Write the model and serial number here:
Model #
Serial #
Find these numbers on a label of the
refrigerator cabinet at the left hand-side wall.
SIDEBYSIDE
REFRIGERATOR
RS2534VVVVRS2534VQ
RS2556VVVVRS2556BB
RS2556SH RS2578VVV
RS2578BB RS2578SH
OWNER'SMANUALANDINSTALLATION
CONTENTS
SAFETY WARNING SIGNS ...............................................................2
OPERATING INSTRUCTIONS ........................................................4
SETTINGUP THE REFRIGERATOR.........................................................4
MAJORFEATURES.....................................................................................4
CONTROLPANEL........................................................................................5
DIGITAL PANEL...........................................................................................6
TEMPERATURECONTROL.......................................................................7
ICE and COLDWATERDISPENSER.........................................................7
SHELVESand BINS.....................................................................................8

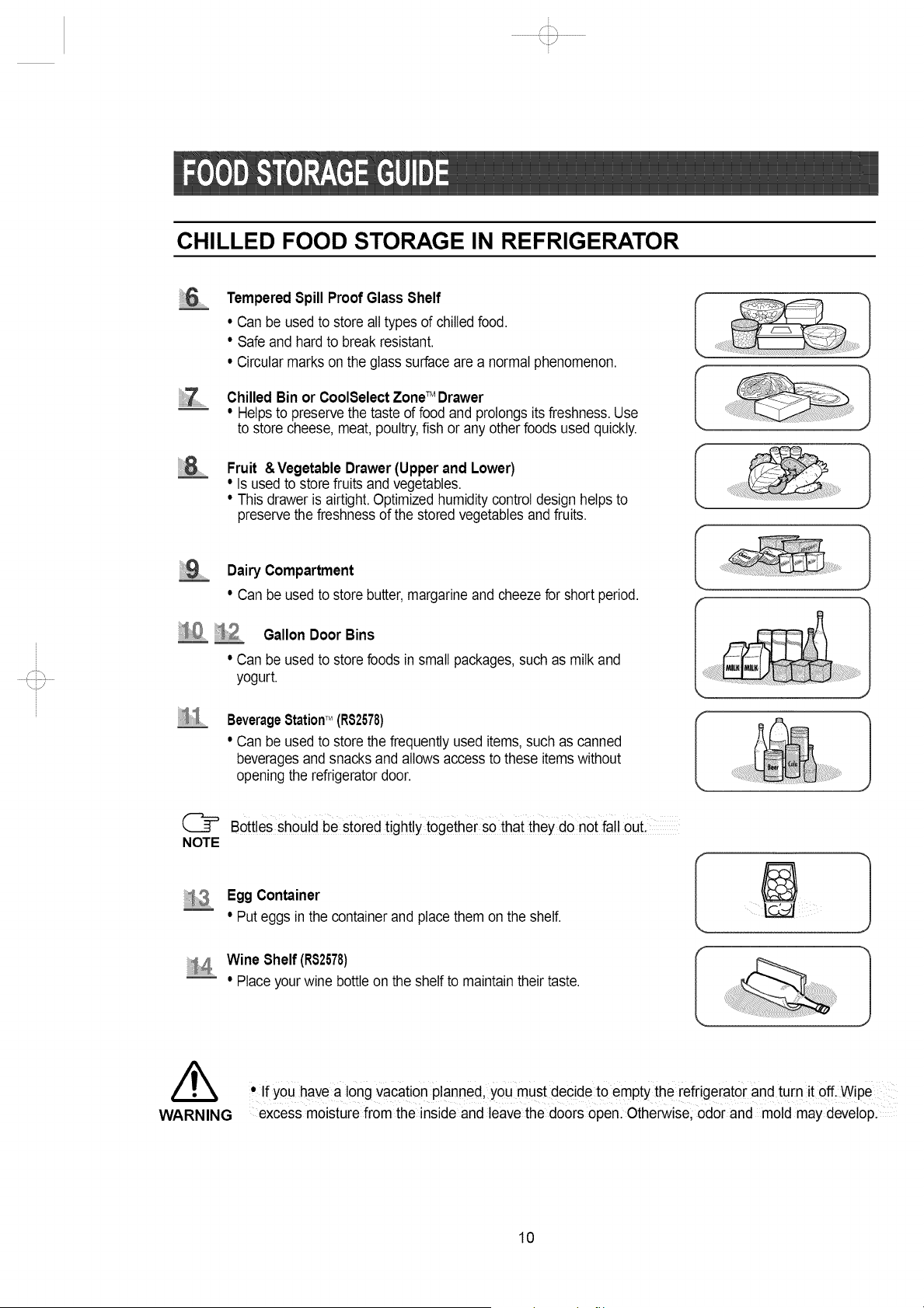

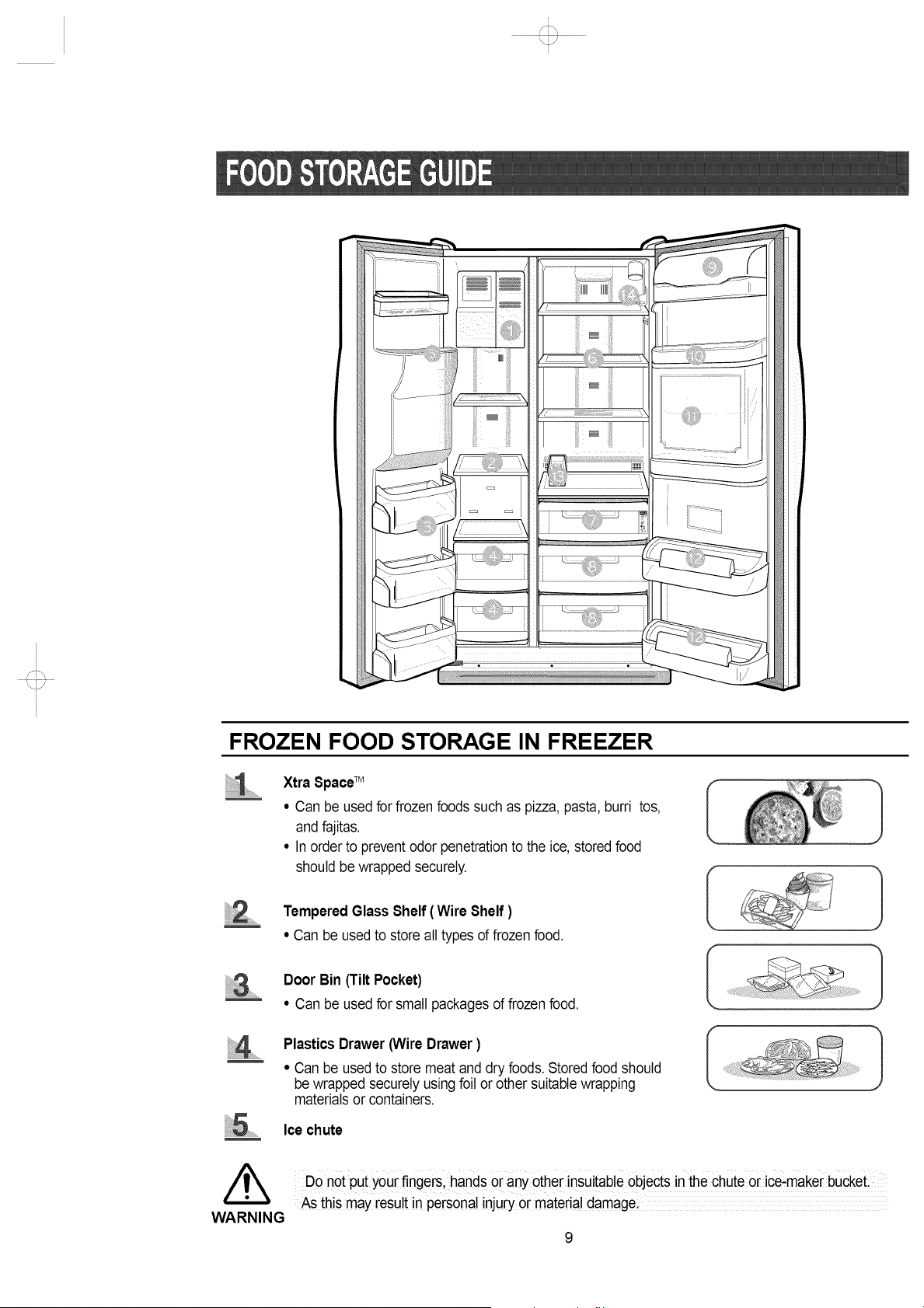

FOODSTORAGEGUIDE...........................................................................9

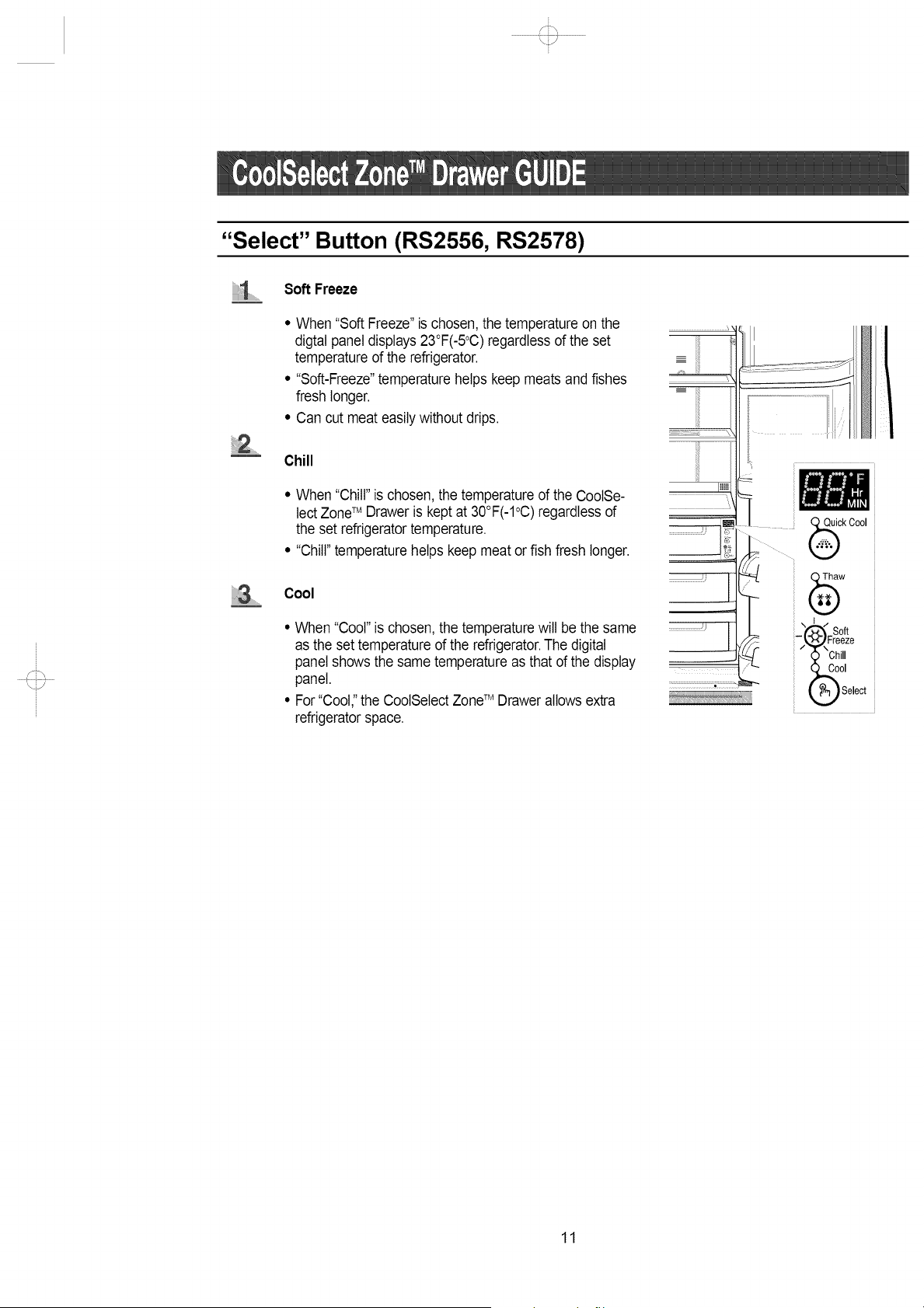

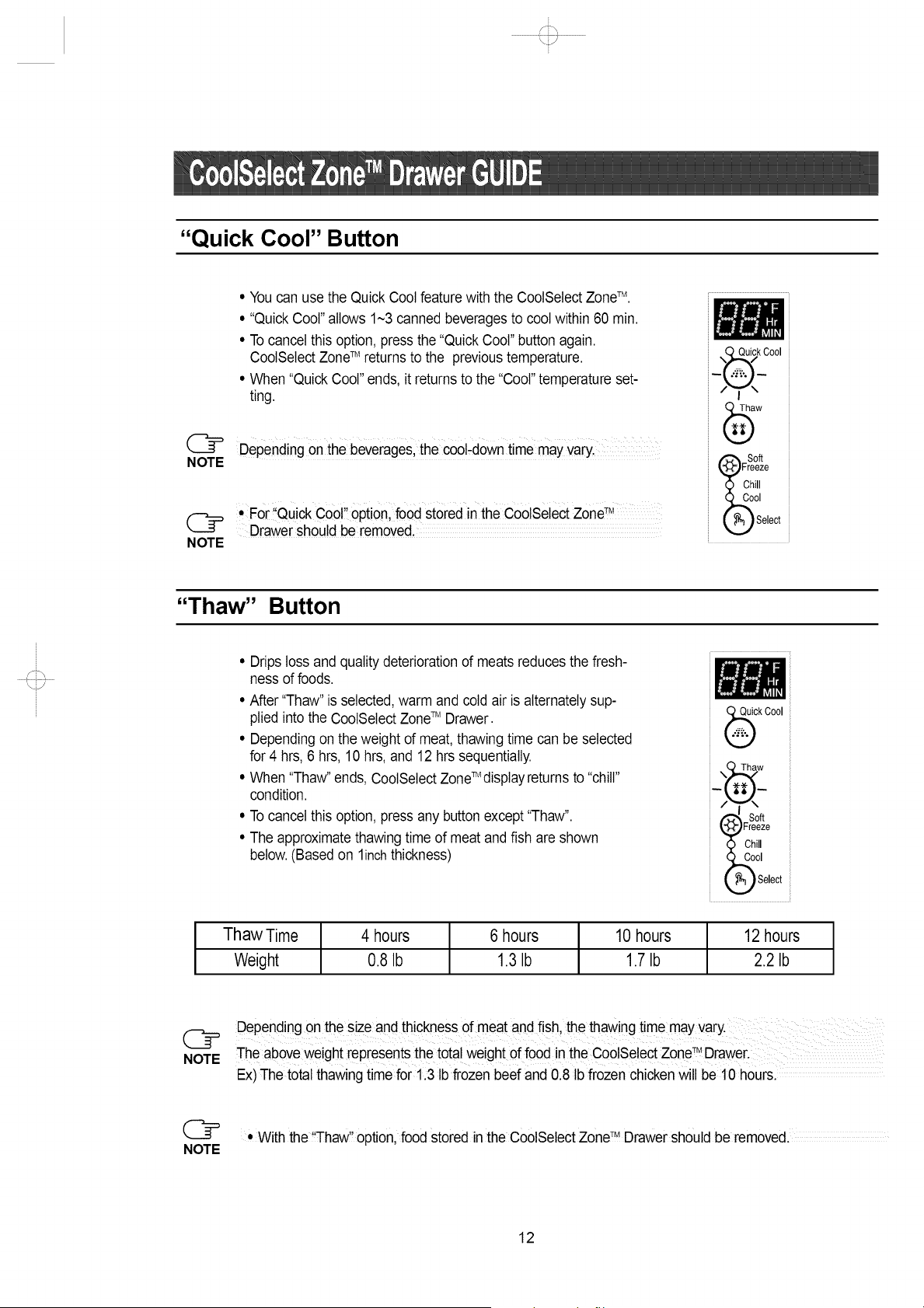

CoolSelectZoneTMDrawerGUIDE.............................................................11

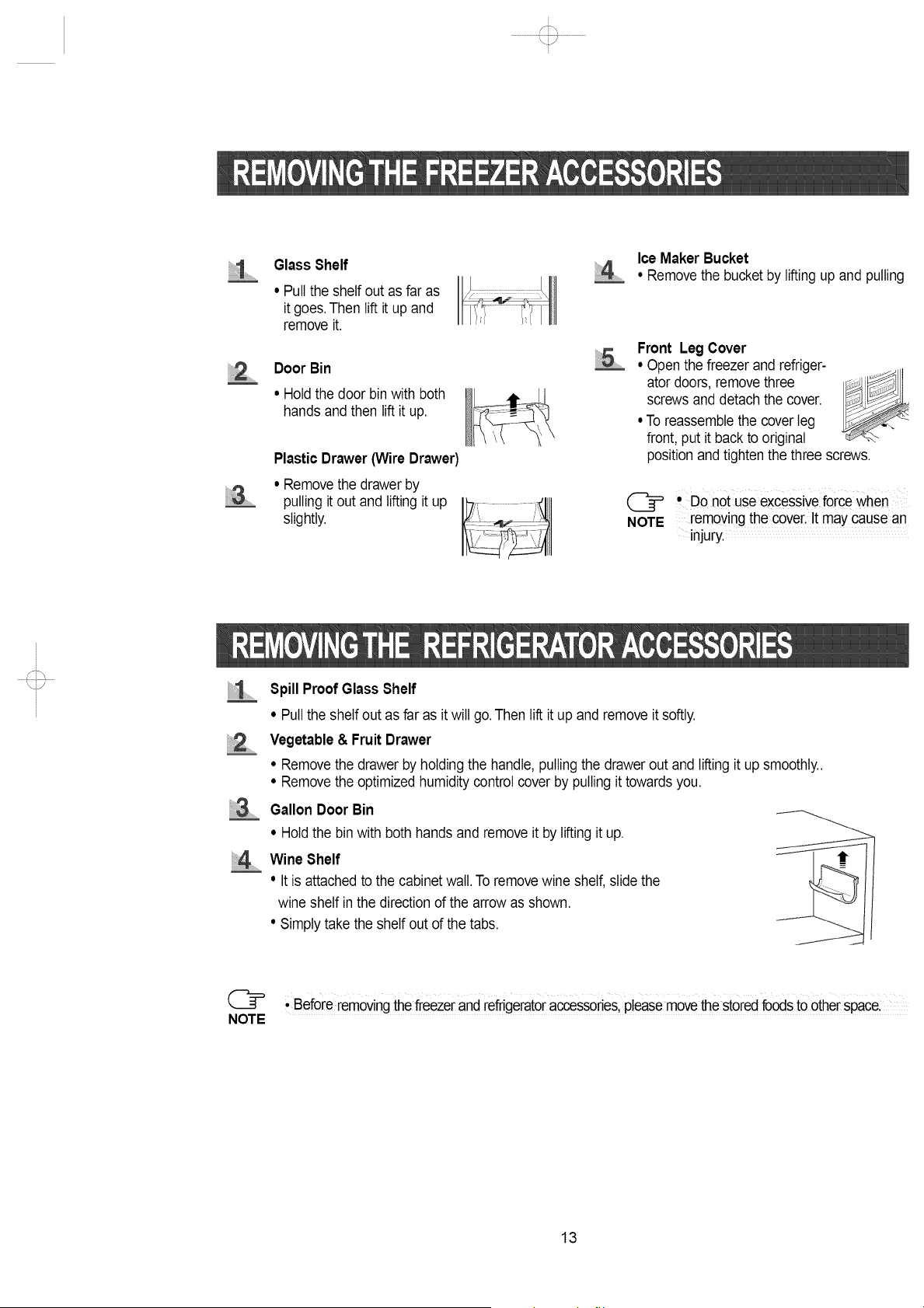

REMOVINGTHE FREEZERACCESSORIES..........................................13
REMOVINGTHE REFRIGERATORACCESSORIES.............................13
BEVERAGESTATIONTM(RS2578)............................................................14
CLEANINGTHE ACCESSORIES.............................................................14

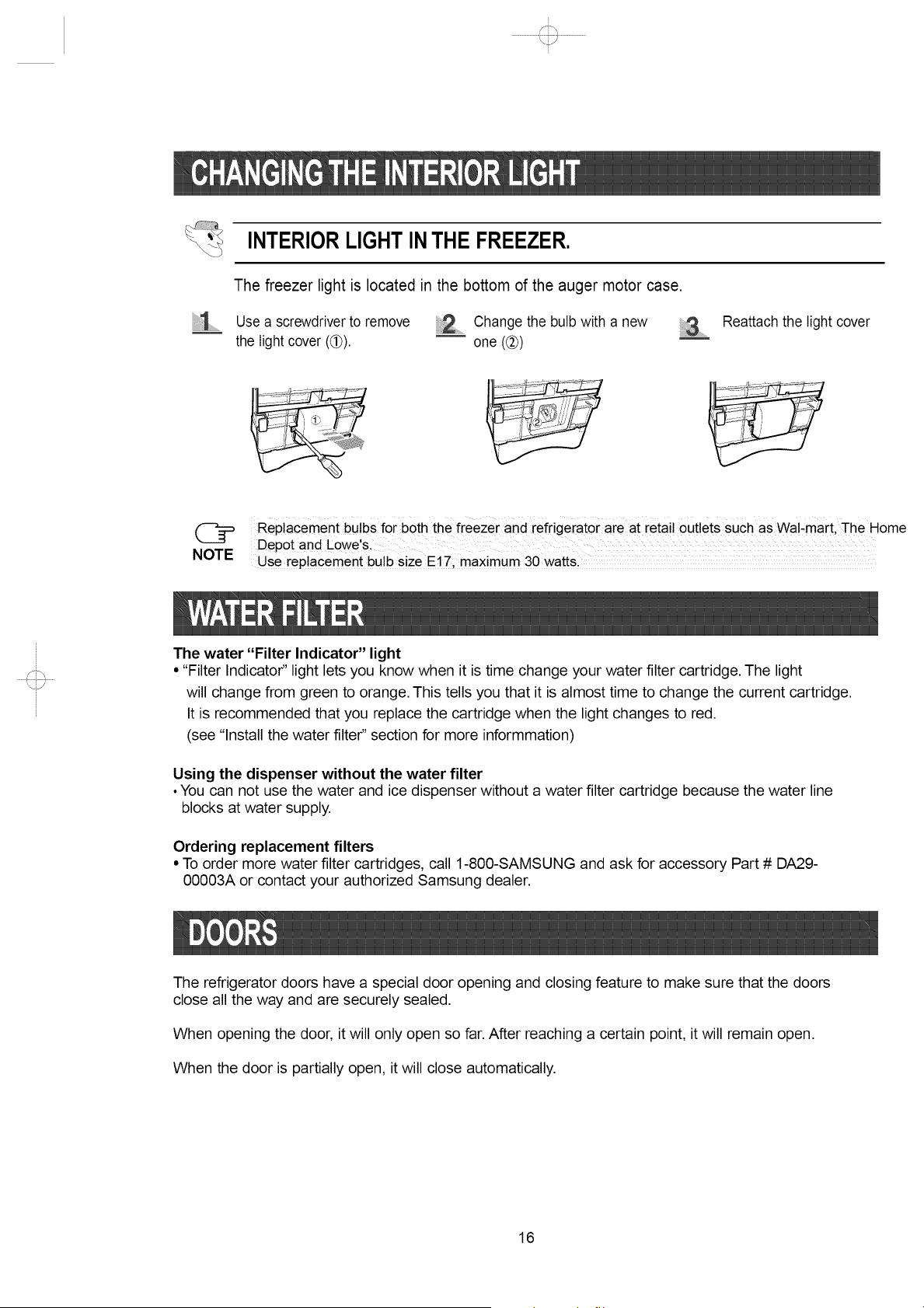

CHANGINGTHE INTERIORLIGHT.........................................................15
WATERFILTER..........................................................................................16
DOORS.......................................................................................................16
INSTALLATION INSTRUCTIONS ................................................17
INSTALLATIONOF THE REFRIGERATOR.............................................17

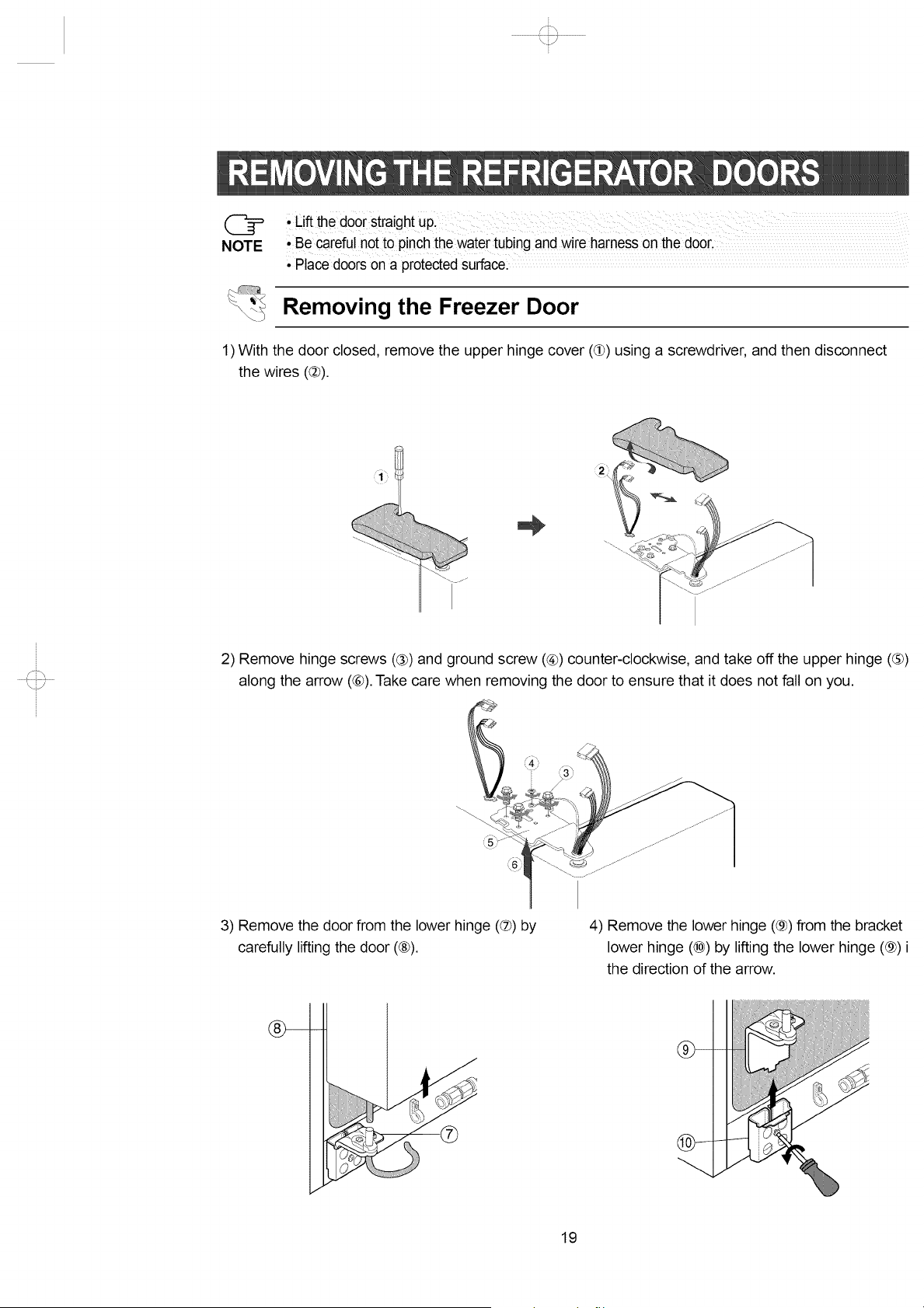

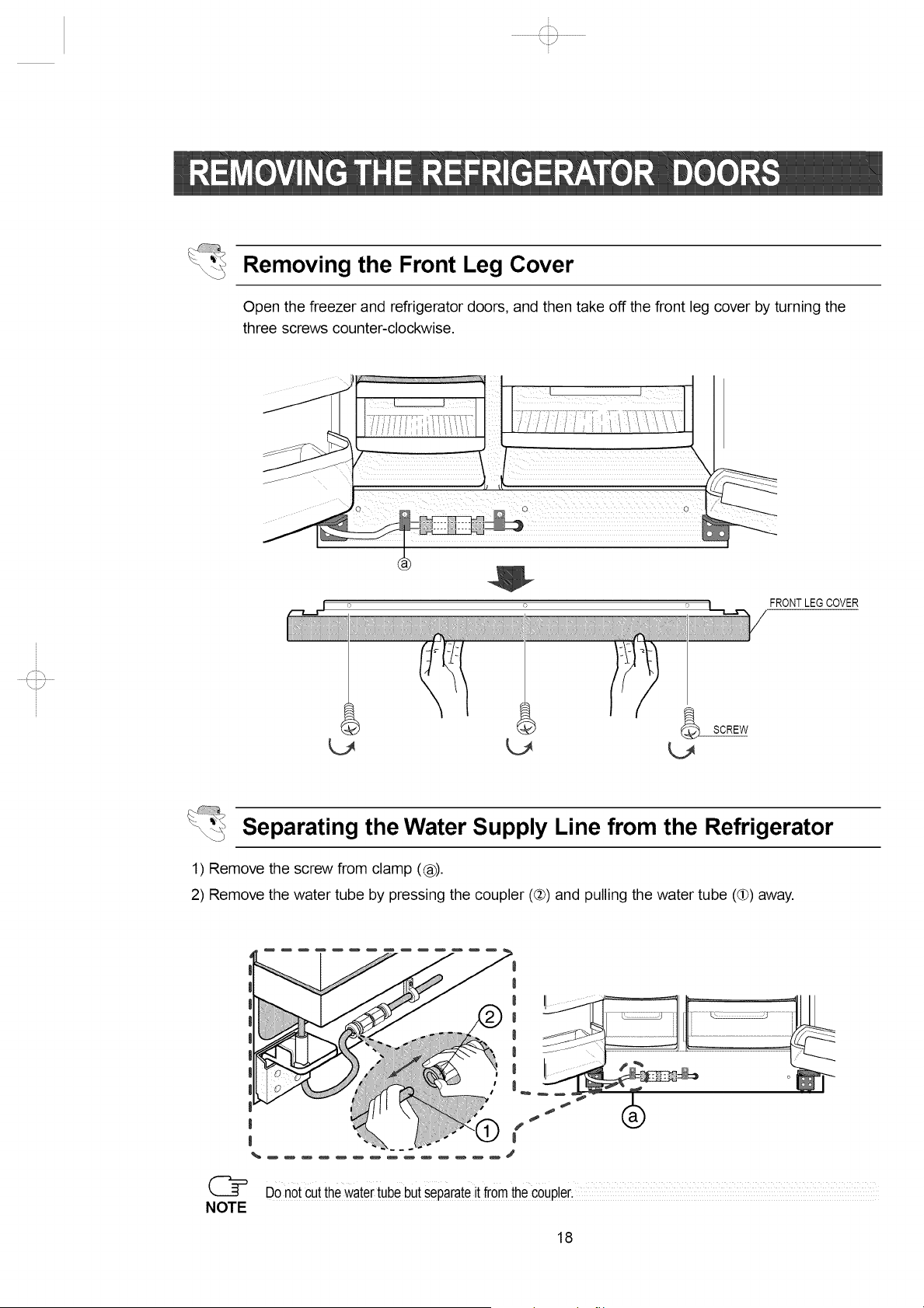

REMOVINGTHE REFRIGERATORDOORS..........................................18

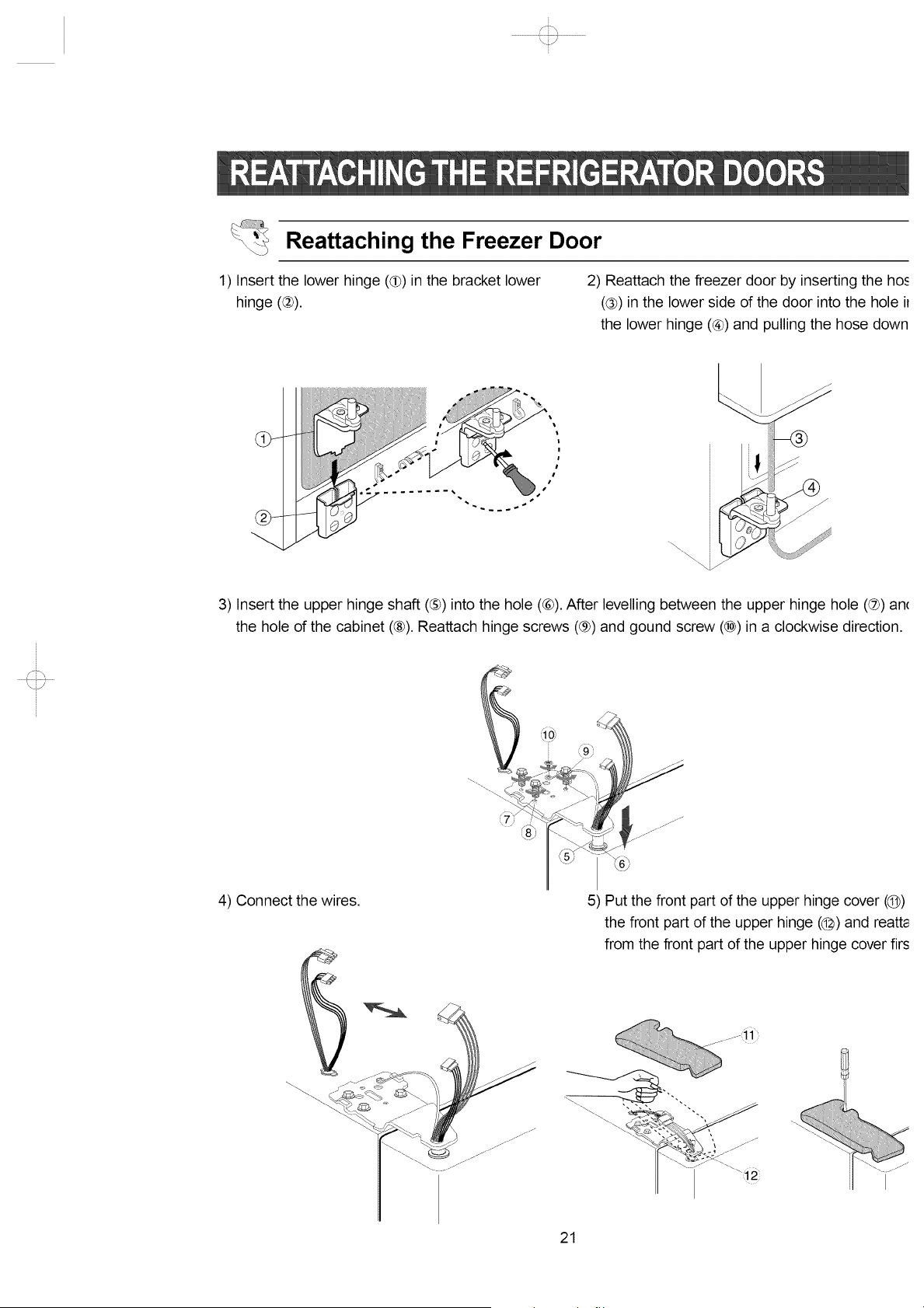

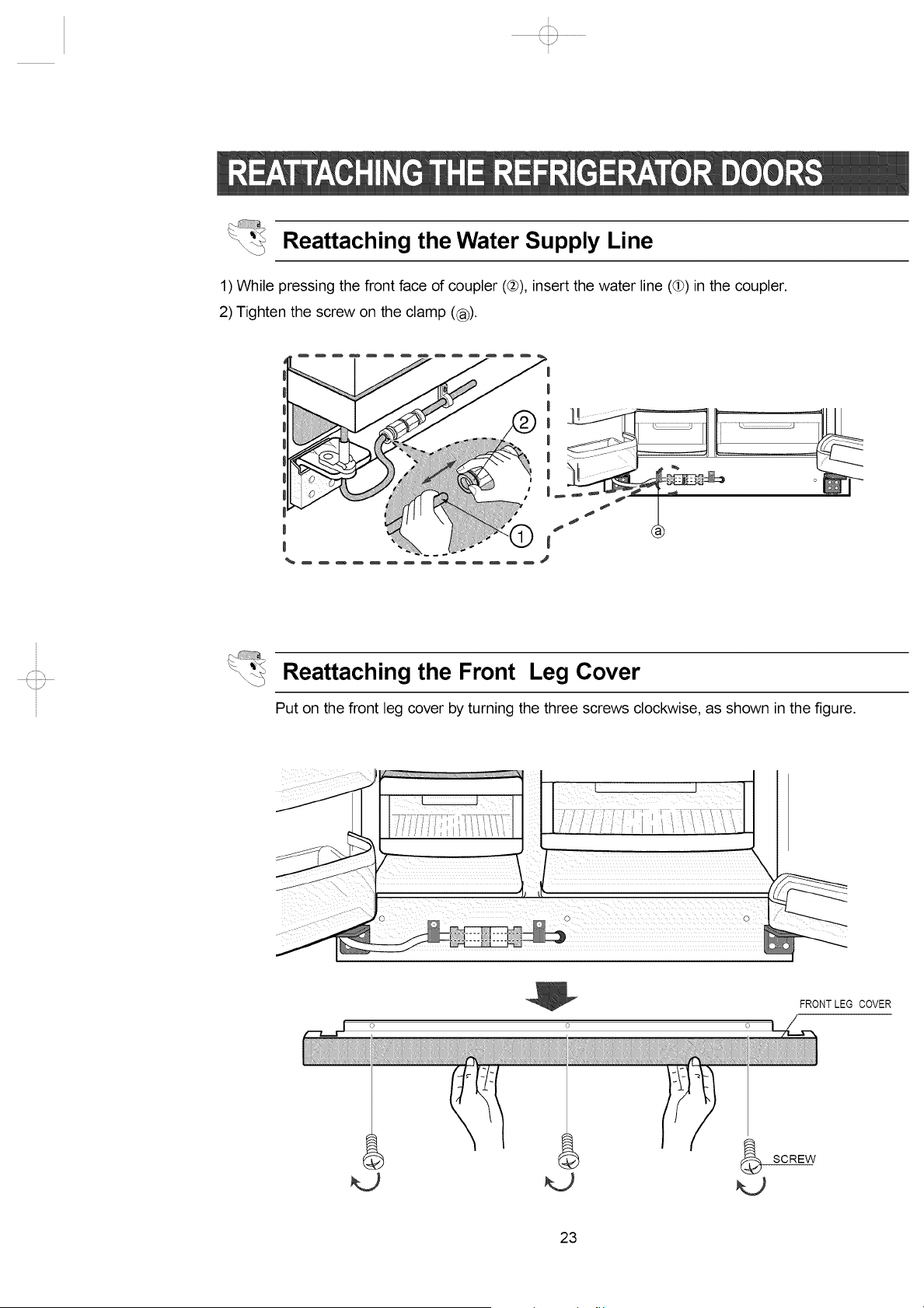

REATTACHINGTHE REFRIGERATORDOORS....................................21

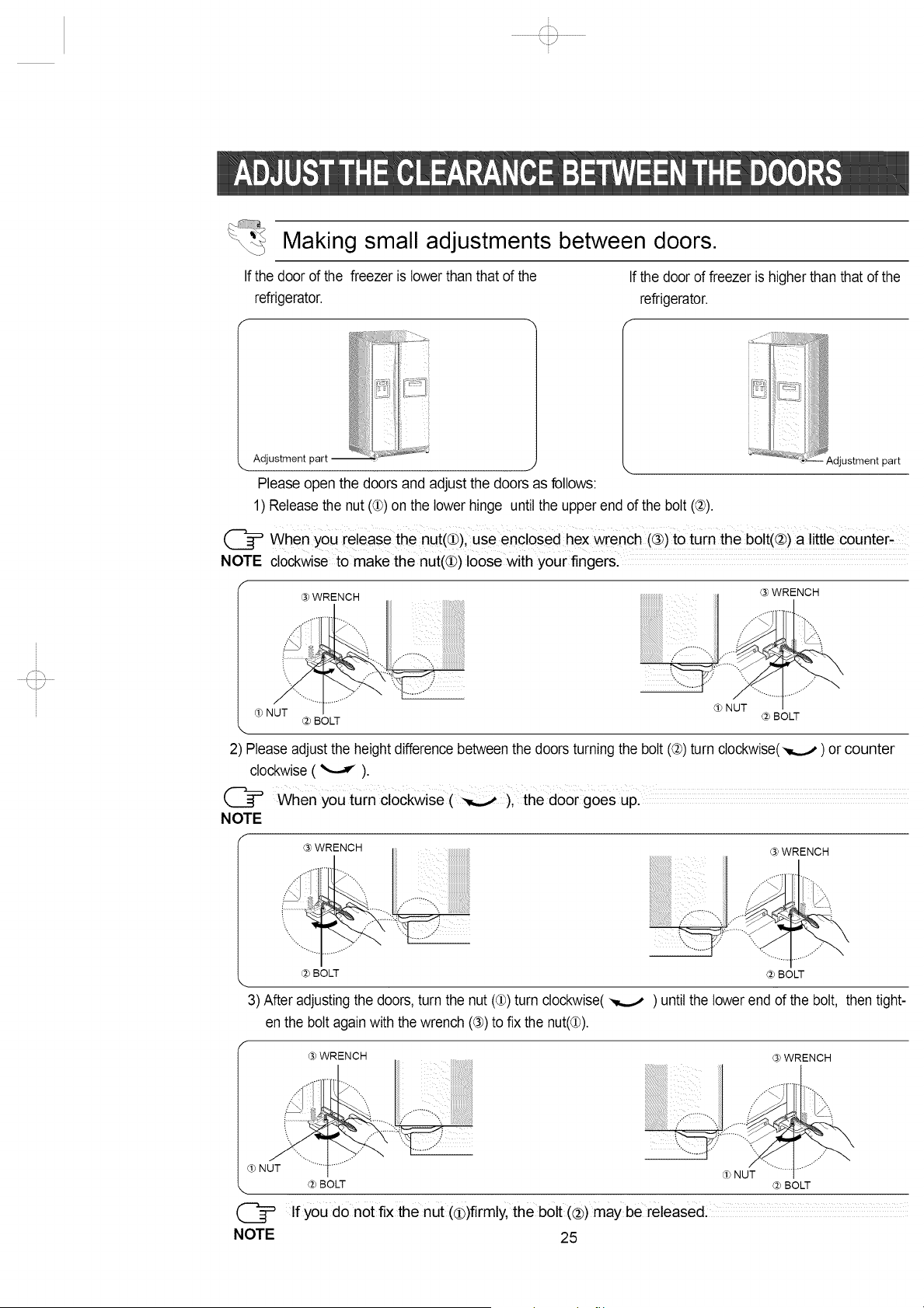

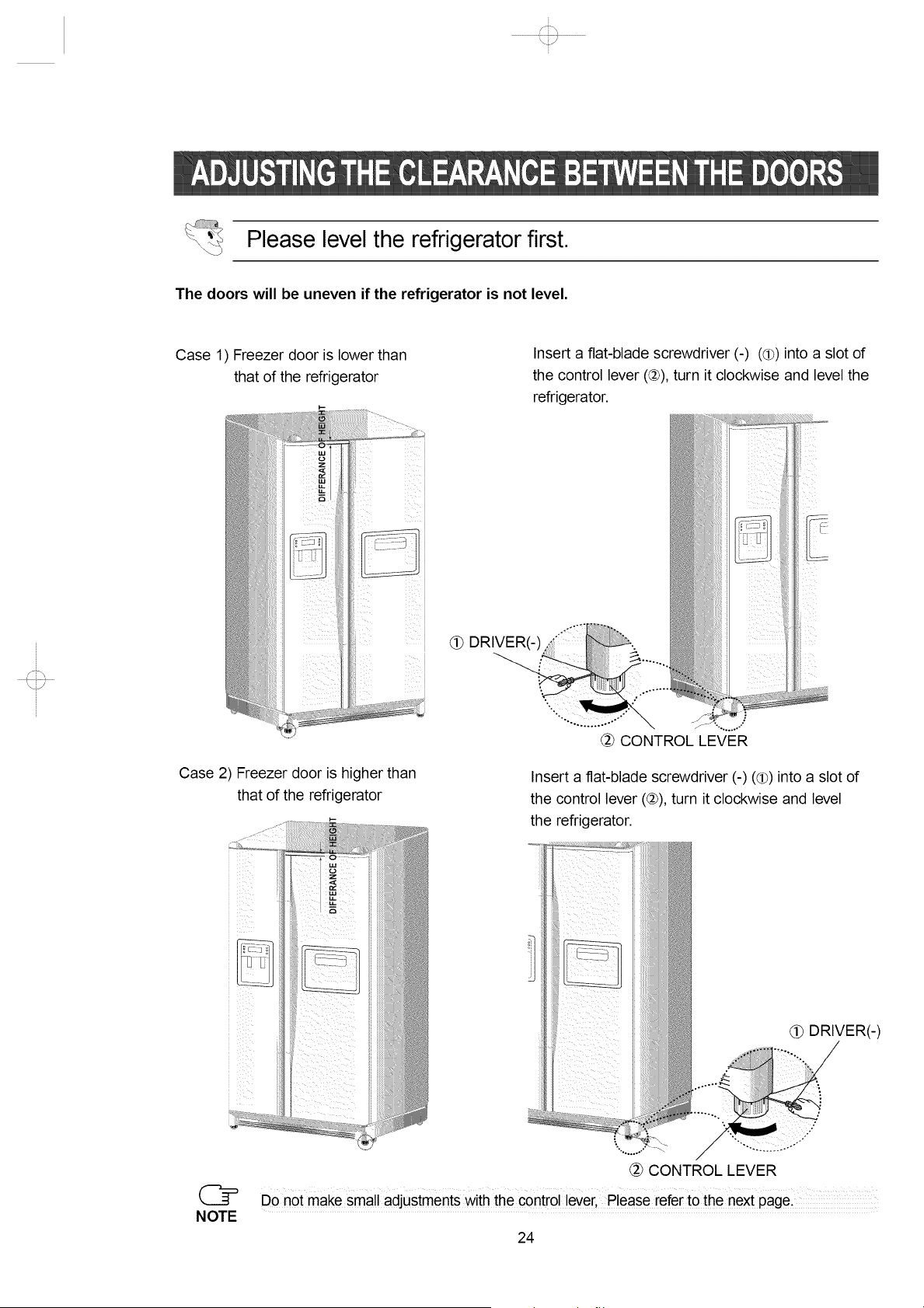

ADJUSTINGTHECLEARANCEBETWEENTHE DOORS ....................24
CHECKINGTHE WATERDISPENSERLINE...........................................26

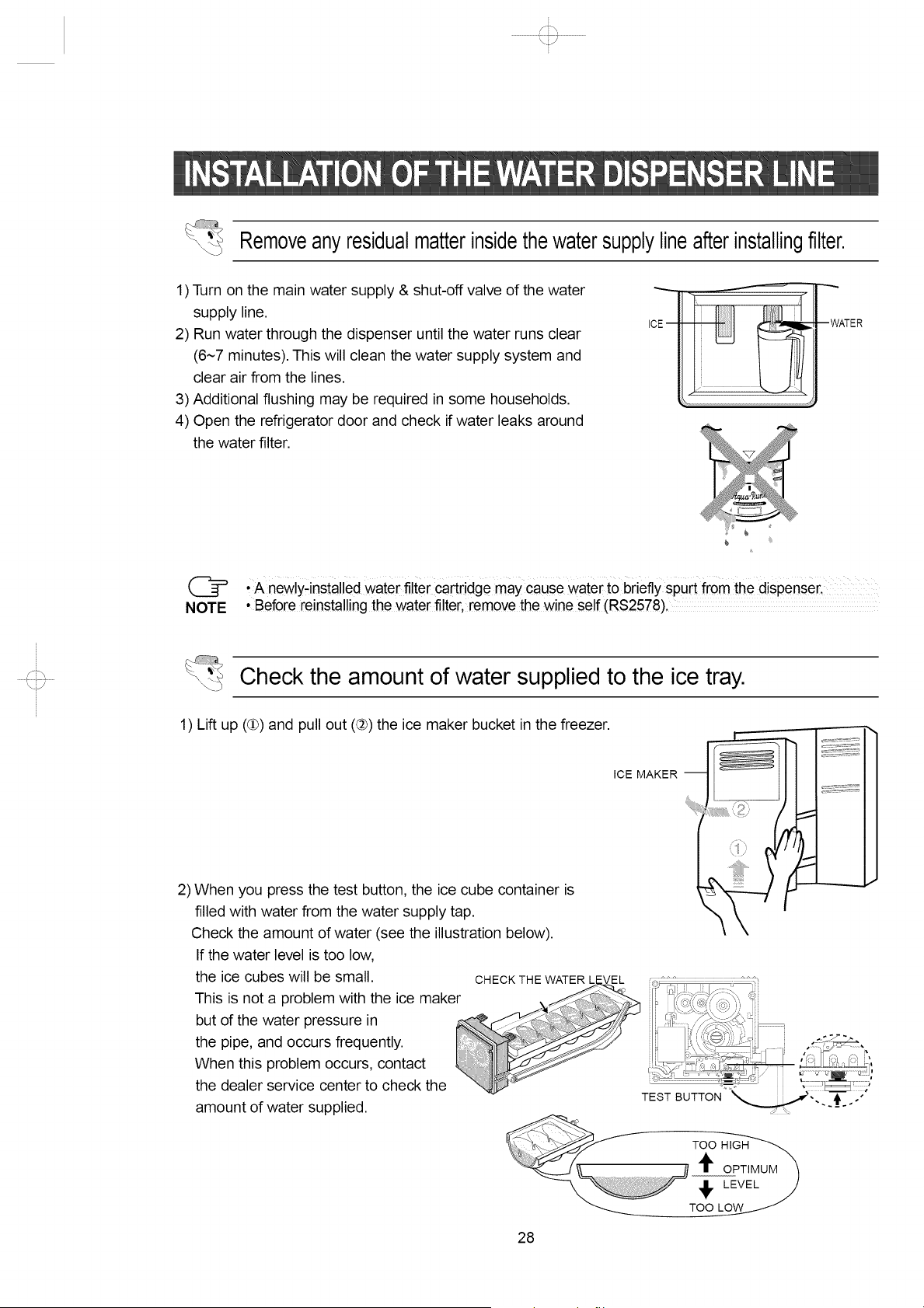

INSTALLINGTHE WATERDISPENSERLINE.........................................26
TROUBLESHOOTING...............................................................................29
CONSUMER SUPPORT ....................................................................30

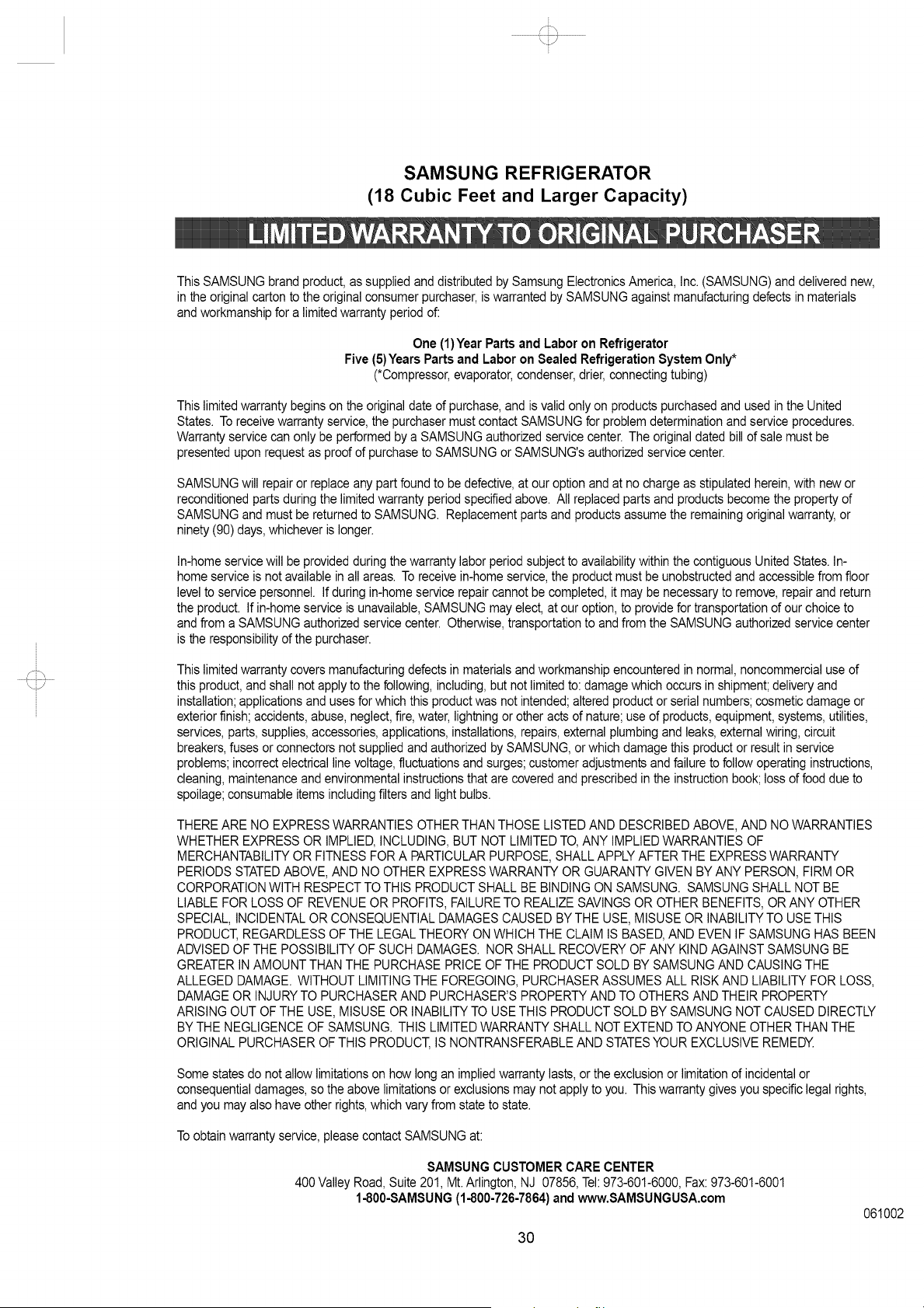

WARRANTY...............................................................................................30
In the U.S.for questions about features,
operation/performance, parts, accesories or service, call:
1-800-726-7864 (1-800-SAMSUNG), FAX:l-973-601-6001
www.samsungusa.com
DA68-00500Y RE

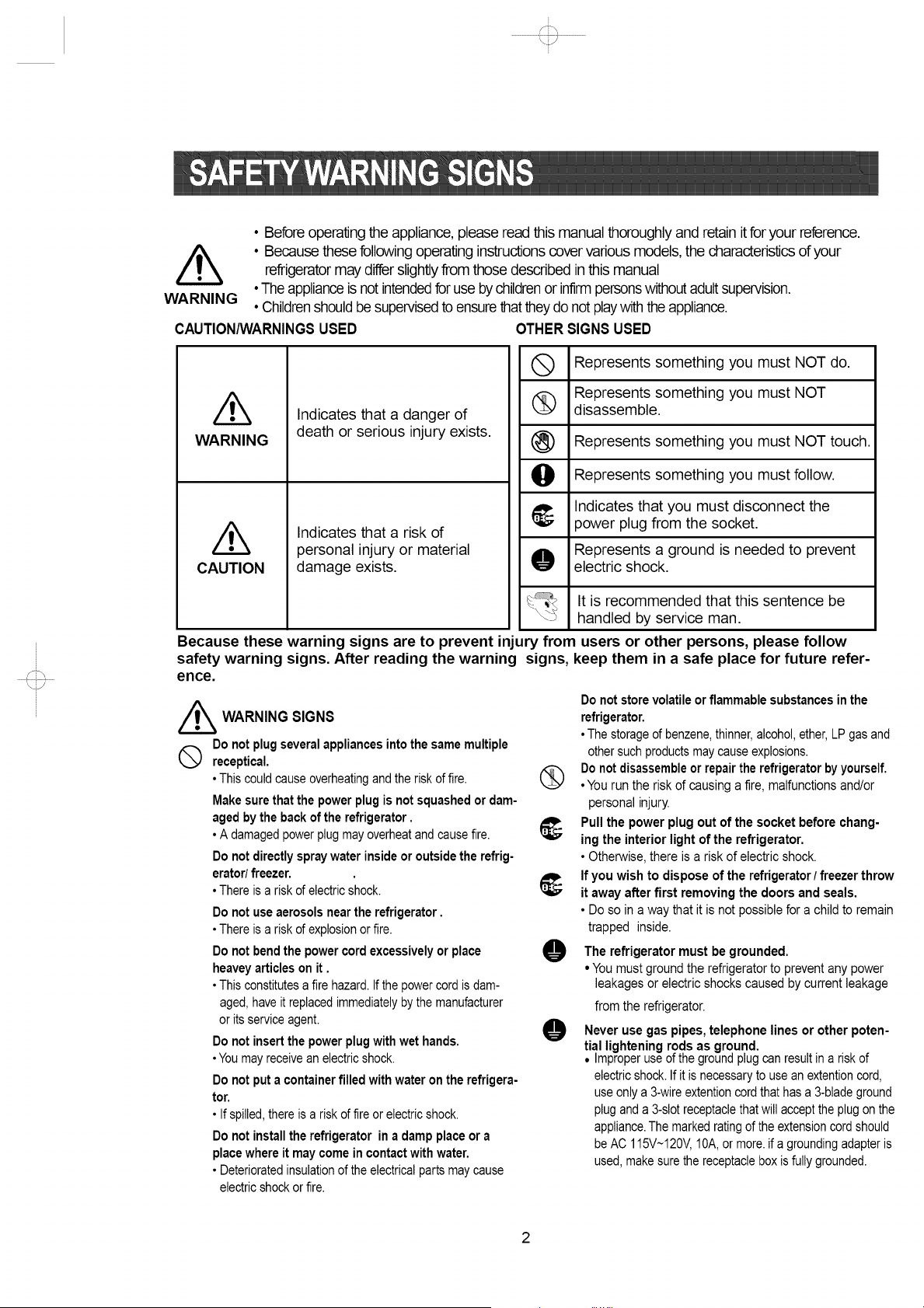

• Before operating the appliance,please read this manual thoroughly and retain itfor your reference.
,/_ • Because these following operating instructionscover various models, the characteristicsof yourrefrigeratormay differ slightlyfrom those described in this manual
WARNING • The applianceis not intendedfor use by childrenor infirmpersonswithoutadultsupervision.
• Childrenshouldbe supervisedto ensurethattheydo not playwiththe appliance.
CAUTION/WARNINGSUSED OTHER SIGNS USED
WARNING
/k
CAUTION
Indicates that a danger of
death or serious injury exists.
Indicates that a risk of
personal injury or material
damage exists.
Q Represents something you must NOT do.
Represents something you must NOT
disassemble.
Represents something you must NOT touch.
O Represents something you must follow.
t_ Indicates that you must disconnect the
power plug from the socket.
Represents a ground is needed to prevent
O electric shock.
It is recommended that this sentence be
handled by service man.
Because these warning signs are to prevent injury from users or other persons, please follow
safety warning signs. After reading the warning signs, keep them in a safe place for future refer-
ence.
_ WARNING SIGNS
Do not plugseveralappliancesinto thesame multiple
Q receptical.
• This could causeoverheatingand the risk of fire.
Makesure that the powerplug is notsquashedor dam-
agedby the back of the refrigerator.
• A damagedpowerplug may overheatandcausefire.
Do not directly spray water inside or outside the refrig-
erator/freezer.
• There is a risk of electricshock.
Do not useaerosolsnearthe refrigerator.
• There isa risk of explosionor fire.
Do not bend the powercordexcessively or place
heavey articles on it.
• This constitutesa fire hazard.If thepowercord is dam-
aged, haveit replacedimmediatelyby the manufacturer
or its serviceagent.
Do not insertthe powerplug with wet hands.
•You may receivean electricshock.
Do not put a container filled with water on the refrigera-
tor.
• If spilled,there is a risk of fire orelectricshock.
Do not install the refrigerator in a damp placeor a
placewhere it may come in contactwith water.
• Deterioratedinsulationof theelectricalpartsmaycause
electricshockor fire.
Do notstore volatileor flammablesubstancesin the
refrigerator.
• The storageof benzene,thinner,alcohol,ether,LP gas and
othersuch productsmaycauseexplosions.
Do notdisassembleor repairthe refrigeratorbyyourself.
• Yourun the risk of causing a fire, malfunctionsand/or
personal injury.
(_ Pull the power plug out of the socket before chang-
ing the interior light of the refrigerator.
• Otherwise,there is a risk of electric shock.
_, If you wish to dispose of the refrigerator / freezer throw
it away after first removing the doors and seals.
• Do so in a way that it is not possible for a child to remain
trapped inside.
0
0
The refrigerator must be grounded.
• Youmust ground the refrigeratorto prevent any power
leakages or electric shocks caused by current leakage
from the refrigerator.
Never use gas pipes,telephone lines or other poten-
tial lightening rods as ground.
• Improperuse of thegroundplug can resultin a risk of
electricshock.If it is necessaryto use an extentioncord,
useonly a 3-wireextentioncordthat has a 3-bladeground
pluganda 3-slotreceptaclethatwill acceptthe plug on the
appliance.The markedratingof the extensioncord should
be AC 115V~120V,10A,or more.if a groundingadapter is
used,makesurethe receptaclebox is fully grounded.

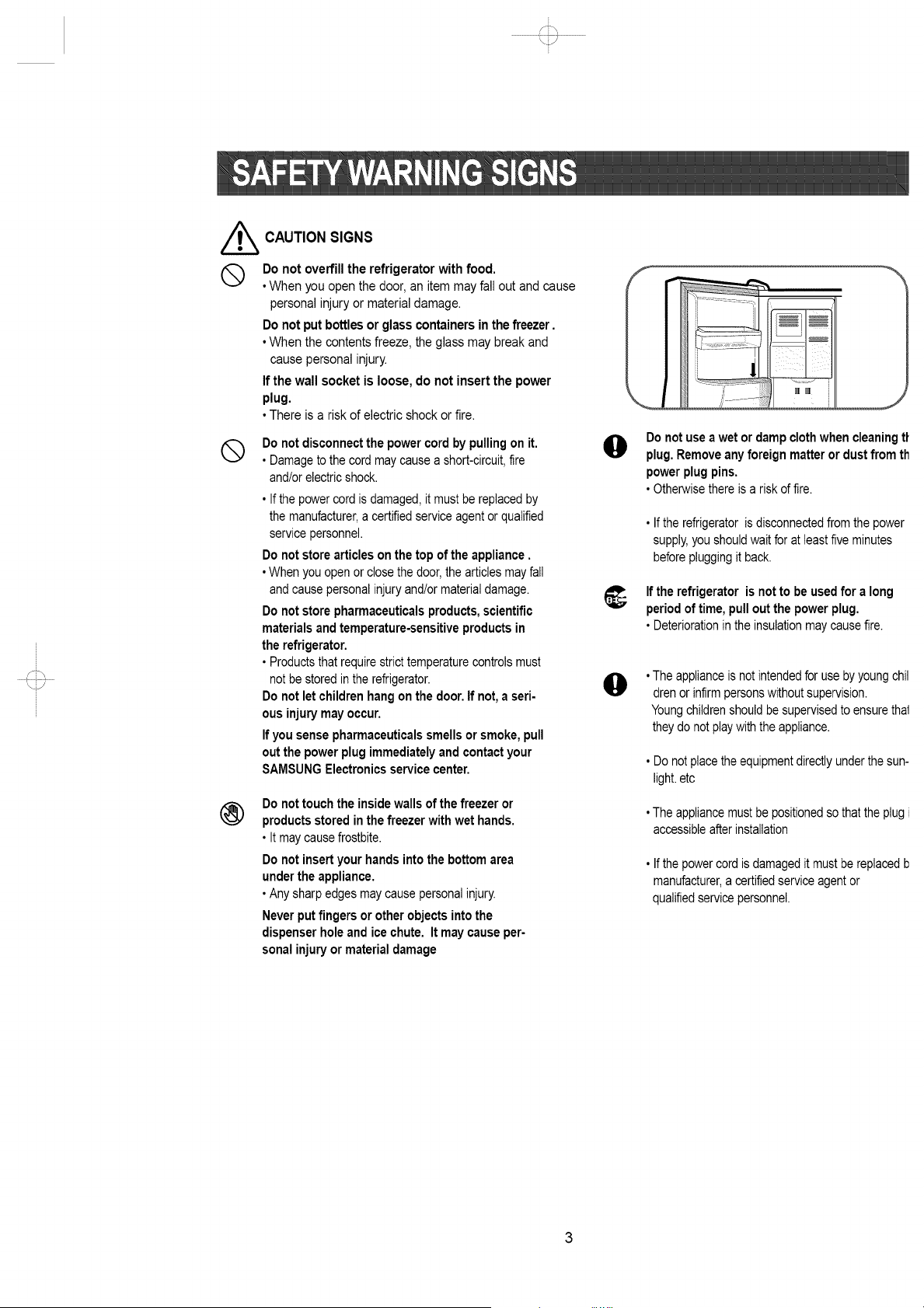

CAUTION SIGNS
Do not overfill the refrigerator with food.
• When you open the door, an item mayfall out and cause
personal injury or material damage.
Do not put bottles or glasscontainersin the freezer.
• When the contents freeze, the glass may break and
cause personal injury.
If the wall socket is loose, do not insert the power
plug.
• There is a risk of electric shock or fire.
Q Do notdisconnectthe powercordby pullingon it.
• Damageto thecord may causea short-circuit,fire
and/orelectricshock.
• Ifthe powercord is damaged,it mustbe replacedby
the manufacturer,a certifiedserviceagent orqualified
servicepersonnel.
Do notstore articleson the top of the appliance.
• Whenyou openor closethe door,the articlesmayfall
and causepersonalinjuryand/or materialdamage.
Do not store pharmaceuticals products, scientific
materials and temperature-sensitive products in
the refrigerator.
• Productsthat requirestrict temperaturecontrolsmust
notbe storedin the refrigerator.
Do not let childrenhang on the door. If not, a seri-
ous injury may occur.
If you sense pharmaceuticals smells or smoke, pull
out the power plug immediately and contactyour
SAMSUNGElectronics service center.
®
Do nottouchthe insidewalls of thefreezeror
productsstoredin the freezer with wet hands.
• It maycausefrostbite.
Do not insertyour handsinto thebottomarea
undertheappliance.
• Any sharp edges maycause personalinjury.
Neverput fingers or other objects into the
dispenser hole and ice chute. It may cause per-
sonal injury or material damage
@
Do notuse a wet or dampclothwhen cleaningtt
plug.Removeany foreign matteror dust from th
powerplug pins.
• Otherwisethereis a riskof fire.
• Ifthe refrigerator is disconnectedfrom the power
supply,you shouldwaitfor at least five minutes
beforepluggingit back.
_; If the refrigerator is notto be usedfor a long
periodof time,pullout the powerplug.
• Deteriorationin the insulationmaycausefire.
@
• The applianceis notintendedforuse byyoungchil
dren or infirmpersonswithoutsupervision.
Youngchildrenshouldbe supervisedto ensurethai
theydo not play withtheappliance.
• Do not place theequipmentdirectlyunderthe sun-
light,etc
• The appliancemustbe positionedso thattheplug
accessibleafter installation
• Ifthe powercordis damagedit mustbe replacedb
manufacturer,a certifiedserviceagent or
qualifiedservicepersonnel.

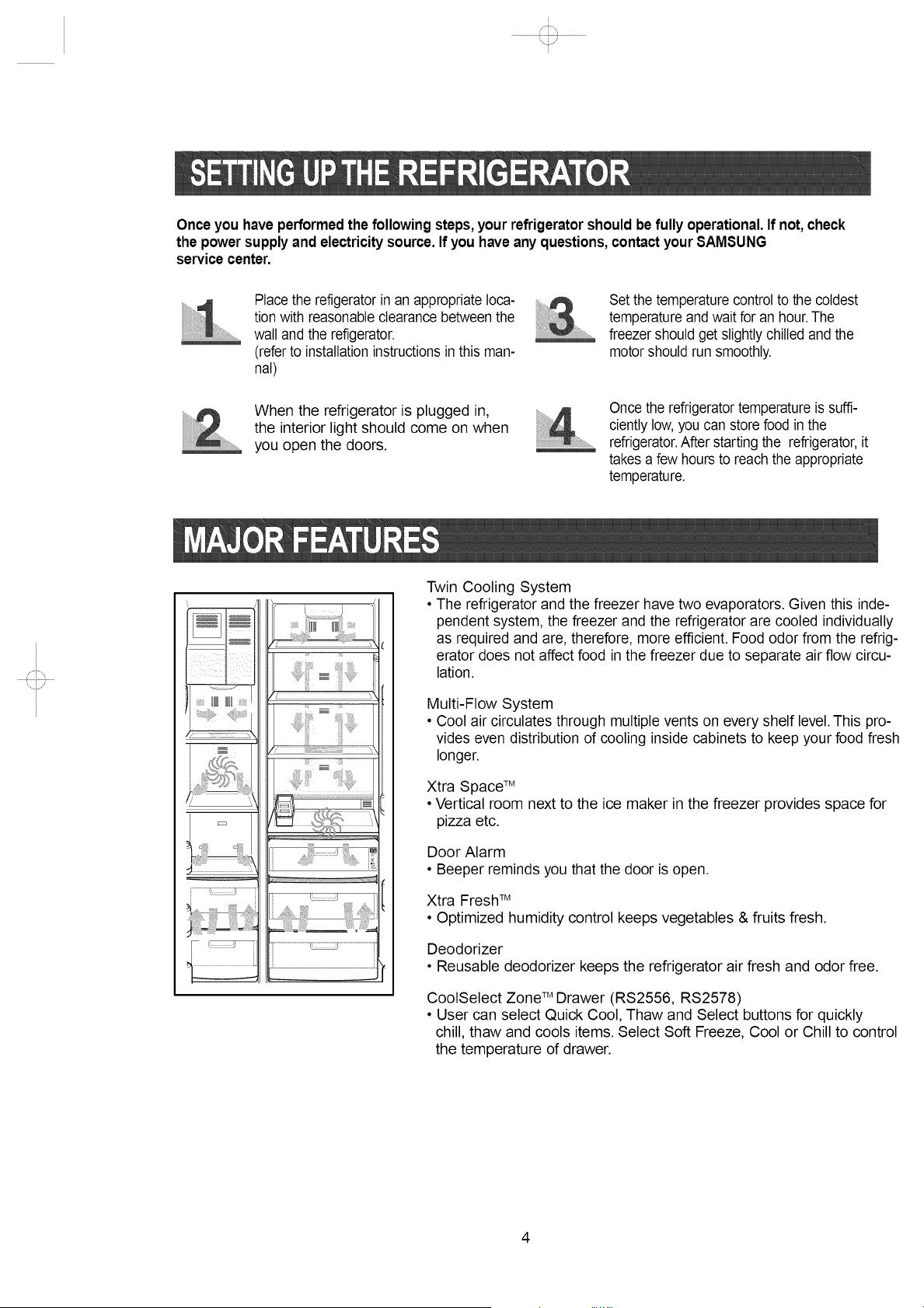

Once you have performed the following steps,your refrigeratorshould be fully operational. If not, check
the power supply and electricity source.If you have any questions,contactyour 8AMSUNG
service center.
Place the refigeratorin an appropriate loca-li 3
il tion with reasonable clearance betweenthe
wall and the reflgerator. .........
(referto installationinstructionsin this man-
nal)
When the refrigerator is plugged in,
the interior light should come on when
you open the doors,
..........
Set the temperature controlto the coldest
temperature andwait for an hour.The
freezershould get slightly chilled and the
motor should run smoothly.
Once the refrigeratortemperatureis suffi-
ciently low,you can store food in the
refrigerator.After starting the refrigerator,it
takes a few hours to reach the appropriate
temperature.
;i_i!!i!ii
RS2534
Power Freeze
Child Lock
Hold 3 secs)
Toset the freezer temperature,press
the button repeatedly to change the set
temperaturein sequence between
8°F and -14°E
POWER FREEZE BUTTON
peeds up the freezing process in
the freeze,
ICE TYPE BUTTON
Use this button to choose Cubed or
Crushed Ice or Ice off.
Toset the fridge temperature, press the button
repeatedlyto change the set temperature in
sequence between 34°F and 46°E
POWER COOL BUTTON
Speeds up the cooling process in the refrigerator
CHILD LOCK BUTTON
When this button is pressed for 3 sec., the Power
Freeze,Power Cool, FreezerTemp.and Fridge
Temp.are locked and can not be modified.The
Waterand Ice dispensers are not locked they can
still be used.
RS2534
or
RS2556,RS2578

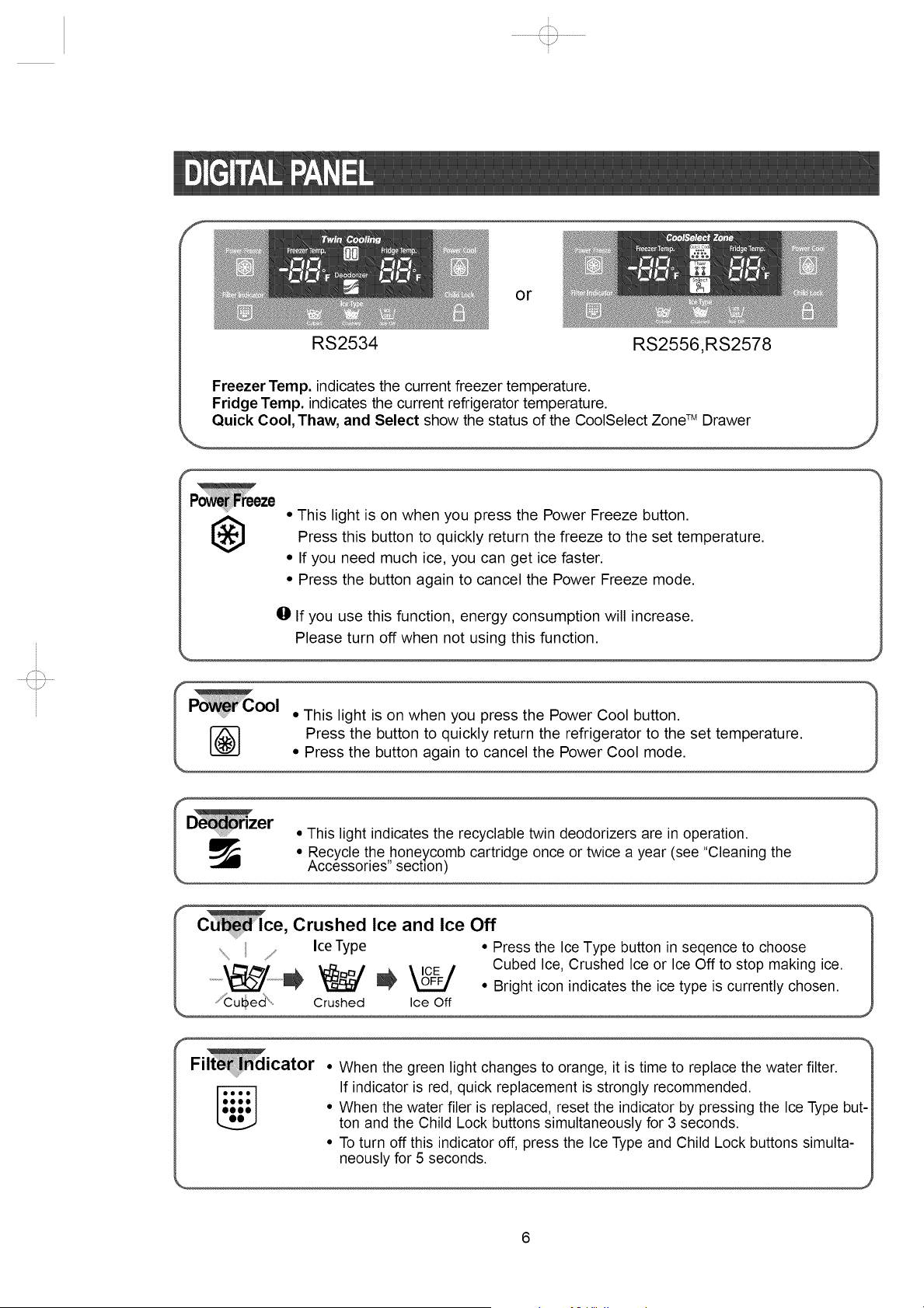

Freezer Temp. indicates the current freezer temperature.
Fridge Temp. indicates the current refrigerator temperature.
Quick Cool, Thaw, and Select show the status of the CoolSelect Zone TM Drawer
®
• This light is on when you press the Power Freeze button.
Press this button to quickly return the freeze to the set temperature.
• If you need much ice, you can get ice faster.
• Press the button again to cancel the Power Freeze mode.
O If you use this function, energy consumption will increase.
Please turn off when not using this function.
rCool .
i,_, This light is on when you press the Power Cool button.
_ Press the button to quickly return the refrigerator to the set temperature.
• Press the button again to cancel the Power Cool mode.
.....' ..... This light indicates the recyclable twin deodorizers are in operation.
_ Recycle the honeycomb cartridge once or twice a year (see Cleaning the
Accessories" secuon)
Cd_'lce, Crushed Ice and Ice Off
,, Ice Type • Press the Ice Type button in seqence to choose m
Cubed Ice, Crushed Ice or Ice Off to stop making ice.
Fi icator
• When the green light changes to orange, it is time to replace the water filter.
If indicator is red, quick replacement is strongly recommended.
• When the water filer is replaced, reset the indicator by pressing the Ice Type but-
ton and the Child Lock buttons simultaneously for 3 seconds.
• To turn off this indicator off, press the Ice Type and Child Lock buttons simulta-
neously for 5 seconds.
\fJ

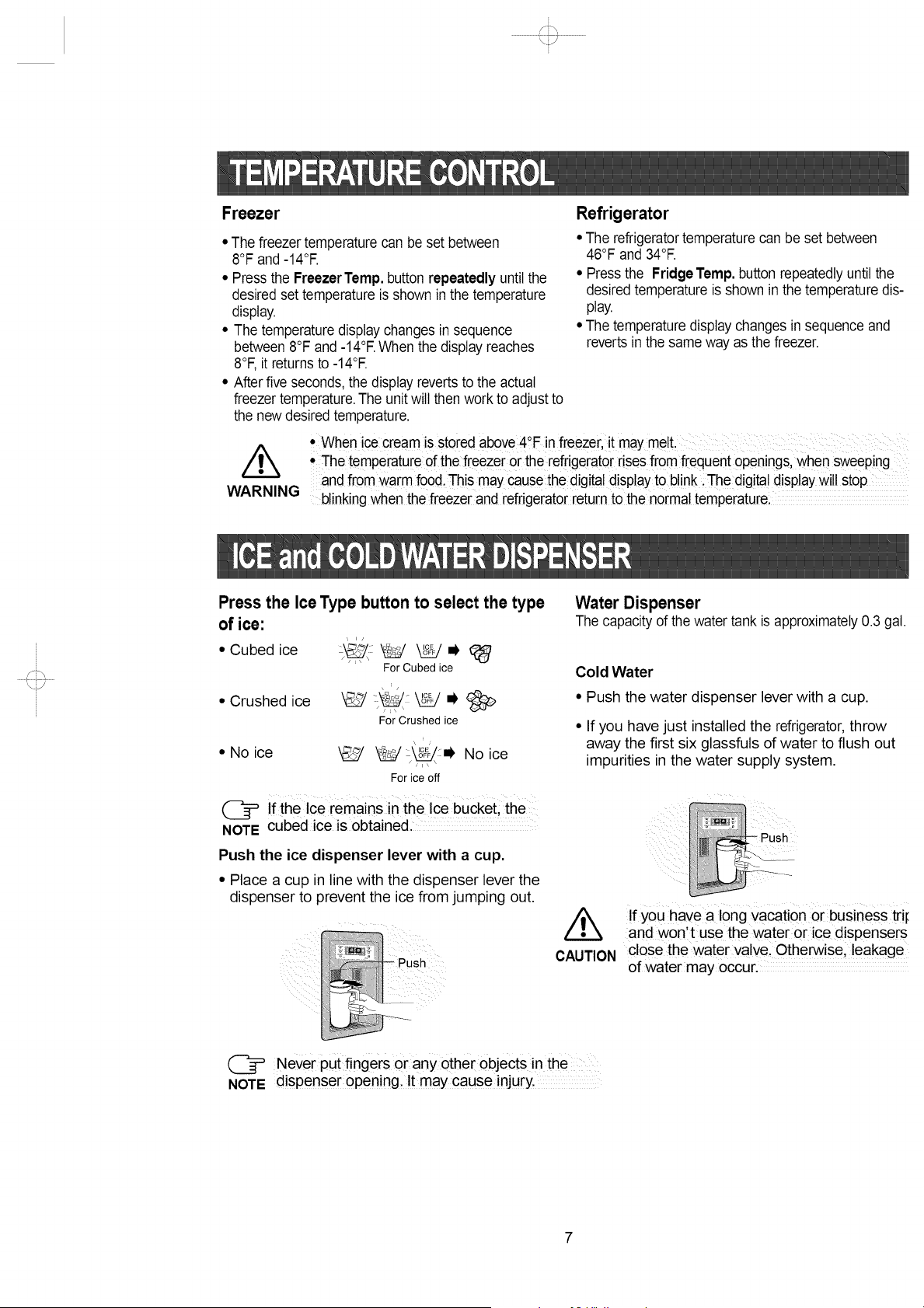

Freezer
Refrigerator
• The freezer temperaturecan be set between
8°F and-14°R
• Pressthe Freezer Temp. button repeatedly until the
desired set temperature is shown in the temperature
display.
• The temperaturedisplay changes in sequence
between 8°F and -14°R When the display reaches
8°F, it returnsto -14°R
• After five seconds, the displayreverts to the actual
freezer temperature.The unit will then work to adjust to
the new desired temperature.
• The refrigeratortemperature can be set between
46°F and 34°R
• Pressthe FridgeTemp.button repeatedlyuntil the
desired temperature is shownin the temperature dis-
play.
• The temperaturedisplaychanges in sequence and
revertsin the same way as the freezer.
/k
WARNING
• When ice cream is stored above 4°F in freezer,it may melt,
i• The temperature of the f[eezer or the refrigerator rises fr0m frequent 0Penings,when sweeping
and from warm food.This may cause the digital displayto blink i The digital displaywill stop
blinkingwhen the freezer and refrigerat0rreturn to the n0rma temperature
Press the Ice Type button to select the type
of ice:
• Cubed ice :_ _ _ _
// \\
For Cubed ice
• Crushed ice
For Crushed ice
• No ice
i, No ice
For ice off
Water Dispenser
The capacityof the water tank is approximately 0.3 gal.
Cold Water
• Push the water dispenser lever with a cup.
• If you have just installed the refrigerator, throw
away the first six glassfuls of water to flush out
impurities in the water supply system.
If the Ice remains in the Ice bucket, the
NOTE cubed ice is obtained.
Push the ice dispenser lever with a cup.
• Place a cup in line with the dispenser lever the
dispenser to prevent the ice from jumping out.
/k
CAUTION
@ Never put fingers or any other objects in the
NOTE dispenser opening, It may cause injury.
If you have a long vacation or business trif
and won't use the water or ice dispensers
close the water valve. Otherwise, leakage
of water may occur.

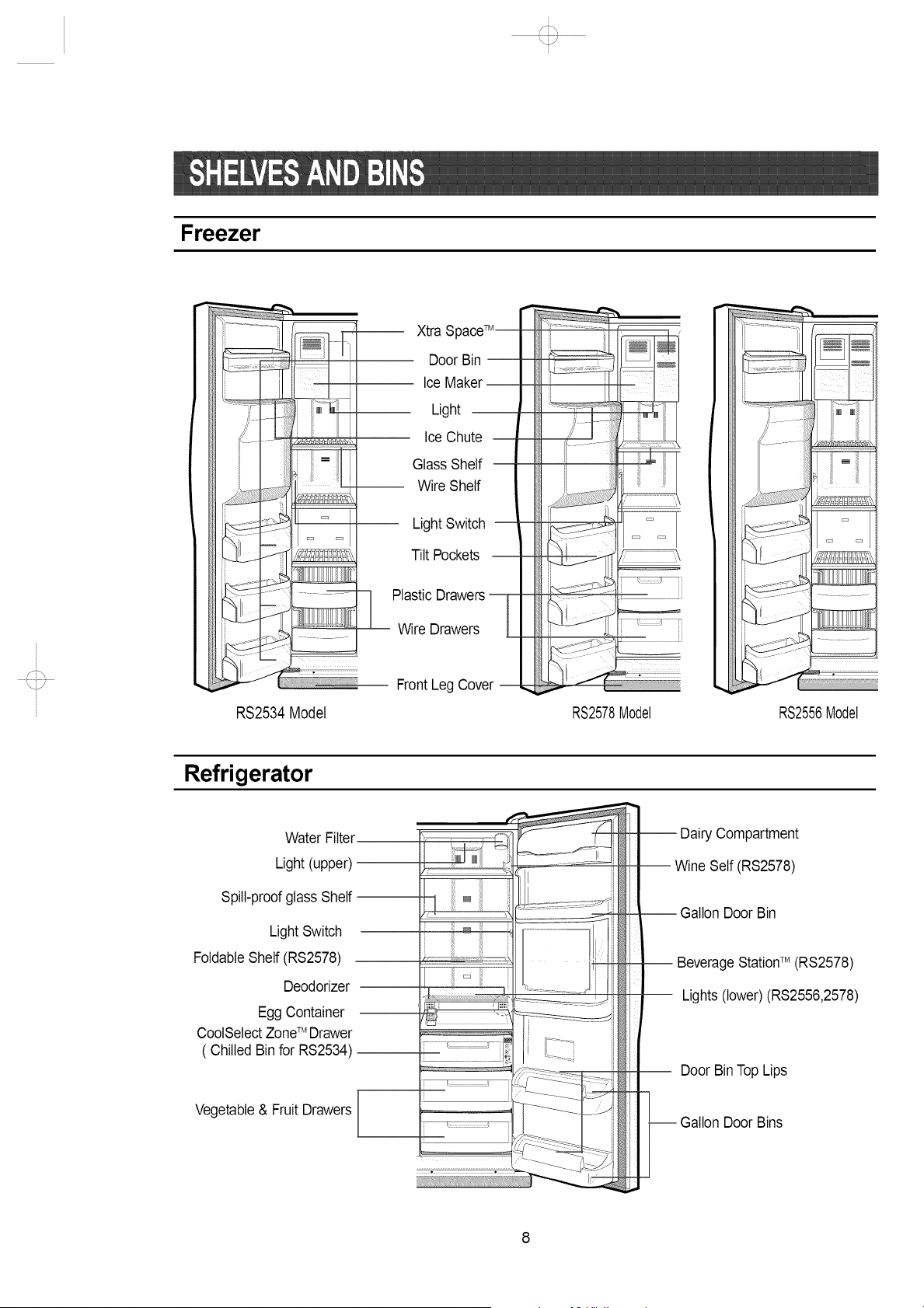

Freezer
--I-_-- Xtra SpaceTM-
_M Door Bin
i I_J _ IceMaker
Light =
:" L_ Ice Chute
i I GlassShelf
!,.._._.......... L Wire Shelf
= Light Switch --
Tilt Pockets --
-i F_i;ICDrDi;wrelS-_
Front Leg Cover --
RS2534 Model RS2578Model RS2556Model
Refrigerator
Water Filter
Light (upper)
Spill-proof glass Shelf
Light Switch
FoldableShelf (RS2578)
Deodorizer
Egg Container
CoolSelect ZoneTM Drawer
( Chilled Bin for RS2534)
Vegetable& Fruit Drawers
-- Dairy Compartment
-- Wine Self (RS2578)
-- Gallon Door Bin
-- BeverageStationTM (RS2578)
Lights (lower)(RS2556,2578)
-- Door BinTop Lips
-- Gallon Door Bins
\fJ
FROZEN FOOD STORAGE IN FREEZER
:1
XtraSpaceTM
• Can be used for frozen foods such as pizza, pasta, burri tos,
and fajitas.
• In order to prevent odor penetrationto the ice, stored food
should be wrapped securely.
2,, TemperedGlassShelf (Wire Shelf)
• Can be used to store all types of frozenfood.
/k
WARNING
Door Bin (Tilt Pocket)
• Can be used for small packagesof frozenfood.
PlasticsDrawer (Wire Drawer)
• Can be used to store meatand dry foods. Storedfood should
be wrapped securely using foil or other suitablewrapping
materialsor containers.
Ice chute
Do not put your fingers,hands or any other insuitable objectsin thechute Orice,maker bucketl
this may reSUltin personalinjurYOrmaterialdamagel
i
\fJ
CHILLED FOOD STORAGE IN REFRIGERATOR
iiliiZ,,,......
TemperedSpill Proof Glass Shelf
• Can be used to store all types of chilledfood.
• Safe and hard to break resistant.
• Circular marks on the glass surface are a normal phenomenon.
Chilled Bin or CoolSelectZoneTM Drawer
• Helpsto preserve the taste of food and prolongs its freshness.Use
to store cheese, meat, poultry,fish or any other foods used quickly.
Fruit & Vegetable Drawer (Upper and Lower)
• Is used to store fruits and vegetables.
• This drawer is airtight.Optimized humidity control design helps to
preservethe freshness of the stored vegetables andfruits.
i
Dairy Compartment
• Can be used to store butter,margarineand cheezefor short period.
iilQ ii!2 Gallon Door Bins
• Can be used to store foods in small packages, such as milk and
yogurt.
BeverageStationTM (R82578)
• Can be used to store the frequently used items,such as canned
beveragesand snacks and allows access to these items without
opening the refrigerator door.
B0ttles should be st0red tightly t0gether so that they d0 not fall OUL
Egg Container
• Put eggs in the container and place them on the shelf.
Wine Shelf (R82578)
• Place your wine bottle on the shelf to maintaintheir taste.
/k
WARNING
" If you have a long vacation planned, you must decide to empty the refrigerator and turn it off.wipe
excess moisture from the inside and leave the doors open. Otherwise,odor and mold maydevelop.
10
\fJ
"Select" Button (RS2556, RS2578)
Soft Freeze
2
iiii!il .............
• When "Soft Freeze"is chosen, the temperatureon the
digtal panel displays23°F(-5°C)regardless of the set
temperatured the refrigerator.
• "Soft-Freeze"temperature helps keep meats and fishes
fresh longer.
• Can cut meat easily without drips.
Chill
• When "Chill" is chosen, the temperatured the CoolSe-
lectZoneTM Drawer is keptat 30°F(-1°C)regardlessd
the set refrigerator temperature.
• "Chill"temperaturehelps keep meat or fish fresh longer.
Cool
• When "coor' is chosen,the temperaturewill be the same
as the set temperature d the refrigerator.The digital
panelshows the same temperature as that d the display
panel.
• For "Cool,"the CoolSelectZoneTM Drawer allowsextra
refrigeratorspace.
11
"Quick Cool" Button
@
NOTE
NOTE
• Youcan use the Quick Cool feature with the CoolSelectZoneTM.
• "QuickCool" allows 1~3 canned beveragesto cool within 60 min.
• Tocancel this option, pressthe "QuickCool" button again.
CoolSelectZoneTM returns to the previous temperature.
• When "QuickCool" ends, it returns to the "Cool"temperatureset-
ting.
Depending0n the beverages,the cool'd0wn time may vaiyl
• For"Quick Cool,'option,food storedin theCoolSelect Zone_M
Drawershould be removed.
O Quick Cool
\ ,/
= _ Soft
Freeze
(2 Chill
_) Select
"Thaw" Button
• Drips loss and qualitydeterioration d meats reduces the fresh-
ness d foods.
• After "Thaw" is selected,warm and cold air is alternately sup-
plied into the CoolSelectZoneTM Drawer.
• Dependingon the weight d meat, thawingtime can be selected
for 4 hrs, 6 hrs, 10 hrs, and 12 hrs sequentially.
• When "Thaw"ends, CoolSelectZoneTMdisplayreturns to "chill"
condition.
• Tocancel this option, press any button except "Thaw".
• The approximatethawing time of meat andfish are shown
below.(Based on linch thickness)
ck Cool
Thaw
Soft
Freeze
Chill
Cool
_ Select
Thaw Time
Weight
4 hours
0.8Ib
6 hours 10 hours 12 hours
1.3 Ib 1.7Ib 2.2 Ib
@
NOTE
Depending onthes ze and thickness of meat and fish, the thawingtime mayvary.
TM
The above weight represents the total weight of food n the CoolSelect 7one Drawer.
Ex) The totalthawing time for 1.3 Ib frozen beef and 0.8 Ib frozen chickenwill be 10 hours. ........
, With the!'Thaw"option, food stored in the CoolSelectZoneTMDrawer should be removed.
NOTE
12
iiii!iiii2....
iiiiiii ............
Glass Shelf
• Pullthe shelf out as far as
it goes.Then lift it up and
remove it.
Door Bin
• Holdthe door bin with both
hands andthen lift it up.
Plastic Drawer (Wire Drawer)
• Removethe drawer by
slightly.pUllingit out and lifting it up _.:,:..................;._
........
iiiiiiii 5,..............
Ice Maker Bucket
• Removethe bucketby lifting up and pulling
Front Leg Cover
• Open the freezer and refriger-
ator doors, remove three
screws and detach the cover.
• To reassemblethe coverleg
front, put it back to original
position and tighten the three screws.
(_ , Do not use excessiveforce When
NOTE removing the cover.It may cause an
injury.
..... Spill Proof Glass Shelf
• Pullthe shelf out as far as it will go.Then lift it up and remove it softly.
12........
Vegetable & Fruit Drawer
• Removethe drawer by holding the handle, pulling the drawer out and lifting it up smoothly..
• Removethe optimized humidity controlcover by pulling it towards you.
Gallon Door Bin
• Hold the binwith both hands and removeit by lifting it up.
...........Wine Shelf
• Itis attached to the cabinet wall.To removewine shelf, slide the
wine shelf in the directiond the arrow as shown.
• Simply take the shelf out of the tabs.
' Before removingthe freezerandrefrigeratora_ssorieS, pleasemovethe storedfoodstOOtherSpace:
NOTE
13

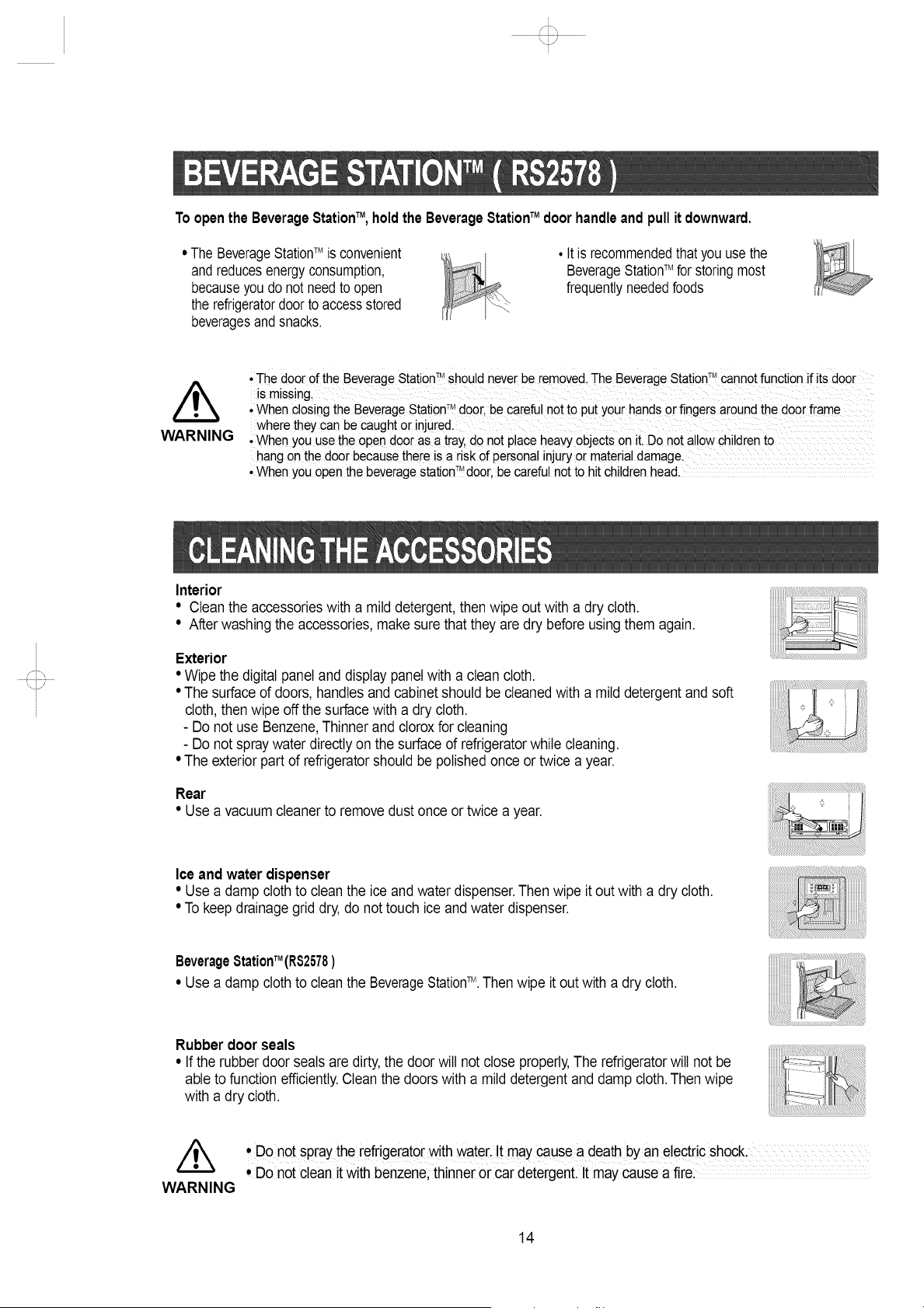

Toopenthe BeverageStationTM, holdthe BeverageStationTM doorhandleand pullit downward.
• The BeverageStationTM is convenient
andreducesenergyconsumption,
becauseyou do not needto open
the refrigeratordoor to accessstored
beveragesand snacks.
• It is recommendedthat you usethe
BeverageStationTM for storingmost
frequentlyneededfoods
WARNING
' The door of the BeverageStationTM should never be removed.The BeverageStationTM cannot function if its door
is missing_
,When closing the BeverageStationTM door, be careful not to put your hands or fingers aroundthe door frame
where they Canbe caught or injured.
• When you use the open door as a tray,do not place heavy objectson it.Do not allow children to
hang on the door because there is a risk of personal injury or material damage. ....................................
• When you open the beveragestationTM door, be careful notto hit children head.
Interior
• Clean the accessorieswith a mild detergent, then wipe out with a dry cloth.
• After washing the accessories,make sure that they are dry before using them again.
Exterior
• Wipe the digital panel and display panel with a clean cloth.
• The surface of doors, handles andcabinet should be cleanedwith a mild detergentand soft
cloth, then wipe off the surface with a dry cloth.
- Do not use Benzene,Thinner and clorox for cleaning
- Do not spray water directly on the surface of refrigeratorwhile cleaning.
• The exterior part of refrigeratorshould be polishedonce or twice a year.
Rear
• Use a vacuum cleaner to remove dust once or twice a year.
Ice and water dispenser
• Use a damp cloth to clean the ice andwater dispenser.Then wipe it out with a dry cloth.
• To keepdrainage grid dry, do not touch ice and water dispenser.
BeverageStationTM (R82578)
• Use a damp cloth to clean the BeverageStationTM. Then wipe it out with a dry cloth.
Rubber door seals
• Ifthe rubber door seals are dirty,the door will not close properly,The refrigeratorwill not be
able to function efficiently.Clean the doors with a mild detergent and damp cloth.Then wipe
with a dry cloth.
//_ • Donot spray the refrigeratorwith water,It may cause a death by an electric shock.
• Do n0t clean it Withbenzene; thinner or car detergenL it maycause a firel
WARNING
14

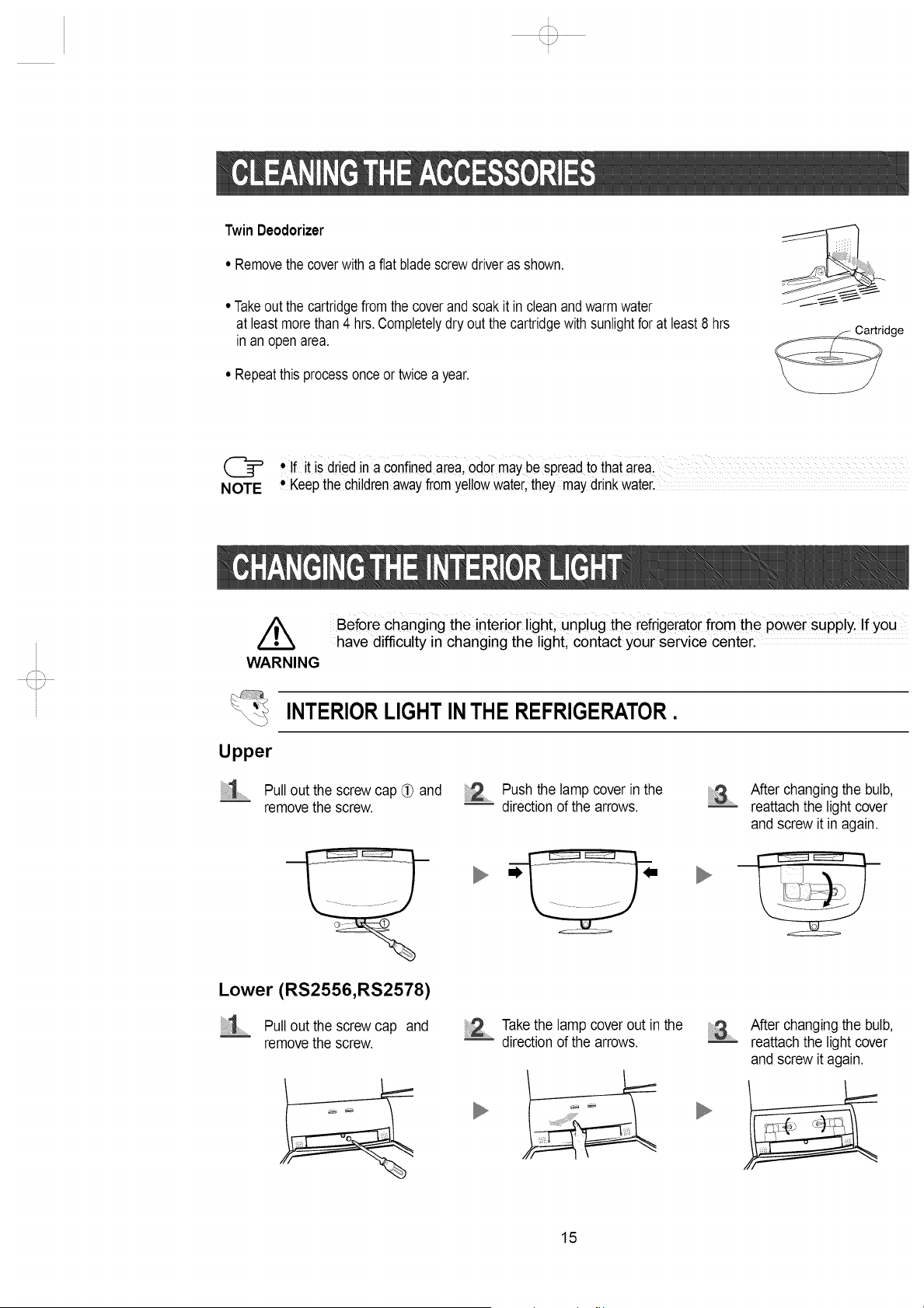

TwinDeodorizer
• Removethe coverwith a fiat bladescrewdriveras shown.
• Takeout the cartridgefromthe coverand soakit in cleanand warmwater
at leastmorethan4 hrs.Completelydry out the cartridgewithsunlightfor at least8 hrs
in an open area.
• Repeatthisprocessonceor twicea year.
.....
dge
(_= °If it is dried ina confinedarea,odor maybe spreadto that areal
NOTE • Keepthe childrenawayfromyellowwater,they may drinkwater.
/t,,
WARNING
Before changing the interior light, unplug the refrigerator from the power supply. If you
have difficulty in changing the light, contact your service center.
INTERIORLIGHT INTHE REFRIGERATOR.
Upper
.......Pull out the screw cap (_ and 2 Push the lamp coverin the
removethe screw, directionof the arrows.
8 .........
After changing the bulb,
reattach the light cover
and screw it in again.
Lower (RS2556,RS2578)
Pullout the screw cap and
removethe screw.
Takethe lamp coverout in the
directionof the arrows. _ ............
After changing the bulb,
reattach the light cover
and screw it again.
15
INTERIORLIGHT INTHE FREEZER.
1 ............
The freezer light is located in the bottom of the auger motor case.
Use a screwdriver to remove ............Change the bulb with a new ..........
the light cover ((_). _ one @)
Reattach the light cover
(_ Replacement bulbs for both the freezer and refrigerator are at retail outlets such as Wal-mart, The Home
NOTE Use reP!acement bu!b size E!7, maximum 30 watts,
The water "Filter Indicator" light
• "Filter Indicator" light lets you know when it is time change your water filter cartridge. The light
will change from green to orange. This tells you that it is almost time to change the current cartridge.
It is recommended that you replace the cartridge when the light changes to red.
(see "Install the water filter" section for more informmation)
Using the dispenser without the water filter
• You can not use the water and ice dispenser without a water filter cartridge because the water line
blocks at water supply.
Ordering replacement filters
• To order more water filter cartridges, call 1-800-SAMSUNG and ask for accessory Part # DA29-
00003A or contact your authorized Samsung dealer.
The refrigerator doors have a special door opening and closing feature to make sure that the doors
close all the way and are securely sealed.
When opening the door, it will only open so far. After reaching a certain point, it will remain open.
When the door is partially open, it will close automatically.
16

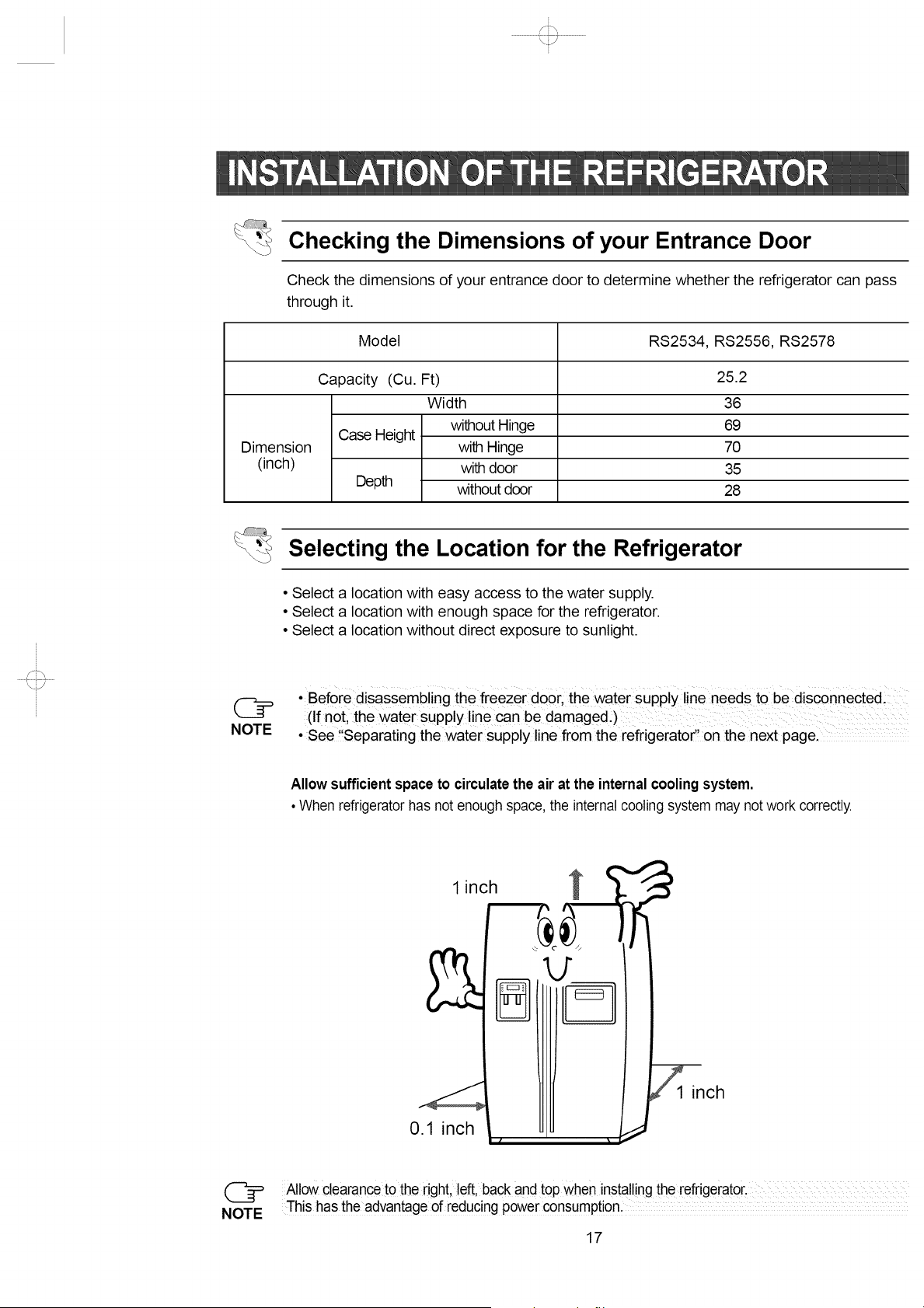

Checking the Dimensions of your Entrance Door
Check the dimensions of your entrance door to determine whether the refrigerator can pass
through it.
Model RS2534, RS2556, RS2578
Capacity (Cu. Ft)
Width
Dimension
(inch)
without Hinge
Case Height
with Hinge
with door
Depth without door
25.2
36
69
70
35
28
@
NOTE
Selecting the Location for the Refrigerator
• Select a location with easy access to the water supply.
• Select a location with enough space for the refrigerator.
• Select a location without direct exposure to sunlight.
• Before disassembling the freezer doOr, the water supply line needs to be disconnected:
(If not, the water supply line can be damaged:)
• See "Separating the water supply line from the refrigerator"on the next page.
Allow sufficient space to circulate the air at the internal cooling system.
• When refrigeratorhas not enough space, the internal cooling system may not work correctly.
1 inch
0.1 inch
1 inch
Allow clearanceto the right, left,back and top when installing the refrigerator.
This has the advantage of reducingpower consumption.
17
Removing the Front Leg Cover
Open the freezer and refrigerator doors, and then take off the front leg cover by turning the
three screws counter-clockwise.
FRONT LEG COVER
L_ L_ L_
SCREW
Separating the Water Supply Line from the Refrigerator
1) Remove the screw from clamp (®).
2) Remove the water tube by pressing the coupler (@) and pulling the water tube (qb) away.
@
NOTE
DOnotCuttheWatertubebutseparateit fromthecoupler:
18
NOTE , Be _reful not to pinch the water tubing and wire harness on the door.
• Place doors on a protected surface:
Removing the Freezer Door
1) With the door closed, remove the upper hinge cover (d)) using a screwdriver, and then disconnect
the wires (@).
2) Remove hinge screws (®) and ground screw (®) counter-clockwise, and take off the upper hinge (®)
along the arrow (®). Take care when removing the door to ensure that it does not fall on you.
3) Remove the door from the lower hinge (@)by
carefully lifting the door (®).
4) Remove the lower hinge (®) from the bracket
lower hinge (®) by lifting the lower hinge (®) i
the direction of the arrow.
19

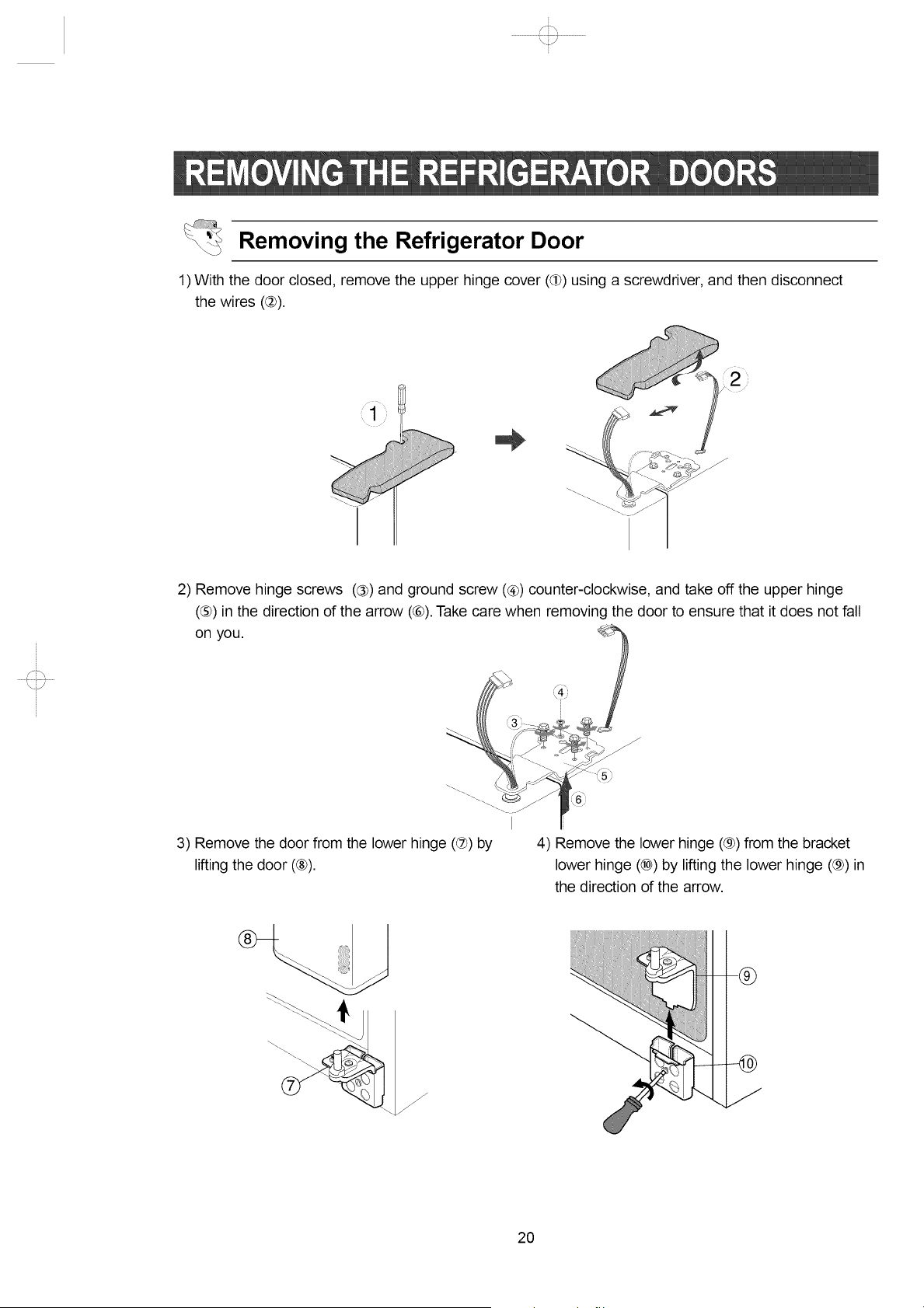

Removing the Refrigerator Door
1) With the door closed, remove the upper hinge cover (d)) using a screwdriver, and then disconnect
the wires (_)).
I
1
2) Remove hinge screws (®) and ground screw (®) counter-clockwise, and take off the upper hinge
(®) in the direction of the arrow (®). Take care when removing the door to ensure that it does not fall
on you.
3) Remove the door from the lower hinge (@) by
lifting the door (®).
4) Remove the lower hinge (®) from the bracket
lower hinge (®) by lifting the lower hinge (®) in
the direction of the arrow.
-\\
/-
\
f
--®
2O
Reattaching the Freezer Door
1) Insert the lower hinge (qb)in the bracket lower
hinge (@).
2) Reattach the freezer door by inserting the ho._
(®) in the lower side of the door into the hole iv
the lower hinge (®) and pulling the hose down
dP
Y
-@
3) Insert the upper hinge shaft (®) into the hole (®). After levelling between the upper hinge hole (@)anc
the hole of the cabinet (®). Reattach hinge screws (®) and gound screw (®) in a clockwise direction.
4) Connect the wires. 5) Put the front part of the upper hinge cover ((_)
the front part of the upper hinge (_) and reatta
from the front part of the upper hinge cover firs
21
Reattaching the Refrigerator Door
1) Insert the lower hinge (qb)in the bracket lower 2) Place the hole in the refrigerator door (®) over
hinge (@). the lower hinge (®).
f
3) Insert the upper hinge shaft (®) into the hole (®). After levelling between the upper hinge hole (@)and
the hole of the cabinet (®). Reattach hinge screws (®) and gound screw (®) in the clockwise direction.
4) Connect the wires. 5) Put the front part of the upper hinge cover ((_) on
the front part of the upper hinge ((_) and reattach
it from the front part of the upper hinge cover
first.
22
Reattaching the Water Supply Line
1) While pressing the front face of coupler (@), insert the water line (qb)in the coupler.
2) Tighten the screw on the clamp (®).
I
J
Reattaching the Front Leg Cover
Put on the front leg cover by turning the three screws clockwise, as shown in the figure.
FRONT LEG COVER
SCREW
23
Please level the refrigerator first.
The doors will be uneven if the refrigerator is not level.
Case 1) Freezer door is lower than
that of the refrigerator
Insert a flat-blade screwdriver (-) (¢) into a slot of
the control lever (@), turn it clockwise and level the
refrigerator.
Case 2) Freezer door is higher than
that of the refrigerator
@
NOTE
Insert a flat-blade screwdriver (-) (¢) into a slot of
the control lever (@), turn it clockwise and level
the refrigerator.
DRIVER(-)
':'. .....::.:::i:::::"
%.°°°°.,"
@ CONTROL LEVER
Do not make small adjustments with the control lever, Please refer to the next paget
24
Making small adjustments between doors.
If the door of the freezer is lower than that of the
refrigerator.
If the door of freezer is higherthan that of the
refrigerator.
Adjustment part --
J
Please open the doors and adjust the doors as follows:
1) Release the nut (@)on the lower hinge until the upper end of the bolt ((_).
\djustment part
@ When yoU release the nut(C), use enclosed hex WrenCh (®) to turn the bolt(@)a little counter:
NOTE clockwise to makethe nut(@) loose with your fingers.
® WRENCH
® WRENCH
d) NUT
® NUT @ BOLT @ BOLT
2) Please adjust the height difference between the doors turning the bolt ((_) turn clockwise(_ ) or counter
clockwise( _ ).
(_= when you turn clockwise (v), the door goes up.
NOTE
f
® WRENCH ® WRENCH
#) BOLT
\
3) After adjusting the doors, turn the nut (@)turn clockwise
en the bolt again with the wrench ((_) to fix the nut(@).
f
® WRENCH
@ BOLT
) until the lower end of the bolt, then tight-
® WRENCH
NUT
\
(2r
NOTE
d) NUT
@ BOLT @ BOLT
If you do not fix the nut ((9)firmly, the bolt (@) maybe released:
25
\fJ
1) In order to operate the ice maker properly, water pressure of 20 ~125 psi is required.
In this range a 170 cc paper cup can be filled in 10 secs.
2) The water filter removes particles. It does not sterilize or destroy any micro-organisms.
3) If the refrigerator is installed in area with low water pressure (below 20psi), you should install a boost-
er pump to compensate for the low pressure.
4) Ensure the water storage tank inside the refrigerator is properly filled initially. Push the water dis
penser lever until the water runs from the outlet.
(_p A universal water supply kit is available at extra c0st from Your dealer: The refrigerator manufac:
NOTE turer recommends using a water supply kit containing copper tubing.
26

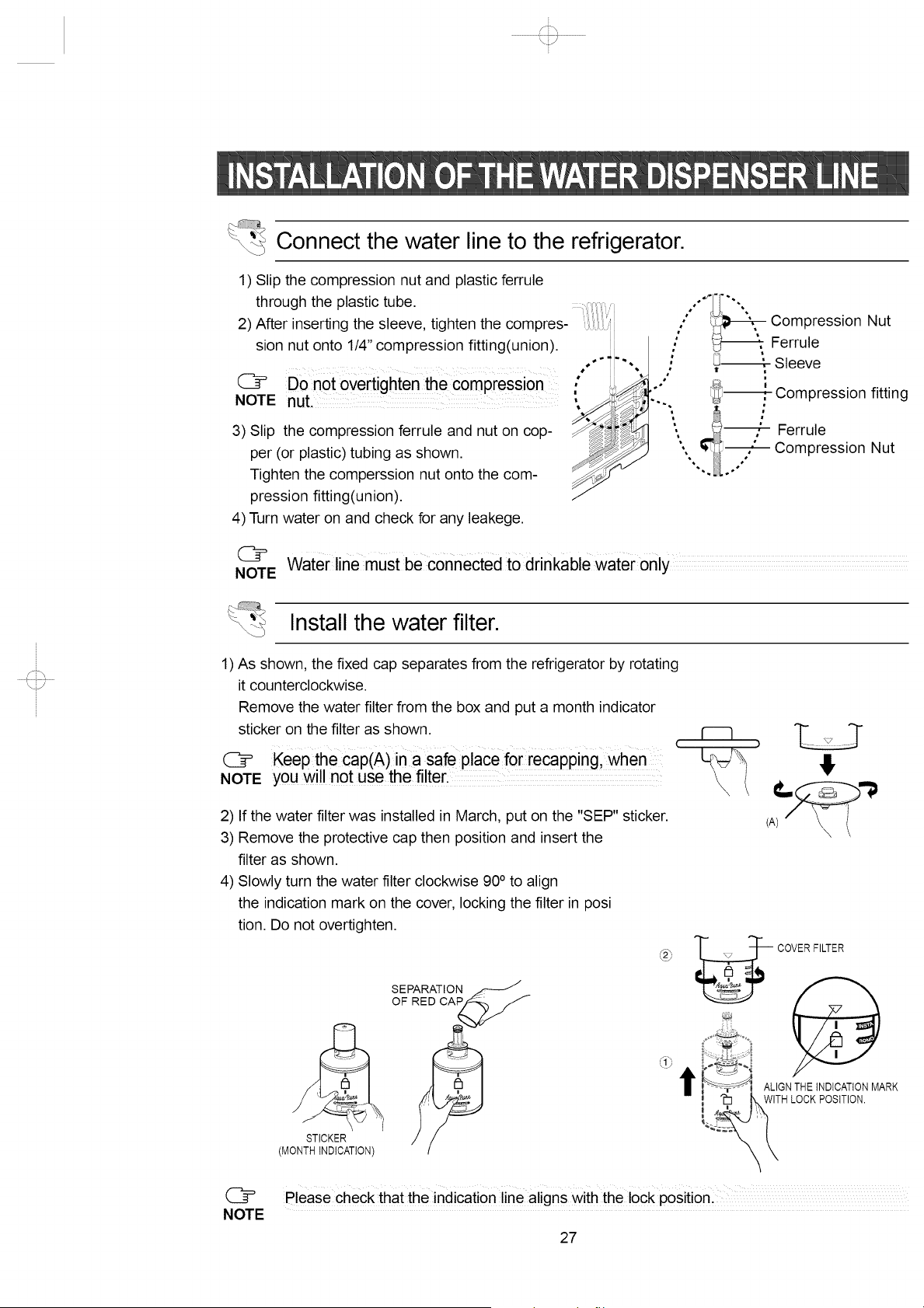

Connect the water line to the refrigerator.
1) Slip the compression nut and plastic ferrule
through the plastic tube.
2) After inserting the sleeve, tighten the compres-
sion nut onto 1/4" compression fitting(union).
@ Do not overtighten the compression
NOTE nut.
3) Slip the compression ferrule and nut on cop-
per (or plastic) tubing as shown.
Tighten the comperssion nut onto the com-
pression fitting(union).
4) Turn water on and check for any leakege.
s_ _ _
• "" " Compression Nut
,: Ferrule
' _ Sleeve
i
"" _ Compression fitting
",, 2. ,_ Ferrule .
',, _ ,--_7_ Compression Nut
@
NOTE
Install the water filter.
1) As shown, the fixed cap separates from the refrigerator by rotating
it counterclockwise.
Remove the water filter from the box and put a month indicator
sticker on the filter as shown.
C
@ Keep the cap(A)in a safe place for recapping, when
NOTE you will not use the filteri
r--q
2) If the water filter was installed in March, put on the "SEP" sticker.
3) Remove the protective cap then position and insert the
filter as shown.
4) Slowly turn the water filter clockwise 90° to align
the indication mark on the cover, locking the filter in posi
tion. Do not overtighten.
SEPARATION
OF RED
STICKER
(MONTH iNDICATiON)
s_
L1j
t ALIGN THE INDICATION MARK
WITH LOCK POSITION.
L
please check that the indication line aligns With the lock positionl
NOTE
27
\fJ
Removeanyresidualmatterinsidethewatersupplylineafterinstallingfilter.
1) Turn on the main water supply & shut-off valve of the water
supply line.
2) Run water through the dispenser until the water runs clear
(6~7 minutes). This will clean the water supply system and
clear air from the lines.
3) Additional flushing may be required in some households.
4) Open the refrigerator door and check if water leaks around
the water filter.
ICE --
--WATER
• A newly-installed water filter cartridge may cause water to briefly spu_ from the dispenser.
NOTE • Before reinstalling the water filter, remove the wine self (RS2578). ............
Check the amount of water supplied to the ice tray.
1) Lift up (@) and pull out (@) the ice maker bucket in the freezer.
ICE MAKER --
2) When you press the test button, the ice cube container is
filled with water from the water supply tap.
Check the amount of water (see the illustration below).
If the water level is too low,
the ice cubes will be small.
This is not a problem with the ice maker
but of the water pressure in
the pipe, and occurs frequently.
When this problem occurs, contact
the dealer service center to check the
amount of water supplied.
CHECK THE WATER
28

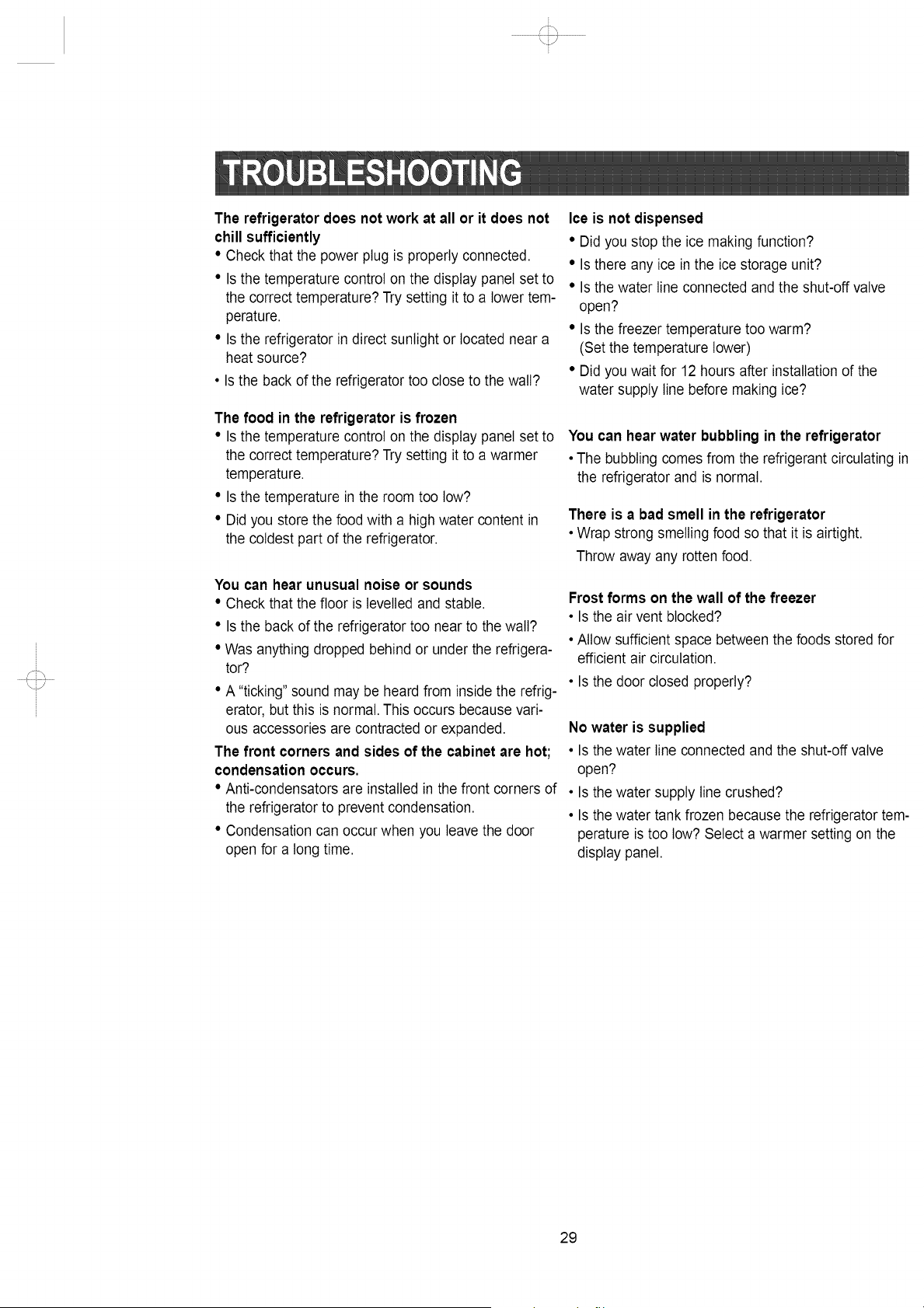

The refrigerator does not work at all or it does not
chill sufficiently
° Check that the power plug is properly connected.
° Is the temperature control on the display panel set to
the correct temperature? Try setting it to a lower tem-
perature.
° Is the refrigerator in direct sunlight or located near a
heat source?
• Is the back of the refrigerator too close to the wall?
The food in the refrigerator is frozen
° Is the temperature control on the display panel set to
the correct temperature? Try setting it to a warmer
temperature.
° Is the temperature in the room too low?
° Did you store the food with a high water content in
the coldest part of the refrigerator.
You can hear unusual noise or sounds
° Check that the floor is levelled and stable.
° Is the back of the refrigerator too near to the wall?
° Was anything dropped behind or under the refrigera-
tor?
° A "ticking" sound may be heard from inside the refrig-
erator, but this is normal. This occurs because vari-
ous accessories are contracted or expanded.
The front corners and sides of the cabinet are hot;
condensation occurs.
• Anti-condensators are installed in the front corners of
the refrigerator to prevent condensation.
° Condensation can occur when you leave the door
open for a long time.
Ice is not dispensed
• Did you stop the ice making function?
° Is there any ice in the ice storage unit?
° Is the water line connected and the shut-off valve
open?
° Is the freezer temperature too warm?
(Set the temperature lower)
° Did you wait for 12 hours after installation of the
water supply line before making ice?
You can hear water bubbling in the refrigerator
• The bubbling comes from the refrigerant circulating in
the refrigerator and is normal.
There is a bad smell in the refrigerator
• Wrap strong smelling food so that it is airtight.
Throw away any rotten food.
Frost forms on the wall of the freezer
• Is the air vent blocked?
• Allow sufficient space between the foods stored for
efficient air circulation.
• Is the door closed properly?
No water is supplied
• Is the water line connected and the shut-off valve
open?
• Is the water supply line crushed?
• Is the water tank frozen because the refrigerator tem-
perature is too low? Select a warmer setting on the
display panel.
29
SAMSUNG REFRIGERATOR
(18 Cubic Feet and Larger Capacity)
This SAMSUNG brand product, as supplied and distributed by Samsung ElectronicsAmerica, Inc. (SAMSUNG)and deliverednew,
in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturingdefects in materials
and workmanship for a limited warranty period of:
One (1)Year Parts and Labor on Refrigerator
Five (5)Years Parts and Laboron Sealed RefrigerationSystem Only*
(*Compressor,evaporator,condenser,drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on products purchasedand used in the United
States. To receivewarranty service, the purchaser must contact SAMSUNG for problem determinationand service procedures.
Warrantyservice can only be performed by a SAMSUNGauthorized service center. The original dated bill of sale must be
presentedupon request as proofof purchase to SAMSUNG or SAMSUNG'sauthorizedservice center.
SAMSUNGwill repairor replaceany part found to be defective,at our option and at no chargeas stipulated herein,with new or
reconditionedparts during the limitedwarranty period specifiedabove. All replaced parts and products become the property of
SAMSUNG and must be returned to SAMSUNG Replacement parts and products assume the remainingoriginal warranty,or
ninety (90)days, whicheveris longer.
In-homeservice will be provided during the warranty labor period subjectto availabilitywithin the contiguous UnitedStates. In-
home service is not available inall areas. To receive in-home service, the product must be unobstructedand accessiblefrom floor
levelto service personnel. If during in-homeservice repaircannot be completed,it may be necessaryto remove, repair and return
the product. If in-home service is unavailable,SAMSUNG mayelect, at our option, to providefor transportationof our choice to
and from a SAMSUNG authorized servicecenter. Otherwise, transportationto and from the SAMSUNG authorizedservice center
is the responsibilityof the purchaser.
This limited warrantycovers manufacturingdefects in materialsand workmanship encounteredin normal, noncommercialuse of
this product, and shall not apply to the following, including,but not limited to: damage which occurs in shipment;delivery and
installation;applicationsand uses for which this product was not intended;altered product or serial numbers;cosmetic damage or
exteriorfinish;accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities,
services, parts,supplies,accessories, applications,installations,repairs,external plumbing and leaks, external wiring,circuit
breakers,fuses or connectors not supplied and authorized by SAMSUNG, orwhich damage this product or result in service
problems;incorrectelectrical line voltage,fluctuations and surges;customer adjustments and failure to follow operatinginstructions,
cleaning, maintenanceand environmentalinstructionsthat are covered and prescribedin the instructionbook; loss of food due to
spoilage;consumable items includingfilters and light bulbs.
THEREARE NO EXPRESS WARRANTIESOTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED,INCLUDING,BUT NOT LIMITEDTO,ANY IMPLIEDWARRANTIES OF
MERCHANTABILITYOR FITNESS FOR A PARTICULARPURPOSE,SHALL APPLYAFTER THE EXPRESSWARRANTY
PERIODS STATEDABOVE, AND NO OTHER EXPRESSWARRANTY OR GUARANTYGIVEN BY ANY PERSON, FIRM OR
CORPORATIONWITH RESPECTTOTHIS PRODUCT SHALL BE BINDINGON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURETO REALIZE SAVINGSOR OTHER BENEFITS,OR ANY OTHER
SPECIAL, INCIDENTALOR CONSEQUENTIALDAMAGESCAUSED BY THE USE, MISUSE OR INABILITYTO USE THIS
PRODUCT,REGARDLESS OFTHE LEGALTHEORY ON WHICH THE CLAIM IS BASED,AND EVEN IF SAMSUNG HAS BEEN
ADVISEDOF THE POSSIBILITYOF SUCH DAMAGES. NOR SHALL RECOVERYOF ANY KIND AGAINST SAMSUNG BE
GREATERINAMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSINGTHE
ALLEGED DAMAGE. WITHOUT LIMITINGTHE FOREGOING,PURCHASERASSUMES ALL RISKAND LIABILITY FOR LOSS,
DAMAGE OR INJURYTO PURCHASERAND PURCHASER'S PROPERTYAND TO OTHERSAND THEIR PROPERTY
ARISING OUT OF THE USE, MISUSE OR INABILITYTO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY
BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITEDWARRANTY SHALL NOT EXTENDTO ANYONE OTHERTHAN THE
ORIGINAL PURCHASEROFTHIS PRODUCT,IS NONTRANSFERABLEAND STATESYOUR EXCLUSIVE REMEDY,
Some states do not allow limitationson how longan impliedwarranty lasts, or the exclusionor limitation d incidentalor
consequentialdamages, so the above limitationsor exclusionsmay not applyto you. This warranty gives you specific legal rights,
and you mayalso have other rights,which vary from state to state.
Toobtain warranty service, please contact SAMSUNG at:
SAMSUNG CUSTOMER CARE CENTER
400 Valley Road,Suite 201, Mt. Arlington, NJ 07856,Tel:973-601-6000, Fax:973-601-6001
1-800-SAMSUNG(1-800-726-7864)and www.SAMSUNGUSA.com
061002
30

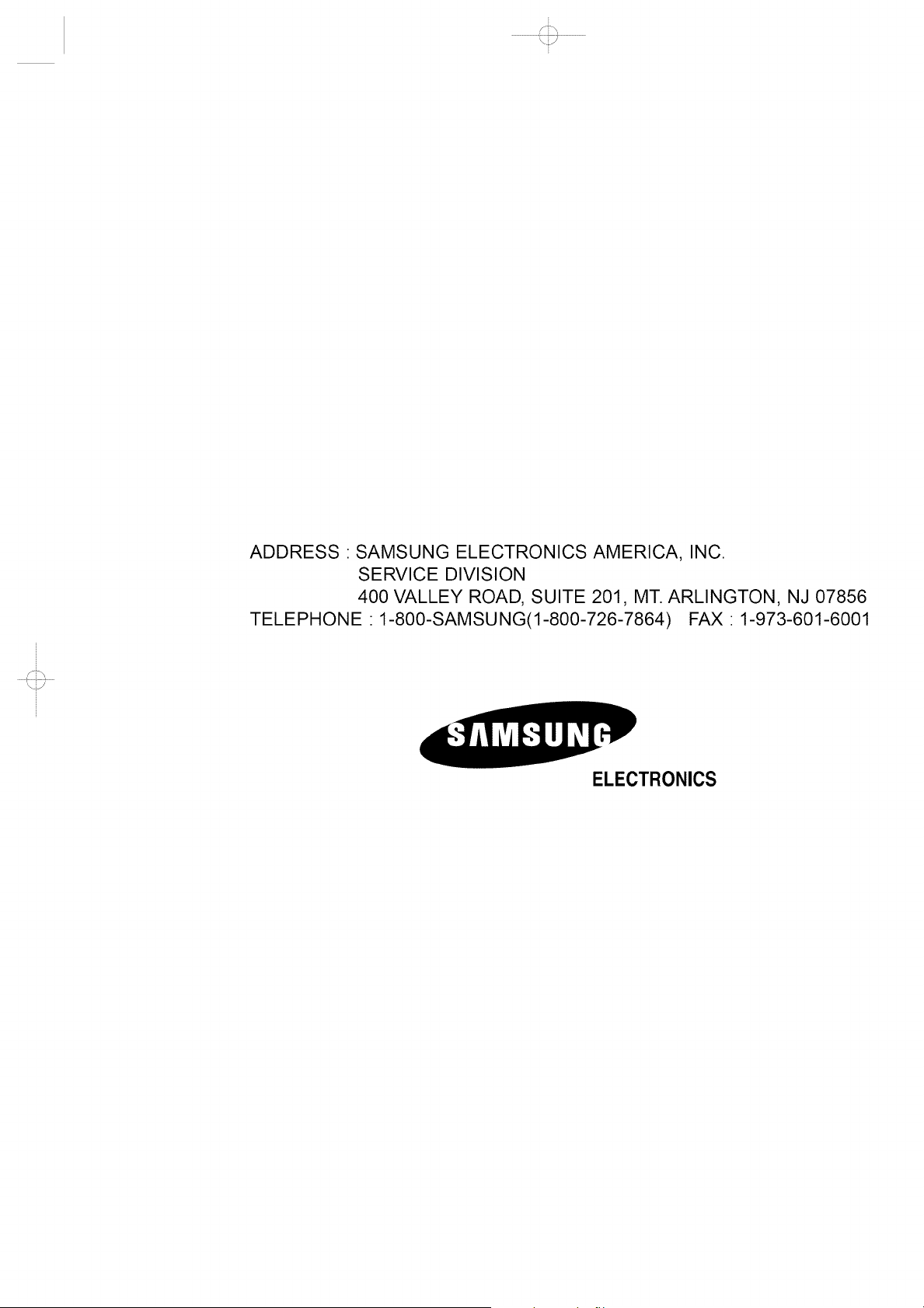

ADDRESS : SAMSUNG ELECTRONICS AMERICA, INC.
SERVICE DIVISION
400 VALLEY ROAD, SUITE 201, MT. ARLINGTON, NJ 07856
TELEPHONE : 1-800-SAMSU NG(1-800-726-7864) FAX : 1-973-601-6001
ELECTRONICS
