SKU Number: 356-1221
356-1223
PACKAGE CONTENTS
211201
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
Mounting Plate Unit
X1
Mounting Screw
X2
Wire Connector
X3
AA
CC
BB
DD
HARDWARE CONTENTS Note: Hardware not shown actual size.
1-LIGHT OUTDOOR MOTION
SENSING WALL LIGHT
Model Number: DJ2003
DJ2002
Rotate to access QuickSet
sensor settings
Auto PC
Test
3min
3H
Custom
Time Low Level Sens
5s
Set screw
X2
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
●
Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
●
Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
●
All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
●
Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
●
Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
●
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder, Wire Stripper.
Page 2 of 7
PREPARATION
ASSEMBLY INSTRUCTIONS
SAFETY INFORMATION
1. Unscrew the two set screws (DD),
remove the mounting plate
unit (AA) from the backplate.
Only general ON/OFF wall switch applies for this fixture, the dimmable wall switch shouldn’t be required.
Work Temperature: -22°F~104°F
Important to know
1. This fixture requires a 120VAC, 60Hz power source.
2. Make sure the power is switched OFF before installation.
3. Motion sensor: turns light ON automatically when motion is detected and turns light OFF automatically when motion
stops.
4. Photocell keeps the light OFF during the daytime.
5. Compatible with most LED dimmable bulb.
6. Dimmable bulb required .
Installation Steps
Turn off the power at fuse or circuit box.
211201
1
AA
DD
2. Attach the mounting plate
unit (AA) to the outlet box
by using two mounting
screws (BB).
Note: Make sure that two
set holes are lined up
horizontally to make the
fixture level.
2
AA
BB
Outlet Box
Page 3 of 7
ASSEMBLY INSTRUCTIONS (continued)
5. Install the bulb (not included).
See relamping label at socket
area or packaging for
maximum wattage allowed.
Turn on the power at fuse or circuit box
211201
4
AA
DD
CC
AA
Green Grounding Screw
3

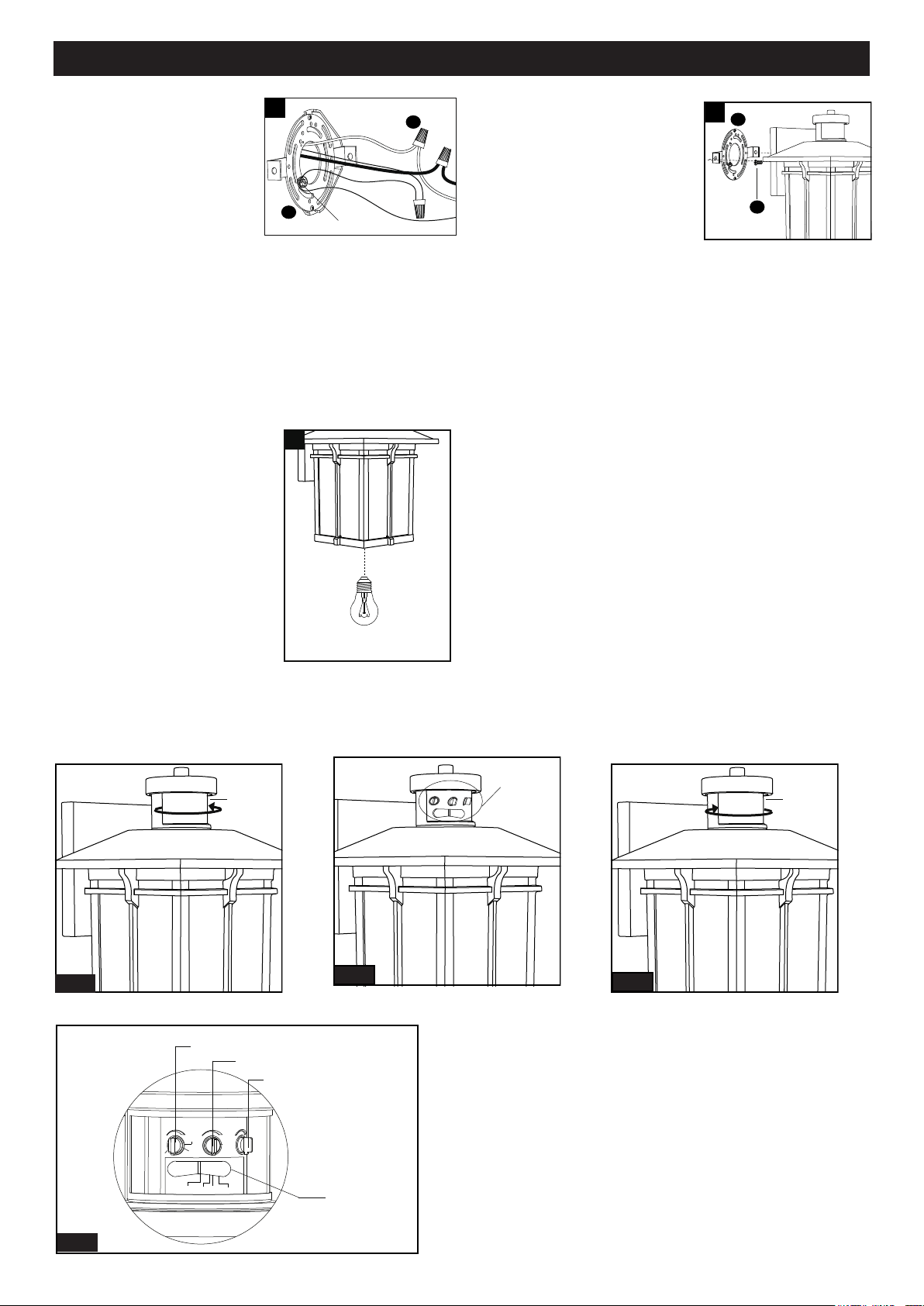

3. Pull out the source wires
from the outlet box. Make
wire connections using wire
connectors (CC) as follows:
• Connect the hot wire
(usually black insulation)
from the fixture to the
black wire from the power
source.
• Connect the neutral wire (usually white insulation) from
the fixture to the white wire from the power source.
• Attach the fixture grounding wire (usually green
insulation or bare wire) to the mounting plate unit (AA)
with the green grounding screw. Then, depending on
local code, connect it to the house grounding wire with
the wire connector (CC).
Carefully put all of the wires back into the outlet box.
4. Attach the backplate to mounting
plate unit (AA) by aligning holes,
secure the set screws (DD) from
the side hole of the backplate.
Note: With silicone caulking
compound, caulk completely
around where the backplate
meets with the wall surface to
prevent water from seeping into the outlet box.
Max.60W Type A Bulb
(not included)
5
The Position of Control Panel
Step 1: Rotate the sensor lens from left side to right side
to show the adjustable knobs and slide switch.
(See Fig.1)
Step 2: Adjust time, low level brightness and sensitivity by
turning the knobs and choose the mode you want
by sliding the switch. (See Fig.2 and Fig A).
Step 3: Restore the sensor lens to original position by
rotating the lens from the right side to the left.
(See Fig.3)
Fig.A
“Time” Knob
“Sens” Knob
Slide Switch
“Low Level” Knob
Time Low Level
Sens
Auto
Test
3min
PC
3H
Custom
5s
Fig.1
Sensor
Lens
Fig.3
Sensor
Lens
View Fig.A
Fig.2
Page 4 of 7
FUNCTION AND OPERATION
Choose a mode by sliding the slide switch.
Note: The light will turn on immediately when power is applied. Wait for 30 seconds to allow the sensor to
warm up.
1. Test MODE (daytime and nighttime operation.)
● Rotate "Time/Test" knob arrow clockwise to point the "Test" position.
motion is detected, and stay on as long as the motion continues. The light will turn to the low-level brightness you
set after 5 seconds when motion is no longer detected.
2. Auto MODE (nighttime operation only)
● To shift to the "AUTO" mode, slide switch to "AUTO" position, and rotate "Time/Test" knob arrow counterclockwise
to point to the desired time setting (5~180 seconds).
● At dusk, the light will turn to low-level brightness (0~50%). The light will turn to high-level brightness (full brightness)
when motion is detected, and stay on as long as the motion continues. When the motion stops, the light will remain
on for the predetermined time set (5~180 seconds), and then turn to the low-level brightness you set.
● The light will turn off automatically at dawn.
3. PC MODE (nighttime operation only)
● To shift to the "PC" mode, slide switch to "PC" position, and rotate "Time/Test" knob arrow counterclockwise away
from "Test" position.
● The light will turn on (full brightness) automatically at dusk and turn off automatically at dawn.
4. 3H MODE (nighttime operation only)
● To shift to the "3H" mode, slide switch to "3H" position, and rotate "Time/Test" knob arrow counterclockwise to
point to the desired time setting (5~180 seconds).
● At dusk, the light will turn to high-level brightness (100% brightness). The light will turn to low-level brightness
(0% ~50% brightness) automatically after 3 hours. The light will turn to high-level brightness (100% brightness)
when motion is detected, and stay on as long as the motion is continuing. When motion is no longer detected,
the light will remain on for the predetermined time you set (5~180 seconds), and then revert to low-level
brightness you set.
● Light will turn off automatically at dawn, and return to 3H mode at dusk.
211201
● The light will turn to low-level brightness (0~50%).The light will turn to high-level brightness (full brightness) when
Auto Mode
3H Mode
Manual
Override
Manual Override Operation Diagram
Turn wall switch OFF-ON
in 0.5~3 Seconds
Turn wall switch OFF-ON
in 0.5~3 Seconds
Fig. 4
6. Manual Override MODE (nighttime operation only)
● Rotate "Time/Test" knob arrow counterclockwise away from "Test"
position.
● To shift to the manual override mode, set the switch to ″Auto″ or
″3H″ mode. Turn the wall switch ″OFF″ and then turn it ″ON″
within 3 seconds. The light will stay on through all night. To restore
to the ″Auto″ or “3H” mode, turn the wall switch ″OFF″ and then turn
it ″ON″ within 3 seconds again. (See Fig.4)
● The light will last for one night only and turn off automatically at dawn.
Note: 1. The low level brightness can be adjusted from 0 to 50% by
rotating “Low level” knob. (See Fig.5)
2. Always keep the wall switch in the “ON” position (including the daytime).
3. Please notice the warm up time is 30 seconds, any operations are invalid during this time.
5. Custom MODE (nighttime operation only):
● To shift to the "Custom" mode, slide switch to "Custom" position, and rotate "Time/Test" knob arrow counterclockwise
to point to the desired time setting (5~180 seconds).
● In "Custom" mode, the light will turn on to full brightness at dusk and off at dawn automatically.
● In this mode, the light can also be set to dim to an adjustable low-level brightness (0~50%) with full brightness upon
motion detection, similar to "AUTO" mode. To make this happen, toggle the wall switch "OFF" and back "ON" within
3 seconds. The light will remember the time that this selection was made and this transition to low-level with
motion-sensing will reoccur each following night at the same time. For example, if a homeowner wants to have the
light stay on full brightness from dusk until 8:00pm before dimming to low-level each night, then they would turn the
wall switch "OFF" and back "ON" within 3 seconds at 8:00pm. The light will remember this operation for each following
night.
● To revert to Default, turn the wall switch "OFF" and then turn it "ON" after 5 seconds.
Note: You can adjust the low-level brightness (0~50%) by using the low-level brightness (0~50%) knob.
FUNCTION AND OPERATION (continued)
Page 5 of 7
NOTE:
1. The sensitivity of the motion sensor will increase as the
environmental temperature gets colder. For best performance,
gently clean the lens with a soft cloth every 1 or 2 months to
ensure maximum sensitivity.
2.
When installed at a height of 6.5 feet, at 77 degrees Fahrenheit,
the light will provide a maximum detection distance of 40 feet
and detection range of 180 degrees. (See Fig.6 Fig.7)
3. The sensor will be more sensitive to motion across its
detection path than motion directly towards it. (See Fig.8)
4. To reduce possible nuisances, do not mount the fixture
near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflecting object or
other light source.
211201
Where you install your light is important:
Be sure the light is mounted straight on the wall;
otherwise, the detection distance may be limited.
5`
6`
10`
40`
Fig.6
Fig. 7
180˚
Motion
Least sensitivity
Most sensitivity
Sensor
Fig. 8
Motion
Customization Options
Shut-off Delay
Fig. 5
(View from back of sensor lens)
Mode
1. The Shut-off delay is the length of time that the light will stay in
high-level brightness after motion stops.
2. The Shut-off delay can be adjusted by using the ″Time″ knob when
the slide switch is set in ″Auto″, ″3H″ or ″Custom″ mode.
3. The range of shut-off delay is 5 seconds to 3 minutes.
4. Rotate the knob clockwise for increasing the shut-off delay.
5. Rotate the knob counterclockwise for decreasing the shut-off delay.
Sensitivity of Motion Sensor
1. The sensitivity can be adjusted from 5 to 40 feet by using the "Sens" knob. (See Fig.5).
2. Turn the knob clockwise for increased sensitivity.
3. Turn the knob counterclockwise for decreased sensitivity.
Spare Parts List:
The following parts are available for reorder if damaged or missing. Call our toll free at 1-800-887-6326.
Assembly Kit
6447MM (1 SET) for 356-1221
6448MM (1 SET) for 356-1223
Glass Panel
X4
10276TG
Mounting Plate Unit
X1
Mounting Screw
X2
Wire Connector
X3
AA
CC
BB
DD
Set screw
X2
Low LevelTime Sens
Test
Auto
PC
3H
Custom
3min
5s
Page 6 of 7
● To clean, turn off and wipe with a damp, non-abrasive cloth.
CARE AND MAINTENANCE
TROUBLESHOOTING
Refer to following information to solve your problems.
Turn the
"
Time/Test
"
knob to the
"Test" position.
Night
If the light
isn’t on
SYMPTOM
DAY/NIGHT
POSSIBLE CAUSE
SOLUTION
Day
Time knob is not set in the test
mode.
Wall switch or circuit breaker is off. Turn on wall switch or circuit breaker.
Test the light bulb on normal working light fixture.
Tighten the light bulb.
Check wire connections.
Relocate fixture away from western facing wall.
Eliminate or turn off other light source, block other
light source from shining onto sensor, or relocate
fixture.
Light bulb may be burned out.
Light bulb is loose.
Incorrect or loose wire connections.
Too much sunlight is shining onto
sensor in the early evening.
Too much light is shining onto
sensor due to another light source,
such as a street lamp or other light
fixture.
The fixture may be installed in
shaded area.
Only need to relocate fixture.
No corrective action needed.
Rotate "Time/Test" knob arrow counterclockwise to
point to the desired time setting (5~180 seconds).
On cloudy or overcast days, the light
may stay on longer than anticipated.
Time knob is setting in the test
mode.
Still on the manual override mode. Turn off the light, then turn it on after 5 seconds.
False triggering caused by a heat
source, such as a heater, dryer vent,
or heated swimming pool.
Eliminate heat source or relocate fixture.
The switch is not set in any mode.
Slide it again to the mode you want.
Day
Night
If the light
stays on
211201
If unable to fix any of the above issues, please consult a certified electrician.
The bulb is non-dimmable or the
quality of light bulb is not good.
Use another normal incandescent lamp to confirm
if the light function is normal, otherwise change the
bulb.
The light
comes on for
no apparent
reason
If the light
is blinking
Night
Night
Passing cars and reflective objects
interfere with the sensor.
Street or sidewalk traffic is triggering
motion sensor.
False triggering caused by a heat
source, such as a heater, dryer vent,
or heated swimming pool.
Relocate fixture.
Adjust the "Sens" knob to reduce the sensitivity.
Eliminate heat source or relocate fixture.
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
Page 7 of 7
211201
