SEARS
OWNER'S
MANUAL
Model Nos.
233.54060591
233.54065591
233.54066591
233.54069591
Read and follow
allSafetyRulesand
Operating Instructions
before first use of this
Product.
RANGE
HOOD
Safety Instructions
Warranty
installation Instructions
€ Use and Care
Part_;t_F_:
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

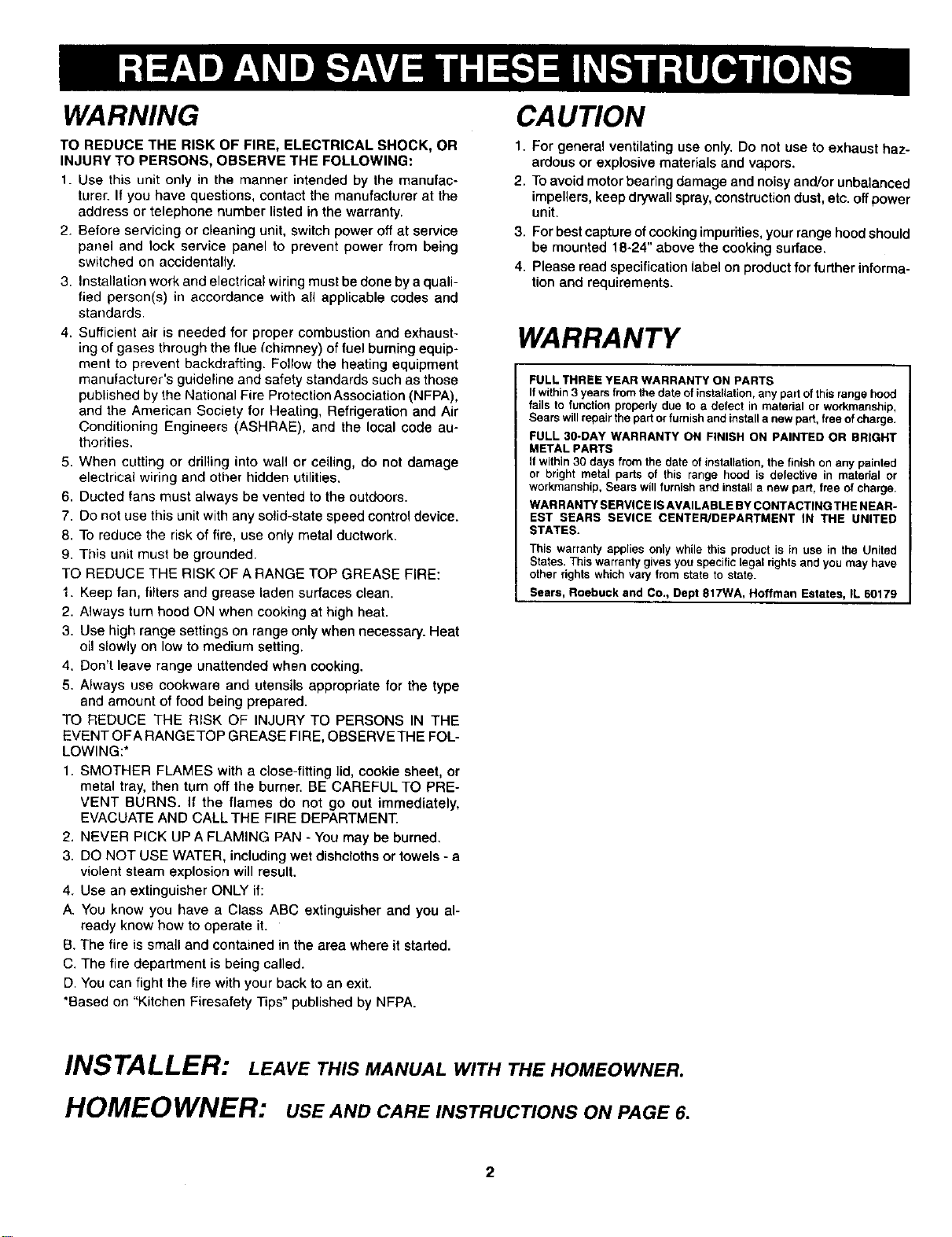

WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufac-
turer. If you have questions, contact the manufacturer at the
address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock service panel to prevent power from being
switched on accidentally.
3. Installation work and electrical wiring must be done by a quali-
fied person(s) in accordance with all applicable codes and
standards.
4. Sufficient air is needed for proper combustion and exhaust-
ing of gases through the flue (chimney) of fuel burning equip-
ment to prevent backdrafting. Follow the heating equipment
manufacturer's guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code au-
thorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
I. Keep fan, filters and grease laden surfaces clean.
2. Always turn hood ON when cooking at high heat.
3. Use high range settings on range only when necessary. Heat
oil slowly on low to medium setting.
4. Don't leave range unattended when cooking.
5. Always use cookware and utensils appropriate for the type
and amount of food being prepared.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OFA RANGETOP GREASE FIRE, OBSERVE THE FOL-
LOWING:*
1. SMOTHER FLAMES with a dose-fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO PRE-
VENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned,
3. DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you al-
ready know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafety Tips" published by NFPA.
CAUTION
1. For general ventilating use only. Do not use to exhaust haz-
ardous or explosive materials and vapors.
2. Toavoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. For best capture of cooking impurities, your range hood should
be mounted 18-24" above the cooking surface.
4. Please read specification label on product for further informa-
tion and requirements.
WARRANTY
FULL THREE YEAR WARRANTY ON PARTS
If within 3 years from the date ofinstagation,any pan ofthis range hood
fails to function properly due to a defect in material or workmanship,
Sears willrepair the pan or furnish and installa newpart, free of charge.
FULL 30-DAY WARRANTY ON FINISH ON PAINTED OR BRIGHT
METAL PARTS
If within 30 days from the date of installation,the finish on any painted
or bright metal pans of this range hood is defective in material or
workmanship, Sears will furnish and installa new pan, tree of charge.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAR-
EST SEARS SEVICE CENTER/DEPARTMENT IN THE UNITED
STATES.
This warranty applies only while this product is in use in the United
States. This warranty gives you specific legal rights and you may have
other rights which vary from state to state.
Sears, Roebuck and Co., Dept 817WA, Hoffman Estates, IL 60179
INSTALLER: LEAVE THIS MANUAL WITH THE HOMEOWNER.
HOMEOWNER: USE AND CARE INSTRUCTIONS ON PAGE 6.

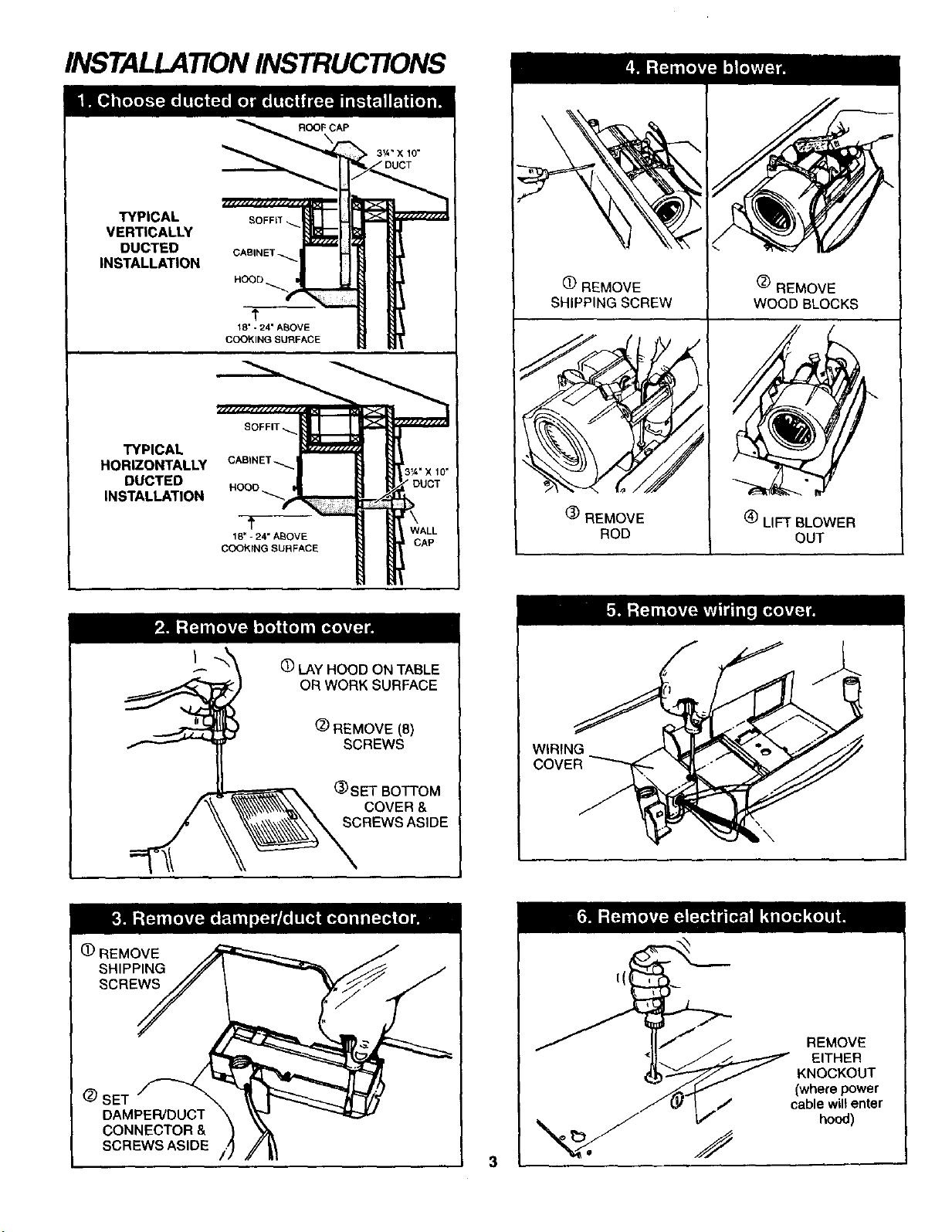

INSTALLATION INSTRUCTIONS
TYPICAL
VERTICALLY
DUCTED
INSTALLATION
CABINET_
HOOD
18"-24"ABOVE
COOKING SURFACE
TYPICAL
HORIZONTALLY
DUCTED
INSTALLATION
CABINET
HOOD "_
-ff-
18"-24"ASOVE
COOKING SURFACE
3¼'X 10'
• DUCT
WALL
CAP
(_) REMOVE
SHIPPING SCREW
_) REMOVE
ROD
(_) REMOVE
WOOD BLOCKS
(_) LAY HOOD ON TABLE
OR WORK SURFACE
REMOVE (8)
SCREWS
(_)SET BOTTOM
COVER&
SCREWSASIDE
WIRING
COVER
(_ REMOVE
SHIPPING
SCREWS
(_)SET
DAMPEWDUCT
CONNECTOR&
SCREWSASIDE
(_ LIFT BLOWER
OUT
REMOVE
EITHER
KNOCKOUT
(where power
/ cable will enter
hood)
J
REMOVE
VERTICAL
O_3
HORIZONTAL
DUCTKNOCKOUT
VERTICAL
KNOCKOUT
KNOCKOUT
HORIZONTAL
DISCHARGE
(through back
of hood
VERTICAL
DISCHARGE
(throughtop
hood
DUCTFREE DISCHARGE
(D REMOVE DUCTFREE
COVER FROM AIR CHUTE
IS CHUT_
®BLOWERD,SCHA.GES
INTO AIR CHUTE
4
OVE
F/ DAMPER
VERTICAL DISCHARGE
REMOVE
TAPE
HORIZONTAL DISCHARGE
WOOD SHIMS HORIZONTAL DUCT &
(recessed-bottom ELECTRICAL ACCESS
cabinets only)
CABINET FRONT
1/8" 3A"
ELECTRICAL
HOOD MOUNTING ACCESS HOLE
SCREWS (4) (in wall)
VERTICAL DUCT &
ELE TRI ALA E
HOOD MOUNTING SCREWS(4)
/ _ 131S/16"(30'_od) .---. _ 131s/16"(30' hco_)
/ /
.k:IFCAB'NETFBONT , !
T-I-J,a, l-rP ,
/;: '1 ln_ I CABINET BO'I'rOM I 971a" I,i:" ' '
|_irl 1Otis L 1*15¼"-'<-'5¼"-_I I I I ;l
4,,I I VERTIC/L OUCT | ,_] I_"_ 10_
CENTER LINE-'-" ELECTRICAL
WOOD SHIMS ACCESS HOLE
(recessed-bottom (in cabinet bottom)
cabinets only)
ROOF CAP
3¼*X 10"
VERTICAL DUCTING
(use straightest duct run
possible)
HORIZONTAL
DUCTING
CONNECT
BLACK TO BLACK,
WHITE TO WHITE,
GREEEN TO GREEN
GROUND SCREW
CABINET BO'Fi-OM
WOOD SHIM
(recessedcabinets only)
SEE STEP 9,
DIAGRAM FOR
SCREW LOCATIONS
USE U.L.
APPROVED WIRING
CONNECTOR
X
75 W MAXIMUM
INCANDESCENT
BULBS
TIGHTEN (4)
MOUNTING
SCREWS

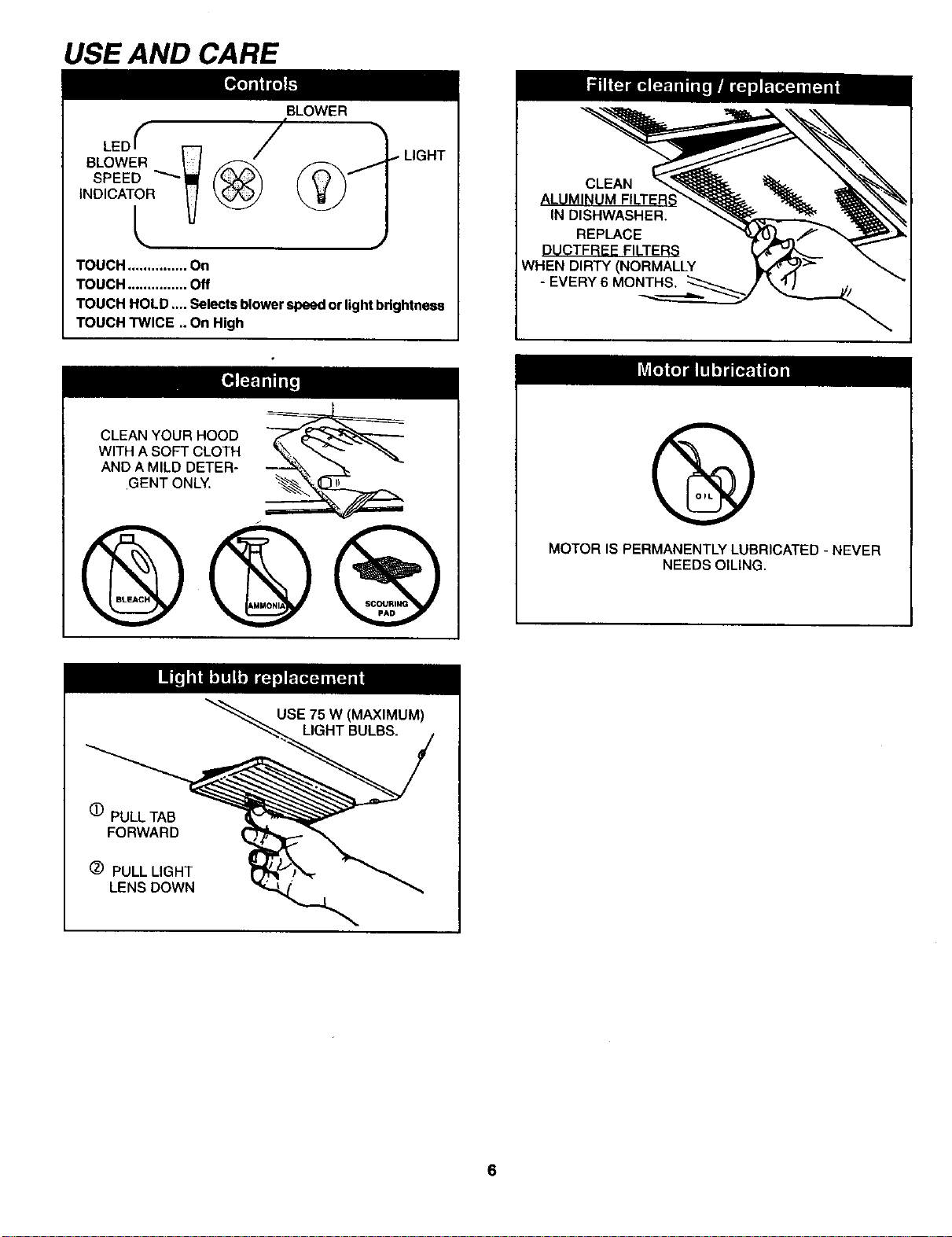

USE AND CARE
BLOWER
LIGHT
TOUCH...............On
TOUCH...............Off
TOUCH HOLD,..,Selectsblowerspeedorlightbdghtness
TOUCH TWlCE,.On High
CLEAN
IN DISHWASHER.
REPLACE
TF FI TER
WHEN DIRTY (NORMALLY
- EVERY 6 MONTHS.
CLEAN YOUR HOOD
WITH A SOFT CLOTH
AND A MILD DETER-
GENT ONLY.
USE 75 W (MAXIMUM)
LIGHT BULBS.
@
MOTOR IS PERMANENTLY LUBRICATED - NEVER
NEEDS OILING.
(_) PULL TAB
FORWARD
(_) PULL LIGHT
LENS DOWN
6
