SINGLE ZONE ART COOL PREMIER

WALL MOUNTED

INSTALLATION MANUAL

1-1/4, 1-1/2 and 2 Tons

LA150HYV3, LA180HYV3, LA240HYV3

3/4 and 1 Tons

LA090HYV3, LA120HYV3

The instructions included in this manual must be followed to prevent product malfunction, property damage, injury, or death to the user or

other people. Incorrect operation due to ignoring any instructions will cause harm or damage. The level of seriousness is classified by the

symbols described below.

Do not throw away, destroy, or lose this manual.

Please read carefully and store in a safe place for future reference.

Content familiarity required for proper installation.

A summary list of safety precautions begins on page 3.

For more technical materials such as submittals, engineering

databooks, and catalogs, visit www.lghvac.com.

For continual product development, LG Electronics U.S.A., Inc., reserves the right to change specifications without notice.

©LG Electronics U.S.A., Inc.

This document, as well as all reports, illustrations, data, information, and other materials are the property of LG Electronics U.S.A., Inc.

PROPRIETARY DATA NOTICE

This document, as well as all reports, illustrations, data, information, and

other materials are the property of LG Electronics U.S.A., Inc., and are

disclosed by LG Electronics U.S.A., Inc., only in confidence.

This document is for design purposes only.

Proper sizing and installation of equipment is critical to achieve optimal performance. Split system air conditioners and heat pumps (exclud-

ing ductless systems) must be matched with appropriate coil components to meet ENERGY STAR

criteria. Ask your contractor for details or

visit www.energystar.gov.

(ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.)

IMPORTANT - This product has been designed and manufactured to meet ENERGY STAR criteria for energy efficiency when matched with

appropriate coil components. However, proper refrigerant charge and proper air flow are critical to achieve rated capacity and efficiency.

Installation of this product should follow the manufacturer’s refrigerant charging and air flow instructions. Failure to confirm proper charge

and airflow may reduce energy efficiency and shorten equipment life.

Safety Instructions

Due to our policy of continuous product innovation, some specifications may change without notification.

SAFETY INSTRUCTIONS

The instructions below must be followed to prevent product malfunction, property damage, injury or death to the user or other people. Incor-

rect operation due to ignoring any instructions will cause harm or damage. The level of seriousness is classified by the symbols described

below.

Do not install or remove the unit by yourself (end user).

Ask the dealer or an LG trained service provider to install the

unit.

,PSURSHULQVWDOODWLRQE\WKHXVHUZLOOUHVXOWLQZDWHUOHDNDJH¿UH

explosion, electric shock, physical injury or death.

For replacement of an installed unit, always contact an LG

trained service provider.

7KHUHLVULVNRI¿UHHOHFWULFVKRFNH[SORVLRQDQGSK\VLFDOLQMXU\RU

death.

The unit is shipped with refrigerant and the service valves

closed.

Do not open service valves on the unit until all

non-condensibles have been removed from the piping sys-

tem and authorization to do so has been obtained from the

commissioning agent.

There is a risk of physical injury or death.

Do not run the compressor with the service valves

closed.

There is a risk of explosion, physical injury, or death.

Periodically check that the outdoor frame is not damaged.

There is a risk of explosion, physical injury, or death.

Replace all control box and panel covers.

If cover panels are not installed securely, dust, water and animals will

HQWHUWKHXQLWFDXVLQJ¿UHHOHFWULFVKRFNDQGSK\VLFDOLQMXU\RUGHDWK

Always check for system refrigerant leaks after the unit has

been installed or serviced.

Exposure to high concentration levels of refrigerant gas will lead to ill-

ness or death.

Wear protective gloves when handling equipment. Sharp

edges will cause personal injury.

Dispose the packing materials safely.

• Packing materials, such as nails and other metal or wooden parts,

will cause puncture wounds or other injuries.

• Tear apart and throw away plastic packaging bags so that children

will not play with them and risk suffocation and death.

Install the unit considering the potential for strong winds or

earthquakes.

Improper installation will cause the unit to fall over, resulting in physical

injury or death.

Do not change the settings of the protection devices.

If the pressure switch, thermal switch, or other protection device is

shorted and forced to operate improperly, or parts other than those

VSHFL¿HGE\/*DUHXVHGWKHUHLVULVNRI¿UHHOHFWULFVKRFNH[SORVLRQ

and physical injury or death.

Do not install the unit on a defective stand.

There is a risk of physical injury.

INSTALLATION

'RQ¶WVWRUHRUXVHÀDPPDEOHJDVFRPEXVWLEOHVQHDUWKHXQLW

7KHUHLVULVNRI¿UHH[SORVLRQDQGSK\VLFDOLQMXU\RUGHDWK

TABLE OF SYMBOLS

This symbol indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

This symbol indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

This symbol indicates situations that may result in equipment or property damage accidents only.

Note:

This symbol indicates information related to the current procedure.

This symbol indicates an action that should not be performed.

D ANGER

WARNING

CAUTION

NOTE

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

SAFETY INSTRUCTIONS

INSTALLATION - CONTINUED

Don’t install the unit where it’s directly exposed to ocean

winds.

Ocean winds will cause corrosion, particularly on the condenser and

HYDSRUDWRU¿QVZKLFKLQWXUQFRXOGFDXVHSURGXFWPDOIXQFWLRQRULQHI-

¿FLHQWSHUIRUPDQFH

When installing the unit in a low-lying area, or a location that

is not level, use a raised concrete pad or concrete blocks to

provide a solid, level foundation.

This will prevent water damage and reduce abnormal vibration.

Properly insulate all cold surfaces to prevent “sweating.”

Cold surfaces such as un-insulated piping can generate condensate that

will drip and cause a slippery surface condition and/or water damage to

walls.

When installing the unit in a hospital, mechanical room, or

VLPLODUHOHFWURPDJQHWLF¿HOG(0)VHQVLWLYHHQYLURQPHQW

SURYLGHVXႈFLHQWSURWHFWLRQDJDLQVWHOHFWULFDOQRLVH

Inverter equipment, power generators, high-frequency medical equip-

ment, or radio communication equipment will cause the air conditioner to

operate improperly. The unit will also affect such equipment by creating

electrical noise that disturbs medical treatment or image broadcasting.

Do not use the product for special purposes such as

preserving foods, works of art, wine coolers, or other

precision air conditioning applications. The equipment is

designed to provide comfort cooling and heating.

There is risk of property damage.

Do not make refrigerant substitutions. Use R410A only.

If a different refrigerant is used, or air mixes with original refrigerant, the

unit will malfunction and be damaged.

Keep the unit upright during installation to avoid vibration or

water leakage.

Do not install the unit in a noise sensitive area.

When connecting refrigerant tubing, remember to allow for

pipe expansion.

Improper piping will cause refrigerant leaks and system malfunction.

Take appropriate actions at the end of HVAC equipment life

to recover, recycle, reclaim or destroy R410A refrigerant

according to applicable U.S. Environmental Protection

Agency (EPA) rules.

Periodically check that the outdoor frame is not damaged.

There is a risk of equipment damage.

Install the unit in a safe location where nobody can step on or

fall onto it.

Do not install the unit on a defective stand.

There is risk of unit and property damage.

Install the drain hose to ensure adequate drainage.

There is a risk of water leakage and property damage.

'RQ¶WVWRUHRUXVHÀDPPDEOHJDVFRPEXVWLEOHVQHDUWKH

unit.

There is risk of product failure.

Always check for system refrigerant leaks after the unit has

been installed or serviced.

Low refrigerant levels will cause product failure

The unit is shipped with refrigerant and the service valves

closed.

Do not open service valves on the unit until all

non-condensibles have been removed from the piping system

and authorization to do so has been obtained from the com-

missioning agent.

There is a risk of refrigerant contamination, refrigerant loss and equip-

ment damage.

Do not run the compressor with the service valves closed.

There is a risk of equipment damage.

CAUTION

Be very careful when transporting the product. Failure to follow these directions will result in minor or moderate physical injury.

• Do not attempt to carry the product without assistance.

• Some products use polypropylene bands for packaging. Do not use polypropylene bands to lift the unit.

• Suspend the unit from the base at specified positions.

• Support the unit a minimum of four points to avoid slippage from rigging apparatus.

If the air conditioner is installed in a small space, take

measures to prevent the refrigerant concentration from

exceeding safety limits in the event of a refrigerant leak.

Consult the latest edition of ASHRAE (American Society of Heating,

Refrigerating, and Air Conditioning Engineers) Standard 15. If the

refrigerant leaks and safety limits are exceeded, it could result in per-

sonal injuries or death from oxygen depletion.

Install the unit in a safe location where nobody can step on or

fall onto it.

There is risk of physical injury or death.

Properly insulate all cold surfaces to prevent “sweating.”

Cold surfaces such as un-insulated piping can generate condensate

that could drip, causing a slippery surface that creates a risk of slipping,

falling, and personal injury.

Safety Instructions

Due to our policy of continuous product innovation, some specifications may change without notification.

SAFETY INSTRUCTIONS

High voltage electricity is required to operate this system.

Adhere to the National Electrical Codes and these

instructions when wiring.

Improper connections and inadequate grounding can cause accidental

injury or death.

Always ground the unit following local, state, and National

Electrical Codes.

7XUQWKHSRZHURႇDWWKHQHDUHVWGLVFRQQHFWEHIRUHVHUYLFLQJ

the equipment.

Electrical shock can cause physical injury or death.

Properly size all circuit breakers or fuses.

7KHUHLVULVNRI¿UHHOHFWULFVKRFNH[SORVLRQSK\VLFDOLQMXU\RUGHDWK

WIRING

The information contained in this manual is intended for use

E\DQLQGXVWU\TXDOL¿HGH[SHULHQFHGFHUWL¿HGHOHFWULFLDQ

familiar with the U.S. National Electric Code (NEC) who is

equipped with the proper tools and test instruments.

Failure to carefully read and follow all instructions in this manual can

result in personal injury or death.

All electric work must be performed by a licensed electrician

and conform to local building codes or, in the absence of

local codes, with the National Electrical Code, and the

instructions given in this manual.

If the power source capacity is inadequate or the electric work is not

SHUIRUPHGSURSHUO\LWZLOOUHVXOWLQ¿UHHOHFWULFVKRFNSK\VLFDOLQMXU\RU

death.

Refer to local, state, and federal codes, and use power wires

RIVXႈFLHQWFXUUHQWFDSDFLW\DQGUDWLQJ

:LUHVWKDWDUHWRRVPDOOZLOOJHQHUDWHKHDWDQGFDXVHD¿UH

6HFXUHDOO¿HOGZLULQJFRQQHFWLRQVZLWKDSSURSULDWHZLUH

strain relief.

Improperly securing wires will create undue stress on equipment power

OXJV,QDGHTXDWHFRQQHFWLRQVZLOOJHQHUDWHKHDWFDXVHD¿UHDQGSK\VL-

cal injury or death.

7KHLQIRUPDWLRQFRQWDLQHGLQWKLVPDQXDOLVLQWHQGHGIRUXVHE\DQLQGXVWU\TXDOL¿HGH[SHULHQFHGFHUWL¿HGHOHFWULFLDQIDPLO-

iar with the U.S. National Electric Code (NEC) who is equipped with the proper tools and test instruments.

Failure to carefully read and follow all instructions in this manual can result in equipment malfunction and property damage.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

SAFETY INSTRUCTIONS

&OHDQXSWKHVLWHDIWHULQVWDOODWLRQLV¿QLVKHGDQGFKHFN

that no metal scraps, screws, or bits of wiring have been left

inside or surrounding the unit.

Do not use this equipment in mission critical or special-

purpose applications such as preserving foods, works of art,

wine coolers or refrigeration. The equipment is designed to

provide comfort cooling and heating.

Do not block the inlet or outlet.

Unit will malfunction.

Securely attach the electrical part cover to the indoor unit

and the service panel to the outdoor unit.

Non-secured covers can result in malfunction due to dust or water in the

service panel.

Periodically verify the equipment mounts have not

deteriorated.

If the base collapses, the unit could fall and cause property damage

or product failure.

Do not allow water, dirt, or animals to enter the unit.

There is risk of unit failure.

OPERATION

Do not provide power to or operate the unit if it is

ÀRRGHGRUVXEPHUJHG

7KHUHLVULVNRI¿UHHOHFWULFVKRFNSK\VLFDOLQMXU\RUGHDWK

Use a dedicated power source for this product.

7KHUHLVULVNRI¿UHHOHFWULFVKRFNSK\VLFDOLQMXU\RUGHDWK

Do not operate the disconnect switch with wet hands.

7KHUHLVULVNRI¿UHHOHFWULFVKRFNSK\VLFDOLQMXU\RUGHDWK

Periodically verify the equipment mounts have not

deteriorated.

If the unit falls from its installed location, it can cause physical injury or

death.

If gas leaks out, ventilate the area before operating the unit.

If the unit is mounted in an enclosed, low-lying, or poorly ventilated area,

DQGWKHV\VWHPGHYHORSVDUHIULJHUDQWOHDNLWZLOOFDXVH¿UHHOHFWULF

shock, explosion, physical injury or death.

CAUTION

To avoid physical injury, use caution when cleaning or servicing the air conditioner.

Do not allow water, dirt, or animals to enter the unit.

7KHUHLVULVNRI¿UHHOHFWULFVKRFNSK\VLFDOLQMXU\RUGHDWK

Avoid excessive cooling, and periodically perform venti-

lation to the unit.

Inadequate ventilation is a health hazard.

Do not touch the refrigerant piping during or after

operation.

It can cause burns or frostbite.

Do not operate the unit with the panel(s) or protective

FRYHUVUHPRYHGNHHS¿QJHUVDQGFORWKLQJDZD\IURP

moving parts.

The rotating, hot, cold, and high-voltage parts of the unit can cause

physical injury or death.

Periodically verify the equipment mounts have not deteriorated.

If the base collapses, the unit can fall and cause physical injury or death.

Periodically check power cord and plug for damage.

Cord must be replaced by the manufacturer, its service agent, or similar

TXDOL¿HGSHUVRQVLQRUGHUWRDYRLGSK\VLFDOLQMXU\DQGRUHOHFWULFVKRFN

Do not open the inlet grille of the unit during operation.

Do not operate the unit with the panels or guards re-

moved.

Do not insert hands or other objects through the

inlet or outlet when the unit is plugged in.

Do not touch

WKHHOHFWURVWDWLF¿OWHULIWKHXQLWLQFOXGHVRQH

The unit contains sharp, rotating, hot, and high voltage parts that can

cause personal injury and/or electric shock.

Securely attach the electrical part cover to the indoor unit

and the service panel to the outdoor unit.

Non-secured covers can result in burns or electric shock due to dust or

water in the service panel.

Due to our policy of continuous product innovation, some specifications may change without notification.

TABLE OF CONTENTS

Safety Instructions ............................................................................. 3-6

General Data ..................................................................................... 8-14

Unit Nomenclature............................................................................... 8

Parts .................................................................................................... 9

6SHFL¿FDWLRQV ............................................................................... 10-13

Electrical............................................................................................ 14

General Installation Guidelines..................................................... 15-24

Outdoor Unit Location Selection................................................... 15-17

Required Outdoor Unit Clearances ................................................... 18

Rigging and Lifting / Outdoor Unit Mounting................................. 19-20

Required Indoor Unit Clearances ...................................................... 21

Indoor Unit Mounting .................................................................... 22-24

General Refrigerant Piping System .............................................. 25-34

Refrigerant Safety Stds / Device Connection Limitations .................. 25

Selecting Field Supplied Piping......................................................... 26

Copper Expansion and Contraction.............................................. 27-28

Piping Handling ................................................................................. 29

Refrigerant System Engineering................................................... 30-32

Flaring and Brazing Procedures................................................... 33-34

Refrigerant Piping Connections.................................................... 35-50

Installation Overview ......................................................................... 35

Special Applications........................................................................... 36

Outdoor Unit Connections ................................................................. 37

Indoor Unit Connections............................................................... 38-42

Outdoor Unit Condensate Drain Hose............................................... 43

Indoor Unit Condensate Drain Hose............................................. 44-47

Bundling............................................................................................. 48

Insulation ...................................................................................... 49-50

Electrical System Installation........................................................ 51-61

6DIHW\*XLGHOLQHV&RQQHFWLRQVDQG6SHFL¿FDWLRQV .................... 51-54

Controller Options.............................................................................. 55

Indoor Unit Electrical Connections ............................................... 56-59

Outdoor Unit Electrical Connections............................................. 60-61

Final Installation Procedures ........................................................ 62-72

Triple Leak / Pressure Test ........................................................... 62-63

Deep Evacuation Procedure......................................................... 63-64

Triple Evacuation Procedure ........................................................ 64-65

Refrigerant Trim Charge .................................................................... 66

Finishing the Job / Finalizing Wall-Mounted Installation .................... 67

Reattaching the Bottom Cover ......................................................... 68

Installing Batteries, Test Run, Performance Evaluation ..................... 69

Installer Modes ............................................................................. 70-71

Pump Down Procedure ..................................................................... 72

Troubleshooting ............................................................................. 73-77

LG Monitoring View (LGMV) Diagnostic Software ........................ 73-74

Error Codes ................................................................................. 75-76

Refrigerant Leaks .............................................................................. 77

Installation Checklist........................................................................... 78

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL DATA

Unit Nomenclature

Single Zone Wall Mount Indoor and Outdoor Units

N 090 HYV 3

Generation or Revision

1 = First

2 = Second

3 = Third

Indoor / Outdoor Product

HYV = Art Cool Premier

Nominal Capacity

(Nominal cooling capacity in Btu/h)

090 = 9,000

120 = 12,000

150 = 15,000

180 = 18,000

240 = 24,000

Type

N = Indoor Wall Mount Unit

U = Outdoor Heat Pump Unit

Family

LA= Art Cool Premier/Gallery/Mirror

Product Data

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL DATA

Parts

• Connecting cable (power and control)

• Piping - vapor line and liquid line, with insulation

• Drain hose extension

Required Parts (field provided)

Included Parts

Part Quantity Image

Installation Plate

(Dimensions Will Vary

Depending on Model)

One (1)

LAN090HYV3, LAN120HYV3 LAN150HYV3, LAN180HYV3,

LAN240HYV3

Type “A” Screws

for Installation Plate

Five (5)

Type “B” Screws

for Wireless Controller

Holder

Two (2)

Type “C” Screws

for Frame

Two (2)

Type “D” Screws

for Bracket

Two (2)

Type “E” Screws

for Drain Hose

(Optional)

One (1)

Bracket One (1)

Wireless

Controller with Holder

AKB74955602

One (1)

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL DATA

6SHFL¿FDWLRQV

Table 1: 6LQJOH=RQH:DOO0RXQWHG$UW&RRO3UHPLHU6\VWHP6SHFL¿FDWLRQV

System (Model) (Indoor Unit / Outdoor Unit)

LA090HYV3

(LAN090HYV3/LAU090HYV3)

LA120HYV3

(LAN120HYV3/LAU120HYV3)

Cooling Capacity (Min/Rated/Max) (Btu/h) 1,023 ~ 9,000 ~ 13,000 1,023 ~ 12,000 ~ 13,785

Cooling Power Input

(Min/Rated/Max) (kW) 0.20 ~ 0.57 ~ 0.74 0.20 ~ 0.87 ~ 1.14

EER2 (@95°F) 15.8 13.8

SEER2 27.0 25.5

Heating Capacity (Min/Rated/Max) (Btu/h) 1,023 ~ 11,000 ~ 20,472 1,023 ~ 13,600 ~ 22,178

Heating Power Input

(Min/Rated/Max) (kW) 0.195 ~ 0.71 ~ 0.93 0.195 ~ 0.97 ~ 1.25

COP (@47°F) 4.54 4.11

HSPF2 13.5 11.2

Rated Low Heating Capacity (Btu/h)

Outdoor 17°F (WB)/Indoor 70°F (DB) 6,750 8,350

Low COP (@17°F) 3.47 3.14

Maximum Heating Capacity (Btu/h)

Outdoor 17°F (WB)/Indoor 70°F (DB) 11,940 (108%) 14,760 (109%)

Outdoor 5°F (WB)/Indoor 70°F (DB) 11,000 (100%) 13,600 (100%)

Outdoor -4 °F (WB)/Indoor 70°F (DB) 9,700 (88%) 11,720 (86%)

Outdoor -13°F (WB)/Indoor 70°F (DB) 8,030 (73%) 9,640 (70%)

ENERGY STAR / Cold Climate Yes / Yes Yes / Yes

Power Supply (V/Hz/Ø) 208-230/60/1

Power/Communication Cable

(No. x AWG) 4 x 14

Outdoor Unit Operating Range

Cooling (°F DB) 14 to 118

Heating (°F WB) -13 to +65

Indoor Unit Operating Range

Cooling (°F WB) 53 to 75

Heating (°F DB) 60 to 86

Indoor Temperature Setting Range

Cooling (°F) 64 to 86

Heating (°F) 60 to 86

Unit Data

Refrigerant Type

/ Refrigerant Control R410A / EEV

IDU Sound Pressure

dB(A) (H/M/L/Sleep) 42 / 36 / 26 / 22 42 / 36 / 26 / 22

ODU Sound Pressure

dB(A) (Cool/Heat) 48 / 50 48 / 50

ODU Max. External Static Pressure (in.wg) 0.0387 0.0387

IDU Dimensions (W x H x D) (in.) 39-9/32 x 13-19/32 x 8-9/32 39-9/32 x 13-19/32 x 8-9/32

ODU Dimensions (W x H x D) (in.) 34-1/4 x 25-19/32 x 13 34-1/4 x 25-19/32 x 13

IDU Net / Shipping Weight (lbs.) 25.1 / 29.5 25.1 / 29.5

ODU Net / Shipping Weight (lbs.) 93.9 / 103.2 93.9 / 103.2

Compressor (Type x Qty.) Twin Rotary x 1 Twin Rotary x 1

EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit

Power Input is rated at high speed.

All power wiring/communication cables are field supplied and are to be minimum 14 AWG, 4-conductor,

stranded, shielded or unshielded (if shielded, must be grounded to chassis at outdoor unit only) and

must comply with applicable local and national codes.

Optional Low Ambient Wind Baffle Kit allows operation down to 0°F in cooling mode.

Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A

refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.

Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.

Piping lengths are equivalent.

This unit comes with a dry helium charge.

This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level

difference outdoor and indoor units.

Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet

bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).

Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet

bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

Product Data

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL DATA

7DEOH$UW&RRO3UHPLHU8QLW6SHFL¿FDWLRQV&RQWLQXHG

6SHFL¿FDWLRQV

System (Model) (Indoor Unit / Outdoor Unit)

LA090HYV3

(LAN090HYV3/LAU090HYV3)

LA120HYV3

(LAN120HYV3/LAU120HYV3)

Dehumidification Rate (pts./hr.) 3.17 3.59

Heat Exchanger

Material and Fin Coating Copper Tube / Aluminum Fin (Gold Fin™ Coating on Outdoor Unit Coil; N/A on Indoor Unit Coil)

Rows / Columns / Fin per inch x Qty. Outdoor Unit: 2 x 28 x 18; Indoor Unit: 2 x 16 x 20

Fan

Indoor Unit Type x Qty. Cross Flow x 1

Outdoor Unit Type x Qty. Propeller x 1

Outdoor Unit Motor Output (W) x Qty. 85 x 1 85 x 1

Outdoor Unit Motor / Drive Brushless Digitally Controlled/Direct

Airflow Rate

IDU Max/H/M/L (CFM) 530 / 424 / 353 / 184 530 / 424 / 353 / 184

ODU Max (CFM) 1,730 1,730

Piping

Liquid (in.) Connection / Pipe Size 1/4 / 1/4 1/4 / 1/4

Vapor (in.) Connection / Pipe Size 3/8 / 3/8 3/8 / 3/8

Condensation Line (OD, ID, in.) 25/32, 19/32 25/32, 19/32

Refrigerant Pre-Charge (oz.) 40.6 40.6

Additional Refrigerant Charge (oz/ft) 0.22 0.22

Pipe Length

(Minimum/Maximum) (ft) 9.8/65.6 9.8/65.6

Piping Length

(no add’l refrigerant, ft) 24.6 24.6

Max Elevation Difference (ft) 39.4 39.4

EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit

Power Input is rated at high speed.

All power wiring/communication cables are field supplied and are to be minimum 14 AWG, 4-conductor,

stranded, shielded or unshielded (if shielded, must be grounded to chassis at outdoor unit only) and

must comply with applicable local and national codes.

Optional Low Ambient Wind Baffle Kit allows operation down to 0°F in cooling mode.

Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A

refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.

Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.

Piping lengths are equivalent.

This unit comes with a dry helium charge.

This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level

difference outdoor and indoor units.

Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet

bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).

Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet

bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL DATA

System (Model) (Indoor Unit / Outdoor Unit)

LA150HYV3

(LAN150HYV3/LAU150HYV3)

LA180HYV3

(LAN180HYV3/LAU180HYV3)

LA240HYV3

(LAN240HYV3/LAU240HYV3)

Cooling Capacity (Min/Rated/Max) (Btu/h) 3,070 ~ 15,000 ~ 21,000 3,070 ~ 18,000 ~ 29,515 3,070 ~ 22,000 ~ 30,000

Cooling Power Input

(Min/Rated/Max) (kW) 0.40 ~ 1.0 ~ 1.73 0.40 ~ 1.25 ~ 2.43 0.40 ~ 1.692 ~ 3.17

EER2 (@95°F) 15.0 14.4 13.0

SEER2 25.0 24.0 23.0

Heating Capacity (Min/Rated/Max) (Btu/h) 3,070 ~ 18,000 ~ 25,200 3,070 ~ 21,600 ~ 32,000 3,070 ~ 26,000 ~ 36,200

Heating Power Input

(Min/Rated/Max) (kW) 0.55 ~ 1.125 ~ 1.99 0.66 ~ 1.543 ~ 2.71 0.66 ~ 2.08 ~ 3.24

COP (@47°F) 4.69 4.10 3.66

HSPF2 11.0 10.8 10.0

Rated Low Heating Capacity (Btu/h)

Outdoor 17°F (WB)/Indoor 70°F (DB) 11,050 13,250 17,500

Low COP (@17°F) 3.56 3.13 2.95

Maximum Heating Capacity (Btu/h)

Outdoor 17°F (WB)/Indoor 70°F (DB) 21,430 (119%) 24,920 (115%) 27,360 (105%)

Outdoor 5°F (WB)/Indoor 70°F (DB) 18,950 (105%) 21,600 (100%) 23,700 (91%)

Outdoor -4 °F (WB)/Indoor 70°F (DB) 16,880 (94%) 18,710 (87%) 21,170 (81%)

Outdoor -13 °F (WB)/Indoor 70°F (DB) 14,660 (81%) 15,680 (73%) 17,740(68%)

ENERGY STAR 6.1 / Cold Climate Yes / Yes Yes / Yes Yes / Yes

Power Supply (V/Hz/Ø) 208-230/60/1

Power/Communication Cable

(No. x AWG) 4 x 14

Outdoor Unit Operating Range

Cooling (°F DB) 14 to 118

Heating (°F WB) -13 to 65

Indoor Unit Operating Range

Cooling (°F WB) 53 to 75

Heating (°F DB) 60 to 86

Indoor Temperature Setting Range

Cooling (°F) 64 to 86

Heating (°F) 60 to 86

Unit Data

Refrigerant Type

/ Refrigerant Control R410A / EEV

IDU Sound Pressure

dB(A) (H/M/L/Sleep) 49 / 44 / 40 / 30 49 / 44 / 40 / 30 49 / 44 / 40 / 30

ODU Sound Pressure

dB(A) (Cooling/Heat) 51 / 56 53 / 56 55 / 56

ODU Max. External Static Pressure (in.wg) 0.0409 0.0409 0.0409

IDU Dimensions (W x H x D) (in.) 41-23/32 x 14-23/32 x 10-7/16 41-23/32 x 14-23/32 x 10-7/16 41-23/32 x 14-23/32 x 10-7/16

ODU Dimensions (W x H x D) (in.) 37-13/32 x 32-3/4 x 13 37-13/32 x 32-3/4 x 13 37-13/32 x 32-3/4 x 13

IDU Net / Shipping Weight (lbs.) 37.7 / 45.6 37.7 / 45.6 37.7 / 45.6

ODU Net / Shipping Weight (lbs.) 135.4 / 147.7 135.4 / 147.7 135.4 / 147.7

Compressor Type (Qty) Twin Rotary (1) Twin Rotary (1) Twin Rotary (1)

7DEOH$UW&RRO3UHPLHU8QLW6SHFL¿FDWLRQV&RQWLQXHG

EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit

Power Input is rated at high speed.

All power wiring/communication cables are field supplied and are to be minimum 14 AWG, 4-conductor,

stranded, shielded or unshielded (if shielded, must be grounded to chassis at outdoor unit only) and

must comply with applicable local and national codes.

Optional Low Ambient Wind Baffle Kit allows operation down to 0°F in cooling mode.

Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A

refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.

Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.

Piping lengths are equivalent.

This unit comes with a dry helium charge.

This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level

difference outdoor and indoor units.

Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet

bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).

Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet

bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

6SHFL¿FDWLRQV

Product Data

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL DATA

System (Model) (Indoor Unit / Outdoor Unit)

LA150HYV3

(LAN150HYV3/LAU150HYV3)

LA180HYV3

(LAN180HYV3/LAU180HYV3)

LA240HYV3

(LAN240HYV3/LAU240HYV3)

Dehumidification Rate (pts./hr.) 3.8 4.65 4.65

Heat Exchanger

Material and Fin Coating Copper Tube / Aluminum Fin (Gold Fin™ Coating on Outdoor Unit Coil; N/A on Indoor Unit Coil)

Rows / Columns / Fin per inch x Qty. Outdoor Unit: 2 x 38 x 17; Indoor Unit: 3 x 18 x 21

Fan

Indoor Unit Type x Qty. Cross Flow x 1

Outdoor Unit Type x Qty. Propeller x 1

Outdoor Unit Motor Output (W) x Qty. 124 x 1 124 x 1 124 x 1

Outdoor Unit Motor / Drive Brushless Digitally Controlled/Direct

Airflow Rate

IDU Max/H/M/L (CFM) 813 / 601 / 495 / 389 813 / 601 / 495 / 389 813 / 601 / 495 / 389

ODU Max (CFM) 2,119 2,119 2,119

Piping

Liquid (in.)

Connection / Pipe

Size

3/8 / 3/8 3/8 / 3/8 3/8 / 3/8

Vapor (in.)

Connection / Pipe

Size

5/8 / 5/8 5/8 / 5/8 5/8 / 5/8

Condensation Line (OD, ID) 25/32, 19/32 25/32, 19/32 25/32, 19/32

Refrigerant Pre-Charge (oz.) 77.6 77.6 77.6

Additional Refrigerant Charge (oz/ft) 0.38 0.38 0.38

Pipe Length

(Minimum/Maximum) (ft) 9.8/164 9.8/164 9.8/164

Piping Length

(no add’l refrigerant, ft) 24.6 24.6 24.6

Max Elevation Difference (ft) 98.4 98.4 98.4

7DEOH$UW&RRO3UHPLHU8QLW6SHFL¿FDWLRQV&RQWLQXHG

EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit

Power Input is rated at high speed.

All power wiring/communication cables are field supplied and are to be minimum 14 AWG, 4-conductor,

stranded, shielded or unshielded (if shielded, must be grounded to chassis at outdoor unit only) and

must comply with applicable local and national codes.

Optional Low Ambient Wind Baffle Kit allows operation down to 0°F in cooling mode.

Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A

refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.

Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.

Piping lengths are equivalent.

This unit comes with a dry helium charge.

This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level

difference outdoor and indoor units.

Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet

bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).

Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet

bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

6SHFL¿FDWLRQV

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL DATA

Electrical

Nominal

Tons

Unit Model

Number

Hertz Voltage

Voltage Range

(Min. to Max.)

MCA MOP

Compressor

Qty.

Compressor Motor

RLA

Outdoor Fan

Motor

Indoor Fan

Motor

Cooling Heating W FLA W FLA

3/4 LA090HYV3

60 208 -230 187 - 253

11.2 15 1 8.3 8.3 85 0.4 58 0.4

1 LA120HYV3 11.2 15 1 8.3 8.3 85 0.4 58 0.4

1-1/4 LA150HYV3 19.0 30 1 14.41 14.41 124 0.4 58 0.5

1-1/2 LA180HYV3 19.0 30 1 14.41 14.41 124 0.4 58 0.5

2 LA240HYV3 19.0 30 1 14.41 14.41 124 0.4 58 0.5

Table 2: Art Cool Premier Electrical Data

Voltage tolerance is ±10%.

Maximum allowable voltage unbalance is 2%.

MCA = Minimum Circuit Ampacity.

Maximum Overcurrent Protection (MOP) is calculated as follows: (Largest motor FLA x 2.25) + (Sum of

other motor FLA) rounded down to the nearest standard fuse size.

RLA = Rated Load Amps.

FLA = Full Load Amps.

General Installation Guidelines

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

Selecting the Best Location for the Outdoor Unit

DANGER

• Do not install the unit in an area where combustible gas will generate, flow, stagnate, or leak. These conditions can cause a fire, resulting

in bodily injury or death.

•

Do not install the unit in a location where acidic solution and spray (sulfur) are often used as it can cause bodily injury or death.

• Do not use the unit in environments where oil, steam, or sulfuric gas are present as it can cause bodily injury or death.

When deciding on a location to place the outdoor unit, be sure to choose an area where run-off water from defrost cycle will not accumulate and

freeze on sidewalks or driveways, which will create unsafe conditions. Properly install and insulate any drain hoses to prevent the hose from freez-

ing, cracking, leaking, and causing unsafe conditions from frozen condensate.

Install a fence to prevent vermin from crawling into the unit or unauthorized individuals from accessing it. Vermin and unauthorized individuals will

FDXVHD¿UHHOHFWULFVKRFNSK\VLFDOLQMXU\RUGHDWK)ROORZWKHSODFHPHQWJXLGHOLQHVVHWIRUWKLQ³&OHDUDQFH5HTXLUHPHQWV´

Install a fence to prevent vermin from crawling into the unit or unauthorized individuals from accessing it. Vermin and unauthorized individuals will

GDPDJHWKHXQLW)ROORZWKHSODFHPHQWJXLGHOLQHVVHWIRUWKLQ³&OHDUDQFH5HTXLUHPHQWV´

Select a location for installing the outdoor unit that will meet the following conditions:

• Where there is enough structural strength to bear the weight of the unit.

• A location that allows for optimum air flow and is easily accessible for inspection, maintenance, and service.

• Where piping between the outdoor unit and indoor unit is within allowable limits.

• Include space for drainage to ensure condensate flows properly out of the unit when it is in heating mode.

Avoid placing the outdoor

unit in a low-lying area where water could accumulate.

• If the outdoor unit is installed in a highly humid environment (near an ocean, lake, etc.), ensure that the site is well-ventilated and has a lot

of natural light (Example: Install on a rooftop).

Do Not’s

• Where it will be subjected to direct thermal radiation from other heat sources, or an area that would expose the outdoor unit to heat or steam

like discharge from boiler stacks, chimneys, steam relief ports, other air conditioning units, kitchen vents, plumbing vents, and other sources

of extreme temperatures.

• Where high-frequency electrical noise / electromagnetic waves will affect operation.

• Where operating sound from the unit will disturb inhabitants of surrounding buildings.

• Where the unit will be exposed to direct, strong winds.

• Where the discharge of one outdoor unit will blow into the inlet side of an adjacent unit (when installing multiple outdoor units).

Planning for Snow and Ice

To ensure the outdoor unit operates properly, certain measures are required in locations where there is a possibility of heavy snowfall or

severe windchill or cold:

1. Prepare for severe winter wind chills and heavy snowfall, even in areas of the country where these are unusual phenomena.

2. Position the outdoor unit so that its airflow fans are not buried by direct, heavy snowfall. If snow piles up and blocks the airflow, the sys-

tem will malfunction.

3. Remove any snow that has accumulated four (4) inches or more on the top of the outdoor unit.

4. In climates that can experience significant snow buildup, mount the outdoor unit on a raised, field-provided platform or stand. The raised

support platform must be high enough to allow the unit to remain above possible snow drifts, and must be higher than the maximum antici-

pated snowfall for the location.

5. Design the mounting base to prevent snow accumulation on the platform in front or back of the unit frame.

6. Provide a field fabricated snow protection hood to keep snow and ice and/or drifting snow from accumulating on the coil surfaces.

7. To prevent snow and heavy rain from entering the outdoor unit, install the condenser air inlets and outlets facing away from direct

winds.

8. Consider tie-down requirements in case of high winds or where required by local codes.

Outdoor Unit Location Selection

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

Planning for Snow and Ice, continued.

The indoor unit will take longer to provide heat, or heating performance will be reduced in winter if the unit is installed:

Choose an area where run-off water from defrost cycle will not accumulate and freeze on sidewalks or driveways. Properly install and insulate any

drain hoses to prevent the hose from freezing, cracking, leaking, and damaging the outdoor unit.

1. In a narrow, shady location.

2. Near a location that has a lot of ground moisture.

3. In a highly humid environment.

4. In an area in which condensate does not drain properly.

Outdoor Unit Location Selection

When deciding on a location to place the outdoor unit, be sure to choose an area where run-off water from defrost cycle will not accumulate and

freeze on sidewalks or driveways, which will create unsafe conditions. Properly install and insulate any drain hoses to prevent the hose from freez-

ing, cracking, leaking, and causing unsafe conditions from frozen condensate.

Tie-Downs and Lightning Protection

Tie-Downs

• The strength of the roof must be checked before installing the

outdoor units.

• If the installation site is prone to high winds or earthquakes, when

installing on the wall or roof, securely anchor the mounting base

using a field-provided tie-down configuration approved by a local

professional engineer.

• The overall tie-down configuration must be approved by a local

professional engineer.

Always refer to local code when using a wind restraint system.

Lightning Protection

• To protect the outdoor unit from lightning, it must be placed within

the specified lightning safety zone.

• Power cable and communication cable must be installed five (5) feet away from lightning rod.

• A high-resistance ground system must be included to protect against induced lightning or indirect strike.

Building Height (feet) 66 98 148 197

3URWHFWLRQ$QJOHÜ 55 45 35 25

If the building does not include lightning protection, the outdoor unit could be damaged from a lightening strike. Inform the customer of this possibility

in advance.

Ground

Safe zone

Lightning rod

3URWHFWLRQ$QJOHÛaÛ

5 feet

Lightning rod

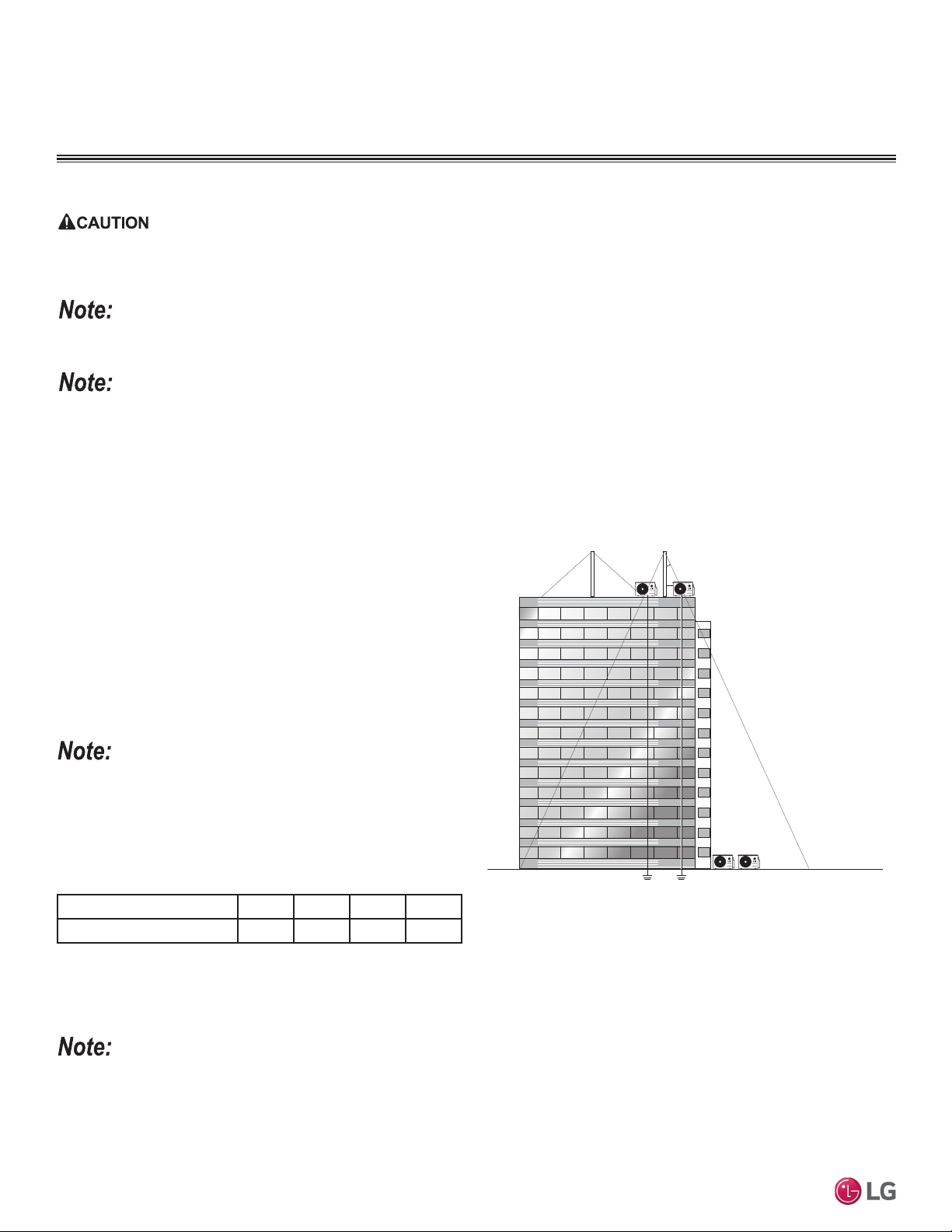

Figure 1: Lightning Protection Diagram.

Table 3: Safety Zone Specifications.

General Installation Guidelines

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

• Avoid installing the outdoor unit where it would be directly

exposed to ocean winds.

• Install the outdoor unit on the side of the building opposite from

direct ocean winds.

• Select a location with good drainage.

• Periodically clean dust or salt particles off of the heat exchanger

with water.

• If the outdoor unit must be placed in a location where it would

be subjected to direct ocean winds, install a concrete windbreak

strong enough to block any winds.

• Windbreak must be more than 150% of the outdoor unit’s height.

There must be 2 to 3-1/2 inches of clearance between the outdoor

unit and the windbreaker for purposes of air flow.

Additional anti-corrosion treatment will need to be applied to the outdoor

unit at oceanside locations.

Ocean winds will cause corrosion, particularly on the condenser and

HYDSRUDWRU¿QVZKLFKLQWXUQFRXOGFDXVHSURGXFWPDOIXQFWLRQRULQHI-

¿FLHQWSHUIRUPDQFH

Oceanside Applications

Use of a Windbreak to Shield from Sea Wind

Use of a Building to Shield from Sea Wind

If a windbreak is not possible, a building or larger structure must be

used to shield the outdoor unit from direct exposure to the sea wind.

The unit must be placed on the side of the building directly opposite

to the direction of the wind as shown at right.

Figure 2: Oceanside Placement Using Windbreak.

Figure 3: Placement Using Building as Shield.

Sea wind

Windbreak

Sea wind

Building

Outdoor Unit Location Selection

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

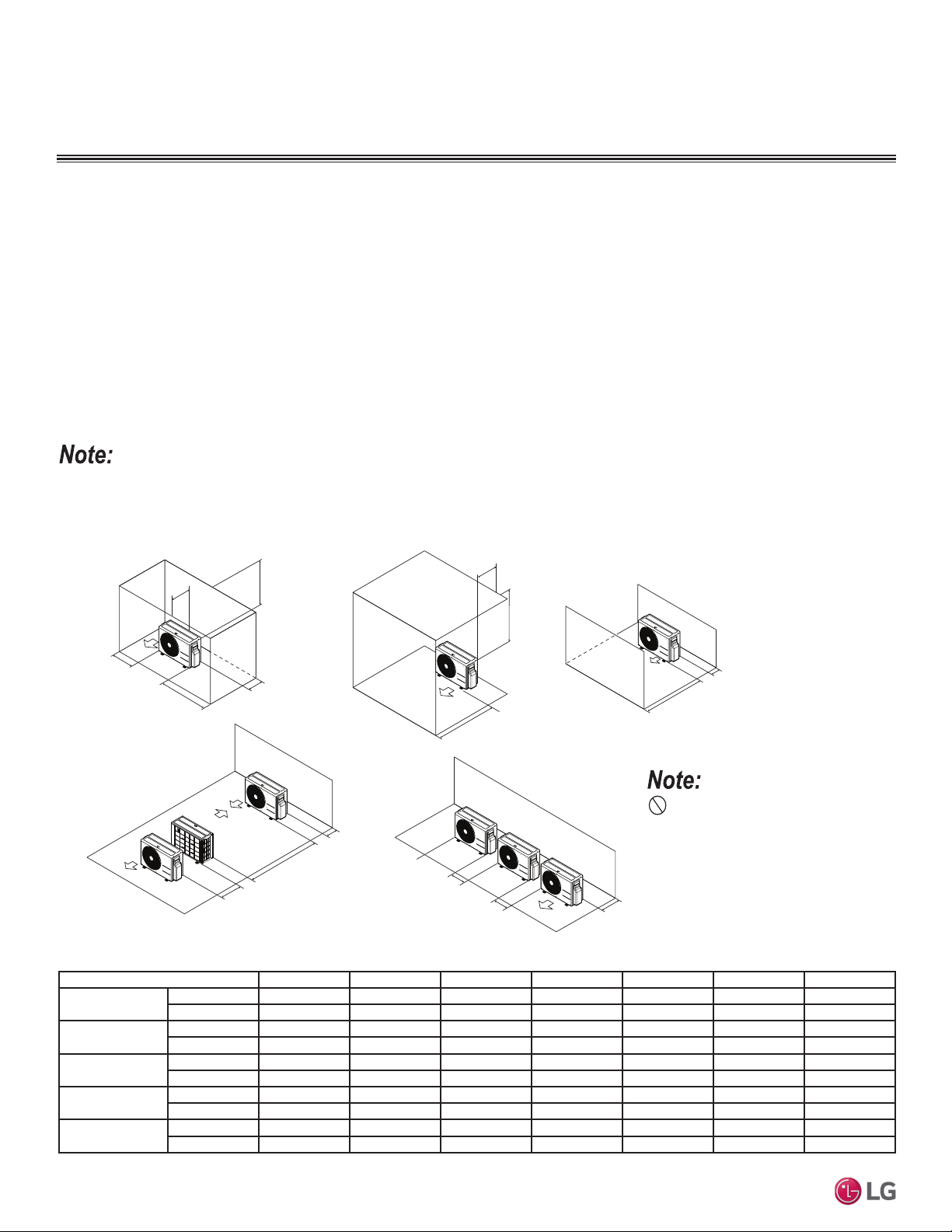

Figure 4: Single Fan Outdoor Unit Service Access and Allowable Clearances Diagram.

Unit: Inch A B C D E F G

Case 1

Standard 12 24 - 12 - - -

Minimum 410- 4 - -40

Case 2

Standard --20----

Minimum --14---40

Case 3

Standard --2012---

Minimum --144---

Case 4

Standard ---1224--

Minimum ---4879-

Case 5

Standard -24-12- - -

Minimum -10-4---

Table 4: Single Fan Outdoor Unit Service Access and Allowable Clearances Diagram Legend.

Do not place the unit where animals

and/or plants will be in the path of the warm

air, or where the warm air and/or noise will

disturb neighbors.

If the outdoor unit is installed between standard and minimum clearances, capacity decreases approximately 10%.

Minimum Clearance Requirements for Single Fan Outdoor Units

Proper clearance for the outdoor unit coil is critical for proper operation. When installing the outdoor unit, consider service, inlet and outlet,

and minimum allowable space requirements as illustrated in the diagrams below.

Specific clearance requirements in the diagram below are for single fan outdoor units. Figure 4 shows the overall minimum clearances that

must be observed for safe operation and adequate airflow around the outdoor unit.

When placing the outdoor unit under an overhang, awning, sunroof or other “roof-like structure”, observe the clearance requirements (as

shown in Cases 1 and 2) for height in relation to the unit. This clearance ensures that heat radiation from the condenser is not restricted

around the unit.

Adhere to all clearance requirements if installing the unit on a roof. Be sure to level the unit and ensure that the unit is adequately anchored.

Consult local codes for rooftop mounting requirements. To have successful service access to the outdoor unit, see Figure 4 for minimum

spacing. When installing multiple outdoor units, see Cases 4 and 5 in Figure 4 for correct spacing requirements. Outdoor unit fans draw air

from the back of the unit and discharge out the front. Place units back to back and front to front.

1/16 inch

20 inches or less

Case 1

Case 4

Case 2 Case 3

Case 5

20 inches or less

Required Outdoor Unit Clearances

General Installation Guidelines

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

Rigging and Lifting / Outdoor Unit Mounting

Rigging and Lifting Instructions

Wear protective gloves and safety goggles when handling equipment. Sharp edges will cause personal injury.

Dispose of the packing materials safely.

• Packing materials, such as nails and other metal or wooden parts, will cause puncture wounds or other injuries.

• Tear apart and throw away plastic packaging bags so that children will not play with them and risk suffocation and death.

• Be very careful when transporting the product. There is a risk of the product falling and causing physical injury.

• Use appropriate moving equipment to transport each frame; ensure the equipment is capable of supporting the weights listed.

• Some products use polypropylene bands for packaging. Do not use polypropylene bands to lift the unit.

• Support the outdoor unit at a minimum of four points to avoid slippage from rigging apparatus.

• Make sure the outdoor unit is in its original packaging to avoid damage during local transport.

• At the time of delivery, the package must be checked for any damage (exterior and interior). Report any damage to the carrier claims agent

immediately.

• Handle the outdoor unit with care. Keep the outdoor unit upright to avoid damaging inside components.

• If a forklift is to transport the outdoor unit, the forklift arms must pass through the openings at the bottom.

• If a crane is to suspend the outdoor unit, it is required that two (2) ropes at least twenty-three (23) feet in length be used. Pass the ropes under

the unit. Pass the rope through the two (2) forklift slots each at the front and rear of the outdoor unit.

• 7RSUHYHQWGDPDJHWRWKHRXWGRRUXQLWDOZD\VOLIWWKHXQLWZLWKWKHURSHVDWWDFKHGDWIRXUSRLQWVDWDQDQJOHRI

• Always include padding to protect the outdoor unit from rope damage, and take into consideration the outdoor unit’s center of gravity.

General Outdoor Unit Mounting

Any underlying structure or foundation must be designed to support the weight of the

outdoor unit. Avoid placing the unit in a low lying area where water and ice will

accumulate. Securely attach the outdoor unit to a condenser pad, base rails, or a

mounting platform that is solidly anchored to the ground or building structure. When

installing the outdoor unit on the wall or roof top, securely anchor the mounting base

to account for wind, earthquakes, or vibration.

Anchoring the Outdoor Unit

• Tightly anchor the outdoor unit with a bolt and nut to a concrete or rigid platform

(see next page for more details).

• When installing on a wall (with field-supplied brackets), roof, or rooftop, securely

anchor the mounting platform with nails, taking into consideration the possibility of

strong winds or earthquakes.

• If there is a possibility of vibration from the outdoor unit transmitting to the building,

add an anti-vibration material.

Follow applicable local codes for clearance, mounting, anchor and vibration attenuation

requirements.

Figure 5: Examples of Outdoor Unit Mounting Methods.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

Model

Foundation (Inches) Leg

Thickness

(Inches)

ABC

LAU090HYV3, LAU120HYV3 23-1/16 Min. 4 15-3/4 1/16

LAU150HYV3, LAU180HYV3,

LAU240HYV3

24-13/32 Min. 4 16 3/32

Concrete Platform Specifi-

cations

• Concrete foundations must

be made of one part cement,

two parts sand, and four parts

gravel.

• The surface of the foundation

must be finished with mortar

with rounded edges, and

weatherproofed.

$OOUHIHUHQFHGPDWHULDOVDUHWREH¿HOGVXSSOLHG,PDJHVDUHQRWWRVFDOH

7/16 (M10)

Anchor Bolt

Minimum 3 to 5

Minimum 1

Unit: Inch

Bolt

Placement

& Anti-Vibration

Pad

Piping Connection

Top of Unit

Foundation

Bolting the Outdoor Unit to the Platform

1. Ensure that the concrete platform will not degrade easily, and

has enough structural strength to bear the weight of the unit.

2. Include an H-beam support. Firmly attach the corners, otherwise

the support will bend.

3. Use a hexagon nut.

4. Use anti-vibration material.

5. Include enough space around the concrete foundation for con-

densate drainage.

6. Seal all wiring and piping access holes to prevent insects from

entering the unit.

Figure 6: Example of Using an Insert

for a Hole in a Reinforced Concrete

Beam.

Outdoor Unit Platform Dimensional Requirements

Figure 7: Close up of Bolt Attachment.

Figure 8: Single Zone Art Cool Premier Wall Mount Outdoor Units.

Table 5: 2XWGRRU8QLW)RXQGDWLRQ6SHFL¿FDWLRQV

Figure 9: Bolting the Outdoor Unit to the Platform (Piping Location Will

Differ Depending on Outdoor Unit Model).

Concrete Beam

Insert

Suspension Bolt

Polyblock /

Anti-Vibration

Material

Nail Securing

Polyblock

Outdoor Unit Mounting

5HYLHZWKHVSHFL¿FDWLRQVIRU¿HOGVXSSOLHGSDGPRXQWVRUEUDFNHWVWR

verify that outdoor dimension requirements are met.

B or

24-13/32 inches

Minimum 16

>4 inches

LAU090HYV3, LAU120HYV3

LAU150HYV3, LAU180HYV3, LAU240HYV3

General Installation Guidelines

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

Required Indoor Unit Clearances

Follow required best practices when choosing an indoor location for the

single zone Art Cool Premier indoor unit.

Do’s

• Minimum clearance of indoor unit from the top of the unit to the

ceiling must be greater than 8 inches.

• Clearance gap between any wall or enclosure and the left or right

side of the unit must be greater than 4 inches. Ensure there is suf-

ficient maintenance space.

• 8QLWPXVWEHDWOHDVWIHHWIURPWKHÀRRUIRUDGHTXDWHFOHDUDQFH

• Place the unit where drainage can be obtained easily. Condensa-

tion drain must be conveniently routed away from the unit.

• Locate the indoor unit in a location where it can be easily con-

nected to the outdoor unit within allowable limits.

• Install the indoor unit on a strong, hard wall that can withstand its weight. Use a metal detector to locate studs in the walls. Anchor unit fol-

lowing stud location to prevent damage to the wall.

Do Not’s

• Do not install the unit near a heat or steam source, or where considerable amounts of oil, iron powder, or flour are used. (These materials

will generate condensate, cause a reduction in heat exchanger efficiency, or the drain to malfunction. If this is a potential problem, install a

ventilation fan large enough to vent out these materials.)

• Ensure there are no obstacles to air circulation around the unit; keep proper distances from ceilings, doorways, floor, walls, etc.

• Do not install in an area where operation sound will disturb occupants--place the unit where noise prevention is taken into consideration

• Do not install near doorway.

• Avoid installing the unit near high-frequency generators.

7KHXQLWPXVWQRWEHLQVWDOOHGZKHUHVXOIXULFDFLGDQGÀDPPDEOHRUFRU-

URVLYHJDVHVDUHJHQHUDWHGYHQWHGLQWRRUVWRUHG7KHUHLVULVNRI¿UH

explosion, and physical injury or death.

WARNING

The unit will be damaged, will malfunction, and / or will not

operate as designed if installed in any of the conditions

listed.

• Indoor units (IDUs) must not be placed in an environment where the IDUs will be exposed to harmful volatile organic compounds (VOCs)

or in environments where there is improper air make up or supply or inadequate ventilation. If there are concerns about VOCs in the envi-

ronment where the IDUs are installed, proper air make up or supply and/or adequate ventilation must be provided. Additionally, in buildings

where IDUs will be exposed to VOCs, consider a third party factory-applied epoxy coating to the fan coils for each IDU where the entire coil

is dipped, not sprayed.

• If the unit is installed near a body of water, the installation parts are at risk of corroding. Appropriate anti-corrosion methods must be taken for

the unit and all installation parts.

Installing in an Area Exposed to Unconditioned Air

In some installation applications, areas (floors, walls) in some rooms will be exposed to unconditioned air (room will be above or next to an

unheated garage or storeroom). To countermeasure:

• Verify that carpet is or will be installed (carpet could increase the temperature by three [3] degrees).

• Add insulation between the floor joists.

• Install radiant heat or another type of heating system to the floor.

Install a ventilation fan

with sufficient capacity

Heat or steam source

Include enough

distance

Indoor Unit

Figure 10: Installing Near a Heat or Steam Source.

Figure 11: Single Zone Art Cool Premier Wall Mount Indoor Unit Clear-

ance Requirements.

More than 8 inches

(200 mm)

More than

4 inches

(100 mm)

More than

4 inches

(100 mm)

At least 6-1/2 feet

(2 m) from the floor

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

Indoor Unit Mounting

1. The wall mounted indoor unit is shipped with the installation plate

attached to its back. To remove, Unscrew all screw / screws that

hold the installation plate to the back of the indoor unit. Number

of screws depends on the indoor unit model.

2. Confirm the location where the installation plate will be placed.

(Install the indoor unit on a strong, hard wall that can withstand

its weight.)

3. Align the centerline using a leveling tool. Measure the wall and

mark the centerline.

4. Attach the installation plate to the wall following the measure-

ments and marks. Use the type “A” screws that are factory-sup-

plied with the plate.

• Insert a screw into the center hole of the installation plate, and

tighten.

• Verify the installation plate is horizontal using a leveling tool.

• Tighten the remaining screws into the holes indicated on the

installation plate.

If the installation plate is not level, any condensate will not drain away

VPRRWKO\ZLOOOHDNLQWRWKHURRPDQGZLOOGDPDJHZDOOVDQGÀRRUV

5. Observe all rear piping clearances when drilling into the wall.

Do not use nails and / or screws to attach indoor units to sheet rock, drywall, plasterboard,

tile, plywood, or similar materials without proper anchors. Indoor units must be securely, and

properly mounted / anchored. Improper installation will result in physical injury.

Do not use nails and / or screws to attach indoor units to sheet rock, drywall, plasterboard,

tile, plywood, or similar materials without proper anchors. Indoor units must be securely and prop-

erly mounted / anchored. Improper installation will result in damage to the indoor unit.

Anchor

Anchor Screw

15/64 x 1-3/16 in.

(6 x 30 mm)

5/32 x 1-31/32 in.

(4 x 50 mm)

Table 6: Anchor / Screw Sizes.

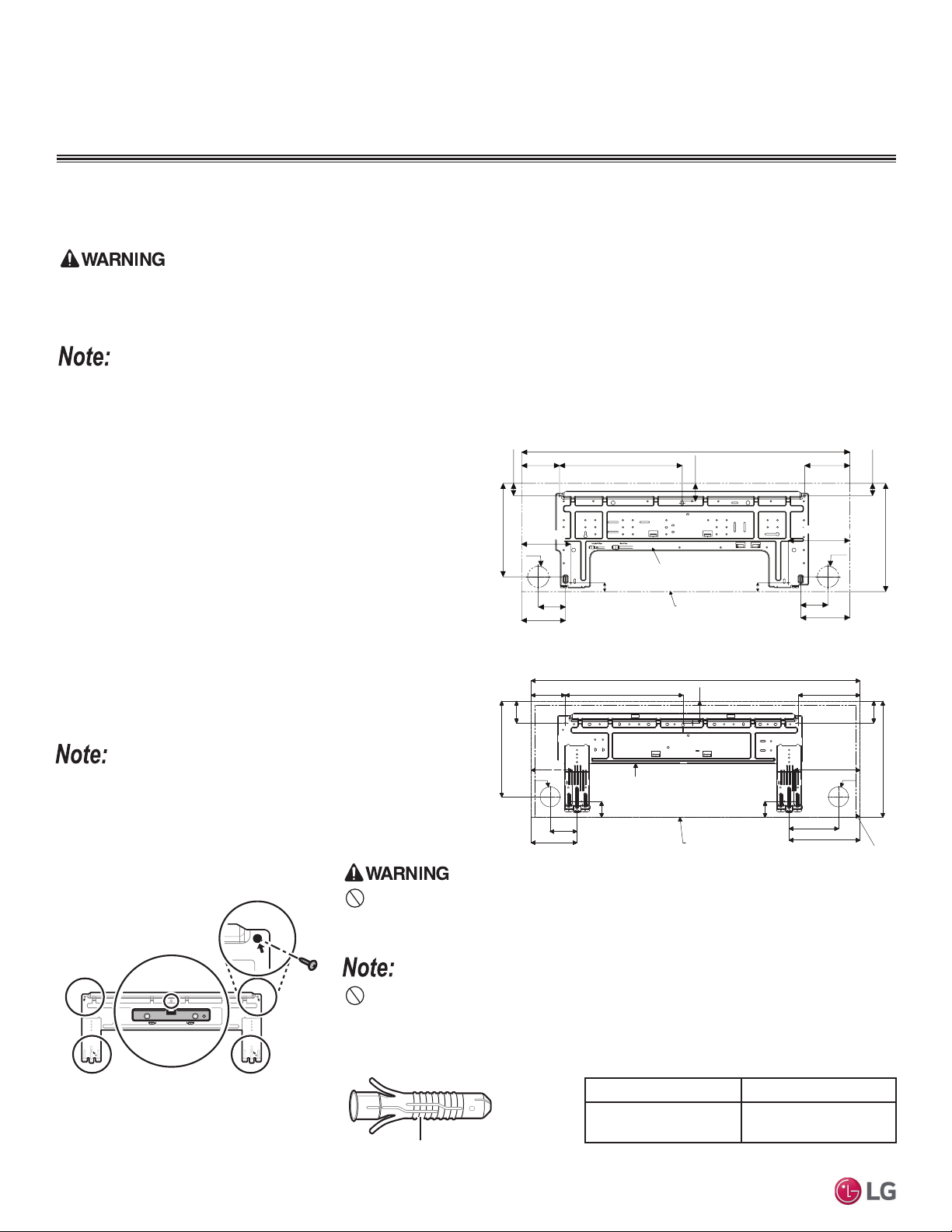

Figure 12: Art Cool Premier Wall Mount LAN090HYV3 / LAN120HYV3

Indoor Unit Installation Plate Dimensions.

Figure 13: Art Cool Premier Wall Mount LAN150HYV3 / LAN180HYV3 /

LAN240HYV3 Indoor Unit Installation Plate Dimensions.

Mounting the Installation Plate to the Wall

Follow the procedure below and general best practices when mounting the indoor unit’s installation plate to a wall.

When choosing a location for the wall mount plate, be sure to take into consideration routing of wiring for power outlets within the wall. Contacting

wiring can cause serious bodily injury or death.

Use caution when drilling holes through the walls for the purposes of piping connections. Power wiring can cause serious bodily injury or death.

Select location carefully. Unit must be anchored to a strong wall to prevent unnecessary vibration.

Figure 14: Installation Plate Screw Locations

(Will Vary Depending on Indoor Unit Model).

Figure 15: Example of an Anchor.

Installation Plate

41-23/32 (1060)

14-29/32 (379)

7-27/32 (199)

8-7/16 (214)

6-5/16 (160)

2 (51)

9-1/32 (229)

Ø2-9/16 (65)

2-3/4 (70)

14-23/32 (374)

2-3/4 (70)

12-1/8 (308)

2 (51)

4-11/32 (110)

3-3/8 (86)

5-25/32 (147)

Ø2-9/16 (65)

Unit Bottom Line

Unit Outline

Fixing the Installation Plate, Drilling Hole

5-3/16 (132)

2-3/4 (70)

39-9/32 (998)

2-23/32 (69)

14-11/16 (373)

5-13/32 (137)

2-3/32 (53)

13-19/32 (345)

Ø2-9/16 (65)

3-9/32 (83)

1-1/16 (27)

Unit Outline

5-29/32 (150)

4-17/32 (115)

Ø2-9/16 (65)

3-9/32 (83)

5-9/32 (134)

1-1/16 (27)

2-3/32 (53)

11-13/16 (300)

5-29/32 (150)5-29/32 (150)

7-13/32 (188)7-13/32 (188)

Installation Plate

General Installation Guidelines

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

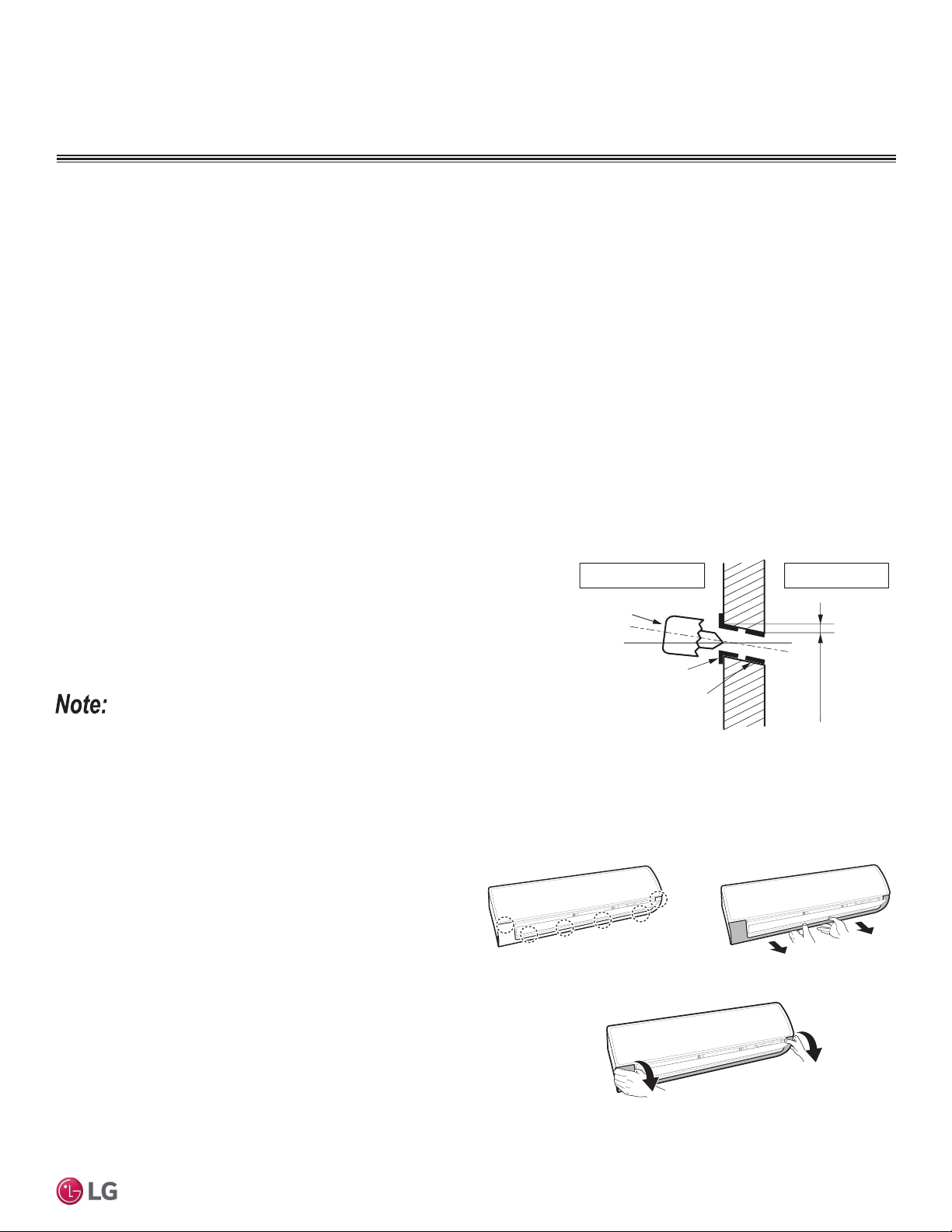

Figure 16: Position of the Bot-

tom Panel Connection Points.

Figure 17: Releasing the Back

of the Bottom Panel.

Figure 18: Releasing the Sides of the Bot-

tom Panel.

Drilling the Access Hole in the Wall

A hole needs to be drilled into the wall to connect the power wiring / communication cable and refrigerant piping (and drain piping) from the

indoor unit to the outdoor unit. Follow all piping and wiring clearance requirements.

1. Confirm the location of the indoor unit, and where the piping hole will be placed. HYV3 Art Cool Premier indoor units have a choice of left

or right piping.

2. Measure the distance from the installation plate (see previous page Refer to the measure indicated on the installation plate.

3. Using a 2-9/16 inch (65 mm) hole core drill bit, drill a hole at either the right or left side of the wall mounting, pre-chosen following installa-

tion guidelines and application needs.

• The slant of the hole must be 3/16” to 5/16” from level with the slant being upward on the indoor unit side and downward on the outdoor

unit side.

4. Finish off the newly drilled hole as shown with bushing and sleeve covering to prevent damage to the insulation and piping.

(3/16"~5/16")

Indoor

WALL

Outdoor

Bushing

Core Drill

Sleeve

Figure 19: Drilling Piping Hole.

Indoor Unit Mounting

Preparing the Piping and Power Wiring / Communication

(Connection) Cable

After the length between the indoor unit and the outdoor unit has

been measured, cut the piping and the power wiring / communication

(connection) cable to the proper length:

• Cut the piping slightly longer than the measurement.

• Cut the power wiring / communication (connection) cable 4.9 ft (1.5

m) longer than that of the piping.

6HHWKH³*HQHUDO3LSLQJ´VHFWLRQIRUSLSLQJPDWHULDOVSHFL¿FDWLRQV

Removing the Indoor Unit Bottom

Panel

To access the indoor unit piping port connections, and to make the

indoor unit installation procedure easier, open the front panel, and

remove the bottom panel first.

1. Fully open the front panel.

2. The bottom panel has plastic clips that attach to the indoor unit at

several connection points. The number and position of the con-

nections vary depending on the model of indoor unit.

3. Hold the center of the bottom panel, and pull it towards to disen-

gage the pins, releasing them from the connection points.

4. Pull both sides of the bottom panel out to release the clips from

the connections, being careful not to damage the bottom panel or

scratch the main horizontal vane. Set aside the bottom panel to

re-install after all procedures are complete.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

GENERAL INSTALLATION GUIDELINES

1. Position the indoor unit onto the top portion of the installation plate.

2. Engage the hooks at the top of the indoor unit with the top edge of the installation plate

(number of hooks depends on model type).

3. Ensure the hooks are properly seated on the installation plate by shaking the indoor unit left

and right.

Permanently secure the indoor unit to the wall ONLY AFTER all other tasks such as Refrigerant

Piping Connections, Drain Piping Connections, Electrical Connections, and Final Installation Proce-

dures are complete.

4. Retain a space between the indoor unit and the installation plate by unsnapping the piping

holder and using it as a space holder.

5. Carefully guide the refrigerant piping and drain piping through the access hole.

• Pay attention to the positioning of the piping through the wall.

6. Close the piping holder by snapping it back into place on the indoor unit.

7. Push the bottom of indoor unit towards the installation plate.

• Press the lower left and right sides of the unit against the installation plate until the clips

engage into their connection points.

• Clicking sounds could be heard as the bottom of the indoor unit attaches to the installation

plate successfully.

Figure 20: Attaching the Indoor Unit to the

Installation Plate.

Figure 21: Releasing the Piping Holder.

Mounting the Indoor Unit to the Installation Plate

The indoor unit can fall from the wall if it is not properly installed and secured to the installation plate.

Falling indoor units can cause bodily injury or death.

• To avoid a gap between the installation plate and the wall, ensure the screws are correctly

and fully secured.

• To prevent condensate from forming due to an inflow of outdoor air, before indoor unit installa-

tion is finished, completely seal the piping access hole in the wall.

Indoor Unit Mounting

Preparing for Piping / Electrical Connections

1. To prepare indoor unit for piping and electrical installation, disengage the bottom of the indoor unit from installation plate, if those procedures

have been performed.

2. Unsnap the piping / drain hose holder out from the indoor unit. Prop it open between the indoor unit and installation plate to separate the

bottom of the indoor unit from the wall. This will allow for more working space.

• Go to the Refrigerant Piping Connections section of this manual for information on indoor unit piping connection installation. See also the

Refrigerant Piping Connections section for drain piping installation.

• Go to the Electrical Installation section of this manual for information on electrical wiring to the indoor unit.

• After all Refrigerant Piping and Electrical Connection procedures are complete, snap the L-bracket closed, and secure the indoor unit to the

LQVWDOODWLRQSODWHDVGHWDLOHGLQ³0RXQWLQJWKH,QGRRU8QLWWRWKH,QVWDOODWLRQ3ODWH´

Figure 22: Closing the Piping Holder.

General Refrigerant Piping System Information

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

Refrigerant Safety Standards

ASHRAE Standards 15-2010 and 34-2010 address refrigerant safety and the maximum allowable concentration of refrigerant in an occupied

space. Refrigerant will dissipate into the atmosphere, but a certain volume of air is required to safely dissipate the refrigerant. For R410A

refrigerant, the maximum allowable concentration of refrigerant is 26 lbs./1,000 cubic feet (Addendum L modified the RCL to 26) of occupied

spaces. Buildings with 24-hour occupancy are allowed half of that concentration.

If a single zone system develops a refrigerant leak, the entire refrigerant charge of the system will dump into the area where the leak occurs.

To meet ASHRAE Standards 15 and 34, the smallest room volume on the system must be calculated and compared to the maximum allow-

able concentration. Also consult state and local codes in regards to refrigerant safety.

REFRIGERANT SAFETY STANDARDS /

DEVICE CONNECTION LIMITATIONS

Device Connection Limitations

A single-zone system consists of one outdoor unit and

one indoor unit. One of the most critical elements of a

single-zone system is the refrigerant piping. If the con-

nection piping is not within allowable limits, there will

be reliability, performance, noise, and vibration issues.

The table below lists the pipe length limits that must be

followed in the design of a Single Zone Art Cool Premier

Wall Mount refrigerant pipe system. Refer to the figure

for maximum length and elevation of piping.

Figure 23: Single Zone Art Cool Premier System Layout.

Outdoor unit

Indoor unit

Outdoor unit

Indoor unit

Max Length = A

Max Elevation = B

Unit = Feet

Table 7: Single Zone Art Cool Premier Refrigerant Piping System Limitations.

Model Numbers LA090HYV3 LA120HYV3 LA150HYV3 LA180HYV3 LA240HYV3

Pipe Sizes

Vapor 3/8 inches 3/8 inches 5/8 inches 5/8 inches 5/8 inches

Liquid 1/4 inches 1/4 inches 3/8 inches 3/8 inches 3/8 inches

Pipe Length

(ELF = Equivalent Length

of pipe in Feet)

Standard Piping Length 24.6 24.6 24.6 24.6 24.6

Piping Length with No Additional

Refrigerant

24.6 24.6 24.6 24.6 24.6

Longest Total Equivalent Piping Length 65.6 65.6 164.0 164.0 164.0

Shortest Total Equivalent Piping Length 9.8 9.8 9.8 9.8 9.8

Distance between fittings and indoor

units or outdoor units

LQFKHV LQFKHV LQFKHV LQFKHV LQFKHV

Elevation

(All Elevation Limitations

are Measured in Actual

Feet)

If outdoor unit is above indoor unit 39.4 39.4 98.4 98.4 98.4

If outdoor unit is below indoor unit 39.4 39.4 98.4 98.4 98.4

Additional Refrigerant Needed (oz./ft) 0.22 0.22 0.38 0.38 0.38

Single Zone Art Cool Premier Wall Mounted Engineering Manual

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

Selecting Field-Supplied Copper Piping

Always follow local codes when selecting and installing copper pipe and piping system components.

Approved piping for use with LG Single Zone products will be marked “R410 RATED” along the length of the pipe. Piping wall thickness must

meet local code requirements and be approved for a maximum operating pressure of 551 psi. When bending piping, try to keep the number

of bends to a minimum, and use the largest radii possible to reduce the equivalent length of installed piping; also, bending radii greater than

ten (10) piping diameters can minimize pressure drop. Be sure no traps or sags are present.

For Single Zone Systems

LG prefers the use of ACR copper piping rated at the system working pressure was used.

Always properly support the piping as per the instructions on page 31.

Table 8: ACR Rated Piping Wall Thicknesses.

Type Seamless Phosphorous Deoxidized

Class UNS C12200 DHP

Straight Lengths H58 Temper

Coils O60 Temper

Table 9: ACR Rated Copper Tubing Material.

OD (in) 1/4 3/8 1/2 5/8 3/4 7/8 1-1/8 1-3/8 1-5/8

Material Rigid or Soft ACR Rated for R410A Rigid or Soft ACR Rated for R410A

Min. Bend Radius (in) 0.563 0.9375 1.5 2.25 3.0 3.0 3.5 4.0 4.5

Min. Wall Thickness (in) 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.04 0.050

Table 10: ACR Copper Tubing Dimensions and Physical Characteristics

1-3

Nominal Pipe

Outside

Diameter (in)

Actual Outside

Diameter (in)

Drawn Temper Annealed Temper

Nominal Wall

Thickness (in)

Weight (lb/ft)

Cubic ft per

Linear ft

Nominal Wall

Thickness (in)

Weight (lb/ft)

Cubic ft per

Linear ft

1/4 0.250 -- -- -- 0.030 0.081 0.00020

3/8 0.375 0.030 0.126 0.00054 0.032 0.134 0.00053

1/2 0.500 0.035 0.198 0.00101 0.032 0.182 0.00103

5/8 0.625 0.040 0.285 0.00162 0.035 0.251 0.00168

3/4 0.750 0.042 0.362 0.00242 0.042 0.362 0.00242

7/8 0.875 0.045 0.455 0.00336 0.045 0.455 0.00336

1-1/8 1.125 0.050 0.655 0.00573 0.050 0.655 0.00573

1-3/8 1.375 0.055 0.884 0.00875 0.055 0.884 0.00875

1-5/8 1.625 0.060 1.14 0.0124 0.060 1.14 0.0124

All dimensions provided are in accordance with ASTM B280 – Standard..

Design pressure = 551 psig.

The Copper Tube Handbook, 2016, Copper Development Association Inc., 260 Madison Avenue, New York, NY 10016.

• Commercially available piping often contains dust and other materials. Always blow it clean with a dry nitrogen.

• Prevent dust, water or other contaminants from entering the piping during installation.

SELECTING FIELD SUPPLIED PIPING

General Refrigerant Piping System Information

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

Copper Expansion and Contraction

See table on next page for precalculated anticipated expansion for various pipe sizes and lengths of refrigerant tubing.

To find the anticipated expansion value:

1. From the table on the next page, find the row corresponding with the actual feet of the straight pipe segment.

2. Estimate the minimum and maximum temperature of the pipe.

3. In the column showing the minimum pipe temperature, look up the anticipated expansion distance corresponding to the segment length.

Do the same for the maximum pipe temperature.

4. Calculate the difference in the two expansion distance values. The result will be the change in pipe length.

COPPER EXPANSION AND CONTRACTION

Under normal operating conditions, the vapor pipe temperature of a

Duct Free System can vary as much as 280°F. With this large vari-

ance in pipe temperature, the designer must consider pipe

expansion and contraction to avoid pipe and fitting fatigue failures.

Refrigerant pipe along with the insulation jacket form a cohesive

unit that expands and contracts together. During system operation,

thermal heat transfer occurs between the pipe and the surrounding

insulation.

If the pipe is mounted in free air space, no natural restriction to

movement is present if mounting clamps are properly spaced and

installed. When the refrigerant pipe is mounted underground in a

utility duct stacked among other pipes, natural restriction to linear

movement is present. In extreme cases, the restrictive force of

surface friction between insulating jackets could become so great

that natural expansion ceases and the pipe is “fixed” in place. In this

situation, opposing force caused by change in refrigerant fluid/vapor

temperature can lead to pipe/fitting stress failure.

The refrigerant pipe support system must be engineered to allow

free expansion to occur. When a segment of pipe is mounted

between two fixed points, provisions must be provided to allow pipe

expansion to naturally occur. The most common method is the

inclusion of expansion Loop or U-bends. Each segment of pipe has

a natural fixed point where no movement occurs. This fixed point is

located at the center point of the segment assuming the entire pipe

is insulated in a similar fashion. The natural fixed point of the pipe

segment is typically where the expansion Loop or U-bend is.

Linear pipe expansion can be calculated using the following formula:

1. From the table, “Linear Thermal Expansion of Copper Tubing in

Inches,” find the row corresponding with the actual length of the

straight pipe segment.

2. Estimate the minimum and maximum temperature of the pipe.

• Heat Pump Systems include Vapor: ambient temperature to

215°F; Liquid pipe: ambient, 80°F, 110°F.

In the column showing the minimum pipe temperature, look up the

anticipated expansion distance. Do the same for the maximum

pipe temperature.

3. Calculate the difference in the two expansion distance values.

The result will be the anticipated change in pipe length.

General Example:

A system is installed and the design shows that there is a 100 foot

straight segment of tubing between an indoor unit and the outdoor

unit. In heating, this pipe transports hot gas vapor to the indoor units

at 120 °F. In cooling, the same tube is a suction line returning refrig-

erant vapor to the outdoor unit at 40 °F. Look up the copper tubing

expansion at each temperature and calculate the difference.

Heat Pump System Vapor Line

Transporting Hot Vapor: 100 ft. pipe at 120 °F = 1.40 in.

Transporting Suction Vapor: 100 ft. pipe at 40 °F = 0.40 in.

Anticipated Change in Length: 1.40 in. – 0.40 in. = 1.00 in.

Heat Pump System Liquid Line

The liquid temperature remains relatively the same temperature; only

the direction of flow will reverse. Therefore, no significant change in

length of the liquid line is anticipated.

When creating an expansion joint, the joint height must be a

minimum of two times the joint width. Although different types of

expansion arrangements are available, the data for correctly sizing

an Expansion Loop is provided in the table, “Coiled Expansion Loops

and Offsets (Plan View).” Use soft copper with long radius bends

on longer runs or long radius elbows for shorter pipe segments.

Using the anticipated linear expansion (LE) distance calculated, look

up the Expansion Loop or U-bend minimum design dimensions. If

other types of expansion joints are chosen, design per ASTM B-88

Standards.

LE = C x L x (T

– T

) x 12

LE = Anticipated linear tubing expansion (in.)

C = Constant (For copper = 9.2 x 10

-6

in./in.°F)

L = Length of pipe (ft.)

= Refrigerant pipe temperature (°F)

= Ambient air temperature (°F)

12 = Inches to feet conversion (12 in./ft.)

Single Zone Art Cool Premier Wall Mounted Engineering Manual

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

Pipe

Length

Fluid Temperature °F

35° 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° 95° 100° 105° 110° 115° 120° 125° 130°

10 0.04 0.04 0.05 0.06 0.06 0.07 0.08 0.08 0.09 0.09 0.10 0.10 0.11 0.11 0.11 0.12 0.13 0.14 0.15 0.15

20 0.08 0.08 0.10 0.12 0.13 0.14 0.15 0.16 0.17 0.18 0.19 0.20 0.21 0.22 0.22 0.23 0.26 0.28 0.29 0.30

30 0.12 0.12 0.15 0.18 0.20 0.21 0.23 0.24 0.26 0.27 0.29 0.30 0.32 0.33 0.32 0.35 0.39 0.42 0.44 0.45

40 0.16 0.16 0.20 0.24 0.26 0.28 0.30 0.32 0.34 0.36 0.38 0.40 0.42 0.44 0.43 0.46 0.52 0.56 0.58 0.60

50 0.20 0.20 0.25 0.30 0.33 0.35 0.38 0.40 0.43 0.45 0.48 0.50 0.53 0.55 0.54 0.58 0.65 0.70 0.73 0.75

60 0.24 0.24 0.30 0.36 0.39 0.42 0.45 0.48 0.51 0.54 0.57 0.60 0.63 0.66 0.65 0.69 0.78 0.84 0.87 0.90

70 0.28 0.28 0.35 0.42 0.46 0.49 0.53 0.56 0.60 0.63 0.67 0.70 0.74 0.77 0.76 0.81 0.91 0.98 1.02 1.05

80 0.32 0.32 0.40 0.48 0.52 0.56 0.60 0.64 0.68 0.72 0.76 0.80 0.84 0.88 0.86 0.92 1.04 1.12 1.16 1.20

90 0.36 0.36 0.45 0.54 0.59 0.63 0.68 0.72 0.77 0.81 0.86 0.90 0.95 0.99 0.97 1.04 1.17 1.26 1.31 1.35

100 0.40 0.40 0.50 0.60 0.65 0.70 0.75 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.08 1.15 1.30 1.40 1.45 1.50

120 0.48 0.48 0.60 0.72 0.78 0.84 0.90 0.96 1.02 1.08 1.14 1.20 1.26 1.32 1.30 1.38 1.56 1.68 1.74 1.80

140 0.56 0.56 0.70 0.84 0.91 0.98 1.05 1.12 1.19 1.26 1.33 1.40 1.47 1.54 1.51 1.61 1.82 1.96 2.03 2.10

160 0.64 0.64 0.80 0.96 1.04 1.12 1.20 1.28 1.36 1.44 1.52 1.60 1.68 1.76 1.73 1.84 2.08 2.24 2.32 2.40

180 0.72 0.72 0.90 1.08 1.17 1.26 1.35 1.44 1.53 1.62 1.71 1.80 1.89 1.98 1.94 2.07 2.34 2.52 2.61 2.70

Table 11: Linear Thermal Expansion of Copper Tubing in Inches.

Pipe length baseline temperature = 0°F. "Expansion of Carbon, Copper and Stainless Steel Pipe," The Engineers' Toolbox, www.engineeringtoolbox.com.

Anticipated Linear

Expansion (LE) (inches)

Nominal Tube Size (OD) inches

1/4 3/8 1/2 3/4

1/2

6789

38 44 50 59

9101113

54 63 70 83

1-1/2

11 12 14 16

66 77 86 101

12 14 16 19

77 89 99 117

2-1/2

14 16 18 21

86 99 111 131

15 17 19 23

94 109 122 143

3-1/2

16 19 21 25

102 117 131 155

17 20 22 26

109 126 140 166

Table 12: Radii of Coiled Expansion Loops and Developed Lengths of Expansion Offsets.

Figure 24: Coiled Expansion Loops and Offsets (Plan View).

Large Tubing U-bend (>3/4 in.) Loop Small Tubing U-bend (<3/4 in.)

R = Centerline Length of Pipe.

L = Centerline Minimum Radius (inches).

All expansion loops and offsets must be installed in the horizontal plane to prevent the possibility of trapping oil. Loops and offsets in vertical risers

must also be installed in a horizontal plane.

COPPER EXPANSION AND CONTRACTION

General Refrigerant Piping System Information

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

Piping Materials and Handling

Pipes used for the refrigerant piping system must include the specified thickness, and the

interior must be clean.

While handling and storing, do not bend or damage the pipes, and take care not to

contaminate the interior with dust, moisture, etc.

Clean Airtight

No moisture should be inside the piping. No dust should be inside the piping. No leaks should occur.

Possible

Problems

- Significant hydrolysis of refrigerant oil.

- Refrigerant oil degradation.

- Poor insulation of the compressor.

- System does not operate properly.

- EEVs, capillary tubes are clogged.

- Refrigerant oil degradation.

- Poor insulation of the compressor.

- System does not operate properly.

- EEVs and capillary tubes become

clogged.

- Refrigerant gas leaks / shortages.

- Refrigerant oil degradation.

- Poor insulation of the compressor.

- System does not operate properly.

Solutions

- Remove moisture from the piping.

- Piping ends should remain capped until

connections are complete.

- Do not install piping on a rainy day.

- Connect piping properly at the unit’s side.

- Remove caps only after the piping is

cut, the burrs are removed, and after

passing the piping through the walls.

- Evacuate system to a maximum of 500

microns and insure the vacuum holds at

that level for 1 hour.

- Remove dust from the piping.

- Piping ends should remain capped until

connections are complete.

- Connect piping properly at the side of

the unit.

- Remove caps only after the piping is cut

and burrs are removed.

- Retain the cap on the piping when

passing it through walls, etc.

- Test system for air tightness.

- Perform brazing procedures that comply

with all applicable standards.

- Perform flaring procedures that comply

with all applicable standards.

- Perform flanging procedures that

comply with all applicable standards.

- Ensure that refrigerant lines are pressure

tested to 550 psig and hold for 24 hours.

Moisture

Dust

Leaks

Keep Pipes Capped While Storing.

Keep refrigerant pipe dry, clean, and airtight.

PIPING HANDLING

Single Zone Art Cool Premier Wall Mounted Engineering Manual

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

REFRIGERANT SYSTEM ENGINEERING

No Pipe Size Substitutions

Use only the pipe size selected by the information in this manual. Using a different size is prohibited and will result in a system malfunction or

failure to work at all.

No In-line Refrigeration Components

Components such as oil traps, solenoid valves, filter-driers, sight glasses, tee fittings, and other after-market accessories are not

permitted on the refrigerant piping system between the outdoor units and the indoor units. LG Single Zone systems are provided with redun-

dant systems that make sure oil is properly returned to the compressor. Sight-glasses and solenoid valves will cause vapor to form in the

liquid stream. Over time, driers will deteriorate and introduce debris into the system. The designer and installer must verify the refrigerant pip-

ing system is free of traps, sagging pipes, sight glasses, filter driers, etc.

Field-Provided Isolation Ball Valves

LG maintains a neutral position on using isolation valves in LG HVAC refrigerant piping systems. LG does not endorse any manufacturer of

isolation valves. It is recognized that installing isolation valves will simplify future maintenance requirements, and, if used, considerations

must be taken including, but not limited to, the following:

• Pressure drops for any component used, including isolation valves, must be known in equivalent pipe length and calculated into the total

and segment equivalent piping lengths and compared to product design limitations.

• In all cases, materials must be suitable for the application and any applicable codes, including, but not limited to, diameter and wall thick-

ness continuity per ACR standards.

Failure to do so will cause significant performance degradation. Proper leak checks must be performed. Using isolation valves does not

automatically void any LG product warranty, however, a limited warranty will be voided in whole or part if any field supplied accessory fail in

any way that causes product failure.

Proper system operation depends on the installer using utmost care while assembling the piping system. The following pages are an over-

view of best practices when installing the refrigerant piping system.

LG Electronics U.S.A.,Inc., is not responsible for any piping calculations, refrigerant leaks, degradation of performance, any other potential problems

or damages caused by the interconnecting piping, their joint connections, isolation valves, or introduced debris inside the piping system.

Component Size (Inches)

Elbow (ft.)

1/4 3/8 1/2 5/8 3/4

0.5 0.6 0.7 0.8 1.2

Table 13: Equivalent Piping Length for Elbows.

Using Elbows

Field-supplied elbows are allowed if they are long radius and designed for

use with R410A refrigerant. The designer and installer, however, must be

cautious with the quantity and size of fittings used, and must account for

the additional pressure losses in equivalent pipe length calculation for each

branch. The equivalent pipe length of each elbow must be added to each

pipe segment manually (see table).

Pipe Bends

When bending soft copper, use long radius bends. Refer to the “Radii of Coiled Expansion Loops and Developed Lengths of Expansion

Offsets” table for minimum radius specifications.

General Refrigerant Piping System Information

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

Figure 25: Installing Piping Above and Below an Obstacle.

Obstacles

When an obstacle, such as an I-beam or concrete T, is in the path

of the planned refrigerant pipe run, it is best practice to route the

pipe over the obstacle. If adequate space is not available to route

the insulated pipe over the obstacle, then route the pipe under the

obstacle. In either case, it is imperative the length of the horizontal

section of pipe above or below the obstacle be a minimum of three

(3) times the longest vertical rise (or fall) at either end of the

segment.

MINIMUM

Above an obstacle

MINIMUM

Below an obstacle

Pipe Supports

A properly installed pipe system must be adequately supported to avoid pipe sagging. Sag-

ging pipes become oil traps that lead to equipment malfunction.

Pipe supports must never touch the pipe wall; supports must be installed outside

(around) the primary pipe insulation jacket. Insulate the pipe first because pipe supports

must be installed outside (around) the primary pipe insulation jacket. Clevis hangers must

be used with shields between the hangers and insulation. Field provided pipe supports must

be designed to meet local codes. If allowed by code, use fiber straps or split-ring hangers

suspended from the ceiling on all-thread rods (fiber straps or split ring hangers can be used

as long as they do not compress the pipe insulation). Place a second layer of insulation over

the pipe insulation jacket to prevent chafing and compression of the primary insulation within

the confines of the support pipe clamp.

A properly installed pipe system will have sufficient supports to avoid pipes from sagging dur-

ing the life of the system. As necessary, place supports closer for segments where potential

sagging could occur. Maximum spacing of pipe supports must meet local codes. If local

codes do not specify pipe support spacing, pipe must be supported:

• Maximum of five (5) feet on center for straight segments of pipe up to 3/4 inches outside

diameter size.

• Maximum of six (6) feet on center for pipe up to one (1) inch outside diameter size.

• Maximum of eight (8) feet on center for pipe up to two (2) inches outside diameter size.

Wherever the pipe changes direction, place a hanger within twelve (12) inches on one side

and within twelve (12) to nineteen (19) inches of the bend on the other side.

Figure 26: Pipe Hanger Details.

Use a 4" + long sheet curved sheet metal

saddles between hanger bracket and insula-

tion to promote linear expansion/contraction.

Figure 27: Typical Pipe Support Location—

Change in Pipe Direction.

Max. 12"

~ 12" – 19"

REFRIGERANT SYSTEM ENGINEERING

Single Zone Art Cool Premier Wall Mounted Engineering Manual

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

REFRIGERANT SYSTEM ENGINEERING

Model

Liquid Conn.

(inches)

Vapor Conn.

(inches)

LAU090HYV3, LAU120HYV3 1/4 3/8

LAU150HYV3, LAU180HYV3,

LAU240HYV3

3/8 5/8

Pipe Sleeves at Penetrations

LG recommends that all pipe penetrations through walls, floors, and pipes buried underground be properly insulated and routed through an

appropriate wall sleeve of sufficient size to prevent compression of refrigerant pipe insulation and free movement of the pipe within the

sleeve. Use 4”+ curved sheet metal saddles between the bottom surface of the pipe and the bottom surface of the penetration.

Figure 28: Pipe Sleeve Options.

Diameter of penetrations must be determined by pipe diameter plus the thickness of the insulation.

Underground Refrigerant Piping

Refrigerant pipe installed underground must be routed inside a vapor tight protective

sleeve to prevent insulation deterioration and water infiltration. Refrigerant pipe in-

stalled inside underground casing must be continuous without any joints. Underground

refrigerant pipe must be located at a level below the frost line.

Table 14: Utility Conduit Sizes.

OD pipe diameter in inches; Values in parenthesis () indicate OD of pipe with insulation jacket.

Diameter of pipe with insulation. Thickness of pipe insulation is typical. Actual required thickness will

vary based on surrounding ambient conditions and must be calculated and specified by the design

engineer.

Insulation thickness (value in parenthesis) = 3/8 inch.

Insulation thickness (value in parenthesis) = 1 inch.

Insulation thickness (value in parenthesis) = 3/4 inch.

Liquid

Pipe

Vapor Pipe

3/8 (2.0

2,5

) 1/2 (2.0

2,5

) 5/8 (2-1/8

2,5

) 3/4 (2-1/4

2,5

)

1/4 (1.0)

444 4

3/8 (1-1/8)

444 5

1/2 (1-1/2)

555 5

5/8 (1-5/8)

555 5

3/4 (1-3/4)

555 5

Figure 29: Typical Arrangement of Refrigerant Pipe

and Cable(s) in a Utility Conduit.

Table 15: Heat Pump Unit Refrigerant Pipe Connections (All Flared Type).

Provide expansion joints in long pipe segments and place in an acces-

sible conduit box for inspection. Use galvanized curved sheet metal

saddles at all mounting points. Pipe must be allowed to move freely

linearly.

Vapor Line

Liquid Line

Communication /

Connection (Power) Cable

e Sleeve

Insulation Material

Insulation

Material

General Refrigerant Piping System Information

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

Flaring Procedure

Flaring and Brazing Procedures

One of the main causes of refrigerant leaks is a defective connection. For LG HVAC systems, the installer needs to know how perform both

flared and brazed connections successfully.

:KHQVHOHFWLQJÀDUH¿WWLQJVDOZD\VXVHD¿WWLQJUDWHGIRUXVHZLWKKLJKSUHVVXUHUHIULJHUDQW5$6HOHFWHG¿WWLQJVPXVWDOVRFRPSO\ZLWKORFDO

state, or federal standards.

• During installation, it is imperative to keep the piping system free of contaminants and debris such as copper burrs, slag, or carbon dust.

•

Do not use kinked pipe caused by excessive bending in one specific area on its length.

3. Flaring the pipe end.

• Use the proper size flaring tool to finish flared connections as

shown.

• ALWAYS create a 45° flare when working with R410A.

1. Cut the pipe to length.

• Measure the distance between the indoor unit and the outdoor unit.

• Cut the pipes a little longer than measured distance.

2A. Remove the burrs.

• Completely remove all burrs from pipe ends.

• When removing burrs, point the end of the copper pipe down to

avoid introducing foreign materials in the pipe.

2B. Slide the flare nut onto the copper tube.

90°

Slanted Uneven Rough

Pipe

Reamer

Point

down

Flare nut

Copper

tube

Bar

Copper pipe

Clamp handle

Red arrow

Cone

Bar

Slanted

Smooth

Uneven

Thickness

2A. 2B.

4. Carefully inspect the flared pipe end.

• Compare the geometry with the figure to the right

• If the flare is defective, cut it off and re-do procedure.

• If flare looks good, blow the pipe clean with dry nitrogen.

90°

45°

“A”

R=0.4 – 0.8

Dimensions of the Flare.

Pipe Size (in. O.D.) “A” Dimension (mm [in.])

1/2

1/4

5/8

3/8

3/4

Flared Connection Dimensions / Tightening Torque.

Handle

Incorrect Flare

Even Length

Cracked

Yoke

Inside is shiny with no scratches

Surface

Damaged

Copper

tube

Outside Diameter (mm)

6.35

9.52

12.7

15.88

19.05

~ 9.1 (11/32 - 23/64)

~ 13.2 (1/2 - 33/64)

~ 16.6 (41/64 - 21/32)

~ 19.7 (49/64 - 25/32)

FLARING AND BRAZING PROCEDURES

Single Zone Art Cool Premier Wall Mounted Engineering Manual

'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ

/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

13.0 - 18.0

24.6 - 30.4

39.8 - 47.7

ightening Torque for Flare Nuts.

ightening the Flare Nuts

1. When connecting the flare nuts, coat the flare (outside only) with polyvinyl ether (PVE) refrigeration oil only.

2. Initially hand tighten the flare nuts using three (3) or four (4) turns.

3. To finish tightening the flare nuts, use both a torque wrench and a backup wrench.

4. After all the piping has been connected and the caps have been tightened, check for refrigerant gas leaks.

Loosening the Flare Nuts

Always use two (2) wrenches to loosen the flare nuts.

Do not use polyolyester (POE) or any other type of mineral oil as a thread lubricant. These lubricants are not compatible with the PVE oil

used in this system and create oil sludge leading to equipment damage and system malfunction.

Pipe Size (in. O.D.) Tightening Torque (ft-lbs.)

1/2

1/4

5/8

3/8

3/4

Outside Diameter (mm)

6.35

9.52

12.7

15.88

19.05

45.4 - 59.3

71.5 - 87.5

Do not add any contaminants inside the refrigerant piping.

Figure 30: Refrigerant Pipe Brazing.

Pressure-reducing

Valve

Taping

Nitrogen

Pipe to

be brazed

Refrigerant

Piping

Brazing Practices

1. Joints are brazed in the field. Single Zone refrigeration system components

contain very small capillary tubes, small orifices, electronic expansion valves, oil

separators, and heat exchangers that can easily become blocked. Proper system

operation depends on the installer using best practices and utmost care while as-

sembling the piping system.

2. Store pipe stock in a dry place; keep stored pipe capped and clean.

3. Blow clean all pipe sections with dry nitrogen prior to assembly.

4. Always use a non-oxidizing material for brazing.

Do not use flux, soft solder, or

anti-oxidant agents. If the proper material is not used, oxidized film will accumulate

and clog or damage the compressors. Flux can harm the copper piping or refriger-

ant oil.

5. Use a tubing cutter,

do not use a saw to cut pipe. De-bur and clean all cuts before assembly.

6. Brazing joints:

• Use a dry nitrogen purge operating at a minimum pressure of three (3) psig and maintain a steady flow.

• Use a 15% silver phosphorous copper brazing alloy to avoid overheating and produce good flow.

• Protect isolation valves, electronic expansion valves, and other heat-sensitive control components from excessive heat with a wet rag or

heat barrier spray.

Do not braze in an enclosed location. Do not allow the refrigerant to leak during brazing. Always test for gas leaks

before and after brazing.

If the refrigerant combusts, it generates a toxic gas the will cause physical injury or death.

• Do not allow the refrigerant to leak during brazing; if the refrigerant combusts, it generates a toxic gas. There is risk of fire, explosion,

and physical injury or death.

• Do not braze in an enclosed location, and always test for gas leaks before / after brazing. There is risk of fire, explosion, and physical

injury or death.

FLARING AND BRAZING PROCEDURES

Refrigerant Piping Connections

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Installation Overview

Figure 31: Installation and Piping Connection Overview (Appearances Will Vary

Depending on Model).

Installation

Single Zone Wall-Mounted systems are one-to-one

systems. There is a direct piping connection between the

outdoor unit and the indoor unit. The figure at right illus-

trates the basic pipe connections between the outdoor

and indoor unit. Refer to the illustration when proceeding

with pipe connections.

This illustration shows the indoor unit being installed at

a higher position than the outdoor unit. However, if the

outdoor unit be installed at a higher position than the

indoor unit, the basic pipe connections are the same.

Refer back to the tables within the “Connection Limita-

tions” section for specific length limitations in conjunction

with outdoor unit and indoor unit positioning.

• When proceeding with piping connections, adhere to

SLSHVXSSRUWVSDFLQJOHQJWKVDVVKRZQLQWKH³*HQHUDO

5HIULJHUDQW3LSLQJ6\VWHP´,QIRUPDWLRQVHFWLRQ5HIHU

WRWKH³3LSH6XSSRUWV´VHFWLRQIRULQIRUPDWLRQRQXVLQJ

clamps and pipe support materials.

• Always adhere to local codes regarding piping and ac-

curate support spacing along the piping system.

• Always include insulation on all refrigerant and drain

piping to ensure condensate does not form and cause

damage to walls, floors, etc.

Bend the piping as closely

to the wall as possible, but do not break it.

Installation Plate

Air Filter

Bottom Cover

Vapor (Gas)

Pipe (Larger Pipe)

Liquid Pipe (Smaller Pipe)

Drain Hose

Power Wiring /

Communication (Connection) Cable

Vapor (Gas) Service Valve

Liquid Service Valve

(Vapor [Gas] / Liquid) Service Valve Caps

System refrigerant piping, drain hose extensions, and power wiring / communications cables

must be field supplied.

Field-Supplied Sleeve

Field-Supplied Sealant

Field-Supplied Clamp

Wiring Cable Access Holes

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Special Applications

If an additional drain hose is necessary, the end of drain outlet must

be routed above the ground. Secure the drain hose appropriately.

See pages later in this section for information on indoor unit drain

hoses.

When the Outdoor Unit is Installed Below the Indoor Unit:

1. Use a piping set cover, or bundle the (separately) insulated

refrigerant piping, the drain hose, and the communications / con-

nection (power) cable together.

2. Make sure to include some slack in the wiring. Wiring must be

installed in an upwards direction to prevent water from accessing

the control box.

3. Secure the piping set cover or bundle along the outside wall us-

ing saddles or a similar type of piping support.

4. Seal any openings in the wall that are around the piping.

When the Outdoor Unit is Installed Above the Indoor Unit:

1. Use a piping set cover, or bundle the (separately) insulated

refrigerant piping and the communications / connection (power)

cable together up to the outdoor unit service valves.

2. Make sure to include some slack in the wiring. Wiring must be

installed in upwards direction to prevent water from accessing the

control box.

3. If necessary, secure the piping set cover or bundle along the

outside wall using saddles or a similar type of piping support.

4. Ensure the drain hose from the indoor unit is installed away

from the outdoor unit, and in a downward direction. If necessary,

secure along the outside wall using saddles or a similar type of

support.

5. Seal any openings in the wall that are around the piping.

Special Applications

Figure 32: Special Applications. (For Illustrative Purposes. Appear-

ance and Connection Locations Will Differ Depending On Outdoor Unit

Model.)

For information about bundling, see the Bundling page in this section.

For information about using a conduit to protect the wiring between the

outdoor unit and the indoor unit, see the in the Electrical System Instal-

lation section.

Seal the small access hole

in the wall around the piping.

Outdoor Unit Below Indoor Units

Outdoor Unit Above Indoor Units

Seal the small access hole

in the wall around the piping.

Drainage from the Indoor Units

Refrigerant Piping Connections

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Outdoor Unit Connections

Outdoor Unit Piping Connections

1. The outdoor unit piping connections are on the side of the unit.

:KHQWLJKWHQLQJWKHÀDUHQXWZLWKDWRUTXHZUHQFKHQVXUHWKHGLUHFWLRQ

for tightening follows the arrow on the wrench.

Table 16: Torque Wrench Tightening.

Pipe Size (in. OD) Outside Diameter (mm) Torque (lbs-ft)

1/4 6.35 13.0 - 18.0

3/8 9.52 24.6 - 30.4

1/2 12.7 39.8 - 47.7

5/8 15.88 45.4 - 59.3

3/4 19.05 71.5 - 87.5

Figure 33: LAU090HYV3 /

LAU120HYV3 Outdoor Unit Cover

Removal.

Figure 34: LAU150HYV3

/ LAU180HYV3 /

LAU240HYV3 Outdoor Unit

Piping Connections.

Piping

Connections

Side Panel

Figure 35: Removing the Flare

Nuts on the Outdoor Unit.

• LAU090HYV3 / LAU120HYV3 outdoor units have a side cover that

protects the piping connections and the electrical components. This

side cover must be removed for piping and electrical connections.

• LAU150HYV3 / LAU180HYV3 / LAU240HYV3 outdoor units have

a side panel that covers its electrical components. The side panel

does not have to be removed for piping installation, however, it will

need to be removed for power wiring / communication (connection)

cable installation.

2. Remove the flare nuts attached to the outdoor unit valves.

3. Thread the flare nuts onto the field-supplied piping.

4. Flare the end of the piping following the information in the

“General Refrigerant Piping System” section and industry best

practices.

5. Place a couple of drops of PVE refrigerant oil on outside of the

flare before assembling.

Do not add any contaminants.

6. Align the center of the refrigerant piping to the corresponding

outdoor unit connection.

7. Connect the field piping to the outdoor unit connection. Tighten

the flare nut initially by hand.

8. Finish tightening the flare nut with a torque wrench until the

wrench clicks. Follow torque guidelines in the table.

Figure 36: Connecting the Flared

Field Piping to the Outdoor Unit

Connection.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

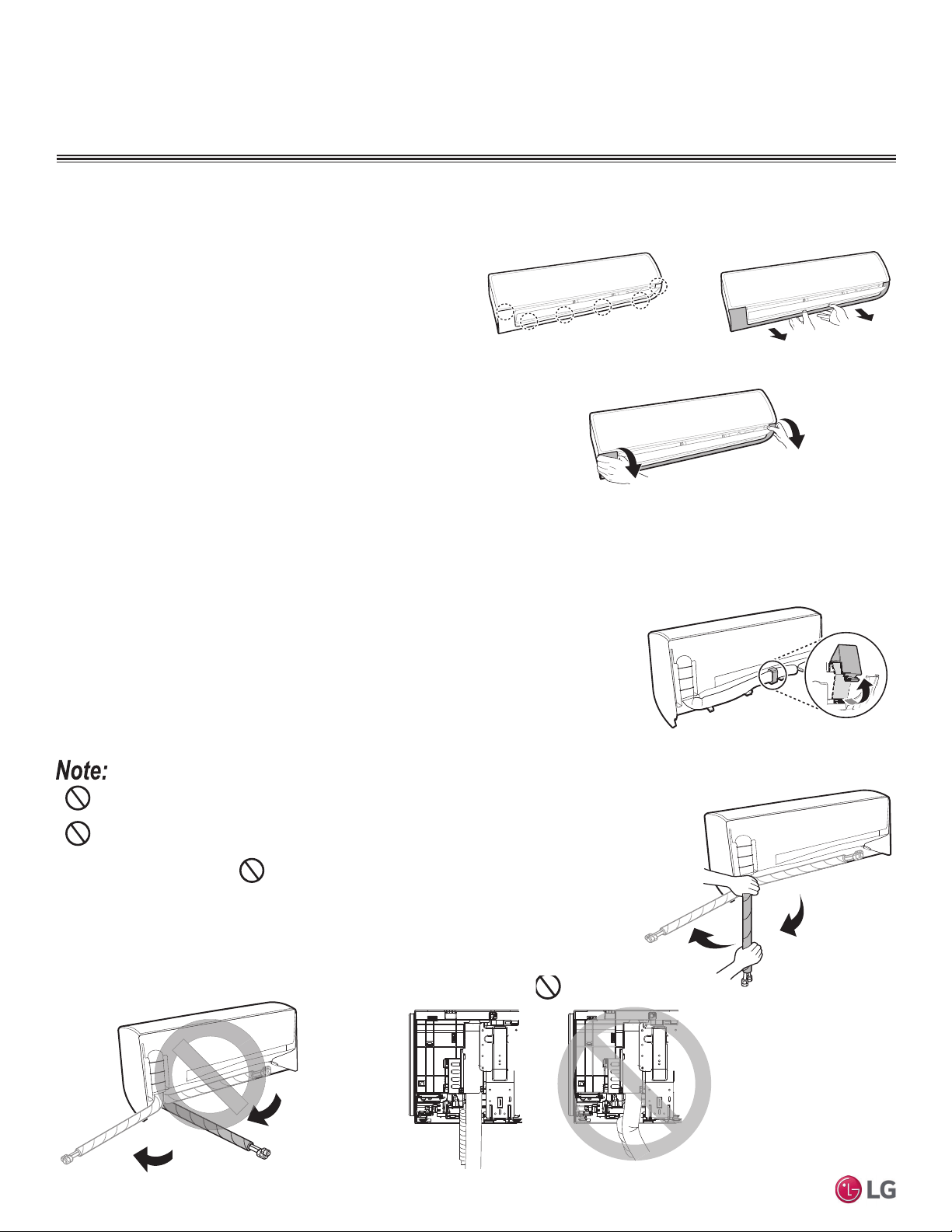

Accessing and Positioning the Indoor Unit Piping

1. Unsnap the piping holder from the back of the indoor unit. Prop it open between the

indoor unit frame and installation plate to separate the bottom of the indoor unit from the

wall. This will allow for more working space.

2. Position the piping by unfolding and bending the piping slowly downward first as shown,

then to the left or right (pre-chosen following installation guidelines and application

needs) as shown.

Removing the Indoor Unit Bottom

Panel

To access the indoor unit piping port connections, and to make the

indoor unit installation procedure easier, open the front panel, and

remove the bottom panel first.

1. Fully open the front panel.

2. The bottom panel has plastic “pins” that attach to the indoor unit

at several connection points. The number and position of the con-

nections vary depending on the model of indoor unit.

3. Hold the center of the bottom panel, and pull it towards to disen-

gage the pins, releasing them from the connection points.

4. Pull both sides of the bottom panel out to release the pins from

the connections, being careful not to damage the bottom panel or

scratch the main horizontal vane. Set aside the bottom panel to

re-install after all procedures are complete.

Figure 37: Position of the Bottom

Panel Connection Points.

Figure 38: Releasing the Back

of the Bottom Panel.

Figure 39: Releasing the Sides of the Bottom

Panel.

Figure 40: Releasing the Piping Holder.

• Do not bend the piping directly to the left or right sides without bending it downward

first; this will damage the indoor unit piping.

•

Do not forcibly press the refrigerant piping onto the bottom frame or the front grille;

this will damage the indoor unit piping and / or indoor unit frame.

• Ensure the piping is straight. Do not kink the piping; this will damage the indoor unit

and piping.

Indoor Unit Connections

Figure 41: Properly Unfolding and Bending

the Piping.

Figure 42: Improperly Unfolding and Bending

the Piping.

Figure 43: Keep Piping Straight;

Avoid Kinks.

Refrigerant Piping Connections

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Table 17: Torque Wrench Tightening.

Pipe Size (in. OD) Outside Diameter (mm) Torque (lbs-ft)

1/4 6.35 13.0 - 18.0

3/8 9.52 24.6 - 30.4

1/2 12.7 39.8 - 47.7

5/8 15.88 45.4 - 59.3

3/4 19.05 71.5 - 87.5

Connecting the Indoor Unit Refrigerant Piping

1. Ensure there is enough working space between the indoor unit and the installation plate by

using the piping holder as a space holder.

2. Remove the flare nuts attached to the indoor unit piping. To remove, hold onto the piping

with an adjustable wrench, and then loosen the flare nut with a torque wrench.

3. Thread the flare nuts onto the field-supplied piping.

4. Flare the end of the piping following industry best practices, and the information in the

“General Refrigerant Piping System” section.

5. Place a couple of drops of PVE refrigerant oil on outside of the flare before assembling.

Do not add any contaminants.

6. Align the center of the refrigerant field piping to the corresponding indoor unit piping.

7. Connect the refrigerant field piping to the indoor unit piping. First, hold onto the piping with

an adjustable wrench. Tighten the flare nut initially by hand, and then finishing tightening

using a torque wrench. Follow torque guidelines in the table.

:KHQWLJKWHQLQJWKHÀDUHQXWZLWKDWRUTXHZUHQFKHQVXUHWKHGLUHFWLRQIRUWLJKWHQLQJIROORZVWKHDUURZRQWKHZUHQFK

Figure 44: Releasing the Piping Holder.

Figure 45: Using the Piping Holder to Prop

the Indoor Unit Away from the Wall.

Figure 46: Connecting the Refrigerant Field Piping to the

Indoor Unit Piping.

Indoor Unit Connections

See the Insulation pages at the end of this section for information on insulating the refrigerant piping and refrigerant piping connections.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Using a Conduit for Indoor Unit Wiring / Cable

Installation

• Use a liquidtight 3/4 inch elbow connector for flexible conduit to protect the communication / con-

nection (power) cable. The conduit can be positioned in the desired direction.

• Before permanently positioning the refrigerant piping and drain hose at the back of the indoor

unit, install the conduit first.

1. Indoor unit includes a conduit bracket that can be found in the accessory kit. Assemble the

conduit and bracket with a grommet and washer (field-supplied or included with the elbow con-

nector) as shown.

2. Guide the power wiring / communication cable into the conduit / bracket assembly.

3. Attach the conduit / bracket assembly to the back of the indoor unit using the black Type D

screws found in the accessory kit.

• Check local, state, and federal codes when choosing a conduit size.

• )RUV\VWHPVZLWKZLULQJJUHDWHUWKDQIHHWVHHWKH³&RPPXQLFDWLRQ&RQQHFWLRQ3RZHU

&DEOH6SHFLILFDWLRQVIURP2XWGRRU8QLWWR,QGRRU8QLW´LQWKH(OHFWULFDO6\VWHP,QVWDOODWLRQVHFWLRQ

for information.

4. Close the piping holder, and, if all wiring and piping installation is complete, reassemble the

indoor unit properly onto the installation plate.

5. To protect the piping, condensate drain, and conduit from the elements, add a lineset cover

from the indoor access hole to the outdoor unit.

Figure 47: Liquidtight 3/4 Inch Elbow

Connector Attached to Flexible Conduit.

Figure 48: Indoor Unit Conduit / Bracket

Assembly.

Figure 49: Attaching the Conduit /

Bracket Assembly to the Back of the

Indoor Unit.

,IDFRQGXLWLVQRWXVHGVHHSDJHVLQWKH³5HIULJHUDQW3LSLQJ&RQQHFWLRQV´IRUUHIULJHUDQWSLSLQJFRQGHQVDWH

drain, power wiring / communication cable bundling information.

Indoor Unit Connections

Refrigerant Piping Connections

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Piping Installation When Piping is on the Left Side

• See the Electrical System Installation section for information on

how to connect the communication / connection (power) cable from

the outdoor unit.

• For left-side piping, it is recommended that the communication /

power connections are complete before starting the piping connec-

tions.

1. Insert drain hose (feature could differ depending on model of

indoor unit).

2. Align the center of the refrigerant piping and corresponding con-

nection as shown on the “Connecting the Indoor Unit Refrigerant

Piping Page”.

3. Place a couple of drops of refrigerant oil on outside of the flare

before assembling.

Do not add any contaminants. Tighten

the flare nut initially by hand.

4. Finish tightening the flare nut with a torque wrench until the

wrench clicks. Follow torque guidelines in the table as shown on

the “Connecting the Indoor Unit Refrigerant Piping Page”.

:KHQWLJKWHQLQJWKHÀDUHQXWZLWKDWRUTXHZUHQFKHQVXUHWKHGLUHFWLRQ

for tightening follows the arrow on the wrench.

5. Bundle the refrigerant piping, drain hose, and communication /

connection (power) cable together. Ensure that the drain hose is

located at the bottom of the bundle.

• If using a conduit for the power wiring / communications cable,

see the conduit information in the Electrical System Installation

section.

Positioning the drain hose at the top of the bundle can cause condensate

WRRYHUÀRZIURPWKHGUDLQSDQLQWKHLQVLGHRIWKHLQGRRUXQLW

Left Side Piping

Drain Hose

Piping

Connection

Cable

Tape

Drain Hose

Figure 50: Piping Installation When Piping is on the Left Side (Appear-

ances Will Vary Depending on Indoor Unit Model).

Indoor Unit Connections

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Piping Installation When Piping is on the Right Side

See the Electrical System Installation section for information on how to connect

the communication / connection (power) wiring from the outdoor unit.

1. Insert drain hose (feature could differ depending on model of indoor

unit).

2. Align the center of the refrigerant piping and corresponding connec-

tion as shown on the “Connecting the Indoor Unit Refrigerant Piping

Page”.

3. Place a couple of drops of refrigerant oil on outside of the flare before

assembling.

Do not add any contaminants. Tighten the flare nut

initially by hand.

4. Finish tightening the flare nut with a torque wrench until the wrench

clicks. Follow torque guidelines in the table as shown on the “Connect-

ing the Indoor Unit Refrigerant Piping Page”.

:KHQWLJKWHQLQJWKHÀDUHQXWZLWKDWRUTXHZUHQFKHQVXUHWKHGLUHFWLRQIRU

tightening follows the arrow on the wrench.

5. Bundle the refrigerant piping, drain hose, and communication / con-

nection (power) cable together. Ensure that the drain hose is located

at the bottom of the bundle.

• If using a conduit for the power wiring / communications cable, see

the conduit information in the Electrical System Installation section.

Positioning the drain hose at the top of the bundle can cause condensate to

RYHUÀRZIURPWKHGUDLQSDQLQWKHLQVLGHRIWKHLQGRRUXQLW

Right Side Piping

Piping

Connection

Cable

Tape

Drain Hose

Figure 51: Piping Installation When Piping is on the Right Side (Ap-

pearances Will Vary Depending on Indoor Unit Model).

Indoor Unit Connections

Refrigerant Piping Connections

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Depending on the installation location, it could be necessary to in-

stall factory-supplied drain plug(s). See pages 15 to 18 for informa-

tion in reference to outdoor unit placement.

Do not use the drain hose on the outdoor unit In locations where it

can drop below freezing. Drain water from the defrost mode can freeze

and build up in the outdoor unit, impairing heating performance, and even

will damage the outdoor unit.

Installing Outdoor Unit Drain Plug / Piping

1. See diagrams at right for drain connection, drain caps, and drain

washer locations on the outdoor units.

2. If a drain hose is necessary, connect the drain hose to the drain

plug with the drain washer through the drain hole on the bottom

of the outdoor unit.

3. Connect field-supplied vinyl condensate piping to the outdoor

unit drain connection. If the field-supplied vinyl piping is too long,

position it to prevent kinks.

Outdoor Unit Condensate Drain Piping Installation

&KHFNORFDOFRGHVIRUPDWHULDOVDSSURYHGIRU¿HOGVXSSOHGFRQGHQVDWH

drain piping.

Figure 52: LAU150HYV3 / LAU180HYV3 / LAU240HYV3 Outdoor Unit

Drain Connection Components.

Drain Plug

Drain

Washer

Drain Cap

Outdoor Unit Condensate Drain Hose

Figure 53: LAU150HYV3 / LAU180HYV3 / LAU240HYV3 Outdoor Unit

Drain Connection Components.

Drain Plug

Drain Cap

Drain Washer

Drain Caps

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Refer to the diagrams and follow proper installation and the position of the drain hose

along the refrigerant piping installation path to avoid leaks. After the drain hose is set

in place, always follow with leak / pressure testing and deep evacuation procedures of

the refrigerant piping to be sure all refrigerant piping is properly installed. Re-check and

retest as necessary.

Indoor units have a choice of drain hose connection locations: left side or right

side. The drain hose must be installed on one of the connection locations, and

depends on indoor unit location, refrigerant piping path, application, and code

requirements.

1. Remove the drain cap from the hole where the drain hose will be connected.

2. Block the unused drain hole with the drain cap. Verify that the cap is tightly

inserted.

3. There are two methods for attaching the drain hose to the indoor unit, depend-

ing on the indoor unit model, the drain hose, and application requirements:

• Type One: Firmly install the drain hose onto the indoor unit drain hose con-

nection.

• Type Two: Firmly install the drain hose onto the indoor unit drain hose connec-

tion, securing the hose with a screw where indicated.

4. Route the drain hose from the indoor unit, through the structure (wall), and to

the outside. It must slope at an angle where it is higher at the indoor unit and

lower toward the outdoor area, thereby letting gravity push any condensation

down and out.

Type One

Type Two

Figure 54: Indoor Unit Drain Hose Connection Locations.

Figure 55: Drain Hose Connection Methods.

Downward slope

to outdoor

for proper drainage

Indoor

Unit

Piping

Correct Drainage Slope

Indoor Unit Condensate Drain Hose Installation

Figure 56: Correct Slope Angle for Drain Hose.

Indoor Unit Condensate Drain Hose

Refrigerant Piping Connections

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Accumulated

drain water

Tip of Drain Hose

In Container

Tip of Drain

Hose Pointing

Tip of Drain Hose

In Water

Air

Kinks

Water

Leak

Water

Leak

Ditch

Less than

2 inch Gap

Between Bottom

of Drain Hose and

Ground

Water

Leak

No rainwater trap

Drain Hose and

Ground are Parallel

Horizontal Drain Hose

>6-1/2 feet

Drain Hose Inserted

<2 inches

Bundle Taped in

Downward

Direction

Less than 2 inch Gap

Buried Pipe

Upward slope

to outdoor

can cause indoor

leaks!

Indoor

Unit

Indoor

Unit

Indoor

Unit

Indoor

Unit

Water

Leak

Indoor

Unit

Indoor

Unit

Water

Leak

Indoor

Unit

Water

Leak

Indoor

Unit

Water

Leak

Drain Hose

Installed in

Upward Direction

Figure 57: Incorrect Slope Angles for the Drain Hose.

Indoor Unit Condensate Drain Hose

Avoid installing the drain hose as shown in the diagrams below. These methods are incorrect and can cause leaks at the indoor unit site.

Incorrect Slope Angles for the Drain Hose

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

If the installation location includes a vinyl chloride drain pipe system, insert the end of the indoor unit drain hose (or drain hose extension) more than

two (2) inches so it won’t pull out.

Insert the drain

hose >2 inches

so it won’t be pulled

out of the field-

supplied drain pipe.

>2 inches

Drain Hose

Interior Wall

Vinyl Chloride

Drain Pipe

Exterior Wall

Extending the Indoor Unit Drain Hose

)ROORZDOOORFDOVWDWHDQGIHGHUDOJXLGHOLQHVZKHQFKRRVLQJD¿HOGVXSSOLHGGUDLQKRVHH[WHQVLRQ

Depending on the location of the indoor unit, and its accessibility to the outside, It could be

necessary to extend the drain hose so that condensate will be properly routed away.

1. Insert the field-supplied drain extension hose into the indoor unit drain hose joint.

2. Securely wrap the connection between the field-supplied drain hose and the indoor unit

drain hose with vinyl tape.

3. All drain hoses and hose connections must be properly insulated to ensure any conden-

sation will not damage walls, floors, furniture, etc. Extension connection insulation is to be

more than 12 inches in length, and more than 1/4 inches thick (follow all local, state, and

federal codes for the proper insulation materials and installation procedures).

2 inches

(50 mm)

Outside WallInside Wall

Vinyl Chloride

Drain Pipe

System

Indoor Outdoor

Indoor Unit

Drain Hose

Indoor Unit

Drain Hose

Insulation

(More than 12 inches long

and 1/4 inches thick)

Drain Hose

Extension

Figure 58: Connecting the Extension Drain

Hose to the Indoor Unit Drain Hose.

Figure 59: Securing the Extension Drain Hose

to the Indoor Unit Drain Hose.

Figure 60: Insulating the Indoor Unit to Extension Drain Hose

Connection.

Indoor Unit Condensate Drain Hose

Precautions for Drain Hose Installation in a Wall-Embedded

Drain Pipe System

Follow all local, state, and federal guidelines when working with a wall-embedded drain pipe system.

Figure 61: Inserting the Drain Hose More Than Two (2) inches Into the

Wall-Embedded Drain Pipe System (Overview).

Figure 62: Inserting the Drain Hose More Than Two (2) inches Into the

Wall-Embedded Drain Pipe System (Close Up View).

Refrigerant Piping Connections

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

Checking the Indoor Unit Drain Hose for Leaks

1. Remove the indoor unit filter by pulling it up and out towards you.

'RQRWWRXFKWKHPHWDOSDUWRIWKHLQGRRUXQLWZKHQUHPRYLQJWKH¿OWHU'RLQJVRZLOOFDXVHFXWV

physical injury.

2. Pour a glass of water on the back of the evaporator.

3. Verify that the water flows appropriately through and out of the indoor unit and drain hose

without any leaks. Check all connection areas for leaks: the drain hose connection to the in-

door unit, the connection from the indoor unit drain hose to the field-suppled drain extension

hose, drain hose insert into wall-embedded drain system.

4. Verify that the water is flowing out and through the drain hose. If leaks are not present, but

water is not flowing out and through the drain hose, pour more water on the back of the

evaporator.

5. When satisfied that the drain system is leak-free, re-insert the filter.

Figure 63: Removing the Indoor Unit Filter.

Indoor Unit Condensate Drain Hose

Figure 64: Adding Water to the Evaporator.

Figure 65: Checking for Leaks at the Con-

nection Areas.

Due to our policy of continuous product innovation, some specifications may change without notification.

REFRIGERANT PIPING CONNECTIONS

• Always include insulation on all refrigerant and drain piping to

ensure condensate does not form and cause damage to walls,

floors, etc.

• Positioning the drain hose at the top of the bundle can cause con-

densate to overflow from the drain pan in the inside of the indoor

unit.

• )RUV\VWHPVZLWKZLULQJJUHDWHUWKDQIHHWVHHWKH³&RPPX-

nication / Connection (Power) Cable Specifications from Outdoor

8QLWWR,QGRRU8QLW´LQWKH(OHFWULFDO6\VWHP,QVWDOODWLRQVHFWLRQIRU

information.

Bundling

If a conduit or piping set cover is not used on the connection from

the outdoor unit to the interior, bundle both separately insulated

refrigerant pipes, the drain hose, and outdoor unit to indoor unit

communication / connection (power) cable together with wide vinyl

tape.

1. Both piping must be fully and separately encased in insulation

material: Overlap the field installation piping insulation material

and the indoor unit piping insulation material. Verify that any

insulation material cutting lines are placed upward.

2. Bind together the two pipes, using vinyl tape. Make sure there

are no gaps during the binding.

3. Wrap the rear piping section with narrow vinyl tape.

4. Continue to wrap the indoor unit pipe as connected to the outdoor

connection pipe.

5. Using a wider vinyl tape, bundle the piping and drain hose to-

gether. Ensure that the drain hose is located at the bottom of the

bundle. Install the wider vinyl tape from the bottom up.

• Tape must be sufficient to cover the piping in order to fit into the

rear piping housing area at the back of the indoor unit.

Figure 66: Bundling the Connection Components (From Outdoor Unit to

Indoor Unit).

Figure 67: Cutaway of Proper Bundling.

Vinyl tape(narrow)

Connection pipe

Connecting cable

Vinyl tape (wide)

Wrap with vinyl tape

Indoor unit pipe

Pipe

Cut Line at Top

Figure 68: Cutaway of Piping and Cable Bundling.

Bundling

Piping

Connection

Cable

Tape

Drain Hose

Insulation

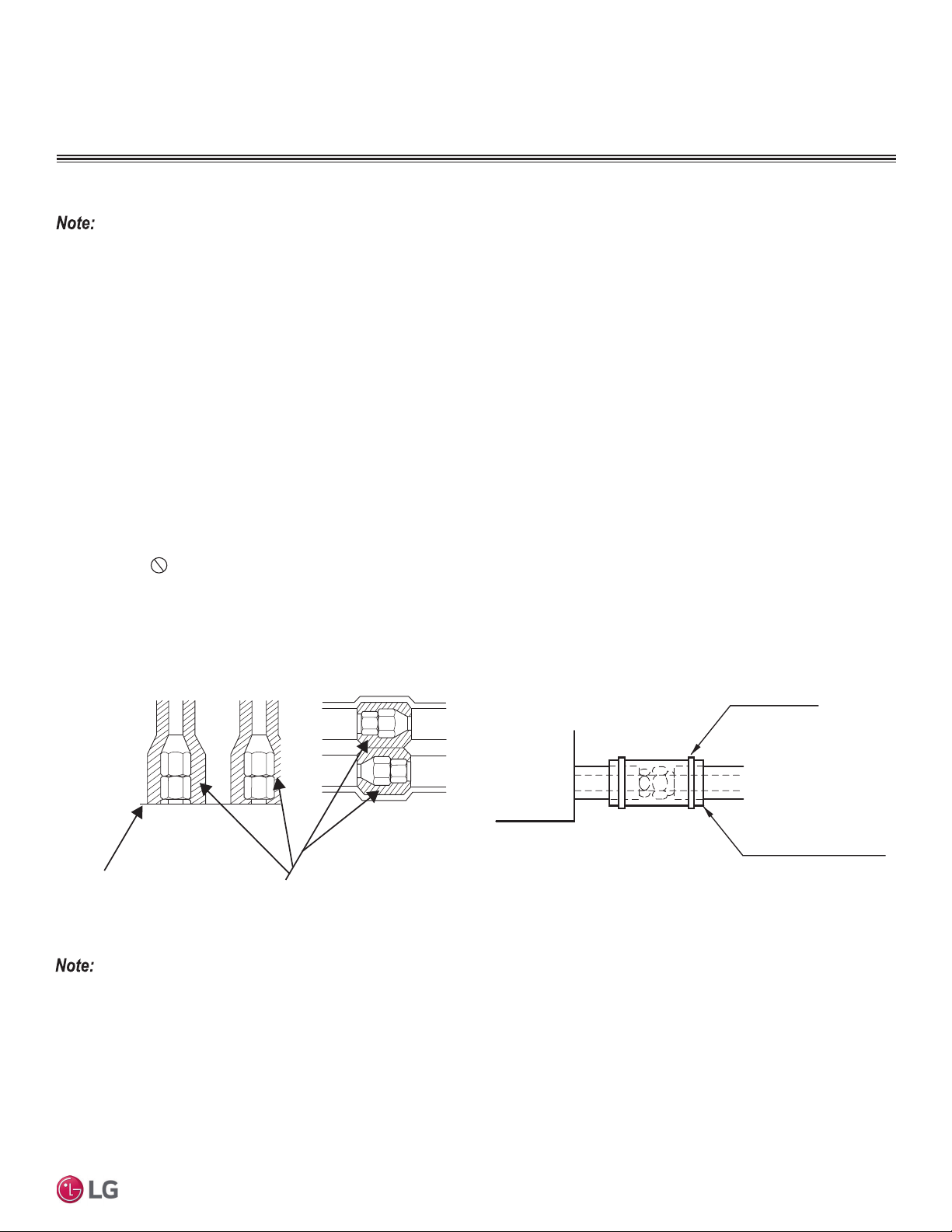

Due to our policy of continuous product innovation, some specifications may change without notification.

INSULATION

Figure 69: Typical Insulation Butt-

Joint at Indoor Unit Casing.

Figure 70: Typical Refrigerant

Flare Fitting Insulation Detail.

Refrigerant Piping System Insulation

)RULQIRUPDWLRQUHJDUGLQJLQVXODWLRQIRUXQGHUJURXQGRUSHQHWUDWLRQVLWXDWLRQVVHHWKH³*HQHUDO5HIULJHUDQW3LSLQJ6\VWHP,QIRUPDWLRQ´VHFWLRQ

All refrigerant piping from the outdoor unit to the indoor units must be insulated correctly for safety and usage. Refrigerant piping, field-pro-

vided isolation ball valves (if present), service valves, and elbows must be properly and completely insulated using closed cell pipe insulation

(up to the indoor unit piping connections). To prevent heat loss / heat gain through the refrigerant piping, all refrigerant piping including liquid

lines and vapor lines must be insulated separately. Insulation must be a minimum 1/2 inches thick, and thickness may need to be increased

based on ambient conditions and local codes. Table on next page lists minimum wall thickness requirements for Ethylene Propylene Diene

Methylene (EPDM) insulation.

Inside the outdoor unit, maximum pipe temperature is 248°F and minimum pipe temperature is -40°F. For field insulation of refrigerant piping

between outdoor units and indoor units, consider the following pipe temperature ranges for an operating heat pump system:

• Heating mode refrigerant temperature ranges: Liquid = 75-118°F; High Pressure Vapor = 95-220°F

• Cooling mode refrigerant temperature ranges: Liquid = 75-118°F; Low Pressure Vapor = 40-90°F

All insulation joints must be glued with no air gaps. Insulation material must fit snugly against the refrigeration pipe with no air space between

it and the pipe.

Do not allow insulation passing through pipe hangers, inside conduit, and/or sleeves to be compressed. Protect insulation

inside hangers and supports with a second layer. All pipe insulation exposed to the sun and outdoor elements must be properly protected

with PVC, aluminum vapor barrier, or alternatively placed in a weather-resistant enclosure such as a pipe rack with a top cover; and meet

local codes.

Surface of

Indoor Unit Casing

Field-Provided

Pipe Insulation

Figure 71: Insulating the Shut Off / Isolation Ball Valve (If Present).

Indoor Unit

Insulation (Field Supplied)

Cable Tie, etc.

(Field Supplied)

Refrigerant Piping

$OZD\VLQFOXGHSOHQW\RILQVXODWLRQRQDOOUHIULJHUDQWDQGGUDLQSLSLQJWRHQVXUHFRQGHQVDWHGRHVQRWIRUPDQGFDXVHGDPDJHWRZDOOVÀRRUVHWF

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

INSULATION

1. Typical Conditioned Location

A building plenum or space that contains conditioned air that does not exceed 80°F DB.

2. Special Conditioned Location

1. When the location is air conditioned, but there is severe temperature/humidity difference due to high ceilings.

• Church, auditorium, theater, lobby, etc.

2. When the location is air conditioned, but internal temperature/humidity are high.

• Bathroom, swimming pool, locker room, etc.

3. Typical Unconditioned Location

An unconditioned space inside a building.

Minimum Refrigerant Pipe Ethylene Propylene Diene Methylene (EPDM) Insulation Wall Thickness Requirements

4. Special Unconditioned Location: If conditions 1 and 2 below are present.

1. An unconditioned space or plenum of a building.

2. An area where there is an elevated humidity level.

&ODVVLÀFDWLRQ3LSLQJ2'

Air-conditioned location Non-air conditioned location

1. Typical Conditioned

Location

2. Special Conditioned

Location

3. Typical Unconditioned

Location

4. Special Unconditioned

Location

Liquid pipe

ø1/4 inch

>1/2 inches >1/2 inches >1/2 inches >1/2 inches

ø3/8 inch

¡LQFK >1/2 inches >1/2 inches >1/2 inches >1/2 inches

Vapor pipe

ø3/8 inch

>1/2 inches

>3/4 inches >3/4 inches

>1 inch

ø1/2 inch

ø5/8 inch

ø3/4 inch

ø7/8 inch

ø1 inch

ø1-1/8 inches

>3/4 inches

ø1-1/4 inches

>1 inch >1 inch

ø1-3/8 inches

ø1-1/2 inches

ø1-3/4 inches

Table 18: Minimum Refrigerant Pipe EPDM Insulation Wall Thickness Requirements.

• Do not insulate gas and liquid pipes together as this can result in pipe leakage and malfunction due to extreme temperature fluctuations.

• Always properly insulate the piping. Insufficient insulation will result in condensation, reduced heating/cooling performance, etc. Also, if the

pipes aren’t insulated properly, condensation could potentially cause damage to building finishes. Pay special attention to insulating the

pipes installed in the ceiling plenum.

• Fully insulate the piping connections.

• Follow locals codes and the designer’s instructions when selecting ethylene propylene diene methylene (EPDM) insulation wall thickness.

The thickness of the above insulation material is based on heat conductivity of 0.61 Btu/in/h/ft

)

5. Additional Insulation for Indoor Units May be Required in Humid Environments.

The air conditioner factory insulation has been tested according to “ISO Conditions with Mist,” and it satisfies the requirements. If the system

has been operating for a long time in a high humidity environment (dew point temperature: more than 73°F), condensate is likely to form. If

this happens, install 3/8 inch thick EPDM insulation that is plenum-rated with a heat-resistance factor of more than 248°F.

Electrical System Installation

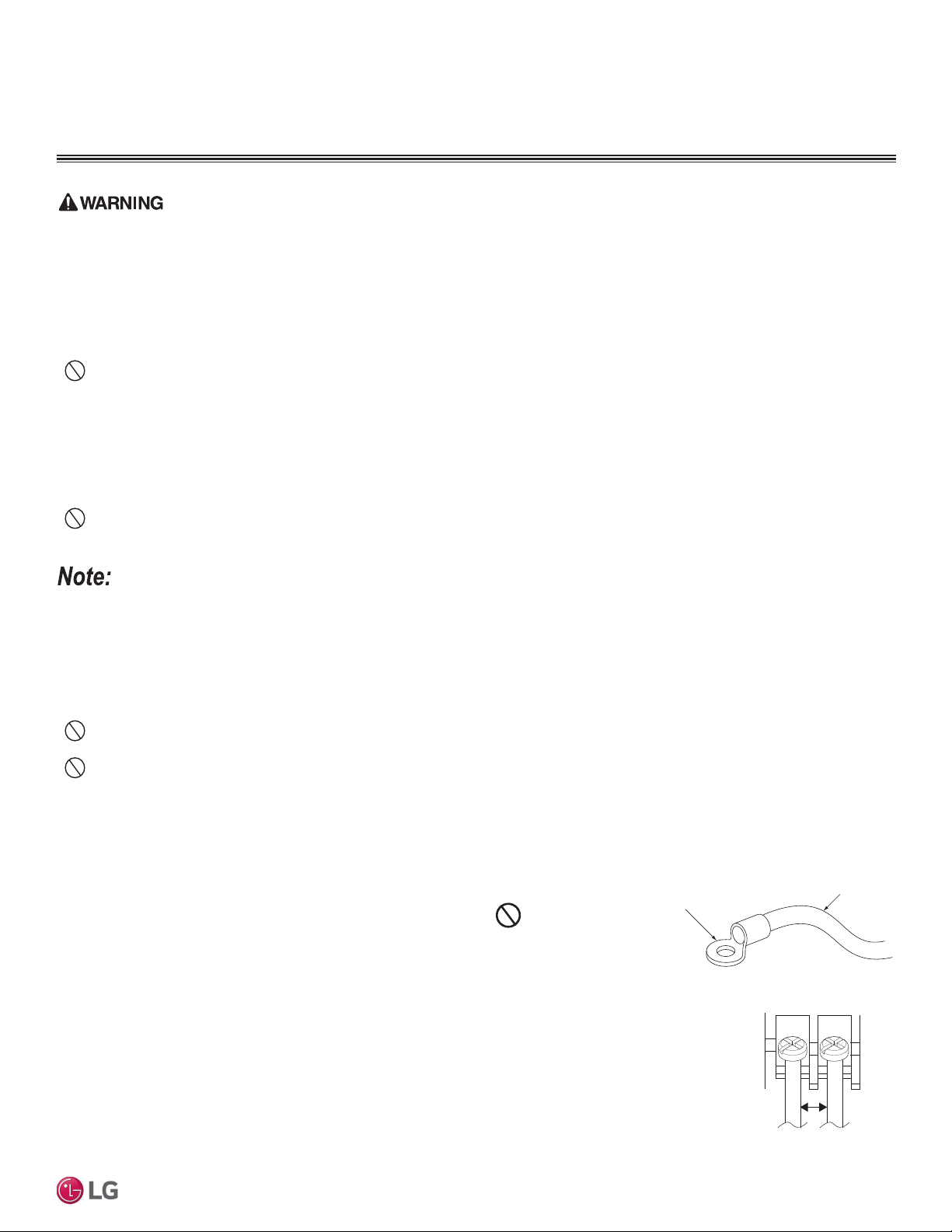

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

• All power wiring and communication cable installation must be performed by trained service providers working in accordance with local, state,

and National Electrical Code (NEC) / UL / CSA federal regulations related to electrical equipment and wiring, and following the manufacturer

product diagrams, requirements, and instructions in this manual. Failure to do so will lead to electric shock which can cause physical injury

or death.

• Verify that main power to the unit is completely off before proceeding. Follow all safety and warning information outlined at the beginning of

this manual. Failure to do so will cause electric shock and bodily injury or death.

• Familiarize yourself with the location of the circuit breaker. Be sure that a circuit breaker or some other emergency power cutoff device is in

place before any power wiring is done to the system. Failure to do so will cause bodily injury or death.

•

Never touch any power lines or live cables before all power is cutoff to the system. To do so will cause bodily injury or death.

• Undersized wiring will lead to unacceptable voltage at the unit and will cause a fire, which will cause bodily injury or death.

• Properly ground the Single Zone outdoor and indoor units. Ground wiring is required to prevent accidental electrical shock, bodily injury, and

death during current leakage.

• Ground wiring must always be installed by a trained technician.

• Install appropriately sized breakers / fuses / overcurrent protection switches and wiring in accordance with local, state, and NEC regulations

related to electrical equipment and wiring, and following the instructions in this manual. Using an oversized breaker or fuse will result in

electric shock, physical injury or death.

•

Do not connect ground wire to refrigerant, gas, or water piping; to lightning rods; to telephone ground wiring; or to the building plumbing

system. Failure to properly provide a NEC-approved earth ground can result in electric shock, fire, physical injury or death.

• Consider ambient conditions (temperature, direct sunlight, inclement weather, etc.) when selecting, installing, and connecting the power wir-

ing.

• Properly ground the Single Zone outdoor and indoor unit. Improperly connected ground wire can cause communication problems from electri-

cal noise, and motor current leakage. Ground wiring must always be installed by a trained technician.

• Install appropriately sized breakers / fuses / overcurrent protection switches and wiring in accordance with local, state, and NEC regulations

related to electrical equipment and wiring, and following the instructions in this manual. Using an oversized breaker or fuse will result in equip-

ment malfunction and property damage.

•

Do not connect ground wire to refrigerant, gas, or water piping; to lightning rods; to telephone ground wiring; or to the building plumbing

system. Failure to properly provide a NEC-approved earth ground can result in property damage and equipment malfunction.

•

Do not operate the air conditioning system until the refrigerant piping installation is complete. Operating the system before refrigerant

piping is finalized will damage the compressor.

6DIHW\*XLGHOLQHV&RQQHFWLRQVDQG6SHFL¿FDWLRQV

Figure 72: Close up of a Typical Ring Terminal.

Power Wiring / Communication Cable Connections

Best practice dictates using solderless ring or fork terminals at all power wiring and com-

munication cable terminations. Use copper bearing ring or fork terminals; do not use

galvanized or nickel plate over steel. Use appropriate crimping tool to attach the ring or fork

terminals at all power wiring and control cable terminations.

To Install a Ring or Fork Terminal:

1. Trim the wiring with wire cutters or pliers, then strip the insulation to expose the strand

wiring to about 3/8 inches.

2. Using a ring terminal fastener or pliers, securely clamp a ring terminal to each stripped

wire end.

Ring Terminal

Power Wiring

Figure 73: Distance Between the Terminal

Connections.

>1/4

inches

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

Strip to 3/8"

Ring

Terminal

Connecting Cable

Connecting cable

Loosening the

terminal block

screw

Fastening the

wiring tightly

Figure 74: Adding a Ring Terminal to the Wir-

ing.

To Connect the Wiring to the Terminals:

1. Remove the JIS terminal screws from the (outdoor unit or indoor unit) terminal plate with a

JIS screwdriver. (See information about LG terminal connections below.)

2. Position the ring terminal around the terminal, place the terminal screw in the ring, and

tighten to the terminal plate using a JIS screwdriver.

• Firmly attach the wire; secure in a way to prevent external forces from being imparted to

the terminal block.

• Use an appropriately sized JIS screwdriver for tightening the terminals.

•

Do not overtighten the connections; overtightening will damage the terminals.

If ring terminals or fork terminals are not available, then:

• Do not terminate different gauge wires to the power terminal block. (Slack in the wiring

will generate heat.)

• When terminating wires of the same thickness, follow the instructions demonstrated in the

figures below.

•

Never apply line voltage power to the communications cable terminal block. If contact is

made, the PCBs will be damaged.

• Always include some allowance in the wiring length when terminating. Firmly attach the wir-

ing or cable, but provide some slack to facilitate removing the electrical panels while servic-

ing, and to prevent external forces from damaging the terminal block.

:Copper Wire

Terminate multiple power wires of

the same gauge to both sides.

Do not terminate two wires on

one side.

Do not terminate different gauge

wires to a terminal block.

,ISRZHUZLUHVDUHQRWSURSHUO\WHUPLQDWHGDQG¿UPO\DWWDFKHGWKHUHLVULVNRI¿UHHOHFWULFVKRFN

and physical injury or death.

Figure 75: Tightening the Ring Terminal to the

Terminal Plate.

Figure 76: Proper and Improper Power Wiring Connections.

Power Wiring / Communication Cable Connections, continued

&RQQHFWLRQVDQG6SHFL¿FDWLRQV

Terminal Connections

LG uses a “JIS” type of screw for all terminals; use a JIS screwdriver to tighten and

loosen these screws and

avoid damaging the terminal. Do not overtighten

the connections — overtightening will damage the terminals — but firmly and securely

attach the wiring in a way to prevent external forces from being imparted to the termi-

nal block.

• 7KHWHUPLQDOVODEHOHG³*1'´DUH127JURXQGWHUPLQDOV7KHWHUPLQDOVODEHOHG

ARE ground terminals.

• 3RODULW\PDWWHUV$OZD\VFRQQHFW³$´WR³$´DQG³%´WR³%´

•

Do not include splices or wire nuts in the communication cable.

Figure 77: JIS Screws.

Electrical System Installation

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

&RQQHFWLRQVDQG6SHFL¿FDWLRQV

• LG Single Zone Art Cool Premier systems operate at 1Ø, 208-

230V, 60Hz.

• Power wiring / power wiring gauge to the outdoor unit(s) must be

solid or stranded, and must comply with all National Electrical

Code (NEC), UL, and local electrical codes.

• The indoor unit is powered by the outdoor unit.

• Power supply, wire types and sizes, and circuit breaker must be

selected based on NEC, UL, and local codes. Maximum allowable

voltage fluctuation ±10% or nameplate rated value.

• Properly ground the outdoor unit and indoor unit per NEC, UL, CA,

and local codes.

• Ground wire must be longer than the common power / communication wires.

• Connect the wiring firmly so the wires cannot be easily pulled out.

• Refer to the inside of the chassis cover or control cover for circuit and terminal block diagrams.

• Always match color codes of each wire and follow wiring diagram.

•

Do not install power wiring to the outdoor unit and the communication / connection (power) cable to the

indoor unit in the same conduit. Use separate conduits.

Figure 78: Example of a

Conduit.

Figure 79: Single Zone Outdoor Unit Power Wiring Diagram.

7/16" ± 1/8"

13/16"

GN/YL

Power Wiring, Ground

to Outdoor Unit

Power Supply / Power Wiring Specifications

5HIHUWR(OHFWULFDO'DWDWDEOHIRUDPSHUHUDWLQJV3URSHUO\VL]HDOOFLUFXLWEUHDNHUVIXVHVZLULQJDQG¿HOGSURYLGHGFRPSRQHQWVSHUORFDOFRGHV

7KHUHLVULVNRI¿UHHOHFWULFVKRFNH[SORVLRQSK\VLFDOLQMXU\RUGHDWK

• All power wiring installation must be performed by trained service providers working in accordance with local, state, and NEC regulations

related to electrical equipment and wiring, and following the instructions in this manual. Failure to do so will lead to electric shock and bodily

injury or death.

• Use specified wiring for connections, and ensure that external force is not imparted to terminal connections. It will generate heat and / or cause

a fire, resulting in physical injury or death.

• 8VHKHDWSURRIHOHFWULFDOZLUHFDSDEOHRIZLWKVWDQGLQJWHPSHUDWXUHVXSWR)WRDYRLGZLULQJPDOIXQFWLRQDQGHOHFWULFDOVKRFNZKLFKZLOO

cause physical injury or death.

• Install appropriately sized breakers / fuses / overcurrent protection switches and wiring in accordance with local, state, and NEC regulation

related to electrical equipment and wiring, and following the instructions in this manual. Generated overcurrent will include some amount of

direct current. Using an oversized breaker or fuse will result in electric shock, physical injury or death.

• Use the appropriate type of overcurrent protection. Generated overcurrent can include some amount of direct current, and if the appropriate

type of overcurrent protection is not installed, there is a risk of fire, electric shock, and physical injury or death.

• Ground wiring is required to prevent accidental electrical shock during current leakage, communication problems from electrical noise, and

motor current leakage.

Do not connect the ground line to the pipes. There is risk of fire, electric shock, explosion, physical injury or death.

• Per code, install a main indoor breaker, and an outdoor service disconnect that interrupts all power sources simultaneously. There is risk of

fire, electric shock, explosion, physical injury or death.

• If there is a possibility of momentary blackout, or the power goes on and off while the system is operating, install a field-supplied phase loss

protection circuit. If not, the compressor and other components will be damaged.

• 8VHKHDWSURRIHOHFWULFDOZLUHFDSDEOHRIZLWKVWDQGLQJWHPSHUDWXUHVXSWR)WRDYRLGGDPDJHWRXQLW

• Install appropriately sized breakers / fuses / overcurrent protection switches and wiring in accordance with local, state, and NEC regulations

related to electrical equipment and wiring, and following the instructions in this manual. Generated overcurrent can include some amount of

direct current. Using an oversized breaker or fuse will result in equipment malfunction and property damage.

•

Do not connect ground wire to refrigerant, gas, or water piping; to lightning rods; to telephone ground wiring; or to the building plumbing

system. Failure to properly provide a NEC approved earth ground can result in property damage and equipment malfunction.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

Communication / Connection (Power) Cable Specifications from Outdoor

Unit to Indoor Unit

Figure 80: Typical Single Zone Outdoor Unit to Indoor Unit Wiring and

Communications Cable Diagram.

Communication / Connection

(Power), Ground Cable

From Outdoor Unit

To Indoor Unit

13/16"

GN/YL

GN/YL = (Ground, Yellow)

7/16" ± 1/8"

&RQQHFWLRQVDQG6SHFL¿FDWLRQV

• Always verify the communication cable is connected to a communi-

cations terminal on the Single Zone Art Cool Premier unit. Never

apply line voltage power to the communication cable connection. If

contact is made, the PCBs will be damaged.

• The shield of the communications cable connecting the outdoor unit to

the indoor unit must be grounded only to the outdoor unit frame.

• Tie the shield of each cable segment together using a wire nut at the

indoor unit. Maintain polarity throughout the communication network.

• Position the incoming power to the outdoor unit away from the power

/ communications cables from the outdoor unit to the indoor unit.

•

Never use a common multiple-core communications cable.

All power wiring and communication cable installation must be performed by trained service providers working in accordance with local, state, and

National Electrical Code (NEC) / UL / ETL federal regulations related to electrical equipment and wiring, and following the manufacturer product

diagrams, requirements, and instructions in this manual. Failure to do so will lead to electric shock which can cause physical injury or death.

Figure 81: Typical Single Zone Power / Communication System Dia-

gram.

Indoor Unit

Terminal

Power Supply

1 Phase, 208-230V

Connecting Cable

Grounding Line

Outdoor Unit

Terminal

If 3-pole disconnect is

required by local code,

install here.

• Communication / connection (power) cable from the single zone

outdoor unit to the indoor unit must use a minimum of 14 AWG,

four (4) conductor, stranded, shielded or unshielded (if shielded,

it must be grounded to the chassis of the outdoor unit only), and

must comply with applicable local and national codes.

• Use of 14 AWG, four (4) conductor, stranded, shielded or unshield-

ed wire is allowed for lengths up to the published maximum pipe

length, plus recommended slack at both ends.

• Insulation material as required by local code.

• Firmly attach the cable; provide slack but secure in a way to pre-

vent external forces from being imparted on the terminal block.

• Wiring must be completed without splices.

Electrical System Installation

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

Controller Options

Handheld Remote Controller

Single Zone Art Cool Premier Wall Mounted systems include a wireless handheld remote controller (Part No.

AKB74955602). Optional LG-suppled wired controllers are available. See “Functions, Controls, Options”in the

Engineering Manual, or contact an LG representative for more information.

Wireless Handheld Remote Controller features:

• Display Panel: Displays operation conditions.

• On / Off Button: Turns system operation on and off.

• Mode Button: Selects the operation mode: Cooling,

Heating, Auto, Dry (Dehumidification), or Fan.

• Temp Up / Down Buttons: Adjusts the desired room

temperature in the different modes.

• Fan Speed Button: Sets desired fan speed.

• Reset: Initializes the handheld remote control set-

tings.

Dry Contact

A Dry Contact can also be connected to the Art Cool Premier indoor

unit using the CN-CC connection on the indoor unit PCB. The Dry

Contact DC is shipped with a specific connector that is used to con-

nect to the indoor unit.

Central Controller

Additionally, Single Zone Art Cool Premier systems can be con-

nected to a central controller if a PI-485 VNet Accessory is installed

in the outdoor unit. See the Central Controller manual for wiring

specifications.

Wired Controller Connections

Optional controllers (see the Single Zone Art Cool Premier Wall-Mounted Engineering Manual, or contact an

LG representative for more information) connect to the Single Zone Art Cool Premier Piping Wall-Mounted

indoor unit in one of two different ways.

1. LG Wired Remote Extension Cable with Molex plug (PZCWRC1; sold separately) that connects to the CN-

REMO terminal on the indoor unit PCB.

2. Field-supplied controller cable that connects to the indoor unit

terminal block (must be at least UL2547 or UL1007, and at least

FT-6 rated if local electric and building codes require plenum

cable usage). Communication cable from indoor unit to remote

controller(s) is to be 22 AWG, 3-conductor, twisted, stranded,

unshielded. Wiring must comply with all applicable local and

national codes.

Figure 82: AKB74955602

Wireless Handheld Remote

Controller.

:KHQXVLQJ¿HOGVXSSOLHGFRQWUROOHUFDEOHPDNHVXUHWRFRQQHFWWKH\HOORZWR\HOORZFRPPXQLFDWLRQVZLUHUHGWRUHG9SRZHUZLUHDQGEODFN

to black (ground wire) terminals from the remote controller to the indoor unit terminal blocks.

Verify the connectors are properly inserted.

C/BOX Cable (Plug type)

Extension cable

To Indoor Unit

CN-REMO

Terminal

TEMP

FAN

SPEED

OPER

MODE

Figure 83: PZCWRC1 LG Wired Remote Extension Cable.

Figure 84: Wired Controller Connections on the Indoor Unit Terminal

Block.

Display

Button

Screen

Reset

Indoor Unit Terminal

BR BL

GR/YL

&RQQHFWLRQVDQG6SHFL¿FDWLRQV&RQWUROOHU2SWLRQV

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

Connecting Indoor Unit Electrical Wiring

• Verify that main power to the unit is completely off before proceeding with these steps as there is a risk of electrical shock, bodily injury, and / or

death.

• Follow all safety and warning information outlined at the beginning and throughout this manual. Failure to do so will cause electrical shock, bodily

injury, and / or death.

• Follow all safety and warning information outlined at the beginning and throughout this manual. Failure to do so will cause unit failure.

• Connect the communication / connection (power) cable to the indoor unit by matching the terminals on the outdoor unit control board. Verify

the color of the wires at the outdoor unit, along with the terminal numbers, match those for the indoor unit.

• Images are representative; actual appearance will vary.

• Refer to the circuit diagram on the indoor unit bottom cover.

Removing the Indoor Unit Bottom Panel

At this point in the installation procedure, the front panel should already be opened, and the bot-

tom cover should already be removed. If not, follow the steps below.

1. Fully open the front panel.

2. The bottom panel has plastic clips that attach to the indoor unit at several connection points.

The number and position of the connections vary depending on the model of indoor unit.

3. Hold the center of the bottom panel, and pull it towards to disengage the pins, releasing them

from the connection points.

4. Pull both sides of the bottom panel out to release the clips from the connections, being careful

not to damage the bottom panel or scratch the main horizontal vane. Set aside the bottom

panel to re-install after all procedures are complete.

Figure 85: Position of the Bottom Panel

Connection Points.

Figure 86: Releasing the Back of the

Bottom Panel.

Figure 87: Releasing the Sides of the

Bottom Panel.

Preparing the Communication / Connection (Power) Cable and Piping

After the length between the indoor unit and the outdoor unit has been measured, cut the power wiring / communication (connection) cable

and the piping to the proper length:

• Cut the communication (connection) cable 4.9 ft (1.5 m) longer than that of the piping.

• Cut the piping slightly longer than the measurement.

Indoor Unit Electrical Connections

Electrical System Installation

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

Figure 88: Example of an Indoor Unit

Knockout.

1(L1) 2(L2) 3

Installing the Indoor Unit Communication / Connection

(Power) Cable

The indoor units have knockout access holes for the communication / connection (power) cable,

with a choice of left or right side wiring installation. Depending on the installation and application

requirements, choose which side to knock out the access hole before applying the steps below. If

a conduit will be used to protect the cable from the indoor unit to the outdoor unit, see “Using a Con-

duit for Indoor Unit Wiring / Cable Installation” on the next page.

1. The terminal block is located on the bottom right side of the front of the indoor unit. Route the

power wiring / communications (connection) cable through the pre-chosen access hole.

2. The terminal block is protected by a metal control box cover. To access the terminals, unscrew

the screw holding the control box cover in place, and push the cover up.

3. Unscrew the screw to the cable clamp. Open the cable clamp.

4. Using a JIS screwdriver, connect the cable terminals to the terminal block. Ensure wire color and

terminal number of the indoor unit matches those of the outdoor unit. See also indoor unit wiring

diagram found on its bottom cover, and outdoor unit wiring diagram on the inside of its chassis

cover.

5. When the wiring is complete, close the clamp cord, secure it with the screw.

Figure 89: Opening the Control Box

Cover.

Figure 90: Opening the Cable Clamp.

6. Close the control box cover, and secure it with the screw.

The connections in the indoor unit control box can become loose during shipping and through typical use.

Check that all of the connections are secure. If the connections are loose, the cables and terminals can

EHFRPHGDPDJHGFDXVLQJVSDUNV¿UHHOHFWULFVKRFNSK\VLFDOLQMXU\DQGRUGHDWK

• Each wire must be securely attached to the terminal block.

• Ground cable must be longer than the other wires.

Figure 91: Installing the Cable / Wiring. Figure 92: Securing the Cable Clamp. Figure 93: Closing the Control Box

Cover.

Indoor Unit Electrical Connections

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

Indoor Unit Electrical Connections

Using a Conduit for Indoor Unit Wiring / Cable

Installation

• Use a liquidtight 3/4 inch elbow connector for flexible conduit to protect the communication / con-

nection (power) cable. The conduit can be positioned in the desired direction.

• Before permanently positioning the refrigerant piping and drain hose at the back of the indoor unit,

install the conduit first.

1. Indoor unit includes a conduit bracket that can be found in the accessory kit. Assemble the

conduit and bracket with a grommet and washer (field-supplied or included with the elbow con-

nector) as shown.

2. Guide the power wiring / communication cable into the conduit / bracket assembly.

3. Attach the conduit / bracket assembly to the back of the indoor unit using the black Type D

screws found in the accessory kit.

• Check local, state, and federal codes when choosing a conduit size.

• )RUV\VWHPVZLWKZLULQJJUHDWHUWKDQIHHWVHHWKH³&RPPXQLFDWLRQ&RQQHFWLRQ3RZHU&DEOH6SHF-

LILFDWLRQVIURP2XWGRRU8QLWWR,QGRRU8QLW´LQWKH(OHFWULFDO6\VWHP,QVWDOODWLRQVHFWLRQIRULQIRUPDWLRQ

4. Close the piping holder, and, if all wiring and piping installation is complete, reassemble the

indoor unit properly onto the installation plate.

5. To protect the piping, condensate drain, and conduit from the elements, add a lineset cover

from the indoor access hole to the outdoor unit.

Figure 94: Liquidtight 3/4 Inch Elbow

Connector Attached to Flexible Conduit.

Figure 95: Indoor Unit Conduit / Bracket

Assembly.

Figure 96: Attaching the Conduit /

Bracket Assembly to the Back of the

Indoor Unit.

,IDFRQGXLWLVQRWXVHGVHHSDJHVLQWKH³5HIULJHUDQW3LSLQJ&RQQHFWLRQV´IRUUHIULJHUDQWSLSLQJFRQGHQ-

sate drain, power wiring / communication cable bundling information.

Electrical System Installation

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

Cable Installation When Piping is on the Left Side

1. Insert the communication / connection (power) cable through the left access hole, and through the inside of the indoor unit to the terminal

block.

2. Connect the communication / connection (power) cable terminals to the terminal block as detailed in “Installing the Indoor Unit Communi-

cation / Connection (Power) Cable” on the previous pages.

3. Secure the refrigerant piping, drain hose, and communication / connection (power) cable together using cable ties, or by the bundling

method.

• Position the drain hose at the bottom. Positioning the drain hose at the top of the bundle can cause condensate to overflow from the drain

pan in the inside of the indoor unit.

• ,IDFRQGXLWLVQRWXVHGVHHWKLVVHFWLRQRULQWKH³5HIULJHUDQW3LSLQJ&RQQHFWLRQV´IRUUHIULJHUDQWSLSLQJFRQGHQVDWHGUDLQSRZHUZLULQJ

communication cable bundling information.

Cable Installation When Piping is on the Right Side

• Insert the communication / connection (power) cable through the right access hole, and through the indoor unit to the terminal block.

• Connect the communication / connection (power) cable terminals to the terminal block as detailed in “Installing the Indoor Unit Communica-

tion / Connection (Power) Cable” on the previous pages.

• Secure the refrigerant piping, drain hose, and communication / connection (power) cable together using cable ties, or by the bundling

method.

• Position the drain hose at the bottom. Positioning the drain hose at the top of the bundle can cause condensate to overflow from the drain

pan in the inside of the indoor unit.

communication cable bundling information.

Indoor Unit Electrical Connections

Single Zone Art Cool Premier Wall Mounted Installation Manual

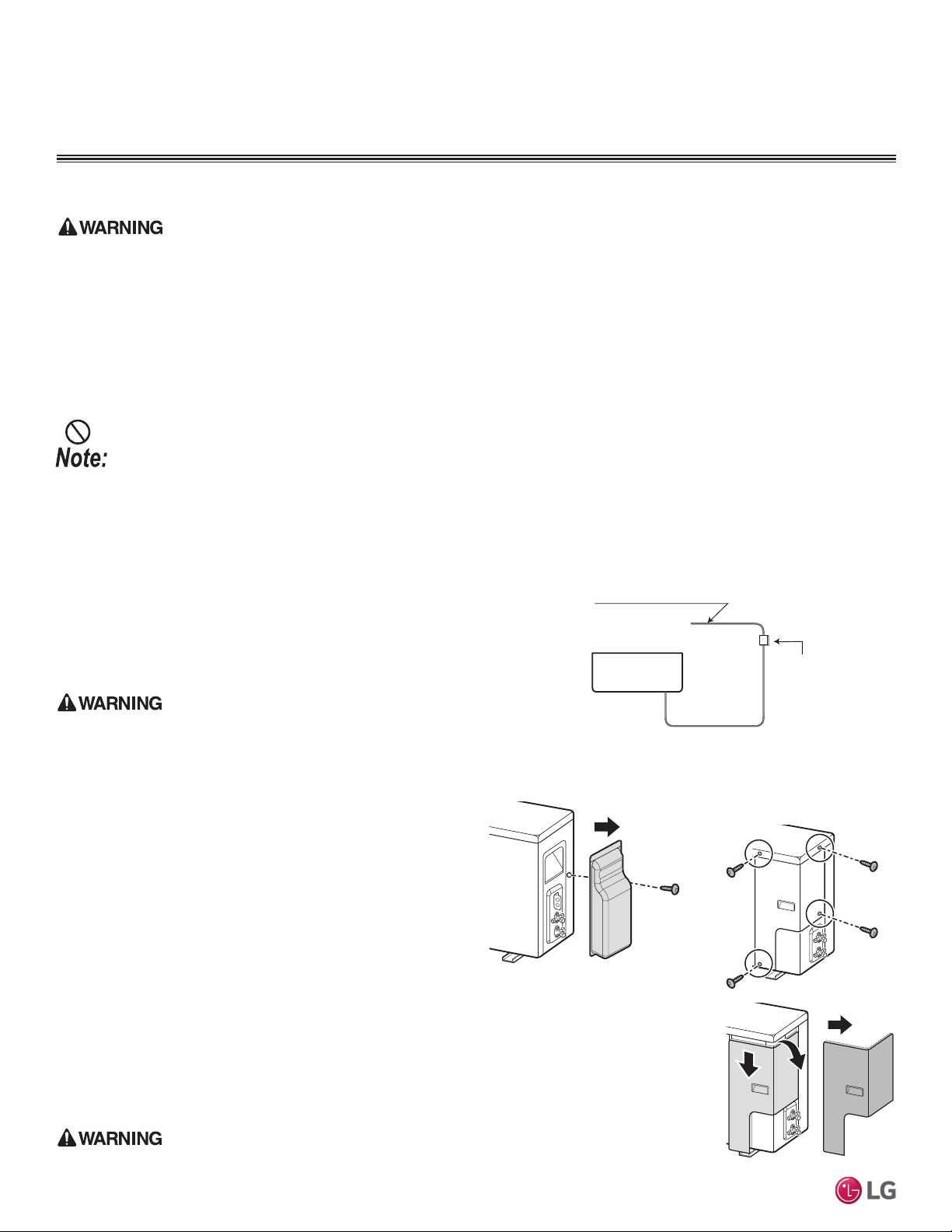

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

Connecting Outdoor Unit Wiring

• Verify that main power is completely off and that no power is going through the Single Zone system before proceeding with these steps. Failure

to do so will cause electric shock, bodily injury and / or death

• Follow all safety and warning information outlined at the beginning of this manual. Failure to do so will cause electric shock, bodily injury and

/ or death.

• Per code, install a main indoor breaker, and an outdoor service disconnect that interrupts all power sources simultaneously. There is risk of

fire, electric shock, explosion, physical injury or death.

• Verify that the circuit breaker or some other emergency power cutoff device is in place before any power wiring is done to the system. Failure

to do so will cause electric shock, bodily injury and / or death.

• 5HYLHZWKH³(OHFWULFDO6SHFLILFDWLRQV´LQWKH³3URGXFW'DWD´VHFWLRQRIWKLVPDQXDORUWKHRXWGRRUXQLWQDPHSODWHIRUWKHFRUUHFWHOHFWULFDO

requirements. Failure to do so will cause fire, electric shock, bodily injury and / or death.

•

Never touch any power lines or live cables before all power is cutoff to the system. To do so will cause bodily injury or death.

Outdoor Unit Electrical Connections

Figure 97: Circuit Breaker.

Air

Conditioner

Main Power Source

Circuit Breaker

Use a circuit breaker

or time delay fuse

• Follow all safety and warning information outlined at the beginning and throughout this manual. Failure to do so will cause unit failure.

• Connect the communication / connection (power) cable to the outdoor unit by matching the terminals on the outdoor unit control board. Verify

the color of the wires at the indoor unit, along with the terminal numbers, match those for the outdoor unit.

• Images are representative; actual appearance will vary.

• Refer to the circuit diagram on the outdoor unit panel.

Connecting Outdoor Unit Power Wiring and

Communication / Connection (Power) Cable

1. Confirm that electrical power supply capacity will be sufficient to run the unit. Verify

that a circuit breaker and service disconnect are installed. See the “Electrical

Specifications” in the “Product Data” section for details on electrical requirements.

Per code, install a main indoor breaker, and an outdoor service disconnect that interrupts

DOOSRZHUVRXUFHVVLPXOWDQHRXVO\7KHUHLVULVNRI¿UHHOHFWULFVKRFN

explosion, physical injury or death.

2. Confirm that the right gauge size is used for all wiring. Follow

all federal, state, and local codes related to power wiring to the

outdoor unit. For specifications related to communication / connec-

tion (power) cable from the outdoor unit to the indoor unit, see the

information detailed in this section.

3. LAU090HYV3 / LAU120HYV3 outdoor units have a piping cover

that protects the piping and electrical connections. Using a Phillips

head screwdriver, remove the one (1) screw, and guide the piping

cover out as shown.

4. LAU150HYV3 / LAU180HYV3 / LAU240HYV3 outdoor units have a side panel to protect the electrical

components. Using a Phillips head screwdriver, remove the four (4) screws, and guide the side panel

down and out as shown.

5. Inspect all interior wiring to be sure they are secure and have not loosen during transportation and out-

door unit installation. Also, inspect wires for damage or cracks.

Loose, damaged, or cracked wires will cause electric shock, bodily injury and / or death.

Figure 99: Accessing the

LAU150HYV3 / LAU180HYV3

/ LAU240HYV3 Outdoor Unit

Terminal Block.

Figure 98: Accessing the

LAU090HYV3 / LAU120HYV3

Outdoor Unit Terminal Block.

Electrical System Installation

Due to our policy of continuous product innovation, some specifications may change without notification.

ELECTRICAL SYSTEM INSTALLATION

Outdoor Unit Electrical Connections

Connecting the Conduit at the

Outdoor Unit

HYV3 outdoor units have a either bracket, or holes on the side to

help access the control panel. Insert the other end of the conduit

to the outdoor unit access hole with a grommet and washer (field-

supplied with the connector) as shown.

Do not install power wiring to the outdoor unit and the communication / connection (power) cable to the indoor unit in the same conduit. Use

separate conduits for the separate access holes. Communication problems will occur.

Loose wires can cause the wiring to burn out, damaging the outdoor unit.

6. Unscrew the screws to the cable clamps, and then open the cable clamps. There is one cable

clamp for the power wiring to the outdoor unit, and one cable clamp for the communication /

connection (power) cable to the indoor unit.

7. Guide the outdoor unit power wiring, and communications / connection (power) cable through

the separate access holes in the bracket (LAU090-120HYV3), or through the separate ac-

cess holes (LAU150-180-240HYV3) (see images at right). If installing conduits to protect the

communication / connection (power) cable, see “Using a Conduit for Indoor Unit Wiring / Cable

Installation”.

Do not install power wiring to the outdoor unit and the communication / connection (power) cable to

the indoor unit in the same conduit. Use separate conduits for the separate access holes. Communica-

tion problems will occur.

8. Using a JIS screwdriver, securely connect wires as shown. See also indoor unit wiring diagram

found on its bottom cover, and outdoor unit wiring diagram on the inside of its chassis cover.

• Each wire must be individually and securely attached to each terminal.

• Outdoor unit wire color and terminal number must match the indoor unit wire color and terminal

number.

• Pay attention to the location / connection of the ground cable.

• Maintain a minimum of 1/4 inches of wire length from terminal block to conduit / bundle.

Loose wires will cause electric shock, bodily injury and / or death.

Loose wires can cause the wiring to burn out, damaging the outdoor unit.

9. Close the cable clamps, and secure them with the screws.

Do not secure the outdoor unit power wiring and the communication / connection (power)

cable to the indoor unit using the same cable clamp. Use the two separate clamps. Communication problems will occur.

10. When finished, reattach the piping cover or side panel (depending on model) to the outdoor unit with the screw(s).

Figure 100: LAU090HYV3 / LAU120HYV3

Outdoor Unit Wiring / Cable Access Holes.

Figure 101: LAU150HYV3 / LAU180HYV3 /

LAU240HYV3 Outdoor Unit Wiring / Cable

Access Holes.

Terminal Connections

for Outdoor Unit

Power Supply Wiring

Terminal Connections for

Communication / Connection

(Power) Cable from

Outdoor Unit to Indoor Unit

1(L1) 2(L2) 1(L1) 2(L2) 3

Figure 102: Outdoor Unit Wiring / Cable Connec-

tions.

Figure 103: LAU090-120HYV3 Out-

door Unit Conduit Assembly.

Figure 104: LAU150-180-240HYV3

Outdoor Unit Conduit Assembly.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

Triple Leak / Pressure Test

After the refrigerant piping installation is complete, perform a triple leak / pressure test. Triple leak / pressure test is performed between the

outdoor unit and indoor unit to verify that refrigerant can flow through the system without danger of leaks or pressure losses. Air and moisture

that is left in the piping can lead to undesirable results and can cause damage to the system. It is important to go through a complete leak /

pressure cycle to be sure that the refrigerant piping is cleared out. This process may have to be repeated if any air or moisture be is found to

remain in the piping.

• Pressure in the system can rise.

• Operating current can rise.

• Inefficient cooling or heating mode capability.

• Moisture in the refrigerant circuit will freeze and block capillary

tubing.

• Water can lead to corrosion of parts in the system.

Figure 105: Outdoor Unit Service Valves.

,QVXI¿FLHQWRULQFRUUHFWO\GRQHDLUSXUJLQJZLOOOHDGWRWKHIROORZLQJ

DANGER

8VLQJFRPEXVWLEOHJDVHVLQFOXGLQJR[\JHQZLOOUHVXOWLQ¿UHRUH[SORVLRQUHVXOWLQJLQSHUVRQDOLQMXU\RUGHDWK8VHLQHUWJDVPHGLFDOJUDGHGU\

nitrogen) when checking leaks, cleaning, installing/repairing pipes, etc. The use of an 800 psig or higher nitrogen regulator is required for safety.

• Never perform the leak test using refrigerant.

• To avoid nitrogen entering the refrigerant system in a liquid state, the top

of the cylinder must be higher than its bottom (used in a vertical standing posi-

tion) when the system is pressurized.

• Use only a leak-free gauge manifold set.

• Piping system must not be pressured to more than 550 psi. Pressures greater

than 550 psi will damage the piping system and cause unit malfunction.

Triple Leak / Pressure Check Procedure

1. After the refrigerant piping installation is complete, open the isolation ball valves, if any, that may

have been included in the piping system.

2. Verify that both the liquid and gas (vapor) suction line outdoor unit service ports are closed, and

the stem head access caps are tight. The leak / pressure check is to be performed only to the

refrigerant piping system and the connected indoor unit.

3. Remove the cap on the gas (vapor) suction line Schrader port. Connect the (medical-grade dry)

nitrogen cylinder regulator to a gauge manifold, then connect the gauge manifold to the gas

(vapor) suction Schrader port on the service port.

4. Perform the leak / pressure check at 150 psig for fifteen (15) minutes (standing pressure check).

5. Perform the leak / pressure check at 300 psig for thirty (30) minutes (standing pressure check).

6. Perform the leak / pressure check at 550 psig for one (1) hour to make sure the piping system is

leak-free. After the gauge reading reaches 550 psig, isolate the system by first closing the gauge

manifold, then close the nitrogen cylinder valve. Check the flared (and any brazed connections)

for leaks by applying a bubble solution to all joints.

The bubble solution must be a solution designed for refrigerant leak testing. Common soap solution must

never be used on refrigerant piping as those contain chemicals that could corrode copper and brass,

and cause product malfunction.

Triple Leak / Pressure Test

Figure 106: Gauge Manifold Hose Con-

nected to the Schrader Valve on the Gas

(Vapor) Service Port.

Indoor Unit

Outdoor Unit

Gauge Manifold

Charge Hose

Nitrogen Gas

Tank (Upright

Position)

Refrigerant

Piping

Micron

Gauge

Connected to Shrader Valve

on Gas (Vapor) Service Port

Gas (Vapor)

Service Valve

Cap

Liquid Service

Valve Cap

Schrader

Valve

Caps

Figure 107: Triple Leak / Pressure Test

Diagram (Outdoor Unit Appearance Will

Differ Depending on Model).

Gauge Manifold

Micron

Gauge

Final Installation Procedures

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

Deep Evacuation Procedure

After the leak / pressure check is complete, its is required that a deep evacuation procedure is be performed to the refrigerant piping and the

connected indoor unit. Deep evacuation must be performed through the gas (vapor) suction line Schrader port on the outdoor unit service port.

The deep evacuation procedure is required for Single Zone systems. A triple evacuation procedure seen on the next page is a best practices recom-

mendation for Single Zone systems.

For faster evacuation, the Schrader core can be removed, and an auxiliary service port can used. Make sure to re-install the original Schrader core

before operating the system.

• Deep evacuate through just the gas (vapor) suction Schrader port on the outdoor unit

service port.

• The outdoor unit service valves must remain closed and the stem head access caps

tight.

Do not open the outdoor unit service valves and release the factory refriger-

ant charge until trim charge is complete, and the system is ready to operate.

• Any field-installed ball valves in the refrigerant system (if used) must be open to

ensure all piping is free and clear for deep evacuation on all piping and the connected

indoor unit.

• Do not apply power to the system before performing the deep evacuation procedure. There is a possibility that the EEV valve may close

and isolate sections of the piping system, making the deep evacuation procedure inconclusive.

• Never perform evacuation using refrigerant.

• Use only a vacuum pump that can reach 500 microns, vacuum rated hoses or copper tubing, and

a leak-free gauge manifold set.

• Use only new vacuum pump oil from a properly sealed (unopened) container, and change oil in

pump before EVERY use.

• Subsequent oil changes will be necessary after several hours of continuous operation; have extra

oil on hand.

• Use a quality micron gauge in good operating order and install as far away from pump as pos-

sible.

Deep Evacuation Procedure Steps

1. If this procedure is performed shortly after the leak / pressure test, the cap and core on the gas

(vapor) suction Schrader port must have already been removed, and the manifold must already

be connected. If the procedure was not performed shortly after the leak / pressure test, make sure to remove the cap and core on the gas

(vapor) suction Schrader port. Verify that the service valves on the outdoor unit are closed, and the stem head access caps are tight.

Triple Leak / Pressure Test / Deep Evacuation Procedure

Figure 108: Gauge Manifold Hose Con-

nected to the Schrader Valve on the Gas

(Vapor) Service Port.

Gauge Manifold

Micron

Gauge

Figure 109: Outdoor Unit Service Valves.

Gas (Vapor)

Service Valve

Cap

Liquid Service

Valve Cap

Schrader

Valve

Caps

Triple Leak / Pressure Check Procedure, continued.

7. If the pressure does NOT drop for one (1) hour, the system passes the test.

8. If the pressure drops, there is a leak and it must be found. Remove the bubble solution with a clean cloth, repair the leak(s), and perform

the leak / pressure check again.

9. After the system has been thoroughly tested and no leaks are found, depressurize by loosening the charging hose connector at the nitro-

gen cylinder regulator. When system pressure returns to normal, completely disconnect the charging hose from the cylinder, and release

the nitrogen charge from all refrigerant piping. Wipe off any remaining bubble solution with a clean cloth.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

Triple Evacuation Procedure

After the leak / pressure check is complete, it is a best practices recommendation that a triple evacuation procedure is performed to the

refrigerant piping and the connected indoor unit. Triple evacuation must be performed through the gas (vapor) suction Schrader port on the

outdoor unit service port.

The deep evacuation procedure is required for Single Zone systems. The triple evacuation procedure is a best practices recommendation for Single

Zone systems.

For faster evacuation, the Schrader core can be removed, and an auxiliary service port can used. Make sure to re-install the original Schrader core

before operating the system.

• Evacuate through just the gas (vapor) suction Schrader port on the outdoor unit service port.

• The outdoor unit service valves must remain closed and the stem head access caps tight.

Do not open the outdoor unit service valves

and release the factory refrigerant charge until trim charge is complete, and the system is ready to operate.

• Any field-installed ball valves in the refrigerant system (if used) must be open to ensure all piping is free and clear for evacuation on all pip-

ing and connected indoor unit.

• Never perform evacuation using refrigerant.

• Use only a vacuum pump that can reach 500 microns, vacuum rated hoses or copper tubing, and a leak-free gauge manifold set.

• Use only new vacuum pump oil from a properly sealed (unopened) container, and change oil in pump before EVERY use.

• Subsequent oil changes will be necessary after several hours of continuous operation; have extra oil on hand.

• Use a quality micron gauge in good operating order and install as far away from pump as possible.

Deep Evacuation Procedure, continued.

2. Connect the gauge manifold along with the vacuum pump to the gas (vapor) suction Schrader

port (with core removed) using a vacuum hose. Open the gauge manifold and the vacuum

pump valves.

3. (YDFXDWHWRVWDWLFPLFURQOHYHOIRUDWOHDVWRQHKRXU

4. 0LFURQOHYHOPXVWUHPDLQIRUWZRKRXUV,IWKHYDFXXPJDXJHULVHVDQGVWRSVWKH

system may contain moisture; therefore, it will be necessary to repeat the steps of vacuum

break and drying.

5. After maintaining the system in vacuum for two (2) hours, check if the vacuum gauge rises or

not. If it doesn’t rise, then the system is properly evacuated.

6. Close the manifold gauge.

7. Shut the valves before turning off and disconnecting the vacuum pump.

Deep Evacuation / Triple Evacuation Procedure

Figure 110: Evacuation Procedure Diagram.

Gauge Manifold

Micron Gauge

Final Installation Procedures

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

Triple Evacuation Procedure

Triple Evacuation Procedure Steps

1. If this procedure is performed shortly after the leak / pressure test, the cap and core on the gas (vapor) suction Schrader port must have

already been removed, and the manifold must already be connected. If the procedure was not performed shortly after the leak / pressure

test, make sure to remove the cap and core on the gas (vapor) suction Schrader port. Verify that the service valves on the outdoor unit

are closed, and the stem head access caps are tight.

2. Connect the gauge manifold along with the vacuum pump to the gas (vapor) suction Schrader port (with core removed) using a vacuum

hose. Open the gauge manifold and the vacuum pump valves.

$IWHUWKHYDFXXPSXPSLV¿UVWRSHUDWHGLIKRVHVPDQLIROGDQGYDFXXPYDOYHVDUHOHDNIUHHDQGRLOLVQRWPRLVWXUHODGHQWKHJDXJHPXVWUHDG

<100 microns within one (1) minute.

Do not proceed if the gauge does not read <100 microns within one (1) minute. There is a leak in the hose, gauge manifold, or vacuum valve,

and the equipment must be replaced.

3. Operate the vacuum pump and evacuate the system to the 2,000 micron level. Isolate the pump by closing the manifold gauges and the

YDFXXPSXPSYDOYHDQGWKHQZDWFKWKHPLFURQOHYHO0LFURQOHYHOZLOOULVHDELWEXW0867HYHQWXDOO\VWRSULVLQJIRU¿IWHHQPLQXWHV

• If the micron level DOES NOT stop rising, there is a leak, and the leak test must be performed again.

• If the micron level DOES rise above 2,000 micron, re-open the manifold gauges and the vacuum pump valve and continue evacuation back

down to 2,000 micron level.

• If the micron level holds at 2,000 micron, continue to step 4.

4. Break vacuum with 50 psig nitrogen purge for an appropriate amount of time (this is to “sweep” moisture from piping).

5. Purge nitrogen from the system until the pressure drops down to 1 to 3 psig.

6. Evacuate to 1,000 micron level. Isolate the pump by closing the manifold gauges and the vacuum pump valve, and then watch the micron

level. Micron level will rise a bit, but MUST eventually stop rising for fifteen (15) minutes.

• If the micron level DOES NOT stop rising, there is a leak, and the leak test must be performed again.

• If the micron level DOES rise above 1,000 micron, re-open the manifold gauges and the vacuum pump valve, and continue evacuation back

down to 1,000 micron level.

• If the micron level holds at 1,000 micron, continue to step 7.

7. Break vacuum with 50 psig nitrogen purge for an appropriate amount of time.

8. Purge nitrogen from the system until the pressure drops down to 1 to 3 psig.

9. (YDFXDWHWRVWDWLFPLFURQOHYHOIRUDWOHDVWRQHKRXU

10. 0LFURQOHYHOPXVWUHPDLQIRUWZRKRXUV,IWKHYDFXXPJDXJHULVHVDQGVWRSVWKHV\VWHPFRXOGFRQWDLQPRLVWXUHWKHUHIRUHLW

will be necessary to repeat the steps of vacuum break and drying.

11.After maintaining the system in vacuum for two (2) hours, check if the vacuum gauge rises or not. If it doesn’t rise, then the system is

properly evacuated.

12. Close manifold gauge.

13. Shut the valves before turning off and disconnecting the vacuum pump.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

Refrigerant Trim Charge

A single zone system could need an additional refrigerant charge if the installed piping lengths are

greater than the “piping length (no additional refrigerant, ft.) specification” listed in the product tables.

See the product sections in the engineering and installation manuals. The system must have the right

amount of refrigerant; if the amount of refrigerant level is low, the system will not perform properly.

The additional refrigerant charge can be calculated manually using the information in the engineering

and / or installation manuals, or by LATS.

1. Keep the outdoor unit service valves closed while adding the trim charge to the system. Charge

through the Schrader port. See specification tables in the front of this installation manual for

base charge, and see below (or the LATS report) for the correct additional refrigerant trim charge

amounts for each system.

2. Connect the gauge manifold hose to the gas (vapor) suction Schrader port on the gas service

valve.

3. Connect the gauge manifold hose to the refrigerant cylinder. These systems use R410A refrig-

erant, which must be charged in the liquid state. Verify that the R410A refrigerant cylinder is

upsidedown.

4. Open both the vapor (gas) and the liquid service valves on the outdoor unit. To open, rotate the

valves counter-clockwise by using an Allen wrench.

5. Charge the refrigerant by adjusting the low-pressure valve of the gauge manifold. See the “Sug-

gested Amount of Refrigerant Charge” below, or on the LATS report.

6. After the correct amount of additional refrigerant is charged, close the low-pressure valve of the

gauge manifold, and remove the low-pressure hose from the outdoor unit.

• Never inhale or directly handle refrigerant. Doing so will cause bodily injury.

• Follow all local, state, and federal guidelines when handling refrigerant. If all regulations are not

followed, it will cause bodily injury.

• Capacity is based on standard length.

• Equivalent Pipe Length = Actual Pipe Length + Number of Bends x 0.3.

• Additional Refrigerant Charge Calculation : X (g) = [ (Refrigerant Pipe Length) - (No Charge Pipe Length) ] × (Additional Refrigerant).

• 7KHUHLVQRQHHGWRDGGUHIULJHUDQWLIHTXLYDOHQWSLSHLVOHVVWKDQWKH³SLSLQJOHQJWKZLWKQRDGGLWLRQDOUHIULJHUDQW´LQWKHWDEOHDERYH

Table 19: Single Zone Art Cool Premier Refrigerant Piping System Additional Refrigerant Charge.

Model Numbers

Refrigerant Piping Length (feet)

16.4 24.6 32.8 41 49.2 65.6 82 98.4 114.8 131.2 147.6 164.0

LA090HYV3

(LAN090HYV3 / LAU090HYV3)

Additional

Refrigerant

Charge (oz.)

001.83.65.49.0------

LA120HYV3

(LAN120HYV3 / LAU120HYV3)

001.83.65.49.0------

LA150HYV3

(LAN150HYV3 / LAU150HYV)

0 0 3.1 6.2 9.3 15.6 21.8 28.0 34.3 40.5 46.7 53.0

LA180HYV3

(LAN180HYV3 / LAU180HYV3)

0 0 3.1 6.2 9.3 15.6 21.8 28.0 34.3 40.5 46.7 53.0

LA240HYV3

(LAN240HYV3 / LAU240HYV3)

0 0 3.1 6.2 9.3 15.6 21.8 28.0 34.3 40.5 46.7 53.0

Gauge Manifold

Micron

Gauge

Figure 111: Gauge Manifold Hose

Connected to the Schrader Valve on the

Gas (Vapor) Service Port.

Figure 112: Opening the Outdoor Unit

Service Valves Counter-clockwise.

Figure 113: Charging the R410A Refrig-

erant.

Gauge Manifold

Micron

Gauge

Final Installation Procedures

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

Finishing the Job / Finalizing Wall-Mounted Installation

Finishing the Job

After the Triple Leak and Evacuation (and refrigerant trim charge, if any) procedures have been performed, follow the steps below to open

the refrigerant lines.

1. Verify that the auxiliary service port is removed (if used in the Evacuation procedure) and the original Schrader core was re-installed on

the gas (vapor) suction service port.

2. The service ports are a back-seated type with a right hand thread. Remove the service valve caps on both the gas (vapor) suction and the

liquid service ports.

3. Using an appropriately sized Allen wrench, fully open the valves on both the gas (vapor) suction and the liquid service ports by turning the

valve stem counterclockwise.

4. Turn until the valve stem is out, stops, and the valve is completely backseated.

Do not apply excessive force.

5. Securely replace service port caps on both the gas (vapor) suction and the liquid using an adjustable wrench.

Finalizing Wall-Mounted Installation

1. Close the piping holder by snapping it back into place on the indoor unit.

2. Push the bottom of indoor unit towards the installation plate.

• Press the lower left and right sides of the unit against the installation plate until the clips

engage into their connection points

• Clicking sounds could be heard as the bottom of the indoor unit attaches to the installation

plate successfully.

3. Using the factory-supplied Type C screws, screw the indoor unit onto the installation plate

at the points indicated at right.

4. Tighten the screws so that there is no gap between the indoor unit and the installation

plate.

The indoor unit can fall from the wall if it is not properly installed and secured to the installation

plate. Falling indoor units can cause bodily injury or death.

• To avoid a gap between the installation plate and the wall, ensure the screws are cor-

rectly and fully secured.

• To prevent condensate from forming due to an inflow of outdoor air, before indoor unit instal-

lation is finished, completely seal the piping access hole in the wall.

5. Re-install the bottom panel to the indoor unit.

Figure 114: Closing the Piping Holder.

Figure 115: Seating the Indoor Unit to the

Installation Plate.

Figure 116: Securing the Indoor Unit to the

Installation Plate.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

Reattaching the Indoor Unit Bottom

Panel

1. Position the bottom panel so its plastic clips align with all of the

indoor unit frame connection points. The number and position of

the connections vary depending on the model of the indoor unit.

Take care not to damage the bottom panel or scratch the main

horizontal vane.

2. Push the back of the bottom panel onto the indoor unit frame until

its clips lock into the connection points.

3. Push both sides of the bottom panel onto the indoor unit frame

until its clips lock into the connection points.

4. Close the front panel.

Figure 117: Positioning the Bottom

Panel Connection Points.

Figure 118: Reconnecting the Back

of the Bottom Panel.

Figure 119: Reconnecting the Sides

of the Bottom Panel.

Reattaching the Bottom Cover

Final Installation Procedures

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

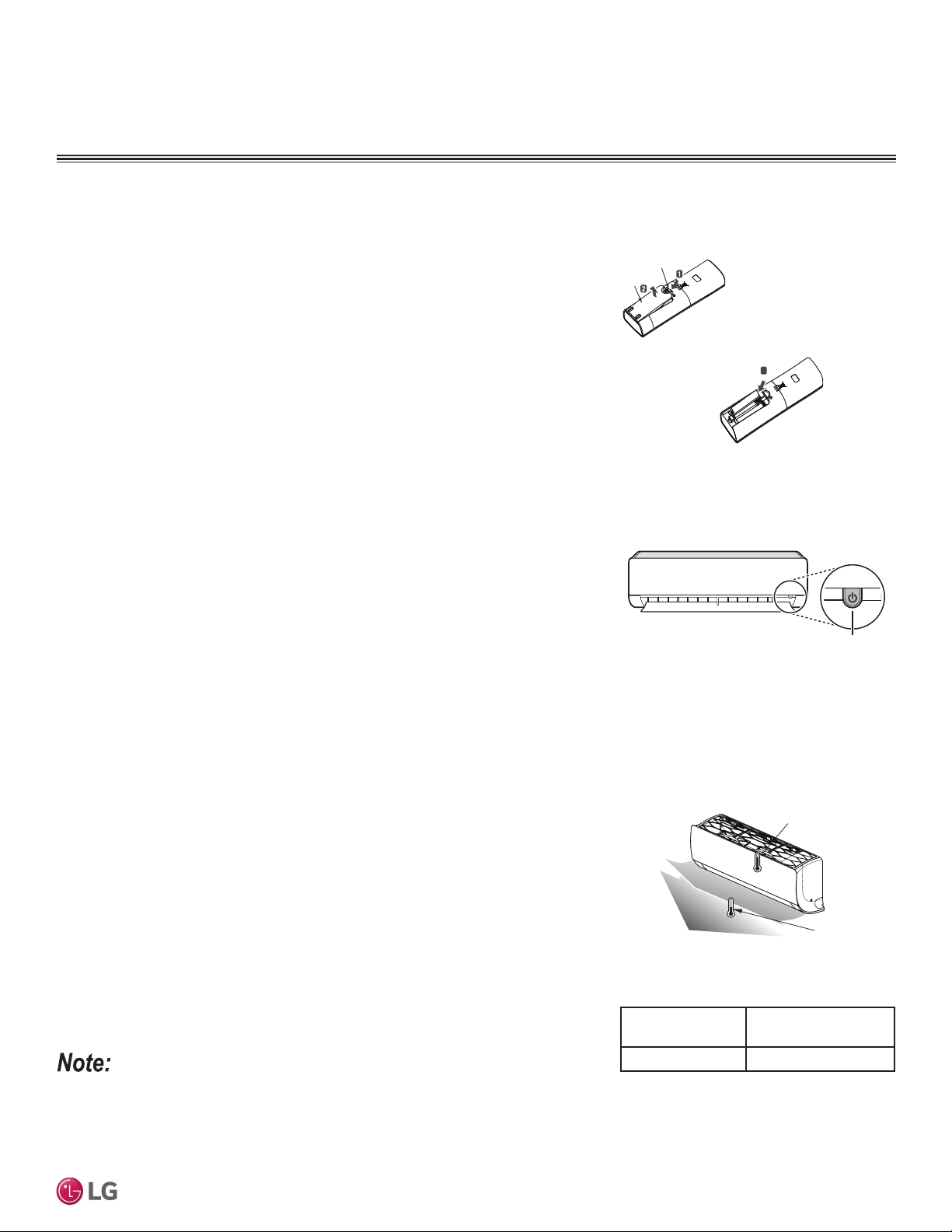

Test Run

After all installation and testing procedures are complete, the system is ready for a test

run. Follow the guidelines below.

1. Check that all drain piping, refrigerant piping, and wiring / cables are properly con-

nected.

2. Check that both the gas (vapor) suction and liquid refrigerant piping service valves are

fully open.

3. Install the batteries into the handheld remote controller (see above).

4. Turn on the power to the outdoor unit, and press and hold press the ON / OFF button

on the indoor unit for three (3) to five (5) seconds to test the system operation.

5. As the system is operating, make notes as needed to troubleshoot any issues that

might appear.

Installing Batteries into the Handheld Remote

Controller

For information on using the handheld remote controller, refer to its owner’s manual.

1. The remote controller needs two AAA (1.5V) batteries for operation. Remove the battery

cover from the back of the remote controller by pushing downward on the tab at the top

of the battery cover, and then lift up to remove.

2. Insert the two new batteries.

• Align batteries by the (+) and (-) sides.

• The interior battery compartment of the remote controller will have clear markings for

the (+) and (-) placement.

3. Verify that the batteries have clicked into the compartment and are firmly engaged with

the contacts on either side of them.

4. Reattach the back cover of the remote controller.

5. Proceed with powering on the remote controller and use as needed. Remove the bat-

teries if system won’t be used for an extended time.

1. Push down on tab

2. Lift cover

3. Insert 3

batteries

Single Zone Remote Controller - Rear View

Battery Cover

Ta b

Battery

Cover

Figure 120: Installing the Remote Controller Bat-

teries.

Performance Evaluation

Operate the unit in heating and / or cooling, depending on outdoor conditions, for 15 to 20

minutes, then check the system refrigerant charge (feature availability depends on model):

1. Measure the pressure of the gas (vapor) suction service valve. (After the performance

evaluation is complete, remove the hose, and securely tighten the outdoor unit service

valve cap with an adjustable wrench.) See optimum psig in table at right.

2. Measure the air temperature from both the inlets and outlets of the indoor unit.

3. Verify the difference between the inlet and outlet temperatures is ±14.4°F. If it is, the

system is functioning normally in cooling.

4. The air conditioner is now ready to use.

Outside Ambient

Temperature

Gas (Vapor) Service

Valve Pressure

95°F 120~135 psig

• If all modes can’t be tested all at one time, testing must be performed later when weather

conditions permit.

• If the actual pressure is higher than shown, the system is most likely overcharged, and

charge must be removed. If the actual pressure is lower than shown, the system is most

likely undercharged, and charge must be added.

Table 20: Gas Side Pressure at Optimum Condi-

tion When System is in Cooling.

Discharge

Temperature

Discharge

Air

Inlet Temperature

Figure 121: ON / OFF Button on the Indoor Unit

(Location Will Vary Depending on Model).

Installing Batteries, Test Run, Performance Evaluation

Figure 122: Performance Evaluation Measure-

ment Locations.

ON / OFF

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

Accessing Installer Mode

It will be necessary to switch to Installer mode if the system needs to operate in Heating Only or Cooling Only

modes, or the Pump Down procedure needs to be performed. Installer Mode can be accessed one of two

ways:

Installer Mode Method One (1):

1. Supply power to the system.

2. Reset the system by simultaneously pressing the Reset button and the “A” button on the handheld control-

ler. A very slender tool is needed to access the Reset button.

3. Release the buttons. The display on the handheld controller changes to “00”.

4. Set the code by pressing the Up and Down Temperature buttons. The Up Temperature button changes the

code on the ten (10) digit; the Down Temperature button changes the code on the one (1) digit. See the

“Setting the Cooling Only / Heating Only Modes” table below for the code numbers.

5. Press the ON / OFF button to save the mode. When the mode is saved, the system will beep.

6. Press reset again to return to a user mode, and turn the power off to the system.

7. Wait approximately thirty (30) seconds, and then turn the power back on to the system. The system will

operate in the selected mode.

To Cancel Installer Mode Method One (1):

Follow steps above, but use the cancel code numbers in the “Cancelling the Cooling Only / Heating Only

Modes” table below.

Figure 123: Installer Mode

Method One (1).

Installer Modes

Mode Code Number

Cooling 45

Heating 47

Table 21: Setting the Cooling Only / Heating

Only Modes.

Table 22: Cancelling the Cooling Only / Heating

Only Modes.

SET UP

TEMP

Reset

TEMP

10 digits

1 digit

ON/OFF

Step 2.

Step 3.

Step 4.

Step 5.

Mode Code Number

Cooling 46

Heating 48

• After the Cooling Only mode is set, Heating and Auto Changeover functions cannot be used.

• After the Heating Only mode is set, Cooling, Dehumidification, and Auto Changeover functions cannot be used.

• After a mode is canceled, the system will return to normal operation.

•

Modes cannot be set when the system is operating. The system must be completely OFF before any mode can be set.

• If a mode is NOT set when the system is OFF, that mode will not operate.

• During Heating Only Mode, if the system is turned OFF when the handheld controller is set to a function other than Heating / Fan mode, the

system will not turn back on. Turn the system OFF first, set the handheld controller to Heating / Fan mode, and then turn the system back

ON.

• WLAN Module’s communication time will lag by about one (1) minute after unit is turned back on, and in normal operating mode.

• Entire lock or Mode lock cannot be set if heating or automatic operation is set through a central controller.

Final Installation Procedures

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

Installer Modes

Installer Mode Method Two (2):

1. Supply power to the system.

2. Insert a battery (or the batteries) into the handheld controller while simultaneously

pressing the “A” button.

3. Release the “A” button. The display on the handheld controller changes to “00”.

4. Set the code by pressing the Up and Down Temperature buttons. The Up Temperature

button changes the code on the ten (10) digit; the Down Temperature button changes

the code on the one (1) digit. See the “Setting the Cooling Only / Heating Only Modes”

table below for the code numbers.

5. Press the ON / OFF button to save the mode. When the mode is saved, the system will

beep.

6. Remove a battery, re-insert the battery, and turn the power off to the system.

7. Wait approximately thirty (30) seconds, and then turn the power back on to the system.

The system will operate in the selected mode.

To Cancel Installer Mode Method Two (2):

Follow steps above, but use the cancel code numbers in the “Cancelling the Cooling Only

/ Heating Only Modes” table below.

Mode Code Number

Cooling 45

Heating 47

Table 23: Setting the Cooling Only / Heating

Only Modes.

Table 24: Cancelling the Cooling Only /

Heating Only Modes.

Mode Code Number

Cooling 46

Heating 48

Figure 124: Installer Mode Method Two (2).

TEMP

10 digits

1 digit

ON/OFF

Step 3.

Step 4.

Step 5.

TEMP

Step 2.

• After the Cooling Only mode is set, Heating and Auto Changeover functions cannot be used.

• After the Heating Only mode is set, Cooling, Dehumidification, and Auto Changeover functions cannot be used.

• After a mode is canceled, the system will return to normal operation.

• Modes cannot be set when the system is operating. The system must be completely OFF before any mode can be set.

• If a mode is NOT set when the system is OFF, that mode will not operate.

• During Heating Only Mode, if the system is turned OFF when the handheld controller is set to a function other than Heating / Fan mode, the

system will not turn back on. Turn the system OFF first, set the handheld controller to Heating / Fan mode, and then turn the system back

ON.

• WLAN Module’s communication time will lag by about one (1) minute after unit is turned back on, and in normal operating mode.

• Entire lock or Mode lock cannot be set if heating or automatic operation is set through a central controller.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

FINAL INSTALLATION PROCEDURES

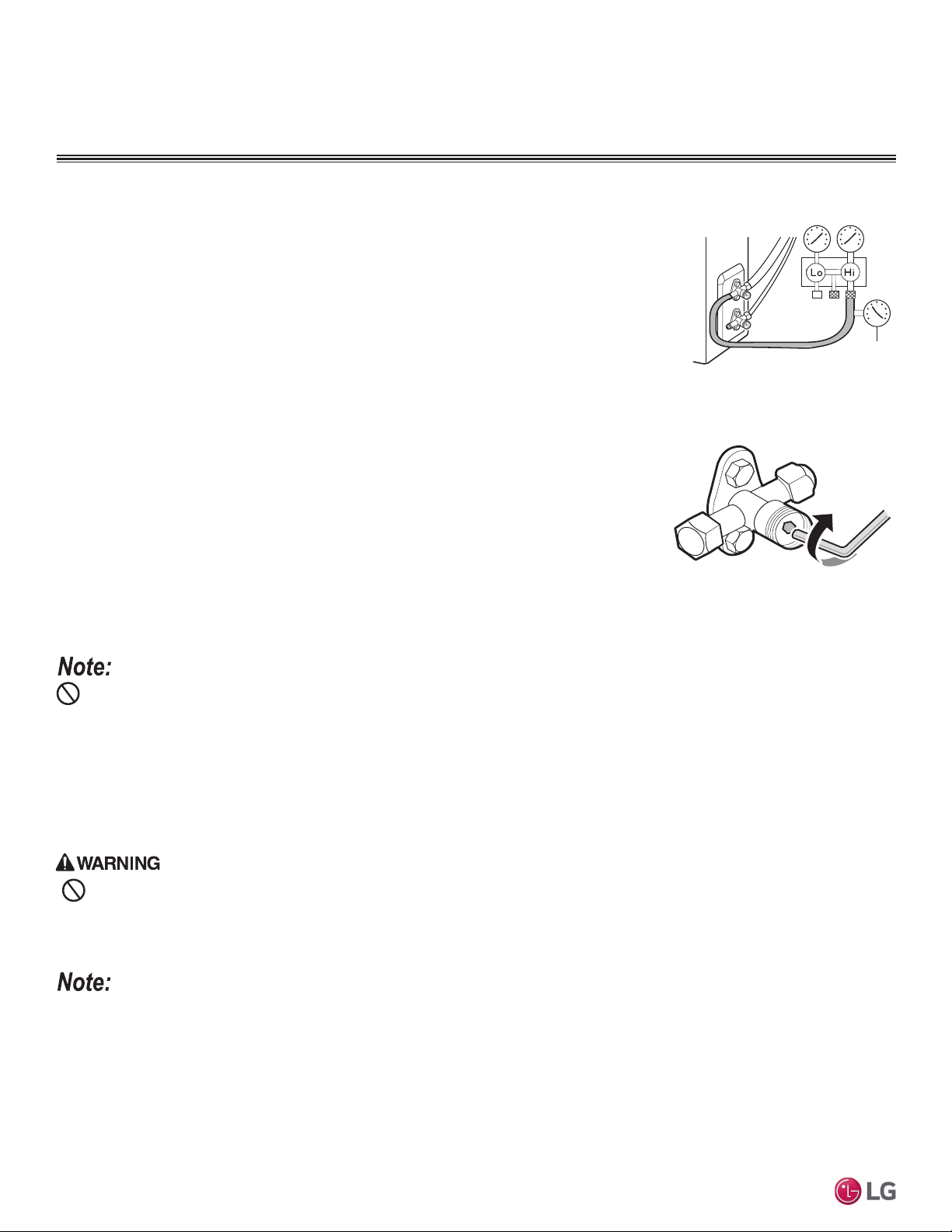

Pump Down Procedure

Use Pump Down Procedure when the refrigerant piping system needs to be serviced. Pumping

down collects all the refrigerant in the system and pipes it to the outdoor unit without losing any

charge. Always adhere to and be familiar with local codes regarding the handling of refrigerant.

The system must operate in Cooling Only mode to proceed with the pump down procedure. If

needed, refer to the previous sections for proper steps to place the unit into Cooling Only mode.

1. Turn off the power to the system.

2. Remove the cap from the vapor (gas) service valve. Connect the gauge manifold hose to the gas

(vapor) suction Schrader port on the gas service valve.

3. Open the gas (vapor) suction Schrader port on the gas service valve halfway, and purge the air

in the manifold hose.

4. Turn the power on. Operate the system in Cooling Only Mode for at least ten (10) minutes; verify

that the compressor is operating properly.

5. Fully close the liquid piping service valve to the outdoor unit by rotating the valve clockwise with

an Allen wrench.

6. Observe the pressure gauge reading. When it changes to 14.2 to 7.1 psig, fully close the gas (vapor) service valve, and then immediately

turn the unit off. Pump down procedure is complete and all refrigerant will be collected into the outdoor unit.

Do not operate the unit in Pump Down for an extended period. It will damage the compressor.

7. Disconnect the gauge manifold hose to the gas (vapor) suction Schrader port on the gas service valve.

8. If necessary for service, disconnect the pipe to the outdoor unit. To protect the outdoor unit from air, vapor, and debris, block the outdoor

valve by installing a flare nut through the pipe after brazing the end of the disconnected pipe.

9. Re-attach the cap to the vapor (gas) service valve, using a torque wrench to firmly tighten.

Always perform Pump Down procedure in the Cooling Only mode.

•

Never inhale or directly handle refrigerant. Doing so will cause bodily harm and injury.

• After pump down, power must be turned OFF before the pipe is removed. If the system is operated without the pipe connected, air inside

the compressor will cause the pressure to increase, causing an explosion and physical injury.

Figure 125: Connecting the Manifold

Hose.

Figure 126: Closing the Outdoor Unit

Liquid Piping Service Valve.

Gauge Manifold

Micron

Gauge

Troubleshooting

TROUBLESHOOTING

Due to our policy of continuous product innovation, some specifications may change without notification.

Additional screens can be accessed by tabs on the main screen.

Additional screens include the following:

1. Cycleview: Graphic of internal components including:

• Compressors showing actual speeds

• EEVs

• IDUs

• Temperature and pressure sensors

• Four-way reversing valve

2. Graph: Full screen graph of actual high and low pressures and high

and low pressure limits. A sliding bar enables user to go back in

time and view data.

3. Control FTN: Enables user to turn on IDUs in 1.8°F increments.

4. Useful Tab

• Unit Conversion: Converts metric values to imperial values.

• Actual inverter compressor speed

• Target inverter compressor speed

• Actual outdoor fan speed

• Target outdoor unit fan speed

• Actual superheat

• Target superheat

• Actual subcooler circuit superheat

• Target subcooler circuit superheat

• Main EEV position

• Subcooling EEV position

• Inverter compressor current transducer value

• Outdoor air temperature

• Actual high pressure/saturation temperature

• Actual low pressure/saturation temperature

• Suction temperature

• Inverter compressor discharge temperature

• Front outdoor coil pipe temperature

• Back outdoor coil pipe temperature

• Liquid line pipe temperature

• Subcooler inlet temperature

• Subcooler outlet temperature

• Average indoor unit (IDU) pipe temperature

• Inverter compressor operation indicator light

• Liquid injection

valves’ operation

indicator lights

• Hot gas bypass valve

operation indicator

light

• Four-way reversing

valve operation

indicator light

• Pressure graph

showing actual low

pressure and high

pressure levels

• Error code display

• Operating mode

indicator

• Target high pressure

• Target low pressure

• PCB (printed circuit board) version

• Software version

• Installer name

• Model number of IDUs

• Site name

• Total number of connected IDUs

• Communication indicators

• IDU capacity

• IDU operating mode

• IDU fan speed

• IDU EEV position

• IDU room temperature

• IDU inlet pipe temperature

• IDU outlet pipe temperature

• IDU error code

LG Monitoring View (LGMV) Diagnostic Software

LGMV software (PRCTSL1 and PRCTFE1) allows the service technician or commissioning agent to connect a computer USB port to the

Single Zone unit’s main printed circuit board (PCB) using an accessory cable without the need for a separate interface device. The monitor-

ing screen for LGMV allows the user to view the following real time data on one screen:

Figure 127: MV Real-time Data Screen.

Figure 128: MV Cycleview.

Images on these pages are examples of LGMV screenshots. Actual images may differ depending on the version of the software and the unit

installed.

LG Monitoring View (LGMV) Diagnostic Software

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

TROUBLESHOOTING

5. Data

• Data Saving Start: Recording of real time data to a separate file created to be stored on the user’s computer.

• Data Loading Start: Recorded data from a saved “.CSV” file can be loaded to

create an LGMV session.

6. Monitoring

• Electrical: The lower half of main screen is changed to show Inverter

Compressor Amps, Volts, Power Hz, Inverter control board fan Hz.

The software is available in a high version with all of the features listed above. The low version has all features as the high version without

Target High Pressure and Target Low Pressure values shown on main screen.

In lieu of connecting to the Water Source Unit (WSU), user has the option to connect to IDU with the use of a USB to RS-485 connector kit.

When connected through IDU, user will not be able to record data.

This software can be used to both commission new systems and troubleshoot existing systems. LGMV data can be recorded to a “.CSV” file

and emailed to an LG representative to assist with diagnostic evaluations.

Error Codes

LGMV software helps the service technician or commissioning agent

to troubleshoot system operation issues by displaying malfunction

codes. These error codes can be seen on the main screen of the

LGMV software program. For an overview of Single Zone unit error

codes, see Error Codes section. For detailed information on how to

troubleshoot individual error codes, see the Single Zone Wall Mount

Service Manual.

Figure 129: Error Code Screen.

• Contact an LG representative for minimum LGMV PC requirements.

• Images on these pages are examples of LGMV screenshots. Actual images may differ depending on the version of the software and the

units installed.

LG Monitoring View (LGMV) Diagnostic Software and Cable - Continued.

LG Monitoring View (LGMV) Diagnostic Software

Troubleshooting

TROUBLESHOOTING

Due to our policy of continuous product innovation, some specifications may change without notification.

Troubleshooting Using Error Codes

Refer to the table below and on the next page for error codes that

are generated from the indoor and outdoor units. These codes are

the most common. Your particular system might generate additional

codes not listed here. Please contact LG Support if you see these

types of errors and a simple power cycle has not corrected the issue.

Error Codes

• Error codes are shown on the control boards of indoor unit and

outdoor units, LG Monitoring View (LGMV) Diagnostic Software,

and the SIMs app.

• Error codes are also displayed on the wired wall remote controller,

if installed.

• Error codes indicate different types of unit failures, assists in self-

diagnosis and to track the frequency of occurrence.

• If two or more errors occur simultaneously, the lower error code

number is displayed first.

• After error is resolved, the error code does not display.

Decoding the Error Display

The first and second number on the LED indicates error number.

Example: 21 = LED1 (Green light) 2x blink, LED2 (Red light) 1x blink.

Error Code Nomenclature Definitions

• MICOM: Non-volatile memory chip where unit setup information is

stored.

• EEPROM: Non-volatile memory chip where device identification,

size, and factory defined default component operating parameters

are stored.

Error Codes

Error

Code

Description

No. of Times Indoor Unit LEDs Blink

LED1 LED2

1 Indoor unit room temperature sensor error 1X -

2 Indoor unit inlet pipe sensor error 2X -

4 Float switch error (optional) 4X -

5 Communication error between indoor unit and outdoor units 5X -

6 Indoor unit outlet pipe sensor error 6X -

9 Indoor unit EEPROM error 9X -

10 Indoor unit BLDC motor fan lock - 1X

12 Indoor unit middle pipe sensor error 2X 1X

21 DC Peak (IPM Fault); Compressor DC voltage was too high

2X 1X

22 Current Transformer2 (CT2) error; Alternating current (AC) input too high

2X 2X

23 DC Link Low Volt 2X 3X

25 AC Low / High Volt 2X 5X

26 DC Comp Position Error (not providing rotation), Locking 2X 6X

27 PSC Fault; Current to inverter compressor between AC and DC converter circuit too high 2X 7X

28 Inverter compressor DC voltage is too high 2X 8X

29 Inverter compressor amperage is too high 2X 9X

31 Current-to-current transformer (CT) thermistor is too low 3X 1X

32 Inverter Compressor Discharge Pipe (D-Pipe) Overheat 3X 2X

40 CT Sensor Error; Thermistor is disconnected or shorted out 4X -

41 D-Pipe Sensor INV is disconnected or shorted out 4X 1X

44 Outdoor Air Sensor is disconnected or shorted out 4X 4X

45 Middle thermistor of outdoor unit condenser coil is disconnected or shorted out 4X 5X

46 Outdoor unit suction line thermistor is disconnected or shorted out 4X 6X

48 Outdoor unit coil outlet (liquid line) thermistor is disconnected or shorted out 4X 8X

53 Communication failure from outdoor unit to indoor unit 5X 3X

60 Outdoor unit printed circuit board (PCB) EEPROM check sum error 6X -

61 Outdoor unit condenser coil temperature is too high 6X 1X

62 Outdoor unit inverter compressor PCB heat sink temperature is too high 6X 2X

63 Condenser coil pipe thermistor temperature is too low 6X 3X

65 Heat sink thermistor has disconnected or has shorted out 6X 5X

67 Outdoor brushless direct current (BLDC) fan motor lock error 6X 7X

Table 25: Single Zone Wall Mounted Indoor Unit Error Codes.

Refer to Service Manuals posted on www.lghvac.com for a full description of all error codes and work-arounds.

Single Zone Art Cool Premier Wall Mounted Installation Manual

Due to our policy of continuous product innovation, some specifications may change without notification.

TROUBLESHOOTING

Error Codes

Table 26: Single Zone Wall Mounted Outdoor Unit Error Codes.

Error

Code

Description

No. of Times Outdoor Unit

LEDs Blink

LED1 LED2

21 DC Peak (IPM Fault); Compressor DC voltage was too high

2X 1X

22 Current Transformer2 (CT2) error; Alternating current (AC) input too high 2X 2X

23 DC Link Low Volt 2X 3X

25 AC Low / High Volt 2X 5X

26 DC Comp Position Error (not providing rotation), Locking 2X 6X

27 PSC Fault; Current to inverter compressor between AC and DC converter circuit too high 2X 7X

28 Inverter compressor DC voltage is too high 2X 8X

29 Inverter compressor amperage is too high 2X 9X

31 Current-to-current transformer (CT) thermistor is too low 3X 1X

32 Inverter Compressor Discharge Pipe (D-Pipe) Overheat 3X 2X

40 CT Sensor Error; Thermistor is disconnected or is shorted out 4X -

41 D-Pipe Sensor INV is disconnected or shorted out 4X 1X

44 Outdoor Air Sensor is disconnected or shorted out 4X 4X

45 Middle thermistor of outdoor unit condenser coil is disconnected or shorted out 4X 5X

46 Outdoor unit suction line thermistor is disconnected or shorted out 4X 6X

48 Outdoor unit coil outlet (liquid line) thermistor is disconnected or shorted out 4X 8X

53 Communication failure from outdoor unit to indoor unit 5X 3X

60 Outdoor unit printed circuit board (PCB) EEPROM check sum error 6X -

61 Outdoor unit condenser coil temperature is too high

6X 1X

62 Outdoor unit inverter compressor PCB heat sink temperature is too high 6X 2X

63 Condenser coil pipe thermistor temperature is too low 6X 3X

65 Heat sink thermistor has disconnected or has shorted out 6X 5X

67 Outdoor brushless direct current (BLDC) fan motor lock error 6X 7X

Single Zone Wall Mounted Outdoor Unit Error Codes

The Single Zone Wall Mounted outdoor unit error codes are visible on the outdoor unit, as well as from the indoor unit. However, the indoor

unit error codes are only visible from the indoor unit and will not display at the outdoor unit. When troubleshooting the system, be sure to

verify if the error codes that are being displayed are specific to the indoor or outdoor unit.

Refer to Service Manuals posted on www.lghvac.com for a full description of all error codes and work-arounds.

Cautions for Refrigerant Leaks

CAUTIONS FOR REFRIGERANT LEAKS

Due to our policy of continuous product innovation, some specifications may change without notification.

Amount of

Factory-Charged

Refrigerant per

Outdoor Unit

Amount of

Additional

Refrigerant

Trim Charge

Refrigerant Concentration Limit (RCL) Calculations

To calculate total refrigerant amount per system:

Cautions for Refrigerant Leaks / Introduction

ASHRAE Standards 15-2010 and 34-2010 offer guidelines that address refrigerant safety and the maximum allowable concentration of refrig-

erant in an occupied space. Refrigerant will dissipate into the atmosphere, but a certain volume of air is required for this to occur safely. For

R410A refrigerant, the maximum allowable concentration is 0.026 lbs./ft

per 1,000 ft

of air in an occupied space. Buildings with twenty-four

(24) hour occupancy allow half of that concentration.

ASHRAE Standards 15 and 34 assume that if a system develops a leak, its entire refrigerant charge will dump into the area where the leak

occurs. To meet ASHRAE Standards 15 and 34, calculate the refrigerant concentration that may occur in the smallest room volume on

the system, and compare the results to the maximum allowable concentration number (see below for information on how to calculate the

refrigerant concentration).

Also consult state and local codes in regards to refrigerant safety.

American Society of Heating, Refrigeration and Air Conditioning Engineers, Inc. (ASHRAE). Atlanta, GA. ASHRAE, Inc. Information about ASHRAE

Standard 15-2010 / 34-2010 and addenda current as of the date of this publication.

Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A refrigerant according to applicable US EPA

rules.

Total System

Refrigerant

Charge

+ =

To calculate the potential refrigerant concentration level (RCL):

1. Measure the occupied space dimensions (in feet).

2. Calculate the cubic foot volume of air in the smallest occupied

space. (To obtain a detailed overview of the RCL, perform the

same calculations to the second smallest zone, the third small-

est zone until the RCL is obtained for all zones. Also, pay special

attention to areas such as basements, etc., where refrigerant

cannot dissipate easily.)

3. Divide the refrigerant charge of the Single Zone system serving

the area in pounds by the results of step 1.

4. If the calculation indicates that the potential refrigerant concen-

tration level is higher than the allowed RCL, increase the cubic

volume of the smallest occupied space or modify the piping

system design.

5. The allowable RCL limit for most applications must be equal to

or less than 0.026 lbs./ft

. However, in special occupied spaces,

such as hospitals and nursing homes, where occupants may have

limited mobility, the allowable RCL limit is cut in half. See ASHRAE

Standard 34-2007 and local codes for detailed information.

RCL (lbs./ft

) =

Total System Refrigerant Charge (lbs.)

Volume of Smallest Occupied Space (ft

)

Refrigerant Leaks

Verify the maximum refrigerant concentration level in the space where the indoor unit will be mounted meets the concentration limit for the applica-

tion. If the refrigerant leaks and safety limits are exceeded, it could result in personal injuries or death from oxygen depletion.

Due to our policy of continuous product innovation, some specifications may change without notification.

Single Zone Art Cool Premier Wall Mounted Installation Manual

INSTALLATION CHECKLIST

Major Component Rough-In

Description Check

Single Zone outdoor unit was connected properly per local code and the product installation procedures.

All literature and bagged accessories have been removed from the fan discharge.

Indoor unit was installed, properly supported, and located indoors in a non-corrosive environment.

Single Zone unit’s gravity condensate drain line was connected and routed where it properly drains away or, if installed in a

mechanical room, was connected and properly routed to a drain terminal.

Piping and Insulation

Description Check

Single-zone and multi-zone duct-free split systems: ACR copper piping rated at the system working pressure for R410A was used.

All refrigerant pipes and valves were insulated separately. Insulation is positioned up against the walls of the indoor unit. No gaps

shown. Insulation was not compressed at clamps and hangers.

Brazing Practices

Description Check

Medical grade (there are 4 available) dry nitrogen for purging during brazing was used (constant 3 psi while brazing).

15% silver brazing material only.

Refrigerant Piping

Description Check

All pipe materials were properly stored, capped, and clean. All burrs were removed after cutting and pipe ends were reamed

before brazing.

During refrigerant pipe installation, for each segment of pipe, a record was made of the pipe length (including expansion loops,

offsets, double-back sections), and sizes, as well as the quantity and type of elbows used.

Expansion loops, coils or other acceptable measures are provided where necessary to absorb temperature-change based pipe

movement.

A torque wrench and backup wrench were used to tighten all flare connections.

The back side of all flares were lubricated with a small drop of PVE refrigeration oil before tightening flare fittings.

Ensure all field made flares are 45°. Use factory-supplied flare nuts only.

Pipe segments were secured to the structure using a combination of xed and oating clamps, and all wall penetrations were sleeved.

Pipe insulation was not compressed at any point.

No oil traps, solenoid valves, sight glasses, filter driers, or any other unauthorized refrigerant specialties were present.

(Optional) High quality R-410A rated full port ball valves (Schrader between the valve body and the indoor units) used at the

indoor unit and at will in the refrigerant piping.

Condensate Pump / Drain Installation

Description Check

Condensate drain installed on indoor units. Extended condensate piping material used is acceptable under local code. Insulated to

prevent condensation.

Indoor unit condensate drain pipes were installed correctly.

Indoor unit with a gravity drain were level or slightly canted toward the drain connection and is supported properly.

Drain lines are properly insulated to prevent condensation.

Power Wire and Communication Cables

Description Check

Power wiring to the Single Zone outdoor unit is solid or stranded, and complies with all local and national electrical codes.

Power wiring was connected to a single phase 208-230V source.

Ground wire was installed and properly terminated at the unit.

The power supplied was clean with voltage fluctuations within specifications. (±10% of nameplate).

Power wiring to the Single Zone outdoor unit was installed per all local electrical code requirements.

Communication / connection (power) cable from the single zone outdoor unit to the indoor unit must use a minimum of 14 AWG,

four (4) conductor, stranded, shielded or unshielded (if shielded, it must be grounded to the chassis of the outdoor unit only), and

must comply with applicable local and national codes.

Use of 14 AWG, four (4) conductor, stranded, shielded or unshielded wire is allowed for lengths up to the published maximum pipe

length, plus recommended slack at both ends.

Wiring to the indoor unit was installed per all local electrical code requirements.

Communication / connection (power) wiring from the outdoor unit to the indoor unit can be run in the same conduit.

Communication type RS-485–BUS type.

22-3 AWG, twisted, stranded, unshielded cable (minimum) was used between the indoor unit and its zone controller (if present).

No cables were spliced and no wire caps are present.

LG-supplied cable was used between the indoor unit and its zone controller. No cables were spliced and no wire caps are present.

Appropriate crimping tool was used to attach ring or spade terminals at all power wiring and control cable terminations.

Power and control wires were run in the same conduit (outdoor unit to indoor only) as provided in the product installation manual.

Power to outdoor unit and power/communications to indoor unit CANNOT be run in the same conduit.

For further technical materials such as submittals, engineering

manuals, service manuals, and catalogs, visit www.lghvac.com.

IM_SZ_ArtCoolPremier_HYV3_09_23A

Supersedes: IM_SZ_ArtCoolPremier_HYV3_09_23

IM_SZ_ArtCoolPremier_HYV3_11_22

IM_SZ_ArtCoolPremier_HYV3_8_20

IM_SZ_ArtCoolPremier_HYV3_3_20

IM_SZ_ArtCoolPremier_HYV1_4_16

IM_SZ_ArtCoolPremier_HYV1_6_15

LG Electronics, U.S.A., Inc.

Air Conditioning Technologies

4300 North Point Parkway

Alpharetta, Georgia 30022

www.lghvac.com

20001747 ISO 9001: 2008

LG ELECTRONICS INC.

LG Electronics LA180HYV3 LG Art Cool Premier Single Zone Inverter Mini Split System

Product's Documents

User Manual

Specifications

LG Electronics LA180HYV3 Questions and Answers
