TABLE OF CONTENTS
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
All about the
Use & Care
of your Refrigerator
A07201401 (March 2017)
Important Safety Instructions ......................2
Features at a Glance ...................................4
Installation ................................................5
Door Removal Instructions ..........................7
Handle Installation .....................................9
Connecting Water Supply .......................... 10
Controls ...................................................12
Storage Features ...................................... 18
Automatic Ice & Water Dispenser ..............20
Changing the Filter ................................... 23
Normal Operating Sounds and Sights ......... 25
Care and Cleaning ....................................26
Before you Call .........................................28
Major Appliance Warranty .........................32
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
IMPORTANT
IMPORTANT indicates installation, operation
or maintenance information which is
important but not hazard-related.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
Doors
Handles are secure and tight
Door seals completely to cabinet on all
sides
Freezer door is level across the top
Leveling
Refrigerator is level, side-to-side and
tilted ¼” (6mm) front-to-back
Toe grille is properly attached to
refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator
No water leaks present at all connections
- recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates correctly
Frontltermustbeushwithlter
housing (select models)
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist
Denitions
This is the safety alert symbol. It is
used to alert you to potential personal injury
hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
For your Safety
• DO NOT store or use gasoline, or other
ammableliquidsinthevicinityofthisor
any other appliance. Read product labels for
warningsregardingammabilityandother
hazards.
• DO NOT operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts of
automatic ice maker.
• Remove all staples from the carton. Staples
can cause severe cuts, and also destroy
nishesiftheycomeincontactwithother
appliances or furniture.
WARNING
Please read all instructions before using this
refrigerator.
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately
after the refrigerator is unpacked. Children
should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic
sheets or stretch wrap may become airtight
chambers,andcanquicklycausesuffocation.
Proper Disposal of your
Refrigerator or Freezer
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators or freezers are still dangerous
– even if they will sit for “just a few days”. If
2
IMPORTANT SAFETY INSTRUCTIONS
Grounding type wall receptacle
Do not, under any
circumstances,
cut, remove, or
bypass the
grounding prong.
Power cord with
3-prong gounded plug
Electrical information
• The refrigerator must be plugged into
its own dedicated 115 Volt, 60 Hz.,
15 Amp, AC only electrical outlet. The
powercordoftheapplianceisequipped
with a three-prong grounding plug for your
protection against electrical shock hazards.
It must be plugged directly into a properly
grounded three prong receptacle. The
receptacle must be installed in accordance
with local codes and ordinances. Consult
aqualiedelectrician.Avoidconnecting
WARNING
These guidelines must be followed to ensure
that safety mechanisms in this refrigerator
will operate properly.
IMPORTANT
P
ressing and holding the On/Off button for
three seconds, located on the temperature
control panel (Electronic controls), or
turning the Freezer and Fresh Food controls
to “0” (Mechanical controls) will disable your
refrigerator’s cooling system, but does not
disconnect the power to the lighting system
and other electrical components. To turn off
power to your refrigerator you must unplug
the power cord from the electrical outlet.
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change.
refrigerator to a Ground Fault Interrupter
(GFI) circuit. Do not use an extension
cord or adapter plug.
• If the power cord is damaged, it should be
replaced by an authorized service technician
to prevent any risk.
• Never unplug the refrigerator by pulling on
thepowercord.Alwaysgriptheplugrmly,
and pull straight out from the receptacle to
prevent damaging the power cord.
• Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
• Performance may be affected if the voltage
varies by 10% or more. Operating the
refrigeratorwithinsufcientpowercan
damage the compressor. Such damage is
not covered under your warranty.
• Do not plug the unit into an electrical outlet
controlled by a wall switch or pull cord to prevent
the refrigerator from being turned off accidentally.
you are getting rid of your old refrigerator or
freezer, please follow the instructions below to
help prevent accidents.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your utility
company or visit www.energystar.gov/recycle for
more information on recycling your old refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove doors.
• Leave shelves in
place so children
may not easily
climb inside.
• Have refrigerant
removed by a
qualiedservice
technician.
3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a cooling system
thatusedCFCsorHCFCs(chlorouorocarbons
orhydrochlorouorocarbons).CFCsandHCFCs
are believed to harm stratospheric ozone if
released to the atmosphere. Other refrigerants
may also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old refrigerator,
make sure the refrigerant is removed for
properdisposalbyaqualiedtechnician.If
you intentionally release refrigerant, you may
besubjecttonesandimprisonmentunder
provisions of environmental legislation.
IMPORTANT
Features not included with your refrigerator can be purchased at
www.frigidaire.com or by calling 1-800-944-9044.
4

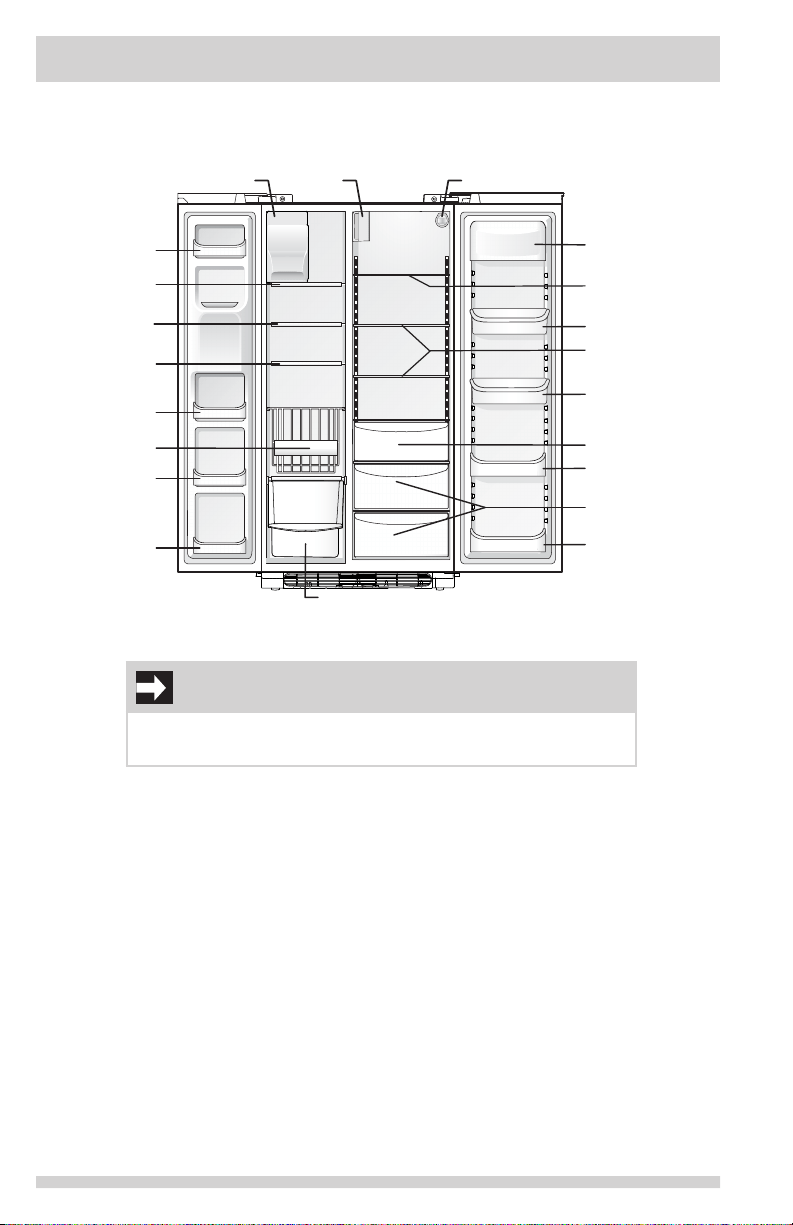

FEATURES AT A GLANCE
Features may vary according to model
Fixed Door Bin
Door Bin
Fixed Door Bin
Door Bin
Dairy Door
Water FilterAir Filter
Crisper Pan
and Cover
Deli Drawer
Large Basket
Door Bin
Door Bin
Door Bin
Door Bin
Wire Shelf
Wire Shelf
Ice Maker
Glass Shelf
Glass Shelf
Slide Out Basket
Wire Shelf
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space so the door can be
opened wider.
5
INSTALLATION
CAUTION
Do Not install the refrigerator where the
temperature will drop below 55°F (13°C) or
rise above 110°F (43°C). The compressor
will not be able to maintain proper
temperatures inside the refrigerator.
Do Not block the toe grille on the lower front
ofyourrefrigerator.Sufcientaircirculation
is essential for the proper operation of your
refrigerator.
This Use & Care Guide provides general
operating instructions for your model. Use
the refrigerator only as instructed in this
Use & Care Guide. Before starting the
refrigerator, follow these important rst
steps.
Location
• Choose a place that is near a grounded
electrical outlet. Do Not use an extension
cord or an adapter plug.
• If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher or other heat sources.
• Therefrigeratormustbeinstalledonaoor
that is level and strong enough to support a
fully loaded refrigerator.
• Consider water supply availability for models
equippedwithanautomaticicemaker.If
you do not hook up water to the refrigerator,
remember to turn the ice maker off.
Installation
Installation clearances
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides&Top ⅜inch
Back 1 inch
Toe Grille Installation and
Removal
To install toe grille
1 Open both doors. Slide left and right
sides of toe grille over lower hinges of
refrigerator.
2 Whilepushingtoegrillermlyagainst
cabinet, fasten bottom clips of toe grille to
cabinet.
3 Fasten top clips to cabinet.
4 Close the doors. Fasten right and left side
clips into groove of bottom hinge.
To remove toe grille
1 With both doors closed, unfasten right
and left side clips of toe grille from bottom
hinge groove.
2 Openbothdoors.Pressrmlyontopof
toe grille until top of toe grille pops off.
3 Pull toe grille outward toward your body
and off of lower hinges.
1
2
3
2
3
1
4
4
Installing Toe Grille
1
2
3
2
3
1
Removing Toe Grille
6
INSTALLATION
NOTE
T
he refrigerator doors are designed to shut
by themselves within a 20 degree opening.
Raise
Door Opening
Your refrigerator should be positioned to
allow easy access to a counter or table when
removing food. For best use of drawers and
freezer baskets, the refrigerator should be
in a position where both the refrigerator and
freezer doors can be fully opened.
Guidelines for nal positioning of your
refrigerator:
• All four corners of the cabinet must rest
rmlyontheoor.
• The cabinet should be level at the front and
rear.
• The sides should tilt ¼ inch (6 mm) from
front to back (to ensure that doors close and
seal properly).
• Doors should align with each other and be
level.
All of these conditions can be met by
raising or lowering the adjustable front
rollers.
To level the cabinet using the front
rollers:
1 Open both doors and remove the toe
grille (see “Toe Grille Installation and
Removal” in the “Installation” section).
2 Closethedoorsanduseaat-blade
screwdriveror⅜inchsocketwrenchto
raise or lower the front rollers.
3 Ensure both doors are bind-free with their
seals touching the cabinet on all four
sides.
Set Screw
(some models)
Hinge
Hinge Flange
Open Door
7/16" Wrench and
3/32" Hex Key (some models)
Door Stop
Flange
6 Replacethetoegrillebyttingitinto
place (see “Toe Grille Installation and
Removal” in the “Installation” section).
Raise
Door
Raise
Door
Door Door
To level the doors using the adjustable
lower hinge (some models):
1 Before leveling either door, remove set
screw that locks door height into position.
(The door cannot be adjusted without set
screw removed).
2 If the refrigerator door is lower than the
freezer door, raise the refrigerator door by
turning the adjustment screw clockwise
using a
7
/
16
inch wrench. (See illustration.)
3 If the freezer door is lower than the
refrigerator door, raise the freezer door by
turning the adjustment screw clockwise
using a
7
/
16
inch wrench. (See illustration.)
4 After leveling, verify door stop contacts
lower hinge and top of door does
not contact upper hinge through full
movement of door (from fully closed to
fully open).
5 Reinstall set screw, locking the door
height.
7
DOOR REMOVAL INSTRUCTIONS
To prepare for removing the doors:
1 Make sure the electrical power cord is
unplugged from the wall outlet.
2 Open both doors and remove the toe
grille (as explained in the Installation
Instructions that came with your
appliance).
3 Remove any food from the door shelves.
4 Close the doors.
To remove the refrigerator top hinge
cover:
1 Remove the three screws from each cover
over the top door hinges.
2 Lift hinge cover straight up and off.
To remove the refrigerator door:
1 Trace lightly around the door’s top hinge
with a pencil. This makes reinstallation
easier.
Rear Cover
Screw
Front Cover
Screws
Top
Hinge
Cover
Hinge
Screws
Top
Hinge
Phillips™
Head
Tools Necessary:
Socket
Wrench Set
Adjustable
Wrench
3/8" Fixed
Wrench
Top
Hinge
Screw
Bottom
Hinge
Screw
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
or
or
2 Remove the two screws from the top
hinge. Lift the door off of the bottom
hinge and set it aside.
8
To remove the freezer top hinge cover:
1 Remove the two screws from each cover
over the top door hinges.
2 Lift hinge cover straight up and off.
Front
Cover Screws
Rear Cover
Screw
Top Hinge
Cover
Hinge
Screws
Multi-Wire
Cable
Top
Hinge
To remove the freezer door:
1 Detach the
multi-wire
cable
connector
located
above the
top hinge.
Grasp both
sides of the
connector
rmlyand
pull apart.
2 Trace lightly around the hinge with a
pencil. This makes reinstallation easier.
3 Detach the water tube from the connector
located below the freezer door. The
Door
Hinge
Assembly Screws
Water
Line
Tubing
Non-Adjusting Hinge (some models)
Closer
Pin
Hinge
Door
Water
Line
Tubing
Screws
Hinge
Assembly
Adjustable Hinge (some models)
connector releases when you press its
outer sleeve inward.
4 Remove the screws from the top hinge
and pull the multi-wire cable through it.
Lift the door off of the bottom hinge.
5 Remove the two bottom hinge screws and
hinge if necessary.
DOOR REMOVAL INSTRUCTIONS
Adjustable Hinge (some models)
Door
Hinge
Assembly
Closer
Pin
Hinge
Screws
3 Remove the two bottom hinge screws and
hinge if necessary.
CAUTION
Be sure doors are set aside in a secure position
where they cannot fall and cause personal injury.
To reinstall the refrigerator door, reverse the
above steps.
To Disconnect
1. Press outer ring against face of
fitting
2. Pull to
remove tube
Insert tube and push until mark
touches face of fitting
To Connect
6 Lay the door on its side to avoid damage to the
water tube extending from the bottom hinge.
To reinstall the freezer door, reverse the above steps.
9

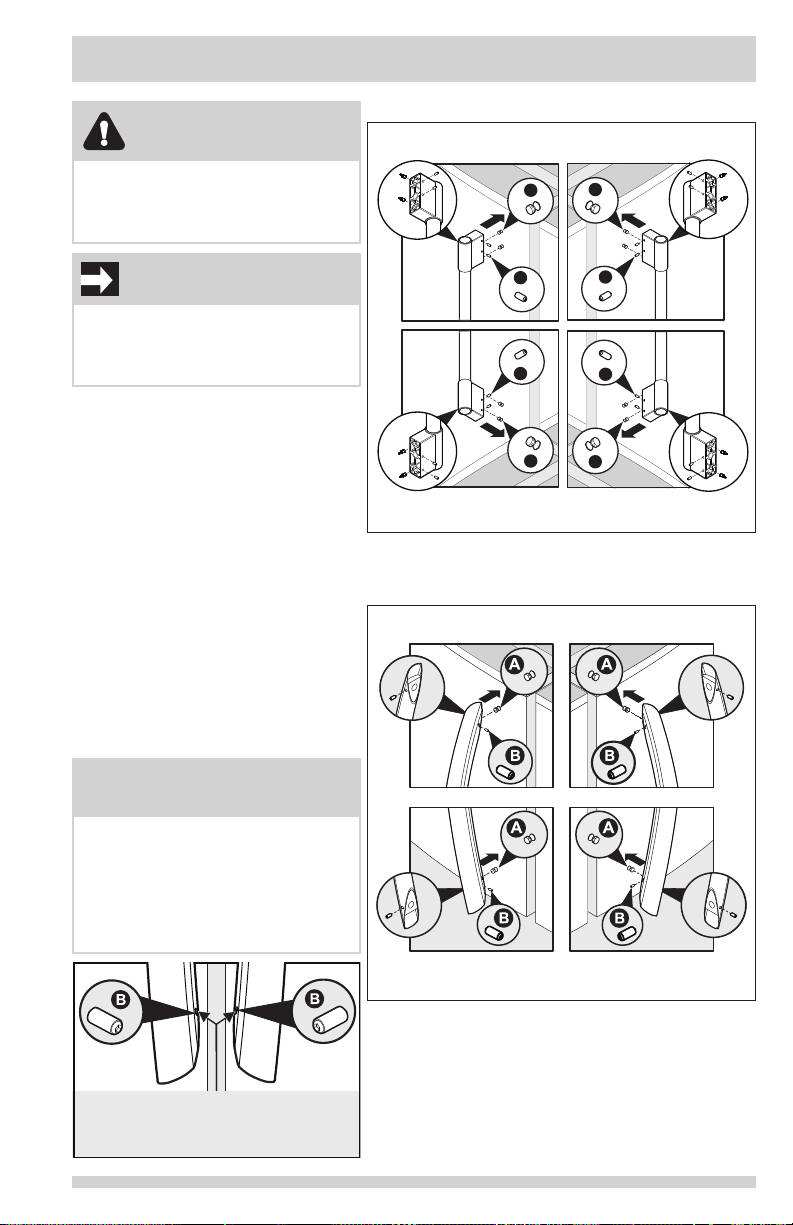

HANDLE INSTALLATION
IMPORTANT
To ensure proper installation of
handles, please review these
instructions and illustrations thoroughly
prior to installing the handles.
CAUTION
Wear gloves and safety goggles and
use extreme CAUTION when installing
these handles. The rounded end of the
handles may be sharp (some models).
Ensure Handle Set Screws
are Facing Each Other
with Doors Closed
1 Remove handles from protective
packaging.
2 Position freezer handle end caps
over upper and lower pre-installed
shoulder bolts (A) that are fastened
into door, ensuring the holes for the
set screws are facing towards the
refrigerator door.
3 Whileholdinghandlermlyagainst
door, fasten furthermost upper and
furthermost lower Allen set screws
(B) with supplied Allen wrench.
4 Firmly tighten the inside Allen set
screws.
5 Repeat steps 2 through 4 to install
refrigerator handle. Ensure the holes
for the set screws are facing towards
the freezer door.
NOTE
All set screws should be tightened
andsub-ush(Allensetscrewshould
be seated just below the surface of
the end cap) of handle end cap. The
end caps should be drawn tight to
freezer and refrigerator doors with
no gaps.
Freezer Upper
End Cap
Refrigerator Upper
End Cap
Frigidaire Gallery
®
Refrigerator Lower
End Cap
Freezer Lower
End Cap
Freezer Upper
End Cap
Refrigerator Lower
End Cap
Refrigerator Upper
End Cap
Freezer Lower
End Cap
Frigidaire Professional
®
A
B
A
B
B
A
B
A
10
WARNING
To avoid electric shock, which can cause
death or severe personal injury, disconnect
the refrigerator from electrical power before
connecting a water supply line to the
refrigerator.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator. Depending on
your local/state building codes, Frigidaire
recommends for homes with existing
valves its Smart Choice
®
water line kit
5304490728 (with a 6 ft. Stainless Steel
Water Line) or 5304493869 (with a 6
ft. Polyline Water Line) and for homes
without an existing valve, Frigidaire
recommends its Smart Choice
®
water
line kit 5304490717 (with a 20 ft. copper
water line with self-tapping saddle valve).
Please refer to www.frigidaire.com/store
for more information.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply
line. Water supply tubing made of ¼
inch plastic is not recommended to be
used. Plastic tubing greatly increases
the potential for water leaks, and the
manufacturer will not be responsible for
any damage if plastic tubing is used for
the supply line.
• DO NOT install water supply tubing in
areas where temperatures fall below
freezing.
• Chemicals from a malfunctioning softener
can damage the ice maker. If the ice
maker is connected to soft water, ensure
that the softener is maintained and
working properly.
IMPORTANT
Ensure that your water supply line
connections comply with all local plumbing
codes.
CONNECTING THE WATER SUPPLY
Before Installing The Water Supply Line,
You Will Need:
• BasicTools:adjustablewrench,at-blade
screwdriver, and Phillips
TM
screwdriver
• Access to a household cold water line with
water pressure between 30 and 100 psi.
• A water supply line made of ¼ inch
(6.4 mm) OD, copper or stainless steel
tubing. To determine the length of tubing
needed, measure the distance from the
ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then
add approximately 7 feet (2.1 meters),
so the refrigerator can be moved out for
cleaning (as shown).
To Connect Water Supply Line To Ice
Maker Inlet Valve
1 Disconnect refrigerator from electric
power source.
2 Place end of water supply line into sink or
bucket.TurnONwatersupplyandush
supply line until water is clear. Turn OFF
water supply at shutoff valve.
3 Remove plastic cap from water valve inlet
and discard cap.
4 If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water supply
line into water valve inlet as far as it
will go (¼ inch/6.4 mm). Slide ferrule
(sleeve)intovalveinletandngertighten
compression nut onto valve. Tighten
another half turn with a wrench; DO NOT
over tighten. See Figure 1.
If you use braided exible stainless
steel or polyline tubing - The nut is
already assembled on the tubing. Slide
nutontovalveinletandngertighten
nut onto valve. Tighten another half turn
with a wrench; DO NOT over tighten. See
Figure 2.
• A shutoff valve to connect the water supply
line to your household water system. Do not
use a self-piercing type shutoff valve.
• Donotre-usecompressionttingoruse
thread seal tape.
• A compression nut and ferrule (sleeve) for
connecting a copper water supply line to the
ice maker inlet valve.
11
IMPORTANT
After connecting the water supply, refer to
“How to Prime the Water Supply System”
for important information about priming an
empty water supply system.
To ensure that your water dispenser works
properly, the water supply system must
becompletelylledwithwaterwhen
yourrefrigeratorisrstconnectedtothe
household water supply line.
Figure 2
Figure 1
Plastic Water
Tubing to Ice
Maker Fill
Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
CONNECTING THE WATER SUPPLY
5 With steel clamp and screw, secure water
supply line (copper tubing only) to rear
panel of refrigerator as shown.
6 Coil excess water supply line (copper
tubing only), about 2½ turns, behind
refrigerator as shown and arrange coils so
they do not vibrate or wear against any
other surface.
7 Turn ON water supply at shutoff valve and
tighten any connections that leak.
8 Reconnect refrigerator to electrical power
source.
Steel
Clamp
Braided
Flexible
Stainless
Steel
Water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft (1.8 Meters) Braided flexible
stainless steel water line from
household water supply.
Plastic Water Tubing
to Ice Maker
Fill Tube
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
12

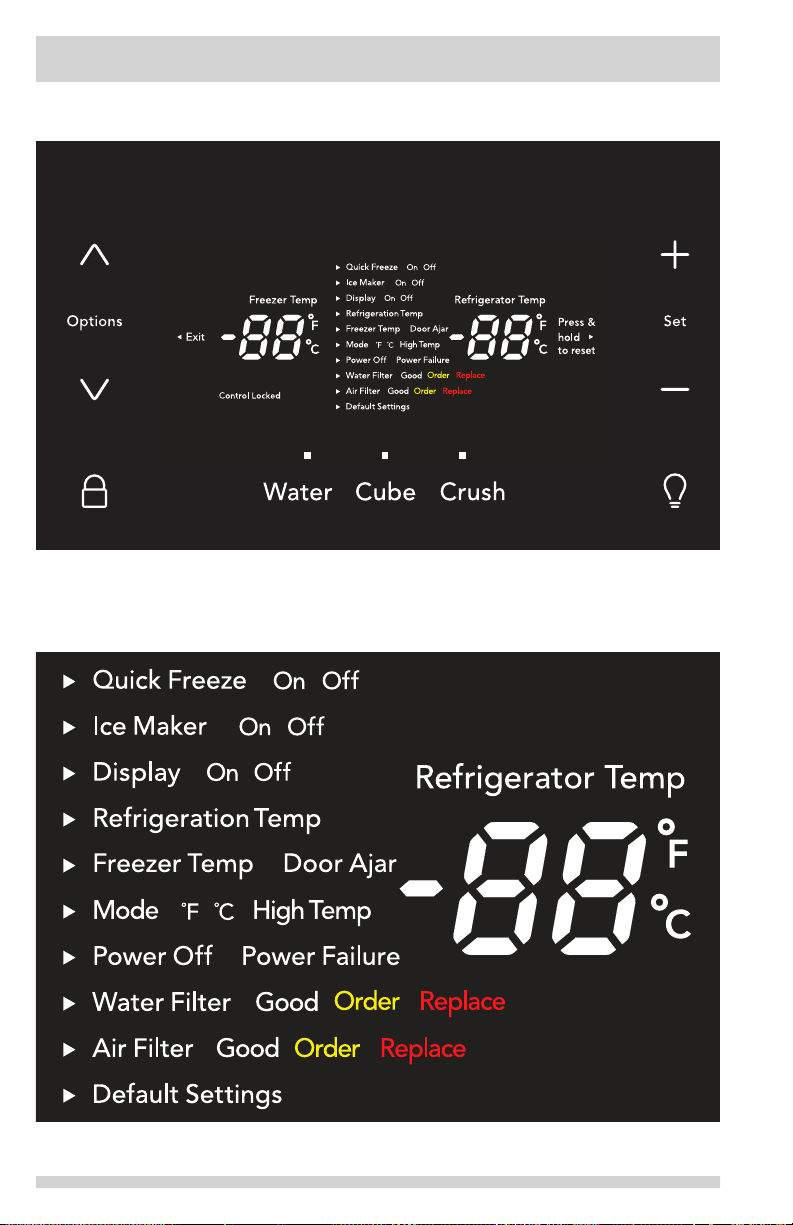

CONTROLS
Enlarged view of user interface display menu (varies by model)
User Interface (varies by model)
FRIGIDAIRE GALLERY
13
CONTROLS
options
(∧ or ∨)
Used to enter and exit the
options menu and make
selections.
exit Toggles the options and run
modes.
control
locked
While in the locked state,
you will not be able to
change any settings on the
display nor dispense ice and
water. The “Control Locked”
indicatorwillashandan
audible warning tone is
played.
light Toggles dispenser light On
and Off.
quick freeze
on off
Activates a faster rate for
freezing food. Deactivates
after 12 hours.
ice maker
on-off
Press and hold for three
seconds to toggle the
ice maker in the freezer
compartment “on” and
“off”.
display
on off
Toggles the temperature
displays On and Off.
refrigeration
temp
Allows the temperature
set-points to be adjusted.
Control temperatures range
from +33°F / +1°C to
+47°F / +8°C.
freezer
temp
Allows the temperature
set-points to be adjusted.
Control temperatures range
from -6°F / -21°C to +6°F
/ -15°C.
mode
°F °C
Toggles display from
Fahrenheit to Celsius.
power off Press and hold for three
seconds to turn off the
cooling system. It also
turns off the ice maker and
all dispenser functions.
The display will read
“power off”.
water lter Displays the current status
ofthewaterlter(Good,
Order, or Replace). To reset
thelterstatusto“Good”,
press and hold the “set” key
for three seconds.
air lter Displays the current status
oftheairlter(Good,Order,
or Replace). To reset the
lterstatusto“Good”,press
and hold the “set” key for
three seconds.
default
settings
While in the default option,
press and hold the set key
for three seconds to reset
all refrigerator settings
to their factory default
settings.
set (+ or -) Selects the current menu
selection option.
water Press the “water” key
to select water. A green
indicator light will be
illuminated above the active
feature.
cube Press the “cube” key to
select cubed ice. A green
indicator light will be
illuminated above the active
feature.
crush Press the “crush” key
to select crushed ice. A
green indicator light will be
illuminated above the active
feature.
Setting cooling temperatures
NOTE
Whenyourstpowerontherefrigerator,the
temperature displays 0°F and 37°F. After a
few seconds, both of the displays will switch
to “HI”. The displays will continue to show
“HI” for 20 minutes. After 20 minutes, the
High Temp alarm will sound and both
displays will show the actual temperature.
1 Plus (+) and Minus (-) indicators are
located on the right side of the control
panel.
2 Press the + or - indicator to adjust the
temperature to the desired setting.
FRIGIDAIRE GALLERY
14
CONTROLS
Alarms Sabbath Mode
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
in accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
pressing and holding both the “∨” and “+” for
veseconds.Thedisplayshows“Sb”whilein
Sabbath mode.
In the Sabbath Mode, the High Temp alarm
is active for health reasons. For example,
if the door is left ajar the High Temp alarm
is activated. The refrigerator will function
normally once the door is closed, without
any violation of the Sabbath/Holidays. The
High Temp alarm is permitted when cabinet
temperature is outside the safe zone for 20
minutes. The alarm silences itself after 10
minutes while the High Temp icon stays lit until
the Sabbath mode is exited.
For further assistance, guidelines for proper
usage and a complete list of models
with the Sabbath feature, please visit
the web at http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights,
dispenser, nor the control panel will work
until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the control
panel.
NOTE
Although you have entered the Sabbath
Mode, the ice maker will complete the
cycle it had already initiated. The ice cube
compartment will remain cold and new ice
cubes can be made with standard trays.
Power
Failure
In the event of a power failure,
the power fail alert will be
illuminated. Press alarm reset to
acknowledge the alarm. Other
modes may be turned off until
the alarm is acknowledged.
When the power fail alert is
acknowledged, the refrigerator
will resume normal operation.
The high temp alarm may
also be illuminated until a safe
operating range temperature
has been reached.
Freezer
Temp
If the freezer temperature
reaches 26°F or greater, the
alarm will sound and the
temperaturewillash.Youcan
disable the alarm by pressing
the set key but the “High Temp”
indicator will illuminate until the
temperature goes below 26°F.
Fresh Food
Temp
If the fresh food temperature
reaches 55°F or greater, the
alarm will sound and the
temperaturewillash.Youcan
disable the alarm by pressing
the set key but the “High Temp”
indicator will illuminate until the
temperature goes below 55°F.
Door Ajar If the freezer or fresh food
doors have been left open for
veminutesormore,analarm
will sound and the door ajar
indicator will illuminate on the
display. Press the set key to
reset any system alarms.
Flapper When “Cube” or “Crush” is
selected,iftheapper(orice
chute door) is being held open
by a jammed ice cube, an alarm
will sound for two minutes.
The alarm will reset after two
minutes or when the ice cube
is removed and the set key is
pressed to reset.
FRIGIDAIRE GALLERY
15
User Interface In-Door Controls
(options may vary)
CONTROLS
FRIGIDAIRE
PROFESSIONAL
POWER
ON-OFF
Press and hold for three seconds
to turn off the cooling system. It
also turns off the ice maker and all
dispenser functions. The display will
read “OFF”.
DEFAULT
SETTINGS
Press and hold for three seconds to
reset all refrigerator settings to their
factory default settings.
ICE MAKER
ON-OFF
Press and hold for 3 seconds to
toggle the ice maker in the freezer
compartment “ON” or “OFF”.
POWERPLUS
FREEZE
Activates a faster rate for freezing
food and increases ice production
in the freezer. Deactivates after 12
hours.
AIR FILTER Displays the current status of the air
lter(GOOD, ORDER, or REPLACE).
Toresetthelterstatusto“GOOD”,
press and hold for three seconds.
WATER FILTER Displays the current status of the
waterlter(GOOD, ORDER, or
REPLACE).Toresetthelterstatus
to “GOOD”, press and hold for three
seconds.
MUTE ALARM Tones emitted by each key press
can be turned off based on user
preference. The sounds are muted
when the red indicator is lit. Warning
signals will stay active.
REFRIGERATOR
TEMP
Allows the temperature set-
points to be adjusted. Press the
“-” or “+” indicator to adjust the
temperature to the desired setting.
Control temperatures range from
+33°F / +1°C to +43°F / +6°C.
FREEZER TEMP Allows the temperature set-
points to be adjusted. Press the
“-” or “+” indicator to adjust the
temperature to the desired setting.
Control temperatures range from
-6°F / -21°C to +4°F / -16°C.
16
CONTROLS
Alarms
Power Failure
In the event of a power failure, the “POWER
FAIL” alert will be illuminated. Press “MUTE
ALARM” to acknowledge the alarm. Other
modes may be turned off until the alarm is
acknowledged. While a “POWER FAIL” alert
is displayed on the control panel, the unit will
continue normal operation. The “POWER FAIL”
alert on the control panel will be removed once
the user acknowledges the power fail condition
by pressing “MUTE ALARM” or “DEFAULT
SETTINGS”.
Freezer Temp
If the freezer temperature reaches 26°F
or greater, the alarm will sound and the
temperaturewillashandthedispenser
control will display “HIGH TEMP DETECTED”.
You can disable the alarm by pressing “MUTE
ALARM” but the “HIGH TEMP DETECTED”
indicator will illuminate until the temperature
goes below 26°F.
Fresh Food Temp
If the fresh food temperature reaches 55°F
or greater, the alarm will sound and the
temperaturewillashandthedispenser
control will display “HIGH TEMP DETECTED”.
You can disable the alarm by pressing “MUTE
ALARM” but the “HIGH TEMP DETECTED”
indicator will illuminate until the temperature
goes below 55°F.
Door Ajar
If the freezer or fresh food doors have been
leftopenforveminutesormore,analarm
will sound and the door ajar indicator will
illuminate on the display. Press “MUTE ALARM”
to reset any system alarms.
Flapper
When “CUBES” or “CRUSHED” is selected,
iftheapper(oricechutedoor)isbeing
held open by a jammed ice cube, an alarm
will sound for two minutes and the current
selection will blink on the dispenser control.
The alarm will reset after two minutes or when
the ice cube is removed.
FRIGIDAIRE
PROFESSIONAL
Dispenser Controls
(options may vary)
WATER Press the “WATER” key to
select water.
CUBES Press the “CUBES” key to
select cubed ice.
CRUSHED Press the “CRUSHED” key to
select crushed ice.
light Toggles dispenser light on
and off.
17
CONTROLS
FRIGIDAIRE
PROFESSIONAL
Sabbath Mode
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
in accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
simultaneously pressing and holding both
the freezer “-” and the refrigerator “+” for
veseconds.Thedisplayshows“Sb”whilein
Sabbath mode.
In the Sabbath Mode, the “HIGH TEMP” alarm
is active for health reasons. For example, if
the door is left ajar the “HIGH TEMP” alarm
is activated. The refrigerator will function
normally once the door is closed, without
any violation of the Sabbath/Holidays. The
“HIGH TEMP” alarm is permitted when cabinet
temperature is outside the safe zone for 20
minutes. The alarm silences itself after 10
minutes while the “HIGH TEMP” icon stays lit
until the Sabbath mode is exited.
For further assistance, guidelines for proper
usage and a complete list of models
with the Sabbath feature, please visit
the web at
http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights,
dispenser, nor the control panel will work
until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the control
panel.
NOTE
Although you have entered the Sabbath
Mode, the ice maker will complete the
cycle it had already initiated. The ice cube
compartment will remain cold and new ice
cubes can be made with standard trays.
CAUTION
To avoid personal injury or property damage,
handle tempered glass shelves carefully.
Shelves may break suddenly if nicked,
scratched, or exposed to sudden temperature
change. Allow the glass shelves to stabilize
to room temperature before cleaning. Do not
wash in dishwasher.
18
STORAGE FEATURES
Cantilever Glass Shelf
1
2
Cantilever Shelf Adjustment
Refrigerator shelves are easily adjusted to
suit individual needs. Before adjusting the
shelves, remove all food. Cantilever shelves are
supported at the back of the refrigerator.
To adjust cantilever shelves:
1 Lift front edge up.
2 Pull shelf out.
Replace the shelf by inserting the hooks at
rear of the shelf into the wall bracket. Lower
the shelf into the desired slots and lock into
position.
Glass shelves (some models) catch and hold
accidental spills. In some models, the glass
shelves slide out for easy access to food
and for fast cleaning. The shelves slide out
independently of their mounting brackets. Just
pull the front of the shelf forward. Shelves can
be extended as far as the stopper will allow
but are not removable from their mounting
brackets.
Door storage
Door bins and shelves are provided for
convenient storage of jars, bottles, and cans.
Frequentlyuseditemscanbequicklyselected.
Some models have door bins that can
accommodate gallon-sized plastic drink
containers and economy-sized jars and
containers. Some bins are adjustable for
maximum storage capacity.
Crisper Humidity Control
Higher Humidity Lower Humidity
Cool Drawer (some models)
SomemodelsareequippedwithaCoolDrawer
for storage of luncheon meats, spreads,
cheeses, and other deli items. This drawer
does not have a separate temperature control.
NOTE
Leafy vegetables keep best when stored
with the humidity control set on Higher
Humidity, or in a drawer without a
Humidity Control. This keeps incoming air
to a minimum and maintains maximum
moisture content.
Crisper Drawer
Crispers
Crispers allow you
theexibilitytostore
any manner of items
including fruits,
vegetables, nuts, etc.
Crispers do not feature
humidity controls.
Fresh Drawers with Humidity
Control (some models)
The fresh drawers, located under the bottom
refrigerator shelf, are designed for storing
fruits, vegetables, and other fresh produce.
The fresh drawers feature humidity control
which allows you to adjust the humidity within
the drawer. This can extend the life of fresh
vegetables that keep best in high humidity.
Wash items in clear water and remove excess
water before placing them in the crispers.
Items with strong odors or high moisture
content should be wrapped before storing.
The dairy compartment, which is warmer than
the general food storage section, is intended
for short term storage of cheese, spreads, or
butter.
19
Chill Drawer (some models)
SomemodelsareequippedwithaChillDrawer.ChillDrawertemperaturescanbeadjustedby
sliding the Chill Drawer Temperature Control in either direction. Use this pan for short term
storage of bulk meat items. If meats are to be kept longer than one or two days, they should be
frozen.TheChillDrawerisxedandcannotbemovedupordown.Iffruitsorvegetablesareto
be stored in the Chill Drawer, set the Chill Drawer Temperature Control to a warmer setting to
prevent freezing.
Colder
Warmer
Chill Drawer
with Temperature Control
STORAGE FEATURES
20
IMPORTANT
Turning off the ice maker simply disables
ice making. You will still be able to dispense
existing ice, and you will still be able to
dispense water.
AUTOMATIC ICE & WATER DISPENSER
NOTE
The water dispenser has a built-in device that
shutsoffthewaterowafterthreeminutes
of continuous use. To reset this shutoff
device, simply release the dispenser paddle.
NOTE
The ice maker also has a built-in plastic
signal arm that automatically stops ice
production when the ice bin is full. This
signal arm should not be used to manually
stop the ice maker.
CAUTION
For proper dispenser operation, recommended
water supply pressure should fall between
30 psi and 100 psi. Excessive pressure may
cause the system to malfunction.
Priming the water supply system
Ice maker operation & care
After the refrigerator is installed properly and
has cooled for several hours, the ice maker can
produce ice within 24 hours. The ice maker will
lltheicebinfromtherear.Youmustdispense
some ice to force the ice forward in the bin.
Thiswillallowthebintollcompletely.
Ice Maker and Storage Bin
Capacity
This ice maker should produce 2.5 to 3 pounds
of ice per 24 hours, depending on usage
conditions. Ice is produced at a rate of 10
cubes every 75 to 90 minutes.
How much ice can be stored in
the ice bin?
When completely full, the bin in standard
depth units will hold about 11 pounds of ice
(total weight of ice and bin will be about 15
pounds). The bin in counter depth units will
hold about 8.5 pounds of ice (total weight of
ice and bin will be about 12 pounds).
Turning the ice maker on and off
Ice production is controlled by the ice maker’s
On/Off feature on the control panel. Pressing
and holding the On/Off button toggles the ice
maker On/Off.
NOTE
Dispensed water is not chilled. For colder
water, add ice to cup or container before
dispensing water.
1 Beginllingthesystembypressingand
holding a drinking glass against the water
dispenser
paddle.
2 Keep the
glass
in this
position
until water
comes
out of the
dispenser.
It may
take
about 1½
minutes.
3 Continue
dispensing
waterforaboutfourminutestoushthe
system and plumbing connections of any
impurities (stopping to empty the glass as
necessary).
Dispenser
(varies by model)
21
IMPORTANT
Small ice cubes or ice chips jamming in the
ice maker may be a sign that your water
lterneedschanging.Ifyouhaveaside
mounted ice maker you may also experience
hollow cubes partially frozen cubes with
water inside. When these cubes are
harvested, they break open and spill water
over the other ice cubes in the ice container,
forming a solid mass of ice. As the water
lternearstheendofitsusefullifeand
becomes clogged with particles, less water is
delivered to the ice maker during each cycle.
Theicemakercan’tlleverycubeintheice
maker mold, leading to small cubes or chips
that can get caught between the ice ejector
blades and the stripper. Remember, if your
ice maker is jamming with small ice cubes or
it’s been six months or longer since you last
changedyourwaterlterreplacethewater
lterwithanewone.Poorqualityhousehold
watermayrequiretheltertobechanged
morefrequently.
Ice maker/dispenser tips
• If your refrigerator is not connected to a
water supply or the water supply is turned
off, turn off the ice maker as described in
the previous section.
• The following sounds are normal when the
ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• When dispensing ice, you will hear a
snapping or clicking sound when the ice
chute opens and closes.
• Ifyouneedalargequantityoficeatone
time, it is best to get cubes directly from
the ice bin.
• Ice cubes stored too long may develop an
oddavor.Emptytheicebinasexplained
below.
• When dispensing cubed ice, it is normal to
haveasmallquantityoflittlepiecesalong
with the whole cubes.
• To avoid splashing, dispense ice into your
containerbeforeaddingliquids.
• Itisnormalforicetolltothetopofthe
ice bin.
IMPORTANT
Your ice maker is turned on at the factory
so it can work as soon as you install your
refrigerator. If you cannot connect a water
supply, set the ice maker’s On/Off feature
toOff;otherwise,theicemaker’sllvalve
may make a loud chattering noise when it
attempts to operate without water.
Using the ice maker after
installation
Beforemakingiceforthersttime,besure
to prime the water supply system. Air in new
plumbing lines can result in two or three empty
ice maker cycles. Furthermore, if the system
isnotushed,thersticecubesmaybe
discoloredorhaveanoddavor.
AUTOMATIC ICE & WATER DISPENSER
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water softener
can damage the ice maker.
22
CAUTION
Besuretormlysupporttheunderside
of the ice bin when removing it from the
refrigerator. A standard depth bin that is full
of ice will weigh about 15 pounds total, and
a counter depth bin that is full of ice will
weigh about 12 pounds total.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could
damage the ice bin and dispenser mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure it is
completely dry.
IMPORTANT
When removing or replacing the ice bin,
avoid rotating the auger in the ice bin. If
the auger is accidentally rotated, you must
realign the auger by turning it in 45 degree
turns(seebelow)untiltheicebintsinto
place with the drive mechanism. If the
auger is not properly aligned when replacing
the ice bin, the refrigerator will not dispense
ice. The freezer door also may not close
properly causing warm air to leak into the
freezer compartment.
AUTOMATIC ICE & WATER DISPENSER
Cleaning the storage bin
Clean the ice
maker and ice
bin at regular
intervals,
especially prior
to vacation or
moving.
1 Turn off
the ice
maker.
2 Remove
the ice
bin by
lifting up slightly on the front of the bin
and pulling it straight out of the ice maker
housing.
Removing Ice Bin
Adjusting Ice Bin Auger
Auger
3 Empty and carefully clean the ice bin
with mild detergent. Do not use harsh or
abrasive cleaners. Rinse with clear water.
4 Allow the ice bin to dry completely before
replacing in the freezer.
5 Remove ice chips and clean the ice bin
shelf and the freezer door chute.
6 Replace the ice bin. Turn the ice maker on
to resume ice production.
Remove and empty the ice bin if:
• An extended power failure (one hour or
longer) causes ice cubes in the ice bin to
melt and refreeze together after power is
restored, jamming the dispenser mechanism.
• Youdonotusetheicedispenserfrequently.
Ice cubes will freeze together in the bin,
jamming the dispenser mechanism.
Remove the ice bin and shake to loosen the
cubes or clean as explained above.
23
CHANGING THE FILTER
Air Filter (some models)
Theairlterislocatedatthetopofthefresh
foodcompartmentnexttothewaterlter.
Replacing the Air Filter
Ingeneral,youshouldchangetheairlter
everysixmonths(thelterstatuslighton
the control panel prompts you to replace
thelteraftersixmonths)toensureoptimal
lteringofrefrigeratorodors.Youmaywant
to adjust this time period depending on the
types and amounts of food you typically
store in your refrigerator. To replace your
PureSource Ultra
TM
airlter:
1 Pulltheairlterhousingstraightout.
2 Removetheoldlteranddiscardit.
3 Unpackthenewlterandplaceitinside
the housing.
4 Slide the housing back into position.
Air Filter
Locating the Filter
Yourrefrigeratorisequippedwithawater
lteringsystem.Thewaterltersystemlters
all dispensed drinking water, as well as the
water used to produce ice.
24
Locating the Filters
Yourrefrigeratorisequippedwithwater
lteringsystem.Thewaterltersystemlters
all dispensed drinking water, as well as the
waterusedtoproduceice.Thelterislocated
in the top right rear corner of the fresh food
compartment.
Water Filter
Thewaterlterislocatedatthetoprightside
of the fresh food compartment.
Ordering Replacement Filters
Toorderyourreplacementlters,pleasevisit
our online store at www.frigidaire.com/store,
by calling toll-free at 1-800-599-7569, or by
visiting the dealer where you purchased your
refrigerator. Frigidaire recommends that you
orderextralterswhenyourstinstallyour
refrigerator,andthatyoureplaceyourltersat
least once every six months.
Hereistheproductnumbertorequestwhen
ordering:
PureSource Ultra II
TM
Water Filter
Part #EPTWFU01
Replacing the Water Filter
In general, you should change the water
ltereverysixmonthstoensurethehighest
possiblewaterquality.Water Filter Status
on the user interface prompts you to replace
thelterafterastandardamountofwater
(125 gallons/473 liters for PureSource
Ultra II
TM
)
hasowedthroughthesystem.
If your refrigerator has not been used for a period
of time (during moving for example), change the
lterbeforereinstallingtherefrigerator.
Do not use with water that is microbiologically
unsafeorofunknownqualitywithoutadequate
disinfection before or after the system. Systems
certiedforcystreductionmaybeusedon
disinfectedwatersthatmaycontainlterablecysts.
Test & certication results:
• Rated Capacity - 125 gallons/473 liters for
PureSource Ultra II
TM
iceandwaterlter
• Ratedserviceow-.65gallonsperminute
• Operating Temp: Min. 33°F, Max. 100°F
• Maximum Rated Pressure - 100 pounds per
squareinch
• Recommended Minimum Operating
Pressure:30poundspersquareinch
To replace your PureSource Ultra II
TM
water lter:
It is not necessary to turn the water supply off
tochangethelter.Bereadytowipeupany
small amounts of water released during the
lterreplacement.
1 Turn Off the ice maker power switch.
2 Removetheoldlterbyrotatingitcounter-
clockwise (to the left) 90 degrees to release it.
3 Slidetheoldltercartridgestraightoutof
the housing and discard it.
4 Unpackagethenewltercartridge.Slideit
intothelterhousingasfarasitwillgowith
the grip end horizontal.
5 Pushlightlyinwardonthelterwhilerotating
itclockwise(totheright).Thelterwillthen
pull itself inward as it is rotated. Rotate the
lter90degreesuntilitstopsandthegrip
end is vertical. You may be able to feel a very
lightclickasthelterlocksintoplace.
6 Press a drinking glass against the water
dispenser while checking for any leaks at
thelterhousing.Anyspurtsandsputters
that occur as the system purges air out of
the dispenser system are normal.
7 Continue dispensing water for 3-4 minutes
oruntil1.5gallonsofwaterhasowed
through the system. You will likely need to
emptyandrellyourglassseveraltimes.
8 Turn On the ice maker.
9 Press and hold the Water Filter reset
button on the control panel for three
seconds. When the display changes from
Red to Green, the status has been reset.
The PureSource Ultra II
TM
iceandwaterltersystemis
testedandcertiedtoNSF/ANSI
Standards 42, 53 and 401 for the
reductionofclaimsspeciedon
the performance data sheet.
More about your Advanced
Water Filter
NOTE
Whenorderingyourreplacementlter,
pleasereorderthesameltertypethatis
currently in your refrigerator.
CHANGING THE FILTER
Filter Cartridge
NOTE
Energyefcientfoaminyourrefrigeratoris
not a sound insulator.
Understanding the Sounds you
may Hear
Yournew,high-efciencyrefrigeratormay
introduce unfamiliar sounds. These sounds
normally indicate your refrigerator is operating
correctly.Somesurfacesonoors,walls,and
kitchen cabinets may make these sounds more
noticeable.
Following is a list of major components in your
refrigerator and the sounds they can cause:
A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear air being
forced through the refrigerator by the
evaporator fan.
C Defrost heater During defrost cycles,
water dripping onto the defrost heater
may cause a hissing or sizzling sound.
After defrosting, a popping sound may
occur.
D Automatic ice maker When ice has
been produced, you will hear ice cubes
falling into the ice bin.
E Electronic control & automatic
defrost control These parts can produce
a snapping or clicking sound when turning
the cooling system on and off.
F Condenser fan You may hear air being
forced through the condenser.
G CompressorModern,high-efciency
compressors run much faster than in the
past. The compressor may have a high-
pitched hum or pulsating sound.
H Water valve Makes a buzzing sound each
timeitopenstolltheicemaker.
I Drain pan (not removable) You may hear
water dripping into the drain pan during
the defrost cycle.
J Condenser May create minimal sounds
from forced air.
K Motorized damper May produce a light
humming during operation.
L Ice chute When dispensing ice, you will
hear a snapping or clicking sound when
the solenoid opens and closes the ice
chute.
NOTE
During automatic defrost cycle, a red glow
in the back wall vents of your freezer
compartment is normal.
25
NORMAL OPERATING SOUNDS AND SIGHTS
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain
the water supply system. Failure to do so could result in water leaks when the refrigerator is
put back into service. Contact a service representative to perform this operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may damage
ooring.Becarefulnottomovetherefrigeratorbeyondtheplumbingconnections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or
damp hands.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other electrical
components will continue until you unplug the power cord from the wall outlet.
Protecting your investment
Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up any
spills immediately and clean the freezer and fresh food compartments at least twice a year.
When cleaning, take the following precautions:
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which
can scratch the appliance surface.
• Do not remove the serial plate.
Donotuseabrasivecleanerssuchaswindowsprays,scouringcleansers,brushes,ammable
uids,cleaningwaxes,concentrateddetergents,bleachesorcleanserscontainingpetroleum
products on plastic parts, interior doors, gaskets or cabinet liners. Do not use paper towels,
metallic scouring pads, or other abrasive cleaning materials or strong alkaline solutions.
26
CARE & CLEANING
Vacation and moving tips
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of three weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bucket, even if you will only be
gone a few days.
Long
Vacations
• Remove all food and ice if you will be gone one month or more.
• Turn the cooling system off (see “Controls” section for location of On/Off
button) and disconnect power cord.
• Turn water supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block doors open
if necessary.
Moving
• Remove all food and ice.
• If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
27
CARE & CLEANING
Care and Cleaning Tips
Part Cleaning
Agents
Tips and Precautions
Interior &
Door Liners
• Soap and water
• Baking soda and
water
• Usetwotablespoonsofbakingsodainonequartof
warm water.
• Be sure to wring excess water out of sponge or cloth
before cleaning around controls, light bulb or any
electrical part.
Door Gaskets
• Soap and water • Wipe gaskets with a clean soft cloth.
Drawers &
Bins
• Soap and water • Use a soft cloth to clean drawer runners and tracks.
• Do not wash any removable items (bins, drawers, etc.)
in dishwasher.
Glass
Shelves
• Soap and water
• Glass cleaner
• Mildliquidsprays
• Allow glass to warm to room temperature before
immersing in warm water.
Toe Grille
• Soap and water
• Mildliquidsprays
• Vacuum
• Remove toe grille (see Installation Instructions).
• Vacuum both sides and wipe with sudsy cloth or
sponge. Rinse and dry.
Exterior &
Handles
• Soap and water
• Non abrasive
glass cleaner
• Do not use commercial household cleaners containing
ammonia, bleach or alcohol to clean handles.
• Use a soft cloth to clean smooth handles.
• Do not use a dry cloth to clean smooth doors.
Exterior &
Handles
(Stainless
Steel Models
Only)
• Soap and water
• Stainless steel
cleaners
• Never use CHLORIDE or cleaners with bleach to clean
stainless steel.
• Clean stainless steel front and handles with non-
abrasive soapy water and a dishcloth. Rinse with clean
water and a soft cloth.
• Use a non-abrasive stainless steel cleaner. These
cleaners can be purchased at most home improvement
or major department stores. Always follow
manufacturer’s instruction. Do not use household
cleaners containing ammonia or bleach. NOTE: Always
clean, wipe and dry with grain to prevent scratching.
• Wash the rest of the cabinet with warm water and
mildliquiddetergent.Rinsewellandwipedrywitha
clean soft cloth.
28
BEFORE YOU CALL
Visit our web site at
www.frigidaire.com
1-800-944-9044 (United States)
1-800-265-8352 (Canada)
CONCERN CAUSE SOLUTION
AUTOMATIC ICE MAKER
Ice maker is
not making any
ice.
• Ice maker is turned off.
• Refrigerator is not
connected to water line
or water valve is not
open.
• The water supply line is
kinked.
• Thewaterlterisnot
seated properly.
• Thewaterltermaybe
clogged with foreign
material.
• Turn on ice maker. Press and hold the “ON-
OFF” button for three seconds until the
indicator light is on.
• Connect the unit to the household water
supply and ensure the water valve is open.
• Ensure that the supply line does not kink
when the refrigerator is pushed into place
against the wall.
• Removeandre-installthewaterlter.
Remove by rotating it counter-clockwise (to
the left) 90 degrees to release it. Re-install
byslidingitintothelterhousingasfaras
it will go with the grip end horizontal. Push
lightlyinwardonthelterwhilerotatingit
clockwise(totheright).Thelterwillthen
pull itself inward as it is rotated. Rotate the
lter90degreesuntilitstopsandthegrip
end is vertical. You may be able to feel a
verylightclickasthelterlocksintoplace.
• If water dispenses slowly or not at all, or
ifthelterissixmonthsoldorolder,it
should be replaced.
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you expect.
• Thewaterltermaybe
clogged with foreign
material.
• The water supply line is
kinked.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Heavytrafc,opening
or closing of the doors
excessively.
• Freezer control is set too
warm.
• The ice maker produces approximately 2.5
to 3 pounds every 24 hours depending on
usage conditions.
• If water dispenses slower than normal,
orifthelterissixmonthsoldorolder,it
should be replaced.
• Ensure that the supply line does not kink
when the refrigerator is pushed into place
against the wall.
• Turn off household water line valve.
Remove valve. Ensure that valve is not
a self-piercing saddle valve. Clean valve.
Replace valve if necessary.
• Press Quick Freeze to temporarily increase
ice production rate. (Does not apply to
Frigidaire Professional.)
• Set freezer control to colder setting to
improve performance of the ice maker.
Allow 24 hours for temperature to stabilize.
29
BEFORE YOU CALL
CONCERN CAUSE SOLUTION
AUTOMATIC ICE MAKER (Continued)
Ice cubes
are freezing
together.
• Ice cubes are not being
usedfrequentlyenough
or interruption of power
for prolonged time.
• Ice cubes are small or
hollow (shells of ice
with water inside). The
hollow cubes break open
in the bin and leak their
water onto existing ice,
which causes it to freeze
together.
• Remove ice container and discard ice. The
ice maker will produce fresh supply. Ice
should be used at least twice weekly to
keep the cubes separated.
• This generally occurs when the ice maker
does not get enough water. This is usually
theresultofacloggedwaterlteror
restricted water supply. Replace the water
lterandiftheconditionstilloccurscheck
for a Saddle Valve, water valve not turned
on all the way or kinked water supply line.
DISPENSER (Ice & Water)
Dispenser will
not dispense
ice.
• Dispenser lock out is
engaged. (Does not apply
to Frigidaire Professional.)
• There is no ice in the bin
to be dispensed.
• The refrigerator doors are
not completely closed.
• Dispenser paddle has
been pressed too long
and the dispenser motor
has overheated.
• Press and hold control lock for three
seconds.
• See the “Ice maker is not making any ice”
section above.
• Be sure the refrigerator doors are
completely closed.
• The motor overload protector will reset in
about three minutes and then ice can be
dispensed.
Ice dispenser is
jammed.
• Ice has melted and
frozen around auger
duetoinfrequentuse,
temperatureuctuations,
and/or power outages.
• Ice cubes are jammed
between ice maker and
back of ice container.
• Remove ice container, thaw, and empty the
contents. Clean container, wipe dry, and
replace in proper position. When new ice is
made, dispenser should operate.
• Remove ice cubes that are jamming the
dispenser.
Dispenser will
not dispense
water.
• Dispenser lock out is
engaged. (Does not apply
to Frigidaire Professional.)
• Waterlternotseated
properly.
• Waterlterisclogged.
• Household water line
valve is not open.
• Press and hold control lock for three
seconds.
• Removeandreinstallthewaterlter.
Be sure to press inward as you rotate it
clockwise to lock it in place.
• Replaceltercartridge.Besuretopress
inward as you rotate it clockwise to lock it
in place.
• Open household water line valve. See
CONCERN column AUTOMATIC ICE MAKER.
Water has an
odd taste and/
or odor.
• Water has not been
dispensed for an
extended period of time.
• Unit not properly
connected to cold water
line.
• Draw and discard 10-12 glasses of water to
freshen the supply.
• Connect unit to cold water line that
supplies water to the kitchen faucet.
30
BEFORE YOU CALL
CONCERN CAUSE SOLUTION
DISPENSER (Ice & Water) (Continued)
Water pressure
is extremely
low.
• Cut-off and cut-on
pressures are too low
(well systems only).
• Reverse osmosis system
is in regenerative phase.
• Have someone turn up the cut-off and cut-
on pressure on the water pump
system (well systems only).
• It is normal for a reverse osmosis system
to be below 20 psi during the regenerative
phase.
Water not cold
enough.
• The water dispensing
system is not designed to
chill water.
• Add ice to cup or container before
dispensing water.
OPENING/CLOSING OF DOORS/DRAWERS
Door(s) will not
close.
• Door was closed too
hard, causing other door
to open slightly.
• Refrigerator is not level.
Itrocksontheoorwhen
moved slightly.
• Refrigerator is touching a
wall or cabinet.
• Close both doors gently.
• Ensureoorislevelandsolid,andcan
adequatelysupporttherefrigerator.
Contact a carpenter to correct a sagging or
slopingoor.
• Ensureoorislevelandsolid,andcan
adequatelysupporttherefrigerator.
Contact a carpenter to correct a sagging or
slopingoor.
Drawers are
difcult to
move.
• Food is touching shelf on
top of drawer.
• Track that drawers slide
on is dirty.
• Remove top layer of items in drawer.
• Ensure drawer is properly installed on
track.
• Clean drawer, rollers, and track. See Care
& Cleaning.
RUNNING OF REFRIGERATOR
Compressor
does not run.
• Freezer control is set to
“OF” or “0”.
• Refrigerator is in defrost
cycle.
• Plug at electrical outlet is
disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• Set freezer control.
• This is normal for a fully automatic defrost
refrigerator. The defrost cycle occurs
periodically, lasting about 30 minutes.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-
delay fuse. Reset circuit breaker.
• Check house lights. Call local electric
company.
31
BEFORE YOU CALL
CONCERN CAUSE SOLUTION
RUNNING OF REFRIGERATOR (Continued)
Refrigerator
runs too much
or too long.
(Single Speed
Compressor)
(Some Models)
• Room or outside weather
is hot.
• Doors are opened too
frequentlyortoolong.
• Fresh Food/freezer door
may be slightly open.
• Freezer control is set too
cold.
• Fresh Food/freezer gasket
is dirty, worn, cracked, or
poorlytted.
• Condenser is dirty.
• It’s normal for the refrigerator to work
longer under these conditions.
• Warm air entering the refrigerator causes it
to run more. Open doors less often.
• Ensure refrigerator is level. Keep food and
contains from blocking door. See PROBLEM
column OPENING/CLOSING OF DOORS/
DRAWERS.
• Set Fresh Food control to warmer
setting until refrigerator temperature
is satisfactory. Allow 24 hours for
temperature to stabilize.
• Clean or change gasket. Leaks in door
seal will cause refrigerator to run longer in
order to maintain desired temperatures.
• Clean condenser. See Care & Cleaning.
Compressor
goes off and on
frequently.
• Thermostat keeps the
refrigerator at a constant
temperature.
• This is normal. Refrigerator goes on and
off to keep temperature constant. (Single
Speed Compressor) (Some Models)
Refrigerator
seems to run
too much
or too long.
(Variable Speed
Compressor)
(Some Models)
• Your variable speed
compressor is designed
to run 100% of the time
except during the defrost
cycle. At times it will run
faster, such as after a
defrost cycle.
• It is normal for the compressor to run
continuously except during defrost mode.
DIGITAL TEMPERATURE DISPLAY
Digital
temperature
displays are
ashing.
• Electronic control system
has detected a
performance problem.
• Call your Frigidaire service representative,
who can interpret any messages or number
codesashingonthedigitaldisplays.
WATER/MOISTURE/FROST INSIDE REFRIGERATOR
Moisture collects
on inside of
refrigerator
walls.
• Weather is hot and
humid.
• Door is slightly open.
• The rate of frost buildup and internal
sweating increases.
• See PROBLEM column OPENING/CLOSING
OF DOORS/DRAWERS.
Water collects
on bottom
side of drawer
cover.
• Vegetables contain and
give off moisture.
• It is not unusual to have moisture on the
bottom side of the cover.
• Move humidity control (some models) to
lower setting.
Water collects
in bottom of
drawer.
• Washed vegetables and
fruit drain while in the
drawer.
• Dry items before putting them in the
drawer. Water collecting in bottom of
drawer is normal.
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Moisture
collects on
outside of
refrigerator or
between doors.
• Weather is humid.
• Door is slightly open,
causing cold air from
inside refrigerator to meet
warm air from outside.
• This is normal in humid weather. When
humidity is lower, the moisture should
disappear.
• See PROBLEM column OPENING/CLOSING
OF DOORS/DRAWERS.
32
MAJOR APPLIANCE WARRANTY
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove
to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
If You Need Service
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside
the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Servicecallstorepairorreplaceappliancelightbulbs,airlters,waterlters,other
consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damagestothenishofapplianceorhomeincurredduringinstallation,includingbutnot
limitedtooors,cabinets,walls,etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other
than genuine Electrolux parts or parts obtained from persons other than authorized service
companies;orexternalcausessuchasabuse,misuse,inadequatepowersupply,accidents,
res,oractsofGod.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH
AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS
WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada,
your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change
or add to any obligations under this warranty. Obligations for service and parts under this warranty
mustbeperformedbyElectroluxoranauthorizedservicecompany.Productfeaturesorspecications
as described or illustrated are subject to change without notice.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty
periodshouldserviceberequired.Ifserviceisperformed,itisinyourbestinteresttoobtainand
keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the
addresses or phone numbers below.
USA
1.800.944.9044
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
