Controls ............ 8=9
_i!_!!iiii!!!iii!iii!!!_i_!!i!!!!_!!!_!_!!!!i_!_!!_!!!!_!!!!_!_!!i!_!_!_!_!_!:_!_:!_!_!_i_!!!i!!_!!!!!i_!!_!!_!!_!!!i!!_!_!!!i!i!!i!i!ii!_i_
Oven Control Functions .............. 10
Setting Oven Controls ............ 10-13
Self Cleaning (Speed Clean).. 14-15
Adjusting Oven Temperature ....... 15
General Care & Cleaning ....... 16-18
Before You Call
Solutions to Common Problems ........................ 19
Questions? 1=800=944=9044 (unitedStates)
1=800=668-4606 (Canada)
Visit the Frigidaire Web Site at:
http:llwww.frigidaire.com
Warranty ......................... Back Page
READ AND SAVE THESE INSTRUCTIONS pin 316417012 rev C (0512)

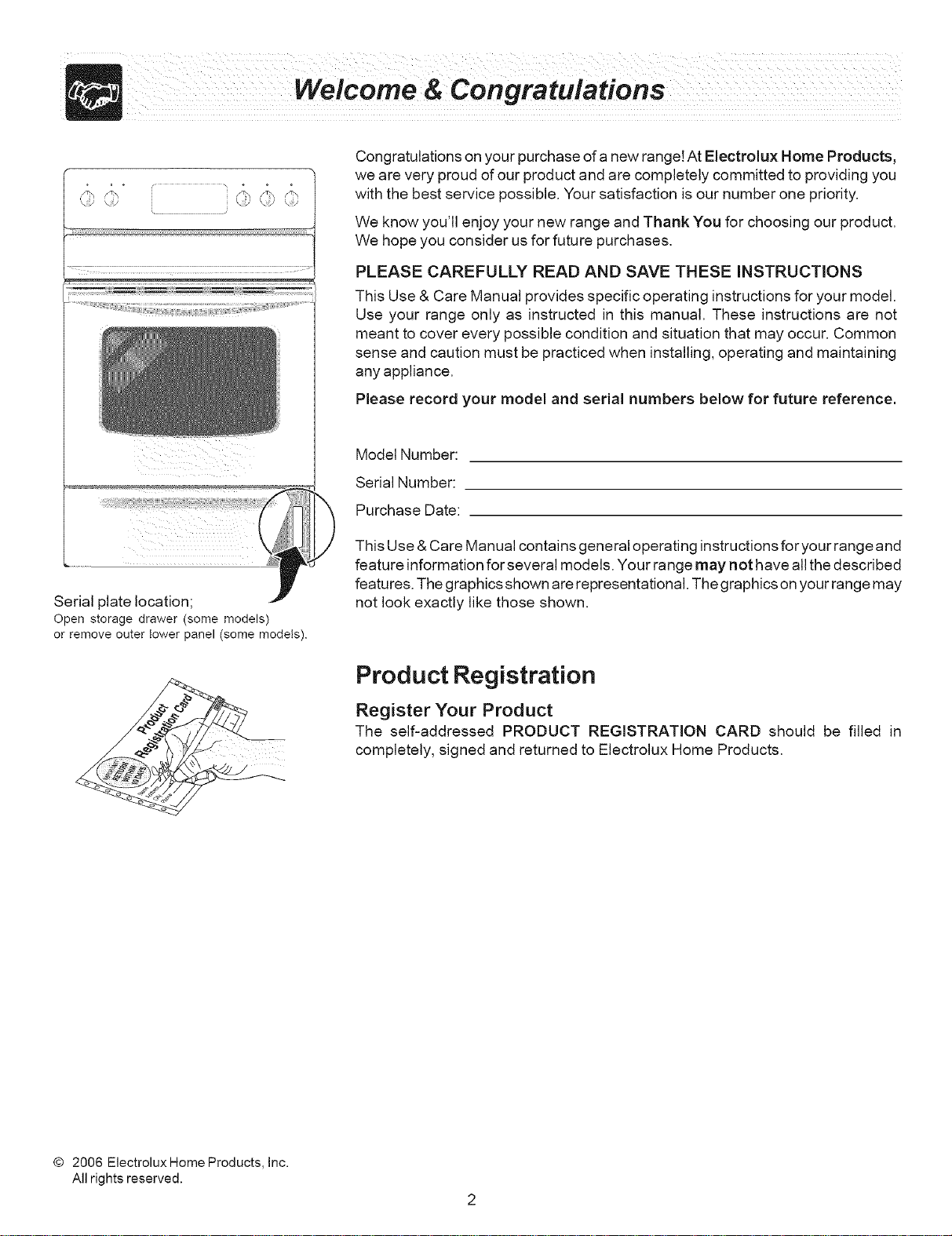

Welcome &Con gratulations
,.j
Serial plate location;
open storage drawer (some models)
or remove outer tower panel (some models).
Congratulations on your purchase of a new range! At Electrolux Home Products,
we are very proud of our product and are completely committed to providing you
with the best service possible. Your satisfaction is our number one priority.
We know you'll enjoy your new range and Thank You for choosing our product.
We hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating instructions for your model.
Use your range only as instructed in this manual. These instructions are not
meant to cover every possible condition and situation that may occur. Common
sense and caution must be practiced when installing, operating and maintaining
any appliance.
Please record your model and serial numbers below for future reference.
Model Number:
Serial Number:
Purchase Date:
This Use & Care Manual contains general operating instructions for your range and
feature information for several models. Your range may not have all the described
features. The graphics shown arerepresentational. The graphics on your range may
not look exactly like those shown.
Product Registration
Register Your Product
The self-addressed PRODUCT REGISTRATION CARD should be filled in
completely, signed and returned to Electrolux Home Products.
© 2006 Electrolux Home Products, inc.
All rights reserved.
Important Safety Instructions
Read all instructions before using this appliance. Save these instructions for future reference.
This manual contains important safety symbc s and instructions. Please pay attention to these symbols and follow all instructions given.
This symbol will help alert you to situations that may cause serious bodily harm. death or property damage.
This symbol will help alert you to situations that may cause bodily injury or property damage.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging material.
Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/
NFPA No. 70 latest edition and local electrical code
requirements. Install only perinstallation instructions provided
in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician. This may reduce the risk of personal
injury and damage to the range.
Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
QAll ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with range.
• See Installation Instructions.
_To reduce the risk of
tipping, the rangemust be secured by
properly installed anti-tip bracket provided
with the range. To check if the bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully
secured by the anti-tip bracket by
removing lower panel or storage drawer.
For models with a warmer drawer, grasp
the top rear edge of the range and
carefully attempt to tilt itforward. Refer to
the installation instructions for proper anti-
tip bracket installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and
also cause damage to the range. Do not allow children to
climb or play around the range. The weight ofa child on an open
door may cause the range to tip, resulting in serious burns or
other injury.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a
range. Children climbing on the range to reach items could be
seriously injured.
Do not use the oven or warmer drawer (if
equipped) for storage.
Never Use Your Appliance for Warming or
Heating the Room.
* Storage in or on Appliance--Flammable materials
should not be stored in an oven, warmer drawer, near
surface units or in the storage drawer. This includes
paper, plasticand cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the range.
* Do Not Leave Children Alone--Children should not be
left alone or unattended in the area where appliance is
in use. They should never be allowed to sit or stand on any
part of the appliance.
* DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE
UNITS, HEATING ELEMENTS OR INTERIOR SURFACES
OF THE OVEN. Both surface units and oven heating elements
may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns. During
and after use, do not touch, or let clothing or otherfiammable
materials touch these areas until they have had sufficient time
to cool. Among these areas are the cook top, surfaces facing
the cook top, the oven vent openings and surfaces near these
openings, oven door and window.
, Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not
let clothing or otherflammable materials contact hotsurfaces.
. Do Not Use Water or Flour on Grease Fires--Smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
. When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
. Use Only Dry Potholders - Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholders touch hot heating elements. Do not use a towel or
other bulky cloth instead ofa potholder.
* Do Not Heat Unopened Food Containers - Buildup of
pressure may cause container to burst and result in
injury.
* Remove the oven door from any unused range if it is to
be stored or discarded.
IMPORTANT--Do not attempt to operate the range during
a power failure. If the power fails, always turn off the range.
If the range is not turned offand the power resumes, the range
will begin to operate again. Once the power resumes, reset the
clock and oven function.

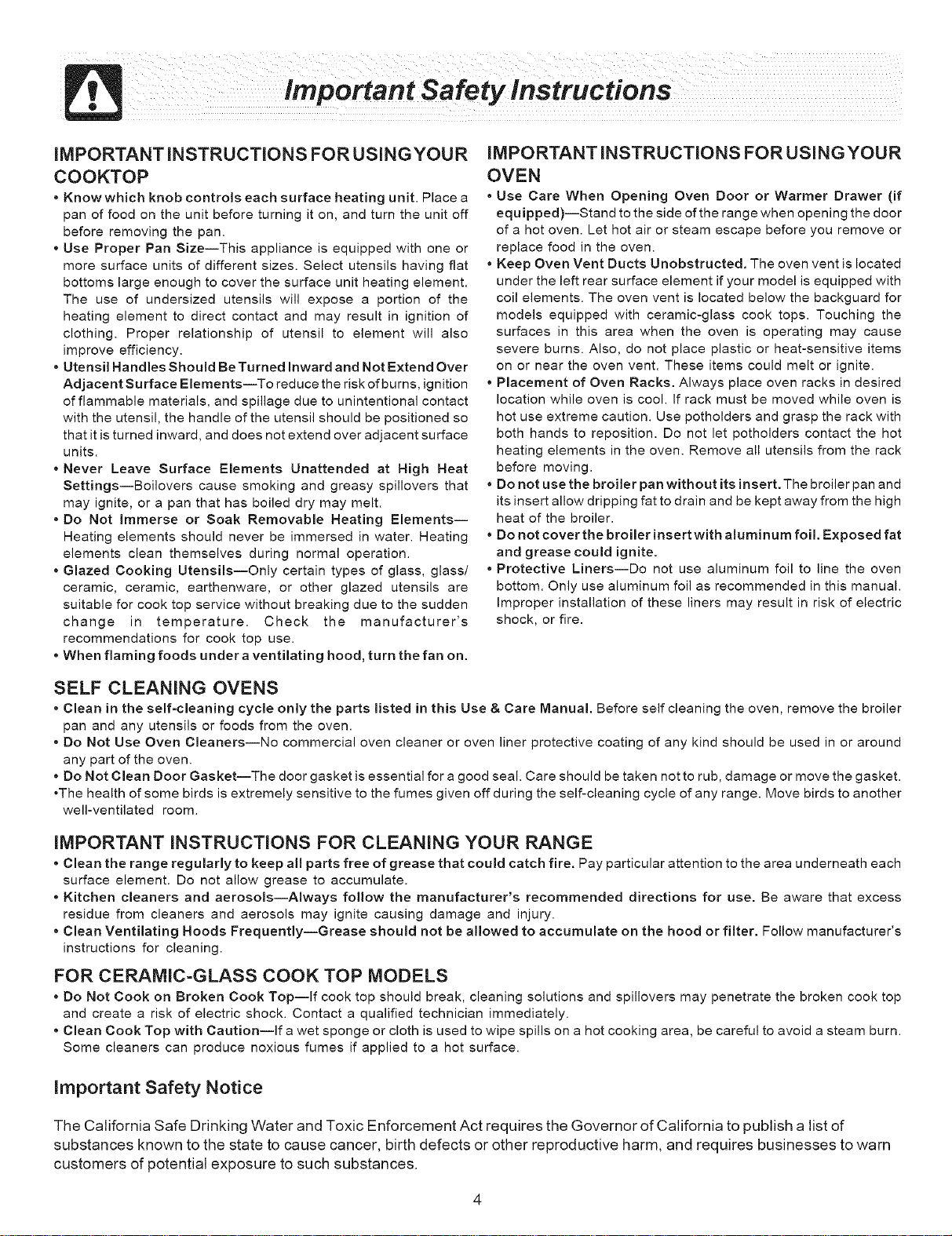

iMPORTANT iNSTRUCTiONS FOR USINGYOUR
COOKTOP
Know which knob controls each surface heating unit. Place a
pan of food on the unit before turning it on, and turn the unit off
before removing the pan.
• Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also
improve efficiency.
• Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Elements--To reduce the risk of burns, ignition
of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface
units.
• Never Leave Surface Elements Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Do Not Immerse or Soak Removable Heating Elements--
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer's
recommendations for cook top use.
• When flaming foods under a ventilating hood, turn the fan on.
IMPORTANT INSTRUCTIONS FOR USINGYOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the door
of a hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped with
coil elements. The oven vent is located below the backguard for
models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler pan and
its insert allow dripping fat to drain and be kept away from the high
heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed fat
and grease could ignite.
• Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this Use & Care Manual, Before self cleaning the oven, remove the broiler
pan and any utensils or foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven cleaner or oven liner protective coating of any kind should be used in or around
any part of the oven.
• Do Not Clean Door Gasket--The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.
•The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another
well-ventilated room.
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE
• Clean the range regularly to keep all parts free of grease that could catch fire, Pay particular attention to the area underneath each
surface element. Do not allow grease to accumulate.
• Kitchen cleaners and aerosols--Always follow the manufacturer's recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing damage and injury.
• Clean Ventilating Hoods Frequently--Grease should not be allowed to accumulate on the hood or filter. Follow manufacturer's
instructions for cleaning.
FOR CERAMIC=GLASS COOK TOP MODELS
• Do Not Cook on Broken Cook Top--If cook top should break, cleaning solutions and spillovers may penetrate the broken cook top
and create a risk of electric shock. Contact a qualified technician immediately.
• Clean Cook Top with Caution--if a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn.
Some cleaners can produce noxious fumes if applied to a hot surface.
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.

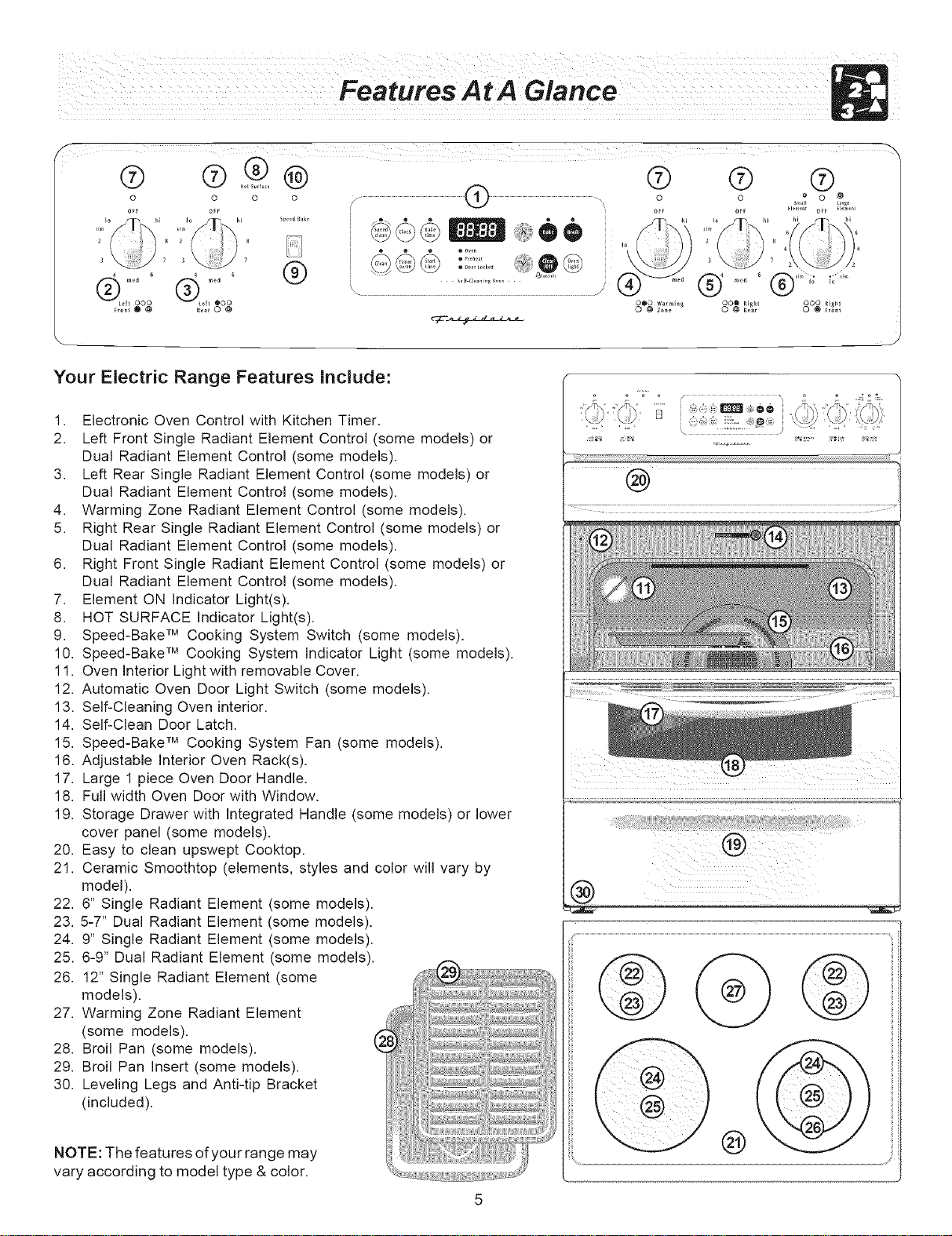

Your Electric Range Features Include:
1. Electronic Oven Control with Kitchen Timer.
2. Left Front Single Radiant Element Control (some models) or
Dual Radiant Element Control (some models).
3. Left Rear Single Radiant Element Control (some models) or
Dual Radiant Element Control (some models).
4. Warming Zone Radiant Element Control (some models).
5. Right Rear Single Radiant Element Control (some models) or
Dual Radiant Element Control (some models).
6. Right Front Single Radiant Element Control (some models) or
Dual Radiant Element Control (some models).
7. Element ON Indicator Light(s).
8. HOT SURFACE Indicator Light(s).
9. Speed-Bake TMCooking System Switch (some models).
10. Speed-Bake TMCooking System Indicator Light (some models).
11. Oven Interior Light with removable Cover.
12. Automatic Oven Door Light Switch (some models).
13. Self-Cleaning Oven interior.
14. Self-Clean Door Latch.
15. Speed-Bake TMCooking System Fan (some models).
16. Adjustable Interior Oven Rack(s).
17. Large 1 piece Oven Door Handle.
18. Full width Oven Door with Window.
19. Storage Drawer with Integrated Handle (some models) or lower
cover panel (some models).
20. Easy to clean upswept Cooktop.
21. Ceramic Smoothtop (elements, styles and color will vary by
model).
22. 6" Single Radiant Element (some models).
23. 5-7" Dual Radiant Element (some models).
24. 9" Single Radiant Element (some models).
25. 6-9" Dual Radiant Element (some models).
26. 12" Single Radiant Element (some
models).
27. Warming Zone Radiant Element
(some models).
28. Broil Pan (some models).
29. Broil Pan Insert (some models).
30. Leveling Legs and Anti-tip Bracket
(included).
NOTE: The features of your range may
vary according to model type & color.
E o i ° /...... E i E i_.
! II ! ->I ,I 71,, _I _!i _ l!!
i 71111111 i 7i { { { { { { { { { { { { { { { { { { { { { { { iiiiiiiiiiiiiiiiiii
®
:: 7777 7771:::
i + %,< i ir,_ 5 ir t>,# ¢ _ iiili
@

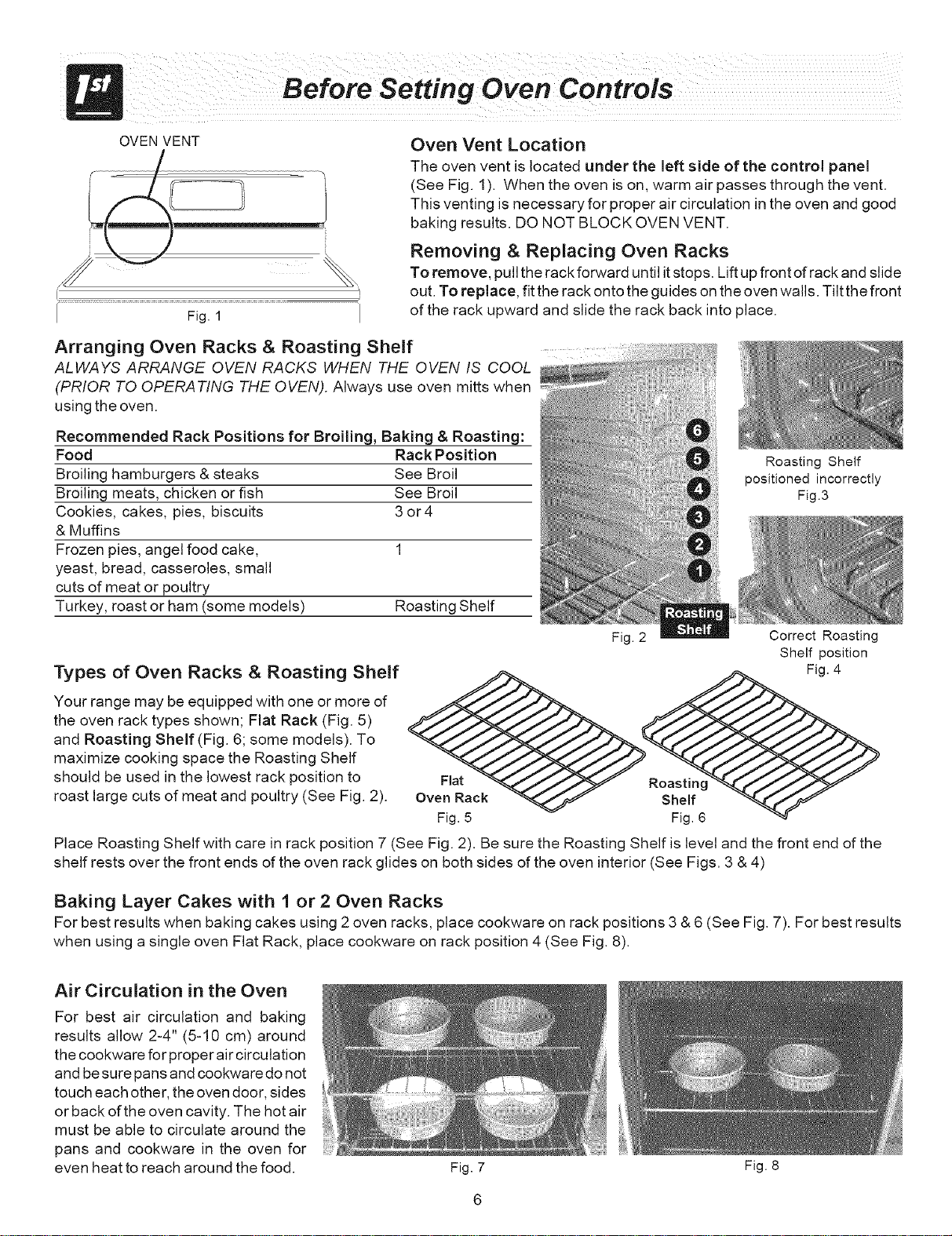

OVENVENT
Oven Vent Location
The oven vent is located under the left side of the control panel
(See Fig. 1). When the oven is on, warm air passes through the vent.
This venting is necessary for proper air circulation in the oven and good
baking results. DO NOT BLOCK OVEN VENT.
Removing & Replacing Oven Racks
To remove, pull the rack forward until itstops. Lift up front of rack and slide
out. To replace, fit the rack onto the guides on the oven walls. Tilt the front
of the rack upward and slide the rack back into place.
Arranging Oven Racks & Roasting Shelf
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL
(PRIOR TO OPERATING THE OVEN). Always use oven mitts when
using the oven.
Recommended Rack Positions for Broiling, Baking & Roasting:
Food Rack Position
Broiling hamburgers & steaks See Broil
Broiling meats, chicken or fish See Broil
Cookies, cakes, pies, biscuits 3 or4
& Muffins
Frozen pies, angel food cake, 1
yeast, bread, casseroles, small
cuts of meat or poultry
Turkey, roast or ham (some models) Roasting Shelf
Roasting Shelf
positioned incorrectly
Fig.3
Types of Oven Racks & Roasting Shelf
Your range may be equipped with one or more of
the oven rack types shown; Flat Rack (Fig. 5)
and Roasting Shelf (Fig. 6; some models). To
maximize cooking space the Roasting Shelf
should be used in the lowest rack position to
roast large cuts of meat and poultry (See Fig. 2).
Fig. 2 Correct Roasting
Shelf position
Oven Rack
Fig. 5 Fig. 6
Place Roasting Shelf with care in rack position 7 (See Fig. 2). Be sure the Roasting Shelf is level and the front end of the
shelf rests over the front ends of the oven rack glides on both sides of the oven interior (See Figs. 3 & 4)
Baking Layer Cakes with 1 or 2 Oven Racks
For best results when baking cakes using 2 oven racks, place cookware on rack positions 3 & 6 (See Fig. 7). For best results
when using a single oven Flat Rack, place cookware on rack position 4 (See Fig. 8).
Air Circulation in the Oven
For best air circulation and baking
results allow 2-4" (5-10 cm) around
the cookware for proper air circulation
and be sure pans and cookware do not
touch each other, the oven door, sides
or back of the oven cavity. The hot air
must be able to circulate around the
pans and cookware in the oven for
even heat to reach around the food.
Fig. 7 Fig. 8

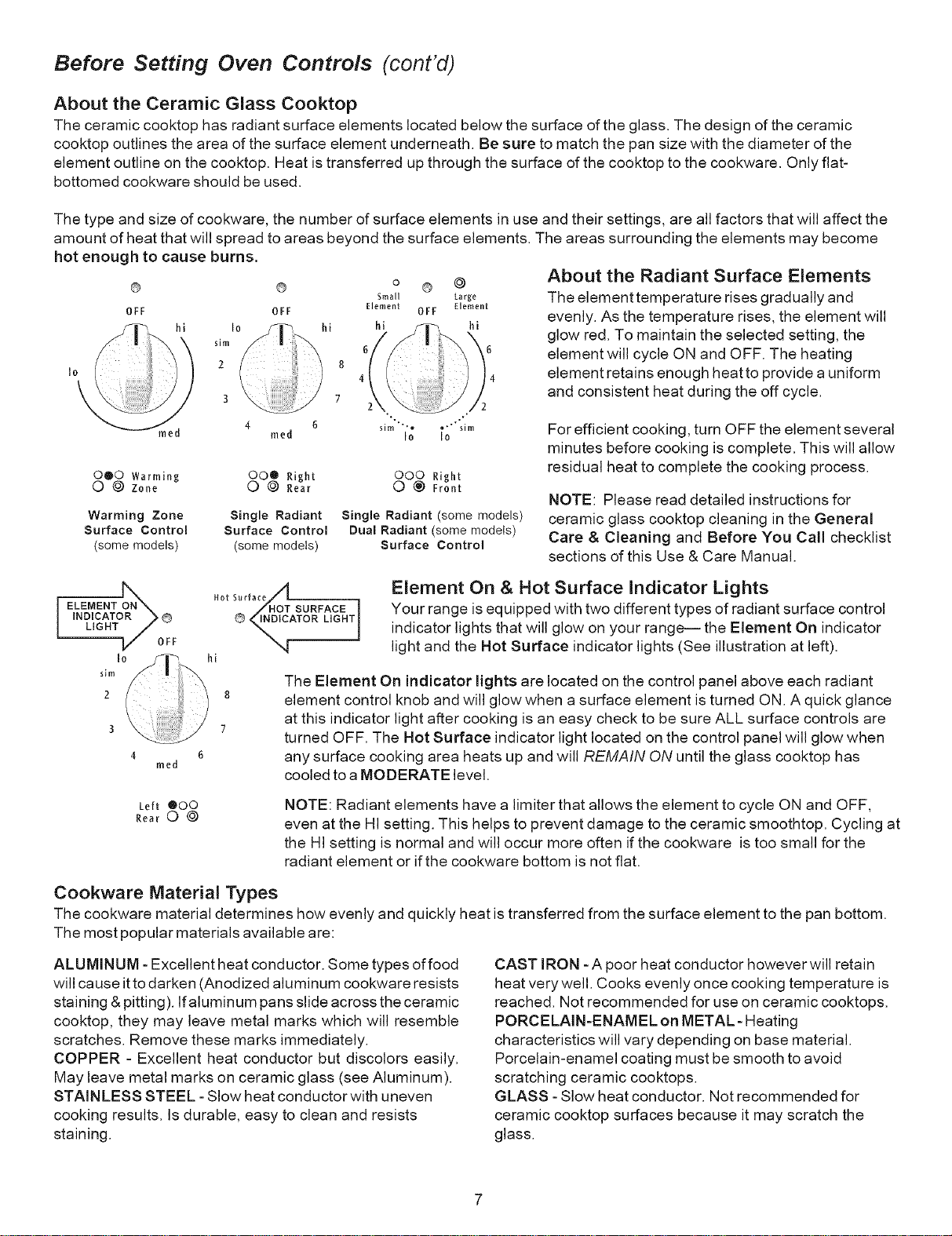

Before Setting Oven Controls (cont'd)
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the
element outline on the cooktop. Heat is transferred up through the surface of the cooktop to the cookware. Only flat-
bottomed cookware should be used.
The type and size of cookware, the number of surface elements in use and their settings, are all factors that will affect the
amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become
hot enough to cause burns.
®
OFF
hi
Io
\
IO
sirn
2
]
@ o @ @
Small Large
OFF Element OFF Element
hi hi hi
000 Warming
O @ Zone
Warming Zone
Surface Control
(some models)
g
'7
About the Radiant Surface Elements
The element temperature rises gradually and
evenly. As the temperature rises, the element will
glow red. To maintain the selected setting, the
element will cycle ON and OFF. The heating
element retains enough heat to provide a uniform
and consistent heat during the off cycle.
4 6
med
000 Right OOO Right
O @ Rear O _) Front
Single Radiant
Surface Control
(some models)
Single Radiant (some models)
Dual Radiant (some models)
Surface Control
For efficient cooking, turn OFF the element several
minutes before cooking is complete. This will allow
residual heat to complete the cooking process.
NOTE: Please read detailed instructions for
ceramic glass cooktop cleaning in the General
Care & Cleaning and Before You Call checklist
sections of this Use & Care Manual.
Io
slm
3
4
med
Element On & Hot Surface Indicator Lights
Your range is equipped with two different types of radiant surface control
indicator lights that will glow on your range-- the Element On indicator
light and the Hot Surface indicator lights (See illustration at left).
g
7
The Element On indicator lights are located on the control panel above each radiant
element control knob and will glow when a surface element is turned ON. A quick glance
at this indicator light after cooking is an easy check to be sure ALL surface controls are
turned OFF. The Hot Surface indicator light located on the control panel will glow when
any surface cooking area heats up and will REMAIN ON until the glass cooktop has
cooled to a MODERATE level.
Left 000
Rear O @
NOTE: Radiant elements have a limiter that allows the element to cycle ON and OFF,
even at the HI setting. This helps to prevent damage to the ceramic smoothtop. Cycling at
the HI setting is normal and will occur more often if the cookware is too small for the
radiant element or if the cookware bottom is not flat.
Cookware Material Types
The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom.
The most popular materials available are:
ALUMINUM -Excellent heat conductor. Some types of food
will cause itto darken (Anodized aluminum cookware resists
staining & pitting). If aluminum pans slide across the ceramic
cooktop, they may leave metal marks which will resemble
scratches. Remove these marks immediately.
COPPER - Excellent heat conductor but discolors easily.
May leave metal marks on ceramic glass (see Aluminum).
STAINLESS STEEL - Slow heat conctuctor with uneven
cooking results. Is durable, easy to clean and resists
staining.
CAST IRON - A poor heat conductor however will retain
heat very well. Cooks evenly once cooking temperature is
reached. Not recommended for use on ceramic cooktops.
PORCELAIN-ENAMEL on METAL- Heating
characteristics will vary depending on base material.
Porcelain-enamel coating must be smooth to avoid
scratching ceramic cooktops.
GLASS - Slow heat conductor. Not recommended for
ceramic cooktop surfaces because it may scratch the
glass.

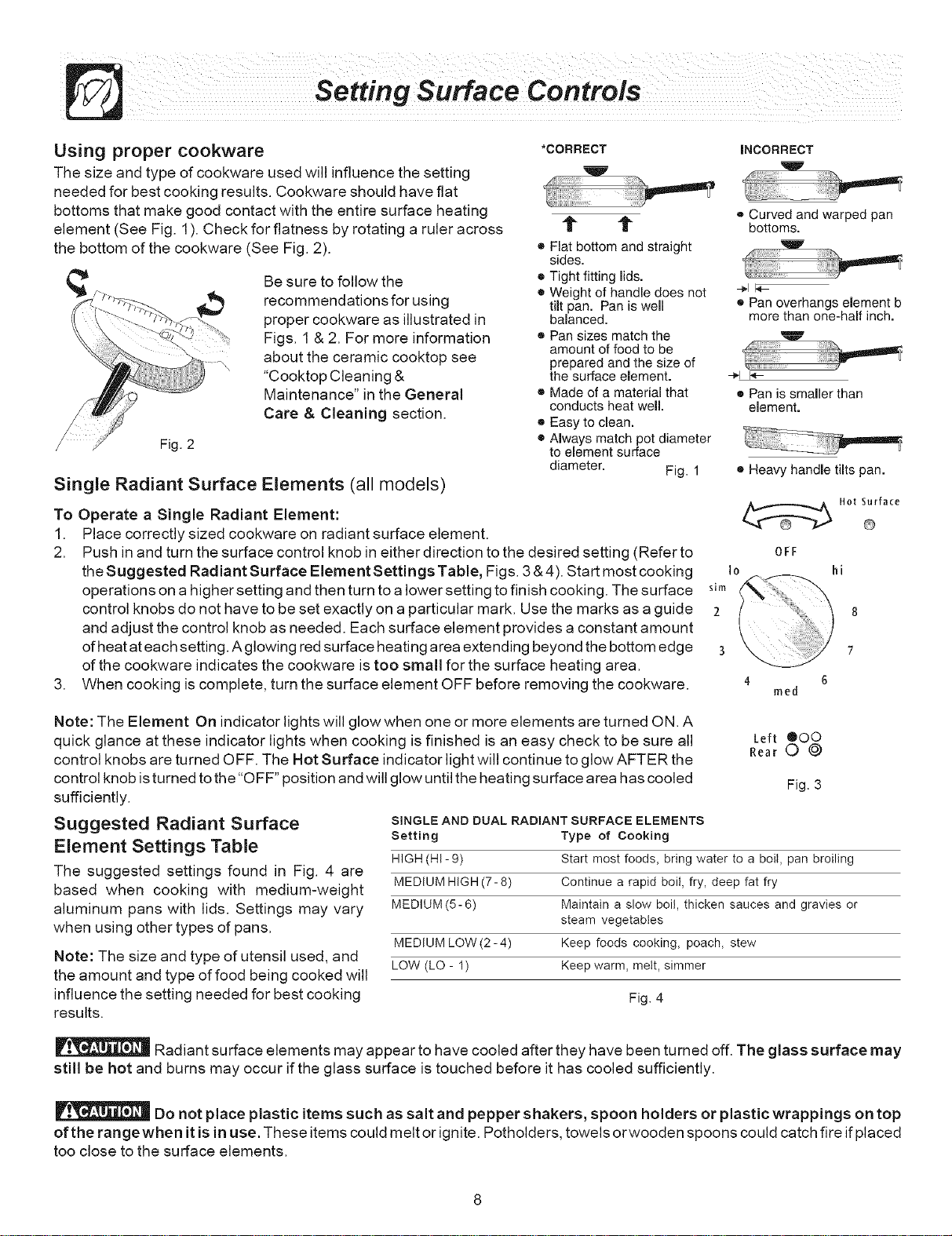

Using proper cookware
The size and type of cookware used will influence the setting
needed for best cooking results. Cookware should have flat
bottoms that make good contact with the entire surface heating
element (See Fig. 1). Check for flatness by rotating a ruler across
the bottom of the cookware (See Fig. 2).
_' Be sure to follow the
recommendations for using
proper cookware as illustrated in
Figs. 1 & 2. For more information
about the ceramic cooktop see
"Cooktop Cleaning &
Maintenance" in the General
Care & Cleaning section.
Single Radiant Surface Elements (all models)
*CORRECT
t t
• Flat bottom and straight
sides.
• Tight fittinglids.
• Weight ofhandle doesnot
tilt pan. Pan iswell
balanced.
e Pansizesmatchthe
amountoffoodto be
prepared andthe sizeof
the surfaceelement.
• Madeofa materialthat
conductsheatwee
®Easyto dean.
• Always match pot diameter
to elementsurface
diameter. Fig. 1
To Operate a Single Radiant Element:
1. Place correctly sized cookware on radiant surface element.
2. Push in and turn the surface control knob in either direction to the desired setting (Refer to
the Suggested Radiant Surface Element Settings Table, Figs. 3 &4). Start most cooking
operations on a higher setting and then turn to a lower setting tofinish cooking. The surface
control knobs do not have to be set exactly on a particular mark. Use the marks as a guide
and adjust the control knob as needed. Each surface element provides a constant amount
of heat ateach setting. A glowing red surface heating areDextending beyond the bottom edge
of the cookware indicates the cookware is too small for the surface heating area.
3. When cooking is complete, turn the surface element OFF before removing the cookware.
iNCORRECT
o Curved and warped pan
bottoms.
÷1 I,q_
®Panoverhangselementb
morethan one-halfinch.
i
÷i i_
• Pan is smaller than
element.
• Heavy handle tilts pan.
Hot Surface
@
OFF
hi
3 7
4 6
reed
Note: The Element On indicator lights will glow when one or more elements are turned ON. A
quick glance at these indicator lights when cooking is finished is an easy check to be sure all
control knobs are turned OFF. The Hot Surface indicator light will continue to glow AFTER the
control knob is turned to the "OFF" position and will glow until the heating surface area has cooled
sufficiently.
Left OOO
Rear O @
Fig. 3
Suggested Radiant Surface
Element Settings Table
The suggested settings found in Fig. 4 are
based when cooking with medium-weight
aluminum pans with lids. Settings may vary
when using other types of pans.
Note: The size and type of utensil used, and
the amount and type of food being cooked will
influence the setting needed for best cooking
results.
SINGLE AND DUAL RADIANT SURFACE ELEMENTS
Setting
HIGH (Hi-g)
MEDIUM HIGH (7-8)
MEDIUM (5- 6)
MEDIUM LOW(2-4)
LOW (LO- I)
Type of Cooking
Start most foods, bring water to a boil, pan broiling
Continue a rapid boil, fry, deep fat fry
Maintain a slow boil, thicken sauces and gravies or
steam vegetables
Keep foods cooking, poach, stew
Keep warm, melt, simmer
Fig. 4
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may
still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.
Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top
of the range when it isin use. These items could melt or ignite. Potholders, towels orwooden spoons could catch fire ifplaced
too close to the surface elements.
Setting Surface Controls (cont'd)
To Operate Dual Radiant Surface Elements (some models)
Symbols on the backguarct are used to indicate which coil of the Dual Radiant
element will heat. The o symbol indicates the inner coil only. The @ symbol
indicates both inner and outer coils will heat (See Figs. 1 & 2 and Suggested
Radiant Surface Element Settings Table on previous page). You may switch
from either coil setting at any time during cooking. Push in and turn the control
knob in either direction to the desired setting as instructed above. Note: Areas
that heat are shown in black.
Radiant surface elements may appear to have cooled after they
have been turned off. The glass surface may still be hot and burns may occur
if the glass surface is touched before it has cooled sufficiently.
Do not place plastic items such as salt and pepper shakers,
spoon holders or plastic wrappings on top of the range when it is in use.
These items could melt or ignite. Potholders, towels or wooden spoons could
catch fire if placed too close to the surface elements.
Do not allow aluminum foil, or ANY material that can melt
to make contact with the ceramic glass cooktop. If these items melt on the
cooktop they will damage the ceramic cooktop.
o ® @
Small Large
Element OFF Element
hi hi
ooo Right
O _) Front
Heating withinner (small)
element only
Small Large
Element OFF Element
hi M
/
ooo Right
0 @ Front
Heating with both
elements
Fig. 1 Fig. 2
Setting the Warming Zone (some models)
The purpose of the Warming Zone is to keep hot cooked foods at serving temperature. Always start with hot food. It is not
recommended to heat cold food on the Warming Zone.
All food placed on the Warming Zone should be covered with a lid or aluminum foil to maintain quality. For best results, when
warming pastries or breads, the cover should have an opening to allow moisture to escape. Do not use plastic wrap to cover
food. Plastic may melt onto the surface and be very difficult to clean.
Use only dishware, utensils and cookware recommended for oven and cooktop use on the Warming Zone.
©
OFF
reed
O@O Warming
O @ Zone
hi
Warming Zone Recommended Food Settings Table
Food Item Heating Level
Fig. 3
Breads/Pastries LO (Low)
Casseroles LO (Low)
Dinner Plates with Food LO (Low)
Eggs LO (Low)
Gravies LO (Low)
Meats MED (Medium)
Sauces MED (Medium)
Soups (cream) MED (Medium)
Stews MED (Medium)
Vegetables MED (Medium)
Fried Foods HI (High)
Hot Beverages HI (High)
Soups (liquid) HI (High)
Fig. 4
Unlike the surface elements, the Warming Zone will not glow red
when it is hot.
Always use potholders or oven mitts when removing food from
the Warming Zone as cookware and plates will be hot.
Setting the Warming Zone Control:
1. Push in either direction and turn the
knob (See Fig 3). The temperatures
are approximate, and are designated
by HI, MED and LO. However, the
control can be set at any position
between HIand LOfordifferent levels
of warming.
2. When ready to serve, turn the control
to OFF. The Warming Zone will remain
warm until the indicator light goes
OFF.
Temperature Selection - Refer to the
Warming Zone Recommended Food
Settings Table (See Fig. 4). Ifa particular
food is not listed, start with the medium
level, and adjust as needed. Most foods
can be kept at serving temperatures by
using the medium level.
Note: use the Warming Z0ne to keep cooked foods hot Such as; vegetablesl gravieSl casseroles, SOups, Stews, breads;
pastdes and oven-safe dinner p!ates:
Oven Control Functions
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. Forsatisfactory use ofyour oven, become familiarwith
the various pad functions of the oven as described below.
CLOCK BAKE TIME UP and DOWN ARROW PADS-- Used along
PAD-- Used PAD-- Used to with the function pads to select oven
to set the enter the length of temperature, cook time, start time (when
time of d_ the bakim time. programming an automatic start time), time of
day, clean timer.
SPEED CLEAN
(SELF-CLEAN) --
Used to select a
shorter 2 hour Self-
Clean cycle time.
SELF-CLEAN PAD--
Used to select a longer
3 hour Self-Clean
cycle time.
TIMER ON/OFF PAD--
O O O ® Oven
.........._ "_
elt-deaning Oven • . •
START TIME OVEN, PREHEAT & DOOR LOCKED LIGHTS* -- The "OVEN" light
Used to set or cancel the PAD-- Used to set
minute timer. The minute the desired start
timer does not start or stop time for baking &
cooking. Also, Self-Clean. May be
TIMER ON/OFF pad is used used with BAKE
to set the Continuous Bake TIME to program a
feature, delayed bake cycle.
will glow each time the oven turns on to maintain the set oven
temperature, The "PREHEAT" light will glow when the oven is first
set to operate, or if the desired temperature is reset higher than the
actual oven temperature, The "DOOR LOCKED" light wilt flash
when the oven door locks and unlocks or when using the Self-
Clean cycle or the oven door lockout is activated.
BAKE PAD--Used
to select the bake
function.
FEATURE INDICATOR
LIGHTS-- These light to
show which feature is in
_ select the variable broil
function.
OVEN LIGHT PAD--
Used to turn the interior
oven light ON or OFF.
CLEAR/OFF PAD-- Used
to clear any function
previously entered
except the time of day
and minute timer. Press
CLEAR/OFF to stop
cooking. Also the CLEAR/
OFF pad is used to
activate oven door
lockout setting.
*Note: The OVEN indicator !ight on the electronic display
wil! turn ONand OFF when using the Bake feature and
during preheat, This is normal and indicates that the oven is
cyc!ing t0 maintain the selected baking temperaturelWhe n
the preheat indicator light turns OFF, your oven is ready.
For a silent control panel
When choosing a function, a beep will be heard each time a
pad is pressed. Ifdesired, the control can be programmed
for silent operation. Press and hold @. After 7 seconds,
the control will beep once. This will block the controls from
sounding when a pad is pressed. To return the sound, press
and hold @ again for 7 seconds until the control beeps
once.
Temperature conversion
The electronic oven control is set to operate in °F
(Fahrenheit) when shipped from the factory. The oven can
be programmed for any temperature from 170°F to 550°F
(77°C to 287°C).
To change the temperature to °C (Celsius) or from °C
to °F (control should not be in a Bake or Clean mode):
1. Press ___. "----" appears in the display.
2. Press and hold the ,/_ until "HI" appears in the
display.
3. Press and hold _ until °F or °C appears in the
display.
4. Press the ,/_ or V to change °F to °C or °C to °F.
5. Press any control pad to return to normal operating
mode.
Not e: T eti seftc'ttynm_u stOstvefe: c octdJ_erttf cOpUlat he o Ven
To Set the Clock
When the range is first plugged in, or when the power
supply to the range has been interrupted, the display will
flash "12:00".
once (do not hold pad down).
1. Press
,
10
Within 5 seconds, press and hold the /_, or V until
the correct time of day appears in the display.
Note: The clock cannot be changed during any timed
bake or Self-Clean cycle.

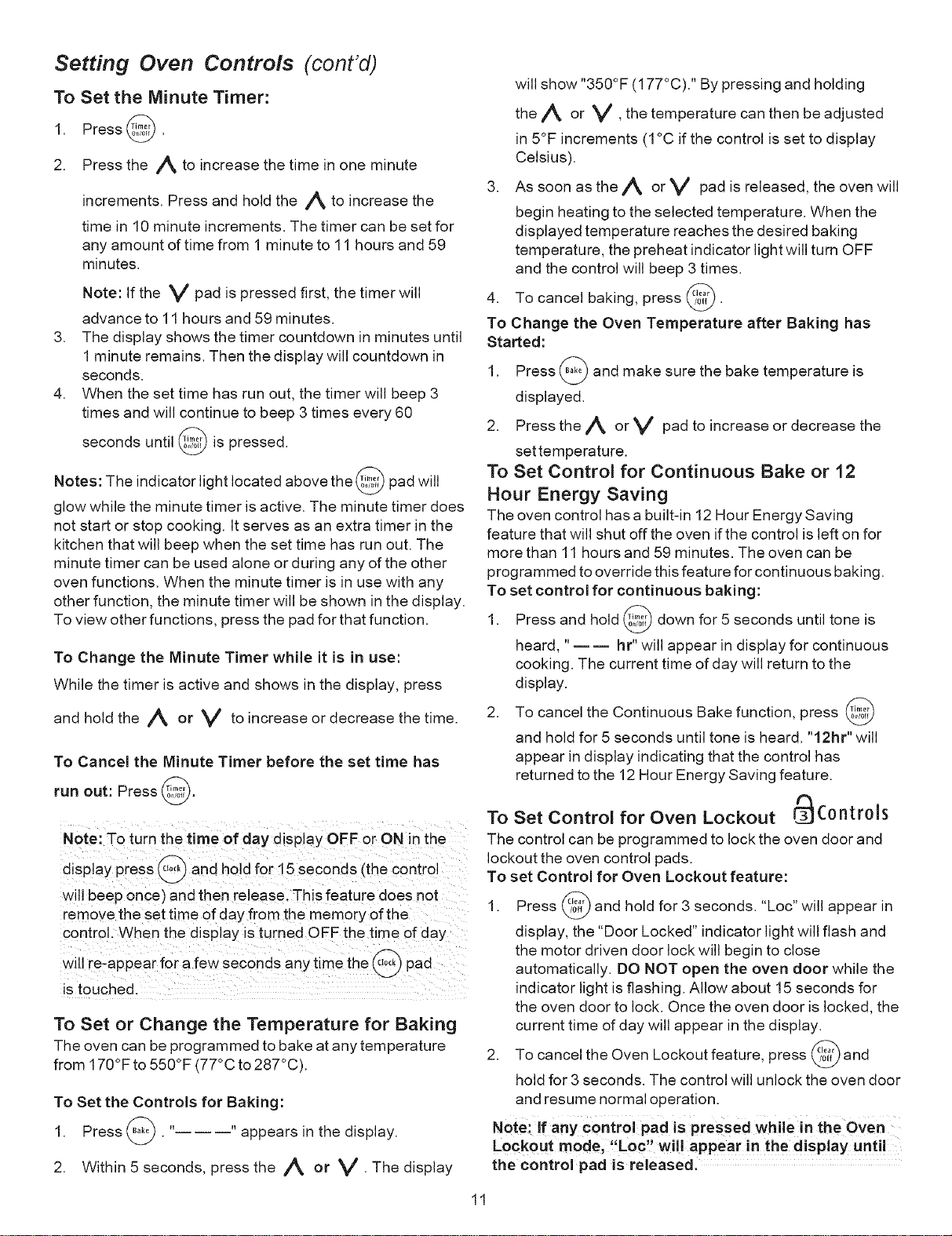

Setting Oven Controls (cont'd)
To Set the Minute Timer:
1. Press@.
2. Press the /_, to increase the time in one minute
increments. Press and hold the /_ to increase the
time in 10 minute increments. The timer can be set for
any amount of time from 1 minute to 11 hours and 59
minutes.
Note: If the V pad is pressed first, the timer will
advance to 11 hours and 59 minutes.
3. The display shows the timer countdown in minutes until
1 minute remains. Then the display will countdown in
seconds.
4. When the set time has run out, the timer will beep 3
times and will continue to beep 3 times every 60
seconds until @ is pressed.
Notes: The indicator light located above the @ pad will
glow while the minute timer is active. The minute timer does
not start or stop cooking. It serves as an extra timer in the
kitchen that will beep when the set time has run out. The
minute timer can be used alone or during any of the other
oven functions. When the minute timer is in use with any
other function, the minute timer will be shown in the display.
To view other functions, press the pad for that function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press
and hold the A or V to increase or decrease the time.
To Cancel the Minute Timer before the set time has
run out: Press 8.
Note: To turn the time of day display OFF or ON in the
and hold for 15 seconds (the control
display press
will beep once) and then release. This feature does not
remove the set time of day from the memory of the
control. When the display is turned OFF the time of day
will re-appear for a few seconds any time the c('_
pad
is touched.
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature
from 170°F to 550°F (77°C to 287°C).
To Set the Controls for Baking:
1. Press _. " "appears in the display.
2. Within 5 seconds, press the /_ or V • The display
will show "350°F (177°C). '' By pressing and holding
the _ or V ,the temperature can then be adjusted
in 5°F increments (1°C if the control is set to display
Celsius).
3. As soon as the/_ or V pad is released, the oven will
begin heating to the selected temperature. When the
displayed temperature reaches the desired baking
temperature, the preheat indicator light will turn OFF
and the control will beep 3 times.
4. To cancel baking, press @.
To Change the Oven Temperature after Baking has
Started:
1. Press _ and make sure the bake temperature is
displayed.
2. Press the/_, or V pad to increase or decrease the
set temperature.
To Set Control for Continuous Bake or 12
Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving
feature that will shut off the oven ifthe control is left on for
more than 11 hours and 59 minutes. The oven can be
programmed to override this feature for continuous baking.
To set control for continuous baking:
1. Press and hold _I}_I_clown for 5 seconds until tone is
heard, "---- hr" will appear in display for continuous
cooking. The current time of day will return to the
display.
2. To cancel the Continuous Bake function, press @
and hold for 5 seconds until tone is heard. "12hr" will
appear in display indicating that the control has
returned to the 12 Hour Energy Saving feature.
To Set Control for Oven Lockout _Contr01s
The control can be programmed to lock the oven door and
lockout the oven control pads.
To set Control for Oven Lockout feature:
1. Press @ and hold for 3 seconds. "Loc" will appear in
display, the "Door Locked" indicator light will flash and
the motor driven door lock will begin to close
automatically. DO NOT open the oven door while the
indicator light is flashing. Allow about 15 seconds for
the oven door to lock. Once the oven door is locked, the
current time of day will appear in the display.
2. To cancel the Oven Lockout feature, press @ and
hold for 3 seconds. The control will unlock the oven door
and resume normal operation.
Note: If any control pad Js pressed While Jnthe oven
Lockout mode, ,Loc, wJJl appear Jn the display until
the control pad Js released.
11
Setting Oven Controls (cont'd)
To Set the Timed Bake and Delay Start
(Delayed Timed Bake) Features
The _ BAKE TiME and _ START TiME pads operate
the features that will turn the oven ON and OFF at the times
you select in advance. The oven can be programmed to start
immediately and shut off automatically (Timed Bake) or to
begin baking at a later time with a delayed start time

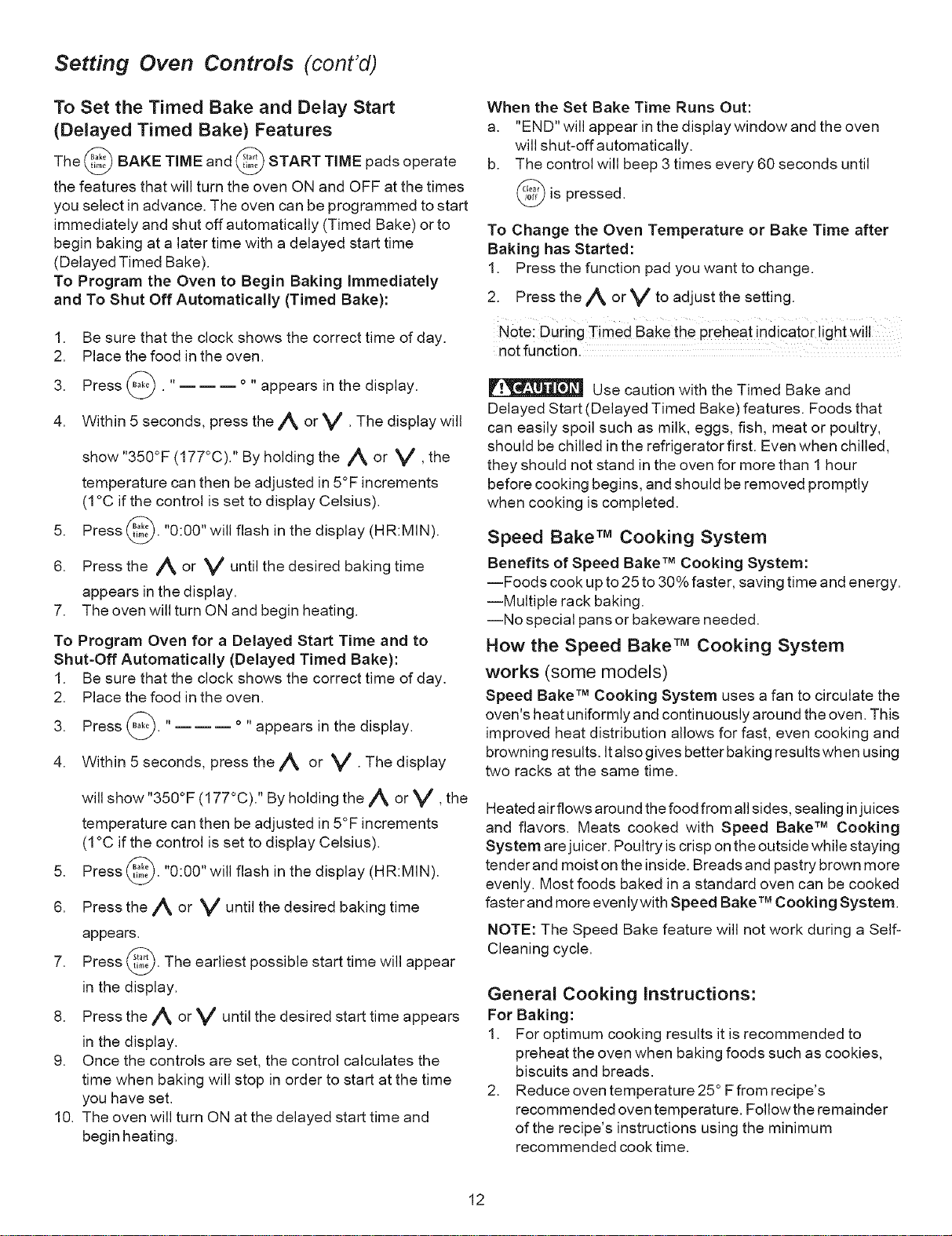

(Delayed Timed Bake).
To Program the Oven to Begin Baking immediately
and To Shut Off Automatically (Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press (_. '.... appears in the display.
4. Within 5 seconds, press the/_ or V •The display will
show "350°F (177°C). '' By holding the ,_ or V, the
temperature can then be adjusted in 5°F increments
(1°C if the control is set to display Celsius).
5. Press @. "0:00" will flash in the display (HR:MIN).
6. Press the A or V until the desired baking time
appears inthe display.
7. The oven will turn ON and begin heating.
To Program Oven for a Delayed Start Time and to
Shut-Off Automatically (Delayed Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press (_. '.... appears in the display.
4. Within 5 seconds, press the,_ or _t .The display
will show "350°F (177°C). '' By holding the ,/_ or V, the
temperature can then be adjusted in 5°F increments
(1°C if the control is set to display Celsius).
5. Press @. "0:00" will flash in the display (HR:MIN).
6. Press the/_ or V until the desired baking time
appears.
7. Press @. The earliest possible start time will appear
in the display.
8. Press the _ or V until the desired start time appears
in the display.
9. Once the controls are set, the control calculates the
time when baking will stop in order to start at the time
you have set.
10. The oven will turn ON at the delayed start time and
begin heating.
When the Set Bake Time Runs Out:
a. "END" will appear in the display window and the oven
will shut-off automatically.
b. The control will beep 3 times every 60 seconds until
_is pressed.
To Change the Oven Temperature or Bake Time after
Baking has Started:
1. Press the function pad you want to change.
2. Press the/_, or V to adjust the setting.
Note: During Timed Bake the preheat indicator !ight wii!
not function.
Use caution with the Timed Bake and
Delayed Start (Delayed Timed Bake) features. Foods that
can easily spoil such as milk, eggs, fish, meat or poultry,
should be chilled in the refrigerator first. Even when chilled,
they should not stand in the oven for more than 1 hour
before cooking begins, and should be removed promptly
when cooking is completed.
Speed Bake TM Cooking System
Benefits of Speed Bake TM Cooking System:
--Foods cook up to 25 to 30% faster, saving time and energy.
--Multiple rack baking.
--No special pans or bakeware needed.
How the Speed Bake TM Cooking System
works (some models)
Speed Bake TM Cooking System uses a fan to circulate the
oven's heat uniformly and continuously around the oven. This
improved heat distribution allows for fast, even cooking and
browning results. Italso gives better baking results when using
two racks at the same time.
Heated airflows around the food from all sides, sealing injuices
and flavors. Meats cooked with Speed Bake TM Cooking
System are juicer. Poultry is crisp on the outside while staying
tenderand moist on the inside. Breads and pastry brown more
evenly. Most foods baked in a standard oven can be cooked
faster and more evenlywith Speed Bake TMCooking System.
NOTE: The Speed Bake feature will not work during a Self-
Cleaning cycle.
General Cooking Instructions:
For Baking:
1. For optimum cooking results it is recommended to
preheat the oven when baking foods such as cookies,
biscuits and breads.
2. Reduce oven temperature 25° Ffrom recipe's
recommended oven temperature. Follow the remainder
of the recipe's instructions using the minimum
recommended cook time.
12
Setting Oven Controls (cont'd)

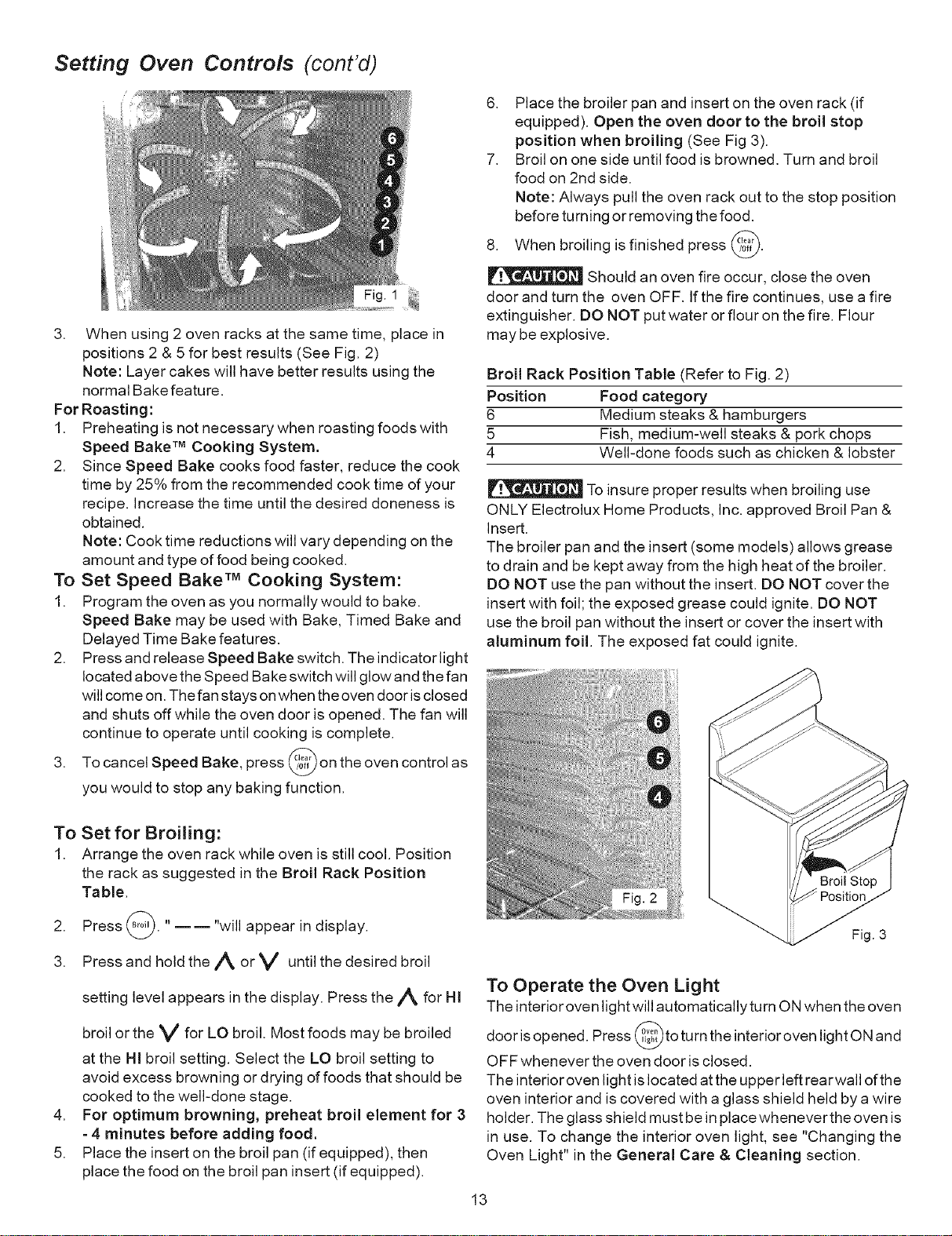

3. When using 2 oven racks at the same time, place in
positions 2 & 5 for best results (See Fig. 2)
Note: Layer cakes will have better results using the
normal Bake feature.
For Roasting:
1. Preheating is not necessary when roasting foods with
Speed Bake TM Cooking System.
2. Since Speed Bake cooks food faster, reduce the cook
time by 25% from the recommended cook time of your
recipe. Increase the time until the desired doneness is
obtained.
Note: Cook time reductions will vary depending on the
amount and type of food being cooked.
To Set Speed Bake TM Cooking System:
1. Program the oven as you normally would to bake.
Speed Bake may be used with Bake, Timed Bake and
Delayed Time Bake features.
2. Press and release Speed Bake switch. The indicator light
located above the Speed Bake switch will glow and the fan
will come on. The fan stays on when the oven door isclosed
and shuts off while the oven door is opened. The fan will
continue to operate until cooking is complete.
3. To cancel Speed Bake, press @ on the oven control as
you would to stop any baking function.
To Set for Broiling:
1. Arrange the oven rack while oven is still cool. Position
the rack as suggested in the Broil Rack Position
Table.
2. Press _. "---- "will appear in display.
3. Press and hold the ,_ or V until the desired broil
setting level appears in the display. Press the/_ for HI
,
5.
broil orthe V for LO broil. Most foods may be broiled
at the Hi broil setting. Select the LO broil setting to
avoid excess browning or drying of foods that should be
cooked to the well-done stage.
For optimum browning, preheat broil element for 3
- 4 minutes before adding food.
Place the insert on the broil pan (if equipped), then
place the food on the broil pan insert (if equipped).
6. Place the broiler pan and insert on the oven rack (if
equipped), Open the oven door to the broil stop
position when broiling (See Fig 3).
7. Broil on one side until food is browned. Turn and broil
food on 2nd side.
Note: Always pull the oven rack out to the stop position
before turning or removing the food.
8. When broiling is finished press @.
Should an oven fire occur, close the oven
door and turn the oven OFF. If the fire continues, use a fire
extinguisher. DO NOT put water or flour on the fire. Flour
may be explosive.
Broil Rack Position Table (Refer to Fig. 2)
Position Food category
6 Medium steaks & hamburgers
5 Fish, medium-well steaks & pork chops
4 Well-done foods such as chicken & lobster
To insure proper results when broiling use
ONLY Electrolux Home Products, Inc. approved Broil Pan &
Insert.
The broiler pan and the insert (some models) allows grease
to drain and be kept away from the high heat of the broiler.
DO NOT use the pan without the insert. DO NOT cover the
insert with foil; the exposed grease could ignite. DO NOT
use the broil pan without the insert or cover the insert with
aluminum foil. The exposed fat could ignite.
Fig. 3
To Operate the Oven Light
The interior oven light will automatically turn ON when the oven
door isopened. Press @to turn the interior oven light ON and
OFF whenever the oven door is closed.
The interior oven light is located at the upper left rearwall of the
oven interior and is covered with a glass shield held by a wire
holder. The glass shield must be in place whenever the oven is
in use. To change the interior oven light, see "Changing the
Oven Light" in the General Care & Cleaning section.
13

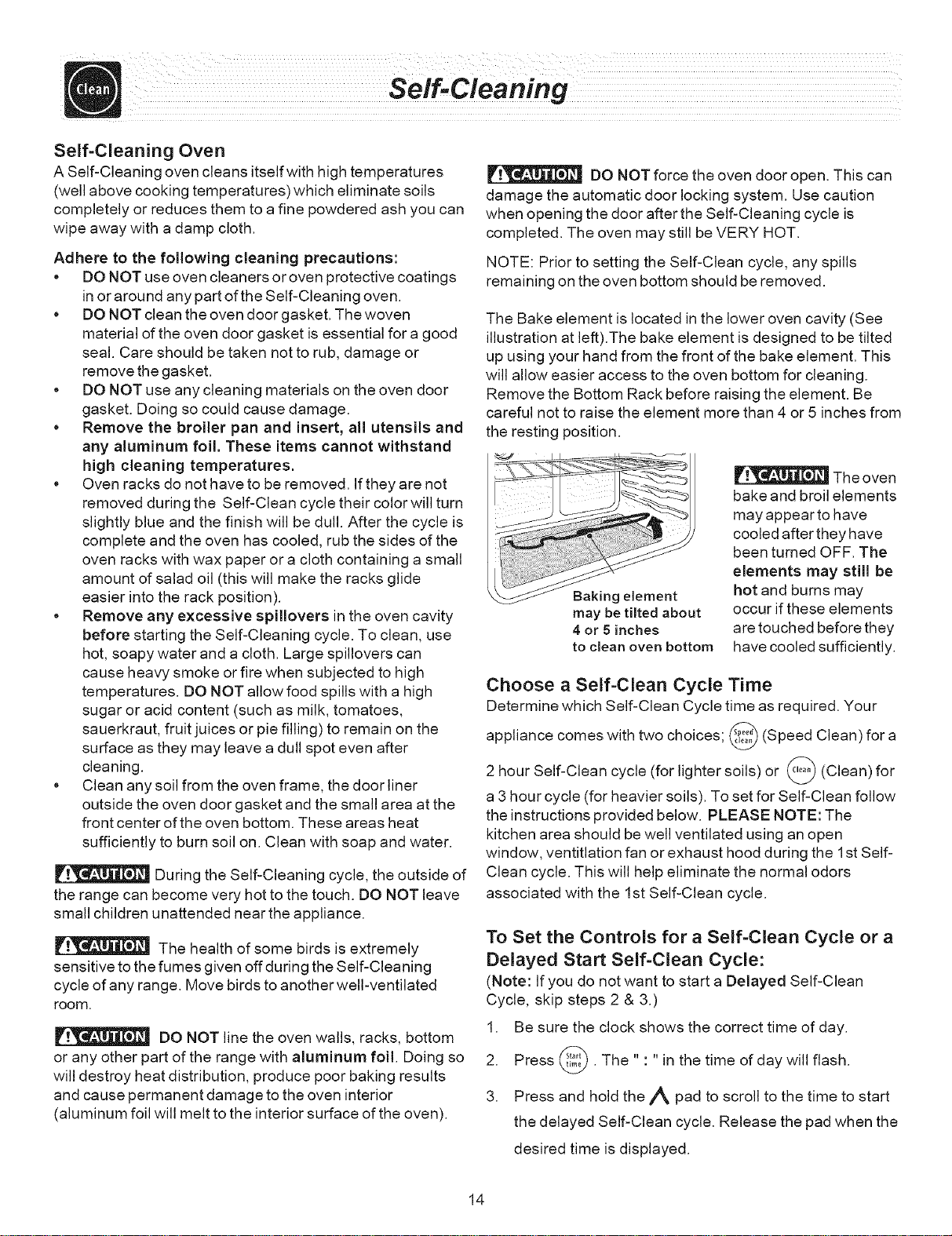

Self=Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures
(well above cooking temperatures) which eliminate soils
completely or reduces them to a fine powdered ash you can
wipe away with a damp cloth.
Adhere to the following cleaning precautions:
DO NOT use oven cleaners or oven protective coatings
in or around any part of the Self-Cleaning oven.
* DO NOT clean the oven door gasket. The woven
material of the oven door gasket is essential for a good
seal. Care should be taken not to rub, damage or
remove the gasket.
DO NOT use any cleaning materials on the oven door
gasket. Doing so could cause damage.
* Remove the broiler pan and insert, all utensils and
any aluminum foil. These items cannot withstand
high cleaning temperatures.
, Oven racks do not have to be removed. Ifthey are not
removed during the Self-Clean cycle their color will turn
slightly blue and the finish will be dull. After the cycle is
complete and the oven has cooled, rub the sides of the
oven racks with wax paper or a cloth containing a small
amount of salad oil (this will make the racks glide
easier into the rack position).
Remove any excessive spillovers in the oven cavity
before starting the Self-Cleaning cycle. To clean, use
hot, soapy water and a cloth. Large spillovers can
cause heavy smoke orfire when subjected to high
temperatures. DO NOT allow food spills with a high
sugar or acid content (such as milk, tomatoes,
sauerkraut, fruit juices or pie filling) to remain on the
surface as they may leave a dull spot even after
cleaning.
Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at the
front center of the oven bottom. These areas heat
sufficiently to burn soil on. Clean with soap and water.
During the Self-Cleaning cycle, the outside of
the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance.
The health of some birds is extremely
sensitive to the fumes given off during the Self-Cleaning
cycle of any range. Move birds to another well-ventilated
room.
DO NOT line the oven walls, racks, bottom
or any other part of the range with aluminum foil. Doing so
will destroy heat distribution, produce poor baking results
and cause permanent damage to the oven interior
(aluminum foil will melt to the interior surface of the oven).
DO NOT force the oven door open. This can
damage the automatic door locking system. Use caution
when opening the door after the Self-Cleaning cycle is
completed, The oven may still be VERY HOT.
NOTE: Prior to setting the Self-Clean cycle, any spills
remaining on the oven bottom should be removed.
The Bake element is located in the lower oven cavity (See
illustration at left).The bake element is designed to be tilted
up using your hand from the front of the bake element. This
will allow easier access to the oven bottom for cleaning.
Remove the Bottom Rack before raising the element. Be
careful not to raise the element more than 4 or 5 inches from
the resting position.
II
I
nt
may be tilted about
4 or 5 inches
to clean oven bottom
The oven
bake and broil elements
mayappear to have
cooled after they have
been turned OFF. The
elements may still be
hot and burns may
occur if these elements
are touched before they
have cooled sufficiently.
Choose a Self-Clean Cycle Time
Determine which Self-Clean Cycle time as required. Your
appliance comes with two choices; @ (Speed Clean)for a
2 hour Self-Clean cycle (for lighter soils) or _ (Clean) for
a 3 hour cycle (for heavier soils). To set for Self-Clean follow
the instructions provided below. PLEASE NOTE: The
kitchen area should be well ventilated using an open
window, ventitlation fan or exhaust hood during the 1st Self-
Clean cycle. This will help eliminate the normal odors
associated with the 1st Self-Clean cycle.
To Set the Controls for a Self-Clean Cycle or a
Delayed Start Self-Clean Cycle:
(Note: If you do not want to start a Delayed Self-Clean
Cycle, skip steps 2 & 3.)
1. Be sure the clock shows the correct time of day.
2. Press @. The " : "in the time of day will flash.
3. Press and hold the A pad to scroll to the time to start
the delayed Self-Clean cycle. Release the pad when the
desired time is displayed.
14

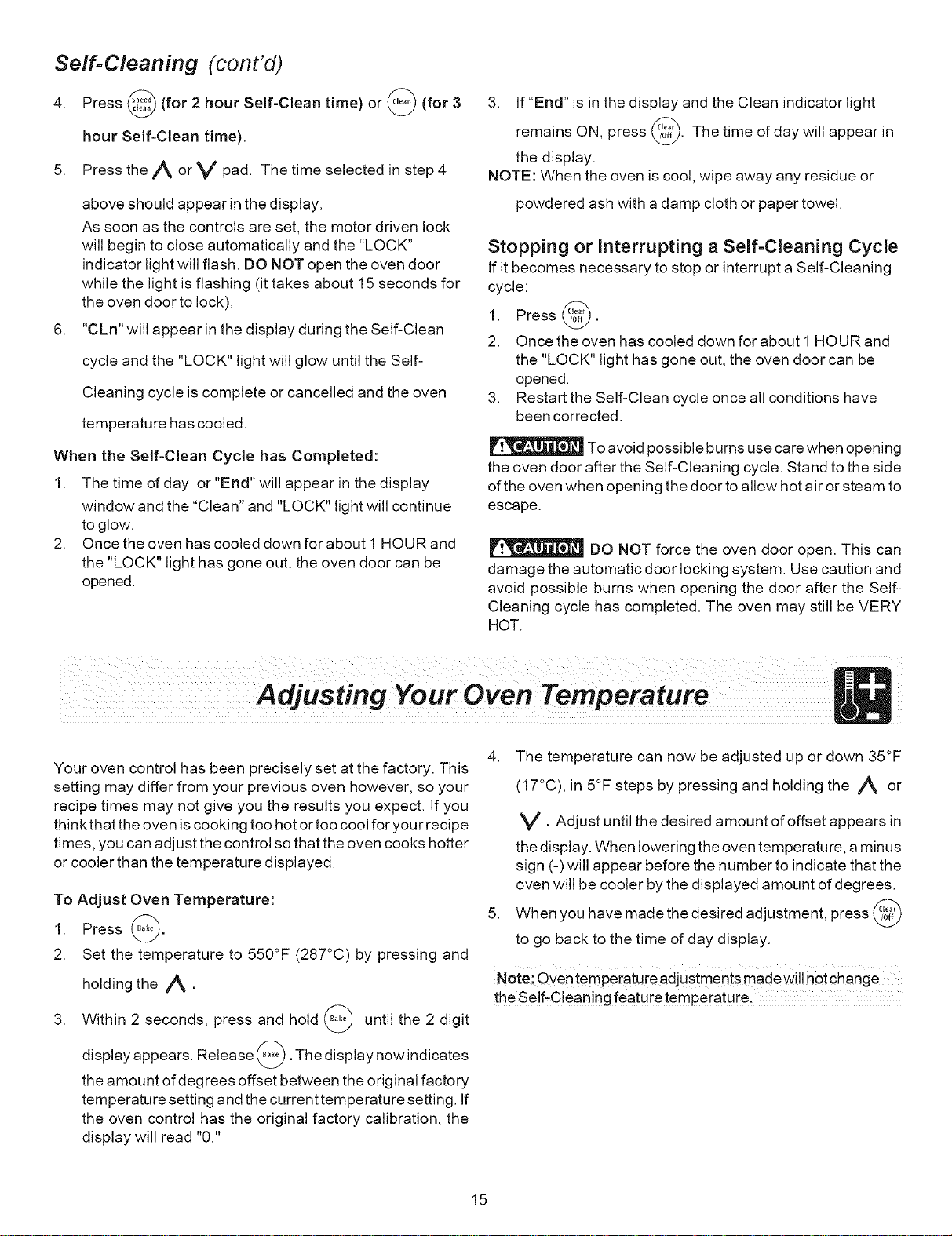

Self-Cleaning (cont'd)
4. Press _ (for 2 hour Self-Clean time) or _ (for 3
hour Self-Clean time).
5. Press the ,_ or V pad. The time selected in step 4
.
above should appear in the display.
As soon as the controls are set, the motor driven lock
will begin to close automatically and the "LOCK"
indicator light will flash. DO NOT open the oven door
while the light is flashing (it takes about 15 seconds for
the oven door to lock).
"CLn" will appear in the display during the Self-Clean
cycle and the "LOCK" light will glow until the Self-
Cleaning cycle is complete or cancelled and the oven
temperature has cooled.
When the Self-Clean Cycle has Completed:
1. The time of day or "End" will appear in the display
window and the "Clean" and "LOCK" light will continue
to glow.
2. Oncetheovenhascooleddownforaboutl HOURand
the "LOCK" light has gone out, the oven door can be
opened.
3. If "End" is in the display and the Clean indicator light
remains ON, press @. The time of clay will appear in
the display.
NOTE: When the oven is cool, wipe away any residue or
powdered ash with a damp cloth or paper towel.
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a Self-Cleaning
cycle:
1. Press _.
2. Once the oven has cooled down for about l HOURand
the "LOCK" light has gone out, the oven door can be
opened.
3. Restart the Self-Clean cycle once all conditions have
been corrected.
To avoid possible burns use care when opening
the oven door after the Self-Cleaning cycle. Stand to the side
of the oven when opening the door to allow hot air or steam to
escape.
DO NOT force the oven door open. This can
damage the automatic door locking system. Use caution and
avoid possible burns when opening the door after the Self-
Cleaning cycle has completed. The oven may still be VERY
HOT.
Adjusting Your Oven Temperature
Your oven control has been precisely set at the factory. This
setting may differ from your previous oven however, so your
recipe times may not give you the results you expect. If you
thinkthat the oven is cooking too hot ortoo cool for your recipe
times, you can adjust the control so that the oven cooks hotter
or cooler than the temperature displayed.
To Adjust Oven Temperature:
1. Press @.
2. Set the temperature to 550°F (287°C) by pressing and
holding the /_,.
3. Within 2 seconds, press and hold (_ until the 2 digit
display appears. Release (_. The display now indicates
the amount of degrees offset between the original factory
temperature setting and the current temperature setting. If
the oven control has the original factory calibration, the
display will read "0."
4. The temperature can now be adjusted up or down 35°F
(17°C), in 5°F steps by pressing and holding the /_, or
V •Adjust until the desired amount of offset appears in
the display. When lowering the oven temperature, a minus
sign (-) will appear before the number to indicate that the
oven will be cooler by the displayed amount of degrees.
When you have made the desired adjustment, press _,,_¢_
v
to go back to the time of day display.
Note; oVen tempeiature adjustments _ade Wil!not change
the Se!f-Cleaning feature temperature:
15

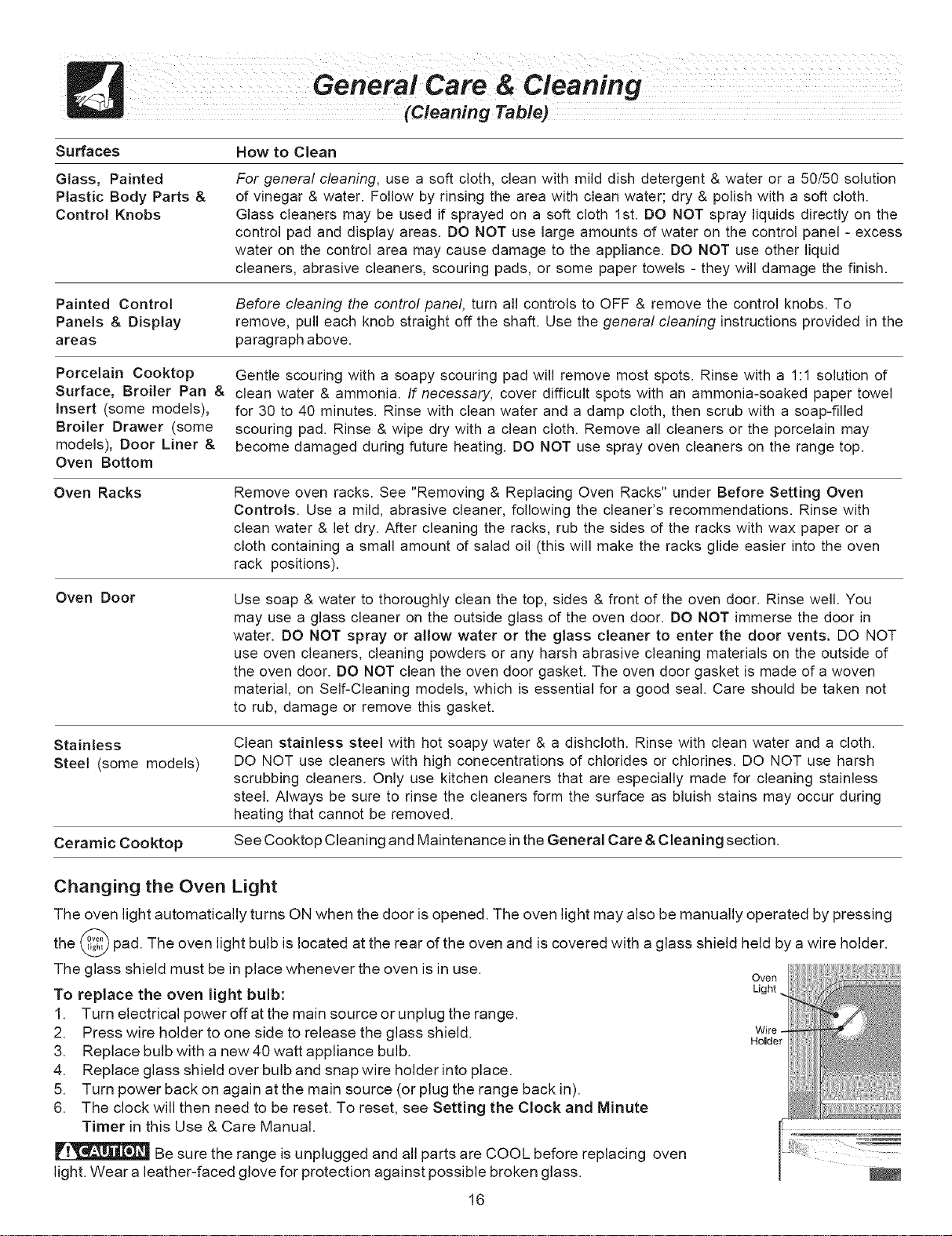

Surfaces Howto Clean
Glass, Painted
Plastic Body Parts &
Control Knobs
For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution
of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth.
Glass cleaners may be used if sprayed on a soft cloth 1st. DO NOT spray liquids directly on the
control pad and display areas. DO NOT use large amounts of water on the control panel - excess
water on the control area may cause damage to the appliance. DO NOT use other liquid
cleaners, abrasive cleaners, scouring pads, or some paper towels - they will damage the finish.
Painted Control
Panels & Display
areas
Before cleaning the control panel, turn all controls to OFF & remove the control knobs. To
remove, pull each knob straight off the shaft. Use the general cleaning instructions provided in the
paragraph above.
Porcelain Cooktop
Surface, Broiler Pan &
Insert (some models),
Broiler Drawer (some
models), Door Liner &
Oven Bottom
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of
clean water & ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel
for 30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub with a soap-filled
scouring pad. Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may
become damaged during future heating. DO NOT use spray oven cleaners on the range top.
Oven Racks
Remove oven racks. See "Removing & Replacing Oven Racks" under Before Betting Oven
Controls. Use a mild, abrasive cleaner, following the cleaner's recommendations. Rinse with
clean water & let dry. After cleaning the racks, rub the sides of the racks with wax paper or a
cloth containing a small amount of salad oil (this will make the racks glide easier into the oven
rack positions).
Oven Door
Use soap & water to thoroughly clean the top, sides & front of the oven door. Rinse well. You
may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in
water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT
use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of
the oven door. DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on Self-Cleaning models, which is essential for a good seal. Care should be taken not
to rub, damage or remove this gasket.
Stainless Clean stainless steel with hot soapy water & a dishcloth. Rinse with clean water and a cloth.
Steel (some models) DO NOT use cleaners with high conecentrations of chlorides or chlorines. DO NOT use harsh
scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning stainless
steel. Always be sure to rinse the cleaners form the surface as bluish stains may occur during
heating that cannot be removed.
Ceramic Cooktop See Cooktop Cleaning and Maintenance in the General Care & Cleaning section.
Changing the Oven Light
The oven light automatically turns ON when the door is opened. The over] light may also be manually operated by pressing
the @ pad. The over] light bulb is located at the rear of the over] and is covered with a glass shield held by a wire holder.
The glass shield must be in place whenever the oven is in use. oven
To replace the oven light bulb:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield, wire.
Holder
3. Replace bulb with a new40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back in).
6. The clock will then need to be reset. To reset, see Setting the Clock and Minute
Timer in this Use & Care Manual.
Be sure the range is unplugged and all parts are COOL before replacing oven ........
light. Wear a leather-faced glove for protection against possible broken glass.
16

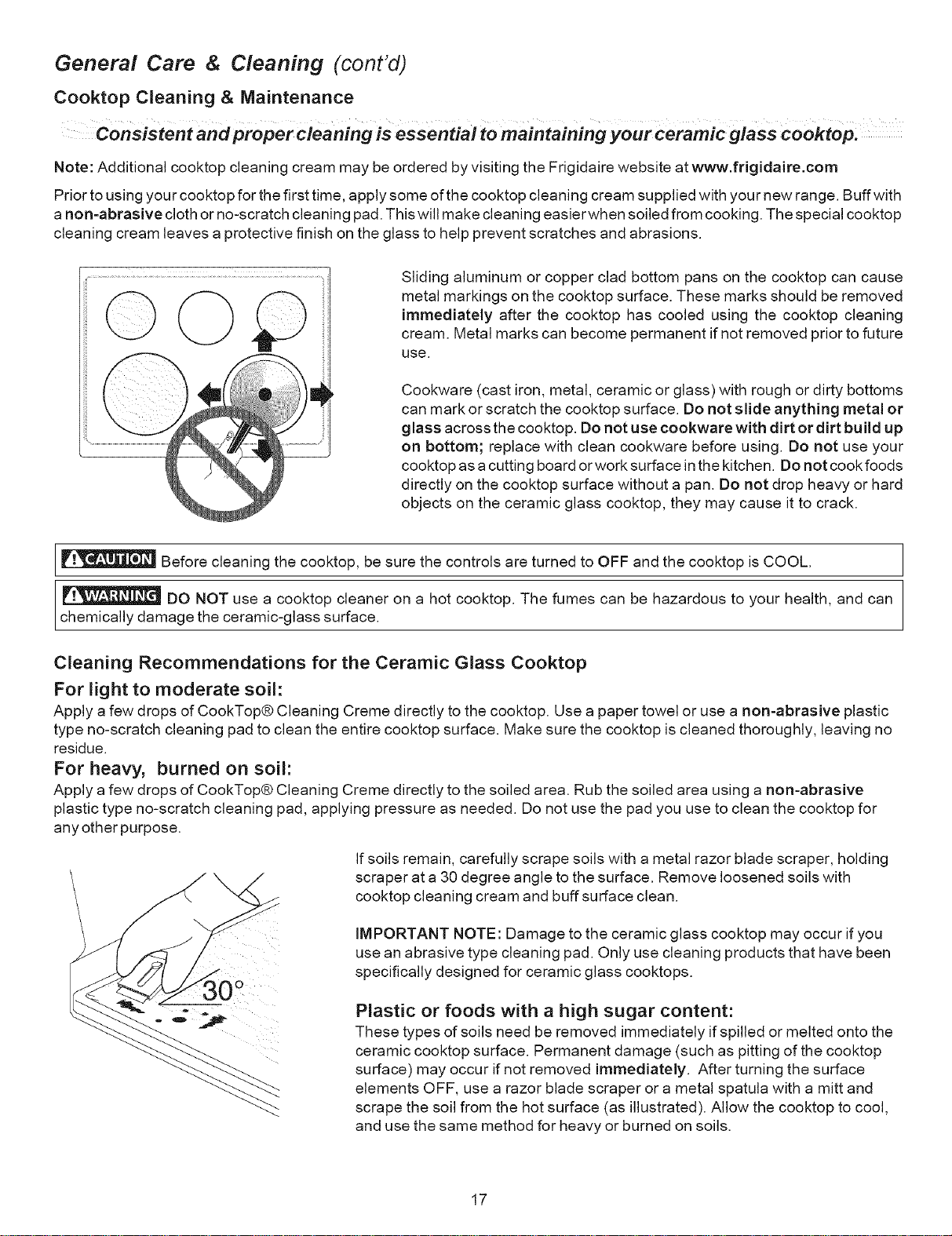

General Care & Cleaning (cont'd)
Cooktop Cleaning & Maintenance
Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop.
Note: Additional cooktop cleaning cream may be ordered by visiting the Frigidaire website at www.frigidaire.com
Prior to using your cooktop for the first time, apply some of the cooktop cleaning cream supplied with your new range. Buffwith
a non-abrasive cloth or no-scratch cleaning pad. This will make cleaning easierwhen soiled from cooking. The special cooktop
cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop can cause
metal markings on the cooktop surface. These marks should be removed
immediately after the cooktop has cooled using the cooktop cleaning
cream. Metal marks can become permanent if not removed prior to future
use.
Cookware (cast iron, metal, ceramic or glass) with rough or dirty bottoms
can mark or scratch the cooktop surface. Do not slide anything metal or
glass across the cooktop. Do not use cookwate with dirt or dirt build up
on bottom; replace with clean cookware before using. Do not use your
cooktop as a cutting board or work surface in the kitchen. Do not cook foods
directly on the cooktop surface without a pan. Do not drop heavy or hard
objects on the ceramic glass cooktop, they may cause it to crack.
Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.
DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can
chemically damage the ceramic-glass surface.
Cleaning Recommendations for the Ceramic Glass Cooktop
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non-abrasive plastic
type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no
residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a non-abrasive
plastic type no-scratch cleaning pad, applying pressure as needed. Do not use the pad you use to clean the cooktop for
any other purpose.
If soils remain, carefully scrape soils with a metal razor blade scraper, holding
scraper at a 30 degree angle to the surface. Remove loosened soils with
cooktop cleaning cream and buff surface clean.
IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you
use an abrasive type cleaning pad. Only use cleaning products that have been
specifically designed for ceramic glass cooktops.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or melted onto the
ceramic cooktop surface. Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately. After turning the surface
elements OFF, use a razor blade scraper or a metal spatula with a mitt and
scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool,
and use the same method for heavy or burned on soils.
17

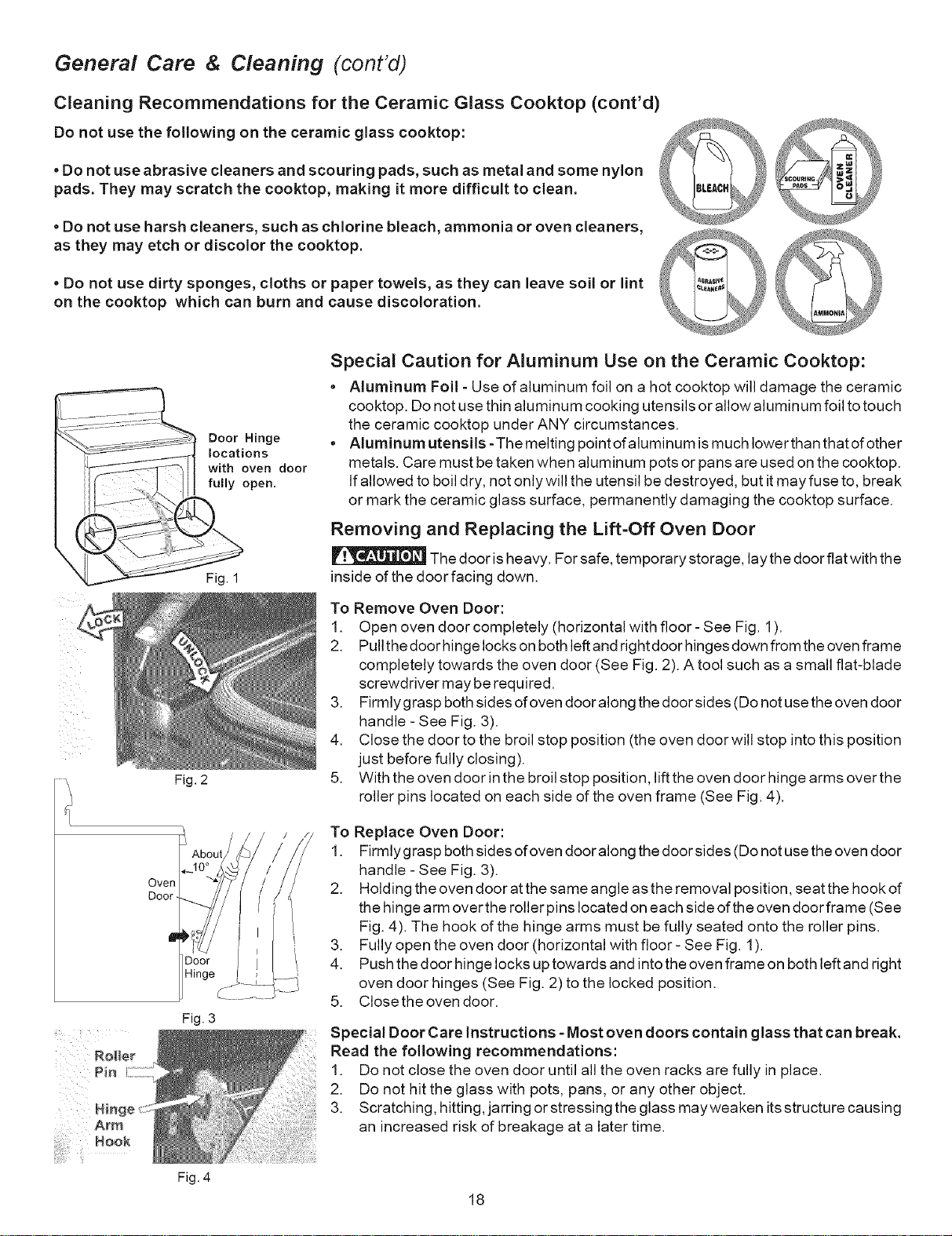

General Care & Cleaning (cont'd)
Cleaning Recommendations for the Ceramic Glass Cooktop (cont'd)
Do not use the following on the ceramic glass cooktop:
. Do not use abrasive cleaners and scouring pads, such as metal and some nylon
pads. They may scratch the cooktop, making it more difficult to clean.
• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners,
as they may etch or discolor the cooktop.
. Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint
on the cooktop which can burn and cause discoloration.
Door Hinge
locations
with oven door
fully open.
Fig. 1
Fig. 2
Special Caution for Aluminum Use on the Ceramic Cooktop:
• Aluminum Foil - Use of aluminum foil on a hot cooktop will damage the ceramic
cooktop. Do not use thin aluminum cooking utensils or allowaluminum foil to touch
the ceramic cooktop under ANY circumstances.
Aluminum utensils -The melting point of aluminum is much lower than that ofother
metals. Care must be taken when aluminum pots or pans are used on the cooktop.
If allowed to boil dry, not onlywill the utensil be destroyed, but itmay fuse to, break
or mark the ceramic glass surface, permanently damaging the cooktop surface.
Removing and Replacing the Lift-Off Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with the
inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor- See Fig. 1).
2. Pull the door hinge locks on both left and right door hinges down from the oven frame
completely towards the oven door (See Fig. 2). A tool such as a small fiat-blade
screwdriver may be required.
3. Firmlygrasp both sides of oven dooralong the doorsides (Do not use the oven door
handle - See Fig. 3).
4. Close the door to the broil stop position (the oven doorwill stop into this position
just before fully closing).
5. With the oven door in the broil stop position, lift the oven door hinge arms over the
roller pins located on each side of the oven frame (See Fig. 4).
Oven
Door,
Hinge
Fig. 3
Fig. 4
To Replace Oven Door:
1. Firmlygrasp both sides of oven dooralong the doorsides (Do not use the oven door
handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal position, seat the hook of
the hinge arm over the roller pins located oneach side of the oven door frame (See
Fig. 4). The hook of the hinge arms must be fully seated onto the roller pins.
3. Fully open the oven door (horizontal with floor- See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame on both left and right
oven door hinges (See Fig. 2) to the locked position.
5. Close the oven door.
Special Door Care instructions - Most oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring orstressing the glass mayweaken its structure causing
an increased risk of breakage at a later time.
18
Solutions to common Problems
Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences
(shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these
problems are provided with the problem listed:
Range is not level - (1) Poor installation. Place oven rack in
center of oven. Place a level on the oven rack. Adjust leveling
legs at base of range until the oven rack is level. (2) Be sure
floor is level, strong & stable enough to adequately support
range. (3) If floor is sagging or sloping, contact a carpenter to
correct the situation. (4) Kitchen cabinet alignment may make
range appear not level. Be sure cabinets are square & have
sufficient room for range clearance.
Cannot move appliance easily, Appliance must be accessible
for service - (1) Cabinets not square or are built in too tightly.
Contact builder or installer to make appliance accessible. (2)
Carpet interferes with range. Provide sufficient space so range
can be lifted over carpet.
Surface element too hot or not hot enouqh_h - Incorrect control
setting. Be sure the correct control is ON for the element to be
used.
Surface element does not heat - (1) Lightweight or warped
pans used. Use only flat, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped
pans. Cookware materials and weight of the material affect
heating. Heavy & medium-weight pans heat evenly. Because
lightweight pans heat unevenly, foods may burn easily. (2) No
power to the appliance. Check steps under "Entire Appliance
Does Not Operate" in this checklist. (3) Incorrect control
setting. Make sure the correct control is ON for the surface
element to be used.
Entire appliance does not operate - (1) The time of day is not
set. The time of day must first be set in order to operate the
oven. See "To Set the Clock" in the Setting Oven Controls
section.(2) Make sure cord/plug is plugged correctly into outlet.
(3) Service wiring is not complete. Contact your authorized
service agent. (4) Electrical power outage. Check house lights
to be sure. Call your local electric company for service.
Oven does not operate - Be sure the oven controls are set
properly for the desired function. See Setting Oven Controls in
this Use & Care Manual or read the instructions "Entire
appliance does not operate" in this checklist.
Oven light does not work (some models) - Replace or tighten
bulb. See Changing Oven Light section in this Use & Care Manual.
Oven control beeps & displays any F code error (for example
- Electronic control has detected a fault condition. Press
CLEAR/OFF to clear the display & stop beeping. Reprogram
oven. If fault recurs, record fault number. Press CLEAR/OFF &
contact an authorized service agent.
Flames inside oven or smoking from oven vent - Excessive
spillovers in oven. For example this will happen for pie
spillovers or large amounts of grease left on the oven bottom.
Wipe up excessive spillovers before starting oven. If flames or
excessive smoke are present see "Broiling" in the Setting
Oven Controls section.
Oven smokes excessively during broilinq- (1) Control(s) not
set properly. Follow Broil instructions under Setting Oven
Controls. (2) Make sure oven door is opened to broil stop
position. (3) Meat too close to the broil element. Reposition the
broil rack to provide proper clearance between the meat & the
element. Preheat the broil element for searing. (4) Meat not
properly prepared. Remove excess fat from meat. Cut fatty
edges to prevent curling, but do not cut into lean. (5) Insert on
broiler pan wrong side up & grease not draining. Always place
grid on the broiler pan with ribs up & slots down to allow grease
to drip into pan (some models). (6) Grease has built up on oven
surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive
smoking.
Poor baking results - Many factors affect baking results. Make
sure the proper oven rack position is used. Center food in the
oven & space pans to allow air to circulate. Allow the oven to
preheat to the set temperature before placing food in the oven.
Try adjusting the recipe's recommended temperature or baking
time. If you feel the oven is too hot or cool, see Adjusting Your
Oven Temperature in this Use & Care Manual.
Soil not completely removed after Self-Cleanin_ -
Failure to clean bottom, front top of oven, frame of oven or door
area outside oven seal. These areas are not in the Self-
Cleaning area, but get hot enough to burn on residue. Clean
these areas before the Self-Cleaning cycle is started. Burned-
on residue can be cleaned with a stiff nylon brush and water or
a nylon scrubber. Be careful not to damage the oven gasket.
Self-Cleaning cycle does not work - (1) Oven control not set
properly. Follow instructions under Self-Cleaning. (2) Self-
Cleaning cycle was interrupted. Follow steps under "Stopping
or Interrupting a Self-Cleaning Cycle" under Self-Cleaning.
Metal marks (Ceramic Cooktop models) - Sliding or scraping
of metal utensils on cooktop surface. Do not slide metal
utensils on cooktop surface. Use a ceramic-glass cooktop
cleaning creme to remove the marks. See "Cooktop Cleaning
and Maintenance" in the Care & Cleaning section.
Scratches or abrasions on cooktop surface (Ceramic
Cooktop models) - (1) Coarse particles such as salt or sand
between cooktop and utensils can cause scratches. Be sure
cooktop surface and bottoms of utensils are clean before
usage. Small scratches do not affect cooking and will become
less visible with time. (2) Cleaning materials not recommended
for ceramic-glass cooktop have been used. See "Cooktop
Cleaning & Maintenance." (3) Cookware with rough bottom has
been used. Use smooth, flat-bottomed cookware.
Brown streaks or specks on cooktop surface (Ceramic
Cooktop models) - Boilovers are cooked onto surface. Use
razor blade scraper to remove soil. See "Cooktop Cleaning and
Maintenance" in the Care & Cleaning section.
Areas of discoloration with metallic sheen (Ceramic Cooktop
models) - Mineral deposits from water and food. Remove using
a ceramic-glass cooktop cleaning creme. Use cookware with
clean, dry bottoms.
19
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be
defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLEAND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENTAS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY ORANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOTALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOTAPPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAYALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
IfYou Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. in the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
RO. Box 212378
Augusta, GA 30907
[] Electrolux
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
