User Gudie Rockford Fosgate P1000X2  Amplifier

Table of contents

  • Introduction
  • Specifications
  • Design Features
  • Installation
  • Installation Considerations
  • Mounting Locations
  • Battery and Charging

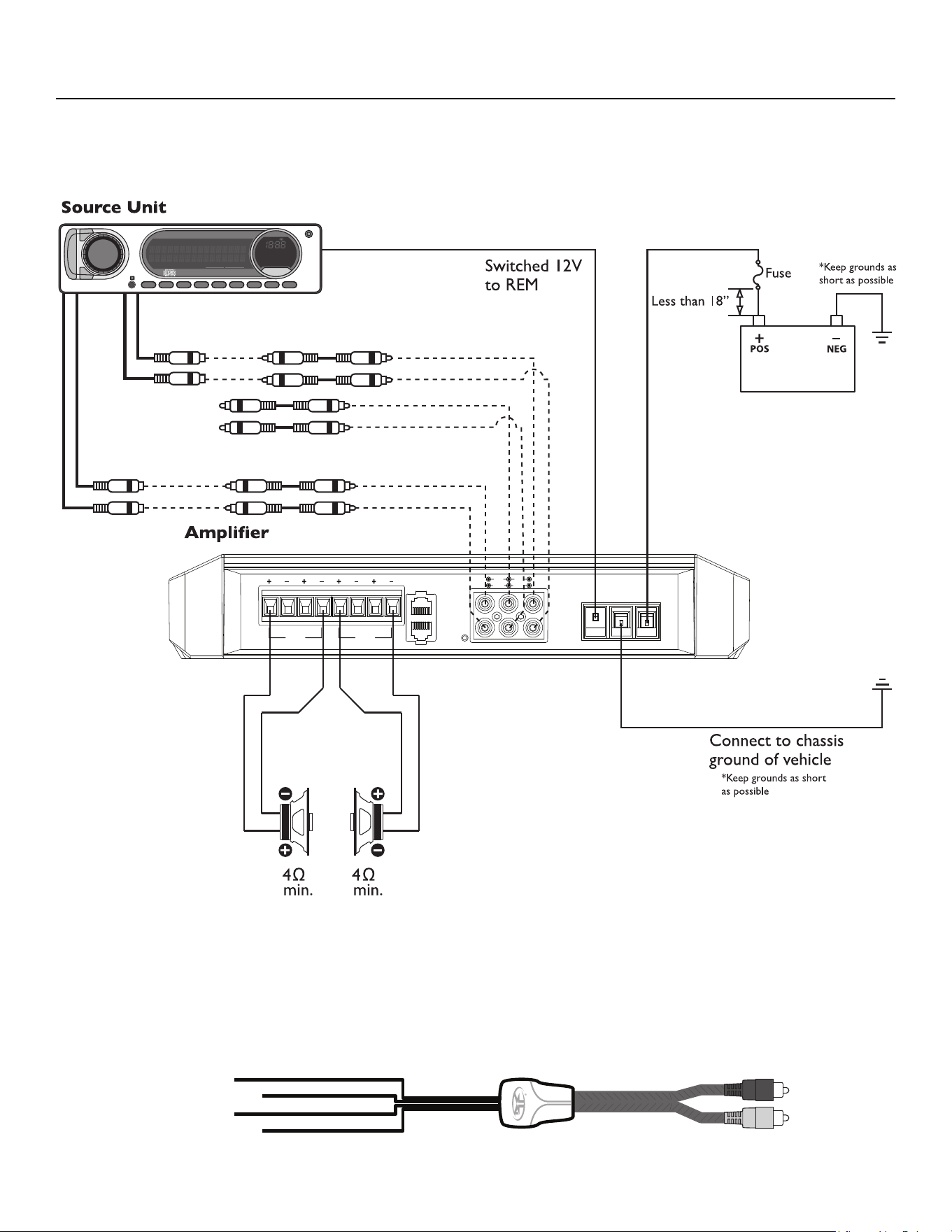

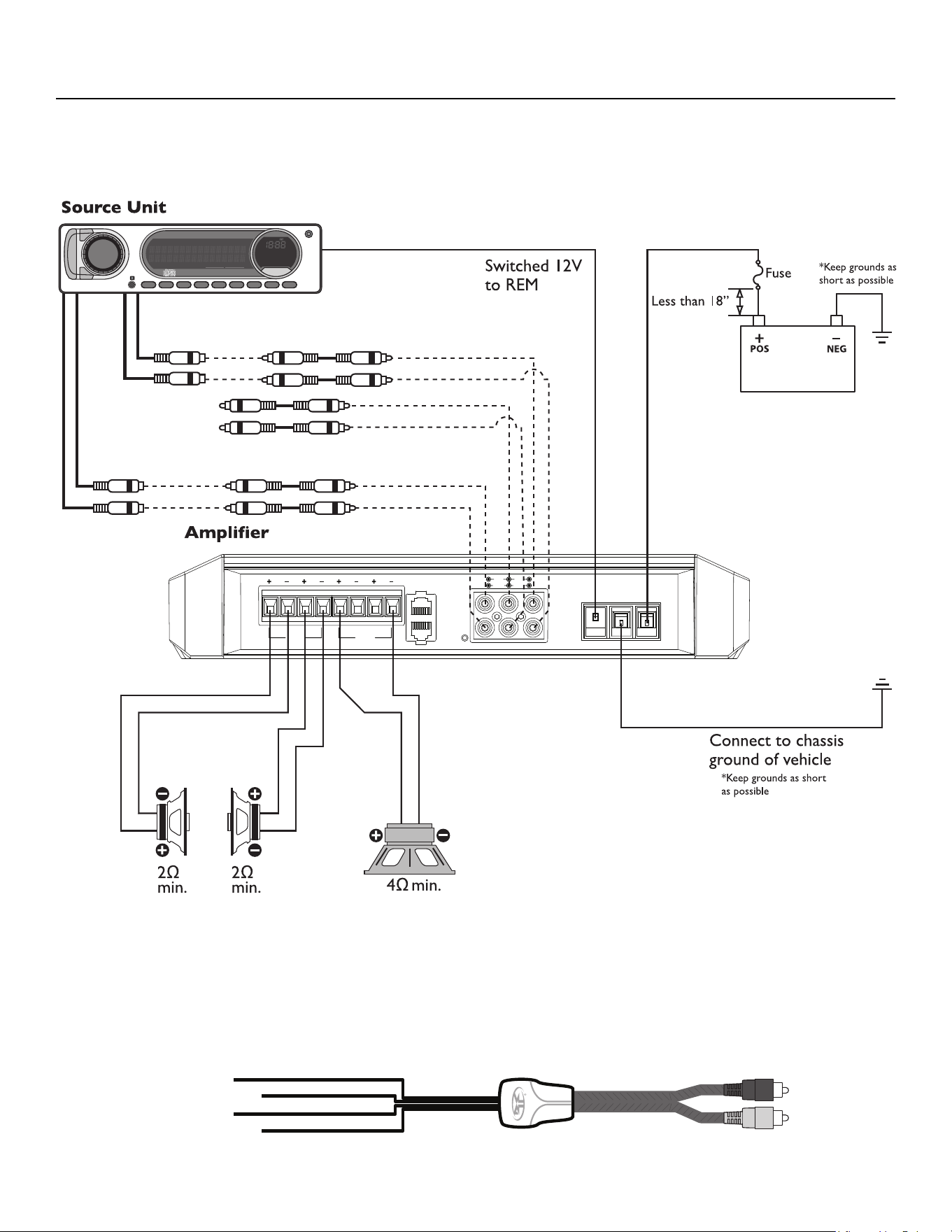

  • Wiring the System

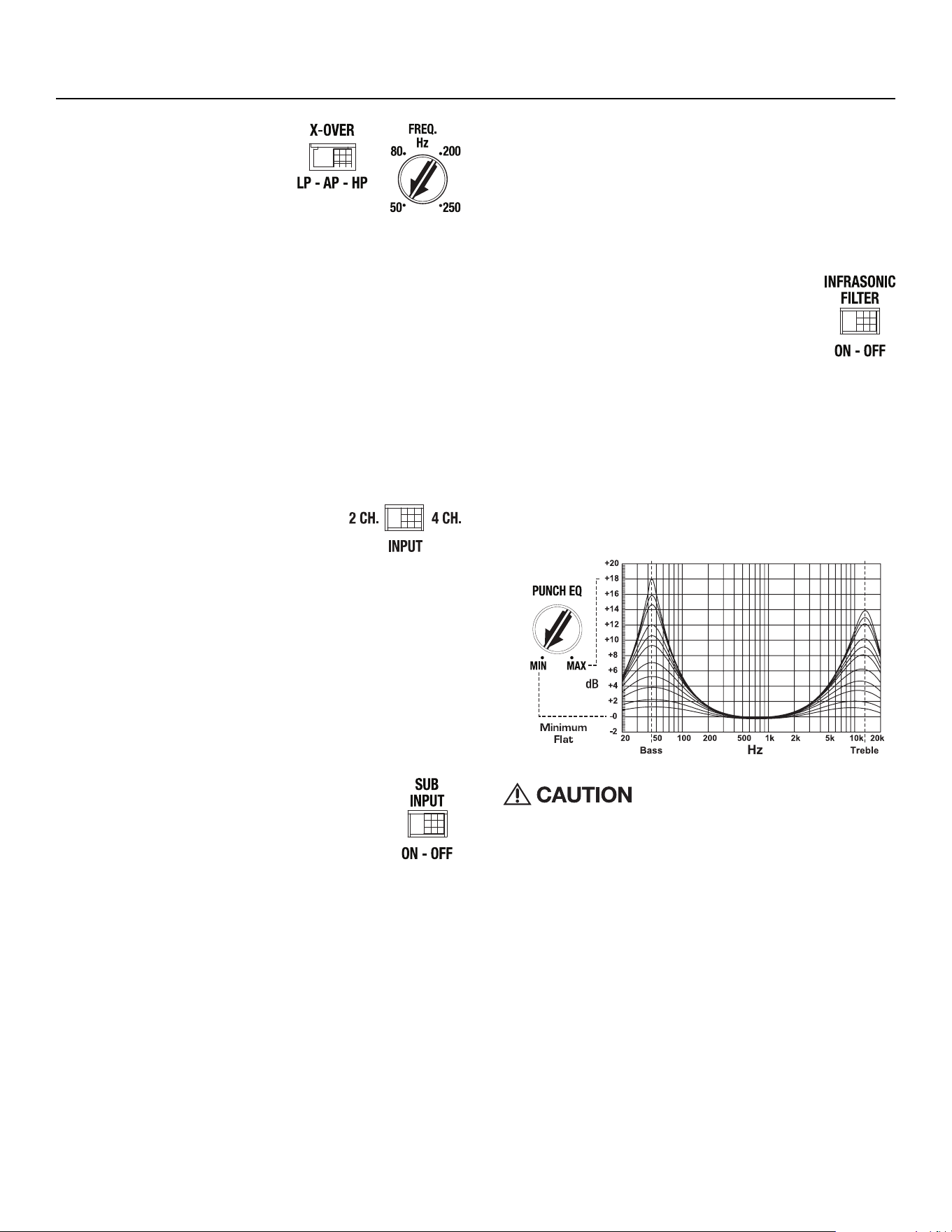

  • Operation
  • Clip Indicator Setup
  • Adjusting Crossover Frequency
  • Channel Switch
  • Subwoofer Input Switch
  • Infrasonic Filter
  • Punch EQ
  • Troubleshooting
  • Limited Warranty Information

Power/Protect

  • LED Power LED illuminates blue when the unit is turned on.
  • Protect LED illuminates yellow if a short circuit or to low of an impedance is detected at the speaker connections.
  • Thermal LED illuminates red when amplifier overheats. The amplifier will automatically shut down if this occurs.

Output Clip Indicator

  • The output clip indicator works in conjunction with the input level knob, illuminating to appropriate color depending on the audio content used for the setup

Intput Clip Indicator

  • The input clip indicator works in conjunction with the audio source volume knob, illuminating red when audio source reaches it’s clipping point.

Power/REM Terminals

  • The power and ground will accommodate 4 AWG, while the remote will accommodate 12 AWG.
  • (The REM terminal is used to remotely turn-on and turn-off the amplifier when +12V DC is applied.)

Trunk Mounting

  • Mounting the amplifier vertically or inverted will provide adequate cooling of the amplifier.
  • Mounting the amplifier on the floor of the trunk will provide the best cooling of the amplifier.

Passenger Compartment

  • Mounting Mounting the amplifier in the passenger compartment will work as long as you provide a sufficient amount of air for the amplifier to cool itself.
  • If you are going to mount the amplifier under the seat of the vehicle, you must have at least 1” (2.54cm) of air gap around the amplifier’s heat sink.

Channel Switch

  • Setting this switch to the 2CH. position, switches the inputs to a 2-channel mode, allowing connection to only the front inputs with a 4-channel output. Output controls function the same as if the amplifier was in 4-channel mode.

Quick Install:

  •  Using the screws supplied, install the mounting clip.
  •  Slip the remote onto the mounting clip until it snaps into place.
  • Route and connect the cable to the remote and amplifier.

Operation:

  • When connected, the “Level Control” is linked and allows you to remotely control the output level of the amplifier from the dash or center console.

NOTE:

  • Use the instructions that came with the remote for a variety of mountings that fit your preference.

Check Amplifier for audio output.

  1.  Verify good RCA input connections at stereo and amplifier. Check entire length of cables for kinks, splices, etc. Test RCA inputs for AC volts with stereo on. Repair/replace if necessary.
  2.  Disconnect RCA input from amplifier. Connect RCA input from test stereo directly to amplifier input.
