MODELS: CTMR99M1W
CTMR99M1B
CTMR99M1S
Refrigerator Freezer
1
2
6
1
2
8
3
4
7
9
5
Important Safety Instructions
To reduce the risk of fire, electrical shock, or injury follow
these basic precautions when using your refrigerator.
DANGER: Risk of child entrapment. To avoid the possibility of child entrapment,
please take the following precautions before you dispose of your refrigerator.
o Remove
all
doors.
o Leave shelves
in
place so children may not easily climb
in.
o Never allow children to
play
with, operate, or crawl inside the refrigerator.
Do not store or use gasoline or any flammable vapors and liquids
in
the vicinity of
this refrigerator.
All refrigeration products contain refrigerants, which under the guidelines of federal
law must be removed before disposal. It is the consumer
’
s responsibility to comply
with federal and local regulations when disposing of this product.
Installation Instructions
Before Using Your Refrigerator
Remove the exterior and interior packing.
Before connecting the refrigerator to the power source,
let
it
stand upright for
approximately 4 hours. This will reduce the possibility of a malfunction
in
the cooling
system from improper handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Location
Do not recess or build-in. This appliance is designed to be free standing
only.
Allow 5 inches clearance space between the back and sides of the refrigerator,
which allows the proper air ventilation.
Avoid Installation:
o On weak surfaces unable to support refrigerator when
fully
loaded.
o In direct sunlight and sources of heat (stove, heater, radiator, etc.). Ambient
temperature below 50°F or above 85°F will hinder the performance of this
appliance.
o In moist areas.
o In garage. This unit is not designed for
any
type of outside installation.
o In moving vehicle. This unit is not designed to be installed in an RV or
used with an inverter. This unit isis intended for household use
only.
Installing Your Refrigerator
Adjust the leveling feet to keep the refrigerator level.
Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) prong from the power cord.
After plugging the appliance into a wall outlet, turn the unit on and allow the unit to
cool down for 24 hours before placing food
in
the refrigerator or freezer compartment.
3
Electrical Connection
Improper use of the grounded plug can result in the risk
of electrical shock. If the power cord is damaged, have it
replaced by an authorized service center.
4
This refrigerator should be properly grounded for your safety. The power cord of this
refrigerator is equipped with a three-prong plug which mates with standard three prong
wall outlets to minimize the possibility of electrical shock.
Do not, under any circumstances,
cut
or remove the third ground prong from the power
cord supplied.
This refrigerator requires a standard 115/120 Volt A.C. ~/60Hz electrical outlet with
three-prong ground.
This refrigerator is not designed to be used with an inverter.
The cord should be secured behind the refrigerator and not
left
exposed or dangling to
prevent accidental injury.
Never unplug the refrigerator
by
pulling the power cord. Always grip the plug firmly and
pull
straight out from the receptacle.
Do not use an extension cord with this appliance.
If
the power cord is too short, have a
qualified electrician or service technician install an outlet near the appliance. Use of an
extension cord can negatively affect the performance of the unit.
Operating Your Refrigerator
Temperature Control
The temperature control is located inside the refrigerator and in the freezer
compartment on some models. The temperature is factory preset to provide satisfactory
food storage temperatures. However, the temperature control is adjustable.
To adjust the temperature colder in the refrigerator compartment, press the SET button
on the control panel so that the display light shifts to a higher number. “1” is the warmest
setting and “5” is the coldest. To adjust the temperature colder in the freezer compartment,
move the Freezer Control knob towards the maximum setting. After each movement of
either control, allow 24 hours for the unit to adjust. If the unit is still not cold enough, repeat
until desired temperature is achieved.
To adjust the temperature warmer in the refrigerator compartment, press the SET button on
the control panel so that the display light shifts to a lower number. To adjust the temperature
warmer in the freezer compartment, move the Freezer Control knob towards the minimum
setting. After each movement of either control, allow 24 hours for the unit to adjust. If the
unit is still not warm enough, repeat until desired temperature is achieved.
NOTE
If the unit is unplugged or loses power; you must wait 3 to 5 minutes before
restarting the unit. If
you
attempt to restart before this time delay, the
refrigerator may not start.
Changing the interior LED light
1. Using a flat blade screwdriver or a fingertip, push in the latch to release the lamp
cover, then remove it.
2. Unscrew the LED light bulb from the lamp socket, then replace it with a new LED
light bulb.
3. Reinstall the lamp cover.
Freezer Compartment Operation
Temperature Control
NOTE
Do not store canned foods or food stored in glass containers in the freezer
compartment.
The Freezer Compartment
This compartment is designed f
or the long-term storage of frozen food. The sto
rage
life
of frozen foods varies and the recommended storage time should not be exceeded.
Place frozen food into the freezer as quickly as possible after purchase. If there are
instructions on the packet, carefully follow these instructions regarding storage times.
Your refrigerator has one control for regulating the
temperature in the freezer compartment. The freezer
temperature control is located on the freezer compartment’s
interior back panel. For the best performance, leave the
freezer control at the midpoint and adjust the refrigerator
compartment temperature control. Adjust the freezer control
one increment at a time until the desired temperature is
reached.
5
Push in here
LED light model: 50241001001C
Lamp base: E12
Input rating: 115V AC 3.5 W
Care and Maintenance
Cleaning Your Refrigerator
Disconnect the electrical unit from the wall outlet.
Clean interior and parts with a cloth soaked
in
lukewarm water and baking soda
solution.
A
solution of 2 tablespoons baking soda to a quart of water will clean and
neutralize odors. Rinse and wipe dry.
Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
The outside of the refrigerator should be cleaned with a warm damp cloth and mild
detergent. Do not use harsh or abrasive cleaners.
Never clean refrigerator parts with flammable fluids. The fumes can create a fire
hazard.
Vacation Time
For long vacations, remove
all
food. Then, unplug the electrical cord from the wall
outlet.
Clean the interior and leave doors open to avoid possible odor or mold formation.
Use extreme caution. The unit should not be accessible to
child
’
s
play.
Moving Your Refrigerator
Disconnect the electrical cord from the wall outlet.
Remove
all
the food and securely tape down
all
loose items such as shelves,
drawers, and doors.
Be sure the refrigerator stays
in
the upright position during transportation.
Energy Saving Tips
The refrigerator should be located
in
the coolest area of the room, away from heat
producing appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing
in
the refrigerator.
Be sure to wrap foods properly, and wipe containers dry before placing them
in
the
refrigerator. This cuts down on frost build-up inside the refrigerator.
Organize and
label
food to reduce door openings and extended searches
6
Changing the Reversible Door
Before reversing the door swing, ensure the appliance is unplugged and empty. Provide
additional support for the doors while hinges are being removed. Do not depend on the door
magnets to hold the door in place. It is recommended that two people perform this task. DO
NOT lay the appliance completely flat as this may damage the coolant system.
Unscrew and remove the middle
hinge and middle hinge washer.
Reserve the screws. Lift the
refrigerator door up and away
from the appliance.
Remove top hinge cover. Unscrew
and remove the top hinge and top
hinge washer. Save the screws.
Lift the freezer door up and away
from the appliance.
Included parts
Unscrew and remove the bottom right hinge.
Save the screws. Remove screw covers from
opposite corner (left) and cover exposed
holes (right). Attach bottom left hinge with the
saved screws.
Top hinge
Top hinge washer
Middle hinge washer
Middle hinge
Door parts
Bottom right hinge
Right pin assembly (2)
Screw
Left pin assembly (2)
Bottom left hinge
Step 2
Step 1
Step 4
Step 3
7
Remove right pin assemblies from the bottom
of the freezer and refrigerator doors. On the
opposite side, attach the replacement pin
assemblies (located in the plastic bag with the
Use and Care Manual) with a philips
screwdriver.
Note: You must re-use the screws from the pin
assemblies that are removed in this step when
attaching the new assemblies.
Place the refrigerator door on the bottom left
hinge. Ensure the door is aligned horizontally
and vertically. Attach middle hinge to top (left)
of refrigerator door, attach washer to the back
of hinge, align with holes and affix to middle
beam with saved screws. Fasten with philips
screwdriver (not included).
Place the freezer door on the middle
hinge. Ensure that the door is aligned
horizontally and vertically, and that the
gasket seals on all sides before attaching
the top hinge. Attach the top hinge and
replace the hinge cover.
Step 5
Step 7
Step 6
8
Troubleshooting Guide
You can solve many common refrigerator problems easily, saving you the cost of a
possible service call. Try the suggestions below to see
if
you can solve the problem
before calling for service.
melborP Possible Causes
Refrigerator does not operate
Refrigerator is unplugged.
The circuit breaker is tripped/ fuse blown.
Compressor turns on and off
The room temperature is warmer than normal
Door is left open or is frequently opened.
The refrigerator does not have the correct
clearances.
The refrigerator has recently been disconnected for
a period of time.
Refrigerator compartments are too
warm
Temperature control is not set correctly.
Door is left open or is frequently opened.
The door gasket does not seal properly.
A large amount of warm or hot food was stored
recently. Wait for the refrigerator to reach its
selected temperature.
The refrigerator has recently been disconnected for
a period of time.
Vibrating or rattling (slight vibration
is normal)
Leveling legs need adjusting
Refrigerator is placed on an uneven or weak
surface.
The refrigerator is touching the wall. Re-level the
refrigerator and move
it
away from the wall.
Temperature of external refrigerator
surface is warm
The exterior refrigerator walls can be as much as
30°F warmer than room temperature.
This is normal while the compressor works to
transfer heat from inside the refrigerator cabinet.
Moisture collects inside the
refrigerator
Door is left open or is frequently opened.
Moisture forms on outside of
refrigerator
Is normal in hot and humid weather. Air carries
moisture into the refrigerator when doors are
opened.
Bubbling or gurgling sounds (like
boiling water)
This is the normal sound
of
refrigerant (used to cool
refrigerator) circulating throughout the system.
Popping or cracking sounds when
compressor comes on
This is normal. Metal parts undergo expansion and
contraction, like hot water pipes. The sound will
level off or disappear as refrigerator runs.
The door will not close properly
The refrigerator is not on a level surface.
The gasket is dirty.
The storage basket is out
of
position.
9

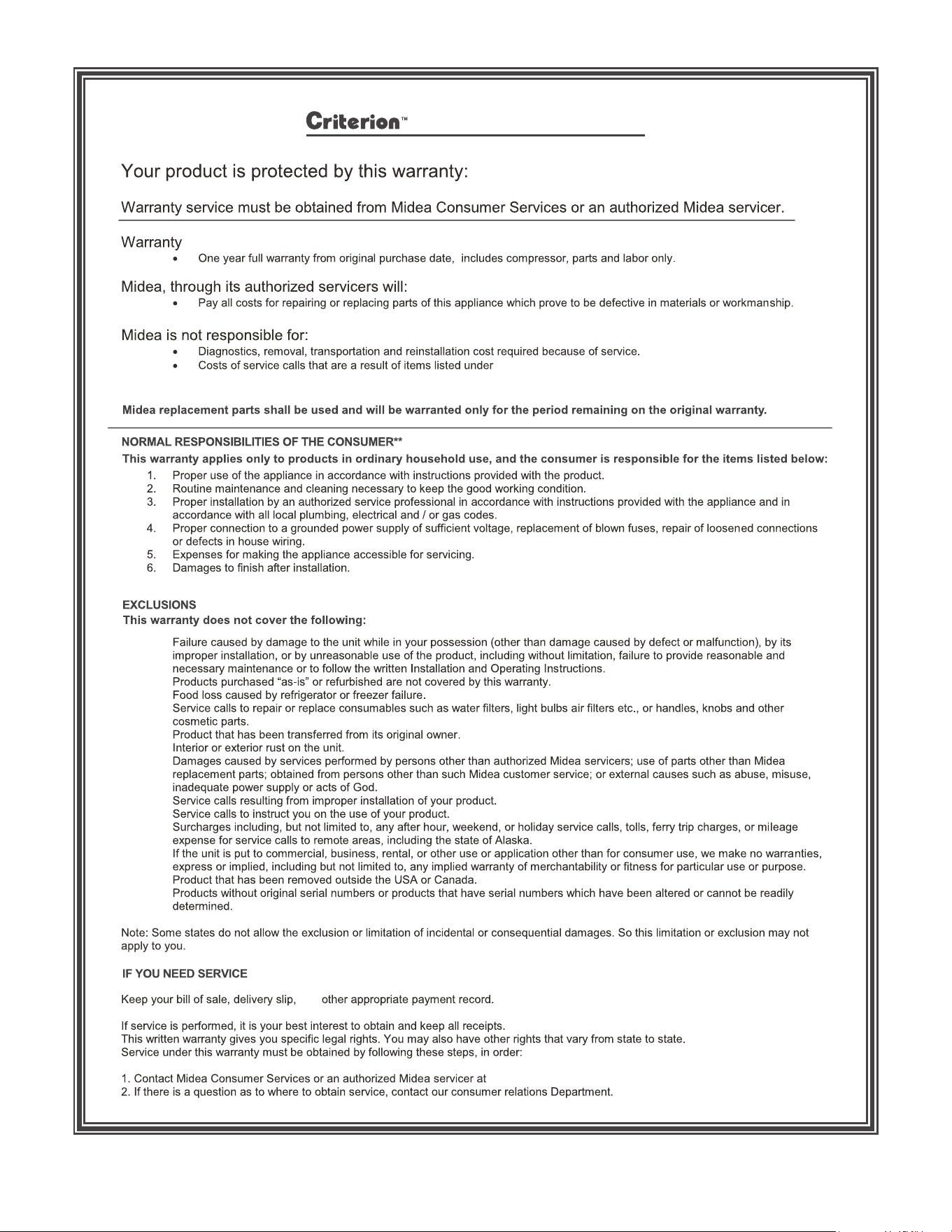

Refrigerator Warranty
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
1-866-646-4332
NORMAL RESPONSIBILITIES OF THE CONSUMER**
The date on the bill established the warranty period should service be required.
and
11411 NW 107
TH
Street
Suite 12
Miami, FL 33178
