WARNINGS
• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT THE POWER IS OFF
BEFORE WIRING!
• TO AVOID FIRE, SHOCK, OR DEATH: Use with compatible dimmable LED and
CFL bulbs, incandescent or 120V halogen fixtures only. For a complete list of
compatible LED bulbs refer to www.leviton.com/led.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
CAUTIONS
• When multiple bulbs are used with one dimmer DO NOT mix bulb types. All bulbs shall be
either LED, CFL
or incandescent. Using the same make/model of each bulb will enhance performance.
• Use only one (1) dimmer in a 3-way circuit. The switch(es) will turn the light on at the
brightness level selected at the dimmer.
• To avoid overheating and possible damage to this device and other equipment, DO NOT
install to control a receptacle, a motor or a transformer-operated appliance, or any other
lighting sources than those specified.
• Use this device WITH COPPER CLAD WIRE ONLY.
• To clean use a damp cloth with mild soap. DO NOT use disinfecting products,
including foggers, sprays or other types of atomized cleaning agents.
In incandescent multi-dimmer installations, the reduction of the dimmer’s capacity is
required. Refer to the chart for maximum load per dimmer. No derating is required for
use in dimmable LED or dimmable CFL multi-dimmer installations.
Before you install your dimmer by itself or with
other dimmers:
MAXIMUM LOAD PER DIMMER FOR MULTI-DEVICE
Cat. No. Load Single Two Devices More than 2 Devices
06674 Incandescent 600W 500W 400W
1. Identify your wires (most common).
NOTE:
2. Wire.
Remove 5/8 in (1.6 cm) of insulation from each wire in the wall box.
NOTE: These are diagrams to represent the most common applications. Your dimmer or wallbox may not look exactly as you see in these diagrams
Single Pole
Installation
LED / CFL / Incandescent Slide Dimmer
Cat. No. 06674
INSTALLATION INSTRUCTIONS
ENGLISH
DI-000-06674-02B
Single Pole

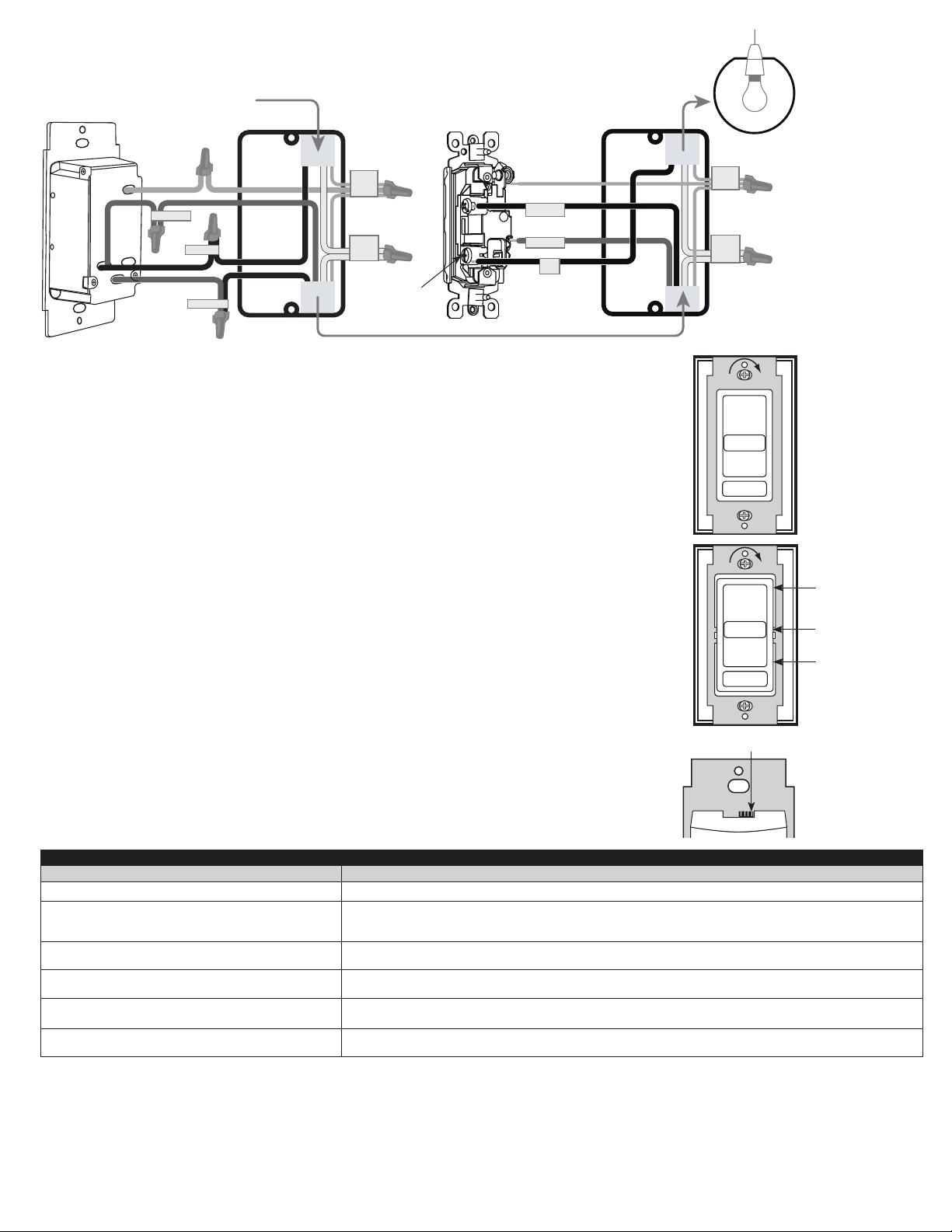

3-Way
You will need:
• Slotted/Phillips screwdriver
• Pencil
• Electrical tape
• Cutters
• Pliers
• Ruler
Cat. No. LED/CFL Incandescent VAC Hz
06674 150W 600W 120VAC 60Hz
GROUND
NEUTRAL
LOAD
LINE
To Light
From
Branch Circuit
Dimmer Wallbox
3-Way Switch Wallb
ox
To Light
From Dimmer
Wallbox
GROUND
GROUND
To Switch
Wallbox
From
Branch Circuit
LOAD
NEUTRAL
NEUTRAL
TRAVELER 2
GROUND
GROUND
LINE
NEUTRAL
NEUTRAL
TRAVELER 2
TRAVELER 1
TRAVELER 2
TRAVELER 1
GROUND
NEUTRAL
To Light
From
Branch Circuit
TRAVELER
LOAD
LINE
NOTE: This wire is used in 3-way
installations only. Cap wire as shown
when not in use.
