Middleton 32” Fireplace Console
Model # WSF32WV23-DB
# WSF32WV23-WA
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our website 24 H a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to: parts@whalenfurniture.com
LOT NUMBER:
DATE PURCHASED: / /
2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Middleton 32” Fireplace Console
MODEL # WSF32WV23-DB / WSF32WV23-WA
MADE IN CHINA
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.
MAXIMUM RECOMMENDED WEIGHT LOADS
MAXIMUM LOAD 22.7 kg / 50 lb
PLACE TV BEHIND THE STOPPER
FITS UP TO MOST 99.06 cm / 39” FLAT
PANEL TVs
MAXIMUM LOAD 27 kg / 60 lb
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT
LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR
EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE
BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE
UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR
FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND
WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT
,
CAUSING POSSIBLE SERIOUS INJURY.
3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE
WIPED OFF WITH A DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet (not included), IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
4. Plug the Cam Lock Cover into the cross slot of the Cam Locks to conceal the cam.
You are now ready to assemble the KD unit.
X
X
12 43
4
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (Qty. 1) B- Base (Qty. 1) C- Center Shelf (Qty. 1)
D- Upper Side Panel (Qty. 2) E- Lower Left Side Panel (Qty. 1) F- Lower Right Side Panel (Qty. 1)
G- Middle Crossbar (Qty. 1) H- Back Panel (Qty. 1) I- Firebox Support (Qty. 1)
Fireplace Insert (Qty. 1) Remote Control with Battery (Qty. 1)
5

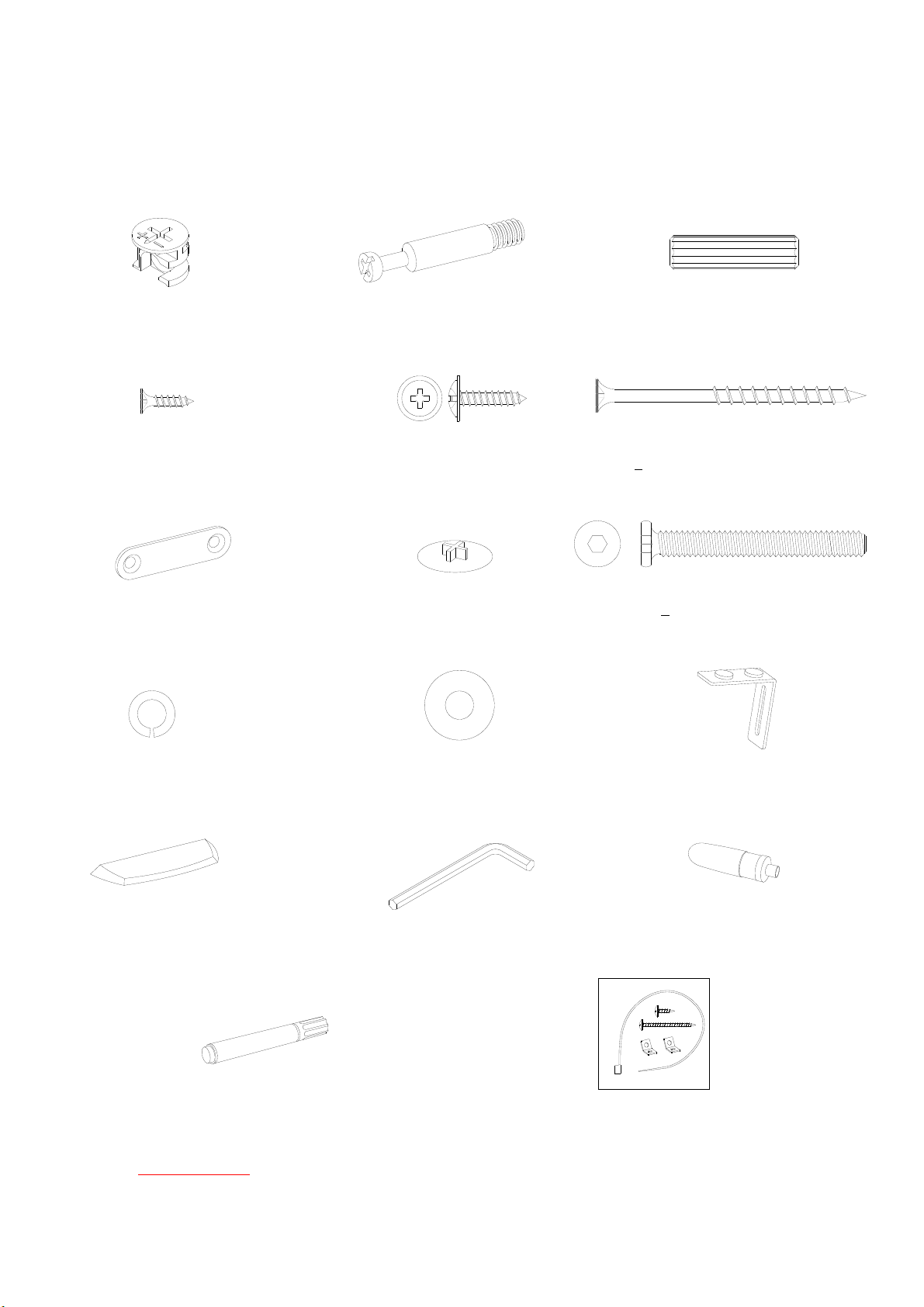

Parts and Hardware List
Please read compl etely through the instructions and verify that all list ed parts and hardware are
present before beginning assembly.
(1) Cam Lock (2) Cam Bolt (3) 8 mm x 30 mm Wood Dowel
(Qty. 16+1 extra) (Qty. 16+1 extra) (Qty. 27+1 extra)
(4) M3.5 x 12 mm Flat Head Screw (5) M3.5 x 15 mm Washer Head Screw (6) M4 x 64 mm Flat Head Screw
(Qty. 4+1 extra) (Qty. 14+1 extra) (Qty. 3+1 extra)
(7) Straight Metal Bracket (8) Cam Lock Cover (9) 1/4” x 50 mm Bolt
(Qty. 2) (Qty. 26+1 extra) (Qty. 1)
(10) Lock Washer (11) Flat Washer (12) L-Shaped Brace
(Qty. 1) (Qty. 1) (Qty. 2)
(13) Acrylic Stopper 4 mm Hex Wrench Glue
(Qty. 1) (Qty. 1) (Qty. 1)
Touch-up Pen Tipping Restraint Hardware Kit (Qty. 2)
(Qty. 1) (Included in plastic bag)
Tools required: Hex wrench (provided), Phillips screwdriver and hammer (not provided).
