Napoleon GDS26NN-1 Castlemore User Manual

ADD MANUAL TITLE

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone 1 (866) 820-8686 • www.napoleon.com • [email protected]

CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:

CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES

INSTALLER:

Leave this manual with the appliance

CONSUMER:

Retain this manual for future reference

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

NATURAL GAS MODELS:

PROPANE GAS MODELS:

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

SAFETY INFORMATION

- Do not store or use gasoline or other

ﬂ ammable vapors and liquids in the vicinity of

this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

- Installation and service must be

performed by a qualiﬁ ed installer, service

agency, or the supplier.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁ ed kit is used.

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly

could result in serious injury, death, or

property damage.

WARNING

ENGLISH

$10.00

FOR INDOOR USE ONLY

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

INSTALLATION AND

OPERATION MANUAL

GDS26P-1

GDS26N-1

(GDS26-1 illustrated)

Castlemore™

SAFETY

BARRIER

FRENCH

PG. 55

W415-2360 / A / 10.31.19

safety information

• This appliance is hot when operated and

can cause severe burns if contacted.

• Any changes or alterations to this

appliance or its controls can be

dangerous and is prohibited.

• Do not operate appliance before reading and

understanding operating instructions. Failure

to operate appliance according to operating

instructions could cause ﬁ re or injury.

• Ensure the glass door is opened or removed

when lighting the pilot for the ﬁ rst time and

when the gas supply has run out.

• Risk of ﬁ re or asphyxiation, do not operate

appliance with ﬁ xed glass removed and never

obstruct the front opening of the appliance.

• Do not connect 110 volts to the control valve,

with the exception of models; GSST8 and

GT8.

• Risk of burns. The appliance should be turned off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during

installation. Sheet metal edges may be sharp.

• Do not burn wood or other materials in this appliance.

• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing

and operating the appliance.

• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at

test pressures above 1/2 psig. Close the manual shut-off valve before pressure testing gas line at test

pressures equal to or less than 1/2 psig (35mb).

• The appliance must not be operated at temperatures below freezing (32°F / 0°C). Allow the appliance

to warm to above freezing prior to operation, with the exception of models; GSS36, GSS42; these

appliances are suitable for 0°F / -18°C.

• Children and adults should be alerted to hazards of high surface temperature and should stay

away to avoid burns or clothing ignition.

• Young children should be carefully supervised when they are in the same room as the

appliance. Toddlers, young children and others may be susceptible to accidental contact

burns. A physical barrier is recommended if there are at risk individuals in the house. To

restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers,

young children and other at risk individuals out of the room and away from hot surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Due to high temperatures, the appliance should be located out of trafﬁ c and away from

furniture and draperies.

• Furniture or other objects must be kept a minimum of 4 feet (1.22m) away from the front of the appliance.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot

surfaces.

• Even after the appliance is off, it will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children

from hot surfaces. These screens and guards must be fastened to the ﬂ oor.

• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior

to operating the appliance.

• It is imperative that the control compartments, burners and circulating blower and its passageway in the

appliance and venting system are kept clean. The appliance and its venting system should be inspected

before use and at least annually by a qualiﬁ ed service person. More frequent cleaning may be required

due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and

free from combustible materials, gasoline and other ﬂ ammable vapors and liquids.

• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it

serviced. Keep burner and control compartment clean.

• Under no circumstances should this appliance be modiﬁ ed.

• Do not allow wind or fans to blow directly into the appliance. Avoid any drafts that alter burner ﬂ ame

patterns.

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

A barrier designed to reduce the risk of burns from the

hot viewing glass is provided with this appliance and

shall be installed for the protection of children and other

at-risk individuals.

WARNING

W415-2360 / A / 10.31.19

safety information

WARNING

• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this

appliance.

• This appliance must not be connected to a chimney ﬂ ue pipe serving a separate solid fuel burning

appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and to replace any part of the control system and any gas control which has

been under water.

• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass

should be done by a licensed or qualiﬁ ed service person, if equipped.

• Do not strike or slam shut the appliance glass door, if equipped.

• Only doors / optional fronts certiﬁ ed with the appliance are to be installed on the appliance.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As

with all plastic bags, these are not toys and should be kept away from children and infants.

• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your

home. If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have

it serviced by a qualiﬁ ed technician before operating it again.

• If equipped, the screen must be in place (closed) when the appliance is in operation.

• When equipped with pressure relief doors, they must be kept closed while the appliance is operating

to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of

the exhaust escaping through these openings can also cause the surrounding combustible materials to

overheat and catch ﬁ re.

• Carbon monoxide poisoning may lead to death; early signs of carbon monoxide poisoning resemble the

ﬂ u, with headache, dizziness and/or nausea. If you have these signs, the appliance may not be working

properly. Get fresh air at once! Have appliance serviced. Some people; pregnant women, persons with

heart or lung disease, anemia, those under the inﬂ uence of alcohol, those at high altitudes are more

affected by carbon monoxide than others. Failure to keep the primary air opening(s) of the burner(s) clean

may result in sooting and property damage.

• As with any combustion appliance, we recommend having your appliance regularly inspected and

serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and

your family against Carbon Monoxide (not applicable for outdoor appliances).

• Ensure clearances to combustibles are maintained when building a mantel or shelves above the

appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting,

discolouration or damage to decorations, a TV or other electronic components.

• For appliances equipped with a safety barrier; if the barrier becomes damaged, the barrier

shall be replaced with the manufacturer’s barrier for this appliance.

• Installation and repair should be done by a qualiﬁ ed service person. It is imperative that control

compartments, burners and circulating air passageways of the appliance be kept clean.

• For outdoor products only: this appliance must not be installed indoors or within any structure that

prevents or inhibits the exhaust gases from dissipating in the outside atmosphere.

• If applicable, the millivolt version of this appliance uses and requires a fast acting thermocouple. Replace

only with a fast acting thermocouple supplied by Wolf Steel Ltd.

WARNING

Disconnect the appliance main gas valve/control

from the supply piping when pressure testing that

system at pressures in excess of 1/2 psi (3.5 kPa).

Isolate the appliance with it’s shut off valve during

any pressure testing of the supply piping at

pressures equal to or less than 1/2 psi (3.5 kPa).

FIRE RISK HAZARD / DELAYED IGNITION

High supply pressure will damage the valve / controls.

Add California Prop 65 warning

WARNING:

This product can expose you to chemicals including lead and lead compounds,

which are known to the State of California to cause cancer, and chemicals including carbon

monoxide, which are known to the State of California to cause birth defects or other reproduc-

tive harm. For more information, go to www.P65Warnings.ca.gov.

W415-2360 / A / 10.31.19

table of contents

1.0 general information 5

1.1 rates and efﬁ ciencies 5

1.2 general instructions 6

1.3 rating plate information 7

1.4 hardware list 7

1.5 dimensions 8

1.6 mobile home installation 9

2.0 venting 10

2.1 typical vent installation 11

2.2 special vent installations 13

2.2.1 periscope termination 13

2.2.2 corner termination 13

2.3 minimum air terminal location

clearances 14

2.4 venting application ﬂ ow chart 15

2.5 deﬁ nitions 15

2.6 elbow vent length values 16

2.7 top exit horizontal termination 16

2.8 rear exit horizontal termination 18

2.9 top or rear exit vertical termination 20

2.10 vertical through existing chimney 22

2.11 rear vent conversion 23

3.0 installation 24

3.1 horizontal installation 25

3.2 vertical installation 25

3.3 appliance vent connection 26

3.4 horizontal air terminal installation 27

3.5 extended horizontal and corner

terminal installation 27

3.6 vertical air terminal installation 28

3.7 gas installation 29

3.8 minimum clearance to combustibles 29

4.0 electrical information 31

4.1 wiring diagram 31

5.0 finishing 32

5.1 safety barrier and glass door 32

5.2 door glass replacement 33

5.3 log placement 33

5.4 vermiculite 34

5.5 logo placement 34

6.0 blower replacement 35

7.0 operation 36

7.1 pilot on demand 37

7.2 general transmitter layout 38

7.3 initializing the transmitter / battery

holder for the ﬁ rst time 38

7.4 temperature display 39

7.5 ﬂ ame height 39

7.6 blower speed 39

7.7 night light dimmer control 39

7.8 continuous pilot / intermittent pilot

(CPI / IPI) selection 39

7.9 key lock 40

7.10 low battery 40

7.11 battery holder / backup installation 40

8.0 adjustments 41

8.1 pilot injector and oriﬁ ce replacement 41

8.2 pilot burner adjustment 41

8.3 ﬂ ame characteristics 42

8.4 venturi adjustment 42

8.5 restricting vertical vents 42

9.0 maintenance 43

9.1 annual maintenance 44

9.2 night light

replacement 45

9.2.1 bulb replacement 45

9.2.2 lens assembly installation 45

9.2.3 lens assembly replacement 45

9.3 care of glass 46

10.0 replacement parts 47

10.1 overview 48

10.2 valve train assembly 49

11.0 accessories 50

12.0 troubleshooting 51

13.0 warranty 53

The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves

the right to change or modify any information within this manual at any time without notice. Changes, other than

editorial, are denoted by a vertical line in the margin.

note:

Batteries must be disposed of according to the local laws and regulations. Some batteries may be

recycled, and may be accepted for disposal at your local recycling center. Check with your

municipality for recycling instructions.

GDS26N-1

GDS26P-1

W415-2360 / A / 10.31.19

standard checklist

Natural Gas: Propane:

1.0 general information

Installer, please ﬁ ll out the following information:

Customer: ______________________________________________________________

Address: ______________________________________________________________

Date of Installation: ______________________________________________________________

Location of Appliance: ______________________________________________________________

Installer: ______________________________________________________________

Dealer/Distributor Contact Number: ______________________________________________________________

Serial Number: ______________________________________________________________

Model:

When the appliance is installed at elevations above 4,500ft (1372m), and in the absence of speciﬁ c recommenda-

tions from the local authority having jurisdiction, the certiﬁ ed high altitude input rating shall be reduced at the rate

of 4% of each additional 1,000ft (305m).

Expansion/contraction noises during heating up and cooling down cycles are normal and to be expected.

The appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for

use with other gases, unless a certiﬁ ed kit is used.

Provide adequate accessbility clearance for servicing and operating the appliance.

Never obstruct the front opening of the appliance.

The protective wrap on plated parts is best removed when the assembly is at room temperature but this can

be improved if the assembly is warmied, using a hair dryer or similar heat source. The protective wrap must be

removed before operating the appliance.

Vented decorative gas appliance: not a source of heat, not for use with solid fuel.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance and

must be installed.

note:

1.1 rates and efﬁ ciencies

RATES AND EFFICIENCIES

NG P

Altitude (FT) 0-4,500

Max. Input (BTU/HR) 25,000

Max. Output Steady State (BTU/HR) 17,000 20,000

Min. Inlet Gas Supply Pressure

4.5" Water Column (11mb) 11" Water Column (27mb)

Max. Inlet Gas Supply Pressure

13" Water Column (32mb)

Manifold Pressure (Under Flow Conditions)

3.5" Water Column (9mb) 10" Water Column (25mb)

W415-2360 / A / 10.31.19

general information

WARNING

• Always light the pilot - whether for the ﬁ rst time or if the gas supply has run out - with the glass door opened or

removed.

• Provide adequate clearance for servicing and operating the appliance.

• Provide adequate ventilation.

• Never obstruct the front opening of the appliance.

• Objects placed in front of the appliance must be kept a minimum of 48" (121.9cm) from the front face of the

appliance.

• Surfaces around and especially above the appliance can become hot. Avoid contact when appliance is

operating.

• Fire risk. Explosion hazard.

• Use only Wolf Steel approved optional accessories and replacement parts with this appliance. Using non-listed

accessories (i.e. blowers, louvres, trims, gas components, venting components, etc.) could result in a safety

hazard and will void the warranty and certiﬁ cation.

THIS GAS APPLIANCE MUST BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local

codes. Installation practices vary from region to region and it is important to know the speciﬁ cs that apply to your area, for

example in the state of Massachusetts:

• This product must be installed by a licensed plumber or gas ﬁ tter when installed within the commonwealth of

Massachusetts.

• The appliance damper must be removed or welded in the open position prior to installation of an appliance insert or gas

log.

• The appliance off valve must be a “T” handle gas cock.

• The ﬂ exible connector must not be longer than 36 inches (0.9m).

• A carbon monoxide detector is required in all rooms containing gas ﬁ red appliances.

• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed

combustion product.

The installation must conform with local codes or, in absence of local

codes, the National Gas and Propane Installation Code CSA B149.1

in Canada, or the National Fuel Gas Code, ANSI Z223.1 / NFPA 54

in the United States. Suitable for mobile home installation if installed

in accordance with the current standard CAN/CSA Z240MH Series,

for gas equipped mobile homes, in Canada or ANSI Z223.1 and

NFPA 54 in the United States.

The appliance and its individual shutoff valve must be disconnected

from the gas supply piping system during any pressure testing

of that system at test pressures in excess of 1/2 psig (35 mb).

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any

pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (35 mb). When installed

with a blower or fan, the junction box must be electrically connected and grounded in accordance with local codes. In the

absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI / NFPA 70 National

Electric Code in the United States. In the case where the blower is equipped with a power cord, it must be connected into a

properly grounded receptacle. The grounding prong must not be removed from the cord plug.

The following does not apply to inserts; as long as the required clearance to combustibles is maintained, the most desirable

and beneﬁ cial location for an appliance is in the center of a building, thereby allowing the most efﬁ cient use of the heat

created. The location of windows, doors and, the trafﬁ c ﬂ ow in the room where the appliance is to be located should be

considered. If possible, you should choose a location where the vent will pass through the house without cutting a ﬂ oor or

roof joist. If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood ﬂ ooring, the

appliance shall be installed on a metal or wood panel extending the full width and depth, unless otherwise tested.

We suggest that our gas

hearth products be installed

and serviced by professionals

who are certied in the U.S.

by the National Fireplace

Institute

(NFI) as NFI Gas

Specialists

www.ncertied.org

1.2 general instructions

W415-2360 / A / 10.31.19

general information

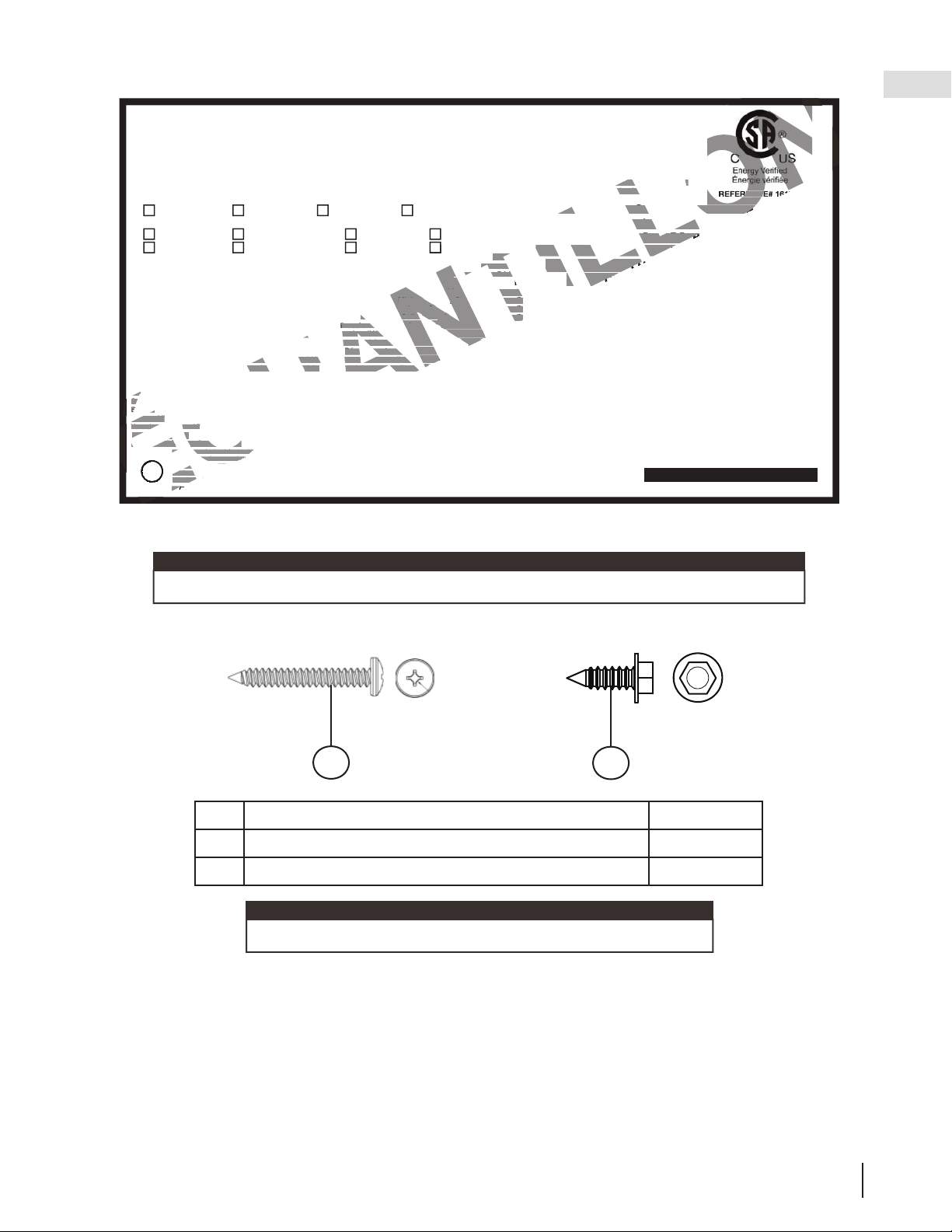

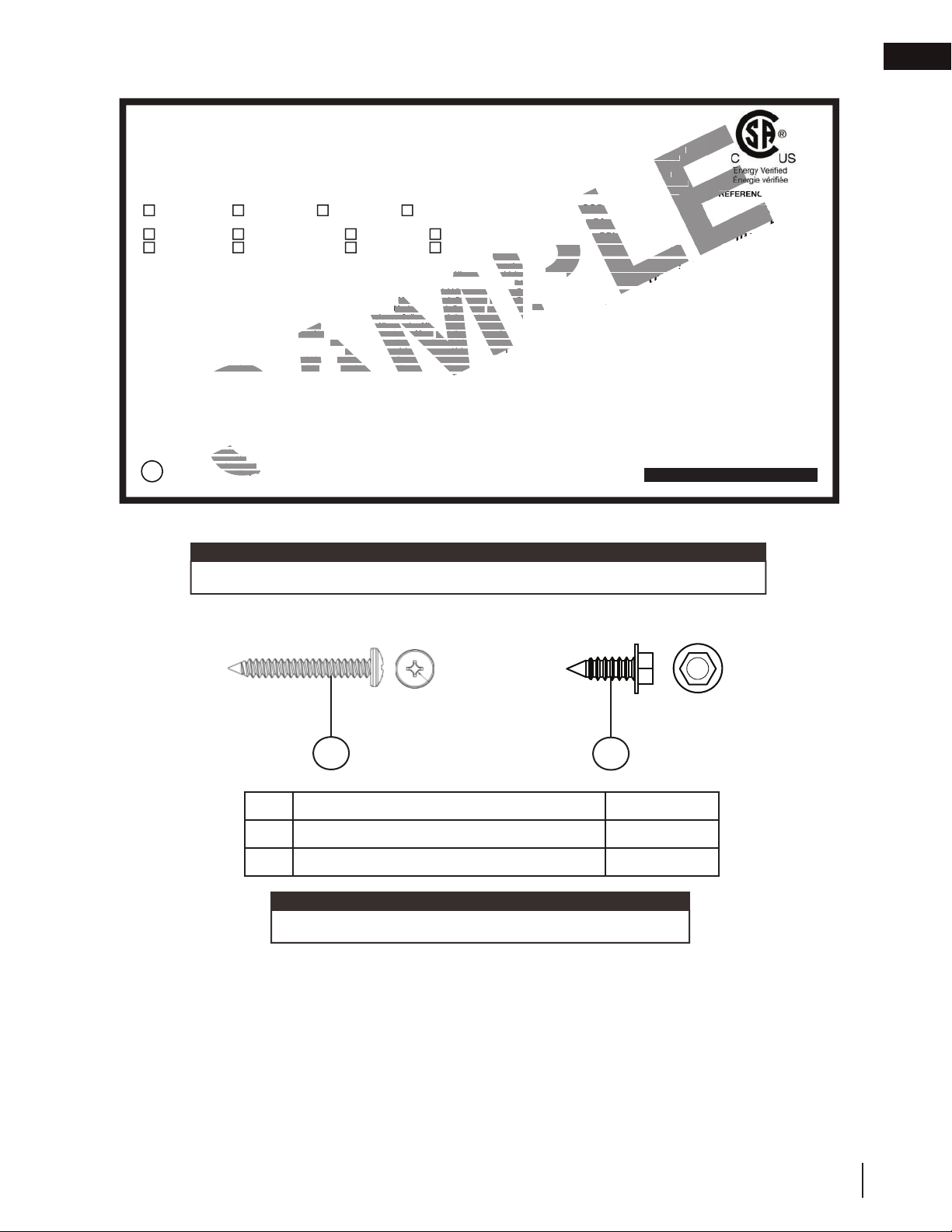

1.3 rating plate information

This illustration is for illustrative purposes only. Refer to the rating plate on the appliance for accurate information.

This rating plate must remain with the appliance at all times. It must not be removed.

note:

1.4 hardware list

Ref. Description Quantity

1 1 3/4" self tapping screw 4

2 1/4" hex, 1/2" long sheet metal screw 3

Only fasteners supplied with the appliance will be illustrated.

note:

Certiﬁed to Canadian and American National Standards: CSA 2.22-XXXX / ANSI Z21.50-XXXX for Vented Decorative Gas Appliances

Certiﬁé selon les normes Nationales Canadiennes et Américaines: CSA 2.22-XXXX / ANSI Z21.50-XXXX pour les Appareils à gaz décoratif à évacuation

Direct vent, vented gas ﬁreplaces. Approved for bedroom, bathroom and bed-sitting room installation. Suitable for mobile home installation, if installed in accordance with the current

standard CAN / CSA Z240MH Series gas equipped mobile homes in Canada, or, in the United States, the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part

3280. When this US Standard is not applicable, use the Standard for Fire Safety Criteria for Manufactured Home Installations, Sites and Communities, ANSI / NFPA 501A. This appliance

must be installed in accordance with local codes, if any; if none, follow the current ANSI Z223.1 or CSA B149. For use with barrier WXXX-XXXX. Follow installation instructions.

Foyer à gaz ventilé. Homologué pour installation dans une chambre à coucher, une salle de bain et un studio. Approprié pour installation dans une maison mobile si son installation

conforme aux exigences de la norme CAN / CSA Z240MH Séries de maisons mobile équipées au gaz en vigueur au Canada, ou, aux États-Unis selon la norme 24 CFR, Part 3280,

Manufactured Home Construction and Safety Standard. Dans le cas ou cette norme d’États-Unis n’est pas pertinentes, utiliser la norme NFPA 501A, Fire Safety Criteria for Manufactured

Home Installations, Sites and Communities. Installer l’appareil selon les codes ou règlements locaux ou, en l’absence de tels règlements, selon les codes d’installation ANSI Z223.1 ou

CSA B149 en vigueur. Utiliser uniquement avec l’écran WXXX-XXXX. Suivre les instructions d’installation.

9700539 (WSL) 4001658 (NAC) 4001657 (NGZ) 4001659 (WUSA)

WOLF STEEL LTD. 24 Napoleon Road, Barrie, ON, L4M 0G8 Canada

XXXX XXXX XXXX XXXX

MODEL / MODÈLE

Altitude

Input

Reduced Input

Élévation

Alimentation

Alimentation Réduite

Manifold Pressure: 3.5” w.c. (NG)

Minimum Supply Pressure: 4.5” w.c. (NG)

Maximum Supply Pressure: 7”* w.c. (NG)

Pression au Collecteur: 3,5” d’une colonne d’eau (GN)

Pression d’Alimentation Min.: 4,5” d’une colonne d’eau (GN)

Pression d’Alimentation Max.: 7” ** d’une colonne d’eau (GN)

** Maximum inlet pressure not to exceed 13”.

Manifold Pressure: 10” w.c. (P)

Minimum Supply Pressure: 11” w.c. (P)

Maximum Supply Pressure: 13”* w.c. (P)

Pression au Collecteur: 10” d’une colonne d’eau (P)

Pression d’Alimentation Min.: 11” d’une colonne d’eau (P)

Pression d’Alimentation Max.: 13” * d’une colonne d’eau (P)

** Pression d’alimentation maximale ne devait pas dépasser 13”.

0-XXXXft (0-XXXXm)

Minimum clearance to combustible materials:

Top, sides & back: per standoff spacers for framing and ﬁnishing

materials. For non-combustible framing and ﬁnishing materials,

see installation manual.

Top X”

Floor X”

Sides X”

Back X”

Vent top X”

Vent sides & bottom X”

Recessed depth X”

*** Mantel X” from appliance opening

Dégagements minimaux des matériaux combustibles:

Dessus, côtés et arrière: selon les espaceurs de dégagements

pour les matériaux d’ossature selon le manuel du propriétaire

pour les matériaux de ﬁnition.

Dessus X”

Plancher X“

Côtés X”

Arrière X“

Dessus du conduit d’évent X”

Côtés et dessous du conduit d’évent X”

Profondeur d’encastré une face X”

*** Tablette X” de l’ouverture de l’appareil

WARNING: Do not add any material to the appliance which will come in contact with the

ﬂames, other than that supplied by the manufacturer with the appliance.

AVERTISSEMENT: N’ajoutez pas à cet appareil aucun matériau devant entretien

contact avec les ﬂammes autre que celui qui est fourni avec cet appareil par le fabricant.

*** Maximum horizontal extension:

X”. See installation manual for

greater extensions, minimum vent

lengths and maximum vent lengths.

*** L’extension horizontale maximale: X”.

Référez au manuel d’installation pour des

extensions plus grandes, les longueurs

d’évacuation minimaux et maximum.

The appliance must be vented using the appropriate Napoleon vent kits. See installation

manual for venting speciﬁcations. Proper reinstallation and resealing is necessary after servicing

the vent-air intake system.

L’appareil doit être ventilé à l’aide de l’ensemble d’évacuation propre à Napoleon. Référez au

manuel d’installation pour les spéciﬁcations d’évacuation. Il est nécessaire de bien réinstaller et

resceller l’évacuation après avoir executer l’entretien du système de prise d’air.

Serial Number / N° de Série:

W385-XXXX

REFERENCE# 161746

XXXX

VENTED DECORATIVE GAS APPLIANCE: NOT A SOURCE OF

HEAT, NOT INTENDED FOR USE AS A HEATING

APPLIANCE, NOT FOR USE WITH SOLID FUEL.

APPAREIL À GAZ DÉCORATIF À ÉVACUATION: N’EST PAS

UNE SOURCE DE CHALEUR; N’EST PAS DESTINÉ À ÈTRE

UTILISÉ COMME UN APPAREIL DE CHAUFFAGE; NE

CONVIENT PAS AUX COMBUSTIBLES SOLIDES.

FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APPLIANCE ONLY.

POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE

CERTIFIÉES AVEC L’APPAREIL.

XX,XXX XX,XXX

For natural gas when equipped with No. XX drill size oriﬁce.

For propane when equipped with No. XX drill size oriﬁce.

Convient au gaz naturel quand l’appareil est muni d’un injecteur de diamètre no. XX.

Convient au propane quand l’appareil est muni d’un injecteur de diamètre no. XX.

Electrical rating: 115V, 60HZ. Less than 12 amperes.

Spéciﬁcations électriques: 115V, 60HZ. Moins de 12 ampère.

XX.X% XX.X%

XXXX XXXX XXXX XXXX

SAMPLE

ppliance pliance

structions.uctions.

on installation ation

24 CFR, Part 3280, 280,

Safety Criteria for Manufactured factured

odes d’installation ANSI Z223.1 ou des d’installation ANSI Z223.1 ou

Él

Élévation

lim

entation

Alim

n R

édu

eAlimentation Réduite

au (GN)u (GN)

ne d’eau (GN)eau (GN)

anifold

ressure:

ifold Pressure:

10” w.c.

(

)c. (P)

Minimum

upply Pressure:

Minimum Supply Pressure:

11” w.c.

(

)11” w.c. (P)

Maximum

upply Pressure:

Maximum Supply Pressure:

3”* w.c.

(

)13”* w.c. (P)

ression au

ollecteur:

ession au Collecte

10” d’une colonne d’eau

(

)0” d’une colonne d’eau (P)

ression d’Alimentation Min.:

d’Alimentation Min.

11” d’une colonne d’eau

(

)1” d’une colonne d’e

ression d’Alimentation Max.:

imentation Max.:

13” * d’une colonne d’eau

(

)13” * d’une colonne d’ea

** Pression d’alimentation maximale ne devait pas dépasser 13”.** Pression d’alimentation maximale ne devait pas dépasser 1

materials:

pacers for framing and ﬁnishing ﬁnishing

tible framing and ﬁnishing materials, tible framing and ﬁnishing materials,

X”

ance openingen

Dégagements minimaux des matériaux combustibleDégagements minimaux des matériaux combustib

Dessus, côtés et arrière: selon les espaceurs de dégagDessus, côtés et arrière: selon les espaceurs

pour les matériaux d’ossature selon le manuel dpour les matériaux d’ossature selon le manu

pour les mles

horizontal extension:rizontal extension:

ion manual forion manual for

ns, minimum vents, minimum vent

mum vent lengths.

m vent lengths.

ENTED DECORATIVE GAS APPLIANCE: NOT A SOECORATIVE GAS APPLIANCE: NOT A SO

HEAT, NOT INTENDED FOR USE AS A H

APPLIANCE, NOT FOR USE WITHAPPLIANCE, NOT FOR USE WITH

APPAREIL À GAZ DÉCORATIF À ÉVACUAPAREIL À GAZ DÉCORATIF À ÉVACU

UNE SOURCE DE CHALEUR; N’EUNE SOURCE DE CHALEUR; N

UTILISÉ COMME UN AUTILISÉ COMME UN

CONVIENTEN

FOR USE WITH GLAFOR

POUR

5V, 60HZ. Le

XXXX

W415-2360 / A / 10.31.19

general information

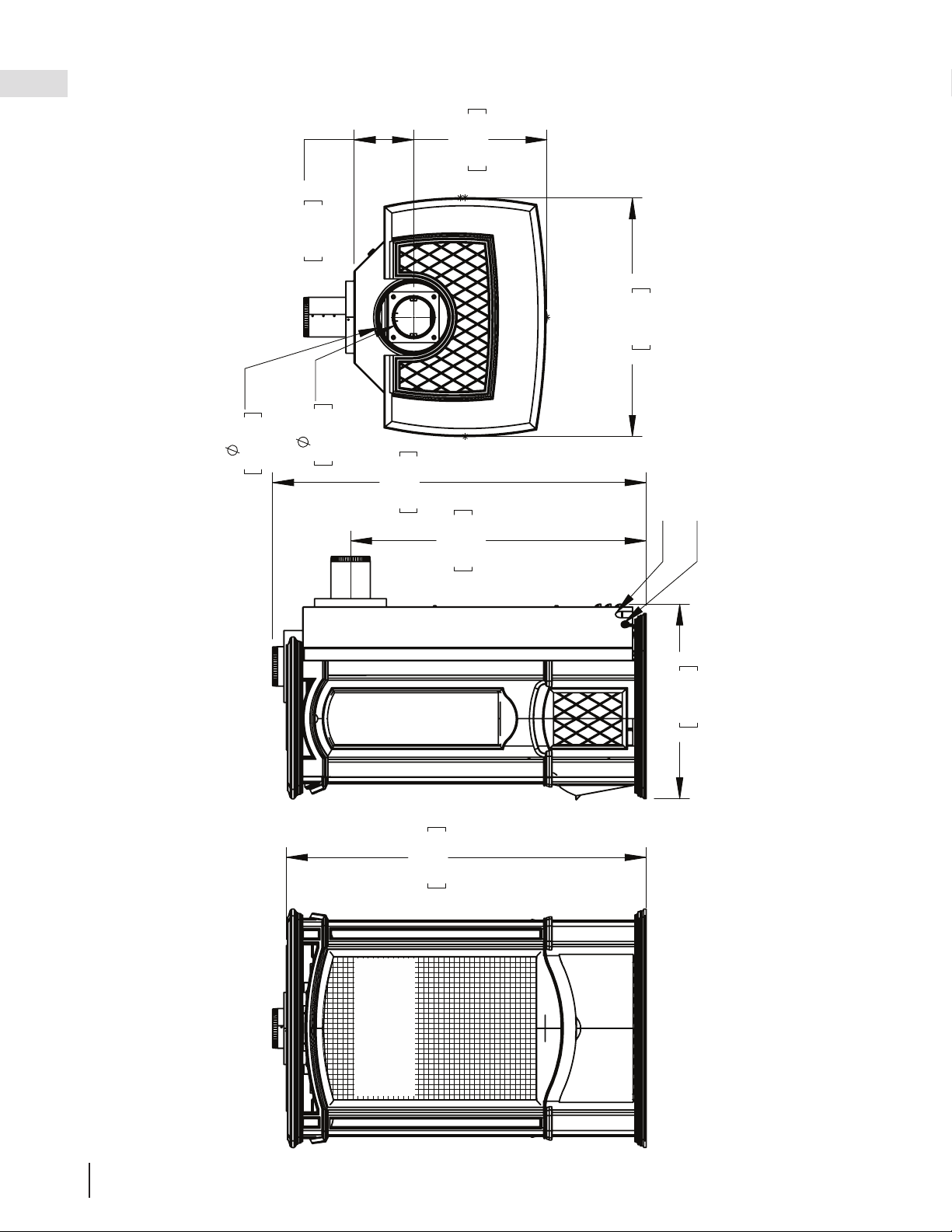

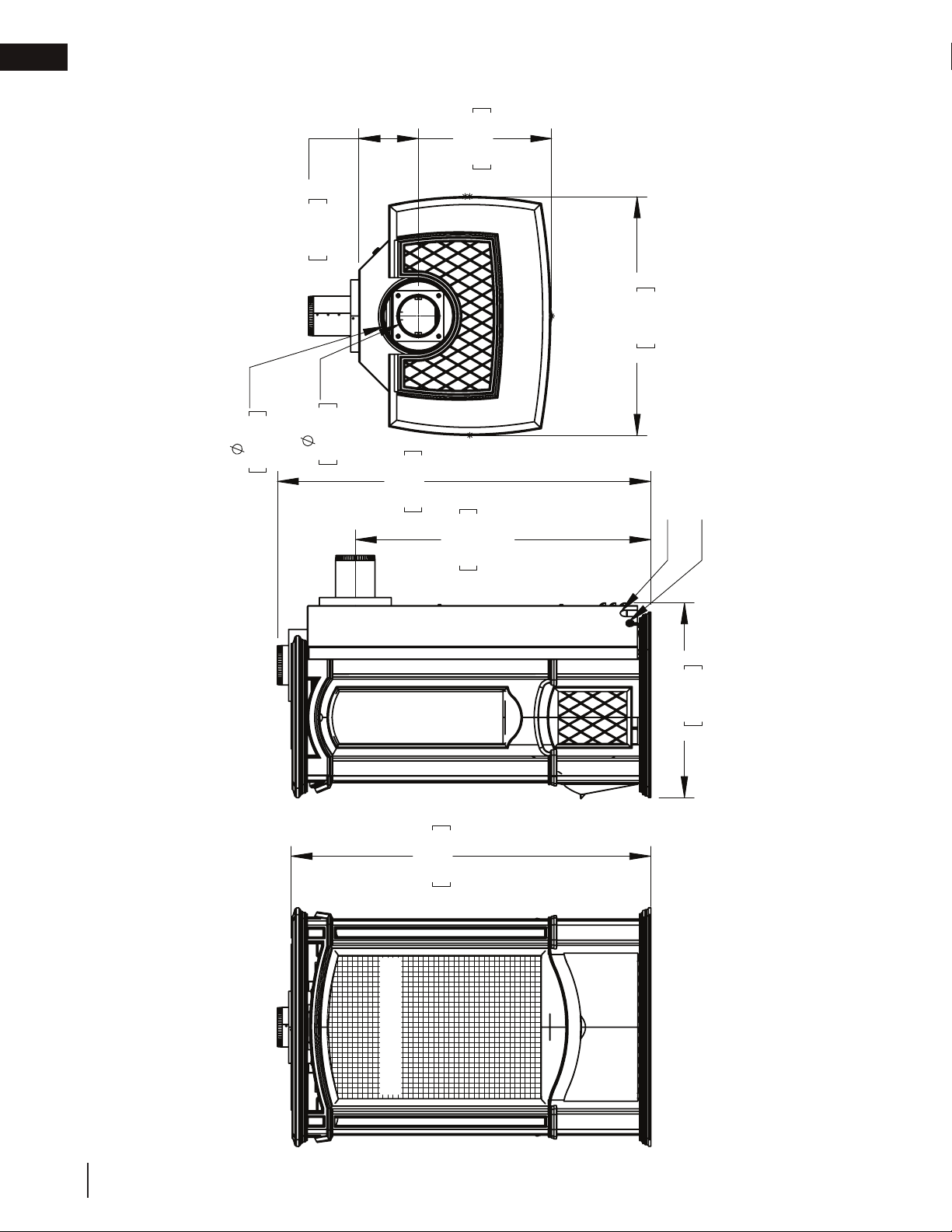

1.5 dimensions

35 1/2"

901mm

SAFETY BARRIER

19 3/16"

487mm

29 1/8"

740mm

(CENTRE OF

REAR VENT)

37"

935mm

GAS LINE ACESS

POWER CORD

102mm

178mm

5 7/8"

149mm

23 9/16"

598mm

19"

483mm

FRONT VIEW

SIDE VIEW

TOP VIEW

W415-2360 / A / 10.31.19

general information

1.6 mobile home installation

This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home

Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas

indicated on the rating plate.

This mobile/manufactured home listed appliance comes factory equipped with a means to secure the appliance. Built

in appliances are equipped with 1/4” (6.4mm) diameter holes located in the front left and right corners of the base.

Use appropriate fasteners, inserted through the holes in the base to secure. For free standing products contact your

local authorized dealer / distributor for the appropriate securing kit. For mobile home installations, the appliance must

be fastened in place. It is recommended that the appliance be secured in all installations. Always turn off the pilot and

the fuel supply at the source, prior to moving the mobile home. After moving the mobile home and prior to lighting the

appliance, ensure that the logs are positioned correctly.

This appliance is certiﬁ ed to be installed in an aftermarket permanently located, manufactured (mobile) home,

where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible

for use with other gases, unless a certiﬁ ed kit is used.

Conversion Kits

This appliance is ﬁ eld convertible between Natural Gas (NG) and Propane (P).

To convert from one gas to another, consult your Authorized dealer/distributor.

W415-2360 / A / 10.31.19

2.0 venting

WARNING

• Risk of ﬁ re. Maintain speciﬁ ed air space clearances to vent pipe and appliance.

• The vent system must be supported every 3’(0.9m) for both vertical and horizontal runs. Use support ring assembly W010-

0067 or equivalent non-combustible strapping to maintain the minimum clearance to combustibles for both vertical and

horizontal runs. Spacers are attached to the inner pipe at predetermined intervals to maintain an even air gap to the outer

pipe. This gap is required for safe operation. A spacer is required at the start, middle, and end of each elbow to ensure this

gap is maintained. These spaces must not be removed.

This appliance uses a 4” (102mm) exhaust / 7” (178mm) air intake vent pipe system. Refer to the section applicable

to your installation.

For safe and proper operation of the appliance, follow the venting instructions exactly. Deviation from the minimum vertical

vent length can create difﬁ culty in burner start-up and/or carboning. Under extreme vent conﬁ gurations, allow several minutes

(5-15) for the ﬂ ame to stabilize after ignition. Although not a requirement, it is recommended for vent lengths that pass through

unheated spaces (attics, garages, crawl spaces) be insulated with the insulation wrapped in a protective sleeve to minimize

condensation. Provide a means for visually checking the vent connection to the appliance after the appliance is installed. Use a

ﬁ restop, vent pipe shield or attic insulation shield when penetrating interior walls, ﬂ oor or ceiling.

The vent terminal may be painted with a high temperature paint to match exterior colours. Use an outdoor paint suitable for

400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot testing is recommended.

For vent systems that provide seals on the inner exhaust ﬂ ue, only the outer air intake joints must be sealed using a red high

temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer intake vent pipe joints of all

other approved vent systems except for the exhaust vent pipe connection to the appliance ﬂ ue collar which must be sealed

using the black high temperature sealant Mill Pac. High temperature sealant must be ordered separately.

For optimum ﬂ ame appearance and appliance performance, keep the vent length and number of elbows to a minimum.

The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify that

it is unobstructed and undamaged.

Rigid and ﬂ exible venting systems must not be combined. Different venting manufacturer components must not

be combined.

These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable horizontal run is 20

feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum number of vent connections is two

horizontally or three vertically (excluding the appliance and the air terminal connections) when using ﬂ exible venting.

Venting

System

Starter Adapter Part Number Supplier Website

Duravent W175-0053 Wolf Steel www.duravent.com

Amerivent 4DSC-N2 American Metal www.americanmetalproducts.com

Direct Temp 4DT-AAN Selkirk www.selkirkcorp.com

SureSeal 4DNA Metal-Fab www.mtlfab.com

Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab venting components.

Minimum and maximum vent lengths, for both horizontal and vertical installations, clearances from vent pipes to combustibles

and air terminal locations as set out in this manual apply to all vent systems and must be adhered to. For Simpson Dura-Vent,

Selkirk Direct Temp, American Metal Amerivent and Metal-Fab, follow the installation procedure provided with the venting

components or on the website for your venting supplier.

A starter adaptor must be used with the following vent systems and may be purchased from the corresponding supplier:

note:

If for any reason the vent air intake system is disassembled, re-install per the instructions provided for the initial installation.

This appliance must be installed with a continuous connection of exhaust and air intake vent pipes. Utilizing alternate

constructions such as a chimney as part of the vent system is not permitted.

This template must be used in conjunction with templates 7.1.1 or 7.1.2, depending on

termination shape (i.e. round, or round and square). See appropriate templates folder.

When using Wolf Steel venting components, use only approved Wolf Steel rigid / ﬂ exible components with the following ter-

mination kits: wall terminal kit GD-222, GD-222R, or 1/12 to 7/12 pitch roof terminal kit GD-110, 8/12 to 12/12 roof terminal

kit GD-111, ﬂ at roof terminal kit GD-112 or periscope kit GD-201 (for wall penetration below grade). With ﬂ exible venting, in

conjunction with the various terminations, use either the 5 foot (1.5m) vent kit GD-220 or the 10 foot (3.1m) vent kit GD-330.

For stoves only: wall terminal kit GD-175 (venting included).

W415-2360 / A / 10.31.19

venting

Horizontal runs may have a 0” rise per foot or 0mm rise per meter however for optimum performance it is recommended

that all horizontal runs have a minimum 1/4” rise per foot or 21mm rise per meter using ﬂ exible venting. For safe and proper

operation of the appliance, follow the venting instructions exactly.

A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings

and serves both dwellings. Local codes or regulations may require different clearances.

Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼” (31.8mm) air gap

all around between the inner liner and outer liner is required for safe operation.

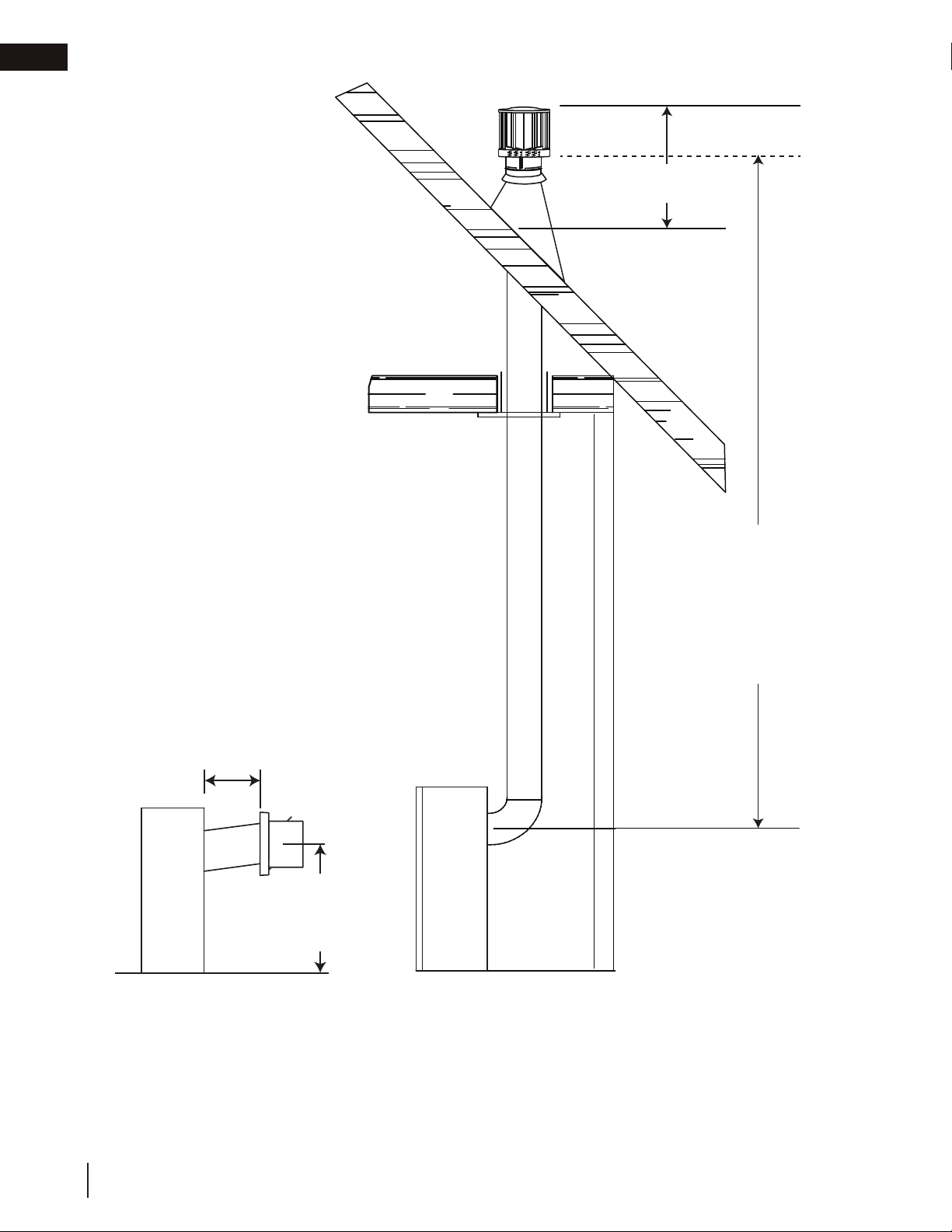

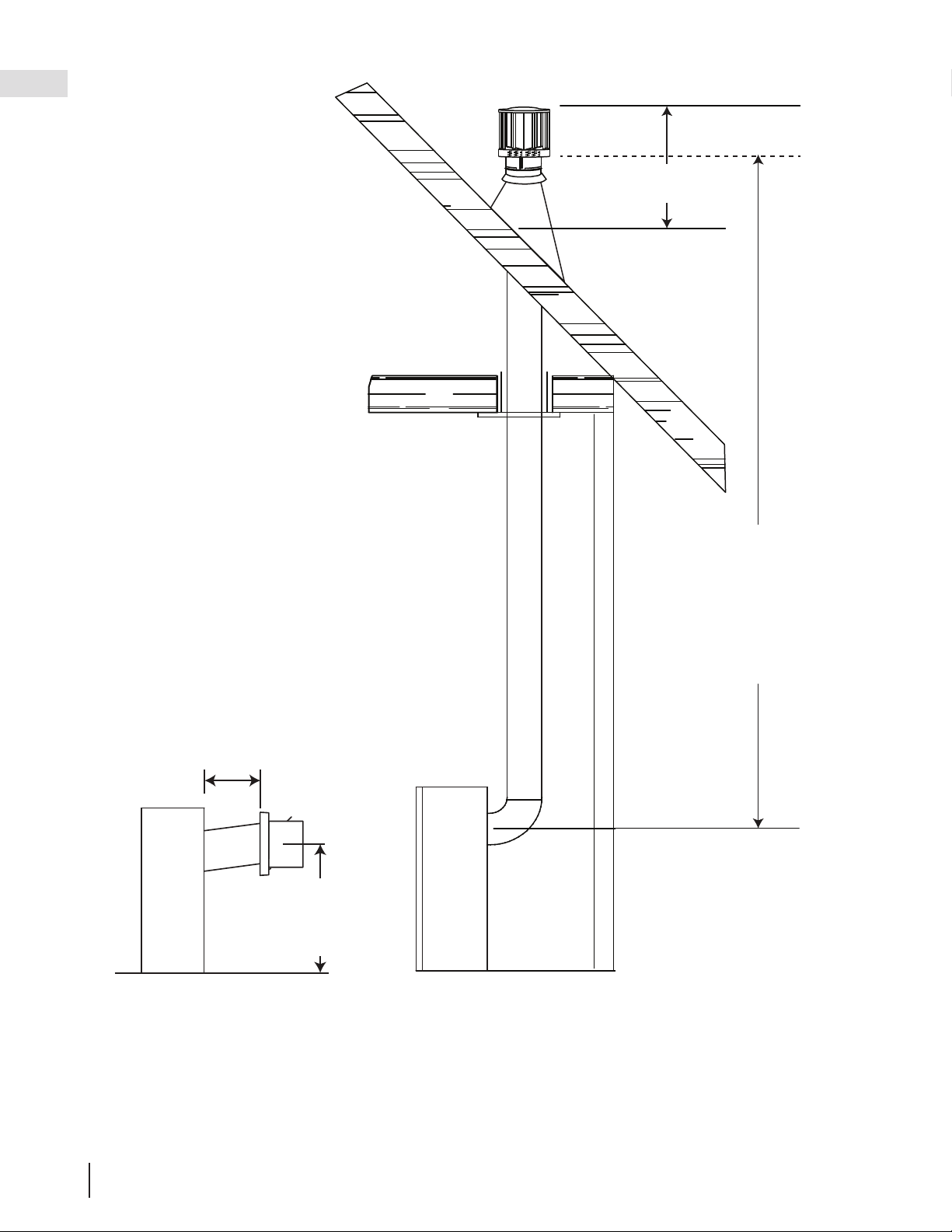

2.1 typical vent installation

16" (40.6cm)

MINIMUM

45 1/2"

(15.6cm)

MINIMUM

PLUS RISE*

10" (254mm)

MINIMUM

* See "venting" section.

40 FT

(12m)

MAXIMUM

3 FT

(1m)

MINIMUM

24" (61cm)

MAXIMUM

TOP VENT

For optimum performance it is recommended that horizontal runs have a minimum 1" (25mm) per rise per foot

when using Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent, or Wolf Steel rigid or ﬂ exible vent

components.

W415-2360 / A / 10.31.19

venting

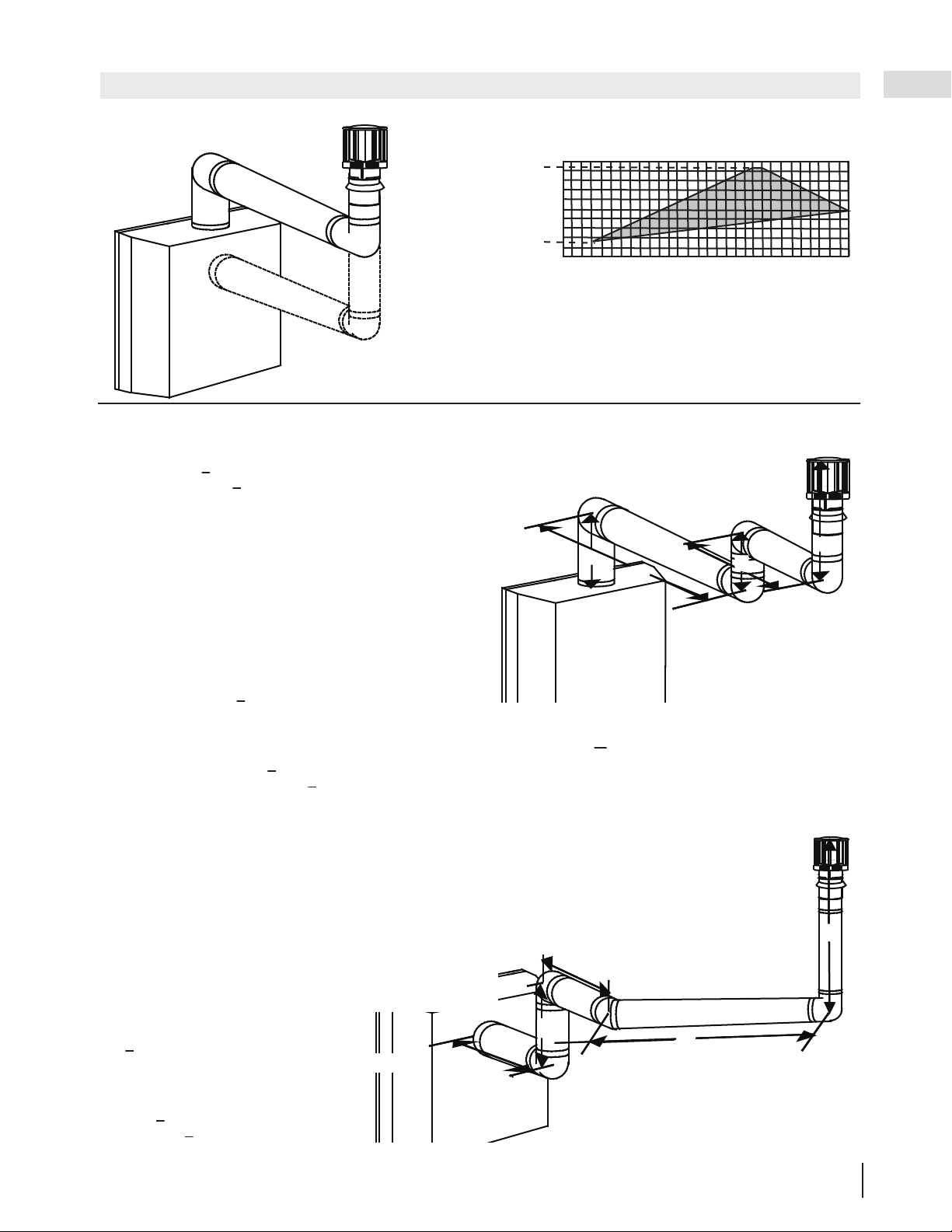

20" (50.8cm)

MAXIMUM

* See "VENTING" section

16" (40.6cm)

MINIMUM

40 FT

(12m)

MAXIMUM

3 FT

(1m)

MINIMUM

29 1/8"

(74cm)

MINIMUM

PLUS RISE*

REAR VENT

W415-2360 / A / 10.31.19

venting

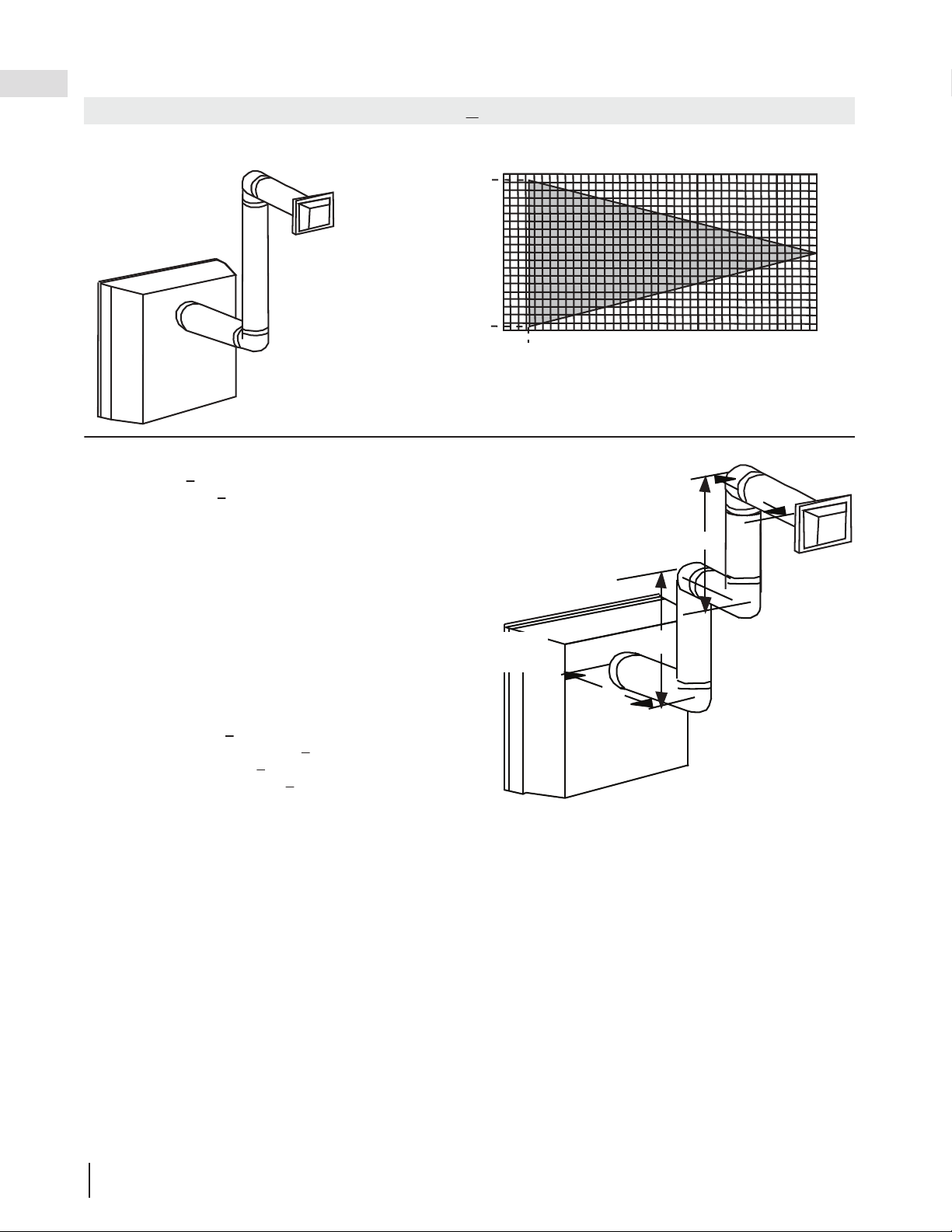

Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when

ﬁ nal grading is completed, the bottom air slot is located a minimum 12” (305mm) above grade. The maximum

allowable vent length (including both rise and run) is 10’ (3m) for a ﬁ replace and 8’ (2m) for a stove. An insulation

sleeve is illustrated in the top vent image below, use only when supplied with the appliance.

(The insulation sleeve is not required with a stove appliance)

TOP VENTREAR VENT

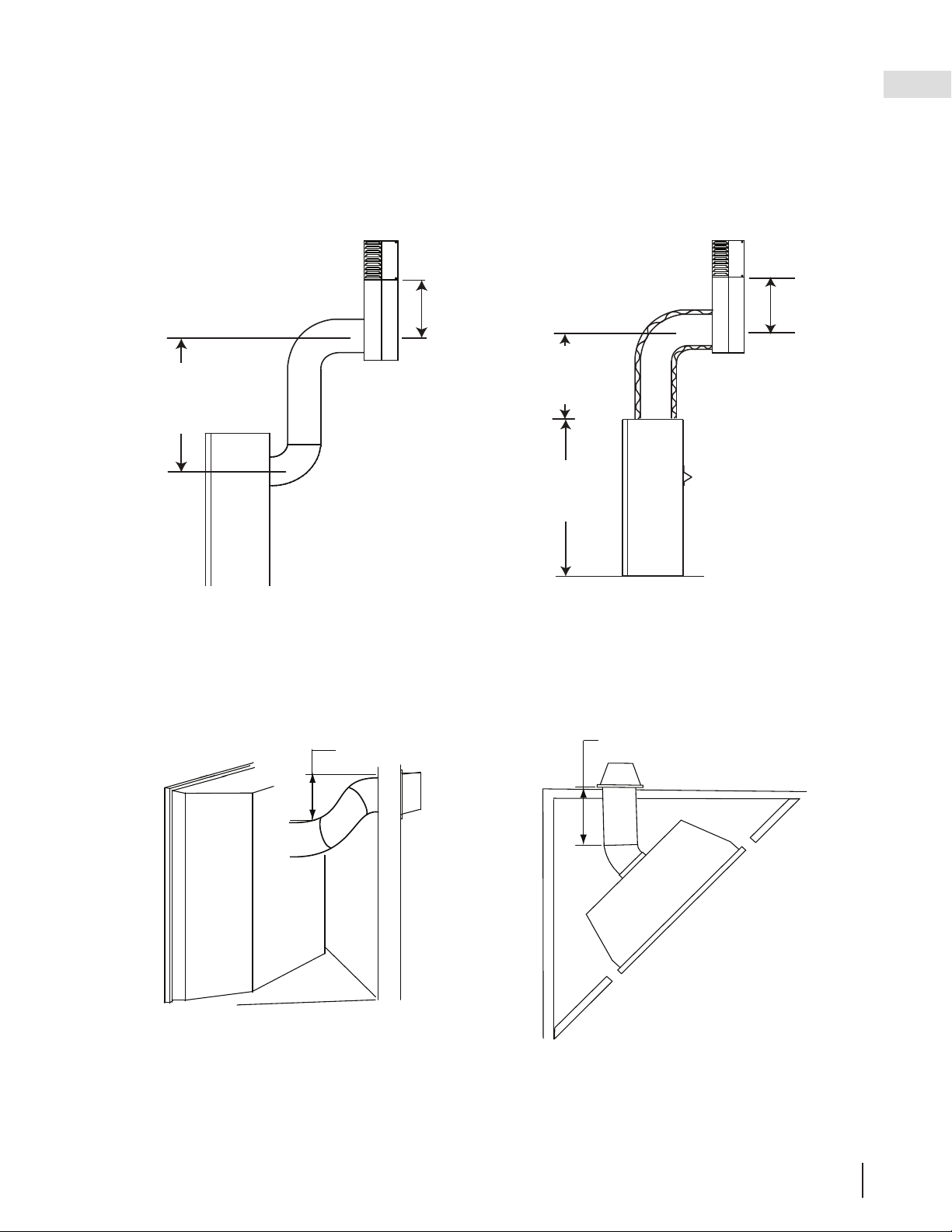

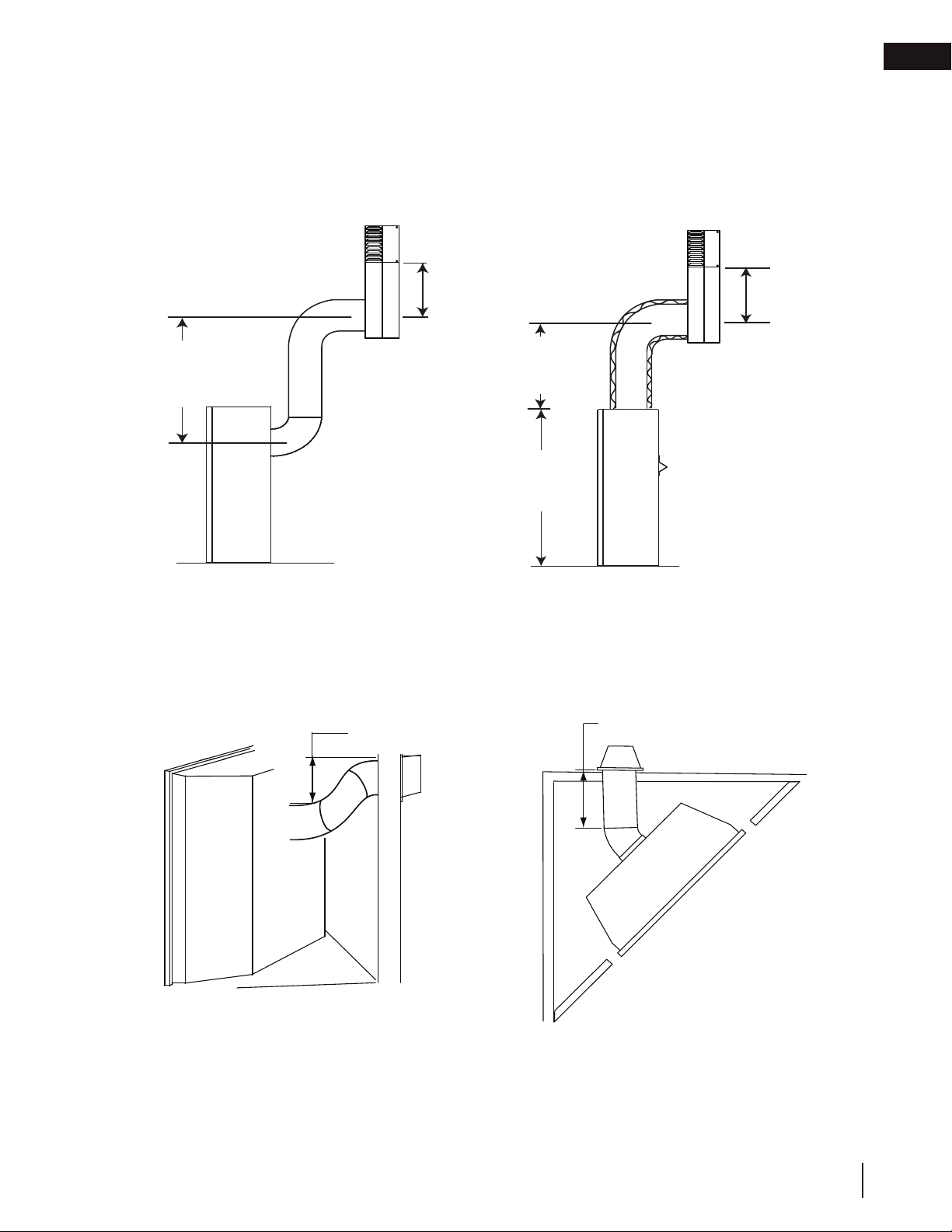

2.2 special vent installations

2.2.1 periscope termination

20" (50.8cm)

MAXIMUM

6” RISE

MINIMUM

2.2.2 corner termination

The maximum vent length for a corner installation is 20" (50.8cm) of horizontal run, in addition to the 45° offset.

In this case zero rise is acceptable. See illustrations below. It is recommended to maintain a 6" (152mm) rise (as

illustrated).

12"

(30.5cm) MIN

TO GRADE

24"

(61cm)

MINIMUM

12"

(30.5cm)

MIN TO

GRADE

35 1/2"

(90.2cm)

24" (61cm)

MINIMUM

W415-2360 / A / 10.31.19

venting

2.3 minimum air terminal location clearances

Covered balcony applications ††*

MIN

MAX

= 3 feet

(0.9m)

= 2 x

IHHW

(4.6m)

ACTUAL

INSTALLATIONS

CANADA U.S.A.

12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony.

12” (30.5cm)

9” (229mm)

Clearance to windows or doors that open.

12” (30.5cm)* 12” (30.5cm)* Clearance to permanently closed windows.

18”

(45.7cm)**

18”

(45.7cm)**

Vertical clearance to ventilated sofﬁ ts located above the terminal within a horizontal distance of 2’ (0.6m)

from the center line of the terminal.

12” (30.5cm)** 12” (30.5cm)** Clearance to unventilated sofﬁ t.

0” (0mm) 0” (0mm) Clearance to an outside corner wall.

0” (0mm)*** 0” (0mm)***

Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).

2” (51mm)*** 2” (51mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).

3’(0.9m) 3’(0.9m)****

Clearance to each side of the center line extended above the meter / regulator assembly to a maximum

vertical distance of 15’ (4.6m).

3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.

12” (30.5cm) 9” (229mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.

6’ (1.8m) 3’ (0.9m) † Clearance to a mechanical air supply inlet.

7’ (2.1m) ‡ 7’ (2.1m) **** Clearance above a paved sidewalk or paved driveway located on public property.

12” (30.5cm)†† 12” (30.5cm)**** Clearance under a veranda, porch or deck.

16” (40.6cm) 16” (40.6cm) Clearance above the roof.

2’ (0.6m)†* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.

8’ (2.4m) 8’ (2.4m)

Roof must be non-combustible without openings.

3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.

6’ (1.8m) 6’ (1.8m)

See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an opening

between the terminal and the open side of the structure.

12” (30.5cm) 12” (30.5cm) Clearance under a covered balcony

Δ The terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.

* Recommended to prevent condensation on windows and thermal breakage

** It is recommended to use a heat shield and to maximize the distance to vinyl clad sofﬁ ts.

*** The periscope requires a minimum 18 inches clearance from an inside corner.

**** This is a recommended distance. For additional requirements, check local codes.

† 3 feet above if within 10 feet horizontally.

‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.

†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the ﬂ oor.

†* Recommended to prevent recirculation of exhaust products. For additional requirements, check local codes.

††* Permitted only if the balcony is fully open on a minimum of one side.

Clearances are to be in accordance with local

installation codes and the requirements of the gas

supplier. In their absence, clearances are to be as

listed above and are based on national codes.

note:

Wall terminals are for illustration purposes only. Size and

shapes may vary.

W415-2360 / A / 10.31.19

venting

2.4 venting application ﬂ ow chart

2.5 deﬁ nitions

Top Exit

Horizontal Termination

Vertical rise is equal

to or greater than the

horizontal run

Vertical rise is equal

to or greater than the

horizontal run

Vertical rise is less

than horizontal run

Vertical rise is less

than horizontal run

Horizontal run +

vertical rise to

maximum of

24.75 feet (7.5m)

Horizontal run +

vertical rise to

maximum of

19 (5.8m)

4.2 times the vertical

rise equal to or

greater than the

horizontal run

3 times the vertical

rise equal to or

greater than the

horizontal run

Horizontal run +

vertical rise to

maximum of

40 feet (12.2m)

Horizontal run +

vertical rise to

maximum of

40 feet (12.2m)

Vertical Termination

REAR EXIT

Horizontal Termination

Vertical Termination

Vertical rise is equal

to or greater than

the horizontal run

Vertical rise is less

than horizontal run

Vertical rise is equal

to or greater than

the horizontal run

Vertical rise is less

than horizontal run

3.5 times the

vertical rise equal to

or greater than the

horizontal run

3 times the vertical

rise equal to or

greater than the

horizontal run

Horizontal run +

vertical rise to

maximum of

40 feet (12m)

Horizontal run +

vertical rise to

maximum of

24.75 feet (7.5m).

Horizontal run +

vertical rise to

maximum of

40 feet (12m)

Horizontal run +

vertical rise to

maximum of

40 feet (12m)

For the following symbols used in the venting calculations and

examples are:

> - greater than

> - equal to or greater than

< - less than

< - equal to or less than

- total of both horizontal vent lengths (Hr) and offsets (Ho) in feet

- combined horizontal vent lengths in feet

- offset factor: .03 (total degrees of offset - 90°*) in feet

- offset factor: .03 (total degrees of offset - 135°*) in feet

- combined vertical vent len

ths in feet

W415-2360 / A / 10.31.19

venting

2.6 elbow vent length values

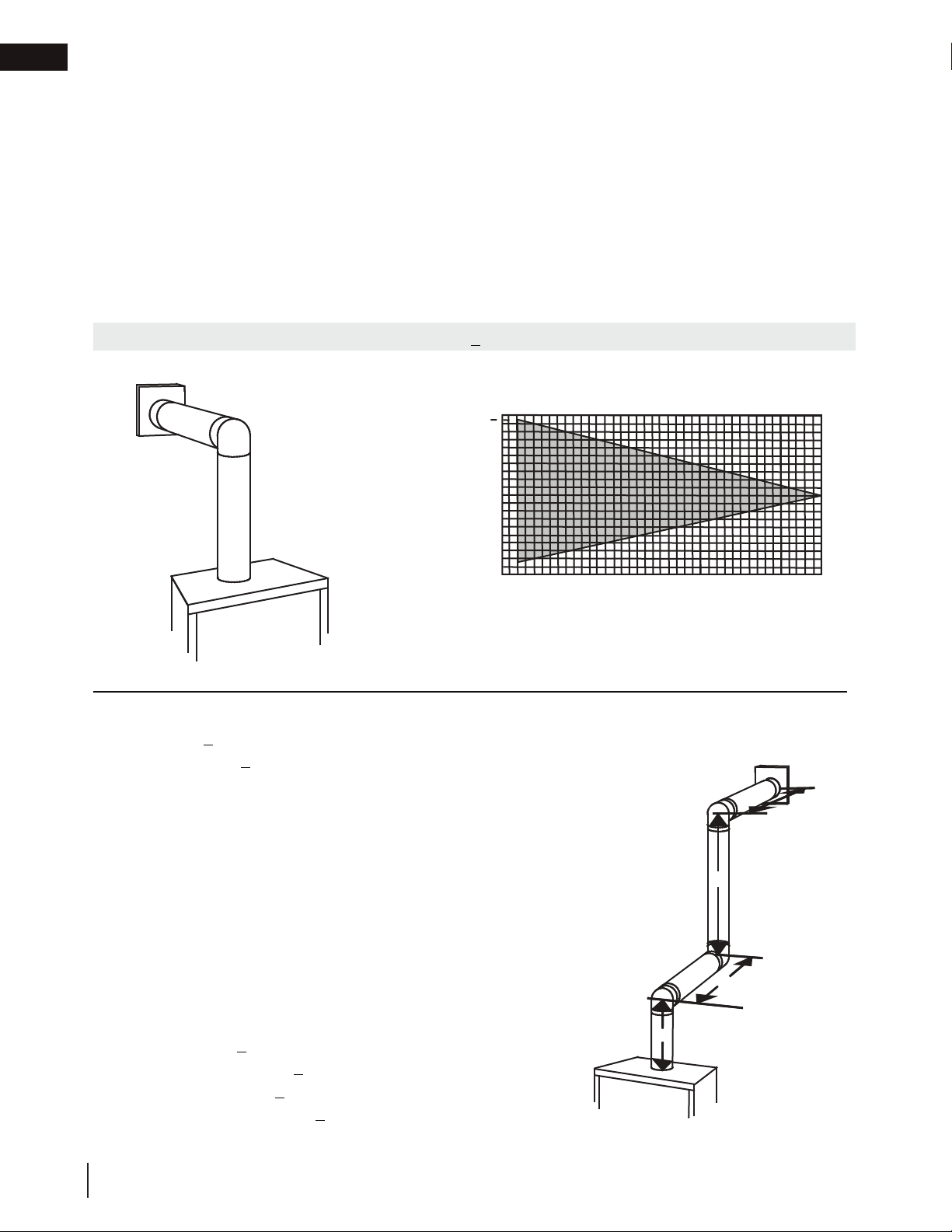

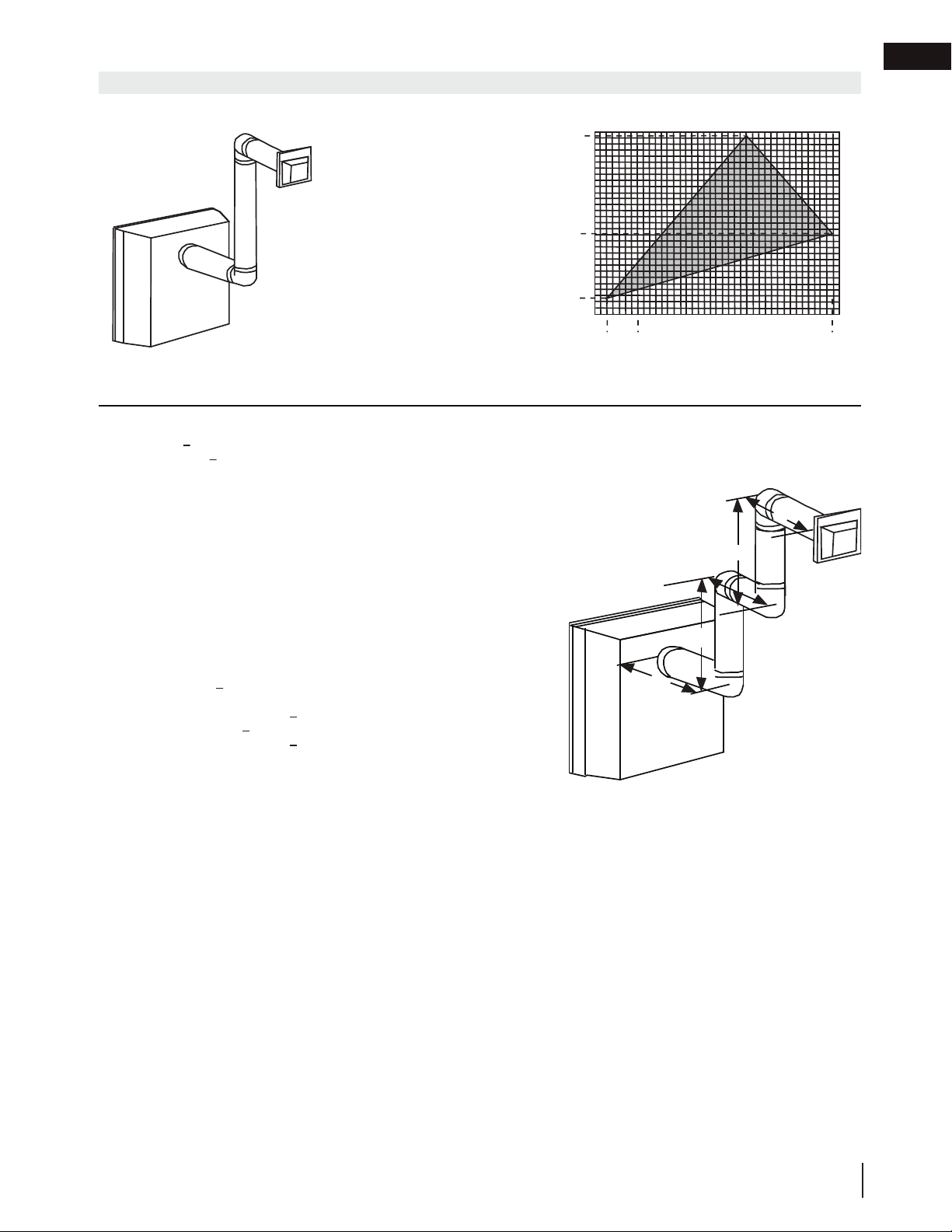

2.7 top exit horizontal termination

Feet Inches Millimeters

1° 0.03 0.5 12.7

15° 0.45 6.0 152.4

30° 0.9 11.0 279.4

45° 1.35 16.0 406.4

90°* 2.7 32.0 812.8

* The ﬁ rst 90° offset has a zero value and is shown in the formula as - 90°

* The ﬁ rst 45° and° offset have a zero value and is shown in the formula as -45° and -90° respectively

or -135° when combined (for 45° exit only).

Simple venting conﬁ guration (only one 90° elbow)

) < (V

)

For vent conﬁ gurations requiring more than one 90° elbow, the following formulas apply:

Formula 1: H

< V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 3 FT (0.9m)

= 8 FT (2.4m)

= V

+ V

= 3 FT (0.9m ) + 8 FT (2.4m) = 11 FT (3.4m)

= 2.5 FT (0.8m)

= 2 FT (0.6m)

= H

+ H

= 2.5 FT (0.8m) + 2 FT (0.6m) = 4.5 FT (1.4m)

= .03 (three 90° elbows - 90°) = .03 (270° - 90°) = 5.4 FT (1.7m)

= H

+ H

= 4.5 FT (1.4m) + 5.4 FT (1.6m) = 9.9 FT (3m)

+ V

= 9.9 FT (3m) + 11 FT (3.4m) = 20.9 FT (6.4m)

Formula 1: H

< V

9.9 FT (3m) < 11 FT (3.4m)

Formula 2: H

+ V

< 40 FT (12.2m)

20.9 FT (6.4m) < 40 FT (12.2m)

Since both formulas are met, this vent conﬁ guration is acceptable.

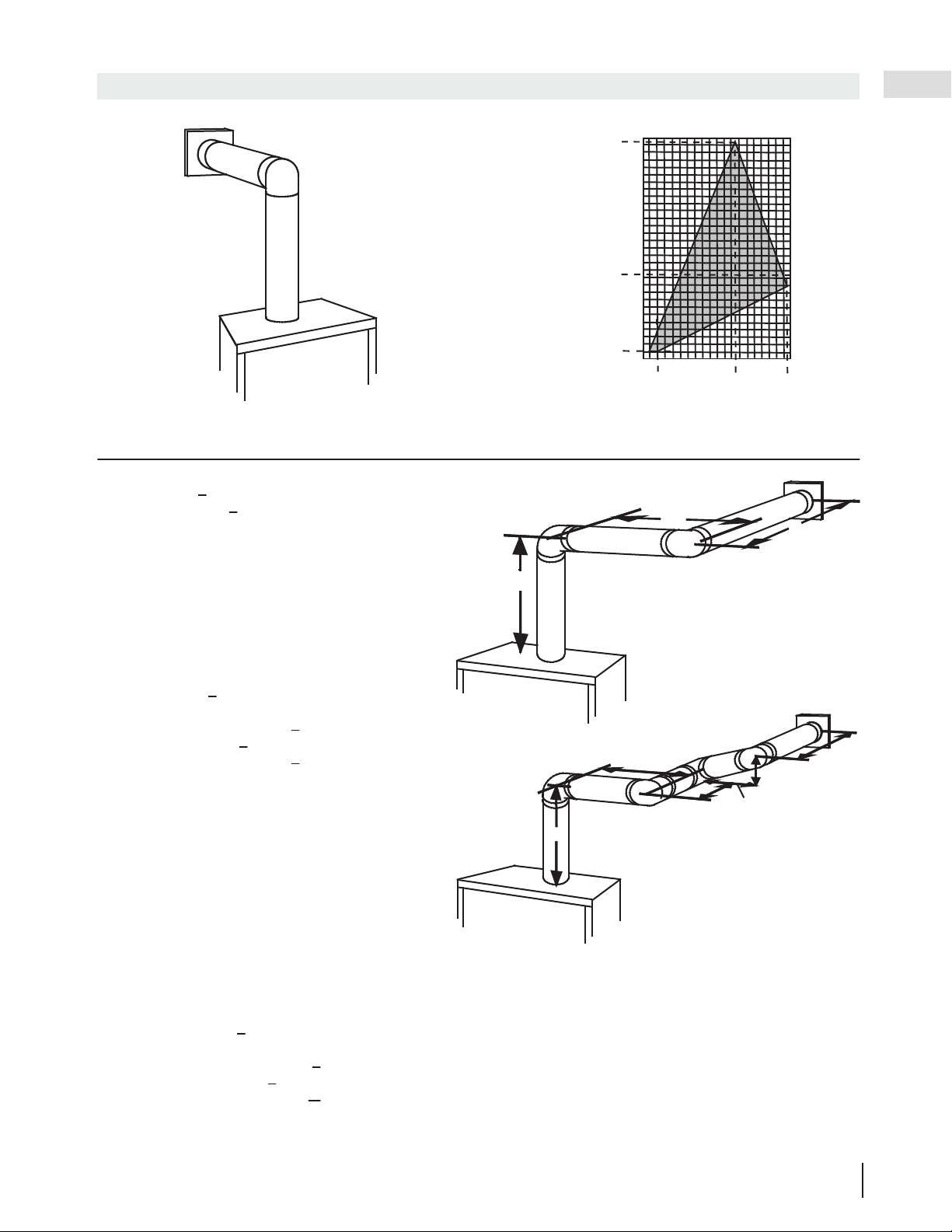

See graph to determine the required vertical

rise V

for the required horizontal run H

The shaded area within the lines represents

acceptable values for H

and V

2.5

(0.8)

(1.5)

7.5

(2.3)

(3.1)

12.5

(3.8)

(4.6)

40 (12.2)

10 (3.1)

20 (6.1)

30 (9.1)

17.5

(5.3)

(6.1)

39 (11.9)

REQUIRED

VERTICAL

RISE IN FEET

(METERS)V

HORIZONTAL VENT RUN PLUS OFFSET IN

FEET (METERS) H

90°

W415-2360 / A / 10.31.19

venting

) > (V

)

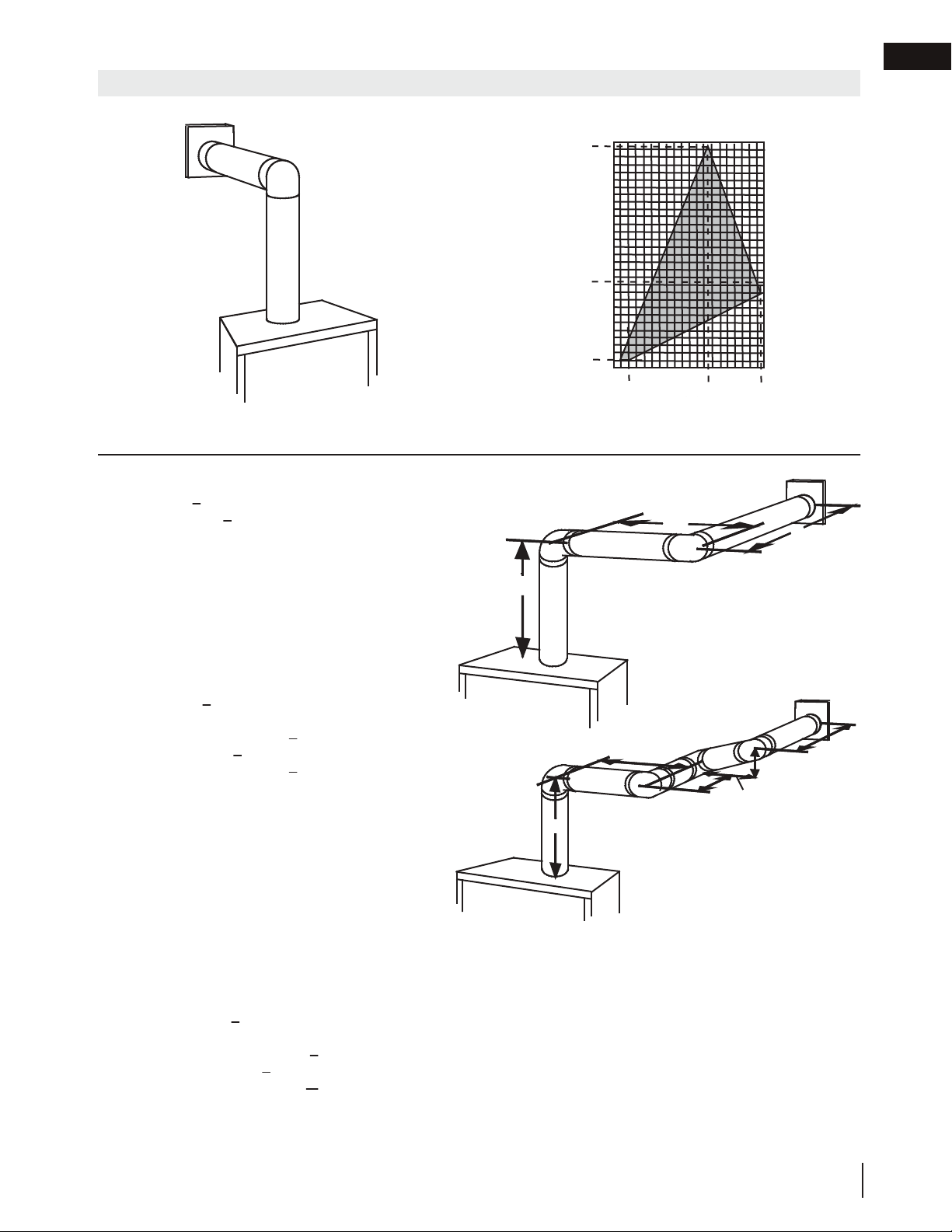

Simple venting configuration (only one 90° elbow)

See graph to determine the required vertical rise V

for the

required horizontal run H

REQUIRED

VERTICAL RISE

IN INCHES

(CENTIMETERS)

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

For vent configurations requiring more than one 90° elbow, the following formulas apply:

Formula 1:

< 4.2 V

Formula 2: H

+ V

< 24.75 feet (7.5m)

Example:

= V

= 6 FT (1.8m)

= 3 FT (0.9m)

= 5 FT (1.5m)

= H

+ H

= 3FT (0.9m) + 5FT (1.5m) = 8 FT (2.4m)

= .03 (two 90° elbows - 90°) = .03 (180° - 90°) = 2.7FT (0.8m)

= H

+ H

= 8FT (2.4m) + 2.7FT (0.8m) = 10.7FT (3.3m)

+ V

= 10.7FT (3.3m) + 6FT (1.8m) = 16.7FT (5.1m)

Formula 1: H

< 4.2 V

4.2 V

= 4.2FT (1.3m) x 6FT (1.8m) = 25.2FT (7.7m)

10.7FT (3.3m) < 25.2FT (7.7m)

Formula 2: H

+ V

< 24.75 FT (7.5m)

16.7FT (5.1m) < 24.75 (7.5m)

Since both formulas are met, this vent configuration is acceptable.

(1.5)

(4.6)

20 (6.1)

100 (254)

50 (127)

150 (381)

12.5

(3.8)

19 1/2

(49.5)

57 (144.8)

147

(373.4)

(0.6)

The shaded area within the lines represents acceptable

values for H

and V

90°

Example:

= 4 FT (1.2m)

= 1.5 FT (0.5m)

= V

+ V

= 4FT (1.2m) + 1.5FT (0.5m) = 5.5 FT (1.7m)

= 2 FT (0.6m)

= 1 FT (0.3m)

= 1.5 FT (0.5m)

= H

+ H

= 2FT (0.6m) + 1FT (0.3m) + 1FT (0.3m) + 1.5FT (0.5m) = 5.5 FT (1.7m)

= .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ H

= 5.5 FT (1.7m) + 8.1 FT (2.5m) = 13.6 FT (4.2m)

+ V

= 13.6 FT (4.2m) + 5.5 FT (1.7m) = 19.1 FT (5.8m)

Formula 1: H

< 4.2 V

4.2 V

= 4.2 FT (1.3m) x 5.5 FT(1.7m) = 23.1 FT (7m)

13.6 FT (4.2m) < 23.1 FT (7m)

Formula 2: H

+ V

< 24.75 FT (7.5m)

19.1FT (5.8m) < 24.75 FT (7.5m)

Since both formulas are met

this vent confi

uration is acce

table.

90°

(3.1)

19.5

(5.9)

(1.5)

(4.6)

20 (6.1)

Simple venting conf

12.5

(3.8)

10”

(0.6)

(3.1)

19.5

(5.9)

(25.4)

50 (127)

57 (144.8)

100 (254)

147

(373.4)

150 (381)

W415-2360 / A / 10.31.19

venting

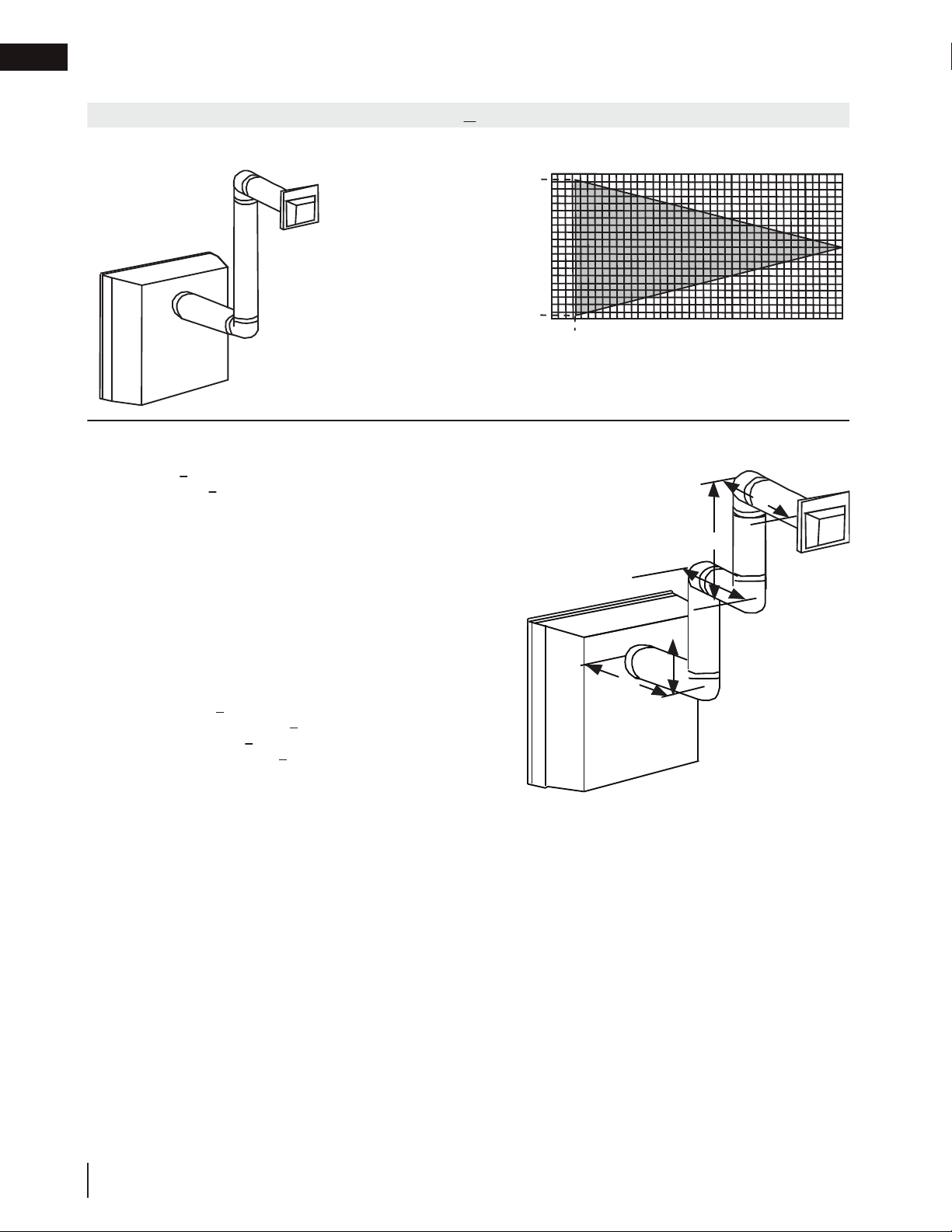

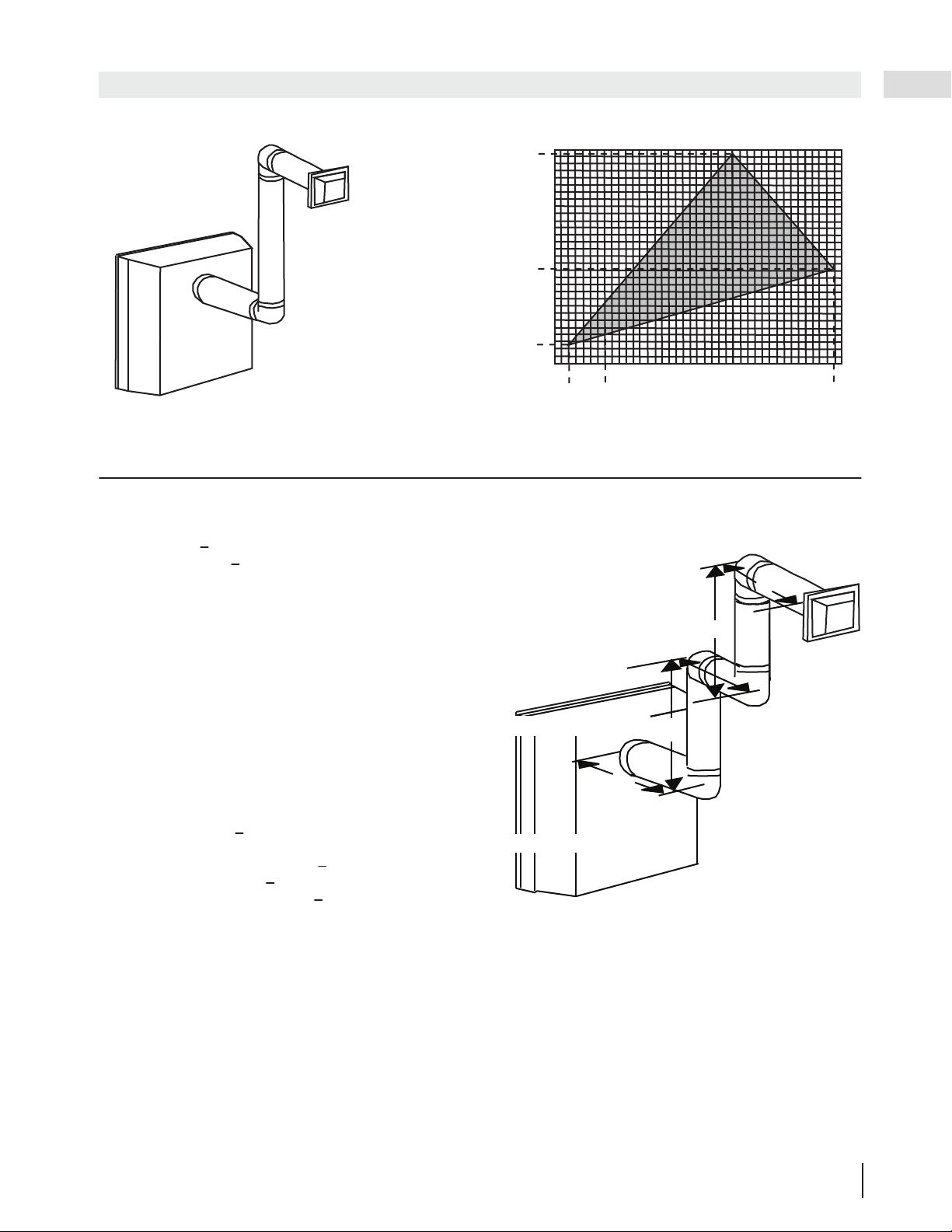

2.8 rear exit horizontal termination

2.5

(0.8)

(1.5)

7.5

(2.3)

(3.1)

12.5

(3.8)

(4.6)

40 (12.2)

10 (3.1)

20 (6.1)

30 (9.1)

17.5

(5.3)

(6.1)

1.6

(0.5)

1.6 (0.5)

38.3 (11.7)

90°

Simple venting configuration

(only two 90° elbows)

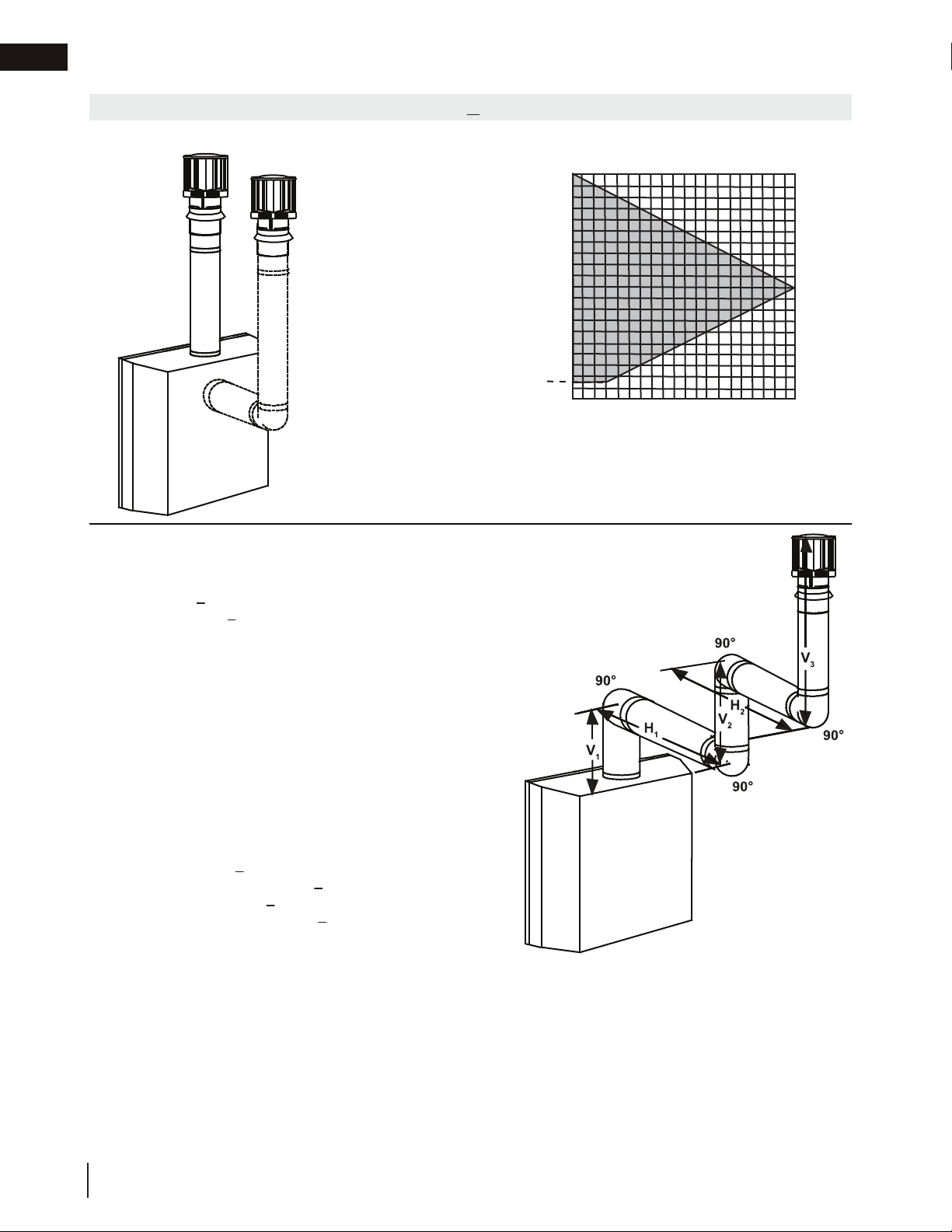

See graph to determine the required vertical rise V

for the required

horizontal run H

REQUIRED

VERTICAL

RISE IN

FEET

(METERS) V

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

The shaded area within the lines represents acceptable values for H

and H

) < (V

)

For vent configurations requiring more than two 90° elbows, the following formulas apply:

Formula 1: H

< V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 9 FT (2.7m)

= 6 FT (1.8m)

= V

+ V

= 9FT (2.7m) + 6FT (1.8m) = 15FT (4.6m)

= 3 FT (0.9m)

= 2 FT (0.6m)

= 1.5 FT (0.5m)

= H

+ H

= 3FT (0.9m) + 2FT (0.6m) + 1.5FT (0.5m) = 6.5FT (2m)

= .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ H

= 6.5FT (2m) + 8.1FT (2.5m) = 14.6FT (4.5m)

+ V

= 14.6FT (4.5m) + 15FT (4.6m) = 29.6 FT (9m)

Formula 1: H

< V

14.6 FT (4.5m) < 15 FT (4.6m)

Formula 2: H

+ V

< 40 FT (12.2m)

29.6 FT (9m) < 40 FT (12.2m)

Since both formulas are met, this vent configuration is acceptable.

W415-2360 / A / 10.31.19

venting

Simple venting configuration

(only two 90° elbows)

See graph to determine the required vertical rise V

for the

required horizontal run H

REQUIRED

VERTICAL RISE IN

FEET

(METERS)V

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) H

The shaded area within the lines represents acceptable

values for H

and H

90°

) > (V

)

4.2 (1.3)

8.3 (2.54)

12.5 (3.8)

2.5

(0.8)

(1.5)

7.5

(2.3)

(3.1)

12.5

(3.8)

(4.6)

17.5

(5.3)

(6.1)

12.25 (3.7)

(0.3)

5.5

(1.68)

(0.3)

3.5

(1.1)

19.25

(5.9)

For vent configurations requiring more than two 90° elbows, the following formulas apply:

Formula 1: H

< 3.5V

Formula 2: H

+ V

< 24.75 feet (7.5m)

Example:

= 4 FT (1.2m)

= 1.5 FT (0.5m)

= V

+ V

= 4FT (1.2m) + 1.5FT (0.5m) = 5.5 FT (1.7m)

= 2 FT (0.6m)

= 1 FT (0.3m)

= 1.5 FT (0.5m)

= H

+ H

= 2FT(0.6m) + 1FT(0.3m) + 1FT(0.3m) + 1.5FT(0.5m) = 5.5 FT(1.7m)

= .03 (four 90° elbows + one 45° elbow - 90°)

= .03 (90 + 90 + 90 + 90 + 45 - 90) = 9.45 FT (2.9m)

= H

+ H

= 5.5FT (1.7m) + 9.45FT (2.9m) = 14.95FT (4.6m)

+ V

= 14.95FT (4.6m) + 5.5FT (1.7m) = 20.45FT (6.2m)

Formula 1: H

< 3.5V

3.5V

= 3.5FT (1.1m) x 5.5FT (1.7m) = 19.25FT (5.9m)

14.95 FT (4.6m) < 19.25 FT (5.9m)

Formula 2: H

+ V

< 24.75 FT (7.5m)

20.45 FT (6.2m) < 24.75 FT (7.5m)

Since both formulas are met, this vent configuration is acceptable.

W415-2360 / A / 10.31.19

venting

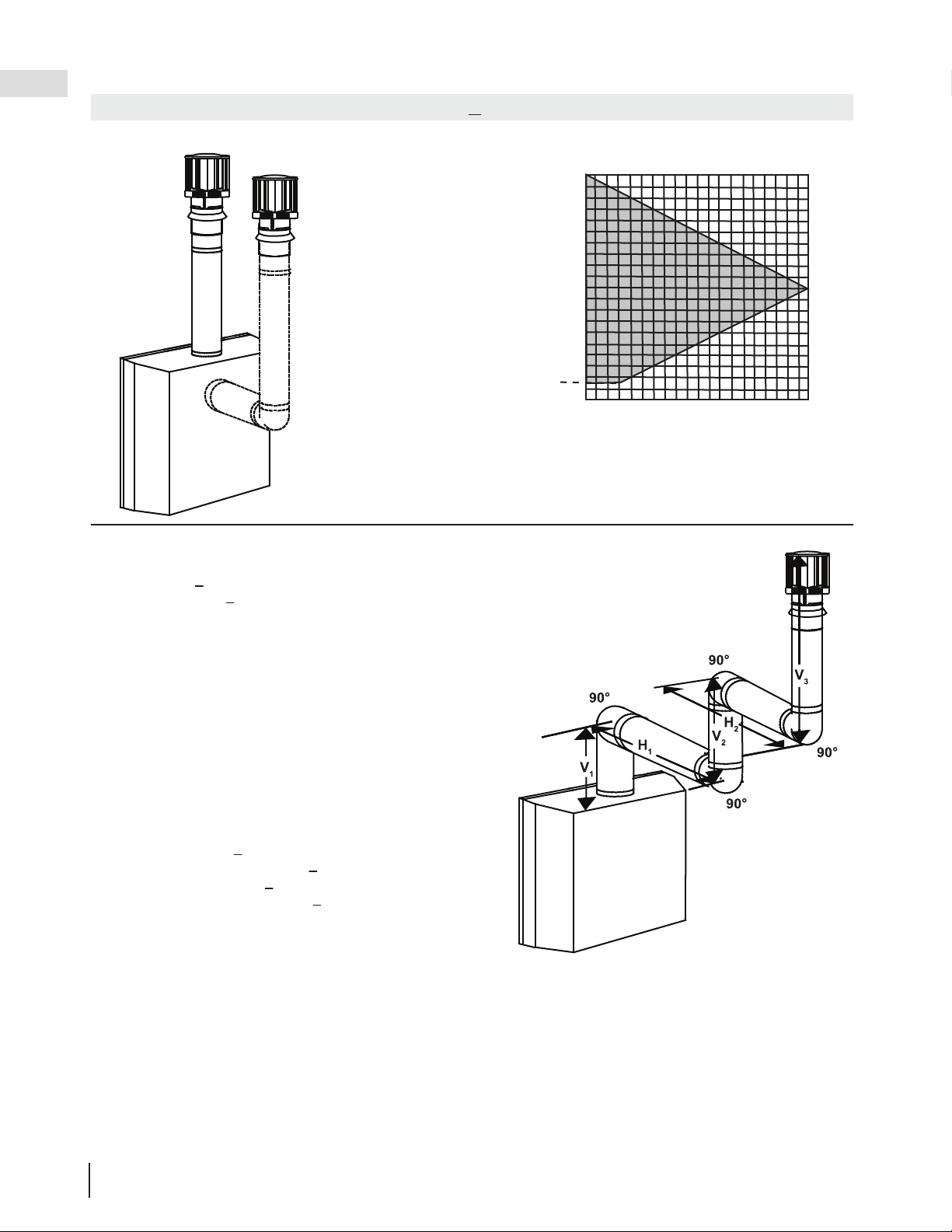

2.9 top or rear exit vertical termination

Simple venting configurations.

See graph to determine the required vertical rise V

for the

required horizontal run H

REQUIRED

VERTICAL RISE

IN FEET

(METERS)V

HORIZONTAL VENT RUN PLUS OFFSET IN FEET

(METERS) H

The shaded area within the lines represents acceptable

values for H

and H

(1.5)

(3.1)

(4.6)

(6.1)

40 (12.2)

10 (3.1)

20 (6.1)

30 (9.1)

3 (0.9)

) < (V

)

For vent configurations requiring one or more 90° elbows (top exit) or one or more 90° elbows

(rear exit), the following formulas apply:

Formula 1: H

< V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 5 FT (1.5m)

= 6 FT (1.8m)

= 10 FT (3.1m)

= V

+ V

= 5FT (1.5m) + 6FT (1.8m) + 10FT (3.1m) = 21 FT (6.4m)

= 8 FT (2.4m)

= 2.5 FT (0.8m)

= H

+ H

= 8FT (2.4m) + 2.5FT (0.8m) = 10.5FT (3.2m)

= .03 (four 90° elbows - 90°)

= .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ H

= 10.5FT (3.2m) + 8.1FT (2.5m) = 18.6FT (5.7m)

+ V

= 18.6FT (5.7m) + 21FT (6.4m) = 39.6FT (12.1m)

Formula 1: H

< 3.5V

18.6 FT (5.7m) < 21 FT (6.4m)

Formula 2: H

+ V

< 40 FT (12.2m)

39.6FT (12.1m) < 40 FT (12.2m)

Since both formulas are met, this vent configuration is acceptable.

W415-2360 / A / 10.31.19

venting

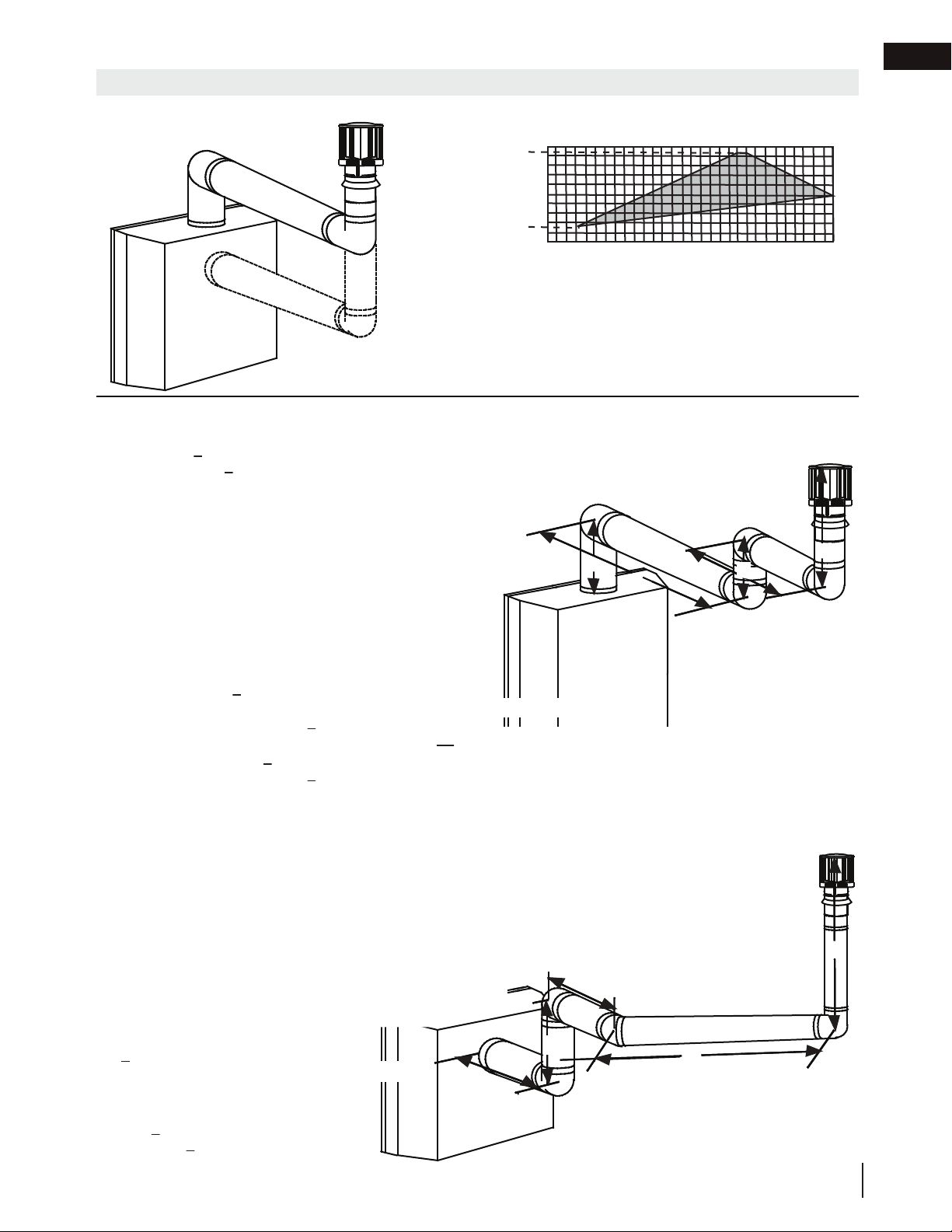

Simple venting configurations.

See graph to determine the required vertical rise V

for the

required horizontal run H

REQUIRED

VERTICAL

RISE IN

FEET

(METERS)V

HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS)H

The shaded area within the lines represents acceptable

values for H

and H

(1.5)

(3.1)

(4.6)

(6.1)

10 (3.1)

20 (6.1)

3 (0.9)

(7.6)

(9.1)

19 (5.8)

90°

) > (V

)

18 2 2B

For vent configurations requiring more than two 90° elbows (top exit) or one 90° elbow (rear exit), the following

formulas apply:

Formula 1: H

< 3 V

Formula 2: H

+ V

< 40 feet (12.2m)

Example:

= 2 FT (0.6m)

= 1 FT (0.3m)

= 1.5 FT (0.5m)

= V

+ V

= 2FT (0.6m) + 1FT (0.3m) + 1.5FT (0.5m) = 4.5 FT (1.4m)

= 6 FT (1.8m)

= 2 FT (0.6m)

= H

+ H

= 6FT (1.8m) + 2FT (0.6m) = 8 FT (2.4m)

= .03 (four 90° elbows - 90°)

= .03 (360° - 90°) = 8.1 FT (2.5m)

= H

+ H

= 8FT (2.4m) + 8.1FT (2.5m) = 16.1FT (4.9m)

+ V

= 16.1FT (4.9m) + 4.5FT (1.4m) = 20.6FT (6.3m)

Formula 1: H

< 3.5 V

3.5 V

= 3FT (0.9m) x 4.5FT (1.4m) = 13.5 FT (4.1m)

16.1FT (4.9m) < 13.5 FT (4.1m)

Since this formula is not met, this vent configuration is unacceptable.

Formula 2: H

+ V

< 40 FT (12.2m)

16.1FT (4.9m) < 13.5 (4.1m)

Since only formula 2 is met, this vent configuration is unacceptable and a new fireplace location or vent configuration will

need to be established to satisfy both formulas.

90°

45°

Example:

= 1.5 FT (0.5m)

= 5 FT (1.5m)

= V

+ V

= 1.5FT (0.5m)+ 5FT (1.5m) = 6.5 FT (2m)

= 1 FT (0.3m)

= 10.75 FT (3.3m)

= H

+ H

= 1FT (0.3m) + 1FT (0.3m) + 10.75FT (3.3m) = 12.75FT (3.9m)

= .03 (four 90° elbows + one 45° elbow - 90°)

= .03 (360° + 45° - 90°) = 6.75 FT (2.1m)

= H

+ H

= 12.75FT (3.9m) + 6.75FT (2.1m) = 19.5 FT (5.9m)

+ V

= 19.5FT (5.9m) + 6.5FT (2m) = 26 FT (7.9m)

Formula 1:

< 3 V

3 V

= 3FT (0.9m) x 6.5FT (2m) = 19.5FT (5.9m)

19.5FT (5.9m) = 19.5FT (5.9m)

Formula 2:

+ V

< 40 FT (12.2m)

26 FT (7.9m) < 40 FT (12.2m)

Since both formulas are met, this vent conﬁ

uration is acce

table.

W415-2360 / A / 10.31.19

venting

2.10 vertical through existing chimney

WARNING

• Risk of ﬁ re.

• Co-axial to co-linear venting conﬁ gurations must only be used in a non-combustible chimney or enclosure.

Installation in a combustible enclosure could result in a ﬁ re.

This appliance is designed to be attached to a 3” (76.2mm) co-linear aluminum ﬂ ex vent system running the full

length of a masonry chimney.

The ﬂ ex liners accommodate any contours of a

masonry chimney, however, it is necessary to keep

the ﬂ exible liners as straight as possible. The inlet

air collar of the termination cap must be connected

to the air intake ﬂ ex liner and the exhaust collar

must be connected to the exhaust ﬂ exible liner.

Both Simpson Duravent and Selkirk co-linear to

co-axial adaptors have been approved on this

appliance

Follow vent manufacturer’s installation instructions.

Different manufacturer’s venting

components must not be combined.

Once the preferred manufacturer’s

appliance adaptor has been attached, the

remainder of the system must be that of

the same manufacturer.

The only exception to this rule is to use

Wolf Steel’s approved 3” (76.2mm) ﬂ ex

liner and co-linear termination.

AIR

INTAKE

EXHAUST

FLUE

FLEX

LINER

* 40 FT (12.2m)

MAX.

10 FT (3.1m)

MIN

COAXIAL TO

CO-LINEAR

ADAPATOR

APPLIANCE

VENT ADAPTOR

TERMINATION

* Measured from appliance ﬂ ue collar

to termination ﬂ ue collar

note:

A vent adaptor will be required directly off the appliance.

W415-2360 / A / 10.31.19

venting

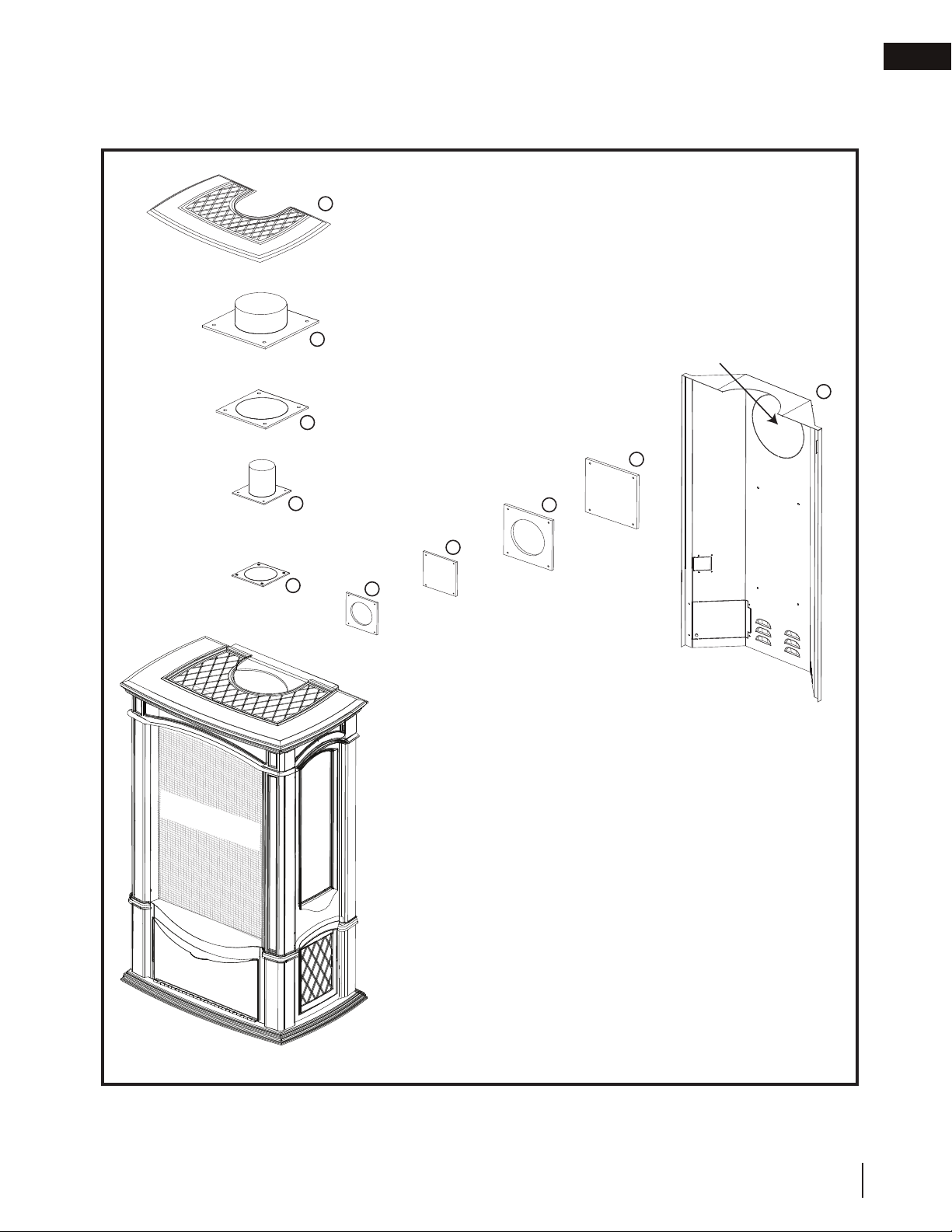

2.11 rear vent conversion

7'' (178mm)

Cover Plate

4'' (102mm)

Gasket

4'' (102mm)

Collar

7'' (178mm)

Gasket

7" (178mm)

Collar

Outer Top

4'' (102mm)

Cover Plate

- Remove the rear shield and the knockout

- Remove the outer top.

- Replace components 3 through 6 onto the rear of

the appliance.

- Replace components 7 through 10 onto the top of

the appliance.

- Before replacing the rear shield, slide the vent pipe through

the rear shield a few inches, secure 4'' (102mm) and

7'' (178mm) to the collars.

- Slide the rear shield along the vent pipe and re-secure to

the appliance.

- Complete vent installation.

Rear Shield

Knockout

SAFETY BARRIER

4'' (102mm)

Gasket

7'' (178mm)

Gasket

In order to convert the venting conﬁ guration from a top exit to a rear exit, remove components as illustrated:

When reinstalling in the alternate position: Check gaskets for tears, replace if necessary to ensure a proper seal.

W415-2360 / A / 10.31.19

3.0 installation

For clearances to combustible materials from the vent pipe, see “framing” section.

For optimum performance it is recommended that horizontal runs have a minimum 1" (25mm) per rise per foot

when using Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent, or Wolf Steel rigid or ﬂ exible vent

components.

WARNING

• Ensure to unpack all loose materials from inside the ﬁ rebox prior to connecting the gas and electrical supply

• If your appliance is supplied with a remote, ensure the remote receiver is in the “OFF” position prior

to connecting the gas and electrical supply to the appliance.

• For safe and proper operation of the appliance, follow the venting instructions exactly.

• The appliance exhaust ﬂ ue collar must be sealed using Mill Pac. All exhaust and intake vent pipe joints

must be sealed using red RTV high temp silicone sealant (W573-0002) (not supplied) or black high temp Mill

Pac (W573-0007) (not supplied).

• If using pipe clamps to connect rigid vent components, a minimum of 3 screws must also be used to ensure

the connection cannot slip off.

• Do not clamp the ﬂ exible vent pipe.

• Risk of ﬁ re, explosion, or asphyxiation. Improper support of the entire venting system may allow vent to sag

and separate. Use vent run supports and connect vent sections per installation instructions.

• Risk of ﬁ re, do not allow loose materials or insulation to touch the vent pipe. Remove insulation to allow for the

installation of the attic shield and to maintain clearances to combustibles.

• Do not ﬁ ll the space between the vent pipe and enclosure with any type of material. Do not pack insulation

or combustibles between ceiling ﬁ restops. Always maintain speciﬁ ed clearances around venting and ﬁ restop

systems. Install wall shields and ﬁ restops as speciﬁ ed. Failure to keep insulation or other materials away from

vent pipe may cause ﬁ re.

• For gas stoves only: If the appliance is installed directly on carpeting, vinyl tile, or other combustible material

other than wood ﬂ ooring, the appliance shall be installed on a metal or wood panel extending the full width and

depth, unless otherwise tested.

W415-2360 / A / 10.31.19

installation

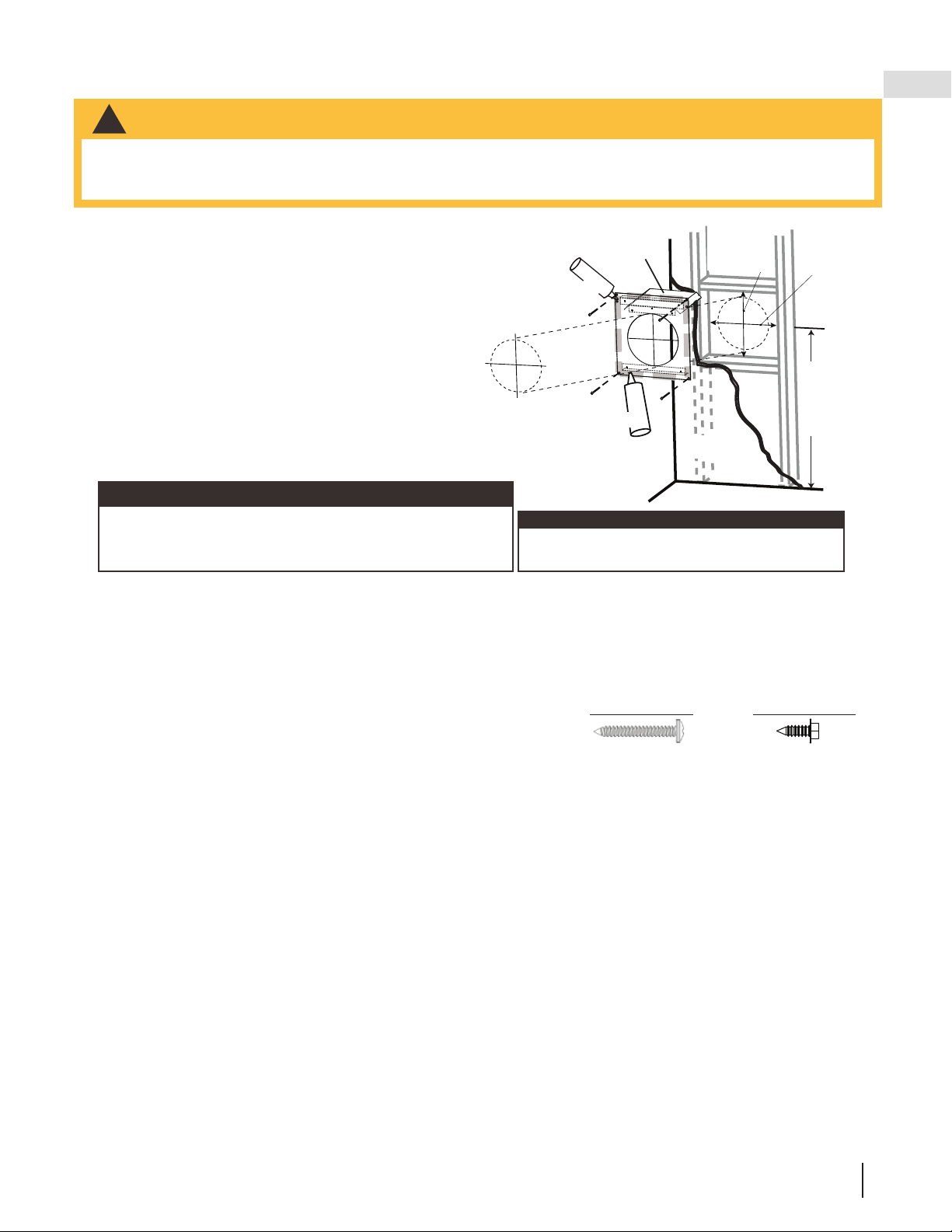

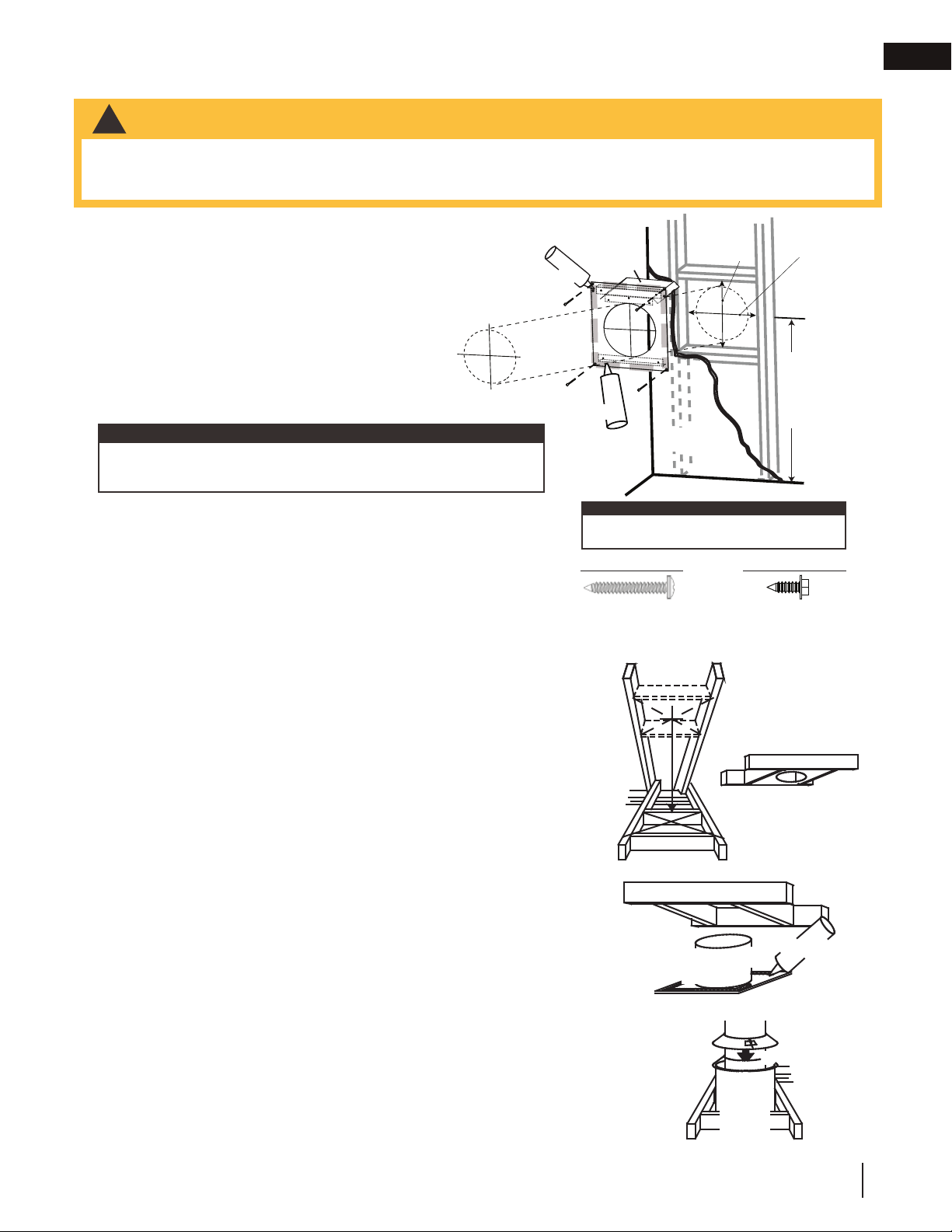

3.1 horizontal installation

3.2 vertical installation

(22mm)

TYPE 2 (X3)

TYPE 1 (X4)

This application occurs when venting through an exterior

wall. Having determined the correct height for the air

terminal location, cut and frame a hole in the exterior wall,

as illustrated, to accommodate the ﬁ restop assembly. Dry

ﬁ t the ﬁ restop assembly before proceeding to ensure the

brackets on the rear surface ﬁ t to the inside surface of the

horizontal framing.

The length of the vent shield may be cut shorter for

combustible walls that are less than 8 1/2” (215.9mm)

thick but the vent shield must extend the full depth of the

combustible wall.

A. Assemble the shield to the spacer as shown, using the 3

shorter screws supplied.

B. Place the ﬁ restop top so that the vent shield covers the top of

the vent within the opening. Ensure that both spacer and shield

maintain the required clearance to combustibles.

C. Secure the spacer in place using the 4 longer screws supplied.

Once the vent pipe is installed in its ﬁ nal position, apply sealant between the pipe and the ﬁ restop spacer.

• The ﬁ restop assembly must be installed with the vent shield to the top.

• Terminals must not be recessed into a wall or siding more than the depth of the return ﬂ ange of the mounting

plate.

WARNING

Do not ﬁ ll the air space between the ﬁ restop spacer and the

exterior wall with any type of insulating material (i.e. spray foam).

note:

DETERMINE

THE

CORRECT

HEIGHT

CAULKING

FIRESTOP

SPACER

VENT

SHIELD

FINISHING

MATERIAL

CAULKING

note:

The above is for illustration purposes only. Vents

do not always pass through center of frame.

ADD

WIDTH

ADD

HEIGHT

10 11/16"

(27.15cm)

HIGH

10 11/16"

(27.15cm)

WIDE

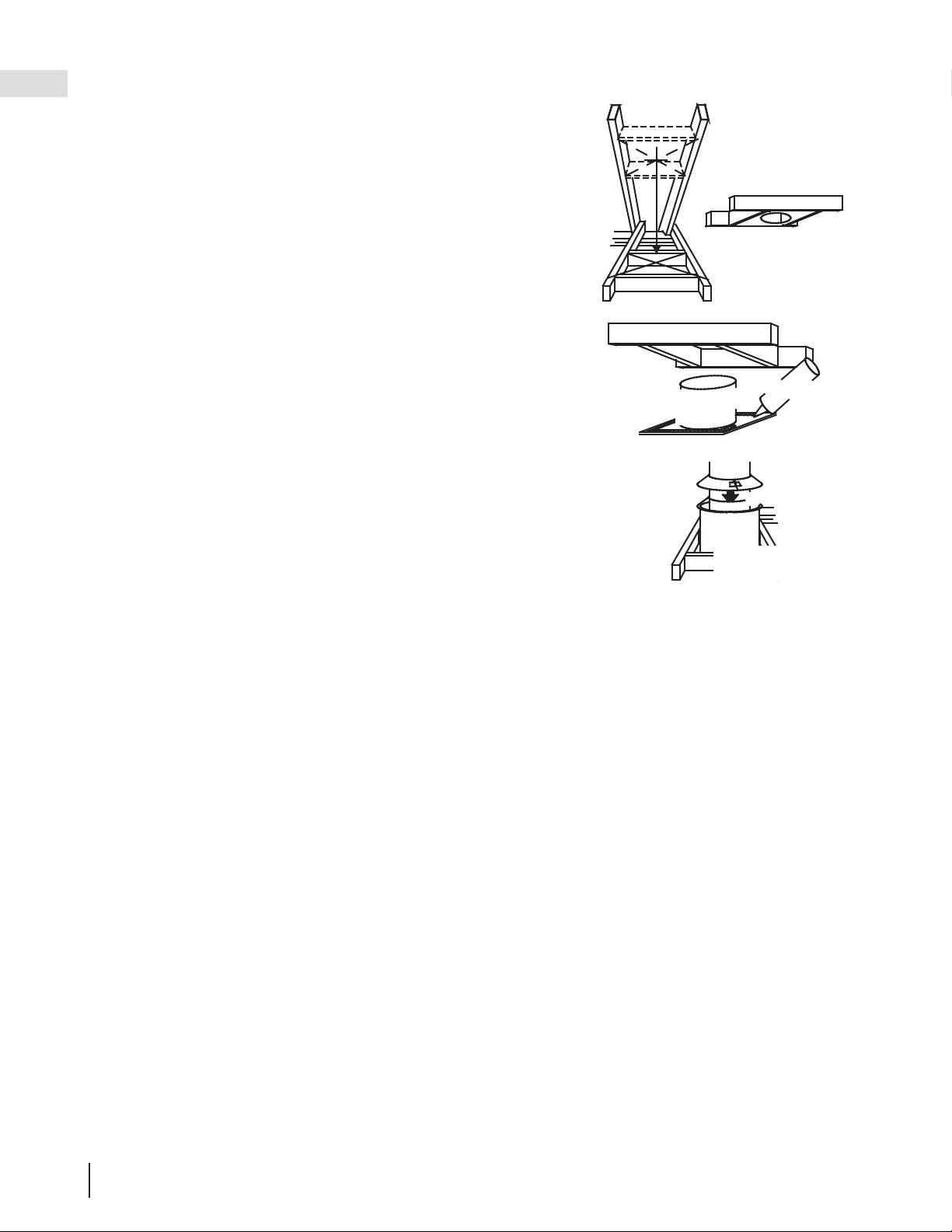

This application occurs when venting through a roof. Installation kits for

various roof pitches are available from your authorized dealer / distributor.

See the “accessories” section to order speciﬁ c kits required.

A. Determine the air terminal location, cut and frame a square opening,

as illustrated, in the ceiling and the roof to provide the minimum 1"

(25mm) clearance between the vent pipe and any combustible material.

Try to center the vent pipe location midway between two joists to

prevent having to cut them. Use a plumb bob to line up the center of

the openings. A vent pipe shield will prevent any materials such as

insulation, from ﬁ lling up the 1" (25mm) air space around the pipe. Nail

headers between the joist for extra support.

B. Apply a bead of caulking (not supplied) to the framework or to the

Wolf Steel vent pipe shield plate or equivalent (in the case of a ﬁ nished

ceiling), and secure over the opening in the ceiling. A ﬁ restop must be

placed on the bottom of each framed opening in a roof or ceiling that

the venting system passes through. Apply a bead of caulking all around

and place a ﬁ restop spacer over the vent shield to restrict cold air from

being drawn into the room or around the ﬁ replace. Ensure that both

spacer and shield maintain the required clearance to combustibles.

Once the vent pipe is installed in its ﬁ nal position, apply red RTV

silicone (W573-0002) (not supplied) between the pipe and the ﬁ restop

assembly.

C. In the attic, slide the vent pipe collar down to cover up the open end

of the shield and tighten. This will prevent any materials, such as

insulation, from ﬁ lling up the 1" (25mm) air space around the pipe.

Caulking

Vent Pipe

Shield

Vent

Pipe

Shield

Vent

Pipe

Collar

Firestop

underside

of joist

W415-2360 / A / 10.31.19

installation

3.3 appliance vent connection

A. Attach the adjustable pipe to the last section of rigid pipe. Secure with

screws and seal.

B. Install the inner ﬂ ex pipe to the appliance. Secure with a minimum of

three screws and ﬂ at washers when installing 3”/5”, 4”/7” or 5”/8”

venting, or six screws and ﬂ at washers when installing 8”/10” or

8”/11” venting. Seal the joint and screw holes using Mill Pac sealant

(W573-0007) (not supplied).

C. Run a bead of high temperature red RTV silicone sealant (W573-

0002) (not supplied) around the inside of the air intake collar. Pull the

adjustable pipe a minimum 2” (50.8mm) into the air intake collar.

INSERT

IMAGE HERE

note:

Always ﬁ nish vent system installation with the appliance vent connection. Ensure that the sealant is not visible on the

exterior pipes once installation is completed. An optional decorative black band may be available with this appliance.

In the event that the venting must be disassembled, care must be taken to reseal the venting.

2” (50.8mm)

Overlap

Mill-Pac

Sealant

#8 X 1/2”

Self Drilling

Screws

W415-2360 / A / 10.31.19

installation

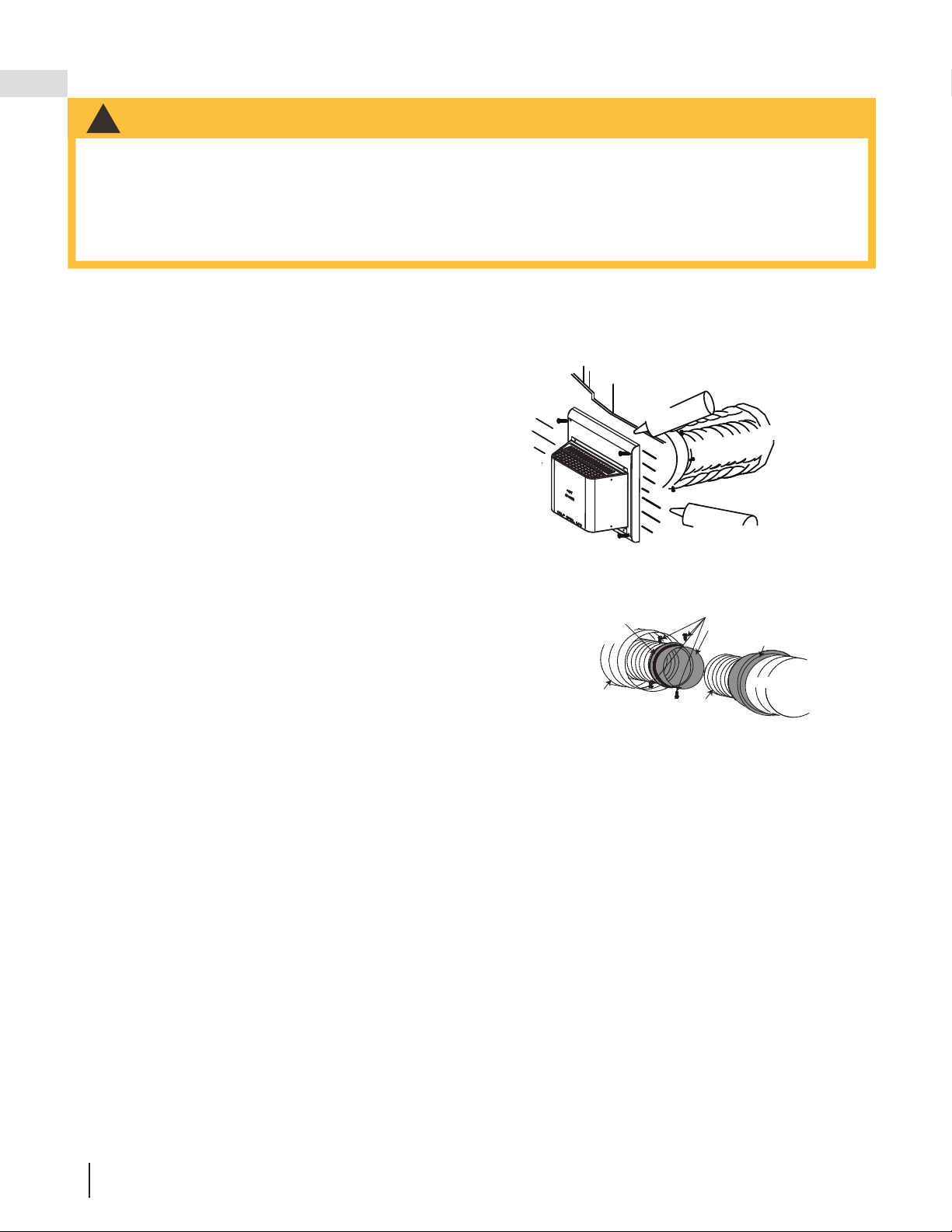

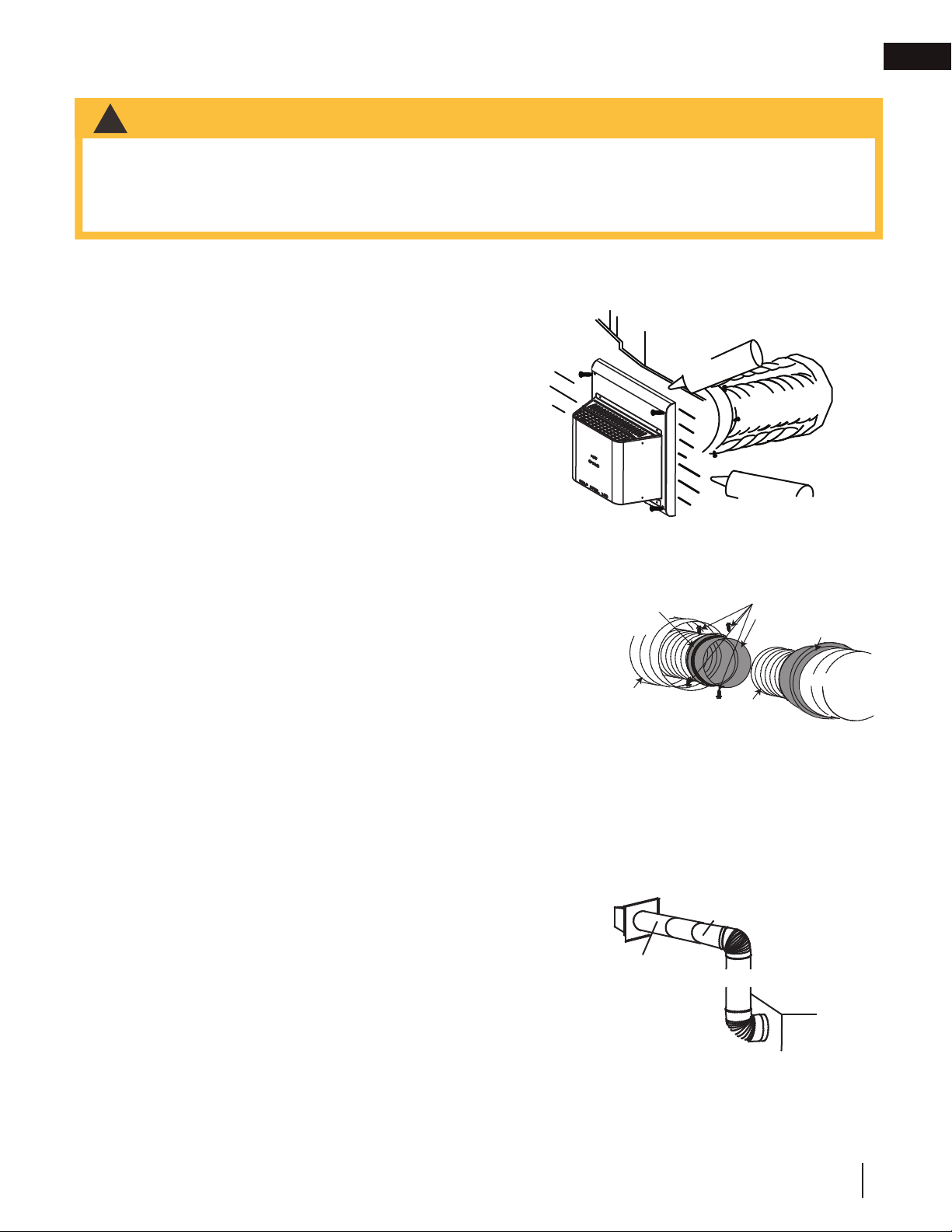

3.5 extended horizontal and corner terminal installation

All 4" (102mm) ﬂ exible vent pipe and 7" (178mm) rigid vent pipe joints must be sealed using either high

temperature sealant W573-0002 (not supplied) or the high temperature sealant W573-0007 Mill Pac (not

supplied). However, the high temperature sealant W573-0007 Mill-Pac (not supplied) must be used on the joint

connecting the 4" (102mm) ﬂ exible vent pipe and the exhaust ﬂ ue collar.

A. Stretch the inner ﬂ ex pipe to the required length taking

into account the additional length needed for the ﬁ nished

wall surface. Apply a heavy bead of the red RTV silicone

(W573-0002) (not supplied) to the inner sleeve of the air

terminal. Slip the vent pipe a minimum of 2” (50.8mm)

over the inner sleeve of the air terminal and secure with a

minimum of 3 screws.

B. Using the outer ﬂ ex pipe, slide over the outer combustion

air sleeve of the air terminal and secure with a minimum

of 3 screws. Seal using red RTV silicone (W573-0002)

(not supplied).

C. Insert the vent pipes through the ﬁ restop maintaining

the required clearance to combustibles. Holding the air

terminal (lettering in an upright, readable position), secure

to the exterior wall and make weather tight by sealing

with caulking (not supplied).

D. If more vent pipe needs to be used to reach the ﬁ replace,

couple them together, as illustrated. The vent system

must be supported approximately every 3 feet (0.9m) for

both vertical and horizontal runs. Use non-combustible

strapping to maintain the minimum clearance to

combustibles.

E. Stove Appliances Only: From inside the house, using

Red RTV Silicone (W573-0002) (not supplied), seal

between the vent pipe and the ﬁ restop. Then slide the black trim collar over the vent pipe up to the

ﬁ restop.

The air terminal mounting plate may be recessed into the exterior wall or siding no greater than the

depth of its return ﬂ ange.

ADD FA

TENER TYP

ADD GRAPHIC

Screws

(Supplied)

2" (50.8mm) Overlap

Outer Flex Pipe

Inner Flex

Pipe

Red RTV Silicone

Caulking

Red RTV Silicone

Screws

Inner Coupler

Outer Coupler

Outer Flex

Pipe

Inner Flex

Pipe

Outer Flex

Pipe

WARNING

• Terminals must not be recessed into a wall or siding more than the depth of the return ﬂ ange of the mounting

plate.

• Do not allow the inner ﬂ ex pipe to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight.

• Spacers are attached to the inner ﬂ ex at pre-determined intervals to maintain an even air gap to the outer ﬂ ex

pipe. This gap is required for safe operation. A spacer is required at the start, middle, and end of each elbow to

ensure this gap is maintained. These spacers must not be removed.

3.4 horizontal air terminal installation

FOR REAR VENT ONLY: A 45° corner installation can have 0” (0mm)

rise between the appliance combustion air collar and the air terminal.

In this case, vent lengths must be kept to a maximum of 24” (61cm).

For longer vent lengths, a minimum vertical rise of 24” (61cm) is required.

A. Follow the instructions for "horizontal air terminal installation" section.

B. Continue adding components alternating inner rigid pipe and outer

rigid pipe. Ensure that all inner rigid pipe and elbows have sufﬁcient

vent spacers attached and each component is sealed and securely

fastened to the one prior. Attach the inner telescopic sleeve to the

vent run. Repeat using the outer telescopic sleeve. Seal and secure

as before. To facilitate completion, attach inner and outer couplers

to the air terminal.

C. Install the air terminal. See “horizontal air terminal installation” section.

Extend the outer telescopic sleeve; connect to the air terminal assembly.

Fasten with self tapping screws and seal.

Air terminal

Telescopic sleeve

20" (51cm)

Coupler

Venting

W415-2360 / A / 10.31.19

installation

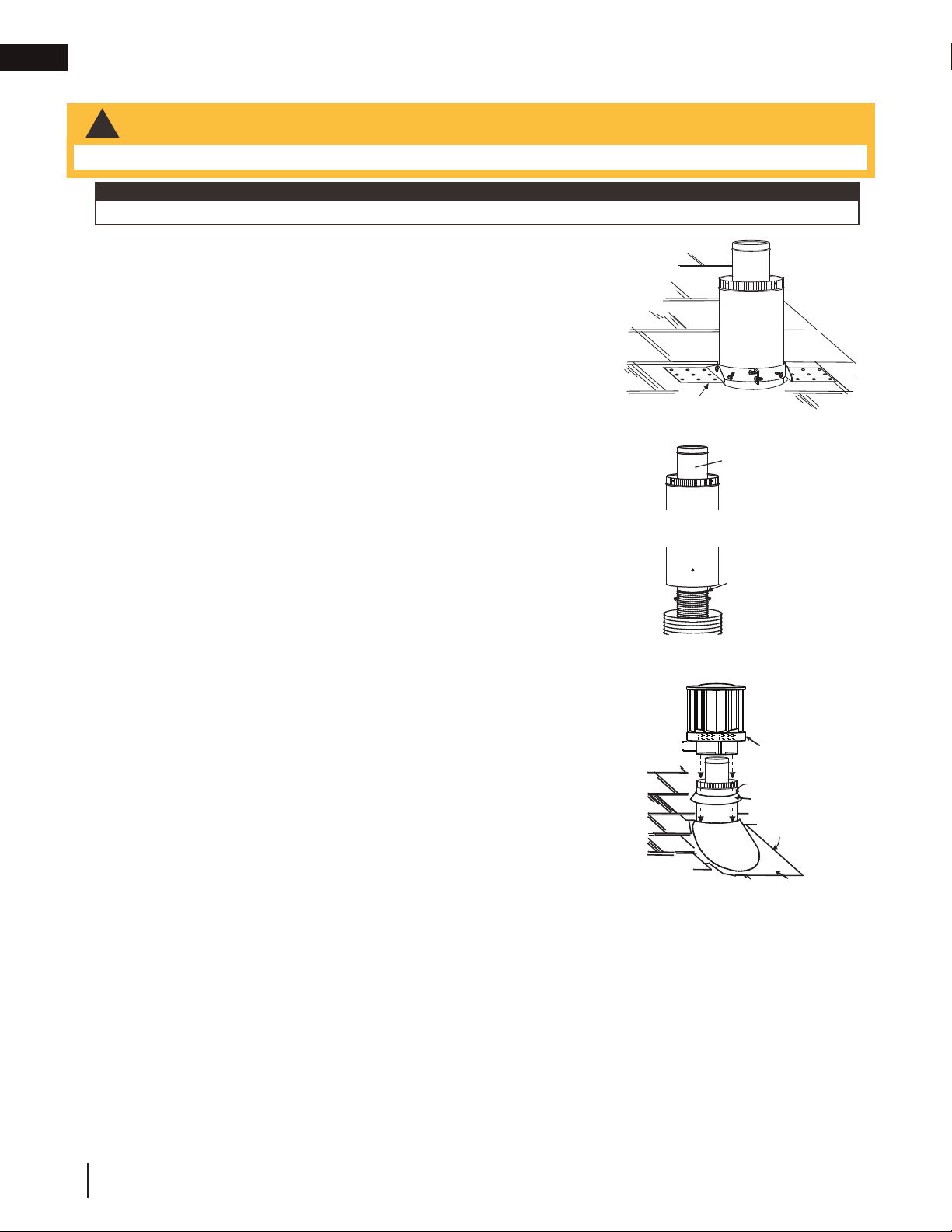

3.6 vertical air terminal installation

A. Fasten the roof support to the roof using 6 screws. The roof support is

optional. In this case, the venting is to be adequately supported using

either an alternate method suitable to the authority having jurisdiction or

the optional roof support.

B. Stretch the inner ﬂ ex pipe to the required length. Slip the inner ﬂ ex

pipe a minimum of 2” (51mm) over the inner pipe of the air terminal

connector and secure with a minimum of three screws, when 4/7, 5/8

and 3/5 venting is used and a minimum of six screws when using 8/10

or 8/11 venting. Seal using a heavy bead of red RTV silicone sealant

(W573-0002) (not supplied).

C. Repeat using the outer ﬂ ex pipe, using a heavy bead of red RTV

silicone sealant (W573-0002) (not supplied) and a minimum of three

screws, when 4/7, 5/8 and 3/5 venting is used and a minimum of six

screws when using 8/10 or 8/11 venting.

D. Thread the air terminal connector / vent pipe assembly down through

the roof. The air terminal must be positioned vertically and plumb.

Attach the air terminal connector to the roof support, ensuring that the

top of the air terminal is 16” (40.6cm) above the highest point that it

penetrates the roof.

E. Remove nails from the shingles, above and to the sides of the air

terminal connector. Place the ﬂ ashing over the air terminal connector

leaving a min. 3/4” (19mm) of the air terminal connector showing above

the top of the ﬂ ashing. Slide the ﬂ ashing underneath the sides and

upper edge of the shingles. Ensure that the air terminal connector is

properly centered within the ﬂ ashing, giving a 3/4” (19mm) margin all

around. Fasten to the roof. Do not nail through the lower portion of the

ﬂ ashing. Make weather-tight by sealing with caulking. Where possible,

cover the sides and top edges of the ﬂ ashing with rooﬁ ng material.

F. Aligning the seams of the terminal and air terminal connector, place the

terminal over the air terminal connector making sure the vent pipe goes

into the hole in the terminal. Secure with a minimum of three screws,

when 4/7, 5/8 and 3/5 venting is used and a minimum of six screws

when using 8/10 or 8/11 venting.

G. Apply a heavy bead of weatherproof caulking 2” (51mm) above the

ﬂ ashing. Install the storm collar around the air terminal and slide down

to the caulking. Tighten to ensure that a weather-tight seal between the

air terminal and the collar is achieved.

H. If more vent pipe needs to be used to reach the appliance, see “horizontal

air terminal installation” section.

Roof Support

Inner Flex Pipe

Inner Pipe

Red RTV

Silicone

(W572-0002)

Air

Terminal

Connector

Outer Flex Pipe

Storm Collar

Flashing

Caulking

Weather

Sealant

2” (51mm)

Air Inlet

Base

WARNING

• Maintain a minimum 2” (51mm) space between the air inlet base and the storm collar.

Fastening hardware provided with appropriate roof terminal and liner kits.

note:

W415-2360 / A / 10.31.19

installation

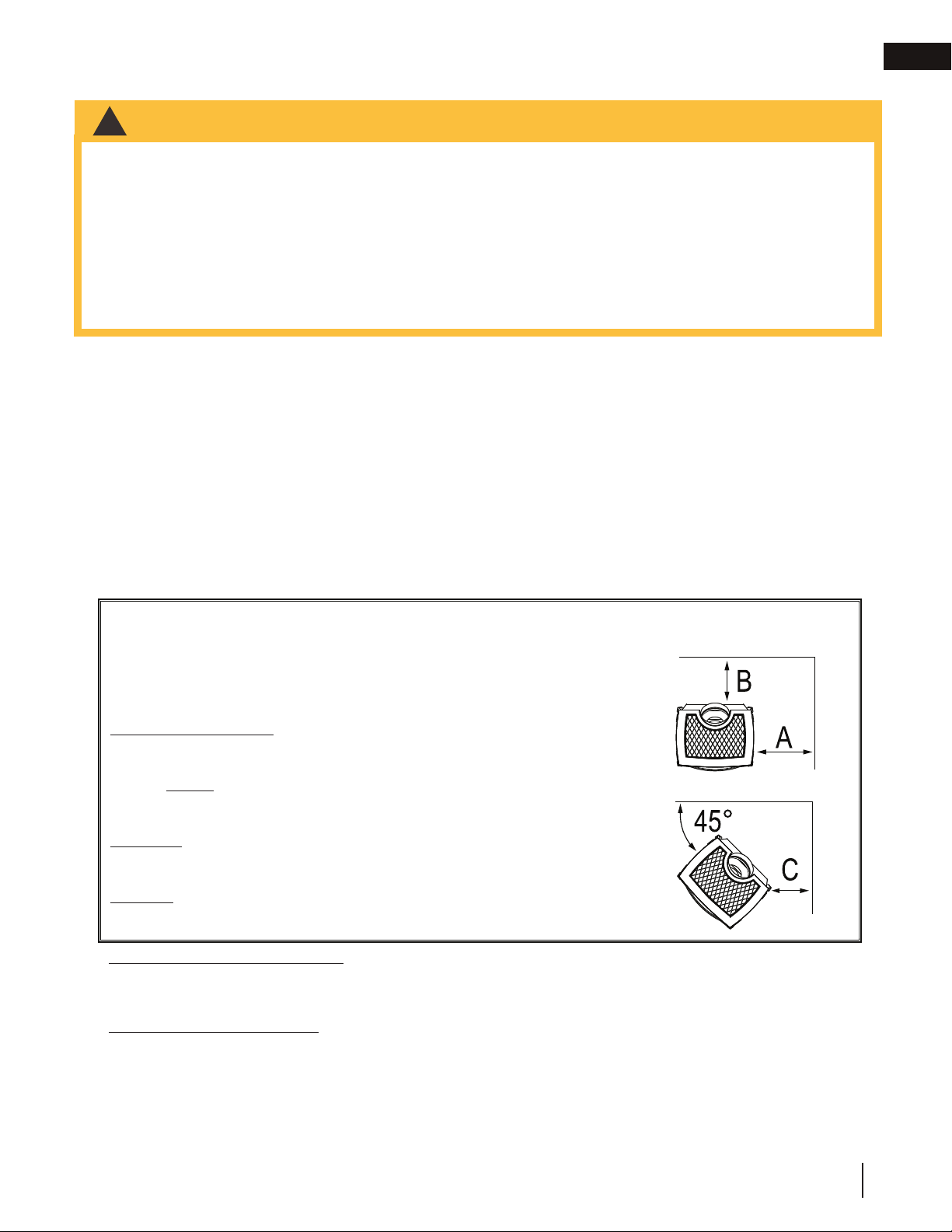

3.8 minimum clearance to combustibles

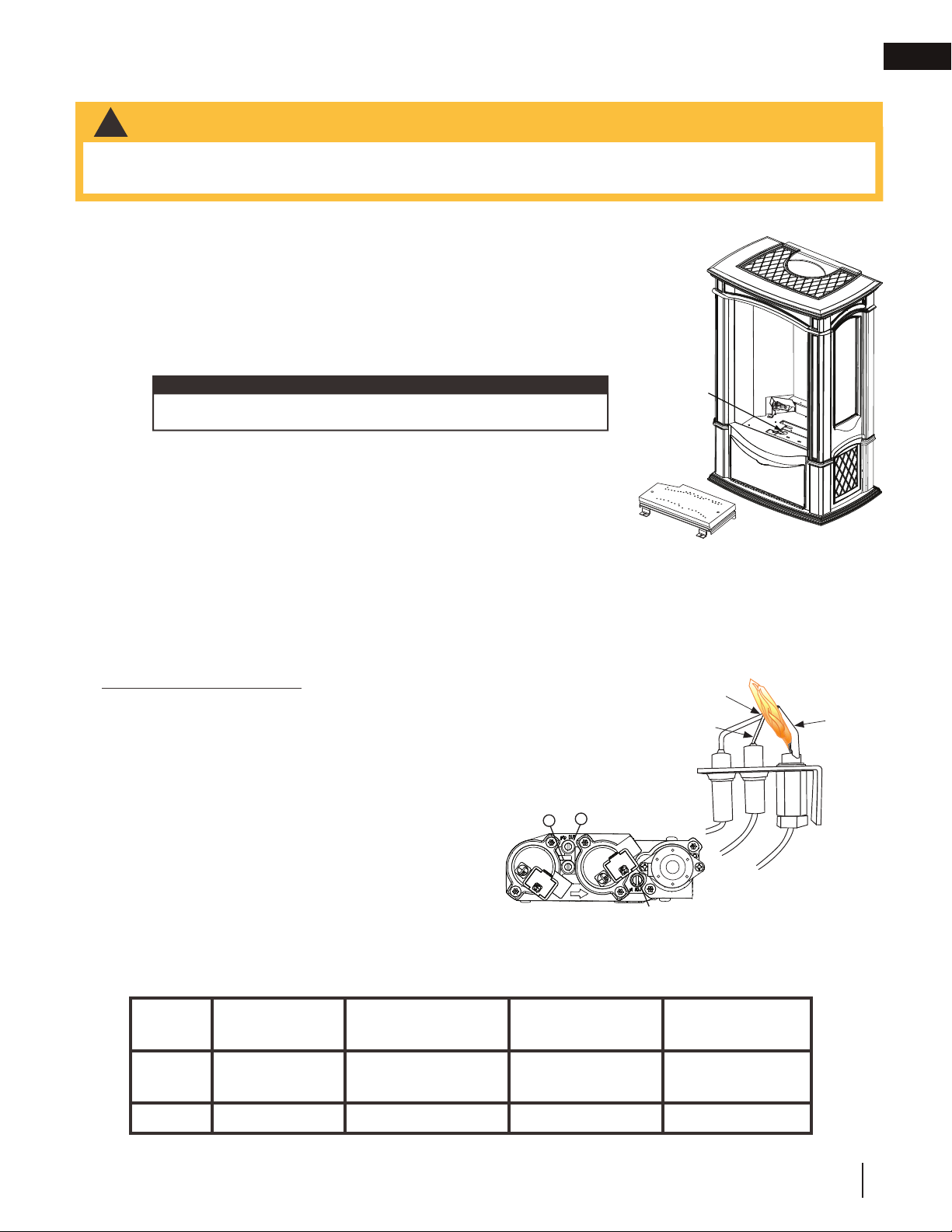

WARNING

• Risk of ﬁ re, explosion, or asphyxiation. Ensure there are no ignition sources such as sparks or open ﬂ ames.

• Support gas control when attaching gas supply pipe to prevent damaging gas line.

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door opened

or removed. Purging of the gas supply line should be performed by a qualiﬁ ed service technician. Ensure

that a continuous gas ﬂ ow is at the burner before closing the door. Ensure adequate ventilation. For gas and

electrical locations, see “dimensions” section.

• All gas connections must be contained within the appliance when complete (gas ﬁ replaces only).

• High pressure will damage valve. Disconnect gas supply piping before testing gas line at test pressures above

1/2 PSIG.

• Valve settings have been factory set, do not change.

Installation and servicing to be done by a qualiﬁ ed installer.

• Move the appliance into position and secure.

• If equipped with a ﬂ ex connector, the appliance is designed to accept a 1/2” (13mm) gas supply. Without the

connector, it is designed to accept a 3/8” (9.5mm) gas supply. The appliance is equipped with a manual shut

off valve to turn off the gas supply to the appliance.

• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the current

CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI Z223.1 / NFPA

54 in the United States.

• When ﬂ exing any gas line, support the gas valve so that the lines are not bent or kinked.

• The gas line ﬂ ex-connector should be installed to provide sufﬁ cient movement for shifting the burner assembly

on its side to aid with servicing components.

• Check for

as leaks b

brushin

on a soa

and water solution. Do not use o

en ﬂ ame.

3.7 gas installation

* HORIZONTAL VENT SECTIONS:

A minimum clearance of 1" (25mm) at the bottom and sides and 2" (51mm) at the top of the vent pipe in all

horizontal runs to combustibles is required. Use ﬁ restop spacer W010-1313 and shield W585-0267 (supplied).

* VERTICAL VENT SECTIONS:

A minimum of 1" (25mm) all around the vent pipe on all vertical runs to combustibles is required. Use ﬁ restop

spacer W010-1313 (supplied).

** For top vent vertical termination, see "rear exit" section for speciﬁ c clearances.

At a distance of 2" (51mm) from the wall, installation or service to the blower may not be practical. A minimum of

5" (127mm) will be required in order to install or service the blower.

Minimum clearance to combustible construction from appliance and vent surfaces:

A - 2" (51mm)

B - 5" (127mm)

C - 2" (51mm)

Combustible Framing:

- 1" (25mm) to bottom and sides of the vent pipe*

- 2" (51mm) to top of the vent pipe*

NOTE: Appliance should not be installed directly on

carpeting.

Rear Exit:

- 47 1/2" (120.7cm) to ceiling from base of the appliance

Top Exit:

- 51" (129.5cm) to ceiling from base of the appliance**

BACK WALL

SIDE WALL

BACK WALL

SIDE WALL

W415-2360 / A / 10.31.19

installation

1” (25mm)

2” (51mm)

/2”

(120.7cm)

/2”

(90.2cm)

5”

(

127mm

)

BRICK

COMBUSTIBLE

NON-COMBUSTIBLE

/8”

(74cm)

MINIMUM

PLUS RISE ***

0” (0mm) IF

NON-COMBUSTIBLE

FINISHING IS USED

SUCH AS BRICK AND

STONE.

12”

(30.5cm)

MANTEL, SHELF,

OR CEILING

The appliance requires a minimum ceiling height of 47 1/2" (120.7cm) for a rear vent. For temperature

requirements, the space around and above the appliance must be left unobstructed.

REAR EXIT

BRICK

COMBUSTIBLE

NON-COMBUSTIBLE

/2”

(115.6cm)

MINIMUM

PLUS RISE ***

MANTEL, SHELF,

OR CEILING

1” (25mm)

/2”

(39.4cm)

51”

(129.5cm)

2” (51mm)

0” (0mm) IF

NON-COMBUSTIBLE

FINISHING IS USED

SUCH AS BRICK AND

STONE.

/2”

(90.2cm)

5”

(

127mm

)

2” (51mm)

TOP EXIT

The appliance requires a minimum ceiling height of 51" (129.5cm) for a top vent horizontal termination. For top

vent vertical termination, see "REAR EXIT" section for speciﬁ c clearances. For temperature requirements, the

space around and above the appliance must be left unobstructed.

* See "venting" section.

W415-2360 / A / 10.31.19

4.0 electrical information

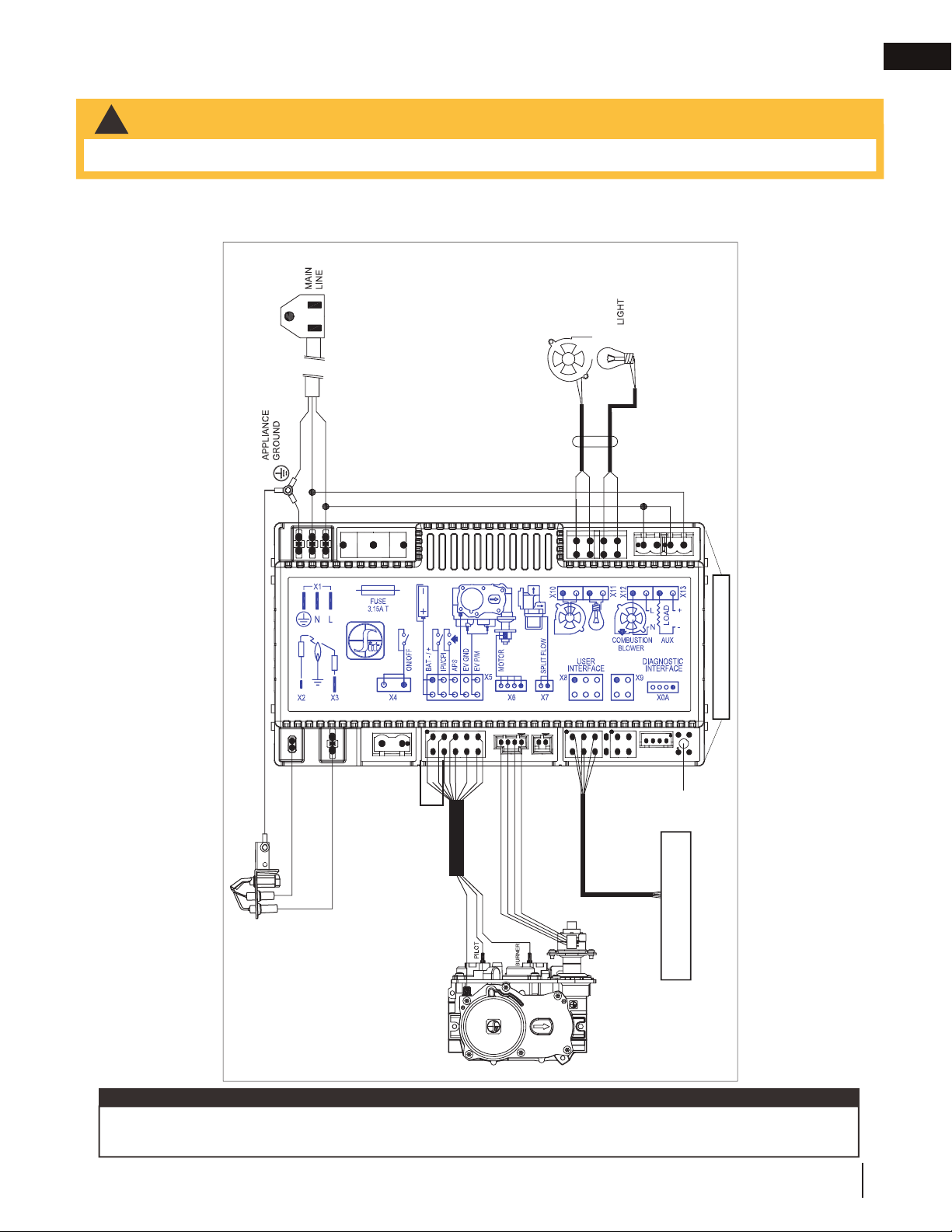

4.1 wiring diagram

RESET

BUTTON

BATTERY HOLDER COMPLETE

NIGHT

LIGHT

BLOWER

WITH RESET BUTTON

(RECEIVER)

(POWER CORD)

(BLOWER/NIGHT LIGHT

WIRE HARNESS)

OPTIONAL

BLOWER

ELECTRONIC

IGNITION

PILOT

ELECTRONIC

VALVE

This appliance must be electrically connected and grounded in accordance with local codes. In the absence of

local codes, use the current CSA C22.1 Canadian electrical code in Canada or the ANSI/NFPA national electrical

code in the United States.

JUMPER

WARNING

• Do not wire 110 volts to the valve or wall switch.

This appliance is equipped with a 3-prong (grounding) plug for protection against shock hazard and should be

connected into a properly grounded circuit. Do not cut or remove the grounding prong from the plug.

note:

W415-2360 / A / 10.31.19

5.0 ﬁ nishing

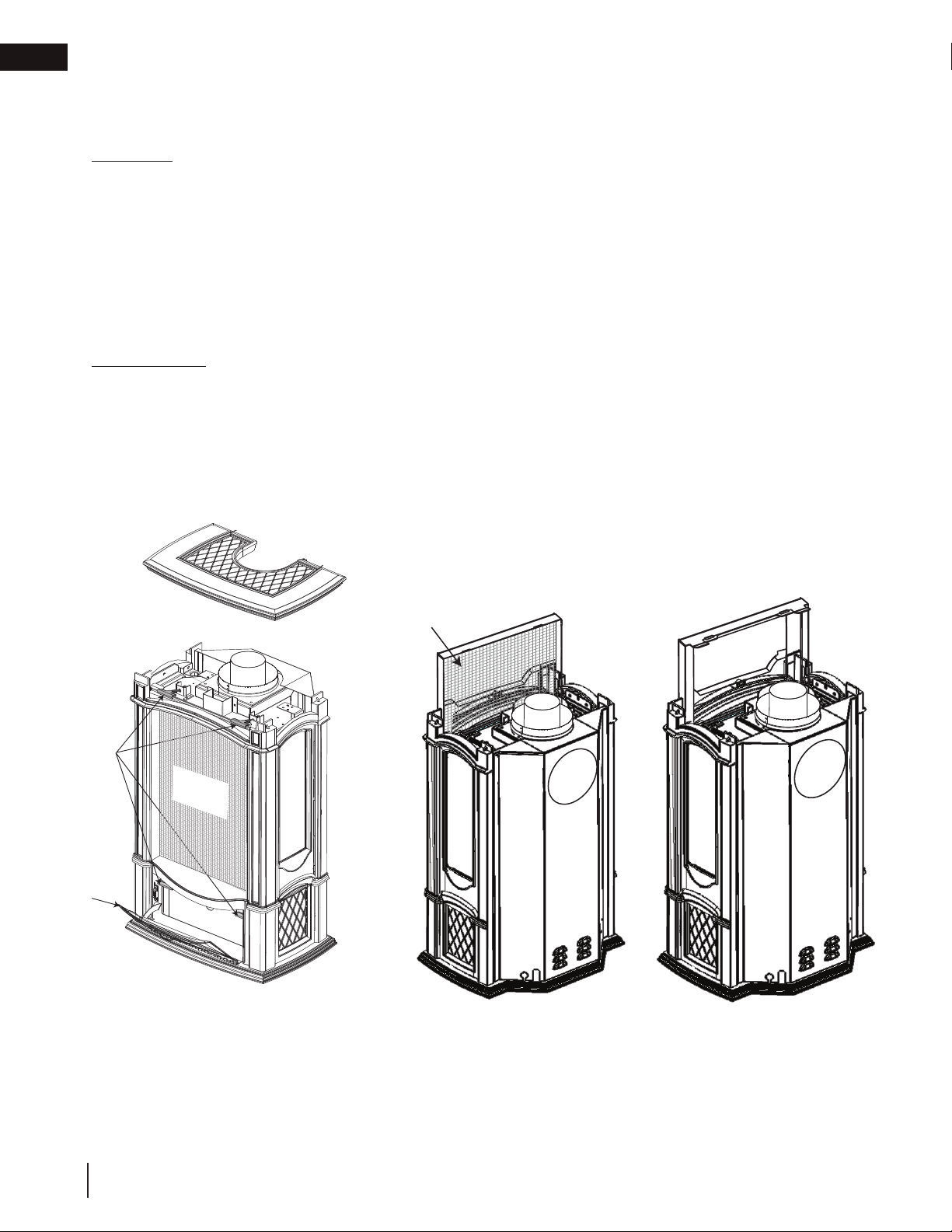

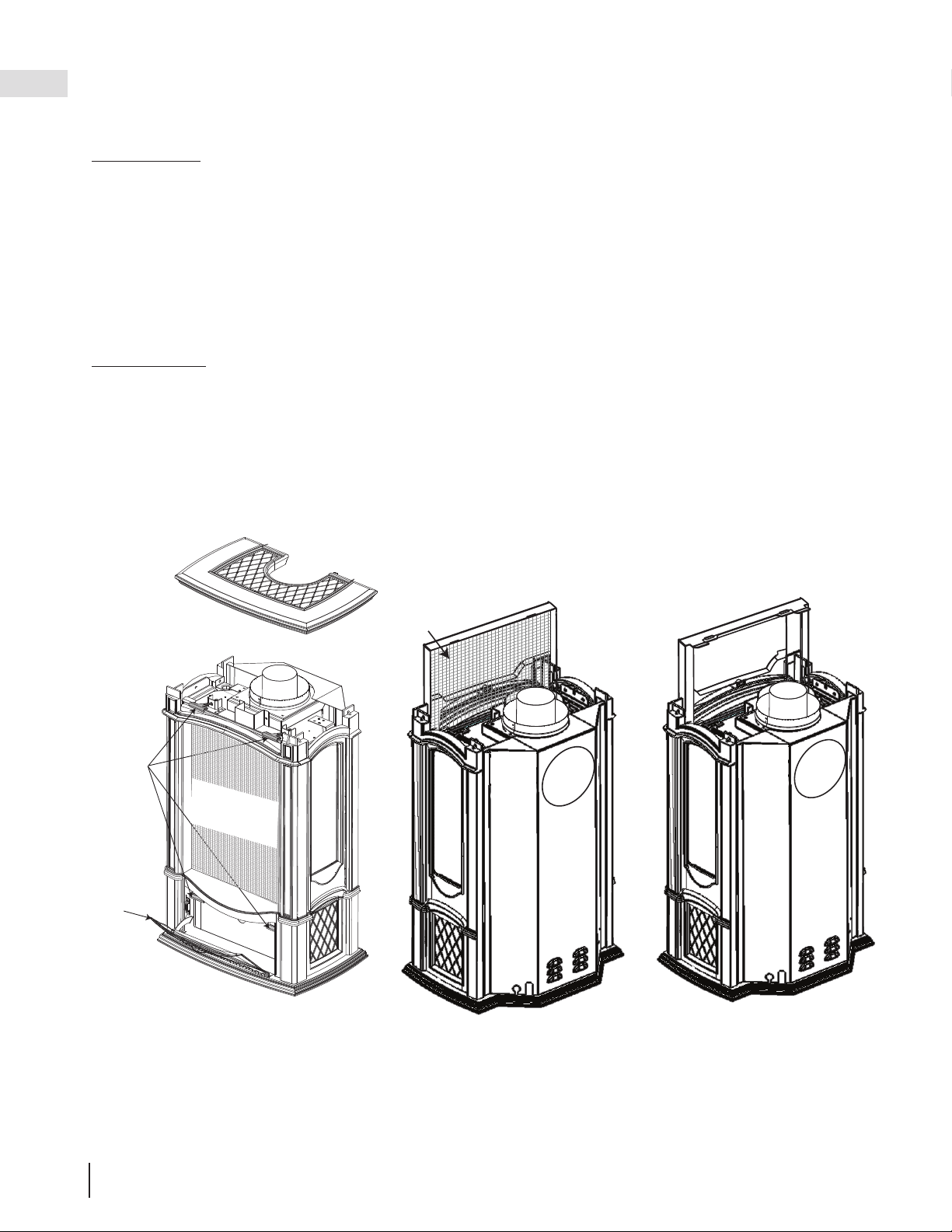

5.1 safety barrier and glass door

REMOVAL:

1. Before the glass door can be removed, the top cast and safety barrier must be removed and the bottom

cast door opened.

2. Lift the cast top up and remove. Slide the safety barrier straight up and remove from appliance.

3. The glass door is secured to the top and front bottom edges of the ﬁ rebox with 4 spring latches. Pull for-

ward on the latches and away from the door to release.

4. Slide the door forward off its support and lift straight up to remove.

INSTALLATION:

1. Slide the door in between the cast front and appliance and rest the door on the door support, centred on

the ﬁ rebox opening.

2. Engage the latches to secure the door.

3. Slide the safety barrier between the cast front and glass door.

4. Replace cast top.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance

and shall be installed.

SAFETY BARRIER

LATCHES

BOTTOM

CAST DOOR

SAFETY

BARRIER

W415-2360 / A / 10.31.19

ﬁ nishing

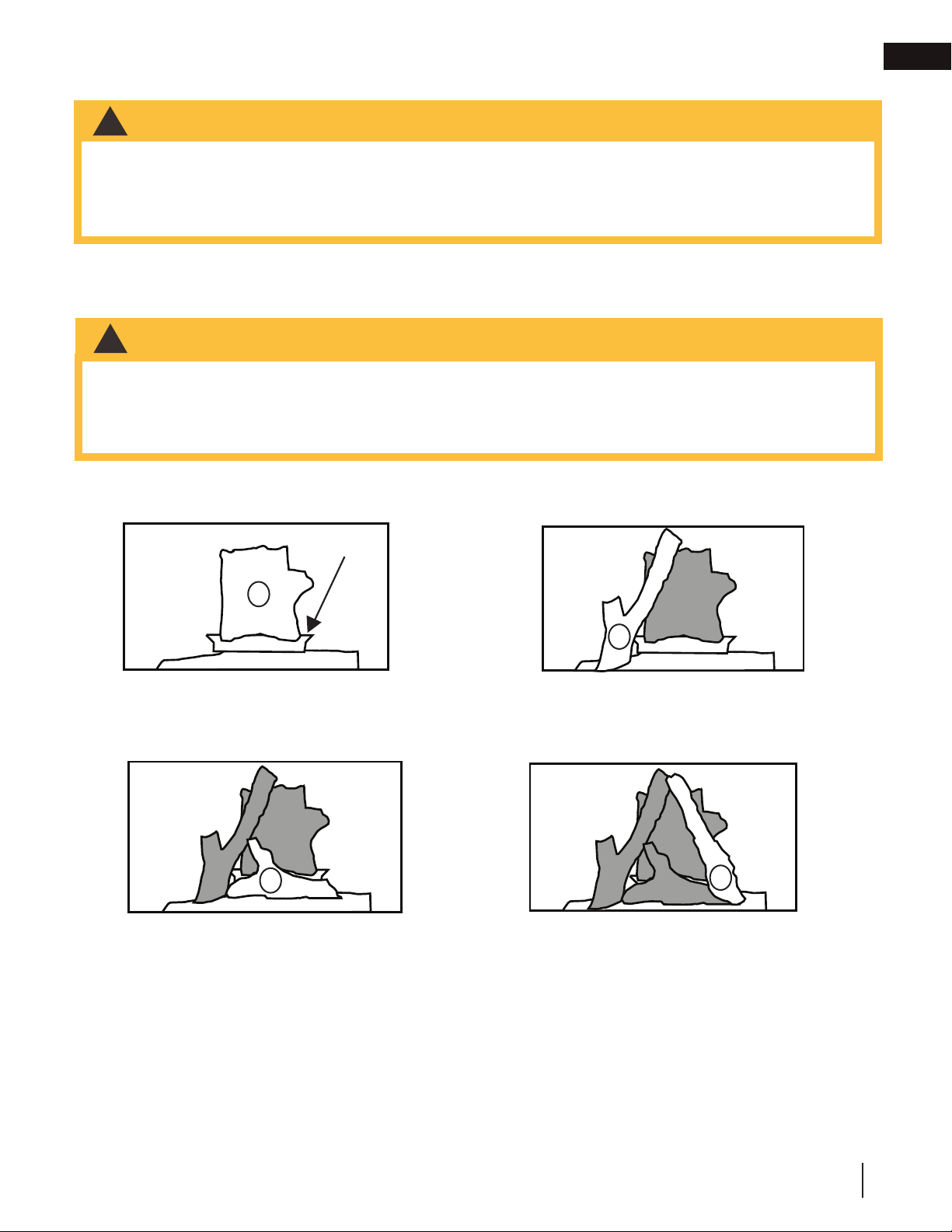

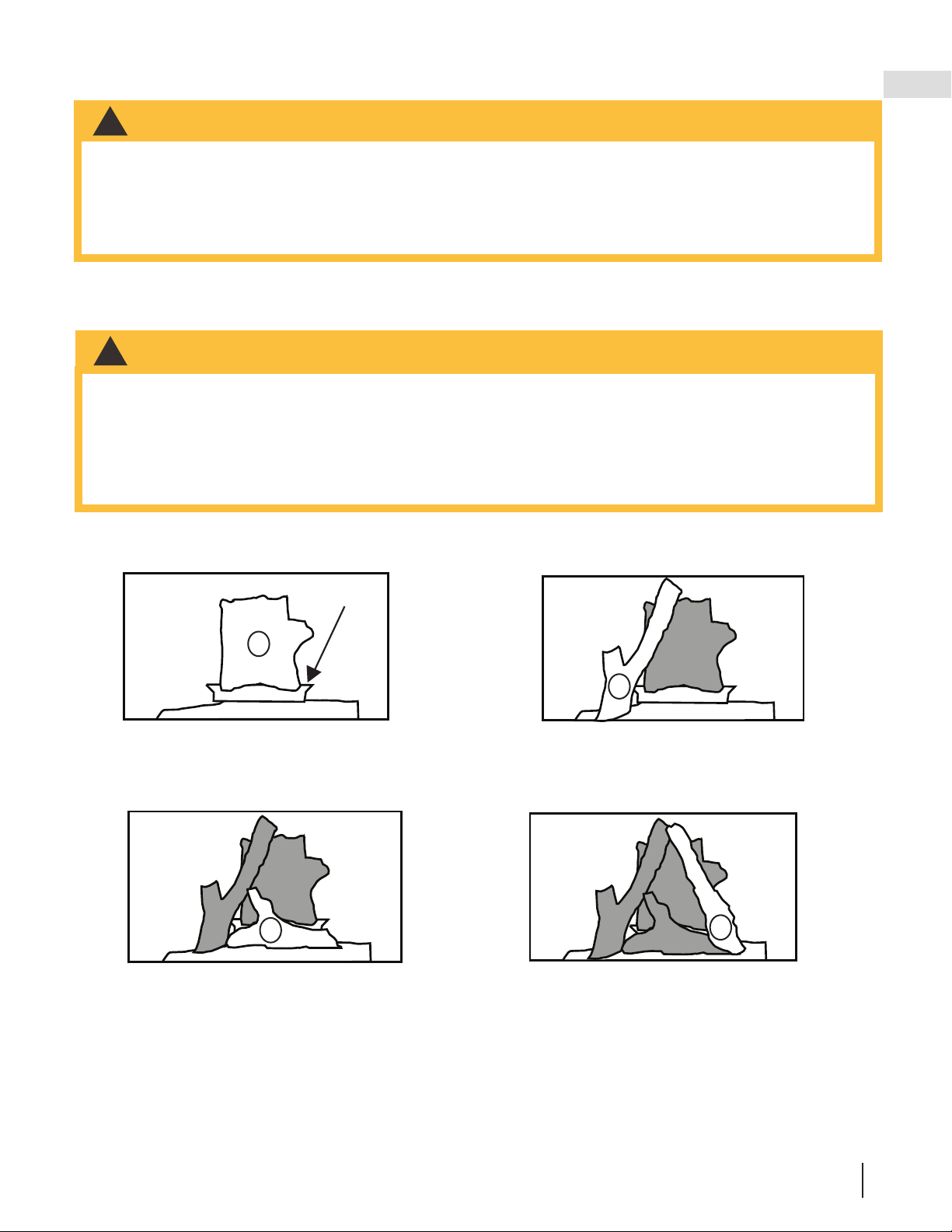

5.3 log placement

A. Place the rear log (W135-0322)(1) as shown,

ensuring the holes on the underside are placed

onto the 2 pins of the log support.

In order to assemble the log set, the glass door must be removed (see "glass door installation and removal" sec-

tion).

BRACKET

B. Place the left log (W135-0323)(2) as shown,

ensuring the hole on the underside is placed

onto the burner pin. This will rest on the left side

of the rear log.

5.2 door glass replacement

C. Place the center log (W135-0325)(3) as

shown. Follow contour of burner and ensure

port holes are not covered.

D. Place the hole in the underside of the right log

(W385-0324)(4) onto the locating pin, on the

burner base and resting against the rear log

(W135-0322)(1) as shown.

E. Reinstall the glass door.

WARNING

• Do not use substitute materials.

• Glass may be hot. Do not touch glass until cooled.

• Care must be taken when removing and disposing of any broken door glass or damaged components. Be

sure to vacuum up any broken glass from inside appliance before operation.

• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, broken, or scratched.

Replacement glass/frame assembly shall be replaced as a complete unit as supplied by the appliance

manufacturer.

WARNING

• Failure to position the logs in accordance with these diagrams or failure to use only logs speciﬁ cally approved

with this appliance may result in property damage or personal injury.

• Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since

appliance may not function properly and delayed ignition may occur.

• The logs are fragile and should be handled with care.

W415-2360 / A / 10.31.19

ﬁ nishing

5.4 vermiculite

5.5 logo placement

Sprinkle vermiculite around the charcoal embers.

WARNING

• Do not block or close off the burner ports. Blocked ports can cause an incorrect ﬂ ame pattern, carbon

deposits and delayed ignition.

• When supplied, charcoal embers, charcoal lumps and vermiculite are not to be placed on the burner.

note:

Vermiculite is not to be placed on the burner.

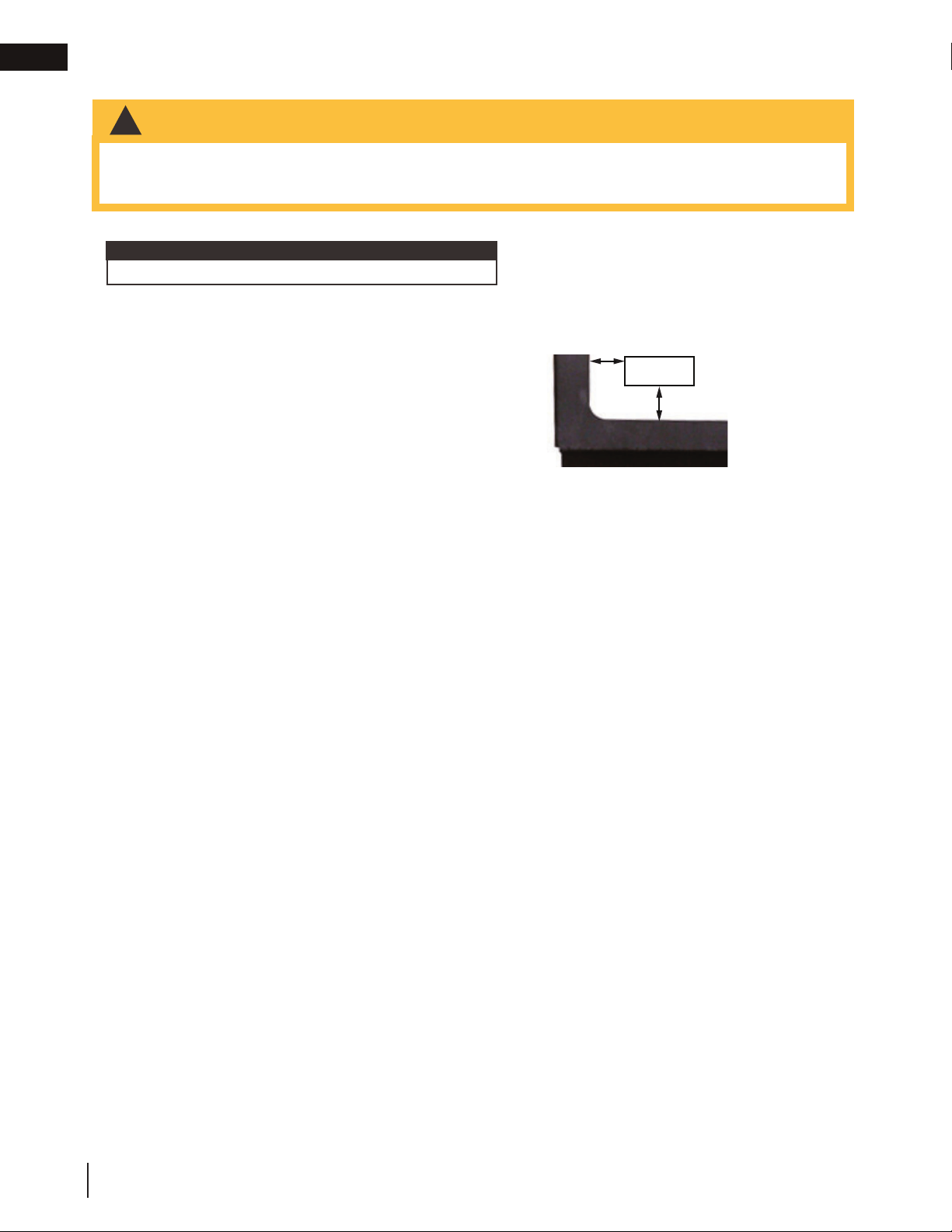

Remove the backing of the logo supplied and place, as illustrated.

1/2"(12.7mm)

LOGO

1/2"(12.7mm)

W415-2360 / A / 10.31.19

6.0 blower replacement

ELECTRICAL INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER and must be connected and

grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 Canadian

Electrical Code in Canada or the current ANSI/NFPA 70 National Electrical Code in the United States.

GREEN

(GROUND)

BLOWER

WIRE

HARNESS

BLACK

IPI

CONTROL

WIRING DIAGRAM

BLOWER

ASSEMBLY

GROUND

SCREW

1. Disconnect the gas and power supply.

2. Remove the 4 screws securing the blower mounting plate to the appliance.

3. Disconnect the 2 ﬂ ag connectors and the grounding wire.

4. Remove the screws securing the blower to the mounting plate.

5. Install the new blower by securing it to the mounting plate using screws from step 4.

6. Reconnect the 2 ﬂ ag connectors and the grounding wire to the new blower.

7. Resecure the blower mounting plate to the appliance using the 4 screws removed in step 2.

8. Reconnect the gas and power power supply.

WARNING

• Risk of ﬁre and electrical shock!

• Turn off the gas and electrical power before servicing this appliance.

• Use only Wolf Steel approved optional accessories and replacement parts with this appliance. Using

non-listed accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could

result in a safety hazard and will void the warranty and certiﬁcation.

• Ensure that the fan’s power cord is not in contact with any surface of the appliance to prevent electrical

shock or ﬁre damage. Do not run the power cord beneath the appliance.

• The wire harness provided in the blower kit is a universal harness. When installed, ensure that any excess

wire is contained, prevent it from making contact with moving or hot objects.

W415-2360 / A / 10.31.19

7.0 operation

WARNING

• Do not turn on if children or other at risk individuals are near the appliance.

• This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

• Before operating, smell all around the appliance area for gas and next to the ﬂ oor because some gas is

heavier than air and will settle on the ﬂ oor.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and replace any part of the control system and any gas control which has been

underwater.

FOR YOUR SAFETY READ BEFORE LIGHTING

WHAT TO DO IF YOU SMELL GAS

LIGHTING INSTRUCTIONS

TO TURN OFF GAS

A. Stop! Read the above safety information on this label.

B. Remove batteries from the transmitter and set thermostat to lowest setting, if

equipped.

C. Turn off all electrical power to the appliance.

D. Open the glass door, if equipped.

E. Turn the manual shut-off valve clockwise to the “OFF” position. (Shut-off valve is

located on the ﬂ ex connector).

F. Wait ﬁ ve (5) minutes to clear out any gas. If you smell gas including near the

ﬂ oor, STOP! Follow the instructions above in the “WHAT TO DO IF YOU

SMELL GAS” section. If you don’t smell gas; close the glass door and go to

the next step.

G. Turn the manual shut-off valve counter clockwise to the “ON” position.

H. Turn on all electrical power to the appliance and re-install the batteries into the

transmitter. Set thermostat to desired setting, if equipped.

I. Turn on the remote wall switch to the appliance.

J. If the appliance will not operate, follow instructions “TO TURN OFF GAS” and

call your service technician or gas supplier.

A. Set thermostat to lowest setting, if equipped.

B. Turn off the remote wall switch to the appliance.

C. Turn off all electric power to the appliance if service is to be performed.

D. Turn manual shutoff valve clockwise to the “OFF” positon. Do not force.

• Turn off all gas to the appliance.

• Open windows.

• Do not try to light any appliance.

• Do not touch any electric switch; do not use

any phone in your building

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

• If you do not follow these instructions exactly, a ﬁ re or explosion may result causing property damage, personal

injury, or loss of life.

• If applicable, always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door

opened or removed.

add gas knob

add gas valve

Ensure that a continuous gas ﬂ ow is at the burner before installing the door. When lit for the ﬁ rst time, the

appliance will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of

paints and lubricants used in the manufacturing process and will not occur again. After extended periods of

non-operation, such as, following a vacation or warm weather season, the appliance may emit a slight odor for a

few hours. This is caused by dust particules in the heat exchanger burning off. In both cases, open a window to

sufﬁ ciently ventilate the room.

This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

note:

W415-2360 / A / 10.31.19

operation

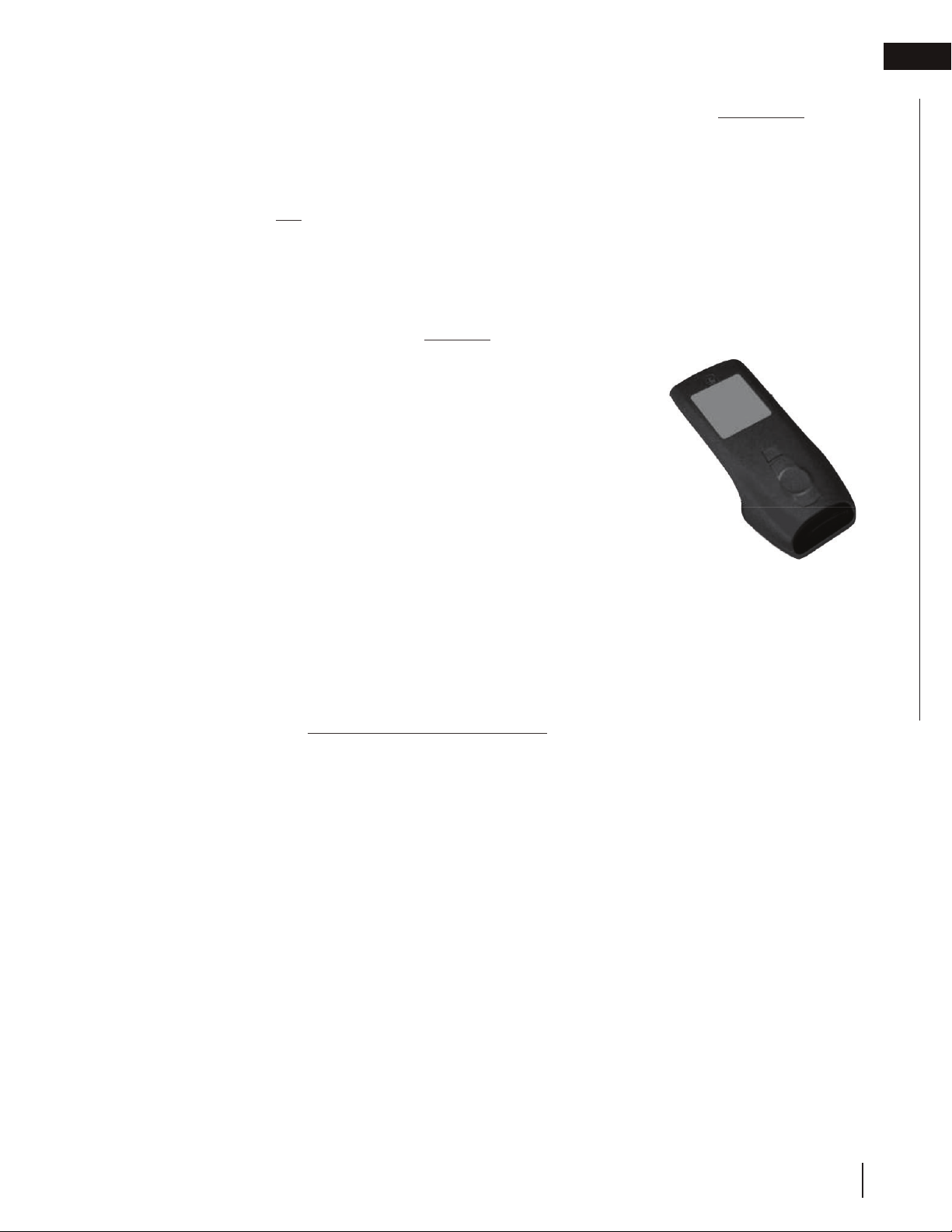

This appliance is equipped with an “On Demand” intermittent pilot ignition system (IPI) which also includes a

continuous pilot ignition (CPI) mode with an integrated seven day timer. This system minimizes your appliance’s

carbon footprint as well as reducing its annual fuel consumption and operating costs.

In IPI mode, the pilot will ignite prior to the main burner, when the appliance is turned on using a switch, remote

or from a call for heat with the thermostat (if equipped). Once the appliance is turned off (or the call for heat is

satisﬁ ed), the main burner and pilot ﬂ ame will shut down.

The continuous (CPI) mode is intended to enhance the performance of the appliance during the startup phase in

colder climates and extreme weather by keeping the system warm when the main burner is not in use. However,

the timer feature provides the convenience that the appliance automatically switches off the pilot when the

appliance has not been used for seven days to save unnecessary fuel consumption.

When the CPI function is turned on, the pilot will remain on after the main burner

is turned off. A timer will then begin the countdown for approximately seven days

before shutting off the pilot if the appliance is not used. This countdown will reset

anytime the appliance main burner is used. Therefore, if the appliance is regularly

used day to day, the pilot will remain on. However, this system does not require

the user to remember to turn the pilot off as summer approaches and avoids

unnecessary fuel consumption while still readily turned back on when the cold

weather returns.

Your appliance may be equipped with an ACS or remote control device which

enables you to select IPI or CPI modes.

If your appliance is equipped with an ACS switch, it has the option to change

modes. If installed with the blue wire facing up, ﬂ ipping the switch UP turns on the

continuous pilot with timer and ﬂ ipping the switch DOWN turns on the intermittent

pilot ignition. If installed with the white wire facing up, the opposite is true.

If your appliance is equipped with a remote control device capable of selecting IPI / CPI modes, refer to remote

operating instructions.

In order to start your pilot, turning the main burner on with the switch, remote or thermostat and then turning it off

will reactivate the continuous pilot mode and reset the seven day timer.

For further information, refer to www.napoleon.com/pilotondemand.

7.1 pilot on demand

W415-2360 / A / 10.31.19

operation

(4) AA Batteries

Low battery alarm

Key Lock

Room

Temperature

Light

Flame ON

Blower

Transmission

CPI mode

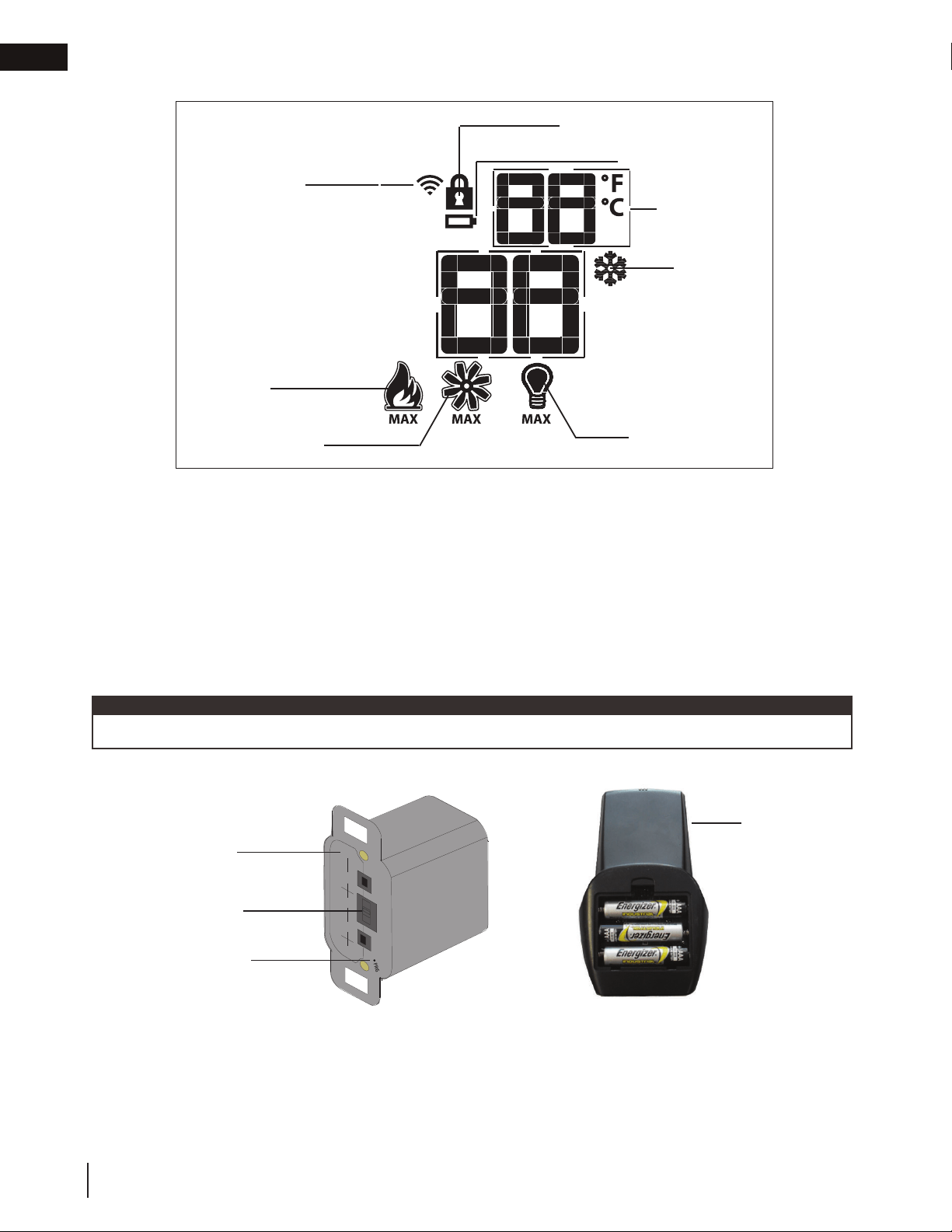

7.2 general transmitter layout

7.3 initializing the transmitter / battery holder for the ﬁ rst time

A. Install the 4 AA batteries into the Proﬂ ame 2 battery holder, note the polarity of the batteries and insert as

indicated on the cover (+/-).

B. Ensure the 3 position slider switch is switched to the “REMOTE” position (middle position).

C. Press the reset/programming button, use a small object such as a paper clip in order to reach the button

marked PRG, as shown in the illustration below.

D. The battery holder will beep 3 times to indicate that it’s ready to synchronize with the transmitter.

E. Install the 3 AAA batteries into the transmitter, as shown in the photograph below, then press the ON

button, The battery holder will beep 4 times to indicate that the transmitter’s command is accepted.

TRANSMITTER

RESET/PROGRAM

BUTTON (PRG)

BATTERY HOLDER

SLIDER SWITCH

(NOT AVAILABLE WITH THIS MODEL)

The initializing process must be completed within 10 seconds of pressing the reset / program button (PRG).

note:

W415-2360 / A / 10.31.19

operation

7.4 temperature display

7.5 ﬂ ame height

7.6 blower speed

7.7 night light dimmer control

7.8 continuous pilot / intermittent pilot (CPI / IPI) selection

A. With the system in the off position, press the Temperature Key and the

mode key at the same time to change from degrees F to C.

B. Look at the LCD screen on the transmitter to verify that a C or F is

visible to the right of the Room Temperature display.

73 23

°F °C

The remote control has six (6) ﬂ ame levels. With the system on and the ﬂ ame level at the maximum, press the Down

arrow key once and it will reduce the ﬂ ame height by one step until the ﬂ ame is turned off.

The Up Arrow Key will increase the ﬂ ame height each time it is pressed. If the Up arrow key is pressed while the

system is on but the ﬂ ame is off, the ﬂ ame will come on at the high position. A single “beep” will conﬁ rm reception of

the command.

°F

OFF

°F

Flame Off Flame at level 1 Flame at level 5 Flame at “Hi” level 6

If the appliance is equipped with a hot air circulating fan, the speed of the

fan can be controlled by the remote system. The fan speed can be adjusted

through six (6) speeds.

A. Use the mode key to guide you to the fan control icon.

B. Use the mode key to turn on/off or adjust the fan speed. A single

“beep” will conﬁ rm reception of the command.

°F

When the desired blower speed is selected, the blower will automatically come on 5 minutes after the main

burner has been turned on and remain on twelve minutes after it has been turned off.

note:

ADD

TITLE:

Night

Light

Dimmer

Control

°F

OFF

°F

The auxiliary function controls the Night Light

with dimmable control.

A. Use the Mode Key to guide you to the Night Light icon.

B. The intensity of the output can be adjusted through 6 levels.

Use the UP/DOWN arrow keys to adjust the output level. A

single beep will conﬁ rm reception of the command.

A. When the transmitter is in the “OFF” position, use the Mode Key to guide

you to the CPI mode icon.

B. Press the UP/DOWN to switch between IPI and CPI modes. A single BEEP

will conﬁ rm reception of the command.

°F

IPI

°F

CPI

If the appliance is equipped with a CPI/IPI toggle switch, set the switch to CPI

position to enable remote CPI operation. If the switch is set to IPI then it will

only work in IPI regardless of what is set on the remote control handset.

note:

W415-2360 / A / 10.31.19

operation

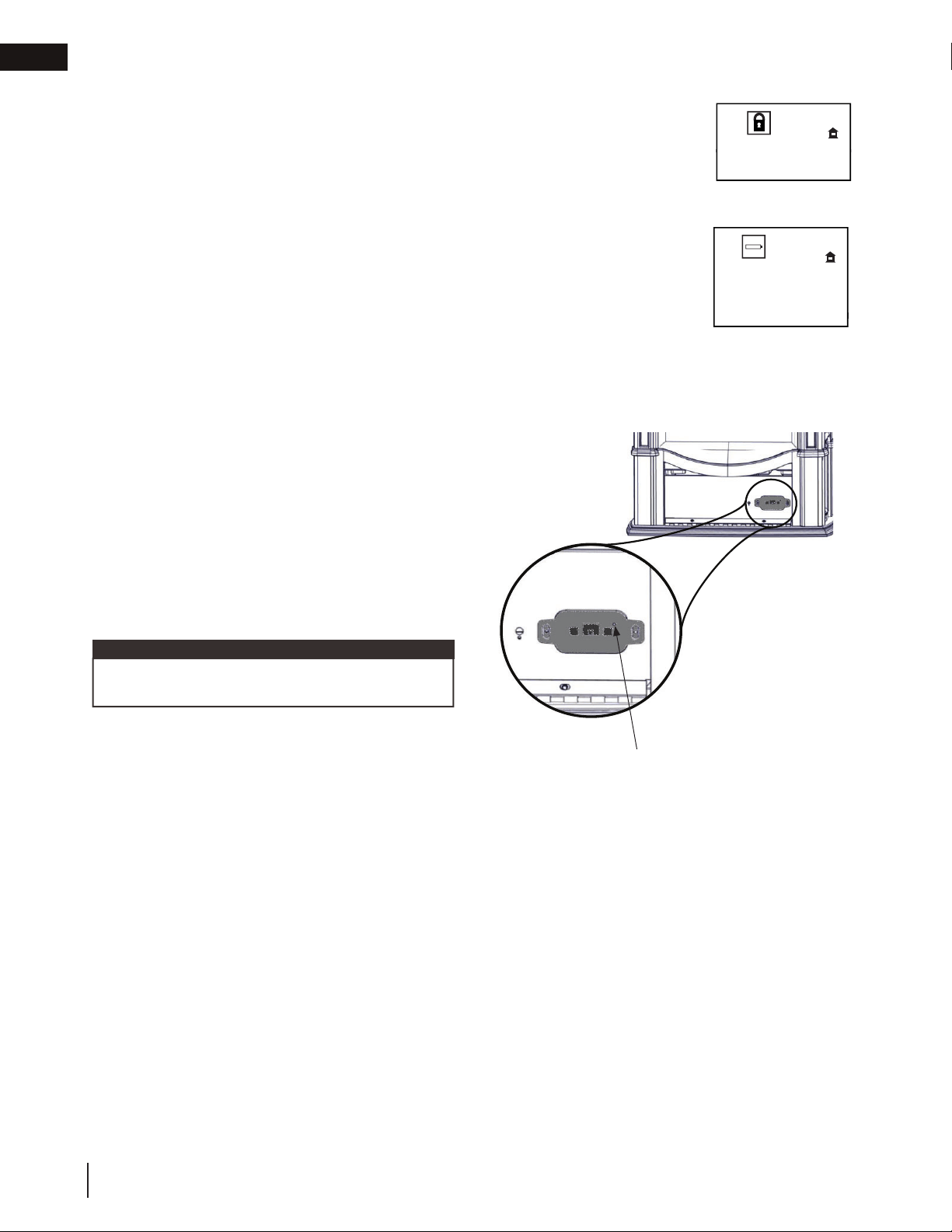

7.9 key lock

7.10 low battery

A. The battery holder is located in the valve

compartment accessible for programming

the remote.

B. Install 4 AA batteries, ensure that the

positive and negative ends correspond with

those identiﬁ ed in the battery holder.

C. In the case of a power outage the 3 position

slider switch needs to be in the "ON"

position (left).

RESET/PROGRAM BUTTON (PRG)

7.11 battery holder / backup installation

ADD

TITLE:

CHILD

PROOF

FUNCTION

This function will lock the keys to avoid unsupervised operation.

A. Press the MODE and UP keys at the same time.

B. To de-activate this function, press the MODE and UP keys at the same time.

°F

The life span of the remote batteries depends on various factors: quality of the batteries, the

number of ignitions, etc.

When the transmitter batteries are low, a Battery Icon will appear on the LCD display before all

battery power is lost. When the batteries are replaced this icon will disappear.

When the receiver batteries are low, no “beep” will be emitted from the receiver when it

receives an ON/OFF command. This in an alert for the receiver that there’s low battery. When

the batteries are replaced the “beep” will be emitted from the receiver when the ON/OFF key is pressed.

If the batteries of the receiver or transmitter are low, the appliance can be turned on manually by sliding the three

position slider switch on the receiver to the “ON” position. This will bypass the remote control feature and the applianc

main burner will come on if the gas valve is in the “ON” position.

°F

Ensure the 3 position slider switch is in the "remote"

position (middle).

note:

W415-2360 / A / 10.31.19

8.0 adjustments

8.1 pilot injector and oriﬁ ce replacement

BURNER

ASSEMBLY

ORIFICE

LOCATION

A. Turn off the electrical and gas supply to the appliance.

B. Remove the cast front, glass viewing door and log set.

C. Remove the 2 securing screws. Slide the burner assembly to the right and lift out.

D. Using a deep socket wrench, remove the main burner oriﬁ ce. A back-up wrench must

be used on the manifold, located below the housing to ensure that the aluminum

tubing does not twist or kink. Replace the correct burner oriﬁ ce using pipe thread

compound.

E. Loosen nut and replace with appropriate injector

F. Reinstall the burner ensuring that the Venturi tube ﬁ ts over the oriﬁ ce.

G. Turn on the gas supply and check for gas leaks by brushing on a soap and

water solution.

DO NOT USE OPEN FLAME.

H. Replace the log set. Then light the pilot and main burner to ensure that the

gas lines have been purged.

I. Replace the glass viewing door and cast front. Turn on the electrical supply

to the appliance.

Purge all gas lines with the glass door removed. Assure that a continuous ﬂ ow is at the burner before re-

installing the door.

8.2 pilot burner adjustment

WARNING

• This installation should be done by a qualiﬁ ed installer and shall be in compliance with local codes. In the

absence of local codes, use the current CAN1-B149 Installation Code in Canada, or the current National Fuel

Gas Code ANSI Z223.1 in the United States.

Check and adjust, if necessary, the primary air to 3/8" (10mm) for

propane and 3/16" (5mm) for natural gas. Replace the screws.

note:

Adjust the pilot screw to provide properly sized ﬂ ame. Turn in a clockwise direction to reduce the gas ﬂ ow.

Check Pressure Readings:

Inlet pressure can be checked by turning screw (A) counter-

clockwise 2 or 3 turns and then placing pressure gauge tubing

over the test point. Gauge should read as described on the chart

below. Check pressure with main burner operating on “HI”.

Outlet pressure can be checked the same as above using screw

(B). Gauge should read as described on the chart below. Check

pressure with main burner operating on “HI”.

After taking pressure readings, be sure to turn screws

clockwise ﬁ rmly to reseal. Do not overtorque.

Leak test with a soap and water solution.

Prior to pilot adjustment, ensure that the pilot assembly has not been painted. If overspray or painting of

the pilot assembly has occurred remove the paint from the pilot assembly, or replace. Fine emery cloth or a

synthetic scrub pad (such as Scotch-Brite

™)

can be used to remove the paint from the pilot hood, electrode

and ﬂ ame sensor.

INSERT PILOT ASSEMBLY

*Maximum inlet pressure not to exceed 13”

Pressure Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

Inlet

*7”

(minimum 4.5”)

17.4mb

(minimum 11.2mb)

13”

(minimum 11”)

32.4mb

(minimum 27.4mb)

Outlet

3.5” 8.7mb 10” 24.9mb

FLAME MUST ENVELOP

UPPER 3/8” (9.5mm) TO

1/2” (12.7mm) OF FLAME

SENSOR

PILOT

BURNER

FLAME

SENSOR

SPARK MODULE

PILOT SCREW

W415-2360 / A / 10.31.19

adjustments

8.3 ﬂ ame characteristics

8.4 venturi adjustment

GDS26-1

NG 3/16” (5mm)

P 3/8” (10mm)

8.5 restricting vertical vents

It’s important to periodically perform a visual check of

the pilot and burner ﬂames. Compare them to the

illustration provided. If any ﬂames appear abnormal,

call a service person.

This appliance has an air shutter that has been factory set open according to

the chart below:

Regardless of venturi orientation, closing the air shutter will cause a more

yellow ﬂame, but can lead to carbonization. Opening the air shutter will cause

a more blue ﬂame, but can cause ﬂame lifting from the burner ports. The ﬂame

may not appear yellow immediately; allow 15 to 30 minutes for the ﬁnal ﬂame

colour to be established.

AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED

INSTALLER.

AIR

SHUTTER

OPENING

VENTURI

BURNER

ORIFICE

It is important that the oriﬁce is securely inserted into the venturi.

note:

Vertical installations may display a very active ﬂ ame. If this appearance is not desirable, the vent exit must be

restricted using a restrictor vent kit. Refer to the “replacement parts” section of the owner’s manual for the

appropriate kit. This will reduce the velocity of the exhaust gases, slowing down the ﬂ ame pattern and creating a

more traditional gentle ﬂ ame appearance. Speciﬁ c instructions are included with the kit.

W415-2360 / A / 10.31.19

9.0 maintenance

WARNING

• Turn off the gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners on glass.

• Do not paint the pilot assembly.

This appliance and its venting system should be inspected before use and at least annually by a qualiﬁ ed

service person. The following suggested checks should be performed by a qualiﬁ ed technician. The appliance

area must be kept clear and free of combustible materials, gasoline, or other ﬂ ammable vapors and liquids.

The ﬂ ow of combustion and ventilation air must not be obstructed.

1. In order to properly clean the burner and pilot assembly, remove the logs, rocks and/or glass to ex-

pose both assemblies.

2. Keep the control compartment, media, burner, air shutter opening and the area surrounding the appli-

ance clean by vacuuming or brushing, at least once a year.

3. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning

or are not burning properly.

4. Check to see that the pilot ﬂ ame is large enough to engulf the ﬂ ame sensor and/or thermocouple /

thermopile as well as it reaches the burner.

5. If your appliance is equipped with a safety barrier, cleaning may be necessary due to excessive lint /

dust from carpeting, pets, etc. simply vacuum using the brush attachment.

6. If your appliance is equipped with relief doors, ensure the system performs effectively. Check that the

gasket is not worn or damaged. Replace if necessary.

7. Replace the cleaned logs, rocks or glass. Failure to properly position the media may cause carboning

which can be distributed in the surrounding living area, inside the ﬁ rebox and on exterior surfaces sur-

rounding vent termination.

8. Check to see that the main burner ignites completely on all ports when turned on. A 5 to 10 second

total light-up period is satisfactory. If ignition takes longer, consult your local authorized dealer / dis-

tributor.

9. Visually inspect the appliance for carbon build up. Using a small whisk or brush, brush off the carbon

and vacuum up or sweep into garbage.

10. This step is not applicable for Vent Free appliances: Check to see that the appliance is vent-

ing correctly. Ensure chimney system is safe and unobstructed. (If for any reason the vent air intake

system is disassembled, re-install and re-seal per the instructions provided for the initial installation).

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and

dangerous operation. Verify proper operation after servicing.

note:

W415-2360 / A / 10.31.19

maintenance

9.1 annual maintenance

WARNING

• This appliance will require maintenance which should be planned on an annual basis.

• Service should include cleaning, battery replacement, venting inspection and inspection of the burner,

media, and ﬁ rebox. Refer to the door removal section and remove the door as instructed.

• Carefully remove media if necessary (logs, glass, brick panels, etc.).

• Using a vacuum with soft brush attachment, gently remove any dirt, debris, or carbon build up from the

logs, ﬁ rebox, and burner. For glass media, follow the installation instructions for pre-cleaning.

• Gently remove any build-up on the pilot assembly including thermopile, thermocouple, ﬂ ame sensor, and

igniter (if equipped).

• Inspect all accessible gaskets and replace as required.

• If equipped with a blower, access the blower and clean using a soft brush and vacuum.

• Re-assemble the various components in reverse order.

• Inspect the relief system. The appliance relieves through the main glass door or through the ﬂ aps on the

ﬁ rebox top. Ensure they open freely, and close sealed.

• Check the gas control valve pilot and Hi / Lo knobs move freely, if equipped. Replace if any stiffness in

movement is experienced.

• Check for gas leaks on all gas connections up and downstream from the gas valve including pilot tube

connections.

Clean ﬂ ame sensor using a ﬁ ne emery cloth or a synthetic scrub pad (such as Scotch-Brite™) to remove any

oxides. Clean the pilot assembly using a vacuum with a soft brush attachment. It is important that the pilot

assembly is not painted.

note:

• Annual maintenance should be performed by a qualiﬁ ed service technician

• The ﬁ rebox becomes very hot during operation. Let the appliance cool completely or wear heat resistant

gloves before conducting service.

• Never vacuum hot embers.

• Do not paint the pilot assembly

W415-2360 / A / 10.31.19

maintenance

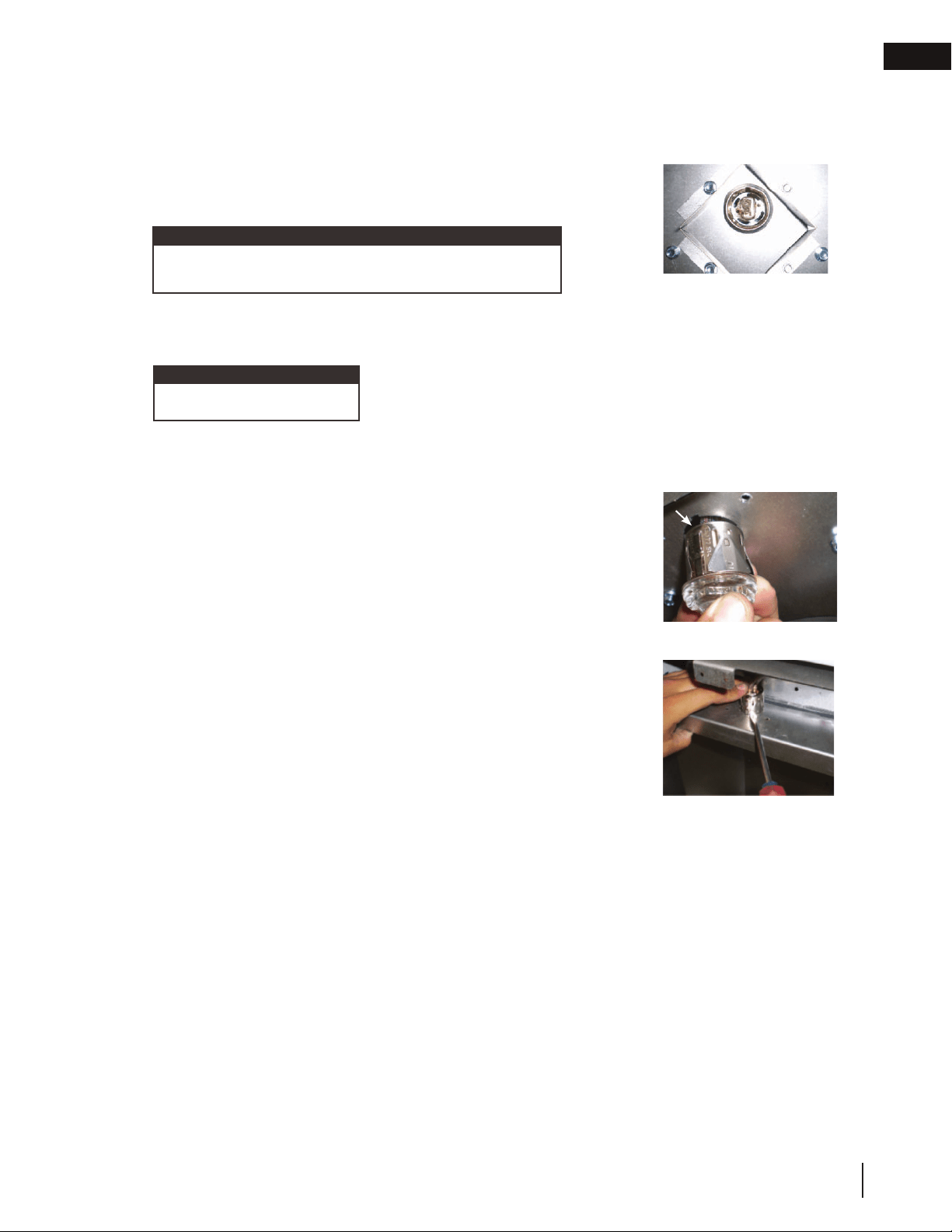

9.2 night light

replacement

9.2.1 bulb replacement

The GDS26-1 comes equipped with our “Night Light™”. If in the event the lamp or lens needs to be replaced, follow

these instructions.

A. Turn off all electrical supply.

B. Remove the safety barrier front and door from the ﬁ rebox.

C. Unscrew the lens cover making sure the washer stays in place.

D. The lamp will pull straight out of the socket. Replace with Wolf Steel Ltd. parts only (W387-0006), as lamp and

lens are special "high temperature" products.

E. Replace lens with gasket, lens covers, attach wires to quick connects and replace the door when ﬁ nished.

When re-assembling the light assembly, care must be taken. “Light Leakage” from above the cast doors

may be noticed. The holes in the lamp housing are necessary for ventilation and must not be covered.

A. Remove the safety barrier and door from the ﬁ rebox.

B. Run the wires up through the lens hole.

C. Align key hole with lens assembly.

D. Snap into place.

E. Replace light shields, attach the wires and replace the door to the ﬁ rebox.

A. Remove the safety barrier and front door and top shield from the

ﬁ rebox.

B. Compress the retainer ﬁ ns in with a screw driver while pressing ﬁ rmly on

the top of the light assembly.

C. Once all the retainer ﬁ ns are pushed in the lens assembly will snap out of

place.

KEY HOLE

9.2.2 lens assembly installation

9.2.3 lens assembly replacement

Do not handle the lamp (bulb) with bare ﬁ ngers. Protect

with a clean, dry cloth.

note:

The ﬁ rebox must be sealed.

note:

W415-2360 / A / 10.31.19

maintenance

9.3 care of glass

WARNING

Buff lightly with a clean dry soft cloth to remove accumulated dust or ﬁ ngerprints. Clean both sides of the glass

after the ﬁ rst 10 hours of operation with an ammonia-free glass cleaner.

Thereafter, clean as required. If the glass is not kept clean permanent discoloration and / or blemishes may

result. Contact you local authorized dealer / distributor for complete cleaning instructions.

Razor blades, steel wool, or other metallic objects must not be used on both surfaces of the glass. Doing so

can remove a thin layer of metal from the razor blades, steel wool, or other metallic objects that may then be

deposited onto the coating. This can result in a discoloured stain or scratch-like mark. More importantly, this can

scratch the glass surface, thereby reducing its strength.

Do not operate the appliance with broken glass, as leakage of ﬂ ue gases may result.

Contact your local authorized dealer / distributor for complete cleaning instructions.

If the glass should ever crack or break while the ﬁ re is burning, do not open the door until the ﬁ re is out. Do not

operate the appliance until the glass has been replaced. Contact you local authorized dealer / distributor for

replacement parts. DO NOT SUBSTITUTE MATERIALS.

Vinegar-based glass cleaners have demonstrated an ability to provide a clean, streak free glass surface.

note:

• Do not clean glass when hot! Do not use abrasive cleaners to clean glass.

This appliance is factory equipped with 5mm ceramic glass. Use only replacement parts as supplied by the

appliance manufacturer. DO NOT SUBSTITUTE MATERIALS.

W415-2360 / A / 10.31.19

10.0 replacement parts

WARNING

• Failure to position the parts in accordance with this manual or failure to use only parts speciﬁ cally approved

with this appliance may result in property damage or personal injury.

Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can

be ordered through your Authorized dealer / distributor.

For warranty replacement parts, a photocopy of the original invoice will be required to honour the

claim.

When ordering replacement parts always give the following information:

• Model & Serial Number of appliance

• Installation date of appliance

• Part number

• Description of part

• Finish

Parts, part numbers, and availability are subject to change without notice.

Parts identiﬁ ed as stocked will be delivered within 2 to 5 business days for most delivery

destinations.

Parts not identiﬁ ed as stocked will be delivered within a 2 to 4 week period, for most cases.

Parts identiﬁ ed as ‘SO’ are special order and can take up to 90 days for delivery.

W415-2360 / A / 10.31.19

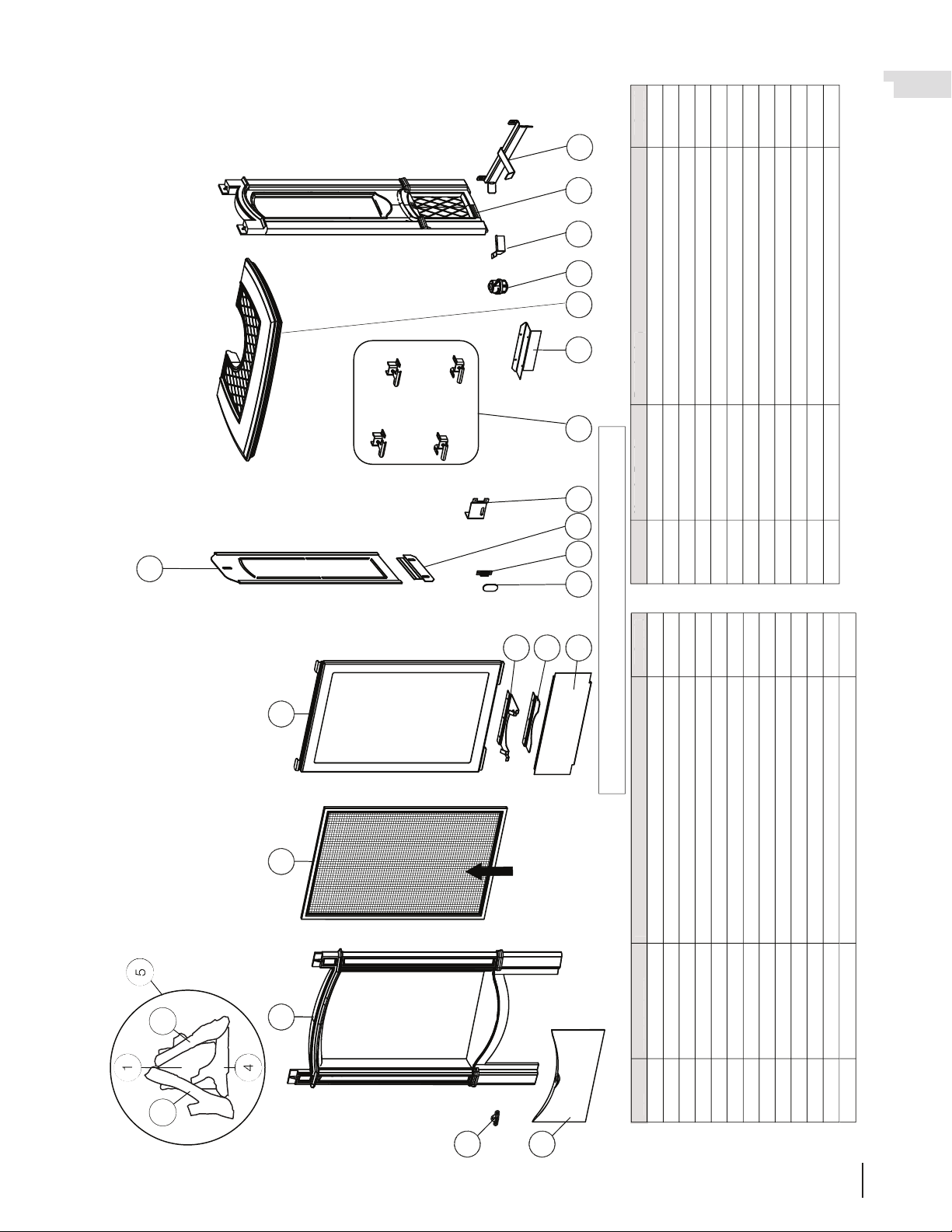

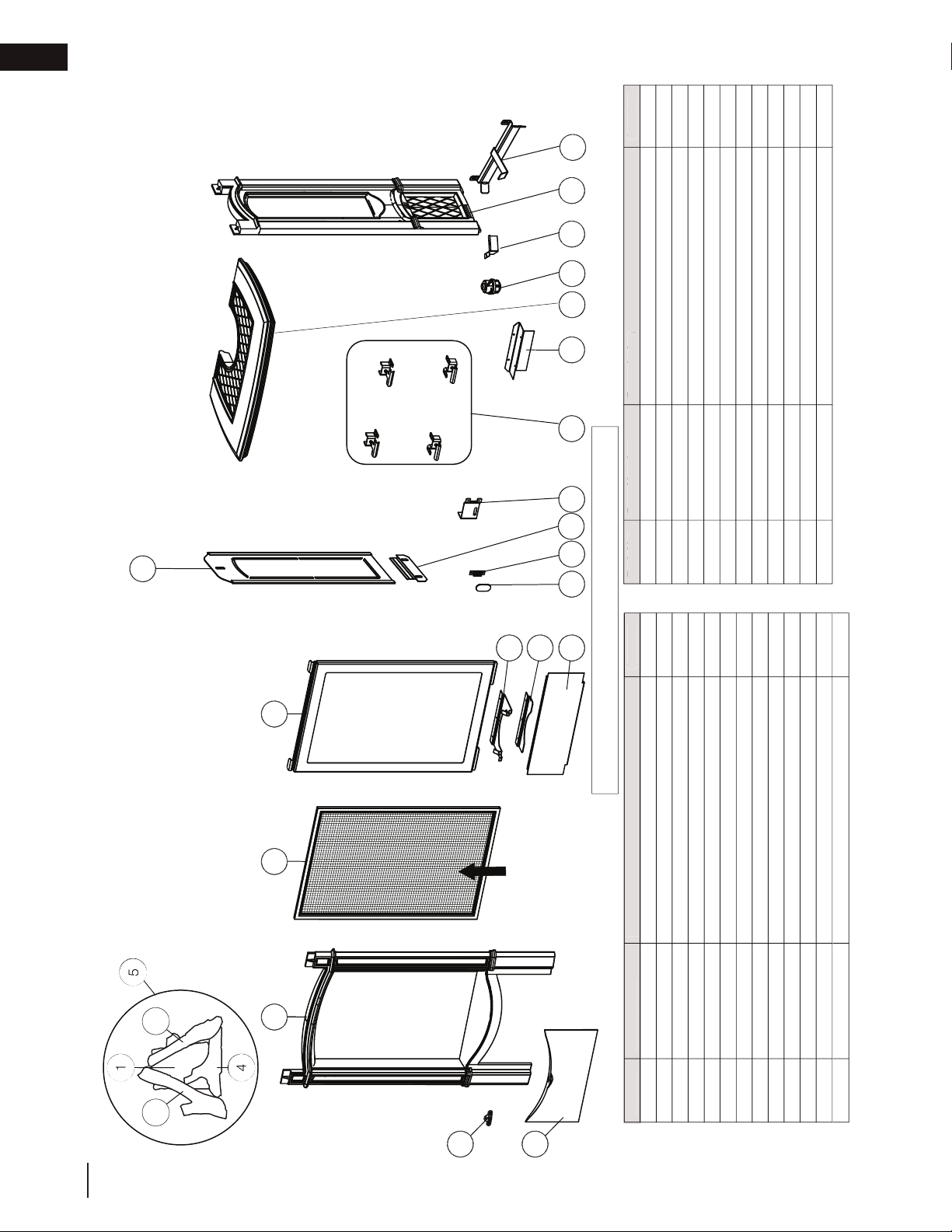

replacement parts

Items may not appear exactly as illustrated.

SAFETY

SCREEN

15 16 18 19 20

21 22

Ref. No. Part Number Description

Ref. No. Description

W135-0322 Rear Log (GL-662)

W135-0323 Left Log (GL-662)

W135-0324 Right Log (GL-662)

W135-0325

Centre Log (GL-662)

GL-662

Log Set

W385-2010 Napoleon Logo

W135-0294-SER Door Casting

W135-0292 Front Casting

W565-0156-SER Safety Screen

W010-2166

Door Assembly

W655-0523 Door Support

W655-0331

Door Support

Part Number

W500-0391 Magnet Striker Plate

W430-0013 Door Match Magnet Assembly

W080-0831 Cast Securing Bracket

W010-3687 Door Latches (x4)

W655-0265

Rear Log Support

W135-0581 Cast Top

W387-0011 Lamp

W585-0236

Light Shield (x2)

W135-0291

Side Casting (x2)

W475-1330

500-0888

080-1713

Side Panel Retaine

Decorative Side Panel

Brick Bracket (Rear & Side)

W475-1336

Control Cover Assembly

23 24

Stocked Stocked

Yes

f. N

. P

rt N

ber

Descri

tio

tocked

f. N

. Descri

tionP

rt N

ber

tocke

10.1 overview

W415-2360 / A / 10.31.19

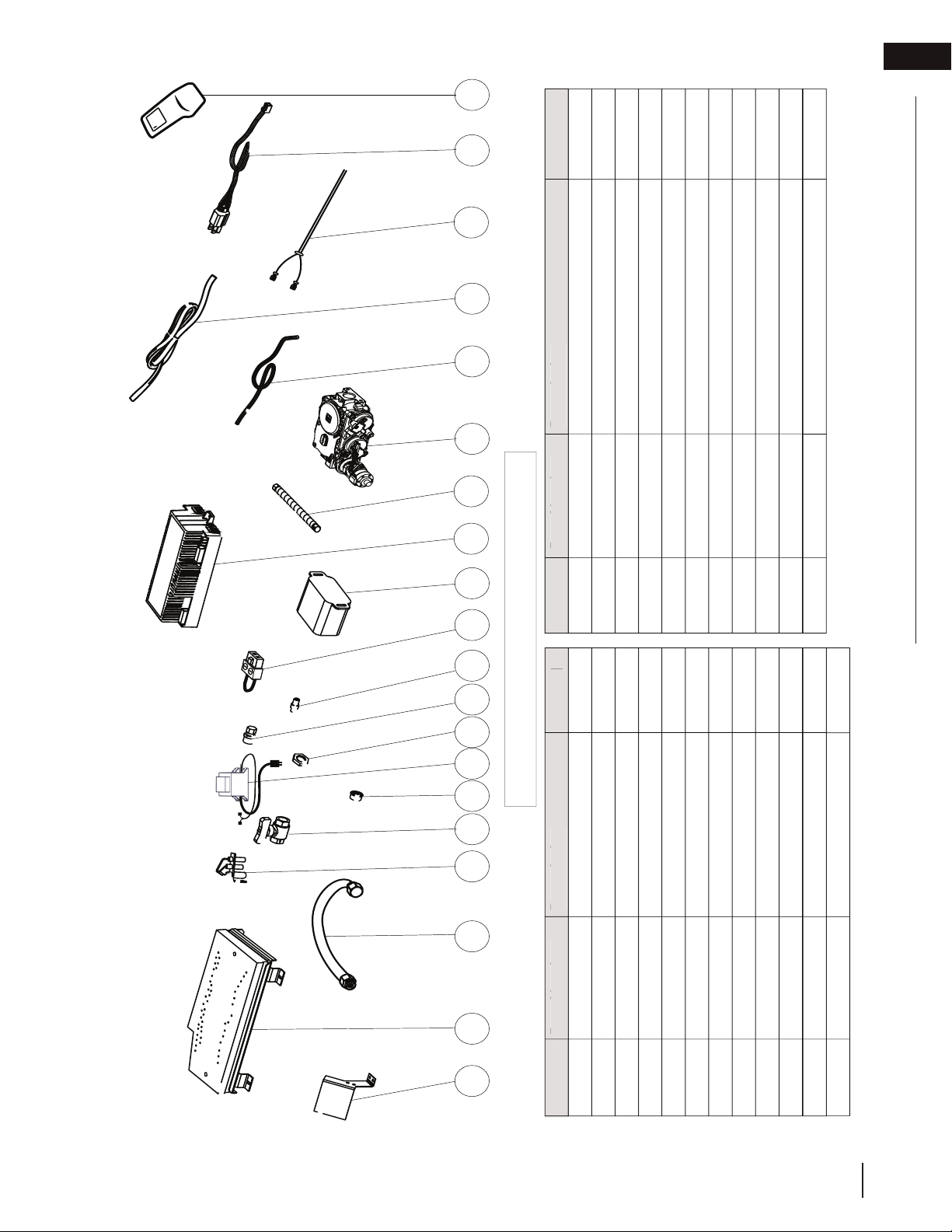

replacement parts

Items may not appear exactly as illustrated.

Ref. No.

Part Number

Description

1 W080-1299 Pilot Bracket

W010-3050 Burner Assembly

Ref. No.

Part Number

Description

456-0042

Burner Oriﬁce #42 (NG)

Stocked Stocked

W350-0655 Battery Housing

W175-0227 Flex Connecto

725-0046

Gas Valve Shut-Of

W175-0355 Female x4 On/Off Jumper

W725-0057

Valve (P)

Pro 2 Wire HarnessW750-0276

W750-0412

Blower/Light Wire Harness

Battery Housing Wire Harness

W750-0268

67°

W660-0126-SER

Pro 2 Transmitte

W432-0078 3/8" Manifold

17 18

W010-3968 Pilot Assembly (NG)

W010-3969 Pilot Assembly (P)

W105-0001 7/8" Bushing

W450-0036

Pal Nut

W445-0038

3/8" Connecto

W190-0177

Control Board

W750-0411 Power Cord

W725-0056

Valve (NG)

W707-0019 Transforme

456-0054

Burner Oriﬁce #54 (P)

Yes

f. N

Part N

ber

Descri

tion Stocke

f. N

Part N

ber

escri

tion Stocke

10.2 valve train assembly

W415-2360 / A / 10.31.19

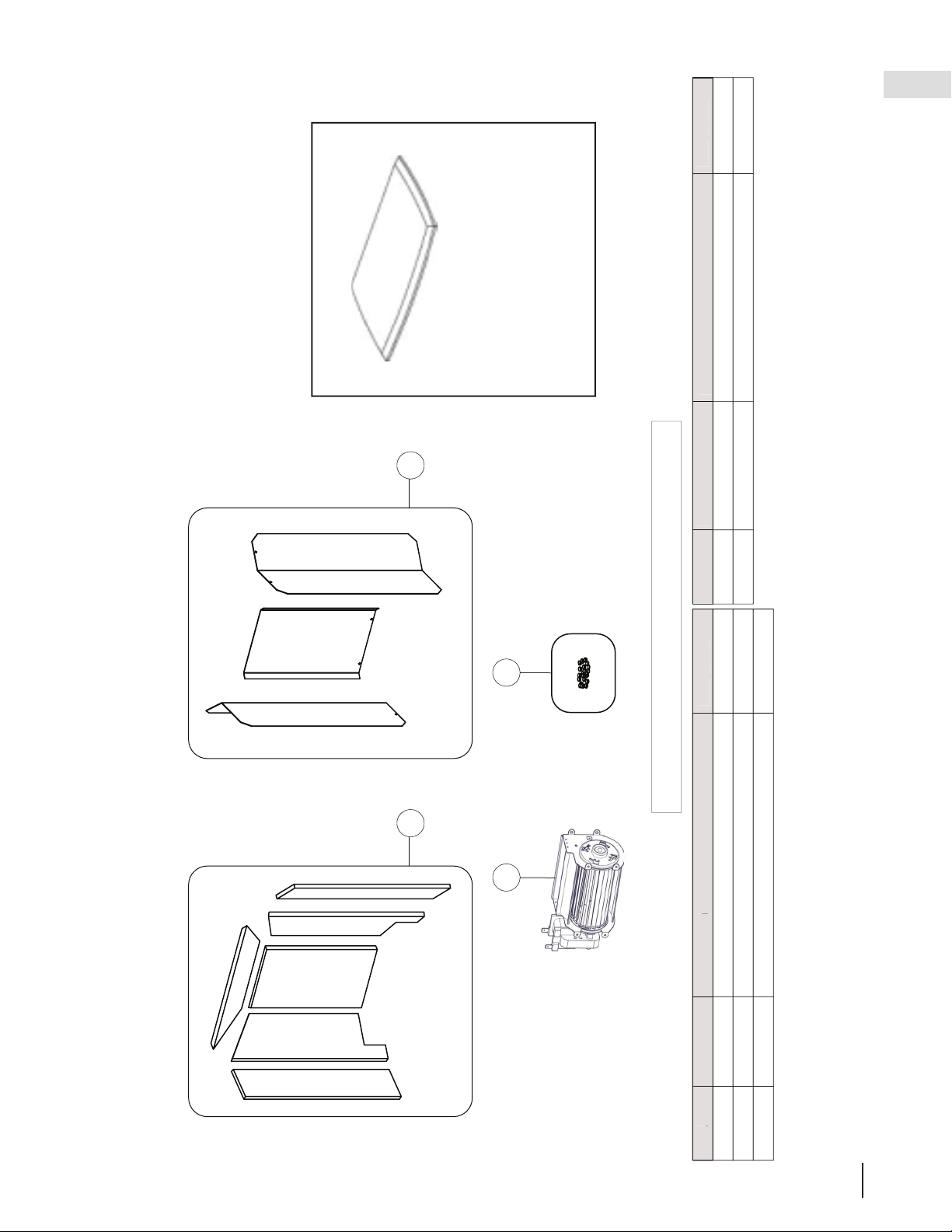

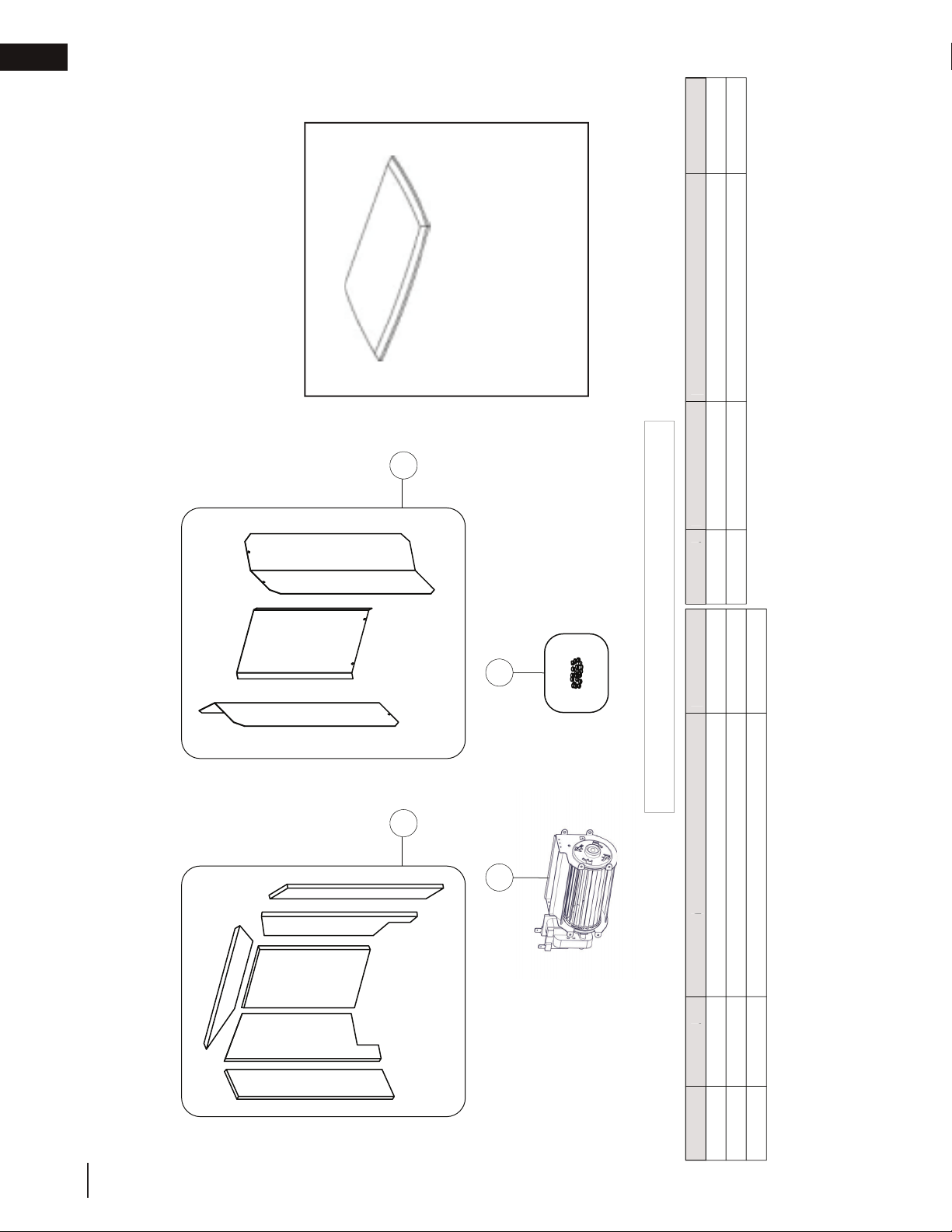

Items may not appear exactly as illustrated.

Ref. No. Part No. Description

GD839KT

PRP19

GD839KT

Decorative Brick Panels Sandstone

GD177

5 *

W361-0239-BUL

Ambient-Glow Embers

Stocked

A stone inset can be cut to enhance

the cast top and to match the room

décor. A template is available to be

downloaded from the product

website. Use this to cut the stone

slab to size so that it will ﬁt into the

cast recess.

PRP19

Porcelain Reﬂective Radiant Panels

GS67-1

Blower Kit

Through the Wall 24” Vent Kit

f. N

Part N

. Descri

tion

tocked

f. N

. Part N

. Descri

tio

tocke

* Parts not illustrated.

11.0 accessories

W415-2360 / A / 10.31.19

12.0 troubleshooting

SYMPTOM PROBLEM TEST SOLUTION

Pilot will not light.

Makes noise with

no spark at pilot

burner.

Wiring. - Verify the wire for the sensor and the wire for the ignitor are

connected to the correct terminals (not reversed) on the

module. NOTE: Sensor has 3/16” (4.8mm) connection and

ignitor has 1/8” (3.2mm)connection.

Loose connection. - Verify no loose connections, electrical shorts in the wiring or

ground out to any metal object.

Module. - Turn the ON/OFF switch to the “OFF” position. Remove the

igniter wire from the module. Place the ON/OFF switch to the

“ON” position. Hold a grounded wire about 3/16” (4.8mm)

away from the ignitor (spark) terminal on the module. If no

spark the ignitor terminal module must be replaced. If there is

a spark the ignitor terminal is ﬁ ne. Inspect pilot assembly for a

shorted wire or cracked insulator around the electrode.

Ignitor Spark gap is incorrect. - Spark gap of the ignitor to the pilot should be 1/8” (3.2mm).

Transformer. - Verify the transformer is installed and plugged into the

module. Check voltage of the transformer under load at the

spade connections on the module with the ON/OFF switch in

the “ON” position. Acceptable readings of a good transformer

are between 6.2 and 7.0 volts A.C.

Battery backup (if power is off) - Check batteries.

A shorted or loose

Connection.

- Remove and reinstall the wiring harness that plugs into the

module. Remove and verify continuity of each wire in wiring

harness.

Improper switch wiring. - Troubleshoot the system with the simplest ON/OFF switch.

Module is not grounded. - Verify the valve and pilot assemblies are properly grounded to the

metal chassis of the appliance or log set.

Pilot sparks but will

not light.

Gas supply. - Verify that the incoming gas line ball valve is “Open”. Verify

that the inlet pressure reading is within acceptable limits, inlet

pressures must not exceed 13” W.C. (32.3mb).

Out of propane gas. - Fill the tank.

Carbon is be-

ing deposited on

glass, logs, rocks,

media or com-

bustion chamber

surfaces.

Air shutter has become

blocked.

- Ensure air shutter opening is free of lint or other obstructions.

Flame is impinging on the

glass, logs, rocks, media or

combustion chamber.

- Check that the glass, logs, rocks or media are correctly positioned.

- Too much glass media around the burner can cause carbon deposits.

- Open air shutter to increase the primary air.

- Check the input rate: check the manifold pressure and oriﬁ ce

size as speciﬁ ed by the rating plate values.

- Check that the door gasketing is not broken or missing and

that the seal is tight.

- Check that both vent liners are free of holes and well sealed

at all joints.

- Check that minimum rise per foot has been adhered to for

any horizontal venting.

WARNING

• Always light the pilot, whether for the ﬁ rst time or if the gas supply has run out, with the glass door open or

removed.

• Turn off the gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners.

W415-2360 / A / 10.31.19

troubleshooting

SYMPTOM PROBLEM TEST SOLUTION

Continues to spark

and pilot lights, but

main burner will not

light.

Short or loose

connection in sensor rod.

- Verify all connections. Verify the connections from the pilot

assembly are tight; also verify these connections are not

grounding out to any metal.

Poor ﬂ ame rectiﬁ cation

or contaminated

sensor rod.

- Verify the ﬂ ame is engulﬁ ng the sensor rod. This will increase

the ﬂ ame rectiﬁ cation. Verify correct pilot oriﬁ ce is installed

and inlet gas speciﬁ cations to manual. (Remember, the ﬂ ame

carries the rectiﬁ cation current, not the gas. If the ﬂ ame lifts

from pilot hood, the circuit is broken. A wrong oriﬁ ce or to

high of an inlet pressure can cause the pilot ﬂ ame to lift.) The

sensor rod may need cleaning.

Poor grounding between

pilot assembly and

gas valve.

- Verify that the wire harness is ﬁ rmly connected to module.

Verify that the ceramic insulator around the sensor rod is not

cracked, damaged, or loose. Verify the connection from the

sensor rod to the sensor wire.

Damaged pilot or dirty

sensor rod.

- Clean sensor rod with a ﬁ ne emery cloth or synthetic

scrub pad to remove any contamination that may have

accumulated on the sensor rod. Verify continuity with

multimeter with ohms set at the lowest range.

Pilot lights

Stops sparking

/ pilot remains lit

but burner will

not turn on.

Wiring / Connection. - Inspect all wires, ensure good tight connections. Verify that

all wiring is installed exactly as speciﬁ ed.

Wiring harness. - Inspect the wiring harness, and verify the harness is

tightly connected to the module. Verify that all wires are

connected in the right order. See “WIRING DIAGRAM”

section.

Exhaust fumes

smelled in room,

headaches.

Appliance is spilling. - Check all seals.

- Check if exhaust is re-entering through an open door or

window.

White / grey ﬁ lm

forms.

Sulphur from fuel is being depos-

ited on glass, logs or combus-

tion chamber

surfaces.

- Clean the glass, see “CARE OF GLASS” section

- DO NOT CLEAN GLASS WHEN HOT.

- If deposits are not cleaned off regularly, the glass may

become permanently marked.

Flames are very ag-

gressive.

Door is ajar. - Tighten door clamps if applicable.

Venting action is too great. - Restrict vent exit with restrictor plate. See “RESTRICTING

VENTS” section if applicable.

Main burner ﬂ ame is

a blue, lazy, trans-

parent

ﬂ ame.

Blockage in vent. - Remove blockage. In extreme conditions, ice buildup may

occur on the terminal and should be removed. To minimize

this from happening again, it is recommended that the

vent lengths that pass through unheated spaces (attics,

garages, crawl spaces) be wrapped with an insulated mylar

sleeve. Prevent sleeve from sagging. Contact your local

authorized dealer for more information.

Compromised venting.

- Check venting system parameters (seal, length, rise, etc.).

Main burner goes

out: pilot goes out.

Vent recirculation. - Check joint seals and installation.

W415-2360 / A / 10.31.19

13.0 warranty

Napoleon warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is

not necessary. Simply provide your proof of purchase along with the model and serial number to make a warranty claim.

Napoleon reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty

claim. Provided that the purchase was made through an authorized Napoleon dealer your appliance is subject to the

following conditions and limitations:

Warranty coverage begins on the date of original installation. This factory warranty is non-transferable and may not

be extended whatsoever by any of our representatives. The gas appliance must be installed by a licensed, authorized

service technician or contractor qualiﬁ ed and authorized installer, service agency or supplier. Installation must be done in

accordance with the installation instructions included with the product and all local and national building and ﬁ re codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or

neglect, and parts installed from other manufacturers will nullify this warranty. This limited warranty further does not cover

any scratches, dents, corrosion or discoloring caused by excessive heat, abrasive and chemical cleaners nor chipping

on porcelain enamel parts, mechanical breakage of Phazer™ logs and embers. This warranty extends to the repair or

replacement of warranted parts which are defective in material or workmanship provided that the product has been

operated in accordance with the operation instructions and under normal conditions. After the ﬁ rst year, with respect to

this President’s Lifetime Limited Warranty, Napoleon may, at its discretion, fully discharge all obligations with respect to this

warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

After the ﬁ rst year, Napoleon will not be responsible for installation, labour, or any other expenses related to the reinstallation

of a warranted part and such expenses are not covered by this warranty. Notwithstanding any provisions contained in the

President’s Lifetime Limited Warranty, Napoleon’s responsibility under this warranty is deﬁ ned as above and it shall not in

any event extend to any incidental, consequential or indirect damages. This warranty deﬁ nes the obligations and liability

of Napoleon with respect to the Napoleon gas appliance and any other warranties expressed or implied with respect to

this product, its components or accessories are excluded. Napoleon neither assumes, nor authorizes any third party to

assume, on its behalf, any other liabilities with respect to the sale of this product. Napoleon will not be responsible for: over-

ﬁ ring, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains,

inadequate vents or ventilation, excessive venting conﬁ gurations, insufﬁ cient makeup air, or negative air pressures which

may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc. Any damages to

the appliance, combustion chamber, heat exchanger, plated trim or other components due to water, weather damage, long

periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of Napoleon.

During the ﬁ rst 10 years Napoleon will replace or repair the defective parts covered by the lifetime warranty at our

discretion free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.

The manufacturer may require that defective parts or products be returned or that digital pictures be provided to support

the claim. Returned products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be

defective, the manufacturer will repair or replace such defect. Before shipping your appliance or defective components,

your dealer must obtain an authorization number. Any merchandise shipped without authorization will be refused and

returned to sender. Shipping costs are not covered under this warranty. Additional service fees may apply if you are

seeking warranty service from a dealer. Warranty labour allowance is only for the replacement of the warranted part. Travel,

diagnostic tests, shipping and other related charges are not covered by this warranty.

Napoleon products are manufactured under the strict Standard of the world recognized ISO 9001 : 2015 Quality Management

System.

Napoleon products are designed with superior components and materials assembled by trained craftsmen who take great

pride in their work. The burner and valve assembly are leak and test-ﬁ red at a quality test station. The complete appliance is

again thoroughly inspected by a qualiﬁ ed technician before packaging to ensure that you, the customer, receive the quality

product that you expect from Napoleon.

The following materials and workmanship in your new Napoleon gas appliance are warranted against defects for as long

as you own the appliance. This covers: combustion chamber, heat exchanger, stainless / steel burner, Phazer™ logs

and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled

components and aluminum extrusion trims.*

Electrical (110V and millivolt) components and wearable parts are covered and Napoleon will provide replacement parts free

of charge during the ﬁ rst year of the limited warranty. This covers: blowers, gas valves, thermal switches, switches, wiring,

remote controls, ignitors, gaskets and pilot assemblies.*

Labour related to warranty repair is covered free of charge during the ﬁ rst year (labour warranty is not applicable for the Gas

Log Sets). Repair work, however, requires the prior approval of an authorized company ofﬁ cial. Labour costs to the account

of Napoleon are based on a predetermined rate schedule and any repair work must be done through an authorized

Napoleon dealer.

* Construction of models vary. Warranty applies only to components included with your speciﬁ c appliance.

Napoleon Gas Appliance President’s Lifetime Limited Warranty

Conditions and Limitations

All speciﬁ cations and designed are subject to change without prior notice due to on-going product improvements. Napoleon is a registered

trademark of Wolf Steel Ltd.

Scan this QR code for more information or visit our website at:

www.napoleonﬁ replaces.com/support/gds26

NAPOLEON CELEBRATING OVER 40 YEARS

OF HOME COMFORT PRODUCTS

AAAA

OOOOO

HHHHH

7200, Route Transcanadienne, Montréal, Québec H4T 1A3

24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8

214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8

103 Miller Drive, Crittenden, Kentucky, USA 41030

Phone: 1-866-820-8686

napoleon.com

ADD MANUAL TITLE

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

$10.00

MODÈLES DE GAZ NATUREL

MODÈLES DE PROPANE

INSTALLATEUR:

Laissez ce manuel avec l’appareil

PROPRIÉTAIRE:

Conservez ce manuel pour consultation

ultérieure

CONSIGNES DE SÉCURITÉ

- N’entreposez pas et n’utilisez pas d’essence

ou autres liquides et vapeurs inﬂ ammables à

proximité de cet appareil ou tout autre appareil.

- QUE FAIRE SI VOUS DÉTECTEZ UN

ODEUR DE GAZ:

• N’allumez aucun appareil.

• Ne touchez à aucun interrupteur

électrique; n’utilisez aucun téléphone dans

votre immeuble.

• Appelez immédiatement votre fournisseur

de gaz d’un téléphone voisin. Suivez ses

instructions.

• Si vous ne pouvez pas rejoindre votre

fournisseur de gaz, appelez le service des

incendies.

- L’installation et l’entretien doivent être faits par

un installateur qualiﬁ é, une agence d’entretien

ou le fournisseur.

Cet appareil peut être installé dans une maison

préfabriquée (mobile) déjà installée à demeure

si les règlements locaux le permettent.

Cet appareil doit être utilisé uniquement

avec le type de gaz indiqué sur la plaque

d’homologation. Cet appareil ne peut être

converti à d’autres gaz, sauf si une trousse de

conversion est utilisée.

RISQUE D’INCENDIE OU D’EXPLOSION

Incapacité à suivre ces avertissements

exactement peuvent entraîner de grave

blessures, des pertes de vie ou des

dommages matériels.

AVERTISSEMENT!

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Téléphone 1(866)820-8686 • www.napoleon.com • [email protected]

CERTIFIÉ SELON LES NORMES NATIONALES CANADIENNES ET AMÉRICANES:

CSA 2.22 ET ANSI Z21.50 POUR LES APPAREILS À GAZ DÉCORATIF À ÉVACUATION

POUR USAGE INTÉRIEUR SEULEMENT

FRANÇAIS

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

MANUEL D'INSTALLATION

ET D'OPÉRATION

GDS26P-1

GDS26N-1

(GDS26-1 illustré)

Castlemore

ÉCRAN DE

PROTECTION

FRANÇAIS

W415-2360 / A / 10.31.19

consignes de sécurité

• Cet appareil est chaud lorsqu’il

fonctionne et peut causer de graves

brûlures en cas de contact.

• Toute modiﬁ cation apportée à cet

appareil ou aux contrôles peut être

dangereux et est interdit.

• Ne faites pas fonctionner l’appareil avant

d’avoir lu et compris les instructions

d’opération. Omettre d’utiliser l’appareil selon

les instructions d’opération pourrait causer un

incendie ou des blessures.

• S’assurez que la porte vitrée est ouvert ou retiré

de l’appareil lorsque vous allumer le pilote pour

la première fois et lorsque le gaz est épuisé.

• Risque d’incendie ou d’asphyxie, ne faites

pas fonctionner l’appareil avec la vitre retirée

et jamais obstruer l’ouverture sur le devant de

l’appareil.

• Ne branchez pas la soupape à du courant 110 volts, avec les exception de modèles; GSST8 et GT8.

• Risque de brûlures. L’appareil doit être éteint et refroidi avant d’effectuer un entretien.

• N’installez pas de composants endommagés ou incomplets ni des composants substituts.

• Risque de coupures et d’éraﬂ ures. Portez des gants protecteurs, des chaussures de protection et des

lunettes de sécurité lors de l’installation. Les bordures des pièces de métal peuvent être coupantes.

• Ne brûlez pas de bois ou autres matériaux dans cet appareil.

• Assurez-vous d’une quantité sufﬁ sante d’air de combustion et de ventilation. Prévoyez un accès sufﬁ sant

pour entretenir et opérer l’appareil.

• Haute pression endommagera la soupape. Débrancher la tuyauterie d’alimentation en gaz avant de tester la pression

de ligne de gaz à la pression d’essai au-dessus de 1/2 psig. Fermer l’arrêt manuelle du soupape avant de tester la

pression de ligne de gaz à la pression égale ou inférieure à 1/2psig (35mb).

• L’appareil ne doit pas être utilisé au températures au-dessous de zero (32°f / 0°c). Permettre à l’appareil

pour réchauffer au-dessus de zero avant le fonctionnement, avec l’exception de modèles; GSS36,

GSS42; ces appareil sont adaptés pour 0°F / -18°C.

• Les enfants et les adultes devraient être informés des dangers que posent les températures

de surface élevées et se tenir à distance afin d’éviter des brûlures ou que leurs vêtements ne

s’enflamment.

• Les jeunes enfants doivent être surveillés attentivement lorsqu’ils sont dans la même pièce

que l’appareil. Les jeunes enfants et autres personnes à risque sont sujets aux brûlures

accidentelles. Une barrière de protection est recommandée si des individus à risque se

trouvent dans la maison. Aﬁ n de restreindre l’accès à l’appareil, installez une barrière de

protection ajustable pour garder les jeunes enfants ou autres personnes à risque hors de la

pièce et loin des surfaces chaudes.

• Les vêtements et autres matériaux combustibles ne doivent pas être posés sur l’appareil ou à

proximité.

• En raison des températures élevées, l’appareil devrait être placé loin des endroits passants et

loin des meubles et des rideaux.

• Les meubles ou autres objets doivent être gardés à une distance d’au moins 4 pieds (1.22m) du devant

de l’appareil.

• Assurez-vous de disposer de mesures de sécurité adéquates pour empêcher les jeunes enfants de

toucher aux surfaces chaudes.

• Même une fois que l’appareil est éteint, l’appareil demeurera chaud pendant un temps prolongé.

• Consultez votre détaillant local de l’appareil pour connaître les écrans de protection et les protection du

foyer offerts pour protéger les enfants des surfaces chaudes. Ces écrans de protection et les protection

du foyer doivent être ﬁ xés au plancher.

• Tout écrans de protection, garde ou barriére enlevés pour faire l’entretien devront être remis

en place avant d’utiliser l’appareil.

• Il est primordial de garder propres les compartiments de contrôle, les brûleurs, la soufﬂ erie, les bouches

d’air de l’appareil ainsi que le système d’évacuation. L’appareil et son système d’évacuation doivent

être inspectés avant la première utilisation et au moins une fois l’an par un spécialiste en entretien. Un

entretien plus fréquent pourrait être nécessaire en raison des peluches provenant des tapis, literie, etc.

L’emplacement de l’appareil doit être gardé libre de tous matériaux combustibles, essence ou autres

liquides et vapeurs inﬂ ammables.

• Si l’appareil s’éteint, n’allume pas l’appareil jusqu’à ce que vous donner de l’air frais. Si l’appareil

continue de s’éteindre, faire réparer.

Garder propres le brûleur et le compartiment de contrôle.

• Cet appareil ne devra être modiﬁ é en aucun cas.

• Ne laissez pas les ventilateurs soufﬂ er directement sur l’appareil. Empêchez les courants d’air de modiﬁ er

l’a

arence de la ﬂ amme.

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

AVERTISSEMENT

Une barriére conçu à réduire le risque de brûlures

causées par le verre chaud est fourni avec l’appareil et

sera installé pour la protection des enfants et d’autres

personnes à risque.

AVERTISSEMENT

W415-2360 / A / 10.31.19

consignes de sécurité

AVERTISSEMENT

• N’utilisez pas une soufﬂ erie intégrée, un échangeur de chaleur intégré ni un autre accessoire non

approuvé pour cet appareil.

• Cet appareil ne doit pas être raccordé au conduit d’une cheminée desservant un autre appareil de

chauffage à combustible solide.

• N’utilisez pas cet appareil si une partie quelconque a été submergée. Contactez immédiatement un

technicien de service qualiﬁ é pour inspecter l’appareil et pour remplacer toute pièce du système de

contrôle et du contrôle du gaz qui aurait été submergée.

• Ne pas opérer l’appareil lorsque la porte vitrée est enlevée, ﬁ ssurée ou brisée. Le remplacement de la

vitre devra être effectué par un technicien de service certiﬁ é ou qualiﬁ é, si équippé.

• Ne frappez pas et ne claquez pas la porte vitrée de l’appareil, si équippé.

• Seulement les portes/façades certiﬁ ées pour l’appareil peuvent être utilisées avec cet

appareil.

• Gardez les matériaux d’emballage hors de la portée des enfants et mettez ces matériaux au rebut de

façon sécuritaire. Comme tous les emballages de plastique, ces matériaux ne sont pas des jouets et

doivent demeurer hors de la portée des enfants et des bébés.

• Le carbone ou la suie ne doit pas se produire dans un appareil sans évent car il peut être distribué dans

une zone habitable de votre maison. Si vous remarquez des signes de carbone ou de suie, éteignez

immédiatement votre appareil et arrangez-le pour le faire entretenir par un technicien qualiﬁ é avant de

l’actionner à nouveau.

• Si équipé, l’écran doivent être (fermez) en place pendant le fonctionnement de l’appareil.

• Lorsque l’appareil est muni de portes d’évacuation de pression, elles doivent demeurer fermées pendant

le fonctionnement de l’appareil aﬁ n d’empêcher les gaz de combustion contenant du monoxyde de

carbone de s’inﬁ ltrer dans la maison. La température des gaz de combustion s’échappant par ces

ouvertures peut aussi causer les matériaux combustibles avoisinants à surchauffer et à prendre feu.

• L’empoisonnement au monoxyde de carbone peut conduire à la mort; les premiers signes d’une intoxication

au monoxyde de carbone ressemblent à la grippe, avec céphalées, vertiges et/ou des nausées. Si vous

présentez ces signes, l’appareil peut ne pas fonctionner correctement. Obtenir l’air frais! Faire réparer

l’appareil. Certaines personnes; les femmes enceintes, les personnes ayant une maladie cardiaque ou

pulmonaire, anémie, ceux sous l’inﬂ uence de l’alcool, ceux à haute altitude sont plus touchées par le

monoxyde de carbone que d’autres. Défaut de garder l’ouverture d’air primaire(s) du brûleur(s) propre peut

entraîner la formation de suies et dommages à la propriété.

• Comme dans le cas de tout appareil à combustion, il est recommandé de faire inspecter et entretenir

votre appareil régulièrement. De même, installez un détecteur de monoxyde de carbone dans la pièce

pour vous protéger, ainsi que votre famille, contre les intoxications (pas applicable pour les appareils pour

l’extérieure).

• Assurez-vous que les distances requises pour les dégagements aux matériaux combustibles sont

respectées lorsque vous installez une tablette décorative ou des tablettes au-dessus de l’appareil. En

raison des températures élevées, un téléviseur ou d’autres composants électroniques pourraient être

endommagés prématurément ou ils pourraient fondre, se déformer ou se décolorer.

• Pour les appareils avec une barriére; si la barriére est endommagée, elle devra être remplacée par la

barriére conçu par le manufacturier pour cet appareil.

• L’installation et la réparation devraient être effectuées par un technicien qualiﬁ é. Il est impératif que

les compartiments de contrôle, le brûleur et les passages de circulation d’air soient gardés propres

aﬁ n de fourni une combustion et une circulation d’air adéquates.

• Produits pour l’extérieur seulement: Cet appareil ne doit pas être installé à l’intérieur ni dans une structure

qui empêche la dissipation des gaz de combustion dans l’environnement extérieur.

• S’il y a lieu, la version de millivolt de cet appareil utilise et requiert un thermocouple à action rapide.

Remplacez uniquement par un thermocouple à action rapide de Wolf Steel ltée.

Isoler l'appareil en fermant la soupape

d'arrêt pendant tout essai de pression

du système d’alimentation en gaz

lorsque les pressions sont de 1/2

lb/po2 (3,5 kPa) ou moins.

RISQUE D'INCENDIE /

RETARD D'ALLUMAGE

AVERTISSEMENT/ADVERTENCIA

Desconectar la válvula/el control

principal de gas del aparato del

caño de suministro cuando se

compruebe la presión del sistema

a más de 1/2 psi (3.5 kPa).

El suministro a alta presión

dañará la válvula/los controles.

Débrancher la soupape de gaz de la

ligne d’alimentation en gaz pendant

les essais de pression de ce

système lorsque les pressions

excèdent 1/2 lb/po2 (3,5 kPa).

Aislar el aparato con su válvula de

cierre durante cualquier

comprobación de la presión de

la cañería de suministro a

una presiónigual o inferior

a 1/2 psi (3.5 kPa).

Add California Prop 65 warning

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

plomb et les composés de plomb qui, selon l’État de Californie, causeraient le cancer, et des

substances chimiques incluant le monoxyde de carbone qui, selon d’État de Californie, cause-

raient des malformations congénitales ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

W415-2360 / A / 10.31.19

table de matières

1.0 information générale 59

1.1 taux et efﬁ cacités 59

1.2 instructions générales 60

1.3 information à propos de la plaque

d'homologation 61

1.4 liste de pièces 61

1.5 dimensions 62

1.6 installation dans une maison mobile 63

2.0 évacuation 64

2.1 typical vent installation 65

2.2 installations particulières d'évents 67

2.2.1 termination périscopique 67

2.2.2 termination en coin 67

2.3 emplacements et dégagements

minimaux de la terminaison 68

2.4 charte d'application des évacuations

2.5 légende 69

2.6 valeur du coude en longueur d'évent

2.7 évacuation sur le dessus - terminaison

horizontale 70

2.8 évacuation à l'arrière - terminaison

horizontale 72

2.9 évacuation sur le dessus ou à l'arrière

- terminaison verticale 74

2.10 terminaison verticale à travers une

cheminée existante 76

2.11 conversion en évacuation à l'arrière 77

3.0 installation 78

3.1 installation horizontale 79

3.2 installation verticale 80

3.3 raccordement des évents à l'appareil

3.4 installation de la terminaison

horizontale 82

3.5 installation de la terminaison

horizontale prolongée ajustable 83

3.6 installation de la terminaison verticale

3.7 branchement du gaz 85

3.8 dégagements minimaux aux matériaux

combustibles 85

4.0 information électrique 87

4.1 schéma de câblage 87

5.0 finitions 88

5.1 la barrière de protection et la porte

vitrée 88

5.2 remplacement de la vitre de porte 89

5.3 emplacement des bûches 89

5.4 vermiculite 90

5.5 mise en place du logo 90

6.0 remplacement de la soufflerie 91

7.0 opération 92

7.1 veilleuse sur demande 93

7.2 dessin général de la télécommande 94

7.3 première initialisation de la

télécommande / bloc-piles 94

7.4 afﬁ cher de température 95

7.5 hauteur de la ﬂ amme 95

7.6 vitesse du ventilateur 95

7.7 veilleuse gradateur accès aux

contrôles 95

7.8 la sélection pilote continu / pilote

intermittente (CPI / IPI) 95

7.9 verrouillage par clé 96

7.10 piles faible 96

7.11 installation du boîtier à piles / piles de

secours 96

8.0 réglages 97

8.1 remplacement de l'injecteur de

veilleuse et de l'injecteur de brûleur 97

8.2 ajustment de veilleuse 98

8.3 caractéristiques de la ﬂ amme 99

8.4 réglage du venturi 99

8.5 étranglement des évents verticaux 99

9.0 entretien 100

9.1 entretien annuel 101

9.2 remplacement de la lumière de veille

102

9.2.1 remplacement de l'ampoule 102

9.2.2 installation de l'assemblage de lentille

102

9.2.3 remplacement de l'assemblage de

lentille 102

9.3 soins de la vitre 103

10.0 pièces de rechange 104

10.1 vue d'ensemble 105

10.2 l'assemblage de la soupape 106

11.0 accessoires 107

12.0 guide de dépannage 108

13.0 garantie 110

14.0 notes 111

L'information contenue dans ce manuel est jugée correcte au moment de l'impression. Wolf Steel Ltée. se

réserve le droite de modiﬁ er ou de modifer toute information contenue dans ce manuel à toute moment sans

préavis. Les modiﬁ cations, autre que les éditoriaux, sont désignées par une ligne verticale dans la marge.

note:

GDS26N-1

GDS26P-1

Les piles doivent être mises au rebut conformément aux lois et à la réglementation locales.

Certaines piles peuvent être recyclées et acceptées dans votre centre de recyclage local. Rensei-

gnez-vous auprès de votre municipalité au sujet des directives de recyclage.

W415-2360 / A / 10.31.19

liste de vériﬁ cation

Gaz Naturel: Propane:

1.0 information générale

Installateur, veuillez rempli les informations suivants:

Client: ______________________________________________________________

Adresse: ______________________________________________________________

Date d'Installation: ______________________________________________________________

Location de l'Appareil: ______________________________________________________________

Installateur: ______________________________________________________________

Number de Contact du

Détaillant / Distributeur: ______________________________________________________________

N° de Série: ______________________________________________________________

Modèle:

Lorsque l'appareil est installé à des élévations dépassant 4 500 pieds (1372m), et en l'absence de recommenda-

tions spéciﬁ ques de l'autorité compétente locale, l'indice certiﬁ é du débit à haute altitude devra être réduit au taux

de 4% pour chaque 1 000 pieds (305m) supplémentaires.

Les bruits causés par l'expansion et la contraction lors des cycles de chauffage et de refroidissement sont tout à

fait normaux et il faut s'y attendre.

Cet appareil ne doit fonctionner qu'avec le type de gaz spéciﬁ é sur la plaque d'homologation. Cet appareil ne peut

être converti à un autre type de gaz à moins d'utiliser un ensemble de conversion certiﬁ é.

Prévoyez un accès sufﬁ sant pour entretenir et opérer l'appareil.

N'obstruez jamais l'ouverture sur le devant de l'appareil.

L'emballage de protection sur les pièces s'enlève mieux lorsque l'assemblage est à température ambiante ou

lorsqu'il est chauffé à l'aide d'un séchoir à cheveux ou d'une autre source de chaleur similaire. L'emballage de

protection doit être retiré avant d'utiliser l'appareil.

Appareil à gaz décoratif à évacuation : n'est pas une source de chaleur ; ne convient pas aux combus-

tibles solides.

Une barrière conçu à réduire le risque de brûlures à partir de la chaude la vitre est à condition qu'avec l'appareil

et sera être installée.

note:

1.1 taux et efﬁ cacités

TAUX ET EFFICACITÉS

GN P

Altitude (PI) 0-4 500

Débit Maximal (BTU/HR) 25 000

Débit Maximal Rendement en Régime

(BTU/HR)

17 000 20 000

Pression minimale d'alimentation en gaz

4,5" Water Column (11mb) 11" Water Column (27mb)

Pression maximale d'alimentation en gaz

13" Water Column (32mb)

Pression au collecteur (lorsque le gaz circule)

3,5" Water Column (9mb) 10" Water Column (25mb)

W415-2360 / A / 10.31.19

information générale

AVERTISSEMENT

• Allumez toujours la veilleuse, qu ce soit pour la première fois ou lorsque l'approvisionnement en gaz est épuisé,

avec la porte vitrée ouverte ou retirée.

• Prévoyez un accès sufﬁ sant pour entretenir et opérer l'appareil.

• Assurez-vous d'une quantité sufﬁ sante d'air de ventilation.

• N'obstruez jamais l'ouverture de l'appareil.

• Les objets placés devant l'appareil doivent être gardés à une distance d'au moins 48" (121,9cm) de la face

vitrée de l'appareil.

• Les surfaces autour et surtout au-dessus de l'appareil peuvent devenir chaudes. Ne touchez pas l'appareil

quand il fonctionne.

• Risque d'incendie ou d'explosion.

• N'utilisez que les accessoires optionnels et les pièces de rechange approuvés par Wolf Steel pour cet appareil.

L'utilisant d'accessoires non listés (c.à.d. soufﬂ erie, portes, persiennes, soulures, composants de gaz,

composants d'évacuation, etc.) pourrait être non sécuritaire et annulera la garantie et la certiﬁ cation.

Cet appareil au gaz devrait être installé et entretenu par un installateur qualiﬁ é en se conformant aux

codes locaux. Les pratiques d’installation peuvent varier d’une région à l’autre. Il est donc important de connaÎtre

les normes spéciﬁ ques qui s’appliquent à votre région. Par example, dans l’état du Massachusetts:

• Ce produit doit être installé par un plombier certiﬁ é ou un installateur pour le gaz lorsque installé dans le

Commonwealth du Massachusetts.

• Le registre de l’appareil doit être enlevé ou bloqué en le soudant en position ouverte avant d’installer un

encastré ou un ensemble de bûches à gaz.

• La soupape d’arrêt doit être un robinet à gaz avec une poignée en T.

• Le raccord ﬂ exible ne doit pas messurer plus que 36 pouces (914,4mm).

• Un détecteur de monoxyde de carbone est requis dans toutes les pièces contenant des appareils alimentés

au gaz.

• L’appareil n’est pas approuvé pour installation dans une chambre à coucher ou une salle de bain à moins

d’être un appareil avec une chambre de combustion scellée à évacuation directe.

L’installation doit se conformer aux codes locaux. En

l’absence de codes locaux, l’installation doit être conforme

au Code d’installation du gaz naturel et du propane CSA

B149.1 au Canada ou au National Fuel Gas Code, ANSI

Z223.1 / NFPA 54 aux États-Unis. Cet appareil convient

pour installation dans une maison mobile si l’installation est

conforme aux normes actuelles pour les maisons mobiles

équipées au gaz CAN/CSA Z240 SÉRIE MM au Canada ou

selon les normes ANSI Z223.1 et NFPA 54 aux États-Unis.

L’alimentation de gaz de l’appareil doit être débranchée

pendant les essais de pression de ce système lorsque les pressions d’essai excèdent ½ lb/po² (3,5 kpa). Fermez

la soupape d’arrêt manuelle pendant tout essai de pression du système d’alimentation en gaz lorsque la pression

est de ½ lb/po² (3,5 mb) ou moins. Si la soufﬂ erie ou ventilateur est installer la boîte de dérivation doit être

branchée au circuit électrique et mise à la terre conformément aux codes locaux. En l’absence de codes locaux

utilisez la version courante du Code Canadien de l’Électricité CSA C22.1 au Canada ou le National Electrical

Code ANSI/NFPA 70 aux États-Unis. Dans le cas où le soufﬂ erie est équipé d’un cordon d’alimentation il doit

être connecté à une réceptacle correctement mise à la terre. La ﬁ che de mise à la terre ne doit pas être retiré du

cordon d’alimentation.

Ce qui suit ne s’applique pas aux foyers encastrés; tant que les distances requises pour les dégagements aux

matériaux combustibles sont respectées, le meilleur endroit pour un appareil est le centre de la maison, car ceci

permet une meilleure utilisation de la chaleur fournie. L’emplacement des fenêtres, des portes et la circulation

dans la pièce où se trouve l’appareil devront être pris en considération. Si possible, vous devriez choisir un

emplacement où le système d’évent peut passer à travers la maison sans avoir à découper des solives de

plancher ou de toit, sauf indication contraire à l’essai.

Nous suggérons que nos

appareils au gaz soient installés

et que l'entretien soit effectué

par des professionnels certi-

fiés par le National Fireplace

Institute® (NFI) comme

spécialiste du gaz NFI.

1.2 instructions générales

W415-2360 / A / 10.31.19

information générale

1.3 information à propos de la plaque d'homologation

Cet illustration est à titre de référence seulement. Consultez la plaque d'homologation pour obtenir l'information

précise.

La plaque d'homologation doit rester avec l'appareil à tout instant. Elle ne doit pas être enlevée.

note:

1.4 liste de pièces

Réf. Description Quantité

1 Vis autopercuses de 1 3/4" 4

2 Vis hexagonale de 1/4", vis de tôle de 1/2" en longueur 3

Seulement les attaches fournies avec l'appareil seront être illustrées.
