Napoleon GDS25NW-1 Bayfield User Manual

ADD MANUAL TITLE

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone 1 (866) 820-8686 • www.napoleon.com • [email protected]

CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:

CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES

INSTALLER:

Leave this manual with the appliance

CONSUMER:

Retain this manual for future reference

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

NATURAL GAS MODELS:

PROPANE GAS MODELS:

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

SAFETY INFORMATION

- Do not store or use gasoline or other

ﬂ ammable vapors and liquids in the vicinity of

this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

- Installation and service must be

performed by a qualiﬁ ed installer, service

agency, or the supplier.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁ ed kit is used.

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly

could result in serious injury, death, or

property damage.

WARNING

ENGLISH

$10.00

FOR INDOOR USE ONLY

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

SAFETY BARRIER

GDS25N-1

GDS25P-1

Bayﬁ eld™

INSTALLATION AND

OPERATION MANUAL

FRENCH

PG. 51

W415-2347 / C / 09.21.20

• This appliance is hot when operated and

can cause severe burns if contacted.

• Any changes or alterations to this

appliance or its controls can be

dangerous and is prohibited.

• Do not operate appliance before reading and

understanding operating instructions. Failure

to operate appliance according to operating

instructions could cause ﬁ re or injury.

• Ensure the glass door is opened or removed

when lighting the pilot for the ﬁ rst time and

when the gas supply has run out.

• Risk of ﬁ re or asphyxiation, do not operate

appliance with ﬁ xed glass removed and never

obstruct the front opening of the appliance.

• Do not connect 110 volts to the control valve,

with the exception of models; GSST8 and

GT8.

• Risk of burns. The appliance should be turned off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during

installation. Sheet metal edges may be sharp.

• Do not burn wood or other materials in this appliance.

• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing

and operating the appliance.

• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at

test pressures above 1/2 psig. Close the manual shut-off valve before pressure testing gas line at test

pressures equal to or less than 1/2 psig (35mb).

• The appliance must not be operated at temperatures below freezing (32°F / 0°C). Allow the appliance

to warm to above freezing prior to operation, with the exception of models; GSS36, GSS42; these

appliances are suitable for 0°F / -18°C.

• Children and adults should be alerted to hazards of high surface temperature and should stay

away to avoid burns or clothing ignition.

• Young children should be carefully supervised when they are in the same room as the

appliance. Toddlers, young children and others may be susceptible to accidental contact

burns. A physical barrier is recommended if there are at risk individuals in the house. To

restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers,

young children and other at risk individuals out of the room and away from hot surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Due to high temperatures, the appliance should be located out of trafﬁ c and away from

furniture and draperies.

• Furniture or other objects must be kept a minimum of 4 feet (1.22m) away from the front of the appliance.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot

surfaces.

• Even after the appliance is off, it will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children

from hot surfaces. These screens and guards must be fastened to the ﬂ oor.

• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior

to operating the appliance.

• It is imperative that the control compartments, burners and circulating blower and its passageway in the

appliance and venting system are kept clean. The appliance and its venting system should be inspected

before use and at least annually by a qualiﬁ ed service person. More frequent cleaning may be required

due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and

free from combustible materials, gasoline and other ﬂ ammable vapors and liquids.

• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it

serviced. Keep burner and control compartment clean.

• Under no circumstances should this appliance be modiﬁ ed.

• Do not allow wind or fans to blow directly into the appliance. Avoid any drafts that alter burner ﬂ ame

patterns.

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

A barrier designed to reduce the risk of burns from the hot

viewing glass is provided with this appliance and must be

installed for the protection of children and other at-risk

individuals.

WARNING

W415-2347 / C / 09.21.20

safety information

WARNING

• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this

appliance.

• This appliance must not be connected to a chimney ﬂ ue pipe serving a separate solid fuel burning

appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and to replace any part of the control system and any gas control which has

been under water.

• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass

should be done by a licensed or qualiﬁ ed service person, if equipped.

• Do not strike or slam shut the appliance glass door, if equipped.

• Only doors / optional fronts certiﬁ ed with the appliance are to be installed on the appliance.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As

with all plastic bags, these are not toys and should be kept away from children and infants.

• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your

home. If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have

it serviced by a qualiﬁ ed technician before operating it again.

• If equipped, the screen must be in place (closed) when the appliance is in operation.

• When equipped with pressure relief doors, they must be kept closed while the appliance is operating

to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of

the exhaust escaping through these openings can also cause the surrounding combustible materials to

overheat and catch ﬁ re.

• Carbon monoxide poisoning may lead to death; early signs of carbon monoxide poisoning resemble the

ﬂ u, with headache, dizziness and/or nausea. If you have these signs, the appliance may not be working

properly. Get fresh air at once! Have appliance serviced. Some people; pregnant women, persons with

heart or lung disease, anemia, those under the inﬂ uence of alcohol, those at high altitudes are more

affected by carbon monoxide than others. Failure to keep the primary air opening(s) of the burner(s) clean

may result in sooting and property damage.

• As with any combustion appliance, we recommend having your appliance regularly inspected and

serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and

your family against Carbon Monoxide (not applicable for outdoor appliances).

• Ensure clearances to combustibles are maintained when building a mantel or shelves above the

appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting,

discolouration or damage to decorations, a TV or other electronic components.

• For appliances equipped with a safety barrier; if the barrier becomes damaged, the barrier

shall be replaced with the manufacturer’s barrier for this appliance.

• Installation and repair should be done by a qualiﬁ ed service person. It is imperative that control

compartments, burners and circulating air passageways of the appliance be kept clean.

• For outdoor products only: this appliance must not be installed indoors or within any structure that

prevents or inhibits the exhaust gases from dissipating in the outside atmosphere.

• If applicable, the millivolt version of this appliance uses and requires a fast acting thermocouple. Replace

only with a fast acting thermocouple supplied by Wolf Steel Ltd.

WARNING

Disconnect the appliance main gas valve/control

from the supply piping when pressure testing that

system at pressures in excess of 1/2 psi (3.5 kPa).

Isolate the appliance with it’s shut off valve during

any pressure testing of the supply piping at

pressures equal to or less than 1/2 psi (3.5 kPa).

FIRE RISK HAZARD / DELAYED IGNITION

High supply pressure will damage the valve / controls.

Add California Prop 65 warning

WARNING:

This product can expose you to chemicals including lead and lead compounds,

which are known to the State of California to cause cancer, and chemicals including carbon

monoxide, which are known to the State of California to cause birth defects or other reproduc-

tive harm. For more information, go to www.P65Warnings.ca.gov.

W415-2347 / C / 09.21.20

safety information

1.0 general information 5

1.1 rates and efﬁ ciencies 5

1.2 rating plate information 7

1.3 mobile home installation 7

1.4 hardware list 8

1.5 dimensions 9

2.0 venting requirements 10

2.1 typical venting installation 11

2.2 special vent installations 12

2.2.1 periscope termination 12

2.2.2 corner termination 12

2.3 vent terminal clearances 13

2.4 horizontal termination 14

2.5 vertical termination 15

2.6 vertical through existing chimney 16

3.0 installation 17

3.1 horizontal installation 18

3.2 vertical installation 18

3.3 horizontal air terminal installation 19

3.4 extended horizontal and corner air

terminal installation 19

3.5 vertical air terminal Installation 20

3.6 appliance vent connection 21

3.7 gas installation 21

3.8 minimum clearance to combustibles 22

3.9 minimum mantel or shelf clearances 23

4.0 finishing 24

4.1 cast front installation and removal 24

4.2 safety barrier installation and removal

4.3 glass door installation and removal 25

4.4 log placement 25

4.5 logo placement 26

5.0 optional blower installation 27

6.0 wiring diagram 29

7.0 operation 30

7.1 pilot-on-demand 31

7.2 general transmitter layout 32

7.3 initializing the transmitter / battery

holder for the ﬁ rst time 32

7.4 temperature display 33

7.5 ﬂ ame height 33

7.6 blower speed 33

7.7 night light dimmer control 33

7.8 continuous pilot / intermittent pilot (CPI

/ IPI) selection 33

7.9 key lock 34

7.10 low battery / manual bypass 34

8.0 adjustment 35

8.1 restricting vertical vents 35

8.2 venturi adjustment 35

8.3 pilot burner adjustment 35

8.4 ﬂ ame characteristics 36

9.0 maintenance 37

9.1 annual maintenance 38

9.2 night light replacement 39

9.3 pilot injector and oriﬁ ce replacement 39

9.4 care of glass 40

9.5 care of plated parts 40

10.0 replacement parts 41

10.1 overview 42

10.2 valve train assembly 43

11.0 accessories 44

12.0 troubleshooting 45

13.0 warranty 48

The information throughout this manual is believed to be correct at the time of printing. Wolf Steel

Ltd. reserves the right to change or modify any information within this manual at any time without

notice. Changes, other than editorial, are denoted by a vertical line in the margin.

note:

The camera icon indicates video tutorials are available as additional reference, visit

http://www.napoleonﬁ replaces.com/category/product-support/support-centre/

W415-2347 / C / 09.21.20

table of contents

Installer, please ﬁ ll out the following information:

Customer:

Address:

Date of Installation:

Location of appliance:

Installer:

Dealer/Distributor contact number:

Serial #:

Model:

Natural Gas: GDS25N-1

Propane: GDS25P-1

1.0 general information

For elevations between 2,000ft (610m) and 4,500ft (1372m) above sea level, this appliance must be de-rated by 10%

using the certiﬁ ed high altitude kit. When the appliance is installed at elevations above 4,500ft (1372m), and in the absence

of speciﬁ c recommendations from the local authority having jurisdiction, the certiﬁ ed high altitude input rating shall be

reduced at the rate of 4% for each additional 1,000ft (305m).

Expansion / contraction noises during heating up and cooling down cycles are normal and to be expected.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for

use with other gases, unless a certiﬁ ed kit is used.

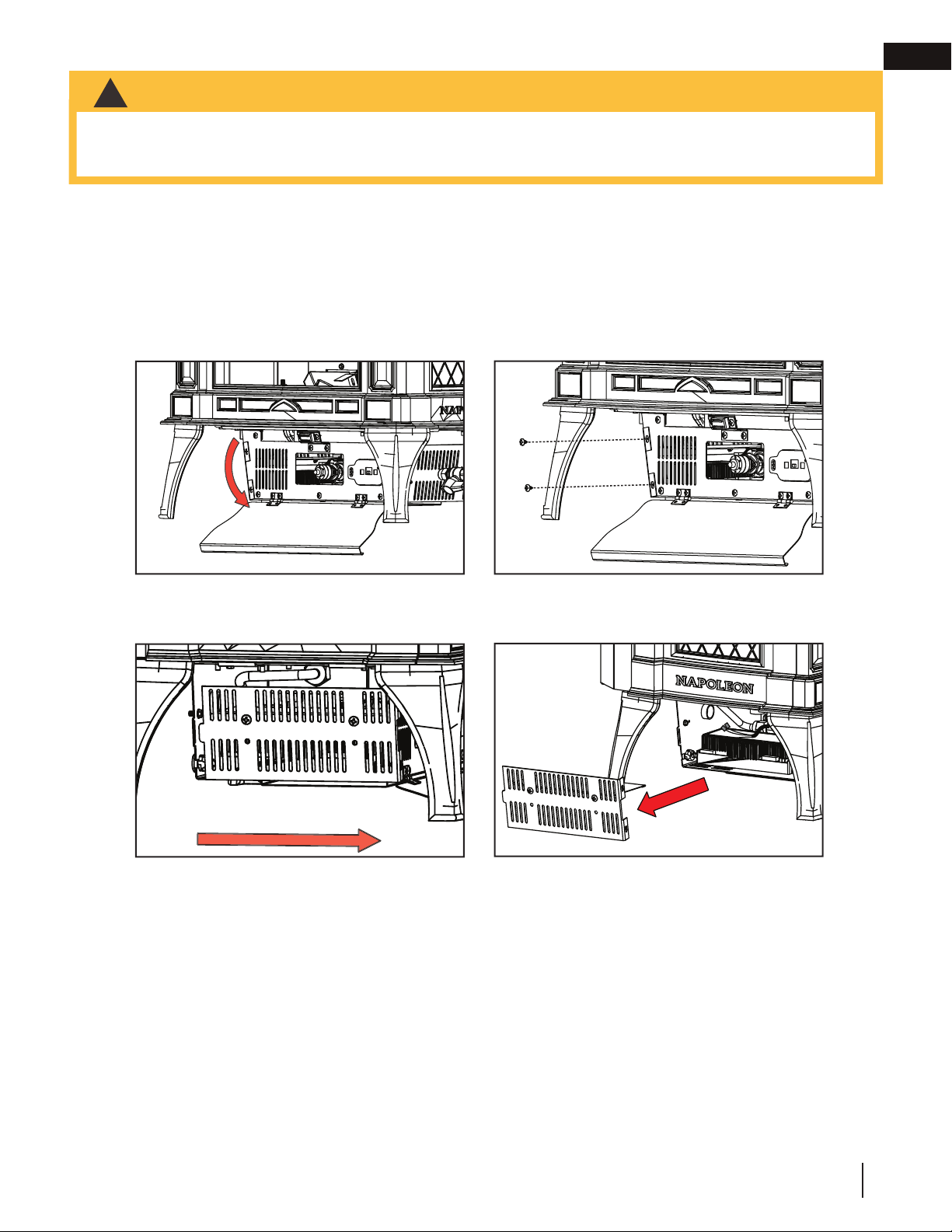

The blower power cord must be connected into a properly grounded receptacle. The grounding prong must not

be removed from the cord plug.

This appliance is approved for closet or recessed installations, as well as for bathroom, bedroom and

bed-sitting room installations and is suitable for mobile home installations. The natural gas model can be installed

in a mobile home that is permanently positioned on its site and fueled with natural gas.

note:

The protective wrap on plated parts is best removed when the assembly is at room temperature but

this can be improved if the assembly is warmed, using a hair dryer or similar heat source.

This appliance is a decorative product. It is not a source of heat and not intended to burn solid fuel.

Batteries must be disposed of according to the local laws and regulations. Some batteries may be

recycled, and may be accepted for disposal at your local recycling center. Check with your

municipality for recycling instructions.

1.1 rates and efﬁ ciencies

GDS25-1

NG P

Altitude (FT) 0-2,000

Max. Input (BTU/HR) 24,500

Max. Output (BTU/HR) 19,000 16,000

Min. Inlet Gas Supply Pressure 4.5" Water Column (11mb) 11" Water Column (27mb)

Max. Inlet Gas Supply Pressure 13" Water Column (17mb) 13" Water Column (32mb)

Manifold Pressure (Under Flow Conditions) 3.5" Water Column (9mb) 10" Water Column (25mb)

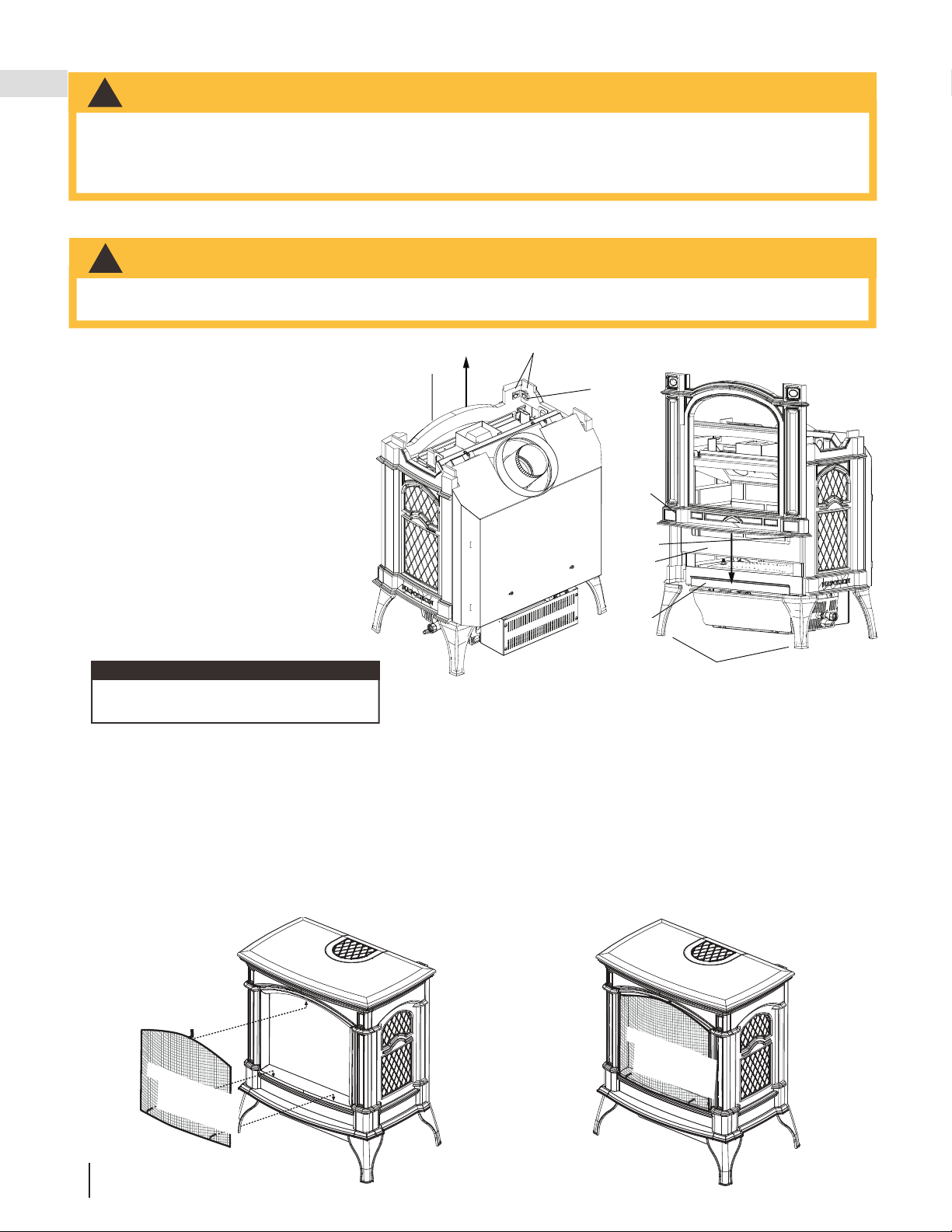

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance and must

be installed.

W415-2347 / C / 09.21.20

standard checklist

WARNING

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out, with the glass door opened

or removed.

• Provide adequate clearance for servicing and operating the appliance.

• Provide adequate ventilation.

• Never obstruct the front opening of the appliance.

• Objects placed in front of the appliance must be kept a minimum of 48” (121.9cm) from the front face of

the appliance.

• Surfaces around and especially above the appliance can become hot. Avoid contact when appliance is

operating.

• Fire risk. Explosion hazard.

• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at test

pressures above 1/2 PISG (35mb). Close the manual shut-off valve before pressure testing gas line at test

pressures equal to or less than 1/2 PISG (35mb).

• Use only Wolf Steel approved optional accessories and replacement parts with this appliance using non-

listed accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could result

in a safety hazard and will void the warranty and certiﬁ cation.

• The appliance must not be operated at temperatures below freezing (32ºF/0ºC). Allow the appliance to

warm to above freezing prior to operation.

THIS GAS APPLIANCE MUST BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local

codes. Installation practices vary from region to region and it is important to know the speciﬁ cs that apply to your area, for

example in the state of Massachusetts:

• This product must be installed by a licensed plumber or gas ﬁ tter when installed within the commonwealth of

Massachusetts.

• The appliance damper must be removed or welded in the open position prior to installation of an appliance insert or gas

log.

• The appliance off valve must be a “T” handle gas cock.

• The ﬂ exible connector must not be longer than 36 inches (0.9m).

• A carbon monoxide detector is required in all rooms containing gas ﬁ red appliances.

• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed

combustion product.

The installation must conform with local codes or, in absence of local

codes, the National Gas and Propane Installation Code CSA B149.1

in Canada, or the National Fuel Gas Code, ANSI Z223.1 / NFPA 54

in the United States. Suitable for mobile home installation if installed

in accordance with the current standard CAN/CSA Z240MH Series,

for gas equipped mobile homes, in Canada or ANSI Z223.1 and

NFPA 54 in the United States.

The appliance and its individual shutoff valve must be disconnected

from the gas supply piping system during any pressure testing

of that system at test pressures in excess of 1/2 psig (35 mb).

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any

pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (35 mb). When installed

with a blower or fan, the junction box must be electrically connected and grounded in accordance with local codes. In the

absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI / NFPA 70 National

Electric Code in the United States. In the case where the blower is equipped with a power cord, it must be connected into a

properly grounded receptacle. The grounding prong must not be removed from the cord plug.

The following does not apply to inserts; as long as the required clearance to combustibles is maintained, the most desirable

and beneﬁ cial location for an appliance is in the center of a building, thereby allowing the most efﬁ cient use of the heat

created. The location of windows, doors and, the trafﬁ c ﬂ ow in the room where the appliance is to be located should be

considered. If possible, you should choose a location where the vent will pass through the house without cutting a ﬂ oor or

roof joist. If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood ﬂ ooring, the

appliance shall be installed on a metal or wood panel extending the full width and depth, unless otherwise tested.

We suggest that our gas

hearth products be installed

and serviced by professionals

who are certied in the U.S.

by the National Fireplace

Institute

(NFI) as NFI Gas

Specialists

www.ncertied.org

W415-2347 / C / 09.21.20

general information

Certiﬁed to Canadian and American National Standards: CSA 2.22-XXXX / ANSI Z21.50-XXXX for Vented Decorative Gas Appliances

Certiﬁé selon les normes Nationales Canadiennes et Américaines: CSA 2.22-XXXX / ANSI Z21.50-XXXX pour les Appareils à gaz décoratif à évacuation

Direct vent, vented gas ﬁreplaces. Approved for bedroom, bathroom and bed-sitting room installation. Suitable for mobile home installation, if installed in accordance with the current

standard CAN / CSA Z240MH Series gas equipped mobile homes in Canada, or, in the United States, the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part

3280. When this US Standard is not applicable, use the Standard for Fire Safety Criteria for Manufactured Home Installations, Sites and Communities, ANSI / NFPA 501A. This appliance

must be installed in accordance with local codes, if any; if none, follow the current ANSI Z223.1 or CSA B149. For use with barrier WXXX-XXXX. Follow installation instructions.

Foyer à gaz ventilé. Homologué pour installation dans une chambre à coucher, une salle de bain et un studio. Approprié pour installation dans une maison mobile si son installation

conforme aux exigences de la norme CAN / CSA Z240MH Séries de maisons mobile équipées au gaz en vigueur au Canada, ou, aux États-Unis selon la norme 24 CFR, Part 3280,

Manufactured Home Construction and Safety Standard. Dans le cas ou cette norme d’États-Unis n’est pas pertinentes, utiliser la norme NFPA 501A, Fire Safety Criteria for Manufactured

Home Installations, Sites and Communities. Installer l’appareil selon les codes ou règlements locaux ou, en l’absence de tels règlements, selon les codes d’installation ANSI Z223.1 ou

CSA B149 en vigueur. Utiliser uniquement avec l’écran WXXX-XXXX. Suivre les instructions d’installation.

9700539 (WSL) 4001658 (NAC) 4001657 (NGZ) 4001659 (WUSA)

WOLF STEEL LTD. 24 Napoleon Road, Barrie, ON, L4M 0G8 Canada

XXXX XXXX XXXX XXXX

MODEL / MODÈLE

Altitude

Input

Reduced Input

Élévation

Alimentation

Alimentation Réduite

Manifold Pressure: 3.5” w.c. (NG)

Minimum Supply Pressure: 4.5” w.c. (NG)

Maximum Supply Pressure: 7”* w.c. (NG)

Pression au Collecteur: 3,5” d’une colonne d’eau (GN)

Pression d’Alimentation Min.: 4,5” d’une colonne d’eau (GN)

Pression d’Alimentation Max.: 7” ** d’une colonne d’eau (GN)

** Maximum inlet pressure not to exceed 13”.

Manifold Pressure: 10” w.c. (P)

Minimum Supply Pressure: 11” w.c. (P)

Maximum Supply Pressure: 13”* w.c. (P)

Pression au Collecteur: 10” d’une colonne d’eau (P)

Pression d’Alimentation Min.: 11” d’une colonne d’eau (P)

Pression d’Alimentation Max.: 13” * d’une colonne d’eau (P)

** Pression d’alimentation maximale ne devait pas dépasser 13”.

0-XXXXft (0-XXXXm)

Minimum clearance to combustible materials:

Top, sides & back: per standoff spacers for framing and ﬁnishing

materials. For non-combustible framing and ﬁnishing materials,

see installation manual.

Top X”

Floor X”

Sides X”

Back X”

Vent top X”

Vent sides & bottom X”

Recessed depth X”

*** Mantel X” from appliance opening

Dégagements minimaux des matériaux combustibles:

Dessus, côtés et arrière: selon les espaceurs de dégagements

pour les matériaux d’ossature selon le manuel du propriétaire

pour les matériaux de ﬁnition.

Dessus X”

Plancher X“

Côtés X”

Arrière X“

Dessus du conduit d’évent X”

Côtés et dessous du conduit d’évent X”

Profondeur d’encastré une face X”

*** Tablette X” de l’ouverture de l’appareil

WARNING: Do not add any material to the appliance which will come in contact with the

ﬂames, other than that supplied by the manufacturer with the appliance.

AVERTISSEMENT: N’ajoutez pas à cet appareil aucun matériau devant entretien

contact avec les ﬂammes autre que celui qui est fourni avec cet appareil par le fabricant.

*** Maximum horizontal extension:

X”. See installation manual for

greater extensions, minimum vent

lengths and maximum vent lengths.

*** L’extension horizontale maximale: X”.

Référez au manuel d’installation pour des

extensions plus grandes, les longueurs

d’évacuation minimaux et maximum.

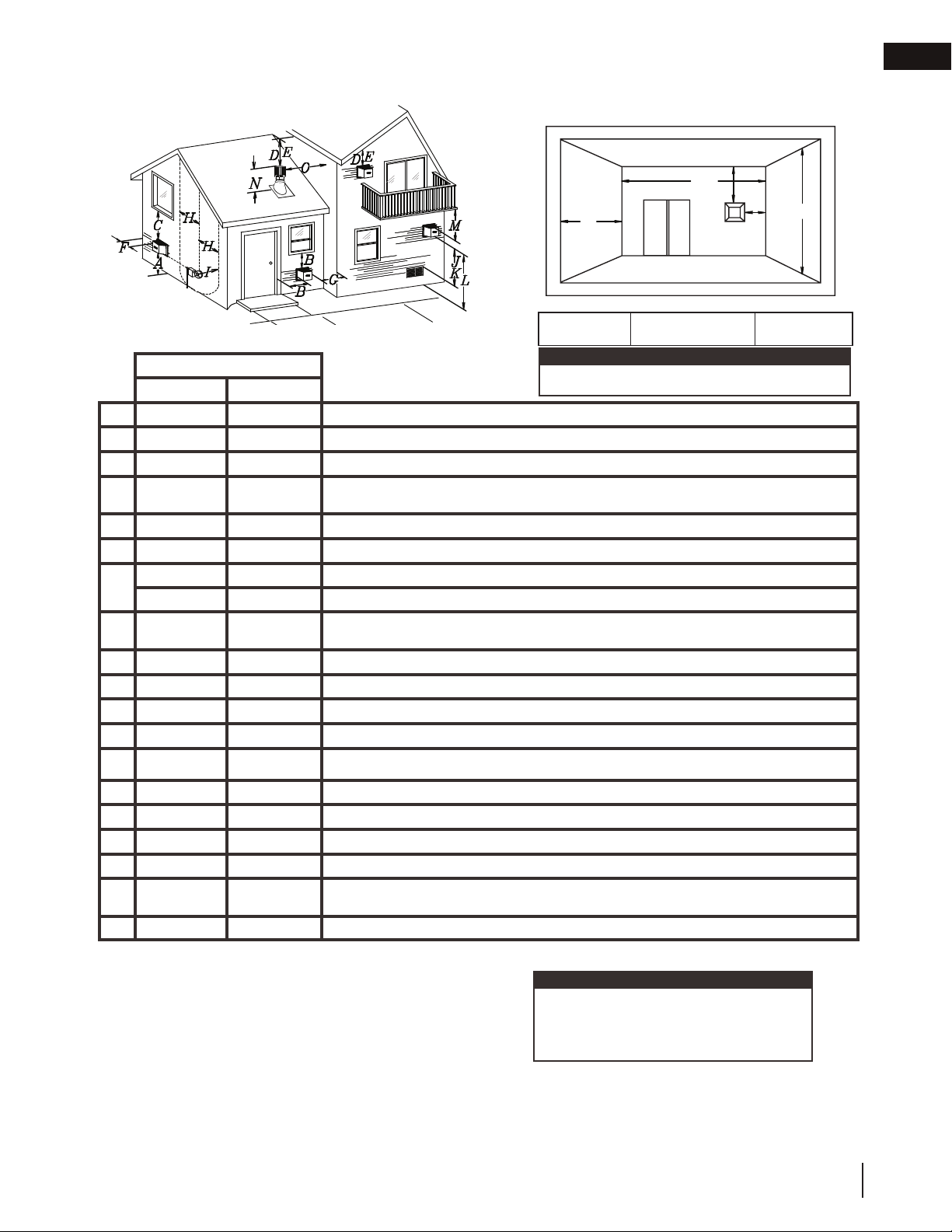

The appliance must be vented using the appropriate Napoleon vent kits. See installation

manual for venting speciﬁcations. Proper reinstallation and resealing is necessary after servicing

the vent-air intake system.

L’appareil doit être ventilé à l’aide de l’ensemble d’évacuation propre à Napoleon. Référez au

manuel d’installation pour les spéciﬁcations d’évacuation. Il est nécessaire de bien réinstaller et

resceller l’évacuation après avoir executer l’entretien du système de prise d’air.

Serial Number / N° de Série:

W385-XXXX

REFERENCE# 161746

XXXX

VENTED DECORATIVE GAS APPLIANCE: NOT A SOURCE OF

HEAT, NOT INTENDED FOR USE AS A HEATING

APPLIANCE, NOT FOR USE WITH SOLID FUEL.

APPAREIL À GAZ DÉCORATIF À ÉVACUATION: N’EST PAS

UNE SOURCE DE CHALEUR; N’EST PAS DESTINÉ À ÈTRE

UTILISÉ COMME UN APPAREIL DE CHAUFFAGE; NE

CONVIENT PAS AUX COMBUSTIBLES SOLIDES.

FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APPLIANCE ONLY.

POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE

CERTIFIÉES AVEC L’APPAREIL.

XX,XXX XX,XXX

For natural gas when equipped with No. XX drill size oriﬁce.

For propane when equipped with No. XX drill size oriﬁce.

Convient au gaz naturel quand l’appareil est muni d’un injecteur de diamètre no. XX.

Convient au propane quand l’appareil est muni d’un injecteur de diamètre no. XX.

Electrical rating: 115V, 60HZ. Less than 12 amperes.

Spéciﬁcations électriques: 115V, 60HZ. Moins de 12 ampère.

XX.X% XX.X%

XXXX XXXX XXXX XXXX

1.2 rating plate information

This illustration is for referece only. Refer to the rating plate on the appliance for accurate information.

SAMPLE

cesces

z décoratif à évacudécoratif à éva

accordance with the current accordance with the curr

fety Standard, Title 24 CFR, Part y Standard, Title 24 CFR

ies

, ANSI / NFPA 501A. This appliance SI / NFPA 501A. This appliance

XX. Follow installation instructions.installation instructions.

s une maison mobile si son installation ile si son installation

s-Unis selon la norme

4 CFR

Part 3280

4 CFR, Part 3280,

NFPA 501A, Fire Safety Criteria for ManufacNFPA 501A, Fire Safety Criteria for Manufa

ents, selon les codes d’installations, selon les

ANSI Z223ANSI Z22

arrie, ON

arrie ON

vati

Élévation

Ali

ntat

entation

limentation Réduite

Alimentation Réduite

Manifold Pressure:Pressure:

0” w.c.

(

)10” w.c. (P)

um Supply Pressure:Pressure:

1” w.c.

(

)11” w.c.

mum Supply Pressure: mum Supply Pressure:

3”* w.c.

(

)3”* w.c. (P)

Collecteur: ollecteur:

10” d’une colonne d’eau

(

)10” d’une colonne d’eau (P)

entation Min.: tation Min.:

11” d’une colonne d’eau (P)11” d’une colonne d’eau (P)

entation Max.: n Max.:

13” * d’une colonne d’eau (P13” * d’une colonne d’eau

mentation maximale ne devait pas dépasser ximale ne devait pas dépass

ements minimaux des matériaux combusments minimaux des matériaux combu

côtés et arrière: selon les espaceurs de dégcôtés et arrière: selon les espaceur

r les matériaux d’ossature selon le manuel dus matériaux d’ossature selon le manue

pour les matépour les maté

Côtés eCô

*** ***

VENTED DECORATIVE GAVENTED DECORATIVE G

HEAT, NOHEAT, NO

APPLAPPL

APPAREIL À GAPPAREIL À G

UNE SOU

FORO

XXX

The rating plate must remain with the appliance at all times. It must not be removed.

note:

1.3 mobile home installation

This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home

Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas

indicated on the rating plate.

This mobile/manufactured home listed appliance comes factory equipped with a means to secure the appliance. Built

in appliances are equipped with 1/4” (6.4mm) diameter holes located in the front left and right corners of the base.

Use appropriate fasteners, inserted through the holes in the base to secure. For free standing products contact your

local authorized dealer / distributor for the appropriate securing kit. For mobile home installations, the appliance must

be fastened in place. It is recommended that the appliance be secured in all installations. Always turn off the pilot and

the fuel supply at the source, prior to moving the mobile home. After moving the mobile home and prior to lighting the

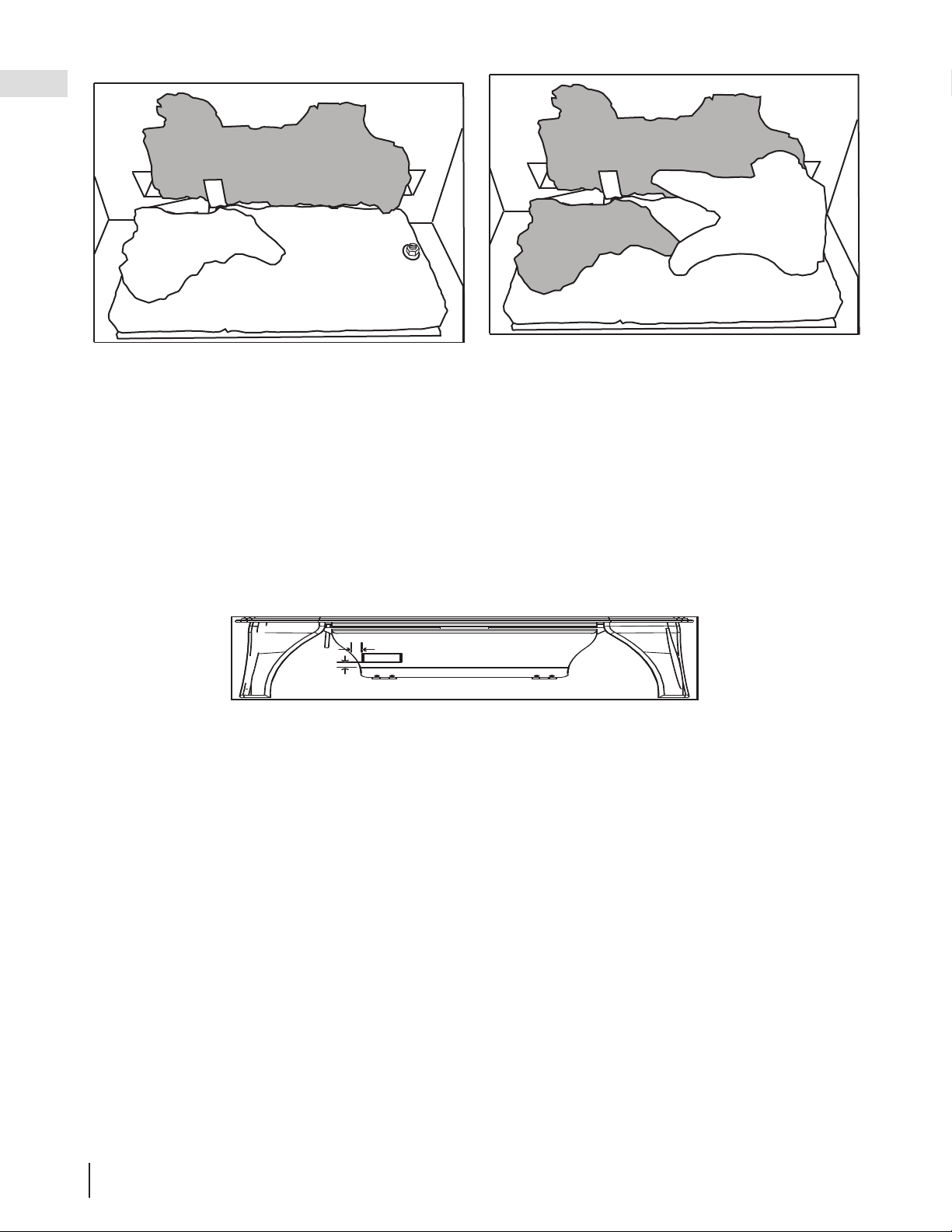

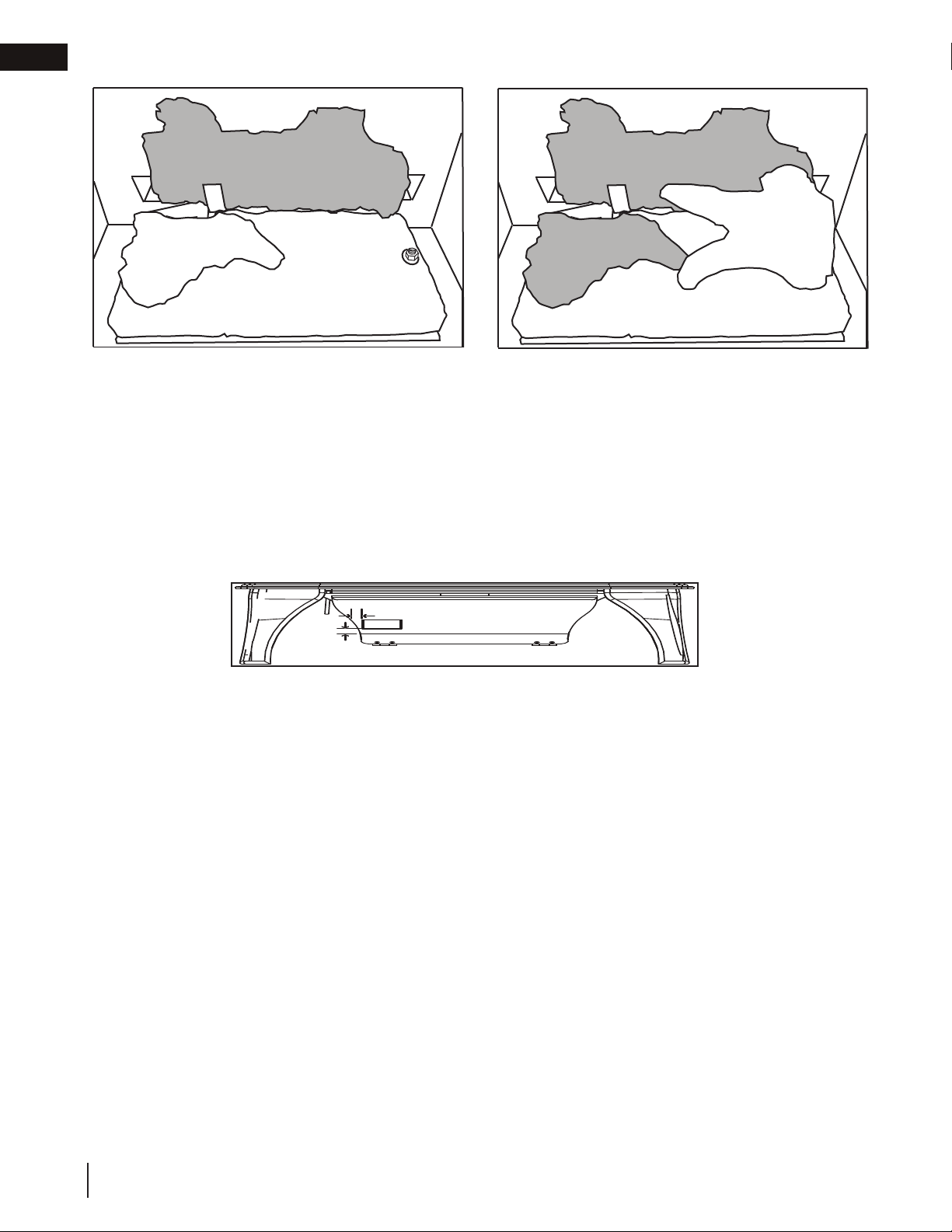

appliance, ensure that the logs are positioned correctly.

This appliance is certiﬁ ed to be installed in an aftermarket permanently located, manufactured (mobile) home,

where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible

for use with other gases, unless a certiﬁ ed kit is used.

Conversion Kits

This appliance is ﬁ eld convertible between Natural Gas (NG) and Propane (P).

To convert from one gas to another, consult your Authorized dealer/distributor.

W415-2347 / C / 09.21.20

general information

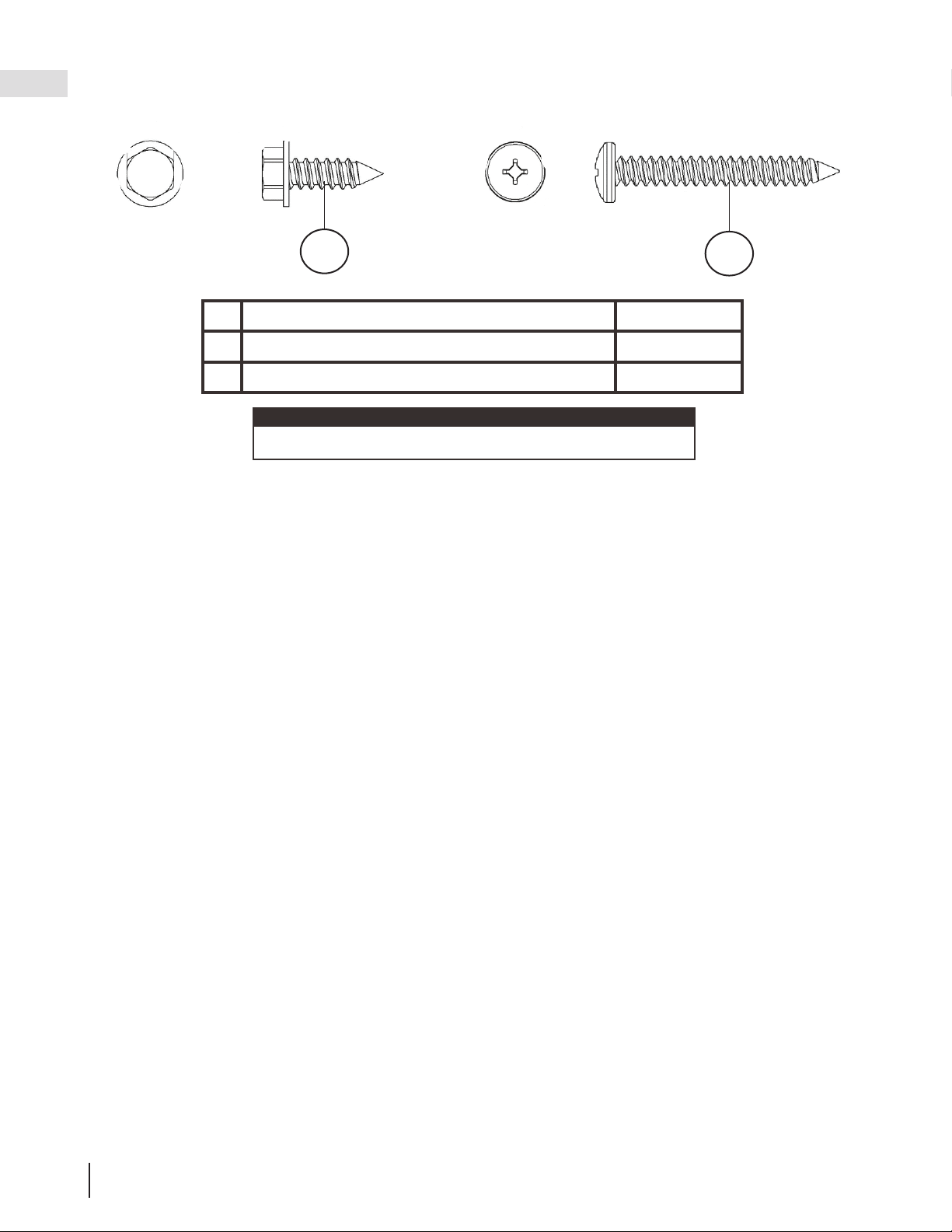

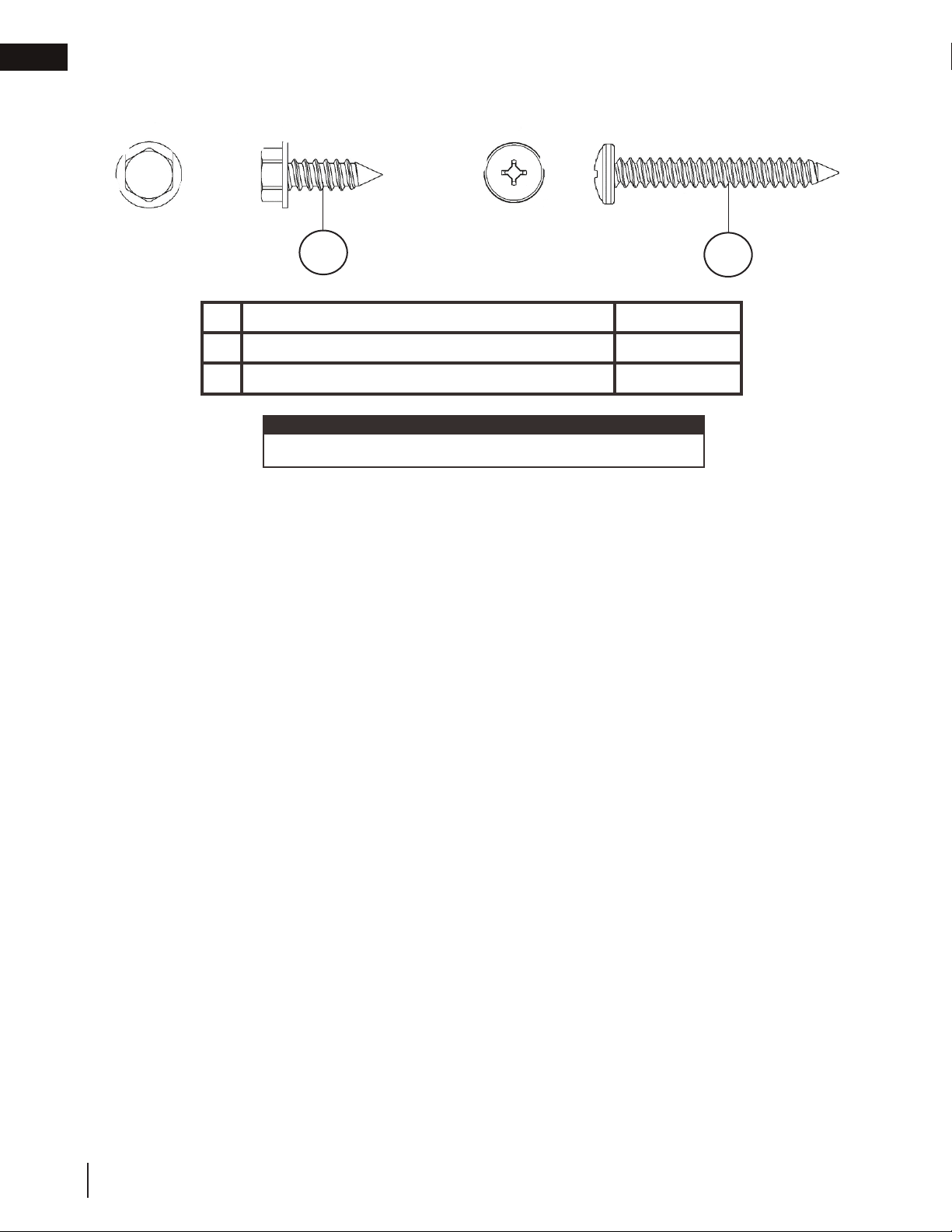

1.4 hardware list

note:

Description Quantity

1/4” Hex Head Screw 3

1 3/4” Pan Head Screw 4

Only fasteners supplied with the appliance are illustrated.

W415-2347 / C / 09.21.20

general information

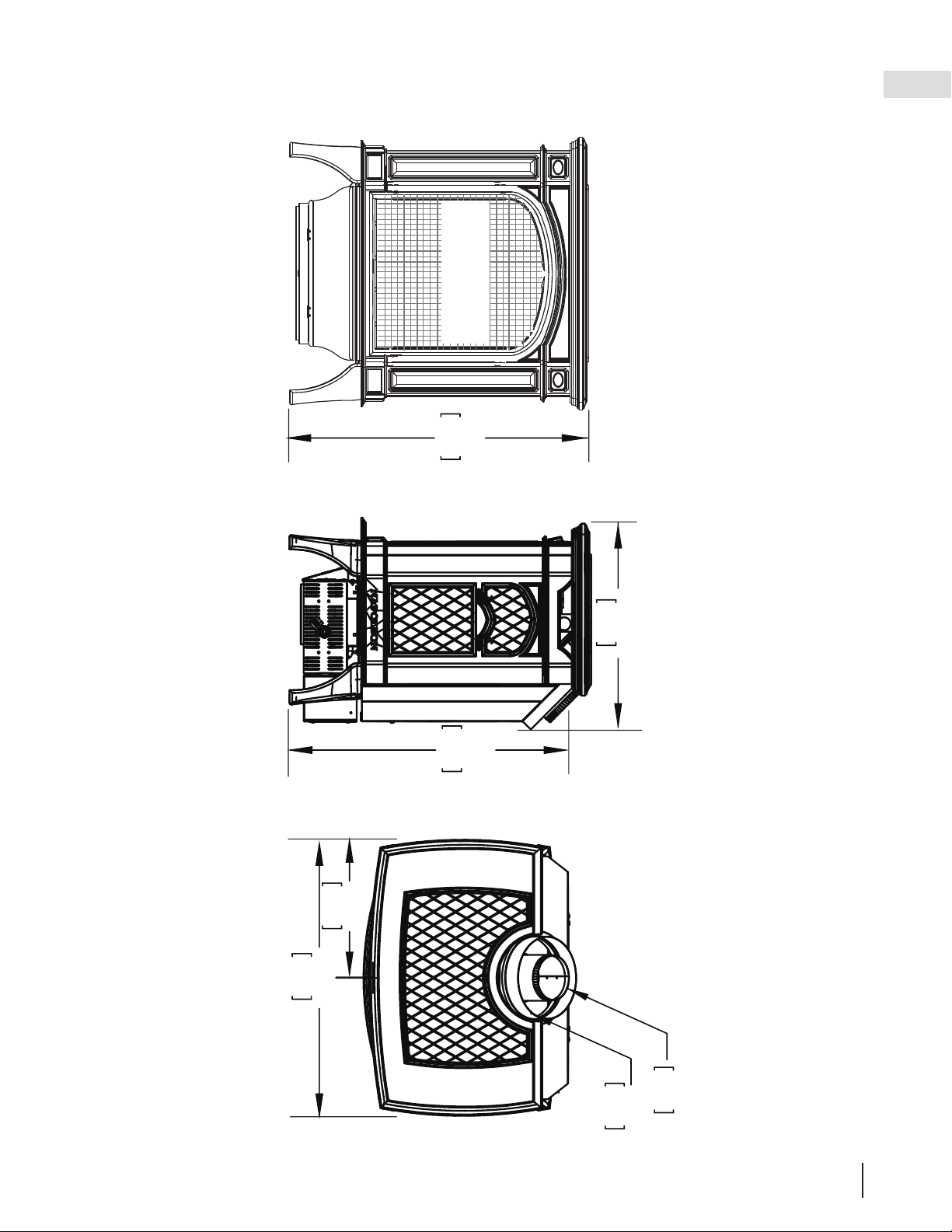

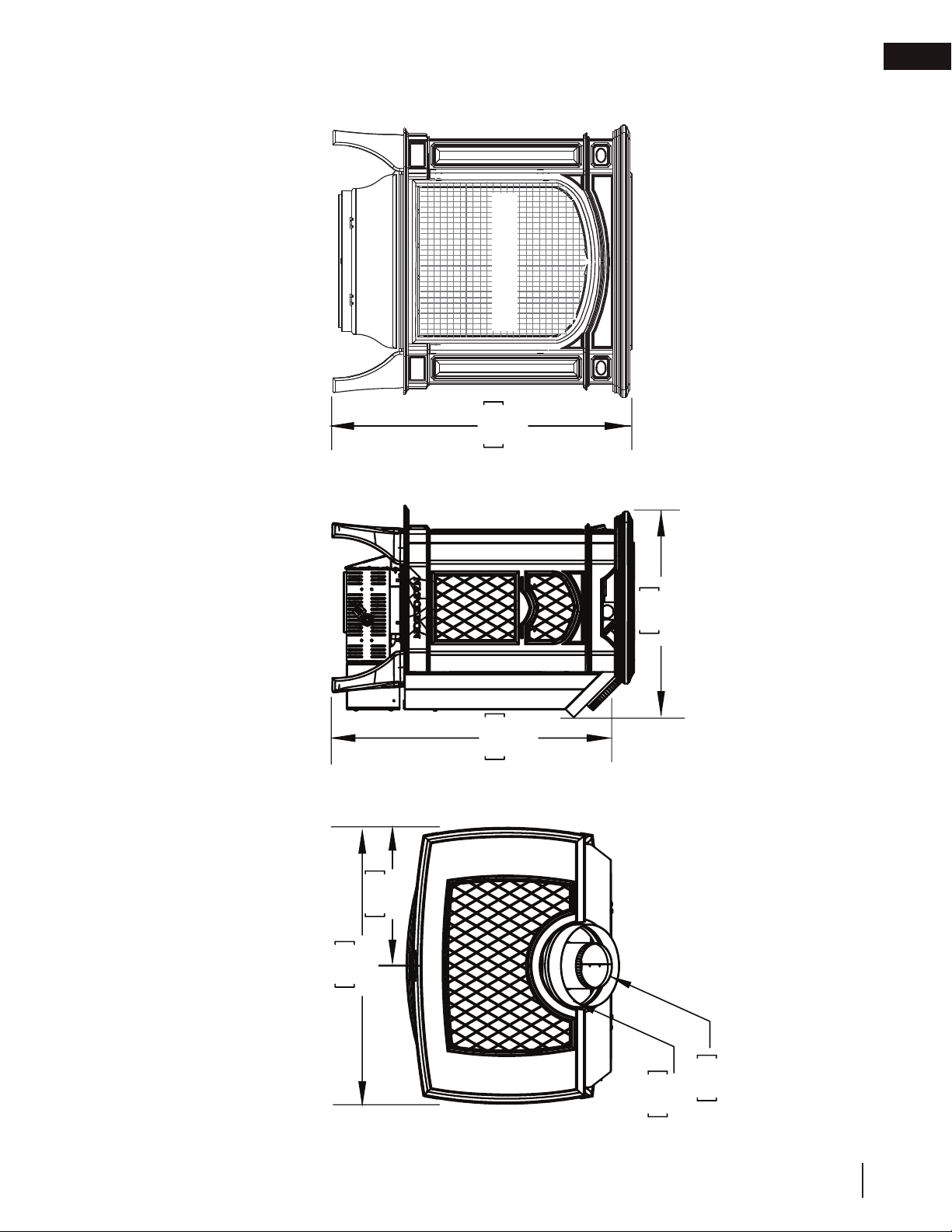

1.5 dimensions

25 5/8"

651mm

23 5/8"

600mm

17 1/2"

445mm

23 1/2"

597mm

12 3/4"

324mm

102mm

178mm

SAFETY BARRIER

FRONT VIEW

RIGHT SIDE VIEW

TOP VIEW

W415-2347 / C / 09.21.20

general information

2.0 venting requirements

WARNING

• Risk of ﬁ re. Maintain speciﬁ ed air space clearances to vent pipe and appliance.

• The vent system must be supported every 3’(0.9m) for both vertical and horizontal runs. Use support ring assembly W010-

0067 or equivalent non-combustible strapping to maintain the minimum clearance to combustibles for both vertical and

horizontal runs. Spacers are attached to the inner pipe at predetermined intervals to maintain an even air gap to the outer

pipe. This gap is required for safe operation. A spacer is required at the start, middle, and end of each elbow to ensure this

gap is maintained. These spaces must not be removed.

This appliance uses a 4” (102mm) exhaust / 7” (178mm) air intake vent pipe system. Refer to the section applicable

to your installation.

For safe and proper operation of the appliance, follow the venting instructions exactly. Deviation from the minimum vertical

vent length can create difﬁ culty in burner start-up and/or carboning. Under extreme vent conﬁ gurations, allow several minutes

(5-15) for the ﬂ ame to stabilize after ignition. Although not a requirement, it is recommended for vent lengths that pass through

unheated spaces (attics, garages, crawl spaces) be insulated with the insulation wrapped in a protective sleeve to minimize

condensation. Provide a means for visually checking the vent connection to the appliance after the appliance is installed. Use a

ﬁ restop, vent pipe shield or attic insulation shield when penetrating interior walls, ﬂ oor or ceiling.

The vent terminal may be painted with a high temperature paint to match exterior colours. Use an outdoor paint suitable for

400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot testing is recommended.

For vent systems that provide seals on the inner exhaust ﬂ ue, only the outer air intake joints must be sealed using a red high

temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer intake vent pipe joints of all

other approved vent systems except for the exhaust vent pipe connection to the appliance ﬂ ue collar which must be sealed

using the black high temperature sealant Mill Pac. High temperature sealant must be ordered separately.

For optimum ﬂ ame appearance and appliance performance, keep the vent length and number of elbows to a minimum.

The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify that

it is unobstructed and undamaged.

Rigid and ﬂ exible venting systems must not be combined. Different venting manufacturer components must not

be combined.

These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable horizontal run is 20

feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum number of vent connections is two

horizontally or three vertically (excluding the appliance and the air terminal connections) when using ﬂ exible venting.

Venting

System

Starter Adapter Part Number Supplier Website

Duravent W175-0053 Wolf Steel www.duravent.com

Amerivent

4DSCB-N1 (stoves)

4DSC-N2 (ﬁ replaces)

American Metal www.americanmetalproducts.com

Direct Temp 4DT-AAN Selkirk www.selkirkcorp.com

SureSeal 4DNA Metal-Fab www.mtlfab.com

Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab venting components.

Minimum and maximum vent lengths, for both horizontal and vertical installations, clearances from vent pipes to combustibles

and air terminal locations as set out in this manual apply to all vent systems and must be adhered to. For Simpson Dura-Vent,

Selkirk Direct Temp, American Metal Amerivent and Metal-Fab, follow the installation procedure provided with the venting

components or on the website for your venting supplier.

A starter adaptor must be used with the following vent systems and may be purchased from the corresponding supplier:

note:

If for any reason the vent air intake system is disassembled, re-install per the instructions provided for the initial installation.

This appliance must be installed with a continuous connection of exhaust and air intake vent pipes. Utilizing alternate

constructions such as a chimney as part of the vent system is not permitted.

This template must be used in conjunction with templates 7.1.1 or 7.1.2, depending on

termination shape (i.e. round, or round and square). See appropriate templates folder.

When using Wolf Steel venting components, use only approved Wolf Steel rigid / ﬂ exible components with the following

termination kits: wall terminal kit GD-222, GD-222R, ST47U or 1/12 to 7/12 pitch roof terminal kit GD-110, 8/12 to 12/12

roof terminal kit GD-111, ﬂ at roof terminal kit GD-112 or periscope kit GD-201 (for wall penetration below grade). With ﬂ exible

venting, in conjunction with the various terminations, use either the 5 foot (1.5m) vent kit GD-220 or the 10 foot (3.1m) vent kit

GD-330. For stoves only: wall terminal kit GD-175 (venting included).

GDS924N

W415-2347 / C / 09.21.20

Horizontal runs may have a 0” rise per foot or 0mm rise per meter however for optimum performance it is recommended

that all horizontal runs have a minimum 1/4” rise per foot or 21mm rise per meter using ﬂ exible venting. For safe and proper

operation of the appliance, follow the venting instructions exactly.

A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings

and serves both dwellings. Local codes or regulations may require different clearances.

Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼” (31.8mm) air gap

all around between the inner liner and outer liner is required for safe operation.

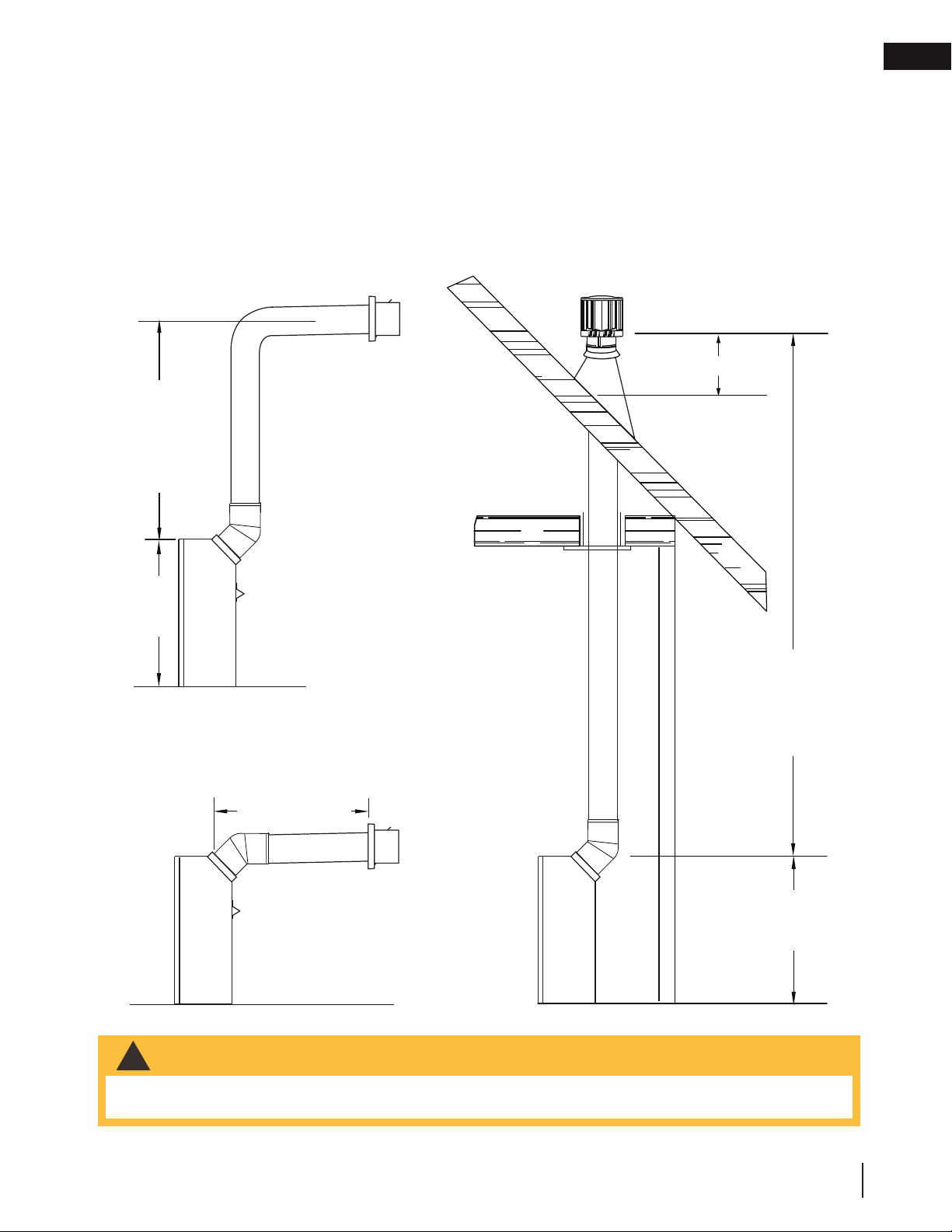

2.1 typical venting installation

24” (61cm)

MAXIMUM

24” (61cm) MIN.

REGARDLESS OF

HORIZONTAL VENT

LENGTH

40FT (12m)

MAX

3FT (1m)

MIN

16” (40.6cm)

25 5/8”

(65.1cm)

25 5/8”

(65.1cm)

• The maximum horizontal run with a 57” (1.45m) vertical rise immediately above the appliance is 20 feet

(6.1m).

WARNING

W415-2347 / C / 09.21.20

venting requirements

Use the periscope kit to locate the air termination above grade. The periscope must

be installed so that when ﬁ nal grading is completed, the bottom air slot is located a

minimum of 12” (305mm) above grade. The maximum allowable vent length is

10’ (3.1m) for a ﬁ replace and 8’ (2.4m) for a stove.

2.2 special vent installations

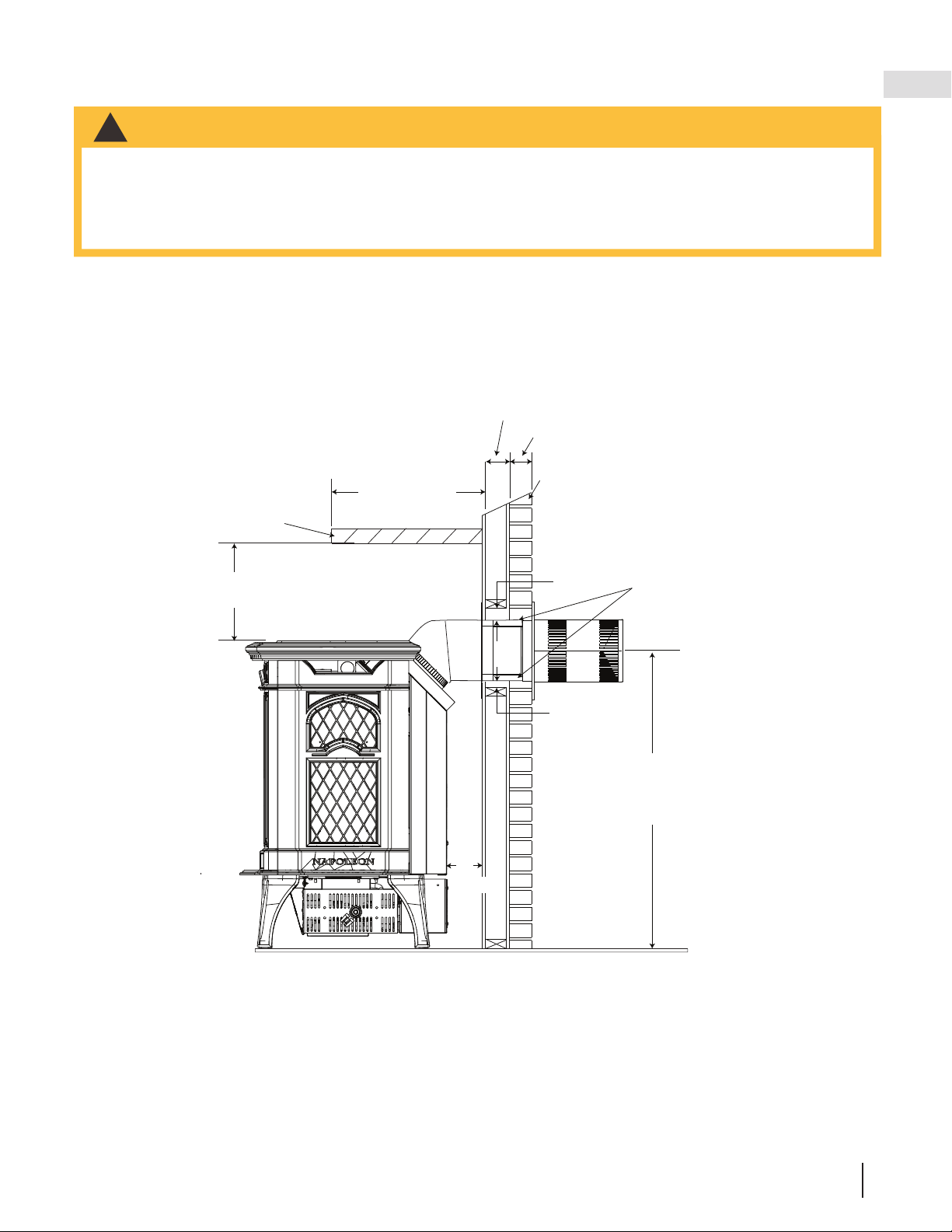

2.2.1 periscope termination

2.2.2 corner termination

12”

(305mm) MIN

TO GRADE

24” (610mm)

MAX.

SAFETY

BARRIER

25 5/8”

(651mm)

24” (610mm) MIN.

REGARDLESS OF OF

HORIZONTAL VENT

LENGTH

• Below grade installation maximum

8ft (2.4m) vent length.

• Use GD201 periscope kit.

• Horizontal run not to exceed verti-

cal rise.

WARNING

W415-2347 / C / 09.21.20

venting requirements

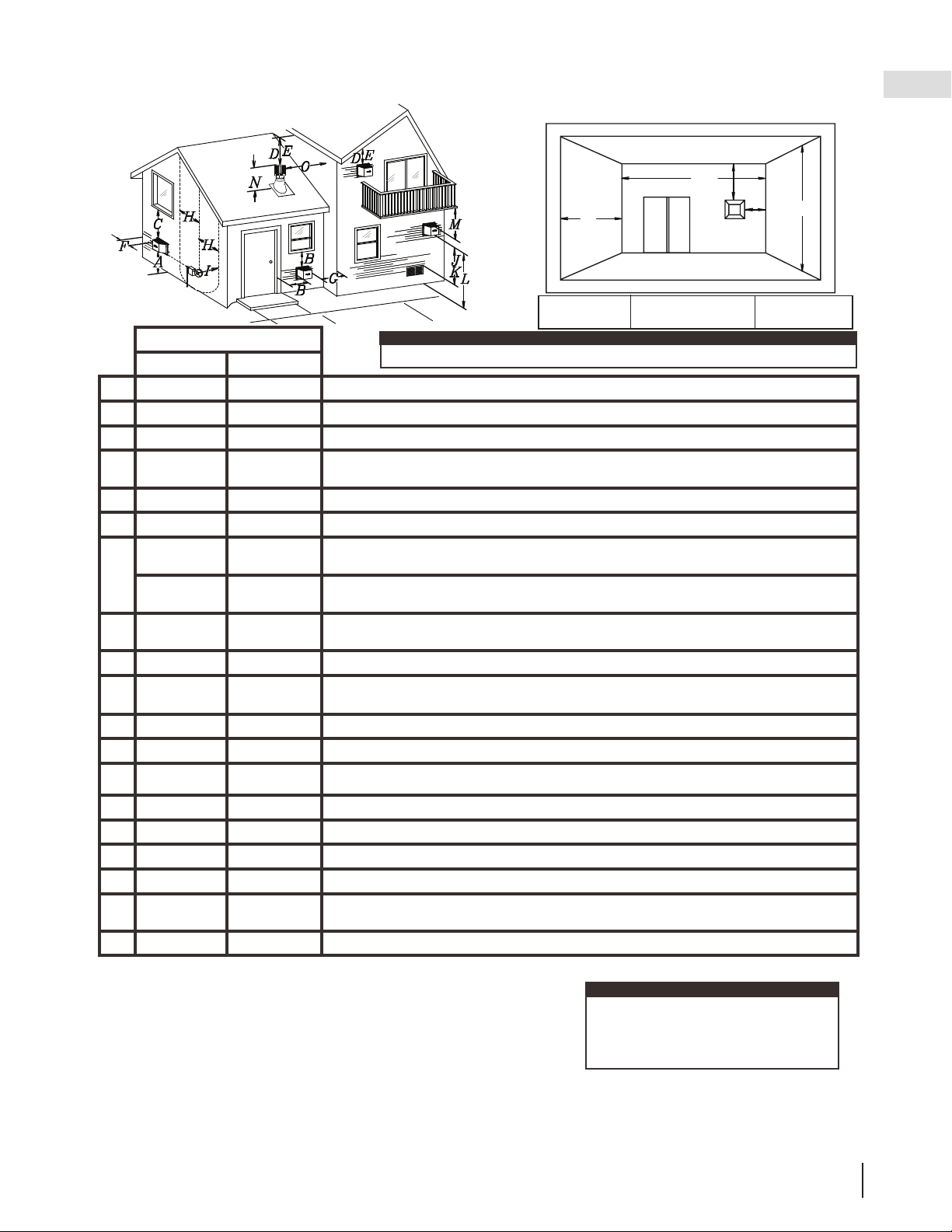

2.3 vent terminal clearances

Covered balcony applications ††*

MIN

MAX

= 3 feet

(0.9m)

= 2 x

IHHW

(4.6m)

ACTUAL

INSTALLATIONS

CANADA U.S.A.

12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony.

12” (30.5cm)

9” (229mm)

Clearance to windows or doors that open.

12” (30.5cm)* 12” (30.5cm)* Clearance to permanently closed windows.

18”

(45.7cm)**

18”

(45.7cm)**

Vertical clearance to ventilated sofﬁ ts located above the terminal within a horizontal distance of 2’ (0.6m)

from the center line of the terminal.

12” (30.5cm)** 12” (30.5cm)** Clearance to unventilated sofﬁ t.

0” (0mm) 0” (0mm) Clearance to an outside corner wall.

0” (0mm)*** 0” (0mm)***

Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).

2” (51mm)*** 2” (51mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).

3’(0.9m) 3’(0.9m)****

Clearance to each side of the center line extended above the meter / regulator assembly to a maximum

vertical distance of 15’ (4.6m).

3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.

12” (30.5cm) 9” (229mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.

6’ (1.8m) 3’ (0.9m) † Clearance to a mechanical air supply inlet.

7’ (2.1m) ‡ 7’ (2.1m) **** Clearance above a paved sidewalk or paved driveway located on public property.

12” (30.5cm)†† 12” (30.5cm)**** Clearance under a veranda, porch, deck or overhang.

16” (40.6cm) 16” (40.6cm) Clearance above the roof.

2’ (0.6m)†* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.

8’ (2.4m) 8’ (2.4m)

Roof must be non-combustible without openings.

3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.

6’ (1.8m) 6’ (1.8m)

See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an opening

between the terminal and the open side of the structure.

12” (30.5cm) 12” (30.5cm) Clearance under a covered balcony

Δ The terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.

* Recommended to prevent condensation on windows and thermal breakage

** It is recommended to use a heat shield and to maximize the distance to vinyl clad sofﬁ ts.

*** The periscope requires a minimum 18 inches clearance from an inside corner.

**** This is a recommended distance. For additional requirements, check local codes.

† 3 feet above if within 10 feet horizontally.

‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.

†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the ﬂ oor.

†* Recommended to prevent recirculation of exhaust products. For additional requirements, check local codes.

††* Permitted only if the balcony is fully open on a minimum of one side.

Clearances are to be in accordance with local

installation codes and the requirements of the gas

supplier. In their absence, clearances are to be as

listed above and are based on national codes.

note:

Wall terminals are for illustration purposes only. Size and

shapes may vary.

W415-2347 / C / 09.21.20

venting requirements

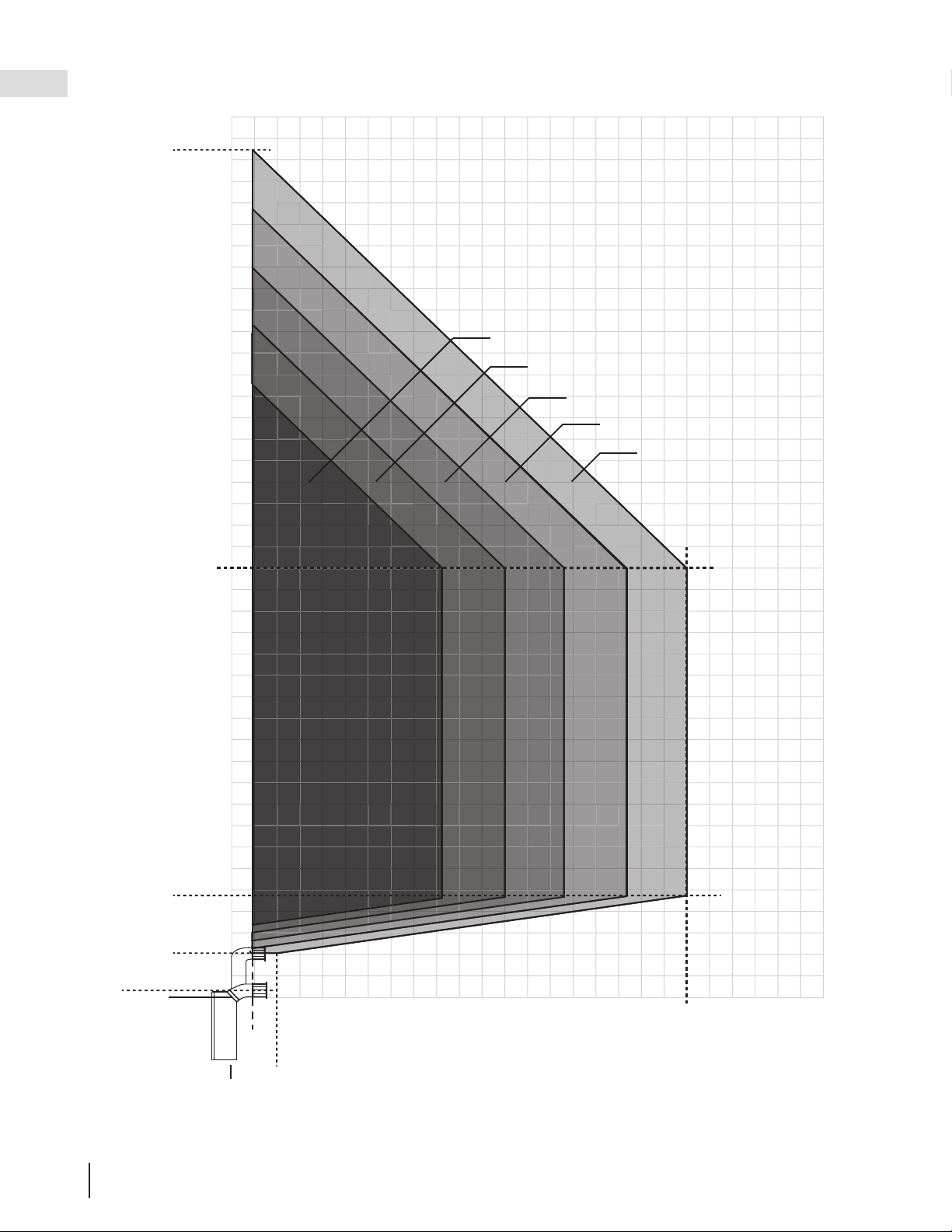

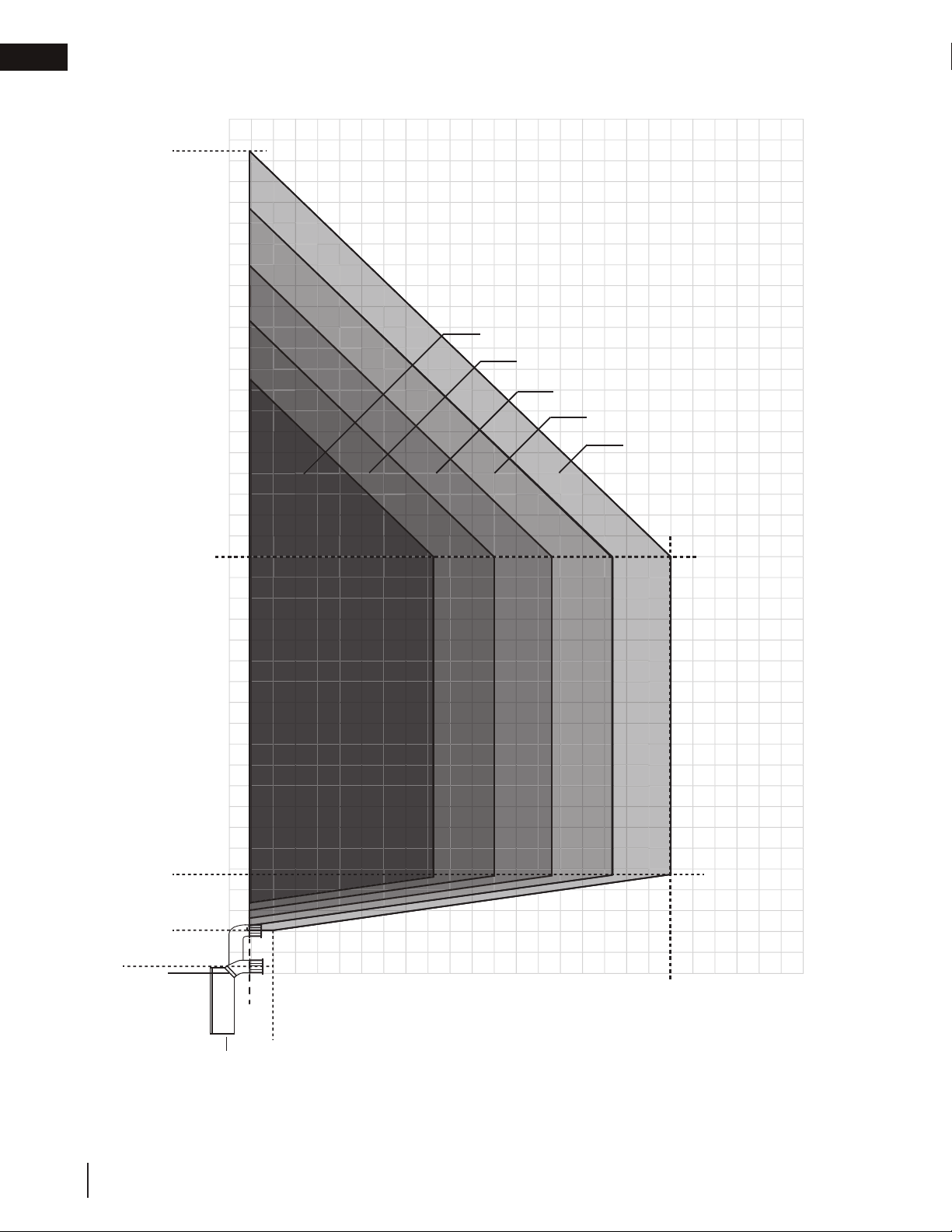

2.4 horizontal termination

0’

Centre of

Base of Air

Collar

10’

15’

20’

25’

20’

30’

5’

1 1/2 elbow zone*

2 1/2 elbow zone

3 1/2 elbow zone

4 1/2 elbow zone

5 1/2 elbow zone

V+H ≤ 40 ft. (For longer vent runs, a power

vent is required).

H ≤ 20 ft.

V + H are measured from the centre of vent

elbows. Elbows are considered as 90º.

Two 45º elbows = One 90º elbow.

4”

MAXIMUM

24”

MAXIMUM

10”

39’ 2”

57”

24”

MINIMUM

* 1 1/2 elbows constitute the 45°

elbow directly off the appliance

and an additional 90° elbow.

W415-2347 / C / 09.21.20

venting requirements

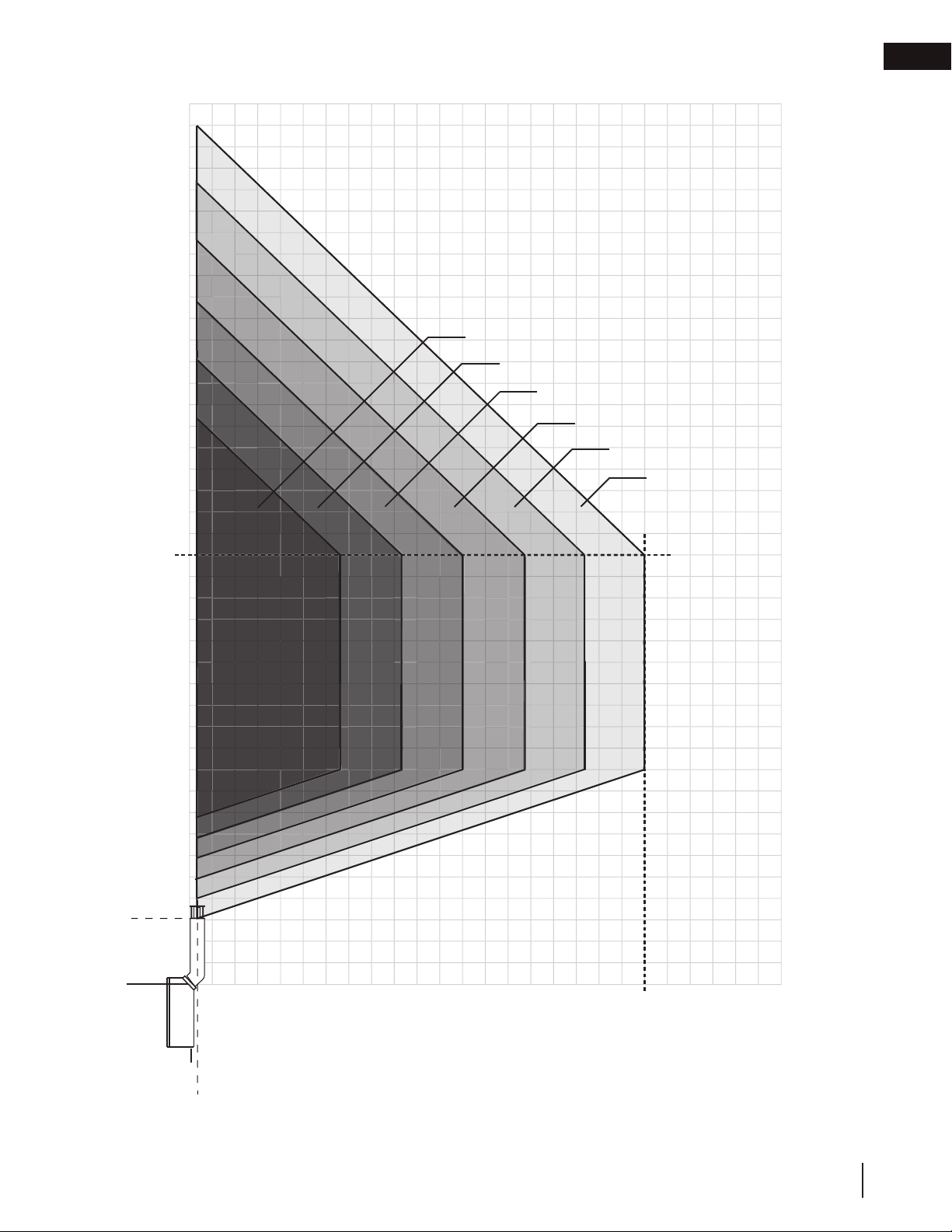

2.5 vertical termination

0’

Centre of

Base of Air

Collar

10’

15’

20’

25’

20’

30’

40’

5’

4”

MINIMUM

5’

1 1/2 elbow zone*

2 1/2 elbow zone

3 1/2 elbow zone

4 1/2 elbow zone

5 1/2 elbow zone

6 1/2 elbow zone

V+H ≤ 40 ft. (For longer vent runs, a power

vent is required).

H ≤ 20 ft.

V + H are measured from the centre of vent

elbows. Elbows are considered as 90º.

Two 45º elbows = One 90º elbow.

3’

MINIMUM

* 1 1/2 elbows constitute the 45°

elbow directly off the appliance

and an additional 90° elbow.

W415-2347 / C / 09.21.20

venting requirements

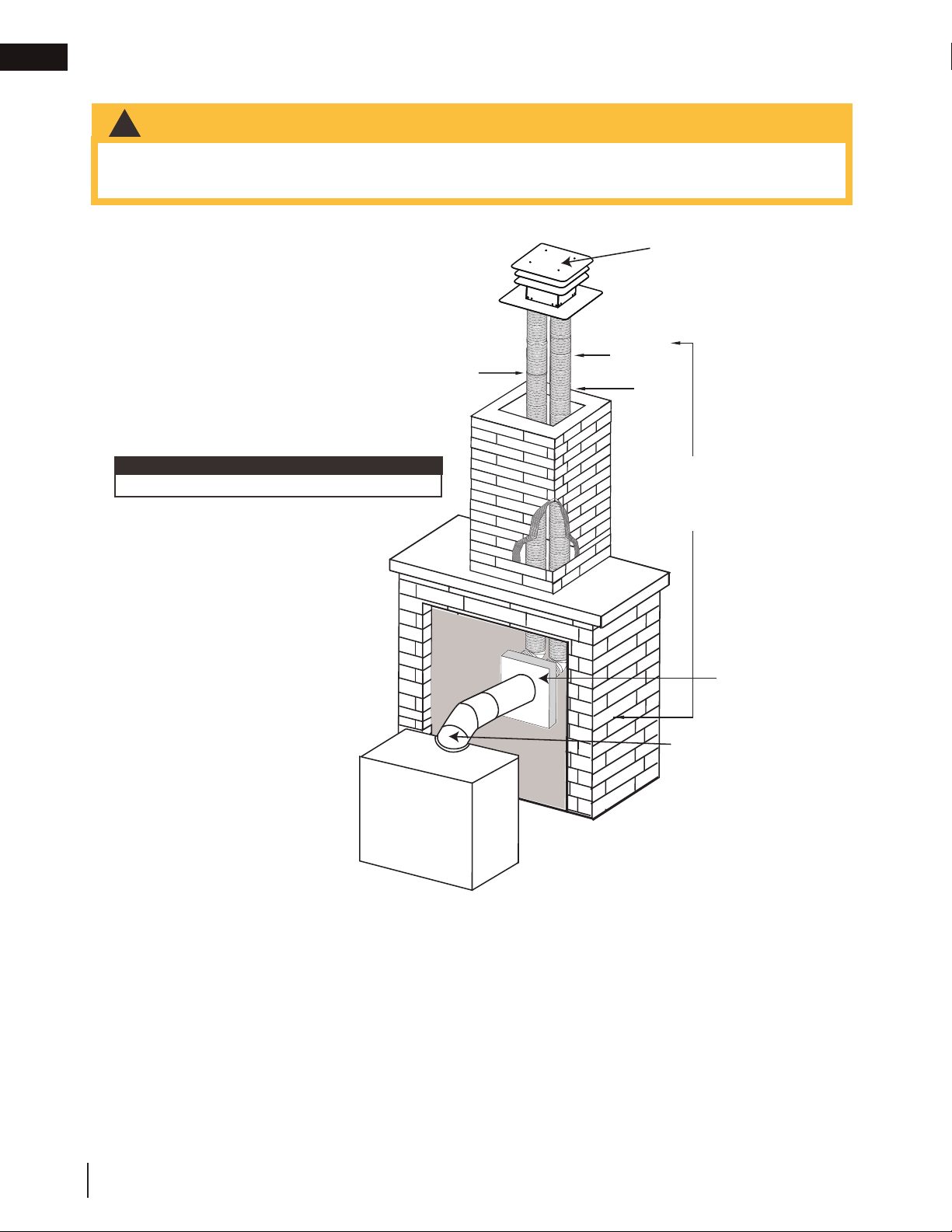

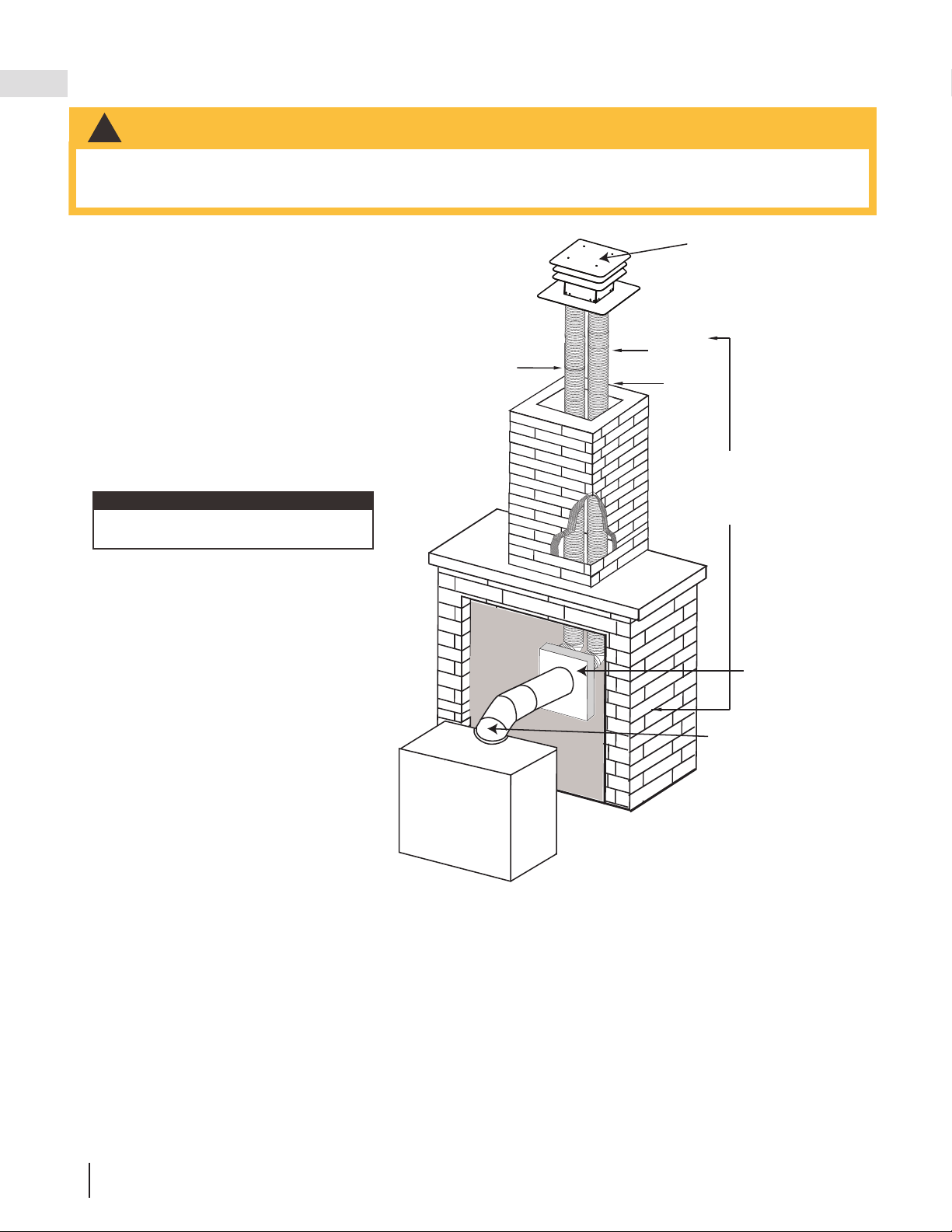

2.6 vertical through existing chimney

WARNING

• Risk of ﬁ re.

• Co-axial to co-linear venting conﬁ gurations must only be used in a non-combustible chimney or enclosure.

Installation in a combustible enclosure could result in a ﬁ re.

This appliance is designed to be attached to a 3” (76.2mm) co-linear aluminum ﬂ ex vent system running the full

length of a masonry chimney.

The ﬂ ex liners accommodate any contours of a

masonry chimney, however, it is necessary to keep

the ﬂ exible liners as straight as possible. The inlet

air collar of the termination cap must be connected

to the air intake ﬂ ex liner and the exhaust collar

must be connected to the exhaust ﬂ exible liner.

Both Simpson Duravent and Selkirk co-linear to

co-axial adaptors have been approved on this

appliance

Follow vent manufacturer’s installation instructions.

Different manufacturer’s venting

components must not be combined.

Once the preferred manufacturer’s

appliance adaptor has been attached, the

remainder of the system must be that of

the same manufacturer.

The only exception to this rule is to use

Wolf Steel’s approved 3” (76.2mm) ﬂ ex

liner and co-linear termination.

AIR

INTAKE

EXHAUST

FLUE

FLEX

LINER

* 40 FT (12.2m)

MAX.

10 FT (3.1m)

MIN

COAXIAL TO

CO-LINEAR

ADAPATOR

APPLIANCE

VENT ADAPTOR

TERMINATION

* Measured from appliance ﬂ ue collar

to termination ﬂ ue collar

note:

A vent adaptor will be required directly off the appliance.

W415-2347 / C / 09.21.20

venting requirements

3.0 installation

WARNING

• Ensure to unpack all loose materials from inside the ﬁ rebox prior to connecting the gas and electrical supply

• If your appliance is supplied with a remote, ensure the remote receiver is in the “OFF” position prior

to connecting the gas and electrical supply to the appliance.

• For safe and proper operation of the appliance, follow the venting instructions exactly.

• The appliance exhaust ﬂ ue collar must be sealed using Mill Pac. All exhaust and intake vent pipe joints

must be sealed using red RTV high temp silicone sealant (W573-0002) (not supplied) or black high temp Mill

Pac (W573-0007) (not supplied).

• If using pipe clamps to connect rigid vent components, a minimum of 3 screws must also be used to ensure

the connection cannot slip off.

• Do not clamp the ﬂ exible vent pipe.

• Risk of ﬁ re, explosion, or asphyxiation. Improper support of the entire venting system may allow vent to sag

and separate. Use vent run supports and connect vent sections per installation instructions.

• Risk of ﬁ re, do not allow loose materials or insulation to touch the vent pipe. Remove insulation to allow for the

installation of the attic shield and to maintain clearances to combustibles.

• Do not ﬁ ll the space between the vent pipe and enclosure with any type of material. Do not pack insulation

or combustibles between ceiling ﬁ restops. Always maintain speciﬁ ed clearances around venting and ﬁ restop

systems. Install wall shields and ﬁ restops as speciﬁ ed. Failure to keep insulation or other materials away from

vent pipe may cause ﬁ re.

• For gas stoves only: If the appliance is installed directly on carpeting, vinyl tile, or other combustible material

other than wood ﬂ ooring, the appliance shall be installed on a metal or wood panel extending the full width and

depth, unless otherwise tested.

W415-2347 / C / 09.21.20

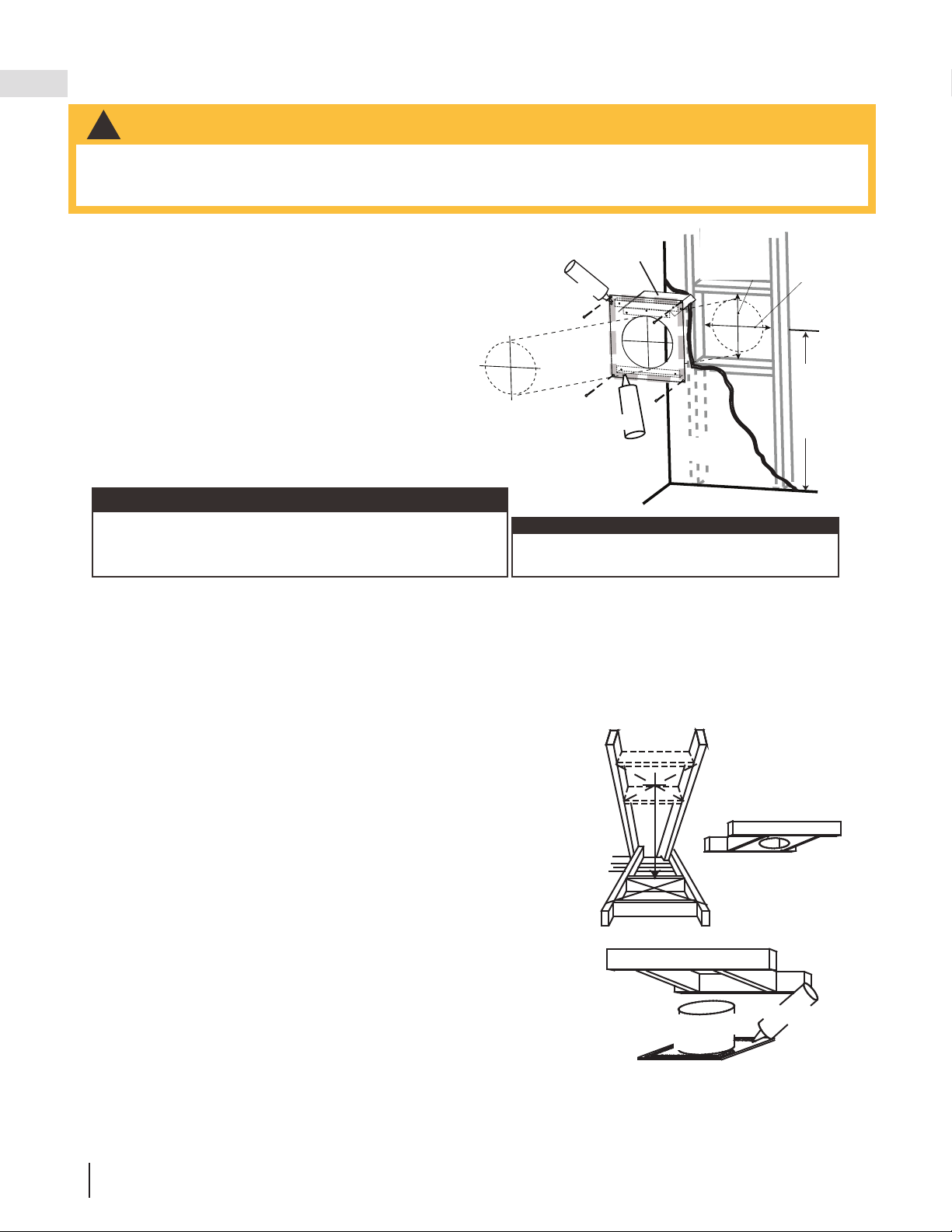

This application occurs when venting through a roof. Installation kits for

various roof pitches are available from your authorized dealer / distributor.

See the “accessories” section to order speciﬁ c kits required.

A. Determine the air terminal location, cut and frame a square opening,

as illustrated, in the ceiling and the roof to provide the minimum 1"

(25mm) clearance between the vent pipe and any combustible material.

Try to center the vent pipe location midway between two joists to

prevent having to cut them. Use a plumb bob to line up the center of

the openings. A vent pipe shield will prevent any materials such as

insulation, from ﬁ lling up the 1" (25mm) air space around the pipe. Nail

headers between the joist for extra support.

B. Apply a bead of caulking (not supplied) to the framework or to the

Wolf Steel vent pipe shield plate or equivalent (in the case of a ﬁ nished

ceiling), and secure over the opening in the ceiling. A ﬁ restop must be

placed on the bottom of each framed opening in a roof or ceiling that

the venting system passes through. Apply a bead of caulking all around

and place a ﬁ restop spacer over the vent shield to restrict cold air from

being drawn into the room or around the ﬁ replace. Ensure that both

spacer and shield maintain the required clearance to combustibles.

Once the vent pipe is installed in its ﬁ nal position, apply red RTV

silicone (W573-0002) (not supplied) between the pipe and the ﬁ restop

assembly.

C. In the attic, slide the vent pipe collar down to cover up the open end

of the shield and tighten. This will prevent any materials, such as

insulation, from ﬁ lling up the 1" (25mm) air space around the pipe.

Caulking

Vent Pipe

Shield

Vent

Pipe

Shield

Vent

Pipe

Collar

Firestop

underside

of joist

3.2 vertical installation

3.1 horizontal installation

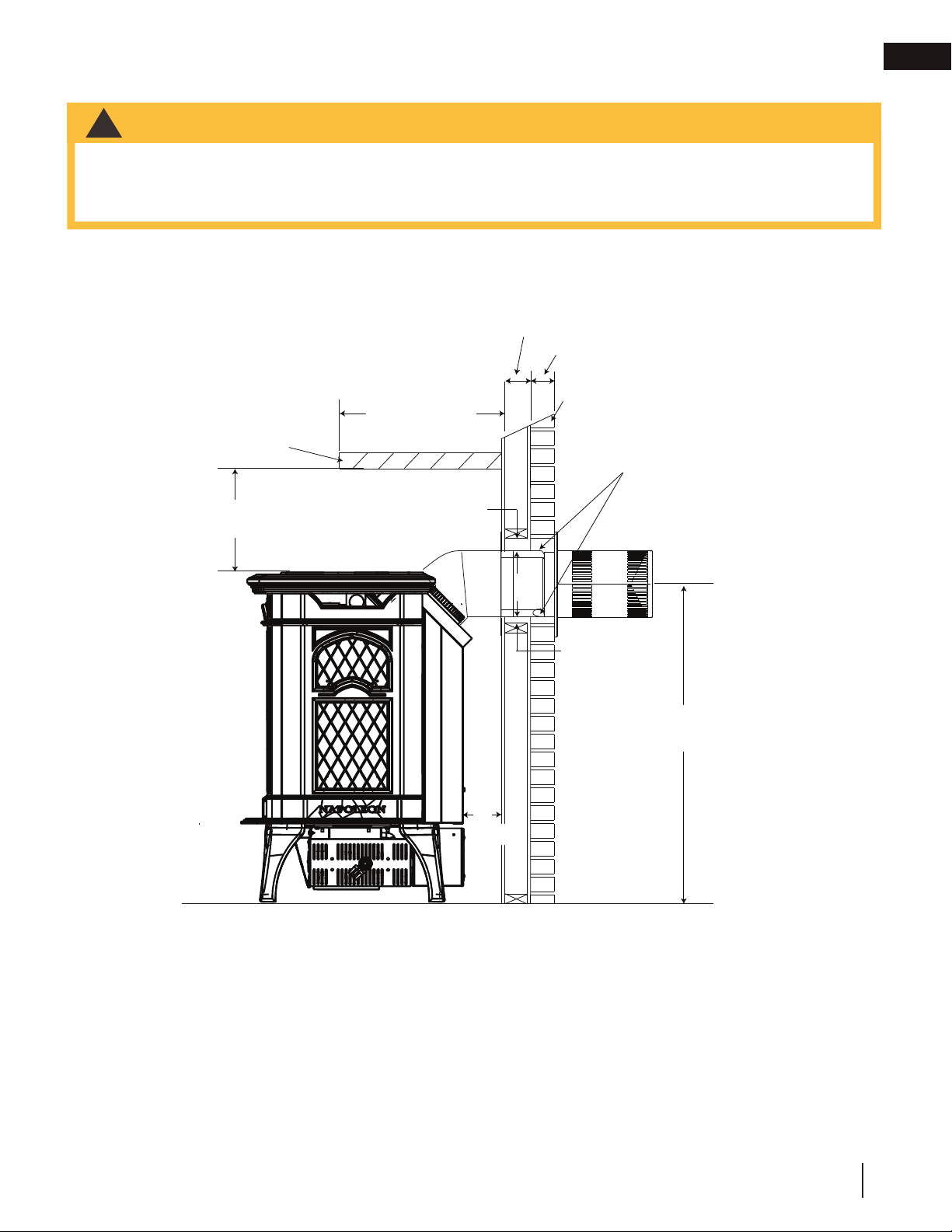

This application occurs when venting through an exterior

wall. Having determined the correct height for the air

terminal location, cut and frame a hole in the exterior wall,

as illustrated, to accommodate the ﬁ restop assembly. Dry

ﬁ t the ﬁ restop assembly before proceeding to ensure the

brackets on the rear surface ﬁ t to the inside surface of the

horizontal framing.

The length of the vent shield may be cut shorter for

combustible walls that are less than 8 1/2” (215.9mm)

thick but the vent shield must extend the full depth of the

combustible wall.

A. Assemble the shield to the spacer as shown, using the 3

shorter screws supplied.

B. Place the ﬁ restop top so that the vent shield covers the top of

the vent within the opening. Ensure that both spacer and shield

maintain the required clearance to combustibles.

C. Secure the spacer in place using the 4 longer screws supplied.

Once the vent pipe is installed in its ﬁ nal position, apply sealant between the pipe and the ﬁ restop spacer.

• The ﬁ restop assembly must be installed with the vent shield to the top.

• Terminals must not be recessed into a wall or siding more than the depth of the return ﬂ ange of the mounting

plate.

WARNING

Do not ﬁ ll the air space between the ﬁ restop spacer and the

exterior wall with any type of insulating material (i.e. spray foam).

note:

DETERMINE

THE

CORRECT

HEIGHT

CAULKING

FIRESTOP

SPACER

VENT

SHIELD

FINISHING

MATERIAL

CAULKING

note:

The above is for illustration purposes only. Vents

do not always pass through center of frame.

ADD

WIDTH

ADD

HEIGHT

10 11/16”

(27.14cm)

WIDE

10 11/16”

(27.14cm)

HIGH

W415-2347 / C / 09.21.20

installation

3.3 horizontal air terminal installation

3.4 extended horizontal and corner air terminal installation

FOR REAR VENT ONLY: A 45° corner installation can have 0” (0mm)

rise between the appliance combustion air collar and the air terminal.

In this case, vent lengths must be kept to a maximum of 24” (61cm).

For longer vent lengths, a minimum vertical rise of 24” (61cm) is required.

A. Follow the instructions for "horizontal air terminal installation" section.

B. Continue adding components alternating inner rigid pipe and outer

rigid pipe. Ensure that all inner rigid pipe and elbows have sufﬁcient

vent spacers attached and each component is sealed and securely

fastened to the one prior. Attach the inner telescopic sleeve to the

vent run. Repeat using the outer telescopic sleeve. Seal and secure

as before. To facilitate completion, attach inner and outer couplers

to the air terminal.

C. Install the air terminal. See “horizontal air terminal installation” section.

Extend the outer telescopic sleeve; connect to the air terminal assembly.

Fasten with self tapping screws and seal.

Add Image

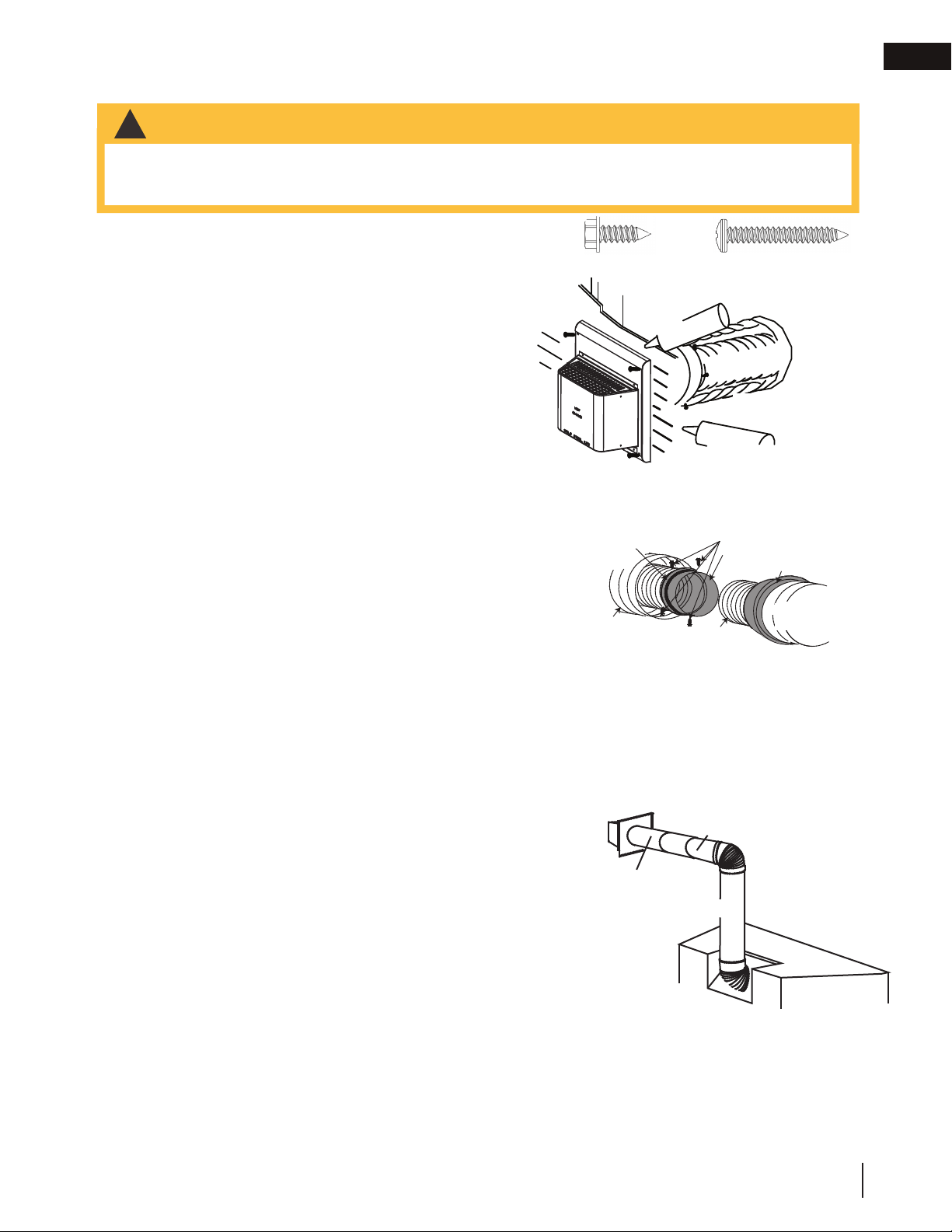

A. Stretch the inner ﬂ ex pipe to the required length taking

into account the additional length needed for the ﬁ nished

wall surface. Apply a heavy bead of the red RTV silicone

(W573-0002) (not supplied) to the inner sleeve of the air

terminal. Slip the vent pipe a minimum of 2” (50.8mm)

over the inner sleeve of the air terminal and secure with a

minimum of 3 screws.

B. Using the outer ﬂ ex pipe, slide over the outer combustion

air sleeve of the air terminal and secure with a minimum

of 3 screws. Seal using red RTV silicone (W573-0002)

(not supplied).

C. Insert the vent pipes through the ﬁ restop maintaining

the required clearance to combustibles. Holding the air

terminal (lettering in an upright, readable position), secure

to the exterior wall and make weather tight by sealing

with caulking (not supplied).

D. If more vent pipe needs to be used to reach the ﬁ replace,

couple them together, as illustrated. The vent system

must be supported approximately every 3 feet (0.9m) for

both vertical and horizontal runs. Use non-combustible

strapping to maintain the minimum clearance to

combustibles.

E. Stove Appliances Only: From inside the house, using

Red RTV Silicone (W573-0002) (not supplied), seal

between the vent pipe and the ﬁ restop. Then slide the black trim collar over the vent pipe up to the

ﬁ restop.

The air terminal mounting plate may be recessed into the exterior wall or siding no greater than the

depth of its return ﬂ ange.

ADD FA

TENER TYP

ADD GRAPHIC

Screws

(Supplied)

2" (50.8mm) Overlap

Outer Flex Pipe

Inner Flex

Pipe

Red RTV Silicone

Caulking

Red RTV Silicone

Screws

Inner Coupler

Outer Coupler

Outer Flex

Pipe

Inner Flex

Pipe

Outer Flex

Pipe

WARNING

• Terminals must not be recessed into a wall or siding more than the depth of the return ﬂ ange of the

mounting plate.

• Do not allow the inner ﬂ ex pipe to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight.

TELESCOPIC SLEEVE

VENTING

AIR TERMINAL

20" (508mm)

COUPLER

Type 1 (x3)

Type 2 (x4)

Outer Rigid Pipe

Outer Rigid

Pipe

W415-2347 / C / 09.21.20

installation

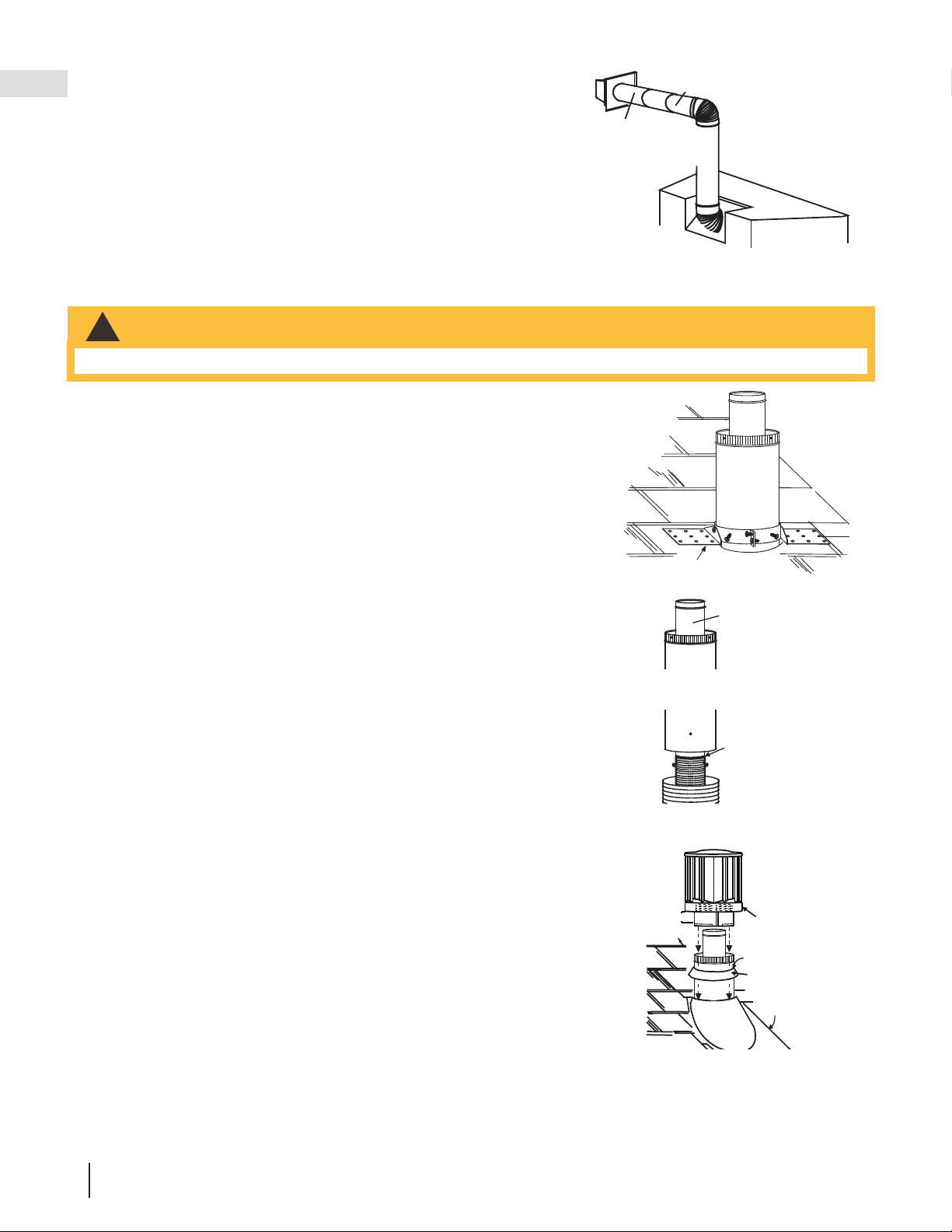

3.5 vertical air terminal Installation

A. Fasten the roof support to the roof using 6 screws. The roof support is

optional. In this case, the venting is to be adequately supported using

either an alternate method suitable to the authority having jurisdiction or

the optional roof support.

B. Stretch the inner ﬂ ex pipe to the required length. Slip the inner ﬂ ex

pipe a minimum of 2” (51mm) over the inner pipe of the air terminal

connector and secure with a minimum of three screws, when 4/7, 5/8

and 3/5 venting is used and a minimum of six screws when using 8/10

or 8/11 venting. Seal using a heavy bead of red RTV silicone sealant

(W573-0002) (not supplied).

C. Repeat using the outer ﬂ ex pipe, using a heavy bead of red RTV

silicone sealant (W573-0002) (not supplied) and a minimum of three

screws, when 4/7, 5/8 and 3/5 venting is used and a minimum of six

screws when using 8/10 or 8/11 venting.

D. Thread the air terminal connector / vent pipe assembly down through

the roof. The air terminal must be positioned vertically and plumb.

Attach the air terminal connector to the roof support, ensuring that the

top of the air terminal is 16” (40.6cm) above the highest point that it

penetrates the roof.

E. Remove nails from the shingles, above and to the sides of the air

terminal connector. Place the ﬂ ashing over the air terminal connector

leaving a min. 3/4” (19mm) of the air terminal connector showing above

the top of the ﬂ ashing. Slide the ﬂ ashing underneath the sides and

upper edge of the shingles. Ensure that the air terminal connector is

properly centered within the ﬂ ashing, giving a 3/4” (19mm) margin all

around. Fasten to the roof. Do not nail through the lower portion of the

ﬂ ashing. Make weather-tight by sealing with caulking. Where possible,

cover the sides and top edges of the ﬂ ashing with rooﬁ ng material.

F. Aligning the seams of the terminal and air terminal connector, place the

terminal over the air terminal connector making sure the vent pipe goes

into the hole in the terminal. Secure with a minimum of three screws,

when 4/7, 5/8 and 3/5 venting is used and a minimum of six screws

when using 8/10 or 8/11 venting.

G. Apply a heavy bead of weatherproof caulking 2” (51mm) above the

ﬂ ashing. Install the storm collar around the air terminal and slide down

to the caulking. Tighten to ensure that a weather-tight seal between the

air terminal and the collar is achieved.

H. If more vent pipe needs to be used to reach the appliance, see “horizontal

air terminal installation” section.

Roof Support

Inner Flex Pipe

Inner Pipe

Red RTV

Silicone

(W572-0002)

Air

Terminal

Connector

Outer Flex Pipe

Storm Collar

Flashing

Caulking

Weather

Sealant

2” (51mm)

Air Inlet

Base

WARNING

• Maintain a minimum 2” (51mm) space between the air inlet base and the storm collar.

Fastening hardware provided with appropriate roof terminal and liner kits.

note:

Outer Rigid Pipe

W415-2347 / C / 09.21.20

installation

3.6 appliance vent connection

A. Attach the adjustable pipe to the last section of rigid pipe. Secure with

screws and seal.

B. Install the inner ﬂ ex pipe to the appliance. Secure with a minimum of

three screws and ﬂ at washers when installing 3”/5”, 4”/7” or 5”/8”

venting, or six screws and ﬂ at washers when installing 8”/10” or

8”/11” venting. Seal the joint and screw holes using Mill Pac sealant

(W573-0007) (not supplied).

C. Run a bead of high temperature red RTV silicone sealant (W573-

0002) (not supplied) around the inside of the air intake collar. Pull the

adjustable pipe a minimum 2” (50.8mm) into the air intake collar.

INSERT

IMAGE HERE

note:

Always ﬁ nish vent system installation with the appliance vent connection. Ensure that the sealant is not visible on the

exterior pipes once installation is completed. An optional decorative black band may be available with this appliance.

In the event that the venting must be disassembled, care must be taken to reseal the venting.

#8 X 1/2”

Self Drilling

Screws

Mill-Pac

Sealant

2” (50.8mm)

Overlap

WARNING

• Risk of ﬁ re, explosion, or asphyxiation. Ensure there are no ignition sources such as sparks or open ﬂ ames.

• Support gas control when attaching gas supply pipe to prevent damaging gas line.

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door opened

or removed. Purging of the gas supply line should be performed by a qualiﬁ ed service technician. Ensure

that a continuous gas ﬂ ow is at the burner before closing the door. Ensure adequate ventilation. For gas and

electrical locations, see “dimensions” section.

• All gas connections must be contained within the appliance when complete (gas ﬁ replaces only).

• High pressure will damage valve. Disconnect gas supply piping before testing gas line at test pressures above

1/2 PSIG.

• Valve settings have been factory set, do not change.

Installation and servicing to be done by a qualiﬁ ed installer.

• Move the appliance into position and secure.

• If equipped with a ﬂ ex connector, the appliance is designed to accept a 1/2” (13mm) gas supply. Without the

connector, it is designed to accept a 3/8” (9.5mm) gas supply. The appliance is equipped with a manual shut

off valve to turn off the gas supply to the appliance.

• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the current

CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI Z223.1 / NFPA

54 in the United States.

• When ﬂ exing any gas line, support the gas valve so that the lines are not bent or kinked.

• The gas line ﬂ ex-connector should be installed to provide sufﬁ cient movement for shifting the burner assembly

on its side to aid with servicing components.

• Check for gas leaks by brushing on a soap and water solution. Do not use open ﬂ ame.

3.7 gas installation

W415-2347 / C / 09.21.20

installation

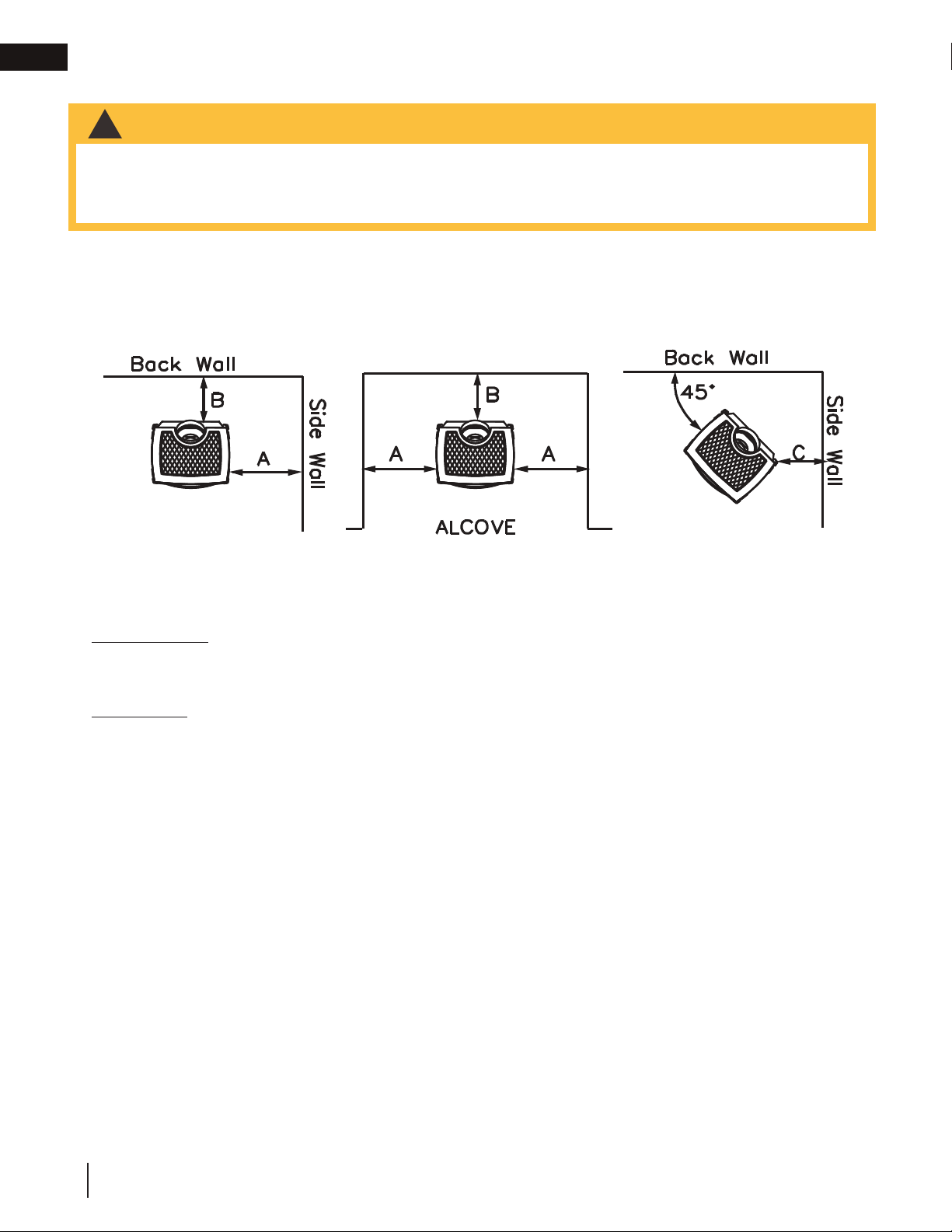

3.8 minimum clearance to combustibles

As long as clearance to combustibles is kept within the required distances, the most desirable and beneﬁ cial

location for a Napoleon® appliance is in the centre of a building, thereby allowing the most efﬁ cient use of the

heat created. The location of windows, doors and the trafﬁ c ﬂ ow in the room where the appliance is to be located

should be considered. If possible, you should choose a location where the vent will pass through the house with-

out cutting a ﬂ oor or roof joist.

A. 4” (102mm) B. 2” (51mm)* C. 2” (51mm)

To ceiling from appliance top 48” (1219mm)

Horizontal vent:

Sides and bottom 1” (25mm)

Top 2” (51mm)

Vertical vent:

All sides 1” (25mm)

*At a distance of 2” (51mm) from the wall, installation or service to the blower may not be practical. A minimum of

5” (127mm) will be required in order to install the blower.

If less than 5” (127mm) clearance is maintained between the back of the appliance and the back wall, it will be

necessary to disconnect the venting and gas pipe to move the appliance out for installation or service of the

blower.

• Minimum clearance to combustibles must be maintained or a serious ﬁ re hazard could result.

• Framing or ﬁ nishing materials closer than the minimums listed must be constructed entirely of non-com-

bustible materials (i.e. steel studs, cement board, etc.).

• Never obstruct the front opening of the appliance.

WARNING

W415-2347 / C / 09.21.20

installation

1” (25mm)

2” (51mm)

24 1/2”

(622mm)

COMBUSTIBLE

NON-COMBUSTIBLE

BRICK

0” (0mm) IF NON-

COMBUSTIBLE

FINISHING IS

USED SUCH AS

BRICK AND STONE

COMBUSTIBLE

MANTEL OR

TRIM MATERIAL

8” (203mm)

MIN.

12” (305mm)

MAX. MANTEL DEPTH

2”

(51mm)

When the appliance is rear vented, a mantel or shelf may be installed above the GDS25-1 at a minimum distance

of 8” (203mm).

3.9 minimum mantel or shelf clearances

• Risk of ﬁ re!

• Maintain all speciﬁ ed air space clearances to combustibles.

• Failure to comply with these instructions may cause a ﬁ re or cause the appliance to overheat.

• Ensure all clearances (i.e. back, side, top, vent, hearth, mantel, front, etc.) are clearly maintained.

WARNING

W415-2347 / C / 09.21.20

installation

4.0 ﬁ nishing

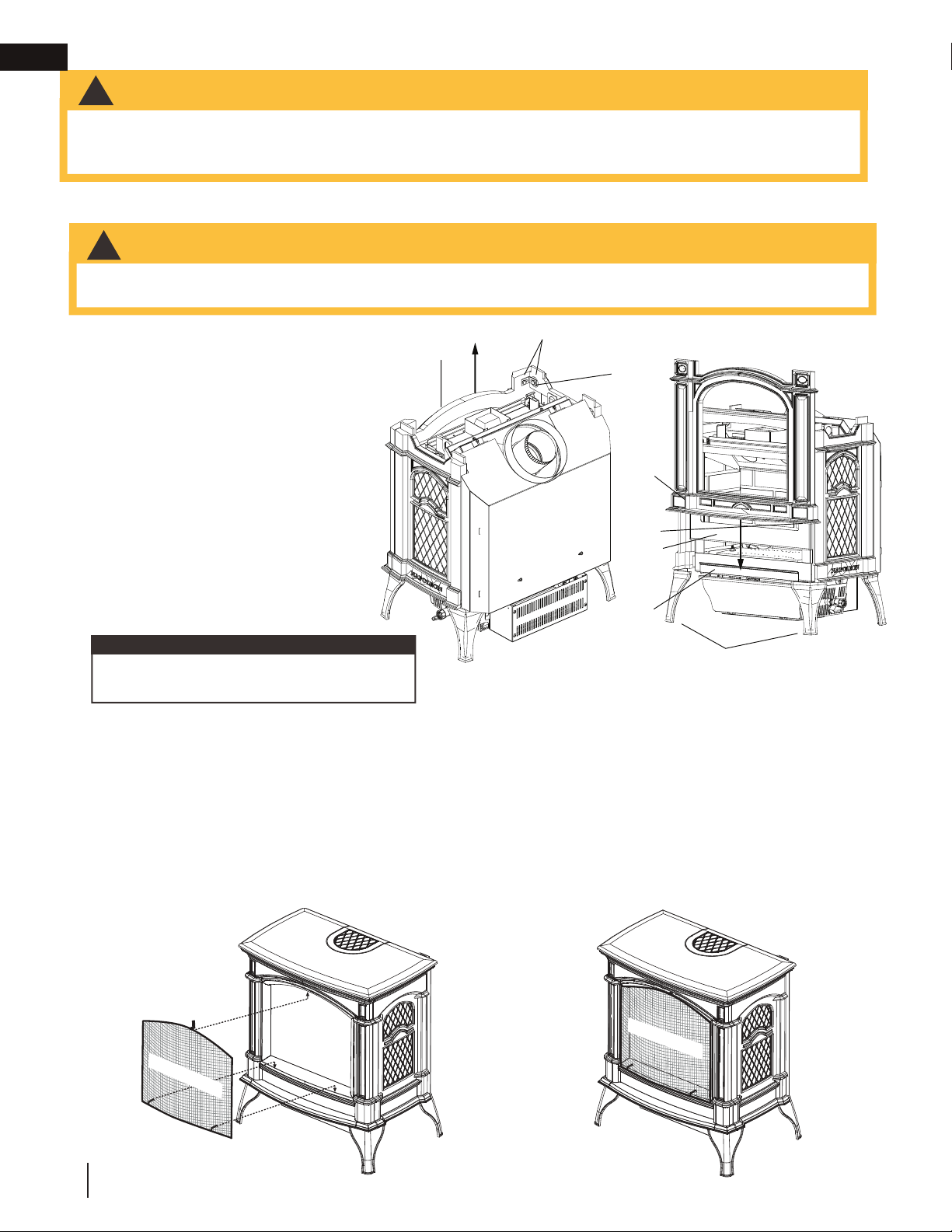

4.1 cast front installation and removal

A. Remove safety barrier.

B. Lift the top cast piece off of the

appliance.

C. Detach the front cast piece from

the side pieces by removing the

screws from the brackets located

in the upper inside corners.

D. Slide the front straight up to

remove.

Retainer

Door

Tab

Front

Bracket

Screws

Front

Front Legs

4.2 safety barrier installation and removal

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance

and shall be installed.

A. Lift the top casting up and remove the safety barrier. Remove and discard plastic.

B. Tilt the top of the safety barrier and hook under the top casting, make sure to hold the safety barrier.

C. Slightly lift the bottom of the safety barrier and push onto theappliance. Careful not to scratch the bottom

casting.

D. Reverse these steps to remove.

SAFETY BARRIER

WARNING

• Risk of ﬁ re!

• Never obstruct the front opening of the appliance.

• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, or scratched.

• Glass may be hot.

• Do not touch glass until cooled.

WARNING

Follow the above steps in reverse in order

to reinstall the cast front. Ensure that

the tabs on the underside of the front ﬁ t

behind the front legs.

It is not necessary to remove the cast front in

order to remove the door.

note:

W415-2347 / C / 09.21.20

A. Remove safety barrier.

B. Lift the top cast piece off of the appliance.

C. Pull handle and rotate 90°.

D. Slide the door straight up to remove.

Follow the above steps in reverse in order to reinstall the door.

Ensure that the bottom of the door engages the door retainer

before closing the latches.

LATCHES

DOOR

4.3 glass door installation and removal

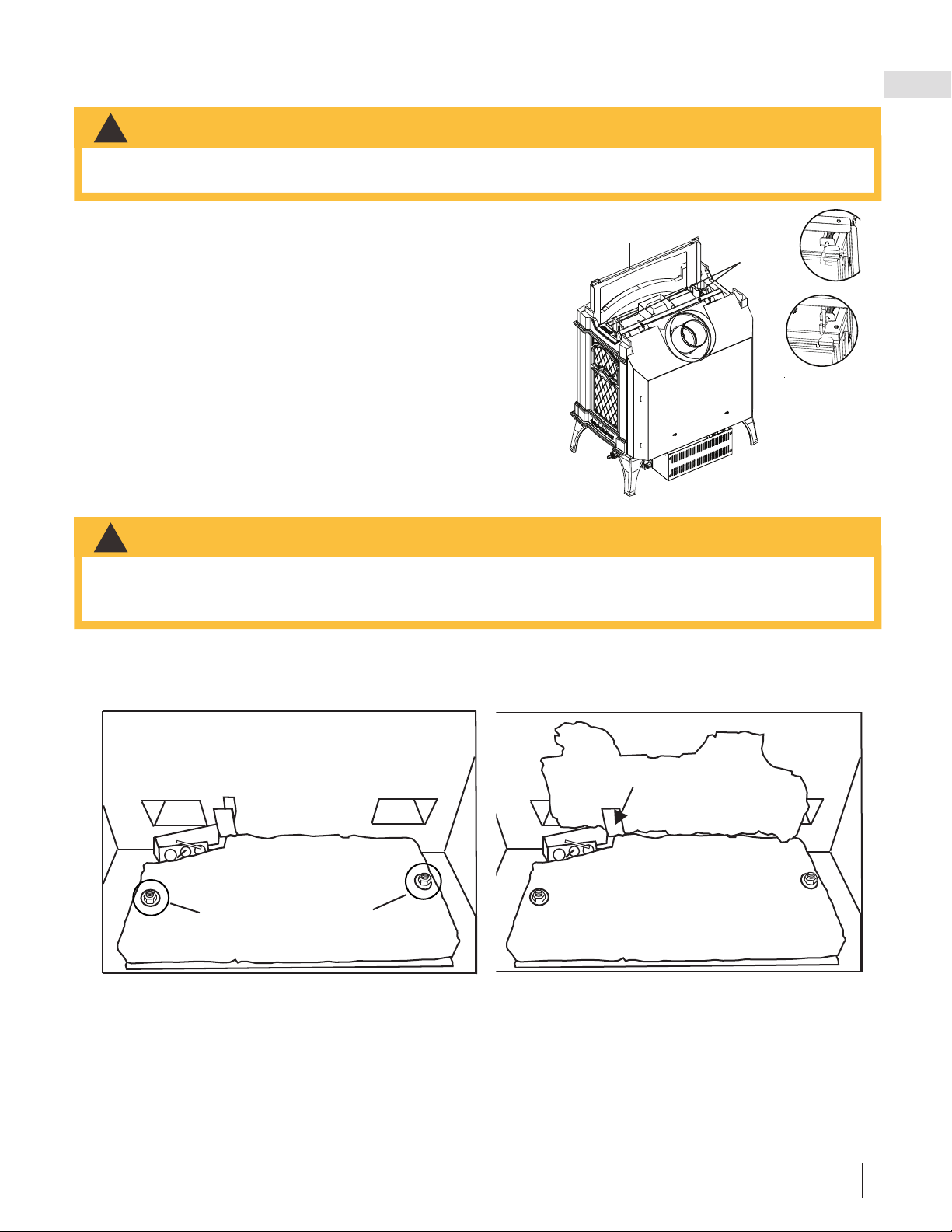

4.4 log placement

LOG LOCATING SCREWS

BRACKET

It is not necessary to remove the cast front, however, this will make for a more simple log installation.

In order to assemble the log set, the glass door must be removed, see “cast front / glass door installation and

removal” section.

A. Place the rear log, as shown, onto the rear log

support brackets. Ensure the cutout on the left

underside of the log, ﬁ ts over the pilotassem-

bly. Bend the bracket on the left side to help

retain the rear log.

• Do not substitute materials.

WARNING

• Logs must be placed in the exact location in appliance. Do not change from the proper log positions, as

appliance may not function properly.

• The logs are fragile and should be handled with care.

WARNING

W415-2347 / C / 09.21.20

ﬁ nishing

LOGO

1/2”

Remove the backing from the logo and position onto the control door as shown.

B. Place the hole in the underside of log #2

onto the locating screw, on the left side of the

burner. The ﬁ bre burner is formed to cradle the

centre of the log.

C. Place the hole in the underside of log #3 onto

the locating screw, on the right side of the

burner. The bottom branch of log #3 sits in

front of, and against, the right end of log #2.

D. Reinstall the glass door & front.

4.5 logo placement

W415-2347 / C / 09.21.20

ﬁ nishing

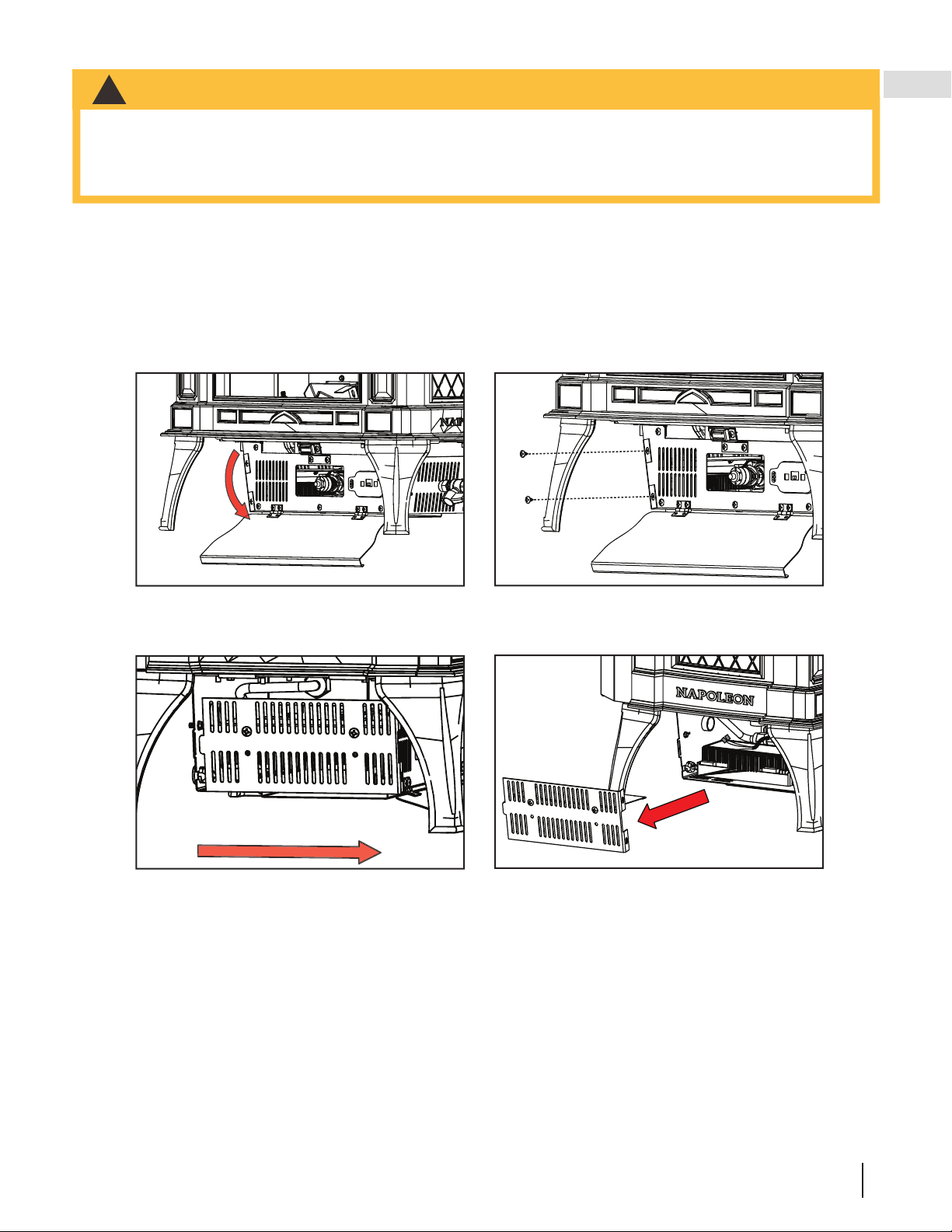

5.0 optional blower installation

A. Disconnect power supply from the appliance.

B. Open the control door located at the bottom front of the appliance (FIG. 1).

C. Remove the 2 screws holding the left control box cover (FIG. 2).

D. Slide the control box cover forward and remove from the appliance (FIG. 3 and 4).

FIG. 1 FIG. 2

FIG. 3

FIG. 4

• Ensure the appliance is completely cool before starting installation.

• To avoid danger of suffocation, keep the packaging bag away from babies and children. Do not use in

cribs, beds, carriages, or play pens. This bag is not a toy. Knot before throwing away.

WARNING

W415-2347 / C / 09.21.20

BUSHING

Spade Connectors

FIG. 6

FIG. 7

FIG. 8

FIG. 9

Rear Hole

Wire Harness

FIG. 5

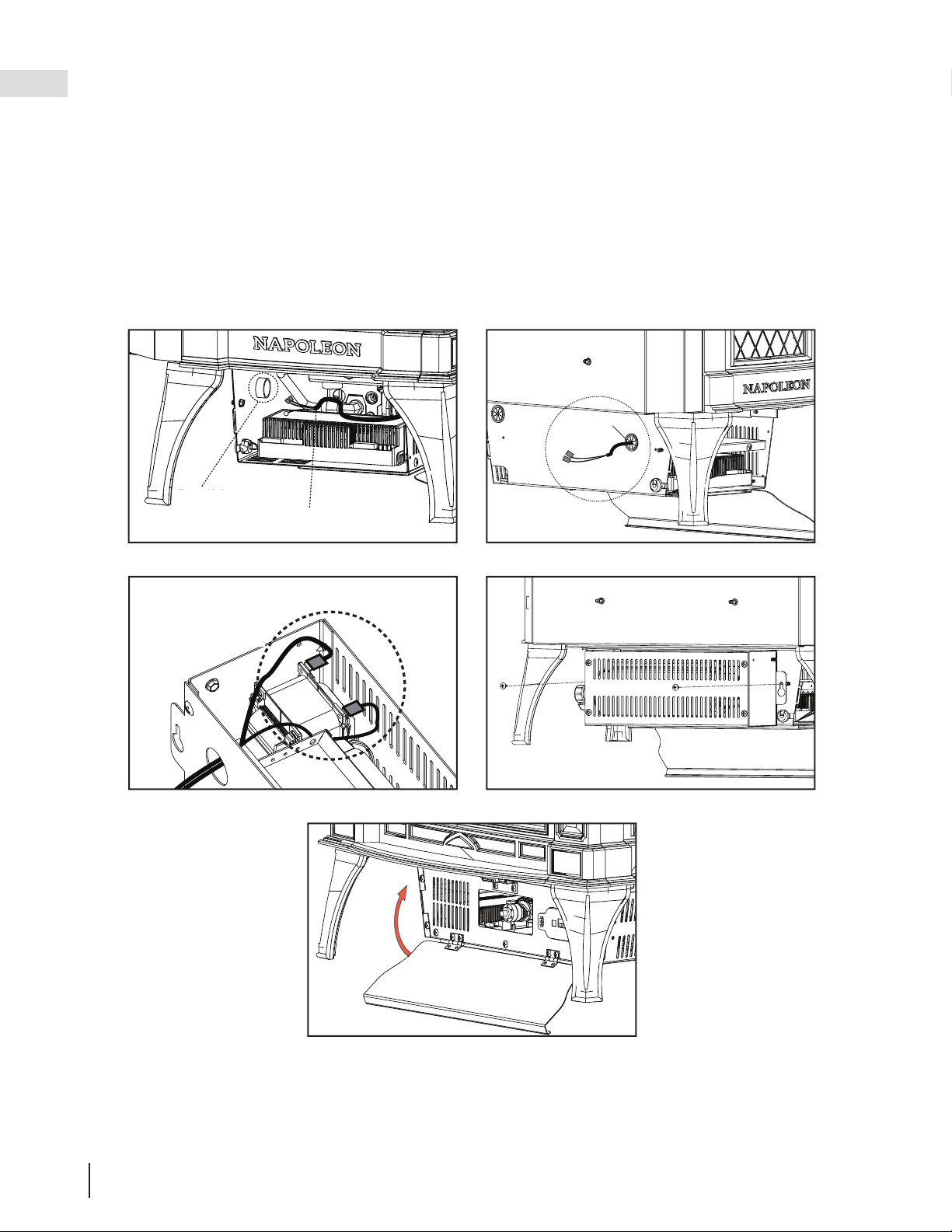

E. Access blower wire leads. Remove 2 insulation connectors from blower wire leads.

F. Route the blower wire through the rear hole of the housing (FIG. 5 and 6).

G. Snap bushing over blower wire and press into rear hole of housing.

H. Place blower housing close to the rear of the appliance. Route wire through hole in blower housing and

connect the spade connectors to blower (FIG. 7).

I. Align the blower to the rear side of the control box and fasten it with 2 screws included with the kit

(FIG. 8).

J. Re-install control box side cover to the control box using the 2 screws previously removed in Step C.

K. Close the control door (FIG. 9).

L. Reconnect power supply to the appliance.

W415-2347 / C / 09.21.20

optional blower installation

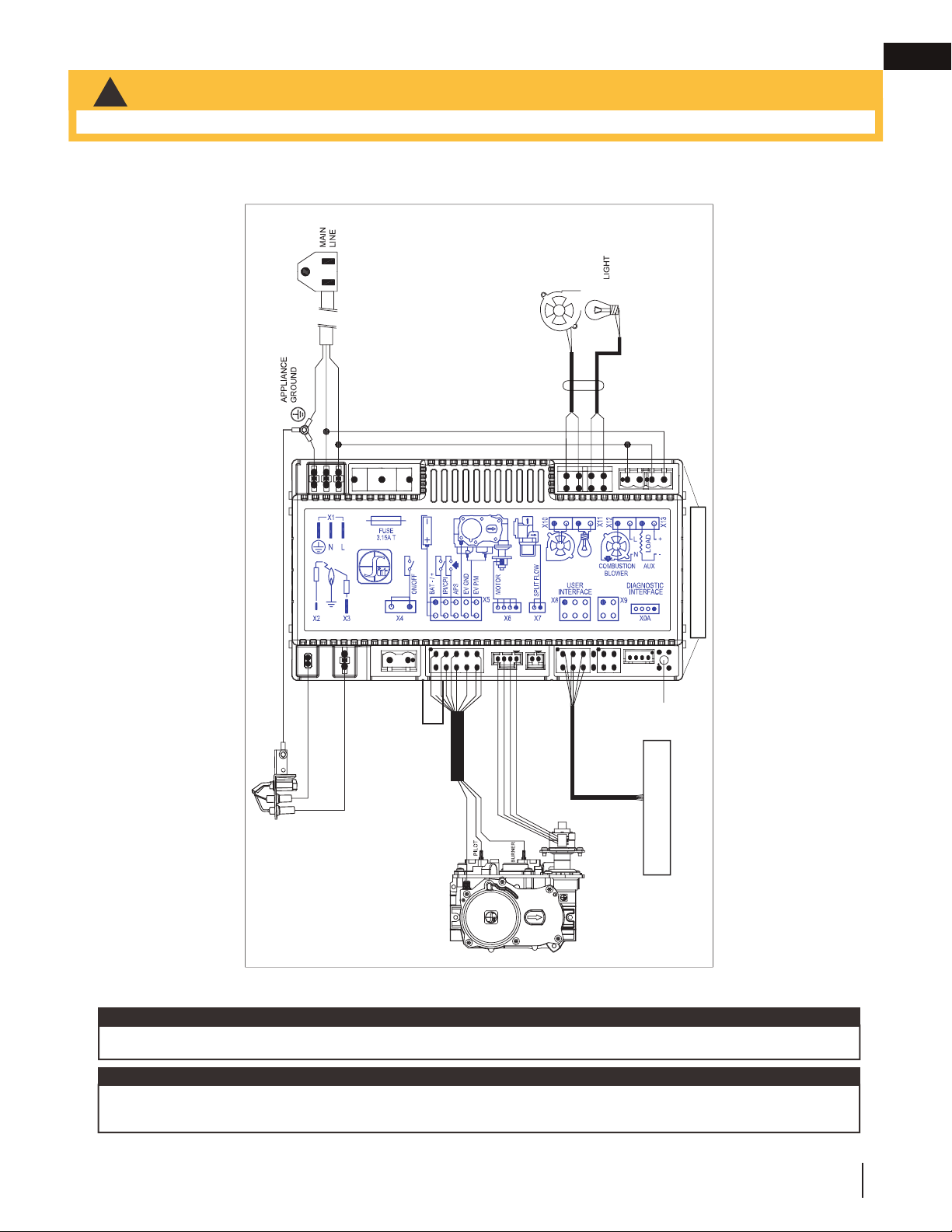

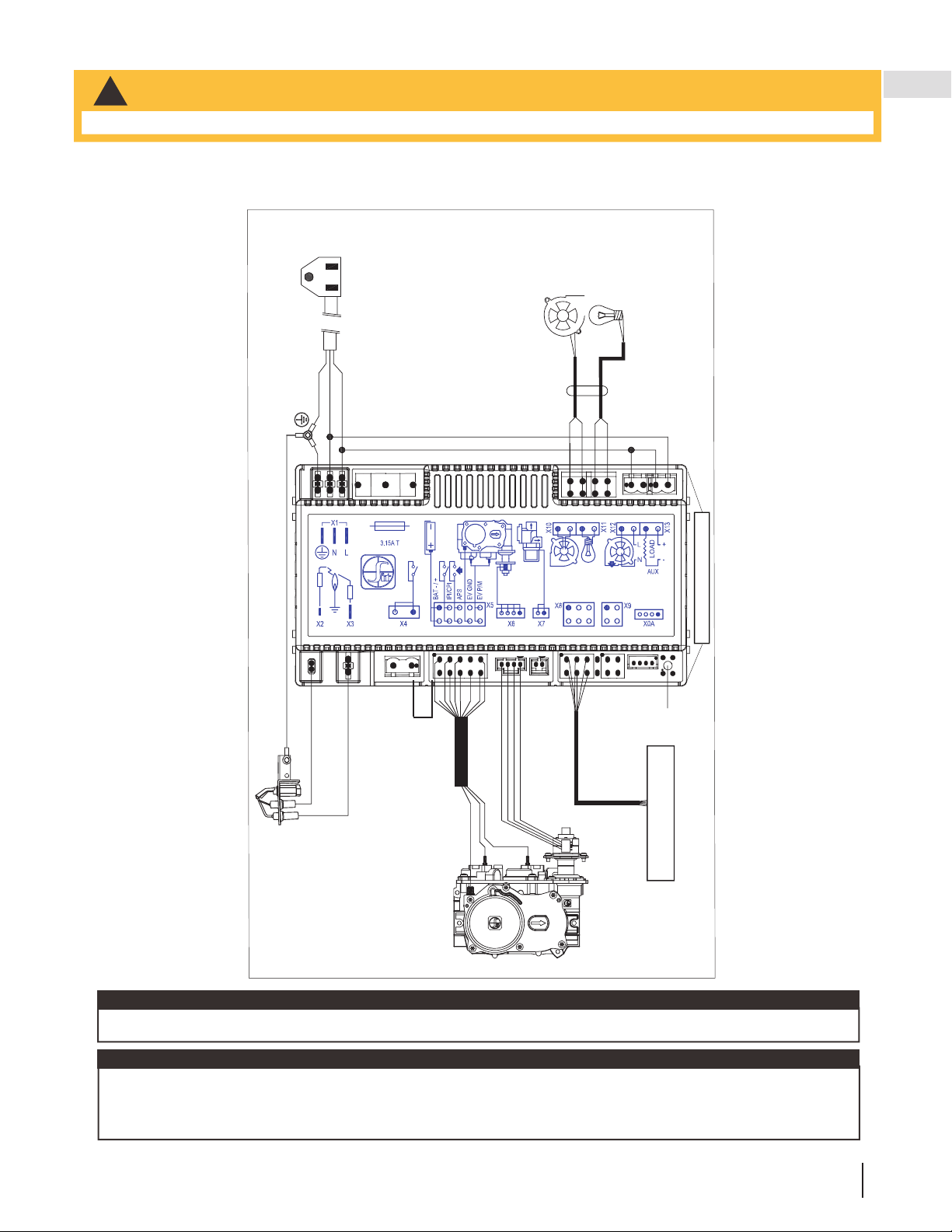

6.0 wiring diagram

RESET

BUTTON

BATTERY HOLDER COMPLETE

NIGHT

LIGHT

BLOWER

WITH RESET BUTTON

(RECEIVER)

(POWER CORD)

(BLOWER/NIGHT LIGHT

WIRE HARNESS)

OPTIONAL

BLOWER

ELECTRONIC

IGNITION

PILOT

ELECTRONIC

VALVE

This appliance must be electrically connected and grounded in accordance with local codes. In the absence of

local codes, use the current CSA C22.1 Canadian electrical code in Canada or the ANSI/NFPA national electrical

code in the United States.

JUMPER

• Do not wire 110 volts to the valve or wall switch.

WARNING

Jumper is only present when appliance is equipped and operated with remote control.

note:

This appliance is equipped with a three-prong (grounding) plug for protection against shock hazard and should

be connected into a properly grounded circuit. Do not cut or remove the grounding prong from the plug.

note:

W415-2347 / C / 09.21.20

WARNING

• Do not turn on if children or other at risk individuals are near the appliance.

• This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

• Before operating, smell all around the appliance area for gas and next to the ﬂ oor because some gas is

heavier than air and will settle on the ﬂ oor.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and replace any part of the control system and any gas control which has been

underwater.

FOR YOUR SAFETY READ BEFORE LIGHTING

WHAT TO DO IF YOU SMELL GAS

LIGHTING INSTRUCTIONS

TO TURN OFF GAS

A. Stop! Read the above safety information on this label.

B. Remove batteries from the transmitter and set thermostat to lowest setting, if

equipped.

C. Turn off all electrical power to the appliance.

D. Open the glass door, if equipped.

E. Turn the manual shut-off valve clockwise to the “OFF” position. (Shut-off valve is

located on the ﬂ ex connector).

F. Wait ﬁ ve (5) minutes to clear out any gas. If you smell gas including near the

ﬂ oor, STOP! Follow the instructions above in the “WHAT TO DO IF YOU

SMELL GAS” section. If you don’t smell gas; close the glass door and go to

the next step.

G. Turn the manual shut-off valve counter clockwise to the “ON” position.

H. Turn on all electrical power to the appliance and re-install the batteries into the

transmitter. Set thermostat to desired setting, if equipped.

I. Turn on the remote wall switch to the appliance.

J. If the appliance will not operate, follow instructions “TO TURN OFF GAS” and

call your service technician or gas supplier.

A. Set thermostat to lowest setting, if equipped.

B. Turn off the remote wall switch to the appliance.

C. Turn off all electric power to the appliance if service is to be performed.

D. Turn manual shutoff valve clockwise to the “OFF” positon. Do not force.

• Turn off all gas to the appliance.

• Open windows.

• Do not try to light any appliance.

• Do not touch any electric switch; do not use

any phone in your building

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

• If you do not follow these instructions exactly, a ﬁ re or explosion may result causing property damage, personal

injury, or loss of life.

• If applicable, always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door

opened or removed.

add gas knob

add gas valve

Ensure that a continuous gas ﬂ ow is at the burner before installing the door. When lit for the ﬁ rst time, the

appliance will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of

paints and lubricants used in the manufacturing process and will not occur again. After extended periods of

non-operation, such as, following a vacation or warm weather season, the appliance may emit a slight odor for a

few hours. This is caused by dust particules in the heat exchanger burning off. In both cases, open a window to

sufﬁ ciently ventilate the room.

This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

note:

7.0 operation

W415-2347 / C / 09.21.20

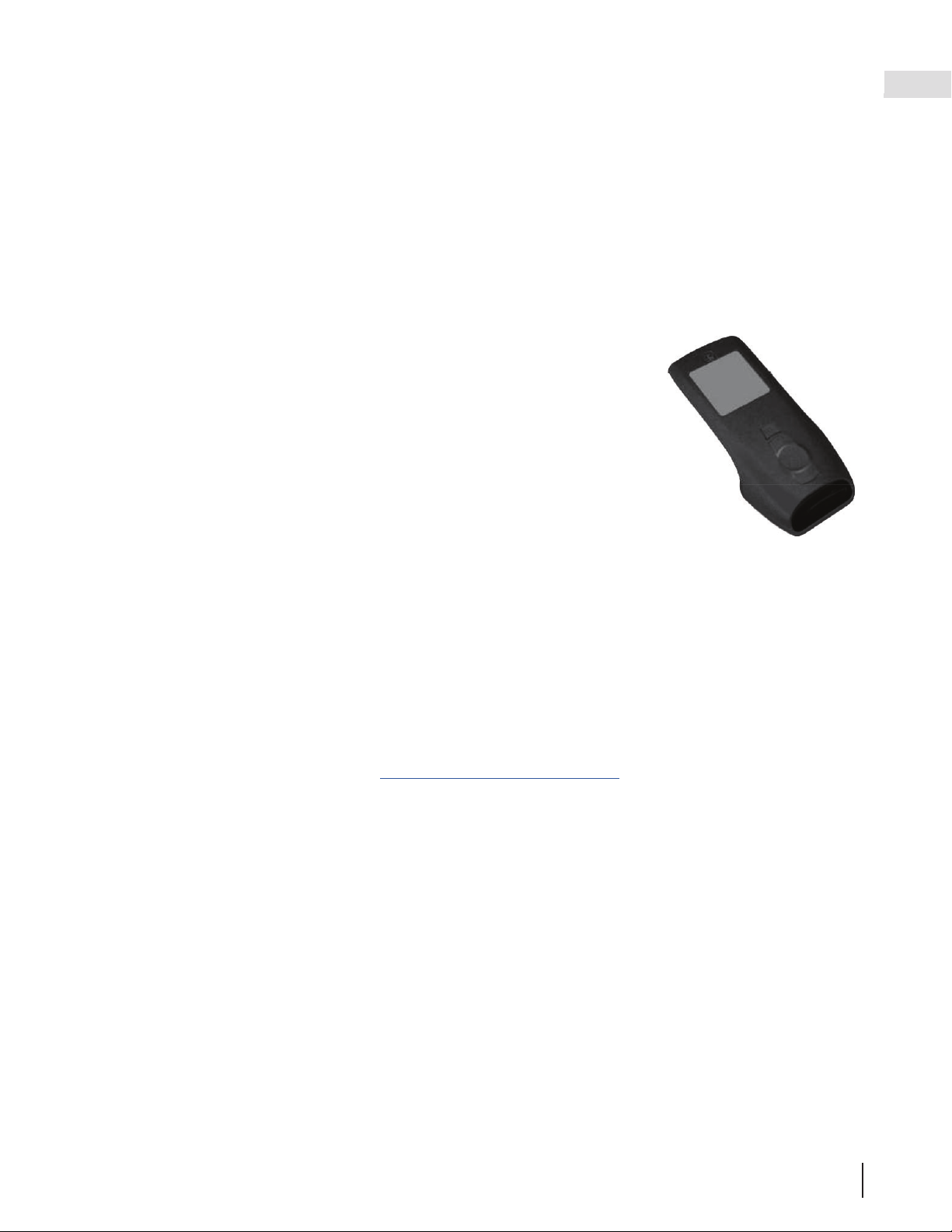

This appliance is equipped with an “On Demand” intermittent pilot ignition system (IPI) which also includes a

continuous pilot ignition (CPI) mode with an integrated seven day timer. This system minimizes your appliance’s

carbon footprint as well as reducing its annual fuel consumption and operating costs.

In IPI mode, the pilot will ignite prior to the main burner, when the appliance is turned on using a switch, remote

or from a call for heat with the thermostat (if equipped). Once the appliance is turned off (or the call for heat is

satisﬁ ed), the main burner and pilot ﬂ ame will shut down.

The continuous (CPI) mode is intended to enhance the performance of the appliance during the startup phase in

colder climates and extreme weather by keeping the system warm when the main burner is not in use. However,

the timer feature provides the convenience that the appliance automatically switches off the pilot when the

appliance has not been used for seven days to save unnecessary fuel consumption.

When the CPI function is turned on, the pilot will remain on after the main burner

is turned off. A timer will then begin the countdown for approximately seven days

before shutting off the pilot if the appliance is not used. This countdown will reset

anytime the appliance main burner is used. Therefore, if the appliance is regularly

used day to day, the pilot will remain on. However, this system does not require

the user to remember to turn the pilot off as summer approaches and avoids

unnecessary fuel consumption while still readily turned back on when the cold

weather returns.

Your appliance may be equipped with an ACS or remote control device which

enables you to select IPI or CPI modes.

If your appliance is equipped with an ACS switch, it has the option to change

modes. If installed with the blue wire facing up, ﬂ ipping the switch UP turns on the

continuous pilot with timer and ﬂ ipping the switch DOWN turns on the intermittent

pilot ignition. If installed with the white wire facing up, the opposite is true.

If your appliance is equipped with a remote control device capable of selecting IPI / CPI modes, refer to remote

operating instructions.

In order to start your pilot, turning the main burner on with the switch, remote or thermostat and then turning it off

will reactivate the continuous pilot mode and reset the seven day timer.

For further information, refer to www.napoleon.com/pilotondemand.

ADD

TITLE:

PILOT-ON-DEMAND

7.1 pilot-on-demand

W415-2347 / C / 09.21.20

(4) AA Batteries

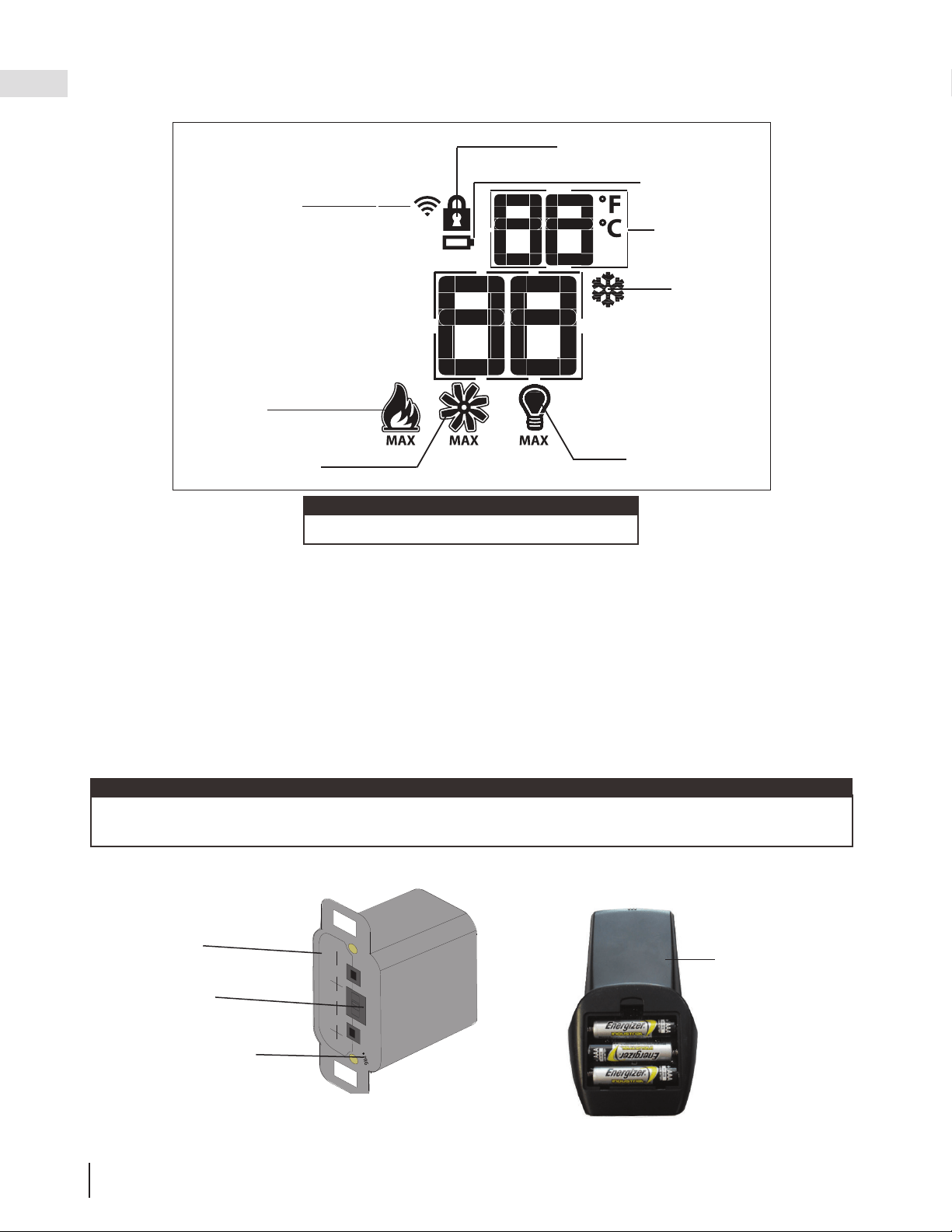

7.2 general transmitter layout

7.3 initializing the transmitter / battery holder for the ﬁ rst time

A. Install the 4 AA batteries into the Proﬂ ame 2 battery holder, note the polarity of the batteries and insert as

indicated on the cover (+/-).

B. Ensure the 3 position slider switch is switched to the “REMOTE” position (middle position).

C. Press the reset/programming button, use a small object such as a paper clip in order to reach the button

marked PRG, as shown in the illustration below.

D. The battery holder will beep 3 times to indicate that it’s ready to synchronize with the transmitter.

E. Install the 3 AAA batteries into the transmitter, as shown in the photograph below, then press the ON

button, The battery holder will beep 4 times to indicate that the transmitter’s command is accepted.

TRANSMITTER

RESET/PROGRAM

BUTTON (PRG)

BATTERY HOLDER

SLIDER SWITCH

Low battery alarm

Key Lock

Room

Temperature

Light

Flame ON

Blower

Transmission

CPI mode

Transmitter is optional with this model.

note:

The initializing process must be completed within 10 seconds of pressing the reset / program button (PRG).

note:

W415-2347 / C / 09.21.20

operation

7.4 temperature display

7.5 ﬂ ame height

7.6 blower speed

7.8 continuous pilot / intermittent pilot (CPI / IPI) selection

A. With the system in the off position, press the Temperature Key and the

mode key at the same time to change from degrees F to C.

B. Look at the LCD screen on the transmitter to verify that a C or F is

visible to the right of the Room Temperature display.

73 23

°F °C

The remote control has six (6) ﬂ ame levels. With the system on and the ﬂ ame level at the maximum, press the Down

arrow key once and it will reduce the ﬂ ame height by one step until the ﬂ ame is turned off.

The Up Arrow Key will increase the ﬂ ame height each time it is pressed. If the Up arrow key is pressed while the

system is on but the ﬂ ame is off, the ﬂ ame will come on at the high position. A single “beep” will conﬁ rm reception of

the command.

°F

OFF

°F

Flame Off Flame at level 1 Flame at level 5 Flame at “Hi” level 6

If the appliance is equipped with a hot air circulating fan, the speed of the

fan can be controlled by the remote system. The fan speed can be adjusted

through six (6) speeds.

A. Use the mode key to guide you to the fan control icon.

B. Use the mode key to turn on/off or adjust the fan speed. A single

“beep” will conﬁ rm reception of the command.

°F

When the desired blower speed is selected, the blower will automatically come on 5 minutes after the main

burner has been turned on and remain on twelve minutes after it has been turned off.

note:

ADD

TITLE:

Night

Light

Dimmer

Control

°F

OFF

°F

The auxiliary function controls the Night Light

with dimmable control.

A. Use the Mode Key to guide you to the Night Light icon.

B. The intensity of the output can be adjusted through 6 levels.

Use the UP/DOWN arrow keys to adjust the output level. A

single beep will conﬁ rm reception of the command.

A. When the transmitter is in the “OFF” position, use the Mode Key to guide

you to the CPI mode icon.

B. Press the UP/DOWN to switch between IPI and CPI modes. A single BEEP

will conﬁ rm reception of the command.

°F

IPI

°F

CPI

If the appliance is equipped with a CPI/IPI toggle switch, set the switch to CPI

position to enable remote CPI operation. If the switch is set to IPI then it will

only work in IPI regardless of what is set on the remote control handset.

note:

7.7 night light dimmer control

W415-2347 / C / 09.21.20

operation

7.10 low battery / manual bypass

ADD

TITLE:

CHILD

PROOF

FUNCTION

This function will lock the keys to avoid unsupervised operation.

A. Press the MODE and UP keys at the same time.

B. To de-activate this function, press the MODE and UP keys at the same time.

°F

The life span of the remote batteries depends on various factors: quality of the batteries, the

number of ignitions, etc.

When the transmitter batteries are low, a Battery Icon will appear on the LCD display before all

battery power is lost. When the batteries are replaced this icon will disappear.

When the receiver batteries are low, no “beep” will be emitted from the receiver when it

receives an ON/OFF command. This in an alert for the receiver that there’s low battery. When

the batteries are replaced the “beep” will be emitted from the receiver when the ON/OFF key is pressed.

If the batteries of the receiver or transmitter are low, the appliance can be turned on manually by sliding the three

position slider switch on the receiver to the “ON” position. This will bypass the remote control feature and the applianc

main burner will come on if the gas valve is in the “ON” position.

°F

7.9 key lock

W415-2347 / C / 09.21.20

operation

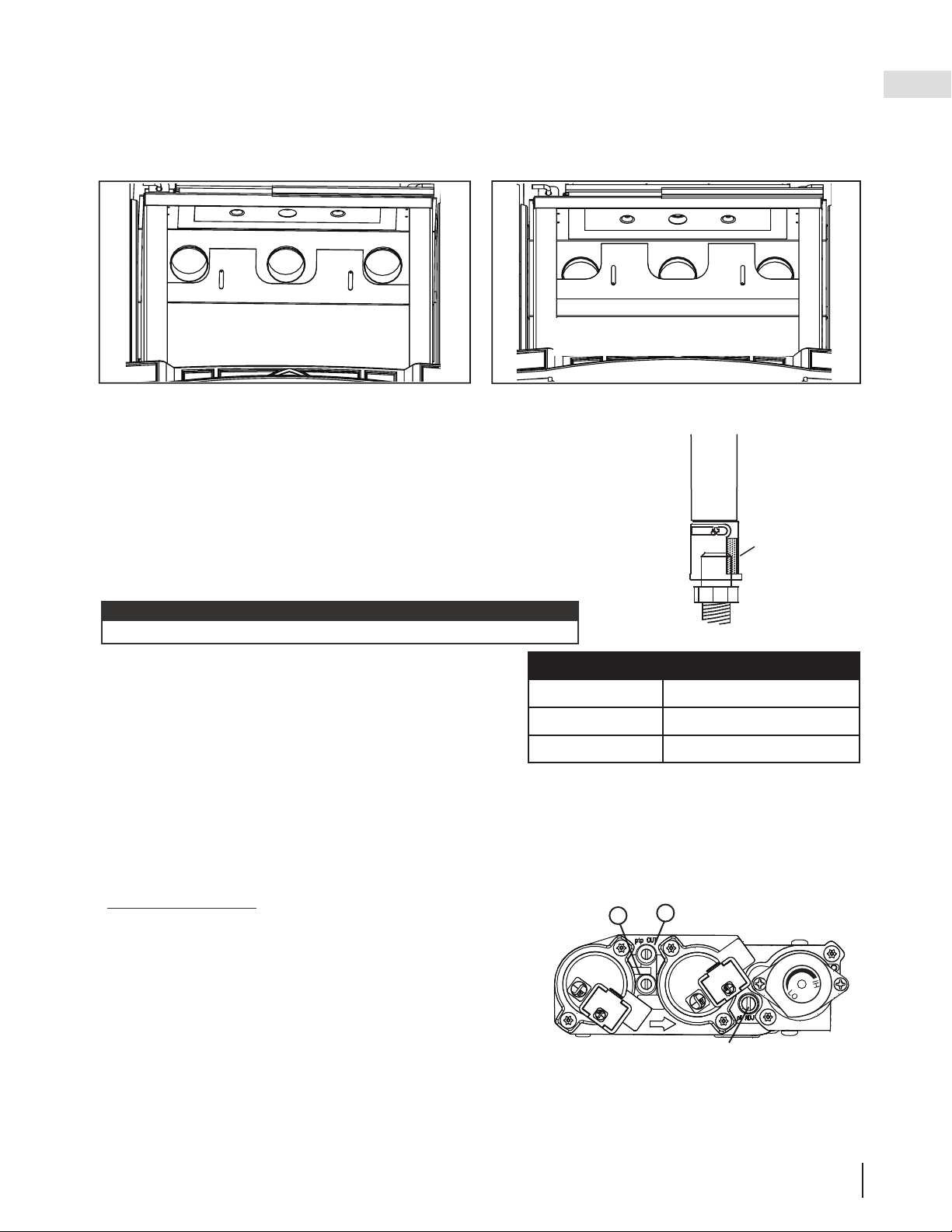

Remove the 2 screws securing the burner. Air shutters have been factory

set open according to the Venturi Adjustment Chart. These settings are for

(maximum) horizontal termination. Adjustment may be required depending

on fuel type, vent conﬁ guration and altitude. After making adjustments

replace the burner ensuring that the venturi tube

ﬁ ts over the oriﬁ ce and replace the screws.

VENTURI ADJUSTMENT CHART

FUEL GDS25-1

NG 5/16” (8mm)

P 7/16” (11mm)

8.0 adjustment

This appliance has an air shutter that has been factory set open according to

the chart below:

Regardless of venturi orientation, closing the air shutter will cause a more

yellow ﬂame, but can lead to carbonization. Opening the air shutter will cause

a more blue ﬂame, but can cause ﬂame lifting from the burner ports. The ﬂame

may not appear yellow immediately; allow 15 to 30 minutes for the ﬁnal ﬂame

colour to be established.

AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED

INSTALLER.

AIR

SHUTTER

OPENING

VENTURI

BURNER

ORIFICE

It is important that the oriﬁce is securely inserted into the venturi.

note:

RESTRICTOR SHOWN IN A

FULLY OPEN POSITION

RESTRICTOR SHOWN IN A

FULLY CLOSED POSITION

Vertical installations may display a very active ﬂ ame. Loosen the two screws and slide the restrictor plate blocking the

exhaust path. This reduces the velocity of the exhaust gases, slowing down the ﬂ ame pattern and creating a more

traditional ﬂ ame appearance. For vertical vents greater than 15 ft (5m), this restrictor must be fully closed.

8.1 restricting vertical vents

8.2 venturi adjustment

8.3 pilot burner adjustment

Adjust the pilot screw to provide properly sized ﬂ ame. Turn in a clockwise direction to reduce the gas ﬂ ow.

Check Pressure Readings:

Inlet pressure can be checked by turning screw (A) counter-

clockwise 2 or 3 turns and then placing pressure gauge tubing

over the test point. Gauge should read as described on the chart

below. Check pressure with main burner operating on “HI”.

Outlet pressure can be checked the same as above using screw

(B). Gauge should read as described on the chart below. Check

pressure with main burner operating on “HI”.

After taking pressure readings, be sure to turn screws

clockwise ﬁ rmly to reseal. Do not overtorque.

Leak test with a soap and water solution.

INSERT PILOT ASSEMBLY

PILOT SCREW

W415-2347 / C / 09.21.20

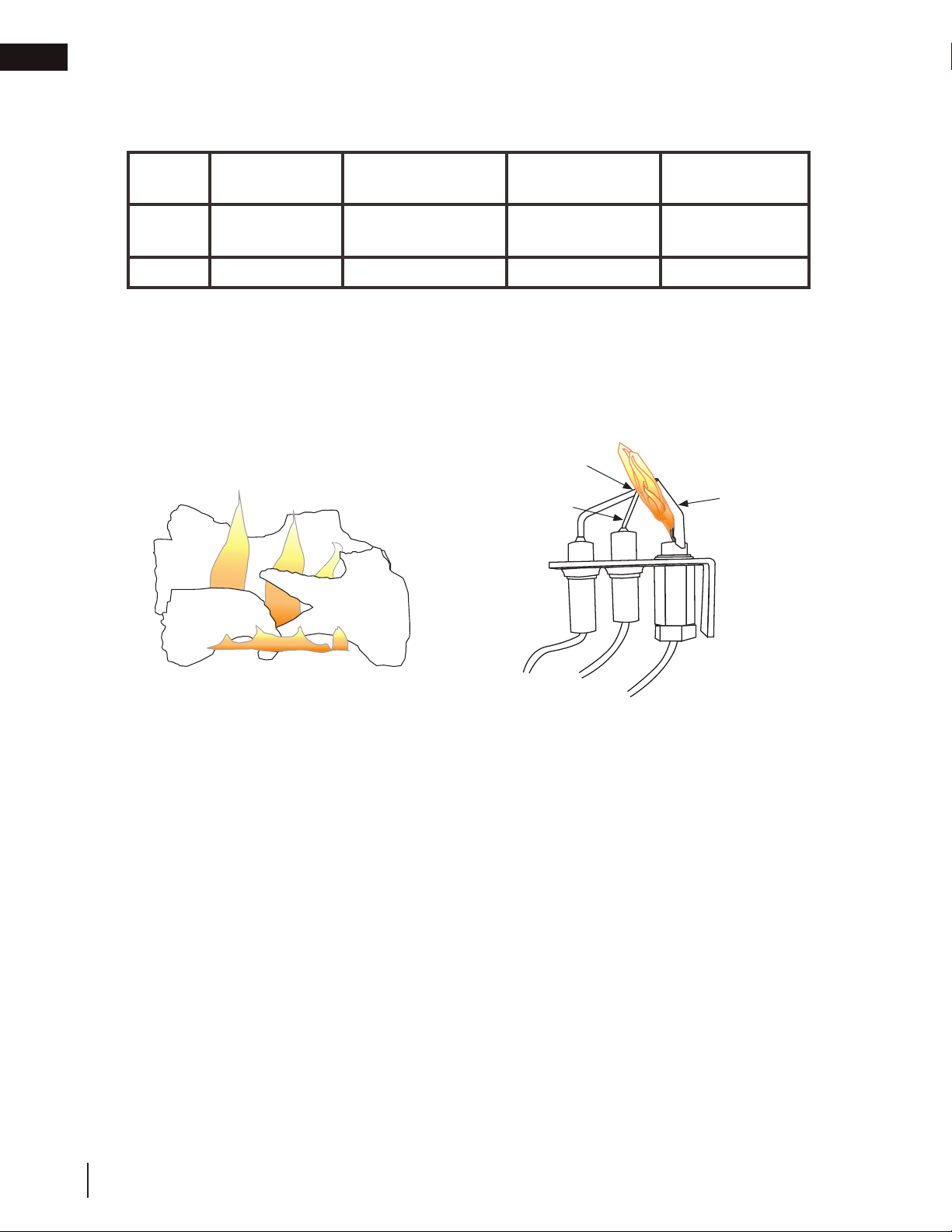

8.4 ﬂ ame characteristics

FLAME MUST ENVELOP

UPPER 3/8” (9.5mm) TO

1/2” (12.7mm) OF FLAME

SENSOR

PILOT

BURNER

FLAME

SENSOR

SPARK MODULE

It’s important to periodically perform a visual check of

the pilot and burner ﬂames. Compare them to the

illustration provided. If any ﬂames appear abnormal,

call a service person.

Prior to pilot adjustment, ensure that the pilot assembly has not been painted. If overspray or painting of

the pilot assembly has occurred remove the paint from the pilot assembly, or replace. Fine emery cloth or a

synthetic scrub pad (such as Scotch-Brite

™)

can be used to remove the paint from the pilot hood, electrode

and ﬂ ame sensor.

*Maximum inlet pressure not to exceed 13”

Pressure Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

Inlet

*7”

(minimum 4.5”)

17.4mb

(minimum 11.2mb)

13”

(minimum 11”)

32.4mb

(minimum 27.4mb)

Outlet

3.5” 8.7mb 10” 24.9mb

W415-2347 / C / 09.21.20

adjustment

9.0 maintenance

WARNING

• Turn off the gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners on glass.

• Do not paint the pilot assembly.

This appliance and its venting system should be inspected before use and at least annually by a qualiﬁ ed

service person. The following suggested checks should be performed by a qualiﬁ ed technician. The appliance

area must be kept clear and free of combustible materials, gasoline, or other ﬂ ammable vapors and liquids.

The ﬂ ow of combustion and ventilation air must not be obstructed.

1. In order to properly clean the burner and pilot assembly, remove the logs, rocks and/or glass to ex-

pose both assemblies.

2. Keep the control compartment, media, burner, air shutter opening and the area surrounding the appli-

ance clean by vacuuming or brushing, at least once a year.

3. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning

or are not burning properly.

4. Check to see that the pilot ﬂ ame is large enough to engulf the ﬂ ame sensor and/or thermocouple /

thermopile as well as it reaches the burner.

5. If your appliance is equipped with a safety barrier, cleaning may be necessary due to excessive lint /

dust from carpeting, pets, etc. simply vacuum using the brush attachment.

6. If your appliance is equipped with relief doors, ensure the system performs effectively. Check that the

gasket is not worn or damaged. Replace if necessary.

7. Replace the cleaned logs, rocks or glass. Failure to properly position the media may cause carboning

which can be distributed in the surrounding living area, inside the ﬁ rebox and on exterior surfaces sur-

rounding vent termination.

8. Check to see that the main burner ignites completely on all ports when turned on. A 5 to 10 second

total light-up period is satisfactory. If ignition takes longer, consult your local authorized dealer / dis-

tributor.

9. Visually inspect the appliance for carbon build up. Using a small whisk or brush, brush off the carbon

and vacuum up or sweep into garbage.

10. This step is not applicable for Vent Free appliances: Check to see that the appliance is vent-

ing correctly. Ensure chimney system is safe and unobstructed. (If for any reason the vent air intake

system is disassembled, re-install and re-seal per the instructions provided for the initial installation).

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and

dangerous operation. Verify proper operation after servicing.

note:

W415-2347 / C / 09.21.20

9.1 annual maintenance

WARNING

• This appliance will require maintenance which should be planned on an annual basis.

• Service should include cleaning, battery replacement, venting inspection and inspection of the burner,

media, and ﬁ rebox. Refer to the door removal section and remove the door as instructed.

• Carefully remove media if necessary (logs, glass, brick panels, etc.).

• Using a vacuum with soft brush attachment, gently remove any dirt, debris, or carbon build up from the

logs, ﬁ rebox, and burner. For glass media, follow the installation instructions for pre-cleaning.

• Gently remove any build-up on the pilot assembly including thermopile, thermocouple, ﬂ ame sensor, and

igniter (if equipped).

• Inspect all accessible gaskets and replace as required.

• If equipped with a blower, access the blower and clean using a soft brush and vacuum.

• Re-assemble the various components in reverse order.

• Inspect the relief system. The appliance relieves through the main glass door or through the ﬂ aps on the

ﬁ rebox top. Ensure they open freely, and close sealed.

• Check the gas control valve pilot and Hi / Lo knobs move freely, if equipped. Replace if any stiffness in

movement is experienced.

• Check for gas leaks on all gas connections up and downstream from the gas valve including pilot tube

connections.

Clean ﬂ ame sensor using a ﬁ ne emery cloth or a synthetic scrub pad (such as Scotch-Brite™) to remove any

oxides. Clean the pilot assembly using a vacuum with a soft brush attachment. It is important that the pilot

assembly is not painted.

note:

• Annual maintenance should be performed by a qualiﬁ ed service technician

• The ﬁ rebox becomes very hot during operation. Let the appliance cool completely or wear heat resistant

gloves before conducting service.

• Never vacuum hot embers.

• Do not paint the pilot assembly

W415-2347 / C / 09.21.20

maintenance

ORIFICE

LOCATION

BURNER

ASSEMBLY

solution.

es have

these instructions.

four screws

assemble the

protect with

olf Steel

” products.

taken

GASKET

GLASS LENS

GASKET

SHEILD

RAIL

WIRE NUT

COVER PLATE

RELIEF

DOOR

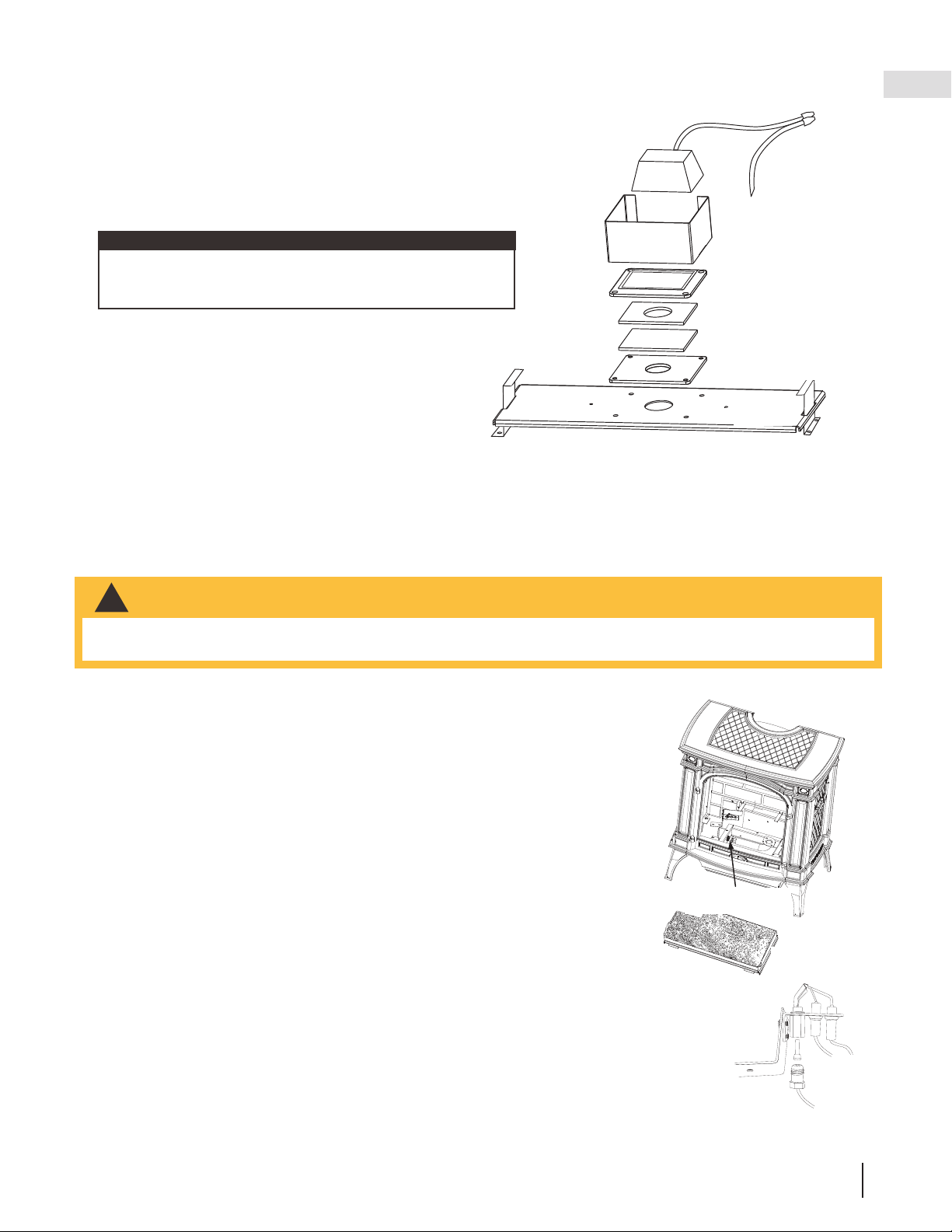

9.2 night light replacement

9.3 pilot injector and oriﬁ ce replacement

This appliance comes equipped with our “Night Light”.

If in the event the lamp or lens needs to be replaced, follow these instructions.

Disconnect the two wire leads at the wire nut. Remove the four screws

securing the accent light assembly from the relief door. Disassemble the

light and the lamp now can be accessed

The lamp will pull straight out of the socket. Replace with Wolf Steel

parts only, as lamp and lens are special “high temperature” products.

When re-installing, ensure integrity of gasket seal.

THE FIREBOX MUST BE SEALED.

When re-assembling the light assembly, care must be

taken with all gaskets.

“Light Leakage” from above the cast doors may be noticed. The holes in the lamp housing are

necessary for ventilation and must not be covered.

This must be carried out by an AUTHORIZED REPRESENTATIVE OF WOLF STEEL

LTD. or a QUALIFIED GAS INSTALLER in accordance with local codes or in the

absence of local codes with the requirements of the provincial / state authorities having

jurisdiction and in accordance with the requirements of the CAN1-B149 Installation Code

in Canada and the ANSI Z223.1 National Fuel Gas Code in the United States.

A. Turn off the electrical and gas supply to the appliance.

B. Remove the cast front, glass viewing door and log set.

C. Remove the 2 securing screws. Slide the burner assembly to the right and lift out.

D. Using a deep socket wrench, remove the main burner oriﬁ ce. A back-up wrench

must be used on themanifold, located below the housing to ensure that the

aluminum tubing does not twist or kink. Replace the correct burner oriﬁ ce using

pipe thread compound.

E. Loosen nut and replace with appropriate injector

F. Reinstall the burner ensuring that the Venturi tube ﬁ ts over the oriﬁ ce.

G. Turn on the gas supply and check for gas leaks by brushing on a soap and water

solution. Do not use open ﬂ ame.

H. Replace the log set. Then light the pilot and main burner to ensure that the gas

lines have been purged.

I. Replace the glass viewing door and cast front. Turn on the electrical supply to the

appliance.

SHIELD

Do not handle the lamp (bulb) with bare ﬁ ngers. Protect with a clean, dry

cloth.

note:

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door open or

removed.

WARNING

W415-2347 / C / 09.21.20

maintenance

WARNING

Buff lightly with a clean dry soft cloth to remove accumulated dust or ﬁ ngerprints. Clean both sides of the glass

after the ﬁ rst 10 hours of operation with an ammonia-free glass cleaner.

Thereafter, clean as required. If the glass is not kept clean permanent discoloration and / or blemishes may

result. Contact you local authorized dealer / distributor for complete cleaning instructions.

Razor blades, steel wool, or other metallic objects must not be used on both surfaces of the glass. Doing so

can remove a thin layer of metal from the razor blades, steel wool, or other metallic objects that may then be

deposited onto the coating. This can result in a discoloured stain or scratch-like mark. More importantly, this can

scratch the glass surface, thereby reducing its strength.

Do not operate the appliance with broken glass, as leakage of ﬂ ue gases may result.

Contact your local authorized dealer / distributor for complete cleaning instructions.

If the glass should ever crack or break while the ﬁ re is burning, do not open the door until the ﬁ re is out. Do not

operate the appliance until the glass has been replaced. Contact you local authorized dealer / distributor for

replacement parts. DO NOT SUBSTITUTE MATERIALS.

Vinegar-based glass cleaners have demonstrated an ability to provide a clean, streak free glass surface.

note:

• Do not clean glass when hot! Do not use abrasive cleaners to clean glass.

If the appliance is equipped with plated parts, you must clean ﬁ ngerprints or other marks from the plated surfaces

before operating the appliance for the ﬁ rst time. Use an ammonia-free or vinegar-based cleaner and a towel

to clean. If not cleaned properly before operating for the ﬁ rst time, the marks can cause permanent blemishes

on the plating. After the plating is cured, the ﬁ ngerprints and oils will not affect the ﬁ nish and little maintenance

is required, just wipe clean as needed. Prolonged high temperature burning with the door ajar may cause

discolouration on plated parts.

The protective wrap on plated parts is best removed when the assembly is at room temperature but this can

be improved if the assembly is warmed (i.e. using a hair dryer or similar heat source).

note:

9.4 care of glass

9.5 care of plated parts

This appliance is factory equipped with 5mm ceramic glass. Use only replacement parts as supplied by the

appliance manufacturer. DO NOT SUBSTITUTE MATERIALS.

W415-2347 / C / 09.21.20

maintenance

WARNING

• Failure to position the parts in accordance with this manual or failure to use only parts speciﬁ cally approved

with this appliance may result in property damage or personal injury.

Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can

be ordered through your Authorized dealer / distributor.

For warranty replacement parts, a photocopy of the original invoice will be required to honour the

claim.

When ordering replacement parts always give the following information:

• Model & Serial Number of appliance

• Installation date of appliance

• Part number

• Description of part

• Finish

Parts, part numbers, and availability are subject to change without notice.

Parts identiﬁ ed as stocked will be delivered within 2 to 5 business days for most delivery

destinations.

Parts not identiﬁ ed as stocked will be delivered within a 2 to 4 week period, for most cases.

Parts identiﬁ ed as ‘SO’ are special order and can take up to 90 days for delivery.

W415-2347 / C / 09.21.20

replacement parts

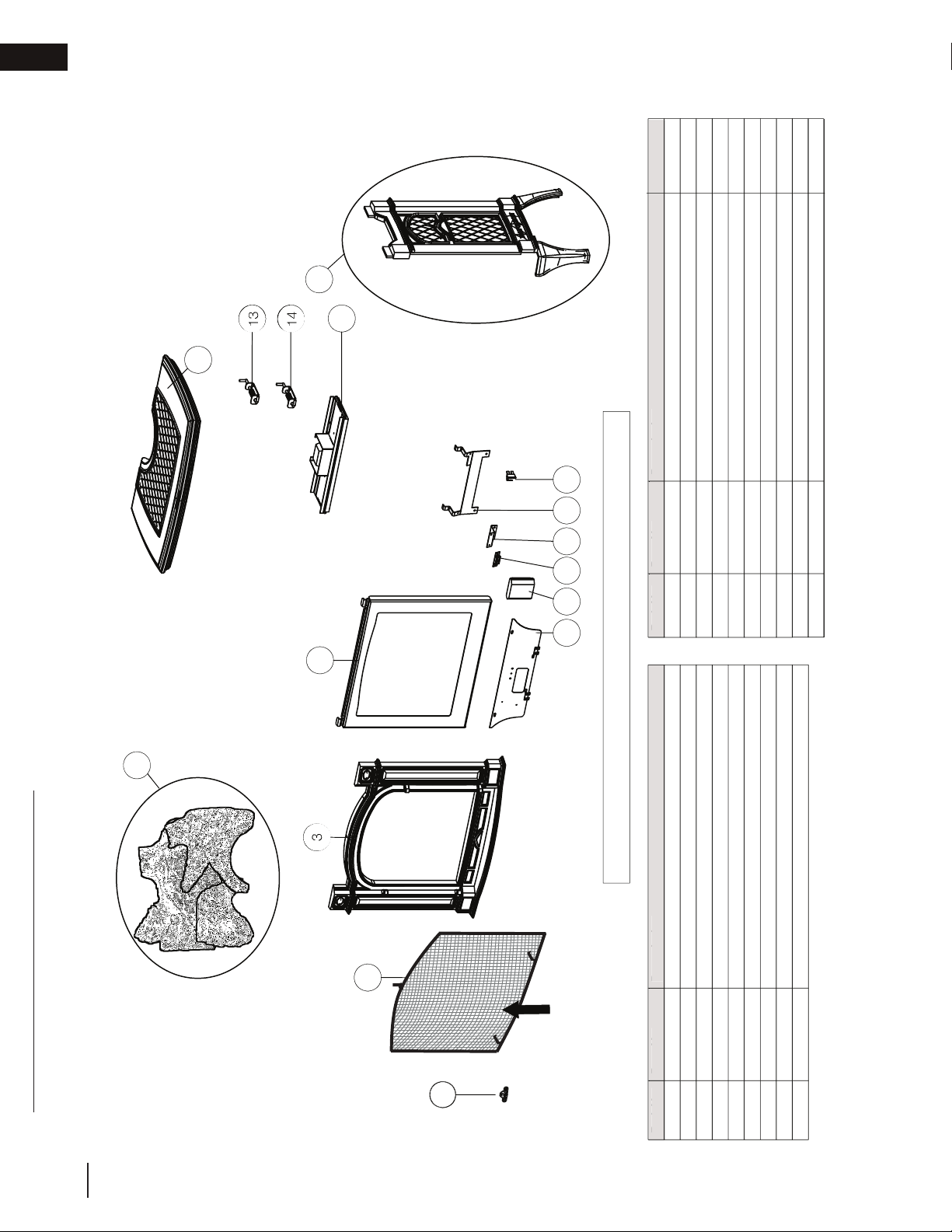

10.0 replacement parts

Items may not appear exactly as illustrated.

Safety Barrie

6 7 8 9 10 11

Ref. No. Part No. Description

Stocked

Ref. No. Description

GL-651-SER

W385-2010

W135-0801/N

W010-3295

W010-1379

Part No.

W010-4177

W350-0655

W430-0013

W080-1786

W655-0239

W660-0009

W135-0800/N

W010-3685

W010-2020

W135-0798/N

Front casting (Metallic Black / Majolica Brown)

Safety barrie

Door assembly

Control cover assembly

Battery housing

Log set

Napoleon logo

Door catch magnet assembly

Magnet bracket

Rear log support

On/off switch

op casting (Metallic Black / Majolica Brown)

Right door latch

Light assembly

Side casting (X2) (Metallic Black / Majolica Brown)

Stocked

Yes

f. N

rt N

Descri

tio

tocked

f. N

Descri

tio

rt N

tocked

W010-3686 Left door latch

W135-1004W

Front casting (White)

W135-1003W

Top casting (White)

W135-1002W

Side casting (X2) (White)

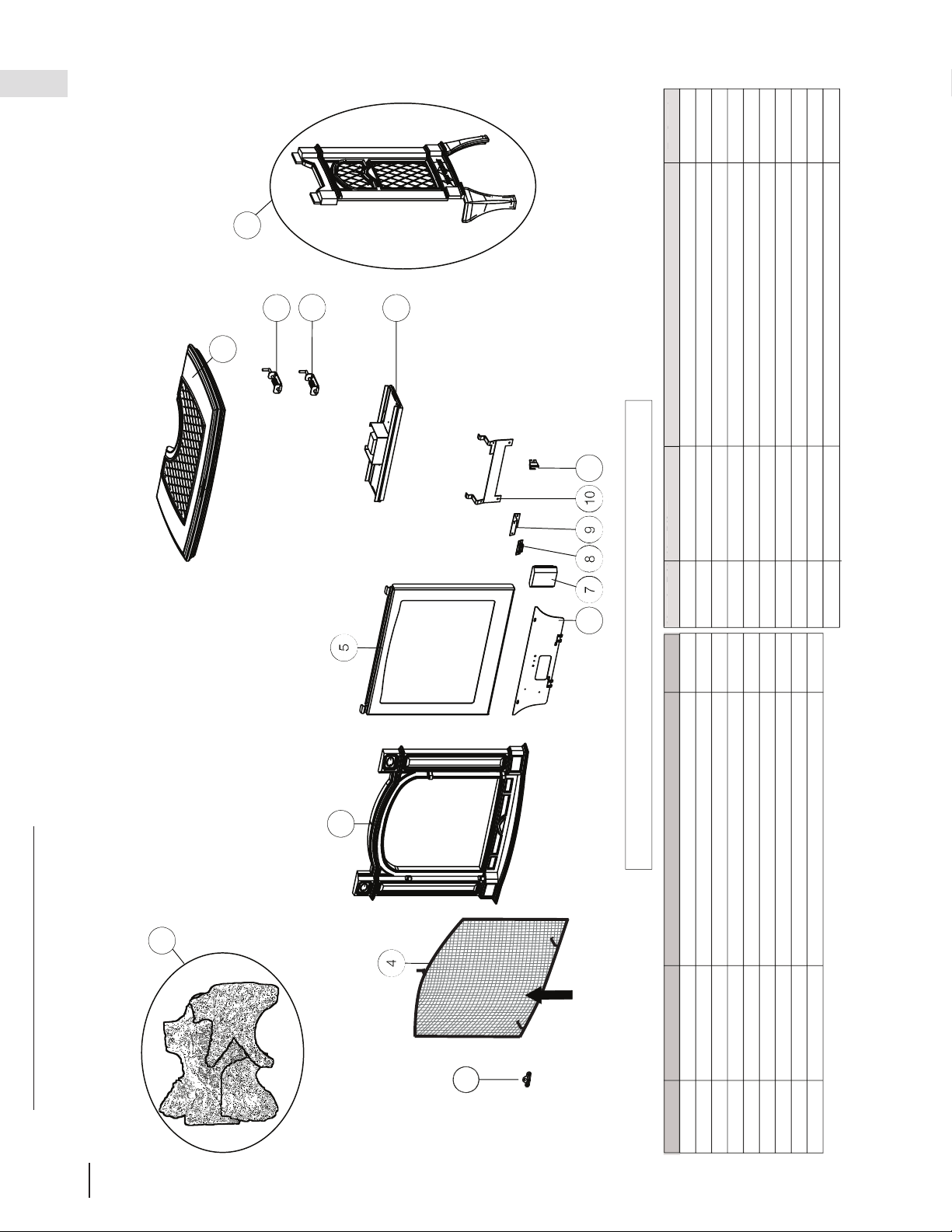

10.1 overview

W415-2347 / C / 09.21.20

replacement parts

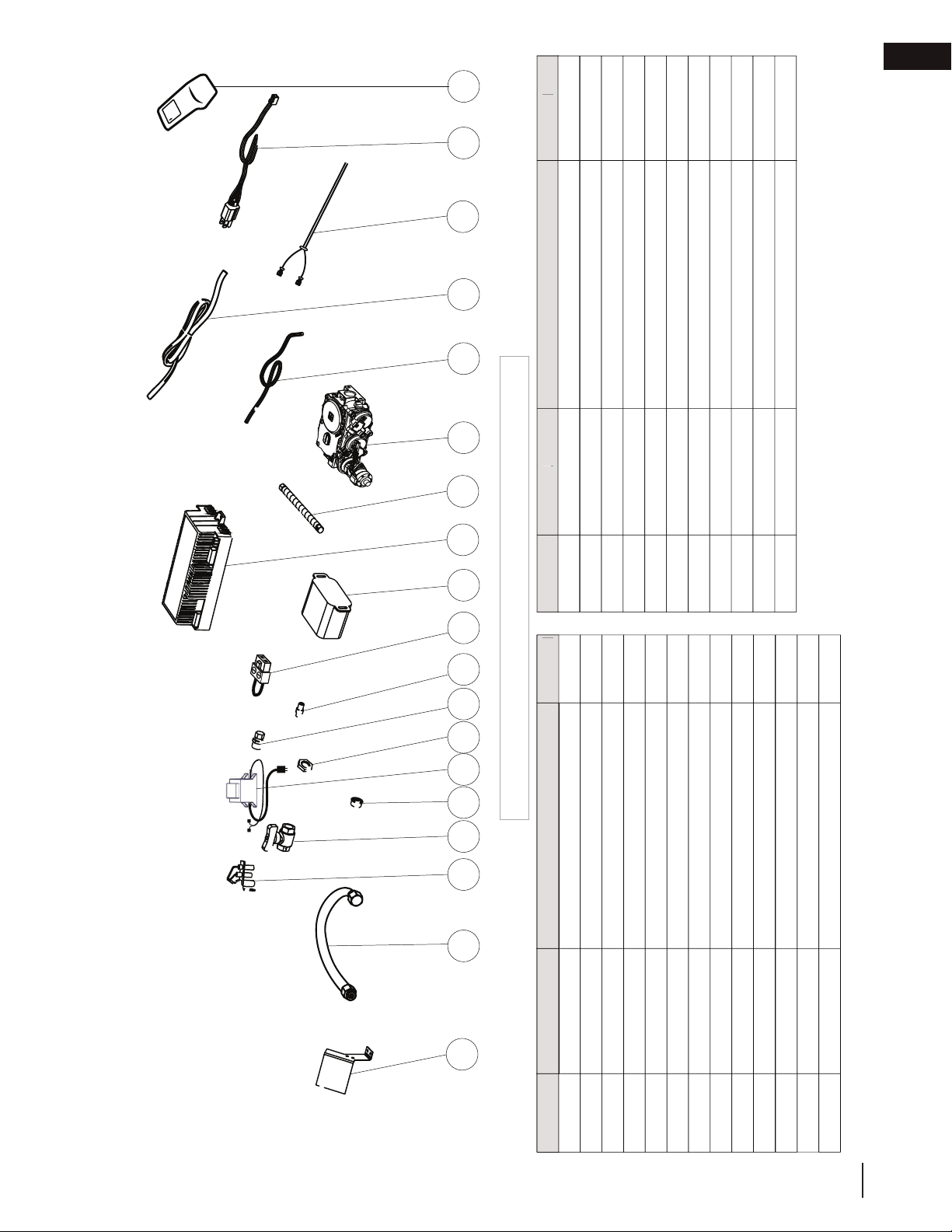

10.2 valve train assembly

Items may not appear exactly as illustrated.

Ref. No. Part No. Description

1 W080-1299 Pilot bracket

Ref. No. Part No. Description

W456-0043

Burner oriﬁce #43 (NG) (low altitude)

Stocked Stocked

350-0655 Battery housing

W175-0227 Flex connecto

W725-0046 Gas valve shut-of

725-0057 Valve (P)

Pro 2 wire harnessW750-0276

750-0412

Blower/light wire harness

W750-0268

67°

W660-0126-SER

Pro 2 transmitte

W432-0078 3/8" manifold

16 17

W010-3968 Pilot assembly (NG)

W010-3969 Pilot assembly (P)

W105-0001 7/8" bushing

W450-0036

Pal nut

W445-0038 3/8" connecto

W190-0175

Control board

W750-0411 Power cord

W725-0056 Valve (NG)

W707-0019 Transforme

W456-0054

Burner oriﬁce #54 (P) (low altitude)

Yes

Battery housing wire harness

f. N

No.

escription Stocked R

f. N

No.

Descriptio

Stocke

175-0355 Female x4 on/off jumpe

Yes

W456-0055

Burner oriﬁce #55 (P) (high altitude)

Burner oriﬁce #44 (NG) (high altitude)

W456-0044

Yes

W415-2347 / C / 09.21.20

replacement parts

13 3

Items may not appear exactly as illustrated.

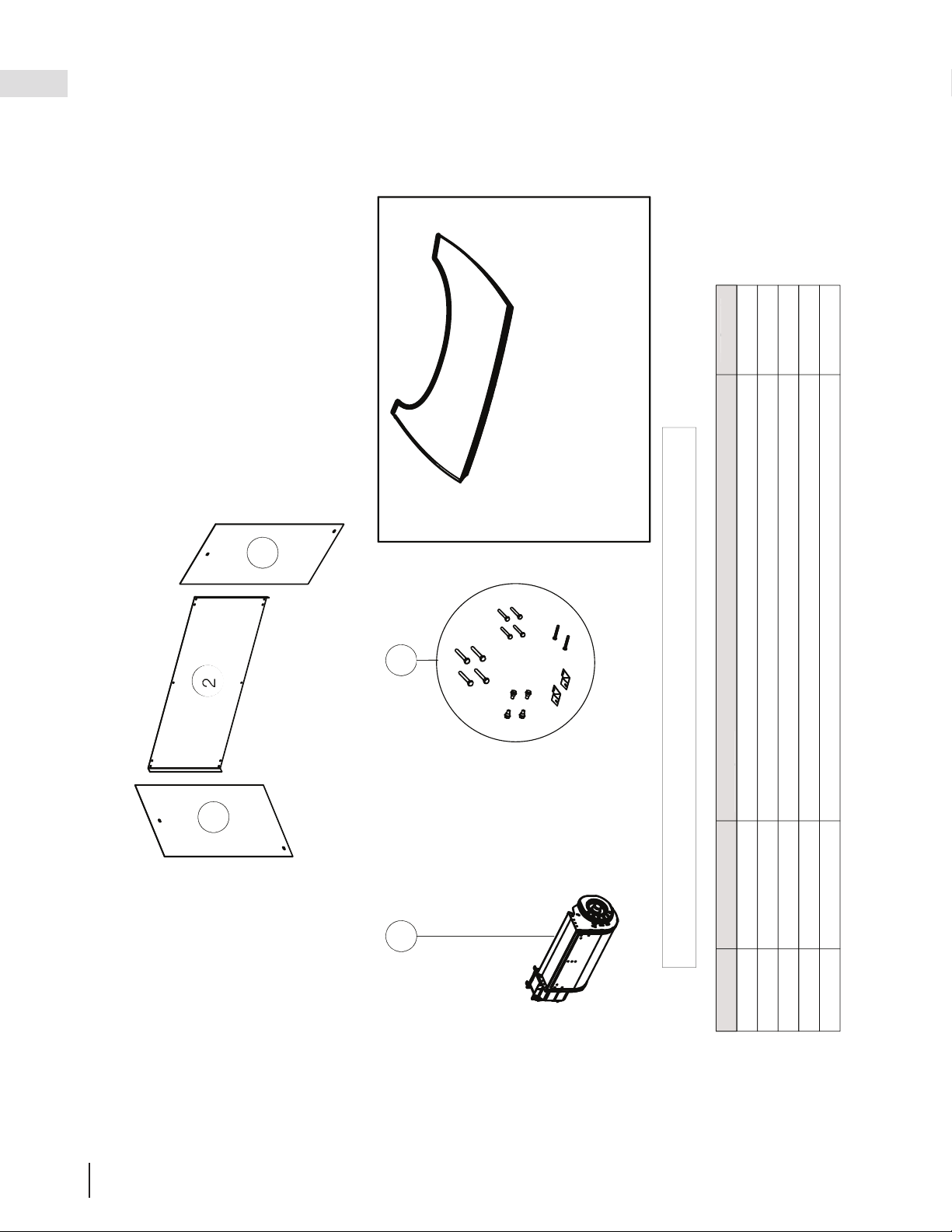

GDSLL-KT

Ref. No. Part No. Description Stocked

1 PRP25 Porcelain Reﬂective Radiant Panels

GSB25K

Blower kit

GDSLL-K

Leg leveling / stove securing kit

A stone inset can be cut to enhance the cast

top and to match the room décor. A template

is available to be downloaded from the

product website. Use this to cut the stone

slab to size so that it will ﬁt into the cast

recess.

art

escr

tocked

W415-2347 / C / 09.21.20

accessories

11.0 accessories

12.0 troubleshooting

WARNING

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out, with the glass door open or

removed.

• Turn off gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners

symptom problem test solution

Main burner ﬂ ame is a

blue, lazy, transparent

ﬂ ame.

(This is not applicable

in outdoor appliances)

Blockage in vent. - Remove blockage. In really cold conditions, ice buildup may occur

on the terminal and should be removed as required. (To minimize this

from reoccuring, the vent lengths that pass through unheated spaces

(attics, garages, crawl spaces) should be wrapped with an insulated

mylar sleeve).

Incorrect installation. - Refer to “venting” section to ensure correct installation.

Flames are consistently

too large or too small.

Carboning occurs.

Appliance is over-ﬁ red or under-

ﬁ red.

- Check pressure readings:

Inlet pressure can be checked by turning screw (A) counter-clock-

wise 2 or 3 turns and then placing pressure gauge tubing over the

test point. Gauge should read as described on the chart below.

Check that main burner is operating on ‘HI’. Outlet pressure can be

checked the same as above using screw (B). Gauge should read as

described on the chart below. Check that main burner is operating

on ‘HI’. After taking pressure readings, be sure to turn screws

clockwise ﬁ rmly to reseal. DO NOT OVER TORQUE.

Leak test with a soap and water solution.

Air shutter improperly adjusted.

- Return air shutter to speciﬁ ed opening, see “venturi adjustments”

section in the installation manual.

Carbon is being

deposited on glass,

logs, rocks, media, or

combustion chamber

surfaces.

Air shutter is blocked. - Ensure air shutter opening is free of lint or other obstructions.

Flame is impinging on the glass,

logs, rocks, media or combus-

tion chamber.

- Ensure the media is positioned correctly in the appliance.

- Open air shutter to increase the primary air.

- Check the input rate: check the manifold pressure and oriﬁ ce size as

speciﬁ ed by the rating plate.

- Ensure door gaskets are not broken or missing and the seal is tight.

- Ensure vent liners are free of holes and well sealed at all joints.

- Check that minimum rise per foot (meters) has been adhered to for

any horizontal venting.

White / grey ﬁ lm forms. Sulphur from fuel is being depos-

ited on glass, logs, or combus-

tion chamber surfaces.

- Clean the glass with a recommended gas ﬁ replace glass cleaner. DO

NOT CLEAN GLASS WHEN HOT.

- If deposits are not cleaned off regularly, the glass may become

permanently marked.

Exhaust fumes smelled

in room, headaches.

Appliance is spilling.

(This is not applicable in outdoor

appliances).

- Check door seal.

- Check for exhaust damage.

- Check that venting is installed correctly.

- Room is in negative pressure; increase fresh air supply.

INSERT


OF VALVE

HERE

*Maximum inlet pressure not to exceed 13” w.c.

Pressure Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

Inlet

*7”

(minimum 4.5”)

17.4mb

(minimum 11.2mb)

13”

(minimum 11”)

32.4mb

(minimum 27.4mb)

Outlet

3.5” 8.7mb 10” 24.9mb

W415-2347 / C / 09.21.20

symptom problem test solution

Pilot will not light. Makes

noise with no spark at

pilot burner.

Wiring: short, loose, or damaged

connections

(poor ﬂ ame rectiﬁ cation).

- Verify the thermocouple/sensor is clean and the wiring is undamaged.

- Verify the interrupter block is not damaged or too tight. Verify

connections from pilot assembly are tight; also verify the connections

are not grounding out to any metal. (Remember, the ﬂ ame carries the

rectiﬁ cation current, not the gas. If ﬂ ame lifts from pilot hood, the circuit

is broken. A wrong oriﬁ ce or too high of an inlet pressure can cause the

pilot ﬂ ame to lift)*. The sensor rod may need cleaning.

No signal from remote with no

pilot ignition.

- Reprogram receiver code.

- Replace receiver.

Poor grounding. - Verify the valve / pilot assembly are properly grounded

Improper switch wiring.

- Troubleshoot the system with the simplest on/off switch.

Dirty, painted, or damaged pilot

and/or dirty sensor rod.

- Clean sensor rod with a green Scotch-Brite™ pad to remove any

contamination that may have accumulated. Verify continuity with

multimeter with ohms set at the lowest range.

Pilot sparks but will

not light.

Gas supply. - Verify that the incoming gas line ball valve is “open”.

- Verify that the inlet pressure reading is within acceptable

limits, inlet pressures must not exceed 13” W.C. (32.4mb).

Out of propane gas. - Fill the tank.

Pilot supply line may contain

air.

- Repeat ignition process several times or purge the pilot

supply line.

Incorrect wiring / grounding. - Ensure correct polarity of wiring of thermocouple (if

equipped).

- Verify pilot assembly / valve are properly grounded.

Receiver (if equipped). - Reset program: hold reset button on receiver and wait for 2

beeps. Release after second beep. Press small ﬂ ame button

on remote within 20 seconds, you will hear an additional

beep (this signals a successful reset).

- Replace receiver.

Valve. - Check valve and replace if necessary (Do not to overtighten

thermocouple).

Burner continues to

spark and pilot lights

but main burner

does not light.

Short or loose connection in

sensor rod.

- Verify all connections. Verify the connections from the pilot

assembly are tight. Also, verify these connections are not

grounding out to any metal.

Dirty, painted, or damaged

pilot assembly components.

- Clean using a green Scotch-Brite™ pad to remove any

contamination that may have accumulated on the sensor

rod, pilot hood, ignitor, or ﬂ ame sensor. Verify continuity with

multimeter with ohms set at the lowest range.

Remote wall switch

is in “off” position;

burner comes on.

Wall switch mounted upside

down.

- Reverse.

Remote wall switch and/or

wire is grounding.

- Replace.

- Check for ground (short); repair ground or replace wire.

Faulty wire - Replace.

Remote and / or

receiver is not

functioning properly.

Remote controls lights but

no spark or ﬂ ame. (Remote is

locked out).

- Reset by turning power source off then on.

Receiver or remote has low battery.

- Replace batteries.

Appliance functions but does not

respond to receiver / remote

- Ensure appliance is being operated by the same device that turned it

on. Remote controls function if appliance was turned on by remote.

Receiver controls function if appliance was turned on by receiver.

Error with synchronizing. - Reset receiver and remote.

Remote too far away from receiver.

- Refer to “wiring diagram” section.

Wire connector pins are bent. - Straighten pins.

Valve wiring is damaged. - Replace valve.

If back up batteries are installed, they must also be removed to

re-program

note:

W415-2347 / C / 09.21.20

troubleshooting

symptom problem test solution

The following applies speciﬁ cally to the SIT system only:

Pilot will not light.

Makes no noise with

no spark at pilot

burner. (Lights and

blower operate, if

equipped).

Ignition box has been locked

out.

Choose one of the 3 methods below to reset the system.

1. To reset ignition box when locked out. Turn off power supply

and remove batteries (if used) from the back up battery pack.

2. To reset the DFC Board when the board goes into a lock

out condition and the LED is blinking 3 times using the

transmitter on/off button:

Step 1: Turn the system off by pressing the on/off

button to turn the system off.

Step 2: After approximately 2 seconds press the on/

off button on the transmitter again. The DFC Board will

reset and the ignition sequence will start again.

3. To reset the DFC Board when the board goes into a lock out

condition and the LED is blinking 3 times by cycling ﬂ ame:

Step 1: In the manual ﬂ ame control mode, use the down

arrow button to reduce the ﬂ ame to off, indicated by the

word OFF displayed on the transmitter LCD screen.

Step 2: Wait approximately 2 seconds and press the up

arrow button, the ignition sequence will start.

Starting from off, press the on button on the transmitter. After approximately 4 seconds on/off button is pressed, the ignition

board will start the spark. The atempt for ignition will last approximately 60 seconds. If there is no ﬂ ame ignition (rectiﬁ cation),

the board will stop sparking and the board will go into lock out.

note:

symptom problem test solution

Lights or blower

won’t function (if

equipped).

Control module switch in

wrong position.

- Verify ON/OFF switch is in the “I” position which denotes on.

COM switch is unplugged. - Verify “COM” switch is plugged into the front of the control

module.

Flames are very

aggressive.

Door is ajar. - Ensure door is secured properly.

Venting action is too great. - Check to ensure venting is properly sealed or restrict vent

exit with restrictor plate. (Not available in all appliances).

Appliance won’t per-

form any functions.

No power to the system.

- Check breaker to verify it’s in the “on” position.

Receiver switch in wrong

position (if equipped).

- Verify that the 3 position switch on the receiver is in the

remote position (middle).

Transmitter isn’t operational. - Check battery power and battery orientation.

W415-2347 / C / 09.21.20

troubleshooting

13.0 warranty

Napoleon warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is

not necessary. Simply provide your proof of purchase along with the model and serial number to make a warranty claim.

Napoleon reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty

claim. Provided that the purchase was made through an authorized Napoleon dealer your appliance is subject to the

following conditions and limitations:

Warranty coverage begins on the date of original installation. This factory warranty is non-transferable and may not

be extended whatsoever by any of our representatives. The gas appliance must be installed by a licensed, authorized

service technician or contractor qualiﬁ ed and authorized installer, service agency or supplier. Installation must be done in

accordance with the installation instructions included with the product and all local and national building and ﬁ re codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or

neglect, and parts installed from other manufacturers will nullify this warranty. This limited warranty further does not cover

any scratches, dents, corrosion or discoloring caused by excessive heat, abrasive and chemical cleaners nor chipping

on porcelain enamel parts, mechanical breakage of Phazer™ logs and embers. This warranty extends to the repair or

replacement of warranted parts which are defective in material or workmanship provided that the product has been

operated in accordance with the operation instructions and under normal conditions. After the ﬁ rst year, with respect to

this President’s Lifetime Limited Warranty, Napoleon may, at its discretion, fully discharge all obligations with respect to this

warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

After the ﬁ rst year, Napoleon will not be responsible for installation, labour, or any other expenses related to the reinstallation

of a warranted part and such expenses are not covered by this warranty. Notwithstanding any provisions contained in the

President’s Lifetime Limited Warranty, Napoleon’s responsibility under this warranty is deﬁ ned as above and it shall not in

any event extend to any incidental, consequential or indirect damages. This warranty deﬁ nes the obligations and liability

of Napoleon with respect to the Napoleon gas appliance and any other warranties expressed or implied with respect to

this product, its components or accessories are excluded. Napoleon neither assumes, nor authorizes any third party to

assume, on its behalf, any other liabilities with respect to the sale of this product. Napoleon will not be responsible for: over-

ﬁ ring, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains,

inadequate vents or ventilation, excessive venting conﬁ gurations, insufﬁ cient makeup air, or negative air pressures which

may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc. Any damages to

the appliance, combustion chamber, heat exchanger, plated trim or other components due to water, weather damage, long

periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of Napoleon.

During the ﬁ rst 10 years Napoleon will replace or repair the defective parts covered by the lifetime warranty at our

discretion free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.

The manufacturer may require that defective parts or products be returned or that digital pictures be provided to support

the claim. Returned products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be

defective, the manufacturer will repair or replace such defect. Before shipping your appliance or defective components,

your dealer must obtain an authorization number. Any merchandise shipped without authorization will be refused and

returned to sender. Shipping costs are not covered under this warranty. Additional service fees may apply if you are

seeking warranty service from a dealer. Warranty labour allowance is only for the replacement of the warranted part. Travel,

diagnostic tests, shipping and other related charges are not covered by this warranty.

Napoleon products are manufactured under the strict Standard of the world recognized ISO 9001 : 2015 Quality Management

System.

Napoleon products are designed with superior components and materials assembled by trained craftsmen who take great

pride in their work. The burner and valve assembly are leak and test-ﬁ red at a quality test station. The complete appliance is

again thoroughly inspected by a qualiﬁ ed technician before packaging to ensure that you, the customer, receive the quality

product that you expect from Napoleon.

The following materials and workmanship in your new Napoleon gas appliance are warranted against defects for as long

as you own the appliance. This covers: combustion chamber, heat exchanger, stainless / steel burner, Phazer™ logs

and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled

components and aluminum extrusion trims.*

Electrical (110V and millivolt) components and wearable parts are covered and Napoleon will provide replacement parts free

of charge during the ﬁ rst year of the limited warranty. This covers: blowers, gas valves, thermal switches, switches, wiring,

remote controls, ignitors, gaskets and pilot assemblies.*

Labour related to warranty repair is covered free of charge during the ﬁ rst year (labour warranty is not applicable for the Gas

Log Sets). Repair work, however, requires the prior approval of an authorized company ofﬁ cial. Labour costs to the account

of Napoleon are based on a predetermined rate schedule and any repair work must be done through an authorized

Napoleon dealer.

* Construction of models vary. Warranty applies only to components included with your speciﬁ c appliance.

Napoleon Gas Appliance President’s Lifetime Limited Warranty

Conditions and Limitations

All speciﬁ cations and designed are subject to change without prior notice due to on-going product improvements. Napoleon is a registered

trademark of Wolf Steel Ltd.

W415-2347 / C / 09.21.20

notes

NAPOLEON CELEBRATING OVER 40 YEARS

OF HOME COMFORT PRODUCTS

AAAA

PPPP

OOOOO

HHHH

7200, Route Transcanadienne, Montréal, Québec H4T 1A3

24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8

214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8

103 Miller Drive, Crittenden, Kentucky, USA 41030

Phone: 1-866-820-8686

napoleon.com

De Riemsdijk 22, 4004 LC Tiel, The Netherlands

ADD MANUAL TITLE

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

$10.00

MODÈLES DE GAZ NATUREL

MODÈLES DE PROPANE

INSTALLATEUR:

Laissez ce manuel avec l’appareil

PROPRIÉTAIRE:

Conservez ce manuel pour consultation

ultérieure

CONSIGNES DE SÉCURITÉ

- N’entreposez pas et n’utilisez pas d’essence

ou autres liquides et vapeurs inﬂ ammables à

proximité de cet appareil ou tout autre appareil.

- QUE FAIRE SI VOUS DÉTECTEZ UN

ODEUR DE GAZ:

• N’allumez aucun appareil.

• Ne touchez à aucun interrupteur

électrique; n’utilisez aucun téléphone dans

votre immeuble.

• Appelez immédiatement votre fournisseur

de gaz d’un téléphone voisin. Suivez ses

instructions.

• Si vous ne pouvez pas rejoindre votre

fournisseur de gaz, appelez le service des

incendies.

- L’installation et l’entretien doivent être faits par

un installateur qualiﬁ é, une agence d’entretien

ou le fournisseur.

Cet appareil peut être installé dans une maison

préfabriquée (mobile) déjà installée à demeure

si les règlements locaux le permettent.

Cet appareil doit être utilisé uniquement

avec le type de gaz indiqué sur la plaque

d’homologation. Cet appareil ne peut être

converti à d’autres gaz, sauf si une trousse de

conversion est utilisée.

RISQUE D’INCENDIE OU D’EXPLOSION

Incapacité à suivre ces avertissements

exactement peuvent entraîner de grave

blessures, des pertes de vie ou des

dommages matériels.

AVERTISSEMENT!

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Téléphone 1(866)820-8686 • www.napoleon.com • [email protected]

CERTIFIÉ SELON LES NORMES NATIONALES CANADIENNES ET AMÉRICANES:

CSA 2.22 ET ANSI Z21.50 POUR LES APPAREILS À GAZ DÉCORATIF À ÉVACUATION

POUR USAGE INTÉRIEUR SEULEMENT

FRANÇAIS

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

GDS25N-1

GDS25P-1

MANUEL D’INSTALLATION

ET D’OPÉRATION

Bayﬁ eld

ÉCRAN DE PROTECTION

FRANÇAIS

W415-2347 / C / 09.21.20

• Cet appareil est chaud lorsqu’il

fonctionne et peut causer de graves

brûlures en cas de contact.

• Toute modiﬁ cation apportée à cet

appareil ou aux contrôles peut être

dangereux et est interdit.

• Ne faites pas fonctionner l’appareil avant

d’avoir lu et compris les instructions

d’opération. Omettre d’utiliser l’appareil selon

les instructions d’opération pourrait causer un

incendie ou des blessures.

• S’assurez que la porte vitrée est ouvert ou retiré

de l’appareil lorsque vous allumer le pilote pour

la première fois et lorsque le gaz est épuisé.

• Risque d’incendie ou d’asphyxie, ne faites

pas fonctionner l’appareil avec la vitre retirée

et jamais obstruer l’ouverture sur le devant de

l’appareil.

• Ne branchez pas la soupape à du courant 110 volts, avec les exception de modèles; GSST8 et GT8.

• Risque de brûlures. L’appareil doit être éteint et refroidi avant d’effectuer un entretien.

• N’installez pas de composants endommagés ou incomplets ni des composants substituts.

• Risque de coupures et d’éraﬂ ures. Portez des gants protecteurs, des chaussures de protection et des

lunettes de sécurité lors de l’installation. Les bordures des pièces de métal peuvent être coupantes.

• Ne brûlez pas de bois ou autres matériaux dans cet appareil.

• Assurez-vous d’une quantité sufﬁ sante d’air de combustion et de ventilation. Prévoyez un accès sufﬁ sant

pour entretenir et opérer l’appareil.

• Haute pression endommagera la soupape. Débrancher la tuyauterie d’alimentation en gaz avant de tester la pression

de ligne de gaz à la pression d’essai au-dessus de 1/2 psig. Fermer l’arrêt manuelle du soupape avant de tester la

pression de ligne de gaz à la pression égale ou inférieure à 1/2psig (35mb).

• L’appareil ne doit pas être utilisé au températures au-dessous de zero (32°f / 0°c). Permettre à l’appareil

pour réchauffer au-dessus de zero avant le fonctionnement, avec l’exception de modèles; GSS36,

GSS42; ces appareil sont adaptés pour 0°F / -18°C.

• Les enfants et les adultes devraient être informés des dangers que posent les températures

de surface élevées et se tenir à distance afin d’éviter des brûlures ou que leurs vêtements ne

s’enflamment.

• Les jeunes enfants doivent être surveillés attentivement lorsqu’ils sont dans la même pièce

que l’appareil. Les jeunes enfants et autres personnes à risque sont sujets aux brûlures

accidentelles. Une barrière de protection est recommandée si des individus à risque se

trouvent dans la maison. Aﬁ n de restreindre l’accès à l’appareil, installez une barrière de

protection ajustable pour garder les jeunes enfants ou autres personnes à risque hors de la

pièce et loin des surfaces chaudes.

• Les vêtements et autres matériaux combustibles ne doivent pas être posés sur l’appareil ou à

proximité.

• En raison des températures élevées, l’appareil devrait être placé loin des endroits passants et

loin des meubles et des rideaux.

• Les meubles ou autres objets doivent être gardés à une distance d’au moins 4 pieds (1.22m) du devant

de l’appareil.

• Assurez-vous de disposer de mesures de sécurité adéquates pour empêcher les jeunes enfants de

toucher aux surfaces chaudes.

• Même une fois que l’appareil est éteint, l’appareil demeurera chaud pendant un temps prolongé.

• Consultez votre détaillant local de l’appareil pour connaître les écrans de protection et les protection du

foyer offerts pour protéger les enfants des surfaces chaudes. Ces écrans de protection et les protection

du foyer doivent être ﬁ xés au plancher.

• Tout écrans de protection, garde ou barriére enlevés pour faire l’entretien devront être remis

en place avant d’utiliser l’appareil.

• Il est primordial de garder propres les compartiments de contrôle, les brûleurs, la soufﬂ erie, les bouches

d’air de l’appareil ainsi que le système d’évacuation. L’appareil et son système d’évacuation doivent

être inspectés avant la première utilisation et au moins une fois l’an par un spécialiste en entretien. Un

entretien plus fréquent pourrait être nécessaire en raison des peluches provenant des tapis, literie, etc.

L’emplacement de l’appareil doit être gardé libre de tous matériaux combustibles, essence ou autres

liquides et vapeurs inﬂ ammables.

• Si l’appareil s’éteint, n’allume pas l’appareil jusqu’à ce que vous donner de l’air frais. Si l’appareil

continue de s’éteindre, faire réparer.

Garder propres le brûleur et le compartiment de contrôle.

• Cet appareil ne devra être modiﬁ é en aucun cas.

• Ne laissez pas les ventilateurs soufﬂ er directement sur l’appareil. Empêchez les courants d’air de modiﬁ er

l’apparence de la ﬂ amme.

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

AVERTISSEMENT

Une barriére conçu à réduire le risque de brûlures causées

par le verre chaud est fourni avec l’appareil et doit être

installé pour la protection des enfants et d’autres

personnes à risque.

AVERTISSEMENT

W415-2347 / C / 09.21.20

consignes de sécurité

AVERTISSEMENT

• N’utilisez pas une soufﬂ erie intégrée, un échangeur de chaleur intégré ni un autre accessoire non

approuvé pour cet appareil.

• Cet appareil ne doit pas être raccordé au conduit d’une cheminée desservant un autre appareil de

chauffage à combustible solide.

• N’utilisez pas cet appareil si une partie quelconque a été submergée. Contactez immédiatement un

technicien de service qualiﬁ é pour inspecter l’appareil et pour remplacer toute pièce du système de

contrôle et du contrôle du gaz qui aurait été submergée.

• Ne pas opérer l’appareil lorsque la porte vitrée est enlevée, ﬁ ssurée ou brisée. Le remplacement de la

vitre devra être effectué par un technicien de service certiﬁ é ou qualiﬁ é, si équippé.

• Ne frappez pas et ne claquez pas la porte vitrée de l’appareil, si équippé.

• Seulement les portes/façades certiﬁ ées pour l’appareil peuvent être utilisées avec cet

appareil.

• Gardez les matériaux d’emballage hors de la portée des enfants et mettez ces matériaux au rebut de

façon sécuritaire. Comme tous les emballages de plastique, ces matériaux ne sont pas des jouets et

doivent demeurer hors de la portée des enfants et des bébés.

• Le carbone ou la suie ne doit pas se produire dans un appareil sans évent car il peut être distribué dans

une zone habitable de votre maison. Si vous remarquez des signes de carbone ou de suie, éteignez

immédiatement votre appareil et arrangez-le pour le faire entretenir par un technicien qualiﬁ é avant de

l’actionner à nouveau.

• Si équipé, l’écran doivent être (fermez) en place pendant le fonctionnement de l’appareil.

• Lorsque l’appareil est muni de portes d’évacuation de pression, elles doivent demeurer fermées pendant

le fonctionnement de l’appareil aﬁ n d’empêcher les gaz de combustion contenant du monoxyde de

carbone de s’inﬁ ltrer dans la maison. La température des gaz de combustion s’échappant par ces

ouvertures peut aussi causer les matériaux combustibles avoisinants à surchauffer et à prendre feu.

• L’empoisonnement au monoxyde de carbone peut conduire à la mort; les premiers signes d’une intoxication

au monoxyde de carbone ressemblent à la grippe, avec céphalées, vertiges et/ou des nausées. Si vous

présentez ces signes, l’appareil peut ne pas fonctionner correctement. Obtenir l’air frais! Faire réparer

l’appareil. Certaines personnes; les femmes enceintes, les personnes ayant une maladie cardiaque ou

pulmonaire, anémie, ceux sous l’inﬂ uence de l’alcool, ceux à haute altitude sont plus touchées par le

monoxyde de carbone que d’autres. Défaut de garder l’ouverture d’air primaire(s) du brûleur(s) propre peut

entraîner la formation de suies et dommages à la propriété.

• Comme dans le cas de tout appareil à combustion, il est recommandé de faire inspecter et entretenir

votre appareil régulièrement. De même, installez un détecteur de monoxyde de carbone dans la pièce

pour vous protéger, ainsi que votre famille, contre les intoxications (pas applicable pour les appareils pour

l’extérieure).

• Assurez-vous que les distances requises pour les dégagements aux matériaux combustibles sont

respectées lorsque vous installez une tablette décorative ou des tablettes au-dessus de l’appareil. En

raison des températures élevées, un téléviseur ou d’autres composants électroniques pourraient être

endommagés prématurément ou ils pourraient fondre, se déformer ou se décolorer.

• Pour les appareils avec une barriére; si la barriére est endommagée, elle devra être remplacée par la

barriére conçu par le manufacturier pour cet appareil.

• L’installation et la réparation devraient être effectuées par un technicien qualiﬁ é. Il est impératif que

les compartiments de contrôle, le brûleur et les passages de circulation d’air soient gardés propres

aﬁ n de fourni une combustion et une circulation d’air adéquates.

• Produits pour l’extérieur seulement: Cet appareil ne doit pas être installé à l’intérieur ni dans une structure

qui empêche la dissipation des gaz de combustion dans l’environnement extérieur.

• S’il y a lieu, la version de millivolt de cet appareil utilise et requiert un thermocouple à action rapide.

Remplacez uniquement par un thermocouple à action rapide de Wolf Steel ltée.

Isoler l'appareil en fermant la soupape

d'arrêt pendant tout essai de pression

du système d’alimentation en gaz

lorsque les pressions sont de 1/2

lb/po2 (3,5 kPa) ou moins.

RISQUE D'INCENDIE /

RETARD D'ALLUMAGE

AVERTISSEMENT/ADVERTENCIA

Desconectar la válvula/el control

principal de gas del aparato del

caño de suministro cuando se

compruebe la presión del sistema

a más de 1/2 psi (3.5 kPa).

El suministro a alta presión

dañará la válvula/los controles.

Débrancher la soupape de gaz de la

ligne d’alimentation en gaz pendant

les essais de pression de ce

système lorsque les pressions

excèdent 1/2 lb/po2 (3,5 kPa).

Aislar el aparato con su válvula de

cierre durante cualquier

comprobación de la presión de

la cañería de suministro a

una presiónigual o inferior

a 1/2 psi (3.5 kPa).

Add California Prop 65 warning

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

plomb et les composés de plomb qui, selon l’État de Californie, causeraient le cancer, et des

substances chimiques incluant le monoxyde de carbone qui, selon d’État de Californie, cause-

raient des malformations congénitales ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

W415-2347 / C / 09.21.20

consignes de sécurité

1.0 information générales 55

1.1 taux et efﬁ cacités 55

1.2 information sur la plaque

d’homologation 57

1.3 installation dans une maison mobile 57

1.4 liste de pièces 58

1.5 dimensions 59

2.0 exigences d’évacuation 60

2.1 installation d’évacuation typique 61

2.2 installations particulières d’évents 62

2.2.1 ensemble périscopique 62

2.2.2 terminaison en coin 62

2.3 emplacements et dégagements

minimaux de la terminaison 63

2.4 terminaison horizontale 64

2.5 terminaison verticale 65

2.6 terminaison vertical à travers une

cheminée existante 66

3.0 installation 67

3.1 installation horizontale 68

3.2 installation verticale 68

3.4 installation de la terminaison

horizontale 69

3.3 installation étendue de la terminaison

horizontale en coin 69

3.5 installation de la terminaison verticale

3.6 raccordement des évents à l’appareil

3.7 branchement du gaz 71

3.8 dégagements minimaux aux matériaux

combustibles 72

3.9 dégagements minimaux de la tablette

4.0 finitions 74

4.1 installation et enlèvement de la façade

en fonte 74

4.2 installation et enlèvement de l’écran de

protection 74

4.3 installation et enlèvement de la porte

vitrée 75

4.4 disposition des bûches 75

4.5 mise en place du logo 76

5.0 installation de la soufflerie

optionnelle 77

6.0 schéma de câblage 79

7.0 opération 80

7.1 veilleuse sur demande 81

7.2 dessin général de la télécommande 82

7.3 première initialisation de la

télécomande / bloc-piles 82

7.4 afﬁ cher de température 83

7.5 hauteur de la ﬂ amme 83

7.6 vitesse du ventilateur 83

7.7 veilleuse gradateur accès aux

contrôles 83

7.8 la sélection pilote continu / pilote

intermittente (CPI / IPI) 83

7.9 fonction de sécurité pour enfants 83

7.10 piles faible 84

8.0 réglages 85

8.1 étranglement des évents verticaux 85

8.2 réglage du venturi 85

8.3 réglage de la veilleuse 85

8.4 caractéristiques de la ﬂ amme 86

9.0 entretien 87

9.1 entretien annuel 88

9.2 remplacement de la lumière de veille 89

9.3 remplacement de l’injecteur de

veilleuse et de l’injecteur de brûleur 89

9.4 soins de la vitre 90

9.5 soins des pièces plaquées 90

10.0 rechanges 91

10.1 vue d’ensemble 92

10.2 l’assemblage de la soupape 93

11.0 accessoires 94

12.0 guide de depannage 95

13.0 garantie 98

L’information contenue dans ce manuel est jugée correcte au moment de l’impression. Wolf Steel

Ltd. se réserve le droit de modiﬁ er ou de modiﬁ er toute information contenue dans ce manuel à tout

moment sans préavis. Les modiﬁ cations, autres que les éditoriaux, sont désignées par une ligne

verticale dans la marge.

note:

L’icône du camera indique que les vidéos sont disponibles comme une référence

supplémentaire. Visitez http://www.napoleonﬁ replaces.com/category/product-support/support-

centre/

W415-2347 / C / 09.21.20

table des matières

Installateur, veuillez rempli les informations suivants:

Client:

Adresse:

Date d’installation:

Location de l’appareil:

Installateur:

Numéro de contact

du détaillant / distributeur:

# de série:

Modèle:

Gaz Naturel: GDS25N-1

Propane: GDS25P-1

Lorsque l’appareil est installé à des élévations entre 2 000pi (610m) et 4 500pi (1372m) au-dessus du niveau de la mer,

le débit devra être réduit de 10% en utilisant un ensemble de conversion haute altitude certiﬁ é. Lorsque l’appareil est

installé à des élévations dépassant 4,500 pieds (1372m), et en l’absence de recommandations spéciﬁ ques de l’autorité

compétente locale, l’indice certiﬁ é du débit à haute altitude devra être réduit au taux de 4% pour chaque 1,000pi (305m)

supplémentaires.

Les bruits causés par l’expansion et la contraction lors des cycles de chauffage et de refroidissement sont tout

à fait normaux et il faut s’y attendre.

Cet appareil ne doit fonctionner qu’avec le gaz spéciﬁ é sur la plaque d’homologation. Cet appareil ne peut être converti

à un autre type de gaz à moins d’utiliser un ensemble de conversion certiﬁ é.

Le cordon d’alimentation de la soufﬂ erie doit être branché dans une prise adéquatement mise à la terre. Ne

retirez pas la pointe de mise à la terre de la ﬁ che du cordon d’alimentation.

Cet appareil est approuvé pour installation dans un placard ou en retrait, ainsi que dans les salles de bain, les

chambres à coucher et les chambres studio. Il peut aussi être installé dans une maison mobile. Le modèle au

gaz naturel peut être installé dans une maison mobile installée en permanence et alimentée au gaz naturel.

1.0 information générales

note:

Les piles doivent être mises au rebut conformément aux lois et à la réglementation locales.

Certaines piles peuvent être recyclées et acceptées dans votre centre de recyclage local. Rensei-

gnez-vous auprès de votre municipalité au sujet des directives de recyclage.

1.1 taux et efﬁ cacités

GDS25-1

NG P

Altitude (PI) 0-2,000

Débit max. (BTU/H) 24,500

Rend. max. (BTU/H) 19,000 16,000

Pression minimale d’alimentation en gaz 4,5” de colonne d’eau (11mb) 11” de colonne d’eau (27mb)

Pression maximale d’alimentation en gaz 13” de colonne d’eau (17m) 13” de colonne d’eau (32mb)

Pression au collecteur (lorsque le gaz circule) 3,5” de colonne d’eau (9mb) 10” de colonne d’eau (25mb)

Une barrière conçu à réduire le risque de brûlures à partir de le chaude la vitre est à condition que avec l’appareil

et sera être installés.

L’emballage de protection sur les pièces s’enlève mieux lorsque l’assemblage est à température

ambiante ou lorsqu’il est chauffé à l’aide d’un séchoir à cheveux ou d’une autre source de chauleur

similaire.

Cet appareil est un produit décoratif. L’appareil n’est pas une source de chaleur et un combustible

solide ne doit pas être utilisé avec cet appareil.

W415-2347 / C / 09.21.20

liste de vertiﬁ cation

AVERTISSEMENT

• Allumez toujours la veilleuse, que ce soit pour la première fois ou lorsque l’approvisionnement en gaz est

épuisé, avec la porte vitrée ouverte ou retirée.

• Prévoyez un accès sufﬁ sant pour entretenir et opérer l’appareil. Assurez-vous d’une quantité sufﬁ sante

d’air de ventilation.

• N’obstruez jamais l’ouverture de l’appareil.

• Les objets placés devant l’appareil doivent être gardés à une distance d’au moins 48” (121,9cm) de la

face vitrée de l’appareil.

• Les surfaces autour et surtout au-dessus de l’appareil peuvent devenir chaudes. Ne touchez pas l’appareil

quand il fonctionne.

• Risque d’incendie ou d’explosion.

• Les pressions élévées endommageront la soupage. L’alimentation en gaz doit être débranchée pendant

les essais de pression de ce système lorsque les pressions d’essai excèdent 1/2 lb/po² (3,5kpa). Fermez

la soupage d’arrêt manuelle pendant tout essai de pression du système d’alimentation en gaz lorsque la

pression est de 1/2 lb/po² (3,5mb) ou moins.

• N’utilisez que les accessoires optionnels et les pièces de rechange approuvés par Wolf Steel pour cet

appareil. L’utilisant d’accessoires non listés (soufﬂ erie, portes, persiennes, moulures, composants de gaz,

composants d’évacuation, etc.) pourrait être non sécuritaire et annulera la garantie et la certiﬁ cation.

• L’appareil ne doit pas être utilisé au températures au-dessous de zero (32°f / 0° c). Permettre à l’appareil

pour réchauffer au-dessus de zero avant le fonctionnement.

Cet appareil au gaz devrait être installé et entretenu par un installateur qualiﬁ é en se conformant aux

codes locaux. Les pratiques d’installation peuvent varier d’une région à l’autre. Il est donc important de connaÎtre

les normes spéciﬁ ques qui s’appliquent à votre région. Par example, dans l’état du Massachusetts:

• Ce produit doit être installé par un plombier certiﬁ é ou un installateur pour le gaz lorsque installé dans le

Commonwealth du Massachusetts.

• Le registre de l’appareil doit être enlevé ou bloqué en le soudant en position ouverte avant d’installer un

encastré ou un ensemble de bûches à gaz.

• La soupape d’arrêt doit être un robinet à gaz avec une poignée en T.

• Le raccord ﬂ exible ne doit pas messurer plus que 36 pouces (914,4mm).

• Un détecteur de monoxyde de carbone est requis dans toutes les pièces contenant des appareils alimentés

au gaz.

• L’appareil n’est pas approuvé pour installation dans une chambre à coucher ou une salle de bain à moins

d’être un appareil avec une chambre de combustion scellée à évacuation directe.

L’installation doit se conformer aux codes locaux. En

l’absence de codes locaux, l’installation doit être conforme

au Code d’installation du gaz naturel et du propane CSA

B149.1 au Canada ou au National Fuel Gas Code, ANSI

Z223.1 / NFPA 54 aux États-Unis. Cet appareil convient

pour installation dans une maison mobile si l’installation est

conforme aux normes actuelles pour les maisons mobiles

équipées au gaz CAN/CSA Z240 SÉRIE MM au Canada ou

selon les normes ANSI Z223.1 et NFPA 54 aux États-Unis.

L’alimentation de gaz de l’appareil doit être débranchée

pendant les essais de pression de ce système lorsque les pressions d’essai excèdent ½ lb/po² (3,5 kpa). Fermez

la soupape d’arrêt manuelle pendant tout essai de pression du système d’alimentation en gaz lorsque la pression

est de ½ lb/po² (3,5 mb) ou moins. Si la soufﬂ erie ou ventilateur est installer la boîte de dérivation doit être

branchée au circuit électrique et mise à la terre conformément aux codes locaux. En l’absence de codes locaux

utilisez la version courante du Code Canadien de l’Électricité CSA C22.1 au Canada ou le National Electrical

Code ANSI/NFPA 70 aux États-Unis. Dans le cas où le soufﬂ erie est équipé d’un cordon d’alimentation il doit

être connecté à une réceptacle correctement mise à la terre. La ﬁ che de mise à la terre ne doit pas être retiré du

cordon d’alimentation.

Ce qui suit ne s’applique pas aux foyers encastrés; tant que les distances requises pour les dégagements aux

matériaux combustibles sont respectées, le meilleur endroit pour un appareil est le centre de la maison, car ceci

permet une meilleure utilisation de la chaleur fournie. L’emplacement des fenêtres, des portes et la circulation

dans la pièce où se trouve l’appareil devront être pris en considération. Si possible, vous devriez choisir un

emplacement où le système d’évent peut passer à travers la maison sans avoir à découper des solives de

plancher ou de toit, sauf indication contraire à l’essai.

Nous suggérons que nos

appareils au gaz soient installés

et que l'entretien soit effectué

par des professionnels certi-

fiés par le National Fireplace

Institute® (NFI) comme

spécialiste du gaz NFI.

W415-2347 / C / 09.21.20

information générales
