WWW.STIEBEL-ELTRON-USA.COM SBB S & SBB PLUS SOLAR STORAGE TANKS | 1
OPERATING AND INSTALLATION INSTRUCTIONS
SINGLE AND DUAL HEAT EXCHANGER DOMESTIC HOT WATER TANKS FOR SOLAR, GEOTHERMAL
OR HYDRONIC APPLICATIONS
›› SBB 300, 400 S & SBB 300, 400, 600 PLUS
SBB tanks are ETL certified in US & Canada to IAS
U.S. Requirements for Indirect Fired Water Heaters
For Use With External Heat Source. No 1-91, Dated
June 6, 1992.
Tested and certified by WQA to NSF/ANSI372
for lead free compliance.
2 | SBB S & SBB PLUS SOLAR STORAGE TANKS WWW.STIEBEL-ELTRON-USA.COM
1. CONTENTS
SECTION PAGE
1. Contents __________________________________________________________ 2
2. Safety Instructions ______________________________________________ 3
3. Operation and Service ___________________________________________ 4
3.1 Start-up __________________________________________________________________ 4
4. Maintenance and Cleaning ______________________________________ 4
4.1 Pressure Relief Valve __________________________________________________ 4
4.2 Decalcification __________________________________________________________ 4
4.3 Sacrificial Anode – Inspection / Replacement ____________________ 4
5. Failures – Cause – Correction __________________________________ 5
6. Technical Specifications _________________________________________ 5
6.1 Technical Data & Specifications _____________________________________ 6

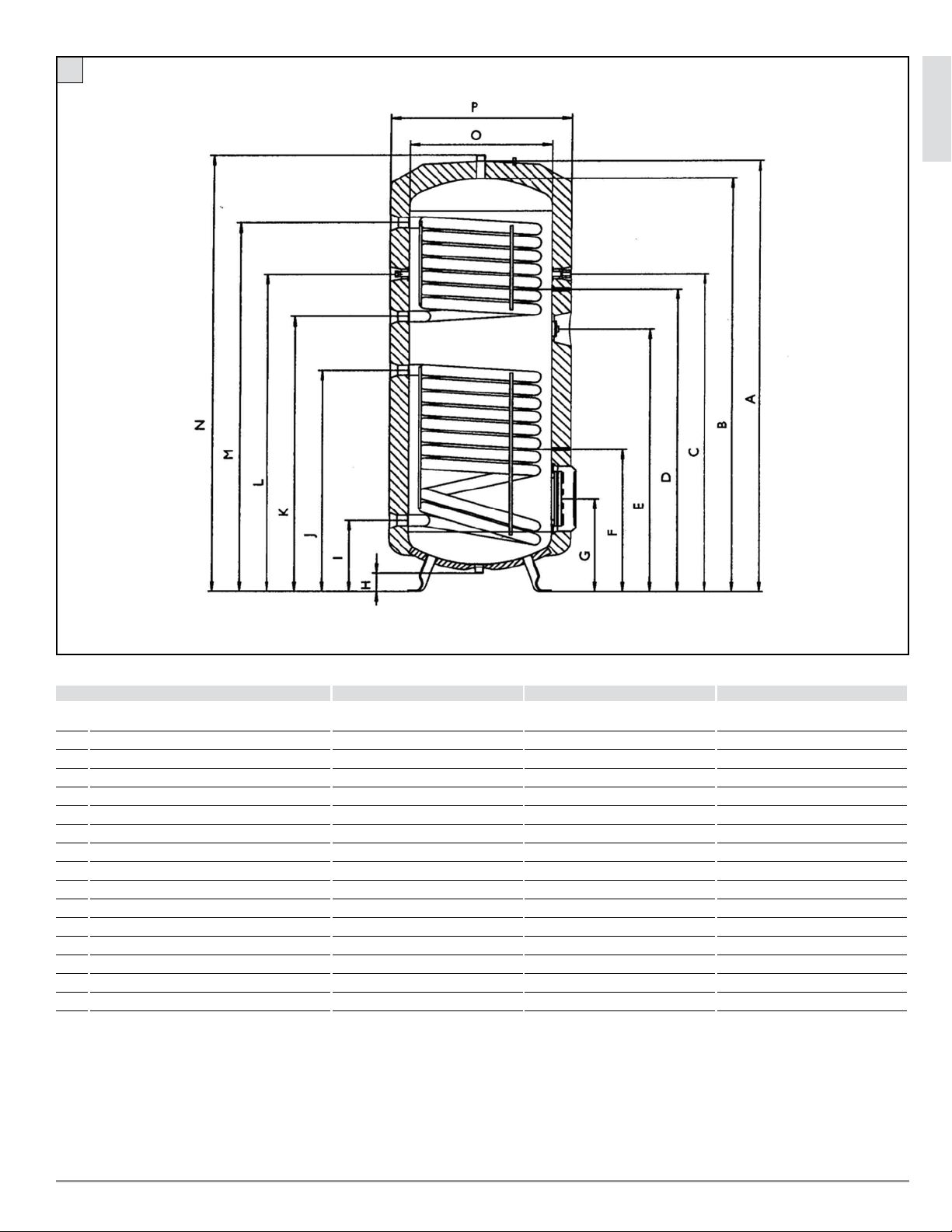

6.2 Dimensions ______________________________________________________________ 7
7. Installation Instructions - General _____________________________ 8
7.1 Set-up ____________________________________________________________________ 8
7.1.1 Brief Description of the Appliance - Applications _______________ 8
7.1.2 Connections _____________________________________________________________ 8
7.2 Delivery Configuration ________________________________________________ 8
7.3 Tasks to be performed by Installer _________________________________ 8
7.4 Regulations and Standards ___________________________________________ 8
8. Set-up and Installation __________________________________________ 9
8.1 Set-up ____________________________________________________________________ 9
8.2 Connections _____________________________________________________________ 9
8.3 Heater Installation _____________________________________________________ 9
8.4 Hot Water Installation _________________________________________________ 9
8.4.1 Local Site Conditions___________________________________________________ 9
8.4.2 Required Pipe Combinations _________________________________________ 9
8.4.3 Cold Water Supply Safety Components ____________________________ 9
8.4.4 Pressure Regulator Settings _________________________________________ 9
8.4.5 Before Filling ____________________________________________________________ 9
8.4.6 Drainage and Re-circulation _________________________________________ 9
8.5 Hot Water Temperature Probe ______________________________________12
8.6 Solar Storage Tank – Temperature Probe ________________________12
8.7 Connection to the Solar Unit ________________________________________12
8.8 Sacrificial Anode ______________________________________________________12

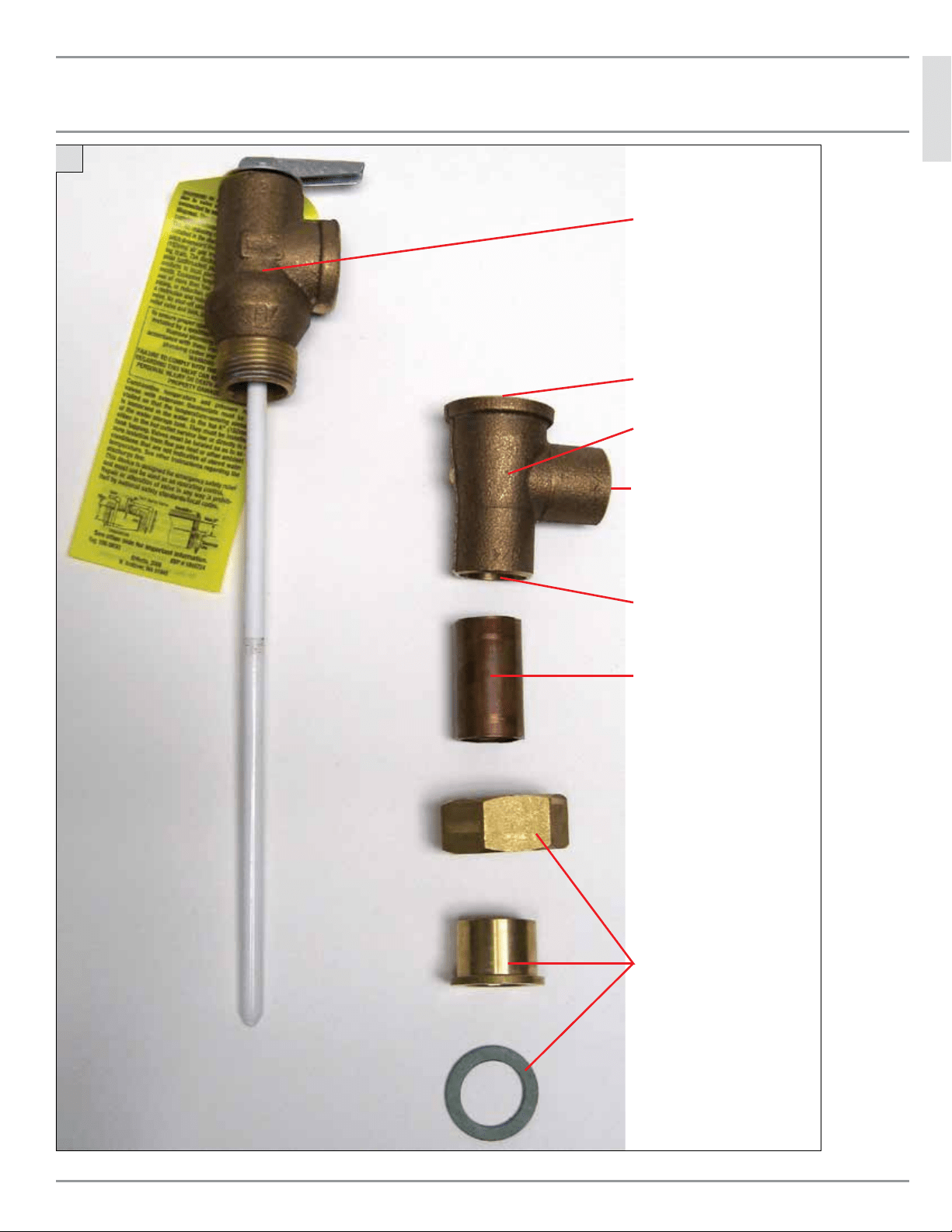

9. Temperature & Pressure Relief Valve Assembly _____________ 13
10. Warranty ________________________________________________________15
WWW.STIEBEL-ELTRON-USA.COM SBB S & SBB PLUS SOLAR STORAGE TANKS | 3
ENGLISH
2. SAFETY INSTRUCTIONS
General Information
Read this entire manual. Failure to follow all the guides,
instructions and rules could cause personal injury or property
damage. Improper installation, adjustment, alteration, service and
use of this unit can result in serious injury.
This unit must be installed by a professional installer. The
installation must comply with all national, state and local plumbing
and electric codes. Proper installation is the responsibility of the
installer. Failure to comply with the installation and operating
instructions or improper use voids the warranty.
Save these instructions for future reference. Installer should leave
these instructions with the consumer.
Service of the unit must be performed by a qualified service agency.
Never set the solar loop pressure greater than potable (domestic)
water supply pressure. If the potable water pressure is too low, a
booster pump may be needed to assure that it exceeds the required
solar loop pressure.
If you have any questions regarding the installation, use or
operation of this water heater, or if you need any additional
installation manuals, please call our technical service line at 800-
582-8423 (USA and Canada only). If you are calling from outside
the USA or Canada, please call USA 413-247-3380 and we will refer
you to a qualified Stiebel Eltron service representative in your area.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazard. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Safety Instructions
WARNING: Never install any valves or shutoff devices in the
piping between the collectors and the safety valve. The
safety valve is actuated at 87 psi pressure.
DANGER: Water temperatures over 125 °F can cause
severe burns instantly or death from scalding. A hot
water scalding potential exists if the thermostat on the unit is
set too high. Households with small children, disabled or elderly
persons may require that the thermostat be set at 120 °F or lower
to prevent possible injury from hot water.
DANGER: Setting the maximum tank temperature higher
than 140 °F at the control unit is permissible only in
conjunction with a thermostatically-controlled DHW mixing valve.
Otherwise there can be a risk of scalding at the drawoff point.
CAUTION: All sensor wiring should be rated for expected
temperatures and must be protected from degradation and
electrical interference.
Solar Loop
Use only a mixture of 50% GRAS (food grade) Propylene Glycol and
de-ionized water. (Heat Exchanger type SW, AWWA Fluid Class II -
see MSDS for handling instructions.)
WARNING: Fluid may be discharged at high temperature
and/or pressure. THere can be a risk of scalding at the
discharge point.
No other fluid shall be used that would change the original
classification of this system. Unauthorized alterations to this
system could result in a hazardous condition.
4 | SBB S & SBB PLUS SOLAR STORAGE TANKS WWW.STIEBEL-ELTRON-USA.COM
3.1 Start-up

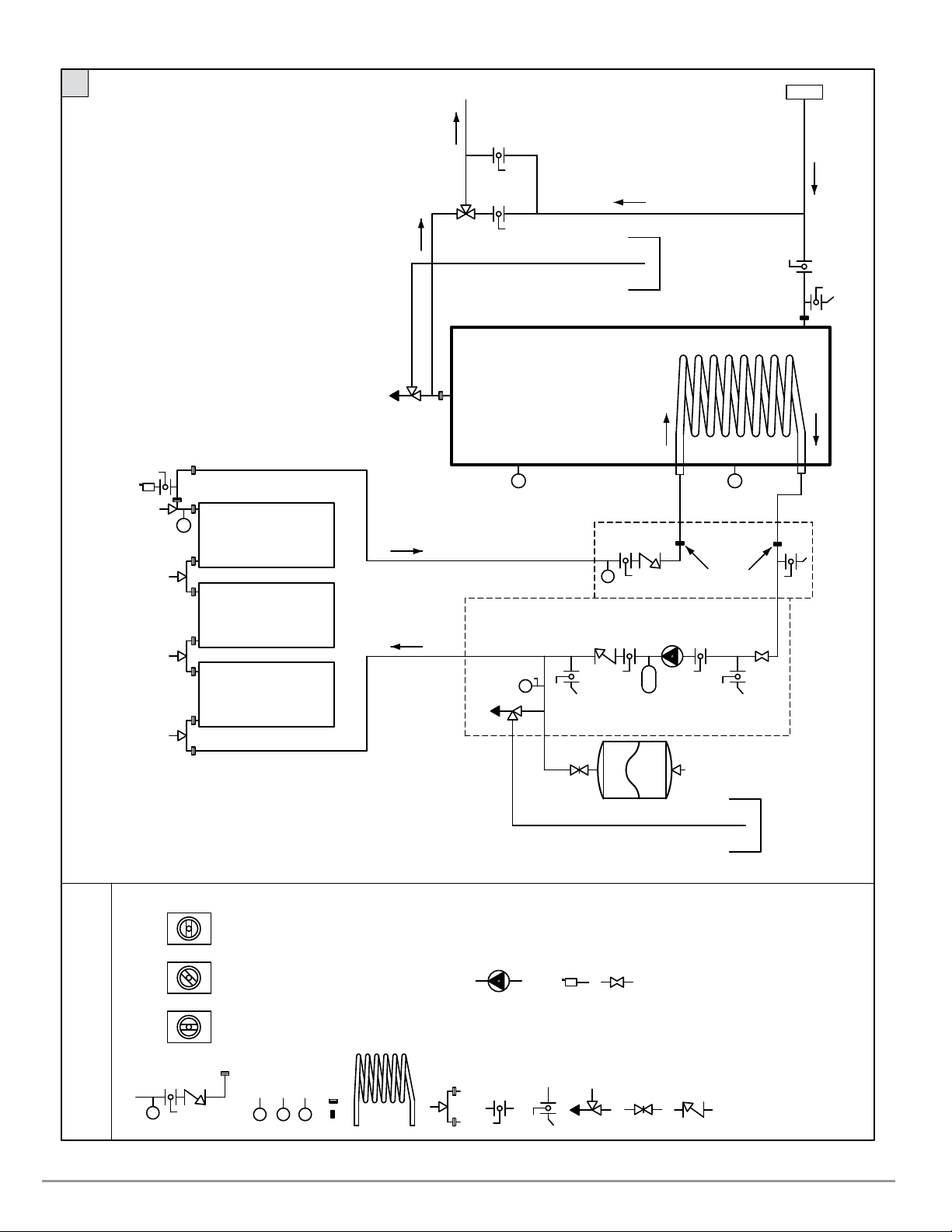

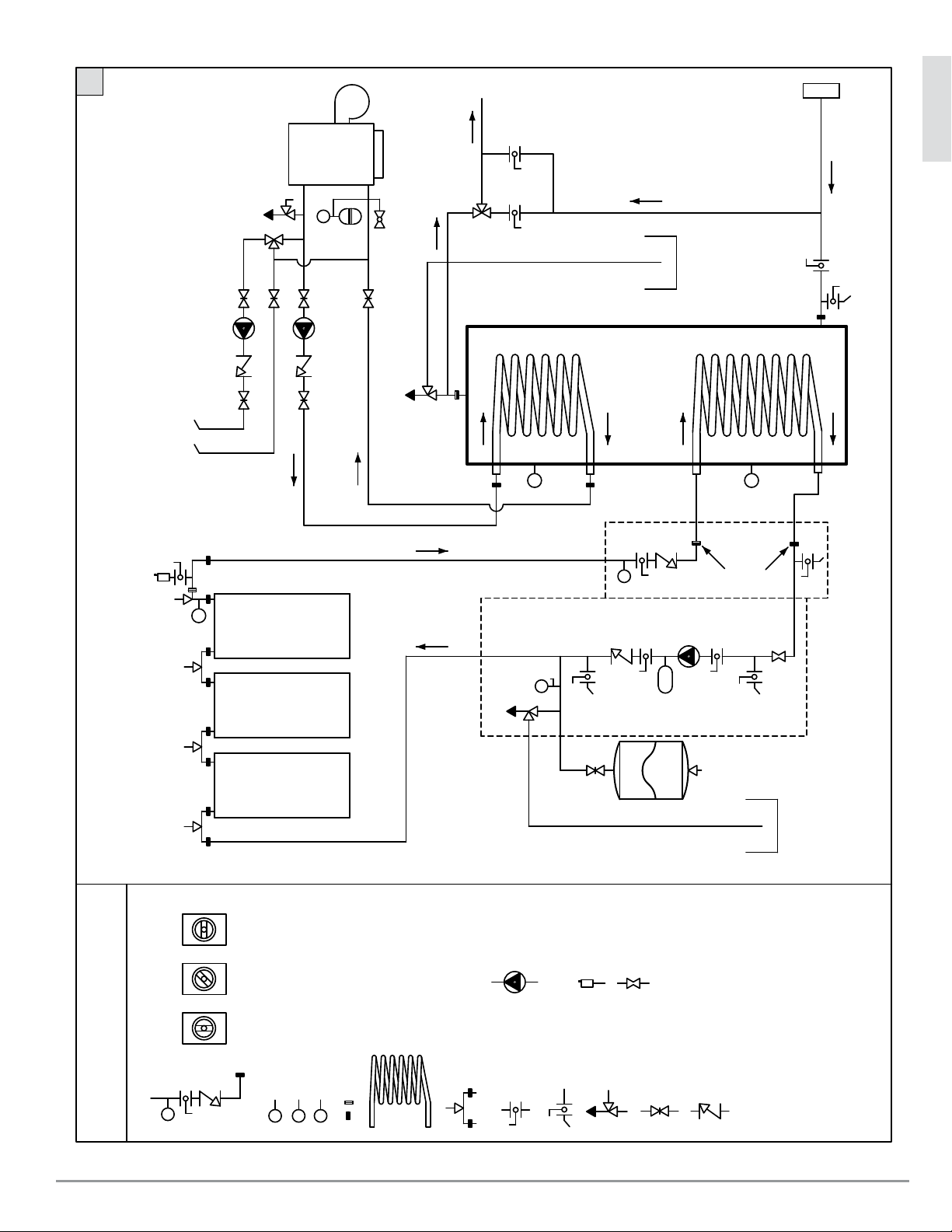

The hydronic back-up boiler (see Figure 5) and solar
storage tank (see Figures 4 & 5), constitute a functional unit. Hot
water is generated throughout the year by the solar collectors (see
Figure 4). Supplemental heat is provided by the back-up boiler
when there is insufficient solar energy available (see Figure 5).
The entire heater and hot water system must be filled with
water and have adaquate air ventilation. Please refer to the solar
collector’s and the boiler’s installation instructions.
3. OPERATION AND SERVICE
4. MAINTENANCE AND CLEANING
Routine care and maintenance extends the life expectancy and
operating safety of the hot water storage unit. The outer casing
should be cleaned with a slightly damp cloth and commercially
available neutral cleaning agent. This should be done on a regular
basis.

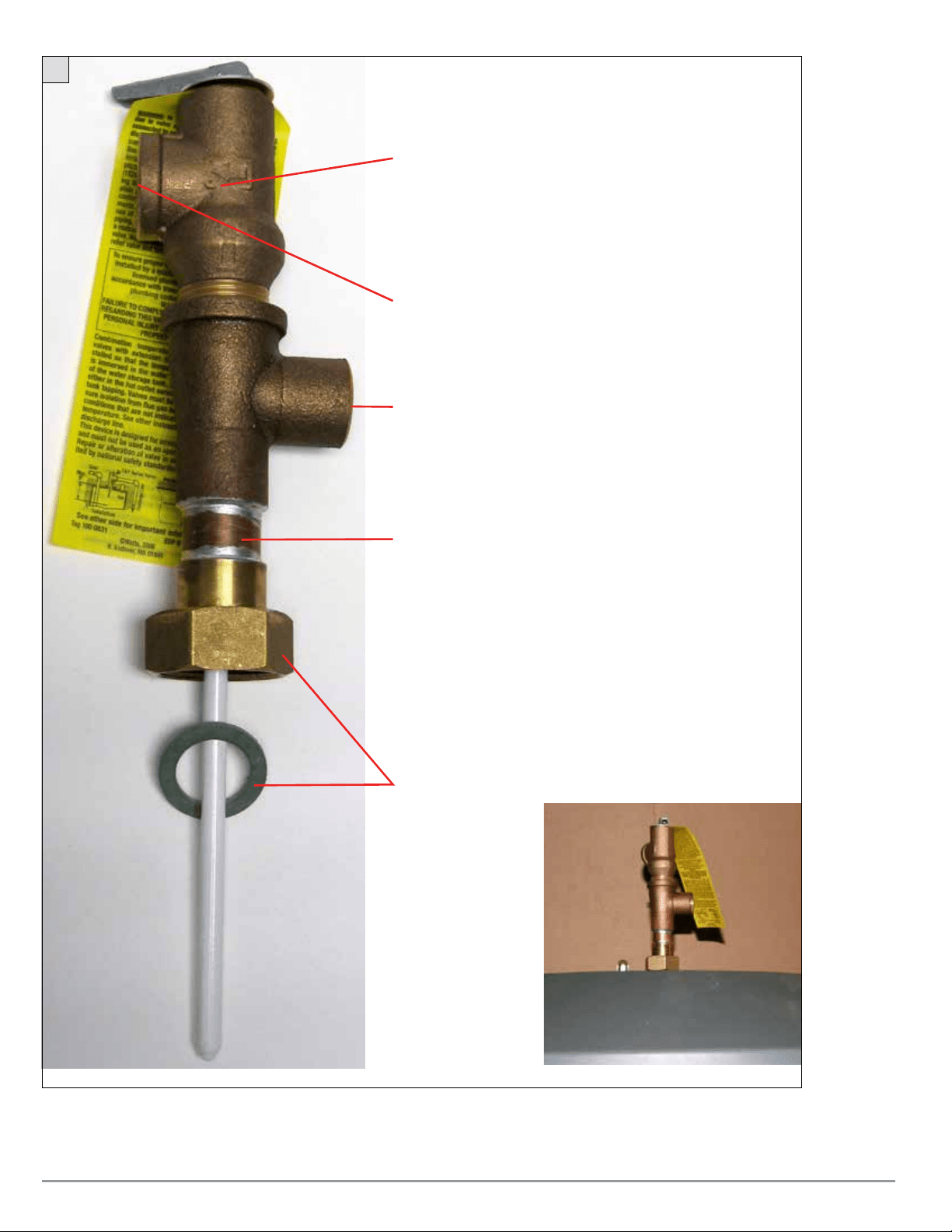

4.1 Temperature / Pressure Relief Valve
WARNING: The T&P relief valve is designed to relieve built
up pressure in the water heater. Fluid may be discharged
at high temperature and/or pressure. Scalding hot water injuries
can occur.
Notice: The water heater and T&P relief valve should be installed
and piped in and to an area where water discharge and leaking
will not cause property damage.
The proper function of the Temperature / Pressure (“T&P”) relief
valve is required to prevent damage to the hot water storage unit.
The T&P valve needs to be open during cold-water addition. The
water has to flow from the relief line at full stream.
4.2 Decalcification
With hard tap water, a deposit of scale will form on the inside of the
storage unit. Based on professional experience, it is necessary to
decalcify with commercially available solvents at timely intervals.
Follow the manufacturers instructions for solvent use. The hot
water storage unit needs to be emptied. The inspection cover must
be removed and sediments on the tank bottom must be flushed.

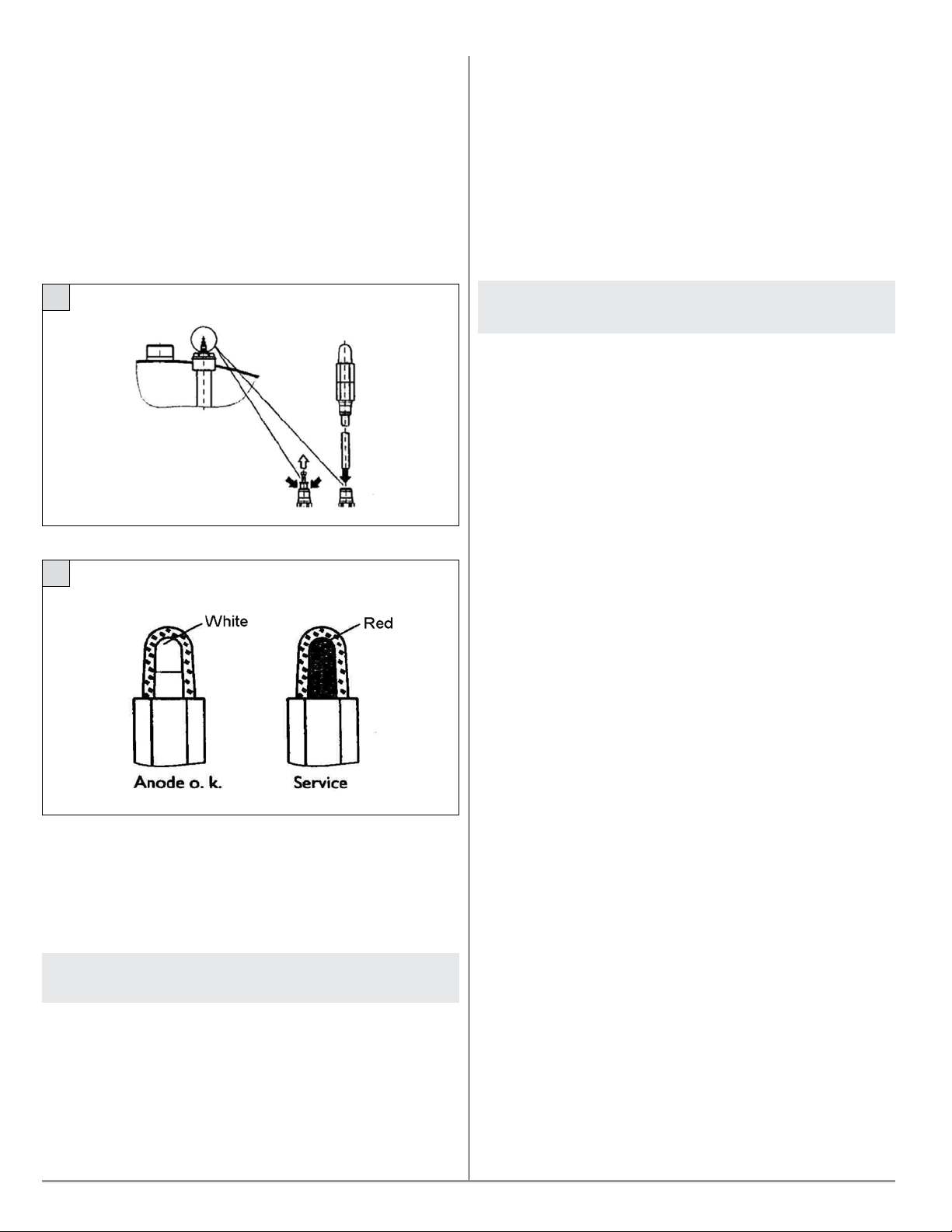

4.3 Replacement of the Sacrificial Anode
Depending on the composition of the tap water, an inspection
of the sacrificial anode (Pos. 1, Figure 1) at timely intervals
is recommended. With heavy wear, an original equipment
replacement anode must be installed to protect the inner container
from corrosion. An inspection should be performed at least once a
year.
WWW.STIEBEL-ELTRON-USA.COM SBB S & SBB PLUS SOLAR STORAGE TANKS | 5
ENGLISH
5. FAILURES – CAUSES – CORRECTION
6. TECHNICAL SPECIFICATIONS
Failures Causes Correction
Inadequate water pressure Shut-off valve is not completely open.
Cold or hot water line is obstructed.
Open Shut-off valve. Clean or exchange pipes.
Hot water flow inadequate
Boiler temperature is set too low.
Recommended 176 to 185 °F / 80 to 85 °C.
Heat exchanger is calcified.
Set boiler to recommended temperature.
Clean heat exchanger.
Hot water storage tank not being heated Program selection at the heater control is not
properly selected.
Select and set program per instructions.
Outlet quantity inadequate Aerator at the extraction point blocked. Unscrew aerator and clean.
Hot water supply exhausted too quickly Flow rate too high. Recommended 2.6-3.9 gal./min.
or 9.8-14.8 l/min.
Restrict spigot valve rate.

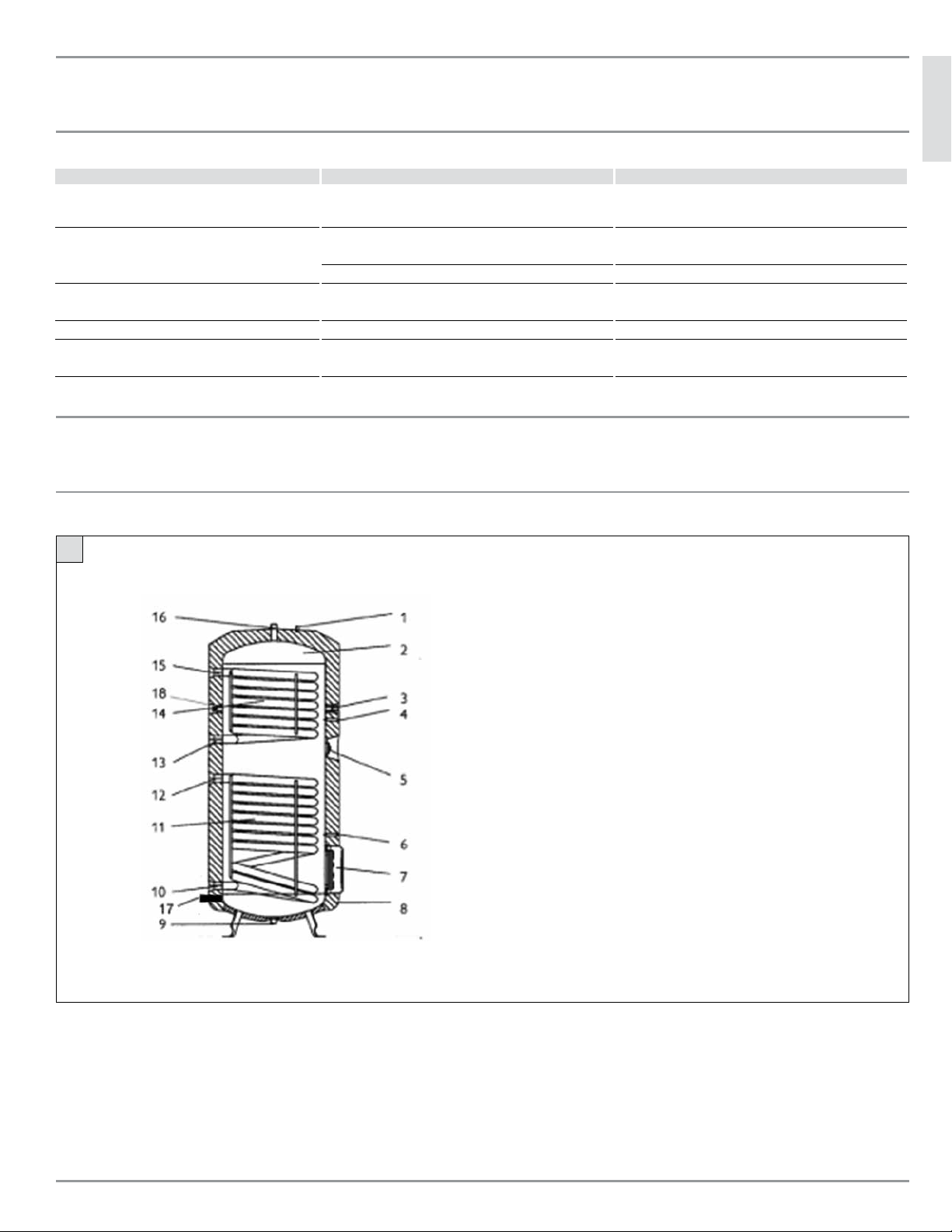

1
1. Sacrifical anode indicator
2. Glass lined steel tank
3. Thermometer well
4. Immersion sleeve for boiler temperature probe
5. Spare port
6. Immersion sleeve for solar temperature probe
7. Inspection port
8. Expanded polystyrene-thermal insulation
9. Cold water inlet (SBB 300 & 400 S/Plus)
10. Solar/main inlet
11. Solar/main heat exchanger
12. Solar/main return
13. Heat exchanger from boiler feed (SBB 300, 400, 600 Plus)
14. Upper heat exchanger (SBB 300, 400, 600 Plus)
15. Heat exchanger to boiler return (SBB 300, 400, 600 Plus)
16. Warm water outlet / T&P relief valve location
17. Cold water inlet (SBB 600 Plus)
18. Circulation port
Components of the SBB S / SBB Plus
6 | SBB S & SBB PLUS SOLAR STORAGE TANKS WWW.STIEBEL-ELTRON-USA.COM
6.1 Technical Data and Specifications
Model SBB 300 S SBB 400 S
Item No. 221219 221222
Contents
Storage capacity 80.6 gal (305 l) 108.6 gal (411 l)
Volume of heat exchanger, top N/A N/A
Volume of heat exchanger, bottom 2.7 gal (10.1 l) 2.9 gal (11.3 l)
Pressure
Working pressure 150 psi (10 bar) 150 psi (10 bar)
Tested to pressure 217 psi (15 bar) 217 psi (15 bar)
Max. pressure of boiler loop 150 psi (10 bar) 150 psi (10 bar)
Temperature
Max. temperature lower loop 203 °F (95 °C) 203 °F (95 °C)
Max. temperature of upper loop N/A N/A
Heat exchanger
Surface area heat exchanger top N/A N/A
Surface area heat exchanger bottom 2,325 sq in (1.5 m
2
) 2,635 sq in (1.7 m
2
)
Weights
Tank weight empty 292 lb (133 kg) 371 lb (169 kg)
Tank weight full 988 lb (448 kg) 1,304 lb (591 kg)
Other
Standby losses in 24 hours 6,500 Btu (1.9 kWh) 7,500 Btu (2.2 kWh)
Cold/hot water connection for 1˝ copper pipe with adapters, provided with unit
Model SBB 300 PLUS SBB 400 PLUS SBB 600 PLUS
Item no. 187873 187874 187875
Contents
Storage capacity 80.6 gal (305 l) 108.6 gal (411 l) 162.9 gal (617 l)
Volume of heat exchanger, top 1.9 gal (7.3 l) 2.2 gal (8.2 l) 2.5 gal (9.6 l)
Volume of heat exchanger, bottom 2.7 gal (10.1 l) 2.9 gal (11.3 l) 3.5 gal (13.2 l)
Pressure
Working pressure 150 psi (10 bar) 150 psi (10 bar) 150 psi (10 bar)
Tested to pressure 217 psi (15 bar) 217 psi (15 bar) 217 psi (15 bar)
Max. pressure of boiler loop 150 psi (10 bar) 150 psi (10 bar) 150 psi (10 bar)
Temperature
Max. temperature lower loop 203 °F (95 °C) 203 °F (95 °C) 203 °F (95 °C)
Max. temperature of upper loop 203 °F (95 °C) 203 °F (95 °C) 203 °F (95 °C)
Heat exchanger
Surface area heat exchanger top 1705 sq in (1.1 m
2
) 2,015 sq in (1.3 m
2
) 2945 sq in (1.9 m
2
)
Surface area heat exchanger bottom 2325 sq in (1.5 m
2
) 2,635 sq in (1.7 m
2
) 3875 sq in (2.5 m
2
)
Weights
Tank weight empty 339 lb (154 kg) 412 lb (187 kg) 544 lb (247 kg)
Tank weight full 988 lb (448 kg) 1,362 lb (618 kg) 1,955 lb (887 kg)
Other
Standby losses in 24 hours 6,500 Btu (1.9 kWh) 7500 Btu (2.2 kWh) 10,000 Btu (2.9 kWh)
Cold/hot water connection for 1˝ copper pipe with adapters, provided with unit
WWW.STIEBEL-ELTRON-USA.COM SBB S & SBB PLUS SOLAR STORAGE TANKS | 7
ENGLISH
Dimensions
2
Type SBB 300 Plus SBB 400 Plus SBB 600 Plus
A Height of unit w/insulation 66.1˝ (1679 mm) 72.7˝ (1848 mm) 68.3˝ (1735 mm)
B Height of unit without insulation 63.3˝ (1609 mm) 70.1˝ (1781 mm) 65.7˝ (1670 mm)
C Height of well for temp. sensor 46.4˝ (1179 mm mm) 48.7˝ (1238 mm) 46.9˝ (1192 mm)
D Height thermometer 41.1˝ (1045 mm) 43.0˝ (1093 mm) 41.5˝ (1055 mm)
E Height spare port 40.3˝ (1025 mm) 42.4˝ (1078 mm) 40.9˝ (1040 mm)
F Height of well for temp. sensor 21.9˝ (557 mm) 22.0˝ (560 mm) 23.4˝ (595 mm)
G Height inspection flange 14.4˝ (365 mm) 14.4˝ (367 mm) 15.9˝ (405 mm)
H Height cold water feed 2.9˝ (73 mm) 2.6˝ (65 mm) 2.0˝ (50 mm)
I Height solar cold feed 11.0˝ (280 mm) 11.1˝ (282 mm) 10.9˝ (277 mm)
J Height solar hot return 34.0˝ (865 mm) 34.1˝ (867 mm) 33.9˝ (862 mm)
K Height heater hot boiler return 38.4˝ (975 mm) 44.5˝ (1130 mm) 42.9˝ (1089 mm)
L Height circulation port 52.7˝ (1339 mm) 63.0˝ (1600 mm) 57.2˝ (1453 mm)
M Height cold boiler feed 52.7˝ (1339 mm) 63.0˝ (1600 mm) 57.2˝ (1453 mm)
N Overall height 67.08˝ (1704 mm) 73.74˝ (1873 mm) 69.29˝ (1760 mm)
O Width without thermal insulation 21.65˝ (550 mm) 23.62˝ (600 mm) 29.52˝ (750 mm)
P Width with thermal insulation 27.55˝ (700 mm) 29.52˝ (750 mm) 36.22˝ (920 mm)
8 | SBB S & SBB PLUS SOLAR STORAGE TANKS WWW.STIEBEL-ELTRON-USA.COM
7.4 Regulations and Standards
WARNING: THIS PRODUCT MUST BE INSTALLED ACCORDING TO
ALL NATIONAL AND LOCAL PLUMBING AND ELECTRICAL CODES. IT
MUST BE INSTALLED BY A LICENSED PLUMBER AND ELECTRICIAN.
Refer to: all local construction, fire-code and trade control
regulations.
7.1 General
Figure 1 is referenced for explanation of the following text.
7.1.1 Brief Description of the Appliance - Applications
The Stiebel Eltron Vertical Solar Storage tank SBB S / Plus, in
combination with Stiebel Eltron’s Solar Collector is an economical
hot water generator.
The Stiebel Eltron Vertical Solar Storage tank SBB S / Plus, in
combination with any hydronic boiler also functions as an efficient
indirectly fired water heater.
7.1.2 Connections
All connections (cold and hot) are readily accessible and allow for
easy installation.
7.2 Delivery Configuration
The hot water storage tank SBB S / Plus is wrapped in plastic and is
delivered on a one-way pallet. The storage tank has foam insulation,
a ABS outer casing and ABS cover.
Equipment:
• Storage unit with two welded steel plain-ended pipe heat
exchangers
• Hot water corrosion protection with special enamel coating
• Maximum operation pressure
Hot water 150 psi (10 bar)
Heated water 150 psi (10 bar)
• Three immersion sleeves for housing of temperature probe and
thermometer
• Magnesium Safety Anode
• Circulation Socket
• Attached Flange inspection cover (SBB models)
• PU Foam insulation 2.95 in. (70 mm.) thick
• ABS outer casing with zipper in protective pouch
• ABS Cover and Flange cover
Only for SBB 600 Plus:
• Removable polyurethane-side panels with fastening strap and
locking parts
7.3 Tasks to be performed by Installer
An approved technician should perform the setup, installation and
initial start-up following these instructions.

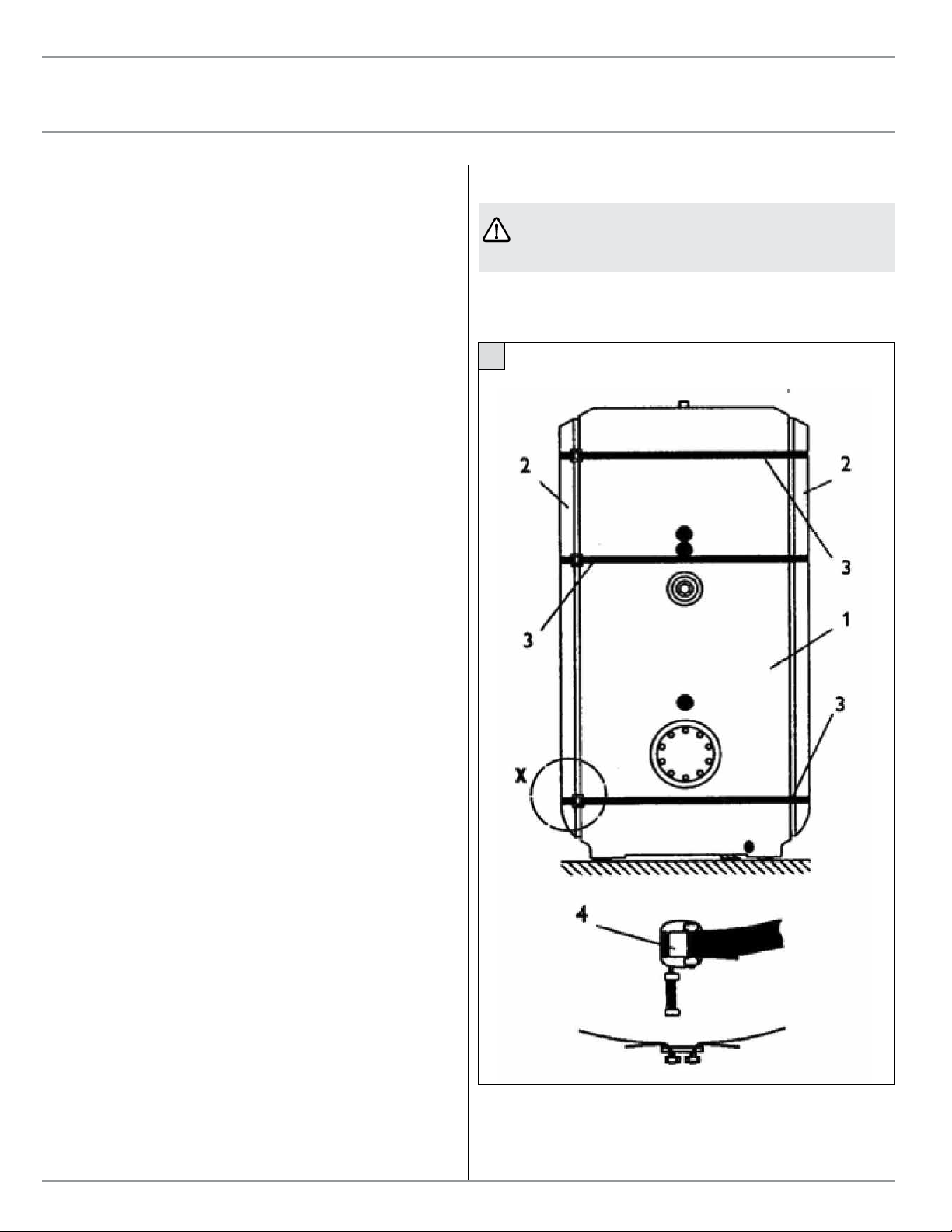

1 Solar tank
2 PU side panel
3 Fastening strap
4 Locking part
7. INSTALLATION INSTRUCTIONS FOR THE PROFESSIONAL
Figure 3: SBB 600 Plus Solar Tank with insulation
3
WWW.STIEBEL-ELTRON-USA.COM SBB S & SBB PLUS SOLAR STORAGE TANKS | 9
ENGLISH
8.1 Set-up
NOTICE: THE UNIT SHOULD BE LOCATED IN AN AREA WHERE
WATER LEAKAGE FROM THE UNIT OR ANY CONNECTIONS WILL NOT
RESULT IN DAMAGE TO THE AREA SURROUNDING THE UNIT.
DANGER: THE UNIT MUST NOT BE LOCATED NEAR FLAMMABLE LIQUID
SUCH AS GASOLINE, ADHESIVES, SOLVENTS, PAINT THINNERS, BUTANE,
LIQUIFIED PROPANE, ETC. AS THE CONTROLS OF THIS APPLIANCE COULD
IGNITE VAPORS CAUSING AN EXPLOSION.
Inspect the packaging for damage and remove packaging at the
installation site. Verify presence of six brass thread to sweat fittings.
The installation site must be structurally capable of supporting the
weight of the tank when filled. The location has to be above freezing.
The water drainage pipe must be freeze proof.
8.2 Connection
Refer to Figure 1 and Figure 2.
8.3 Heater Installation
The installation of the hydronic loop is shown in Figures 4 & 5. The
circuit must include a Temperature / Pressure Relief Valve, and air-
vent, a check valve, and an expansion tank.
8.4 Hot Water Installation
8.4.1 Local Site Conditions
Prior to installation check that the local conditions are compatible
with the appliance design, especially that the maximum working
excess pressure of 150 psi (10 bar.) is not exceeded.
8.4.2 Required Pipe Combinations
A steel or a copper pipe with insulation can be used for the hot
water connectors. Copper pipe with insulation is especially suitable
due to its low heat loss.
Required combinations:
Cold water pipeline Hot water pipeline
Copper pipe Copper pipe
Steel pipe Steel or copper pipe
Plastic pipe Steel or copper pipe
8.4.3 Cold Water Supply Safety Components
All safety components must be installed into the cold water supply
(Fill & drail valve, Check valve, isolating ball valve & pressure
regulator, see Figures 4 & 5). The order of the individual fittings must
be in accordance to local regulations.
8.4.4 Pressure Regulator Settings
The pressure regulator has to be set to 150 psi (10 bar). It can
only be installed into the cold water supply. The supply has to be
thoroughly inspected prior to installation. Installation of dirt filters
or any other narrowing of the supply line to the pressure relief valve
is forbidden.
The temperature & pressure relief valve has to be easily accessible.
Expansion water generated during the heating has to flow visibly to
a drain. The drainage pipe must be large enough to accommodate
water drainage with a fully opened T & P valve. The drainage pipe
must be protected from freezing and must not lead outdoors.
The pressure regulator (Figures 4 & 5) has to be set so no water
drips from the T & P valve.
Heavy dripping of the T & P valve can be caused by dirt in the valve
seat or water pressure. Water pressure needs to re regulated below
150 psi.
8.4.5 Before Filling
Prior to filling all screws must be tight.
8.4.6 Drainage and Re-circulation
Drainage of the hot water tank is via the fill & drain valve (Figures 4
& 5).
A re-circulator can be attached to a separate socket across the
thermometer. Drill the outer casing with a hole saw
Ø
50 where
marked and remove insulation from the socket in that area.
For energy conservation, use of a circulator is not recommended.
8. SET-UP AND INSTALLATION
10 | SBB S & SBB PLUS SOLAR STORAGE TANKS WWW.STIEBEL-ELTRON-USA.COM
AV
S1
Pipe Fittings
SS
MV
Flexible Stainless Steel Tube with
3/4" BSPP thread union fittings
and manual vent
1" union fitting (STAK)
PT
MV
SS
MV
SS
MV
SS
MV
overflow
container
1" union
fitting
(STAK)
domestic water
supply
T
BC 1
T
BC 1
TCS (tank connection
set) - 2 pcs.
BC 1
Fill &
Drain
Valve
Pressure Rel.
Valve
P
1" twin
nipples (2)
BC 1 = ball valve with
integrated check &
thermometer well
Fill &
Drain
Valve
Pressure
Gauge &
Valve
check
valve
active
Two-way
flow
active
valve
closed
Pump
(3-speed)
Fill &
Drain
Valve
Throttle and
isolation
valve
Flow Meter
Pump
Station
S
Temperature Sensor
(RTD)
T
Thermometer
P
Pressure
gauge
Expansion
Tank
Air Fill
Valve
Disconnect
Valve
Solar Collectors
Purg-O-Mat (auto-vent and
anti-steaming valve)
LEGEND
S2
S3
T/S4
Flow Meter
Pump
(3-speed)
Fill & Drain
Valve
Ball valve
Check Valve
Disconnect
Valve
Pressure
Rel. Valve
PT
AV
Automatic
Vent
Coil-in-tank
Heat Exchanger
mixing
valve
Solar
Storage
Tank
SBB S
Figure 4: Installation / system diagram for SBB S solar storage tank without hydronic back-up
4
pressure
regulator
WWW.STIEBEL-ELTRON-USA.COM SBB S & SBB PLUS SOLAR STORAGE TANKS | 11
ENGLISH
AV
S1
Pipe Fittings
SS
MV
Flexible Stainless Steel Tube with
3/4" BSPP thread union fittings
and manual vent
1" union fitting (STAK)
PT
MV
SS
MV
SS
MV
SS
MV
to DHW piping
overflow
container
1" union
fitting
(STAK)
domestic water
supply
T
BC 1
T
BC 1
TCS (tank connection
set) - 2 pcs.
BC 1
Fill &
Drain
Valve
Pressure Rel.
Valve
P
1" twin
nipples (2)
BC 1 = ball valve with
integrated check &
thermometer well
Fill &
Drain
Valve
Pressure
Gauge &
Valve
check
valve
active
Two-way
flow
active
valve
closed
Pump
(3-speed)
Fill &
Drain
Valve
Throttle and
isolation
valve
Flow Meter
Pump
Station
S
Temperature Sensor
(RTD)
T
Thermometer
P
Pressure
gauge
Expansion
Tank
Air Fill
Valve
Disconnect
Valve
Solar Collectors
Purg-O-Mat
(auto-vent
and
anti-steaming
valve)
LEGEND
S2
S3
T/S4
Flow Meter
Pump
(3-speed)
Fill & Drain
Valve
Ball valve
Check Valve
Disconnect
Valve
Pressure
Rel. Valve
PT
AV
Automatic
Vent
Coil-in-tank
Heat Exchanger
mixing
valve
Pump
Pump
EX
Afterheating
System
(boiler)
P
mixing
valve
Afterheat Loop
to heating zones
Solar
Storage
Tank
SBB Plus
Figure 5: Installation / system diagram for SBB Plus solar storage tank with hydronic back-up
5
pressure
regulator
12 | SBB S & SBB PLUS SOLAR STORAGE TANKS WWW.STIEBEL-ELTRON-USA.COM
6
7
8.5 Hot water temperature probe
The hot water temperature probe is to be installed into the upper
immersions sleeve (Pos. 3, Figure 1).
8.6 Solar Storage Tank – Temperature Probe
The solar storage tank temperature probe to lower immersion sleeve
of the hot water storage tank (Pos. 6, Figure 1). The temperature
probe must be completely inserted into the probe sleeve.
8.7 Connection to the Solar Unit
The installation of the solar loop is shown in Figures 4 & 5. The solar
loop must include temp/pressure relief, an air-vent, a check valve
and an expansion tank. Refer to the separate operation and installa-
tion instructions for the SOL 25 Plus flat plate solar collector.
IMPORTANT NOTICE: Test operation after installation. Start up must follow
the approval of the installer (refer to section 3. operation and service).
8.8 Sacrificial anode (spare part)
If a sacrificial anode is installed into the SBB S or SBB Plus storage
tank, the following must be observed:
Installation – sacrificial anode
• Pull out the red shut-off plug while simultaneously depressing the
pressure ring, (see Figure 7).
• Push in the open pipe end of the indicator element until dead-
stop.
• Attach the sticker “Note Signal Anode” to a highly visible spot on
the insulation.
NOTICE: When the storage tank is not operated with a signal display, the
red plug must remain in the anode.
Function – Sacrificial indicator
• After consumption of the anode, humidity escapes through the
hollow anode core to the signal cartridge and causes a color
change there (see Figure 7)
• When the cartridge turns red contact the installer so he can check
the anode and if needed replace it.
Routine maintenance improves operating safety and life
expectancy of the SBB S and SBB Plus solar hot water
storage tanks.
Figure 5: Temperature probe assembly
Figure 6: Sacrificial anode indicator
WWW.STIEBEL-ELTRON-USA.COM SBB S & SBB PLUS SOLAR STORAGE TANKS | 13
ENGLISH
T&P Relief Valve
Automatic-Resetting
Temperature and Pressure
Relief Valve
150 psi 210 °F
Watts #100XL-8
3/4” NPT
SE# S28640
3/4” NPTF
SE# S34292
3/4” copper to Domestic
Hot Water (DHW)
3/4” copper
2” of 3/4” copper
SE# S258185
Figure 8: Exploded view of T&P relief valve assembly including part numbers
8
9. TEMPERATURE & PRESSURE RELIEF VALVE ASSEMBLY
14 | SBB S & SBB PLUS SOLAR STORAGE TANKS WWW.STIEBEL-ELTRON-USA.COM
Mounted to top of SBB tank
T&P Relief Valve
Automatic-Resetting
Temperature and Pressure
Relief Valve
150 psi 210 °F
Watts #100XL-8
3/4˝ NPT
SE# S28640
SE# S34292
3/4
˝ copper to Domestic Hot Water (DHW)
Pressure relief safety vent pipe (3/4
˝ NPTF)
2
˝ of 3/4˝ copper
SE# S258185
Complete assembly on SBB tank.
Figure 9: Assembled view of T&P relief valve assembly including part numbers
9
WWW.STIEBEL-ELTRON-USA.COM SBB S & SBB PLUS SOLAR STORAGE TANKS | 15
ENGLISH
10. WARRANTY
All SB 150 S, SB 200 S, SB 300 E, SB 400 E, SBB 300 S, SBB 400 S, SBB 300 Plus, SBB 400 Plus,
& SBB 600 Plus Models
Subject to the terms and conditions set forth in this limited
lifetime warranty, Stiebel Eltron, Inc. (the “Manufacturer”)
hereby warrants to the original purchaser (the “Owner”) that
each storage tank (the “Tank”) shall be free from defects in the
Manufacturer’s materials or workmanship for a period of:
1. (10 Years) from the date of purchase for single, two-, and
three-family residential installations
2. (5 Years) from the date of purchase for all other
installations
3. (Excluded) sacrificial or electronic anode
As Owner’s sole and exclusive remedy for the above warranty,
Manufacturer shall, at the Manufacturer’s discretion, either
factory repair or replace the defective Tank with a replacement
unit or part(s) with comparable operating features.
Manufacturer’s maximum liability under all circumstances shall
be limited to the Owner’s purchase price for the Tank.
This limited warranty shall be the exclusive warranty made by
the Manufacturer and is made in lieu of all other warranties,
express or implied, whether written or oral, including, but
not limited to warranties of merchantability and fitness for
a particular purpose. Manufacturer shall not be liable for
incidental, consequential or contingent damages or expenses
arising directly or indirectly from any defect in the Tank or the
use of the Tank. Manufacturer shall not be liable for any water
damage or other damage to property of Owner arising, directly
or indirectly, from any defect in the Tank or the use of the Tank.
Manufacturer alone is authorized to make all warranties on
Manufacturer’s behalf and no statement, warranty or guarantee
made by any other party shall be binding on Manufacturer.
Manufacturer shall not be liable for any damage whatsoever
relating to or caused by:
1. any misuse or neglect of the Tank, any accident to the Tank,
any alteration of the Tank, or any other unintended use;
2. acts of God and circumstances over which Manufacturer
has no control;
3. installation of the Tank other than as directed by
Manufacturer and other than in accordance with
applicable building codes;
4. improper installation and/or improper materials used
by any installer and not relating to defects in parts or
workmanship of Manufacturer;
5. failure to maintain the Tank or to operate the Tank in
accordance with the Manufacturer’s specifications;
6. failed components not originally installed by the
Manufacturer as a part of the unit at the time of sale;
7. exposure to freezing conditions;
8. exposure to harmful chemicals, contaminated water,
corrosive fluids or atmosphere, liquids harmful to steel
tubing including improperly applied or maintained heat
transfer fluids.
9. utilizing the tank as an open loop heat exchanger, e.g.,
do not use in drainback systems or continually pass fresh
potable water through the units internal heat exchanger.
10. installing the Tank in a closed system without a properly
sized and installed thermal expansion tank;
11. operating the Tank without the factory installed
sacrificial anode;
12. operating the Tank under fluctuating or excessive water
pressure or in the event the Tank is supplied with non-
potable water for any duration;
13. operating the Tank when it is empty or partially full of
potable water;
14. Installing and operating the Tank outdoors;
15. operating the Tank at temperatures higher than
recommended by Manufacturer;
16. (SB E models) replacing the electric heating element
with a unit not manufactured by Stiebel Eltron or greater
in power than the originally installed element;
17. (SB E models) connecting the Tank to improper voltage
or service;
Should owner wish to return the Tank to manufacturer for
repair or replacement under this warranty, Owner must first
secure written authorization from Manufacturer. Owner shall
demonstrate proof of purchase, including a purchase date, and
shall be responsible for all removal and transportation costs.
If Owner cannot demonstrate a purchase date this warranty
shall be limited to the period beginning from the date of
manufacture stamped on the Tank. Manufacturer reserves
the right to deny warranty coverage upon Manufacturer’s
examination of the Tank. This warranty is restricted to the
Owner and cannot be assigned.
Some States and Provinces do not allow the exclusion or
limitation of certain warranties. In such cases, the limitations
set forth herein may not apply to the Owner. In such cases this
warranty shall be limited to the shortest period and lowest
damage amounts allowed by law. This warranty gives you
specific legal rights and you may also have other rights which
vary from State to State or Province to Province.
Owner shall be responsible for all labor and other charges
incurred in the removal or repair of the Tank in the field. Please
also note that the Tank must be installed in such a manner that
if any leak does occur, the flow of water from any leak will not
damage the area in which it is installed.
17 West Street
West Hatfield, MA 01088
TOLL FREE 800.582.8423
PHONE 413.247.3380
FAX 413.247.3369
info
@
stiebel-eltron-usa.com
www.stiebel-eltron-usa.com
This Warranty is valid for U.S.A. & Canada only. Warranties
may vary by country. Please consult your local Stiebel Eltron
Representative for the Warranty for your country.
DHW SOLAR & INDIRECT STORAGE TANKS
LIMITED WARRANTY
This Warranty is valid for all purchases on or after June 15, 2019.
STIEBEL ELTRON, Inc.
17 West Street | West Hatfield MA 01088
Tel. 413-247-3380 | Fax 413-247-3369
www.stiebel-eltron-usa.com
