Table1
Model Rails Watts Weight (kg)
CPTC 5 100 5.4
Important Safety Advice
WARNING - THE SURFACE OF THIS RADIATOR CAN BE HOT.
In order to be effective the towel rail will get hot, however
momentary contact with any part of it should not cause
injury.
The heater is to be installed so that switches and other
controls cannot be touched by a person in the bath or
shower
CAUTION - This appliance can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Precautions should be taken to ensure that prolonged
contact with the towel rail cannot occur. Particular care
should be taken in confined areas where accidental
prolonged contact with the rail could be more likely to
occur.
This appliance should only be used to dry fabrics washed
in water using commonly available detergents.
A means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
IMPORTANT - If the towel rail is to be installed in a place
used by the public, a warning notice should be placed
adjacent to the rail advising that the surface can be hot.
WARNING - the towel rail is a sealed unit and is filled and
sealed under controlled conditions. Under no
circumstances should the seal of the unit be
compromised
WARNING - In order to avoid a hazard for very young
children, this appliance should be installed so that the
lowest heated rail is at least 600mm above the floor.
General
The CPTC towel rail is designed to provide an all year round service
for airing towels and articles of clothing.
No routine maintenance is necessary apart from occasional cleaning.
The unit is splashproof to IPX5 standard.
Electrical
WARNING - This appliance must be earthed
The electrical installation of this towel rail must be carried out by a
competent electrician in accordance with the current I.E.E Regulations
for Electrical Equipment. The towel rail is suitable for use on an A.C.~
electrical supply. Before installation check that the supply voltage
corresponds with that marked on the rail.
IMPORTANT - The wires in the mains lead are coloured in
accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
GREEN/ YELLOW - EARTH
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured GREEN and YELLOW must be
connected to the terminal in the plug which is marked with the letter
E or by the earth symbol or coloured green or green and yellow.
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured BROWN must be connected to the terminal
which is marked with the letter L or coloured red.
This appliance must only be used on A.C. mains supply of 230/240
Volts~.
Installation
If fitted in a room containing a bath or shower, to comply with the
current I.E.E. Regulations, a cable outlet will be
necessary with the supply to the heater controlled by a
double-pole pull-cord switch having a contact separation of 3mm in
each pole. The body of the switch should be situated as to be
normally inaccessible to a person using a bath or shower. Alternatively
the switch can be located outside of the bathroom.
IMPORTANT - Protect the electrical connection whilst
handling the towel rail.
The towel rail must be permanently fixed to the wall using the wall
brackets supplied. The rail must be mounted vertically as shown
observing the minimum clearances stated.
IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

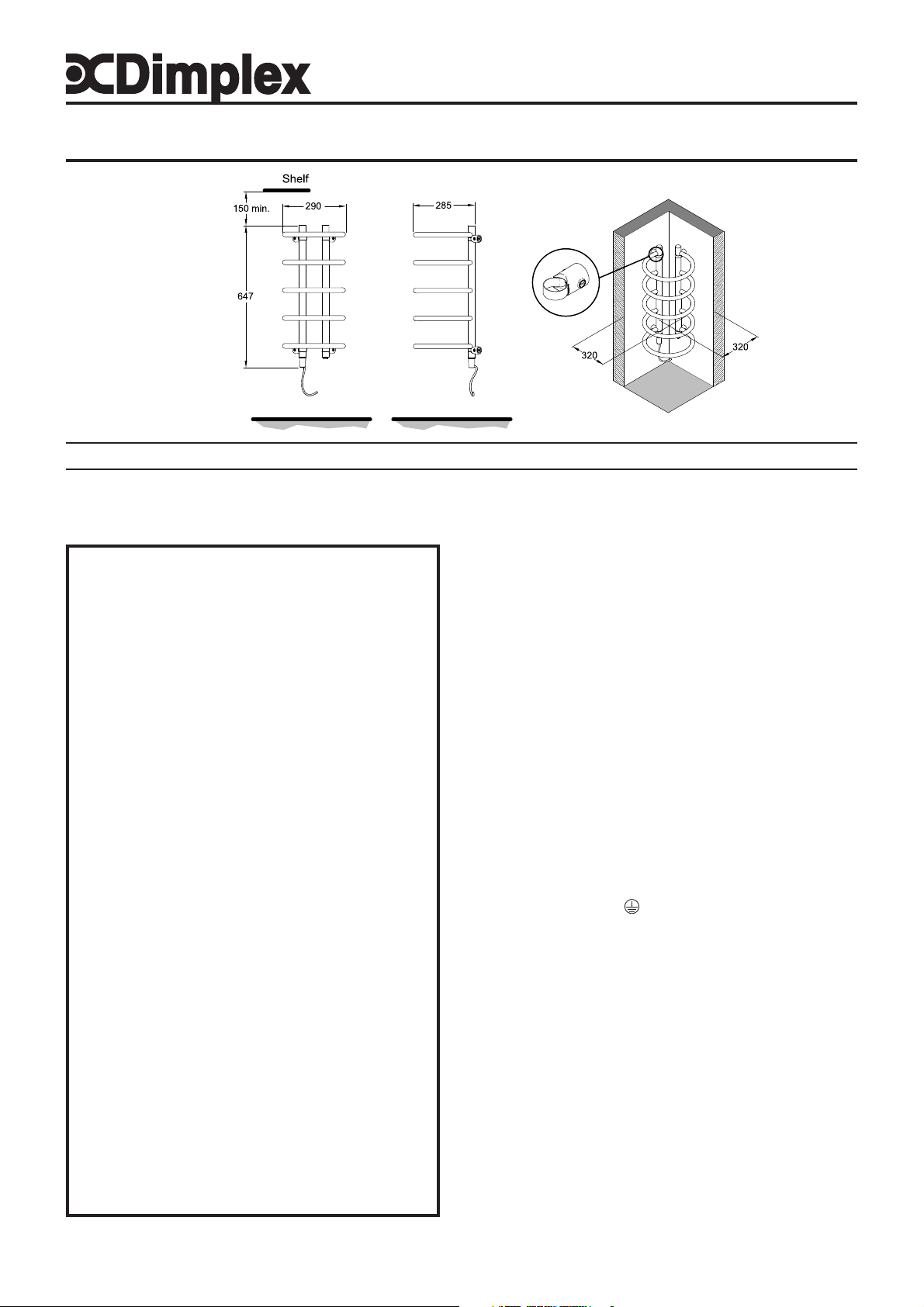

Dimensions
(millimetres)
Installation and Operating Instructions
Compact Towel Rail
Model : CPTC
Fig. 1
08/51911/0 (UK) Issue 0
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
WARNING - to ensure safe/ correct operation the rail must
only be mounted vertically as shown in Fig. 1, observing the
minimum clearances stated.
WARNING - The towel rail is heavy. Care must be taken when
lifting and fitting the towel rail.
Wall mounting
The wall mounting accessory pack contains the following:
(A) 4 mounting collars,
(B) 4 mounting brackets,
(C) 4 collar fixing screws,
(D) 4 bracket pins,
(x) 4 wall plugs,
(y) 4 wall mounting screws,
Procedure for wall mounting
Wall mounting dimensions:
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
??
Step 1
Mark suitable mounting hole positions for the fixing brackets (ensuring
they are horizontal) - see Fig. 3, ensure to allow enough room above
and below to maintain the minimum clearance stated in Fig. 1.
Step 2
Drill and plug (x) the wall to suit. Fix the mounting brackets to the wall
using the screws provided (y). Ensure the bracket pin holes are
aligned horizontally to allow the mounting pins to be inserted through
the collars - see Fig. 4.
Note: Ensure the mounting brackets are aligned to allow easy
assembly of the bracket pins once the towel rail is in place, it is
recommended that the pins are inserted towards the adjacent wall
(from outside the product) to provide the clearance necessary for
the use of tools to secure the rail in place - see Fig. 5.
Step 3
Carefully place the four mounting collars around the towel rail uprights
in the positions shown
in Fig. 1 and secure in place using fixing
screws (C) provided - see Fig. 4. ensure the rear of the straps are
facing directly backwards.
Tip: it is advisable not to over tighten the collars in order to allow them
to rotate on the rail uprights while mounting the rail on the wall.
???
Step 4
Lift the towel rail complete with the collars attached and align with
the mounting brackets which were previously fixed to the wall.
Insert the collar ends into the mounting brackets and fix in place
using the bracket pins (D). The rail is then locked in place by rotating
the pins a quarter turn - see Fig. 5.
?
?
Note: the collars can be repositioned to ensure the towel rail is
horizontal.
Drying and airing towels
It is recommended that for efficient drying, no more than two layers
of towels or similar fabric should be draped over the rail. Items
should be placed evenly over the whole surface of the rail where
possible.
It is not advisable to leave very damp towels or clothes on the towel
rail when not in use, as this may in time, affect the paint finish.
The rail, although hot to the touch is not hot enough to scorch or burn
fabrics. However, soap and detergents remaining in articles after
washing can cause discoloration. Therefore care should be taken
to thoroughly rinse articles before airing.
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Operation (Electrical)
Heat will be distributed along each of the rails.
Some variation in the temperature across the surface of the rail is
normal. When the appliance is covered the heating pattern of the
rails may alter, and generally temperatures at the upper part of that
rail will rise.
The towel rail may be switched on and off at the isolating wall
switch which must be positioned outside the bathroom, or operated
by means of a pull cord switch.
A further means of control would be to link the towel rail to a room
thermostat and/or timer. A room thermostat will
ensure that the rail automatically switches off in warmer weather. A
timer will allow for short periods of use.
Note: If the towel rail is located in a bathroom the
adjustment for these controls must be located outside the bathroom.
Maintenance
There are no user serviceable parts on the towel rail.
WARNING - The bleed screw on the rear of the product is
intended for the use of the service agent only and should
never be opened.
The rail is filled with a precise quantity of special liquid and should
never need draining or refilling. Repairs requiring the opening of the
liquid-tight seal must only be made by the manufacturer’s Service
Agent. Any leakage must be reported to the manufacturer’s Service
Agent.
The element and cable are a single unit and any maintenance must
be carried out by the manufacturers Service Agent using the
recommended parts.
Cleaning
The finish on your towel rail can be maintained by occasionally
wiping over with a damp cloth and lightly finishing with a soft dry
cloth. This should only be carried out when the rail is cold. Do not
use abrasive cleaning powders as this could damage the surface
finish.
The product complies with the European Safety Standards EN60335-2-46 and the European Standard Electromagnetic Compatibility
(EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC
DIMPLEX
MILLBROOK HOUSE
GRANGE DRIVE
HEDGE END
SOUTHAMPTON
SO30 2DF
[c] GDC Group Ltd,
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Dimplex.
A division of GDC Group Ltd,
TEL: 0844 879 3587
FAX: 0844 879 3583
WEBSITE:
www.dimplex.co.uk
Republic of Ireland Tel. 01 8424833
Recycling
For electrical products sold within the European Community.
At the end of the electrical products useful life it should
not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or
retailer for recycling advice in your country.
After Sales Service
If this product appears damaged when first received or does
not function correctly contact us by e-mail
[email protected] or ring 0844 879 35 87 and we will
be able to help. For ROI please phone 01 842 4833.
Do Not Return the product in the first instance as this may delay us
providing you with a satisfactory service.
ACCIDENTAL DAMAGE IS NOT COVERED UNDER THE WARRANTY.
Your product is guaranteed for two years from the date of purchase.
Within this period, we undertake to repair this product free of charge
provided it has been installed and operated in accordance with these
instructions.
Should you require assistance with this product please go to
www.dimplex.co.uk and click on “Customer Support” or e-mail us
Alternatively ring our contact centre on 0844 879 35 87 (UK only).
This is a Lo-call no from a BT landline - other providers including
mobile phones may charge you more. For ROI please phone 01 842
4833.
To assist you, we will need the following information: model number
& serial no (these can be found on the product), nature of the fault &
date of purchase. Please retain your receipt as proof of
purchase. Your rights under this guarantee are additional to your
statutory rights, which in turn are not affected by this guarantee.
Spares can be purchased on line, go to www.dimplex.co.uk/
outlet_store
Please retain your receipt as proof of purchase.
