Napoleon EX36NTEL Elevation X 36 User Manual

FRENCH

PG. 65

W415-2000 / F / 04.13.21

ADD MANUAL TITLE

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone 1 (866) 820-8686 • www.napoleon.com • [email protected]

CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:

CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES

INSTALLER:

Leave this manual with the appliance

CONSUMER:

Retain this manual for future reference

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

NATURAL GAS MODELS:

PROPANE GAS MODELS:

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

SAFETY INFORMATION

- Do not store or use gasoline or other

ﬂ ammable vapors and liquids in the vicinity of

this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

- Installation and service must be

performed by a qualiﬁ ed installer, service

agency, or the supplier.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁ ed kit is used.

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly

could result in serious injury, death, or

property damage.

WARNING

ENGLISH

$10.00

FOR INDOOR USE ONLY

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

EX36PTEL / EX42PTEL

Elevation™ Series

(EX36 illustrated)

INSTALLATION MANUAL

EX36NTEL / EX42NTEL

PLACE BARCODE LABEL ON THE

OWNER’S MANUAL

THIS APPLIANCE IS SUITABLE FOR THE OPTIONAL DYNAMIC HEAT

CONTROL™ SYSTEM

(See Dynamic Heat Control™ installation manual)

HEA

T CONT

T CONTR

PATENT PENDING

Safety Barrier

W415-2000 / F / 04.13.21

safety information

• This appliance is hot when operated and

can cause severe burns if contacted.

• Any changes or alterations to this

appliance or its controls can be

dangerous and is prohibited.

• Do not operate appliance before reading and

understanding operating instructions. Failure

to operate appliance according to operating

instructions could cause ﬁ re or injury.

• Ensure the glass door is opened or removed

when lighting the pilot for the ﬁ rst time and

when the gas supply has run out.

• Risk of ﬁ re or asphyxiation, do not operate

appliance with ﬁ xed glass removed and never

obstruct the front opening of the appliance.

• Do not connect 110 volts to the control valve,

with the exception of models; GSST8 and

GT8.

• Risk of burns. The appliance should be turned off and cooled before servicing.

• Do not install damaged, incomplete or substitute components.

• Risk of cuts and abrasions. Wear protective gloves, protective footwear, and safety glasses during

installation. Sheet metal edges may be sharp.

• Do not burn wood or other materials in this appliance.

• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing

and operating the appliance.

• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at

test pressures above 1/2 psig. Close the manual shut-off valve before pressure testing gas line at test

pressures equal to or less than 1/2 psig (35mb).

• The appliance must not be operated at temperatures below freezing (32°F / 0°C). Allow the appliance

to warm to above freezing prior to operation, with the exception of models; GSS36, GSS42; these

appliances are suitable for 0°F / -18°C.

• Children and adults should be alerted to hazards of high surface temperature and should stay

away to avoid burns or clothing ignition.

• Young children should be carefully supervised when they are in the same room as the

appliance. Toddlers, young children and others may be susceptible to accidental contact

burns. A physical barrier is recommended if there are at risk individuals in the house. To

restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers,

young children and other at risk individuals out of the room and away from hot surfaces.

• Clothing or other ﬂ ammable material should not be placed on or near the appliance.

• Due to high temperatures, the appliance should be located out of trafﬁ c and away from

furniture and draperies.

• Furniture or other objects must be kept a minimum of 4 feet (1.22m) away from the front of the appliance.

• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot

surfaces.

• Even after the appliance is off, it will remain hot for an extended period of time.

• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children

from hot surfaces. These screens and guards must be fastened to the ﬂ oor.

• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior

to operating the appliance.

• It is imperative that the control compartments, burners and circulating blower and its passageway in the

appliance and venting system are kept clean. The appliance and its venting system should be inspected

before use and at least annually by a qualiﬁ ed service person. More frequent cleaning may be required

due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and

free from combustible materials, gasoline and other ﬂ ammable vapors and liquids.

• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it

serviced. Keep burner and control compartment clean.

• Under no circumstances should this appliance be modiﬁ ed.

• Do not allow wind or fans to blow directly into the appliance. Avoid any drafts that alter burner ﬂ ame

patterns.

HOT GLASS WILL CAUSE

BURNS.

DO NOT TOUCH GLASS UNTIL

COOLED.

NEVER ALLOW CHILDREN TO

TOUCH GLASS.

DANGER

A barrier designed to reduce the risk of burns from the hot

viewing glass is provided with this appliance and must be

installed for the protection of children and other at-risk

individuals.

WARNING

W415-2000 / F / 04.13.21

safety information

WARNING

• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this

appliance.

• This appliance must not be connected to a chimney ﬂ ue pipe serving a separate solid fuel burning

appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and to replace any part of the control system and any gas control which has

been under water.

• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass

should be done by a licensed or qualiﬁ ed service person, if equipped.

• Do not strike or slam shut the appliance glass door, if equipped.

• Only doors / optional fronts certiﬁ ed with the appliance are to be installed on the appliance.

• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As

with all plastic bags, these are not toys and should be kept away from children and infants.

• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your

home. If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have

it serviced by a qualiﬁ ed technician before operating it again.

• If equipped, the screen must be in place (closed) when the appliance is in operation.

• When equipped with pressure relief doors, they must be kept closed while the appliance is operating

to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of

the exhaust escaping through these openings can also cause the surrounding combustible materials to

overheat and catch ﬁ re.

• Carbon monoxide poisoning may lead to death; early signs of carbon monoxide poisoning resemble the

ﬂ u, with headache, dizziness and/or nausea. If you have these signs, the appliance may not be working

properly. Get fresh air at once! Have appliance serviced. Some people; pregnant women, persons with

heart or lung disease, anemia, those under the inﬂ uence of alcohol, those at high altitudes are more

affected by carbon monoxide than others. Failure to keep the primary air opening(s) of the burner(s) clean

may result in sooting and property damage.

• As with any combustion appliance, we recommend having your appliance regularly inspected and

serviced as well as having a Carbon Monoxide Detector installed in the same area to defend you and

your family against Carbon Monoxide (not applicable for outdoor appliances).

• Ensure clearances to combustibles are maintained when building a mantel or shelves above the

appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting,

discolouration or damage to decorations, a TV or other electronic components.

• For appliances equipped with a safety barrier; if the barrier becomes damaged, the barrier

shall be replaced with the manufacturer’s barrier for this appliance.

• Installation and repair should be done by a qualiﬁ ed service person. It is imperative that control

compartments, burners and circulating air passageways of the appliance be kept clean.

WARNING:

This product can expose you to chemicals including lead and lead compounds,

which are known to the State of California to cause cancer, and chemicals including carbon

monoxide, which are known to the State of California to cause birth defects or other reproduc-

tive harm. For more information, go to www.P65Warnings.ca.gov.

WARNING

Disconnect the appliance main gas valve/control

from the supply piping when pressure testing that

system at pressures in excess of 1/2 psi (3.5 kPa).

Isolate the appliance with it’s shut off valve during

any pressure testing of the supply piping at

pressures equal to or less than 1/2 psi (3.5 kPa).

FIRE RISK HAZARD / DELAYED IGNITION

High supply pressure will damage the valve / controls.

W415-2000 / F / 04.13.21

table of contents

1.0 general information 5

1.1 rates and speciﬁ cations 5

1.2 installation checklist 6

1.3 installation overview 7

1.4 rating plate information 9

1.5 mobile home installation 9

1.6 EX36 dimensions 10

1.7 EX42 dimensions 11

1.8 hardware list 12

2.0 venting requirements 13

2.1 typical venting installation 14

2.2 minimum air terminal location

clearances 16

2.3 all terminations 17

3.0 rough framing 18

3.1 header shield installation 19

3.2 minimum framing dimensions 21

3.3 minimum clearance to combustible

enclosures 22

4.0 venting installation 23

4.1 horizontal installation 24

4.2 vertical installation 24

4.3 using either ﬂ exible vent components

4.3.1 horizontal air terminal installation 25

4.3.2 vertical air terminal installation 26

4.3.3 appliance vent connection 26

4.3.4 restricting vents 27

5.0 electrical information 28

5.1 hard wiring connection 28

5.2 junction box installation 28

5.3 electronic wiring diagram 28

5.4 eFIRE Controller application 29

5.5 initializing the transmitter / battery

holder for the ﬁ rst time 30

5.6 wiring diagram 31

6.0 gas installation 32

7.0 operation 33

7.1 pilot-on-demand 34

8.0 finish framing 35

8.1 ﬂ ush 35

8.2 recessed 36

9.0 finishing 37

9.1 decorative panels 37

9.2 log placement 37

9.3 glowing embers 38

9.4 charcoal embers 38

9.5 media placement 38

9.6 safety barrier & glass door installation

/ removal 39

9.7 installing non-combustible board

(non-DHC install) 40

9.8 ﬁ nishing ﬂ ange adjustment 41

9.9 clearances around appliance 42

9.10 minimum combustible mantel

clearances 43

9.11 logo placement 43

9.12 air shutter adjustment 44

9.13 pilot burner adjustment 45

9.14 ﬂ ame characteristics 45

10.0 maintenance 46

10.1 care of glass 46

10.2 annual maintenance 47

10.3 glass / door replacement 47

10.4 ember bed light replacement 48

10.5 blower replacement 49

11.0 replacement parts 51

11.1 EX36 overview 52

11.2 EX36 valve train assembly 53

11.3 EX36 logs 54

11.4 EX42 overview 55

11.5 EX42 valve train assembly 56

11.6 EX42 logs 57

12.0 troubleshooting 58

13.0 warranty 61

14.0 service history 62

The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves

the right to change or modify any information within this manual at any time without notice. Changes, other than

editorial, are denoted by a vertical line in the margin.

note:

W415-2000 / F / 04.13.21

general information

1.0 general information

When the appliance is installed at elevations above 4,500ft (1372m), and in the absence of speciﬁ c recommendations

from the local authority having jurisdiction, the certiﬁ ed high altitude input rating shall be reduced at the rate of 4% for each

additional 1,000ft (305m). Expansion / contraction noises during heating up and cooling down cycles are normal

and are to be expected. Change in ﬂ ame appearance from “HI” to “LO” is more evident in natural gas than in

propane.

This appliance is approved for bathroom, bedroom and bed-sitting room installations and is certiﬁ ed for mobile

home installation.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not

convertible for use with other gases, unless a certiﬁ ed kit is used.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the

appliance and must be installed.

The protective wrap on plated parts is best removed when the assembly is at room temperature but this can be

improved if the assembly is warmed, using a hair dryer or similar heat source.

This appliance is a decorative product. It is not a source of heat and not intended to burn solid fuel.

note:

Batteries must be disposed of according to the local laws and regulations. Some batteries may be

recycled, and may be accepted for disposal at your local recycling center. Check with your

municipality for recycling instructions.

1.1 rates and speciﬁ cations

EX36 EX42

Fuel Type

Natural Gas Propane Natural Gas Propane

Altitude (FT)

0-4,500

Max. Input (BTU/hr)

37,000 34,000 45,000 39,000

Min. Inlet Gas Supply Pressure

4.5” w.c. (11mb) 11” w.c. (27mb) 4.5” w.c. (11mb) 11” w.c. (27mb)

Max. Inlet Gas Supply Pressure

7”* w.c. (17mb) 13” w.c. (32mb) 7”* w.c. (17mb) 13” w.c. (32mb)

Manifold Pressure (Under Flow

Conditions)

3.5” w.c. (9mb) 10” w.c. (25mb) 3.5” w.c. (9mb) 10” w.c. (25mb)

Installer: please ﬁ ll out appliance checklist

in the Owner’s manual.

*Maximum inlet pressure not to exceed 13”.

This appliance is suitable for use with Napoleon’s optional Dynamic Heat Control™ & Dynamic Heat Control™ Plus

systems. THIS MANUAL DOES NOT include detailed information relating to these optional systems. Framing and ﬁ nishing

are NOT the same. For further details, refer to the Dynamic Heat Control™ installation manual provided with the kit before

starting installation.

W415-2000 / F / 04.13.21

general information

1.2 installation checklist

GAS FIREPLACE INSTALLATION CHECKLIST

Customer:

Date Installed:

Address: Installer:

Model: Dealer:

Serial #: Dealer Phone #:

This checklist is a reference tool only. It is not intended as a substitute for the installation instructions.

Wolf Steel Ltd. recommends photographs of the various stages of construction be filed along with a copy of this completed form.

Fireplace Installation

Is the fireplace level and secured?

YES IF NOT, PLEASE EXPLAIN WHY?

Are the factory supplied non-combustible materials installed?

Is the exterior wall insulated and dry-walled?

Are the clearances to combustibles maintained?

Are the logs/media installed as instructed?

Are the accessories installed as instructed?

Is the glass door properly sealed and unobstructed?

Is the safety barrier installed and secure?

Are all required accessories installed (i.e. door trims)?

Venting Installation

Is the venting configuration within the parameters?

Has the venting been sealed with the appropriate sealant?

Is the venting supported and secured?

Are all clearances to combustibles maintained?

Are the appropriate firestops and shields properly installed?

Is the terminal, level, secured and sealed?

Gas and Electrical

Was the fireplace converted to propane?

Was the appropriate supply pressure verified?

Were all gas connections leak tested?

Is the 110 VAC supply connection to the fireplace compliant?

Are all electrical wires protected from damage?

Finishing

Non-combustible materials used as per instructions?

Enclosure instructions forwarded to builder/finisher?

Minimum enclosure dimensions compliant?

Combustible Mantle Clearances compliant?

Commissioning

Was the fireplace test fired and all operation verified?

Safety and lighting instructions reviewed with the Customer?

Operating Instruction Manual left with the Customer?

W415-2000 / F / 04.13.21

general information

1.3 installation overview

Recommended installation steps:

1. Determine venting requirements before deciding the ﬁ nal location of the appliance.

2. Determine ﬁ nished ﬂ oor thickness (see “rough framing” section).

3. Plan out appliance enclosure, framing, fronts, accessories, etc.

4. Install rough framing (refer to “rough framing” section).

5. Install nailing tabs and header shield (refer to “header shield installation” sections).

6. Place the appliance in its ﬁ nal position.

7. Install appliance venting (refer to “venting installation” section).

8. Install all electrical wirings (refer to “electrical information” section).

9. Install gas lines (refer to “gas installation” section).

10. Test appliance.

11. Complete framing (refer to “ﬁ nish framing - typical” or “ﬁ nish framing - recess” sections).

12. Finishing (refer to “ﬁ nishing” section).

13. Complete checklist in the owner’s manual and apply serial number to owner’s manual.

Non-combustible

board

For Dynamic Heat Control™ installation steps, refer to the leaﬂ et provided with the Dynamic Heat Control™ kit.

Start Dynamic Heat Control™ installation before step 3 (place the appliance in its ﬁ nal position)

note:

W415-2000 / F / 04.13.21

general information

WARNING

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out, with the glass door opened

or removed.

• Provide adequate clearance for servicing and operating the appliance.

• Provide adequate ventilation.

• Never obstruct the front opening of the appliance.

• Objects placed in front of the appliance must be kept a minimum of 48” (121.9cm) from the front face of

the appliance.

• Surfaces around and especially above the appliance can become hot. Avoid contact when appliance is

operating.

• Fire risk. Explosion hazard.

• High pressure will damage valve. Disconnect gas supply piping before pressure testing gas line at test

pressures above 1/2 PISG (35mb). Close the manual shut-off valve before pressure testing gas line at test

pressures equal to or less than 1/2 PISG (35mb).

• Use only Wolf Steel approved optional accessories and replacement parts with this appliance using non-

listed accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could result

in a safety hazard and will void the warranty and certiﬁ cation.

• The appliance must not be operated at temperatures below freezing (32ºF/0ºC). Allow the appliance to

warm to above freezing prior to operation.

THIS GAS APPLIANCE MUST BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local

codes. Installation practices vary from region to region and it is important to know the speciﬁ cs that apply to your area, for

example in the state of Massachusetts:

• This product must be installed by a licensed plumber or gas ﬁ tter when installed within the commonwealth of

Massachusetts.

• The appliance damper must be removed or welded in the open position prior to installation of an appliance insert or gas

log.

• The appliance off valve must be a “T” handle gas cock.

• The ﬂ exible connector must not be longer than 36 inches (0.9m).

• A carbon monoxide detector is required in all rooms containing gas ﬁ red appliances.

• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent sealed

combustion product.

The installation must conform with local codes or, in absence of local

codes, the National Gas and Propane Installation Code CSA B149.1

in Canada, or the National Fuel Gas Code, ANSI Z223.1 / NFPA 54

in the United States. Suitable for mobile home installation if installed

in accordance with the current standard CAN/CSA Z240MH Series,

for gas equipped mobile homes, in Canada or ANSI Z223.1 and

NFPA 54 in the United States.

The appliance and its individual shutoff valve must be disconnected

from the gas supply piping system during any pressure testing

of that system at test pressures in excess of 1/2 psig (35 mb).

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any

pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (35 mb). When installed

with a blower or fan, the junction box must be electrically connected and grounded in accordance with local codes. In the

absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI / NFPA 70 National

Electric Code in the United States. In the case where the blower is equipped with a power cord, it must be connected into a

properly grounded receptacle. The grounding prong must not be removed from the cord plug.

The following does not apply to inserts; as long as the required clearance to combustibles is maintained, the most desirable

and beneﬁ cial location for an appliance is in the center of a building, thereby allowing the most efﬁ cient use of the heat

created. The location of windows, doors and, the trafﬁ c ﬂ ow in the room where the appliance is to be located should be

considered. If possible, you should choose a location where the vent will pass through the house without cutting a ﬂ oor or

roof joist. If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood ﬂ ooring, the

appliance shall be installed on a metal or wood panel extending the full width and depth, unless otherwise tested.

We suggest that our gas

hearth products be installed

and serviced by professionals

who are certied in the U.S.

by the National Fireplace

Institute

(NFI) as NFI Gas

Specialists

www.ncertied.org

W415-2000 / F / 04.13.21

general information

Certiﬁed to Canadian and American National Standards: CSA 2.22-XXXX / ANSI Z21.50-XXXX for Vented Decorative Gas Appliances

Certiﬁé selon les normes Nationales Canadiennes et Américaines: CSA 2.22-XXXX / ANSI Z21.50-XXXX pour les Appareils à gaz décoratif à évacuation

Direct vent, vented gas ﬁreplaces. Approved for bedroom, bathroom and bed-sitting room installation. Suitable for mobile home installation, if installed in accordance with the current

standard CAN / CSA Z240MH Series gas equipped mobile homes in Canada, or, in the United States, the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part

3280. When this US Standard is not applicable, use the Standard for Fire Safety Criteria for Manufactured Home Installations, Sites and Communities, ANSI / NFPA 501A. This appliance

must be installed in accordance with local codes, if any; if none, follow the current ANSI Z223.1 or CSA B149. For use with barrier WXXX-XXXX. Follow installation instructions.

Foyer à gaz ventilé. Homologué pour installation dans une chambre à coucher, une salle de bain et un studio. Approprié pour installation dans une maison mobile si son installation

conforme aux exigences de la norme CAN / CSA Z240MH Séries de maisons mobile équipées au gaz en vigueur au Canada, ou, aux États-Unis selon la norme 24 CFR, Part 3280,

Manufactured Home Construction and Safety Standard. Dans le cas ou cette norme d’États-Unis n’est pas pertinentes, utiliser la norme NFPA 501A, Fire Safety Criteria for Manufactured

Home Installations, Sites and Communities. Installer l’appareil selon les codes ou règlements locaux ou, en l’absence de tels règlements, selon les codes d’installation ANSI Z223.1 ou

CSA B149 en vigueur. Utiliser uniquement avec l’écran WXXX-XXXX. Suivre les instructions d’installation.

9700539 (WSL) 4001658 (NAC) 4001657 (NGZ) 4001659 (WUSA)

WOLF STEEL LTD. 24 Napoleon Road, Barrie, ON, L4M 0G8 Canada

XXXX XXXX XXXX XXXX

MODEL / MODÈLE

Altitude

Input

Reduced Input

Élévation

Alimentation

Alimentation Réduite

Manifold Pressure: 3.5” w.c. (NG)

Minimum Supply Pressure: 4.5” w.c. (NG)

Maximum Supply Pressure: 7”* w.c. (NG)

Pression au Collecteur: 3,5” d’une colonne d’eau (GN)

Pression d’Alimentation Min.: 4,5” d’une colonne d’eau (GN)

Pression d’Alimentation Max.: 7” ** d’une colonne d’eau (GN)

** Maximum inlet pressure not to exceed 13”.

Manifold Pressure: 10” w.c. (P)

Minimum Supply Pressure: 11” w.c. (P)

Maximum Supply Pressure: 13”* w.c. (P)

Pression au Collecteur: 10” d’une colonne d’eau (P)

Pression d’Alimentation Min.: 11” d’une colonne d’eau (P)

Pression d’Alimentation Max.: 13” * d’une colonne d’eau (P)

** Pression d’alimentation maximale ne devait pas dépasser 13”.

0-XXXXft (0-XXXXm)

Minimum clearance to combustible materials:

Top, sides & back: per standoff spacers for framing and ﬁnishing

materials. For non-combustible framing and ﬁnishing materials,

see installation manual.

Top X”

Floor X”

Sides X”

Back X”

Vent top X”

Vent sides & bottom X”

Recessed depth X”

*** Mantel X” from appliance opening

Dégagements minimaux des matériaux combustibles:

Dessus, côtés et arrière: selon les espaceurs de dégagements

pour les matériaux d’ossature selon le manuel du propriétaire

pour les matériaux de ﬁnition.

Dessus X”

Plancher X“

Côtés X”

Arrière X“

Dessus du conduit d’évent X”

Côtés et dessous du conduit d’évent X”

Profondeur d’encastré une face X”

*** Tablette X” de l’ouverture de l’appareil

WARNING

: Do not add any material to the appliance which will come in contact with the

ﬂames, other than that supplied by the manufacturer with the appliance.

AVERTISSEMENT

: N’ajoutez pas à cet appareil aucun matériau devant entretien

contact avec les ﬂammes autre que celui qui est fourni avec cet appareil par le fabricant.

*** Maximum horizontal extension:

X”. See installation manual for

greater extensions, minimum vent

lengths and maximum vent lengths.

*** L’extension horizontale maximale: X”.

Référez au manuel d’installation pour des

extensions plus grandes, les longueurs

d’évacuation minimaux et maximum.

The appliance must be vented using the appropriate Napoleon vent kits. See installation

manual for venting speciﬁcations. Proper reinstallation and resealing is necessary after servicing

the vent-air intake system.

L’appareil doit être ventilé à l’aide de l’ensemble d’évacuation propre à Napoleon. Référez au

manuel d’installation pour les spéciﬁcations d’évacuation. Il est nécessaire de bien réinstaller et

resceller l’évacuation après avoir executer l’entretien du système de prise d’air.

Serial Number / N° de Série:

W385-XXXX

REFERENCE# 161746

XXXX

VENTED DECORATIVE GAS APPLIANCE: NOT A SOURCE OF

HEAT, NOT INTENDED FOR USE AS A HEATING

APPLIANCE, NOT FOR USE WITH SOLID FUEL.

APPAREIL À GAZ DÉCORATIF À ÉVACUATION: N’EST PAS

UNE SOURCE DE CHALEUR; N’EST PAS DESTINÉ À ÈTRE

UTILISÉ COMME UN APPAREIL DE CHAUFFAGE; NE

CONVIENT PAS AUX COMBUSTIBLES SOLIDES.

FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APPLIANCE ONLY.

POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE

CERTIFIÉES AVEC L’APPAREIL.

XX,XXX XX,XXX

For natural gas when equipped with No. XX drill size oriﬁce.

For propane when equipped with No. XX drill size oriﬁce.

Convient au gaz naturel quand l’appareil est muni d’un injecteur de diamètre no. XX.

Convient au propane quand l’appareil est muni d’un injecteur de diamètre no. XX.

Electrical rating: 115V, 60HZ. Less than 12 amperes.

Spéciﬁcations électriques: 115V, 60HZ. Moins de 12 ampère.

XX.X% XX.X%

XXXX XXXX XXXX XXXX

This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.

1.4 rating plate information

The rating plate must remain with the appliance at all times. It must not be removed.

note:

1.5 mobile home installation

This appliance must be installed in accordance with the manufacturer’s instructions and the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States or the Mobile Home

Standard, CAN/CSA Z240 MH Series, in Canada. This appliance is only for use with the type(s) of gas

indicated on the rating plate.

This mobile/manufactured home listed appliance comes factory equipped with a means to secure the appliance. Built

in appliances are equipped with 1/4” (6.4mm) diameter holes located in the front left and right corners of the base.

Use appropriate fasteners, inserted through the holes in the base to secure. For free standing products contact your

local authorized dealer / distributor for the appropriate securing kit. For mobile home installations, the appliance must

be fastened in place. It is recommended that the appliance be secured in all installations. Always turn off the pilot and

the fuel supply at the source, prior to moving the mobile home. After moving the mobile home and prior to lighting the

appliance, ensure that the logs are positioned correctly.

This appliance is certiﬁ ed to be installed in an aftermarket permanently located, manufactured (mobile) home,

where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible

for use with other gases, unless a certiﬁ ed kit is used.

Conversion Kits

This appliance is ﬁ eld convertible between Natural Gas (NG) and Propane (P).

To convert from one gas to another, consult your Authorized dealer/distributor.

rati

ance with nce with

ndard, Title 24 Cdard, Title 2

SI / NFPA 501A. ThisSI / NFPA 501A. Th

llow installation instruclow installation instru

maison mobile si son installation son mobile si son installa

selon la norme a norme

24 CFR, Part 3280, 24 CFR, Part 3280,

A 501A, Fire Safety Criteria for Manufacture

Safety Criteria for Manufacture

selon les codes d’installationstallation

ANSI Z223.1 ou ANSI Z223.1 ou

Barrie

onÉlév

Alim

Aliment

Alimentation RéduiteAlimentation Réduite

P4P4

anifold Pressure:old Pressure

0” w.c.

(

) w.c. (P)

m Supply Pressure:ply Pressure:

1” w.c.

(

)11” w.c. (P)

mum Supply Pressure: Pressure:

13”* w.c.

(

)13”* w.c. (P)

Collecteur: ollecte

10” d’une colonne d’eau

(

)d’une colonne d’eau (P)

entation Min.:ntation Min.:

11” d’une colonne d’eau

(

)11” d’une colonne d’eau

entation Max.: ation Max.:

13” * d’une colonne d’eau (P13” * d’une colonne d’eau (

imentation maximale ne devait pas dépasser n maximale ne devait pas dépasser

gements minimaux des matériaux combusmaux des matériaux com

s, côtés et arrière: selon les espaceurs de dég, côtés et arrière: selon les espaceurs de dé

our les matériaux d’ossature selon le manuel dles matériaux d’ossature selon le manuel d

pour les matépour les m

Côté

VENTED DECORATIVE GAS AVENTED DECORATIVE GAS A

HEAT, NOT INT, NOT I

APPLIANAPPLIAN

APPAREIL À GAZAPPAREIL À GAZ

UNE SOURCUNE SOURC

UTIL

FOR UFO

W415-2000 / F / 04.13.21

general information

1.6 EX36 dimensions

38 3/4”

OVERALL

33 1/8”*

F.O.

36”*

FIREPLACE OPENING

44”

OVERALL

43 1/2”

HEADER

22 1/2”

22”

8”

1”

8”

5”

EX36

35 1/8”

TOP VIEW

FRONT VIEW

RIGHT SIDE VIEW

30 1/2”

Gas inlet

* Finishing flange (the finishing flange defines the perimeter of the fireplace opening.

Framing or finishing materials must NEVER encroach inside the finishing flange).

Safety

Barrier

W415-2000 / F / 04.13.21

general information

42” *

FIREPLACE OPENING

37 1/8”*

F.O.

44 3/4”

OVERALL

48”

OVERALL

47 1/2”

HEADER

22 1/2”

22”

1”

8”

5”

EX42

39 1/8”

RIGHT SIDE VIEWFRONT VIEWTOP VIEW

36 1/2”

Gas inlet

1.7 EX42 dimensions

* Finishing flange (the finishing flange defines the perimeter of the fireplace opening.

Framing or finishing materials must NEVER encroach inside the finishing flange).

Safety

Barrier

W415-2000 / F / 04.13.21

general information

Ref. # Part Number Description Quantity

W570-0018 #9-14 x 1/2” Wildrill 1/4” Hex 25

W570-0022 #10 x 2 1/2” Pan Head 4

W570-0026 #10 x 1 1/2” Truss Head 4

W570-0053 #8 x 3/4” Hex Head (Blk Zinc) 4

Only fasteners supplied with the appliance will be illustrated.

note:

1.8 hardware list

W415-2000 / F / 04.13.21

venting requirements

2.0 venting requirements

WARNING

• Risk of ﬁ re. Maintain speciﬁ ed air space clearances to vent pipe and appliance.

• The vent system must be supported every 3’(0.9m) for both vertical and horizontal runs. Use support ring assembly

W010-0067 or equivalent non-combustible strapping to maintain the minimum clearance to combustibles for both

vertical and horizontal runs. Spacers are attached to the inner pipe at predetermined intervals to maintain an even air

gap to the outer pipe. This gap is required for safe operation. A spacer is required at the start, middle, and end of each

elbow to ensure this gap is maintained. These spaces must not be removed.

This appliance uses a 5” (127mm) exhaust / 8” (203.2mm) air intake vent pipe system. Refer to the section

applicable to your installation.

For safe and proper operation of the appliance follow the venting instructions exactly. Deviation from the minimum vertical

vent length can create difﬁ culty in burner start-up and/or carboning. Under extreme vent conﬁ gurations, allow several

minutes (5-15) for the ﬂ ame to stabilize after ignition. Although not a requirement, it is recommended for vent lengths that

pass through unheated spaces (attics, garages, crawl spaces) be insulated with the insulation wrapped in a protective sleeve

to minimize condensation. Provide a means for visually checking the vent connection to the appliance after the appliance is

installed. Use a ﬁ restop, vent pipe shield or attic insulation shield when penetrating interior walls, ﬂ oor or ceiling.

The vent terminal may be painted with a high temperature paint to match exterior colours. Use an outdoor paint suitable for

400°F (200°C). Application and performance of paint is the consumer’s responsibility. Spot testing is recommended.

Connections made by means of an adaptor at the appliance, as well as the connection at the vent terminal must be sealed.

RTV sealant may be used on both the inner exhaust and outer intake vent pipe joints of all other approved vent systems, ex-

cept for the exhaust vent pipe connection to the appliance ﬂ ue collar which must be sealed using the black high temperature

sealant Mill Pac.

For all vent systems is strongly recommend for all installations but required when power venting the appliance, that the outer

air intake joints are sealed using either high temperature silicone (RTV) or a suitable aluminum tape that covers each joint in

the vent system entirely around its circumference. This will ensure the best performance in every application and avoids per-

formance or condensation concerns that may occur in “tightly” constructed homes, particularly those in cold climates.

Use only Wolf Steel, Metal-Fab, BDM, Simpson Dura-Vent, or Selkirk Direct Temp venting components. Minimum and

maximum vent lengths, for both horizontal and vertical installations, clearances from vent pipes to combustibles and air

terminal locations as set out in this manual apply to all vent systems and must be adhered to. For Metal-Fab, BDM, Simpson

Dura-Vent, or Selkirk Direct Temp, follow the installation procedure provided with the venting components or on the website

for your venting supplier.

A starter adaptor must be used with the following vent systems and may be purchased through Wolf Steel or from the

corresponding supplier listed below:

If for any reason the vent air intake system is disassembled; reinstall per the instructions provided for the initial

installation.

This appliance must be installed with a continuous connection of exhaust and air intake vent pipes. Utilizing alternate

constructions, such as a chimney as part of the vent system, is not permitted.

note:

Venting System Manufacturer

Starter Adapter

Part Number

Supplier Website

SureSeal Metal-Fab 5DNA Wolf Steel www.mtlfab.com

Direct Vent Pro Simpson DuraVent W175-0170 Wolf Steel www.duravent.com

Pro-Form BDM N/A BDM www.dalsinmfg.com

Direct Temp Selkirk 5DT-AAN Selkirk www.selkirkcorp.com

Ventis

Olympia Chimney

and Venting

VDV-NA05-58F

Olympia Chimney

and Venting

www.olympiachimney.com

When using Wolf Steel venting components, use only approved Wolf Steel rigid / ﬂ exible components with the

following termination kits: wall terminal kit GD422R-2, or 1/12 to 7/12 pitch roof terminal kit GD410, 8/12 to

12/12 roof terminal kit GD411, ﬂ at roof terminal kit GD412 or periscope kit GD401 (for wall penetration below

grade). With ﬂ exible venting, in conjunction with the various terminations, use either the 5 foot (1.5m) vent kit

GD420 or the 10 foot (3.1m) vent kit GD430.

W415-2000 / F / 04.13.21

venting requirements

12"

(30.5cm)

minimum

to grade

Special vent installation (periscope termination)

Use the periscope kit to locate the air termination above grade. The periscope must be installed so that when

ﬁ nal grading is completed, the bottom air slot is located a minimum 12” (30.5cm) above grade. The maximum

allowable vent length is 10’ (3m) for a ﬁ replace and 8’ (2m) for a stove.

base of air collar

• The ﬁ rst 3 feet of outer 8” (203mm)

diameter vent pipe from the ap-

pliance must be wrapped in the

1” (25mm) thick insulation sleeve

(supplied).

WARNING

• The ﬁ rst 3 feet of outer 8” (203mm)

diameter vent pipe from the ap-

pliance must be wrapped in the

1” (25mm) thick insulation sleeve

(supplied).

WARNING

24"

(61cm)

30" (76.2cm)

minimum

insulated

sleeve

insulated

sleeve

For optimum ﬂ ame appearance and appliance performance, keep the vent length and number of elbows to a minimum.

The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify that

it is unobstructed and undamaged.

Rigid and ﬂ exible venting systems must not be combined. Different venting manufacturer components must not

be combined.

These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable horizontal run is 20

feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The maximum number of vent connections is two

horizontally or three vertically (excluding the appliance and the air terminal connections) when using ﬂ exible venting.

Horizontal runs may have a 0” (0mm) rise per foot/meter however for optimum performance it is recommended that all

horizontal runs have a minimum 1/4” (21mm) rise per foot/meter using ﬂ exible venting. For safe and proper operation of the

appliance, follow the venting instructions exactly.

A terminal shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwell-

ings and serves both dwellings. Local codes or regulations may require different clearances.

This appliance is certiﬁ ed for use with a power vent kit. Contact your local authorized dealer for more information.

20" (51cm)

maximum

2.1 typical venting installation

All vent measurements start at the base of the air collar of the appliance.

EX36 EX42

59” 63”

W415-2000 / F / 04.13.21

venting requirements

16" (40.6cm)

MINIMUM

40 FT (12M)

MAXIMUM

3 FT (1M)

MINIMUM

* Refer to “venting requirements” and “venting installation” sections.

base of air collar

• The ﬁ rst 3 feet of outer 8” (203mm)

diameter vent pipe from the ap-

pliance must be wrapped in the

1” (25mm) thick insulation sleeve

(supplied).

WARNING

insulated sleeve

W415-2000 / F / 04.13.21

venting requirements

2.2 minimum air terminal location clearances

MIN

MAX

= 3 feet

(0.9m)

= 2 x

IHHW

(4.6m)

ACTUAL

INSTALLATIONS

CANADA U.S.A.

12” (30.5cm) 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony.

12” (30.5cm)

9” (229mm)

Clearance to windows or doors that open.

12” (30.5cm)* 12” (30.5cm)* Clearance to permanently closed windows.

18”

(45.7cm)**

18”

(45.7cm)**

Vertical clearance to ventilated sofﬁ ts located above the terminal within a horizontal distance of 2’ (0.6m)

from the center line of the terminal.

12” (30.5cm)** 12” (30.5cm)** Clearance to unventilated sofﬁ t.

0” (0mm) 0” (0mm) Clearance to an outside corner wall.

0” (0mm)*** 0” (0mm)***

Clearance to an inside non-combustible corner wall or protruding non-combustible obstructions (chimney, etc.).

2” (51mm)*** 2” (51mm)*** Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).

3’(0.9m) 3’(0.9m)****

Clearance to each side of the center line extended above the meter / regulator assembly to a maximum

vertical distance of 15’ (4.6m).

3’ (0.9m) 3’ (0.9m)**** Clearance to a service regulator vent outlet.

12” (30.5cm) 9” (229mm) Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.

6’ (1.8m) 3’ (0.9m) † Clearance to a mechanical air supply inlet.

7’ (2.1m) ‡ 7’ (2.1m) **** Clearance above a paved sidewalk or paved driveway located on public property.

12” (30.5cm)†† 12” (30.5cm)**** Clearance under a veranda, porch, deck or overhang.

16” (40.6cm) 16” (40.6cm) Clearance above the roof.

2’ (0.6m)†* 2’ (0.6m) †* Clearance from an adjacent wall including neighbouring buildings.

8’ (2.4m) 8’ (2.4m)

Roof must be non-combustible without openings.

3’ (0.9m) 3’ (0.9m) See chart for wider wall dimensions.

6’ (1.8m) 6’ (1.8m)

See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an opening

between the terminal and the open side of the structure.

12” (30.5cm) 12” (30.5cm) Clearance under a covered balcony

Δ The terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.

* Recommended to prevent condensation on windows and thermal breakage

** It is recommended to use a heat shield and to maximize the distance to vinyl clad sofﬁ ts.

*** The periscope requires a minimum 18 inches clearance from an inside corner.

**** This is a recommended distance. For additional requirements, check local codes.

† 3 feet above if within 10 feet horizontally.

‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.

†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the ﬂ oor.

†* Recommended to prevent recirculation of exhaust products. For additional requirements, check local codes.

††* Permitted only if the balcony is fully open on a minimum of one side.

Wall terminals are for illustration purposes only. Size and shapes may vary. Wall terminal

measurements taken from the exhaust outlet, not the mounting plate.

Covered balcony applications ††*

Clearances are to be in accordance with local

installation codes and the requirements of the gas

supplier. In their absence, clearances are to be as

listed above and are based on national codes.

note:

W415-2000 / F / 04.13.21

venting requirements

2.3 all terminations

0’

Base of

air collar

10’

15’

20’

25’

20’

30’

40’

5’

1.7’

(20”)

2’ min.

(24”)

5’

1 elbow zone

1-2 elbow zone

1-3 elbow zone

1-4 elbow zone

1-5 elbow zone

1-6 elbow zone

V+H ≤ 40 ft. (For longer vent runs, a power

vent is required).

H ≤ 20 ft.

V + H are measured from the centre of vent

elbows. Elbows are considered as 90º.

Two 45º elbows = One 90º elbow.

3’ min.

(36”)

38 1/2’

(462”)

Vertical termination only.

No horizontal termination allowed.

W415-2000 / F / 04.13.21

rough framing

WARNING

• Risk of ﬁ re!

• In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the appliance

body, it is recommended that the walls of the appliance enclosure be “ﬁ nished” (i.e. drywall / sheetrock),

as you would ﬁ nish any other outside wall of a home. This will ensure that clearance to combustibles is

maintained within the cavity.

• Do not notch the framing around the appliance stand offs. Failure to maintain air space clearance may cause

over heating and ﬁ re. Prevent contact with sagging or loose insulation or framing and other combustible

materials. Block opening into the chase to prevent entry of blown-in insulation. Make sure insulation and

other materials are secured.

• When constructing the enclosure, allow for ﬁ nishing material thickness to maintain clearances. Framing or

ﬁ nishing material closer than the minimums listed must be constructed entirely of non-combustible materials.

Materials consisting entirely of steel, iron, brick, tile, concrete, slate, glass or plasters, or any combination

thereof are suitable. Materials that are reported as passing ASTM E136, standard test method for behaviour

of materials in a vertical tube furnace at 1382ºF (750ºC) and UL763 shall be considered non-combustible

materials.

• Minimum clearance to combusibles must be maintained or a serious ﬁ re hazard could result.

• The appliance requires a minimum enclosure height. Measure from the appliance base.

• If steel stud framing kits with cement board are provided, or speciﬁ ed in the installation instructions, they

must be installed.

• If speciﬁ ed in the installation instruction, ﬁ nishing must be done using a non-combustible board, ceramic tile,

marble, etc. Do NOT use wood or drywall. Any ﬁ re rated drywall is not acceptable.

When using optional ﬁ nishing accessories, the framing dimensions and ﬁ nishing materials may differ from

what is outlined in the section below; refer to the leaﬂ et instructions supplied in the accessory kit for speciﬁ c

framing and ﬁ nishing speciﬁ cations.

note:

3.0 rough framing

It is NOT necessary to install a hearth extension, but the appliance MUST be raised to be ﬂ ush with either the

hearth or the ﬁ nished ﬂ oor if installing any optional trims.

note:

It is necessary early on to choose either a non-combustible ﬁ nishing kit (NCEX36/42) or a combustible ﬁ nishing

kit (DHCEX). Speciﬁ c framing requirements need to be considered depending on which kit is used. With the

combustible framing kit (DHCEX), an air outlet opening is required in the appliance enclosure, as opposed to the

non-combustible framing kit (NCEX36/42) where no opening is needed. Refer to the manual or leaﬂ et for details.

note:

W415-2000 / F / 04.13.21

rough framing

3.1 header shield installation

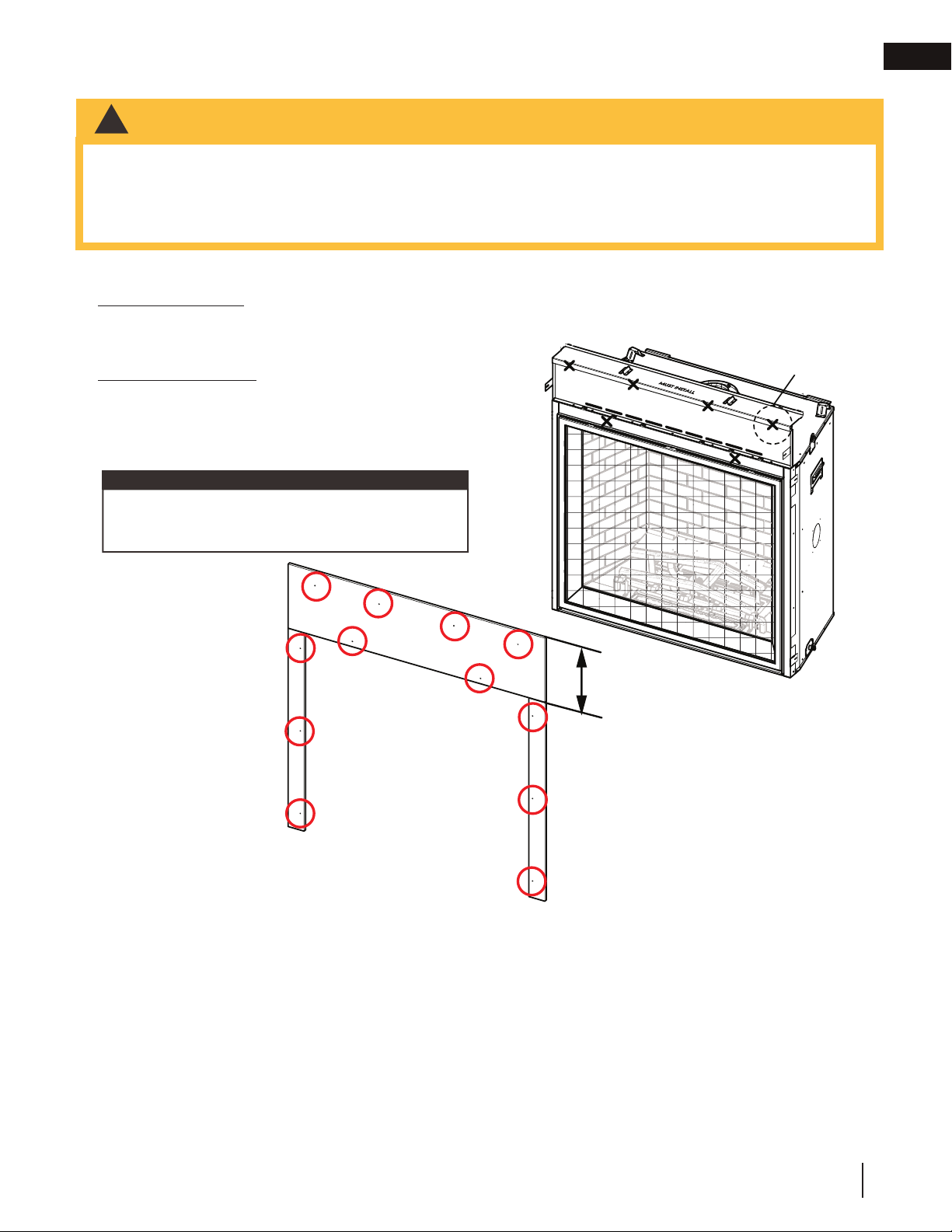

The header shield provides the minimum clearance to the header. Use only non-combustible material for the

width of the appliance.

note:

Screw count varies by model.

note:

Remove the 4 screws securing the header shield. Once the header shield is removed, replace the 4

screws removed in step 1.

Secure the header shield with 7 screws (provided)

and remove the shipping brackets.

Bend the nailing tabs out 180º.

Nailing tab

Shipping bracket

W415-2000 / F / 04.13.21

rough framing

72”

(182.8cm)

min.

Before framing your appliance, determine vent requirements prior to deciding the ﬁ nal location of the appliance.

After rough framing, place the appliance in its ﬁ nal position.

For heavier ﬁ nishing materials such as marble, we recommend adding extra support to the frame. Ensure

there is adequate ﬂ oor support for the appliance and ﬁ nishing material.

note:

EX36 EX42

42 3/4” 48 3/4”

22 1/4”

4 1/2” min.

Finished ﬂ oor thicknesses vary. Lift the appliance the thickness of the ﬂ oor material - this ensures the 1/4” clear-

ance when the ﬁ nishing trim is installed (i.e. 1/4” underlay with 1/4” tile will require a 1/2” ﬁ nished ﬂ oor thickness.

Lift the appliance using 1/2” plywood).

W415-2000 / F / 04.13.21

rough framing

Do not

ut ob

ects in

ront o

the a

liance

(

minimum distance of 4 feet

)

SIDE WALL

6” min.

3.2 minimum framing dimensions

Horizontal vent sections: A minimum clearance of 3” (76mm) on the top of the vent to combustibles and 2”

(51mm) on the sides and bottom of the vent to combustibles is required.

Vertical vent sections: A minimum clearance of 1” (25mm) all around the vent pipe on all vertical runs to com-

bustibles is required.

EX36 EX42

22 1/4”

53 3/8” 57 13 /16”

75 1/2” 81 11/16”

W415-2000 / F / 04.13.21

rough framing

3.3 minimum clearance to combustible enclosures

* Refer to “venting requirements” and “venting installation” sections.

Vent Sections

When passing through a wall, use ﬁ restop spacer W010-1800 (supplied).

When passing through a ceiling, use ﬁ restop spacer W500-0028 (not supplied).

note:

** Clearances within the enclosure may be higher (refer to “minimum framing dimensions” section).

Firestop

assembly

Non-combustible

material

1" [25mm]

0” [0mm] if non-combustible

ﬁnishing material is used

such as brick and stone.

Insulated

sleeve

[76mm]

to top

[51mm] to

sides / bottom

Non-combustible

Brick

Combustible

1" [25mm] minimum all sides for vertical venting sections.

When passing through a ceiling, use ﬁrestop

W500-0028 (not supplied).

min.

12"

[305mm]

* 72"

(182.8cm)

min.

10 1/4"

EX36 EX42

59” 63”

+ rise

* The minimum enclosure

height is determined based

on volume of air needed in

the enclosure.

W415-2000 / F / 04.13.21

venting installation

For optimum performance, it is recommended that all horizontal runs have a minimum of 1/4" (6mm) rise per foot

using ﬂ exible venting. For safe and proper operation of the appliance, follow the venting instructions exactly.

WARNING

• Ensure to unpack all loose materials from inside the ﬁ rebox prior to connecting the gas and electrical supply

• If your appliance is supplied with a remote, ensure the remote receiver is in the “OFF” position prior

to connecting the gas and electrical supply to the appliance.

• For safe and proper operation of the appliance, follow the venting instructions exactly.

• The appliance exhaust ﬂ ue collar must be sealed using Mill Pac. All exhaust and intake vent pipe joints

must be sealed using red RTV high temp silicone sealant (W573-0002) (not supplied) or black high temp Mill

Pac (W573-0007) (not supplied).

• If using pipe clamps to connect rigid vent components, a minimum of 3 screws must also be used to ensure

the connection cannot slip off.

• Do not clamp the ﬂ exible vent pipe.

• Risk of ﬁ re, explosion, or asphyxiation. Improper support of the entire venting system may allow vent to sag

and separate. Use vent run supports and connect vent sections per installation instructions.

• Risk of ﬁ re, do not allow loose materials or insulation to touch the vent pipe. Remove insulation to allow for the

installation of the attic shield and to maintain clearances to combustibles.

• Do not ﬁ ll the space between the vent pipe and enclosure with any type of material. Do not pack insulation

or combustibles between ceiling ﬁ restops. Always maintain speciﬁ ed clearances around venting and ﬁ restop

systems. Install wall shields and ﬁ restops as speciﬁ ed. Failure to keep insulation or other materials away from

vent pipe may cause ﬁ re.

• For gas stoves only: If the appliance is installed directly on carpeting, vinyl tile, or other combustible material

other than wood ﬂ ooring, the appliance shall be installed on a metal or wood panel extending the full width and

depth, unless otherwise tested.

4.0 venting installation

W415-2000 / F / 04.13.21

venting installation

This application occurs when venting through an exterior

wall. Having determined the correct height for the air

terminal location, cut and frame a hole in the exterior wall,

as illustrated, to accommodate the ﬁ restop assembly. Dry

ﬁ t the ﬁ restop assembly before proceeding to ensure the

brackets on the rear surface ﬁ t to the inside surface of the

horizontal framing.

The vent shield must be installed to the full depth of

the combustible wall. The length of the vent shield may

cut shorter for combustible walls that less than 8 1/2”

(216mm) thick.

A. Fold the vent shield up so that it is perpendicular to the

spacer plate.

B. Bend the tabs located on either side of the vent shield so

that they are just shy of 90º to the spacer plate.

C. On both sides of the ﬁ restop, fasten the (W570-0018)

screws through the clearance holes in the bend tabs and

threaded into the holes in the vent shield.

D. Apply a bead of caulking around the outer edge of the

ﬁ restop assembly.

E. Screw the ﬁ restop onto the wall/framing, using 4 screws.

F. Once the vent pipe is installed in its ﬁ nal position, apply

red RTV silicone (W573-0002) (not supplied) between the

pipe and the ﬁ restop.

Bend the tabs for reduced side clearances or move

the shield for reduced top clearances (dependent

on speciﬁ c appliance clearances). Do not ﬁ ll the air

space between the ﬁ restop spacer and the exterior

wall with any type of insulating material (i.e. spray

foam).

note:

DETERMINE

THE

CORRECT

HEIGHT

CAULKING

FIRESTOP

SPACER

VENT

SHIELD

FINISHING

MATERIAL

CAULKING

The above is for illustrative purposes

only. Vents do not always pass through

center of frame.

13 1/8”

(33.3CM)

14 1/2”

(36.8CM)

• The ﬁ restop assembly must be installed with the vent shield to the top.

• Terminals must not be recessed into a wall or siding more than the depth of the return ﬂ ange of the mounting

plate.

• The vent shield must be ﬁ xed in place by fastening the extended vent shield to the bend tabs using the

supplied fasteners.

WARNING

Where the venting passes horizontally through a wall, you MUST use a Wolf Steel ﬁ restop for all rigid and ﬂ ex vent

systems. The gap between the outside diameter of the vent and the ﬁ restop MUST be completely sealed with

high temperature RTV. When using ﬂ ex venting, use ﬁ restop assembly W010-4479 (not supplied).

When using rigid venting, use ﬁ restop assembly 5DHFSN (not supplied).

note:

4.1 horizontal installation

W415-2000 / F / 04.13.21

venting installation

This application occurs when venting through a roof. Installation kits for

various roof pitches are available from your authorized dealer / distributor.

See the “accessories” section to order speciﬁ c kits required.

A. Determine the air terminal location, cut and frame a square opening,

as illustrated, in the ceiling and the roof to provide the minimum 1"

(25mm) clearance between the vent pipe and any combustible material.

Try to center the vent pipe location midway between two joists to

prevent having to cut them. Use a plumb bob to line up the center of

the openings. A vent pipe shield will prevent any materials such as

insulation, from ﬁ lling up the 1" (25mm) air space around the pipe. Nail

headers between the joist for extra support.

B. Apply a bead of caulking (not supplied) to the framework or to the

Wolf Steel vent pipe shield plate or equivalent (in the case of a ﬁ nished

ceiling), and secure over the opening in the ceiling. A ﬁ restop must be

placed on the bottom of each framed opening in a roof or ceiling that

the venting system passes through. Apply a bead of caulking all around

and place a ﬁ restop spacer over the vent shield to restrict cold air from

being drawn into the room or around the ﬁ replace. Ensure that both

spacer and shield maintain the required clearance to combustibles.

Once the vent pipe is installed in its ﬁ nal position, apply red RTV

silicone (W573-0002) (not supplied) between the pipe and the ﬁ restop

assembly.

C. In the attic, slide the vent pipe collar down to cover up the open end

of the shield and tighten. This will prevent any materials, such as

insulation, from ﬁ lling up the 1" (25mm) air space around the pipe.

Caulking

Vent Pipe

Shield

Vent

Pipe

Shield

Vent

Pipe

Collar

Firestop

underside

of joist

Where the venting passes vertically through a ceiling you use MUST use a Wolf Steel ﬁ restop for all rigid and

ﬂ ex vent systems. The gap between the outside diameter of the vent and the ﬁ restop MUST be completely

sealed with high temperature RTV.

For 4”/7” appliances:

When using ﬂ ex venting, use ﬁ restop assembly W500-0292 (not supplied).

When using rigid venting, use ﬁ restop assembly 4DFS (not supplied).

For 5”/8” appliances:

When using ﬂ ex venting, use ﬁ restop assembly W500-0028 (not supplied).

When using rigid venting, use ﬁ restop assembly 5DFS (not supplied).

note:

4.2 vertical installation

W415-2000 / F / 04.13.21

venting installation

4.3 using either ﬂ exible vent components

A. Stretch the inner ﬂ ex pipe to the required length taking

into account the additional length needed for the ﬁ nished

wall surface. Apply a heavy bead of the red RTV silicone

(W573-0002) (not supplied) to the inner sleeve of the air

terminal. Slip the vent pipe a minimum of 2” (50.8mm)

over the inner sleeve of the air terminal and secure with a

minimum of 3 screws.

B. Using the outer ﬂ ex pipe, slide over the outer combustion

air sleeve of the air terminal and secure with a minimum

of 3 screws. Seal using red RTV silicone (W573-0002)

(not supplied).

C. Insert the vent pipes through the ﬁ restop maintaining

the required clearance to combustibles. Holding the air

terminal (lettering in an upright, readable position), secure

to the exterior wall and make weather tight by sealing

with caulking (not supplied).

D. If more vent pipe needs to be used to reach the ﬁ replace,

couple them together, as illustrated. The vent system

must be supported approximately every 3 feet (0.9m) for

both vertical and horizontal runs. Use non-combustible

strapping to maintain the minimum clearance to

combustibles.

E. Stove Appliances Only: From inside the house, using

R d RTV Sili (W573 0002) ( t li d) l

ADD FA

TENER TYP

ADD GRAPHIC

For safe and proper operation of the appliance, follow the venting instructions

exactly.

The vent system must be supported approximately every 3 feet (0.9m) for

both vertical and horizontal runs. Use Wolf Steel Ltd. support ring assembly

or equivalent noncombustible strapping to maintain the minimum clearance to

combustibles for both vertical and horizontal runs.

All inner ﬂ ex pipe and outer ﬂ ex pipe joints may be sealed using high temperature

red RTV silicone W573-0002 (not supplied) or the high temperature sealant W573-

0007 Mill Pac (not supplied). However, the high temperature sealant W573-0007

Mill Pac (not supplied) must be used on the joint connecting the inner ﬂ ex pipe and

the exhaust ﬂ ue collar.

Use only approved ﬂ exible vent pipe kits marked:

“Wolf Steel Approved Venting” or “E2” as identiﬁ ed by the stamp only on the ﬂ ex pipes.

Elbow

Spacers

• Do not allow the inner ﬂ ex pipe to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight.

• Spacers are attached to the inner ﬂ ex pipe at predetermined intervals to maintain an even air gap to the outer

ﬂ ex pipe. This gap is required for safe operation. A spacer is required at the start, middle, and end of each

elbow to ensure this gap is maintained. These spacers must not be removed.

WARNING

Red RTV Silicone

Screws

Inner Coupler

Outer Coupler

Outer Flex

Pipe

Inner Flex

Pipe

Outer Flex

Pipe

When installing using rigid vent components, follow the manufacturer’s installation and vent sealing requirements.

4.3.1 horizontal air terminal installation

The air terminal mounting plate may be recessed into the

exterior wall or siding no great than the depth of its return

flange.

Screws

(Supplied)

2" (50.8mm) Overlap

Outer Flex Pipe

Inner Flex

Pipe

Caulking

Red RTV Silicone

Type 2 (x4)

Type 1 (x6)

W415-2000 / F / 04.13.21

venting installation

A. Install the inner ﬂ ex pipe to the appliance. Secure with a minimum of

three screws when installing 3”/5”, 4”/7” or 5”/8” venting, or six screws

when installing 8”/10” or 8”/11” venting. Seal the joint and screw holes

using Mill Pac sealant (W573-0007) (not supplied).

B. Install the outer ﬂ ex pipe to the appliance. Secure with a minimum of

three screws when installing 3”/5”, 4”/7” or 5”/”8 venting, or six screws

when installing 8”/10” or 8”/11” venting. Seal the joints using high

temperature red RTV silicone (W573-0002) (not supplied).

INSERT

IMAGE HERE

ADD FA

TENER TYP

4.3.2 vertical air terminal installation

1 1/4” (31.8mm)

Overlap

#8 X 1/2”

Self Drilling

Screws

Mill-Pac Sealant

Red RTV

Silicone

4.3.3 appliance vent connection

A. Fasten the roof support to the roof using 6 screws. The roof support is

optional. In this case, the venting is to be adequately supported using

either an alternate method suitable to the authority having jurisdiction or

the optional roof support.

B. Stretch the inner ﬂ ex pipe to the required length. Slip the inner ﬂ ex

pipe a minimum of 2” (51mm) over the inner pipe of the air terminal

connector and secure with a minimum of three screws, when 4/7, 5/8

and 3/5 venting is used and a minimum of six screws when using 8/10

or 8/11 venting. Seal using a heavy bead of red RTV silicone sealant

(W573-0002) (not supplied).

C. Repeat using the outer ﬂ ex pipe, using a heavy bead of red RTV

silicone sealant (W573-0002) (not supplied) and a minimum of three

screws, when 4/7, 5/8 and 3/5 venting is used and a minimum of six

screws when using 8/10 or 8/11 venting.

D. Thread the air terminal connector / vent pipe assembly down through

the roof. The air terminal must be positioned vertically and plumb.

Attach the air terminal connector to the roof support, ensuring that the

top of the air terminal is 16” (40.6cm) above the highest point that it

penetrates the roof.

E. Remove nails from the shingles, above and to the sides of the air

terminal connector. Place the ﬂ ashing over the air terminal connector

leaving a min. 3/4” (19mm) of the air terminal connector showing above

the top of the ﬂ ashing. Slide the ﬂ ashing underneath the sides and

upper edge of the shingles. Ensure that the air terminal connector is

properly centered within the ﬂ ashing, giving a 3/4” (19mm) margin all

around. Fasten to the roof. Do not nail through the lower portion of the

ﬂ ashing. Make weather-tight by sealing with caulking. Where possible,

cover the sides and top edges of the ﬂ ashing with rooﬁ ng material.

F. Aligning the seams of the terminal and air terminal connector, place the

terminal over the air terminal connector making sure the vent pipe goes

into the hole in the terminal. Secure with a minimum of three screws,

when 4/7, 5/8 and 3/5 venting is used and a minimum of six screws

when using 8/10 or 8/11 venting.

G. Apply a heavy bead of weatherproof caulking 2” (51mm) above the

ﬂ ashing. Install the storm collar around the air terminal and slide down

to the caulking. Tighten to ensure that a weather-tight seal between the

air terminal and the collar is achieved.

H. If more vent pipe needs to be used to reach the appliance, see “horizontal

air terminal installation” section.

Roof Support

Inner Flex Pipe

Inner Pipe

Red RTV

Silicone

(W572-0002)

Air

Terminal

Connector

Outer Flex Pipe

Storm Collar

Flashing

Caulking

Weather

Sealant

2” (51mm)

Air Inlet

Base

WARNING

• Maintain a minimum 2” (51mm) space between the air inlet base and the storm collar.

Fastening hardware provided with appropriate roof terminal and liner kits.

note:

W415-2000 / F / 04.13.21

venting installation

4.3.4 restricting vents

• Turn off gas and electrical supply before servicing the appliance.

• Appliance may be hot, do not service until appliance is cool.

• For safe and proper operation of the appliance, follow the venting instruction exactly.

• To avoid danger of suffocation, keep the packaging bag away from babies and children. Do not use in

cribs, beds, carriages or play pens. This bag is not a toy. Knot before throwing away.

WARNING

Vertical installations may display a very active ﬂ ame. If this appearance is not desirable, the exhaust outlet may be

restricted with a Wolf Steel approved restrictor kit.

A. The exhaust outlet reducer is factory installed for all vent conﬁ gurations.

B. Depending on the amount of restriction desired, the restrictor plate (supplied) can be installed ﬂ at for the

most restriction or bent up for varying degrees of restriction.

Restrictor plate

Exhaust outlet

reducer







1. Most restriction

2. Moderate restriction

3. Least restriction

Exhaust collar

Firebox top

#8x½ hex head

sheet metal screw

MIN/MAX

57" / 20'

NO RESTRICTION PLATE REQUIRED

8 FT (70°)

10 FT (45°)

20 FT(40°)

30 FT (35°)

40 FT (

30°

)

CLOSED

20°

45°

70°

NATURAL GAS

Note: Adjust paddle based

on more "V" or "H"

NG / LP

** FOR SEVERELY RESTRICTED VENT CONFIGURATIONS, THE PRE-INSTALLED

REDUCER MAY BE REMOVED.

Fig. 1

Fig. 2

Fig. 3

W415-2000 / F / 04.13.21

electrical information

It is necessary to hard wire this appliance.

This appliance must be electrically connected and grounded in accordance with local codes. In the absence

of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA 70 National

Electrical Code in the United States.

5.0 electrical information

5.1 hard wiring connection

5.2 junction box installation

5.3 electronic wiring diagram

WARNING

• Do not use this appliance if any part has been under water. Call a qualiﬁ ed service technician immediately to

have the appliance inspected for damage to the electrical circuit.

• Risk of electrical shock or explosion. Do not wire 110V to the valve or to the appliance wall switch. Incorrect

wiring will damage controls.

• All wiring should be done by a qualiﬁ ed electrician and shall be in compliance with local codes. In the

absence of local codes, use the current CSA22.1 Canadian Electric Code in Canada or the current National

Electric Code ANSI/NFPA NO. 70 in the United States.

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out, with the glass door opened or

removed.

A. Remove the two screws that secure the junction box assembly to the outer shell on the left side of the

appliance and remove the junction box assembly.

B. Remove the one screw that secures the junction box to the

junction box plate and slide off the clip.

C. Route the supply wire through the 7/8” (22.2mm) hole of the

junction box plate with a box connector (not supplied).

D. Connect the 120 volt supply wire to the receptacle as per

the current CSA C22.1 Canadian Electrical Code in Canada

or the current ANSI/NFPA 70 National Electrical Code in the

United States.

E. Once the wiring is complete, re-install the junction box to the

junction box plate and re-secure the screw that was removed

in step B.

F. Re-install the junction box assembly by reversing step A

making sure all plugs are secure in the junction box.

note:

If the appliance is already installed inside the enclosure, you can access the junction box from inside the appli-

ance by removing the burner base assembly (see “accessing the blower” section).

W415-2000 / F / 04.13.21

electrical information

5.4 eFIRE Controller application

Napoleon’s eFIRE application will revolutionize the way you use your fireplace! We have cracked the code and

present to you the first fireplaces to be controlled by Bluetooth technology, using an intuitive app on your mobile

device.

When fully equipped (if applicable), the eFIRE application allows you to select from a multitude of colours to suit

your mood or décor simply by scrolling through the colour wheel. Additionally, Napoleon’s eFIRE application allows

you to control many other functions of your fireplace, including on/off, flame height, light feature, blower, and a

timer to create a schedule for your fireplace that works for you.

Using the instructions on the eFIRE Controller application website http://napoleon.com/efire, install the

application and enjoy the features the eFIRE Controller application has to offer. *

* Visit the website or contact your authorized dealer for appliance-specific information and/or frequently asked

questions regarding features and products available with the eFIRE Controller application.

note:

The remote control is considered the master control for the appliance and can always be used to turn the

appliance off (ex. the eFIRE Controller application user, in control of the appliance, leaves the home).

W415-2000 / F / 04.13.21

electrical information

5.5 initializing the transmitter / battery holder for the ﬁ rst time

• Ensure the gas and electrical power to the appliance is turned off.

• Appliance may be hot, do not service until the appliance has cooled.

WARNING

A. Install the 4 AA batteries into the Proﬂ ame 2 battery holder, note the polarity of the batteries and insert as

indicated on the cover (+/-).

B. Ensure the 3 position slider switch is switched to the “REMOTE” position (middle position).

C. Press the reset/programming button, use a small object such as a paper clip in order to reach the button

marked PRG, as shown in the illustration below.

D. The battery holder will beep 3 times to indicate that it’s ready to synchronize with the transmitter.

E. Install the 3 AAA batteries into the transmitter, as shown in the photograph below, then press the ON

button. The battery holder will beep 4 times to indicate that the transmitter’s command is accepted.

(4) AA Batteries

Remote control

Reset / Program

Button (PRG)

Battery Holder

(including switch)

Slider Switch

The initializing process must be completed within 10 seconds of pressing the reset/programming button (PRG).

note:

Receiver must be located

within 8 feet (2.4m) of this side

of the appliance and must be

accessible for

programming the remote.

Install the receiver into a

standard electrical switch

box. Determine an

appropriate location and

install the electrical box.

(4) AA Batteries

ON REMOTE OFF

(4) AA Batteries

ON REMOTE OFF

Ensure the three position slider

switch is in the “REMOTE”

position (middle).

note:

W415-2000 / F / 04.13.21

electrical information

5.6 wiring diagram

• Do not wire 110 volts to the valve or wall switch.

WARNING

PILOT

RESET

BUTTON

W010-4611 (NG)

W010-2808 (P)

BATTERY HOLDER COMPLETE

LAMP

COMFORT

FAN

WITH PROGRAM BUTTON

W190-0177 (RECEIVER)

W750-0294

BLUETOOTH

(W190-0090)

W750-0472

(LIGHT PIGTAIL)

W707-0019

W750-0377

ACCENT LIGHTS

W750-0276

WIRE HARNESS

W350-0655

W405-0094

GROUND

W750-0472

(LIGHT PIGTAIL)

(BLOWER

PIGTAIL)

JUMPER

REAR

W190-0156

FRONT LIGHTS

W010-4608

W405-0094

W707-0032

W725-0058

W415-2000 / F / 04.13.21

electrical information

6.0 gas installation

WARNING

• Risk of ﬁ re, explosion, or asphyxiation. Ensure there are no ignition sources such as sparks or open ﬂ ames.

• Support gas control when attaching gas supply pipe to prevent damaging gas line.

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door opened

or removed. Purging of the gas supply line should be performed by a qualiﬁ ed service technician. Ensure

that a continuous gas ﬂ ow is at the burner before closing the door. Ensure adequate ventilation. For gas and

electrical locations, see “dimensions” section.

• All gas connections must be contained within the appliance when complete (gas ﬁ replaces only).

• High pressure will damage valve. Disconnect gas supply piping before testing gas line at test pressures above

1/2 PSIG.

• Valve settings have been factory set, do not change.

Installation and servicing to be done by a qualiﬁ ed installer.

• Move the appliance into position and secure.

• If equipped with a ﬂ ex connector, the appliance is designed to accept a 1/2” (13mm) gas supply. Without the

connector, it is designed to accept a 3/8” (9.5mm) gas supply. The appliance is equipped with a manual shut

off valve to turn off the gas supply to the appliance.

• Connect the gas supply in accordance to local codes. In the absence of local codes, install to the current

CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI Z223.1 / NFPA

54 in the United States.

• When ﬂ exing any gas line, support the gas valve so that the lines are not bent or kinked.

• The gas line ﬂ ex-connector should be installed to provide sufﬁ cient movement for shifting the burner assembly

on its side to aid with servicing components.

• Check for

as leaks b

brushin

on a soa

and water solution. Do not use o

en ﬂ ame.

After installing the electrical wiring and gas lines, ensure to test the appliance before ﬁ nishing the framing and ﬁ nish-

ing the appliance.

A. Remove the 4 screws holding the grate into position.

B. Remove the 6 screws securing the gas access panel.

A gas access hole has been provided to help with gas installation. Plate and gasket must be sealed before

operation.

note:

W415-2000 / F / 04.13.21

operation

7.0 operation

WARNING

• Do not turn on if children or other at risk individuals are near the appliance.

• This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

• Before operating, smell all around the appliance area for gas and next to the ﬂ oor because some gas is

heavier than air and will settle on the ﬂ oor.

• Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician

to inspect the appliance and replace any part of the control system and any gas control which has been

underwater.

FOR YOUR SAFETY READ BEFORE LIGHTING

WHAT TO DO IF YOU SMELL GAS

LIGHTING INSTRUCTIONS

TO TURN OFF GAS

A. Stop! Read the above safety information on this label.

B. Remove batteries from the transmitter and set thermostat to lowest setting, if

equipped.

C. Turn off all electrical power to the appliance.

D. Open the glass door, if equipped.

E. Turn the manual shut-off valve clockwise to the “OFF” position. (Shut-off valve is

located on the ﬂ ex connector).

F. Wait ﬁ ve (5) minutes to clear out any gas. If you smell gas including near the

ﬂ oor, STOP! Follow the instructions above in the “WHAT TO DO IF YOU

SMELL GAS” section. If you don’t smell gas; close the glass door and go to

the next step.

G. Turn the manual shut-off valve counter clockwise to the “ON” position.

H. Turn on all electrical power to the appliance and re-install the batteries into the

transmitter. Set thermostat to desired setting, if equipped.

I. Turn on the remote wall switch to the appliance.

J. If the appliance will not operate, follow instructions “TO TURN OFF GAS” and

call your service technician or gas supplier.

A. Set thermostat to lowest setting, if equipped.

B. Turn off the remote wall switch to the appliance.

C. Turn off all electric power to the appliance if service is to be performed.

D. Turn manual shutoff valve clockwise to the “OFF” positon. Do not force.

• Turn off all gas to the appliance.

• Open windows.

• Do not try to light any appliance.

• Do not touch any electric switch; do not use

any phone in your building

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call

the ﬁ re department.

• If you do not follow these instructions exactly, a ﬁ re or explosion may result causing property damage, personal

injury, or loss of life.

• If applicable, always light the pilot whether for the ﬁ rst time or if the gas supply has run out with the glass door

opened or removed.

add gas knob

add gas valve

Ensure that a continuous gas ﬂ ow is at the burner before installing the door. When lit for the ﬁ rst time, the

appliance will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of

paints and lubricants used in the manufacturing process and will not occur again. After extended periods of

non-operation, such as, following a vacation or warm weather season, the appliance may emit a slight odor for a

few hours. This is caused by dust particules in the heat exchanger burning off. In both cases, open a window to

sufﬁ ciently ventilate the room.

This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the

pilot by hand.

note:

MANUAL SHUT-OFF

(SHOWN IN OFF POSITION)

W415-2000 / F / 04.13.21

operation

This appliance is equipped with an “On Demand” intermittent pilot ignition system (IPI) which also includes a

continuous pilot ignition (CPI) mode with an integrated seven day timer. This system minimizes your appliance’s

carbon footprint as well as reducing its annual fuel consumption and operating costs.

In IPI mode, the pilot will ignite prior to the main burner, when the appliance is turned on using a switch, remote

or from a call for heat with the thermostat (if equipped). Once the appliance is turned off (or the call for heat is

satisﬁ ed), the main burner and pilot ﬂ ame will shut down.

The continuous (CPI) mode is intended to enhance the performance of the appliance during the startup phase in

colder climates and extreme weather by keeping the system warm when the main burner is not in use. However,

the timer feature provides the convenience that the appliance automatically switches off the pilot when the

appliance has not been used for seven days to save unnecessary fuel consumption.

When the CPI function is turned on, the pilot will remain on after the main burner

is turned off. A timer will then begin the countdown for approximately seven days

before shutting off the pilot if the appliance is not used. This countdown will reset

anytime the appliance main burner is used. Therefore, if the appliance is regularly

used day to day, the pilot will remain on. However, this system does not require

the user to remember to turn the pilot off as summer approaches and avoids

unnecessary fuel consumption while still readily turned back on when the cold

weather returns.

Your appliance may be equipped with an ACS or remote control device which

enables you to select IPI or CPI modes.

If your appliance is equipped with an ACS switch, it has the option to change

modes. If installed with the blue wire facing up, ﬂ ipping the switch UP turns on the

continuous pilot with timer and ﬂ ipping the switch DOWN turns on the intermittent

pilot ignition. If installed with the white wire facing up, the opposite is true.

If your appliance is equipped with a remote control device capable of selecting IPI / CPI modes, refer to remote

operating instructions.

In order to start your pilot, turning the main burner on with the switch, remote or thermostat and then turning it off

will reactivate the continuous pilot mode and reset the seven day timer.

For further information, refer to www.napoleon.com/pilotondemand.

ADD

TITLE

PILOT

DEMAND

7.1 pilot-on-demand

W415-2000 / F / 04.13.21

ﬁ nish framing

72”

(183cm)

min.

8.0 ﬁ nish framing

8.1 ﬂ ush

WARNING

• Risk of fire!

• Maintain all specified air space clearances to combustibles. Failure to comply with these instructions may

cause a fire or cause the appliance to overheat.

• Ensure all clearances (i.e. back, side, top, vent, mantel, front, etc.) are clearly maintained.

EX36 EX42

43 3/4” 47 3/4”

39 3/4” 45 3/4”

6” min.

22 1/4” min.

W415-2000 / F / 04.13.21

ﬁ nish framing

72”

(183cm)

min.

Recessed

volume must

be added to

the overall size

of the

enclosure.

WARNING

• Risk of fire!

• Maintain all specified air space clearances to combustibles. Failure to comply with these instructions may

cause a fire or cause the appliance to overheat.

• Ensure all clearances (i.e. back, side, top, vent, mantel, front, etc.) are clearly maintained.

EX36 EX42

43 3/4” 47 3/4”

39 3/4” 45 3/4”

6” min.

22 1/4” min.

Max. 5 1/2” (140mm)

* Recess frame can be “backed”

with 3/4” ply to support TV

mounting hardware.

8.2 recessed

W415-2000 / F / 04.13.21

ﬁ nishing

• Risk of ﬁ re!

• Never obstruct the front opening of the appliance.

• The front of the appliance must be ﬁ nished with any non-combustible materials such as brick, marble, granite,

etc., provided that these materials do not go below the speciﬁ ed dimension, as illustrated.

• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, or scratched.

• Facing and/or ﬁ nishing material must never overhang into the appliance opening.

• The glass door assembly is designed to pivot forward when relieving excess pressure that might occur. Finishing

or other materials must not be located in the opening surrounding the door as this will interfere with the doors

ability to relieve pressure.

WARNING

9.0 ﬁ nishing

This appliance does not include decorative brick panels, however, panels are required. Panel kits are sold sepa-

rately. Consult your local authorized dealer / distributor. Refer to the ‘replacement parts’ section.

9.1 decorative panels

WARNING

• Failure to position the logs in accordance with these diagrams or failure to use only logs speciﬁ cally approved

with this appliance may result in property damage or personal injury.

• Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since

appliance may not function properly and delayed ignition may occur.

• The logs are fragile and should be handled with care.

Logs and glowing embers exclusive to Napoleon, provide a unique and realistic glowing effect that is different in

every installation. Take the time to carefully position the glowing embers for a maximum glowing effect. Log colours

may vary. During the initial use of the appliance, the colours will become more uniform as colour pigments burn in

during the heat activated curing process. Blocked burner ports can cause an incorrect ﬂ ame pattern.

OLKEX36

DLKEX42

Refer to leaﬂ et provided with kit for log placement instructions.

9.2 log placement

W415-2000 / F / 04.13.21

ﬁ nishing

9.3 glowing embers

9.4 charcoal embers

WARNING

• Do not block or close off the burner ports. Blocked ports can cause an incorrect ﬂ ame pattern, carbon

deposits and delayed ignition.

• When supplied, charcoal embers, charcoal lumps and vermiculite are not to be placed on the burner.

ear the embers into pieces and loosely layer above the burner ports covering the burner area. Care should be

taken to shred the embers into thin, small irregular pieces as only the exposed edges of the ﬁ bre hairs will glow.

The ember material will only glow when exposed to direct ﬂ ame; however, care should be taken to not

lock off the burner ports.

WARNING

• Completely blocking the burner ports can cause an incorrect ﬂ ame pattern, carbon deposits and delayed

ignition.

Blocked burner ports can cause an incorrect flamme pattern, carbon deposits and delayed ignition. Logs glow

when exposed to direct flame. Use only certified glowing embers and logs available form your local authorized

dealer / distributor. See log installation leaflets for details.

Blocked burner ports can cause an incorrect flame pattern, carbon deposits and delayed ignition. Logs glow

when exposed to direct flame. Use only certified charcoal embers and logs available form your local authorized

dealer / distributor. See log installation leaflets for details.

9.5 media placement

A. Cover all lenses completely with clear glass (shaded area).

B. Spread small amounts of amber glass over the clear glass to give the ember bed effect (shaded area).

C. Place charcoal chips in the front corners and down the sides. Additionally, spread a small amount over the

front light ember bed.

D. Refer to log installation leaﬂ et for further details.

note:

Ensure to keep air shutter areas free from media.

It is recommended that the rear 2 accent lights are covered when installing porcelain panels. It is optional with

brick panels.

Some components have been hidden for clarity.

Air shutter

areas

W415-2000 / F / 04.13.21

ﬁ nishing

9.6 safety barrier & glass door installation / removal

WARNING

• Glass may be hot. Do not touch glass until cooled.

• If equipped with door latches that are part of a safety system, they must be properly engaged. Do not

operate the appliance with latches disengaged.

• Facing and/or ﬁ nishing materials must not interfere with air ﬂ ow through air openings, louvre openings,

operation of louvres, or doors/access for service. Observe all clearances when applying combustible

materials.

• Before door is removed, turn the appliance off and wait until appliance is cool to the touch. Doors are heavy

and fragile so handle with care.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the

appliance and must be installed.

Before the glass door can be removed, the safety screen must be removed. Lift the safety screen up and away

from the appliance.

Remove the bottom door trim. Leave a hand on the glass door during entire door removal. The glass door is

secured to the ﬁ rebox with 6 spring latches.

Pull the handles of the latches forward (door latch tool supplied in manual baggie), then lift the latches out from

the door frame to release the of the door. Next, pivot the door forward until the top edge clears the front of the

appliance. Carefully grip the sides of the door lifting it off the appliance.

Reverse these steps to re-install the safety screen and door. Ensure safety screen is installed correctly.

note:

These spring latches make up the spring relief system for

the appliance. Ensure they open freely and close sealed.

W415-2000 / F / 04.13.21

ﬁ nishing

9.7 installing non-combustible board (non-DHC install)

Non-combustible facing material must not project more than 4” (101.6mm) from the face of the door (all four

sides). If greater projections are desired, increase the clearance to the sides, bottom and top by 2” (50.8mm) for

every additional 1” (25.4mm) of projection. If using an optional surround, the same rule applies, starting from the

top of the surround. Ensure clearances are maintained for surround removal, as it must lift off the appliance for

maintenance.

WARNING

Non-combustible top:

• Align pre-drilled holes in the non-combustible board with

the pilot holes in the sheet metal.

• Secure the non-combustible panel to the appliance.

Non-combustible sides:

• Place the side non-combustible board against the appliance

and tight to the top board.

• Mark the appliance to pre-drill holes.

• Secure the non-combustible panel to the appliance.

Joint Compound where required

Joint compounds such as Durabond 90 and tapes that are resilient to heat and cracking should be used when

taping and mudding seams.

Setting tiles and grouting

We recommend you use tiles with a dry butt joint to be installed using a two-part mortar with an acrylic latex

additive, such as Mapei Kerabond/Kerlastic, to allow for slight movement in the normal operation of the appliance.

If grout is used between the tiles, a polymer-based grout, such as Mapei Ultracolour plus, is recommended.

Primer/Paint

For a painted surface, use a 100% acrylic latex primer and ﬁ nish coat. Light coloured paints may discolour.

Do not notch the framing around the appliance

standoffs. Failure to maintain air clearance space

could cause overheating and/or ﬁ re.

note:

12”

(30.5cm)

Pilot Holes

(x6)

A non-combustibles kit is available for purchase. Consult your local authorized dealer / distributor.

W415-2000 / F / 04.13.21

ﬁ nishing

9.8 ﬁ nishing ﬂ ange adjustment

Depending on the thickness of ﬁ nishing material we have allowed up to 1" (25mm) of adjustment after the 1/2"

(13mm) non-combustible boards have been installed. Adjust the ﬁ nishing ﬂ ange to the desired position.

Screw count varies by model.

note:

EX42

illustrated.

1” (25mm) after

non-combustibles

W415-2000 / F / 04.13.21

ﬁ nishing

9.9 clearances around appliance

6” min.

Top of ﬁnishing ﬂange

(ﬁreplace opening)

2.5” min.

2” min. (3” max. recommended)

6” min.

2.5” min.

See “minimum clearance

to mantle” section

(installation manual).

Enclosure

TV bracket

Flush installation with mantel

Recessed installation

Recessed installation with protrusion

Top of ﬁnishing ﬂange

(ﬁreplace opening)

Top of ﬁnishing ﬂange

(ﬁreplace opening)

2” min. (3” max. recommended)

Top of

ﬁnishing

ﬂange

(ﬁreplace

opening)

Enclosure

TV bracket

Flush installation without mantel

Appliance

The volume of air must be added to the enclosure

to accomodate the recessed area.

Max. 4”

• These are recommended minimum clearances only and are in supplied in good faith and not a guarantee

of compliance with TV manufacturers’ maximum allowable operating temperatures. Always comply to TV

manufacturers’ requirements.

• TV temperatures must be validated at the time of installation as air ﬂ ow characteristics within the

room can vary and maximum acceptable operating temperatures can vary from appliance to appliance.

TVs cannot be used where the TV temperature exceeds the manufacturer’s maximum allowable operating

temperatures (see TV manufacturer’s speciﬁ cations).

• Mantel height and depth must conform to mantel clearance requirements speciﬁ ed in this manual, see

“minimum clearance to combustible mantel” section in installation manual.

• Dimension “A” the gap between the top of the ﬁ nishing ﬂ ange and the bottom of the TV are taken from the

top of the appliance opening.

• TV temperatures may be further reduced by increasing the horizontal distance between the front of the TV

and the front edge of the mantel or by increasing dimension “A”. However, increasing the gap between the

top of the mantel and the bottom of the TV beyond the maximum recommended ﬁ gure, typically results in

higher temperatures. Minimum clearance between the mantel and bottom of the TV should be maintained to

allow air circulation below and behind the TV.

note:

W415-2000 / F / 04.13.21

ﬁ nishing

9.10 minimum combustible mantel clearances

Combustible mantel clearance can vary according to the mantel depth.

Use the graph to help evaluate the clearance needed.

34 7

12 56

(

MANTEL DEPTH

8109

TOP OF

FIREPLACE

OPENING

MANTEL DIMENSIONS

Ref Height Depth

15” 2”

17” 4”

19” 6”

21” 8”

9.11 logo placement

Remove the backing of the logo supplied and place, as illustrated.

INSERT


HERE

EX36 = 33 1/8”

EX42 = 37 1/8”

W415-2000 / F / 04.13.21

ﬁ nishing

This appliance has 2 primary air shutters that have been factory set to fully open.

Fine air adjustments should be made using the levers to achieve the desired ﬂ ame (FIG. 1).

Regardless of venturi orientation, closing the air shutter will cause a more yellow ﬂ ame, but can lead to

carbonization. Opening the air shutter will cause a more blue ﬂ ame, but can cause ﬂ ame lifting from the burner

ports. The ﬂ ame may not appear yellow immediately; allow 15 to 30 minutes for the ﬁ nal ﬂ ame colour to be

established.

AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED INSTALLER!

Adjustment may be required depending on fuel type, vent conﬁ guration and altitude.

note:

9.12 air shutter adjustment

Rear

Adjustment

Rod

Fig. 1

Open

Closed

A. Position the adjustment rod into the middle of the opening to disengage it from the securing notches (Fig. 1).

B. Push in or pull out until desired ﬂ ame is achieved.

Securing

Notch

Front

Adjustment

Rod

W415-2000 / F / 04.13.21

ﬁ nishing

Flame must envelop

upper

3/8" to 1/2"

(12.7mm - 9.5mm) of

Flame sensor

3/8” - 1/2”

(9.5mm - 12.7mm)

It’s important to periodically perform a visual check of

the pilot and burner ﬂames. Compare them to the

illustration provided. If any ﬂames appear abnormal,

call a service person.

Adjust the pilot screw to provide properly sized ﬂ ame. Turn in a clockwise direction to reduce the gas ﬂ ow.

Check Pressure Readings:

Inlet pressure can be checked by turning screw (A) counter-

clockwise 2 or 3 turns and then placing pressure gauge tubing

over the test point. Gauge should read as described on the chart

below. Check pressure with main burner operating on “HI”.

Outlet pressure can be checked the same as above using screw

(B). Gauge should read as described on the chart below. Check

pressure with main burner operating on “HI”.

After taking pressure readings, be sure to turn screws

clockwise ﬁ rmly to reseal. Do not overtorque.

Leak test with a soap and water solution.

Prior to pilot adjustment, ensure that the pilot assembly has not been painted. If overspray or painting of

the pilot assembly has occurred remove the paint from the pilot assembly, or replace. Fine emery cloth or a

synthetic scrub pad (such as Scotch-Brite

™)

can be used to remove the paint from the pilot hood, electrode

and ﬂ ame sensor.

INSERT PILOT ASSEMBLY

*Maximum inlet pressure not to exceed 13”

Pressure Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

Inlet

*7”

(minimum 4.5”)

17.4mb

(minimum 11.2mb)

13”

(minimum 11”)

32.4mb

(minimum 27.4mb)

Outlet

3.5” 8.7mb 10” 24.9mb

PILOT SCREW

9.13 pilot burner adjustment

9.14 ﬂ ame characteristics

PILOT SCREW

W415-2000 / F / 04.13.21

ﬁ nishing

10.0 maintenance

WARNING

• Turn off the gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners on glass.

• Do not paint the pilot assembly.

This appliance and its venting system should be inspected before use and at least annually by a qualiﬁ ed

service person. The following suggested checks should be performed by a qualiﬁ ed technician. The appliance

area must be kept clear and free of combustible materials, gasoline, or other ﬂ ammable vapors and liquids.

The ﬂ ow of combustion and ventilation air must not be obstructed.

1. In order to properly clean the burner and pilot assembly, remove the logs, rocks and/or glass to ex-

pose both assemblies.

2. Keep the control compartment, media, burner, air shutter opening and the area surrounding the appli-

ance clean by vacuuming or brushing, at least once a year.

3. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning

or are not burning properly.

4. Check to see that the pilot ﬂ ame is large enough to engulf the ﬂ ame sensor and/or thermocouple /

thermopile as well as it reaches the burner.

5. If your appliance is equipped with a safety barrier, cleaning may be necessary due to excessive lint /

dust from carpeting, pets, etc. simply vacuum using the brush attachment.

6. If your appliance is equipped with relief doors, ensure the system performs effectively. Check that the

gasket is not worn or damaged. Replace if necessary.

7. Replace the cleaned logs, rocks or glass. Failure to properly position the media may cause carboning

which can be distributed in the surrounding living area, inside the ﬁ rebox and on exterior surfaces sur-

rounding vent termination.

8. Check to see that the main burner ignites completely on all ports when turned on. A 5 to 10 second

total light-up period is satisfactory. If ignition takes longer, consult your local authorized dealer / dis-

tributor.

9. Visually inspect the appliance for carbon build up. Using a small whisk or brush, brush off the carbon

and vacuum up or sweep into garbage.

10. This step is not applicable for Vent Free appliances: Check to see that the appliance is vent-

ing correctly. Ensure chimney system is safe and unobstructed. (If for any reason the vent air intake

system is disassembled, re-install and re-seal per the instructions provided for the initial installation).

Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and

dangerous operation. Verify proper operation after servicing.

note:

10.1 care of glass

WARNING

Buff lightly with a clean dry soft cloth to remove accumulated dust or ﬁ ngerprints. Clean both sides of the glass

after the ﬁ rst 10 hours of operation with an ammonia-free glass cleaner.

Thereafter, clean as required. If the glass is not kept clean permanent discoloration and / or blemishes may

result. Contact you local authorized dealer / distributor for complete cleaning instructions.

Razor blades, steel wool, or other metallic objects must not be used on both surfaces of the glass. Doing so

can remove a thin layer of metal from the razor blades, steel wool, or other metallic objects that may then be

deposited onto the coating. This can result in a discoloured stain or scratch-like mark. More importantly, this can

scratch the glass surface, thereby reducing its strength.

Do not operate the appliance with broken glass, as leakage of ﬂ ue gases may result.

Contact your local authorized dealer / distributor for complete cleaning instructions.

If the glass should ever crack or break while the ﬁ re is burning, do not open the door until the ﬁ re is out. Do not

operate the appliance until the glass has been replaced. Contact you local authorized dealer / distributor for

lacement

arts. DO NOT SUBSTITUTE MATERIALS.

Vinegar-based glass cleaners have demonstrated an ability to provide a clean, streak free glass surface.

note:

• Do not clean glass when hot! Do not use abrasive cleaners to clean glass.

W415-2000 / F / 04.13.21

maintenance

This appliance is factory equipped with 5mm ceramic glass. Use only replacement parts as supplied by the

liance manufacturer. DO NOT SUBSTITUTE MATERIALS.

WARNING

• This appliance will require maintenance which should be planned on an annual basis.

• Service should include cleaning, battery replacement, venting inspection and inspection of the burner,

media, and ﬁ rebox. Refer to the door removal section and remove the door as instructed.

• Carefully remove media if necessary (logs, glass, brick panels, etc.).

• Using a vacuum with soft brush attachment, gently remove any dirt, debris, or carbon build up from the

logs, ﬁ rebox, and burner. For glass media, follow the installation instructions for pre-cleaning.

• Gently remove any build-up on the pilot assembly including thermopile, thermocouple, ﬂ ame sensor, and

igniter (if equipped).

• Inspect all accessible gaskets and replace as required.

• If equipped with a blower, access the blower and clean using a soft brush and vacuum.

• Re-assemble the various components in reverse order.

• Inspect the relief system. The appliance relieves through the main glass door or through the ﬂ aps on the

ﬁ rebox top. Ensure they open freely, and close sealed.

• Check the gas control valve pilot and Hi / Lo knobs move freely, if equipped. Replace if any stiffness in

movement is experienced.

• Check for gas leaks on all gas connections up and downstream from the gas valve including pilot tube

connections.

Clean ﬂ ame sensor using a ﬁ ne emery cloth or a synthetic scrub pad (such as Scotch-Brite™) to remove any

oxides. Clean the pilot assembly using a vacuum with a soft brush attachment. It is important that the pilot

assembly is not painted.

note:

• Annual maintenance should be performed by a qualiﬁ ed service technician

• The ﬁ rebox becomes very hot during operation. Let the appliance cool completely or wear heat resistant

gloves before conducting service.

• Never vacuum hot embers.

• Do not paint the pilot assembly

WARNING

• Do not use substitute materials.

• Glass may be hot. Do not touch glass until cooled.

• Care must be taken when removing and disposing of any broken door glass or damaged components. Be

sure to vacuum up any broken glass from inside appliance before operation.

• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, broken, or scratched.

10.2 annual maintenance

10.3 glass / door replacement

Replacement glass/frame assembly shall be replaced as a complete unit as supplied by the appliance

manufacturer.

W415-2000 / F / 04.13.21

maintenance

10.4 ember bed light replacement

Your appliance comes equipped with our Night Light™

and ember bed lights. The lights have been pre-wired

and can be controlled from your transmitter (see

Owner’s Manual for instructions).

In the event the lamp or lens needs to be replaced:

• Turn off power to the appliance.

• Remove the 4 screws securing the log support

assembly. Remove and set aside (Fig. 1).

• Remove the screws that secure lamp holder or the

lens frame. This frame retains the glass lens (Fig. 2).

• The lamp can now be accessed. Wiggle gently to

pull straight out of the socket.

note:

Do not handle the lamp (bulb) with bare fingers at

anytime. Oils from your fingers may damage the lamps.

Use dry cloth or gloves during installation.

note:

Do not over-tighten the screws, as this could break

the lens.

• Replace the lamp with Wolf Steel parts only, as lamp

and lens are special “high temperature” products.

• When re-installing, ensure integrity of gasket seal.

THE FIREBOX MUST BE SEALED.

“Light leakage” from the lower area may be noticed. The

holes in the lamp housing are necessary for ventilation

and must not be covered.

Bit Access

Holes (x4)

(Fig. 1)

note:

The 3 front ember bed lights can be replaced from

below the appliance along the front. The 2 night lights

and 2 middle ember bed lights must be replaced from

inside the firebox.

SCREWS

LENS ASSEMBLY

GASKET

LENS

FRAME

SMOOTH

SIDE UP

(Fig. 2)

Lens

assembly

Some components have been hidden for clarity.

Night lights are the back 2 lights. All others are

considered ember bed lights.

Log Support

Bit Access

(x4)

Mid (x2)

Ember

Night

Lights (x2)

Front

Ember

W415-2000 / F / 04.13.21

maintenance

WARNING

• Risk of ﬁre and electrical shock!

• Turn off the gas and electrical power before servicing this appliance.

• Use only Wolf Steel approved optional accessories and replacement parts with this appliance. Using

non-listed accessories (blowers, doors, louvres, trims, gas components, venting components, etc.) could

result in a safety hazard and will void the warranty and certiﬁcation.

• Ensure that the fan’s power cord is not in contact with any surface of the appliance to prevent electrical

shock or ﬁre damage. Do not run the power cord beneath the appliance.

• The wire harness provided in the blower kit is a universal harness. When installed, ensure that any excess

wire is contained, prevent it from making contact with moving or hot objects.

A. Turn off the power to the appliance.

B. Remove the safety barrier.

C. Remove the main door assembly.

D. Remove media and logs.

E. Remove the 4 screws securing the log support

assembly. Remove and set aside (Fig. 1).

F. This appliance is equipped with a left and right

blower. Remove the access plate from the side

being replaced (Fig. 2).

10.5 blower replacement

Left blower

access plate

Right blower

access plate

(Fig. 2)

Bit Access

Holes (x4)

(Fig. 1)

Log Support

Bit Access

(x4)

W415-2000 / F / 04.13.21

maintenance

G. Lift the blower up from the slots.

TOP VIEW

Some components have been hidden for clarity.

H. Rotate the blower down the side of the ﬁ rebox and out of the opening. Disconnect wires.

I. Replace the blower assembly and reverse previous steps.

Drywall dust will penetrate into the blower bearings, causing irreparable damage. Care must be taken to prevent

drywall dust from coming into contact with the blower or its compartment. Any damage resulting from this condi-

tion is not covered by the warranty policy.

REAR VIEW

note:

Ensure the blower motor is on the correct side.

Left Access Plate Right Access Plate

** **

W415-2000 / F / 04.13.21

replacement parts

11.0 replacement parts

WARNING

• Failure to position the parts in accordance with this manual or failure to use only parts speciﬁ cally approved

with this appliance may result in property damage or personal injury.

Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can

be ordered through your Authorized dealer / distributor.

For warranty replacement parts, a photocopy of the original invoice will be required to honour the

claim.

When ordering replacement parts always give the following information:

• Model & Serial Number of appliance

• Installation date of appliance

• Part number

• Description of part

• Finish

Parts, part numbers, and availability are subject to change without notice.

Parts identiﬁ ed as stocked will be delivered within 2 to 5 business days for most delivery

destinations.

Parts not identiﬁ ed as stocked will be delivered within a 2 to 4 week period, for most cases.

Parts identiﬁ ed as ‘SO’ are special order and can take up to 90 days for delivery.

W415-2000 / F / 04.13.21

replacement parts

11.1 EX36 overview

Ref. No Part Number Part Description Stocked

1 W585-0961-SER Light shield

2 W715-1234-SER Door trim

3 W010-4617-SER Complete door assembly Yes

4 W010-4616-SER Premium safety barrier assembly Yes

5 W350-0937-BK1FT-SER Left side safety barrier

6 W565-0326-SER Premium safety screen

7 W350-0922-BK1FT-SER Top/bottom safety barrier

8 W475-1707-BK1FT-SER Safety barrier front

9 W350-0923-BK1FT-SER Right side safety barrier

10 W525-0085-SER Left ﬁ nishing guide

Ref. No Part Number Part Description Stocked

11 W525-0084-SER Right ﬁ nishing guide

12 W525-0083-SER Upper ﬁ nishing guide

13 W500-0264-SER Brick retainer Yes

14 W655-0938-SER Door support

15 W655-0933-SER Log support top (NG)

15 W655-0958-SER Log support top (P)

16 W655-0926-SER Log support (NG)

16 W655-0957-SER Log support (P)

17 W200-0788-SER Air inlet cover

18 W010-4623-SER Right side blower assembly Yes

19 W010-4624-SER Left side blower assembly Yes

20 W200-0405 Battery cover

Items may not appear exactly as illustrated.

W415-2000 / F / 04.13.21

replacement parts

11.2 EX36 valve train assembly

Ref. No Part Number Part Description Stocked

1 W325-0105-SER Rear air shutter handle

2 W080-1944-SER Halogens bracket

3 W010-4580-SER Grate assembly Yes

4 W100-0256-SER Front burner (NG) Yes

4 W100-0285-SER Front burner (P) Yes

5 W100-0257-SER Rear burner (NG) Yes

5 W100-0286-SER Rear burner (P) Yes

6 W325-0104-SER Front air shutter handle

7 W190-0156-SER Ember bed halogen control

8 W190-0090 Bluetooth™ Control Module (PF2)

9 W290-0908 Silicone gasket (adjustable shutter)

10 W500-1046 Shutter base plate

11 W010-4626-SER Air shutter assembly

12 W750-0294 18” power cord wire (PF2)

13 W190-0177-SER Control board (PF2 7-Day)

14 W010-4584-SER Pilot assembly (NG)

14 W010-4586-SER Pilot assembly (P)

15 W080-1943-SER Pilot bracket

16 W585-0960-SER Pilot shield

Ref. No Part Number Part Description Stocked

17 W010-4608-SER Light assembly (w/ plate)

18 W290-0904 Valve access gasket

19 W500-1024-SER Access plate

20 W750-0358 Female pig tails w/ connector (PF2) Yes

21 W405-0094-SER Light assembly

22 W750-0478 Blower wire harness

23 W290-0080 1/8” Kaowool gasket Yes

24 W707-0019 Transformer Yes

25 W750-0479 Night Light™ wire harness

26 W290-0902 Valve train gasket

27* W370-0219 Bulb/lamp replacement kit

28 W725-0056 Valve (NG)

28 W725-0057 Valve (P)

29 W456-0051 Front burner oriﬁ ce #51 (NG)

29 W456-0057 Front burner oriﬁ ce #57 (P)

30 W456-0041 Rear burner oriﬁ ce #41 (NG)

30 W456-0054 Rear burner oriﬁ ce #54 (P)

31 W455-0070 Pilot oriﬁ ce #62 (NG)

31 W455-0068 Pilot oriﬁ ce #35 (P)

Items may not appear exactly as illustrated.

W415-2000 / F / 04.13.21

replacement parts

11.3 EX36 logs

DLKEX36

OLKEX36

BLKEX36

Ref. No Part Number Part Description Stocked

1 W135-0883 #1 Rear log

2 W135-0884 #2 Left middle

3 W135-0885 #3 Right middle

4 W135-0886 #4 Front log

5 W135-0887 #5 Front right log

6 W135-0888 #6 Left crossover log

7 W135-0889 #7 Middle crossover log

8 W135-0890 #8 Right crossover log

Ref. No Part Number Part Description Stocked

9 W135-0867 #1 Rear log

10 W135-0868 #2 Left middle log

11 W135-0869 #3 Middle middle log

12 W135-0870 #4 Right middle log

13 W135-0871 #5 Front log

14 W135-0872 #6 Right crossover log

15 W135-0873 #7 Middle crossover log

Ref. No Part Number Part Description Stocked

16 W135-0942 #1 Rear log

17 W135-0943 #2 Middle left log

18 W135-0944 #3 Middle right log

19 W135-0945 #4 Front left log

20 W135-0946 #5 Front right log

21 W135-0947 #6 Bottom left log

22 W135-0948 #7 Bottom right log

23 W135-0949 #8 Top left log

24 W135-0950 #9 Top right log

Items may not appear exactly as illustrated.

W415-2000 / F / 04.13.21

replacement parts

11.4 EX42 overview

Ref. No Part Number Part Description Stocked

1 W585-0962-SER Light shield

2 W715-1233-SER Door trim

3 W010-4619-SER Complete door assembly Yes

4 W010-4618-SER Premium safety barrier assembly Yes

5 W350-0938-BK1FT-SER Left side safety barrier

6 W565-0327-SER Premium safety screen

7 W350-0929-BK1FT-SER Top/bottom safety barrier

8 W475-1730-BK1FT-SER Safety barrier front

9 W350-0928-BK1FT-SER Right side safety barrier

Ref. No Part Number Part Description Stocked

10 W525-0088-SER Left ﬁ nishing guide

11 W525-0087-SER Right ﬁ nishing guide

12 W525-0086-SER Upper ﬁ nishing guide

13 W500-0264-SER Brick retainer Yes

14 W655-0938-SER Door support

15 W655-0934-SER Log support top

16 W655-0932-SER Log support

17 W200-0788-SER Air inlet cover

18 W010-4623-SER Right side blower assembly Yes

19 W010-4624-SER Left side blower assembly Yes

20 W200-0405 Battery cover

Items may not appear exactly as illustrated.

W415-2000 / F / 04.13.21

replacement parts

11.5 EX42 valve train assembly

Ref. No Part Number Part Description Stocked

1 W325-0105-SER Rear air shutter handle

2 W080-1944-SER Halogens bracket

3 W010-4593-SER Grate assembly Yes

4 W100-0258-SER Front burner (NG) Yes

4 W100-0281-SER Front burner (P) Yes

5 W100-0259-SER Rear burner (NG) Yes

5 W100-0282-SER Rear burner (P) Yes

6 W325-0104-SER Front air shutter handle

7 W190-0156-SER Ember bed halogen control

8 W190-0090 Bluetooth™ Control Module (PF2)

9 W290-0908 Silicone gasket (adjustable shutter)

10 W500-1046 Shutter base plate

11 W010-4626-SER Air shutter assembly

12 W750-0294 18” power cord wire (PF2)

13 W190-0177-SER Control board (PF2 7-Day)

14 W010-4584-SER Pilot assembly (NG)

14 W010-4586-SER Pilot assembly (P)

15 W080-1943-SER Pilot bracket

16 W585-0960-SER Pilot shield

Ref. No Part Number Part Description Stocked

17 W010-4608-SER Light assembly (w/ plate)

18 W290-0904 Valve access gasket

19 W500-1024-SER Access plate

20 W750-0358 Female pig tails w/ connector (PF2) Yes

21 W405-0094-SER Light assembly

22 W750-0478 Blower wire harness

23 W290-0080 1/8” Kaowool gasket Yes

24 W707-0019 Transformer Yes

25 W750-0479 Night Light™ wire harness

26 W290-0902 Valve train gasket

27* W370-0219 Bulb/lamp replacement kit

28 W725-0056 Valve (NG)

28 W725-0057 Valve (P)

29 W456-0046 Front burner oriﬁ ce #46 (NG)

29 W456-0057 Front burner oriﬁ ce #57 (P)

30 W456-0038 Rear burner oriﬁ ce #38 (NG)

30 W456-0053 Rear burner oriﬁ ce #53 (P)

31 W455-0070 Pilot oriﬁ ce #62 (NG)

31 W455-0068 Pilot oriﬁ ce #35 (P)

Items may not appear exactly as illustrated.

W415-2000 / F / 04.13.21

replacement parts

11.6 EX42 logs

DLKEX42

OLKEX42

BLKEX42

Ref. No Part Number Part Description Stocked

1 W135-0899 #1 Rear log

2 W135-0900 #2 Left middle log

3 W135-0901 #3 Right middle log

4 W135-0902 #4 Left crossover log

5 W135-0903 #5 Front middle log

6 W135-0904 #6 Middle crossover log

7 W135-0905 #7 Right crossover log

8 W135-0906 #8 Right middle crossover log

9 W135-0907 #9 Middle top crossover log

10 W135-0908 #10 Front left log

Ref. No Part Number Part Description Stocked

11 W135-0891 #1 Left rear log

12 W135-0892 #2 Right rear log

13 W135-0893 #3 Left middle log

14 W135-0894 #4 Right middle log

15 W135-0895 #5 Front left log

16 W135-0896 #6 Front right log

17 W135-0938 #7 Left middle crossover log

18 W135-0897 #8 Left crossover log

19 W135-0898 #9 Right crossover log

Ref. No Part Number Part Description Stocked

20 W135-0951 #1 Left rear log

21 W135-0952 #2 Right rear log

22 W135-0953 #3 Middle left log

23 W135-0954 #4 Middle right log

24 W135-0955 #5 Front left log

25 W135-0956 #6 Front right log

26 W135-0957 #7 Left crossover log

27 W135-0958 #8 Bottom left crossover log

28 W135-0959 #9 Middle left crossover log

29 W135-0960 #10 Middle right crossover log

30 W135-0961 #11 Right crossover log

Items may not appear exactly as illustrated.

W415-2000 / F / 04.13.21

troubleshooting12.0 troubleshooting

WARNING

• Always light the pilot whether for the ﬁ rst time or if the gas supply has run out, with the glass door open or

removed.

• Turn off gas and electrical power before servicing the appliance.

• Appliance may be hot. Do not service until appliance has cooled.

• Do not use abrasive cleaners

symptom problem test solution

Main burner ﬂ ame is a

blue, lazy, transparent

ﬂ ame.

(This is not applicable

in outdoor appliances)

Blockage in vent. - Remove blockage. In really cold conditions, ice buildup may occur

on the terminal and should be removed as required. (To minimize this

from reoccuring, the vent lengths that pass through unheated spaces

(attics, garages, crawl spaces) should be wrapped with an insulated

mylar sleeve).

Incorrect installation. - Refer to “venting” section to ensure correct installation.

Flames are consistently

too large or too small.

Carboning occurs.

Appliance is over-ﬁ red or under-

ﬁ red.

- Check pressure readings:

Inlet pressure can be checked by turning screw (A) counter-clock-

wise 2 or 3 turns and then placing pressure gauge tubing over the

test point. Gauge should read as described on the chart below.

Check that main burner is operating on ‘HI’. Outlet pressure can be

checked the same as above using screw (B). Gauge should read as

described on the chart below. Check that main burner is operating

on ‘HI’. After taking pressure readings, be sure to turn screws

clockwise ﬁ rmly to reseal. DO NOT OVER TORQUE.

Leak test with a soap and water solution.

Air shutter improperly adjusted.

- Return air shutter to speciﬁ ed opening, see “venturi adjustments”

section in the installation manual.

Carbon is being

deposited on glass,

logs, rocks, media, or

combustion chamber

surfaces.

Air shutter is blocked. - Ensure air shutter opening is free of lint or other obstructions.

Flame is impinging on the glass,

logs, rocks, media or combus-

tion chamber.

- Ensure the media is positioned correctly in the appliance.

- Open air shutter to increase the primary air.

- Check the input rate: check the manifold pressure and oriﬁ ce size as

speciﬁ ed by the rating plate.

- Ensure door gaskets are not broken or missing and the seal is tight.

- Ensure vent liners are free of holes and well sealed at all joints.

- Check that minimum rise per foot (meters) has been adhered to for

any horizontal venting.

White / grey ﬁ lm forms. Sulphur from fuel is being depos-

ited on glass, logs, or combus-

tion chamber surfaces.

- Clean the glass with a recommended gas ﬁ replace glass cleaner. DO

NOT CLEAN GLASS WHEN HOT.

- If deposits are not cleaned off regularly, the glass may become

permanently marked.

Exhaust fumes smelled

in room, headaches.

Appliance is spilling.

(This is not applicable in outdoor

appliances).

- Check door seal.

- Check for exhaust damage.

- Check that venting is installed correctly.

- Room is in negative pressure; increase fresh air supply.

INSERT


OF VALVE

HERE

*Maximum inlet pressure not to exceed 13” w.c.

Pressure Natural Gas

(inches)

Natural Gas

(millibars)

Propane

(inches)

Propane

(millibars)

Inlet

*7”

(minimum 4.5”)

17.4mb

(minimum 11.2mb)

13”

(minimum 11”)

32.4mb

(minimum 27.4mb)

Outlet

3.5” 8.7mb 10” 24.9mb

SENSOR

IGNITOR

(SPARK)

PILOT

TUBE

W415-2000 / F / 04.13.21

troubleshooting

symptom problem test solution

Pilot will not light. Makes

noise with no spark at

pilot burner.

Wiring: short, loose, or damaged

connections

(poor ﬂ ame rectiﬁ cation).

- Verify the thermocouple/sensor is clean and the wiring is undamaged.

- Verify the interrupter block is not damaged or too tight. Verify

connections from pilot assembly are tight; also verify the connections

are not grounding out to any metal. (Remember, the ﬂ ame carries the

rectiﬁ cation current, not the gas. If ﬂ ame lifts from pilot hood, the circuit

is broken. A wrong oriﬁ ce or too high of an inlet pressure can cause the

pilot ﬂ ame to lift)*. The sensor rod may need cleaning.

No signal from remote with no

pilot ignition.

- Reprogram receiver code.

- Replace receiver.

Poor grounding. - Verify the valve / pilot assembly are properly grounded

Improper switch wiring.

- Troubleshoot the system with the simplest on/off switch.

Dirty, painted, or damaged pilot

and/or dirty sensor rod.

- Clean sensor rod with a green Scotch-Brite™ pad to remove any

contamination that may have accumulated. Verify continuity with

multimeter with ohms set at the lowest range.

Pilot sparks but will

not light.

Gas supply. - Verify that the incoming gas line ball valve is “open”.

- Verify that the inlet pressure reading is within acceptable

limits, inlet pressures must not exceed 13” W.C. (32.4mb).

Out of propane gas. - Fill the tank.

Pilot supply line may contain

air.

- Repeat ignition process several times or purge the pilot

supply line.

Incorrect wiring / grounding. - Ensure correct polarity of wiring of thermocouple (if

equipped).

- Verify pilot assembly / valve are properly grounded.

Receiver (if equipped). - Reset program: hold reset button on receiver and wait for 2

beeps. Release after second beep. Press small ﬂ ame button

on remote within 20 seconds, you will hear an additional

beep (this signals a successful reset).

- Replace receiver.

Valve. - Check valve and replace if necessary (Do not to overtighten

thermocouple).

Burner continues to

spark and pilot lights

but main burner

does not light.

Short or loose connection in

sensor rod.

- Verify all connections. Verify the connections from the pilot

assembly are tight. Also, verify these connections are not

grounding out to any metal.

Dirty, painted, or damaged

pilot assembly components.

- Clean using a green Scotch-Brite™ pad to remove any

contamination that may have accumulated on the sensor

rod, pilot hood, ignitor, or ﬂ ame sensor. Verify continuity with

multimeter with ohms set at the lowest range.

Remote wall switch

is in “off” position;

burner comes on.

Wall switch mounted upside

down.

- Reverse.

Remote wall switch and/or

wire is grounding.

- Replace.

- Check for ground (short); repair ground or replace wire.

Faulty wire - Replace.

Remote and / or

receiver is not

functioning properly.

Remote controls lights but

no spark or ﬂ ame. (Remote is

locked out).

- Reset by turning power source off then on.

Receiver or remote has low battery.

- Replace batteries.

Appliance functions but does not

respond to receiver / remote

- Ensure appliance is being operated by the same device that turned it

on. Remote controls function if appliance was turned on by remote.

Receiver controls function if appliance was turned on by receiver.

Error with synchronizing. - Reset receiver and remote.

Remote too far away from receiver.

- Refer to “wiring diagram” section.

Wire connector pins are bent. - Straighten pins.

Valve wiring is damaged. - Replace valve.

If back up batteries are installed, they must also be removed to

re-program

note:

W415-2000 / F / 04.13.21

troubleshooting

The following applies speciﬁ cally to the SIT system only:

Pilot will not light.

Makes no noise with

no spark at pilot

burner. (Lights and

blower operate, if

equipped).

Ignition box has been locked

out.

Choose one of the 3 methods below to reset the system.

1. To reset ignition box when locked out. Turn off power supply

and remove batteries (if used) from the back up battery pack.

2. To reset the DFC Board when the board goes into a lock

out condition and the LED is blinking 3 times using the

transmitter on/off button:

Step 1: Turn the system off by pressing the on/off

button to turn the system off.

Step 2: After approximately 2 seconds press the on/

off button on the transmitter again. The DFC Board will

reset and the ignition sequence will start again.

3. To reset the DFC Board when the board goes into a lock out

condition and the LED is blinking 3 times by cycling ﬂ ame:

Step 1: In the manual ﬂ ame control mode, use the down

arrow button to reduce the ﬂ ame to off, indicated by the

word OFF displayed on the transmitter LCD screen.

Step 2: Wait approximately 2 seconds and press the up

arrow button, the ignition sequence will start.

Starting from off, press the on button on the transmitter. After approximately 4 seconds on/off button is pressed, the ignition

board will start the spark. The atempt for ignition will last approximately 60 seconds. If there is no ﬂ ame ignition (rectiﬁ cation),

the board will stop sparking and the board will go into lock out.

note:

symptom problem test solution

Lights or blower

won’t function (if

equipped).

Control module switch in

wrong position.

- Verify ON/OFF switch is in the “I” position which denotes on.

COM switch is unplugged. - Verify “COM” switch is plugged into the front of the control

module.

Flames are very

aggressive.

Door is ajar. - Ensure door is secured properly.

Venting action is too great. - Check to ensure venting is properly sealed or restrict vent

exit with restrictor plate. (Not available in all appliances).

Appliance won’t per-

form any functions.

No power to the system.

- Check breaker to verify it’s in the “on” position.

Receiver switch in wrong

position (if equipped).

- Verify that the 3 position switch on the receiver is in the

remote position (middle).

Transmitter isn’t operational. - Check battery power and battery orientation.

W415-2000 / F / 04.13.21

warranty

13.0 warranty

Napoleon warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is

not necessary. Simply provide your proof of purchase along with the model and serial number to make a warranty claim.

Napoleon reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty

claim. Provided that the purchase was made through an authorized Napoleon dealer your appliance is subject to the

following conditions and limitations:

Warranty coverage begins on the date of original installation. This factory warranty is non-transferable and may not

be extended whatsoever by any of our representatives. The gas appliance must be installed by a licensed, authorized

service technician or contractor qualiﬁ ed and authorized installer, service agency or supplier. Installation must be done in

accordance with the installation instructions included with the product and all local and national building and ﬁ re codes.

This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or

neglect, and parts installed from other manufacturers will nullify this warranty. This limited warranty further does not cover

any scratches, dents, corrosion or discoloring caused by excessive heat, abrasive and chemical cleaners nor chipping

on porcelain enamel parts, mechanical breakage of Phazer™ logs and embers. This warranty extends to the repair or

replacement of warranted parts which are defective in material or workmanship provided that the product has been

operated in accordance with the operation instructions and under normal conditions. After the ﬁ rst year, with respect to

this President’s Lifetime Limited Warranty, Napoleon may, at its discretion, fully discharge all obligations with respect to this

warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

After the ﬁ rst year, Napoleon will not be responsible for installation, labour, or any other expenses related to the reinstallation

of a warranted part and such expenses are not covered by this warranty. Notwithstanding any provisions contained in the

President’s Lifetime Limited Warranty, Napoleon’s responsibility under this warranty is deﬁ ned as above and it shall not in

any event extend to any incidental, consequential or indirect damages. This warranty deﬁ nes the obligations and liability

of Napoleon with respect to the Napoleon gas appliance and any other warranties expressed or implied with respect to

this product, its components or accessories are excluded. Napoleon neither assumes, nor authorizes any third party to

assume, on its behalf, any other liabilities with respect to the sale of this product. Napoleon will not be responsible for: over-

ﬁ ring, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains,

inadequate vents or ventilation, excessive venting conﬁ gurations, insufﬁ cient makeup air, or negative air pressures which

may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc. Any damages to

the appliance, combustion chamber, heat exchanger, plated trim or other components due to water, weather damage, long

periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of Napoleon.

During the ﬁ rst 10 years Napoleon will replace or repair the defective parts covered by the lifetime warranty at our

discretion free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.

The manufacturer may require that defective parts or products be returned or that digital pictures be provided to support

the claim. Returned products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be

defective, the manufacturer will repair or replace such defect. Before shipping your appliance or defective components,

your dealer must obtain an authorization number. Any merchandise shipped without authorization will be refused and

returned to sender. Shipping costs are not covered under this warranty. Additional service fees may apply if you are

seeking warranty service from a dealer. Warranty labour allowance is only for the replacement of the warranted part. Travel,

diagnostic tests, shipping and other related charges are not covered by this warranty.

Napoleon products are manufactured under the strict Standard of the world recognized ISO 9001 : 2015 Quality Management

System.

Napoleon products are designed with superior components and materials assembled by trained craftsmen who take great

pride in their work. The burner and valve assembly are leak and test-ﬁ red at a quality test station. The complete appliance is

again thoroughly inspected by a qualiﬁ ed technician before packaging to ensure that you, the customer, receive the quality

product that you expect from Napoleon.

The following materials and workmanship in your new Napoleon gas appliance are warranted against defects for as long

as you own the appliance. This covers: combustion chamber, heat exchanger, stainless / steel burner, Phazer™ logs

and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled

components and aluminum extrusion trims.*

Electrical (110V and millivolt) components and wearable parts are covered and Napoleon will provide replacement parts free

of charge during the ﬁ rst year of the limited warranty. This covers: blowers, gas valves, thermal switches, switches, wiring,

remote controls, ignitors, gaskets and pilot assemblies.*

Labour related to warranty repair is covered free of charge during the ﬁ rst year (labour warranty is not applicable for the Gas

Log Sets). Repair work, however, requires the prior approval of an authorized company ofﬁ cial. Labour costs to the account

of Napoleon are based on a predetermined rate schedule and any repair work must be done through an authorized

Napoleon dealer.

* Construction of models vary. Warranty applies only to components included with your speciﬁ c appliance.

Napoleon Gas Appliance President’s Lifetime Limited Warranty

Conditions and Limitations

All speciﬁ cations and designed are subject to change without prior notice due to on-going product improvements. Napoleon is a registered

trademark of Wolf Steel Ltd.

W415-2000 / F / 04.13.21

service history

Appliance Service History

This appliance must be serviced annually depending on usage.

Date Dealer Name Service Technician Name Service Performed Special Concerns

14.0 service history

NAPOLEON CELEBRATING OVER 40 YEARS

OF HOME COMFORT PRODUCTS

AAA

OOOOO

FFF

HHH

7200, Route Transcanadienne, Montréal, Québec H4T 1A3

24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8

214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8

103 Miller Drive, Crittenden, Kentucky, USA 41030

Phone: 1-866-820-8686

napoleon.com

De Riemsdijk 22, 4004 LC Tiel, The Netherlands

FRANÇAIS

W415-2000 / F / 04.13.21

ADD MANUAL TITLE

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

$10.00

MODÈLES DE GAZ NATUREL

MODÈLES DE PROPANE

INSTALLATEUR:

Laissez ce manuel avec l’appareil

PROPRIÉTAIRE:

Conservez ce manuel pour consultation

ultérieure

CONSIGNES DE SÉCURITÉ

- N’entreposez pas et n’utilisez pas d’essence

ou autres liquides et vapeurs inﬂ ammables à

proximité de cet appareil ou tout autre appareil.

- QUE FAIRE SI VOUS DÉTECTEZ UN

ODEUR DE GAZ:

• N’allumez aucun appareil.

• Ne touchez à aucun interrupteur

électrique; n’utilisez aucun téléphone dans

votre immeuble.

• Appelez immédiatement votre fournisseur

de gaz d’un téléphone voisin. Suivez ses

instructions.

• Si vous ne pouvez pas rejoindre votre

fournisseur de gaz, appelez le service des

incendies.

- L’installation et l’entretien doivent être faits par

un installateur qualiﬁ é, une agence d’entretien

ou le fournisseur.

Cet appareil peut être installé dans une maison

préfabriquée (mobile) déjà installée à demeure

si les règlements locaux le permettent.

Cet appareil doit être utilisé uniquement

avec le type de gaz indiqué sur la plaque

d’homologation. Cet appareil ne peut être

converti à d’autres gaz, sauf si une trousse de

conversion est utilisée.

RISQUE D’INCENDIE OU D’EXPLOSION

Incapacité à suivre ces avertissements

exactement peuvent entraîner de grave

blessures, des pertes de vie ou des

dommages matériels.

AVERTISSEMENT!

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Téléphone 1(866)820-8686 • www.napoleon.com • [email protected]

CERTIFIÉ SELON LES NORMES NATIONALES CANADIENNES ET AMÉRICANES:

CSA 2.22 ET ANSI Z21.50 POUR LES APPAREILS À GAZ DÉCORATIF À ÉVACUATION

POUR USAGE INTÉRIEUR SEULEMENT

FRANÇAIS

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

EX36PTEL / EX42PTEL

Série Elevation

(EX36 illustré)

MANUEL

D’INSTALLATION

EX36NTEL / EX42NTEL

PLACEZ L’ÉTIQUETTE BARCODE SUR

LE MANUEL DU PROPRIÉTAIRE

Barrière de

Protection

CET APPAREIL EST APPROPRIÉ POUR LA SYSTÈME OPTIONNEL

DYNAMIC HEAT CONTROL

(Voir le manuel d’installation de Dynamic Heat Control

)

HEA

T CONT

T CONTR

BREVET EN INSTANCE

W415-2000 / F / 04.13.21

consignes de sécurité

• Cet appareil est chaud lorsqu’il

fonctionne et peut causer de graves

brûlures en cas de contact.

• Toute modiﬁ cation apportée à cet

appareil ou aux contrôles peut être

dangereux et est interdit.

• Ne faites pas fonctionner l’appareil avant

d’avoir lu et compris les instructions

d’opération. Omettre d’utiliser l’appareil selon

les instructions d’opération pourrait causer un

incendie ou des blessures.

• S’assurez que la porte vitrée est ouvert ou retiré

de l’appareil lorsque vous allumer le pilote pour

la première fois et lorsque le gaz est épuisé.

• Risque d’incendie ou d’asphyxie, ne faites

pas fonctionner l’appareil avec la vitre retirée

et jamais obstruer l’ouverture sur le devant de

l’appareil.

• Ne branchez pas la soupape à du courant 110 volts, avec les exception de modèles; GSST8 et GT8.

• Risque de brûlures. L’appareil doit être éteint et refroidi avant d’effectuer un entretien.

• N’installez pas de composants endommagés ou incomplets ni des composants substituts.

• Risque de coupures et d’éraﬂ ures. Portez des gants protecteurs, des chaussures de protection et des

lunettes de sécurité lors de l’installation. Les bordures des pièces de métal peuvent être coupantes.

• Ne brûlez pas de bois ou autres matériaux dans cet appareil.

• Assurez-vous d’une quantité sufﬁ sante d’air de combustion et de ventilation. Prévoyez un accès sufﬁ sant

pour entretenir et opérer l’appareil.

• Haute pression endommagera la soupape. Débrancher la tuyauterie d’alimentation en gaz avant de tester la pression

de ligne de gaz à la pression d’essai au-dessus de 1/2 psig. Fermer l’arrêt manuelle du soupape avant de tester la

pression de ligne de gaz à la pression égale ou inférieure à 1/2psig (35mb).

• L’appareil ne doit pas être utilisé au températures au-dessous de zero (32°f / 0°c). Permettre à l’appareil

pour réchauffer au-dessus de zero avant le fonctionnement, avec l’exception de modèles; GSS36,

GSS42; ces appareil sont adaptés pour 0°F / -18°C.

• Les enfants et les adultes devraient être informés des dangers que posent les températures

de surface élevées et se tenir à distance afin d’éviter des brûlures ou que leurs vêtements ne

s’enflamment.

• Les jeunes enfants doivent être surveillés attentivement lorsqu’ils sont dans la même pièce

que l’appareil. Les jeunes enfants et autres personnes à risque sont sujets aux brûlures

accidentelles. Une barrière de protection est recommandée si des individus à risque se

trouvent dans la maison. Aﬁ n de restreindre l’accès à l’appareil, installez une barrière de

protection ajustable pour garder les jeunes enfants ou autres personnes à risque hors de la

pièce et loin des surfaces chaudes.

• Les vêtements et autres matériaux combustibles ne doivent pas être posés sur l’appareil ou à

proximité.

• En raison des températures élevées, l’appareil devrait être placé loin des endroits passants et

loin des meubles et des rideaux.

• Les meubles ou autres objets doivent être gardés à une distance d’au moins 4 pieds (1.22m) du devant

de l’appareil.

• Assurez-vous de disposer de mesures de sécurité adéquates pour empêcher les jeunes enfants de

toucher aux surfaces chaudes.

• Même une fois que l’appareil est éteint, l’appareil demeurera chaud pendant un temps prolongé.

• Consultez votre détaillant local de l’appareil pour connaître les écrans de protection et les protection du

foyer offerts pour protéger les enfants des surfaces chaudes. Ces écrans de protection et les protection

du foyer doivent être ﬁ xés au plancher.

• Tout écrans de protection, garde ou barriére enlevés pour faire l’entretien devront être remis

en place avant d’utiliser l’appareil.

• Il est primordial de garder propres les compartiments de contrôle, les brûleurs, la soufﬂ erie, les bouches

d’air de l’appareil ainsi que le système d’évacuation. L’appareil et son système d’évacuation doivent

être inspectés avant la première utilisation et au moins une fois l’an par un spécialiste en entretien. Un

entretien plus fréquent pourrait être nécessaire en raison des peluches provenant des tapis, literie, etc.

L’emplacement de l’appareil doit être gardé libre de tous matériaux combustibles, essence ou autres

liquides et vapeurs inﬂ ammables.

• Si l’appareil s’éteint, n’allume pas l’appareil jusqu’à ce que vous donner de l’air frais. Si l’appareil

continue de s’éteindre, faire réparer.

Garder propres le brûleur et le compartiment de contrôle.

• Cet appareil ne devra être modiﬁ é en aucun cas.

• Ne laissez pas les ventilateurs soufﬂ er directement sur l’appareil. Empêchez les courants d’air de modiﬁ er

l’a

arence de la ﬂ amme.

LA VITRE CHAUDE CAUSERA

DES BRÛLURES.

NE PAS TOUCHER LA VITRE

AVANT QU’ELLE AIT REFROIDI.

NE JAMAIS LAISSER LES

ENFANTS TOUCHER LA VITRE.

AVERTISSEMENT

Une barriére conçu à réduire le risque de brûlures causées

par le verre chaud est fourni avec l’appareil et doit être

installé pour la protection des enfants et d’autres

personnes à risque.

AVERTISSEMENT

W415-2000 / F / 04.13.21

consignes de sécurité

AVERTISSEMENT

• N’utilisez pas une soufﬂ erie intégrée, un échangeur de chaleur intégré ni un autre accessoire non

approuvé pour cet appareil.

• Cet appareil ne doit pas être raccordé au conduit d’une cheminée desservant un autre appareil de

chauffage à combustible solide.

• N’utilisez pas cet appareil si une partie quelconque a été submergée. Contactez immédiatement un

technicien de service qualiﬁ é pour inspecter l’appareil et pour remplacer toute pièce du système de

contrôle et du contrôle du gaz qui aurait été submergée.

• Ne pas opérer l’appareil lorsque la porte vitrée est enlevée, ﬁ ssurée ou brisée. Le remplacement de la

vitre devra être effectué par un technicien de service certiﬁ é ou qualiﬁ é, si équippé.

• Ne frappez pas et ne claquez pas la porte vitrée de l’appareil, si équippé.

• Seulement les portes/façades certiﬁ ées pour l’appareil peuvent être utilisées avec cet

appareil.

• Gardez les matériaux d’emballage hors de la portée des enfants et mettez ces matériaux au rebut de

façon sécuritaire. Comme tous les emballages de plastique, ces matériaux ne sont pas des jouets et

doivent demeurer hors de la portée des enfants et des bébés.

• Le carbone ou la suie ne doit pas se produire dans un appareil sans évent car il peut être distribué dans

une zone habitable de votre maison. Si vous remarquez des signes de carbone ou de suie, éteignez

immédiatement votre appareil et arrangez-le pour le faire entretenir par un technicien qualiﬁ é avant de

l’actionner à nouveau.

• Si équipé, l’écran doivent être (fermez) en place pendant le fonctionnement de l’appareil.

• Lorsque l’appareil est muni de portes d’évacuation de pression, elles doivent demeurer fermées pendant

le fonctionnement de l’appareil aﬁ n d’empêcher les gaz de combustion contenant du monoxyde de

carbone de s’inﬁ ltrer dans la maison. La température des gaz de combustion s’échappant par ces

ouvertures peut aussi causer les matériaux combustibles avoisinants à surchauffer et à prendre feu.

• L’empoisonnement au monoxyde de carbone peut conduire à la mort; les premiers signes d’une intoxication

au monoxyde de carbone ressemblent à la grippe, avec céphalées, vertiges et/ou des nausées. Si vous

présentez ces signes, l’appareil peut ne pas fonctionner correctement. Obtenir l’air frais! Faire réparer

l’appareil. Certaines personnes; les femmes enceintes, les personnes ayant une maladie cardiaque ou

pulmonaire, anémie, ceux sous l’inﬂ uence de l’alcool, ceux à haute altitude sont plus touchées par le

monoxyde de carbone que d’autres. Défaut de garder l’ouverture d’air primaire(s) du brûleur(s) propre peut

entraîner la formation de suies et dommages à la propriété.

• Comme dans le cas de tout appareil à combustion, il est recommandé de faire inspecter et entretenir

votre appareil régulièrement. De même, installez un détecteur de monoxyde de carbone dans la pièce

pour vous protéger, ainsi que votre famille, contre les intoxications (pas applicable pour les appareils pour

l’extérieure).

• Assurez-vous que les distances requises pour les dégagements aux matériaux combustibles sont

respectées lorsque vous installez une tablette décorative ou des tablettes au-dessus de l’appareil. En

raison des températures élevées, un téléviseur ou d’autres composants électroniques pourraient être

endommagés prématurément ou ils pourraient fondre, se déformer ou se décolorer.

• Pour les appareils avec une barriére; si la barriére est endommagée, elle devra être remplacée par la

barriére conçu par le manufacturier pour cet appareil.

• L’installation et la réparation devraient être effectuées par un technicien qualiﬁ é. Il est impératif que

les compartiments de contrôle, le brûleur et les passages de circulation d’air soient gardés propres

aﬁ n de fourni une combustion et une circulation d’air adéquates.

• Produits pour l’extérieur seulement: Cet appareil ne doit pas être installé à l’intérieur ni dans une structure

qui empêche la dissipation des gaz de combustion dans l’environnement extérieur.

• S’il y a lieu, la version de millivolt de cet appareil utilise et requiert un thermocouple à action rapide.

Remplacez uniquement par un thermocouple à action rapide de Wolf Steel ltée.

Isoler l'appareil en fermant la soupape

d'arrêt pendant tout essai de pression

du système d’alimentation en gaz

lorsque les pressions sont de 1/2

lb/po2 (3,5 kPa) ou moins.

RISQUE D'INCENDIE /

RETARD D'ALLUMAGE

AVERTISSEMENT/ADVERTENCIA

Desconectar la válvula/el control

principal de gas del aparato del

caño de suministro cuando se

compruebe la presión del sistema

a más de 1/2 psi (3.5 kPa).

El suministro a alta presión

dañará la válvula/los controles.

Débrancher la soupape de gaz de la

ligne d’alimentation en gaz pendant

les essais de pression de ce

système lorsque les pressions

excèdent 1/2 lb/po2 (3,5 kPa).

Aislar el aparato con su válvula de

cierre durante cualquier

comprobación de la presión de

la cañería de suministro a

una presiónigual o inferior

a 1/2 psi (3.5 kPa).

Add California Prop 65 warning

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

plomb et les composés de plomb qui, selon l’État de Californie, causeraient le cancer, et des

substances chimiques incluant le monoxyde de carbone qui, selon d’État de Californie, cause-

raient des malformations congénitales ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

W415-2000 / F / 04.13.21

table de matières

1.0 information générale 69

1.1 taux et homologations 69

1.2 vériﬁ cation d’installation 70

1.3 vue d’ensemble d’installation 71

1.4 information à propos de la plaque

d’homologation 73

1.5 installation dans une maison

mobile 73

1.6 dimensions d’EX36 74

1.7 dimensions d’EX42 75

1.8 liste de pièces 76

2.0 exigences d’évacuation 77

2.1 installation d’évacuation typique 79

2.2 emplacement et dégagements

minimaux de la terminaison 81

2.3 toutes les terminaisons 82

3.0 ossature approximatif 83

3.1 installation du bouclier d’espaceur

3.2 dimensions minimaux de l’ossature

3.3 dégagements minimaux aux

enceintes combustible 87

4.0 installation d’évacuation 88

4.1 installation horizontale 89

4.2 installation verticale 90

4.3 utilisation de composants ﬂ exibles

d’évacuation 91

4.3.1 installation de la terminaison

horizontale 91

4.3.2 installation de la terminaison

verticale 92

4.3.3 raccordement des évents à

l’appareil 92

4.3.4 renstreignant des évents 93

5.0 information électrique 94

5.1 connexion de câblage dûr 94

5.2 installation de la boîte de jonction

5.3 schéma de câblage électronique 94

5.4 l’application Contrôleur eFIRE 95

5.5 première initialisation de la

télécommande / support

de batteries 96

5.6 schéma de câblage 97

6.0 installation du gaz 98

7.0 opération 99

7.1 veilleuse sur demande 100

8.0 ossature fini 101

8.1 afﬂ euré 101

8.2 encastré 102

9.0 finitions 103

9.1 panneaux décoratifs 103

9.2 disposition des bûches 103

9.3 braises incandescentes 104

9.4 braises de charbon 104

9.5 emplacement de média 104

9.6 installation / enlèvement de la

porte et l’écran de protection 105

9.7 installation de la planche

incombustible (installation

non-DHC) 106

9.8 réglage de la bride de ﬁ nition 107

9.9 dégagements autour de l’appareil

108

9.10 dégagements minimaux de la

tablette 109

9.11 mise en place du logo 109

9.12 réglage du venturi 110

9.13 réglage de la veilleuse 111

9.14 caractéristiques de ﬂ amme 111

10.0 entretien 112

10.1 soins de vitre 112

10.2 entretien annuel 113

10.3 remplacement de la vitre / porte

113

10.4 lumières de lit de braise 114

10.5 remplacement de la soufﬂ erie 115

11.0 pièces de rèchange 117

11.1 vue d’ensemble EX36 118

11.2 assemblage de la soupape EX36

119

11.3 ensemble de bûches EX36 120

11.4 vue d’ensemble EX42 121

11.5 assemblage de la soupape EX42

122

11.6 ensemble de bûches EX42 123

12.0 guide de dépannage 124

13.0 garantie 127

L’information contenue dans ce manuel est jugée correcte au moment de l’impression. Wolf Steel Ltée. se

réserve le droit de modiﬁ er ou de modiﬁ er toute information contenue dans ce manuel à tout moment sans préa-

vis. Les modiﬁ cations, autre que les éditoriaux, sont désignées par une ligne verticale dans la marge.

note:

W415-2000 / F / 04.13.21

1.0 information générale

Lorsque l’appareil est installé à des élévations dépassant 4 500 pieds (1372m), et en l’absence de recommandations

spéciﬁ ques de l’autorité compétente locale, l’indice certiﬁ é du débit à haute altitude devra être réduit au taux de 4% pour

chaque 1 000 pieds (305m). Les bruits causés par l’expansion et la contraction lors des cycles de chauffage et de

refroidissement sont tout à fait normaux et il faut s’y attendre. Le changement de l’aspect de la ﬂ amme de « HI » à

« LO » est plus évident pour le gaz naturel que pour le propane.

Cet appareil est approuvé pour une installation dans les salles de bain, les chambres à coucher, ou les chambres

studio et est certiﬁ é pour installation dans les maisons mobile.

Cet appareil ne doit être utilié qu’avec le type de gaz indiqué sur la plaque d’homologation. Cet appareil ne

peut être converti à un autre type de gaz à moins d’utiliser un ensemble de conversion certiﬁ é.

L’emballage de protection sur les pièces plaquées s’enlève mieux lorsque l’assemblage est à température

ambiante ou lorsqu’il est chauffé à l’aide d’un séchoir à chevaux ou d’une autre source de chaleur similaire.

Cet appareil est un produit décoratif. L’appareil n’est pas une source de chaleur et un combustible

solide ne doit pas être utilisé avec cet appareil.

note:

Les piles doivent être mises au rebut conformément aux lois et à la réglementation locales.

Certaines piles peuvent être recyclées et acceptées dans votre centre de recyclage local. Rensei-

gnez-vous auprès de votre municipalité au sujet des directives de recyclage.

1.1 taux et homologations

EX36 EX42

Type de Comburant

Gaz Naturel Propane Gaz Naturel Propane

Altitude (PI)

0-4 500

Débit Max. (BTU/hr)

37 000 34 000 45 000 39 000

Pression Minimale

d’Alimentation en Gaz

4,5” w.c. (11mb) 11” w.c. (27mb) 4,5” w.c. (11mb) 11” w.c. (27mb)

Pression Maximale

d’Alimentation en Gaz

7”* w.c. (17mb) 13” w.c. (32mb) 7”* w.c. (17mb) 13” w.c. (32mb)

Pression au Collecteur

(lorsque le gaz circule)

3,5” w.c. (9mb) 10” w.c. (25mb) 3,5” w.c. (9mb) 10” w.c. (25mb)

Installateur: veuillez remplir la liste de

contrôle dans le manuel du propriétaire.

*Pression maximale d’alimentation ne doivent pas dépasser 13”.

Une barrière conçu pour réduire le risque de brûlures causées par le contact avec la vitre chaude est

fourni avec l’appareil et doit être installé.

Cet appareil est approprié pour utilisation avec le système optionnel Dynamic Heat Control

et Dynamic Heat Control

Plus. CET MANUEL N’INCLUS PAS information détaillées concernant ces systèmes. L’encadrement et ﬁ nition NE SONT

PAS la même. Pour plus d’information, consultez le manuel d’installation fourni avec le kit du système Dynamic Heat

Control

avant de commencer l’installation.

W415-2000 / F / 04.13.21

information générale

1.2 vériﬁ cation d’installation

LISTE DE VÉRIFICATION POUR L'INSTALLATION D'UN FOYER AU GAZ

Client :

Date

d'installation :

Adresse : Installateur :

Modèle : Détaillant :

N° de série : Téléphone :

Cette liste de vérification est fournie uniquement à titre de référence. Elle n'est pas destinée à remplacer les

instructions d'installation.

Installation du foyer

Le foyer est-il de niveau et fixé en place?

OUI

SI NON, VEUILLEZ EXPLIQUER POURQUOI.

Les matériaux incombustibles fournis avec l'appareil sont-ils

installés?

Le mur extérieur est-il isolé et revêtu d'une cloison sèche?

Les dégagements aux matériaux combustibles sont-ils maintenus?

Les bûches/ensembles décoratifs sont-ils installés conformément

aux instructions?

Les accessoires sont-ils installés conformément aux instructions?

La porte vitrée est-elle correctement scellée et dégagée?

L'écran de protection est-il installé et fixé en place?

Tous les accessoires requis sont-ils installés?

Installation du système d'évents

La configuration du système d'évents est-elle conforme aux

paramètres?

Le système d'évents a-t-il été scellé avec le scellant approprié?

Le système d'évents est-il supporté et fixé en place?

Est-ce que tous les dégagements aux matériaux combustibles sont

maintenus?

Les coupe-feu et les écrans appropriés sont-ils correctement

installés?

La terminaison est-elle de niveau, fixée en place et scellé?

Gaz et électricité

Le foyer a-t-il été converti au propane?

La pression d'alimentation a-t-elle été vérifiée?

Est-ce que tous les raccords de gaz ont été testés pour des fuites?

Le raccordement de l'alimentation de 110 V CA au foyer est-il

conforme?

Est-ce que tous les fils électriques sont protégés contre les

dommages?

Finition

Les matériaux incombustibles sont-ils utilisés selon les

instructions?

Les instructions relatives à l'enceinte ont-elles été transmises à

l'entrepreneur?

Les dimensions minimales de l'enceinte sont-elles conformes?

Les dégagements du manteau combustible sont-ils conformes?

Mise en service

Est-ce qu'un test d'allumage a été effectué et tout le

fonctionnement du foyer vérifié?

Les consignes de sécurité et d'allumage ont-elles été revues avec

le propriétaire?

Le manuel d'instructions a-t-il été remis au propriétaire?

W415-2000 / F / 04.13.21

information générale

1.3 vue d’ensemble d’installation

Étapes d’installation recommandés:

1. Déterminez les exigences d’évacuation avant de déterminez la position ﬁ nale de l’appareil.

2. Déterminez l’épaisseur du sol ﬁ ni (voir la section « ossature approximatif »).

3. Planiﬁ er l’enceinte, l’encadrement, les façades, les accessoires, etc.

4. Installez l’ossature approximatif (voir la section « ossature approximatif »).

5. Installez les pattes du cloutage et le bouclier d’espaceur (voir la section « installation du bouclier d’espaceur »).

6. Placez l’appareil dans la position ﬁ nale.

7. Installez l’évacuation de l’appareil (voir la section « installation d’évacuation »).

8. Installez toutes câblages électrique (voir la section « information électrique »).

9. Installez les conduites de gaz (voir la section « branchement du gaz »).

10. Testez l’appareil.

11. Complétez l’ossature (voir la section « ossature ﬁ ni » ou « ossature ﬁ ni - encastré »).

12. Complétez (voir la section « ﬁ nitions »).

13. Complétez la liste dans le manuel du propriétaire et appuyez le numéro du série sur le manuel du propriétaire.

Non-combustible

board

Planche

Incombustible

W415-2000 / F / 04.13.21

information générale

AVERTISSEMENT

• Allumez toujours la veilleuse, que ce soit pour la première fois ou lorsque l’approvisionnement en gaz est

épuisé, avec la porte vitrée ouverte ou retirée.

• Prévoyez un accès sufﬁ sant pour entretenir et opérer l’appareil. Assurez-vous d’une quantité sufﬁ sante d’air de

ventilation.

• N’obstruez jamais l’ouverture de l’appareil.

• Les objets placés devant l’appareil doivent être gardés à une distance d’au moins 48” (121,9cm) de la face

vitrée de l’appareil.

• Les surfaces autour et surtout au-dessus de l’appareil peuvent devenir chaudes. Ne touchez pas l’appareil

quand il fonctionne.

• Risque d’incendie ou d’explosion.

• Les pressions élévées endommageront la soupape. L’alimentation en gaz doit être débranchée pendant

les essais de pression de ce système lorsque les pressions d’essai excèdent 1/2 lb/po² (3,5kpa). Fermez la

soupape d’arrêt manuelle pendant tout essai de pression du système d’alimentation en gaz lorsque la pression

est de 1/2 lb/po² (3,5mb) ou moins.

• N’utilisez que les accessoires optionnels et les pièces de rechange approuvés par Wolf Steel pour cet appareil.

L’utilisant d’accessoires non listés (soufﬂ erie, portes, persiennes, moulures, composants de gaz, composants

d’évacuation, etc.) pourrait être non sécuritaire et annulera la garantie et la certiﬁ cation.

• L’appareil ne doit pas être utilisé au températures au-dessous de zéro (32°F / 0°C). Permettre à l’appareil pour

réchauffer au-dessus de zéro avant le fonctionnement.

Cet appareil au gaz devrait être installé et entretenu par un installateur qualiﬁ é en se conformant aux

codes locaux. Les pratiques d’installation peuvent varier d’une région à l’autre. Il est donc important de connaÎtre

les normes spéciﬁ ques qui s’appliquent à votre région. Par example, dans l’état du Massachusetts:

• Ce produit doit être installé par un plombier certiﬁ é ou un installateur pour le gaz lorsque installé dans le

Commonwealth du Massachusetts.

• Le registre de l’appareil doit être enlevé ou bloqué en le soudant en position ouverte avant d’installer un

encastré ou un ensemble de bûches à gaz.

• La soupape d’arrêt doit être un robinet à gaz avec une poignée en T.

• Le raccord ﬂ exible ne doit pas messurer plus que 36 pouces (914,4mm).

• Un détecteur de monoxyde de carbone est requis dans toutes les pièces contenant des appareils alimentés

au gaz.

• L’appareil n’est pas approuvé pour installation dans une chambre à coucher ou une salle de bain à moins

d’être un appareil avec une chambre de combustion scellée à évacuation directe.

L’installation doit se conformer aux codes locaux. En

l’absence de codes locaux, l’installation doit être conforme

au Code d’installation du gaz naturel et du propane CSA

B149.1 au Canada ou au National Fuel Gas Code, ANSI

Z223.1 / NFPA 54 aux États-Unis. Cet appareil convient

pour installation dans une maison mobile si l’installation est

conforme aux normes actuelles pour les maisons mobiles

équipées au gaz CAN/CSA Z240 SÉRIE MM au Canada ou

selon les normes ANSI Z223.1 et NFPA 54 aux États-Unis.

L’alimentation de gaz de l’appareil doit être débranchée

pendant les essais de pression de ce système lorsque les pressions d’essai excèdent ½ lb/po² (3,5 kpa). Fermez

la soupape d’arrêt manuelle pendant tout essai de pression du système d’alimentation en gaz lorsque la pression

est de ½ lb/po² (3,5 mb) ou moins. Si la soufﬂ erie ou ventilateur est installer la boîte de dérivation doit être

branchée au circuit électrique et mise à la terre conformément aux codes locaux. En l’absence de codes locaux

utilisez la version courante du Code Canadien de l’Électricité CSA C22.1 au Canada ou le National Electrical

Code ANSI/NFPA 70 aux États-Unis. Dans le cas où le soufﬂ erie est équipé d’un cordon d’alimentation il doit

être connecté à une réceptacle correctement mise à la terre. La ﬁ che de mise à la terre ne doit pas être retiré du

cordon d’alimentation.

Ce qui suit ne s’applique pas aux foyers encastrés; tant que les distances requises pour les dégagements aux

matériaux combustibles sont respectées, le meilleur endroit pour un appareil est le centre de la maison, car ceci

permet une meilleure utilisation de la chaleur fournie. L’emplacement des fenêtres, des portes et la circulation

dans la pièce où se trouve l’appareil devront être pris en considération. Si possible, vous devriez choisir un

emplacement où le système d’évent peut passer à travers la maison sans avoir à découper des solives de

plancher ou de toit, sauf indication contraire à l’essai.

Nous suggérons que nos

appareils au gaz soient installés

et que l'entretien soit effectué

par des professionnels certi-

fiés par le National Fireplace

Institute® (NFI) comme

spécialiste du gaz NFI.
