Wood Stove
Owner's Manual
Part 2 of 2
INSTALLATION AND
OPERATION REQUIREMENTS
MOBILE
HOME
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
accredited laboratory.
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS
IN LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
ENGLISH
ONLINE WARRANTY REGISTRATION
If the unit requires repairs during the warranty period, proof of purchase must be provided.
The purchase invoice must be kept. The date indicated on it establishes the warranty period.
If it can not be provided, the warranty period will be determined by the date of manufacture of the
product. It is also highly recommended to register the warranty online at
https://www.drolet.ca/en/warranty/warranty-registration/
Registering the warranty will help to quickly find the information needed on the unit.
Dealer:
Installer:
Phone Number:
Serial Number:
Page 3
Installation and Operation Manual - Fox et Spark II
ENGLISH
TABLE OF CONTENTS
1. CERTIFICATION PLATE .......................................................................................................... 4
2. General Information ................................................................................................................ 6
2.1 Performances ..................................................................................................................... 6
2.2 Specifications ..................................................................................................................... 7
2.3 Dimensions ........................................................................................................................ 8
2.3.1 Stove Dimensions ................................................................................................... 8
2.3.2 Combustion Chamber Dimensions ........................................................................... 9
2.4 EPA loading ......................................................................................................................10
2.4.1 Air control .............................................................................................................10
2.4.2 High burn rate (primary air control open) ..................................................................10
2.4.3 Medium and low burn rate ......................................................................................10
3. Clearances to Combustible Material .................................................................................... 11
3.1 Clearances ........................................................................................................................11
3.1.1 With Heat Shield AC02762 ....................................................................................13
3.1.2 With Lowered Ceiling .............................................................................................14
3.1.3 With Heat Shield AC02762 and Lowered Ceiling ......................................................15
3.1.4 Inside a Combustible Alcove ...................................................................................16
3.1.5 Mobile Home .........................................................................................................16
3.1.6 Mobile Home With Heat Shield AC02762 .................................................................17
4. Floor Protection .................................................................................................................... 18
5. Reducing Wall and Ceiling Clearances Safely .................................................................... 19
5.1 Shield Construction Rules ..................................................................................................19
6. options installation on your product .................................................................................... 22
6.1 Legs Installation ................................................................................................................23
6.2 Optional Fresh Air Intake Kit Installation ..............................................................................25
6.3 Optional Fire Screen Installation ........................................................................................26
6.4 Optional Blower And Thermodisc Installation .......................................................................27
6.5 Air Tubes And Baffle Installation .......................................................................................... 28
6.6 Mobile Home Installation ....................................................................................................30
7. Maintenance/Parts Replacement ......................................................................................... 31
7.1 Replacement .....................................................................................................................31
7.2 Gasket ..............................................................................................................................32
7.3 Door .................................................................................................................................32
7.3.1 Adjustment ............................................................................................................32
7.3.2 Door Alignment ......................................................................................................33
7.3.3 Gasket ..................................................................................................................34
8. Exploded Diagram and Parts List ........................................................................................ 35
DROLET LIMITED LIFETIME WARRANTY...................................................................................38
Page 4
Installation and Operation Manual - Fox et Spark II
ENGLISH

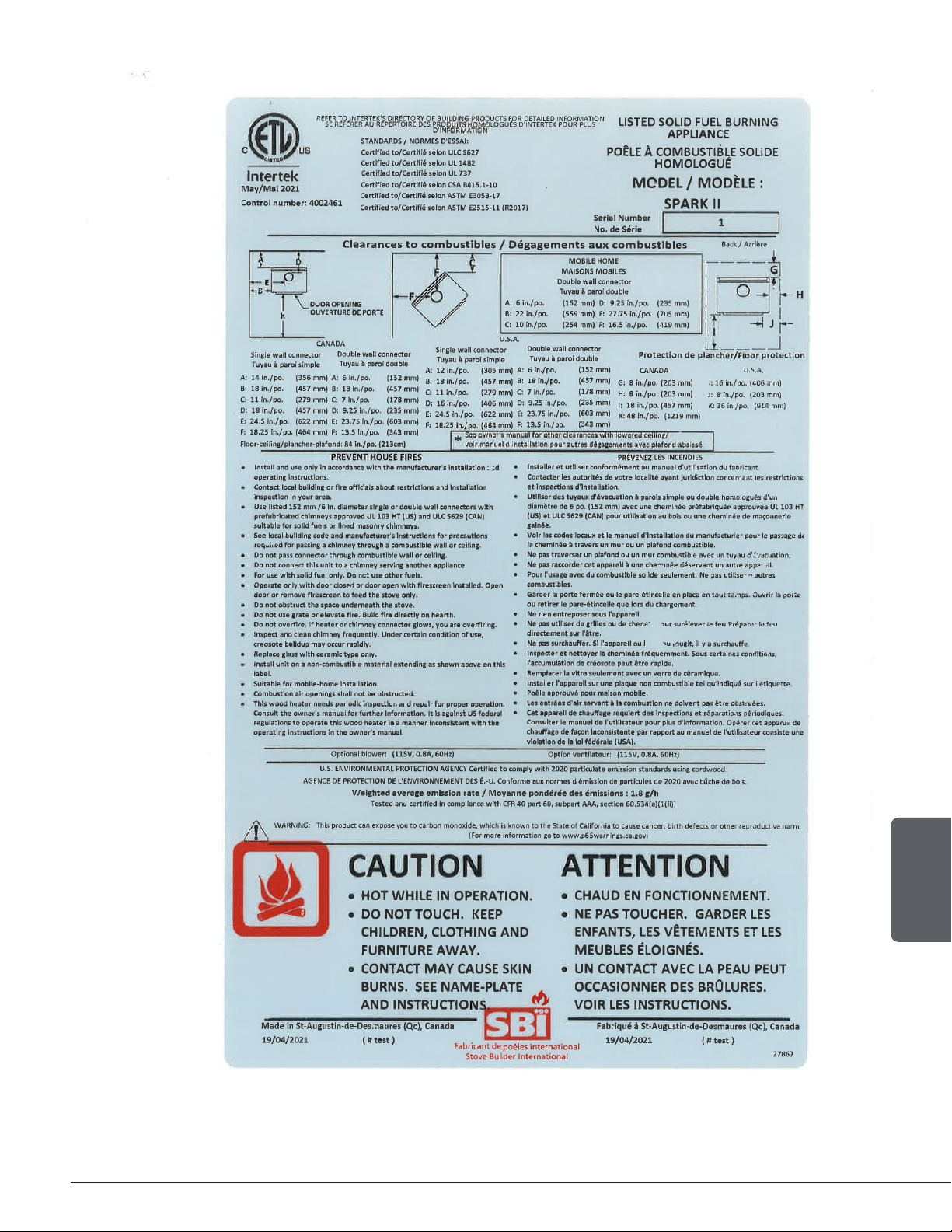

1. CERTIFICATION PLATE
Page 5
Installation and Operation Manual - Fox et Spark II
ENGLISH
Page 6
Installation and Operation Manual - Fox et Spark II
ENGLISH
2. General Information
2.1 Performances
Values are as measured per test method, except for the recommended heating area, firebox volume,
maximum burn time and maximum heat output.
Model Escape 1200 (DB03182)
Combustion type
Non-catalytic
Fuel Type
Dry Cordwood
Recommended heating area (sq. ft.
.
)
1
250 to 1,200 ft
2
(23 to 111 m
2
)
Total firebox volume 1.7 ft
3
(0.0481 m
3
)
EPA loading volume
1.55 ft
3
(0.0439 m
3
)
Maximum burn time
1
5 hours
Maximum heat output (dry cordwood)
2
45,000 BTU/h (13.2 kW)
Overall heat output rate (min. to max.)
2 3
12,124 BTU/h to 26,700 BTU/h
(3.55 kW to 7.83 kW)
Average overall efficiency
3
(Dry cordwood)
74 % (HHV)
4
79 % (LVH)
5
Optimum efficiency
6
80 %
Optimum heat transfer efficiency
7
79 %
Average particulate emissions rate
8
1.8 g/h (EPA / CSA B415.1-10)
9
Average CO
10
74 g/h
1
Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type
and other variables. The recommended heated area for a given appliance is dened by the manufacturer as its capacity to maintain a minimum
acceptable temperature in the designated area in case of a power failure.
2
The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging
from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and nish.
The specied loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
3
As measured per CSA B415.1-10 stack loss method.
4
Higher Heating Value of the fuel.
5
Lower Heating Value of the fuel.
6
Optimum overall efciency at a specic burn rate (LHV).
7
The optimum heat transfer efciency is for the low burn rate and represents the appliance’s ability to convert the energy contained in the wood logs
into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
8
This appliance is ofcially tested and certied by an independent agency.
9
Tested and certied in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and ASTM E3053-17 based on the ALT-125 sent by EPA
on February 28
th
, 2018.
10
Carbon monoxide.
Page 7
Installation and Operation Manual - Fox et Spark II
ENGLISH
2.2 Specifications
Maximum log length
11
17 in (432 mm) north-south
Flue outlet diameter 6 in (150 mm)
Recommended connector pipe diameter 6 in (150 mm)
Type of chimney ULC-S629, UL 103 HT (2100 °F)
Minimum chimney height 12 feet
Baffle material Vermiculite
Approved for alcove installation Yes
Approved for mobile home installation
12
Yes
Type of door Simple, glazed or not, with cast iron frame
Type of glass Ceramic glass
Blower Optional (up to 100 CFM)
Particulate emission standard
13
EPA / CSA B415.1-10
USA standard (Safety) UL 1482, UL 737
Canada standard (Safety) ULC-S627
11
North-south: ends of the logs visible, East-west: sides of the logs visible.
12
Mobile homes (Canada) or manufactured homes (USA): The US Department of Housing and Urban Development describes “manufactured homes”
better known as “mobile homes” as follows; buildings built on xed wheels and those transported on temporary wheels/axles and set on a permanent
foundation. In Canada, a mobile home is a dwelling for which the manufacture and assembly of each component is completed or substantially
completed prior to being moved to a site for installation on a foundation and connection to service facilities and which conforms to the CAN/CSA-
Z240 MH standard.
13
Tested and certied in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and ASTM E3053-17 based on the ALT-125 sent by
EPA on February 28
th
, 2018.
Page 8
Installation and Operation Manual - Fox et Spark II
ENGLISH
2.3 Dimensions
2.3.1 Stove Dimensions
9 1/4"
235mm
18 1/2"
470mm
6 5/8"
170mm
6"
153mm
Figure 1: Top View
17 7/8"
454mm
8 1/2"
216mm
10 1/4"
260mm
28 3/4"
731mm
26 3/4"
680mm
28 7/8"
732mm
21"
532mm
22 3/4"
578mm
Figure 2: Front View Figure 3: Side View
Page 9
Installation and Operation Manual - Fox et Spark II
ENGLISH
2.3.2 Combustion Chamber Dimensions
7 5/8"
195mm
12"
305mm
Figure 4: Door Opening
14 1/4"
360mm
11 3/4"
298mm
19 1/8"
484mm
1/4"
6mm
3/16"
5mm
Figure 5: Front View - Combustion Chamber Figure 6: Side View - Combustion Chamber
Page 10
Installation and Operation Manual - Fox et Spark II
ENGLISH
2.4 EPA loading
The charging methods shown below are those that were used during emissions certification.
2.4.1 Air control
The air control is located underneath the ash shelf. To open the
air control, push the air control handle completely to the left
(High). This will increase the burn rate. To close the air control,
push the air control handle completely to the right (Low). This
will decrease the burn rate.
2.4.2 High burn rate (primary air control open)
Open the air control completely. Place six small pieces (2"x2")
of wood in the firebox crossing them at the greatest possible angle. Criss cross fifteen kindling
wood pieces on the small pieces of wood in three layers at the greatest possible angle. Tie knot
with five sheets of paper and place them on top of the kindling wood. Light up the paper and
let the door ajar at 90° until all the kindling wood is on fire and the first row of small pieces of
wood is on fire too. Close the door.
When there is no more fire in the front of the firebox and there are only faint flames on the wood
in the back of the firebox, break ashes, level the coal bed and put four logs in the firebox. Place
the biggest log (about 5"x5") and a medium log (about 4"x4") on the coal bed with a north-south
orientation. Place two other medium logs on the first two with the greatest possible angle. Their
should be air space between each logs and between the logs and the bricks. Let the door ajar
at 90° for approximately two minutes and then close the door.
2.4.3 Medium and low burn rate
On a 2" coal bed that is still slightly red, place five logs of approximatively 4"x4" or 3"x3" with
a north-south orientation. Place three logs on the coal bed and the other two on top with the
greatest possible angle. Their should be air space between each logs and between the logs
and the bricks. Let the door ajar at 90° for approximately 5 min. Then, close the door with the
primary air control open. Leave to burn with the primary air control open for approximately 10
minutes and then close the primary air control completely for the low burn rate and halfway for
the medium burn rate.
Page 11
Installation and Operation Manual - Fox et Spark II
ENGLISH
3. Clearances to Combustible Material
The clearances shown in this section have been determined by tests according to procedures
set out in safety standards ULC S627 (Canada), UL 1482 (U.S.A.) and UL 737 (U.S.A.). When
the stove is installed so that its surfaces are at or beyond the minimum clearances specified,
combustible surfaces will not overheat under normal and even abnormal operating conditions.
No part of the stove or flue pipe may be located closer to combustibles than the minimum
clearance figures given.
The clearances to combustible walls may be slightly different in Canada and the U.S.A. and may
also differ depending on whether single or double wall flue pipe is used. Make sure to choose
the correct clearance for the stove location and type of flue pipe.
The clearances of the appliance and the flue pipes must be met individually, meaning the
appliance cannot be installed closer to the combustible materials than the single or double wall
pipe allows. For a safe way to reduce clearances refer to section"5. Reducing Wall and Ceiling
Clearances Safely"
3.1 Clearances
APPLIANCE CLEARANCES WITH SINGLE
WALL PIPE CONNECTOR
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA Canada USA
A 14" (356 mm) 12" (305 mm) A 6" (152 mm) 6" (152 mm)
B 18" (457 mm) 18" (457 mm) B 18" (457 mm) 18" (457 mm)
C 11" (279 mm) 11" (279 mm) C 7" (178 mm) 7" (178 mm)
If the above clearances are met, then the distances measured from the flue outlet will be:
DISTANCES
14
FROM PIPE CONNECTOR
WITH SINGLE WALL PIPE CONNECTOR
DISTANCES
14
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTORE
Canada USA Canada USA
D 18" (457 mm) 16" (406 mm) D 9 ¼" (235 mm) 9 ¼" (235 mm)
E 24 ½" (622 mm) 24 ½" (622 mm) E 23 ¾" (603 mm) 23 ¾" (603 mm)
F 18 ¼" (464 mm) 18 ¼" (464 mm) F 13 ½" (343 mm) 13 ½" (343 mm)
14
The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.
Page 12
Installation and Operation Manual - Fox et Spark II
ENGLISH
A
B
E
D
CAN
48"
122 cm
US
36"
92 cm
48"
Flush
F
F
C
Figure 7: Clearances - Top Figure 8: Clearances - Corner
84"
213 cm
Ve
Ho
N
Figure 9: Clearances - Side
Page 13
Installation and Operation Manual - Fox et Spark II
ENGLISH
3.1.1 With Heat Shield AC02762
15
To reduce the clearances of an appliance using a single wall pipe connector, the use of a heat
shield certified with the single wall pipe connector to be used as close as 6" from combustible
materials must be used. Only in this case, the same clearances as a certified double wall pipe
connector can be used.Refer to the booklet present in the screen options to obtain the dimensions
to be respected.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
DISTANCES
16
FROM DOUBLE WALL PIPE
CONNECTOR
Canada USA Canada USA
A 2 ½" (64 mm) 2 ½" (64 mm) D 5 ¾" (146 mm) 5 ¾" (146 mm)
B 2 ½" (64 mm) 2 ½" (64 mm) E 8 ¼" (210 mm) 8 ¼" (210 mm)
C 2 ½" (64 mm) 2 ½" (64 mm) F 9" (229 mm) 9" (229 mm)
A
B
E
D
CAN
48"
122 cm
US
36"
92 cm
48"
Flush
F
F
C
If the clearance reduction is on the same side as the door handle, position the stove at
a minimum of 6 inches from the side wall (clearance B), otherwise it may be located at
the clearance shown in the table above.
15
Note that to reduce the clearances of an appliance using a single wall pipe connector, the use of a heat shield certied with the single wall pipe
connector to be used as close as 6" from combustible materials must be used. Only in this case, the same clearances as a certied double wall
pipe connector can be used.
16
The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.
Page 14
Installation and Operation Manual - Fox et Spark II
ENGLISH
3.1.2 With Lowered Ceiling
APPLIANCE CLEARANCES WITH SINGLE
WALL PIPE CONNECTOR
Canada USA
A 14" (356 mm) 14" (356 mm)
B 20" (508 mm) 20" (508 mm)
C 11" (279 mm) 11" (279 mm)
L 72" (1829 mm) 72" (1829 mm)
Ve
Ho
L
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA
A 6" (152 mm) 6" (152 mm)
B 18" (457 mm) 18" (457 mm)
C 8" (203 mm) 8" (203 mm)
L 72" (1829 mm) 72" (1829 mm)
If the above clearances are met, then the distances measured from the flue outlet will be:
DISTANCES
17
FROM PIPE CONNECTOR
WITH SINGLE WALL PIPE CONNECTOR
DISTANCES
17
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA Canada USA
D
18" (457 mm) 18" (457 mm)
D
9 ¼" (235 mm) 9 ¼" (235 mm)
E
26 ½" (673 mm) 26 ½" (673 mm)
E
23 ¾" (603 mm) 23 ¾" (603 mm)
F
18 ¼" (464 mm) 18 ¼" (464 mm)
F
14 ½" (368 mm) 14 ½" (368 mm)
17
The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.
Page 15
Installation and Operation Manual - Fox et Spark II
ENGLISH
3.1.3 With Heat Shield AC02762 and Lowered Ceiling
To reduce the clearances of an appliance using a single wall pipe connector, the use of a heat
shield certified with the single wall pipe connector to be used as close as 6" from combustible
materials must be used. Only in this case, the same clearances as a certified double wall pipe
connector can be used. Refer to the booklet present in the screen options to obtain the dimensions
to be respected.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA
A
2 ½" (64 mm) 2 ½" (64 mm)
B
2 ½" (64 mm) 2 ½" (64 mm)
C
2 ½" (64 mm) 2 ½" (64 mm)
L
72" (1829 mm) 72" (1829 mm)
Ve
Ho
L
DISTANCES
18
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA
D
5 ¾" (146 mm) 5 ¾" (146 mm)
E
8 ¼" (210 mm) 8 ¼" (210 mm)
F
9" (229 mm) 9" (229 mm)
A
B
E
D
CAN
48"
122 cm
US
36"
92 cm
48"
Flush
F
F
C
If the clearance reduction is on the same side as the door handle, position the stove at
a minimum of 6 inches from the side wall (clearance B), otherwise it may be located at
the clearance shown in the table above.
18
The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.
Page 16
Installation and Operation Manual - Fox et Spark II
ENGLISH
3.1.4 Inside a Combustible Alcove
See section 3.1 for single wall pipe installation.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA
A
6" (152 mm) 6" (152 mm)
B
20" (508 mm) 20" (508 mm)
K
48" (1219 mm) 36" (914 mm)
L
72" (1829 mm) 72" (1829 mm)
Ve
Ho
L
DISTANCES
19
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA
D
9 ¼" (235 mm) 9 ¼" (235 mm)
E
25 ¾" (654 mm) 25 ¾" (654 mm)
A
B
E
D
K
E
B
3.1.5 Mobile Home
It is strictly forbidden to install a unit with a single wall pipe in a mobile home.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
DISTANCES
19
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA Canada USA
A
6" (152 mm) 6" (152 mm)
D
9 ¼" (235 mm) 9 ¼" (235 mm)
B
22" (559 mm) 22" (559 mm)
E
27 ¾" (705 mm) 27 ¾" (705 mm)
C
10" (254 mm) 10" (254 mm)
F
16 ½" (419 mm) 16 ½" (419 mm)
19
The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.
Page 17
Installation and Operation Manual - Fox et Spark II
ENGLISH
3.1.6 Mobile Home With Heat Shield AC02762
It is strictly forbidden to install a unit with a single wall pipe in a mobile home.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
DISTANCES
20
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA Canada USA
A 3" (76 mm) 3" (76 mm) D 6 ¼" (159 mm) 6 ¼" (159 mm)
B 3" (76 mm) 3" (76 mm) E 8 ¾" (222 mm) 8 ¾" (222 mm)
C 3" (76 mm) 3" (76 mm) F 9 ½" (241 mm) 9 ½" (241 mm)
A
B
E
D
CAN
48"
122 cm
US
36"
92 cm
48"
Flush
If the clearance reduction is on the same side as the door handle, position the stove at
a minimum of 6 inches from the side wall (clearance B), otherwise it may be located at
the clearance shown in the table above.
20
Les distances de tuyau listées dans ce tableau se réfèrent aux distances obtenues lorsque le poêle est installé en accord avec les dégagements
de l’appareil mentionnés ci-dessus.
Page 18
Installation and Operation Manual - Fox et Spark II
ENGLISH
4. Floor Protection
This stove is designed to prevent the floor from overheating. However, it must be placed on a
non-flammable surface to protect the floor from hot embers that may fall during loading.
The floor protection must be a continuous, non combustible material, such as steel with a minimum
thickness of 0.015" (0.38 mm) or ceramic tiles sealed together with grout. Cement board, brick, or
any other approved or listed material suited for floor protection. No R factor required.
Any type of tile will require a continuous non combustible sheet beneath to prevent the possibility
of embers falling through to the combustible floor if cracks or separation should occur in the
finished surface. Check local codes for approved alternatives.
No protection is required if the unit is installed on a non-combustible floor (ex: concrete).
FLOOR PROTECTION
Canada USA
G
21
8" (203 mm) N/A
H 8" (203 mm) N/A
I 18" (457 mm)
From door
opening
16" (203 mm)
From door
opening
J N/A 8" (203 mm)
K 34 ½" (876 mm) 31 ¼ (794 mm)
N
22
N/A See note 22
S 48 ¾" (1238 mm) 38 ¾" (984 mm)
T 34 ½" (876 mm) 27 ½" (698 mm)
U 34 ½" (876 mm) 31 ¼ (794 mm)
V 66" (1676 mm) 54 3/8" (1381 mm)
H
I
G
J
K
S
Figure 10: Floor Protection
U
T
V
84"
213 cm
Ve
Ho
N
21
The oor protection at the back of the stove is limited to the stove’s required clearance if such clearance is smaller than 8 inches (203 mm).
22
Only required under the horizontal section (Ho) of the connector. Must exceed each side of the connector by at least 2 inches (51 mm).
Page 19
Installation and Operation Manual - Fox et Spark II
ENGLISH
5. Reducing Wall and Ceiling Clearances Safely
It is often desired to use as little space as possible when installing
a wood stove. To do this, it is possible to reduce the clearances
safely and install the stove closer to the walls by permanently
installing a heat shield between the stove and the flammable
material.
The rules for heat shields are sometimes complicated. Read
and apply the instructions carefully. Some regions may have
different regulations. Consult the local building code or contact
the fire department for restrictions, inspection and installation
requirements in the area.
5.1 Shield Construction Rules
−
Adhesives used in shield construction must not ignite or lose adhesive qualities at temperatures
likely to be encountered.
− Mounting hardware which extends from the shield surface into combustibles may be used only
at the edges of the shield.
− Mounting hardware must allow full vertical ventilation.
A) Minimum clearance between the appliance top and an unshielded combustible ceiling (for a
ceiling 72" from the floor): 45 ¼" (1149 mm)
B) Shield extension above the appliance: 20" (500 mm)
C) Minimum space behind the shield: 1" (25 mm). In Canada 7/8" (21 mm)
D) Clearance along the bottom of the shield: minimum 1" (25 mm) and maximum 3" (75 mm)
E) Minimum clearance along the top of the shield: 3" (75 mm)
F) Mounting hardware must not be located closer than 8" (200 mm) from the vertical centre line of
the appliance.
G) Edge clearance for ceiling shields to side and back walls: 3" (75 mm)
H) Shield extension beyond each side of the appliance: 18" (450 mm).
Figure 11: Heat shield clearances Figure 12: Heat shield clearances
Page 20
Installation and Operation Manual - Fox et Spark II
ENGLISH
H
H
Figure 13: Heat shield clearances
Figure 14: Heat shield clearances
Page 21
Installation and Operation Manual - Fox et Spark II
ENGLISH
TYPE OF SHIELD
CLEARANCES MAY BE REDUCED BY
THESE PERCENTAGES
SIDES AND REAR TOP (CEILING)
CAN /
USA (%)
USA
MIN.
CAN /
USA (%)
USA
MIN.
Sheet metal, a minimum of 24 gauge (0.61 mm)
in thickness , spaced out at least 1" (25 mm)* by
non-combustible spacers
67
12"
(305 mm)
50
18"
(457 mm)
Ceramic tiles, or equivalent non-combustible
material, on non-combustible board spaced
out at least 1" (25 mm)* by non-combustible
spacers
50
18"
(457 mm)
33
24"
(610 mm)
Ceramic tiles, or equivalent non-combustible
material, on non-combustible board, with a
minimum of 24 gauge (0.61 mm) sheet metal
backing spaced out at least 1" (25 mm)* by
non-combustible spacers
67
12"
(305 mm)
50
24"
(610 mm)
Brick, spaced out at least 1" (25 mm)* by non-
combustible spacers
50
18"
(457 mm)
N/A N/A
Brick, with a minimum of 24 gauge (0.61 mm)
sheet metal backing, spaced out at least 1"
(25 mm)* by non-combustible spacers
67
12"
(305 mm)
N/A N/A
* In Canada this space can be ⅞" (21 mm)
Page 22
Installation and Operation Manual - Fox et Spark II
ENGLISH
6. OPTIONS INSTALLATION ON YOUR PRODUCT
Page 23
Installation and Operation Manual - Fox et Spark II
ENGLISH
6.1 Legs Installation
THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE
ASSEMBLY REMAINS THE SAME.
1. Remove the door and the firebricks from the stove.
2. Put the stove on its side. Unscrew and discard the metal plate (B) located under the fireplace.
B
A
Page 24
Installation and Operation Manual - Fox et Spark II
ENGLISH
3. Put the stove on its side. Install the legs (A) on the stove and secure them with the washers (B)
and nuts (C).
A
B
C
4. Install the heat shield plate (D) under the stove and secure it with screws (E) and nuts (F) from the top
only.
D
E
F
Page 25
Installation and Operation Manual - Fox et Spark II
ENGLISH
5. Put the stove on its legs and install two screws (G) on the other side of the heat shield plate
and screw with the nuts (H).
H
G
6. Put back the firebricks, the ash plug and the door on the stove. (See step 1)
The baffle and the bricks must be put back in the right place after the final positioning of the stove.
Page 26
Installation and Operation Manual - Fox et Spark II
ENGLISH
6.2 Optional Fresh Air Intake Kit Installation
THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE
ASSEMBLY REMAINS THE SAME.
This mobile home approved stove requires the installation of a fresh air intake kit (A) and an
insulated fresh air intake pipe (HVAC type, must meet ULC S110 or UL 181 class 0 or class 1) (B),
sold separately. Refer to air intake kit installation instructions for more details.
A
B
After installing the fresh air intake, before screwing the heat shield plate (D) under the
stove, remove the metal rectangle cut in the heat shield plate by cutting the micro-joints
with pliers.
Page 27
Installation and Operation Manual - Fox et Spark II
ENGLISH
6.3 Optional Fire Screen Installation
THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE
ASSEMBLY REMAINS THE SAME.
In the United States or in provinces with a particulate emission limit (eg US EPA), the use of wood
stoves with open door with and fire screen is prohibited.
It is prohibited to use this wood stove with a fire screen in a mobile home.
1. Open the door. 2. Hold the fire screen by the two handles and
bring it close to the door opening.
3. Lean the upper part of the fire screen against the top door opening making sure to position the
top fire screen brackets behind the primary air deflector.
4. Lift the fire screen upwards and push the bottom part towards the stove then let the fire screen
rest on the bottom of the door opening.
Warning: Never leave the stove unattended while in use with the fire screen.
Page 28
Installation and Operation Manual - Fox et Spark II
ENGLISH
6.4 Optional Blower And Thermodisc Installation
THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE
ASSEMBLY REMAINS THE SAME.
A blower and a thermodisc, sold separately, can be installed on the stove. The installation of the
blower is identical for a stove on legs or pedestal. Thermodisc allows the blower to operate only
when the stove is hot enough. See the instructions provided with the thermodisc for more details.
1. Remove the backplate by cutting the knockouts with pliers.
MICROJOINT
2. Screw the blower (D) in place using the screws (C) included in the installation manual. Screw
the thermodisc (A) with the screws (B) supplied with the thermodisc on the back of the stove.
Ensure that the blower’s power cord is not in contact with any surface of the stove to
prevent electrical shock or fire damage. Do not run the power cord beneath the stove.
A
B
D
C
Page 29
Installation and Operation Manual - Fox et Spark II
ENGLISH
6.5 Air Tubes And Baffle Installation
1. Starting with the rear tube, lean and insert the right end of the secondary air tube into the rear
right channel hole. Then lift and insert the left end of the tube into the rear left channel.
2. Align the notch in the left end of the tube with the key of the left air channel hole. Using a Vise grip hold
the tube and lock it in place by turning the tube as shown. Make sure the notch reaches the
end of the key way.
3. Put the baffle in place.
4. Repeat steps 1 and 2 for the three other tubes.
5. To remove the tubes use the above steps in reverse order.
Page 30
Installation and Operation Manual - Fox et Spark II
ENGLISH
Note that secondary air tubes (B) can be replaced without removing the baffle board (A) and that
all tube are not necessarely identical (look at the part number on the tube).
B
A
Page 31
Installation and Operation Manual - Fox et Spark II
ENGLISH
6.6 Mobile Home Installation
THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE
ASSEMBLY REMAINS THE SAME.
Screw the legs in place with the proper hardware (A).
A
4x
Page 32
Installation and Operation Manual - Fox et Spark II
ENGLISH
7. Maintenance/Parts Replacement
Do not clean the glass when the stove is hot.
Do not abuse the glass door by striking or slamming shut.
Do not use the stove if the glass is broken.
7.1 Replacement
The glass used is a ceramic glass, 5/32" (4 mm) thick, tested to reach temperatures up to 1400º
F. If the glass breaks, it must be replaced with one having the same specification.
To remove or replace the glass (D):
THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE
ASSEMBLY REMAINS THE SAME.
E
D
C
A
B
1. Remove the door (E) from its hinges and lay it on a soft, flat surface.
2. Remove the eight screws (A), the eight glass retainers (B), and the metal frames (C).
3. Remove the glass (D). If it is damaged install a new one in place. The replacement glass must
have a gasket all around (see procedure below).
4. Reinstall the glass, being careful to centre the glass in the door and not to over-tightening the
retaining screw.
The two main causes of broken door glass are uneven placement in the door and over-tightening
the retaining screws.
Page 33
Installation and Operation Manual - Fox et Spark II
ENGLISH
7.2 Gasket
The glass gasket is flat, adhesive-backed, woven fibreglass.
The gasket must be centred on the edge of the glass.
1. Follow the steps of the previous section to remove the
glass.
2. Remove the old gasket and clean the glass thoroughly.
3. Peel back a section of the paper covering the adhesive and
place the gasket on a table with the adhesive side up.
4. Stick the end of the gasket to the middle of one edge, then
press the edge of the glass down onto the gasket, taking
care that it is perfectly centred on the gasket.
5. Peel off more of the backing and rotate the glass. The gasket must not be stretched during
installation.
6. Cut the gasket to the required length.
7. Pinch the gasket onto the glass in a U shape, all around the glass.
7.3 Door
In order for the stove to burn at its best
efficiency, the door must provide a perfect
seal with the firebox. The tightness of the
door seal can be verified by closing and
latching the door on a strip of paper. The
test must be performed all around the door.
If the paper slips out easily anywhere, either
adjust the door or replace the gasket.
7.3.1 Adjustment
In order for the stove to burn at its best efficiency, the door must provide a perfect seal with the
firebox. Therefore, the gasket should be inspected periodically to check for a good seal. The
gasket seal may be improved with a simple latch mechanism adjustment:
1. Remove the split pin by pulling and turning it using pliers.
2. Turn the handle one counterclockwise turn to increase pressure.
3. Reinstall the split pin with a small hammer.
Figure 15: Removing the split pin Figure 16: Installing the split pin
Page 34
Installation and Operation Manual - Fox et Spark II
ENGLISH
7.3.2 Door Alignment
Door alignment should be checked before lighting the wood stove for the first time, as
it may not be properly aligned.
To align, open the door and loosen the pressures screws located on the lower and upper hinges
of the door using a 3/32” Allen key to free the adjustable hinge rods.
Using a flat screwdriver, turn the adjustable hinge rods in the direction shown to adjust the
doors. Tighten all door hinge pressure screws when they are at the desired positions.
Configurations 1-2-3-4-5-6, show in which direction these act on the adjustment of the door.
3/32"
5
6
3
2
A
B
1
4
4
2
A
B
1
3
Page 35
Installation and Operation Manual - Fox et Spark II
ENGLISH
7.3.3 Gasket
It is important to replace the gasket with another having the same diameter and density to
maintain a good seal.
1. Remove the door and place it face-down on
something soft like a cushion of rags or a piece
of carpet.
2. Remove the old gasket from the door. Use a
screwdriver to scrape the old gasket adhesive
from the door gasket groove.
3. Apply a bead of approximately 3/16" (5 mm)
of high temperature silicone in the door gasket
groove. Starting from the middle, hinges side,
press the gasket into the groove. The gasket
must not be stretched during installation.
4. Leave about ½" long of the gasket when cutting
and press the end into the groove. Tuck any loose
fibers under the gasket and into the silicone.
5. Close the door. Do not use the stove for 24 hours.
Page 36
Installation and Operation Manual - Fox et Spark II
ENGLISH
8. Exploded Diagram and Parts List
29
30
26
27
28
25
24
23
21
22
13
12
14
20
18
19
16
17
5
6
4
3
2
1
9
9
10
10
10
10
10
10
8
10
11
11
10
10
10
10
10
32
33
31
47
42
34
40
39
41
38
37
36
44
45
46
35
6
7
48
FOX
SPARK II
24
50
46
15
43
49
51
52 SPARK II / FOX
Page 37
Installation and Operation Manual - Fox et Spark II
ENGLISH
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your stove, please provide the model number and serial number. We reserve the right to change
parts due to technology upgrade or availability. Contact an authorized dealer to obtain one of these
parts. Never use substitute materials. The use of unapproved parts can cause poor performance
and risk to your safety.
# Item Description Qty
1 21622 13 7/16" X 6 3/4" X 1" VERMICULITE BAFFLE 2
2 PL66833 REAR SECONDARY AIR TUBE 1
3 PL66834 REAR CENTER SECONDARY AIR TUBE 1
4 PL66835 FRONT AND CENTER SECONDARY AIR TUBE 2
5 PL74262 EXHAUST DEFLECTOR 1
6 30154 BLACK SCREW #10 X 5/8" QUADREX #2 TYPE A 12
7 SE74262 BACK HEAT SHIELD ASSEMBLY 1
8 29007 3 1/4'' X 9'' X 1 1/4'' REFRACTORY BRICK 4
9 29010 4 1/2" X 9" X 1 1/4" REFRACTORY BRICK 2
10 29015 4'' X 9'' X 1 1/4'' REFRACTORY BRICK 12
11 29000 4'' X 8'' X 1 1/4'' REFRACTORY BRICK 2
12 AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1
13 SE46259 FOX AND SPARK INSTRUCTION MANUAL KIT 1
14 SE74167 DOOR HINGE REPLACEMENT KIT 1
15 30025 1/4-20 X 1/2" PAN-HEAD QUADREX BLACK SCREW 4
16 SE74355 ASSEMBLY AIR CONTROL HATCH KIT 1
17 30429 3/8'' NICKEL COIL HANDLE 1
18 PL74265 ASH TRAY 1
19 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 X 3/4" 3
20 SE53585 GLASS RETAINER KIT WITH SCREWS (12 PER KIT) 1
21 PL74317 RIGHT GLASS FRAME 1
22 PL74318 LEFT GLASS FRAME 1
23 SE74251 GLASS WITH GASKET 11 3/8'' L X 9 1/2'' H 1
24 AC06400 3/4" X 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1
25 30101 SPRING TENSION PIN 5/32"Ø X 1 1/2"L 1
26 SE70697 REPLACEMENT HANDLE WITH LATCH KIT 1
27 AC09185 DOOR LATCH KIT 1
28 AC07867 1/2" CHROME PLATED COIL HANDLE 1
29 SE24349 ESCAPE 1200 CAST IRON DOOR ASSEMBLY 1
30 AC06500 SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT 1
31 AC01420 RIGID FIRESCREEN 1
32 PL06728 PAINTED AIR CONTROL HANDLE 2
33 30129 METAL SCREW #10 X 1/2" PAN QUADREX ZINC "A" TYPE 4
Page 38
Installation and Operation Manual - Fox et Spark II
ENGLISH
# Item Description Qty
34 AC02055 QUICK CONNECT THERMODISC 1
35 44028 CERAMIC THERMODISC F110-20F 1
36 AC02050 BLOWER ASSEMBLY WITH VARIABLE SPEED CONTROL (UP TO 100
CFM)
1
37 44085 RHEOSTAT KNOB 1
38 44087 RHEOSTAT NUT 1
39 44080 RHEOSTAT WITHOUT NUT (MODEL KBMS-13BV) 1
40 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1
41 60013 POWER CORD 96" X 18-3 type SJT (50 pcs per carton) 1
42 AC01421 5"Ø FRESH AIR INTAKE KIT FOR WOOD STOVE ON LEGS 1
43 PL74323 LEG SUPPORT 2
44 30536 LEVELING BOLT 1/4 - 20 X 1'' 4
45 30185 17/64" AA TYPE WASHER BLACK 4
46 30100 BLACK HEX NUT 1/4 - 20 8
47 PL74328 LEG 4
48 SE74357 BOTTOM HEAT SHIELD KIT 1
49 30141 LEG KIT HARDWARE BAG 1
50 SE74358 FOX DOOR PLATE ASSEMBLY 1
51 AC06810 SELF ADHESIVE BLACK GASKET KIT 1/8" X 3/8" X 6' 1
52 SE74364 SPARK II GLASS AND MOLDING KIT 1
DROLET LIMITED LIFETIME WARRANTY
DROLET LIMITED LIFETIME WARRANTY
The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. This warranty
covers brand new products only, which have not been altered, modified nor repaired since shipment from the factory.
Proof of purchase (dated bill of sale), model name and serial number must be supplied when making any warranty
claim to the DROLET dealer.
This warranty applies to normal residential use only. This warranty is void if the unit is used to burn material other
than cordwood (for which the unit is not certified by EPA) and void if not operated according to the owner's manual.
Damages caused by misuse, abuse, improper installation, lack of maintenance, over firing, negligence or accident
during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered
by this warranty. The recommended heated area for a given appliance is defined by the manufacturer as its capacity
to maintain a minimum acceptable temperature in the designated area in case of a power failure.
This warranty does not cover any scratch, corrosion, distortion, or discoloration. Any defect or damage caused by
the use of unauthorized or other than the original parts voids this warranty. An authorized qualified technician must
perform the installation in accordance with the instructions supplied with this product and all local and national
building codes. Any service call related to an improper installation is not covered by this warranty.
The manufacturer may require that defective products be returned or that digital pictures be provided to support the
claim. Returned products are to be shipped prepaid to the manufacturer for investigation. Transportation fees to ship
the product back to the purchaser will be paid by the manufacturer. Repair work covered by the warranty, executed
at the purchaser’s domicile by an authorized qualified technician requires the prior approval of the manufacturer. All
parts and labour costs covered by this warranty are limited according to the table below.
The manufacturer, at its discretion, may decide to repair or replace any part or unit after inspection and investigation
of the defect. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty
by refunding the wholesale price of any warranted but defective parts. The manufacturer shall, in no event, be
responsible for any uncommon, indirect, consequential damages of any nature, which are in excess of the original
purchase price of the product. A one-time replacement limit applies to all parts benefiting from lifetime coverage. This
warranty applies to products purchased after March 1
st
2019.
DESCRIPTION
WARRANTY
APPLICATION*
PARTS LABOUR
Combustion chamber (welds only) and cast iron door frame. Lifetime 3 years
Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions),
plating (defective manufacture**), and convector air-mate.
5 years 3 years
Removable stainless steel combustion chamber components, secondary air tubes**,
deflectors, and supports.
5 years N/A
Glass retainers, handle assembly, and air control mechanism. 3 years 1 year
Carbon steel combustion chamber components, vermiculite baffle**, and C-Cast baffle**. 2 years N/A
Standard blower, heat sensors, switches, rheostat, wiring, and other controls. 1 year 1 year
Optional blower, paint (peeling**), ceramic glass (thermal breakage only**), ceramic fibre
blankets, gaskets, insulation, and other options.
1 year N/A
Firebricks. N/A N/A
All parts replaced under the warranty. 90 days N/A
*Subject to limitations above. **Picture required.
Labour cost and repair work to the account of the manufacturer are based on a predetermined rate schedule and
must not exceed the wholesale price of the replacement parts. Shall your unit or a component be defective, contact
immediately your DROLET dealer. To accelerate processing of your warranty claim, make sure to have on hand the
following information when calling:
• Your name, address and telephone number;
• Bill of sale and dealer’s name;
• Installation configuration;
• Serial number and model name as indicated on the
nameplate fixed to the back of your unit;
• Nature of the defect and any relevant information.
Before shipping your unit or defective component to our plant, you must obtain an Authorization
Number from your DROLET dealer. Any merchandise shipped to our plant without authorization will be
refused automatically and returned to the sender.
Stove Builder International inc.
250, rue de Copenhague,
St-Augustin-de-Desmaures (Québec) Canada
G3A 2H3
418-908-8002
https://www.drolet.ca/en/
This document is available for free download on the
manufacturer’s website. It is a copyrighted document.
Resale is strictly prohibited. The manufacturer may update
this document from time to time and cannot be responsible
for problems, injuries, or damages arising out of the use
of information contained in any document obtained from
unauthorized sources.
