ORIGINAL INSTRUCTIONS
Cordless Lawn
Mower
RLM18X33B50
RLM18X33B40
RLM18C33B25
OLM1833B
Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.
Safety, performance, and dependability have
been given top priority in the design of your
cordless lawn mower.
INTENDED USE
The cordless lawn mower is intended for
outdoor use only.
The product is designed for domestic lawn
mowing. It is a pedestrian-controlled walk-
behind mower designed to be pushed by
hand.
The product should never be operated with
the wheels off the ground, it should not be
pulled or ridden on. The cutting blade should
rotate approximately parallel to the ground
over which it is being wheeled. All four wheels
should touch the ground while mowing. It
should not be used to cut anything other than
domestic grass lawns.
Do not use the product for any other purpose.
GENERAL SAFETY WARNINGS
WARNING
When using the product, the safety rules
must be followed. For your own safety
and that of bystanders, please read these
instructions before operating the product.
Please keep the instructions safe for later
use.
WARNING
The product should be operated only with
the battery packs specied in this manual.
When using a battery operated product,
basic safety precautions should always be
followed to reduce the risk of re, leaking
batteries and personal injury.
PERSONAL SAFETY
■ The product is capable of amputating
hands and feet, and of throwing objects.
Failure to observe all safety instructions
could result in serious injury or death.
■ Be familiar with the controls and the correct
use of the product.
■ Never allow children or people with reduced
physical, sensory or mental capabilities or
persons who are not familiar with these
instructions to operate, clean, or maintain
the product. Local regulations may restrict
the age of the operator. Children should be
adequately supervised to ensure they do
not play with the product.
■ Stay alert, watch what you are doing,
and use common sense when operating
the product. Do not operate the product
while tired, ill, or under the influence of
drugs, alcohol, or medication. A lapse in
concentration while operating the product
may result in serious personal injury.
■ Wear heavy, long trousers, long sleeves,
and sturdy anti-slip footwear. Do not wear
short trousers, sandals, or go barefoot.
Avoid wearing clothing that is loose fitting
or that has hanging cords or ties.
■ Always wear safety glasses with side
shields.
■ Always be sure of your footing especially
on slopes. Keep firm footing and balance.
Walk, never run.
■ Use the product across the face of slopes,
never up and down. Exercise extreme
caution when changing direction on slopes.
■ Do not use the product near drop-offs,
ditches, excessively steep slopes, or
embankments. Poor footing could cause a
slip and fall accident.
WORK AREA SAFETY
■ Never use product while people, especially
children, or pets are within 15 m because
of the danger of objects being thrown by
contact with the blade.
■ Objects struck by the lawn mower blade
can cause severe injuries to persons.
Thoroughly inspect the area where the
product is to be used and remove all rocks,
sticks, metal, wire, bones, toys, or other
foreign objects. Remember, string or wire
may entangle with the cutting means.
■ Always use the product in the daylight or
with good artificial light.
■ Do not operate the product in explosive
atmospheres, such as in the presence
of flammable liquids, gases, or dust. The
product creates sparks which may ignite
the dust or fumes.
■ Do not operate the product on wet grass or
in the rain.
■ Do not use the product when there is a risk
of lightning.
1
■ Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their property.
■ Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the product
and the mowing activity. Never assume
that children will remain where you last saw
them.
■ Keep children out of the mowing area and
under the watchful care of a responsible
adult other than the operator. Be alert, and
turn the product off if a child enters the
area.
■ Use extra care when approaching blind
corners, shrubs, trees, or other objects
including overhanging shrubs, which may
block your view.
BATTERY TOOLS USE AND CARE
■ Read, understand, and always follow
the safety instructions that came with
your battery and charger. Failure to do
so may result in electric shock, fire or
other hazardous situations. Keep all the
instructions together in a safe place for
future reference.
■ Battery-operated products do not have to be
plugged into an electrical outlet; therefore,
they are always in operating condition.
Remove the isolator key whenever you are
not operating the product.
■ Remove the battery pack before making
any adjustments, cleaning, or removing
material from the product.
■ Ensure that the isolator key is removed
before inserting battery pack.
■ A battery pack must be recharged only with
the charger specified by the manufacturer.
Using a charger with an incompatible
battery pack may create a risk of fire. Use
battery pack only with charger listed.
■ Use only battery pack intended specifically
for the product. Use of any other battery
packs may result in a risk of fire, electric
shock, or injury to persons.
■ When battery pack is not in use, keep it away
from other metal objects like, paper clips,
coins, keys, nails, screws, or other small
metal objects, that can make a connection
from one terminal to another. Shorting the
battery pack terminals together may cause
sparks, burns, fire or explosion.
■ Do not place battery products or their
batteries near fire or heat. This increases
the risk of explosion and possibly injury.
■ Do not open or mutilate the battery pack.
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may
be toxic if swallowed.
■ Protect the battery pack against moisture
and water. Do not charge the product in a
damp or wet location. Following this rule
will reduce the risk of electric shock.
■ In case of damage and improper use of the
battery, vapour may be emitted. Provide
for fresh air, and seek medical help in case
of complaints. The vapour can irritate the
respiratory system.
■ Do not leave the battery pack inside a
vehicle in hot or cold conditions.
■ Do not incinerate the battery.
■ Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
LAWN MOWER SAFETY WARNINGS
■ Before use, always visually inspect to
ensure blades, blade bolts, and cutter
assembly are not worn or damaged.
■ Replace worn or damaged blades and
bolts in sets to preserve balance.
■ The blade on the product is sharp. Use
extreme caution and wear heavy-duty
gloves when fitting, replacing, cleaning or
checking bolt security.
■ Bring the product to an authorised service
centre to replace damaged or unreadable
labels.
■ Check all nuts, bolts, and screws at
frequent intervals for proper tightness to
be sure that the product is in safe working
condition.
■ Frequently check the grass catcher for
wear, holes, or deterioration.
■ Replace worn or damaged parts before
operating the product.
■ The product must be started with the user
behind the handlebars in the operator
safety zone. Never start the product if:
● Not all four wheels are on the ground.
2
● The grass discharge chute is exposed
and is not protected by the grass catcher
and grass discharge chute cover.
● Hands and feet of all persons are not
clear of the cutting enclosure.
■ Never operate the product if the on/off
switch on the handlebar does not properly
start and stop the product.
■ Never attempt to lock the on/off switches in
the on position; this is extremely dangerous.
■ Do not force the product. It will do the job
better and safer at the speed for which it
was designed.
■ Stop the blade when crossing gravel
surfaces.
■ Do not pull the product backwards unless
absolutely necessary. If you must back the
product away from a wall or obstruction,
first look down and behind to avoid tripping
or pulling the product over your feet.
■ Stop the motor and allow the blade to
stop if the product has to be tilted for
transportation when crossing surfaces
other than grass, and when transporting
the product to and from the work area.
■ Never use the product with defective guards
or shields, or without safety devices, such
as, deflectors and/ or grass collectors, in
place.
■ Do not tilt the product when turning on
the motor or while the motor is running. If
absolutely necessary, you may raise the
front of the lawn mower by no more than
5 cm to enable easier starting. Press down
on the handlebar to achieve this. Always
return the mower to its normal position with
all wheels on the ground before cutting.
Tilting the mower exposes the blade and
increases the probability of objects being
thrown and accidental contact with the
blade.
■ Turn on the motor carefully according to
instructions and keep hands and feet away
from blades. Do not put hands or feet near
or under rotating parts.
■ Never pick up or carry the product while it
is running.
■ Turn off the product, and remove the
isolator key and the battery pack. Make
sure that all moving parts have come to a
complete stop:
● whenever leaving the product
unattended (including disposal of grass
clippings)
● before clearing blockages or unclogging
discharge chute
● before checking, cleaning, or working on
the product
● before removing the grass catcher or
opening the grass discharge chute cover
● after striking a foreign object; inspect the
product for damage and make repairs
as necessary before restarting and
operating the product
● If the product starts to vibrate abnormally
(check immediately)
– inspect for damage, particularly the
blades
– replace or repair any damaged parts
– check for and tighten any loose parts
■ Avoid holes, ruts, bumps, rocks, property
stakes, or other hidden objects. Uneven
terrain could cause a slip-and-fall accident.
■ Always ensure that the motor control cable
is never trapped, pinched or otherwise
damaged during assembly or when folding
the handle.
ADDITIONAL BATTERY SAFETY
WARNINGS
WARNING
To reduce the risk of re, personal injury,
and product damage due to a short circuit,
never immerse your tool, battery pack or
charger in uid or allow a uid to ow inside
them. Corrosive or conductive uids, such
as seawater, certain industrial chemicals,
and bleach or bleach-containing products,
etc., can cause a short circuit.
PRODUCT FEATURES
OVERLOAD AND OVERHEAT PROTECTION
The product has an overload protection device.
When overloading is detected, the product
will automatically turn off. If the overload
protector is actuated, the on/off button must
be released. Press the on/off button to restart
the product.
The battery pack has overheat protection.
Excessive temperatures will cause the battery
to stop powering the product. If the battery
3
pack is too warm, allow it to cool down before
resuming operation. If the product still does
not work, recharge the battery.
NOTE: The battery pack LED indicator will
not work if the battery protection feature has
caused the battery pack to stop powering the
product. Release the on/off button or remove
the battery pack from the product, and the
battery pack LED indicator will resume normal
function.
NOTE: The latch should snap into place when
the battery pack is properly inserted into the
product.

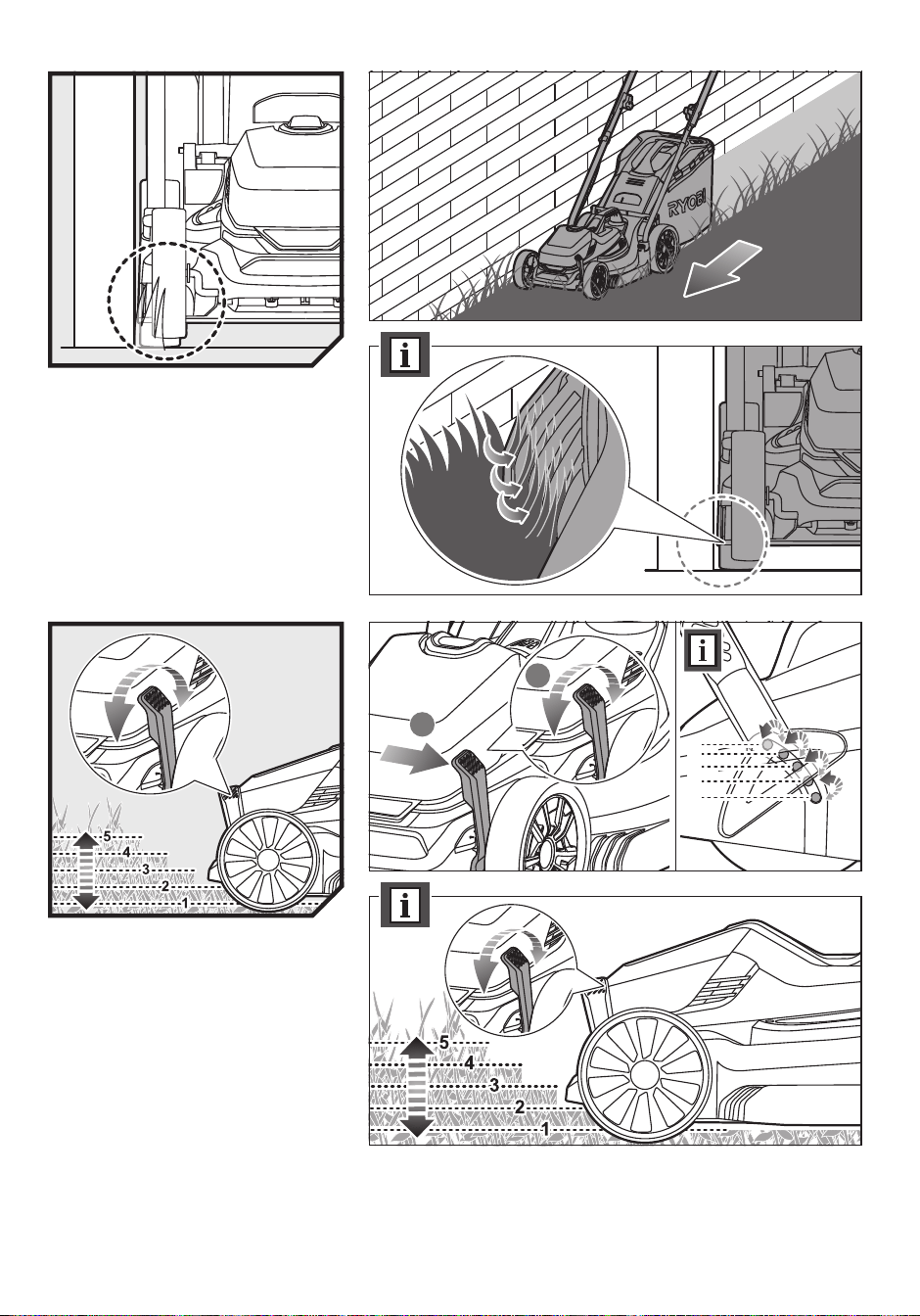

GENERAL MOWING TIPS
The run time of the battery depends on the
condition, length, and density of the grass.
Adjust the cutting height of the lawn mower to
suit the current condition of the lawn.
Grass
conditions
Suggested
height
adjustment
Coverage
(maximum)
First
pass
Succeeding
passes
4 Ah
battery
5 Ah
battery
Very thin /
Dry
3 2 200 m
2
250 m
2
Thin / Dry 4 3 → 2 150 m
2
200 m
2
Medium /
Dense
5 4 → 3 100 m
2
150 m
2
■ For best performance, always cut off one-
third or less of the total height of the grass.
■ When cutting long grass, reduce walking
speed to allow for more effective cutting
and a proper discharge of the clippings.
■ Do not cut wet grass; it will stick to the
underside of the deck and prevent proper
collection or discharge of grass clippings.
■ New or thick grass may require a higher
cutting height.
■ To collect the grass cuttings for disposal,
remove the mulching plug and fit the
grass catcher, making sure that the
grass discharge chute cover is properly
closed. Empty the grass catcher regularly;
otherwise, the discharge chute will become
blocked with grass cuttings.
■ If you are making a light cut and wish
for the grass cuttings to remain on the
lawn, fit the mulching plug and close the
grass discharge chute cover to cover the
discharge opening. It is not necessary to fit
the grass catcher in this case.
■ The product is designed to operate and cut
most effectively when moving forwards.
■ A higher cutting height extends the run
time of the battery.
TRANSPORTATION AND STORAGE
■ Turn off the product, and remove the
isolator key and the battery pack. Make
sure that all moving parts have come to a
complete stop. Allow the product to cool
down before storing or transporting.
■ Clean all foreign materials from the product.
Store the product in a cool, dry, and well-
ventilated place that is inaccessible to
children. Keep the product away from
corrosive agents such as garden chemicals
and de-icing salts. Do not store the product
outdoors.
■ For transportation in vehicles, remove
the isolator key, and secure the product
against movement or falling to prevent
injury to persons or damage to the product.
WARNING
Use extreme caution when lifting or tilting
the product for maintenance, cleaning,
storage, or transportation. The blade is
sharp; keep all body parts away from the
blade while it is exposed.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local
and national provisions and regulations.
Follow all special requirements on packaging
and labelling when transporting batteries by a
third party. Ensure that no batteries can come
in contact with other batteries or conductive
materials while in transport by protecting
exposed connectors with insulating, non-
conductive caps or tape. Do not transport
batteries that are cracked or leaking. Check
with the forwarding company for further
advice.
4

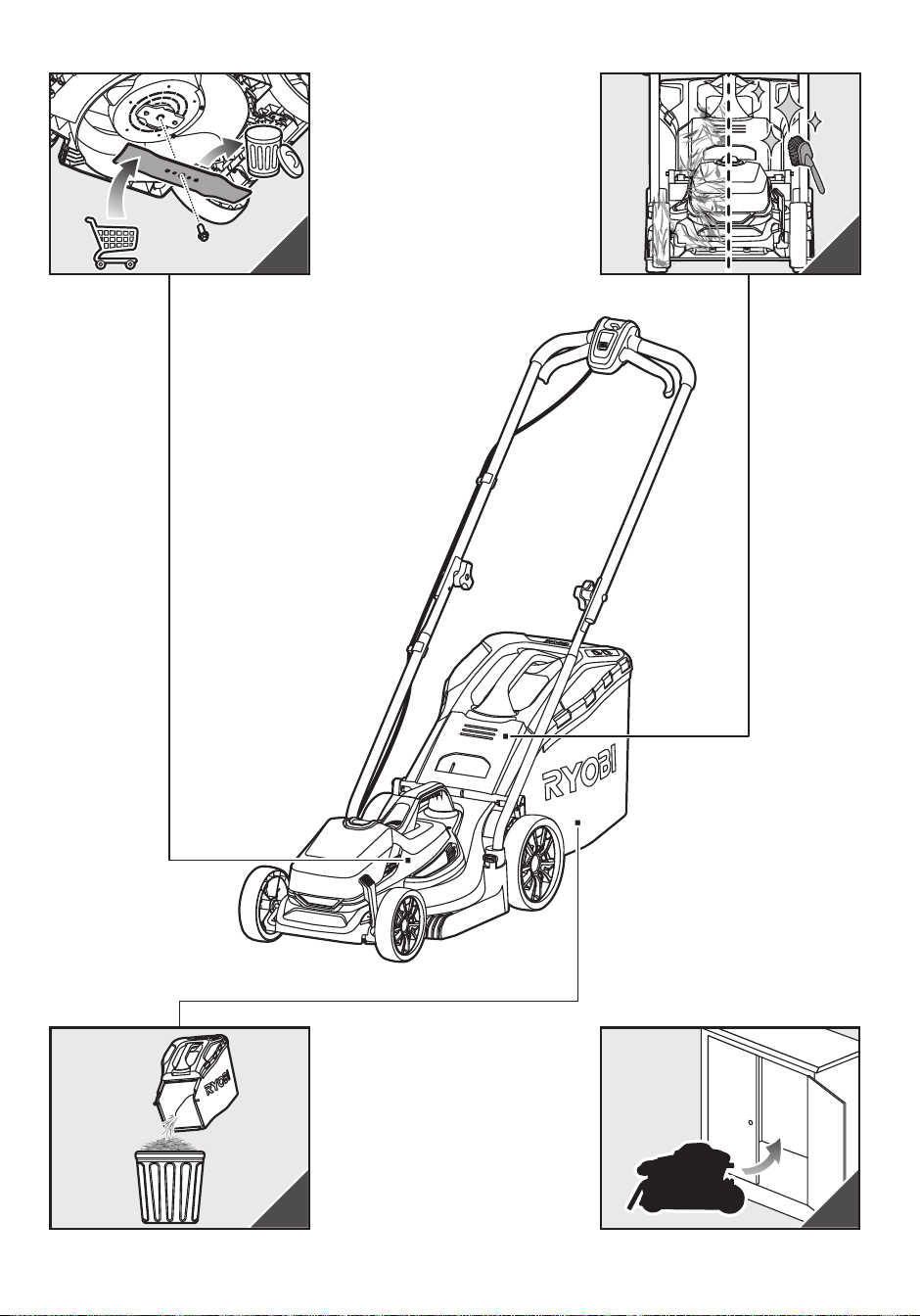

MAINTENANCE
WARNING
Use only original manufacturer’s
replacement parts, accessories and
attachments. Failure to do so can cause
possible injury, can contribute to poor
performance, and may void your warranty.
WARNING
Servicing requires extreme care and
knowledge and should be performed only
by a qualied service technician. Have the
product serviced by an authorised service
centre only. When servicing, use only
original replacement parts.
■ Turn off the product, and remove the
isolator key and the battery pack. Make
sure all moving parts have come to a
complete stop before any cleaning or
maintenance task.
■ You may make adjustments and repairs
described in this manual. For other repairs,
contact an authorised service centre.
■ Replace worn or damaged part for safety.
■ Check the grass catcher frequently for
wear or deterioration.

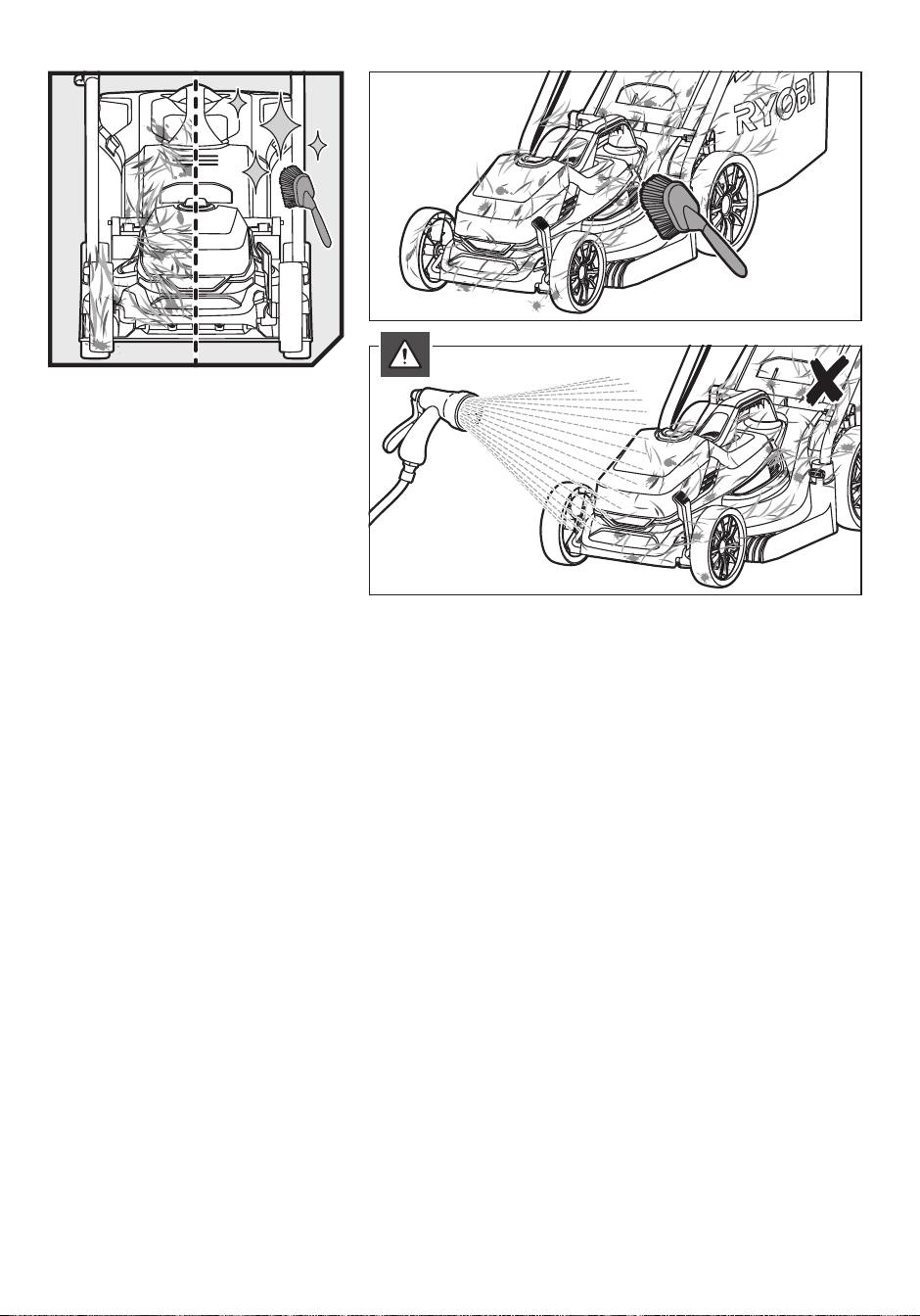

■ After each use, clean the product with a
soft, dry cloth. Any part that is damaged
should be properly repaired or replaced by
an authorised service centre.
■ Check all nuts, bolts, and screws at frequent
intervals for proper tightness to ensure the
product is in safe working condition.
■ Be careful during adjustment of the product
to prevent entrapment of the fingers
between moving blades and fixed parts of
the product.
■ When servicing the blades, be aware that
even though the power source is turned off,
the blades can still be moved.
■ The blade on the product is sharp. Use
extreme caution, and wear heavy-duty
gloves when fitting, replacing, cleaning, or
checking bolt security.
■ Replace damaged blades and bolts in sets
to preserve balance.
■ The blade bolts must be adequately
tightened. See the manufacturer’s
recommendations for blade bolt torque
which can be found in the product
specification table in this manual.
CLEARING BLOCKAGES
■ Turn off the product, and remove the
isolator key and the battery pack. Make
sure that all moving parts have come to a
complete stop.
■ Always wear heavy-duty gloves when
checking or clearing a blockage. The
blades are sharp and the blockage itself
could be a sharp object.
■ Remove the grass catcher, check for and
carefully clear obstructions.
■ Check the grass discharge chute, and
carefully clear blockages.
■ Turn the product on its side. Check its
underside and the area around the blade. If
any blockages are found, remove carefully.
Remember, the blade may move during
cleaning.
RESIDUAL RISKS
Even when the product is used as prescribed,
it is still impossible to completely eliminate
certain residual risk factors. The following
hazards may arise during use, and the
operator should pay special attention to avoid
the following:
■ injury caused by vibration
– Always use the right tool for the job. Use
designated handles and restrict working
time and exposure.
■ injury caused by noise
– Exposure to noise can cause hearing
injury. Wear ear protection and limit
exposure.
■ injury from contact with the blades
■ injury caused by thrown objects
RISK REDUCTION
It has been reported that vibrations from
handheld tools may contribute to a condition
called Raynaud’s Syndrome. Symptoms may
include tingling, numbness and blanching of
the ngers, usually apparent upon exposure
to cold. Hereditary factors, exposure to cold
and dampness, diet, smoking and work
practices are all thought to contribute to the
development of these symptoms. There are
5
measures that can be taken by the operator to
possibly reduce the effects of vibration:
■ Keep your body warm in cold weather.
When operating the product, wear gloves
to keep the hands and wrists warm. It is
reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■ After each period of operation, exercise to
increase blood circulation.
■ Take frequent work breaks. Limit the
amount of exposure per day.
If you experience any of the symptoms of this
condition, immediately discontinue use and
see your physician.
WARNING
Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any
tool for prolonged periods, ensure you take
regular breaks.

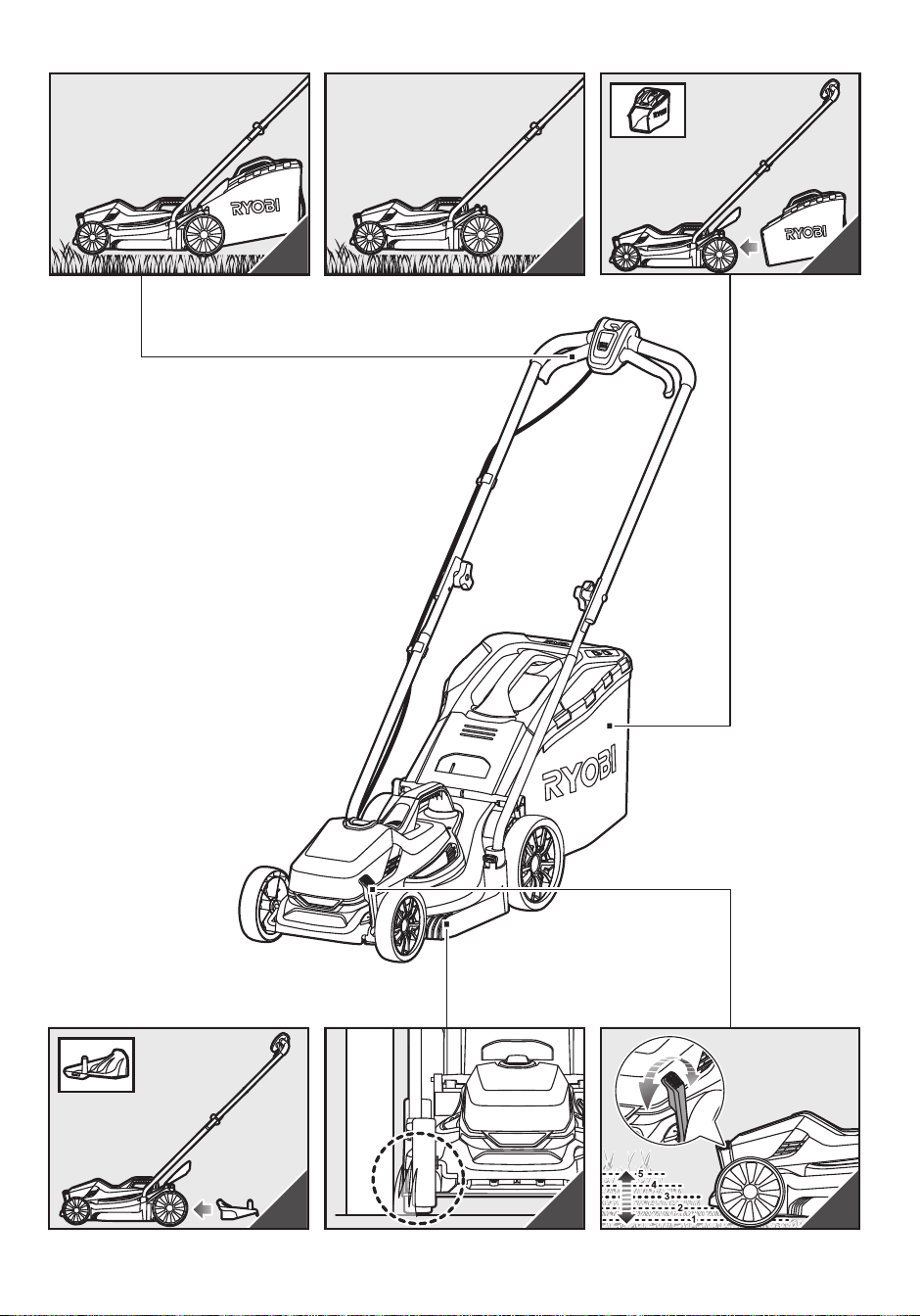

KNOW YOUR PRODUCT
See pages 12.
1. Start button
2. Handle
3. On-off button
4. Handle knob
5. Grass catcher
6. Grass catcher full indicator
7. Handle lock
8. Rear wheel
9. Front wheel
10. Mulching plug
11. Charger
12. Battery
13. Isolator key
14. Height adjustment lever
15. Battery door
16. Grass discharge chute cover
17. Motor control cable retainer
18. Motor control cable
SYMBOLS ON THE PRODUCT
Read and understand all
instructions before operating
the product. Follow all warnings
and safety instructions.
Wear ear protection.
Wear eye protection.
Do not operate on inclines
greater than 15°. Mow across
the face of slopes, never up
and down.
Do not expose to rain or damp
condition
Beware of sharp blades.
Blades continue to rotate after
the motor is switched off –
Remove isolator key before
maintenance
Beware of thrown or ying
objects. Keep all bystanders,
especially children and pets,
at least 15 m away from the
operating area.
The handle features 3 levels
of height adjustment. Check
to ensure the tubes are
properly inserted especially at
the highest level. The handle
could slip out of the holes if not
properly inserted and locked.
Press the start button and then
the On/off button (A or B) to
start the product. Release the
Start button and keep pressing
the On/off button to run the
product. Release the On/off
button to stop the product.
Go
Stop
Please read the instructions
carefully before using the
product.
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your local authority
or retailer for recycling advice.
6
Conforms to all regulatory
standards in the country in
the EU where the product is
purchased
EurAsian Conformity Mark
Ukrainian mark of conformity
The guaranteed sound power
level is shown on this label by
96 dB.
SYMBOLS IN THIS MANUAL
Parts or accessories sold
separately
Note
Warning
The following signal words and meanings
are intended to explain the levels of risk
associated with the product:
DANGER
Indicates an imminently hazardous situation,
which, if not avoided, will result in death or
serious injury.
WARNING
Indicates a potentially hazardous situation,
which, if not avoided, could result in death or
serious injury.
CAUTION
Indicates a potentially hazardous situation,
which, if not avoided, may result in minor or
moderate injury.
CAUTION
(Without safety alert symbol) Indicates a
situation that may result in property damage.
7
RLM18X33B40
x 1
STOP
GO
x 1
x 1
x 1
x 1
x 2
x 2
x 1
10mm
x 1
x 1
8
RLM18X33B50
x 1
STOP
GO
x 1
x 1
x 1
x 1
x 2
x 2
x 1
10mm
x 1
x 1
9
RLM18C33B25
x 1
STOP
GO
x 1
x 1
x 2
x 2
x 1
10mm
x 1
x 1
x 1
x 1
10
OLM1833B
10 mm
x 1
x 2
x 2
x 1 x 1
STOP
GO
x 1
x 1
x 1
11
STOP
GO
1
2
3
4
5
6
7
8
9
111213 10
14
15
16
18
17
12
1
2
7a
1
1
2
3
3
1
2
4
2
1
1
2
8 9
A
1
2
A
+ /
B
B
A
B
10
2
2
1
1
3
3
5 6
2
1
2
1
2
3
7b
STOP
GO
13
14
STOP
GO
STOP
GO
p.17 p.18 p.19
p.19 p.20 p.20
15
STOP
GO
STOP
GO
p.23p.21
p.24
p.25
16
17
15˚Max.15˚
1
2
4
3
2
A
+ /
B D
A
1
B
A
B
2
1
15˚Max.15˚
2
4
3
1
1
18
2
A
+ /
B D
A
1
B
A
B
2
1
2
1
2
3
1
3
2
1
2
2
2
1
1
STOP
GO
19
20
STOP
GO
1
2
1
2
3
4
5
21
2
1
3
4
1
2
3
1
2
4
22
1
2
1
2
1
2
5
6
7
23
24
1
3
2
STOP
GO
STOP
GO
STOP
GO
STOP
GO
1
2
25
2
1
3
4
1
2
1
3
4
1
3
2
2
20190920v4
26
2
1
2
1
3
6
7
1
2
5
20190919v4d3
PRODUCT SPECIFICATIONS
Product name Cordless Lawn
Mower
Model RLM18X33B50 /
RLM18X33B40 /
RLM18C33B25 /
OLM1833B
Rated voltage 18V d.c.
Width of cut 33 cm
Height of cut 25-65 mm
No-load speed 4400/min
Weight (without battery) 7.5 kg
Grass catcher capacity 35 L
Blade bolt torque 35~40 Nm
Vibration level (in accordance with Annex FF of
EN 60335-2-77)
Total vibration value <2.5 m/s
2
Noise emission level (in accordance with Annex
GG of EN 60335-2-77)
A-Weighted sound
pressure level at
operator’s position
90.0 dB(A)
Uncertainty of
measurement
2.5 dB
A-Weighted sound power
level
93.6 dB(A)
Uncertainty of
measurement
1.6 dB
BATTERY AND CHARGER
Model RLM18X33B50 RLM18X33B40
Battery
pack
RB18L50 RB18L40
Weight 0.73 kg 0.73 kg
Charger RC18120 RC18120
Compatible
battery
packs
RB18L13, RB18L15, RB18L20,
RB18L25, RB18L26, RB18L30,
RB18L40, RB18L50, RB18L90
Compatible
chargers
BCL14181H, RC18115, RC18120,
RC18150
Model RLM18C33B25 OLM1833B
Battery pack
RB18L25 -
Weight 0.455 kg -
Charger RC18115 -
Compatible
battery
packs
RB18L13, RB18L15, RB18L20,
RB18L25, RB18L26, RB18L30,
RB18L40, RB18L50, RB18L90
Compatible
chargers
BCL14181H, RC18115,
RC18120, RC18150
REPLACEMENT PART
Blade RAC434 (682072)
VIBRATION LEVEL
The declared vibration value has been
measured with a standard test method and
may be used to compare one tool with another.
The declared vibration value may be used in
preliminary assessment of exposure.
The vibration emission during actual use of
the power tool can differ from the declared
total value depending on the ways in which
the tool is used.
Identify safety measures to protect the
operator based on an estimation of exposure
in the actual conditions of use, taking account
of all parts of the operating cycle such as the
times when the tool is switched off and when
it is running idle in addition to the trigger time.
RYOBI
®
WARRANTY APPLICATION CONDITIONS
In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.
1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date
has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer
and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies
only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period
described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended
warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The
end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The
end user may register for the extended warranty in his/her country of residence if listed on the online registration form
where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is
required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt,
which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended
warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at
the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations
including but not limited to incidental or consequential damages. The warranty is not valid if the product has been
misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty
does not apply to:
– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or
removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior
authorisation by Techtronic Industries
– any product connected to an improper power supply (amps, voltage, frequency)
– any product used with inappropriate fuel mixture (fuel, oil, Ratio of oil / fuel mixture)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
– Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting
lines etc.
– Any periodic adjustments to or maintenance cleaning of carburetors
– Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs,
drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord,
tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw
chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark
plugs, air filters, gas filters, mulching blades, etc.
4. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the
following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product
to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely
packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short
description of the fault.
5. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the
warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage
will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
6. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia.
Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.
AUTHORISED SERVICE CENTRES
ACD PLANT LTD
145 Southbank Road
Coundon
Coventry, West Midlands
CV6 1FG
Phone: 02476 594348
Email: [email protected]
Web: www.acdplant.co.uk
CBS Power Tools Limited
Unit 4, V P Square
Storeys Bar Rd, Fengate
Peterborough, Cambridgeshire
PE1 5YS
Phone: 01733 343031
Email: [email protected]
Web: www.cbspowertools.com
C D Powertools
76 Old Road
Churwell Morley, Leeds
LS27 7TH
Phone: 0113 2718494
Email: [email protected]
Web : www.cdpowertools.co.uk
C J Sinclair Limited
44 Victoria Road
St Peters
Broadstairs, Kent
CT10 2UG
Phone: 01843 869400
Email: [email protected]
Web: www.cjsinclairltd.co.uk
ToolTech Industrial Equipment
227 E Dunhill Road, Macosquin
Coleraine, Co Londonderry
BT514LQ
Phone: 028 70359493
Email: [email protected]
For an updated list of authorised service centres, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.
DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Strasse 10, D-71364 Winnenden, Germany
Herewith we declare that the product
Cordless Lawn Mower
Brand: RYOBI
Model number: OLM1833B
Serial number range: 46291001000001 - 46291001999999
is in conformity with the following European Directives and harmonised standards
2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU, EN 60335-1:2012 +A11:2014+A13:2017,
EN 60335-2-77:2010, EN 55014-1:2017, EN 55014-2:2015, EN IEC 63000:2018
Measured sound power level 93.6 dB(A)
Guaranteed sound power level 96 dB(A)
Conformity assessment method to Annex VI Directive 2000/14/EC amended by 2005/88/EC
The notied body involved:
Société Nationale de Certication et d’Homologation (Notied Body 0499)
2a. Kalchesbruck L-1852 Luxembourg
Todd Chipner
Sr. Director, CPT Quality and Asia Regulatory & Safety
Winnenden, Jan. 25, 2019
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Techtronic Industries GmbH
Max-Eyth-Straße 10,
71364 Winnenden, Germany
961479016-03
RYOBI is a trademark of Ryobi Limited,
and is used under license.
© 2019 Techtronic Cordless GP. All rights reserved.
