www.lg.com
Please read the safety information carefully before using the
product.
IPS LED Monitor (LED Monitor) Model List
Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
29UM68
34UM68
2
ENG
ENGLISH
Contents
CONTENTS
17 USER SETTINGS
18 Customizing settings
18 - Menu Settings
18 - -Quick Settings

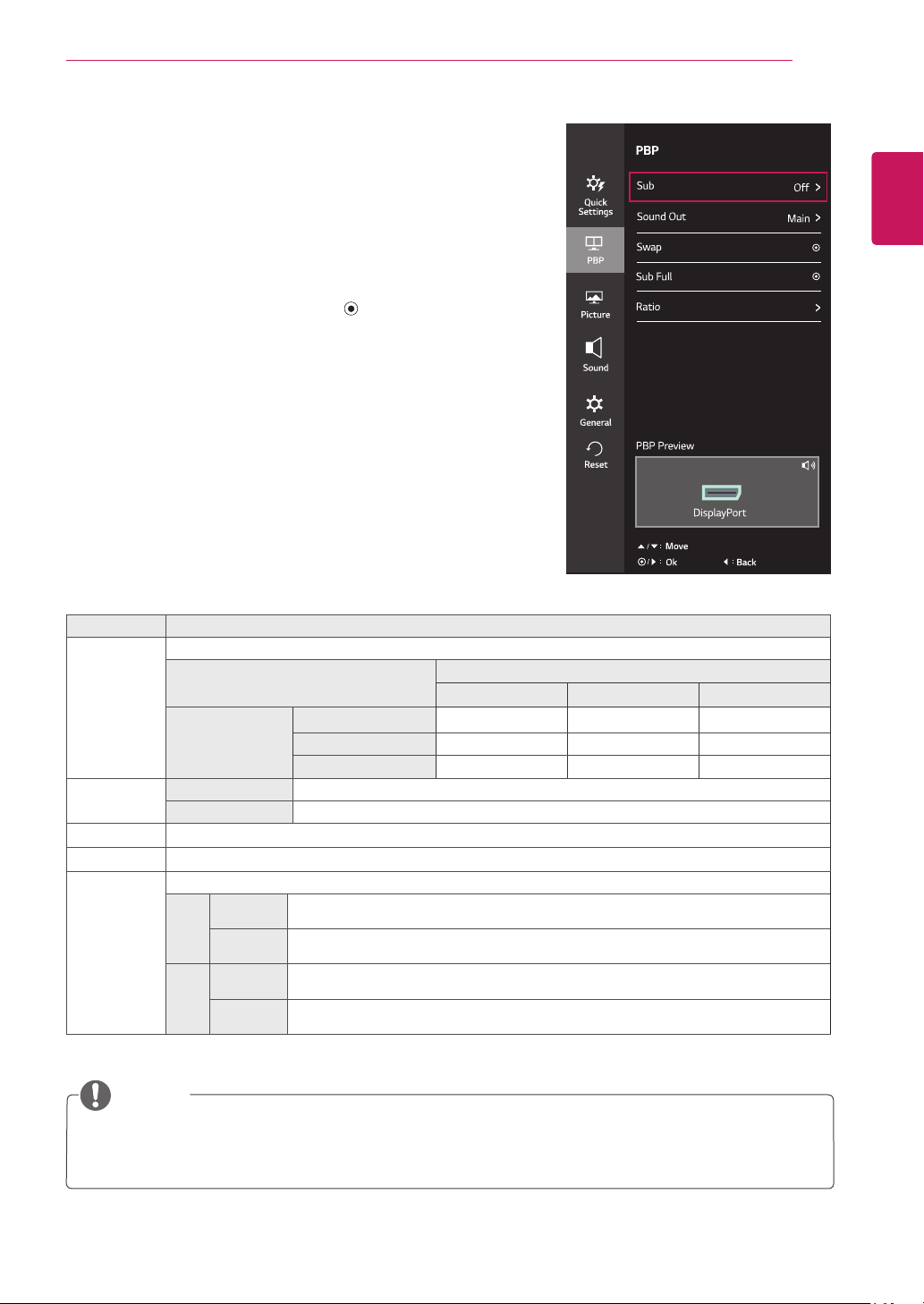

19 - -PBP
20 - -Picture
22 - -Sound

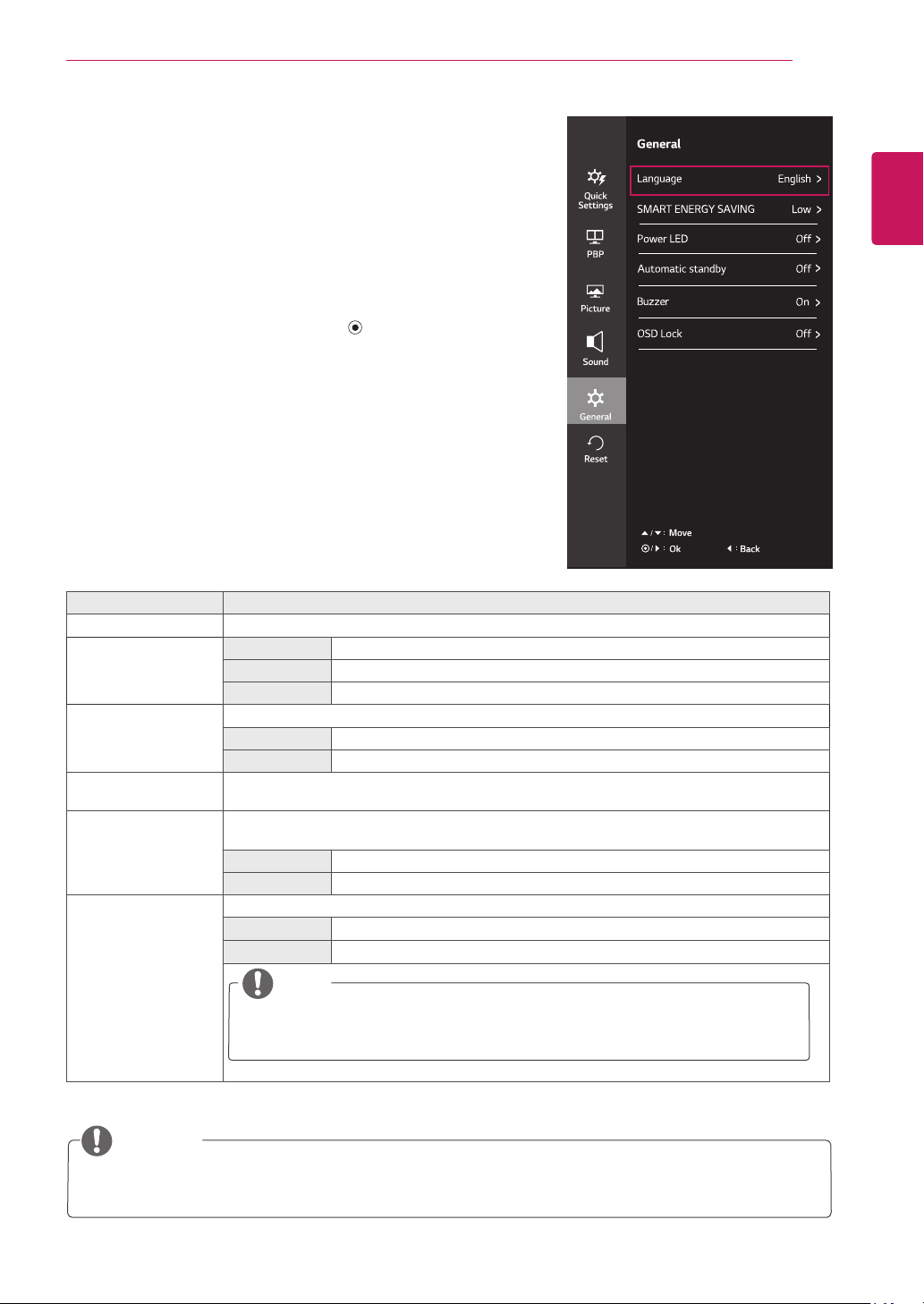

23 - -General
24 - -Reset
25 TROUBLESHOOTING
27 SPECIFICATIONS
27 29UM68
28 34UM68
29 Factory support mode
(HDMI/ DisplayPort)
29 HDMI Timing (Video)
29 Indicator
3 LICENSE
4 ASSEMBLING AND
PREPARING
4 Product Components
5 Component and Button Description
5 - How to Use the Joystick Button
7 Moving and Lifting the Monitor
8 Installing the Monitor
8 - Assembling the stand base
10 - Using the cable holder
10 - Adjusting the stand height
11 - Installing onto a table
12 - Adjusting the angle
13 - Using the Kensington lock
13 - Installing the wall mount plate
14 - Installing to a wall
15 USING THE MONITOR
15 Connecting to a PC
15 - HDMI connection
15 - DisplayPort connection
16 Connecting to AV Devices
16 - HDMI connection
16 Connecting to External Devices
16 - Connecting Headphones
3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
VESA, VESA logo, DisplayPort Compliance Logo and DisplayPort
Compliance Logo for dual-mode source are all registered trademarks of the
Video Electronics Standards Association.
MaxxAudio and additional MAXX trademarks are trademarks and/or
registered trademarks of Waves Audio Ltd.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet
the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

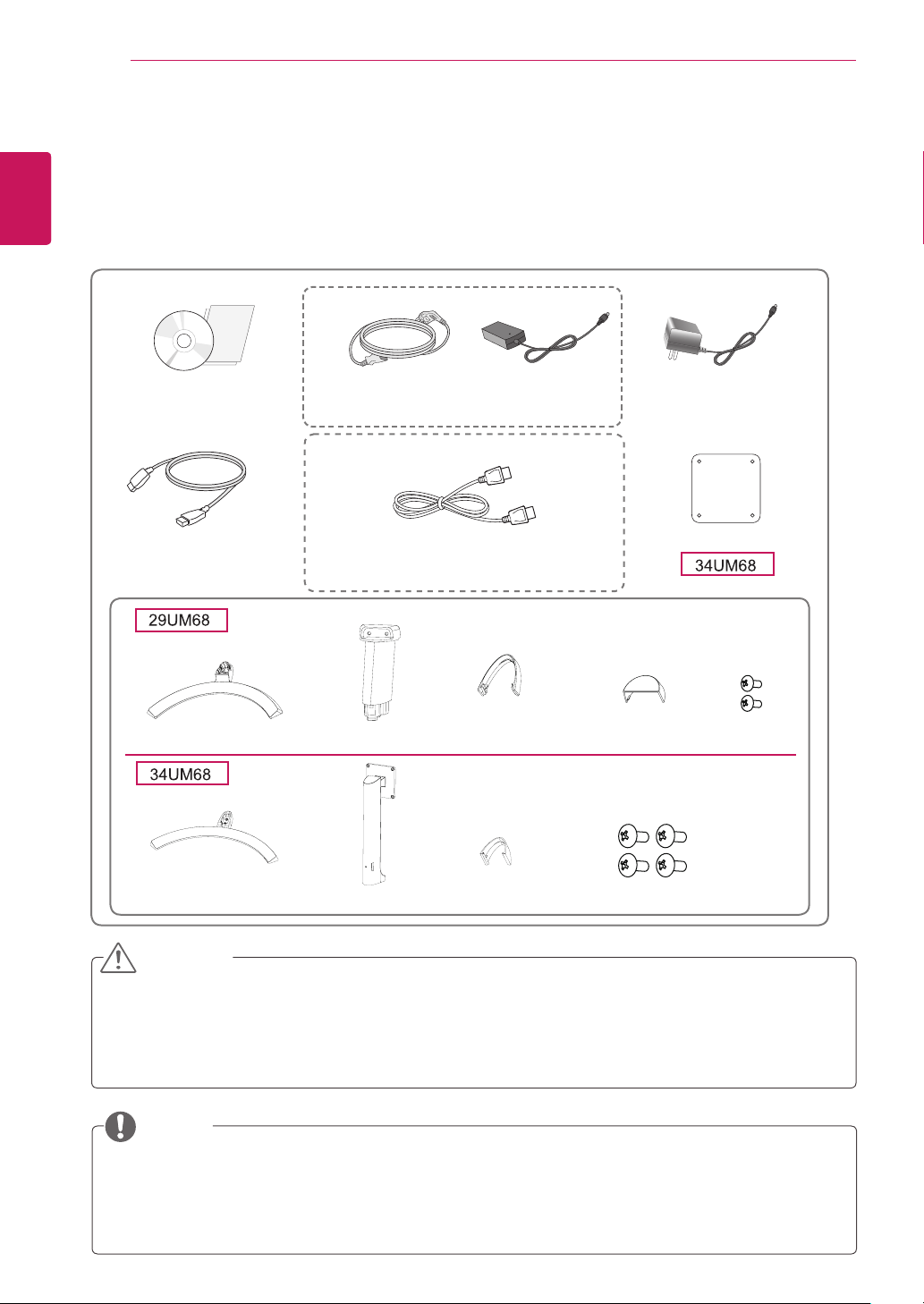

Product Components
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
y
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
It is recommend that use the supplied components.
y
If you use generic cables not certified by LG, the screen may not display or there may be image
noises.
CAUTION
y
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to im-
prove the performance of the product.
y
To purchase optional accessories, visit an electronics store or online shopping site or contact the
retail store where you purchased the product.
NOTE
CD(Owner's Manual) /
Card
DisplayPort Cable
Stand Base
Stand Base
Stand Body
Stand Body
HDMI Cable
( This cable is not in-
cluded in all countries. )
( This cable is not in-
cluded in all countries. )
( Depending on the country )
( Depending on
the country )
Power Cord
AC-DC Adapter
AC-DC Adapter
or
Cable Holder Screw Cover
Cable Holder 4 Screws
2 Screws
Clear sheet
OPTIONAL ACCESSORIES
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Component and Button Description
Power Indicator
y
On: power is on
y
Off: power is off
Joystick Button
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Power on
Press the joystick button once with your finger to turn on the
monitor.
Power off
Press and hold the joystick button once with your finger to turn off
the monitor.
◄/►
Volume
Control
You can control the volume by moving the joystick button left/right.
y
The joystick button is located at the bottom of the monitor.
NOTE
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

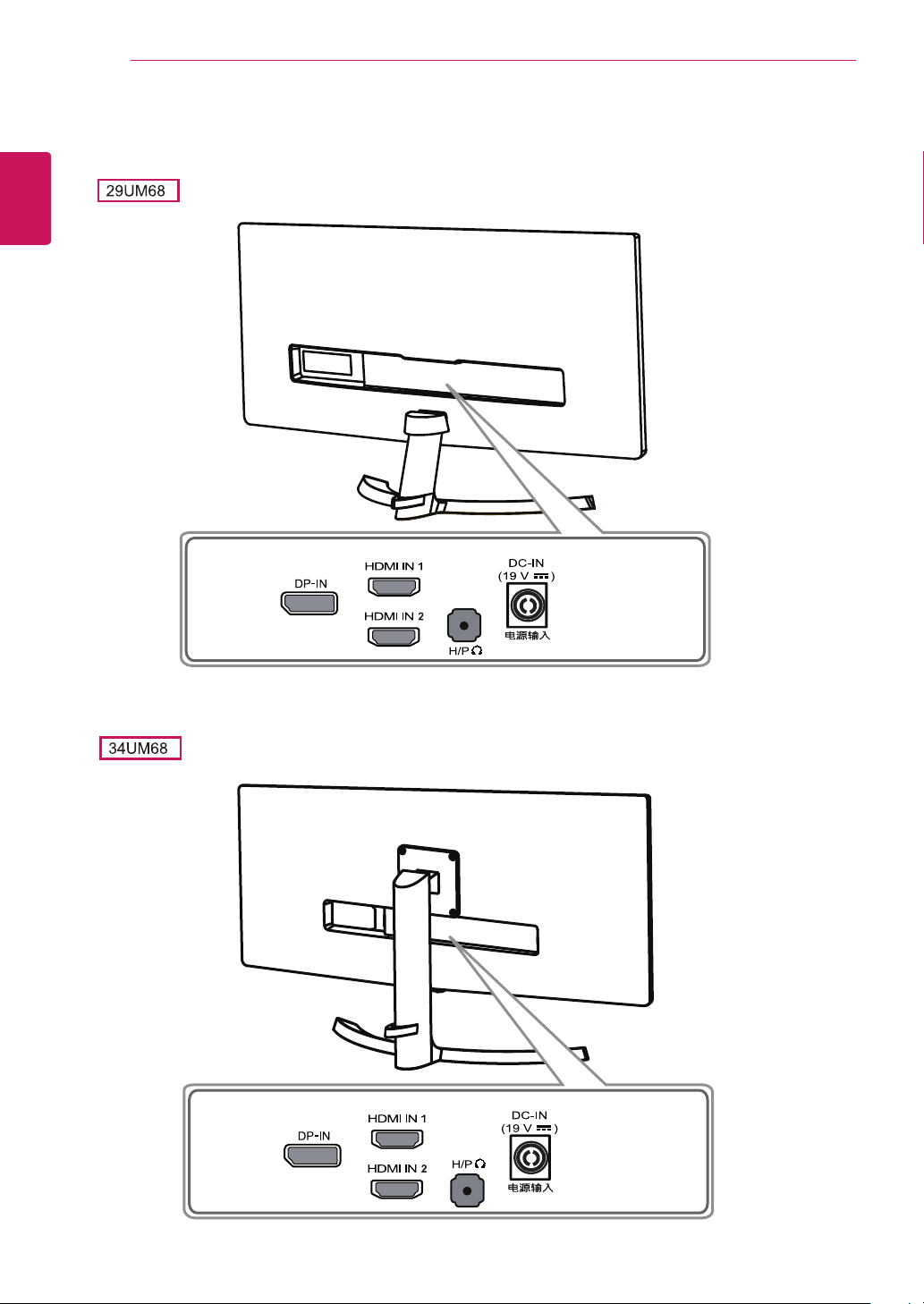

Input Connector
Input Connector
7
ENG
ENGLISH
ASSEMBLING AND PREPARING

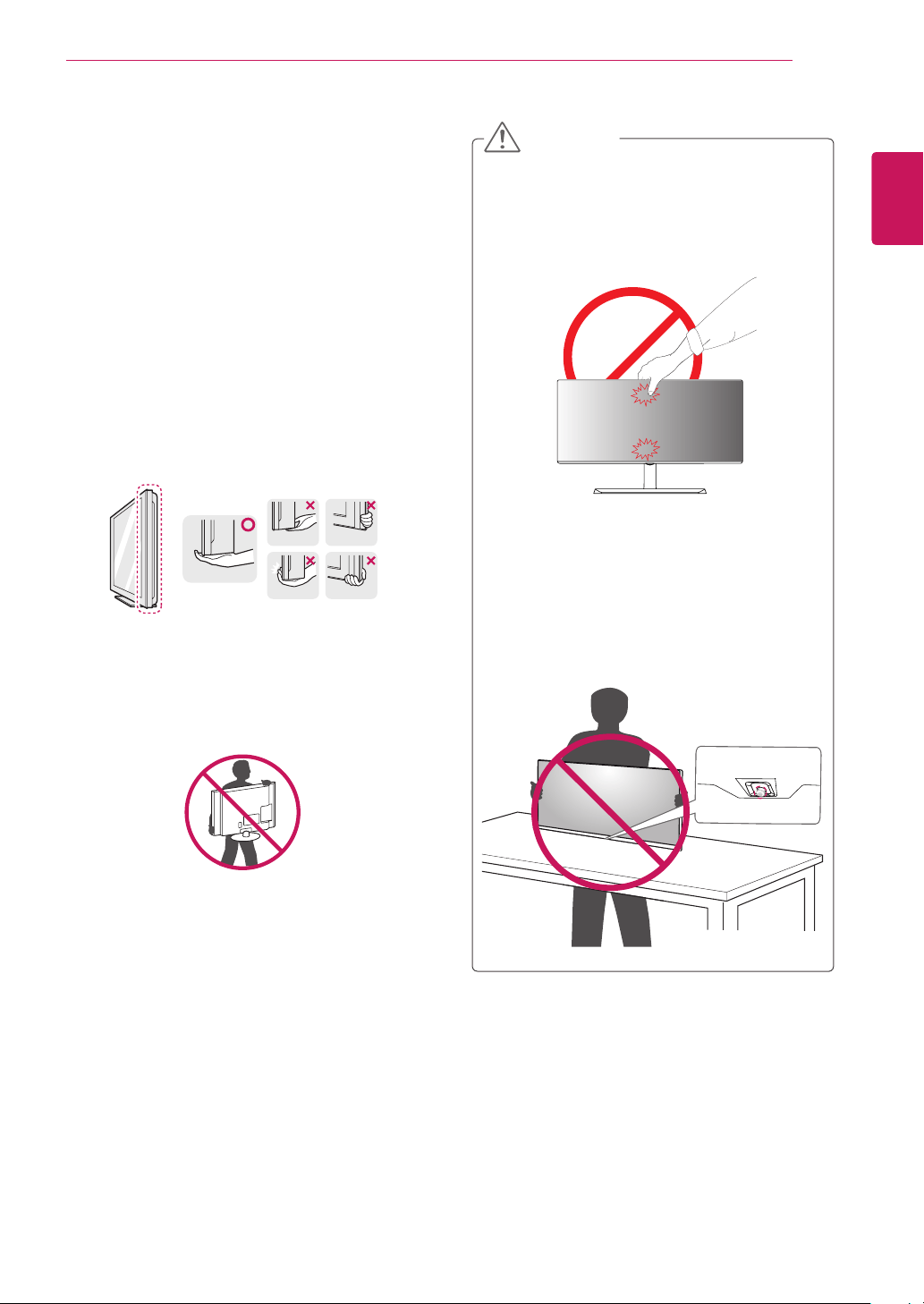

Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
y
As far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
y
It is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
y
When moving the monitor, avoid any strong
shock or vibrations to the product.
y
When moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION
y
If you use the monitor panel without the
stand base, its joystick button may cause
the monitor to become unstable and fall,
resulting in damage to the monitor or human
injury. In addition, this may cause the joystick
button to malfunction.
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the Monitor

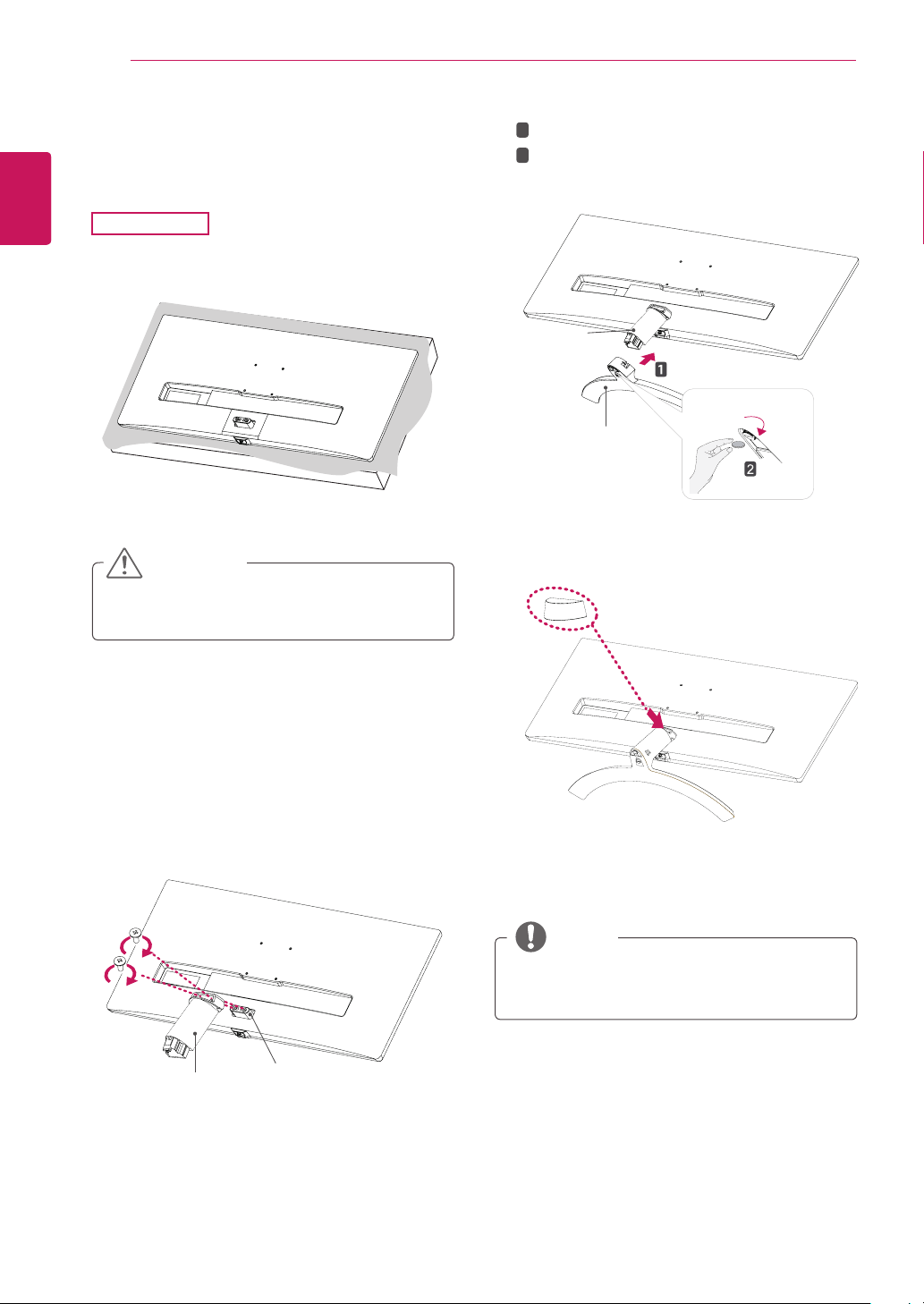

Assembling the stand base
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
Place the screen face down.
29UM68
3
2
Check the direction of the
stand body
(front, back) and then mount the
stand body
onto the stand hinge.
Tighten two screws into the back of the
stand
body.
Stand Body
Stand Body
Stand Base
Screw Cover
Stand Hinge
y
You can disassemble the stand in the
reverse order of the assembly.
NOTE
Attach the
Stand Base to Stand Body.
Using a coin, turn the screw clockwise to
secure the stand base.
1
2
4
Attach the screw cover.
9
ENG
ENGLISH
ASSEMBLING AND PREPARING

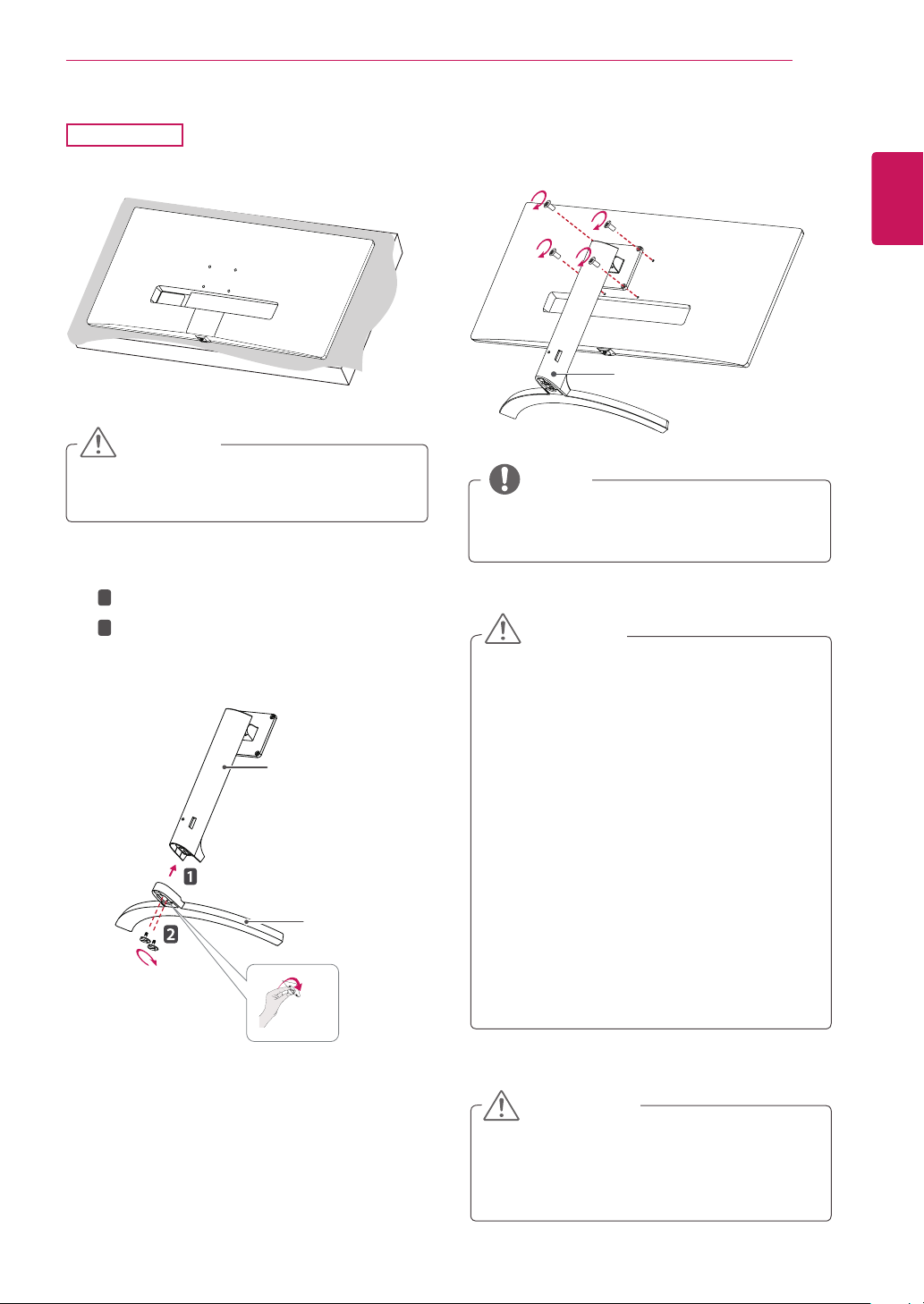

Stand Body
Stand Body
Stand Base
1
Place the screen face down.
34UM68
y
You can disassemble the stand in the
reverse order of the assembly.
NOTE
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
3
Attach the Stand Base to Stand Body.
Tighten the screw to the right.
Use a tool to attach the stand body as shown
in the figure.
1
2
It may hurt your foot off the stand, so be
careful.
CAUTION
y
Illustrations in this document represent typi-
cal procedures, so they may look different
from the actual product.
y
Applying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be cov-
ered by the product warranty.
y
Be careful not to hurt your hand on the edges
of the screw covers.
y
Do not carry the monitor upside down by just
holding the base. This may cause the moni-
tor to fall off the stand and could result in
personal injury.
y
When lifting or moving the monitor, do not
touch the monitor screen. The force applied
to the monitor screen may cause damage to
it.
CAUTION
10
ENG
ENGLISH
ASSEMBLING AND PREPARING

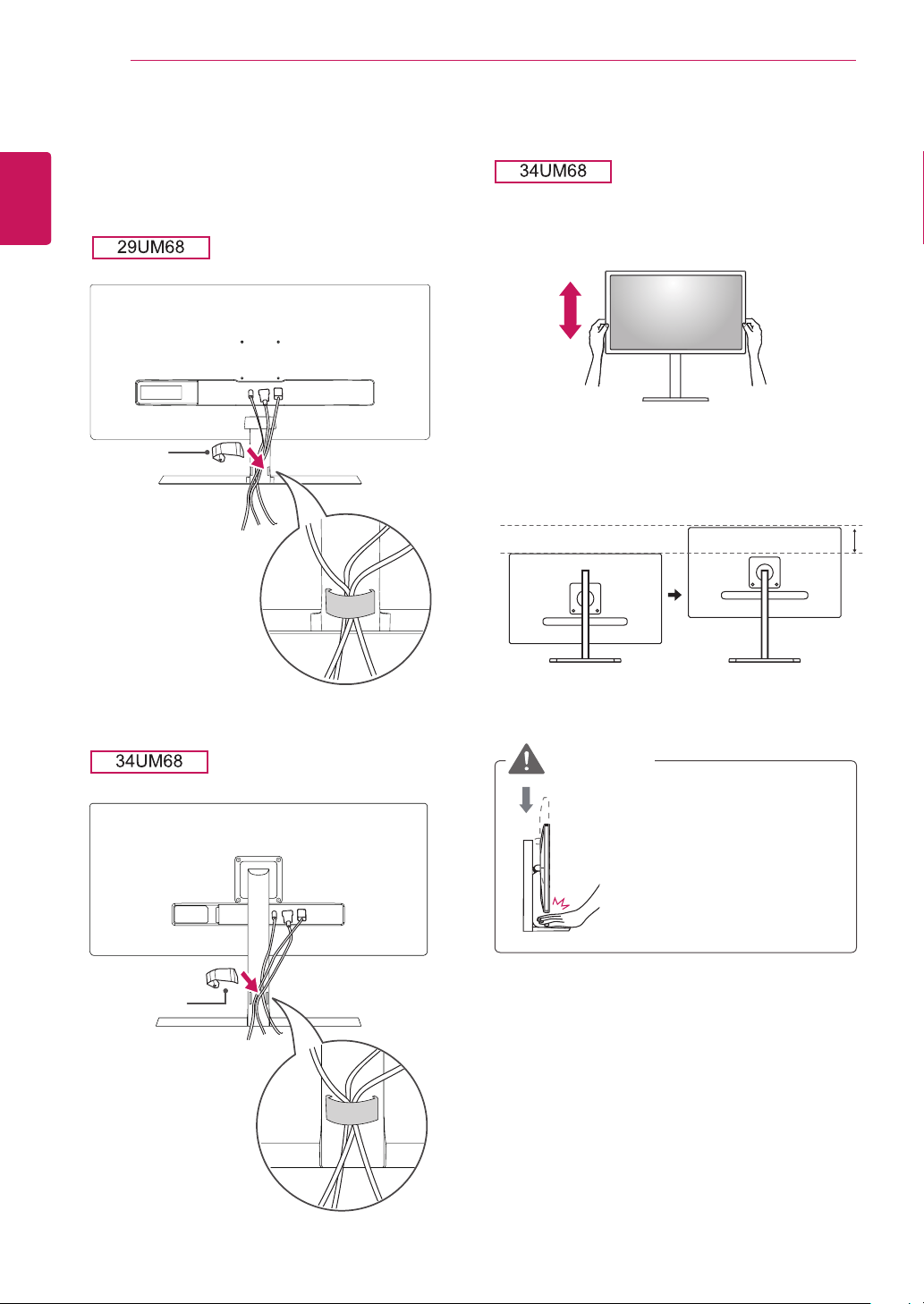

Using the cable holder Adjusting the stand height
1
Handle the monitor with both hands for safety.
2
The height can be adjusted up to
120.0 mm.
Cable Holder
120.0 mm
Cable Holder
Arrange the cables using the cable holder as
shown in the illustration.
y
Do not put your fingers or
hand between the screen
and the base (chassis) when
adjusting the screen's height.
WARNING
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
29UM68
34UM68

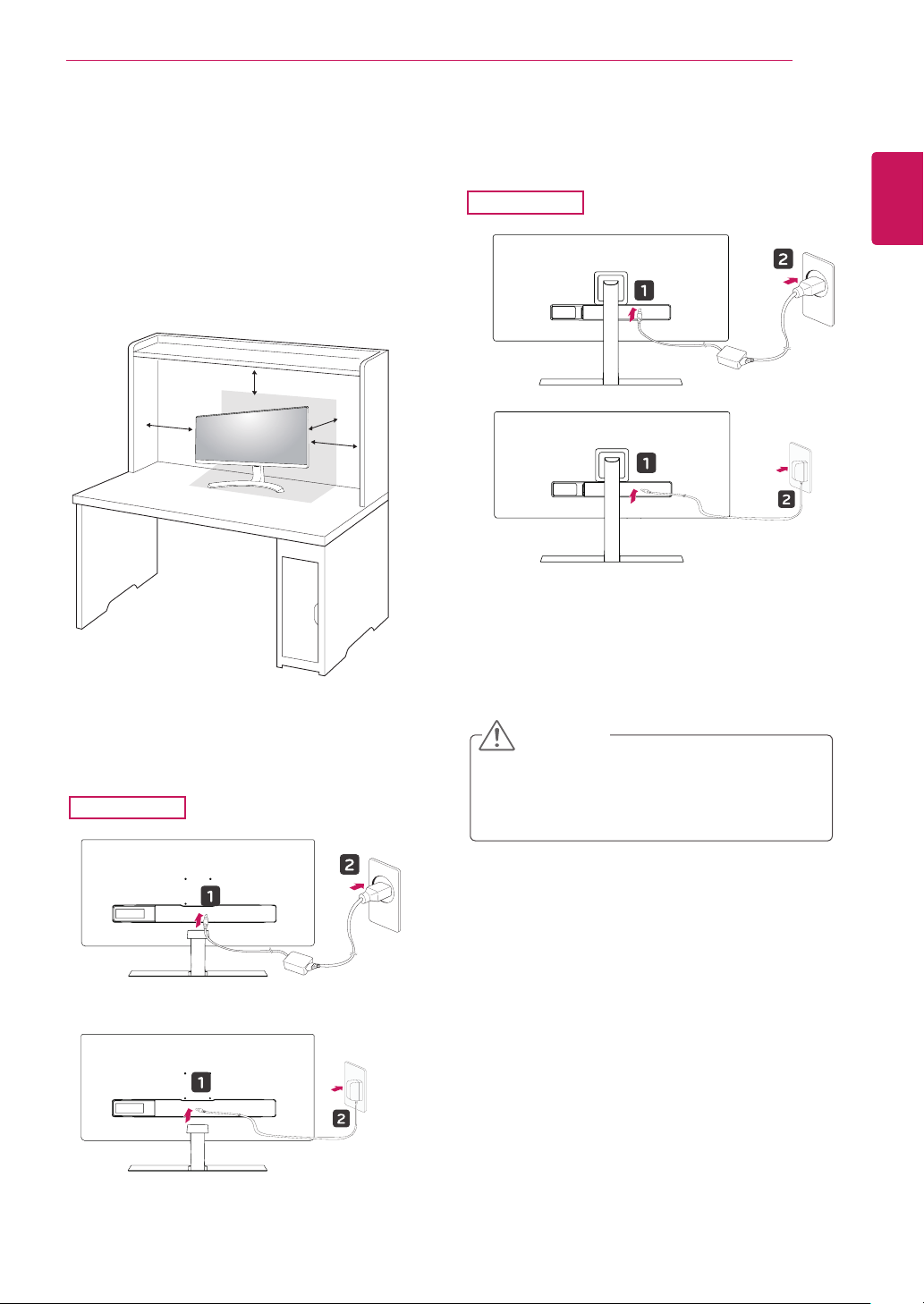

Installing onto a table
1
Lift the monitor and place it on the table in an
upright position.
Place at least 100 mm away from the wall to
ensure sufficient ventilation.
2
Connect the power adapter to the monitor and
then plug the power cord into the wall outlet.
or
or
y
Unplug the power cord prior to moving or
installing the monitor. There is risk of electric
shock.
CAUTION
3
Press the joystick button on the bottom of the
monitor to turn on the monitor.
100 mm
100 mm
100 mm
100 mm
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
Adjusting the angle
1
Place the monitor in an upright position, mount-
ed on the stand base.
2
Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards
for a comfortable viewing experience.
Front Side
Rear Side
y
To avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
WARNING
y
Be careful not to touch or press the screen
area when adjusting the angle of the monitor.
Front Side
Rear Side
13
ENG
ENGLISH
ASSEMBLING AND PREPARING

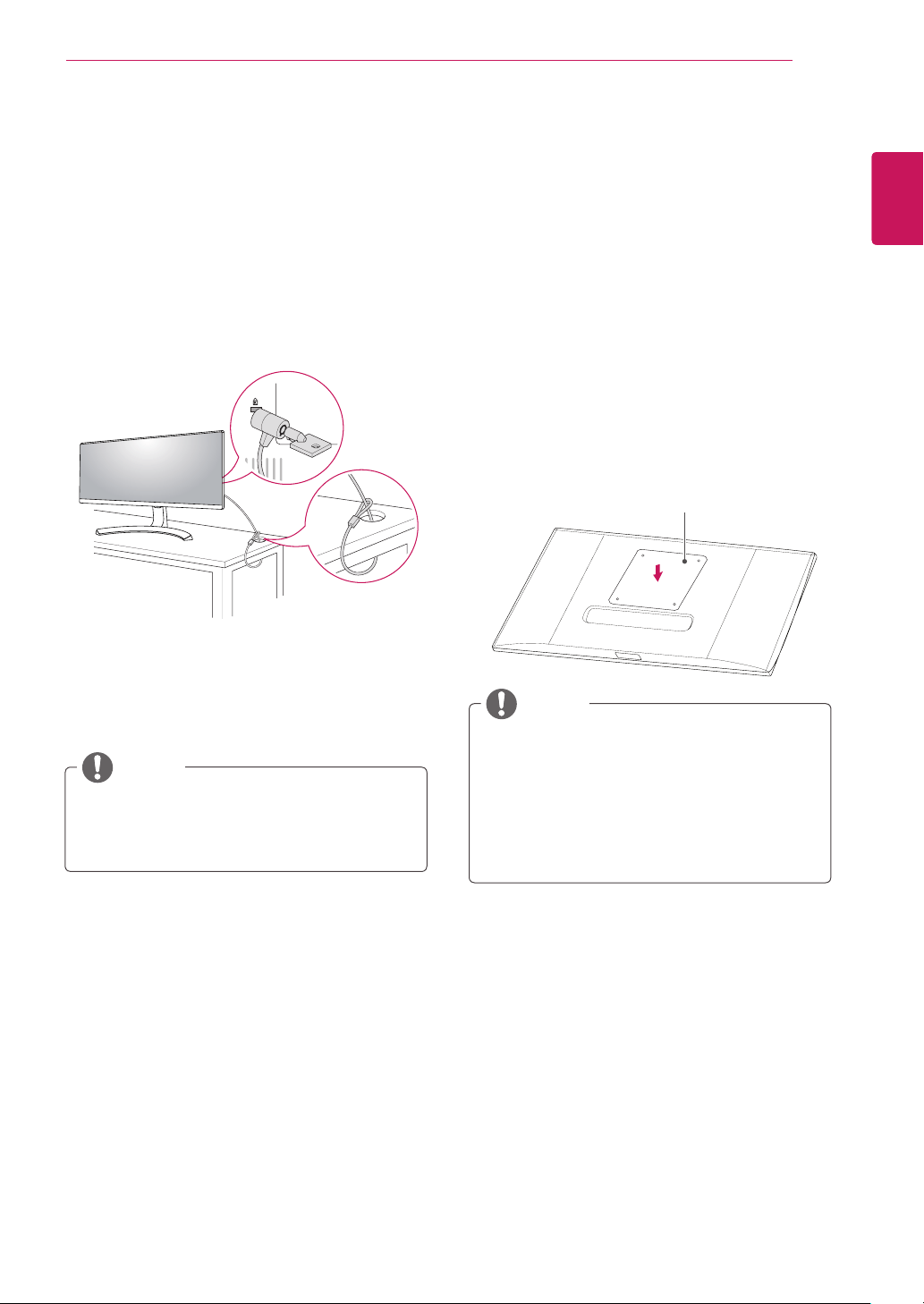

Installing the wall mount plate
This monitor supports the specification of the stan-
dard wall mount plate or compatible device.
1
Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2
Attach the clear sheet to the back of the moni-
tor and align it with the screw holes.(34UM68)
3
Place the wall mount plate onto the monitor
and align it with the screw holes.
4
Tighten the four screws to fix the plate to the
monitor using a screwdriver.
y
The wall mount plate is sold separately.
y
For more information on installation, refer to
the wall mount plate's installation guide.
y
Be careful not to use excessive force when
mounting the wall mount plate, as this can
damage the monitor's screen.
NOTE
y
Use of the Kensington lock is optional.
The accessories can be purchased at
your local electronics store.
NOTE
Using the Kensington lock
The Kensington security system connector is locat-
ed at the back of the Monitor set.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the Kensington security system cable
between the Monitor set and a table.
Clear sheet
(PET sheet)
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
To install the monitor to a wall, attach a wall mount-
ing bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely
fixed to the monitor and to the wall.
1 If you use screw longer than standard, the moni-
tor might be damaged internally.
2 If you use improper screw, the product might be
damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
Installing to a wall
Install the monitor at least 100 mm away from the
wall and leave about 100 mm of space at each
side of the monitor to ensure sufficient ventilation.
Detailed installation instructions can be obtained
from your local retail store. Please refer to the
manual to install and set up a tilting wall mounting
bracket.
y
Unplug the power cord before moving or in-
stalling the monitor to avoid electric shocks.
y
Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling
off, which could lead to injury. Please use
the genuine LG wall mounting bracket. For
more information, contact your local retail
store or a qualified installer.
y
Applying excessive force when fastening
screws may cause damage to the moni-
tor. Damage caused in this way will not be
covered by the product warranty.
y
Use the wall mounting bracket and screws
that conform to the VESA standard. Dam-
age caused by the use or misuse of inap-
propriate components will not be covered
by the product warranty.
y
Screw length from outer surface of back
cover should be under 8mm.
y
Use the screws specified by the VESA stan-
dard.
y
The wall mount kit includes the installation
guide and all necessary parts.
y
The wall mounting bracket is optional. The
accessories can be purchased at your local
retail store.
y
The length of the screw may differ for each
wall mounting bracket. Ensure the correct
length screw is used.
y
For more information, please refer to the
user manual for the wall mounting bracket.
CAUTION
NOTE
Wall mount Pad
Wall mount Pad
Back Cover
Back Cover
Standard screw
Max.8mm
y
Wall Mount (A x B)
A
B
Model
Wall Mount (A x
B)
75 x 75 100 x 100
Standard screw M4 x L10
Number of
screws
4
Wall Mount
Plate
(Optional)
RW120
29UM68
34UM68
100 mm
100 mm
100 mm
100 mm
15
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR
Connecting to a PC
y
This monitor supports the *Plug and Play
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.
HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu button and then select the input
option from the input menu.
NOTE
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
DP OUT
y
There may be no video or audio output
depending on the DP version of the PC.
y
If you use generic cables not certified by
LG, the screen may not display or there may
be image noises.
DisplayPort connection
Transmits the digital video and audio signals from
your PC to the monitor. Connect your PC to the
monitor using the DisplayPort cable as illustrated
below.
Press the menu button and then select the input
option from the input menu.
NOTE
16
ENG
ENGLISH
USING THE MONITOR
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu button and then select the input
option from the input menu.
NOTE
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
Connecting to External Devices
(sold separately)
Connecting Headphones
Connect peripherals to the monitor via the head-
phones port. Connect as illustrated.
y
Peripheral devices are sold separately.
y
If you use angled earphones, it may cause
a problem with connecting another external
device to the monitor. Therefore, it is recom-
mended to use straight earphones.
Angled Straight
y
Depending on the audio settings of the PC
and external device, headphones and speaker
functions may be limited.
NOTE
17
ENG
ENGLISH
User Settings
Button Menu Status Description
Main menu disabled
Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off
the monitor this way at any time, including when the OSD is on.)
◄
Main menu disabled
Adjusts the monitor volume level.
Main menu enabled
Enters the menu features.
►
Main menu disabled
Adjusts the monitor volume level.
Main menu enabled
Enters the input feature.
▲
Main menu disabled
Enables the main menu.
Main menu enabled
Enters the game mode feature.
▼
Main menu disabled
Enables the main menu.
Main menu enabled
Turns off the monitor.
Main Menu Features
Main Menu Description
Menu
Configures the screen settings.
Game Mode
You can change Picture Mode to a gaming
mode.
Input
Sets input mode.
Monitor off
Turns off the monitor.
Exit
Exits the main menu.
USER SETTINGS
Activating the Main Menu
1
Press the joystick button on the bottom of the monitor.
2
Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3
Press the joystick button once more to exit the main menu.
Joystick Button
18
ENG
ENGLISH
User Settings
Each option is described below.
Customizing settings
Menu Settings
-Quick Settings
1
To view the
OSD menu
, press the
joystick button
at
the bottom of the monitor and then enter the
Menu
.
2
Go to
Quick Settings >
Brightness
by moving the
joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick
to ◄ until you exit.
Menu > Quick Settings Description
Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume.
NOTE
y
You can adjust Mute/ Unmute by moving the joystick button to ▼ in
the Volume menu.
Input Selects the current input mode.
Ratio Adjusts the screen ratio.
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
Cinema 1
Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema 2 Enlarges the screen with an aspect ratio of 21:9 including the black box area
at the bottom for subtitles. (at 1080p)
1:1 The aspect ratio is not adjusted from the original.
NOTE
y
The display may look the same for Wide, Original options at the recommended resolution (2560 x
1080).
19
ENG
ENGLISH
User Settings
Each option is described below.
-PBP
1
To view the
OSD menu
, press the
joystick button
at
the bottom of the monitor and then enter the
Menu
.
2
Go to
PBP
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick
to ◄ until you exit.
Menu > PBP Description
Sub Displays the screens of two input modes on one monitor.
PBP Connection Sub Screen (Right)
HDMI 1 HDMI 2 DisplayPort
Main Screen
(Left)
HDMI 1 - O O
HDMI 2 O - O
DisplayPort O O -
Sound Out Main Selects the input for Main.
Sub Selects the input for Sub.
Swap Toggles between the main screen and sub screen in PBP mode.
Sub Full Converts the sub screen of PBP mode to the wide screen.
Ratio Adjusts the aspect ratio of the main screen or sub screen.
Main Wide Displays the video to fit the PBP screen, regardless of the video signal input.
Original Displays the video in the aspect ratio of the video signal input on the PBP screen.
Sub Wide Displays the video to fit the PBP screen, regardless of the video signal input.
Original Displays the video in the aspect ratio of the video signal input on the PBP screen.
NOTE
y
When the Sub mode is Off, Sound Out, Swap, Sub Full, and Ratio menus become disabled.
The Main/Sub options for Ratio become disabled if there is no signal.
y
The optimal resolution for PBP mode is set automatically when PBP mode is set.
20
ENG
ENGLISH
User Settings
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be
adjusted.
Reader Optimizes the screen for viewing documents. You can brighten the screen in the OSD
menu.
Photo Optimizes the screen for photos.
Cinema Optimizes the screen for video.
Color
Weakness
This mode is for users who cannot distinguish between red and green. It enables
users with color weakness to easily distinguish between the two colors.
FPS Game 1 This mode is optimized for FPS games.
FPS Game 2 It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark
FPS games.
RTS Game This mode is optimized for RTS Game.
Custom
(Game)
In this mode, users can customize various elements including game-related options.
NOTE
y
If the picture mode is changed in the DP (DisplayPort) input, the screen
may flicker or the resolution of your PC screen may be affected.
Each option is described below.
-Picture
1
To view the
OSD menu
, press the
joystick button
at
the bottom of the monitor and then enter the
Menu
.
2
Go to
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick
to ◄ until you exit.
21
ENG
ENGLISH
User Settings
Picture Adjust Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
y
Offset:
as a reference for a video signal, this is the darkest color the
monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the
current contrast ratio of the screen.
DFC Adjusts the brightness automatically according to the screen.
Game Adjust Response Time Sets a response time for displayed pictures based on the speed of the
screen.
For a normal environment, it is recommended that you use Middle. For
a fast-moving picture, it is recommended that you use high.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Does not use the response time improvement feature.
FreeSync Provides seamless and natural images by synchronizing the vertical
frequency of the input signal with that of the output signal.
NOTE
y
To use the FreeSync feature, a graphic card that supports
FreeSync is necessary.
y
Supported Interface: DisplayPort
y
For more information, refer to AMD website at http://www.amd.
com/FreeSync
On FreeSync function on.
Off FreeSync function off.
Black Stabilizer You can control the black contrast to have better visibility in dark
scenes.
Increasing the Black Stabilizer value brightens the low gray level
area on the screen. (You can easily distinguish objects on dark game
screens.)
Reducing the Black Stabilizer value darkens the low gray level area and
increases the dynamic contrast on the screen.
Color Adjust Gamma The higher the gamma value, the darker the image becomes. Likewise,
the lower the gamma value, the lighter the image becomes. If you do
not need to adjust the gamma settings, select Off.
Color Temp Custom Allows the user to adjust each element. The color mode of
the main menu can be adjusted.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Red You can customize the picture color using Red, Green, and Blue colors.
Green
Blue
Six Color Meets the user requirements for colors through adjusting the color and
saturation of the six colors(
Red_Hue, Red_Saturation, Green_Hue,
Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue, Cyan_
Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue, Yel-
low_Saturation
) and saving the settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower the
value, less saturated and bright the colors become. The higher the
value, the more saturated and dark the colors become.
Reset Returns the color settings to the default settings.
22
ENG
ENGLISH
User Settings
-
Sound
1
To view the
OSD menu
, press the
joystick button
at
the bottom of the monitor and then enter the
Menu
.
2
Go to
Sound
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick
to ◄ until you exit.
Each option is described below.
Menu > Sound Description
MaxxAudio MaxxAudio On MaxxAudio
®
by Waves, recipient of a Technical GRAMMY
Award
®
is a suite of studio-quality sound tools for a superior
listening experience.
Off Disables the MaxxAudio function.
MaxxAudio
Settings
The user can set the sound quality manually.
MaxxBass Bass Enhancement.
MaxxTreble Treble Enhancement.
MaxxDialog Dialog Enhancement.
Maxx3D Enhances the three dimensional effect of the sound.
Reset Returns the sound quality to the default settings.
Midnight
Mode
Lets you enjoy rich and full sound at a low volume.
23
ENG
ENGLISH
User Settings
Menu > General Description
Language Sets the menu screen to the desired language.
SMART ENERGY
SAVING
High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.
Off Disables the SMART ENERGY SAVING feature.
Power LED Turns the power LED on the front of the monitor on or off.
On The power LED turns on automatically.
Off The power LED turns off.
Automatic Standby Feature that automatically turns off the monitor when there is no movement on the screen for
a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
Buzzer This feature lets you set the sound generated from Buzzer when your monitor powers on to
On or Off.
On Enables your monitor`s Buzzer.
Off Disables your monitor`s Buzzer.
OSD Lock Prevents incorrect key input.
On Disables key input.
Off Enables key input.
NOTE
y
All features are disabled except Brightness, Contrast, Volume, Input in Quick Set-
tings, OSD Lock in General, and the Exit button.
-General
1
To view the
OSD menu
, press the
joystick but-
ton
at the bottom of the monitor and then enter the
Menu
.
2
Go to
General
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick
to ◄ until you exit.
Each option is described below.
NOTE
y
Saving Data depends on the Panel. So,those values should be different from each panel and panel vendor.If op-
tion of SMART ENERGY SAVING is High or Low, monitor luminance become higher or lower depend on source.
24
ENG
ENGLISH
User Settings
-Reset
1
To view the
OSD menu
, press the
joystick but-
ton
at the bottom of the monitor and then enter the
Menu
.
2
Go to
Reset
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick
to ◄ until you exit.
Each option is described below.
Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.
25
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged
in?
y
Check if the power cord is correctly plugged into the power outlet.
Is the power LED on?
y
Check the power cable connection and press the power button.
Is the power on and the power LED
displaying white?
y
Check that the connected input is enabled (Menu > Quick Settings
> Input).
Is the power LED blinking?
y
If the monitor is in sleep mode, move the mouse, or press any key
on the keyboard, to switch the display on.
y
Check if the computer is turned on.
Is the OUT OF RANGE message
being displayed?
y
This occurs when signals transferred from the PC (graphics card)
are out of the horizontal or vertical frequency range of the monitor.
Please see the Product Specification section of this manual to set
the appropriate frequency.
Is the No Signal message being
displayed?
y
This is displayed when the signal cable between the PC and
the monitor is missing or disconnected. Check the cable and
reconnect it.
The OSD lock message is being displayed.
Are some functions not avail-able
when you press the Menu button?
y
The OSD is locked. Go to Menu > General and set OSD Lock to
Off.
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
y
Displaying a still image for a prolonged time may cause damage to
the screen, resulting in the retention of the image.
y
To extend the lifetime of the monitor, use a screensaver.
Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate
resolution?
y
If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the
screen may be flickering. Change the resolution to 1080P or the
recommended resolution.
NOTE
y
Vertical frequency
In order to display an image, the screen must be refreshed dozens of times per second, like a
fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency, or refresh
rate, and is represented by Hz.
y
Horizontal frequency
The time it takes to display one horizontal line is called the horizontal cycle. If 1 is divided
by the horizontal interval, the result is the number of horizontal lines displayed per second. This is called horizontal
frequency and is represented by kHz.
26
ENG
ENGLISH
TROUBLESHOOTING
The display color is abnormal.
Does the display appear discol-ored
(16 colors)?
y
Set the color to 24 bit (true color) or higher. In Windows, go to
Control Panel > Display > Settings > Color Quality.
Does the display color appear
unstable or monochrome?
y
Check if the signal cable is connected properly. Reconnect the
cable or reinsert the PC's graphics card.
Are there spots on the screen?
y
When using the monitor, pixilated spots (red, green, blue, white,
or black) may appear on the screen. This is normal for an
LCD screen. It is not an error, nor is it related to the monitor's
performance.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
y
Be sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download
the driver from our web site: http://www.lg.com.
y
Make sure to check if the video card supports Plug&Play function.
y
Check if the graphics card's resolution or frequency is within the range allowed by the monitor and set
it to the recommended (optimal) resolution in Control Panel > Display > settings.
y
Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a
dimmed screen, a truncated display area, or misalignment of the display.
y
The setting methods may be different depending on the computer or operating system, and some
resolutions may not be available depending on the performance of the graphics card. If this is the
case, contact the manufacturer of the computer or graphics card for assistance.
y
Some graphics cards may not support 2560x1080 resolution. If the resolution cannot be displayed,
contact the manufacturer of your graphics card.
NOTE
No sound from the headphone port or speaker.
Are images displayed using
DisplayPort or HDMI input without
sound?
y
Try increasing the volume using the button on the monitor.
y
Set the audio output of the PC to the monitor you are using. On
Microsoft Windows, go to Control Panel > Hardware and Sound >
Sound > set the monitor as default device.
27
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
29UM68
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.2628 mm x 0.2628 mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency HDMI:(AV)25Hz to 60 Hz
(PC)56Hz to75 Hz
DP: 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector HDMI IN1, HDMI IN2 , DP(DisplayPort) IN, H/P
Power Voltage 19 V
2.4 A
Power consumption (Typ.) On mode: 48 W Typ.(Outgoing condition)**
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.3 W
AC/DC adaptor Type DA-48F19, Asian Power Devices Inc. production
Or type LCAP35, LIEN CHANG ELECTRONIC ENTERPRISE production
Or type PA-1480-11,Lite-On Technology Corporation production
Output: 19 V
2.53 A
Environmental
Conditions
Operating Condition Temperature: 0°C to 40°C; Humidity: < 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: < 85%
Dimension Monitor Size (Width x Height x Depth)
With Stand 702.5 mm x 414.0 mm x 204.7 mm
Without Stand 702.5 mm x 328.4 mm x 63.8 mm
Weight (Without
Packaging)
5.4 kg
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
** The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum
resolution).
28
ENG
ENGLISH
SPECIFICATIONS
34UM68
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.312(H) mm x 0.310(V) mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency HDMI:(AV)25Hz to 60 Hz
(PC)56Hz to75 Hz
DP: 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector HDMI IN1, HDMI IN2 , DP(DisplayPort) IN, H/P
Power Voltage 19 V
3.3 A
Power consumption (Typ.) On mode: 53 W Typ.(Outgoing condition)**
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.3 W
AC/DC adaptor Type DA-65G 19,
Asian Power Devices Inc.
production
Or type LCAP39,
LIEN CHANG ELECTRONIC ENTERPRISE
production
Output: 19 V
3.42 A
Environmental
Conditions
Operating Condition Temperature: 0°C to 40°C; Humidity: < 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: < 85%
Dimension Monitor Size (Width x Height x Depth)
With Stand 829.9 mm x 428.9 mm x 252.4 mm
Without Stand 829.9 mm x 379.8 mm x 49.2 mm
Weight (Without
Packaging)
8.0 kg
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
** The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum
resolution).
SPECIFICATIONS
29
ENG
ENGLISH
SPECIFICATIONS
Factory support mode
(HDMI/ DisplayPort)
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V) Remarks
720x400 31.468 70.08 -/+
640x480 31.469 59.94 -/-
640x480 37.5 75 -/-
800x600 37.879 60.317 +/+
800x600 46.875 75 +/+
1024x768 48.363 60 -/-
1024x768 60.123 75.029 +/+
1152x864 67.5 75 +/+
1280x720 45 60 +/+
1280x1024 63.981 60.02 +/+
1280x1024 79.976 75.025 +/+
1600x900 60 60 +/+
1680x1050 65.290 59.954 -/+
1920x1080 67.5 60 +/-
2560x1080 66.7 60 -/+
1280x1080(PBPonly) 67.5 60 -/+
HDMI Timing (Video)
Factory support mode
(Preset Mode)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Remarks
480P 31.50 60
576P 31.25 50
720P 37.50 50
720P 45.00 60
1080P 56.25 50
1080P 67.50 60
Indicator
Mode LED Color
OnMode White
SleepMode BlinkingWhite
OffMode Off
This device meets the EMC requirements for
home appliances (Class B) and is intended for
home usage. This device can be used in all
regions. Read the owner's manual (CD) carefully
and keep it at hand. Please note that the label
attached to the product provides information for
technical support.
MODEL
SERIAL
To obtain the source code under GPL, LGPL,
MPL, and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com.In addition to the source
code, all referred license terms, warranty
disclaimers and copyright notices are available
for download.LG Electronics will also provide
open source code to you on CD-ROM for
a charge covering the cost of performing
such distribution (such as the cost of media,
shipping, and handling) upon email request to
opensource@lge.com. This offer is valid for three
(3) years from the date on which you purchased
the product.
