User Manual Whirlpool WVED900AHG Eco 9kg Washer

• Owner's manual - (English)

INSTRUCTION MANUAL FULLY AUTOMATIC TUB WASHER Whirlpool WVED900AHG

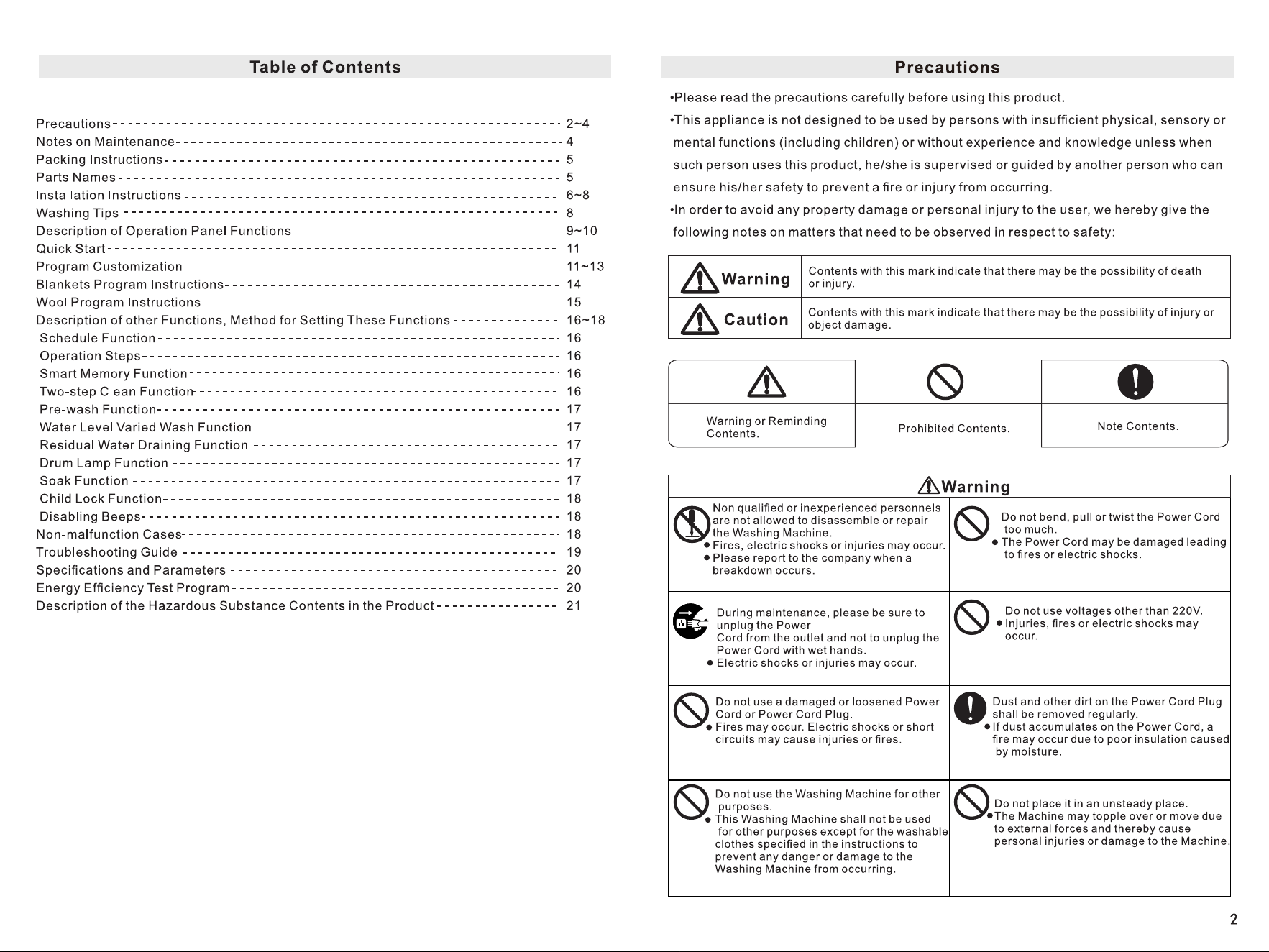

Table of contents

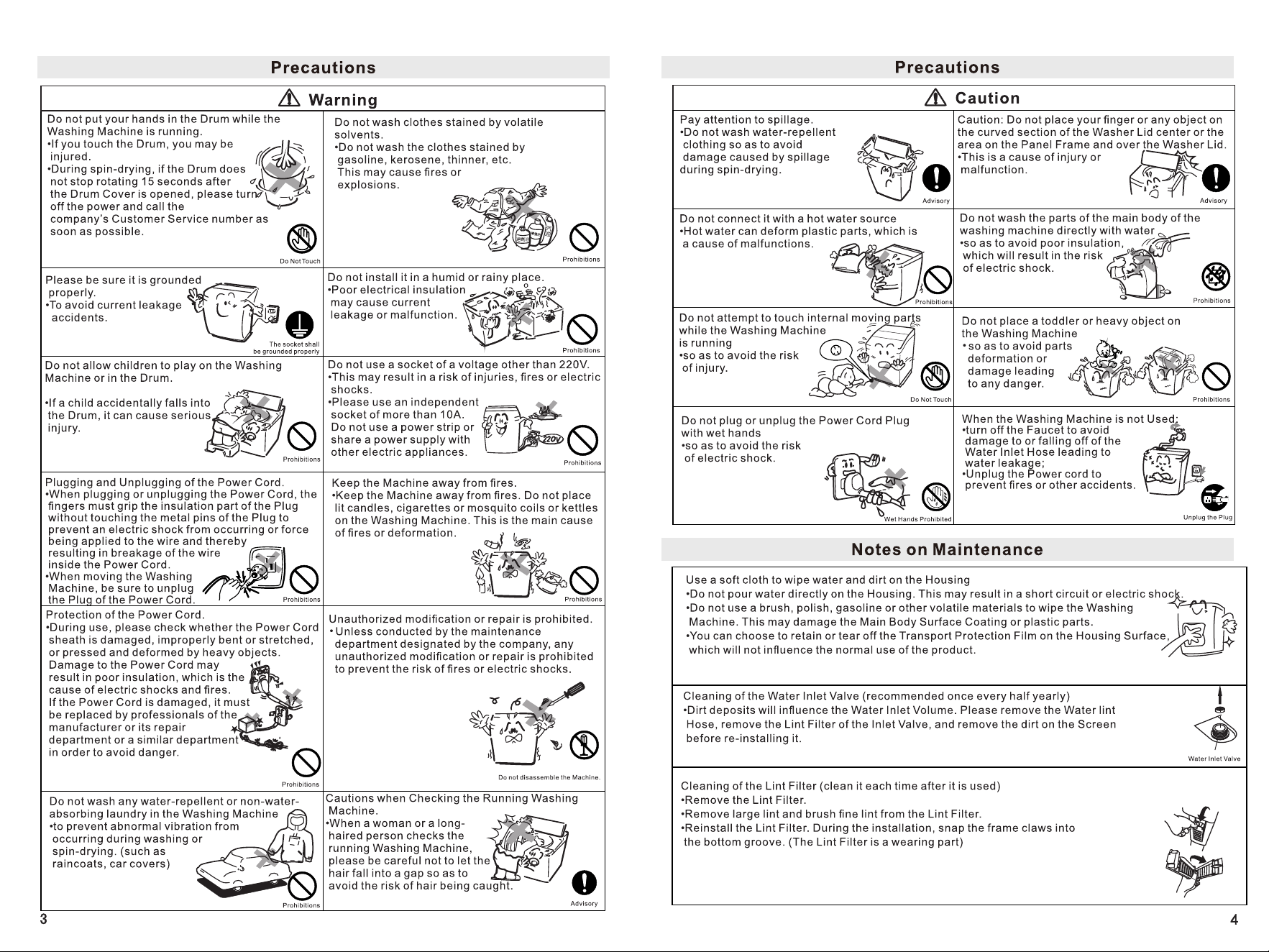

• Precautions
• Notes on Maintenance
• Packing Instructions
• Parts Names
• Installation Instructions
• Washing Tips

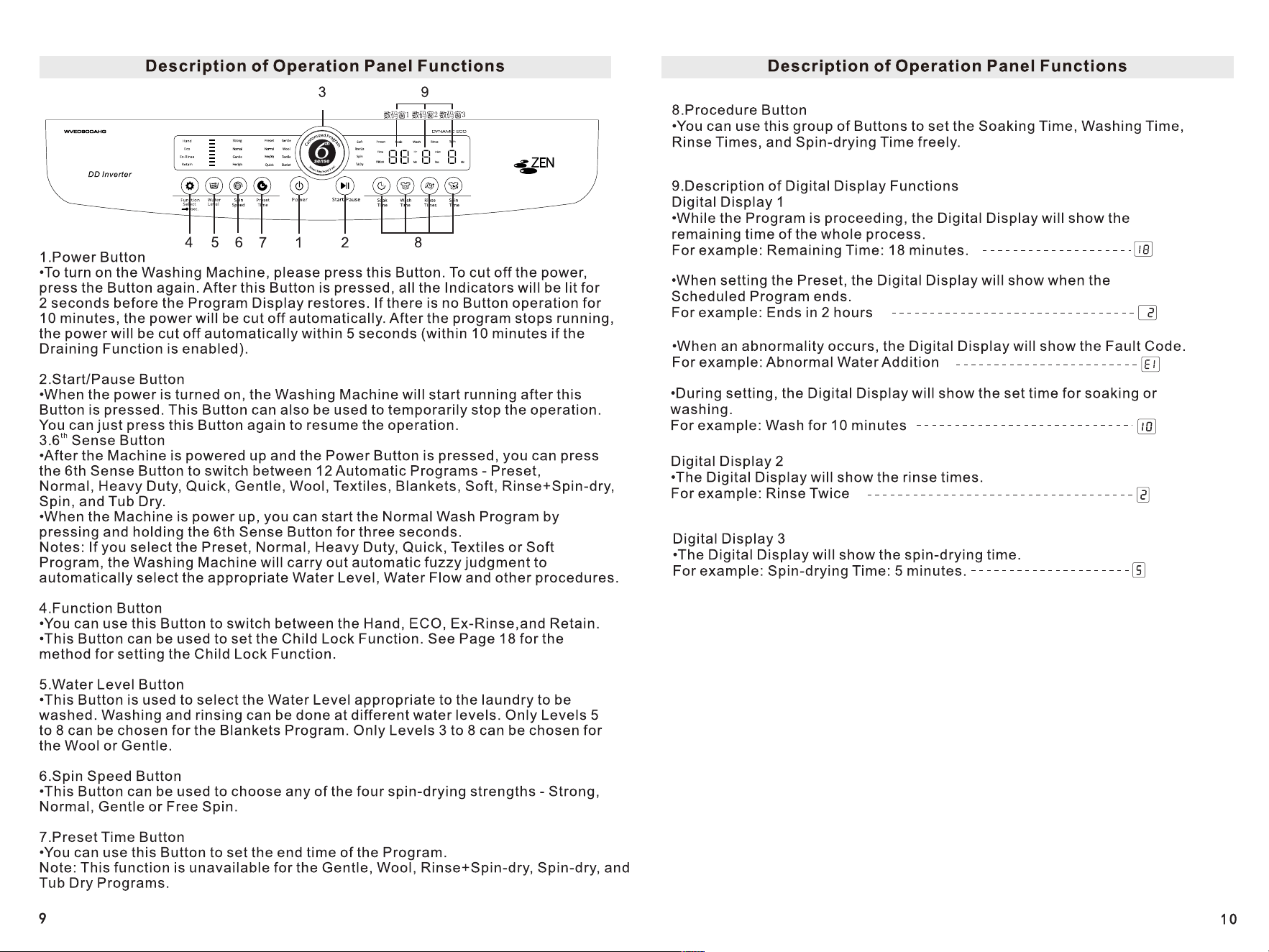

• Description of Operation Panel Functions

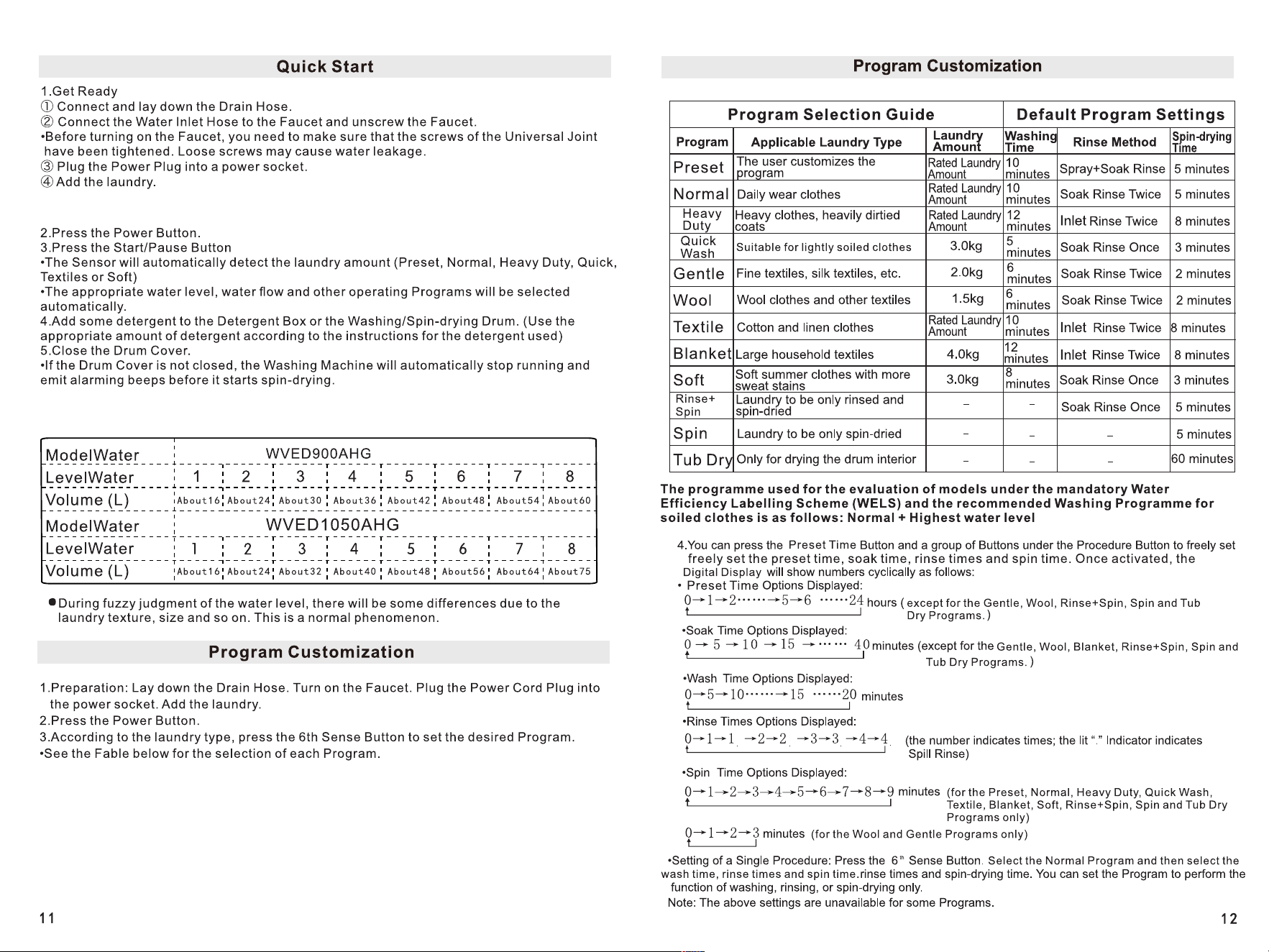

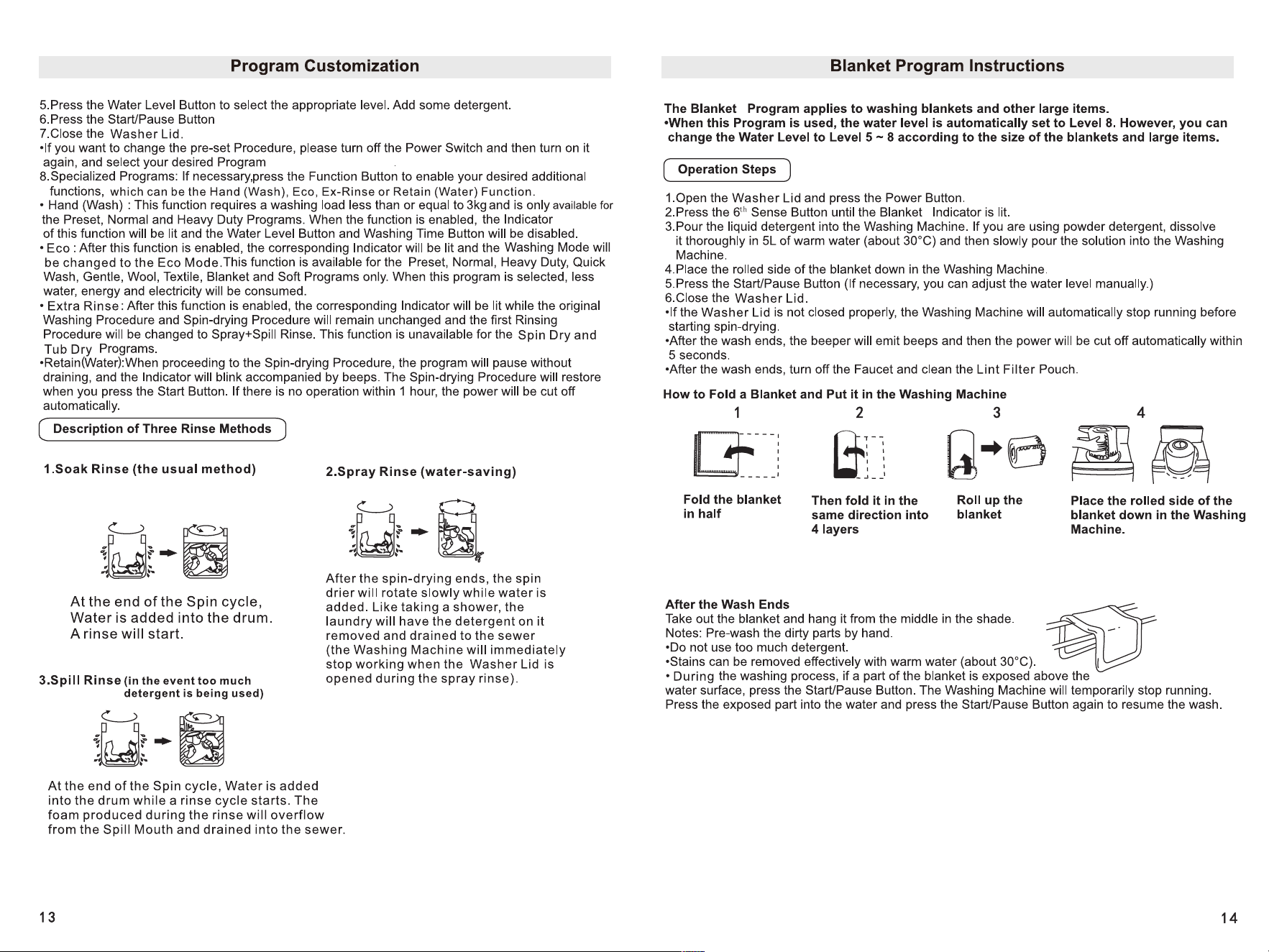

• Program Customization
• Blankets Program Instructions

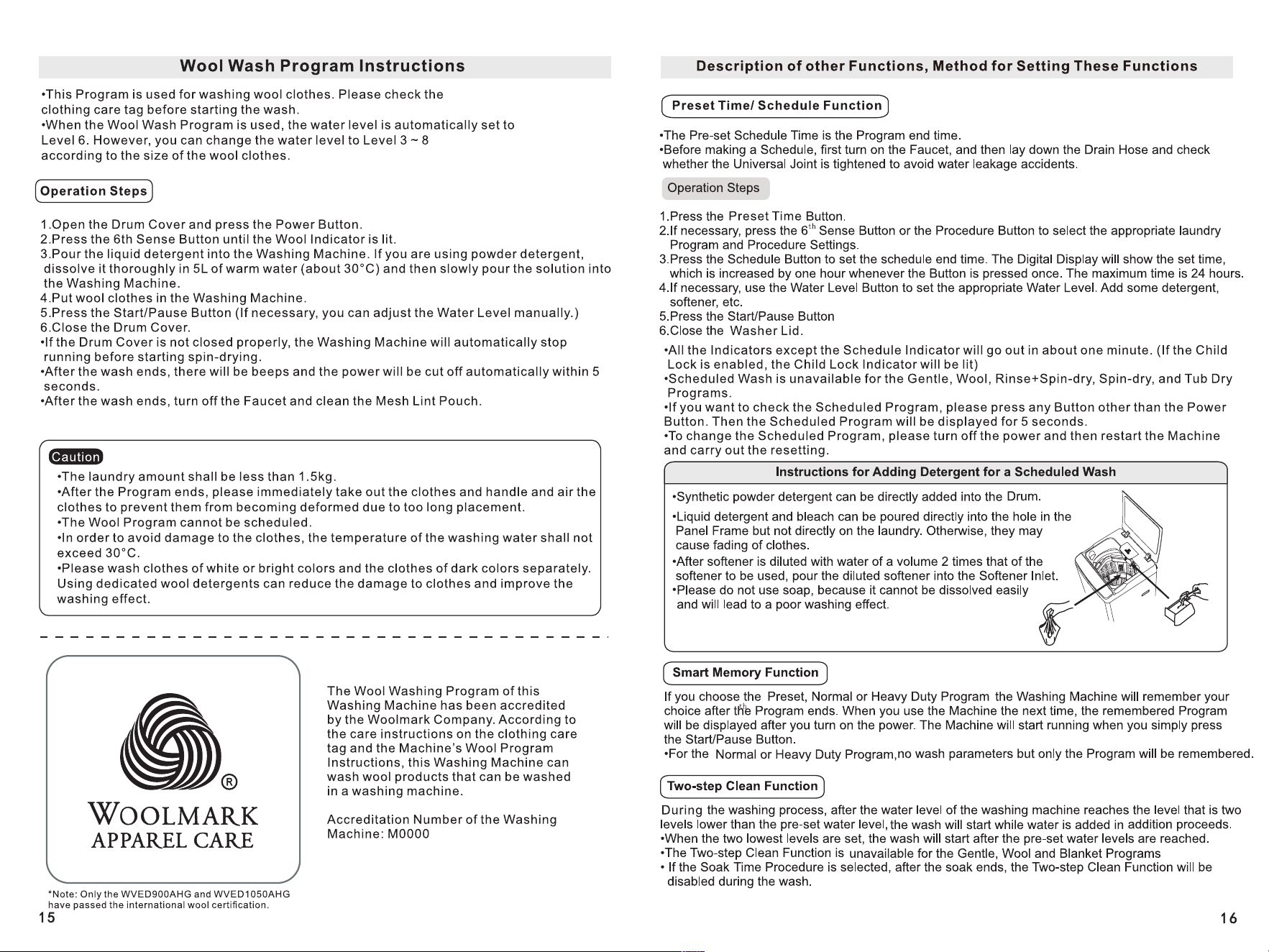

• Wool Program Instruotlons
• Description of other Functions  , Method for Setting These Functions
• Schedule Function
• Smart Memory Funtion
• Two-step Clean Funtion
• Pre-wash Function
• Water Level Varied Wash Function
• Residual Water Draining Funotion
• Drum Lamp Function
• Child Look Function
• Disabling Beeps
• Non-melfunction cases

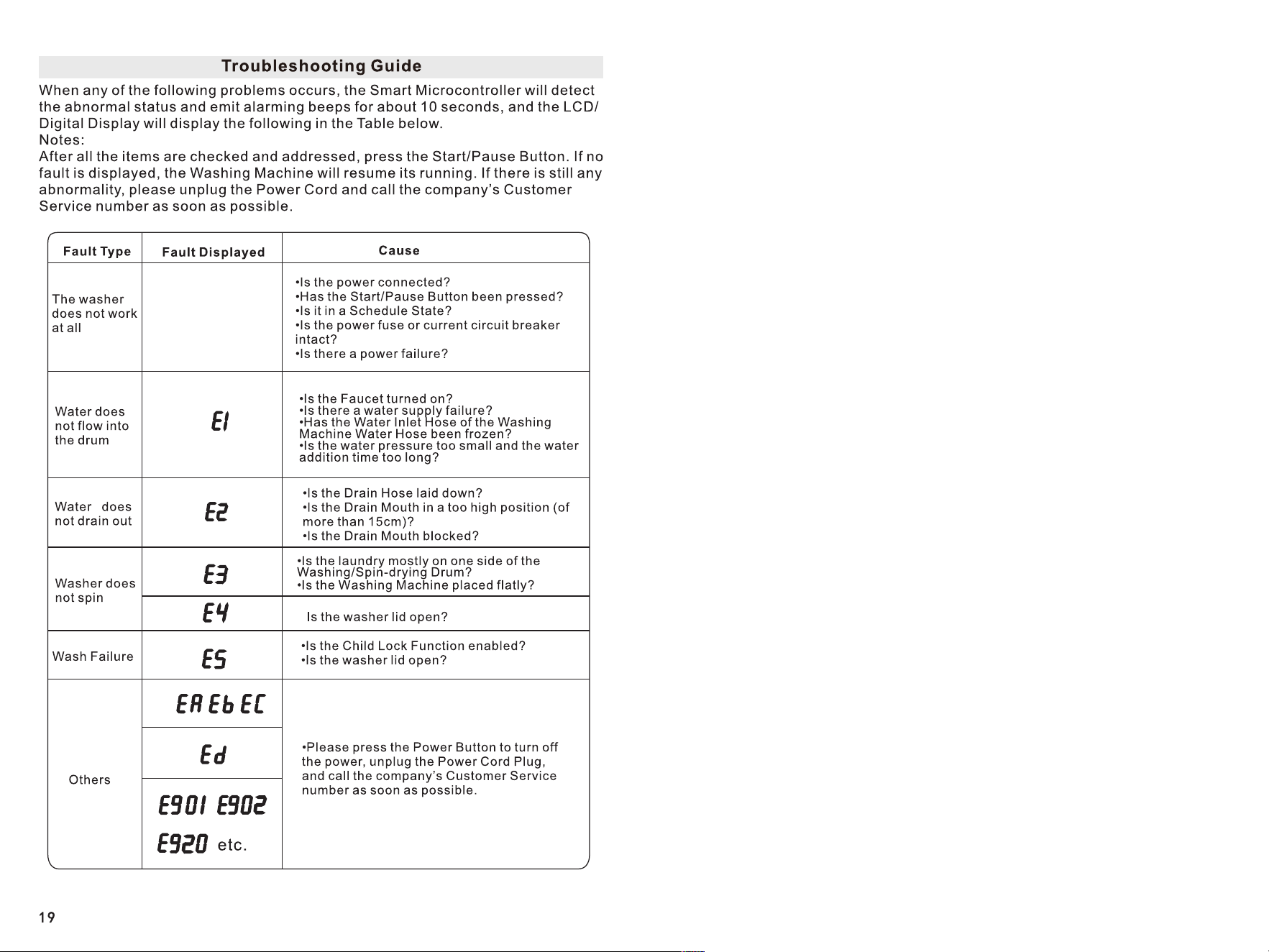

• Troubleshooting Guide

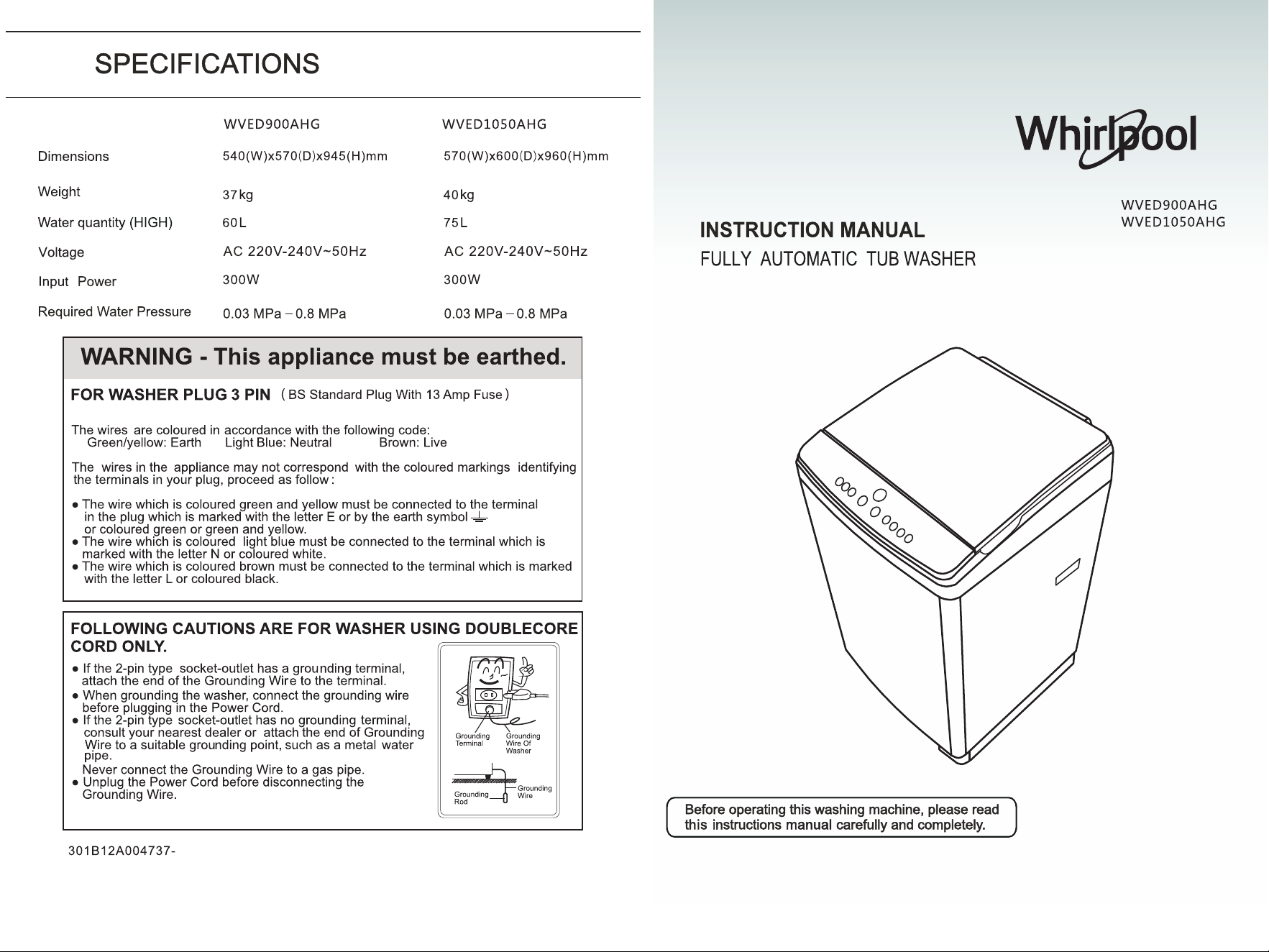

• Specifications and Parameters
• Energy Efficiency Test Program
• Description of the Hazardous Substance Contents in the Product

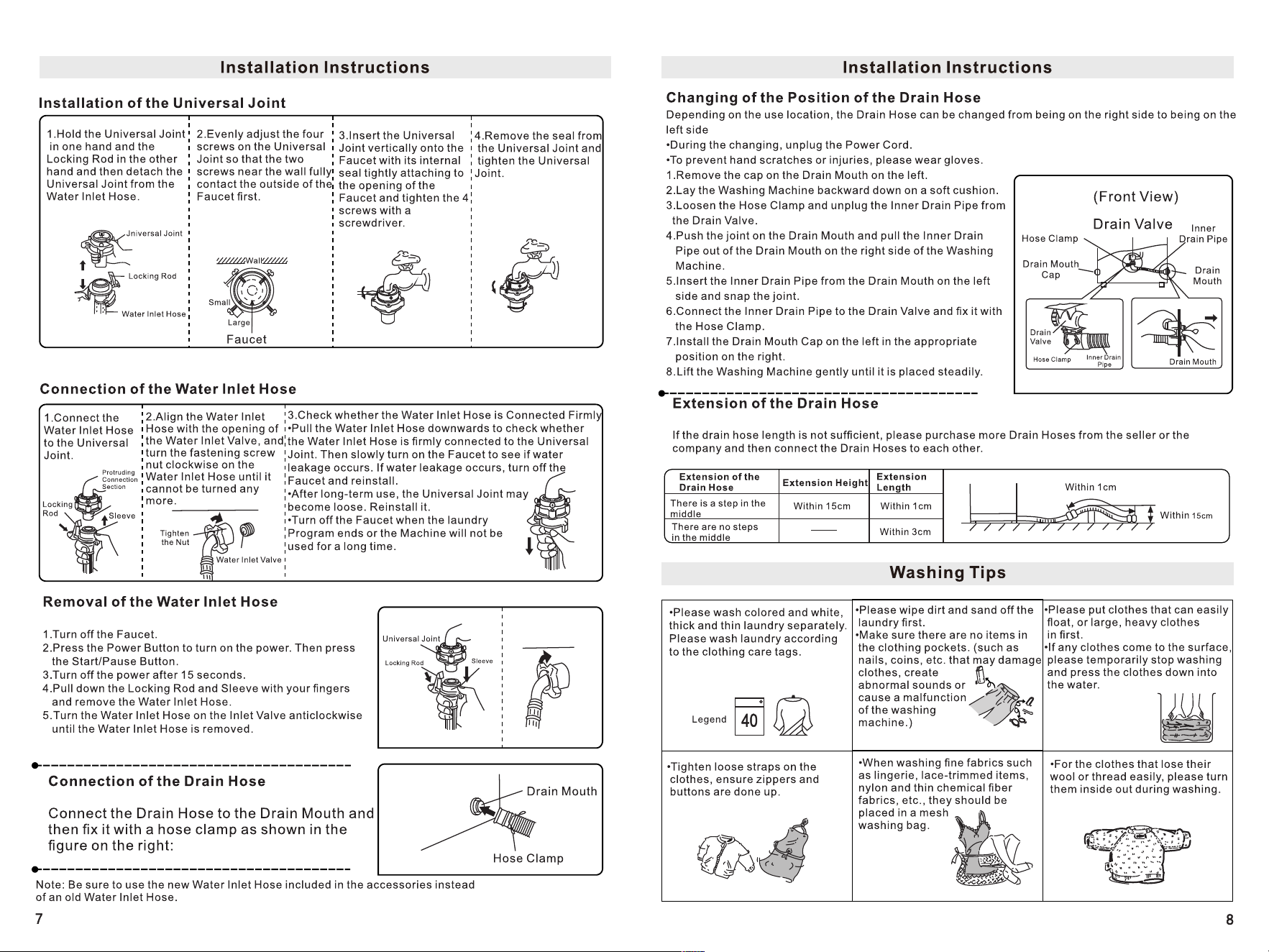

Installation Instructions

Shield Installation

1. Take out the Shield on the Panel Frame protective packaging and the Screws in the bag.
2. Tilt the Washing Machine backward and slowly putit down on a cushion.
3. Push the Shield straight along the Seat Slotuntil itis installed in place.
4. Fix the Shield and Seat with Screws. 5.Lift the Washing Machine gently until itis placed steadily.

PIacement of the Washing Machine

1. Choose a dry place without direct sunlight to the Washing mahcine
2. Place the Washing Machine on steady solid ground.
3. A floor drainer shall be provided in the place where the Washing Machine is placed, and shall drain water smoothly. The floor drainer shall be in the same plane as that where the Washing Machine is placed or slightly lower than the plane, to avoid Washing Machine leakage causing any damage.
4. Place the Washing Machine as firmly as possible. lf necessary, level the Washing Machine by adjusting the Adjustable Feet of the Washing Machine according to the order shown in the figures. The maximum allowable inclination of the plane on which the Washing Machine is placed is 2°.

Removal of the Water Inlet Hose

1. Turn off the Faucet.
2. Press the Power Button to turn on the power. Then press the Start/Pause Button.
3. Turn off the power after 15 seconds.
4. Pull down the Locking Rod and Sleeve with your fingers and remove the Water Inlet Hose.
5. Turn the Water Inlet Hose on the Inlet Valve anticlockwise until the Water Inlet Hose is removed

Washing Tips

• Please wipe dirt and sand off the | laundry first.
• Make sure there are no items in the clothing pockets. (such as nails, coins, etc. that may damagel clothes, create abnormal sounds or cause a malfunction of the washing machine.)
• When washing fine fabrics such aslingerie, lace-trimmed items, nylon and thin chemical fiber fabrics, etc., they should be placed in amesh washing bag.

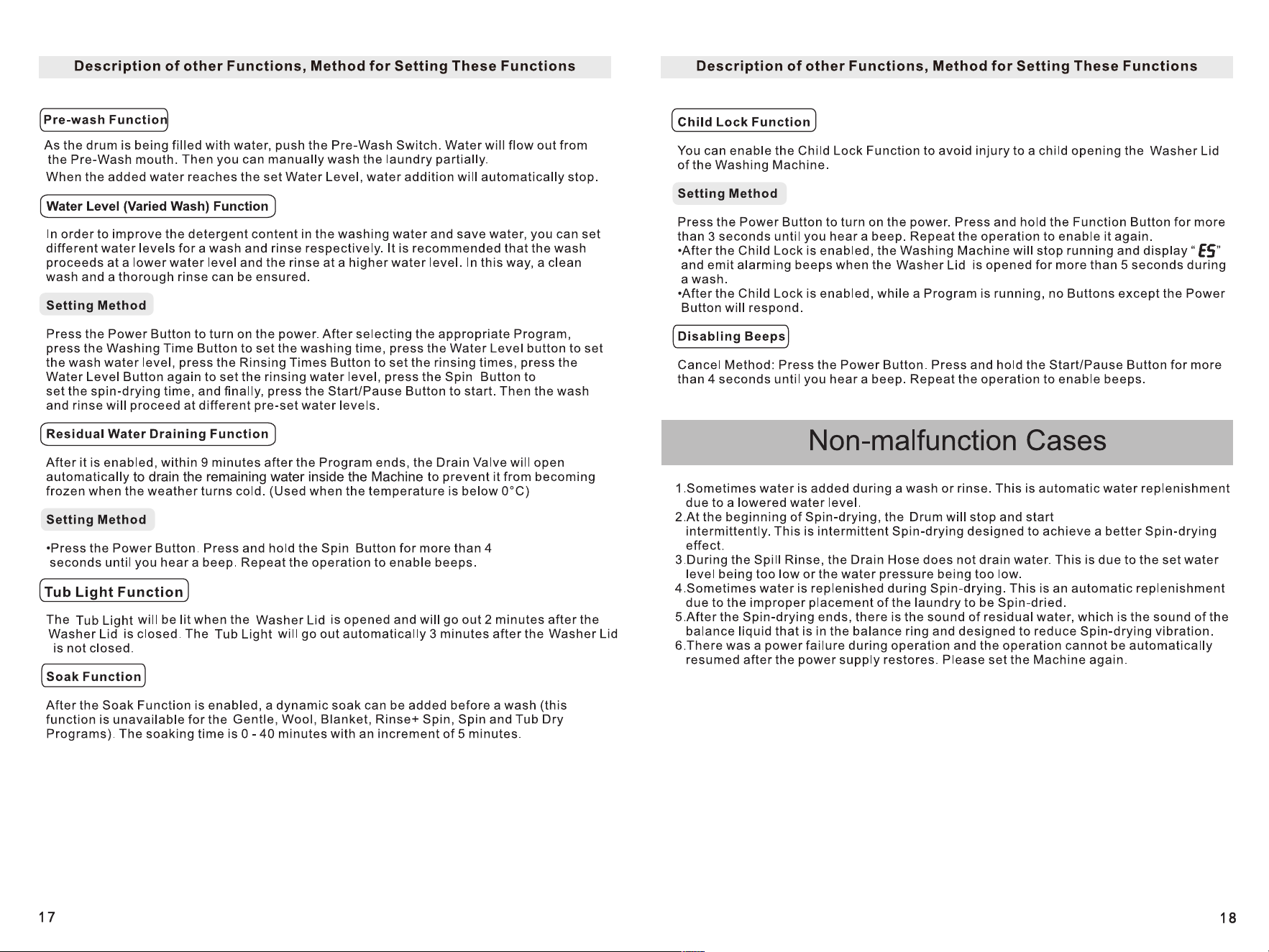

Non-malfunction Cases

1. Sometimes water is added during a wash or rinse. This is automatic water replenishment due to a lowering water level.
2. At the beginning of Spin-drying, the Drum will stop and start intermittently. This is intermittent Spin-drying designed to achieve a better Spin-drying effect.
3. During the Spill Rinse, the Drain Hose does not drain water. This is due to the setwater. level being too low or the water pressure being too low.
4. Sometimes water is replenished during Spin-drying. This is an automatic replenishment due to the improper placement of the laundry to be Spin-dried.
5. After the Spin-drying ends, there is the sound of residual water, which is the sound of the balance liquid that is in the balance ring and designed to reduce Spin-drying vibration.
6. There was a power failure during operation and the operation cannot be automatically resumed after the power supply restores. Please set the Machine again.
