OYSTER PERPETUAL DATE
OYSTER PERPETUAL
WEARING THE WATCH
FOR THE FIRST TIME
Before being worn for the first time, or if it has
stopped, a Rolex watch must be wound manually
in order to function correctly and precisely.
Towind the watch manually, unscrew the winding
crown completely, then turn it several times
clockwise. (Turning in the other direction has
noeffect.) A minimum of 25turns is required for
adequate partial winding. The watch will then
bewound automatically as long as it is worn on
the wrist. Carefully screw the crown back down
against the case to ensure waterproofness.
The green seal accompanying your
Rolex watch is a symbol of its status
as a Superlative Chronometer. This
exclusive designation attests that it
has successfully undergone a series of
specific final controls by Rolex in its own
laboratories in addition to the official
COSC certification of its movement.
This unique testing of its chronometric
precision, waterproofness, self-winding
and reliability pushes back the
boundaries of performance and makes
Rolex a benchmark for excellence
in mechanical watches. For further
information, please visit rolex.com.
THE HEART OF THE OYSTER PERPETUAL MODELS
OYSTER PERPETUAL / OYSTER PERPETUAL DATE 4-5
USING YOUR WATCH
OVERVIEW 6-7
SETTING THE OYSTER PERPETUAL 8-9
SETTING THE OYSTER PERPETUAL DATE 10-11
EASYLINK COMFORT EXTENSION LINK 12-13
ROLEX SERVICE
CARING FOR YOUR ROLEX 14-15
AFTER-SALES SERVICE 16-17
WORLDWIDE SERVICE NETWORK 18
ROLEX.COM
19
5
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
OYSTER PERPETUAL MODELS
OYSTER PERPETUAL
OYSTER PERPETUAL DATE
Embodiments of Rolex prestige
and expertise, the Oyster Perpetual
and Oyster Perpetual Date are true
watchmaking archetypes. Having
inherited the renowned aesthetics of
the original Oyster, the world’s first
waterproof wristwatch, these watches
epitomize timeless, universal style.
Their Oyster case, guaranteed
waterproof to a depth of 100 metres
(330feet), is a paragon of robustness
and elegance. The sapphire crystal
is virtually scratchproof, and is fitted
with a Cyclops lens at 3 o’clock on
the Oyster Perpetual Date for easy
reading of the date.
The Oyster Perpetual and Oyster
Perpetual Date are equipped with a
self-winding mechanical movement
entirely manufactured by Rolex.
Available with a wide range of dials,
the Oyster Perpetual and Oyster Perpetual
Date feature an Oyster bracelet with
an Oysterclasp and Easylink comfort
extension link.
6
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
OYSTER PERPETUAL MODELS

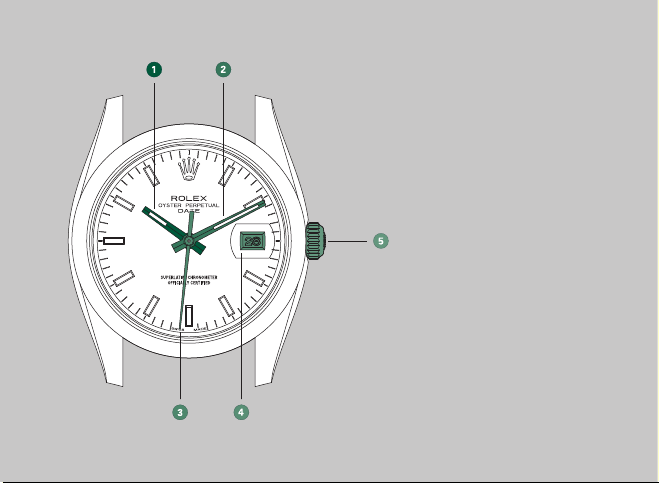

OVERVIEW
Hour hand
Minute hand
Seconds hand
Date window
(Oyster Perpetual Date only)
Twinlock winding crown with
double waterproofness system
Diagram of the Oyster Perpetual Date
8
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
OYSTER PERPETUAL MODELS
SETTING THE OYSTER PERPETUAL
Screwed-down position (position 0)
The crown is completely screwed down
against the case. When the crown
is in this position, the Oyster Perpetual
is guaranteed waterproof to a depth
of 100 metres (330 feet).
Manual winding (position 1)
The crown is unscrewed. To wind
the watch manually, turn the crown
clockwise; turning in the other direction
has no effect. When setting the watch
for the first time or after the watch
has stopped, complete a minimum
of25turns for partial winding.
Setting the time (position 2)
The crown is unscrewed and pulled out
to the first notch. The seconds hand
is stopped, allowing you to set the
time to the precise second. To set the
hour and minute, turn the crown in
eitherdirection.
Unscrew and then pull out

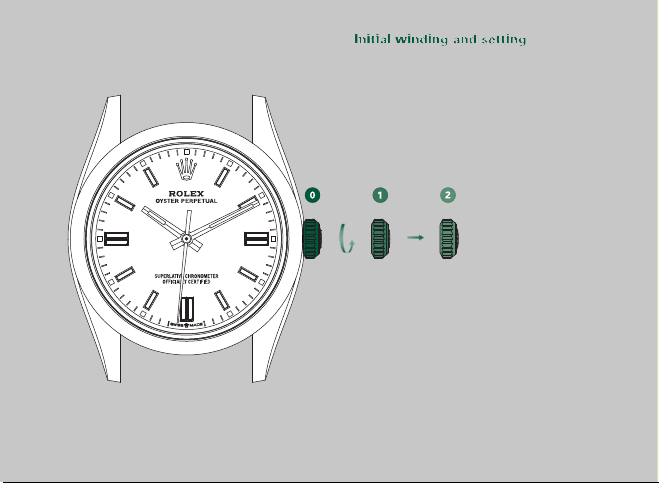

Initial winding and setting
Initial winding and setting
A. Wind the watch manually (position 1).
B. Set the time (position 2).
After every use, carefully screw the crown
back down against the case to guarantee the
waterproofness. Return the crown to position1
and apply light pressure on it while screwing
it down clockwise against the case. The crown
should never be unscrewed underwater.
10
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
OYSTER PERPETUAL MODELS
Screwed-down position (position 0)
The crown is completely screwed down
against the case. When the crown is in
this position, the Oyster Perpetual Date
is guaranteed waterproof to a depth
of100metres (330 feet).
Manual winding (position 1)
The crown is unscrewed. To wind the
watch manually, turn the crown clockwise;
turning in the other direction has no effect.
When setting the watch for the first time
or after the watch has stopped, complete
aminimum of25turns for partial winding.
Setting the date (position 2)
The crown is unscrewed and pulled out
to the first notch. To set the date, turn
the crown clockwise; turning in the
other direction has no effect. During this
operation, the watch continues tofunction.
Setting the time (position 3)
The crown is unscrewed and pulled out to
the second notch. The seconds hand is
stopped, allowing you to set the time to the
precise second. To set the hour and minute,
turn the crown in either direction. To avoid
confusion between a.m. and p.m. hours,
move the hour hand to12 o’clock. If the
date changes, it ismidnight.
SETTING THE OYSTER PERPETUAL DATE
Unscrew and then pull out
Initial winding and setting
Initial winding and setting
A. Wind the watch manually (position 1).
B. Note the date change at midnight,
then set the time (position 3).
C. Set the date (position 2).
After every use, carefully screw the crown
back down against the case to guarantee the
waterproofness. Return the crown to position1
and apply light pressure on it while screwing
it down clockwise against the case. The crown
should never be unscrewed underwater.
12
USING
YOUR WATCH
ROLEX
SERVICE
THE HEART OF THE
OYSTER PERPETUAL MODELS
EASYLINK COMFORT
EXTENSION LINK
To ensure optimal comfort when wearing
your watch, Rolex created the Easylink
comfort extension link. Its exclusive
design comprises a link that is pulled
out or folded back on itself to adjust the
length of the bracelet by approximately
5mm, without the need for tools.

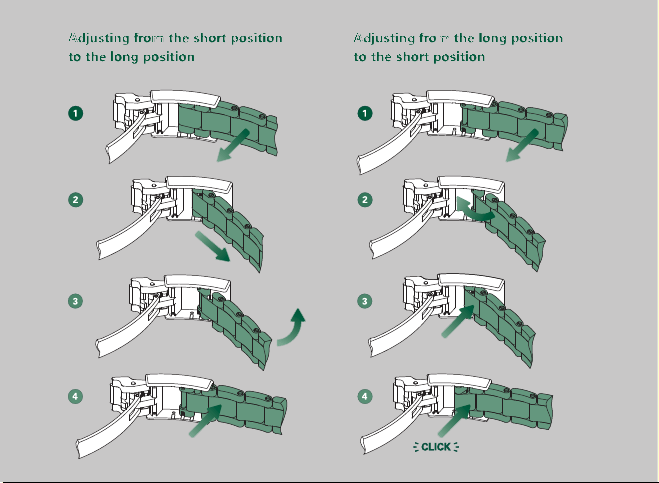

Adjusting from the short position
Adjusting from the short position
to the long position
to the long position
Adjusting from the long position
Adjusting from the long position
to the short position
to the short position
14
THE HEART OF THE
OYSTER PERPETUAL MODELS
USING
YOUR WATCH
ROLEX
SERVICE
CARING FOR
YOUR ROLEX
Thanks to Rolex expertise, your watch
will require very little day-to-day care.
You can help preserve its lustre by
cleaning it occasionally with a microfibre
cloth. You can also wash the case and
bracelet from time to time using soapy
water and a soft brush. After wearing
your watch in the sea, it is important to
rinse it with fresh water to remove any
salt and sand deposits.
15
Before cleaning your watch, always
ensure that the crown is screwed down
properly against the case to guarantee
waterproofness.
16
THE HEART OF THE
OYSTER PERPETUAL MODELS
USING
YOUR WATCH
ROLEX
SERVICE
AFTER-SALES
SERVICE
Rolex watch servicing ensures that
your timepiece will continue to
perform optimally and meet Rolex’s
stringent requirements in terms of
precision, reliability and waterproofness
throughout its life.
The timekeeping accuracy of your watch
is largely dependent on high-performance
lubricants specially developed by Rolex
to minimize friction and prevent wear
of components. To guarantee continued
accuracy and waterproofness, Rolex
recommends that you periodically return
your watch to an Official Rolex Retailer or
Service Centre for professional servicing,
which will always be carried out by a
Rolex-approved watchmaker.
During a complete service, the watch is
dismantled and all of its components
– the case, bracelet and movement – are
closely examined.
The movement is entirely disassembled
and all the parts are carefully inspected.
Those that no longer meet Rolex
requirements are systematically replaced
by new components. The movement
is lubricated on reassembly. The case
17
and bracelet are re-polished or satin-
finished according to their original finish,
restoring their shine and lustre while
removing any marks or scratches.
At the end of the process, your Rolex
watch undergoes a series of tests to
verify its functions, waterproofness and
power reserve, as well as the precision
of its movement.
After a complete Rolex service, your
watch is covered by a service guarantee.
18
THE HEART OF THE
OYSTER PERPETUAL MODELS
USING
YOUR WATCH
ROLEX
SERVICE
WORLDWIDE SERVICE
NETWORK
The network of Official Rolex Retailers
and Service Centres covers more than
100 countries around the world and
draws on the expertise of highly skilled
watchmakers, carefully selected and
trained by Rolex.
Official Rolex Retailers can advise you on
all the technical aspects of your watch’s
functions. Whether your bracelet needs
sizing or it is time for a complete service,
highly qualified Rolex watchmakers are
on hand worldwide to meet all of your
service needs.
For a list of Official Rolex Retailers and
Service Centres, please visit rolex.com.
19
ROLEX.COM
We invite you to visit rolex.com,
a privileged place to learn more about
the functions of your Rolex watch
and about the quality, know-how and
fundamental values of the brand.
Welcome to the world of Rolex.
Rolex reserves the right to modify the models illustrated in this publication at any time.
© Rolex SA, 3-5-7, rue François-Dussaud, 1211 Geneva 26, Switzerland
IMR-OP-EN-20 - 7.2020 - Printed in Switzerland rolex.com
