2004 Odyssey Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Owner's Identification Form
Introduction..................................................................................................................................................... i
A Few Words About Safety ..........................................................................................................................ii
Your Vehicle at a Glance...............................................................................................................................2
Driver and Passenger Safety .......................................................................................................................5
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System.
Instruments and Controls...........................................................................................................................57
Instrument panel indicator and gauge, and how to use dashboard and steering column controls.
Comfort and Convenience Features.......................................................................................................
115
How to operate the climate control system, the audio system, and other convenience features.
Before Driving ...............................................................................................................................
..............167
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving...........................................................................................................................................................181
The proper way to start the engine, shift the transmission, and park, plus towing a trailer.
Maintenance...............................................................................................................................
..................201
The Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Taking Care of the Unexpected...............................................................................................................237
This section covers several problems motorists sometimes experience, and how to handle them.
Technical Information...............................................................................................................................263
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)......................................................................277
A summary of the warranties covering your new Honda, and how to contact us.
Authorized Manuals (U.S. only)...............................................................................................................
281
How to order manuals and other technical literature.
Index .................................................................................................................................................................I
Service Information Summary
A summary
of information you need when you pull up to the fuel pump.
This Owner’s Manual should be considered
a permanent part of the vehicle, and should
remain with the vehicle when it is sold.
This Owner’s Manual covers all models of
the Odyssey. You may find descriptions of
equipment and features that are not on your
particular model.
The information and specifications included
in this publication were in effect at the time
of approval for printing. Honda Motor Co.,
Ltd. reserves the right, however, to
discontinue or change specifications or
design at any time without notice and
without incurring any obligation whatsoever.
Owner’s Identification
POUR CLIENTS CANADIEN
AVIS IMPORTANT: Si vous avez
besoin d’un Manuel du Conducteur
en français, veuillez demander à
votreconcessionnairede
commander le numéro de pièce
38S0X650
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
Main Menu
Congratulations! Your selection of a 2004 Honda Odyssey was a wise
investment. It will give you years of driving pleasure.
One of the best ways to enhance the enjoyment of your new Honda is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new Honda. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the schedules given in this manual
helps to keep your driving trouble-free while it preserves your investment.
When your vehicle needs maintenance, keep in mind that your Honda
dealer’s staff is specially trained in servicing the many systems unique to
your Honda. Your Honda dealer is dedicated to your satisfaction and will be
pleased to answer any questions and concerns.
As you read this manual, you will
find information that is preceded by
a symbol. This information
is intended to help you avoid damage
to your Honda, other property, or the
environment.
California Proposition 65 Warning
This product contains or emits chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
Introduction
WARNING:
NOTICE:
i
Main Menu
−
−
−
−
−
−
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
You will find this important safety information in a variety of forms,
including:
on the vehicle.
preceded by a safety alert symbol and one of
three signal words: , , or .
These signal words mean:
such as Important Safety Reminders or Important
Safety Precautions.
such as Driver and Passenger Safety.
This entire book is filled with important safety information please read it
carefully.
how to use this vehicle correctly and safely.
AFewWordsAboutSafety
Safety Labels
Safety Messages
Safety Headings
Safety Section
Instructions
DANGER WARNING CAUTION
ii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
Main Menu
Your Vehicle at a Glance
2

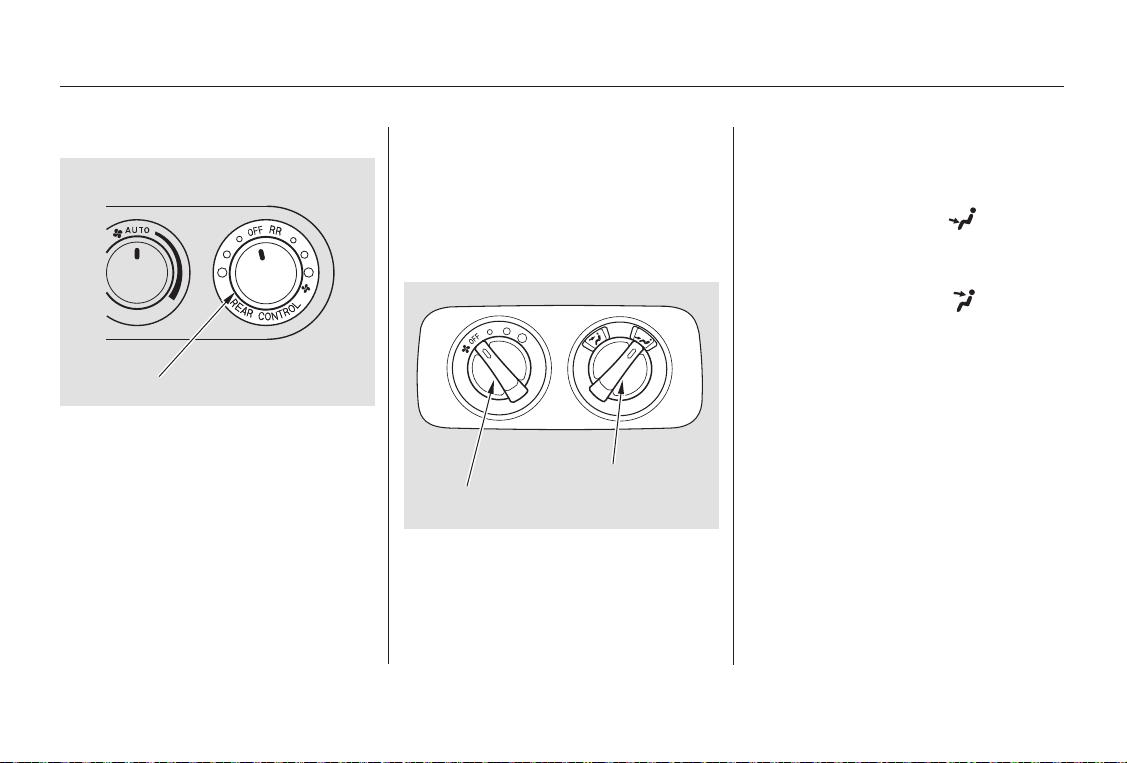

REAR A/C CONTROL

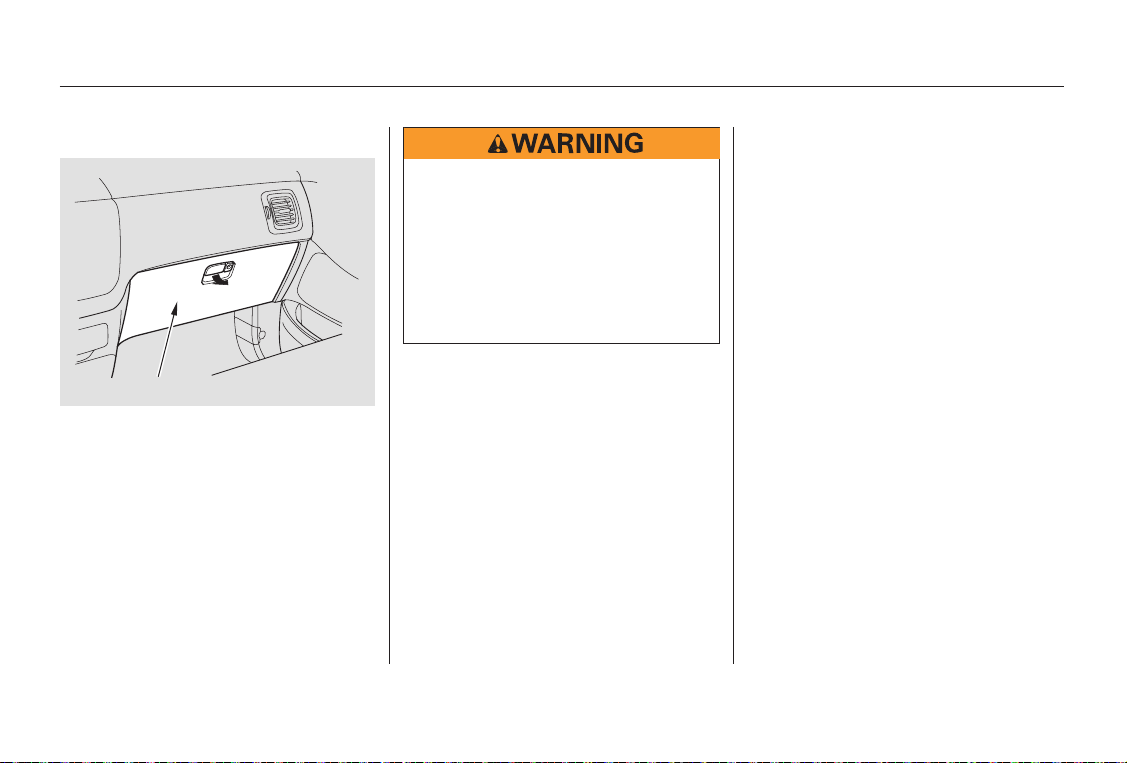

GLOVE BOX
AUDIO SYSTEM/
REAR ENTERTAINMENT
SYSTEM
CENTER TABLE
ACCESSORY
POWER SOCKET
PARKING BRAKE
PEDAL
FUEL FILL
DOOR RELEASE
HOOD RELEASE
HANDLE

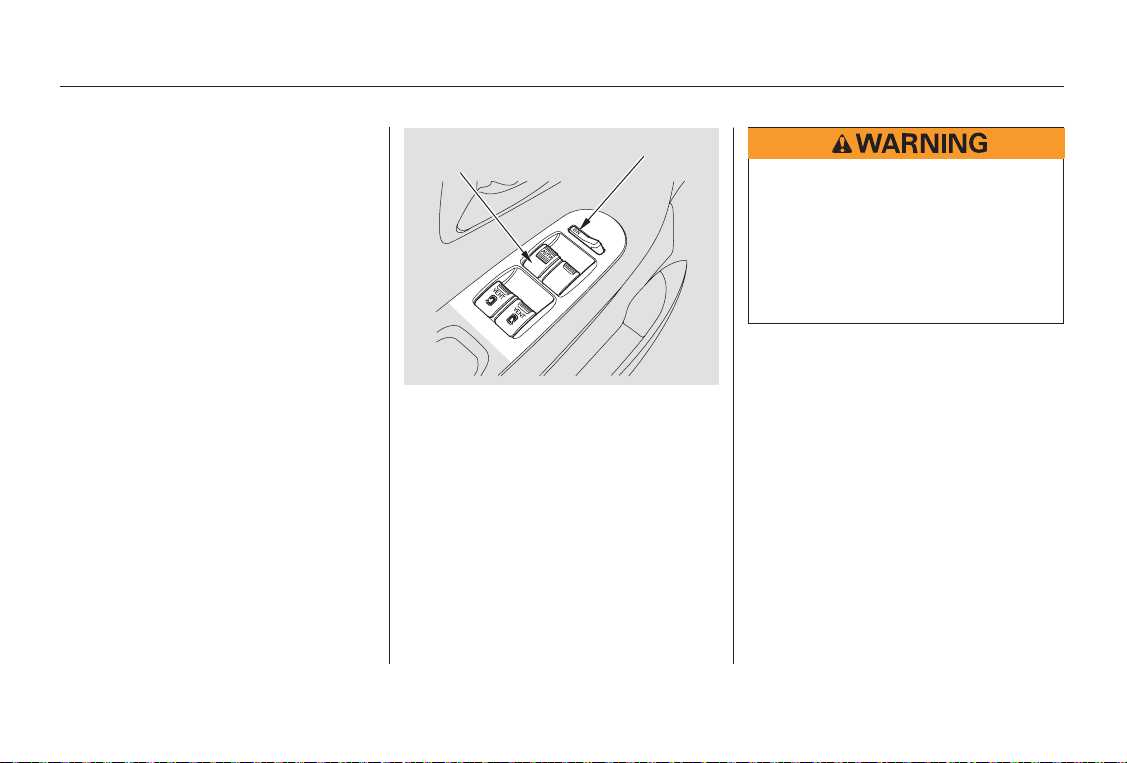

POWER WINDOW
SWITCHES
POWER
DOOR LOCK
SWITCHES
SEAT HEATER
SWITCH

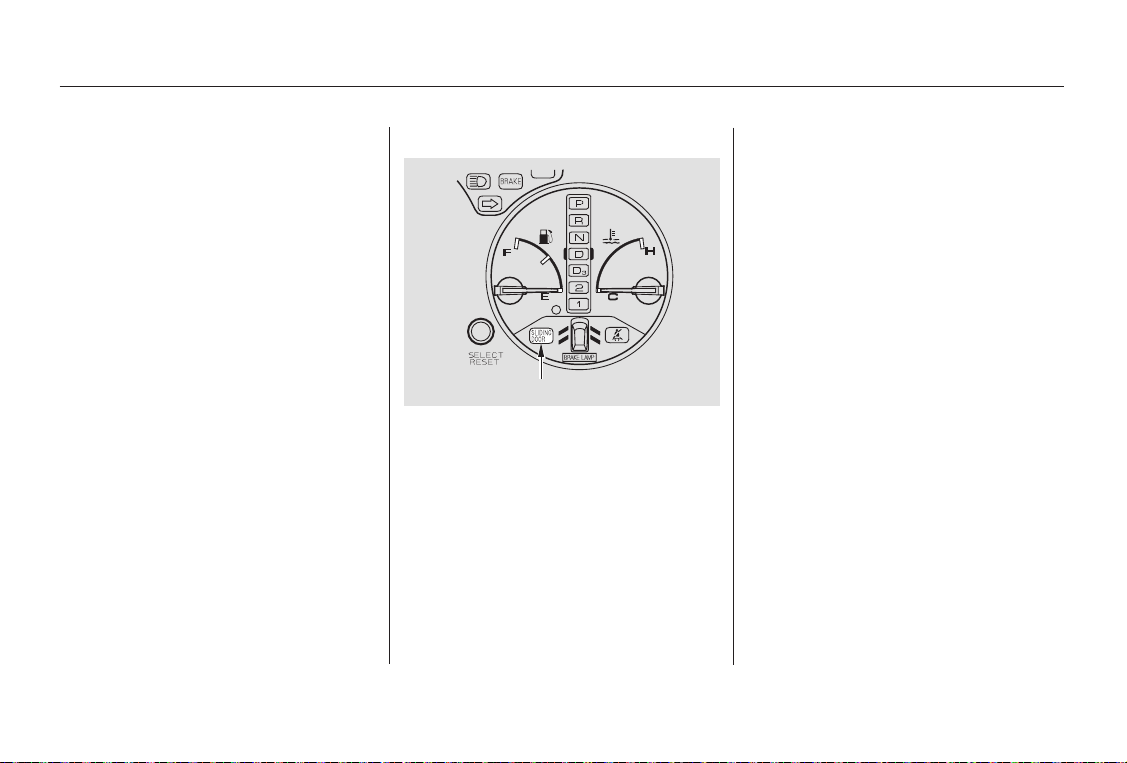

INSTRUMENT PANEL INDICATORS
GAUGES
(P.66) (P.184)
(P.78)
(P.99)
(P.98)
(P.170)
(P.169)
(P.103)
(P.109)
(P.105)
(P.126, 145)
(P.109)
(P.123)
(P.116)
(P.121)

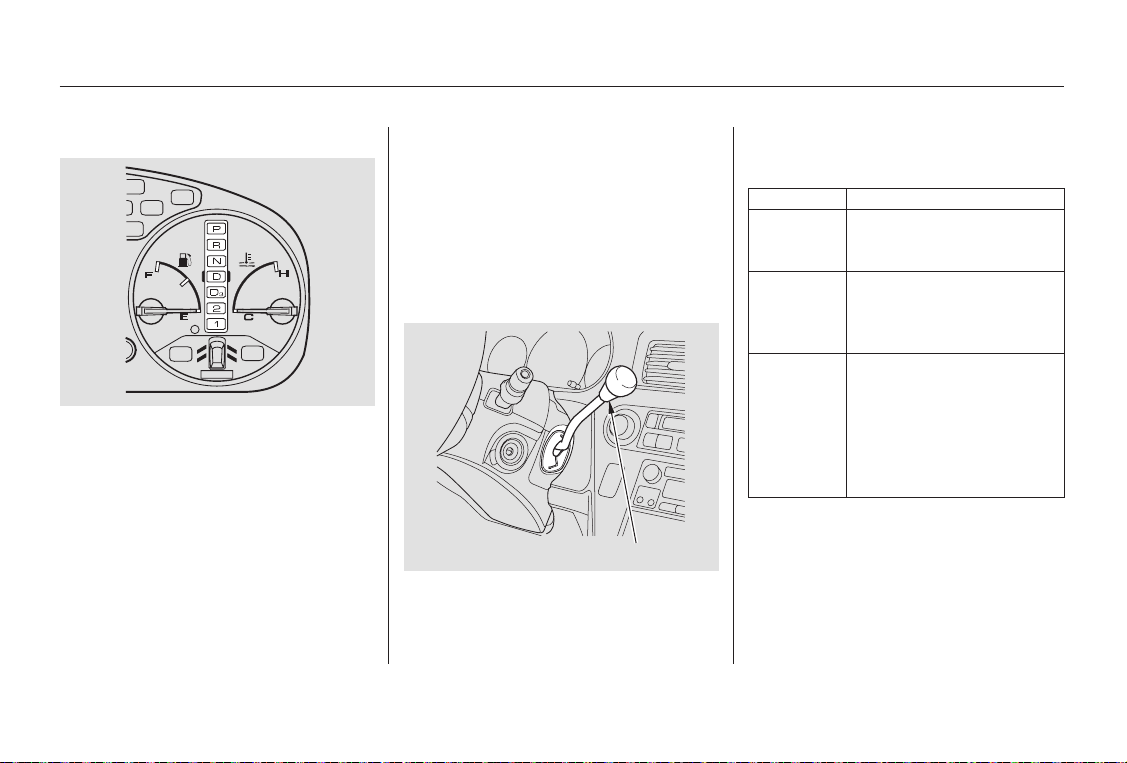

SHIFT LEVER HEATING AND COOLING SYSTEM
CLIMATE CONTROL SYSTEM
(P.59, 60)
Main Menu
＊
＊
To use the horn, press the pad around the ‘‘H’’ logo.:
Your Vehicle at a Glance
3
TRACTION CONTROL SYSTEM
POWER SLIDING
DOOR SWITCHES
HEADLIGHTS/
TURN SIGNALS
REAR WINDOW
DEFOGGER
WINDSHIELD
WIPERS/WASHERS
CRUISE
CONTROL
HORN
STEERING WHEEL
ADJUSTMENT
CRUISE
CONTROL
MIRROR
CONTROLS
(P.192)
(P.71) (P.73)
CLOCK
(P.105)
(P.73)
(P.32)
(P.69)
(P.160)
(P.74)
(P.160)
(P.102)
(P.85)
LIGHT CONTROL
SWITCH
AUDIO SYSTEM/
REAR
ENTERTAINMENT
SYSTEM
(P.126, 145)
(P.112)
STEERING WHEEL
AUDIO CONTROLS
(P.143)
HAZARD WARNING
BUTTON
PASSENGER
AIRBAG OFF
INDICATOR
Main Menu
4
Main Menu
−
This section gives you important
information about how to protect
yourself and your passengers. It
shows you how to use seat belts
properly. It explains how your airbag
work, and it tells you how to properly
restrain infants and children in your
vehicle.
.........Important Safety Precautions . 6
.......Your Vehicle’s Safety Features . 7
.......................................Seat Belts . 8
...........................................Airbags . 9
.........Protecting Adults and Teens . 11
.....1. Close and Lock the Doors . 11

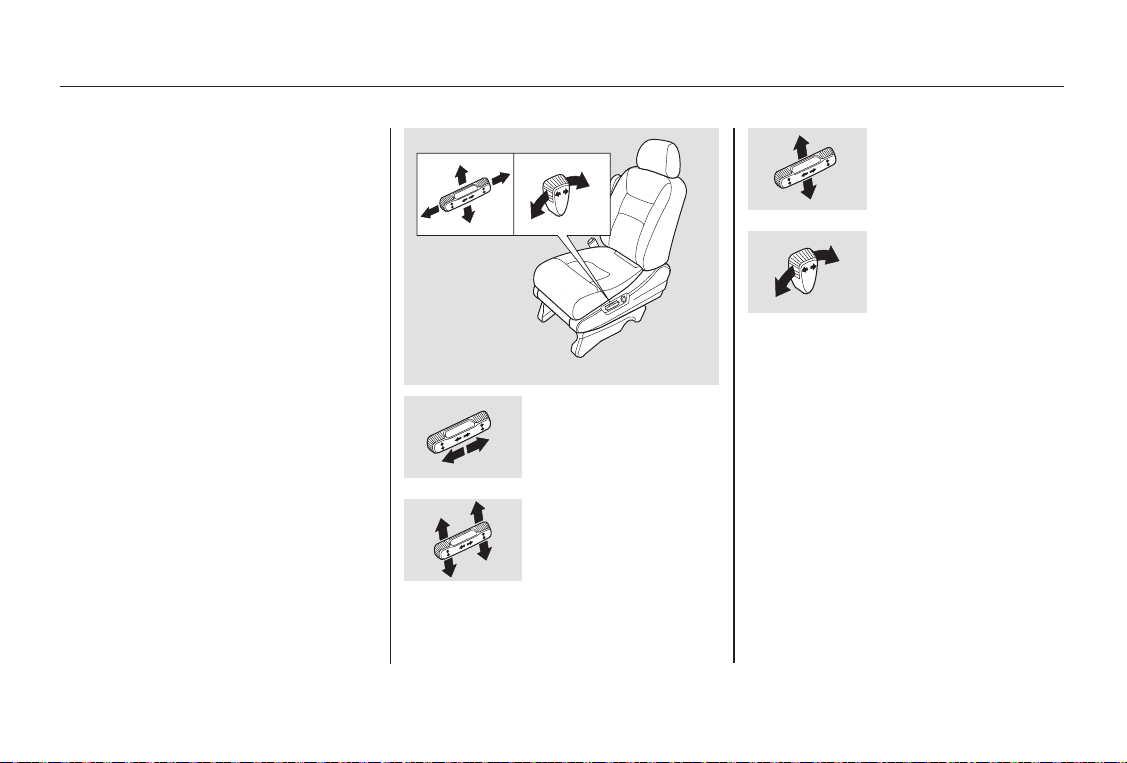

...........2. Adjust the Front Seats . 11
............3. Adjust the Seat-Backs . 12

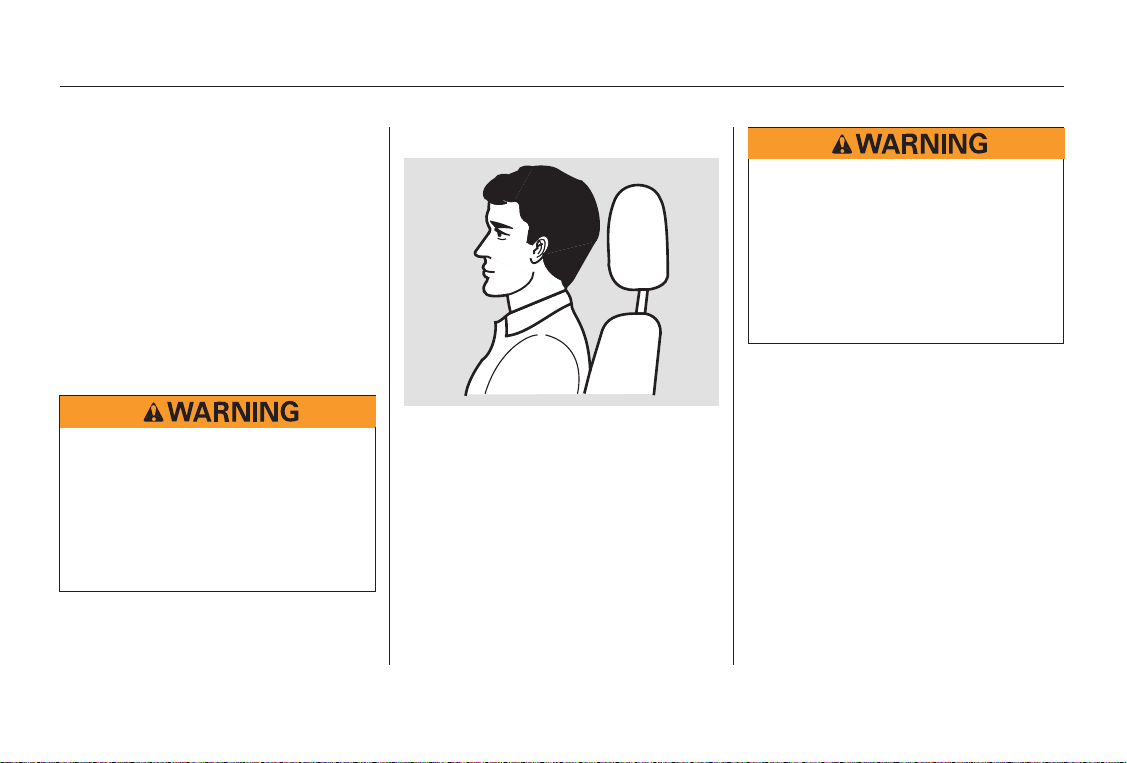

...4. Adjust the Head Restraints . 13
5. Fasten and Position the Seat
.....................................Belts . 14
....6. Adjust the Steering Wheel . 17
7. Maintain a Proper Sitting
................................Position . 17

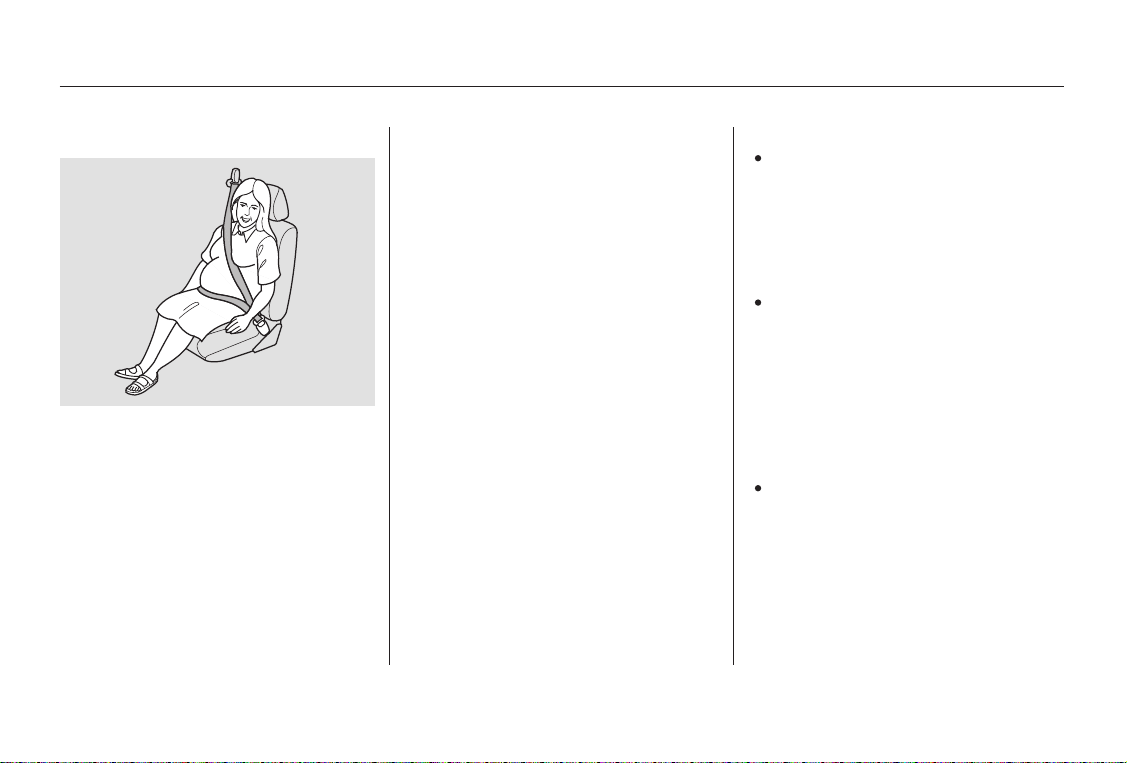

.....Advice for Pregnant Women . 18
...Additional Safety Precautions . 18
Additional Information About Your
.................................Seat Belts . 20
..Seat Belt System Components . 20
......................Lap/Shoulder Belt . 20
Automatic Seat Belt
.............................Tensionners . 22
...............Seat Belt Maintenance . 22
Additional Information About Your
.....................................Airbags . 24
......Airbag System Components . 24
How Your Front Airbags
.........................................Work . 25
How Your Side Airbags
.........................................Work . 29
..How the SRS Indicator Works . 30
How the Side Airbag Off
......................Indicator Works . 31
How the Passenger Airbag
...............Off Indicator Works . 32
.............................Airbag Service . 33
...Additional Safety Precautions . 34
Protecting Children General
................................Guidelines . 35
All Children Must Be
...............................Restrained . 35
Children Should Sit in a Back
...........................................Seat . 36
The Passenger’s Front Airbag
.........Can Pose Serious Risks . 36
If You Must Drive with Several
...................................Children . 38
If a Child Requires Close
..................................Attention . 38
...Additional Safety Precautions . 39
Protecting Infants and Small
...................................Children . 40
.......................Protecting Infants . 40
.........Protecting Small Children . 41
.................Selecting a Child Seat . 42
....................Installing a Child Seat . 43
Installing a Child Seat Using
.....................................LATCH . 44
Installing a Child Seat with a
..................Lap/Shoulder Belt . 46
Installing a Child Seat with a
......................................Tether . 48
...........Protecting Larger Children . 50
.............Carbon Monoxide Hazard . 54

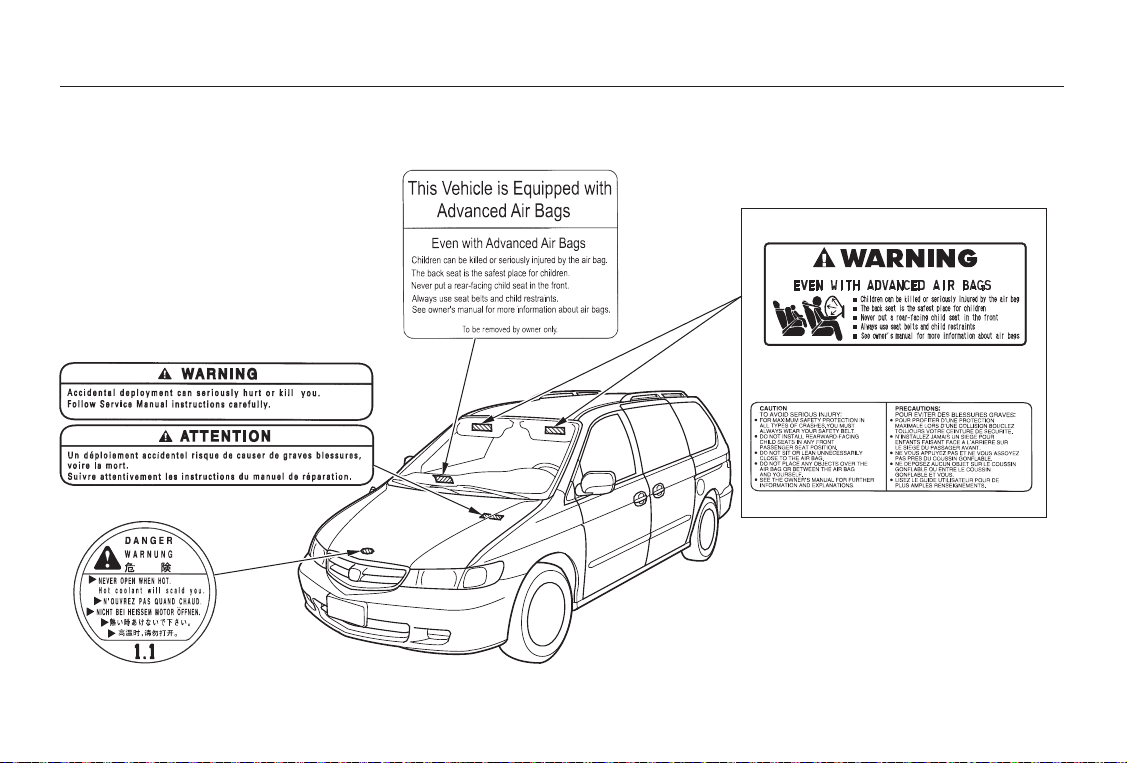

...................................Safety Labels . 55
Driver and Passenger Safety
Driver and Passenger Safety
5
Main Menu
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.

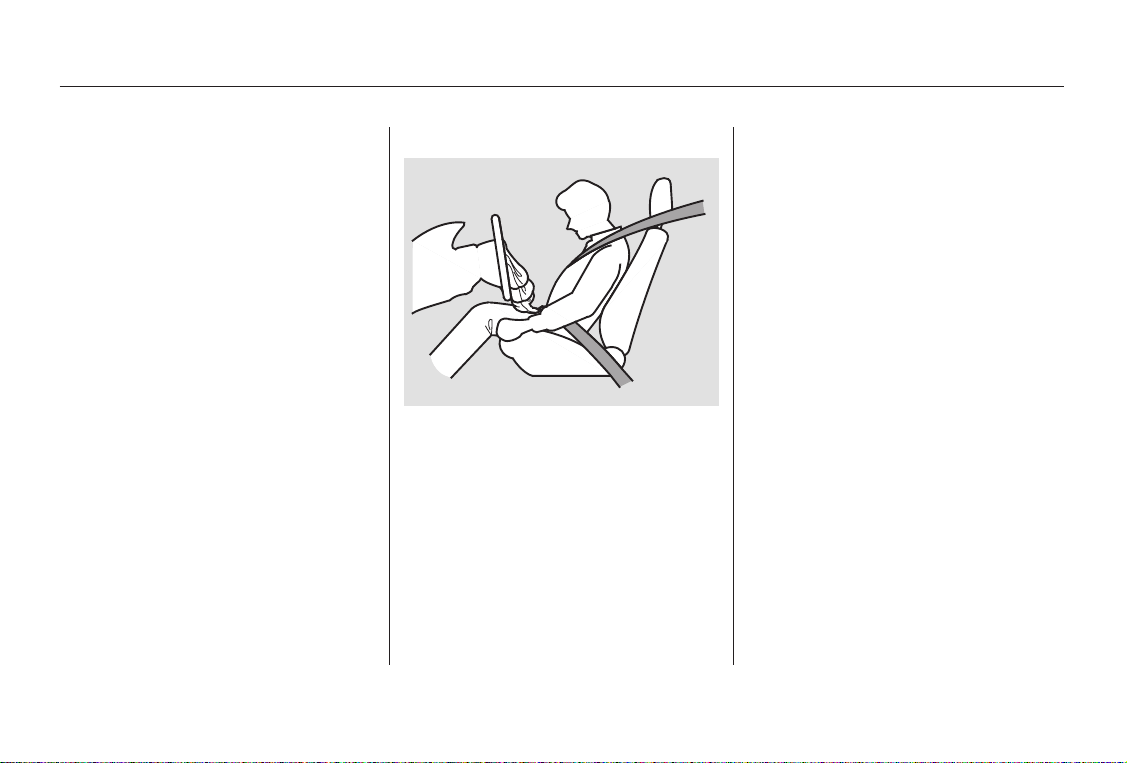

A seat belt is your best protection in
all types of collisions. Airbags
supplement seat belts, but airbags
are designed to inflate only in a
moderate to severe frontal or side
collision. So even though your
vehicle is equipped with airbags,
make sure you and your passengers
always wear your seat belts, and
wear them properly (see page ).
Children age 12 and under should
ride properly restrained in a back
seat. Infants and small children
should be restrained in a child seat.
Larger children should use a booster
and a lap/shoulder belt until they
canusethebeltproperlywithouta
booster (see page ).
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual.
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
14
35
205
Important Safety Precautions
Driver and Passenger Safety
Always Wear Your Seat Belt
Restrain All Children
Be Aware of Airbag Hazards
Control Your Speed
Keep Your Vehicle in Safe
Condition
Don’t Drink and Drive
6
Main Menu
Table of Contents
Your vehicle is equipped with many
features that work together to
protect you and your passengers
during a crash.
Some safety features do not require
anyactiononyourpart.These
include a strong steel framework
that forms a safety cage around the
passenger compartment; front and
rear crush zones, a collapsible
steering column, and seat belt
tensioners that tighten the front seat
belts in the event of a crash.
CONTINUED

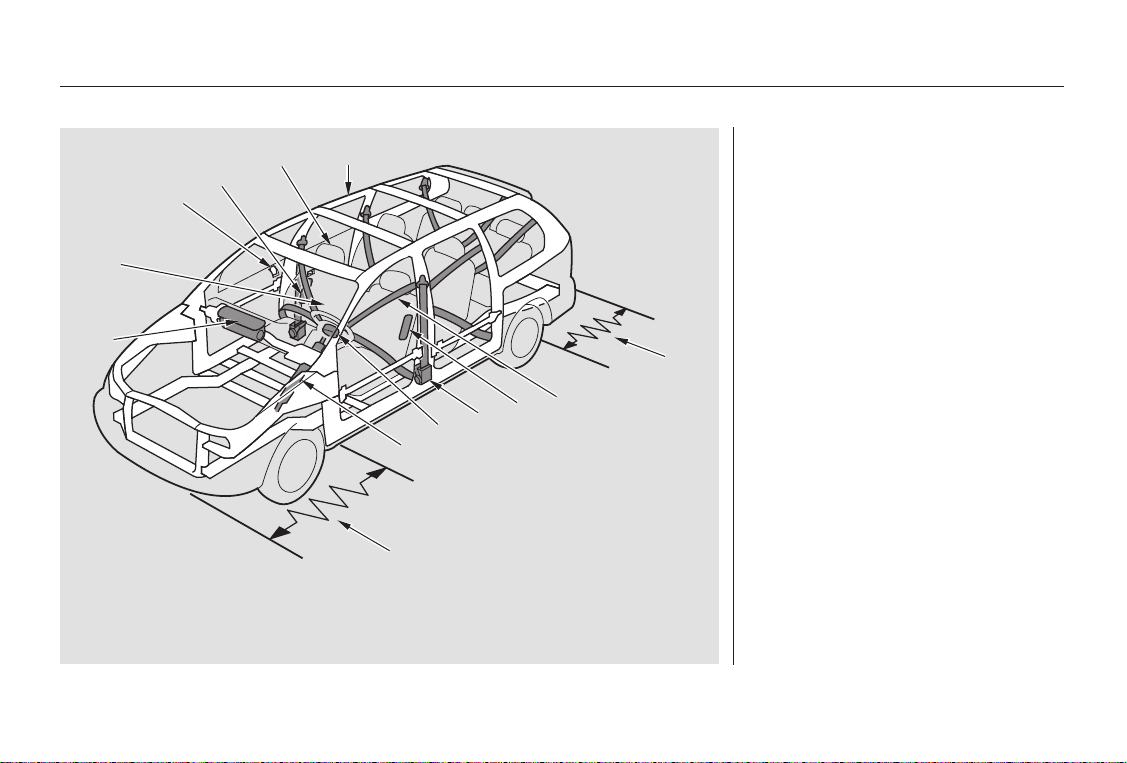

Your Vehicle’s Safety Features
Driver and Passenger Safety
7
(1)
(2)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(8)
(7)
(9)
(10)
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags
(9) Front Seat Belt Tensioners
(10) Door Locks
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
Main Menu
Table of Contents
However, you and your passengers
can’t take full advantage of these
safety features unless you remain
sitting in a proper position and
always wear your seat belts properly.
Infact,somesafetyfeaturescan
contribute to injuries if they are not
used properly.
The following pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers.
Your vehicle is equipped with seat
belts in all seating positions.
Your seat belt system also includes
an indicator on the instrument panel
to remind you and your passengers
to fasten your seat belts.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children (Infants and smaller
children must be properly restrained
in child seats).
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.
When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
Help protect you in almost every
type of crash, including frontal,
side,rearimpacts,androllovers.
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
Keep you from being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag, and
allows you to get the best
advantage from the airbag.
Your Vehicle’s Safety Features
Driver and Passenger Safety
Seat Belts
Why Wear Seat Belts
8
Main Menu
Table of Contents
CONTINUED
Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page for more
information on how your side airbags
work).
Your vehicle has a Supplemental
Restraint System (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page
for more information on how
your front airbags work).
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear your seat belt, and
make sure you wear it properly.
29
25
Your Vehicle’s Safety Features
Driver and Passenger Safety
Airbags
What You Should Do:
9
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your passengers
always wear seat belts and wear
them properly.
Main Menu
Table of Contents
The most important things you need
to know about your airbags are:
They are designed to supplement
the seat belts.
To do
their job, airbags must inflate with
tremendous force. So while
airbags help save lives, they can
cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
Always wear
your seat belt properly, and sit
upright, and as far back from the
steering wheel while allowing full
control of the vehicle. A front
passenger should move their seat as
far back from the dashboard as
possible.
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember, however, that no safety
system can prevent all injuries or
deaths that can occur in severe
crashes, even when seat belts are
properly worn and the airbags deploy.
Your Vehicle’s Safety Features
Driver and Passenger Safety
Airbags do not replace seat belts.
Airbags offer no protection in rear
impacts, rollovers, or minor
frontal or side collisions.
Airbags can pose hazards.
What you should do:
10
Main Menu
Table of Contents
−
The following pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenagers who are large enough
and mature enough to ride in the
front. See pages for
important guidelines on how to
properly protect infants, small
children, and larger children who
ride in your vehicle.
After everyone has entered the
vehicle, be sure the doors and
tailgate are closed and locked.
Your vehicle has a door and tailgate
monitor indicator on the instrument
panel to indicate when a specific
door or the tailgate is not tightly
closed.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.
Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain full control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.
See page for how to lock the
doors, and page for how the
monitor indicator works.
35 39
78
63
CONTINUED
Driver and Passenger Safety
Introduction Close and Lock the Doors Adjust the Front Seats1. 2.
Protecting Adults and Teens
11
Main Menu
Table of Contents
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest.
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Once your seat is adjusted correctly,
rock it back and forth to make sure
the seat is locked into position. See
page for how to adjust the front
seats.
Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comfortable, upright
position.
89
Protecting Adults and Teens
Driver and Passenger Safety
Adjust the Seat-Backs3.
12
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
Main Menu
Table of Contents
See page for how to adjust the
head restraints.
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
Have passengers with adjustable
restraints adjust their restraints
properly as well. Taller persons
should adjust their restraint as high
as possible.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page for how to adjust seat-
backs.
92
90
Protecting Adults and Teens
Driver and Passenger Safety
Adjust the Head Restraints4.
13
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Main Menu
Table of Contents
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched.
The center belt in the third row has a
shoulder belt that must be attached
to the lap belt before the seat belt is
used (see page ).
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
Check that the belt is not twisted.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
If necessary, pull up on the shoulder
belt again to remove any slack, then
check that the belt rests across the
center of your chest and over your
shoulder. This spreads the forces of
a crash over the strongest bones in
your upper body.
15
Protecting Adults and Teens
Driver and Passenger Safety
Fasten and Position the Seat
Belts
5.
Using a Lap/Shoulder Belt
14
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Main Menu
Table of Contents
CONTINUED
Insert the hook at the end of the
shoulder belt plate into the metal
loop on the latch plate marked
CENTER.Makesuretheshoulder
belt is not twisted, as a twisted belt
can cause serious injuries in a crash.
Pull on the shoulder belt to make
sure it is securely attached.
Unlatch the metal shoulder belt plate
from the anchor on the ceiling, then
extend the belt by pulling the metal
plate.
The front seats and second row seats
have adjustable seat belt anchors. To
adjust the height of an anchor, press
andholdthereleasebuttonandslide
the anchor up or down as needed
(the anchor has four positions).
Protecting Adults and Teens
Driver and Passenger Safety
Using the Lap/Shoulder Belt in the
Center Position of the Third Row
15
METAL
HOOK
LATCH PLATE
RELEASE
BUTTON
METAL PLATE
Main Menu
Table of Contents
Pull upon the shoulder belt again to
remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This could cause
very serious injuries in a crash.
If a seat belt does not seem to work
as it should, it may not protect the
occupant in a crash.
See page for additional
information about your seat belts
and how to take care of them.
Position the lap belt as low as
possible across your hips, then pull
on the loose end of the lap belt for a
snug but comfortable fit.
Insert the latch plate on the lap belt
into the buckle marked CENTER. If
the belt is too short, hold the latch
plate at a right angle and pull on the
plate to extend the belt. Then insert
the latch plate into the buckle, and
tug on the lap and shoulder belts to
make sure the belt is securely
latched.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your Honda dealer check the
belt as soon as possible.
20
Protecting Adults and Teens
Driver and Passenger Safety
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
No one should sit in a seat with an
inoperative seat belt.
16
Main Menu
Table of Contents
In addition, an occupant who is out of
position in the front seat can be
seriously or fatally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag. Being struck
by an inflating side airbag can
possibly result in serious injuries.
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.

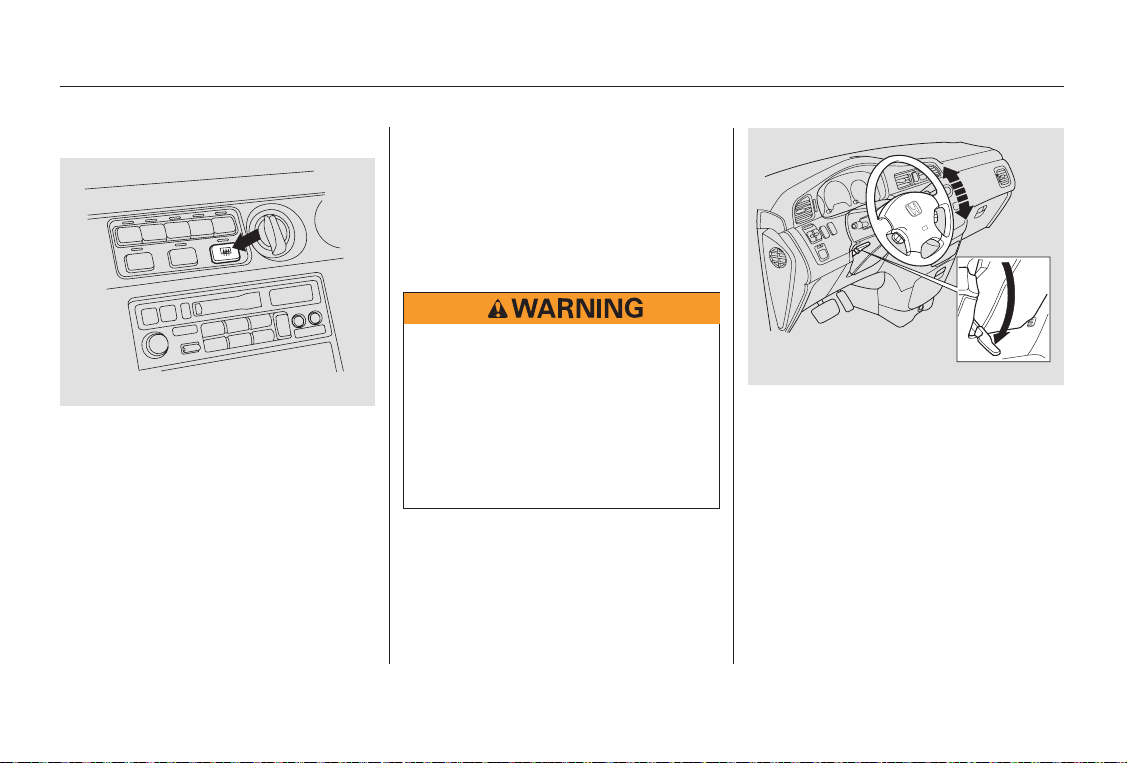

Adjust the steering wheel, if needed,
so that the wheel points toward your
chest, not toward your face. This
provides optimal protection from the
front airbag.
See page for how to adjust the
steering wheel.
74
Protecting Adults and Teens
Driver and Passenger Safety
Maintain a Proper Sitting
Position
Adjust the Steering Wheel 7.6.
17
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
Main Menu
Table of Contents
If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a front passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Each time you have a check-up, ask
your doctor if it’s okay for you to
drive.
All passengers
must sit in locked, upright seats
andbeproperlyrestrainedbyseat
belts.
A passenger who is not
wearing a seat belt during a crash
or emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or out of
the vehicle.
If they do, they
could be very seriously injured in a
crash.
Protecting Adults and Teens
Advice for Pregnant Women Additional Safety Precautions
Never let passengers ride in the
cargo area or on top of a folded-
down back seat.
Passengers should not stand up or
change seats while the vehicle is
moving.
Two people should never use the
same seat belt.
Driver and Passenger Safety
18
Main Menu
Table of Contents
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp objects in
your mouth, can result in injuries
if your front airbag inflates.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inflates.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interfere with the proper
operation of the airbags. Or, if the
airbags inflate, the objects could
be propelled inside the vehicle and
hurt someone.
If a side airbag
inflates,acupholderorotherhard
object attached on or near the
door could be propelled inside the
vehicle and hurt someone.
This could make the driver’s
seat position sensor or the front
passenger’s seat weight sensors
ineffective (see page for
more information).
This could
cause problems with the driver’s
seat position sensor or the front
passenger’s seat weight sensors
(see page for more
information).
28
34
Protecting Adults and Teens
Driver and Passenger Safety
Do not put any accessories on seat
belts.
Do not place hard or sharp objects
between yourself and a front
airbag.
Keep your hands and arms away
from the airbag covers.
Do not attach or place objects on
the front airbag covers.
Do not attach hard objects on or
near a front door.
Do not modify the front seats.
Do not place any items under
the front seats.
19
Main Menu
Table of Contents
Your seat belt system includes lap/
shoulder belts in all seven seating
positions. The front seat belts are
also equipped with automatic seat
belt tensioners.
Most seat belts are a one-piece lap/
shoulder belt. This seat belt goes
over your shoulder, across your
chest and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, push the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
The seat belts in all positions except
the driver’s and the center seat in
the third row have an additional
locking mechanism that must be
activated to secure a child seat (see
page ).
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move freely.
To deactivate the locking
mechanism, unlatch the buckle, and
let the seat belt fully retract. To
refasten the belt, pull it out only as
far as needed.
The seat belt system
includes an indicator on the
instrument panel to remind you and
your passengers to fasten your seat
belts.
If the driver’s seat belt is not
fastened before the ignition is turned
to ON (II), the indicator will come on
and a beeper will also sound. The
beeper will stop after a few seconds,
but the indicator will stay on until the
driver’s seat belt is fastened.
46
14
Additional Information About Your Seat Belts
Driver and Passenger Safety
Seat Belt System Components Lap/Shoulder Belt
(Except center position of third row)
20
Main Menu
Table of Contents
−
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
To unlatch the belt, push the red
PRESS button on the buckle and
detach the shoulder belt from the lap
belt.
When properly assembled, the
combination lap belt and shoulder
belt in this position goes over your
shoulder, across your chest, and
over your hips (see pages
for belt assembly, latching, and
positioning instructions).
15
16
Additional Information About Your Seat Belts
Driver and Passenger Safety
(Center position of third row)
21
Main Menu
Table of Contents
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in place.
The tensioners are designed to
activate primarily in frontal collisions,
andtheyshouldactivateinany
collision severe enough to cause
front-airbag inflation.
However, the tensioners can be
activated during a collision in which
the front airbags do not deploy. In
this case, the airbags would not be
needed, but the additional restraint
could be helpful.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
For safety, you should check the
condition of your seat belts regularly.
Pull each belt out fully and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. Any belt that
is not in good condition or not
working properly will not provide
good protection and should be
replaced as soon as possible.
Honda provides a lifetime warranty
on seat belts for U.S. models. See
your
booklet for details.
Honda Warranty Information
Additional Information About Your Seat Belts
Driver and Passenger Safety
Automatic Seat Belt Tensioners Seat Belt Maintenance
22
Main Menu
Table of Contents
If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For information on how to clean your
seat belts, see page .226
Additional Information About Your Seat Belts
Driver and Passenger Safety
23
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Main Menu
Table of Contents
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Automatic seat belt tensioners
(see page ).
Sensors that can detect a
moderate to severe frontal or side
impact.
Your Airbag System includes:
Two SRS (Supplemental Restraint
System) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
22
29
25
Additional Information About Your Airbags
Driver and Passenger Safety
Airbag System Components
24
(8)
(3)
(4)
(6)
(10)
(5) (11) (1) (8) (9)
(2)
(10)
(4)
(7)
(5)
(7)
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors
(11) Occupant Position Detection
System (OPDS) Sensors
Main Menu
Table of Contents
CONTINUED
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, and driver and
frontpassengerseatbeltusewhen
the ignition is in the ON (II)
position.
Weight sensors that monitor the
weight on the front passenger’s
seat. These prevent the passenger’s
front airbag from inflating if the
weight is less than about 65 lbs
(30 kg) (see page ).
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags (see
page ).
An indicator on the instrument
panel that alerts you that the front
passenger’s side airbag has been
turned off (see page ).
An indicator on the dashboard that
alerts you that the passenger’s
front airbag has been turned off
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
A driver’s seat position sensor that
monitors the seat position. If the
seat is too far forward, the airbag
will inflate with less force (see
page ).
If you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration. If the rate of
deceleration is high enough, the
control unit will instantly inflate the
driver’s and front passenger’s front
airbags, at the appropriate time and
with the force needed.
28
30
31
32
28
Additional Information About Your Airbags
Driver and Passenger Safety
How Your Front Airbags Work
25
Main Menu
Table of Contents
During a frontal crash, your seat belt
restrains your lower body and torso,
and the airbag helps protect your
head and chest.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
After inflating, the front airbags
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’s surface.
Although the powder is not harmful,
people with respiratory problems
mayexperiencesometemporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
Only the driver’s airbag can deploy if
there is no passenger in the front
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).
Although both airbags normally
inflate within a split second of each
other, it is possible for only one
airbag to deploy.
31
Additional Information About Your Airbags
Driver and Passenger Safety
26
Main Menu
Table of Contents
CONTINUED
Your front airbags are dual-stage
airbags. This means they have two
inflation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inflation time
with a little less force.
Your front airbags are also dual-
threshold airbags. Airbags with this
feature have two deployment
thresholds that depend on whether
or not the occupant is wearing a seat
belt.
If the occupant’s belt is ,
the airbag will deploy at the same
threshold as a conventional airbag,
because the occupant would need
extra protection.
It the occupant’s belt is , the
airbag will inflate at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
Your front airbags are also advanced
airbags. The main purpose of this
feature is to prevent airbag-caused
injuries to short drivers and children
who ride in front.
In addition, do not spill any liquids,
cover the sensors, or put any cargo
or metal objects under the front
seats. Ask second row passengers to
not put their feet under the front
seats. Any of these actions could
damage the sensors or prevent them
from working properly.
For the advanced airbags to work
properly, occupants must sit upright
and wear their seat belts properly. If
a child seat is installed in the front, it
must be properly secured.
Additional Information About Your Airbags
Driver and Passenger Safety
Dual-Stage Airbags
more severe
less severe
Dual-Threshold Airbags
not latched
latched
Advanced Airbags
27
Main Menu
Table of Contents
If there is a problem with the seat
position sensor, the SRS indicator
will come on in the instrument panel.
In this case, the driver’s airbag will
inflate in the normal manner during
a crash regardless of the driver’s
seating position.
The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
positioned too far forward, the
airbag will inflate sequentially,
regardless of the severity of the
impact.
The passenger’s advanced front
airbag system has weight sensors
under the seat. If the sensors detect
a total weight on the seat of about 65
lbs (30 kg) or less, the system will
automatically turn the passenger’s
front airbag off.
When the airbag is turned off, an
indicator in the center of the
dashboard will come on indicating
‘‘Passenger Airbag Off’’ (see page
).
If there is no passenger in the front
seat, the but the
indicator .
To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes:
A rear passenger pushing or
pulling on the back of the
passenger’s seat.
Moving the front seat forcibly
back against cargo on the seat or
floor behind it.
Hanging heavy items on the front
passenger seat, or placing heavy
items in the seat-back pocket.
32
Additional Information About Your Airbags
Driver and Passenger Safety
airbag will be off
will not come on
do not do anything
that would increase or decrease the
weight on the front passenger’s seat.
28
DRIVER’S
SEAT
POSITION
SENSOR
PASSENGER’S
SEAT WEIGHT
SENSOR
Main Menu
Table of Contents
If you ever have a moderate to
severe side impact, the sensors will
detect rapid deceleration and signal
the control unit to instantly inflate
either the driver’s or the passenger’s
side airbag.
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
The passenger’s side airbag has a
cutoff system designed to turn off
the passenger’s side airbag if a child’s
head is in the airbag’s deployment
path (see page ).
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
If a short adult leans sideways, or a
larger adult slouches and leans
sideways into the side airbag
deployment path, the system may
also shut off the side airbag.
If the side airbag off indicator comes
on, have the passenger sit upright.
Once the passenger is out of the
deployment path of the side airbag,
the system will turn the airbag back
on and the indicator will go out.
To get the best protection from the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
When you turn the ignition to ON
(II), the indicator should come on
briefly and go out (see page ). If it
doesn’t come on, stays on, or comes
on while driving without a passenger
in the front seat, have the system
checked.
31
61
Additional Information About Your Airbags
Driver and Passenger Safety
How Your Side Airbags Work
29
Main Menu
Table of Contents
The SRS indicator alerts
you to a potential problem
with your airbags or seat belt
tensioners (see page ).
When you turn the ignition to ON
(II), this indicator will come on
briefly then go out. This tells you the
system is working properly.
If you see any of these indications,
the airbags and seat belt tensioners
may not work properly when you
need them.
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the indicator stays on after the
engine starts.
If the indicator comes on or
flashesonandoffwhileyoudrive.
If the SRS indicator does not come
on after you turn the ignition
switch to ON (II).
22
How the SRS Indicator Works
Driver and Passenger Safety
Additional Information About Your Airbags
30
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
Main Menu
Table of Contents
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
When you turn the ignition switch to
ON (II), the indicator should come
on briefly and go out (see page ).
If it doesn’t light, stays on, or comes
on while driving without a passenger
in the front seat, have the system
checked.
This indicator alerts you
that the passenger’s side
airbag has been automatically shut
off. It does mean there is a
problem with your side airbags.
To reduce the risk of injury from an
inflating side airbag, your vehicle has
an automatic cutoff system for the
passenger’s side airbag.
Although Honda does not encourage
children to ride in front, this system
is designed to shut off the side
airbag if a child leans sideways and
the child’s head is in the side airbag
deployment path.
61
Additional Information About Your Airbags
Driver and Passenger Safety
How the Side Airbag Off
Indicator Works
not
31
Main Menu
Table of Contents
This indicator alerts you that the
passenger’s front airbag has been
shut off. It does not mean there is a
problem with the airbag.
To reduce the chance of airbag-
caused injuries, the system shuts off
the passenger’s front airbag when
the total weight on the front
passenger’s seat is about 65 lbs
(30 kg) or less.
If no one is riding in the front
passenger’s seat, the airbag will be
automatically shut off, but the
indicator will not come on.
However, if the indicator comes on
with no passenger in the front, or
with an adult in the seat, there may
be a problem with the advanced
airbag system. Have the vehicle
checked by the dealer as soon as
possible.
The Passenger Airbag Off indicator
may also come on and off repeatedly
if total weight on the seat is near the
airbag cutoff threshold (65 lbs or 30
kg).
If this happens, have the passenger
ride properly restrained in a back
seat. If the passenger must ride in
front, move the seat as far to the
rear as possible, have the passenger
sit upright and wear the seat belt
properly.
This indicator may come on and off
repeatedly if objects are placed on
the front passenger’s seat, or if the
interior temperature of the vehicle
changes suddenly when a door is
opened.
See page for more information
about the passenger’s advanced
front airbag.
27
Additional Information About Your Airbags
Driver and Passenger Safety
How the Passenger Airbag Off
Indicator Works
32
PASSENGER AIRBAG OFF
INDICATOR
Main Menu
Table of Contents
Your airbag systems are virtually
maintenance-free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. If a
front airbag inflates the seat belt
tensioners must also be replaced.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by a Honda dealer or a
knowledgeable body shop.
Take your vehicle to an
authorized Honda dealer as soon
as possible. If you ignore this
indication, your airbags may not
operate properly.
your dealer
should inspect the driver’s seat
position sensor and the front
passenger’s weight sensors to
make sure they are operating
properly.
Additional Information About Your Airbags
Driver and Passenger Safety
Airbag Service
An airbag ever inflates.
The SRS indicator alerts you to a
problem.
If your vehicle has a moderate to
severe impact, and even if your
airbags do not inflate,
33
Main Menu
Table of Contents
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
If water or another liquid
soaks into a seat-back, it can
prevent the side airbag cutoff
system from working properly.
This could make the
driver’s seat position sensor and
the front passenger’s weight
sensors ineffective.
Improperly
replacing or covering front seat-
back covers can prevent your side
airbags from inflating during a
side impact.
This could make the driver’s seat
position sensor and the front
passenger’s weight sensors
ineffective.
Pushing or
pulling on the back of the seat,
placing heavy items in the back
seat pocket, pushing cargo against
the seat, or hanging heavy items
on the seat back can interfere with
the proper operation of the
passenger’s advanced front airbag.
This could make the
driver’s seat position sensor or the
front passenger’s weight sensors
ineffective. If it is necessary to
remove or modify a front seat to
accommodate a person with
disabilities, first contact American
Honda at 800-999-1009.
Additional Safety Precautions
Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
Do not expose the front seat-backs
to liquid.
Do not place any items under the
front seats.
Do not cover or replace front seat-
back covers without consulting a
Honda dealer.
Do not modify the front seats.
Do not do anything that would
increase or decrease weight on the
front passenger’s seat.
Do not remove or modify a front
seat without consulting a Honda
dealer.
Additional Information About Your Airbags
Driver and Passenger Safety
34
Main Menu
Table of Contents
−
−
−
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of death of children ages 12 and
under.
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be properly
restrained when they ride in a
vehicle.
(see pages ).
(see pages ).
If you have children, or if you ever
need to drive with a child in your
vehicle, be sure to read this section.
It begins with important general
guidelines, then presents special
information for infants, small
children, and larger children.
Children depend on adults to protect
them. However, despite their best
intentions, many adults do not know
how to properly protect child
passengers.
50 53
4940
Protecting Children General Guidelines
Driver and Passenger Safety
All Children Must Be Restrained
Infants and small children must be
restrained in an approved child seat
that is properly secured to the
vehicle
Larger children must be restrained
with a lap/shoulder belt and ride on
a booster until the seat belt fits them
properly
35
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster if necessary.
Main Menu
Table of Contents
−
Even if the passenger’s front airbag
is turned off, we strongly
recommend that children age 12 and
under ride properly restrained in a
back seat where they will be safer.
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this
the passenger’s front airbag is quite
large and it can inflate with enough
force to cause very serious injuries.
To help prevent airbag-caused
injuries to children, this vehicle has
an advanced airbag system.
With this system, the front
passenger’s airbag is turned off if
sensors detect a total weight of less
thanabout65lbs(30kg)intheseat.
(See page for additional
information about how the front
passenger’s advanced airbag works.)
According to accident statistics,
children of all ages and sizes are
safer when they are restrained in a
back seat. The National Highway
Traffic Safety Administration and
Transport Canada recommend that
all children age 12 and under be
properly restrained in a back seat.
Children who ride in back are less
likely to be injured by striking
interior vehicle parts during a
collision or hard braking. Also,
children cannot be injured by an
inflating airbag when they ride in the
back. 27
Protecting Children General Guidelines
Driver and Passenger Safety
The Passenger’s Front Airbag
Can Pose Serious Risks
All Children Should Sit in a Back
Seat
36
Main Menu
Table of Contents
−

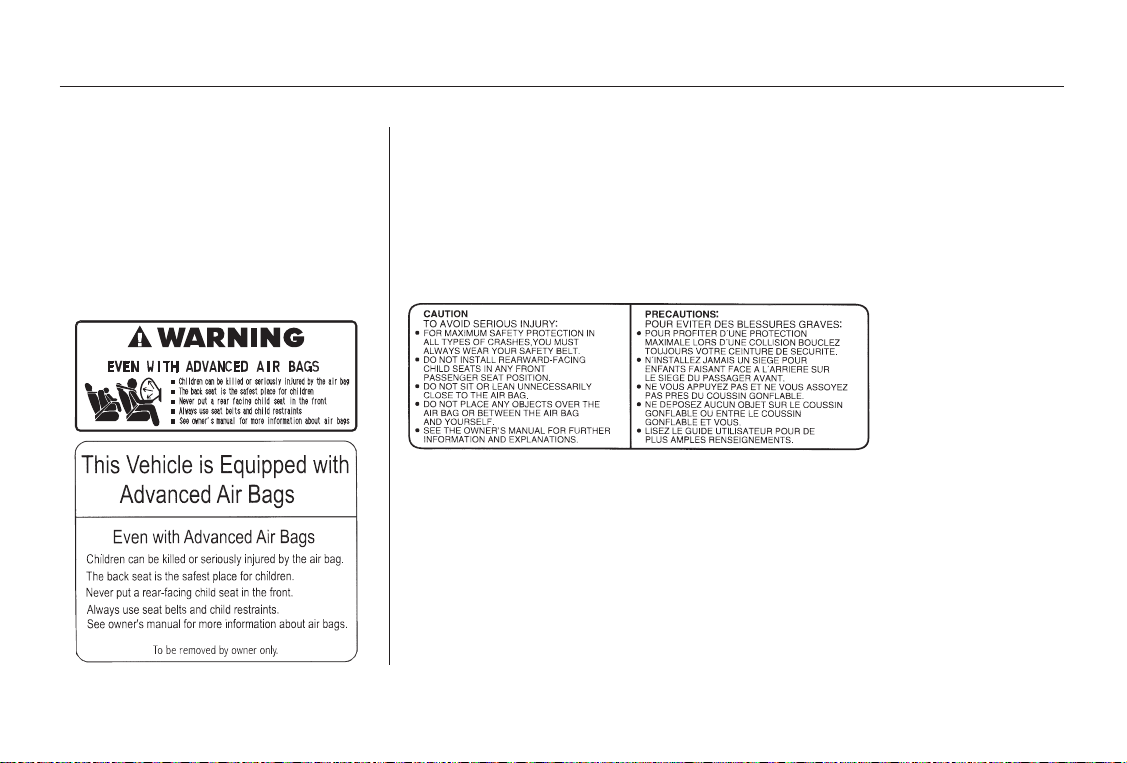

To remind you of the passenger’s
front airbag hazards, and that
children must be properly restrained
in a back seat, your vehicle has
warninglabelsonthedashboardand
on the driver’s and front passenger’s
visors. Please read and follow the
instructions on these labels.
To remind you of the front airbag
hazards, your vehicle has warning
labels on the driver’s and front
passenger’s visors. Please read and
follow the instructions on these
labels.
Protecting Children General Guidelines
Driver and Passenger Safety
U.S. Models Canadian Models
37
Main Menu
Table of Contents
−
Your vehicle has two rows of back
seats where children can be properly
restrained. If you ever have to carry
a group of children, and a child must
ride in front:
Many parents say they prefer to put
an infant or small child in the front
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the front seat
exposes the child to hazards in a
frontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
If a child requires close physical
attention or frequent visual contact,
we strongly recommend that another
adult ride with the child in a back
seat. The back seat is far safer for a
child than the front.
Place the largest child in the front
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ).
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage ).
Make sure the seat belt is properly
positioned and secured (see page
).14
17
11
50
Protecting Children General Guidelines
Driver and Passenger Safety
If You Must Drive with Several
Children
If a Child Requires Close
Attention
38
Main Menu
Table of Contents
−
Lock all doors and the tailgate
when your vehicle is not in use.
Children who play in vehicles can
accidentally get trapped inside the
vehicle. Teach your children not to
play in or around vehicles.
Keep vehicle keys and remote
transmitters out of the reach of
children. Even very young
children learn how to unlock
vehicle doors, turn on the ignition,
and open the tailgate, which can
lead to accidental injury or death.
Never put a seat belt over yourself
and a child. During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
Never let two children use the
same seat belt. If they do, they
could be very seriously injured in a
crash.

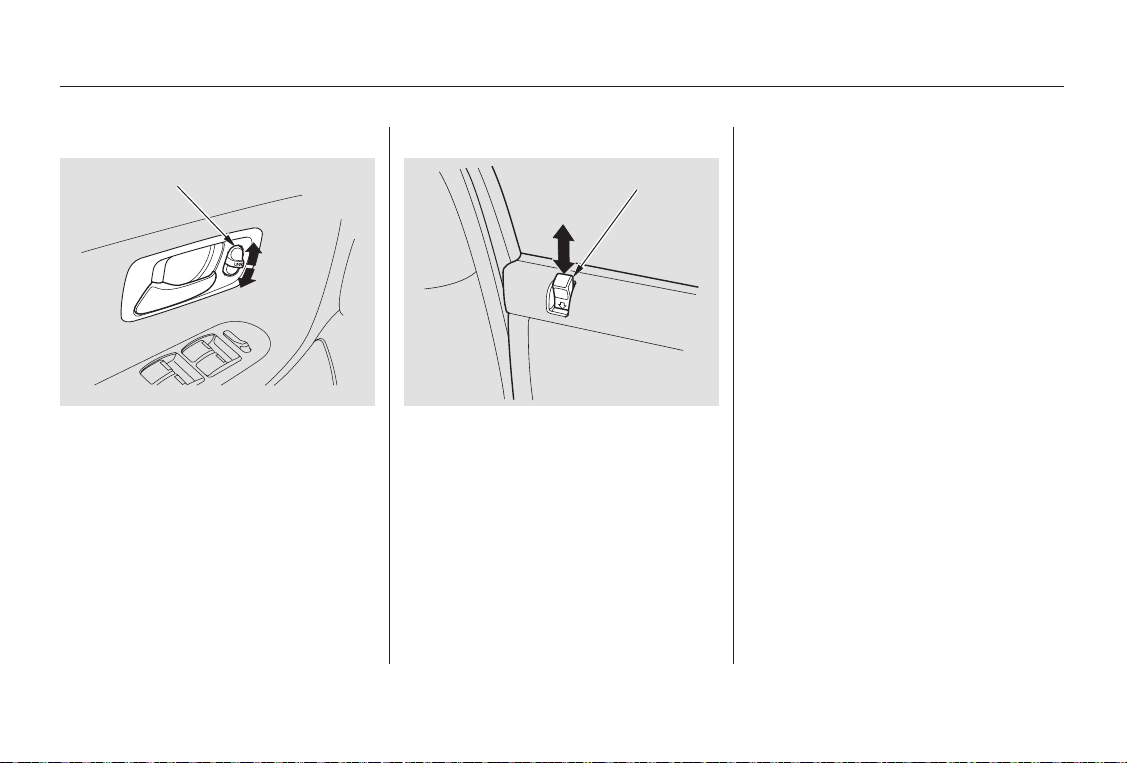

Use childproof door locks to
prevent children from opening the
doors. This can prevent children
from accidentally falling out.

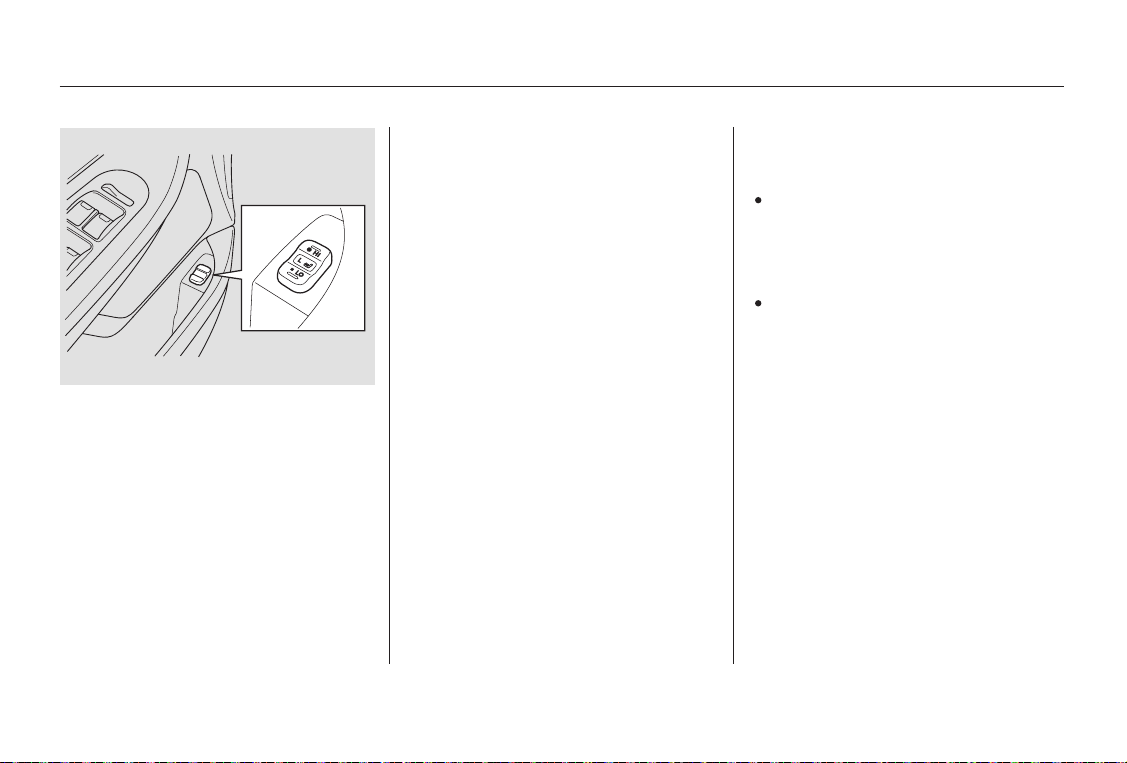

Use the power sliding door main
switch to prevent children from
operating the sliding doors. This
will prevent unintended use of the
doors.
Do not leave children alone in a
vehicle. Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous. For
example, infants and small
childrenleftinavehicleonahot
day can die from heatstroke. A
child left alone with the key in the
ignition can accidentally set the
vehicle in motion, possibly injuring
themselves or others.
Neverholdaninfantorchildon
your lap. If you are not wearing a
seat belt in crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
from your arms and be seriously
hurt or killed.
Protecting Children General Guidelines
Driver and Passenger Safety
Additional Safety Precautions
39
Main Menu
Table of Contents

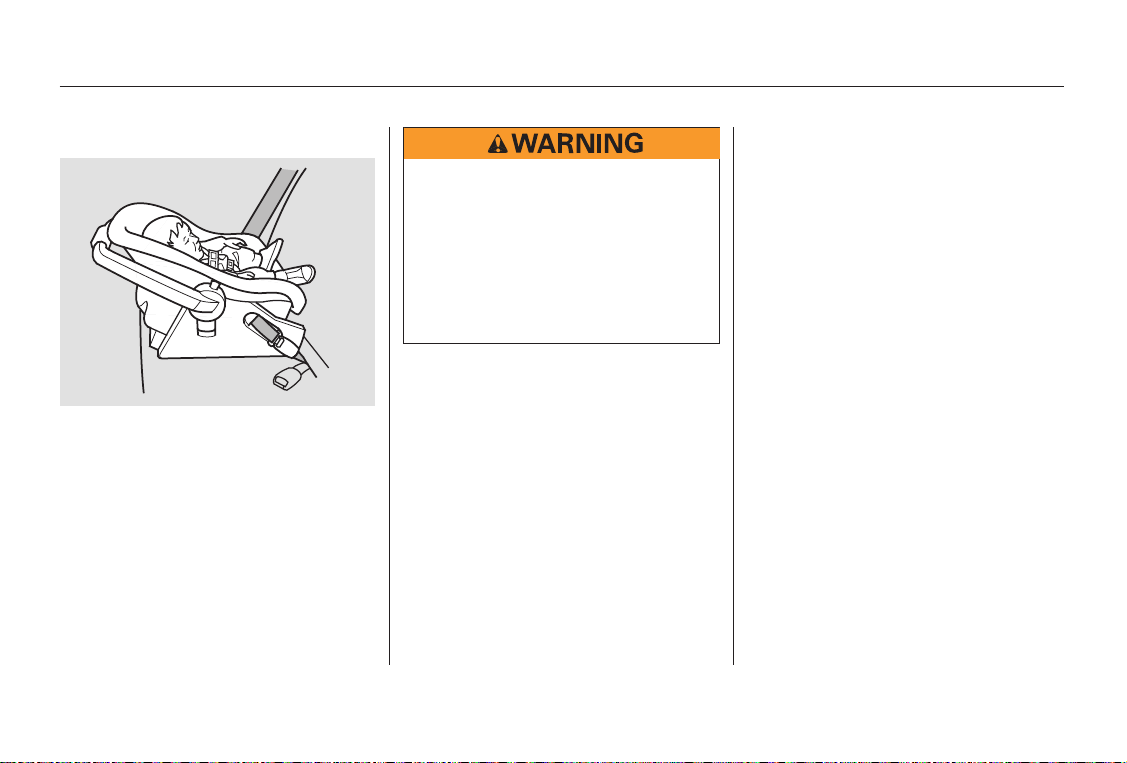

Only a rear-facing child seat provides
proper support for a baby’s head,
neck, and back.
An infant must be properly
restrained in a rear-facing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
for the seat and the child is at least
one year old.
Two types of seats may be used: a
seat designed exclusively for infants,
or a convertible seat used in the rear-
facing, reclining mode.
If placed
facing forward, an infant could be
very seriously injured during a
frontal collision.
We strongly recommend installing a
rear-facing child seat in a back seat.
In either of these situations, we
strongly recommend that you install
the child seat in a different back
seating position or get a smaller rear-
facing child seat.
If an infant must ride in the front,
make sure the ‘‘Passenger Airbag
Off’’ indicator comes on and stays on
while driving. If it goes off, the child
could be killed or seriously injured if
the front airbag inflates.
When properly installed, a rear-
facing child seat may prevent the
driver or a front passenger from
moving the seat as far back as
recommended, or from locking the
seat-back in the desired position.
Protecting Infants and Small Children
Driver and Passenger Safety
Protecting Infants
Child Seat Type
Do not put a rear-facing child seat in
a forward-facing position.
Child Seat Placement
40
Placing a rear-facing child seat
in the front seat can result in
serious injury or death during a
collision.
Always place a rear-facing child
seat in the back seat, not the
front.
Main Menu
Table of Contents
−
A child who is at least one year old,
and who fits within the child seat
maker’s weight and height limits,
should be restrained in a forward-
facing, upright child seat.
Of the different seats available, we
recommend those that have a five-
point harness system as shown.
We also recommend that a small
child uses the child seat as long as
possible, until the child reaches the
weight or height limit for the seat.
Even with advanced airbags, which
can automatically turn the
passenger’s front airbag off (see
page ), a back seat is the safest
place for an infant.
In any of these situations, we
strongly recommend that you install
the child seat in a different back
seating position or get a smaller rear-
facing child seat.
Or it could push against the front-
passenger’s seat-back, interfering
with the proper operation of the
passenger’s advanced front airbag
(see pages ).
32
2827
CONTINUED
Protecting Infants and Small Children
Driver and Passenger Safety
Protecting Small Children
Child Seat Type
41
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
Main Menu
Table of Contents
We strongly recommend placing a
forward-facing child seat in a back
seat,notthefront.Evenwith
advanced airbags, which can
automatically turn the passenger’s
front airbag off (see page ), a
back seat is the safest place for a
small child.
If it is necessary to put a forward-
facing child seat in the front, move
the vehicle seat as far to the rear as
possible, be sure the child seat is
firmly secured to the vehicle, and the
child is properly strapped in the seat.
When buying a child seat, you need
to choose between a conventional
child seat, or one designed for use
with the Lower Anchors and Tethers
for Children (LATCH) system.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the two second-
row seat.
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
We also recommend selecting a
LATCH-compatible seat with a rigid,
rather than a flexible, anchor (see
page ).
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
32
44
Driver and Passenger Safety
Child Seat Placement
Selecting a Child Seat
Protecting Infants and Small Children, Selecting a Child Seat
42
Main Menu
Table of Contents
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Look for FMVSS
213 or CMVSS 213 on the box.
Rear-facing for infants, forward-
facing for small children.
Before purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specific
vehicle seating position, or positions,
where the seat will be used.
After selecting a proper child seat,
and a good place to install the seat,
there are three main steps in
installing the seat:
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers for Children) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
After installing a child
seat, push and pull the seat
forward and from side to side to
verify that it is secure.
A child seat secured with a seat belt
should be installed as firmly as
possible. However, it does not need
to be ‘‘rock solid’’. Some side-to-side
movement can be expected and
should not reduce the child seat’s
effectiveness.
If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly secured.
The following pages provide
guidelines on how to properly install
a child seat. A forward-facing child
seat is used in all examples, but the
instructions are the same for a rear-
facing child seat.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
1.
2.
3.
1.
2.
3.
Selecting a Child Seat, Installing a Child Seat
Driver and Passenger Safety
The child seat should meet U.S. or
Canadian Motor Vehicle Safety
Standard 213.
The child seat should be of the
proper type and size to fit the child.
The child seat should fit the
vehicle seating position (or
positions) where it will be used.
Properly secure the child seat to
the vehicle.
Make sure the child seat is firmly
secured.
Secure the child in the child seat.
Installing a Child Seat
43
Main Menu
Table of Contents
Move the seat belt buckle or
tongue away from the lower
anchors.
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and
anchors.
Place the child seat on the vehicle
seat, and attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Some LATCH-compatible seats
have a rigid-type connection as
shown above.

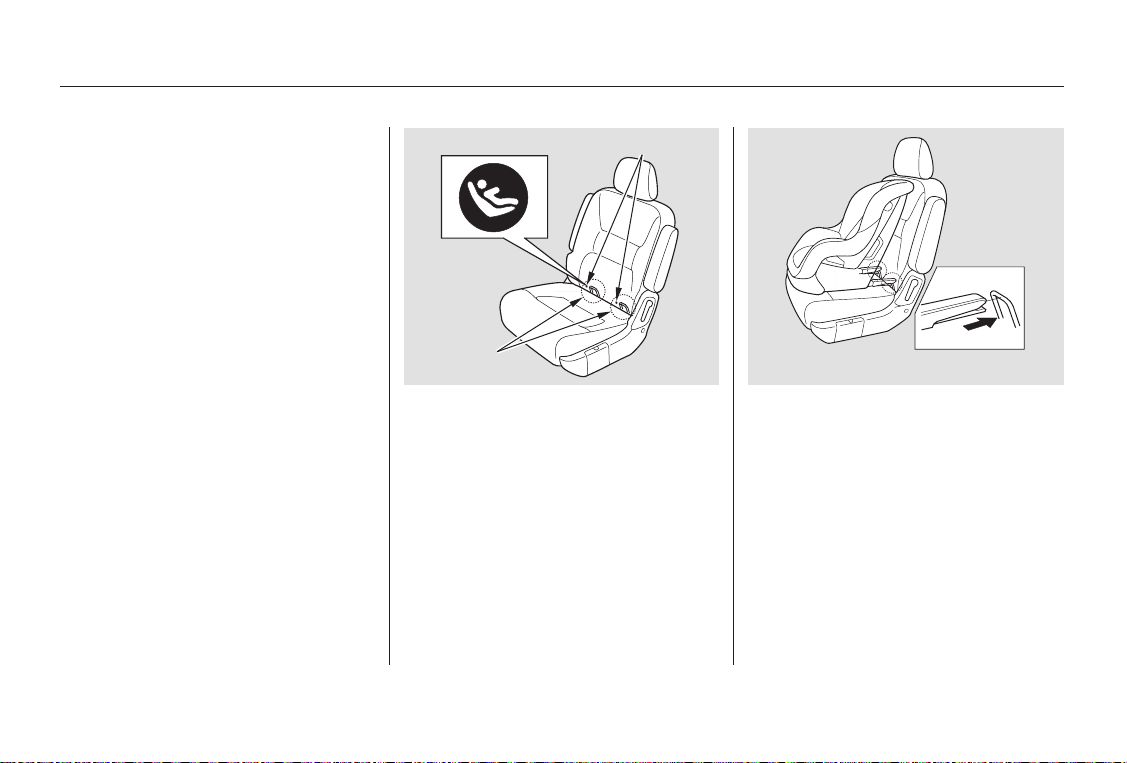

Your vehicle is equipped with
LATCH (Lower Anchors and
Tethers for Children) in the two
second row seats. The lower anchors
are located between the seat-back
and seat bottom, and are to be used
only with a child seat designed for
use with LATCH.
To install a LATCH-compatible child
seat:
Small marks are positioned to
indicate the locations of each anchor
point. 1.
2.
3.
Driver and Passenger Safety
Installing a Child Seat
Installing a Child Seat Using
LATCH
44
RIGID TYPE
LOWER
ANCHORS
LOWERANCHORMARKS
Main Menu
Table of Contents
Other LATCH-compatible seats have
a flexible-type connection as shown
above.
Whatever type you have, follow
the child seat maker’s instructions
for adjusting or tightening the fit.
Route the tether strap through the
legs of the head restraint, then
attach the hook to the anchorage
point on the underside of the seat
cushion as shown.
Push and pull the child seat
forward and from side-to-side to
verify that it is secure.
Make sure the strap is not twisted,
then tighten the strap according to
the child seat maker’s instructions.
4.
5.
6.
7.
Driver and Passenger Safety
Installing a Child Seat
45
FLEXIBLE TYPE
Main Menu
Table of Contents
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
In addition, the lap/shoulder belts in
the second row seats, the outer seats
in the third row, and the front
passenger seat have a locking
mechanism that must be activated to
secure a child seat.
With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
the belt out, it is not locked and
you will need to repeat these steps.
1. 2.
3.
Installing a Child Seat
Driver and Passenger Safety
Installing a Child Seat with a Lap/
Shoulder Belt
46
Main Menu
Table of Contents
To remove slack, it may help to put
weight on the child seat, or push on
the back of the seat while pulling up
on the belt.
Follow instruction number 5
beginning on page .
Route the lap belt through the
child seat according to the seat
maker’s instructions, then insert
the latch plate into the buckle. Pull
hard on the loose end of the belt to
remove any slack.
After confirming that the belt is
locked, grab the shoulder part of the
belt near the buckle and pull up to
remove any slack from the lap part
of the belt. Remember, if the lap part
of the belt is not tight, the child seat
will not be secure.
Push and pull the child seat
forward and from side-to-side to
verify that it is firmly secured. If
the child seat is not secure,
unlatch the belt, allow it to retract
fully, then repeat these steps.
To deactivate the locking
mechanism and remove a child seat,
unlatch the buckle, unroute the seat
belt, and let the belt fully retract.
5.
46
1.
2
Installing a Child Seat
Driver and Passenger Safety
Installing a Child Seat in the Center
Position of the Third Row
47
Main Menu
Table of Contents
A child seat with a tether can be
installed in any seating position in
the second or third row.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available. (Tethers are required in
Canada.)
Each second row bucket seat has a
tether anchorage point on the
underside of the seat cushion.
After securing the child seat in the
desired position (see page ),
route the tether strap over the top
of the seat-back and between the
head restraint legs.
1.
46
Installing a Child Seat
Driver and Passenger Safety
Installing a Child Seat with a
Tether
Second Row Installation
48
TETHER ANCHORAGE POINT
Main Menu
Table of Contents
Attach the tether strap hook to the
anchor as shown above, then
tighten the strap according to the
child seat maker’s instructions.
Make sure the strap is not twisted.
Followsteps1and2ofthesecond
row seat installation.

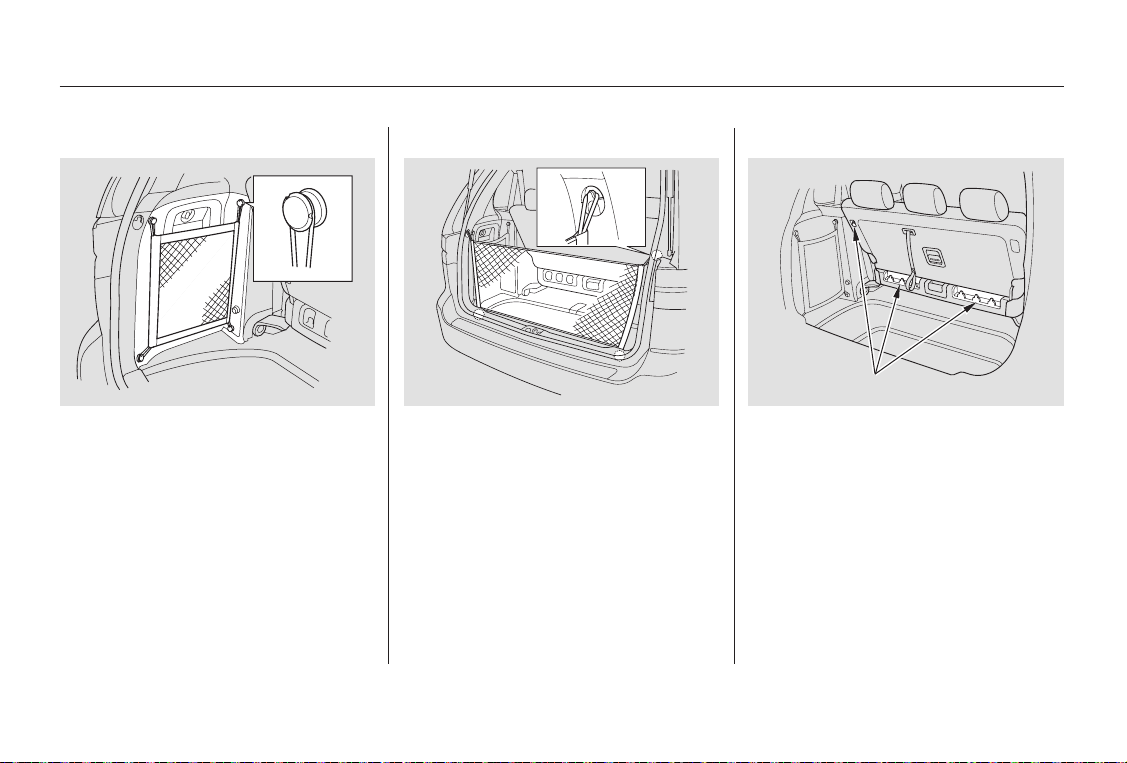

There are three anchorage points on
the tailgate sill. The tether hardware
is installed on the center anchorage
point.
If you want to use either of the
outside anchorage points shown
above, remove the tether
hardware from the center
anchorage point on the tailgate sill.
With a flat tipped screwdriver,
remove the plug from the
anchorage point you intend to use,
then install the tether hardware.
Make sure the toothed washer is on
the bottom of the bolt. Tighten the
bolt to:
To attach the tether to the child
seat, follow the child seat maker’s
instructions.
If you did not use a torque wrench,
or you are not sure how to install the
tether or the hardware, contact your
Honda dealer for assistance.
2.
2.
1.
3.
4.
Installing a Child Seat
Driver and Passenger Safety
Third Row Installation
49
16 lbf·ft (22 N·m , 2.2 kgf·m)
Main Menu
Table of Contents
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster and wear a lap/shoulder belt.
The following pages give
instructions on how to check proper
seat belt fit, what kind of booster
seat to use if one is needed, and
important precautions for a child
who must sit in front.
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comfortably over the edge of the
seat?
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat.
1.
2.
3.
4.
5.
Protecting Larger Children
Driver and Passenger Safety
Checking Seat Belt Fit
50
Allowing a large child age 12 or
under to sit in front can result in
injury or death if the passenger’s
front airbag inflates.
If a large child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
Main Menu
Table of Contents
A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt fits them
properly without the booster.
Some states also require children to
use a booster until they reach a
given age or weight (e.g., 6 years or
60lbs).Besuretocheckcurrent
laws in the state or states where you
intend to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster meets federal
safety standards (see page ) and
that you follow the booster seat
maker’s instructions.
If a child who uses a booster must
ride in front, move the vehicle seat
as far to the rear as possible, and be
sure the child is wearing the seat
belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster.
We strongly recommend that a child
whousedaboosterrideinaback
seat,notthefront.Evenifthe
passenger’s front airbag is off, a
back seat is the safest place for the
child.
Even then, the child may still need to
use a booster seat. Note that some
states now require children to use
boosters until they reach a certain
ageand/orweight.Besuretocheck
current laws in the state or states
where you intend to drive.
35
Protecting Larger Children
Driver and Passenger Safety
Using a Booster Seat
51
Main Menu
Table of Contents
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
Even with advanced front airbag, the
back seat is the safest place for a
child of any age or size.
If the passenger’s front airbag is on,
and it inflates in a moderate to
severe frontal collision, the airbag
can cause serious injuries to a child
who is unrestrained, improperly
restrained, sitting too close to the
airbag, or out of position.
The side airbag also poses risks. If
any part of a larger child’s body is in
the path of a deploying side airbag,
the child could receive possibly
serious injuries.
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in the
front. There are other important
factors you should consider.
To safely ride in front, a child must
be able to follow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see pages and ). If
the seat belt does not fit properly,
with or without the child sitting on a
booster, the child should not sit in
the front.
If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
5014
Protecting Larger Children
Driver and Passenger Safety
When Can a Larger Child Sit in
Front
Maturity
Physical Size
52
Main Menu
Table of Contents
This could result in
serious neck injuries during a crash.
This could cause
very serious injuries during a crash.
It also increases the chance that the
child will slide under the belt in a
crash and be injured.
If they do, they could
be very seriously injured in a crash.
Devices intended to improve a
child’s comfort or reposition the
shoulder part of a seat belt can make
the belt less effective, and increase
the chance of serious injury in a
crash.
Protecting Larger Children
Driver and Passenger Safety
Additional Safety Precautions
Do not let a child wear a seat belt
across the neck.
Do not let a child put the shoulder
part of a seat belt behind the back or
under the arm.
Two children should never use the
same seat belt.
Do not put any accessories on a seat
belt.
53
Main Menu
Table of Contents
Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
Have the exhaust system inspected
for leaks whenever:
The vehicle is raised for an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the under-
side.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
With the tailgate open, air flow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
tailgate open, open all the windows
and set the heating and cooling
system/climate control system as
shown below.
If you must sit in your parked vehicle,
even in an unconfined area, with the
engine running, adjust the heating
and cooling system/climate control
system as follows:
Select the Fresh Air mode.
Select the mode.
Turn the fan on high speed.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Safety
54
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Main Menu
Table of Contents

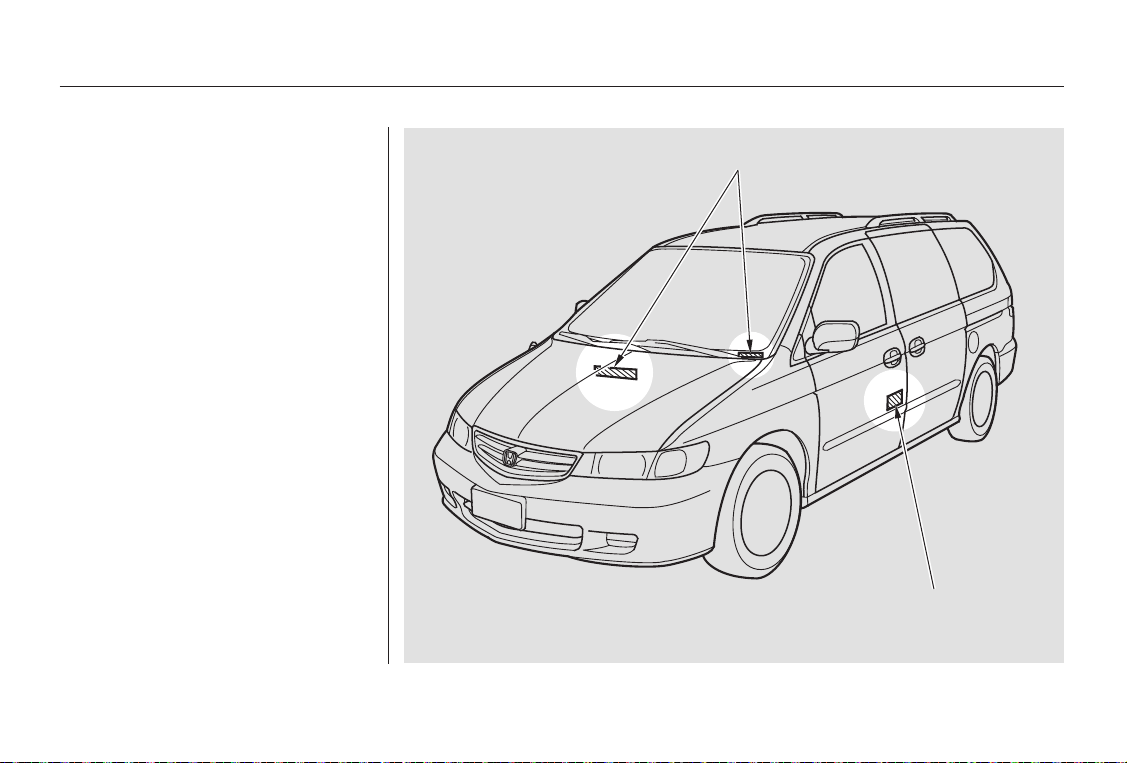

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully.
If a label comes off or becomes hard
to read (except for the U.S.
dashboard label which is removed by
the owner), contact your Honda
dealer for a replacement.
U.S. models only
U.S. models
Canadian models
Safety Labels
Driver and Passenger Safety
55
RADIATOR CAP
SUN VISOR
HOOD
DASHBOARD
Main Menu
Table of Contents
56
Main Menu
This section gives information about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach.
...........................Control Locations . 58
............................Instrument Panel . 59
..........Instrument Panel Indicators . 60
..Maintenance Required Indicator . 65
.............................................Gauges . 66
Controls Near the Steering
...........................................Wheel . 68
.Windshield Wipers and Washers . 69
......................................Turn Signal . 71
........................................Headlights . 71

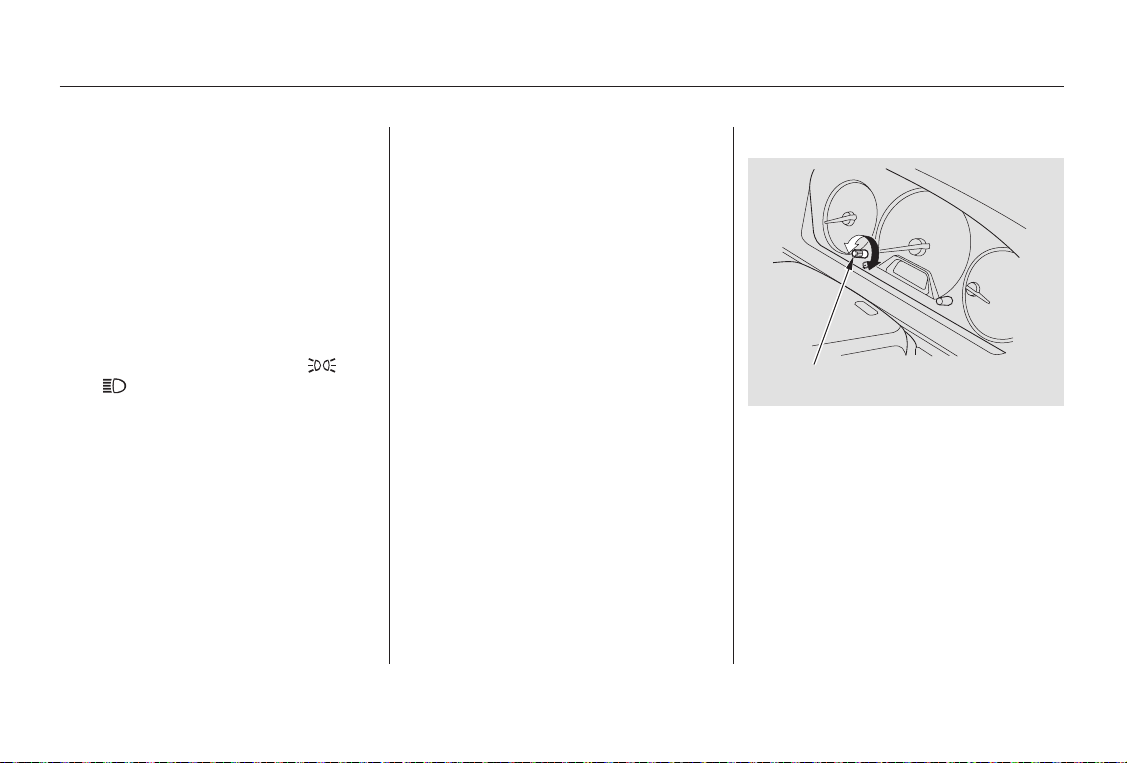

........Instrument Panel Brightness . 72
..............................Hazard Warning . 73
.................Rear Window Defogger . 73
..........Steering Wheel Adjustment . 74
...............................Keys and Locks . 75
........................Immobilizer System . 76
................................Ignition Switch . 77
......................................Door Locks . 78
......................Power Door Locks . 78
..............Childproof Door Locks . 79
........................................Tailgate . 79
.......................Remote Transmitter . 81
...................................Sliding Doors . 84
.................................................Seats . 88
....................................Seat Heaters . 98
..............................Power Windows . 99
...........................................Mirrors . 102
...............................Parking Brake . 103
.........Interior Convenience Items . 104
..........................................Clock . 105
.............................Center Table . 105
.....................Beverage Holders . 106
....................Sunglasses Holder . 107
...................................Sun Visor . 108
............................Vanity Mirror . 108
...................Rear Compartment . 108
..................................Glove Box . 109
........Accessory Power Sockets . 109
...........................Center Pocket . 110
...............................Coin Holder . 110
...............................Storage Box . 111
..................................Coat Hook . 111
...............................Interior Lights . 112
Instruments and Controls
Instruments and Controls
57
Main Menu
Control Locations
Instruments and Controls
58
HEATING/COOLING CONTROLS
CLIMATE CONTROL SYSTEM
HOOD RELEASE HANDLEFUEL FILL DOOR RELEASE
AUDIO SYSTEM/
REAR ENTERTAINMENT
SYSTEM
POWER WINDOW
SWITCHES
SEAT HEATER
SWITCH
POWER DOOR
LOCK SWITCH
(P.78)
(P.99)
(P.98)
(P.169)
(P.170)
POWER SLIDING
DOOR SWITCHES
(P.85)
(P.102)
(P.60)
GAUGES
(P.66)
(P.105)
CLOCK
(P.116)
(P.121)
REAR A/C UNIT
CONTROL
(P.123)
(P.126, 145)
MIRROR
CONTROLS
INSTRUMENT
PANEL
INDICATORS
Main Menu
Table of Contents
＊
＊
＊
The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Instrument Panel
Instruments and Controls
59
IMMOBILIZER SYSTEM
INDICATOR
CRUISE CONTROL INDICATOR
HIGH BEAM INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR
LOW FUEL
INDICATOR
DOOR AND BRAKE LAMP MONITOR
POWER SLIDING
DOOR INDICATOR
SECURITY SYSTEM INDICATOR
LOW OIL PRESSURE INDICATOR
CHARGING SYSTEM INDICATOR
MALFUNCTION INDICATOR LAMP
MAINTENANCE REQUIRED
INDICATOR
TRACTION CONTROL SYSTEM INDICATOR
(P.62)
(P.62)
(P.65)
(P.64)
(P.64)
(P.61)
(P.61)
(P.60, 252)
(P.60, 252)
(P.253)
(P.159)
(P.62)
(P.63)
SIDE AIRBAG
OFF
INDICATOR
(P.61)
(P.64)
(P.60)
SEAT BELT REMINDER
INDICATOR (P.60)
Main Menu
Table of Contents
The instrument panel has many
indicators to give you important
information about your vehicle.
See page .
The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
This indicator has two functions:
If it remains lit after you fully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page .
This indicator comes on when you
turn the ignition switch to ON (II). It
reminds you and your passengers to
fasten your seat belts. A beeper also
sounds if you have not fastened your
seat belt.
If you do not fasten your seat belt,
the beeper will stop after a few
seconds but the indicator stays on
until you do. Both the indicator and
the beeper stay off if you fasten your
seat belt before turning on the
ignition.
This indicator comes on when you
turn the ignition switch to ON (II).
It is a reminder to check the
parking brake. Driving with the
parking brake not fully released
can damage the brakes and tires.
253
252
252 254
Instruments and Controls
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Parking Brake and Brake System
Indicator
Seat Belt Reminder
Indicator
Instrument Panel Indicators
60
U.S. Canada
Main Menu
Table of Contents
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your front airbags or automatic seat
belt tensioners. This indicator will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system,
driver’s seat position sensor, or front
passenger’s weight sensors. For
more information, see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more information, see page .
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem in the
ABS. If this happens, have your
vehicle checked by your Honda
dealer. With this indicator on, your
vehicle still has normal braking
ability but no anti-lock. For more
information, see page .
30
31
190
Instrument Panel Indicators
Instruments and Controls
Supplemental Restraint
System Indicator
Side Airbag Off Indicator
Anti-lock Brake System (ABS)
Indicator
61
CanadaU.S.
Main Menu
Table of Contents
This indicator has three functions:
Itcomesonasareminderthatyou
have turned off the Traction
Control System.
It flashes when the TCS is
regulating wheelspin.
Ifitcomesonandstaysonwhen
the Traction Control System is on,
it indicates that there is a problem
in the TCS.
This indicator also comes on when
you turn the ignition to ON (II) and
goes off after the engine starts. See
page for more information on
the TCS.
This indicator comes on for a few
seconds when you turn the ignition
switch to ON (II). It will then go off
if you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch from ON (II) to ACCESSORY
(I) or LOCK (0).
This indicator comes on for a few
seconds when you turn the ignition
switch to ON (II). If it comes on at
any other time, there is a problem in
the power sliding door system. With
this indicator on, move the main
switch on the dashboard to the OFF
position, and have the system
checked by your Honda dealer as
soon as possible. You can still open
or close each sliding door manually.
For more information on the power
sliding doors, see page .
1.
2.
3.
192
76
84
EX and EX-L models only
Instrument Panel Indicators
Instruments and Controls
Traction Control System
(TCS) Indicator
Immobilizer System
Indicator
Power Sliding Door
Indicator
62
Main Menu
Table of Contents
The appropriate light comes on in
this display if the tailgate or any door
is not closed tightly. If a brake light
does not work, the
indicator comes on when you push
the brake pedal with the ignition
switch to ON (II).
A burned out brake light is a hazard
when drivers behind you cannot tell
you are braking. Have your brake
lights repaired right away.
All the indicators in the monitor
displaycomeonwhenyouturnthe
ignition switch to ON (II). The
indicators go off after the engine
starts and the tailgate and all doors
are closed tightly.
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink
or blink rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signaling.
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the vehicle should flash.
222
Instrument Panel Indicators
Instruments and Controls
Door and Brake Lamp Monitor Turn Signal and
Hazard Warning
Indicators
63
BRAKE LAMP
Main Menu
Table of Contents
This indicator comes on as a
reminder that you must refuel soon.
This indicator comes on with the
high beam headlights. See page
for information on the headlight
controls.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
This indicator comes on when the
washer fluid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go off if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
71
72
160
216
Canadian models only
Canadian models only
Instrument Panel Indicators
Instruments and Controls
Low Fuel Indicator High Beam Indicator
‘‘Daytime Running
Lights’’ Indicator
Cruise Control Indicator
Washer Level Indicator
64
LOW FUEL
INDICATOR
Main Menu
Table of Contents
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Refer to the Maintenance Schedules
for Normal and Severe Driving
Conditions on pages and .
Between 6,000 miles (9,600 km) and
7,500 miles (12,000 km), it will light
for 2 seconds when you first turn the
ignition switch to ON (II), and then
flash for 10 seconds.
If you exceed 7,500 miles (12,000
km) without having the scheduled
maintenance performed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
after completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
follows.
Turn off the engine.
Hold the button for about 10
seconds until the indicator goes
off.
For the first 6,000 miles (9,600 km)
after the Maintenance Required
Indicator is reset, it will come on for
2 seconds when you turn the ignition
switch to ON (II). Press and hold the Select/Reset
buttonintheinstrumentpanel,
then turn the ignition switch to
ON (II).
1.
2.
3.
205 206
Maintenance Required Indicator
Instruments and Controls
Maintenance Required
Indicator
65
SELECT/RESET BUTTON
Main Menu
Table of Contents
This shows how much fuel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
off the ignition.
This shows the total distance your
vehicle has been driven. It measures
miles in U.S. models and kilometers
in Canadian models.
It is illegal under U.S. federal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
Gauges
Instruments and Controls
Odometer
Fuel Gauge
66
NOTICE:
TACHOMETER SPEEDOMETER TEMPERATURE
GAUGE
TRIP METER
FUEL GAUGE
TRIP METER SELECT/RESET BUTTONMAINTENANCE
REQUIRED INDICATOR
ODOMETER
Avoid driving with an
extremely low f uel level. Running out
of f uel could cause the engine to

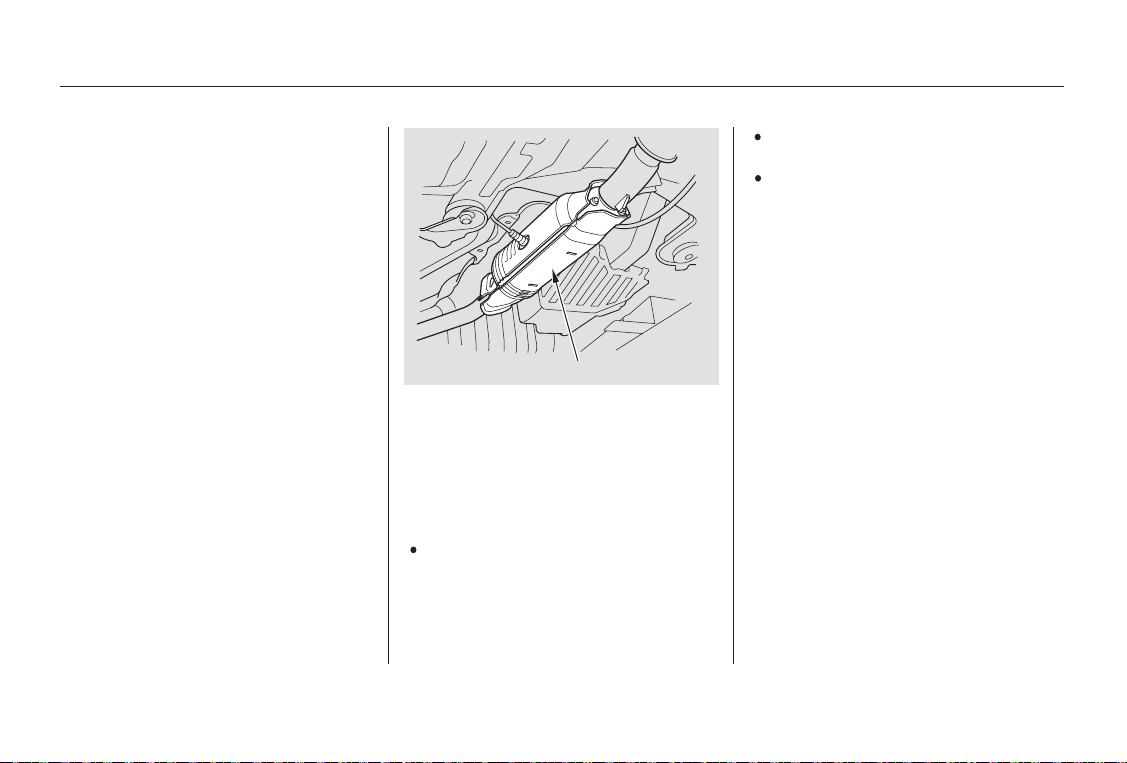

misf ire, damaging the catalytic
converter.
Main Menu
Table of Contents
The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the Select/
Reset button repeatedly. Each trip
meter works independently, so you
can keep track of two different
distances.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0’’.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
mayrisetoneartheupperwhite
mark. If it reaches the red (Hot)
mark, pull safely to the side of the
road. Turn to page for
instructions and precautions on
checking the engine’s cooling
system.
250
Gauges
Instruments and Controls
Trip Meter Temperature Gauge
67
Main Menu
Table of Contents
＊
＊
To use the horn, press the pad around the ‘‘H’’ logo.
Controls Near the Steering Wheel
Instruments and Controls
68
REAR WINDOW
DEFOGGER
LIGHT CONTROL
SWITCH
HORN
TILT
ADJUSTMENT
HEADLIGHTS/
TURN SIGNALS
CRUISE
CONTROL
WINDSHIELD
WIPERS/WASHERS
POWER SLIDING DOOR
(EX and EX-L models)
MIRROR CONTROL
SHIFT LEVER
TRACTION CONTROL
SYSTEM
HAZARD WARNING
BUTTON
PASSENGER AIRBAG
OFF INDICATOR
Main Menu
Table of Contents
Turntherotaryswitchattheendof
the lever or push down or pull the
lever to select a position.
: The wipers run at high speed.
OFF
INT : Intermittent
: Low speed
: High speed
MIST
Windshield Washers
The wipers are not activated.
The wipers run at high speed
until you release the lever.
The length of the wiper
interval is varied
automatically according to the
vehicle’s speed.
Vary the delay by turning the
INT TIME ring. If you turn it
to the shortest delay, the
wipers will change to low
speed operation when the
vehicle speed exceeds 12 mph
(20 km/h).
:Pullthewiper
control lever toward you and
hold it. The washers spray
until you release the lever.
The wipers run at low speed,
then complete one more
sweep after you release the
lever.
: The wipers run at low speed.
1.
2.
3.
4.
5.
6.
Windshield Wipers and Washers
Instruments and Controls
OFF:
MIST:
INT:
Windshield Washer
69
Main Menu
Table of Contents
The rear window wiper switch is
located next to the windshield wiper
switch.
To activate the rear windshield wiper,
turn the switch ‘‘ON’’. If you turn the
switch ‘‘ON’’, the rear windshield
wiper swings twice and then will
sweep the glass approximately every
7 seconds. If you want to use the
wiper and washer, turn and hold the
switch one position up from ‘‘ON’’.
Therearwindowwasherusesthe
same fluid reservoir as the wind-
shield washer.
Windshield Wipers and Washers
Instruments and Controls
Rear Window Wiper and Washer
70
Main Menu
Table of Contents
−−
−
Push down on the
left lever to signal a left turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn.
To turn on, pull the
lever back until you hear a click. The
blue high beam indicator will light
(see page ). Push it forward to
return to low beams.
To flash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Turn signal
Off
Parking and indicator lights
Headlights on
High beams
Flashhighbeams
Rotating the
switch on the left lever to the
‘‘ ’’ position turns on the parking
lights, taillights, instrument panel
lights, side-marker lights, and rear
license plate lights. Turning the
switch to the ‘‘ ’’ position turns
on the headlights. If you leave the
lights on with the ignition switch in
ACCESSORY (I) or LOCK (0), you
will hear a reminder chime when you
open the driver’s door.
1.
2.
3.
4.
5.
6.
64
Turn Signal, Headlights
Instruments and Controls
Turn Signal and Headlights Turn Signal High Beams
Headlights On
71
Main Menu
Table of Contents
The lights will turn on again when
you unlock or open the driver’s door.
If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver’s door
open, you will hear a lights-on
reminder chime.
With the headlight switch off, the
high beam headlights and the high
beam indicator come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
off, even if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
The knob on the instrument panel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
This feature activates if you leave
the headlight switch in the ‘‘ ’’
or ‘‘ ’’ position, remove the key,
then open and close the driver’s door.
If you remove the key from the
ignition switch with the headlight
switch on, but do not open the door
and get out, the lights will turn off
after 10 minutes.
This turns off the headlights,
parking lights, taillights, side marker
lights, license plate lights, and
instrument panel lights within 15
seconds of removing the key from
the ignition switch and closing the
driver’s door.
On EX and EX-L models
Headlights, Instrument Panel Brightness
Instruments and Controls
Automatic Lighting Off Feature
Daytime Running Lights
(Canadian Models)
Instrument Panel Brightness
72
INSTRUMENT PANEL
BRIGHTNESS CONTROL KNOB
Main Menu
Table of Contents
CONTINUED
Push the button to the left of the
clocktoturnonthehazardwarning
lights (four-way flashers). This
causes all four outside turn signals
and both indicators in the instrument
panel to flash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled.
The rear window defogger will clear
fog, frost, and thin ice from the
window. Push the defogger button to
turn it on and off. The indicator
above the button lights to show the
defogger is on. If you do not turn it
off, the defogger will shut itself off
after about 15 minutes. It also shuts
off when you turn off the ignition.
You have to turn it on again when
you restart the vehicle.
Make sure the rear window is clear
and you have good visibility before
starting to drive.
Instruments and Controls
Hazard Warning Rear Window Defogger
Hazard Warning, Rear Window Defogger
73
EX and EX-L models
Vehicles with Navigaition System
Main Menu
Table of Contents
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.
Make any steering wheel adjustment
before you start driving.
Push the lever under the steering
column all the way down.
Push the lever up to lock the
steering wheel in position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up and down.
Move the steering wheel so it
points toward your chest, not
towardyourface.Makesureyou
can see the instrument panel
gauges and indicators.
3.
4.
1.
2.
See page for important safety
information about how to properly
position the steering wheel.
17
Rear Window Defogger, Steering Wheel Adjustment
Instruments and Controls
Steering Wheel Adjustment
74
LX model
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
Main Menu
Table of Contents
The master key fits all the locks on
your vehicle. The valet key works
only in the ignition, the door locks,
and the tailgate. You can keep the
glove box locked when you leave
your vehicle and the valet key at a
parking facility.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.
Protect the keys from direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
The keys do not contain batteries.
Do not try to take them apart.
Keys and Locks
Instruments and Controls
75
MASTER
KEYS
(BLACK)
VALET KEY
(GRAY)
KEY
NUMBER
TAG
Main Menu
Table of Contents
The Immobilizer System protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine’s fuel
system is disabled.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on for a few
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your Honda dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and you
cannot start the engine, contact a
Honda dealer.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Immobilizer System
Instruments and Controls
76
Main Menu
Table of Contents
−−
−
−
Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn off the beeper.
TheshiftlevermustbeinPark
before you can remove the key from
the ignition switch.
The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
You can insert or
remove the key only in this position.
To turn the key, the shift lever must
be in Park, and you must push the
key in slightly.
If the front wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the left or right as
you turn the key.
You can
operate the audio system and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from ACCESSORY
(I) to ON (II).
Ignition Switch
Instruments and Controls
START (III)LOCK (0)
ACCESSORY (I)
ON (II)
77
Main Menu
Table of Contents
To lock all of the doors and the
tailgate, press the master door lock
switch on either front door, press the
locktabdownonthedriver’sdoor,
orusethekeyontheoutsidelock.
Pressing up on either master door
lock switch will unlock all of the
doors and the tailgate.
The lock tab on the front passenger’s
door locks and unlocks only that
door. Pulling up on the driver’s door
lock tab only unlocks the driver’s
door.
To unlock the driver’s door from the
outside, turn the key and release it.
If you turn and hold it, all doors and
the tailgate unlock. All four doors
and the tailgate unlock when you use
the key in the passenger’s door.
With the driver’s door open and the
key in the ignition, both master door
lock switches are disabled. They are
not disabled if the driver’s door is
closed. Pushing the switch down on
the open passenger’s door will lock
all doors and the tailgate.
Door Locks
Power Door Locks
Lockout Prevention
Instruments and Controls
78
LOCK TAB
MASTER DOOR LOCK SWITCH
Main Menu
Table of Contents

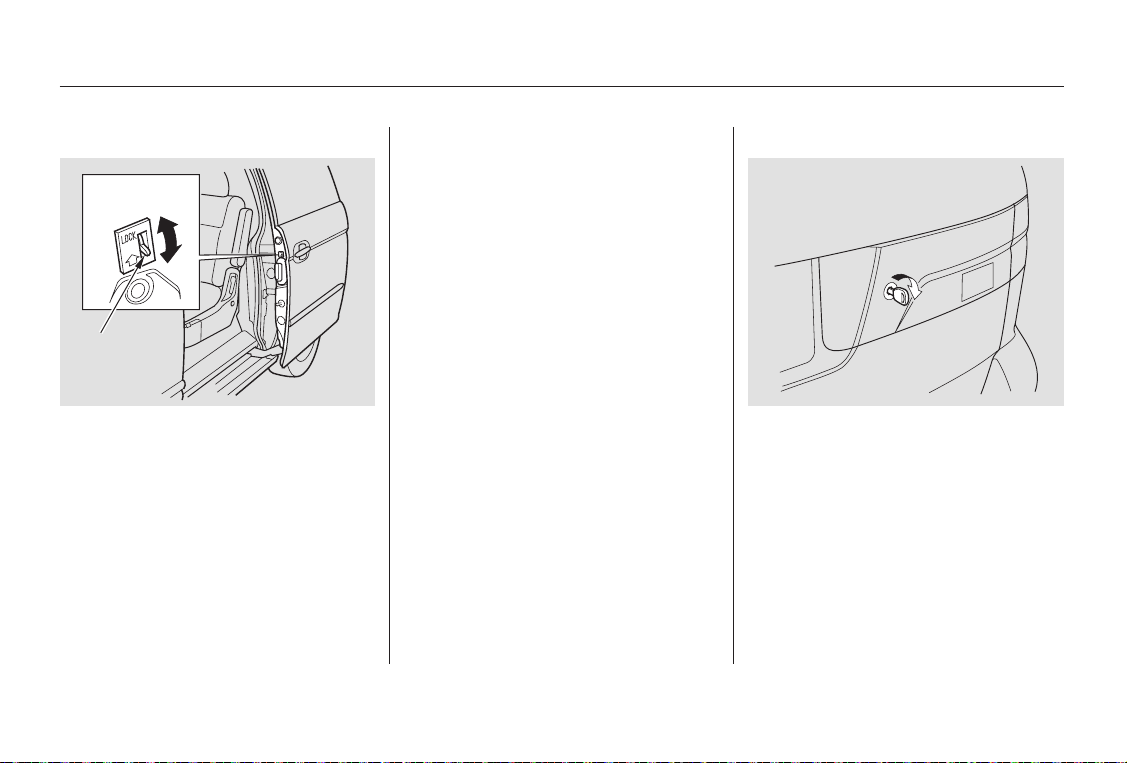

The childproof door locks are
designed to prevent children seated
in the rear from accidentally opening
the rear sliding doors. Each door has
a lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened from the inside
regardless of the position of the lock
knob. To open the door, slide the
lock knob forward, and use the
outside door handle.
With the childproof door locks on,
automatic operation with the inside
door handle is disabled.
Use your key to lock and unlock the
tailgate.
You can also lock and unlock the
tailgate with the remote transmitter
(see page ).81
CONTINUED
On EX and EX-L models
On EX and EX-L models
Door Locks
Instruments and Controls
Childproof Door Locks Tailgate
79
Unlock
LOCK
LEVER
Lock
Main Menu
Table of Contents

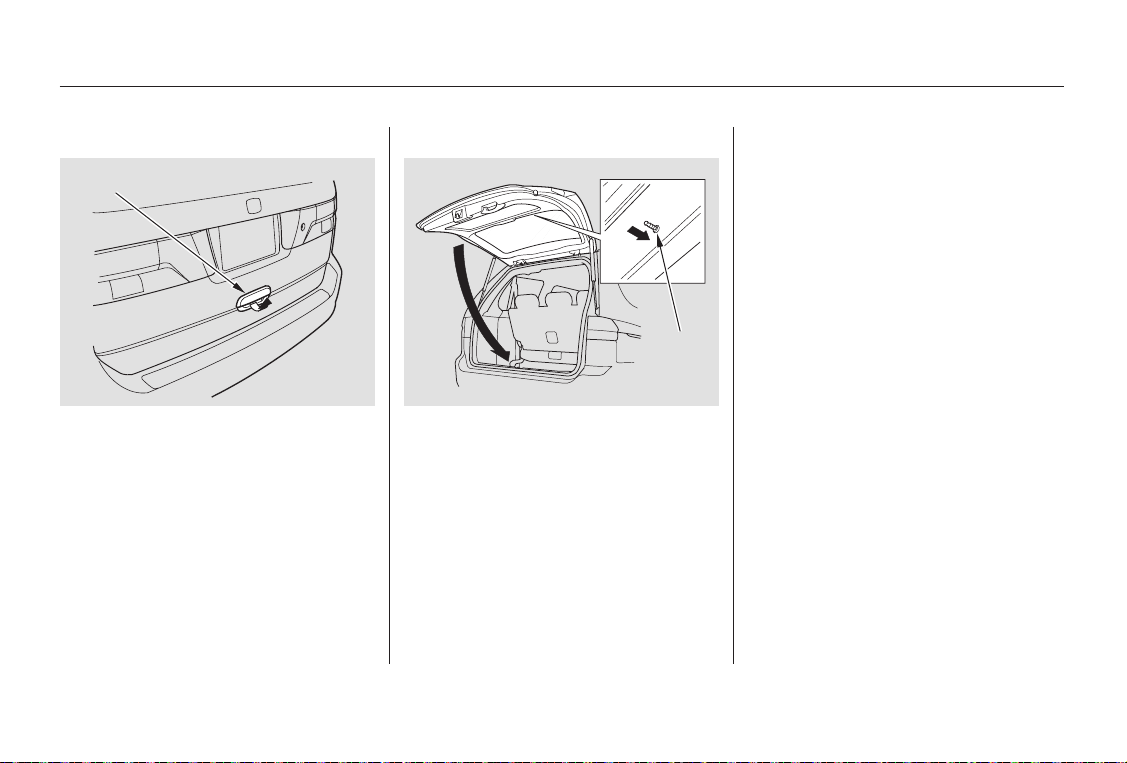

The tailgate also has a lock tab on
the inside.
To lock the tailgate without the key
or the remote transmitter, push the
lock tab down and close the tailgate.
Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
from getting into the interior. See
on page
.
To open the tailgate, pull the handle,
then lift up. To close the tailgate, use
the inner handle to pull it down, then
press down on the back edge.
54
Door Locks
Instruments and Controls
Carbon Monoxide Hazard
80
HANDLE
LOCK
TAB
Main Menu
Table of Contents
−
−−
Pressthisbuttontolock
all doors and the tailgate. Some
exterior and interior lights will flash.
This button does not work if any
door or the tailgate is not fully closed
or key is in the ignition switch.
Press this button once
to unlock the driver’s door. Push it
twice to unlock the other doors and
the tailgate. Some exterior and
interior lights will flash twice when
you push the button the first time. If
you do not open any door or the
tailgate within 30 seconds, they will
automatically relock.
When you press the UNLOCK
button, the front and rear individual
map lights and the cargo area light,
depending on their switch positions,
will come on (see page ). If you
do not open any door or the tailgate,
the lights stay on for about 10
seconds, then go out. If you relock
thedoorsandthetailgatewiththe
remote transmitter before 10
seconds have elapsed, the lights will
go off immediately.
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter or turn the ignition
switch to ON (II).
113
CONTINUED
On EX and EX-L models
Remote Transmitter
Instruments and Controls
LOCK
UNLOCK PANIC
81
LED
UNLOCK
BUTTON
LOCK
BUTTON
PANIC
BUTTON
Main Menu
Table of Contents
Youcanopenorcloseeachrear
sliding door with the remote
transmitter. The right button
controls the passenger’s side door
and the left button controls the
driver’s side door.
If the power sliding door MAIN
switch on the dashboard is in the
OFF position, you cannot open or
close the sliding doors with the
remote transmitter.
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperatures.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by a Honda dealer.
Remote Transmitter
Instruments and Controls
Opening or Closing the Power Sliding
Doors
Remote Transmitter Care
82
DRIVER’S
SIDE
SLIDING
DOOR
BUTTON
LED
PASSENGER’S
SIDE
SLIDING
DOOR
BUTTON

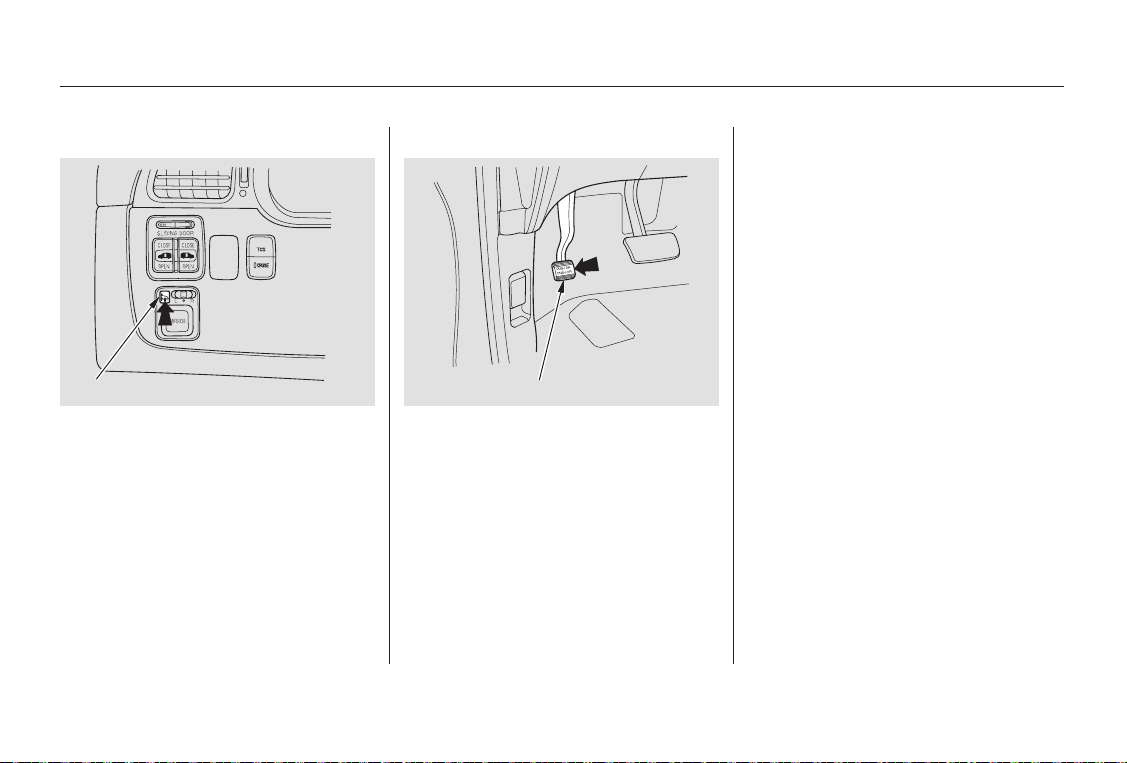

POWER SLIDING DOOR MAIN SWITCH
Main Menu
Table of Contents
＋
▽
◎
If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.

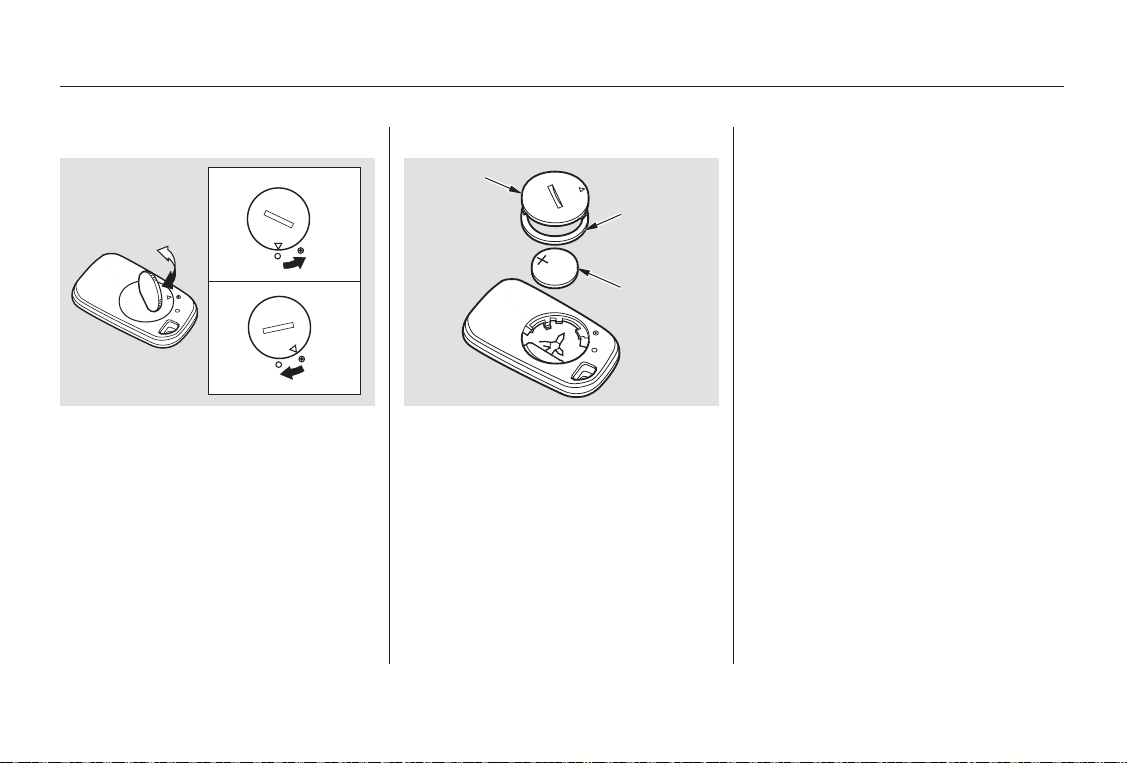

To replace the battery, move the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Reinstall the cushion ring. Align
the mark on the cover with
the mark on the transmitter.
Setthecoverinplaceandturnit
clockwise.
Battery type: CR2025
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Remote Transmitter
Instruments and Controls
Replacing the Transmitter Battery
83
Open
Close
ROUND
COVER
CUSHION
RING
BATTERY
Main Menu
Table of Contents
To open, pull the inside or outside
door handle, and slide the door back.
It will latch in the fully open position.
When opening from the inside, the
childproof door lock must be
unlocked.
To close, pull either handle, and slide
the door closed. Make sure the door
is closed and latched securely before
driving, and all passengers are clear
of the sliding doors before closing
them.
The doors on EX and EX-L models
are electrically powered and can be
operated with the remote transmitter,
the door handles, or the dashboard
switches. To operate the doors:
TheshiftlevermustbeinPark.

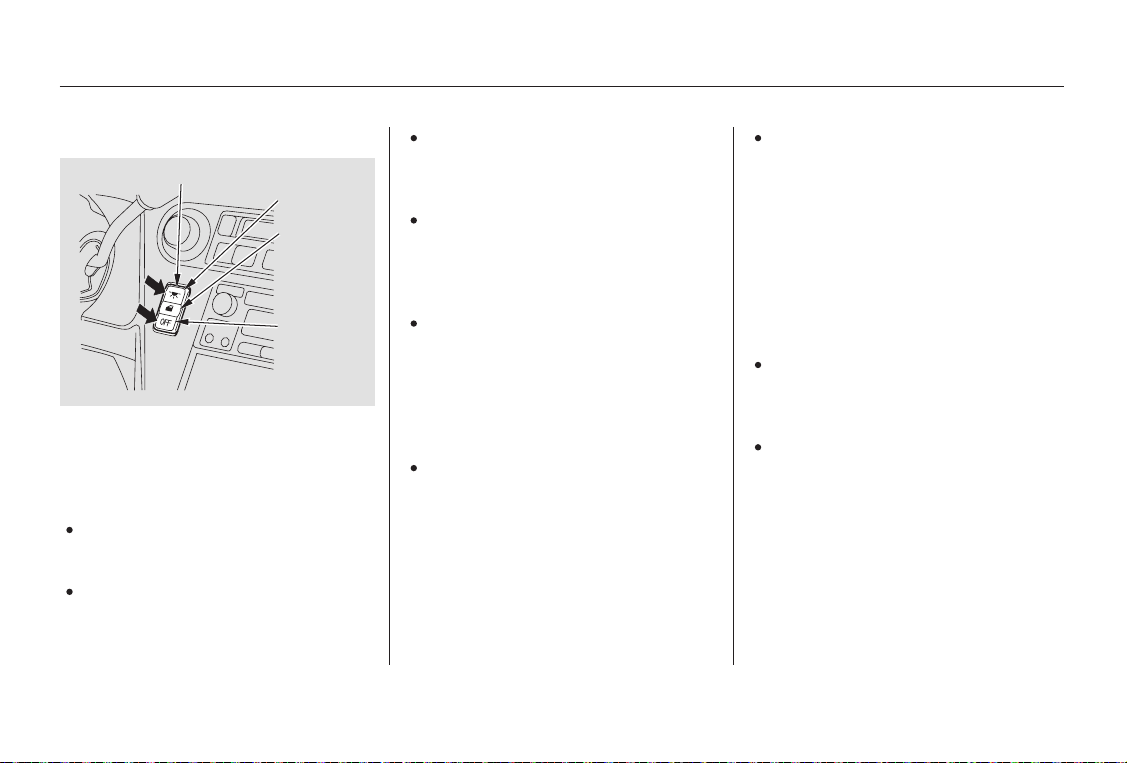

The MAIN switch must be in the
ON position.
The doors must be unlocked.
If you shift out of Park while a door
is closing, you will hear a beep until
the door closes. Make sure both
door are closed before you start
driving.
If you shift out of Park while a door
is opening, you will hear a
continuous tone and the door will
stop moving. If you keep driving, the
tone will continue until you stop and
close the door.
To open and close the power doors,
pull and release the inside or outside
door handles. They will close
automatically.
Each power sliding door has an auto-
reverse feature. If a door meets
resistance while closing, it will beep
three times and reverse direction.
However, the door may not reverse
immediately and may cause some
bruising or discomfort. Always make
sure passengers and objects are
clear of the doors before closing
them.
Also check that passengers,
especially children, do not have their
hands on the edge of the sliding door
or on the door pillar. The auto-
reverse motor stops working when
the door is about to latch so the
motor can pull the door shut.
LX models
Sliding Doors
Instruments and Controls
Opening and Closing Manual
Sliding Doors
Power Sliding Doors
Auto-Reverse
84
Main Menu
Table of Contents
The dashboard switches to the left
of the steering column allow you to
open or close the power sliding doors.
The MAIN switch on the dashboard
controls power to the sliding doors.
To open a power sliding door, push
and release the bottom of the
appropriate switch. If you forget to
unlock the door, you will hear three
beeps. Unlock the door and try again.
To close a sliding door, push and
release the top of the switch.
To stop a door, push either the top or
bottom of the switch. The door will
stop and you will hear three beeps.
Push the switch again to resume
movement.
When the MAIN switch is in the
OFF position, you have to operate
the doors manually. The door will be
difficult to move; this is normal. Do
not use force or try to move the door
rapidly; you could damage its motor.
If a person or object is in the way
after the door begins to close, the
door handles cannot be used to stop
the door. To stop the door, use the
dashboard switches or the remote
transmitter.
CONTINUED
Sliding Doors
Instruments and Controls
Dashboard Switches
85
POWER
SLIDING
DOOR
SWITCHES
POWER SLIDING DOOR MAIN SWITCH
Closing a power sliding door
while any part of a passenger is
in the door’s path can cause
serious injury.
Make sure all passengers are
clear of the doorway before
closing a sliding door.
Main Menu
Table of Contents
To open and close a power sliding
door, press the appropriate button
for at least two seconds. If you forget
to unlock the door, you will hear
three beeps. Unlock the door and try
again.
To stop movement, push the
appropriate door button; you will
hear three beeps. Push the same
button again and the door will
reverse direction.
Each sliding door has a lock knob
under the inside door handle. Slide
the lock knob forward to unlock, and
backward to lock.
Whenyoudrivewithchildreninyour
vehicle, use the childproof door
locks (see page ). This will
prevent children from opening the
doors accidentally.
When you release the fuel fill door,
the driver’s side sliding door
automatically locks so it cannot open
and interfere with the fuel door. If a
passenger attempts to unlock the
door by cycling the lock knob several
times, the door can be opened.
If a passenger needs to get out while
you are refueling, instruct that
person to exit on the passenger’s
side.
After you close the fuel fill door, you
must manually unlock the sliding
door.
79
Remote Transmitter
Sliding Doors
Instruments and Controls
Locking the Doors Refueling
86
LOCK KNOB
Unlock
Lock
DRIVER’S
SIDE
SLIDING
DOOR
BUTTON
LED
PASSENGER’S
SIDE SLIDING
DOOR
BUTTON
Main Menu
Table of Contents
−
When parking facing downhill, make
sure the doors are latched in the
fully open position, and then hold the
door open for your passengers. Do
not pull the inside or outside door
handle, or the door will slam shut.
Make sure the
MAIN switch is in the ON position.
When parking facing downhill on a
steep grade, the power sliding doors
may not open or close as they do
normally. If the Power Sliding Door indicator
comesonandstayson,thereisa
problem in the system. Turn the
MAIN switch to OFF, and have the
system inspected by a Honda dealer.
If the battery is disconnected or goes
dead, close the sliding door
completely by hand, or turn the
MAIN switch on, and hold the door
switch until each door closes
completely. If it still does not operate
properly after the battery is
reconnected, have your vehicle
checked by a Honda dealer.
On EX, EX-L models
Sliding Doors
Instruments and Controls
Parking Facing Downhill Power Sliding Door Problems
87
POWER SLIDING DOOR INDICATOR
Main Menu
Table of Contents

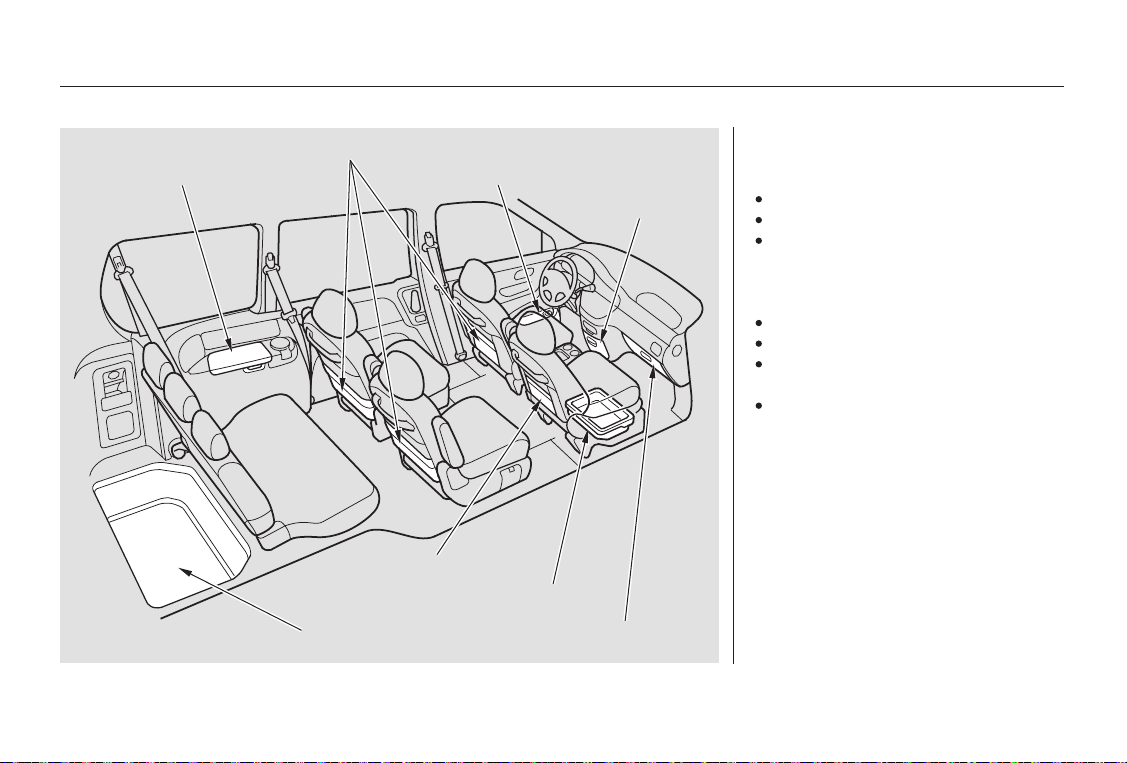

There are bucket seats with
armrests for two front passengers,
bucket seats with armrests for two
passengers in the second row, and a
bench seat for three passengers in
the third row.
For greater cargo capacity, the seats
in the second row can be removed,
andthebenchseatinthethirdrow
can be folded into the floor.
Seats
Instruments and Controls
Passenger Seating
Convertible Second Row Bucket
Seats
88
Main Menu
Table of Contents
−
To adjust the bucket seats in the
second row, pull up the lever on the
front of the seat bottom.
The EX and EX-L models have a
power adjustable driver’s seat. All
other models have manual driver’s
seat adjustments.
The front passenger’s seat, and the
seats in the second and third rows
adjust manually.
Make all seat adjustments before
you start driving.
To adjust the seat forward and
backward, pull up on the lever under
the seat cushion’s front edge. Move
the seat to the desired position, and
releasethelever.Trytomovethe
seat to make sure it is locked in
position.
CONTINUED
See pages for important safety
information and warnings about how to
properly position the seats and seat-
backs.
11 13
Seats
Instruments and Controls
Manual Seat Adjustments
89
Main Menu
Table of Contents
The height of your driver’s seat is
adjustable. Turn the front dial on the
outside of the seat cushion to raise
the front of the seat bottom, and turn
the rear dial to raise the rear.
Make all adjustments before you
start driving.
To change the seat-back angle of the
bucket seats in the second row, pull
forwardontheleverontheoutside
of the seat-back.
To change the seat-back angle of the
front seat, pull up on the lever on the
outside of the seat bottom.
To adjust the seat-back angle of the
third seat, open the tailgate. Pull the
handle on the back of the seat-back,
move the seat-back to the desired
position, and release the handle. Let
the seat-back latch in the new
position.
On LX model
Seats
Instruments and Controls
Driver’s Seat Manual Height
Adjustment
90
HANDLE
Main Menu
Table of Contents
−
Moves the seat
forward and
backward.
Raises or lowers the
seat.
The controls for the power
adjustable driver’s seat are on the
outside edge of the seat bottom. You
can adjust the power seat with the
ignition switch in any position. Make
all seat adjustments before you start
driving.
Moving the long horizontal switch
adjusts the seat bottom in several
directions. The seat bottom adjusts
in the direction you move the switch.
The short vertical switch adjusts the
seat back angle.
Moves the front of
the seat up or down
and the rear of the
seat up or down.
Adjusts the seat-
back angle forward
or backward.
See pages for important safety
information and warnings about how to
properly position the seats and seat-
backs.
On EX and EX-L models
11 13
Seats
Instruments and Controls
Power Seat Adjustments
91
Main Menu
Table of Contents
See page for important safety
information and a warning about how to
properly position the head restraints.
13
On EX and EX-L models
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers from whiplash and other
injuries.
An armrest is located on each of the
frontseatsandoneachsideofthe
second row seats. Pivot it down to
use it. When you remove the bucket
seats in the second row, pivot the
armrests up out of the way.
To change the lumbar support, move
the lever on the right side of the
seat-back forward or backward.
Keep moving the lever forward or
backward until you find a suitable
position.
They are most effective when you
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
Seats
Instruments and Controls
Head RestraintsArmrestsDriver’s Lumbar Support
92
Main Menu
Table of Contents
The head restraints adjust for height.
You need both hands to adjust the
restraint. Do not attempt to adjust it
while driving. To raise it, pull upward.
To lower the restraint, push the
release button sideways, and push
the restraint down.
To get into or out of the third row
seat, walk between the second row
seats.
When the seat on the passenger’s
side is moved to the center, walk
through the passenger’s side to get
into or out of the third row seat.
Seats
Instruments and Controls
Third Seat Access
93
RELEASE
BUTTON
Main Menu
Table of Contents
The second row bucket seat on the
passenger’s side can be moved to the
center to provide access to the third
row seat.

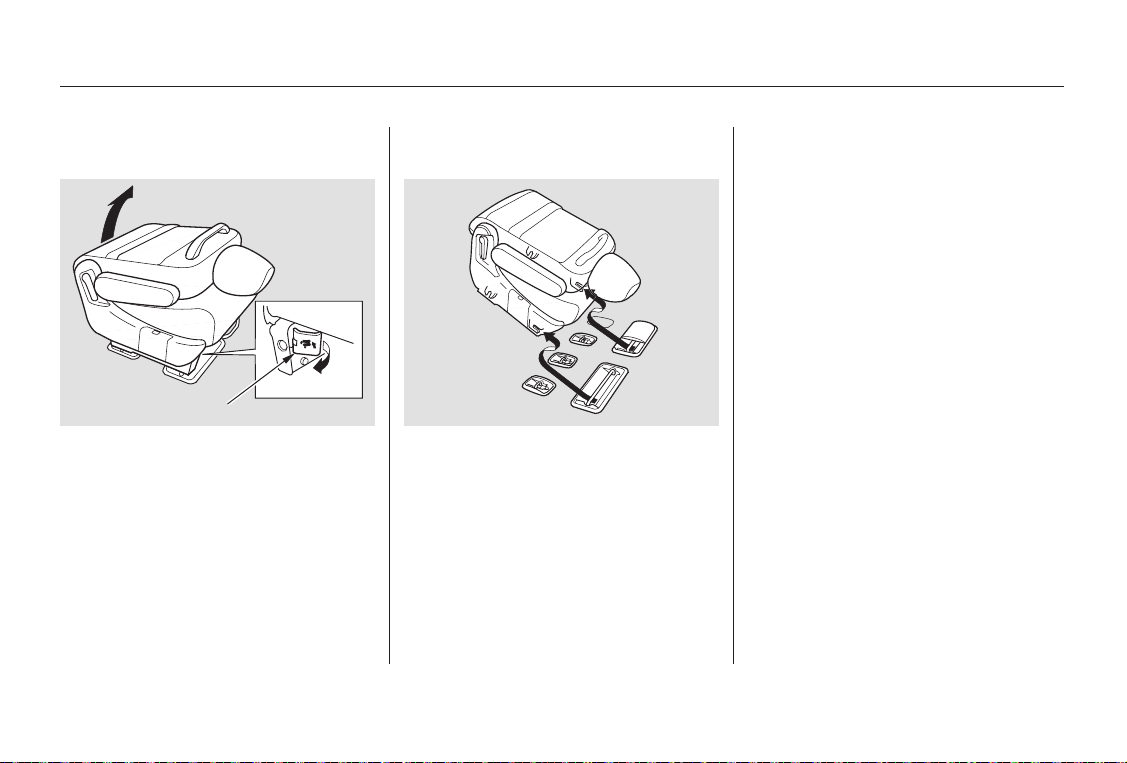

Remove the two floor covers
between the bucket seats in the
second row by carefully prying on
the back edge of the covers with a
flat-tipped screwdriver.
Unlock the seat from the floor by
pulling the lock release lever under
the seat cushion’s front edge and
lifting the rear of the seat.
Slide the seat toward the center of
the vehicle.
Push the back of the seat down over
the floor hooks. Make sure the seat
is securely locked in place.
Install the floor covers over the outer
floor hooks on the passenger’s side
as shown.
Make sure the seat is securely
locked in place before driving. A seat
thatisnotlockedinplacecouldfly
around and cause injury in a sudden
stop or crash.
Reverse this procedure to move the
seat back to the outside.
Seats
Instruments and Controls
Moving the Second Row Bucket
Seat
94
LOCK
RELEASE
LEVER
Main Menu
Table of Contents
Both seats can be removed to give
more cargo capacity.
To remove a seat:
Unhook the front of the seat from
the floor by pulling it back slightly,
then pivoting it upward.
Always remove an unsecured seat
from the vehicle before driving. A
seat that is not locked in place could
be thrown about and cause injury in
a sudden stop or crash.
To reinstall the seat, hook the front
of the seat to the floor, then push the
back into the locks. Make sure both
the front and the back of the seat are
securely latched before driving.
Pull up the seat-back angle
adjustment lever, and fold the seat-
back forward.
Unlock the seat from the floor by
pulling the lock release lever under
the seat cushion’s front edge and
lifting the rear of the seat.
Seats
Instruments and Controls
Removing the Bucket Seats in the
Second Row
95
LOCK RELEASE LEVER
Main Menu
Table of Contents

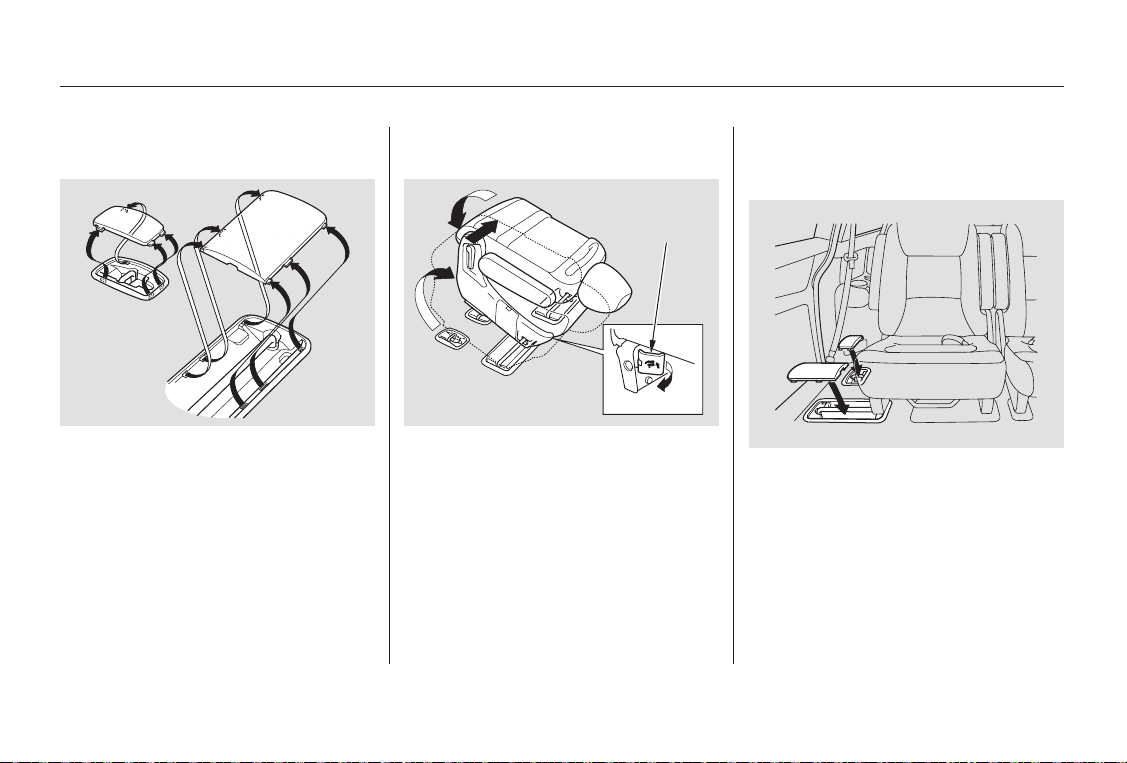

To create more cargo space, you can
fold the third row ‘‘Magic Seat’’ into
the floor recess.
To fold the seat:
Remove the head restraints by
pushing the release buttons and
pulling the restraints out.
Store the head restraints in the
sidecargonet.Toinstalltheside
cargo net, hook the four loops on
the net to the tabs on the left side
panel.
Make sure the head restraint legs
areinsidethecargonetsotheydo
not damage the seat as you fold it.
Unlock the seat-back by pulling
the handle. Push the seat-back
forward.
1.
2. 3.
Seats
Instruments and Controls
Folding the Third Row ‘‘Magic
Seat’’
96
RELEASE BUTTON
HANDLE
Main Menu
Table of Contents
Pull up on the handle on the seat-
back, and pull the seat-back
upright with the strap. Make sure
the seat is securely locked in place.
Reinstall the head restraints.
Pull the handle on the back of the
seat cushion while you pull the
entire seat towards you with the
strap. Pivot the seat into the floor
recess. Make sure the strap is
above the seat.
Make sure the center shoulder belt
is stored in the holder and the outer
shoulder belts are positioned on each
hook whenever the third seat is
folded.
Make sure all items in the cargo area
are secured. Loose items can fly
forward and cause injury if you have
to brake hard. See
on page .
To return the seat to the upright
position:
Pull the seat out of the recess by
pulling on the handle and the strap.
Pivot the seat forward all the way.
4.
1.
2.
3.
176
Seats
Instruments and Controls
Carrying Cargo
97
HANDLE
HANDLE
Main Menu
Table of Contents
Both front seats are equipped with
seat heaters. The ignition switch
must be in the ON (II) position to
use them. The seat heater switch is
located on each front door. Push the
front of the switch, HI, to rapidly
heat up the seat.
After the seat reaches a comfortable
temperature, select LO by pushing
the back of the switch. This will keep
the seat warm.
In HI, the heater turns off when the
seat gets warm, and turns back on
after the seat’s temperature drops.
In LO, the heater does not cycle with
temperature change.
Follow these precautions when using
the seat heaters:
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current from the
battery.
Because of the sensors for the side
airbag system, there is no heater in
the passenger’s seat-back.
If the engine is left idling for an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.
On EX-L model
Seat Heaters
Instruments and Controls
98
Main Menu
Table of Contents
Your vehicle’s front windows are
electrically-powered. Turn the
ignition switch to ON (II) to raise or
lower either window.
Therearwindowsarealso
electrically-powered (see page ).
Each front door has a switch that
controls its window. To open the
window, push the switch down and
hold it. Release the switch when you
want the window to stop. Close the
window by pulling back on the
switch and holding it.
The driver’s door armrest has a
master power window control panel.
To open the front passenger’s
window, push down on the switch
and hold it down until the window
reaches the desired position. To
close the window, pull back on the
window switch. Release the switch
when the window gets to the position
you want.
101
CONTINUED
Power Windows
Instruments and Controls
99
MAIN SWITCH
DRIVER’S WINDOW
SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
Main Menu
Table of Contents
− −To open the driver’s
window fully, push the window
switch firmly down, then release it.
The window automatically goes
down all the way. To stop the
window from going all the way down,
pull back on the window switch
briefly.
To close the driver’s window fully,
pull back the window switch firmly,
then release it. The window
automatically goes all the way up. To
stop the window from going all the
way up, push down on the window
switch briefly.
To open or close the driver’s window
partially, push down or pull back on
the window switch lightly and hold it.
The window will stop when you
release the switch.
If the MAIN switch is off, the front
passenger’s window cannot be raised
or lowered and the rear windows
cannot be opened or closed. Keep
the MAIN switch off when you have
children in the vehicle so they do not
injure themselves by operating the
windows unintentionally.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
before closing it.
If the driver’s
window runs into any obstacle while
it is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
AUTO Auto Reverse
Power Windows
Instruments and Controls
100
Main Menu
Table of Contents
If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window fuse is removed, the
AUTO function will be disabled. The
power window system needs to be
reset after reconnecting the battery
or installing the fuse.
Start the engine. Push down and
hold the driver’s window switch
until the window is fully open.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
for a second or two more.
If the power windows do not operate
properly after resetting, have your
vehicle checked by a Honda dealer.
The power window system has a key-
off delay function. The windows will
stilloperateforupto10minutes
after you turn off the ignition.
Opening either front door cancels
the delay function. You must turn
the ignition switch to ON (II) again
before you can operate the windows.
Youcanopenorcloseeachrear
window with the switches on the
driver’s door armrest. The right
switch controls the passenger’s side
rear window, and the left switch
controls the driver’s side window. To
open the window, push the switch
downandholdit.Releasetheswitch
when you want the window to stop.
Close the window by pulling back on
the switch and holding it.
1.
2.
Power Windows
Instruments and Controls
101
REAR WINDOW SWITCHES
Main Menu
Table of Contents
Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Turn the ignition switch to ON (II).
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you finish, move the
selector switch to the center (off)
position. This turns off the
adjustment switch to keep your
settings.
1.
2.
3.
4.
Mirrors
Instruments and Controls
Adjusting the Power Mirrors
102
TAB
SELECTOR SWITCH
ADJUSTMENT SWITCH
Main Menu
Table of Contents
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.
To apply the parking brake, push the
parking brake pedal down with your
foot. To release the parking brake,
push on the pedal again. The parking
brake indicator on the instrument
panel should go out when the
parking brake is fully released with
the engine running (see page ).60
Canadian Models
Mirrors, Parking Brake
Instruments and Controls
Power Mirror Heaters Parking Brake
103
NOTICE:
HEATED MIRROR BUTTON
PARKING BRAKE PEDAL
Driving the vehicle with the
parking brake applied can damage the
rear brakes and axles.
Main Menu
Table of Contents
＊
＊
Interior Convenience Items
Instruments and Controls
104
BEVERAGE HOLDER
CLOCK
VANITY
MIRROR
CENTER
POCKET
STORAGE
BOX
ACCESSORY
POWER
SOCKET
ACCESSORY
POWER
SOCKET
REAR
COMPARTMENT
COAT HOOK
BEVERAGE
HOLDER
CENTER
TABLE
SUNGLASSES
HOLDER
GLOVE BOX
BEVERAGE HOLDER,
COIN HOLDER
SUN VISOR
: EX and EX-L models only
Main Menu
Table of Contents
The clock displays the time with the
ignition switch in any position.
To set the clock:
Turn the ignition switch to ON (II).
Press and hold the H button until
the hour advances to the desired
time.
Press and hold the M button until
the numbers advance to the
desired time.
You can use R to quickly set the time
to the nearest hour. If the displayed
time is before the half hour, pressing
Rsetstheclockbacktotheprevious
hour. If the displayed time is after
the half hour, pressing R sets the
clock forward to the beginning of the
next hour.
For example:
1:06 would RESET to 1:00.
1:52 would RESET to 2:00.
To use the center table, pull up the
outside edge of the table until it
latches. To store it, pull the lever and
lower the table.
2.
3.
1.
CONTINUED
On models without navigation system
Interior Convenience Items
Clock Center Table
Instruments and Controls
105
HM R
Main Menu
Table of Contents
Sitting on or getting under the table,
or putting heavy objects on the table,
may damage or deform it.
Do not put any items on the table
while driving. They may fall down or
fly around when you go around
corners or brake hard.
Thecentertablecanbeextendedby
pulling on the rear.
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
To use the front beverage holder,
pull on the bottom edge.
Additional beverage holders for the
front seat passengers, and beverage
holders for the passengers in the
second row, are in the center table.
Interior Convenience Items
Instruments and Controls
Beverage Holders
106
Main Menu
Table of Contents
Each second row seat has a
beverage holder on the outside of
the seat cushion. To use the
beverage holder, push on the tab.
The beverage holder will swing open.
To close, pivot it up and push it in
until it latches.
To protect the beverage holder, the
bottom tray is designed to break
away if you try to place a heavy
object on it. If this happens, hold the
edge of the bottom tray and pull it up
until you feel a detent.
Be careful not to damage an open
beverage holder when you get into
or out of the vehicle.
The beverage holders for the third
seat passengers are located in the
armrests on the rear side panels.
The inner liner can be removed if
youwanttoholdalargercup.
To open the sunglasses holder, push
on the front edge. Make sure the
holder is closed while you are driving.
Some larger styles of sunglasses
may not fit in the holder.
Interior Convenience Items
Instruments and Controls
Sunglasses Holder
107
TAB
Main Menu
Table of Contents

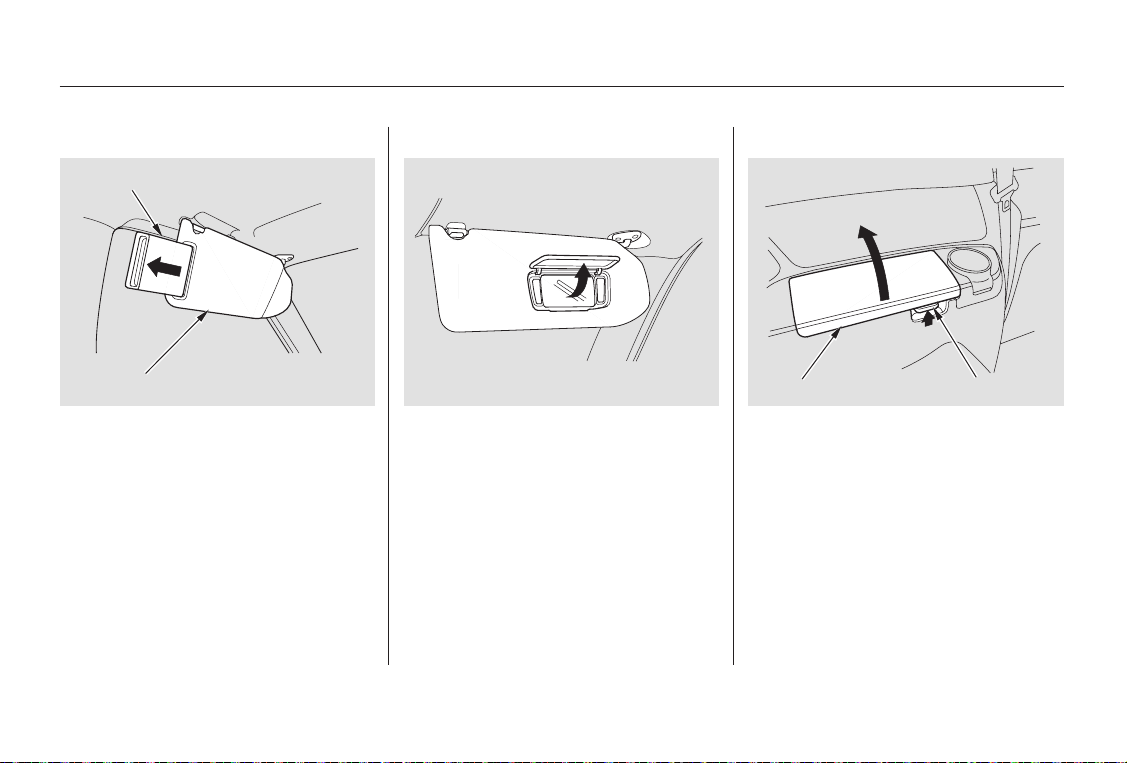

Whenusingthesunvisorforthe
side window, remove the support rod
from the clip and swing it out. Slide
the extension out to get more
coverage on the side window.
Pull up the vanity mirror cover to use
it. The lights come on only when the
parking lights are on.
To open the compartment, pull the
lever and lift the lid. To close, lower
the lid and push it down until it
latches.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
Do not use the sun visor extension
over the rear view mirror.
Interior Convenience Items
Instruments and Controls
Sun Visor Vanity Mirror Rear Compartment
108
REAR COMPARTMENT
LEVER
EXTENSION
SUN VISOR
Main Menu
Table of Contents
Open the glove box by pulling the
bottom of the handle. Close it with a
firm push. Lock or unlock the glove
box with the master key.
These sockets are intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps).
None of the sockets will power an
automotive type cigarette lighter
element. When more than one
socket is being used, the combined
power rating of the accessories
should be 120 watts or less
(10 amps).
Interior Convenience Items
Instruments and Controls
Glove Box Accessory Power Sockets
109
GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Main Menu
Table of Contents
Open the center pocket by pulling
thehandle.Closeitwithafirmpush.
The light in the pocket comes on
when the instrument panel lights are
on.
Push up the handle to open the
center pocket.
The coin holder is located in the
front beverage holder. To open it,
pull on the bottom edge. Close it
with a firm push.
On EX and EX-L models
On U.S. EX-L with optional
Rear Entertainment System
Interior Convenience Items
Instruments and Controls
Center Pocket Coin Holder
110
CENTER
POCKET
Main Menu
Table of Contents

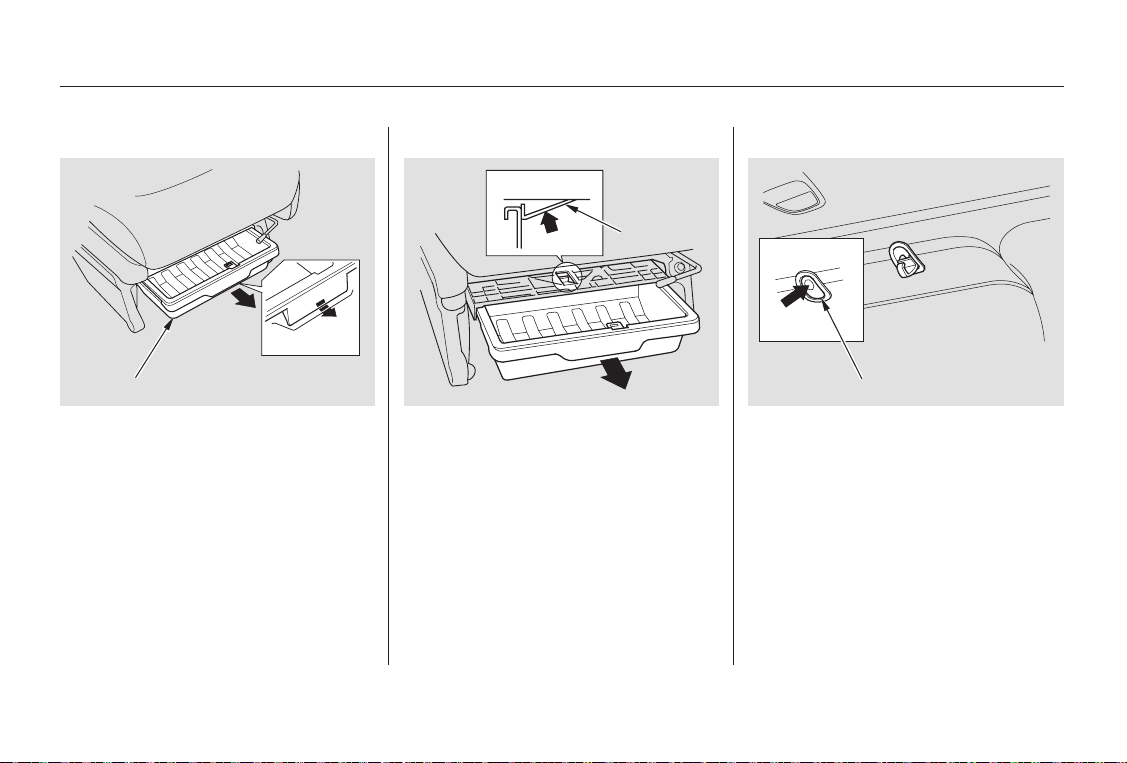

A storage box is located under the
front passenger’s seat. To use it, pull
the handle and slide the box out.
To remove the box for cleaning,
push on the lock tab under the seat
bottom and pull the tray out. Do not
try to force the box. You could
damage it.
To use a coat hook, push on the lid.
Close it with a firm push.
Make sure the coat hook is closed
when you are not using it. This hook
is not designed for large or heavy
items.
On EX and EX-L models
(Except for vehicles with navigation
System)
Interior Convenience Items
Instruments and Controls
Storage Box Coat Hook
111
STORAGE BOX
LOCK TAB
LID
Main Menu
Table of Contents
The light control switch has three
positions: OFF, Door Activated, and
ON.
OFF
None of the lights come on when a
door or the tailgate is opened.
The individual map lights in the
front can be turned on and off with
the switches next to the lights.
The individual map lights in the
second and third rows cannot be
turned on.
The cargo area light can be turned
on with the switch in the light.
Door
Activated
The individual map lights in the
front come on when any door or
thetailgateisopened.Whenthe
doors and the tailgate are closed,
eachlightcanbeturnedonandoff
with the switch next to the light.
The individual map lights in the
second and third rows come on
whenanydoororthetailgateis
opened. When the doors and the
tailgate are closed, each light can
be turned on and off by pushing
on the lens.
The cargo area light comes on
when any door or the tailgate is
opened if the light control switch
is in the door activated (center)
position. When the doors and the
tailgate are closed, the cargo area
lightcanbeturnedonwiththe
switch in the light.
ON
All the individual map lights come
onandstayonaslongasthe
switch remains in the ON position.
The cargo area light comes on and
stays on if the light control switch
is in the door activated (center)
position.
When this switch is in the position:
When the switch is in the
position:
When the light control switch is in the
position:
Instruments and Controls
Interior Lights
Light Control Switch
112
LIGHT CONTROL SWITCH
ON
DOOR
ACTIVATED
POSITION
OFF
Main Menu
Table of Contents
The lights go out about six seconds
after all the doors and the tailgate
are closed.
With the light control switch in the
Door Activated position, all the
individual map lights and the cargo
area light (with its switch in the
center position) come on when you
unlock the door with the remote
transmitter (see page ).
Withanydoororthetailgateleft
open, the lights stay on about 3
minutes, then go out.
Turn on the front individual map
lights by pushing the button next to
each light. Push the button again to
turn it off. You can also operate
these lights with the light control
switch (see page ).
Turn on each rear individual map
light by pushing the lens when the
ignition switch is in the
ACCESSORY (I) or ON (II) position.
Push the lens again to turn it off.
You can also operate these lights
with the light control switch (see
page ).
112
81
112
On EX and EX-L models
Interior Lights
Instruments and Controls
Individual Map Lights
113
FRONT
REAR
Main Menu
Table of Contents

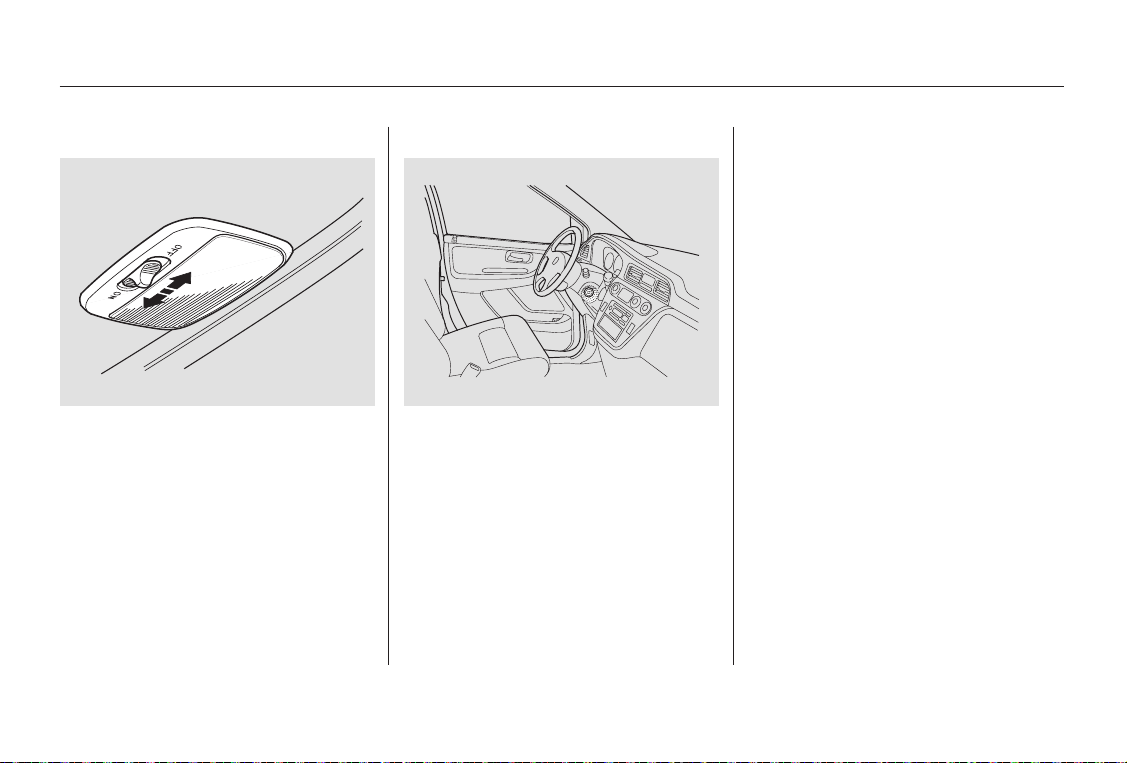

The cargo area light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, it comes on when
you open the tailgate. In the ON
position, it stays on continuously.
This light also works with the light
control switch (see page ).
The ignition switch light comes on
when you open the driver’s door, and
stays on several seconds after you
close the door.
112
Interior Lights
Instruments and Controls
Cargo Area Light Ignition Switch Light
114
OFF
ON
Main Menu
Table of Contents
The heating and air conditioning
systems in your Honda provide a
comfortable driving environment in
all weather conditions.
The standard audio system has
many features. This section de-
scribes those features and how to
use them. (If you selected an
optional audio system, refer to the
operating instructions that came
with it.)
The security system helps to dis-
courage vandalism and theft of your
Honda.
Your Honda has an anti-theft audio
system that requires a code number
to enable it.
.............Vents, Heating, and A/C . 116
.........................Airflow Buttons . 117
Using Automatic Climate
...................................Control . 121
...................Rear Climate Control . 124
..............Climate Control Sensors . 125
..........................Playing the Radio . 126
............................Radio Reception . 130
..................................Playing a CD . 132
Operating the Optional CD
.....................................Changer . 134
....................Protecting Your CDs . 135
.........CD Player Error Messages . 136
.....CD Changer Error Messages . 137
...............................Playing a Tape . 139
.............Steering Wheel Controls . 143
.................Radio Theft Protection . 144
........Rear Entertainment System . 145
..............................Playable DVDs . 154
............................Security System . 159
...............................Cruise Control . 160
HomeLink Universal
................................Transceiver . 163
On EX and EX-L models
Comfort and Convenience Features
Comfort and Convenience Features
115
Main Menu
Vents, Heating, and A/C
Comfort and Convenience Features
LX model
EX model and EX-L model without Navigation System
EX-L model with Navigation System
116
MODE BUTTONS
REAR A/C
CONTROL DIAL
FAN CONTROL
DIAL
RECIRCULATION
BUTTON
REAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
DIAL
TEMPERATURE
CONTROL DIAL
AUTO
BUTTON
OFF BUTTONDEFROST BUTTON
TEMPERATURE
DISPLAY
RECIRCULATION
BUTTON
MODE ICONS AIR CONDITIONING
(A/C) ICONS
AIR CONDITIONING BUTTON
AIR CONDITIONING BUTTON
TEMPERATURE BUTTON
MODE BUTTON
FAN CONTROL ICONS
FULL AUTO
DISPLAY
OFF BUTTON FAN CONTROL DIAL
REAR A/C CONTROL DIAL
AUTO BUTTON
RECIRCULATION BUTTON
DEFROST BUTTON
MODE
ICONS
REAR WINDOW
DEFOGGER BUTTON
REAR WINDOW
DEFOGGER BUTTON
Main Menu
Table of Contents
▲▼
For automatic climate control and
manual operation on EX and EX-L
models, see page .
Turn this dial clockwise to increase
fan speed and increase the airflow.
You can manually select the fan
speed. Press the A/C button to view
the display, then press any of the fan
control icons.
Turning this dial clockwise increases
the temperature of the airflow.
To select the desired temperature,
press either side of the temperature
(TEMP) button ( or ).
This button turns the air
conditioning on and off. On LX
models, the light in the button is on
when the A/C is on. On EX and EX-L
models, you will see A/C ON or A/C
OFF selected in the display.
Press the A/C button to view the
display. Touching ON or OFF in the
display turns the air conditioning on
andoff.YouwillseeA/CONorA/C
OFF in the display.
When you turn the A/C off, the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
121
On all models without Navigation
System
On EX-L model with Navigation System
On all models without Navigation
System
On EX-L model with Navigation System
On all models without Navigation
System
On EX-L model with Navigation System
On EX and EX-L models
Vents, Heating, and A/C
Comfort and Convenience Features
Fan Control
Temperature Control
Air Conditioning (A/C) Button/
Icons
Airflow Buttons
117
Main Menu
Table of Contents
When the light in/above the button
is on, air from the vehicle’s interior is
sent throughout the system again.
When the light is off, air is brought
in from the outside of the vehicle
(Fresh Air mode).
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
defogger off and on (see page ).
Use the mode control buttons or
icons to select the vents the air flows
from. Some air will flow from the
dashboard corner vents in all modes.
Air flows from the center
and corner vents in the dashboard.
Air flows from the floor
vents.
Air flows from the defroster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C.
When you select , the system
automatically switches to Fresh Air
mode.
With this dial, you can adjust the
rear A/C unit heating, cooling, and
airflow (see page ).
Airflow is divided between
the vents in the dashboard and the
floor vents.
Airflow is divided between
the floor vents and the defroster
vents at the base of the windshield.
73
123
Vents, Heating, and A/C
Comfort and Convenience Features
Recirculation Button Rear Window Defogger Button
Mode Control
Rear A/C Control Dial
118
Main Menu
Table of Contents
▲▼
The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear side
panels.
Set the temperature control dial or
the button to the lower limit.
Make sure the A/C is off.
Select and Fresh Air mode.
Set the fan to the desired speed.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
Select .
When you select , the system
automatically switches to Fresh
Air mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn off the A/C until the gauge
reads normally.
Press the A/C button to show the
A/C screen.
Select the desired mode and fan
speed icons on the screen.
Adjustthewarmthwiththe
temperature button ( or ).
Press the A/C button. The light
above the button comes on when a
fan speed is selected.
Make sure the temperature
control dial is set to the lower limit.
Select .
If the outside air is humid, select
the Recirculation mode. If the
outside air is dry, select the Fresh
Air mode.
Set the fan to the desired speed.
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
1.
2.
3.
4.
5.
67
CONTINUED
All except EX-L model with Navigation
System
EX-L model with Navigation System
All except EX-L model with Navigation
System
Vents, Heating, and A/C
Comfort and Convenience Features
Ventilation Using the Heater Using the A/C
119
Main Menu
Table of Contents
Press the A/C button to show the
A/C screen.
Select the ON icon on the screen.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select the Fresh Air
mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
The vehicle has two A/C and
heater units. These units are
controlled by the front panel controls,
unless the RR A/C control dial is in
the OFF position. The rear
passengers can also adjust the
direction and the amount of airflow.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
Switch the fan on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial or button to your preference.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Set the fan to the desired speed, or
high for faster defrosting.
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
Adjust the temperature control
dial or button so the airflow feels
warm.
Select to help clear the
rear window.
To increase airflow to the
windshield, close the side vents.
To remove fog from the inside of the
windows:
When you switch to another mode
from , the A/C stays on.
Press the A/C button to turn it off.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3.
If the interior is very warm,
EX-L model with Navigation System
Vents, Heating, and A/C
Comfort and Convenience Features
Dehumidify the Interior To Defog and Defrost
120
NOTE:
Main Menu
Table of Contents
▲
▼
−
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
Select .
Set the fan and temperature
controls to maximum level.
To clear the windows faster, you can
close the dashboard corner vents by
rotating the wheel next it. This will
send more warm air to the
windshield defroster vents. Once the
windshield is clear, select the Fresh
Air mode to avoid fogging the
windows.
For your safety, make sure you have
a clear view through all the windows
before driving.
The Automatic Climate Control
system can adjust the fan speed and
airflow levels to maintain the interior
temperature you select.
Press the Auto button. With
Navigation System, the light in the
button comes on.
Set the desired temperature by
turning the Temperature Control
dial. You will see FULL AUTO in
the system’s display.
Set the desired temperature by
pressing to raise the
temperature or to lower the
temperature. The selected
temperature will show in the
temperature display on the control
panel.
The system automatically selects the
proper mix of conditioned and/or
heated air to raise or lower the
interior temperature to the
temperature you selected.
If you set the temperature to its
lower limit or its highest limit, the
system runs at full cooling or heating
only. It does not regulate the interior
temperature.
In cold weather, the fan will not
come on automatically until the
heater starts to develop warm air.
When the
system is in FULL AUTO, the rear
A/C passenger control dials cannot
be used. Turning the rear A/C
controldialonthefrontpanel
disables the FULL AUTO function.
1.
2.
1.
2.
3.
Without Navigation System
With Navigation System
EX and EX-L models
Vents, Heating, and A/C
Comfort and Convenience Features
To Remove Exterior Frost or Ice
From the Windows
Using Automatic Climate Control
Rear A/C Control
121
Main Menu
Table of Contents
You can manually select various
functions of the Climate Control
system when it is in FULL AUTO.
All other features remain
automatically controlled.
Manually selecting a function causes
thewordFULLinthedisplaytogo
out.
If you press the A/C button next to
the display, the manual selection will
show in the display. This causes the
light in the AUTO button to turn off.
Turningthefanspeedand
temperature control dials all the way
to left shuts off the system
completely.
If you press OFF, the Climate
Control system shuts off completely.
Keep the system completely off
for short periods only.
To keep stale air and mustiness
from collecting, you should have
the fan running at all times.
When the Climate Control System is
turned OFF, the temperature in the
display will also turn off.
Without Navigation System
With Navigation System
With Navigation System
EX and EX-L models LX model
EX and EX-L models
Vents, Heating, and A/C
Comfort and Convenience Features
Manual Operation To Turn Everything Off
122
Main Menu
Table of Contents
You can adjust the heating, cooling,
and airflow of the rear A/C unit with
the rear A/C control dial. The rear
passengers can also adjust the
direction and the amount of airflow
with the rear ceiling vents.
Using the Rear A/C Unit
Comfort and Convenience Features
Vents, Heating, and A/C
123
REAR CEILING VENT
REAR A/C PASSENGER
CONTROL PANEL
REAR A/C
CONTROL DIAL
TAB
LEVER
OFF POSITION
Main Menu
Table of Contents
−
−
No air flows to the rear
vents, and the rear control panel is
turned off.
increases the rear fan speed, and air
flows from the rear ceiling vents.
increases the rear fan speed, and air
flows from the rear floor vents.
The rear A/C passenger
control panel is enabled. A second
row passenger can then adjust the
fanspeedandairflow.
You can use the rear control panel
when the front panel dial is in the RR
position.
When the dial is in the position,
cooled air flows from the rear ceiling
vents. Cooled air can be selected
when the A/C switch on the front
control panel is turned on.
When the dial is in the position,
heated air flows from the rear floor
vents.
Turn the fan speed control dial
clockwise to increase fan speed and
airflow.
Rear Climate Control
Comfort and Convenience Features
Rear A/C Control
OFF
Turning the dial to the left
Turning the dial to the right
RR
Rear A/C Passenger Control
Panel
124
REAR A/C CONTROL DIAL
FAN SPEED
CONTROL DIAL
HEATING/COOLING/
AIRFLOW
CONTROL DIAL
Main Menu
Table of Contents
Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
The direction and quantity of airflow
from each rear ceiling vent is
adjustable.
To adjust the direction of the air
coming from a rear ceiling vent,
move the tab in the center of each
vent back-and-forth, and rotate the
vent with the tab. The lever next to
each vent can be opened and closed
to regulate the amount of airflow.
Rear Climate Control, Climate Control Sensors
Comfort and Convenience Features
Sunlight and Temperature
Sensors
Rear Ceiling Vents
125
SUNLIGHT SENSOR
TEMPERATURE SENSOR
TAB
LEVER
Main Menu
Table of Contents
Playing the Radio
Comfort and Convenience Features
LX model
EX and EX-L models
Optional on U.S. EX-L model
126
AM/FM BUTTON SCAN BUTTON
STEREO INDICATOR
BASS/FADER CONTROL
KNOB
TREBLE/BALANCE CONTROL
KNOB
SEEK SWITCH
TUNE BAR
TUNE BAR
PRESET BUTTONS
STEREO
INDICATOR
SCAN
INDICATOR
TUNE KNOB
AM/FM
BUTTON
SCAN
BUTTON
PRESET BUTTONS
PRESET BUTTONS
BASS/
FADER
CONTROL
KNOB
TREBLE/
BALANCE
CONTROL
KNOB
AUTO SELECT
BUTTON
SCAN BUTTON
PWR/VOL
KNOB
AM/FM
BUTTON
STEREO
INDICATOR
SEEK
BAR
AUTO
SELECT
BUTTON
PWR/VOL
KNOB
SEEK BAR
Main Menu
Table of Contents
−
▲
▼
−
−
CONTINUED
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction in
AM is not available.
You can use any of five methods to
find radio stations on the selected
band: the
preset buttons, and
(EX and EX-L models).
Use the TUNE bar or
knob to tune the radio to a desired
frequency. Press the / side
of the bar or turn the knob to the
right to tune to a higher frequency,
or press the / side or turn
the knob to the left to tune to a lower
frequency.
The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the / or /
side of the bar, or push the
SEEK switch up or down, then
release it.
The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. SCN/SCAN shows in
the display. The system will scan for
a station with a strong signal. When
it finds a strong signal, it will stop
and play that station for about 5
seconds.
If you do nothing, the system will
then scan for the next strong station
andplayitfor5seconds.Whenit
plays a station that you want to listen
to, press the SCAN button again.
Playing the Radio
Comfort and Convenience Features
To Play the Radio To Select a Station
TUNE,SEEK,SCAN,
AUTO SELECT
TUNE
SEEK
SCAN
127
Main Menu
Table of Contents
−−Each preset button can
store one frequency on AM, and two
frequencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
The preset frequencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio fuse is
removed.
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select feature
to find stations in the local area.
Press the A. SEL Button. ‘‘A.SEL’’
flashes in the display, and the system
goes into scan mode for several
seconds. It stores the frequencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed after
pressing a preset button if Auto
Select cannot find a strong station
for every preset button.
If you do not like the stations Auto
Select has stored, you can store
other frequencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN functions to find stations, then
store them in the preset buttons as
described.
press the
A. SEL button. This restores the
presets you originally set.
1.
2.
3.
4.
To turn off Auto Select,
Playing the Radio
Comfort and Convenience Features
Preset AUTO SELECT
128
Main Menu
Table of Contents
−
−
−
−
These two
controls adjust the strength of the
sound coming from each speaker.
The Balance control adjusts the side-
to-side strength, while the Fader
control adjusts the front-to-back
strength.
Use these controls
to adjust the tone to your liking.
To adjust the fader or balance, push
on the control knob to get it to pop
out. Pull it out slightly farther, and
adjust the sound to your liking. Push
theknobbackinwhenyouaredone
so you cannot change the setting by
accidentally bumping it.
To adjust the Treble or Bass level,
push on the control knob to get it to
pop out. Without pulling it out
farther, turn the knob to adjust the
sound level. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.
Press the TUNE knob repeatedly to
display the Bass (BAS), Treble
(TRE), Balance (BAL), and Fader
(FAD) settings.
Eachmodeisshowninthedisplayas
it changes. Turn the TUNE knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘ ’’ in the display.
The system will automatically return
the display to the selected audio
mode about 5 seconds after you stop
adjusting a mode.
Use the TRE/BAS
modes to adjust the tone to your
liking.
These two
modes adjusts the strength of the
sound coming from each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the front-to-back
strength.
On LX, EX and EX-L models
Optional on U.S. EX-L model
Playing the Radio
Comfort and Convenience Features
Adjusting the Sound
Balance/Fader
Treble/Bass
Treble/Bass
Balance/Fader
129
BASS/FADER
CONTROL
TREBLE/BALANCE
CONTROL
EX and EX-L models shown
Main Menu
Table of Contents
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is off.
Your Honda’s radio can receive the
complete AM and FM bands.
Those bands cover these frequen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned frequencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned frequencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round-off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’
How well your Honda’s radio
receives stations is dependent on
many factors, such as the distance
from the station’s transmitter,
nearby large objects, and atmos-
pheric conditions.
A radio station’s signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.Ifyouare
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
72
Playing the Radio, Radio Reception
Comfort and Convenience Features
Audio System Lighting
Radio Frequencies Radio Reception
130
Main Menu
Table of Contents
Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Radio Reception
Comfort and Convenience Features
131
Main Menu
Table of Contents
Comfort and Convenience Features
Playing a CD
LX model
EX and EX-L models
Optional on U.S. EX-L model
132
PWR/VOL
KNOB
TAPE/CD BUTTONAM/FM BUTTON
RANDOM INDICATOR
REPEAT INDICATOR
PRESET BUTTONS
REPEAT BUTTON
SKIP SWITCH
PWR/VOL KNOB
RANDOM
BUTTON
SKIP
BAR
TUNE
BAR
EJECT
BUTTON
CD SLOT
AM/FM BUTTON
PWR/VOL KNOB
REPEAT
BUTTON
SKIP BAR
CD BUTTON
RANDOM
BUTTON
REPEAT
BUTTON
CD SLOT
CD EJECT BUTTON
CD BUTTON
Main Menu
Table of Contents
−
−
CONTINUED
To play a CD, the ignition switch
must be in the ACCESSORY (I) or
ON(II) position.
You operate the CD player with the
same controls used for the radio.
The number of the track playing is
shown in the display. The system will
continuously play a CD until you
change modes.
Insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way to play it. When the system
reaches the end of the disc, it will
return to the beginning and play the
disc again.
You can also play 3-inch (8-cm) discs
without using an adapter ring.
To play the radio when a CD is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
To play the tape when a CD is
playing, insert a tape in the player (if
available). If a tape is in the player,
press the TAPE button. Press the
CD button again to switch back to
the CD player. The cassette player is
optional on EX and EX-L models.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it left off (at
thesamediscandtrackonLX
model).
Each time you press and
release / or push up the
SKIP switch, the player skips
forward to the beginning of the next
track. Press and release /
button, or push down the SKIP
switch to skip backward to the
beginning of the current track. Press
orpushdownitagaintoskiptothe
beginning of the previous track.
To move rapidly within a track, press
andholdthe / or /
side of the SKIP bar. You will
see CUE or REW in the display. On
LX model, push and hold the SKIP
switch. You will hear a beep when
the system begins to move.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press the RPT button again
to turn it off.
Optional on LX model
Playing a CD
Comfort and Convenience Features
To Play a CD SKIP
REPEAT
133
Main Menu
Table of Contents
−
−
＋
−
To activate Random Play on LX
model, press and hold the RPT
button until you see RDM in the
display. Press it again to return to
normal play.
If the system is in repeat mode, turn
it off before you select random mode.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it from the slot,
the system will automatically reload
the CD after 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD.
Insert a tape in the player (if
available) to switch to the tape while
aCDisplaying.Ifatapeisinthe
player, press the TAPE button. Press
the CD button again to switch back
to the CD player. The cassette player
is optional on EX and EX-L models.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it left off (at
thesamediscandtrackonLX
model).
An optional six disc CD changer is
available for your vehicle from your
Honda dealer.
This disc changer uses the same
controls used for the in-dash CD
player or the radio.
Load the CDs in the magazine and
load the magazine in the changer
according to the instructions that
came with the unit.
To select the CD changer, press the
CD button. The disc and track
numbers will be displayed. To select
a different disc, use the appropriate
preset buttons (1 6). On the U.S.
EX-L model, use the preset 5 (DISC
) button to select the previous disc,
or the preset 6 (DISC ) button to
select the next disc in sequence.
If you select an empty slot in the
magazine, the changer will, after
finding that slot empty, try to load
the CD in the next slot. This
continues until it finds a CD to load
and play.
On EX and EX-L models, if there are
no CDs, the display will flash, then
you need to select another mode.
Press and release the
RDM button to play the tracks in
random order. You will see RDM in
the display. Press the RDM button
again to return to normal play.
Playing a CD
Comfort and Convenience Features
To Stop Playing a CD
Operating the Optional CD
Changer
RANDOM
134
Main Menu
Table of Contents
When using CD-R discs, use only
high quality CDs labeled for audio
use.
When recording a CD-R, the
recording must be closed for it to
be used.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping.
When a CD is not being played, store
it in its case to protect it from dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean soft cloth.
Wipe across the CD from the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the re-
cording surface of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert foreign objects in
the CD player or the magazine.
Handle a CD by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
from fingerprints, liquids, and felt-tip
pens, can cause the CD to not play
properly, or possibly jam in the drive.
Protecting Your CDs
Comfort and Convenience Features
General Information Protecting CDs
135
Main Menu
Table of Contents
If you see an error message in the
display while playing a CD, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to a Honda dealer.
Error Message Cause Solution
Error Message Cause Solution
System Error
FOCUS Error
Mechanical Error
Communication Error
LSI Error
Press the EJECT button and pull out the CD.
Check if it is inserted correctly in CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out or the error
message does not disappear after the CD is
ejected, see a Honda dealer.
Consult your Honda dealer.
FOCUS Error
Mechanical Error, or a
DVD has been loaded in
the CD player.
High Temperature
Press the EJECT button and pull out the CD.
Check if it is inserted correctly in CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out or the error
message does not disappear after the CD is
ejected, see a Honda dealer.
Will disappear when the temperature returns to
normal.
CD Player Error Messages
Comfort and Convenience Features
EX and EX-L models
Optional on U.S. EX-L model
136
Main Menu
Table of Contents
CONTINUED
Cause Solution
If you see an error message in the
display while operating the CD
changer, find the cause in the
following charts. If you cannot clear
theerrormessage,takeyourvehicle
to a Honda dealer.
Error Message
Disc-changer
malfunction.
CD magazine ejection
impossible.
Disc is in changer
mechanism.
High Temperature
Misconnection or
disconnection of CD
changer.
No CD magazine in the
CD changer.
No CD in magazine.
If the message disappears within a few seconds,
unit is OK. Press the magazine eject button and
pull it out, check for an error message, and
insert the magazine again. If the message does
not disappear or the magazine cannot be pulled
out, see a Honda dealer.
Press the magazine eject button. If the maga-
zine does not eject, see a Honda dealer.
Press the magazine eject button, and insert an
empty magazine.
Will disappear when the temperature returns to
normal.
See a Honda dealer.
Insert CD magazine.
Insert a CD in the magazine.
CD Changer Error Messages
Comfort and Convenience Features
LX model
137
Main Menu
Table of Contents
Error Message Cause Solution
Error Message Cause Solution
System Error
FOCUS Error
Mechanical Error
Communication Error, LSI Error
High Temperature
No CD magazine in the CD changer
No CD in the CD magazine
Press the magazine eject button and pull it out, check for an error message, and insert the
magazine again. If the message does not disappear or the magazine cannot be pulled out,
see a Honda dealer.
Press the magazine eject button and pull it out, check for an error message, and insert the
magazine again. If the message does not disappear or the magazine cannot be pulled out,
see a Honda dealer.
See a Honda dealer.
Will disappear when the temperature returns to normal.
Insert CD magazine.
Insert CD.
FOCUS Error
No CD in the CD magazine
Mechanical Error
High Temperature
No CD magazine in the CD changer
Press the magazine eject button, pull it out, and check for an error message, and insert the
magazine again. If the message does not disappear or the magazine cannot be pulled out,
see a Honda dealer.
Insert CD.
Press the magazine eject button, pull it out, check for an error message, and insert the
magazine again. If the message does not disappear or the magazine cannot be pulled out,
see a Honda dealer.
Will disappear when the temperature returns to normal.
Insert CD magazine.
CD Changer Error Messages
Comfort and Convenience Features
Optional on U.S. EX-L model
EX and EX-L models
138
Main Menu
Table of Contents
Comfort and Convenience Features
Playing a Tape
EX and EX-L models
LX model
Optional on U.S. EX-L model
139
TUNE BAR
REW BUTTON
TAPE BUTTON
PWR/VOL
KNOB
SKIP SWITCH
PLAY BUTTON
REPEAT BUTTON
EJECT BUTTON
FF BUTTON
DOLBY BUTTON
PROG BUTTON
PLAY BUTTON PROG BUTTON
NR BUTTON
CD BUTTON/
TAPE BUTTON
SKIP BAR
REPEAT BUTTON
PWR/
VOL
KNOB
TAPE DIRECTION
INDICATOR
DOLBY
INDICATOR
TAPE
BUTTON
PROG BUTTON SKIP BAR
TAPE DIRECTION
INDICATOR
CASSETTE
SLOT
TAPE
EJECT
BUTTON
PWR/VOL KNOB
CASSETTE SLOT
TAPE DIRECTION
INDICATOR
AM/FM BUTTON
Main Menu
Table of Contents
▲
−
−
＊
＊
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Make sure the open side of the tape
is facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
The tape direction indicator will light
to show you which side of the tape is
playing. The indicates the side
youinsertedupwardinnowplaying.
If you want to play the other side,
press the PROG button. When the
player reaches the end of the tape, it
will automatically reverse direction
and play the other side.
Dolby noise reduction turns on
when you insert a tape. The
indicator will come on in the
display. If the tape was not recorded
in Dolby, turn it off by pressing the
NR ( ) button. Dolby remains
off until you press the NR ( )
button again.
To remove the tape, press the tape
EJECT button. If you want to turn
the player off, press the PWR/VOL
knob or turn off the ignition. The
tape will remain in the drive. When
youturnthesystembackon,the
tape will begin playing where it left
off.
When you
turn the system back on, the tape
will be in pause mode. Press the
PLAY button to resume play.
You
can remove the tape with ignition
switch in any position, even if the
audio system is off
To switch to the radio or CD player
while a tape is playing, press the
AM/FM or CD button. To change
back to the tape player, press the
TAPE button (CD button on EX and
EX-L).
Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
EX and EX-L models
Optional on U.S. EX-L model
Optional on EX and EX-L models
Playing a Tape
Comfort and Convenience Features
To Play a Tape To Stop Playing a Tape
140
Main Menu
Table of Contents
−
−
−
To rewind the tape,
push the REW/Preset 1 ( )
button or press and release the
side of the TUNE bar. You will
seeREWinthedisplay.Tofast
forward the tape, push the FF/
Preset 3 ( ) button or press and
releasethe sideoftheTUNE
bar. You will see FF displayed. Press
the PLAY button or /
side/button to take the system
outofrewindorfastforward.
Press / side or
push the SKIP switch down to find
the beginning of the current song or
passage. Press / side or
push the SKIP switch up to find the
beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
Press the RPT button
to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button again.
The SKIP and REPEAT
functions use silent periods on the
tape to find the end of a song or
passage. These features may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection.
Playing a Tape
Comfort and Convenience Features
Tape Search Functions
FF/REW
SKIP
REPEAT
141
NOTE:
Main Menu
Table of Contents
Thetapeplayerpicksupdirtand
oxides from the tape. This
contamination builds up over time
and cause the sound quality to
degrade. To prevent this, you should
clean the player after every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your Honda dealer has
a cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
If the tape is loose, tighten it by
turning the hub with a pencil or your
finger. If the label is peeling off,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Store tapes in their cases to protect
them from dust and moisture. Never
placetapeswheretheywillbe
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature before
inserting it into the player.
Never try to insert foreign object
into the tape player.
If you see the error message
‘‘ ’’ (LX model)/‘‘ ’’
(EX and EX-L models)/‘‘ ’’
(optional on EX-L model) on the
display, press the tape EJECT button
and remove the tape from the unit.
Make sure the tape is not damaged.
Ifthetapewillnotejectortheerror
message stays on after the tape
ejects, take the vehicle to your
Honda dealer.
If a problem develops in the connec-
tion between the tape player and the
radio,youwillsee‘‘ ’’inthe
display. Take the vehicle to your
Honda dealer.
On LX model
Playing a Tape
Comfort and Convenience Features
Caring for the player and the
tapes
142
Main Menu
Table of Contents
▲▼
Two controls for the audio system
are mounted in the steering wheel
hub. These let you control basic
functions without removing your
hand from the wheel.
The top and bottom buttons adjust
thevolumeup( )ordown( ).
Press the proper button and hold it
until the desired volume is reached,
then release it.
The AUDIO/CH button has three
functions, depending on whether you
are listening to the radio, or playing a
tape or CD.
If you are listening to the radio, use
the AUDIO/CH button to change
stations. Each time you press this
button, the system advances to the
next preset station on the band you
are listening to. You will see the
number of the selected preset button
in the display. To change bands,
press the AM/FM button on the
audio system’s front panel.
Ifyouareplayingatape,usethe
AUDIO/CH button to advance to the
next selection. You will see ‘‘FF’’
blinking in the display when you
press the AUDIO/CH button. The
system fast forwards until it senses a
silent period, then resumes playing.
IfyouareplayingaCD,thesystem
skips to the beginning of the next
track each time you push the
AUDIO/CH button. You will see the
CD and track number in the display.
On EX and EX-L models
Steering Wheel Controls
Comfort and Convenience Features
143
AUDIO/CH
BUTTON
Main Menu
Table of Contents
Your vehicle’s audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code with
the preset buttons. Because there
are hundreds of number
combinations possible from the five
digits, making the system work
without knowing the exact code is
nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a safe place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual.
Ifyoushouldhappentolosethecard,
you must obtain the code number
from a Honda dealer. To do this, you
will need the system’s serial number.
If your vehicle’s battery is discon-
nected or goes dead, or the radio
fuse is removed, the audio system
will disable itself. If this happens,
youwillsee‘‘ ’’inthe
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons to enter the five-digit code.
The code is located on the radio code
card included in your Owner’s
Manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
five-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for 1
hour before trying again.
You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
On EX and EX-L models
Radio Theft Protection
Comfort and Convenience Features
144
Main Menu
Table of Contents
CONTINUED
Rear Entertainment System
Comfort and Convenience Features
145
REAR PWR
BUTTON
RR CTRL
KNOB
RR LED
RANDOM
BUTTON
PLAY
BUTTON
PAUSE
BUTTON
SEEK/SKIP
BAR
REAR SPEAKERS OFF
ICON
REAR CONTROL OFF ICON
REAR SYSTEM
DISPLAY
REPEAT
BUTTON
Main Menu
Table of Contents
Your Honda is equipped with a Rear
Entertainment System that includes
a DVD player for the enjoyment of
the rear passengers.
With this system, the rear
passengers can enjoy a different
entertainment source (radio, tape
player, CD player, or DVD player)
than the front seat occupants. The
audio is broadcast through the
supplied wireless headphones.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position
to operate the Rear Entertainment
System.
Press the REAR PWR button. To
turn on the rear controls (ceiling
panel or remote), press the RR
CTRL knob. The system’s icon
shows in the right side display. Your
passengers can then operate the rear
system with the control panel in the
ceiling or with the remote control.
Press the RR CTRL knob again to
turn the rear controls off. You will
seetheRearControlsOfficoninthe
right display.
The rear system selects the source it
waslastsetto.Ifthatsourcehas
been removed (the DVD has been
ejected from the player, for example),
youwillsee‘‘____’’inthedisplay.
You must select another source.
Whenyouturnonthesystem,the
rear speakers are automatically
turned off. You will see the Rear
Speakers Off icon in the display. The
sound for the rear system is sent to
the wireless headphones.
Ifyouwanttoturntherearspeakers
on again, press and hold the REAR
PWR button until the Rear Speakers
Off icon goes off.
The rear speakers are
connected to the front system, so
they will always play the source that
the front system is set to.
Optional on EX-L model
Rear Entertainment System
Comfort and Convenience Features
To Turn On the System Rear Speakers
146
NOTE:
Main Menu
Table of Contents
＊
＊
To operate the rear entertainment
system from the front panel, turn the
RR CTRL knob clockwise. The
amber RR LED comes on to show
that the control panel is enabled.
To play the radio or tape, the buttons
for the front entertainment system
have the same functions.
IfaCDisloadedinthemainCD
player or CD changer, select CD/
CHG.IftheCDisloadedinthe
lower player, select DVD/AUX.
The DVD player in your Rear
Entertainment System can play DVD
video discs and CDs. It features
Dolby noise reduction.
Open the overhead screen by
pushingonthebutton.Thescreen
will swing down part-way. Pivot the
screen the rest of the way. If you
pivot the screen too far forward, past
the detent, the display will turn off.
Pivot the screen back to the detent
to turn the display back on. To close
the screen, pivot it up until it latches.
Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
CONTINUED
Rear Entertainment System
Comfort and Convenience Features
To Select Rear Entertainment
from the Front Control Panel
Operating the DVD Player from
the Front Control Panel
147
REAR CONTROL
PANEL
BUTTON
OVERHEAD
SCREEN
Main Menu
Table of Contents
−
−
−
＋
−
＋
−
−
Turn the RR CTRL knob clockwise.
The amber RR LED will come on to
show that the control panel is now
enabled.
Insert a DVD into the DVD/CD
player below the front panel.
Push the DVD in halfway, the drive
will pull it in the rest of the way.
Press the PLAY button if
the DVD does not start playing
automatically.
Press the PAUSE button
to pause the DVD. Press the button
again or press PLAY to resume.
Pause works only with the DVD
player.
Press and hold the
side to move forward; you will see
‘‘CUE’’ in the display. Press and hold
the sidetomovebackward;you
will see ‘‘REV’’ in the display.
Release the bar when the system
reaches the point you want.
Each time you press and release the
side of the SEEK/SKIP bar, the
system skips forward to the
beginning of the next track or
chapter. Press and release the
side of the bar to skip backward to
the beginning of the current track or
chapter. Press it again to skip to the
beginning of the previous track or
chapter.
Press the eject button to
remove the DVD from the drive.
To return front panel control to the
front audio system, turn the RR
CTRL knob counterclockwise.
PLAY
PAUSE
SEEK/SKIP
EJECT
To Return to Front Audio
Controls
Comfort and Convenience Features
Rear Entertainment System
148
DVD SLOT
DVD EJECT
BUTTON
Main Menu
Table of Contents

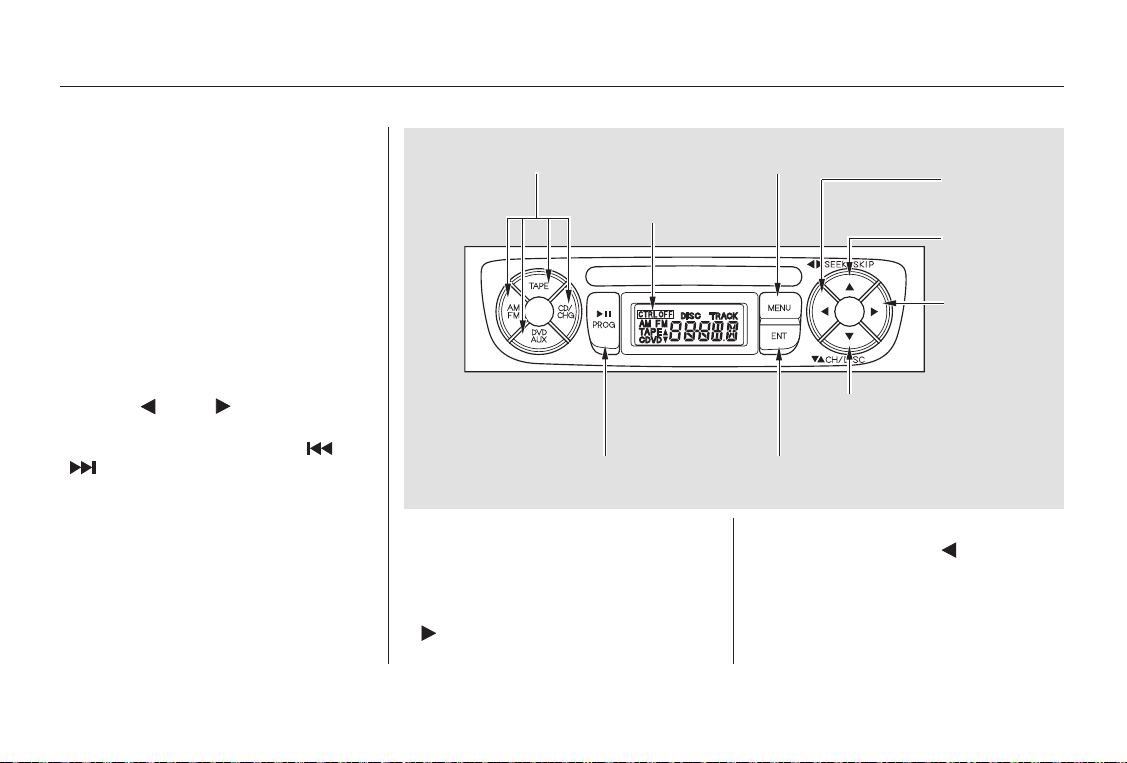

Use these buttons to select the
entertainment source (radio, tape
player, CD player/CD changer, or
DVD player/Auxiliary device). The
selected source will be shown in the
display. Make sure the rear control
operation has not been disabled with
theRRCTRLknobonthefront
panel.
Use the and buttons to
select from the stations on the radio
preset buttons. Pressing the or
button will cause the system to
search up or down the band for a
station with a strong signal. You will
seeSEEKinthedisplay.
On the rear control panel, use the
PLAY/PAUSE/PROG button to
reverse the tape direction. Press the
button to skip forward to
beginning of the next song or
passage. You will see FF flashing in
the display. Press the button to
skip backward to the beginning of
the current song or passage. You will
seeREVflashinginthedisplay.
Rear Entertainment System
Comfort and Convenience Features
Using the Rear Control Panel
To Play the Radio from the Rear
Control Panel
To Play a Tape from the Rear
Control Panel
149
SOURCE SELECTION
BUTTONS
REAR CONTROLS
OFF INDICATOR
MENU
BUTTON
SEEK/SKIP
BUTTON
CH/DISK
BUTTON
SEEK/SKIP
BUTTON
CH/DISK
BUTTON
ENT BUTTONPLAY/PAUSE/PROG
BUTTON
Main Menu
Table of Contents
−
−
−
−
−
▼
▲
▼
▲
IfaCDisloadedinthemainCD
player or CD changer, select it by
pressing the CD/CHG button. If the
CD is loaded in the DVD player,
press the DVD/AUX button.
Pressthe buttontoskiptothe
beginning of the next track. Press
the button to return to the
beginning of the current track. If the
changer is selected, use the and
buttons to change discs.
Press the RPT button
to continuously replay the current
track. You will see RPT in the display.
Press the button again to turn it off.
To play the tracks within a
CD in random order, press the RDM
button. You will see RDM in the
display. Press the button again to
cancel RDM.
The video screen is for use by rear
seat passengers only. The driver and
front seat passenger should not try
to view the screen while driving.
Open the overhead screen by
pushing the open button. The screen
will swing down partway. Pivot the
screen the rest of the way. If you
pivot the screen past the detent, the
display will turn off. To close the
screen, pivot it up until it latches.
Press
this button when you want to pause
the DVD. Press this button again to
go back to PLAY.
Press the
button to skip to the beginning
of the next chapter. Press the
buttontoskipbacktothe
beginning of the current chapter.
To select the menu
on the DVD, press the MENU
button. Use the , , ,
and buttons to move to the
desired menu selection, then press
the ENT button to enter your
selection.
Rear Entertainment System
Comfort and Convenience Features
To Play a CD from the Rear
Control Panel
REPEAT
RDM
To Play a DVD from the Rear
Control Panel
PLAY/PAUSE/PROG
SEEK/SKIP
MENU/ENT
150
REAR CONTROL
PANEL
BUTTON
OVERHEAD
SCREEN
Main Menu
Table of Contents

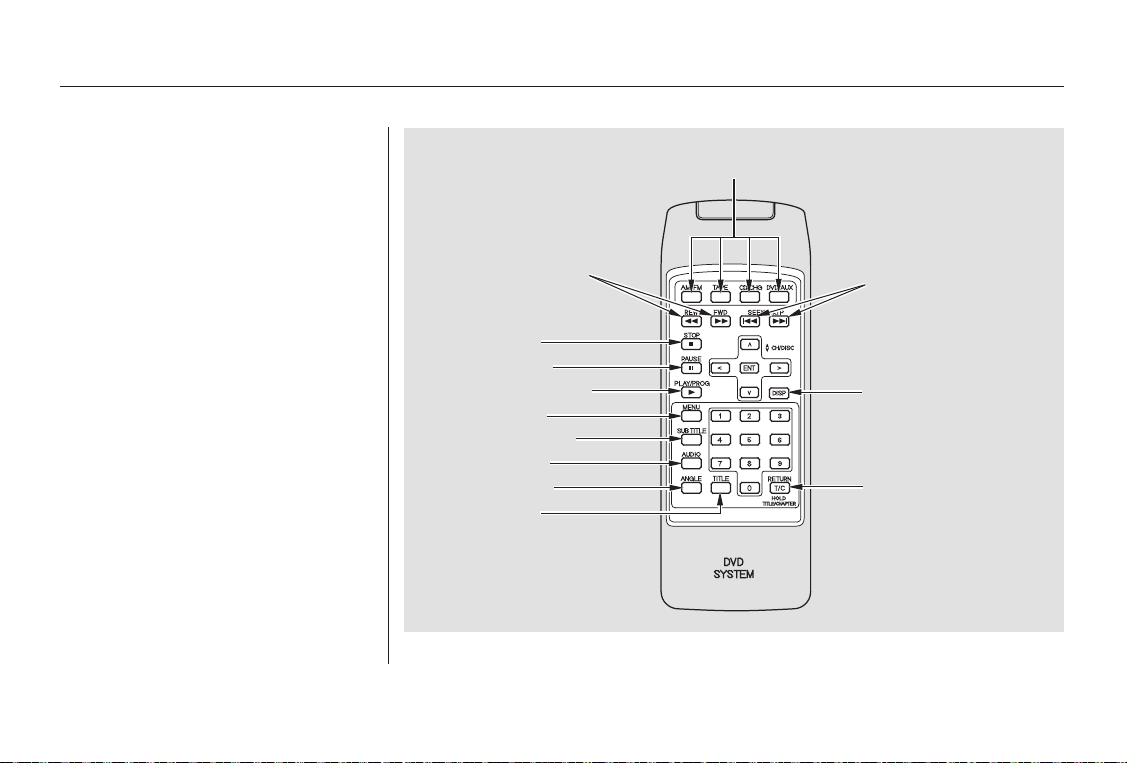

You can use the remote control to
select the entertainment source
(radio, tape player, CD player, or
DVD player/Auxiliary device). The
selected source will be shown in the
display.
Make sure the rear control operation
has not been disabled with the RR
CTRL knob on the front panel.
ThePLAY/PROG,PAUSE,SKIP,
and FWD/REW buttons work the
same function as the front and rear
control panel buttons.
ThePLAY/PROG,PAUSE,SKIP,
and FWD/REW buttons work the
same as the front and rear control
panel buttons.
When using the remote control,
point it at the rear control panel in
the ceiling.
CONTINUED
Rear Entertainment System
Comfort and Convenience Features
Using the Remote Control
To Play a DVD
To Play a Tape, CD, or Radio
151
SOURCE SELECTION
BUTTONS
SEEK/SKIP BUTTONS
DISP BUTTON
RETURN (T/C) BUTTON
REW/FWD BUTTONS
STOP BUTTON
PAUSE BUTTON
PLAY/PROG BUTTON
MENU BUTTON
SUBTITLE BUTTON
AUDIO BUTTON
ANGLE BUTTON
TITLE BUTTON
Main Menu
Table of Contents
−
−
−
−
−
−
▼
▲
Pressthisbutton
to stop playing a DVD.
Some DVDs have menus that allow
you to select a dubbed language,
subtitles, a chapter list, previews, etc.
Themenucontentswillvaryfrom
DVD to DVD.
Usethe,,,and
buttons to select the desired
menu option. Then press ENT to
enter your selection. Use the
and buttons to change
pages. You can also use the
numbered buttons to enter the two-
digit number of a menu option. You
do not have to press ENT. Press the
button again to close the window.
Many DVDs are recorded with
subtitles or dubbed in multiple
languages. To select subtitles, press
the SUBTITLE button. To select a
different language than the one
being heard, press the AUDIO
button. Continue to press and
release the SUBTITLE or AUDIO
button to scan through all available
languages.
To change the
color, contrast, aspect ratio, and
brightness of the video screen, press
the DISP button. The current setting
of one will be displayed on the
screen each time you press the
button. Use the and
buttons to change the setting
as desired. The display will disappear
from the screen several seconds
after you stop adjusting the setting.
On some DVDs,
the scenes are recorded by more
than one camera, giving different
viewpoints of the same scene. By
pressing the Angle button, you can
select a different viewpoint.
In the
MENU selection mode, pressing the
RETURN button for less than two
seconds changes the MENU display
to the previous page.
Pressing the RETURN button for
more than two seconds while a DVD
is playing brings the system into the
TITLE enter mode. When you enter
your selection, the DVD player will
start playing from the selected title.
Rear Entertainment System
Comfort and Convenience Features
STOP Button
MENU and TITLE Buttons
SUBTITLES and AUDIO Buttons
DISP Button
ANGLE Button
RETURN (T/C) Button
152
Main Menu
Table of Contents

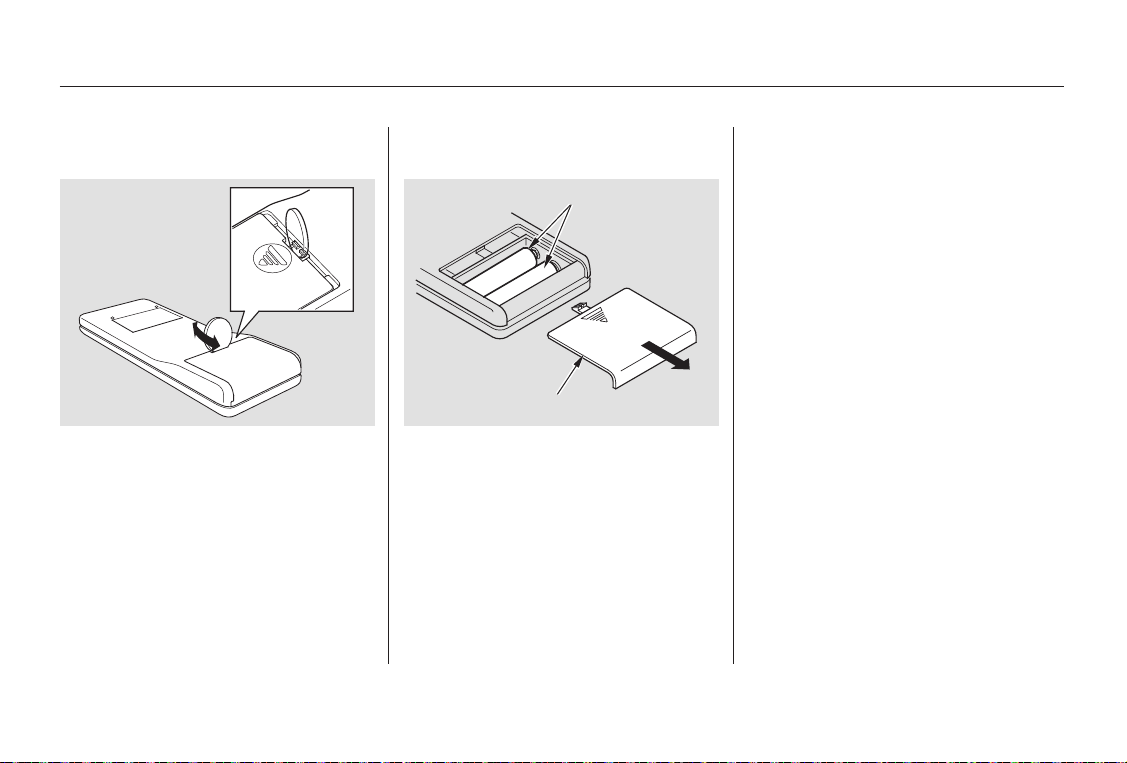

The remote control uses two
AA batteries. To replace the
batteries, put a coin in the notch on
the back. Turn it one-quarter, then
slide the cover off. Remove the old
batteries.Makesurethepolarityof
the new batteries is correct when
you install them. Slide the cover on
until it locks.
As required by the FCC: This device
complies with Part 15 of the FCC rules.
Operation is subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that
may cause undesired operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210. Operation is
subject to the following two conditions:
(1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Rear Entertainment System
Comfort and Convenience Features
Replaceing the Remote Control
Batteries
153
BATTERIES
COVER
Main Menu
Table of Contents

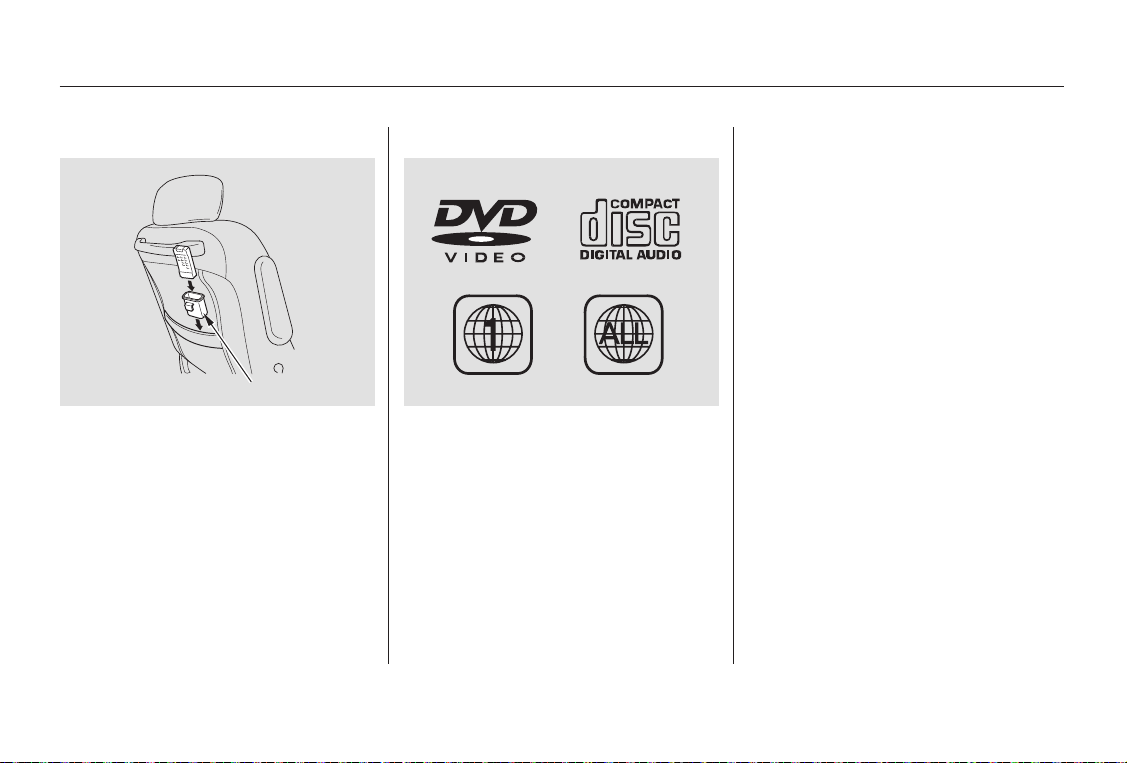

When you are not using the remote
control, store it in holder in the front
seat-back pocket.
There are various types of DVDs
available. Some of them are not
compatible with your system.
The DVD player in your Rear
Entertainment System can play
DVDs and CDs bearing the above
marks on their packages or jackets.
Those packages or jackets should
also bear the designation of ‘‘1’’ or
‘‘ALL’’. DVD-ROMs cannot be played
in this system.
The tips on how to handle and
protect DVDs are basically the same
as those for compact discs. Refer to
‘‘Protecting Your CDs’’ on page .135
Rear Entertainment System
Comfort and Convenience Features
Storing the Remote Control Playable DVDs
Protecting DVDs
154
HOLDER
Main Menu
Table of Contents
If you see an error message in the
display while operating the DVD
player,findthecauseinthechartto
the right. If you cannot clear the
message, take your vehicle to a
Honda dealer.
Message Cause Solution
FOCUS Error
Mechanical Error, or a
DVD has been loaded in
the CD player
High Temperature
Low Vehicle Battery
Voltage
Press the EJECT button and pull out the DVD.
Check if it is inserted correctly in the DVD
Player.MakesuretheDVDisnotscratchedor
damaged.
Press the EJECT button and pull out the DVD.
Check it for damage or deformation.
If the DVD cannot be pulled out, or the error
message does not disappear after the DVD is
ejected, see a Honda dealer.
Do not try to force the DVD out of the player.
Will disappear when the temperature returns to
normal.
Run the engine to recharge the battery.
Rear Entertainment System
Comfort and Convenience Features
DVD Player Error Messages
155
Main Menu
Table of Contents
Some state and local government
agencies prohibit the use of
headphones by the driver of a motor
vehicle. Always obey applicable laws
and regulations.
The audio for the rear entertainment
system is sent to the wireless
headphones that come with the
system. To turn on the headphones,
presstheredbuttonontheearpiece.
Adjust the volume level with the dial
at the bottom of the same earpiece.
To adjust the comfort of the
headphones, slide the earpieces up
or down the headband.
For greater battery life, turn off the
headphones when they are not in use
by pressing the red button again.
They will turn off automatically if
they do not receive an audio signal
from the system for several minutes.
When not in use, store the
headphones in the pocket on the
back of either front seat.
Each headphone uses two AAA
batteries. The batteries are under
the domed covers on the back of
each earpiece. To remove a cover,
put a coin in the notch at the bottom
of the earpiece, and turn it one-
quarter to pop up the cover. Slide the
upper side of the cover backward
(away from the headband), then lift
it up.
Rear Entertainment System
Comfort and Convenience Features
Wireless Headphones
Replacing Batteries
156
ON/OFF BUTTON
VOLUME
DIAL
Main Menu
Table of Contents
Remove the batteries and note their
polarity. Install the new batteries in
the earpiece with the same polarity.
Set the cover in place, then slide it up
until it locks.
Auxiliary input jacks and headphone
connectors for the rear
entertainment system are under the
third seat armrest on the driver’s
side. To access these connectors,
open the cover by pulling up on the
lever.
The system will accept auxiliary
inputs from standard video games
and video equipment.
Some video game power supplies
may cause poor picture quality.
V=Videojack
L = Left audio jack
R = Right audio jack
CONTINUED
Rear Entertainment System
Comfort and Convenience Features
Auxiliary Input Jacks
157
COVER
BATTERY
ARMREST
LEVER
AUXILIARY INPUT JACKS
Main Menu
Table of Contents
There are three headphone
connectors for the third seat
passengers. Each connector has its
own volume control.
Rear Entertainment System
Comfort and Convenience Features
158
VOLUME DIALS
HEADPHONE CONNECTORS
Main Menu
Table of Contents
The security system helps to protect
your vehicle and valuables from theft.
The horn sounds and a combination
of headlights, parking lights, side
marker lights and taillights flashes if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues for two minutes,
then the alarm stops. To reset an
alarming system before the two
minutes have elapsed, unlock either
front door with the key or the
remote transmitter.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and the tailgate. For the
system to activate, you must lock the
doors from the outside with the key,
the lock tab, the door lock switch, or
theremotetransmitter.Thesecurity
system indicator next to the low oil
pressure indicator starts blinking
immediately to show you the system
is setting itself.
Once the security system is set,
opening any door without using the
key or the remote transmitter, or the
hood, will cause it to alarm. It also
alarms if the radio is removed from
the dashboard or the wiring is cut.
With the system set, you can still
open the tailgate with the master key
or the remote transmitter without
triggering the alarm. The alarm will
sound if the tailgate lock is forced, or
smashed.
The security system will not set if
the hood, tailgate, or any door is not
fully closed. If the system will not set,
check the Door Lamp Monitor on
the instrument panel (see page ),
to see if the doors and the tailgate
are fully closed. Since it is not part of
the monitor display, manually check
the hood.
Do not attempt to alter this system
or add other devices to it.
63
On EX and EX-L models
Comfort and Convenience Features
Security System
159
SECURITY SYSTEM
INDICATOR
Main Menu
Table of Contents
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your foot on the
accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
Push in the Cruise Control Master
Switch. The indicator in the switch
will come on.
Accelerate to the desired cruising
speedabove25mph(40km/h).
Press and release the SET/decel
buttononthesteeringwheel.The
CRUISE CONTROL indicator on
the instrument panel comes on to
show the system is now activated.
1.
2.
3.
Using the Cruise Control
Cruise Control
Comfort and Convenience Features
160
CRUISE CONTROL MASTER SWITCH
RESUME/accel
CANCEL
SET/decel
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
Main Menu
Table of Contents
Thecruisecontrolmaynotholdthe
set speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slow down. This will cancel the
cruise control. To resume the set
speed, press the RESUME/accel
button. The CRUISE CONTROL
indicator on the instrument panel will
come back on.
When climbing a steep hill, the
automatic transmission may
downshift to hold the set speed.
You can increase the set cruising
speed in any of these ways:
Push on the accelerator pedal.
Accelerate to the desired cruising
speed and press the SET/decel
button.
To increase your speed in very
small amounts, tap the RESUME/
accel button. Each time you do
this, the vehicle will speed up
about 1 mph (1.6 km/h).
You can decrease the set cruising
speed in any of these ways:
Press and hold the SET/decel
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/decel
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
Tap the brake pedal lightly with
your foot. The CRUISE
CONTROL indicator on the
instrument panel will go out.
When the vehicle slows to the
desired speed, press the SET/
decel button.
Press and hold the RESUME/
accel button. When you reach the
desired cruising speed, release the
button.
CONTINUED
Cruise Control
Comfort and Convenience Features
Changing the Set Speed
161
Main Menu
Table of Contents
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The vehicle
will return to the set cruising speed.
Youcancancelthecruisecontrolin
any of these ways:
Tap the brake pedal.
Push the CANCEL button on the
steering wheel.
Press the Cruise Control Master
Switch.
When you push the CANCEL button,
or tap the brake pedal, the system
will remember the previously set
cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h) and then press and
release the RESUME/accel button.
The CRUISE CONTROL indicator
comes on. The vehicle will accelerate
to the same cruising speed as before.
Pressing the Cruise Control Master
Switch turns the system completely
off and erases the previous cruising
speed.
Resting your foot on the brake pedal
will cause the cruise control to
cancel.
Cruise Control
Comfort and Convenience Features
Cancelling the Cruise Control Resuming the Set Speed
162
CANCEL
BUTTON
Main Menu
Table of Contents
−The HomeLink Universal
Transceiver built into your vehicle
canbeprogrammedtooperateupto
three remote controlled devices
around your home, such as garage
doors, lighting, or home security
systems.
If you are training HomeLink to
operate a garage door or gate, you
should unplug the motor for that
device during training. Repeatedly
pressing the remote control button
could burn out the motor.
The HomeLink transceiver stores
the code in a permanent memory.
There should be no need to retrain
the transmitter if your vehicle’s
battery goes dead or is disconnected.
If your garage door opener was
manufactured before April 1982, you
may not be able to program
HomeLink to operate it. They do not
have the safety feature that causes
the motor to stop and reverse if an
obstacle is detected during closing,
increasing the risk of injury.
HomeLink
is a registered
trademark of Johnson Controls .
If you just
received your vehicle and have not
trained any of the buttons in
HomeLink before, you should erase
any previously learned codes before
training the first button.
Todothis,pressandholdthetwo
outside buttons on the HomeLink
transceiver for about 20 seconds, or
until the red light flashes. Release
the buttons, then proceed to Step 1.
If you are training the second or
third buttons, go directly to Step 1.
Always refer to the opening
instructions and safety information
that came with your garage door
opener or other equipment you
intend to operate with the HomeLink
Universal Transceiver. If you do not
have this information, you should
contact the manufacturer of the
equipment.
CONTINUED
On EX and EX-L models
HomeLink Universal Transceiver
Comfort and Convenience Features
General Information
Training HomeLink
Important Safety Precautions
Before you begin
163
TM
Main Menu
Table of Contents
Unplug the garage door opener
motor from the house current.
Holdtheendofthegaragedoor
opener remote control 2 to 5
inches from HomeLink. Make
sure you are not blocking your
view of the red light in HomeLink.
Press and hold the remote control
button and one of the HomeLink
buttons at the same time.
The remote control
you are training from may stop trans-
mitting after 2 seconds. This is not
enough for HomeLink to learn the
code. Release and press the button
on the remote control every 2
seconds until HomeLink has learned
the code.
The red light in HomeLink should
begin flashing. It will flash slowly
at first, then rapidly.
When the red light flashes rapidly,
release both buttons. HomeLink
should have learned the code from
the remote control.
Plug in the garage door opener
motor, then test the HomeLink
transceiver button by pushing it. If
the button does not work, repeat
the procedure to train it again. If it
still does not work, you may have a
variable or rolling code garage
door opener. See if you do by
pressing and holding the
HomeLink transceiver button you
just trained. If the red light blinks
for two seconds then stays on, you
have a rolling code garage door
opener. Go to ‘‘Training with a
Rolling Code System’’ (see page
).
Repeat these steps to train the
other two HomeLink buttons to
operate any other remotely
controlled devices around your
home (lighting, automatic gate,
security system, etc.).
2.
3.
1. 4.
5. 7.
6.
165
Canadian Owners:
HomeLink Universal Transceiver
Comfort and Convenience Features
164
Main Menu
Table of Contents
−
−
For security purposes, newer garage
door opening systems use a ‘‘rolling’’
or variable code. Information from
the remote control and the garage
door opener are needed before
HomeLink can operate the garage
door opener.
The ‘‘Training HomeLink’’
procedure trains HomeLink to the
proper garage door opener code.
The following procedure
synchronizes HomeLink to the
garage door opener so they send and
receive the correct codes.
Make sure you have properly
completed the ‘‘Training
HomeLink’’ procedure.
Find the ‘‘Training’’ button on your
garage door opener unit. The
location will vary, depending on
the manufacturer.
Press the Training button on the
garage door opener unit until the
light next to the button comes on,
then release it. The light may blink,
or come on and stay on. You then
have approximately 30 seconds to
complete the following steps.
Press and hold the button on
HomeLink for 3 4 seconds.
Press and hold the HomeLink
button again for 3 4 seconds.
This should turn off the training
light on the garage door opener
unit. (Some systems may require
youtopressthebuttonuptothree
times.)
Press the HomeLink button again.
It should operate the garage door.
6.
2.
4.
5.
1.
3.
Training With a Rolling Code
System
HomeLink Universal Transceiver
Comfort and Convenience Features
165
TRAINING BUTTON
Main Menu
Table of Contents
Toerasethecodesstoredinallthree
buttons, press and hold the two
outside buttons until the red light
begins to flash, then release the
buttons.
Youshoulderaseallthreecodes
before selling the vehicle.
Totrainanalreadyprogrammed
transceiver button with a new device,
you do not have to erase all the
memory. Train the selected button
over the existing memory code
following the steps under
.
If you have problems with training
the HomeLink Universal Transceiver,
or would like information on home
products that can be operated by the
transmitter, call (800) 355-3515. On
the Internet, go to www.homelink.
com.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
HomeLink Universal Transceiver
Comfort and Convenience Features
Erasing Codes
Retraining a Button
Training
HomeLink
Customer Assistance
166
Main Menu
Table of Contents
Before you begin driving your Honda,
youshouldknowwhatgasolineto
use, and how to check the levels of
important fluids. You also need to
know how to properly store luggage
or packages. The information in this
section will help you. If you plan to
add any accessories to your vehicle,
please read the information in this
section first.
..............................Break-in period . 168
...............................Gasoline Type . 168
.........Service Station Procedures . 169
...............................Fuel Economy . 173
....................................Accessories . 174
.................................Modifications . 175
.............................Carrying Cargo . 176
Before Driving
Before Driving
167
Main Menu
Help assure your vehicle’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
Avoid full throttle starts and rapid
acceleration.
Avoidhardbrakingforthefirst
200 miles (300 km).
Do not change the oil until the
scheduled maintenance time.
We also recommend that you should
not tow a trailer during the first 500
miles (800 km).
Your Honda is designed to operate
on unleaded gasoline with a pump
octane number of 86 or higher. Use
of a lower octane gasoline can cause
a persistent, heavy, metallic rapping
noise in the engine that can lead to
mechanical failure.
We recommend gasolines containing
detergent additives that help prevent
fuel system and engine deposits.
Using gasoline containing lead will
damage your vehicle’s emissions
controls. This contributes to air
pollution.
Use of gasoline with these additives
may adversely affect performance,
and cause the Malfunction Indicator
Lamp on your instrument panel to
come on. If this happens, contact
your authorized Honda dealer for
service.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 percent ethanol
by volume and up to 15 percent
MTBE by volume. Do not use
gasoline containing methanol.
In addition, in order to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
fuel additives such as MMT.
You should also follow these same
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
For further important fuel-related
information, please refer to your
.
Break-in Period, Gasoline Type
Before Driving
Break-in Period Gasoline Type
Quick Start Guide
168
Main Menu
Table of Contents
Open the fuel fill door by pulling
onthehandletotheleftofthe
driver’s seat.
Before refueling, make sure the rear
sliding door on the driver’s side is
closed.
Remove the fuel fill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the cap in the holder on the
fuel fill door.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
even
though the tank is not full, there may
be a problem with your vehicle’s fuel
vapor recovery system. The system
helps keep fuel vapors from going
into the atmosphere. Consult your
dealer.
Park with the driver’s side closest
to the service station pump.
1.
2.
3.
4.
If the fuel nozzle keeps clicking off
CONTINUED
Refueling
Before Driving
Service Station Procedures
169
Pull
FUEL FILL CAP
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine and keep
heat, sparks, and flames
away.
Handle fuel only outdoors.
Wipe up spills immediately.
Main Menu
Table of Contents
Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malfunction Indicator
Lampmaycomeon(seepage
).
Push the fuel fill door closed until
it latches.
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
Put your fingers under the front
edge of the hood. The hood latch
handle is above the ‘‘H’’ logo. Pull
up on this handle until it releases
the hood. Lift the hood.
If the hood latch handle moves stiffly,
or if you can open the hood without
lifting the handle, the mechanism
should be cleaned and lubricated
(see page ).
1.
5.
6.
253
2.
220
Opening the Hood
Before Driving
Service Station Procedures
170
HOOD RELEASE HANDLE
LATCH
Main Menu
Table of Contents
Pull the support rod out of its clip
and insert the end into the hole on
the driver’s side of the hood.
Lift it up slightly to remove the
support rod from the hole. Put the
support rod back into its holding clip.
Lower the hood to about a foot (30
cm) above the fender, then let it
drop. Make sure it is securely
latched.
Wait a few minutes after turning the
engine off before you check the oil.
Remove the dipstick (orange
handle).
Wipe off the dipstick with a clean
cloth or paper towel.
Insert it all the way back in its hole.
Remove the dipstick again and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page .
1.
3.
2.
3.
4.
211
Before Driving
To Close the Hood:
Oil Check
Adding Oil
Service Station Procedures
171
DIPSTICK
SUPPORT ROD
UPPER MARK
LOWER MARK
Main Menu
Table of Contents
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
information on adding the proper
coolant.
Refer to
on page for information
on checking other items in your
Honda.
214
204
Adding
Engine Coolant
Engine Coolant Check Owner’s Maintenance
Checks
Before Driving
Service Station Procedures
172
MAX RESERVE TANK
MIN
Main Menu
Table of Contents
Always maintain your vehicle
according to the maintenance
schedule. See
(see page
).
an underinflated tire
causes more ‘‘rolling resistance,’’
which uses fuel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your fuel
mileage and reduces the chance of
corrosion.
Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more fuel.
Always drive in the highest gear
possible.
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel.Usethecruisecontrolwhen
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
204
For example,
Fuel Economy
Before Driving
Improving Fuel Economy
Owner’s
Maintenance Checks
173
Main Menu
Table of Contents
Modifying your vehicle, or installing
some non-Honda accessories, can
make your vehicle unsafe. Before
you make any modifications or add
anyaccessories,besuretoreadthe
following information.
Your dealer has Honda accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved for your
vehicle, and are covered by warranty.
Although aftermarket accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability. (See
‘‘Modifications’’ on page for
additional information.)
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as the SRS and anti-lock brake
system.
Before installing any accessory:
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interfere with
proper operation.
Have the installer contact your
Honda dealer for assistance before
installing any electronic accessory.
257
175
Accessories
Accessories
Before Driving
174
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
Main Menu
Table of Contents
Removing parts from your vehicle,
or replacing components with non-
Honda (aftermarket) components
could seriously affect your vehicle’s
handling, stability, and reliability.
Some examples are:
Lowering the vehicle with an
aftermarket suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
Raising your vehicle with an
aftermarket suspension kit can
affect the handling and stability.
Aftermarket wheels, because they
are a universal design, can cause
excessive stress on suspension
components.
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Do not modify your steering wheel
or any other part of your
Supplemental Restraint System.
Modifications could make the
system ineffective. See the safety
precautions on page .
If you plan to modify your vehicle,
consult with your Honda dealer.
Any object
attached to or placed on the covers
marked ‘‘SRS AIRBAG’’ in the
center of the steering wheel and
on top of the dashboard, could
interfere with the proper operation
of the airbags. Or, if the airbags
inflate, the objects could be
propelled inside the vehicle and
hurt someone.
If a side airbag
inflates,acupholderorotherhard
object attached on or near the
door could be propelled inside the
vehicle and hurt someone.
This could prevent the
airbag from inflating properly.
34
Modifications
Before Driving
Modifying Your Vehicle Additional Safety Precautions
Do not attach or place objects on
the front airbag covers.
Do not attach hard objects on or
near a front door.
Do not place any objects over or
replacetheoutsideedgeofafront
seat-back.
175
Main Menu
Table of Contents
＊
＊
＊
Your vehicle has several convenient
storage areas:
Glove box
Front door and seat-back pockets
Rear cargo area, including the
second row seats when removed,
andthethirdrowseatwhenfolded
flat
Center pocket
Rear compartment
Storage box (EX and EX-L
models)
Roof-rack (if installed)
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
Carrying Cargo
Before Driving
176
REAR COMPARTMENT FRONT DOOR POCKET
CENTER POCKET
GLOVE BOX
STORAGE BOX
SEAT-BACK POCKET
EX and EX-L models only
CARGO AREA
SEAT-BACK POCKETS
Main Menu
Table of Contents
×
−
The maximum load for your vehicle
is 1,158 lbs (525 kg). This figure
includes the total weight of all
occupants, cargo, accessories, and
the tongue weight if you are towing a
trailer.
To determine the correct cargo and
luggage load limit:
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 1,158
lbs (525 kg)’’ on your vehicle’s
placard (on the driver’s doorjamb).
Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
(Seven is the seating capacity of
your vehicle.)
Subtract the combined weight of
the driver and passengers from
1,158 lbs (525 kg).
The resulting figure equals the
available amount of cargo and
luggage load capacity.
For example, if there will be five 150
lbs (70 kg) occupants in your vehicle,
the amount of available cargo and
luggage load capacity is 408 lbs (175
kg).
5 150 lbs (70 kg) = 750 lbs (350
kg)
1,158 lbs (525 kg) 750 lbs (350 kg)
= 408 lbs (175 kg)
Determine the combined weight
of accessories, luggage, and cargo
beingloadedinthevehicle.The
weight may not safely exceed the
available cargo and luggage load
capacity calculated in step 4 [408
lbs(175kg)inthisexample].
If your vehicle will be towing a
trailer, the load from your trailer
will be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity of
your vehicle.
The total weight must not exceed
theGrossVehicleWeightRating
(GVWR). The load for the front and
rear axles also must not exceed the
Gross Axle Weight Rating (GAWR)
(see page ).
1.
2.
3.
4.
5.
6.
195
Carrying Cargo
Before Driving
177
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Main Menu
Table of Contents
Store or secure all items that could
be thrown around and hurt
someone during a crash.
Be sure items placed on the floor
behind the front seats cannot roll
under the seats and interfere with
the pedals or seat operation.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.
Distribute cargo evenly on the
floor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
If you carry large items that
prevent you from closing the
tailgate, exhaust gas can enter the
passenger area. To avoid the
possibility of
, follow the instructions
on page .
If you carry any items on a roof
top carrier, be sure the total
weight of the rack and the items
does not exceed 150 lb (68 kg).
If you use an accessory roof top
carrier, the roof top carrier weight
limit may be lower. Refer to the
information that came with your roof
top carrier.
54
Carrying Items in the Passenger
Compartment
carbon monoxide
poisoning
Carrying Cargo in the Cargo Area
or on a Roof Top Carrier
Carrying Cargo
Before Driving
178
Main Menu
Table of Contents
The side cargo net can be installed
on the driver’s side panel in the
cargo area to secure small items. To
install the side cargo net, hook each
loop on the four corners of the net to
the tabs on the left side panel. When
youfolddownthethirdseat,store
the head restraints in the side cargo
net.
You can use the cargo net to secure
items in the cargo area, and store
small items between the two halves
of the net. To install the cargo net,
hook the loops on the four corners of
the net to the tabs at both sides of
the tailgate sill.
There are cargo hooks for plastic
grocery bags on the back of the third
row seat. They are designed to hold
light items. Heavy objects may
damage the hooks.
On EX and EX-L models
Carrying Cargo
Side Cargo Net Cargo Net Cargo Hooks
Before Driving
179
CARGO HOOKS
Main Menu
Table of Contents
180
Main Menu
This section gives you tips on
starting the engine under various
conditions, and how to operate the
automatic transmission. It also
includes important information on
parking your vehicle, the braking
system, the Traction Control System,
and facts you need if you are
planning to tow a trailer.
........................Preparing to Drive . 182
.......................Starting the Engine . 183
..............Automatic Transmission . 184
..................................Parking Tips . 188
.............................Braking System . 189
...............Anti-lock Brakes (ABS) . 190
..Traction Control System (TCS) . 192
...........................Towing a Trailer . 194
Driving
Driving
181
Main Menu
Youshoulddothefollowingchecks
and adjustments before you drive
your vehicle.
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Check that the hood is fully closed.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Check that any items you may be
carrying are stored properly or
fastened down securely.
Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check the steering wheel
adjustment (see page ).
Make sure the doors and the
tailgate are securely closed and
locked.
Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page ).
When you start the engine, check
the gauges and indicators in the
instrument panel (see page ).
3.
2.
1.
4.
5.
6.
7.
8.
9.
10.
88
102
74
14
60
Preparing to Drive
Driving
182
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
Make sure the shift lever is in
Park. Press on the brake pedal.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in START for more than
15 seconds at a time. If the engine
does not start right away, pause
for at least 10 seconds before
trying again.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
If the engine fails to start, press
the accelerator pedal all the way
downandholdittherewhile
starting to clear flooding. If the
engine still does not start, return
to step 5.
5.
6.1.
2.
3.
4.
Starting the Engine
Driving
183
NOTICE: The engine is harder to start
in cold weather. Also, the thinner air
f ound at altitudes above 8,000 f eet
(2,400 meters) adds to this problem.
Main Menu
Table of Contents
These indicators on the instrument
panel show which position the shift
lever is in.
The ‘‘D’’ indicator comes on for a
few seconds when you turn the
ignition switch to ON (II). If it
flashes while driving (in any shift
position), it indicates a possible
problem in the transmission.
If the malfunction indicator lamp
comes on along with the ‘‘D’’
indicator, there is a problem in the
automatic transmission control
system. Avoid rapid acceleration and
havethetransmissioncheckedbya
Honda dealer as soon as possible.
To shift from any position, press
firmly on the brake pedal and pull
the lever towards you. You cannot
shift out of Park when the ignition
switch is in the LOCK (0) or
ACCESSORY (I) position.
To shift from:
PtoR
RtoP
NtoR
Dto2
2to1
1to2
2toD
DtoD
DtoN
DtoD
NtoD
RtoN
Do this:
Press the brake pedal and
pull the shift lever towards
you.
Pull the shift lever towards
you.
Move the lever.
3
3
3
3
Automatic Transmission
Driving
Shift Lever Position Indicators
Shifting
184
SHIFT LEVER
Main Menu
Table of Contents
−−
−
−
−
−
This position mechani-
cally locks the transmission. Use
Park whenever you are turning off or
starting the engine. To shift out of
Park, you must press on the brake
pedal and have your foot off the
accelerator pedal. Pull the shift lever
towards you, then move it out of
Park.
If you have done all of the above and
still cannot move the lever out of
Park, see Shift Lock Release on page
.
You must also pull the shift lever
towards you to shift into Park. To
avoid transmission damage, come to
a complete stop before shifting into
Park. The shift lever must be in Park
before you can remove the key from
the ignition switch.
Press the brake
pedal and pull the shift lever towards
you to shift from Park to Reverse. To
shift from Reverse to Natural, come
to a complete stop and then shift.
Use Neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from Neutral to
another gear.
Use this position for
normal driving. The transmission
automatically selects a suitable gear
for your speed and acceleration. You
may notice the transmission shifting
up at higher speeds when the engine
is cold. This helps the engine warm
up faster.
This position is similar
to D, except only the first three
gears are selected instead of all five.
Use D when towing a trailer in hilly
terrain, or to provide engine braking
when going down a steep hill. D can
also keep the transmission from
cycling between third and fourth
gears in stop-and-go driving.
This position locks
the transmission in second gear. It
does not downshift to first gear
when you come to a stop.
Use Second gear:
For more power when climbing.
To increase engine braking when
going down steep hills.
For starting out on a slippery
surface or in deep snow.
When driving downhill with a
trailer.
186
3
3
CONTINUED
Automatic Transmission
Driving
Park (P) Reverse (R)
Neutral (N)
Drive (D)
Drive (D )
Second (2)
3
185
Main Menu
Table of Contents
− To shift from Second to
First, pull the shift lever towards you,
then shift to the lower gear. With the
lever in this position, the
transmission locks in First gear. By
upshifting and downshifting through
1, 2, D , and D, you can operate the
transmission much like a manual
transmission without a clutch pedal.
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
This allows you to move the shift
lever out of Park if the normal
method of pushing on the brake
pedal and pulling the shift lever does
not work.
Set the Parking brake.
Remove the key from the ignition
switch.
1.
2.
3
Automatic Transmission
Driving
First (1) Engine Speed Limiter Shift Lock Release
186
Main Menu
Table of Contents
Place a cloth on the edge of the
Shift Lock Release slot cover.
Using a small flat-tipped
screwdriver or a metal fingernail
file, carefully pry on the edge of
the cover to remove it.
Remove the key from the Shift
Lock Release slot, then install the
cover. Press the brake pedal, and
restart the engine.
If you need to use the Shift Lock
Release, it means your vehicle is
developing a problem. Have it
checked by a Honda dealer.
Insert the key in the Shift Lock
Release slot.
Push down on the key while you
pull the shift lever towards you
and move it out of Park to Neutral.
5.
6.
4.3.
Automatic Transmission
Driving
187
SHIFT LOCK RELEASE SLOT COVER
Main Menu
Table of Contents
Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set firmly or
your vehicle may roll if it is parked
on an incline.
Set the parking brake before you put
the transmission in Park. This keeps
the vehicle from moving and putting
pressure on the parking mechanism
in the transmission.
Make sure the windows are closed.
Turn off the lights.
Place any packages, valuables, etc.
in the cargo area, or take them
with you.
Lock the doors and the tailgate.
Never park over dry leaves, tall
grass, or other flammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
If the vehicle is facing uphill, turn
the front wheels away from the
curb.
If the vehicle is facing downhill,
turn the front wheels toward the
curb.
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Driving
Parking Tips
Parking Tips
188
Main Menu
Table of Contents
Your Honda is equipped with disc
brakes at all four wheels. A power
assist helps reduce the effort needed
on the brake pedal. The ABS helps
you retain steering control when
braking very hard.
Resting your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness.
It also keeps your brake lights on all
the time, confusing drivers behind
you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious in your driving.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal for
the brakes to occasionally squeal or
squeak when you apply them.
Braking System
Driving
Braking System Design
Brake Wear Indicators
189
Front
Main Menu
Table of Contents
＊
＊
The Anti-lock Brake System (ABS)
helps prevent the brakes from
locking up and helps you retain
steering control by pumping the
brakes rapidly, much faster than a
person can do it.
The ABS also balances the front-to-
rear braking distribution according
to vehicle loading.
this defeats the purpose of the ABS.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal as you steer away from
the hazard. This is sometimes
referred to as ‘‘stomp and steer.’’
You will feel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal: it is the ABS rapidly
pumpingthebrakes.Ondry
pavement, you will need to press on
thebrakepedalveryhardbeforethe
ABS activates. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice.
If the ABS indicator comes on, the
anti-lock function of the braking
system has shut down. The brakes
still work like a conventional system,
but without anti-lock. You should
have the dealer inspect your vehicle
as soon as possible.
You should never pump the brake pedal;
Anti-lock Brakes Activating the Anti-lock Brakes ABS Indicator
Driving
Anti-lock Brakes (ABS)
190
U.S. indicator shown
ABS INDICATOR
Main Menu
Table of Contents
If the ABS indicator and the brake
system indicator come on together,
and the parking brake is fully
released, the front-to-rear braking
distribution system may also be shut
down.
Test your brakes as instructed on
page . If the brakes feel normal,
drive slowly and have your vehicle
repaired by your Honda dealer as
soon as possible. Avoid sudden hard
braking which could cause the rear
wheels to lock up and possibly lead
to a loss of control.
The TCS indicator will come on
alongwiththeABSindicatorifthere
is a problem with the anti-lock brake
system.
It only helps with the
steering control during braking.
such as trying to take a
corner too fast or making a sudden
lane change. Always drive at a safe
speed for the road and weather
conditions.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock. Slow down and allow a greater
distance between vehicles under
those conditions.
254
Anti-lock Brakes (ABS)
Driving
Important Safety Reminders
ABS does not reduce the time or
distance it takes to stop the
vehicle.
ABS will not prevent a skid that
results from changing direction
abruptly,
ABS cannot prevent the loss of
stability.
A vehicle with ABS may require a
longer distance to stop
191
Main Menu
Table of Contents
Your Honda is equipped with a
Traction Control System (TCS) to
assist you in maintaining traction
while driving slowly on loose or
slippery surfaces. The TCS assists
only in low-speed, low-traction
conditions; up to approximately 18
mph (30 km/h).
TCS monitors the speed of all four
wheels. When it senses a front wheel
losing traction, it applies braking to
that wheel. The TCS indicator
flashes when this occurs.
Driving with TCS requires no special
skills or technique. The TCS does
not control your vehicle’s whole
braking system and cannot prevent
skidding if you enter a corner too
fast. It is still your responsibility to
drive at reasonable speeds and to
leave a sufficient margin of safety.
You should still install winter tires on
your vehicle during the winter. Make
sure to use the same size originally
supplied with vehicle. Exercise the
samecautioninwinterdrivingasyou
would if your vehicle was not
equipped with TCS.
Driving with the compact spare tire
installed (see page ) may
activate the TCS. You should turn off
the system.
When starting out or driving at low
speeds on a loose or slippery road
surface, you may notice that the
vehicle does not respond to the
accelerator in the same way it does
at other times. This is a sign TCS is
activating. You will see the TCS
indicator flash.
If the brakes overheat while TCS is
activating, the TCS indicator will
stop flashing and stay on temporarily.
This indicates that TCS has turned
off. After the brakes have cooled
down (usually for about 10 minutes),
TCSwillturnbackonandthe
indicator will turn off.
238
Driving
Traction Control System (TCS)
192
TRACTION CONTROL
SYSTEM INDICATOR
Main Menu
Table of Contents
This switch is under the side vent. It
letsyouturntheTractionControl
System on and off. You cannot turn
off the TCS while the TCS indicator
is flashing.
Deactivate the system by pressing
the TCS On/Off switch. The TCS
indicator comes on as a reminder.
Pressing the switch again turns the
system back on.
The Traction Control System turns
on every time you start the engine,
even if you turned it off the last time
you drove the vehicle.
The TCS indicator comes on or
flashes under the following condi-
tions:
When you turn the ignition switch
to ON (II).
When you manually turn off TCS.
It flashes when TCS is regulating
wheelspin.
If the system’s diagnostics senses
a problem with TCS, the indicator
will come on and stay on.
If the brakes overheat, the
indicator will come on.
If the TCS indicator comes on and
stays on for more than 10 minutes
while driving, pull to the side of the
road when it is safe and turn off the
engine. Reset the system by
restarting the engine, and watch the
TCS indicator. If the indicator
remains on, or comes back on while
driving, have the system inspected
by your Honda dealer. You can still
drive the vehicle without TCS.
This indicator will come on along
with the ABS indicator if there is a
problem in the anti-lock brake
system (see on page
).
The TCS indicator may occasionally
come on for one or two seconds and
then go out. This is normal.
190
TCS ON/OFF Switch
TCS Indicator
ABS Indicator
Traction Control System (TCS)
Driving
193
TCS ON/OFF SWITCH
Main Menu
Table of Contents
To safely tow a trailer, you should
observe the load limits, use the
proper equipment, and follow the
guidelines in this section.
The
maximum weight you can tow
depends on several factors. See
page for limits for your towing
situation. Towing a load that is too
heavy can seriously affect your
vehicle’s handling and
performance.
The weight that
the tongue of a fully-loaded trailer
puts on the hitch should be
approximately 10 percent of the
trailer weight. Too little tongue
load can make the trailer unstable
and cause it to sway. Too much
tongue load reduces front-tire
traction and steering control.
195
Towing a Trailer
Driving
Load Limits
Total Trailer Weight: Tongue Load:
194
Exceeding any load limit or
improperly loading your vehicle
and trailer can cause a crash in
which you can be seriously hurt
or killed.
Check the loading of your
vehicle and trailer carefully
beforestartingtodrive.
Main Menu
Table of Contents
＊＊
＊
＊
＊＊
Including driver. Based on 150 lbs (70 kg) per occupant.
Weight limited to avoid exceeding rear GAWR (see below).
Equipped with transmission cooler
and power steering fluid cooler
3,500 lbs (1,580 kg)
3,350 lbs (1,520 kg)
3,200 lbs (1,450 kg)
3,050 lbs (1,380 kg)
2,900 lbs (1,310 kg)
650 lbs (295 kg)
Maximum Total Trailer Weight
Number of Occupants
2
3
4
5
6
7
:
:
To achieve a proper tongue load,
start by loading 60 percent of the
load toward the front of the trailer
and 40 percent toward the rear, then
re-adjust the load as needed.
The maximum allowable weight of
the vehicle, all occupants, all cargo,
and the tongue load is 5,665 lbs
(2,570 kg).
The maximum allowable weights
on the vehicle axles are 2,833 lbs
(1,285 kg) on the front axle, and
2,845 lbs (1,290 kg) on the rear
axle.
The maximum allowable weight of
the fully loaded vehicle and trailer
is 8,265 lbs (3,750 kg) with the
proper hitch and fluid coolers.
(See page for information
about fluid coolers.)
197
Towing a Trailer
Driving
Gross Vehicle Weight Rating
(GVWR):
Gross Axle Weight Rating
(GAWR):
Gross Combined Weight Rating
(GCWR):
195
Main Menu
Table of Contents
The best way to confirm that vehicle
and trailer weights are within limits
is to have them checked at public
scale.
Using a suitable scale or a special
tongue load gauge, check the tongue
load the first time you set up a
towing combination (a fully-loaded
vehicle and trailer), then recheck the
tongue load whenever the conditions
change.
Towing generally requires a variety
of supplemental equipment. To
ensure the best quality, we
recommend that you purchase
Honda equipment whenever possible.
Always use safety chains. Make sure
they are secured to both the trailer
and hitch, and that they cross under
the tongue so they can catch the
trailer if it becomes unhitched.
Leave enough slack to allow the
trailer to turn corners easily, but do
not let chains drag on the ground.
Any hitch used on your vehicle must
be properly bolted to the underbody,
using the six threaded holes
provided. A hitch and the required
fluid coolers designed especially for
your Odyssey can be obtained from
your Honda dealer.
If the total trailer weight is more
than 1,850 lbs (840 kg), you must
also use a weight distributing hitch.
This device transfers weight from
the vehicle’s rear wheels to the front
wheels, and to the trailer’s wheels.
Carefully follow the hitch maker’s
instructions for proper installation
and adjustment.
If the total trailer weight exceeds
2,000 lbs (900 kg), you should install
a sway control device to minimize
swaying that can occur in crosswinds
and in normal and emergency
driving maneuvers. Your trailer
maker can tell you what kind of sway
control you need and how to install it.
Discuss any additional needs with
your trailer sales or rental agency,
and make sure all equipment is
properly installed, maintained, and
also meets state and province
regulations.
Towing a Trailer
Driving
Checking Loads
Towing Equipment and
Accessories
Safety Chains
Hitches
Weight Distributing Hitch
Sway Control
196
Main Menu
Table of Contents
Trailer lights and equipment must
comply with federal, state, province,
and local regulations. Check with
your local recreational vehicle dealer
for the requirements in your area,
and use only equipment designed for
your vehicle.
Your vehicle has a trailer lighting
connector located behind the left
side panel in the cargo area. Refer to
thedrawingaboveforthewiring
color code and purpose of each pin.
To use the trailer lighting connector,
you will need a wiring harness and
converter. This comes with the
Honda hitch (see page ), or it
may be obtained separately from
your dealer.
If you use a non-Honda trailer
lighting harness and converter, you
can get the connector and pins that
mate with the connector in your
vehicle from your Honda dealer.
Since lighting and wiring vary by
trailer type and brand, you should
have a qualified technician install a
suitable connector between the
vehicle and the trailer. Improper
equipment or installation can cause
damage to your vehicle’s electrical
system and affect your vehicle
warranty.Seeyourtrailerdealerformore
information on installing electric
brakes.
If you choose electric brakes, be
sure they are electrically actuated.
Do not attempt to tap into your
vehicle’s hydraulic system. No
matter how successful it may seem,
any attempt to attach trailer brakes
to your vehicle’s hydraulic system
will lower braking effectiveness and
create a potential hazard.
Honda recommends that any trailer
having a total weight of 1,000 lbs
(450 kg) or more be equipped with
its own electric or surge-type brakes.
You must also have a transmission
fluid cooler and a power steering
fluid cooler installed. These coolers
are available only from your Honda
dealer.
196
CONTINUED
Towing a Trailer
Driving
Trailer LightsTransmission Fluid Cooler and
Power Steering Fluid Cooler
Trailer Brakes
197
BACK-UP LIGHT
(GREEN/BLACK)
LEFT TURN SIGNAL
(GREEN/BLUE)
GROUND
(BLACK)
RIGHT TURN SIGNAL
(GREEN/YELLOW)
TAILLIGHT
(RED/BLACK)
BRAKE LIGHT
(WHITE/BLACK)
Main Menu
Table of Contents
When towing a trailer, you should
carry a full-size wheel and tire as a
spare in case you have a flat. If you
use the compact spare tire that came
with the vehicle, it may adversely
affect vehicle handling. See page
for information on proper tire
size, and page for information on
how to store a full-size tire. When
storing a full-size spare tire in the
trailer, follow the trailer maker’s
instructions.
Many states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don’t,
you should install special mirrors if
you cannot clearly see behind you, or
if the trailer creates a blind spot.
Askyourtrailersalesorrental
agency if any other items are
recommended or required for your
towing situation.
When preparing to tow, and before
driving away, be sure to check the
following:
You may want to fill the fuel tank
with premium fuel. Premium fuel
provides improved performance.
Your vehicle tires and spare are
properly inflated (see page ),
and the trailer tires and spare are
inflated as recommended by the
trailer maker.
The lights and brakes on your
vehicle and the trailer are working
properly.
Allitemsonandinthetrailerare
properly secured and cannot shift
while you drive.
Thehitch,safetychains,andany
other attachments are secure.
All weights and loads are within
limits (see pages and ).
The trailer has been properly
serviced and is in good condition.
If you tow frequently, follow the
Severe Conditions maintenance
schedule.
The vehicle has been properly
serviced, and the tires, brakes,
suspension, and cooling system
are in good operating condition.244
233
194
231
195
Towing a Trailer
Driving
Spare Vehicle Tire
Additional Trailer Equipment
Pre-Tow Checklist
198
Main Menu
Table of Contents
CONTINUED
Crosswinds and air turbulence
caused by passing trucks can disrupt
your steering and cause trailer
swaying. When being passed by a
large vehicle, keep a constant speed
and steer straight ahead. Do not try
to make quick steering or braking
corrections.
Always drive slowly and have
someone guide you when backing up.
Grip the of the steering
wheel; then turn the wheel to the left
to get the trailer to move to the left,
andturnthewheelrighttomovethe
trailer to the right.
Follow all normal precautions when
parking, including putting the
transmission in Park and firmly
setting the parking brake. Also, place
wheel chocks at each of the trailer’s
tires.
The added weight, length, and
height of a trailer will affect your
vehicle’s handling and performance,
so driving with a trailer requires
some special driving skills and
techniques.
Foryoursafetyandthesafetyof
others,taketimetopracticedriving
maneuvers before heading for the
open road, and follow the guidelines
below.
Drive slower than normal in all
driving situations, and obey posted
speed limits for vehicles with trailers.
Use the D position when towing a
trailer on level roads. See ‘‘
’’ in the next column for
additional gear information. Do not
exceed 55 mph (88 km/h). At higher
speeds, the trailer may sway or
affect vehicle handling.
Maketurnsmoreslowlyandwider
than normal. The trailer tracks a
smaller arc than your vehicle, and it
canhitorrunoversomethingthe
vehicle misses. Allow more time and
distance for braking. Do not brake or
turn suddenly as this could cause the
trailer to jackknife or turn over.
When climbing hills, closely watch
your temperature gauge. If it nears
the red mark, turn the air
conditioning off, reduce speed and, if
necessary, pull to the side of the
road to let the engine cool.
If the automatic transmission shifts
frequently while going up a hill, shift
to D .
bottom
3
Towing a Trailer
Driving
Handling Crosswinds and Buff eting
Backing Up
Parking
Towing Speeds and Gears
Driving on
Hills
Making Turns and Braking
Driving on Hills
Driving Safely With a Trailer
199
Main Menu
Table of Contents
If you must stop when facing uphill,
use the foot brake or parking brake.
Do not try to hold the vehicle in
placebypressingontheaccelerator,
as this can cause the automatic
transmission to overheat.
When driving down hills, reduce
your speed and shift down to 2nd
gear. Do not ‘‘ride’’ the brakes, and
remember it will take longer to slow
downandstopwhentowingatrailer.
Towing a Trailer
Driving
200
Main Menu
Table of Contents
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
Maintenance Schedules for normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions for simple maintenance tasks
you may want to take care of
yourself.
If you have the skills and tools to per-
form more complex maintenance
tasks on your Honda, you may want
to purchase the Service Manual. See
page for information on how to
obtain a copy, or see your Honda
dealer.
......................Maintenance Safety . 202
.................Maintenance Schedule . 203
....................Maintenance Record . 207
..............................Fluid Locations . 210
........................Adding Engine Oil . 211
.........Changing the Oil and Filter . 212
..............................Engine Coolant . 214
....................Windshield Washers . 216
....Automatic Transmission Fluid . 216
....................................Brake Fluid . 218
....................Power Steering Fluid . 219
....................................Timing Belt . 219
....................................Hood Latch . 220
.............................................Lights . 220
.......................................Seat Belts . 226
.....................................Floor Mats . 226
..............................Audio Antenna . 227
..................Dust and Pollen Filter . 227
.................................Wiper Blades . 228
...............................................Tires . 230
........................Check the Battery . 235
.............................Vehicle Storage . 236
281
Maintenance
Maintenance
201
Main Menu
All service items not detailed in this
section should be performed by a
Honda technician or other qualified
mechanic.
To eliminate potential hazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
Do
not run the engine unless
instructed to do so.
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
Wear eye protection and
protective clothing when working
with the battery or compressed air.
Be sure there is
adequate ventilation whenever you
operate the engine.
Let the
engine and exhaust system cool
before touching any parts.
Maintenance Safety
Maintenance
Important Safety Precautions
Injury from moving parts.
Potential Vehicle Hazards
Carbon Monoxide poison from
engine exhaust.
Burns from hot parts.
202
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Improperly maintaining this
vehicle or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection,
maintenance recommendations,
and schedules in this owner’s
manual.
Main Menu
Table of Contents
−
−
The maintenance schedule assumes
you will use your vehicle as normal
transportation for passengers and
their possessions. You should also
follow these recommendations:
Avoid exceeding your vehicle’s
load limit. This puts excess stress
on the engine, brakes, and many
other vehicle parts. The load limit
is shown on the tire information
label on the driver’s doorjamb.
Operate your vehicle on
reasonable roads within legal
speed limits.
Driving less than 5 miles (8 km)
per trip or, in freezing
temperatures, driving less than 10
miles (16 km) per trip.
Follow the
Maintenance Schedule for Severe
Conditions if you drive your vehicle
MAINLY under one or more of the
following conditions.
Service your vehicle according to the
time and mileage periods on one of
the Maintenance Schedules on the
following pages.
Driving in extremely hot [over
90°F (32°C)] conditions.
Trailer towing, driving with a roof
rack, or driving in mountainous
conditions.
Driving on muddy, dusty, or de-
iced roads.
If you only OCCASIONALLY
drive under a ‘‘severe’’ condition, you
should follow the Maintenance
Schedule for Normal Conditions.
Follow the
Maintenance Schedule for Severe
Conditions.
Always use unleaded gasoline with
theproperoctanerating(seepage
).
Drive your vehicle regularly over a
distance of several miles
(kilometers).
Extensive idling or long periods of
stop-and-go driving, such as a taxi
or a commercial delivery vehicle.
168
Maintenance Schedule
Maintenance
U.S. Owners
Which Schedule to Follow:
Canadian Owners
203
NOTE:
Main Menu
Table of Contents
−
−
−
−
−
−
＃
Your authorized Honda dealer
knows your vehicle best and can
provide competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
skilled person to keep your
warranties in effect. Keep all the
receipts as proof of completion, and
have the person who does the work
fill out the Maintenance Record.
Check your warranty booklet for
more information.
We recommend the use of Honda
parts and fluids whenever you have
maintenance done.
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Automatic transmission Check
the fluid level monthly. See page
.
Brakes Check the fluid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, Honda
recommends that all maintenance
services be performed at the
recommended time or mileage
period to ensure long-term reliability.
U.S. Vehicles:
171
172
216
218
230
220
Maintenance Schedule
Maintenance
Servicing Your Vehicle Owner’s Maintenance ChecksMaintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certified’’ to EPA standards.
204
Main Menu
Table of Contents
＃
＊
＃
＃
＊
Maintenance
205
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
15
24
30
48
60
96
90
144
150
240
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 7,500 miles (12,000 km) or every 1 year, whichever comes first
Every 7,500 miles (12,000 km)
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy
Every 105,000 miles (168,000 km) or every 7 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 232 )
Replace engine oil filter
Check front and rear brake wear
Check parking brake adjustment
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Inspect idle speed
Replace timing belt and inspect water pump
Replace engine coolant
Replace brake fluid
45
72
75
120
135
216
120
192
105
168
See information on maintenance and emissions warranty, last column, page .
Replace at 45,000 miles (72,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
:
:
204
Maintenance Schedule for Normal Conditions
Main Menu
Table of Contents
＃
＃
＊
＃＊
＃
＊
＊
Maintenance
206
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
15
24
30
48
45
72
75
120
135
216
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Rotate tires (follow pattern on page 232 )
Check front and rear brake wear
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks and latches
Inspect the following items:
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Inspect idle speed
Replace timing belt , and inspect water pump
Replace engine coolant
Replace brake fluid
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first
Every 7,500 miles (12,000 km)
Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty condition)
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy
60
96
90
144
120
192
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 105,000 miles (168,000 km) or every 7 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
105
168
150
240
See information on maintenance and emissions warranty, last column, page .
See dust and pollen filter on page for replacement information under special driving conditions.
See timing belt on page for replacement information under special driving conditions.
:
1:
2:
204
227
219
1
2
Maintenance Schedule for Severe Conditions
Main Menu
Table of Contents
(for Normal and Severe Schedules)
CONTINUED
Maintenance Record
Maintenance
207
3,750 mi
7,500 mi
11,250 mi
15,000 mi
18,750 mi
22,500 mi
26,250 mi
30,000 mi
33,750 mi
37,500 mi
41,250 mi
45,000 mi
48,750 mi
52,500 mi
56,250 mi
60,000 mi
You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
Signature or dealer stamp
6,000 km
12,000 km
18,000 km
24,000 km
30,000 km
36,000 km
42,000 km
48,000 km
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
54,000 km
60,000 km
66,000 km
72,000 km
78,000 km
84,000 km
90,000 km
96,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
205
206
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
Maintenance
208
63,750 mi
67,500 mi
71,250 mi
75,000 mi
78,750 mi
82,500 mi
86,250 mi
90,000 mi
93,750 mi
97,500 mi
101,250 mi
105,000 mi
108,750 mi
112,500 mi
116,250 mi
120,000 mi
Signature or dealer stamp
102,000 km
108,000 km
114,000 km
120,000 km
126,000 km
132,000 km
138,000 km
144,000 km
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
150,000 km
156,000 km
162,000 km
168,000 km
174,000 km
180,000 km
186,000 km
192,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
Maintenance
209
123,750 mi
127,500 mi
131,250 mi
135,000 mi
138,750 mi
142,500 mi
146,250 mi
150,000 mi
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
198,000 km
204,000 km
210,000 km
216,000 km
222,000 km
228,000 km
234,000 km
240,000 km
Signature or dealer stamp
Main Menu
Table of Contents
Fluid Locations
Maintenance
210
ENGINE OIL DIPSTICK
(Orange loop)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
RADIATOR CAP
ENGINE OIL FILL CAP
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
BRAKE FLUID
(Gray cap)
ENGINE COOLANT
RESERVOIR
Main Menu
Table of Contents
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and carefully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment.
Install the engine oil fill cap and
tighten it securely. Wait a few
minutes and recheck the oil level. Do
not fill above the upper mark; you
could damage the engine.
Oil is a major contributor to your
engine’s performance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Honda Motor Oil is the preferred
5W-20 lubricant for your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle for
optimum engine protection. Make
sure the API Certification Seal says
‘‘For Gasoline Engines’’.
The oil viscosity or weight is
provided on the container’s label.
5W-20 oil is formulated for year-
round protection of your Honda to
improve cold weather starting and
fuel economy.
Adding Engine Oil
Maintenance
Recommended Engine Oil
211
ENGINE OIL FILL CAP
Ambient Temperature
API CERTIFICATION SEAL
Main Menu
Table of Contents
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil: it
displays the API Certification Seal
and it is the proper weight. You must
follow the oil and filter change
intervals given on the maintenance
schedule.
Your Honda does not require any oil
additives. Additives may adversely
affect your engine’s or transmission’s
performance and durability.
Always change the oil and filter
according to the recommendations in
the maintenance schedule. The oil
and filter collect contaminants that
can damage your engine if they are
not removed regularly.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Run the engine until it reaches
normal operating temperature,
then shut it off.
Open the hood and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.
1.
2.
Adding Engine Oil, Changing the Oil and Filter
Maintenance
Synthetic Oil
Engine Oil Additives
Changing the Oil and Filter
212
WASHER
DRAIN BOLT
Main Menu
Table of Contents
Remove the oil filter and let the
remaining oil drain. A special
wrench (available from your
Honda dealer) is required.
Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including filter):
Replace the engine oil fill cap.
Start the engine. The oil pressure
indicator light should go out within
5 seconds. If it does not, turn off
the engine and check your work.
Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
Turn off the engine and let it sit
for several minutes, then check
the oil level on the dipstick. If
necessary, add more oil.
Install a new oil filter according to
the instructions that come with it.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
9.
8.
7.
6.
4.
5.
3.
Changing the Oil and Filter
Maintenance
213
NOTICE:
OIL FILTER
4.6 US qt (4.4 )
29 lbf·ft (39 N·m , 4.0 kgf·m)
Improper disposal of engine
oil can be harmf ul to the environment.
If you change your own oil, please
dispose of the used oil properly. Put it
in a sealed container and take it to a
recycling center. Do not discard it in a
trash bin or dump it on the ground.
Main Menu
Table of Contents
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
Always use Honda All Season
Antifreeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or
plain water.
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended for aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malfunction or fail. Have the cooling
system flushed and refilled with
Honda antifreeze/coolant as soon as
possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Engine Coolant
Maintenance
Adding Engine Coolant
214
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
Pour the coolant slowly and carefully
so you do not spill. Clean up any
spills immediately; it could damage
components in the engine
compartment.
Put the radiator cap back on, and
tighten it fully.
3.
4.
5.
1.
2.
Engine Coolant
Maintenance
215
RADIATOR CAP
RESERVE TANK
Main Menu
Table of Contents
Check the fluid level with the engine
at normal operating temperature.
Park the vehicle on level ground.
Shut off the engine.
Remove the dipstick (yellow loop)
from the transmission, and wipe it
with a clean cloth.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition them.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
The low washer
level indicator will come on when the
level is low (see page ).
Check the reservoir’s fluid level by
removing the cap and looking at the
level gauge attached to the cap.
Check the fluid level in the
windshield washer reservoir at least
monthly during normal use. This
reservoir supplies the windshield and
rear window washers.
1.
2.
64
On Canadian models:
Windshield Washers, Automatic Transmission Fluid
Maintenance
Automatic Transmission FluidWindshield Washers
216
NOTICE:
LEVEL GAUGE
DIPSTICK
Do not use engine antifreeze
or a vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
Main Menu
Table of Contents
To thoroughly flush the transmission,
the technician should drain and refill
it with Honda ATF-Z1, then drive the
vehicle for a short distance. Do this
three times. Then drain and refill the
transmission a final time.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
The transmission should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to add fluid,
contact your Honda dealer.
If the level is below the lower
mark, remove the fill plug and add
fluid to bring it to the upper mark.
Pour the fluid slowly and carefully
so you do not spill. Clean up any
spills immediately; it could damage
components in the engine
compartment.
Always use Honda ATF-Z1
(Automatic Transmission Fluid). If
it’s not available, you may use a
DEXRON
III automatic
transmission fluid as a temporary
replacement. However, continued
use can affect the shift quality.
Have the transmission flushed and
refilled with Honda ATF-Z1 as
soon as it is convenient.
Insert the dipstick all the way into
the transmission as shown.
Remove the dipstick and check
the fluid level. It should be
between the upper and lower
marks.
5.
6.
3.
4.
Automatic Transmission Fluid
Maintenance
217
DIPSTICK
UPPER MARK
LOWER MARK
Main Menu
Table of Contents
Check the fluid level in the brake
fluid reservoir monthly. Replace it
according to the maintenance
schedule recommendations.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
Brake fluid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Pour the fluid slowly and carefully so
you do not spill. Clean up any spills
immediately; it could damage
components in the engine
compartment.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system. Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake Fluid
Maintenance
218
MAX
MIN
Main Menu
Table of Contents
−−
Pour the fluid slowly and carefully so
you do not spill. Clean up any spills
immediately; it could damage
components in the engine
compartment.
Always use Honda Power Steering
Fluid. You may use another power
steering fluid as an emergency
replacement, but have the power
steering system flushed and refilled
with Honda PSF as soon as possible.
A low power steering fluid level can
indicate a leak in the system. Check
the fluid level frequently, and have
the system inspected as soon as
possible.
The timing belt should be replaced
at the intervals shown in the
maintenance schedule.
Replace the belt at 60,000 miles
(100,000 km) if you regularly drive
your vehicle in one or more of these
conditions:
In very high temperatures
(over 110°F, 43°C).
In very low temperatures
(under 20°F, 29°C).
Check the level on the side of the
reservoir when the engine is cold.
The fluid should be between the
UPPER LEVEL and LOWER LEVEL.
If not, add power steering fluid to the
UPPER LEVEL mark.
Power Steering Fluid, Timing Belt
Maintenance
Power Steering Fluid Timing Belt
219
NOTICE:
UPPER LEVEL
LOWER LEVEL
Turning the steering wheel to
f ull lef t or right lock and holding it
there can damage the power steering
pump.
Main Menu
Table of Contents
Clean the hood latch assembly with a
mild cleaner, then lubricate it with a
multipurpose grease. Lubricate all
the moving parts (as shown),
including the pivot. Follow the time
and distance recommendations in
the Maintenance Schedule. If you
are not sure how to clean and grease
the latch, contact your Honda dealer.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area or pull a trailer, a
readjustment may be required.
Adjustments should be performed by
a Honda dealer or other qualified
mechanic.
Your vehicle has halogen headlight
bulbs, one on each side. When
replacing a bulb, handle it by its steel
base and protect the glass from
contactwithyourskinorhard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
Hood Latch, Lights
Maintenance
Hood Latch Headlight Aiming Replacing a Headlight Bulb
220
NOTICE:
LATCH ASSEMBLY
Halogen headlight bulbs get
very hot when lit. Oil, perspiration, or a
scratch on the glass can cause the bulb
to overheat and shatter.
Main Menu
Table of Contents
Open the hood. To change a
headlight bulb on the driver’s side,
remove the air intake cover.
Remove the electrical connector
from the bulb by pulling the
connector straight back.
Remove the rubber weather seal
by pulling on the tab.
Unclip the end of the hold-down
wire from its slot. Pivot it out of
the way, and remove the bulb.
Install the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Make sure it is right side up; it is
marked ‘‘TOP’’.
Push the electrical connector onto
the new bulb. Make sure it is
connected securely. Turn on the
headlights to test the new bulb.
(Driver’s side)
Reinstall the air intake cover.
1. 2.
3.
4.
6.
7.
8.
5.
Lights
Maintenance
221
AIR
INTAKE
COVER
HOLD-DOWN WIRE WEATHER
SEAL
BULB
CONNECTOR
Main Menu
Table of Contents
To change the bulb on the driver’s
side, start the engine, turn the
steering wheel all the way to the
right, and turn off the engine. To
change the bulb on the passenger’s
side, turn the steering wheel to the
left.
Use a flat-tipped screwdriver to
remove the two holding clips from
the inner fender.
Pull the inner fender cover away
from the fender and bumper.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Remove the burned out bulb from
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Put the inner fender cover in place.
Install the two holding clips. Lock
each one in place by pushing on
the center.
1. 2.
3.
5.
6.
7.
8.
4.
9.
Lights
Maintenance
Replacing the Front Side Marker/
Turn Signal and Parking Light
Bulb
222
HOLDING CLIP
Main Menu
Table of Contents
Open the tailgate. Release the
covers by inserting a flat-tip
screwdriver into the slot until the
cover bows slightly. Then pivot
the screwdriver 90° and pull it
straight out of the slot.
Use a Phillips-head screwdriver to
remove the taillight assembly
mounting screw under each cover.
Pull the taillight assembly out of
thebodybyslidingitbackward.
Determine which of the two bulbs
is burned out: stop/taillight/side
marker light or turn signal light.
Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
When reinstalling the taillight
assembly, align and pop the snap
fasteners in place. Tighten the two
mounting screws and reinstall the
covers in place.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Lights
Maintenance
Replacing Rear Bulbs
(in Fenders)
223
Main Menu
Table of Contents
Open the tailgate. Place a cloth on
the edge of the taillight cover.
Remove it by carefully prying in
the notch on its edge with a small
flat-tipped screwdriver.
Determine which of the two bulbs
is burned out: taillight or back-up
light.
Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Insert the socket back into the
light assembly. Turn it clockwise
to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Reinstall the taillight cover.
2.
3.
5.
6.
7.
1.
4.
Lights
Maintenance
Replacing Rear Bulbs
(in Tailgate)
224
TAILLIGHT COVER
Main Menu
Table of Contents
Place a cloth on the edge of the
lens segment on the passenger’s
side. Remove that lens segment by
carefully prying on its edge with a
small flat-tipped screwdriver.
Use a Phillips-head screwdriver to
remove the screw under the lens.
Pull the light assembly out of the
tailgate.
Remove the socket from the light
assembly by turning it one-quarter
turn counterclockwise.
Put the socket back into the light
assembly and turn it clockwise to
lock it in place.
Turn on the lights to make sure
the new bulb is working.
Put the light assembly back into
the tailgate. Install the screw and
tighten it securely. Reinstall the
lens segment.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
1.
2.
3.
6.
7.
4.
5.
8.
Lights
Maintenance
Replacing a High-mount Brake
Light Bulb
225
SCREW
Main Menu
Table of Contents
Clean dirty seat belts with a soft
brush and a mixture of mild soap and
warm water. Do not use bleach, dye,
or cleaning solvents. They can
weaken the belt material. Let the
belts air dry before you use the
vehicle.
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
The driver’s floor mat that came
with your vehicle hooks over the
floor mat anchor. This keeps the
floor mat from sliding forward and
possibly interfering with the pedals.
If you remove the driver’s floor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.
Seat Belts, Floor Mats
Maintenance
Seat Belts Floor Mats
226
LOOP
Main Menu
Table of Contents
If you use a non-Honda floor mat,
make sure it fits properly and that it
canbeusedwiththefloormat
anchor. Do not put additional floor
mats on top of the anchored mat.
This filter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling system/climate control
system.
Have your Honda dealer replace this
filter every 30,000 miles (48,000 km)
under normal conditions. It should
be replaced every 15,000 miles
(24,000 km) if you drive primarily in
urban areas that have high
concentrations of soot in the air, or if
the airflow from the heating and
cooling system/climate control
system becomes less than usual.
Floor Mats, Audio Antenna, Dust and Pollen Filter
Maintenance
Audio Antenna Dust and Pollen Filter
227
NOTICE: Your vehicle is equipped
with an antenna on the front right
f ender. Bef ore using a ‘‘drive-
through’’ car wash, make sure you
remove the antenna by unscrewing it by
hand. This prevents the antenna f rom
being damaged by the car wash brushes.
Main Menu
Table of Contents
To replace a wiper blade:
Raise the wiper arm off the
windshield.
Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
Check the condition of the wiper
blades at least every six months.
Replace them if you find signs of
cracking in the rubber, and areas
that are getting hard, or if they leave
streaks and unwiped areas when
used.
Front windshield: Raise the driver’s
side first, then the passenger’s
side.
2.
1.
Wiper Blades
Maintenance
228
NOTICE:
WIPER ARMS
LOCK TAB
Do not open the hood when
the wiper arms are raised, or you will
damage the hood and the arms.
Main Menu
Table of Contents
Remove the blade from its holder
by grasping the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
Examine the new wiper blades. If
they have no plastic or metal rein-
forcement along the back edge,
remove the metal reinforcement
strips from the old wiper blade and
install them in the slots along the
edge of the new blade.
Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield.
Front windshield: Lower the
passenger’s side first, then the
driver’s side.
6.
7.
4.
5.
3.
Wiper Blades
Maintenance
229
BLADE
BLADE
REINFORCEMENT
Main Menu
Table of Contents
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced.
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
Use a gauge to measure the air
pressure at least once a month. Even
tires that are in good condition may
lose one to two psi (10 to 20 kPa, 0.1
to 0.2 kgf/cm ) per month.
Remember to check the spare tire at
thesametime.
Check the pressure in the tires when
they are cold. This means the vehicle
has been parked for at least three
hours, or driven less than 1 mile (1.6
km).
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinflated tires can make your
vehicleridemoreharshly,are
more prone to damage from road
hazards, and wear unevenly. Add or release air, if needed, to
match the recommended cold tire
pressures on page .231
Tires
Maintenance
Inflation
230
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
Main Menu
Table of Contents
If you check the pressure when the
tires are hot [driven for several miles
(kilometers)], you will see readings 4
to6psi(30to40kPa,0.3to0.4
kgf/cm ) higher than the cold
reading. This is normal; do not
release air to match the cold
pressure.
Thecompactsparetirepressureis:
For convenience, the recommended
tire sizes and cold air pressures are
on a label on the driver’s doorjamb.
For additional technical information,
see page .
Tire pressure for high speed driving
is the same as for normal driving.
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherortheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear.
Tubeless tires have some ability to
self-seal if they are punctured. You
should look closely for punctures if a
tire starts losing pressure.
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
270
CONTINUED
Tire Size Cold Tire Pressure
for Normal Driving
Tires
Maintenance
Tire Inspection
231
60 psi (420 kPa , 4.2 kgf/cm )
225/60R16 98T 36 psi (250 kPa , 2.5
kgf/cm
)
Main Menu
Table of Contents
Your vehicle’s tires have wear
indicators molded into the tread.
When the tread wears down to that
point, you will see a 1/2 inch (12.7
mm) wide band running across the
tread. This shows there is less than
1/16 inch (1.6 mm) of tread left on
the tire. A tire that is this worn gives
very little traction on wet roads. You
should replace the tire if you can see
the tread wear indicator in three or
more places around the tire.
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
To help increase tire life and
distribute wear more evenly, rotate
the tires every 7,500 miles (12,000
km). Move the tires to the positions
showninthecharteachtimethey
are rotated. If you purchase
directional tires, rotate only front-to-
back.
On some models
Tires
Maintenance
Tire Maintenance Tire Rotation
232
NOTICE:
Front Front
(For Non-directional
Tires and Wheels)
(For Directional
Tires and Wheels)
INDICATOR LOCATION MARKS
TREAD WEAR INDICATORS
Improper wheel weights can
damage your vehicle’s aluminum
wheels. Use only genuine Honda
wheels weights f or balancing.
Main Menu
Table of Contents
Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall). Mixing radial and
bias-ply tires on your vehicle can
reduce braking ability, traction, and
steering accuracy. Using tires of a
different size or construction can
cause the ABS to work inconsistently.
TheABSworksbycomparingthe
speed of the wheels. When replacing
tires, use the same size originally
supplied with the vehicle. Tire size
and construction can affect wheel
speed and may cause the system to
work.
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specifications
match those of the original wheels.
See page for DOT tire quality
grading information, and page
for tire size explanation.
Replacement wheels are available at
your Honda dealer.
Wheel:
Tire:
268
270
Replacing Tires
Wheels and Tires
Tires
Maintenance
233
225/60R16 98T
16x61/2JJ
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
Main Menu
Table of Contents
＋Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
Honda, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer for
maximum speed recommendations.
Because your Honda has limited tire
clearance, mount only SAE Class ‘‘S’’
cable-type traction devices, with
rubber chain tensioners on the front
tires. Use traction devices only when
required by driving condition or local
laws.Makesuretheyarethecorrect
size for your tires. Metal link-type
‘‘chains’’ should not be used.
When installing cables, follow the
manufacturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
Tires
Maintenance
Winter Driving
Snow Tires
Tire Chains
234
NOTICE: Traction devices that are the
wrong size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
Main Menu
Table of Contents
−
Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
future corrosion.
If additional battery maintenance is
needed, see your Honda dealer or a
qualified technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
Maintenance
WARNING:
Wash your hands after handling.
Checking the Battery
235
TEST INDICATOR WINDOW
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
Main Menu
Table of Contents
If you need to park your vehicle for
an extended period (more than one
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
Fill the fuel tank.
Change the engine oil and filter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc. are
completely dry.
Leave the parking brake off. Put
the transmission in Park.
Block the rear wheels.
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.
Support the front and rear wiper
blade arms with a folded towel or
ragsotheydonottouchthe
windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and tailgate seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and tailgate seals.
Cover the vehicle with a
‘‘breathable’’ cover, one made
from a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
If possible, periodically run the
engine until it reaches full
operating temperature (the
cooling fans cycle on and off
twice). Preferably, do this once a
month.
If you store your vehicle for 1 year or
longer, have your Honda dealer
perform the inspections called for in
the 2 years/30,000 miles (48,000 km)
maintenance schedule (Normal
Conditions) as soon as you take it
out of storage (see page ). The
replacements called for in the
maintenance schedule are not
needed unless the vehicle has
actually reached that time or mileage.
205
Vehicle Storage
Maintenance
236
Main Menu
Table of Contents
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also find instructions
on getting your vehicle towed.
......................Compact Spare Tire . 238
....................Changing a Flat Tire . 239
.............If the Engine Won’t Start . 247
................................Jump Starting . 248
..............If the Engine Overheats . 250
.........Low Oil Pressure Indicator . 252
..........Charging System Indicator . 252
.......Malfunction Indicator Lamp . 253
...............Brake System Indicator . 254
......................Emergency Towing . 255
..............................................Fuses . 257
..............................Fuse Locations . 260
Taking Care of the Unexpected
Taking Care of the Unexpected
237
Main Menu
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced
and put it back on your vehicle as
soon as you can.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
Follow these precautions:
Never exceed 50 mph (80 km/h)
under any circumstances.
This tire gives a harsher ride and
less traction on some road sur-
faces. Use greater caution while
driving.
Do not mount snow chains on it.
Do not use the compact spare tire
if you are towing a trailer.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Turn off the Traction Control
System (see page ). Driving
withthecompactsparetiremay
activate the TCS.
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.
193
Compact Spare Tire
Taking Care of the Unexpected
238
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents
CONTINUED
If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area that is
far away from the traffic lanes.
Park the vehicle on firm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake. If you are towing a
trailer, unhitch the trailer.
Turn on the hazard warning lights,
and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the vehicle
while you change the tire.
2.1.
Changing a Flat Tire
Taking Care of the Unexpected
239
JACK VINYL BAG
SPARE TIRETOOLS
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
Main Menu
Table of Contents
Thetoolsandjackarebehinda
cover in the cargo area on the
driver’s side. Remove the cover by
turning the handle
counterclockwise, then pulling out
the cover.
Take the tools out of the storage
compartment.
Turn the jack’s end bracket
counterclockwise to loosen it, then
remove the jack.
The spare tire is stored under the
floor between the first and second
row of seats. If the front seats are
adjusted to the rear-most position,
move the seats forward slightly
and adjust the seat-backs to an
upright position (see page ).
Lift up the center table (see page
).
Open the tailgate. Remove the
cargo net.
3.
4.
5.
6.
7.
105
89
Changing a Flat Tire
Taking Care of the Unexpected
240
COVER
Main Menu
Table of Contents
CONTINUED
Remove the spare tire basket.
Unscrew the wing bolt, and take
the spare tire out of its well. After
you have removed the spare tire,
screw this wing bolt back into
place.
If you are changing a rear tire,
close the sliding door. Then turn
off the sliding door MAIN switch.
Loosen each wheel nut 1/2 turn
with the wheel wrench.
Open either of the rear sliding
doors. Pull the floor carpet up by
lifting up on the edge, then raise
the floor lid by pulling up on the
handle. To keep the floor carpet
and lid out of the way, pull out the
hook on the back of the floor lid
and attach it into the seat-back
handle on the driver’s seat.
8. 9.
11.
12.
10.
On EX and EX-L models On EX and EX-L models
Changing a Flat Tire
Taking Care of the Unexpected
241
HOOK
HANDLE
SPARE TIRE
BASKET
SPARE TIRE
WING BOLT
WHEEL NUTS
Main Menu
Table of Contents
△
Place the jack under the jacking
point nearest the tire you need to
change. It is pointed to by a
mark molded into the underside of
the body. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Use the extension and wheel
wrench as shown to raise the
vehicle until the flat tire is off the
ground.
Do not attempt to forcibly pry the
wheel cover off with a screwdriver or
other tool. The wheel cover cannot
be removed without first removing
the wheel nuts.Remove the wheel nuts, then
remove the flat tire. Handle the
wheel nuts carefully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
13. 14.
15.
On LX model
Changing a Flat Tire
Taking Care of the Unexpected
242
JACKING POINT
EXTENSION
WHEEL
WRENCH
WHEEL
COVER
Main Menu
Table of Contents
Before mounting the spare tire,
wipeanydirtoffthemounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is firmly against
the hub. Do not try to tighten
them fully.
Lower the vehicle to the ground
and remove the jack.
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
16.
17.
18.
19.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
243
HAB
80 lbf·ft (108 N·m , 11 kgf·m)
Main Menu
Table of Contents
Put the flat tire in the supplied
vinyl bag. This bag is stored in the
rear compartment on the driver’s
side panel in the third row. Knot
the top of the vinyl bag.
When the third seat is not folded,
the flat tire is secured behind the
third seat.
Turn on the sliding door MAIN
switch so you can open the door.
Remove the bracket and the wing
bolt from the spare tire lid by
unscrewing the bracket mounting
bolt.
You will find a u-shaped slit on the
carpet behind the seat bottom of
the third seat. Pull up the carpet at
theslitandremovetheplastic
screw with a coin.
20. 22.
21.
Storing the flat tire behind the third
row
On EX and EX-L models
Changing a Flat Tire
Taking Care of the Unexpected
244
BRACKET MOUNTING BOLT
WING BOLT
BRACKET
MOUNTING
BOLT
BRACKET
PLASTIC
SCREW
BRACKET
Main Menu
Table of Contents
Adjust the seat-back of the third
seat to the upright position (see
page ). Install the bracket and
the bracket mounting bolt to the
attachment point as shown, and
tighten the bolt. Make sure the
bracket is securely locked.
Install the flat tire on the bracket
with the inside of the wheel facing
toward you. Put the tire mounting
wing bolt in the attachment point
through one of the five wheel nut
holes and the bracket as shown.
Poke holes in the vinyl bag. Secure
the flat tire by tightening the wing
bolt.
When the third seat is folded, the
flat tire is secured to the floor on
topofthefoldedseat.Pullupthe
carpet on the attachment point and
remove the plastic screw as
described in the previous
procedure.
Remove the wing bolt from the
bracket that is attached to the
spare tire lid.
23.
90
Storing the Flat Tire on the Floor
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
245
BRACKET
TIRE MOUNTING WING BOLT
Main Menu
Table of Contents
Place the flat tire face down on the
attachment point. Put the tire
mountingwingboltinthe
attachment point through one of
the five wheel nut holes as shown.
Poke holes in the vinyl bag. Secure
the flat tire by tightening the wing
bolt.
Store the jack in its holder. Turn
the jack’s end bracket clockwise to
lock it in place. Store the tools.
Replace the cover.
Close the tailgate.
Store the plastic screw in the spare
tire well.
Store the wheel cover in the spare
tire well. Make sure it will not get
scratched or damaged.
Storethesparetirebasketinthe
spare tire well.
Unclip the hook from the seat
back handle on the driver’s seat,
and lower the floor lid and the
carpet.
Make sure to adjust the front
seats properly before you start
driving (see page ).
24.
25.
26.
27.
89
On LX model
On EX and EX-L models
Changing a Flat Tire
Taking Care of the Unexpected
246
TIRE MOUNTING WING BOLT
ATTACHMENT POINT
Loose items can fly around the
interiorinacrashandcould
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
Main Menu
Table of Contents
CONTINUED
Diagnosing why your engine won’t
start falls into two areas, depending
on what you hear when you turn the
key to START (III):
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Check these things:
Check the transmission interlock.
The transmission must be in Park
orNeutralorthestarterwillnot
operate.
Turn the ignition switch to ON (II).
Turn on the headlights and check
their brightness. If the headlights
are very dim or don’t light at all,
the battery is discharged. See
on page .
Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the fuses. If
thefusesareOK,thereis
probably something wrong with
the electrical circuit for the
ignition switch or starter motor.
You will need a qualified
technician to determine the
problem (see
on page ).
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the vehicle from a
booster battery (see page ).
In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run.
Are you using the proper starting
procedure? Refer to
on page .
255
248
235
248
183
IftheEngineWon’tStart
Taking Care of the Unexpected
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Emergency Towing
The Starter Operates Normally
Starting the
Engine
247
Main Menu
Table of Contents
＋
＋
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Do you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem. See
on page .
Although this seems like a simple
procedure, you should take several
precautions.
You cannot start a Honda by pushing
or pulling it.
Connect one jumper cable to the
positive ( ) terminal on your
Honda’s battery. Connect the
other end to the positive ( )
terminal on the booster battery.
Put the transmission in Neutral or
Park, and set the parking brake.
Turn off all the electrical acces-
sories: heater, A/C, climate
control, audio system, lights, etc.
Open the hood and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or like ice, do not try
jump starting until it thaws.
1.
2.
3.
76
257
255
Emergency
Towing
Jump Starting
If the Engine Won’t Start, Jump Starting
Taking Care of the Unexpected
To Jump Start Your Vehicle:
248
NOTICE:
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme
cold, the electrolyte inside can f reeze.
Attempting to jump start with a frozen
battery can cause it to rupture.
Main Menu
Table of Contents
−
Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
The numbers in the illustration
show you the order to connect the
jumper cables.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
Start your vehicle. If the starter
motor still operates slowly, check
that the jumper cables have good
metal-to-metal contact.
Once your vehicle is running,
disconnect the negative cable from
your vehicle, then from the
booster battery. Disconnect the
positive cable from your vehicle,
and then from the booster battery.
Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until everything is
disconnected. Otherwise, you may
cause an electrical short.
4.
6.
7.
5.
Jump Starting
Taking Care of the Unexpected
249
BOOSTER
BATTERY
Main Menu
Table of Contents
The pointer of your vehicle’s
temperature gauge should stay in
the midrange. If it climbs to the red
mark, you should determine the
reason (hot day, driving up a steep
hill, etc.).
If your vehicle overheats, you should
take immediate action. The only
indication may be the temperature
gauge climbing to or above the red
mark. Or you may see steam or
spray coming from under the hood.
Safely pull to the side of the road.
Put the transmission in Neutral or
Park, and set the parking brake.
Turn off all accessories, and turn
on the hazard warning indicators.
If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
If you do not see steam or spray,
leave the engine running and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge comes down to the midpoint,
then continue driving.
If the temperature gauge stays at
the red mark, turn off the engine.
1.
2.
3.
4.
IftheEngineOverheats
Taking Care of the Unexpected
250
NOTICE:
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature
gauge pointer at the red mark can
cause serious damage to your engine.
Main Menu
Table of Contents
Look for any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see
on page ).
If you don’t find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the tempera-
ture gauge, or lower, before check-
ing the radiator.
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise without pushing
down to the first stop. After the
pressure releases, push down on
the cap and turn it until it comes
off.
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
Put the radiator cap back on
tightly. Run the engine and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
Start the engine, and set the
temperature control dial to
maximum (climate control to
FULL AUTO at 90°F/32°C). Add
coolant to the radiator up to the
base of the filler neck. If you do
not have the proper coolant
mixture available, you can add
plain water. Remember to have
the cooling system drained and
refilled with the proper mixture as
soon as you can.
5.
6.
7.
8.
9.
255
10.
11.
255
Emergency
Towing
Emergency
Towing
IftheEngineOverheats
Taking Care of the Unexpected
251
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
This indicator should never
come on when the engine is
running. If it starts flashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible and you should
take immediate action.
Safely pull off the road, and shut
off the engine. Turn on the hazard
warning indicators.
Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving.
(See on page
).
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a Honda dealer or a service
station where you can get technical
assistance.
If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
1.
2.
3.
4.
211
171
255
Low Oil Pressure Indicator, Charging System Indicator
Low Oil Pressure Indicator
Emergency Towing
Charging System Indicator
Taking Care of the Unexpected
252
NOTICE: Running the engine with low
oil pressure can cause serious
mechanical damage almost immediately.
Turn of f the engine as soon as you can
saf ely get the vehicle stopped.
Main Menu
Table of Contents
If this indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may feel no difference in
your vehicle’s performance,
continued operation may cause
serious damage.
If you have recently refueled your
vehicle, the indicator could come on
because of a loose or missing fuel fill
cap. Tighten the cap until it clicks at
least three times. Tightening the cap
will not turn the indicator turn off
immediately; it takes at least three
days of normal driving.
If the indicator remains on, or the
fuel cap was not loose or missing,
have your vehicle checked by the
dealer as soon as possible.
This indicator may also come on
along with the ‘‘D’’ indicator.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If your vehicle battery has been
disconnected or gone dead, these
codes are erased. It takes at least
three days of driving under various
conditions to set the codes again.
To check if they are set, turn the
ignition switch to ON (II), without
starting the engine. The Malfunction
Indicator Lamp will come on for 20
seconds. If it then goes off, the
readiness codes are set. If it blinks 5
times, the readiness codes are not
set. If possible, do not take your
vehicle for a state emissions test
until the readiness codes are set.
Refer to State Emissions Testing for
more information (see page ).274
Malfunction Indicator Lamp
Taking Care of the Unexpected
Readiness Codes
253
NOTICE: If you keep driving with the
Malf unction Indicator Lamp on, you
can damage your vehicle’s emissions
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.
Main Menu
Table of Contents
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down and
you will have to press harder on the
pedal.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
If the ABS indicator and the TCS
indicator come on with the brake
system indicator, have the vehicle
inspected by your dealer
immediately.If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ).
If the fluid level is low, take the
vehicle to your dealer and have the
brake system inspected for leaks or
worn brake pads.
The brake system
indicator normally
comesonwhenyou
turn the ignition switch to ON (II),
and as a reminder to check the
parking brake. It will stay lit if you do
not fully release the parking brake.
255
218
Brake System Indicator
Taking Care of the Unexpected
Emergency
Towing
254
U.S. Canada
Main Menu
Table of Contents
−
−
−
CONTINUED
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
There are three popular types of
professional towing equipment.
The tow
truck uses two pivoting arms that go
under the tires (front or rear) and lift
them off the ground. The other two
tires remain on the ground.
The tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the frame or suspension and
the cables lift that end of the vehicle
off the ground. Your vehicle’s sus-
pension and body can be seriously
damaged.
Release the parking brake.
Start the engine.
ShifttoD,thentoN.
Turn off the engine.
The operator
loads your vehicle on the back of a
truck.
If your Honda cannot be transported
by flatbed, it should be towed by
wheel-lift equipment with the front
wheels off the ground. If, due to
damage, your vehicle must be towed
with the front wheels on the ground,
do the following:
With the front wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
Emergency Towing
Taking Care of the Unexpected
Wheel-lift Equipment
Sling-type Equipment
Flatbed Equipment
This is
an acceptable way to tow your
Honda.
This method of towing
is unacceptable.
This is the best way to
transport your Honda.
255
NOTICE: Improper towing preparation
will damage the transmission. Follow
the above procedure exactly. If you
cannot shift the transmission or start
the engine, your vehicle must be
transported with the f ront wheels of f
the ground.
Main Menu
Table of Contents
If you decide to tow your vehicle
with all four wheels on the ground,
make sure you use a properly-
designed and attached tow bar.
Prepare the vehicle for towing as
described above, and leave the
ignition switched in the
ACCESSORY (I) position so the
steering wheel does not lock. Make
sure the radio and any items plugged
into the accessory power socket are
turned off so they do not run down
the battery.
Emergency Towing
Taking Care of the Unexpected
256
NOTICE:
NOTICE:
Trying to lif t or tow your
vehicle by the bumpers will cause
serious damage. The bumpers are not
designed to support the vehicle’s weight.
The steering system can be
damaged if the steering wheel is locked.
Leave the ignition switched to
Accessory (I), and make sure the
steering wheel turns f reely bef ore you
begin towing.
Main Menu
Table of Contents
The vehicle’s fuses are located in
four fuse boxes. The interior fuse
boxes are located under the
dashboard on the driver’s and
passenger’s side.
To open the passenger’s side, pull
the right edge of the cover.
The primary under-hood fuse box is
locatedonthepassenger’sside.
The secondary fuse box is next to
the battery.
Fuses
Taking Care of the Unexpected
257
DRIVER’S SIDE INTERIOR
PASSENGER’S SIDE
INTERIOR
PRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX
Main Menu
Table of Contents
Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse boxes by
pulling out each fuse with the fuse
puller provided in the primary
under-hood fuse box.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine from the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that device. The diagram for
theinteriordriver’ssidefuseboxis
on the kick panel below the fuse box.
Check those fuses first, but check all
the fuses before deciding that a
blown fuse is the cause. Replace any
blown fuses, and check if the device
works.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover from the fuse
box.
Check each of the large fuses in
the primary under-hood fuse box
by looking through the top at the
wire inside. Removing these fuses
requires a Phillips-head
screwdriver.
1.
2.
3. 4.
260 261
Fuses
Taking Care of the Unexpected
Checking and Replacing Fuses
258
FUSE
BLOWN
FUSE PULLER
Main Menu
Table of Contents
Look for a burned wire inside the
fuse. If it is burned, replace it with
oneofthesparefusesofthesame
rating or lower.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit, and have your vehicle
checked by a qualified mechanic.
If the driver’s power window fuse is
removed, the AUTO feature of the
driver’s window will be disabled. You
should reset the AUTO feature (see
page ).
If the radio fuse is removed, the
audio system will disable itself. The
nexttimeyouturnontheradioyou
will see ‘‘ ’’ in the frequency
display. Use the preset buttons to
enter the five-digit code (see page
).
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
5.
6.
101
144
On EX and EX-L models
Fuses
Taking Care of the Unexpected
259
NOTICE:
BLOWN
Replacing a f use with one
that has a higher rating greatly
increases the chances of damaging
the electrical system. If you do not
have a replacement f use with the
proper rating for the circuit, install
one with a lower rating.
Main Menu
Table of Contents
＊
＊
＊
＊
＊
−
−−
＊
＊
＊
Circuits ProtectedCircuits ProtectedNo. Amps. No. Amps.
Circuits ProtectedAmps.No.
Back Up, ACC
Power Seat
Heater Motor
Cooling Fan
Spare Fuse
Spare Fuse
Spare Fuse
Battery
Condenser Fan
MG Clutch
Ignition Switch (IG 1 Main)
ABS Motor
Spare Fuse
Spare Fuse
Right Headlight
ACG S
Hazard
Not Used
Stop
Left Headlight
ABS F/S
Power Window Motor
Power Sliding Door
Rear Defroster
1
2
3
4
5
6
7
8
9
10
11
12
20 A
30 A
15 A
15 A
15 A
20 A
15 A
20 A
40 A
30 A
30 A
13
14
15
16
17
18
19
20
21
22
23
24
40 A
40 A
40 A
30 A
7.5 A
10 A
15 A
120 A
30 A
7.5 A
50 A
30 A
Rear Entertaiment System
Not Used
Seat Heaters
Driver’s Power Window
Rear A/C
Power Sliding Door
20 A
20 A
30 A
40 A
20 A
1
27
8
9
10
11
: EX and EX-L models
EX-L models1:
EX and EX-L models2:
1
1
2
Fuse Locations
Taking Care of the Unexpected
260
PRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX
Main Menu
Table of Contents
＊
＊
＊
＊
＊
＊
＊
＊
No. Amps. Circuits Protected No. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
15 A
10 A
7.5 A
7.5 A
7.5 A
15 A
15 A
7.5 A
10 A
7.5 A
10 A
30 A
7.5 A
Fuel Pump
SRS
Heater Control, A/C Clutch
Relay, Cooling Fan Relay
Power Mirror
Daytime Running Light
ECU(PCM),CruiseControl
IG Coil
ACC Relay
Back-up Lights, Instrument
Lights
Turn Signals
Rear Wiper
Front Wiper
Starter Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
20 A
20 A
10 A
20 A
20 A
10 A
7.5 A
20 A
15 A
15 A
10 A
20 A
7.5 A
7.5 A
20 A
7.5 A
Driver’s Side Automatic
Sliding Door
Power Seat Reclining
BSC
Power Seat Sliding
Passenger’s Side Automatic
Sliding Door
Daytime Running Light
Left Rear Window
Front Passenger’s Power
Window
ACC Socket
Inst. Panel Light, License
Light
Interior Light, Radio
Power Door Locks
Clock, Back Up
ABS Motor Check
Driver’s Power Window
Right Rear Window
EX and EX-L models
Canadian models
:
1:
2:
On Canadian models
1
1
1
2
Fuse Locations
Taking Care of the Unexpected
261
Driver’s Side
INTERIOR FUSE BOX
Passenger’s Side
Front
Front
Main Menu
Table of Contents
262
Main Menu
Thediagramsinthissectiongive
you the dimensions and capacities of
your Honda, and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 264
................................Specifications . 266
DOT Tire Quality Grading
.......................(U.S Vehicles) . 268
Uniform Tire Quality
..................................Grading . 268
.................................Treadwear . 268
......................................Traction . 268
.............................Temperature . 269
.................................Tire Labeling . 270
.......................Emissions Controls . 271
.....................The Clean Air Act . 271
Crankcase Emissions Control
....................................System . 271
Evaporative Emissions Control
....................................System . 271
Onboard Refueling Vapor
................................Recovery . 271
...Exhaust Emissions Controls . 272
....................PGM-FI System . 272
Ignition Timing Control
................................System . 272
Exhaust Gas Recirculation
...................(EGR) System . 272
Three Way Catalytic
...........................Converter . 272
....................Replacement Parts . 272
..Three Way Catalytic Converter . 273
..............State Emissions Testing . 274
....Testing of Readiness Codes . 274
Technical Information
Technical Information
263
Main Menu
Your vehicle has several identifying
numbers in various places.
The Vehicle Identification Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle for warranty purposes. It is
also necessary for licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certification label.
Identification Numbers
Technical Information
264
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
Main Menu
Table of Contents
The Engine Number is stamped into
the engine block. It is on the front.
The Transmission Number is on a
label on top of the transmission.
Identification Numbers
Technical Information
265
ENGINE NUMBER
AUTOMATIC TRANSMISSION NUMBER
Main Menu
Table of Contents
−−
＊
＊
＊
＊
＊
＊
＊
＊
Specifications
Technical Information
266
Dimensions
Weights
Capacities
Air Conditioning
201.2 in (5,110 mm)
75.6 in (1,920 mm)
5.3 US qt (5.0 )
2.6 US qt (2.5 )
0.16 US gal (0.6
)
4.6 US qt (4.4
)
4.2 US qt (4.0 )
2.48 US gal (9.4 )
3.5 US qt (3.3 )
8.3 US qt (7.9
)
4.8 US qt (4.5 )
HFC-134a (R-134a)
66.1 in (1,680 mm)
66.1 in (1,680 mm)
118.1 in (3,000 mm)
68.5 in (1,740 mm)
32 34 oz (850 900 g)
ND-OIL8
20.00 US gal (75.7
)
1.98 US gal (7.5 )
69.7 in (1,770 mm)
8,265 lbs (3,750 kg)
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Excluding the oil remaining in the engine.
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Gross combined weight
rating (GCWR)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Windshield
washer
reservoir
Refrigerant type
Charge quantity
Lubricant type
See the tire information label atta-
ched to the driver’s doorjamb.
Approx.
Front
Rear
1:
2:
Change
Total
Change
Including
filter
Without
filter
Total
Change
Total
U.S. Vehicles
Canada Vehicles
1:LX
2:EX,EX-L
1
2
1
2
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
＋
−
Specifications
Technical Information
267
Lights
Battery
Fuses
Engine
Alignment
Tires
12 V 21 W
12 V 21/5 W
3.50 x 3.66 in (89.0 x 93.0 mm)
212 cu-in (3,471 cm )
10 : 1
24/2.2 CP
12 V 1.8 W
12 V 8 W
12 V 21 W
12 V 3 CP
2CP
21 CP (18 W)
4CP
10 W
12 V
12 V
12 V
12 V
12 V
60/55 W (HB2)12 V
65 AH/20 HR
52 AH/5 HR12 V
12 V
0.00 in (0.0 mm)
0.00 in (0.0 mm)
0°
0°30’
2°07’
225/60R16 98T
T135/80D16 101M
36 psi (250 kPa , 2.5 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm )
PZFR5F-11
PKJ16CR-L11
0.04 in (1.1 mm)
Headlights
Front turn signal/parking/side
marker lights
Rear turn signal lights
Stop/Taillights/Rear side
marker lights
Taillights
Back-up lights
License plate light
High-mount brake light
Individual map lights
Cargo area light
Vanity mirror lights
Capacity
Interior
Under-hood
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark Plug Gap
Toe-in
Camber
Caster
Size
Pressure
See page 261 or the fuse label
attached to the dashboard.
See page 261 or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 260 or the fuse box
cover.
High/Low
Front/Rear
Spare
Front/Rear
Spare
Front
Rear
Front
Rear
Front
Front
Rear
Driver’s side
Passenger’s side
(Amber)
NGK:
DENSO:
Water cooled 4-stroke SOHC VTEC,
6-cylinder, gasoline engine
0
0.1 mm
Main Menu
Table of Contents
−The tires on your car meet all U.S.
Federal Safety Requirements. All
tires are also graded for treadwear,
traction, and temperature perform-
ance according to
Department of Transportation
(DOT) standards. The following
explains these gradings.
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate.
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT Tire Quality Grading (U.S. Vehicles)
Technical Information
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Treadwear Traction AA, A, B, C
268
Main Menu
Table of Contents
−
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
failure.
DOT Tire Quality Grading (U.S. Vehicles)
Technical Information
Temperature A,B,C
269
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identification Number (TIN) is
a group of numbers and letters that
look like the following example TIN.
Date of manufacture.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Tire type code.
Manufacturer’s
identification mark.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
P
225
55
R
94
V
16
DOT
B97R
FW6X
2202
Tire Labeling
Technical Information
Tire Size
Tire Identification Number
270
P225/55R16 94V
DOT B97R FW6X 2202
Main Menu
Table of Contents
＊
＊
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx) and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to form photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on pages
and .
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specified in an
agreement with Environment
Canada, at the time they are
manufactured.
Your vehicle has a Positive
Crankcase Ventilation System. This
keeps gasses that build up in the
engine’s crankcase from going into
the atmosphere. The Positive Crank-
case Ventilation valve routes them
from the crankcase back to the
intake manifold. They are then
drawn into the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The Onboard Refueling Vapor
Recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
205
206
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Refueling Vapor
Recovery
Emissions Controls
Technical Information
271
Main Menu
Table of Contents
The exhaust emissions controls
include four systems: PGM-FI,
Ignition Timing Control, Exhaust
Gas Recirculation and Three Way
Catalytic Converter. These four
systems work together to control the
engine’s combustion and minimize
the amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
The PGM-FI System uses sequential
multiport fuel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Powertrain Control Module
(PCM) uses various sensors to
determine how much air is going
into the engine. It then controls how
much fuel to inject under all
operating conditions.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The Exhaust Gas Recirculation
(EGR) system takes some of the
exhaust gas and routes it back into
the intake manifold. Adding exhaust
gas to the air/fuel mixture reduces
the amount of NOx produced when
the fuel is burned.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), dinitrogen
(N ), and water vapor.
The emissions control systems are
designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent for repairs. Using lower
qualitypartsmayincreasethe
emissions from your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
2
2
Exhaust Emissions Controls Replacement Parts
PGM-FI System
Ignition Timing Control System
Exhaust Gas Recirculation (EGR)
System
Three Way Catalytic Converter
Technical Information
Emissions Controls
272
Main Menu
Table of Contents
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any com-
bustible materials that come near it.
Parkyourvehicleawayfromhigh
grass, dry leaves, or other flamma-
bles.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Information
273
THREE WAY CATALYTIC CONVERTER
Main Menu
Table of Contents
If you take your vehicle for a state
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle re-tested within the
next two or three days, you can
condition the vehicle for re-testing
by doing the following.
Make sure the gas tank is nearly,
but not completely, full (around
3/4).
Make sure the vehicle has been
parked with the engine off for 8
hours or more.
Make sure the ambient
temperature is between 20° and
95°F.
Without touching the accelerator
pedal, start the engine and let it
idle for 20 seconds.
Keep the vehicle in Park
(automatic transmission). Increase
the engine speed to 2,000 rpm and
hold it there until the temperature
gauge rises to at least 1/4 of the
scale (approximately 3 minutes).
Testing of Readiness Codes
State Emissions Testing
Technical Information
274
Main Menu
Table of Contents
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D (A/T). Do not use the cruise
control. When traffic allows, drive
for 90 seconds without moving the
accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If
you cannot do this for a
continuous 90 seconds because of
traffic conditions, drive for at least
30 seconds, then repeat it two
more times (for a total of 90
seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing facility determines the
readiness codes are still not set, see
your Honda dealer.
Technical Information
State Emissions Testing
275
Main Menu
Table of Contents
276
Main Menu
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
Service Manager or General
Manager can help. Almost all
problems are solved in this way.
If you are dissatisfied with the
decision made by the dealership’s
management, contact your Honda
Customer Service Office.
U.S. Owners:
Canadian Owners:
In Puerto Rico and the U.S. Virgin
Islands:
When you call or write, please give
us this information:
Vehicle Identification Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
264
Customer Service Information
Warranty and Customer Relations
278
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÉLE
American Honda Motor Co., Inc.
Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
Bella International
P.O. Box 190816
San Juan, Puerto Rico 00919-0816
Tel: (787) 250-4318
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−Your new Honda is covered by these
warranties:
covers your new vehicle, except for
the battery, emissions control
systems, and accessories, against
defects in materials and
workmanship.
these two
warranties cover your vehicle’s emis-
sions control systems. Time, mileage,
and coverage are conditional. Please
read the warranty manual for exact
information.
this warranty gives up
to 100 percent credit toward a
replacement battery.
a seat
belt that fails to function properly is
coveredfortheusefullifeofthe
vehicle.
all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
Honda Accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty manual for
details.
covers all Honda
replacement parts against defects in
materials and workmanship.
provides
coverageforaslongasthepur-
chaser of the muffler owns the
vehicle.
Restrictions and exclusions apply to
all these warranties. Please read the
2004 Honda Warranty Information
booklet that came with your vehicle
for precise information on warranty
coverages. Your Honda’s original
tires are covered by their
manufacturer. Tire warranty infor-
mation is in a separate booklet.
Please refer to the 2004 Warranty
Manual that came with your vehicle.
provides prorated
coverage for a replacement battery
purchased from a Honda dealer.
Warranty Coverages
Warranty and Customer Relations
U.S. Owners
Canadian Owners
New Vehicle Limited Warranty
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty
Original Equipment Battery Limited
Warranty
Seat Belt Limited Warranty
Rust Perforation Limited Warranty
Accessory Limited Warranty
Replacement Parts Limited
Warranty
Replacement Muffler Lifetime
Limited Warranty
Replacement Battery Limited
Warranty
279
Main Menu
Table of Contents
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying American Honda Motor
Co., Inc.
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may either
call the Auto Safety Hotline toll-free
at 1-800-424-9393 (or 366-0123 in
Washington D.C. area) or write to:
NHTSA, U.S. Department of
Transportation, Washington,
D.C. 20590. You can also obtain
other information about motor
vehicle safety from the Hotline.
Reporting Safety Defects (U.S. Vehicles)
Warranty and Customer Relations
280
Main Menu
Table of Contents
＊
＊
＊
−
＊
２
０
０
４
Ｈ
Ｏ
Ｎ
The publications shown below can be purchased from Helm
Incorporated. You can order in any of three ways:
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356
Detach and mail the order form on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
Valid only for sales within the U.S. Canadian owners should
contact their authorized Honda dealer.
(credit card orders only)
Authorized Manuals
Purchasing Factory Authorized Manuals (U.S. only)
281
Publication
Form Number
61S0X05
61S0X05EL
61S0X30
31S0X650
31S0X750
31S0XQ10
HON-R
Form Description
1999-2004 Honda Odyssey
Service Manual
1999-2004 Honda Odyssey
Electrical Troubleshooting Manual
1999-2004 Honda Odyssey
Body Repair Manual
2004 Honda Odyssey
Owner’s Manual
2004 Honda Odyssey
Navigation System Owner’s Manual
2004 Honda Odyssey
Quick Start Guide
Order Form for Previous Years-
Indicate Year and Model Desired
Price
Each
$70.00
$50.00
$44.00
$34.00
$29.00
$12.00
FREE
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
ORDER TOLL FREE: 1-800-782-4356
OR
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95
Prices are subject to change without notice and without incurring
obligation.
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
www. helminc. com
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
Ｔ
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
This manual complements the Service Manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
This manual describes the procedures involved in the
replacement of damaged body parts.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
282
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
Main Menu
Table of Contents
Battery
Charging System
...........................Indicator . 60, 252
............................Jump Starting . 248
..............................Maintenance . 235
............................Specifications . 267
..............................Before Driving . 167
....................................Belts,Seat .8,20
.........................Beverage Holders . 106
..................................Booster Seats . 51
Brakes
...........Anti-lock System (ABS) . 190
.............Break-in, New Linings . 168
....................Bulb Replacement . 223
...........................................Fluid . 218
.......................................Parking . 103
.................System Indicator . 60, 254
........................Wear Indicators . 189
.............................Braking System . 189
.................Break-in, New Vehicle . 168
..Brightness Control, Instruments . 72
........................Brights, Headlights . 71
Bulb Replacement
..........................Back-up Lights . 224
..............................Brake Lights . 223
................Front Parking Lights . 222
........Front Side Marker Lights . 222
.................................Headlights . 220
.........High-mount Brake Light . 225
Bulb Replacement
.........................Rear Bulbs . 223, 224
............................Specifications . 267
....................Turn Signal Lights . 222
..............................Bulbs, Halogen . 220
....................................Accessories . 174
ACCESSORY (Ignition Key
.......................................Position) . 77
............Accessory Power Sockets . 109
....................Additives, Engine Oil . 212
...............AdvancedAirbagSystem .27
...............................Airbag (SRS) . 9, 24
..............Air Conditioning System . 116
.....................Rear A/C Control . 123
.................................Usage . 119, 121
.......................Air Outlets (Vents) . 118
.......................Air Pressure, Tires . 230
.......................Alcohol in Gasoline . 168
..........................................Antenna . 227
......................................Antifreeze . 214
Anti-lock Brakes (ABS)
...............................Indicator . 61, 190
...................................Operation . 190
..............Anti-theft, Audio System . 144
.Anti-theft Steering Column Lock . 77
..........................................Armrests . 92
...............Audio Controls, Remote . 143
................................Audio System . 126
...Automatic Seat Belt Tensioners . 22
...Automatic Lighting Off Feature . 72
.............Automatic Speed Control . 160
..............Automatic Transmission . 184
..........................Capacity, Fluid . 266
...............Checking Fluid Level . 216
.......................................Shifting . 184
Shift Lever Position
...............................Indicators . 184
................Shift Lever Positions . 185
....................Shift Lock Release . 186
CONTINUED
Index
A
B
I
Main Menu
＊
................DANGER, Explanation of . ii
...................................Dashboard . 2, 58
................Daytime Running Lights . 72
Daytime Running Lights
.......................................Indicator . 64
.................................Dead Battery . 248
............Defects, Reporting Safety . 280
................Defogger, Rear Window . 73
................................Cancel Button . 160
............................Capacities Chart . 266
.............Carbon Monoxide Hazard . 54
..........................Cargo Area Light . 114
.................................Cargo Hooks . 179
....................Cargo, How to Carry . 176
......................................Cargo Net . 179
Cassette Player
............................................Care . 142
...................................Operation . 139
..............CAUTION, Explanation of . ii
.........................................CD Care . 135
...................................CD Changer . 134
.......CD Changer Error Message . 137
.......................CD Error Message . 136
.......................................CD Player . 133
...............................Center Pocket . 110
..................................Center Table . 105
........................Certification Label . 264
.................................Chains, Tires . 234
Changing Oil
........................................How to . 212
......................................When to . 205
....................Changing a Flat Tire . 239
...Charging System Indicator . 60, 252
............Checklist, Before Driving . 182
..................Childproof Door Locks . 79
.....................................Child Safety . 35
..............................Booster Seats . 51
...................................Child Seats . 42
.....Important Safety Reminders . 39
..........................................Infants . 40
..........................Lerger Children . 50
.........................................LATCH . 44
......................Risks with Airbags . 36
.............................Small Children . 41
.........................................Tethers . 48
........Where Should A Child Sit? . 36
.......................................Child Seats . 42
......LATCH Anchorage System . 44
..........Tether Anchorage Points . 48
Cleaning
...................................Seat Belts . 226
...............Climate Control System . 121
..............................................Clock . 105
......................................Coat Hook . 111
.....................Code, Audio System . 144
........................CO in the Exhaust . 271
...................................Coin Holder . 110
............Cold Weather, Starting in . 183
......................Compact Spare Tire . 238
...............Consumer Information . 278
.............Controls, Instruments and . 57
Coolant
........................................Adding . 214
....................................Checking . 172
.........................Proper Solution . 214
...................Temperature Gauge . 67
Crankcase Emissions Control
........................................System . 271
................Cruise Control Indicator . 64
............Cruise Control Operation . 160
...................................Cup Holders . 106
.............Customer Service Office . 278
Index
C
D
II
Main Menu
CONTINUED
..............Defrosting the Windows . 120
....................................Dimensions . 266
...............Dimming the Headlights . 71
Dipstick
..........Automatic Transmission . 216
..................................Engine Oil . 171
..........................Directional Signals . 71
........Disc Brake Wear Indicators . 189
.....................Disposal of Used Oil . 213
Doors
..............Locking and Unlocking . 78
....................Lockout Prevention . 78
.................Manual Sliding Doors . 84
..............................Monitor Light . 63
......................Power Door Locks . 78
...................Power Sliding Doors . 84
..........DOT Tire Quality Grading . 268
...........Driver and Passenger Safety . 5
...........................................Driving . 181
....................................Economy . 173
..................Dust and Pollen Filter . 227
....................DVD Error Message . 155
...................................DVD Player . 145
..............................Economy, Fuel . 173
..................................Emergencies . 237
.............Battery, Jump Starting . 248
...........Brake System Indicator . 254
................Changing a Flat Tire . 239
.....Charging System Indicator . 252
..................Checking the Fuses . 257
.........Hazard Warning Flashers . 73
............................Jump Starting . 248
.....Low Oil Pressure Indicator . 252
...Malfunction Indicator Lamp . 253
..................Overheated Engine . 250
.......................................Towing . 255
.........................Emergency Brake . 103
......................Emergency Flashers . 73
......................Emergency Towing . 255
.......................Emissions Controls . 271
.............Emissions Testing, State . 274
Engine
....Coolant Temperature Gauge . 67
..............Engine Speed Limiter . 186
.........................If It Won’t Start . 247
Malfunction Indicator
................................Lamp . 60, 253
........Oil Pressure Indicator . 60, 252
..............Oil, What Kind to Use . 211
...............................Overheating . 250
............................Specifications . 267
.......................................Starting . 183
.Evaporative Emissions Controls . 271
...............................Exhaust Fumes . 54
Exhaust Gas Recirculation
........................................System . 272
Expectant Mothers, Use of Seat
........................................Belts by . 18
...................................Fan, Interior . 117
Features, Comfort and
..............................Convenience . 115
....................Filling the Fuel Tank . 169
Filters
.........................Dust and Pollen . 227
...............................................Oil . 212
.............Flashers, Hazard Warning . 73
...................Flat Tire, Changing a . 239
.....................................Floor Mats . 226
Index
E
F
III
Main Menu
Fluids
..........Automatic Transmission . 216
..........................................Brake . 218
..........................Power Steering . 219
................Windshield Washers . 216
FM Stereo Radio
...................................Reception . 130
...................Folding the Third Seat . 96
..........................Four-way Flashers . 73
..............................Front Airbags . 9, 25
........................................Front Seat . 88
......................................Adjusting . 88
.........................................Heaters . 98
.....................................Airbags . 9, 25
.................................................Fuel . 168
......................Fill Door and Cap . 169
...........................................Gauge . 66
................Octane Requirement . 168
....................................Refueling . 169
........................Reserve Indicator . 64
.....................Fuses, Checking the . 260
.............Halogen Headlight Bulbs . 220
..............Hazard Warning Flashers . 73
........................................Headlights . 71
........................................Aiming . 220
..............Automatic Lighting Off . 72
............Daytime Running Lights . 72
..................High Beam Indicator . 64
.........................Reminder Chime . 71
........Replacing Halogen Bulbs . 220
...................................Turning on . 71
...................................Headphones . 156
..............................Head Restraints . 92
...............................Heated Mirror . 103
.....................................Heater, Seat . 98
.....................Heating and Cooling . 116
.............High Altitude, Starting at . 183
.................High-Low Beam Switch . 71
HomeLink Universal
................................Transceiver . 163
....................................Hood Latch . 220
.......................Hood, Opening the . 170
..............................................Horn .3,68
...............Gas Mileage, Improving . 173
.........................................Gasoline . 168
...............Fuel Reserve Indicator . 64
...........................................Gauge . 66
................Octane Requirement . 168
....................................Refueling . 169
................Gas Station Procedures . 169
Gauges
...Engine Coolant Temperature . 67
...............................................Fuel . 66
...............................Speedometer . 66
.................................Tachometer . 66
GAWR (Gross Axle Weight
.......................................Rating) . 195
GCWR (Gross Combined Weight
.......................................Rating) . 195
......................................Glove Box . 109
GVWR (Gross Vehicle Weight
.......................................Rating) . 195
...Identification Number, Vehicle . 264
Ignition
..............................................Keys . 75
...........................................Switch . 77
............Timing Control System . 272
........................Immobilizer System . 76
Index
H
I
G
IV
Main Menu
CONTINUED
.........Important Safety Precautions . 6
.........................................Indicators . 59
......ABS (Anti-lock Brake) . 61, 190
Brake (Parking and Brake
...........................System) . 60, 254
.................................Brake Lamp . 63
................Charging System . 60, 252
.............................Cruise Control . 64
DRL (Daytime Running
.....................................Lights) . 64
...................................High Beam . 64
.......Key (Immobilizer System) . 62
......................................Low Fuel . 64
................Low Oil Pressure . 60, 252
.....................Side Airbag Off . 31, 61
.........................................SRS . 30, 61
Turn Signal and Hazard
...................................Warning . 63
..............................Washer Level . 64
..................Individual Map Lights . 113
...............................Infant Restraint . 40
......................................Infant Seats . 42
......LATCH Anchorage System . 44
...........................Lower Anchors . 44
..........Tether Anchorage Points . 48
...................Inflation, Proper Tire . 230
.................................Inside Mirror . 102
.............................Inspection, Tire . 231
........................Instrument Panel . 2, 59
........Instrument Panel Brightness . 72
...............................Interior Lights . 112
........................................Introduction . i
.................Jacking up the Vehicle . 242
.......................................Jack, Tire . 240
................................Jump Starting . 248
..................................................Keys . 75
.......................Label, Certification . 264
.................Lane Change, Signaling . 71
..................Lap/Shoulder Belts . 14, 20
...........LATCH Anchorage System . 44
....................Light Control Switch . 112
Lights
....................Bulb Replacement . 220
.......................................Indicator . 59
.......................................Interior . 112
.........................................Parking . 71
..................................Turn Signal . 71
............................Load Limits . 177, 194
......LOCK (Ignition Key Position) . 77
Locks
.......Anti-theft Steering Column . 77
............................Fuel Fill Door . 169
..................................Glove Box . 109
....................Lockout Prevention . 78
.................................Power Door . 78
...............................Sliding Doors . 84
........................................Tailgate . 79
........................Low Coolant Level . 172
.........................Low Fuel Indicator . 64
...Low Oil Pressure Indicator . 60, 252
................................Lower Anchors . 44
...Lubricant Specifications Chart . 266
...........Luggage Net (Cargo Net) . 179
...........Luggage, Storing (Cargo) . 176
Index
J
K
L
V
Main Menu
..................................Maintenance . 201
...Owner Maintenance Checks . 204
.................................Record . 207-209
......................Required Indicator . 65
..........................................Safety . 202
.............................Schedule . 203-206
.Malfunction Indicator Lamp . 60, 253
.....................Manual Sliding Doors . 84
...............................Meters, Gauges . 66
........................Mirrors, Adjusting . 102
.................................Modifications . 175
.Additional Safety Precautions . 175
...............Modifying Your Vehicle . 175
Moving the Second Row Bucket
...............................................Seat . 94
...................Neutral Gear Position . 185
..................New Vehicle Break-in . 168
...................NOTICE, Explanation of . i
...............Numbers, Identification . 264
...Octane Requirement, Gasoline . 168
.........................................Odometer . 66
...............................Odometer, Trip . 67
Oil
........................Change, How to . 212
......................Change, When to . 205
......................Checking Engine . 171
..............Pressure Indicator . 60, 252
Selecting Proper Viscosity
......................................Chart . 211
...........ON (Ignition Key Position) . 77
Onboard Refueling Vapor
....................................Recovery . 271
............................Outside Mirrors . 102
....................Overheating, Engine . 250
.......Owner Maintenance Checks . 204
.........................Oxygenated Fuels . 168
..............Panel Brightness Control . 72
........................Park Gear Position . 185
...........................................Parking . 188
...............................Parking Brake . 103
Parking Brake and Brake
.................System Indicator . 60, 254
.................................Parking Lights . 71
..Parking Over Things that Burn . 188
....Passenger Airbag Off Indicator . 32
.............................PGM-FI System . 272
..........................Power Door Locks . 78
Power Sliding Doors
.................................Indicator . 62, 87
.....................................Operation . 84
.......................................Switches . 85
...............Power Socket Locations . 104
..............................Power Windows . 99
.........Pregnancy, Using Seat Belts . 18
.........Protecting Adults and Teens . 11
...Additional Safety Precautions . 18
.....Advice for Pregnant Women . 18
........................Protecting Children . 35
.......................Protecting Infants . 40
.......Protecting Larger Children . 50
.........Protecting Small Children . 41
Using Child Seats with
.....................................Tethers . 48
.............................Using LATCH . 44
Index
M
N
O
P
VI
Main Menu
＊
CONTINUED
..................................Safety Belts . 8, 20
.........Safety Defects, Reporting . 280
.................................Safety Features . 7
...........................................Airbags . 9
.......................................Seat Belts . 8
.............Safety Labels, Location of . 55
...............................Safety Messages . ii
.....................................Seat Belts . 8, 20
...............Additional Information . 20
Automatic Seat Belt
...............................Tensioners . 22
.....................................Cleaning . 226
......................Lap/Shoulder Belt . 20
................................Maintenance . 22
Reminder Indicator and
................................Beeper . 20, 60
................................Replacement . 22
...................System Components . 20
...............Use During Pregnancy . 18
...Wearing a Lap/Shoulder Belt . 14
....................................Seat Heaters . 98
.................................................Seats . 88
..........................Adjustments . 89, 91
............Drivers Lumbar Support . 92
...............Folding the Third Seat . 96
..........................Head Restraints . 92
.......Manual Height Adjustment . 90
......................Passenger Seating . 88
.........Reclining the Second Seat . 90
............Reclining the Third Seat . 90
......Removing the Second Seats . 95
.......................Third Seat Access . 93
............................Security System . 159
...................Radiator Overheating . 250
.....Radio/CD Sound System . 126, 132
...........................Readiness Codes . 253
............Rear Audio Control Panel . 149
...............................Rear A/C Unit . 123
.......................Rear Compartment . 108
........Rear Entertainment System . 145
Rear Lights, Bulb
......................Replacement . 223, 224
..........................Rear View Mirror . 102
.................Rear Window Defogger . 73
...............................Rear Windows . 101
.Rear Window Wiper and Washer . 70
.........Reclining the Seat Backs . 90, 91
...........Reclining the Second Seats . 90
................Reclining the Third Seat . 90
.......................Reminder Indicators . 59
................Remote Audio Controls . 143
................Remote Control (RES) . 151
.......................Remote Transmitter . 81
..........Removing the Second Seats . 95
Replacement Information
................Engine Oil and Filter . 212
..........................................Fuses . 257
................................Light Bulbs . 220
....................................Schedule . 203
................................Timing Belt . 219
...........................................Tires . 233
.............................Wiper Blades . 228
Replacing Seat Belts After a
............................................Crash . 22
Reserve Tank,
.................Engine Coolant . 172, 214
..................Reverse Gear Position . 185
......................................Roof Rack . 178
................................Rotation, Tire . 232
Index
S
R
VII
Main Menu
＊
Sensors
Front Passenger’s Weight
.....................................Sensors . 28
....Driver’s Seat Position Sensor . 28
...............................Serial Number . 264
...........................Service Intervals . 205
...........................Service Manual . 281
...........Service Station Procedure . 169
..........................Setting the Clock . 105
...Shift Lever Position Indicators . 184
........................Shift Lock Release . 186
................................Side Airbags . 9, 24
..........................Off Indicator . 31, 61
Side Marker Lights, Bulb
..............................Replacement . 222
...............................Signaling Turns . 71
...................................Sliding Doors . 84
.....................................Snow Tires . 234
................................Sound System . 126
Spare Tire
......................................Inflating . 238
............................Specifications . 267
....................................Spark Plugs . 267
....................Specifications Charts . 266
................................Speed Control . 160
...................................Speedometer . 66
..........SRS, Additional Information . 24
...Additional Safety Precautions . 34
.............................Airbag Service . 33
..How the SRS Indicator Works . 30
.....How Your Airbags Work . 25, 29
........................SRS Components . 24
.............................SRS Indicator . 30, 61
....START (Ignition Key Position) . 77
.......................Starting the Engine . 183
In Cold Weather at High
..................................Altitude . 183
................With a Dead Battery . 248
..............State Emissions Testing . 274
........Steam Coming from Engine . 250
Steering Wheel
..................................Adjustment . 74
.............Anti-theft Column Lock . 77
.......................................Buttons . 143
...................Stereo Sound System . 126
....................Storing Your Vehicle . 236
...................................Storage Box . 111
........................Sunglasses Holder . 107
........................................Sun Visor . 108
Supplemental Restraint System
......................................Servicing . 33
.........................SRS Indicator . 30, 61
...................System Components . 24
..................................Synthetic Oil . 212
.....................................Tachometer . 66
............................................Tailgate . 79
.................................Opening the . 79
...................Open Monitor Light . 63
.Taillights, Changing Bulbs . 223, 224
.Taking Care of the Unexpected . 237
....................................Tape Player . 139
Technical Descriptions
.....Emissions Control Systems . 271
Three Way Catalytic
...............................Converter . 273
.......................Temperature Gauge . 67
........Temperature, Inside Sensor . 125
...................Tensioners, Seat Belts . 22
..............Tether Anchorage Points . 48
............................Theft Protection . 144
..Three Way Catalytic Converter . 273
..................Tilt the Steering Wheel . 74
..........................Time, Setting the . 105
....................................Timing Belt . 219
....................................Tire Chains . 234
Index
T
VIII
Main Menu
＊
CONTINUED
.........Tire, How to Change a Flat . 239
...............................................Tires . 230
..............................Air Pressure . 230
...................................Balancing . 232
.........................Checking Wear . 231
..........................Compact Spare . 238
......DOT Tire Quality Grading . 268
......................................Inflation . 230
..................................Inspection . 231
.....................................Labeling . 270
...................................Replacing . 233
......................................Rotating . 232
...........................................Snow . 234
............................Specifications . 267
................................Tire Chains . 234
...................Tools, Tire Changing . 239
Towing
.....................................A Trailer . 194
................Emergency Wrecker . 255
....Equipment and Accessories . 196
.....................Weight Limit . 194, 195
Traction Control
.............................System(TCS) . 192
.............................Trailer Loading . 194
......................Trailer Towing Tips . 199
Transmission
...............Checking Fluid Level . 216
...........................Fluid Selection . 217
..............Identification Number . 264
.............Shifting the Automatic . 184
.....................................Treadwear . 268
.......................................Trip Meter . 67
....................................Turn Signals . 71
Unexpected, Taking Care
..........................................of the . 237
....Uniform Tire Quality Grading . 268
........................Unleaded Gasoline . 168
.......Used Oil, How to Dispose of . 213
................................Vanity Mirror . 108
.........Vehicle Capacity Load . 177, 194
......................Vehicle Dimensions . 266
....Vehicle Identification Number . 264
.............................Vehicle Storage . 236
.....................................Ventilation . 119
.................................................VIN . 264
..................................Viscosity, Oil . 211
.............WARNING, Explanation of . ii
.........Warning Labels, Location of . 55
..................Warranty Coverages . 279
Washer, Windshield
........Checking the Fluid Level . 216
............................Level Indicator . 64
.....................................Operation . 69
Wheels
...............Adjusting the Steering . 74
............Alignment and Balance . 232
..........................Compact Spare . 238
......................................Wrench . 242
Windows
.............................Auto Reverse . 100
..................Operating the Power . 99
............................................Rear . 101
...........................Rear, Defogger . 73
Index
U
V
W
IX
Main Menu
＊
Windshield
.......................................Cleaning . 69
...................................Defroster . 120
.......................................Washers . 69
Wipers, Windshield
.......................Changing Blades . 228
.....................................Operation . 69
Rear Windshield Wiper and
.....................................Washer . 70
..................Wireless Headphones . 156
....................................Worn Tires . 239
.....Wrecker, Emergency Towing . 255
: U.S. and Canada only
Index
X
Main Menu
Service Information Summary
Gasoline:
Fuel Tank Capacity:
Recommended Engine Oil:
Automatic Transmission Fluid:
Power Steering Fluid:
Brake Fluid:
Tire Pressure (measured cold):
36 psi (250 kPa , 2.5 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
4.6 US qt (4.4
)
Unleaded gasoline, pump octane
number of 86 or higher.
API Premium grade 5W-20
detergent oil (see page ).
Oil change capacity (including
filter):
Honda ATF-Z1 (Automatic
Transmission Fluid) preferred, or
aDEXRON
III ATF as a
temporary replacement (see page
).
Honda Power Steering Fluid
preferred, or another brand of
power steering fluid as a
temporary replacement. Do not
use ATF (see page ).
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Front/Rear:
Compact Spare Tire:
211
217
219
218
20.00 US gal (75.7 )
Main Menu
