5713212551/06.09
33
A4
A5
A7
A9
A12
A13
A14
A15
A18
A21
A23
A6
A8
A2
A3
A1
A17
A11
A10
A16
A19
A20
B1
B8
B9
B2 B3B4 B5B6
B7
B10
B11
B12 B13 B14
B15
44
123
5467
981011
1312 14 15
55
1716 18
2120 22
19
6
CONTENTS
1. IMPORTANT SAFEGUARDS ..........................7
1.1 California Proposition 65 ..............................7
1.2 Short cord instructions .................................8
2. INTRODUCTION ..........................................8
2.1 Symbols used in these instructions ...............8
2.2 Letters in brackets .........................................8
2.3 Troubleshooting and repairs ..........................8
2.4 Video instruction manual available on: ........8
3. DESCRIPTION.............................................8
3.1 Description of the appliance ..........................8
3.2 Description of control panel ..........................9
4. PRELIMINARY CHECKS................................9
4.1 Checking the appliance .................................9
4.2 Installing the appliance .................................9
4.3 Connecting the appliance ..............................9
4.4 Using the appliance for the rst time ............9
5. TURNING THE APPLIANCE ON.................... 10
6. TURNING THE APPLIANCE OFF .................. 10
7. SETTING AUTOOFF STANDBY ................ 10
8. SETTING TEMPERATURE ........................... 10
9. ENERGY SAVING ....................................... 10
10. MAKING COFFEE ....................................... 10
10.1 Selecting the coee taste ............................10
10.2 Selecting the quantity of coee in the cup .. 11
10.3 Adjusting the coee mill .............................11
10.4 Tips for a hotter coee:................................11
10.5 Making coee using coee beans ...............11
10.6 Making coee using pre-ground coee .......12
11. MAKING CAPPUCCINO .............................. 12
11.1 Cleaning the cappuccino maker after use ....12
12. HEATING WATER ......................................13
13. CLEANING................................................13
13.1 Cleaning the coee maker ...........................13
13.2 Cleaning the coee grounds container ........13
13.3 Cleaning the drip tray ..................................13
13.4 Cleaning the inside of the machine .............13
13.5 Cleaning the water tank .............................. 14
13.6 Cleaning the coee spouts ..........................14
13.7 Cleaning the pre-ground coee funnel .......14
13.8 Cleaning the infuser ....................................14
14. DESCALING .............................................. 14
15. SETTING WATER HARDNESS ...................... 15
15.1 Measuring water hardness ..........................15
15.2 Set water hardness ...................................... 15
16. TECHNICAL SPECIFICATION ....................... 15
17. MEANING OF LIGHTS DURING NORMAL
OPERATION ............................................. 16
18. MEANING OF THE ALARM LIGHTS .............. 17
19. TROUBLESHOOTING ................................. 18
7
1. IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the following.
• Read all instructions carefully.
• Make sure the voltage of your electrical system corresponds to the voltage shown on the bottom of the
machine.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against re, electrical shock and personal injury, do not immerse cord, plug or appliance in
water or other liquid.
• Keep the appliance out of the reach of children and do not leave appliance unattended while in operation.
• Unplug from the outlet when not in use and before cleaning.
• Do not operate with a damaged cord or plug, or after the appliance malfunctions, or has been damaged
in any manner. Return the appliance to the nearest authorized service facility for examination, repair or
adjustment.
• The use of accessory attachments not recommended by the manufacturer may result in re, electrical
shock, or personal injury.
• Do not use outdoors.
• Make sure the power cord does not hang over the edge of the table or counter-top to avoid getting acci-
dentally caught or entangled.
•
Do not place the appliance or its electrical parts on or near electric stoves, cooking surfaces, or gas burners.
• Plug cord into the wall outlet. To disconnect, rst turn machine “o”, then remove plug from wall outlet.
• Do not use the appliance for other than the intended use. This appliance is to be utilized for domestic
use only. The manufacturer declines all responsibility for any damage caused by improper, incorrect, or
irresponsible use.
WARNING: To reduce the risk of re or electric shock, do not remove the cover or the exterior of
the unit. Don’t attempt to repair or modify the machine, doing so will void the warranty. Repair
should be done by authorized service personnel only!
1.1 California Proposition 65
This product contains chemicals known to the State of California to cause cancer, birth defects or other repro-
ductive harm.
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
8
1.2 Short cord instructions
- A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a
longer cord.
- Longer, detachable power supply cords or extension cords are available and may be used if care is exer-
cised in their use.
- If an extension cord is used, the marked electrical rating should be at least as great as the electrical rating
of the appliance. If the appliance is provided with 3- wire, grounding type cord, the extension should be
a GROUNDING TYPE 3 - WIRE CORD. The longer cord should be arranged so that it will not drape over the
counter-top or table top where it can be pulled on by children or tripped over.
- Your product is equipped with a polarized alternating current line plug (a plug having one blade wider
than the other). This plug will t into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to t,
contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized
plug.
2. INTRODUCTION
Thank you for choosing the ESAM04110 automatic coee maker.
We hope you enjoy using your new appliance.
Take a few minutes to read these instructions.
This will avoid all risks and damage to the machine.
2.1 Symbols used in these instructions
Important warnings are identied by these symbols.
It is vitally important to observe these warnings.
Danger!
Failure to observe the warning could result in life threatening
injury from electric shock.
Important!
Failure to observe the warning could result in injury or damage
to the appliance.
Danger of burns!
Failure to observe the warning could result in scalds.
Please note:
This symbol identies important advice or information for the
user.
2.2 Letters in brackets
The letters in brackets refer to the legend in the Description of
the Appliance on page 3.
2.3 Troubleshooting and repairs
In the event of problems, rst try and resolve them following
the information given in the section “19. TROUBLESHOOTING”
and “18. MEANING OF THE ALARM LIGHTS”.
If this does not resolve the problem or you require further in-
formation, you should consult Customer Experience by calling
the number given on the annexed “Customer Experience” sheet.
If your country is not among those listed on the sheet, call the
number given in the guarantee.
If repairs are required, contact De’Longhi Customer Experience
only.
Contact details are given in the guarantee certicate provided
with the appliance.
2.4 Video instruction manual available on:
http://esam04110.delonghi.com
3. DESCRIPTION
3.1 Description of the appliance
(page 3 - A )
A1. Grinding adjustment knob
A2. Main switch (on back of appliance)
A3. Beans container
A4. Beans container lid
A5. Pre-ground coee funnel lid
A6. Compartment for measuring spoon
A7. Cup shelf
A8. Pre-ground coee funnel
A9. Steam spout
A10. Cappuccino maker (removable)
A11. Steam nozzle (removable)
A12. Water tank
A13. Power cable
A14. Cup tray
9
A15. Drip tray
A16. Infuser door
A17. Coee grounds container
A18. Coee spout (adjustable height)
A19. Coee guide
A20. Infuser
A21. Control panel
3.2 Description of control panel
(page 3 - B )
B1. button: turns the appliance on and o (stand-by).
B2. 1 cup and coee temperature OK light
B3. button: to make 1 cup of coee
B4. 2 cups and coee temperature OK light
B5. button: to make 2 cups of coee
B6. Steam and steam temperature OK light
B7. button: to select the steam function
B8. Coee quantity selection knob (short, standard or long)
B9. Selection knob to choose coee taste (for a mild, stand-
ard or strong coee) or use pre-ground coee
.
B10. Steam/hot water knob
B11. light: no water or water tank absent
B12. light: grounds container full or absent
B13. light: general alarm
B14. button to select rinsing or descaling
B15. Descaling light
B16. ECO button to select energy saving mode
B17. Energy saving mode light
4. PRELIMINARY CHECKS
4.1 Checking the appliance
After removing the packaging, make sure the product is com-
plete and undamaged and that all accessories are present.
Do not use the appliance if it is visibly damaged.
Contact De’Longhi Customer Services.
4.2 Installing the appliance
Important!
When you install the appliance, you should respect the follow-
ing safety warnings:
• The appliance gives o heat. After positioning the appli-
ance on the worktop, leave a space of at least 1.18 in/ 3
cm between the surfaces of the appliance and the side and
rear walls and at least 6 in/ 15 cm above the coee maker.
• Water penetrating the appliance could cause damage. Do
not place the appliance near taps or sinks.
• The appliance could be damaged if the water it contains
freezes. Do not install the appliance in a room where the
temperature could drop below freezing point.
• Arrange the power cable in such a way that it cannot be
damaged by sharp edges or contact with hot surfaces (e.g.
electric hot plates).
4.3 Connecting the appliance
Important!
Check that the mains power supply voltage corresponds to
the value indicated on the rating plate on the bottom of the
appliance.
Connect the appliance to an eciently earthed and correctly
installed socket with a minimum current rating of 10A only.
If the power socket does not match the plug on the appliance,
have the socket replaced with a suitable type by a qualied
professional.
4.4 Using the appliance for the rst time
Please note :
• Coee has been used to factory test the appliance and it is
therefore completely normal for there to be traces of coee
in the mill.
The machine is, however, guaranteed to be new.
• You should customise water hardness as soon as possible
following the instructions in the section “15. SETTING
WATER HARDNESS” .
1. Remove the water tank (A12), ll to the MAX line with
fresh water then replace in the appliance (g. 1).
2. Turn the cappuccino maker (A9) outwards and place a
container with a minimum capacity of 3.38 .oz. / 100 ml
underneath (g. 2).
3. Plug the appliance into the mains socket and place the
main switch (A2) on the back of the appliance in the I posi-
tion (g. 3).
4. The (B2), (B4), (B6) lights ash
simultaneously.
5. Turn the steam/hot water knob (B10) a half turn
counterclockwise as far as it will go to position I (g.
5). Water is delivered from the cappuccino maker
(it is normal for the appliance to make some noise).
6
. Wait for delivery of hot water to stop automatically. The
, , lights ash to indicate that you
must close the steam tap by turning the steam/hot water
knob to the 0 position.
7. Turn the steam/hot water knob to the 0 position. The ap-
pliance goes o automatically.
To use the appliance, turn it on.
10
Please note :
• When using the appliance for the rst time, you need to
make 4-5 cups of coee or 4-5 cappuccinos before the ap-
pliance starts to give satisfactory results.
5. TURNING THE APPLIANCE ON
Please note :
Before turning the appliance on, make sure the main switch
(A2-g. 3)on the back of the appliance is in the I position.
Each time the appliance is turned on, it performs an automatic
preheat and rinse cycle which cannot be interrupted.
The appliance is ready for use only after completion of this cycle.
Danger of burns!
During rinsing, a little hot water comes out of the coee spouts
(A18) and is collected in the drip tray underneath (A15). Avoid
contact with splashes of water.
• To turn the appliance on, press the button (B1-g.
4). The (B2) and (B4) lights ash while the
appliance is heating up and performing an automatic rinse
cycle. By circulating the hot water, the appliance heats the
boiler and the internal circuits. During this phase, the light
ashes.
When the
and lights remain on steadily, the
appliance is at temperature.
6. TURNING THE APPLIANCE OFF
Each time the appliance is turned o, it performs an automatic
rinse cycle which cannot be interrupted.
Danger of burns!
During rinsing, a little hot water ows from the coee spouts.
Avoid contact with splashes of water.
To turn the appliance o, press the button (B1-g. 4). The
appliance performs a rinse cycle then goes o.
Please note :
If the appliance is not used for an extended period, place the
main switch in the 0 position (A2-g. 6).
Important!
To avoid damaging the appliance, never place the main switch
(g. 6) in the 0 position while the appliance is on.
7. SETTING AUTOOFF STANDBY
The appliance is set by default to go o if not used for one hours.
The time can be changed so that the appliance switches o after
15 or 30 minutes, or after 1, 2 or 3 hours.
1. With the appliance o but the main switch in the l posi-
tion (A2-g. 3), press and hold the ECO button (B16) until
the lights at the bottom of the control panel come on (see
image after point 2).
2. Select the required period of time (15 or 30 minutes or 1,
2 or 3 hours) by pressing the (B7) button (see the
light/time table below).
15min 30min 1h 2h 3h
.
3. Press the ECO button to conrm the selection. Auto-o is
programmed.
Please note:
To disconnect the appliance completely, place the main switch
at the back of the appliance in the 0 position (g. 6).
8. SETTING TEMPERATURE
If you want to modify the temperature of the water used to
make the coee (low, medium, high, maximum), proceed as
follows:
1. With the appliance o (standby), but the main switch on
pos. I (A2-g. 3), press and hold the
button (B3-g.
11) until the lights on the control panel come on;
2. Press the button (B5-g. 12) to select the requi-
red temperature:
LOW HIGH
3. Press the button to conrm; the lights go o.
9. ENERGY SAVING
Use this function to activate or deactivate energy saving mode.
This reduces energy consumption in compliance with current
European regulations.
To activate the function, press the ECO button (B16), the light
(B17) comes on. To deactivate the function, press the ECO but-
ton. The light goes o.
Please note:
A few seconds may elapse between energy saving mode and
delivery of the rst coee as the appliance must heat up again.
11
10. MAKING COFFEE

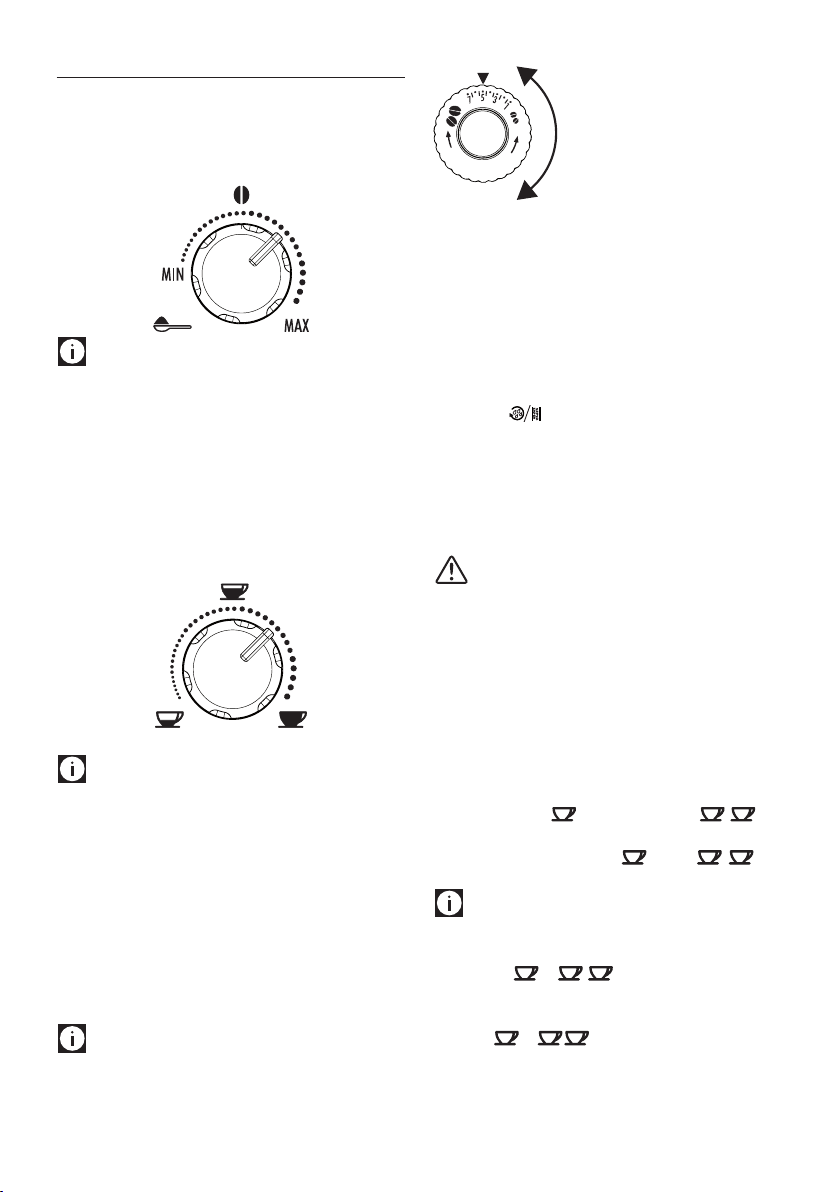

10.1 Selecting the coee taste
Turn the coee taste selection knob (B9) to select the required
taste. Turning it clockwise increases the quantity of coee beans
the appliance will grind and therefore the strength of the coee
obtained.
Please note :
• The rst time you use the appliance, you will need to make
a number of coees to identify the correct knob position
through trial and error.
• Make sure not to turn the knob too far clockwise, other-
wise the coee may be delivered too slowly (a drop at a
time), particularly when making two cups of coee.
10.2 Selecting the quantity of coee in the cup
Adjust the coee quantity selection knob (B8) to set the re-
quired quantity.
Turning it clockwise increases the amount of coee obtained.
Please note :
The rst time you use the appliance, you will need to make a
number of coees to identify the correct knob position through
trial and error.
10.3 Adjusting the coee mill
The coee mill is set by default to prepare coee correctly and
should not require regulating initially.
However, if after making the rst few coees you nd that the
coee is either too weak and not creamy enough or delivery is
too slow (a drop at a time), this can be corrected by adjusting
the grinding adjustment knob (A1) (g. 7).
Please note :
The grinding adjustment knob must only be turned when the
coee mill is in operation.
To obtain delivery not a drop at a time,
turn one click clockwise towards “7”.
For fuller bodied creamier coee, turn
one click anticlockwise towards “1”
(do not turn more than one click at
a time otherwise the coee could be
delivered a drop at a time).
These adjustments will only be evident after at least 2 cups of
coee have been made.
If this adjustment does not obtain the desired result, turn the
knob another click.
10.4 Tips for a hotter coee:
For hotter coee, you should:
• before delivering the coee, perform a rinse cycle by press-
ing the button (B14). Hot water is delivered from
the coee spout (A18), heating the internal circuits of the
appliance and thus raising the coee temperature.
• warm the cups by rinsing them with hot water (using the
hot water function).
10.5 Making coee using coee beans
Important!
Do not use caramelised or candied coee beans as they could
stick to the coee mill and make it unusable.
1. Fill the container with coee beans (A3-g. 8).
2. Place under the coee spouts (A18):
- 1 cup, if you want 1 coee (g. 9);
- 2 cups, if you want 2 coees.
3. Lower the spouts as near as possible to the cup. This makes
a creamier coee (g. 10).
4. Press the button corresponding to the number of coees
required (1 cup B3-g. 11 or 2 cups B5-
g. 12).
5. Preparation begins and the (B2) or (B4)
light stays on until delivery is complete.
Please note:
• While the machine is making coee, delivery can be inter-
rupted at any moment by pressing one of the two coee
buttons ( or ).
• At the end of delivery, to increase the quantity of coee in
the cup, just press (within 3 seconds) one of the coee but-
tons ( or ).
Once the coee has been made, the appliance is ready to use
again.
12
Please note:
For hotter coee, see the section “10.4 Tips for a hotter coee:”.
Important!
• If the coee is delivered a drop at a time, too weak and not
creamy enough or too cold, read the tips in the “19. TROU-
BLESHOOTING” section.
• Lights may be displayed on the control panel during use.
Their meaning is given in the sections “17. MEANING OF
LIGHTS DURING NORMAL OPERATION” and “18. MEANING
OF THE ALARM LIGHTS”.
10.6 Making coee using pre-ground coee
Important!
• Never add pre-ground coee when the machine is o or it
could spread through the inside of the machine and dirty
it. This could damage the appliance.
• Never use more than one level measure
or it could dirty the inside of the machine
or block the funnel.
Please note:
If you use pre-ground coee, you can only make one cup of
coee at a time.
1. Turn the coee taste selection knob (B9) anticlockwise as
far as it will go to the position.
2. Make sure the funnel (A8) is not blocked, then add one
level measure of pre-ground coee (A23) (g. 13).
3. Place a cup under the coee spouts (g 9).
4. Press the cup coee button (g. 11).
5. Preparation begins and can be interrupted at any moment
by pressing one of the two coee buttons ( -B3 or
-B5).
To deactivate the pre-ground coee function, turn the knob to
one of the other positions.
Please note:
A few seconds may elapse between energy saving mode and
delivery of the rst coee.
11. MAKING CAPPUCCINO
Important! Danger of burns!
During preparation, steam is given o. Take care to avoid scalds.
1. When preparing cappuccino, make the coee in a large
cup;
2. Fill a container with about 3,53 .oz/ 100 grams of milk for
each cappuccino to be made.
In choosing the size of the container, bear in mind that the
milk doubles or triples in volume;
Please note:
For a richer denser froth, use skimmed or partially skimmed
milk at refrigerator temperature (about 41°F/ 5°C).
To avoid milk with poor froth or large bubbles, always clean
the cappuccino maker (A9) as described in the section
“11.1 Cleaning the cappuccino maker after use”.
3. Press the button (B7). The corresponding light (B6)
ashes, indicating that the appliance is heating up;
5. Turn the cappuccino maker outwards and immerse in the
milk container (A9- g. 14);
6. When the light stops ashing and comes on steadily,
turn the steam/hot water knob to the l position (B10 - g.
5). Steam is delivered from the cappuccino maker, giving
the milk a creamy frothy appearance and making it more
voluminous;
7. For a creamier froth, rotate the container with slow move-
ments in an upward direction. (You should not discharge
steam for more than 3 minutes at a time);
8. When you have obtained the required froth, stop steam
delivery by turning the steam/hot water knob back to the
0 position.
Important! Danger of burns!
Always turn the steam/hot water knob to the 0 position
before removing the container with the frothed milk to
avoid burns caused by splashes of boiling milk.
9. Add the milk froth to the cup of coee prepared previously.
The cappuccino is ready. Sweeten to taste and, if desired,
sprinkle the froth with a little cocoa powder.
Please note:
• If immediately after making cappuccino and deactivating
the steam function by pressing the steam button
you press the (B3) or (B5) button because
you want to make another coee, the coee maker will be
too hot (the and lights (B2 and B4) ash to
indicate an unsuitable temperature). You must wait about
ten minutes for the appliance too cool down suciently.
To cool it down more quickly, after deactivating the steam
function, open the steam/hot water knob and let the water
ow out of the cappuccino maker into a container until the
lights and stop ashing.
Danger of burns!
Avoid contact with splashes of water.
13
11.1 Cleaning the cappuccino maker after use
Clean the cappuccino maker (A9) each time you use it to avoid
the build-up of milk residues or blockages.
Important! Danger of burns!
When cleaning the cappuccino maker, a little hot water is
delivered.
Avoid contact with splashes of water.
1. Deliver a little water for a few seconds by rotating the knob
to the I position (B10).
Then turn the steam/hot water knob to the 0 position to
stop the ow of hot water.
2. Wait for a few minutes for the cappuccino maker (A11) to
cool down. Grip the handle of the cappuccino maker tube
rmly in one hand and with the other rotate the cappuc-
cino maker anticlockwise (g. 15) and remove by pulling
downwards (g. 16).
3. Wash all parts of the cappuccino maker thoroughly with a
sponge and warm water.
4. Make sure the holes shown by the arrows in g. 17 are not
blocked. If necessary, clean with a pin.
5. Wash all parts of the cappuccino maker thoroughly with a
sponge and warm water.
6. Reinsert the nozzle (A10) and replace the cappuccino
maker tube (A11) on the nozzle, turning it and pushing it
upwards until it is attached.
12. HEATING WATER
Important! Danger of burns!
Never leave the machine unsupervised while delivering hot
water.
As shown below, stop delivery of hot water when the cup is full.
The cappuccino maker (A9) becomes hot while water is being
delivered and must be held by the handle only.
1. Place a container under the cappuccino maker (as close as
possible to avoid splashes).
2. Check that the (B2) and (B4) lights are on
steadily.
3. Turn the steam/hot water knob (B10) a half turn anticlock-
wise as far as it will go. Delivery begins.
4.
Stop by turning the steam/hot water knob to the 0 position.
Please note:
• If “Energy Saving” mode is active, you may have to wait a
few seconds before the hot water is delivered.
• To produce steam immediately after preparing hot water,
you should open the steam/hot water knob for a few sec-
onds to empty the water circuits.
13. CLEANING
13.1 Cleaning the coee maker
The following parts of the machine must be cleaned regularly:
- the appliance’s internal circuit;
- coee grounds container (A17),
- drip tray (A15),
- water tank (A12),
- coee spouts (A18),
- cappuccino maker (A9 - see “11.1 Cleaning the cappuccino
maker after use”)
- pre-ground coee funnel (A8),
- inside of the machine, accessible after opening the infuser
door (A16),
- infuser (A20).
Important!
• Do not use solvents, abrasive detergents or alcohol to clean
the coee maker.
With De’Longhi superautomatic coee makers, you need
not use chemical products to clean the machine. The des-
caler recommended by De’Longhi is made from natural
and completely biodegradable substances.
• None of the components can be washed in a dishwasher.
• Do not use metal objects to remove encrustations or coee
deposits as they could scratch metal or plastic surfaces.
13.2 Cleaning the coee grounds container
When the light ashes (B12), the coee grounds container
needs emptying (A17). Unless you clean the grounds container,
the light will continue to ash and the appliance cannot be used
to make coee. To clean (with the machine on):
• Open the service door (A16) on the front of the appliance,
extract the drip tray (A15-g. 18), empty and clean.
• Empty the grounds container and clean thoroughly to re-
move all residues left on the bottom.
Important!
When removing the drip tray, the grounds container must be
emptied, even if it contains few grounds.
If this is not done, when you make the next coees, the grounds
container may ll up more than expected and clog the machine.
13.3 Cleaning the drip tray
Important!
If the drip tray is not emptied regularly, the water could over-
ow from the edge and seep inside or around the machine.
This could damage the machine, the surface it rests on or the
surrounding area.
The drip tray (A15) is tted with a level indicator (red) showing
the level of water it contains (g. 19).
14
Before the indicator protrudes from the cup tray (A14), the drip
tray must be emptied and cleaned.
To remove the drip tray:
1. Remove the drip tray and the grounds container (g. 18);
2. Empty the drip tray and grounds container and wash them;
3. Replace the drip tray and grounds container.
13.4 Cleaning the inside of the machine
Danger of electric shock!
Before cleaning internal parts, the machine must be turned o
(see “6. TURNING THE APPLIANCE OFF”) and unplugged from the
mains power supply.
Never immerse the coee maker in water.
1. Check regularly (about once a month) that the inside of the
appliance (accessible after removing the drip tray - A15) is
not dirty. If necessary, remove coee deposits with a brush
and a sponge.
2. Remove the residues with a vacuum cleaner (g. 20).
13.5 Cleaning the water tank
1. Clean the water tank (A12) regularly (about once a month
and whenever you replace the water softener lter, if
provided) with a damp cloth and a little mild washing up
liquid.
2. Fill the tank with fresh water and put back in the appliance.
13.6 Cleaning the coee spouts
1. Clean the coee spouts with a sponge or cloth (A18-g.
21).
2. Check the holes in the coee spout are not blocked. If nec-
essary, remove coee deposits with a toothpick (g. 22).
13.7 Cleaning the pre-ground coee funnel
Check regularly (about once a month ) that the pre-ground cof-
fee funnel (A8) is not blocked.
If necessary, remove coee deposits with a brush.
13.8 Cleaning the infuser
The infuser (A20) must be cleaned at least once a month.
Important!
The infuser may not be extracted when the machine is on.
1. Make sure the machine is correctly turned o (see “6.
TURNING THE APPLIANCE OFF”).
2. Open the service door (A16).
3. Extract the drip tray (A15) and the grounds container (A17)
(g. 18).
4. Press the two red release buttons inwards and at the same
time pull the infuser outwards (g. 23).
Important!
RINSE WITH WATER ONLY NO WASHING UP LIQUID NO DISH
WASHER
Do not use washing up liquid to clean the infuser as it could
cause damage.
5. Soak the infuser in water for about 5
minutes, then rinse under the tap.
6. After cleaning, replace the infuser by
sliding it onto the internal support and
pin at the bottom, then push the PUSH
symbol fully in until it clicks into place.
Please note!
If the infuser is dicult to insert,
before insertion, adapt it to the
right size by pressing the two le-
vers shown in the gure.
7. Once inserted, make sure the two red buttons have
snapped out.
8. Replace the drip tray and grounds container.
9. Close the service door.
14. DESCALING
Descale the appliance when the light (B15) on the panel
ashes.
Important!
• Descaler contains acids which may irritate the skin and
eyes. It is vital to respect the manufacturer’s safety warn-
ings given on the descaler pack and the warnings relating
to the procedure to follow in the event of contact with the
skin and eyes.
• You should use De’Longhi descaler only. Using unsuitable
descaler and/or performing descaling incorrectly may re-
sult in faults not covered by the manufactur er’s guarantee.
1. Turn the machine on.
2. Empty the water tank (A12).
3. Pour the descaler diluted with water (respecting the pro-
portions indicated on the descaler pack) into the water
tank.
15
Place an empty container with a minimum capacity of
57.48 .oz./1.7 litres under the hot water spout (A18).
4. Wait for the (B2) and (B4) lights to come
on steadily.
Important! Danger of burns!
Hot water containing acid ows from the cappuccino maker
(A9). Avoid contact with splashes of water.
5. Press the button (B14) and hold it down for at least
5 seconds to conrm that you have added the solution
and begin the descaling procedure. The light in the button
remains on steadily to indicate that the descaling pro-
gramme has begun. The
, and (B6)
lights ash simultaneously telling you to turn the steam
knob to the l position (coee cannot be made).
6. Turn the steam/hot water knob (B10) anticlockwise to the l
position. The descaler solution ows out of the cappuccino
maker into the underlying container.
The descale programme automatically performs a series of
rinses and pauses to remove limescale deposits from inside
the machine.
After about 30 minutes, the water tank is empty, the
(B11)
light comes on and the , and lights alter-
nate. Turn the steam/hot water knob clockwise as far as it will
go to the 0 position.
The appliance is now ready for rinsing through with clean water.
11. Empty the container used to collect the descaler solution
and replace it empty under the cappuccino maker.
12. Remove the water tank, empty, rinse under running water,
ll with clean water and replace. The , and
lights ash simultaneously.
13. Turn the steam/hot water knob a half turn anticlockwise to
the l position. Hot water comes out of the spout.
14. When the water tank is completely empty, the light
goes out and the and , , lights
ash.
15. Turn the knob to the 0 position, ll the water tank again
and the appliance goes o automatically.
To use the appliance, turn it on by pressing the
(B1)
button.
Please note!
If the descaling cycle is not completed correctly (e.g. lack of elec-
tricity) we recommend repeating the cycle.
15. SETTING WATER HARDNESS
The light (B15) comes on after a period of time estab-
lished according to water hardness.
The machine is set by default for a hardness value of 4 (very hard
water).
The machine can also be programmed according to the hardness
of the mains water in the various regions so that the machine
needs to be descaled less often.
15.1 Measuring water hardness
1. Remove the “TOTAL HARDNESS TEST” indicator paper at-
tached to this manual from its pack.
2. Immerse the paper completely in a glass of water for one
second.
3. Remove the paper from the water and shake lightly. After
about a minute, 1, 2, 3, or 4 red squares form, depending
on the hardness of the water. Each square corresponds to
one level.
15.2 Set water hardness
1. Make sure the appliance is o (but connected to the mains
electricity supply and with the main switch (in the I posi-
tion) (A2-g. 3);
2. Press and hold the button (B14) for at least 6 sec-
onds. The
lights
(B11, B12, B13 and B14) come on simultaneously;
3. Press the ECO button (B16) to set the actual water hardness
(as measured by the indicator paper).
Level Level Level Level
1234
4. Press the button to exit the menu.
The machine is now reprogrammed with the new water hard-
ness setting.
16. TECHNICAL SPECIFICATION
Voltage: 120 V
Absorbed power: 1350 W
Pressure: 1,5 MPa (15 bar)
Water tank capacity: 1,7 L
Size: LxHxD: 280x364x400 mm
Cable length: 1110 mm
Weight: 10,8 kg
level 1
level 2
level 3
level 4
16
17. MEANING OF LIGHTS DURING NORMAL OPERATION
LIGHTS DESCRIPTION MEANING
1
8
9
2
3
4
5
6
7
10
11
The lights ash (B2 and B4) The coee maker is not ready to make coee (the
water has not yet reached the ideal temperature).
Wait for the lights to come on steadily before ma-
king coee or (if the appliance is too hot to make
coee) open the steam/hot water knob and let
the water ow out of the cappuccino maker into a
container until the lights and stop
ashing
1
8
9
2
3
4
5
6
7
10
11
The lights are on steadily The coee maker is at the right temperature and
ready to make coee
1
8
9
2
3
4
5
6
7
10
11
The light is on steadily The appliance is delivering one cup of coee
1
8
9
2
3
4
5
6
7
10
11
The light is on steadily The appliance is delivering two cups of coee
1
8
9
2
3
4
5
6
7
10
11
The steam light is ashing (B6) The coee maker is heating up to the ideal tempe-
rature to produce steam. Wait for the light to remain
on steadily before using the steam function
1
8
9
2
3
4
5
6
7
10
11
The steam light is on steadily The appliance is ready to deliver steam
1
8
9
2
3
4
5
6
7
10
11
The lights ash alternately The appliance is turning o (see the section “6. TUR-
NING THE APPLIANCE OFF”)
1
8
9
2
3
4
5
6
7
10
11
The lights ash You must turn the steam/hot water knob to posi-
tion I
1
8
9
2
3
4
5
6
7
10
11
The lights ash alternately You must turn the steam/hot water knob to position
0
1
8
9
2
3
4
5
6
7
10
11
The light (B17) is on steadily The appliance is in energy saving mode
1
8
9
2
3
4
5
6
7
10
11
The light (B15) is on steadily The automatic descaling programme is underway
17
18. MEANING OF THE ALARM LIGHTS
LIGHTS DESCRIPTION MEANING WHAT TO DO
1
2
3
4
5
6
7
8
9
10
11
The light (B11) is on
steadily
Insucient water in tank
or tank not correctly in
place
Fill the tank (A12) with water and/
or insert it correctly, pushing it as
far as it will go until it clicks into
place.
The tank is dirty and/or
clogged
Rinse or descale the tank
1
2
3
4
5
6
7
8
9
10
11
The light ashes The grinding is too ne
and the coee is delivered
too slowly
Repeat coee delivery and turn
the grinding adjustment knob (A1)
(g. 10) one click clockwise to-
wards “7” while the coee mill is in
operation. If after making at least
2 coees delivery is still too slow,
repeat the correction procedure,
turning the grinding adjustment
knob another click until delivery is
correct (see the section “10.3 Adju-
sting the coee mill”).
The machine is not able to
make coee
If the problem persists, turn the
steam/hot water knob (B10) to the
I position and deliver water from
the cappuccino maker (A9)
1
2
3
4
5
6
7
8
9
10
11
The light (B12) is on
steadily
The grounds container is
full or missing
Empty the grounds container
(A15) and drip tray (A17), clean
and replace (g. 18). Important:
when removing the drip tray,
the grounds container MUST be
emptied, even if it contains few
grounds. If this is not done, when
you make the next coees, the
grounds container may ll up
more than expected and clog the
machine
1
2
3
4
5
6
7
8
9
10
11
The light ashes The “pre-ground coee”
function
has been
selected without placing
any pre-ground coee in
the funnel
Place pre-ground coee in the
funnel (A8) or deselect the “pre-
ground” function
The coee beans have run
out
Fill the beans container (A3)
If the coee mill is very
noisy, this means a small
stone in the coee beans
has blocked the mill.
Contact Customer Services
1
2
3
4
5
6
7
8
9
10
11
The light (B15) ashes The machine must be
descaled
The descaling procedure described
in the section “14. DESCALING”
needs to be performed as soon as
possible.
18
1
2
3
4
5
6
7
8
9
10
11
There is an unusual
noise and the lights
ash alternately
The infuser has not been
replaced after cleaning
Leave the service door (A16) closed
and the infuser (A20) out of the
coee maker. Press the
(B3)
or (B5) buttons toge-
ther until the four lights go o.
Only when all four lights are o
can the door be opened and the
infuser inserted.
1
2
3
4
5
6
7
8
9
10
11
The lights ash
alternately
The coee maker has
just been turned on, the
infuser is not inserted cor-
rectly and the service door
is not correctly closed.
Press the word PUSH on the infuser
(A20)until it clicks into place.
Make sure the two red buttons
have snapped out.
Close the service door and turn the
appliance on again
1
2
3
4
5
6
7
8
9
10
11
The lights ash The pre-ground coee
funnel is clogged
Empty the funnel (A8) with the
help of a brush as described in the
section “13.7 Cleaning the pre-
ground coee funnel”.
1
2
3
4
5
6
7
8
9
10
11
The light (B13) is on
steadily
The infuser has not been
replaced after cleaning.
Insert the infuser (A20) as descri-
bed in the paragraph “13.8 Clea-
ning the infuser”
The inside of the appliance
is very dirty
Clean the appliance thoroughly
1
2
3
4
5
6
7
8
9
10
11
The light ashes The service door is open If you cannot close the door (A16),
make sure the infuser (A20) is cor-
rectly inserted
1
2
3
4
5
6
7
8
9
10
11
The lights ash
alternately
The coee maker has been
switched on with the steam
knob in the open position
You must turn the steam/hot
water knob (B10) to position 0
19. TROUBLESHOOTING
Below is a list of some of the possible malfunctions.
If the problem cannot be resolved as described, contact Customer Services.
PROBLEM POSSIBLE CAUSE SOLUTION
The coee is not hot The cups were not preheated. Warm the cups by rinsing them with hot water
(N.B. you can use the hot water function).
The infuser has cooled down because 2/3 mi-
nutes have elapsed since the last coee was
made.
Before making coee, heat the infuser (A20) by
pressing the
button (B14).
The coee is weak or not
creamy enough.
The coee is ground too coarsely. Turn the grinding adjustment knob (A1) one click
anticlockwise towards “1” while the coee mill is in
operation (g. 7). Continue one click at a time until
coee delivery is satisfactory. The eect is only visi-
ble after delivering 2 coees (see the section “10.3
Adjusting the coee mill”).
The coee is unsuitable. Use pre-ground coee for espresso coee makers
19
The coee is delivered
too slowly or a drop at
a time.
The coee is ground too nely. Turn the grinding adjustment knob (A1) one click
clockwise towards “7” while the coee mill is in
operation (g. 7). Continue one click at a time until
coee delivery is satisfactory. The eect is only visi-
ble after delivering 2 coees (see the section “15.
SETTING WATER HARDNESS”).
Coee does not come out
of one of the spouts.
The spouts are blocked. Clean the spouts (A18) with a toothpick (g. 22).
The coee does not come
out of the spouts, but
from around the service
door.
The holes in the spouts are clogged with dry
coee dust
The coee guide inside the service door is blocked
and cannot swing.
Clean the spouts (A18) with a toothpick, spon-
ge or hard bristled kitchen brush (g. 21 and
22)
Thoroughly clean the coee guide (A19), particu-
larly near the hinges.
The frothed milk has
large bubbles
The milk is not cold enough or is not
semi-skimmed.
You should ideally use skimmed or semi-skimmed
milk at refrigerator temperature (about 5°C). If the
result is not as you wished, try changing brand of
milk.
The milk is not frothed Cappuccino maker (A9) dirty. Clean as described in the section “11.1 Cleaning the
cappuccino maker after use”.
Steam delivery stops A safety device stops steam delivery after 3
minutes.
Wait, then activate the steam function again.
The appliance does not
come on.
It is not plugged into the mains socket. Plug into the mains socket.
The main switch (A2) is not turned on. Place the main switch in the I position (g. 3).
When the steam/hot
water knob is turned to
the l position, steam/hot
water is not delivered
from the cappuccino
maker
The holes in the cappuccino maker (A9) and/or
steam nozzle (A10) are blocked
Clean the cappuccino maker as described in the sec-
tion “11.1 Cleaning the cappuccino maker after use”
The infuser assembly
cannot be removed for
cleaning.
The appliance is on or has not completed the
turning o cycle.
The infuser (A20) can only be removed when the
appliance has been turned o correctly (see the
section “6. TURNING THE APPLIANCE OFF”).
