LG LHB977 Network Blu-ray Home Theater System User Manual

Owner’s Manual

Model: LHB977

As an ENERGY STAR

Partner, LG

has determined that this product

or product models meet the

ENERGY STAR

guidelines for

energy efficiency.

ENERGY STAR

is a U.S. registered mark.

For Service/

Support, call:

Toll Free Number

1-800-243-0000

(http://us.lgservice.com)

Netflix Support

For help with Netflix Instant Streaming:

Call 1-866-579-7113 or

Visit www

.netflix.com/help

ENGLISH

Network Blu-ray Disc

Home Theater System

P/NO : MFL62596605

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 1

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE REFER

SERVICING TO QUALIFIED SERVICE PERSON-

NEL.

This lightning flash with arrowhead symbol

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

dangerous voltage within the product’s

enclosure that may be of suf ficient magni-

tude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and mainte-

nance (servicing) instructions in the litera-

ture accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC

SHOCK HAZARD, DO NOT EXPOSE THIS PROD-

UCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a con-

fined space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings.

Install in accordance with the manufacturer's

instructions.

Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the

product and to protect it from over heating. The

openings shall be never be blocked by placing the

product on a bed, sofa, rug or other similar surface.

This product shall not be placed in a built-in installa-

tion such as a bookcase or rack unless

proper ventilation is provided or the manufacturer's

instruction has been adhered to.

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read

this owner’s manual carefully and retain it for future

reference. Shall the unit require maintenance, con-

tact an authorized service center.

Use of controls, adjustments or the performance of

procedures other than those specified herein may

result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try

to open the enclosure. Visible laser radiation when

open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus shall not be exposed to

water (dripping or splashing) and no objects filled

with liquids, such as vases, shall be placed on the

apparatus.

CAUTION concerning the Power Cord

Most appliances recommend they be placed

upon a dedicated circuit;

That is, a single outlet circuit which powers only that

appliance and has no additional outlets or branch

circuits. Check the specification page of this

owner's manual to be certain. Do not overload wall

outlets. Overloaded wall outlets, loose or damaged

wall outlets, extension cords, frayed power cords, or

damaged or cracked wire insulation are dangerous.

Any of these conditions could result in electric

shock or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage

or deterioration, unplug it, discontinue use of the

appliance, and have the cord replaced with an

exact replacement part by an authorized service

center. Protect the power cord from physical or

mechanical abuse, such as being twisted, kinked,

pinched, closed in a door, or walked upon. Pay par-

ticular attention to plugs, wall outlets, and the point

where the cord exits the appliance. To disconnect

power from the mains, pull out the mains cord plug.

When installing the product, ensure that the plug is

easily accessible.

FCC WARNING: This equipment may generate or

use radio frequency energy. Changes or modifica-

tions to this equipment may cause harmful

interference unless the modifications are expressly

approved in the instruction manual. The user could

lose the authority to operate this equipment if an

unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when the product is

operated in a residential installation. This product

generates, uses, and can radiate radio frequency

energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this product does cause harmful

interference to radio or television reception, which

can be determined by turning the product of f and

on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

•

Increase the separation between the product and

receiver.

• Connect the product into an outlet on a circuit

different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV

technician for help.

FCC COMPLIANCE: The responsible party for this

product’s compliance is:

LG Electronics U.S.A., Inc.,1000 Sylvan Avenue,

Englewood Cliffs, NJ.

Phone: 1-201-816-2000.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 2

Important Safety

Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other appa-

ratus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polar-

ized or grounding-type plug. A polarized plug

has two blades with one wider than the other . A

grounding type plug has two blades and a third

grounding prong. The wide blade or the third

prong are provided for your safety. If the provid-

ed plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11. Only use attachments/accessories specified by

the manufacturer.

12. Use only with the cart, stand,

tripod, bracket, or table specified

by the manufacturer, or sold with

the apparatus. When a cart is

used, use caution when moving

the cart/apparatus combination

to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14.

Refer all servicing to qualified service person-

nel. Servicing is required when the apparatus

has been damaged in any way, such as power-

supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or

moisture, does not operate normally, or has

been dropped.

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .5-8

Remote control . . . . . . . . . . . . . . . . . . . . . . . .9

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . .10

Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . .1 1

Assembling the Speakers . . . . . . . . . . . . . . .12

Speaker connection . . . . . . . . . . . . . . . . .12-13

Positioning the system . . . . . . . . . . . . . . . . . .13

Connections to your TV . . . . . . . . . . . . . .14-15

Resolution Setting . . . . . . . . . . . . . . . . . . .16-17

Internet connection . . . . . . . . . . . . . . . . . .17-18

Network Software Update . . . . . . . . . . . . .19-20

Setting the sound mode . . . . . . . . . . . . . . . . .21

Adjust the speaker level settings . . . . . . . . . .21

Using the late night function . . . . . . . . . . . . . .21

Using the sleep timer . . . . . . . . . . . . . . . . . . .21

Using USB devices . . . . . . . . . . . . . . . . . . . . .22

Using the Home Menu . . . . . . . . . . . . . . . . . .23

Adjust the Setup settings . . . . . . . . . . . . .23-29

Play a disc . . . . . . . . . . . . . . . . . . . . . . . .30-33

Displaying disc Information . . . . . . . . . . . . . . .34

Enjoying BD-LIVE™ . . . . . . . . . . . . . . . . .35-36

Playing a movie . . . . . . . . . . . . . . . . . . . . . . .3 6

Listening to music . . . . . . . . . . . . . . . . . . . . .3 7

Viewing a photo . . . . . . . . . . . . . . . . . . . .38-39

Playing Netflix Streaming . . . . . . . . . . . . . .40-42

Playing CinemaNow videos . . . . . . . . . . . .43-46

Using Pandora . . . . . . . . . . . . . . . . . . . . . .47-49

Playing YouTube videos . . . . . . . . . . . . . . .50-52

Listening to the radio . . . . . . . . . . . . . . . . . . .53

Playing the iPod . . . . . . . . . . . . . . . . . . . .53-54

Listening to music from your portable audio

player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Listening to the sound from your component .55

Using HDMI IN jacks . . . . . . . . . . . . . . . . . . .56

Using DIGITAL AUDIO IN jacks . . . . . . . . . . .56

Reference . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Code numbers of controllable TVs . . . . . . . . .58

Language Codes . . . . . . . . . . . . . . . . . . . . . .59

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . .59

Troubleshooting . . . . . . . . . . . . . . . . . . . .60-61

Specifications . . . . . . . . . . . . . . . . . . . . . . . .62

IMPORTANT INFORMATION RELATING TO

NETWORK SERVICES . . . . . . . . . . . . . . . . .63

Open source software notice . . . . . . . . . . . . .64

Limited Warranty . . . . . . . . . . . . . . .Back Cover

Before connecting, operating or adjusting this

product, please read this instruction booklet

carefully and completely.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 3

Notes on Copyrights

 Because AACS (Advanced Access Content

System) is approved as content protection

system for BD format, similar to use of CSS

(Content Scramble System) for DVD format,

certain restrictions are imposed on playback,

analog signal output, etc., of AACS protected

contents. The operation of this product and

restrictions on this product may vary depending

on your time of purchase as those restrictions

may be adopted and/or changed by AACS after

the production of this product.

Furthermore, BD-ROM Mark and BD+ are

additionally used as content protection systems

for BD format, which imposes certain restrictions

including playback restrictions for BD-ROM Mark

and/or BD+ protected contents. To obtain

additional information on AACS, BD-ROM Mark,

BD+, or this product, please contact an

authorized Customer Service Center.

 Many BD-ROM/DVD discs are encoded with

copy protection. Because of this, you should only

connect your player directly to your TV, not to a

VCR. Connecting to a VCR results in a distorted

picture from copy-protected discs.

 This product incorporates copyright protection

technologies that are protected by certain U.S.

patents and other intellectual property rights

owned by Macrovision Corporation and other

rights owners. Use of this copyright protection

technology must be authorized by Macrovision

Corporation and is intended for home and other

limited viewing uses only, unless otherwise

authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

 Under the U.S. Copyright laws and Copyright

laws of other countries, unauthorized recording,

use, display, distribution, or revision of television

programs, videotapes, BD-ROM discs, DVDs,

CDs and other materials may subject you to civil

and/or criminal liability.

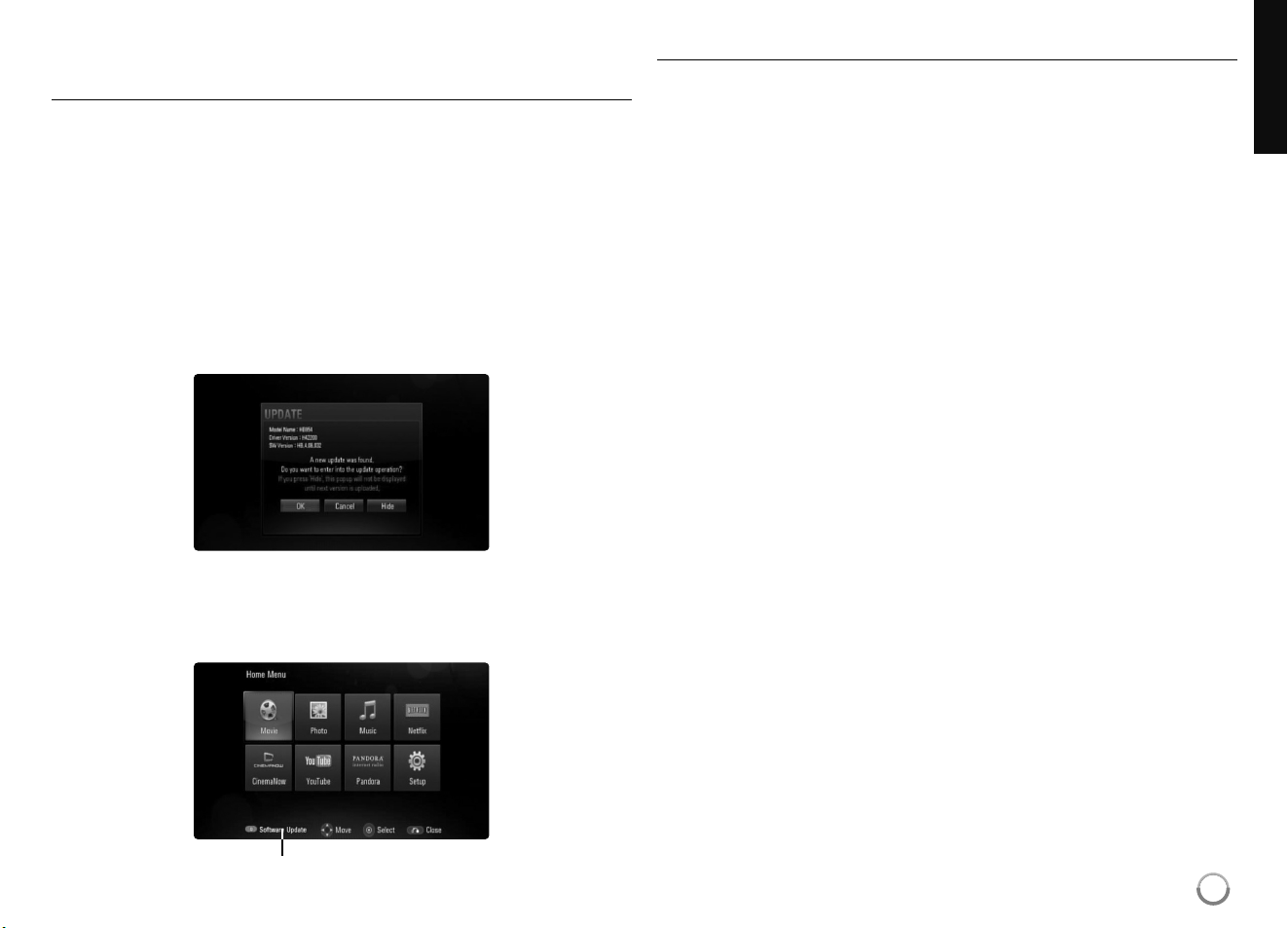

Software Update

The software of the player can be updated by

connecting it to the Internet using the LAN cable.

We recommend to update the player using the

latest software to enhance the products operation

and/or add new features (see page 19-20).

To use BD-Live functionality

You must attach an external USB device using the

USB port (see page 22).

What is SIMPLINK?

Some functions of this unit are controlled by the

TV’s remote control when this unit and LG TV’s with

SIMPLINK are connected through HDMI

connection.

 Controllable functions by LG TV’s remote control;

Play, Pause, Scan, Skip, Stop, Power Of f, etc.

 Refer to the TV owner’s manual for the details of

SIMPLINK function.

 LG TV’s with SIMPLINK function have the logo

as shown above.

Notes:

 Depending on the disc type or playing status,

some SIMPLINK operation may differ from your

purpose or not work.

 If “SIMPLINK” function does not work, check that

your HDMI cable supports by CEC (Consumer

Electronics Control) for HDMI.

 If the sound is output from both the system’ s

speakers and TV speaker or not output from both

them during SIMPLINK operation, reset speaker

setting of LG TV’s SIMPLINK menu.

Licenses

Java and all Java-based trademarks and logos are

trademarks or registered trademarks of Sun

Microsystems, Inc. in the United States and other

countries.

Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, and the double-D symbol are

trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’ s:

5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,226,616; 6,487,535; 7,392,195; 7,272,567;

7,333,929; 7,212,872 & other U.S. and worldwide

patents issued & pending. DTS is a registered

trademark and the DTS logos, Symbol, DTS-HD

and DTS-HD Master Audio I Essential are

Rights Reserved.

HDMI, the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI licensing LLC.

“BD-LIVE” logo is trademark of Blu-ray Disc

association.

“DVD Logo” is trademark of DVD Format/Logo

Licensing Corporation.

“x.v.Color” is a trademark of Sony Corporation.

“Blu-ray Disc” is a trademark.

“BONUSVIEW” is trademark of Blu-ray Disc

Association.

This product is licensed under the AVC patent port-

folio license and VC-1 patent portfolio license for

the personal and non-commercial use of a con-

sumer to (i) encode video in compliance with the

AVC Standard and VC-1 Standard (“AVC/VC-1

Video”) and/or (ii) decode AVC/VC-1 Video that was

encoded by a consumer engaged in a personal and

non-commercial activity and/or was obtained from a

video provider licensed to provide AVC/VC-1 Video.

No license is granted or shall be implied for any

other use. Additional information may be obtained

from MPEG LA, LLC. See http://www.mpegla.com.

“AVCHD” and the AVCHD logo are trademarks

of Panasonic and Sony Corporation.

iPod is a trademark of Apple Inc., registered in

the U.S. and other countries.

iPhone is a trademark of Apple Inc.

“Made for iPod” means that an electronic

accessory has been designed to connect

specifically to iPod and has been certified by the

developer to meet Apple performance standards.

“Works with iPhone” means that an electronic

accessory has been designed to connect

specifically to iPhone and has been certified by

the developer to meet Apple performance

standards.

Apple is not responsible for the operation of

this device or its compliance with safety and reg-

ulatory standards.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 4

Introduction

To ensure proper use of this product, please read this owner ’s manual

carefully and retain for future reference.

This manual provides information on the operation and maintenance of

your player. Should the unit require service, contact an authorized service

location.

About the Symbol Display

“ “ may appear on your TV display during operation and indicates that

the function explained in this owner ’s manual is not available on that spe-

cific media.

Symbols Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier .

A section whose title has one of the following symbols are applicable only

to the disc represented by the symbol.

All discs listed below

BD-ROM disc

DVD-Video, DVD±R/RW in Video mode or VR

mode and finalized

DVD±R/RW in AVCHD format

Audio CDs

Music files contained in the USB/Disc

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need

to ship the unit, for maximum protection, re-pack the unit as it was

originally packed at the factory.

Keeping the exterior surfaces clean

 Do not use volatile liquids such as insecticide spray near the unit.

 Wiping with strong pressure may damage the surface.

 Do not leave rubber or plastic products in contact with the unit for a long

period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty ,

use a soft cloth lightly moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine, or thinner , as these

might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc

drive parts are dirty or worn, the picture quality could be diminished.

For details, please contact your nearest authorized service center .

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so

that fingerprints do not get on the surface. Never stick paper or tape on the

disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct

sunlight or sources of heat and never leave it in a parked car exposed to

direct sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound

distortion. Before playing, clean the disc with a clean cloth. Wipe the disc

from the center out.

Do not use strong solvents such as alcohol, benzine, thinner , commercially

available cleaners, or anti-static spray intended for older vinyl records.

MUSIC

ACD

AVCHD

DVD

ALL

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 5

Playable Discs

Blu-ray Disc

- Discs such as movies that can be purchased or rented

- BD-R/RE discs that contain audio titles, MP3, WMA, or Photo

files.

DVD-VIDEO (8 cm / 12 cm disc)

Discs such as movies that can be purchased or rented

DVD-R (8 cm / 12 cm disc)

-Video mode and finalized only

- Supports the dual layer disc also

-AVCHD format

- DVD-R discs that contain audio titles, MP3, WMA, or Photo files.

DVD-RW (8 cm / 12 cm disc)

- VR mode, Video mode and finalized only

-AVCHD format

- DVD-RW discs that contain audio titles, MP3, WMA, or Photo

files.

DVD+R (8 cm / 12 cm disc)

- Finalized disc only

- Supports the dual layer disc also

-AVCHD format

- DVD+R discs that contain audio titles, MP3, WMA, or Photo

files.

DVD+RW (8 cm / 12 cm disc)

-Video mode and finalized only

-AVCHD format

- DVD+RW discs that contain audio titles, MP3, WMA, or Photo

files.

Audio CD (8 cm / 12 cm disc)

Audio CDs or CD-Rs/CD-RWs in audio CD format that can be

purchased

CD-R/CD-RW (8 cm / 12 cm disc)

CD-R/CD-RW discs that contain audio titles, MP3, WMA, or Photo

files.

Notes:

 Depending on the conditions of the recording equipment or the CD-

R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs

cannot be played on the unit.

 Do not attach any seal or label to either side (the labeled side or the

recorded side) of a disc.

 Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal).

Doing so may result in malfunctions.

 Depending on the recording software & the finalization, some recorded

discs (CD-R/RW or DVD±R/RW) may not be playable.

 DVD±R/RW and CD-R/RW discs recorded using a personal computer or

a DVD or CD Recorder may not play if the disc is damaged or dirty , or if

there is dirt or condensation on the player ’s lens.

 If you record a disc using a personal computer , even if it is recorded in a

compatible format, there are cases in which it may not play because of

the settings of the application software used to create the disc. (Check

with the software publisher for more detailed information.)

 This player requires discs and recordings to meet certain technical stan-

dards in order to achieve optimal playback quality. Pre-recorded DVDs

are automatically set to these standards. There are many different types

of recordable disc formats (including CD-R containing MP3 or WMA

files) and these require certain pre-existing conditions to ensure compat-

ible playback.

 Customers should note that permission is required in order to download

MP3 / WMA files and music from the Internet. Our company has no right

to grant such permission. Permission should always be sought from the

 You have to set the disc format option to [Mastered] in order to make the

discs compatible with the LG players when formatting rewritable discs.

When setting the option to Live System, you cannot use it on LG player .

(Mastered/Live File System : Disc format system for windows V ista)

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 6

BD-ROM Disc Features

BD-ROM Discs can store 25 GB (single layer) or 50 GB (dual layer) on a

single sided disc - about 5 to 10 times the capacity of a DVD.

BD-ROM Discs also support the highest quality HD video available in the

industry (up to 1920 x 1080) - Large capacity means no compromise on

video quality. Furthermore, a BD-ROM disc has the same familiar size and

look as DVD.

 The following BD-ROM disc features are disc dependent and will vary .

 Appearance and navigation of features will also vary from disc to disc.

 Not all discs will have the features described below .



BD-ROM, Hybrid disc have both BD-ROM and DVD (or CD) layers on one

side. On such discs, BD-ROM layer will be only played back in this player .

Video highlights

The BD-ROM format for movie distribution supports three highly advanced

video codecs, including MPEG-2, MPEG4 AVC (H.264), and SMPTE VC1.

HD video resolutions are also available:

 1920 x 1080 HD

 1280 x 720 HD

Graphic planes

Two individual, full HD resolution (1920x1080) graphic planes (layers) are

available, on top of the HD video layer . One plane is assigned to video-

related, frame accurate graphics (like subtitles), and the other plane is

assigned to interactive graphic elements, such as buttons or menus.

For both planes, various wipes, fades and scroll ef fects may be available.

For High-Definition Playback

To view high-definition contents from BD-ROM discs, an HDTV is required.

Some discs may require HDMI OUT for viewing of high-definition contents.

Ability to view high-definition contents in BD-ROM discs may be limited

depending on the resolution of your TV.

Menu sounds

When you highlight or select a menu option, sounds can be heard such as

button clicks or a voice-over explaining the highlighted menu choice.

Multi-page/PopUp Menus

With DVD-Video, playback is interrupted each time a new menu screen is

accessed. Due to BD-ROM disc’s ability to preload data from the disc with-

out interrupting playback, a menu can consist of several pages.

You can browse through the menu pages or select dif ferent menu paths,

while the audio and video remain playing in the background.

Interactivity

Certain BD-ROM Discs may contain animated menus and/or trivia games.

User Browsable Slideshows

With BD-ROM Discs, you can browse through various still pictures while

the audio remains playing.

Subtitles

Depending on what is contained on the BD-ROM disc, you may be able to

select different font styles, sizes and colors for some subtitles. Subtitles

may also be animated, scrolled or faded in and out.

BD-J Interactive Capability

The BD-ROM format supports Java for interactive functions. “BD-J” of fers

content providers almost unlimited functionality when creating interactive

BD-ROM titles.

BD-ROM Disc Compatibility

This player supports BD-ROM Profile 2.

• Discs supporting BD-Live (BD-ROM version 2 Profile 2) that allows inter-

active functions to be used when this unit is connected to the Internet in

addition to the BONUSVIEW function.

• Discs supporting BONUSVIEW (BD-ROM version 2 Profile 1 version

1.1/Final Standard Profile) that allows Virtual packages or Picture-in-

Picture functions to be used.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 7

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play

only BD-ROM or DVD discs labeled same as the rear of the unit or “ALL”.

AVCHD (Advanced Video Codec High Definition)

• This player can playback AVCHD format discs. These discs are normally

recorded and used in camcorders.

• The AVCHD format is a high definition digital video camera format.

• The MPEG-4 AVC/H.264 format is capable of compressing images at

higher efficiency than that of the conventional image compressing for-

mat.

• Some AVCHD discs use the “x.v.Color” format.

• This player can playback AVCHD discs using “x.v.Color” format.

• “x.v.Color” is a trademark of Sony Corporation.

• Some AVCHD format discs may not play, depending on the recording

condition.

•AVCHD format discs need to be finalized.

• “x.v.Color” offers a wider color range than normal DVD camcorder discs.

Compatibility Notes

• Because BD-ROM are a new format, certain disc, digital connection and

other compatibility issues are possible. If you experience compatibility prob-

lems, please contact an authorized Customer Service Center.

• Viewing high-definition content and up-converting standard DVD content may

require a HDMI-capable input or HDCP-capable DVI input on your display

device.

• Some BD-ROM and DVD discs may restrict the use of some operation

commands or features.

• Dolby Digital EX, DTS-ES and DTS 96/24 are output as Dolby Digital 5.1 or

DTS 5.1.

• You can use the USB device that is used to store some disc related

information, including downloaded on-line content. The disc you are using will

control how long this information is retained.

Certain System Requirements

For high definition video playback:

• High definition display that has COMPONENT or HDMI input jacks.

• BD-ROM disc with high definition content.

• HDMI or HDCP capable DVI input on your display device is required for

some content (as specified by disc authors).

• For up-conversion of standard definition DVD, a HDMI or HDCP capable DVI

input on your display device is required for copy protected content.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 8

Remote control

     

INPUT (TUNER): Changes the input source

(FM, AM, AUX, PORTABLE, OPTICAL,

COAXIAL, HDMI IN 1, HDMI IN 2).

POWER: Switches the player ON or OFF.

OPEN/CLOSE (Z): Opens and closes the disc tray.

iPod: Selects REMOTE IPOD or OSD IPOD mode.

PIP*: Switches on/off Secondary Video (Picture-in-pic-

ture) (BD-ROM only).

DISPLAY: Displays or exits On-Screen Display.

HOME: Displays or exits the [Home Menu].

DISC MENU: Accesses menu on a disc.

     

Direction buttons: Selects an option in the menu.

PRESET (v/V): Selects programme of Radio.

TUN. (+/-): Tunes in the desired radio station.

ENTER ( ): Acknowledges menu selection.

RETURN (O): Exits the menu or resumes playback.

The resume play function may work depending on the

BD-ROM disc.

TITLE/POPUP: Displays the DVD title menu or

BD-ROM’s popup menu, if available.

     

STOP (x): Stops playback.

PLAY (N): Starts playback.

PAUSE/STEP (X): Pauses playback.

SKIP (. / >): Go to next or previous chapter /

track / file.

SCAN (m / M): Searches backward or forward.

SPK LEVEL ( ):

Sets the sound level of desired speaker .

SOUND ( ): Selects a sound mode.

MUTE: Press MUTE to mute your unit. You can mute

your unit in order, for example, to answer the telephone.

VOL. (+/-): Adjusts speaker volume.

NIGHT ( ): Sets the late night function.

     

0-9 numerical buttons: Select numbered options in a

menu.

SUBTITLE ( ): Selects a subtitle language.

RESOLUTION: Sets the output resolution for HDMI and

COMPONENT VIDEO OUT jacks.

MARKER: Marks any point during playback.

SEARCH: Displays or exits the search menu.

REPEAT: Repeat a desired section.

CLEAR: Removes a mark on the search menu or a

number when setting the password.

Colored (A, B, C, D) buttons: Use to navigate BD-

ROM menus.

- D button: Selects MONO or STEREO in FM mode.

TV Control Buttons: See page 57.

SLEEP: Sets a certain period of time after which the unit

will switch to standby.

* Depending on a disc type or the pre-recorded con-

tents of the BD-ROM disc, different functions may be

executed than other media or there are no response

when pressing some buttons (depending on media

used).

Remote Control Operation

Point the Remote Control at the remote sensor and

press the buttons.

Remote Control Battery Installation

Remove the battery cover on the rear of the Remote

Control, and insert a R03 (size AAA) battery with and

matched correctly.

POWER

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 9

}}

(POWER) Button

Switches the unit ON or OFF.

b Disc Tray

Insert a disc here.

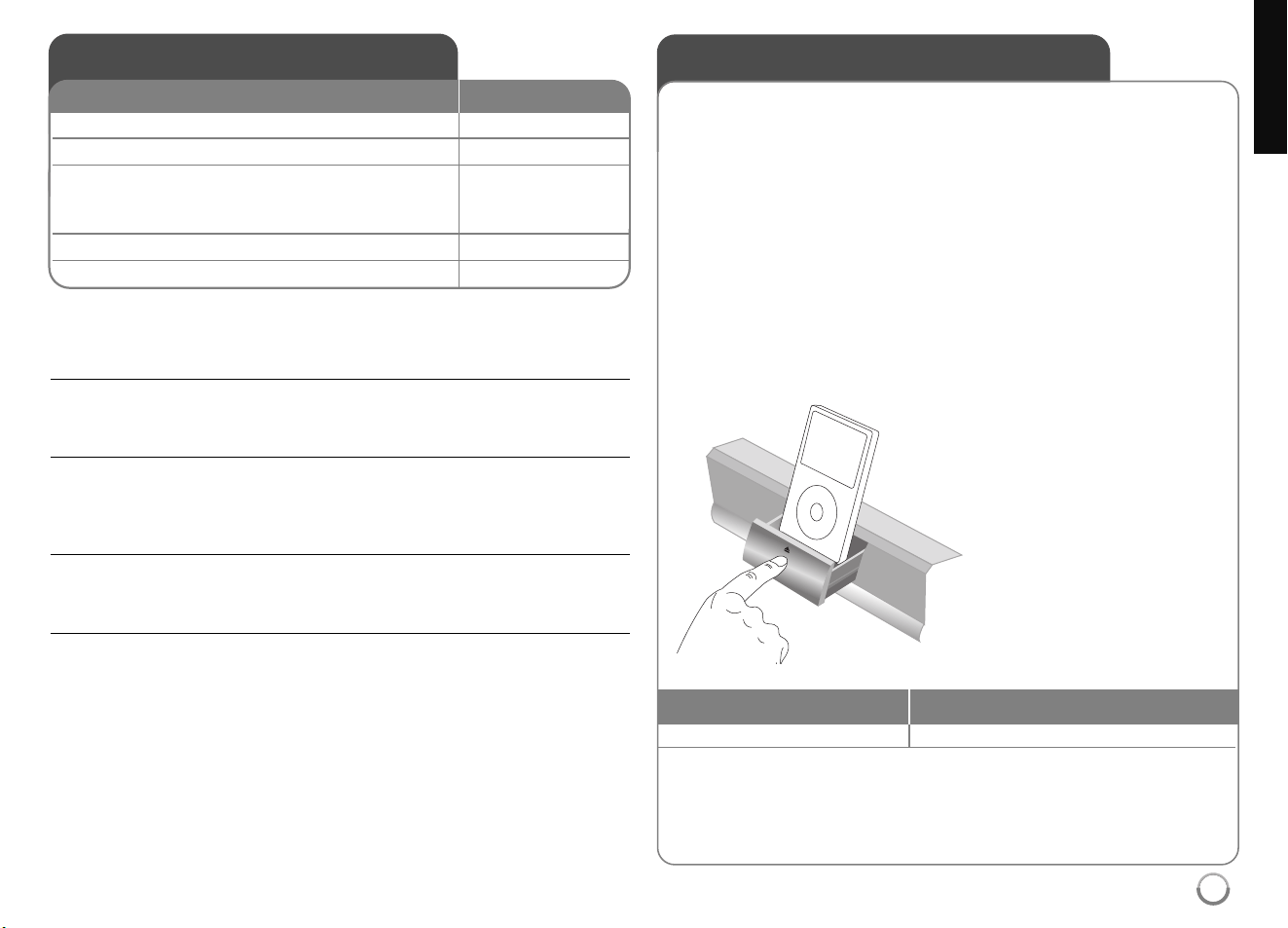

c iPod Dock

Connect your iPod here.

Push Z to open the iPod Dock.

d Remote Sensor

Point the remote control here.

e Touch Buttons

- Z (OPEN/CLOSE)

Opens or closes the disc tray.

- (N/X)PLAY / PAUSE

Starts playback.

Pause playback temporarily,

press again to exit pause mode.

- x (STOP)

Stops playback.

- . / > (SKIP)

Go to next or previous file/track/chapter.

Searches backward or forward if you press and hold it.

- FUNC.

Changes the input source (FM, AM, OSD IPOD, REMOTE IPOD,

AUX, PORTABLE, OPTICAL, COAXIAL, HDMI IN 1, HDMI IN 2) or

displays On-Screen Display.

f USB Port

Connect a USB device.

g Display Window

Shows the current status of the player .

h VOLUME

Adjusts speaker volume.

Front panel

ab cd e f

Precautions in using the touch buttons

• Use the touch buttons with clean and dry hands.

- In a humid environment, wipe out any moisture on the touch buttons

before using.

• Do not press the touch buttons hard to make it work.

- If you apply too much strength, it can damage the sensor of the touch

buttons.

• Touch the button that you want to work in order to operate the function

correctly.

• Be careful not to have any conductive material such as metallic object

on the touch buttons. It can cause malfunctions.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 10

a AC Power Cord

Plug into the power source.

b SPEAKER Connectors

Connect the speakers.

c Cooling Fan

d FM ANTENNA Connector

Connect the FM antenna.

e DIGITAL AUDIO IN (COAXIAL)

Connect to digital (coaxial) audio equipment.

f VIDEO OUT

Connect to a TV with video inputs.

g AUX (L/R) INPUT

Connect to an external source with 2 channel audio outputs.

h AM ANTENNA Connector

Connect the AM antenna.

i DIGITAL AUDIO IN (OPTICAL)

Connect to digital (optical) audio equipment.

j PORT. IN

Connect to a portable player with audio outputs.

k COMPONENT VIDEO (Y P

B PR)

OUTPUT (PROGRESSIVE SCAN)

Connect to a TV with Y Pb Pr inputs.

l LAN port

Connect a network with an always-on broadband connection.

m HDMI IN (Type A) 1/2

Connect to an external source with HDMI outputs.

n HDMI OUT (Type A)

Connect to TV with HDMI inputs. (Interface for digital audio and video)

abcdefg

hij k l m n

Rear panel

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 11

Speaker Connection

Connect the black end of each wire to

the terminals marked -(minus) and the

other end to the terminals marked +

(plus).

Connect the wires to the speakers.

Connect the other end of each wire to the correct speaker according to

the color coding

Attaching the speakers to the player

You will have received six speaker cables.

Each one is color-coded by a band near each end and connects one of

the six speakers to the player.

Connect the wires to the player.

Match each wire’s colored band to the same colored connection terminal

on the rear of the player. To connect the cable to the player, press each

plastic finger pad to open the connection terminal. Insert the wire and

release the finger pad.

Assembling the Speakers

Before connecting the speakers, assemble the speakers.

(The illustrations in the following steps are for the front speakers.)

Attach the speaker to the desktop stand.

Secure the speaker with the screws.

Thread the speaker cable through the hole in the bottom of the

desktop stand.

Connect the speaker cables to the speaker.

Use the speaker cable of the red and white tube. Connect the black

end of each wire to the terminal marked - (minus) and the other end to

the terminal marked + (plus).

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 12

Positioning the System

The following illustration shows an example of positioning the system.

Note that the illustrations in these instructions dif fer from the actual unit for

explanation purposes.

For the best possible surround sound, all the speakers other than the

subwoofer should be placed at the same distance from the listening

position (A).

A Front left speaker (L)/ B Front right speaker (R):

Place the front speakers to the sides of the monitor or screen and as

flush with the screen surface as possible.

C Center speaker: Place the center speaker above or below the monitor

or screen.

D Surround left speaker (L)/ E Surround right speaker (R):

Place these speakers behind your listening position, facing slightly

inwards.

F Subwoofer: The position of the subwoofer is not so critical, because

low bass sounds are not highly directional. But it is better to place the

subwoofer near the front speakers. Turn it slightly toward the center of

the room to reduce the wall reflections.

G Unit

To connect the cable to the speakers, press each plastic finger pad to open the

connection terminals on the base of each speaker . Insert the wire and release

the finger pad.

Be careful of the following

Be careful to make sure children not to put their hands or any objects into the

*speaker duct.

*Speaker duct: A hall for plentiful bass sound on speaker cabinet(enclosure).

FM/AM Antenna connection

AM - Connect the AM loop antenna to the player.

FM - Connect the FM antenna to the player .

The reception will be its best when the two loose ends of the antenna are in a

straight and horizontal line.

Grey

Blue

Green

Orange

Red

White

Rear

Center

Sub Woofer

Front

Behind you and to your right.

Behind you and to your left.

Above or below screen, directly in front

of you.

This can be placed in any front

position.

In front of you, to the right of

the screen.

In front of you, to the left of

the screen.

POSITION

SPEAKER

COLOR

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 13

Connections to your TV

Make one of the following connections, depending on the capabilities of

your existing equipment.

Tips:

• Depending on your TV and other equipment you wish to connect, there

are various ways you could connect the player . Use only one of the con-

nections described below.

• Please refer to the manuals of your TV or other devices as necessary to

make the best connections.

Cautions:

• Make sure the player is connected directly to the TV. Tune the TV to the

correct video input channel.

• Do not connect your player via your VCR. The image could be distorted

by the copy protection system.

HDMI Connection

If you have a HDMI TV or monitor, you can connect it to this player using a

HDMI cable.

Connect the HDMI OUT jack on the player to the HDMI IN jack on a HDMI

compatible TV or monitor (H).

Set the TV’s source to HDMI (refer to TV’s Owner’s manual).

Notes:

•You must select a HDMI audio output that your TV accepts using

[HDMI Audio] options on the [Setup] menu (see page 26).

• If a connected HDMI device does not accept the audio output of the unit,

the HDMI device’s audio sound may be distorted or may not output.

Tips:

• You can fully enjoy digital audio and video signals together with this

HDMI connection.

• When you use HDMI connection, you can change the resolution for the

HDMI output. (Refer to “

Resolution Setting” on page 16-17.)

• Select the type of video output from the HDMI OUT jack using

[HDMI Color Setting] option on the [Setup] menu (see page 24).

Cautions:

• Changing the resolution when the connection has already been

established may result in malfunctions. To solve the problem, turn

off the player and then turn it on again.

• When the HDMI connection with HDCP is not verified, TV screen is

changed to black or green screen or the snow noise may occur on the

screen. In this case, check the the HDMI connection, or disconnect the

HDMI cable.

• If there is noise or lines on the screen, please check the HDMI cable

(length is generally limited to 15ft) and use a High Speed HDMI cable

(Version 1.3).

BD player

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 14

Additional Information for HDMI

• When you connect a HDMI or DVI compatible device make sure of the

following:

-Try switching off the HDMI/DVI device and this player. Next, switch on

the HDMI/DVI device and leave it for around 30 seconds, then switch

on this player.

- The connected device’s video input is set correctly for this unit.

- The connected device is compatible with 720x480p, 1280x720p,

1920x1080i or 1920x1080p video input.

• Not all HDCP-compatible HDMI or DVI devices will work with this player .

- The picture will not be displayed properly with non-HDCP device.

- This player does not playback and TV screen is changed to black or

green screen or the snow noise may occur on the screen.

Component Video Connection

Connect the COMPONENT VIDEO OUT jacks on the player to the

corresponding input jacks on the TV using Y Pb Pr cables (C).

You can hear the sound through the system’ s speakers.

Tip:

When you use COMPONENT VIDEO OUT connection, you can change

the resolution for the output. (Refer to “Resolution setting” on page 16-17.)

Video Connection

Connect the VIDEO OUT jack on the player to the video in jack on the TV

using a video cable (V).

You can hear the sound through the system’ s speakers.

BD player

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 15

Resolution Setting

The player provides several output resolutions for HDMI OUT and

COMPONENT VIDEO OUT jacks.

You can change the resolution using [Setup] menu or pressing the

RESOLUTION button in [Home Menu] and [Setup] Menu.

Note:

Since several factors affect the resolution of video output, see “A vailable

resolution according to the resolution setting” to the right.

How to change the resolution using RESOLUTION

button

Press RESOLUTION repeatedly in [Home Menu] and [Setup] Menu to

change the resolution. The display window will show you the current

resolution.

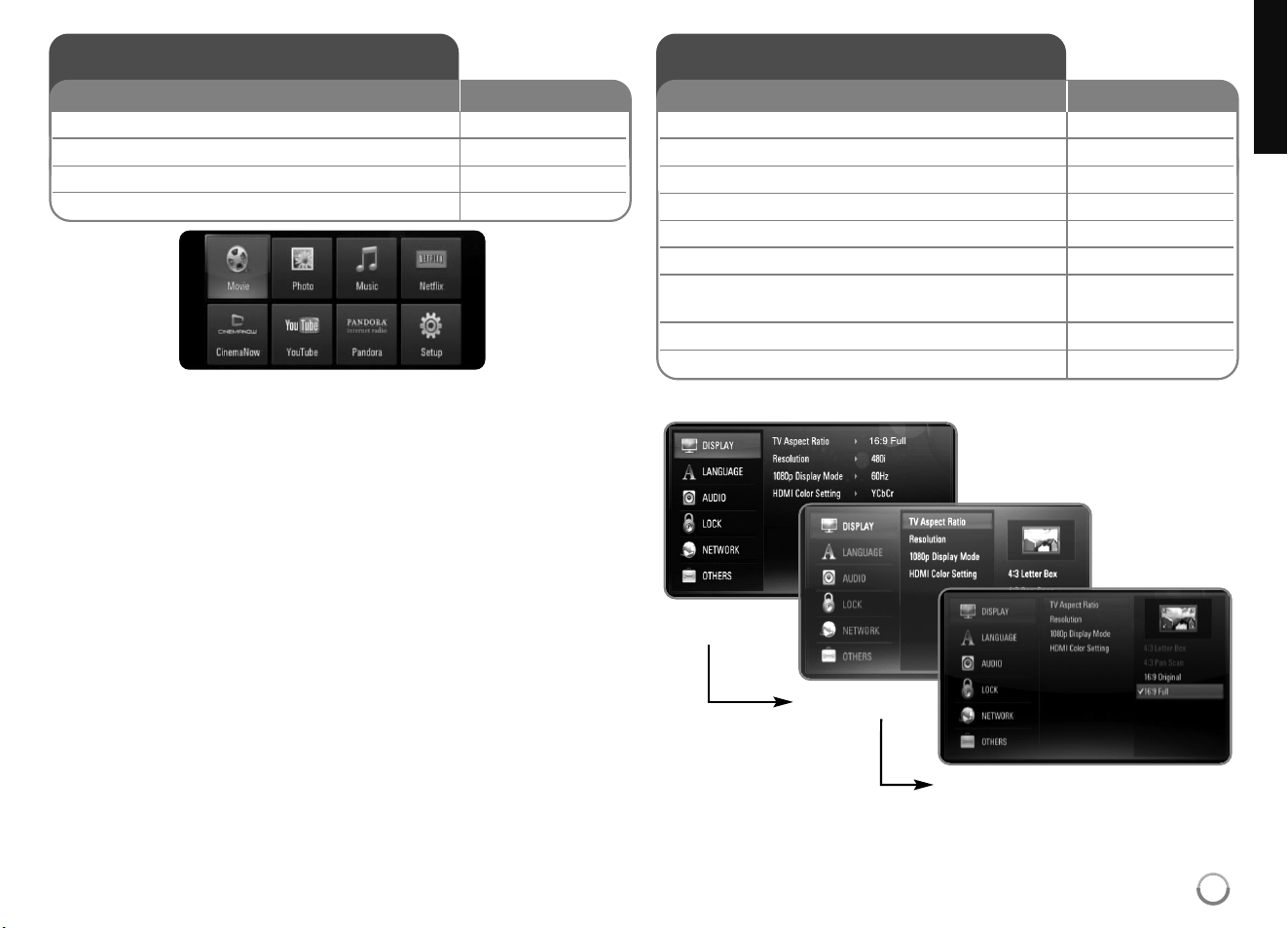

How to change the resolution using the [Setup] menu

1 Press HOME and the [Home Menu] appears.

2 Select the [Setup] and press ENTER. The [Setup] menu appears.

3 Use v / V to select [DISPLAY] option then press B to move to the

second level.

4 Use v / V to select the [Resolution] option then press B to move to the

third level.

5 Use v / V to select the desired resolution then press ENTER to confirm

your selection.

Note:

If the video signal from the HDMI OUT jack is not output from the TV

screen when [Resolution] is set to [Auto], change the video output

resolution by pressing RESOLUTION button.

Available resolution according to the resolution setting

Notes:

• Depending on your display, some of the resolution settings may result in

the picture disappearing or an abnormal picture appearing. In this case,

press HOME then RESOLUTION repeatedly until the picture re-appear .

• This player supports simultaneous output of all video out jacks. The

resolution of the HDMI output will not be the same as the resolution

output on the component video output.

• When the non-copy protected media is playing back

Video Output HDMI OUT COMPONENT VIDEO OUT

Resolution HDMI connected HDMI disconnected

480i 480p 480i

480p 480p 480p

720p 720p 720p

1080i 1080i 1080i

1080p / 24Hz 1080p / 24Hz 480i 1080i

1080p / 60Hz 1080p / 60Hz 480i 1080i

• When the copy protected media is playing back

Video Output HDMI OUT COMPONENT VIDEO OUT

Resolution HDMI connected HDMI disconnected

480i 480p 480i

480p 480p 480p

720p 720p 480i 480p

1080i 1080i 480i 480p

1080p / 24Hz 1080p / 24Hz 480i 480p

1080p / 60Hz 1080p / 60Hz 480i 480p

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 16

HDMI OUT connection

• For the 480i resolution setting, real output resolution of HDMI OUT will

change to 480p.

• If you select a resolution manually and then connect the HDMI jack to

TV and your TV does not accept it, the resolution setting is set to [Auto].

• If you select a resolution that your TV does not accept, the warning

message will appear. After resolution change, if you cannot see the

screen, please wait 20 seconds and the resolution will automatically

revert back to the previous resolution.

• The 1080p video output frame rate may be automatically set to either

24Hz or 60Hz depending both on the capability and preference of the

connected TV and based on the native video frame rate of the content

on the BD-ROM disc.

COMPONENT VIDEO OUT connection

• For the 1080p resolution setting with unprotected media, real output

resolution of COMPONENT VIDEO OUT will change to 1080i.

• For the 720p, 1080i, 1080p resolution setting with protected media, real

output resolution of COMPONENT VIDEO OUT will change to 480i or

480p depending on the connectivity of HDMI cable.

• BD, DVD or Netflix video stream could prevent up-scaling on analog

output.

VIDEO OUT connection

The resolution of the VIDEO OUT jack is always outputted at 480i

resolution.

Internet connection

This player can be connected to a local area network (LAN) via the LAN

port on the rear panel.

By connecting the unit to a broadband home network, you have access to

services such as software updates, YouTube, BD-Live interactivity, and

streaming services such Netflix, etc.

• Ethernet cable connection

Connect the player’s LAN port to the corresponding port on your Modem or

Router using a LAN cable.

Use a commercially available LAN or Ethernet cable (CA T5 or better with

RJ45 connector. If the player is not near a network connection, many

retailers have LAN cables in lengths of 50 feet or more.

• Ethernet Adapter connection

Another connection option is to use an Ethernet adapter . One of the most

popular Ethernet adapter options available from many retailers is a

Powerline Ethernet Adapter.

Broadband

Service

Router

BD player

LAN

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 17

Cautions:

• When plugging or unplugging the LAN cable, hold the plug portion of the

cable. When unplugging, do not pull on the LAN cable but unplug while

pressing down on the lock.

• Do not connect a modular phone cable to the LAN port.

• Since there are various connection configurations, please follow the

specifications of your telecommunication carrier or internet service

provider.

Notes:

• Many network connection problems during set up can often be fixed by

re-setting the router or modem. After connecting the player to the home

network, quickly power off and/or disconnect the power cable of the

home network router or cable modem. Then power on and/or connect

the power cable again.

• Depending on the internet service provider (ISP), the number of devices

that can receive internet service may be limited by the applicable terms

of service. For details, contact your ISP.

• Our company is not responsible for any malfunction of the player and/or

the internet connection feature due to communication errors/malfunc-

tions associated with your broadband internet connection, or other con-

nected equipment.

• Our company is not responsible for any trouble in your internet connec-

tion.

• The features of BD-ROM discs made available through the Internet

Connection feature are not created or provided by our company , and our

company is not responsible for their functionality or continued availabili-

ty. Some disc related material available by the Internet Connection may

not be compatible with this player. If you have questions about such

content, please contact the producer of the disc.

• Some internet contents may require a higher bandwidth connection.

• Even if the player is properly connected and configured, some internet

contents may not operate properly because of internet congestion, the

quality or bandwidth of your internet service, or problems at the provider

of the content.

• Some internet connection operations may not be possible due to certain

restrictions set by the Internet service provider (ISP) supplying your

broadband Internet connection.

• Any fees charged by an ISP including, without limitation, connection

charges are your responsibility.

•A10 Base-T or 100 Base-TX LAN port is required for connection to this

player. If your internet service does not allow for such a connection, you

will not be able to connect the player .

•You must use a Router to use xDSL service.

•ADSL modem is required to use DSL service and a cable modem is

required to use cable modem service. Depending on the access method

of and subscriber agreement with your ISP, you may not be able to use

the internet connection feature contained in this player or you may be

limited to the number of devices you can connect at the same time. (If

your ISP limits subscription to one device, this player may not be

allowed to connect when a PC is already connected.)

• The use of a “Router” may not be allowed or its usage may be limited

depending on the policies and restrictions of your ISP. For details, con-

tact your ISP directly.

•Your ISP may protect this player from being connected to network when

confirming MAC ADDRESS. In that case, contact your ISP to request to

initialize MAC ADDRESS.

•We recommend a minimum connection speed of 1.5 Mbps. For the best

playback condition, a connection speed of 4.0 Mbps is required.

Sometimes your broadband speed varies based on your ISP’ s network

conditions. Contact your ISP if you have problems maintaining a fast

connection that is reliable, or if you want to increase your connection

speed. Many ISPs offer a variety of broadband speed options.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 18

Network Software Update

Network update notification

From time to time, performance improvements and/or additional features or

services may be made available to units that are connected to a broadband

home network. If there is new software available and the unit is connected

to a broadband home network, the player will inform you about the update

as follows.

Option 1:

1 The update menu will appear on the screen when you turn on the player .

2 Use b / B to select a desired option and then press ENTER.

[OK] - Starts the software update.

[Cancel] - Exits the update menu.

[Hide] - Exits the update menu and it does not appear until next

software is uploaded in the update server .

Option 2:

If the software update is available from the update server , the “Software

Update” icon appears at the bottom of the Home menu. Press blue colored

button to start the update procedure.

Software Update

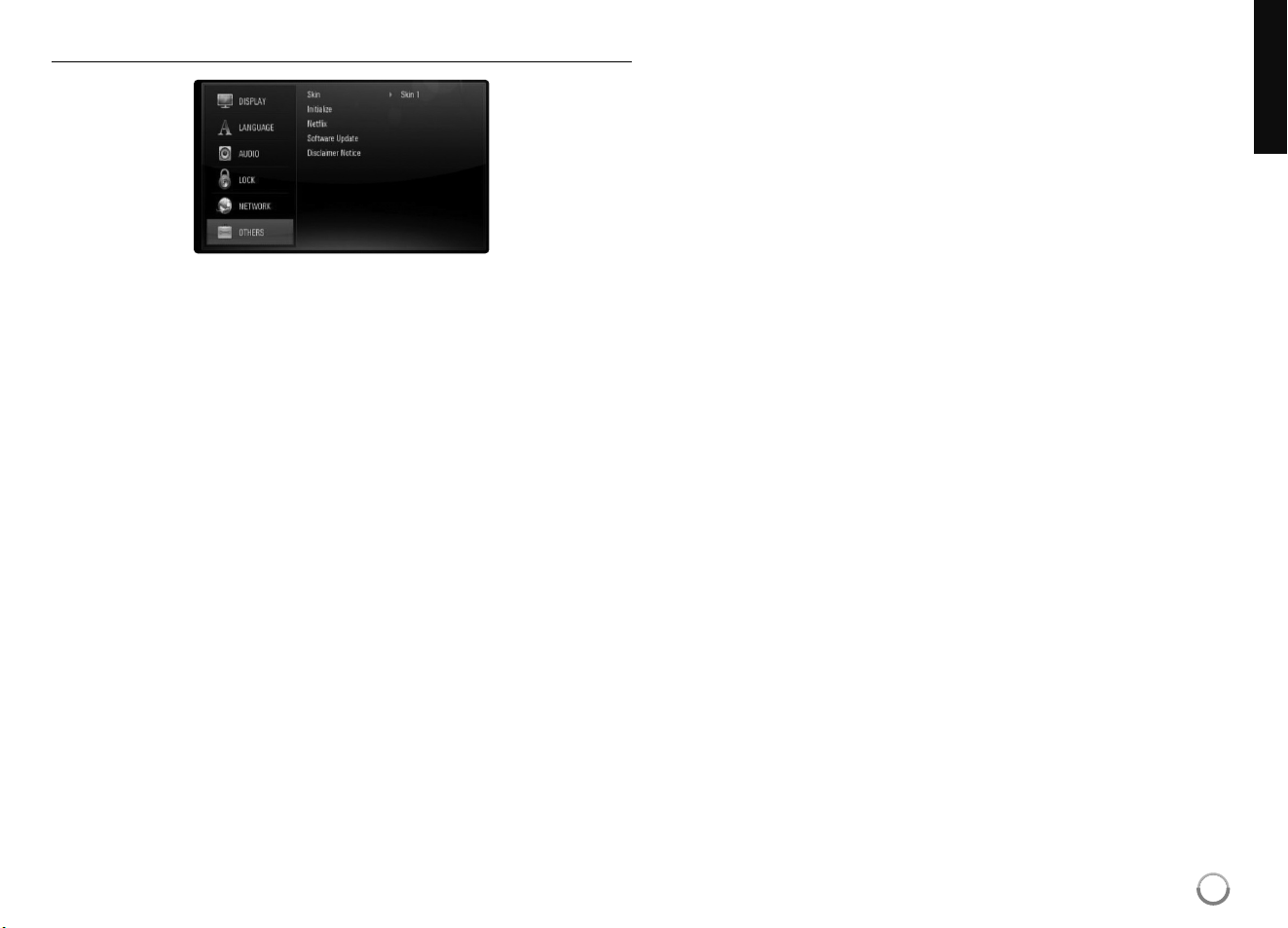

Updating software in the [Setup] menu

You can update the player using the latest software to enhance the

products operation and/or add new features. You can update the software

by connecting the unit directly to the software update server .

Step 1: Check the Network Connection and settings

See page 17-18 and 28.

Step 2: Checking Network Configuration

See page 28.

Step 3: Updating Software

Cautions:

• Before updating the software in your player, remove any disc

and USB Device from the player .

• Before updating the software in your player, turn the player off

and then turn it back on.

• During the software update procedure, do not turn off the

player or disconnect AC power, or do not press any button.

• If you cancel the update. Turn off the power and turn it on for

stable performance.

• This unit cannot be updated to previous software version.

1. Select [Software Update] option in the [Setup] menu then press B or

ENTER.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 19

2. The player will check for the newest update.

Caution: Pressing ENTER while checking for the update will end the

process.

Note: If there is no update available, the Message,

“No update is found.” appears. Press ENTER to return to the [Home

Menu].

3. If newer version exists, the message “A new update was found. Do

you want to download it?” appears.

4. Select OK to download the update. (Selecting [Cancel] will end the

update.)

5. The player starts downloading the newest update from the server .

(Downloading will take about 80 seconds at the network speed of

4Mbps Speed.)

6. When downloading is completed, the message, “Download is

complete. Do you want to update?” appears.

7. Select OK to start updating.

(Selecting [Cancel] will end the update and downloaded file will not be

re-usable. To update software the next time, the software update

procedure has to be started from the beginning again.)

Caution: Do not turn off the power during the software update.

Note: If the software includes the driver update, disc tray may open

during the process.

8. When update is completed, the message, “Update is complete.” will

appear, and the power will turn of f automatically after 5 seconds.

9. Turn the power back on. The system now operates with the new

version.

10. After completing the update process, repeat procedures 1-2 in Step 3

and check if there are no more updates available.

Tip:

The Software Update function may not work properly depending on

your internet environment. In this case, you can obtain the latest

software from the authorized LG Electronics Service Center then

update your player. Refer to “Customer Support” on page 61.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 20

Setting the sound mode

You can select a suitable sound mode. Press SOUND repeatedly until the

desired mode appears on the front panel display or the TV screen.

The setting the sound mode is not available when [HDMI Audio] is set to

[On] (see page 26).

[Natural] mode: You can enjoy comfortable and natural sound.

[Bypass] mode: Software with multichannel surround audio signals

is played according to the way it was recorded.

[Bass Booster] mode: Reinforce the bass sound effect from front left

and right speaker and subwoofer.

[PL ll Movie] mode: Performs Pro Logic ll movie mode decoding to

the input signal and produces five full-bandwidth output channels from

2 channel sources. This setting is ideal for watching videos of

overdubbed or old movies. This mode is available only to 2 channel

sources.

[PL ll Music] mode: Performs Pro Logic ll music mode decoding to

the input signal and produces five full-bandwidth output channels from

2 channel sources. This setting is ideal for normal stereo sources such

as CD. This mode is available only to 2 channel sources.

[News] mode: This mode makes voice sound clear, improving the

quality of voice sound.

This mode outputs sound from the front left and right speakers, center

speaker, and subwoofer.

[Drama] mode: You can enjoy more dynamic sound with improved

center channel while watching a television drama.

This mode outputs sound from the front left and right speakers, center

speaker, and subwoofer.

[Sports] mode: This mode produces dynamic sound expansion for the

sports program.

[Game] mode: You can enjoy more virtual sound while playing video

games.

[Concert] mode: Creates the sound of concert hall.

[Music ReTouch] mode: When listening to MP3 files or other

compressed music, you can enhance the sound.

This mode is available only to 2 channel sources.

Note:

Only [BYPASS] mode is available when HDMI IN’ s audio is a compressed

bitstream of Dolby Digital Plus, Dolby TrueHD and DTS-HD.

Adjust the speaker level settings

You can adjust the sound level of each speaker .

Press SPK LEVEL repeatedly to select a desired speaker to set.

Press VOL. (+/-) to adjust the sound level of the selected speaker while

the level setting menu is displayed on the front panel display or the TV

screen. Repeat and adjust the sound level of the other speakers.

Using the late night function

You can compress the dynamic range of the sound track.

Press NIGHT repeatedly.

This may be useful when you want to watch movies at low volumes late at

night.

[NIGHT OFF]: Late night function off.

[NIGHT ON]: Reduction in dynamic range.

Notes:

•

The late night function may be less ef fective or have no effect depending on

the source.

• During the late night mode is on, the lighting of the touch buttons and the

volume knob are turned off and the front panel display is dimmed.

Using the sleep timer

You can set the system to turn of f at a preset time, so you can fall asleep

listening to music.

- Press SLEEP repeatedly to select the desired time period options (in minutes):

(Dimmer on

Sleep timer value

Dimmer off)

Dimmer on:

The lighting of the touch buttons and the volume knob are turned

off and the front panel display is dimmed.

-To view the time countdown to the standby mode, press SLEEP again.

-To deactivate the sleep timer, press SLEEP until the previous status is displayed

or press POWER to switch the unit to standby.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 21

Tip:

If you select the [Photo] or [Music] option when the USB device is

connected and a disc is inserted simultaneously, the menu for selecting

a media will appear. Select a media then press ENTER.

For example:

Inserting/Removing the USB device

Inserting the USB device – Insert straight-in until it fits into place.

Removing the USB device – Withdraw the USB device or cable

carefully.

Notes:

• This player supports USB flash memory/external HDD formatted in

FAT16, FAT32 and NTFS when accessing files (music, photo).

However, for BD-Live, only FAT16 and FAT32 formats are supported.

Please use the Internal Flash Memory or USB flash memory/external

HDD formatted in either FAT16 or FAT32 when using BD-Live.

• The USB device can be used for the local storage for enjoying

BD-Live discs with Internet.

• This unit can support up to 4 partitions of the USB device.

• Do not extract the USB device during operation (play, etc.).

•AUSB device which requires additional program installation when you

have connected it to a computer is not supported.

• USB device: USB device that support USB1.1 and USB2.0.

• Music files (MP3/WMA) and photo files (JPEG/PNG) can be played. For

details of operations on each file, refer to relevant pages.

• Regular back up is recommended to prevent data loss.

• If you use a USB extension cable or USB HUB, the USB device may not

be recognized.

• Some USB devices may not work with this unit.

• Digital camera and mobile phone are not supported.

• USB Port of the unit cannot be connected to PC.

The unit cannot be used as a storage device.

Using USB devices

This unit can play the music and photo

files contained on the USB device.

ON REMOTE

1 Connect a USB device: –

2Displays the [Home Menu]: HOME

3 Select a main option:

bb BB

, ENTER

[Photo] or [Music] option

4 Select the [USB] option:

bb BB

5 Displays corresponding menu list: ENTER

[PHOTO] or [MUSIC] menu appears.

Details for the menu are on pages 36-39.

BD player

USB Flash Drive

USB External HDD

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 22

[Movie] – Start video media’s playback or displays the [MOVIE] menu.

(page 36)

[Photo] – Displays [PHOTO] menu. (page 38-39)

[Music] – Displays [MUSIC] menu. (page 37)

[Netflix] – Instantly watch some movies & TV episodes streamed from

Netflix to your TV. (page 40-42)

[CinemaNow] – Instantly watch some movies & TV episodes streamed

from CinemaNow to your TV. (pages 43-46)

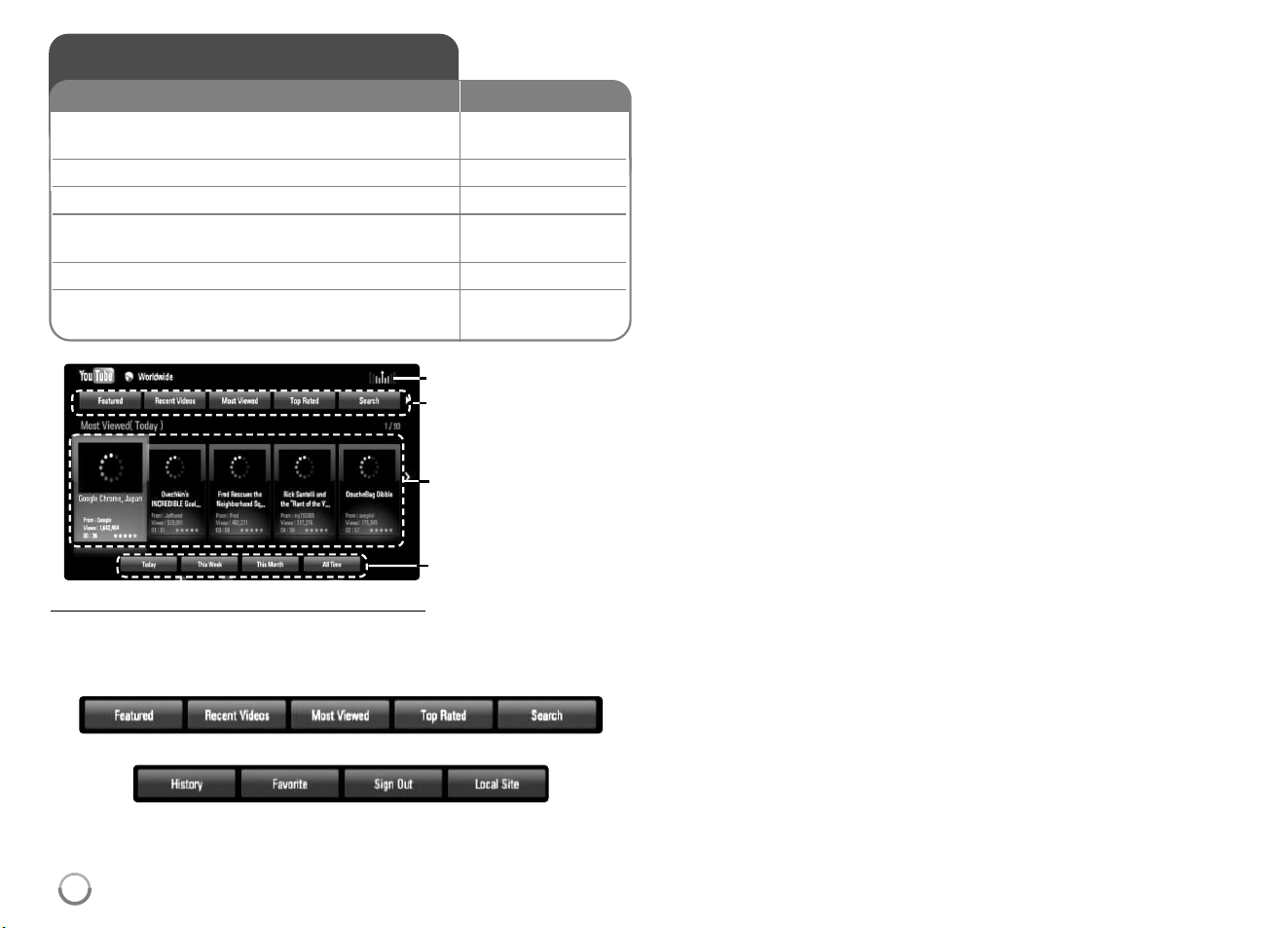

[YouTube] – Watch YouTube videos streamed from the Youtube server via

the internet to your TV. (pages 50-52)

[Pandora] – Instantly listen to some musics streamed from Pandora.

(page 47-49)

[Setup] – Displays the [Setup] menu. (page 23-29)

Tips:

• If you select the [Photo] or [Music] option when the USB device is

connected and a disc is inserted simultaneously, the menu for

selecting a media will appear. Select a media then press ENTER.

• If “Software Update” appears on the [Home Menu], it means there is a

software update available via network. To update the unit, press blue (D)

button. For details, see page 19-20.

Notes:

• The unit will be in stop mode then the [Home Menu] will appear if you

press HOME during playback.

• If you insert a DVD or an unplayable disc that is formatted as ISO9660

or UDF, the [Photo] or [Music] option can be selected in the

[Home Menu]. But you cannot play it.

Using the Home Menu

1Displays the [Home Menu]: HOME

2 Select an option: v V b B

3Displays the selected option menu: ENTER

4 Exit the [Home Menu]: HOME

ON REMOTE

Adjust the Setup settings

1Displays the [Home Menu]: HOME

2 Select the [Setup] option:

bb BB

, ENTER

3 Select a desired option on the first level:

vv VV

4 Move to second level:

5 Select a desired option on the second level:

vv VV

6 Move to third level:

7 Adjust or confirm the setting:

vv VV

, ENTER

Some items require additional steps. 0-9 Numeric

8 Go back to the previous level:

9 Exit the [Setup] menu: HOME or RETURN

ON REMOTE

First level

Second level

Third level

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 23

[DISPLAY] Menu

TV Aspect Ratio

[4:3 Letter Box] – Select when a standard 4:3 TV is connected.

Displays theatrical images with masking bars above and below the

picture.

[4:3 Pan Scan] – Select when a standard 4:3 TV is connected.

Displays pictures cropped to fill your TV screen. Both sides of the

picture are cut off.

[16:9 Original] – Select when a 16:9 wide TV is connected. The 4:3

picture is displayed with an original 4:3 aspect ratio, with black bars

appearing at the left and right sides.

[16:9 Full] – Select when a 16:9 wide TV is connected. The 4:3

picture is adjusted horizontally (in a linear proportion) to fill the entire

screen.

Note:

You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the

resolution is set to higher than 720p.

Resolution

Sets the output resolution of the Component and HDMI video signal.

Refer to “Resolution Setting” on page 16-17 for details about the

resolution.

[Auto] – If the HDMI OUT jack is connected for TVs providing display

information (EDID), automatically selects the resolution best suited to

the connected TV. If the COMPONENT VIDEO OUT is only connected,

this changes the resolution to 1080i as default resolution.

[1080p] – Outputs 1080 lines of progressive video (only for HDMI

connection).

[1080i] – Outputs 1080 lines of interlaced video.

[720p] – Outputs 720 lines of progressive video.

[480p] – Outputs 480 lines progressive video.

[480i] – Outputs 480 lines of interlaced video.

1080p Display Mode

When the resolution is set to 1080p, select [24Hz] for smooth presentation

of film material (1080/24p) with a HDMI-equipped display compatible with

1080/24p input.

Notes:

• When you select [24Hz], you may experience some picture disturbance

when the video switches video and film material. In this case, select

[60Hz].

• Even when [1080p Display Mode] is set to [24Hz], if your TV is not

compatible with 1080/24p, the actual frame frequency of the video

output will be 60Hz to match the video source format.

HDMI Color Setting

Select the type of output from the HDMI OUT jack. For this setting, please

refer to the manuals of your display device.

[YCbCr] – Select when connecting to a HDMI display device.

[RGB] – Select when connecting to a RGB display device.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 24

[LANGUAGE] Menu

Display Menu

Select a language for the [Setup] menu and on-screen display .

Disc Menu / Disc Audio / Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtitles,

and the disc menu.

[Original] – Refers to the original language in which the disc was

recorded.

[Other] – Press ENTER to select another language. Use number

buttons then ENTER to enter the corresponding 4-digit number

according to the language code list on page 59.

[Off] (for Disc Subtitle) – Turn off Subtitle.

Note:

Depending on a disc, your language setting may not work for some disc.

[AUDIO] Menu

Speaker Setup

To obtain the best possible sound, use the Speaker Setup display to

specify the volume of the speakers you have connected and their distance

from your listening position. Use the Test to adjust the volume of the

speakers to the same level.

[Speaker] – Select a speaker that you want to adjust.

[Volume] – Adjust the output level of each speaker.

Be sure to set “Test” to “All” for easy adjustment.

[Distance] – Adjust the distance between each speaker and the

listening position.

[Test] – The speakers will emit a test tone.

All: The test tone is emitted from each speaker in sequence.

To save your settings, press ENTER and select [Yes] by pressing

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 25

HD AV Sync

Sometimes Digital TV encounters a delay between picture and sound. If this

happens you can compensate by setting a delay on the sound so that it

effectively ‘waits’ for the picture to arrive: this is called HD AV Sync.

Use v V to scroll up and down through the delay amount, which you can set

at anything between 0 and 300m sec.

The delay will vary depending on which digital TV channel you are on. If you

change channel you may need to readjust the HD AV Sync.

HDMI Audio

You can set TV speaker output for the audio signal from the HDMI OUT jack.

[Off] – Audio signals are output to the system speakers only .

[On] – Audio signals are output from the TV’s speaker and the

system’s front left and right speaker and subwoofer.

Note:

When [HDMI Audio] is set to [On], the sound mode is switched to

[BYPASS] automatically.

[LOCK] Menu (Parental Control)

The [LOCK] settings affect only Netflix movie, BD and DVD playback.

To access the any features in [LOCK] settings, you must enter the 4-digit

security code you have created.

If you have not entered a password yet, you are prompted to do so. Enter

a 4-digit password and press ENTER. Enter it again and press ENTER to

verify.

Password

You can create, change or delete the password.

[New] – Enter a 4-digit password and press ENTER. Enter it again and

press ENTER to create a new password.

[Change] – Enter the current password and press ENTER.

Enter a 4-digit password and press ENTER. Enter it again and press

ENTER to create a new password.

[Delete] – Enter the 4-digit password and press ENTER to delete the

password.

Tip:

If you make a mistake before pressing ENTER, press CLEAR. Then input

the correct password.

If you forget your password

If you forget your password, you can clear it using the following steps:

1 Remove any disc that might be in the player .

2 Highlight [Password] in the [LOCK] option.

3 Use Number buttons to enter “210499”. The password is cleared.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 26

DVD Rating

Blocks playback of rated disc based on their content. (Not all discs are

rated.)

[Rating 1-8] – Rating one (1) has the most restrictions and rating eight

(8) is the least restrictive.

[Unlock] – If you select unlock, parental control is not active and the

disc plays in full.

BD Rating

Set an age limit of BD-ROM play. Use number buttons to input an age limit

for BD-ROM viewing.

[255] – All BD-ROM can be played.

[0-254] – Prohibits play of BD-ROM with corresponding ratings

recorded on them.

Notes:

• The [BD rating] will be applied only for the BD disc that containing the

Advanced Rating Control.

• For the region using MPAA rating level, refer to the table below as an

example.

Area Code

Enter the code of the area whose standards were used to rate the DVD

video disc, based on the list on page 59.

BD Rating MPAA rating

0 G

8 PG

13 PG-13

17 R

18 NC-17

255 Not restricted

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 27

[NETWORK] Menu

The [NETWORK] settings are needed to use the software update, BD Live,

Netflix, Pandora, Cinemanow and YouTube features.

Some BD-ROM discs may enable you to access special BD-ROM sites, if

you connect the player to the Internet. For example, if a BD-ROM site

includes content such as links to future movie trailers, you can watch the

downloaded on-line content on the player.

You do not need to connect to a PC to use this function.

Preparations:

• This feature requires an always-on broadband internet connection.

(see page 17-18.)

•ABD-ROM disc compatible with this feature is required. Not all BD-

ROM discs are compatible.

Connection Setting

If you have connected this player to a local area network (LAN), the player

needs to be set up for network communication. (See “Internet connection”

on pages 17-18.)

Connection Status

If you want to check the network status on this player , select the

[Connection Status] options and press B or ENTER to check whether a

connection to the network and the internet have been established.

BD-LIVE connection

You can restrict Internet access when BD-Live functions are used.

[Permitted] – Internet access is permitted for all BD-Live contents.

[Partially permitted] – Internet access is permitted only for BD-Live

contents which have content owner certificates. Internet access and

AACS Online functions are prohibited for all BD-Live contents without

a certificate.

[Prohibited] – Internet access is prohibited for all BD-Live contents.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 28

[OTHERS] Menu

Skin

Changes the background of the initial screen.

Initialize

[Factory Set] – You can reset the player to its original factory settings.

Note:

If you reset the player to its original factory settings using [Factory Set]

option, you have to set the network settings, CinemaNow , Netflix and

Pandora activation again.

[BD Storage Clear] – Initializes the BD contents from the connected

USB storage.

Netflix

[Netflix ESN] – Display its unique Netflix ESN (Electronic Serial

Number) that allows you to use the Netflix streaming.

[Deactivate Netflix] – Deactivates your player. To activate the Netflix

again, see page 40.

Software Update

You can update the software by connecting the unit directly to the software

update server (see page 19-20).

Disclaimer Notice

Press ENTER or B to view the notice of Network Service Disclaimer on

page 63.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 29

Notes:

• When you turn on the player or replace a disc, the player returns to the

initial default setting. Depending on a disc, a specific type of audio that

the disc has is output.

• Depending on the pre-recorded contents of the BD-ROM, some

functions may not be available or may be operated dif ferently than

other media.

If a disc menu screen is displayed

The menu screen may be displayed first after loading a disc which contains

a menu.

Use b / B / v / V buttons to select the title/chapter you want to view , then

press ENTER to start playback.

Skip to the next/previous chapter/track/file

During playback, press . or > to go to the next chapter/track/file or

to return to the beginning of the current chapter/track/file.

Press . twice briefly to step back to the previous chapter/track/file.

Resume playback

During playback, press STOP (x) to stop playback.

The unit records the stopped point, depending on the disc. “ Xx” appears

on the screen briefly. Press PLAY (N) to resume playback (from the

scene point). If you press STOP (x) again or unload the disc (“x” appears

on the screen.), the unit will clear the stopped point. (Xx = Resume Stop,

x = Complete Stop)

Notes:

• The resume point may be cleared when a button is pressed

(for example; POWER, OPEN/CLOSE, etc).

• On BD-Video discs including BD-J, the resume play function does not

work.

• On BD-ROM interactive title, the unit will be in Complete Stop mode if

you press STOP once during playback.

Pause a playback

During playback, press PAUSE/STEP (X) to pause playback. Press PLAY

(N) to continue playback.

Tip: During Audio CD or MP3/WMA playback, press PAUSE/STEP (X)

once again to resume playback.

Frame-by-Frame playback

Press PAUSE/STEP (X) repeatedly to play Frame-by-Frame playback.

Slow down the playing speed

While the playback is paused, press SCAN M repeatedly to play in slow

motion (4 steps, forward only).

Fast forward or fast reverse

Press SCAN (m or M) to play fast forward or fast reverse during

playback.

You can change the various playback speeds by pressing SCAN ( m or

M) repeatedly. Press PLAY (

) to continue play at normal speed.

Note:

This function may not work on some disc or titles.

ALL

AVCHD

DVDBD

AVCHD

DVDBD

ALL

AVCHD

DVDBD

Play a disc

1 Open the disc tray: OPEN/CLOSE (

)

2 Insert a disc: -

3Close the disc tray: OPEN/CLOSE (

)

4 Adjust the disc menu settings: v V b B, ENTER

A disc menu may not appear on the screen

depending on the disc.

5 Starts playback: PLAY (

)

6 Stops playback: STOP (

)

ON REMOTE

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 30

Playing repeatedly

During playback, press REPEAT repeatedly to select a desired repeat

mode. The current title, chapter or track will be played back repeatedly . To

return to normal playback, press REPEAT repeatedly to select [OFF].

When you are using the repeat, A-B repeat or random functions in the

[MUSIC] menu, refer to the mode icons as shown below .

– Selected portion will be repeated continually.

Press REPEAT to select [A-] at the beginning of the portion you

wish to repeat and press ENTER at the end of the portion.

Your selected portion will be repeated continually.

You cannot select a portion less than 3 seconds. To return to

normal playback, press REPEAT repeatedly to select [OFF].

Track – The current track or file will be played back repeatedly .

All – All the tracks or files will be played back repeatedly .

All – All the tracks or files will be played back repeatedly in

random order.

– The tracks or files will be played back in random order .

To cancel the A-B repeat, repeat or Random playback, press CLEAR.

Note:

If you press > once during Repeat Chapter/Track playback, the repeat

playback cancels.

Viewing the Title menu or Popup menu

Press TITLE/POPUP to display the title menu or popup menu.

If the current DVD or BD-ROM disc has a menu, the Title menu or Popup

menu appears on the screen. Depending on the disc, the menu may not be

available.

Marker Search

To enter a Marker

You can start playback from up to nine memorized points. To enter a

marker, press MARKER at the desired point on the disc. The Marker icon

appears on the TV screen briefly. Repeat to enter up to nine markers.

To Recall or Clear a Marked Scene

Press SEARCH and the search menu appears on the screen.

Press a number button to select a marker number that you want to recall.

Playback starts from the marked scene.

Press V to highlight a marker number. Use b / B to select a marked scene

that you want to recall or clear .

Press ENTER and playback starts from the marked scene. Press CLEAR

and the marked scene is erased from the search menu.

Notes:

• This function may not work on some disc or titles.

• All marked points are cleared if you press ST OP (x) twice (complete

stop), the title is changed or if you unload the disc.

AVCHD

DVD

AVCHD

DVD

ACD

ALL

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 31

Selecting a subtitle language

During playback, press SUBTITLE repeatedly to select a desired subtitle

language.

During playback, press DISPLAY to display the playback menu.

Use v V to select the [Subtitle] option then use bB to select desired

subtitle language.

Note:

Some discs allow you to change subtitle selections only via the disc menu.

If this is the case, press TITLE/POPUP or DISC MENU button and choose

the appropriate subtitle from the selections on the disc menu.

Hearing a different audio

During playback, press DISPLAY to display the playback menu.

Use v V to select the [Audio] option then use bB to select desired

audio language or audio track.

Notes:

• Some discs allow you to change audio selections only via the disc

menu. If this is the case, press TITLE/POPUP or DISC MENU button

and choose the appropriate audio from the selections on the disc menu.

• Immediately after you have switched sound, there may be a temporary

discrepancy between the display and actual sound.

• On BD-ROM disc, the multi audio format (5.1CH or 7.1CH) is displayed

with [MultiCH] in the on-screen display.

Using the search menu

During playback, press SEARCH to display the search menu.

Press bBto skip the playback 15 seconds forward or backward.

Tip:

You can select a point that you want to skip by pressing and holding b / B

button.

Notes:

• This function may not work on some disc or titles.

Using colored (A, B, C, D) Buttons

These buttons are available only during BD-J contents playback. Use the

appropriate buttons as indicated by the display. Depending on the disc

contents, the functions of each button may dif fer.

AVCHD

DVDBD

AVCHD

DVDBD

AVCHD

DVDBD

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 32

Last Scene Memory

This unit memorizes last scene from the last disc that is viewed. The last

scene remains in memory even if you remove the disc from the unit or

switch off the unit. If you load a disc that has the scene memorized, the

scene is automatically recalled.

Notes:

• Settings are stored in memory for use any time.

• This unit does not memorize settings of a disc if you switch of f the unit

before commencing to play it.

• Last Scene Memory function for a previous disc is erased once a

different disc is played.

• This function may not work depending on the disc.

Screen Saver

The screen saver appears when you leave the player in Stop mode for

about five minutes.

Note:

Depending on the unit status, the screen saver may not appear .

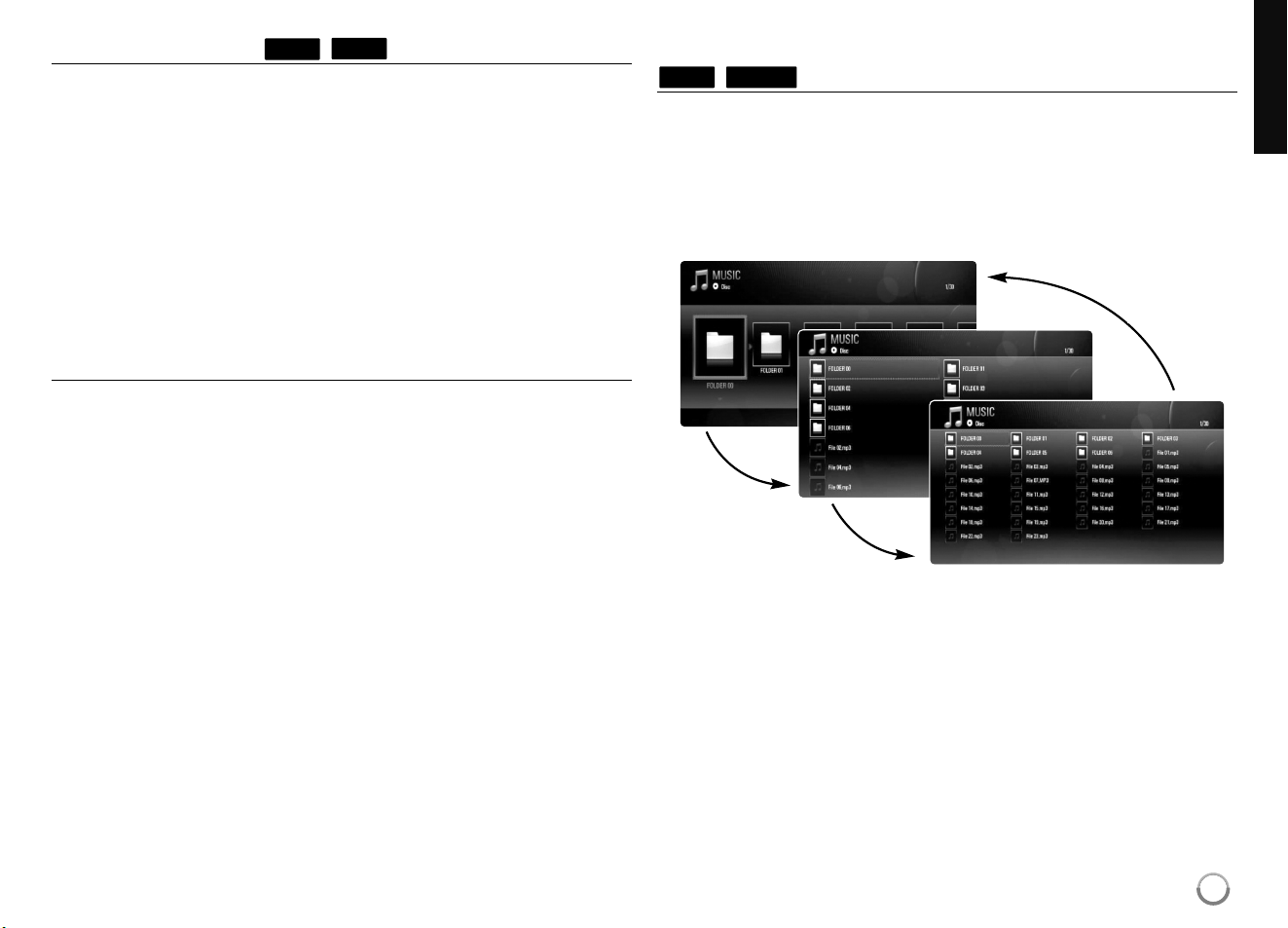

Changing content list view

On the [Music], [Photo] menu, you can change the content list

view by pressing DISPLAY repeatedly.

Note:

The equalizer will be disappeared when you change the music contents list

view.

MUSICACD

DVD

third push

first push

second push

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 33

a Title – Current title number/total number of titles.

b Chapter – Current chapter number/total number of chapters.

c Time – Elapsed playing time.

d Audio – Selected audio language or channel.

e Subtitle – Selected subtitle.

f Angle – Selected angle/total number of angles.

Notes:

• If no button is pressed for a few seconds, the on-screen display

disappears.

•

A title number cannot be selected on some discs.

• An item may not be available on some discs or titles.

• If BD interactive title is playing back, some setting information is

displayed on the screen but prohibited to be changed.

Moving to another title/chapter

When a disc has more than one title/chapter , you can move to

another title/chapter/track.

Press DISPLAY during playback then use v / V to select the

[Title/Chapter] icon. Then, press the appropriate numbered button

(0-9) or b / B to select a title/chapter number.

Playing from selected time

Press DISPLAY during playback. The time search box shows the elapsed

playing time. Select the [Time] option and then input the required start time

in hours, minutes, and seconds from left to right. For example, to find a

scene at 2 hours, 10 minutes, and 20 seconds, enter “21020” and press

ENTER. If you enter the wrong numbers, press CLEAR and enter the

correct numbers.

Note:

This function may not work on some disc or titles.

Watching from a different angle

If the disc contains scenes recorded at dif ferent camera angles, you can

change to a different camera angle during playback.

During playback, press DISPLAY to display the playback menu. Use v V

to select the [Angle] option, then use bB to select desired angle.

DVDBD

AVCHD

DVDBD

AVCHD

DVDBD

Displaying disc information

1 Play the disc loaded on the unit: PLAY

2 Displays the playback menu: DISPLAY

3 Select an item:

vv VV

4 Adjust the playback menu settings:

bb BB

5 Exit the disc playback menu: DISPLAY

ON REMOTE

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 34

This unit allows you to enjoy functions such as picture-in-picture,

secondary audio and Virtual packages, etc., with BD-Video supporting

BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1/ Final Standard

Profile). In addition to the BONUSVIEW function, BD-V ideo supporting

BD-Live (BD-ROM version 2 Profile 2) that has a network extension

function allows you to enjoy more functions such as online games by

connecting this unit to the Internet.

Enjoying BD-Live discs with Internet

This unit supports BD-Live, a new BD-V ideo function that allows you to use

the following interactive functions when connected to the Internet. (The

usable functions and the operating method may vary with each disc. For

details, refer to the instructions for the disc.)

– Additional contents such as movie’s trailer, subtitles and BD-J, etc. can

be downloaded to the USB device to play them.

– Special video data, etc. may be played back while they are being

downloaded to a USB device.

Preparations:

• The unit must be connected to the Internet and set up to use the

BD-Live functions (see page 17-21 and 28).

• A USB device is required to use this function. Connect a USB device

(see page 22).

• The free space in the USB device must be more than 1GB.

Caution:

Do not extract the connected USB device while content is being

downloaded or a Blu-ray disc is still in the disc tray . Doing so may damage

the connected USB device and BD-Live features may not operate properly

with the damaged USB device anymore.

If the connected USB device seems damaged from such an action, you

can format the connected USB device from the PC and reuse it with this

player.

Notes:

• Some BD-Live contents may be restrictively accessed in some

territories by contents provider’s own decision.

• It may take up to several minutes to load and start enjoying BD-Live

contents.

• Depending on a disc, the BD-Live function may not be operated if [BD-

LIVE connection] option is set to [Partially permitted]. (See page 28.)

• The connection to the Internet may take time or the Internet may not

be connected depending on the connection environment. It is required

that you use a broadband connection.

• Do not remove the USB device during operation. The USB device may

be damaged. Stop playback and turn of f the menu beforehand.

Tip:

Special video data, etc. may be played back while they are being

downloaded to a USB device using one function of BD-Live. The playback

may be paused depending on the communication environment.

Some functions may be disabled to prevent skipping to sections that have

not been downloaded, etc.

AACS Online

When discs supporting BD-Live are played back, the player or disc IDs

may be sent to the content provider via the Internet.

Services and functions to be provided dif fer depending on the disc.

–You can be introduced to other similar movies if you record your

viewing history on the server by using these IDs.

– Game score histories can be saved.

Enjoying BD-LIVE™

1 Inserts a BD-ROM disc with BD-LIVE™ OPEN/CLOSE (Z)

features:

2 Check the network connection and settings: –

BD-Live features need the internet connection.

3 Connect a USB device: –

A USB device is required to use this function.

4 Select a BD-LIVE™ features on the v V b B, ENTER

disc menu:

ON REMOTE

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 35

Playing secondary video (picture-in-picture)

Secondary video can be played from a disc compatible with the picture-in-

picture function.

For the playback method, refer to the instructions for the disc.

To turn on/off secondary video, press PIP. Secondary video is played.

Press the button to turn it ON or OFF.

Notes:

• Discs may not always be played back according to the settings on this

unit, as certain playback formats are prioritized on certain discs.

• Only the primary video is played during search/slow-motion or frame-by-

frame.

• This function may not work depending on the disc.

Notes:

•You can use various playback functions. Refer to pages 30-33.

• On the [MOVIE] menu, use red or blue button to move to the first or the

last file or track and green or yellow button to move to the previous or

next page.

• Unfinalized DVD VR format discs may not be played in this player .

• Some DVD-VR disc are made with CPRM data by DVD RECORDER.

This unit cannot support these kinds of discs.

What is CPRM?

CPRM is a copy protection system (with scramble system) only allowing

the recording of ‘copy once’ broadcast programs. CPRM stands for

Content Protection for Recordable Media.

Playing a movie

1 Inserts a disc containing movie contents. –

2Displays the [Home Menu]

: HOME

3 Selects the [Movie] option:

bb BB

, ENTER

4Selects a movie from the [Movie] menu: v V

5 Plays the selected movie: PLAY

6Stops the playback: STOP

The player can play video contents recorded on a

DVD-RW(VR mode) discs.

ON REMOTE

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 36

Example) MP3 files

Notes:

• When the USB device is connected and a disc is inserted

simultaneously, the menu for selecting a media will appear . Select a

media then press ENTER.

•You can use various playback functions. Refer to pages 30-33.

Tips:

•To go directly to any track or file and play , enter the track/file number

using the numbered buttons (0-9).

• The playback may start automatically if the Audio CD inserted.

• Use v/V/b/B to select a folder then press ENTER and you can view the

files in the folder. If you want to move to the upper or lower directory ,

use v/V to move to the desired directory.

• On the [MUSIC] menu, use red or blue button to move to the first or the

last file or track and green or yellow button to move to the previous or

next page.

• The equalizer indicator is not coupled with the music in play back.

• If there is impossible code to express in the file name, it may be

displayed as illegible.

MP3/WMA audio file requirement

File extensions: “.mp3”, “.wma”

Sampling frequency: within 8-48 kHz (WMA), within 11-48 kHz (MP3)

Bit rate: within 8-320 kbps (WMA, MP3)

CD-R/RW, DVD±R/RW, BD-R/RE Format:

ISO 9660+JOLIET, UDF and UDF Bridge format

Maximum Files/Folder: Less than 2000

(total number of files and

folders)

Notes on MP3/WMA file

• Depending on the size and number of the MP3/WMA files, it may take

several minutes to read the contents of the media.

• This unit cannot support the ID3 Tag embedded in the MP3 file.

• The total playback time indicated on the screen may not correct for

VBR files.

Listening to music

1 Inserts an Audio CD or a disc/USB Flash –

Drive containing MP3/WMA files.

2Displays the [Home Menu]: HOME

3 Selects the [Music] option:

bb BB

, ENTER

4 Selects a music from the [MUSIC] menu: v V

5 Plays the selected music: PLAY

6Stops the playback: STOP

The player can play Audio CDs and MP3/WMA

files. Before playing MP3/WMA files, read

“MP3/WMA audio file requirement”.

ON REMOTE

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 37

Notes:

• When the USB device is connected and a disc is inserted

simultaneously, the menu for selecting a media will appear . Select a

media then press ENTER.

•You can start the slide show by pressing PLA Y (N) while photo file is

selected in the [PHOTO] menu.

• On the [PHOTO] menu, use red or blue button to move to the first or

the last file and green or yellow button to move to the previous or next

page.

•You can change the content list view by pressing DISPLA Y repeatedly.

Options during viewing a photo file in full screen

You can use various options during viewing a picture in full screen.

Use v V b B to select an option and use the options as described below .

Options of [PHOTO] menu

a Use bBto advance to the previous or next file.

b Press ENTER to start or pause the slide show.

c Press ENTER to play or pause the background music. This option

is available after the background music is selected using

[Music Select] option.

d Selects the background music.

1) Press ENTER and the menu will appear.

2) Use vVbBto select a media or folder that there are music

file(s).

3) Press ENTER to confirm your selection.

e Press ENTER to rotate the picture clockwise.

This option is not available during slide show .

f Use green or yellow buttons to zoom in or out the picture. You can

move through the zoomed picture using vVbBbuttons. Press

RETURN to exit the [Zoom] menu and return to the normal picture

size.

Viewing a photo

1 Inserts a disc/USB device containing –

photo files.

2Displays the [Home Menu]: HOME

3 Selects a [Photo] option: bB, ENTER

4Selects a photo from the [PHOTO] menu: vVbB

5Displays the selected photo in full screen: ENTER

6Displays the next or previous photo: . / >

7 Returns to the [PHOTO] menu screen: STOP (

)

This unit can play a photo files. Before playing

photo files, read “Photo file requirement” on page

39.

ON REMOTE

bcdefgh

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 38

g Use vVto selects an option between [Effect] or [Delay].

Use bBto adjusts and press ENTER to set the selected option.

[Effects] – You can apply various effects when sliding photos.

OFF : Slide Show without any ef fect.

Random : Slide show effects are applied randomly.

Slide : Slides a photo from various direction.

Door : Photo will be appear like door opening.

Lattice : Photo will be appear from tiled pieces to full screen


[Delay] – You can set the photo delaying time while Slide Show .

h Press ENTER to exit the option menu.

To appear the menu again, press ENTER.

Tips:

• For the files that are contained in a disc or USB device, you can enter

the file number using the numbered buttons (0-9) to go directly to a

specific file.

•You can advance to the previous or next file by pressing . or >

during viewing a photo file in full screen.

•You can start the slide show without option menu by pressing

PLAY (N) during viewing a photo file in full screen.

• Use vVbBto select a folder then press ENTER and you can view

the files in the folder. If you want to move to the upper or lower

directory, use vVto move to the desired directory.

• If there is impossible code to express in the file name, it may be

displayed as illegible.

Photo file requirement (USB/DISC)

File extensions: “.jpg”, “.jpeg”, “.png”

Recommended size:

Less than 4,000 x 3,000 x 24 bit/pixel

Less than 3,000 x 3,000 x 32 bit/pixel

CD-R/RW, DVD±R/RW, BD-R/RE Format:

ISO 9660+JOLIET, UDF and UDF Bridge format

Maximum Files/Disc:

Less than 1999 (total number of files and folders)

Notes on Photo file

• Progressive and lossless compression photo image files are not

supported.

• Depending on the size and number of the photo files, it may take

several minutes to read the contents of the media.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 39

You can instantly watch movies (very few new releases) & TV episodes

from Netflix streamed over the internet to your TV via your LG BD player.

To become a Netflix member visit: www

.netflix.com/LG

Activating your player

You must activate your player before you can use it to watch movies

streamed over the INTERNET from Netflix.

3. On your computer, visit

www.netflix.com/activate.

4. If necessary, enter your [Email Address] and [Password] to log into

your account.

Notes:

• If newer software is needed, a software update screen will automatically

appear when you select [Netflix] from the [Home Menu]. For details on

software updates, see page 19-20.

•

For questions regarding the Netflix service please visit:

www.netflix.com/help

or call 1-866-579-7113

• For questions regarding your player please visit:

http://us.lgservice.com

or call 1-800-243-0000

• You can deactivate streaming from Netflix to your player using

[Deactivate Netflix] option on the setup menu (see page 29).

Playing Netflix Streaming

1 Check the network connection and settings: –

See page 17-18 and 28.

2Displays the [Home Menu]: HOME

3 Select the [Netflix] option:

bb BB

, ENTER

ON REMOTE

Use v / V to select the [yes -

activate instant streaming from

Netflix], then press ENTER.

Wait for the activation screen to

appear on your TV screen. You

are now ready to complete

activation on the Netflix website.

Enter the activation code that

appears on your TV screen.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 40

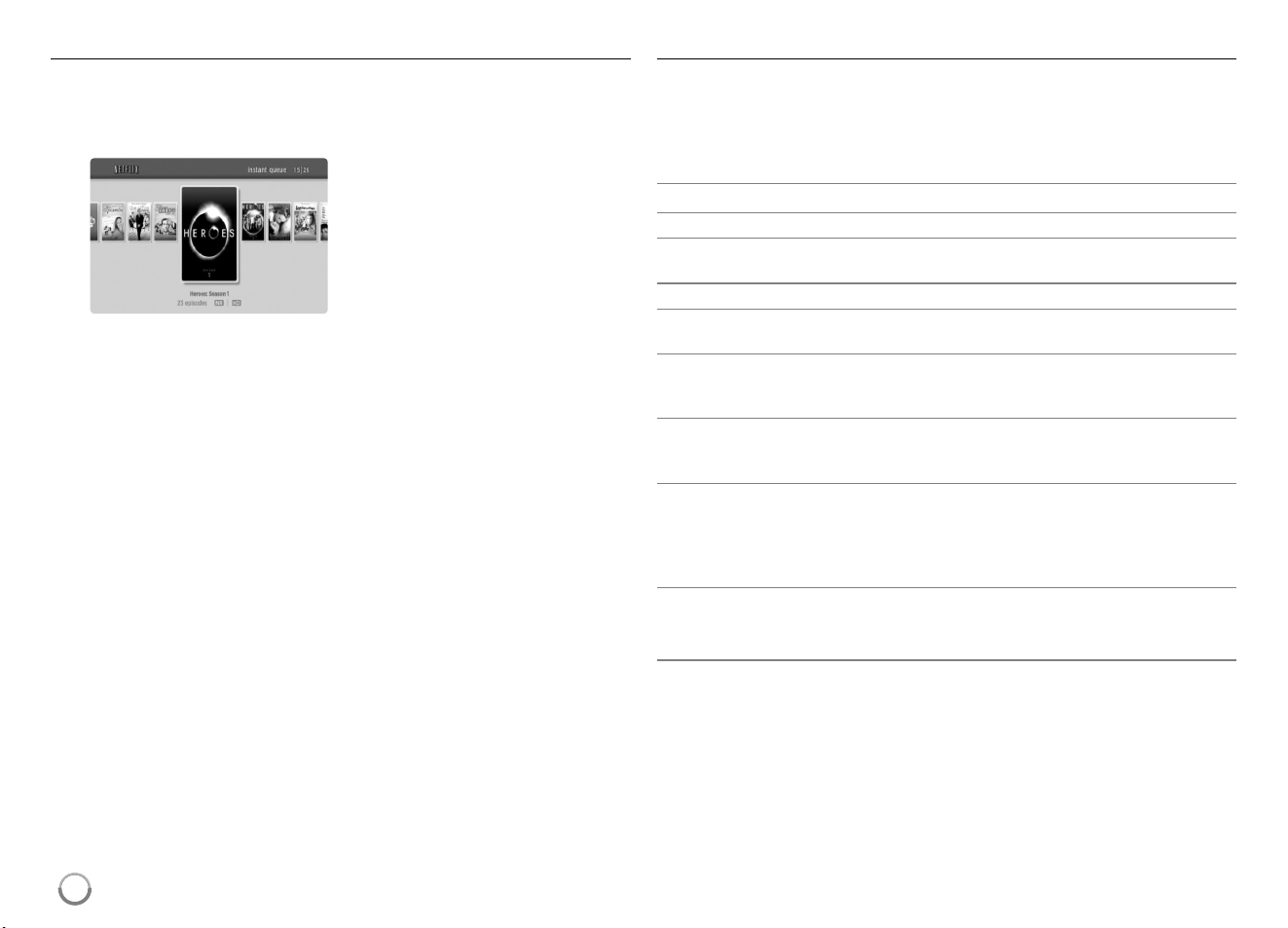

Using your player for Netflix

After you activate your player, you’re ready to add movies & TV episodes

to your instant Queue. You can then use your player ’s remote to browse

your instant Queue and to select and watch titles on your TV. You will be

amazed at how quick and easy it is.

Filling your Queue

Your instant Queue works just like your DVD Queue. Add and manage the

movies & TV episodes in your instant Queue from the Netflix website on

your computer. Your instant Queue also appears on your TV via your

player, so your selections are available to watch anytime.

1. Visit the Netflix website on your computer: www

.netflix.com

5. Repeat step 4 to add more movies & TV episodes to your instant

Queue.

6. (Optional) Arrange your instant Queue by clicking the [Instant] subtab.

•To rearrange your instant Queue, drag and drop the titles in the

order you want them, or change the numbers to the left of the titles

and then click [Update Instant Queue] to your changes.

•To remove a title from your instant Queue, click the [Remove] check

box to the right of the title.

•To recover the removed title, press [Undo].

If necessary, enter your Email

Address and Password to log into

your account.

Click [Watch Instantly] tab.

When you find a movie or TV

episode you want to watch,

mouse over the [Play] button to

reveal additional options, and

then click [Add to Instant Queue].

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 41

Selecting a movie to watch on your TV

After you set up your player and add movies & TV episodes, you can

browse and watch them on your TV.

1. Press HOME and the home menu will appear .

3. Use b / B to highlight a movie on your instant Queue. Use m / M

button to move to the previous or next page.

The selected movie shows the title, rating and total time.

4. Do either of the following:

• Press N (PLAY) to play back the highlighted title.

• Press ENTER to view details for the highlighted title, and then use

v / V to choose any of the menu items:

[play] Starts playing the selected title.

[resume playing] Plays a previously paused title from the scene

where you paused it. This option is available only if you begin

watching a title and then pause it.

[play from beginning] Starts playing from the beginning of the

selected title.

[choose a different episode] (TV series only) Enables you to select

a specific show of a TV series. Press b / B to highlight the show

you want to view, and then press ENTER to choose it.

[rate] Enables you to rate a movie or show . The more stars, the

higher the rating. Press ENTER to access the rating feature, and

then press b / B to increase or decrease the rating. Press ENTER

again to confirm the selected rating.

[remove] Deletes the selected movie from your instant Queue.

[remove series] (TV series only) Deletes the selected TV series from

your instant Queue.

5. Press v to return to your instant Queue.

Playing a movie

While watching a movie or TV episode from Netflix via your player, you

have full control over your viewing experience. You can use the buttons

on the remote to pause and resume viewing and to scan forward and

backward, just like when you watch a DVD. While playing a movie, the

buttons on the remote do the following:

Button(s) Operations

N Starts playing back the movie.

X To pause a movie while it’s playing. To resume playing

a paused movie, press N (Play) again.

x / v Stops the movie and displays your instant Queue.

ENTER Pauses playing the movie and enters frame scanning

mode.

B Pauses playing the movie and enters frame scanning

mode. To scan forward one frame at a time, press the

button again.

b Pauses playing the movie and enters frame scanning

mode. To scan backward one frame at a time, press the

button again.

M / m Pauses playing the movie and scans forward or backward

through the movie. To scan faster, press the button again.

To play the highlighted scene, press ENTER or N.

To resume playing from the point you paused the movie,

press v.

HOME When you have finished watching movies streamed from

Netflix, simply press the HOME button on the remote

control to go to the Home Menu.

Note:

Even if you use a high-resolution setup, audio/video quality may be

compromised based on the speed of your broadband internet connection.

Your Internet Service Provider (ISP) determines your broadband speed.

Use b / B to select the [Netflix]

then press ENTER.

The instant Queue screen will

appear.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 42

You can browse, search and watch movies & TV episodes from

CinemaNow streamed over the internet to your TV via your LG BD player.

To become a CinemaNow member, visit: www

.cinemanow.com

Activating your player

You must activate your player before you can use it to watch movies

streamed over the INTERNET from CinemaNow.

2. Enter your [user name] and [password] to log into your account. If you

are not a member of CinemaNow yet, click [GET STARTED] to be a

member.

3. Enter the Personal Information, Payment Information, Gift Code

Redemption and Adult Access Restrictions, and then click

[CONTINUE].

Notes:

To learn more about controlling access to adult content, please visit

www

.cinemanow.com/adultcheck/

4. The activation code number appears. Note the activation code

number.

5. On your player, select [CinemaNow] in the [Home Menu] and press

ENTER.

6. Use vVbBto select the [Settings] and press ENTER.

Notes:

• If newer software is needed, a software update screen will automatically

appear when you select [CinemaNow] from the [Home Menu]. For

details on software updates, see page 19-20.

• For questions regarding the CinemaNow service please visit:

www

.cinemanow.com/support

• For questions regarding your player please visit:

http://us.lgservice.com

or call 1-800-243-0000

•You can deactivate streaming from the CinemaNow service on your

player using [De-activate] option on the [settings] menu item.

• User must log in CinemaNow web site to activate your player . To watch

the stream video, you should browse and buy titles at the player .

Playing CinemaNow videos

1 Check the network connection and settings: HOME, v V b B

See pages 17-18 and 28.

2Displays the [Home Menu]: HOME

3 Select the [CinemaNow] option: vVbB, ENTER

ON REMOTE

On your computer, visit :

www.cinemanow.com/activate

Select [Activate] and press ENTER

to display the activation code input

screen. Enter the activation code

displayed on your computer using

vVbBand numeric buttons, and

then press ENTER while [Activate]

is selected.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 43

About the CinemaNow menu

After activating your player, you’re ready to use the CinemaNow service.

a Movies – The movie list appears on the screen. Browse movies

you want to buy/rent from the categorized options or search by

selecting the [Search by Title] option.

b TV Shows – The TV show list appears on the screen. You can

browse TV episodes you want to buy from the categorized options

search by selecting the [Search by Title] option.

c Search by Title – Search movies & TV episodes by entering the

title name on the keyboard menu.

d My Videos - Displays the movies & TV episodes you have bought

or rented. You can browse the videos from categorized options as

well as play the videos from this screen. The My videos screen is

where you can get access to all your previously rented or

purchased content from any CinemaNow powered by device.

e Wish List – Displays the movies & TV episodes you have added to

your CinemaNow Wish List. You can buy, rent or remove videos

from the list.

f Settings – You can activate or de-activate the CinemaNow Service

from your player. You can set the check box to only show the titles

that are available for rent.

My videos

The My videos screen is where you can get access to all your previously

rented or purchased content from any CinemaNow powered by service.

You can view your content under different filters:

abc

def

a All – show all movies & TV content

b Rent titles only – show rent titles only

c Buy titles only – show buy titles only

d Movies only – show Movies only, no TV

e TV Shows only – show TV content only, no movies

f Unavailable – videos that are currently un-available for streaming

due to content owner restrictions

Renting and Purchasing videos

After activating your player, you are ready to buy or rent movies & TV

episodes. You can then use your player ’s remote to browse, search and

watch directly on your TV.

1. Select a video you want to buy or rent from [Movies] or [TV Shows]

menu. Press ENTER while selecting the video thumbnail to display

the [Title Details].

The [Title Details] screen shows the information of the video such as

rating, run time, etc.

2. Use vVbBto select [Buy] or [Rent] and press ENTER.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 44

Tips:

• If you select [Add to Wish List] from [T itle Details] menu, the video

will be stored in the [Wish List]. You can buy, rent or remove this

video from the [Wish List] menu.

• For [Title Details] menu of [TV Shows], Use vVbBto select an

episode, and then select [Buy] to purchase each episode.

3. Select [Place order] to confirm your purchase. Any gift code balance

you have previously redeemed will be applied automatically. If you

want to redeem a new gift code, select [Redeem Gift Code] and press

ENTER to enter the gift code on the keyboard menu.

4. Select [Watch Now] to play the video immediately or [Continue

Browsing] to add the movie to the [My V ideos] and return to the

[Movies] menu.

Notes:

• Rental videos are available to watch for a 24 hour period (in most

cases), starting from the first time they are played.

• If you have a CinemaNow gift code, you can redeem it by selecting the

[Redeem Gift Code] button at checkout.

• While most videos are available for rental and purchase, some are

available for purchase only due to content owner restrictions. If you

want to view content that is only available to rent, you may do so by

going to the settings menu, and checking the “Show only titles

available for RENT in browse results”.

• Please note that there may be a dif ference between the content

offered to buy and watch on the CinemaNow service on the LG player ,

and that on www.cinemanow.com. This is due to content owner restric-

tions.

Searching for videos

You can search for videos by entering search words of up to 26

characters. Use b B to select [Search by Title] option from the

CinemaNow menu or [Search by Title] from [Movies]/[TV Shows], and then

press ENTER to display the keyboard menu. Use

vv VV bb BB

to select a

character then press ENTER to confirm your selection on the keyboard

menu.

When you entering characters, titles that start with the letters you are

entering will be displayed on the Right.

[Clear]: Clear all entered characters.

[Space]: Inserts a space at the cursor position.

[Backspace]: Deletes the previous character at the cursor position.

[ABC / abc / #@$]: Change the keyboard menu settings to capital

letter, small letters or symbols.

When you finish entering the search words, Use

vv VV bb BB

to select a title

from the list shown on the right, and then press ENTER to display the

[Title details] screen of the video.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 45

Playing a video

While watching a movie or TV episode from CinemaNow via your player,

you have control over your viewing experience. You can use the buttons

on the remote to pause and resume viewing and to scan forward and

backward, just like when you watch a DVD. While playing a movie, the

buttons on the remote do the following:

Note the video quality indicator on the top right hand side of the screen

while a video is playing. The quality level is dependent on your current

internet network conditions and will improve as those do.

Button(s) Operations

N Starts playing back the movie.

X To pause a movie while it’s playing. To resume playing

a paused video, press N (Play) again.

x Stops the movie and displays previous screen.

ENTER Displays the video quality indicator and progress bar on

the screen.

m / M Scans forward or backward through the movie. To scan

faster, press the button again.

To resume playing back, press N.

HOME When you have finished watching movies streamed from

CinemaNow, simply press the HOME button on the remote

control to go to the Home Menu.

ZOOM During playback or pause mode, press ZOOM to display

the [Zoom] menu. Use green or yellow buttons to zoom in

or out the picture. You can move through the zoomed pic-

ture using vVbBbuttons. To return to the normal picture

size, press yellow button repeatedly to fully zoom out the

picture. Press RETURN to exit the [Zoom] menu.

Note:

The playback of CinemaNow videos may be paused, stopped or buf fering

occurring often depending on your broadband speed.

We recommend a minimum connection speed of 1.5 Mbps. For the best

playback condition, a connection speed of 4.0 Mbps is required.

Sometimes your broadband speed varies based on your ISP’ s network

conditions. Contact your ISP if you have problems maintaining a fast

connection that is reliable, or if you want to increase your connection

speed. Many ISPs offer a variety of broadband speed options.

Video quality

indicator

progress

bar

video title

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 46

You can instantly listen to personalized radio stations, streamed over the

internet, from Pandora through the system speakers via your LG BD player .

To use Pandora on the web, please visit: www .pandora.com. To setup

Pandora on your LG BD player, please follow the activation instructions

below.

To become a Pandora member visit: www.pandora.com

Activating Pandora on your player

You must activate Pandora on your player before you can listen to or

create personalized radio stations.

If you already have a Pandora

account select [Yes] by pressing

, and then press ENTER.

Your player will be automatically

activated at this point.

Go to step 3.

After launching Pandora on your

player, the initial screen appears.

If you don’t already have a

Pandora account you will need to

create one. Select [No] by

pressing

, and then press

ENTER. On your TV screen you

will see an activation code.

Please write the activation code

down and then visit the web site

address displayed on screen to

complete the Pandora registration

process. After you have completed

the registration, return to your TV

and press ENTER and go to step

4 of the instructions.

Using Pandora

1 Check the network connection and settings: –

See page 17-18 and 28.

2Displays the [Home Menu]: HOME

3 Select the [Pandora] option:

bb BB

, ENTER

ON REMOTE

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 47

Notes:

• Pandora will pause a playback after eight hours without any input.

At this point, Pop-up message appears and you have to press ENTER to

resume the music.

• You may not get the song informations according to the network

conditions.

•

For questions regarding the Pandora service please visit:

http://www.pandora.com/help

or e-mail: pandora-support @ pandora.com

• For questions regarding your player please visit:

http://us.lgservice.com

or call 1-800-243-0000

Using Pandora on your LG BD player

You will be amazed at how quick and easy it is to use Pandora on your BD

player. Using your player’s remote control, you can play stations that you

have already created or create new ones by providing the name of a single

song or artist. While the music is playing, you can give a song a Thumbs

Up or Down and Pandora will instantly change the music selection to bet-

ter match your tastes. Best of all, you can listen to your Pandora stations

through the BD player system speakers or online at pandora.com.

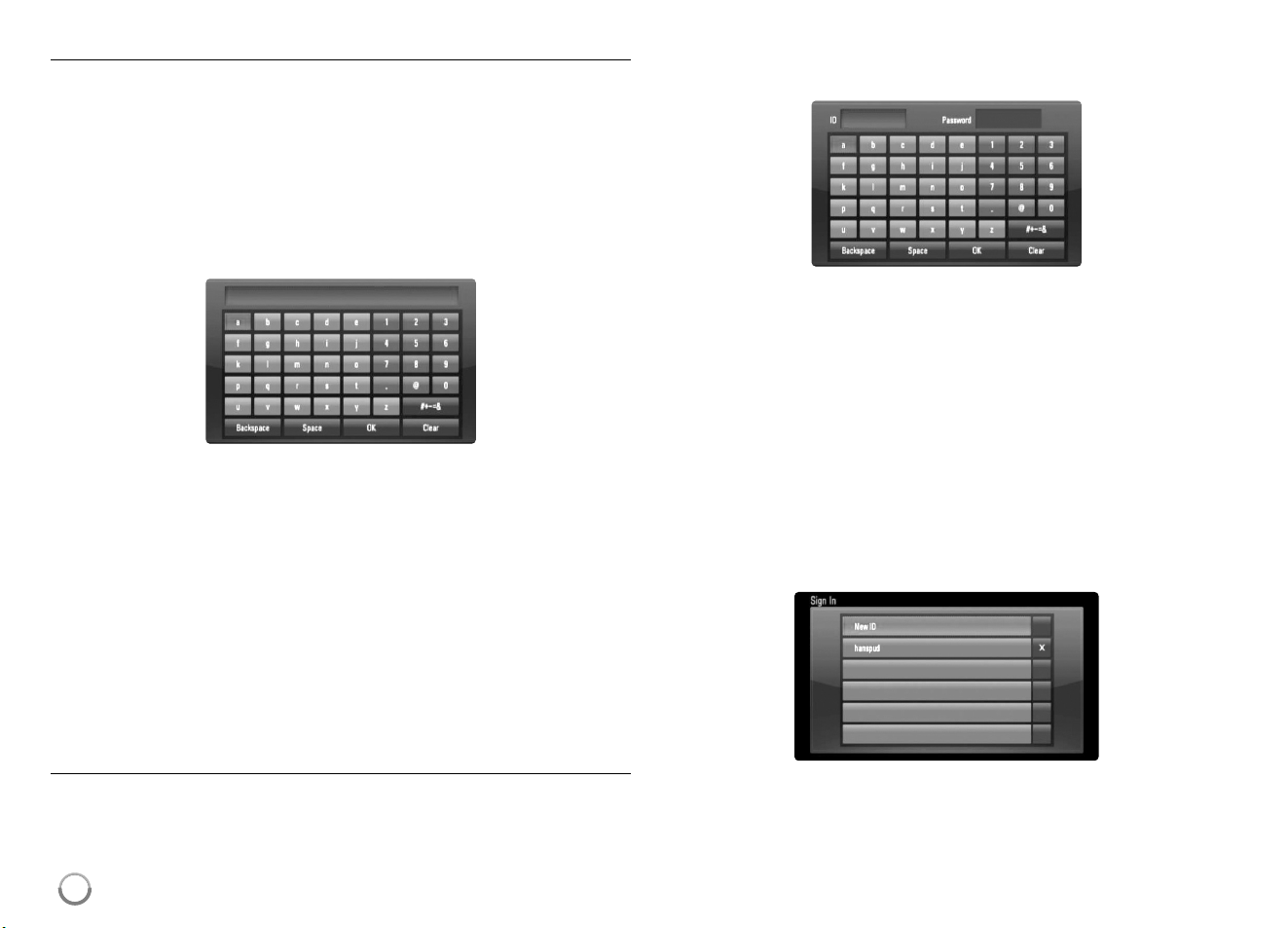

Enter your Pandora user name and

password on the virtual keyboard

with the supplied remote.

You may have to create a new

station if you don’t have one yet.

Enter one of your favorite artists or

songs to create a

station.

After creating the stations, it

automatically shows the list of

stations created from the web or

player, and plays music.

[OK]: Finishes entering an E-mail or password.

[T Delete]: Deletes the previous character at the cursor position.

[Space]: Inserts a space at the cursor position.

[Clear All]: Clears all entered characters.

[ABC/abc/#+=]: Changes the virtual keyboard menu settings to capital

letters, small letters or symbols.

Tips:

• You can use CLEAR on the supplied remote instead of selecting

[T Delete].

• You can use the numerical buttons on the supplied remote instead of

selecting the numerical buttons on the virtual keyboard.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 48

Adding multiple Pandora user accounts

It is easy to setup more than one Pandora user account on this device.

Everyone in your household can create their own Pandora accounts so

they can create and listen to their own stations.

Playing Pandora stations

While listening to musics from Pandora via your player , you have full

control over your listening experience. You can use the buttons on the

remote to pause and resume listening to. While listening to a music, the

buttons on the remote do the following:

Button(s) Operations

N (PLAY) Starts playing back the music.

X, x To pause a music while it’s playing. To resume playing

a paused music, press N (PLAY) again.

ENTER Acknowledges menu selection.

HOME When you have finished listening to musics streamed

from Pandora, simply press the HOME button on the

remote control to go to the Home Menu.

> Skips to the next song.

(This is limited to at most 6 times. )

O (RETURN) Goes back to the previous mode.

A (red button) Creates station.

B (green button) Deletes station.

C (yellow button) Plays the stations in random order. (QuickMix)

To create or edit the QuickMix visit:

www.pandora.com

D (blue button) Signs out

v/ V/ b/ B Moves to the up/ down/ left/ right

Using the main screen

Menu Button(s)

Operations

Tells Pandora that you like the currently playing song.

Pandora will then play you more songs that are similar .

Tells Pandora that you do not like the currently playing

song. Pandora will immediately skip to the next song

and won’t play you the song, or others like it, again.

Excludes the selected song from the all stations for a

month.

Bookmarks the currently playing song. You can view all

of your bookmarks by logging into Pandora on the web

at www.pandora.com and clicking on the “Your Profile”

link.

Use b / B to select [Pandora]

then press ENTER.

The username list screen will

appear.

Use v/ V to select a

username on your username

list. The station lists of the

selected username appear and

plays music. If necessary,

you can create a new

username here.

Press HOME and the home

menu will appear.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 49

About the YouTube menu

There are various options on the YouTube menu. Use v V b B to select

an option and press ENTER to select the options as described below .

abcde

fg hi

a Featured – The featured videos list will be displayed.

b Recent Videos – The most recently updated videos list will be

displayed.

c Most Viewed – The most viewed videos list will be displayed. The

period option appears at the bottom of the screen.

d Top Rated – The best rated videos list from YouTube server will be

displayed. The period option appears at the bottom of the screen.

e Search – The keyboard menu will be displayed.

See “Searching videos” on page 52 for more detail.

f History – The videos list that you previously played on this unit will

be displayed. Maximum of 25 videos can be stored.

g Favorites – This option will be appeared only when the unit is in

sign-in status. Displays the videos list that is arranged in the

YouTube server with your account.

Some videos may not appear on the [Favorites] list, even if the

videos are arranged in the server.

h Sign in (Sign Out) – Displays the keyboard menu to sign in or

returns to the sign-out status. See “Sign in with your YouTube

account” on page 52 for more details.

i Local site – Choose which country’s videos you would like to view.

The countries listed on the [Local Site] menu may dif ferent with

those listed on the YouTube web site.

Notes:

• The YouTube menu can display 5 videos in the videos list. Press red or

blue button to display next/previous 5 videos.

• If you select the [Most Viewed] or [Top Rated] option in the YouTube

menu, the period options appear at the bottom of the screen. Use v V

bB to select a period option and press ENTER to display the videos

list within the selected period.

• The videos list searched from the player may dif ferent with the list

searched from a web browser on PC.

Playing YouTube videos

1 Check the network connection and settings: HOME, v V b B

See pages 17-18 and 28.

2Displays the [Home Menu]: HOME

3Select the [YouTube] option: vVbB, ENTER

4 Select a desired option on the YouTube v V b B, ENTER

menu:

5 Select a video you want to play:

bb BB

6 Starts playback the selected video: PLAY (

), ENTER

or DISPLAY

ON REMOTE

YouTube menu

video list

period options

Network condition

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 50

About YouTube playback screen

When you press PLAY (N) or ENTER at the video you want to watch, the

playback screen and content detail will appear on the screen.

while playing

And when the playback ends or stops, the stopped playback screen and

related videos list appear on the screen. Use v V b B to select the cur-

rent video or a video from the related videos list and then press PLA Y (N)

or ENTER to play the selected video.

while stopped

When you press DISPLAY at the video you want to watch, the playback

starts in full screen.

Full Screen

Press DISPLAY to toggle between playback in full screen and playback

screen with content detail.

Playing a video

While watching a video from YouTube via your player, you can control the

YouTube video playback. You can use the buttons on the remote to pause

and resume viewing, just like when you watch a DVD. While playing a

video, the buttons on the remote do the following:

Button(s) Operations

N or ENTER Starts playback the video with content detail.

DISPLAY Toggle between playback in full screen and playback

screen with content detail.

X To pause a video while it is playing. To resume playing

a paused video, press PLAY (N) again.

x Stops the video and displays related videos list.

./> Skip the playback forward or backward .

HOME When you have finished watching videos, simply press

the HOME button on the remote control to go to the

[Home Menu].

Notes:

• The settings of this player do not af fect the YouTube’s playback quality.

• The playback of YouTube videos may be paused, stopped or buf fering

occurring often depending on your broadband speed.

playback

screen

content detail

playback

screen

progress bar

playback

screen

related videos

list

progress bar

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 51

Searching videos

You can search for videos by entering search words of up to 128

characters. Use b B to select [Search] option from the menu and press

ENTER to display the keyboard menu. Use

vv VV bb BB

to select a character

then press ENTER to confirm your selection on the keyboard menu.

When you entering a character, maximum of 5 suggestion words will be

displayed.

To enter a letter with an accent mark, select the letter from extended

character set.

Example: Select “D” and then press DISPLAY to display the extended

character set. Use b B to select “D” or “Ď” and then press ENTER.

[OK]: Searching related videos of search words.

[Clear]: Clear all entered characters.

[Space]: Inserts a space at the cursor position.

[Backspace]: Deletes the previous character at the cursor position.

[ABC / abc / #+-=&]: Change the keyboard menu settings to capital

letter, small letters or symbols.

When you finish entering the search words, select [OK] and press ENTER

to display the related videos list.

Note:

Available languages to enter on the keyboard menu are as follows:

English, Spanish, Italian, French, German, Dutch, Portuguese, Swedish,

Polish and Czech.

To watch videos from your [Favorites] video list on the YouTube server with

your account, you need to sign in with your YouTube account.

Use b B to select [Sign In] option from the menu and press ENTER to

display the keyboard menu. Use

vv VV bb BB

to select a character then press

ENTER to confirm your selection on the keyboard menu.

[OK]: Finish entering an ID or password.

[Clear]: Clear all entered characters.

[Space]: Inserts a space at the cursor position.

[Backspace]: Deletes the previous character at the cursor position.

[ABC / abc / #+-=&]: Change the keyboard menu settings to capital

letters, small letters or symbols.

If you want to sign out, select the [Sign Out] from the YouTube menu and

press ENTER.

This unit can automatically store up to 5 IDs which were previously

signed-in. The IDs list appears when you select the [Sign In] option.

Select a stored ID on the list and press ENTER to display the keyboard

menu with the selected ID is entered. You will then only need to enter the

password to sign in.

[New ID]: Displays the keyboard menu for entering a new ID and

password.

[X]: Delete the stored ID as shown left of the [X] symbol.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 52

Listening to the radio - more you can do

Look for radio stations automatically

Press and hold TUN.-/TUN.+ for more than a second. The tuner will scan auto-

matically and stop when it finds a radio station.

Choose a preset number for a radio station

When storing a radio station, the preset number can be chosen. When this unit

automatically shows a preset number, press PRESET

to change it. Press

ENTER to save your chosen number.

Delete all the saved stations

Press and hold ENTER for two seconds. ERASE ALL will flash up on the

display. Press ENTER to erase all saved radio stations.

Improve poor FM reception

Press MO./ST.(D). This will change the tuner from stereo to mono and usually

improve the reception.

Listening to the radio

1 Select FM or AM: TUNER ( INPUT)

2 Select a radio station: TUN.-/+

3To save a radio station: ENTER

A preset number will show on the display.

Up to 50 radio stations can be saved.

4To confirm press: ENTER

5To select a saved station PRESET

ON REMOTE

Be sure that FM and AM antennas are connected.

Playing the iPod

For details about iPod, refer to the iPod User Guide.

Preparation

• To view iPod’s Videos and Photos on the TV screen.

- Be sure to use the video connection through the VIDEO OUT jack on

the rear panel of this unit.

Select the appropriate video input mode on the TV.

- Depending on the iPod, make sure that select V ideos > Video settings,

and then set TV Out to Ask or On from your iPod.

For details about Video Settings, refer to the iPod User Guide.

- The viewing photos is available only if this unit is in REMOTE IPOD

mode and you can view photos only as a slideshow .

You have to start a slideshow on your iPod to view a photo on a TV.

For details about a slideshow, refer to the iPod User Guide.

• Before connecting the iPod, turn this unit of f and reduce the volume of

this unit to its minimum.

Connect the iPod firmly.

To open the iPod Dock:

Push the marked Z.

To close the iPod Dock:

Push the iPod Dock forward.

Select an iPod mode Press iPod.

•

REMOTE IPOD mode: You can operate your iPod through an iPod’ s

display by using the supplied remote control and also control on your iPod.

• OSD IPOD mode: You can operate your iPod by controlling OSD menu

on the TV screen with the supplied remote control. The controls on

your iPod are not operational in the OSD iPod mode.

Do this on remoteTo

• If you turn this unit on, your iPod is automatically turned on and recharging starts.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 53

Tip:

You may use the dock adapter which should be supplied with your iPod to

the dock for the stable use of the iPod.

If you need an adapter, consult your iPod dealer.

Notes:

•

Compatibility with your iPod may vary depending on the type of your iPod.

• iPod touch and iPhone have any dif ference in operation other than iPod.

You may need any additional control to use them with this unit.

(e.g. “slide to unlock”)

• If you use an application, make a call, or send and receive SMS text

message, etc. on iPod touch or iPhone, disconnect it from iPod

dock of this unit and then use it.

• Depending on your iPod’s software version, it may not be possible to

control your iPod from this unit. W e recommend installing the latest

software version.

• The video quality depends on the video sources on your iPod.

• When LG TV’s SIMPLINK is set to On, the audio signals are output to the

system speakers only.

• If this unit displays an error message, follow the message.

An error message “CHECK IPOD” or “Please check your iPod.”

appears when:

- the communication between this unit and your iPod is failed.

Undock & re-dock your iPod in this unit.

- your iPod is not connected firmly.

- this unit recognizes your iPod as unknown device.

- your iPod is exceptionally low on power .

The battery needs to be charged.

If you charge the battery while iPod is extremely low in power , it may

take longer to charge.

An error message “CHECK IPOD” or “Connected iPod model is not

supported.” appears when:

- your iPod is not available for the function to be operated.

An error message

“CHECK IPOD” or

“Please update iPod’s software.”

appears when:

- your iPod has an old software version.

Update your iPod software to latest version.

• If you have a problem with your iPod, please visit

www.apple.com/support/ipod.

Select a menu item Press v V and B or ENTER.

Go back to the previous menu

Press RETURN (

) or DISC MENU or b.

Browse for a song From the main menu, select Music.

Browse for a video From the main menu, select Videos.

Play a song or video

Select the song or video and press ENTER.

Pause a song or video Press PAUSE/STEP (

) or PLAY (B).

To continue playback, press

PAUSE/STEP (

) or PLAY (B) again.

Skip to the next song or video Press SKIP (>).

Start a song or video over Press SKIP (.).

Play the previous song or video

Press SKIP (.) twice.

Fast-forward or rewind a song Press and hold SCAN (m or M).

or video

Repeat a song Press REPEAT repeatedly to select a

desired repeat mode: Track ( ), All ( ),

Off (No display).

Do this on remoteTo

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 54

Listening to music from your

portable audio player

1 Connect the headphones (or line out ) jack

of the portable audio player into the PORT.

IN on the rear panel of this unit: -

2Turn the power on: POWER

3 Select the [PORTABLE] option: INPUT

4Turn down the volume of this unit: VOL. (+/-)

5Turn the portable audio player on and start

it playing: -

6 Adjust the volume of this unit and your VOL. (+/-)

portable audio player:

You can enjoy the sound of your portable audio player from the speakers

of the system.

ON REMOTE

Listening to the sound from

your component

1 Connect the analog audio output jacks of your

component into the AUX L/R (INPUT) on the rear

panel of this unit: -

2Turn the power on: POWER

3 Select the [AUX] option: INPUT

4 Turn down the volume of this unit: VOL. (+/-)

5Turn your component on: -

6 Adjust the volume: VOL. (+/-)

You can enjoy the sound of your component with the analog audio

output jacks from the speakers of the system.

ON REMOTE

3.5 mm stereo

miniplug cable

To the audio output jacks

of your component

(TV, VCR, etc.)

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 55

Note:

•You cannot change the video resolution at the HDMI IN 1/2 mode.

Change the video resolution of the connected component.

•You cannot operate SIMPLINK function at the HDMI IN 1/2 mode.

• The setting of the sound mode is not available when Dolby Digital

Plus, Dolby TrueHD and DTS-HD are played at HDMI IN 1/2 mode.

• If the video output signal is abnormal when your personal computer is

connected to HDMI IN 1/2 jack, change the resolution of your personal

computer to 480p, 720p, 1080i or 1080p.

1 Connect the optical or coaxial output jack

of your component into the OPTICAL or

COAXIAL (DIGITAL AUDIO IN) jack on the

rear panel of this unit. -

2Turn the power on: POWER

3 Select the [OPTICAL] or [COAXIAL] option: INPUT

4Turn down the volume: VOL.(+/-)

5Turn your component on: -

6 Adjust the volume: VOL.(+/-)

You can enjoy the sound of your component with the digital

optical or coaxial output jack from the speakers of the system.

ON REMOTE

Using DIGITAL AUDIO IN jacks

To the digital optical output jack of your component

To the digital coaxial output jack of your component

1 Connect the HDMI OUT jack of your

component into the HDMI IN 1 or 2 jack on

the rear panel of this unit. -

2Turn the power on: POWER

Select the [HDMI IN 1] or [HDMI IN 2] option:

INPUT

4Turn down the volume of this unit: VOL.(+/-)

5Turn your component on: -

6 Adjust the volume of this unit: VOL.(+/-)

An easy way to enjoy superior audio and video performance from all of

your high-def sources, such as cable boxes and game systems, is to use

the 2 HDMI inputs on your home theater system.

ON REMOTE

Using HDMI IN jacks

To the HDMI OUT jack of your component

(set-top box, digital satellite receiver, video game machine, etc.)

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 56

Reference

Controlling a TV with the Supplied Universal

Remote Control

You can control the volume, input source, and power state of your TV with

the supplied Universal Remote Control.

You can control your TV using the buttons below.

By pressing You can

TV POWER Turn the TV on or off.

INPUT Switch the TV’s input source between the

TV and other input sources.

PR/CH

Scan up or down through memorized

channels.

VOL +/– Adjust the volume of the TV.

Note:

Depending on the unit being connected, you may not be able to control

your TV using some of the buttons.

To program the remote to control the TV using the

manufacturer code

If your TV is listed in the table on the next page, set the appropriate

manufacturer code.

1. While holding down TV POWER button, press the number buttons to

select the manufacturer code for your TV (Refer to table on the next

page).

• If more than one code number is listed, try entering them one at a

time until you find the one that works with your TV.

2. Release TV POWER button.

Notes:

• Depending on your TV, some or all buttons may not function on the TV,

even after entering the correct manufacturer code.

• If you enter a new code number , the code number previously entered

will be erased.

• When you replace the batteries of the remote, the code number you

have set may be reset to the default setting. Set the appropriate code

number again.

POWER

TV Control

Buttons

Number

Buttons

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 57

Code numbers of controllable TVs

Manufacturer Code Number

ADMIRAL 16,33,37,44,45

AIWA 70

AKAI 01

AMARK 09

AOC 01

BELL & HOWELL 33

BROKSONIC 18,19

CANDLE 51

CCE 07

CENTURION 08

CINERAL 43

CITIZEN 49,50,51,52,53,54,55

CORONADO 09

CROWN 09

CURTIS MATHES 01,03,08,33,35,37,44

DAEWOO 16,38,39,40,41,42,43

DAYTRON 01,08

EMERSON 01,09,16,17,18,19

FISHER 28,29

FUNAI 46,47

GENERAL ELECTRIC 03,10,11,13,37,44

GOLDSTAR 01,07,08,09,35,39,40

GRADIENTE 01,56,57,63,67

HITACHI 09,14,15,43

JC PENNEY 01,08,10,27,35

JVC 20,21,63,67

KIOTE 43

KMC 09

KTV 01,08,09,31

LG 01,07,08,09,35,39,40

LODGENET 33

LOGIK 33

LXI 09,24,25,26,27,28,29

Manufacturer Code Number

MAGNAVOX 01,02,04,05,06,

07,08,09,20,

34,35,43,51,61,62,65

MAJESTIC 33

MARANTZ 01,32

MEMOREX 33

MGA/MITSUBISHI 01,08,32,34

MONTGOMERY

01,06,08,09

WARD

23,24,32,33,34

NEC 01,08

NOBLEX 07

PACKARD BELL 43

PANASONIC 07,11,13,25,35,36

PHILCO 01,06,07,08,09,

15,38,43,58

PHILIPS 06,07,43,61,62,65

PIONEER 30

PORTLAND 09

PROSCAN 03,37,44

QUASAR 11,13

RADIO SHACK 16,17,23

RCA 01,03,37,44,69

REALISTIC 16,17,23

SAMPO 08

SAMSUNG 01,08,09,25,68

SANYO 28,29

SCOTT 01,08

SEARS 09,25,26,27,28,29

SEMP 64

SHARP 09,22,23,24,60,66

SIGNATURE 2000 01,06,08,09,10,

23,24,33,34

Manufacturer Code Number

SONY 12,62

SOUNDESIGN 51

SYLVANIA 01,04,05,06,07,

08,35,51

SYMPHONIC 46,47

TATUNG 11

TEKNIKA 07,09,16,33,51

TELERENT 09,33

THOMSON 69

YORX 08

TOSHIBA 01,25,26,27,64

WARDS 01,06,08,09,10,33,34

XR1000 48

ZENITH 01, 02,33,59

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 58

Language Codes

Use this list to input your desired language for Disc Audio, Disc Subtitle and Disc Menu.

Area Codes

Choose an area code from this list.

Language Code

Afar 6565

Afrikaans 6570

Albanian 8381

Ameharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Chinese 9072

Language Code

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Language Code

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laothian 7679

Latin 7665

Latvian, Lettish 7686

Language Code

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Language Code

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Singhalese 8373

Slovak 8375

Slovenian 8376

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Language Code

Tajik 8471

Tamil 8465

Telugu 8469

Thai 8472

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria A T

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Area Code

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Area Code

Greenland GL

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya L Y

Luxembourg LU

Malaysia MY

Area Code

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Netherlands Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama P A

Area Code

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian Federation RU

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Area Code

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 59

Troubleshooting

Possible Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD signal output.

• The video cable is not connected securely.

• The selected resolution is not capable with your TV.

• The equipment connected with the audio cable is not

set to receive disc signal output.

•

The power of the equipment connected with the audio

cable is turned off.

• The [AUDIO] options are set to the wrong position.

• The player is in reverse play, fast forward, slow motion

or pause mode.

• The disc is upside down.

• An unplayable disc is inserted.

• The rating level is set.

• The disc was recorded on another unit and was not

finalized.

• The Remote Control is not pointed at the remote

sensor on the player.

• The Remote Control is too far from the player .

Symptom

No power.

The power is on, but the

player does not work.

No picture.

No sound.

The player does not start

playback.

The Remote Control does

not work properly.

Correction

• Plug the power cord into the wall outlet securely .

• Insert a disc. (Check the disc indicator in the display win-

dow is lit.)

• Select the appropriate video input mode on the TV.

• Connect the video cable securely.

• Select another resolution using RESOLUTION button.

• Select the correct input mode of the audio receiver so you

can listen to the sound from the player .

•Turn on the equipment connected with the audio cable.

• Set the [AUDIO] options to the correct position

(see page 25-26).

• Return to the normal playback.

• Insert the disc with the playback side down.

• Insert a playable disc. (Check the disc type and regional

code.)

• Change the rating level.

• Finalize the disc on that unit.

• Point the Remote Control at the remote sensor of the

player.

• Operate the Remote Control closer to the player .

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 60

Resetting the unit

If you observe any of the following symptoms.

• The unit is plugged in, but the power will not turn on or of f.

• The front panel display is not working.

• The unit is not operating normally.

You can reset the unit as follows.

• Press and hold the POWER button for at least five seconds. This will

force the Player to power off. Press the POWER button again to turn

the Player back on.

• Unplug the power cord, wait at least five seconds, and then plug it in

again.

Customer Support

You can update the Player using the latest software to enhance the

products operation and/or add new features.

To obtain the latest software for this player (if updates have been made),

please visit

http://us.lgservice.com

or contact LG Electronics customer

care center.



Design and specifications are subject to change without notice.

Troubleshooting

Possible Cause

•AUSB device is not connected.

• The connected USB device does not have enough

space.

• Internet connection is not established.

• The [BD-LIVE connection] option in the [Setup] menu

is set to [Prohibited].

• The connected USB device is damaged.

•You broadband service speed may not be fast enough

to stream video servicecs (such as Netflix, etc.)

• The ID list is full.

• The signal strength of the stations is too weak (when

tuning in with automatic tuning).

Symptom

BD-Live feature does not

work.

Streaming video services

(such as Netflix, etc.) often

stop or “buffer” during

playback.

The YouTube ID is not

automatically stored in the

ID list.

Radio stations cannot be

tuned in.

Correction

• Connect a FAT16 or FAT32 formatted USB device to the

USB port (see page 22).

• Secure at least 1GB free space in the USB device for

using BD-Live features

• Ensure that the unit is correctly connected to the local area

network and can access the internet (see page 17-18).

• Set the [BD-LIVE connection] option to [Permitted].

• Format the USB device on your PC then re-connect it to

USB port on the unit.

• Contact your Internet Service Provider (ISP) and increase

the broadband speed is recommended.

• Delete one of the stored IDs and sign in with the ID again.

• Use direct tuning.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 61

Specifications

General

Power requirements: AC 120 V~, 60 Hz

Power consumption: 130 W

Dimensions (W x H x D): Approx. 16.9 x 2.9 x 14.9 inches

(430 x 76 x 379 mm) without foot

Net Weight (Approx.): 10.5 lbs (4.8 kg)

Operating temperature: 41 °F to 95 °F (5 °C to 35 °C)

Operating humidity: 5 % to 90 %

Inputs/Outputs

VIDEO OUT: 1.0 V (p-p), 75 Ω, sync negative,

RCA jack x 1

COMPONENT VIDEO OUT: (Y) 1.0 V (p-p), 75 Ω, sync negative,

RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

HDMI OUT (video/audio): 19 pin (HDMI standard, Type A)

HDMI IN (video/audio):

19 pin (HDMI standard, Type A)

ANALOG AUDIO IN: 2.0 Vrms (1 kHz, 0 dB), 600 Ω,

RCA jack (L, R) x 1

DIGITAL IN (COAXIAL): 0.5 V (p-p), 75 Ω, RCA jack x 1

DIGITAL IN (OPTICAL): 3 V (p-p), Optical jack x 1

PORT. IN: 0.5 Vrms (

3.5 stereo jack)

Tuner FM/AM

FM Tuning Range: 87.5 - 108.0 MHz

AM Tuning Range: 520 - 1,710 kHz

Amplifier

Stereo mode: 155 W + 155 W (4 Ω at 1 KHz, THD 10%)

Surround mode: Left+Right: 155 W + 155 W (THD 10%)

Center: 155 W

Surround: 155 W + 155 W

(4Ω at 1 KHz, THD 10%)

Subwoofer: 225 W (3Ω at 30 Hz, THD 10%)

System

Laser: Semiconductor laser,

wavelength: 405nm / 650 nm

Signal system: Standard NTSC color TV system

Frequency response: 20 Hz to 20 kHz

Signal-to-noise ratio: More than 100 dB

Harmonic distortion: Less than 0.008%

Dynamic range: More than 95 dB

LAN port: Ethernet jack x 1, 10BASE-T/100BASE-TX

Speakers

Front Rear Center Passive

speaker Speaker Speaker Subwoofer

Type

2 Way 3 speaker 1 Way 1 speaker

2 Way 3 speaker

1 Way 1 speaker

Impedance 4Ω 4Ω 4Ω 3Ω

Rated

Input Power 155 W 155 W 155 W 225 W

Max.

Input power 310 W 310 W 310 W 450 W

Net Dimensions

11 x 45 x 11 inches

3.7 x 9 x 4

inches

13.7 x 4 x 3.6

inches

8.5 x 15.9 x 14

inches

(W x H x D)

(

290 x 1150 x 290 mm)

(

96 x 240 x 108 mm)

(

350

105

mm)

(

216 x 405 x 360 mm

)

Net Weight 9.4 lbs (4.3 kg)

1.7 lbs (0.8 kg)

3 lbs (1.5 kg)

15.6 lbs (7.1 kg)

Accessories

Speaker cable (6), Remote control (1), Battery (1), Component cable (1),

AM antenna (1), FM antenna (1), V ideo cable (1)

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 62

IMPORTANT INFORMATION RELATING TO

NETWORK SERVICES

PLEASE READ CAREFULLY. USE OF THE NETWORK SERVICES IS

SUBJECT TO THE FOLLOWING TERMS AND CONDITIONS.

Use of the Network Services requires an Internet connection which is sold

separately and for which you are solely responsible. The Network Services

may be limited or restricted depending upon the quality , capabilities and

technical limitations of your Internet service.

The Network Services belong to third parties and may be protected by

Network Services are provided solely for your personal and noncommercial

use. Unless expressly authorized by the respective content owner or

service provider, you shall not modify, copy, republish, upload, post,

transmit, translate, sell, create derivative works, exploit, or distribute in any

manner or medium any content or services accessible through this

product.

LG IS NOT RESPONSIBLE FOR YOUR USE OF THE NETWORK

SERVICES. THE NETWORK SERVICES ARE PROVIDED “AS IS.” TO

THE FULLEST EXTENT PERMISSIBLE BY LAW, LG MAKES NO

REPRESENTATIONS OR WARRANTIES OF ANY KIND WHATSOEVER

(i) FOR THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR

COMPLETENESS OF ANY NETWORK SERVICE MADE AVAILABLE

THROUGH THIS PRODUCT; OR (ii) THAT THE NETWORK SERVICES

ARE FREE OF VIRUSES OR OTHER COMPONENTS THAT MAY

INFECT, HARM, OR CAUSE DAMAGE TO THIS PRODUCT, YOUR

COMPUTER, TELEVISION, OTHER EQUIPMENT, OR ANY OTHER

PROPERTY. LG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES,

INCLUDING BUT NOT LIMITED TO, WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY,

WHETHER IN CONTRACT, TORT, STRICT LIABILITY OR OTHERWISE,

SHALL LG BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, STATUTORY,

CONSEQUENTIAL OR OTHER DAMAGES OR ATTORNEY FEES OR

EXPENSES RELATING TO OR ARISING OUT OF THE NETWORK

SERVICES EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES OR IF SUCH DAMAGES COULD HAVE BEEN REASONABLY

FORESEEN.

The Network Services may be terminated or interrupted at any time, and

LG makes no representation or warranty that any Network Service will

remain available for any period of time. Use of the Network Services may

be subject to additional terms and conditions of the respective third party

service provider. The Network Services are transmitted by third parties by

means of networks and transmission facilities over which LG has no

control. LG EXPRESSLY DISCLAIMS ANY RESPONSIBILITY OR

LIABILITY FOR ANY INTERRUPTION OR SUSPENSION OF ANY

NETWORK SERVICE.

LG shall be neither responsible nor liable for customer service related to

the Network Services. Any question or request should be made directly to

the respective Network Service providers.

“Network Service(s)” means the third party services accessible through this

product including but not limited to all data, software, links, messages,

video and other content found thereon or used in connection therewith.

“LG” means LG Electronics, Inc. its parent company and all of their

respective subsidiaries, affiliates and related companies worldwide.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 63

Open source software notice

The following GPL executables and LGPL libraries used in this product are

subject to the GPL2.0/LGPL2.1 License Agreements:

GPL EXECUTABLES: Linux kernel 2.6, bash, busybox, dhcpcd, mtd-utils,

net-tools, procps, sysutils, tinylogin

LGPL LIBRARIES: uClibc, DirectFB, iconv, cairo, gnutls, libcrypt, libgpg-

err, libusb

gSOAP Public License 1.3 LIBRARY: gsoap

LG Electronics offers to provide source code to you on CD-ROM for a

charge covering the cost of performing such distribution, such as the cost

of media, shipping and handling upon e-mail request to LG Electronics at:

[email protected]

This offer is valid for a period of three(3) years from the date of the distrib-

ution of this product by LG Electronics.

You can obtain a copy of the GPL, LGPL licenses from

http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and

http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html .

Also you can obtain a copy of gSOAP public license from

http://www.cs.fsu.edu/~engelen/license.html.

This software is based in part on the work of the Independent JPEG Group

This product includes

(www.freetype.org).

Mark Adler.

• OpenSSL library :

– cryptographic software written by Eric Young ([email protected]).

– software written by Tim Hudson ([email protected]).

– software developed by the OpenSSL Project for use in the OpenSSL

Toolkit. (http://www.openssl.org)

[email protected]

• Libpcap

This product includes other open source software.

<[email protected]>

Permission is hereby granted, free of charge, to any person obtaining a

copy of this software and associated documentation files (the "Software"),

to deal in the Software without restriction, including without limitation the

rights to use, copy, modify, merge, publish, distribute, sublicense, and/or

sell copies of the Software, and to permit persons to whom the Software is

furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF

ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO

THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICU-

LAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE

AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,

DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CON-

TRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CON-

NECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS

IN THE SOFTWARE.

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 64

This LG Electronics product, will be repaired or replaced, at LG’ s option, if it proves to be defective in material or workmans hip, under normal use, during the war-

ranty period (“Warranty Period”) listed below, effective from the date (“Date of Purchase”) of original consumer purchase of th e product. This warranty is good only

to the original purchaser of the product and ef fective only when used in the United States, excluding U.S. Territories.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN

DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG ELECTRONICS WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDI-

RECT, SPECIAL OR PUNITIVE DAMAGES OF ANY NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING WITHOUT LIMI-

TATION, LOST REVENUES OR PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CON-

TRACT, TORT OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitation on how long an implie d

warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and yo u may also have other rights that may

vary from state to state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

• Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration, maintenance or failure to maintain, or separate

system components; and

• Damages or operating problems that result from normal wear and tear , misuse, abuse, operation outside environmental specificati ons or contrary to the

requirements or precautions in the Operating Guide, accident, lightning strikes or other natural causes, unauthorized modificat ion or alteration, incorrect elec-

trical current or voltage, reception problem caused by inadequate home antenna or faulty antenna connections, computer software , institutional or commercial

use, or other causes not arising out of defect in material or workmanship.

Therefore, the cost of repair or replacement of such defective product shall be borne by the consumer .

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

LG ELECTRONICS U.S.A., INC.

1000 SYLVAN AVENUE

ENGLEWOOD CLIFFS, NJ

Issue O

Printed in Indonesia

WARRANTY PERIOD:

LABOR: 90 days from the Date of Purchase.

PARTS: One Year from the Date of Purchase.

* Parts replaced are warranted for the remaining portion of the original warranty

period.

HOW SER

VICE IS HANDLED:

Call 1-800-243-0000

for instructions on getting the defective unit repaired or

replaced.

Please retain dated sales receipt and your box to return the unit to LG for repair

or replacement.

Shipping both ways will be paid by LG during the W arranty Period. After the

Warranty Period, you pay inbound shipping charges and LG pays return shipping

charges.

Visit our website at: http://www.lgservice.com

For nearest Authorized Service Center, Where to buy, Product Assistance, or

Customer Assistance

Call

1-800-243-0000

(24 hours a day, 365 days per year) and select appropriate

options from the menu.

Or visit our website at http://us.lgservice.com

LG Electronics, Inc. Limited Warranty - USA

HB954PA-AD.BUSALL_ENG_6605 8/19/09 10:57 AM Page 65
