RS36A72J1
36" ACTIVESMART™
BUILT-IN STAINLESS
STEEL FRENCH DOOR
REFRIGERATOR
WITH ICE
The next generation of family size Fisher &
Paykel Built-in refrigerators oers a new
level of fit and finish to deliver seamless
kitchen integration. Designed for easy
installation and flush fit into new or existing
kitchen cabinetry with minimal ⅛" gaps.
The high quality stainless steel reflects the
styling of our family of kitchen appliances.
With internal ice making and SmartTouch
controls these refrigerators are designed to
match with our family of kitchen appliances.
FEATURES BENEFITS
Seamless Integration
The Built-in series minimizes gaps through heavy-
duty inline hinges and adjustable doors enabling
minimal gaps to create consistent lines throughout
your kitchen. The series fits flush with cabinetry
to reduce disruption and deliver design freedom.
Sized to Suit The spacious 36" French Door refrigerator is
designed for family life, with double doors for
easy access to uninterrupted refrigerator space.
Fresher Food for Longer ActiveSmart™ technology helps keep your food
fresher for longer by constantly monitoring how
you use your refrigerator and adapting to maintain
a controlled environment and optimum temperature.
Easy Cleaning Removable, spill-safe cantilevered glass shelves
are designed to contain drips and spills that can
be simply wiped away, while leaving the interior
walls completely smooth and easy to clean.
Storage bins and EZkleen stainless steel doors
justneed a wipe to keep spotless.
Flexible Living These refrigerators adapt to suit your lifestyle
by streamlining food preparation and organization
with SmartTouch controls, flexible shelving and
storage options, and slide out bins and trays. The
water filter is easily accessible for quick cleaning
orreplacement. LED lighting in all compartments
lights up all the shelves, bins and trays.
Ecient These ActiveSmart™ refrigerators intelligently
adapt to daily use to help save energy, cooling
and defrosting only when they need to without
compromising on food care.
SPECIFICATIONS
Finish
Stainless Steel Pre-finished
Door Panel Set sold separately
Dimensions
(excluding door panels)
H71⁄" x W5⅓" x D2¾"
Cabinetry height
with included trim kit
72"
Capacity
Refrigerator
11.7 cu.ft
Freezer
5.1 cu.ft
Total
16.8 cu.ft
ENERGY STAR Certified
l
Performance
ActiveSmart™ technology
l
Frost free freezer
l
Adaptive defrost
l
Humidity control system
l
Sabbath mode
l
Internal ice making
l
Accessories
Stainless steel door
panel set 72"
RD672
SKU (door panel set)
2441
UPC Code (door panel set)
8228424419
Water filter part number
842802
Warranty
Parts & labor
2 years
Additional sealed
systemparts
years
SKU
247
UPC Code
822842472
For full specifications visit
fisherpaykel.com

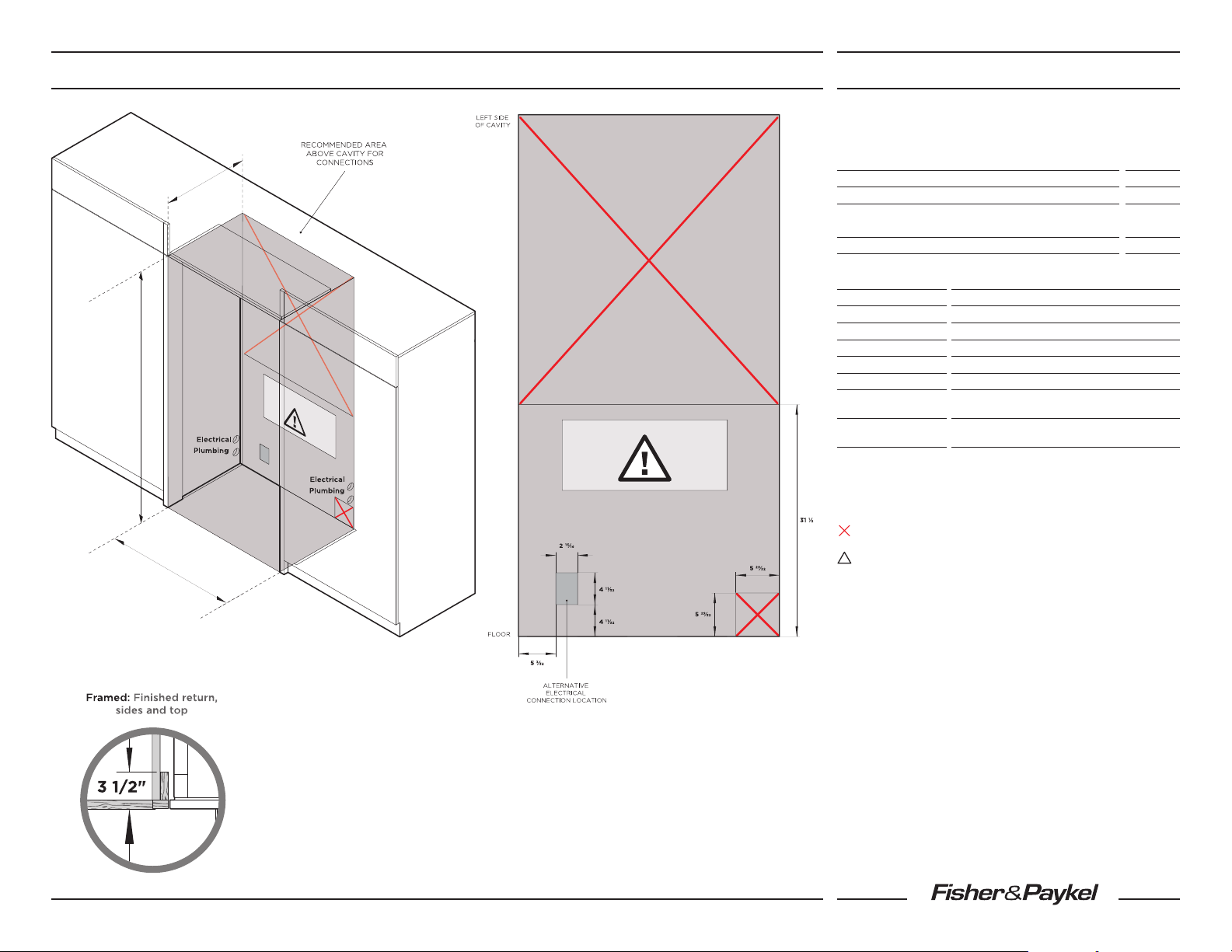

CAVITY PREPARATION
36" ACTIVESMART™ BUILT-IN REFRIGERATOR
7357_FP_2015-08-21
Model no:
RS36A72J1 (with Stainless Steel Door panels PART NO. RD3672)
Cavity Dimensions
in
a Overall height of cavity
72"
B Overall width of cavity
when adjoining cabinetry cannot share 5/2" door gap
6"
c Overall depth of cavity
25"
Specifications
Electrical
Supply
115 VAC, 60 Hz
Service
10 amp circuit
Plumbing
Supply
1/4" (6mm) PEX hose or copper tubing
(to suit local regulations)*
Pressure
min 22 psi (150 kPa)
max 120 psi (827 kPa) @ 68°F (20°C)
NOTE: Recommended that the electrical & water connection be located above
the fridge cavity. Optional to locate in an adjacent cabinet to either side of
the fridge.
Do not locate water or electricity in this area, keep clear of connections.
CAUTION: Central area can only fit electrical plug if it is placed within a
recessed cavity.
* Customer to supply.
!
IMPORTANT NOTE: The product dimensions and specifications apply at the date
of issue. Under our policy of continuous product improvement, these dimensions
and specifications may change at any time. Dimensions may vary by ±/2
''.
Please read the installation manual for detailed information on installing the
product or visit fisherpaykel.com.
A
B
C
ISO VIEW OF CAVITY
REAR OF CAVITY

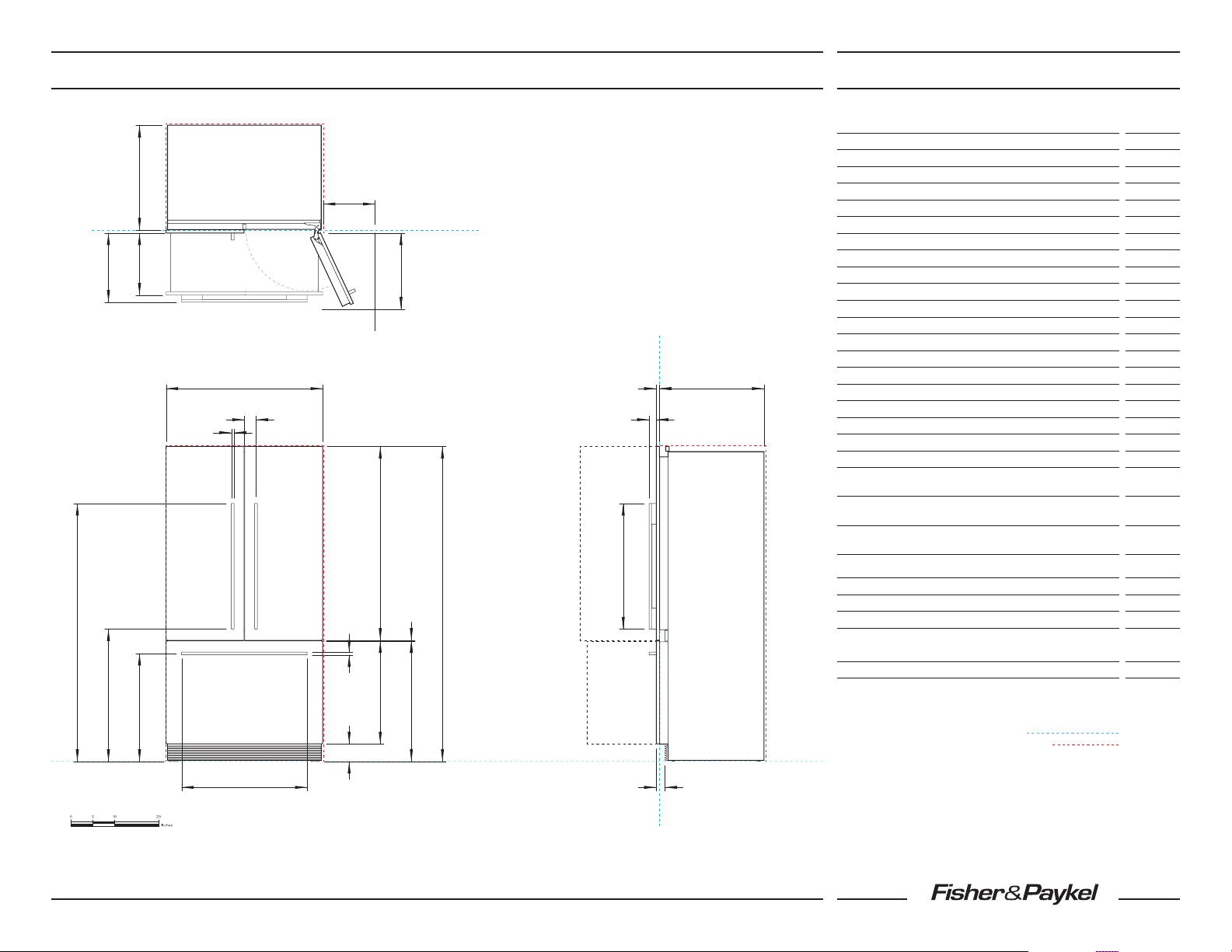

DATA SHEET
36" ACTIVESMART™ BUILT-IN REFRIGERATOR
7357_FP_2015-08-21
DATUM :
FLOOR (LEVEL)
71 27/2"
A
DATUM : FRONT OF CHASSIS
DATUM : FRONT OF CHASSIS
E
FRONT VIEW
PLAN VIEW
PROFILE VIEW
5 21/2"
B DC
D
WALL
G
H
I
J
K
L
M
N
O
M
Q
R
P
T
S
U
V
F
Model no:
RS36A72J1 (with Stainless Door panels PART NO. RD3672)
Product Dimensions
in
a Overall height of fridge
71 27/2"
B Overall width of fridge
5 21/2"
c Depth of fridge front panels (excl. handles)
/4"
D Overall depth of fridge (excl. front door panels)
2 /4"
E Height from bottom datum to top of toekick
4"
F Depth of toekick measured from front of door
2"
G Height of bottom drawer panel
2 15/2"
H Height of top door panels
44 7/2"
I Height from bottom datum to top of drawer panel
27 15/2"
J Gap between top and bottom door panels
5/2"
K Height from bottom datum to centre of bottom handle
24 21/2"
L Width of bottom handle
28 5/8"
M Thickness of handles
5/8"
N Height from bottom datum to bottom of top handle
0 /16"
O Height from bottom datum to top of top handle
58 1/16"
P Height of top handles
28 5/8"
Q Distance from centre of fridge to the centre of top handles
2 5/8"
R Depth of handle (measured from front of door)
1 5/8"
S Depth of door (widest opening) measured from front of door
17 5/16"
T Depth of drawer (open) measured from front of drawer,
including handle
15 /4"
U Depth of drawer (open) measured from front of drawer,
excluding handle
14 /16"
V Minimum door clearance to adjacent wall (115° – full internal
access)
11 1/16"
Clearances Dimensions
in
Minimum cabinetry gap clearance from edge of product
5/2"
Overall height of cavity
72"
Overall width of cavity
when adjoining cabinetry cannot share 5/2" door gap
6"
Overall depth of cavity
25"
INDICATES PRODUCT DATUM
INDICATES MINIMUM CABINETRY CLEARANCES
IMPORTANT NOTE: The product dimensions and specifications apply at the date
of issue. Under our policy of continuous product improvement, these dimensions
and specifications may change at any time. Dimensions may vary by ±/2
''.
Please read the installation manual for detailed information on installing the
product or visit fisherpaykel.com.
