User manual Gas cooktops EHG313BA EHG643BA

EHG643SA EHG645SA

EHG755SA EHG953SA

EHG953BA EHG955SA

CONTENTS

3 General warnings

4 Part names

8 Using your cooktop

9 Burners

10 Cleaning and care

11 Troubleshooting

12 Technical data

14 Installation instructions

18 Installation procedure

23 Gas connection

24 LP conversion

26 Electrical connection

27 Testing appliance operation

29 Warranty

LEGEND

WARNING!

This symbol indicates information concerning your

personal safety.

CAUTION!

This symbol indicates information on how to avoid

damaging the cooktop.

IMPORTANT!

This symbol indicates tips and information about use of

the cooktop.

ENVIRONMENT!

This symbol indicates tips and information about

economical and ecological use of the cooktop.

INFORMATION ON DISPOSAL

FOR USERS

ENVIRONMENT!

• Mostofthepackagingmaterialsarerecyclable.Please

dispose of these materials through your local recycling

depot or by placing them in appropriate collection

containers.

• Ifyouwishtodiscardthisproduct,pleasecontactyour

local authorities and ask for the correct method of

disposal.

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance.

You’ve chosen a product that brings with it decades

of professional experience and innovation. Ingenious

andstylish,ithasbeendesignedwithyouinmind.

Sowheneveryouuseit,youcanbesafeinthe

knowledge that you’ll get great results every time.

Welcome to Electrolux.

BEFORE USING YOUR APPLIANCE

Beforeyouusethecooktop,werecommendthatyou

read through the whole user manual which provides the

description of the cooktop and its functions. To avoid

the risks that are always present when you use a gas

appliance,itisimportantthatthecooktopisinstalled

correctly and that you read the safety instructions carefully

to avoid misuse and hazards.

Forfuturereference,pleasestorethisbookletinasafe

place.

This appliance complies with the requirements of

Australian Standard AS 4551.

CONDITIONS OF USE

This appliance is intended to be used in household and

similar applications such as:

• Staffkitchenareasinshops,ofcesand

other working environments

• Farm houses

• Byclientsinhotels,motelsandotherresidential

type environments

• Bed and breakfast type environments.

BEFORE YOU CALL

Please ensure you read the instruction manual fully before

youcallforservice,orafullservicefeecouldbeapplicable.

RECORD MODEL AND SERIAL

NUMBER HERE:

Model:

Serial No:

CAUTION!

Read the following carefully to avoid an electric

shock or ﬁre.

It is important to use your cooktop safely. Check these

safety points before using your cooktop.

This appliance is not intended for use by persons

(includingchildren)withreducedphysical,sensory

ormentalcapabilities,orlackofexperienceand

knowledge,unlesstheyhavebeengivensupervisionor

instruction concerning use of the appliance by a person

responsible for their safety.

Children should be supervised to ensure they do not

play with this appliance.

Duringuse,thisappliancebecomeshot.Careshould

be taken to avoid touching hot surfaces. To avoid

burns,youngchildrenshouldbekeptaway.

This appliance must not be used as a space heater.

Keep vents clear of obstructions.

Inordertoavoidafire,thisappliancemustbe

kept clean.

Do not spray aerosols in the vicinity of this appliance

while it is in operation.

Do not store flammable materials on or under this

appliance,e.g.aerosols.

Do not remove the trivet and enclose the burner with

a wok stand as this will concentrate and deflect heat

onto the burner.

Do not use large pots or heavy weights which can

bend the trivet or deflect flame onto the burner.

Donotplaceanything,e.g.asbestosmatbetween

pan and trivet as serious damage to the cooktop

may occur.

Formaximumstability,ensurepotsandpansare

centrally located on the trivets.

Handles should be turned away from the front of the

bench to avoid accidents.

Do not modify this appliance.

Only models fitted with flame safeguard can be used

inmarinecraft,caravansormobilehomes.

GENERAL WARNINGS

Please read the user manual carefully and store in a handy

place for later reference. Pass the user manual on to

possible new owners of the cooktop.

Read the following carefully to avoid damage or injury.

This symbol indicates never to do this

This symbol indicates always do this

WARNING!

• Donotallowpotstoboildry,asdamagetobothpan

and cooktop may result.

• Donotoperatethecooktopforanextendedperiodof

time without a pot or pan on the burner.

• Donotallowlargecookwaretooverhangthecooktop

onto adjacent benchtop. This will cause scorching to the

benchtop surface.

• Donotallowcookingpotsorpanstointrudeintothe

area which is close to the controls.

• Ensureburnerbodiesandtrivetsareproperlylocated

(see Figure 3).

NOTE! You must read these warnings carefully

before installing or using the cooktop. If you need

assistance, contact your Customer Care Department.

The manufacturer will not accept liability, should these

instructions or any other safety instructions incorporated

in this book be ignored.

Description of the burner

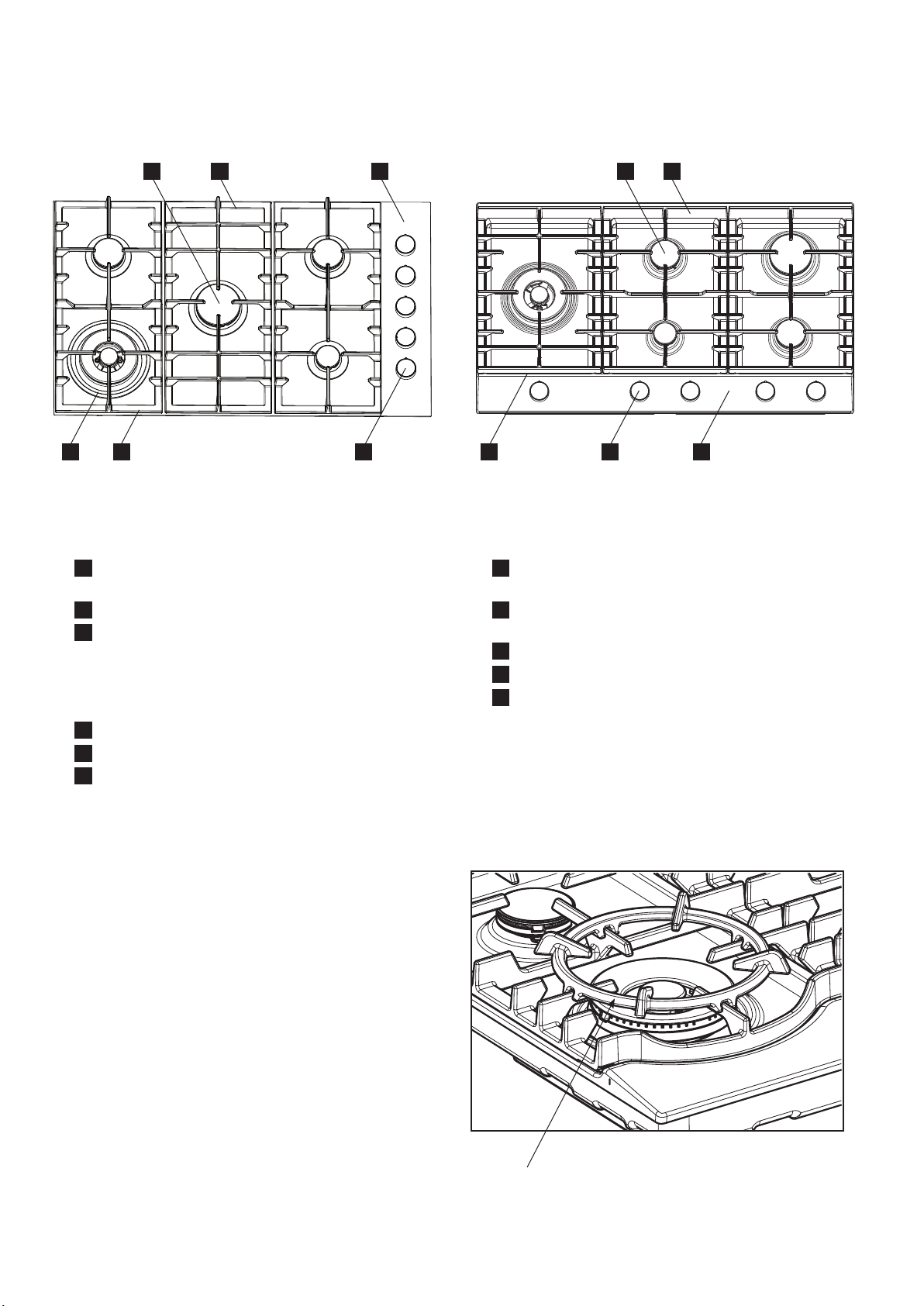

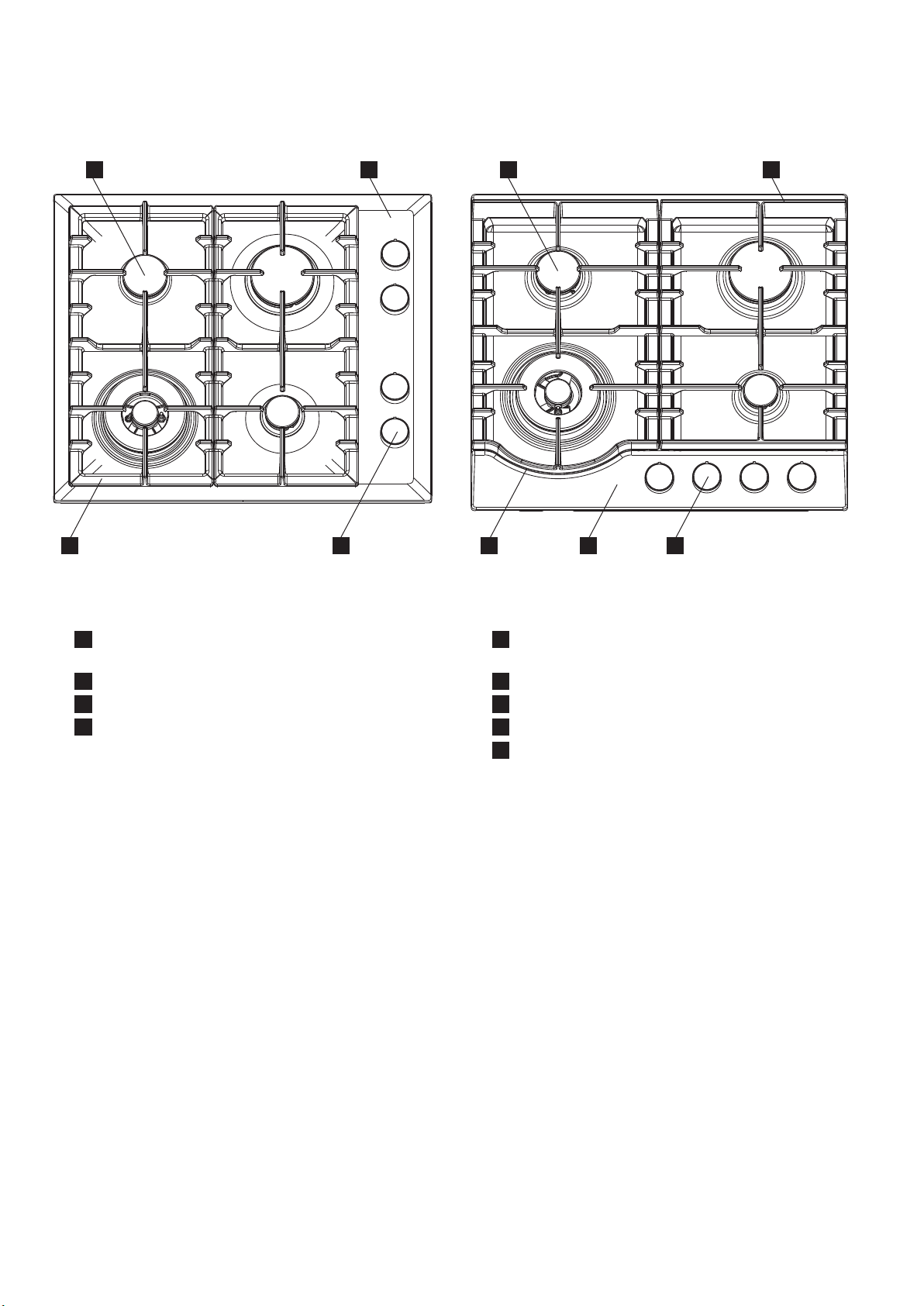

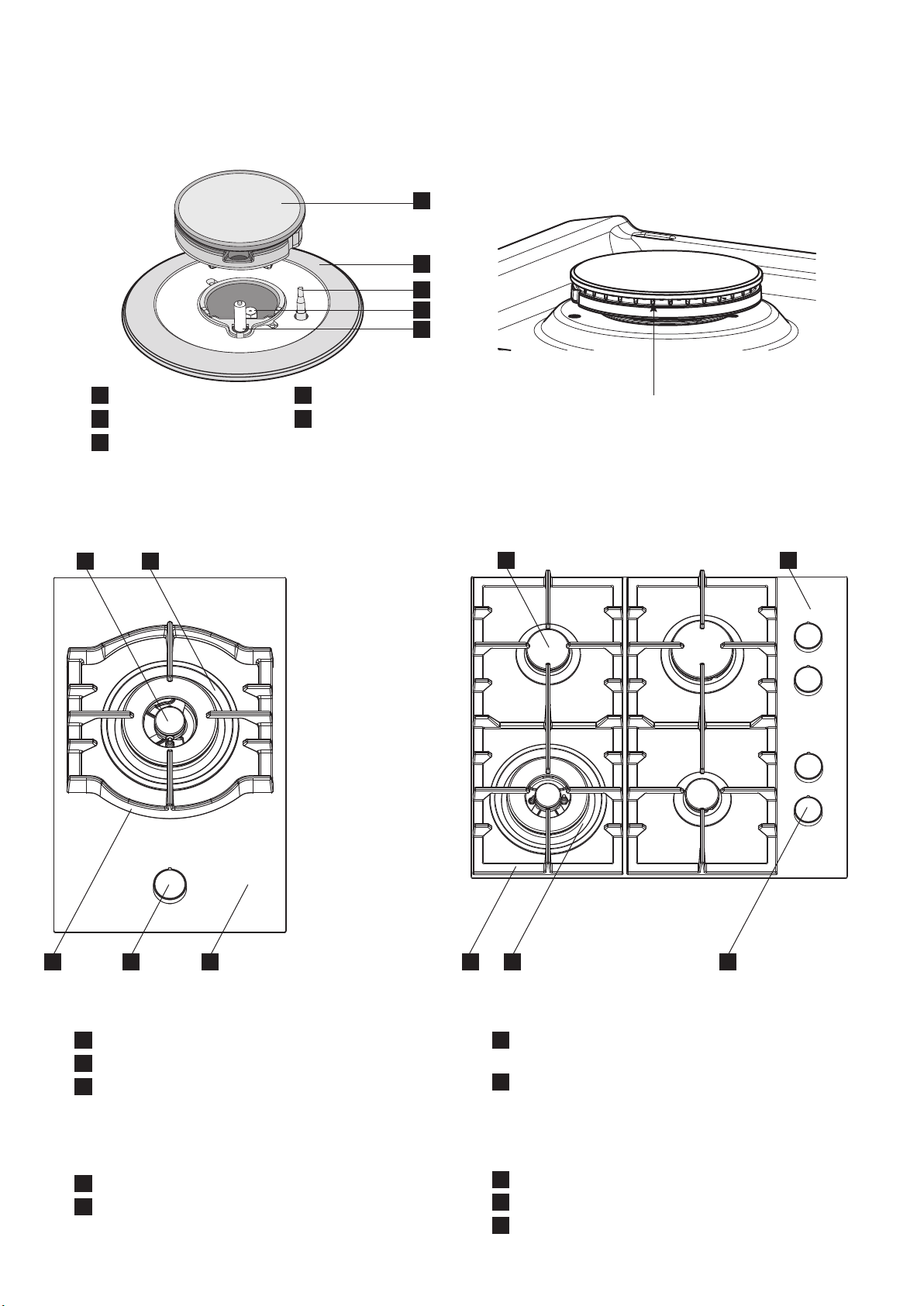

PART NAMES

EHG643BA

 Burners–thisunithasasmall,medium,largeand

dual wok burner

Ceramic Glass hob – the glass hob is resistant to

heat,coldandrapidtemperaturechanges,but

is vulnerable to impact. A pepper mill falling on

the hob could crack it. Never stand or put heavy

loadsonthehob,oruseasastoragespace

Control knob

Enamelled burner skirts

Removable cast iron trivet (2 per)

Figure 2b

345

1 2

Figure 2a

EHG313BA

Dual wok burner

Enamelled burner skirt

Ceramic Glass hob – the glass hob is resistant to

heat,coldandrapidtemperaturechanges,but

is vulnerable to impact. A pepper mill falling on

the hob could crack it. Never stand or put heavy

loadsonthehob,oruseasastoragespace

Control knob

Removable cast iron trivet (left)

5 4 3

Burner

Skirt

Flame safeguard sensor

Injector

Ignition spark plug

Figure 1a

Figure 1a Figure 1b

Burner flame ports

Figure 2c

EHG643SA

 Burners–thisunithasasmall,medium,largeand

dual wok burner

Stainless Steel hob

Control knob

Removable cast iron trivet (2 per)

1 2

EHG645SA

 Burners–thisunithasasmall,medium,largeand

dual wok burner

Removable cast iron trivet (right)

Control knob

Stainless Steel hob

Removable cast iron trivet (left)

Figure 2d

1 2

5 4 3

Figure 2e

EHG755SA

 Burners–thisunithasasmall,medium(2per),

large and dual wok burner

Removable cast iron trivet (2 per) for centre

and right

Stainless Steel hob

Control knob

Removable cast iron trivet (left)

5 4 3

EHG953SA

 Burners–thisunithasasmall,medium(2per),

large and dual wok burner

Removable cast iron trivet for centre

Stainless Steel hob

Control knob

Removable cast iron trivet (2 off for left and right)

Figure 2f

1 2 3

Figure 2g

EHG953BA

 Burners–thisunithasasmall,medium(2per),

large and dual wok burner

Removable cast iron trivet for centre

Ceramic Glass hob – the glass hob is resistant to

heat,coldandrapidtemperaturechanges,but

is vulnerable to impact. A pepper mill falling on

the hob could crack it. Never stand or put heavy

loadsonthehob,oruseasastoragespace

Control knob

Removable cast iron trivet (2 off for left and right)

Enamelled burner skirts

1 2

5 46

EHG955SA

 Burners–thisunithasasmall,medium(2per),

large and dual wok burner

Removable cast iron trivet (2 per) for centre

and right

Stainless Steel hob

Control knob

Removable cast iron trivet (left)

Figure 2h

Figure 3

5 4 3

Wok support trivet

Installation

• Anauthorisedpersonmustinstallthisapplianceand

MUST provide a Certiﬁcate of Compliance.

Thiscerticateshouldberetainedalongwith

purchase information.

• Beforeusingtheappliance,ensurethatallpacking

materials are removed from the appliance.

• Inordertoavoidanypotentialhazard,theinstallation

instructionsinthisbooklet,andanylabelsonthe

appliance must be followed.

• Ensurethatallspeciedvents,openingsandair

spaces are not blocked.

• Wheretheapplianceisbuiltintoabenchtop,

the benchtop material must be capable of

withstanding 85°C.

• Ensurethattheduplicateratinglabel(inthe

instruction pack) is attached to a readily accessible

adjacentsurface,sothatthecooktopcanbeeasily

identiedinthecaseofaservicecall.

Servicing

• ServicingMUSTonlybecarriedoutby

authorised personnel.

• Tomaintainsafeoperation,itisrecommendedthatthe

productbeinspectedeveryveyearsbyanauthorised

service person.

• Ifthesupplycordisdamaged,itmustbereplacedby

themanufacturer,itsserviceagentorsimilarlyqualied

persons in order to avoid a hazard.

Cleaning

• Alwaysensuretheapplianceisturnedoff

before cleaning.

• Thisappliancecontainsaluminiumttings.

Do not use caustic based cleaners.

• Donotusesteamcleanersasthismaycausemoisture

build up on electrical components.

• Alwayscleantheapplianceimmediatelyafter

any food spillage.

• Donotplaceanycomponentsinadishwasher.

• Refertopage10forcareandcleaninginstructionsfor

stainless/ ceramic hob panel.

CAUTION!

• Donotplaceburnersinadishwasher.

• Donotplacetrivetsinthedishwasher.

Controls

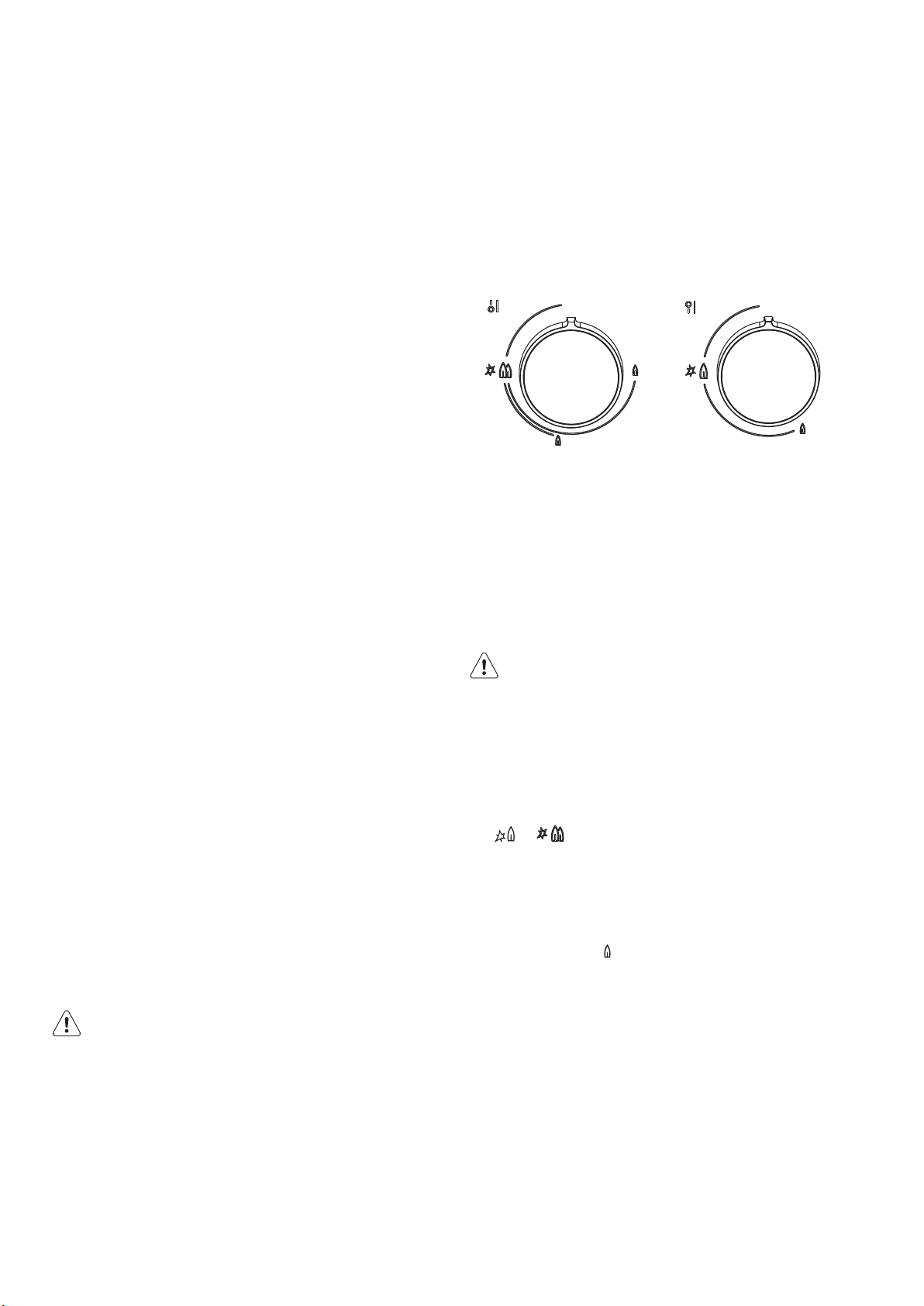

Each burner is controlled by a control knob. The markings

on the control panel indicate which burner the knob

controls,andthesettingforthatburner(seeFigure4).

NOTE! Gas controls turn anticlockwise from ‘OFF’ and have

limited movement.

Lighting burners

Electronicignition:Thesecooktopsarettedwith

mains powered ignition. When the appliance has been

connectedandthepowerison,depressinganyknob

will release sparks to all burners.

CAUTION!

• Keephandsclearofburnerswhenlighting.

• Ifburnerdoesnotlightwithin5seconds,turnknob

to‘OFF’position,allowgastodisperse,thentry

lighting again.

• BurnersMUSTbeoperatedbetween‘HIGH’and

‘LOW’ settings only.

Tolightaburner,theknobmustbeturnedtothe

or ‘HIGH’position,thenpusheddownasfaras

possible for approximately 5 seconds. If the ﬂame goes out

whentheknobisreleasedsimplydepresstheknobagain,

this time holding it down with slightly more force for the

same length of time.

The height of the ﬂame can be varied by turning the control

knob toward the

‘LOW’ position.

NOTE! When the wok burner is turned to low only the

small inner ring stays lit. This is a normal function of

the dual wok burner to provide a very low power

flame option.

Intheabsenceofelectricalpower,carryouttheignition

directly to the burner with a hand held ignition source.

Figure 4

Dual wok burner Other burners

USING YOUR COOKTOP

Choice of burner

For your convenience there is a choice of burners:

• Asmallburnerforspeciallowheatand

slow cooking.

• Amediumburnerfornormalcookingandsimmering

(oneonthefourburnermodelsandtwoontheve

burner models).

• Alargeburnerforfastheatingandlargepots

and pans.

• Awokburnerforveryfastheatingusingawokor

large pot or pan. This wok burner is also a “dual”

burner and therefore results in a small low powered

ﬂame when the burner is turned down. This is

achieved by only supplying gas to the inner ring of

the wok burner.

To conserve gas place the pan centrally over the burner

and adjust the ﬂame so that it does not extend past the

edge of the pan (Figure 5). Do not boil food too rapidly.

Avigorousboilwillnotcookfoodanyfaster,andwill

waste energy.

Pots and pans

Allcommonpotsandpans;aluminium,stainlesssteel,

castiron,ceramic,etc.,maybeusedonyournewgas

cooktop. Ensure that the pots or pans are steady and have

ﬂat bases to avoid dangerous spill-over of hot liquids and

wasted energy.

CAUTION!

Neveruseasbestosmats,wirematsorgrids,or

aluminiumfoilasitcanleadtooverheating,cracked

enamel or broken glass. The warranty will be void if

these items are used and cause a failure. Woks should

only be used on the wok burner and wok support trivet

(refer to Figure 3 on page 7).

BURNERS

Choice of flame height

Incorrect – flame too high

and will cause gas waste

and possible handle damage.

Correct flame height.

Gas saved.

Choice of cooking utensils

Foralargeburner,

use a large utensil.

Forasmallburner,

use a small utensil.

Figure 5

CAUTION!

Ensure the appliance is off and cool before cleaning.

Enamel (on burner skirts and trivets)

Persistent stains may require rubbing with a nylon

scourer or creamed powder cleansers. Household

enamelcleanersareavailable,followthemanufacturer’s

instructions in their use. Harsh abrasive cleaners,

powder cleaners, steel wool or wax polishes should

not be used.

Stainless steel

(Models with Stainless Steel hob)

Simply wipe with a soft cloth using warm water and a mild

detergent and rinse with clean water. Where stainless steel

hasbecomeextremelydirtyordiscoloured,useastainless

steel cleaner – but be sure to follow the brushing lines.

CAUTION!

DO NOT use abrasive cleaners or harsh solvents.

IMPORTANT!

Scrapers are to be used on ceramic models only

Ceramic glass

(on models with glass hob)

The specially treated glass in the product is

manufactured using the latest technology to the highest

possible standards for both safety and reliability.

However,itmustberememberedthatasitisCERAMIC

GLASS,itmaybreak.Treatitaccordingly.Toclean

the ceramic glass hob use a soft cloth or sponge with

detergent and warm water.

CAUTION!

Ifthesurfaceiscracked,switchofftheappliance

immediately to avoid the possibility of electric shock.

If the hob is very soiled:

1. Remove soilage using the razor blade scraper.

2. Use a hob cleaner product after there has been

sufcienttimeallowedforthehobtocool.Shakethe

bottle and apply a small quantity of cleaner directly

onto the hob. Rub clean using a damp cloth or

paper towels.

3. Use a damp cloth to remove all remaining traces of the

cleaner,whichcouldotherwiseburnonwhenthehob

is next used. Wipe the hob dry.

CAUTION!

Use the scraper supplied to remove spillages

immediately, while the hob is still hot! Especially

sugar and foods with a high sugar content (eg. jam),

melted plastics and foil, all of which can damage

the hob if left.

CLEANING AND CARE

Razor blade scraper

Use the scraper to remove spillages from the ceramic hob.

How to use the razor blade scraper:

1. Pull back the protective cover until the blade is visible.

2. Make sure that the razor blade is clean and not worn.

Thereisarisk,otherwise,thatitmightdamagethe

hob. New razor blades can be bought

from pharmacies.

3. Angle scraper at approx. 45° and scrape away the

spillage. The razor blade can be pressed down hard

onto the hob without causing any damage.

4. Carefully clean the blade by wiping it with a

paper towel.

5. Whenyouhavenished,presstheprotectivecover

forwards as far as it will go. Keep the scraper out of

the reach of children.

Changing the razor blade:

1. Open the scraper by completely unscrewing the screw

and then place the new razor blade at the front edge.

2. Put the scraper together again and screw the screw

back into place.

3. Press the protective cover forwards as far as it will go

to cover the razor blade.

CAUTION!

THE RAZOR BLADE SCRAPER SHOULD

BE KEPT WELL OUT OF THE REACH OF

CHILDREN. Use the razor blade scraper

carefully, as the razor blade is extremely sharp.

Trivets and burners

These can all be lifted off and removed for separate

cleaning.

NOTE! When refitting the burners, ensure that they are

correctly seated.

Ensure burners are thoroughly dried after cleaning or

spillage.Whencleaningtheburners,ensurethatallthe

ﬂame ports are free of any blockage (refer to Figure

1bonpage4).Ifnecessary,useatoothpickorbrush

to clear ports. The outer surface of the burner caps

haveapolishednishandextracareneedstobetaken

to avoid scratching this surface during cleaning. In

instancesofheavysoiling,itmaybenecessarytoapply

a non-abrasive cleaning compound and rub with a cloth

untilthesoilingisremovedandthennishwithasoft,

dry cloth.

NOTE! DO NOT place trivets or burners in the

dishwasher.

Ignition spark plug and flame safeguard sensor

GENTLY clean the ignition spark plug and ﬂame

safeguard sensor with a damp cloth to avoid lighting

difculties.Ensurethattheyaredrybeforeuse.

Injector

Ensure the injector remains free of any foreign material.

Ifnecessary,useathinpieceofwiretocleartheorice.

Ifyouhaveaproblemwiththecooktop,checkthetable

below. You may be able to solve the problem and this

will save you from paying for a service call. You will have

to pay for a service call even in the warranty period if the

problem is one listed below.

TROUBLESHOOTING

Table 1

problem possible cause solution

Burner will not light

even though the

sparker is working

• Knob not held down long enough in ‘HIGH’

position for ﬂame safeguard.

• Gas supply valve turned off.

• Wrong knob turned.

• Port blockage in ignition area.

• Ignition spark plugs wet or dirty.

• Repeat lighting procedure and hold knob

down for 5 seconds in ‘HIGH’ position.

(Refer page 8).

• Turn on gas supply to appliance.

• Ensure the knob you are turning corresponds

to the burner you want to light.

• Ensure that ports in ignition area are clean

and dry.

• Dry or clean ignition spark plugs.

No spark is

obtained when

control knob is

activated

• Electricity supply is disconnected or switched

off.

• Ignition spark plugs wet or dirty.

• Switch on electricity or check fuses.

• Dry or clean ignition spark plugs.

Flames uneven or

tending to lift

• Flame ports blocked or wet.

• Burnercapincorrectlytted.

• Clean or dry ﬂame ports.

• Ensurethiscomponentisttedcorrectly.

Flames not staying

on when knob is

released

• Knob not held down long enough in ‘HIGH’

position for ﬂame safeguard

to engage.

• Knob not set between ‘HIGH’

and ‘LOW’

• Dirt or spillage on ﬂame

safeguard sensor.

• Repeat lighting procedure and hold knob

down for 5 seconds in ‘HIGH’ position.

(Refer page 8).

• Knob MUST be set between

these positions.

• Clean ﬂame safeguard sensor tip.

Lowheat,

slow cooking

• Incorrect cooking pot or pan being used. • Refer to Figure 5 (page 9).

Benchtop or knobs

overheating

• Incorrect cooking pot or pan used.

• Pot or pan not located on burner properly.

• Refer to Figure 5 (page 9).

• Ensure pot or pan is centrally located on

burner.

Cooktop stainless

steel discloloured

• Pot or pan being used is too large. • Ensure pot sizes used are as per user

manual requirements. Clean with STEEL

POWER (available through spare parts).

Outer ring of wok

burner goes out

when set to low

• This is not a failure. This is a function of the

dual wok burner to give a very low power

ﬂame option.

• No remedy - burner is functioning

as intended.

We reserve the right to alter these specifications.

This appliance conforms to AS 4551.

TECHNICAL DATA

features EHG313BA EHG643BA EHG643SA EHG645SA

Cooking zones 1 4 4 4

Wok Yes,dual Yes,dual Yes,dual Yes,dual

Ignition 220-240V 220-240V 220-240V 220-240V

Trivet Cast Cast Cast Cast

Hob material Ceramic glass Ceramic glass Stainless steel Stainless steel

Features

Ignition through

knob

Ignition through

knob

Ignition through

knob

Ignition through

knob

Flame safeguard Yes Yes Yes Yes

Colours Black Black Stainless steel Stainless steel

Gas types

NG,(LPconversion

kit supplied)

NG,(LPconversion

kit supplied)

NG,(LPconversion

kit supplied)

NG,(LPconversion

kit supplied)

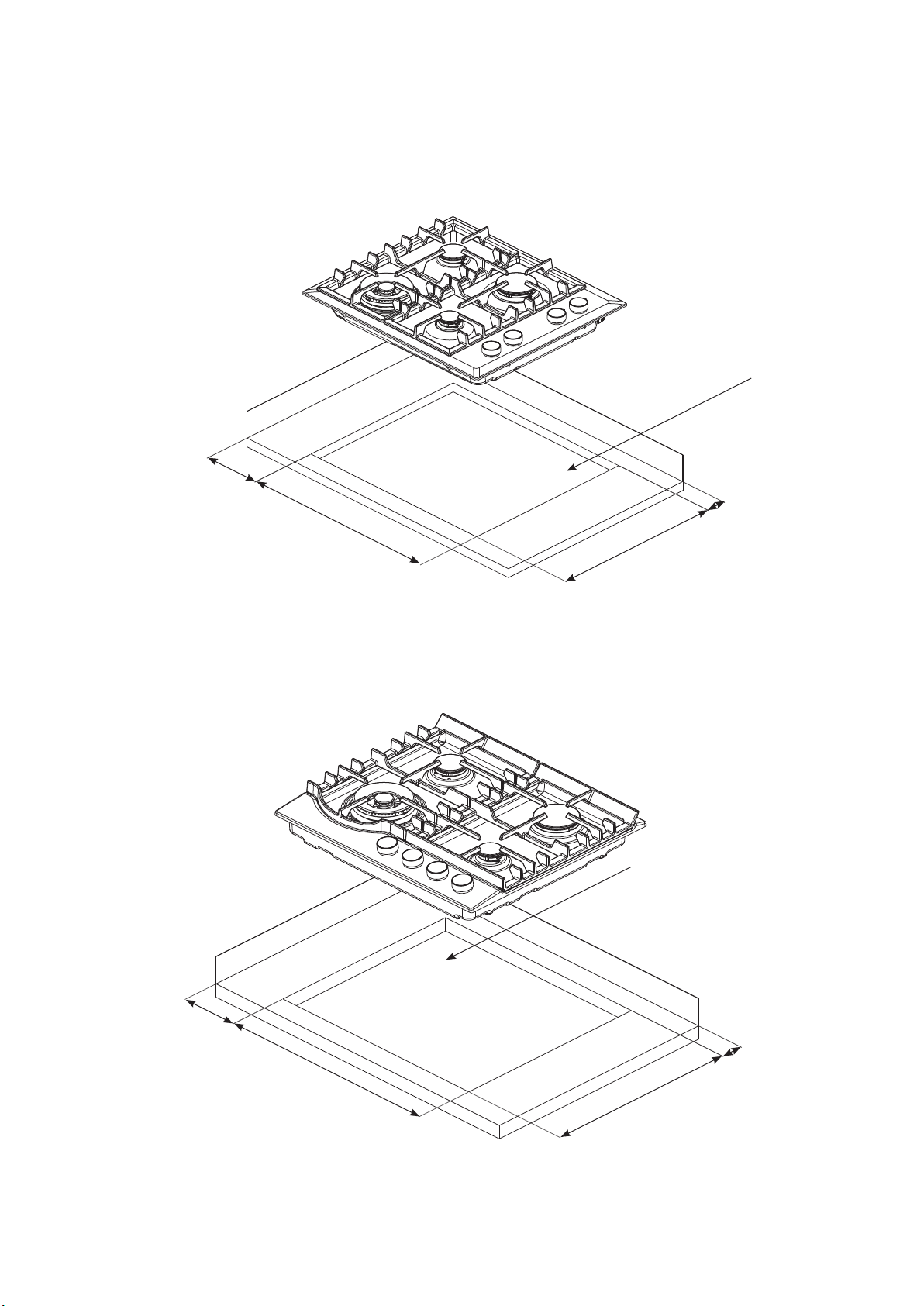

cooktop dimensions mm

Width 320 610 600 595

Depth 520 520 520 530

Height 56 56 45 44

cut out dimensions mm

Width 303 570 570 560

Depth 485 490 490 490

energy rating (NG) – MJ/h

Small burner NA 5.1 5.1 5.1

Medium burner NA 9.0 9.0 9.0

Large burner NA 12.1 12.1 12.1

Wok burner 17.0 17.0 17.0 17.0

Total MJ/h 17.0 43.2 43.2 43.2

Table 2

features EHG755SA EHG955SA EHG953BA EHG953SA

Cooking zones 5 5 5 5

Wok Yes,dual Yes,dual Yes,dual Yes,dual

Ignition 220-240V 220-240V 220-240V 220-240V

Trivet Cast Cast Cast Cast

Hob material Stainless steel Stainless steel Ceramic glass Stainless steel

Features

Ignition through

knob

Ignition through

knob

Ignition through

knob

Ignition through

knob

Flame safeguard Yes Yes Yes Yes

Colours Stainless steel Stainless steel Black Stainless steel

Gas types

NG,(LPconversion

kit supplied)

NG,(LPconversion

kit supplied)

NG,(LPconversion

kit supplied)

NG,(LPconversion

kit supplied)

cooktop dimensions mm

Width 745 895 861 860

Depth 530 530 520 520

Height 44 44 55 47

cut out dimensions mm

Width 730 880 830 830

Depth 490 490 470 470

energy rating (NG) – MJ/h

Small burner 5.1 5.1 5.1 5.1

Medium burner 2 x 9.0 2 x 9.0 2 x 9.0 2 x 9.0

Large burner 12.1 12.1 12.1 12.1

Wok burner 17.0 17.0 17.0 17.0

Total MJ/h 52.2 52.2 52.2 52.2

Table 2 continued

This appliance must be installed by an authorised person

and in compliance with:

1. AS/NZS 5601.1 Gas Installations Part 1: General

Installations,andAS/NZS5601.2GasInstallations

Part 2: LP Gas installations in caravans and boats for

non-propulsivepurposes,ortherelevantinstallation

code for gas appliances in your country.

2. Thelocalgasttingregulations,municipalbuilding

codes,electricalwiringregulationsandanyother

relevant statutory regulations.

3. The particular instructions as given below.

4. A certificate of compliance MUST be given

to the customer after the application is

successfully installed.

INSTALLATION INSTRUCTIONS

CAUTION!

Cooktops are supplied set up for natural gas (NG).

TouseonLPG,theinjectorsmustbechangedusing

the conversion kit supplied. Refer LP conversion on

page 24-25.

* to combustible surface

Figure 6a – EHG313BA

Gas supply

connection location

490

300

116 min*

63 min*

Gas supply

connection location

Figure 6b – EHG643BA

570

490

130 min*

161 min*

Figure 6c – EHG643SA

Gas supply

connection location

490

570

136 min*

120 min*

* to combustible surface

Figure 6d – EHG645SA

Gas supply

connection location

560

490

146 min*

* to combustible surface

Figure 6e – EHG755SA

Gas supply

connection location

730

490

135 min*

149 min*

Figure 6f – EHG953SA

Gas supply

connection location

830

470

116 min*

136 min*

* to combustible surface

Figure 6g – EHG953BA

Gas supply

connection location

830

470

126 min*

156 min*

Figure 6h – EHG955SA

Gas supply

connection location

880

490

146 min*

124 min*

1. The bench cutout should be made as per cutout

dimensions in Table 2 and Figure 6.

2. Adjacent walls, cupboards and protection for

combustible materials: Ensure that the appliance is

installed in accordance with clauses 6.2.5 and 6.10.1.1

ofAS/NZS5601.1,orclauses6.9.1and6.9.5ofAS/

NZS 5601.2 with regard to clearances to combustible

surfacesandmaterials,andclearancestorangehoods

and exhaust fans.

To ensure clearances of 200mm from burners to

vertical combustible surfaces observe the minimum

distance requirements shown in Figure 7.

Clearances to combustible surfaces may be reduced

if combustible surfaces are protected in accordance

withclause6.10.1.2ofAS/NZS5601.1,orclause6.9.2

of AS/NZS 5601.2.

3. Barrier: A barrier must be installed to prevent

accidentalcontactwiththecooktopbase,wherethe

base of the cooktop is accessible from below (i.e.

Insideacupboard,etc.).Animpressionhasbeen

incorporated into the base to ensure a minimum

clearance of 15mm is maintained between the base

and the barrier. This barrier may be made of any non-

combustible,rigidmaterial.

Note: An alternative to the above is to purchase a

barrier shield from Electrolux spare parts (P/No. ACC

072)whichcanbetteddirectlytotheunderside

of the product. This shield protects the user from

accidently touching certain areas of the product.

Barrier protection is not necessary if the product

is installed above an underbench oven or similar

appliance and/or if the cupboard construction is such

that the underside of the cooktop is not accessible.

INSTALLATION PROCEDURE

4. A FOAM SEAL has been provided and is to be applied

along the perimeter of the hob.

5. Fit the pull down clamps supplied to ensure that the

cooktop cannot move after installation.

WARNING!

Failuretoxthecooktoptothebenchcouldresultin

loosening of the gas connection through movement of the

cooktop and a gas leak may result.

Four clamps and screws are supplied with 4-burner

models and six clamps and screws are supplied with

5-burner models. Fit the clamps as shown in Figure 8. No

clampsareneededformodelEHG313BAasitisttedwith

spring clips on the sides which locate on the inner edge of

the bench cutout.

Whenbenchtopsarelessthan33mminthickness,itmay

benecessarytotaspacerbetweenthebenchtopand

eachclamptoensureclampscanbetightenedsufciently.

Figure 7a – EHG313BA

Combustible surface

106106

Figure 7b – EHG643BA

Combustible surface

142

116

Figure 7c – EHG643SA

Combustible surface

121

106

Figure 7d – EHG645SA

Combustible surface

115

129 113

Figure 7e – EHG755SA

Combustible surface

142

115

126

Figure 7f – EHG953SA

Combustible surface

121

no minimum distance

requirement

no minimum distance

requirement

Figure 7g – EHG953BA

Combustible surface

141

101

Figure 8 – Clamp fitment

Benchtop

Seal

Hob

Burner Box

Screw

Clamp

Figure 7h – EHG955SA

Combustible surface

101

117

115

GAS CONNECTION

This appliance is supplied for use with Natural Gas.

However, it can be converted for use with LPG.

Refer to LP conversion on page 24 & 25.

Supply pipe sizing

The total hourly gas consumption for the appliance is

shown on the data label. The required supply pressure

(i.e. at inlet to appliance regulator) for each gas type is

shownonthedatalabel,andgiveninTable3(page24).

Usethisinformationinconjunctionwiththelengthofrun,

numberofelbows,teesandbends,theavailableservice

pressure and the supply requirements of other installed

appliances to determine a suitable pipe size.

For assistance in this matter refer to the appropriate

section of AS/NZS 5601.1 or AS/NZS 5601.2.

AnAGAcertiedclassBorDexibleconnectionmay

be used to connect the cooktop in accordance with

AS/NZS5601.1,inparticularsection5.9andclause

6.10.1.8,orAS/NZS5601.2,inparticularsection2.11.

Where a hose assembly is used and the cooktop is in the

installedposition,thehoseassemblyshallbesuitablefor

connectiontoaxedconsumerpipingoutletlocatedat

a point 800 – 850mm above the ﬂoor and in the region

outside the width of the appliance to a distance of 250mm.

The point of connection to consumer piping must be

accessible with appliance installed.

ELBOW POSITIONING

It is possible to reposition the elbow if required by

loosening the locking nut and elbow by using two

spanners. Re-tighten the entire assembly after the elbow

hasbeenrepositioned.Whenttingelbowtoappliance,

ensurethatthesealingwasheristted.

NOTE TO INSTALLER: Assembly of elbow to manifold

at rear of unit requires two spanners to secure locking

nut and ensure leak free connection. For this reason the

elbow is best secured onto cooktop manifold before

installing unit into benchtop.

Regulator

An appliance regulator is provided. The regulator must be

positioned so that the pressure test nipple is accessible

when the appliance is installed.

Connect the gas supply to the ½” B.S.P. internal thread

inlet of the regulator. Refer to ‘bench cutout’ (Figure 6) for

connection point position.

Regulatorsaresuppliedpre-adjustedandconguredby

the component maker for use with Natural Gas.

The appliance installer is not required to make an

adjustment to obtain the correct outlet pressure setting.

An arrow on the base of the regulator indicates the

direction of gas ﬂow when the inlet and outlet of the

regulator is orientated correctly. When the regulator has

beenttedcheckforleaksfromtheconnectionswith

soapy water.

OPERATION ON N.G./S.N.G.

CHECKING THE GAS SUPPLY

1. Check the manometer zero point is correct.

2. Connect the manometer to the cooktop pressure

point. This is located on the regulator.

3. Turn on the gas supply and electricity and try to

ignite the gas.

NOTE! It will take additional time to light the gas for the

first time as air needs to be purged from the pipes.

4. With the appliance operating check the outlet pressure

 • whenallburnersoftheapplianceareoperating

atmaximum,

 • whenthesmallestburneroftheapplianceis

operating at minimum.

Under these conditions the outlet pressure should not

vary from the nominal outlet pressure of 1.00kPa by

more than

0.20kPa.

Iftheregulatorappearstonotbeperformingsatisfactorily,

then check the following points:

1. If the outlet pressure is consistently too low then the

inlet pressure may be too low and adjustment of an

upstreamregulatormaybeneeded,oranupstream

regulatororvalvewithinsufcientowcapacitymay

be present in the gas supply line. If this is suspected

then it may be necessary to repeat the checks whilst

measuring both the inlet and outlet pressure to

determine if the inlet pressure is in the range

1.13 – 5kPa.

2. Checkthattheregulatorhasbeenttedtothegas

supplylineinthecorrectorientation,thearrowonthe

base of the body indicates the direction of gas ﬂow.

Oncethesecheckshavebeencompleted,ifthe

regulator still fails to perform in a satisfactory manner it

should be replaced.

LP Conversion – Important

This appliance is ﬁtted with Natural Gas

burner injectors.

Please follow the procedure below if a conversion to suit

LP gas is required.

The conversion kit contains appropriate LPG injectors

and 1 LPG sticker.

1. Remove the hotplate burners to access the hotplate

injectors.ReplacethefactoryttedNGinjectorswith

theappropriateinjectors,assupplied(seeTable3).

Table 3

burner type

natural gas (nominal test point pressure: 1.00kPa) LPG (nominal test point pressure: 2.60kPa)

injector size (mm) gas consumption (MJ/h) injector size (mm) gas consumption (MJ/h)

Small burner 1.00 5.1 0.55 4.2

Medium burner 1.35 9.0 0.70 6.5

Large burner 1.60 12.1 0.90 10.7

Wok burner 0.85 + 2 x 1.25 17.0 0.46 + 2 x 0.73 17.0

OPERATION ON N.G./S.N.G.

Assembly of Regulator

The assembly of the regulator to the cooktop manifold

is achieved via the elbow union and sealing washer

supplied,refertogure9.

The½”parallelthreadconnectstothemanifold,andthe

sealing washer is placed between the manifold end and

the ﬂat face on the elbow.

The ½” tapered thread connects to the outlet of

theregulator,andissealedonthethreadusing

approved thread sealing tape or approved thread

sealing compound.

The inlet of the regulator is a ½” parallel thread and

is connected to consumer piping or hose assembly.

Regulatorsaresuppliedpre-adjustedandcongured

by the component maker for use with Natural Gas.

The appliance installer is not required to make an

adjustment to obtain the correct outlet pressure setting.

An arrow on the base of the regulator indicates the

direction of gas ﬂow when the inlet and outlet of the

regulator is orientated correctly. When the regulator has

beenttedcheckforleaksfromtheconnectionswith

soapy water.

Figure 9

½” Tapered thread

Seal using approved

sealing tape or

approved thread

sealing compound

Manifold

endform

Female nut Flat face

Sealing

washer

½” Parallel

thread

Regulator

Outlet

Inlet

Hex nut

assembly,fully

screwed down

Hexnutassembly,

removed

from regulator

and insert

disassembled

Insert

oriented

for LPG

operation

Figure 10

Insert

oriented for

natural gas

operation

2. Unscrew the hex nut from the regulator. The hex

nut,brasswasherandnyloninsertwilldisengageas

an assembly.

3. Unclip the nylon insert and nut assembly by rotating

theinsert¼turn,andpullingitfree.

4. Turn over the insert and clip back into position.

5. Retthehexnutassemblytotheregulatorensuring

that it is fully screwed down. The regulator is now

set for connection to LP.

6. Turn on the gas supply and at each new connection

check for leaks using soapy water: each hotplate

valveshouldbeturnedon,oneatatime,andthe

injector hole blanked off for several seconds.

7. Theoperationoftheregulatorcanbeconrmedby

connecting a manometer to the pressure test point

located on the side of the regulator body adjacent to

the outlet.

With the appliance operating check the

outlet pressure:

 • whenallburnersoftheapplianceareoperating

atmaximum,

 • whenthesmallestburneroftheapplianceis

operating at minimum.

Under these conditions the outlet pressure should not vary

from the nominal outlet pressure of 2.60kPa by more the

+/-0.52kPa.

8. If the regulator appears to not be performing

satisfactorily then check the following points:

 • Iftheoutletpressureisconsistentlytoolowthen

the inlet pressure may be too low and adjustment

ofanupstreamregulatormaybeneeded,oran

upstreamregulatororvalvewithinsufcientow

capacity may be present in the gas supply line.

If this is suspected then it may be necessary to

repeat the checks whilst measuring both the

inlet and outlet pressure to determine if the inlet

pressure is in the range 2.75 – 7.00kPa.

 • Checkthattheinserthasbeenttedcorrectlyas

perdiagramgure10.Checkthatthehexnutis

fully screwed down.

 • Checkthattheregulatorhasbeenttedtothe

gassupplylineinthecorrectorientation,thearrow

on the base of the body indicates the direction of

gas ﬂow.

Oncethesecheckshavebeencompleted,ifthe

regulator still fails to perform in a satisfactory manner it

should be replaced.

9. Onebyone,turntheknobstominimumandscrew

in the bypass screw (accessible when the knob is

removed) until a small stable ﬂame results. Turn the

knob to maximum and then back to minimum to

ensure that the correct minimum ﬂame is maintained.

10. AttachtheLPGstickertothecooker,nearthegas

supply inlet. Cover the Natural Gas label that is

factorytted.

Use of hose assembly

Ensure that the hose assembly is restrained from

accidental contact with the ﬂue outlet of an underbench

oven or any other hot surface of an adjacent appliance.

Diagram 1a – All models except EHG313BA

Diagram 1b – model EHG313BA

DANGER

220-240 VOLTS AC

DISCONNECT FROM SUPPLY

BEFORE REMOVING PANEL

220-240V

IGNITION

BOX

BODY

KNOB

IGNITION

SWITCHES

TO BURNER SPARK PLUGS

DANGER

220-240 VOLTS AC

DISCONNECT FROM SUPPLY

BEFORE REMOVING PANEL

220-240V

IGNITION

BOX

BODY

KNOB

IGNITION

SWITCHES

TO BURNER SPARK PLUG

The appliance is supplied with a standard 7.5 Amp

service cord terminated by a 3-pin plug for connection

to a standard household socket. The electrical supply is

required to power the electronic ignition system.

NOTE! It will be necessary for servicing purposes to

disconnect the electrical power supply. The power

point should therefore be accessible after the appliance

is installed, as specified in the local wiring regulations.

Diagram 1 is a schematic of the wiring in the appliance.

WEIGHT of the unit is printed on the appliance

packaging label.

ELECTRICAL CONNECTION (220-240 VOLTS)

Afterinstallation,testtheapplianceandensurethat

it operates correctly before handing it over to the

customer. The following procedure is recommended:

1. Turn on the gas and electricity supply and attempt

ignitiononallburners,bothseparatelyandin

combination. (For correct procedure refer to page 8

Lighting Burners). Note that additional time needs to

be allowed for the initial lighting as air has to be purged

from the pipes.

2. Observe the ﬂame appearance on each burner

(Figure 11). If it is much larger or much smaller than

expected,theinjectorsizeandsupplypressurerequire

checking.Whereaameisunsatisfactory,referto

the Troubleshooting Guide (page 11) to correct the

fault. If the Troubleshooting Guide does not solve the

problem,calltheServiceCentre.

3. Whenalltheforegoingissatisfactory,checkthe

turndown(minimumorlow)settingoneachburner,

as this may need adjustment. Valves have a bypass

controllingscrew,whichmaybeaccessedby

removing the knob. This screw will be located on a

particularareaofthevalve(referFigure12).Normally,

this will have been correctly set at the factory for use

on Natural Gas (NG) and should not

require adjustment.

IMPORTANT!

 IftheappliancehasbeenconvertedtoLPG,thenthe

bypass screw will HAVE tobescrewedinuntilasmall,

stable ﬂame results.

Please ensure the supply pressure has been

checked PRIOR to any adjustment.

4. If the appliance cannot be adjusted to perform safely

informthecustomeroftheproblemandafxan

appropriate warning notice to the appliance. If the fault

appears to be dangerous the appliance should be

disconnected.Ifaminorfaultexists,thecustomermay

wish to use the appliance while awaiting service.

 Ifafaultcannotbexed,pleasecallthe

Service Centre.

5. Thecustomershouldbeadvisedthat,intheevent

ofafault,thelocalserviceorganisationorthe

retailer from whom the appliance was purchased

should be contacted.

6. Whensatisedthattheunitisoperatingcorrectly,

turn off and instruct the customer on correct

operation as outlined in this booklet. Ask the

customer to operate the controls to ensure that

the correct procedure is understood.

TESTING APPLIANCE OPERATION

Flame size adjusted to maximum

Flame size adjusted to minimum

Bypass screw

Figure 11

Figure 12

CAUTION!

Servicing must only be carried out by an authorised

service person.

Injector sizes required for various gas types are shown

in Table 3 (page 24). The appliance test point pressure

for each gas type is also shown.

Formodelidenticationafterinstallation,anadditional

data plate sticker has been provided. This sticker is to

be stuck onto adjacent cabinetry.

NOTES









1. In this warranty

(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has

the same meaning referred to in the ACL;

(b) ‘ACL’ means Trade Practices Amendment (Australian Consumer

Law) Act (No.2) 2010;

accompanied by this document;

(d) ‘ASC’ means Electrolux’ authorised service centres;

(e) ‘Electrolux’ means Electrolux Home Products Pty Ltd of 163

O’Riordan Street, Mascot, NSW 2020, ABN 51 004 762 341 in

respect of Appliances purchased in Australia and Electrolux (NZ)

Limited of 3-5 Niall Burgess Road, Mount Wellington, in respect

of Appliances purchased in New Zealand;

(f) ‘major failure’ as referred to in clause 10 of this warranty has the

same meaning referred to in the ACL and includes a situation when

an Appliance cannot be repaired or it is uneconomic for Electrolux, at

its discretion, to repair an Appliance during the Warranty Period;

(g) ‘Warranty Period’ means:

(i) where the Appliance is used for personal, domestic or household

use (i.e. normal single family use) as set out in the instruction

manual, the Appliance is warranted against manufacturing

defects in Australia for 24 months and in New Zealand for 24

months, following the date of original purchase of the Appliance;

(ii) where the Appliance is used for commercial purposes (including

being used to directly assist a business or where the Appliance is

used in a multi-family communal or share type environment), the

Appliance will then be warranted against manufacturing defects

in Australia for 3 months and in New Zealand for 3 months,

following the date of original purchase of the Appliance.

(h) ‘you’ means the purchaser of the Appliance not having purchased

the Appliance for re-sale, and ‘your’ has a corresponding meaning.

2. This warranty only applies to Appliances purchased and used in Australia

or New Zealand and is in addition to (and does not exclude, restrict, or

modify in any way) any non-excludable statutory warranties in Australia

or New Zealand.

3. During the Warranty Period Electrolux or its ASC will, at no extra charge

if your Appliance is readily accessible for service, without special

equipment and subject to these terms and conditions, repair or replace

any parts which it considers to be defective. Electrolux or its ASC may

use remanufactured parts to repair your Appliance. You agree that

any replaced Appliances or parts become the property of Electrolux.

This warranty does not apply to light globes, batteries, lters or similar

perishable parts.

4. Parts and Appliances not supplied by Electrolux are not covered by

this warranty.

5. You will bear the cost of transportation, travel and delivery of the

Appliance to and from Electrolux or its ASC. If you reside outside of the

service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Electrolux or

its ASC,

In all instances, unless the Appliance is transported by Electrolux or an

Electrolux authorised representative, the Appliance is transported at the

owner’s cost and risk while in transit to and from Electrolux or its ASC.

6. Proof of purchase is required before you can make a claim under

this warranty.

7. You may not make a claim under this warranty unless the defect claimed

is due to faulty or defective parts or workmanship. Electrolux is not liable

in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions supplied with

the Appliance;

(b) the Appliance is modied without authority from Electrolux in writing;

or defaced;

(d) the Appliance was serviced or repaired by anyone other than

Electrolux, an authorised repairer or ASC.

8. This warranty, the contract to which it relates and the relationship

between you and Electrolux are governed by the law applicable where

the Appliance was purchased. Where the Appliance was purchased in

New Zealand for business purposes the Consumer Guarantee Act does

not apply.

9. To the extent permitted by law, Electrolux excludes all warranties and

liabilities (other than as contained in this document) including liability for

any loss or damage whether direct or indirect arising from your purchase,

use or non use of the Appliance.

10. For Appliances and services provided by Electrolux in Australia,

the Appliances come with a guarantee by Electrolux that cannot be

excluded under the Australian Consumer Law. You are entitled to a

replacement or refund for a major failure and for compensation for any

other reasonably foreseeable loss or damage. You are also entitled to

have the Appliance repaired or replaced if the Appliance fails to be of

acceptable quality and the failure does not amount to a major failure.

The benets to you given by this warranty are in addition to your other

rights and remedies under a law in relation to the Appliances or services

to which the warranty relates.

11. At all times during the Warranty Period, Electrolux shall, at its discretion,

determine whether repair, replacement or refund will apply if an

Appliance has a valid warranty claim applicable to it.

12. For Appliances and services provided by Electrolux in New Zealand,

the Appliances come with a guarantee by Electrolux pursuant to the

provisions of the Consumer Guarantees Act, the Sale of Goods Act and

the Fair Trading Act.

13. To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms

of this warranty;

(b) have the model and serial number of the Appliance available;

(d) telephone the numbers shown below.

14. You accept that if you make a warranty claim, Electrolux and its ASC

may exchange information in relation to you to enable Electrolux to meet

its obligations under this warranty.

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: BUILT-IN OVEN, COOKTOP

AND FLOOR MOUNTED COOKER



Before calling for service, please ensure that the steps listed in point 13 above have been followed.



or to nd the address of your nearest

state service centre in Australia



For the cost of a local call (Australia only)



ELECTROLUX HOME PRODUCTS

www.electrolux.com.au



or to nd the address of your nearest

state spare parts centre in Australia



For the cost of a local call (Australia only)



or to nd the address of your nearest

authorised service centre in New Zealand



(New Zealand only)



ELECTROLUX HOME PRODUCTS

www.electrolux.co.nz



or to nd the address of your nearest

state spare parts centre in New Zealand



(New Zealand only)

GOV_Warr_Apr11

Electrolux Home Products Australia

telephone: 1300 363 640

fax: 1800 350 067

email: customercare@electrolux.com.au

web: www.electrolux.com.au

Electrolux Home Products New Zealand

telephone: 0800 234 234

fax: 0800 363 600

email: customercare@electrolux.co.nz

web: www.electrolux.co.nz

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say

“Oh! How did you know? That’s exactly what I wanted!” That’s the kind

of feeling that the designers at Electrolux seek to evoke in everyone who

choosesorusesoneofourproducts.Wedevotetime,knowledge,and

a great deal of thought to anticipating and creating the kind of appliances

that our customers really need and want.

This kind of thoughtful care means innovating with insight. Not design for design’s

sake,butdesignfortheuser’ssake.Forus,thoughtfuldesignmeansmaking

applianceseasiertouseandtasksmoreenjoyabletoperform,freeingour

customerstoexperiencethatultimate21stcenturyluxury,easeofmind.Ouraim

is to make this ease of mind more available to more people in more parts of their

everydaylives,allovertheworld.Sowhenwesaywe’rethinkingofyou,

you know we mean just that.

The “Thinking of you” promise from Electrolux goes beyond meeting the needs of

today’s consumers. It also means we’re committed to making appliances safe for

the environment—now and for future generations.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com.au or www.electrolux.co.nz

P/No. 305 6209 00

ABN 51 004 762 341

EMAN_GAS_HOBS_UM_Jul13

Electrolux EHG955SA 90cm Natural Gas Cooktop

Product's Documents

User Manual

Specifications

Electrolux EHG955SA Questions and Answers

Related Products

Electrolux EHG953BA 90cm Natural Gas Cooktop

Electrolux EW27EW55GS4 Gas Cooktop Combination

Electrolux E36GC76GPS3 gas cooktop

Electrolux E36GC76EPS gas cooktop

Electrolux EHG645SA Gas Cooktop

Electrolux EHG953SA Gas Cooktop
