User Manual Ninja CP307 Hot and Cold Brewed System Tea & Coffee Maker

Ninja CP307 Hot and Cold Brewed System Tea & Coffee Maker - Use Manual - Use Guide PDF.

Documents: Go to download!
User Manual
  • User Manual - (English, French, Spanish)
Other Documents
  • Other Content - (English)
Specification


User manual Coffee Maker

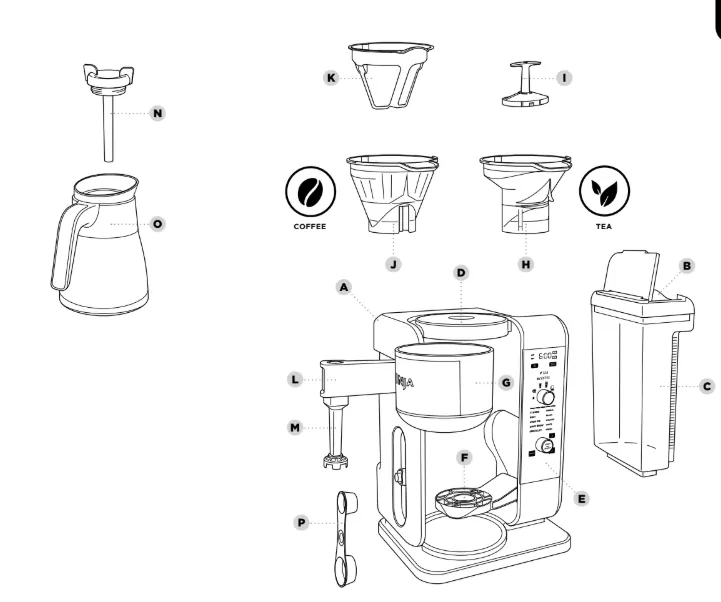

PARTS

A Brewer (power cord & storage not shown)

B Flip-Top Water Reservoir Lid

C Removable Water Reservoir

D Showerhead

E Control Panel

F Single-Serve Cup Platform

G Swinging Brew Basket

H Removable Tea Filter Holder

I Tea Permanent Filter

J Removable Coffee Filter Holder

K Coffee Permanent Filter

L Integrated Frother

M Frother Whisk

N Brew-Through Lid

O Stainless Steel Carafe

P Ninja Smart Scoopâ„¢

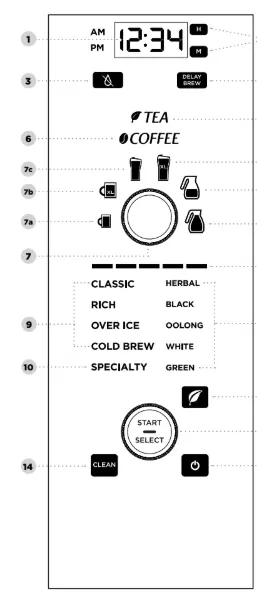

USING THE CONTROL PANEL

1 Programmable Digital Clock

2 Hour & Minute Buttons

3 Drip Stop Button

4 Delay Brew Button

5 Tea Mode Indicator

6 Coffee Mode Indicator

7 Multi-Serve Dial

a Cup

b XL Cup

c Travel Mug

d XL Multi-Serve

e Half Carafe

f Full Carafe

8 Progress Bar

9 Custom Brew Types

Classic Brew

Rich Brew

Over Ice Brew

Cold Brew

10 Ninja® Signature Brew

Specialty Brew

11 Tea Types

Herbal

Black

Oolong

White

Green

12 Tea Button

13 Start/Select Dial

14 Intelligent Clean Cycle

Indicator/Button

15 Power Button

FEATURES

of the Ninja® Hot & Cold Brewed System™

  • Coffee & Tea Brewing – Brew coffee and steep tea with one machine.
  • Two Removable Filter Holders – Specially designed baskets for coffee and tea to keep the flavors separate.
  • Smart Basket Sensing – The Ninja Hot & Cold Brewed System automatically knows which filter holder has been placed in the brew basket. The control panel will change between Coffee & Tea settings depending on which filter holder is inserted into the brew basket.
  • Coffee Permanent Filter – A reusable filter that preserves the natural coffee oils and small coffee particles to provide a robust flavor, similar to what you would experience when using a French press.
  • Tea Permanent Filter – Specially designed to deliver the right amount of flavor from your tea.
  • Tea Type Selection – Choose between Herbal, Black, Oolong, White, or Green tea.
  • Thermal Flavor Extraction® Technology – Unlocks the full flavor potential of your coffee and tea by combining precision water delivery with automated controls for calibrated temperature, pre-infusion, saturation, and flavor richness.
  • Auto-iQ® – The Ninja Hot & Cold Brewed System knows how much water to use, and at what temperature, for each size and brew type—both coffee and tea.
  • Brew Sizes – Brew directly into your favorite cup, travel mug, or carafe.
  • Brew Types – Control the strength and style of your coffee or tea: ice for an ultra-smooth, deep, naturally sweet, refreshing coffee or tea.
    • Classic Brew for smooth, balanced, traditional flavor.
    • Rich Brew for a richer, never-bitter flavor that stands up to milk, cream, or flavoring.
    • Over Ice Brew for a smooth, rich, freshly brewed iced coffee or tea that’s not watered down.
    • Cold Brew is brewed at a lower temperature and for a longer time over ice for an ultra-smooth, deep, naturally sweet, refreshing coffee or tea.
    • Specialty Brew is a super-rich concentrate used to make coffee-based drinks like a cappuccino or latte, or teabased beverages like chai or matcha.
  • Single-Serve Cup Platform – Pull down the platform to brew directly into your favorite cup or mug.
  • Removable Water Reservoir with Easy-Access Flip-Top Lid – For quick and easy filling.
  • 24-Hour Programmable Delay Brew – Easily schedule automatic brewing.
  • Automatic Drip Stop – The drip stop automatically closes after a brew is complete. Press the Drip Stop button to sneak a cup, then press the Drip Stop button again to finish the brew.
  • Clean Function – When your system senses there is hard-water calcium buildup that can affect the flavor of your coffee and tea, the CLEAN light will illuminate. Follow the cleaning instructions in the Care & Maintenance section.
  • High-Altitude Calibration – The calibration brew automatically adjusts your brewer’s boiling point based on the conditions where you live to achieve a consistent brew.
  • Auto Shut-Off – Your unit will automatically power off after one hour of inactivity.

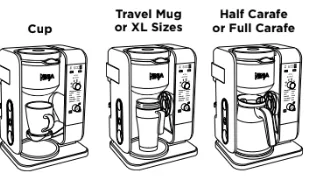

Brew into a cup, travel mug, or carafe.

BEFORE FIRST USE

PLEASE KEEP THIS IMPORTANT SAFEGUARD IN MIND WHEN USING THE APPLIANCE:

IMPORTANT: DO NOT run the appliance without water.

  1. Remove all packaging material and stickers from the brewer.
  2. Wash the water reservoir, thermal carafe, removable filter holders, and coffee and tea permanent filters in warm, soapy water with a soft cloth.
  3. Rinse parts and dry thoroughly.
  4. Before first use, prime the system by running two Full Carafe, Classic Brew cycles with water only. After each cycle is complete, discard the water.

SETTING THE CLOCK

  1. Plug the power cord into an electrical outlet. The clock will flash on the control panel to indicate that the time has not been set (Fig. 1).
  2. Press the hour (H) or minute (M) button until you reach the current time. The AM or PM indicator will illuminate on the left side of the display as you are setting the time.
  3. After 5 seconds, the clock will stop flashing and the clock will be set.

NOTE: If the clock stops flashing and does not display the correct time of day, pressing the hour (H) or minute (M) button at any time will cause the clock to flash again. You can now reprogram the correct time by following the previous steps.

NOTE: If you unplug the brewer or in the event of an extended power loss, you will need to reset the clock the next time the brewer is plugged in.

PRIMING YOUR NINJA HOT & COLD BREWED SYSTEMâ„¢

IMPORTANT:

We recommend fresh, cool, filtered water. Well water is not recommended.

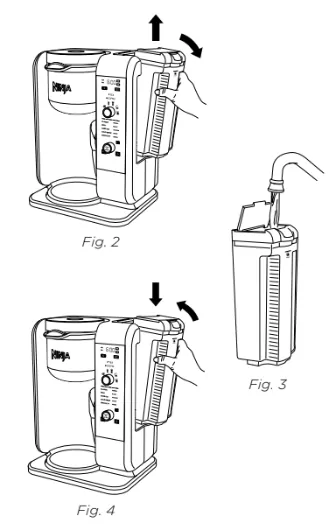

1 To fill the water reservoir, use the hand grips to lift it to the right and up off the brewer (Fig. 2). Flip the reservoir lid open or remove the entire lid, then add fresh, filtered water up to, but not exceeding, the Max Fill line (Fig. 3). Return the water reservoir to the brewer (Fig. 4). DO NOT fill water reservoir with anything other than water, as other liquids may damage your brewer.

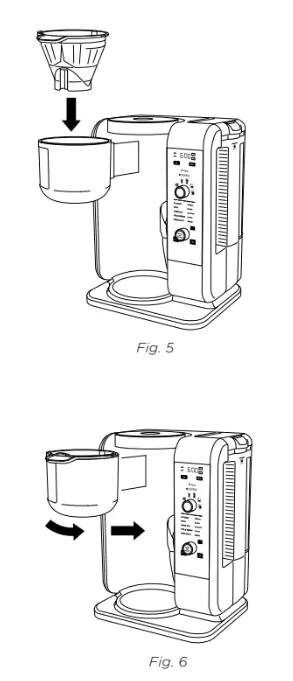

2 Ensure one of the removable filter holders is nested inside the brew basket (Fig. 5). Once in place, slide the brew basket all the way in until you hear a slight click (Fig. 6).

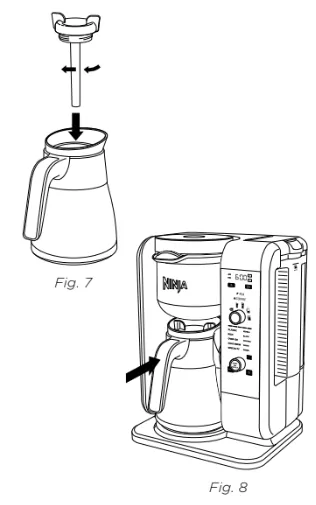

3 Twist the brew-through lid clockwise onto the carafe to lock into place (Fig. 7) and center the carafe below the brew basket (Fig. 8).

NOTE: Do not place any ground coffee or tea in the brew basket for the first two cycles.

4 Once all parts are securely in place and the unit is powered on, select the Full Carafe size and Classic Brew setting, then press the START/SELECT dial (Fig. 9).

5 When the cycle is complete, discard the water in the carafe. Repeat, beginning with step 1. You are now ready to use your Ninja Hot & Cold Brewed System to brew.

HIGH-ALTITUDE CALIBRATION (OPTIONAL, BUT RECOMMENDED FOR USERS IN HIGH-ALTITUDE AREAS)

Because water boils at lower temperatures at higher altitudes, running a calibration cycle before your first brew allows the unit to detect the boiling point of water at your location. Running a calibration cycle will help deliver a consistent brew each time.

1 Fill the water reservoir up to, but not exceeding, the Max Fill line.

2 Place an empty filter holder into the brew basket, and an empty vessel in the machine.

3 Press and hold both the Drip Stop button and the Tea button until the clock display begins a two-minute countdown.

4 A calibration cycle will begin. When complete, the unit will beep and End will appear on the clock display. Discard the water in the vessel.

NOTE: Pressing the Drip Stop button , Tea button , or Power button will cancel the calibration cycle.

PREPARING & USING THE NINJA HOT & COLD BREWED SYSTEMâ„¢

HOW MUCH DO YOU GET IN YOUR CUP?

Each size and brew type produces a different amount of coffee and tea to optimize strength and taste.

NOTE: The coffee grounds and tea will absorb some of the water that is brewed, resulting in slightly less brewed coffee or tea than water used.

APPROXIMATE BREW VOLUMES

Size

Classic

Rich

Over Ice & Cold Brew

coffee/tea only

filled with ice
Cup

9.5 oz.

8.7 oz.

4.8 oz.

9.5 oz
XL Cup

11.5 oz.

10.3 oz.

5.8 oz.

11.5 oz.
Travel Mug

14 oz.

13.2 oz.

7.0 oz.

14 oz.
XL Multi-Serve

18 oz.

16 oz.

9.0 oz.

18 oz.

.

You don’t need to adjust the size for Specialty Brew—it always yields 4 oz. of coffee and 6 oz. of tea (with the exception of Green tea, which yields 2 oz.).

COFFEE MEASUREMENT CHART

Serving Size

Ninja

Smart Scoop "

Tablespoons

Cup/XL Cup

2-3 small scoops

2-3 Tbsp.

Travel Mug/ XL Multi-Serve

3-5 small

scoops

3-5 Tbsp.

Half Carafe

3-4 big scoops

6-8 Tbsp.

Full Carafe

4-6 big scoops

8-12 Tbsp.

Specialty (4 oz.)

2 big scoops

4 Tbsp.

NOTE: For Cold Brew coffee, add one extra scoop.

NOTE: Exceeding the recommended medium grind size for whole beans may cause the brew basket to overflow.

TEA MEASUREMENT CHART

Serving Size

Ninja

Smart Scoop " Loose Leaf Tea

Tea Bags

Cup/XL Cup

1 small scoop

1 tea bag

Travel Mug/ XL Multi Serve

1-2 small scoops

2 tea bags

Half Carafe

2-3 small scoops

4 tea bags

Full Carafe

3-4 small scoops

6 tea bags

Specialty (6 oz.)*

1 big scoop

3 tea bags

*With the exception of Specialty Green tea, which yields 2 oz.

FILLING THE COFFEE BREW BASKET

For best results, use the coffee measurement chart to determine how much ground coffee to use for each brew size. The amount of ground coffee for each size will remain the same for any brew type you select.

For example, if you select Cup and Classic Brew, you will use the same amount of coffee grounds as if you select Cup and Over Ice Brew. The only exception is Cold Brew, which requires one extra scoop of coffee, regardless of the size.

1 Open the brew basket by sliding it out of the brewer (Fig. 10). Ensure you have the COFFEE filter holder in the machine, denoted by the orange handle with the coffee bean icon.

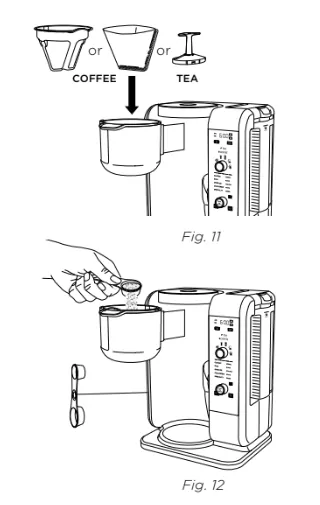

2 Place the coffee permanent filter or a #4 paper cone filter in the COFFEE filter holder. If using

a paper filter, first ensure the permanent filter is removed from the filter holder. Then fold the paper filter along the seams, open it fully, and firmly press it into the filter holder making sure it is fully seated (Fig. 11)

3 Use the Ninja Smart Scoop™ and follow the measurements in the chart to fill the brew basket (Fig. 12). These measurements vare based on level scoops—adjust to your preferred taste. We suggest using a medium-sized grind if grinding whole beans.

4 Slide the brew basket back into the brewer until it clicks into place.

FILLING THE TEA BREW BASKET

For best results, use the tea measurement chart to determine how many tea bags or how much loose leaf tea to use for each brew size. The amount of tea for each size will remain the same for any brew type you select.

1 Open the brew basket by sliding it out of the brewer (Fig. 10). Ensure you have the TEA filter holder in the machine, denoted by the green handle with the tea leaf icon.

2 Place the tea permanent filter in the TEA filter holder (Fig. 11). When using tea bags, you may remove the tea permanent filter if more space is needed in the brew basket.

3 Use the Ninja Smart Scoopâ„¢ and follow the recommended measurements in the chart to fill the brew basket, adjusting to your preferred taste (Fig. 12).

4 Slide the brew basket back into the brewer until it clicks into place.

AUTOMATIC DRIP STOP

The system is equipped with an automatic drip stop. When the Drip Stop button is illuminated, the drip stop is closed and no coffee or tea will flow out of the brew basket.

When brewing a half or full carafe, press the Drip Stop button to pause the brew cycle and pour a cup. Promptly replace the carafe and press the Drip Stop button again to complete the brew (Fig. 13a).

NOTE: If you forget to press the Drip Stop button Bil to resume the brew, the unit will pause the brew, and after 30 seconds it will give you a friendly audible reminder. After 5 minutes, the brew will be canceled.

DRIP STOP TIME SETTTING

After a brew is complete, the drip stop will automatically close. Some types of coffee, such as finely ground or decaf, can take a little longer to fully drain from the brew basket. To extend the amount of time the drip stop remains open after a brew, follow these instructions:

1 Press and hold the Drip Stop button (Fig. 13a) until the clock display flashes either dFLt (default) or the previously specified time.
