Philips 40PFL4907/F7 4000 series LED TV User Manual

EN User Manual

ES Manual del Usuario

FR Manuel d’Utilisation

www.philips.com/support

EN: For further assistance, call the customer support service in your country.

• To obtain assistance, contact Philips Customer Care Center;

In the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands 1 866 309 0843

México D.F. and Área Metropolitana; 58 87 97 36

Interior de la Republica; 01 800 839 19 89

ES: Para obtener más información, llame al servicio de soporte al cliente de su

país.

•

Para obtener asistencia, comuníquese con Centro de atención al cliente de Philips;

En los Estados Unidos, en Canadá, Puerto Rico o en las Islas Vírgenes de los Estados Unidos;

1 866 309 0843

México D.F. y Área Metropolitana; 58 87 97 36

Interior de la Republica; 01 800 839 19 89

FR: Pour obtenir de l’aide supplémentaire, communiquez avec le centre de service

à la clientèle de votre pays.

•

Pour obtenir de l’aide, communiquez avec le centre de service à la clientèle Philips au;

Dans le États-Unis, au Canada, à Puerto Rico ou aux Îles Vierges américaines; 1 866 309 0843

México D.F. et Área Metropolitana; 58 87 97 36

Interior de la Republica; 01 800 839 19 89

40PFL4907

English

Contents

1 Notice 5

2 Important 7

Positioning the TV 7

Regulatory notices 7

Environmental care 7

3 Getstarted 8

Features 8

Supplied accessories 8

Symbols used in this User Manual 8

Attaching the base 9

Managing cables 9

Installing the remote control batteries 9

Remote control function 10

Control panel 11

Terminals 11

Connecting the antenna or the cable 12

Plugging in the AC power cord 12

Initial setup 13

4 UseyourTV 15

Switching on your TV and putting it in Standby mode 15

Adjusting volume 15

Switching channels 15

Watching channels from an external device 16

Access the Home menu 16

Philips Wireless MediaConnect 17

View photos, play music and watch videos using DLNA 17

Net TV 19

Enjoying vTuner 20

Pandora

operations 22

Using Twitter 23

Using auto mode 25

Create and use lists of favorite channels 25

Sleep timer 25

Changing picture format 26

TV screen information 26

USB 27

5 UsemoreofyourTV 29

Picture 30

Sound 32

Features 33

Caption settings 33

Sleeptimer 34

Child and ratings lock 34

Change PIN 36

Installation 36

Language 36

Channel installation 37

Preferences 38

Use Philips EasyLink 38

Network 40

Return your settings to default values 43

Software 43

Checking your current software version 43

Preparing for the software upgrade 43

Upgrading the software 44

Automatically check for latest software 44

Netix deactivation 44

Netix ESN 44

VUDU deactivation 44

YouTube deactivation 44

6 Connectingdevices 45

Selecting your connection quality 45

Connecting your devices 45

7 Usefultips 49

FAQ 49

Troubleshooting 49

8 Information 52

Glossary 52

Maintenance 52

9 Specications 53

10Warranty 54

License end of book

English

Know these safety symbols

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the apparatus’s enclosure

that may be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the apparatus.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall

not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the

apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION

: Pour éviter les choc électriques,introduire la lame la plus large de la fiche dans la borne correspondante de la

prise et pousser jusqu’au fond.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The caution marking is located on the rear or bottom of the cabinet.

CAUTION

*Product Safety Notification *Additional Benefits

By registering your product, you'll receive notification -

directly from the manufacturer - in the rare case of a

product recall or safety defect.

Registering your product guarantees that you'll receive

all of the privileges to which you're entitled, including

special money-saving offers.

Registering your model with Philips makes you eligible for all of the valuable benefits listed below, so don't miss out.

Complete and return your Product Registration Card at once or visit at www.philips.com/support to ensure:

Visit our World Wide Web Site at www.philips.com/support

Return your Product Registration Card or visit at

http://www.productrecords.com/philips/ today to get the very most from your purchase.

www.CE.org/safety

English

ImportantSafetyInstructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than the

other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong are provided for your

safety. If the provided plug does not t into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where

they exit from the apparatus.

11. Only use attachments / accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specied by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

moving the cart / apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is

required when the apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has

been dropped.

NotetotheCATVsysteminstaller:

This reminder is provided to call the CATV system installer’s

attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in particular, species that the cable ground

shall be connected to the grounding system of the building, as close

to the point of cable entry as practical.

ExampleofAntennaGroundingasperNEC−National

ElectricCode

ANTENNADISCHARGE

UNIT(NECSECTION810-20)

GROUNDINGCONDUCTORS

(NECSECTION810-21)

POWERSERVICEGROUNDING

ELECTRODESYSTEM

(NECART250,PARTH)

ANTENNALEADINWIRE

GROUNDCLAMPS

ELECTRICSERVICE

EQUIPMENT

GROUNDCLAMP

WallMountBracketKit

Brand: PHILIPS

Model# Screwdimension

40PFL4907 SQM6435/17

M6 x 1.614” (41mm)

with spacer

• The recommended Wall Mount Bracket Kit (sold separately)

allows the mounting of the TV on the wall.

• For detailed information on installing the wall mount, refer to

the Wall Mount Instruction Book.

• P&F USA is not responsible for any damage to the product or

injury to yourself or others if you elect to install the TV Wall

Mount Bracket or mount the TV onto the Bracket on your own.

• The Wall Mount Bracket must be installed by experts.

P&FUSAisnotliableforthesetypesofaccidentsorinjurynoted

below.

• Install the Wall Mount Bracket on a sturdy vertical wall.

• If installed onto a ceiling or slanted wall, the TV and Wall Mount

Bracket may fall which could result in a severe injury.

• Do not use screws that are longer or shorter than their

specied length. If screws too long are used this may cause

mechanical or electrical damage inside the TV set. If screws too

short are used this may cause the TV set to fall.

• Do not fasten the screws by excessive force. This may damage

the product or cause the product to fall, leading to an injury.

• For safety reasons use 2 people to mount the TV onto a Wall

Mounting Bracket.

• Do not mount the TV onto the Wall Mounting Bracket while

your TV is plugged in or Turned On. It may result in an electrical

shock injury.

Wheninstallingtheunitonthewall,allowthismuchspace.

Top: 11.8 inches (30cm)

Leftandrightside: 5.9 inches (15cm)

Bottom: 3.9 inches (10cm)

English

1 Notice

Trademarks are the property of Koninklijke Philips Electronics N.V. or

their respective owners.

P&F USA reserves the right to change products at any time without

being obliged to adjust earlier supplies accordingly.

The material in this User Manual is believed adequate for the intended

use of the system. If the product or its individual modules or procedures

are used for purposes other than those specied herein, conrmation

of their validity and suitability must be obtained. P&F USA warrants

that the material itself does not infringe any United States patents. No

further warranty is expressed or implied.

P&F USA cannot be held responsible neither for any errors in the

content of this document nor for any problems as a result of the

content in this document. Errors reported to P&F USA will be adapted

and published on the P&F USA support website as soon as possible.

Pixelcharacteristics

This LCD product has a high number of color pixels. Although it has

effective pixels of 99.999% or more, black dots or bright points of light

(red, green or blue) may appear constantly on the screen. This is a

structural property of the display (within common industry standards)

and is not a malfunction.

Warranty

No components are user serviceable. Do not open or remove covers

to the inside of the product. Repairs may only be done by Service

Centers and ofcial repair shops. Failure to do so shall void any

warranty, stated or implied.

Any operation expressly prohibited in this User Manual, any adjustments

or assembly procedures not recommended or authorized in this User

Manual shall void the warranty.

FederalCommunicationsCommissionNotice

Thisequipmenthasbeentestedandfoundtocomplywiththelimits

foraClassBDigitaldevice,pursuanttopart15oftheFCCRules.

Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisequipment

generates,uses,andcanradiateradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructions,maycause

harmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparticularinstallation.If

thisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,whichcanbedeterminedbyTurningtheequipmentOffand

On,theuserisencouragedtotrytocorrecttheinterferencebyone

ormoreofthefollowingmeasures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio or television technician

for help.

DeclarationofConformity

TradeName: PHILIPS

ResponsibleParty: P&F USA, Inc.

Model: 40PFL4907

Address: PO Box 2248, Alpharetta, GA 30023-2248

U.S.A.

TelephoneNumber: 1 866 309 0843

Modications

This apparatus may generate or use radio frequency energy. Changes or

modications to this apparatus may cause harmful interference

unless the modications are expressly approved in the User Manual.

The user could lose the authority to operate this apparatus if an

unauthorized change or modication is made.

Cables

Connections to this device must be made with shielded cables with

metallic RFI / EMI connector hoods to maintain compliance with FCC

Rules and Regulations.

Canadiannotice

ThisClassBDigitalapparatuscomplieswithCanadianICES-003.

StandardTelevisionReceivingApparatus,CanadaBETS-7/NTMR-7.

ThefollowingFCC/ICRSS-GenisdescriptionofUSB

WirelessLANadapter.

FCCCaution:Anychangesormodicationsnotexpresslyapproved

bythepartyresponsibleforcompliancecouldvoidtheuser’s

authoritytooperatethisequipment.

This transmitter must not be co-located or operating in conjunction

with any other antenna or transmitter.

CountryCodeStatement

For product available in the USA market, only channel 1~11 can be

operated. Selection of other channels is not possible.

To maintain compliance with FCC RF exposure requirements, use

only belt-clips, holsters or similar accessories that do not contain

metallic components in its assembly. The use of accessories that do

not satisfy these requirements may not comply with FCC RF exposure

requirements and should be avoided.

FCCRadiationExposureStatement

This equipment is compliance with SAR for general population/

uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been

tested in accordance with the measurement methods and procedures

specied in OET Bulletin 65 Supplement C. This equipment should

be installed and operated with minimum distance 2.5cm between the

radiator & your body.

This device complies with Industry Canada license-exempt RSS

standard(s). Operation is subject to the following two conditions: (1)

this device may not cause interference and (2) this device must accept

any interference, including interference that may cause undesired

operation of the device.

English

All other registered and unregistered trademarks are the property of

their respective owners.

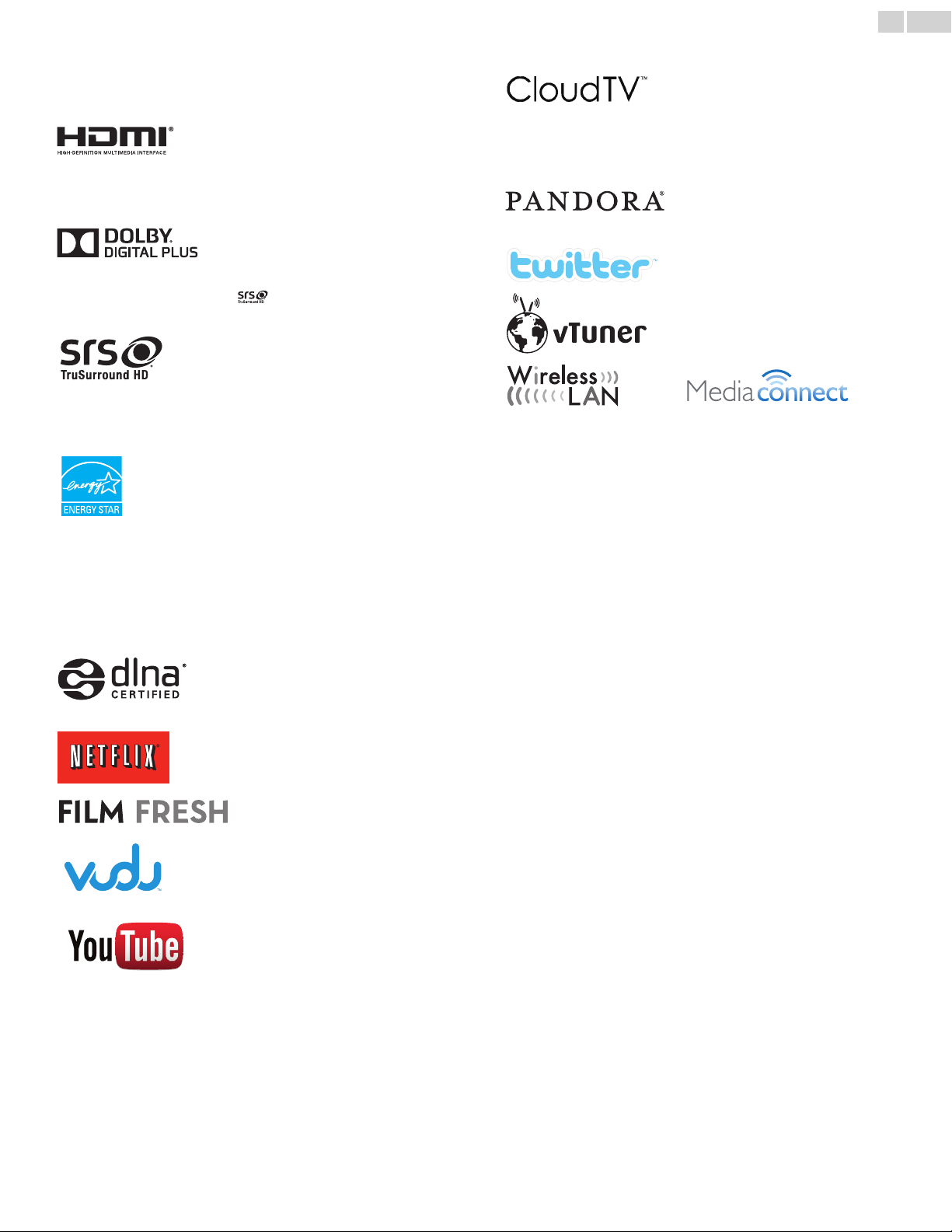

The terms HDMI and HDMI High-

Denition Multimedia Interface, and

the HDMI Logo are trademarks

or registered trademarks of HDMI

Licensing LLC in the United States and

other countries.

Manufactured under license from

Dolby Laboratories. Dolby and the

double-D symbol are trademarks of

Dolby Laboratories.

is a trademark of SRS Labs,

Inc. TruSurround HD technology is

incorporated under license from SRS

Labs, Inc.

SRS TruSurround HD™ creates an

immersive, feature-rich surround

sound experience from two speakers,

complete with rich bass, high frequency

detail and clear dialog.

ENERGY STAR

is a joint program

of the U.S. Environmental Protection

Agency and the U.S. Department of

Energy helping us all save money and

protect the environment through

energy efcient products and practices.

ConsumerNotice:

This TV has been set to maximize energy efciency while delivering the

best possible picture using the factory installed home mode settings.

Changing or enabling other features in this TV (e.g. brightened

backlighting) will possibly increase energy consumption beyond the

original ENERGY STAR

qualied limits.

DLNA®, the DLNA Logo and DLNA

CERTIFIED® are trademarks, service

marks, or certication marks of the

Digital Living Network Alliance.

Netix and the Netix logo are

trademarks or registered trademarks

of Netix, Inc.

Film Fresh and the Film Fresh logo are

registered trademarks of Film Fresh Inc.

VUDU

is a trademark of VUDU, Inc.

YouTube and the YouTube logo are

trademarks of Google Inc.

CloudTV™ (CloudTV™ by

ActiveVideo®) technology provided

under license from ActiveVideo

Networks, Inc. U.S. and Foreign Patents

apply. CloudTV™ and the “CloudTV™”

logo are proprietary trademarks of

ActiveVideo Networks, Inc.

PANDORA, the PANDORA logo,

and the Pandora trade dress are

trademarks or registered trademarks

of Pandora Media, Inc. Used with

permission.

Twitter is a trademark of Twitter, Inc.

vTuner is a trademark of Nothing Else

Matters Software, Ltd.

Portionsofthissoftwarearecopyright©TheFreeTypeProject

(www.freetype.org).

TheAmericanAcademyofPediatricsdiscouragestelevisionviewingfor

childrenyoungerthantwoyearsofage.

English

2 Important

PositioningtheTV

• Large screen TVs are heavy. 2 people are required to carry and

handle a large screen TV.

• Make sure to hold the upper and bottom

frames of the unit rmly as illustrated.

• Install the unit in a horizontal and stable

position.

• Do not install the unit in direct sunlight

or in a place subject to dust or strong

vibration.

• Depending on the environment, the temperature of this unit may

increase slightly. This is not a malfunction.

• Avoid a place with drastic temperature changes.

• Do not place anything directly on top or bottom of the unit.

• Depending on your external devices, noise or disturbance of the

picture and / or sound may be generated if the unit is placed too

close to them. In this case, please ensure enough space between

the external devices and the unit.

• Do not insert the AC power cord into the power socket outlet

before all the connections are made.

• Ensure that you always have easy access to the AC power cord or

plug to disconnect the TV from the power.

• Before you move the TV, disconnect attached cables to prevent

damage to connectors.

• Be sure to unplug the AC power cord from the AC outlet before

moving or carrying the unit.

Regulatorynotices

Donotplacetheunitonthefurniturethatiscapableofbeingtilted

byachildandanadultleaning,pulling,standingorclimbingonit.

Afallingunitcancauseseriousinjuryorevendeath.

Thisapparatusshouldnotbeplacedinabuilt-ininstallationsuchasa

bookcaseorrackunlessproperventilationisprovided.

Makesuretoleaveaspaceof4inches(10cm)ormorearoundthis

apparatus.

Press

toTurntheunitOnandgointoStandbymode.

TocompletelyTurnOfftheunit,youmustunplugtheACpowercord.

DisconnecttheACplugtoshuttheunitoffwhentroubleisfoundor

notinuse.TheACplugshallremainreadilyavailable.

NeveruseagasdusteronthisTV.

Thegastrappedinsideofthisunitmaycauseignitionandexplosion.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

WARNING: Batteries (battery pack or battery installed) shall not be

exposed to excessive heat such as sunshine, re or the

like.

WARNING: To prevent injury, this apparatus must be securely

attached to the furniture / wall in accordance with the

instructions. Tipping, shaking, or rocking the unit may

cause injury / death.

Environmentalcare

The packaging of this product is intended to be recycled.

Contact your local authorities for information about how to recycle the

packaging.

For product recycling information, please visit - www.recycle.philips.com

Endoflifedirectives

Philips pays a lot of attention to produce environment-friendly products

in green focal areas. Your new TV contains materials which can be

recycled and reused. At the end of its life, specialized companies can

dismantle the discarded TV to concentrate the reusable materials and to

minimize the amount of materials to be disposed of. Please ensure you

dispose of your old TV according to local regulations.

Disposalofusedbatteries

Thebatteriessupplieddonotcontaintheheavymetalsmercuryand

cadmium.Nevertheless,inmanyareasbatteriesmaynotbedisposed

ofwithyourhouseholdwaste.Pleaseensureyoudisposeofbatteries

accordingtolocalregulations.

English

3 Getstarted

Features

• DTV/TV/CATV

You can use your remote control to select channels which are broadcast in

Digital format and conventional Analog format. Also, cable subscribers can

access their cable TV channels.

• Informationdisplay

You can display the title, contents and other information of the current

program on the TV screen.

• AutoProgram

This unit automatically scans and memorizes channels available in your area,

eliminating difcult setup procedures.

• NetTV

This unit lets you enjoy Internet services. Use the remote control to

browse the Net TV pages. You can play movies and much more, all

from your TV screen.

• Childlock

This feature allows you to block children’s access to inappropriate

programs.

• ClosedCaptiondecoder

Built-in Closed Caption decoder displays text for Closed Caption

supported programs.

• MTS/SAPtuner

Audio can be selected from the remote control.

• AutoStandby

If there is no Input signal and no operation for 15 minutes, the unit will go

into Standby mode automatically.

• Sleeptimer

You can set the unit to go into Standby mode after a specic amount of

time.

• Choicesforon-screenlanguage

Select your on-screen language: English, Spanish or French.

• Stereosoundfunction

• PLLfrequencysynthesizedtuning

Provides free and easy channel selection and lets you tune directly to any

channel using the number and decimal point “•” buttons on the remote

control.

• Variousadjustmentforpictureandsound

Customizes image quality suitable for your room and sets your sound

preference.

• EasyLinkviaHDMIlink

EasyLink allows your other HDMI link devices to be controlled by the

HDMI cable connected to your TV.

• HDMIInput

• HDMI-DVIInput

If your video device has DVI Output jack, use an HDMI-DVI conversion

cable to connect the unit.

• ComponentVideoInput

• PCInput

• AVInput

• USBterminal

The picture (JPEG), music (MP3) and video les stored on a USB Memory

Stick can be played back on this unit.

• USBwirelessnetworkterminal

Connects the supplied USB wireless LAN adapter.

• DigitalAudioOutput

• HeadphoneAudioOutput

Suppliedaccessories

UserManual QuickStartguide

Quick

Start

Registrationcard

IMPORTANT

Box-inserts

RemoteControl and

batteries (AAA, 1.5V x 2)

AAA

TVbase andscrews

Screws packed with this unit:

Model Quantity Size

40PFL4907

4 M5 x 20

Cablemanagementtie

USBwirelessLAN

adapter

ACpowercord

Note

• If you lose the screws, please purchase the above-mentioned Phillips head screws at

your local store.

• If you need to replace these accessories, please refer to the part name or No. with the

illustrations and call our toll free customer support line found on the cover of this User

Manual.

Whenusingauniversalremotecontroltooperatethisunit.

• Make sure the component code on your universal remote control is set to our brand.

Refer to the instruction book accompanying your remote control for more details.

• We do not guarantee 100% interoperability with all universal remote controls.

SymbolsusedinthisUserManual

The following is the description for the symbols used in this User

Manual. Description refers to:

DigitalTVoperation

Analog/CableTVoperation

• If neither symbol appears, the operation is applicable to both.

English

Attachingthebase

You must attach the base to the unit to have it as a table top unit.

Be sure the front and rear of the base match the proper direction.

For large screen TVs, at least 2 people are required for these steps.

4 5

x

Note

• Make sure to use a table which can support the weight of this unit and is larger than

this unit.

• Make sure the table is in a stable location.

• When attaching the base, ensure that “FRONT” with “arrow” written on the bottom of

the base is downward.

• When attaching the base, ensure that all screws are tightly fastened. If the base is not

properly attached, it could cause the unit to fall, resulting in injuries as well as damage

to the unit.

• To remove the base from this unit, unscrew the Phillips head screws in step 2.

Be careful not to drop the base when you remove it.

Managingcables

Route your antenna cable and all other cables through the cable

management tie at the back of the TV.

The holder helps keep your cables tidy and easily manageable.

1 Attach the cable management tie as illustrated below.

2 Pass cables through the cable management tie to avoid tangles.

Installingtheremotecontrolbatteries

1 Slide the battery cover off the back of the remote control.

2 Insert the 2 supplied batteries (AAA, 1.5V). Be sure the + and −

ends of the batteries line up with the markings inside the case.

3 Slide the cover back into position.

Note

• Remove the batteries if not using the remote control for an extended period of time.

English

Remotecontrolfunction

a (POWER-ON/STANDBY-ON)

Press to Turn the unit On and go into Standby mode.

To completely Turn Off the unit, you must unplug the AC power

cord.

b FAV

Displays a list of all channels marked as favorite.

(Includes subchannels)

c SLEEP

Press to activate the sleep timer.

d COLORbuttons(green/yellow)

Functionally useful for Net service.

e VUDUandCOLORbutton(blue)

Starts up VUDU and functionally useful for Net service.

f SOURCE

Toggles to select connected devices.

g NETTV

Displays the Net TV menu.

h OK

Press to decide the command of setting when the Home menu is

displayed.

i ▲▼◄►(NAVIGATIONbuttons)

Press to move left / right / up / down through the items.

j INFO

Displays information about the TV channel or accessory device.

k EasyLinkbuttons

Functionally useful for EasyLink, Net service and DLNA.

 E/D

Press to search backward or forward through the disc.



Æ∆

Press to start, pause or resume playback.

 C

Press to stop the disc playback.

 



Press to start or stop video recording.

l 0−9(NUMBERbuttons)

Press to select channels.

• (DOT) Press to shift the subchannel from the main

channel.

PREV.CH Press to return to the previously viewed channel.

CH+/− Press to select channels.

m FORMAT

Selects a picture format.

n VOL+/−

Press to adjust the volume.

o MUTE

Press to Turn the sound On and Off.

p BACK

Press to return to the previous menu operation.

q MENU/EXIT

Press to display the Home menu.

r NETFLIXandCOLORbutton(red)

Starts up NETFLIX and functionally useful for Net service.

s AUTOMODE

Cycles through preset picture and sound settings.

t OPTIONS

Displays a list of menu items applicable to the highlighted object

or screen.

English

Controlpanel

a VOLUME−/+

Press to adjust volume down (−) / up (+) or to move left (−) / right

(+) when selecting menu items.

b SOURCE

Toggle to select the connected devices.

c CHANNEL−/+

Press to select channels or to move up (+) / down (−) when

selecting menu items.

d POWER

Press

to Turn the unit On and go into Standby mode.

To completely Turn Off the unit, you must unplug the AC power

cord.

e Infraredsensor

Receives IR signals from remote control.

f PowerOnindicator

Lights up white when the unit is Turned On and ashes while the

unit is Turning On.

g Ambientlightsensor

Alters the brightness of the TV screen automatically by detecting

your room lighting level. Do not block the light sensor allowing it

to work properly.

g ef

Terminals

h Ethernetport

For Internet connection using an Ethernet cable with an RJ-45

connector.

i DigitalAudioOutputjack

Digital Audio (S/PDIF) Output to home theaters and other Digital

Audio systems.

j PCInputjack

VGA cable connection for PC.

k Component(Y/Pb/Pr)/CompositeVideo(VIDEO)Inputjacks

forVIDEO

Composite Video Input (VIDEO) jack is shared jack with

Component Video Input (Y) jack.

l AnalogAudio(L/R)Inputjacks

Connects Analog Audio signals from;

– HDMI-DVI / Analog Audio (L/R) jacks signal.

– Component Video / Analog Audio (L/R) jacks signal.

– Composite Video / Analog Audio (L/R) jacks signal.

– PC Connection / Analog Audio (L/R) jacks signal with Stereo

mini 3.5mm plug Audio cable on PC.

m HDMIInputjacks

Digital Audio and video Input from high denition Digital devices

such as Blu-ray disc players, cable boxes and satellite set-top

boxes.

For HDMI 1 only

In addition to normal HDMI and HDMI-DVI functionality, it

outputs TV Audio to an HDMI-ARC-compliant device, such as a

home theater system.

n USBwirelessnetworkterminal

Connects the supplied USB wireless LAN adapter.

o USBterminal

Data Input from USB Memory Stick only.

Do not connect any device to this terminal such as; Digital

camera, keyboard, mouse, etc.

p 75ohmCable/Antennaconnection

Signal Input from an antenna, cable or satellite.

q HeadphoneAudioOutputjack

Headphone 3.5mm stereo jack for personal listening.

English

Connectingtheantennaorthecable

Be sure your antenna or other device is connected properly before

plugging in the AC power cord.

IfyouconnecttoanantennathroughRFcable

Any DTV programs that are broadcasted in your area can be received

for free through an antenna connection.

ININ

OUT

antenna

RFcable

cable

Ifyouconnectaset-topboxthroughRFcable

If the TV is connected to a cable box or satellite set-top box via a

coaxial connection, set the TV to channel 3, 4 or the channel specied

by the service provider.

ININ

OUT

set-topbox

RFcable

antenna

RFcable

Ifyouconnectaset-topboxthroughHDMI

If the TV is connected to a cable box or satellite set-top box via HDMI,

make sure you select the correct Source by using SOURCE.

ININ OUT

set-topbox

HDMIcable

RFcable

Ifyouconnectaset-topboxthroughComponentVideoInput

If the TV is connected to a cable box or satellite set-top box via

Component Video Input, make sure you select the correct Component

Video Source by using SOURCE.

OUTOUT

OUT

set-topbox

RFcable

Audio(L/R)cables

Component(Y/Pb/Pr)Videocables

Connectingaset-topbox,Blu-ray/DVDrecordervia

compositeconnectorsandAnalogAudio

Do not place your recorder too close to the screen because some

recorders can be susceptible to signals.

ININ

OUT

ININ

OUT

RFcable

cable

set-topbox

Blu-raydisc/DVDrecorder

Audio(L/R)+Videocables

Audio(L/R)+

Videocables

Note

• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further

information.

• Depending on your antenna system, you may need different types of combiners

(mixers) or separators (splitters) for HDTV signal. The minimum RF bandpass on these

devices is 2,000MHz or 2GHz.

• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable

from the antenna Input jack before moving the unit.

• If you did use an antenna to receive Analog TV, it should also work for DTV reception.

Outdoor or attic antennas will be more effective than a set-top box or inside antenna.

• To Turn On your reception source easily between antenna and cable, install an antenna

selector.

• If you are not receiving a signal from your cable service, contact the Cable provider.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

PluggingintheACpowercord

Make sure that the AC power cord must be plugged to an AC outlet

after all the necessary connections are made.

Caution

• Do not connect the AC power cord to a power supply outside the indicated voltage of

this unit (AC 120V).

• Connecting the AC power cord to a power supply outside of this range may result in

re or electrical shocks.

Note

• Each time you plug in the AC power cord, no operations will be performed for a few

seconds. This is not a malfunction.

English

These operations are accessible by remote control.

Some may also be accessible by control panel on the main unit.

Initialsetup

This section will guide you through the unit’s initial setting which

includes selecting a language for your on-screen menu, country, location

and AutoProgram, which automatically scans and memorizes viewable

channels. You can also set the network connection in this setting.

Before you begin:

Make sure the unit is connected to antenna or cable.

1 After making all the necessary connections, press to Turn On the

unit.

• It may take a few moments to Turn On the unit for the rst time.

• Initial setup menu appears automatically after the unit is Turned

On.

2 Use ▲▼ to select the on-screen language, country, location on the

right side of the TV screen, then press OK.

• You must set Home in location setting. Otherwise, Picture and

Sound settings you adjusted will not be memorized after the unit

goes into Standby mode.

3 Use ▲▼ to select the signal type.

• If the TV is connect to a cable box or satellite set-top box, select

the 2nd one and skip to step 5.

TosetupaTVsignalfromacableTV

walljackorastandardTVantenna.



Select

TosetupaTVsignalfromacableTV

boxorsatelliteTVreceiver.



Select

4 Use ▲▼ to select Antenna for TV channels or Cable for CATV

channels, then press OK.

Makesurethatyouhave

attachedyourantennaorcable

signalintothejackontheback

ofyourTVlabeled“ANTENNA.IN”.



NowselecteitherAntennaor

Cable,usingup/downkeyofthe

remotecontrol.Onceyouhave

madeyouselection,pressthe

OKbuttontoproceed.



Antenna

Cable

Skip

– When Antenna is selected, the TV detects antenna signals. It searches

for DTV and Analog TV channels available in your area.

– When Cable is selected, the TV detects signals supplied by cable. It

searches for DTV, Analog TV and Cable channels available in your

area.

• Autoprogram will begin.

Systemsearching.Pleasewait...

Digitalchannelsfound: 0

Analogchannelsfound: 0

Autoprogrammingmaytakemorethan20minutesto

complete.DigitalchannelswilltakelongerthanAnalog

tofindandprogram.Pleasewaituntilyousee

theAutoProgrammingcompletemessage.



Stop

5 After the channel installation is completed, Network setup screen

will appear. Use ▲▼ to select Wireless or Wired, then press OK.

ThisTVcanbeconnectedto

yourhomenetwork.

Selectyourconnectiontype.

Wireless

Wired

Skip

Wireless

If you have a router with WPS function, select

Wireless to connect to the Internet.

Wired

If you connect with an Ethernet cable, select

Wired to connect to the Internet.

• If you select Wireless, use ▲▼ to select EasyConnect and

press OK.

6 Follow the on-screen instructions to complete the installation.

• When you select On in the selection screen of

Autosoftwareupdate. A message will appear if there is the

latest software on the network server.

7 Use ◄► to select Start,thenpress OK to begin Settingsassistant.

Settingsassistantwillallowyoutocustomizeyourpicturesettingstoyour

personalpreference.Youwillseeaseriesoftestpictureswhere

therightsideandleftsidediffer.Selectthesidethatismostpleasingto

youwiththeLeft/Rightbuttons.

Cancel Start

8 Press ◄

or ►

5 times to select the side of the pictures that is the

most pleasing to you, then press OK.

Whichsideofthepicturedoyouprefer?

Cancel Picture A Picture B

Continued on next page.

English

9 Press OK to nish Settingsassistant.

Storeyourpreferences.

Cancel Store

• Networkupdates will appear after Connectiontest succeeds.

Use ◄► to select Yes, then press OK.

• When the initial setup is completed, the lowest memorized

channel with the conrmation message of the location setting

will be displayed on the TV screen.

Note

• If you are not receiving a signal from your cable service, contact the Cable provider.

• If you press

during AutoProgram, this setup of TV channels will be canceled.

• The initial AutoProgram function can be executed for either Antenna or Cable only

once. When you change the connection (Antenna / Cable), set Autoprogram again.

➠

p.37

After an initial setup is completed...

• If you want to scan the channels automatically again.

Autoprogram  

➠

p.37

• You can add the desired cable and Analog channels

unmemorized by AutoProgram.

Weakchannelinstallation 

➠

p.37

• If you want to change to another language.

Language

➠

p.36

• If you want to change the country setting.

Country

➠

p.19

• If you want to change the location setting.

Location

➠

p.38

• If you want to change the network setting.

Network

➠

p.40

• If you want to restore the picture setting.

Settingsassistant

➠

p.30

English

4 UseyourTV

SwitchingonyourTVandputtingitin

Standbymode

ToTurnPowerOnortoTurnStandbyOn

• Press

on the side panel or the remote control.

Note

• Energy consumption contributes to air and water pollution. When the AC power

cord is plugged in, your TV consumes energy. Your TV has very low Standby power

consumption.

Adjustingvolume

Toincreaseordecreasevolume

• Press VOLUME −(down) / +(up)on the side panel or press

VOL+/− on the remote control.

Tomuteorunmutesound

• Press MUTE on the remote control to mute the sound.

• Press MUTE again or VOL+/− to recover the original sound.

Switchingchannels

ToselectChannelsbyusingCHANNEL−/+orCH+/−

• Press CHANNEL+(up) / −(down)on the side panel or press

CH+/− on the remote control.

ToselectChannelsbyusingtheNUMBERbuttons

DigitalTVoperation

• For Digital channels, press a number followed by a dot “•” and the

corresponding sub channel number.

– When selecting Digital channel 11.1

Be sure to press • before entering the subchannel number.

Analog/CableTVoperation

– When selecting cable or Analog channel 11

Press PREV.CH to return to the previously viewed channel.

Note

• To select the non-memorized channels, use theNUMBERbuttons.

• ChannelnotavailableorNoSignal will appear on the TV screen after the subchannel

broadcast is over.

• Audioonly message will appear on the TV screen, when you receive only sound signal.

English

Watchingchannelsfromanexternaldevice

Switching Each Input Mode can easily switch with the remote control

between TV (DTV or Analog TV) and external devices when they are

connected to the unit.

1 Turn On a set-top box or the connected device.

• The picture from your set-top box or the connected device

might appear automatically on the TV screen.

If the picture does not appear

 Press SOURCE repeatedly to select the set-top box or the

connected device and wait a few seconds till the picture appears.

e.g.)

HDMI1

HDMI2

HDMI3

Video

 11.1 HDMI1 HDMI2

DTV/TVchannel

Video

Component

PC HDMI3

• Pressing ▲ reverses the direction of the Input modes.

2 Use the remote control of the set-top box or the connected device

to select channels.

AccesstheHomemenu

1

Press MENU/EXIT.

GuidetoHomemenu

WatchTV BrowseUSB BrowsePC

NetTV Addnewdevices Setup

Watch TV :

Switches back to the antenna source if

another source is selected.

b Net TV :

Accesses Net TV menus.

c Add new devices :

Adds new devices to the Home menu.

d Browse USB :

Accesses USB menus.

e Browse PC :

Accesses DLNA menus.

f Setup :

Accesses menus that allow you to

change picture, sound and other TV

settings.

Note

• After selecting Addnewdevices, follow the on-screen instructions to select the correct

device and connector.

LockorunlockyourdevicefromtheHomemenu

This section describes how to lock or unlock specied device.

1 Press MENU/EXIT on the remote control.

2 Use ▲▼◄► to select a device to lock or unlock.

3 Press OPTIONS on the remote control.

4 Use

▲▼ to select Devicelock or Deviceunlock, then press OK.

• If device lock is unlocked, Devicelock will be displayed. If device

lock is locked, Deviceunlock will be displayed and

will be

displayed at the top right of the device icons.

5 Enter your PIN. ChangePIN

➠

p.36

• Once you have set PIN, PIN input menu does not appear after

the unit is Turned on.

EnableordisableRCkeyforwardingfromtheHome

This section describes how to enable or disable RC key forwarding for

a particular device.

1 Press MENU/EXIT on the remote control.

2 Use ▲▼◄► to select a device to enable or disable RC key

forwarding.

3 Press OPTIONS on the remote control.

4 Use ▲▼ to select EnableRCkeyforwarding or

DisableRCkeyforwarding, then press OK.

• If RC key forwarding is set to off, EnableRCkeyforwarding

will be displayed. If RC key forwarding is set to on,

DisableRCkeyforwarding will be displayed and

will be

displayed at the top left of the device icons.

Note

• This function is available only when your devices are connected to this unit

through HDMI cables and assigned to an HDMI port (HDMI 1 to HDMI 3) with

Addnewdevices in the Home menu.

English

PhilipsWirelessMediaConnect

You can enjoy your TV as a PC monitor wirelessly using your home

network. Make sure you download the Philips Wireless MediaConnect

software and install it on your PC before you perform the steps below.

InstallPhilipsWirelessMediaConnect

1 Display Setup using Home menu and use ▲▼ to select Software,

then press OK.

2 Use ▲▼ to select MediaConnectcode, then press OK.

• Write down the 12-digit code displayed on the screen. You will

need this to download MediaConnect software.

3 Start your Internet browser on your PC and open

the Philips Wireless MediaConnect download page at

www.wifimediaconnect.philips.com/

On the website, you can check the necessary PC system

requirements.

4 Enter the 12 digit code you wrote at step 2.

5 Click the “Download now” button to download the free

Philips Wireless MediaConnect software.

6 Once downloaded, start the le “Philips Wireless MediaConnect_

setup.exe”. Follow the instructions on the screen to complete

software installation.

UsingPhilipsWirelessMediaConnect

1 Launch Philips Wireless MediaConnect on your PC rst.

• Select “Start projecting” with right click on the

in the

system tray.

• The start up screen for Philips Wireless MediaConnect will

be displayed and the unit searches for an available PC that is

running Philips Wireless MediaConnect software.

Once connected, the Philips Wireless MediaConnect software will

encode and stream the screen of your PC as a video along with audio.

Depending on your computer and network conguration, there will be

a delay between your PC screen and the TV but the audio-video will

always be in sync.

PhilipsWirelessMediaConnectHelp

To read the Philips Wireless MediaConnect Help, right click the program

icon in the notication tray of the PC and select Help.

Specics

You can project high denition (HD) or standard denition (SD) video,

depending on the processing power of your PC. For smooth playback

of HD video, please use a hardware accelerated video player on your

computer. A hardware accelerated video player uses the graphics

adapter of your PC to render HD video rather than the processor.

This frees up the processor for Philips Wireless MediaConnect video

encoding. The content protection on most Blu-ray or DVD disc

movies might restrict watching the movie on TV when the disc is

playing on a PC. The TV shows PC media les with a small delay.

Philips Wireless MediaConnect is only available for PC.

PCrequirements

Windows XP, Windows Vista, Windows 7,

Mac OS X 10.6 or above (PC only)

MinimumPCrequirements

• Intel

Core™ 2 Duo 1.8GHz

• 512MB RAM

• IEEE 802.11n

RecommendedPCrequirements

• Intel

Core™ 2 Duo 2.1GHz

• 1GB RAM

Viewphotos,playmusicandwatchvideos

usingDLNA

On your TV you can play video, music and photo les stored on DLNA

certied home media servers connected to your home network. In

order to use this feature, you must connect this unit to the Internet.

Itisrecommendedthatlestobeplayedbackinthisunitarerecorded

underthefollowingspecications:

<MP3>

• Sampling frequency : 32kHz or 44.1kHz or 48kHz

• Constant bit rate : 32kbps - 320kbps

<JPEG>

• Upper limit : 16Mpixel

<MPEG>

• Playable codec : MPEG1, MPEG2

• Maximum size of a video : 1920 x 1080

• Audio type : AC3, MPEG1 audio layer 3 (MP3),

MPEG1 audio layer 2, LPCM

Note

• A maximum of 1,023 folders or les can be recognized.

• For the home server list, maximum of 16 servers can be displayed.

• The 10th and deeper hierarchies cannot be displayed.

• Unplayable les in the home server will not be displayed in the le list.

• For some les, playback is not available even if displayed in the le list.

• In order to play back the contents in home servers, the player and the servers must be

connected to the same access point.

• Compatibility and available playback function may differ depending on the home server.

• Video les with unsupported audio format will be skipped.

• The quality of the playback picture or audio differs depending on your network condition.

BeforeusingDLNA

Follow the procedure below before using DLNA.

1 Connect this unit to the Internet.

ConnectingtheTVtotheInternetusinganEthernetcable

➠

p.46

or ConnectingtheTVtotheInternetusingawirelessLAN

➠

p.47

• Broadband Internet connection of 8Mbps or faster is required.

2 Set up the necessary network connection settings. Network

➠

p.40

UsingDLNA

1 Start DLNA home media servers in your home network.

• For details, refer to the instruction book of the DLNA certied

device.

2 Press MENU/EXIT on the remote control.

3 Use ▲▼◄► to select BrowsePC.

• This unit will start loading the home server list.

4 After loading, home server list will appear. Select a home server you

want to access, then press OK.

English

GuidetoDLNA

Server 1 Audio

Server 2 Photos

Server 3 Video

Folder

Highway Blues

Title:

Artist:

Album:

Duration:

0

0:05:28

Year:

Video10

Blue hills

b c

a Home server list

b Folder / media icon

c Group (folder) / le list

d Image

e Current le info

ViewyourpicturesusingDLNA

1 Press ▲▼ to select a le or a folder.

2 Press OK or

Æ∆

to start a Slide show of the les.

• Press OK or

Æ∆

to pause the Slide show.

The F icon appears.

• Press E or D to move between images.

• Press BACK or C to stop the Slide show.

• Press OPTIONS to display the optional menu, then use ▲▼

select the desired item.

Slidetime*

Short

Switches to the next image in 5 seconds.

Medium

Switches to the next image in 10 seconds.

Long

Switches to the next image in 15 seconds.

Transitions*

None

No effect when switching images.

Dissolve

Overlaps a next image on a current image.

Wiperight

Pushes a current image out from left.

Wipeleft

Pushes a current image out from right.

Wipeup

Pushes a current image out from bottom.

Wipedown

Pushes a current image out from top.

Boxin

A next image comes into the center from out.

Boxout

A next image goes to the out from center.

Rotate*

Displays an image at its original direction.

Rotates an image clockwise by 90 degrees.

180

Rotates an image clockwise 180 degrees.

270

Rotates an image clockwise 270 degrees.

Zoom*

Displays an image at its original size.

Magnies a current image as twice.

Magnies a current image as fourfold.

*1 You can set Slidetimeand Transitions when images are in Slide show.

*2 You can set Rotate and Zoom when Slide show is in pause mode.

ListentomusicusingDLNA

1 Press ▲▼ to select a le or a folder.

2 Press OK or

Æ∆

to play the selected les.

• Press OK or

Æ∆

to pause, press OK or

Æ∆

again to resume.

• Press D to skip up the next le.

• Press E to skip down the previous le.

• Press C to stop playback.

• Press OPTIONS to display the optional menu, then use ▲▼

select the desired item.

Repeat

Off

Sets repeat playback to off.

Sets repeat playback for all MP3 les in the

current folder.

Shufe

Off

Sets shufe playback to off.

Sets shufe playback for all MP3 les in the

current folder.

TVspeakers

Off

The sound will not be output from the unit's

speakers.

The sound will be output from the unit's

speakers.

Speakers

EasyLink

You can control audio output from your

connected EasyLink Compliant Devices with

VOL+/−by using this unit's remote control.

Note

• MasterEasyLink must be activated in the Preferences menu to make the

 TVspeakers menu available when you select OnorSpeakersEasyLink.

WatchvideosusingDLNA

1 Press ▲▼ to select a le or a folder.

2 Press OK or

Æ∆

to play the selected les.

• Press OK or

Æ∆

to pause, press OK or

Æ∆

again to resume.

• Press D to fast-forward search.

• Press E to fast-backward search.

• Press C to stop playback.

Press

Æ∆

to resume from the point at which playback was

stopped. Press OK to play from the beginning of the le at

which playback was stopped.

• Press CH+to play the next le.

• Press CH− to play the current le at the beginning.

Press CH− twice within 5 seconds to play the previous le.

• Press OPTIONS to display the optional menu, then use ▲▼

select the desired item.

TVspeakers

Off

The sound will not be output from the unit's

speakers.

The sound will be output from the unit's

speakers.

Speakers

EasyLink

You can control audio output from your

connected EasyLink Compliant Devices with

VOL+/−by using this unit's remote control.

Note

• The resume information will be kept even when the unit is Turned Off.

• If you play another le while the previously viewed le is being resumed, the resume

information of the previously viewed le will be deleted.

English

NetTV

Net TV offers Internet services for your TV. Use the remote control to

browse the Net TV pages. You can play movies and much more, all from

your TV screen.

– Because Net TV is an online system, it can be modified over time to

better serve its purpose.

– Some Net TV services can be added, changed or stopped after

some time.

– You cannot download and save files or install plug-ins.

BeforeLoggingintoNetTV

Follow the procedure below before logging in to Net TV.

1 Connect this unit to the Internet.

2 Set up the necessary network connection settings. Network

➠

p.40

LoggingintoNetTV

1 Press NETTV.

• Net TV screen will appear, then use ▲▼◄► to select service

icon.

• For the rst time only, PhilipsTermsofUseInternet

Enabledproductscreen will appear. After conrming the

content, use ◄► to select Agree, then press OK.

GuidetoNetTVscreen

Apps

HD MOVIES

App Gallery

Video

Radio

Cloud TV™ POWERD

GA MES

movies sports technology

APP1

My Apps

APP2

: USA

Termsofuse

Country

a Net service icons (xed) :

Displays default service icons.

b MyApps list :

Displays Net service icons you have listed

in AppGallery.

c Country :

Selects what country you live.

d Termsofuse :

Displays a clause of Net service.

e AppGallery :

Displays currently available Net service

icons in your country.

f Page guide :

Displays the order of pages. The current

page will be highlighted.

g APP1 / APP2 :

Displays Net service icons you

have registered in AppGallery for

APP1 / APP2.

• Press COLORbuttons(green/yellow)

to start up APP1 / APP2 accordingly.

MyAppsfunctions

RemoveApp

1 Use ▲▼◄► to select the desired App, then press OPTIONS.

2 Use ▲▼ to select RemoveApp, then press OK.

• The selected App will be removed from MyApps list.

MoveApp

1 Use ▲▼◄► to select the desired App, then press OPTIONS.

2 Use ▲▼ to select MoveApp, then press OK.

• The selected App icon will be smaller.

3 Use ▲▼◄► to the point you want to place, then press OK.

GuidetoAppGallery

App Gallery

Video

Cloud TV™ POWERD

GA MES

Cloud TV™ POWERD

vTuner Video Cloud TV

Twitter

Tag Games

facebook (CloudTV)

All

a Category menu: :

List of category menu.

b Icon list :

Displays unregistered Net service icons

on MyAppslist.

c Page guide :

Displays the order of pages. The current

page will be highlighted.

1 Press NETTV, then use ▲▼◄► to select AppGallery.

2 Use ▲▼◄► to select the desired App in MyApps list, then press

OK.

• You can also choose from Category menu. Use ▲▼◄► to

select All, then use ▲▼ OK to select the desired category.

• If you select Add, the selected App icon will be placed at the

end of MyApps list.

• If you select Addandmove, the selected App icon will be

smaller and use ▲▼◄► to the point you want to place, then

press OK.

Even if you press BACK to cancel this function, the selected App

icon will be placed at the end of MyApps list.

InformationonNetworkServices

For detailed information on 3rd party Internet services, please visit the

service providers website:

Netix : http://www.netflix.com/HowItWorks

Film Fresh : http://filmfresh.roxionow.com/

VUDU : http://www.vudu.com/product_overview.html

Cloud TV : http://www.activevideo.com

English

EnjoyingvTuner

With this unit, you can enjoy video and Internet radio with vTuner via

the Internet. In order to watching video and listen to Internet radio, you

must connect this unit to the Internet.

Videoplayback

After you set up the network connection, follow the procedure below

to watch the video.

Guidetotheplayerscreen

e.g.) Recommendations

2/3

NewsNews

FavoriteNextPrevious

Recommendations Favo Genr Most

a Category :

List of category menus

 Recommendations : List of recommendation stations

 Favorites : List of your favorite video stations

 Genre : List of stations categorized by genre

 MostPopularPodcasts : List of popular podcasts

b Station list :

Displays station list.

c Operation guide :

Displays COLORbuttons

(red/green/yellow/blue) guide.

1 Press NETTV on the remote control and then use ▲▼◄►

select vTunerVideo.

2 Use ◄► to select the desired category, then press OK.

3 In the player screen, use ▲▼◄► to select the desired station or

genre, then press OK.

Guidetotheplaybackscreen

FavoriteNextPrevious

NEWSNEWS(11.25.10)

NEWSNEWS(11.24.10)

NEWSNEWS(11.23.10)

NEWSNEWS(11.22.10)

NEWSNEWS(11.21.10)

Date :Nov/25/2010

Duration :00:19:24

NEWSNEWS(Video)

Thelatestnews

Reco Favo Genre Most

a Station icon

b Station name

c Station information

d Episode list

e COLORbuttons(red/green/yellow/blue) guide

f Current episode information

4 In the playback screen, use ▲▼ to select the desired episode, then

press OK.

• After loading, playback of the selected episode will start.

• To stop playback, press C.

• Episode list can be displayed 5 episodes at one time. To show

the previous / next episodes, press COLORbuttons(red/green).

• To enlarge playback screen, press COLORbutton(blue).

Note

• Video service may not be fully available with narrowband Internet connection. (e.g.

56k modem) When watching video, use broadband Internet connection. (For details,

contact your Internet service provider.)

• Depending on the bit rate of a station or the network environment, it may take a while

to complete loading the station or playback may not be available.

• The streaming video may be interrupted during playback, when the vTuner server is busy.

• Some stations cannot be displayed in the list, depending on the network environment.

• If the loading time of a station exceeds 3 minutes, the loading will be canceled.

• The order of station / episode in the list depends on the information from vTuner

server and may change without notice.

AddtoFavorites

You can add your favorite stations to Favorites in the category tab. To

add your favorite stations, follow the procedure below.

1 Follow steps 1 to 2 in Videoplayback.

➠

p.20

2 Use ▲▼◄► to select the station you want to add to Favorites,

then press COLORbutton(yellow).

• The selected station is added to the station list in Favorites.

• Conrmation message will appear.

• Press COLORbutton(yellow) to add your favorite station in

Favorites while the desired episode is selected in the episode list

or the episode is being played back.

3 Press OK.

RemovefromFavorites

1 Follow step 1 in Videoplayback.

➠

p.20

2 Use ◄►

to select Favorites in the category tab, then press OK.

3 Use ▲▼◄►

to select the station you want to remove from

Favorites, then press COLORbutton(yellow).

• Conrmation message will appear.

4 Use ◄► to select Yes, then press OK.

• The selected station is removed from Favorites.

English

Internetradioplayback

After you set up the network connection, follow the procedure below

to listen to Internet radio.

Guidetotheplaybackscreen

e.g.)Location

 Jazz(3)

7

6.2

F

Jazz

j

Azz

j

aZz

j

azZ

Schonan

B

each

F

7

8.9

Favorite

Genre :Jazz

Location :Japan

Language :Japanese

a Current hierarchy (total number of items)

b Current station information

(Information will be changed when INFO is pressed)

c COLORbuttons(red/green/yellow/blue) guide

d Station list

e Playback status

f Station icon

1 Press NETTV on the remote control and then use ▲▼◄►

select vTunerRadio.

• Category list will appear.

2 In the category list, use ▲▼ to select the desired category, then

press OK.

• Station / folder list of selected category will appear.

• For Location and Genre, use ▲▼ to select the desired location

or genre after selecting the category, then press OK.

RecentlyPlayed

List of stations which are recently played

Favorites

List of your favorite radio stations

MyAddedStations

List of stations which are added on vTuner

website (This category will appear only

after you add stations on vTuner website. )

Location

List of stations categorized by location

Genre

List of stations categorized by genre

NewStations

List of the latest stations which are recently

added automatically.

MostPopularStations

List of the most frequently accessed

stations by the all listeners.

3 In the station / folder list, use ▲▼ to select the desired station, then

press OK.

• After loading, playback of the selected station will start.

• If you select a folder, use ▲▼ to select the desired station in the

next hierarchy, then press OK.

• To stop playback, press C.

• To go back to the previous or next hierarchy, press ◄►.

Note

• This unit cannot play back stations with audio format other than MP3 and WMA.

• Internet radio service may not be fully available with narrowband Internet connection.

(e.g. 56k modem) When listening to Internet radio, use broadband Internet connection.

(For details, contact your Internet service provider.)

• Depending on the bit rate of a station or the network environment, it may take a while

to complete loading the station or playback may not be available.

• The streaming audio may be interrupted during playback, when the vTuner server is busy.

• Some stations cannot be displayed in the list, depending on the network environment.

• If the loading time of a station exceeds 3 minutes, the loading will be canceled.

• The order of station / folder in the list depends on the information from vTuner server

and may change without notice.

Addtofavoritelist

You can add your favorite stations to Favorites in the category list. To

add your favorite stations, follow the procedure below.

1 Follow steps 1 to 3 in Internetradioplayback.

➠

p.21

2 Use ▲▼ to select the station you want to add to Favorites, then

press COLORbutton(yellow).

• The selected station is added to Favorites folder.

• Conrmation message will appear.

• If you select a folder, use ▲▼ to select the desired station in the

next hierarchy, then press COLORbutton(yellow).

3 Press OK.

Note

• You can also add your favorite stations to Favorites on your PC. To add your favorite

stations on your PC, visit http://go2service.vtuner.com/pe/ and create a vTuner account

with the access code, which you can check from the category list. Internetradio

playback

➠

p.21

• You can change folder names or order of lists in your vTuner page on the Internet.

• My_Favorite folder will appear after you add a station to Favorites on this unit. (Your

favorite station will also be added to My_Favorite folder.)

Removefromfavoritelist

1 Follow step 1 in Internetradioplayback.

➠

p.21

2 Use ▲▼ to select Favorites, then press OK.

3 Use ▲▼ to select the station you want to remove from Favorites,

then press COLORbutton(yellow).

• Conrmation message will appear.

4 Use ◄► to select Yes, then press OK.

• The selected station is removed from Favorites folder.

AddstationsonthevTunerwebsite

You can add stations which are not in the vTuner station list.

1 Follow step 1 in Internetradioplayback.

➠

p.21

2 Use ▲▼ to select Getaccesscode, then press OK.

• The latest vTuner website address and access code for this unit

will be displayed. Please take a note of the access code. (This

access code will be required when creating a vTuner account.)

3 On your PC, visit the website and create your vTuner account.

• Follow the instructions given on the PC screen.

4 Add stations by following the instructions given on the PC screen.

• The stations will be added to MyAddedStations.

English

Resetthestationlist

You can remove all stations / folders in RecentlyPlayed, Favorites and

MyAddedStations.

1 Follow step 1 in Internetradioplayback.

➠

p.21

2 Use ▲▼ to select Reset, then press OK.

3 Use ◄► to select Yes, then press OK.

• All stations / folders in RecentlyPlayed, Favorites and

MyAddedStations are removed.

Pandora

operations

With this unit, you can instantly listen to personalized radio stations

streamed over the Internet from Pandora.

To learn more about Pandora, please visit www.pandora.com

ActivatingPandora

In order to listen to Internet radio streamed from Pandora via the

Internet, you must create a Pandora account and activate this unit.

1 Press NETTV,then use▲▼◄► to select PANDORA.

2 Use ▲▼ to select Createnewaccount, then press OK.

3 Use ▲▼ to select No,IamnewtoPandora., then press OK.

4 Note the activation code and website address displayed on the TV

screen.

5 On your PC, visit the website address noted at step 4.

6 Follow directions on the website to create your account.

7 On this unit, select Continue and press OK to complete activation.

AddingPandoraUserAccounts

You can add multiple Pandora user accounts on this unit.

1 Follow steps 1 to 2 inActivatingPandora.

➠

p.22

2 Use ▲▼ to select Yes,IhaveaPandoraaccount, then press OK.

3 Enter your e-mail address, then press OK while OK is selected.

4 Enter a password, then press OK while OK is selected.

5 Use ▲▼ to select SignIn, then press OK.

• Your account is added to the user list and player screen appears

on the TV screen.

Note

• Pandora is available only in the United States.

• You can add up to 5 accounts. After creating 5 accounts, Createnewaccount will not

be displayed.

CreatingaNewStation

By entering your favorite artists or tracks, Pandora selects music and

creates a new station for you on the basis of the entered information.

1 On the player screen, press COLORbutton(yellow) to call up the

ToolMenu.

2 Use ▲▼ to select Createanewstation, then press OK.

3 Enter a name of your favorite artist or tracks, then press OK while

OK is selected.

• Search result will appear on the right side of the TV screen.

• If the selection screen of result type appears, use ▲▼ to select

the desired type, then press OK.

4 Use ▲▼ to select the desired station, then press OK to start the

playback.

Æ∆

Resumes the playback / pause the playback.

Stops the playback and the station list will appear.

∫

Skips to the next track.

Note

• On the ToolMenu, you can delete or rename the currently selected station.

GuidetothePlayerScreen

On the player screen, you can set various options to the currently

playing track.

: XXXXX

ABC

American Oldies Radio

4:52 0:00

cba d e f

Exit

Whythistrack? ToolMenu StationList

a Artist name

: Displays artist name.

b Album name

: Displays album name.

: Give thumbs up to the currently playing track.

Pandora will play tracks similar to the track.

: Give thumbs down to the currently playing

track. Pandora will skip and will not play the

track.

: Bookmarks the currently playing track.

You can view your bookmarked tracks list by

accessing Pandora website and log into your

account.

: Tells Pandora that you do not like the currently

playing track. Pandora will not play the track for

about a month.

Operation guide

: Displays COLORbuttons

(red/green/yellow/blue) guide.

English

UsingTwitter

You can view your Twitter feeds and more using the Twitter application

on this unit.

– For more details about Twitter, please visit www.twitter.com

LoggingintoTwitter

After you set up the network connection, you must log in with your

Twitter account.

Make sure the unit is not in network service or Browse USB mode.

1 Press NETTV on the remote control and then use ▲▼◄►

select Twitter.

• Login screen will appear.

2 Use ▲▼ to select Username, then press OK.

• Software keyboard will appear.

Characters

Select each one of characters from the list.

Clear

Delete the last character in the entry eld.

Allclear

Delete all characters in the entry eld.

a/A/@

Switch case and symbols.

Cancel

Cancel the input.

Determine the input Username and/or Password.

3 Use ▲▼◄► to input your Usernameand Password into the

entry elds. Select OKafter you have lled in all the necessary

items in the entry eld, then press OK.

• Password can be skipped next time onwards once you have

selected Rememberme when registering the user name.

• Software keyboard will disappear.

4 Use ▲▼◄► to select Start, then press OK.

• The unit will now establish a connection with the Twitter server

and perform authentication.

5 When the unit is logged in successfully, Twitter Homescreen will

appear at the left and the timeline will appear at the bottom of the

TV screen.

Note

• User name and password are case-sensitive.

• User name will not accept your e-mail account. Use only your user name registered on

the Twitter server.

• If you select Start with no user name, the unit logs in as 'Public'. In this case you can

display 'Public timeline' and 'Trends' only.

• For questions regarding Twitter, please visit www.twitter.com

GuidetoTwitterHomescreen

Twitter Home Screen consolidates browsing of tweets and some

functional menus for Twitter.

To call up the screen, press NETTV on the remote control and then

use ▲▼◄►

to select Twitter.

SingleView

Phily and Maggy

Home

Favorite

Mentions

List

Trends

Rightasrain.Thatwasasenseofhumor...

 lessthan1minute

a Menu :

List of functional menus.

Viewing channel :

Displays currently watching channel.

Timeline :

Displays currently tweeting on Twitter.

Operation guide :

Displays COLORbuttons

(red/green/yellow/blue) guide.

FullView

Single view switches to Full view when you select timeline then press

OK.

Peter’s rock star

Propatanga

Tinner Loberto

Perseverance prevails.

Phily and Maggy

Home

Favorite

Mentions

List

Trends

Rightasrain.Thatwasasenseofhumor...

 lessthan1minute

I'llbethere,textbookinhand!

 lessthan1minute

Greetings,Iamlookingforasmalltinystoveinwhichtoheatonceaday.

 lessthan1minute

Wouldyoulikethestraightforwardreasonsthatpeoplebelieveinit?

 lessthan1minute

It’snotsorichacountryasyourcountry.

 lessthan1minute

ViewingtweetsontheTV

After logging in to Twitter, your TV will download the latest 20 tweets

to display.

1 Press NETTV on the remote control and then use ▲▼◄►

selectTwitter.

2 Use ▲▼◄► to select the desired user name, then press OK.

• If you have not stored the password,

will appear beside the

user name.

3 When the unit is logged in successfully, Twitter Homemenu will

appear at the left and the timeline will appear at the bottom of the

TV screen.

Note

• 4 user names (accounts) can be stored in this unit.

Continued on next page.

English

ViewingFavoritesonTwitter

Your TV displays the logged in user's favorites on Twitter.

1 Follow steps 1 to 2 in ViewingtweetsontheTV.

➠

p.23

2 Use ▲▼ to select Favorite, then press OK.

• If you have no favorites, TVwasnotabletoacquiretheTweet.

will appear.

DisplayingMentionsonTwitter

Your TV displays replies for the logged in user.

1 Follow steps 1 to 2 in ViewingtweetsontheTV.

➠

p.23

2 Use ▲▼ to select Mentions, then press OK.

• If you have no replies, TVwasnotabletoacquiretheTweet.

will appear.

ViewingListsonTwitter

The list shows timeline categories such as friends, family, colleagues, or

sports teams created by yourself on your account.

1 Follow steps 1 to 2 in ViewingtweetsontheTV.

➠

p.23

2 Use ▲▼ to select List, then press OK.

• If you have no lists, Cannotgetthelistinformation. will appear.

3 When you press COLORbutton(yellow) in 1 or 5 list view, the

timeline will be separated at top and bottom. The upside displays 3

timelines and the downside display 2 timelines.

2ListView

Peter’s rock star

Propatanga

Tinner Loberto

Perseverance prevails.

Phily and Maggy

Rightasrain.Thatwasasenseofhumor...

 lessthan1minute

I'llbethere,textbookinhand!

 lessthan1minute

Greetings,Iamlookingforasmalltinystoveinwhichtoheatonceaday.

 lessthan1minute

Wouldyoulikethestraightforwardreasonsthatpeoplebelieveinit?

 lessthan1minute

It’snotsorichacountryasyourcountry.

 lessthan1minute

4 When you press COLORbutton(blue) in 1 or 2 list view, the

timeline will increase 5 lines.

5ListView

Peter’s rock star

Propatanga

Tinner Loberto

Perseverance prevails.

Phily and Maggy

Rightasrain.Thatwasasenseofhumor...

 lessthan1minute

I'llbethere,textbookinhand!

 lessthan1minute

Greetings,Iamlookingforasmalltinystoveinwhichtoheatonceaday.

 lessthan1minute

Wouldyoulikethestraightforwardreasonsthatpeoplebelieveinit?

 lessthan1minute

It’snotsorichacountryasyourcountry.

 lessthan1minute

ViewingTrendsonTwitter

Trends show topics trending in your area.

1 Follow steps 1 to 2 in ViewingtweetsontheTV.

➠

p.23

2 Use

Îï

to select Trends, then press OK.

• Press COLORbutton(green)to switch between the Area and

Trends.

• If you display Area, the topside will be displayed some countries,

and the downside will be displayed some cities.

English

Usingautomode

1

Press AUTOMODE to set your TV to a predened picture and

sound setting.

2 Use ▲▼to select one of the following settings :

Autopicture Autosound Description

Personal

The customized settings you dened using

the Picture and Sound menu

Vivid

Enhanced picture contrast, sharpness and

sound for viewing in a well-lit room

Sports

Brilliant picture settings and clear sound for

high action

Standard

For normal TV viewing

Movie

Deep picture and powerful sound settings

for a cinematic experience

Game -

Optimized for PCs and game consoles

Internetvideo -

Optimized for low bitrate Internet video

Powersaver -

Eco TV settings for low power

consumption

- Music

Optimized for music playback

- News

Controls picture tone and set the anchor's

voice at a comfortable volume

Createanduselistsoffavoritechannels

You can create lists of your preferred TV channels so that you can nd

those channels easily.

Selectalistoffavoritechannels

1 Press FAV.

• Your lists of favorite channels are displayed.

2 Use ▲▼

to select the desired list, then press OK.

Createoreditalistoffavoritechannels

1 Press FAV to display your lists of favorite channels.

2 Use ▲▼

to select the desired list, then press OK.

3 Press OPTIONS to enter edit mode.

• A list of channels is shown.

4 Use ▲▼ to select the desired channel, then press OK to add or

remove on the list of favorite channels.

• indicates that the channel is added.

• indicates that the channel is removed.

5 Press MENU/EXIT to exit.

Switchtooneofthechannelsonalist

1 Press OK to display the last list that you selected.

2 Use ▲▼ to select a channel, then press OK.

• The TV switches to that channel.

Note

• Press CH+/− to select channels in a list or press theNUMBERbuttons to select

channels that are not in a list. .

Sleeptimer

Sleep timer can set the unit to go into Standby mode after an

incremental period of time.

 Press SLEEP repeatedly to change the amount of time

(increases the time by 5 minutes up to 180 minutes).

• Each press of ◄ will decrease the time by 5 minutes.

• Press INFO once to call up the display for checking the

remaining time.

• To cancel sleep timer, press SLEEP or ◄► repeatedly until

“ 0 ” is displayed.

English

Changingpictureformat

Display modes can be selected when your TV receives a 16:9 or 4:3

video signal.

Three types of display modes can be selected for a PC Input signal.

Press FORMATrepeatedly to switch the TV aspect ratio.

For16:9videosignal

Automatic

Widescreen

4:3

Unscaled(1080i/p only)

Automatic

Other than DTV and HDMI connected devices, enlarges

the picture to best t the screen.

DTV and HDMI connected devices display the picture at

its original size. The subtitles may remain visible.

4:3

Displays a 16:9 picture at a 4:3 size; the picture is

shortened horizontally.

Sidebars appear on both edges of the screen.

Widescreen

Displays a 16:9 picture that is stretched horizontally and

vertically.

Unscaled

(1080i/p only)

Displays a 16:9 picture at its original size.

For4:3videosignal

Automatic

4:3

Superzoom

Movieexpand16:9

Movieexpand14:9

Widescreen

Automatic

Other than DTV and HDMI connected devices, enlarges

the picture to best t the screen.

DTV and HDMI connected devices display the picture at

its original size. The subtitles may remain visible.

Superzoom

Displays a 4:3 picture at a 16:9 size; the picture is stretched

horizontally and vertically and its left and right edges are

enlarged. This crops out the top and bottom of the picture.

4:3

Displays a 4:3 picture at its original size.

Sidebars appear on both edges of the screen.

Movieexpand

14:9

Displays a 4:3 picture at a 14:9 size; the picture is stretched

horizontally and vertically.

This crops out the top and bottom of the picture. Sidebars

appear on both edges of the screen.

Movieexpand

16:9

Displays a 4:3 picture at a 16:9 size; the picture is stretched

horizontally and vertically.

This crops out the top and bottom of the picture.

Widescreen

Displays a picture that is stretched out of proportion to ll

the screen.

ForPCInputsignal

4:3

Unscaled

Widescreen

• This unit can also be connected to your PC that has a DVI terminal. Use an HDMI-DVI

conversion cable for this Video connection and it requires Stereo mini 3.5mm plug Audio

cable for Analog Audio signal as well.

• Refer to 16:9 video signal on this page if PC has HDMI Output.

4:3

Displays a proportionately stretched picture.

Sidebars appear on both edges of the screen.

Widescreen

Displays a picture that is stretched out of proportion to ll

the screen.

Unscaled

Displays a picture in its original size.

TVscreeninformation

You can display the currently selected channel or other information

such as the aspect ratio on the TV screen.

In the Digital mode, the detailed broadcasting information for the current

off-the-air channel such as program title and program guides are displayed.

1 Press INFO.

11.1 KABC

ADayofMemories

Resolution 1080i

Pictureformat Widescreen

Soundmode

Stereo

Audiolanguage English

CCpresence

Rating None

Sleeptimer

a broadcast station

b channel number / Input mode26

   Switchingchannels

➠

p.15

   Watchingchannelsfromanexternaldevice

➠

p.16

c program title (for DTV only)

d program’s image aspect ratio

   Changingpictureformat

➠

p.26

e audio language (DTV) / audio mode (Analog TV)

   Sound

➠

p.32

f CC (not available if Closed Caption is set to Off)

   Captionsettings

➠

p.33

g child lock rating

   Childandratingslock 

➠

p.34

h remaining time of sleeptimer

   Sleeptimer 

➠

p.34

2 Press INFO to hide the information.

Note

• While the program guide is displayed, the Closed Caption function is interrupted.

• The information display will automatically disappear in 5 seconds.

English

USB

Your TV is tted with a USB connection that enables you to view

photos, listen to music or watch video les stored on a USB Memory

Stick.

1 Connect the USB Memory Stick to the USB terminal on the side of

your TV.

2 Press MENU/EXIT and use ▲▼◄► to select USB, then press

OK.


avi

jpg

Music

mp3


Video





3 Use ▲▼ to select the Picture, Music or Video, then press OK.

• The les recorded under the following specications are

required.

• Press OPTIONS to display the optional menu, then press OK to

switch between List and Thumbnails.

Picture(JPEG)

Upper limit

16Mpixel

Music(MP3)

Sampling frequency

32 kHz, 44.1 kHz or 48 kHz

Constant bit rate

32 kbps - 320 kbps

Video

Maximum size of a

video

1920 x 1080

Extension

.mpg,

.mpeg

.vob .avi .mp4 .wmv

Video codec

Audio codec

MPEG1,

MPEG2

MPEG4 SP

MPEG4 ASP

H.264,

MPEG4

WMV9

(WVC1)

AC3 YES YES YES NO NO

MPEG1 audio layer3

(MP3)

YES NO YES NO NO

MPEG1 audio layer2 YES NO YES NO NO

LPCM YES NO NO NO NO

AAC-LC NO NO NO YES NO

WMA NO NO NO NO YES

Note

• Up to 2GB (FAT16) or 8GB (FAT32) capacity can be supported.

• Up to 10,000 les or 1,000 folders with 19 hierarchies can be recognized.

• Up to 255 English characters can be recognized.

• This unit does not support MTP(Media Transfer Protocol).

• This unit supports FAT16 and FAT32 le systems.

• If the le is not supported, an error message appears.

• When the USB Memory Stick is not recognized, try reconnecting it again.

• We cannot be held responsible if your USB Memory Stick is not supported, nor will we

accept any liability for damage or loss of stored data.

• A le name exceeding 128 characters or contains a dot character is not supported on

this TV.

• Progressive JPEG les are not supported.

Picture(JPEG)

1 Use ▲▼ to select a le or a folder.

avi Image4.jpg

jpg Image5.jpg

mp3 Image6.jpg

Image1.jpg Image7.jpg

Image2.jpg Image8.jpg


11/11/201111:11AM

800×600pixels


2 Press OK or

Æ∆

to start a Slide show of the les.

• Press OK or

Æ∆

to pause the Slide show.

The F icon appears.

• Press E or D to move between images.

• Press BACK or C to stop the Slide show.

• Press OPTIONS to display the optional menu, then use ▲▼

select the desired item.

Slidetime*

Short

Switches to the next image in 5 seconds.

Medium

Switches to the next image in 10 seconds.

Long

Switches to the next image in 15 seconds.

Transitions*

None

No effect when switching images.

Dissolve

Overlaps a next image on a current image.

Wiperight

Pushes a current image out from left.

Wipeleft

Pushes a current image out from right.

Wipeup

Pushes a current image out from bottom.

Wipedown

Pushes a current image out from top.

Boxin

A next image comes into the center from out.

Boxout

A next image goes to the out from center.

Autopicture

Selects the picture mode according to your preference.

(Vivid,Sports,Standard,Movie, Game, Internetvideo and

Powersaver)

Rotate*

Displays an image at its original direction.

Rotates an image clockwise by 90 degrees.

180

Rotates an image clockwise 180 degrees.

270

Rotates an image clockwise 270 degrees.

Zoom*

Displays an image at its original size.

Magnies a current image by 2 times.

Magnies a current image by 4 times.

*1 You can set Slidetimeand Transitions when images are in Slide show.

*2 You can set Rotate and Zoom when Slide show is in Pause mode.

English

Music(MP3)

1 Use ▲▼ to select a le or a folder.

avi Track4.mp3

jpg Track5.mp3

mp3 Track6.mp3

Track1.mp3 Track7.mp3

Track2.mp3 Track8.mp3

Title:

Artist:

Album:

Duration:00:05:28

Year:

Track3.mp3

2 Press OK or

Æ∆

to play the selected les.

• Press OK or

Æ∆

to pause, then press OK or

Æ∆

again to

resume.

• Press D to skip to the next le.

• Press E to return to the beginning of the le currently playing.

• Press C to stop playback.

• Press OPTIONS to display the optional menu, then use ▲▼

select the desired item.

Repeat

Off

Sets repeat playback to Off.

Sets repeat playback for all MP3 les in the

current folder.

Shufe

Off

Sets shufe playback to Off.

Sets shufe playback for all MP3 les in the

current folder.

TVspeakers

Off

The sound will not be output from the unit's

speakers.

The sound will be output from the unit's

speakers.

Speakers

EasyLink

You can control Audio Output from your

connected

EasyLink Compliant Devices with

VOL+/−by using this unit's remote control.

Autosound

Selects the sound mode according to your preference.

(Standard,Vivid,Sports,Movie,MusicandNews)

Note

• TVspeakers will be displayed only when MasterEasyLink is set to On.

EasyLink

➠

p.39

Video

1 Use ▲▼ to select a le or a folder.

avi Movie4.avi

jpg Movie5.avi

mp3 Movie6.avi

Movie1.avi Movie7.avi

Movie2.avi Movie8.avi

Title:

Director:

Date:

Duration:

Movie3.avi

2 Press OK or

Æ∆

to play the selected les.

• Press OK or

Æ∆

to pause, then press OK or

Æ∆

again to

resume.

• Press D to fast-forward search.

• Press E to fast-backward search.

• Press C to stop playback.

Press

Æ∆

to resume from the point at which playback was

stopped. Press OK to play from the beginning of the le.

• Press OPTIONS to display the optional menu, then use ▲▼

select the desired item.

Subtitle

Notavailable

Displays if no subtitle is available.

SubtitleOff

Sets subtitle to Off.

Subtitle1-8

Selects the desired subtitle if the Video le

contains them.

Audio

language

Notavailable

The unit displays if no Audio language is

available.

Audio1-8

Selects the desired Audio language if the Video

le contains them.

TVspeakers

Off

The sound will not be output from the unit's

speakers.

The sound will be output from the unit's

speakers.

Speakers

EasyLink

You can control Audio Output from your

connected

EasyLink Compliant Devices with

VOL+/−by using this unit's remote control.

Autopicture

Selects the picture mode according to your preference.

(Vivid,Sports,Standard,Movie, Game, Internetvideo and

Powersaver)

Autosound

Selects the sound mode according to your preference.

(Standard,Vivid,Sports,Movie,MusicandNews)

Note

• The resume information will be kept even when the unit is Turned Off.

• If you play another le while the previously viewed le is being resumed, the resume

information of the previously viewed le will be deleted.

• The le or the folder in resume stop mode will be highlighted in gray on



List or

Thumbnails

• TVspeakers will be displayed only when MasterEasyLink is set to On.

EasyLink

➠

p.39

English

5 UsemoreofyourTV

3 Use ▲▼ to select the desired menu and an item, then press OK

or use ▲▼◄► to determine the setting.


Settings assistant

Start now

Auto picture

Personal

Backlight

Contrast

Brightness

Color

Tint

Sharpness

Sound

Features

Installation

Software


➠

p.30

Adjusting the picture mode or customize the picture

quality as your preference.

Sound

➠

p.32

Adjusting the sound mode, equalizer and some other

sound functions.

Features

➠

p.33

Adjusting the Closed Caption, parental guide and some

other useful functions.

Installation

➠

p.36

You can choose language, scan the channels available in

your area or make the Network settings.

Software

➠

p.43

You can check the current software version, update the

software or deactivate the setting for Netix and VUDU.

4 When the setting is completed, press MENU/EXIT or BACK to

exit.

This section describes the overview of the Setup menu displayed when

you press MENU/EXIT and use ▲▼◄►to selectSetup.

The Setup menu consists of the function setting items below.

1 Press MENU/EXITto display Home menu.

2 Use ▲▼◄► to select Setup, then press OK.

WatchTV BrowseUSB BrowsePC

NetTV Addnewdevices Setup

English


Before you begin:

You must set Home in Location.

➠

p.38

Otherwise, personalized picture and sound settings will not be

memorized after the unit goes into Standby mode.

1 Press MENU/EXIT and use ▲▼◄► to select Setup, then press

OK.

2 Use ▲▼ to select Picture, then press OK.


Settings assistant

Start now

Auto picture

Personal

Backlight

Contrast

Brightness

Color

Tint

Sharpness

Sound

Features

Installation

Software

3 Use ▲▼◄► to select the item you want to adjust, then press OK.

• The following picture settings can be congured. Depending on

the format of the picture Source, some picture settings are not

available.

Settingsassistant

to guide you through the best picture setting

Autopicture

to select the desired setting, then press OK

(Personal, Vivid, Sports, Standard, Movie,Game

Internetvideoand Powersaver)

When you adjust the following settings, Personal will

be set automatically.

Cursor◄ Cursor►

Backlight

to reduce power

consumption

to set the backlight

brighter

Contrast

to decrease contrast to increase contrast

Brightness

to decrease brightness to increase brightness

Color

to decrease color

intensity

to increase color intensity

Tint

to add red to add green

Sharpness

to soften to sharpen



*Advancedpicture

to select the desired setting, then press OK

(Coloralignment, Noisereduction, Lightsensor,

Blackstretch, Dynamiccontrast, Gamma,

MPEGartifactreduction,Dynamicbacklight,

Colorenhancement,Customcolormanagement

andFilmmode)

Pictureformat

Automatic

Changingpictureformat

➠

p.26

Superzoom

4:3

Movieexpand14:9

Movieexpand16:9

Widescreen

Unscaled

Modeselection

to Turn Off image enhancement

features which makes the TV to

act purely as a monitor

HDTV

to enable image enhancement

features to improve picture

quality

Autoadjustment

to adjust the horizontal / vertical position, clock and

phase of the PC screen automatically

Cursor◄ Cursor►

Clock

to decrease setting value to increase setting value

Phase

Horizontalshift

to move PC screen left to move PC screen right

Verticalshift

to move PC screen down to move PC screen up

Continued on next page.

English

*You can set a particular about picture quality in Advanced picture.

Auto picture

Color alignment

Mode

Noise reduction

Auto

Light sensor

Black stretch

Medium

Dynamic contrast

Maximum

Gamma

MPEG artifact reduction

Medium

Dynamic backlight

Maximum

Backlight

Contrast

Brightness

Color

Tint

Sharpness

Advanced picture

Color

alignment

Mode

to set the color temperature to

Personal, Cool, Normal and Warm

When you adjust the following

settings, Personal will be set

automatically.

Cursor◄ Cursor►

Redgain

to decrease

contrast with red

to increase

contrast with red

Greengain

to decrease

contrast with

green

to increase

contrast with

green

Bluegain

to decrease

contrast with blue

to increase

contrast with blue

Redoffset

to decrease

brightness with

red

to increase

brightness with

red

Greenoffset

to decrease

brightness with

green

to increase

brightness with

green

Blueoffset

to decrease

brightness with

blue

to increase

brightness with

blue

Noise

reduction

to select the desired setting, then press OK

(Off, Minimum, Medium, Maximum and Auto)

Lightsensor

Off

to set Light sensor to Off

to adjust backlight for the best picture

quality by dynamically adjusting the

backlight intensity in accordance with

lighting condition in the room

Black

stretch

to select the desired setting, then press OK

(Off, Minimum, Medium and Maximum)

Dynamic

contrast

to select the desired setting, then press OK

(Off, Minimum, Medium and Maximum)

Gamma

Cursor◄ Cursor►

to adjust the gamma encoding of images

MPEG

artifact

reduction

to select the desired setting, then press OK

(Off, Minimum, Medium and Maximum)

Dynamicbacklight

to select the desired setting, then press OK

(Off, Minimum, Medium and Maximum)

Color

enhancement

Off

to set color enhancement to Off

to make colors more vivid and bright

Custom

color

management

to select the desired setting, then press OK

(Red, Yellow, Green,Cyan,BlueandMagenta)

Cursor◄ Cursor►

Tint

to rotate only

selected color

tint in clockwise

direction

to rotate

only selected

color tint in

counterclockwise

direction

Saturation

to decrease color

with only selected

color

to increase color

with only selected

color

Brightness

to decrease

brightness with

only selected

color

to increase

brightness with

only selected

color

Filmmode

Off

to set lm mode to Off

Auto

to optimize the picture recorded by

the original lm

Note

• Modeselection is available only if

– the external Input modes are selected HDMI 1, HDMI 2 or HDMI 3.

– the connected HDMI device is outputting a video signal.

• Adjusts backlight for the best picture quality by dynamically adjusting the backlight

intensity in accordance with lighting condition in the room when Lightsensor is set to

On. Please ensure the room lighting is stable and the light sensor is not blocked.

English

Sound

Before you begin:

You must set Home in Location.

➠

p.38

Otherwise, personalized picture and sound settings will not be

memorized after the unit goes into Standby mode.

1 Press MENU/EXIT and use ▲▼◄► to select Setup, then press

OK.

2 Use ▲▼ to select Sound, then press OK.


Auto sound

Personal

Sound

Equalizer Start now

Features

Balance

Installation

Digital audio language English

Software

SRS TruSurround HD On

AVL

Off

TV speakers

Delta volume

3 Use ▲▼◄► to select the item you want to adjust, then press

OK.

The following sound settings can be congured. Depending on the

format of the broadcasting, some sound settings are not available.

Autosound

to select the desired setting

(Personal, Standard, Vivid, Sports, Movie,Musicand

News)

When you adjust the following settings (Equalizer,

SRSTruSurroundHDand AVL), Personalwill be set

automatically.

Adjust the tonal quality for each frequency.

Equalizer

Cursor◄ Cursor►

to adjust the each level of tonal quality

Press BACK to go back to the previous menu.

Adjust the speakers to suit your listening preference.

Balance

Cursor◄ Cursor►

to adjust the balance of the right and left speakers

DigitalTVoperation

You can select the Audio language while your TV is receiving the Digital

broadcasting.

Digitalaudio

language

to select the language according to your preference.

(It differs depending on the program.)

Analog/CableTVoperation

You can select Main or SAP while your TV is receiving the Analog

broadcasting that has the SAP (Second Audio Program).

(It differs depending on the program.)

Alternateaudio

Main to output main-audio

SAP to output second-audio program

Analog/CableTVoperation

When you set to Main in Alternateaudio above, you can select Mono

or Stereo if the Analog broadcasting is sending the MTS (Multichannel

television sound).

Mono/Stereo

Mono to output mono-audio

Stereo to output stereo-audio

This selects sound modes for more spatial or surround sound

reproduction.

SRSTruSurround

Off

to set SRS TruSurround HD™ to Off

to set SRS TruSurround HD™ to On

This function keeps a constant loudness differential between the TV

commercials and the programs.

AVL

Off

to remove the auto volume leveling

to reduce volume differences between the

TV commercials and the programs

You can select the Audio Output from the unit’s speakers or not. If your

amplier is HDMI link function compatible and connected by an HDMI

cable to this unit, some sound operations such as volume up can be

changed by using this unit’s remote control. Make sure MasterEasyLink

is set to On.

➠

p.39

TVspeakers

Off

not to output sound from the unit’s

speakers

to output sound from the unit’s speakers

Speakers

EasyLink

to control Audio Output from your

connected EasyLink Compliant Devices

with VOL+/−by using this unit's remote

control.

If a channel or Input device is too loud or too soft, navigate to that

channel or Input device.

Deltavolume

Cursor◄ Cursor►

to set a negative delta

volume level as per your

personal preferences

to set a positive delta

volume level as per your

personal preferences

Note

• Alternateaudio and Mono/Stereo are not available when you watching TV programs

with a cable box or satellite set-top box connected through an HDMI cable or

Component / Composite Video cables.

English

Features

1 Press MENU/EXIT and use ▲▼◄► to select Setup, then press

OK.

2 Use ▲▼ to select Features, then press OK.

Picture Caption settings Closed captions

Sound Sleeptimer

Features Child lock Channel lock

Installation

Change PIN Start now

Software

3 Adjust the following items.

Captionsettings

Closed Captioning displays the Audio portion of programming as text

superimposed over the video.

1 Use ▲▼ to select Captionsettings, then press OK.

Caption settings Closed captions Off

Sleeptimer Caption service CC-1

Child lock Digital caption service CS-1

Change PIN Digital caption options Reset to default

Closedcaptions

Off

not to display the Closed Caption

to display the Closed Caption

Onduringmute

to display the Closed Caption when

you set to mute

DigitalTVoperation

In addition to the basic Closed Caption, DTV has its own Closed

Caption called Digital caption service. Use this menu to change the

settings for Digital caption service.

Digitalcaption

service

CS-1

CS-6

Selects one of these before changing

any other item in Captionsettings

menu. Choose CS-1 under normal

circumstances.

You can choose the size, font, color, background and other

characteristics of the caption text.

Digitalcaption

options

Resettodefault

You can reset the status of Digital

caption options.

You can change Closed Captioning font size, style, color

and transparency.

(Size, Style, TextColor and Textopacity)

You can change background color and transparency of

the displayed caption.

(Backgroundcolor and Backgroundopacity)

You can change edge color and type of the displayed

caption.

(Edgetype and Edgecolor)

So, yo u m ust b e P hil ip. Hi!

I’m pl eas ed to me et you.

So, yo u m ust b e P hil ip. Hi!

I’m pl eas ed to me et you.

Background

(BackgroundcolorandBackgroundopacity)

Picturedisplay

Font

(Style,Size,TextColorandTextopacity)

Edge

(EdgecolorandEdgetype)

• Review your setting choice made below by looking in the upper

left corner of the displayed setting box (not all selections show

the differences selected).

Analog/CableTVoperation

Captionservice

CC-1

and

T-1

The primary caption and text services. The

captioning or text is displayed in the same

language as the program’s dialog (up to 4

lines of script on the TV screen).

CC-3

and

T-3

Serve as the preferred data channels. The

captioning or text is often a secondary

language.

CC-2,

CC-4,

T-2

and

T-4

Rarely available and broadcasters use them

only in special conditions, such as when

CC-1 and CC-3 or T-1 and T-3 are not

available.

• There are 3 display modes according to programs:

Paint-on

Displays input characters on the TV screen

immediately.

Pop-on

Once characters are stored in memory, they are

displayed all at once.

Roll-up

Displays the characters continuously by scrolling

(max. 4 lines).

Continued on next page.

English

Note

• Digitalcaptionservice that you can switch differs depending on the broadcast

description.

• Closed Captioning service may not be controlled by this unit’s menu options if you are

watching television through an external cable or satellite set-top box. In which case

you will need to use the menu options on the external set-top box to control Closed

Captioning.

• The captions do not always use correct spelling and grammar.

• Not all TV programs and product commercials include Closed Caption information.

Refer to your area TV program listings for the TV channels and times of Closed Caption

shows. The captioned programs are usually noted in the TV listings with service marks

such as CC.

• Not all captioning services are used by a TV channel during the transmission of a

Closed Caption program.

• Closed Caption will NOT be displayed when you are using an HDMI or a Component

(except for 480i) connection.

• To show the Closed Caption on your TV screen, broadcast signal must contain the

Closed Caption data.

• Not all TV programs and commercials have the Closed Caption or all types of the

Closed Caption.

• Captions and texts may not exactly match the TV voice.

• Changing channels may delay the Closed Caption for a few seconds.

• Adjusting or muting the volume may delay the Closed Caption for a few seconds.

• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep

pace with the on-screen action. This is not a malfunction.

• The caption or text characters will not be displayed while the Home menu or functions

display is shown.

• If a black box appears on the TV screen, this means that the Closed Caption is set to

the text mode. To clear the box, select CC-1, CC-2, CC-3 or CC-4.

• If the unit receives poor quality television signals, the captions may contain errors or

there might be no captions at all. Some possible causes of poor quality signals are:

– Automobile ignition noise

– Electric motor noise

– Weak signal reception

– Multiplex signal reception (ghosts or screen flutter)

– Data dropout and Pixelation (for DTV only)

• The unit retains the Closed Caption setting if the power fails.

• When the unit receives special effects playback signal (e.g. Search, Slow and Still) from a

VCR’s video Output channel (ch3 or ch4), the unit may not display the correct caption

or text.

Sleeptimer

Sleep timer can set the unit to go into Standby mode after an

incremental period of time.

1 Use ▲▼ to select Sleeptimer, then press OK.

2 Use ► repeatedly to change the amount of time

(increases the time by 5 minutes up to 180 minutes).

• Each press of ◄ will decrease the time by 5 minutes.

• Press INFO once to call up the display for checking the

remaining time.

• To cancel the sleep timer, press ► repeatedly until “ 0 ” is

displayed.

Note

• You can also press SLEEP directly to switch the desired setting.

➠

p.25

Childandratingslock

You can prevent your children from watching certain programs or

certain channels by locking the TV controls and by using ratings.

1 Use ▲▼ to select Childlock, then press OK.

Picture Caption settings Closed captions

Sound Sleeptimer

Features Child lock Channel lock

Installation

Change PIN Start now

Software

2 Use theNUMBERbuttons to enter the 4-digit numbers for your

PIN code.

• When you have not set up your PIN code, enter 0, 0,0,0.

• When the PIN code is correct, Childlock menu is displayed.

 See the following description for setting each item.

Caption settings Channel lock

Select

Sleeptimer TV ratings lock

Select

Child lock Movie ratings lock

Select

Change PIN

Canada English ratings lo

Select

Canada French ratings lo Select

Region ratings lock Select

Note

• When you select the higher rating and set it to , the lower ratings will be blocked

automatically.

• When you set the All to

, all ratings return to automatically.

• Regionratingslock will be available when the unit receives a Digital broadcast using

the new rating system.

• To block any inappropriate programs, set your limits in TVratingslock,

Movieratingslockand Regionratingslock.

• For the United States, the unit may download the Region Ratings Lock Table, if required.

• The Canadian rating systems on this unit are based on CEA-766-A and CRTC policy.

Continued on next page.

English

Channellock

Particular channels or external Input modes can be invisible in this

function.

3 Use ▲▼ to select Channellock, then press OK.

4 Use ▲▼ to select the particular channels or external Input, then

press OK repeatedly to switch between view and block.

• indicates that the channel or Input Source is locked.

• indicates that the channel or Input Source is not locked.

Caption settings Channel lock

40.1 DTV

Sleeptimer TV ratings lock

40.2 DTV

Child lock Movie ratings lock

40.3 DTV

Change PIN

Canada English ratings lo

40.4 DTV

Canada French ratings lo

HDMI1

Region ratings lock

HDMI2

HDMI3

Video

SettingTVandmovieratings

Movie ratings lock is the rating system created by MPAA. TV ratings lock

has controlled access to individual programs based on their age ratings

and content rating.

3 Use ▲▼ to select TVratingslock or Movieratingslock, then

press OK.

4 Use ▲▼ to select the desired rating, then press OK repeatedly to

switch between view and block.

•

indicates that the rating is locked.

•

indicates that the sub rating is locked.

•

indicates that the rating is not locked.

TV ratings lock

Channel lock

All

TV ratings lock

None

Movie ratings lock

TV-Y

Canada English ratings

TV-Y7

Canada French ratings

TV-G

Region ratings lock

TV-PG

TV-14

TV-MA

Movie ratings lock

Caption settings

Channel lock

All

Sleeptimer TV ratings lock

Child lock

Movie ratings lock

Change PIN

Canada English ratings lo

Canada French ratings lo

PG-13

Region ratings lock

NC-17

USmovie

ratings

USTV

ratings

Description

All

All ratings locked including no rating

NR None

No rating

− TV-Y

Appropriate for all children

− TV-Y7

Appropriate for all children 7 and older

G TV-G

General audience

PG TV-PG

Parental guidance suggested

PG-13 −

Unsuitable for children under 13

− TV-14

Unsuitable for children under 14

R −

Restricted under 17 requires accompanying

parent or adult guardian

NC-17 −

No one under 17 admitted

X TV-MA

Mature audience only

To set the sub ratings

For TV ratings lock, you can further set the sub ratings to block specic

elements of programming. To set the sub ratings, follow the step below.

Use ▲▼◄► to select the desired rating, then press OK repeatedly to

switch between

and .

Channel lock

All FantasyViolence

TV ratings lock

None

Movie ratings lock

TV-Y

Canada English ratings

TV-Y7

Canada French ratings

TV-G

Region ratings lock

TV-PG

TV-14

TV-MA

USTVratings SubRating

TV-Y7

Fantasy Violence

TV-PG

Dialog

Language

Sex

Violence

TV-14

TV-MA

Language

Sex

Violence

Note

• Blocked sub rating will appear beside the main rating category in TVratingslock menu.

• You cannot block a sub rating if the main rating is set to

• Changing the category to

or automatically changes all its sub ratings to the same

(

or ).

Continued on next page.

English

CanadaEnglishorCanadaFrenchratings

You can select the rating for Canada English or Canada French

broadcasting.

3 Use ▲▼ to select CanadaEnglishratingslock or

CanadaFrenchratingslock, then press OK.

4 Use ▲▼ to select the desired rating, then press OK repeatedly to

switch between view and block.

• indicates that the rating is locked.

• indicates that the rating is not locked.

CanadaEnglish

ratingslock

CanadaFrench

ratingslock

Description

All

Locked all ratings

Exempt program

C −

For all children

C8+ −

For children over 8

General audience

− 8ans+

Unsuitable for ages under 8

PG −

Parental guidance suggested

− 13ans+

Unsuitable for ages under 13

14+ −

Unsuitable for ages under 14

− 16ans+

Unsuitable for ages under 16

18+ 18ans+

Adult audience only

Note

• The V-Chip can block non rated programs as per “CEA-608-E sec. L.3”. If the option

to block NR, None or E programs is used in Movieratingslock, TVratingslock,

CanadaEnglishratingslock or CanadaFrenchratingslock accordingly “unusual

results may occur and the unit may not receive emergency bulletins or other types

of programming:” / Emergency Bulletins (Such as EAS messages, weather warnings

and others) / Locally originated programming / News / Political / Public Service

Announcements / Religious / Sports / Weather.

ChangePIN

Although the default PIN code (0000) is supplied with the unit, you can

set your own PIN code.

1 Use ▲▼ to select ChangePIN, then press OK.

2 PresstheNUMBERbuttons to enter the new 4-digit PIN code.

• Enter PIN code again to conrm.

Change PIN

Please enter your current PIN.

Note

• Make sure new PIN code and conrm PIN code must be exactly the same. If they are

different, the space is cleared for reentering.

• If you have forgotten your PIN code, enter 0711 to reset the PIN code.

Installation

1 Press MENU/EXIT and use ▲▼◄► to select Setup, then press

OK.

2 Use ▲▼ to select Installation, then press OK.

Picture Language English

Sound Channels Autoprogram

Features Preferences Location

Installation Network Network settings assi

Software Reset AV settings Start now

3 Adjust the following items.

Language

1

Use ▲▼ to select Language, then press OK.

Picture Language English

Sound Channels Français

Features Preferences

Español

Installation Network

Software Reset AV settings

2 Use ▲▼ to select English,Español or Français, then press OK.

Note

• If you need the English menu instead of the Spanish or French menu’s, press

MENU/EXIT.

Use ◄►▲▼ to select Conguración or Conguration, then press OK.

Use ▲▼ to select Instalación or Installation, then press OK.

Use ▲▼ to select Idioma or Langue, then press OK.

Use ▲▼ to select English, then press OK.

Press MENU/EXIT to exit the Home menu.

English

Channelinstallation

Be sure the RF cable is correctly connected to this unit and you are

registered with your cable TV provider when you install cable channels.

Autoprogram

If you switch wires (e.g. between antenna and CATV) or if you move

the unit to a different area after the initial setting, or if you restore the

DTV channels you deleted, it is recommended to use AutoProgram to

perform a new channel search.

You need to select the signal type in Installationmode before you

perform AutoProgram.

1 Use ▲▼ to select Channels, then press OK.

2 Use ▲▼ to select Autoprogram, then press OK.

• If you run Autoprogram when you have locked channels, a

message appears asking to enter your PIN code. Enter your

PIN code in order to complete the installation. You need to set

the channel lock again after the installation.

3 Press OK to select Startnow.

• When the scanning and memorizing are completed, the lowest

memorized channel will be displayed.

4 Follow the on-screen instructions to complete the installation.

Systemsearching.Pleasewait...

Digitalchannelsfound: 0

Analogchannelsfound: 0

Autoprogrammingmaytakemorethan20minutesto

complete.

Stop

Note

• After setting Autoprogram, using CH+/−skips unavailable programs automatically.

• If you are not receiving a signal from your cable service, contact the cable provider.

• If you press

or during AutoProgram, the setup of TV channels will be canceled.

• Even if Autoprogram is completed, the channel setting will be lost if the AC power

cord is unplugged before the unit goes into Standby mode by pressing

• The PIN code will be required once you set a PIN code in the Childandratingslock.

➠

p.34

• If you want to change your PIN code, follow the instruction of ChangePIN.

➠

p.36

Weakchannelinstallation

This function lets you add the channels that were not added by the

AutoProgram due to the reception conditions during the initial setup.

It is available only when you select Antenna in Installationmode.

1 Use ▲▼ to select Channels, then press OK.

2 Use ▲▼ to select Weakchannelinstallation, then press OK.

• The PIN code will be required if you have locked channels.

3 Use ◄►

to select

channel Input box, then use ▲▼ to select a

channel you want to memorize.

4 Use ◄►

to select Search, then press OK.

5 Display will be changed to Store from Search when the channel is

found, then press OK.

Note

• In most cases, Digital channels are not broadcast on the RF channel on which they

appear on your TV. To add Digital channels you need to know the RF channel on which

the Digital channel is being broadcast. (e.g. If there is a Digital channel 9.1 which is being

broadcast on RF channel 25, you need to enter 25 while performing a weak channel

installation.) To nd out the RF channel on which a particular Digital channel is being

broadcast, please contact your local service provider.

Installing Digital channels using Weakchannelinstallation might not work for direct

cable connections and if the Digital signal is too weak for the TV to process.

Installationmode

1 Use ▲▼ to select Channels, then press OK.

2 Use ▲▼ to select Installationmode, then press OK.

3 Use ▲▼

to select Antenna or Cable, then press OK.

• When Antenna is selected, the TV detects antenna signals. It

searches for DTV and Analog TV channels available in your area.

• When Cable is selected, the TV detects signals supplied by cable.

It searches for DTV Analog TV and Cable channels available in

your area.

Uninstallchannels

The channels selected here can be skipped when selecting the channels

using CH+/−.

Those channels can still be selected with theNUMBERbuttons.

1 Use ▲▼ to select Channels, then press OK.

2 Use ▲▼ to select Uninstallchannels, then press OK.

3 Use ▲▼

to select the channel you want to remove, then press OK.

• The removed channels are not displayed on the list of favorite

channels.

• To reactivate a removed channel, use ▲▼ then press OK.

English

Preferences

You can set the unit to reduce the power consumption or adjust the

backlight brightness in Location setting.

EasyLink allows you to operate your connected EasyLink device.

Settingyourlocationtohome

Choosing Home gives you full exibility to change predened settings

for picture and sound.

1 Use ▲▼ to select Preferences, then press OK.

2 Use ▲▼ to select Location, then press OK.

Language Location Retail store

Channels

EasyLink Home

Preferences

Network

Reset AV settings

3 Use ▲▼ to select Home, then press OK.

Retailstore

The unit will be set up with predened settings for

retail displays. In this setting, the power consumption

may possibly exceed the limit requirement of the

ENERGY STAR

qualication.

Home

This setting is ENERGY STAR

qualied.

The unit is set to maximize the energy efciency

for home setting and it can be adjusted through a

choice of picture and sound quality according to your

preference.

Note

• You must set Home. Otherwise, personalized picture and sound settings will not be

memorized after the unit goes into Standby mode.

• If you select Home, E-sticker will not be displayed.

E-sticker

When you set Locationto Retailstore, E-sticker (Electronic Sticker) is

displayed. E-sticker can be Turned Off using procedure below.

1 Use ▲▼ to select Preferences, then press OK.

2 Use ▲▼ to select E-sticker, then press OK.

3 Use ▲▼

to select Off, then press OK.

UsePhilipsEasyLink

Your TV supports Philips EasyLink, which enables one-touch play and

one-touch Standby between EasyLink-compliant devices. Compliant

devices must be connected via an HDMI connector.

One-touchplay

When you connect your TV to devices that support one-touch play,

you can control your TV and the devices with one remote control. For

example, when you press ►(play) on your DVD remote control, your

TV automatically switches to the correct channel to show the DVD

content.

One-touchStandby

When you connect your TV to devices that support Standby, you can

use your TV remote control to put your TV and all connected HDMI

devices in Standby mode. You can perform one-touch Standby using the

remote control from any of the connected HDMI devices.

Systemaudiocontrol

When you connect your TV to HDMI CEC compliant devices, your

TV can switch automatically to play audio from the connected device.

To use one-touch audio, you must map the audio input from the

connected device to your TV. You can use the remote control from the

connected device to adjust the volume.

Remotecontrol(RC)keyforwarding

RC key forwarding allows you to control EasyLink-compliant devices

using your TV remote control.

HDMI-ARC(AudioReturnChannel)

HDMI-ARC allows you to use Philips EasyLink to output TV audio

directly to a connected Audio device, without the need for an additional

Digital Audio cable. Be sure that the device is HDMI CEC and ARC

compliant, and that the TV is connected to the device using an HDMI

cable attached to both HDMI-ARC connectors.

Note

• Philips does not guarantee 100% interoperability with all HDMI CEC devices.

• The EasyLink-compliant device must be Switched On and selected as the source.

English

EasyLink

This function allows you to operate the linked functions between our

brand devices with a EasyLink feature and this unit connecting through

an HDMI cable. You must connect this unit to our brand EasyLink

devices and be sure its EasyLink setting is also set to On.

1 Use ▲▼ to select Preferences, then press OK.

2 Use ▲▼ to select EasyLink, then press OK.

3 Use ▲▼◄► to select the item you want to adjust, then press

OK.

Location Master EasyLink On

EasyLink

Auto TV on On

RC key forwarding Select

HDMI-ARC Off

Device list Select

Set the MasterEasyLink to On or Off. The following additional settings

will be grayed out when you set to Off.

MasterEasyLink

Off

Disables all EasyLink.

Selects if you have connected an

external device that is compatible with

the EasyLink function.

This unit will Turn On when the Power On signal is sent from your

connected EasyLink device.

AutoTVon

Off

This unit stays in Standby mode even if

you Turn On your connected EasyLink

device.

This unit Turns On automatically when

you Turn On your connected EasyLink

device.

You can operate some functions such as disc playback or call up the

menu of the connected devices, by using this unit’s remote control.

You can set each HDMI input to activate the RCkeyforwarding. Each

press of OK will toggle RCkeyforwarding On or Off.

• indicates that the RCkeyforwarding is On.

• indicates that the RCkeyforwarding is Off.

RCkeyforwarding

HDMI1

PLAY, PAUSE

Æ∆

/ STOPC /

FWD D / REV E / OPTIONS /

▲▼◄► / OK / BACK /

theNUMBERbuttonscan be used

to control your connected EasyLink

devices by this unit’s remote control.

HDMI2

HDMI3

HDMI-ARC allows you to use Philips EasyLink to output TV Audio

directly to a connected Audio device, without the need for an

additional Digital Audio cable

HDMI-ARC

Off

Disable HDMI-ARC.

You can output TV Audio through

the HDMI cable solely, provided both

the TV and device are HDMI-ARC

compliant.

Devicelist

This function lets you see the product model number or name of

connected devices.

Use ▲▼ to select the desired EasyLink device listed on the TV screen,

then press OK.

Your connected EasyLink device will be Turned On if the device is in

Stand by mode.

Device list

Refresh

Back

HDMI1:DVDrecorder

HDMI2:Blu-raydiscplayer

HDMI3:Hometheatersystem

English

Network

Set up network connection settings in order to use Net TV or network

upgrade function.

• The meanings of abbreviations are dened as below.

  AP :WirelessLANAccessPoint

  WPS :Wi-FiprotectedSetup

  SSID :Wirelessnetworkname

• The key entry screen will appear when you select SSID,

WEP / WPA / WAP2 or Proxy address.

1 2 3 4 5 6 7 8 9 0

a b c d e f g h i j

k l m n o p q r s t

u v w x y z . - _

―

Clear Allclear a/A/@ Cancel OK

• Enter the key of the selected wireless network using ▲▼◄►,

then press OK.

Clear : Clear the entered number or word.

Allclear : Clear all the entered numbers or words.

a/A/@ : Switch between abc, ABC and @ ! ?

Cancel : Shows the cancellation display.

OK : Set the entered number or word.

1 Use ▲▼ to select Network, then press OK.

Picture Language English

Sound Channels Autoprogram

Features Preferences Location

Installation Network Network settings assi

Software Reset AV settings Start now

Networksettingsassistant

Before you proceed to Connectiontest or other settings in Network

section, set this selection to suit your preference.

2 Use ▲▼ to select Networksettingsassistant, then press OK.

Language Network settings assistant Start now

Channels Manual network settings Network selection

Preferences Connection test Start now

Network Setting status Information

Reset AV settings Reset network settings Start now

3 Press OK to select Startnow.

Wirelesssetting

Select to use a wireless LAN to connect to the Internet by wireless

connection.

4 Use ▲▼ to select Wireless, then press OK.

ThisTVcanbeconnectedtoyourhome

network.

Selectyourconnectiontype.



Wireless

Wired

Cancel

5 Use ▲▼ to select the desired setting, then press OK.

Easyconnect

Select this setting if your router has a WPS

button. Start scanning for wireless networks on

the TV after pressing the WPS button on your

router. If connection test fails, try Easy connect

again.*

If it fails then refer to the router’s manual for

more details.

Scan

Search for wireless networks automatically

and select the SSID from the list.

Wirelessnetworksetting

➠

p.41

Manualentry

Set up the connection to the AP (e.g. wireless

router) manually by entering the SSID.

*1 WPS (Easy Connect) cannot be used when the security protocol is set to

WEP. Change the Access Point’s security mode from WEP to WPA or WPA2

(recommended).

Wiredsetting

Select to use an Ethernet cable to connect to the Internet by wired

connection. Please purchase shielded Ethernet cables at your local store

and use them when you connect to network equipment.

4 Use ▲▼ to select Wired, then press OK.

• Connectiontest will start automatically.

➠

p.42

Manualnetworksettings

2 Use ▲▼ to select Manualnetworksettings, then press OK.

Network settings assistant Network selection Wireless

Manual network settings Wireless network setting Auto

Connection test IP configuration IP setting mode

Setting status

Proxy configuration Proxy setting

Reset network settings

Networkselection

3 Use ▲▼ to select Networkselection, then press OK.

4 Use ▲▼ to select the desired setting, then press OK.

Wired

If you connect to an Ethernet cable, select Wired

to connect to the Internet.

Wireless

If you have a router with WPS function, select

Wireless to connect to the Internet.

Continued on next page.

English

Wirelessnetworksetting

This menu is displayed only when you set Wireless in

Networkselection. In order to use a wireless network, you must set up

a connection to the AP (e.g. wireless router).

3 Use ▲▼ to select Wirelessnetworksetting, then press OK.

Auto

Search for wireless networks automatically and select the SSID from the

list.

4 Use ▲▼ to select Auto, then press OK.

5 The list of wireless networks will be displayed.

Use ▲▼ to select the appropriate the SSID, then press OK.

Auto Router 1

Enter Key

Manually enter your S

Router 2

Select

Router 3

Enter Key

Router 4

Select

• If you select the SSID with , WEP*

/ WPA / WPA2 Key entry

screen will appear.

Enter the WEP*

/ WPA / WPA2 key of the selected wireless

network using ▲▼◄►, then press OK.

• If you select the SSID has a WPS, the WPS setting screen will

appear.

Use ▲▼◄► to select a setting, then press OK.

Easyconnect

Select this setting if your router has a WPS

button. Start scanning for wireless networks on

the TV after pressing the WPS button on your

router. If connection test fails, try Easy connect

again.*

If it fails then refer to the router’s manual for

more details.

WPScode

Select this setting if your router has a WPS but

does not have a WPS button. Enter the 8-digit

WPS PIN code shown on your TV in the router

settings menu via PC before Connect is selected.

Manual

If your wireless network with authentication

setting (WEP*

, WPA-PSK or WPA2-PSK),

WEP*

/ WPA / WPA2 Key entry screen will

appear. Enter the WEP*

/ WPA / WPA2 key of

the selected wireless network using ▲▼◄►,

then press OK.

*1 WPS (Easy Connect) cannot be used when the security protocol is set to

WEP. Change the Access Point’s security mode from WEP to WPA or WPA2

(recommended).

*2 WEP is not recommended to be used due to its Major security aws.

Change the Security protocol on the wireless router to WPA or WPA2

(recommended) mode.

Conrmation message will appear. Select OK to complete the settings.

Note

• For a wireless network with authentication setting, key icon appears to the right hand

of the SSID.

• Signal icon shows the strength of the signal.

• WEP / WPA key appears as asterisks on the conrmation screen.

• The wireless LAN supports following specications.

– Wireless standards : IEEE 802.11 b/g/n

– Frequency spectrum : 2.4GHz

– Security protocol : WEP*

/ WPA / WPA2

ManuallyenteryourSSID

Set up the connection to the AP (e.g. wireless router) manually by

entering the SSID.

4 Use ▲▼ to select ManuallyenteryourSSID, then press OK.

• AP (e.g. wireless router) SSID entry screen will appear.

Enter the SSID using ▲▼◄►, then press OK.

5 Use ▲▼ to select the authentication setting of the selected

wireless network.

• For a wireless network with authentication setting, select the

authentication setting, according to the security type of the

wireless network.

Selectsecuritytypefor

"Router1"

None

WEP

WPA-PSK

WPA2-PSK

Back

None

Set the authentication setting to None.

WEP*

Set the authentication setting to WEP.*

WPA-PSK

Set the authentication setting to WPA-PSK.

WPA2-PSK

Set the authentication setting to WPA2-PSK.

• For a wireless network without authentication setting, select

None.

• If you selectWEP*

, WPA-PSK or WPA2-PSK, WEP /

WPA / WPA2 Key entry screen will appear.

Enter the WEP*

/ WPA / WPA2 key of the selected wireless

network using ▲▼◄►, then press OK.

• Conrmation message will appear. Select Yes to complete the

settings.

2 WEP is not recommended to be used due to its Major security aws.

Change the Security protocol on the wireless router to WPA or WPA2

(recommended) mode.

Continued on next page.

English

IPconguration

In following cases, select IPconguration to set each setting as

necessary.

– When connection test failed with the setting of Connectiontest.

– When instructed by your Internet service provider to make specific

settings in accordance with your network environment.

3 Use ▲▼ to select IPconguration, then press OK.

4 Use ▲▼ to select a setting, then press OK.

Network selection IP setting mode Manual

Wireless network setting IP address 192.168.11.3

IP configuration Subnet mask 255.255.255.0

Proxy configuration

Default gateway 192.168.11.1

Primary DNS 192.168.11.1

Secondary DNS

0.0.0.0

MAC address 00:12:0E:10:09:15

IPsettingmode

Auto

Sets the IP setting automatically.

Manual

Sets the IP setting manually.

IPaddress*

1, 3

A set of numbers which are assigned to

devices participating in a computer network.

Subnetmask*

1, 3

A mask which is used to determine what

subnet an IP address belongs to.

Defaultgateway *

1, 3

IP address of the network device (such as

router) which provides Internet access.

DNS

settingmode

Auto

Sets the DNS setting automatically.

Manual

Sets the DNS setting manually.

PrimaryDNS *

2, 3

A server which handles the name and IP

address over the Internet.

SecondaryDNS *

2, 3

A server which handles the name and IP

address over the Internet.

MACaddress

An address which recognizes the devices

connecting to the network. It is also called

Hardware Address.

Items can be selected only when IPsettingmode is set to Manual.

Items can be selected only when DNSsettingmode is set to Manual.

Use ▲▼ or theNUMBERbuttons to input numbers. When you use

▲▼ to input numbers, then press OK or input the triple digits by using

theNUMBERbuttons, the cursor moves to the next entry eld. When you

use ▲▼ to input numbers, then press OK or input the triple digits by using

theNUMBERbuttons at the rightmost entry eld, numbers will be stored

and go back to the previous menu.

Note

• The range of input numbers is between 0 and 255.

• If you enter a number larger than 255, the number will automatically be 255.

• The manually entered number will be saved even if you change the setting to Auto.

• If you want to enter 1 or 2 digit number in one cell, press OK to move on to the next

cell.

• If the entered IP address or the default gateway or primary DNS number is same as

the default setting, IP address setting will be set to Auto. (The manually entered number

will be saved).

• When IP address setting is set to Manual, the setting of DNS setting will automatically

be Manual and when IP address setting is set to Auto, you can set either Auto or

Manual for DNS setting.

Proxyconguration

3 Use ▲▼ to select Proxyconguration, then press OK.

4 Use ▲▼ to select a setting, then press OK.

Network selection

Proxy setting Do not use

Wireless network setting

IP configuration

Proxy configuration

• Donotuse is selected for default settings.

• If you need to change the proxy setting as instructed by your

Internet service provider to set the designated proxy address

and port, select Use.

Proxysetting

Donotuse

Not use the proxy server.

Use

Uses the proxy server.

Proxyaddress*

Selects the number or word by using

▲▼◄►, then press OK.

Proxyport*

Use ▲▼ or theNUMBERbuttons to input

numbers.

Items can be selected only when Proxysetting is set to Use.

Note

• The range of input numbers for the port number is between 0 and 65535.

(If you enter a number larger than 65535, it will be regarded as 65535.)

• For proxy port, the selected ports may be blocked and not be able to use depending

on your network environment.

• If the proxy address is entered with blank only, proxy server setting will be set to

Donotuse.

Connectiontest

Perform the following steps to test your Internet connection after you

have connected an Ethernet cable or entered network settings such as

IP address, DNS settings, etc. manually.

2 Use ▲▼ to select Connectiontest, then press OK.

3 Press OK to select Startnow.

• Connection test will start automatically and the test result will

appear right after the connection test nishes.

Testing…

The test is in progress.

Pass

Connection test is successfully completed.

Fail

Connection test failed. Check the connection settings.

4 Press OK to go to the list of network status conrmation screen.

Note

• If the connection test passes, you are ready to use Net TV or network upgrade function

using the Internet without making any additional settings.

• If the connection test fails, check if the Ethernet cable is connected to this TV properly

or if you have entered all the required details for the wireless LAN connection properly.

Continued on next page.

English

Settingstatus

You can check the status of network settings.

2 Use ▲▼ to select Settingstatus, then press OK.

• Network setting list will be displayed.

• MAC address of this unit will be displayed in the list.

Resetnetworksettings

You can reset the status of network settings.

2 Use ▲▼ to select Resetnetworksettings, then press OK.

3 Press OK to select Startnow.

Returnyoursettingstodefaultvalues

When you return picture and sound settings to their default values the

channel installation settings are not affected.

1 Use ▲▼ to select ResetAVsettings, then press OK.

2 Press OK to select Startnow.

Software

Philips continuously tries to improve its products and we strongly

recommend that you upgrade the TV software when upgrades are available.

New software can be downloaded from our website at

www.philips.com/support using the model number of your TV to nd

information.

1 Press MENU/EXIT and use ▲▼◄► to select Setup, then press OK.

2 Use ▲▼ to select Software, then press OK.

Picture Software information

Software update

Automatically check for

Netflix deactivation

Netflix ESN

VUDU deactivation

YouTube deactivation

MediaConnect code

Select

USB

Off

Sound

Features

Installation

Software

Checkingyourcurrentsoftwareversion

1

Use ▲▼ to select Softwareinformation, then press OK.

• The version and a description of the current software is

displayed.

Picture Software information

Software update

Automatically check for

Netflix deactivation

Netflix ESN

VUDU deactivation

YouTube deactivation

MediaConnect code

PHL-XXXX_XXX_X

Sound

Features

Installation

Software

Preparingforthesoftwareupgrade

You require the following equipment :

– A PC with web browsing capability

– An archive utility that supports the ZIP-format

(e.g. WinZip for Windows or StuffIt for Mac OS)

– An empty clean formatted USB Memory Stick

Note

• Only FAT / DOS-formatted portable memory is supported.

• Use only software upgrades that can be found on the Philips web site.

Warning

• When the software upgrade is running, don’t press any buttons.

• Do not remove the USB Memory Stick during the software upgrade.

• If an error occurs during the upgrade, retry the procedure or for further assistance,

please contact Call Center.

Downloadingthesoftware

Find information and software related to your TV and download the

latest software upgrade le to your PC.

1 On your PC, open a web browser and go to

www.philips.com/support.

2 Enter the model number in the “Type the Model Number...” eld.

3 Click the desired software to be downloaded.

• Decompress the ZIP-le.

4 Copy the upgrade le to the root directory of the USB Memory

Stick.

English

Upgradingthesoftware

USBupgrade

You can upgrade the software by using USB Memory Stick.

1 Connect your USB Memory Stick with the upgrade le to the USB

terminal on the side of your TV.

2 Use ▲▼

to select Softwareupdate, then press OK.

3 Use ▲▼

to select USB, then press OK.

4 Use ▲▼

to select the desired Update le.

5 Use ◄►

to select Yes, then press OK.

6 Read the on-screen instructions and conrm that you want to

continue with the installation.

Softwareupdateisinprogress.Pleasewait.

DonotremovetheUSBstoragedeviceorturntheTVoffwhile

upgradeisinprogress.



UpdateyourTVwithnewsoftware:

7 When the software upgrade is completed, press to set the unit

to go into Standby mode, then remove the USB Memory Stick.

8 Unplug the AC power cord for a few seconds from AC outlet and

plug it again.

9 Press again to Turn the unit On.

• The TV starts up with the new software.

For further assistance, please contact Call Center.

Networkupdate

You can update the software by connecting the unit to the Internet.

1 Use ▲▼

to select Softwareupdate, then press OK.

2 Use ▲▼

to select Network, then press OK.

3 Use ◄► to select Yes, then press OK.

• This unit will then start checking for the latest rmware version.

4 Conrmation message will appear.

Use ◄► to select Yes, then press OK.

• The unit will start downloading the latest rmware version.

• The unit will start updating the rmware version.

• It may take a while to complete the updating.

5 When the software update is complete, press

to make sure the

unit goes to Standby mode.

6 Unplug the AC power cord for a few seconds from AC outlet and

plug it again.

7 Press again to Turn the unit On.

• The TV starts up with the new software.

For further assistance, please contact Call Center.

Note

• In order to update software via the Internet, you must connect the unit to the Internet

and set up necessary settings. Networksettingsassistant

➠

p.40 Network

➠

p.40

• Please do not unplug the AC power cord or Ethernet cable while executing the

Networkupdate.

• All settings will remain the same even if you update the software version.

• The version of Net service will also be updated if newer version of Net service is

available when updating the rmware.

Automaticallycheckforlatestsoftware

This function lets you know if the latest software is available while the

unit is connected to the Internet.

1 Use ▲▼ to select Automaticallycheckforlatestsoftware, then

press OK.

2 Use ▲▼ to select the desired option, then press OK.

Off

Disable automatically check for latest software.

A message will appear if there is the latest software on the

network server.

Netixdeactivation

Displays the deactivation setting for Netix.

1 Use ▲▼ to select Netixdeactivation, then press OK.

2 Use ▲▼ to select the desired option, then press OK.

Yes

Deactivate the connection to Netix.

Activate the connection to Netix.

NetixESN

Displays the ESN information.

1 Use ▲▼ to select NetixESN, then press OK.

• Displays the ESN (Electronic Serial Number) to get any services

from Netix.

VUDUdeactivation

Displays the deactivation setting for VUDU.

1 Use ▲▼ to select VUDUdeactivation, then press OK.

2 Use ▲▼ to select the desired option, then press OK.

Yes

Deactivate the connection to VUDU.

Activate the connection to VUDU.

YouTubedeactivation

Displays the deactivation setting for YouTube.

1 Use ▲▼ to select YouTubedeactivation, then press OK.

2 Use ▲▼ to select the desired option, then press OK.

Yes

Deactivate the connection to YouTube.

Activate the connection to YouTube.

English

6 Connectingdevices

No supplied cables are used with these connections:

• Please purchase the necessary cables at your local store.

Before you connect AC power cord:

Be sure other devices are connected properly before plugging in the AC

power cord.

Selectingyourconnectionquality

HDMI-Highestquality

Supports high-denition Digital signals and gives highest picture and

sound quality. Video and Audio signals are combined in one cable. You

must use HDMI for full high-denition video and to enable Philips

EasyLink.

Note

• Philips HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP

is a form of Digital Rights Management that protects high denition content in Blu-ray

discs or DVDs.

• The HDMI-ARC connector on the TV features HDMI-ARC functionality. This allows

output of TV Audio to an HDMI-ARC-compliant device.

Component(YPbPr)-Highquality

Supports high-denition Analog signals but gives lower picture quality than

HDMI. Component (Y/Pb/Pr) Video cables combine Red / Green / Blue

video cables with Red / White Audio (L/R) cables. Match the cable

colors when you connect to the TV.

Composite-Basicquality

For Analog connections. Composite Video / Audio Analog cable usually

combine a Yellow video cable with Red / White Audio (L/R) cables.

With this unit, Yellow cable must be connected to Y (Green) of

Component Video Input jacks.

Connectingyourdevices

HDMIDigitalconnection

HDMI connection offers the highest picture quality.

HDMI (High-Denition Multimedia Interface) transports high denition

Digital video and multi-channel Digital Audio through a single cable.

ININ OUT

set-topbox

Blu-raydiscplayer

HDgameconsole

HDMIcable

HDMI-DVIconnection

This unit can be connected to your device that has a DVI terminal.

Use an HDMI-DVI conversion cable for this connection and it requires

Audio cable for Analog Audio signal as well.

ININ OUT

OUT

HDMI-DVI

conversioncable

Audio(L/R)cables

cablereceiveror

satelliteboxwiththe

DVIOutputjack

Note

• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI

cable is recommended for the better compatibility.

ForHDMIconnection

• The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of video signals, 32kHz

/ 44.1kHz and 48kHz of Audio signals.

• This unit accepts 2 channel Audio signal (LPCM) only.

• This unit accepts only signals in compliance with EIA861.

ForHDMI-DVIconnection

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.

• HDMI-DVI connection requires separate Audio connections as well and the Audio

signals are output as Analog (L/R) Audio.

• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

Continued on next page.

English

HDMI-ARCconnection

HDMI-ARC allows you to use EasyLink to output TV Audio directly to

a connected Audio device, without the need for an additional Digital

Audio cable.

OUT

HDMI-ARC

Digitalhometheater

amplier

HDMIcable

HDMI1INonly

Note

• The HDMI 1 connector is HDMI Audio Return Channel (ARC) compliant. Use it to

output Digital Audio to an HDMI home theater system.

• Be sure that the device is HDMI CEC and ARC compliant and that the TV is connected

to the device using an HDMI cable attached to HDMI-ARC connectors.

ComponentAnalogVideoConnection

Component Analog Video connection offers better picture quality for

video devices connected to the unit.

If you connect to the unit’s Component Video (Y/Pb/Pr) Input jacks,

connect Analog Audio cables to the Analog Audio (L/R) Input jacks.

OUTOUT

OUT

Component(Y/Pb/Pr)Videocables

Audio(L/R)cables

set-topbox

Blu-raydisc/DVD

recorder

Note

• The unit accepts 480i / 480p / 720p and 1080i/p of video signals for this connection.

CompositeAnalogVideoConnection

Composite Analog Video connection offers standard picture quality for

video devices connected to the unit.

If you connect to the unit’s Composite Video (Y/VIDEO) Input jack,

connect Audio cables to the Audio (L/R) Input jacks. When the Audio is

monaural, then only connect to the Audio L Input jack.

OUTOUT

DVDplayer

Audio(L/R)+Videocables

Note

• With this unit, Yellow cable must be connected to Y (Green) of Component Video Input

jacks.

• Whenever you connect to the Composite Video Input jack (Y/VIDEO), you must

disconnect the Component Video Input jacks (Pb and Pr). If you leave those jacks

connected, it may cause of unstable picture.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

ConnectingtheTVtotheInternetusinganEthernetcable

LAN

Networkprovisioning

equipment

Ethernetcable

Internet

Note

• Please purchase shielded Ethernet cables at your local store and use them when you

connect to network equipment.

• After connecting an Ethernet cable, set up necessary network settings. Network

➠

p.40

• Do not insert any cable other than an Ethernet cable to the Ethernet port to avoid

damaging the unit.

• If your telecommunications equipment (modem, etc.) does not have broadband router

functions, connect a broadband router.

• If your telecommunications equipment (modem, etc.) has broadband router functions

but there is no vacant port, use a hub.

• For a broadband router, use a router which supports 10BASE-T / 100BASE-TX.

• Do not connect your PC directly to the Ethernet port of this unit.

Continued on next page.

English

ConnectingtheTVtotheInternetusingawirelessLAN

WLAN

LAN

Broadbandrouter

USBwirelessLAN

adapter

Networkprovisioning

equipment

Ethernetcable

Internet

Note

• After you made the wireless connection, set up necessary network settings.

Network

➠

p.40

• Use a Wireless LAN Access Point (AP) (e.g. wireless router) which supports IEEE

802.11 b/g/n. (n is recommended for stable operation of the wireless network.)

• This unit does not support Ad-hoc mode.

• Other radio devices or obstacles may cause interference to the wireless network

connection.

DigitalAudioOutputConnection

If you connect this unit to an external Digital Audio device, you can

enjoy multi-channel Audio like 5.1ch Digital broadcasting sound.

Use a Digital Audio coaxial cable to connect the unit to external Digital

Audio devices.

ININ

OUT

Digitalhometheater

amplier

DigitalAudiocoaxialcable

PCconnection

HDMI connection

This unit can be connected to your PC that has a HDMI terminal. Use

an HDMI cable for this Digital connection.

ININ OUT

HDMIcable

HDMI-DVI connection

This unit can be connected to your PC that has a DVI terminal. Use

an HDMI-DVI conversion cable for this Video Digital connection and it

requires Stereo mini 3.5mm plug Audio cable for Analog Audio signal as

well.

OUT

ININ

Stereomini3.5mmplugAudiocable

HDMI-DVI

conversioncable

VGA connection

This unit is equipped with a PC Input jack. If you connect this unit to

your PC, you can use this unit as a PC monitor.

Use a VGA cable for this Video connection and it requires a Stereo mini

3.5mm plug Audio cable for Analog Audio signal as well.

OUT

VGAcable

Stereomini3.5mmplugAudiocable

Continued on next page.

English

The following video signals can be displayed:

Format Resolution Refreshrate

VGA

640

480

60Hz

SVGA

800

600

XGA

1,024

768

WXGA

1,280

768

1,360

768

FHD

1,920

1,080

Other formats or non-standard signals will not be displayed correctly.

Note

• Please purchase the VGA cable or HDMI-DVI conversion cable that has a ferrite core.

• The following operations may reduce noise.

– Attach a ferrite core to the AC power cord of your PC.

– Unplug the AC power cord and use the built-in battery of your PC.

• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI

cable is recommended for the better compatibility.

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.

• HDMI-DVI connection requires separate Audio connections as well and the Audio

signals are output as Analog (L/R) Audio.

• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

USBMemoryStick

This unit offers easy playback of picture (JPEG), music (MP3) and video

les.

Insert the USB Memory Stick into the USB terminal shown below.

USB

➠

p.27

Note

• The unit recognizes only a USB Memory Stick.

• Do not use a USB hub or an extension cable to connect an external hard disk drive to

the unit. (Not supported.)

• A USB Memory Stick is always inserted to this unit directly.

• A USB Memory Stick is not supplied with this unit.

• We do not guarantee that all USB Memory Sticks can be supported by this unit.

• Be sure to keep a backup copy of the original les on your device before you play them

back on this unit. We have no responsibilities for damage or loss of your stored data.

• To protect your USB Memory Stick les from being erased place the write protect

sliding tab in the protect position.

• When you are ready to remove a USB Memory Stick, set the unit to go into Standby

mode to avoid any damage to your data and the unit.

• A USB Memory Stick that requires its own driver or the device with a special system

such as ngerprint recognition are not supported.

• This unit is not allowed to use the USB Memory Stick which requires an external

power supply (500mA or more).

English

7 Usefultips

FAQ

Question Answer

Myremotecontroldoesnot

work.

WhatshouldIdo?

• Check the antenna or cable connection to the main unit.

• Check the batteries of the remote control.

• Check if there is an obstacle between the infrared sensor window and the remote control.

• Test the signal Output use IRSignalCheck.

➠

p.52 If okay, then possible infrared sensor trouble.

• Aim the remote control directly at the infrared sensor window on the front of the unit.

• Reduce the distance to the unit.

• Re-insert the batteries with their polarities (+/–) as indicated.

• When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit. Move

the infrared-equipped device away from this unit, change the angle of the infrared sensor or Turn Off the infrared communication

function.

Howcometheinitialsetup

appearseverytimeITurnOn

thisunit?

• Make sure to complete the initial setup before the unit goes into Standby mode.

WhycanInotwatchsomeRF

signalTVprograms.

• Autoprogram must be completed when you set up the unit for the rst time or move it to a location where previously unavailable

channels are broadcast.

• Make sure Autoprogram has been completed.

➠

p.37

• The selected channel may not be broadcasting.

• When Autoprogram is interrupted and not completed, some channels will not be received. Make sure to complete the

Autoprogram.

➠

p.37

• The selected channel cannot be viewed by the Childandratingslock setting.

➠

p.34

• The unit requires some kind of antenna Input. An indoor antenna (Digital or VHF / UHF), an external antenna (Digital or VHF / UHF)

or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.

Howcomethereisnoimage

fromtheconnectedexternal

devices?

• Check if the correct Input mode is selected by pressing SOURCE. Watchingchannelsfromanexternaldevice

➠

p.16

• Check the antenna, cable or other Input connection to the unit.

• When using the Component Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/Cr) connectors are connected

to their corresponding colored jacks on the unit.

WhenIenterachannelnumber,

itchangesautomatically.

• Many Digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the

broadcasting station channel number. These basic numbers used for previous Analog broadcasts. (e.g., Input ch# 30 automatically

changes to ch# 6.1)

Whyarecaptionsnotdisplayed

entirely?Or,captionsare

delayedbehindthedialog.

• Captions that are delayed a few seconds behind the actual dialog are common for live broadcasts. Most captioning production

companies can display a dialog to maximum of 220 words per minute. If a dialog exceeds that rate, selective editing is used to

insure that the captions remain up-to date with the current TV screen dialog.

HowcanIsettheclock? • There is no clock function on this unit.

IcannotchangetheChildlock

settingbecausemyPINcodeno

longerworks.

• Although the default PIN code (0000) is supplied with the unit, the PIN code will be required once you set a PIN code in Child

andratingslock.

➠

p.34When you forget your PIN code, enter 0711 in ChangePIN to reset the PIN code.

➠

p.36

Troubleshooting

If the unit does not perform properly when operated as instructed in this User Manual,

checkthefollowingchartandallconnectionsoncebeforecallingforservice.

Symptom Remedy

No power • Make sure the AC power cord is plugged in.

• Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet to ensure that the AC

outlet operates normally.

• If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself.

Control buttons do not work. • Press only one button at a time. Do NOT press more than one button at the same time.

• Ensure that no buttons on the remote control are depressed and move freely.

Power is ON but no screen

image.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Check whether all the cables to the unit are connected to the correct Output jack of your device like Blu-ray / DVD recorder.

• Make sure that the selected Input mode is connected to the working Input jack.

• Check if your computer is NOT in sleep mode when the Input mode of this unit is in PC mode. Tap any key on the keyboard to

wake up your computer.

Continued on next page.

English

Symptom Remedy

No picture or sound • Check if the Power is On.

• Check whether all the cables to the unit are connected to the correct Output jack of your device like Blu-ray / DVD recorder.

• View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• Unplug the AC power cord and wait for about 1 minute, then plug the AC power cord and Turn On the unit again.

• Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.

• Make sure that the selected Input mode is connected to the working Input jack.

• Check if your computer is NOT in sleep mode when the Input mode of this unit is in PC mode. Tap any key on the keyboard to

wake up your computer.

• Make sure that the sound is not muted. Press MUTEso that the volume bar and current volume level will appear on the TV screen.

• Make sure that the volume is NOT set to 0 or

. If so, use VOL+/− to adjust to the desired volume.

• Make sure that the headphone is NOT connected to the Headphone Audio Output jack.

• Make sure that the TVspeakers is NOT set to Off.

No color • View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• Adjust Color in Picture settings.

➠

p.30

No sound, distorted sound or

incorrect Audio Sound is heard

when using the HDMI-DVI

connections.

• Make sure that the Analog Audio signals from the HDMI-DVI device are connected to the Analog Audio (L/R) Input jacks.

• When using Component Analog Video, Composite Analog Video or PC VGA Video make sure that the Analog Audio (L/R)

connectors are mounted into the Audio (L/R) Input jacks.

Adjusted Picture or Sound

settings are not effective every

time the unit is Turned On.

• You must set Home in Location.

➠

p.38

Otherwise, the settings you adjusted will not be memorized after the unit goes into Standby mode.

Sound OK, picture poor • Electrical interference from nearby appliances may affect picture quality when viewing an off-the-air low power NTSC analog

broadcast signal.

• Adjust Contrast and Brightness in Picture settings.

➠

p.30

• View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• For the best picture quality, watch High Denition wide screen programs.

If the HD content is not available, watch Standard Denition programs instead.

Picture OK, sound poor • View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

• Check if the Audio cable is connected into the unit correctly.

You see a distorted picture or

hear an unusual sound.

• You may be getting interference from electrical appliances, automobiles, motorcycles or uorescent lights when viewing an off-the-

air low power NTSC analog broadcast signal.

• Try moving the unit to another location to see if this is the cause of the problem.

Ghosts, lines or streaks in picture • Electrical interference from nearby appliances may affect picture quality when viewing an off-the-air low power NTSC analog

broadcast signal.

• View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.

You see noise or trash on the

screen.

• When the capabilities of the unit exceed the capabilities of the Digital broadcasting, the signal will be increased to match the

capabilities of the display of the unit. This may cause noise or trash.

When viewing an off-the-air low power NTSC Analog broadcast signal may show noise or trash on the screen.

Different color marks on the TV

screen

• View other TV channels. The problem might be limited to the broadcasting station, missing data or pixelation.

You switch to a different Input

and the volume changes.

• This unit will memorize the volume level from the last time you adjusted it.

• If the volume of the sound from another device is higher or lower, then the loudness will change.

• Make sure AVL is set to On.

➠

p.32

You switch to a different Input

and the screen size changes.

• This unit will memorize the viewing mode from the last time you used the particular Input modes.

The display image does not

cover the entire screen.

• If you are using the unit as a PC monitor, make sure that Horizontalshift and Verticalshift in Picture are set correctly.

➠

p.30

• If you are watching TV or using the Composite Video, Component Video or HDMI with 480i Input, press FORMAT repeatedly to

switch various screen modes.

Captions are displayed as a white

box. No caption is displayed in

the Closed Caption-supported

program.

• Interference from buildings or weather conditions may cause captioning to be incomplete if watching Analog TV (NTSC) signals.

• Broadcasting station may shorten the program to insert advertisements.

• The Closed Caption decoder cannot read the information of the shortened program.

Black box is displayed on the TV

screen.

• The text mode is Selected. For caption, select CC-1, CC-2, CC-3 or CC-4.

Cannot connect to the network. • Check if the Ethernet cable connection is properly made. Turn On the modem or broadband router.

• Check the network settings.

• Check if the broadband router and/or modem is correctly connected.

Sometimes video quality is poor

when using the wireless LAN.

• The wireless network connection quality varies depending on the distance or obstacles (e.g. wall, basement, 2nd oor) between the TV

Wireless LAN Adapter and the wireless router (access point), from other wireless networks, and brand and type of the wireless router

(access point). When using the Wireless LAN of the TV, it is suggested to place the wireless router as close as possible to the Television.

Wireless LAN connection fails or

wireless connection is poor.

• Check the installation location of the TV and wireless router (access point). Signal quality may be affected for the following reasons.

– Interference of other wireless devices, microwaves, fluorescent lights, etc., are placed nearby.

– There are floors or walls between the wireless router and TV.

– If the problems continue even after checking the above, try making a wired LAN connection.

Continued on next page.

English

Symptom Remedy

Cannot use the wireless

connection.

• Check if the Wireless LAN Access Point (AP) (e.g. wireless router) is oriented properly or not placed too close between them.

• Once you have activated the wireless connection please wait 30 seconds for the connection to be established after Turning On the

unit, before trying to access network features such as Net TV.

Cannot use Netix feature. • Netix is available only in the United States and Canada.

• Check if the network connection is properly made.

• Visit http://www.netflix.com/HowItWorks on your PC and become a Netix member.

Cannot add movies or TV

episodes to the Instant Queue.

• Visit www.netflix.com on your PC.

Even though the speed of the

Internet connection improves

during playback, the picture

quality of Netix streaming

movie does not improve.

• The picture quality does not change during playback. It differs depending on the speed of Internet connection at the time of loading.

Cannot use VUDU feature. • VUDU is available only in the United States and Mexico.

• Check if the network connection is properly made.

Cannot rent or buy movies / TV

episodes on VUDU.

• You need to activate the VUDU account. For detailed information, please visit the service providers website at

http://www.vudu.com/product_overview.html

• Log into your account at http://my.vudu.com and check your payment information.

The picture quality of streaming

movie (Netix, Film Fresh or

VUDU) is poor.

• Check the speed of your Internet connection. You need speeds of at least 8 Mbps to this player for high quality uninterrupted

playback.

Streaming movie (Netix,

Film Fresh or VUDU) often stops

or starts buffering during playback.

• Contact your Internet service provider to troubleshoot your Internet connection for speed and line quality. Consistent line quality

and speed are very important for Internet video playback.

Cannot connect to the network

while my PC is connected to the

network.

• Check the content of your Internet service contract to see if your Internet Service Provider prevents multiple terminals connecting

at the same time.

Cannot use Easyconnect (WPS)

to connect to the Access Point.

• Connect the unit to the Access Point using Scan or Manual entry mode. If the Access Point’s security mode is set to WEP *, change

the setting to WPA or WPA2 (recommended), then try Easy connect (WPS) again. (For Access Point conguration, please consult

its user manual or manufacturer.)

* WEP is not recommended to be used due to its Major security aws. Change the Security protocol on the wireless router to

WPA or WPA2 (recommended) mode.

Folder or les stored on DLNA

home media server are not

displayed in the le list or cannot

be played back.

• Check the setting on your home media server. (Refer to the user manual of the home media server.)

• Check the network connection and settings.

Cannot use Film Fresh feature. • Film Fresh is available only in the United States.

• Check if the network connection is properly made.

• Visit http://filmfresh.roxionow.com/ (Film Fresh) on your PC and create an account.

Cannot use Pandora feature. • Check if the network connection is properly made.

• Pandora is available only in the United States.

• You must create a Pandora account and activate this unit. ActivatingPandora

➠

p.22

The audio of Internet radio

station interrupted.

• vTuner server, station or the Internet connection is busy. The bit rate of the station is high.

Cannot play back Internet radio. • Check if the network connection is properly made.

• Check the rewall setting of the modem or router.

• For some stations, playback is not available on this unit.

The quality of the Internet radio

audio is poor or noise occurs

during playback of Internet station.

• The bit rate of the station is low.

Cannot get into the

PC's screen even the

Philips Wireless MediaConnect is

launched.

• Make sure if the network connection is connected properly.

• Check if your PC runs Philips Wireless MediaConnect.

• Make sure your TV and PC are connected on the same network.

I have a 1.8GHz CPU but

MediaConnect does not work

on my PC.

• For smooth operation of your PC while Philips Wireless MediaConnect is running you need a mainstream dual core processor from

Intel

or AMD.

Intel

: Core™2 Duo or Core™ i3/5/7 @ 1.8GHz or higher.

AMD : Athlon™ II X2, Turion™ II Dual-Core or Phenom™ X2 @ 2GHz or higher.

Note

• The LCD screen is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a xed point of blue, green or red.

This is not to be considered a defect in the LCD screen.

• Some functions are not available in specic modes, but this is not a malfunction. Read the description in this User Manual for more details on correct operations.

English

8 Information

Glossary

AnalogTV(NTSC)

Acronym that stands for National Television Systems Committee and the name

of Analog broadcasting standards.

off-the-air NTSC signals are no longer being sent by major broadcasting stations

in the USA.

ARC(AudioReturnChannel)

HDMI-ARC allows you to use of Philips EasyLink to output TV audio directly to a

connected Audio device, without the need for an additional Digital Audio cable.

Be sure that the device is HDMI CEC and ARC compliant, and that the TV is

connected to the device using an HDMI cable attached to both HDMI-ARC

connectors.

Aspectratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other

words, the TV screen is almost square); widescreen models are 16:9 (the TV

screen is almost twice as wide as its height).

CEC(ConsumerElectronicsControl)

This allows you to operate the linked functions between our brand devices with

CEC feature and this unit. We do not guarantee 100% interoperability with other

brands of CEC compliant devices.

ComponentVideo

This is a video signal format that conveys each of 3 principal colors of light

(red, blue and green) through different signal lines. This allows the viewers to

experience picture colors as original as it is. There are several signal formats,

including Y / Pb / Pr and Y / Cb / Cr.

DolbyDigital

The system developed by Dolby Laboratories to compress Digital sound. It offers

stereo sound (2ch) or multi-channel Audio.

DTV(ATSC)

Acronym that stands for Advanced Television Systems Committee and the name

of the Digital broadcasting standards.

E-sticker

E-sticker is showing set features, technical information, etc on this TV set

that is displayed on the TV screen mainly used by TV retailers. Previously the

information was on a printed sticker that was put on the display.

HDMI(High-DenitionMultimediaInterface)

Interface that supports all uncompressed, Digital Audio / Video formats including

set-top box, Blu-ray / DVD recorder or Digital television, over a single cable.

HDTV(HighDenitionTV)

Ultimate Digital format that produces high resolution and high picture quality.

PINcode

A stored 4-digit number that allows access to parental control features.

SAP(SecondaryAudioProgram)

Second-Audio channel delivered separately from main-Audio channel. This Audio

channel is used as an alternate in bilingual broadcasting.

SDTV(StandardDenitionTV)

Standard Digital format that is similar to the Analog TV (NTSC) picture quality.

SRSTruSurroundHD™

Creates an immersive, feature-rich surround sound experience from two

speakers, complete with rich bass, high frequency detail and clear dialog.

Maintenance

CabinetCleaning

• Wipe the front panel and other exterior surfaces of the unit with

a soft cloth.

• Never use a solvent or alcohol. Do not spray insecticide liquid near

the unit. Such chemicals may cause damage and discoloration to

the exposed surfaces.

PanelCleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel,

disconnect the AC power cord.

Servicing

Should your unit become inoperative, do not try to correct the

problem yourself. There are no user serviceable parts inside. Call our

toll free customer support line found on the cover of this User Manual

to locate an authorized service center.

IRSignalCheck

If the remote control is not working properly, you can use a Digital

camera (including a cellular phone with built-in camera) to see if it is

sending out an infrared signal.

With a Digital camera

(including built-in cell phone cameras):

Point the Digital Camera towards the remote control

infrared diode at the front of the remote control.

Press any button on the remote control and loOK

through the camera display. If the infrared pulsating

light appears through the camera, the remote control

is sending out an IR signal.

English

9 Specifications

Model# 40PFL4907

Pictureenhancement

Type FHD (1920 x 1080 pixels 60Hz)

Aspectratio 16:9

Viewingangles 178° (V) by 178° (H)

Built-inDigitaltuner ATSC / NTSC

Soundenhancement

Mono/Stereo Mono, Stereo, SRS TruSurround HD™

Poweroutput(RMSwatts) 10 W x 2

Equalizer 5 band

Easeofuse

Pictureformat

SD (4:3 Source) :

HD (16:9 Source) :

HDMI AV (4:3 Source) :

HDMI AV (16:9 Source) :

PC Source :

Automatic / Super zoom / 4:3 / Movie expand 14:9 / Movie expand 16:9 /

Wide screen

Automatic / 4:3 / Wide screen / Unscaled (1080i/p only)

Automatic / Super zoom / 4:3 / Movie expand 14:9 / Movie expand 16:9 /

Wide screen

Automatic / 4:3 / Wide screen / Unscaled (1080i/p only)

4:3 / Wide screen / Unscaled

(Refer to HDMI AV (16:9 Source) above if PC has HDMI Output. )

PhotoSlideshow JPEG les only

MP3playback MP3 les only

Videoplayback

MPEG1 (.mpg / .mpeg), MPEG2 (.mpg / .mpeg / .vob), H.264 (.mp4),

MPEG4 SP /

ASP (.avi), MPEG4 (.mp4), WVC1 (.wmv)

Connections

ComponentVideoInput(Y/Pb/Pr)

supporting video signals : 480i/p, 720p, 1080i/p 60Hz

CompositeVideoInput

(sharedYterminalofComponentVideo)

HDMIInput

supporting video signals : 480i/p, 720p, 1080i/p, 24Hz-60Hz

HDMI-ARC (HDMI 1 only)

PC-Input signal up to FHD (1920 x 1080)

AudioL/RInput 1

PCInput via VGA, HDMI and HDMI-DVI + Analog Audio L/R

USB

1 terminal mainly for wireless LAN adapter, both terminals function as a USB input terminal

WirelessLAN Supporting wireless standards : IEEE 802.11 b/g/n (2.4GHz)

Ethernetport 1

DigitalAudioOutput

supporting Dolby Digital

HeadphoneOutput

1/8 inches (3.5mm)

Power

Powerrequirements 120V~ AC +/− 10%, 60Hz +/− 0.5%

Temperature

Operatingtemperature 41 °F (5 °C) to 104 °F (40 °C)

• Specications are subject to change without prior notice.

English

10Warranty

P&F USA, Inc. PO Box 2248, Alpharetta, GA 30023-2248

LIMITED WARRANTY

ONE

(

)

YEAR

WARRANTY COVERAGE:

This warranty obligation is limited to the terms as set forth

below.

WHO IS COVERED:

This product warranty is issued to the original purchaser or the

person receiving the product as a gift against defects in materials

and workmanship as based on the date of original purchase

(“Warranty Period”) from an Authorized Dealer. The original

sales receipt showing the product name and the purchase date

from an authorized retailer is considered such proof.

WHAT IS COVERED:

This warranty covers new products if a defect in material or

workmanship occurs and a valid claim is received within the

Warranty Period. At its option, the company will either (1)

repair the product at no charge, using new or refurbished

replacement parts, or (2) exchange the product with a product

that is new or which has been manufactured from new, or ser-

viceable used parts and is at least functionally equivalent or most

comparable to the original product in current inventory, or (3)

refund the original purchase price of the product.

Replacement products or parts provided under this warranty are

covered against defects in materials and workmanship from the

date of the replacement or repair for ninety (90) days or for the

remaining portion of the original product’s

warranty, whichever

provides

longer coverage for you. When a product or part is

exchanged, any replacement item becomes your property and the

replaced item becomes company property. When a refund is

given, your product becomes company property.

Note: Any product sold and identified as refurbished or

renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty

requirements are met. Failure to follow all requirements

can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMI-

TATIONS:

This Limited Warranty applies only to new company manufac-

tured products that can be identified by the trademark, trade

name, or logo affixed to it. This Limited Warranty does not apply

to any hardware product or any software, even if packaged or

sold with the product, as manufacturers, suppliers, or publishers

may provide a separate warranty for their own products pack-

aged with the bundled product.

The company is not liable for any damage to or loss of any pro-

grams, data, or other information stored on any media contained

within the product, or other additional product or part not cov-

ered by this warranty. Recovery or reinstallation of programs,

data or other information is not covered under this Limited

Warranty.

This warranty does not apply (a) to

damage caused by

accident,

abuse, misuse, neglect, misapplication, or non-supplied product,

(b) to damage caused by service performed by anyone other than

company approved Authorized Service Location, (c) to a product

or a part that has been modified without written company per-

mission, or (d) if any serial number has been removed or defaced,

or (e) product, accessories or consumables sold “AS IS” without

warranty of any kind by including refurbished product sold “AS

IS” by some retailers.

This Limited Warranty does not cover:

• Shipping charges to return defective product.

• Labor charges for installation or setup of the product, adjust-

ment of customer controls on the product, and installation or

repair of antenna/signal source systems outside of the product.

• Product repair and/or part replacement because of improper

installation or maintenance, connections to improper voltage

supply, power line surge, lightning damage, retained images or

screen markings resulting from viewing fixed stationary con-

tent for extended periods, product cosmetic appearance items

due to normal wear and tear, unauthorized repair or other

cause not within the control of the company.

• Damage or claims for products not being available for use, or

for lost data or lost software.

• Damage from mishandled shipments or transit accidents when

returning product.

• A product that requires modification or

adaptation to enable

to operate in any country other than the country for which

it was designed, manufactured, approved and/or authorized, or

repair of products damaged by these modifications.

• A product used for commercial or institutional purposes

(including but not limited to rental purposes).

• Product lost in shipment and no signature verification receipt

can be provided.

• Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE…

Contact the Customer Care Center at:

1 866 309 0843

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS

WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-

SUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR

ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR

BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON

THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY

APPLICABLE LAW, ANY IMPLIED WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

ON THIS PRODUCT IS LIMITED IN DURATION TO THE

DURATION OF THIS WARRANTY.

Some states do not allow the exclusions or limitation of inciden-

tal or consequential damages, or allow limitations on how long an

implied warranty lasts, so the above limitations or exclusions may

not apply to you.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

061708

License

This product uses some open source software:

GPL software:linux, gcc, sysfsutils, Realtek WiFi driver, binutils, busybox,

dhcpcd

LGPL software: directfb, glibc, Qt

MIT: Expat, c-ares, libxml2, lua, lua-xmlreader, lua-slncrypto, giﬂ ib

MIT/X: cURL

gSOAP Public License: gSOAP

BSD: WPA Supplicant

zlib/libpng License: zlib, libpng

XML-RPC FOR C/C++ license: xmlrpc

Free Type, LibJPEG, OpenSSL, MINIX 3, unicode, ADPCM, OpenGL

GPL

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this

license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom

to share and change it. By contrast, the GNU General Public License is

intended to guarantee your freedom to share and change free software

to make sure the software is free for all its users. This General Public

License applies to most of the Free Software Foundation's software

and to any other program whose authors commit to using it. (Some

other Free Software Foundation software is covered by the GNU Lesser

General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price.

Our General Public Licenses are designed to make sure that you have the

freedom to distribute copies of free software (and charge for this service

if you wish), that you receive source code or can get it if you want it, that

you can change the software or use pieces of it in new free programs; and

that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone

to deny you these rights or to ask you to surrender the rights. These

restrictions translate to certain responsibilities for you if you distribute

copies of the software, or if you modify it. For example, if you distribute

copies of such a program, whether gratis or for a fee, you must give the

recipients all the rights that you have. You must make sure that they, too,

receive or can get the source code. And you must show them these

terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2)

offer you this license which gives you legal permission to copy, distribute

and/or modifythe software.

Also, for each author's protection and ours, we want to make certain that

everyone understands that there is no warranty for this free software. If

the software is modiﬁ ed by someone else and passed on, we want its

recipients to know that what they have is not the original, so that any

problems introduced by others will not reﬂ ect on the original authors'

reputations.

Finally, any free program is threatened constantly by software patents.

We wish to avoid the danger that redistributors of a free program

will individually obtain patent licenses, in effect making the program

proprietary To prevent this, we have made it clear that any patent must

be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and

modiﬁ cation follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND

MODIFICATION

0. This License applies to any program or other work which contains

a notice placed by the copyright holder saying it may be distributed

under the terms of this General Public License. The “Program”,

below, refers to any such program or work, and a "work based

on the Program" means either the Program or any derivative

work under copyright law: that is to say, a work containing the

Program or a portion of it, either verbatim or with modiﬁ cations

and/or translated into another language. (Hereinafter, translation

is included without limitation in the term “modiﬁ cation".) Each

licensee is addressed as “you”. Activities other than copying,

distribution and modiﬁ cation are not covered by this License;

they are outside its scope. The act of running the Program is not

restricted,and the output from the Program is covered only if its

contents constitute a work based on the Program (independent

of having been made by running the Program). Whether that is

true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's

source code as you receive it, in any medium, provided that

you conspicuously and appropriately publish on each copy an

appropriate copyright notice and disclaimer of warranty; keep

intact all the notices that refer to this License and to the absence

of any warranty; and give any other recipients of the Program a

copy of this License along with the Program. You may charge a fee

for the physical act of transferring a copy, and you may at your

option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any

portion of it, thus forming a work based on the Program, and

copy and distribute such modiﬁ cations or work under the terms

of Section 1 above, provided that you also meet all of these

conditions:

a) You must cause the modiﬁ ed ﬁ les to carry prominent notices

stating that you changed the ﬁ les and the date of any change.

b) You must cause any work that you distribute or publish, that in

whole or in part contains or is derived from the Program or

any part thereof, to be licensed as a whole at no charge to all

third parties under the terms of this License.

c) If the modiﬁ ed program normally reads commands interactively

when run, you must cause it, when started running for such

interactive use in the most ordinary way, to print or display an

announcement including an appropriate copyright notice and a

notice that there is no warranty (or else, saying that you provide

a warranty) and that users may redistribute the program under

these conditions, and telling the user how to view a copy of this

License. (Exception: if the Program itself is interactive but does

not normally print such an announcement, your work based on

the Program is not required to print an announcement.)

These requirements apply to the modiﬁ ed work as a whole.

If identiﬁ able sections of that work are not derived from the

Program, and can be reasonably considered independent and

separate works in themselves, then this License, and its terms, do

not apply to those sections when you distribute them as separate

works. But when you distribute the same sections as part of a

whole which is a work based on the Program, the distribution of

the whole must be on the terms of this License,whose permissions

for other licensees extend to the entire whole, and thus to each

and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest

your rights to work written entirely by you; rather, the intent is

to exercise the right to control the distribution of derivative or

collective works based on the Program.

In addition, mere aggregation of another work not based on

the Program with the Program (or with a work based on the

Program) on a volume of a storage or distribution medium does

not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on

it, under Section 2) in object code or executable form under the

terms of Sections 1 and 2 above provided that you also do one of

the following:

a) Accompany it with the complete corresponding machine-

readable source code, which must be distributed under the

terms of Sections 1 and 2 above on a medium customarily used

for software interchange; or,

b) Accompany it with a written offer, valid for at least three

years, to give any third party, for a charge no more than your

cost of physically performing source distribution, a complete

machine-readable copy of the corresponding source code, to

be distributed under the terms of Sections 1 and 2 above on a

medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer

to distribute corresponding source code. (This alternative is

allowed only for noncommercial distribution and only if you

received the program in object code or executable form with

such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work

for making modiﬁ cations to it. For an executable work, complete

source code means all the source code for all modules it contains,

plus any associated interface deﬁ nition ﬁ les, plus the scripts used to

control compilation and installation of the executable. However, as

a special exception, the source code distributed need not include

anything that is normally distributed (in either source or binary

form) with the major components (compiler, kernel, and so on)

of the operating system on which the executable runs, unless that

component itself accompanies the executable.

If distribution of executable or object code is made by offering

access to copy from a designated place, then offering equivalent

access to copy the source code from the same place counts as

distribution of the source code, even though third parties are not

compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program

except as expressly provided under this License. Any attempt

otherwise to copy, modify, sublicense or distribute the Program

is void, and will automatically terminate your rights under this

License. However, parties who have received copies, or rights,

from you under this License will not have their licenses terminated

so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not

signed it. However, nothing else grants you permission to modify

or distribute the Program or its derivative works. These actions

are prohibited by law if you do not accept this License. Therefore,

by modifying or distributing the Program (or any work based on

the Program), you indicate your acceptance of this License to do

so, and all its terms and conditions for copying, distributing or

modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on

the Program), the recipient automatically receives a license from

the original licensor to copy, distribute or modify the Program

subject to these terms and conditions. You may not impose

any further restrictions on the recipients' exercise of the rights

granted herein. You are not responsible for enforcing compliance

by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent

infringement or for any other reason (not limited to patent

issues), conditions are imposed on you (whether by court order,

agreement or otherwise) that contradict the conditions of this

License, they do not excuse you from the conditions of this

License. If you cannot distribute so as to satisfy simultaneously

your obligations under this License and any other pertinent

obligations, then as a consequence you may not distribute the

Program at all. For example, if a patent license would not permit

royalty-free redistribution of the Program by all those who receive

copies directly or indirectly through you, then the only way you

could satisfy both it and this License would be to refrain entirely

from distribution of the Program.

If any portion of this section is held invalid or unenforceable under

any particular circumstance, the balance of the section is intended

to apply and the section as a whole is intended to apply in other

circumstances.

It is not the purpose of this section to induce you to infringe any

patents or other property right claims or to contest validity of

any such claims; this section has the sole purpose of protecting

the integrity of the free software distribution system, which is

implemented by public license practices. Many people have made

generous contributions to the wide range of software distributed

through that system in reliance on consistent application of that

system; it is up to the author/donor to decide if he or she is willing

to distribute software through any other system and a licensee

cannot impose that choice.

This section is intended to make thoroughly clear what is believed

to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in

certain countries either by patents or by copyrighted interfaces,

the original copyright holder who places the Program under this

License may add an explicit geographical distribution limitation

excluding those countries, so that distribution is permitted only in

or among countries not thus excluded. In such case, this License

incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new

versions of the General Public License from time to time. Such

new versions will be similar in spirit to the present version, but

may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the

Program speciﬁ es a version number of this License which applies

to it and “any later version”, you have the option of following the

terms and conditions either of that version or of any later version

published by the Free Software Foundation. If the Program does

not specify a version number of this License, you may choose any

version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free

programs whose distribution conditions are different, write to the

author to ask for permission. For software which is copyrighted

by the Free Software Foundation, write to the Free Software

Foundation; we sometimes make exceptions for this. Our decision

will be guided by the two goals of preserving the free status of all

derivatives of our free software and of promoting the sharing and

reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN

OTHERWISE STATED IN WRITING THE COPYRIGHT

HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM

“AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS

TO THE QUALITY AND PERFORMANCE OF THE PROGRAM

IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE,

YOU ASSUME THE COST OF ALL NECESSARY SERVICING,

REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW

OR AGREED TO IN WRITING WILL ANY COPYRIGHT

HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/

OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE,

BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY

GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES ARISING OUT OF THE USE OR INABILITY TO

USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO

LOSS OF DATA OR DATA BEING RENDERED INACCURATE

iii

OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR

A FAILURE OF THE PROGRAM TO OPERATE WITH ANY

OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER

PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest

possible use to the public, the best way to achieve this is to make it

free software which everyone can redistribute and change under these

terms. To do so, attach the following notices to the program. It is safest to

attach them to the start of each source ﬁ le to most effectively convey the

exclusion of warranty;and each ﬁ le should have at least the “copyright”

line and a pointer to where the full notice is found.

one line to give the program's name and an idea of what it does.

This program is free software; you can redistribute it and/or modify it

under the terms of the GNU General Public License as published by the

Free Software Foundation; either version 2 of the License, or (at your

option) any later version.

This program is distributed in the hope that it will be useful, but

WITHOUT ANY WARRANTY; without even the implied warranty of

MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See

the GNU General Public License for more details.

You should have received a copy of the GNU General Public License

along with this program; if not, write to the Free Software Foundation,

Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Also add information on how to contact you by electronic and paper

mail.

If the program is interactive, make it output a short notice like this when

it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY; for details

type ‘show w’. This is free software, and you are welcome to redistribute

it under certain conditions; type ‘show c’ for details.

The hypothetical commands ‘show w’ and ‘show c’ should show the

appropriate parts of the General Public License. Of course, the commands

you use may be called something other than ‘show w’ and ‘show c’; they

could even be mouse-clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or

your school, if any, to sign a “copyright disclaimer” for the program, if

necessary.

Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program

‘Gnomovision’ (which makes passes at compilers) written by James

Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program

into proprietary programs. If your program is a subroutine library, you

may consider it more useful to permit linking proprietary applications

with the library. If this is what you want to do, use the GNU Lesser

General Public License instead of this License.

If you are interested in obtaining GPL source code used in this product,

please contact

Open Source Team, P&F USA, Inc.,PO Box 2248, Alpharetta, GA 30023-

2248.

LGPL

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this

license document, but changing it is not allowed.

[This is the ﬁ rst released version of the Lesser GPL. It also counts as

the successor of the GNU Library Public License, version 2, hence the

version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom

to share and change it. By contrast, the GNU General Public Licenses are

intended to guarantee your freedom to share and change free software

to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially

designated software packages--typically libraries--of the Free Software

Foundation and other authors who decide to use it. You can use it too,

but we suggest you ﬁ rst think carefully about whether this license or

the ordinary General Public License is the better strategy to use in any

particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use,

not price. Our General Public Licenses are designed to make sure that

you have the freedom to distribute copies of free software (and charge

for this service if you wish); that you receive source code or can get it if

you want it; that you can change the software and use pieces of it in new

free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid

distributors to deny you these rights or to ask you to surrender these

rights. These restrictions translate to certain responsibilities for you if you

distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a

fee, you must give the recipients all the rights that we gave you. You must

make sure that they, too, receive or can get the source code. If you link

other code with the library, you must provide complete object ﬁ les to

the recipients, so that they can relink them with the library after making

changes to the library and recompiling it. And you must show them these

terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the

library, and (2) we offer you this license, which gives you legal permission

to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no

warranty for the free library. Also, if the library is modiﬁ ed by someone

else and passed on, the recipients should know that what they have is not

the original version, so that the original author's reputation will not be

affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any

free program. We wish to make sure that a company cannot effectively

restrict the users of a free program by obtaining a restrictive license from

a patent holder. Therefore, we insist that any patent license obtained for

a version of the library must be consistent with the full freedom of use

speciﬁ ed in this license.

Most GNU software, including some libraries, is covered by the ordinary

GNU General Public License. This license, the GNU Lesser General

Public License, applies to certain designated libraries, and is quite different

from the ordinary General Public License. We use this license for certain

libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a

shared library, the combination of the two is legally speaking a combined

work, a derivative of the original library. The ordinary General Public

License therefore permits such linking only if the entire combination ﬁ ts

its criteria of freedom. The Lesser General Public License permits more

lax criteria for linking other code with the library.

We call this license the “Lesser” General Public License because it does

Less to protect the user's freedom than the ordinary General Public

License. It also provides other free software developers Less of an

advantage over competing non-free programs. These disadvantages are

the reason we use the ordinary General Public License for many libraries.

However, the Lesser license provides advantages in certain special

circumstances.

For example, on rare occasions, there may be a special need to encourage

the widest possible use of a certain library, so that it becomes a de-facto

standard. To achieve this, non-free programs must be allowed to use the

library. A more frequent case is that a free library does the same job as

widely used non-free libraries. In this case, there is little to gain by limiting

the free library to free software only, so we use the Lesser General Public

License.

In other cases, permission to use a particular library in non-free programs

enables a greater number of people to use a large body of free software.

For example, permission to use the GNU C Library in non-free programs

enables many more people to use the whole GNU operating system, as

well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users'

freedom, it does ensure that the user of a program that is linked with the

Library has the freedom and the wherewithal to run that program using

a modiﬁ ed version of the Library.

The precise terms and conditions for copying, distribution and modiﬁ cation

follow. Pay close attention to the difference between a “work based on

the library” and a “work that uses the library”. The former contains code

derived from the library, whereas the latter must be combined with the

library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND

MODIFICATION

0. This License Agreement applies to any software library or other

program which contains a notice placed by the copyright holder

or other authorized party saying it may be distributed under

the terms of this Lesser General Public License (also called “this

License”). Each licensee is addressed as “you”.

A “library” means a collection of software functions and/or

data prepared so as to be conveniently linked with application

programs (which use some of those functions and data) to form

executables.

The “Library”, below, refers to any such software library or work

which has been distributed under these terms. A “work based

on the Library” means either the Library or any derivative

work under copyright law: that is to say, a work containing the

Library or a portion of it, either verbatim or with modiﬁ cations

and/or translated straightforwardly into another language.

(Hereinafter, translation is included without limitation in the term

“modiﬁ cation”.)

“Source code” for a work means the preferred form of the work

for making modiﬁ cations to it. For a library, complete source code

means all the source code for all modules it contains, plus any

associated interface deﬁ nition ﬁ les, plus the scripts used to control

compilation and installation of the library.

Activities other than copying, distribution and modiﬁ cation are not

covered by this License; they are outside its scope. The act of

running a program using the Library is not restricted, and output

from such a program is covered only if its contents constitute a

work based on the Library (independent of the use of the Library

in a tool for writing it). Whether that is true depends on what the

Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's

complete source code as you receive it, in any medium, provided

that you conspicuously and appropriately publish on each copy

an appropriate copyright notice and disclaimer of warranty; keep

intact all the notices that refer to this License and to the absence

of any warranty; and distribute a copy of this License along with

the Library.

You may charge a fee for the physical act of transferring a copy,

and you may at your option offer warranty protection in exchange

for a fee.

2. You may modify your copy or copies of the Library or any portion

of it, thus forming a work based on the Library, and copy and

distribute such modiﬁ cations or work under the terms of Section

1 above, provided that you also meet all of these conditions:

a) The modiﬁ ed work must itself be a software library.

b) You must cause the ﬁ les modiﬁ ed to carry prominent notices

stating that you changed the ﬁ les and the date of any change.

c) You must cause the whole of the work to be licensed at no

charge to all third parties under the terms of this License.

d) If a facility in the modiﬁ ed Library refers to a function or a table

of data to be supplied by an application program that uses

the facility, other than as an argument passed when the facility

is invoked, then you must make a good faith effort to ensure

that, in the event an application does not supply such function

or table, the facility still operates, and performs whatever part

of its purpose remains meaningful. (For example, a function

in a library to compute square roots has a purpose that is

entirely well-deﬁ ned independent of the application. Therefore,

Subsection 2d requires that any application-supplied function

or table used by this function must be optional: if the application

does not supply it, the square root function must still compute

square roots.)

These requirements apply to the modiﬁ ed work as a whole. If

identiﬁ able sections of that work are not derived from the Library,

and can be reasonably considered independent and separate

works in themselves, then this License, and its terms, do not apply

to those sections when you distribute them as separate works.

But when you distribute the same sections as part of a whole

which is a work based on the Library, the distribution of the whole

must be on the terms of this License, whose permissions for other

licensees extend to the entire whole, and thus to each and every

part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest

your rights to work written entirely by you; rather, the intent is

to exercise the right to control the distribution of derivative or

collective works based on the Library.

In addition, mere aggregation of another work not based on the

Library with the Library (or with a work based on the Library) on

a volume of a storage or distribution medium does not bring the

other work under the scope of this License.

3. You may opt to apply the terms of the ordinary GNU General

Public License instead of this License to a given copy of the

Libr

ary. To do this, you must alter all the notices that refer to this

License, so that they refer to the ordinary GNU General Public

License, version 2, instead of to this License. (If a newer version

than version 2 of the ordinary GNU General Public License has

appeared, then you can specify that version instead if you wish.)

Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that

copy, so the ordinary GNU General Public License applies to all

subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of

the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or

derivative of it, under Section 2) in object code or executable

form under the terms of Sections 1 and 2 above provided that

you accompany it with the complete corresponding machine-

readable source code, which must be distributed under the terms

of Sections 1 and 2 above on a medium customarily used for

software interchange.

If distribution of object code is made by offering access to copy

from a designated place, then offering equivalent access to copy

the source code from the same place satisﬁ es the requirement

to distribute the source code, even though third parties are not

compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion of the Library,

but is designed to work with the Library by being compiled or

linked with it, is called a “work that uses the Library”. Such a work,

in isolation, is not a derivative work of the Library, and therefore

falls outside the scope of this License.

However, linking a “work that uses the Library” with the Library

creates an executable that is a derivative of the Library (because

it contains portions of the Library), rather than a “work that uses

the library”. The executable is therefore covered by this License.

Section 6 states terms for distribution of such executables.

When a “work that uses the Library” uses material from a header

ﬁ le that is part of the Library, the object code for the work may

be a derivative work of the Library even though the source code

is not. Whether this is true is especially signiﬁ cant if the work can

be linked without the Library, or if the work is itself a library. The

threshold for this to be true is not precisely deﬁ ned by law.

If such an object ﬁ le uses only numerical parameters, data

structure layouts and accessors, and small macros and small inline

functions (ten lines or less in length), then the use of the object

ﬁ le is unrestricted, regardless of whether it is legally a derivative

work. (Executables containing this object code plus portions of

the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may

distribute the object code for the work under the terms of

Section 6. Any executables containing that work also fall under

Section 6, whether or not they are linked directly with the Library

itself.

6. As an exception to the Sections above, you may also combine or

link a “work that uses the Library” with the Library to produce

a work containing portions of the Library, and distribute that

work under terms of your choice, provided that the terms permit

modiﬁ cation of the work for the customer's own use and reverse

engineering for debugging such modiﬁ cations.

You must give prominent notice with each copy of the work

that the Library is used in it and that the Library and its use are

covered by this License. You must supply a copy of this License.

If the work during execution displays copyright notices, you must

include the copyright notice for the Library among them, as well

as a reference directing the user to the copy of this License. Also,

you must do one of these things:

a) Accompany the work with the complete corresponding

machine-readable source code for the Library including

whatever changes were used in the work (which must be

distributed under Sections 1 and 2 above); and, if the work

is an executable linked with the Library, with the complete

machine-readable “work that uses the Library”, as object code

and/or source code, so that the user can modify the Library

and then relink to produce a modiﬁ ed executable containing

the modiﬁ ed Library. (It is understood that the user who

changes the contents of deﬁ nitions ﬁ les in the Library will not

necessarily be able to recompile the application to use the

modiﬁ ed deﬁ nitions.)

b) Use a suitable shared library mechanism for linking with the

Library. A suitable mechanism is one that (1) uses at run time

a copy of the library already present on the user's computer

system, rather than copying library functions into the executable,

and (2) will operate properly with a modiﬁ ed version of the

library, if the user installs one, as long as the modiﬁ ed version is

interface-compatible with the version that the work was made

with.

c) Accompany the work with a written offer, valid for at least

three years, to give the same user the materials speciﬁ ed in

Subsection 6a, above, for a charge no more than the cost of

performing this distribution.

d) If distribution of the work is made by offering access to copy

from a designated place, offer equivalent access to copy the

above speciﬁ ed materials from the same place.

e) Verify that the user has already received a copy of these

materials or that you have already sent this user a copy.

For an executable, the required form of the “work that uses

the Library” must include any data and utility programs needed

for reproducing the executable from it. However, as a special

exception, the materials to be distributed need not include

anything that is normally distributed (in either source or binary

form) with the major components (compiler, kernel, and so on)

of the operating system on which the executable runs, unless that

component itself accompanies the executable.

It may happen that this requirement contradicts the license

restrictions of other proprietary libraries that do not normally

accompany the operating system. Such a contradiction means you

cannot use both them and the Library together in an executable

that you distribute.

7. You may place library facilities that are a work based on the

Library side-by-side in a single library together with other

library facilities not covered by this License, and distribute such

a combined library, provided that the separate distribution of the

work based on the Library and of the other library facilities is

otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same

work based on the Library, uncombined with any other library

facilities. This must be distributed under the terms of the

Sections above.

b) Give prominent notice with the combined library of the fact

that part of it is a work based on the Library, and explaining

where to ﬁ

nd the accompanying uncombined form of the

same work.

8. You may not copy, modify, sublicense, link with, or distribute

the Library except as expressly provided under this License.

Any attempt otherwise to copy, modify, sublicense, link with, or

distribute the Library is void, and will automatically terminate your

rights under this License. However, parties who have received

copies, or rights, from you under this License will not have

their licenses terminated so long as such parties remain in full

compliance.

9. You are not required to accept this License, since you have not

signed it. However, nothing else grants you permission to modify

or distribute the Library or its derivative works. These actions are

prohibited by law if you do not accept this License. Therefore, by

modifying or distributing the Library (or any work based on the

Library), you indicate your acceptance of this License to do so, and

all its terms and conditions for copying, distributing or modifying

the Library or works based on it.

10. Each time you redistribute the Library (or any work based on the

Library), the recipient automatically receives a license from the

original licensor to copy, distribute, link with or modify the Library

subject to these terms and conditions. You may not impose

any further restrictions on the recipients' exercise of the rights

granted herein. You are not responsible for enforcing compliance

by third parties with this License.

11. If, as a consequence of a court judgment or allegation of patent

infringement or for any other reason (not limited to patent

issues), conditions are imposed on you (whether by court order,

agreement or otherwise) that contradict the conditions of this

License, they do not excuse you from the conditions of this

License. If you cannot distribute so as to satisfy simultaneously

your obligations under this License and any other pertinent

obligations, then as a consequence you may not distribute the

Library at all. For example, if a patent license would not permit

royalty-free redistribution of the Library by all those who receive

copies directly or indirectly through you, then the only way you

could satisfy both it and this License would be to refrain entirely

from distribution of the Library.

If any portion of this section is held invalid or unenforceable under

any particular circumstance, the balance of the section is intended

to apply, and the section as a whole is intended to apply in other

circumstances.

It is not the purpose of this section to induce you to infringe any

patents or other property right claims or to contest validity of

any such claims; this section has the sole purpose of protecting

the integrity of the free software distribution system which is

implemented by public license practices. Many people have made

generous contributions to the wide range of software distributed

through that system in reliance on consistent application of that

system; it is up to the author/donor to decide if he or she is willing

to distribute software through any other system and a licensee

cannot impose that choice.

This section is intended to make thoroughly clear what is believed

to be a consequence of the rest of this License.

12. If the distribution and/or use of the Library is restricted in

certain countries either by patents or by copyrighted interfaces,

the original copyright holder who places the Library under this

License may add an explicit geographical distribution limitation

excluding those countries, so that distribution is permitted only in

or among countries not thus excluded. In such case, this License

incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may publish revised and/or new

versions of the Lesser General Public License from time to time.

Such new versions will be similar in spirit to the present version,

but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library

speciﬁ es a version number of this License which applies to it and

“any later version”, you have the option of following the terms

and conditions either of that version or of any later version

published by the Free Software Foundation. If the Library does

not specify a license version number, you may choose any version

ever published by the Free Software Foundation.

14. If you wish to incorporate parts of the Library into other free

programs whose distribution conditions are incompatible with

these, write to the author to ask for permission. For software

which is copyrighted by the Free Software Foundation, write to

the Free Software Foundation; we sometimes make exceptions

for this. Our decision will be guided by the two goals of preserving

the free status of all derivatives of our free software and of

promoting the sharing and reuse of software generally.

NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE,

THERE IS NO WARRANTY FOR THE LIBRARY, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN

OTHERWISE STATED IN WRITING THE COPYRIGHT

HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY

“AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS

TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS

WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU

ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR

OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW

OR AGREED TO IN WRITING WILL ANY COPYRIGHT

HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/

OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE,

BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY

GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES ARISING OUT OF THE USE OR INABILITY TO

USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO

LOSS OF DATA OR DATA BEING RENDERED INACCURATE

OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A

FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER

SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY AS

BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible

use to the public, we recommend making it free software that everyone

can redistribute and change. You can do so by permitting redistribution

under these terms (or, alternatively, under the terms of the ordinary

General Public License).

To apply these terms, attach the following notices to the library. It is

safest to attach them to the start of each source ﬁ le to most effectively

convey the exclusion of warranty; and each ﬁ le should have at least the

“copyright” line and a pointer to where the full notice is found.

This library is free software; you can redistribute it and/or modify it under

the terms of the GNU Lesser General Public License as published by the

Free Software Foundation; either version 2.1 of the License, or (at your

option) any later version. This library is distributed in the hope that it will

be useful, but WITHOUT ANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR

PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public

License along with this library; if not, write to the Free Software

Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301

USA

Also add information on how to contact you by electronic and paper

mail.

You should also get your employer (if you work as a programmer) or your

school, if any, to sign a “copyright disclaimer” for the library, if necessary.

Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob'

(a library for tweaking knobs) written by James Random Hacker.

<signature of Ty Coon>, 1 April 1990

Ty Coon, President of Vice

That's all there is to it!

If you are interested in obtaining GPL source code used in this product,

please contact Open Source Team, P&F USA, Inc.,PO Box 2248,

Alpharetta, GA 30023-2248.

vii

MIT

Expat

and Clark Cooper

c-ares

Permission to use, copy, modify, and distribute this software and its

documentation for any purpose and without fee is hereby granted,

provided that the above copyright notice appear in all copies and that

both that copyright notice and this permission notice appear in supporting

documentation, and that the name of M.I.T. not be used in advertising

or publicity pertaining to distribution of the software without speciﬁ c,

written prior permission. M.I.T. makes no representations about the

suitability of this software for any purpose. It is provided “as is” without

express or implied warranty.

libxml2

lua

lua-xmlreader

lua-slncrypto

giﬂ ib

Permission is hereby granted, free of charge, to any person obtaining a

copy of this software and associated documentation ﬁ les (the “Software”),

to deal in the Software without restriction, including without limitation the

rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell

copies of the Software, and to permit persons to whom the Software is

furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included

in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF

ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT

SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR

ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN

ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,

OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE

USE OR OTHER DEALINGS IN THE SOFTWARE.

Permission is hereby granted, free of charge, to any person obtaining a

copy of this software and associated documentation ﬁ les (the Software),

to deal in the Software without restriction, including without limitation

the rights to use, copy, modify, merge, publish, distribute, sublicense, and/

or sell copies of the Software, and to permit persons to whom the

Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included

in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF

ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT

SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR

ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN

ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,

OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE

USE OR OTHER DEALINGS IN THE SOFTWARE.

MIT/X

cURL

Permission to use, copy, modify, and distribute this software for any

purpose with or without fee is hereby granted, provided that the above

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY

OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS

FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF

THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR

OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT

OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION

WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE

SOFTWARE.

Except as contained in this notice, the name of a copyright holder shall

not be used in advertising or otherwise to promote the sale, use or

other dealings in this Software without prior written authorization of the

gSOAP

Part of the software embedded in this product is gSOAP software.

THE SOFTWARE IN THIS PRODUCT WAS IN PART PROVIDED

BY GENIVIA INC AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR

BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,

EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,

BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS

OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS

INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF

LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY

WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF

THE POSSIBILITY OF SUCH DAMAGE.

viii

BSD

Redistribution and use in source and binary forms, with or without

modiﬁ cation, are permitted provided that the following conditions are

met:

1. Redistributions of source code must retain the above copyright

notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above

in the documentation and/or other materials provided with the

distribution.

3. Neither the name(s) of the above-listed copyright holder(s) nor

the names of its contributors may be used to endorse or promote

products derived from this software without speciﬁ c prior written

permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS

AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL

THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR

ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF

USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN

CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE

OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF

THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

zlib/libpng License

zlib.h -- interface of the 'zlib' general purpose compression library version

1.2.3, July 18th, 2005

This software is provided 'as-is', without any express or implied warranty.

In no event will the authors be held liable for any damages arising from

the use of this software.

Permission is granted to anyone to use this software for any purpose,

including commercial applications, and to alter it and redistribute it freely,

subject to the following restrictions:

1. The origin of this software must not be misrepresented; you

must not claim that you wrote the original software. If you use

this software in a product, an acknowledgment in the product

documentation would be appreciated but is not required.

2. Altered source versions must be plainly marked as such, and must

not be misrepresented as being the original software.

3. This notice may not be removed or altered from any source

distribution.

Jean-loup Gailly Mark Adler

[email protected] [email protected]

The data format used by the zlib library is described by RFCs (Request for

Comments) 1950 to 1952 in the ﬁ les http://www.ietf.org/rfc/rfc1950.txt

(zlib format), rfc1951.txt (deﬂ ate format) and rfc1952.txt (gzip format).

xmlrpc

XML-RPC For C/C++ License

Redistribution and use in source and binary forms, with or without

modiﬁ cation, are permitted provided that the following conditions are

met:

1. Redistributions of source code must retain the above copyright

notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above

in the documentation and/or other materials provided with the

distribution.

3. The name of the author may not be used to endorse or promote

products derived from this software without speciﬁ c prior written

permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND

CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL

THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,

INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT

OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT

LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)

ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN

IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Free Type

LibJPEG

This software is based in part on the work of the Independent JPEG

Group.

OpenSSL

LICENSE ISSUES

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of

the OpenSSL License and the original SSLeay license apply to the toolkit.

See below for the actual license texts. Actually both licenses are BSD-style

Open Source licenses. In case of any license issues related to OpenSSL

please contact [email protected].

OpenSSL License

Redistribution and use in source and binary forms, with or without

modiﬁ cation, are permitted provided that the following conditions are

met:

1. Redistributions of source code must retain the above copyright

notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above

in the documentation and/or other materials provided with the

distribution.

3. All advertising materials mentioning features or use of this

software must display the following acknowledgment: “This

product includes software developed by the OpenSSL Project for

use in the OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be

used to endorse or promote products derived from this software

without prior written permission. For written permission, please

contact [email protected].

5. Products derived from this software may not be called “OpenSSL”

nor may “OpenSSL” appear in their names without prior written

permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following

acknowledgment: “This product includes software developed by

the OpenSSL Project for use in the OpenSSL Toolkit (http://www.

openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT

``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

ARE DISCLAIMED.IN NO EVENT SHALL THE OpenSSL PROJECT

OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,

INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT

OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND

ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT

LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)

ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN

IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young

(eay@cryptsoft.com).

This product includes software written by Tim Hudson (tjh@cryptsoft.

com).

Original SSLeay License

This package is an SSL implementation written by Eric Young (eay@

cryptsoft.com).

The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as

the following conditions are aheared to. The following conditions apply

to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc.,

code; not just the SSL code.The SSL documentation included with this

distribution is covered by the same copyright terms except that the

holder is Tim Hudson (tjh@cryptsoft.com).

code are not to be removed. If this package is used in a product, Eric

Young should be given attribution as the author of the parts of the library

used. This can be in the form of a textual message at program startup or

in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without

modiﬁ cation, are permitted provided that the following conditions are

met:

1. Redistributions of source code must retain the copyright notice,

this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above

in the documentation and/or other materials provided with the

distribution.

3. All advertising materials mentioning features or use of this

software must display the following acknowledgement: “This

product includes cryptographic software written by Eric Young

(eay@cryptsoft.com)”

The word 'cryptographic' can be left out if the rouines from the

library being used are not cryptographic related :-).

4. If you include any Windows speciﬁ c code (or a derivative thereof)

from the apps directory (application code) you must include an

acknowledgement: “This product includes software written by Tim

Hudson (tjh@cryptsoft.com)”

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND

ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.IN

NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE

FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF

USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN

CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE

OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF

THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

The licence and distribution terms for any publically available version or

derivative of this code cannot be changed.i.e. this code cannot simply be

copied and put under another distribution licence

[including the GNU Public Licence.]

MINIX 3

Redistribution and use of the MINIX 3 operating system in source and

binary forms, with or without modiﬁ cation, are permitted provided that

the following conditions are met:

Redistributions of source code must retain the above copyright notice,

this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice,

this list of conditions and the following disclaimer in the documentation

and/or other materials provided with the distribution.

Neither the name of the Vrije Universiteit nor the names of the software

authors or contributors may be used to endorse or promote products

derived from this software without speciﬁ c prior written permission.

Any deviations from these conditions require written permission from

the copyright holder in advance

unicode

Unicode Copyright.

2. Certain documents and ﬁ les on this website contain a legend

indicating that “Modiﬁ cation is permitted." Any person is hereby

authorized, without fee, to modify such documents and ﬁ les to

create derivative works conforming to the UnicodeR Standard,

subject to Terms and Conditions herein.

3. Any person is hereby authorized, without fee, to view, use,

reproduce, and distribute all documents and ﬁ les solely for

informational purposes in the creation of products supporting the

Unicode Standard, subject to the Terms and Conditions herein.

4. Further speciﬁ cations of rights and restrictions pertaining to

the use of the particular set of data ﬁ les known as the Unicode

Character Database can be found in Exhibit 1.

5. Each version of the Unicode Standard has further speciﬁ cations

of rights and restrictions of use. For the book editions (Unicode

5.0 and earlier), these are found on the back of the title page.

The online code charts carry speciﬁ c restrictions. All other ﬁ les,

including online documentation of the core speciﬁ cation for

Unicode 6.0 and later, are covered under these general Terms of

Use.

6. No license is granted to "mirror" the Unicode website where a

fee is charged for access to the "mirror" site.

7. Modiﬁ cation is not permitted with respect to this document. All

copies of this document must be verbatim.

EXHIBIT 1

UNICODE, INC. LICENSE AGREEMENT - DATA FILES AND

SOFTWARE

Unicode Data Files include all data ﬁ les under the directories

http://www.unicode.org/Public/, http://www.unicode.org/reports/, and

http://www.unicode.org/cldr/data/. Unicode Data Files do not include

PDF online code charts under the directory

http://www.unicode.org/Public/. Software includes any source code

published in the Unicode Standard or under the directories

http://www.unicode.org/Public/, http://www.unicode.org/reports/, and

http://www.unicode.org/cldr/data/.

NOTICE TO USER: Carefully read the following legal agreement. BY

DOWNLOADING, INSTALLING, COPYING OR OTHERWISE USING

UNICODE INC.'S DATA FILES ("DATA FILES"), AND/OR SOFTWARE

("SOFTWARE"), YOU UNEQUIVOCALLY ACCEPT, AND AGREE TO

BE BOUND BY, ALL OF THE TERMS AND CONDITIONS OF THIS

AGREEMENT. IF YOU DO NOT AGREE, DO NOT DOWNLOAD,

INSTALL, COPY, DISTRIBUTE OR USE THE DATA FILES OR

SOFTWARE.

under the Terms of Use in http://www.unicode.org/copyright.html.

Permission is hereby granted, free of charge, to any person obtaining a

copy of the Unicode data ﬁ les and any associated documentation (the

Data Files) or Unicode software and any associated documentation

(the Software) to deal in the Data Files or Software without restriction,

including without limitation the rights to use, copy, modify, merge, publish,

distribute, and/or sell copies of the Data Files or Software, and to permit

persons to whom the Data Files or Software are furnished to do so,

provided that (a) the above copyright notice(s) and this permission

notice appear with all copies of the Data Files or Software, (b) both the

above copyright notice(s) and this permission notice appear in associated

documentation, and (c) there is clear notice in each modiﬁ ed Data File or

in the Software as well as in the documentation associated with the Data

File(s) or Software that the data or software has been modiﬁ ed.

THE DATA FILES AND SOFTWARE ARE PROVIDED "AS IS", WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING

BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT

OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT

HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR

ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL

DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM

LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION

OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION,

ARISING OUT OF OR IN CONNECTION WITH THE USE OR

PERFORMANCE OF THE DATA FILES OR SOFTWARE.

Except as contained in this notice, the name of a copyright holder shall

not be used in advertising or otherwise to promote the sale, use or

other dealings in these Data Files or Software without prior written

authorization of the copyright holder.

ADPCM

Netherlands.

Permission to use, copy, modify, and distribute this software and its

documentation for any purpose and without fee is hereby granted,

provided that the above copyright notice appear in all copies and that

both that copyright notice and this permission notice appear in supporting

documentation, and that the names of Stichting Mathematisch Centrum

or CWI not be used in advertising or publicity pertaining to distribution

of the software without speciﬁ c, written prior permission.

STICHTING MATHEMATISCH CENTRUM DISCLAIMS ALL

WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING

ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS,

IN NO EVENT SHALL STICHTING MATHEMATISCH CENTRUM

BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL

DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM

LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION

OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION,

ARISING OUT OF OR IN CONNECTION WITH THE USE OR

PERFORMANCE OF THIS SOFTWARE.

OpenGL

Notice

License Applicability. Except to the extent portions of this ﬁ le are made

subject to an alternative license as permitted in the SGI Free Software

License B, Version 1.0 (the “License”), the contents of this ﬁ le are subject

only to the provisions of the License. You may not use this ﬁ le except in

compliance with the License. You may obtain a copy of the License at

Silicon Graphics, Inc., attn: Legal Services, 1600 Amphitheatre Parkway,

Mountain View, CA 94043-1351, or at: http://oss.sgi.com/projects/FreeB

Note that, as provided in the License, the Software is distributed on

an “AS IS” basis, with ALL EXPRESS AND IMPLIED WARRANTIES

AND CONDITIONS DISCLAIMED, INCLUDING, WITHOUT

LIMITATION, ANY IMPLIED WARRANTIES AND CONDITIONS

OF MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A

PARTICULAR PURPOSE, AND NON-INFRINGEMENT.

Original Code. The Original Code is: OpenGL Sample Implementation,

Version 1.2.1, released January 26, 2000, developed by Silicon Graphics,

Additional Notice Provisions: The application programming interfaces

established by SGI in conjunction with the Original Code are The

OpenGL(R) Graphics System: A Speciﬁ cation (Version 1.2.1), released

April 1, 1999; The OpenGL(R) Graphics System Utility Library (Version

1.3), released November 4, 1998; and OpenGL(R) Graphics with the

X Window System(R) (Version 1.3), released October 19, 1998. This

software was created using the OpenGL(R) version 1.2.1 Sample

Implementation published by SGI, but has not been independently veriﬁ ed

as being compliant with the OpenGL(R) version 1.2.1 Speciﬁ cation. SGI

FREE SOFTWARE LICENSE B (Version 1.1 [02/22/2000])

1. Deﬁ nitions.

1.1. “Additional Notice Provisions” means such additional provisions

as appear in the Notice in Original Code under the heading

“Additional Notice Provisions.”

1.2. “Covered Code” means the Original Code or Modiﬁ cations, or

any combination thereof.

1.3. “Hardware” means any physical device that accepts input,

processes input, stores the results of processing, and/or provides

output.

1.4. “Larger Work” means a work that combines Covered Code or

portions thereof with code not governed by the terms of this

License.

1.5. “Licensable” means having the right to grant, to the maximum

extent possible, whether at the time of the initial grant or

subsequently acquired, any and all of the rights conveyed herein.

1.6. “License” means this document.

1.7. “Licensed Patents” means patent claims Licensable by SGI that are

infringed by the use or sale of Original Code or any Modiﬁ cations

provided by SGI, or any combination thereof.

1.8. “Modiﬁ cations” means any addition to or deletion from the

substance or structure of the Original Code or any previous

Modiﬁ cations. When Covered Code is released as a series of ﬁ les,

a Modiﬁ cation is:

A. Any addition to the contents of a ﬁ le containing Original Code

and/or addition to or deletion from the contents of a ﬁ le

containing previous Modiﬁ cations.

B. Any new ﬁ le that contains any part of the Original Code or

previous Modiﬁ cations.

1.9. “Notice” means any notice in Original Code or Covered Code, as

required by and in compliance with this License.

1.10. “Original Code” means source code of computer software code

that is described in the source code Notice required by Exhibit

A as Original Code, and updates and error corrections speciﬁ cally

thereto.

1.11. “Recipient” means an individual or a legal entity exercising rights

under, and complying with all of the terms of, this License or a

future version of this License issued under Section 8. For legal

entities, “Recipient” includes any entity that controls, is controlled

by, or is under common control with Recipient. For purposes of

this deﬁ nition, “control” of an entity means (a) the power, direct or

indirect, to direct or manage such entity, or (b) ownership of ﬁ fty

percent (50%) or more of the outstanding shares or beneﬁ cial

ownership of such entity.

1.12. “Recipient Patents” means patent claims Licensable by a Recipient

that are infringed by the use or sale of Original Code or any

Modiﬁ cations provided by SGI, or any combination thereof.

1.13. “SGI” means Silicon Graphics, Inc.

1.14. “SGI Patents” means patent claims Licensable by SGI other than the

Licensed Patents.

2. License Grant and Restrictions.

2.1. SGI License Grant. Subject to the terms of this License and

any third party intellectual property claims, for the duration

of intellectual property protections inherent in the Original

Code, SGI hereby grants Recipient a worldwide, royalty-free,

non-exclusive license, to do the following: (i) under copyrights

Licensable by SGI, to reproduce, distribute, create derivative

works from, and, to the extent applicable, display and perform the

Original Code and/or any Modiﬁ cations provided by SGI alone

and/or as part of a Larger Work; and (ii) under any Licensable

Patents, to make, have made, use, sell, offer for sale, import and/

or otherwise transfer the Original Code and/or any Modiﬁ cations

provided by SGI. Recipient accepts the terms and conditions of

this License by undertaking any of the aforementioned actions. The

patent license shall apply to the Covered Code if, at the time any

related Modiﬁ cation is added, such addition of the Modiﬁ cation

causes such combination to be covered by the Licensed Patents.

The patent license in Section 2.1(ii) shall not apply to any other

combinations that include the Modiﬁ cation. No patent license is

provided under SGI Patents for infringements of SGI Patents by

Modiﬁ cations not provided by SGI or combinations of Original

Code and Modiﬁ cations not provided by SGI. 2.2. Recipient

License Grant. Subject to the terms of this License and any third

party intellectual property claims, Recipient hereby grants SGI

and any other Recipients a worldwide, royalty-free, non-exclusive

license, under any Recipient Patents, to make, have made, use, sell,

offer for sale, import and/or otherwise transfer the Original Code

and/or any Modiﬁ cations provided by SGI.

2.3. No License For Hardware Implementations. The licenses granted

in Section 2.1 and 2.2 are not applicable to implementation in

Hardware of the algorithms embodied in the Original Code or

any Modiﬁ cations provided by SGI .

Redistributions.

3.1.

Retention of Notice/Copy of License. The Notice set forth in

Exhibit A, below, must be conspicuously retained or included in

any and all redistributions of Covered Code. For distributions of

the Covered Code in source code form, the Notice must appear

in every ﬁ le that can include a text comments ﬁ eld; in executable

form, the Notice and a copy of this License must appear in related

documentation or collateral where the Recipient’s rights relating

to Covered Code are described. Any Additional Notice Provisions

which actually appears in the Original Code must also be retained

or included in any and all redistributions of Covered Code.

3.2. Alternative License. Provided that Recipient is in compliance

with the terms of this License, Recipient may, so long as without

derogation of any of SGI’s rights in and to the Original Code,

distribute the source code and/or executable version(s) of

Covered Code under (1) this License; (2) a license identical to

this License but for only such changes as are necessary in order

to clarify Recipient’s role as licensor of Modiﬁ cations; and/or (3) a

license of Recipient’s choosing, containing terms different from this

License, provided that the license terms include this Section 3 and

Sections 4, 6, 7, 10, 12, and 13, which terms may not be modiﬁ ed

or superseded by any other terms of such license. If Recipient

elects to use any license other than this License, Recipient must

make it absolutely clear that any of its terms which differ from

this License are offered by Recipient alone, and not by SGI. It is

emphasized that this License is a limited license, and, regardless of

the license form employed by Recipient in accordance with this

Section 3.2, Recipient may relicense only such rights, in Original

Code and Modiﬁ cations by SGI, as it has actually been granted by

SGI in this License.

3.3. Indemnity. Recipient hereby agrees to indemnify SGI for any

liability incurred by SGI as a result of any such alternative license

terms Recipient offers.

4. Termination. This License and the rights granted hereunder will

terminate automatically if Recipient breaches any term herein and

fails to cure such breach within 30 days thereof. Any sublicense

to the Covered Code that is properly granted shall survive any

termination of this License, absent termination by the terms of

such sublicense. Provisions that, by their nature, must remain in

effect beyond the termination of this License, shall survive.

5. No Trademark Or Other Rights. This License does not grant any

rights to: (i) any software apart from the Covered Code, nor

shall any other rights or licenses not expressly granted hereunder

arise by implication, estoppel or otherwise with respect to the

Covered Code; (ii) any trade name, trademark or service mark

whatsoever, including without limitation any related right for

purposes of endorsement or promotion of products derived

from the Covered Code, without prior written permission of SGI;

or (iii) any title to or ownership of the Original Code, which shall

at all times remains with SGI. All rights in the Original Code not

expressly granted under this License are reserved.

6. Compliance with Laws; Non-Infringement. There are various

worldwide laws, regulations, and executive orders applicable

to dispositions of Covered Code, including without limitation

export, re-export, and import control laws, regulations, and

executive orders, of the U.S. government and other countries, and

Recipient is reminded it is obliged to obey such laws, regulations,

and executive orders. Recipient may not distribute Covered

Code that (i) in any way infringes (directly or contributorily) any

intellectual property rights of any kind of any other person or

entity or (ii) breaches any representation or warranty, express,

xii

implied or statutory, to which, under any applicable law, it might be

deemed to have been subject.

7. Claims of Infringement. If Recipient learns of any third party claim

that any disposition of Covered Code and/or functionality wholly

or partially infringes the third party’s intellectual property rights,

Recipient will promptly notify SGI of such claim.

8. Versions of the License. SGI may publish revised and/or new

versions of the License from time to time, each with a distinguishing

version number. Once Covered Code has been published under

a particular version of the License, Recipient may, for the duration

of the license, continue to use it under the terms of that version,

or choose to use such Covered Code under the terms of any

subsequent version published by SGI. Subject to the provisions of

Sections 3 and 4 of this License, only SGI may modify the terms

applicable to Covered Code created under this License.

9. DISCLAIMER OF WARRANTY. COVERED CODE IS

PROVIDED “AS IS.” ALL EXPRESS AND IMPLIED WARRANTIES

AND CONDITIONS ARE DISCLAIMED, INCLUDING,

WITHOUT LIMITATION, ANY IMPLIED WARRANTIES AND

CONDITIONS OF MERCHANTABILITY, SATISFACTORY

QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-

INFRINGEMENT. SGI ASSUMES NO RISK AS TO THE QUALITY

AND PERFORMANCE OF THE SOFTWARE. SHOULD

THE SOFTWARE PROVE DEFECTIVE IN ANY RESPECT, SGI

ASSUMES NO COST OR LIABILITY FOR SERVICING, REPAIR

OR CORRECTION. THIS DISCLAIMER OF WARRANTY IS

AN ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY

COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT

SUBJECT TO THIS DISCLAIMER.

10. LIMITATION OF LIABILITY. UNDER NO CIRCUMSTANCES

NOR LEGAL THEORY, WHETHER TORT (INCLUDING,

WITHOUT LIMITATION, NEGLIGENCE OR STRICT

LIABILITY), CONTRACT, OR OTHERWISE, SHALL SGI OR

ANY SGI LICENSOR BE LIABLE FOR ANY DIRECT, INDIRECT,

SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

OF ANY CHARACTER INCLUDING, WITHOUT LIMITATION,

DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE,

LOSS OF DATA, COMPUTER FAILURE OR MALFUNCTION,

OR ANY AND ALL OTHER COMMERCIAL DAMAGES

OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE BEEN

INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS

LIMITATION OF LIABILITY SHALL NOT APPLY TO LIABILITY

FOR DEATH OR PERSONAL INJURY RESULTING FROM SGI’s

NEGLIGENCE TO THE EXTENT APPLICABLE LAW PROHIBITS

SUCH LIMITATION. SOME JURISDICTIONS DO NOT ALLOW

THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THAT EXCLUSION AND

LIMITATION MAY NOT APPLY TO RECIPIENT.

11. Indemnity. Recipient shall be solely responsible for damages arising,

directly or indirectly, out of its utilization of rights under this License.

Recipient will defend, indemnify and hold harmless Silicon Gr aphics, Inc.

from and against any loss, liability, damages, costs or expenses (including

the payment of reasonable attor neys fees) arising out of Recipient’s use ,

modiﬁ cation, reproduction and distr ibution of the Covered Code or out

of any representation or warranty made by Recipient.

12. U.S. Government End Users. The Covered Code is a “commercial

item” consisting of “commercial computer software” as such

terms are deﬁ ned in title 48 of the Code of Federal Regulations

and all U.S. Government End Users acquire only the rights set

forth in this License and are subject to the terms of this License.

13. Miscellaneous. This License represents the complete agreement

concerning the its subject matter. If any provision of this License

is held to be unenforceable, such provision shall be reformed so

as to achieve as nearly as possible the same legal and economic

effect as the original provision and the remainder of this License

will remain in effect. This License shall be governed by and

construed in accordance with the laws of the United States and

the State of California as applied to agreements entered into and

to be performed entirely within California between California

residents. Any litigation relating to this License shall be subject to

the exclusive jurisdiction of the Federal Courts of the Northern

District of California (or, absent subject matter jurisdiction in such

courts, the courts of the State of California), with venue lying

exclusively in Santa Clara County, California, with the losing party

responsible for costs, including without limitation, court costs and

reasonable attorneys fees and expenses. The application of the

United Nations Convention on Contracts for the International

Sale of Goods is expressly excluded. Any law or regulation that

provides that the language of a contract shall be construed against

the drafter shall not apply to this License.

Exhibit A

License Applicability. Except to the extent portions of this ﬁ le are made

subject to an alternative license as permitted in the SGI Free Software

License B, Version 1.1 (the “License”), the contents of this ﬁ le are subject

only to the provisions of the License. You may not use this ﬁ le except in

compliance with the License. You may obtain a copy of the License at

Silicon Graphics, Inc., attn: Legal Services, 1600 Amphitheatre Parkway,

Mountain View, CA 94043-1351, or at: http://oss.sgi.com/projects/FreeB

Note that, as provided in the License, the Software is distributed on

an “AS IS” basis, with ALL EXPRESS AND IMPLIED WARRANTIES

AND CONDITIONS DISCLAIMED, INCLUDING, WITHOUT

LIMITATION, ANY IMPLIED WARRANTIES AND CONDITIONS

OF MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A

PARTICULAR PURPOSE, AND NON-INFRINGEMENT.

Original Code. The Original Code is: [name of software, version number,

and release date], developed by Silicon Graphics, Inc. The Original Code is

Original Code] Silicon Graphics, Inc. Copyright in any portions created by

Additional Notice Provisions: [such additional provisions, if any, as appear

in the Notice in the Original Code under the heading “Additional Notice

Provisions”]

A27P6UH

★★★★★

Philips and Philips Shield are used under license of

Koninklijke Philips Electronics N.V.

P&F USA, Inc.

PO Box 2248, Alpharetta, GA 30023-2248

P&F Mexicana, S.A. de C.V.

Av. La Palma No. 6, Col. San Fernando La Herradura,

Huixquilucan Edo. de México C.P. 52787

Philips 40PFL4907/F7 4000 series LED TV

Product's Documents

User Manual

Specifications

Philips 40PFL4907/F7 Questions and Answers

Related Products

Philips 22PFL4907/F7 4000 series LED TV

Philips 26PFL4907/F7 4000 series LED TV

Philips 26PFL4507/F7 4000 series LED TV

Philips 32PFL4507/F7 4000 series LED TV

Philips 40PFL4707/F7 4000 series LED TV
