Operation Manual
Sewing
Embroidery and Sewing Machine
Product Code: 882-W30
Be sure to read this manual before using the machine.
Be sure to read this manual before using the machine.
We recommend that you keep this document nearby for future reference.
We recommend that you keep this document nearby for future reference.
Be sure to read this manual before using the machine.
We recommend that you keep this document nearby for future reference.
INTRODUCTION
1
Thank you for purchasing this machine.
Before using this machine or attempting any maintenance, carefully read the “IMPORTANT SAFETY
INSTRUCTIONS” on this page, and then study the Operation Manual for the correct operation of the
various functions. In addition, after you have finished reading this product safety manual, store it where it
can quickly be accessed for future reference. Failure to follow these instructions may result in an
increased risk of personal injury or damage to property, including through fire, electrical shock, burns or
suffocation.
Please read these safety instructions before attempting to use the machine.
DANGER - To reduce the risk of electric shock
1Always unplug the machine from the electrical outlet immediately after using, when cleaning, when making any
user servicing adjustments mentioned in this manual, or if you are leaving the machine unattended.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to
persons.
2Always unplug the machine from the electrical outlet when removing covers, or when making any adjustments
mentioned in the instruction manual.
• To unplug the machine, switch the machine to the symbol “O” position to turn it off, then grasp the plug and pull
it out of the electrical outlet. Do not pull on the cord.
• Plug the machine directly into the electrical outlet. Do not use an extension cord.
• Always unplug your machine if the power is cut.
3Electrical Hazards:
• This machine should be connected to an AC power source within the range indicated on the rating label. Do not
connect it to a DC power source or inverter. If you are not sure what kind of power source you have, contact a
qualified electrician.
• This machine is approved for use in the country of purchase only.
4Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped
or damaged, or water is spilled on the unit. Return the machine to the nearest authorized Brother dealer for
examination, repair, electrical or mechanical adjustment.
• While the machine is stored or in use if you notice anything unusual, such as an odor, heat, discoloration or
deformation, stop using the machine immediately and unplug the power cord.
• When transporting the sewing machine, be sure to carry it by its handle. Lifting the sewing machine by any other
part may damage the machine or result in the machine falling, which could cause injuries.
• When lifting the sewing machine, be careful not to make any sudden or careless movements, otherwise you may
injure your back or knees.
INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
2
5Always keep your work area clear:
• Never operate the machine with any air openings blocked. Keep ventilation openings of the sewing machine and
foot control free from the build up of lint, dust, and loose cloth.
• Do not store objects on the foot controller.
• Do not use extension cords. Plug the machine directly into the electrical outlet.
• Never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use the machine near a heat source, such as a stove or iron; otherwise, the machine, power cord or
garment being sewn may ignite, resulting in fire or an electric shock.
• Do not place this sewing machine on an unstable surface, such as an unsteady or slanted table, otherwise the
sewing machine may fall, resulting in injuries.
6Special care is required when sewing:
• Always pay close attention to the needle. Do not use bent or damaged needles.
• Keep fingers away from all moving parts. Special care is required around the machine needle.
• Switch the sewing machine to the symbol “O” position to turn it off when making any adjustments in the needle
area.
• Do not use a damaged or incorrect needle plate, as it could cause the needle to break.
• Do not push or pull the fabric when sewing, and follow careful instruction when free motion stitching so that
you do not deflect the needle and cause it to break.
7This machine is not a toy:
• Your close attention is necessary when the machine is used by or near children.
• The plastic bag that this sewing machine was supplied in should be kept out of the reach of children or disposed
of. Never allow children to play with the bag due to the danger of suffocation.
• Do not use outdoors.
8For a longer service life:
• When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine
near a space heater, iron, halogen lamp, or other hot objects.
• Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage the
case and machine, and should never be used.
• Always consult the operation manual when replacing or installing any assemblies, the presser feet, needle, or
other parts to assure correct installation.
9For repair or adjustment:
• If the light unit is damaged, it must be replaced by an authorized Brother dealer.
• In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of
the operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your
local authorized Brother dealer.
IMPORTANT SAFETY INSTRUCTIONS
3
Use this machine only for its intended use as described in the manual.
Use accessories recommended by the manufacturer as contained in this manual.
Use only the mouse designed specifically for this machine.
The contents of this manual and specifications of this product are subject to change without notice.
For additional product information and updates, visit our website at www.brother.com
SAVE THESE INSTRUCTIONS
This machine is intended for household use.
FOR USERS IN COUNTRIES EXCEPT CENELEC COUNTRIES
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
FOR USERS IN CENELEC COUNTRIES
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
FOR USERS IN THE UK, EIRE, MALTA AND CYPRUS
ONLY
IMPORTANT
• In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the mark,
rating as marked on plug.
• Always replace the fuse cover. Never use plugs with the fuse cover omitted.
• If the available electrical outlet is not suitable for the plug supplied with this equipment, you should contact your
authorized Brother dealer to obtain the correct lead.
IMPORTANT SAFETY INSTRUCTIONS
4
Federal Communications Commission (FCC) Declaration
of Conformity (For U.S.A. Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the authorized Brother dealer or an experienced radio/TV technician for help.
• This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Important
Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user's authority to
operate the equipment.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure
evaluation (MPE).
Responsible Party: Brother International Corporation
200 Crossing Boulevard
P.O. Box 6911
Bridgewater, NJ 08807-0911 USA
TEL : (908) 704-1700
declares that the product
Product Name:
Model Number:
Brother Sewing Machine
XP1
IMPORTANT SAFETY INSTRUCTIONS
5
For users in Canada
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC
radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very
low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE).
For users in Mexico
The operation of this equipment is subject to the following two conditions:
(1) it is possible that this equipment or device may not cause harmful interference, and
(2) this equipment or device must accept any interference, including interference that may cause undesired operation.
La operación de este equipo está sujeta a las siguientes dos condiciones:
(1) es posible que este equipo o dispositivo no cause interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.
Declaration of Conformity (Europe and Turkey only)
We, Brother Industries, Ltd.
15-1 Naeshiro-cho, Mizuho-ku, Nagoya 467-8561 Japan
declare that this product is in conformity with the essential requirements of all relevant directives and regulations applied within
the European Community.
The Declaration of Conformity (DoC) can be downloaded from Brother Solutions Center.
Visit support.brother.com
and:
click “Manuals”
select your model
click “Declaration of Conformity”
click “Download”
Your Declaration will be downloaded as a PDF file.
Declaration of Conformity for RE Directive 2014/53/EU
(CENELEC and Turkey only)
(Applicable to models with radio interfaces)
We, Brother Industries, Ltd.
15-1 Naeshiro-cho, Mizuho-ku, Nagoya 467-8561 Japan
declare that these products are in conformity with the provisions of the RE Directive 2014/53/EU. A copy of the Declaration of
Conformity can be downloaded by following the instructions in the Declaration of Conformity (CENELEC and Turkey only)
section.

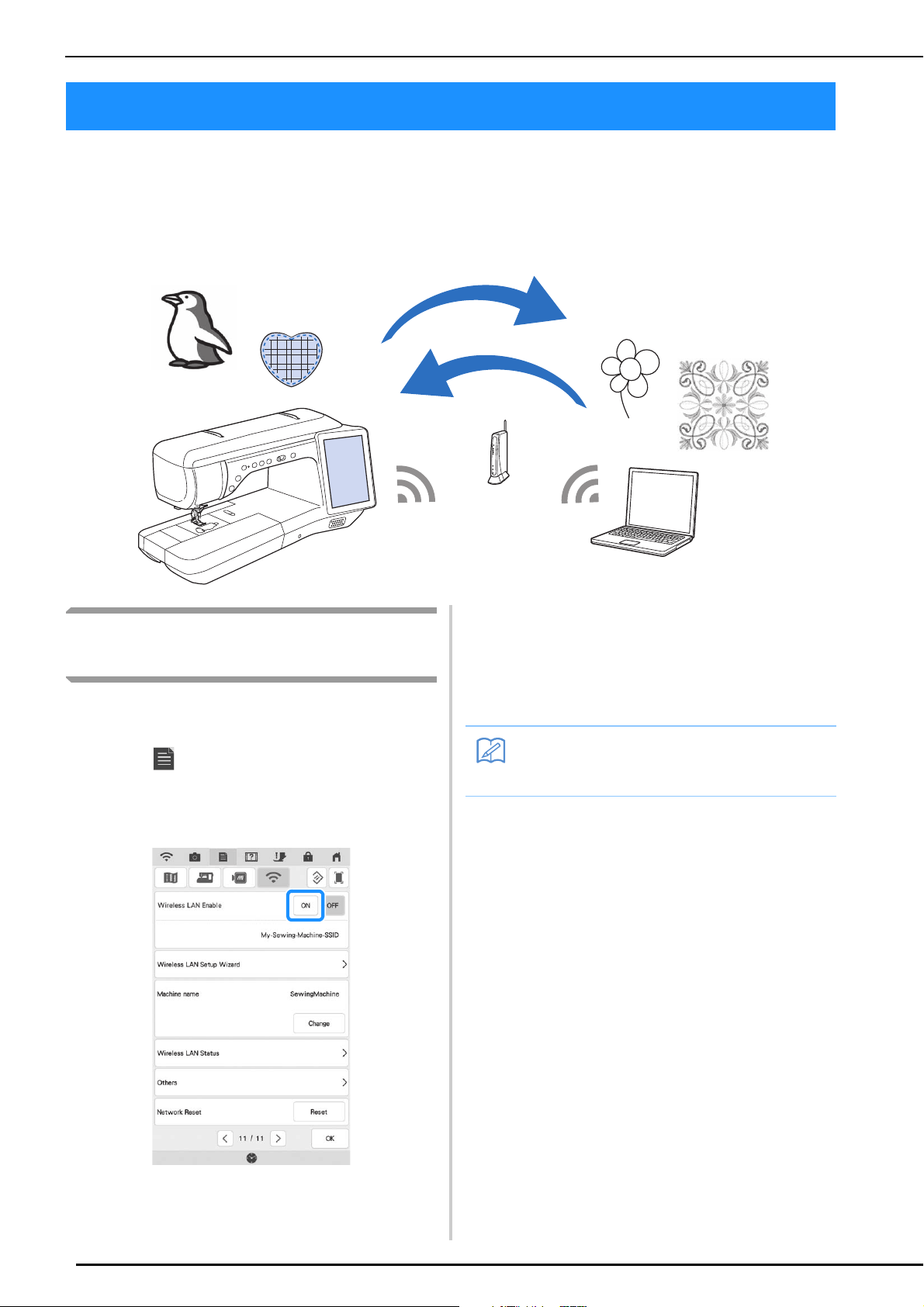

Wireless LAN (Models with Wireless LAN function only)
This machine supports wireless interface.
Frequency band(s): 2400-2483.5 MHz
Maximum radio-frequency power transmitted in the frequency band(s): Less than 20 dBm(e.i.r.p)
For users in Norway
* This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Alesund on Svalbard.
* Dette underavsnittet gjelder ikke for det geografiske området innenfor en radius av 20 km fra sentrum av Ny-Ålesund på
Svalbard.
For users in Thailand
This telecommunication equipment conforms to NTC technical requirement.
Trademarks
6
Secure Digital (SD) Card is a registered trademark or a trademark of SD-3C, LLC.
CompactFlash is a registered trademark or a trademark of Sandisk Corporation.
Memory Stick is a registered trademark or a trademark of Sony Corporation.
SmartMedia is a registered trademark or a trademark of Toshiba Corporation.
MultiMediaCard (MMC) is a registered trademark or a trademark of Infineon Technologies AG.
xD-Picture Card is a registered trademark or a trademark of Fuji Photo Film Co. Ltd.
IBM is a registered trademark or a trademark of International Business Machines Corporation.
“Adobe” and “Adobe Reader” are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other
countries.
Artifex, the Artifex logo, MuPDF, Ghostscript, the SmartOffice logo, and the Ghostscript logo are registered trademarks of Artifex Software, Inc.
Portions Copyright © 1998/2016 Artifex Software Inc.
This software is based in part on the work of the Independent JPEG Group.
Portions Copyright © 1998 Soft Horizons.
Portions Copyright © 2005 LuraTech Imaging GmbH. All Rights Reserved.
Each company whose software title is mentioned in this manual has a Software License Agreement specific to its proprietary programs.
Any trade names and product names of companies appearing on Brother products, related documents and any other materials are all trademarks
or registered trademarks of those respective companies.
This product includes open-source software.
To see the open source licensing remarks, please go to the manual download section on your model's
home page of Brother Solutions Center at “ http://s.brother/cpdab/
”.
Trademarks
Open Source Licensing Remarks
7
The Operation Manuals for this machine consist of the Operation Manual (Sewing) and the Operation
Manual (Embroidery). Refer to the appropriate Operation Manual according to your needs. For basic
information about, for example, the included accessories or the settings screen, refer to chapter 1 of the
Operation Manual (Sewing).
In the screens appearing in the step-by-step instructions, the parts referred to in the operations are marked
with . Compare the screen in the directions with the actual screen, and carry out the operation.
If, while using the machine, you experience something you do not understand, or there is a function you
would like to know more about, refer to the index at the back of the Operation Manual in conjunction
with the table of contents to find the section of the manual you should refer to.
HOW TO USE THIS MANUAL
CONTENTS
8
CONTENTS
INTRODUCTION................................................. 1
IMPORTANT SAFETY INSTRUCTIONS ................ 1
Trademarks........................................................... 6
Open Source Licensing Remarks........................... 6
HOW TO USE THIS MANUAL ............................. 7
Chapter 1 Getting Ready 11
NAMES OF MACHINE PARTS AND THEIR
FUNCTIONS....................................................... 12
Machine............................................................................... 12

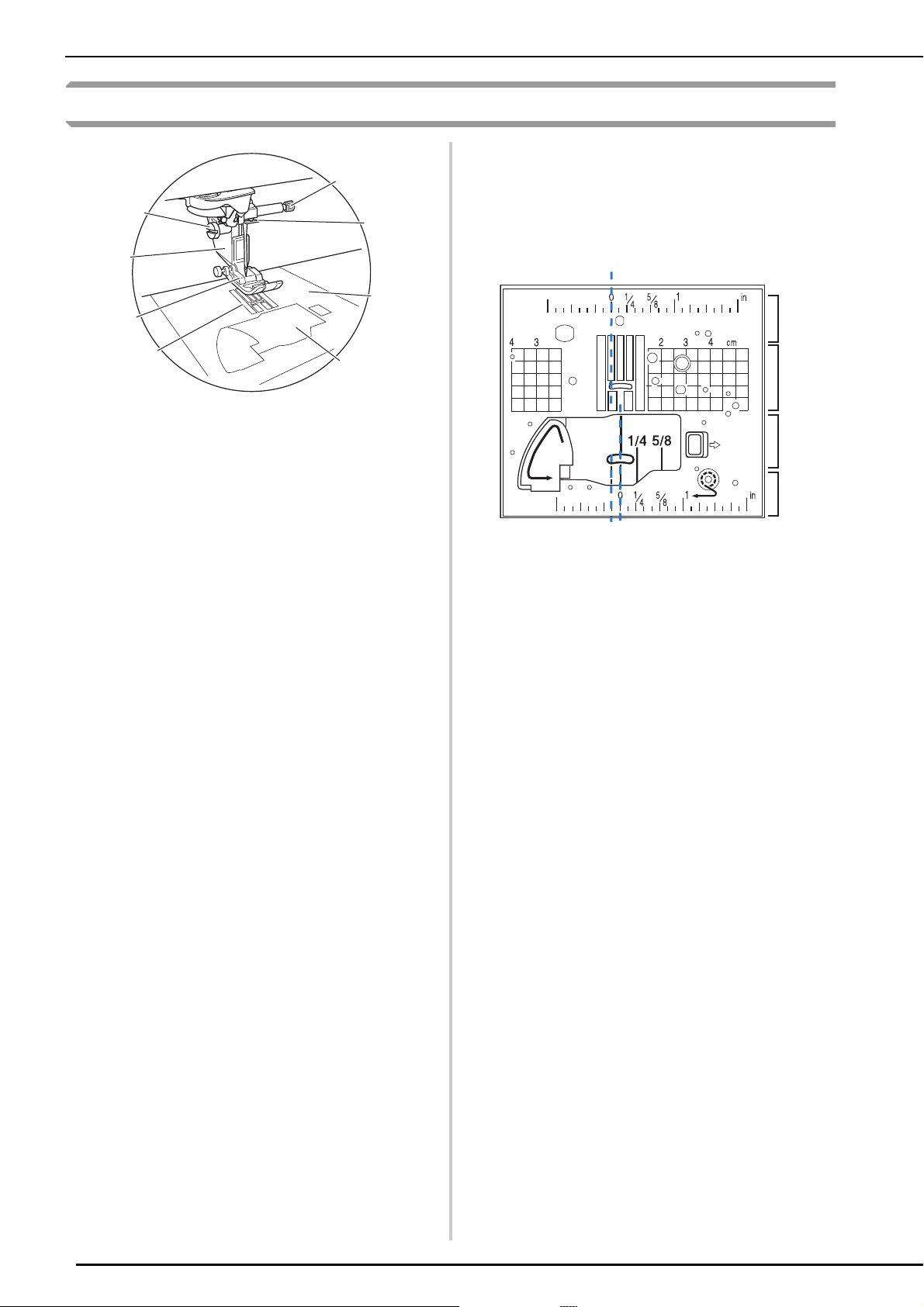

Needle and Presser Foot Section .......................................... 14
Embroidery Unit................................................................... 15
Operation Buttons................................................................ 15
Using the Flat Bed Attachment ............................................. 16
Using the Accessory Case..................................................... 16
Storing Bobbin Clips............................................................. 16

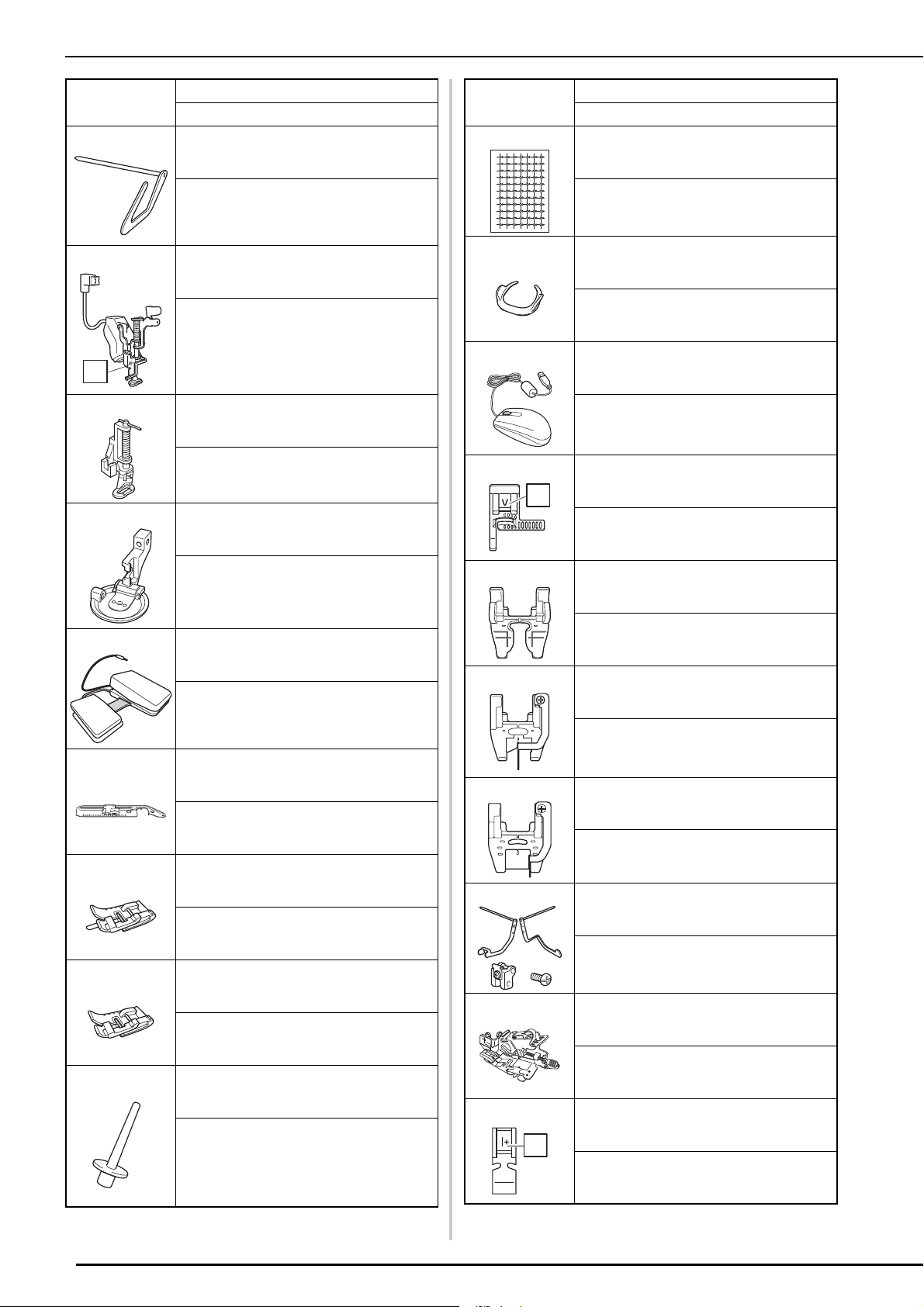

Included Accessories............................................................ 17
Accessories that are Included in Some Countries or Regions
... 20

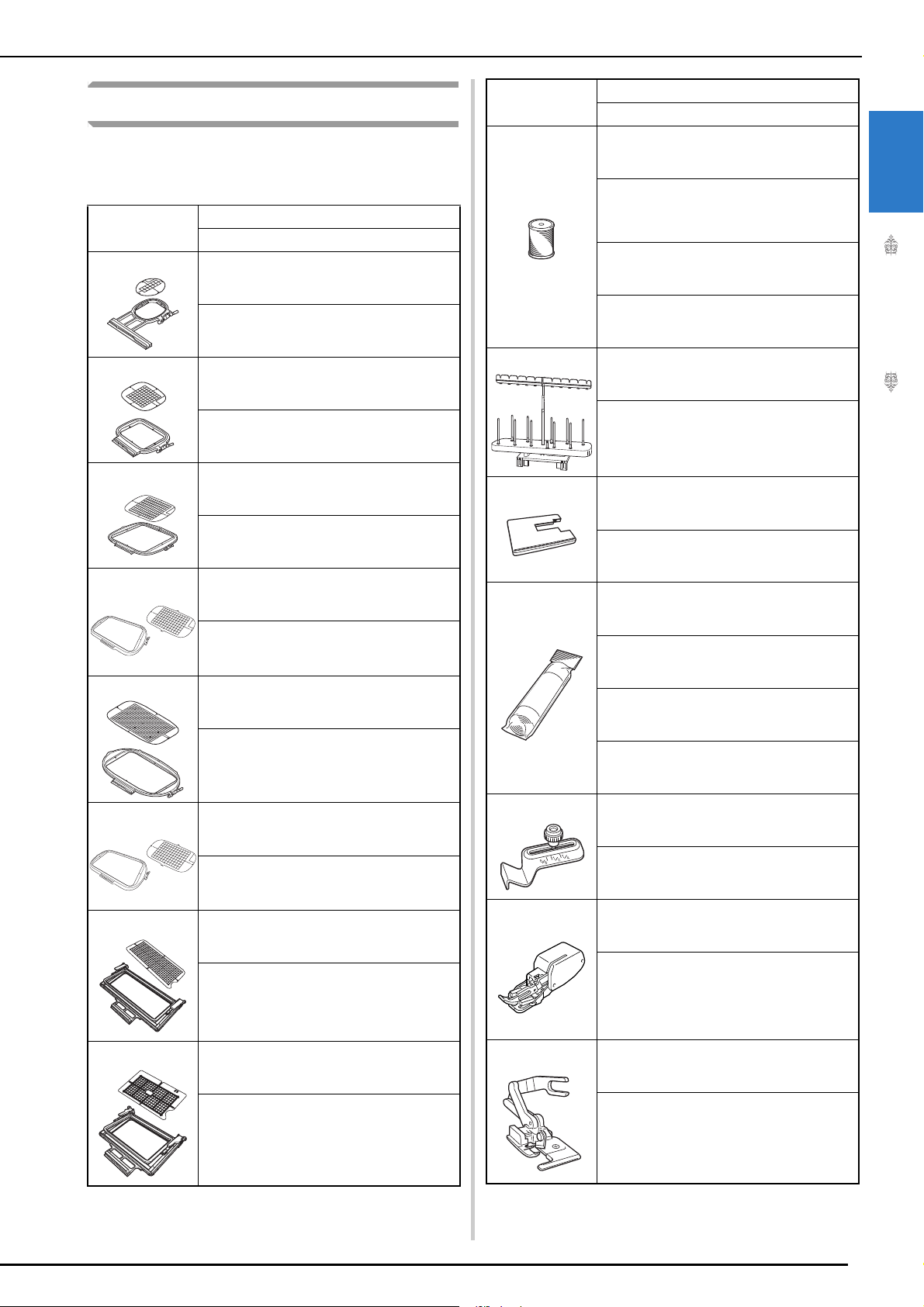

Options................................................................................ 21
Using the Multi-purpose Screwdriver ................................... 24
Using the Spool Stand .......................................................... 24
Assembling the Spool Stand ................................................. 25
TURNING THE MACHINE ON/OFF................... 26
Setting Your Machine for the First Time................................ 27

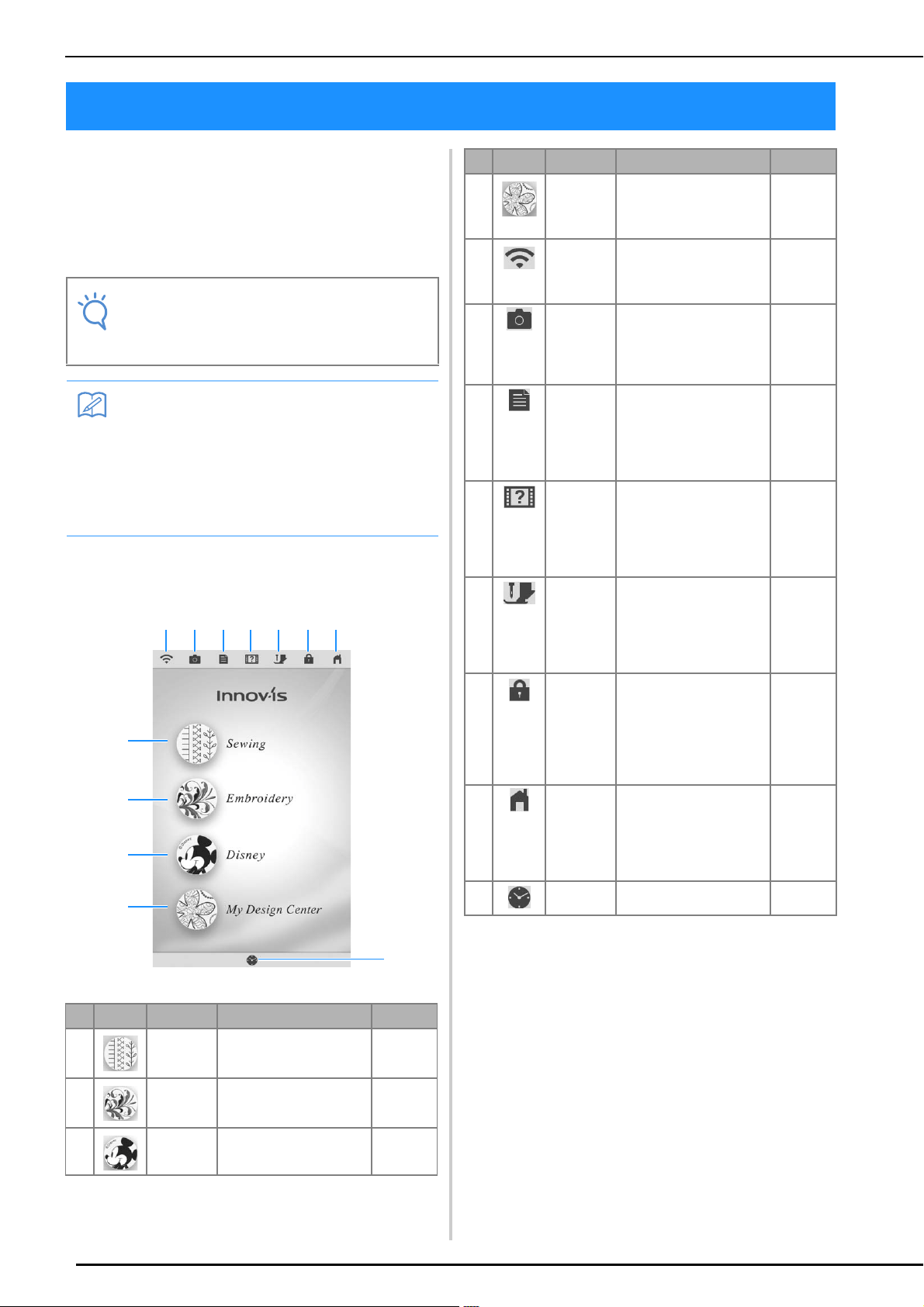

LCD SCREEN ...................................................... 28

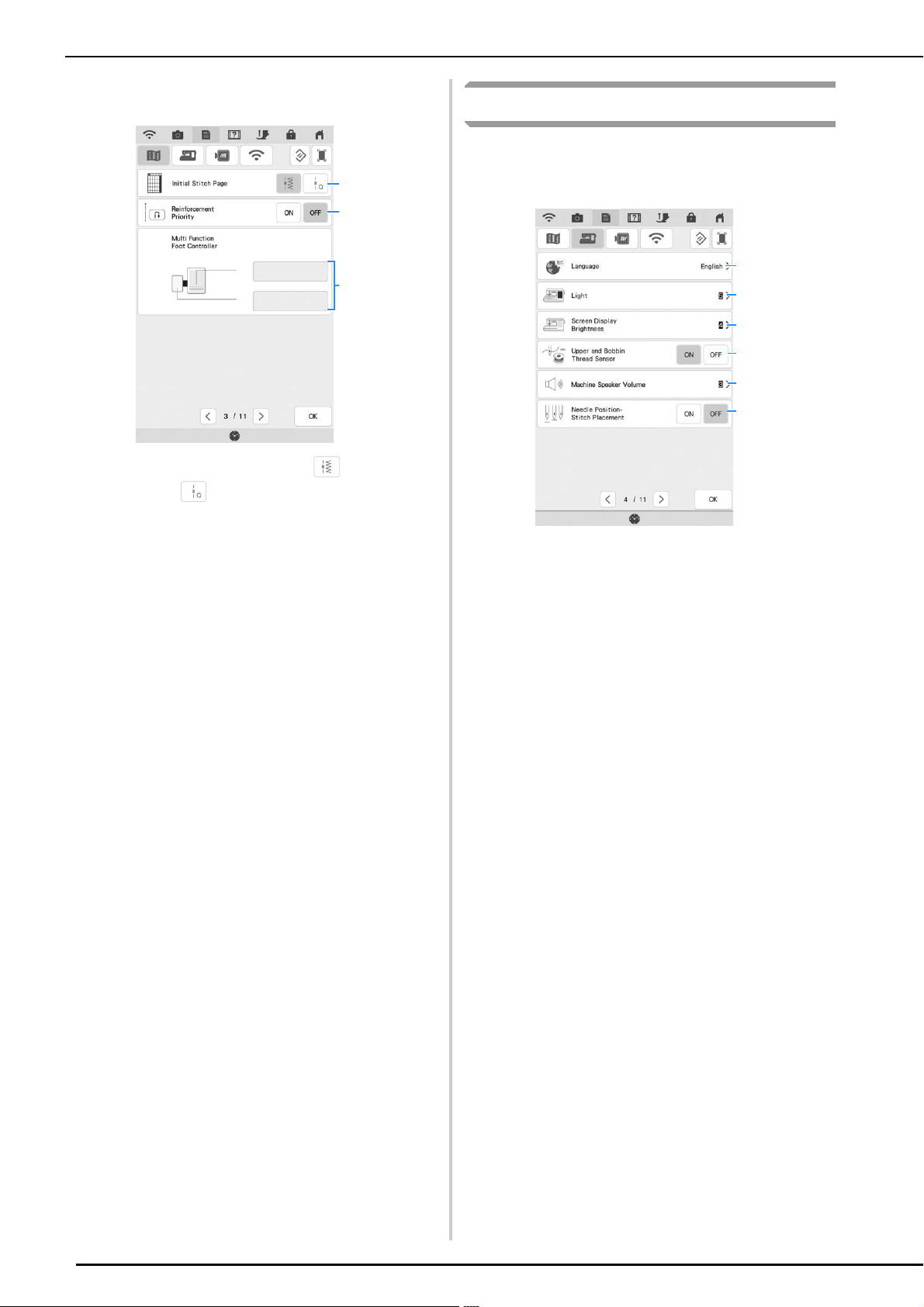

Using the Machine Setting Mode Key................................... 29
Sewing Settings .................................................................... 29
General Settings ................................................................... 30

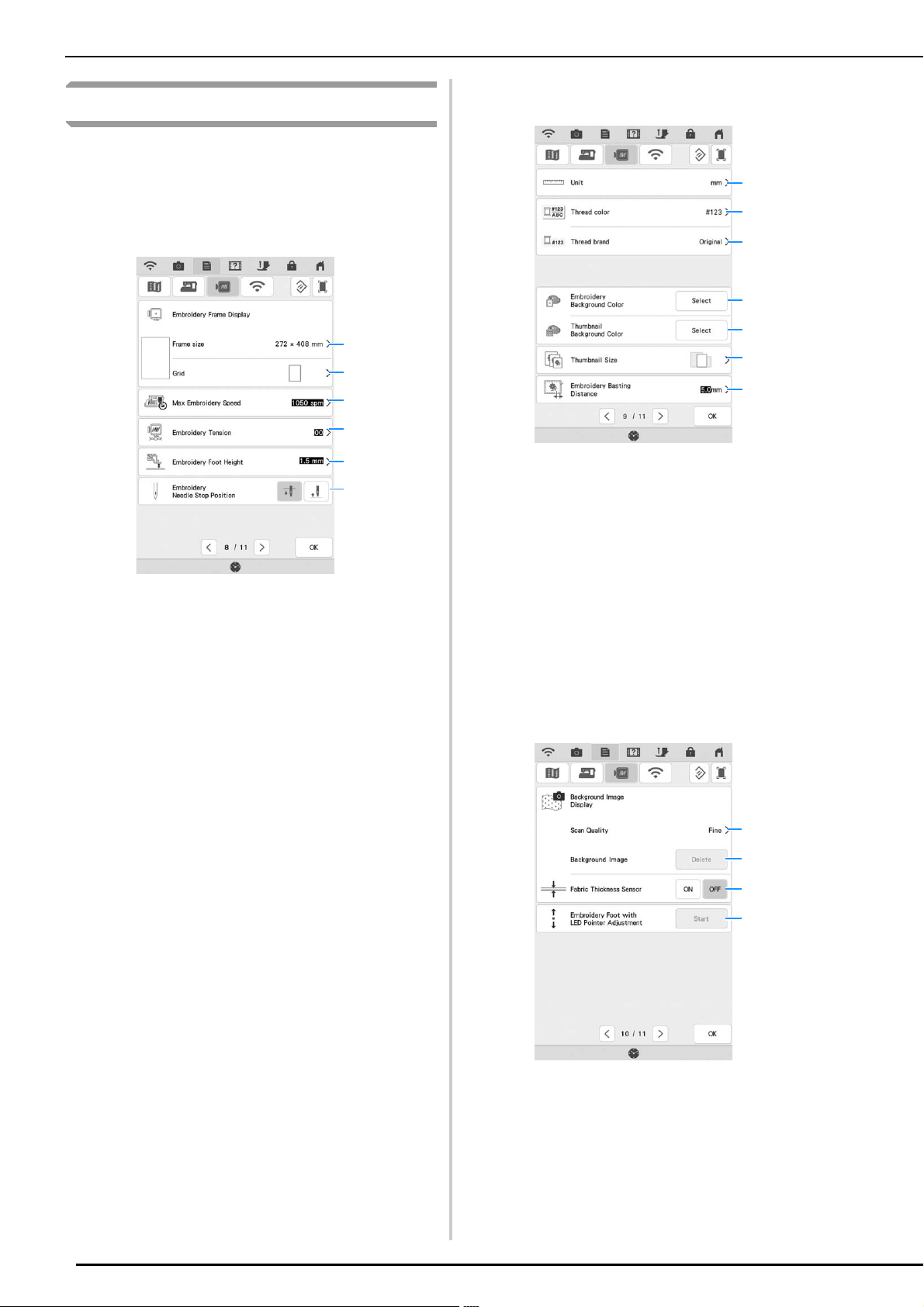

Embroidery Settings.............................................................. 32
Wireless LAN settings........................................................... 33
Setting Functions.................................................................. 33
Using the Machine Help Key................................................ 39

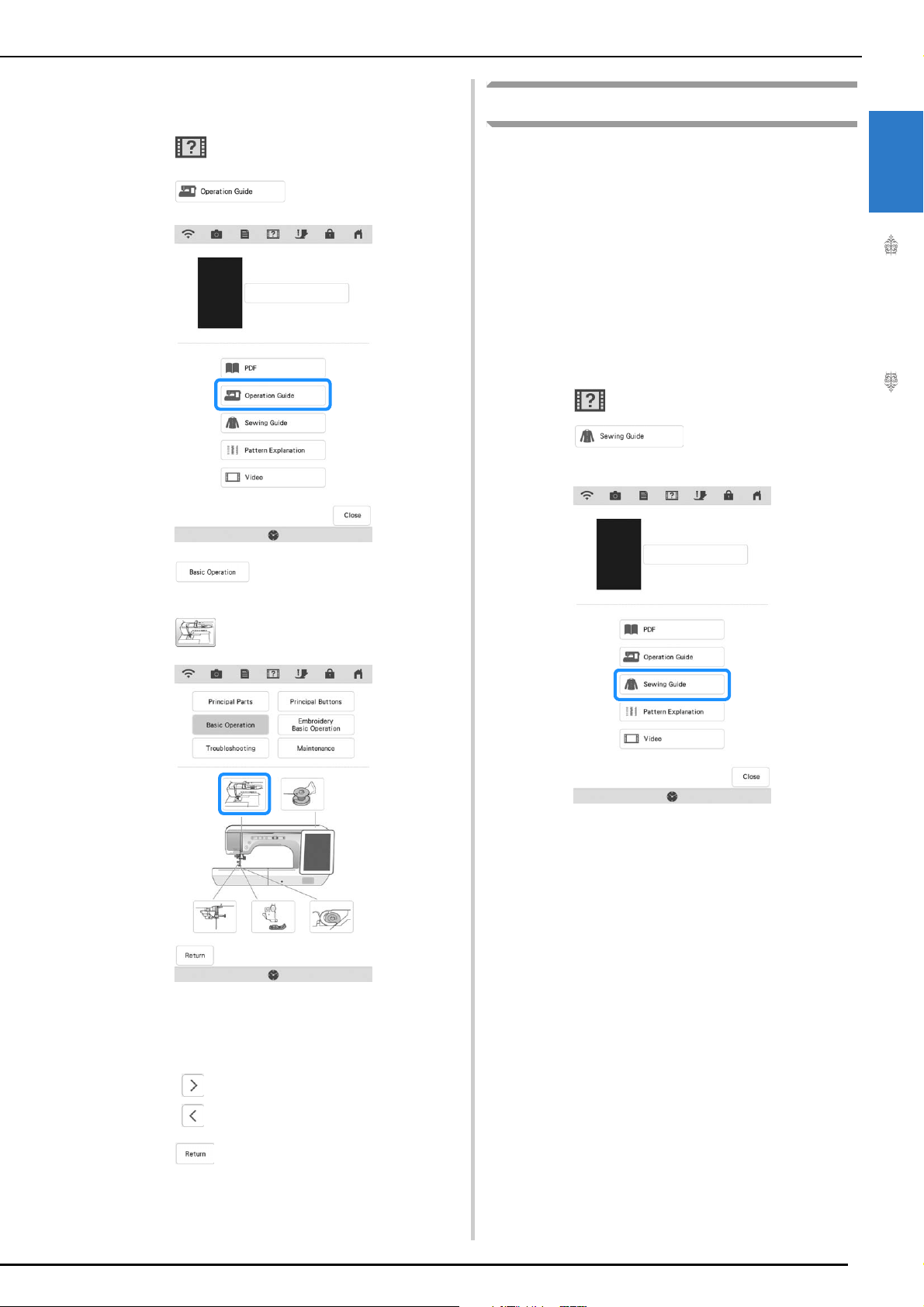

Using the Operation Guide Function.................................... 40
Using the Sewing Guide Function ........................................ 41
Playing a Tutorial Video....................................................... 42
Playing MPEG-4 (MP4) Videos ............................................. 43
Using the Stitch Pattern Explanation Function ...................... 44
Viewing the Operation Manual (PDF File) on the Machine... 45
WIRELESS NETWORK CONNECTION FUNCTIONS
... 46
Specifying Wireless Network Connection Settings ................ 46
Using the Wizard to Set Up the Wireless Network Connection
... 47
CONNECTING THE ACCESSORY TO THE
MACHINE........................................................... 49
Using USB Media/SD card (Sold Separately)......................... 49
Using a USB Mouse (Sold Separately)................................... 49
Chapter 2 Sewing Basics 51

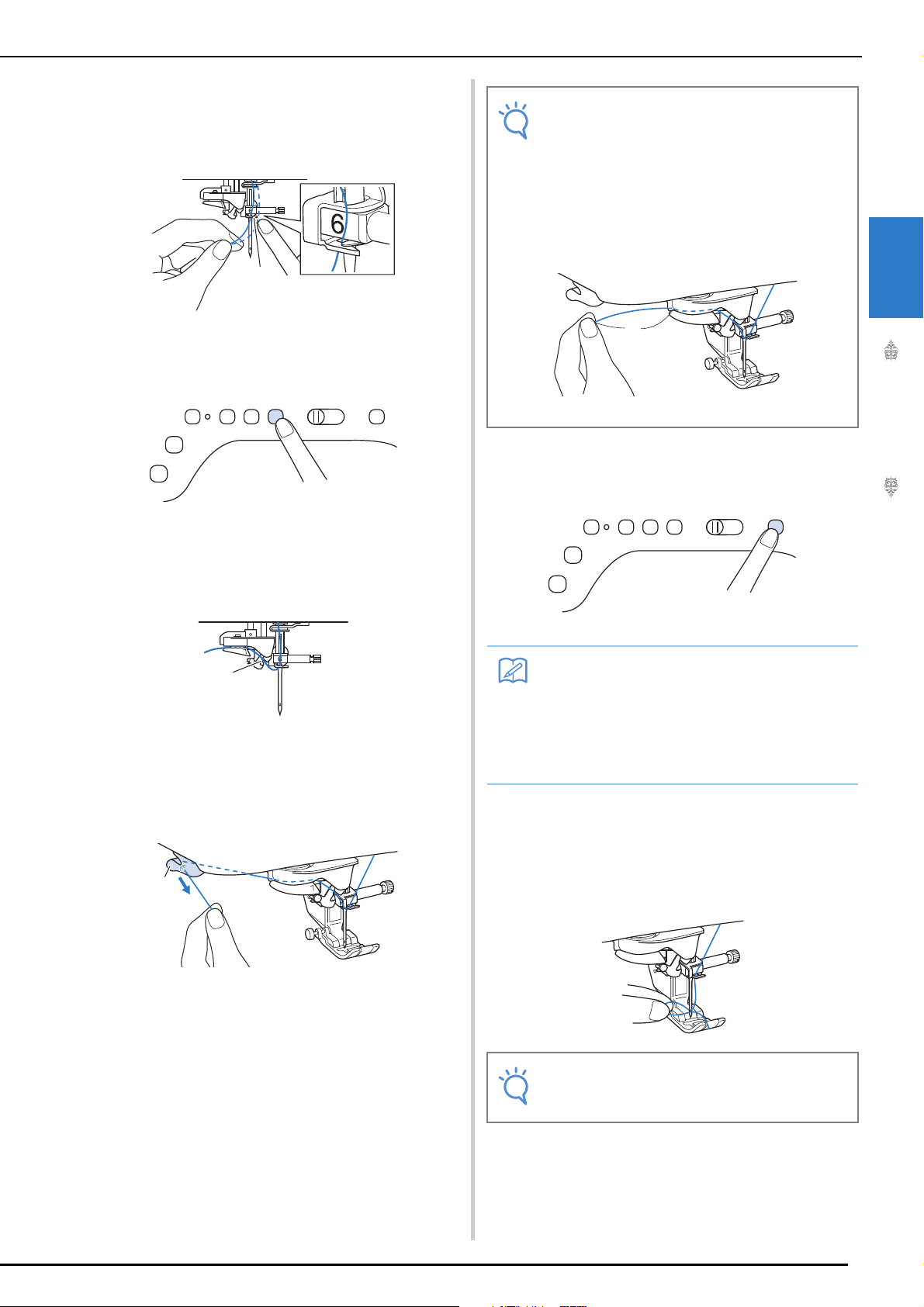

LOWER THREADING ......................................... 52

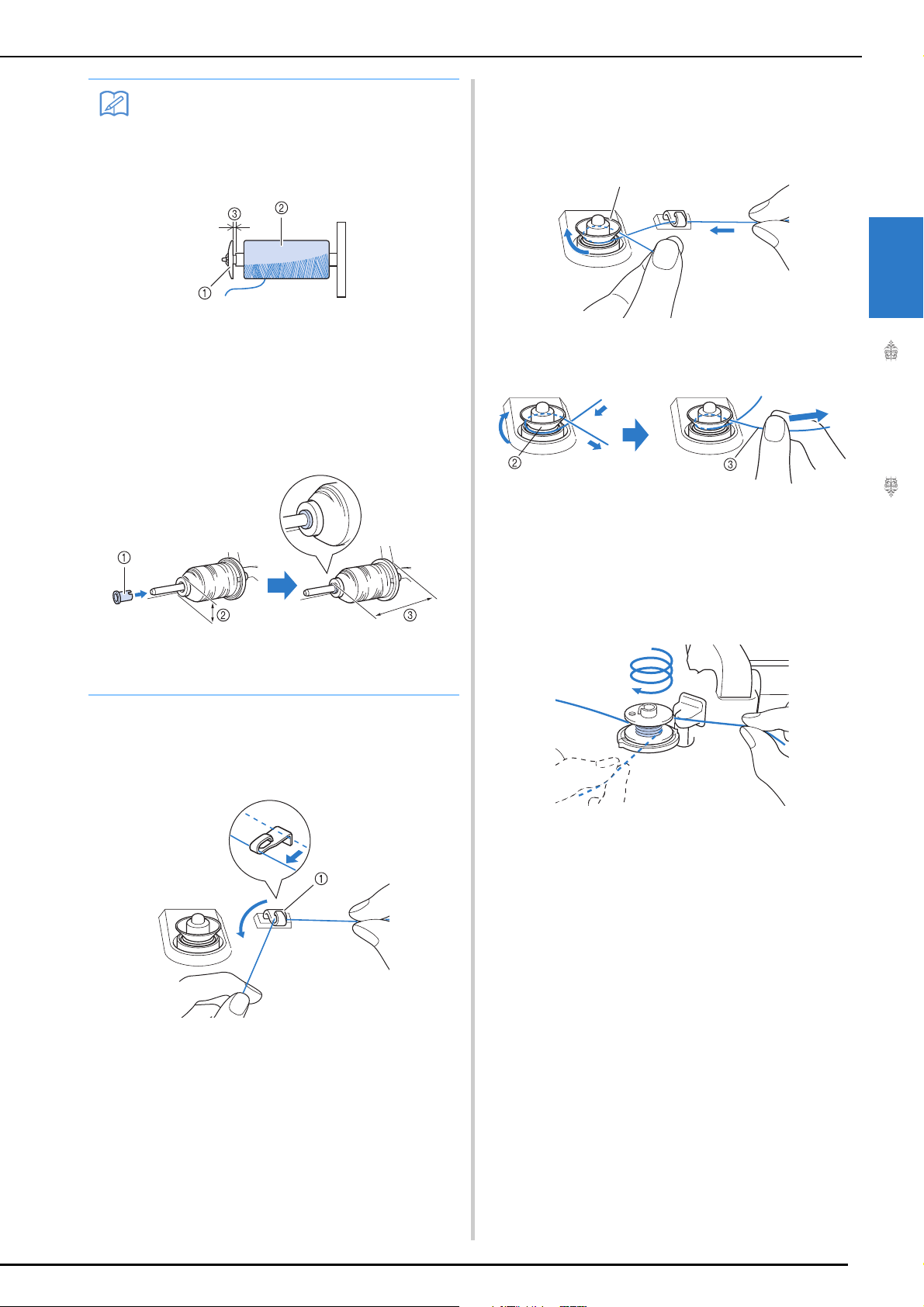

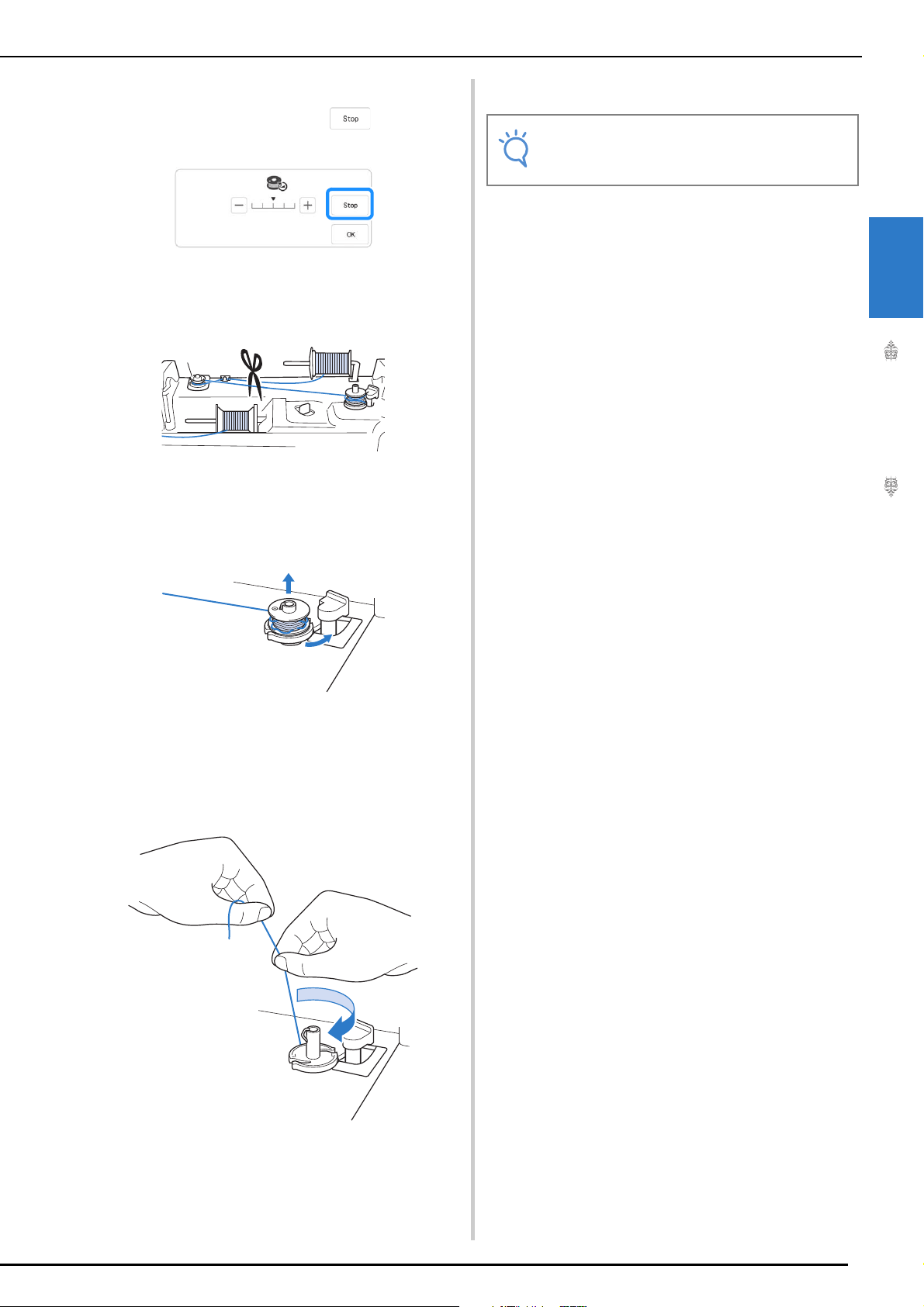

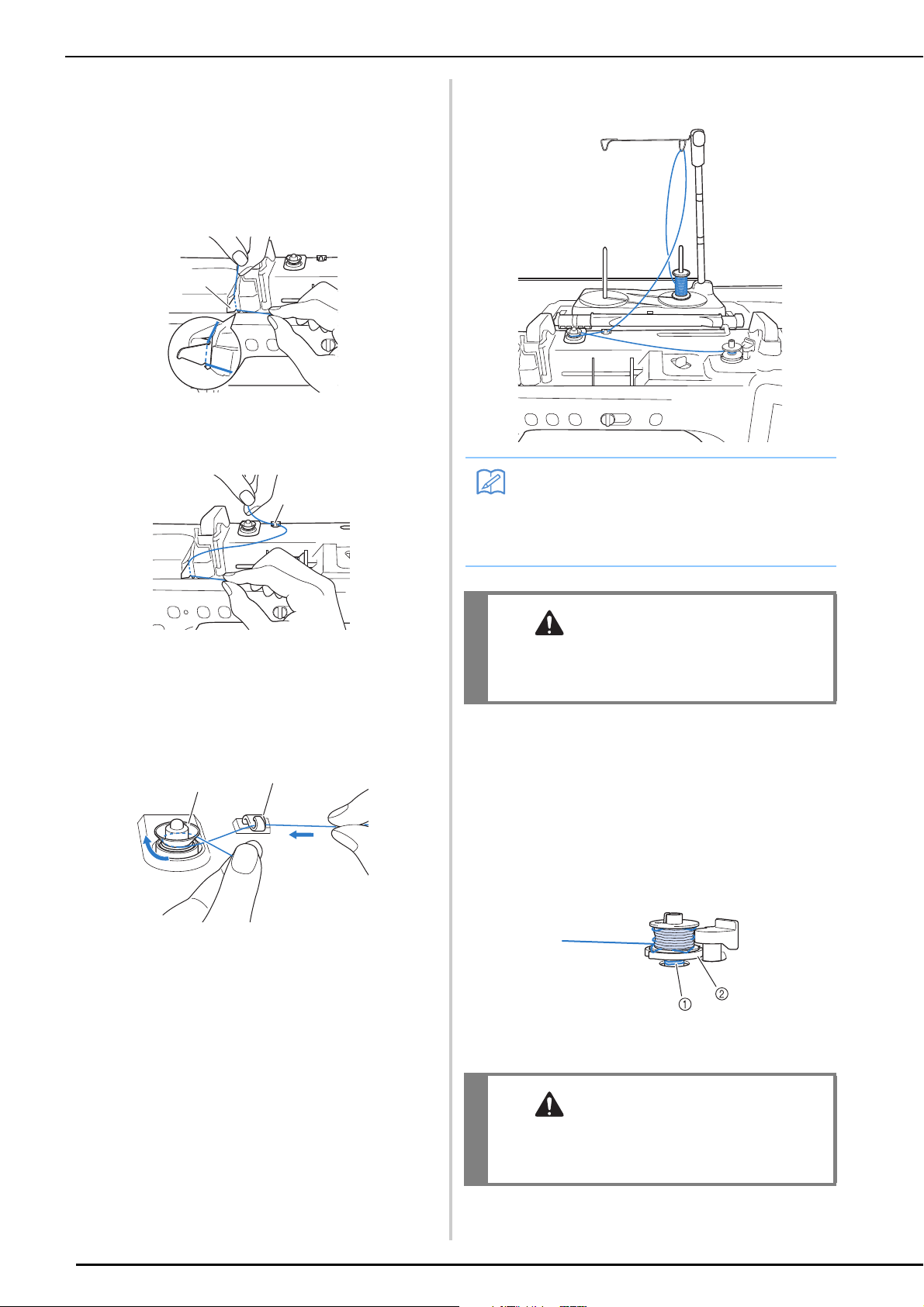

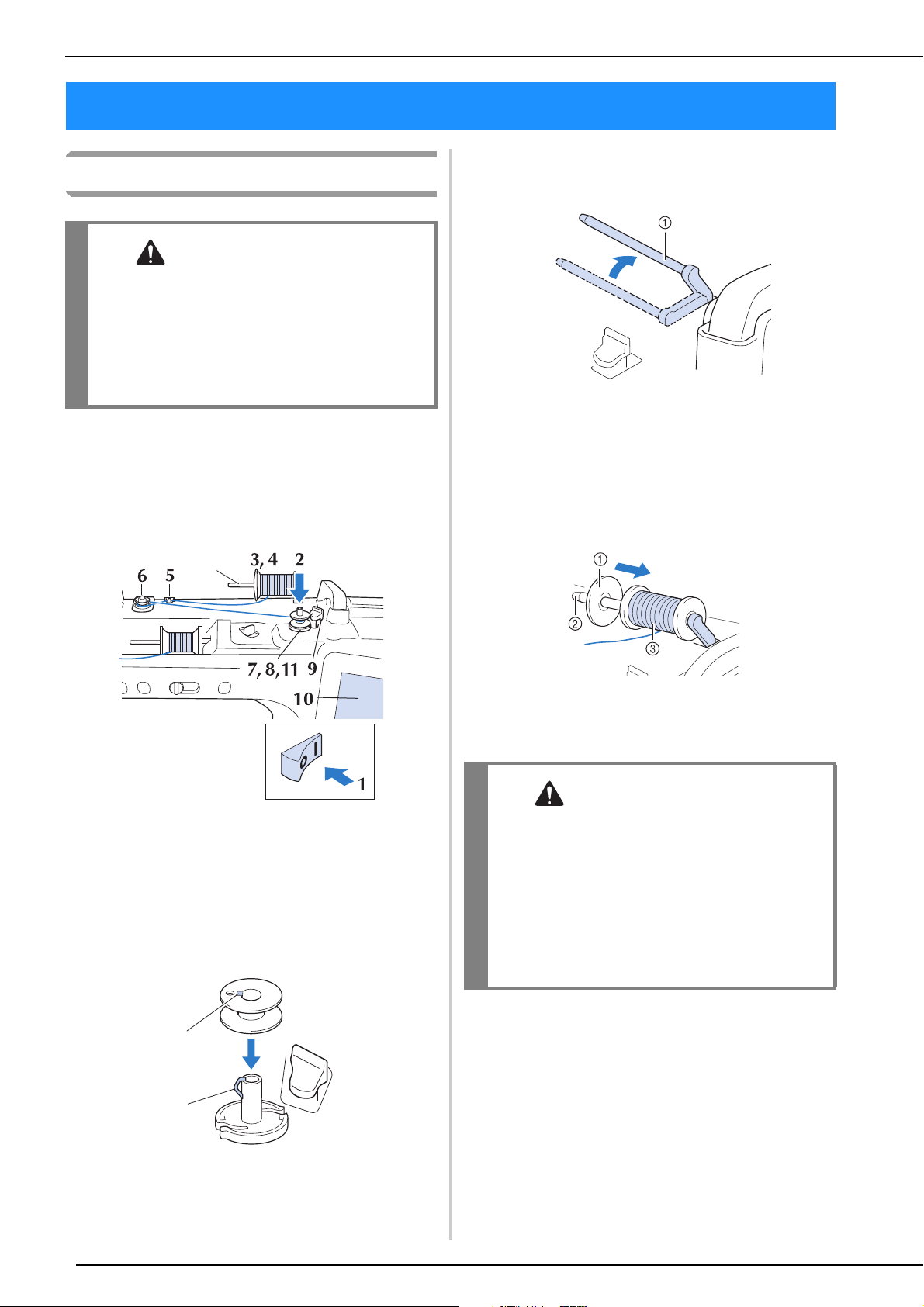

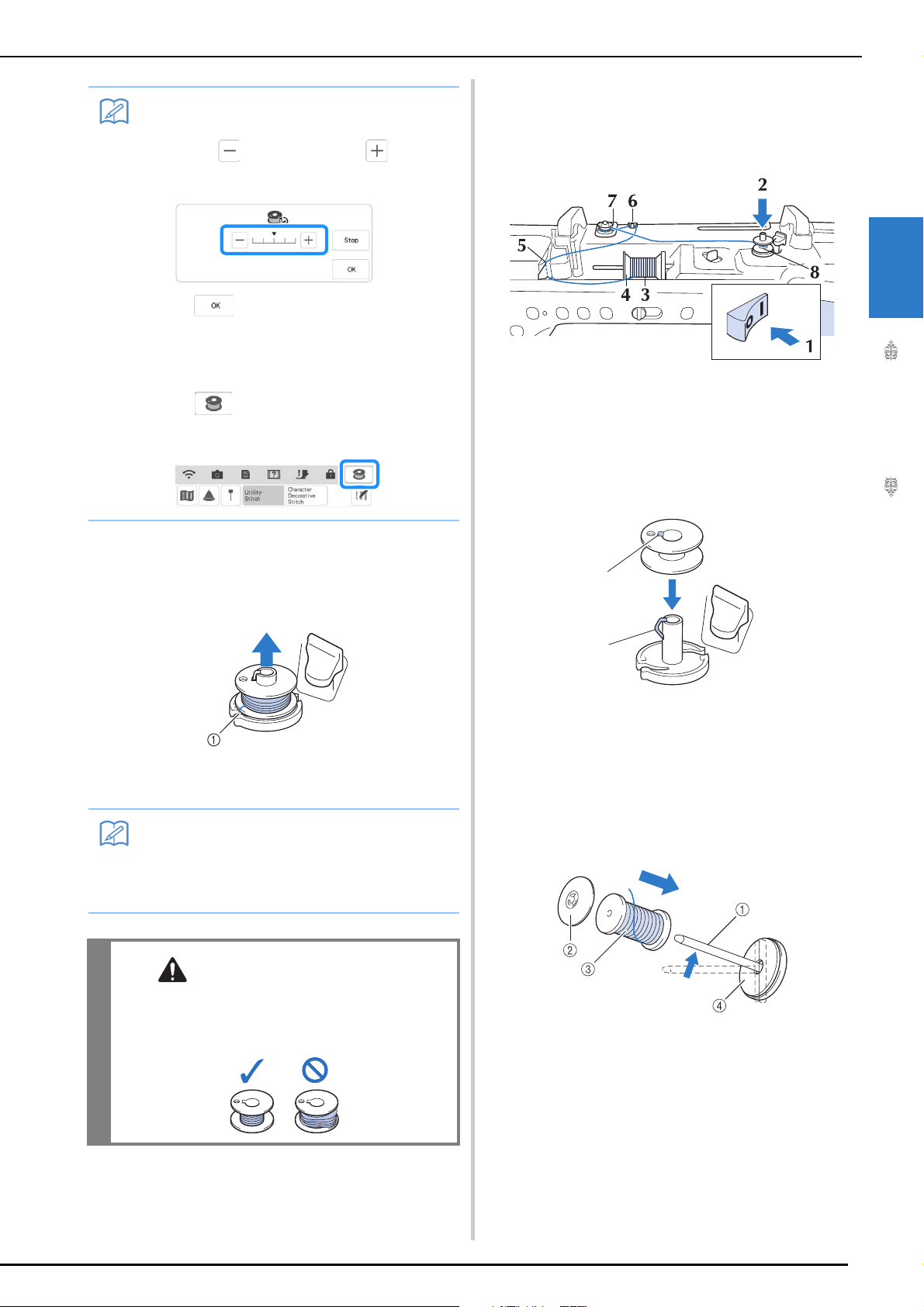

Winding the Bobbin ............................................................. 52

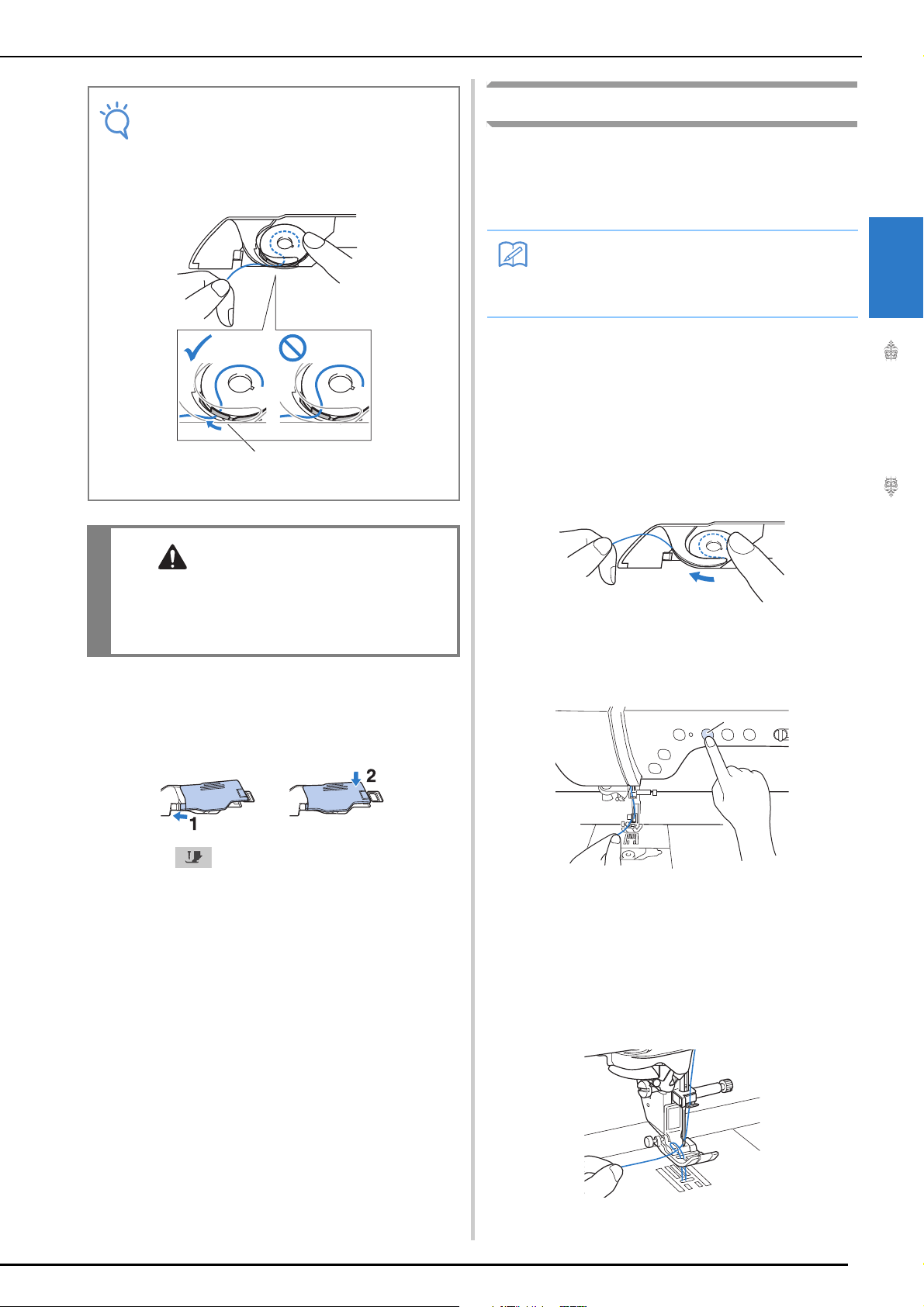

Setting the Bobbin ................................................................ 58
Pulling Up the Bobbin Thread .............................................. 59
UPPER THREADING........................................... 61
Upper Threading.................................................................. 61
Using the Twin Needle Mode............................................... 64
Using the Spool Stand .......................................................... 66
Using Threads that Unwind Quickly .................................... 68

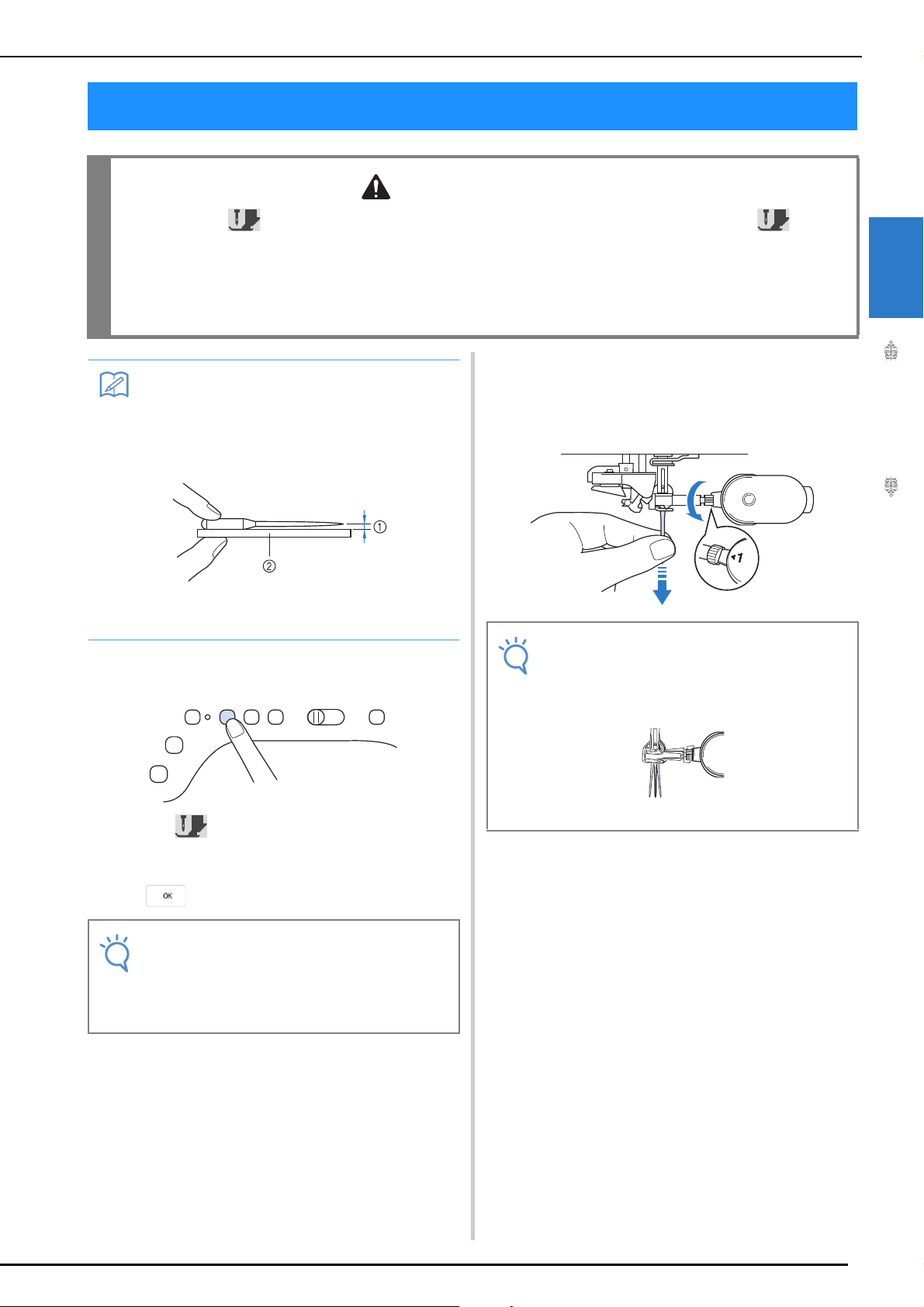

CHANGING THE NEEDLE.................................. 69
Fabric/Thread/Needle Combinations .................................... 71
CHANGING THE PRESSER FOOT ...................... 72
Removing the Presser Foot ................................................... 72
Attaching the Presser Foot .................................................... 72
Attaching the Presser Foot with the Included Adapter........... 73

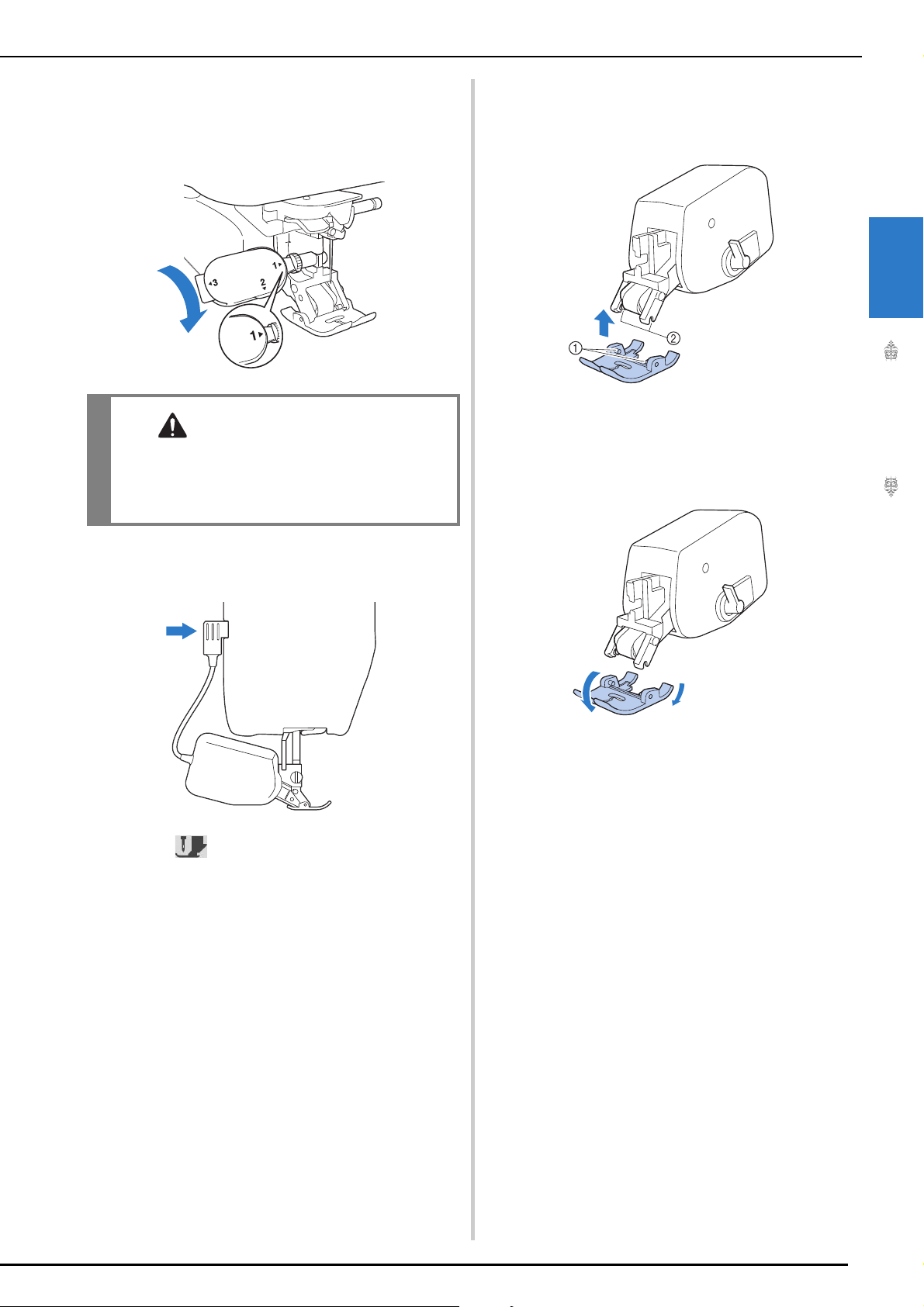

Using the Dual Feed Foot..................................................... 74
SEWING ............................................................. 77
Sewing a Stitch..................................................................... 77
Sewing Reinforcement Stitches............................................. 79
Automatic Reinforcement Stitching...................................... 79

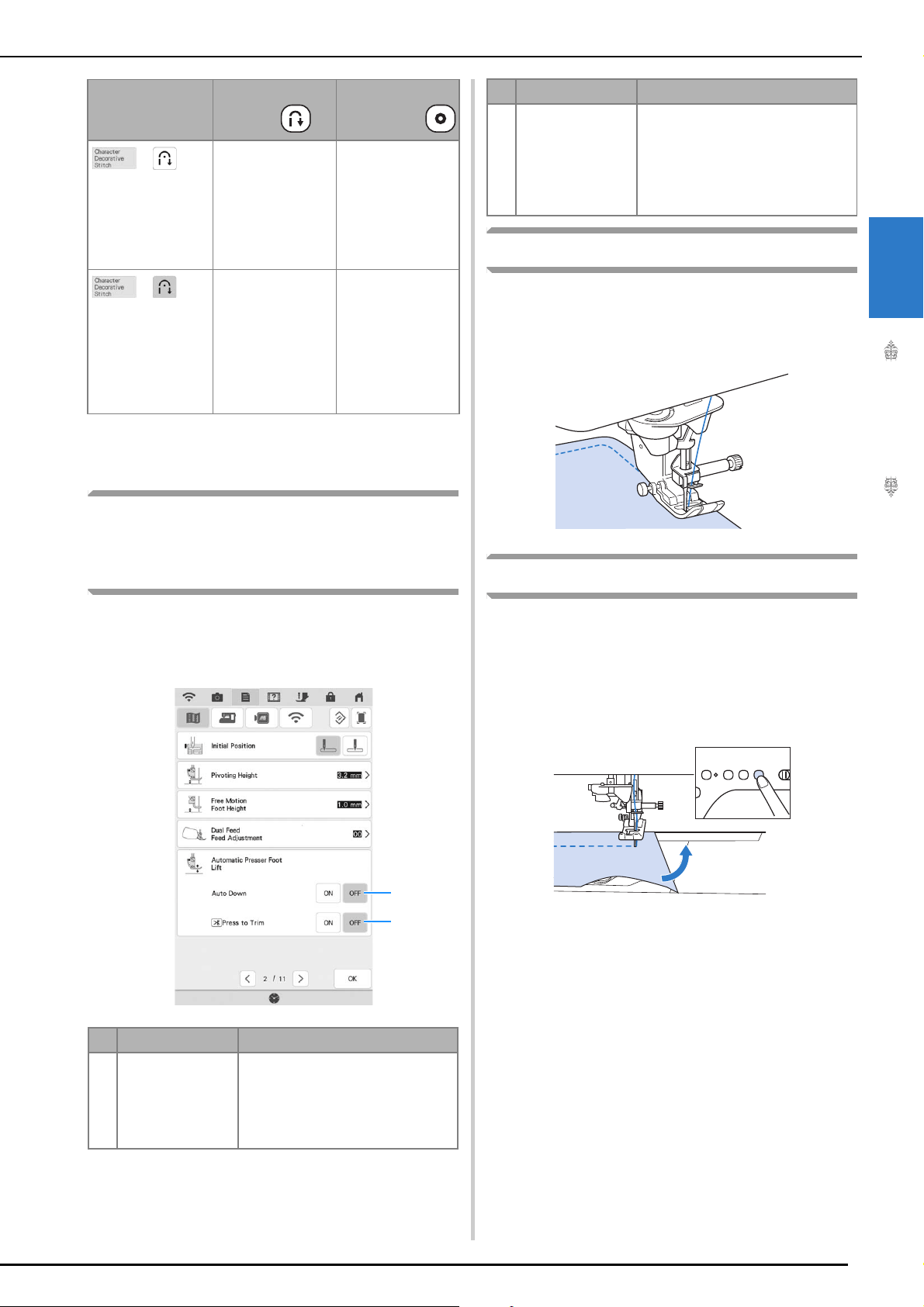

Automatic Presser Foot Lowering Function and Thread Cutting
Function .............................................................................. 81
Sewing Curves..................................................................... 81
Changing Sewing Direction ................................................. 81
Sewing Heavyweight Fabrics ............................................... 82
Sewing Hook-and-Loop Fastener Tape................................. 83
Sewing Lightweight Fabrics.................................................. 84
Sewing Stretch Fabrics......................................................... 84
STITCH SETTINGS ............................................. 85

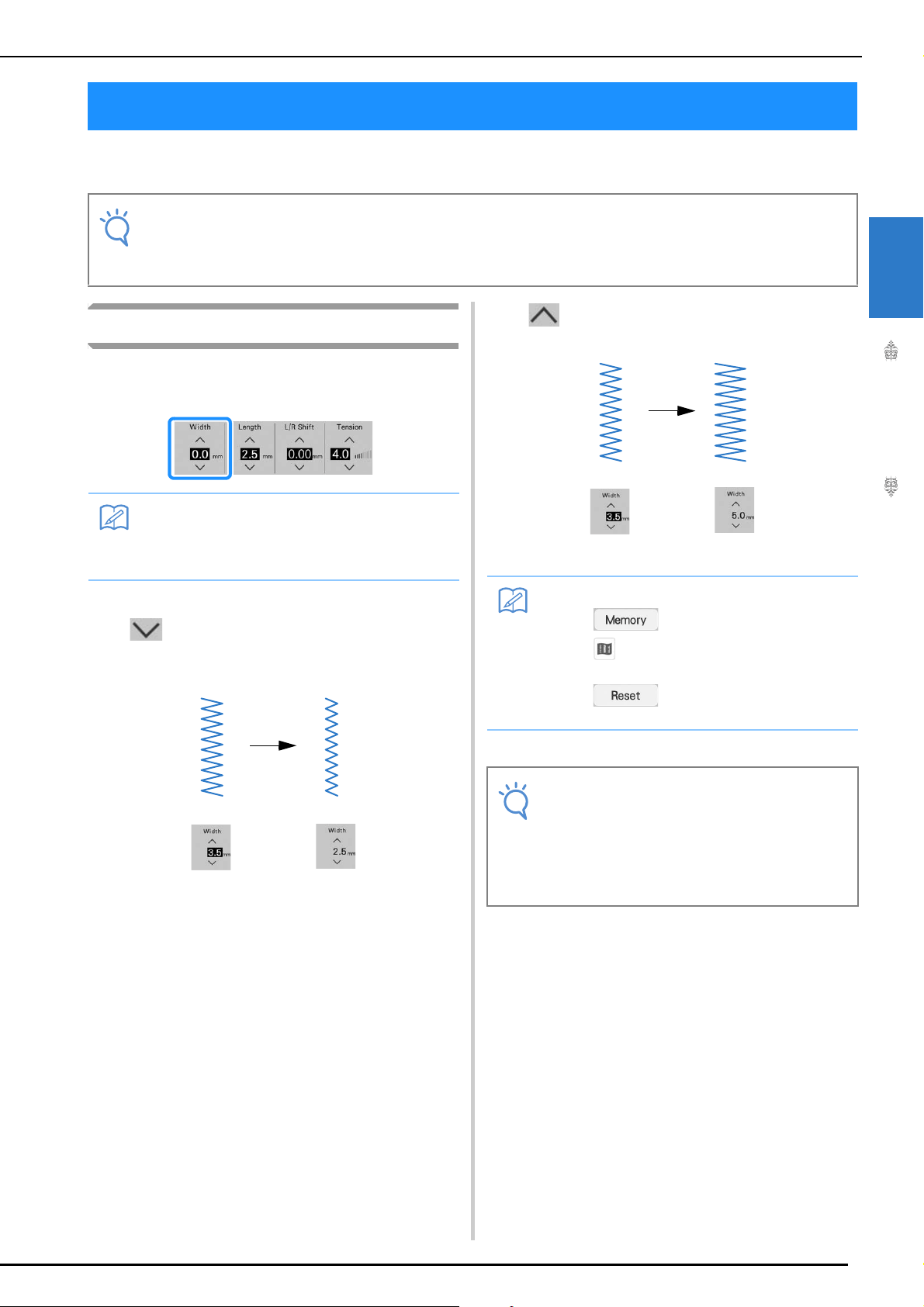

Setting the Stitch Width ....................................................... 85

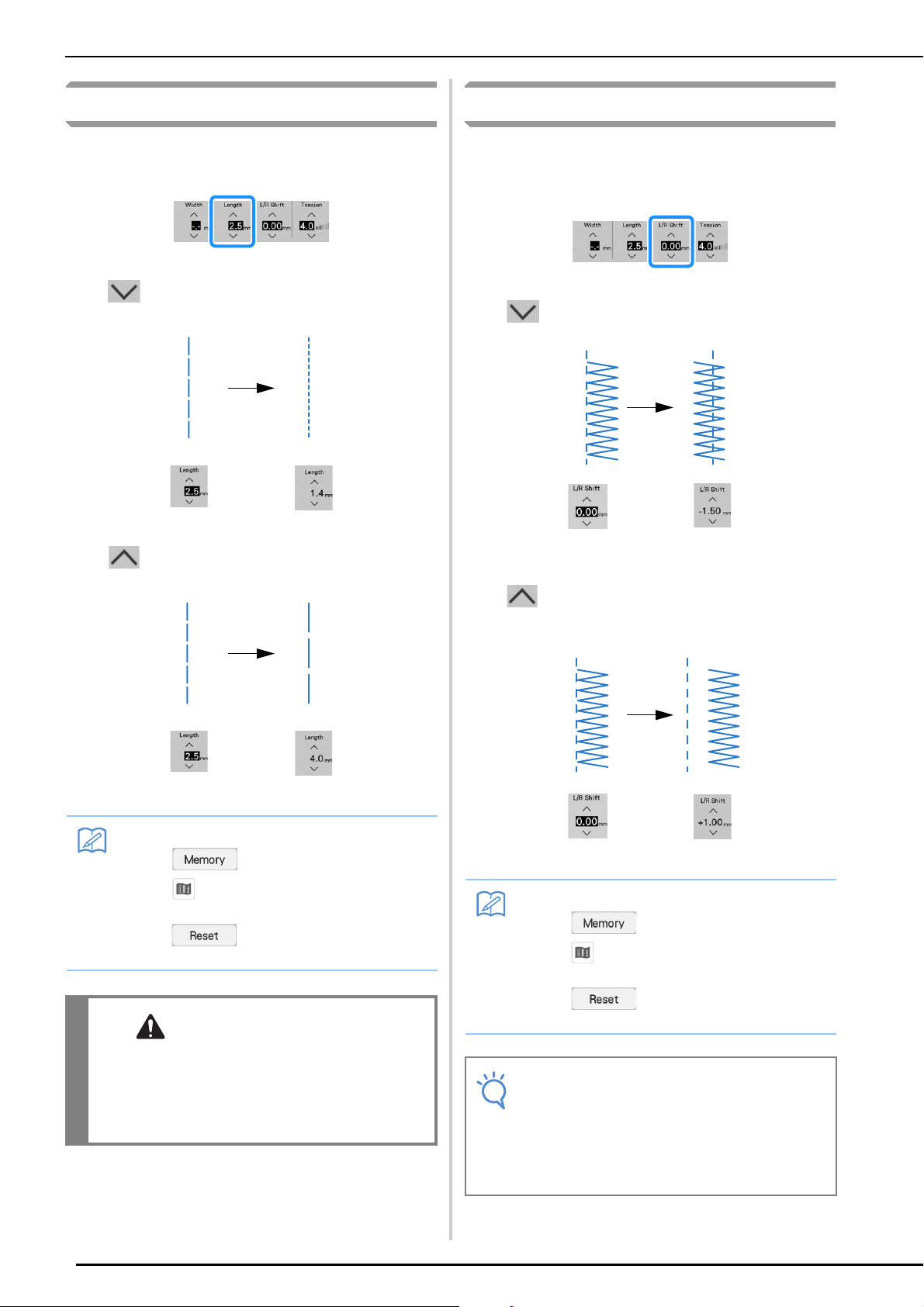

Setting the Stitch Length....................................................... 86

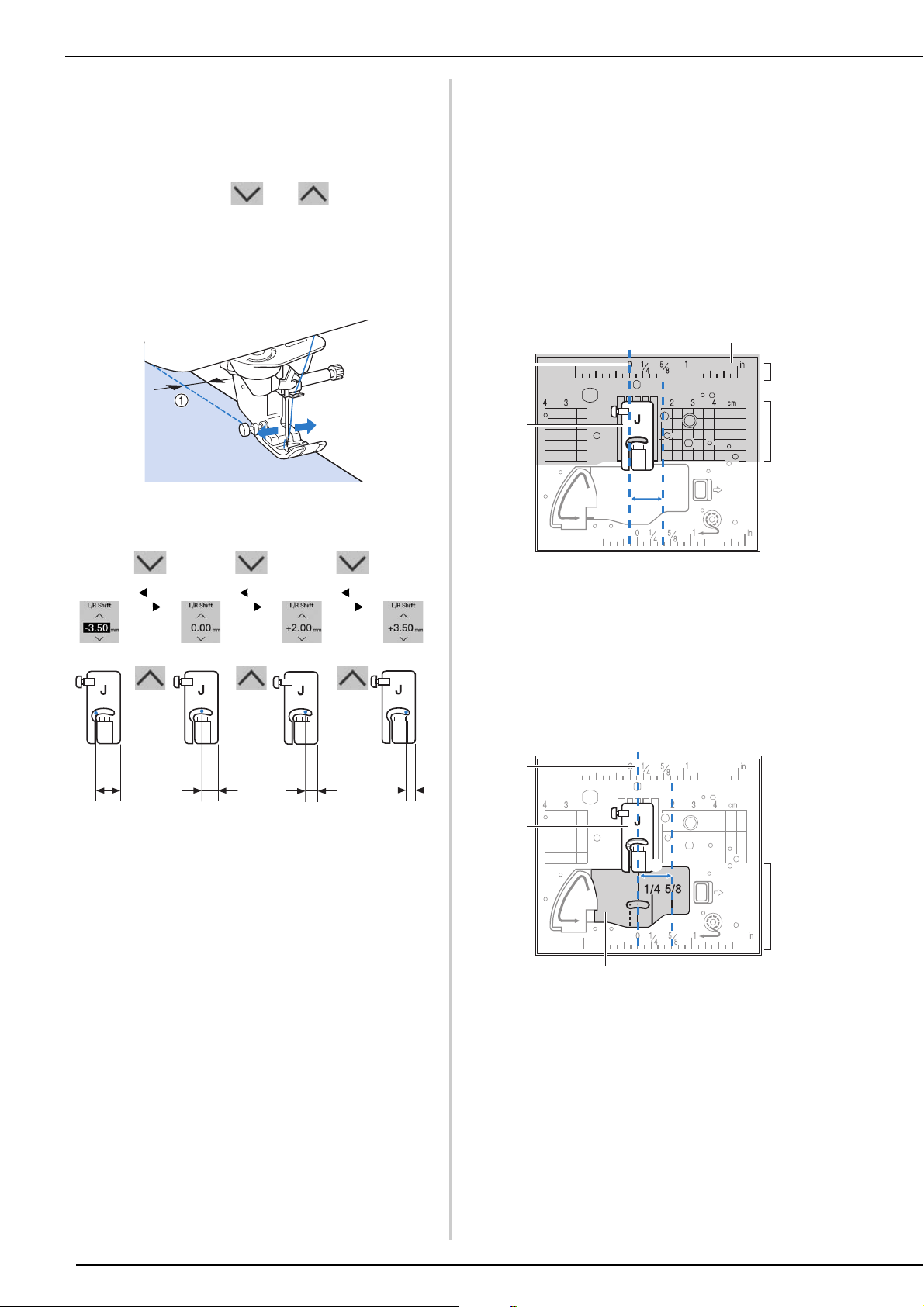

Setting the “L/R Shift”........................................................... 86
Setting the Thread Tension................................................... 87
USEFUL FUNCTIONS ........................................ 88
Automatic Thread Cutting.................................................... 88
Pivoting ............................................................................... 89
Using the Knee Lifter ........................................................... 90
Automatic Fabric Sensor System (Automatic Presser Foot
Pressure).............................................................................. 91
Needle Position - Stitch Placement ...................................... 92
Checking the Needle Location in the Screen........................ 92
USING THE PROJECTOR................................... 94
Convenient Sewing Features by Using the Projector ............ 94

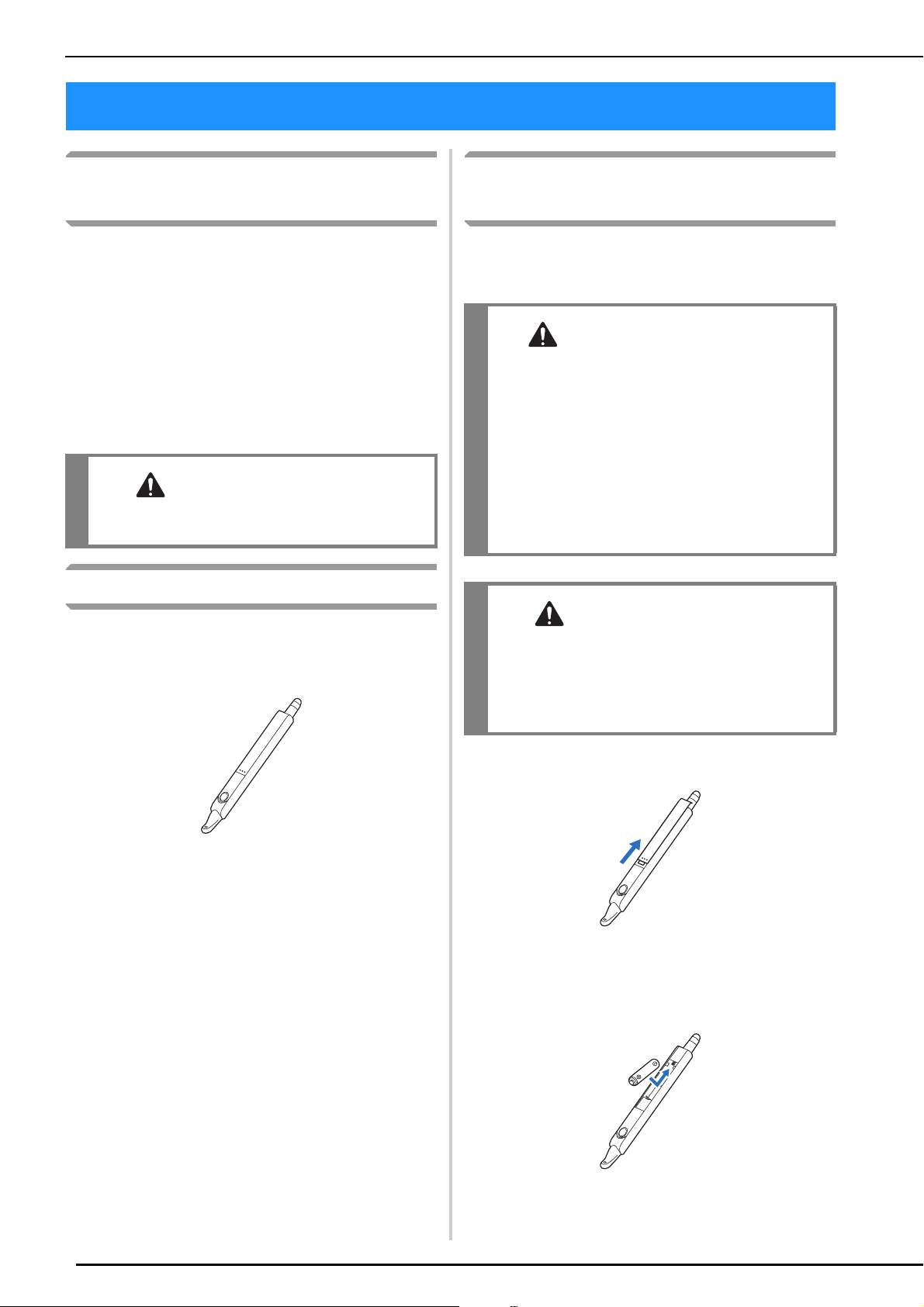

About the Dual Purpose Stylus............................................. 94
Installing a Battery in the Dual Purpose Stylus ..................... 94
Operating the Projector with the Dual Purpose Stylus.......... 95
Using the Dual Purpose Stylus Holder ................................. 95
PROJECTOR FUNCTIONS (UTILITY STITCHES
AND CHARACTER/DECORATIVE STITCHES).... 96
Projection Area of Projector................................................. 96
Projecting the Stitch Pattern with the Projector .................... 96
Selecting a Stitch Pattern with the Dual Purpose Stylus........ 97
Editing a Stitch Pattern Selected with the Dual Purpose Stylus
... 97

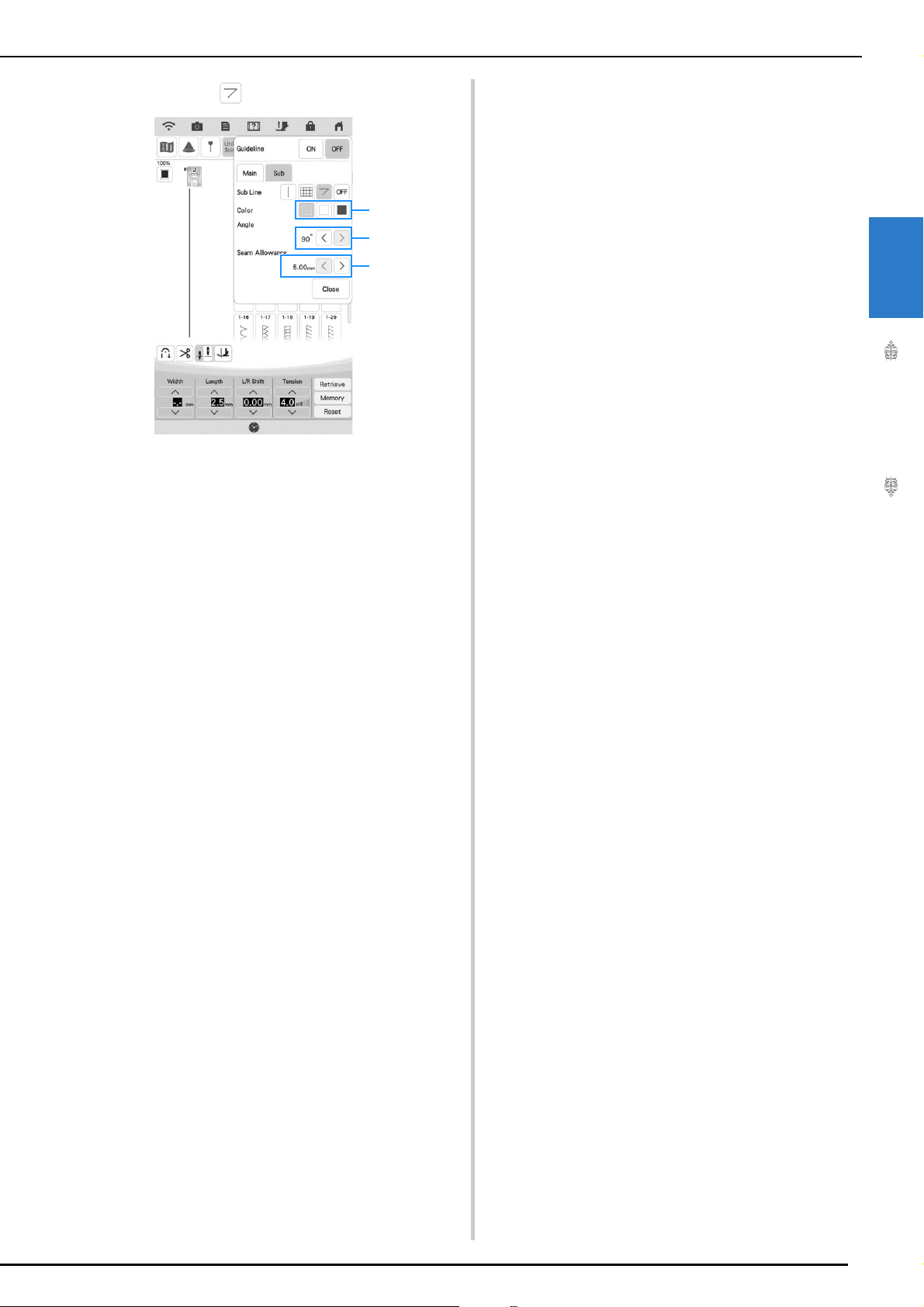

Projecting the Guidelines with the Projector........................ 98
Chapter 3 Utility Stitches 101
SELECTING UTILITY STITCHES ....................... 102
Selecting a Stitch ............................................................... 105
Saving Your Stitch Settings................................................. 107
SEWING THE STITCHES .................................. 108

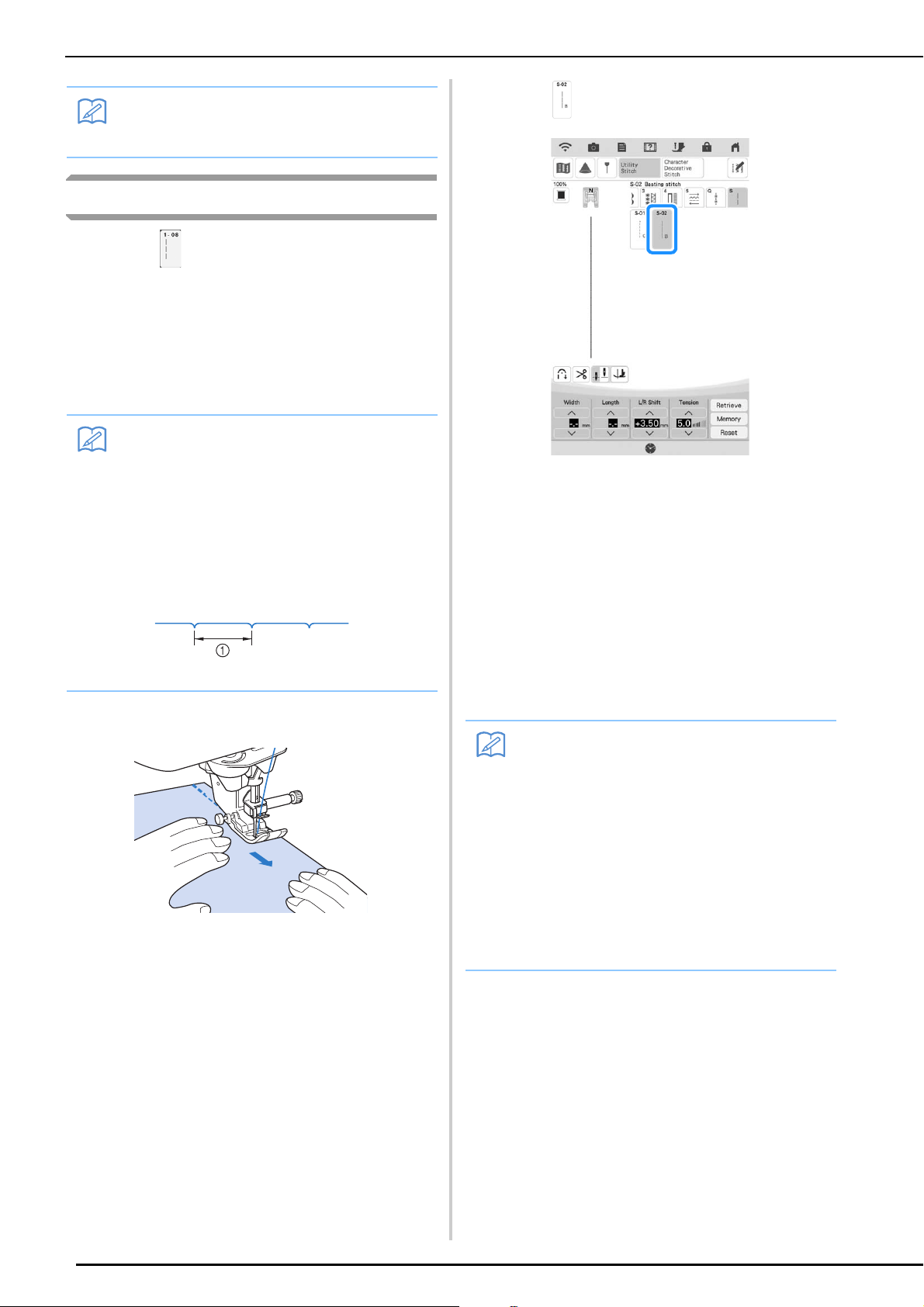

Straight Stitches ................................................................. 108

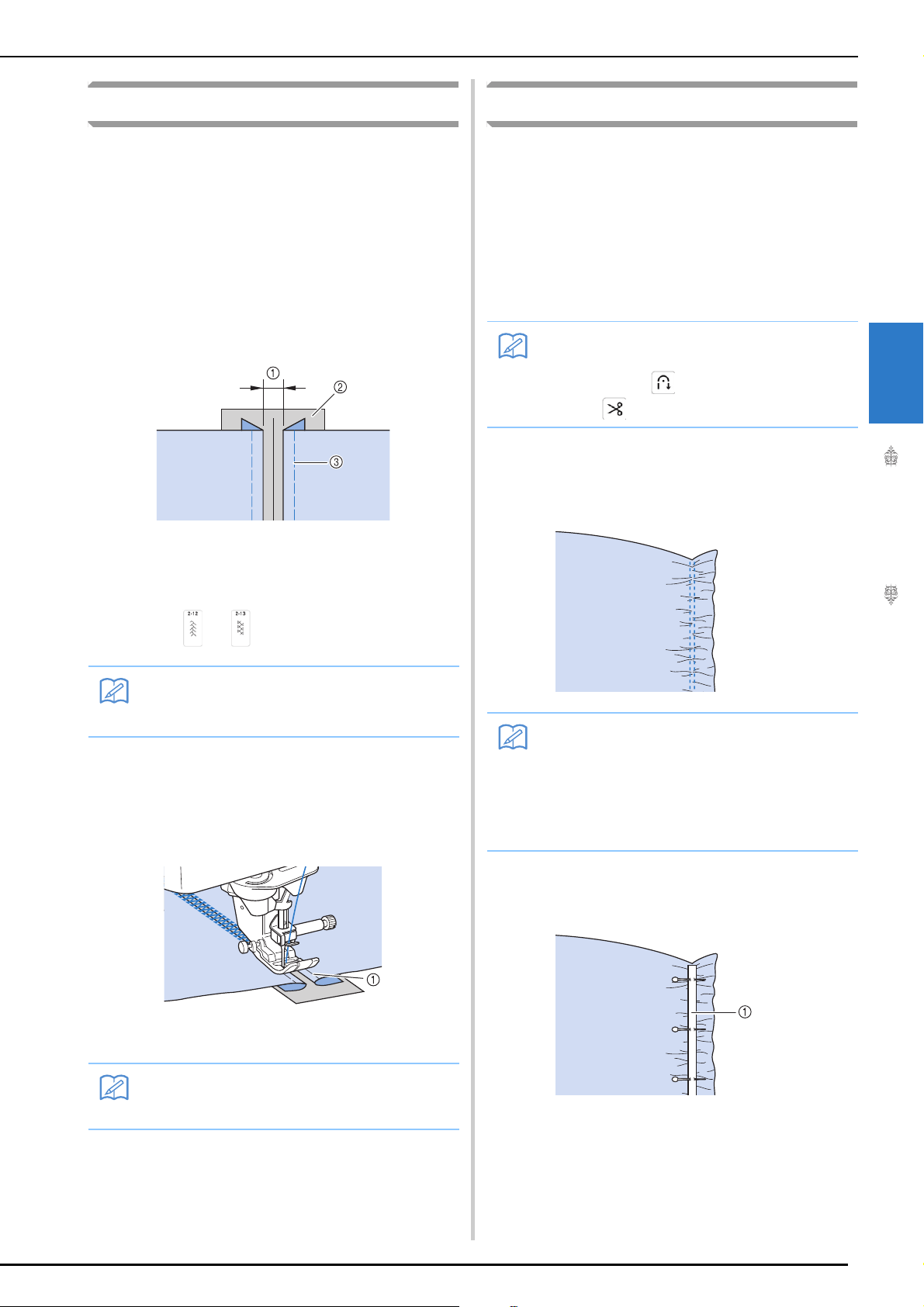

Dart Seam.......................................................................... 112

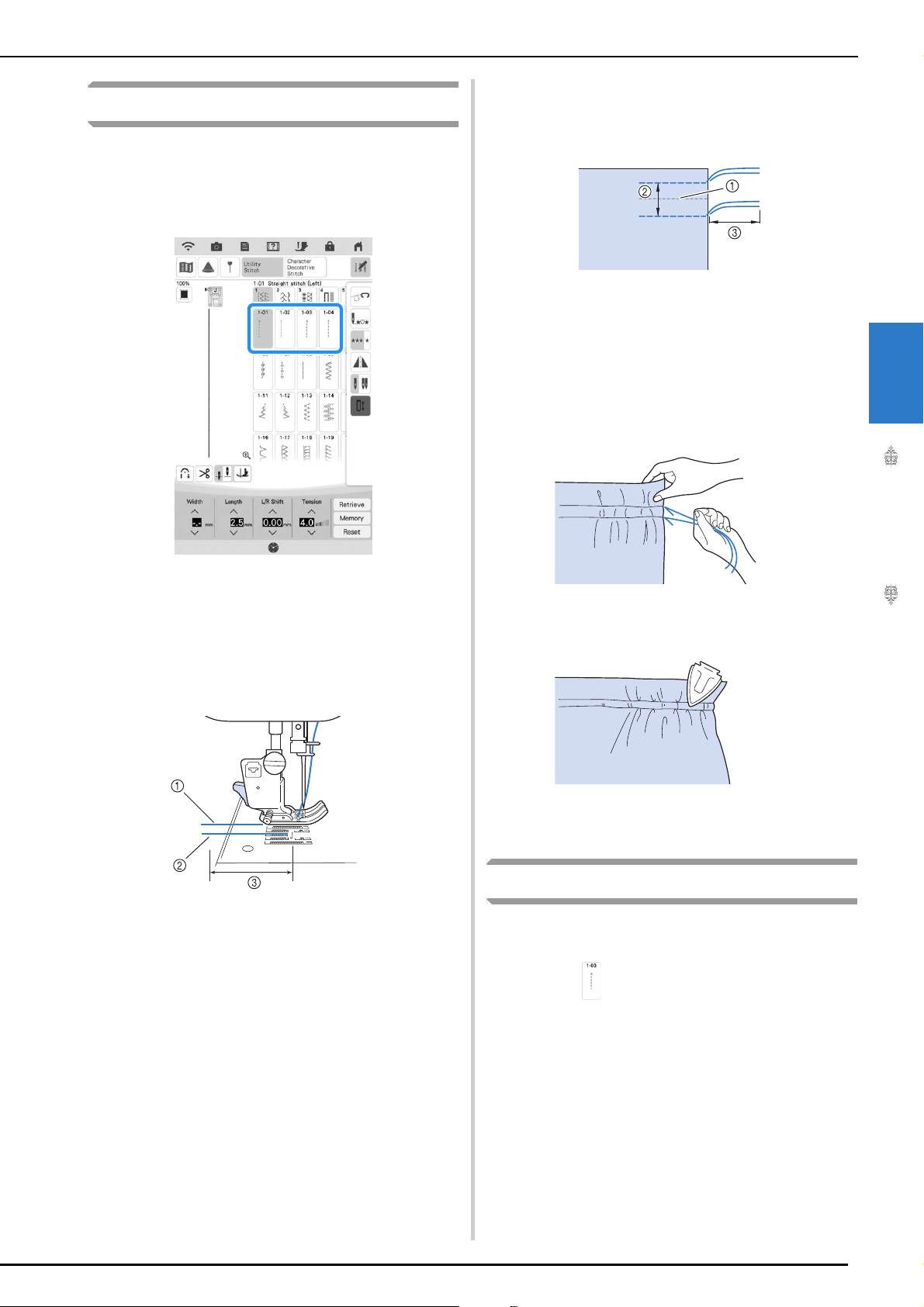

Gathering .......................................................................... 113
Flat Fell Seam .................................................................... 113
Pintuck .............................................................................. 114
Zigzag Stitches................................................................... 116
Elastic Zigzag Stitches........................................................ 117
Overcasting ....................................................................... 118
Quilting............................................................................. 121
Blind Hem Stitches ............................................................ 131
Appliqué............................................................................ 133
Shelltuck Stitches............................................................... 134

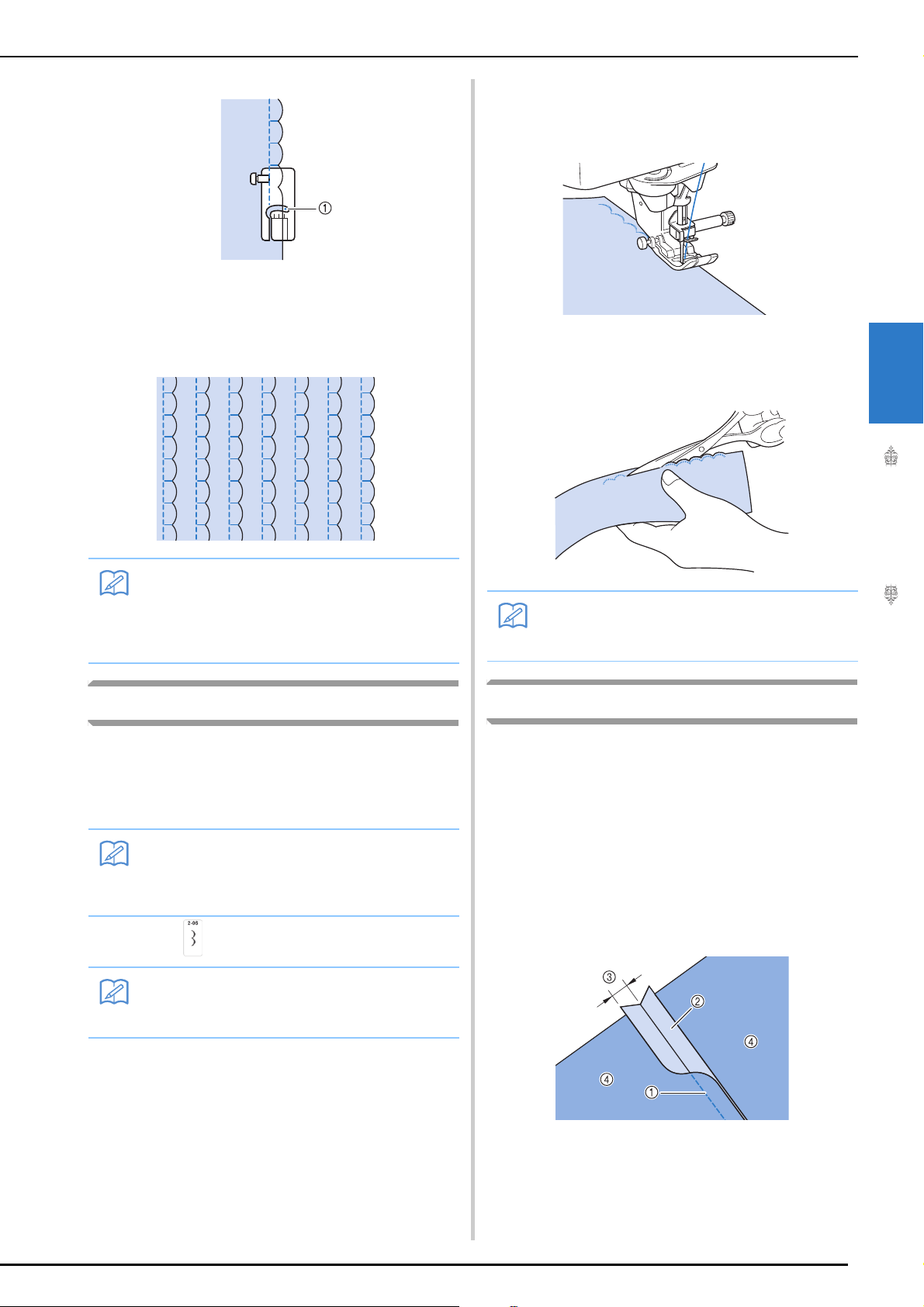

Scallop Stitches.................................................................. 135
Crazy Quilting ................................................................... 135
Smocking Stitches.............................................................. 136
Fagoting............................................................................. 137
Tape or Elastic Attaching ................................................... 137
Heirloom........................................................................... 138
Basting............................................................................... 140

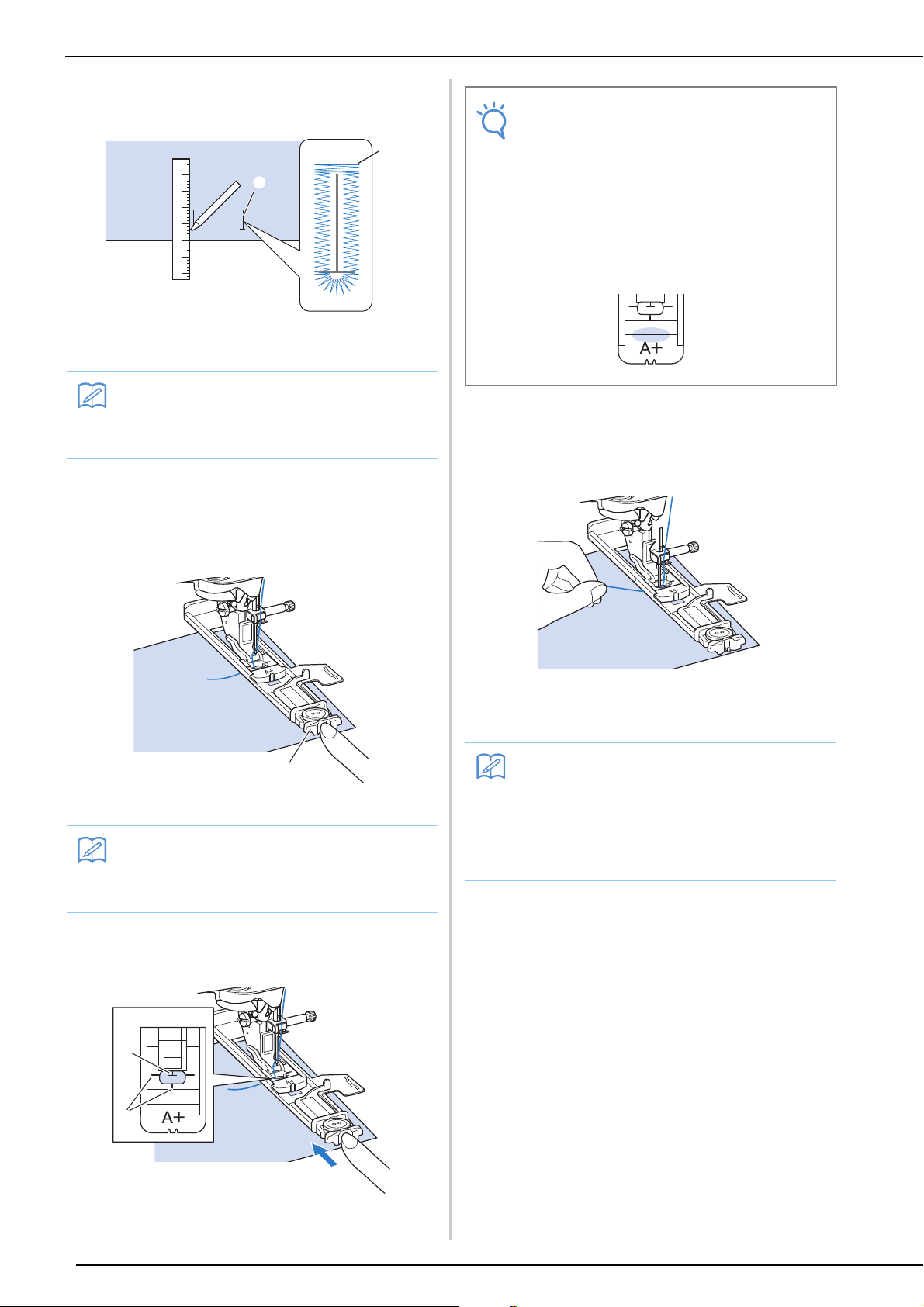

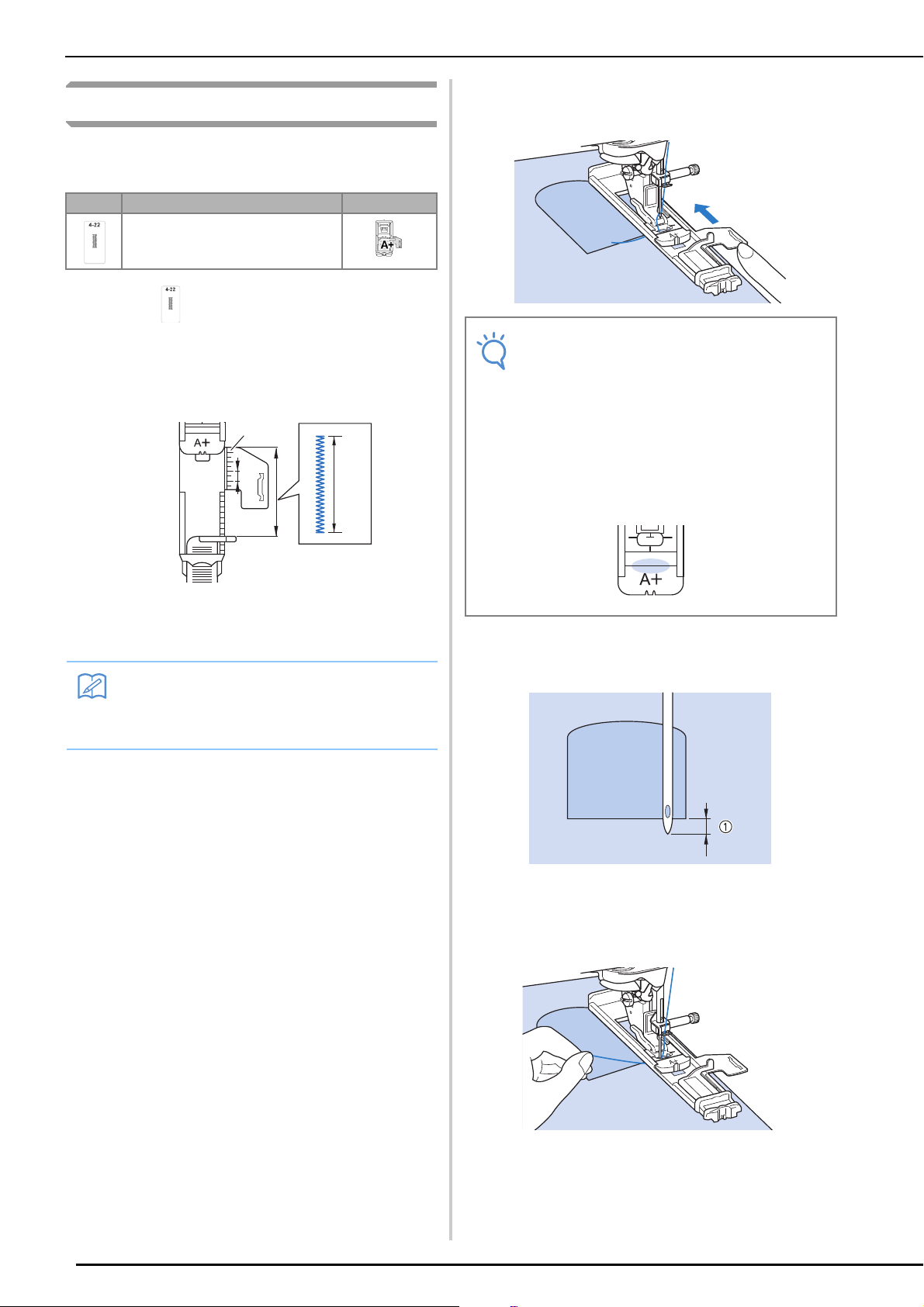

One-step Buttonholes ........................................................ 141
Four-step Buttonholes........................................................ 145
Bar Tacks........................................................................... 148
Button Sewing ................................................................... 149

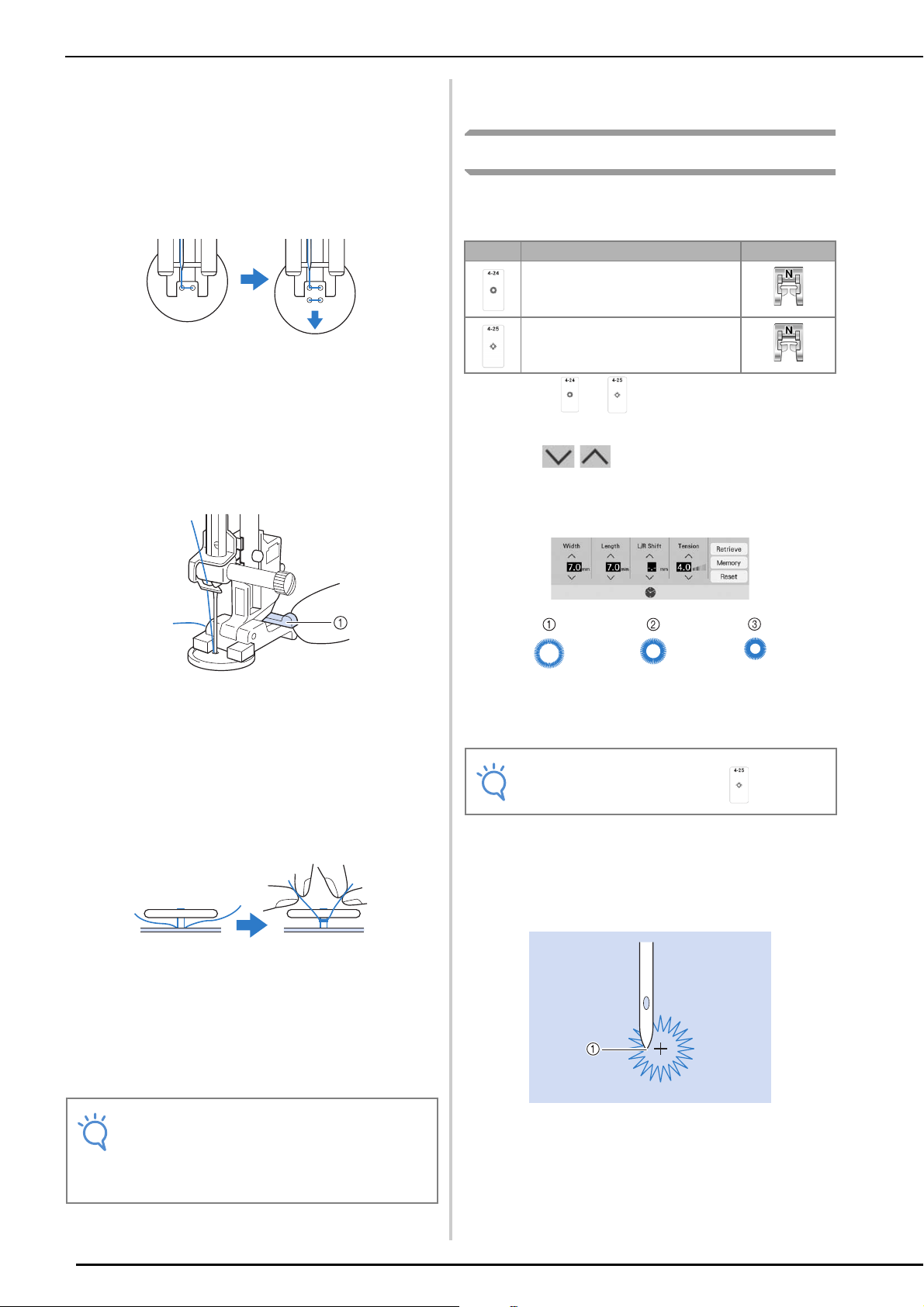

Eyelet................................................................................. 150

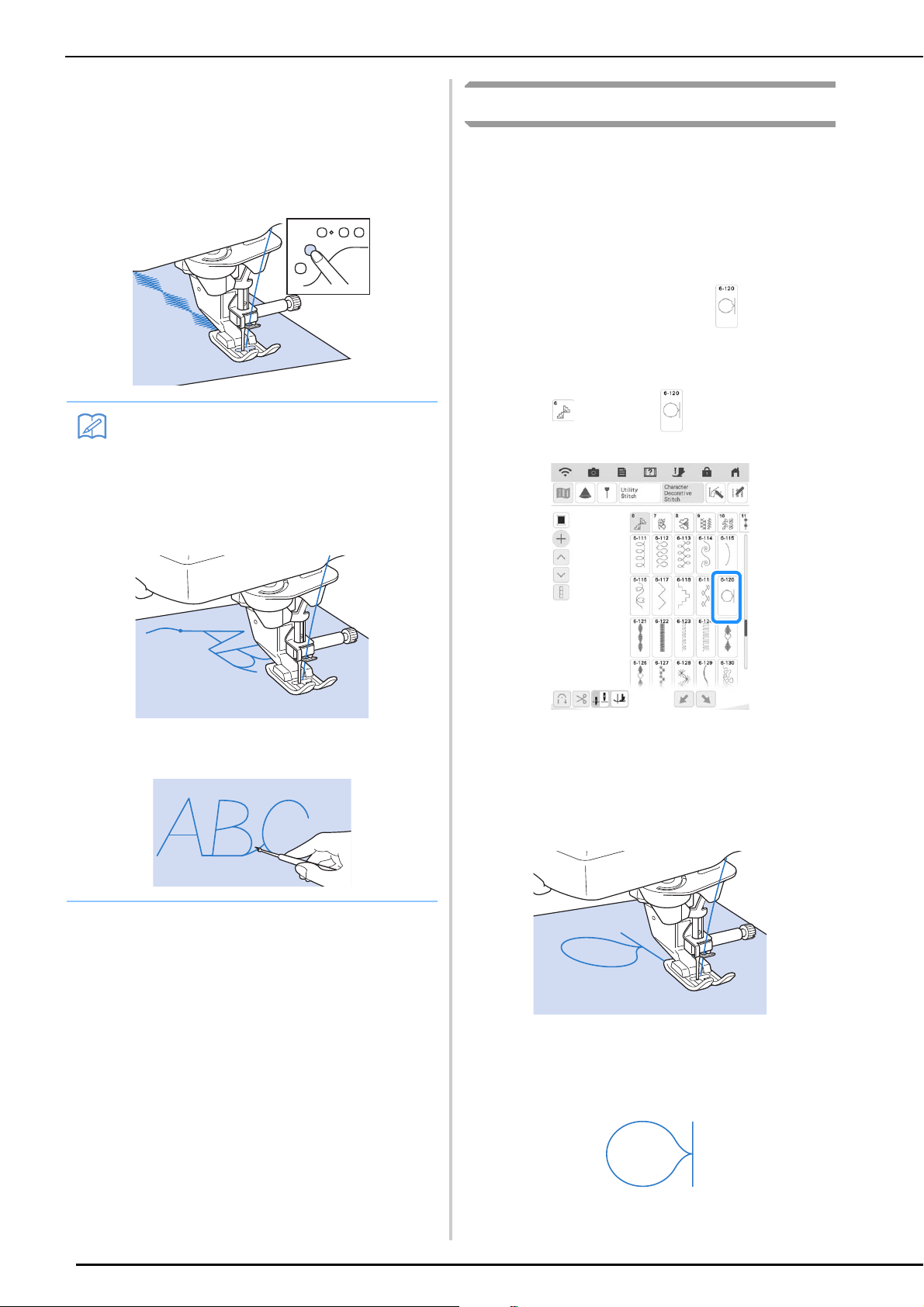

Multi-directional Sewing (Straight Stitch and Zigzag Stitch)
... 151
Zipper Insertion ................................................................. 152
CONTENTS
9
1
2
3
4
5
6
Chapter 4
Character/Decorative Stitches
157
SELECTING STITCH PATTERNS ....................... 158

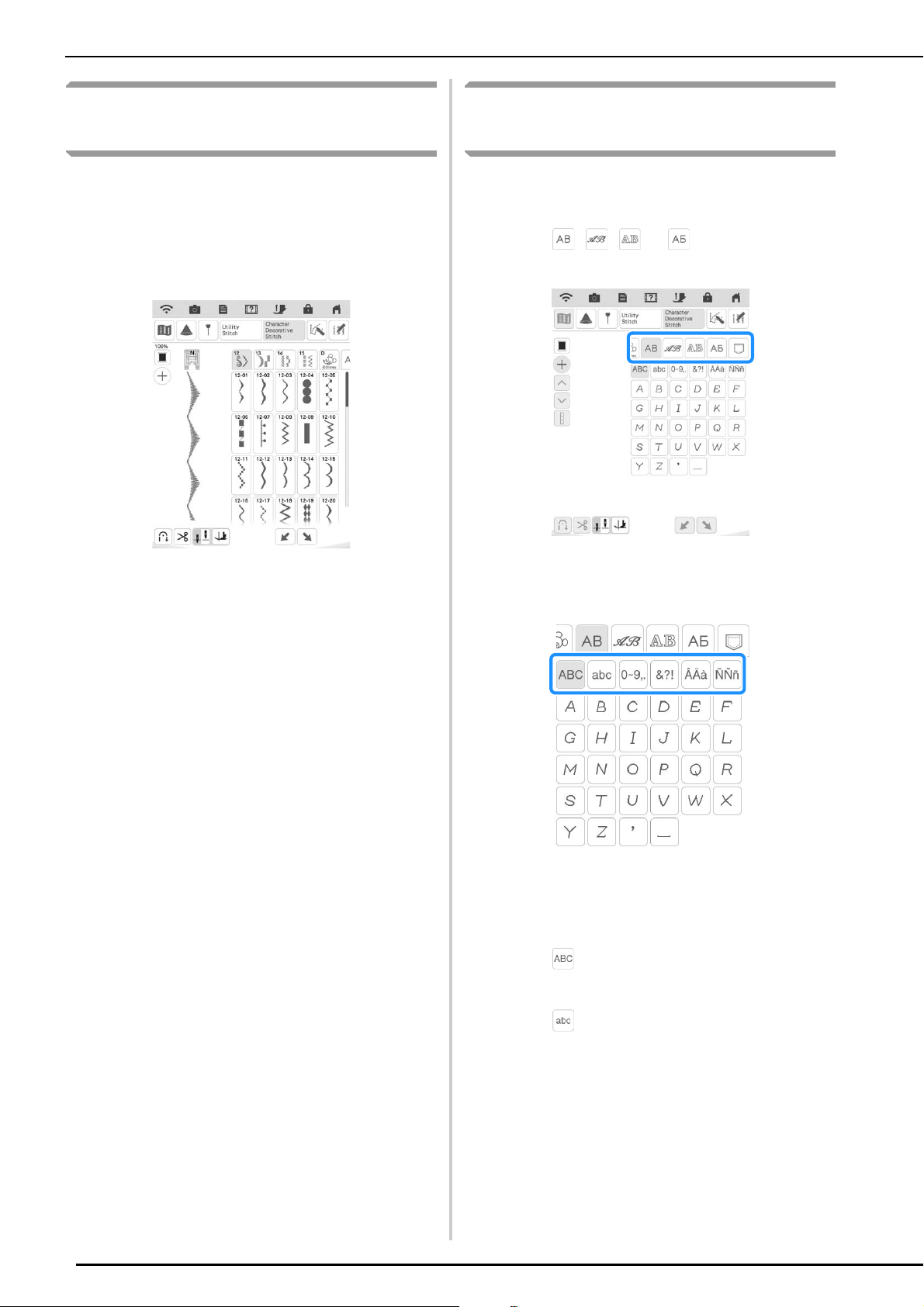

Selecting Decorative Stitch Patterns ................................... 160
Selecting Character Stitch Patterns ..................................... 160
SEWING STITCH PATTERNS............................ 163
Sewing Attractive Finishes.................................................. 163
Basic Sewing...................................................................... 163
Making Adjustments .......................................................... 164
EDITING STITCH PATTERNS ........................... 166
Changing the Size .............................................................. 169
Changing the Length (for 7mm Satin Stitch Patterns Only)
... 169
Creating a Vertical Mirror Image ........................................ 169
Creating a Horizontal Mirror Image ................................... 169
Sewing a Stitch Pattern Continuously ................................. 169
Changing Thread Density (for Large Satin Only)................. 170
Returning to the Beginning of the Stitch Pattern ................. 170
Checking the Image ........................................................... 171
COMBINING STITCH PATTERNS .................... 172
Before Combining.............................................................. 172
Combining Various Stitch Patterns ..................................... 172
Combining Large and Small Stitch Patterns ........................ 173
Combining Horizontal Mirror Image Stitch Patterns ........... 174
Combining Stitch Patterns of Different Length .................... 175

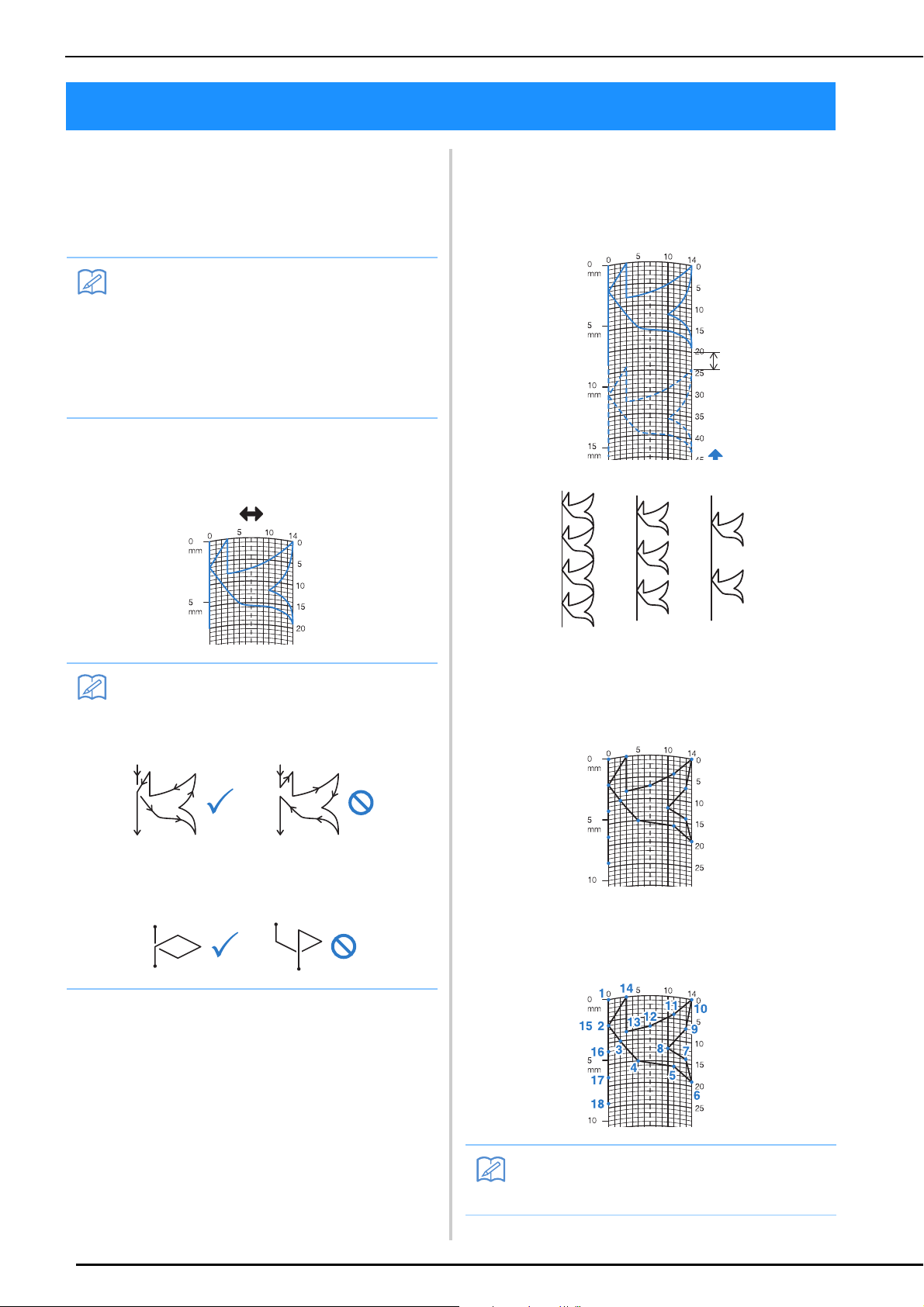

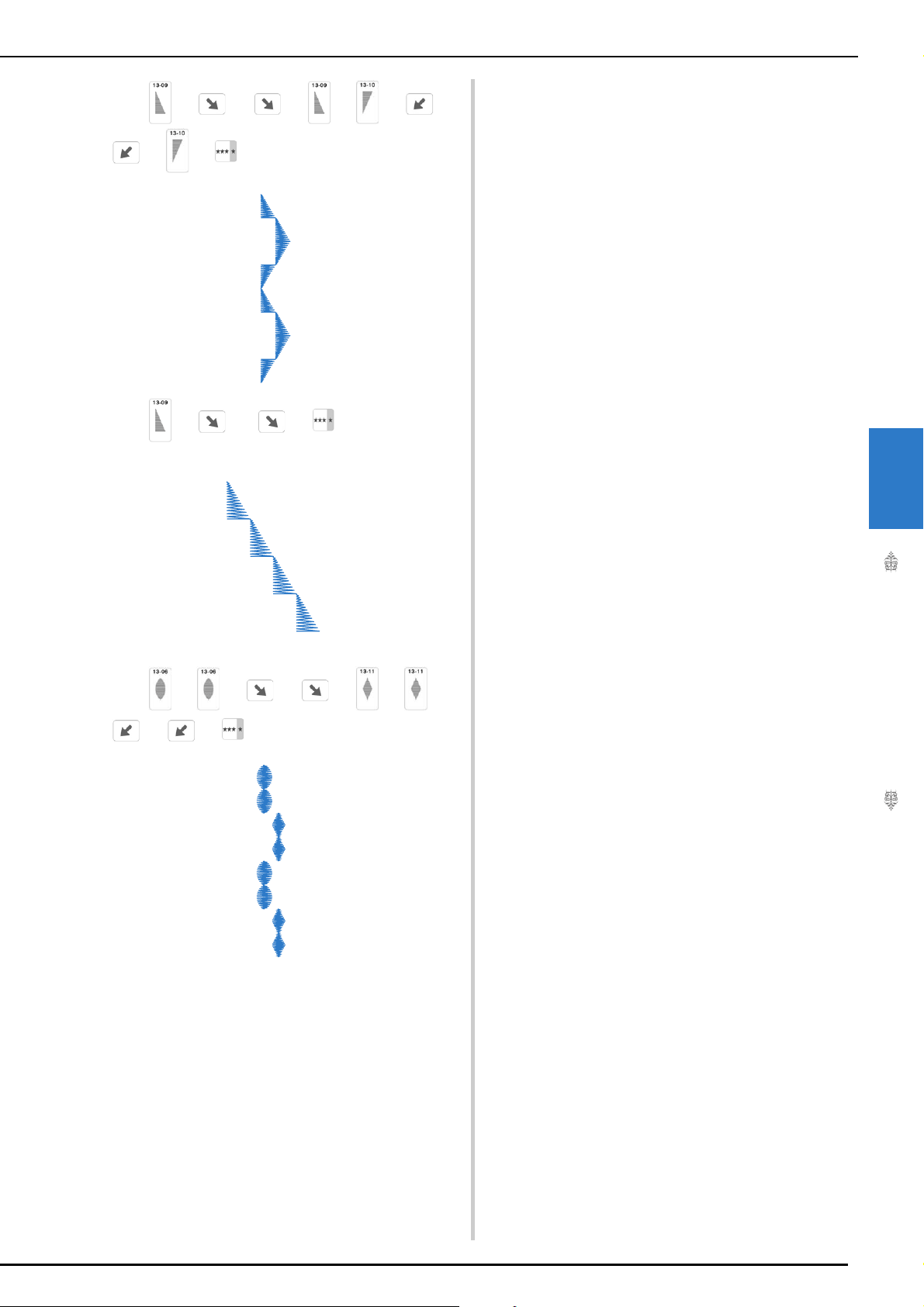

Making Step Stitch Patterns ................................................ 175

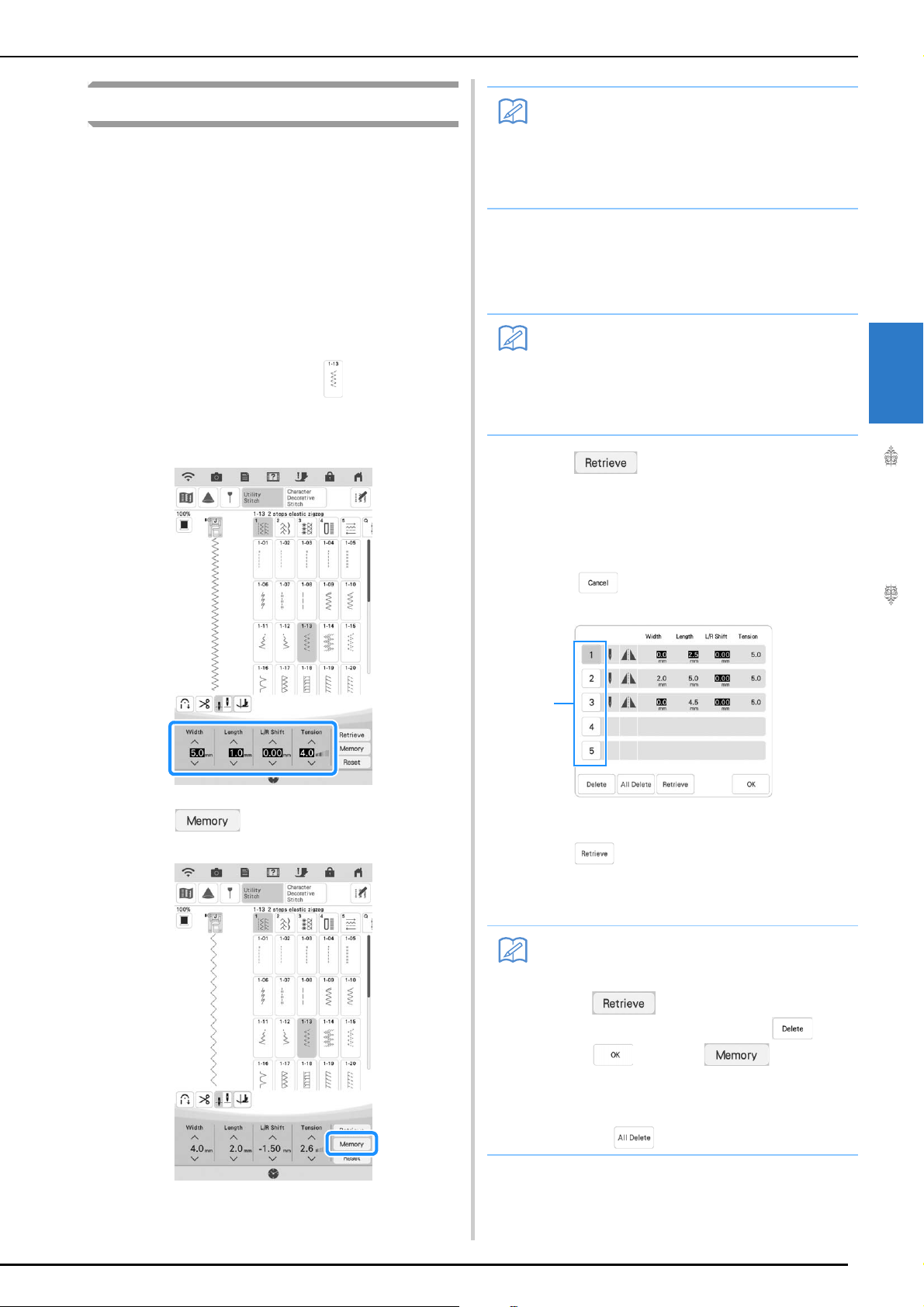

USING THE MEMORY FUNCTION.................. 178
Stitch Data Precautions ...................................................... 178

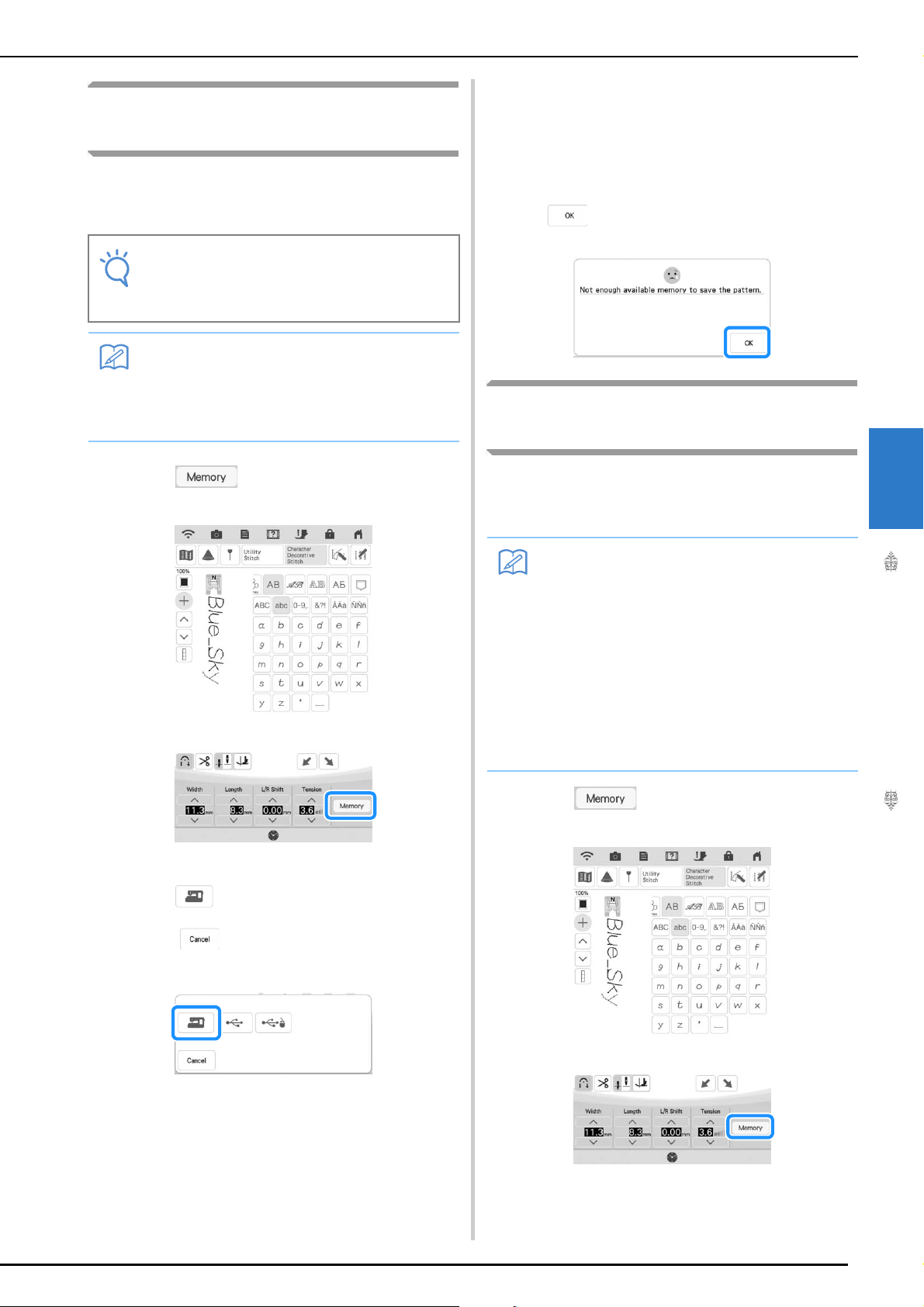

Saving Stitch Patterns in the Machine’s Memory ................ 179

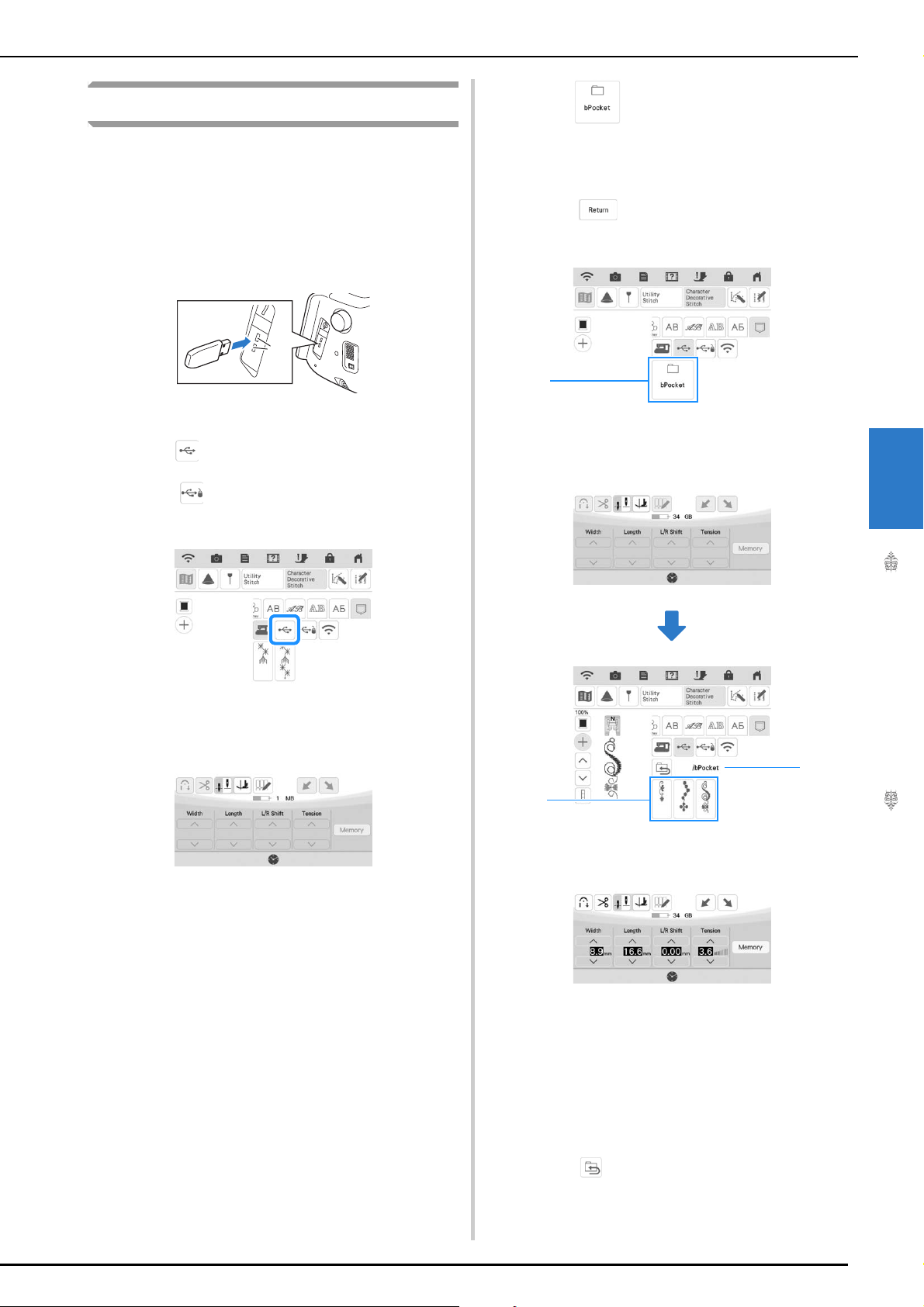

Saving Stitch Patterns to USB Media .................................. 179
Retrieving Stitch Patterns from the Machine’s Memory....... 180
Recalling from USB Media................................................. 181
Managing Saved File .......................................................... 182
Transferring Stitch Patterns to the Machine (PE-DESIGN to this
machine)............................................................................ 183
Chapter 5 MY CUSTOM STITCH 185
DESIGNING A STITCH .................................... 186
ENTERING STITCH DATA................................ 188
Editing Stitch Stored in the Machine................................... 192
USING STORED CUSTOM STITCHES .............. 194
Storing Custom Stitches in Your List ................................... 194
Retrieving Stored Stitches................................................... 195
Chapter 6 Appendix 197
CARE AND MAINTENANCE............................. 198
Restrictions on oiling ......................................................... 198
Precautions on storing the machine ................................... 198
Cleaning the LCD Screen ................................................... 198
Cleaning the Machine Casing ............................................ 198

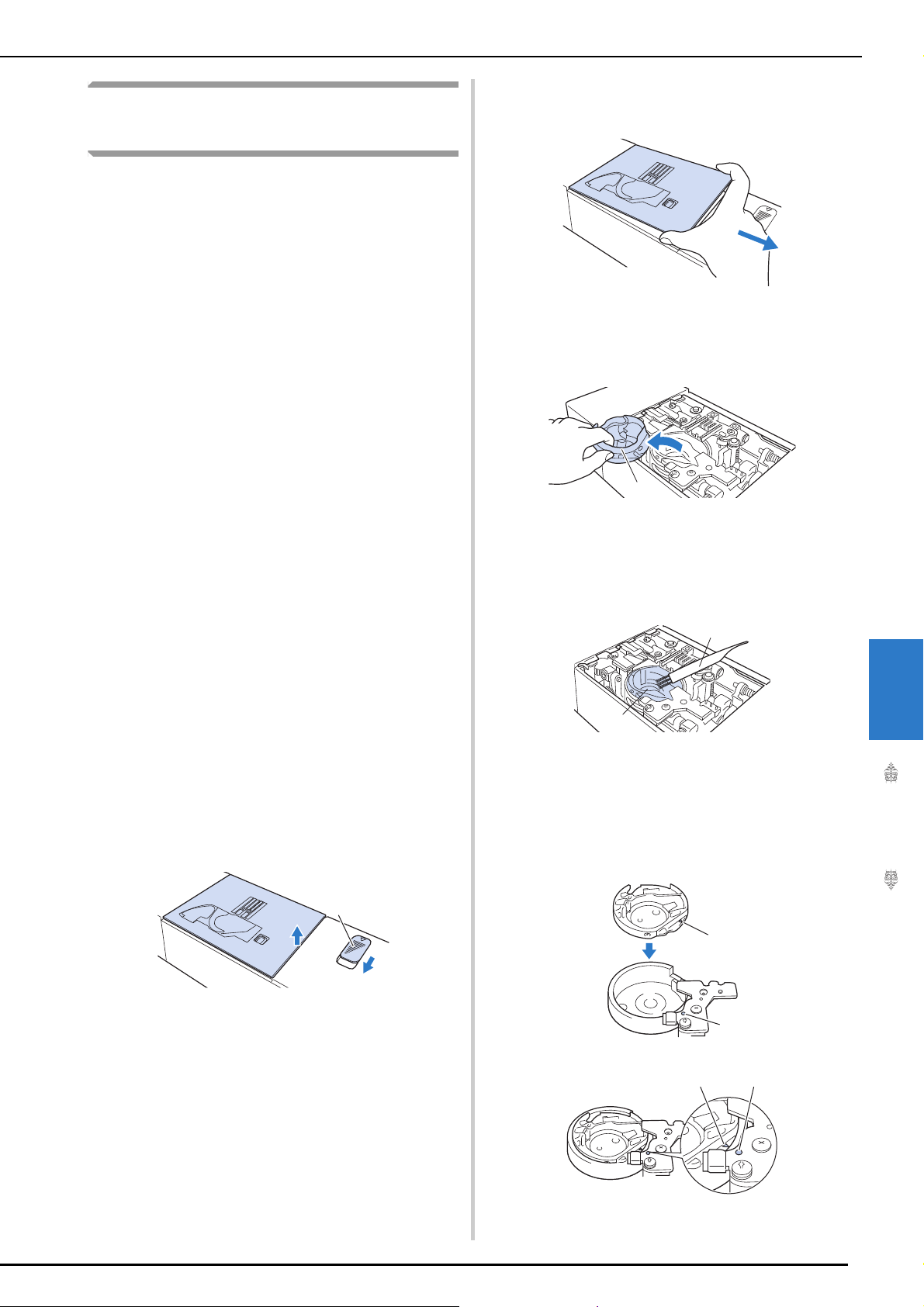

Cleaning the Race.............................................................. 198
Cleaning the Cutter in the Bobbin Case Area ..................... 200
About the Maintenance Message ....................................... 200
TROUBLESHOOTING...................................... 201
Frequent Troubleshooting Topics ....................................... 201
Upper Thread is Too Tight ................................................. 201
Tangled Thread on Wrong Side of Fabric ........................... 202
Incorrect Thread Tension ................................................... 204
Fabric is Caught in the Machine and Cannot be Removed
... 205
List of Symptoms................................................................ 208
ERROR MESSAGES ........................................... 213
SPECIFICATIONS ............................................. 216
UPGRADING YOUR MACHINE’S SOFTWARE
... 217
Upgrade Procedure Using USB Media ............................... 217

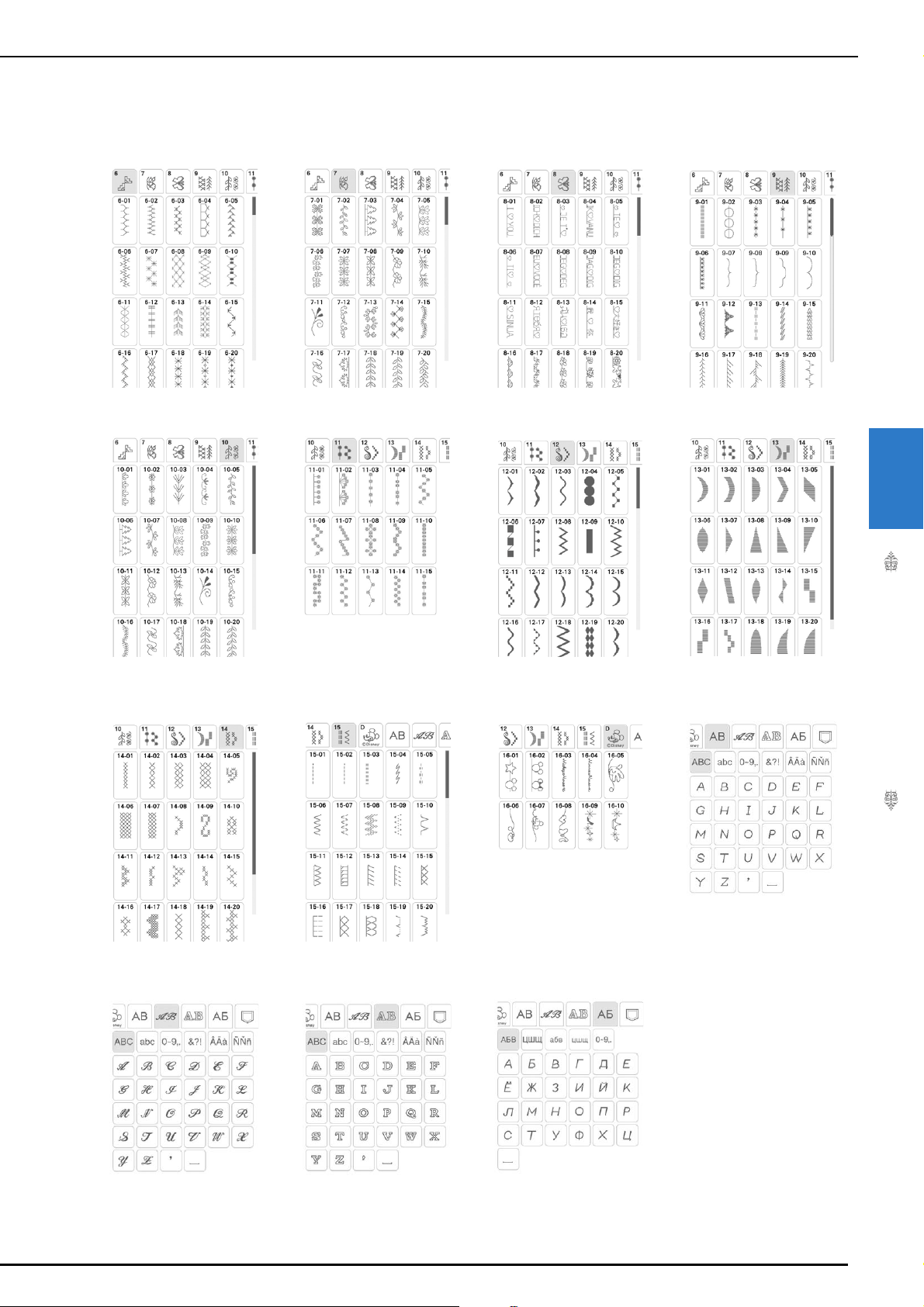

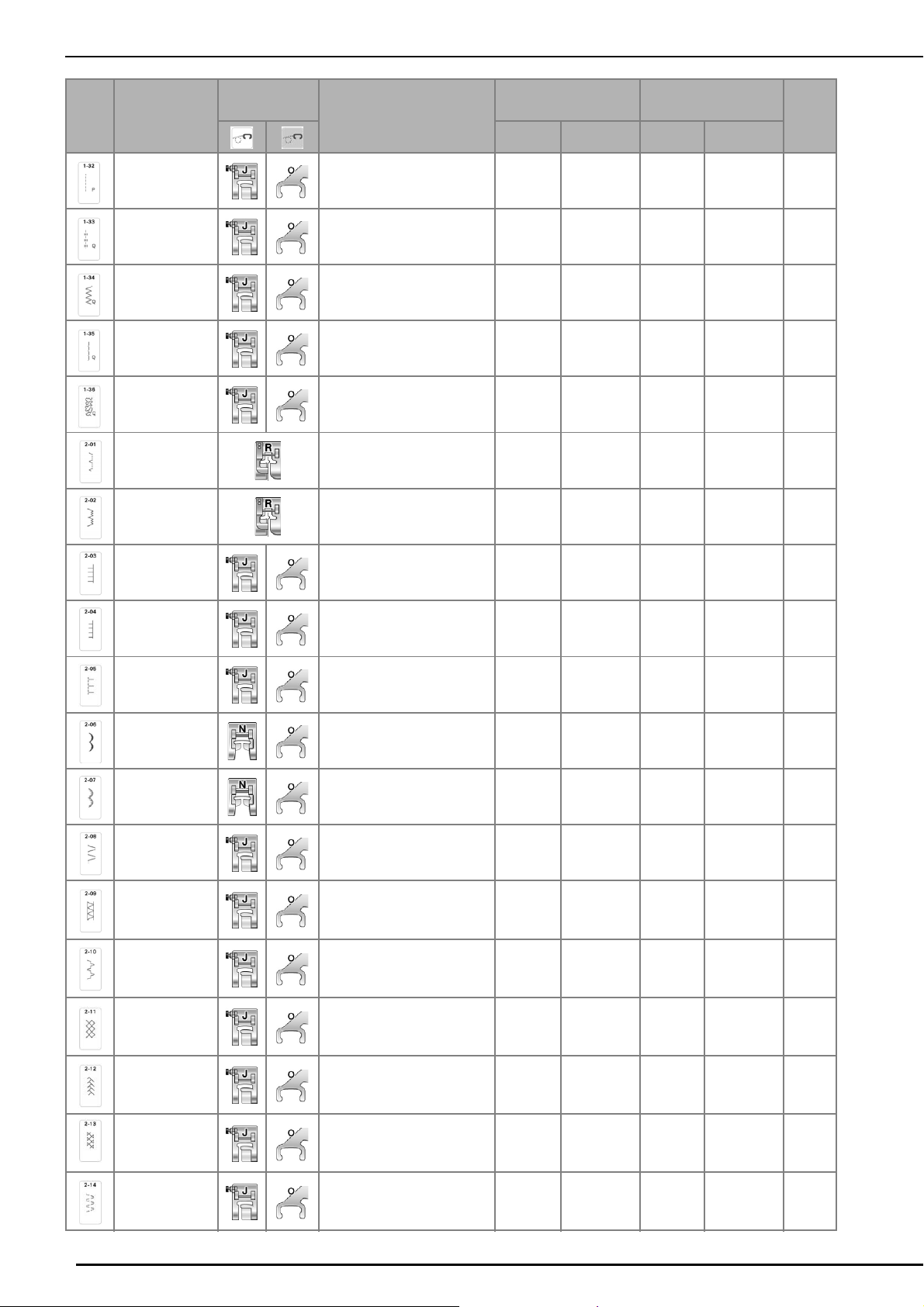

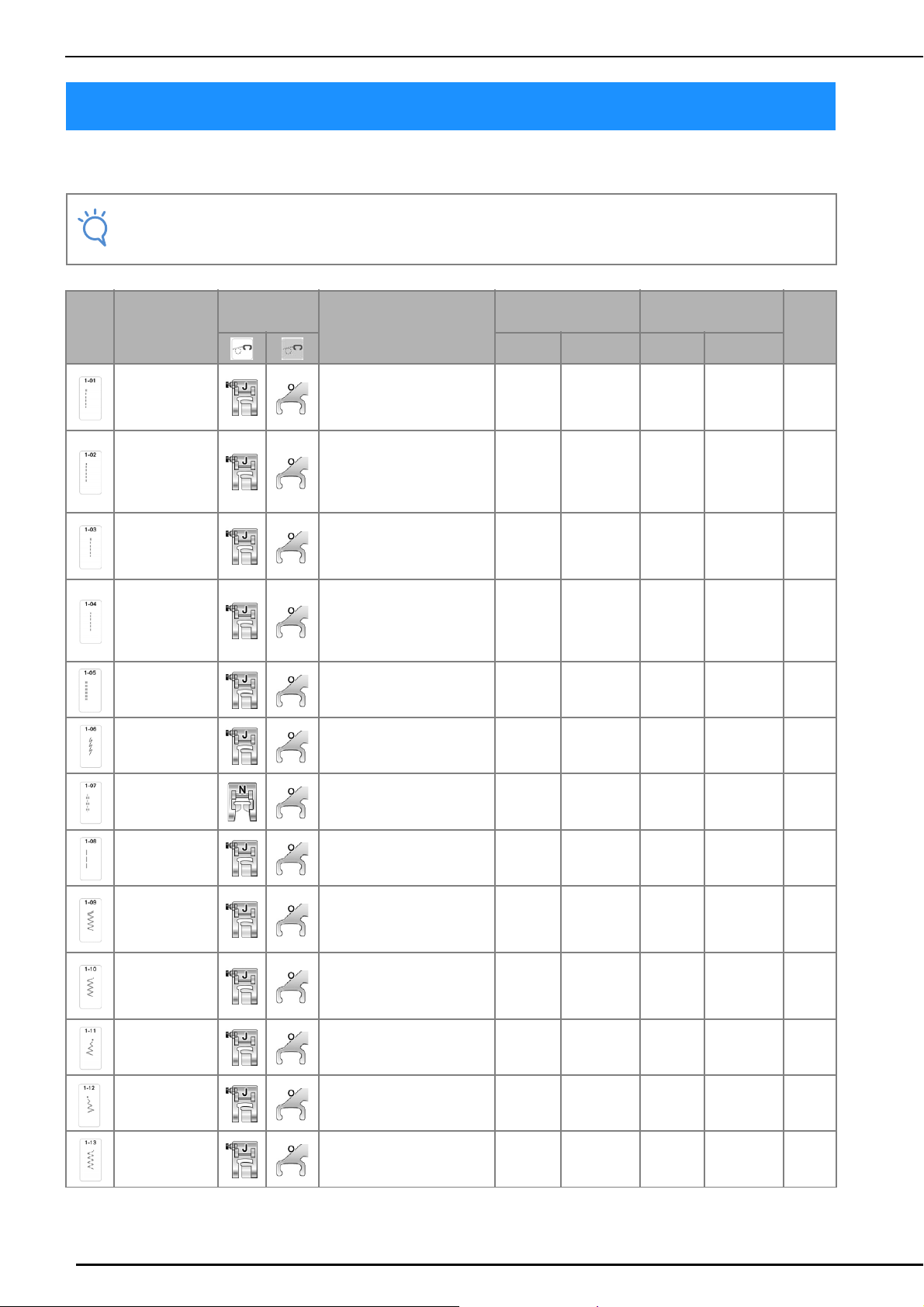

STITCH SETTING CHART................................. 218
INDEX .............................................................. 227
CONTENTS
10
Chapter 1
Getting Ready
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
12
The names of the various parts of the machine and their functions are described below. Before using the
machine, carefully read these descriptions to learn the names of the machine parts.
Machine
■ Front View
a Top cover
Open the top cover when threading the machine or winding the
bobbin.
b Pretension disk
Pass the thread around the pretension disk when winding the
bobbin thread. (page 52)
c Thread guide for bobbin winding
Pass the thread through this thread guide when winding the
bobbin thread. (page 52)
d Spool pin
Place a spool of thread on the spool pin. (page 61)
e Spool cap
Use the spool cap to hold the spool of thread in place.
(page 61)
f Supplemental spool pin
Use this spool pin to wind the bobbin thread, or to sew with the
twin needle. (page 52, 64)
g Bobbin winder
Use the bobbin winder when winding the bobbin. (page 52)
h Bobbin winding slider
Adjust the amount of thread wound onto the bobbin. (page 54)
i LCD (liquid crystal display)
Settings for the selected stitch and error messages appear in
the LCD. (page 28)
j Speaker
k Knee lifter
Use the knee lifter to raise and lower the presser foot. (page 90)
l Knee lifter slot
Insert the knee lifter into the slot. (page 90)
m Operation buttons (7 buttons) and sewing speed
controller
Use these buttons and the slide to operate the machine.
(page 15)

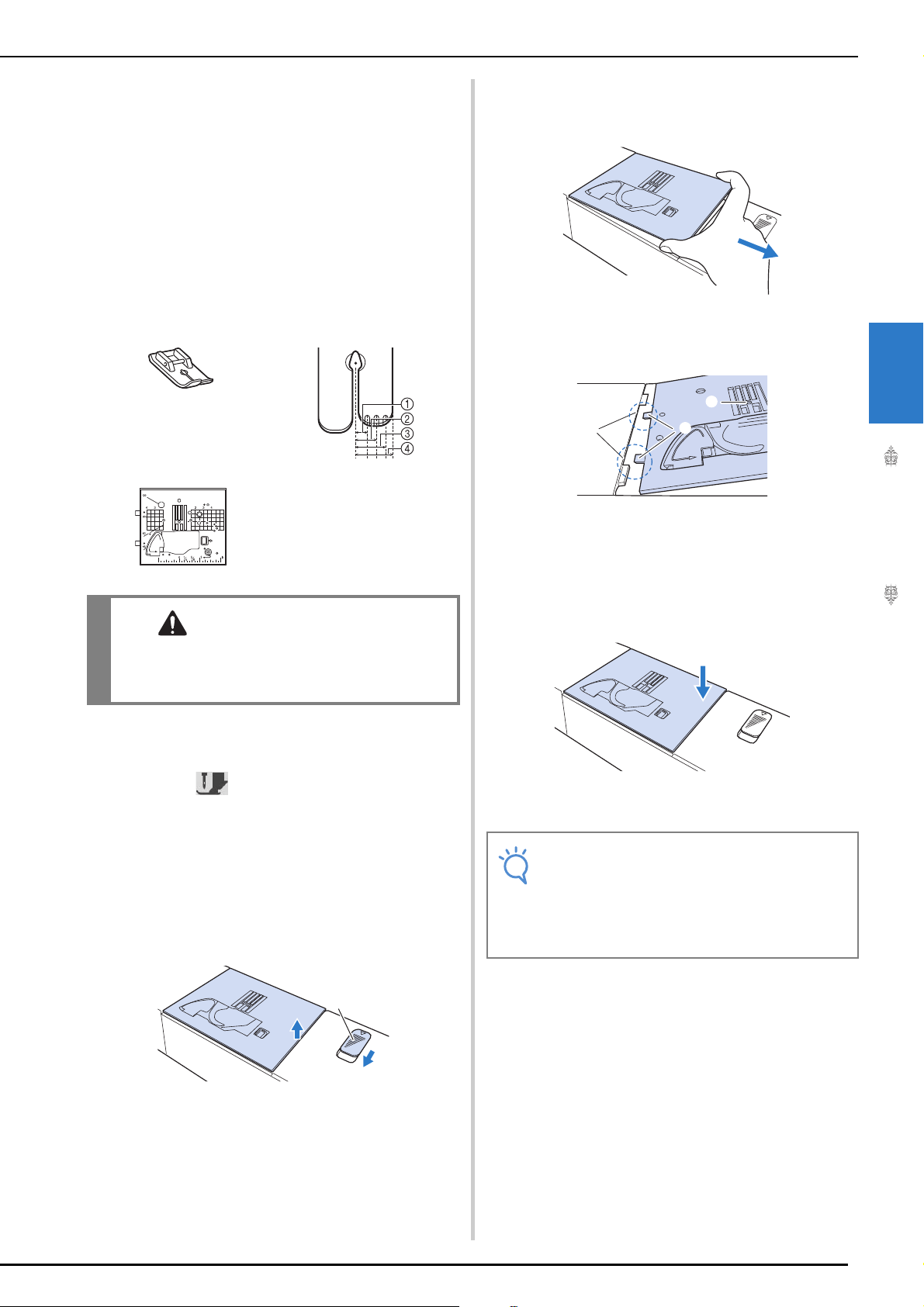

n Needle plate lever
Slide the lever toward you to remove the needle plate.
(page 198)
o Flat bed attachment with accessory compartment
Store presser feet and bobbins in the accessory compartment
of the flat bed attachment. When sewing cylindrical pieces,
remove the flat bed attachment. (page 16)
p Thread cutter
Pass the threads through the thread cutter to cut them.
(page 63)
q Thread guide plate
Pass the thread around the thread guide plate when threading
upper thread. (page 61)
* Camera and projector (built-in)
■ Right-side/Rear View
a Connector for the presser foot
Connect the dual feed foot or embroidery foot with LED pointer
(sold separately). (page 74)
b Handle
Carry the machine by its handle when transporting the
machine.
c Presser foot lever
Raise and lower the presser foot lever to raise and lower the
presser foot. (page 72)
d Air vent
The air vent allows the air surrounding the motor to circulate.
Do not cover the air vent while the machine is being used.
e Main power switch
Use the main power switch to turn the machine ON and OFF.
(page 26)

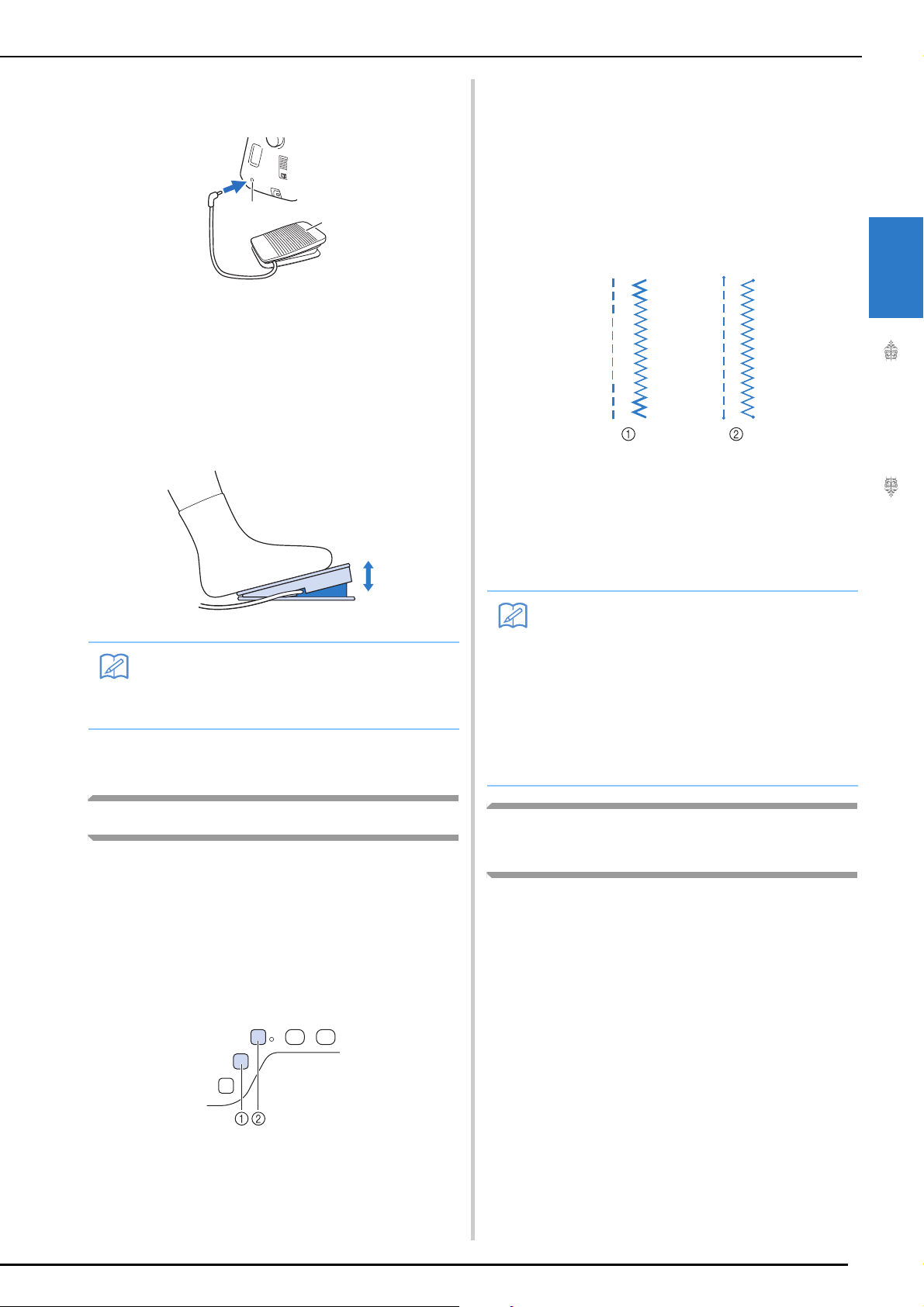

f Foot controller
Use the foot controller to operate the machine.
g Power cord receptacle
Insert the power cord into the machine receptacle. (page 26)
h Dual purpose stylus holder connector
Connect the included dual purpose stylus holder. (page 95)
i Foot controller jack
Insert the foot controller plug into its jack on the machine.
(page 78)
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
CAUTION
• Do not place any object weighing 1 kg or more
on the top cover, otherwise the cover may be
damaged.
a
b
c
d
ef
g
h
o
p
i
j
l
m
n
k
q
*
CAUTION
• Do not touch the camera or projector.
Otherwise, it will not display properly.
a
b
c
d
e
f
g
h
i
j
k
l
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
Getting Ready
13
1
j USB port
In order to send stitch patterns and embroidery patterns from/
to USB media, plug the USB media directly into the USB port.
k SD card slot
Insert an SD card into the SD card slot in order to import/export
stitch patterns and embroidery patterns.
l Handwheel
Rotate the handwheel toward you (counterclockwise) to raise
and lower the needle. The wheel should be turned toward the
front of the machine.
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
14
Needle and Presser Foot Section
a Presser foot holder screw
Use the presser foot holder screw to hold the presser foot in
place. (page 73)
b Presser foot holder
The presser foot is attached to the presser foot holder.
(page 72)
c Presser foot
The presser foot consistently applies pressure to the fabric as
sewing takes place. Attach the appropriate presser foot for the
selected stitch. (page 72)
d Feed dogs
The feed dogs feed the fabric in the sewing direction.
e Bobbin cover
Open the bobbin cover to set the bobbin. (page 58, 117)
f Needle plate
The needle plate is marked with guides to help sew straight
seams. (page 110)
Remove the needle plate to clean the race. (page 111, 198)
g Needle bar thread guide
Pass the upper thread through the needle bar thread guide.
(page 61)
h Needle clamp screw
Use the needle clamp screw to hold the needle in place.
(page 73)
Measurements on the needle plate and the bobbin
cover (with mark)
The measurements on the bobbin cover and
needle plate are references for stitch patterns with
a left or middle (center) needle position.
a For stitches with a middle (center) needle position
b For stitches with a left needle position
c Left needle position on the needle plate <inch>
d Left needle position on the needle plate <cm>
e Middle (center) needle position on the bobbin cover
(with mark) <inch>
f Middle (center) needle position on the needle plate
<inch>
a
b
c
d
g
h
e
f
a
b
c
d
e
f
b
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
Getting Ready
15
1
Embroidery Unit
a Carriage
The carriage moves the embroidery frame automatically when
embroidering.
b Release lever (located under the embroidery unit)
Press the release lever to remove the embroidery unit.
c Embroidery frame holder
Insert the embroidery frame into the embroidery frame holder
to hold the frame in place.
d Frame-securing lever
Press the frame-securing lever down to secure the embroidery
frame.
e Embroidery unit connection
Insert the embroidery unit connection into the connection port
when attaching the embroidery unit.
Operation Buttons
a “Start/Stop” button
Press this button and the machine will sew a few stitches at a
slow speed and then begin sewing at the speed set by the
sewing speed controller. Press the button again to stop the
machine. Hold the button in to sew at the machine’s slowest
speed. The button changes color according to the machine’s
operation mode.
b “Reverse Stitch” button
For straight, zigzag, and elastic zigzag stitch patterns that take
reverse stitches, the machine will sew reverse stitches at low
speed only while holding down the “Reverse Stitch” button.
The stitches are sewn in the opposite position.
For other stitches, use this button to sew reinforcement
stitches at the beginning and end of sewing. Press and hold
this button, and the machine sews 3 stitches in the same spot
and stops automatically. (page 79)
c “Reinforcement Stitch” button
Use this button to sew a single stitch repeatedly and tie-off.
For character/decorative stitches, press this button to end with
a full stitch instead of at a mid-point. The LED light beside this
button lights up while the machine is sewing a full motif, and
automatically turns off when the sewing is stopped. (page 79)
d “Needle Position” button
Use this button when changing sewing direction or for detailed
sewing in small areas. Press this button to raise or lower the
needle position. With this button, you can lower and raise the
needle to sew a single stitch.
e “Thread Cutter” button
Press this button after sewing to automatically trim the excess
thread.
f “Presser Foot Lifter” button
Press this button to lower the presser foot and apply pressure
to the fabric. Press this button again to raise the presser foot.
g Sewing Speed controller
Use this controller to adjust the sewing speed. Move the slide
to the left to sew at slower speeds. Move the slide to the right
to sew at higher speeds.
h “Automatic Threading” button
Use this button to automatically thread the needle.
CAUTION
• Before inserting or removing the embroidery
unit, turn the main power to off.
• After the embroidery frame is set in the frame
holder, be sure the frame-securing lever is
correctly lowered.
a
b
c
d
e
Green: The machine is ready to sew or is sewing.
Red: The machine cannot sew.
CAUTION
• Do not press the thread cutter button after the
threads have been cut. The needle may break
and threads may become tangled, or damage
to the machine may occur.
a
b
c
d
e
fg
h
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
16
Using the Flat Bed Attachment
Pull the top of the flat bed attachment to open the
accessory compartment.
Using the Accessory Case
■ Opening the Accessory Case
Slide the latches on the front of the accessory case
outward to open it.
a Latches
■ Using the Accessory Trays
Three presser foot storage trays are stored in the
included accessory case.
For your convenience, a presser foot storage tray
can be stored in the accessory compartment of the
flat bed attachment.
a Presser foot storage space of the flat bed
attachment
b Presser foot storage trays
Storing Bobbin Clips
Bobbin clips can be stored inside of the accessory
case cover.
a
Memo
• Placing bobbin clips on bobbins helps
prevent the thread from unwinding from the
bobbin. In addition, snapping bobbin clips
together allows the bobbins to be
conveniently stored and prevents them from
rolling around if they are dropped.
a
b
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
Getting Ready
17
1
Included Accessories
After opening the box, check that the following accessories are included. If any item is missing or
damaged, contact your authorized Brother dealer.
Part Name
Part Code
1.
Zigzag foot “J” (on machine)
XF3022-001
2.
Monogramming foot “N”
X53840-351
3.
Overcasting foot “G”
XC3098-051
4.
Zipper foot “I”
X59370-051
5.
Buttonhole foot “A+”
XH2665-001
6.
Buttonhole foot stabilizer
XH1726-001
7.
Blind stitch foot “R”
X56409-051
8.
Button fitting foot “M”
130489-001
9.
Dual feed foot
SA196 (Americas)
DF1: XF4166-001 (Europe)
DF1AP: XF6843-001 (other area)
J
N
G
I
A+
R
M
10.
Regular dual feed foot
XF4419-001
11.
Straight stitch foot
SA167 (Americas)
F042: XC1973-052 (other area)
12.
Free motion quilting foot “C”
XF4737-001
13.
Free motion echo quilting foot “E”
XE0766-001
14.
Free motion open toe quilting foot “O”
XF4873-001
15.
Embroidery foot “W”
XF4012-001
16.
1/4 quilting foot with guide
SA185 (Americas)
F057: XC7416-252 / 115C05E0005 (Europe)
F057: 115C05E7005 (other area)
17.
Adapter
SA131 (Americas)
F010N: XF3613001 / 115Z05E0004 (Europe)
F010AP: 115Z05E7004 (other area)
Part Name
Part Code
C
E
E
O
O
W
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
18
18.
Screw (small)
XA4813-051
19. Needle set
75/11 2 needles
90/14 2 needles
90/14 2 needles: Ball point needle (gold
colored)
XE4962-001
20.
Twin needle
2.0/11 needle
XE4963-001
21. Ball point needle set
75/11 2 needles:
Ball point needle for embroidery
HAX130EBBR
XD0705-151
22.
Bobbin × 10 (One is on machine.)
SA156 (Americas)
SFB: XA5539-151 / 115J05E0001 (Europe)
SFB: 115J05E7001 (other area)
23.
Seam ripper
XF4967-001
24.
Scissors
XF2052-001
25.
Cleaning brush
X59476-051
26.
Eyelet punch
XZ5051-001
27.
Screwdriver (small)
X55468-051
Part Name
Part Code
28.
Screwdriver (large)
XC4237-021
29.
Multi-purpose screwdriver
SAMDRIVER1 (U.S.A) / SAMDRIVER1C
(Canada)
MDRIVER1: XG1298-001 / 115Z05E0003
(Europe)
MDRIVER1AP: 115Z05E7003 (other area)
30.
Spool cap (small)
130013-154
31.
Spool cap (medium) × 2 (One is on machine.)
X55260-153
32.
Spool cap (large)
130012-054
33.
Thread spool insert (mini king thread spool)
XA5752-121
34.
Spool stand
XH1606-001
Refer to “Using the Spool Stand” on page 24.
35.
Bobbin clip × 10
XE3060-001
36.
Spool felt (on machine)
X57045-051
37.
Spool net × 2
XA5523-050
Part Name
Part Code
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
Getting Ready
19
1
38.
Embroidery needle plate cover
XE4708-001
39.
Knee lifter
SA599 (Americas)
KL1: XG6723-001 /115Z05E000C (Europe)
KL1: XE5902-001 / 115Z05E700C (other area)
40.
Alternate bobbin case (no color on the screw)
XC8167-651
41.
Straight stitch needle plate
XH1569-001
42.
Cord guide bobbin cover (with single hole)
XE5992-001
43.
Bobbin cover (with mark)
XH3126-001
44.
Bobbin cover (on machine)
XE8878-001
45.
Embroidery frame (medium) H 100 mm × W
100 mm (H 4 inches × W 4 inches)
SA438 (Americas)
EF74: XC8480-152 / 115D05E0005 (Europe)
EF74: 115D05E7005 (other area)
46.
Embroidery frame (large) H 180 mm × W 130
mm (H 7 inches × W 5 inches)
SA439 (Americas)
EF75: XC8481-152 / 115D05E0001 (Europe)
EF75: 115D05E7001 (other area)
47.
Embroidery frame (quilt) H 240 mm × W 240
mm (H 9-1/2 inches × W 9-1/2 inches)
XG5558-001
Part Name
Part Code
48.
Embroidery frame (LL) H 408 mm × W 272 mm
(H 16 inches × W 10-5/8 inches)
XH1466-001
49.
Scanning frame
XF9321-001
50.
Magnet × 6
XF9325-001
51.
Embroidery bobbin thread
SA-EBT (Americas)
EBT-CEN: X81164-001 / 115G05E0001
(Europe)
EBT-CEN: 115G05E7001 (other area)
52.
Embroidery positioning sticker sheets × 2
SAEPS2 (U.S.A.) / SAEPS2C (Canada)
EPS2: XG6749-001 / 115Z05E000E (Europe)
EPS2: 115Z05E700E (other area)
53.
White calibration stickers (solid)
XE7916-001
54.
Stabilizer material
SA519 (Americas)
BM3: XG6683-001 / 115Z05E0007 (Europe)
BM3: 115Z05E7007 (other area)
55.
Grid sheet set
SA507 (Americas)
GS3: X81277-151 (other area)
56.
Chalk pencil
XE8568-001
57.
Dual purpose stylus
XH1791-001
XH1807-001 (Europe)
Part Name
Part Code
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
20
Following documents can be downloaded at
Brother Solutions Center:
• Operation Manual (Sewing)
• Operation Manual (Embroidery)
• Embroidery Design Guide
• DISNEY DESIGN GUIDE
http://s.brother/cpdab/
Accessories that are Included in
Some Countries or Regions
If these accessories are not included with your
machine, these are available as optional
accessories.
58.
Dual purpose stylus holder
XH1805-001
59.
Accessory case
XH1836-001
60.
Foot controller
XC8816-051
Memo
• (For U.S.A. only)
Foot controller: Model T
This foot controller can be used on the
machine with product code 882-W30. The
product code is mentioned on the machine
rating plate.
• Always use accessories recommended for
this machine.
• The screw for the presser foot holder is
available through your authorized Brother
dealer (Part code XA4813-051).
Part Name
Part Code
Part Name
Part Code
1.
Bobbin center pin and instruction sheet
XF5048-001
2.
Dust Cover
XG1096-001
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
Getting Ready
21
1
Options
The following are available as optional accessories
to be purchased separately from your authorized
Brother dealer.
Part Name
Part Code
1.
Embroidery frame set (small) H 20 mm × W 60
mm (H 1 inch × W 2-1/2 inches)
SA437 (Americas)
EF73: XG6663-001 (Europe)
EF73: XC8479-152 (other area)
2.
Embroidery frame set (square) H 150 mm × W
150 mm (H 6 inches × W 6 inches)
SA448 (U.S.A.) SA448C (Canada)
SEF150: XG6761-001 (Europe)
SEF150: 115D05E000E (other area)
3.
Embroidery frame set (quilt) H 200 mm × W
200 mm (H 8 inches × W 8 inches)
SA446 (U.S.A.) SA446C (Canada)
EF91: XG6715-001 (Europe)
EF91: XE5068-101 (other area)
4.
Embroidery frame set (extra large) H 300 mm ×
W 200 mm (H 12 inches × W 8 inches)
SA447 (Americas)
EF92: XG6717-001 (Europe)
EF92: XE5071-001 (other area)
5.
Embroidery frame set (extra large) H 260 mm ×
W 160 mm (H 10-1/4 inches × W 6-1/4 inches)
SA441 (Americas)
EF81: XG6673-001 (Europe)
EF81: XC9763-152 (other area)
6.
Embroidery frame set (super large) H 360 mm
× W 240 mm (H 14 inches × W 9-1/2 inches)
XF9309-001
7.
Border embroidery frame H 300 mm × W 100
mm (H 12 inches × W 4 inches)
SABF6200D1 (U.S.A.) SABF6200D1C
(Canada)
BF3: XG6763-001 (Europe)
BF3: XF4170-001/115D05E000N (other area)
8.
Border embroidery frame set H 180 mm × W
100 mm (H 7 inches × W 4 inches)
SABF6000D (U.S.A.) SABF6000DC (Canada)
BF2: XG6079-001 (Europe)
BF2: XE5059-001 (other area)
9.
Embroidery bobbin thread (white)
SA-EBT (Americas)
EBT-CEN: X81164-001 / 115G05E0001
(Europe)
EBT-CEN: 115G05E7001 (other area)
Embroidery bobbin thread (black)
SA-EBT999 (Americas)
EBT-CEBN: XG6643-001 (Europe)
EBT-CEBN: XC5520-001 (other area)
10.
10 spool stand
SA561 (U.S.A.) SA561C (Canada)
TS5: XG6765-001 (Europe)
TS5: XF4175-001 (other area)
11.
Wide table
SAWTXP1 (U.S.A.)
SAWTXP1C (Canada)
WT16AP: 115K05E700J (other area)
12.
Stabilizer material
SA519 (Americas)
BM3: XG6683-001 / 115Z05E0007 (Europe)
BM3: 115Z05E7007 (other area)
Water soluble stabilizer
SA520 (Americas)
BM5: XG6681-001 (Europe)
BM5: XE0615-001 (other area)
13.
Seam guide
SA538 (Americas)
SG1: XC8483-052 (Europe)
SG1: 115Z05E7002 (other area)
14.
Walking foot
SA140 (Americas)
F033N: XG6623-001 (Europe)
F033N: 115C05E7015 (other area)
15.
Side cutter foot
SA177 (Americas)
F054: XC3879-152 (Europe)
F054: 115C05E7008 (other area)
Part Name
Part Code
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
22
16.
Quilting guide
SA132 (Americas)
F016N: XC2215-052 (Europe)
F016N: 115Z05E7001 (other area)
17.
Embroidery foot “W+” with LED pointer
SA197 (U.S.A.) SA197C (Canada)
FLED1: XF4168-001 (Europe)
FLED1AP: 115C05E700W (other area)
18.
Free-motion quilting foot
SA129 (Americas)
F005N: XC1948-052 (Europe)
F005N: 115C05E7002 (other area)
19.
Couching foot
SA199V (U.S.A.) SA199VC (Canada)
F073: XF8185-001 (Europe)
F073AP: XF8188-001 (other area)
20.
Multi-Function Foot controller
SAMFFC (U.S.A.) SAMFFCC (Canada)
MFFC1: XG6777-001 (Europe)
MFFC1OC: XF4471-001 (Australia)
21.
Circular attachment
SACIRC1 (Americas) SACIRC1C (Canada)
CCIRC1: XG6705-001 (Europe)
CIRC1: 115Y05E7003 (other area)
22.
Stitch in the ditch foot
SA191 (Americas)
F065: XF2339-001 (Europe)
F065: 115C05E700C (other area)
23.
Edge joining foot
SA184 (Americas)
F056: XC6441-352 (Europe)
F056: 115C05E700K (other area)
24.
Vertical spool pin
XC8619-052
Part Name
Part Code
W+
25.
Embroidery positioning sticker sheets × 8
SAEPS2 (U.S.A.) / SAEPS2C (Canada)
EPS2: XG6749-001 / 115Z05E000E (Europe)
EPS2: 115Z05E700E (other area)
26.
Free motion guide grip
SAFMGRIP (Americas)
FMG2: XF6266-001 (Europe)
FMG2AP: XF6267-001 (other area)
27.
USB mouse
XE5334-101
28.
Vertical stitch alignment foot “V”
SA189 (Americas)
F063: XG6721-001 (Europe)
F063: XE5224-001 (other area)
29.
Open toe for dual feed foot
SA195 (Americas)
F070: XG6773-001 (Europe)
F070: XF6096-001 (other area)
30.
Stitch in the Ditch Dual Feed Foot
SA204 (U.S.A.) SA204C (Canada)
F075: XG3155-001 (Europe)
F075AP: 115C05E700Y (other area)
31.
1/4 inch Guide Dual Feed Foot
SA205 (U.S.A.) SA205C (Canada)
F076: XG4868-001 (Europe)
F076AP: 115C05E701D (other area)
32.
Dual Feed Quilting Guide
SA206 (U.S.A.) SA206C (Canada)
F077: XG4879-001 (Europe)
F077AP: 115Z05E7008 (other area)
33.
Ruffler foot
SA143 (Americas)
F051: XA9093-052 (Europe)
F051: 115C05E700L (other area)
34.
Narrow Zipper Foot “I+”
SA208 (U.S.A.) SA208C (Canada)
F079: 115C05E002D (Europe)
F079AP: 115C05E702D (other area)
Part Name
Part Code
V
I+
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
Getting Ready
23
1
35.
Bi-level Foot (Right)
SA103 (U.S.A.) SA103C (Canada)
F081: 115C05E002F (Europe)
F081AP: 115C05E702F (other area)
36.
Bi-level Foot (Left)
SA104 (U.S.A.) SA104C (Canada)
F082: 115C05E002G (Europe)
F082AP: 115C05E702G (other area)
37.
Concealed Zipper Foot “K”
SA102 (U.S.A.) SA102C (Canada)
F080: 115C05E002E (Europe)
F080AP: 115C05E702E (other area)
38.
Embroidery frame sheet (medium) H 100 mm ×
W 100 mm (H 4 inches × W 4 inches)
XC8357-051
39.
Embroidery frame sheet (large) H 180 mm × W
130 mm (H 7 inches × W 5 inches)
XC8359-051
40.
Embroidery frame sheet (quilt) H 240 mm × W
240 mm (H 9-1/2 inches × W 9-1/2 inches)
XG5566-001
41.
Embroidery frame sheet (LL) H 408 mm × W
272 mm (H 16 inches × W 10-5/8 inches)
XH1825-001
42.
Bobbin Work Kit
SABWRK1 (U.S.A.) SABWRK1C (Canada)
BWRK1: XG6745-001 (Europe)
BWRK1: XE9099-001 (other area)
Memo
• All specifications are correct at the time of
printing. Please be aware that some
specifications may change without notice.
Note
• Visit your nearest authorized Brother dealer
for a complete listing of optional
accessories for your machine.
Part Name
Part Code
K
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
24
Using the Multi-purpose
Screwdriver
Since the screwdriver can be changed to three
different positions, it can be extremely useful for
the various machine preparations. With this
machine, position “1” and position “3” are used.
■ Position “1”
You can install/remove the presser foot holder,
needle clamp screw.
■ Position “3”
The multi-purpose screwdriver can be positioned
over the screw on the embroidery frame to tighten
the screw after hooping the fabric or when removing
the fabric.
Using the Spool Stand
The included spool stand is useful when using
thread spools with a large diameter (cross-wound
thread). The spool stand can hold two spools of
thread.
* No.2 to No.6 are included in a plastic bag.
■ Warning label
This product contains magnets.
a Be careful not to pinch your fingers or any objects
between the spool stand and the upper cover of
the machine.
b Be sure to keep the magnets away from precision
electronics, computer disks, credit cards with a
magnetic stripe, etc.
c Do not use the spool stand if you have a
pacemaker.
Note
• When rotating the multi-purpose
screwdriver, do not forcefully rotate it in the
direction that it does not rotate; otherwise, it
may break.
123
456
No. Part Name Part Code
1 Spool stand XH1606-001
2 Spool cap (XL) × 2 XE0779-001
3 Spool holder × 2 XA0679-050
4 Spool cap base × 2 XE0780-001
5 Spool felt × 2 XC7134-051
6 Ring × 4 026030-136
CAUTION
• Do not lift the handle of the machine while the
spool stand is installed.
• Do not push or pull the telescopic thread
guide or spool pins with extreme force,
otherwise damage may result.
• Do not place any object other than spools of
thread on the spool support.
• Do not try to wind thread on the bobbin while
sewing using the spool stand.
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS
Getting Ready
25
1
Assembling the Spool Stand
a
Hold in the tabs on the spool stand and
remove the lid.
a Tabs
b
Raise the telescopic thread guide shaft and
the two spool pins.
a Spool pins
b Telescopic thread guide shaft
c
Fully extend the telescopic thread guide
shaft until the two internal stoppers snap
into place.
d
Turn the thread guide counterclockwise.
e
Open the upper cover of the machine, and
then place the spool stand on the upper
cover with the notches in the spool stand
aligned with the tabs on the upper cover.
a
a
b
a
Note
• Make sure that the spool stand is firmly
secured. Otherwise, the spool stand may
fall during sewing.
• Do not place any object weighing 1 kg or
more on the top cover. The weight of the
spool stand with its lid removed is about
280 g.
Memo
• For details on winding the bobbin using the
spool stand, refer to page 56.
• For details on upper threading using the
spool stand, refer to page 66.
TURNING THE MACHINE ON/OFF
26
TURNING THE MACHINE ON/OFF
WARNING
• Use only regular household electricity for the power source. Using other power sources may result in fire,
electric shock, or damage to the machine.
• Make sure that the plugs on the power cord are firmly inserted into the electrical outlet and the power
cord receptacle on the machine. Otherwise, a fire or electric shock may result.
• Do not insert the plug on the power cord into an electrical outlet that is in poor condition.
• Turn the main power to OFF and remove the plug in the following circumstances:
When you are away from the machine
After using the machine
When the power fails during use
When the machine does not operate correctly due to a bad connection or a disconnection
During electrical storms
CAUTION
• Use only the power cord included with this machine.
• Do not use extension cords or multi-plug adapters with many other appliances plugged in to them. Fire or
electric shock may result.
• Do not touch the plug with wet hands. Electric shock may result.
• When unplugging the machine, always turn the main power to OFF first. Always grasp the plug to remove
it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock.
• Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled.
Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the
cord, or cause fire or electric shock. If the cord or plug is damaged, take the machine to your authorized
Brother dealer for repairs before continuing use.
• Unplug the power cord if the machine is not to be used for a long period of time. Otherwise, a fire may
result.
• When leaving the machine unattended, either the main switch of the machine should be turned to OFF or
the plug must be removed from the socket-outlet.
• When servicing the machine or when removing covers, the machine must be unplugged.
•For U.S.A only
This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electrical
shock, this plug is intended to fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet. Do not modify the plug in any way.
TURNING THE MACHINE ON/OFF
Getting Ready
27
1

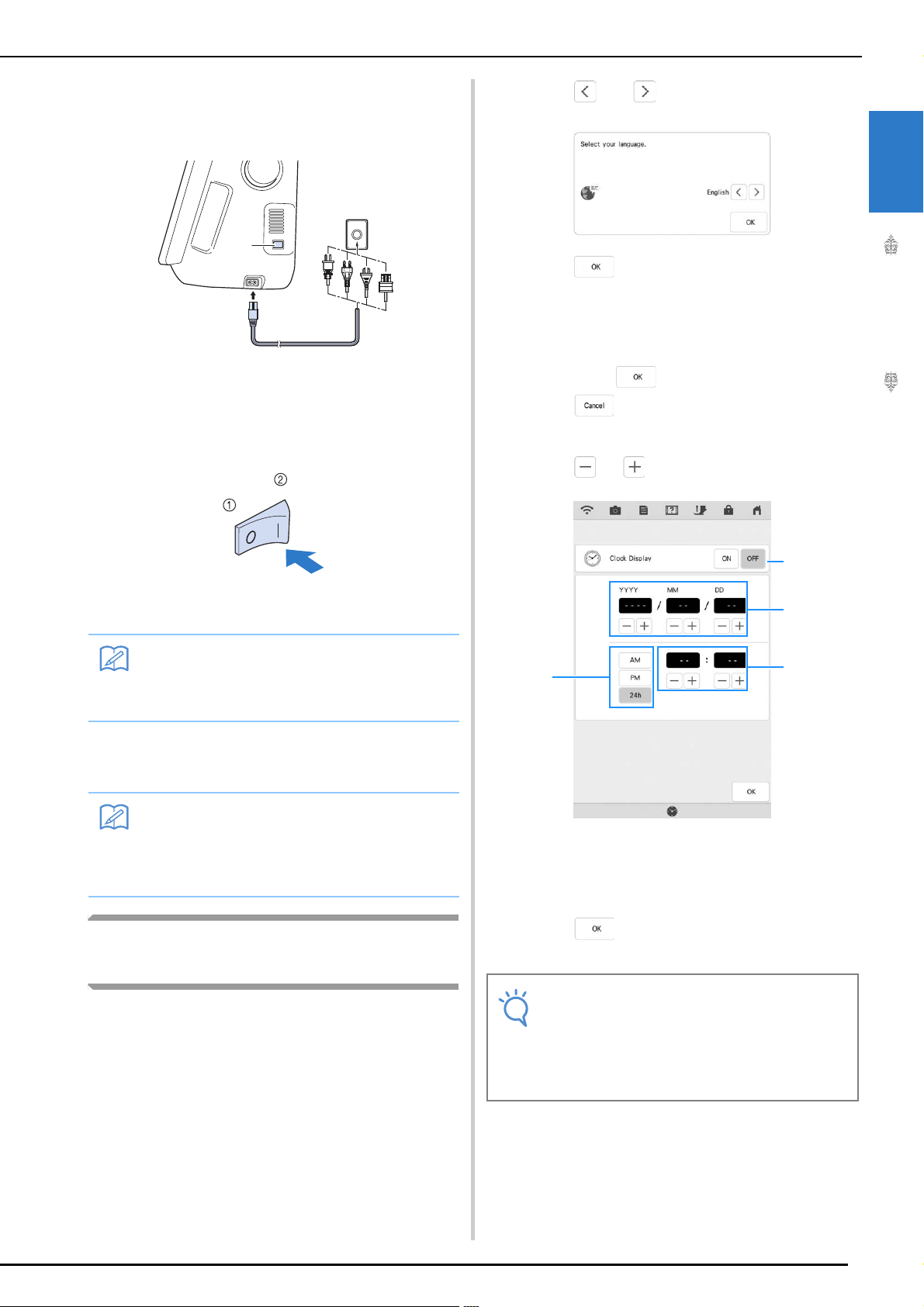

a
Insert the power supply cord into the power
cord receptacle, then insert the plug into a
wall outlet.
a Main power switch
b Power supply cord
b
Turn the main power switch to “I” to turn
on the machine.
a OFF
b ON
c
Turn the main power switch to “O” to turn
off the machine.
Setting Your Machine for the First
Time
When you first turn on the machine, set the
language and time/date to your language and local
time/date. Follow the procedure below when the
settings screen appears automatically.
a
Press and to set your local language.
b
Press .
c
The message screen, confirming if you want
to set time/date, appears. To set the time/
date, press ; to cancel the setting,
press .
The screen to set time/date appears.
d
Press or to set time date.
a Press to display the time on the screen.
b Set the year (YYYY), month (MM) and date (DD).
c Select whether 24h or 12h setting to display.
d Set the current time.
e
Press to start using your machine.
The clock starts from 0 second of the time you set.
Memo
• When the machine is turned on, the needle
and the feed dogs will make sound when
they move; this is not a malfunction.
Memo
• If the machine is turned off in the middle of
sewing in the “Sewing” function, the
operation will not be continued after turning
the power on again.
a
b
Note
• The time/date you set may be cleared, if
you don't turn on the machine for an
extended period of time.
• Time setting is also available by pressing
clock button/time on the LCD screen.
b
a
c
d
LCD SCREEN
28
When the machine is turned on, the opening
movie is played. Touch anywhere on the screen
for the home page screen to be displayed. Touch
the LCD screen or a key with your finger or the
included dual purpose stylus to select a machine
function.
■ Home Page Screen
LCD SCREEN
Note
• When the straight stitch needle plate is on
the machine, the needle will automatically
move to the middle position.
Memo
• Only touch the screen with your finger or the
included dual purpose stylus. Do not use a
sharp pencil, screwdriver, or other hard or
sharp object. It is not necessary to press
hard on the screen. Pressing too hard or
using a sharp object may damage the
screen.
No. Display Key Name Explanation Page
a Sewing key Press this key to sew utility
stitches or character/
decorative stitch patterns.
102, 158
b Embroidery
key
Attach the embroidery unit
and press this key to
embroider patterns.
–
c Disney key Press this key to sew
Disney stitch patterns.
–
b
c
a
l
e f g h i j
d
k
d My Design
Center key
Press this key to start
creating your custom
design embroidery
patterns.
–
e Wireless
LAN key
Check the machine’s
signal strength. Press this
key to specify the wireless
settings.
46
f Camera
view key
Press this key to check the
needle location as it is
shown on the screen
through the built-in
camera.
92
g Machine
setting
screen key
Press this key to change
the needle stop position,
adjust the stitch patterns
and embroidery patterns
or screen, and change
other machine settings.
29
h Machine
help key
Press this key to see
explanations on how to
use the machine. You can
see the tutorial videos and
also the MP4 movie files
that you have.
39
i Presser
foot/
Needle
exchange
key
Press this key before
changing the needle, the
presser foot, etc. This key
locks all key and button
functions to prevent
operation of the machine.
58, 72
j Screen
lock key
Press this key to lock the
screen. When the screen
is locked, can still sew, but
cannot change any of the
screen functions. Press
this key again to unlock
the settings.
158
k Home
page
screen key
Press this key anytime it is
displayed to return to the
home page screen and
select a different category
- “Sewing”, “Embroidery”
or “My Design Center”.
–
l Time/Date
key
Press this key to set the
clock to your local time.
27
No. Display Key Name Explanation Page
LCD SCREEN
Getting Ready
29
1
Using the Machine Setting Mode Key
Press to change the default machine settings (needle stop position, embroidery speed, opening
display, etc.). To display the different settings screens, press for “Sewing settings”, for “General
settings”, for “Embroidery settings” or for “Wireless LAN settings”.
Sewing Settings
■ Page 1
a Select whether to use the sewing speed controller
to determine the zigzag width (page 125).
b Make adjustments to character or decorative
stitch patterns (page 164).
c Adjust the presser foot height. Select the height of
the presser foot when the presser foot is raised.
d Adjust the presser foot pressure. The higher the
number, the greater the pressure will be. Set the
pressure at “3” for normal sewing.
e When set to “ON”, the thickness of the fabric is
automatically detected by an internal sensor while
sewing. This enables the fabric to be fed smoothly
(pages 83 and 91).
■ Page 2
f Select whether “1-01 Straight stitch (Left)” or “1-
03 Straight stitch (Middle)” is the utility stitch that
is automatically selected when the machine is
turned on.
g Change the height of the presser foot when
sewing is stopped when the pivot setting is
selected (page 89). Adjust the presser foot to one
of the four heights.
h Change the height of the presser foot when the
machine is set to free motion sewing mode
(page 126).
i Adjust the amount of fabric feeding of the dual
feed foot (page 76).
j Pressing the “Start/Stop” button or depressing the
foot controller automatically lowers the presser
foot (if it is raised) before starting sewing.
k Pressing the “Thread Cutter” button automatically
lowers the presser foot before cutting the thread.
The presser foot will be raised after the thread is
cut.
Memo
• Press or to display a different settings screen.
a
b
c
d
e
f
g
h
i
j
k
LCD SCREEN
30
■ Page 3
l Select whether utility stitches ( ) or quilting
stitches ( ) are displayed first in the stitch
selection screen.
m When set to “ON”, reinforcement stitches are
sewn at the beginning and/or end of sewing for a
reinforcement stitch pattern, even when the
“Reverse Stitch” button is pressed (page 79).
n You can activate this setting after connecting the
multi-function foot controller (optional). (These
settings are not operable unless the multi-function
foot controller is attached to the machine.)
(page 34)
General Settings
■ Page 4
a Change the display language.
b Change the brightness of the needle area and
work area lights.
c If the screen is not very clear in certain
environments, you can adjust the brightness of the
screen.
d Turn both the upper and bobbin thread sensor
“ON” or “OFF”. If it is turned “OFF”, the machine
can be used without thread.
e Change the speaker volume. Increase the number
for louder volume, decrease for softer volume.
f Select the operation of the “Needle Position -
Stitch Placement” button from the following two
sequences. (page 92)
n
l
m
a
d
f
b
c
e
LCD SCREEN
Getting Ready
31
1
■ Page 5
g Select whether to display the opening screen
video when the machine is turned on.
h Select to save the machine power by setting the
“Eco Mode” or the “Shutoff Support Mode”
(page 35).
i Select the length of time until the screen saver
appears.
j Change the image of the screen saver (page 36).
k Change the shape of the pointer when a USB
mouse is used. The setting remains selected even
after the machine is turned off.
■ Page 6
l Select the brightness of the projector.
m Select whether to show background color when
using projector function.
n Select whether to display outline of the pattern.
o Select the color of the pointer.
p The camera needle drop point can be specified.
(page 37)
■ Page 7
q Display the service count which is a reminder to
take your machine in for regular servicing.
(Contact your authorized Brother dealer for
details.)
r Display the total number of stitches sewn on this
machine.
s The “No.” is the internal machine number for the
machine.
t Display the program version.
i
h
j
k
g
p
o
n
l
m
q
t
r
s
LCD SCREEN
32
Embroidery Settings
For details on embroidering settings, refer to the
Operation Manual (Embroidery).
■ Page 8
a Select from among 12 embroidery frame displays.
b Change the center point marker or grid lines.
c Adjust the maximum embroidery speed setting.
d Adjust the upper thread tension for embroidering.
e Select the height of the embroidery foot during
embroidering.
f Adjust the needle position for embroidering.
■ Page 9
g Change the display units (mm/inch).
h Change the thread color display on the
“Embroidery” screen; thread number, color name.
i Select the thread brand used to display a pattern
when it is opened.
j Change the color of the background for the
embroidery display area.
k Change the color of the background for the
thumbnail area.
l Press to specify the size of pattern thumbnails.
m Adjust the distance between the pattern and the
basting stitching.
■ Page 10
n Select the quality for displaying the fabric in the
screen.
o Erase the scanned image.
p Set to “ON” when positioning the pattern on the
thick fabric using the built-in camera.
q Adjust the position and brightness of the
embroidery foot “W+” with LED pointer (sold
separately). (These settings are not available
unless embroidery foot “W+” with LED pointer is
installed on the machine.)
a
d
e
f
b
c
j
k
g
h
l
i
m
p
q
o
n
LCD SCREEN
Getting Ready
33
1
Wireless LAN settings
■ Page 11
a Enable/disable the wireless LAN function.
b Display the connected SSID.
c Set the machine to connect wireless LAN function.
d Display the machine name of wireless LAN
function.
e Press to change the machine name of
wireless LAN function.
f Check the wireless LAN status.
g Display other menus.
h Press to reset network operations.
Setting Functions
■ Saving a Settings Screen Image to
USB Media
An image of the settings screen can be saved as
.PNG file.

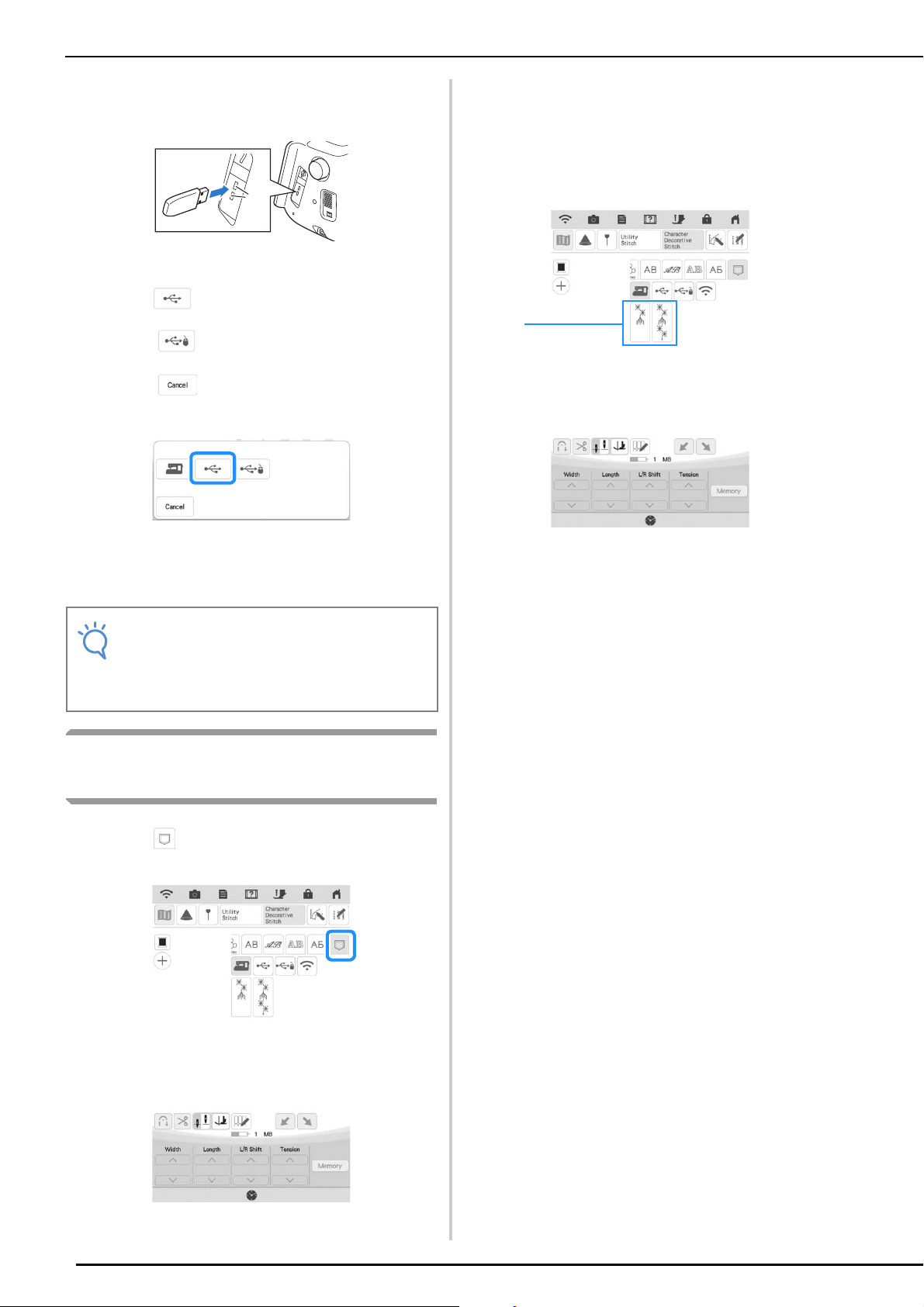

a
Insert the USB media into the USB port on
the right side of the machine.
a USB media
b USB port
b
Press .
The settings screen appears. Select the settings
screen page that you want to save the screen image
of.
c
Press .
The image file will be saved to the USB media.
c
d
b
a
e
f
g
h
a
b
LCD SCREEN
34
■ Specifying the Multi-Function Foot
Controller (Sold Separately)
With the multi-function foot controller, various
machine operations in addition to starting/
stopping sewing, such as thread cutting and
reverse stitching, can be specified to be
performed.
Functions that can be specified
* If you set the “Reverse Stitch” function on the heel
switch, machine operates the same as pressing the
“Reverse Button” on the machine.
* Reinforcement stitching may be applied depending
on the selected stitch pattern. For the details, refer to
“Automatic Reinforcement Stitching” on page 79.
Specifying the functions
The functions performed by the multi-function foot
controller can be specified in the settings screen.
a
Press .
b
Display page 3 of the settings screen.
c
Select the functions to be performed by the
multi-function foot controller.
d
Press .
Controller Functions that can be specified
a Main foot controller Start/Stop
b Heel switch Select any of the following:
• Thread Cutting
• Needle Position – Up/Down
• Single Stitch
• Reverse Stitch (Reinforcement
Stitch) *
• Presser Foot Up/Down
• No Setting
c Side pedal
Memo
• If you set “Reverse Stitch” on the side
pedal, you can create a darning stitch effect
using zigzag stitches. With both feet, keep
pressing the main foot controller, and
repeat pressing and releasing the side pedal
to sew forward and reverse in turn. Machine
will reverse at the speed you press the main
foot controller.
Note
• Before specifying the functions, connect the
multi-function foot controller to the
machine. The settings screen is activated
the first time that the machine detects the
multi-function foot controller.
• After the multi-function foot controller is
connected to the machine and the functions
are specified, the “Start/Stop” button
cannot be used. All buttons other than the
“Start/Stop” button can continue to be
used.
LCD SCREEN
Getting Ready
35
1
■ Selecting the “Eco Mode” or
“Shutoff Support Mode”
You can save the machine power by setting the eco
mode or the shutoff support mode.
If you leave the machine without using for a
specified period of time, the machine enters in one
of these modes.
“Eco Mode”;
Machine will enter a sleep mode. Touch the screen
or press the “Start/Stop” button to continue sewing.
“Shutoff Support Mode”;
Machine will enter the lower power mode after set
period of time. Turn machine off and then back on
to restart sewing.
Press the “Start/Stop” button or touch the screen
display to recover from these modes.
a
Press .
The settings screen appears.
b
Press .
The General settings screen appears.
c
Display page 5 of the General settings
screen.
d
Press circled area to select the time until
entering the mode.
Condition Eco Mode Shutoff Support
Mode
Available time OFF, 10 - 120
(minute)
OFF, 1 - 12 (hour)
“Start/Stop” button Green flashing Green slow flashing
Suspended function Machine light,
Screen display
All functions
After recovering The machine starts
from the previous
operation.
You need to turn off
the machine.
Note
• If you turn off the machine while the
machine is in the “Eco Mode” or the
“Shutoff Support Mode”, wait for about 5
seconds before turning on the machine
again.
LCD SCREEN
36

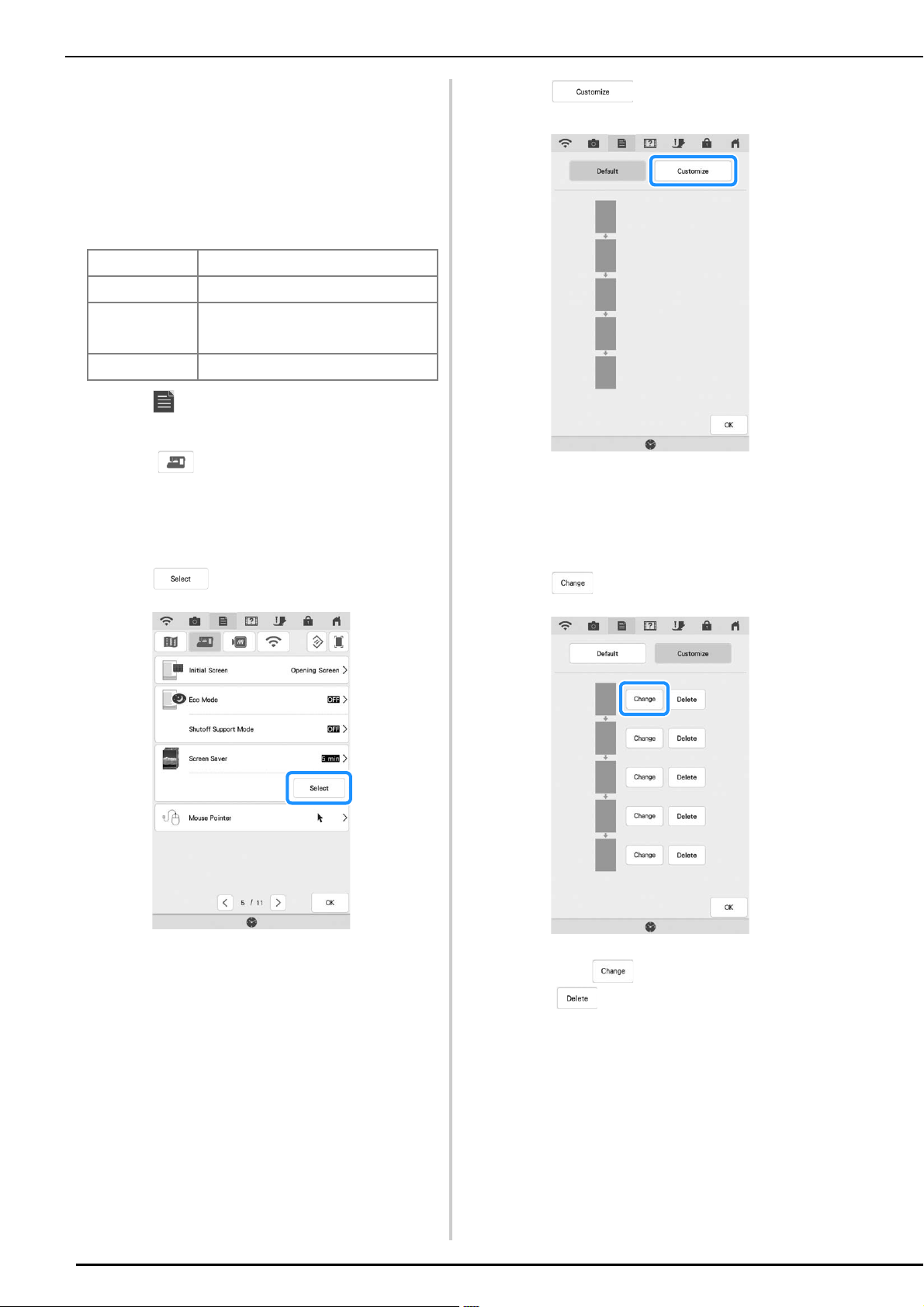

■ Changing the Screen Saver Image
Instead of the default image, you can select your
own personal images for the screen saver of your
machine.
Before changing the screen saver image, prepare the
image on your computer or USB media.
Compatible image files
a
Press .
The settings screen appears.
b
Press .
The General settings screen appears.
c
Display page 5 of the General settings
screen.
d
Press .
e
Press .
f
Connect the USB media that contains your
personal image to the USB port of the
machine.
* Refer to page 49 about USB connectivity.
g
Press to select the first image.
* The images will appear in a list in this screen. Select
the desired to specify the image.
* Press to delete the selected image.
Format
.bmp, .jpg, .png
File size
Max. 2 MB for each image
File dimension
800 × 1280 pixels or less, (If the width is
more than 800 pixels, the image imported
will be reduced to a width of 800 pixels.)
Number allowed
5 or less
LCD SCREEN
Getting Ready
37
1

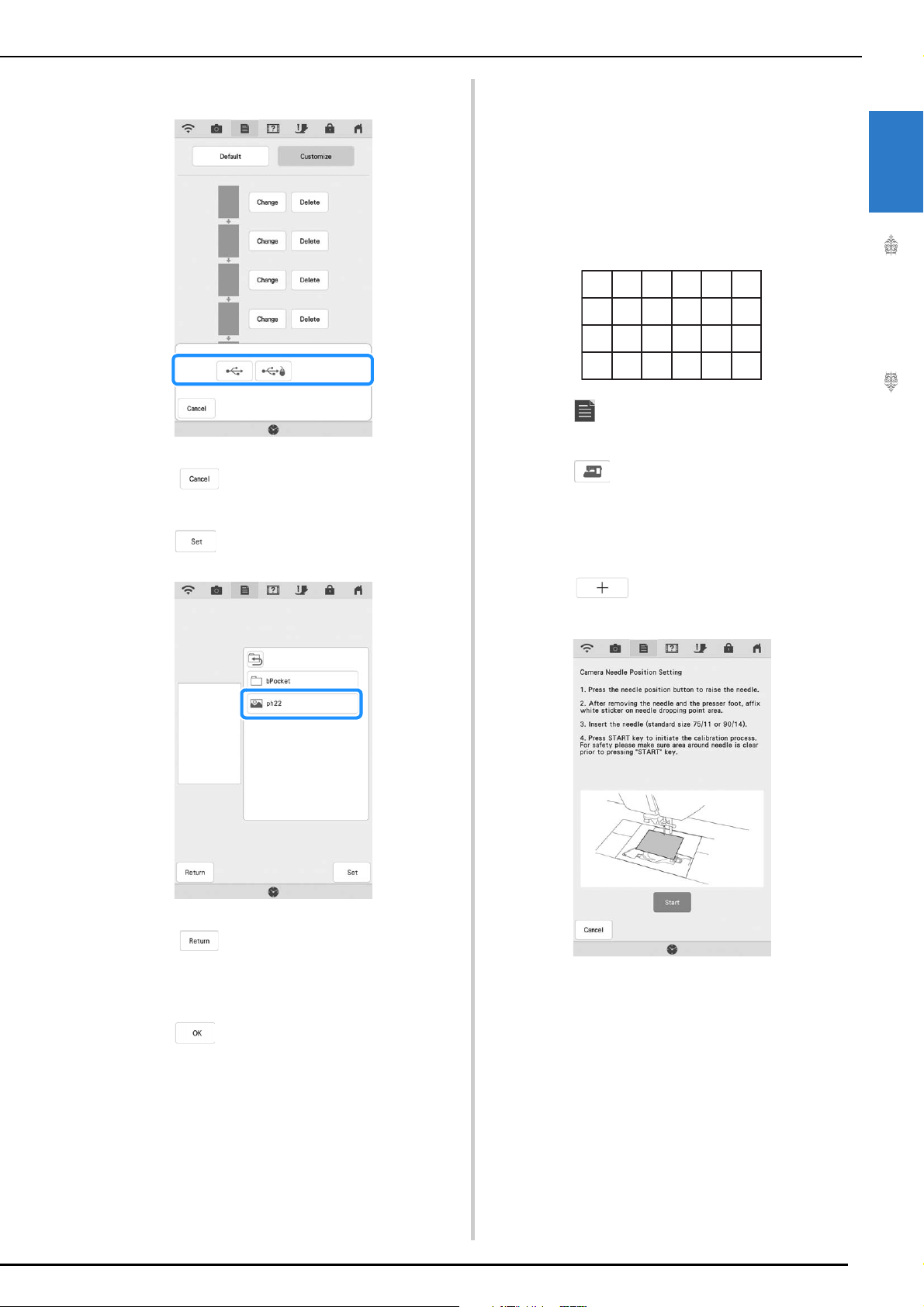

h
Select the device that is connected.
A list of your personal images appear on the screen.
* Press to view the previous page.
i
Press a file name to select image and then
press .
The selected image is stored on your machine.

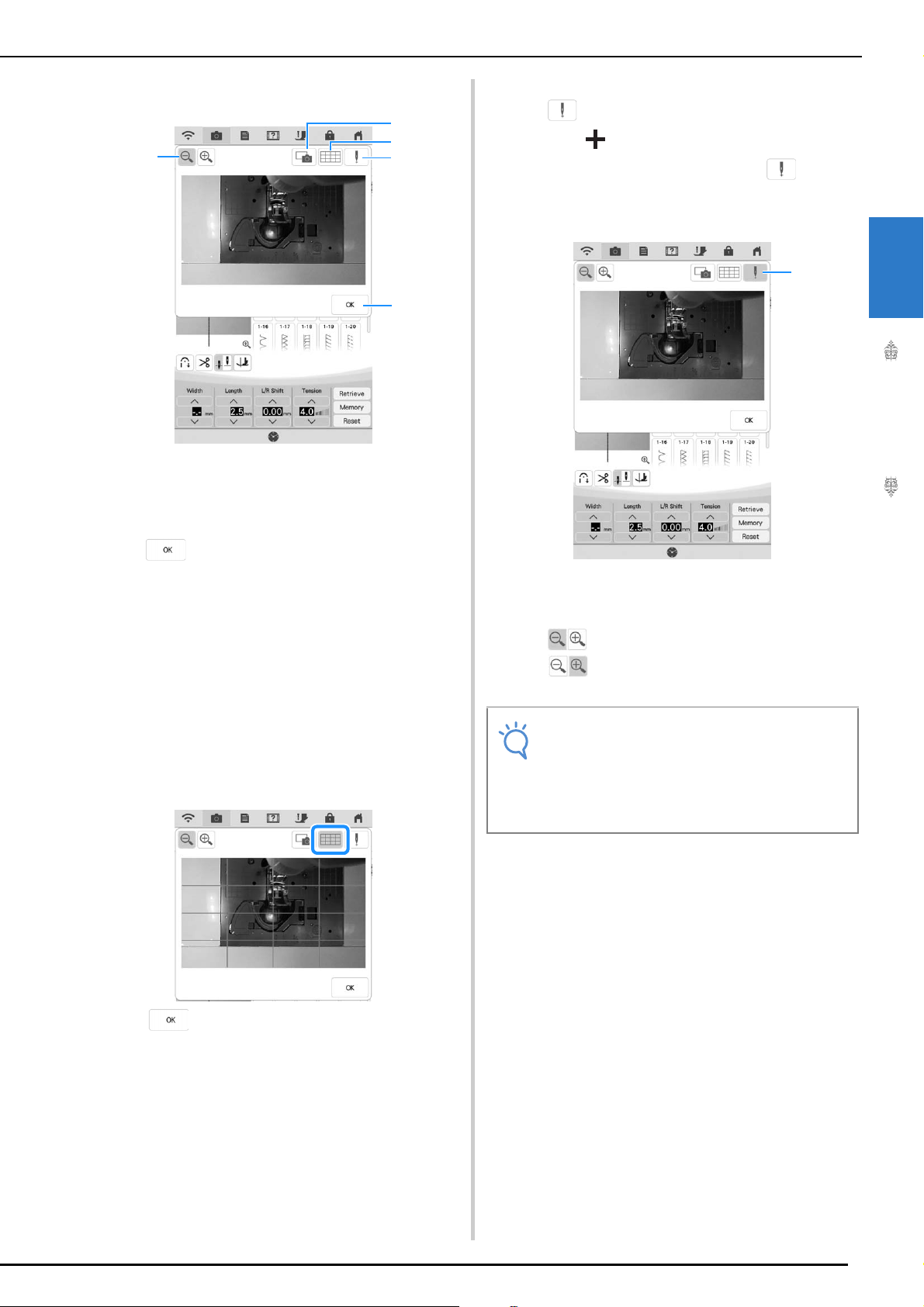

* Press to view the previous page.
j
Repeat the procedure from step g to select
the remaining images.
k
Press to return to the original screen.
■ Needle Calibration Using the Built-
in Camera
Setting the camera needle position is essential
when you use camera or projector function. It is
not necessary to perform this operation each time,
but we recommend performing it when the needle
is changed. Use the white stickers (solid) included
with the machine.
a
Press .
The settings screen appears.
b
Press .
The General settings screen appears.
c
Display page 6 of the General settings
screen.
d
Press .
Camera needle position setting screen appears.
e
Follow the on-screen instructions to
complete the procedure.
1. Press the needle position button to raise the
needle.
LCD SCREEN
38

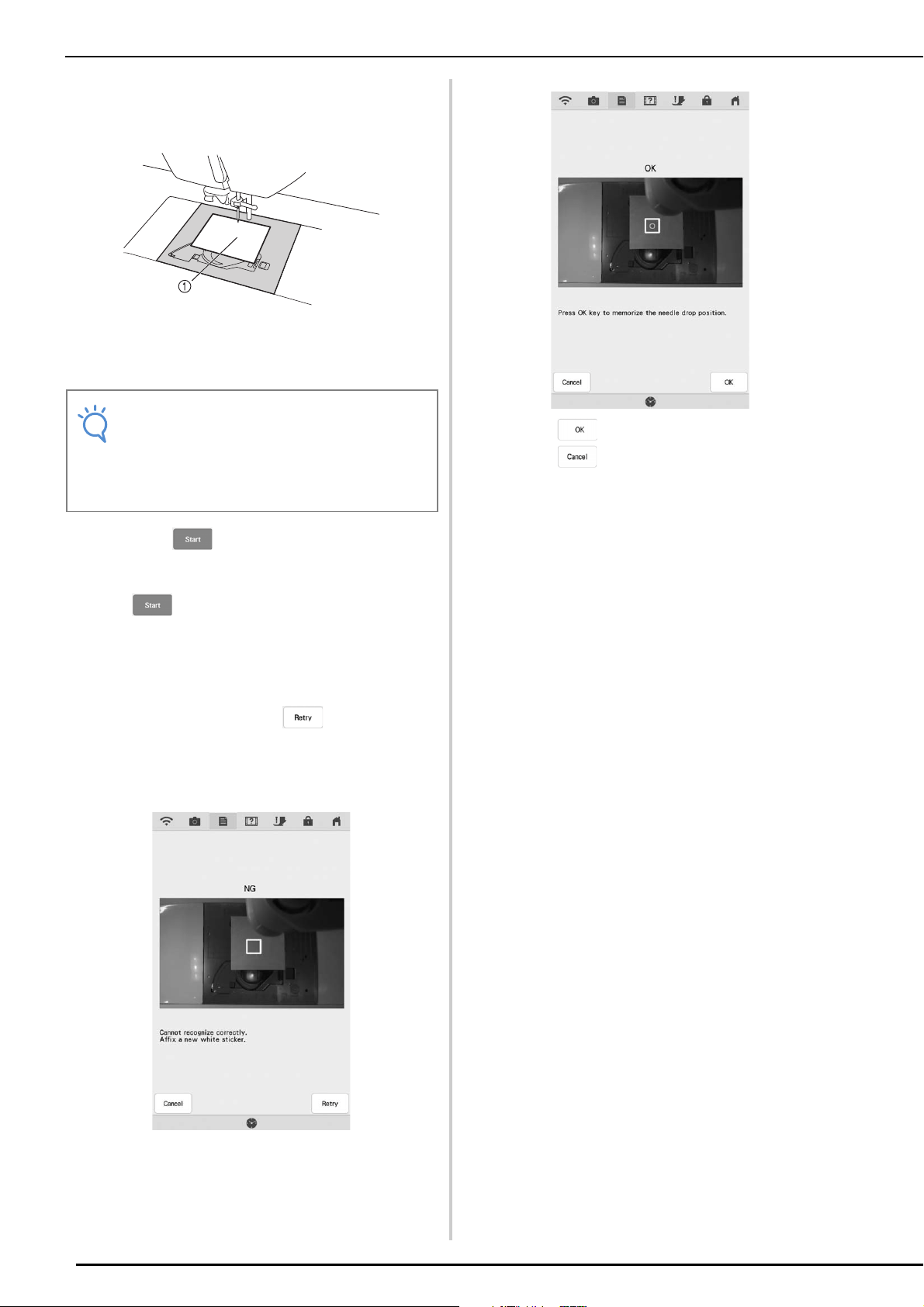

2. After removing the needle and the presser
foot, affix white sticker on needle dropping
point area.
a White sticker
3. Insert the needle (standard size 75/11 or 90/
14).
4. Press to initiate the calibration
process. For safety please make sure area
around needle is clear prior to pressing
.
Setting the needle drop point begins.
f
The operation is finished when “OK”
appears. If “NG” appears, affix a new white
sticker, and then press . If multiple
attempts to set the position are not
successful, contact your nearest authorized
Brother dealer.
* Press to memorize the calibration data.
* Press to back to original screen without
memorizing the calibration data.
g
Remove the sticker.
Note
• Use a new sticker. The camera needle
position cannot be set correctly if there is a
hole in sticker or if it is dirty. If you have no
new stickers, contact your nearest
authorized Brother dealer.
LCD SCREEN
Getting Ready
39
1
Using the Machine Help Key
Press to open the machine help screen. Six functions are available from the screen shown below.
a Press this key to continue viewing the Operation Manual (PDF file) or watching the video that was stopped.
b Press this key to view the Operation Manual (PDF file).
c Press this key to see explanation for upper threading, winding the bobbin, changing the presser foot, preparing to
embroider a pattern, and how to use the machine (page 40).
d Press this key to select utility stitches when you are not sure which stitch to use or how to sew the stitch (page 41).
e Press this key to see an explanation of the selected stitch (page 44).
f Press this key to watch tutorial videos or MPEG-4 (MP4) files from USB media (page 42).
a
b
c
d
e
f
LCD SCREEN
40
Using the Operation Guide Function
Press to open the screen shown below. Six categories are displayed at the top of the
screen. Press a key to see more information about that category.
displays information about the
main parts of the machine and their
functions. This is the first screen displayed
when you press .
displays information about the
operation buttons.
displays information about
threading the machine, changing presser
feet, etc. Some of the functions are described
in the movies. Watch these movies for a
better understanding of the functions.
displays information about
attaching the embroidery unit, preparing
fabric for embroidering, etc.
Some of the functions are described in the
movies. Watch these movies for a better
understanding of the functions.
displays troubleshooting
information.
displays information about
cleaning the machine, etc.
Some of the functions are described in the
movies. Watch these movies for a better
understanding of the functions.
LCD SCREEN
Getting Ready
41
1
Example: Displaying information about upper
threading
a
Press .
b
Press .
c
Press .
The lower half of the screen will change.
d
Press (upper threading).
The screen shows instructions for threading the
machine.
e
Read the instructions.
* Press to view the next page.
* Press to view the previous page.
f
Press to return to the original screen.
Using the Sewing Guide Function
The sewing guide function can be used to select
stitch patterns from the Utility Stitch screen.
Use this function when you are not sure which
stitch to use for your application, or to get advice
about sewing particular stitches. For example, if
you want to sew overcasting, but you do not know
which stitch to use or how to sew the stitch, you
can use this screen to get advice. We recommend
that beginners use this method to select stitches.
a
Enter Utility Stitch category from the home
page.
b
Press .
c
Press .
The advice screen is displayed.
LCD SCREEN
42
d
Press the key of the category whose sewing
instructions you wish to view.
* Press to return to the original screen.
e
Read the explanations and select the
appropriate stitch.
The screen displays directions for sewing the
selected stitch. Follow the directions to sew the
stitch.
Playing a Tutorial Video
This machine provides tutorial videos on how to
use the machine. Together with the help guides,
which offer descriptions through text and
illustrations, the tutorial videos assist with machine
operation.
a
Press .
b
Press .
c
Press the title of the desired tutorial video.
The selected tutorial video begins playing.
d
Play the tutorial video.
a Number of seconds elapsed/Total number of
seconds
Operation keys
e
After you are finished playing the video,
press .
Play
Pause
Skip back 10 seconds
Skip forward 10 seconds
Return to beginning
Repeat
Delete video (when playing from the
machine’s memory)
Save to machine (when playing from USB
media)
Memo
• A frequently viewed tutorial video can be
saved to (favorites) of the machine, from
where it can be played.
a
LCD SCREEN
Getting Ready
43
1
Playing MPEG-4 (MP4) Videos
Your MP4 videos can be played from USB media.
In addition, the MP4 video can be saved to the
machine so that a tutorial video on creating a
project, for example, can be viewed at any time.
Videos that can be played
a
Press .
b
Press .
c
Select the device where the video is saved.
: Play a tutorial video
: Play a video saved on the machine (favorites)
: Play a video from USB media plugged into the
USB port
: Play a video from USB media plugged into the
USB port for mouse
* To return to the previous screen, press .
d
Select the video that you want to play.
* To return to the previous screen, press .
e
Play the video.
* Use the operation keys as described in “Playing a
Tutorial Video” on page 42.
f
After you are finished playing the video,
press .
MP4 file format: Video - H.264/MPEG-4 AVC, Audio – AAC
Size: 450 (H) × 800 (W)
Memo
• MP4 file size will be changed to fit the
screen. If you view the large MP4 file, the
file will be reduced to fit the screen. If you
view the smaller MP4 file, the file will be
expanded to fit the screen.
• Some type of MP4 file cannot viewed with
the machine.
Note
• Long video file names may be shortened
when they are displayed.
Note
• Up to about 1 GB of MP4 videos can be
saved on the machine. When the maximum
capacity has been reached, delete
unnecessary videos.
LCD SCREEN
44
Using the Stitch Pattern
Explanation Function
If you want to know more about the uses of a stitch
pattern, select the stitch pattern and press and
then to see an explanation of the
stitch selection. Descriptions are displayed for
each stitch pattern in the Utility Stitch screen.
Example: Displaying information about
a
Press .
b
Press .
c
Press .
The screen shows information.
d
Press to return to the original screen.
Note
• With the stitch pattern explanation function,
descriptions can be displayed for the stitch
patterns available on the Utility Stitch and
Character/Decorative Stitch screens.
Memo
• The settings remain displayed to allow you
to fine tune the stitch.
LCD SCREEN
Getting Ready
45
1
Viewing the Operation Manual
(PDF File) on the Machine
The Operation Manual (PDF file) for this machine
can be viewed on the machine.
a
Press .
b
Press .
c
Select the document to be viewed.
d
Read the Operation Manual.
Operation keys
Memo
• The Operation Manual can be viewed in the
currently selected display language. For
details on selecting the display language,
refer to “Page 4” on page 30.
a Press to select from 100%, 200% and
400%.
b 1. Press to display a keyboard.
2. Enter the text to be searched for.
3. To search from the current page to
the beginning of the document,
press . To search from the
current page to the end of the
document, press .
c Press to return to the screen before the
Operation Manual (PDF file) was
opened.
d Press to display the first page.
e Press to display the previous page.
f Shows the current page/total number
of pages. Press the current page
number, and then enter a page number
to display the desired page.
g Press to display the next page.
h Press to display the last page.
i Press to close the screen and exit the
machine help screen.
Memo
• To zoom in or out on a page, pinch two
fingers together or spread them apart. You
can also move a page after zooming in by
dragging it.
a
c d e f g h i
b
WIRELESS NETWORK CONNECTION FUNCTIONS
46
This machine supports a wireless network connection. Using this function, an embroidery pattern or
decorative stitch pattern edited in embroidery editing software (PE-DESIGN 11) with wireless transfer
functions can be transferred to the machine from a computer. In addition, embroidery patterns can be
transferred from the machine to the embroidery editing software (PE-DESIGN 11). The machine and
computer must be connected to the same network. For detailed procedures, refer to the manual for the
application.
Specifying Wireless Network
Connection Settings
The machine can be connected to your wireless
network.
a
Press .
b
Set “Wireless LAN Enable” to “ON”.
The machine will begin to emit the wireless network
signal.
■ Requirements for a Wireless
Network Connection
The wireless network connection complies with IEEE
802.11 n/g/b standards and uses the 2.4 GHz
frequency.
WIRELESS NETWORK CONNECTION FUNCTIONS
Memo
• A wireless network cannot be set up with
WPA/WPA2 Enterprise.
WIRELESS NETWORK CONNECTION FUNCTIONS
Getting Ready
47
1
Using the Wizard to Set Up the
Wireless Network Connection
There are multiple ways to set up the wireless
network connection. We recommend the method
that uses the wizard on this machine.
a
In order to connect your machine to a
wireless network, the security information
(SSID and network key) for your home
network will be required. The network key
may also be called a password, security key
or encryption key. First, find your security
information and note it.
b
Press beside “Wireless LAN Setup
Wizard”.
A list of available SSIDs appears.
c
Select beside the SSID that was noted.
The screen for entering the network key (password)
appears.
SSID
Network Key
(Password)
Memo
• The wireless network connection cannot be
set up if you do not have the security
information.
• How to find the security information
a Check the manual provided with your home
network.
b The default SSID may be the manufacturer's
name or the model name.
c If you cannot find the security information,
contact the manufacturer of the router, your
network administrator or your Internet
provider.
Memo
• If the desired network SSID does not
appear in the list, press .
• If the desired network SSID is not displayed,
specify it as described below.
a Select in the list of SSIDs, and then
press .
b Enter the desired network SSID, and then
press .
c Select the authentication method and
encryption mode.
• If the machine had already been connected
to the home network, press , and
then select the saved SSID.
WIRELESS NETWORK CONNECTION FUNCTIONS
48
d
Enter the network key (password) that was
noted, and then press .
a Text input area
b Character keys
c Caps key
d Space key
e Letters/numbers/symbols key
f Backspace key (Deletes the character at the
cursor's position.)
g Cursor keys (Move the cursor to the left or right.)
e
When the following message appears, press
.
When a connection is established, the following
message appears.
f
Press to exit the setup.
The number beside “Machine Name” is the name
that will be used when registering the machine with
embroidery editing software (PE-DESIGN 11) in
order to transfer files.
■ Using the “Others” Menu
The “Others” menu contains the following items.
a TCP/IP settings can be manually entered.
b Shows the MAC address.
c Use when proxy settings are required.
c
b
a
e
d
f
g
Memo
• While connected, the signal strength is
indicated by the icon in the upper-left
corner of the display.
• Once a wireless network connection has
been set up, a wireless network connection
will be established each time the machine is
turned on. However, “Wireless LAN Enable”
in the network settings screen must remain
set to “ON”.
a
b
c
CONNECTING THE ACCESSORY TO THE MACHINE
Getting Ready
49
1
Using USB Media/SD card (Sold
Separately)
When sending or reading stitch patterns using the
USB media, connect the device to the USB port.
When using SD card, insert the SD card into the
SD card slot.
a SD card slot
b USB port
Using a USB Mouse (Sold
Separately)
The USB mouse, connected to the machine, can
be used to perform a variety of operations in the
screens.
Connect a USB mouse to the USB port.
a USB port
b USB mouse
CONNECTING THE ACCESSORY TO THE MACHINE
Memo
• USB media is widely used, however some
USB media may not be usable with this
machine. Please visit our website for more
details.
• Depending on the type of USB media being
used, either directly plug the USB device
into the machine’s USB port or plug the
USB media Reader/Writer into the
machine’s USB port.
• Do not insert anything other than USB
media into the USB media port. Otherwise,
the machine may be damaged.
• Do not insert anything other than SD card
into the SD card slot. Otherwise, the
machine may be damaged.
a
b
Memo
• If a mouse other than the optional USB
mouse is used, it may not perform as
described in this Operation Manual.
Note
• A USB mouse can be connected or
disconnected at any time.
• Only the left mouse button can be used to
perform operations. No other buttons can
be used.
• The mouse pointer does not appear in the
camera view window, the screen saver or
opening screen.
a
b
CONNECTING THE ACCESSORY TO THE MACHINE
50
■ Clicking a Key
When the mouse is connected, the pointer appears
on the screen. Move the mouse to position the
pointer over the desired key, and then click the left
mouse button.
a Pointer
■ Changing Pages
If page numbers and a vertical scroll bar for
additional pages are displayed, click the left mouse
button with the pointer on / or / to
display the previous or next page.
Memo
• Double-clicking has no effect.
a
Chapter 2
Sewing Basics
LOWER THREADING
52
Winding the Bobbin
■ Using the Supplemental Spool Pin
With this machine, you can wind the bobbin during
sewing. While the main spool pin is being used for
sewing, you can wind a bobbin by using the
supplemental spool pin.
a Supplemental spool pin
a
Turn the main power to ON and open the
top cover.
b
Align the groove in the bobbin with the
spring on the bobbin winder shaft, and set
the bobbin on the shaft.
a Groove in the bobbin
b Spring on the shaft
c
Set the supplemental spool pin in the “up”
position.
a Supplemental spool pin
d
Place the spool of thread on the
supplemental spool pin, so that thread
unrolls from the front. Push the spool cap
onto the spool pin as far as possible to
secure the thread spool.
a Spool cap
b Spool pin
c Thread spool
LOWER THREADING
CAUTION
• The included bobbin was designed specifically
for this machine. If bobbins from other models
are used, the machine will not operate
correctly. Use only the included bobbin or
bobbins of the same type (part code: SA156,
(SFB: XA5539-151 / 115J05E0001)). SA156 is
Class 15 type bobbin.
a
a
b
CAUTION
• If the thread spool and/or spool cap are set
incorrectly, the thread may tangle on the spool
pin and cause the needle to break.
• Use the spool cap (large, medium or small)
that is closest in size to the thread spool. If a
spool cap smaller than the thread spool is
used, the thread may become caught in the slit
on the end of the spool and cause the needle
to break.
LOWER THREADING
Sewing Basics
53
2
e
With your right hand, hold the thread near
the thread spool. With your left hand, hold
the end of the thread, and use both hands to
pass the thread through the thread guide.
a Thread guide
f
Pass the thread around the pretension disk
making sure that the thread is under the
pretension disk.
a Pretension disk
Make sure that the thread passes under the
pretension disk.
b Pretension disk
c Pull it in as far as possible.
Check to make sure thread is securely set between
pretension disks.
g
Wind the thread clockwise around the
bobbin 5-6 times.
Memo
• When sewing with fine, cross-wound
thread, use the small spool cap, and leave a
small space between the cap and the
thread spool.
a Spool cap (small)
b Thread spool (cross-wound thread)
c Space
• If a spool of thread whose core is 12 mm (1/
2 inch) in diameter and 75 mm (3 inches)
high is inserted onto the spool pin, use the
mini spool cap.
a Spool cap (mini king thread spool)
b 12 mm (1/2 inch)
c 75 mm (3 inches)
a
LOWER THREADING
54

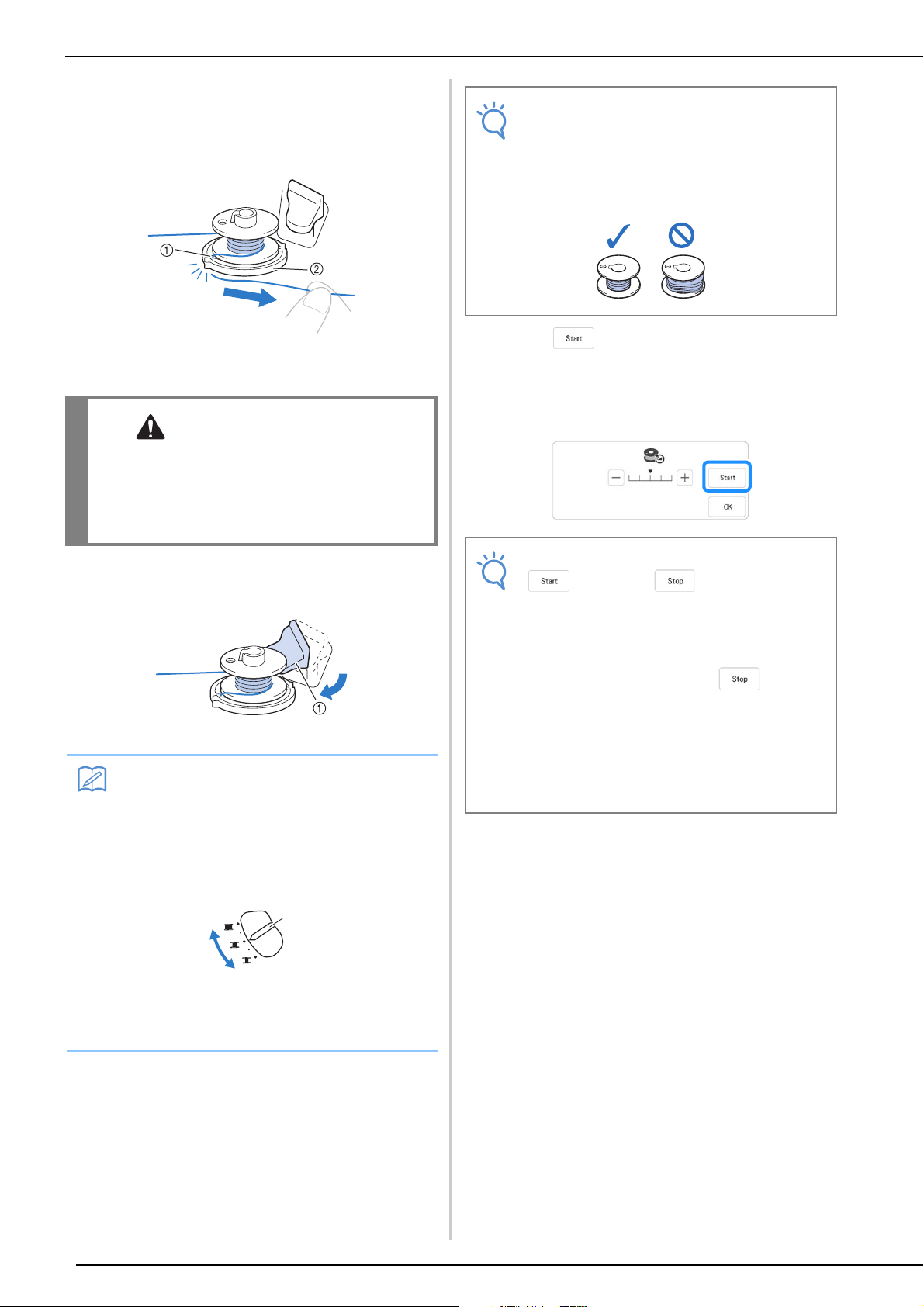

h
Pass the end of the thread through the guide
slit in the bobbin winder seat, and pull the
thread to the right to cut the thread with
the cutter.
a Guide slit (with built-in cutter)
b Bobbin winder seat
i
Set the bobbin winding switch to the left,
until it clicks into place.
a Bobbin winding switch
The bobbin winding window appears.
j
Press .
Bobbin winding starts. The bobbin stops rotating
when bobbin winding is completed. The bobbin
winding switch will automatically return to its
original position.
CAUTION
• Be sure to follow the process described. If the
thread is not cut with the cutter, and the
bobbin is wound, when the thread runs low it
may tangle around the bobbin and cause the
needle to break.
Memo
• Sliding the bobbin winding switch to the left
switches the machine into bobbin winding
mode.
• Use the bobbin winding slider to adjust the
amount of thread wound onto the bobbin to
one of five levels.
a Bobbin winding slider
b More
c Less
a
b
c
Note
• When winding transparent nylon thread on
the bobbin, stop bobbin winding when the
bobbin is 1/2 to 2/3 full. If the bobbin was
fully wound with transparent nylon thread, it
may not be wound neatly.
Note
• changes to while the bobbin is
winding.
• Stay near the machine while winding the
bobbin to make sure the bobbin thread is
being wound correctly. If the bobbin thread
is wound incorrectly, press
immediately to stop the bobbin winding.
• The sound of winding the bobbin with stiff
thread, such as nylon thread for quilting,
may be different from the one produced
when winding normal thread; however, this
is not a sign of a malfunction.
LOWER THREADING
Sewing Basics
55
2
k
Cut the thread with cutter and remove the
bobbin.
a Cutter
■ Using the Spool Pin
You can use the main spool pin to wind the bobbin
before sewing. You cannot use this spool pin to
wind the bobbin while sewing.
a
Turn the main power to ON and open the
top cover.
b
Align the groove in the bobbin with the
spring on the bobbin winder shaft, and set
the bobbin on the shaft.
a Groove in the bobbin
b Spring on the shaft
c
Pivot the spool pin so that it angles upward.
Set the thread spool on the spool pin so that
the thread unwinds from the front of the
spool.
a Spool pin
b Spool cap
c Thread spool
d Spool felt
Memo
• You can change the winding speed by
pressing (to decrease) or (to
increase) in the bobbin winding window.
• Press to minimize the bobbin winding
window. Then, you can perform other
operations, such as selecting a stitch or
adjusting the thread tension, while the
bobbin is being wound.
• Press (in top right of the LCD screen)
to display the bobbin winding window
again.
Memo
• When removing the bobbin, do not pull on
the bobbin winder seat. Doing so could
loosen or remove the bobbin winder seat,
and could result in damage to the machine.
CAUTION
• Setting the bobbin improperly may cause the
thread tension to loosen, breaking the needle
and possibly resulting in injury.
a
b
LOWER THREADING
56
d
Push the spool cap onto the spool pin as far
as possible, then return the spool pin to its
original position.
e
While holding the thread with both hands,
pull the thread up from under the thread
guide plate.
a Thread guide plate
f
Pass the thread through the thread guide.
a Thread guide
g
Pass the thread around the pretension disk
making sure that the thread is under the
pretension disk.
a Thread guide
b Pretension disk
h
Follow steps g through k on page 53
through 55.
■ Using the Spool Stand
To wind thread on the bobbin while the spool stand
is installed, pass the thread from the spool through
the thread guide on the telescopic thread guide, and
then wind the bobbin according to steps
e through
k of “Using the Supplemental Spool Pin”on
page 53 to page 55.
■ Untangling Thread from Beneath the
Bobbin Winder Seat
If the bobbin winding starts when the thread is not
passed through the pretension disk correctly, the
thread may become tangled beneath the bobbin
winder seat.
Wind off the thread according to the following
procedure.
a Thread
b Bobbin winder seat
a
a
a
b
Memo
• Refer to page 25 to assemble the spool
stand.
• Refer to page 66 to thread the machine
using the spool stand.
CAUTION
• When winding thread on the bobbin, do not
cross the bobbin winding thread with the
upper thread in the thread guides.
CAUTION
• Do not remove the bobbin winder seat even if
the thread becomes tangled under the bobbin
winder seat. It may result in injuries.
LOWER THREADING
Sewing Basics
57
2
a
If the thread becomes tangled under the
bobbin winder seat, press once to
stop the bobbin winding.
b
Cut the thread with scissors near the
pretension disk.
a Pretension disk
c
Push the bobbin winder switch to the right,
and then raise the bobbin at least 100 mm
(4 inches) from the shaft.
d
Cut the thread near the bobbin and hold the
thread end of the spool with your left hand.
Unwind the thread clockwise near the
bobbin winder seat with your right hand as
shown below.
e
Wind the bobbin again.
a
Note
• Make sure that the thread passes through
the pretension disk correctly (page 53).
LOWER THREADING
58
Setting the Bobbin
a
Press to lock all keys and buttons and
raise the presser foot.
* If the message “OK to automatically lower the
presser foot?” appears on the LCD screen, press
to continue.
b
Slide the bobbin cover latch to the right.
a Bobbin cover
b Latch
The bobbin cover opens.
c
Remove the bobbin cover.
d
Hold the bobbin with your right hand and
hold the end of the thread with your left
hand.
e
Set the bobbin in the bobbin case so that
the thread unwinds to the left.
f
Hold the bobbin lightly with your right
hand, and then guide the thread with your
left hand.
g
Pass the thread through the guide, and then
pull the thread out toward the front.
a Cutter
The cutter cuts the thread.
CAUTION
• Use a bobbin thread that has been correctly
wound. Otherwise, the needle may break or
the thread tension will be incorrect.
• The included bobbin was designed specifically
for this machine. If bobbins from other models
are used, the machine will not operate
correctly. Use only the included bobbin or
bobbins of the same type (part code: SA156,
(SFB: XA5539-151 / 115J05E0001)). SA156 is
Class 15 type bobbin.
• Before inserting or changing the bobbin, be
sure to press in the LCD to lock all keys
and buttons, otherwise injuries may occur if
the “Start/Stop” button or any other button is
pressed and the machine starts sewing.
a
b
LOWER THREADING
Sewing Basics
59
2
h
Insert the tab in the lower-left corner of the
bobbin cover (1), and then lightly press
down on the right side to close the cover
(2).
i
Press to unlock all keys and buttons.
Pulling Up the Bobbin Thread
There may be some sewing applications where
you want to pull up the bobbin thread; for
example, when making gathers, darts, or doing
free motion quilting or embroidery.
a
Follow steps a to d in “Setting the
Bobbin” on page 58 for installing the
bobbin into the bobbin case.
b
Guide the bobbin thread through the
groove, following the arrow in the
illustration.
* Do not cut the thread with the cutter.
* Do not replace the bobbin cover.
c
While holding the upper thread, press the
“Needle Position” button to lower the
needle.
a “Needle Position” button
d
Press the “Needle Position” button to raise
the needle.
e
Gently pull the upper thread. A loop of the
bobbin thread will come out of the hole in
the needle plate.
Note
• If the thread is not correctly inserted
through the tension spring of the bobbin
case, it may cause incorrect thread tension.
(page 87)
a Tension spring
CAUTION
• Be sure to hold down the bobbin with your
finger and unwind the bobbin thread
correctly. Otherwise, the thread may break or
the thread tension will be incorrect.
a
Memo
• You can pull up the bobbin thread after
threading the upper thread (“UPPER
THREADING” on page 61).
a
LOWER THREADING
60

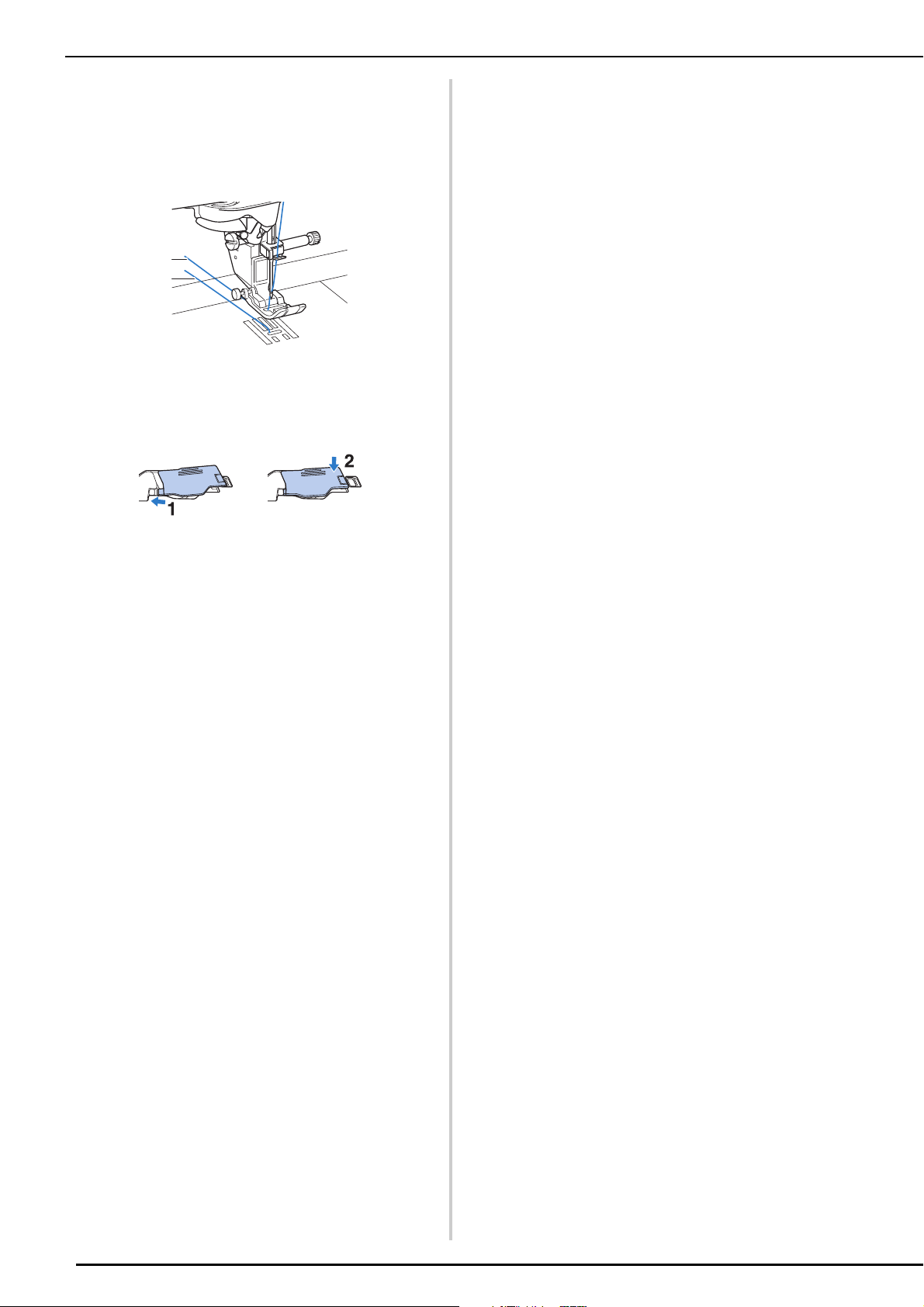

f
Pull up the bobbin thread, pass it under the
presser foot and pull it about 100 mm
(approx. 3-4 inches) toward the back of the
machine, making it even with the upper
thread.
a Upper thread
b Bobbin thread
g
Replace the bobbin cover.
a
b
UPPER THREADING
Sewing Basics
61
2
Upper Threading
a
Turn the main power to ON.
b
Press the “Presser Foot Lifter” button to
raise the presser foot.
The upper thread shutter opens so the machine can
be threaded.
a Upper thread shutter
c
Press the “Needle Position” button to raise
the needle.
d
Pivot the spool pin so that it angles upward.
Set the thread spool on the spool pin so that
the thread unwinds from the front of the
spool.
a Spool pin
b Spool cap
c Thread spool
d Spool felt
UPPER THREADING
CAUTION
• Be sure to thread the machine properly.
Improper threading can cause the thread to
tangle and break the needle, leading to injury.
• When using the walking foot, the side cutter or
accessories not included with this machine,
attach the accessory to the machine after
threading the machine.
Memo
• The automatic threading function can be
used with home sewing machine needle
sizes 75/11 through 100/16.
• When threads such as transparent nylon
monofilament or speciality threads are used
it is not recommended to use the needle
threader.
• The automatic threading function cannot be
used with the wing needle or the twin
needle.
Memo
• This machine is equipped with an upper
thread shutter, allowing you to check that
the upper threading is performed correctly.
Note
• If you try to thread the needle automatically
without raising the needle, the thread may
not thread correctly.
a
UPPER THREADING
62
e
Push the spool cap onto the spool pin as far
as possible, then return the spool pin to its
original position.
f
While holding the thread with both hands,
pull the thread up from under the thread
guide plate.
a Thread guide plate
g
While holding the thread in your right
hand, pass the thread through the thread
guide in the direction indicated.
h
Guide the thread down, up, then down
through the groove, as shown in the
illustration.
CAUTION
• If the thread spool and/or spool cap are set
incorrectly, the thread may tangle on the spool
pin and cause the needle to break.
• Use the spool cap (large or medium) or the
thread spool insert (mini king thread spool)
that is closest in size to the thread spool. If a
spool cap smaller than the thread spool is
used, the thread may become caught in the slit
on the end of the spool and cause the needle
to break.
Memo
• When sewing with fine, cross-wound
thread, use the small spool cap, and leave a
small space between the cap and the
thread spool.
a Spool cap (small)
b Thread spool (cross-wound thread)
c Space
• If a spool of thread whose core is 12 mm (1/
2 inch) in diameter and 75 mm (3 inches)
high is inserted onto the spool pin, use the
thread spool insert (mini king
thread spool).
a Thread spool insert (mini king thread spool)
b 12 mm (1/2 inch)
c 75 mm (3 inches)
Memo
• Look in the upper groove area to check if
the thread catches on the thread take-up
lever visible inside the upper groove area.
a Look in the upper groove area
a
UPPER THREADING
Sewing Basics
63
2
i
Pass the thread through the needle bar
thread guide (marked “6”) by holding the
thread with both hands and guiding it as
shown in the illustration.
a Needle bar thread guide
j
Press the “Presser Foot Lifter” button to
lower presser foot.
k
Pass the thread through the thread guide
disks (marked “7”). Make sure that the
thread passes through the groove in the
thread guide.
a Groove in thread guide
l
Pull the thread up through the thread cutter
to cut the thread, as shown in the
illustration.
a Thread cutter
m
Press the “Automatic Threading” button to
have the machine automatically thread the
needle.
The thread passes through the eye of the needle.
n
Carefully pull the end of the thread that was
passed through the eye of the needle.
* If a loop was formed in the thread passed through
the eye of the needle, carefully pull on the loop of
thread through to the back of the needle.
a
a
a
Note
• When using thread that quickly winds off
the spool, such as metallic thread, it may be
difficult to thread the needle if the thread is
cut.
Therefore, instead of using the thread
cutter, pull out about 80 mm (approx. 3
inches) of thread after passing it through the
thread guide disks (marked “7”).
a 80 mm (approx. 3 inches) or more
Memo
• When the “Automatic Threading” button is
pressed, the presser foot will be
automatically lowered. After threading is
finished, the presser foot moves back to the
position before the “Automatic Threading”
button was pressed.
Note
• Pulling the loop of thread gently will avoid
needle breakage.
a
UPPER THREADING
64

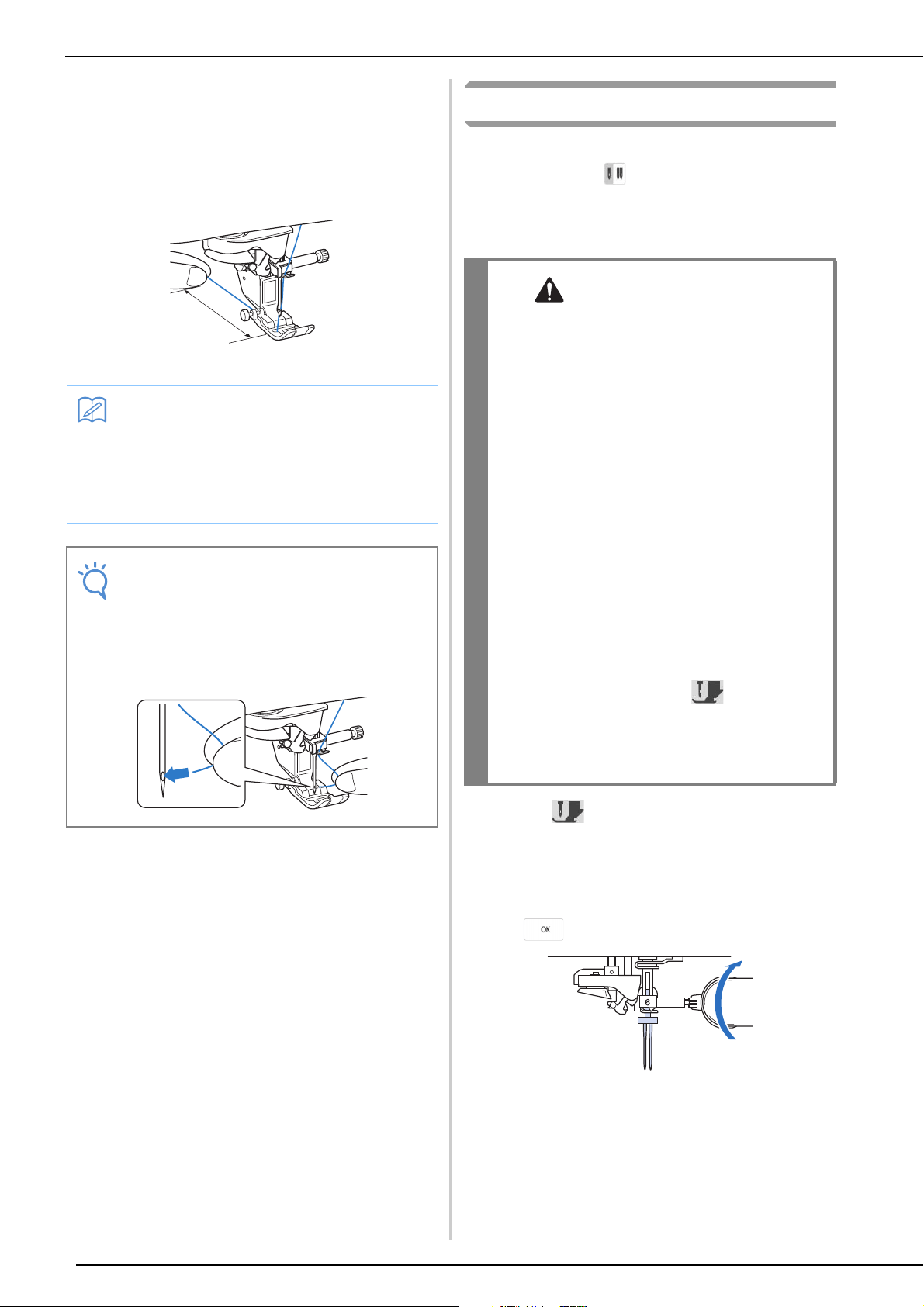

o
Pull out about 100-150 mm (approx. 4-6
inches) of the thread, and then pass it under
the presser foot toward the rear of the
machine.
Raise the presser foot lever if the presser foot is
lowered.
a About 100-150 mm (approx. 4-6 inches)
Using the Twin Needle Mode
The twin needle can only be used for stitch
patterns that show after being selected. Before
you select a stitch pattern, make sure the stitch can
be sewn in the twin needle mode (refer to the
“STITCH SETTING CHART” on page 218).
a
Press to lock all keys and buttons and
then install the twin needle (“CHANGING
THE NEEDLE” on page 69).
* If the message “OK to automatically lower the
presser foot?” appears on the LCD screen, press
to continue.
Memo
• If the needle could not be threaded or the
thread was not passed through the needle
bar thread guides, perform the procedure
again starting from step
c.
Then, pass the thread through the eye of
the needle after step
i.
Note
• Some needles cannot be threaded with the
needle threader. In this case, instead of
using the needle threader after passing the
thread through the needle bar thread guide
(marked “6”), manually pass the thread
through the eye of the needle from the front.
CAUTION
• Twin needle (part code XE4963-001) is
recommended for this machine. Contact your
authorized Brother dealer for replacement
needles (size 2.0/11 is recommended).
• Be sure to set the twin needle mode when
using the twin needle. Using the twin needle
while the machine is in single needle mode
could cause the needle to break, resulting in
damage.
• Do not sew with bent needles. The needle
could break and cause injury.
• When using the twin needle, it is
recommended to use presser foot “J”.
• When the twin needle is used, bunched
stitches may occur depending on the types of
fabric and thread that are used.
Use monogramming foot “N” for decorative
stitches.
• Before changing the needle or threading the
machine, be sure to press
on the LCD
Screen to lock all keys and buttons, otherwise
injuries may occur if the “Start/Stop” button
or any other button is pressed and the machine
starts sewing.
UPPER THREADING
Sewing Basics
65
2
b
Thread the machine for the first needle
according to the procedure for threading a
single needle (“Upper Threading” on
page 61).
c
Pass the thread through the needle bar
thread guides on the needle bar, then
thread the needle on the left side manually.
a Needle bar thread guide
d
Pull up the supplemental spool pin and set it
in the up position.
a Supplemental spool pin
e
Place the additional spool of thread on the
supplemental spool pin, so that the thread
unwinds from the front. Push the spool cap
onto the spool pin as far as possible to
secure the thread spool.
a Spool cap
b Spool pin
c Thread spool
f
Hold the thread from the spool with both
hands, and place the thread in the thread
guide.
* Do not place the thread in the pretension disks.
a Thread guide
g
While holding the thread from the spool,
pull the thread through the lower notch in
the thread guide plate, then through the
upper notch. Hold the end of the thread
with your left hand, and then guide the
thread through the groove, following the
arrows in the illustration.
Note
• The “Automatic Threading” button cannot
be used. Manually thread the twin needle
from front to back. Using the “Automatic
Threading” button may result in damage to
the machine.
a
UPPER THREADING
66
h
Continue threading however do not pass
the thread in the needle bar thread guide
“6” on the needle bar. Thread the needle on
the right side.
a Needle bar thread guide
i
Press to unlock all keys and buttons.
j
Select a stitch pattern. (Example: )
* Refer to “Sewing a Stitch” on page 77 for selecting
the stitch.
* Refer to the “STITCH SETTING CHART” on
page 218 for the proper stitch to use with presser
foot “J”.
The selected stitch is displayed.
k
Press , and then press to select the
twin needle mode.
Twin needle mode is set.
l
Start sewing.
Sample of Twin Needle Sewing
Using the Spool Stand
The included spool stand is useful when using
thread on spools with a large diameter (cross-
wound thread). This spool stand can hold two
spools of thread.
■ Using the Spool Stand
• Be sure to use a spool cap that is slightly larger
than the spool.
If the spool cap that is used is smaller or much
larger than the spool, the thread may catch and
sewing performance may suffer.
Note
• If the key is light gray after selecting the
stitch, the selected stitch cannot be sewn in
the twin needle mode.
CAUTION
• Be sure to set the twin needle mode when
using the twin needle. Using the twin needle
while the machine is in single needle mode
could cause the needle to break, resulting in
damage.
a
Memo
• To change direction when sewing with the
twin needle, raise the needle from the
fabric, raise the presser foot lever, and then
turn the fabric.
Memo
• Refer to page 25 to assemble the spool
stand.
• Refer to page 56 to wind the bobbin when
using the spool stand.
UPPER THREADING
Sewing Basics
67
2
• When using thread on a thin spool, place the
included spool felt on the spool pin, place the
thread spool on the spool pin so that the center
of the spool is aligned with the hole at the center
of the spool felt, and then insert the spool cap
onto the spool pin.
a Spool felt
• When using thread on a cone spool, use the
spool holder. When using cone shaped thread
spool with other than cotton thread, it is not
necessary to use spool caps.
a Spool holder
• Depending on the size of spool or the amount of
thread remaining, choose the appropriate sized
spool cap (large or medium). Spool cap (small)
cannot be used with the spool cap base.
a Spool cap
b Spool cap base
a
Attach the spool stand to the machine.
b
Place the spool of thread on the spool pin
so that the thread feeds off the spool
clockwise. Firmly insert the spool cap onto
the spool pin.
a
b
Note
• When using 2 spools of thread, make sure
that both spools are feeding in the same
direction.
• Make sure that the spools do not touch
each other, otherwise the thread will not
feed off smoothly, the needle may break, or
the thread may break or become tangled. In
addition, make sure that the spools do not
touch the telescopic thread guide at the
center.
• Make sure that the thread is not caught
under the spool.
UPPER THREADING
68
c
Pull the thread off the spool. Pass the thread
from the back to the front through the
thread guides at the top.
When using thread that quickly feeds off the spool,
such as metallic thread, use the enclosed ring to
prevent the thread from becoming entangled.
Threading sequence; Pull the thread from the spool,
place the thread through the ring from the bottom up
(1), into the thread guide (2) and through the ring
from the top down (3). When using the ring, do not
use the spool cap base.
d
Pass the thread through the machine’s
thread guide from the right to the left.
a Thread guide
e
Thread the machine according to the steps
f to o of “Upper Threading” on page 61.
Using Threads that Unwind
Quickly
■ Using the Spool Net
If using transparent nylon monofilament thread,
metallic thread, or other strong thread, place the
included spool net over the spool before using it.
When using specialty threads, threading must be
done manually.
If the spool net is too long, fold it once to match it to
the spool size before placing it over the spool.
Note
• Guide the thread so that it does not become
entangled with the other thread.
• After feeding the thread as instructed, wind
any excess thread back onto the spool,
otherwise the excess thread will become
tangled.
2
1
3
a
a Spool net
b Thread spool
c Spool pin
d Spool cap
Memo
• When threading the spool with the spool net
on, make sure that 50-60 mm (approx. 2 -
2-1/2 inches) of thread are pulled out.
• It may be necessary to adjust the thread
tension when using the spool net.
CHANGING THE NEEDLE
Sewing Basics
69
2
a
Press the “Needle Position” button to raise
the needle.
b
Press to lock all keys and buttons.
* If the message “OK to automatically lower the
presser foot?” appears on the LCD screen, press
to continue.
c
Use the screwdriver to turn the needle
clamp screw toward the front of the
machine and loosen the screw. Remove the
needle.
CHANGING THE NEEDLE
CAUTION
• Always press on the screen to lock all keys and buttons before changing the needle. If is not
pressed and the “Start/Stop” button or another operation button is pressed accidentally, the machine will
start and injury may result.
• Use only home sewing machine needles made for home use. Other needles may bend or break and may
cause injury.
• Never sew with a bent needle. A bent needle will easily break and may cause injury.
Memo
• To check the needle correctly, place the flat
side of the needle on a flat surface. Check
the needle from the top and the sides.
Throw away any bent needles.
a Parallel space
b Level surface (bobbin cover, glass, etc.)
Note
• Before replacing the needle, cover the hole
in the needle plate with fabric or paper to
prevent the needle from falling into the
machine.
Note
• Do not apply pressure to the needle clamp
screw. Doing so may damage the needle or
machine.
CHANGING THE NEEDLE
70
d
With the flat side of the needle facing the
back, insert the new needle all the way to
the top of the needle stopper (viewing
window) in the needle clamp. Use a
screwdriver to securely tighten the needle
clamp screw.
a Needle stopper
b Hole for setting the needle
c Flat side of needle
e
Press to unlock all keys and buttons.
CAUTION
• Be sure to push in the needle until it touches
the stopper, and securely tighten the needle
clamp screw with a screwdriver. If the needle
is not completely inserted or the needle clamp
screw is loose, the needle may break or the
machine may be damaged.
Memo
• The automatic threading function can be
used with home sewing machine needle
sizes 75/11 through 100/16.
• When threads such as transparent nylon
monofilament or speciality threads are used
it is not recommended to use the needle
threader.
a
b
c
CHANGING THE NEEDLE
Sewing Basics
71
2
Fabric/Thread/Needle Combinations
• Needles that can be used with this machine: Home sewing machine needles (size 65/9 - 100/16)
* The larger the number, the larger the needle. As the numbers decrease, the needles get finer.
• Thread that can be used with this machine: 30 - 90 weight
* Never use thread of 20 weight or lower. It may cause machine to malfunction.
* The smaller the number, the heavier the thread. As the numbers increase, the thread gets finer.
• The machine needle and thread that should be used depends on the type and thickness of the fabric. Refer to
the following table when choosing the thread and needle appropriate for the fabric that you wish to sew.
- The combinations shown in the table provide a general guideline. Be sure to sew trial stitches on the actual number of
layers and type of fabric to be used in your project.
- The machine needles are consumables. For safety and best results, we recommend replacing the needle regularly. For
details on when to replace the needle, refer to “CHANGING THE NEEDLE” on page 69.
• In principle, use a fine needle and thread with lightweight fabrics, and a larger needle and heavier thread with
heavyweight fabrics.
• Select a stitch appropriate for the fabric, and then adjust the stitch length. When sewing lightweight fabrics,
make the stitch length finer (shorter). When sewing heavyweight fabrics, make the stitch length coarser
(longer). (page 86)
When sewing stretch fabrics, refer to “Sewing Stretch Fabrics” on page 84.
■ Transparent nylon thread
Use a home sewing machine topstitching needle, regardless of the fabric or thread.
■ Embroidery needles
Use a 75/11 home sewing machine needle for embroidery.
Fabric Type/Application
Thread
Size of needle
Stitch length
mm (inch)
Type Weight
Lightweight
fabrics
Lawn, georgette, challis, organdy,
crepe, chiffon, voile, gauze, tulle,
lining, etc.
Polyester
thread
60 - 90
65/9 - 75/11
Fine stitches
1.8-2.5
(1/16-3/32)
Cotton thread,
Silk thread
50 - 80
Medium weight
fabrics
Broadcloth, taffeta, gabardine,
flannel, seersucker, double gauze,
linen, terry cloth, waffle weave,
sheeting, poplin, cotton twill, satin,
quilting cotton, etc.
Polyester
thread
60 - 90
75/11 - 90/14
Regular stitches
2.0-3.0
(1/16-1/8)
Cotton thread,
Silk thread
50 - 60
Heavyweight
fabrics
Denim (12 ounces or more), canvas,
etc.
Polyester
thread,
Cotton thread
30 100/16
Coarse stitches
2.5-4.0
(3/32-3/16)
Denim (12 ounces or more), canvas,
tweed, corduroy, velour, melton
wool, vinyl-coated fabric, etc.
Polyester
thread
60
90/14 - 100/16
Cotton thread,
Silk thread
30 - 50
Stretch fabrics
(knit fabrics, etc.)
Jersey, tricot, T-shirt fabric, fleece,
interlock, etc.
Polyester thread,
Cotton thread,
Silk thread
50
Ball point needle
75/11 - 90/14
Setting appropriate for
the fabric thickness
For top-stitching
Polyester thread,
Cotton thread
30 90/14 - 100/16
Setting appropriate for
the fabric thickness
50 - 60 75/11 - 90/14
CAUTION
• The appropriate fabric, thread and needle combinations are shown in the preceding table. If the
combination of the fabric, thread and needle is not correct, particularly when sewing heavy fabrics (such
as denim) with thin needles (such as 65/9 to 75/11), the needle may bend or break. In addition, the
stitching may be uneven or puckered or there may be skipped stitches.

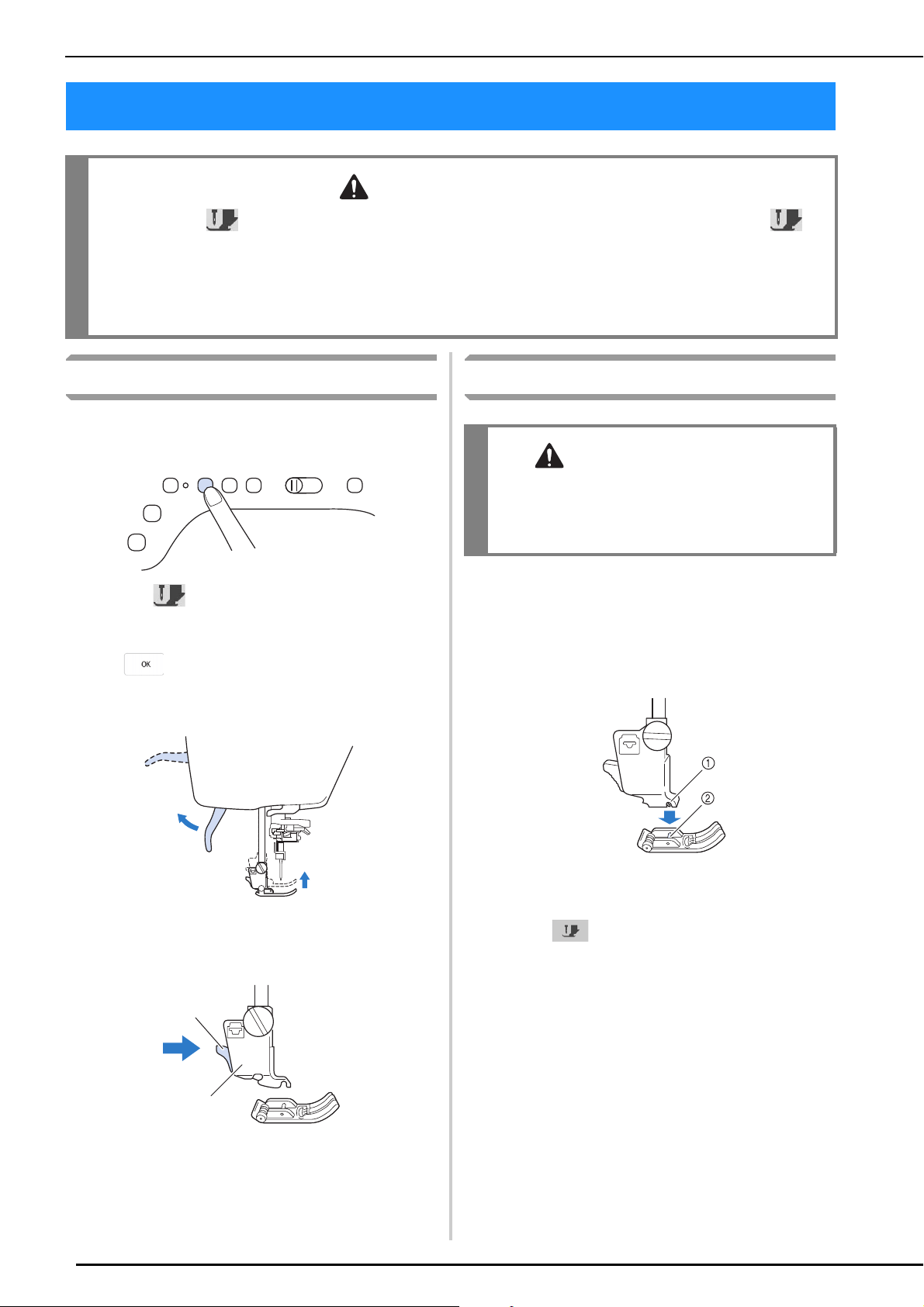

CHANGING THE PRESSER FOOT
72
Removing the Presser Foot
a
Press the “Needle Position” button to raise
the needle.
b
Press to lock all keys and buttons.
* If the message “OK to automatically lower the
presser foot?” appears on the LCD screen, press
to continue.
c
Raise the presser foot lever.
d
Press the black button on the presser foot
holder and remove the presser foot.
a Black button
b Presser foot holder
Attaching the Presser Foot
a
Place the new presser foot under the
holder, aligning the foot pin with the notch
in the holder. Lower the presser foot lever
so that the presser foot pin snaps into the
notch in the holder.
a Notch
b Pin
b
Press to unlock all keys and buttons.
c
Raise the presser foot lever.
CHANGING THE PRESSER FOOT
CAUTION
• Always press on the screen to lock all keys and buttons before changing the presser foot. If is
not pressed and the “Start/Stop” button or another button is pressed, the machine will start and may
cause injury.
• Always use the correct presser foot for the selected stitch pattern. If the wrong presser foot is used, the
needle may strike the presser foot and bend or break, and may cause injury.
• Only use presser feet made for this machine. Using other presser feet may lead to accident or injury.
b
a
CAUTION
• Make sure that the presser foot is installed in
the correct direction, otherwise the needle
may strike the presser foot, breaking the
needle and causing injuries.
CHANGING THE PRESSER FOOT
Sewing Basics
73
2
Attaching the Presser Foot with
the Included Adapter
You can attach the presser feet using the included
adapter and small screw.
For example, the walking foot, the free motion
echo quilting foot “E”, the free motion quilting foot
“C” and so on.
Following procedure shows how to attach the
walking foot as an example.
■ Attaching the Walking Foot
The walking foot holds the fabric between the
presser foot and the feed dogs to feed the fabric.
This enables you to have better fabric control
when sewing difficult fabrics (such as quilted
fabrics or velvet) or fabrics that slip easily (such as
vinyl, leather, or synthetic leather).
a
Follow the steps in “Removing the Presser
Foot” on page 72.
b
Loosen the screw of the presser foot holder
to remove the presser foot holder.
a Multi- purpose screwdriver
b Presser foot holder screw
c Presser foot holder
c
Remove the screw of the presser foot
completely from the presser foot shaft.
d
Set the adapter on the presser foot bar,
aligning the flat side of the adapter opening
with the flat side of the presser bar. Push it
up as far as possible, and then tighten the
screw securely with the screwdriver.
e
Turn a supplied small screw 2 or 3 times
with your hand.
Note
• Thread the needle manually when using the
walking foot, or only attach the walking foot
after threading the needle using the
“Automatic Threading” button.
• When sewing with the walking foot, sew at
medium to low speeds.
Memo
• The walking foot can only be used with
straight or zigzag stitch patterns. Reverse
stitches cannot be sewn with the walking
foot. Only select straight or zigzag stitch
patterns with reinforcement stitches.
(page 79.)
CHANGING THE PRESSER FOOT
74

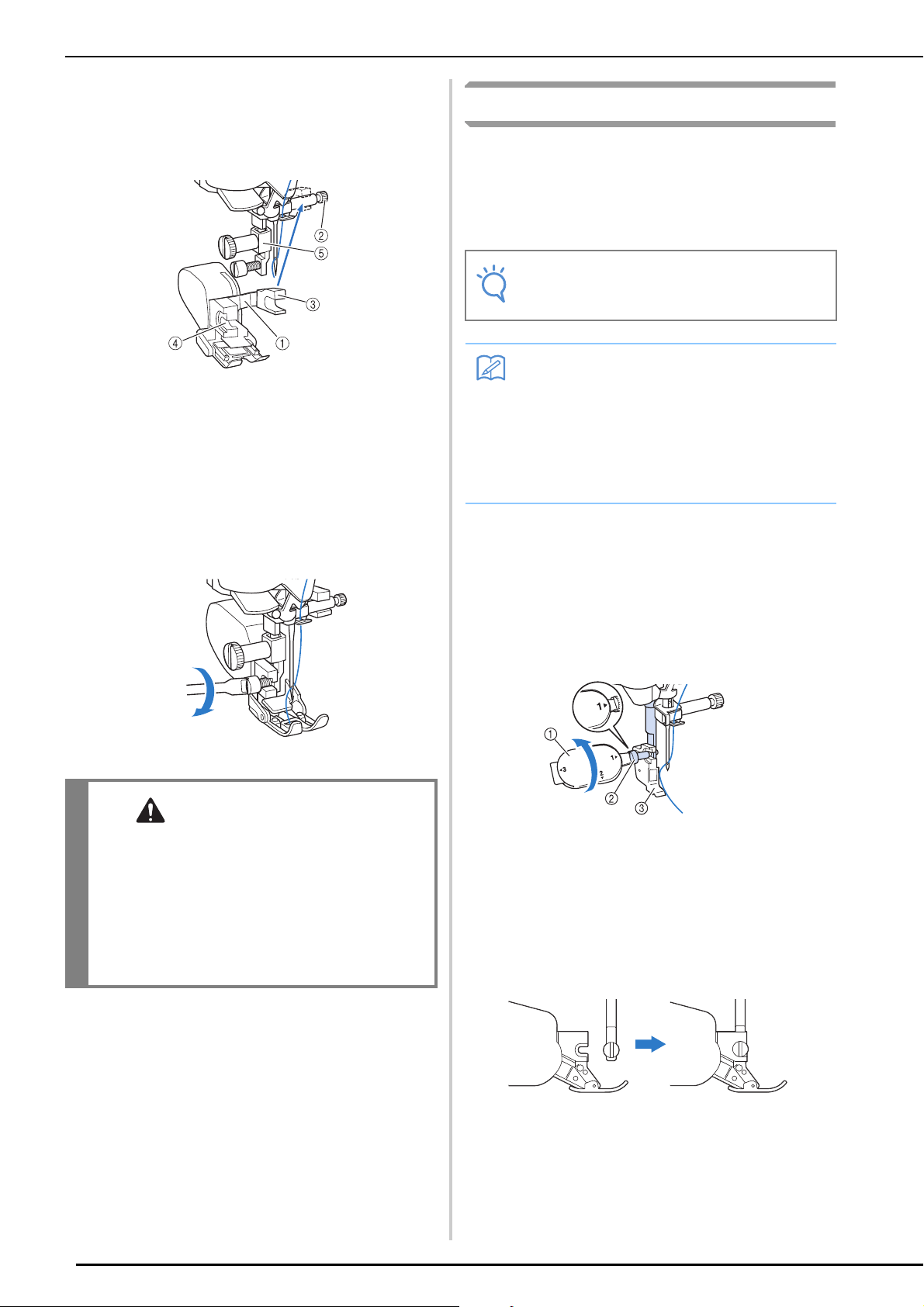

f
Set the operation lever of the walking foot
so that the needle clamp screw is set in the
fork. Position the shank of the walking foot
on the presser foot bar.
a Operation lever
b Needle clamp screw
c Fork
d Walking foot shank
e Presser foot bar
g
Lower the presser foot lever. Insert the
screw, and tighten the screw securely with
the screwdriver.
Using the Dual Feed Foot
Dual feed foot enables you to have best fabric
control when sewing difficult fabrics that slip
easily, such as quilted fabrics or fabrics that tend
to stick to the bottom of a presser foot, such as
vinyl, leather or synthetic leather.
■ Attaching the Dual Feed Foot
a
Follow the steps in “Removing the Presser
Foot” on page 72.
b
Loosen the screw of the presser foot holder
to remove the presser foot holder.
a Multi- purpose screwdriver
b Presser foot holder screw
c Presser foot holder
c
Position the dual feed foot to the presser
foot bar by aligning the notch of the dual
feed foot to the large screw.
Side view
CAUTION
• Use the included screwdriver to tighten the
screw securely. If the screw is loose, the
needle may strike the presser foot and cause
injury.
• Be sure to rotate the handwheel toward you
(counterclockwise) to check that the needle
does not strike the presser foot. If the needle
strikes the presser foot, injury may result.
Note
• When sewing with the dual feed foot, sew at
medium to low speeds.
Memo
• When selecting stitches to be used with the
dual feed foot, only the stitches that can be
used will be activated on the display.
• When sewing fabric that easily sticks
together, a more attractive finish can be
achieved by basting the beginning of
sewing.
CHANGING THE PRESSER FOOT
Sewing Basics
75
2
d
Hold the dual feed foot in place with your
right hand, then using the included
screwdriver securely tighten the large
screw.
e
Plug the connector of the dual feed foot
into the jack on the back of your machine.
f
Press to unlock all keys and buttons.
All keys and operation buttons are unlocked, and
the previous screen is displayed.
■ Attaching/Detaching toe
Attach the toe by aligning the pins with the notches
and snap it into place.
a Pins
b Notches
If you push down on the front and back part of the
dual feed foot, the toe of the dual feed foot will snap
off.
CAUTION
• Use the included screwdriver to firmly tighten
the screw. If the screw is loose, the needle may
strike the presser foot and possibly cause
injury.

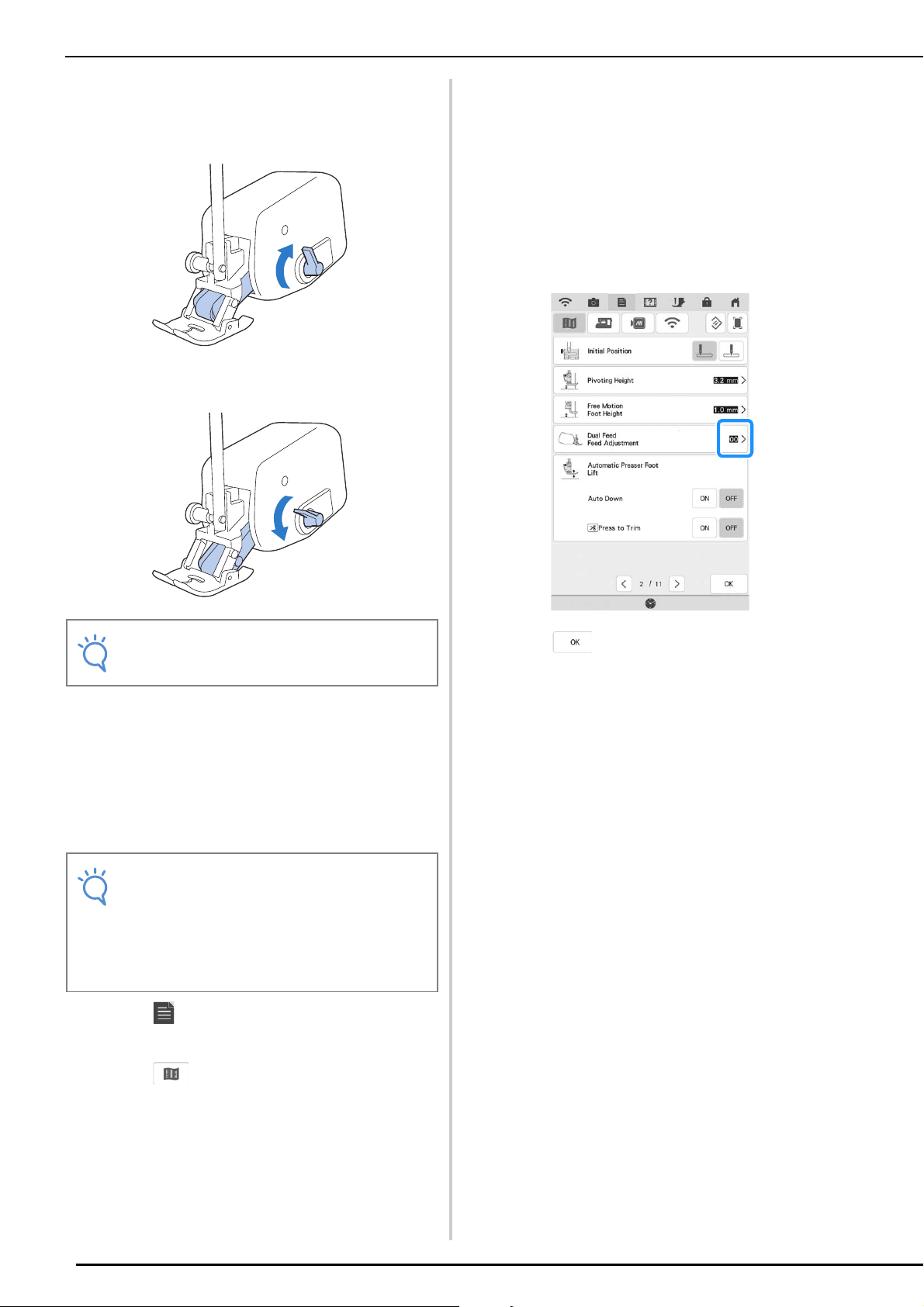

CHANGING THE PRESSER FOOT
76
■ Using the Dual Feed Position Lever
When the feed position lever is up, the black roller
belt on the dual feed is not engaged.
When the feed position lever is down, the black
roller belt on the dual feed is engaged.
■ Adjusting the Amount of Fabric
Feeding of the Dual Feed Foot
The dual feed mechanism pulls the top fabric
according to the set stitch length. With troublesome
fabrics, fine tune the set length, by changing the
dual feed feed adjustment in the settings screen.
a
Press .
The settings screen appears.
b
Press .
The Sewing settings screen appears.
c
Display page 2 of the Sewing settings
screen.
d
Touch the number to select the feeding of
the top fabric.
* Select “00” for sewing in most cases.
* If the feed amount for the top fabric is too little,
causing the fabric to be longer than the bottom
fabric, touch a higher number to increase the feed
amount for the top fabric.
* If the feed amount for the top fabric is too much,
causing the fabric to be shorter than the bottom
fabric, touch a lower number to decrease the feed
amount for the top fabric.
e
Press to return to the original screen.
Note
• Do not operate the lever while sewing.
Note
• As a default, some keys mentioned in the
following procedures appear in light gray
and are not available. To enable the keys for
specifying the settings, attach the dual feed
foot to the machine. The keys are enabled
after the dual feed foot is detected.
SEWING
Sewing Basics
77
2
Sewing a Stitch
a
Turn the main power to ON and press
to display the utility stitches, and push the
“Needle Position” button to raise the
needle.
b
Select the category, and then press the key
of the stitch you want to sew.
a Category
b Key of the stitch
The symbol of the correct presser foot will be
displayed in the upper left corner of the LCD screen.
c
Install the presser foot (“CHANGING THE
PRESSER FOOT” on page 72).
d
Set the fabric under the presser foot. Hold
the fabric and thread in your left hand, and
push the “Needle Position” button to set
the needle in the sewing start position.
e
Lower the presser foot.
* You do not have to pull up the bobbin thread.
SEWING
CAUTION
• To avoid injury, pay special attention to the needle while the machine is in operation. Keep your hands
away from moving parts while the machine is in operation.
• Do not stretch or pull the fabric during sewing. Doing so may lead to injury.
• Do not use bent or broken needles. Doing so may lead to injury.
• Do not attempt to sew over basting pins or other objects during sewing. Otherwise, the needle may break
and cause injury.
• If stitches become bunched, lengthen the stitch length setting before continuing sewing. Otherwise, the
needle may break and cause injury.
b
a
CAUTION
• Always use the correct presser foot. If the
wrong presser foot is used, the needle may
strike the presser foot and bend or break,
possibly resulting in injury.
Refer to “STITCH SETTING CHART” on
page 218 for presser foot recommendations.
Memo
• The black button on the left side of presser
foot “J” should be pressed only if the fabric
does not feed or when sewing thick seams
(page 83). Normally, you can sew without
pressing the black button.
SEWING
78
f
Adjust the sewing speed with the speed
control slide.
* You can use this slide to adjust sewing speed during
sewing.
a Slow
b Fast
g
Press the “Start/Stop” button to start
sewing.
* Guide the fabric lightly by hand.
h
Press the “Start/Stop” button again to stop
sewing.
i
Press the “Thread Cutter” button to trim
the upper and lower threads.
The needle will return to the up position
automatically.
j
When the needle has stopped moving, raise
the presser foot and remove the fabric.
■ Using the Foot Controller
You can also use the foot controller to start and stop
sewing.
Memo
• When the foot controller is being used, you
cannot start sewing by pressing the “Start/
Stop” button.
a
b
CAUTION
• Do not press the “Thread Cutter” button after
the threads have been cut. Doing so could
tangle the thread or break the needle and
damage the machine.
• Do not press the “Thread Cutter” button when
there is no fabric set in the machine or during
machine operation. The thread may tangle,
possibly resulting in damage.
Note
• When cutting thread thicker than #30, nylon
monofilament thread, or other decorative
threads, use the thread cutter on the side of
the machine.
Memo
• This machine is equipped with a bobbin
thread sensor that warns you when the
bobbin thread is almost empty. When the
bobbin thread is nearly empty, the machine
automatically stops. However, if the “Start/
Stop” button is pressed, a few stitches can
be sewn. When the warning displays, re-
thread the machine immediately.
CAUTION
• Do not allow fabric pieces and dust to collect
in the foot controller. Doing so could cause a
fire or an electric shock.
Memo
• When the foot controller is being used, you
cannot start sewing by pressing the “Start/
Stop” button.
• The foot controller cannot be used when
embroidering.
• The foot controller can be used for sewing
utility and decorative stitches when the
embroidery unit is attached.
SEWING
Sewing Basics
79
2
a
Insert the foot controller plug into its jack
on the machine.
a Foot controller
b Foot controller jack
b
Slowly depress the foot controller to start
sewing.
Pressing down on the foot controller increases the
sewing speed; releasing the pressure on the foot
controller decreases the sewing speed.
c
Release the foot controller to stop the
machine.
Sewing Reinforcement Stitches
Reverse/reinforcement stitches are generally
necessary at the beginning and end of sewing. You
can use the “Reverse Stitch” button to sew reverse/
reinforcement stitches. When you keep pressing
“Reinforcement Stitch” button, the machine will
sew reinforcement stitch at that point 3 to 5
stitches, and then stop. (page 15)
a “Reverse Stitch” button
b “Reinforcement Stitch” button
If the automatic reinforcement stitch is selected on
the screen, reverse stitches (or reinforcement
stitches) will be sewn automatically at the
beginning of sewing when the “Start/Stop” button
is pressed. Press “Reverse Stitch” button or
“Reinforcement Stitch” button to sew reverse
stitches (or reinforcement stitches) automatically at
the end of sewing (Refer to the next procedure
“Automatic Reinforcement Stitching”.).
a Reverse stitch
b Reinforcement stitch
The operation performed when the button is
pressed differs depending on the selected stitch
pattern. (Refer to “STITCH SETTING CHART” on
page 218.)
Automatic Reinforcement
Stitching
After selecting a stitch motif, turn on the automatic
reinforcement stitching function before sewing,
and the machine will automatically sew
reinforcement stitches (or reverse stitches,
depending on the stitch motif) at the beginning
and end of sewing.
Memo
• The speed that is set using the sewing
speed controller is the foot controller’s
maximum sewing speed.
a
b
Memo
• When you press the “Reinforcement Stitch”
button while sewing character/decorative
stitch pattern, you can end sewing with a
full stitch instead of at a mid-point.
• The green light on the right of the
“Reinforcement Stitch” button lights up
while the machine is sewing a full motif, and
it automatically turns off when the sewing is
stopped.

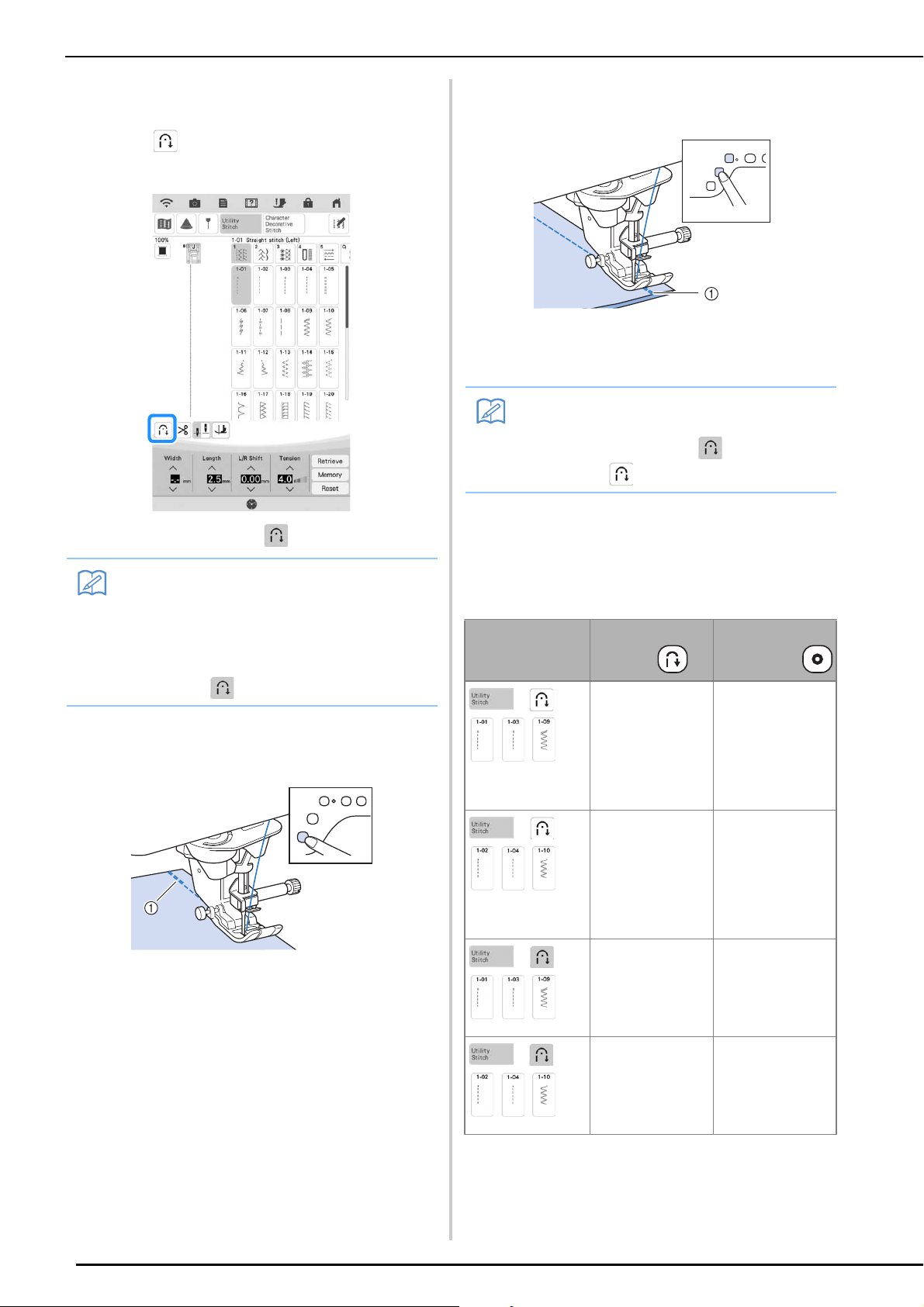

SEWING
80
a
Select a stitch pattern.
b
Press to set the automatic
reinforcement stitching function.
The key will display as .
c
Set the fabric in the start position and begin
sewing.
a Reverse stitches (or reinforcement stitches)
The machine will automatically sew reverse stitches
(or reinforcement stitches) and then continue
sewing.
If you press the Start/Stop button to pause sewing,
press it again to continue. The machine will not
sew reverse/reinforcement stitches again.
d
Press “Reverse Stitch” button or
“Reinforcement Stitch” button.
a Reverse stitches (or reinforcement stitches)
The machine will sew reverse stitches (or
reinforcement stitches) and stop.
The operation performed when the button is
pressed differs depending on the selected stitch
pattern. Refer to the following table for details on
the operation that is performed when the button is
pressed.
Memo
• Some stitches, such as buttonholes and bar
tacks, require reinforcement stitches at the
beginning of sewing. If you select one of
these stitches, the machine will
automatically turn on this function (the key
appears as when the stitch is selected).
Memo
• To turn off the automatic reinforcement
stitching function, press again, so it
appears as .
“Reverse Stitch”
button
“Reinforcement
Stitch” button
+
Machine starts
sewing the stitches
and only sews
reverse stitches
while holding the
“Reverse Stitch”
button.
Machine starts
sewing the stitches
and sews 3 – 5
reinforcement
stitches while
holding the
“Reinforcement
Stitch” button.
+
Machine starts
sewing the stitches
and only sews
reverse stitches
while holding the
“Reverse Stitch”
button.*
Machine starts
sewing the stitches
and sews 3 – 5
reinforcement
stitches while
holding the
“Reinforcement
Stitch” button.
+
Machine sews
reverse stitches at
the beginning and
end of sewing.
Machine sews
reverse stitches at
the beginning and
reinforcement
stitches at the end of
sewing.
+
Machine sews
reinforcement
stitches at the
beginning and
reverse stitches at
the end of sewing.*
Machine sews
reinforcement
stitches at the
beginning and end of
sewing.
SEWING
Sewing Basics
81
2
* If “Reinforcement Priority” of the settings screen is set to
“ON” (page 30), reinforcement stitches are sewn instead of
reverse stitches.
Automatic Presser Foot Lowering
Function and Thread Cutting
Function
By setting the machine to automatically raise and
lower the presser foot, sewing operations can be
performed more smoothly.

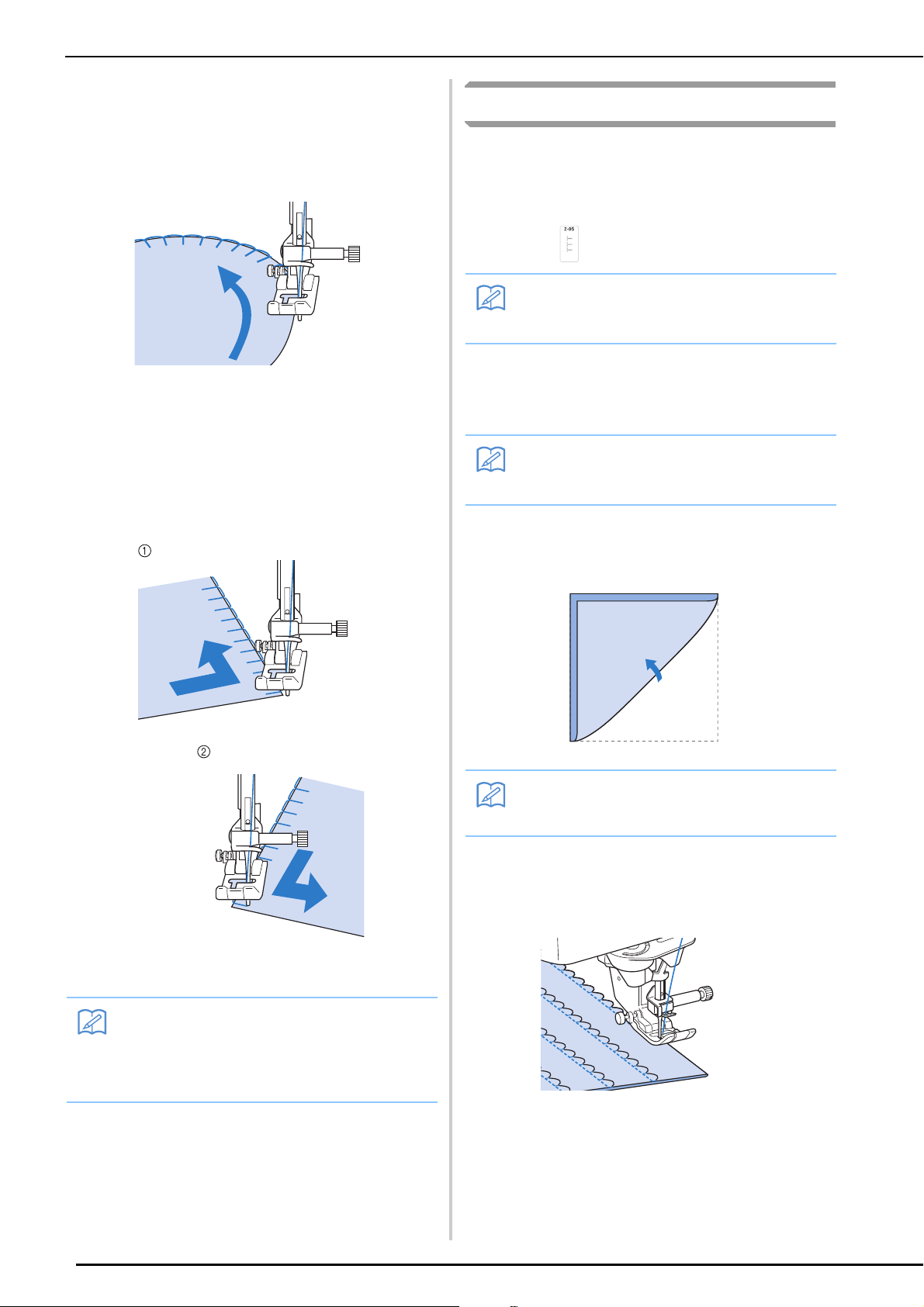

Sewing Curves
Sew slowly while keeping the seam parallel with
the fabric edge as you guide the fabric around the
curve.
Changing Sewing Direction
Stop the machine. Leave the needle in the fabric,
and press the “Presser Foot Lifter” button to raise
the presser foot. Using the needle as a pivot, turn
the fabric so that you can sew in the new
direction. Press the “Presser Foot Lifter” button to
lower the presser foot and start sewing.
The pivot setting is useful when changing the
sewing direction. When the machine is stopped at
the corner of the fabric, the machine stops with the
needle in the fabric and the presser foot is
automatically raised so the fabric can easily be
rotated (“Pivoting” on page 89).
+
Machine starts
sewing and then
sews reinforcement
stitches while
holding the “Reverse
Stitch” button.
Machine starts
sewing at the
beginning, then
completes the stitch
pattern and sews
reinforcement
stitches at the end of
sewing.
+
Machine sews
reinforcement
stitches at the
beginning and sews
reinforcement
stitches when the
“Reverse Stitch”
button is pressed.
Machine sews
reinforcement
stitches at the
beginning, then
completes the stitch
pattern and sews
reinforcement
stitches at the end of
sewing.
No. Key Name Explanation
a Auto Down When “Auto Down” in the machine
settings screen is set to “ON”,
pressing the “Start/Stop” button or
depressing the foot controller
automatically lowers the presser foot
(if it is raised) before starting to sew.
“Reverse Stitch”
button
“Reinforcement
Stitch” button
a
b
b Press to Trim When “Press to Trim” in the machine
settings screen is set to “ON”,
pressing the “Thread Cutter” button
automatically lowers the presser foot
(if it is raised) before cutting the thread.
The presser foot will be raised after the
thread is cut.
No. Key Name Explanation
SEWING
82
■ Sewing a Seam Allowance of 0.5 cm
or Less
Baste the corner before sewing, and then, after
changing the sewing direction at the corner, pull the
basting thread toward the back while sewing.
a 5 mm (approx. 3/16 inch)
Sewing Heavyweight Fabrics
The machine can sew fabrics up to 6 mm (approx.
1/4 inch) thick. If the thickness of a seam causes
sewing to occur at an angle, help guide the fabric
by hand and sew on the downward slope.
CAUTION
• Do not forcefully push fabrics more than 6 mm
(approx. 1/4 inch) thick through the machine.
This may cause the needle to break and cause
injury.
• Thicker fabrics require a larger needle.
(page 71)
SEWING
Sewing Basics
83
2

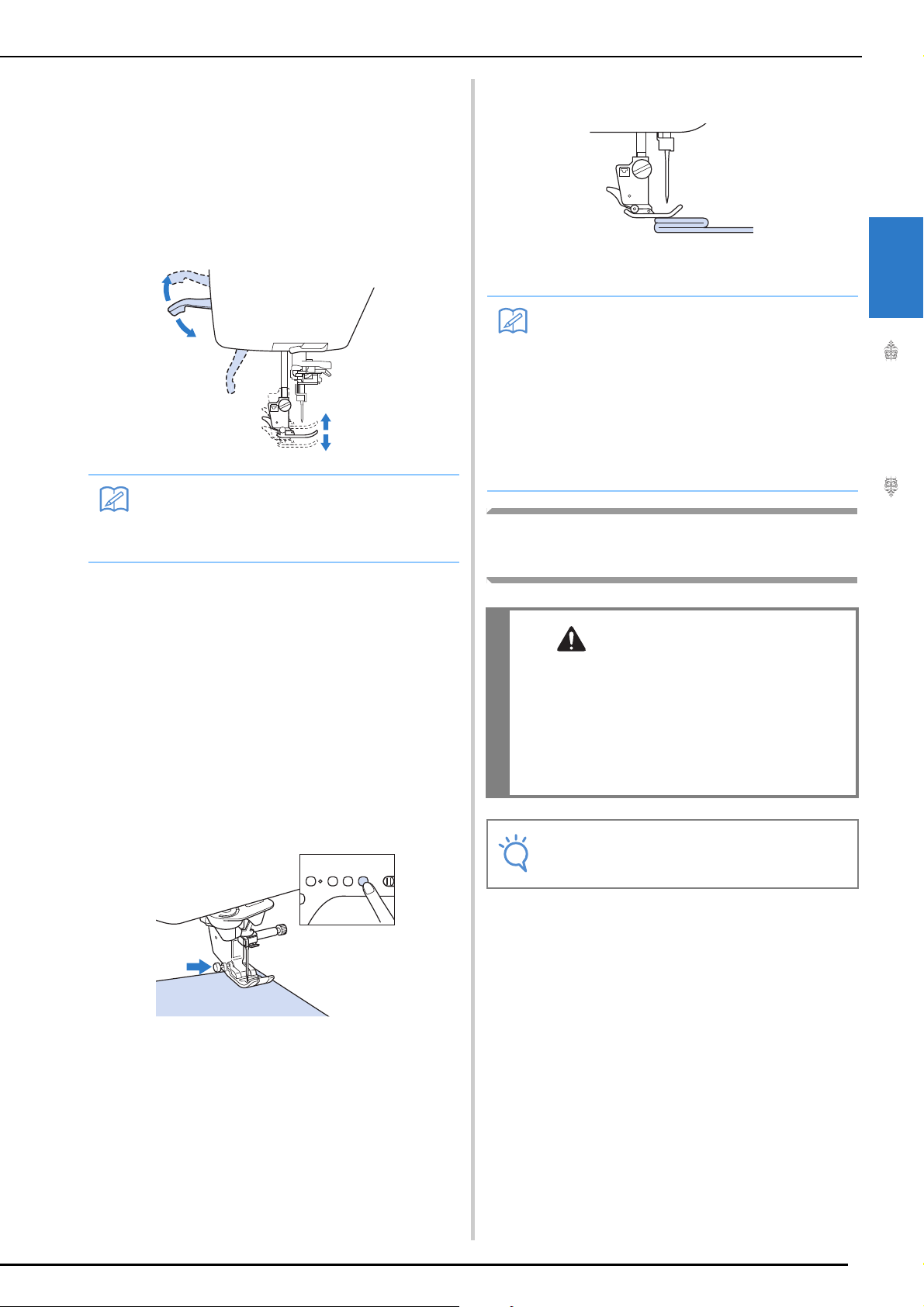

■ If the Fabric does not Fit under the
Presser Foot
If the presser foot is in the up position, and you are
sewing heavyweight or multiple layers of fabric
which do not fit easily under the presser foot, use
the presser foot lever to raise the presser foot to its
highest position. The fabric will now fit under the
presser foot.
■ If the Fabric does not Feed
If the fabric does not feed when starting to sew or
when sewing thick seams, press the black button on
the left side of presser foot “J”.
a
Raise the presser foot.
b
While keeping the black button on the left
side of presser foot “J” pressed in, press the
“Presser Foot Lifter” button to lower the
presser foot.
c
Release the black button.
The presser foot remains level, enabling the fabric to
be fed.
Sewing Hook-and-Loop Fastener
Tape
Memo
• You cannot use the presser foot lever after
the presser foot has been raised using the
“Presser Foot Lifter” button.
Memo
• Once the trouble spot has been passed, the
foot will return to its normal position.
• When “Automatic Fabric Sensor System”
(Automatic Presser Foot Pressure) in the
machine settings screen is set to “ON”, the
thickness of the fabric is automatically
detected by the internal sensor so the fabric
can be fed smoothly for best sewing results.
(page 91.)
CAUTION
• Do not use adhesive backed hook-and-loop
fastener tape designed for sewing. When glue
adheres to the needle or the bobbin hook race,
it may cause malfunction.
• If the hook-and-loop fastener tape is sewn with
a fine needle (65/9-75/11), the needle may
bend or break.
Note
• Before starting to sew, baste the fabric and
hook-and-loop fastener tape together.
SEWING
84
Make sure that the needle passes through the
hook-and-loop fastener tape by rotating the
handwheel and lower the needle into the hook-
and-loop fastener tape before sewing. Sew the
edge of the hook-and-loop fastener tape at a slow
speed.
If the needle does not pass through the hook-and-
loop fastener tape, replace the needle size with the
needle for thick fabrics (page 71).
a Edge of the hook-and-loop fastener tape
Sewing Lightweight Fabrics
Place thin paper or tear away embroidery
stabilizer under thin fabrics to make sewing easier.
Gently tear off the paper or the stabilizer after
sewing.
a Thin paper
Sewing Stretch Fabrics
First, baste together the pieces of fabric, and then
sew without stretching the fabric.
In addition, a better result can be achieved by
using thread for knits or a stretch stitch.
a Basting stitching
Memo
• For best results when sewing stretch
fabrics, decrease the pressure of the
presser foot (“Using the Machine Setting
Mode Key” on page 29).
STITCH SETTINGS
Sewing Basics
85
2
When you select a stitch, your machine automatically selects the appropriate stitch width, stitch length,
and upper thread tension. However, if needed, you can change any of the individual settings.
Setting the Stitch Width
Follow the steps below when you want to change
the zigzag stitch pattern width.
Example:
Press to narrow the zigzag stitch pattern
width.
The value in the display gets smaller.
Press to widen the zigzag stitch pattern width.
The value in the display gets bigger.
STITCH SETTINGS
Note
• Settings for some stitches cannot be changed (refer to “STITCH SETTING CHART” on page 218).
• If you turn off the machine or select another stitch without saving stitch setting changes (“Saving Your
Stitch Settings” on page 107), the stitch settings will return to their default settings.
Memo
• For an alternate method of changing the
stitch width using the speed controller, refer
to page 125.
Memo
• Press to save the stitch settings.
• Press to check changes made to the
stitch.
• Press to return the stitch width to
the original setting.
Note
• After adjusting the stitch width, slowly
rotate the handwheel toward you
(counterclockwise) and check that the
needle does not touch the presser foot. If
the needle hits the presser foot, the needle
may bend or break.
STITCH SETTINGS
86
Setting the Stitch Length
Follow the steps below when you want to change
the stitch pattern length.
Example:
Press to shorten the stitch length.
The value in the display gets smaller.
Press to lengthen the stitch length.
The value in the display gets bigger.
Setting the “L/R Shift”
Follow the steps below when you want to change
the placement of the zigzag stitch pattern by
moving it left and right.
Example:
Press to shift the stitch pattern to the left.
The value in the display appears with a minus sign.
Press to shift the stitch pattern to the right side
of the left needle position.
The value in the display appears with a plus sign.
Memo
• Press to save the stitch settings.
• Press to check changes made to the
stitch.
• Press to return the stitch length to
the original setting.
CAUTION
• If the stitches get bunched together, lengthen
the stitch length and continue sewing. Do not
continue sewing without lengthening the stitch
length. Otherwise, the needle may break and
cause injury.
Memo
• Press to save the stitch settings.
• Press to check changes made to the
stitch.
• Press to return to the original
setting.
Note
• After adjusting the “L/R Shift”, slowly rotate
the handwheel toward you
(counterclockwise) and check that the
needle does not touch the presser foot. If
the needle hits the presser foot, the needle
may bend or break.
STITCH SETTINGS
Sewing Basics
87
2
Setting the Thread Tension
You may need to change the thread tension,
depending on the fabric and thread being used.
Follow the steps below to make any necessary
changes.
■ Proper Thread Tension
The upper thread and the bobbin thread should
cross near the center of the fabric. Only the upper
thread should be visible from the right side of the
fabric, and only the bobbin thread should be visible
from the wrong side of the fabric.
a Wrong side
b Surface
c Upper thread
d Bobbin thread
■ Upper Thread is Too Tight
If the bobbin thread is visible from the right side of
the fabric, the upper thread is too tight.
a Bobbin thread
b Upper thread
c Surface
d Locks appear on surface of fabric
Press , to loosen the upper thread.
■ Upper Thread is Too Loose
If the upper thread is visible from the wrong side of
the fabric, the upper thread is too loose.
a Upper thread
b Bobbin thread
c Wrong side
d Locks appear on wrong side of fabric
Press , to tighten the upper thread.
Note
• If the bobbin thread was incorrectly
threaded, the upper thread may be too
tight. In this case, refer to “Setting the
Bobbin” on page 58 and rethread the
bobbin thread.
Memo
• When you finish sewing, remove the bobbin
cover and then make sure that the thread is
shown as below. If the thread is not shown
as below, the thread is not inserted through
the tension-adjusting spring of the bobbin
case correctly. Reinsert the thread
correctly. For details, refer to page 58.
Note
• If the upper thread was incorrectly
threaded, the upper thread may be too
loose. In this case, refer to “Upper
Threading” on page 61 and rethread the
upper thread.
Memo
• Press to return the thread tension
to the original setting.
USEFUL FUNCTIONS
88
Automatic Thread Cutting
After selecting a stitch pattern, turn on the
automatic thread cutting function before sewing,
and the machine will automatically sew
reinforcement stitches (or reverse stitches,
depending on the stitch pattern) at the beginning
and end of sewing, and trim the threads at the end
of sewing. This function is useful when sewing
buttonholes and bar tacks.
a
Select a stitch pattern.
b
Press to set the automatic thread
cutting function.
You get , and the machine is set for
automatic thread cutting function and automatic
reverse/reinforcement stitching.
c
Set the fabric in the start position and start
sewing.
a Reverse stitches (or reinforcement stitches)
The machine will automatically sew reverse stitches
(or reinforcement stitches) and then continue
sewing.
d
Once you have reached the end of the
stitching, press “Reverse Stitch” button or
“Reinforcement Stitch” button once.
If stitching, such as buttonholes and bar tacking, that
includes reinforcement stitching has been selected,
this operation is unnecessary.
a The point where the “Start/Stop” button was
pressed.
b The point where the “Reverse Stitch” button or the
“Reinforcement Stitch” button was pressed.
c The thread is cut here.
USEFUL FUNCTIONS
Memo
• To turn off the automatic thread cutting
function, press again, so it appears as
.
• This function is set automatically when
doing embroidery.
Memo
• If you press the “Start/Stop” button to
pause sewing, press the same button again
to continue. The beginning reverse/
reinforcement stitches will not be sewn
again.
Memo
• The automatic thread cutting function will
not be performed if the “Start/Stop” button
is pressed while sewing. Press the “Reverse
Stitch” button or the “Reinforcement Stitch”
button at the end of the stitching.
32
1
USEFUL FUNCTIONS
Sewing Basics
89
2

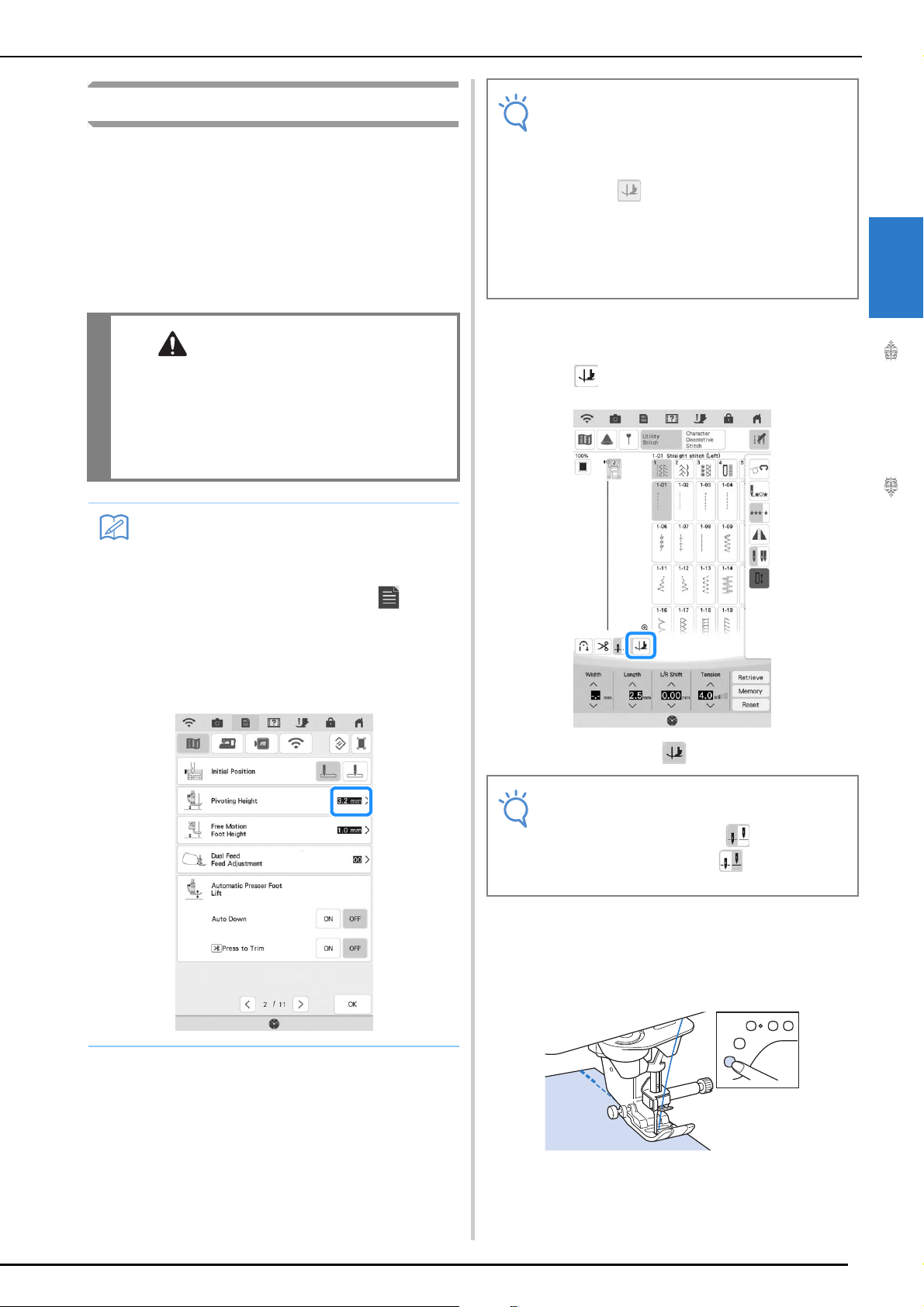

Pivoting
If the pivot function is selected, the machine stops
with the needle lowered (in the fabric) and the
presser foot is automatically raised to an
appropriate height when the “Start/Stop” button is
pressed. When the “Start/Stop” button is pressed
again, the presser foot is automatically lowered
and sewing continues. This function is useful for
stopping the machine to rotate the fabric.
a
Select a stitch.
b
Press to select the pivot setting.
The key appears as .
c
Place the fabric under the presser foot with
the needle at the starting point of the
stitching, and then press the “Start/Stop”
button. The machine will begin sewing.
CAUTION
• When the pivot setting is selected, the
machine starts when the “Start/Stop” button is
pressed or the foot controller is pressed down
even if the presser foot has been raised. Be
sure to keep your hands and other items away
from the needle, otherwise injuries may occur.
Memo
• When the pivot setting is selected, the
height of the presser foot when sewing is
stopped can be changed according to the
type of fabric being sewn. Press to
display “Pivoting Height” of the settings
screen. Touch the number to select the
height. To raise the presser foot further,
increase the setting. (Normally, 3.2 mm is
set.)
Note
• The pivot function can only be used with
stitches where presser foot “J”, “N” or “X”
(Couching foot) is indicated in the upper-left
corner of the screen. If any other stitch is
selected, appears as light gray and is
not available.
• If the pivot function is selected, “Presser
Foot Height” in the settings screen are not
available and the setting cannot be
changed.
Note
• To use the pivot function, the needle
position should be set to . When the
needle position is set to , the presser
foot is raised automatically.
USEFUL FUNCTIONS
90
d
Press the “Start/Stop” button to stop the
machine at the point where the sewing
direction changes.
The machine stops with the needle in the fabric, and
the presser foot is raised.
e
Rotate the fabric, and then press the “Start/
Stop” button.
The presser foot is automatically lowered, and
sewing continues.
Using the Knee Lifter
Using the knee lifter, you can raise and lower the
presser foot with your knee, leaving both hands
free to handle the fabric.
a
Change the operating position of the knee
lifter handle before inserting into the
machine.
Slide up the knee lifter handle slightly and
rotate it while releasing pressure so handle
will click into position.
* The knee lifter can be adjusted to three different
angles.
a Knee lifter handle
Rotate knee lifter handle till it clicks into the
selected position that is most comfortable for you.
Memo
• If you press the “Start/Stop” button to
pause sewing, press it again to continue,
reverse stitches (or reinforcement stitches)
will not be sewn.
Memo
• If “Automatic Presser Foot Lift” in the
machine settings screen is set to “ON”, the
needle and the presser foot are raised when
the machine is stopped.
USEFUL FUNCTIONS
Sewing Basics
91
2
b
Align the tabs on the knee lifter with the
notches in the knee lifter slot on the front of
the machine. Insert the knee lifter bar as far
as possible.
c
Use your knee to move the knee lifter bar to
the right in order to raise the presser foot.
Release the knee lifter to lower the presser
foot.
Automatic Fabric Sensor System
(Automatic Presser Foot
Pressure)
The thickness of the fabric is automatically
detected and the presser foot pressure is
automatically adjusted with an internal sensor
while sewing, to insure that your fabric is fed
smoothly. The fabric sensor system works
continuously while sewing. This function is useful
for sewing over thick seams (page 82), or quilting
(page 123).
a
Press .
The settings screen appears.
b
Set “Automatic Fabric Sensor System” to
“ON”.
c
Press to return to the original screen.
CAUTION
• Only change position of the knee lifter handle
when knee lifter is not on the machine,
otherwise the knee lifter may damage the
mounting slot on front of the machine.
Note
• If the knee lifter bar is not pushed into the
mounting slot as far as possible, it may
come out during use.
CAUTION
• Be sure to keep your knee away from the knee
lifter during sewing. If the knee lifter is pushed
during machine operation, the needle may
break or the thread tension may loosen.
Memo
• When the presser foot is in the up position,
move the knee lifter to the far right and then
release to return the presser foot to the
down position.
USEFUL FUNCTIONS
92

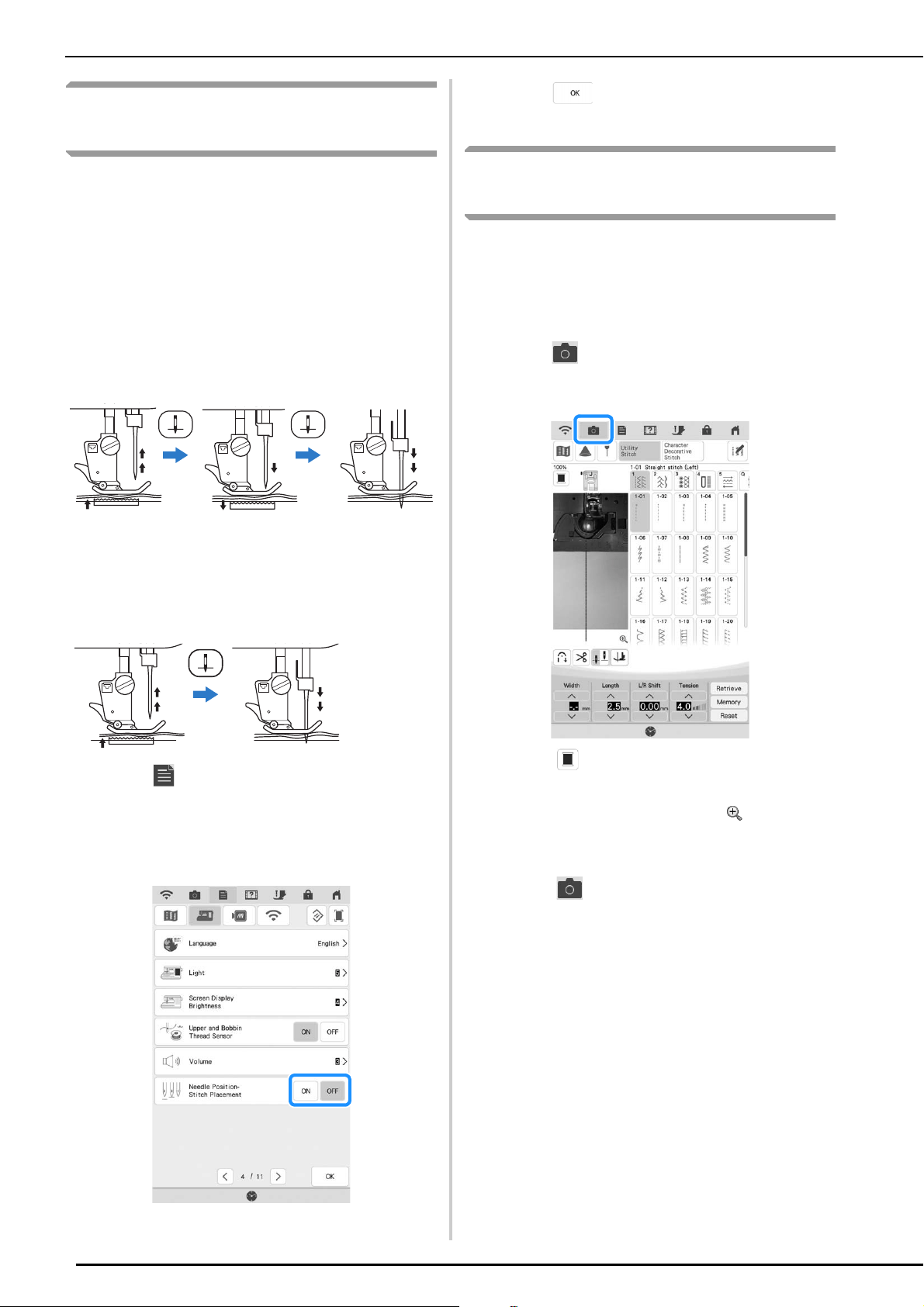

Needle Position - Stitch
Placement
When the “Needle Position - Stitch Placement” is
“ON”, the needle will be partially lowered for
precise stitch placement and then press the
“Needle Position” button to lower the needle
completely. Each press of the “Needle Position”
button changes the needle to the next position.
When the “Needle Position - Stitch Placement” is
“OFF”, each press of the “Needle Position” button
simply raises and then lowers the needle.
“Needle Position - Stitch Placement” is “ON”
* When the needle is nearly lowered by pressing the
“Needle Position” button, the feed dogs are
lowered. At this time, the fabric can be shifted to
finely adjust the needle drop position.
“Needle Position - Stitch Placement” is “OFF”
a
Press .
b
Set “Needle Position - Stitch Placement” to
“ON” or “OFF”.
c
Press to return to the original screen.
Checking the Needle Location in
the Screen
You can check the stitch image with actual fabric
image on the screen.
a
Select a stitch.
b
Press .
An image of the selected stitch and the actual fabric
image are displayed.
* Press to change the thread color displayed on
the screen. You can select from four different colors.
c
Press on the fabric image or on the
screen.
The camera view window appears.
Press again to turn off the camera view.
USEFUL FUNCTIONS
Sewing Basics
93
2
■ Using the Camera View Window
The camera view window appears.
a CAMERA IMAGE
b GRID VIEW
c NEEDLE DROP POSITION
d
e ZOOM
CAMERA IMAGE
Press this key to save a camera image to the USB
media.
Insert the USB media to the machine to save a
camera image (Refer to “Saving a Settings Screen
Image to USB Media” on page 33). The files for
camera images are saved as “.PNG”. A maximum of
100 camera images can be saved in one USB media.
GRID VIEW
Press this key to display a grid.
Press to close the screen.
NEEDLE DROP POSITION
Press to show the needle drop position in the
screen as “ ”.
Lower the presser foot before pressing . Once
the needle drop position appears on the screen, you
can raise the presser foot and change the needle
drop position by moving the fabric.
a Needle drop position
ZOOM
Press to enlarge the image in the screen.
Press again to return the image to its original
display size.
b
c
d
e
a
Note
• The camera view window disappears when
you start sewing.
• When sewing thick fabrics, the needle drop
position indicated in the screen may differ
from the actual position.
a
USING THE PROJECTOR
94
Convenient Sewing Features by
Using the Projector
Operations that can use the projector
• Setting the guideline as a reference for your
sewing position.
• Selecting a stitch pattern
• Editing the selected stitch pattern
• Displaying the needle drop point (when
embroidering)
• Displaying the edited embroidery pattern (when
embroidering)
About the Dual Purpose Stylus
The included dual purpose stylus has two points.
Use the soft point to operate the LCD screen and
the hard point to operate the projector.
Installing a Battery in the Dual
Purpose Stylus
A battery for the dual purpose stylus is not
included with your machine. Use a new AAA
alkaline battery (LR03).
a
Slide the lid with your finger to remove it.
b
Install a new AAA alkaline battery (LR03) in
the dual purpose stylus with the negative
end (-) pointing up.
USING THE PROJECTOR
CAUTION
• Do not stare directly at the projector light.
Otherwise, blindness may result.
WARNING
• Do not disassemble or modify the dual
purpose stylus.
• Do not use metallic objects, such as tweezers
or a metallic pen, when changing the battery.
• Do not throw the battery into fire or expose to
heat.
• Remove battery immediately and stop using
the machine if you notice abnormal odor, heat,
discoloration, deformation or anything
unusual while using or storing it.
CAUTION
• Remove the battery if you do not intend to use
the dual purpose stylus for an extended period
of time.
• Do not set the positive and negative ends of
the battery in the wrong direction.
USING THE PROJECTOR
Sewing Basics
95
2
c
Close the lid.
Operating the Projector with the
Dual Purpose Stylus
Press the button to light the hard point of the dual
purpose stylus. After the built-in camera detects
the light, you can operate the projector with the
dual purpose stylus.
a Button
Using the Dual Purpose Stylus
Holder
Attach the dual purpose stylus holder to keep the
dual purpose stylus with the machine. The right
side of the holder can be used to hold the dual
purpose stylus.
Dual purpose stylus holder
a
Firmly insert the dual purpose stylus holder
into the hole.
b
With the flat part of the dual purpose stylus
facing to the machine, insert it into the dual
purpose stylus holder.
IMPORTANT
• Do not put your hand, fabric or any object
between the built-in camera and the light-
emitting part of the dual purpose stylus,
otherwise the built-in camera cannot detect
the light from the dual purpose stylus.
CAUTION
• Do not insert any object into the light-emitting
part of the dual purpose stylus, otherwise the
stylus may be damaged.
a
PROJECTOR FUNCTIONS (UTILITY STITCHES AND CHARACTER/DECORATIVE STITCHES)
96

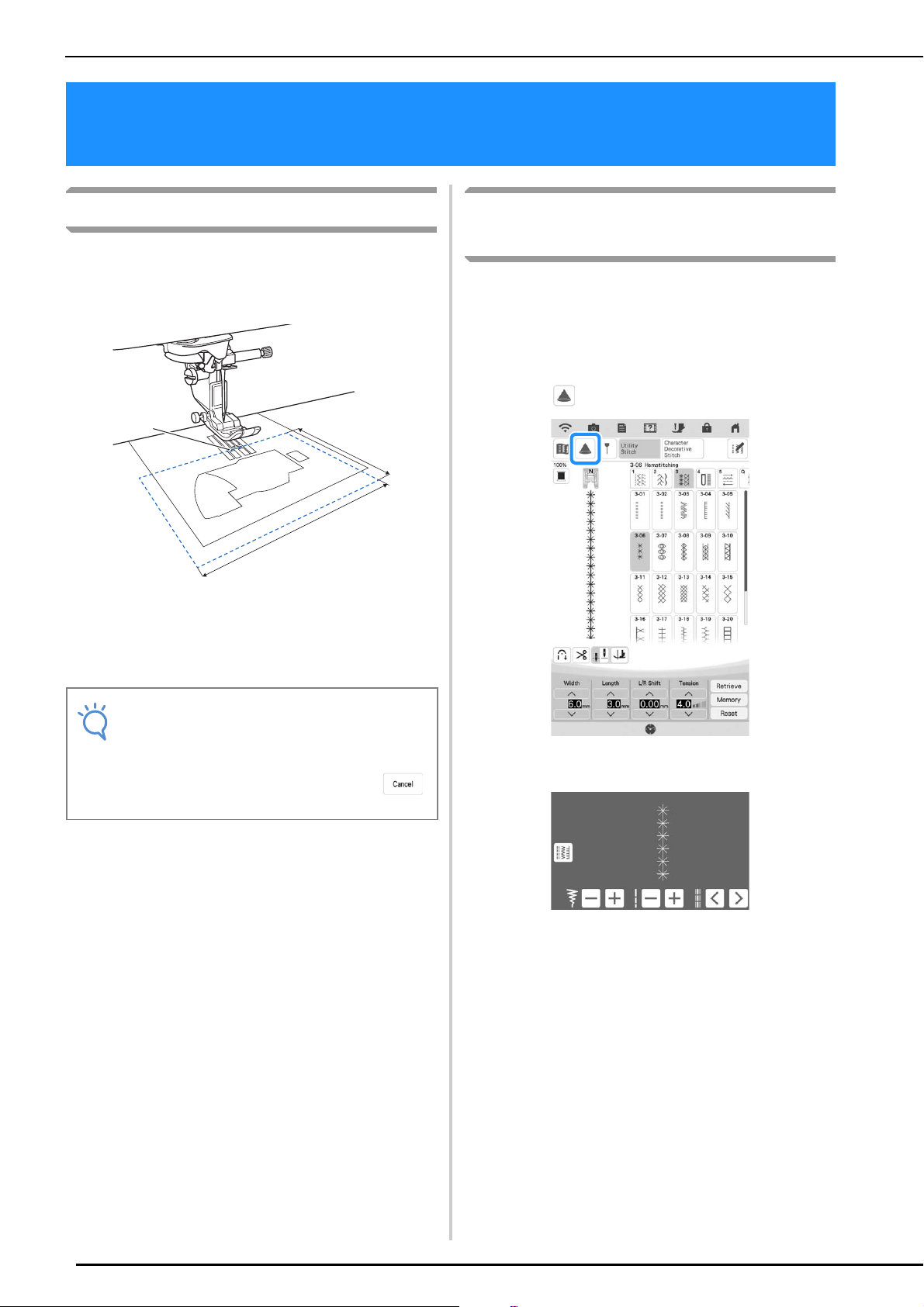

Projection Area of Projector
When the machine is sewing utility stitches or
character/decorative stitches, the projection area
of the projector is as shown below.
a Needle drop point
b Projection area
c 7.6 cm (3 inches)
d 12.7 cm (5 inches)
Projecting the Stitch Pattern with
the Projector
Using the projector, the selected stitch pattern can
be projected onto the fabric.
a
Select a stitch pattern.
b
Press .
The selected stitch pattern and the adjustment keys
are projected onto the fabric.
PROJECTOR FUNCTIONS (UTILITY STITCHES AND
CHARACTER/DECORATIVE STITCHES)
Note
• A stitch pattern cannot be selected from the
LCD while a stitch pattern is being
projected by the projector. In order to select
a stitch pattern from the LCD, press
in the screen.
a
b
c
d
PROJECTOR FUNCTIONS (UTILITY STITCHES AND CHARACTER/DECORATIVE STITCHES)
Sewing Basics
97
2
Selecting a Stitch Pattern with
the Dual Purpose Stylus
a
When the stitch pattern is projected onto
the fabric, press with the dual purpose
stylus.
A stitch pattern can be selected.
b
Press with the dual purpose stylus
until the desired stitch pattern is displayed,
and then press .
Editing a Stitch Pattern Selected
with the Dual Purpose Stylus
The stitch width, stitch length and “L/R Shift” can
be changed for the stitch pattern projected by the
projector.
a
Use the dual purpose stylus to adjust the
stitch width, stitch length and sewing
position.
a Stitch width setting
b Stitch length setting
c “L/R Shift” setting
d Press to select a different stitch pattern.
The specified settings are applied to the projected
stitch pattern.
Memo
• When the stitch selection screen appears
again in the LCD, the settings change to
those specified with the dual purpose
stylus.
• With twin needle sewing, the stitch width is
specified based on the left needle.
d
abc
PROJECTOR FUNCTIONS (UTILITY STITCHES AND CHARACTER/DECORATIVE STITCHES)
98
Projecting the Guidelines with
the Projector
With the guideline function, sewing can easily be
done by following the lines and marks projected
onto the fabric.
a
Press .
The guideline settings screen appears.
b
Specify the guideline settings.
Main guideline
a If the guidelines will not be used, select “OFF”.
b Select the guideline whose settings are to be
specified.
c Select the length of the main guideline.
d Select the color of the main guideline.
e Specify the position of the main guideline.
f Press to finish specifying the guideline settings.
Sub guideline
a Select the color of the sub guideline.
b Specify the position of the sub guideline.
c Press to finish specifying the guideline settings.
Sub guideline
a Select the color of the sub guideline.
b Specify the grid size of the sub guideline.
a
b
c
d
e
f
Memo
• When or is selected, the position of
the sub guideline is based on the position of
the main guideline. When the position of the
sub guideline is changed, change the
position of the main guideline.
a
b
c
a
b
PROJECTOR FUNCTIONS (UTILITY STITCHES AND CHARACTER/DECORATIVE STITCHES)
Sewing Basics
99
2
Sub guideline
a Select the color of the sub guideline.
b Specify the angle of the sub guideline.
c Specify the seam allowance of the sub guideline.
a
b
c
PROJECTOR FUNCTIONS (UTILITY STITCHES AND CHARACTER/DECORATIVE STITCHES)
100
Chapter 3
Utility Stitches
SELECTING UTILITY STITCHES
102
■ Utility Stitch LCD Screen
Press a key with your finger to select the stitch pattern, to select a machine function, or to select an
operation indicated on the key.
* All key functions of the LCD are explained in the “Key Functions” table on the following page.
SELECTING UTILITY STITCHES
No. Display Key Name Explanation Page
a Stitch pattern display
size
Shows the approximate size of the stitch pattern selected.
: Nearly the same size as the sewn stitch pattern
* The actual size of the sewn stitch pattern may differ depending on the
type of fabric and thread that is used.
105
b Presser foot display Shows the presser foot code. Attach the presser foot indicated in this
display before sewing.
72
c Selected stitch
display
Shows the name and code number of the selected stitch. 105
d Stitch preview Shows a preview of the selected stitch. When shown at 100%, the stitch
appears in the screen at nearly its actual size. Press to display the
stitch preview and the camera view together to check how the stitch will be
sewn on the actual fabric.
92, 105
e Stitch selection
screen
Press the key for the stitch pattern you want to sew. Use
to change to different stitch
groups.
105
f Scroll bar Slide the scroll bar to move the pages of stitch selection screen. 104
a
b
d
c
e
f
SELECTING UTILITY STITCHES
Utility Stitches
103
3

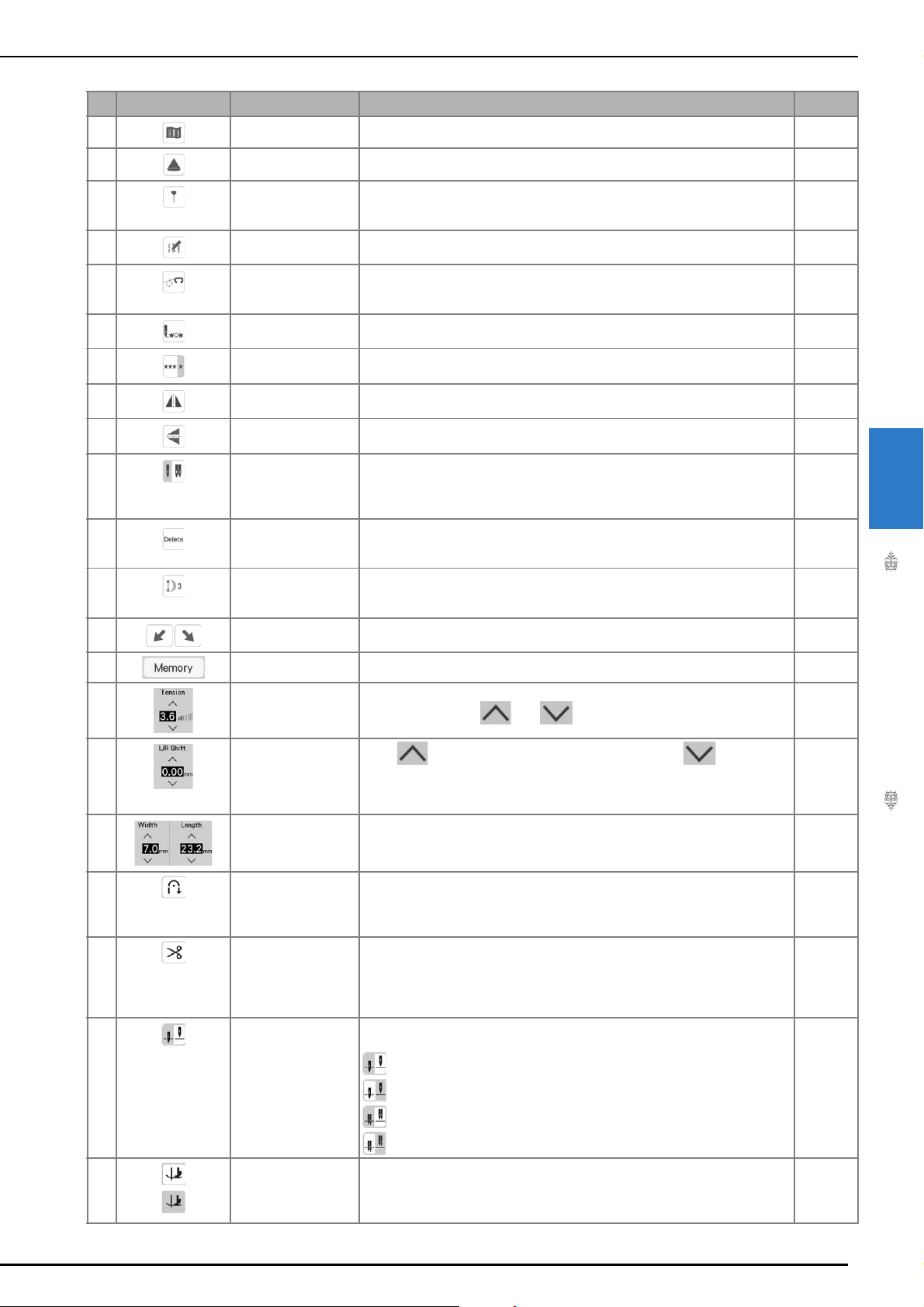

■ Key Functions
Note
• Editing function keys are found after pressing .
No. Display Key Name Explanation Page
a Image key Press this key to display an enlarged image of the selected stitch pattern. 106
b Projector key Press this key to use projector functions. 96
c Guideline marker key Press this key to display or set the guideline marker for the sewing line.
The guideline marker makes quilt piecing or aligning stitching on the fabric
edge easier.
98
d Utility stitch key Press this key to select a straight stitch, zigzag stitch, buttonhole, blind hem
stitch, or other stitches commonly used in garment construction.
105
e Character/Decorative
stitch key
Press this key to select character or decorative stitch patterns. 158
f Edit key Press this key to display editing function keys on the screen. 166
g Free motion mode
key
Press this key to enter free motion sewing mode.
The presser foot is raised to an appropriate height and the feed dog is lowered
for free motion quilting.
126
h Back to beginning key When sewing is stopped, press this key to return to the beginning of the stitch. 106
i Single/Repeat sewing
key
Press this key to choose single stitches or continuous stitches. 106
j Mirror image key Press this key to create a mirror image of the selected stitch pattern. If the key
display is light gray, a mirror image of the selected stitch pattern cannot be
sewn.
105
k Needle mode
selection key (single/
double)
Press this key to select twin needle sewing mode. The sewing mode changes
between single needle mode and twin needle mode each time you press the
key. If the key display is light gray, the selected stitch pattern cannot be sewn
in the twin needle mode.
64
l Slit length key Press this key to manually set the buttonhole length when a buttonhole stitch is
selected.
144
m Retrieve key Press this key to retrieve a saved stitch pattern. 107
n Manual memory key Change the stitch pattern settings (zigzag width and stitch length, thread
tension, automatic thread cutting or automatic reinforcement stitching, etc.),
then save them by pressing this key. Five sets of settings can be saved for a
single stitch pattern.
107
o Reset key Press this key to return the selected stitch pattern saved settings to the default
settings.
85-87
v
c
g
l
m
n
o
p
s
d e
f
i
h
k
j
qr
t
u
a
w
b
SELECTING UTILITY STITCHES
104

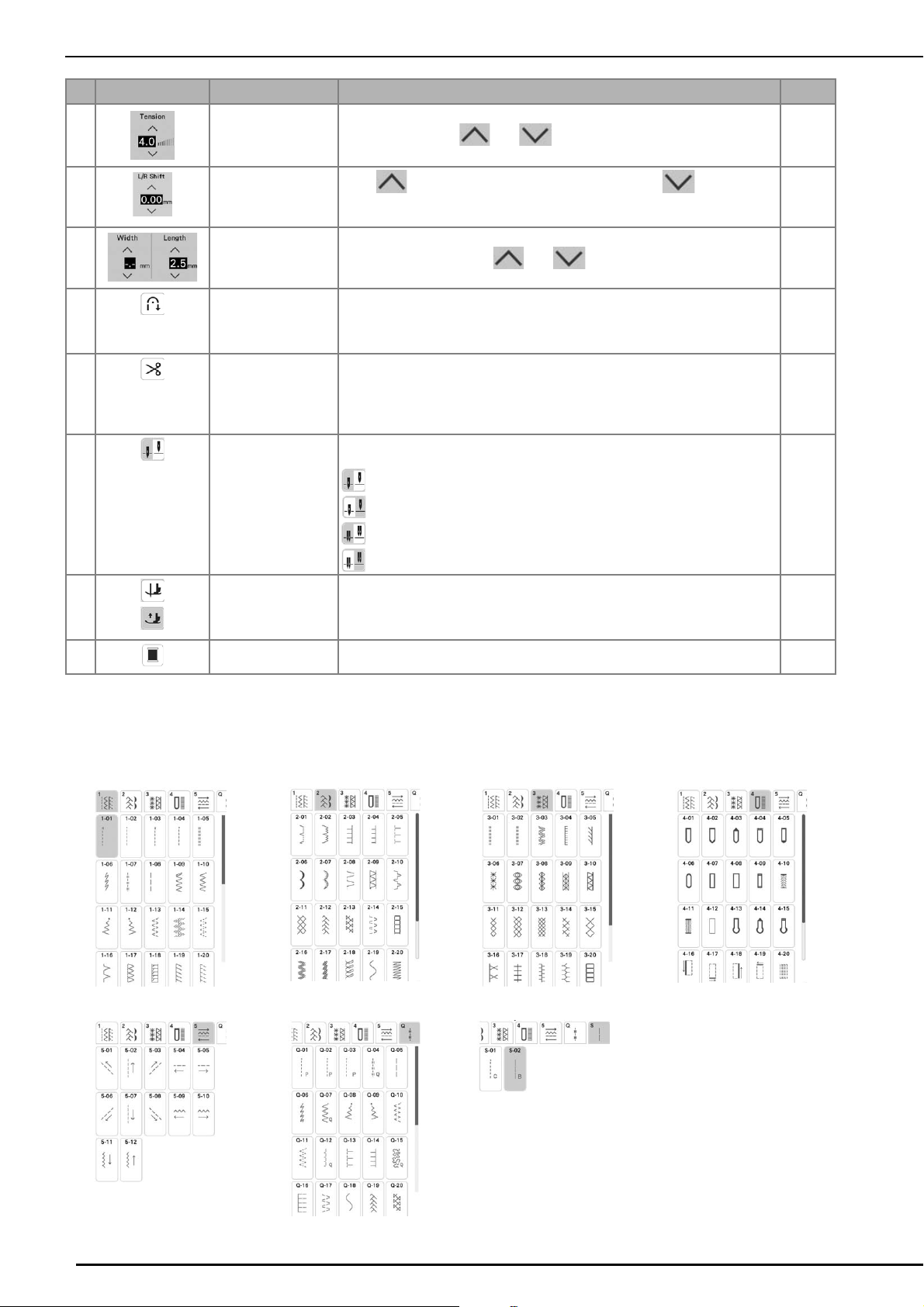

■ Stitch Selection Screens
There are seven categories of Utility Stitches.
p Thread tension key Shows the automatic thread tension setting of the currently selected stitch
pattern. You can use and to change the thread tension settings.
87
q “L/R Shift” key
Press to shift the stitch pattern to the right or press to shift the
stitch pattern to the left. This feature is not available for all stitch patterns. Only
those applicable will be shifted. The machine default setting is highlighted.
86
r Stitch width and
stitch length key
Shows the zigzag width and stitch length settings of the currently selected
stitch pattern. You can use and to adjust the zigzag width and
stitch length settings.
85, 86
s Automatic
reinforcement stitch
key
Press this key to use the automatic reinforcement stitching (reverse stitching)
setting. If you select this setting before sewing, the machine will automatically
sew reinforcement stitches at the beginning and end of sewing (depending on
the stitch pattern, the machine may sew reverse stitches).
79
t Automatic thread
cutting key
Press this key to set the automatic thread cutting function. Set the automatic
thread cutting function before sewing to have the machine automatically sew
reinforcement stitches at the beginning and end of sewing (depending on the
stitch pattern, the machine may sew reverse stitches) and trim the threads after
sewing.
88
u Needle position
setting key
Press this key to select the needle stop position to be up or down. You can also
check the needle mode setting (single or twin).
Single needle/down position
Single needle/up position
Twin needle/down position
Twin needle/up position
64, 89
v Pivot key / Auto Up
key
Press this key to select the pivot function. When the pivot function is selected,
stopping the machine lowers the needle and slightly raises the presser foot
automatically. In addition, when sewing is restarted, the presser foot is
automatically lowered.
89
w Thread color change
key
Press this key to change the thread color displayed on the screen. 106
Straight/Overcasting Decorative Stitches Heirloom Stitches Buttonholes/Bar tacks
Multi-directional Sewing Quilting Stitches Other stitches
No. Display Key Name Explanation Page
SELECTING UTILITY STITCHES
Utility Stitches
105
3
Selecting a Stitch
a
Turn the main power to ON and press
to display the utility stitches.
Either “1-01 Straight stitch (Left)” or “1-03 Straight
stitch (Middle)” is selected, depending on the setting
selected in the settings screen.
b
Use to
select the category you want.
c
Press the key of the stitch you want to sew.
■ Using the Mirror Image Key
Depending on the type of utility stitch you select,
you may be able to sew a horizontal mirror image of
the stitch.
If is lit when you select a stitch, it will be
possible to make a mirror image of the stitch.
Press to create a horizontal mirror image of the
selected stitch.
The key will display as .
Memo
• Swipe the key of a category or stitch pattern
sideways to display hidden categories.
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
Note
• If is light gray after you select a stitch,
you cannot create a horizontal mirror image
of the selected stitch due to the type of
stitch or type of presser foot recommended
(this is true of buttonholes, multi-directional
sewing, and others).
SELECTING UTILITY STITCHES
106

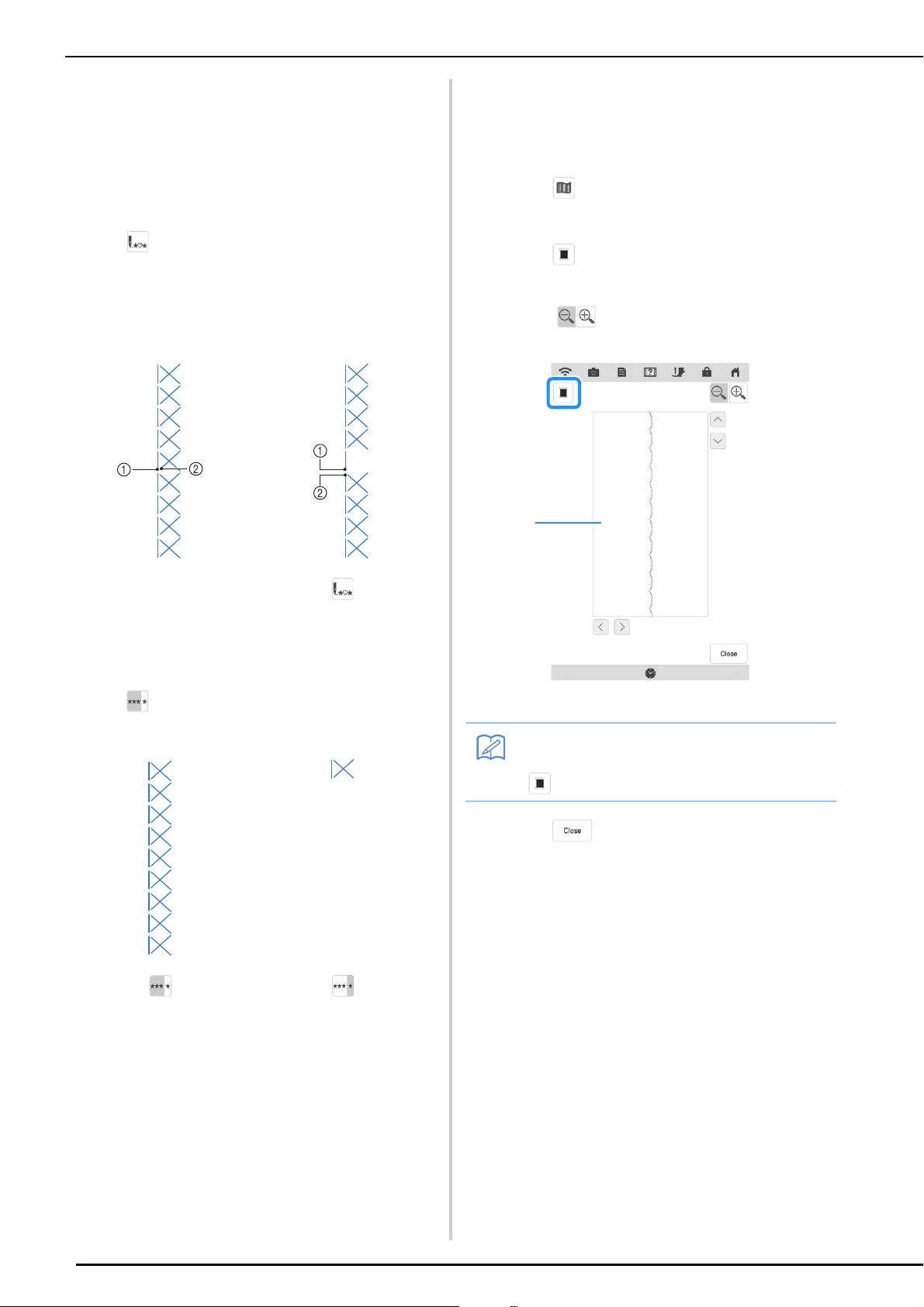

■ Returning to the Beginning of the
Stitch
Even if you stopped stitching while sewing, you can
return to the beginning of the stitch pattern. This
function is useful after trial sewing or when the
stitching is sewn incorrectly.
Press before start sewing, to return to the
beginning of the stitch.
a Stop stitching
b Re-start stitching
■ Sewing Continuous/Single Stitch
Sewing
Press to select continuous sewing or single stitch
sewing.
■ Using the Image Key
You can display an image of the selected stitch. You
can check and change the colors of the image of the
screen.
a
Press .
An image of the selected stitch is displayed.
b
Press to change the thread color of the
stitch on the screen.
* Press to display an enlarged image of the
stitch.
a Stitch screen
c
Press to go back to the original
screen.
Memo
• The color changes every time you press
.
a
SELECTING UTILITY STITCHES
Utility Stitches
107
3
Saving Your Stitch Settings
The settings for the zigzag stitch width, stitch
length, thread tension, automatic thread cutting,
automatic reinforcement stitching, etc., are preset
in the machine for each stitch. However, if you
have specific settings that you wish to reuse later
for a stitch, you can change the settings so that
they can be saved for that stitch. Five sets of
settings can be saved for a single stitch.
■ Saving Settings
a
Select a stitch. (Example: )
b
Specify your preferred settings.
c
Press .
The settings are saved and the original screen
automatically appears.
■ Retrieving Saved Settings
a
Select a stitch.
b
Press .
c
Press the numbered key of the settings to be
retrieved.
* Press to return to the original screen without
retrieving settings.
a Numbered keys
d
Press .
The selected settings are retrieved, and the original
screen automatically appears.
Memo
• If you try to save settings when there are
already 5 sets of settings saved for a stitch,
the message “The pockets are full. Delete a
pattern” will appear. Close the message
and delete a setting referring to page 107.
Memo
• When a stitch is selected, the last settings
retrieved are displayed. The last settings
retrieved are retained even if the machine
was turned off or a different stitch was
selected.
Memo
• To save new settings when there are
already 5 sets of settings saved for a stitch,
press . Press the numbered key of
the setting to be deleted. Press ,
press and then . The new
setting will be saved in place of the recently
deleted setting.
• You can delete all the saved settings by
pressing .
a
SEWING THE STITCHES
108

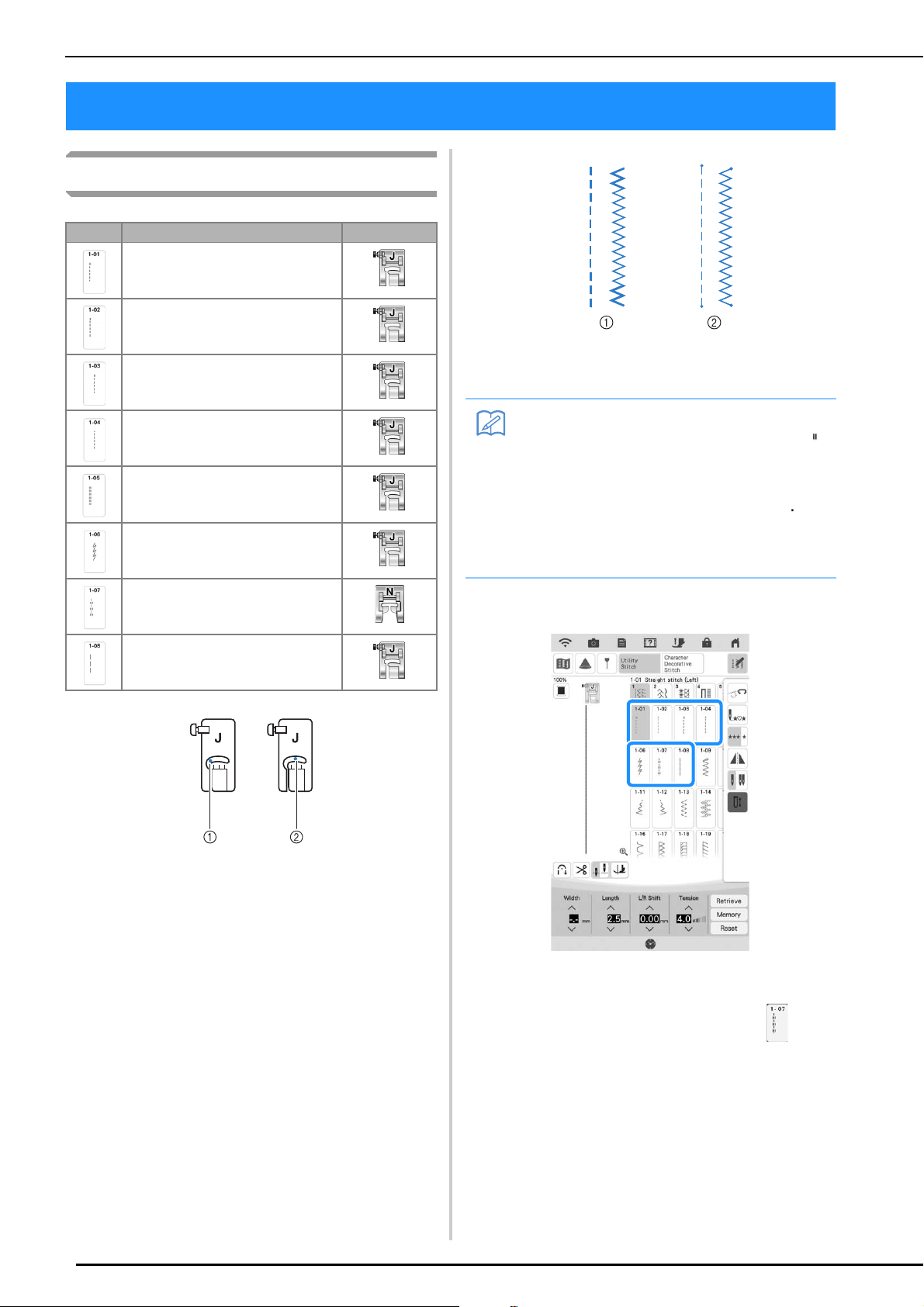

Straight Stitches
a Left needle position
b Middle needle position
a Reverse stitch
b Reinforcement stitch
a
Select a stitch.
b
Attach presser foot “J”.
* Attach presser foot “N” when you select .
SEWING THE STITCHES
Stitch Stitch name Presser foot
Straight stitch (Left)
Straight stitch (Left)
Straight stitch (Middle)
Straight stitch (Middle)
Triple stretch stitch
Stem stitch
Decorative stitch
Basting stitch
Memo
• If the selected stitch has a double mark “ ”
at the top of the key display, you can sew
reverse stitches holding the “Reverse
Stitch” button (page 79).
• If the selected stitch has a dot mark “ ” at
the top of the key display, you can sew
reinforcement stitches holding the
“Reinforcement Stitch” button.
SEWING THE STITCHES
Utility Stitches
109
3
c
Hold the thread tail and fabric with your
left hand, and push the “Needle Position”
button with your right hand to insert the
needle into the fabric.
a Sewing start position
d
Lower the presser foot, and hold the
“Reverse Stitch” button or the
“Reinforcement Stitch” button to sew 3-4
stitches.
The machine sews reverse stitches or reinforcement
stitches.
e
Press the “Start/Stop” button to sew
forward.
a Reverse stitches or reinforcement stitches
The machine will begin sewing slowly.
f
When sewing is completed, hold the
“Reverse Stitch” button or the
“Reinforcement Stitch” button to sew 3-4
reverse stitches or reinforcement stitches at
the end of the seam.
g
After sewing, press the “Thread Cutter”
button to trim the threads.
CAUTION
• Be sure the needle does not strike a basting
pin, or any other objects, during sewing. The
thread could tangle or the needle could break,
causing injury.
Memo
• When the automatic thread cutting and
automatic reinforcement stitch keys on the
screen are selected, reverse stitches or
reinforcement stitches will be sewn
automatically at the beginning of sewing
when the “Start/Stop” button is pressed.
Press the “Reverse Stitch” button or the
“Reinforcement Stitch” button to sew
reverse stitches or reinforcement stitches
and trim the thread automatically at the end
of sewing.
SEWING THE STITCHES
110
■ Changing the Needle Position (Left
or Middle Needle Position Stitches
Only)
When you select left or middle needle position
stitches, you can use and in the L/R Shift
display to change the position of the needle. Match
the distance from the right edge of the presser foot to
the needle with the stitch width, then align the edge
of the presser foot with the edge of the fabric during
sewing for an attractive finish.
a Stitch width
Example: Left/Middle needle position stitches
■ Aligning the Fabric with a Mark on
the Needle Plate or Bobbin Cover
(with Mark)
While sewing, align the edge of the fabric with the
16 mm (approx. 5/8 inch) mark on the needle plate
or bobbin cover (with mark) depending on the
needle position (left or middle (center) needle
position stitches only).
For stitches with a left needle position
(Stitch width: 0.0 mm)
a Seam
b Presser foot
c Centimeters
d Inches
e Needle plate
f 16 mm (5/8 inch)
For stitches with a middle (center) needle position
(Stitch width: 3.5 mm)
a Seam
b Presser foot
c Inches
d Bobbin cover (with mark)
e 16 mm (5/8 inch)
12.0 mm
(approx.
15/32 inch)
8.5 mm
(approx.
21/64 inch)
6.5 mm
(approx. 1/
4 inch)
5.0 mm
(approx.
13/64 inch)
a
b
c
d
e
f
a
b
c
e
d
SEWING THE STITCHES
Utility Stitches
111
3
■ Using the Straight Stitch Needle
Plate and the Straight Stitch Foot
The straight stitch needle plate and the straight stitch
foot can only be used for straight stitches (middle
needle position stitches). Use the straight stitch
needle plate and the straight stitch foot when sewing
thin fabrics or when sewing small pieces which tend
to sink into the hole of the regular needle plate
during sewing. The straight stitch foot is perfect to
reduce puckering on lightweight fabrics. The small
opening on the foot provides support for the fabric
as the needle travels through the fabric.
a
Press the “Needle Position” button to raise
the needle and turn the main power to OFF
or press to lock all keys and buttons.
b
Remove the needle and the presser foot
holder (refer to page 69, 73).
c
Remove the flat bed attachment or the
embroidery unit if either are attached.
d
Slide the needle plate lever toward you.
a Slide toward you.
The needle plate opens.
e
Slide out the regular needle plate with your
right hand to remove it.
f
Insert the tabs on the straight stitch needle
plate into the notches in the machine.
a Tabs
b Notches
c Round hole
g
Press down on the right side of the straight
stitch needle plate to secure it.
h
Select any of the straight stitches.
a 2.25 mm (1/8 inch)
b 4.25 mm (3/16 inch)
c 6.25 mm (1/4 inch)
d 8.5 mm (5/16 inch)
CAUTION
• Always use the straight stitch foot in
combination with the straight stitch needle
plate.
a
Note
• Selecting other stitches will cause an error
message to be displayed.
• After installing straight stitch needle plate,
you must turn the machine OFF, then back
to ON to reset the straight stitch settings.
a
c
b
SEWING THE STITCHES
112
i
Insert needle and attach the straight stitch
foot.
a Notch
b Pin
j
Press to unlock all keys and buttons,
and then start sewing.
* After sewing, make sure to remove the straight stitch
needle plate and the straight stitch foot, and reinstall
the regular needle plate and the presser foot “J”.
Dart Seam
a
Select and attach presser foot “J”.
b
Sew a reverse stitch at the beginning of the
dart and then sew from the wide end to the
other end without stretching the fabric.
a Basting
c
Cut the thread at the end leaving 50 mm
(approx. 1-15/16 inches), and then tie both
ends together.
* Do not sew a reverse stitch at the end.
d
Insert the ends of the thread into the dart
with a hand sewing needle.
e
Iron the dart to one side so that it is flat.
Memo
• When using the straight stitch needle plate,
many straight stitches become middle
needle position stitches. If a straight stitch
is selected that is not applicable for use
when the straight stitch needle plate is
attached, an error message will be
displayed to prevent the use of this stitch.
You cannot change the needle position
using the L/R Shift.
CAUTION
• Slowly rotate the handwheel toward you
(counterclockwise) before sewing and make
sure that the needle is not contacting the
straight stitch foot and straight stitch needle
plate.
Memo
• To prevent puckering on fine fabrics, use a
fine needle, size 75/11, and a short stitch
length. For heavier fabrics, use a heavier
needle, size 90/14, and longer stitches.
SEWING THE STITCHES
Utility Stitches
113
3
Gathering
Use on waists of skirts, sleeves of shirts, etc.
a
Select a straight stitch and attach presser
foot “J”.
b
Set the stitch length to 4.0 mm (approx. 5/
32 inch) and the thread tension to
approximately 2.0 (weaker tension).
c
Pull the bobbin and upper threads out by 50
mm (approx. 1-15/16 inches) (page 59).
a Upper thread
b Bobbin thread
c About 50 mm (approx. 1-15/16 inches)
d
Sew two rows of straight stitches parallel to
the seam line, then trim excess thread
leaving 50 mm (approx. 1-15/16 inches).
a Seam line
b 10 to 15 mm (approx. 3/8 inch to 9/16 inch)
c About 50 mm (approx. 1-15/16 inches)
e
Pull the bobbin threads to obtain the
desired amount of gather, then tie the
threads.
f
Smooth the gathers by ironing them.
g
Sew on the seam line and remove the
basting stitch.
Flat Fell Seam
Use for reinforcing seams and finishing edges
neatly.
a
Select and attach presser foot “J”.
b
Sew the finish line, then cut half of the seam
allowance from the side on which the flat
fell seam will lie.
* When the automatic thread cutting and automatic
reinforcement stitching are preset, reverse stitches
will be sewn automatically at the beginning of
sewing. Press the “Reinforcement Stitch” button to
sew a reinforcement stitch and trim the thread
automatically at the end of sewing.
SEWING THE STITCHES
114
a About 12 mm (approx. 1/2 inch)
b Wrong side
c
Spread the fabric out along the finish line.
a Finish line
b Wrong side
d
Lay both seam allowances on the side of the
shorter seam (cut seam) and iron them.
a Wrong side
e
Fold the longer seam allowance around the
shorter one, and sew the edge of the fold.
a Wrong side
Finished flat fell seam
a Surface
Pintuck
a
Mark along the folds on the wrong side of
the fabric.
a Wrong side
b
Turn the fabric and iron the folded parts
only.
a Surface
c
Select and attach presser foot “I”.
SEWING THE STITCHES
Utility Stitches
115
3
d
Sew a straight stitch along the fold.
* When the automatic thread cutting and automatic
reinforcement stitching are preset, reverse stitches
will be sewn automatically at the beginning of
sewing. Press the “Reinforcement Stitch” button to
sew a reinforcement stitch and trim the thread
automatically at the end of sewing.
a Width for pintuck
b Wrong side
c Surface
e
Iron the folds in the same direction.
SEWING THE STITCHES
116
Zigzag Stitches
Zigzag stitches are useful for overcasting,
appliqué, patchwork, and many other
applications.
Select a stitch, and attach presser foot “J”.
If the stitch which you select has a double mark
“ ” at the top of the key display, you can sew
reverse stitches by holding the “Reverse Stitch”
button. (page 79)
If the stitch which you select has a dot mark “ ” at
the top of the key display, you can sew
reinforcement stitches by holding the
“Reinforcement Stitch” button (page 79).
a
Select a stitch.
b
Attach presser foot “J”.
■ Overcasting (Using a Zigzag Stitch)
Sew the overcasting along the edge of the fabric
while positioning the right-hand side needle drop
point just outside the edge of the fabric.
a Needle drop position
■ Appliqué (Using a Zigzag Stitch)
Attach the appliqué material using a temporary
spray adhesive or basting, and then sew it.
* Sew a zigzag stitch while positioning the right-hand
side needle drop point just outside the edge of the
fabric.
■ Patchwork (for Crazy Quilt)
Turn back the desired width of fabric and position it
over the lower fabric, then sew so that the stitch
bridges both pieces of fabric.
■ Sewing Curves (Using a Zigzag
Stitch)
Shorten the stitch length setting to obtain a fine
stitch. Sew slowly, keeping the seams parallel with
the fabric edge as you guide the fabric around the
curve.
Stitch Stitch name Presser foot
Zigzag stitch
Zigzag stitch
Zigzag stitch (Right)
Zigzag stitch (Left)

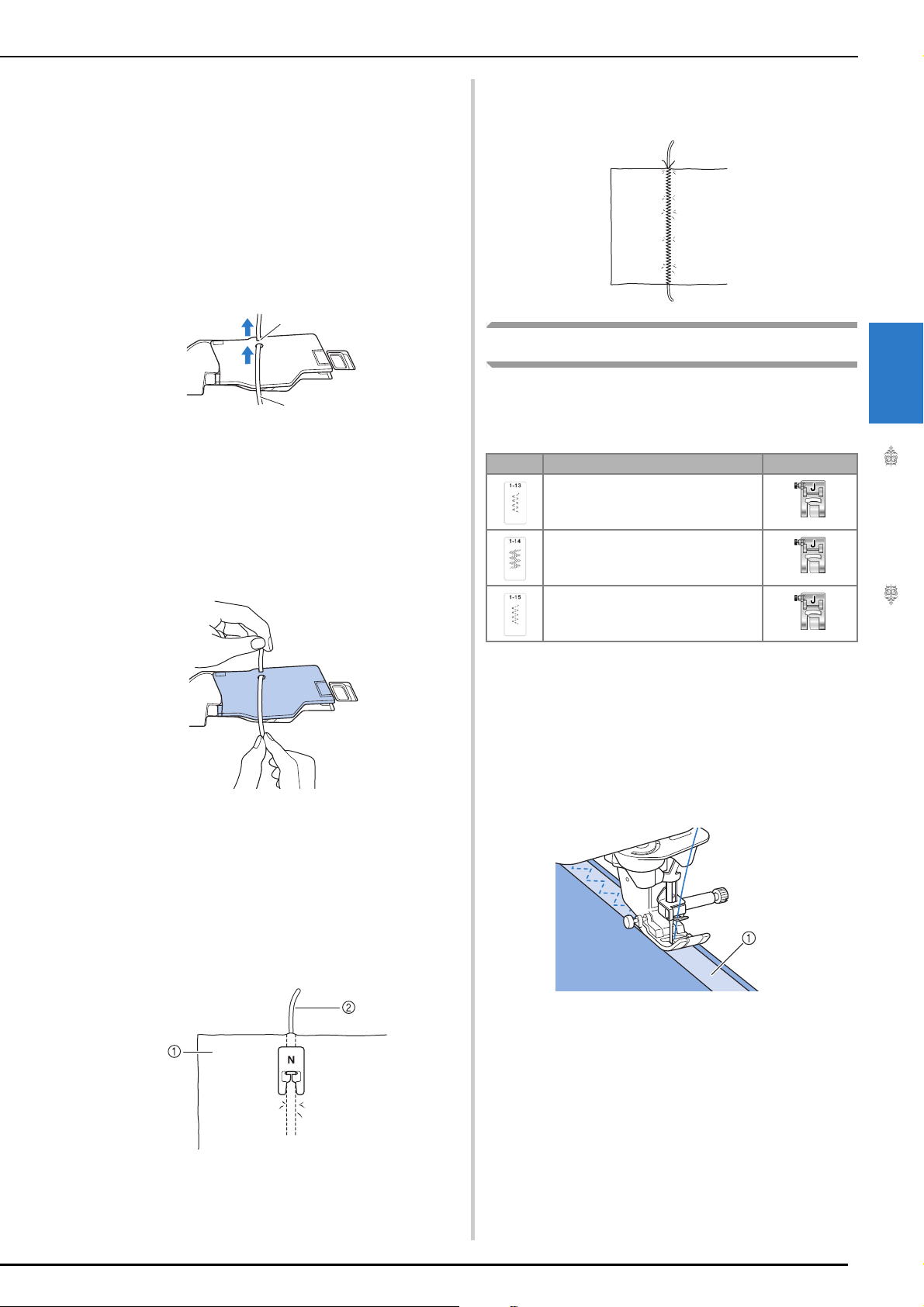

SEWING THE STITCHES
Utility Stitches
117
3
■ Cord Guide Bobbin Cover (Using a
Zigzag Stitch)
a
Remove the bobbin cover from the machine
(page 58).
b
Thread the gimp thread through the hole in
the cord guide bobbin cover from bottom
to top. Position the thread in the notch at
the back of the cord guide bobbin cover.
a Notch
b Gimp thread
c
Snap the cord guide bobbin cover into
place, making sure that the gimp thread can
be fed freely.
* Make sure there are no restrictions when feeding the
thread.
d
Set the zigzag width from 2.0-2.5 mm
(approx. 1/16 - 3/32 inch).
e
Attach presser foot “N”.
f
Position the fabric right side up on top of
the cord and place the cord to the rear of
the machine under the presser foot.
a Fabric (right side)
b Gimp thread
g
Lower the presser foot and start sewing to
make a decorative finish.
Elastic Zigzag Stitches
Use elastic zigzag stitches for tape attaching,
overcasting, darning, or a wide variety of other
uses.
a
Select a stitch.
b
Attach presser foot “J”.
■ Tape Attaching
While stretching the tape flat, sew it to the fabric.
a Tape
a
b
Stitch Stitch name Presser foot
2 steps elastic zigzag
2 steps elastic zigzag
3 steps elastic zigzag
SEWING THE STITCHES
118
■ Overcasting
Use this stitch to sew overcasting on the edge of
stretch fabrics. Sew the overcasting along the edge
of the fabric while positioning the right-hand side
needle drop point just outside the edge of the fabric.
Overcasting
Use for the edge of seams in skirts or trousers, and
the edge of all cuttings. Use presser foot “G”,
presser foot “J”, or the side cutter attachment
depending on the kind of overcasting stitch you
select.
■ Overcasting Using Presser Foot “G”
a
Select a stitch and attach presser foot “G”.
b
Lower the presser foot so that the presser
foot guide is set flush against the edge of the
fabric.
c
Sew along the presser foot guide.
a Guide
d
Press the “Start/Stop” button to stop sewing
when you are finished, and raise the presser
foot and needle to remove the fabric by
pulling it back.
Stitch Stitch name Presser foot
Overcasting stitch
Overcasting stitch
Overcasting stitch
CAUTION
• After the stitch width is adjusted, rotate the
handwheel toward you (counterclockwise).
Check that the needle does not touch the
presser foot. If the needle hits the presser foot,
the needle may break and cause injury.
a The needle should not touch the center bar
• If the presser foot is raised to its highest level,
the needle may strike the presser foot.
CAUTION
• Pull the fabric to the back of the machine after
finished sewing. By pulling the fabric to the
front or side, the center bar of the presser foot
“G” may break.
a Center bar
SEWING THE STITCHES
Utility Stitches
119
3

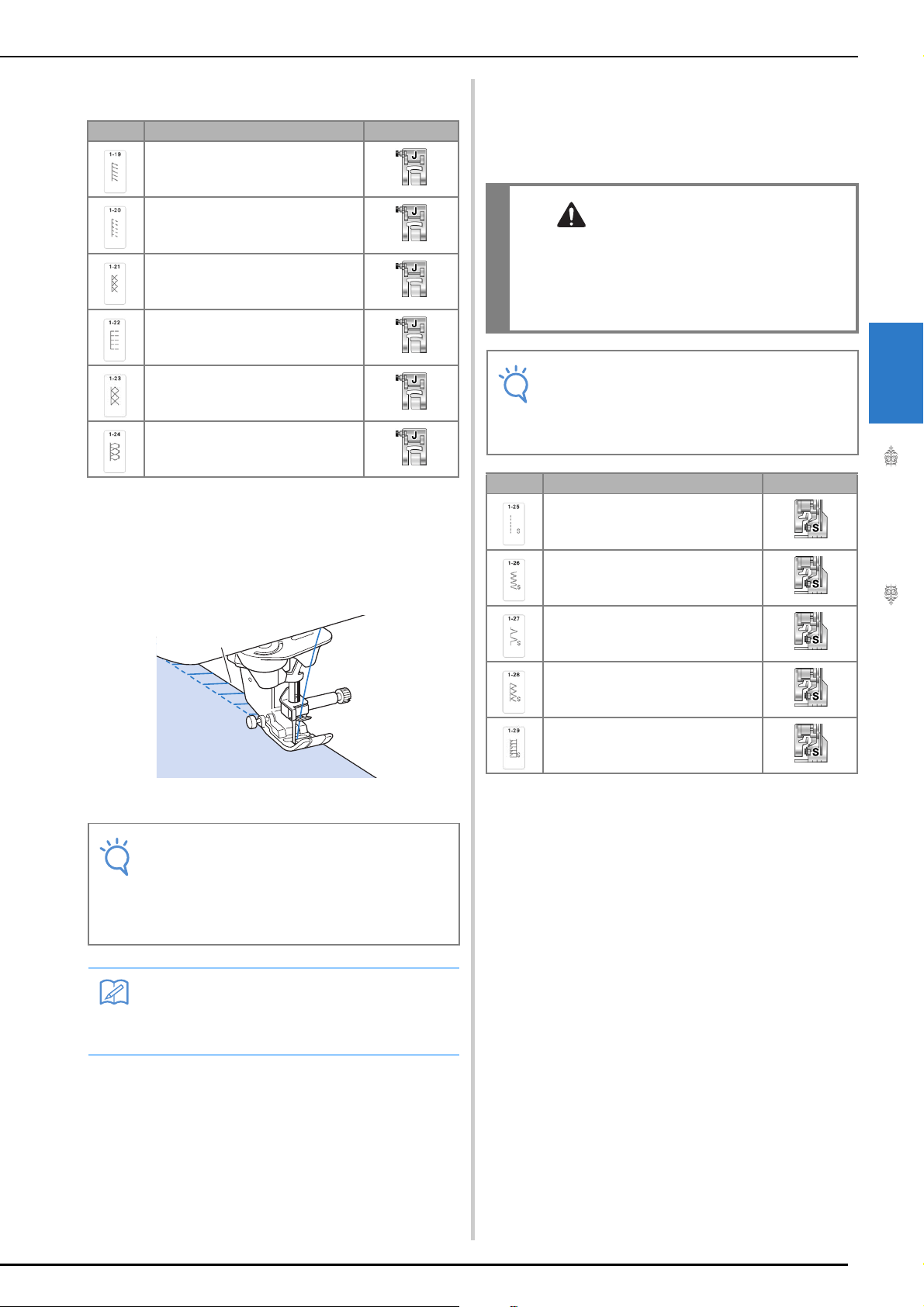

■ Overcasting Using Presser Foot “J”
a
Select a stitch and attach presser foot “J”.
b
Sew with the needle dropping slightly off
the edge of the fabric.
a Needle drop position
■ Overcasting Using the Side Cutter
(Sold Separately)
By using the side cutter, you can do overcasting
while cutting the fabric.
a
Select a stitch.
b
Follow the steps on page 72 to remove the
presser foot.
c
Thread the needle (page 61).
Stitch Stitch name Presser foot
Overcasting stitch
Overcasting stitch
Overcasting stitch
Overcasting stitch
Single diamond overcast
Single diamond overcast
Note
• Fine adjustment of the stitching on the
fabric can be done with “L/R Shift”. Before
sewing your project, be sure to sew trial
stitches using the same conditions as in the
actual project.
Memo
• For best results when sewing stretch
fabrics, decrease the pressure of the
presser foot.
a
CAUTION
• Recommended stitches are noted “S” in the
lower right corner, therefore sure to only
select one of these stitches listed below. Using
another stitch may cause the needle to hit the
presser foot and break, possibly causing injury.
Note
• Thread the needle manually when using the
side cutter, or only attach the side cutter
after threading the needle using the
“Automatic Threading” button.
Stitch Stitch name Presser foot
With side cutter
With side cutter
With side cutter
With side cutter
With side cutter
SEWING THE STITCHES
120

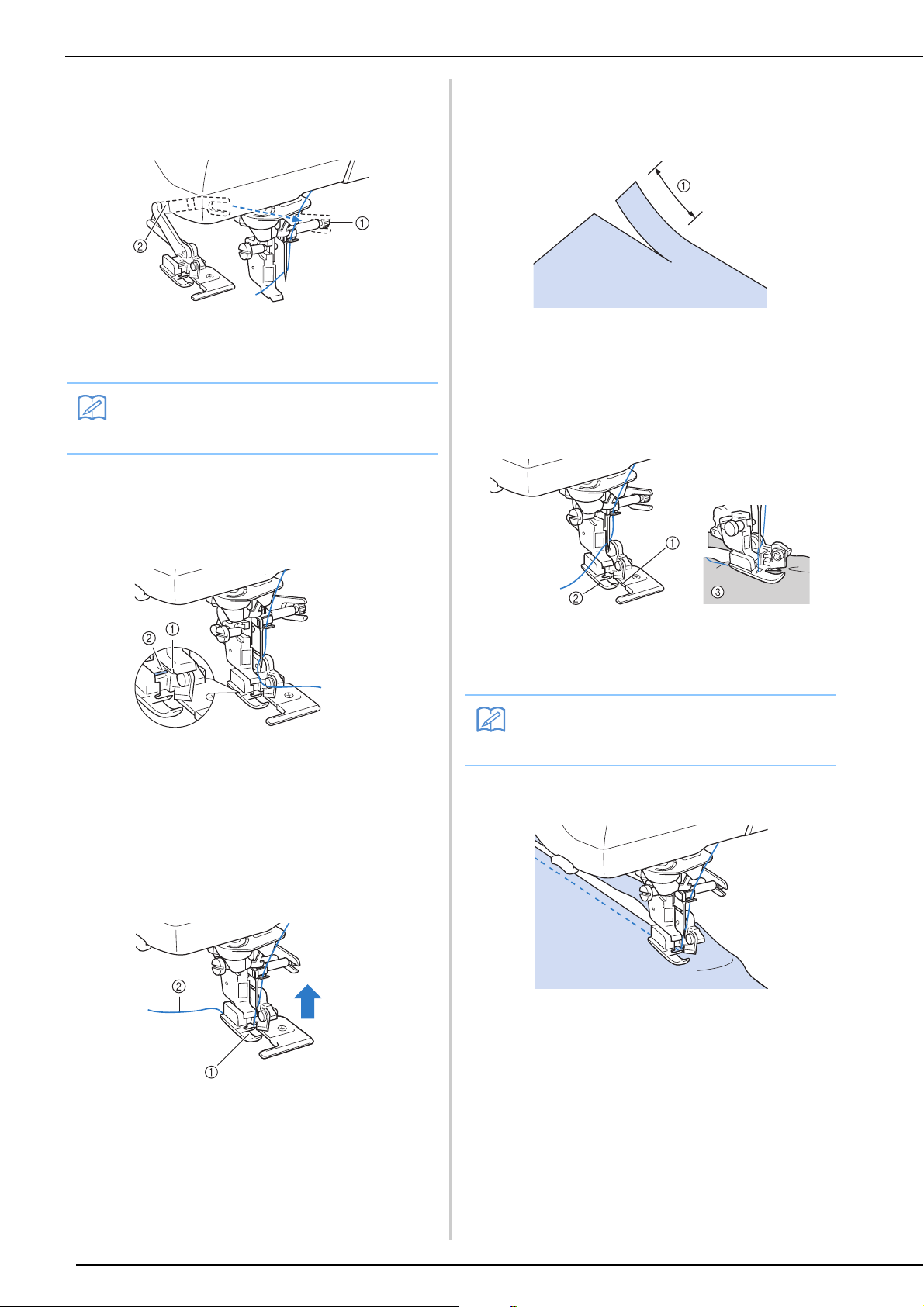

d
Position the fork on the side cutter’s
operating lever onto the needle clamp
screw.
a Needle clamp screw
b Operating lever
e
Position the side cutter so that the side
cutter pin is aligned with the notch in the
presser foot holder, and then lower the
presser foot.
a Notch in presser foot holder
b Pin
The side cutter is attached.
f
Raise the presser foot and pull out a long
section of the upper thread. Pass it below
the presser foot and pull it out in the fabric
feed direction.
a Presser foot
b Upper thread
g
Make a cut of approximately 20 mm
(approx. 3/4 inch) in the fabric.
a 20 mm (approx. 3/4 inch)
h
Position the fabric so that the right side of
the cut is on top of the guide plate and the
left side of the cut is underneath the presser
foot.
a Guide plate (lower knife)
b Presser foot
c Upper thread
i
Lower the presser foot and start.
A seam allowance is cut while the stitching is sewn.
Memo
• Make sure that the fork of the operating
lever is set onto the needle screw firmly.
Memo
• If the fabric is not positioned correctly, the
fabric will not be cut.
SEWING THE STITCHES
Utility Stitches
121
3
■ Sewing Straight Stitches While Using
the Side Cutter (Sold Separately)
The seam margin should be approximately 5 mm
(approx. 3/16 inch).
a Seam margin
Quilting
You can make beautiful quilts quickly and easily
with this machine. When making a quilt, you will
find it convenient to use the knee lifter and foot
controller to free your hands for other tasks
(“Using the Foot Controller” on page 78 and /or
“Using the Knee Lifter” on page 90).
The 30 quilting stitches Q-01 through Q-30 and
the utility stitches with “P” or “Q” indicated on
their key are useful for quilting.
The “P” or “Q” at the bottom of the key display
indicates that these stitches are intended for (“Q”)
quilting and (“P”) piecing.
• When using the side cutter, sew
between low and mid-speed and do
not touch the knives or operation
lever of the side cutter while sewing
to avoid equipment damage or
injury.
a Guide plate (lower knife)
b Upper knife
c Operation lever
Note
• If the width has been adjusted, rotate the
handwheel toward you (counterclockwise).
Check that the needle does not touch the
side cutter. If the needle touches the side
cutter, it might cause the needle to break.
Memo
• The fabric will not be cut if the whole fabric
is simply spread out underneath the presser
foot guide plate. Set the fabric as explained
in step
h from the previous section, and
then start sewing.
• One layer of 13 oz. denim can be cut.
• Clean the side cutter after use to avoid
having dust and scraps of thread build up in
the cutter area.
• Add a small amount of oil as required to the
cutting edge of the cutter.
Stitch Stitch name
Presser foot
Piecing stitch (Middle)
Piecing stitch (Right)
Piecing stitch (Left)
Hand-look quilting (Middle)
Basting stitch
SEWING THE STITCHES
122
Stem stitch
Quilting appliqué zigzag stitch
Zigzag stitch (Right)
Zigzag stitch (Left)
2 steps elastic zigzag
3 steps elastic zigzag
Quilting appliqué stitch
Shell tuck edge
Blanket stitch
Quilting stippling
Overcasting stitch
Tape attaching
Serpentine stitch
Feather stitch
Fagoting cross stitch
Couching stitch
Patchwork double overlock stitch
Smocking stitch
Rick-rack stitch
Stitch Stitch name
Presser foot
Decorative stitch
Decorative stitch
Hemstitching
Hemstitching
Single diamond overcast
Overcasting stitch
Piecing stitch (Right)
Piecing stitch (Middle)
Piecing stitch (Left)
Hand-look quilting
Quilting appliqué zigzag stitch
Quilting appliqué stitch
Quilting stippling
Memo
• When a stitch pattern in the quilting stitches
category (only quilting stitches marked with
“Q”) is selected, a finer stitch width can be
set than that available with stitch patterns in
other categories.
Stitch Stitch name
Presser foot
SEWING THE STITCHES
Utility Stitches
123
3
■ Piecing
Sewing two pieces of fabric together is called
piecing. When cutting pieces for quilt blocks, make
sure the seam allowance is 6.5 mm (approx. 1/4
inch).
a
Select or and attach presser foot “J”.
b
Align the edge of the fabric with the edge of
the presser foot, and start sewing.
* To sew a 6.5 mm (approx. 1/4 inch) seam allowance
along the right edge of the presser foot with
selected, the width should be set to 5.50 mm
(approx. 7/32 inch).
a 6.5 mm (approx. 1/4 inch)
* To sew a 6.5 mm (approx. 1/4 inch) seam allowance
along the left edge of the presser foot with
selected, the width should be set to 1.50 mm
(approx. 1/32 inch).
a 6.5 mm (approx. 1/4 inch)
* To change the needle position, use or in
the L/R Shift display.
■ Quilting
Sewing the quilt top, batting, and backing together is
called quilting. You can sew the quilt with the dual
feed foot to keep the quilt top, batting, and backing
from sliding. The dual feed foot has a motorized belt
that moves together with the feed dogs in the needle
plate during sewing.
For straight line quilting, use the dual feed foot and
the straight stitch needle plate. Always select a
straight stitch (middle needle position) when using
the straight stitch needle plate.
a
Select , or .
b
Attach the dual feed foot (page 74).
c
Place one hand on each side of the presser
foot to hold the fabric secure while sewing.
Memo
• Using a straight stitch (middle needle
position) makes it easier to sew smoothly
(page 108).
• In the case Q-01(center, at L/R Shift 3.5
mm) is selected, if the guideline marker is
set at 10.0 mm (3.5 mm plus 6.5 mm, close
to 1/4 inch), you can sew piecing by
referring to the guideline marker.
Memo
• Sew at slow to medium speed.
• Always check to be sure that your quilting
surface is securely basted before beginning
to sew. Specialized machine quilt needles
and threads are also available for machine
quilting.
SEWING THE STITCHES
124

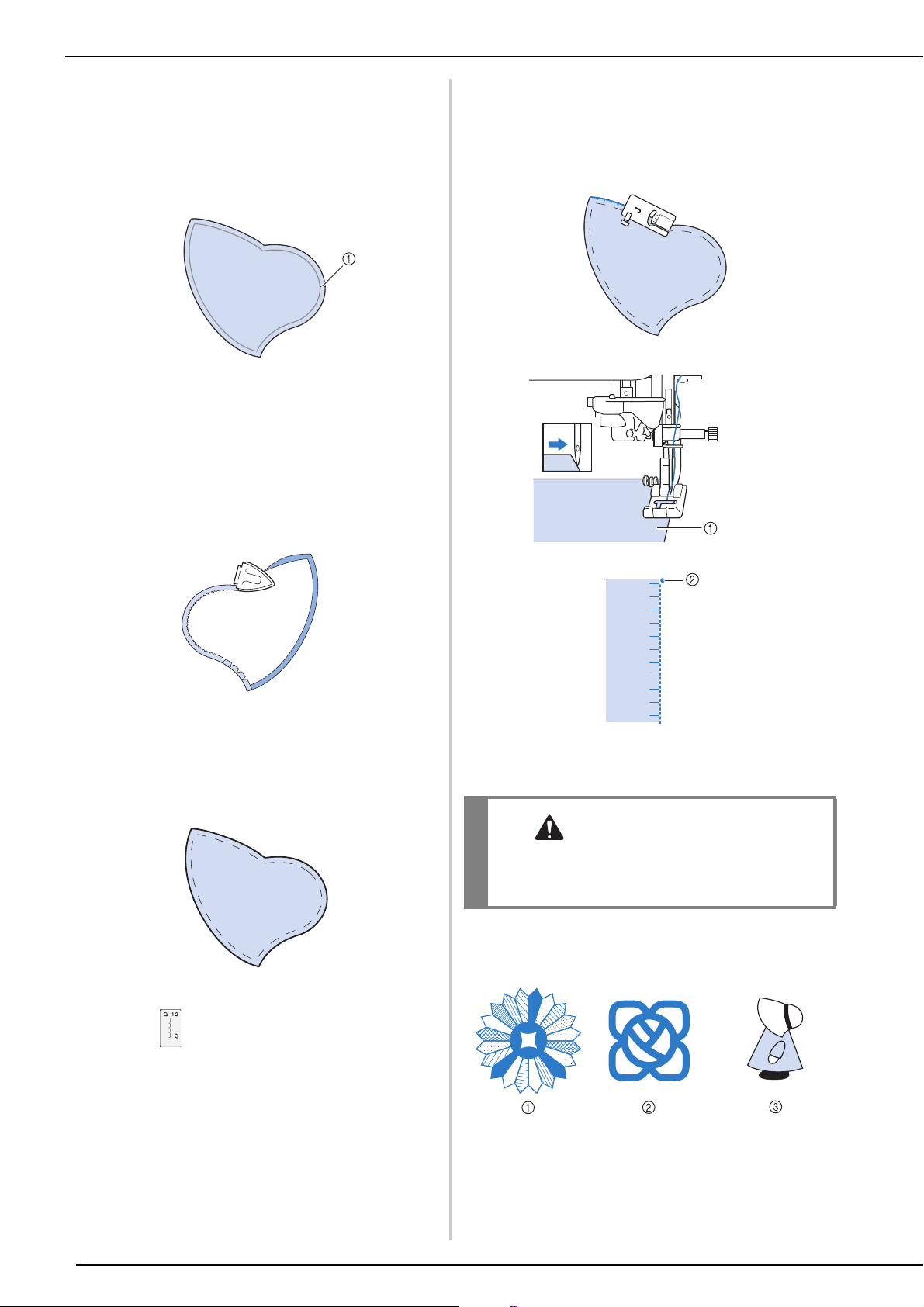

■ Appliqué
a
Trace the pattern onto the appliqué fabric
and then cut around it, leaving a 3 to 5 mm
(approx. 1/8 to 3/16 inch) seam allowance.
a Seam allowance: 3 to 5 mm
(approx. 1/8 to 3/16 inch)
b
Place a piece of stabilizer cut to the finished
size of the appliqué design onto the fabric,
and then fold over the seam margin using
an iron. Clip curves when necessary.
c
Turn the appliqué over, and attach the
stabilizer with basting pins or a basting
stitch.
d
Select and attach presser foot “J”.
e
Use the quilting appliqué stitch to attach
the appliqué. Sew around the edge while
dropping the needle as close to the edge as
possible.
a Appliqué
b Needle drop position
You can use the appliqué technique to attach
appliqué designs like the three pictured below.
CAUTION
• Be careful that the needle does not strike a
basting pin during sewing. Striking a pin can
cause the needle to break, resulting in injury.
a Dresden plate
b Stained glass
c Sunbonnet sue
SEWING THE STITCHES
Utility Stitches
125
3

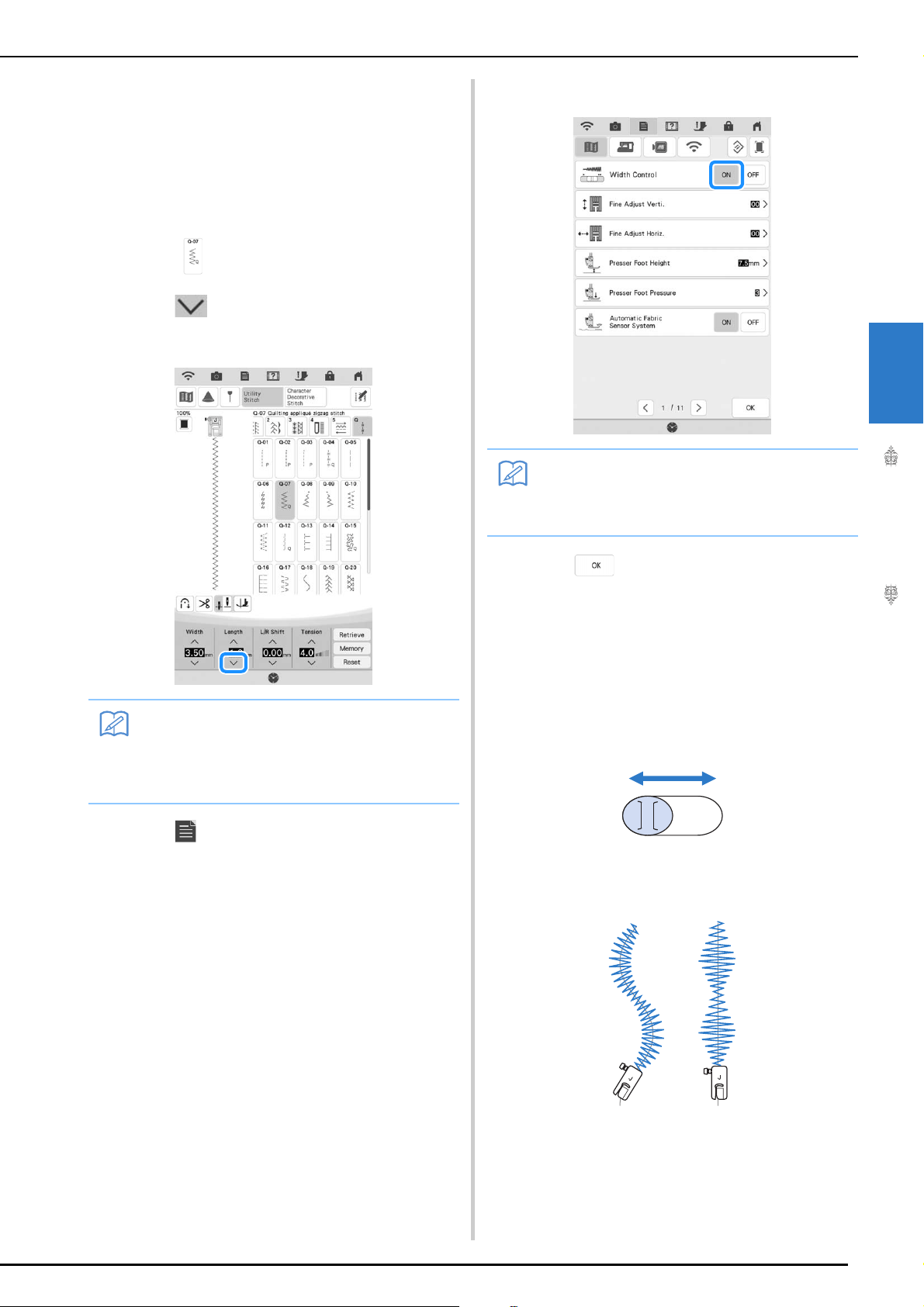

■ Quilting with Satin Stitches
For better fabric control, use the foot controller to
sew with satin stitches. Set the speed control slide to
control the stitch width to make subtle changes in
the stitch width during sewing.
a
Attach the foot controller (page 78).
b
Select and attach presser foot “J”.
c
Press in the length display to shorten
the stitch length.
d
Press to use the speed control slide to
control the stitch width.
e
Set the “Width Control” to “ON”.
f
Press .
The display will return to the original screen.
g
Start sewing.
* You can adjust the stitch width during sewing by
moving the sewing speed controller. Slide the lever
to the left, and the stitch width becomes narrower.
Slide it to the right, the stitch width becomes wider.
The size of the width changes equally on both sides
of the middle needle position.
a narrower
b wider
Example: Changing the width
h
When you are finished sewing, set the
“Width Control” back to “OFF”.
Memo
• The setting will vary according to the kind of
fabric and the thickness of the thread, but a
length of 0.3 to 0.5 mm (approx. 1/64 to 1/
32 inch) is best for satin stitches.
Memo
• You can use the speed control slide to
adjust the stitch width. Use the foot
controller to adjust the sewing speed.
a
b
SEWING THE STITCHES
126

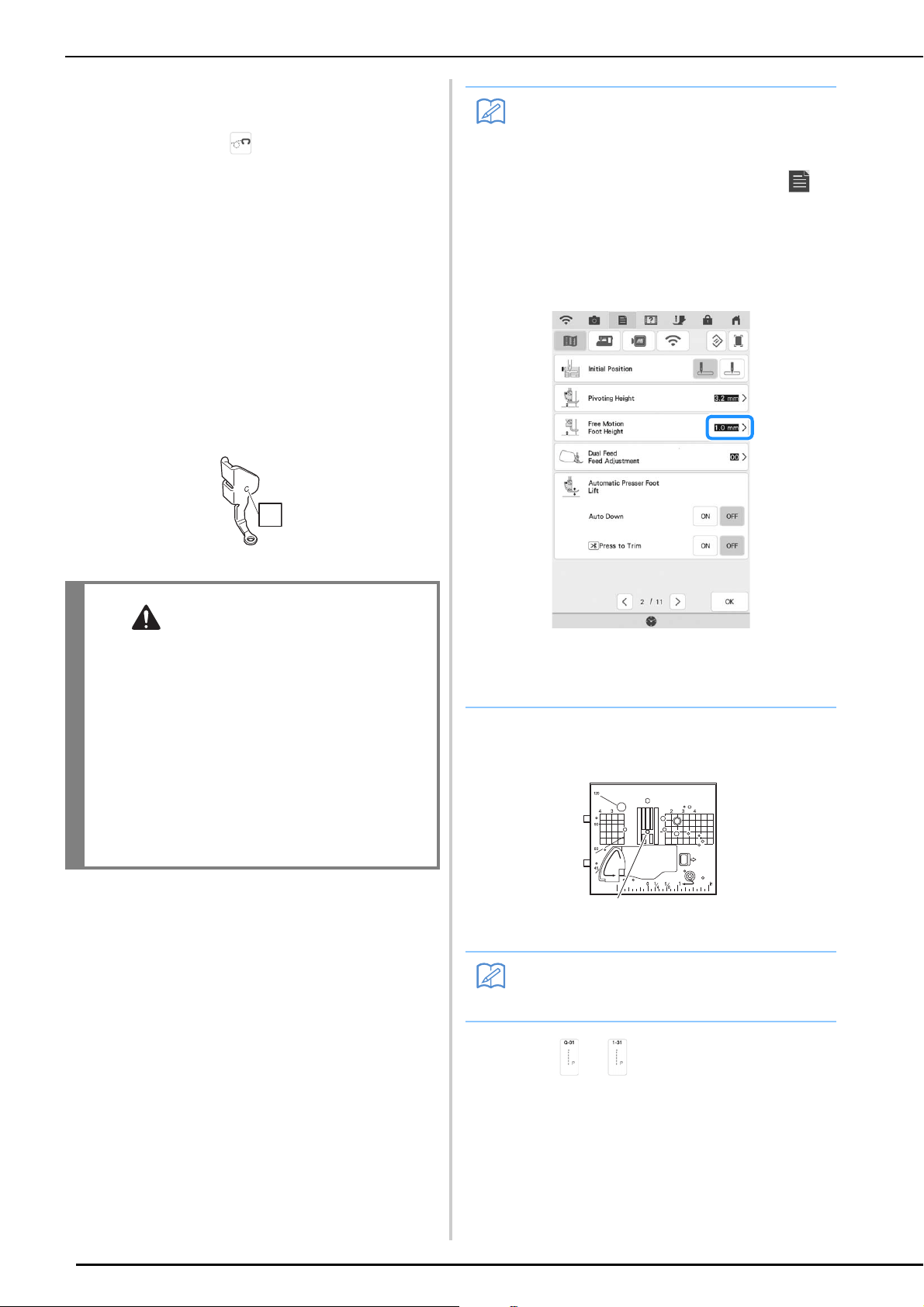

■ Free Motion Quilting
With free motion quilting, the feed dogs can be
lowered by pressing , so that the fabric can be
moved freely in any direction.
For free motion quilting, use free motion quilting
foot “C” or free motion open toe quilting foot “O”
depending on the stitch that is selected, and set the
machine to free motion sewing mode. In this mode,
the presser foot is raised to the necessary height for
free motion sewing.
We recommend attaching the foot controller and
sewing at a consistent speed. You can adjust the
sewing speed with the speed control slide on the
machine.
Using Free motion Quilting Foot “C”
Use the free motion quilting foot “C” with straight
stitch needle plate for free motion sewing.
Free motion quilting foot “C”
a
Attach the straight stitch needle plate
(page 111).
a Round hole
b
Select or .
CAUTION
• With free motion quilting, control the feeding
speed of the fabric to match the sewing speed.
If the fabric is moved faster than the sewing
speed, the needle may break or other damage
may result.
• When using free motion quilting foot “C”, be
sure to use the straight stitch needle plate and
sew with the needle in middle (center) needle
position. If the needle is moved to any position
other than the middle (center) needle position,
the needle may break, which may result in
injuries.
C
Memo
• When starting to sew, the internal sensor
detects the thickness of the fabric, and the
quilting foot is raised to the height specified
in the machine settings screen. Press to
display “Free Motion Foot Height” of the
settings screen. Touch the number to select
the height that the quilting foot is raised
above the fabric. Increase the setting, for
example, when sewing very stretchy fabric,
so that it is easier to sew.
• In order to sew with a balanced tension, it
may be necessary to adjust the upper
thread tension. Test with a sample piece of
fabric that is similar to your chosen fabric.
Memo
• Notice this needle plate has a round hole for
the needle.
a
SEWING THE STITCHES
Utility Stitches
127
3

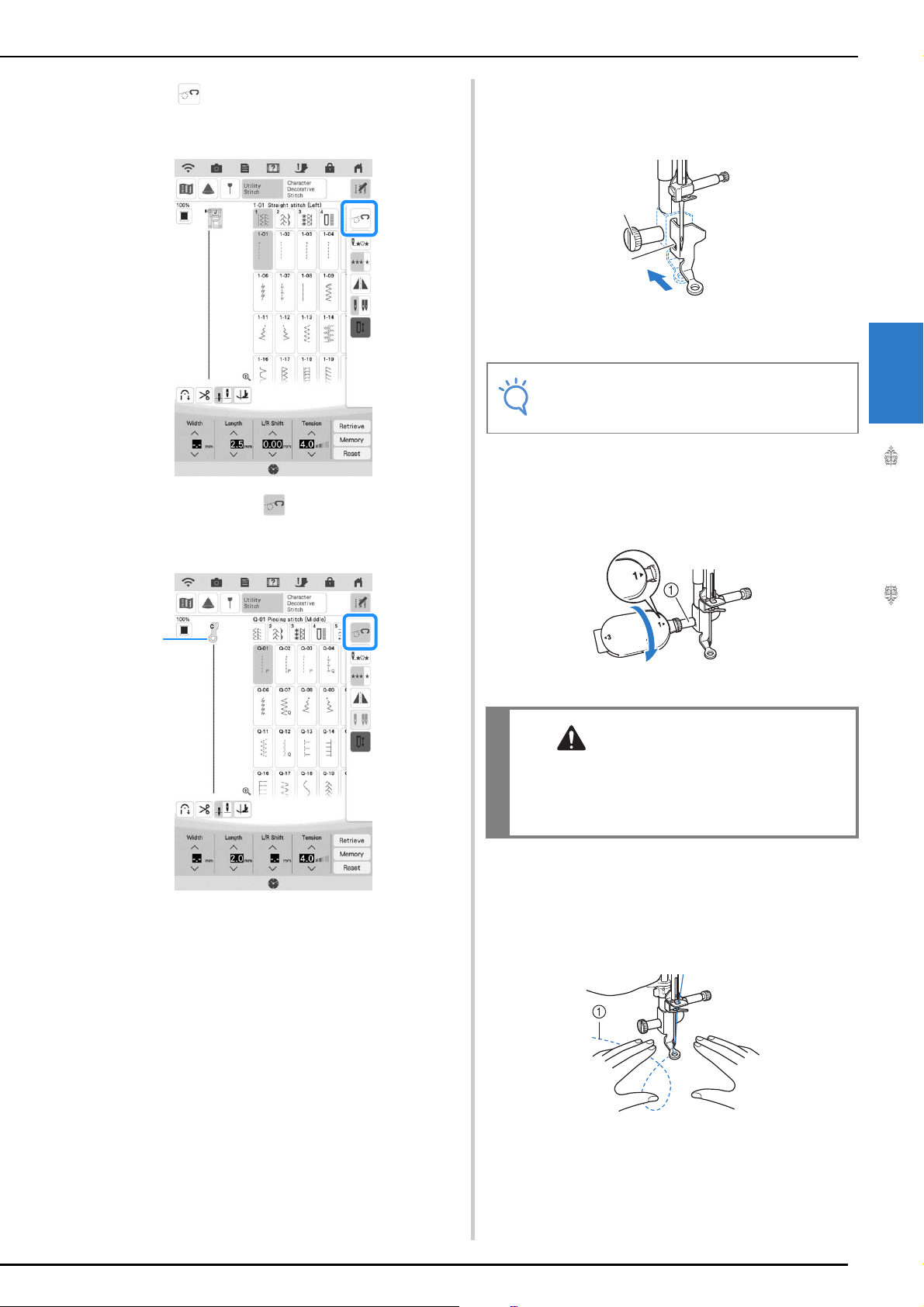

c
Press to set the machine to free motion
sewing mode.
The key appears as , the quilting foot is raised to
the necessary height, and then the feed dogs are
lowered for free motion sewing.
a Free motion quilting foot “C”
When stitch Q-01 or 1-31 is selected, free motion
quilting foot “C” is indicated in the upper-left corner
of the screen.
d
Remove the presser foot holder (page 73).
e
Attach free motion quilting foot “C” at the
front with the presser foot holder screw
aligned with the notch in the quilting foot.
a Presser foot holder screw
b Notch
f
Hold the quilting foot in place with your
right hand, and tighten the presser foot
holder screw using the multi-purpose
screwdriver with your left hand.
a Presser foot holder screw
g
Use both hands to stretch the fabric taut,
and then move the fabric at a consistent
pace in order to sew uniform stitches
roughly 2.0-2.5 mm (approx. 1/16 - 3/32
inch) in length.
a Stitch
a
Note
• Make sure that the quilting foot is attached
properly and not slanted.
CAUTION
• Be sure to securely tighten the screws with the
included multi-purpose screwdriver.
Otherwise, the needle may touch the quilting
foot, causing it to bend or break.
b
a
SEWING THE STITCHES
128
h
Press to cancel the free motion sewing
mode.
Rotate the handwheel toward you
(counterclockwise) to raise the feed dogs.
i
After sewing, make sure to remove the
straight stitch needle plate and presser foot
“C”, and reinstall the regular needle plate.
Using free motion Open Toe Quilting Foot “O”
The free motion open toe quilting foot “O” is used
for free motion quilting with zigzag or decorative
stitches or for free motion quilting of straight lines on
fabric with an uneven thickness. Various stitches
can be sewn using free motion open toe quilting foot
“O”. For details on the stitches that can be used,
refer to “STITCH SETTING CHART” on page 218.
Free motion open toe quilting foot “O”
a
Press to set the machine to free motion
sewing mode.
The key appears as , the quilting foot is raised to
the necessary height, and then the feed dogs are
lowered for free motion sewing.
b
Select a stitch.
c
Remove the presser foot holder (page 73).
d
Attach free motion open toe quilting foot
“O” by positioning the pin of the quilting
foot above the needle clamp screw and
aligning the lower-left of the quilting foot
and the presser bar.
a Pin
b Needle clamp screw
c Presser bar
e
Hold the quilting foot in place with your
right hand, and tighten the presser foot
holder screw using the multi-purpose
screwdriver with your left hand.
* Use the multi-purpose screw driver setting the
position to “1”. (page 24)
a Presser foot holder screw
Note
• Free motion open toe quilting foot “O” can
also be used with the straight stitch needle
plate. We recommend using free motion
open toe quilting foot “O” with free motion
sewing of fabrics of uneven thicknesses.
• When using the straight stitch needle plate,
all straight stitches become middle needle
position stitches. You cannot change the
needle position using the L/R Shift.
Memo
• Normally, the feed dogs are raised for
regular sewing.
• Do not be discouraged with your initial
results. The technique requires practice.
Memo
• In order to sew with a balanced tension, it
may be necessary to adjust the upper
thread tension (page 87). Test with a sample
piece of quilting fabric.
O
O
Memo
• When stitch Q-01 or 1-31 is selected, free
motion quilting foot “C” is indicated in the
upper-left corner of the screen. When the
other stitches are selected, free motion
open toe quilting foot “O” is indicated in the
screen.
Note
• Make sure that the quilting foot is not
slanted.
CAUTION
• Be sure to securely tighten the screws with the
included multi-purpose screwdriver.
Otherwise, the needle may touch the quilting
foot, causing it to bend or break.

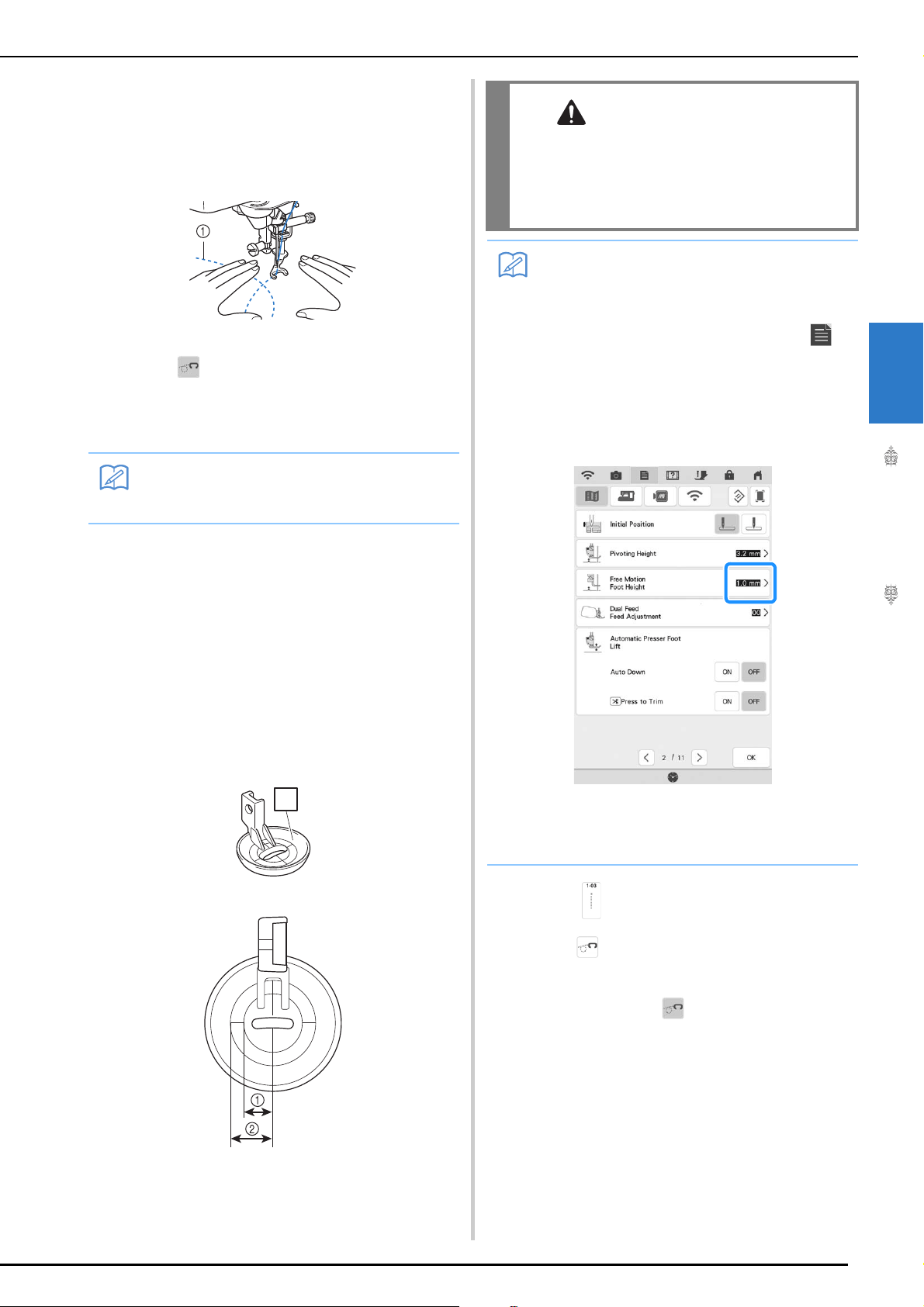

SEWING THE STITCHES
Utility Stitches
129
3
f
Use both hands to stretch the fabric taut,
and then move the fabric at a consistent
pace in order to sew uniform stitches
roughly 2.0-2.5 mm (approx. 1/16 - 3/32
inch) in length.
a Stitch
g
Press to cancel the free motion sewing
mode.
Rotate the handwheel toward you
(counterclockwise) to raise the feed dogs.
■ Echo Quilting Using the Free Motion
Echo Quilting Foot “E”
Sewing quilting lines at equal distances around a
motif is called echo quilting. The quilting lines,
which appear as ripples echoing away from the
motif, are the distinguishing characteristic of this
quilting style. Use the free motion echo quilting foot
“E” for echo quilting. Using the measurement on the
presser foot as a guide, sew around the motif at a
fixed interval. We recommend attaching the foot
controller and sewing at a consistent speed.
Free motion echo quilting foot “E” measurement
a 6.4 mm (approx. 1/4 inch)
b 9.5 mm (approx. 3/8 inch)
a
Select .
b
Press to set the machine to free motion
sewing mode.
The key appears as , the quilting foot is raised to
the necessary height, then the feed dogs are lowered
for free motion sewing.
c
Follow the steps on page 72 to remove the
presser foot.
d
Remove the presser foot holder (page 73)
and the screw.
Memo
• Do not be discouraged with your initial
results. The technique requires practice.
E
E
CAUTION
• With free motion quilting, control the feeding
speed of the fabric to match the sewing speed.
If the fabric is moved faster than the sewing
speed, the needle may break or other damage
may result.
Memo
• When starting to sew, the internal sensor
detects the thickness of the fabric, and the
quilting foot is raised to the height specified
in the machine settings screen. Press to
display “Free Motion Foot Height” of the
settings screen (page 29). Touch the
number to select the height that the quilting
foot is raised above the fabric. Increase the
setting, for example, when sewing very soft
fabric, so that it is easier to sew.
• In order to sew with a balanced tension, it
may be necessary to adjust the upper
thread tension (page 87). Test with a sample
piece of quilting fabric.
SEWING THE STITCHES
130
e
Position the free motion echo quilting foot
“E” on the left side of the presser bar with
the holes in the quilting foot and presser bar
aligned.
f
Tighten the screw with the included
screwdriver (large).
g
Using the measurement on the quilting foot
as a guide, sew around the motif.
a 6.4 mm (approx. 1/4 inch)
Finished project
h
Press to cancel the free motion sewing
mode.
Rotate the handwheel toward you
(counterclockwise) to raise the feed dogs.
CAUTION
• Be sure to securely tighten the screws with the
included screwdriver (large). Otherwise, the
needle may touch the quilting foot, causing it
to bend or break.
SEWING THE STITCHES
Utility Stitches
131
3

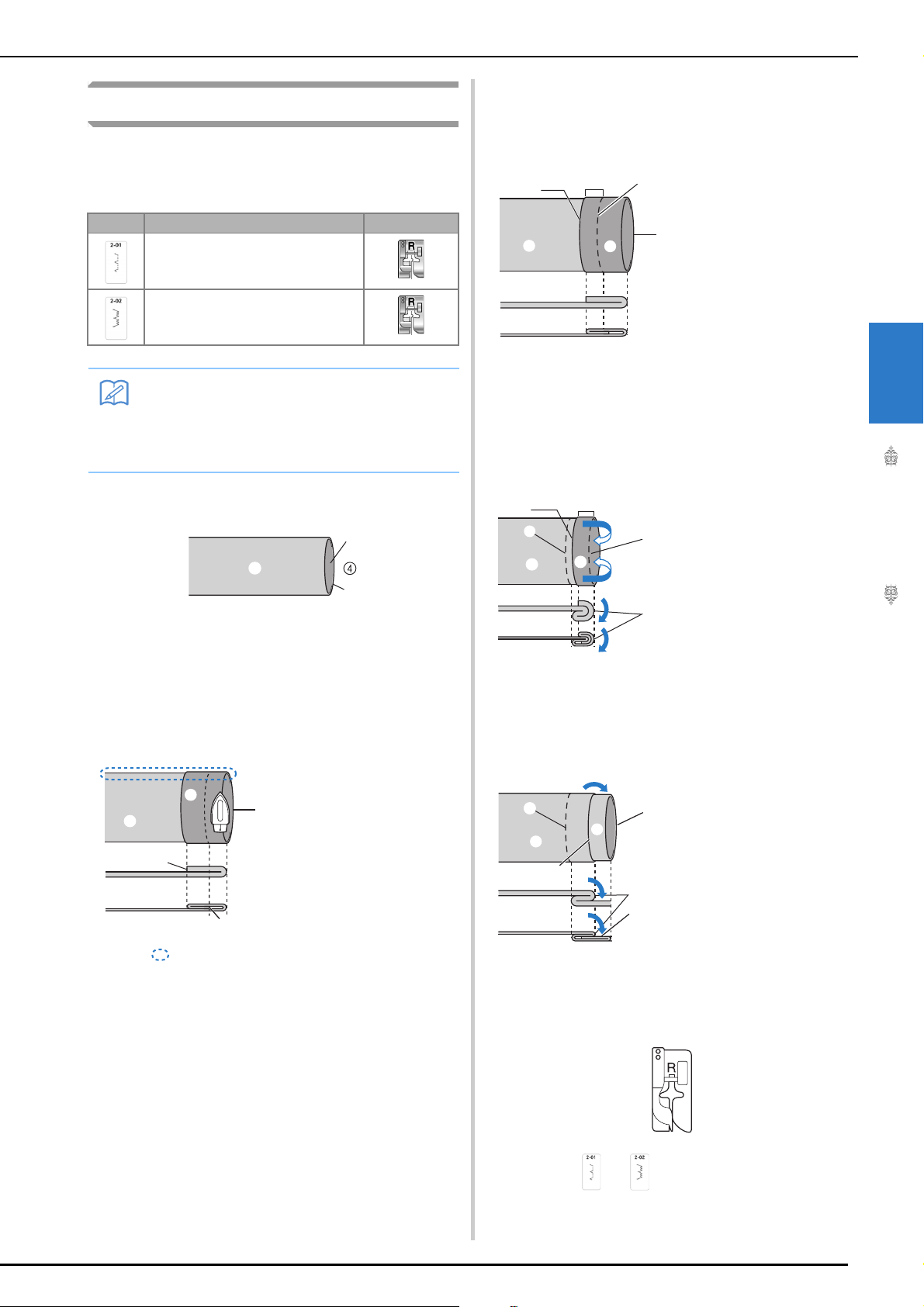

Blind Hem Stitches
Secure the bottoms of skirts and pants with a blind
hem. Two stitches are available for blind hem
stitching.
a
Turn the skirt or pants wrong side out.
a Wrong side of fabric
b Right side of fabric
c Edge of fabric
d Bottom side
b
Fold the fabric along the desired edge of the
hem, and press.
c
Use a chalk to mark on the fabric about 5
mm (3/16 inch) from the edge of the fabric,
and then baste it.
d
Fold back the fabric inside along the
basting.
e
Unfold the edge of fabric, and position the
fabric with the wrong side facing up.
f
Attach blind stitch foot “R”.
g
Select or .
Stitch Stitch name Presser foot
Blind hem stitch
Blind hem stitch stretch
Memo
• When the size of cylindrical pieces is too
small to slide onto the arm or the length is
too short, the fabric will not feed and
desired results may not be achieved.
a Wrong side of fabric
b Right side of Fabric
c Edge of fabric
d Desired edge of hem
<Thick fabric>
<Normal fabric>
<Seen from the side>
2
1
3
1
2
1
2
1
3
3
4
2
a Wrong side of fabric
b Right side of fabric
c Edge of fabric
d Desired edge of hem
e 5 mm (3/16 inch)
f Basting
<Thick fabric>
<Normal fabric>
<Seen from the side>
a Wrong side of fabric
b Right side of fabric
c Edge of fabric
d Desired edge of hem
e 5 mm (3/16 inch)
f Basting
g Basting point
<Thick fabric>
<Normal fabric>
<Seen from the side>
a Wrong side of fabric
b Right side of fabric
c Edge of fabric
d Desired edge of hem
e Basting point
f Basting
<Thick fabric>
<Normal fabric>
<Seen from the side>
1
2
1
2
3
5
6
4
1
2
1
3
6
5
1
1
2
7
4
5
1
1
1
1
1
2
6
3
4
SEWING THE STITCHES
132
h
Remove the flat bed attachment to use the
free-arm.
i
Slide the item that you wish to sew onto the
free arm, make sure that the fabric feeds
correctly, and then start sewing.
a Free arm
j
Position the fabric with the edge of the
folded hem against the guide of the presser
foot, and then lower the presser foot lever.
a Wrong side of fabric
b Fold of hem
c Guide
k
Adjust the stitch width until the needle
slightly catches the fold of the hem.
a Needle drop point
When you change the needle drop point, raise the
needle, and then change the stitch width.
<Stitch Width>
a Thick fabric
b Normal fabric
■ If the Needle Catches Too Much of
the Hem Fold
The needle is too far to the left.
Press to decrease the stitch width so that the
needle slightly catches the fold of the hem.
<Thick fabric>
<Normal fabric>
a Wrong side of fabric
b Right side of fabric
■ If the Needle does not Catch the
Hem Fold
The needle is too far to the right.
Press to increase the stitch width so that the
needle slightly catches the fold of the hem.
Memo
• Blind hem stitches cannot be sewn if the left
needle drop point does not catch the fold. If
the needle catches too much of the fold, the
fabric cannot be unfolded and the seam
appearing on the right side of the fabric will
be very large, leaving an unattractive finish.
If you experience either of these cases,
follow the instructions below to solve the
problem.
1
2
SEWING THE STITCHES
Utility Stitches
133
3
<Thick fabric>
<Normal fabric>
a Wrong side of fabric
b Right side of fabric
l
Sew with the fold of the hem against the
presser foot guide.
m
Remove the basting stitching and reverse
the fabric.
a Wrong side of fabric
b Right side of fabric
Appliqué
a
Use a temporary spray adhesive, fabric glue
or a basting stitch to attach the appliqué to
the fabric.
* This will keep the fabric from moving during
sewing.
a Appliqué
b Fabric glue
b
Select or .
* Adjust the stitch length and width to correspond to
the appliqué shape, size, and quality of material
(page 85).
c
Attach presser foot “J”. Check that the
needle drops slightly off the edge of the
appliqué, then start sewing.
a Appliqué material
a Needle drop position
1
2
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
SEWING THE STITCHES
134
■ Appliqué Sharp Curves
Stop the machine with the needle in the fabric
outside the appliqué. Raise the presser foot and turn
the fabric a little bit at a time while sewing for an
attractive finish to the seam.
■ Appliqué Corners
Stop the machine with the needle in the right
position of the outside (or inside) corner of the
appliqué. Raise the presser foot and pivot the fabric
to align the fabric edge. Lower the presser foot and
continue stitching.
a Outside corner
b Inside corner
Shelltuck Stitches
Shelltuck stitches give an attractive appearance of
shells along the curve of a collar. This stitch
pattern can be used for edging the neckline or
sleeves of dresses and blouses.
a
Select .
b
Increase the upper thread tension for an
attractive scallop finish to the shelltuck
stitches (page 87).
c
To make rows of shell tuck stitches, fold the
fabric in half along the bias.
d
Attach presser foot “J”. Set the needle drop
point slightly off the edge of the fabric, and
start sewing.
Memo
• Placing a lightweight tear away stabilizer
beneath the stitching area will improve the
stitch placement along the edge of the
appliqué fabric.
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
Memo
• If the upper thread tension is too weak, the
shelltuck stitches will not scallop.
Memo
•Use a thin fabric.
SEWING THE STITCHES
Utility Stitches
135
3
a Needle drop position
e
Unfold the fabric, and iron the tucks to one
side.
Scallop Stitches
This wave-shaped satin stitch is called the scallop
stitch. Use this stitch to decorate the edges of
blouse collars and handkerchiefs or use it as a hem
accent.
a
Select .
b
Attach presser foot “N”. Sew scallop
stitches along the edge of the fabric.
* Do not sew directly on the edge of the fabric.
c
Trim along the seam, making sure not to cut
the stitches.
Crazy Quilting
For a decorative look called “Crazy Quilting”, the
following stitches can be sewn on top of a pressed
seam allowance.
a
Select a straight stitch and attach presser
foot “J”.
b
With the right sides facing each other, sew
two pieces of fabric together, and then
press open the seam allowance.
a Straight stitch
b Seam margins
c 6.5 mm (approx. 1/4 inch)
d Wrong side
Memo
• To make shell tucks at the edge of a collar
or neckline, follow the stitch pattern’s
instructions and then use this stitch to make
a decorative finish on the collar or neckline.
Memo
• A temporary spray adhesive may be
necessary for lightweight fabrics. Test sew
the fabric before sewing a project.
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
Memo
• Use a seam sealant to secure the edges of
the scallop stitches.
SEWING THE STITCHES
136
c
Select a stitch for top stitching.
d
Place the fabric right side up in the
machine, and center the presser foot over
the seam when sewing.
a Right side of fabric
Smocking Stitches
Use smocking stitches for decorative sewing on
clothes, etc.
a
Select a straight stitch and attach presser
foot “J”.
b
Set the stitch length to 4.0 mm (approx. 5/
32 inch) and loosen the upper thread
tension to approximately 2.0 (“Setting the
Stitch Length” on page 86 and “Setting the
Thread Tension” on page 87).
c
Pull the bobbin and upper threads out by 50
mm (approx. 2 inches).
d
Sew the seams, leaving approximately 10
mm (approx. 3/8 inch) between the seams,
then trim excess thread, leaving 50 mm
(approx. 2 inches).
a Approximately 10 mm (approx. 3/8 inch)
e
Pull the bobbin threads to obtain the
desired amount of gather, and then smooth
the gathers by ironing them.
f
Select or .
g
Sew the spaces between the straight seams.
h
Pull out the straight stitch threads.
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
SEWING THE STITCHES
Utility Stitches
137
3
Fagoting
When there is a space between two fabrics with
thread sewn over the space to join the fabrics
together, it is called fagoting. Use this stitch when
sewing blouses or children’s clothes.
a
Baste two pieces of fabric onto thin paper,
leaving a space of 4 mm (approx. 3/16 inch)
between the fabrics.
* If you draw a line down the middle of the thin paper
or water soluble stabilizer, sewing is easier.
a 4.0 mm (approx. 3/16 inch)
b Paper
c Basting stitches
b
Select or .
c
Attach presser foot “J”. Align the center of
the presser foot with the middle of the
space between the fabrics and begin
sewing.
a Basting stitches
d
When sewing is finished, gently tear the
paper away.
Tape or Elastic Attaching
a
Select a straight stitch and attach presser
foot “J”.
b
Set the stitch length to 4.0 mm (approx. 3/
16 inch), and loosen the upper thread
tension to 2.0 (“Setting the Stitch Length”
on page 86 and “Setting the Thread
Tension” on page 87).
c
Sew two rows of straight stitches on the
right side of the fabric, then pull the bobbin
thread to create the necessary gather.
d
Place the tape over the gather, and hold it
in place with basting pins.
a Tape
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
Memo
• Use a thick thread.
Memo
• Be sure that neither automatic
reinforcement nor automatic thread
cutting is selected.
Memo
• Before sewing the straight stitch, rotate the
handwheel toward you (counterclockwise)
and pull up the bobbin thread. Holding the
top and bobbin thread, pull a length of
thread out from the rear of the machine. (Be
sure that the presser foot is raised.)
SEWING THE STITCHES
138
e
Select or .
f
Sew over the tape (or elastic).
g
Pull out the straight stitch threads.
Heirloom
■ Hemstitching (1) (Daisy Stitch)
Use for sewing tablecloths, decorative hems, and
decorative stitching on shirt fronts.
a
Insert a type 130/705H, size 100/16 Wing
needle.
* This specialty sewing needle is not furnished with
your machine. Must be purchased separately.
b
Select a stitch and attach presser foot “N”.
* Select any stitch between 3-01 and 3-25.
c
Start sewing.
Example: Illustration of finished product
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
CAUTION
• Be sure the needle does not strike a basting
pin, or any other objects, during sewing. The
thread could tangle or the needle could break,
causing injury.
Memo
• Use a light to medium weight homespun
fabric with a little stiffness.
CAUTION
• The “Automatic Threading” button cannot be
used. Thread the wing needle by hand, from
front to back. Using the “Automatic
Threading” button may result in damage to the
machine.
• A more attractive finish can be obtained if you
use a “130/705H Wing” needle when sewing
these stitch patterns. If using a wing needle
and the stitch width has been set manually,
check that the needle will not touch the
presser foot by carefully rotating the
handwheel toward you (counterclockwise)
before starting to sew.
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
SEWING THE STITCHES
Utility Stitches
139
3
■ Hemstitching (2) (Drawn Work (1))
a
Pull out several threads from one area on a
piece of fabric to open the area.
* Pull out 5 or 6 threads to leave a 3 mm (approx. 1/8
inch) area open.
b
Select .
c
Attach presser foot “N”. With the right side
of the fabric facing up, sew one edge of the
open area.
d
Press to create a mirror image of the
stitch.
e
Match beginning needle drop points on the
opposite edge of the open area to keep the
stitching symmetrical.
■ Hemstitching (3) (Drawn Work (2))
a
Pull out several threads from both sides of
the 4 mm (approx. 3/16 inch) area which
are not yet open.
* Pull out four threads, leave five threads, and then
pull out four threads. The width of five threads is
approximately 4 mm (approx. 3/16 inch) or less.
a Approx. 4 mm (approx. 3/16 inch) or less
b Four threads (pull out)
c Five threads (leave)
b
Select .
c
Sew the decorative stitch in the center of
the five threads created above.
Memo
• Loosely woven fabrics work best for this.
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
SEWING THE STITCHES
140
Basting
a
Select and attach presser foot “J”.
b
Keep pressing the “Reverse Stitch” button
or the “Reinforcement Stitch” button to
sew 4 stitches of reinforcement stitches,
then press “Start/Stop” button to continue
sewing.
c
Sew while keeping the fabric straight.
d
End the basting with reinforcement stitches.
■ Free-Motion Basting
When the feed dogs are lowered, basting can be
sewn while freely moving the fabric.
a
Press .
The presser foot is raised to the height necessary for
free-motion sewing, and the feed dogs are lowered.
b
Keep pressing the “Reverse Stitch” button
or the “Reinforcement Stitch” button to
sew 4 stitches of reinforcement stitches,
then press “Start/Stop” button to continue
sewing.
c
Press the “Start/Stop” button to start
sewing.
Sew while moving the fabric when the needle is
raised.
d
End the basting with reinforcement stitches.
Memo
• A wing needle can be used for Hemstitching
(3).
Memo
• When you use the basting stitch for
gathering, do not use a reinforcement stitch
at the beginning; you should lift the presser
foot, rotate the handwheel toward you
(counterclockwise), pull up the bobbin
thread and pull a length of top and bobbin
thread out from the rear of the machine.
• Stitching will be sewn with a length of 5 mm
(approx. 3/16 inch).
a 5 mm (approx. 3/16 inch)
Memo
• If the side pedal of the multi-function foot
controller (sold separately) is set to “Single
Stitch”, basting can be sewn by using the
side pedal to sew each single stitch. For
details on specifying settings for the multi-
function foot controller, refer to “Specifying
the Multi-Function Foot Controller (Sold
Separately)” on page 34.
• The green light on the right of the
“Reinforcement Stitch” button lights up
while reinforcement or reverse stitching.
• The sewing speed is limited up to 100 spm.
SEWING THE STITCHES
Utility Stitches
141
3
One-step Buttonholes
With one-step buttonholes, you can make
buttonholes appropriate to the size of your button.
One-step buttonholes are sewn from the front of
the presser foot to the back, as shown below.
a Reinforcement stitching
a
Select a buttonhole stitch, and attach
buttonhole foot “A+”.
CAUTION
• When attaching and removing buttonhole foot
“A+”, do not apply excessive force to the
presser foot, otherwise it may be damaged. In
addition, be careful not to hit the needle when
attaching and removing buttonhole foot “A+”,
otherwise the needle may break.
Note
• Before attaching the presser foot, check
that there is enough thread in the bobbin.
• When the presser foot is attached, the
compartment of the flat bed attachment
cannot be opened. Be sure to first remove
any necessary accessories.
• Sew trial stitches on fabric that is the same
as that used in your project, referring to
“Fabric/Thread/Needle Combinations” on
page 71.
• The built-in camera detects the position of
buttonhole foot “A+”. Do not touch the
camera. (Refer to “NAMES OF MACHINE
PARTS AND THEIR FUNCTIONS” on
page 12.)
• Do not peel the “A+” sticker off buttonhole
foot “A+” or cover the sticker with the upper
thread, etc., otherwise the camera cannot
detect the presser foot or buttonholes
cannot be sewn.
Stitch Stitch name Presser foot
Narrow rounded buttonhole
Wide round ended buttonhole
Tapered round ended buttonhole
Round ended buttonhole
Round ended buttonhole
Round double ended buttonhole
Narrow squared buttonhole
Wide squared buttonhole
Squared buttonhole
Stretch buttonhole
Heirloom buttonhole
Bound buttonhole
Keyhole buttonhole
Tapered keyhole buttonhole
Keyhole buttonhole
Stitch Stitch name Presser foot
SEWING THE STITCHES
142
b
Mark the position and length of the
buttonhole on the fabric.
a Marks on fabric
b Buttonhole sewing
c
Pull out the button holder plate on the
presser foot, and insert the button that will
be put through the buttonhole. Then tighten
the button holder plate around the button.
a Button holder plate
d
Align the presser foot with the mark on the
fabric, and lower the presser foot.
a Mark on the fabric
b Marks on the presser foot
e
Gently hold the end of the upper thread,
and then start sewing.
* Feed the fabric carefully by hand while the
buttonhole is sewn.
Once sewing is completed, the machine
automatically sews reinforcement stitches, and then
stops.
Memo
• The maximum buttonhole length is about 47
mm (approx. 1-3/4 inches) (diameter +
thickness of the button).
Memo
• The size of the buttonhole is determined by
the size of the button in the button holder
plate.
a
b
a
b
a
Note
• Pass the thread underneath the presser
foot.
• Slide the outside frame of the buttonhole
foot backward as far as possible as shown
in the illustration, making sure that there is
no gap behind the part of the foot marked
“A+”. If the buttonhole foot is not slid back
as far as possible, the buttonhole will not be
sewn at the correct size.
Memo
• If automatic thread cutting is turned on
before you start sewing, both threads are
automatically cut after the reinforcement
stitches are sewn. If the fabric does not feed
(for example, because it is too thick),
increase the stitch length setting.
SEWING THE STITCHES
Utility Stitches
143
3
f
Insert a pin along the inside of one of the
bar tacks, and then insert the seam ripper
into the center of the buttonhole and cut
towards the pin.
a Basting pin
b Seam ripper
■ Sewing Stretch Fabrics
When sewing on stretch fabric with or , sew
the buttonhole stitches over a gimp thread.
a
Hook the gimp thread onto the back of
presser foot “A+”. Insert the ends into the
grooves at the front of the presser foot, and
then temporarily tie them there.
a Upper thread
b
Lower the presser foot and start sewing.
CAUTION
• When using the seam ripper to open the
buttonhole, do not put your hand or finger in
the path of the ripper. The ripper may slip and
cause injury. Do not use the seam ripper in any
other way than how it is intended.
Memo
• For keyhole buttonholes, use the eyelet
punch to make a hole in the rounded end of
the buttonhole. Then insert a pin along the
inside of one of the bar tacks, insert a seam
ripper into the hole made with the eyelet
punch, and cut towards the pin.
a Eyelet punch
b Basting pin
Note
• Attach stabilizer material to the back of
stretch fabrics to prevent them from
stretching.
Memo
• Set the width of the satin stitches to the
width of the gimp thread, and set the
buttonhole width to be 2-3 times the width
of the gimp thread.
a
SEWING THE STITCHES
144
c
Once sewing is completed, gently pull the
gimp thread to remove any slack, and trim
off any excess.
■ Odd Shaped Buttons/Buttons that do
Not Fit into the Button Holder Plate
Use the markings on the presser foot scale to set the
size of the buttonhole. One mark on the presser foot
scale equals 5 mm (approx. 3/16 inch).
Add the button diameter and thickness together, and
then set the plate at the calculated value.
a Presser foot scale
b Button holder plate
c Completed measurement of diameter + thickness
d 5 mm (approx. 3/16 inch)
■ Sewing Thick Fabrics
Place a piece of folded fabric or cardboard beside
the fabric being sewn to level the buttonhole foot
and allow for easier and even feeding.
a Presser foot
b Thick paper
c Fabric
Memo
• After using the seam ripper to cut open the
threads over the buttonhole, trim off the
threads.
a
d
c
b
Memo
• Example) For a button with a diameter of 15
mm (about 9/16 inch) and thickness of 10
mm (about 3/8 inch), align the scale with 25
mm (about 1 inch), or specify 25 mm in the
screen.
a 10 mm (approx. 3/8 inch)
b 15 mm (approx. 9/16 inch)
Memo
• If automatic thread cutting is turned on
before you start sewing, both threads are
automatically cut after the reinforcement
stitches are sewn. If the fabric does not feed
(for example, because it is too thick),
increase the stitch length setting.
a
b
c
SEWING THE STITCHES
Utility Stitches
145
3
■ Sewing Thick Seams or Fabric That
Cannot Be Correctly Fed
Attach the buttonhole stabilizer, and then feed the
fabric between the stabilizer and the presser foot.
Four-step Buttonholes
You can sew 4-step buttonholes using the
following 4 stitches together. You can sew any
desired length for the buttonhole when using 4-
step buttonholes. 4-step buttonholes are a good
option when attaching oversize buttons.
Four-step buttonholes are sewn as shown below.
a
Mark the position and length of the
buttonhole on the fabric.
a Starting point
b End point
c Buttonhole sewing
b
Attach monogramming foot “N”, and select
stitch to sew the left side of the
buttonhole.
c
Press the “Start/Stop” button to start
sewing.
d
Sew the desired length for the buttonhole
and press the “Start/Stop” button again.
e
Select stitch to sew the bar tack and
press the “Start/Stop” button.
The machine will automatically stop after sewing
the bar tack.
f
Select stitch to sew the right side of the
buttonhole, and press the “Start/Stop”
button to begin sewing.
Note
• When changing the stitch settings, make
sure that all stitch settings are changed to
match.
Stitch Stitch name Presser foot
4 steps buttonhole 1
4 steps buttonhole 2
4 steps buttonhole 3
4 steps buttonhole 4
b
c
a
SEWING THE STITCHES
146
g
Sew the right side of the buttonhole and
press the “Start/Stop” button again.
* Sew the right side of the buttonhole the same length
as the left.
h
Select stitch to sew the bar tack and
then press the “Start/Stop” button.
The machine will automatically sew off the bar tack
tie and stop when the bar tack is complete.
i
Raise the presser foot and remove the
fabric.
j
Refer to page 143 to open the buttonhole.
SEWING THE STITCHES
Utility Stitches
147
3
■ Darning
Use darning stitches for mending and other
applications.
Darning is performed by sewing from the front of the
presser foot to the back as shown below.
a Reinforcement stitches
a
Select a stitch, and attach buttonhole foot
“A+”.
b
Set the scale to the desired length of the
darning.
a Presser foot scale
b Completed length measurement
c Width 7 mm (approx. 1/4 inch)
d 5 mm (approx. 3/16 inch)
c
Check that the needle drops at the desired
position and lower the presser foot, making
sure the upper thread passes underneath
the buttonhole foot.
d
Gently hold the end of the upper thread,
and then press the “Start/Stop” button to
start the machine.
Once sewing is completed, the machine
automatically sews reinforcement stitches, and then
stops.
Stitch Stitch name Presser foot
Darning
Darning
Memo
• The maximum length for darning is 50 mm
(approx. 1-31/32 inches).
a
d
c
b
Note
• Pass the thread underneath the presser
foot.
• Set the presser foot so that there is no gap
behind the section marked with an “A+” (the
shaded area in the illustration below). If
there is a gap, the size of the darning will
not be correct.
Memo
• If automatic thread cutting is turned on
before you start sewing, both threads are
automatically cut after the reinforcement
stitches are sewn. If the fabric does not feed
(for example, because it is too thick),
increase the stitch length setting.
SEWING THE STITCHES
148
Bar Tacks
Use bar tacks to reinforce areas that will be subject
to strain, such as pocket corners.
a
Select .
b
Attach buttonhole foot “A+” and set the
scale to the length of the bar tack you wish
to sew.
a Presser foot scale
b Completed length measurement
c 5 mm (approx. 3/16 inch)
c
Set the fabric so that the pocket moves
toward you during sewing.
d
Check the first needle drop point and lower
the presser foot.
a 2 mm (approx. 1/16 inch)
e
Gently hold the end of the upper thread and
begin sewing.
When sewing is completed, the machine will sew
reinforcement stitches and stop automatically.
Stitch Stitch name Presser foot
Bar tack
Memo
• Bar tacks can be between 10 mm (approx.
25/64 inch) and 50 mm (approx. 1-31/32
inches).
a
c
b
Note
• Pass the thread underneath the presser
foot.
• Slide the outside frame of the buttonhole
foot backward as far as possible as shown
in the illustration, making sure that there is
no gap behind the part of the foot marked
“A+”. If the buttonhole foot is not slid back
as far as possible, the bar tack will not be
sewn to the correct size.
SEWING THE STITCHES
Utility Stitches
149
3
Button Sewing
Buttons with 2 or 4 holes can be attached, using
the machine.
a
Select .
The feed dogs are lowered automatically.
b
Raise the presser foot.
c
Attach button sewing foot “M”, slide the
button along the metal plate and into the
presser foot, and lower the presser foot.
a Button
b Metal plate
d
Rotate the handwheel toward you
(counterclockwise) to check that the needle
goes into each hole correctly.
* If the needle does not reach the holes on the left
side, adjust the stitch width.
* To attach the button more securely, repeat the
process.
e
Gently hold the end of the upper thread and
start sewing.
The machine stops automatically when sewing is
finished.
f
From the wrong side of the fabric, pull the
end of the bobbin thread to pull the upper
thread through to the wrong side of the
fabric. Tie the two thread ends together and
cut the threads.
g
After the button is attached, select another
stitch and rotate the handwheel toward you
(counterclockwise) to raise the feed dogs.
Stitch Stitch name Presser foot
Button sewing
Note
• Do not use the automatic thread cutting
function when sewing buttons. Otherwise,
you will lose the thread ends.
CAUTION
• Make sure the needle does not strike the
button during sewing. The needle may break
and cause injury.
SEWING THE STITCHES
150
■ Attaching 4 Hole Buttons
Sew the two holes closest to you. Then raise the
presser foot and move the fabric so that the needle
goes into the next two holes, and sew them in the
same way.
■ Attaching a Shank to the Button
a
Pull the shank lever toward you before
sewing.
a Shank lever
b
Pull the two ends of the upper thread
between the button and the fabric, wind
them around the shank, and then tie them
firmly together.
c
Tie the ends of the bobbin thread from the
beginning and end of sewing together on
the wrong side of the fabric.
d
Cut off any excess thread.
Eyelet
Use this stitch for making belt holes and other
similar applications.
a
Select or .
b
Use in either the stitch width
display or the stitch length display to
choose the size of the eyelet.
a Large 7 mm (approx. 9/32 inch)
b Medium 6 mm (approx. 15/64 inch)
c Small 5 mm (approx. 13/64 inch)
c
Attach monogramming foot “N”, then
rotate the handwheel toward you
(counterclockwise) to check the needle
drop position.
a Needle drop position
Note
• When sewing is completed, be sure to
select the other stitch and rotate the
handwheel toward you (counterclockwise)
to raise the feed dogs.
Stitch Stitch name Presser foot
Eyelet
Star eyelet
Note
• Only one size is available for .
SEWING THE STITCHES
Utility Stitches
151
3
d
Lower the presser foot and start sewing.
When sewing is finished, the machine sews
reinforcement stitches and stops automatically.
e
Use the eyelet punch to make a hole in the
center of the stitching.
Multi-directional Sewing
(Straight Stitch and Zigzag Stitch)
Use these stitch patterns to attach patches or
emblems to pant legs, shirt sleeves, etc.
a
Remove the flat bed attachment to use the
free-arm.
b
Select and attach monogramming foot
“N”.
c
Set the needle in the fabric at the sewing
start point, and sew seam “1” as shown.
a Start Point
d
Select and sew seam “2” as shown.
* The fabric will move sideways, guide the fabric by
hand to keep sewing straight.
e
Select and sew seam “3” as shown.
The fabric feeds forward while stitching backward.
Note
• If the stitch pattern comes out poorly, make
adjustments to “SEWING STITCH
PATTERNS” on page 163.
Memo
• Insert the tubular piece of fabric onto the
free-arm, and then sew in the order shown
in the illustration.
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
SEWING THE STITCHES
152
f
Select and sew seam “4” as shown.
The seam will be connected to the starting point of
seam 1.
Zipper Insertion
■ Centered Zipper
Use for bags and other such applications.
a
Select .
b
Attach presser foot “J” and sew straight
stitches up to the zipper opening. Change to
a basting stitch (page 140) and sew to the
top of the fabric.
a Basting stitches
b Reverse stitches
c End of zipper opening
d Wrong side
c
Press the seam allowance open and attach
the zipper with a basting stitch in the
middle of each side of the zipper tape.
a Basting stitches
b Zipper
c Wrong side
d
Remove presser foot “J”. Align the right
side of the pin in zipper foot “I” with the
presser foot holder, and attach the zipper
foot.
a Right
b Left
c Needle drop position
Memo
• For details on each stitch, refer to “STITCH
SETTING CHART” on page 218.
Note
• Make sure you sew using the middle needle
position.
CAUTION
• When using zipper foot “I”, make sure the
straight stitch, middle needle position is
selected. Rotate the handwheel toward you
(counterclockwise) to make sure the needle
does not strike the presser foot. If another
stitch is selected, the needle will strike the
presser foot, causing the needle to break and
possibly causing injury.
SEWING THE STITCHES
Utility Stitches
153
3
e
Topstitch 7 to 10 mm (approx. 1/4 to 3/8
inch) from the seamed edge of the fabric,
then remove the basting.
■ Inserting a Side Zipper
Use for side zippers in skirts or dresses.
a
Select .
b
Attach presser foot “J” and sew straight
stitches up to the zipper opening. Change to
a basting stitch and sew to the top of the
fabric.
a Reverse stitches
b Wrong side of fabric
c Basting stitches
d End of zipper opening
c
Press the seam allowance open and align
the folded hem along the teeth of the
zipper, while maintaining 3 mm (approx. 1/
8 inch) of sewing space.
a Zipper pull tab
b Wrong side of fabric
c Zipper teeth
d End of zipper opening
e 3 mm (approx. 1/8 inch)
d
Remove presser foot “J”.
CAUTION
• Make sure the needle does not strike the
zipper during sewing. If the needle strikes the
zipper, the needle may break, leading to
injury.
Note
• Make sure you sew using the middle needle
position.
SEWING THE STITCHES
154
e
Align the right side of the pin in zipper foot
“I” with the presser foot holder, and attach
the presser foot.
a Right
b Left
c Needle drop position
f
Set the presser foot in the 3 mm (approx. 1/8
inch) margin.
g
Starting from the end of the zipper opening,
sew to a point about 50 mm (approx. 2
inches) from the edge of the fabric, then
stop the machine.
h
Pull down the zipper slider, then continue
sewing to the edge of the fabric.
a 50 mm (approx. 2 inches)
b 3 mm (approx. 1/8 inch)
i
Close the zipper, turn the fabric over, and
sew a basting stitch.
a Front of the skirt (wrong side of fabric)
b Basting stitches
c Front of the skirt (right side of fabric)
d Back of the skirt (right side of fabric)
j
Remove the presser foot, and reattach it so
that the left side of the pin is attached to the
presser foot holder.
* When sewing the left side of the zipper, the needle
should drop on the right side of the presser foot.
When sewing the right side of the zipper, the needle
should drop on the left side of the presser foot.
a Right
b Left
c Needle drop position
k
Set the fabric so that the left edge of the
presser foot touches the edge of the zipper
teeth.
l
Sew reverse stitches at the top of the
zipper, then continue sewing.
m
Stop sewing about 50 mm (approx. 2
inches) from the edge of the fabric, leave
the needle in the fabric, and remove the
basting stitches.
CAUTION
• When using zipper foot “I”, make sure the
straight stitch, middle needle position is
selected. Rotate the handwheel toward you
(counterclockwise) to make sure the needle
does not strike the presser foot. If another
stitch is selected, the needle will strike the
presser foot, causing the needle to break and
possibly causing injury.
CAUTION
• Make sure the needle does not strike the
zipper during sewing. If the needle strikes the
zipper, the needle may break, leading to
injury.
SEWING THE STITCHES
Utility Stitches
155
3
n
Open the zipper and sew the rest of the
seam.
a Basting stitches
b 7 to 10 mm (approx. 1/4 inch to 3/8 inch)
c Reverse stitches
d 50 mm (approx. 2 inches)
SEWING THE STITCHES
156
Chapter 4
Character/Decorative Stitches
SELECTING STITCH PATTERNS
158
Press , then to display the screen below.
.
SELECTING STITCH PATTERNS
a Wide and Various
b Wide Botanical
c Wide Motifs and Messages
d Narrow and Various
e Narrow Botanical
f Candlewicking
g Large Satin
h Satin
i Cross Stitches
j Combinable Utility
k Disney
l Alphabet characters (gothic font)
m Alphabet characters (handwriting font)
n Alphabet characters (outline)
o Cyrillic font
p Pocket
q Press this key to create your own stitches with the “MY CUSTOM STITCH” function (page 188)
Note
• If the screen is locked ( ), unlock the screen by pressing . While the screen is locked, no other
key can be operated.
a b c d e f g h i j k l m n o p
q
SELECTING STITCH PATTERNS
Character/Decorative Stitches
159
4
■ Stitch Selection Screens
There are 15 categories of Character/Decorative stitch patterns.
Wide and Various Wide Botanical Wide Motifs and Messages Narrow and Various
Narrow Botanical Candlewicking Large Satin Satin
Cross Stitches Combinable Utility Disney
Alphabet characters
(gothic font)
Alphabet characters
(handwriting font)
Alphabet characters (outline) Cyrillic font
SELECTING STITCH PATTERNS
160
Selecting Decorative Stitch
Patterns
a
Select the category of the stitch pattern you
want to sew.
b
Press the key of the stitch pattern you want
to sew.
The selected stitch pattern is displayed.
Selecting Character Stitch
Patterns
Entering characters from the groups shown below,
for example “Blue Sky”.
a
Press , , or to select a font.
b
Press to change the selection screens.
c
Press and then enter “B”.
d
Press and then enter “lue”.
SELECTING STITCH PATTERNS
Character/Decorative Stitches
161
4
e
Press to enter a space.
f
Press again and enter “S”.
g
Press and then enter “ky”.
a Jump stitch
* Remove the jump stitches after sewing.
* To continue entering characters in a different font,
select the other font, and then repeat the procedure
from step
a.
■ Deleting Characters
a
Press , and then press to delete the
last character.
b
Select the correct character.
■ Adding Characters
a
Press so that screen displays .
b
Press or to move the cursor in front
of the character where you want to add
characters.
c
Select the character you want to add.
■ Adjusting the Character Spacing
The space between the characters can be adjusted.
a
Press , and then press .
The character spacing window appears.
a
SELECTING STITCH PATTERNS
162
b
Press to adjust character spacing.
* Press to increase the character spacing and press
to decrease the character spacing.
Memo
• The default setting is “0”. No number less
than “0” can be set.
• Changing character spacing by this
method, pertains to all characters. Spacing
changes are valid not only while entering
characters but also before and after the
entering of characters.
SEWING STITCH PATTERNS
Character/Decorative Stitches
163
4
Sewing Attractive Finishes
To achieve attractive results when sewing character/decorative stitches, check the table below for the
proper fabric/needle/thread combinations.
Basic Sewing
a
Select a stitch pattern.
b
Attach monogramming foot “N”.
c
Place the fabric under the presser foot, pull
the upper thread out to the side, and then
lower the presser foot.
d
Press the “Start/Stop” button to start
sewing.
SEWING STITCH PATTERNS
Note
• Other factors, such as fabric thickness, stabilizer material, etc., also have an effect on the stitch, so
you should always sew a few trial stitches before beginning your project.
• When sewing satin stitch patterns, there may be shrinking or bunching of stitches, so be sure to
attach a stabilizer material.
• Guide the fabric with your hand to keep the fabric feeding straight and even during sewing.
Fabric When sewing on stretch fabrics, lightweight fabrics, or fabrics with coarse weaves, attach stabilizer on the
wrong side of the fabric. If you do not wish to do so, place the fabric on a thin paper such as tracing paper.
a Fabric
b Stabilizer
c Thin paper
Thread #50 - #60
Needle With lightweight, regular, or stretch fabrics: the Ball point needle (golden colored)
With heavyweight fabrics: home sewing machine needle 90/14
Presser foot Monogramming foot “N”.
Using another presser foot may give inferior results.
CAUTION
• When sewing 7 mm satin stitch patterns and
the stitches are bunched, lengthen the stitch
length. If you continue sewing when the
stitches are bunched, the needle may bend or
break (“Setting the Stitch Length” on page 86).
Memo
• If the fabric is pulled or pushed during
sewing, the stitch pattern may not turn out
correctly. Also, depending on the stitch
pattern, there may be movement to the left
and right as well as front and back. Guide
the fabric with your hand to keep the fabric
feeding straight and even during sewing.
SEWING STITCH PATTERNS
164
e
Press the “Start/Stop” button to stop
sewing.
f
Keep pressing the “Reverse Stitch” button
or the “Reinforcement Stitch” button to
sew 4 stitches of reinforcement stitches.
Making Adjustments
Your stitch pattern may sometimes turn out poorly,
depending on the type or thickness of fabric, the
stabilizer material used, sewing speed, etc. If your
sewing does not turn out well, sew trial stitches
using the same conditions as the real sewing, and
adjust the stitch pattern as explained below. If the
stitch pattern does not turn out well even after
making adjustments based on the stitch
pattern, make adjustments for each stitch pattern
individually.
a
Press and select .
b
Attach monogramming foot “N” and sew
the stitch pattern.
c
Compare the finished stitch pattern to the
illustration of the correct stitch pattern
below.
Memo
• When sewing character stitches, the
machine automatically sews reinforcement
stitches at the beginning and end of each
character.
• After sewing is finished, use a seam ripper
to trim any excess thread (jump stitches).
SEWING STITCH PATTERNS
Character/Decorative Stitches
165
4
d
Press , and then adjust the stitch pattern
with the “Fine Adjust Verti.” or “Fine
Adjust Horiz.” displays.
* If the stitch pattern is bunched:
Touch to increase the number in the “Fine Adjust
Verti.” display.
The displayed value increases each time the button
is pressed and the stitch pattern will lengthen.
* If the stitch pattern has gaps:
Touch to decrease the number in the “Fine Adjust
Verti.” display.
The displayed value decreases each time the button
is pressed and the stitch pattern will shorten.
* If the stitch pattern is skewed to the left:
Touch to increase the number in the “Fine Adjust
Horiz.” display.
The displayed value increases each time the button
is pressed and the stitch pattern will slide to the
right.
* If the stitch pattern is skewed to the right:
Touch to decrease the number in the “Fine Adjust
Horiz.” display.
The displayed value decreases each time the button
is pressed and the stitch pattern will slide to the left.
e
Sew the stitch pattern again.
* If the stitch pattern still comes out poorly, make
adjustments again. Adjust until the stitch pattern
comes out correctly.
f
Press to return to the original screen.
Memo
• You can sew with the setting screen on the
display.
EDITING STITCH PATTERNS
166
■ Key Functions
You can create just the finish you want using the editing functions. Make stitch patterns larger or smaller, make
mirror images, etc.
EDITING STITCH PATTERNS
Note
• Some editing functions cannot be used with certain stitch patterns. Only the functions for the
displayed keys are available when a stitch pattern is selected.
a
b
c
x
w
v
r
s
u
t
opq n
h
m
g
j
i
l
k
f
e
d
z
y
Q
R
S
EDITING STITCH PATTERNS
Character/Decorative Stitches
167
4
No. Display Key Name Explanation Page
a Image key Press this key to display an enlarged image of the selected stitch pattern. 171
b Projector key Press this key to use projector functions. 96
c Guideline marker key Press this key to display or set the guideline marker for the sewing line. The
guideline marker makes quilt piecing or aligning stitching on the fabric edge
easier.
98
d Stitch pattern editing
key
Press this key to display editing function keys on the screen. 103
e Free motion mode
key
Press this key to enter free motion sewing mode.
The feed dog is lowered and presser foot is raised to a height appropriate for
free motion quilting.
126
f Back to beginning key When sewing is stopped, press this key to return to the beginning of the stitch
pattern.
170
g Single/Repeat sewing
key
Press this key to choose single stitches or continuous stitches. 169
h Horizontal mirror
image key
After selecting the stitch pattern, use this key to create a horizontal mirror
image of the stitch pattern.
169
i Vertical mirror image
key
After selecting the stitch pattern, use this key to create a vertical mirror image
of the stitch pattern.
169
j Needle mode
selection key (single/
double)
Press this key to select twin needle sewing mode. The sewing mode changes
between single needle mode and twin needle mode each time you press the
key. If the key display is light gray, the selected stitch pattern cannot be sewn
in the twin needle mode.
64
k Delete key When you make a mistake selecting a stitch pattern, use this key to delete the
mistake. When you make a mistake in combining stitch patterns, use this key
to delete stitch patterns.
161
l Elongation key When 7mm satin stitch patterns are selected, press this key to choose from 5
automatic length settings, without changing the stitch zigzag width or stitch
length settings.
169
m Step effect key Press this key to make step stitch patterns. 175
n Memory key Use this key to save stitch pattern combinations. 179
o Thread tension key Shows the automatic thread tension setting of the currently selected stitch
pattern. You can use and to change the thread tension settings.
87
p “L/R Shift” key
Press to shift the stitch pattern to the right or press to shift the
stitch pattern to the left. This feature is not available on all stitch patterns.
Only those applicable will be shifted. The machine default setting is
highlighted.
86
q Stitch width and
stitch length key
Shows the stitch width and stitch pattern length of the selected stitch pattern.
The machine default settings are highlighted.
85, 86
r Automatic
reinforcement stitch
key
Press this key to use the automatic reinforcement stitching (reverse stitching)
setting. If you select this setting before sewing, the machine will automatically
sew reinforcement stitches at the beginning and end of sewing (depending on
the stitch pattern, the machine may sew reverse stitches).
79
s Automatic thread
cutting key
Press this key to set the automatic thread cutting function. Set the automatic
thread cutting function before sewing to have the machine automatically sew
reinforcement stitches at the beginning and end of sewing (depending on the
stitch pattern, the machine may sew reverse stitches) and trim the threads
after sewing.
88
t Needle position
setting key
Press this key to select the needle stop position to be up or down. You can
also check the needle mode setting (single or twin).
Single needle/down position
Single needle/up position
Twin needle/down position
Twin needle/up position
64, 89
u Pivot key Press this key to select the pivot function. When the pivot function is selected,
stopping the machine lowers the needle and slightly raises the presser foot
automatically. In addition, when sewing is restarted, the presser foot is
automatically lowered.
89
EDITING STITCH PATTERNS
168
v Add stitch pattern key Press this key to add a new stitch pattern. 161
w Thread color change
key
Press this key to change the thread color displayed on the screen. 171
x Stitch pattern display
size
Show the approximate size of the stitch pattern selected.
: Nearly the same size as the sewn stitch pattern
: 1/2 the size of the sewn stitch pattern
: 1/4 the size of the sewn stitch pattern
* The actual size of the sewn stitch pattern may differ depending on the
type of fabric and thread that is used.
105
y Thread density key After selecting the stitch pattern, use this key to change the thread density of
the stitch pattern.
170
z Maintain aspect ratio
key
Press this key to maintain the aspect ratio when enlarging or reducing the
stitch pattern.
169
Q Stitch pattern
selection key
Press this key to enter or edit the stitch pattern immediately after the selected
stitch pattern.
161
R Select all on/off key Press this key to switch between selecting only the last stitch pattern entered
or all combined stitch patterns.
169
S Character spacing
key
Press this key to change the spacing of character stitch patterns. 161
No. Display Key Name Explanation Page
EDITING STITCH PATTERNS
Character/Decorative Stitches
169
4
Changing the Size
Select a stitch pattern, then press or to
change the size of the stitch pattern.
Stitch Pattern Size
* The size differs depending on the fabric and threads.
Changing the Length (for 7mm
Satin Stitch Patterns Only)
When 7mm satin stitch patterns are selected, press
, and then press to choose from 5 automatic
length settings, without changing the stitch zigzag
width or stitch length settings.
Creating a Vertical Mirror Image
To create a vertical mirror image, select a stitch
pattern, press , and then press .
Creating a Horizontal Mirror
To create a horizontal mirror image, select a stitch
pattern, press , and then press .
Sewing a Stitch Pattern
Continuously
Press , and then press to select continuous
sewing or single stitch sewing.
Memo
• When the select all on/off key appears as
, the size of all stitch patterns can be
changed.
• When the maintain aspect ratio key appears
as , the stitch pattern size can be
changed while maintaining the aspect ratio.
Memo
• To finish a complete motif while sewing the
stitch pattern continuously, you can press
the key while sewing. The machine will
automatically stop when the motif is
finished.
EDITING STITCH PATTERNS
170
Changing Thread Density
(for Large Satin Only)
After selecting a satin stitch pattern, press , and
then press to select your preferred thread
density.
Returning to the Beginning of the
Stitch Pattern
When sewing character/decorative stitches, you
can return to the beginning of the stitch pattern
after trial sewing or when the stitching is sewn
incorrectly.
a
Press the “Start/Stop” button to stop the
machine, press , and then press .
Sewing returns to the beginning of the selected stitch
pattern (“W”) from the point where sewing was
stopped.
b
Press the “Start/Stop” button to continue
sewing.
CAUTION
• If the stitches bunch when thread density is
changed to , return the thread density to
. If you continue sewing when the stitches
are bunched, the needle may bend or break.
Memo
• When the select all on/off key appears as
, the thread density of all stitch patterns
can be changed.
Memo
• If this key is pressed while sewing is
stopped, stitch patterns can be added at
the end of a combined stitch pattern. (In this
example, “!” is added.) Press or to
add the stitch pattern at the desired
location.
EDITING STITCH PATTERNS
Character/Decorative Stitches
171
4
Checking the Image
You can display an approximate size image of the
selected stitch pattern. You can also check and
change the colors of the image on the screen.
a
Press .
An image of the selected stitch pattern is displayed.
b
Press to change the thread color in the
image to red, blue, black or yellow.
The color changes every time you press the button.
c
Press to display the enlarged image.
d
Scroll with your finger to view any part of
the image that extends out of the viewable
display area.
e
Press to return to the original screen.
COMBINING STITCH PATTERNS
172
You can combine many varieties of stitch patterns, such as character stitches, cross stitches, satin stitches,
or stitches you design with MY CUSTOM STITCH function (see chapter 5 for information about MY
CUSTOM STITCH). You can also combine stitch patterns of different sizes, mirror image stitch patterns,
and others.
Before Combining
Single stitch sewing is automatically selected for sewing combined stitch patterns. If you want to sew the
stitch pattern continuously, press after finishing the stitch pattern combination.
Combining Various Stitch
Patterns
Example:
a
Press .
b
Select .
c
Press .
COMBINING STITCH PATTERNS
COMBINING STITCH PATTERNS
Character/Decorative Stitches
173
4
d
Press .
e
Select .
f
Press to sew the stitch pattern
continuously.
Combining Large and Small
Stitch Patterns
Example:
a
Press .
The large size stitch will be selected.
b
Press so that it displays .
c
Press again, and then press to
change the size.
The size of the stitch pattern changes.
Memo
• Stitch patterns are deleted individually
starting with the last stitch pattern entered
by pressing .
Memo
• To change the size of the stitch pattern
while maintaining the aspect ratio, press the
maintain aspect ratio key ( ).
COMBINING STITCH PATTERNS
174
d
Press , and then press to sew
continuously.
The entered stitch pattern is repeated.
Combining Horizontal Mirror
Image Stitch Patterns
Example:
a
Press .
b
Press .
c
Press again, press , and then press
.
The stitch pattern is flipped along a vertical axis.
d
Press .
The entered stitch pattern is repeated.
COMBINING STITCH PATTERNS
Character/Decorative Stitches
175
4
Combining Stitch Patterns of
Different Length
Example:
a
Press , then press once.
The length of the image is set to .
b
Press .
c
Select again, press , and then press
3 times.
The length of the image is set to .
d
Press .
The entered stitch pattern is repeated.
Making Step Stitch Patterns
You can use the keys to create a step
effect, also called step stitch patterns.
* Press to move the stitch pattern a distance
equal to half of the stitch pattern’s size to the left.
* Press to move the stitch pattern a distance
equal to half of the stitch pattern’s size to the right.
COMBINING STITCH PATTERNS
176
Example:
a
Press .
b
Press .
The next stitch pattern will move to the right.
c
Press again.
d
Press .
The next stitch pattern will move to the left.
e
Press , and then press .
The entered stitch pattern is repeated.
■ More Examples
Press .
COMBINING STITCH PATTERNS
Character/Decorative Stitches
177
4
Press
.
Press .
Press
.
USING THE MEMORY FUNCTION
178
Stitch Data Precautions
Observe the following precautions when using stitch data other than that created and saved in this
machine.
■ Types of Stitch Data that can be Used
• In the Character/Decorative Stitch memory, “.pmv”, “.pmx”, “.pmu” and “.pmp” stitch data files can be used
with this machine. When the machine is used to save a file with any extension, it is saved as a “.pmp” data
file.
• Using data other than that created using this machine or the machine which create “.pmu” data file, may
cause the machine to malfunction.
■ Types of USB Devices/Media that can be Used
Stitch data can be saved to or recalled from USB external media. Use external media that meets the following
specifications.
• USB Flash drive (USB Flash memory)
Stitch data can be recalled only from;
• USB CD-ROM, CD-R, CD-RW drives
You can also use the following types of USB media with the USB Memory Card Reader/USB card writer module.
• Secure Digital (SD) Card
• CompactFlash
• Memory Stick
•Smart Media
• Multi Media Card (MMC)
• xD-Picture Card
• To create file folders, use a computer.
■ Precautions on Using the Computer to Create and Save Data
• If the name of the stitch data file/folder cannot be identified, for example, because the name contains special
characters, the file/folder is not displayed. If this occurs, change the name of the file/folder. We recommend
using the 26 letters of the alphabet (uppercase and lowercase), the numbers 0 through 9, “-”, and “_”.
• Stitch data in a folder created in USB media can be retrieved.
USING THE MEMORY FUNCTION
Note
• Some USB media may not be usable with this machine. Please visit our website for more details.
• The access lamp will begin blinking after inserting USB devices/media, and it will take about 5 to 6
seconds to recognize the devices/media. (Time will differ depending on the USB device/media).
USING THE MEMORY FUNCTION
Character/Decorative Stitches
179
4
Saving Stitch Patterns in the
Machine’s Memory
You can save often used stitch patterns in the
machine’s memory. A total of about 1 MB of stitch
patterns can be saved in the machine’s memory.
a
Press .
b
Press .
* Press to return to the original screen without
saving.
The “Saving…” screen is displayed. When the stitch
pattern is saved, the display returns to the original
screen automatically.
■ If the Memory is Full
If the following screen appears while you are trying
to save a stitch pattern, the memory is too full to
hold the currently selected stitch pattern. To save
the stitch pattern in the machine’s memory, you
have to delete a previously saved stitch pattern.
Press , and then refer to “Retrieving Stitch
Patterns from the Machine’s Memory” on page 180.
Saving Stitch Patterns to USB
Media
When sending stitch patterns from the machine to
USB media, plug the USB media into the
machine’s USB port.
a
Press .
Note
• Do not turn the main power to OFF while the
“Saving…” screen is displayed. You will
lose the stitch pattern you are saving.
Memo
• It takes a few seconds to save a stitch
pattern.
• Refer to page 180 for information on
retrieving a saved stitch pattern.
Memo
• USB media is commercially available, but
some USB media may not be usable with
this machine. Please visit our website for
more details.
• Depending on the type of USB media being
used, either directly plug the USB device
into the machine’s USB port or plug the
USB media Reader/Writer into the
machine’s USB port.
• The USB media can be inserted or removed
at any time.
USING THE MEMORY FUNCTION
180
b
Insert the USB media into the USB port on
the machine.
a USB port
c
Press .
* Press when connecting the USB media to the
USB port for mouse.
* Press to return to the original screen without
saving.
The “Saving…” screen is displayed. When the stitch
pattern is saved, the display returns to the original
screen automatically.
Retrieving Stitch Patterns from
the Machine’s Memory
a
Press .
The pocket selection screen appears.
b
Choose a stitch pattern to retrieve.
* If the entire saved stitch pattern is not displayed,
press the thumbnail.
a Saved stitch patterns
The selected stitch pattern is retrieved and the
sewing screen will be displayed.
Note
• Do not insert or remove USB media while
“Saving…” screen is displayed. You will
lose some or all of the stitch pattern you are
saving.
a
a
USING THE MEMORY FUNCTION
Character/Decorative Stitches
181
4
Recalling from USB Media
You can recall a specific stitch pattern from either
direct USB media or a folder in the USB media. If
the stitch pattern is in a folder, check each folder
to find the stitch pattern.
a
Insert the USB media into the USB port on
the machine. (page 179)
a USB port
b
Press .
* Press when connecting the USB media to the
USB port for mouse.
Stitch patterns and a folder in a top folder are
displayed.
c
Press when there is a subfolder to
sort two or more stitch patterns to USB
media, the stitch pattern in the subfolder is
displayed.
* Press to return to the original screen without
recalling.
a Folder name
b Stitch patterns in a folder show only the first stitch
pattern of any combined stitch patterns.
c Path
The path shows the current folder at the top of the
list.
Stitch patterns and a subfolder within a folder are
displayed.
* Press to return to the previous folder.
* Use the computer to create folders. Folders cannot
be created with the machine.
a
a
c
b
USING THE MEMORY FUNCTION
182
d
Press the key of the stitch pattern you want
to recall.
The selected stitch pattern is recalled and the sewing
screen will be displayed.
Managing Saved File
You can delete the saved file, or save to machine’s
memory from USB media.
a
In the retrieving screen from USB, press
, and touch the stitch pattern you want
to manage.
b
Choose the command.
Press to select all displayed stitch patterns.
Press to deselect all selected stitch patterns.
Press to delete the selected stitch patterns.
Press to save the selected stitch patterns in
the machine’s memory.
USING THE MEMORY FUNCTION
Character/Decorative Stitches
183
4
Transferring Stitch Patterns to the
Machine (PE-DESIGN to this
machine)
For detailed procedures, refer to PE-DESIGN
manual (Version 11 or higher).
a
In the stitch pattern selection screen, press
, and then press .
The stitch patterns transferred from the application
appear.
USING THE MEMORY FUNCTION
184
Chapter 5
MY CUSTOM STITCH
DESIGNING A STITCH
186
By using the MY CUSTOM STITCH function, you
can register stitches you have created yourself.
You can also sew designs combining MY
CUSTOM STITCH creations with built-in
characters (page 172).
a
Draw the stitch design on the grid sheet
(part code SA507, GS3:X81277-151).
b
Decide the spacing of the stitch.
* By adjusting the spacing of a stitch, you can create
various stitch patterns with one stitch.
c
Place points where the stitch pattern
intersects with the grid, and connect all the
points with a line.
d
Determine the x and y coordinates of each
of the marked points.
DESIGNING A STITCH
Memo
• Stitches that you create with MY CUSTOM
STITCH can be a maximum of 7 mm
(approx. 9/32 inch) wide and 37 mm
(approx. 1-1/3 inches) long.
• Stitches can be designed more easily with
MY CUSTOM STITCH if you first draw the
stitch on the included grid sheet.
Memo
• Simplify the design so that it can be sewn
as a continuous line. For a more attractive
stitch, close the design by intersecting lines.
If the design is to be repeated and linked,
the start point and end point of the design
should be at the same height.
Memo
• This will determine the stitch design that will
be sewn.
DESIGNING A STITCH
187
MY CUSTOM STITCH
5
Examples of Custom Stitches
Stitch123456789101112131415
01218222321171412963136
003610131413111314131063
Stitch 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
12 41 43 40 41 38 35 32 30 32 35 41 45 47 44
00471113141310630047
Stitch 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
45 47 50 54 56 55 51 45 70
11131413106300
Stitch123456789101112131415
0 3032323233353537353230302926
0017101211812141411538
Stitch 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
24 18 13 12 13 10 12 8 12 7 12 6 10 5 10
1013141412111098663202
Stitch 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
16 19 23 22 17 22 23 19 42
1006106000
Stitch123456789101112131415
03581217202427293132302724
0581113141413121196310
Stitch 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
21 18 16 15 15 16 18 21 25 28 33 37 41 43 44
0135810121314141311850
Stitch 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
Stitch123456789101112131415
05458781111111611740
773770773773037
Stitch 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
4 7 11 16 21 20 21 24 23 24 27 27 27 32 27
11 14 11 7 7 11 7 7 14 7 7 11 7 7 11
Stitch 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
23 20 16 20 23 27 32
141173037
ENTERING STITCH DATA
188
■ Key Functions
a This area displays the stitch being created.
b Displays the number of the present set point over the total number of points in the stitch.
c Displays the y-coordinate of over the x-coordinate of .
ENTERING STITCH DATA
No. Display Key Name Explanation Page
d Single/triple stitching
key
Press this key to select whether one or three stitches will be sewn
between two points.
189
e Point delete key Press this key to delete a selected point. 189
f Return key Press this key to exit the entering stitch data screen. —
g Test key Press this key to sew a test of the stitch. 189, 194
h MY CUSTOM STITCH
memory key
Press this key to store the stitch being created. 194
i Block move key Press this key to group points together and move them together. 191
j Insert key Press this key to insert new points on the stitch design. 192
k Set key Press this key to set a point on the stitch design. 189-191
l
Arrow keys
Use these keys to move over the display area.
189-192
m
Point-to-point key
Use these keys to move from point to point on the stitch, or to
the first or last point entered on the stitch.
190-192
n Stitch edit key Press this key to edit the utility stitches in the machine.
192
o Grid direction key Press this key to change the direction of the grid sheet. 189
p Enlarger key Press this key to see an enlarged version of the stitch being created. 189
q Image key Press this key to view an image of the stitch. 189
a
m
i
h
g
b
d
f
c
e
q
l
k
j
o
n
p
ENTERING STITCH DATA
189
MY CUSTOM STITCH
5
a
Press and then .
b
Press .
c
Use to move to the coordinates
of the first point on the grid.
* Press to change the direction of the grid.
* Press to enlarge the image of the stitch being
created.
a Currently selected point/Total number of points
b Coordinates of
d
Press to add the point indicated by .
* To insert coordinates with the dual purpose stylus,
move the tip of the pen to a desired point. Once you
release the pen from the screen a point will be
entered into the graph at those coordinates. The
number of the currently selected points along with
the total number of points will be displayed.
e
Select whether one stitch or three stitches
will be sewn between the first two points.
* To sew three stitches, press the key so that it appears
as .
f
Use to move to the second point
and press .
g
Repeat the steps above for each point that
you have drawn on the grid sheet until the
stitch design is drawn on the screen as a
continuous line.
* Press to delete a selected point entered.
a
b
ENTERING STITCH DATA
190
* Press to sew a test-run of the stitch.
* Press to return to the original screen.
* Press to view an image of the stitch.
■ Moving a Point
a
Press or to move to the point
that you want to move.
* To move to the first point, press .
* To move to the last point, press .
b
Use to move the point.
* You can also move by using the dual purpose
stylus.
Memo
• If you have entered points that are too close
together, the fabric may not feed properly.
Edit the stitch data to leave a larger space
between points.
• If the stitch design is to be repeated and
linked, make sure that linking stitches are
added so that the stitch designs will not
overlap.
a Linking stitches
• You can touch on the grid to set the point,
or you can also use stylus or arrows on the
screen.
ENTERING STITCH DATA
191
MY CUSTOM STITCH
5
■ Moving Part or All of the Design
a
Press .
The selected point and all points that were entered
after it are selected.
b
Press or to move the section.
c
Press .
The section will be moved.
ENTERING STITCH DATA
192
■ Inserting New Points
a
Press or to move to a place on
the design where you want to add a new
point.
* To move to the first point, press .
* To move to the last point, press .
b
Press .
A new point is entered and moves to it.
c
Use to move the point.
* You can also move by using the dual purpose
stylus.
Editing Stitch Stored in the
Machine
a
Press .
ENTERING STITCH DATA
193
MY CUSTOM STITCH
5
b
Select the stitch category and stitch that
you want to edit.
* Scroll to display the other stitches.
Selected stitch is displayed in the grid.
c
Press .
Edit the stitch as you like.
Memo
• When retrieving a saved custom stitch to be
edited, refer to “Retrieving Stitch Patterns
from the Machine’s Memory” on page 180.
USING STORED CUSTOM STITCHES
194
Storing Custom Stitches in Your
List
Stitch patterns created using the MY CUSTOM
STITCH function can be stored for later use.
a
Press
b
Touch the desired icon to memory.
Before storing a stitch, press to sew a test-
run of the stitch.
USING STORED CUSTOM STITCHES
Note
• When saving file to USB, be sure to insert
USB media into the USB media port.
Memo
• Storing a stitch pattern takes a few
seconds.
• For details on retrieving a stored stitch
pattern, refer to page 195.
Note
• Do not turn off the machine while the
“Saving…” message is displayed, otherwise
the stitch pattern data being saved may be
lost.
USING STORED CUSTOM STITCHES
195
MY CUSTOM STITCH
5
■ If the Memory is Full
If the following screen appears while you are trying
to save a stitch pattern, the memory is too full to
hold the currently selected stitch pattern. To save
the stitch pattern in the machine’s memory, you
have to delete a previously saved stitch pattern.
Press , and then refer to “Retrieving Stitch
Patterns from the Machine’s Memory” on page 180.
Retrieving Stored Stitches
a
Press .
b
Press .
c
Choose , or to retrieve.
* Press to return to the previous screen without
retrieving.
Memo
• You can also retrieve the stitches by the
procedure to retrieve the Decorative/
Character stitches. Refer to page 180 and
181.
USING STORED CUSTOM STITCHES
196
d
Select the stitch pattern you want to
retrieve and press .
Chapter 6
Appendix
CARE AND MAINTENANCE
198
Restrictions on oiling
In order to prevent damaging this machine, it must
not be oiled by the user. This machine was
manufactured with the necessary amount of oil
applied to ensure correct operation, making
periodic oiling unnecessary.
If problems occur, such as difficulty turning the
handwheel or an unusual noise, immediately stop
using the machine, and contact your authorized
Brother dealer or the nearest Brother authorized
service center.
Precautions on storing the
machine
Do not store the machine in any of the locations
described below, otherwise damage to the
machine may result, for example, rust caused by
condensation.
* Exposed to extremely high temperatures
* Exposed to extremely low temperatures
* Exposed to extreme temperature changes
* Exposed to high humidity or steam
* Near a flame, heater or air conditioner
* Outdoors or exposed to direct sunlight
* Exposed to extremely dusty or oily environments
Cleaning the LCD Screen
If the screen is dirty, gently wipe it with a soft, dry
cloth. Do not use organic solvents or detergents.
Cleaning the Machine Casing
If the surface of the machine is dirty, lightly soak a
cloth in a neutral detergent, squeeze it out firmly,
and then wipe the surface. Then wipe again with a
dry cloth.
Cleaning the Race
a
Press the “Needle Position” button to raise
the needle.
b
Turn the main power to OFF.
c
Remove the needle and the presser foot
holder (page 69, 72).
d
Remove the flat bed attachment or the
embroidery unit if either is attached.
e
Slide the needle plate lever toward you.
a Slide toward you.
The needle plate opens.
f
Slide out the needle plate with your right
hand to remove it.
CARE AND MAINTENANCE
CAUTION
• Be sure to unplug the machine before cleaning it. Otherwise, electric shock or injury may result.
Note
• In order to extend the life of this machine,
periodically turn it on and use it. Storing this
machine for an extended period of time
without using it may reduce its efficiency.
Note
• Do not wipe the LCD screen with a damp
cloth.
Memo
• Occasionally, condensation may form on
the LCD screen or it may become fogged
up; however, this is not a malfunction. After
a while, the cloudiness will disappear.
a
CARE AND MAINTENANCE
199
Appendix
6
g
Grasp the bobbin case, and then gently lift
out.
a Bobbin case
h
Use the cleaning brush or a vacuum cleaner
to remove any lint and dust from the race
and bobbin thread sensor and the
surrounding area.
a Cleaning brush
b Race
c Bobbin thread sensor
i
Insert the bobbin case so that the mark
on the bobbin case aligns with the
● mark
on the machine.
* Align the and ● marks.
a mark on the bobbin case
b
● mark on the machine
c Bobbin case
* Make sure that the indicated points are aligned
before installing the bobbin case.
j
Insert the tabs on the needle plate into the
notches in the machine.
a Tabs
b Notches
k
Press down on the right side of the needle
plate to secure it.
Note
• Do not apply oil to the bobbin case.
• If lint or dust collects on the bobbin thread
sensor, the sensor may not operate
correctly.
a
a
b
c
a
b
b
a
CAUTION
• Never use a bobbin case that is scratched;
otherwise, the upper thread may become
tangled, the needle may break, or sewing
performance may suffer. For a new bobbin
case (part code: XE5342-101 (green marking
on the screw), XC8167-551 (no color on the
screw)), contact your nearest Brother
authorized service center.
• Make sure that you fit the bobbin case
properly, otherwise the needle may break.
c
a
b
CARE AND MAINTENANCE
200
Cleaning the Cutter in the Bobbin
Case Area
The cutter below the needle plate should be
cleaned. If dust or lint accumulate on the cutter, it
will be difficult to cut the thread when the “Thread
Cutter” button is pressed or the automatic thread
cutting function is used. Clean the cutter when the
thread is not easily cut.
a
Follow steps a through g in “Cleaning the
Race” to remove the needle plate.
b
Use the cleaning brush or a vacuum cleaner
to remove any lint and dust from the cutter
in the bobbin case area.
a Cutter
c
Attach the needle plate.
About the Maintenance Message
Once this message appears, it is recommended to
take your machine to an authorized Brother dealer
or the nearest Brother authorized service center for
a regular maintenance check. Although this
message will disappear and the machine will
continue to function once you press , the
message will display several more times until the
appropriate maintenance is performed.
Please take the time to arrange for the
maintenance your machine requires once this
message appears. Such steps will help to ensure
you receive continued, uninterrupted hours of
machine operation for the future.
CAUTION
• Do not touch the cutter, otherwise injuries
may result.
a
TROUBLESHOOTING
201
Appendix
6
If the machine stops operating correctly, check the following possible problems before requesting service.
You can solve most problems by yourself. If you need additional help, the Brother Solutions Center offers
the latest FAQs and troubleshooting tips. Visit us at “ http://s.brother/cpdab/
”.
If the problem persists, contact your authorized Brother dealer or the nearest Brother authorized service
center.
Frequent Troubleshooting Topics
Detailed causes and remedies for common troubleshooting topics are described below. Be sure to refer to
this before contacting your authorized Brother dealer.
Upper Thread is Too Tight
■ Symptom
* The upper thread appears as a single continuous
line.
* The lower thread is visible from the upper side of the
fabric. (Refer to the illustration below.)
* The upper thread has tightened up, and comes out
when pulled.
* The upper thread has tightened up, and wrinkles
appear in the fabric.
* The upper thread tension is tight, and the results do
not change even after the thread tension is adjusted.
a Lower side of fabric
b Lower thread visible from upper side of fabric
c Upper thread
d Upper side of fabric
e Lower thread
■ Cause
Incorrect lower threading
If the lower thread is incorrectly threaded, instead of
the appropriate tension being applied to the lower
thread, it is pulled through the fabric when the
upper thread is pulled up. For this reason, the thread
is visible from the upper side of the fabric.
■ Remedy
Correctly install the lower thread.
a
Turn off the machine.
b
Remove the bobbin from the bobbin case.
c
Place the bobbin in the bobbin case so that
the thread unwinds in the correct direction.
* Hold the bobbin with your right hand with the
thread unwinding to the left, and hold the end of the
thread with your left hand. Then, with your right
hand, place the bobbin in the bobbin case.
If the bobbin is inserted with the thread unwinding
in the wrong direction, sewing will be done with
an incorrect thread tension.
TROUBLESHOOTING
■ Upper Thread is Too Tight
page 201
■ Tangled Thread on Wrong Side of Fabric
page 202
■ Incorrect Thread Tension
page 204
■ Fabric is Caught in the Machine and Cannot be
Removed
page 205
TROUBLESHOOTING
202
d
While holding the bobbin in place with
your finger, pass the thread through the slit
in the needle plate.
* Hold down the bobbin with your right hand, and
then pull the end of the thread around the tab with
your left hand.
a Tab
b Hold down the bobbin with your right hand.
Pull the thread to pass it through the slit in the
needle plate, then cut it with the cutter.
c Slit
d Cutter
Sewing with the correct thread tension is possible
after the bobbin has been correctly installed in the
bobbin case.
Tangled Thread on Wrong Side of
Fabric
■ Symptom
* The thread becomes tangled on the lower side of the
fabric.
* After starting sewing, a rattling noise is made and
sewing cannot continue.
* Looking under the fabric, there is tangled thread in
the bobbin case.
■ Cause
Incorrect upper threading
If the upper thread is incorrectly threaded, the upper
thread passed through the fabric cannot be firmly
pulled up and the upper thread becomes tangled in
the bobbin case, causing a rattling noise.
■ Remedy
Remove the tangled thread, and then correct the
upper threading.
a
Remove the tangled thread. If it cannot be
removed, cut the thread with scissors.
* Refer to “Cleaning the Race” in “CARE AND
MAINTENANCE” on page 198.
b
Remove the upper thread from the
machine.
c
Refer to the following steps to correct the
upper threading.
* If the bobbin was removed from the bobbin case,
refer to “Setting the Bobbin” on page 58 and
“Remedy” in the section “Upper Thread is Too
Tight” on page 201 to correctly install the bobbin.
c
d
TROUBLESHOOTING
203
Appendix
6
d
Raise the presser foot using the presser foot
lever.
* If the presser foot is not raised, the machine cannot
be threaded correctly.
e
Raise the needle by turning the handwheel
toward you (counterclockwise) so that the
mark on the wheel points up, or press
“Needle Position” button once or twice to
raise the needle.
or
a Mark
f
While holding the thread with both hands,
pull the thread up from under the thread
guide plate.
a Thread guide plate
g
While holding the thread in your right
hand, pass the thread through the thread
guide in the direction indicated.
h
Guide the thread down, up, then down
through the groove, as shown in the
illustration.
i
Pass the thread through the needle bar
thread guide (marked “6”) by holding the
thread with both hands and guiding it as
shown in the illustration.
a Needle bar thread guide
j
Thread the needle according to steps j
and
o in “UPPER THREADING” on
page 61.
a
Memo
• Look in the upper groove area to check if
the thread catches on the thread take-up
lever visible inside the upper groove area.
a Look in the upper groove area
a
TROUBLESHOOTING
204
Incorrect Thread Tension
■ Symptoms
• Symptom 1: The lower thread is visible from the upper side of the fabric.
• Symptom 2: The upper thread appears as a straight line on the upper side of the fabric.
• Symptom 3: The upper thread is visible from the lower side of the fabric.
• Symptom 4: The lower thread appears as a straight line on the lower side of the fabric.
• Symptom 5: The stitching on the lower side of the fabric is loose or has slack.
■ Cause/remedy
Cause 1
The machine is not correctly threaded.
<With symptoms 1 and 2 described above>
The lower threading is incorrect.
Adjust the upper thread tension and then refer to “Upper Thread is Too Tight” on page 87.
<With symptoms 3 through 5 described above>
The upper threading is incorrect.
Adjust the upper thread tension and then refer to “Tangled Thread on Wrong Side of Fabric” on page 202 to
correct the upper threading.
Cause 2
A needle and thread appropriate for the fabric are not being used.
The machine needle that should be used depends on the type of fabric sewn and the thread thickness.
If a needle and thread appropriate for the fabric are not being used, the thread tension will not be adjusted
correctly, causing wrinkles in the fabric or skipped stitches.
* Refer to “Fabric/Thread/Needle Combinations” on page 71 to check that a needle and thread appropriate for the fabric
are being used.
Cause 3
An appropriate upper tension is not selected.
Adjust the upper thread tension to select an appropriate thread tension.
The appropriate thread tension differs according to the type of fabric and thread being used.
* Adjust the thread tension while test sewing on a piece of scrap fabric that is the same as that used in your project.
* When the lower thread is visible on the upper side
of the fabric. Set the upper thread tension to a lower
number. (Loosen the thread tension.)
* When the upper thread is visible on the lower side
of the fabric. Set the upper thread tension to a higher
number. (Tighten the thread tension.)
Symptom 1 Symptom 3
a Lower side of fabric
b Lower thread visible on
upper side of fabric
c Upper thread
d Upper side of fabric
e Lower thread
f Upper thread visible from
lower side of fabric
Note
• If the upper threading and lower threading are incorrect, the thread tension cannot be adjusted
correctly, even by adjusting the upper thread tension. Check the upper threading and lower threading
first, and then adjust the thread tension.
TROUBLESHOOTING
205
Appendix
6
Fabric is Caught in the Machine
and Cannot be Removed
If the fabric is caught in the machine and cannot
be removed, the thread may have become tangled
under the needle plate. Follow the procedure
described below to remove the fabric from the
machine. If the operation could not be completed
according to the procedure, instead of attempting
to complete it forcefully, contact your authorized
Brother dealer or the nearest Brother authorized
service center.
■ Removing the fabric from the
machine
a
Immediately stop the machine.
b
Turn off the machine.
c
Remove the needle.
If the needle is lowered into the fabric, turn the
handwheel away from you (clockwise) to raise the
needle out of the fabric, and then remove the needle.
* Refer to “CHANGING THE NEEDLE” on page 69.
d
Remove the presser foot and presser foot
holder.
* Refer to “CHANGING THE PRESSER FOOT” on
page 72.
e
Lift up the fabric and cut the threads below
it.
If the fabric can be removed, remove it. Continue with
the following steps to clean the race.
f
Slide the needle plate lever toward you.
a Slide toward you.
The needle plate opens.
g
Slide out the needle plate with your right
hand to remove it.
h
Grasp the bobbin case, and then gently lift
out.
If threads remain in the bobbin case, remove them.
a Bobbin case
i
Use the cleaning brush or a vacuum cleaner
to remove any dust or loose threads from
the race and its surrounding area.
a Cleaning brush
b Race
j
Insert the bobbin case so that the mark
on the bobbin case aligns with the ● mark
on the machine.
a
a
a
b
a
b
b
a
TROUBLESHOOTING
206
* Align the and ● marks.
a mark
b ● mark
c Bobbin case
* Make sure that the indicated points are aligned
before installing the bobbin case.
k
Insert the tabs on the needle plate into the
notches in the machine.
a Tabs
b Notches
l
Press down on the right side of the needle
plate to secure it.
m
Check the condition of the needle, and then
install it.
If the needle is in a poor condition, for example, if it is
bent, be sure to install a new needle.
* Refer to “CHANGING THE NEEDLE” on page 69.
■ Checking machine operations
If the needle plate has been removed, check
machine operations to confirm that installation has
been completed correctly.
a
Turn on the machine.
b
Select .
c
Slowly turn the handwheel toward you
(counterclockwise), and look from all sides
to check that the needle falls at the center
of the hole in the needle plate.
If the needle contacts the needle plate, remove the
needle plate, and then install it again.
a Hole in the needle plate
b Handwheel
d
Select zigzag stitch . At this time,
increase the stitch length and width to their
maximum settings.
e
Slowly turn the handwheel toward you
(counterclockwise) and check that the
needle bar and feed dogs operate correctly.
If the needle or feed dogs contact the needle plate, the
machine may be malfunctioning; therefore, contact
CAUTION
• Never use a bobbin case that is scratched;
otherwise, the upper thread may become
tangled, the needle may break, or sewing
performance may suffer. For a new bobbin
case (part code: XE5342-101 (green marking
on the screw), XC8167-551 (no color on the
screw)), contact your nearest Brother
authorized service center.
• Make sure that you fit the bobbin case
properly, otherwise the needle may break.
c
a
b
CAUTION
• Never use bent needles. Bent needles can
easily break, possibly resulting in injuries.
Note
• After completing this procedure, continue
with the following procedure in “Checking
machine operations” to check that the
machine is operating correctly.
Memo
• Since the needle may have been damaged
when the fabric was caught in the machine,
we recommend replacing it with a new one.
Note
• Do not yet install the presser foot and
thread.
TROUBLESHOOTING
207
Appendix
6
your authorized Brother dealer or the nearest Brother
authorized service center.
f
Turn off the machine, and then install the
bobbin and presser foot.
* Refer to “Setting the Bobbin” on page 58 and
“CHANGING THE PRESSER FOOT” on page 72.
g
Correctly thread the machine.
* For details on the machine, refer to “UPPER
THREADING” on page 61.
h
Perform trial sewing with normal fabric.
Note
• The thread may have become tangled as a
result of incorrect upper threading. Make
sure that the machine is correctly threaded.
Note
• Remember when sewing thin fabrics, select
a center stitch that is shorter in length and
use the straight stitch needle plate for
straight sewing stitches. A lightweight
paper stabilizer can also be placed on the
underside of the fabric.
TROUBLESHOOTING
208
List of Symptoms
If you have a minor problem with your machine, check the following solutions. If the solutions suggested
do not correct the problem, contact your authorized Brother dealer. Press
for advice about minor sewing problems during sewing. Press at any time to return to
the original screen.
■ Getting ready
Problem Cause Solution Page
Cannot thread the
needle.
Needle is not in the correct position. Press the “Needle Position” button to raise the
needle.
15
Needle is installed incorrectly. Reinstall the needle correctly. 69
Needle is turned, bent or the point is dull. Replace the needle. 69
Upper threading is incorrect. Check the steps for threading the machine and
rethread the machine.
61
The needle threader hook is bent and does not
pass through the eye of the needle.
Contact your authorized Brother dealer.
—
The needle threader lever cannot be moved or
returned to its original position.
Contact your authorized Brother dealer.
—
A size 65/9 needle is being used. The needle is incompatible with the needle
threader. Manually pass the thread through the
eye of the needle.
64
Cannot lower the
presser foot with the
presser foot lever.
Presser foot was raised using the “Presser
Foot Lifter” button.
Press the “Presser Foot Lifter” button to lower
the presser foot.
15
Bobbin thread does
not wind neatly on the
bobbin.
The thread is not passed through the bobbin
winding thread guide correctly.
Correctly pass the thread through the bobbin
winding thread guide.
65
Bobbin spins slowly.
Press in the bobbin winding window to
increase the bobbin winding speed.
55
The thread that was pulled out was not wound
onto the bobbin correctly.
Wind the thread that was pulled off around the
bobbin 5 or 6 times clockwise.
53
The empty bobbin was not set on the pin
properly.
Set the empty bobbin on the pin and slowly
turn the bobbin until you hear it click in place.
52
While winding the
bobbin, the bobbin
thread was wound
below the bobbin
winder seat.
You have not wound the bobbin thread
properly when you are initially winding thread
on the bobbin as well as being sure that the
bobbin thread is set in the guides.
After removing the thread wound below the
bobbin winder seat, wind the bobbin correctly.
Follow the drawn images on the top of the
machine for guidance when threading the
machine for bobbin winding.
52
The bobbin thread
cannot be pulled up.
Needle is turned, bent or the point is dull. Replace the needle. 69
Bobbin is set incorrectly. Reset the bobbin thread correctly. 58
Machine does not
operate
All keys and buttons have been locked by
.
Press to unlock all keys and buttons.
66, 72
Nothing appears in
the LCD.
Main power switch is not turned on. Turn the main power to ON.
26
The plug of the power cord is not inserted into
an electrical outlet.
Insert the plug of the power cord into an
electrical outlet.
27
The LCD screen does
not look very clear.
The brightness of the screen is not adjusted. Adjust the “Screen Display Brightness” in the
settings screen.
30
Nothing happens,
even if the LCD
display is pressed
The screen has been locked. Press either of the following keys to unlock the
screen.
—
The LCD screen is
fogged up.
Condensation has formed on the LCD screen. After a while, the cloudiness will disappear.
—
The dual purpose
stylus cannot be
operated.
The dual purpose stylus is dirty. Clean the light-emitting part of the dual
purpose stylus.
—
The battery is dead. Replace the battery with a new one.
94
TROUBLESHOOTING
209
Appendix
6
■ While sewing
Problem Cause Solution Page
Machine does not
operate.
“Start/Stop” button was not pressed. Press the “Start/Stop” button.
15
There is no stitch pattern selected. Select a stitch pattern.
105, 158
Presser foot is not lowered. Lower the presser foot.
15
“Start/Stop” button was pressed with the foot
controller attached.
Remove the foot controller, or use the foot
controller to operate the machine.
78
The “Start/Stop” button was pressed while the
machine is set for the sewing speed controller
to control the zigzag stitch width.
Use the foot controller instead of the “Start/
Stop” button to operate the machine, or set
the “Width Control” to “OFF” in the settings
screen.
29, 78
Needle breaks. Needle is installed incorrectly. Reinstall the needle correctly. 69
Needle clamp screw is not tightened. Tighten the needle clamp screw. 70
Needle is turned or bent. Replace the needle. 69
Using improper needle or thread for the
selected fabric.
Check the “Fabric/Thread/Needle
Combinations” chart.
71
Wrong presser foot was used. Use the recommended presser foot.
218
Upper thread tension is too tight. Adjust the thread tension. 87
Fabric is pulled during sewing. Do not pull the fabric during sewing. —
Spool cap is set incorrectly. Check the method for attaching the spool cap,
then reattach the spool cap.
61
There are scratches around the opening in the
needle plate.
Replace the needle plate, or consult your
authorized Brother dealer.
198
There are scratches around the opening in the
presser foot.
Replace the presser foot, or consult your
authorized Brother dealer.
72
There are scratches on the bobbin case. Replace the bobbin case, or consult your
authorized Brother dealer.
198
Needle is defective. Replace the needle. 69
A bobbin designed specifically for this
machine is not used.
Incorrect bobbins will not work properly. Only
use a bobbin designed specifically for this
machine.
58
Upper threading is incorrect. Check the steps for threading the machine and
rethread the machine.
61
Bobbin is set incorrectly. Reset the bobbin thread correctly. 58
Presser foot is attached incorrectly. Attach the presser foot correctly. 72
Screw of the presser foot holder is loose. Securely tighten the screw of the presser foot. 73
Fabric is too thick. Use fabric that the needle can pierce when the
handwheel is turned.
82
Fabric is fed forcefully when sewing thick
fabric or thick seams.
Allow the fabric to be fed without being
forcefully pushed.
71, 82
Stitch length is too short. Adjust the stitch length. 86
Bobbin thread is incorrectly wound. Use a correctly wound bobbin. 52
TROUBLESHOOTING
210
Upper thread breaks. Machine is not threaded correctly (used the
wrong spool cap, spool cap is loose, the
thread did not catch the needle bar threader,
etc.)
Rethread the machine correctly. 61
Knotted or tangled thread is being used. Remove any knots or tangles.
—
The selected needle is not appropriate for the
thread being used.
Select a needle that is appropriate for the type
of thread being used.
71
Upper thread tension is too tight. Adjust the thread tension. 87
Thread is twisted. Use scissors, etc., to cut the twisted thread
and remove it from the race, etc.
—
Needle is turned, bent or the point is dull. Replace the needle. 69
Needle is installed incorrectly. Reinstall the needle correctly. 69
There are scratches around the opening of the
needle plate.
Replace the needle plate, or consult your
authorized Brother dealer.
198
There are scratches around the opening in the
presser foot.
Replace the presser foot, or consult your
authorized Brother dealer.
72
There are scratches on the bobbin case. Replace the bobbin case, or consult your
authorized Brother dealer.
198
Using improper needle or thread for the
selected fabric.
Check the “Fabric/Thread/Needle
Combinations” chart.
71
While sewing, the thread became knotted or
tangled.
Rethread upper and lower thread. 58, 61
A bobbin designed specifically for this
machine is not used.
Incorrect bobbins will not work properly. Only
use a bobbin designed specifically for this
machine.
58
The thread is tangled
on the wrong side of
the fabric.
Upper threading is incorrect. Check the steps for threading the machine and
rethread the machine. Be sure that the presser
foot is in the raised position when threading
the machine so that the upper thread sets
properly in the upper tension.
61
Using improper needle or thread for the
selected fabric.
Check the “Fabric/Thread/Needle
Combinations” chart.
71
The upper thread is
too tight.
The bobbin thread is incorrectly installed. Correctly install the bobbin thread. 58
Bobbin thread
breaks.
Bobbin is set incorrectly. Reset the bobbin thread correctly. 58
Bobbin thread is incorrectly wound. Use a correctly wound bobbin. 52
There are scratches on the bobbin or it doesn’t
rotate properly.
Replace the bobbin. 58
Thread is twisted. Use scissors, etc. to cut the twisted thread
and remove it from the race, etc.
—
A bobbin designed specifically for this
machine is not used.
Incorrect bobbins will not work properly. Only
use a bobbin designed specifically for this
machine.
58
Fabric puckers. There is a mistake in the upper or bobbin
threading.
Check the steps for threading the machine and
rethread it correctly.
58, 61
Spool cap is set incorrectly. Check the method for attaching the spool cap,
then reattach the spool cap.
61
Using improper needle or thread for the
selected fabric.
Check the “Fabric/Thread/Needle
Combinations” chart.
71
Needle is turned, bent or the point is dull. Replace the needle. 69
Stitches are too long when sewing thin fabrics. Shorten the stitch length. 86
Thread tension is set incorrectly. Adjust the thread tension. 87
Wrong presser foot. Use the correct presser foot. 218
The stitch is not sewn
correctly.
The presser foot that is used is not appropriate
for the type of stitch that you wish to sew.
Attach the presser foot that is appropriate for
the type of stitch that you wish to sew.
218
The thread tension is incorrect. Adjust the tension of the upper thread. 87
The thread is tangled, for example, in the
bobbin case.
Remove the tangle thread. If the thread is
tangled in the bobbin case, clean the race.
198
Skipped stitches Machine is threaded incorrectly. Check the steps for threading the machine and
rethread it correctly.
61
Using improper needle or thread for the
selected fabric.
Check the “Fabric/Thread/Needle
Combinations” chart.
71
Problem Cause Solution Page
TROUBLESHOOTING
211
Appendix
6
Skipped stitches Needle is turned, bent or the point is dull. Replace the needle. 69
Needle is installed incorrectly. Reinstall the needle correctly. 69
Needle is defective. Replace the needle. 69
Dust or lint has collected under the needle
plate.
Remove the dust or lint with the brush. 198
Thin or stretch fabrics are being sewn. Sew with one sheet of thin paper under the
fabric.
84
No stitching Needle is turned, bent or the point is dull. Replace the needle. 69
Bobbin is set incorrectly. Reset the bobbin thread correctly. 58
Upper threading is incorrect. Check the steps for threading the machine and
rethread the machine.
61
High-pitched sound
while sewing
Dust or lint is caught in the feed dogs. Remove the dust or lint. 198
Pieces of thread are caught in the race. Clean the race. 198
Upper threading is incorrect. Check the steps for threading the machine and
rethread the machine.
61
A bobbin designed specifically for this
machine is not used.
Incorrect bobbins will not work properly. Only
use a bobbin designed specifically for this
machine.
58
There are needle holes or friction scratches in
the bobbin case.
Replace the bobbin case, or consult your
authorized Brother dealer.
198
Fabric does not feed
through the machine.
Feed dogs are set in the down position.
Press , and then turn the handwheel to
raise the feed dogs.
126
Stitches are too close together. Lengthen the stitch length setting. 86
Wrong presser foot was used. Use the correct presser foot.
218
Needle is turned, bent or the point is dull. Replace the needle. 69
Thread is entangled. Cut the entangled thread and remove it from
the race.
—
Zigzag foot “J” is slanted on a thick seam at
the beginning of stitching.
Use the presser foot locking pin (black button
on the left side) on zigzag foot “J” to keep the
presser foot level while sewing.
83
The fabric feeds in
the opposite
direction.
The feed mechanism is damaged. Contact your authorized Brother dealer.
—
The needle contacts
the needle plate.
The needle clamp screw is loose. Firmly tighten the needle clamp screw. If the
needle is bent or blunt, replace it with a new
one.
70
Needle is turned, bent or the point is dull. Replace the needle. 69
Fabric being sewn
with the machine
cannot be removed.
Thread is tangled below the needle plate. Lift up the fabric and cut the threads below it,
and clean the race.
202
A broken needle has
fallen into the
machine.
— Turn off the machine, and then remove the
needle plate. If the needle that fell into the
machine can be seen, use tweezers to remove
it. After removing the needle, return the needle
plate to its original position.
Before turning on the machine, slowly turn the
handwheel toward you to check that it turns
smoothly. If the handwheel does not turn
smoothly or the needle that fell into the
machine cannot be removed, consult your
authorized Brother dealer.
—
The handwheel feels
sluggish when it is
turned.
Thread is tangled in the bobbin case. Remove the tangled thread from the bobbin
case. Re-install the bobbin case so it is
correctly positioned.
202
The built-in camera
cannot detect the
buttonhole foot.
The buttonhole foot is dirty. Clean the area of the buttonhole foot to be
detected.
141
Mark “A+” or 3 dots on the presser foot is
shaded.
Keep these area clean. 141
Problem Cause Solution Page
TROUBLESHOOTING
212
■ After sewing
Problem Cause Solution Page
Thread tension is
incorrect.
Upper threading is incorrect. Check the steps for threading the machine and
rethread the machine.
61
Bobbin is set incorrectly. Reset the bobbin. (If needle plate was
removed, reinstall needle plate and tighten
screws prior to installing bobbin case.)
58
Using improper needle or thread for the
selected fabric.
Check the “Fabric/Thread/Needle
Combinations” chart.
71
Presser foot holder is not attached correctly. Reattach the presser foot holder correctly. —
Thread tension is set incorrectly. Adjust the thread tension. 87
Bobbin thread is incorrectly wound. Use a correctly wound bobbin. 52
Needle is turned, bent or the point is dull. Replace the needle. 69
A bobbin designed specifically for this
machine is not used.
Incorrect bobbins will not work properly. Only
use a bobbin designed specifically for this
machine.
58
Character or
decorative stitch
patterns are
misaligned.
Stitch pattern adjustment settings were set
incorrectly.
Revise the stitch pattern adjustment settings. 164
Stitch pattern does
not turn out.
Wrong presser foot was used. Attach the correct presser foot. 218
Did not use a stabilizer material on thin fabrics
or stretch fabrics.
Attach a stabilizer material. 163
Thread tension is set incorrectly. Adjust the thread tension. 87
Fabric was pulled, pushed or fed at an angle
while it was being sewn.
Sew while guiding the fabric with your hands
so that the fabric is fed in a straight line.
77
The thread is tangled, for example, in the
bobbin case.
Remove the tangle thread. If the thread is
tangled in the bobbin case, clean the race.
198
CAUTION
• This machine is equipped with a thread detection device. If the “Start/Stop” button is pushed before the
upper threading is done, the machine will not operate properly.
• If the power is disconnected during sewing:
Turn the main power to OFF and unplug the machine.
If you restart the machine, follow the Operation Manual for operating the machine correctly.
ERROR MESSAGES
213
Appendix
6
If the machine is not properly set and the “Start/Stop” button or the “Reverse/Reinforcement Stitch” button
is pressed, or if the operation procedure is incorrect, the machine does not start. An alarm sounds and an
error message is displayed on the LCD. If an error message displays, follow the instructions in the
message.
Below is an explanation of error messages. Refer to these when necessary (if you press or do the
operation correctly while the error message is displayed, the message disappears).
ERROR MESSAGES
CAUTION
• Be sure to rethread the machine. If you press the “Start/Stop” button without rethreading the machine,
the thread tension may be wrong or the needle may break and cause injury.
This message is displayed
when the motor locks due
to tangled thread or for
other reasons related to
thread delivery.
This message is displayed
when you try to sew with a
stitch other than a middle
needle position stitch while
the single-hole needle plate
is installed.
This message is displayed
when the needle plate is
removed with the machine
on or when the machine is
turned on and embroidery
or embroidery edit mode is
selected.
This message is displayed
when the machine needs to
be maintained. (page 200)
This message is displayed
when you try to combine
more than 71 stitch
patterns.
This message is displayed
when the speed control
lever is set to control the
zigzag stitch width, and the
“Start/ Stop” button is
pushed. Use the foot
controller to operate the
machine.
This message is displayed
when the automatic needle
threading button is pushed
while twin needle sewing is
set.
This message appears
when you try to save more
than 100 camera image or
settings screen image files
in the USB media. In this
case, delete a file from the
USB media or use different
USB media. (page 33)
This message appears
when or is
pressed to delete the
settings for a utility stitch.
To delete the selected
settings, press .
This message is displayed
when the stitch patterns
you are editing take up too
much memory, or if you are
editing too many stitch
patterns for the memory.
ERROR MESSAGES
214
This message is displayed
when a key on the LCD
display is touched while the
needle is in the down
position.
This message is displayed
when there are too many
characters and the curved
character configuration is
impossible.
This message is displayed
when the upper thread is
broken or not threaded
correctly, and the “Start/
Stop” button or the
“Reverse/ Reinforcement
Stitch” button is pressed.
This message is displayed
when the “Presser Foot
Lifter” button is pushed
while the presser foot lever
is raised/the needle is
lowered.
This message is displayed
when the “Start/Stop”
button is pushed to sew
utility stitches or character/
decorative stitches while
the foot controller is
connected.
This message is displayed
when there is no stitch
pattern selected and the
“Start/Stop” button or the
“Reverse/Reinforcement
Stitch” button is pressed.
This message is displayed
when the bobbin thread is
running out.
This message is displayed
when the memory is full
and the stitch pattern or
embroidery pattern cannot
be saved.
This message is displayed
when, after selecting a
stitch pattern, ,
, or is pressed
and the stitch pattern is
about to be deleted.
This message is displayed
when the bobbin is being
wound, and the motor
locks because the thread is
tangled, etc.
This message is displayed
when there is a possibility
that the data for the
selected stitch pattern is
corrupted.
This message is displayed
when you try to use
incompatible media.
This message is displayed
when you attempt to select
a stitch pattern after the
USB media in which the
stitch pattern is saved has
been changed.
This message is displayed
when an error occurs with
the USB media.
This message is displayed
when the memory is full
and a stitch pattern must
be deleted.
ERROR MESSAGES
215
Appendix
6
■ Alarm Sounds
If the operation was performed incorrectly, an alarm
sounds to indicate that an error occurred. If the
operation was performed correctly, the machine
beeps to confirm the operation.
This message is displayed
when a button, such as the
“Start/Stop” button, is
pushed while the presser
foot is raised.
This message is displayed
when it seems that the
upper thread has not been
threaded correctly.
This message is displayed
when the file size exceeds
the data capacity of the
machine.
Confirm the file size and
format. (page 36.)
This message appears if
the file format is
incompatible with this
machine. Check the list of
compatible file formats.
(page 36.)
This message is displayed
when the image is deleted.
This message is displayed
when you press
in the
screen other than the utility
stitch, or press
in the
screen other than the utility
stitch or character/
decorative stitch.
This message appears
when you try to start
sewing utility stitches or
character/decorative
stitches with the
embroidery foot with the
LED pointer attached to the
machine.
Remove the embroidery
foot with the LED pointer
before entering the sewing
mode.
This message appears
when the dual feed foot
cannot be used with the
current stitch. Select other
stitch.
This message appears
when start sewing
buttonhole stitches without
attaching buttonhole foot
“A+”.
Memo
• To cancel the operation beep or to change
the volume, press , display page 4 of the
General settings screen, and then change
the setting for “Machine Speaker Volume”.
Refer to page 30 for more details.
SPECIFICATIONS
216
* Please be aware that some specifications may change without notice.
SPECIFICATIONS
Item Specification
Machine
(Box 1 of 2)
Dimensions of machine Approx. 690 mm (W) × 349 mm (H) × 322 mm (D) (approx.
27-11/64 inches (W) × 13-47/64 inches (H) × 12-43/64
inches (D))
Dimensions of box Approx. 805 mm (W) × 510 mm (H) × 405 mm (D) (approx.
31-11/16 inches (W) × 20-5/64 inches (H) × 15-15/16 inches
(D))
Weight of machine Approx. 19.6 kg (approx. 43.2 lb)
Weight of box (for shipping) Approx. 23.0 kg (approx. 50.7 lb)
Sewing speed 70 to 1050 stitches per minute
Needles Home sewing machine needles (HA × 130)
Embroidery Unit
(Box 2 of 2)
Dimensions of embroidery unit Approx. 637 mm (W) × 150 mm (H) × 576 mm (D) (approx.
25-5/64 inches (W) × 5-29/32 inches (H) × 22-43/64 inches
(D))
Dimensions of machine with
embroidery unit attached
Approx. 973 mm (W) × 349 mm (H) × 576 mm (D) (approx.
38-5/16 inches (W) × 13-47/64 inches (H) × 22-43/64 inches
(D))
Dimensions of box Approx. 800 mm (W) × 695 mm (H) × 205 mm (D) (approx.
31-1/2 inches (W) × 27-23/64 inches (H) × 8-5/64 inches (D))
Weight of embroidery unit Approx. 5.6 kg (approx. 12.3 lb)
Weight of box (for shipping) Approx. 9.2 kg (approx. 20.3 lb)
Total Shipping Weight (Combination of all 2 boxes complete) Approx. 43.4 kg (approx. 95.7 lb)
Data storage USB media/SD card (SD and SDHC)
UPGRADING YOUR MACHINE’S SOFTWARE
217
Appendix
6
You can use USB media to upgrade software for your machine.
When an upgrade program is available on “ http://s.brother/cpdab/
”, please download the files following
the instructions on the website and steps below.
Upgrade Procedure Using USB
Media
a
While pressing the “Automatic Threading”
button, turn the main power to ON.
The following screen will appear on the LCD.
b
Press or .
c
Insert the USB media into the USB port
corresponding to the button pressed in step
b . USB port on the machine. The media
device should only contain the upgrade file.
a USB media
b USB port
d
Press .
The upgrade file is loaded.
e
Remove the USB media, and turn the
machine off and on again.
UPGRADING YOUR MACHINE’S SOFTWARE
Note
• When using USB media to upgrade the software, check that no data other than the upgrade file is
saved on the USB media being used before starting to upgrade.
• Compatible operating systems:
Windows 7, Windows 8.1, Windows 10
Note
• The access lamp will begin blinking after
inserting USB media, and it will take about 5
to 6 seconds to recognize the media. (Time
will differ depending on the USB media).
a
b
Note
• If an error occurs, a red text error message
will appear. When the installation is
performed successfully, following message
will appear.
STITCH SETTING CHART
218
The following chart shows information for each utility stitch concerning applications, stitch lengths, stitch
widths, and whether or not the twin needle mode can be used.
STITCH SETTING CHART
Note
• Quilting foot “C” is used when the straight stitch needle plate is attached to the machine. Refer to
“Using Free motion Quilting Foot “C”” on page 126.
Stitch Stitch name
Presser foot
Applications
Stitch width
[mm (inch)]
Stitch length
[mm (inch)]
Twi n
needle
Auto. Manual Auto. Manual
Straight stitch
(Left)
General sewing, gather,
pintuck, etc. Reverse stitch is
sewn while pressing “Reverse/
Reinforcement Stitch” button.
0.0
(0)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Straight stitch
(Left)
General sewing, gather,
pintuck, etc. Reinforcement
stitch is sewn while pressing
“Reverse/Reinforcement
Stitch” button.
0.0
(0)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Straight stitch
(Middle)
General sewing, gather,
pintuck, etc. Reverse stitch is
sewn while pressing “Reverse/
Reinforcement Stitch” button.
3.5
(9/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Straight stitch
(Middle)
General sewing, gather,
pintuck, etc. Reinforcement
stitch is sewn while pressing
“Reverse/Reinforcement
Stitch” button.
3.5
(9/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Triple stretch
stitch
General sewing for
reinforcement and decorative
topstitching
0.0
(0)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Stem stitch Reinforced stitching, sewing
and decorative applications
1.0
(3/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Decorative
stitch
Decorative stitching, top
stitching
0.0
(0)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Basting stitch Basting
0.0
(0)
0.0 - 7.0
(0 - 9/32)
20
(25/32)
5.0
(13/64)
NO
Zigzag stitch For overcasting, mending.
Reverse stitch is sewn while
pressing “Reverse/
Reinforcement Stitch” button.
3.5
(9/64)
0.0 - 7.0
(0 - 9/32)
1.4
(1/16)
0.0 - 5.0
(0 - 13/64)
OK
( J )
Zigzag stitch For overcasting, mending.
Reinforcement stitch is sewn
while pressing “Reverse/
Reinforcement Stitch” button.
3.5
(9/64)
0.0 - 7.0
(0 - 9/32)
1.4
(1/16)
0.0 - 5.0
(0 - 13/64)
OK
( J )
Zigzag stitch
(Right)
Start from right needle
position, zigzag sew at left.
3.5
(9/64)
2.5 - 5.0
(3/32 - 13/
64)
1.4
(1/16)
0.3 - 5.0
(1/64 - 13/
64)
OK
( J )
Zigzag stitch
(Left)
Start from left needle position,
zigzag sew at right.
3.5
(9/64)
2.5 - 5.0
(3/32 - 13/
64)
1.4
(1/16)
0.3 - 5.0
(1/64 - 13/
64)
OK
( J )
2 steps elastic
zigzag
Overcasting (medium weight
and stretch fabrics), tape and
elastic
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
1.0
(3/64)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
STITCH SETTING CHART
219
Appendix
6
2 steps elastic
zigzag
Overcasting (medium weight
and stretch fabrics), tape and
elastic
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
1.0
(3/64)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
3 steps elastic
zigzag
Overcasting (medium,
heavyweight and stretch
fabrics), tape and elastic
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
1.0
(3/64)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Overcasting
stitch
Reinforcing of light and
medium weight fabrics
3.5
(9/64)
2.5 - 5.0
(3/32 - 13/
64)
2.0
(5/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
Overcasting
stitch
Reinforcing of heavyweight
fabric
5.0
(13/64)
2.5 - 5.0
(3/32 - 13/
64)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Overcasting
stitch
Reinforcing of medium,
heavyweight and easily friable
fabrics or decorative stitching.
5.0
(13/64)
3.5 - 5.0
(9/64 - 13/
64)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Overcasting
stitch
Reinforced seaming of stretch
fabric
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Overcasting
stitch
Reinforcing of medium stretch
fabric and heavyweight fabric,
decorative stitching
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Overcasting
stitch
Reinforcement of stretch
fabric or decorative stitching
4.0
(5/32)
0.0 - 7.0
(0 - 9/32)
4.0
(5/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Overcasting
stitch
Stretch knit seam
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
4.0
(5/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Single diamond
overcast
Reinforcement and seaming
stretch fabric
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
3.0
(1/8)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Single diamond
overcast
Reinforcement of stretch
fabric
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
1.8
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
With side cutter Straight stitch while cutting
fabrics
0.0
(0)
0.0 - 2.5
(0 - 3/32)
2.5
(3/32)
0.2 - 5.0
(1/64 - 13/
64)
NO
With side cutter Zigzag stitch while cutting
fabrics
3.5
(9/64)
3.5 - 5.0
(9/64 - 13/
64)
1.4
(1/16)
0.0 - 5.0
(0 - 13/64)
NO
With side cutter Overcasting stitch while
cutting fabrics
3.5
(9/64)
3.5 - 5.0
(9/64 - 13/
64)
2.0
(5/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
With side cutter Overcasting stitch while
cutting fabrics
5.0
(13/64)
3.5 - 5.0
(9/64 - 13/
64)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
With side cutter Overcasting stitch while
cutting fabrics
5.0
(13/64)
3.5 - 5.0
(9/64 - 13/
64)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Piecing stitch
(Right)
Piecework/patchwork 6.5 mm
(approx. 1/4 inch) right seam
allowance
5.5
(7/32)
0.0 - 7.0
(0 - 9/32)
2.0
(5/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
Piecing stitch
(Middle)
Piecework/patchwork
— —
2.0
(5/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
Stitch Stitch name
Presser foot
Applications
Stitch width
[mm (inch)]
Stitch length
[mm (inch)]
Twin
needle
Auto. Manual Auto. Manual
STITCH SETTING CHART
220
Piecing stitch
(Left)
Piecework/patchwork 6.5 mm
(approx. 1/4 inch) left seam
allowance
1.5
(1/16)
0.0 - 7.0
(0 - 9/32)
2.0
(5/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
Hand-look
quilting
Quilting stitch made to look
like hand quilting stitch
0.0
(0)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Quilting
appliqué zigzag
stitch
Zigzag stitch for quilting and
sewing on appliqué quilt
pieces
3.5
(9/64)
0.0 - 7.0
(0 - 9/32)
1.4
(1/16)
0.0 - 5.0
(0 - 13/64)
NO
Quilting
appliqué stitch
Quilting stitch for invisible
appliqué or attaching binding
1.5
(1/16)
0.0 - 7.0
(0 - 9/32)
1.8
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Quilting
stippling
Background quilting
7.0
(9/32)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Blind hem stitch Hemming woven fabrics
0.0
(0)
+3.0 - -3.0
(+1/8 - -1/8)
2.0
(5/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
Blind hem stitch
stretch
Hemming stretch fabric
0.0
(0)
+3.0 - -3.0
(+1/8 - -1/8)
2.0
(5/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
Blanket stitch Appliqués, decorative blanket
stitch
3.5
(9/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Blanket stitch Appliqués, decorative blanket
stitch
2.5
(3/32)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Shell tuck edge Shell tuck edge finish on
fabrics
4.0
(5/32)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Satin scallop
stitch
Decorating collar of blouse,
edge of handkerchief
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
0.5
(1/64)
0.1 - 5.0
(0 - 13/64)
OK
( J )
Scallop stitch Decorating collar of blouse,
edge of handkerchief
7.0
(9/32)
0.0 - 7.0
(0 - 9/32)
1.4
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Patchwork join
stitch
Patchwork stitches, decorative
stitching
4.0
(5/32)
0.0 - 7.0
(0 - 9/32)
1.2
(1/16)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Patchwork
double overlock
stitch
Patchwork stitches, decorative
stitching
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Couching stitch Decorative stitching, attaching
cord and couching
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
1.2
(1/16)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Smocking stitch Smocking, decorative
stitching
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Feather stitch Fagoting, decorative stitching
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Fagoting cross
stitch
Fagoting, bridging and
decorative stitching
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Tape attaching Attaching tape to seam in
stretch fabric
4.0
(5/32)
0.0 - 7.0
(0 - 9/32)
1.0
(3/64)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Stitch Stitch name
Presser foot
Applications
Stitch width
[mm (inch)]
Stitch length
[mm (inch)]
Twi n
needle
Auto. Manual Auto. Manual
STITCH SETTING CHART
221
Appendix
6
Ladder stitch Decorative stitching
4.0
(5/32)
0.0 - 7.0
(0 - 9/32)
3.0
(1/8)
0.4 - 5.0
(1/64 - 13/
64)
NO
Rick-rack stitch Decorative top stitching
4.0
(5/32)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Decorative
stitch
Decorative stitching
1.0
(3/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Decorative
stitch
Decorative stitching
5.5
(7/32)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Serpentine
stitch
Decorative stitching and
attaching elastic
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
1.0
(3/64)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Decorative
stitch
Decorative stitching and
appliqué
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
1.0
(3/64)
0.2 - 5.0
(1/64 - 13/
64)
OK
( J )
Decorative
stippling stitch
Decorative stitching
7.0
(9/32)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Decorative hems, triple
straight at left
1.0
(3/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Decorative hems, triple
straight at center
3.5
(9/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching
zigzag
Decorative hems, top stitching
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
3.0
(1/8)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Decorative hems, lace
attaching pin stitch
3.5
(9/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Decorative hems
3.0
(1/8)
0.0 - 7.0
(0 - 9/32)
3.5
(9/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Decorative hems daisy stitch
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
3.0
(1/8)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Heirloom, decorative hems
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
3.5
(9/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Heirloom, decorative hems
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
3.5
(9/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Heirloom, decorative hems
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
3.5
(9/64)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Heirloom, decorative hems
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
4.0
(5/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Heirloom, decorative hems
4.0
(5/32)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Stitch Stitch name
Presser foot
Applications
Stitch width
[mm (inch)]
Stitch length
[mm (inch)]
Twin
needle
Auto. Manual Auto. Manual
STITCH SETTING CHART
222
Honeycomb
stitch
Heirloom, decorative hems
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Honeycomb
stitch
Heirloom, decorative hems
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
3.5
(9/64)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Heirloom, decorative hems
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Heirloom, decorative hems
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
3.0
(1/8)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Heirloom, decorative hems
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
4.0
(5/32)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Heirloom, decorative hems
4.0
(5/32)
0.0 - 7.0
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Heirloom, decorative hems
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
2.0
(5/64)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Decorative hems and bridging
stitch
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
2.0
(5/64)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Decorative hems. Fagoting,
attaching ribbon
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
3.0
(1/8)
0.4 - 5.0
(1/64 - 13/
64)
OK
( J )
Hemstitching Decorative hems, smocking
6.0
(15/64)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Decorative hems, smocking
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/16 - 13/
64)
NO
Hemstitching Decorative hems, smocking
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Decorative hems
5.0
(13/64)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Ladder stitch Decorative hems. Fagoting,
attaching ribbon
7.0
(9/32)
0.0 - 7.0
(0 - 9/32)
1.6
(1/16)
0.4 - 2.5
(1/64 - 3/32)
NO
Narrow rounded
buttonhole
Buttonhole on light to medium
weight fabrics
5.0
(13/64)
3.0 - 6.5
(1/8 - 1/4)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Wide round
ended
buttonhole
Buttonholes with extra space
for larger buttons
5.5
(7/32)
3.5 - 6.5
(9/64 - 1/4)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Tapered round
ended
buttonhole
Reinforced waist tapered
buttonholes
5.0
(13/64)
3.0 - 6.5
(1/8 - 1/4)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Round ended
buttonhole
Buttonholes with vertical bar
tack in heavyweight fabrics
5.0
(13/64)
3.0 - 6.5
(1/8 - 1/4)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Stitch Stitch name
Presser foot
Applications
Stitch width
[mm (inch)]
Stitch length
[mm (inch)]
Twi n
needle
Auto. Manual Auto. Manual
STITCH SETTING CHART
223
Appendix
6
Round ended
buttonhole
Buttonholes with bar tack
5.0
(13/64)
3.0 - 6.5
(1/8 - 1/4)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Round double
ended
buttonhole
Buttonholes for fine, medium
to heavyweight fabrics
5.0
(13/64)
3.0 - 6.5
(1/8 - 1/4)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Narrow squared
buttonhole
Buttonholes for light to
medium weight fabrics
5.0
(13/64)
3.0 - 6.5
(1/8 - 1/4)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Wide squared
buttonhole
Buttonholes with extra space
for larger decorative buttons
5.5
(7/32)
3.5 - 6.5
(9/64 - 1/4)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Squared
buttonhole
Heavy-duty buttonholes with
vertical bar tacks
5.0
(13/64)
3.0 - 6.5
(1/8 - 1/4)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Stretch
buttonhole
Buttonholes for stretch or
woven fabrics
6.0
(15/64)
3.0 - 6.5
(1/8 - 1/4)
1.0
(3/64)
0.5 - 2.0
(1/64 - 5/64)
NO
Heirloom
buttonhole
Buttonholes for heirloom and
stretch fabrics
6.0
(15/64)
3.0 - 6.5
(1/8 - 1/4)
1.5
(1/16)
1.0 - 3.0
(3/64 - 1/8)
NO
Bound
buttonhole
The first step in making bound
buttonholes
5.0
(13/64)
0.0 - 6.5
(0 - 1/4)
2.0
(5/64)
0.2 - 4.0
(1/64 - 5/32)
NO
Keyhole
buttonhole
Buttonholes in heavyweight or
thick fabrics for larger flat
buttons
7.0
(9/32)
3.0 - 7.0
(1/8 - 9/32)
0.5
(1/64)
0.3 - 1.0
(1/64 - 3/64)
NO
Tapered keyhole
buttonhole
Buttonholes in medium to
heavy weight fabrics for larger
flat buttons
7.0
(9/32)
3.0 - 7.0
(1/8 - 9/32)
0.5
(1/64)
0.3 - 1.0
(1/64 - 3/64)
NO
Keyhole
buttonhole
Buttonholes with vertical bar
tack for reinforcement in
heavyweight or thick fabrics
7.0
(9/32)
3.0 - 7.0
(1/8 - 9/32)
0.5
(1/64)
0.3 - 1.0
(1/64 - 3/64)
NO
4 steps
buttonhole 1
Left side of 4 step buttonhole
5.0
(13/64)
1.5 - 7.0
(1/16 - 9/32)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
4 steps
buttonhole 2
Bar tack of 4 step buttonhole
5.0
(13/64)
1.5 - 7.0
(1/16 - 9/32)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
4 steps
buttonhole 3
Right side of 4 step buttonhole
5.0
(13/64)
1.5 - 7.0
(1/16 - 9/32)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
4 steps
buttonhole 4
Bar tack of 4 step buttonhole
5.0
(13/64)
1.5 - 7.0
(1/16 - 9/32)
0.4
(1/64)
0.2 - 1.0
(1/64 - 3/64)
NO
Darning Darning of medium weight
fabric
7.0
(9/32)
2.5 - 7.0
(3/32 - 9/32)
2.0
(5/64)
0.4 - 2.5
(1/64 - 3/32)
NO
Darning Darning of heavyweight fabric
7.0
(9/32)
2.5 - 7.0
(3/32 - 9/32)
2.0
(5/64)
0.4 - 2.5
(1/64 - 3/32)
NO
Bar tack Reinforcement at opening of
pocket, etc.
2.0
(5/64)
1.0 - 3.0
(3/64 - 1/8)
0.4
(1/64)
0.3 - 1.0
(1/64 - 3/64)
NO
Stitch Stitch name
Presser foot
Applications
Stitch width
[mm (inch)]
Stitch length
[mm (inch)]
Twin
needle
Auto. Manual Auto. Manual
STITCH SETTING CHART
224
Button sewing Attaching buttons
3.5
(9/64)
2.5 - 4.5
(3/32 - 11/
64)
— —NO
Eyelet For making eyelets, holes on
belts, etc.
7.0
(9/32)
7.0 6.0 5.0
(9/32 15/64
13/64)
7.0
(9/32)
7.0 6.0 5.0
(9/32 15/64
13/64)
NO
Star eyelet For making star-shaped
eyelets on holes.
— — — —NO
Diagonally left
up (Straight)
For attaching appliqué on
tubular pieces of fabric and
mitering corners
— — — —NO
Reverse
(Straight)
For attaching appliqué on
tubular pieces of fabric and
mitering corners
— — — —NO
Diagonally right
up (Straight)
For attaching appliqué on
tubular pieces of fabric and
mitering corners
— — — —NO
Sideways to left
(Straight)
For attaching appliqué on
tubular pieces of fabric
— — — —NO
Sideways to
right (Straight)
For attaching appliqué on
tubular pieces of fabric
— — — —NO
Diagonally left
down (Straight)
For attaching appliqué on
tubular pieces of fabric and
mitering corners
— — — —NO
Forward
(Straight)
For attaching appliqué on
tubular pieces of fabric and
mitering corners
— — — —NO
Diagonally right
down (Straight)
For attaching appliqué on
tubular pieces of fabric and
mitering corners
— — — —NO
Sideways to left
(Zigzag)
For attaching appliqué on
tubular pieces of fabric
— — — —NO
Sideways to
right (Zigzag)
For attaching appliqué on
tubular pieces of fabric
— — — —NO
Forward
(Zigzag)
For attaching appliqué on
tubular pieces of fabric and
mitering corners
— — — —NO
Reverse
(Zigzag)
For attaching appliqué on
tubular pieces of fabric and
mitering corners
— — — —NO
Piecing stitch
(Middle)
Piecework/patchwork
— —
2.0
(5/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
Piecing stitch
(Right)
Piecework/patchwork
6.5 mm (approx. 1/4 inch) right
seam allowance
5.50
(7/32)
0.00 - 7.00
(0 - 9/32)
2.0
(5/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
Piecing stitch
(Left)
Piecework/patchwork
6.5 mm (approx. 1/4 inch) left
seam allowance
1.50
(1/16)
0.00 - 7.00
(0 - 9/32)
2.0
(5/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
Stitch Stitch name
Presser foot
Applications
Stitch width
[mm (inch)]
Stitch length
[mm (inch)]
Twi n
needle
Auto. Manual Auto. Manual
STITCH SETTING CHART
225
Appendix
6
Hand-look
quilting
Quilting stitch made to look
like hand quilting stitch
3.50
(9/64)
0.00 - 7.00
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Basting stitch Basting
3.50
(9/64)
0.00 - 7.00
(0 - 9/32)
20
(25/32)
5 - 30
(13/64 - 1-3/
16)
NO
Stem stitch Reinforced stitching, sewing
and decorative applications
1.00
(3/64)
0.00 - 7.00
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Quilting
appliqué zigzag
stitch
Zigzag stitch for quilting and
sewing on appliqué quilt
pieces
3.50
(9/64)
0.00 - 7.00
(0 - 9/32)
1.6
(1/16)
0.0 - 5.0
(0 - 13/64)
NO
Zigzag stitch
(Right)
Start from right needle
position, zigzag sew at left
3.50
(9/64)
2.50 - 5.00
(3/32 - 13/
64)
1.6
(1/16)
0.3 - 5.0
(1/64 - 13/
64)
NO
Zigzag stitch
(Left)
Start from left needle position,
zigzag sew at right
3.50
(9/64)
2.50 - 5.00
(3/32 - 13/
64)
1.6
(1/16)
0.3 - 5.0
(1/64 - 13/
64)
NO
2 steps elastic
zigzag
Overcasting (medium weight
and stretch fabrics), tape and
elastic
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
1.0
(3/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
3 steps elastic
zigzag
Overcasting (medium,
heavyweight and stretch
fabrics), tape and elastic
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
1.0
(3/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
Quilting
appliqué stitch
Quilting stitch for invisible
appliqué or attaching binding
2.00
(5/64)
0.00 - 7.00
(0 - 9/32)
2.0
(5/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
Shell tuck edge Shell tuck edge finish on
fabrics
4.00
(5/32)
0.00 - 7.00
(0 - 9/32)
2.5
(3/32)
0.2 - 5.0
(1/64 - 13/
64)
NO
Blanket stitch Appliqués, decorative blanket
stitch
3.50
(9/64)
0.00 - 7.00
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Quilting
stippling
Background quilting
7.00
(9/32)
0.00 - 7.00
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Overcasting
stitch
Stretch knit seam
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
4.0
(5/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Tape attaching Attaching tape to seam in
stretch fabric
5.50
(7/32)
0.00 - 7.00
(0 - 9/32)
1.4
(1/16)
0.2 - 5.0
(1/64 - 13/
64)
NO
Serpentine
stitch
Decorative stitching and
attaching elastic
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
2.0
(5/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
Feather stitch Fagoting, decorative stitching
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Fagoting cross
stitch
Fagoting, bridging and
decorative stitching
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Couching stitch Decorative stitching, attaching
cord and couching
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
1.2
(1/16)
0.2 - 5.0
(1/64 - 13/
64)
NO
Stitch Stitch name
Presser foot
Applications
Stitch width
[mm (inch)]
Stitch length
[mm (inch)]
Twin
needle
Auto. Manual Auto. Manual
STITCH SETTING CHART
226
Patchwork
double overlock
stitch
Patchwork stitches, decorative
stitching
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Smocking stitch Smocking, decorative
stitching
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Rick-rack stitch Decorative top stitching
4.00
(5/32)
0.00 - 7.00
(0 - 9/32)
2.5
(3/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Decorative
stitch
Decorative stitching and
appliqué
6.00
(15/64)
0.00 - 7.00
(0 - 9/32)
1.0
(3/64)
0.2 - 5.0
(1/64 - 13/
64)
NO
Decorative
stitch
Decorative stitching
5.50
(7/32)
0.00 - 7.00
(0 - 9/32)
1.6
(1/16)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Heirloom, decorative hems
5.00
(13/64)
0.00 - 7.00
(0 - 9/32)
2.0
(5/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
Hemstitching Decorative hems and bridging
stitch
6.00
(15/64)
0.00 - 7.00
(0 - 9/32)
2.0
(5/64)
0.4 - 5.0
(1/64 - 13/
64)
NO
Single diamond
overcast
Reinforcement and seaming
stretch fabric
6.00
(15/64)
0.00 - 7.00
(0 - 9/32)
3.0
(1/8)
0.4 - 5.0
(1/64 - 13/
64)
NO
Overcasting
stitch
Reinforcement of stretch
fabric or decorative stitching
4.00
(5/32)
0.00 - 7.00
(0 - 9/32)
4.0
(5/32)
0.4 - 5.0
(1/64 - 13/
64)
NO
Free motion
couching stitch
Free motion couching stitch
3.50
(9/64)
2.75 - 3.75
(3/32 - 1/8)
– –NO
Basting stitch Free motion basting stitch
3.50
(9/64)
0.00 - 7.00
(0 - 9/32)
– –NO
Stitch Stitch name
Presser foot
Applications
Stitch width
[mm (inch)]
Stitch length
[mm (inch)]
Twi n
needle
Auto. Manual Auto. Manual
INDEX
227
Appendix
6
INDEX
A
Accessories
included accessories
................................................................ 17
options
.................................................................................... 21
Accessory case
............................................................................ 16
Accessory compartment
.............................................................. 16
Air vent
....................................................................................... 12
Alarm sounds
............................................................................ 215
Alphabet characters
character/decorative stitches
.................................................. 160
Appliqué
................................................................................... 133
quilting
.................................................................................. 124
using a zigzag stitch
............................................................... 116
Arrow keys
................................................................................ 189
Automatic fabric sensor system
.................................................... 91
Automatic reinforcement stitching
............................................... 79
Automatic thread cutting key
....................................................... 88
Automatic Threading button
................................................ 15, 61
B
Back to beginning key ............................................................... 170
Ball point needle
......................................................................... 71
Ball point needle 75/107
............................................................. 71
Bar tacks
.................................................................................... 148
Basting
...................................................................................... 140
Blind hem stitches
..................................................................... 131
Block move key
......................................................................... 191
Bobbin
pulling up the bobbin thread
................................................... 59
setting
...................................................................................... 58
winding
................................................................................... 52
Bobbin case
cleaning
................................................................................. 198
Bobbin clip
.................................................................................. 16
Bobbin cover
....................................................................... 14, 58
Bobbin winder
............................................................................. 12
Bobbin winding switch
................................................................ 54
Built-in camera
.................................................................... 93, 95
Button sewing
............................................................................ 149
4 hole buttons
........................................................................ 150
shank
..................................................................................... 150
Buttonholes
four-step
................................................................................ 145
odd-shaped/buttons that do not fit the button holder plate
..... 144
one-step
................................................................................. 141
C
Character/Decorative Stitches
adjustments
........................................................................... 164
combining
............................................................................. 172
editing
................................................................................... 166
key functions
......................................................................... 166
retrieving
..................................................................... 180, 181
saving
.................................................................................... 179
selecting
................................................................................ 158
sewing
................................................................................... 163
stitch selection screens
.......................................................... 159
Cleaning
LCD screen
............................................................................ 198
machine casing
...................................................................... 198
race
....................................................................................... 198
Clock
........................................................................................... 27
Combining stitch patterns
character/decorative stitches
.................................................. 172
Cord guide bobbin cover
........................................................... 117
Crazy quilt
................................................................................. 116
D
Darning ..................................................................................... 147
Dart seam
.................................................................................. 112
Dual feed foot
.................................................................... 74, 123
Dual purpose stylus
........................................................... 94, 189
Dual purpose stylus holder
.......................................................... 95
E
Echo quilting .............................................................................. 129
Eco mode
..................................................................................... 35
Editing
character/decorative stitches
.................................................. 166
MY CUSTOM STITCH
............................................................ 188
Elastic zigzag stitches
................................................................. 117
Elongation key
........................................................................... 169
Embroidery unit
........................................................................... 15
carriage
.................................................................................... 15
Enlarger key
............................................................................... 189
Error messages
........................................................................... 213
Eyelet
......................................................................................... 150
F
Fabrics
fabric/thread/needle combinations
........................................... 71
sewing heavyweight fabrics
...................................................... 82
sewing lightweight fabrics
........................................................ 84
sewing stretch fabrics
..................................................... 84, 143
Fagoting
..................................................................................... 137
Feed dogs
.......................................................................... 14, 126
Flat bed attachment
..................................................................... 12
Flat fell Seam
............................................................................. 113
Foot controller
..................................................................... 12, 78
Free motion quilting
free motion echo quilting foot “E”
.......................................... 129
free motion open toe quilting foot “O”
................................... 128
free motion quilting foot “C”
.................................................. 126
Free motion sewing mode
.......................................................... 126
G
Gathering ................................................................................... 113
Grid direction key
...................................................................... 189
H
Handle ......................................................................................... 12
Handwheel
.................................................................................. 13
Heirloom
................................................................................... 138
Hemstitching
daisy stitch
............................................................................. 138
drawn work
............................................................................ 139
Home page screen
....................................................................... 28
I
Image key .............................................................. 106, 171, 190
Innov-eye Technology (for U.S.A. only)
....................................... 93
Insert key
................................................................................... 192
K
Key functions
character/decorative stitches
.................................................. 166
MY CUSTOM STITCH
............................................................ 188
utility stitches
......................................................................... 103
Knee lifter
............................................................................ 12, 90
INDEX
228
L
L/R Shift ....................................................................................... 86
LCD screen
.......................................................................... 12, 28
cleaning
................................................................................. 198
light
......................................................................................... 30
Lower threading
pulling up the bobbin thread
.................................................... 59
setting the bobbin
.................................................................... 58
winding the bobbin
.................................................................. 52
M
Machine help key ........................................................................ 39
Machine operation mode key
.................................................... 208
Main power switch
.............................................................. 12, 26
Mirror image key
............................................................. 105, 169
MPEG-4 (MP4) videos
.................................................................. 43
Multi-directional sewing
............................................................ 151
Multi-function foot controller
....................................................... 34
Multi-purpose screwdriver
........................................................... 24
Muvit (for U.S.A. only)
................................................................. 74
MY CUSTOM STITCH
designing
............................................................................... 186
entering data
.......................................................................... 188
key functions
.......................................................................... 188
retrieving
................................................................................ 195
saving
.................................................................................... 194
storing in your list
.................................................................. 194
N
Needle
changing the needle
................................................................. 69
changing the needle position
................................................. 110
checking the needle location
................................................... 92
fabric/thread/needle combinations
........................................... 71
twin needle
.............................................................................. 64
Needle bar thread guides
..................................................... 14, 65
Needle calibration
....................................................................... 37
Needle clamp screw
.................................................................... 14
Needle mode selection key
.......................................................... 64
Needle plate
................................................................................ 14
Needle position
................................................................. 92, 110
Needle Position button
................................................................ 15
O
Operation buttons ................................................................ 12, 15
Overcasting
..................................................................... 116, 118
P
Patchwork .................................................................................. 116
Piecing
....................................................................................... 123
Pintuck
...................................................................................... 114
Pivoting
....................................................................................... 89
Point delete key
......................................................................... 189
Power cord
.................................................................................. 27
Power cord receptacle
................................................................. 12
Presser foot
attaching
.................................................................................. 72
pressure
................................................................................... 91
removing
.................................................................................. 72
types
...................................................................................... 218
Presser foot holder
............................................................... 14, 72
Presser foot holder screw
............................................................. 14
Presser foot lever
.................................................................. 12, 83
Presser Foot Lifter button
.............................................................. 15
Presser foot/Needle exchange key
................................ 64, 69, 72
Pretension disk
............................................................. 12, 53, 56
Projector
.............................................................................. 94, 96
Q
Quilting ..................................................................................... 121
free motion
............................................................................ 126
with satin stitches
.................................................................. 125
R
Race .......................................................................................... 198
Reinforcement stitch
.................................................................... 79
Reinforcement Stitch button
........................................................ 79
Retrieving
character/decorative stitch patterns
........................................ 180
machine’s memory
................................................................ 180
MY CUSTOM STITCH designs
............................................... 195
stitch settings
......................................................................... 107
USB media
............................................................................ 181
utility stitches
........................................................................ 107
Reverse Stitch button
................................................................... 79
Reverse/Reinforcement Stitch button
.................................... 15, 79
Reverse/Reinforcement stitches
................................................... 79
S
Satin stitches .................................................................... 125, 170
Saving
character/decorative stitches
.................................................. 179
machine’s memory
................................................................ 179
MY CUSTOM STITCH designs
............................................... 194
stitch settings
......................................................................... 107
USB media
............................................................................ 179
utility stitches
........................................................................ 107
Scallop stitches
.......................................................................... 135
Screen saver
................................................................................ 36
SD card
usable
.................................................................................... 178
Set key
...................................................................................... 189
Settings
automatic thread cutting
.......................................................... 88
embroidery settings
................................................................. 32
general settings
........................................................................ 30
machine setting mode key
....................................................... 29
sewing settings
........................................................................ 29
stitch length
............................................................................. 86
stitch width
.............................................................................. 85
thread tension
.......................................................................... 87
Sewing speed controller (speed control slide)
............... 12, 15, 77
Sewing type selection key
........................................................... 41
Shelltuck stitches
....................................................................... 134
Shutoff support mode
.................................................................. 35
Side cutter
................................................................................. 119
Single/Repeat sewing key
.......................................................... 169
Single/Triple stitching key
.......................................................... 189
Size selection key
...................................................................... 169
Smocking stitches
...................................................................... 136
Speaker
....................................................................................... 30
Specifications
............................................................................ 216
Spool cap
.................................................................................... 12
Spool net
..................................................................................... 68
Spool pin
..................................................................................... 12
Spool stand
.......................................................................... 56, 66
Start/Stop button
.......................................................................... 15
Step stitch patterns
.................................................................... 175
Stitch setting chart
..................................................................... 218
StitchVision Technology (for U.S.A. only)
.................................... 94
Straight stitch foot
...................................................................... 111
Straight stitch needle plate
......................................................... 111
Straight stitches
......................................................................... 108
Supplemental spool pin
................................................ 12, 52, 65
T
Tape attaching ........................................................................... 117
Tape or elastic attaching
............................................................ 137
Test key
............................................................................ 190, 194
INDEX
229
Appendix
6
Thread
fabric/thread/needle combinations
........................................... 71
thread tension
.......................................................................... 87
Thread cutter
....................................................................... 12, 78
Thread Cutter button
................................................................... 15
Thread density key
.................................................................... 170
Thread guide
........................................................ 12, 53, 56, 65
Thread guide plate
........................................................ 12, 56, 61
Top cover
.................................................................................... 12
Top stitching
.............................................................................. 135
Transparent nylon thread
............................................................. 71
Troubleshooting
........................................................................ 201
Tutorial video
.............................................................................. 42
Twin needle
................................................................................ 64
U
Up Close Viewer (for U.S.A. only) ............................................... 93
Upgrading
................................................................................. 217
Upper threading
twin needle mode
