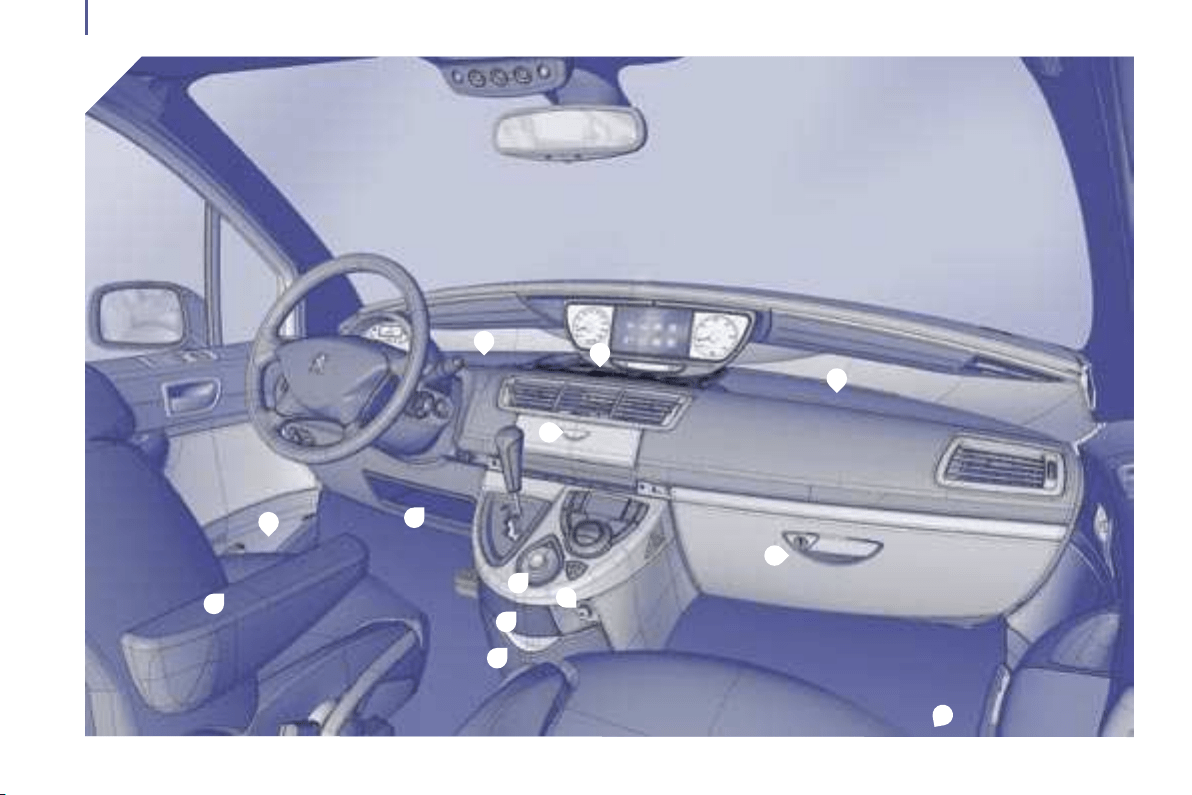

Interior overview
4
AT A GLANCE
Interior overview
12 - Side adjustable vent.
13 - Battery/Fuse box.
14 - Passenger air bag.
15 - Passenger’s lower glove box/CD
changer/Fuse box.
16 - Air conditioning controls.
17 - Lighter/12 V accessories socket.
18 - Hazard warning lights switch.
19 - Storage compartment or additional
telematics control.
20 - Cooled compartment.
21 - Ashtray/Can holder.
22 - Seat adjustment control.
23 - Storage compartment.
24 - Handbrake - on the left.
1 - Electric mirror controls.
- Electric window controls.
- Deactivation of the rear electric
controls.
2 - Driver’s upper glove box.
3 - Central adjustable vents.
4 - RD4 audio equipment or RT3 GPS
audio/telephone with flap.
5 - Instrument panel/Large colour display.
6 - Sunshine and passenger compartment
temperature sensor.
7 - Passenger’s upper glove box.
8 - Windscreen demisting vents.
9 - Speaker (tweeter).
10 - Front window demisting vents.
11 - Passenger air bag disarming switch*.
25 - Bonnet release under cover - on the
left.
26 - Acoustic windscreen.
INTERIOR OVERVIEW
* According to country.
5
1
SETTING THE DATE AND
TIME
For more information about this
adjustment, refer to the "Setting
the date and time" section of the
"In-Car Technology" chapter".
ADDITIONAL HEATER
With the engine at idle or when
the vehicle is stationary, it is
normal to notice a high-pitched
whistling and a slight emission of
smoke and odour.
1
2
3
4
5
6
7
9
10
11
12
8

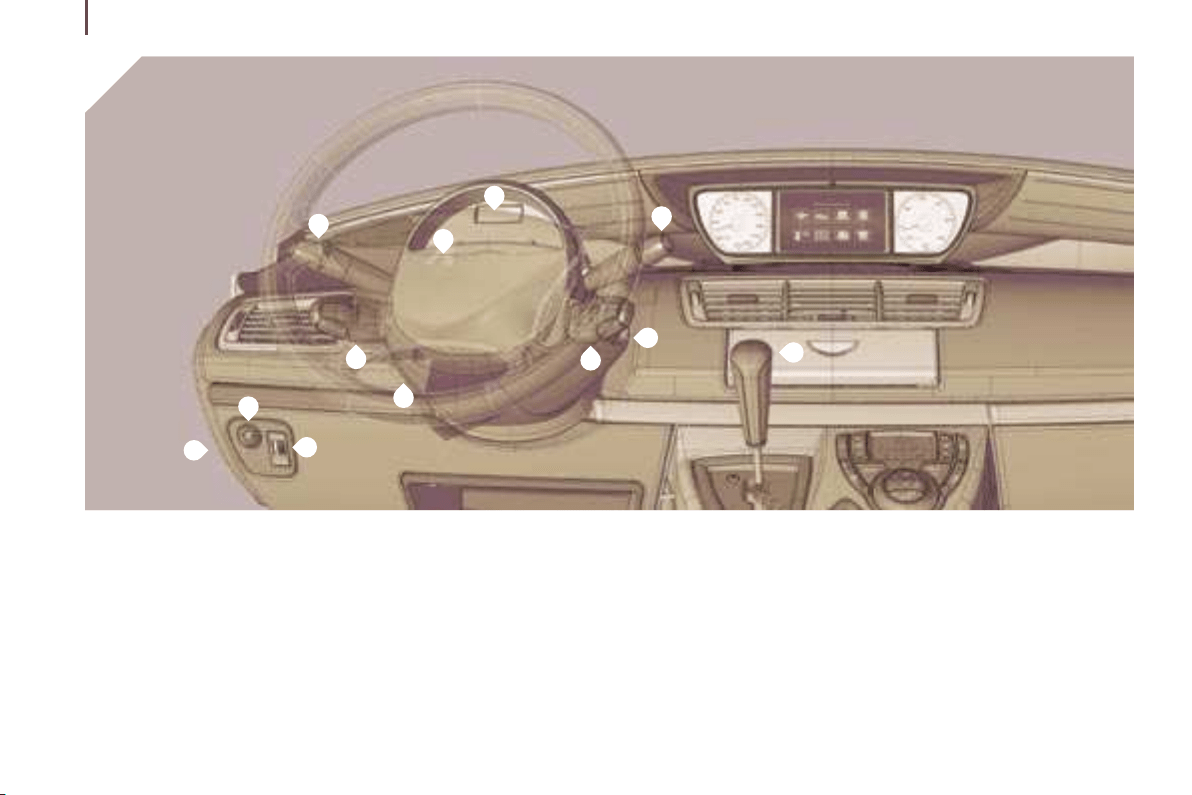

Instruments and controls
6
4 - Driver’s air bag.
Horn.
5 - Control block.
6 - Audio equipment steering wheel controls.
7 - Wipers/wash-wipe/trip computer controls.
1 - Interior protection alarm deactivation
button.
2 - Speed limiter/cruise control switches.
3 - Lights, direction indicators controls.
8 - Gear lever.
9 - Ignition.
10 - Headlamp height adjuster.
11 - Dynamic stability control button
(ESP/ASR).
12 - Steering wheel adjustment control.
INSTRUMENTS AND CONTROLS
AT A GLANCE
Familiarisation
FAMILIARISATION

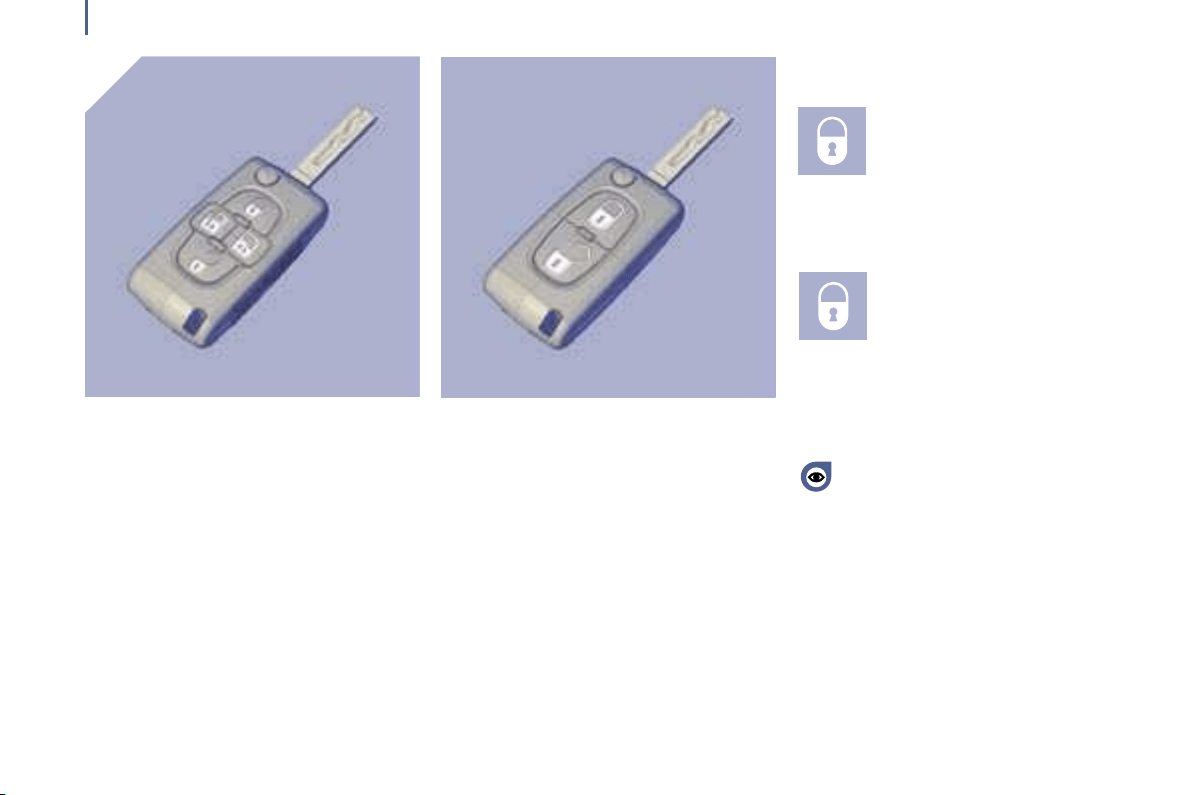

KEYS
The keys allow you to switch on the ignition
and to independently operate the locks on
the driver and passenger doors, the fuel
filler cap, the glove box and the passenger
air bag disarming switch.
Unlocking
Press the button to unlock the
vehicle.
ELECTRIC SLIDING SIDE DOORS
Opening/Closing from the front:
press the corresponding switch to open
or close.
An audible signal accompanies the opening
and closing of the door.
The opening and closing of the doors
can also be controlled from the 2nd
row. For further information regarding this
equipment, refer to the "Accesses" section
of the "Ergonomics and Comfort" chapter.
Normal locking
Press the button to lock the
vehicle.
Opening/Closing the
electric sliding side doors
Press the button to open or close
the right or left rear door.
7
1
Familiarisation

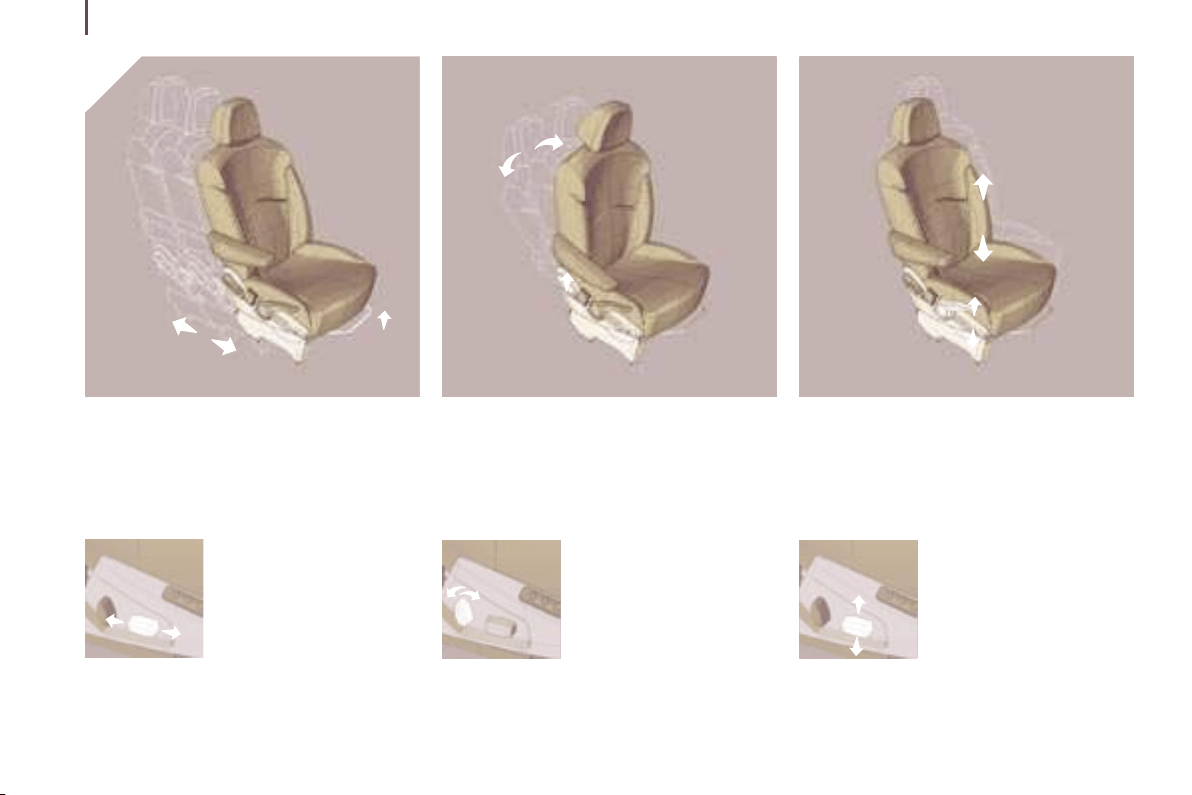

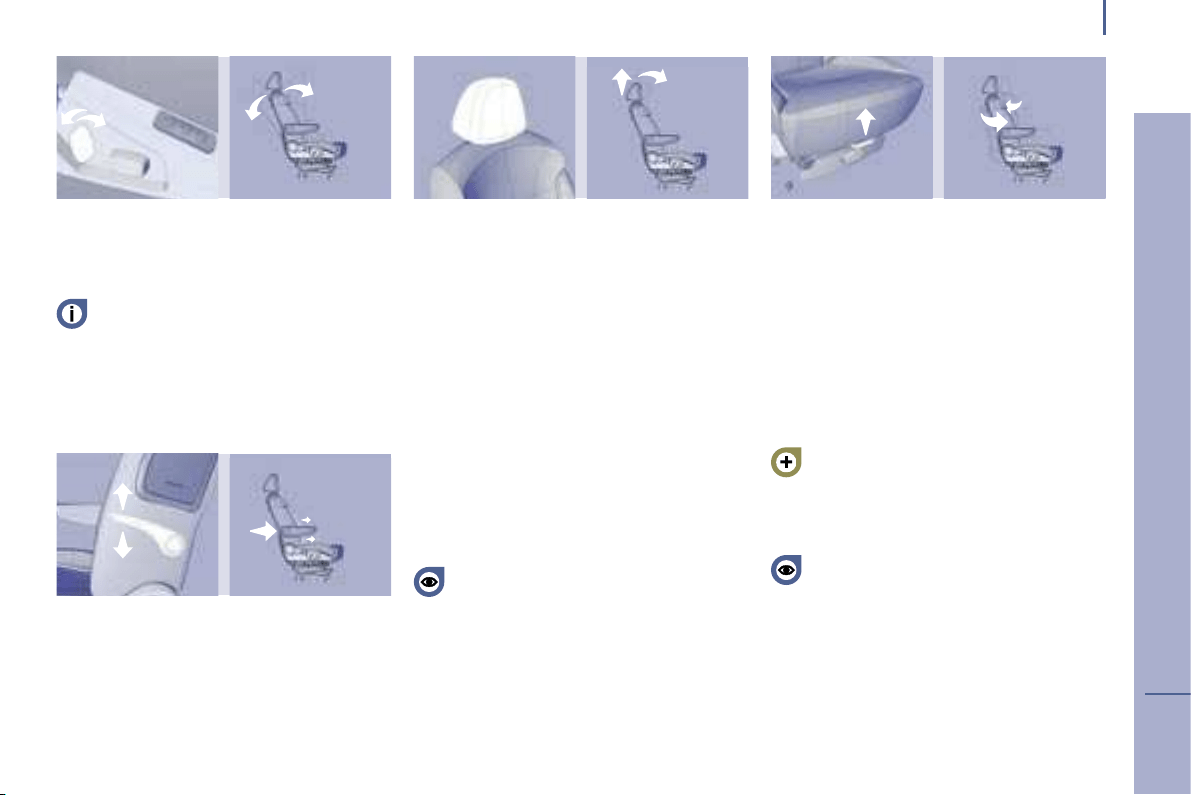

FRONT SEAT ADJUSTMENT
Fowards-backwards
Manual: raise the bar to slide the seat
forwards or backwards.
Electric: push the control
forwards or backwards to
slide the seat.
Seat back angle
Manual: tilt the lever upwards then adjust
until the required angle is obtained.
Electric: tilt the control
forwards or backwards to
obtain the required angle.
Driver’s seat height
Manual: push the control upwards or
downwards to the required position.
Electric: push the rear part
of the control upwards or
downwards to obtain the
correct height.
8
AT A GLANCE
Familiarisation

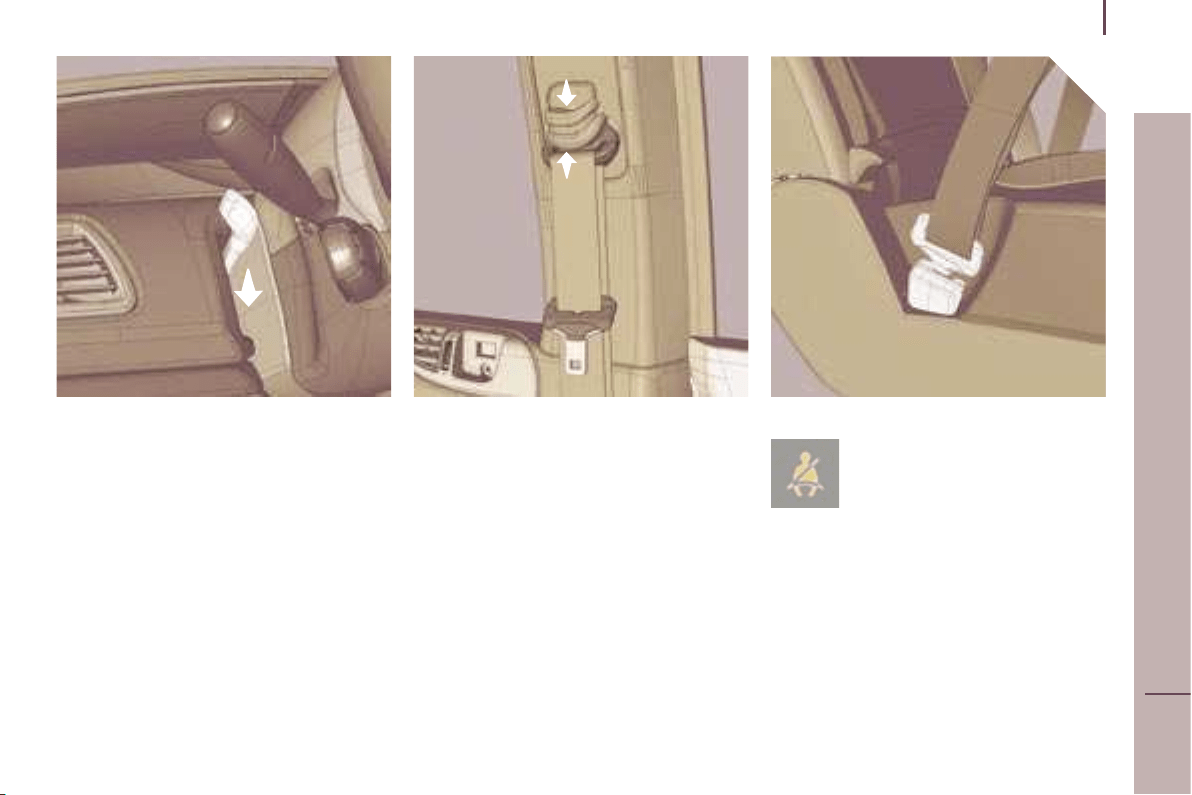

SEAT BELTS
Fastening
Pull the strap then insert the buckle in the
clasp.
Front and 2nd row rear side seat
belt height adjustment
To raise or lower the seat belt attachment
point, squeeze the control and slide it
upwards or downwards.
9
1
Front seat belt not
fastened
The warning light comes on when
the ignition is switched on. If the
driver and/or the front passenger has not
fastened his seat belt, this warning light
comes on. Then, at a speed above 15 mph
(25 km/h), it flashes accompanied by an
audible warning of increasing volume (for
approximately 90 seconds) and the message
"Seat belt reminder" on the display.
STEERING WHEEL HEIGHT AND
DEPTH ADJUSTMENT
When the vehicle is stationary, unlock the
steering wheel by lowering the lever.
Adjust the height and depth of the steering
wheel, then lock by pushing the lever fully
upwards.
A
B
1
2
3
Familiarisation
Exterior mirrors
Control A permits selection of the right or
left mirror.
Move control B
in the four directions to
adjust.
Remember to return control A to the central
position afterwards.
MIRRORS
Interior mirror
This has two positions: day and night.
Manual mirror: push or pull the lever on the
lower edge to change position.
Automatic mirror: with the ignition on,
press the switch on the lower edge. The
indicator light indicates the activation of the
automatic operating mode.
10
STARTING
1 - STOP position:
the ignition is off.
2 - Running and accessories position:
the ignition is on and the accessories
can be used.
3 - Starting position:
the starter is operated.
Accesses
The remote control
Normal locking
Deadlocking*
A second press on the closed
padlock within five seconds
of locking changes this to
deadlocking.
This is confirmed by fixed lighting of the
direction indicators for approximately two
seconds.
If one of the doors or the tailgate is open, the
central locking does not work.
The remote control performs the same
functions at a distance.
KEYS
The keys allow you to switch on the ignition
and to independently operate the locks on
the driver’s door and passenger door, the
fuel filler cap, the glove box, the passenger
air bag disarming switch and the child safety
lock.
Central locking
From the driver’s door or passenger door,
the keys allow you to lock, deadlock or
unlock the doors and tailgate, as well as fold
back the exterior mirrors.
Deadlocking renders the internal
and external door locking controls
inoperative. Never leave anyone inside the
vehicle when it is deadlocked.
If the deadlocking is operated from inside
the vehicle, it will change to normal locking
when the vehicle is started.
12
ACCESSES
Press the closed padlock to lock
the vehicle.
This is confirmed by fixed lighting
of the direction indicators for
approximately two seconds.
* According to equipment.
Pressing the closed padlock for
more than 2 seconds, in addition
to locking or deadlocking, permits
automatic closing of the windows
and places the sunroofs in the partially open
position, if they were open. To close them
completely, you must press their switch
before leaving the vehicle.

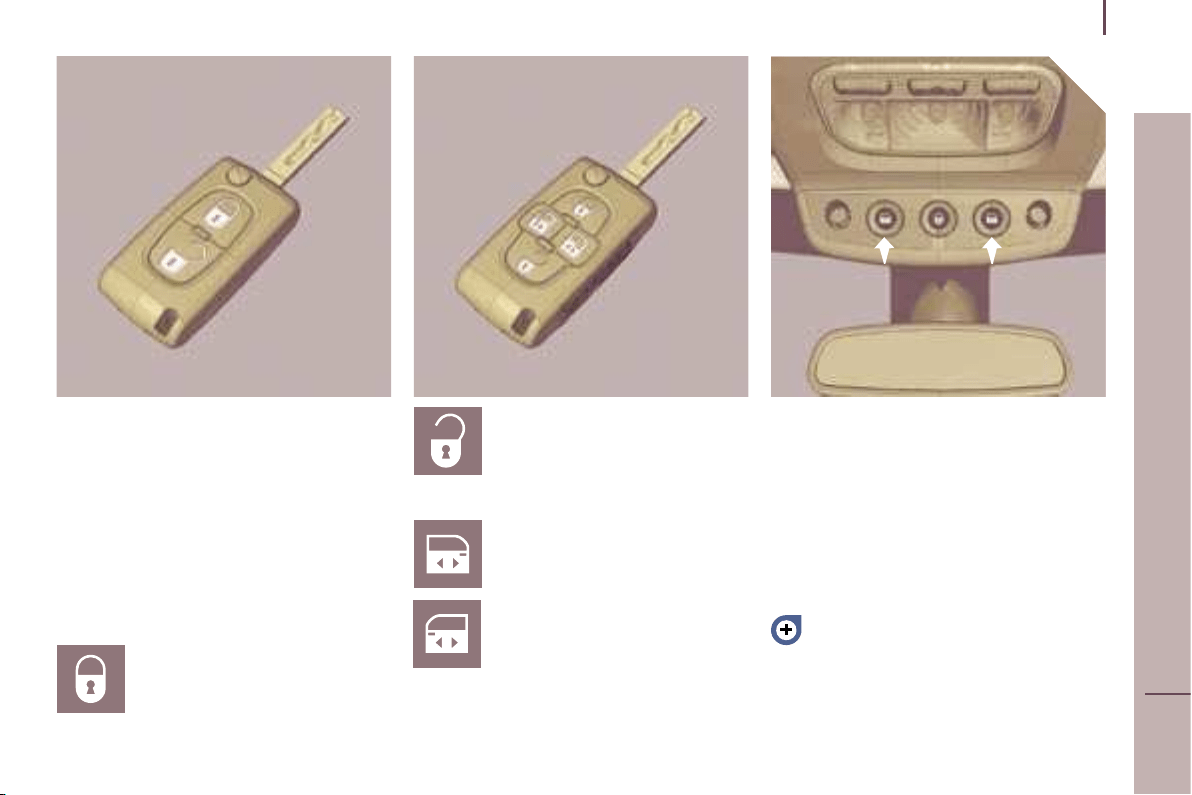

Opening/Closing the electric
sliding side doors
Pressing one of the
buttons opens or closes the
corresponding rear door
(right or left).
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press the closed padlock, the
courtesy lights come on and the direction
indicators flash for a few seconds.
Key in ignition
A buzzer sounds on opening the driver’s
door, if the key has been left in the ignition.
Changing the battery of the remote
control
Battery ref.: CR1620/3 volts.
The information "battery flat" is given by an
audible signal, accompanied by a message
on the multifunction display.
To replace the battery, unclip the casing
using a coin at the ring.
If the remote control does not work after the
battery has been changed, re-programme
the remote control.
Accesses
Folding/opening out the key
To tuck away the key blade, press
the button, then fold it down into
the remote control module.
To open out the key, press the button.
Programming the remote control
Following changing of the remote control
battery or disconnection of the vehicle
battery, the remote control must be
reprogrammed.
ERGONOMICS and COMFORT
Wait at least one minute before
using the remote control.
Switch on the ignition.
Press one of the two padlocks
for at least five seconds within
the next ten seconds.
Switch off the ignition.
Wait at least one minute before
using the remote control.
The remote control is now working again.
13
2
Unlocking
Press the open padlock to unlock
the vehicle.
This is confirmed by rapid
flashing of the direction indicators.
If the vehicle is locked and unlocking is
activated inadvertently, unless the doors are
opened within 30 seconds, the vehicle will
lock automatically.
This press unlocks the vehicle before
opening the corresponding door.
Do not discard the remote control batteries,
they contain metals which are harmful to the
environment.
Take them to a PEUGEOT dealership, or to
any other approved collection point.
Accesses
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system as
soon as the ignition has been switched off
and therefore prevents starting of the vehicle
by anyone who does not have the key.
The ignition key has an electronic chip which
has a special code. When the ignition is
switched on, the code must be recognised
for starting to be possible.
If the system does not function correctly,
the central locking button indicator light,
situated on the courtesy light console,
flashes rapidly when the ignition is switched
on (2nd notch).
In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as
possible.
CONFIDENTIAL CARD
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a PEUGEOT
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
Depending on the circumstances, a
PEUGEOT dealer will carry out his work
more efficiently and quickly if you give him this
confidential card:
- if the keys are lost, if you have made a note of the
number coded on the label attached to the key.
- if the anti-theft socket (alloy wheels) is lost, if you
have made a note of the code etched on the head
of the socket.
The high frequency remote control is a sensitive
system; do not operate it while it is in your
pocket as there is a possibility that it may unlock
your vehicle, without you being aware of it.
The remote control does not operate
when the key is in the ignition, even when
the ignition is switched off, except for
reprogramming.
Do not operate the deadlocking function if
there is anyone inside the vehicle.
Driving with the doors locked may make access
to the passenger compartment by the emergency
services more difficult in an emergency.
As a safety precaution (with children on
board), remove the ignition key when you
leave the vehicle, even for a short time.
Do not repeatedly press the buttons of your
remote control out of range and out of sight
of your vehicle. You run the risk of stopping
it from working and the remote control would
have to be reprogrammed.
When purchasing a second-hand vehicle:
ensure that you are given the confidential
card and the anti-theft socket for alloy
wheels;
have the key codes memorised by a
PEUGEOT dealer, to ensure that the keys
in your possession are the only ones
which can start the vehicle.
Do not make any modifications to the
electronic engine immobiliser system.
14
A
Accesses
15
ERGONOMICS and COMFORT
2
ALARM*
This provides two types of protection:
- exterior protection: it sounds if a door, the
tailgate or the bonnet is opened.
- interior protection: it sounds if the volume
inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).
A red indicator light, located in the centre of
the fascia, indicates the information detailed
below.
Setting the alarm
Switch off the ignition and get out of the
vehicle.
Set the alarm within five minutes of
getting out of the vehicle, by locking or
deadlocking using the remote control
(the red indicator light flashes once per
second).
To lock your vehicle without setting the
alarm, insert the key in the lock then
lock the vehicle (eg. for washing).
When the alarm is triggered, the siren
sounds and the direction indicator lights
flash for thirty seconds.
Warning - alarm triggered: the red indicator
light flashes rapidly, insert the key and
switch on the ignition to switch it off.
When the alarm has been triggered ten
times in succession (on the eleventh time)
the alarm is deactivated. Repeat the rules
for setting the alarm.
Disarming
Unlock the vehicle with the remote control
(the red indicator light goes out).
To set the alarm with exterior
protection only
If, while you are away from the vehicle, you
wish to leave a window partially open or a
pet inside the vehicle, you should choose
exterior protection only.
Close the sunroofs,
Switch off the ignition,
In the next ten seconds, press button
A, located on the left-hand side of the
fascia, until the red indicator light is on
continuously,
Get out of the vehicle,
Within the next five minutes, set the
alarm by locking or deadlocking using
the remote control (the red indicator light
flashes once a second).
When the alarm is set but the remote
control does not operate:
Unlock the doors with the key and open
the door. The alarm is triggered.
Switch on the ignition in the next ten
seconds.
The alarm is disarmed.
Incorrect operation
When the ignition is switched on, if the red
indicator light remains on for ten seconds,
there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the
system checked.
Automatic setting of the alarm*
The alarm is set automatically 2 minutes
after the last door or the tailgate is closed.
To prevent triggering of the alarm when
a door or the tailgate is opened, it is
imperative to press the remote control
unlocking button again.
Do not make any modifications to
the alarm system as this could cause
faults.
* According to country.
16
Accesses
DOORS
Automatic central locking
The doors can lock automatically when you
are driving (at a speed of more than 6 mph
(10 km/h)).
You can activate or deactivate this function.
To deactivate
With the ignition on, press and
hold the padlock.
Deactivation of the function is
accompanied by an audible signal.
"Door open" alert
If a door or the boot is not closed properly:
- when the engine is running, you are
warned by a diagram and a message on
the display for a few seconds,
- when the vehicle is moving (speed above
6 mph (10 km/h)), the service warning light
comes on. It is accompanied by an audible
signal, a message and a diagram on the
display for a few seconds.
Opening the doors from outside
Opening the doors from inside
If the vehicle is locked or deadlocked
from the outside, the red warning light
flashes and the padlock does not function. In
this case, use the key or the remote control
to unlock from the outside.
The door opening switches do not function
when the vehicle is deadlocked.
Locking/Unlocking from
the inside
Press the padlock, the red
warning light comes on when the
vehicle is locked and switches off when it is
unlocked.
This locks/unlocks the doors and the
tailgate.
To activate
With the ignition on, press and
hold the padlock.
Activation of the function is
accompanied by an audible signal and the
message "Automatic locking of the doors
activated" on the display.
>Visuel à venir
either inside or outside the vehicle.
Do not lean through an open window, do not
leave any object protruding through the door
during opening or closing.
Do not leave children or pets near the
opening and closing controls without
supervision.
Obstacle detection
The detection system is triggered when
an obstacle which has a certain physical
resistance hinders the movement of the
door.
If an obstacle is detected during:
- closing of the door, the door opens fully,
- opening of the door, the door stops.
When the obstacle has been removed,
complete or restart the action using the
remote control or the interior controls.
Failure to observe these recommendations
may result in injury or damage if part of
the body or an object becomes jammed or
caught.
Opening/Closing using the
remote control:
Press one of the buttons to open
or close the corresponding rear
door (right or left).
Opening/Closing from
the front:
press the corresponding
control.
An audible signal accompanies the opening
and closing of the door.
ELECTRIC SLIDING SIDE DOORS
Accesses
Remember to close the sliding doors when
your vehicle is parked for long periods,
the electric open door monitoring system
consumes power.
General recommendations
It is imperative that the doors are only
operated when the vehicle is stationary.
Always ensure that the door is operated
safely. Check that no person, animal or
object is preventing the required operation,
ERGONOMICS and COMFORT
17
2
Opening/Closing from the
2nd row:
press the corresponding
control.
>Visuel à venir
C
A
B
D
18
Accesses
CHILD SAFETY
A - Mechanical
This prevents either of the rear doors being
opened from inside.
Turn the switch A a quarter of a turn using
the ignition key.
B - Electric
This disarms all the electrical controls in the
rear:
electric windows,
sliding side doors,
sunroofs in the 2nd and 3rd row.
With the ignition on, press button B.
The message "Child safety activated"
appears on the display, accompanied by an
audible signal.
Simultaneous locking or unlocking
of the tailgate and the doors
The tailgate is locked or unlocked by the
remote control or the driver’s door or
passenger door lock.
To open, operate the handle C and lift the
tailgate.
Tailgate release
This enables the tailgate to be unlocked in
the event of a central locking fault.
Fold back a 2nd row rear seat,
Fold back a 3rd row rear seat or the bench
seat to gain access to the lock from inside
the boot,
Insert a small screwdriver into hole D in
the lock and push it towards the left to
unlock the tailgate.
Always remove the ignition key when
leaving the vehicle, even for a short time.
The tailgate locks automatically when
the vehicle is being driven at more than
6 mph (10 km/h) and unlocks when one of
the front doors is opened.
"Tailgate open" warning
When the engine is running or the vehicle is
being driven, you are warned if the tailgate
is not closed correctly by a diagram on the
display, accompanied by an audible signal.
TAILGATE
B
A
Accesses
ERGONOMICS and COMFORT
19
SUNROOFS
You have three sunroofs each with an
independent control.
However, the front passenger’s control
can also operate the two rear sunroofs
simultaneously.
to partially open the roof: press and
hold part A of the control.
to open the roof completely: press part
A of the control briefly.
to close it completely: press part B of
the control briefly to slide it, then press
the control again continuously to close it
completely.
Safety auto-reverse
When the sunroof is sliding closed and
meets an obstacle, it stops then partially
opens again.
Malfunction
In the event of a malfunction, unwanted
opening of the roof on closing (for
example, in the presence of ice), following
reconnection of the battery or if the sunroof
does not close:
press A until the roof is fully open,
press B within one second to close the
roof,
if the roof does not close, press B several
times until the roof is fully closed.
release then continue to press the control
B for approximately five seconds after
closing of the roof.
The safety auto-reverse function is not
active during these operations.
Disarming of the 2nd and 3rd row
controls
press the rear electrical functions
disarming switch.
The sunroof shutter is manual.
To open it, lift the handle and slide it
rearwards.
To close it, slide it forwards until the handle
locks.
Do not open the sunroofs immediately
after a shower or immediately after
washing the car.
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
Always ensure that the sunroofs are closed
correctly before leaving the vehicle.
In the event of contact during operation of
the roof, you must reverse the movement
of the roof. To do this, press the switch
concerned.
When the driver operates the roof switch,
he must ensure that no one is preventing
correct closing of the roof. Be aware of
children when operating the roof.
The driver must ensure that the passengers
use the sunroof correctly.
2
Instruments and controls
20
INSTRUMENTS AND CONTROLS
CONTROL BLOCK
Display
1
2 3
4
2 1
3
4
Instruments and controls
Warning lights
A warning light continuously lit, or flashing,
with the engine running, is an indication of a
malfunction in the relevant unit.
Some warning lights may be linked to
buzzers and a message on the display. Do
not ignore this warning: contact a PEUGEOT
dealer as quickly as possible.
If the central STOP warning light
comes on when you are driving, stop
immediately where it is safe to do so.
21
ERGONOMICS and COMFORT
2

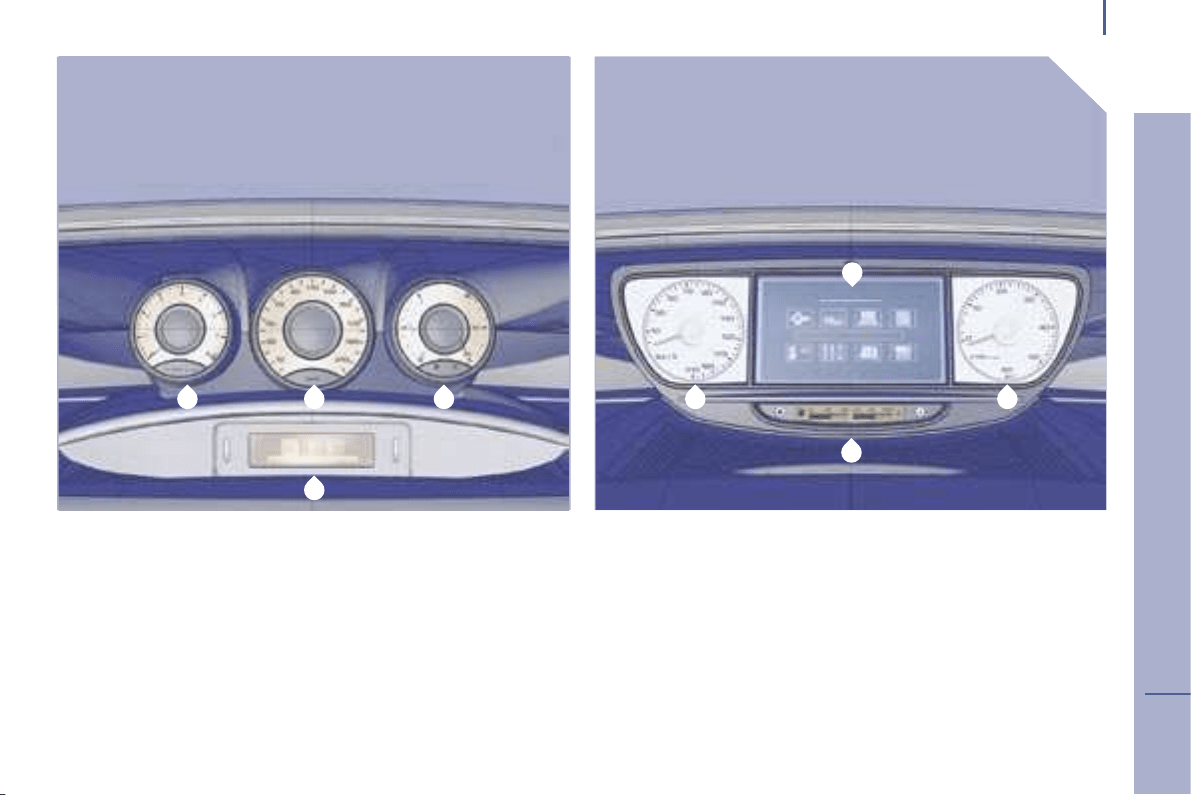

INSTRUMENT PANELS
With monochrome display With colour display
1. Rev counter.
2. Speedometer.
3. Level and temperature control block.
4. Display.
1
2 3
4
2 1
3
4
Instruments and controls
Warning lights
A warning light continuously lit, or flashing,
with the engine running, is an indication of a
malfunction in the relevant unit.
Some warning lights may be linked to
buzzers and a message on the display. Do
not ignore this warning: contact a PEUGEOT
dealer as quickly as possible.
If the central STOP warning light
comes on when you are driving, stop
immediately where it is safe to do so.
21
ERGONOMICS and COMFORT
2
INSTRUMENT PANELS
With monochrome display With colour display
1. Rev counter.
2. Speedometer.
3. Level and temperature control block.
4. Display.
Instruments and controls
This comes on for a few seconds each
time the ignition is switched on. If the
warning light remains on or comes on while
the engine is running, accompanied by
an audible signal and a message on the
display, it indicates one of the following:
- an engine immobiliser system fault,
- an engine management system fault,
- a rear parking assistance system fault,
- an automatic switching on of the lights
system and rain sensor fault,
- a tyre under-inflation detection system
warning,
- a brake pad wear warning,
- a flat remote control battery,
- one or more doors open at a vehicle speed
above 6 mph (10 km/h),
- a lack of engine oil.
To consult the corresponding warning
message, refer to "Warning log".
Service
This comes on for a few seconds each time
the ignition is switched on.
If it remains on or comes on above 8 mph
(12 km/h), it indicates a malfunction of the
ABS.
However, the vehicle retains conventional
servo-assisted braking.
Illumination of this warning light is
accompanied by an audible signal and the
message "ABS fault" on the display.
Contact a PEUGEOT dealer.
Anti-lock braking system
(ABS)
This comes on for a few seconds each time
the ignition is switched on.
It flashes when the system is activated
and is lit continuously when the system is
switched off.
If it remains on or comes on with the
engine running and the vehicle moving, it is
accompanied by an audible signal and the
message "ESP/ASR not functioning" on
the display.
Contact a PEUGEOT dealer.
Dynamic stability control (ESP/
ASR)
This comes on for a few seconds each time
the ignition is switched on.
It is linked to the "engine oil pressure",
"brake fluid level", "electronic brake force
distribution fault" and "power steering fault"
warning lights, the coolant temperature
gauge and the puncture warnings, indicated
by a message on the display.
Stop immediately.
Contact a PEUGEOT dealer.
Central STOP warning
This is linked to the central STOP warning light.
If it comes on with the engine running, it is
accompanied by an audible signal and the
message "Oil pressure insufficient" on the
display.
Stop immediately. Contact a PEUGEOT dealer
without delay.
Park and switch off your engine. Allow the
lubricating circuit to cool in order to check its level
and in the case of a lack of oil, top up the level
with the engine cold.
For further information regarding the oil level,
refer to the "Checking the levels" section of the
"Maintenance" chapter.
Engine oil pressure
22
Front seat belt not fastened
This comes on for a few seconds each time
the ignition is switched on.
If the driver and/or front passenger has/have
not fastened his/their seat belt, this warning
light comes on when the engine is running.
Then at a speed in excess of 15 mph
(25 km/h) it flashes accompanied by an
audible signal of increasing volume (for
approximately 90 seconds) and the message
"Seat belt reminder" on the display.
This comes on for a few seconds each time
the ignition is switched on.
If it comes on with the engine running,
accompanied by an audible signal and
the message "Antipollution fault" on the
display, it indicates a malfunction in the
emission control system.
If it flashes with the engine running,
accompanied by an audible signal and the
message "Catalytic converter fault" on
the display, it indicates a malfunction in the
injection or ignition system. There is a risk
of damage to the catalytic converter (petrol
engines only).
Contact a PEUGEOT dealer without delay.
This comes on for a few seconds each time
the ignition is switched on.
If it comes on with the engine running, it is
accompanied by an audible signal and the
message "Battery charge fault" on the
display.
It indicates faulty operation of the charging
circuit (loose battery terminals, a cut or slack
alternator belt, an alternator fault).
Contact a PEUGEOT dealer.
Battery charge Emission control system
This comes on for a few seconds each time
the ignition is switched on.
Illumination of this indicator light is
accompanied by an audible signal and the
message "Passenger air bag deactivated"
on the display.
If the passenger air bag is disarmed, the
indicator light comes on when the ignition is
switched on and remains on.
In all cases, if the indicator light flashes,
contact a PEUGEOT dealer.
Passenger air bag disarmed
This comes on for a few seconds when the
ignition is switched on.
Illumination of this warning light, with the
engine running, is accompanied by an
audible signal and the message "Air bag
fault" on the display, indicating a front, side
or curtain air bag fault.
Contact a PEUGEOT dealer.
Front, side and curtain air bags
Instruments and controls
Following prolonged operation of the
vehicle at very low speed or at idle, you
may, in exceptional circumstances, notice
emissions of water vapour at the exhaust
on acceleration. This does not have any
effect on the vehicle’s performance or on the
environment.
23
ERGONOMICS and COMFORT
2
Instruments and controls

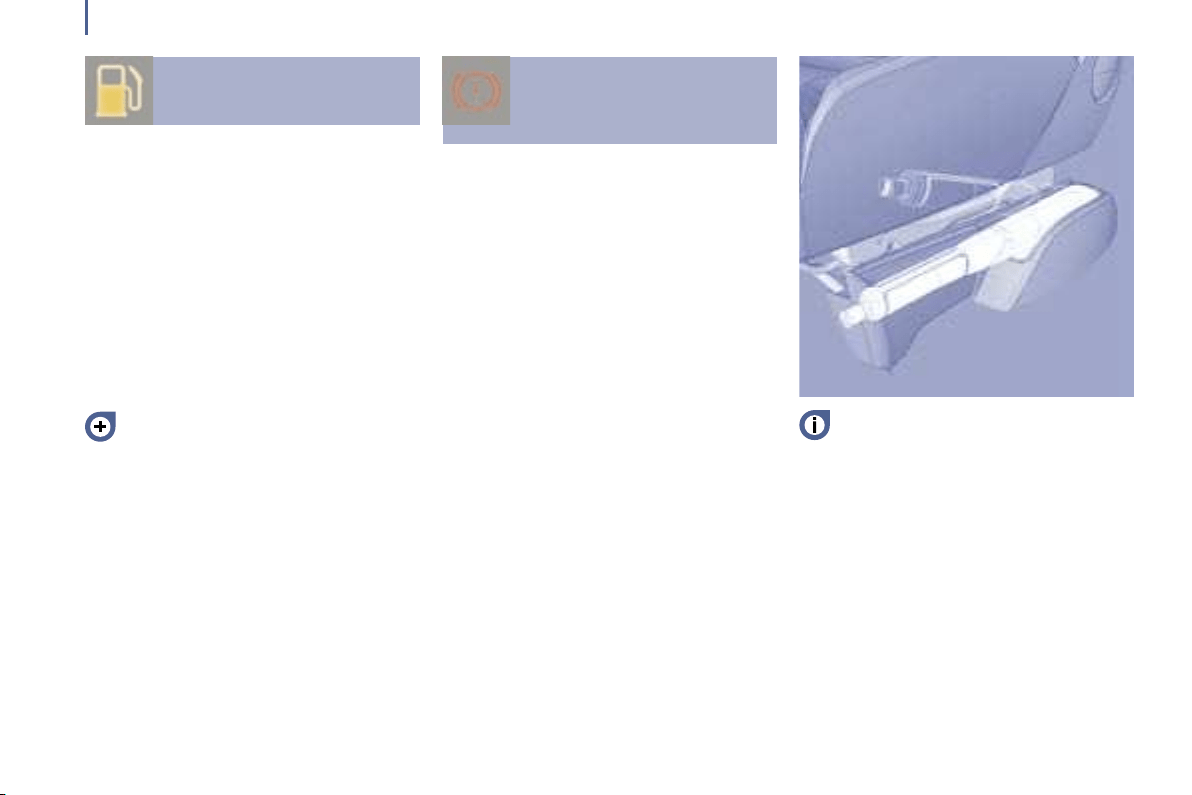

Low fuel level
This comes on for a few seconds each time
the ignition is switched on.
When the warning light comes on,
accompanied by the message "Fuel level
low" on the display, there is enough fuel
remaining to drive approximately 30 miles
(50 km) (the tank capacity is approximately
80 litres).
This light flashes to indicate a malfunction
of the fuel gauge or cutting-off of the fuel
supply, if it is accompanied by the message
"Fuel circuit neutralised" on the display.
This is linked to the central STOP warning
light.
It comes on for a few seconds each time the
ignition is switched on.
This warning light is accompanied by an
audible signal and a message on the display
indicating the cause of the warning:
- "Handbrake on", if the handbrake is on or
not released correctly while driving,
- "Brake fluid level low" in the event of an
excessive drop in the brake fluid level (if
the warning light remains lit even with the
handbrake released),
- "Braking fault", displayed at the same
time as the ABS warning light, indicating an
electronic brake force distribution system
fault.
Stop immediately.
Contact a PEUGEOT dealer.
Handbrake, low brake fluid
level and electronic brake
force distribution
Restore the supply (refer to the "Fuel"
section of the "Maintenance" chapter)
or contact a PEUGEOT dealer, depending
on the circumstances.
24
On the pivoting front seat version, the
handbrake can be disengaged. The
action of pulling the handbrake to immobilise
the vehicle then lowering the lever does not
release the handbrake, it facilitates pivoting
of the driver’s seat.
Also, do not forget to raise the lever and
fully release the handbrake before setting off
again. The warning light on the instrument
panel will remain on as in this configuration
when the lever is lowered this does not
mean that the brake is released.
Release the brake to switch off the warning
light.
Instruments and controls
This comes on for a few seconds each time
the ignition is switched on.
In cold weather, wait until it goes out before
trying the starter.
If the temperature is high enough, the warning
light comes on for less than one second, you
can start without waiting.
This comes on for a few seconds each time
the ignition is switched on. If the warning light
remains on or comes on while the engine is
running, accompanied by an audible signal
and a message on the display, it indicates
one of the following:
- a low coolant level,
- a low diesel additive reservoir level,
- the start of clogging of the particulate
emission filter,
- the presence of water in the diesel fuel.
Service
Low coolant level
This is linked to the central STOP warning
light and the service warning light.
It comes on for a few seconds each time the
ignition is switched on.
Illumination of this warning light, with the
engine running, is accompanied by an
audible signal and the message "Top up
engine coolant level" on the display.
Stop immediately.
Particulate emission filter saturation
warning
The message "Diesel additive minimum
level" or "Risk of clogging of the
particulate emission filter" on the display,
accompanied by an audible signal and
displaying of the service warning light,
indicates a particulate emission filter fault.
When this occurs with the engine running,
this is due to the particulate emission filter
starting to become clogged (exceptionally
prolonged urban driving conditions: reduced
speed, long traffic jams, ...).
In order to regenerate the filter, you are
advised to drive, as soon as possible, when
traffic conditions permit, at a speed of
35 mph (60 km/h) or more for at least five
minutes (until the message is cleared and
the service warning light is switched off).
During regeneration of the particulate
emission filter, relay noise may be heard
under the fascia.
If the message is still displayed and the
service warning light remains lit, contact a
PEUGEOT dealer.
Pre-heat
Diesel: specific warning lights
Allow the engine to cool before topping
up. The cooling system is pressurised.
To prevent the risk of scalding, unscrew
the cap by two turns to allow the pressure
to drop. Once the pressure has dropped,
remove the cap and top-up the level.
Contact a PEUGEOT dealer.
25
ERGONOMICS and COMFORT
2
A
B
A
B
Instruments and controls
Wait for the engine to cool before
topping up the level.
The cooling system is pressurised.
In the event of a breakdown and in order to
avoid any risk of scalding, unscrew the cap
two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.
Contact a PEUGEOT dealer.
COOLANT TEMPERATURE INDICATOR
In zone
A, the temperature is correct.
In zone B, the temperature is too high.
The central STOP warning light and the
maximum coolant temperature warning
light 1 come on, accompanied by an audible
signal and the message "Engine coolant
temp. too high" on the display.
You must stop immediately.
With monochrome screen
With colour screen
26
Instruments and controls
Automatic gearbox indicator
Automatic gearbox indicator light:
"SNOW" indicator light
This comes on when the
automatic gearbox "SNOW"
operating programme is selected.
Automatic gearbox lever positions:
"Reverse"
"Neutral"
"Park"
"Drive"
"Manual" mode:
1st gear engaged
2nd gear engaged
3rd gear engaged
4th gear engaged

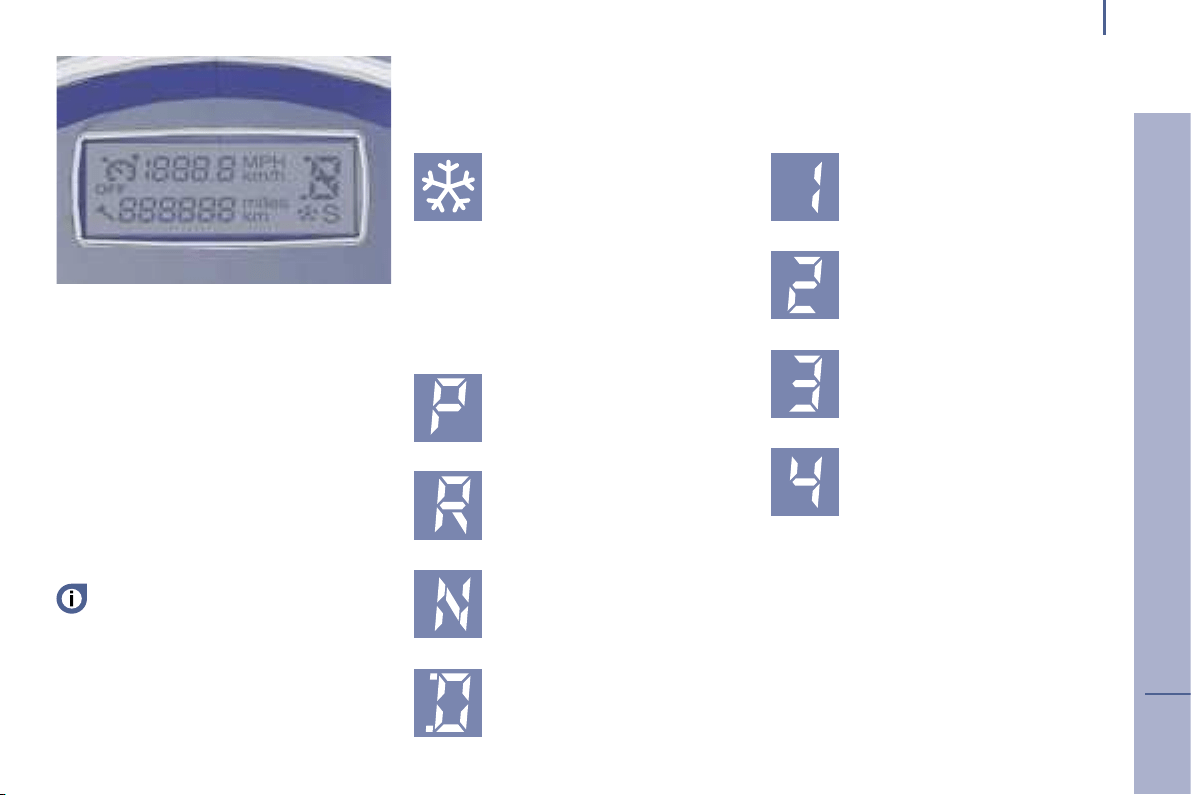

INSTRUMENT PANEL DISPLAY
After switching on the ignition, three
functions are shown in succession:
- service indicator,
- engine oil level indicator (see corresponding
section),
- total distance recorder (total and trip
distances).
It also displays the automatic gearbox
positions and programmes selected
(see opposite).
The total and trip distances are
displayed for thirty seconds, when
the ignition is switched off, on opening the
driver’s door as well as on locking and
unlocking the vehicle.
27
ERGONOMICS and COMFORT
2
Service indicator
Located in the instrument panel with
the total distance recorder (total and
trip distances), this programmes service
intervals according to the use of the vehicle.
Operation
A few moments after the ignition has been
switched on, the spanner indicating a service
operation lights up; the display for the total
distance recorder tells you (in round figures)
the distance remaining before the next
service.
The points at which a service is due are
calculated from the last indicator zero reset.
The point at which a service is due is
determined by two parameters:
the distance travelled.
the time which has elapsed since the last
service.
A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
showing the total and trip distances.
The distance remaining before the next
service is less than 500 miles/1 000 km.
Each time the ignition is switched on and
for a few seconds, the spanner flashes and
the number of miles/kilometres remaining is
displayed:
A few seconds after the ignition is switched
on, the oil level is displayed, then the total
distance recorder resumes normal operation
and the spanner remains lit. This indicates
that a service should be carried out shortly.
The service is overdue*
Each time the ignition is switched on and for
a few seconds, the spanner flashes and the
excess distance is displayed.
With the engine running the spanner
remains lit until the service has been
carried out.
* First of the two terms reached: the spanner
also lights up if the two-year interval has
elapsed.
The distance remaining before the next
service may be weighted by the time
factor, depending on the driver’s driving
habits.
Example: 4 800 miles/km remain before
the next service is due. When the ignition
is switched on and for a few seconds, the
display shows:
Instruments and controls
28
A
B
Zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service yourself,
the re-set procedure is as follows:
Switch off the ignition,
Press and hold the trip recorder re-set
button,
Switch on the ignition.
The display begins a countdown.
When the display shows "= 0", release
the button; the spanner disappears.
Engine oil level indicator
When the ignition is switched on, the engine
oil level is indicated for a few seconds, after
the service information.
Oil level correct
Lack of oil
Flashing of "OIL", linked
with the service warning
light, accompanied by
an audible signal and a
message on the display, indicates a lack of
oil which could damage the engine.
If the lack of oil is confirmed by a check
using the dipstick, it is essential that the
level is topped up.
Oil level gauge fault
Flashing of "OIL --"
indicates a malfunction
of the engine oil level
gauge. Contact a
PEUGEOT dealer.
Dipstick
A = maximum, never exceed
this level as a surplus of oil may
damage the engine.
Contact a PEUGEOT dealer
without delay.
B = minimum, top up the level via
the oil filler cap, using the type of
oil suited to your engine.
Trip recorder zero reset
button
With the ignition on, press the
button until the zeros appear.
Lighting rheostat
With the lights on, press the
button to vary the intensity of
the lighting of the instruments
and controls. When the lighting
reaches the minimum (or maximum) setting,
release the button then press it again to
increase (or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
Instruments and controls
29
ERGONOMICS and COMFORT
2
The level read will only be correct
if the vehicle is on level ground and
the engine has been off for more than
15 minutes.
After this operation, if you wish to
disconnect the battery, lock the vehicle
and wait for at least five minutes, otherwise
the zero re-set will not be registered.
Gearboxes
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX
The four-speed automatic gearbox offers
a choice between the comfort of integral
automatic operation, enhanced by a snow
programme, or the pleasure of manual gear
changing.
Gear selection gate
Move the lever in the gate to select a
position.
Once the position is selected, the
corresponding indicator light appears on
the instrument panel display.
:
snow programme
Park: to immobilise the vehicle or start the
engine, with the handbrake on or off.
Reverse: to reverse (select this position
with the vehicle stationary, engine at idle).
If position N is engaged inadvertently
while driving, allow the engine to return
to idle before engaging position D to
accelerate.
Neutral: to start the engine and to park,
with the handbrake on.
Drive: for driving in automatic mode.
Manual: for driving in manual mode.
If the battery is flat and the lever is
in position
P, it will be impossible to
change to another position.
30
GEARBOXES
For immediate maximum acceleration
without touching the gear lever, press
the accelerator pedal down as far as it will
go to the end of its travel passing the point
of resistance (kick down). The gearbox will
automatically change down or maintain the
gear selected until maximum engine speed
is reached.
On a descent, the gearbox will automatically
change down in order to provide efficient
engine braking and good re-acceleration.
If you take your foot off the accelerator
suddenly, the gearbox will not change to a
higher gear for reasons of safety.
Snow programme
In addition to the auto-adaptive programme,
there is a special programme.
The programme is displayed on the
instrument panel screen.
The Snow programme improves starting and
drive when traction is poor.
Press button once the vehicle has
been started and position D selected.
The gearbox adapts to driving on slippery
roads.
Gearboxes
When the engine is at idle, brakes
not applied, if position R, D or M is
selected the vehicle moves even without the
accelerator being pressed.
For this reason, do not leave children
unsupervised inside the vehicle, with the
engine running.
When maintenance operations need to be
carried out with the engine running, apply
the handbrake and select position P.
Automatic operation
Automatic changing of the four gears:
select position D in the gate.
The gearbox always selects the most
suitable gear according to the following
parameters:
the style of driving,
the road profile,
the vehicle load.
The gearbox is then operating in auto-
adaptive mode, without any action on your
part.
Never select position N when the
vehicle is moving.
Never select positions P or R unless the
vehicle is stationary.
Never change between positions to optimise
braking on a slippery surface.
Moving off
With the engine running, to move off from
position P:
it is essential to press the brake pedal to
exit position P,
select position R, D or M, then gradually
release the pressure on the brake pedal;
the vehicle moves off immediately.
You can also move off from position N:
release the handbrake, with your foot on
the brake.
select position R, D or M, then gradually
release the pressure on the brake pedal;
the vehicle moves off immediately.
31
ERGONOMICS and COMFORT
2
Gearboxes
It is only possible to change from one
gear to another if the vehicle speed
and engine speed permit. If they do not, the
vehicle will operate temporarily in automatic
mode.
When the vehicle is stationary or moving
very slowly, the gearbox automatically
selects gear M1.
The (snow) programme does not operate
in manual mode.

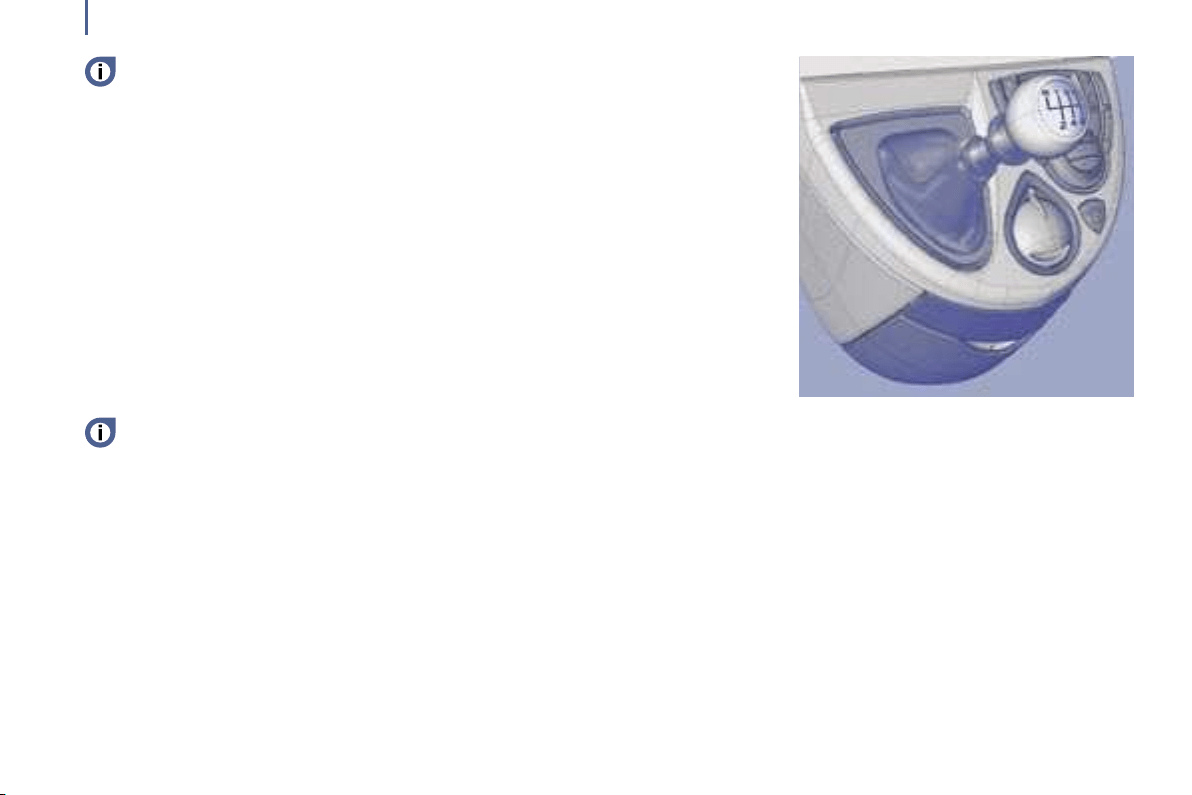

MANUAL GEARBOX
Reverse*
To change to reverse gear, lift the ring under
the gear lever knob and push the gear lever
to the left then to the front.
Reverse gear can only be engaged when
the vehicle is stationary with the engine
idling.
You can return to the auto-adaptive
programme at any time.
Press button again to switch off the
programme you are in.
Manual operation
Manual changing of the four gears:
select position M in the gate,
push the lever to the + sign to change to a
higher gear,
pull the lever to the - sign to change to a
lower gear.
You can change from position D (driving in
automatic mode) to position M (driving in
manual mode) at any time.
Operating abnormality
Any operating abnormality is indicated by an
audible signal, accompanied by the
message "Automatic gear fault" on the
display and flashing of the Snow warning
light on the instrument panel.
In this situation the gearbox operates in
downgrade mode (locked in 3rd gear). You
may feel a substantial knock when
changing from P to R and from N to R (this
will not cause any damage to the gearbox).
Do not exceed 60 mph (100 km/h), keeping
within the limit of local speed restrictions.
Contact a PEUGEOT dealer as soon as
possible.
* According to engine.
32
Gearboxes
It is only possible to change from one
gear to another if the vehicle speed
and engine speed permit. If they do not, the
vehicle will operate temporarily in automatic
mode.
When the vehicle is stationary or moving
very slowly, the gearbox automatically
selects gear M1.
The (snow) programme does not operate
in manual mode.
MANUAL GEARBOX
Reverse*
To change to reverse gear, lift the ring under
the gear lever knob and push the gear lever
to the left then to the front.
Reverse gear can only be engaged when
the vehicle is stationary with the engine
idling.
You can return to the auto-adaptive
programme at any time.
Press button again to switch off the
programme you are in.
Manual operation
Manual changing of the four gears:
select position M in the gate,
push the lever to the + sign to change to a
higher gear,
pull the lever to the - sign to change to a
lower gear.
You can change from position D (driving in
automatic mode) to position M (driving in
manual mode) at any time.
Operating abnormality
Any operating abnormality is indicated by an
audible signal, accompanied by the
message "Automatic gear fault" on the
display and flashing of the Snow warning
light on the instrument panel.
In this situation the gearbox operates in
downgrade mode (locked in 3rd gear). You
may feel a substantial knock when
changing from P to R and from N to R (this
will not cause any damage to the gearbox).
Do not exceed 60 mph (100 km/h), keeping
within the limit of local speed restrictions.
Contact a PEUGEOT dealer as soon as
possible.
* According to engine.
32
A
B
Steering wheel controls
LIGHTING CONTROL
Front and rear lights
Selection is by turning ring A.
Side lights on
Lights off
Dipped beam (green)
Main beam (blue)
Dipped beam/main beam change
Pull the stalk fully towards you.
Lights-on buzzer
When the ignition is switched off, when the
driver’s door is opened, a buzzer sounds,
accompanied by the message "Side lights
on" on the multi-function display if you have
left your lights on.
Front and rear fog lights
Rotate ring B forwards to switch on and
rearwards to switch off. The status is
confirmed by the light on the instrument
panel.
Front fog lights (green, 1st
rotation of the ring forwards).
33
ERGONOMICS and COMFORT
2
STEERING WHEEL CONTROLS
These operate with the
side lights and the dipped
beam headlamps.
Front fog lights (green)
and rear fog lights (amber, 2nd rotation of
the ring forwards).
Steering wheel controls
These operate with the side lights and
the dipped beam headlamps.
To switch off the front and rear fog lights,
turn the ring rearwards twice in succession.
In clear weather or in rain, both day
and night, rear fog lights dazzle and
are prohibited.
Do not forget to switch them off when they
are no longer needed.
Automatic switching on of the lights switches
off the rear fog lamps, but the front fog
lamps remain on.
Daytime lights*
On vehicles which are equipped
with daytime lights, the dipped
headlamps come on when the
vehicle is started.
This warning light comes on on the
instrument panel.
The instruments and controls (instrument
panel, multifunction display, air conditioning
control panel, ...) are only lit on switching to
the automatic switching on of the lights mode
or when the lights are switched on manually.
* According to country.
In foggy weather or in snow, the
brightness sensor can detect sufficient
light. As a consequence, the lights will not
come on automatically.
Automatic "Follow-Me-Home"
lighting
With the ignition off, when you leave your
vehicle with the automatic switching on
of the lights function activated, the side
lights and dipped headlamps remain on for
the selected duration.
Automatic switching on of the lights
Side lights and dipped beam headlamps
switch on automatically if the light is poor,
or during operation of the windscreen
wipers. They switch off as soon as the light
becomes bright enough or the windscreen
wipers stop.
To switch the function on or off,
use the display configuration
menu.
Carry out these operations while
the vehicle is stationary.
Activation
The activation of this function is
accompanied by a message on the display.
The function is activated when the manual
lights stalk is in position 0.
Deactivation
The deactivation of this function is
accompanied by a message on the display.
The function is deactivated temporarily when
you use the manual lights stalk.
Direction indicators
(green flashing)
Left: downwards.
Right: upwards.
Do not cover the brightness sensor
located in the centre of the fascia. It is
used for the automatic switching on of the
lights.
To deactivate or activate this
function, go to the display
configuration menu.
The duration of the timed period must also
be set (15, 30, 60 seconds), via the display
configuration menu.
Carry out these operations when the vehicle
is stationary.
Cancelling:
"flash" the headlamps,
get out of the vehicle and lock it.
34
If the brightness sensor does not
function correctly, the lights come on
accompanied by the service warning light,
an audible signal and a message on the
display.
Contact a PEUGEOT dealer.
Steering wheel controls
These operate with the side lights and
the dipped beam headlamps.
To switch off the front and rear fog lights,
turn the ring rearwards twice in succession.
In clear weather or in rain, both day
and night, rear fog lights dazzle and
are prohibited.
Do not forget to switch them off when they
are no longer needed.
Automatic switching on of the lights switches
off the rear fog lamps, but the front fog
lamps remain on.
Daytime lights*
On vehicles which are equipped
with daytime lights, the dipped
headlamps come on when the
vehicle is started.
This warning light comes on on the
instrument panel.
The instruments and controls (instrument
panel, multifunction display, air conditioning
control panel, ...) are only lit on switching to
the automatic switching on of the lights mode
or when the lights are switched on manually.
* According to country.
In foggy weather or in snow, the
brightness sensor can detect sufficient
light. As a consequence, the lights will not
come on automatically.
Automatic "Follow-Me-Home"
lighting
With the ignition off, when you leave your
vehicle with the automatic switching on
of the lights function activated, the side
lights and dipped headlamps remain on for
the selected duration.
Automatic switching on of the lights
Side lights and dipped beam headlamps
switch on automatically if the light is poor,
or during operation of the windscreen
wipers. They switch off as soon as the light
becomes bright enough or the windscreen
wipers stop.
To switch the function on or off,
use the display configuration
menu.
Carry out these operations while
the vehicle is stationary.
Activation
The activation of this function is
accompanied by a message on the display.
The function is activated when the manual
lights stalk is in position 0.
Deactivation
The deactivation of this function is
accompanied by a message on the display.
The function is deactivated temporarily when
you use the manual lights stalk.
Direction indicators
(green flashing)
Left: downwards.
Right: upwards.
Do not cover the brightness sensor
located in the centre of the fascia. It is
used for the automatic switching on of the
lights.
To deactivate or activate this
function, go to the display
configuration menu.
The duration of the timed period must also
be set (15, 30, 60 seconds), via the display
configuration menu.
Carry out these operations when the vehicle
is stationary.
Cancelling:
"flash" the headlamps,
get out of the vehicle and lock it.
34
If the brightness sensor does not
function correctly, the lights come on
accompanied by the service warning light,
an audible signal and a message on the
display.
Contact a PEUGEOT dealer.
WINDSCREEN WIPER STALK
Manual windscreen wipers
Special position of the windscreen
wipers
In the minute following switching off of the
ignition, any action on the stalk positions the
wipers against the windscreen uprights.
Vehicle fitted with the
automatic windscreen
wipers control
On vehicles which are fitted
with this control, in the AUTO position, the
windscreen wipers operate automatically
and adapt their speed to the intensity of
the rainfall.
When not in AUTO mode, for the other
positions, refer to the manual windscreen
wipers section.
The command must be reactivated
whenever the ignition has been switched
off for more than one minute:
move the stalk to any position,
then move it back to the required position.
Steering wheel controls
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the Intermittent position, the wiping speed
is in proportion to the vehicle speed.
This action enables you to position the
wiper blades for winter parking, cleaning or
replacement.
35
ERGONOMICS and COMFORT
2
Refer to the "Changing a windscreen
wiper blade" section of the
"Troubleshooting" chapter.
To park the wipers after this has been done,
switch on the ignition and operate the stalk.
Windscreen and headlamp wash
Pull the windscreen wiper stalk towards you.
The windscreen wash then the windscreen
wipers operate for a fixed period.
The headlamp wash is also activated, if the
headlamps are on.
Steering wheel controls
Activation
Activation of the function is accompanied by
a message on the display.
The automatic windscreen wipers
function must be reactivated if the ignition
has been switched off for more than one
minute, by pressing the stalk downwards.
Deactivation - Switching off
Deactivation of the function is accompanied
by a message on the display.
To deactivate the function, place the
windscreen wipers stalk in position I, 1 or 2.
To switch it off, return to position 0.
In the event of malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in
intermittent mode.
Contact a PEUGEOT dealer to have the
system checked.
Rear windscreen wiper
Turn the ring to the first notch.
The wiping speed is inversely
proportional to the speed of the
vehicle.
Automatic rear windscreen wiping
place the front wipers stalk in a position
other than 0.
engage reverse gear.
the rear wiper operates with intermittent
wiping.
Rear windscreen wash
Turn the ring past the first notch:
the windscreen wash then the
windscreen wiper operate for a
fixed time.
Do not cover the rain sensor on the
windscreen, located in the centre, on
the fascia.
When using an automatic car wash, switch
off the ignition.
In winter, it is advisable to wait for the
windscreen to completely clear of ice before
operating the automatic wipe.
If a bicycle carrier is used, contact a
PEUGEOT dealer to have this function
disarmed.
In winter, in the event of a considerable
amount of snow or ice, switch on the
rear screen demister. Once de-icing is
complete, remove the snow or ice which has
accumulated on the rear wiper blade. You
can now operate the rear windscreen wiper.
36
Steering wheel controls
CRUISE CONTROL*
"This is the speed at which the driver wishes
to drive".
This aid to driving in free-flowing traffic
enables the vehicle to maintain the speed
programmed by the driver, unless a steep
gradient makes this impossible.
In order for it to be programmed or
activated, the vehicle speed must be greater
than 25 mph (40 km/h) with at least 4th gear
engaged in the case of vehicles fitted with a
manual gearbox.
On vehicles fitted with an automatic
gearbox, the lever must be in position
D (Drive) or at least 2nd gear must be
engaged in sequential mode.
If the vehicle is fitted with a speed limiter
and cruise control, these functions cannot
be activated at the same time.
Function selected,
displaying of the "Cruise
Control" symbol.
Function deactivated,
OFF (example at
107 km/h).
Function activated
(example at 107 km/h).
Vehicle speed above
(e.g. 118 km/h),
the programmed speed
is displayed flashing.
Operating fault detected,
OFF - the dashes flash.
This cruise control shows the function
selection status on the instrument panel and
displays the programmed speed:
37
ERGONOMICS and COMFORT
2
* According to country and engine.
Steering wheel controls
Selecting the function
Place the switch in the CRUISE position.
The cruise control is selected but is
not yet active and no speed has been
programmed.
First activation/
programming a
speed
Reach the chosen
speed by pressing the
accelerator.
Press the SET - or SET +
button.
This programmes/activates the reference
speed and the vehicle will maintain this
speed.
Temporary
exceeding of the speed
It is possible to accelerate and drive
momentarily at a speed greater than the
programmed speed. The value programmed
flashes.
When the accelerator pedal is released, the
vehicle will return to the programmed speed.
Reactivation
Following deactivation of the cruise
control, press this button.
Your vehicle will return to the last
programmed speed.
Alternatively, you can repeat the "first
activation" procedure.
Deactivation (off)
Press this button or the
brake or clutch pedal.
38
Switching the function off
Place the dial in position 0 or switch off
the ignition to switch everything off.
Cancelling the programmed
reference speed
When the vehicle becomes stationary, after
switching off the ignition, the system no
longer memorises a speed.
When changing the programmed
reference speed by means of a
maintained press, pay attention as the
speed can increase or decrease rapidly.
Do not use the cruise control on slippery
roads or in heavy traffic.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed.
In any event, the cruise control cannot
replace the need to observe the speed
limits, nor can it replace the need for
vigilance and responsibility on the part of the
driver.
To avoid any jamming under the pedals:
- ensure that the mat is positioned correctly,
- never place one mat on top of another.

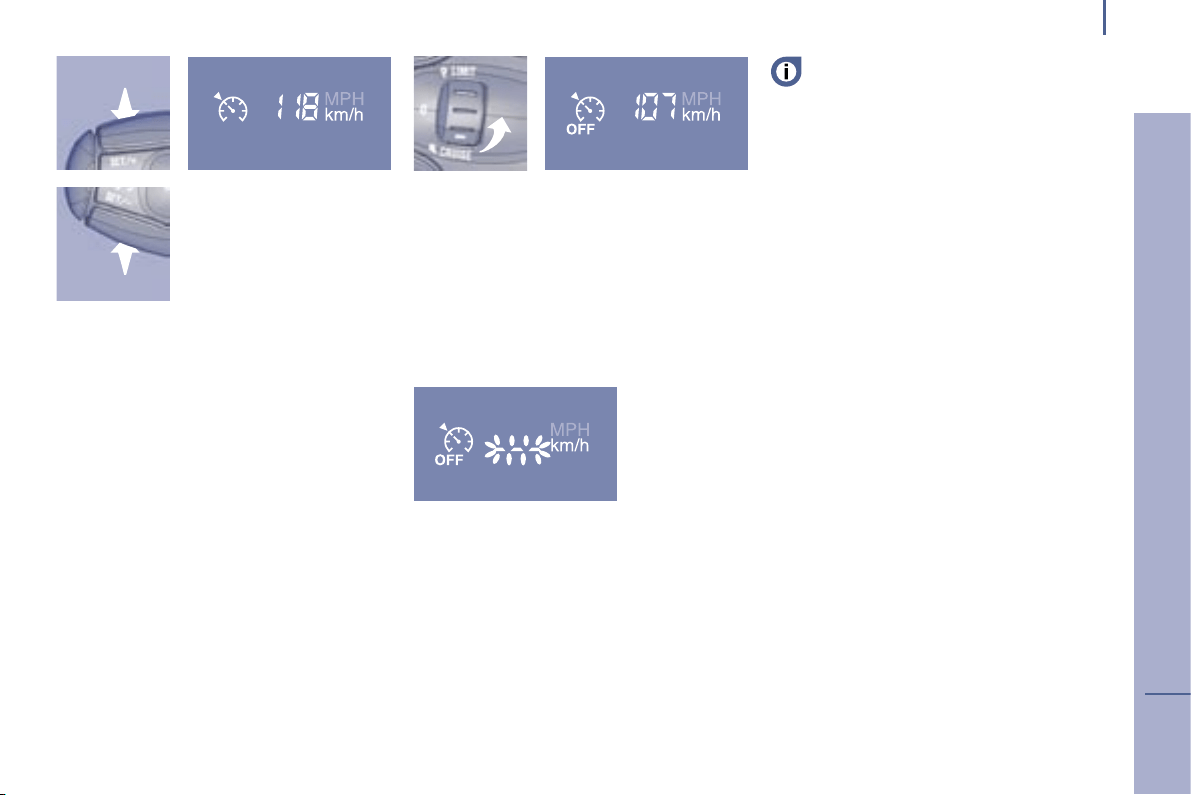

Steering wheel controls
Changing the
programmed speed
There are two methods of
memorising a speed higher
than the previous one:
Without using the accelerator:
press the Set + button.
A brief press increases the speed by 1 mph
(km/h).
A maintained press increases the speed in
steps of 5 mph (km/h).
Using the accelerator:
exceed the memorised speed until the
speed required is reached,
press the Set + or Set - button.
To memorise a speed lower than the
previous one:
press the Set - button.
A brief press decreases the speed by 1 mph
(km/h).
A maintained press decreases the speed in
steps of 5 mph (km/h).
Operating fault
The programmed speed is cleared and the
dashes flash for a few seconds.
Contact a PEUGEOT dealer to have the
system checked.
ERGONOMICS and COMFORT
2
39
Steering wheel controls
SPEED LIMITER*
"This is the selected speed which the driver
does not wish to exceed".
This selection is made with the engine
running while stationary or with the vehicle
moving. The minimum speed which can be
programmed is 20 mph (30 km/h).
The speed of the vehicle responds to the
pressure of the driver’s foot as far as the
accelerator pedal point of resistance which
indicates that the programmed speed has
been reached.
However, pressing the pedal beyond this point
of resistance to the floor permits exceeding
of the programmed speed. To resume use of
the limiter, simply reduce the pressure on the
accelerator pedal gradually and return to a
speed below that programmed.
If the vehicle is fitted with a speed limiter
and cruise control, these functions cannot
be activated at the same time.
The operating actions can be carried out
when stationary, with the engine running,
or with the vehicle moving.
Function selected,
displaying of the "Speed
Limiter" symbol.
Function deactivated,
last programmed speed
- OFF
(example at 107 km/h).
Function activated
(example at 107 km/h).
Vehicle speed above
(example at 118 km/h),
the programmed speed
is displayed flashing.
Operating fault detected,
OFF - the dashes flash.
This speed limiter shows the function
selection status on the instrument panel and
displays the programmed speed:
40
* According to engine and country.
Steering wheel controls
Selecting the function
Place the dial in the LIMIT position. The
limiter is selected but is not yet active.
The display indicates the last programmed
speed.
Programming a speed
A speed can be programmed without activating
the limiter but with the engine running.
To memorise a speed higher than the
previous one:
press the Set + button.
A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in
steps of 5 mph (km/h).
To memorise a speed lower than the
previous one:
press the Set - button.
A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the speed in
steps of 5 mph (km/h).
Activation/Deactivation (off)
Pressing this button once activates the
limiter, pressing the button again deactivates
it (OFF).
ERGONOMICS and COMFORT
2
41
Steering wheel controls
Switching the function off
Place dial in position 0 or switch off the
ignition to switch the system off. The
last programmed speed remains in the
memory.
Exceeding the programmed speed
Pressing the accelerator pedal in order to
exceed the programmed speed will have
no effect unless you press the pedal firmly
beyond the point of resistance.
The limiter is deactivated temporarily and
the programmed speed flashes.
To return to the limiter function, reduce your
speed to below the programmed speed.
Flashing of the speed
The speed flashes:
following forcing of the accelerator point of
resistance,
when the limiter cannot prevent an
increase in the vehicle speed due to the
profile of the road or on a steep descent,
in the event of sharp acceleration.
In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for
vigilance and responsibility on the part of the
driver.
Always pay attention to the profile of the
road and take care on sharp acceleration.
To avoid any jamming under the pedals:
- ensure that the mat is positioned correctly,
- never place one mat on top of another.
Operating fault
The programmed speed is cleared and the
dashes flash for a few seconds.
Contact a PEUGEOT dealer to have the
system checked.
42

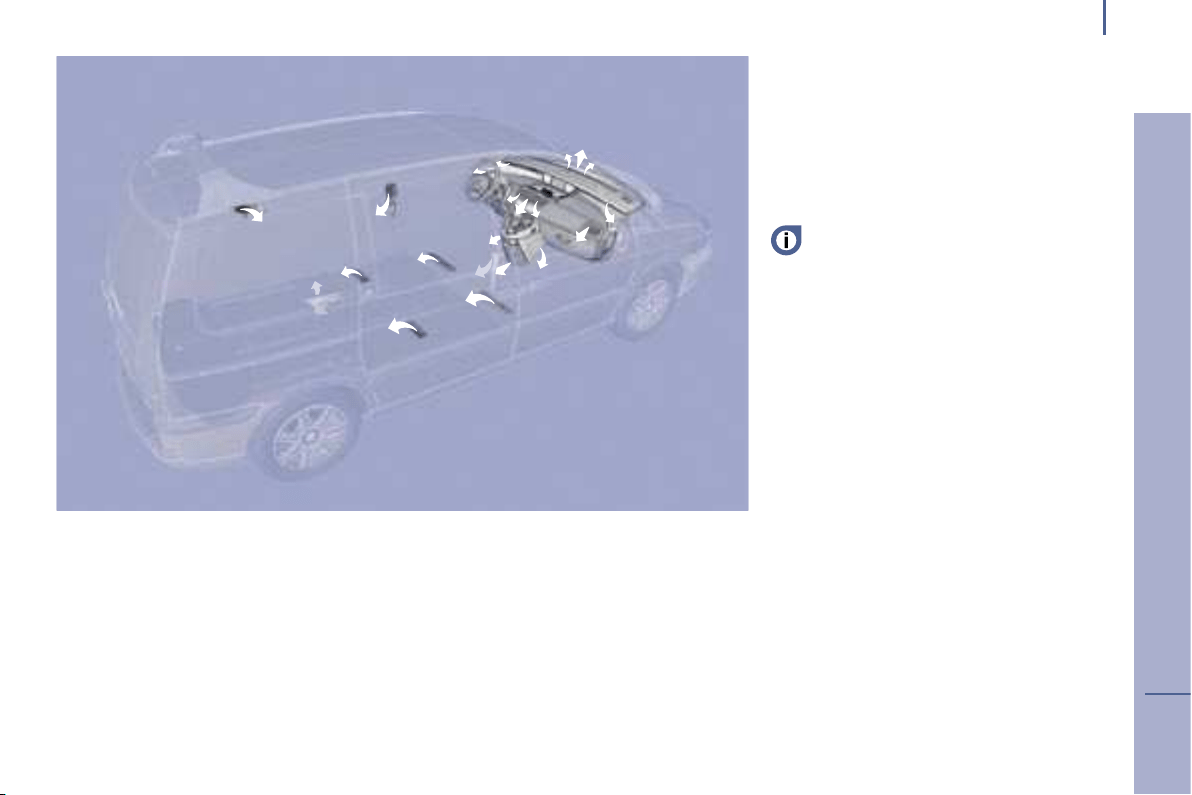

To be effective, you should operate the air
conditioning only with the windows closed.
If the interior temperature remains high after
a lengthy period in the sun, do not hesitate
to ventilate the passenger compartment for
a few moments.
To ensure an even distribution of air, ensure
you do not block the air intake grille at the
base of the windscreen, the side vents, the
air outlets on the floor and the air extractor
at the tailgate pillars.
CORRECT USE OF THE AIR
CONDITIONING
Whenever possible use the system in AUTO
mode, if your vehicle is equipped with
automatic air conditoning, as this enables the
air flow, air temperature within the passenger
compartment, air distribution and air intake or
air recirculation to operate to optimum effect.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
Have the filter elements replaced regularly
(air filter and passenger compartment filter).
If the environment is dusty, change them
twice as often.
If the system does not produce cold air,
do not use it and contact your PEUGEOT
dealer.
The condensation created by the air
conditioning system results in a flow of water
under the vehicle when stationary which is
perfectly normal.
Air conditioning
ERGONOMICS and COMFORT
2
43
AIR CONDITIONING
Air conditioning
44

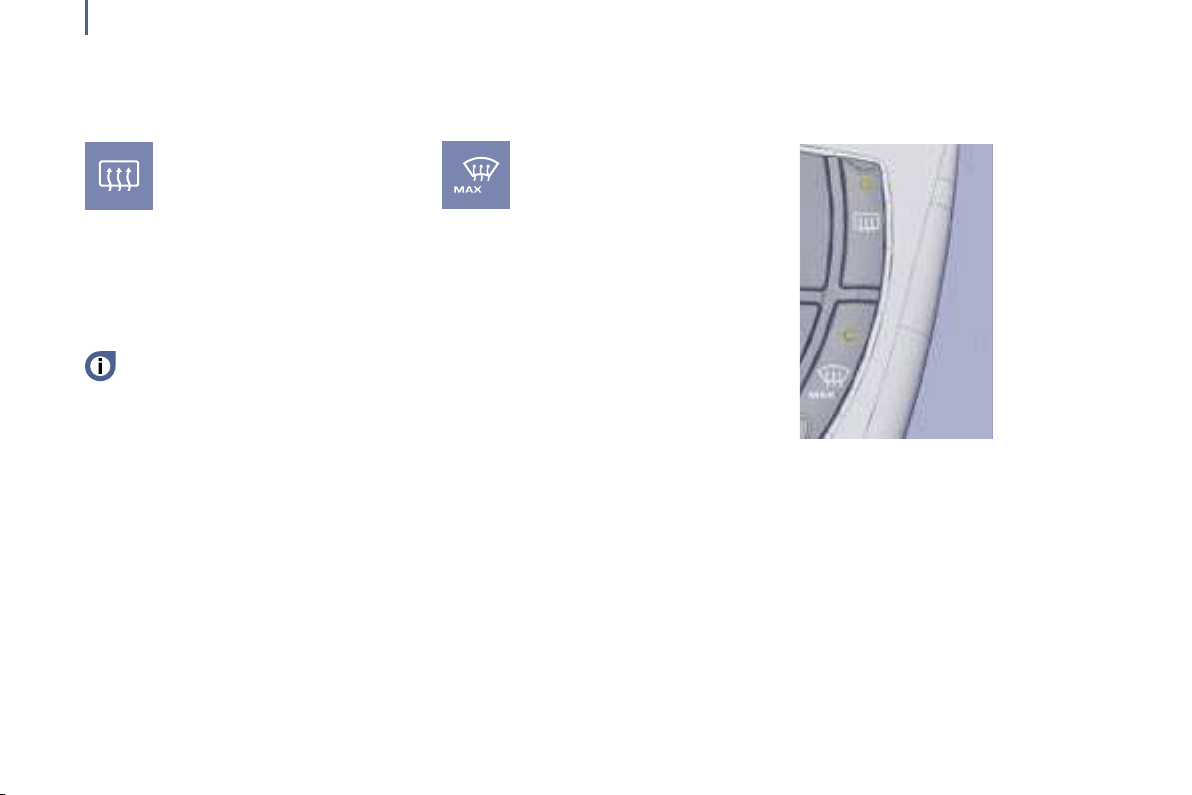

De-icing the rear screen
and mirrors
Demisting, visibility programme
DE-ICING AND DEMISTING
Press this button, with the engine
running, to de-ice the rear screen
and mirrors.
The de-icing indicator light comes on. The
duration of de-icing depends on the exterior
temperature.
Pressing the button again reactivates the
de-icing.
It is possible to stop the de-icing before
it is switched off automatically by
pressing this button again.
The comfort programme may not
be sufficient to quickly demist or
de-ice the windows (humidity,
several passengers, ice).
In this case, select the visibility
programme. The visibility programme
indicator light comes on.
It activates the air conditioning, the air flow,
the de-icing of the rear screen and provides
optimum distribution of the ventilation to the
windscreen and side windows.
It deactivates the air recirculation.
5
3
2
4
1
Air conditioning
the side vents and the central
vents,
MANUAL AIR CONDITIONING
Located on the centre console, the control
panel is to the right of the gear lever.
1 - Setting the air distribution
Turn control knob 1 to the corresponding
position to direct the flow of air towards:
45
ERGONOMICS and COMFORT
2
the side vents, the central vents
and the footwells,
the footwells,
the windscreen and the footwells,
the windscreen.
2 - Temperature adjustment
Position control knob 2 to suit
your requirements:
from blue (cold when the air
conditioning is on) to red (hot).
To lower the temperature inside the
passenger compartment quickly, position
control knob 2 on "MAX".
The air conditioning 5 and the air
recirculation 4 come on.
Turn the knob away from the "MAX"
position when the ambient air suits your
requirements.
The air conditioning 5 remains on while the
air recirculation 4 switches off.
Air conditioning
46
Recommended settings for the manual air conditioning
For optimum operation of the system, it is recommended:
If I require...
Air
distribution
Temperature Air flow
Air
recirculation
AC
Heating -
Cooling
Deicing
Demisting
With Automatic Air Conditioning, operation in AUTO mode is recommended, irrespective of
the requirement.
Remember to switch it off when the ambient air suits your requirements.
3 - Setting the air flow
Turn control knob 3 to the right or
to the left respectively to increase
or reduce the flow of air.
Avoid prolonged operation in interior air
recirculation mode (risk of misting of the
windows and of deterioration of the air quality).
5 - Air conditioning ON/OFF
The air conditioning is intended
to operate in all seasons. In
summer it allows the temperature
to be reduced and in winter, above 0 °C, it
increases the effectiveness of the demisting.
Press switch 5.
The air conditioning indicator light 5 comes
on if the air flow is sufficient.
Pressing this button again switches off the
air conditioning.
4 - Intake of exterior air/
Recirculation of interior air
Press button 4 to recirculate the
air inside.
The air recirculation indicator light 4 comes on.
Recirculation insulates the passenger
compartment from external odours and fumes.
Used simultaneously with the air
conditioning 5, recirculation improves the
performance of the system when set to hot
as well as to cold.
51
6
4
2 3
7
8
9
Air conditioning
AUTOMATIC AIR CONDITIONING WITH SEPARATE SETTINGS
Do not cover the sunshine sensor
located in the centre of the
fascia. This is used to regulate the air
conditioning.
Located on the centre console, the control
panel is to the right of the gear lever.
The driver and front passenger can each
adjust the air temperature to suit their
requirements.
They can also activate or disarm the rear
ventilation adjustment controls.
1 - AUTO mode
This is the normal air conditioning
operating mode.
Press the "AUTO" button.
Depending on the comfort temperature
selected, the system controls the air
distribution, flow and intake so that the
passenger compartment is comfortable and
has an adequate circulation of air. You do
not have to make any further adjustments.
When the engine is cold, in order to prevent
a rush of cold air, the ventilation will reach
its optimum level progressively.
The "AUTO" symbol is displayed.
For your comfort, the settings selected
when the ignition is switched off will be
retained when it is switched on again, if the
temperature in the passenger compartment
has not changed significantly; otherwise,
operation will resume in automatic mode.
47
ERGONOMICS and COMFORT
2

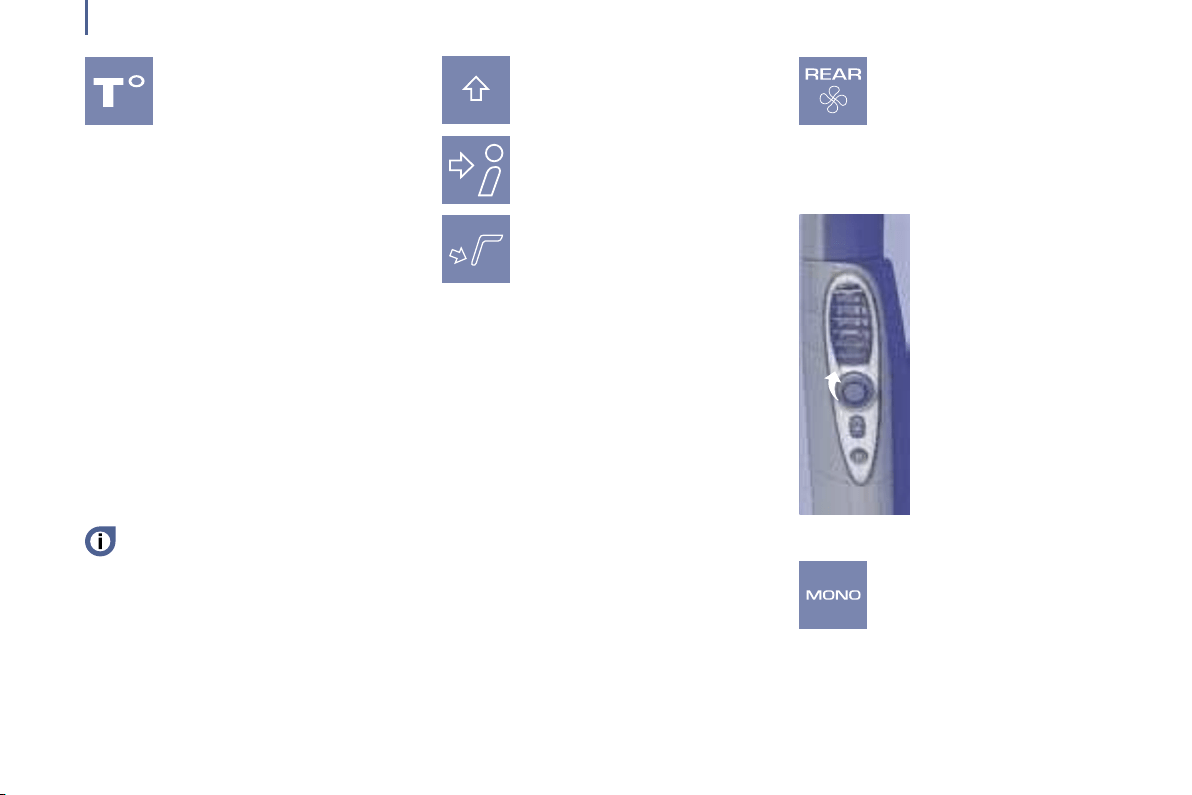

Air conditioning
48
2 - Driver’s temperature
adjustment
4 - Adjustment of the air
distribution
Pressing the corresponding
button(s) 4 allows you to
position the air flow towards:
the windscreen,
the side vents and the central
vents,
the side vents, the central vents
and the footwells,
the windscreen and the
footwells,
the footwells.
The indicator light corresponding to the
position selected 4 comes on.
5 - Adjustment of the rear
ventilation
("REAR" version)
To permit adjustment of the
ventilation to the rear passengers, press the
REAR button.
The rear ventilation symbol is displayed.
The 2nd row side vents air
flow adjustment controls
are operational and can be
adjusted.
To deactivate the rear
ventilation controls, press
the REAR button again.
The rear ventilation symbol
switches off.
Take care not to obstruct
the side vents and the air
outlets on the floor.
MONO Version
Press this button once to obtain
an even temperature throughout
the passenger compartment. The
reference value is selected by the
driver.
3 - Passenger’s temperature
adjustment
The required value is displayed (from 14 to
28: comfort value = 21).
The maximum difference between the
value displayed for the driver and for the
passenger may not be greater than 5.
If you use these manual adjustments, the
AUTO symbol switches off.
Press the corresponding "+" and "-"
buttons to adjust.
To make the driver and passenger setting
the same:
air conditioning with "MONO" version,
press the MONO button.
air conditioning with "REAR" version,
press the button for more than two
seconds.
On entering the vehicle, the interior
temperature may be considerably lower
(or higher) than is comfortable. It is not
necessary to change the value displayed
in order to quickly obtain the desired level
of comfort. The system will operate at
maximum performance to reach the comfort
value set.
Air conditioning
6 - Adjustment of the air flow
Turn control knob 6 to the right
or to the left respectively to
increase or decrease the air
flow.
On the display, the blades of the fan darken
when the air flow is increased.
7 - Switching the system off
Turn air flow control knob 6 to the left until
the display switches off.
The action disarms all the system functions,
with the exception of demisting of the rear
screen. Your comfort setting is no longer
maintained and switches off.
For your comfort, avoid remaining in the off
position.
Operating control knob 6 again or the
"Visibility" button or "AUTO" button
reactivates the system with the values which
were present before it was switched off.
Flashing of the points in the temperature
setting values indicates that there is a
malfunction of the air conditioning.
Contact your PEUGEOT dealer.
8 - Intake of exterior air/
Recirculation of interior air
Press this button to recirculate
the air inside.
The air recirculation symbol and indicator
light 8 are displayed.
Recirculation insulates the passenger
compartment from outside smells and
smoke.
9 - Air conditioning On/Off
Press this button to activate
automatic operation of the air
conditioning.
The symbol and the indicator light 9 are
displayed.
Press this button again to switch off the air
conditioning.
The symbol and the indicator light 9 switch
off.
49
Avoid prolonged operation of interior
air recirculation (risk of misting of the
windows and deterioration of air quality).
Press this button again to return air intake
to automatic control.
ADDITIONAL HEATER
Vehicles fitted with HDI engines may be
fitted with automatic additional heating to
improve your comfort.
With the engine at idle or when the vehicle
is stationary, it is normal to notice a high-
pitched whistling and a slight emission of
smoke and odour.
ERGONOMICS and COMFORT
2
Air conditioning
6 - Adjustment of the air flow
Turn control knob 6 to the right
or to the left respectively to
increase or decrease the air
flow.
On the display, the blades of the fan darken
when the air flow is increased.
7 - Switching the system off
Turn air flow control knob 6 to the left until
the display switches off.
The action disarms all the system functions,
with the exception of demisting of the rear
screen. Your comfort setting is no longer
maintained and switches off.
For your comfort, avoid remaining in the off
position.
Operating control knob 6 again or the
"Visibility" button or "AUTO" button
reactivates the system with the values which
were present before it was switched off.
Flashing of the points in the temperature
setting values indicates that there is a
malfunction of the air conditioning.
Contact your PEUGEOT dealer.
8 - Intake of exterior air/
Recirculation of interior air
Press this button to recirculate
the air inside.
The air recirculation symbol and indicator
light 8 are displayed.
Recirculation insulates the passenger
compartment from outside smells and
smoke.
9 - Air conditioning On/Off
Press this button to activate
automatic operation of the air
conditioning.
The symbol and the indicator light 9 are
displayed.
Press this button again to switch off the air
conditioning.
The symbol and the indicator light 9 switch
off.
49
Avoid prolonged operation of interior
air recirculation (risk of misting of the
windows and deterioration of air quality).
Press this button again to return air intake
to automatic control.
ADDITIONAL HEATER
Vehicles fitted with HDI engines may be
fitted with automatic additional heating to
improve your comfort.
With the engine at idle or when the vehicle
is stationary, it is normal to notice a high-
pitched whistling and a slight emission of
smoke and odour.
ERGONOMICS and COMFORT
2
5
4
6
1
3
2
Seats
FRONT SEATS WITH MANUAL
ADJUSTMENT
2 - Seat back angle adjustment
Pull the lever upwards and set the required
angle.
1 - Forwards/backwards adjustment
Lift the bar and slide the seat forwards or
backwards.
50
SEATS
3 - Driver’s seat height adjustment
Manoeuvre the handle upwards or
downwards until the desired position is
reached.
4 - Driver’s seat lumbar adjustment
Move the lever up or down to obtain the
required position.
5 - Head restraint height and angle
adjustment
To raise or lower the restraint, pull it
forwards, then slide it.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove it, set it in the high position, lift
the tab using a coin and pull upwards and
forwards at the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
6 - Rotating of seats
If your vehicle is fitted with this function:
Place the seat back in the upright position.
Place the seat in the highest intermediate
longitudinal position.
On the driver’s side, push the steering
wheel, apply the handbrake. To allow
rotation of the seat, lower the handbrake
handle pulling on the end.
Pull the control upwards and rotate the seat
inwards.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
This pivoting operation must be carried
out with the engine switched off. The
handbrake, the lever of which is now in the
lower position, remains applied.
Do not forget to raise the lever and release
the brake before setting off.
Driving with a passenger seated facing the
rear is prohibited.
Seats
ERGONOMICS and COMFORT
2
51
For further information regarding the
disengaging of the handbrake, refer to
the "Driving Safety" section of the "Safety"
chapter.
5
4
6
3
1-2
Seats
FRONT SEATS WITH ELECTRICAL
ADJUSTMENT
2 - Driver’s seat height adjustment
Push the rear part of the control upwards or
downwards to obtain the required height.
1 - Forwards-backwards adjustment
Push the control forwards or backwards to
slide the seat.
52
Seats
3 - Seat back angle adjustment
Tilt the control to the front or the rear to
obtain the angle required.
The electrical functions of the seats are
cancelled one minute after the ignition
has been switched off.
4 - Driver’s seat lumbar adjustment
(mechanical)
Raise or lower the lever to obtain the correct
position.
5 - Head restraint height and angle
adjustment (manual)
To raise or lower the head restraint, pull it
forwards, then slide it.
The setting is correct when the upper edge
of the head restraint is level with the top of
the head.
To remove the head restraint, place it in the
high position, lift the tab using a coin and
pull upwards and forwards at the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
6 - Rotating of seats (mechanical)
Place the seat back in the upright position.
Place the seat in the highest intermediate
longitudinal position.
On the driver’s side, push the steering
wheel, apply the handbrake. To allow
rotation of the seat, lower the handbrake
handle pulling on the end.
Pull the control upwards and rotate the seat
inwards.
This pivoting operation must be carried
out with the engine switched off. The
handbrake, the lever of which is now in the
lower position, remains applied.
Do not forget to raise the lever and release
the brake before setting off.
Driving with a passenger seated facing the
rear is prohibited.
ERGONOMICS and COMFORT
2
53
For further information regarding the
disengaging of the handbrake, refer to
the "Driving safety" section of the "Safety"
chapter.
Seats

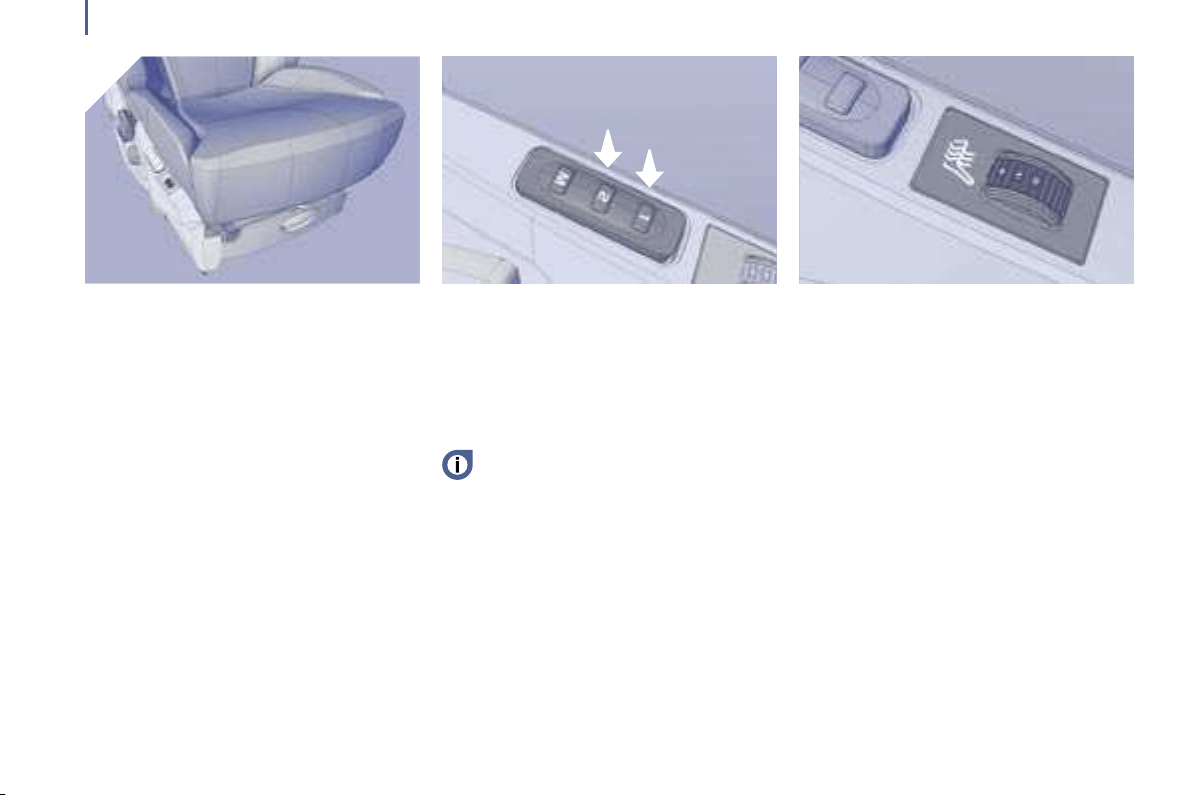

Memorising seat positions
Two driving positions can be memorised,
using buttons M/1 and M/2.
These are located on the side of the seat:
Place the ignition key in the "running"
position (2nd notch),
Adjust your seat,
Press button M, then button 1 for a first
driving position within four seconds.
Repeat the same actions on buttons M and
2 to store another driving position.
An audible signal confirms that a position
has been memorised.
Memorising a new position cancels the
previous one.
Activating a memorised driving
position
Engine off
Briefly press button 1 or 2 to recall the
corresponding memorised position.
Front heated seat controls
When the engine is running, the front seats
can be heated separately.
Use the adjustment controls located on the
side of each front seat to switch on and
select the self-regulated level of heating:
1: Low.
2: Medium.
3: High.
0: Off.
After recalling a memorised position
five times in succession, the function
will be cancelled until the engine is started.
Engine running
Keep button 1 or 2 pressed down until
the end of setting of the corresponding
memorised position.
54
Seats
Rear side seats
Two rear passenger seats, left and right side position, 2nd and 3rd row.
Rear centre seat
One rear passenger seat, 2nd row central position and 3rd row left
side position. Integrated seat belt. Plastic shell trim. Folds to the low
table position.
Rear bench seat
One three-seat bench seat, 3rd row position.
Pullman seat
Equipment dedicated to the special version of the 807.
Four rear passenger seats with armrests.
2nd and 3rd row side position.
ERGONOMICS and COMFORT
2
55
1 2 3 4
1 2 3 4
A
B
C
B
c
REAR SIDE SEATS
Forwards/backwards adjustment
Lift bar A and slide the seat forwards or
backwards.
Adjusting the angle of the seat back
Push lever B upwards and adjust the angle
as required.
Release the lever to lock.
Handling the side seat
Access to the 3rd row
1 - Place the head restraint in the low position.
2 - Push lever B upwards as far as possible.
3 - Fold the seat back onto the seat cushion
and guide the tilting of the seat back
forwards until the rear anchorages are
unlocked. If you experience any
difficulty, use the emergency control to
unlock the anchorages.
4 - Place the seat in the vertical closed
position.
Exit from the 3rd row
1 - Place the head restraint in the low position.
2 - Pull control C.
3 - Guide the tilting of the seat back forwards
until the rear anchorages are unlocked. If
you experience any difficulty, use the
red emergency control to unlock the
anchorages.
4 - Place the seat in the vertical closed
position.
Seats
56
Following each entry or exit, reposition
the raised seat guiding it until the rear
anchorages lock in their rails.
1 2 3 4
1 2
3
Control for sliding the rear side seats
from the 3rd row or the boot
Pull the strap (marked with the arrow
symbol) to slide the seat in front of you.
Removing the side seat
1 - Tilt the seat back forwards to detach the
rear anchorages.
2 -
Grab the red strap which appears and pull it
upwards, the front anchorages unlock.
Refitting the side seat
3 - The strap, like the handle, enables you to
remove the seat.
Seats
1 - Place the front anchorages at the front
stop in the slides. Support the strap firmly
for easier positioning of the seat.
2 - Tilt the folded seat towards the rear. The
rear anchorages lock.
3 - Raise the seat back.
4 - Slide the seat.
ERGONOMICS and COMFORT
2
Check that there is no obstacle
obstructing the slides or preventing
correct locking of the seat anchorages.
57
1 2 3
1 2
3 4
Seats
2ND ROW CENTRE SEAT
This can be placed in the 3rd row, on the left.
"Low table" position
1 - Place the head restraint in the low position.
2 - At the top (at the back of the seat), lift
the handle identified by the symbol
and guide the tilting of the seat back
towards its seat cushion.
3 - You have a "low table". To return to the
seat position, lift the handle and guide
the raising of the seat back.
Removing the centre seat
1 - Place the seat in the "low table" position.
2 - Using the control which you pull, tilt the
seat back forwards so releasing the rear
anchorages from the slides.
3 - Grab the red strap which appears and pull it
upwards, the front anchorages unlock.
4 - The strap, like the handle, enables you to
remove the seat.
58
1 2 3
Seats
Rear head restraints
The rear head restraints can be removed
and have two positions:
high, position for use,
low, storage position.
To raise or lower a head restraint, pull it
forwards sliding it at the same time.
To remove it, place it in the high position,
push the lug and pull it forwards and upwards.
To refit it, engage the head restraint rods
in the holes taking care to remain in the
centreline of the seat back.
Never drive with the head restraints
removed, they must be in place and
correctly adjusted.
Refitting the centre seat
Check that there is no obstacle
obstructing the slides or preventing
correct locking of the seat anchorages.
1 - Place the front anchorages at the front
stop in the slides. Support the strap firmly
for easier positioning of the seat.
2 - Tilt the folded seat towards the rear. The
rear anchorages lock.
3 - Raise the seat back and slide the seat.
Turning a rear seat round
The rear seats can be placed in a "face to
face" position.
Carry out the operations described for
removal then turn the seat round and
resume with the procedure for refitting the
seat.
This turning operation must be carried
out when stationary.
Driving with a passenger seated facing the
rear is prohibited.
When the vehicle is being driven, placing
a 2nd row seat in the closed position while
a passenger is sitting in the 3rd row is
prohibited.
ERGONOMICS and COMFORT
2
59
1 2 3
Seats
Rear head restraints
The rear head restraints can be removed
and have two positions:
high, position for use,
low, storage position.
To raise or lower a head restraint, pull it
forwards sliding it at the same time.
To remove it, place it in the high position,
push the lug and pull it forwards and upwards.
To refit it, engage the head restraint rods
in the holes taking care to remain in the
centreline of the seat back.
Never drive with the head restraints
removed, they must be in place and
correctly adjusted.
Refitting the centre seat
Check that there is no obstacle
obstructing the slides or preventing
correct locking of the seat anchorages.
1 - Place the front anchorages at the front
stop in the slides. Support the strap firmly
for easier positioning of the seat.
2 - Tilt the folded seat towards the rear. The
rear anchorages lock.
3 - Raise the seat back and slide the seat.
Turning a rear seat round
The rear seats can be placed in a "face to
face" position.
Carry out the operations described for
removal then turn the seat round and
resume with the procedure for refitting the
seat.
This turning operation must be carried
out when stationary.
Driving with a passenger seated facing the
rear is prohibited.
When the vehicle is being driven, placing
a 2nd row seat in the closed position while
a passenger is sitting in the 3rd row is
prohibited.
ERGONOMICS and COMFORT
2
59
1 2 3
1 2 3 4
A
C
B
D
5
c
c
Seats
REAR BENCH SEAT
Forwards/backwards adjustment
From the seat cushion, lift bar A and slide
the seat towards the front or the rear.
From the boot, you can pull on strap B
and slide the seat forwards to make it
easier to load the vehicle.
The rear bench seat must only be
fitted in the 3rd
row.
Seat back folded position
1 - Place the head restraints in the low
position.
2 - Pull the strap C upwards, from the
tailgate.
3 - Tilt the seat back on the seat cushion.
Vertical position of the bench seat
1 - Place the head restraints in the low
position.
2 - Pull the strap C upwards, from the
tailgate.
3 - Fold the seat back onto the seat cushion.
4 - Pull the lever D to unlock the rear
anchorages.
5 - Place the seat in the vertical "folded"
position.

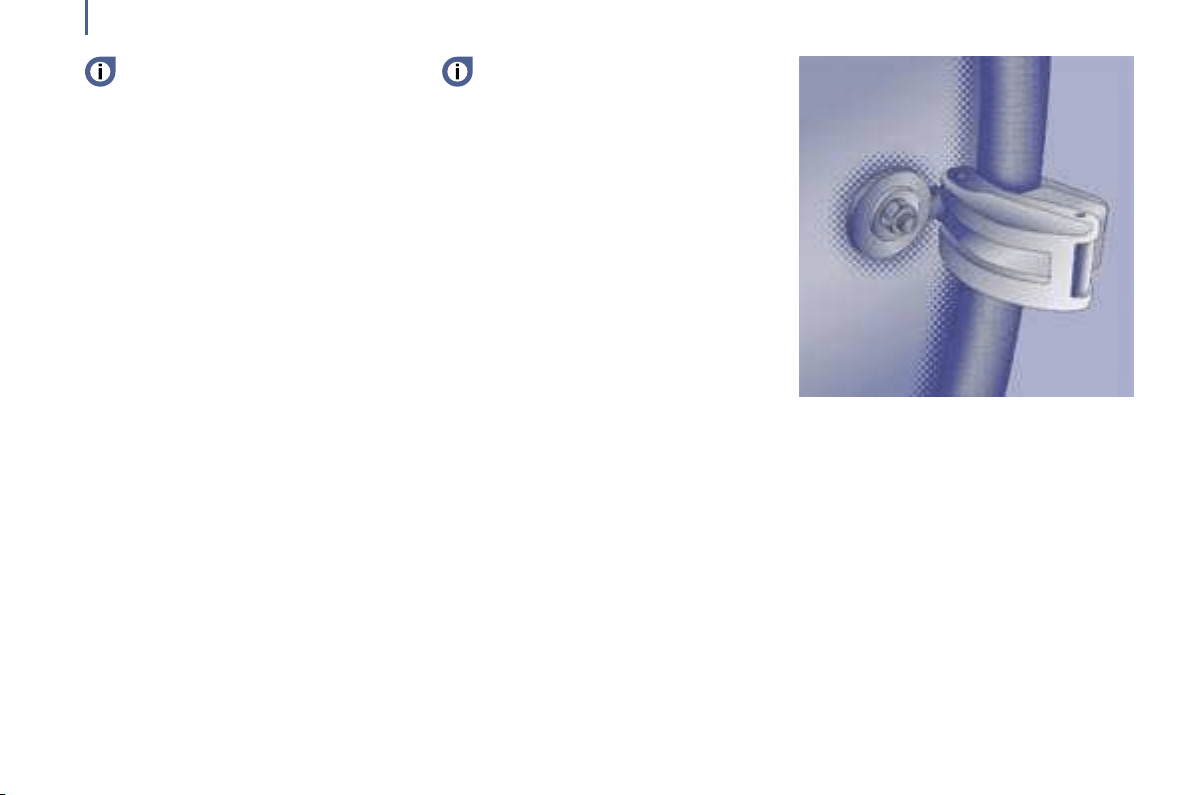

When driving, attach the retaining
straps to the handles.
60
1 2
1 2 3 4
E
3
C
Seats
Removing the bench seat
1 - Fold the seat to the vertical position.
2 - Grasp the two bars E underneath the
seat.
3 - The front
anchorages unlock.
Refitting the bench seat
For removal and refitting, pass the rear
seat, in the "folded" position, through
the sliding side doors.
Check that there is nothing blocking
the runners which could prevent correct
locking of the bench seat anchorages.
1 - Position the front anchorages at the front
stop of the runners.
2 - Tilt the folded seat rearwards.
3 - The rear anchorages then lock.
4 - Unlock the seat back and lift it using the
strap C.
ERGONOMICS and COMFORT
2
61
Seats
The centre seat may be installed in the
central position in the 2nd row and in
the left side position in the 3rd row.

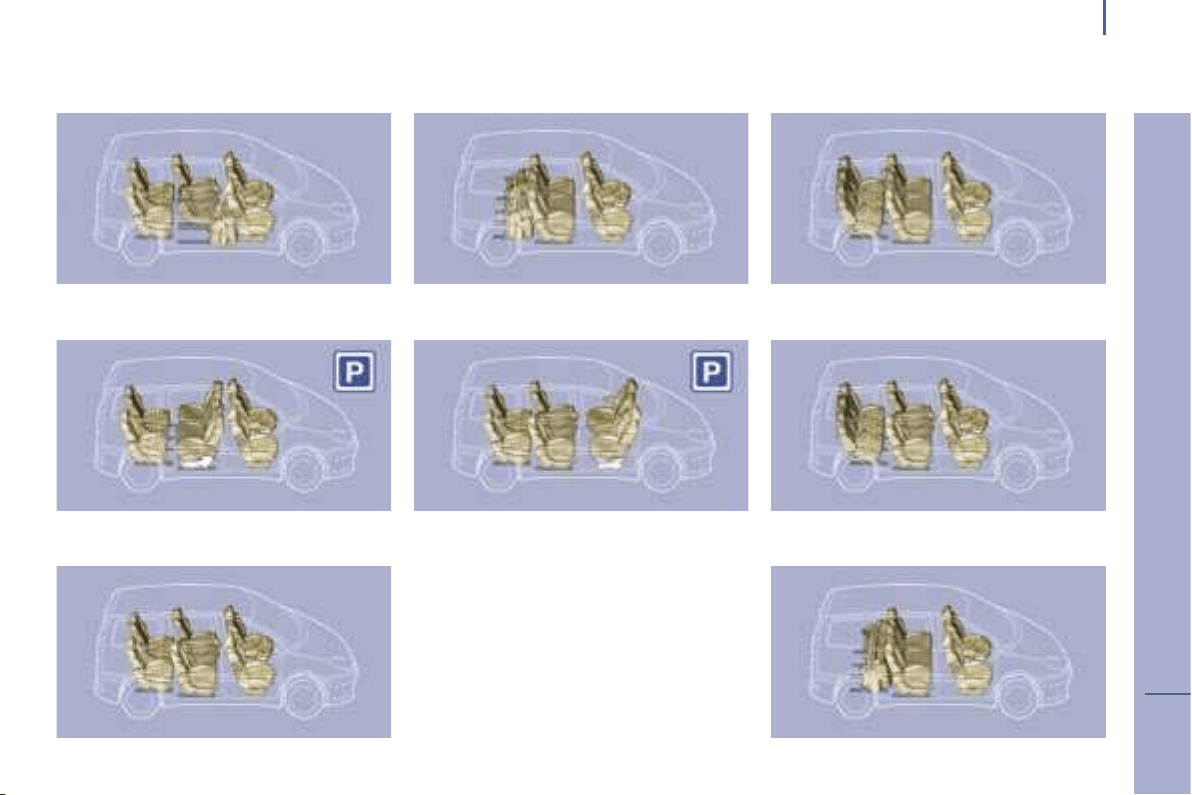

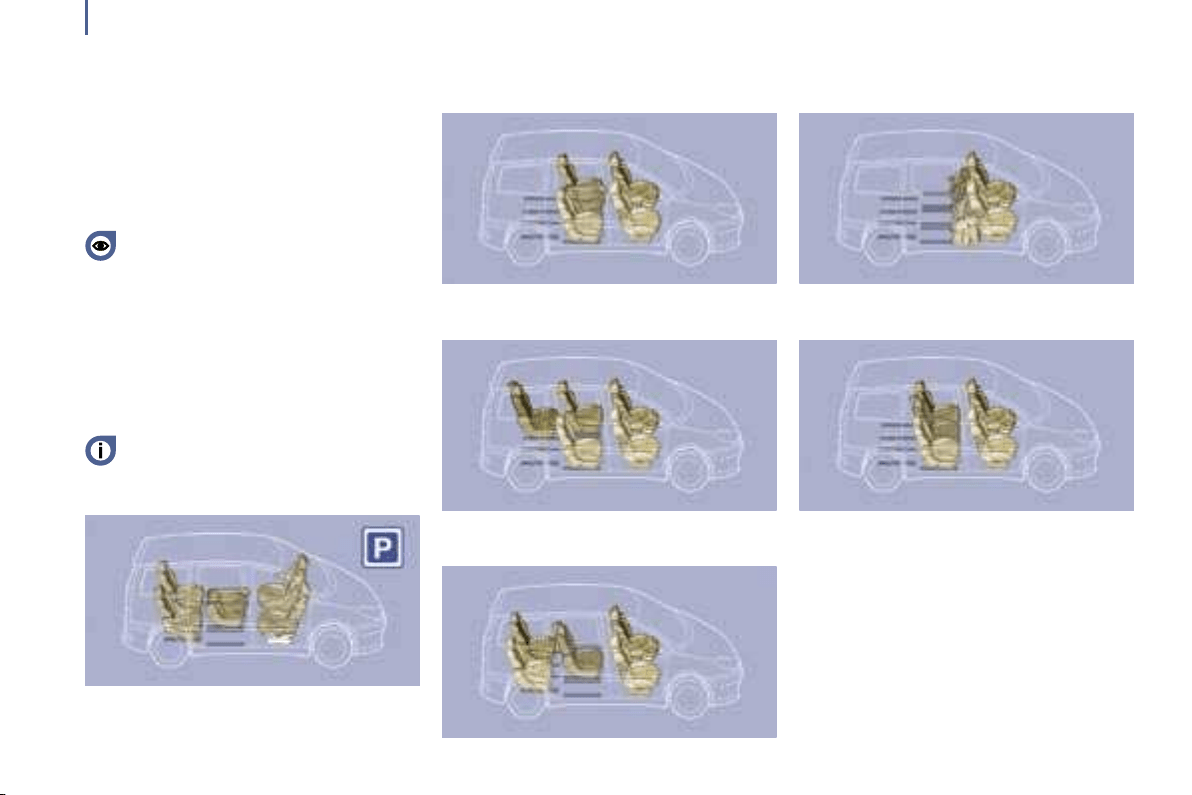

MODULARITY AND POSSIBLE SEAT CONFIGURATIONS
Examples of various arrangements
combining pleasure and
practicality:
5 seat arrangements
The various operations modifying the
existing configuration must be carried
out with the engine switched off (See section
on "Seats").
It is prohibited to be in a rearwards facing
position when the vehicle is being driven.
The rotating of the seats depends on the
vehicle equipment and the country.
5 seats with picnic position when parked
62
Seats
7 seats with access to 3rd row 8 seats with bench seat
ERGONOMICS and COMFORT
2
63
"Cargo" configuration
Transportation of long objects configuration
Seats
64
6 seats "Pullman"
A

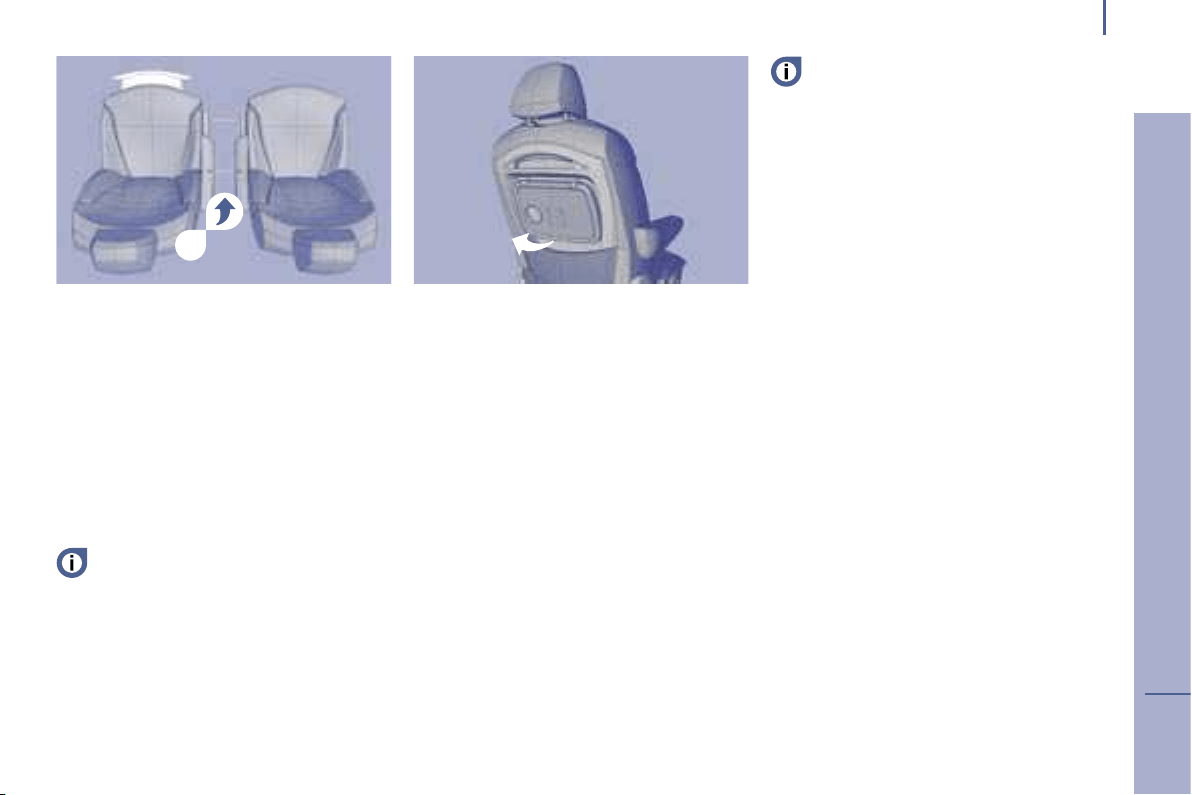

Practical information
FRONT SEAT LAYOUT
Storage drawers
There is a storage drawer under each front
seat.
To open it, lift and pull.
To take it out, open it to its full extent, lift
the two tabs on either side of the drawer,
then remove it completely.
Each front seat also has a storage
pocket on the seat back.
12 V socket
You have a 12 V accessory socket at the
foot of the driver’s seat, which is accessible
to passengers in the 2nd row.
Front and rear armrests
To place the armrest in its rest position:
Lift the armrest until it is aligned with the
seat back.
To place the armrest in the position in
which it is used:
Push it towards the rear,
Fold it down completely,
Raise it slowly to the required position,
If you lift it past the required position,
restart the above operations.
Elastic retaining straps
There is an elastic retaining strap on each
front seat, on the centre side.
In the side position (elastic strap on
its own seat), this can be used as a
magazine holder.
In the transverse position (elastic straps A
hooked between the two seats), they can
hold a bag.
'Aircraft' type table
You have an 'aircraft' type table with a rim,
equipped with a cup holder, fitted to the rear
of each front seat.
Do not forget to fold this before pivoting the
seat.
PRACTICAL INFORMATION
Under the front seat on the passenger
side, if the vehicle has an amplifier, the
storage drawer will be locked.
65
ERGONOMICS and COMFORT
2
6
5
1
2
3
4
9
8
7
10
11
12
12
Practical information
66
Practical information
The light comes on when the cover is
opened.
It contains three sockets for the connection
of video equipment* and access to the
fascia fuse box.
It includes special compartments for
storing maps, a packet of cigarettes, an A4
document etc.
6. Lighter or 12 V socket for accessories
This permits the connection of a mobile
telephone charger, a baby’s bottle warmer,
etc.
7. Cooled compartment
It can hold up to three cans.
Slide the closer, located on the right, to
open (upwards) or close (downwards) the
air inlet.
8. Can holder and ashtray
This retractable and lit support contains up
to two can holders, a removable ashtray
and a location for the lighter when it is used
as a 12 V socket.
1. Driver’s upper glove box
To open, press the button.
To close, press the cover.
It includes special compartments for storing
a pen, a mobile telephone, coins or tokens
and credit cards.
2. Audio equipment concealing flap
Lower the flap fully to lock it in place.
Press the flap to raise it.
3. Central storage compartment
4. Passenger’s upper glove box
To open, press the button.
To close, press the cover.
It includes special compartments for storing
a pair of spectacles, keys, five CDs and four
audio cassettes or nine audio CDs.
5. Passenger’s lower glove box
This is fitted with a lock.
To open the glove box, lift the handle.
FRONT INTERIOR LAYOUT
9. Storage compartment or additional
telematics control*
The storage compartment must not be used
as an ashtray.
10. Storage compartment
11. Door tray with space for a bottle of
water
67
ERGONOMICS and COMFORT
2
* According to equipment.
12. Mat fitting/removal
When removing the front mat, push the
seats as far back as possible and remove
the fixings.
When refitting, position the mat correctly on
the pins and clip the fixings.
Check that the mat is secured correctly.
To prevent the mat from becoming caught
under the pedals:
- only use mats suited to the fixings already
present in the vehicle.
It is imperative that these fixings are used.
- never fit one mat on top of another.

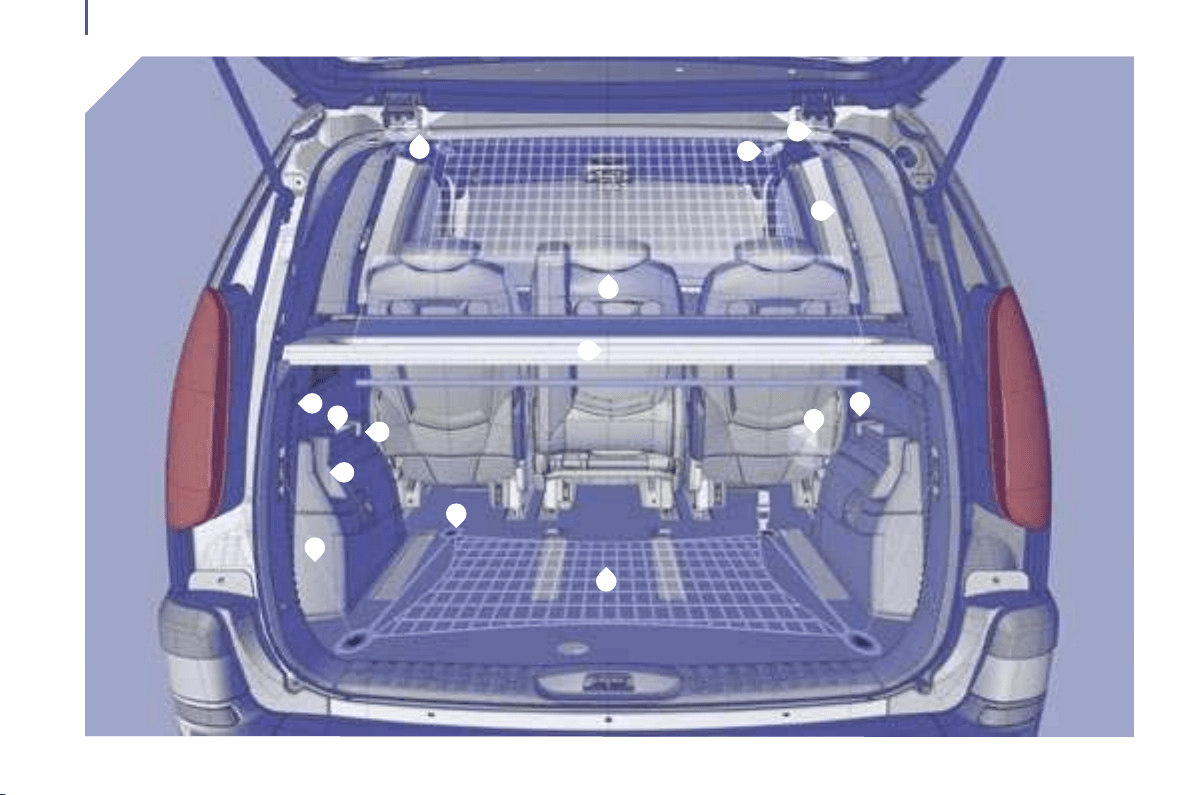

2
4
2
1
3
4
5
6
7
8
9
11
12
10
13
Practical information
68
Practical information
REAR INTERIOR LAYOUT
6. Can holder
7. Storage compartment
8. Bottle holder or portable bin with
ashtray
9. Luggage retaining net "hammock"
position* fastenings
Fold the net in two.
Secure the two centre hooks in the stowing
rings on the floor.
Secure the net’s remaining four hooks on
the tailgate pillars.
10. 12 V socket for accessories
This permits the connection of a mobile
telephone charger, a baby’s bottle
warmer, ...
11. Luggage retaining net "octopus"
position*
Secure the net’s four hooks in their stowing
rings on the floor.
1. Access handle
2. Grab handle and coat hook
3. Door tray with storage for a can and a
bottle of water or for the portable bin
with ashtray
4. High load retaining net fastenings
Open the covers of the upper fastenings at
the 3rd row.
Install the ends of the metal bar in these
fastenings.
Secure the two tray strap hooks in the
stowing rings on the floor.
Pull the two straps taut.
Secure the two hooks on the elastic parts of
the tray in these rings.
The rings are located directly below the
corresponding upper fastenings.
5. Storage compartment
12. Load space cover (5 seat version)
To install it:
- position one end of the roller in the 2nd
row,
- compress the opposite end of the roller and
position it,
- release it to allow it to engage,
- unroll the cover as far as the pillars,
- secure the two hooks on the pillars,
To remove it:
- pull the cover towards you to detach it from
its fastenings,
- return the cover into its roller,
- compress it and remove it from its support
at the 2nd row.
13. Rear shelf with umbrella holder
(6-7-8 seat version)
To remove the shelf:
- pull it rearward
- lift it slightly, then remove it
To install it:
- tilt it forwards slightly,
- push to engage it in its fastenings.
* Modification during the year.
69
ERGONOMICS and COMFORT
2
Practical information
70

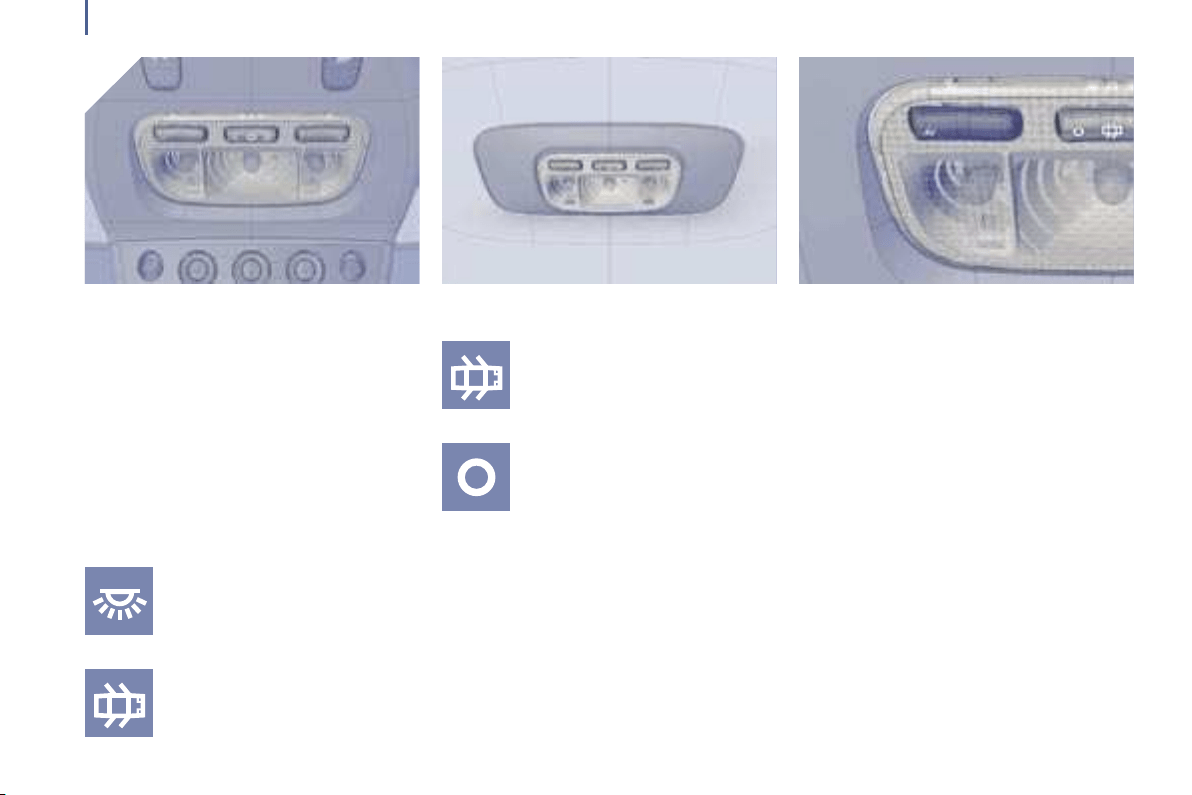

Front courtesy light
Automatic switching on/off
The front courtesy light comes on when the
key is removed from the ignition, when the
vehicle is unlocked, when one of the front
doors is opened or for location of the vehicle
using the remote control.
It switches off gradually after the ignition is
switched on and when the vehicle is locked.
Permanently on, ignition on.
Front: comes on when one of the
front or rear doors is opened.
Permanently off.
Individual reading light
Rear courtesy light 2nd row
Rear courtesy light 3rd row
These are switched on and off by means of
a manual switch.
COURTESY LIGHTS
2nd row and 3rd row: comes on
when one of the rear doors is
opened.
Rear courtesy light
Practical information
AREAS FOR TOLL
CARDS/CAR PARK TICKETS
The athermic windscreen has two
non-reflective zones located either side of
the base of the interior mirror.
They are intended for affixing toll cards
and/or car park tickets.
SUN VISOR WITH ILLUMINATED
COURTESY MIRROR
With the ignition on, the mirror is illuminated
automatically when the concealing flap is
raised.
SIDE BLINDS
Side blinds are available in the rear 2nd
and/or 3rd rows.
Pull the side blind by the tab(s).
Position the blind’s attachment(s) on the
corresponding hook(s).
MANUAL ADJUSTMENT OF THE
HEADLAMPS
Depending on the load in your vehicle,
adjusting the beam of your headlamps is
recommended.
0 - 1 or 2 people in the front seats.
1 - 5 people.
2 - 6 to 8 people.
3 - Driver + maximum authorised loads.
Initial setting is position 0.
AUTOMATIC ADJUSTMENT OF
THE XENON HEADLAMPS
On vehicles which are fitted with xenon
headlamps, this system automatically
corrects the height of the light beam,
regardless of the load in the vehicle. The
driver is then guaranteed optimum lighting
without dazzling other road users.
Ensure that the tabs are hooked
correctly to prevent any damage to the
blind when the corresponding sliding side
door is opened.
71
ERGONOMICS and COMFORT
2
A
B
1
2
Mirrors and windows
Manual interior mirror
The interior mirror has two positions:
day (normal),
night (anti-dazzle).
To change from one to the other, push or
pull the lever on the lower edge of the mirror.
Automatic day/night interior mirror
This automatically and gradually changes
between the day and night positions. To
prevent dazzling, the glass of the mirror
darkens automatically depending on the
intensity of the light from behind. It clears
as the light (headlamps of following vehicles,
sunlight) decreases, ensuring maximum
visibility.
Operation
Switch on the ignition and press switch 1:
Indicator light 2 lit (switch pressed):
automatic operation.
MIRRORS
Electric exterior mirrors
Move switch A to the right or to the left to
select the corresponding mirror.
Move knob B in all four directions to
adjust.
Return switch A to the centre
position.
When parked, the mirrors can be folded
back manually, or electrically by pulling
switch A rearwards.
Electric unfolding of the mirrors is possible
with the key on unlocking the vehicle.
Indicator light 2 off: automatic system off.
The mirror remains at its most clear.
72
MIRRORS AND WINDOWS
Special feature
To ensure maximum visibility during
manoeuvres, the mirror clears automatically
when reverse gear is engaged.
5
1
4
3
2
Mirrors and windows
ELECTRIC WINDOWS
1 - Driver’s electric window switch.
2 - Passenger electric window switch.
3 - Rear right electric window switch.
4 - Rear left electric window switch.
5 - Rear electric windows disarming
switch (child safety).
red strip visible: the rear switches
are activated.
red strip covered: the rear switches
are disarmed.
You have two options:
Manual operation:
press or pull switch 1, without going
beyond the point of resistance. The
window stops when the switch is released.
Automatic operation:
press or pull switch 1, beyond the point of
resistance: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the
movement of the window.
The electrical functions of the electric
windows are disarmed one minute after
switching off the ignition.
Disarming the rear controls
For the safety of your children, press
switch 5 to disarm all of the electrical
controls in the rear:
electric windows,
sliding side doors,
sunroofs.
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers again.
73
ERGONOMICS and COMFORT
2
Mirrors and windows
REAR WINDOWS
To partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.
Always remove the key from the
ignition when leaving the vehicle, even
for a short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this, press
the switch concerned.
When the driver operates the passenger
electric window switches, he must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be aware of children when operating the
windows.
In the event of unwanted opening of
the window on closing (for example, in
the presence of ice), press the switch until
the window is fully open, then pull it again
until the window closes. Continue to hold the
switch for approximately one second after
the window has closed.
Following reconnection of the battery, in
the event of a malfunction, release the
switch and pull it again until the window is
fully closed. Continue to hold the switch for
approximately one second after the window
has closed.
The safety auto-reverse function is not
active during these operations.
74
Mirrors and windows
REAR WINDOWS
To partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.
Always remove the key from the
ignition when leaving the vehicle, even
for a short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this, press
the switch concerned.
When the driver operates the passenger
electric window switches, he must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be aware of children when operating the
windows.
In the event of unwanted opening of
the window on closing (for example, in
the presence of ice), press the switch until
the window is fully open, then pull it again
until the window closes. Continue to hold the
switch for approximately one second after
the window has closed.
Following reconnection of the battery, in
the event of a malfunction, release the
switch and pull it again until the window is
fully closed. Continue to hold the switch for
approximately one second after the window
has closed.
The safety auto-reverse function is not
active during these operations.
74
75
RD4
AUDIO EQUIPMENT
CONTENTS
• 01 First steps pg. 76
• 02 Display and general menu pg. 77
• 03 Audio pg. 78
• 04 Trip computer pg. 80
• 05 Control short-cuts pg. 81
• 06 Configuration pg. 82
• 07 Display flow charts pg. 83
The INFOTEC internet site provides additional
animated information on the RD4. It can be consulted
at the following address:
http://public.infotec.peugeot.com
Simple registration permits access and free
consultation of the handbook.
The RD4 audio equipment is coded in such a way that
it will only operate in your vehicle. If it is to be installed
in another vehicle, contact your PEUGEOT dealer for
configuration of the system.
IN-CAR TECHNOLOGY
3
76

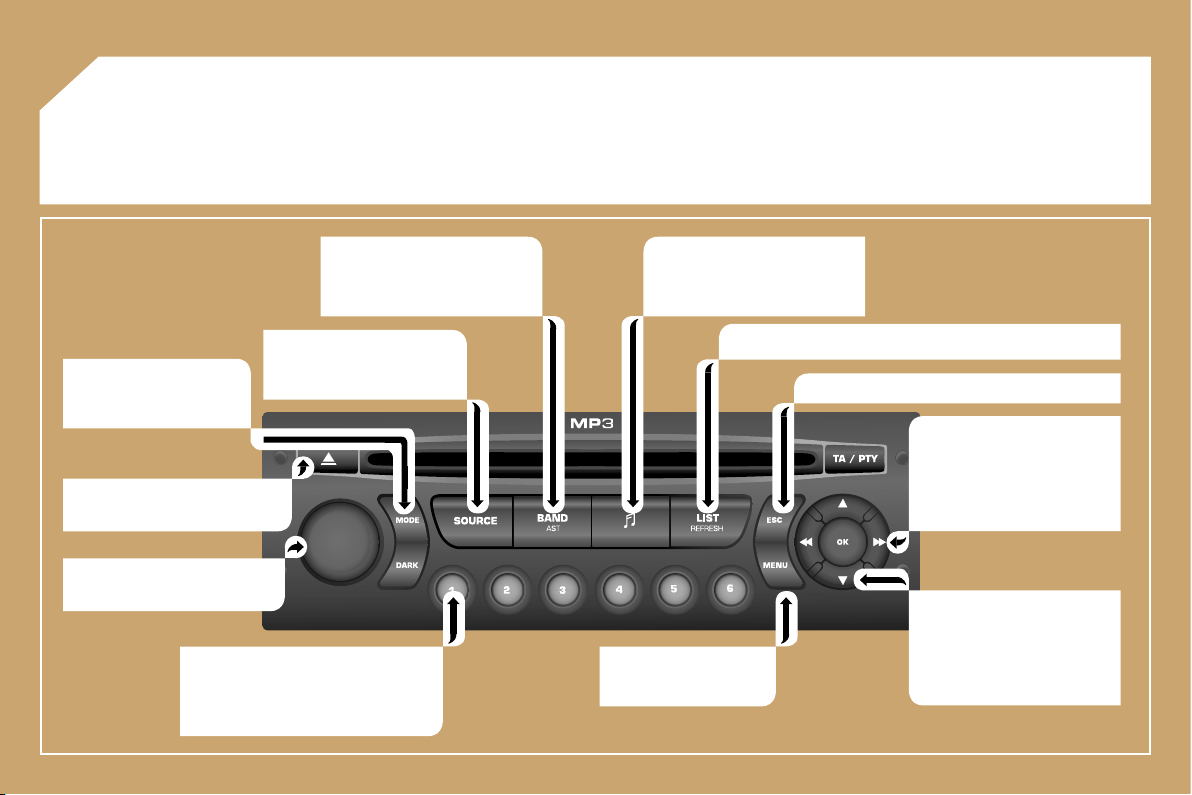

01 FIRST STEPS
- Selection of a lower/higher
frequency.
- Selection of the previous/
next CD.
- Selection of the previous/
next MP3 directory.
Setting the audio options:
Front/rear balance, left/right
balance, loudness, sound
ambiences.
On/Off and volume adjustment.
- Storing of a station.
- Selection of a stored radio station.
- Selection of a CD in the CD
changer.
CD eject.
Displaying of the local stations, of the tracks on the CD or of
the MP3 directories.
Displaying of the general
menu.
Selection of the FM1, FM2,
FMast and AM wavebands.
Selection of the source: radio,
CD and CD changer.
Abandon current operation. Confirmation.
- Automatic search for a
lower/higher frequency.
- Selection of previous/next
CD or MP3 track.
Selection of the screen
display mode.
02 DISPLAY AND GENERAL MENU
77
02 DISPLAY AND GENERAL MENU
AUDIO FUNCTION: radio,
CD, options.
PERSONALISATION-
CONFIGURATION: vehicle
parameters, display,
languages.
TRIP COMPUTER:
distance entering,
warnings, status of
functions.
> GENERAL MENU> DISPLAY
This displays the following information, via the RD4 audio equipment control pad:
- the time,
- the date,
- the exterior temperature (this flashes if there is a risk of ice),
- the audio source displays (radio, CD, ...),
- the accesses check (doors, boot, ...),
- the warning messages (e.g.: "Antipollution fault") or information messages
(e.g.: "Auto lighting activated") displayed temporarily, can be cleared by
pressing the "ESC" button,
- the trip computer,
- the location of a faulty wheel,
- the detection of a rear obstacle.
1
2
4
1
3
78

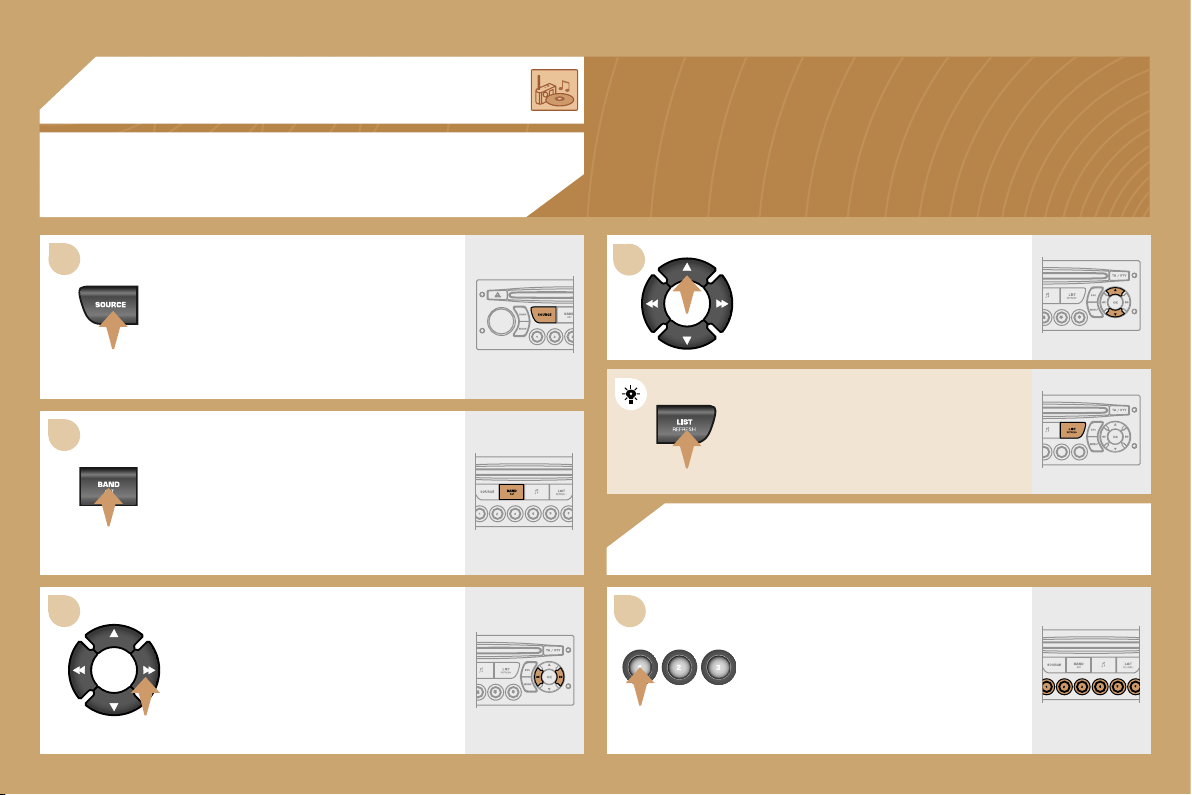

03 AUDIO
RADIO
SELECTING A STATION
RADIO
STORING A STATION
Press the SOURCE button several
times in succession and select the
radio.
Press the BAND/AST button to select
a waveband: FM1, FM2, FMast, AM.
Briefly press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out a
manual search of the radio stations.
Press one of the buttons on the
numeric keypad for more than
2 seconds to store the current station.
Press the LIST REFRESH button to
display the list of stations received
locally.
To update this list, press for more than
two seconds.
1
2
3
1
2

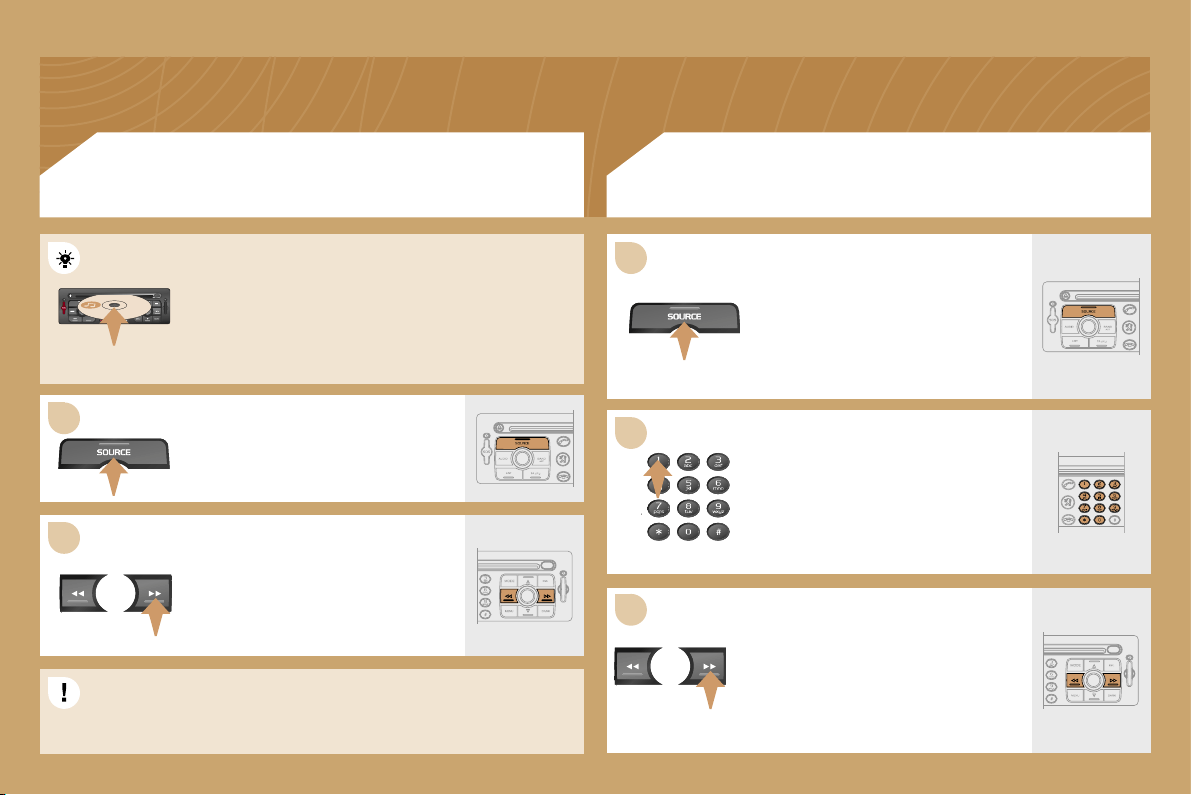

79
CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
Insert one or more CDs in the
changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
numeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forwards or backwards play.
* according to specification.
CD
PLAYING A CD OR AN MP3 COMPILATION*
Insert circular compact discs only. Some anti-pirating
systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no
reflection on the quality of the original player.
Insert a CD or an MP3 compilation in the player, play
begins automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to
display the list of tracks on the CD or of
the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation may depend on
the recording programme and/or the parameter settings used. We
recommend use of the ISO 9660 recording standard.
80

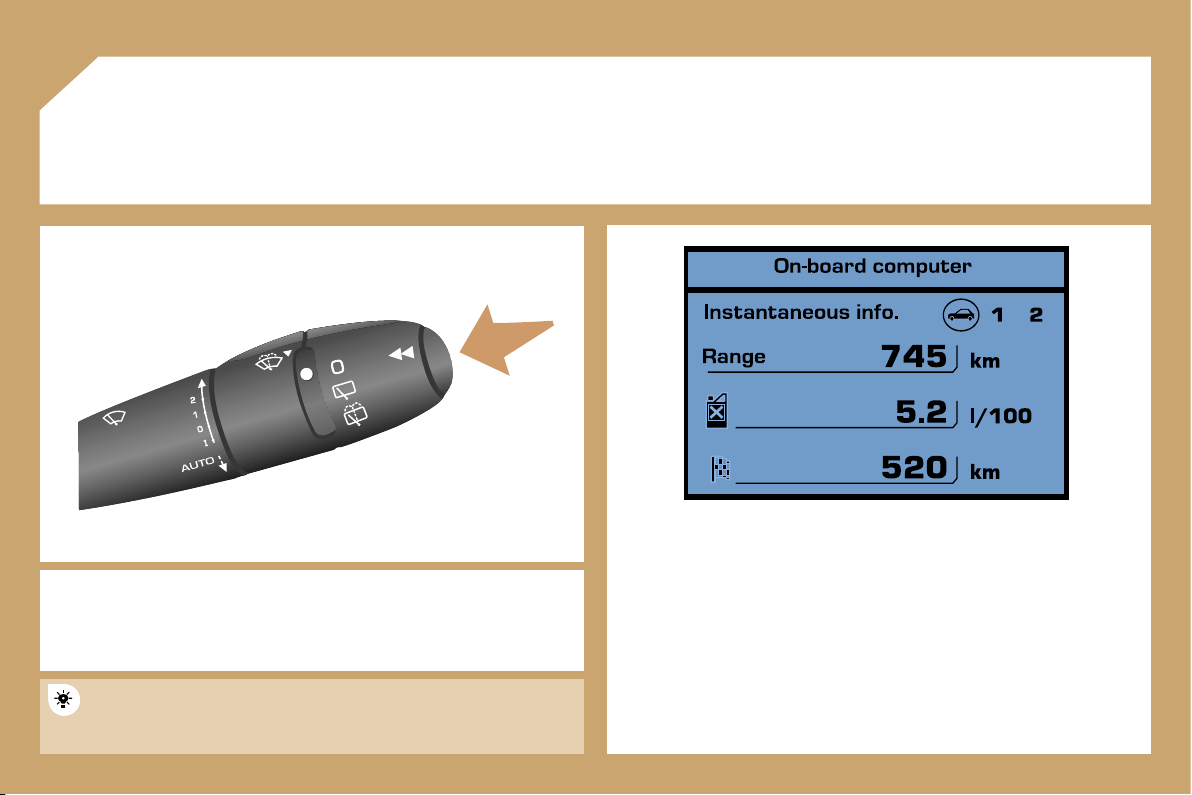

04 TRIP COMPUTER
Each press of the button, located at the end of the
wipers stalk, permits displaying of the different trip
computer data in succession, depending on the display.
- the "vehicle" tab with:
• the range, the current consumption and the distance remaining to the
destination,
- the "1" tab (route 1) with:
• the average speed, the average consumption and the distance travelled
calculated over route "1",
- the "2" tab (route 2) with the same characteristics for a second route.
A few definitions
Range: Displays the distance which can be travelled with the remaining
fuel detected in the tank, in relation to the average consumption over
the last few miles (kilometres).
This displayed value may vary significantly following a change in
the vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed.
After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of digits,
contact a PEUGEOT dealer.
Current consumption: only calculated and displayed above 20 mph
(30 km/h).
Average consumption: this is the average quantity of fuel consumed
since the last trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to
the final destination, entered by the user. If guidance is activated, the
navigation system calculates it as a current value.
Average speed: this is the average speed calculated since the last trip
computer zero reset (ignition on).
Zero reset
When the required route is displayed, press the control for more than
two seconds.
81

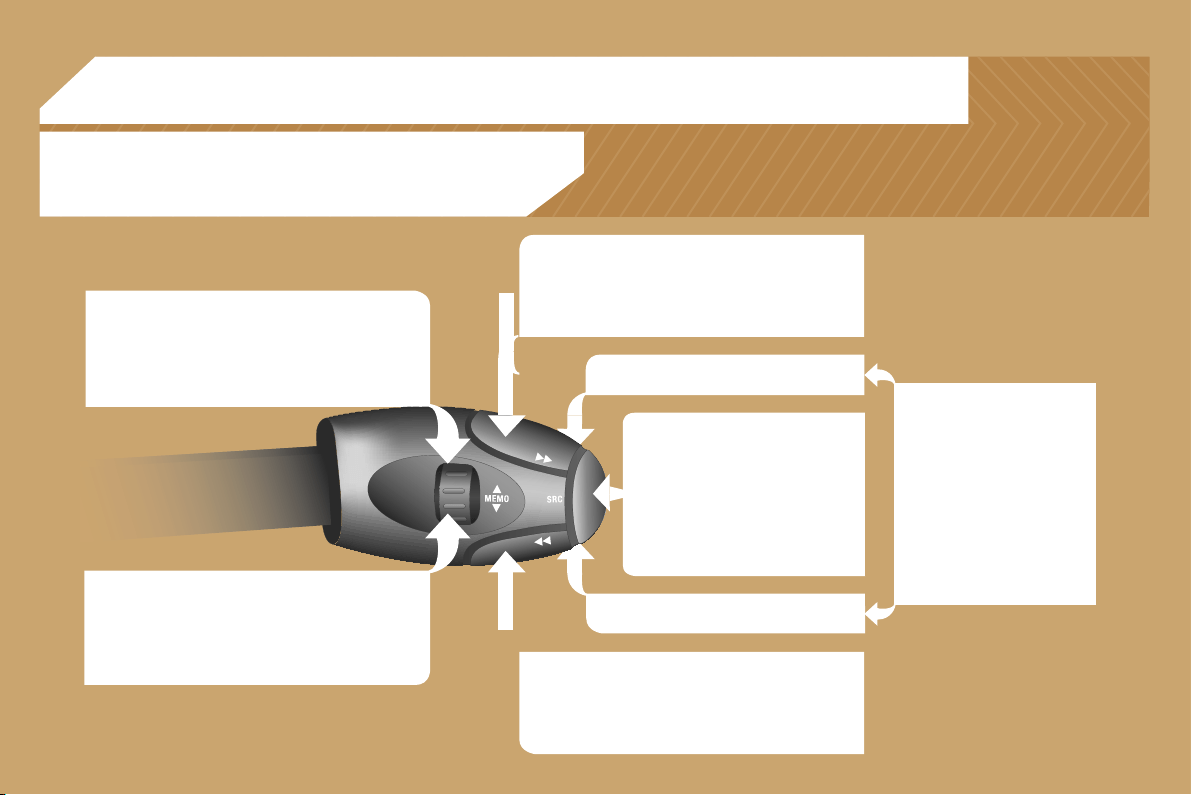

RADIO: selection of a higher stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
Forwards scrolling of the RADIO and CD lists.
MP3: selection of the next directory.
RADIO: selection of a lower stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
Backwards scrolling of the RADIO and CD lists.
MP3: selection of the previous directory.
RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
Continuous press: fast forwards play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous track.
Continuous press: fast backwards play.
Selection of the next item.
Volume increase.
Volume decrease.
05 CONTROL SHORT-CUTS
Mute: press the volume
increase and decrease
buttons simultaneously.
Restore the sound by pressing
one of the two volume buttons.
- Change of sound source.
- Confirmation of a selection.
STEERING WHEEL CONTROLS
5
6
7
8
1
2
3
4
82

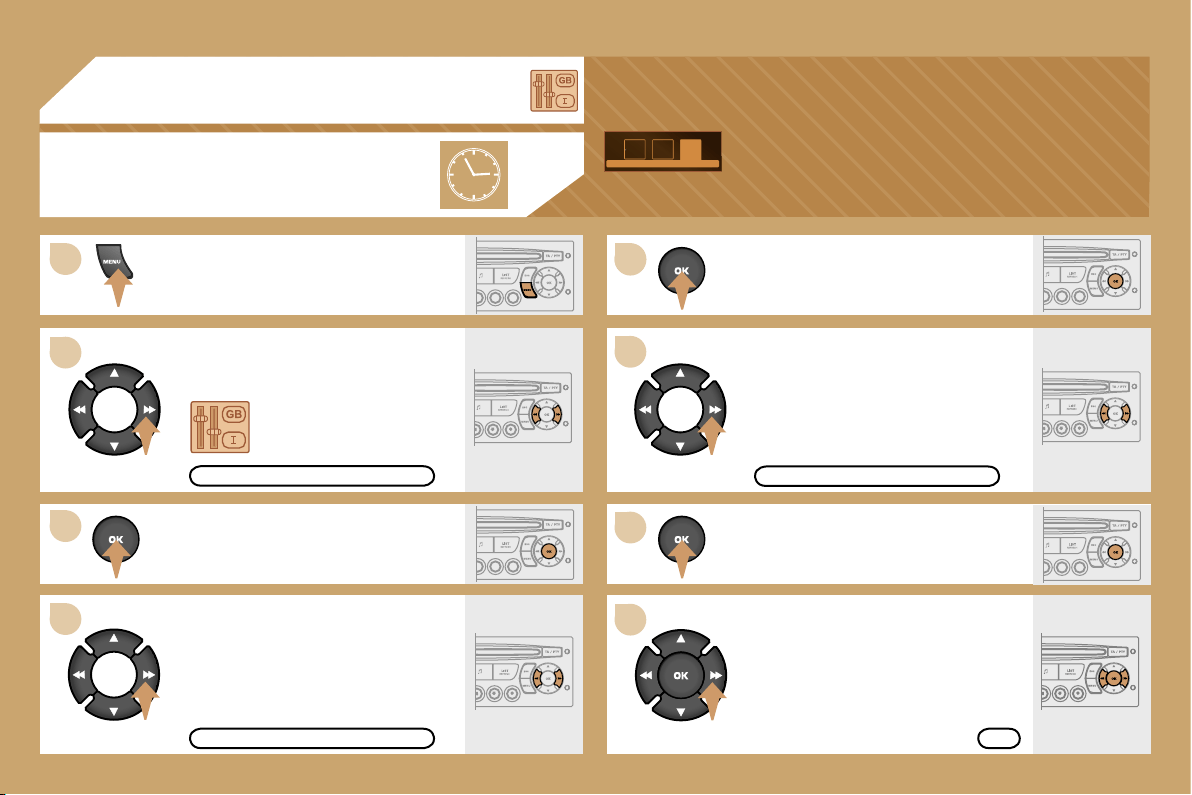

06 CONFIGURATION
ADJUSTING THE DATE
AND TIME
Press the MENU button.
Using the arrows, select
the PERSONALISATION
CONFIGURATION function.
Press to confirm the selection.
Using the arrows, select the DISPLAY
CONFIGURATION function.
Press to confirm the selection.
Press to confirm the selection.
Using the arrows, select the ADJUST
DATE AND TIME function.
Adjust the parameters one by one
confirming by pressing the OK button.
Next select the OK tab on the display
then confirm.
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION
1
2
3
2
3
1
2
4
3
4
3
4
2
4
3
4
4
4
4
3
4
4
4
3
4
1
2
3
4
3
4
3
4
2
3
4
3
4
1
2
3
2
3
2
3
2
3
3
3
3
3
3
3
3
83
AUDIO FUNCTIONS
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
cd changer repeat (RPT)
activate/deactivate
track random play (RDM)
activate/deactivate
07 DISPLAY FLOW CHART
PERSONALISATION-CONFIGURATION
DEFINE THE VEHICLE PARAMETERS
parking assistance
parking assistance
activation of rear wiper in reverse gear
lighting and signalling
automatic lighting of headlamps
guide-me-home headlamps (duration: x seconds)
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CHOICE OF LANGUAGE
Deutsch
English
Espanol
Francais
Italiano
Nederlands
Portugues
Portugues brasil
MAIN FUNCTION
CHOICE A
choice A1
choice A2
CHOICE B...
TRIP COMPUTER
ENTER DISTANCE TO DESTINATION
distance: x km
WARNING LOG
diagnostics
STATUS OF FUNCTIONS
functions activated or deactivated
84

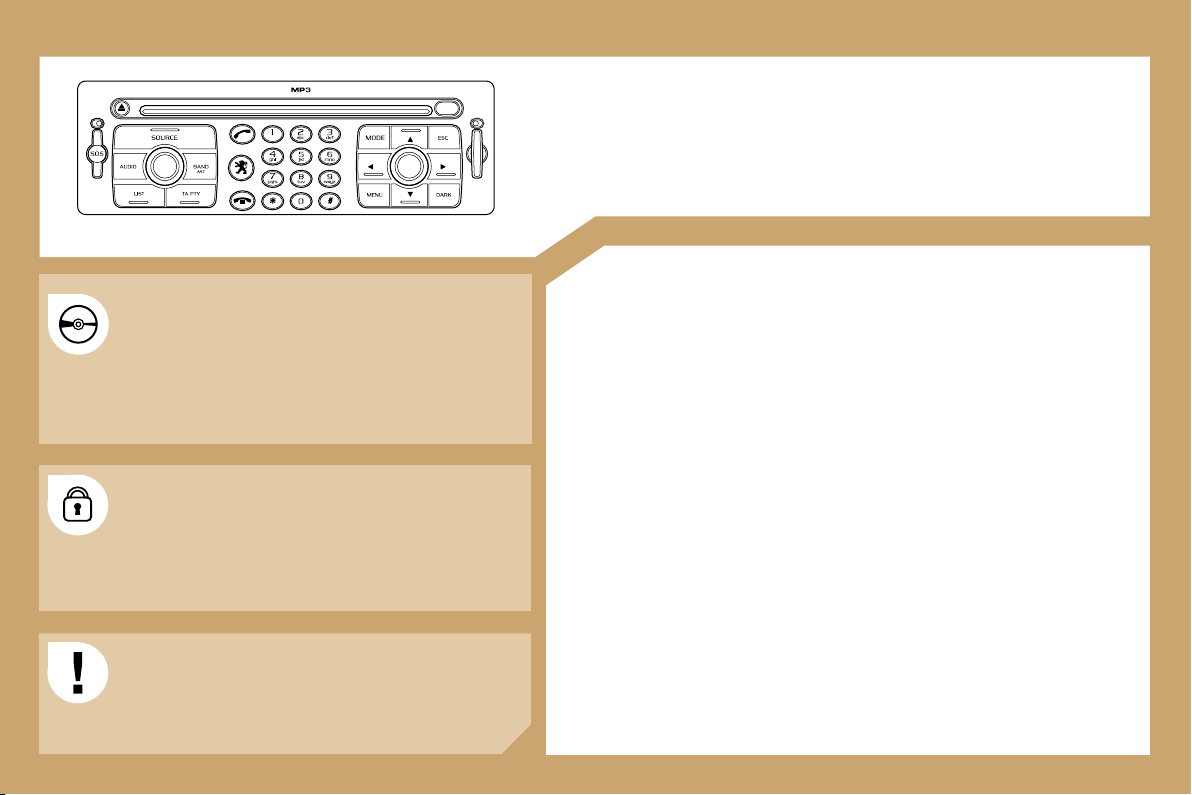

RT3
AUDIO EQUIPMENT/TELEPHONE/GPS
CONTENTS
• 01 First steps pg. 85
• 02 Display and general menu pg. 86
• 03 GPS pg. 88
• 04 Audio pg. 95
• 05 Telephone pg. 97
• 06 Trip computer pg. 100
• 07 Control short-cuts pg. 102
• 08 Configuration pg. 105
• 09 Display flow charts pg. 107
The RT3 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact your PEUGEOT
dealer for configuration of the system.
For safety reasons, the driver must carry out
operations which require prolonged attention while the
vehicle is stationary.
The INFOTEC internet site provides additional
animated information on the RT3. It can be
consulted at the following address:
http://public.infotec.peugeot.com
Simple registration permits access and free
consultation of the handbook.
84
85
01 FIRST STEPS
Selection of the source: radio,
CD, CD changer and auxiliary
(AUX).
Long press on the SOS button:
emergency call.
On/Off.
Volume adjustment.
Selection of the FM1, FM2,
FMast, AM wavebands.
Keypad for entering
descriptions by means of
successive presses.
Access to the "PEUGEOT"
services menu.
Displaying of the general
menu.
SIM card flap.
Cancellation of the current
operation.
- Selection of a lower/higher frequency.
- Selection of the previous/next CD.
- Selection of the previous/next MP3
directory.
- Automatic search for a lower/
higher frequency.
- Selection of the previous/next
track on CD or MP3.
Selection and confirmation.
Selection of the
screen display mode.
86
02 DISPLAY AND GENERAL MENU
> COLOUR DISPLAY DT
This displays the following information, via the RT3 audio/telephone
control pad:
- the time,
- the date,
- the exterior temperature (if there is a risk of ice, you are warned by a
message),
- the audio source displays (radio, CD, ...),
- the telematic system displays (telephone, services, ...),
- the accesses check (doors, boot, ...),
- the warning messages (e.g.: "Fuel level low") and vehicle function
status messages (e.g.: "Auto lighting activated") displayed temporarily,
- the trip computer display,
- the satellite navigation system displays.
In order to be able to use all of the functions of your system, you have two CD-ROMs:
- one, "Configuration", contains the software and the various display and vocal information languages,
- the other, "Navigation", contains the satellite navigation system map data.
87
02 DISPLAY AND GENERAL MENU
AUDIO FUNCTIONS: radio,
CD, parameters, options.
TELEPHONE functions:
services, telephone functions,
SMS.
CONFIGURATION: vehicle
parameters, display, time,
languages.
MAP: GPS, details, orientation.
VIDEO: activation, parameters.
DIRECTORY: telephone
and GPS.
NAVIGATION: GPS, traffic
information, options.
> GENERAL MENU COLOUR DT
TRIP COMPUTER: speed,
consumption, distance.
1
2
3
5
7
4
6
8
88

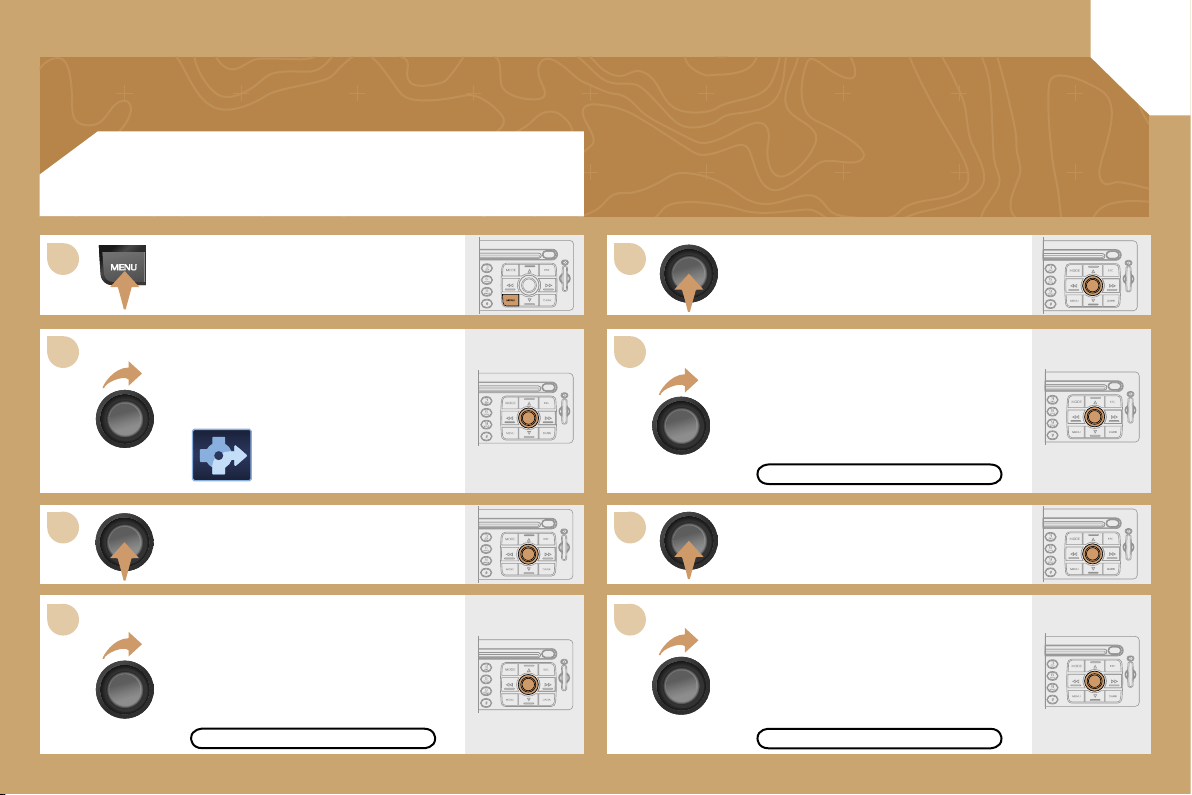

03 GPS
ENTERING AN ADDRESS AND
ACTIVATING GUIDANCE
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the selection.
Turn the dial and select the
DESTINATION CHOICE function.
Press the dial to confirm the selection.
Press the dial to confirm the selection.
Turn the dial and select the ENTER AN
ADDRESS function.
Turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
The navigation CD ROM:
Insert the navigation CD ROM in the drive on the control panel and leave it
there in order to use the Navigation functions.
DESTINATION CHOICE
9
11
12
13
15
10 14
89
Press the dial to confirm the selection.
Turn the dial and select the letters of
the town one by one confirming each
time by pressing the dial.
Turn the dial and select the OK
function.
Press the dial to confirm the selection.
Use the alphanumeric keypad to enter the letters and
digits and * to correct.
Press the dial to confirm the selection.
Select the OK function on the ENTER
AN ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions.
PARIS
OK
OK
STORE
Select the STORE function to record the address entered in a
directory record and press the dial to confirm the selection.
1
2
3
4
5
6
7
8
90
03 GPS
GUIDANCE OPTIONS
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the selection.
Turn the dial and select the
GUIDANCE OPTIONS function.
Press the dial to confirm the selection.
Press the dial to confirm the selection.
Turn the dial and select the DEFINE
CALCULATION CRITERIA function.
Turn the dial and select, for example,
the FASTEST ROUTE function.
GUIDANCE OPTIONS FASTEST ROUTE
DEFINE CALCULATION CRITERIA
9
10
11
12
13
1
2
3
4
5
91

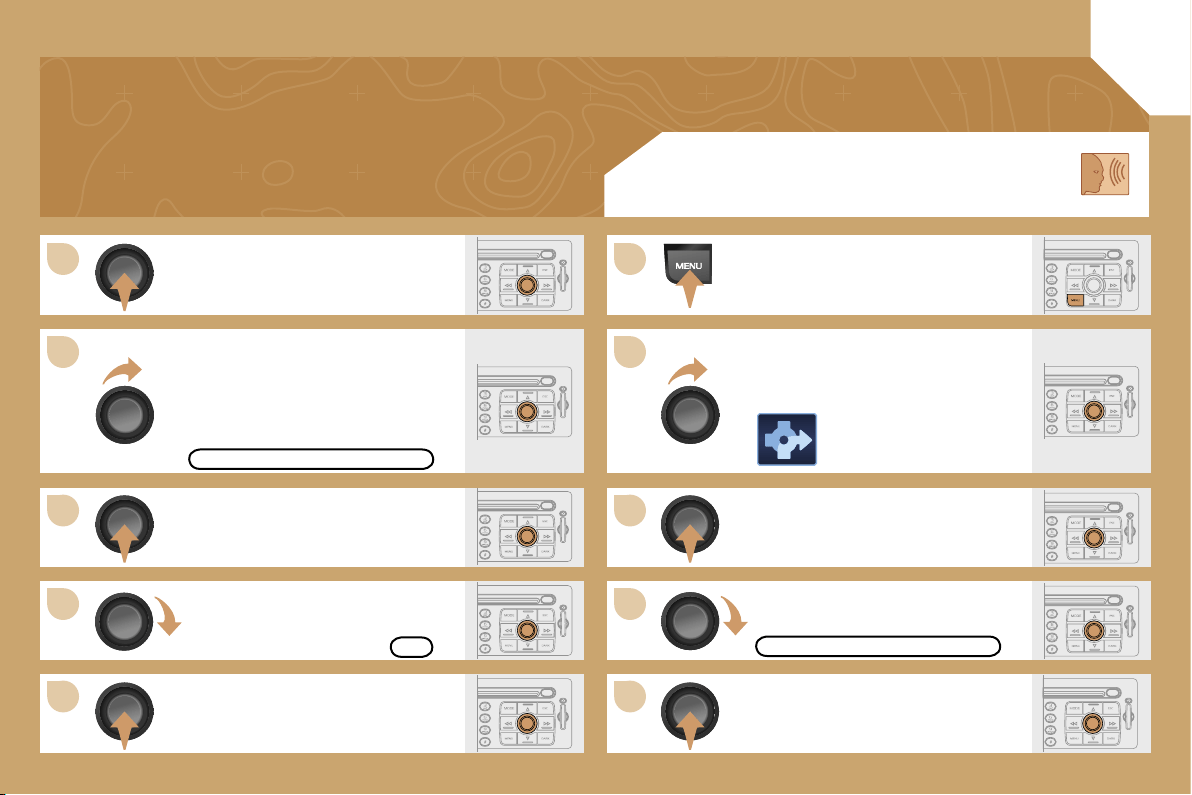

Press the dial to confirm the selection.
Press the dial to confirm the selection.
Turn the dial and select the WITH
TOLLS function if it is not ticked.
SPEECH SYNTHESIS
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the selection.
Turn the dial and select the
GUIDANCE OPTIONS function.
WITH TOLLS
GUIDANCE OPTIONS
Press the dial to confirm the selection.
OK
Turn the dial and select the OK
function.
Press the dial to confirm the selection.
6
7
8
9
1
2
3
4
92
Press the dial to confirm the selection.
Turn the dial and select the ADJUST
SPEECH SYNTHESIS function.
Turn the dial and select the ACTIVATE
function.
Press the dial to confirm the function.
03 GPS
SPEECH SYNTHESIS
ACTIVATE
ADJUST SPEECH SYNTHESIS
Press the MENU button.
Turn the dial and select the MAP
function.
Press the dial to confirm the selection.
Turn the dial and select the MAP
DETAILS function.
Permits selection of the services
which can be seen on the map (hotels,
restaurants...).
ACTIONS ON THE MAP
(Colour display DT only)
MAP DETAILS
1
2
3
4
5
6
7
8
93

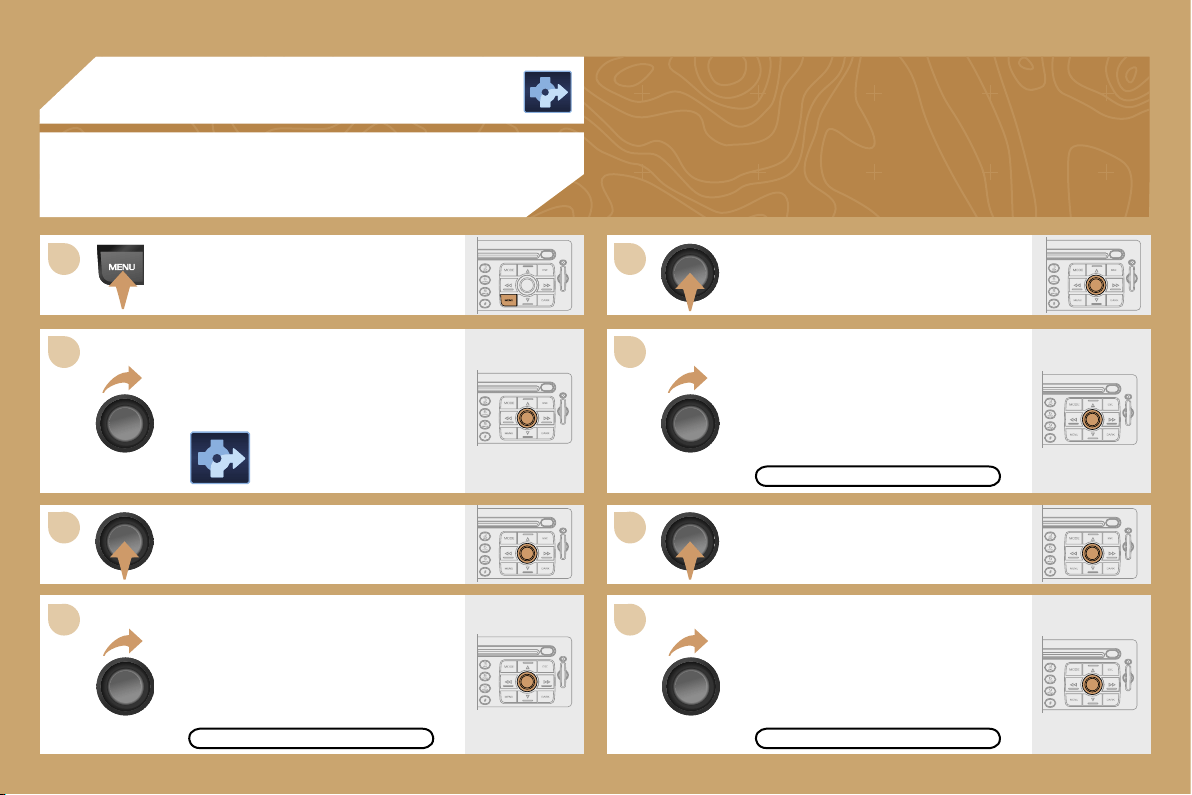

ACTIVATING THE ROUTE FILTER
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the selection.
Turn the dial and select the TRAFFIC
INFORMATION function.
TRAFFIC INFORMATION
Press the dial to confirm the selection.
Turn the dial and select the FILTER
THE TMC INFORMATION function.
FILTER THE TMC INFORMATION
ACTIVATE ROUTE FILTER
Press the dial to confirm the selection.
Turn the dial and select the ACTIVATE
ROUTE FILTER function.
1
2
3
4
6
5
7
8
8
94
ADDING A STAGE
Press the MENU button.
Turn the dial and select the
NAVIGATION function.
Press the dial to confirm the selection.
Turn the dial and select the STAGES
AND ROUTE function.
STAGES AND ROUTE
ADD A STAGE
Turn the dial and select the ADD A
STAGE function. Press the dial to
confirm the selection.
SERVICE CHOICE
Press the dial to confirm the selection.
Enter an address (see GPS section)
or select SERVICE CHOICE
(restaurants, hotel...).
Press the dial to confirm the selection.
Press the dial to confirm the order
of the stages.
Once the stage has been reached, guidance is redirected towards the
destination. Any stage can be deleted before it has been reached,
without losing guidance towards the stored destination or the next
stage.
1
2
3
4
1
95
04 AUDIO
RADIO
SELECTING A STATION
RADIO
STORING A STATION
Press the SOURCE button several
times in succession and select the
RADIO.
Press the BAND/AST button to select
a waveband: FM1, FM2, FMast, AM.
Briefly press one of the buttons to carry
out an automatic search of the radio
stations.
Press one of the buttons on the
alphanumeric keypad for more than
2 seconds to store the frequency
of the current station.
Press one of the buttons to carry out a
manual search of the radio stations.
Press the LIST button to display the list
of stations received locally.
To update this list, press for more than
two seconds.
1
2
1
2
3
96
CD
PLAYING A CD OR AN MP3 COMPILATION
CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
If the GPS is used, the navigation CD ROM must
remain in the RT3 audio/telephone player. In this case,
audio CDs must be inserted in the CD changer.
Otherwise, insert an audio CD or an MP3
compilation in the player, play begins
automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST button to display
the list of tracks on the CD or of the
directories of the MP3 compilation.
Insert one or more CDs in
the changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
alphanumeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
The playing and displaying of an MP3 compilation may depend on
the recording programme and/or the parameter settings used. We
recommend use of the ISO 9660 recording standard.
1
2
3
1
2
97
05 TELEPHONE
INSTALLING THE SIM CARD
(NOT SUPPLIED)
ENTERING THE PIN CODE
Access the slot by pressing the button
using the tip of a pen.
Install the SIM
card in the holder
and then insert it
in the slot.
To remove the SIM card, repeat step 1.
The SIM card must be installed and removed with the RT3 GPS
audio/telephone switched off and the ignition off.
Enter the PIN code on the keypad.
Confirm the PIN code by pressing
button # or by selecting the OK tab
on the display.
PIN CODE
OK
When entering the PIN code, tick the STORE PIN tab to gain access
to the telephone without having to enter this code when it is used
subsequently.
98
1
2
3
4
5
6
1
1

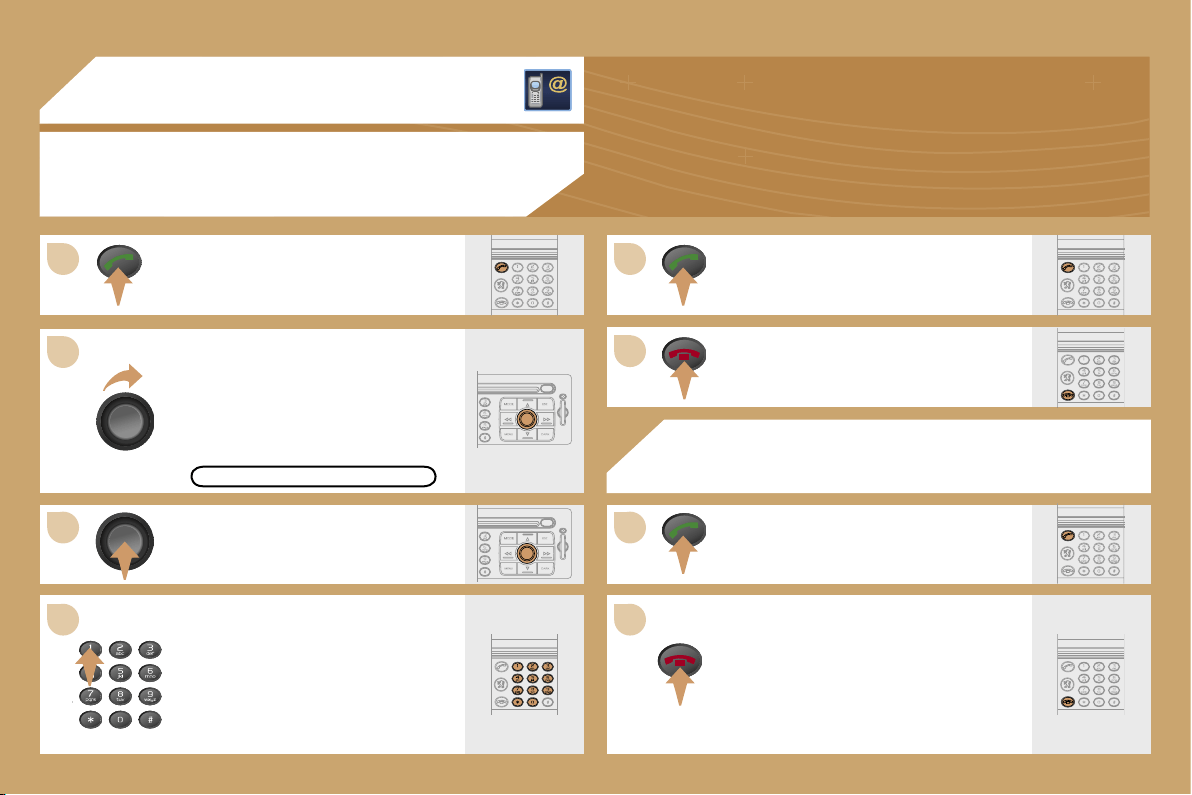

05 TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL
function.
Press the PICK UP button to display
the superimposed telephone menu.
Press the dial to confirm the selection.
Dial the telephone number of your
contact using the alphanumeric
keypad.
Press the PICK UP button to call the
number dialled.
Press the HANG UP button to end the
call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button.
Press the HANG UP button.
The call will then be transferred to your
voice mailbox.
DIAL
1
2
3
99
Turn the dial and select the
MAILBOX function.
Press the PICK UP button.
Press the dial to confirm the selection.
CONSULTING THE MAILBOX
CONSULTING THE SERVICES
Press the LION button to gain access
to the PEUGEOT services.
The services and options are subject
to conditions and availability.
In an emergency, press the
SOS button until you hear an
audible signal and a CONFIRMATION/
CANCELLATION screen is displayed.
The services and options are subject
to conditions and availability.
OPERATOR SERVICES
MAILBOX
MESSAGES LIST
PEUGEOT ASSISTANCE
CUSTOMER CONTACT CENTRE
Press the end of the steering wheel stalk for more
than 2 seconds to gain access to the telephone
menu: call log, directory, mailbox.
3
100
06 TRIP COMPUTER
Each press of the button, located at the end of the
wipers stalk, permits displaying of the different trip
computer data in succession, depending on the display.
The "vehicle" tab with:
• the range, the current consumption and the distance remaining to
the destination.
Zero reset
When the required route is displayed, press the control for more than
two seconds.
101
A few definitions
Range: Displays the distance which can be travelled with the remaining fuel
detected in the tank, in relation to the average consumption over the last few
miles (kilometres).
This displayed value may vary significantly following a change in the
vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed. After
filling with at least 5 litres of fuel, the range is recalculated and is displayed
when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of digits, contact
a PEUGEOT dealer.
Current consumption: only calculated and displayed above 20 mph (30
km/h).
Average consumption: this is the average quantity of fuel consumed since
the last trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to the
final destination, entered by the user. If guidance is activated, the navigation
system calculates it as a current value.
Average speed: this is the average speed calculated since the last trip
computer zero reset (ignition on).
06 TRIP COMPUTER
Tab "1" (route 1) with:
• the average speed, the average consumption and the distance
travelled calculated over route "1".
Tab "2" (route 2) with the same functions for a second route.
102
RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
MP3: selection of the previous directory.
Backwards scrolling of the RADIO and CD lists.
RADIO: selection of the next stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
MP3: selection of the next directory.
Forwards scrolling of the RADIO and CD lists.
RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
Continuous press: fast forwards play.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous
track.
Continuous press: fast backwards play.
- Change of sound source.
- Confirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
Volume increase.
Volume decrease.
07 CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
103
07 CONTROL SHORT-CUTS
ADDITIONAL CONTROL
Selection of the screen display mode.
Press for more than 2 seconds: displaying
of the general information.
Displaying of the AUDIO function
contextual menu.
Displaying of the general menu.
Press for more than
2 seconds: access to the
help menu.
Displaying of the general
information.
Displaying of the
NAVIGATION function
contextual menu.
Displaying of the TELEPHONE
function contextual menu.
Cancellation of the operation in progress.
Clearing of the last superimposed display.
Press for more than 2 seconds: return to the
permanent application.
Selection
and
confirmation.
2
1
104
Press the end of the lights stalk to start the voice
recognition.
Say the words one by one and wait for the audible
confirmation signal between each word.
The list which follows is not exhaustive.
AUDIO
- RADIO then NEXT
- CD PLAYER then NEXT TRACK
- CD CHANGER then NEXT DISK
...
TELEPHONE
- TELEPHONE then REDIAL
- TELEPHONE then ADDRESS BOOK then DESCRIPTION
- TELEPHONE then VOICE MAIL
...
GPS
- NAVIGATION then SHOW then DESTINATION
- NAVIGATION then STOP
- NAVIGATION then ZOOM IN
...
VOICE COMMANDS
To display the list of available voice commands, press
the end of the lights stalk to start the voice recognition,
then say HELP or WHAT CAN I SAY.
For the same operation, press and
hold the MENU button and select
the function VOICE COMMANDS
LIST.
VOICE COMMANDS LIST
1
2
3
4
5
6
7
8
9
105
08 CONFIGURATION
ADJUSTING THE DATE
AND TIME
Press the MENU button.
Turn the dial and select the
CONFIGURATION function.
Press the dial to confirm the selection.
Turn the dial and select the
DISPLAY CONFIGURATION function.
Press the dial to confirm the
selection.
Turn the dial and select the
ADJUST THE DATE AND TIME
function.
Adjust the parameters one by one
confirming by pressing the OK
button. Next select the OK tab on
the display then confirm.
OK
ADJUST THE DATE AND TIME
DISPLAY CONFIGURATION
INTERNATIONAL PARAMETERS
Press the dial to confirm the selection.
Turn the dial and select the
INTERNATIONAL PARAMETERS
function then confirm.
2
3
4
5
6
7
2
1
1
106
ACTIVATING THE AUXILIARY INPUT (AUX)
COLOUR DISPLAY DT
Press the MENU button.
Turn the dial and select the
CONFIGURATION function.
Press the dial to confirm the selection.
Turn the dial and select the
DISPLAY CONFIGURATION
function then confirm.
DISPLAY CONFIGURATION
ACTIVATE AUX INPUT
SOUND
Turn the dial and select the SOUND
function then confirm.
Turn the dial and select the
ACTIVATE AUX INPUT function.
USING THE AUXILIARY INPUT (AUX)
CABLE NOT SUPPLIED
Press the SOURCE button several
times in succession and select AUX.
Connect the portable equipment
(MP3 player…) to the audio sockets (white
and red, RCA type) located in the glove box.
Press the dial to confirm the selection.
The auxiliary input permits the connection of portable equipment
(MP3 player...).
1
2
3
2
3
1
2
3
4
5
4
4
4
4
4
3
4
5
5
4
5
5
5
5
5
5
4
5
5
5
5
5
4
5
5
5
5
5
5
4
5
5
5
5
5
5
3
4
5
5
3
4
5
5
2
3
4
5
5
5
5
6
6
4
5
5
5
4
5
6
6
4
5
6
6
3
3
4
5
4
4
3
4
4
2
5
5
3
4
4
4
4
4
4
3
4
4
3
3
3
4
5
2
3
3
4
4
5
6
107
MAIN FUNCTION
CHOICE A
choice A1
choice A2
CHOICE B...
09 DISPLAY FLOW CHARTS
golf courses
skating rinks, bowling alleys
winter sports centres
parks & gardens
theme parks
transport & automobile
ports, airports
station, bus stations
automatic checks*
vehicle hire
rest areas, car parks
service stations, garages
directory
nav directory
town, street, n°
ok
previous destinations
list of destinations
town, street, n°
ok
STAGES AND ROUTES
add a stage
enter an address
town
street
junction n°
gps
longitude
latitude
centre of interest
administration & security
hotels, restaurants & businesses
culture, tourism & shows
sports centres & outdoor pursuits
transport & automobile
directory
nav directory
town, street, n°
ok
previous destinations
list of destinations
town, street, n°
ok
arrange/delete stages
divert route
divert route over 2 km
the best diversion possible is 3 km. continue?
range 1-50
ok
chosen destination
town, street, n°
change
GUIDANCE OPTION
define the calculation criteria
the fastest
the shortest
distance/time
with tolls
with ferry
traffic info
adjust speech synthesis
volume
activate/deactivate
activate/deactivate street names
description of the cd-rom
delete the previous destinations
do you want to delete the list of previous destinations?
yes/no
* Function not available at present.
TMC TRAFFIC INFORMATION
consult the messages
filter the TMC traffic information
activate/deactivate the route filter
filter by event
traffic information
traffic information
DT
NAVIGATION/TRAFFIC INFO
CHOICE OF DESTINATION
enter an address
town
street
junction n°
gps
longitude
latitude
centre of interest
administration & security
town halls, town centre
universities, colleges
hospitals
hotels, restaurants & businesses
hotels
restaurants
vinyards
business centres
supermarkets, shopping
craft centres
culture, tourism & shows
tourism, historical monuments
culture, museums & theatres
shows & exhibitions
casinos & nightlife
cinemas
sports centres & outdoor pursuits
sports centres, complexes
5
5
5
5
6
6
5
6
7
6
6
5
3
4
3
4
3
4
5
5
2
3
4
3
3
4
4
2
3
4
4
1
2
3
4
6
6
7
6
6
6
108
6
4
3
6
6
6
6
5
5
3
4
2
5
4
5
5
4
3
6
6
6
4
5
1
2
2
2
2
1
2
3
3
4
4
4
4
4
4
2
3
3
3
2
3
4
4
4
4
1
2
3
2
3
3
3
4
2
3
4
5
6
5
4
5
3
4
4
4
3
4
4
4
5
5
5
5
5
3
4
5
3
3
3
3
TRIP COMPUTER
TRIP COMPUTER CONFIGURATION
enter distance to destination
0 km
select units
l/100 & km
mpg & miles
km/l & km
°c/°f
bar, psi
DIAGNOSTICS
warning log
equipment backup supply
gps coverage
STATUS OF FUNCTIONS
list of functions
road closures
road restrictions
road conditions
weather & visibility
urban information
parking
public transport
demonstrations
geographical filter
around the vehicle
around a place/select
filter radius 50 km
choice of TMC station
station name
next station
speech synthesis
volume
activate/deactivate
activate/deactivate traffic information
RESUME/STOP GUIDANCE
AUDIO FUNCTIONS
ACTIVATE/DEACTIVATE RDS ALTERNATIVE FREQUENCIES
ACTIVATE/DEACTIVATE REGIONAL MODE
ACTIVATE/DEACTIVATE RADIO TEXT INFO
ACTIVATE/DEACTIVATE CD DETAILS INFO
DIRECTORY
MANAGEMENT OF DIRECTORY FILES
consult or change a file
entire directory
name
voice recording
notes
address
town
street
n°
number
display
list of numbers
change
add
delete
e-mail
display
list of numbers
change
add
delete
add a file
description
delete a file
entire directory
delete all files
do you want to delete all of the files in the directory
(non sim)?
yes
no
CONFIGURATION OF THE DIRECTORY
select a directory
user xxxx
name a directory
select the starting directory
user xxx
last directory used
FILE TRANSFER
infrared exchange
send all files
send one file
receive by infrared
exchange with the sim card
send all files
send one file
receive all files
receive one file
TELEPHONE AND TELEMATIC SERVICES
CALL
warning log
dial
directory
voice mail
SERVICE
customer contact centre
PEUGEOT assistance
PEUGEOT mobile services (if services available
and/or activated)
messages received
list of v-cards
TELEPHONE FUNCTIONS
network
network search mode
automatic mode
manual mode
list of networks
networks available
list of networks
duration of calls
partial counter
total duration
zero reset
manage the pin code
activate
store the pin code
change the pin code
entering the pin code
old code
> new code
confirmation
>> correct
call options
delete the list of calls and sms
do you want to delete the list of calls and sms from the
equipment?
4
5
5
4
5
3
2
3
4
3
4
3
4
4
5
6
6
5
6
1
2
3
4
4
4
3
4
4
3
4
5
6
6
5
6
6
5
6
6
5
6
4
5
5
3
4
5
5
5
4
5
5
5
5
5
3
4
4
5
109
4
4
3
4
4
2
3
configure the calls
displaying of my number
automatic pick-up after 3 rings
ring options
for voice calls
volume
type of ring
for text messages (sms)
text message buzzer
voice call diversion n°
TEXT MESSAGES (SMS)
reading the text message received
list of text messages received
sending a text message
list of saved text messages
typing a text mesage
text message
message sent
delete the list of text messages
CONFIGURATION
DISPLAY CONFIGURATION
select the colours
6 colours
night
automatic day/night
luminosity & brightness
luminosity
brightness
sound
speech synthesis adjustment
volume of guidance instructions
volume
activate/deactivate
volume of other messages
volume
activate/deactivate
select a voice
male
female
speech synthesis
activate/deactivate
voice command adjustment
volume
activate/deactivate
aux input
activate/deactivate
international parameters
adjust the date & time
day, month, year
time, 12 h, 24 h, am/pm
adjusting the minutes on gps
select the units
l/100 & km
mpg & miles
km/l & km
°c/°f
bar, psi
choice of language
list of languages available
DEFINE THE VEHICLE PARAMETERS
parking assistance
parking assistance
triggering of rear wiper in reverse gear
lighting and signalling
automatic switching on of the headlamps
follow-me-home lighting (duration: x s)
110
2
3
4
2
3
2
3
2
4
4
3
4
4
4
4
4
4
3
4
4
4
4
4
3
4
4
4
4
4
4
3
4
4
4
4
4
1
2
3
2
4
4
3
3
3
1
3
2
4
4
Flow chart version 6.6
MAP
MOVE THE MAP
MAP ORIENTATION
north oriented map
vehicle oriented map
CENTRE AROUND THE VEHICLE
MAP DETAILS
administration & security
town halls, town centre
universities, colleges
hospitals
hotels, restaurants & businesses
hotels
restaurants
vinyards
business centres
supermarkets, shopping
craft centres
culture, tourism & shows
tourism, historical monuments
culture, museums & theatres
shows & exhibitions
casinos & nightlife
cinemas
sports centres & outdoor pursuits
sports centres, complexes
golf courses
skating rinks, bowling alleys
winter sports centres
parks & gardens
theme parks
transport & cars
ports, airports
station, bus stations
automatic checks*
vehicle hire
rest areas, car parks
service stations, garages
STORE THE CURRENT POSITION
description
deleted
VIDEO
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
display formats
16/9 (full screen)
4/3 (conventional)
adjust the brightness
adjust the colours
adjust the contrast
* Function not available at present.
A
B
C
D
C
This holds up to 6 discs.
It does not permit the reading of:
CD-ROMs in MP3 format,
the navigation assistance CD-ROM.
To insert a disc into the changer:
open sliding panel A,
press button B to eject the cartridge C,
open one of the six compartments of the
cartridge by pulling tab D,
insert the disc with the printed face
upwards and close the compartment,
insert the cartridge into the changer,
close the sliding panel A.
The use of copied compact discs may
cause faults.
Insert circular compact discs only.
CD changer
111
IN-CAR TECHNOLOGY
3
CD CHANGER

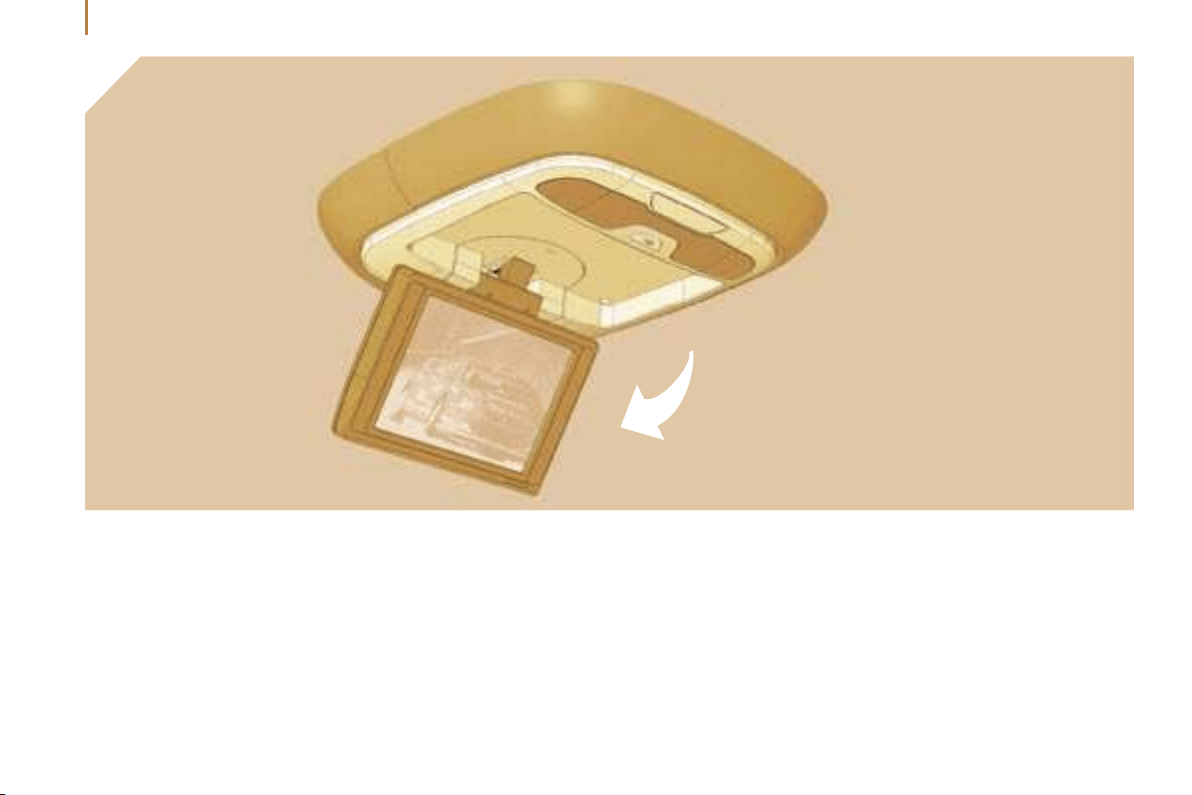

Rear video kit
112
This consists of:
- a 4/3 - 6.8 inch, LCD colour monitor,
- two high frequency, wireless, stereo
headphones,
- a remote control,
- a base with two wired headphone outputs,
a courtesy light with its switch and a
monitor release button,
- three audio/video sockets in the glove
compartment.
The monitor has left/right and up/down
position adjustment. It can also be stored in
its base by folding it and pushing it to lock
it. Once stored, the supply, and that of the
wireless headphones, is cut off automatically
after approximately fifteen minutes.
The rear video kit accepts all types of audio/
video source, PAL/NTSC compatible, such as:
DVD player, camcorder, games console, ...
These sources are connected to the three
audio/video sockets, AV1, in the glove
compartment only as the AV2 sockets are
not available.
REAR VIDEO KIT
B
A
C
MUTE: cutting off/restoring of the volume at
the wired headphones.
DOMELIGHT: remote courtesy light on/off.
Remote control
The monitor’s remote control incorporates
the following controls:
POWER: monitor on/off.
SOURCE: selection of the input source, AV1
or AV2.
SETUP: selection of the settings.
VOL and VOL
: changing of the settings
or decrease/increase of the volume at the
wired headphones.
Housing for the two LR03 batteries: located
in the lower part of the remote control.
Headphones
The various controls are incorporated in the
wireless headphones:
A - Housing for the two LR03 batteries.
B - Headphones on/off button.
C - Headphones volume adjustment control.
To get the best out of the headphones, you
must adjust their size to your own size and
adjust the volume by rotating control C.
This video assembly is intended to be
operated and used by the rear passengers
only.
The courtesy light can be controlled
directly by means of its switch in the on
or off position or remotely by means of the
remote control in the intermediate position.
By pressing buttons 3 and 4, you can adjust
the brightness, the contrast, the colours, ...
For further details, refer to the operating
manual "ALPINE video kit".
Rear video kit
113
IN-CAR TECHNOLOGY
3
VIDEO ACCESSORIES
Parking assistance
114
signal becomes continuous and the "Danger"
symbol appears depending on the display.
The volume of the audio equipment decreases
during the transmission of the parking
assistance bleeps.
Switching the system off
Change to neutral, the system is again
inactive.
AUDIBLE AND/OR VISUAL
REAR PARKING
ASSISTANCE
If fitted on your vehicle, the system is audible
and/or visual and consists of four proximity
sensors, located in the rear bumper.
The sensors detect any obstacle: person,
vehicle, tree, gate, behind the vehicle during
the manoeuvre.
Objects the size or thickness of which is
detected at the beginning of the manoeuvre,
may no longer be detected at the end of the
manoeuvre: blind spots between and below
the sensors.
Examples: stake, roadworks cone,
kerbstone.
Switching the system on
The system is activated as soon as reverse gear
is engaged.
This is accompanied by an audible signal and
displaying of the vehicle, depending on the display.
The proximity information is given by:
an audible signal, which becomes more rapid
as the vehicle approaches the obstacle,
a graphic on the display, with blocks which
become progressively closer to the vehicle.
Depending on the display, the audible signal is
transmitted by a buzzer or by the rear speakers
which transmit:
on the right if an obstacle is detected on the
right,
on the left if an obstacle is detected on the
left,
on the right and on the left if an obstacle is
detected in the centre.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
Activation/Deactivation
The system can be activated
or deactivated from the display
configuration menu.
The activation and deactivation of the
system are memorised when the engine is
switched off.
This function will be deactivated
automatically when the vehicle is towing
a trailer or when a bicycle carrier is fitted
(vehicle fitted with towing attachment or
bicycle carrier recommended by PEUGEOT).
In bad or wintry weather, ensure that the
sensors are not covered with mud, frost or
snow.
If there is an operating fault (e.g.
sensors dirty), when reverse gear is
engaged, the service warning light comes
on, accompanied by an audible signal (short
bleep or long bleep if the sensors are dirty)
and a message on the display.
Contact a PEUGEOT dealer.
FRONT AND 2ND ROW REAR
SIDE SEAT BELTS
The front and 2nd row rear side seats
are fitted with pre-tensioners
and force limiters.
To adjust the height:
To lower the attachment point,
squeeze control and slide
it downwards.
To raise the attachment point,
slide control upwards.
To lock:
Pull the strap, then insert the buckle
into the stalk.
Check that the seat belt is secured
correctly by pulling the strap.
The lap strap must be positioned as low as
possible on the pelvis. The chest strap must
pass over the hollow of the shoulder.
Check that the seat belt is fastened correctly
by pulling the strap.
Inertia reel seat belts
These are fitted with a device which locks
the seat belt automatically in the event of an
impact or emergency braking.
Safety in the event of a frontal impact has
been improved by the introduction of
pre-tensioning and force-limiting seat belts.
Depending on the seriousness of the impact,
the pre-tensioning system instantly tightens
the seat belts firmly against the body of the
occupant.
The pre-tensioning seat belts are armed
when the ignition is on.
The force-limiting device reduces the
pressure of the seat belt against the
occupant’s body in the event of an accident.
Seat belts
SAFETY
115
4
A bag placed on the front passenger
seat or a pet sitting on this seat may
trigger the lighting of this warning light.
SEAT BELTS
Front seat belt warning
light
If the driver and/or front passenger
has/have not fastened his/their
seat belt, this warning light comes on.
Then, at a speed in excess of approximately
15 mph (25 km/h), it flashes accompanied by
an audible signal of increasing volume (for
approximately 90 seconds) and the message
"Seat belt reminder" on the display.
2nd row rear side seat belts
For your comfort, if you are not using
the seat belt, slide the seat belt loop to the
upper stop to prevent the tongue
from vibrating.
3rd row rear side seat belts
The 3rd row rear side seats are fitted with
two seat belts which are both three-point
inertia reel belts with force limiter.
Seat belts
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking.
You can release the device by pulling the
strap sharply and releasing it.
In order to be effective, a seat belt:
must be tightened as close to the body as
possible,
must restrain one adult only,
must not bear any trace of cuts or fraying,
must be pulled in front of you with a
smooth movement, checking that it does
not twist,
must not be transformed or modified to
avoid altering its performance.
In accordance with current safety
regulations, all work and checks must be
carried out by a PEUGEOT dealer who
guarantees the standard of the work.
Have your seat belts checked regularly by a
PEUGEOT dealer, particularly if the straps
show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
PEUGEOT dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and rolled up correctly.
Recommendations for children:
use a suitable child seat if the passenger
is less than 12 years old or shorter than
one metre fifty.
never use the same seat belt to restrain
more than one person,
never allow a child to travel on your lap.
Depending on the nature and seriousness
of the impacts, the pre-tensioning device
may be triggered before and independently
of the air bags.
In all cases, the air bag warning light comes on.
Following an impact, however minor, or if
the straps show signs of wear, have the
seat belts system checked, and if necessary
replaced, by a PEUGEOT dealer.
* According to model.
116
Wherever you are seated in the
vehicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as they
will not fulfil their role fully.
If the seats have armrests*, the lap part of
the seat belt must always pass under the
armrest.
The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size. The seat belt is stored
automatically when not in use.
Before and after use, ensure that the seat
belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
To install the seat belt, move the spring hook
into position to insert it into the stalk.
2nd and 3rd row rear centre seat
belts
The 2nd row rear centre seat and the rear
bench seat centre seat have an integrated
three-point inertia reel seat belt.

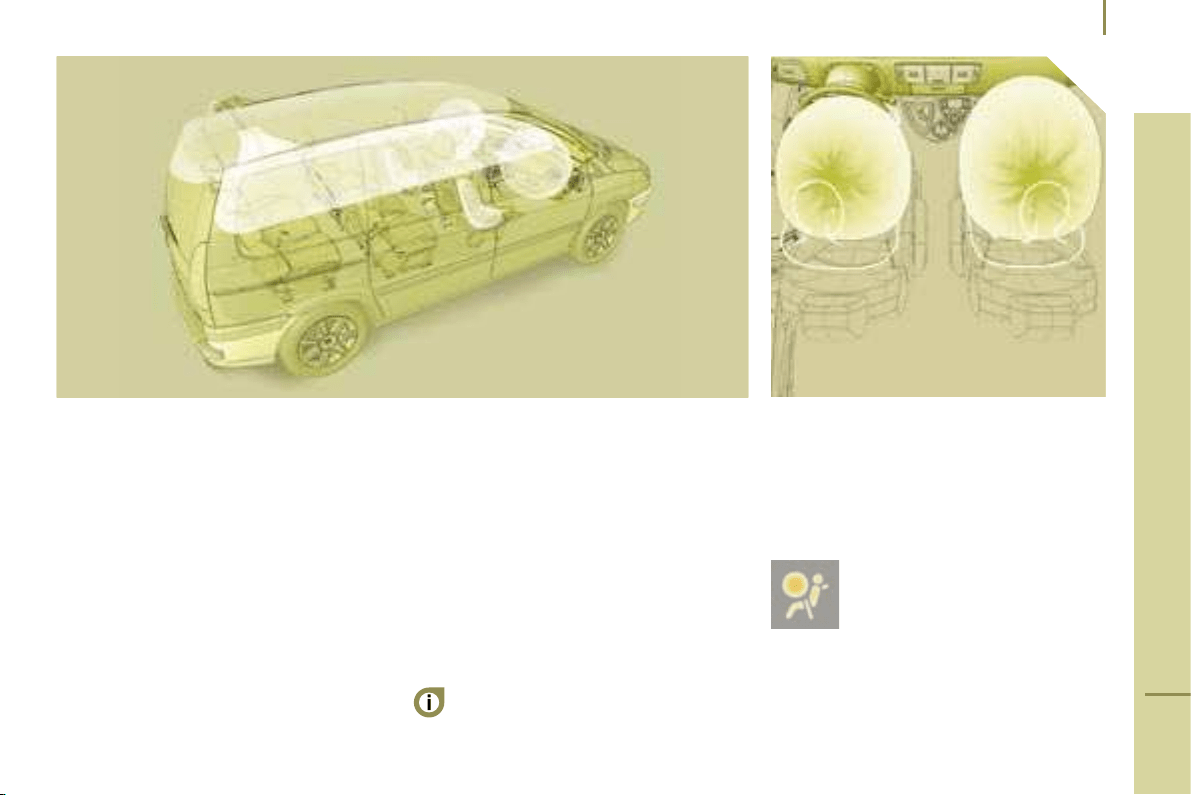

Air bags
The air bags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.
In the event of a serious collision, the
electronic detectors record and analyse any
abrupt deceleration of the vehicle: if the
triggering threshold is reached, the air bags
inflate instantly and protect the occupants of
the vehicle.
Immediately after the impact, the air bags
deflate rapidly, so that they do not hinder the
visibility of the occupants nor their possible
exit from the vehicle.
The air bags will not be deployed in
collisions which are not serious, for
which the seat belt is sufficient to provide
maximum protection. The seriousness of
the collision depends on the nature of the
obstacle and the speed of the vehicle at the
moment of impact.
Air bags only operate when the ignition is
switched on.
Front air bags
These are folded in the centre of the
steering wheel for the driver and in the
fascia for the front passenger. They are
deployed simultaneously, unless the
passenger air bag has been disarmed.
Front air bag malfunction
If this warning light comes on,
accompanied by a buzzer and a
message on the display, contact
a PEUGEOT dealer to have the system
checked.
SAFETY
4
117
The gas escaping from the inflated air
bags can be a minor irritant.
AIR BAGS
The air bag warning light on the instrument
panel is lit throughout the disarming
process.
In the "OFF" position, the passenger air
bag will not be triggered in the event of an
impact.
As soon as the child seat is removed, turn
the air bag slot to the "ON" position to
re-activate the air bag and thus ensure the
safety of your passenger in the event of an
impact.
Disarming check
This is confirmed by an indicator light,
accompanied by an audible signal and
a message on the display.

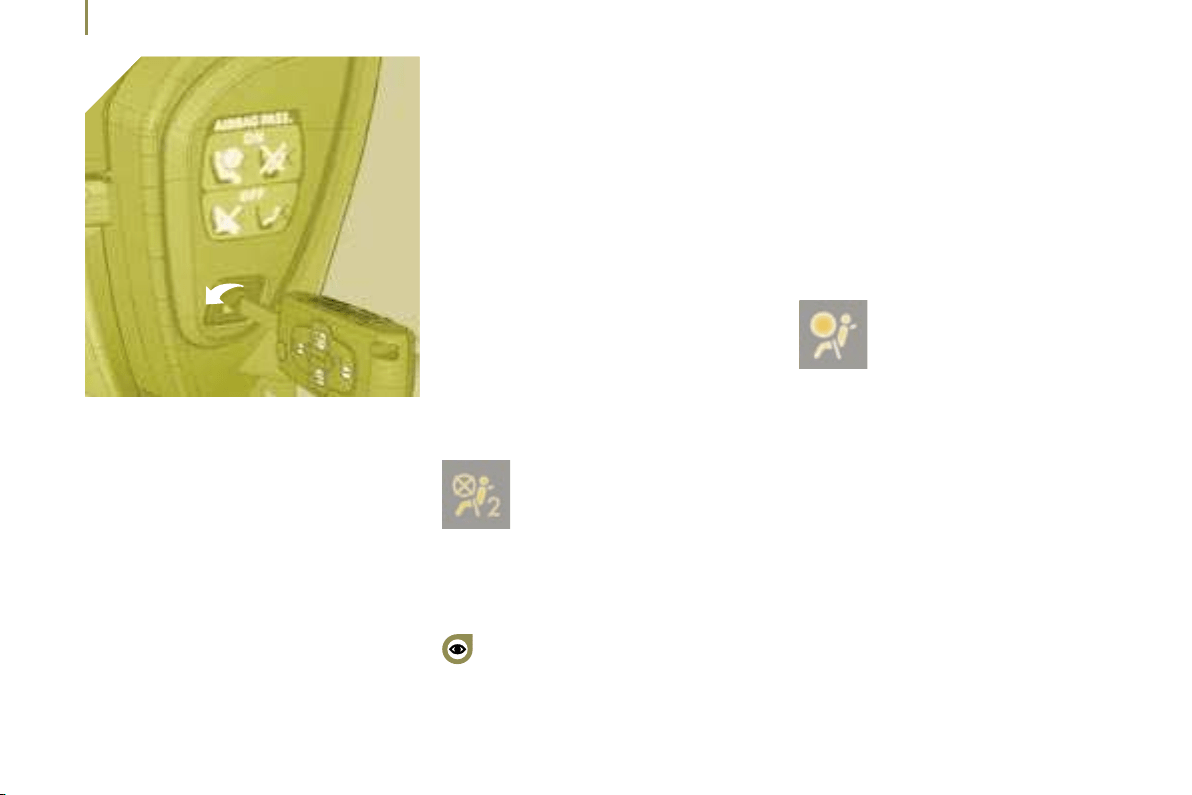

Disarming the passenger air bag*
To ensure the safety of your child, it is
essential to disarm the passenger air bag
when you install a rear-facing child seat
on the front passenger seat. Otherwise,
the child would risk being killed or
seriously injured if the air bag were
to inflate.
With the ignition switched off, insert the
key into the passenger air bag disarming
switch 1, turn it to the "OFF" position,
then remove the key keeping the slot in
this position.
Side air bags* and curtain air bags*
The side air bags are incorporated into the
front seat backs on the door side.
The curtain air bags are incorporated into
the door pillars and the upper part of the
passenger compartment.
They are deployed independently of each
other depending on which side the collision
occurs.
Operating check
This is confirmed by an indicator
light, accompanied by an audible
signal and a message on the
multifunction display.
If this indicator light comes on, accompanied
by an audible signal and the message "Air
bag fault" on the multifunction display,
contact a PEUGEOT dealer to have the
system checked.
Air bags
118
In the event of permanent lighting of
the two air bag warning lights, do not
install a rear facing child seat. Contact a
PEUGEOT dealer.
With the ignition on (2nd notch),
illumination of this warning light
accompanied by an audible signal
and the message "Passenger air
bag deactivated" on the display, indicates
that the passenger air bag is disarmed
(switch in the "OFF" position).
* According to country.
For the front, side* and curtain* air
bags to be fully effective, observe the
following safety rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between the
occupants and the air bags (child, animal,
object...).
This could hamper the operation of the air
bags or injure the occupants.
All work on the air bag systems is strictly
prohibited unless it is carried out by
qualified personnel of the PEUGEOT
network.
After an accident or if the vehicle has
been stolen or broken into, have the air
bag systems checked.
Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on
the fascia.
Smoke as little as possible; deployment of
the air bags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.
Side air bags*
Only put approved covers on the front
seats. Contact your PEUGEOT dealer.
Do not fix or glue anything to the front
seat backs. This could cause injury to the
chest or arms when the side air bag is
triggered.
Do not sit with the upper part of the body
any nearer to the door than necessary.
Curtain air bags*
Do not fix or glue anything to the pillars
or the roof. This could cause injury to the
head when the curtain air bag inflates.
Do not remove the bolts from the grab
handles installed on the roof, they play a
part in securing the curtain air bags.
Air bags
SAFETY
4
119
* According to country.
The air bag warning light on the instrument
panel is lit throughout the disarming
process.
In the "OFF" position, the passenger air
bag will not be triggered in the event of an
impact.
As soon as the child seat is removed, turn
the air bag slot to the "ON" position to
re-activate the air bag and thus ensure the
safety of your passenger in the event of an
impact.
Disarming check
This is confirmed by an indicator light,
accompanied by an audible signal and
a message on the display.
Disarming the passenger air bag*
To ensure the safety of your child, it is
essential to disarm the passenger air bag
when you install a rear-facing child seat
on the front passenger seat. Otherwise,
the child would risk being killed or
seriously injured if the air bag were
to inflate.
With the ignition switched off, insert the
key into the passenger air bag disarming
switch 1, turn it to the "OFF" position,
then remove the key keeping the slot in
this position.
Side air bags* and curtain air bags*
The side air bags are incorporated into the
front seat backs on the door side.
The curtain air bags are incorporated into
the door pillars and the upper part of the
passenger compartment.
They are deployed independently of each
other depending on which side the collision
occurs.
Operating check
This is confirmed by an indicator
light, accompanied by an audible
signal and a message on the
multifunction display.
If this indicator light comes on, accompanied
by an audible signal and the message "Air
bag fault" on the multifunction display,
contact a PEUGEOT dealer to have the
system checked.
Air bags
118
In the event of permanent lighting of
the two air bag warning lights, do not
install a rear facing child seat. Contact a
PEUGEOT dealer.
With the ignition on (2nd notch),
illumination of this warning light
accompanied by an audible signal
and the message "Passenger air
bag deactivated" on the display, indicates
that the passenger air bag is disarmed
(switch in the "OFF" position).
* According to country.
For the front, side* and curtain* air
bags to be fully effective, observe the
following safety rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between the
occupants and the air bags (child, animal,
object...).
This could hamper the operation of the air
bags or injure the occupants.
All work on the air bag systems is strictly
prohibited unless it is carried out by
qualified personnel of the PEUGEOT
network.
After an accident or if the vehicle has
been stolen or broken into, have the air
bag systems checked.
Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on
the fascia.
Smoke as little as possible; deployment of
the air bags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.
Side air bags*
Only put approved covers on the front
seats. Contact your PEUGEOT dealer.
Do not fix or glue anything to the front
seat backs. This could cause injury to the
chest or arms when the side air bag is
triggered.
Do not sit with the upper part of the body
any nearer to the door than necessary.
Curtain air bags*
Do not fix or glue anything to the pillars
or the roof. This could cause injury to the
head when the curtain air bag inflates.
Do not remove the bolts from the grab
handles installed on the roof, they play a
part in securing the curtain air bags.
Air bags
SAFETY
4
119
* According to country.
GENERAL POINTS RELATING
TO CHILD SEATS
Although one of PEUGEOT’s main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:
in accordance with Directive 2003/20, all
children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight, on seats fitted with a seat belt or
ISOFIX mountings*.
statistically, the safest seats in your
vehicle for the transportation of
children are the rear seats,
a child weighing less than 9 kg must
travel in the "rearwards-facing"
position both in the front and in the
rear.
PEUGEOT recommends that children
should travel in the rear seats of your
vehicle:
"rearwards-facing" up to the age of 2,
"forwards-facing" over the age of 2.

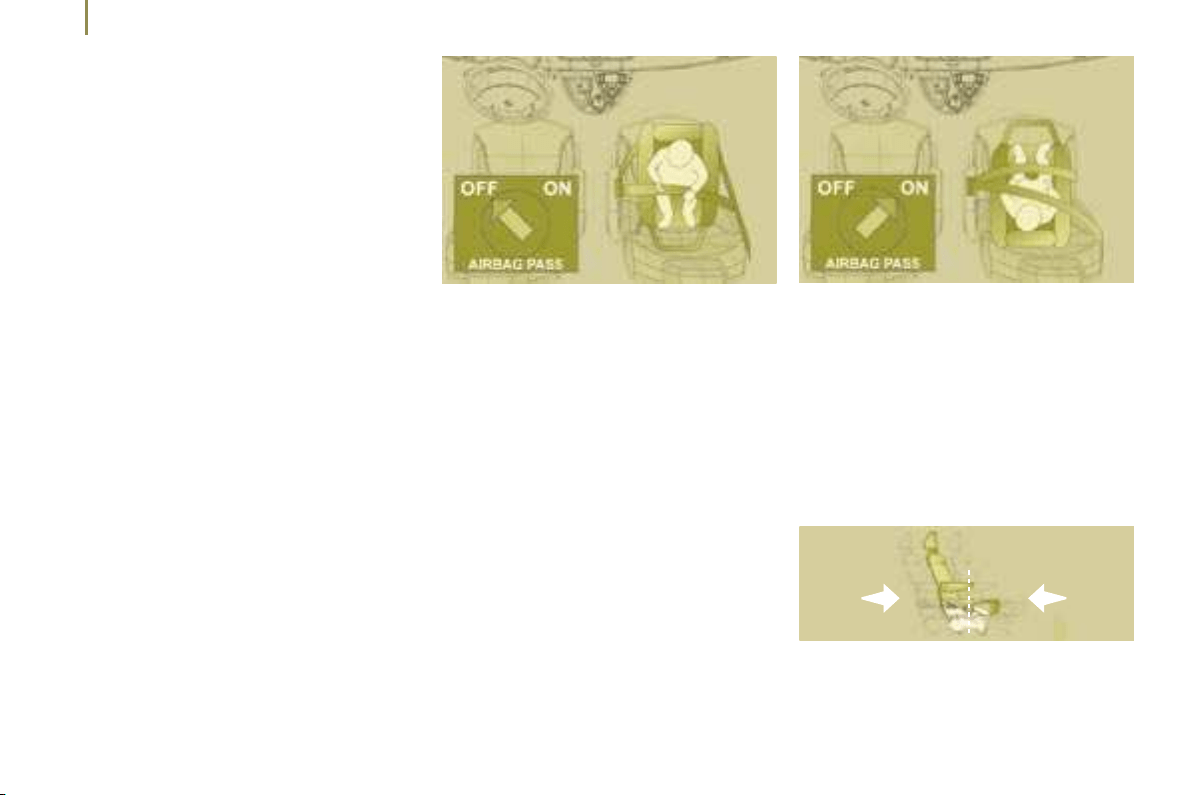

INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
When a "forwards-facing" child seat is
installed on the front passenger seat,
adjust the vehicle’s seat to the intermediate
longitudinal position with the seat back
upright and leave the passenger air bag
armed**.
Intermediate longitudinal position
"Rearwards-facing"
"Forwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger air bag** is
disarmed. Otherwise, the child would risk
being seriously injured or killed if the air
bag were to inflate.
120
CHILD SAFETY
Child safety
* The rules for transporting children are
specific to each country. Consult the
current legislation in your country.
** According to model.
Child safety

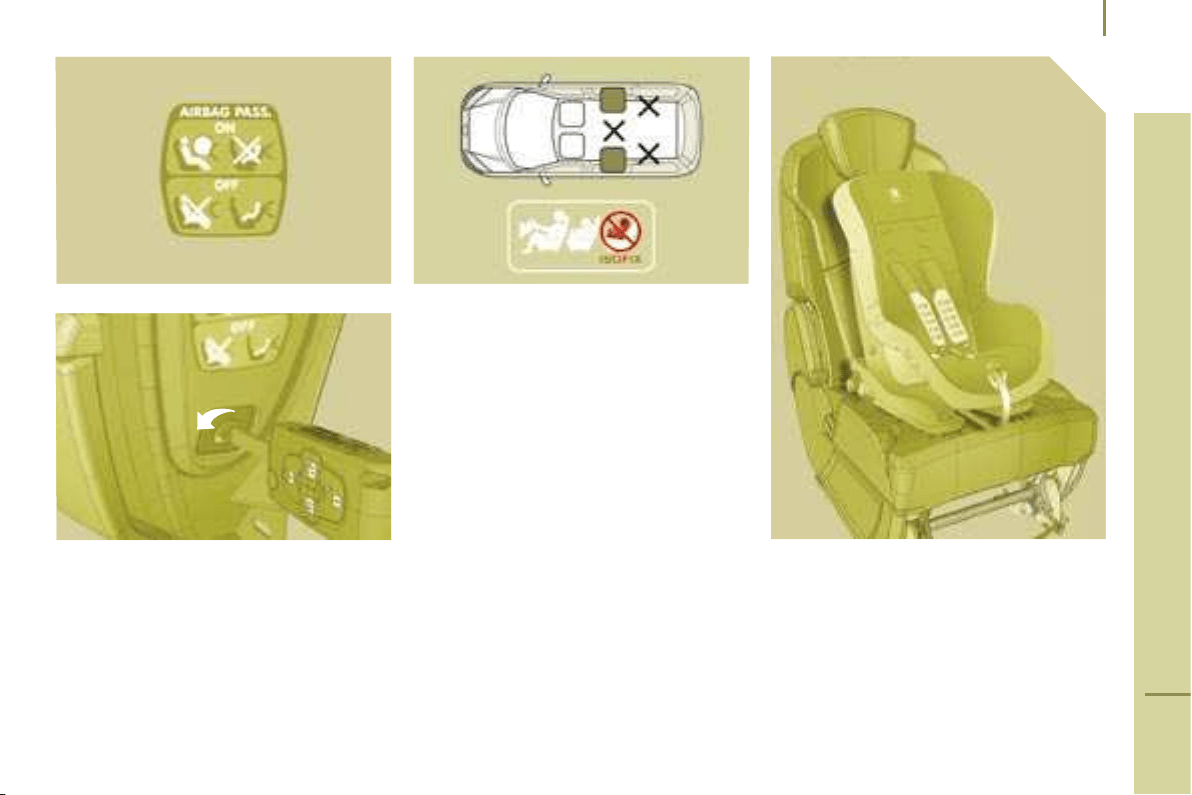

Passenger air bag OFF**
** According to version.
"ISOFIX" MOUNTINGS
These seats* are fitted with ISOFIX
mountings.
These are two rings located between the
seat back and the seat cushion.
The ISOFIX child seats are fitted with two
locks which are secured easily on these
rings.
This ISOFIX mounting system guarantees
reliable, safe and fast fitting of the child seat
in your vehicle.
* According to version.
SAFETY
4
121
Child safety
Passenger air bag OFF**
** According to version.
"ISOFIX" MOUNTINGS
These seats* are fitted with ISOFIX
mountings.
These are two rings located between the
seat back and the seat cushion.
The ISOFIX child seats are fitted with two
locks which are secured easily on these
rings.
This ISOFIX mounting system guarantees
reliable, safe and fast fitting of the child seat
in your vehicle.
* According to version.
SAFETY
4
121
Child safety

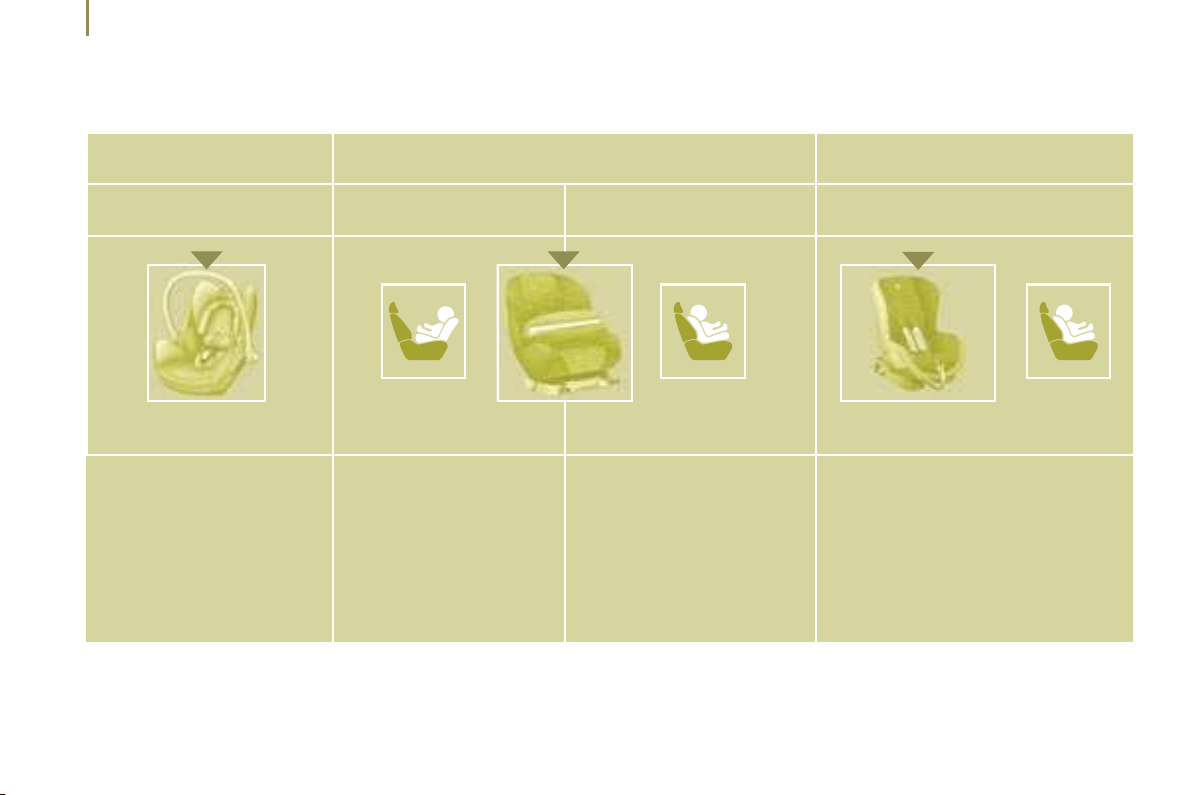

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
122
These child seats can also be used on seats which are not fitted with ISOFIX mountings. In this case, it is essential that they are secured to
the vehicle’s seat by means of the three point seat belt.
Follow the instructions for fitting the child seat indicated in the seat manufacturer’s installation guide.
The ISOFIX KIDDY seat is installed in the 2nd row only.
MAXI COSI CabrioFix
(size category E)
ISOFIX KIDDY
ISOFIX RÖMER Duo
(size category B1)
Group 0+: from
birth to 13 kg
Group 0+: from
birth to 13 kg
Group 1: from 9 to 18 kg Group 1: from 9 to 18 kg
Installed in the rear facing position.
Installed in the rear facing position.
Installed in the forwards facing position.
Installed in the forwards facing position only.
The ISOFIX base is fitted with
a height adjustable strut. This
strut must be in contact with
the vehicle floor. The body of
the child seat can be used,
independently of the ISOFIX
base, on a vehicle which is not
fitted with ISOFIX mountings.
The body of the child seat
must be in contact with the
back of the vehicle’s front
seat.
It is essential that the vehicle’s
front seat is adjusted to the
intermediate longitudinal
position.
Secured without the top strap.
Three child seat body angles: sitting,
reclining and lying positions.
Adjust the vehicle’s front seat so that the
child’s feet do not touch the seat back.
Child safety

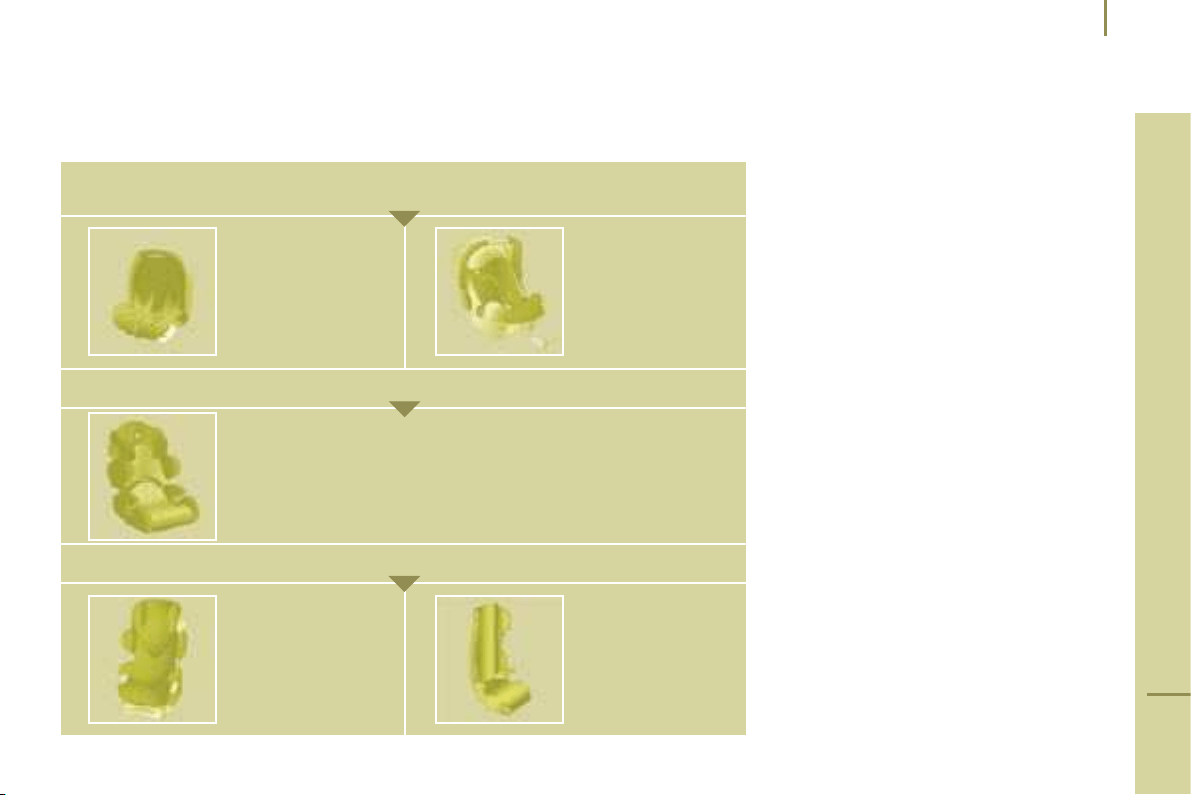

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a
three point seat belt:
SAFETY
4
123
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1 "BRITAX
Babysure"
(E11 0344117)
Installed in the rear-
facing position.
L2 "ROMER
Baby-Safe"
(E1 03301146)
Installed in the rear-
facing position
Groups 1, 2 and 3: from 9 to 36 kg
L3 "KIDDY Life"
(E1 03301135)
For the safety of young children (from 9 to
18 kg), PEUGEOT recommends use of the
restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L4 "RECARO Start"
(E1 03301108)
L5 "KLIPPAN
Optima"
(E17 030007)
From the age of
6 years (approximately
22 kg), the booster is
used on its own.
INSTALLING CHILD SEATS
ATTACHED USING THE SEAT BELT
In accordance with the European regulation
(Directive 2000/3), the table presented on
the following page indicates the options for
installing child seats secured using a seat
belt and universally approved in accordance
with the weight of the child and the seat in
the vehicle.
Child safety
124
Seat
Weight of the child and indicative age
Under 13 kg
(groups 0 (a) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger seat
(b)
U U U U
Side seats of row 2 U U U U
Centre seat of row 2 U U U U
Side seats of row 2,
placed in row 3
L1, L2 L3 L3, L4, L5 L3, L4, L5
Centre seat of row 2,
placed in row 3
U U U U
3-seat bench seat,
placed in row 3
L1, L2 L3 L3, L4, L5 L3, L4, L5
X L3 L3, L4, L5 L3, L4, L5
a: Group 0: from birth to 10 kg.
b: consult the legislation in force in your country before installing your child on this seat.
U: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or "forward facing".
L-: only the child seats indicated can be installed on the seat concerned (according to country).
X: seat not suitable for the installation of a child seat of the weight group indicated.
Child safety
ADVICE ON CHILD SEATS
Otherwise, the child would risk being
seriously injured or killed if the air bag were
to inflate.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child’s shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child’s thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:
one or more children alone and
unsupervised in a vehicle,
a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
the keys within reach of children inside the
vehicle.
To prevent accidental opening of the doors,
use the "Child lock" if fitted on your vehicle.
Take care not to open the rear windows by
more than one third if fitted on your vehicle.
The incorrect installation of a child seat in a
vehicle compromises the child’s protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child’s body to a minimum,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle’s seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
If fitted on your vehicle, disarm the
passenger air bag when a "rear facing" child
seat is installed on the front seat.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
SAFETY
4
125
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear seats.
Fitted on its own ball joint and able to retract
into its housing in the roof, it provides a
panoramic view of the rear interior of the
vehicle.
Child safety
ADVICE ON CHILD SEATS
Otherwise, the child would risk being
seriously injured or killed if the air bag were
to inflate.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child’s shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child’s thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.
As a safety precaution, do not leave:
one or more children alone and
unsupervised in a vehicle,
a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
the keys within reach of children inside the
vehicle.
To prevent accidental opening of the doors,
use the "Child lock" if fitted on your vehicle.
Take care not to open the rear windows by
more than one third if fitted on your vehicle.
The incorrect installation of a child seat in a
vehicle compromises the child’s protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child’s body to a minimum,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle’s seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
If fitted on your vehicle, disarm the
passenger air bag when a "rear facing" child
seat is installed on the front seat.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
SAFETY
4
125
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear seats.
Fitted on its own ball joint and able to retract
into its housing in the roof, it provides a
panoramic view of the rear interior of the
vehicle.
HANDBRAKE
Applying
When parking, pull the handbrake to
immobilize your vehicle. When parking on
a slope, direct your wheels towards the
pavement and pull the handbrake.
Releasing
Pull on the handle and press the button to
release the handbrake.
Disengaging
Apply the handbrake.
Pull the button located at the end of the
handbrake forwards.
The handbrake lever lowers.
You can now pivot the seat.
To return to normal operation, pull the lever
upwards until a click is heard.
If the handbrake is still on or has not been
released properly, this is indicated by:
HAZARD WARNING LIGHTS
Press the button, the direction indicators
flash.
They can operate with the ignition off.
Automatic lighting of hazard warning
lights*
When braking in an emergency, depending
on the deceleration, the hazard warning
lights come on automatically. They switch off
automatically the first time you accelerate.
It is also possible to switch them off by
pressing the button.
* According to country.
Driving safety
DRIVING SAFETY
126
a warning light which comes on
on the instrument panel,
an audible signal,
a message on the display.
Driving safety
ANTI-LOCK BRAKING SYSTEM
(ABS) AND ELECTRONIC BRAKE
FORCE DISTRIBUTION (EBFD)
The ABS, in conjunction with the electronic
brake force distribution, increases the
stability and manoevrability of your vehicle
on braking, in particular on poor or slippery
road surfaces.
HORN
Press one of the spokes of the steering wheel.
When changing wheels (tyres and
rims), make sure that these are
approved.
The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock.
When this warning light comes
on, accompanied by a buzzer and
a message, it indicates that there
is a malfunction of the ABS, which
can cause a loss of control of the vehicle
when braking.
EMERGENCY BRAKING
ASSISTANCE SYSTEM (EBA)
In an emergency, this system enables the
optimum braking pressure to be reached
more quickly, thus reducing the stopping
distance.
It is triggered by the speed at which the
brake pedal is activated. This alters the
resistance of the brake pedal under your
foot.
To prolong the operation of the emergency
braking assistance system: keep your foot
on the brake pedal.
SAFETY
4
127
When this warning light comes
on, connected to the STOP
warning light, accompanied
by a buzzer and a message, it
indicates that there is a malfunction of the
electronic brake force distribution, which can
cause a loss of control of the vehicle when
braking.
Stop immediately.
In both cases, consult a PEUGEOT dealer.
Normal operation of the ABS may make
itself felt by slight vibrations of the
brake pedal.
In emergency braking, press very firmly
without releasing the pressure.
TRACTION CONTROL (ASR) AND
DYNAMIC STABILITY CONTROL
(ESP)
These systems are linked and complement
the ABS.
The ASR system optimises drive to prevent
the wheels skidding, by acting on the brakes
of the drive wheels and on the engine. It
also allows the directional stability of the
vehicle to be improved on acceleration.
If there is a variation between the trajectory
followed by the vehicle and that required
by the driver, the ESP system automatically
acts on the engine and the brake of one
or more wheels, in order to put the vehicle
back on course, within the limits of the laws
of physics.
Operation of the ASR and
ESP systems
The warning light flashes if the
ASR or ESP is activated.
Disarming the ASR/ESP systems
In certain conditions (vehicle stuck in mud or
snow, or on loose ground...), it could prove
useful to disarm the ASR and ESP systems
to make the wheels spin and regain grip.
Press switch, situated under the steering
wheel on the left of the fascia.
The indicator light comes on
accompanied by the message
"ESP/ASR deactivated": the
ESP and ASR systems no longer
act on the engine operation, but continue to
act on the brakes.
They engage again:
automatically above 30 mph (50 kmh),
manually by pressing the switch again.
Operating check
When a malfunction of the
systems occurs, the indicator light
comes on, accompanied by an
audible signal and the message "ESP/ASR
not functioning" on the display.
Contact a PEUGEOT dealer to have the
system checked.
Driving safety
The ASR/ESP systems offer increased
safety during normal driving, but should
not incite the driver to take risks or to drive
at high speed.
The operation of these systems is ensured
if the recommendations of the manufacturer
regarding the wheels (tyres and rims),
the braking components, the electronic
components and the fitting and repair
procedures within the PEUGEOT network
are observed.
After an impact, have these systems
checked by a PEUGEOT dealer.
128
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure during
driving, and trigger a warning in the event of
a malfunction (speed greater than approx.
15 mph [25 km/h]) or puncture.
An outline representing one or more wheels
flashing indicates the location of the wheel
or wheels concerned.
Flat tyre
The SERVICE warning light
comes on, accompanied by the
message "Tyre(s) deflated", an
outline on the display, and an audible signal.
Check the tyre pressure as soon as
possible.
If the damaged tyre is temporarily
stored in the boot, it will again emit this
message to remind you of the necessity of
having it repaired. This will prevent another
warning of the same type being displayed.
Sensor(s) not detected
The SERVICE warning light
comes on, accompanied by
the message "X tyre pressure
sensor(s) missing", an outline on the
display and an audible signal.
Under-inflation detection is absent from one
(or several) tyre(s).
Contact a PEUGEOT dealer to replace the
faulty sensor(s).
This message is also displayed when
one of the tyres is away from the
vehicle (being repaired) or when a wheel
without a sensor is fitted.
All repairs and changing of tyres on a
wheel fitted with this system must be
carried out by a PEUGEOT dealer.
The tyre under-inflation detection system
is a driving aid which does not take the
place of vigilance or the responsibility of
the driver.
This system does not remove the need to
have the tyre pressure checked regularly
(including the spare wheel), to ensure that
the dynamic performance of the vehicle
remains at its best and to avoid premature
wear of the tyres, in particular in the case of
arduous driving (heavy load, high speed).
The system may temporarily be disturbed by
radio broadcasts on a frequency close to it.
Driving safety
SAFETY
4
129
Puncture
The STOP warning light
comes on, accompanied by
the message "Punctured
tyre(s)", an outline on the display and an
audible signal.
Stop immediately, avoiding any sudden
movement of the steering wheel and the
brakes.
Change the damaged (punctured or very
deflated) tyre, and have the tyre pressure
checked as soon as possible.
A
Towing a trailer
130
TOWING A TRAILER, CARAVAN, BOAT, ETC.
For more information about
weights, refer to the Petrol or Diesel
"Dimensions, weights and towed loads"
section of the "Technical Data" chapter.
Driving advice
A towed vehicle must free wheel: gearbox in
neutral.
Distribution of loads: distribute the load in
the trailer so that the heaviest loads are as
close as possible to the axle and the nose
weight is close to the maximum authorised
without, however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.
Dimension A = 0.96 m
ACCESSORIES
On the contrary, use a high gear to lower the
engine speed and reduce your speed.
In all cases, pay attention to the coolant
temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Towbar
We recommend the use of original
PEUGEOT towbars, which have been tested
for endurance from the design stage of your
vehicle.
Towing equipment must be fitted in
accordance with the manufacturer’s
instructions, with particular attention to the
towing capacities of your vehicle, the load
towed, the nose weight and the electrical
connection. As this fitting should be carried
out by a professional, we recommend that
you entrust the fitting of this equipment to a
PEUGEOT dealer.
When using a trailer connection, you must
add a fuse. Refer to the "Changing a fuse"
section of the "Troubleshooting" chapter.
Lighting
Manual adjustment
Adjust your headlamps so as not to dazzle
other road users.
Check the electrical signalling of the trailer.
Automatic adjustment
For vehicles with Xenon bulbs, this system
automatically corrects the height of the
beam, whatever the load of the vehicle. The
driver is then assured of having optimum
lighting and not causing a nuisance to other
road users.
Towing a trailer
131
5
In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power. In this
case, cutting off the air conditioning allows
the engine power to be recovered, and
therefore the towing speed to be significantly
increased (approximately 12 mph [20 km/h]
more). Sequential control of the gearbox
may also become unavailable.
If the coolant temperature warning light
comes on, stop the vehicle and switch off
the engine as soon as possible.
Tyres: check the tyre pressures of the
towing vehicle (see section on "The
identification features of your vehicle") and
of the trailer, observing the recommended
pressure.
For further information regarding
manual adjustment of the headlamps,
refer to the "Practical information" section of
the "Ergonomics and Comfort" chapter.
Bicycle carrier
If you fit a bicycle carrier on the tailgate,
deactivate the rear wiper from the display’s
configuration menu.
A
A
Roof bars
USING ROOF BARS
To use the transverse roof bars, release the
four locking levers provided for this purpose.
From the left-hand side, slide them in their
rails to the required notch.
Lock the four locking levers located at the
base of the feet of each bar.
When the roof bars are not in use,
position them at the rear stop to avoid
excess consumption.
Use accessories approved by Automobiles
PEUGEOT and follow the manufacturer’s
fitting instructions.
Maximum authorised weight on the roof
rack 220 lbs. (100 kg)
Removal and refitting of the roof bars
Remove the bolt, the stop and the two
washers at each location A.
Move the bars to the locations A.
Lift the two bars to remove them.
Imperative: refit the bolt, the stop and the
two washers at each location A.
To refit, proceed in the reverse order.
Direction of use
132
A
B
B
ACCESSORIES
Snow screen
133
5
REMOVABLE SNOW COVER*
The removable snow cover is installed on
the lower part of the front bumper to prevent
the accumulation of snow at the radiator
cooling fan.
When the snow has cleared, do not forget
to remove the removable snow cover.
FITTING
Offer up the removable snow cover facing
its centring pin A on the front bumper.
Put it in place by pressing at each clip B
located in the four corners.
REAR VIDEO KIT
For further information regarding this
equipment available in your vehicle,
refer to the "Rear video kit" section of the
"In-car Technology" chapter.
REMOVAL
Pass a screwdriver into the hole located
near each of the clips.
Use the screwdriver as a lever to unclip
the four clips B in turn.
* According to country.
Other accessories
OTHER ACCESSORIES
A wide choice of accessories recommended
by PEUGEOT and original parts is available
through the dealer network.
These accessories and parts, after being
tested and approved for reliability and
safety, are all adapted to your PEUGEOT
vehicle.
This product range, offered by PEUGEOT
Accessories, is structured around
5 categories:
To avoid any jamming under the
pedals:
ensure that the mat is positioned correctly,
never place one mat on top of another.
134
The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may
result in a failure of your vehicle’s electronic
system.
Please note this specific warning. You
are advised to contact a representative
"Protection": anti-theft alarm,
window engraving, first aid kit,
safety jacket**, rear parking
assistance, warning triangle**, ...
"In-Car Technology": audio
systems, telephone, hands-
free kit, speakers, CD changer,
navigation system, rear video kit,
DVD player, ...
"Styling": alloy wheels, trims,
aluminium interior trim kit, mud
flaps, ...
"Universal": screenwash, interior
and exterior maintenance and
cleaning products, replacement
bulbs**, ...
of the Marque to be shown the range of
recommended equipment or accessories.
* When using a tailgate bicycle carrier,
deactivate the rear wiper from the display
configuration menu.
** According to country: it is compulsory that
these accessories or parts are available in
your vehicle.
"Touring": seat covers
compatible with side air bags,
mats, boot tray, sunroof, luggage
net, door deflectors, cool box
secured on the slides, clip
armrest, roof bars, roof box, snow
chains, ski carrier, tailgate bicycle carrier*,
interior bicycle carrier, booster seats and
child seats, Isofix seats, side sun blinds and
rear blind, ...
Trailer towbar which must be fitted by a
PEUGEOT dealer.
Compatible portable equipment
For the RD4, the fitting of an RCA
auxiliary socket is offered specifically by the
Network.
The audio cable for connection to the
auxiliary socket (RCA yellow-red located
in the glove box) is also offered by the
Network.
Following connection of the cable and
selection of the AUX mode, via the source
button, your portable equipment is ready to
operate.
Set the portable equipment to half volume
to avoid saturating the audio system sound.
Then use the audio system volume button.

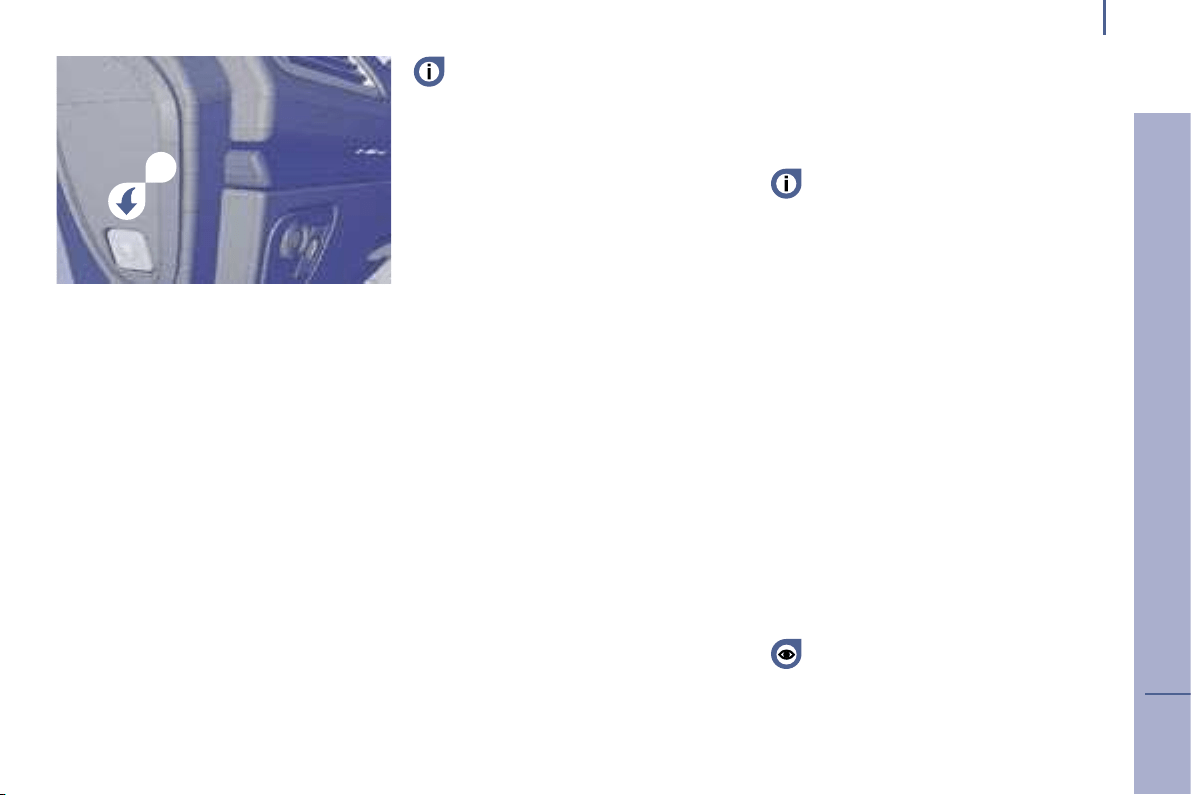

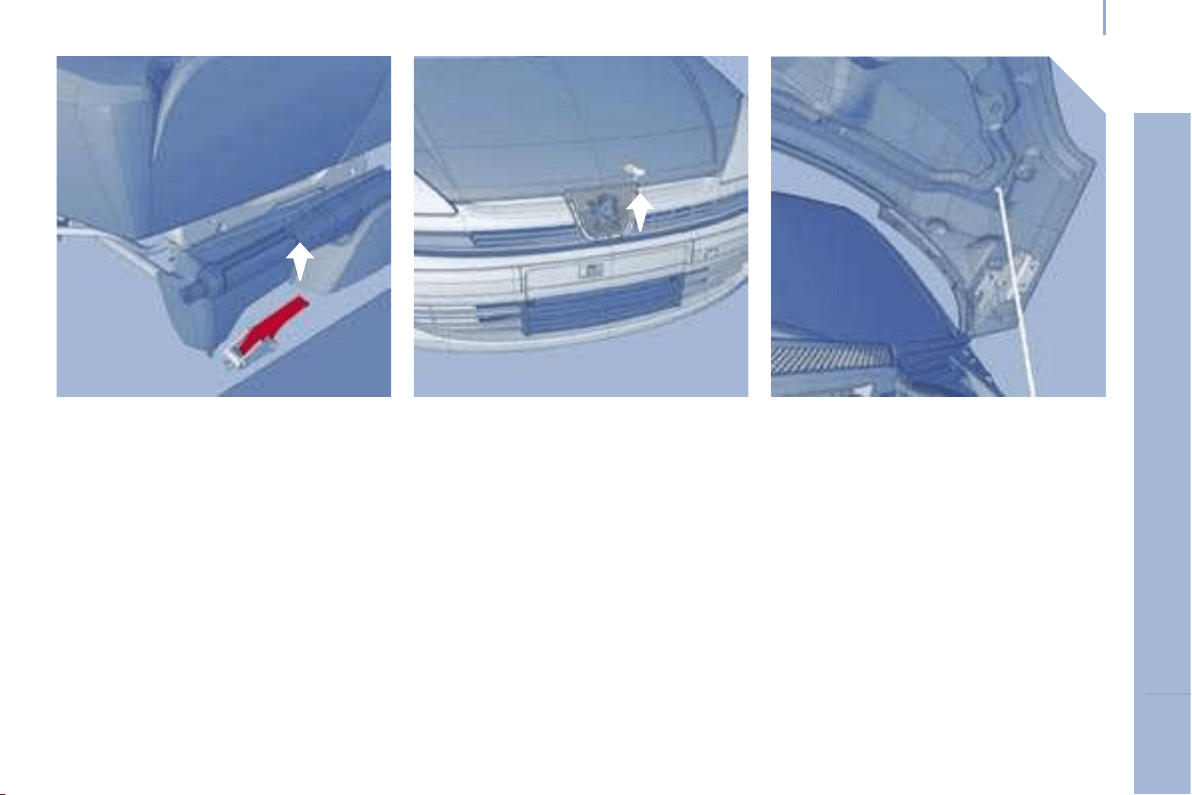

Opening the bonnet
OPENING THE BONNET
From inside:
lift the cover located at the left foot of the
driver’s seat.
pull the control upwards.
"Bonnet open" warning
This warning is linked to the alarm option
only.
With the engine running or the vehicle
moving, a diagram on the display
accompanied by an audible signal, warns
you that the bonnet is not properly closed.
From outside:
lift the catch and raise the bonnet.
Bonnet strut
Secure the strut to hold the bonnet open.
Before closing the bonnet, replace the strut
in its housing.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet is
properly locked.
MAINTENANCE
6
135
1
2
3
4
5
6
7
8
10
9
11

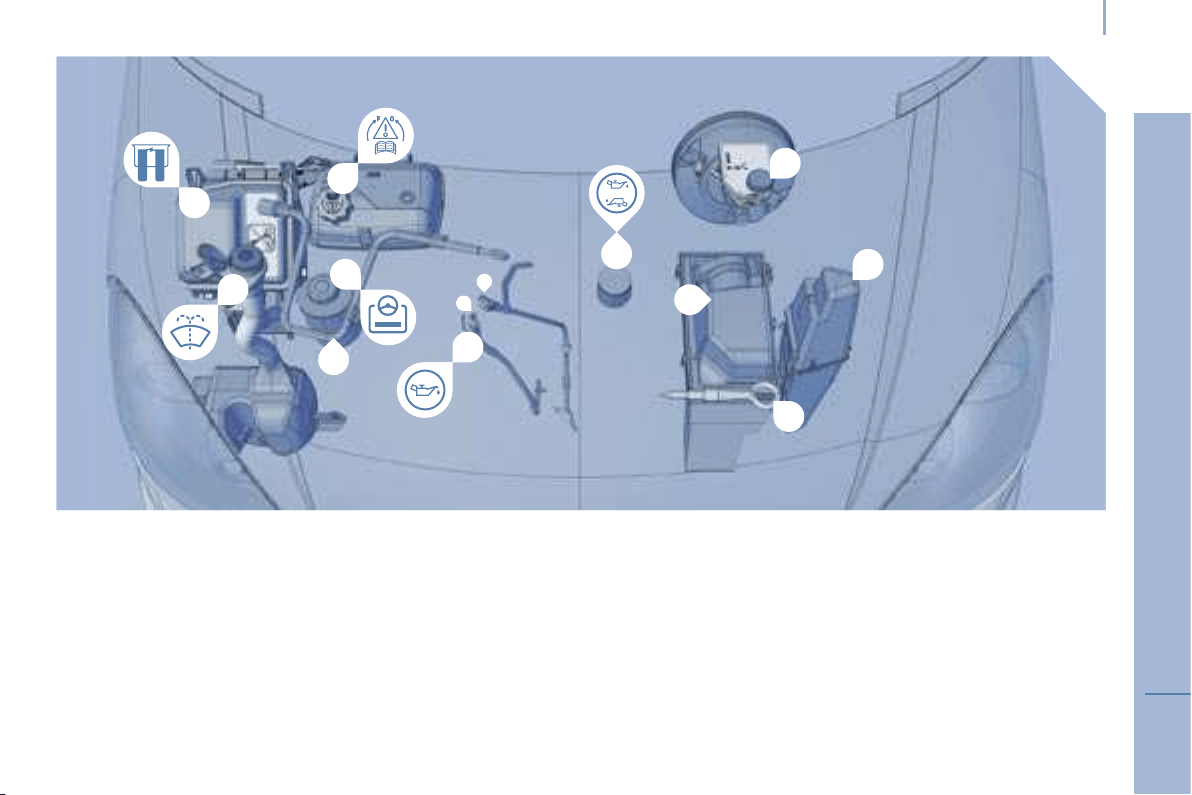

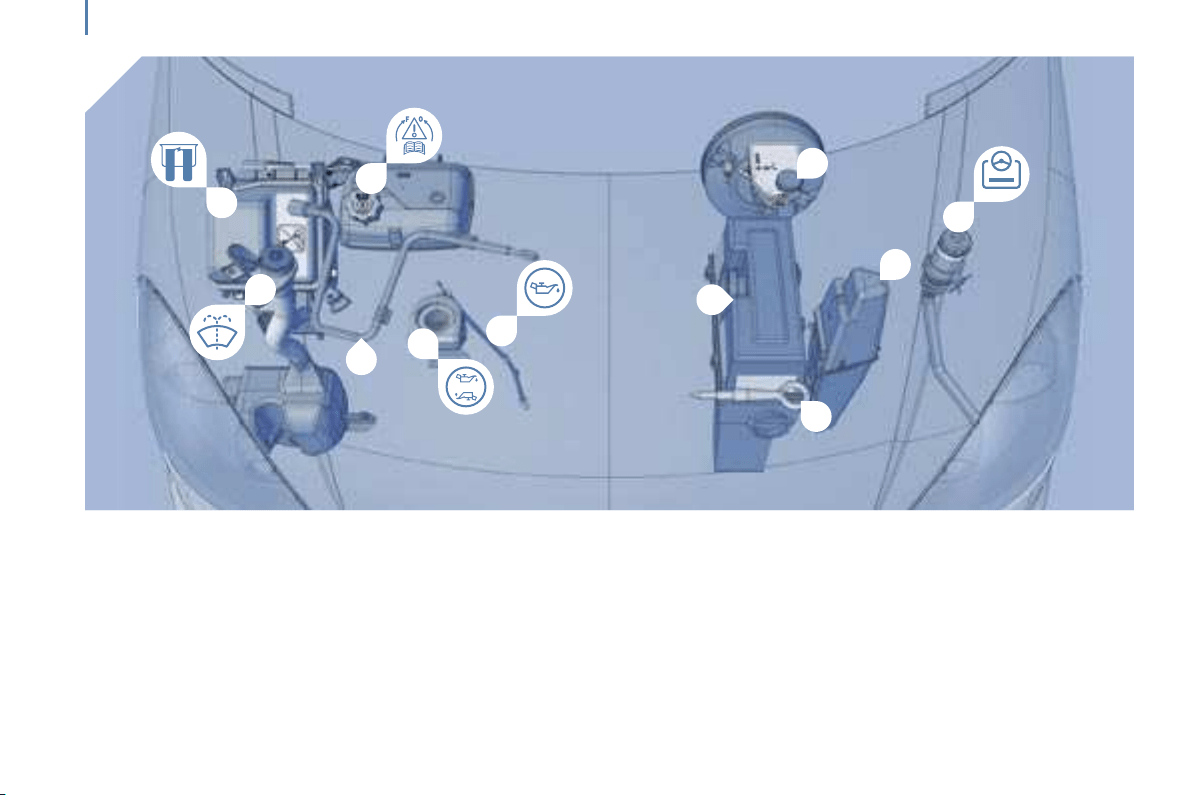

Under the bonnet
136
PETROL ENGINES
1 - Windscreen/headlamp wash reservoir.
2 - Fuse box.
3 - Coolant reservoir.
4 - Wheelbrace.
5 - Brake and clutch fluid reservoir.
6 - Jack housing.
7 - Air filter.
8 - Removable towing eye.
9 - Dipstick.
10 - Engine oil filler cap.
11 - Power steering reservoir.
UNDER THE BONNET
1
2
5
6
7
8
10
9
11
3
4
a
b
Under the bonnet
DIESEL ENGINES
5 - Brake and clutch fluid reservoir.
6 - Jack housing.
7 - Air filter.
8 - Removable towing eye.
9 - Engine oil filler cap.
10 - Dipstick.
(a: 2.2 litre HDI; b: 2 litre HDI).
11 - Power steering reservoir.
MAINTENANCE
6
137
1 - Windscreen/headlamp wash reservoir.
2 - Fuse box.
3 - Coolant reservoir.
4 - Wheelbrace.
A
B
Checking the levels
138
These regular maintenance operations
will keep your vehicle in good running
order. Consult the instructions at PEUGEOT
dealerships, on the Infotec site or in the
servicing booklet enclosed in the wallet
containing the handbook pack.
reliability of engines and emission control
systems, the use of additives in engine oil is
prohibited.
Oil change
It is imperative that this is carried out at the
intervals specified and the viscosity grade of
the oil selected must fulfil the requirements
in accordance with the manufacturer’s
servicing schedule. Consult the instructions
at PEUGEOT dealerships or on the Infotec
site.
Viscosity selection
In all cases, the oil selected must meet the
manufacturer’s requirements.
Changing the brake fluid
The brake fluid must be changed at
the intervals stated, according to the
manufacturer’s servicing schedule.
Use fluids recommended by the
manufacturer, which fulfil DOT4 standards.
Cooling system
Only use the fluid recommended by the
manufacturer.
Otherwise, you risk seriously damaging your
engine.
When the engine is warm, the temperature
of the coolant is controlled by the engine
fan. As this fan can operate with the ignition
key removed and because the cooling
system is pressurised, wait for at least one
hour after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to release
the pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
Windscreen wash and headlamp
wash* level
For best quality cleaning and for your safety,
we would advise that you use products of
the PEUGEOT Universal range.
Used oil
Avoid prolonged contact of used oil with the
skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid or
coolant into drains or into the ground but
into the containers dedicated to this use at
PEUGEOT dealerships.
CHECKING THE LEVELS
If you have to remove/refit the engine
style cover, handle it with care to avoid
damaging the fixing clips.
Oil level
Check the level regularly and top up between
changes. The maximum consumption is 0.5 l
per 600 miles (1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
Dipstick
There are two marks on
the dipstick:
A = maximum
If you fill past this mark,
contact a PEUGEOT
dealer.
B = minimum
Never allow the level to
fall below this mark.
To maintain the
* According to country.
Checking the levels
CHECKS
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer.
Air filter and passenger
compartment filter
Have the filter elements replaced regularly.
If you drive in dusty conditions, change
them twice as often.
Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances.
It may be necessary to check the thickness
of the pads, even between services.
Handbrake
Where the handbrake travel is too great
or there is a reduction in the performance
of the system, the handbrake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer.
Oil filter
Change the filter regularly, in accordance
with the servicing schedule.
Manual gearbox
Have the level checked in accordance with
the manufacturer’s servicing schedule.
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from reaching
the engine.
To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer
to the pages of the servicing booklet
which correspond to your vehicle's
engine.
Only use products recommended by
PEUGEOT or products of equivalent
quality and characteristics.
In order to optimise the operation of units as
important as the braking circuit, PEUGEOT
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
MAINTENANCE
6
139
The flashing of this warning light
is accompanied by a message on
the display.
Check that there is no odour or leakage of
fuel outside the vehicle and re-establish the
fuel supply:
switch off the ignition (STOP position).
remove the key.
put the key back in the ignition.
switch on the ignition and start.
Fuel
Low fuel level
When the tank’s minimum level is
reached, this warning light comes
on, accompanied by the message
"Fuel level low" on the display.
You have enough fuel left to cover
approximately 30 miles (50 km), depending
on driving conditions and the engine.
If the warning light flashes, this indicates a
fuel gauge malfunction.
Contact a PEUGEOT dealer.
The tank must be filled with fuel with the
engine off.
Open the fuel filler flap.
Insert the key then turn it to the left.
Remove the cap and attach it to the clip
located on the inside of the flap.
FILLING THE FUEL TANK
A label on the inside of the flap indicates
which type of fuel to use.
If you fill your tank, do not continue after the
third cut-off of the pump nozzle. This could
result in vehicle malfunctions.
The capacity of the tank is approximately
18 gallons (80 litres).
After filling the tank, lock the cap and
close the flap.
When the fuel filler flap is open, a
system limits the opening of the rear
left sliding side door.
The key cannot be removed from the cap’s
lock until the cap is refitted on the tank.
MAINTENANCE
6
141
To find out more about this warning
light, refer to "Fuel circuit disarmed" in
the "Checking the levels" section.
142
ECONOMY MODE FUNCTION
After the engine has stopped, with the key
in the ignition position, certain functions
(windscreen wiper, electric windows,
courtesy lights, audio equipment, etc.) can
only be used for a cumulative duration of
thirty minutes, to prevent discharging the
battery.
Once the thirty minutes are over, the
message "Economy mode active" appears
on the display and the active functions are
put on standby.
To resume the use of these functions
immediately, start the engine and let it run
for a few seconds.
A flat battery will prevent the engine from
starting.
This is housed in a compartment located
underneath the floor, in front of the driver’s
seat.
To charge the battery using a
battery charger
Disconnect the battery,
Follow the instructions for use given by
the battery charger manufacturer,
Reconnect starting with the negative (-)
terminal,
Check that the terminals and connectors
are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
To start the vehicle from another
battery
Connect the red cable to the positive (+)
terminals of the two batteries,
Connect one end of the green or black
cable to the negative (-) terminal of the
slave battery,
Connect the other end of the green or
black cable to an earth point on the
broken down vehicle as far as possible
from the battery,
Operate the starter, let the engine run,
Wait for the engine to return to idle, then
disconnect the cables.
Battery
BATTERY
Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without first
disconnecting the terminals.
Close the windows and sunroof before
disconnecting the battery. If they do not
operate normally following reconnection of
the battery, they must be reinitialised (refer
to the information regarding the sunroof
safety auto-reverse in the "Accesses"
section of the "Ergonomics and Comfort"
chapter and regarding the electric window
safety auto-reverse in the "Mirrors and
Windows" section).
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight difficulties
are experienced after this, please contact a
PEUGEOT dealer.
The door open monitoring electrical system
consumes power, remember to close the
sliding doors when your vehicle is parked for
long periods.
It is advisable to disconnect the battery
if the vehicle is not to be used for a
period of more than one month.
1
4
2
3
143
TROUBLESHOOTING
Changing a wheel
7
CHANGING A WHEEL
1. PARKING THE VEHICLE
- If possible, park the vehicle on level, stable
and non-slippery ground.
- Apply the handbrake, switch off the ignition
and engage first or reverse gear (position
P for the automatic gearbox).
- If possible, place a chock under the wheel
diagonally opposite the one to be changed.
1 - Wheelbrace.
2 - Jack housing.
3 - Alloy wheel embellisher remover.
4 - Removable towing eye.
Refer to the location of the tools
(situated in the engine compartment)
in the "Under the bonnet" section of the
"Maintenance" chapter.
2. TOOLS
3. SPARE WHEEL
Gain access to the spare wheel from the
boot.
Open the cover to release the winch and
access its bolt.
You can switch on the 3rd row courtesy
light to increase the light in the boot.
Changing a wheel
144
Unwind the winch cable by unscrewing the
bolt using the wheelbrace.
Detach the spare wheel from the rear of
the vehicle and place it near the wheel to
be changed.
4. OPERATING PROCEDURE
Special tools for vehicles fitted with alloy
wheels*
If your vehicle has wheels with alloy rims:
The embellisher is removed using the
alloy wheel embellisher remover.
Each wheel is fitted with an anti-theft bolt.
These bolts can be loosened using your
anti-theft socket (given to you on delivery
of your vehicle along with your confidential
card) and the wheelbrace.
Remove the trim pulling at the valve
passage hole. Use the flat end of the
towing eye as a lever.
Loosen the wheel bolts and start
unscrewing them.
* According to version and country.
Changing a wheel
TROUBLESHOOTING
7
145

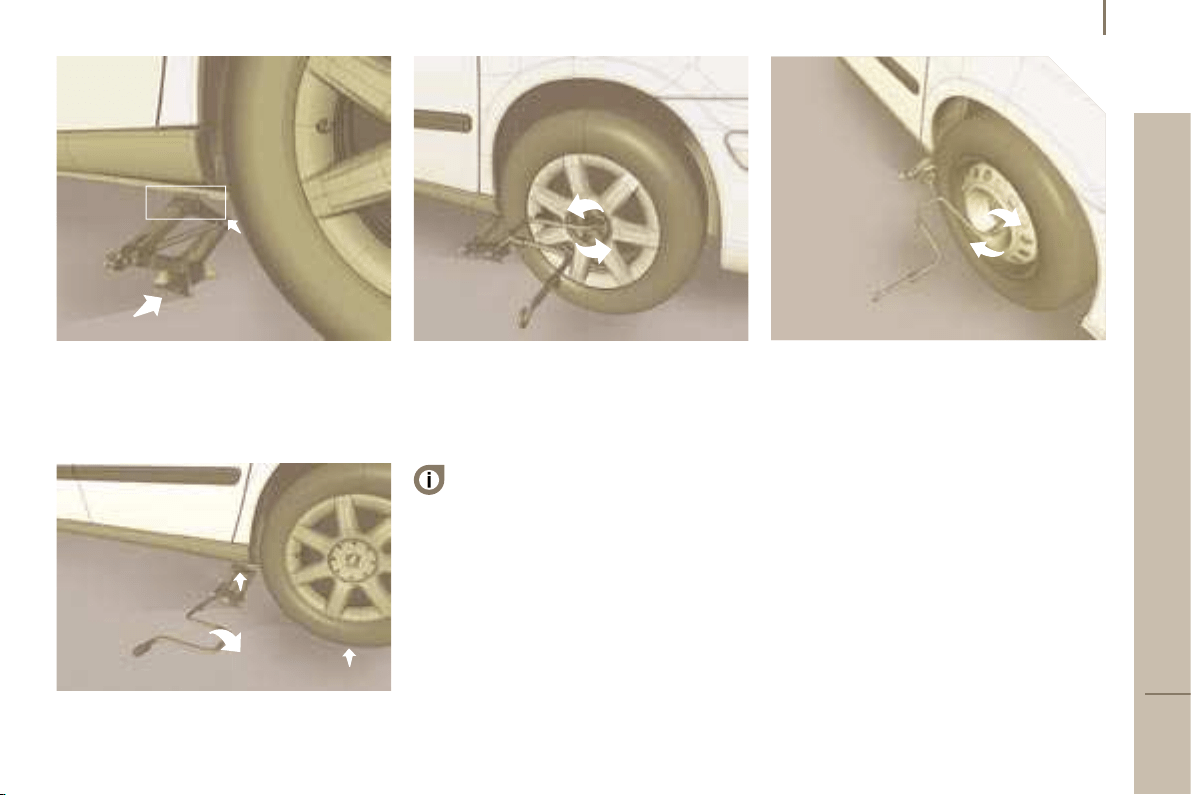

Do not extend the jack until you have
started unscrewing the bolts on the
wheel to be changed and have placed the
chock under the wheel diagonally opposite.
Place the jack in contact with the locating
point provided, the one which is closest
to the wheel to be changed. Ensure that
the base of the jack is in contact with the
ground, and straight above.
Extend the jack to lift the wheel clear of
the ground.
Resume and complete the unscrewing of
the wheel bolts.
Remove the bolts and remove the wheel.
5. FITTING THE SPARE WHEEL
Position the wheel on the hub and start
tightening the bolts by hand.
Initially tighten the bolts using the
wheelbrace.
Changing a wheel
146
Lower the vehicle completely by folding
the jack, then remove the jack.
Tighten the bolts again using the
wheelbrace, tighten them fully without
forcing them.
Place the wheel to be repaired in the boot
well by raising the winch cable using the
wheelbrace.
Remember to close the flap, located in the
boot, it permits securing of the winch.
Store the trim in the boot.
Never go underneath a vehicle that
is supported only by a jack (use a
ramp). Never use a screwdriver in place of
the wheelbrace to unwind or wind the winch
cable.
6. REFITTING THE REPAIRED
WHEEL
The wheel is refitted as described in step 5,
not forgetting to refit the wheel trim.
The spare wheel is not designed to
be used over long distances, have the
tightening of the bolts and the tyre pressure
checked by a PEUGEOT dealer as soon as
possible.
Also, have the original wheel repaired and
refitted by a PEUGEOT dealer as soon as
possible.
1
2
4
5
3
Changing a bulb
TROUBLESHOOTING
7
147

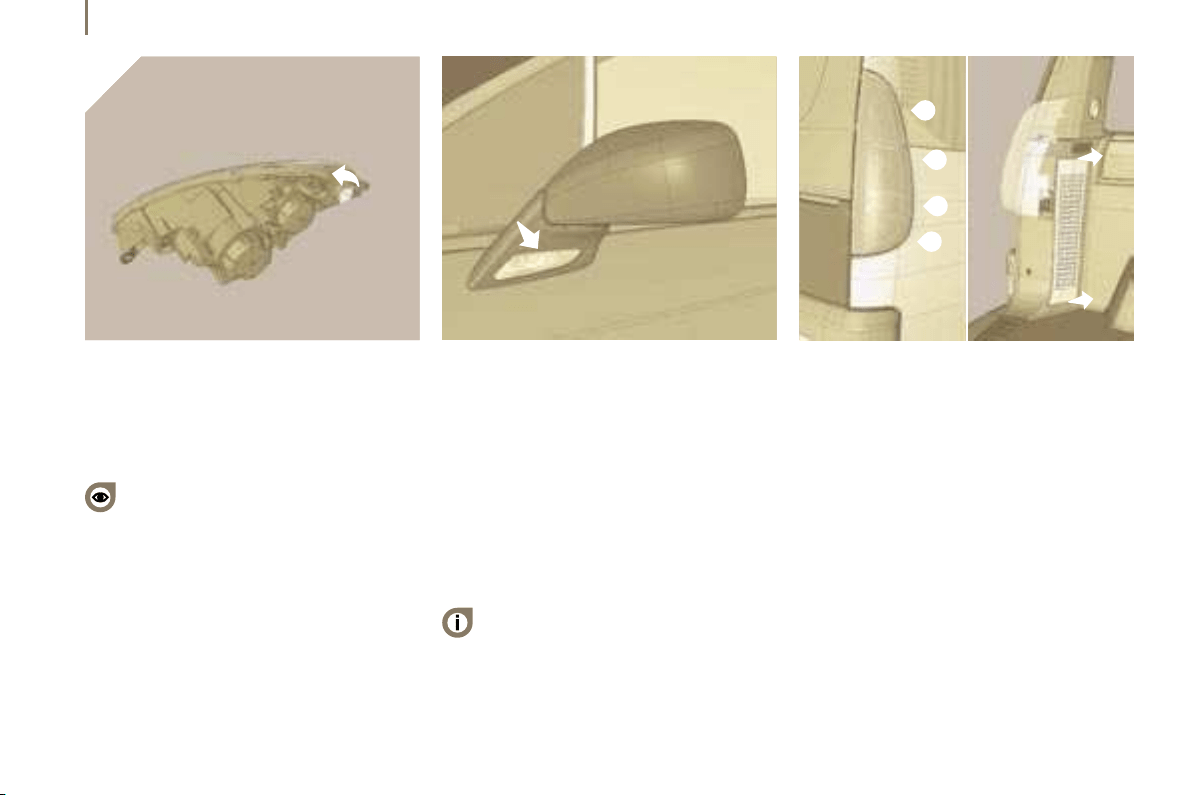

CHANGING A BULB
FRONT LIGHTS
1 - Dipped headlamps
2 - Main beam headlamps
3 - Fog lamps
4 - Side lights
5 - Direction indicators
1 - Dipped beam headlamps
H7-55 W or xenon bulb.
2 - Main beam headlamps
H7-55 W or xenon bulb.
3 - Fog lamps
H1-55 W.
WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be changed by a
PEUGEOT dealer.
Handle the bulbs with a dry cloth.
Make access easier on the right-hand
side by removing the wash-wipe pipe and
the fuse box cover.
Turn the protective cover corresponding
to the faulty bulb a quarter of a turn to the
left and remove it.
Disconnect the connector.
Press the end of the securing clip to free
it. Change the bulb.
When fitting the new bulb, ensure that the
direction notches are positioned correctly
and the securing clip is fixed properly.
Reconnect the connector.
Refit the protective cover, then turn it a
quarter of a turn to the right.
4 - Side lights
W 5 W.
Push the light from the inside towards the
outside of the bumper.
Pull the light forwards.
Turn the bulb holder a quarter turn to the
left and remove it.
Turn the bulb a quarter turn to the left,
remove it and change it.
When refitting, engage the light towards the
outside and move it towards the inside of the
bumper.
1
2
3
4
Changing a bulb
148
REAR LIGHTS
1 - Direction indicators
PY 21 W (amber).
2 - Brake/side lights
P 21/5 W.
3 - Reversing lights
P 21 W.
4 - Fog lamps
P 21 W.
These 4 bulbs are changed from inside the
vehicle:
open the tailgate,
remove the air extraction grille on the side
concerned,
unclip the light harness,
5 - Direction indicators
PY 21 W (amber).
Turn the bulb holder a quarter of a turn to
the left and remove it.
Change the bulb.
The headlamps are fitted with
polycarbonate glass with a protective
coating. Do not clean them with a dry or
abrasive cloth, nor with a detergent or
solvent product. Use a sponge and soapy
water.
In certain climatic conditions (low
temperature, humidity), condensation inside
the headlamp glass is normal; it disappears a
few minutes after the lights are switched on.
Direction indicator side repeaters
WY 5 W (amber).
Push the repeater rearwards and release
it from the mirror.
Hold the connector and turn the bulb
holder a quarter turn to the left.
Turn the bulb a quarter turn to the left,
remove it and change it.
When refitting, engage the repeater towards
the rear and move it towards the front of the
mirror.
Amber coloured bulbs (direction
indicators and side repeaters) must be
changed for bulbs of identical specification
and colour.
1
2
3
4
Changing a bulb
148
REAR LIGHTS
1 - Direction indicators
PY 21 W (amber).
2 - Brake/side lights
P 21/5 W.
3 - Reversing lights
P 21 W.
4 - Fog lamps
P 21 W.
These 4 bulbs are changed from inside the
vehicle:
open the tailgate,
remove the air extraction grille on the side
concerned,
unclip the light harness,
5 - Direction indicators
PY 21 W (amber).
Turn the bulb holder a quarter of a turn to
the left and remove it.
Change the bulb.
The headlamps are fitted with
polycarbonate glass with a protective
coating. Do not clean them with a dry or
abrasive cloth, nor with a detergent or
solvent product. Use a sponge and soapy
water.
In certain climatic conditions (low
temperature, humidity), condensation inside
the headlamp glass is normal; it disappears a
few minutes after the lights are switched on.
Direction indicator side repeaters
WY 5 W (amber).
Push the repeater rearwards and release
it from the mirror.
Hold the connector and turn the bulb
holder a quarter turn to the left.
Turn the bulb a quarter turn to the left,
remove it and change it.
When refitting, engage the repeater towards
the rear and move it towards the front of the
mirror.
Amber coloured bulbs (direction
indicators and side repeaters) must be
changed for bulbs of identical specification
and colour.
TROUBLESHOOTING
7
149
Changing a bulb
NUMBER PLATE LIGHTS
W 5 W
Remove the lens.
Change the faulty bulb.
THIRD BRAKE LIGHT
5 W 5 W bulbs
Remove the tailgate upper trim by
unclipping it on each side.
Squeeze the two tabs 1 to release the
bulb holder.
Change the faulty bulb.
When refitting, ensure that the tailgate
upper trim has been put back in place
correctly.
unscrew the two interior nuts and remove
the light,
unscrew the bulb holder concerned an
eighth turn to the left and remove it,
unscrew the faulty bulb
an eighth turn to
the left and change it.
When refitting:
take care to position the bulb correctly and
press on it to engage it,
take care to position the bulb holder
correctly and screw it in an eighth of a turn
to the right,
take care to position and secure the light
correctly.
When two or more bulbs are faulty, you
must replace them immediately.
A
150
CHANGING A FUSE
The fuse boxes are located in:
- the instrument panel lower glove box (right-
hand side),
- the battery compartment (right-hand side
floor),
- the engine compartment.
The spare fuses and special pliers A are
fixed to the inside of the lid of the instrument
panel fuse box.
Removing and changing a fuse
Before changing a fuse you must establish
the cause of the fault and have it corrected.
The fuse numbers are indicated on the fuse
box.
Use the special pliers A.
Always change a faulty fuse for one of the
same rating.
Changing a fuse
Changing a fuse
152
BATTERY COMPARTMENT FUSES
Fuse box
The fuses are located in the battery
compartment, housed underneath the floor
in front of the seat on the right-hand side:
unclip the cover.
Carefully close the cover when you have
finished.
Changing a fuse
TROUBLESHOOTING
7
153
N° Rating Functions
(Amps)
1* 40 Electric sliding side door.
2 40 Electric sliding side door.
3* - Not used.
4* 40 Trailer fuse box.
* The maxi-fuses provide additional protection for the electrical systems.
All work must be carried out by a PEUGEOT dealer.
31 5 Main brake switch.
32 25 Driver’s seat memorisation.
33 25 Passenger’s seat memorisation.
34 20 Sunroof row 3.
35 20 Sunroof row 2.
36 10 Passenger’s heated seat.
37 10 Driver’s heated seat.
38 15 Main beam headlamps (xenon bulb).
39 20 12 V accessories socket row 3.
40 20 12 V accessories socket row 2.
Changing a fuse
154
N° Rating Functions
(Amps)
1* 50 Air conditioning blowers.
2* 40 Braking system (ABS/ESP).
3* 30 Braking system (ABS/ESP).
4* 60 Built-in Systems Interface supply.
5* 70 Built-in Systems Interface supply.
6* 20 Additional heating (Diesel).
7* Not used.
8* Not used.
The electrical system of your vehicle is
designed to operate with standard or
optional equipment.
Before installing other electrical equipment
or accessories on your vehicle, contact a
PEUGEOT dealer.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular where the
equipment in question consumes more than
10 milliamperes.
* The maxi-fuses provide additional
protection for the electrical systems. All
work must be carried out by a PEUGEOT
dealer.
ENGINE COMPARTMENT FUSES
Fuse box
To access the fuses located in the engine
compartment (to the left of the coolant
reservoir):
unclip the cover.
Carefully close the cover when you have
finished.
Changing a fuse
TROUBLESHOOTING
7
155
N° Rating Functions
(Amps)
1 20 Engine control unit, Fuel supply and air supply systems, Fan assembly.
2 15 Horn.
3 10 Front and rear wash-wipe pump.
4 20 Headlamp wash pump.
5 15 Fuel supply system.
6 10 Power steering, Secondary brake pedal switch, Automatic gearbox control unit.
7 10 Braking system (ABS/ESP).
8 20 Starter control.
9 10 Engine control unit.
10 30 Fuel supply and air supply systems, Emission control systems.
11 40 Front air conditioning.
12 30 Windscreen wipers.
13 40 Built-in systems interface.
14 - Not used.
The designations communicated only relate to the fuses which can be changed by the user using the pliers and spare fuses, located in
the glove box behind the instrument panel fuse box, on the right-hand side. For any other work, visit a PEUGEOT dealer.
Intended for professionals: for full fuse and relay information, consult the "Methods" diagram via the Network or the INFOTEC site.
Changing a fuse
TROUBLESHOOTING
7
151
INSTRUMENT PANEL FUSES
Open the lower glove box on the right-hand side
Pull the handle to open the cover and access the fuses.
N° Rating Functions
(Amps)
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manual air conditioning, Clutch switch,
Headlamp beam height, Particle emission filter pump, Electrochromatic interior mirror.
5 30 Electric mirrors, Electric window motor.
6 30 Front electric windows supply, Sunroof row 1.
7 5 Courtesy lights, Glove box light, Courtesy mirror lights.
8 20 Multifunction display, Anti-theft alarm siren, Audio equipment, Compact disc changer,
Audio/telephone, Trailer fuse box, Diesel additive control unit, Tyre under-inflation detection control unit,
Sliding doors module control unit.
9 30 Lighter.
10 15 Steering wheel switching, Trailer fuse box.
11 15 Diagnostic socket, Ignition switch, Automatic gearbox.
12 15 Driver’s seat memory unit, Passenger’s electric seat, Air bag control unit, Parking assistance control
unit, Sliding side door buttons.
13 5 Engine fuse box, Trailer fuse box.
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Sunroofs, Odometer warning lights unit,
Audio-telematics control.
15 30 Locking/unlocking/deadlocking of the accesses.
16 - Not used.
17 40 Heated rear screen.
Changing a wiper blade
156
CHANGING A WINDSCREEN
WIPER BLADE
Placing the wiper blades in the
special position
Less than a minute after switching off
the ignition, operate the wipers stalk
to position the wiper blades along the
windscreen uprights (special position).
Changing a front wiper blade
Lift the wiper arm, then disconnect the
windscreen-wash pipe.
Unclip the blade and remove it.
Fit the new blade.
Reconnect the windscreen-wash pipe and
push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk.
Changing the rear wiper blade
Lift the wiper arm, then unclip the blade
and remove it.
Fit the new blade and push back the
wiper arm.
Having your vehicle towed
TROUBLESHOOTING
7
157
From the rear
Unclip the top of the cover using a coin,
Screw in the removable towing eye until
it locks.
Lifting (2 wheels on the road only)
It is preferable to raise the vehicle using
professional lifting equipment.
TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)
You should always use a towbar.
The removable towing eye is inside the
engine compartment.
From the front
Unclip the cover by pressing the bottom
part.
Screw in the removable towing eye until
it locks.
Special features of the automatic
gearbox
When being towed with four wheels on the
road, it is essential to observe the following
rules:
selector lever in position N,
tow the vehicle at a speed below 30 mph
(50 km/h) over a distance limited to
30 miles (50 km) maximum,
do not add oil to the gearbox.
When towing with the engine switched off,
there is no braking or steering assistance.
Petrol technical data
158
This table presents the Petrol and Diesel Model Codes
Engine, __xxx__ Petrol 2 litre 16V __RFJ__
Diesel 2 litre HDI 16V __RHK__
2 litre HDI 16V PEF __RHT__
__RHM__ __RHR__
2.2 litre HDI 16V PEF __4HW__
Number of seats, xx_____ 7 seats maximum EA_____
Base model: 5 individual seats 8 seats maximum EB_____
Type of gearbox, _____xx Manual _____C/IF
(5-speed) _____B
(6-speed) _____G
(6-speed) _____H
Automatic _____F/IF_____E
Category and type of towing device A 50 X
Part number, instructions concerning
fitting
R 06-0049
PETROL ENGINES
Model codes E_RFJ__
Engines 2 litre 16V
Manual (5-speed) Automatic (4-speed)
Capacity (cm
3
) 1 997
Bore x stroke (mm) 85 x 88
Number of valves 16
Max. power: EU standard (KW) 103
Max. power engine speed (rpm) 6 000
Max torque: EU standard (Nm) 190
Max. torque engine speed (rpm) 4 100
Fuel RON 95 - RON 98
Catalytic converter Yes
Electronic injection Yes
Oil capacities (in litres)
Engines (with filter replacement) 5.0
DIESEL ENGINES
Model codes E_RHKH* E_RHTB E_RHME E_RHRH* E_4HWG
Engines 2 litre HDi 16V 2 litre HDi 16V PEF
2 litre HDi 16V PEF
2.2 litre HDi 16V PEF
Manual
(6 speed)
Manual
(5 speed)
Automatique
(4 speed)
Manual
(6 speed)
Manual
(6 speed)
Capacity (cm
3
) 1 997 1 997 1 997 2 179
Bore x stroke (mm) 85 x 88 85 x 88 85 x 88 85 x 96
Number of valves 16 16 16 16
Max. power: EU standard (KW) 88 79 100 94
Max. power engine speed (rpm) 4 000 4 000 4 000 4 000
Max. torque: EU standard (Nm) 300 270 250 320/340 314
Max. torque engine speed (rpm) 2 000 1 750 2 000 2 000
Fuel Diesel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes Yes
Particle emission filter (PEF) No Yes Yes Yes
Electronic injection Yes Yes Yes Yes
Oil capacities (in litres)
Engines (with filter replacement) 5 4.50 5 4.75
Petrol technical data
162
* During the year, for more information, consult the INFOTEC site at the address: http://public.infotec.peugeot.com
Petrol technical data
158
This table presents the Petrol and Diesel Model Codes
Engine, __xxx__ Petrol 2 litre 16V __RFJ__
Diesel 2 litre HDI 16V __RHK__
2 litre HDI 16V PEF __RHT__
__RHM__ __RHR__
2.2 litre HDI 16V PEF __4HW__
Number of seats, xx_____ 7 seats maximum EA_____
Base model: 5 individual seats 8 seats maximum EB_____
Type of gearbox, _____xx Manual _____C/IF
(5-speed) _____B
(6-speed) _____G
(6-speed) _____H
Automatic _____F/IF_____E
Category and type of towing device A 50 X
Part number, instructions concerning
fitting
R 06-0049
PETROL ENGINES
Model codes E_RFJ__
Engines 2 litre 16V
Manual (5-speed) Automatic (4-speed)
Capacity (cm
3
) 1 997
Bore x stroke (mm) 85 x 88
Number of valves 16
Max. power: EU standard (KW) 103
Max. power engine speed (rpm) 6 000
Max torque: EU standard (Nm) 190
Max. torque engine speed (rpm) 4 100
Fuel RON 95 - RON 98
Catalytic converter Yes
Electronic injection Yes
Oil capacities (in litres)
Engines (with filter replacement) 5.0
TECHNICAL DATA
Petrol technical data
159
8
The consumption values, presented here, are the values communicated at the time of printing. These consumption values were
established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style of driving, traffic conditions,
weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the accessories.
PETROL CONSUMPTION As per EC Directive 80/1268 (as amended) in MPG (litres/100 km)
Model
codes
Engines Gearbox Urban
driving
Extra-urban
driving
Urban
Mixed
Emission
by mass (g/km)
of CO
2
E_RFJ__ 2 litre 16V Manual 23.0 (12.3) 38.7 (7.3) 31.0 (9.1) 218
Automatic 20.6 (13.7) 38.7 (7.3) 29.4 (9.6) 230
DIESEL CONSUMPTION As per EC Directive 80/1268 (as amended) in MPG (litres/100 km)
Model codes Engines Gearbox
Urban
driving
Extra-urban
driving
Urban
Mixed
Emission
by mass (g/km)
of CO
2
E_RHKH* 2 litre HDi 16V Manual 6 32.1 (8.8) 48.7 (5.8) 40.9 (6.9) 182
E_RHTB
E_RHME
2 litre HDi Manual 5 30.1 (9.4) 47.9 (5.9) 39.2 (7.2) 189
16V PEF Automatic 26.2 (10.8) 44.1 (6.4) 35.3 (8.0) 210
E_RHRH*
2 litre HDi
16V PEF
Manual 6 31.1 (9.0) 47.1 (6.0) 39.8 (7.1) 188
E_4HWG
2.2 litre HDi 16V
PEF
Manual 6 29.1 (9.7) 46.3 (6.1) 38.7 (7.3) 195
The consumption values, presented here, are the values communicated at the time of printing. These consumption values were
established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style of driving, traffic conditions,
weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of accessories.
* During the year, for more information, consult the INFOTEC site at the address: http://public.infotec.peugeot.com
Petrol technical data
TECHNICAL DATA
8
163
Petrol technical data
160
PETROL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)
Model codes EARFJ__ EBRFJ__
7 seats 8 seats
manual auto manual auto
Engines 2 litre 16V
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1 850
Height at kerb weight
without roof bars 1 745 to 1 759
with fixed roof bars 1 854 to 1 863
Kerb weight 1 738 to 1 825 1 766 to 1 863 1 706 to 1 875 1 734 to 1 904
on Axle 1 1 018 to 1 043 1 046 to 1 081 1 014 to 1 060 1 044 to 1 090
on Axle 2 720 to 782 720 to 782 692 to 815 690 to 814
Model codes EARFJ__ EBRFJ__
manual auto manual auto
7 seats 8 seats
Engines 2 litre 16V
Gross train weight (GTW) 3 705 3 635 3 705 3 635
Gross vehicle weight (GVW) 2 405 2 435 2 405 2 435
Gross weight
on Axle 1 1 270
on Axle 2 1 300
Gross towed weight 1 750 1 650 1 700 1 600
Gross weight of unbraked
trailer
750
Gross weight
on towing attachment
76
TECHNICAL DATA
Petrol technical data
161
8
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned must be
reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when the exterior
temperature is above 37 °C, restrict the towed weight.
DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)
Model codes EARHKH* EBRHKH* EARHTB EBRHTB EARHRH*
EBRHRH*
EA4HWG EB4HWG
EARHME EBRHME
7 seats 8 seats 7 seats 8 seats 7 seats 8 seats 7 seats 8 seats
Engines 2 litre HDi 16V 2 litre HDi 16V PEF 2 litre HDi 16V PEF 2.2 litre HDi 16V PEF
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1 850
Height at kerb weight
without roof bars 1 745 to 1 759
with fixed roof bars 1 854 to 1 863
Kerb weight
1 846
to
1 949 1 811
to
1 976 1 785
to
1 900 1 743
to
1 916 1 854
to
1 957
1 818 to 1 983
1 825
to
1 940 1 783
to
1 950
on Axle 1
1 117
to
1 153 1 114
to
1 158 1 061
to
1 099 1 057 to 1 123 1 121
to
1 157
1 117 to 1 161
1 086
to
1 124 1 082
to
1 144
on Axle 2
729 to 796 697 to 818 724 to 801 686 to 793 733 to 800 701 to 822 739 to 816 701 to 806
Petrol technical data
164
* During the year, for more information, consult the INFOTEC site at the address: http://public.infotec.peugeot.com
Model codes EARHKH* EBRHKH* EARHTB
EARHME
EBRHTB
EBRHME
EARHRH* EBRHRH* EA4HWG EB4HWG
7 seats 8 seats 7 seats 8 seats 7 seats 8 seats
7
seats 8 seats
Engines 2 litre HDi 16V 2 litre HDi 16V PEF 2 litre HDi 16V PEF 2.2 litre HDi 16V PEF
Gross train weight (GTW) 3 875 3 850 3 945 3 880
Gross vehicle weight (GVW) 2 530 2 505 2 530 2 505
on Axle 1 1 253 1 259 1 216 1 218 1 256 1 263 1 233 1 245
on Axle 2 1 277 1 271 1 289 1 287 1 274 1 267 1 272 1 260
Gross weight
on Axle 1 1 270 1 270 1 250 1 250 1 270 1 270 1 250 1 250
on Axle 2 1 300 1 300 1 300 1 300 1 300 1 300 1 350 1 350
Gross towed weight*
1 820 1 800 1 850
Gross weight of unbraked
trailer
750 750 650 650 750 750 650 650
Gross weight
on towing attachment
73 72 76 76 76 76 76 76
Petrol technical data
TECHNICAL DATA
8
165
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned must be
reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when the exterior
temperature is above 45 °C, restrict the towed weight.
* During the year, for more information, consult the INFOTEC site at the address: http://public.infotec.peugeot.com
Dimensions
166
DIMENSIONS (IN MM)
To find out more about dimensions,
refer to "Dimensions, weights and
towing loads" for both petrol and diesel
engines in the "Technical data" chapter.
TECHNICAL DATA
8
167
Dimensions
4727
28231013 891
2273
Dimensions
168
A
B
C
IDENTIFICATION FEATURES
the wheel and tyre sizes,
the brands of tyres approved by the
manufacturer,
the tyre pressures (the tyre pressure
must be checked when the tyre is cold,
at least once a month),
the paint colour reference.
A. Manufacturer’s plate.
B. Model serial number.
C. Tyres and paint colour reference.
The label C on the driver’s door gives:
Identification features
169
TECHNICAL DATA
8
