OWNER’S MANUAL
FRENCH DOOR
REFRIGERATOR
Please read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
LMX28994
**
P/No.: MFL62184507
www.lg.com
ENGLISH FRANÇAIS ESPAÑOL
2
IMPORTANT SAFETY INFORMATION
Basic Safety Precautions ........................................3
CFC Disposal ..........................................................4
How to Connect Electricity ......................................5
PARTS AND FEATURES
Special Features .....................................................6
Key Parts and Components ....................................7
INSTALLATION
Choose the Proper Location ...................................8
Clearances ..............................................................8
Flooring ...................................................................9
Handle Removal......................................................9
Refrigerator Door Removal and Renistallation......10
Converta Drawer Removal And Reinstallation......14
Freezer Drawer Removal And Reinstallation ........16
Connecting the Water Supply ...............................18
Connecting the Water Lines..................................19
Leveling the Refrigerator Doors ............................20
Starting..................................................................21
HOW TO USE
Control Panel Features .........................................22
Adjusting the Temperatures and Display .............24
Operating the Dispenser ......................................25
Setting the Functions ...........................................26
Spaceplus Ice System ..........................................28
Automatic Icemaker .............................................29
Storing Foods .......................................................30
Using the Converta Drawer ..................................31
Location of Foods .................................................32
Shelf Height Adjustment .......................................33
Removing and Replacing Components ................34
CARE AND CLEANING
Cleaning the Refrigerator .....................................38
General Information .............................................38
Replacing the Water Filter.....................................39
TROUBLESHOOTING
Before Calling for Service …………………………44
SPECIFICATIONS
Key Dimensions and Specifications .....................50
WARRANTY
Product Registration Information ..........................51
THANK YOU!
Congratulations on your purchase
and welcome to the LG family.
Your new LG French Door
Refrigerator combines
advanced cooling technology
with simple operation and high
efficiency. Follow the operating
and care instructions in this
manual and your refrigerator
will provide you with many years
of reliable service.
ENGLISH
3
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all
safety messages.
w This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill
or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety
alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:
wDANGER
You might be killed or seriously injured if you don’t follow instructions.
wWARNING
You can be killed or seriously injured if you don’t follow instructions.
wCAUTION
Indicates an imminently hazardous situation which, if not avoided, may
result in minor or moderate injury, or product damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
wWARNING
To reduce the risk of fire, electric shock, or
injury to persons when using your product,
basic safety precautions should be followed,
including the following.
Read all instructions before using this appliance.
• NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull it
straight out from the outlet.
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion damage along its length or at either the
plug or connector end.
• When moving your refrigerator away from the wall,
be careful not to roll over or damage the power cord.
• DO NOT store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
• DO NOT allow children to climb, stand, or hang on
the refrigerator doors or shelves in the refrigerator.
They could damage the refrigerator and seriously
injure themselves.
• Keep fingers out of pinch point areas; clearances
between the doors and cabinet are necessarily
small. Be careful closing doors when children are
in the area.
• Unplug your refrigerator before cleaning or making
any repairs.
NOTE: Service should be performed by a qualified
technician.
• Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker
or fuse box in order to avoid contact with a live wire
filament. (A burned-out light bulb may break when
being replaced.)
NOTE: Some models have LED interior lighting and
service should be performed by a qualified
technician.
NOTE: Setting either or both controls to the OFF
position does not remove power to the light circuit.
• When you are finished, reconnect the refrigerator to
the electrical source and reset the control
(Thermostat Refrigerator Control, or Freezer
Control, or Freezer Control, depending on the
model) to the desired setting.
• This refrigerator must be properly installed in
accordance with the Installer Instructions that
were taped to the front of the refrigerator.
• After your refrigerator is in operation, do not touch
the cold surfaces in the freezer compartment when
hands are damp or wet. Skin may adhere to the
extremely cold surfaces.
• In refrigerators with automatic icemakers, avoid
contact with the moving parts of the ejector
mechanism or with the heating element that
releases the cubes. DO NOT place fingers or hands
on the automatic icemaking mechanism while the
refrigerator is plugged in.
• Do not modify or extend the power cord length.
It will cause electric shock or fire.
4
BASIC SAFETY PRECAUTIONS
(CONT.)
• Do not use drier to dry the inside, nor light a candle
to remove odor.
• Install in places away from the fire such as the place
where flammable gas is leaked.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
• DO NOT refreeze frozen foods which have
thawed completely. The United States
Department of Agriculture in Home and Garden
Bulletin No. 69 says:
…You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are
still cold—below 40°F (4°C).
…Thawed ground meats, poultry, or fish that have
any off-odor or off-color should not be refrozen
and should not be eaten. Thawed ice cream
should be discarded. If the odor or color of any
food is poor or questionable, dispose of it. The
food may be dangerous to eat.
Even partial thawing and refreezing reduces the
quality of foods, particularly fruits, vegetables,
and prepared foods. The eating quality of red
meats is affected less than that of many other
foods. Use refrozen foods as soon as possible to
save as much of their quality as you can.
Risk of Child Entrapment
Discarded or abandoned refrigerators are
dangerous, even if they will sit for just a few
days. If you are disposing of your old refrigerator,
please follow the instructions below to help prevent
accidents.
Before you throw away your old refrigerator or
freezer:
• Take off the doors.
• Do not leave the shelves in
place, as children may climb
inside.
• Turn the discarded
refrigerator on its long side
to make it less likely to turn
over and fail on someone.
CFC DISPOSAL
Your old refrigerator may have a cooling system
that used CFCs (chlorofluorocarbons). CFCs are
believed to harm stratospheric ozone.
If you are throwing away your old refrigerator,
make sure the CFC refrigerant is removed for
proper disposal by a qualified servicer.
If you intentionally release this CFC refrigerant, you
can be subject to fines and imprisonment under
provisions of environmental legislation.
wWARNING
Keep away from moving drawers.
• Small children can be knocked down.
• Fingers and toes can be injured.
Use child lock in households with children.
( For further information refer to page 23. )
Do not sit or climb on
drawers.
• The refrigerator can tip over.
ENGLISH
5
HOW TO CONNECT ELECTRICITY
IMPORTANT: Please read carefully.
wWARNING
Electrical Shock Hazard
For personal safety, this appliance must be
properly grounded. Have the wall outlet and
the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into
its own individual properly grounded electrical
outlet rated for 120 volts, 60 Hz, AC only, and
fused at 20 amperes. This provides the
best performance and also prevents overloading
house wiring circuits which could cause a fire
hazard from overheated wires. It is
recommended that a separate circuit serving
only this appliance be provided.
Use a receptacle which cannot be turned off with
a switch or pull chain. Do not use an extension
cord. Where a standard two-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded three-prong wall outlet.
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not use an adapter plug.
NOTE: Some models have LED interior lighting and
service should be performed by a qualified technician.
When you are finished, reconnect the refrigerator to
the electrical source and reset the control
(Thermostat, Refrigerator Control, or Freezer Control,
depending on the model) to the desired setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an extension cord.
However, if you still elect to use an extension
cord, it is absolutely necessary that it be a UL-listed
(USA), 3-wire grounding-type appliance
extension cord having a grounding-type plug
and outlet and that the electrical rating of the
cord be 20 amperes (minimum) and 120 volts.
Use of an extension cord will increase the
clearance needed for the back of the
refrigerator.
SAVE THESE INSTRUCTIONS
6
SPECIAL FEATURES
CONTROL PANEL LED DISPLAY SCREEN
Simple electronic controls are user-friendly. The LED
screen shows refrigerator and freezer temperatures,
displays water filter status, dispenser information, and
more.
ICE PLUS
When this feature is activated, the freezer section will
run at the coldest temperature for a 24- hour period to
increase ice production.
FILTERED WATER AND ICE DISPENSER
The water dispenser offers fresh, chilled, filtered
water through the door. The ice dispenser offers
cubed or crushed ice.
DOOR ALARM
A warning alarm sounds at 30-second intervals when
the refrigerator or freezer door is left open for more
than 60 seconds.
CONVERTA DRAWER CONTROL PANEL
The Converta Drawer has three adjustable
temperature settings: FROZEN FOOD, SOFT
FREEZE AND FRESH FOOD.
SPACEPLUS ICE SYSTEM
The icemaker automatically produces 80–130 ice
cubes in a 24-hour period to keep the ice dispenser
fully supplied. The in-door design creates more shelf
space.
CRISPERS
LG’s crispers preserve humidity and help
vegetables stay crisp.
GLIDE‘N’SERVE
Provides storage space with a variable
temperature control that keeps
the compartment colder than refrigerator.
MULLION
The door mullion folds in when the left
door is opened.
AUTO CLOSING HINGE
When you slightly push the door of the refrigerator,
it is automatically closed. (The door is automatically
closed within 30° of the opening angle.)
1
2
3
4
5
6
7
8
9
10
1
2
4
3
5
6
9
10
7
8
7
KEY PARTS AND COMPONENTS
In addition to the special features and components outlined in the Special Features section,
there are several other important components that are referenced in this manual.
ENGLISH

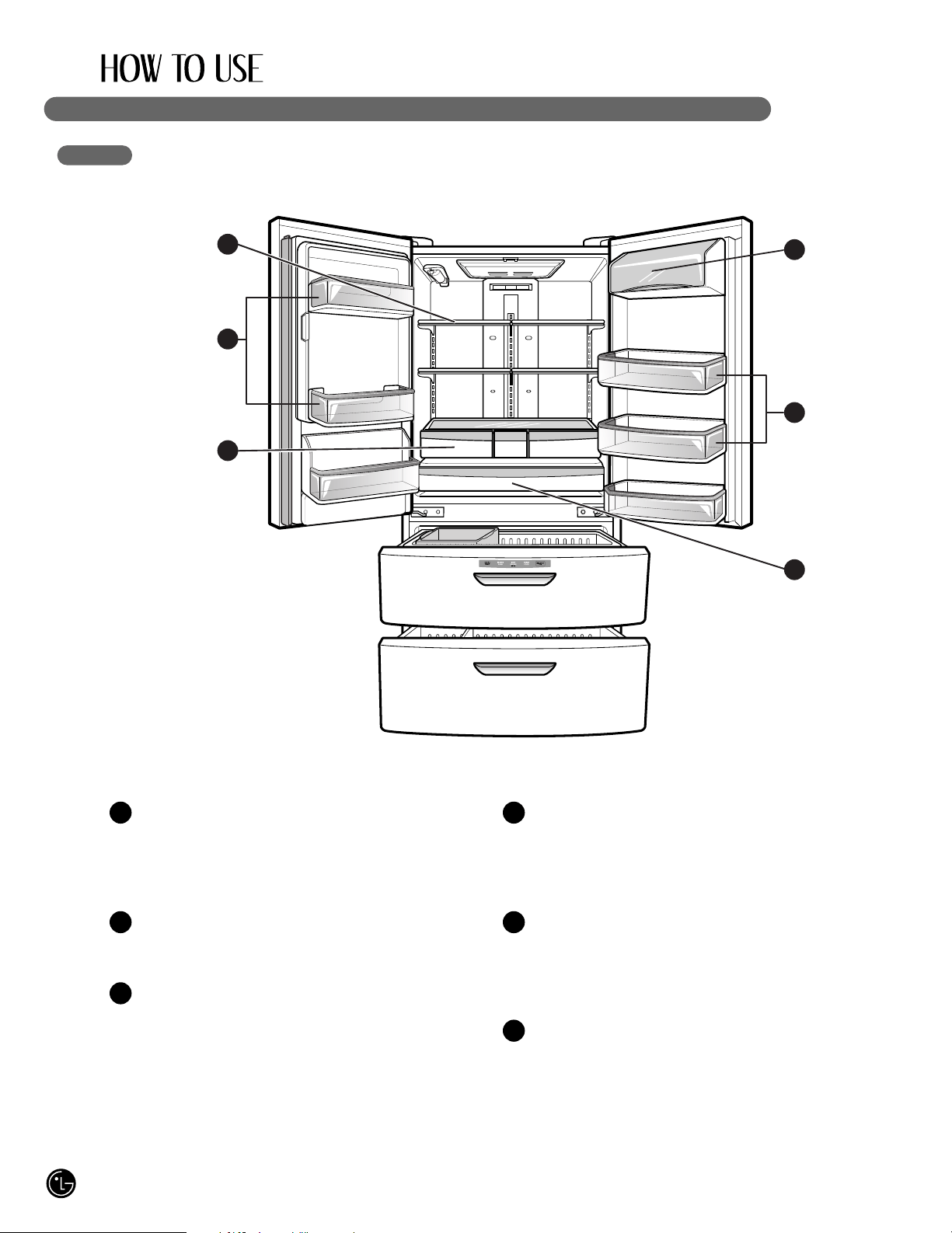

ADJUSTABLE REFRIGERATOR SHELVING
The shelves in your refrigerator are adjustable
to meet your individual storage needs.
GALLON STORAGE BINS
Two interchangeable bins can be arranged to
suit your storage needs.
REMOVABLE ICE STORAGE BIN
The ice storage bin can be removed to fill ice
buckets, coolers, or pitchers.
LED INTERIOR LAMPS
Three separate LED arrays light the freezer and
refrigerator interiors.
CAN STORAGE BIN
FIXED DOOR BINS
1
2
4
5
3
6
3
5
6
6
1
4
4
2
4
8
CHOOSE THE PROPER LOCATION
wWARNING
Excessive Weight Hazard
Two or more people are required when
moving and unpacking the appliance.
• Store and install the refrigerator where it will not
be exposed to temperatures below freezing or
exposed to outdoor weather conditions.
• Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or too high, cooling ability may be
adversely affected.
• If this refrigerator is installed where the
temperature is above 110°F (43°C), the
freezing capacity is compromised and the cost
of electricity used increases.
• To reduce the risk of electric shock, do not
install the refrigerator in a wet or damp area.
• Select a place where a water supply can be
easily connected for the automatic icemaker
and dispenser.
• Unstable installation may cause vibration and
noise. If the floor is not even, make the
refrigerator level by rotating the height adjusting
screws.
• Properly ground the refrigerator to conform with
all governing codes and ordinances.
wCAUTION
Avoid placing the unit near heat sources,
direct sunlight, or moisture.
CLEARANCES
• Too small a distance from adjacent items may
result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 in. (61 cm) in front of the
refrigerator to open the doors.
NOTE: For complete dimensions and specifications,
see page 50.
2" (5.08 cm)
ENGLISH
9
FLOORING
• To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
• To avoid vibration, the unit must be level.
If required, adjust the leveling legs to compensate
for unevenness of the floor. The front should be
slightly higher than the rear to aid in door
closing. The leveling legs can be turned easily
by pushing against the top of the refrigerator to
take the weight off the feet. Turn the leveling
legs clockwise to raise the unit or
counterclockwise to lower it.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the refrigerator on a platform or
weakly supported structure.
NOTE: When moving the refrigerator for cleaning
or service, be sure to protect the floor. Always
pull the refrigerator straight out when moving it.
Do not wiggle or walk the refrigerator when trying
to move it; floor damage could occur.
HANDLE REMOVAL
NOTE: Handle appearance may vary from illustrations on this page.
wCAUTION
• Use special care when removing handles to
prevent scratching the doors.
• The handle could be damaged if you hit it with
a hammer while removing or attaching.
• When you assemble or disassemble a handle,
you must push or pull with reasonable force.
NOTE: It is recommend that the doors be removed when it is necessary to move the refrigerator through a
narrow opening.
Loosen the set screws with a 2.5 mm (3/32") Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners need
to be tightened or removed, use a 1/4" Allen
wrench.
Mounting
Fasteners
Set Screw
Allen Wrench
10
HANDLE REMOVAL
(CONT.)
HANDLE REINSTALLATION
REFRIGERATOR DOOR REMOVAL AND REINSTALLATION
REFRIGERATOR DOOR REMOVAL
wWARNING
Electric Shock Hazard
• Disconnect electrical supply to the refrigerator
before installing. Failure to do so could result in
death or serious injury.
• Do not put hands or feet or metal sticks into the air
vents, base grille, or bottom of the refrigerator.
You may be injured or receive an electrical shock.
• Be careful when you work with the hinge, base
grille, and stopper. You may be injured.
Before you begin, remove food and bins from the
doors.
If your entrance door is too narrow for the refrigerator
to pass through, remove the refrigerator door and
move the refrigerator sideways through the doorway.
wWARNING
When the customer takes apart the handle or
assemble it from a refrigerator, please be cautious of
following things.
• Hold the handle with your own hand to make sure
not to drop the handle to the floor or instep while
taking apart the handle from a refrigerator.
• Do not swing the handle towards people or animals
after taking apart the handle.
• Insert the bracket hole of the handle into the stopper
bolt of the door exactly, and then assemble the set
screws to fix the handle.
• Check if there's any gap between the door and
handle after fixing the handle.
Place the handle on the door by aligning handle
footprints to fit mounting fasteners and tightening
the set screws with a 2.5 mm (3/32
"
) Allen
wrench.
NOTE: If the handle mounting fasteners need to
be tightened or removed, use a 1/4
"
Allen wrench.
To remove the left refrigerator door:
You might want to suggest turning the water
off before doing this.
Pull the water tube out of the fitting while
pressing the release ring on the fitting.
NOTE : When you pull out the tube, first you
have to push the collet by opposite direction
of arrow in the upper picture and pull the tube
out by direction of arrow.
1
Mounting
Fasteners
Collet
11
REFRIGERATOR DOOR REMOVAL AND REINSTALLATION
(CONT.)
REFRIGERATOR DOOR REMOVAL
(CONT.)
ENGLISH
• Open the door. Remove the top hinge cover
screw (1).
• Use a flat blade screwdriver to lift the tabs
on the front underside of the cover(2). Lift up
the cover.
• Remove the cover. Pull out the tube (3).
• Disconnect all the wire harnesses (4).
• Remove the grounding screw(5).
• Rotate hinge lever (6) counterclockwise.
Lift the top hinge (7) free of the hinge lever
latch (8).
IMPORTANT: When lifting the hinge free of
the latch, be careful that the door does not fall
forward.
• Lift the door from the middle hinge pin and
remove the door.
• Place the door, inside facing up, on a non-
scratching surface.
(1)
(2)
(4)
(3)
(6)
(7)
(8)
(5)
2 To remove the right refrigerator door:
• Open the door. Remove the top hinge cover
screw (1). Lift up the cover (2).
• Remove the cover.
• Rotate the hinge lever (3) clockwise.
Lift the top hinge (4) free of the hinge lever
latch (5).
IMPORTANT: When lifting the hinge free of
the latch, be careful that the door is heavy
and may fall forward.
• Lift the door from the middle hinge pin and
remove the door.
• Place the door, inside facing up, on a non-
scratching surface.
(1)
(2)
(3)
(4)
(5)
3
12
REFRIGERATOR DOOR REMOVAL AND REINSTALLATION
(CONT.)
REFRIGERATOR DOOR REINSTALLATION
Install the right-side door first.
• Lower the door onto the middle hinge pin as
shown.
• Make sure the plastic sleeve is inserted in
the bottom of the door.
1 • Fit the top hinge (1) over the hinge lever
latch (2) and into place. Rotate the lever
(3) counterclockwise to secure the hinge.
• Hook the tab on the door-switch side of the
cover (4) under the edge of the wire opening
in the cabinet top. Position the cover into
place. Insert and tighten the cover screw (5).
(3)
(2)
(1)
(5)
(4)
2
Install the left-side door.
• Lower the door onto middle hinge pin.
3 • Fit the top hinge (1) over the hinge lever
latch (2) and into place. Rotate the lever (3)
clockwise to secure the hinge.
• Install the grounding screw (4) and connect
all the wire harnesses (5).
(2)
(1)
(3)
(4)
(5)
4
13
REFRIGERATOR DOOR REMOVAL AND REINSTALLATION
(CONT.)
REFRIGERATOR DOOR REINSTALLATION
(CONT.)
ENGLISH
• Push the water supply tube (6) into the hole
on the top case and pull it through the
backplate.
(6)
5 Insert the water supply tube into the
connector.
• Insert the tube at least 5/8 in. (15 mm) into
the connector.
• Hook the tab on the door-switch side of the
cover under the edge of the wire opening in
the cabinet top. Position the cover into
place. Insert and tighten the cover screw.
6
Cover
Cover Screw
wCAUTION

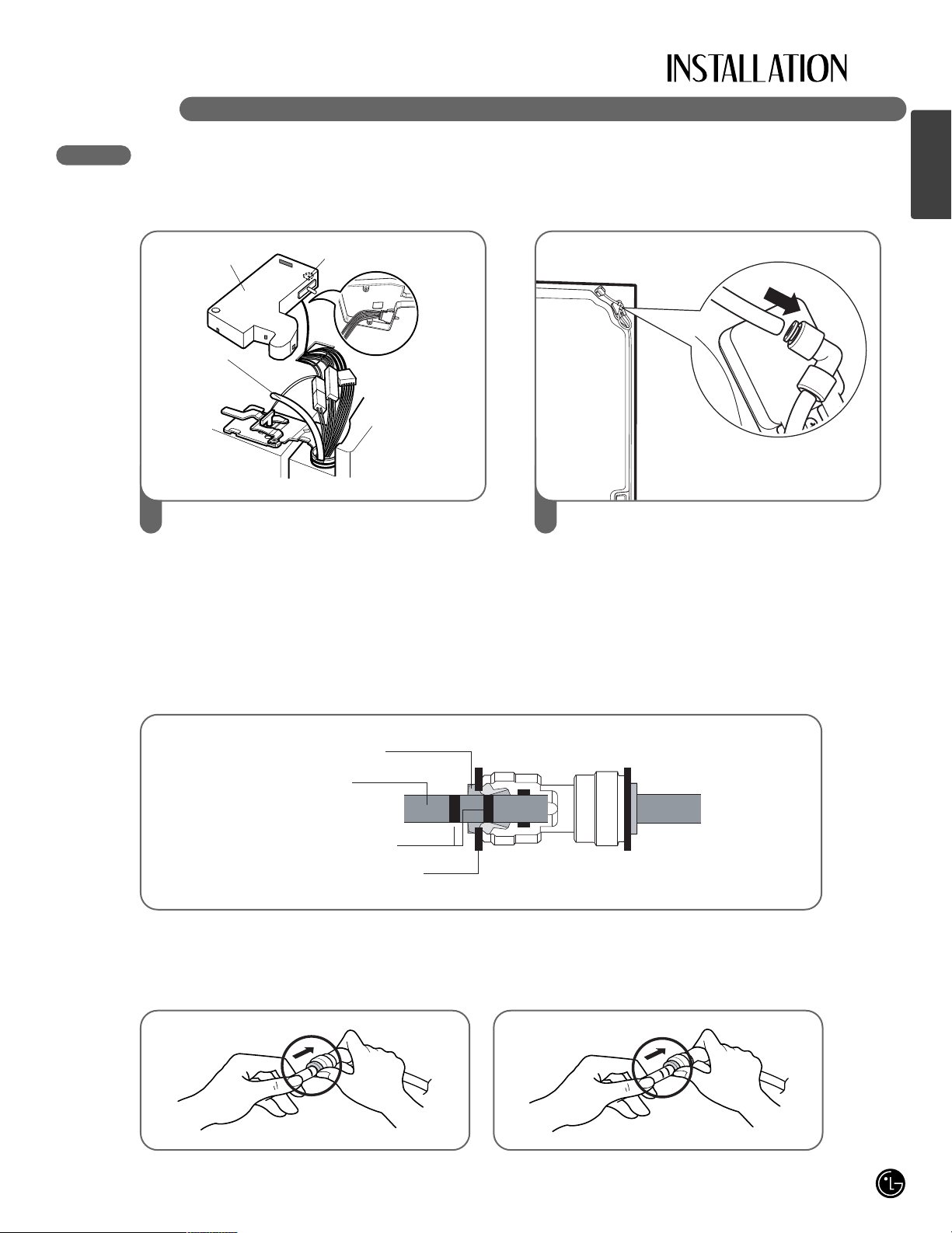

1. Insert the tube until you can see only one of the lines printed on the tube.
2. After inserting, pull the tube to ascertain that it is secure.
3. Insert the safety clip under the collet.
Collet
Correct Incorrect
Insert Line
Clip
Tube
14
CONVERTA DRAWER REMOVAL AND REINSTALLATION
CONVERTA DRAWER REMOVAL
wCAUTION
• Care should be taken to avoid product or property
damage when removing the converta drawer. It
maybe necessary to have assistance with the
following insturctions.
• To avoid damage do not hold the handle when
removing the door. It could come off and cause and
injury.
wCAUTION: When you remove the drawer, do not hold the handle. It may come off and it could cause
personal injury.
wCAUTION: When placing the drawer on the floor, care should be taken to avoid floor damage.
Remove the cover of housing by pulling
upside.
Detach the rail housing from the case.
2Fully extend the converta drawer. Lifting up
and out to remove the drawer and ice bin
making sure to clear the rail system.
1
Remove one white screw on each side of
the rails.
Holding both sides of the door pull up to
separate the door from the rails.
1
3 With both hands, bend the center bar just
enough to allow the gears on both ends to
release from their tracks.
54
CONVERTA DRAWER
ENGLISH
15
CONVERTA DRAWER REMOVAL AND REINSTALLATION
(CONT.)
CONVERTA DRAWER REINSTALLATION
wCAUTION
• To avoid possible injury or product or property
damage, you will need two people to perform the
following instructions. It maybe necessary to have
assistance with the following instructions.
wWARNING
Risk of Child Entrapment
• To prevent accidental child and pet entrapment
or suffocation risk, DO NOT allow them to play
inside of the converta drawer.
• DO NOT step or sit on the converta drawer.
wWARNING: To prevent accidental child and pet entrapment or suffocation risk.
DO NOT allow them to play inside of drawer.
wWARNING: DO NOT step or sit down on converta.
To reinstall the converta drawer, place the bar
back on edge of the gears in the secure holes
on the opposite rails and pull out until the
drawer rails are fully extended.
1
Hook door supports into rail tabs .
Lower door into final position and tighten the
screws.
2
1
2
Attach the rail housing to the case.
Install the housing cover by pulling on the top.
3 With the drawer pulled out to full extension,
insert the drawer and ice bin in the rail
assembly.
4
CONVERTA DRAWER
16
FREEZER DRAWER REMOVAL AND REINSTALLATION
FREEZER DRAWER REMOVAL
wCAUTION
• Care should be taken to avoid product or property
damage when removing the freezer door. It may be
necessary to have assistance with the following
insturctions.
• To avoid damage do not hold the handle when
removing the door. It could come off and cause and
injury.
wCAUTION: When you remove the drawer, do not hold the handle. If it may come off and it could cause
personal injury.
wCAUTION: When placing the drawer on the floor, care should be taken to avoid floor damage.
Remove the cover of housing by pulling
upside.
Detach the rail housing from the case.
2Fully extend the freezer drawer. Lift up and
out to remove the Dura Base basket making
sure to clear the rail system.
1
Remove one white screw on each side of
the rails.
Hold both sides of the door pull up to separate
the door from the rails.
1
3 With both hands, bend the center bar just
enough to allow the gears on both ends to
release from their tracks.
54
FREEZER DRAWER
17
FREEZER DRAWER REMOVAL AND REINSTALLATION
(CONT.)
FREEZER DRAWER REINSTALLATION
ENGLISH
wCAUTION
• To avoid possible injury or product or property
damage, you will need two people to perform the
following instructions. It may be necessary to have
assistance with the following instructions.
wWARNING
Risk of Child Entrapment
• To prevent accidental child and pet entrapment
or suffocation risk, DO NOT allow them to play
inside of the freezer drawer.
• DO NOT step or sit on the freezer drawer.
wWARNING: To prevent accidental child and pet entrapment or suffocation risk, DO NOT allow them to play
inside of drawer.
wWARNING: DO NOT step or sit down on freezer.
To reinstall the freezer drawer, place the bar
back on edge of the gears in the secure holes
on the opposite rails and pull out until the
drawer rails are fully extended.
1
Hook door supports into rail tabs .
Lower door into final position and tighten the
screws.
2
1
2
Attach the rail housing to the case.
Install the housing cover by pulling on the top.
3 With the drawer pulled out to full extension,
insert the lower basket in the rail assembly.
4
FREEZER DRAWER
18
CONNECTING THE WATER SUPPLY
wWARNING
Connect to safe drinking water supply
only.
• The water pressure must be between 20 and
120 psi (1.4~8.4 kgf/cm
2
).
• If water pressure does not reach 20 psi
(1.4 kgf/cm
2
) or falls below, it is necessary to
purchase a separate pressure pump for normal
automatic icemaker and water dispensing operation.
• It is recommended that the total length of the water
feed tube does not exceed 26 ft. (8 m).
• Install the water supply line where it will not be
affected by heat.
• If a reverse osmosis water filtration system is
connected to your cold water supply, this water line
installation is not warranted by the refrigerator or
icemaker manufacturer. Follow next instructions
carefully to minimize the risk of expensive water
damage.
• If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs
to be a minimum of 40 to 60 psi (2.8 kgf/cm
2
~
4.2 kgf/cm
2
, less than 2.0~3.0 sec to fill a cup of
7oz capacity).
If the water pressure from the reverse osmosis
system is less than 20 psi (1.4 kgf/cm
2
, more than
4 seconds to fill a cup of 7 oz capacity):
• Check to see whether the sediment filter in the
reverse osmosis system is blocked. Replace the
filter if necessary.
• Allow the storage tank on the reverse osmosis
system to refill after heavy usage.
• If the issue about water pressure from reverse
osmosis remains, call a licensed, qualified plumber.
IMPORTANT: Read all directions thoroughly before
you begin.
• If operating the refrigerator before installing the
water connection, turn the icemaker to the OFF
position to prevent operation without water.
• All installations must be in accordance with local
plumbing code requirements.
• Use copper tubing and check for leaks.
• Install tubing only in areas where temperatures will
remain above freezing.
• It may take up to 24 hours for the icemaker to begin
producing ice.
Tools Required
• Standard screwdriver
• 7/16-in. and 1/2-in. open-end wrenches or two
adjustable wrenches
• 1/4-in. nut driver
• 1/4-in. drill bit
• Hand drill or electric drill (properly grounded)
NOTE: Refrigerator dealers offer a kit with a 1/4-in.
saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, make sure a saddle-type valve
complies with local plumbing codes.
Do not use a piercing-type or 3/16-in. saddle valve
which reduces water flow and clogs more easily.
NOTE: The Commonwealth of Massachusetts
Plumbing Code 248CMR shall be adhered to.
Saddle valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed plumber.
Cold Water Supply
• The icemaker water valve contains a flow washer
which is used as a water pressure regulator.
• The icemaker needs to be connected to a cold water
line with water pressure between 20~120 psi
(1.4~8.4 kgf/cm
2
).
19
CONNECTING THE WATER LINES
IMPORTANT: Before connecting the tubing to the water
line, unplug the refrigerator or disconnect the power.
• Turn off the main water supply and open the nearest
faucet to relieve pressure in the line. Opening an outside
faucet may help drain water from the line in the house.
• Find a 1/2-in. vertical COLD water pipe near the
refrigerator.
NOTE: A horizontal pipe will work, but the following
precaution must be taken: drill on the top of the pipe, not the
bottom. This will help keep water away from the drill and
also keep normal sediment from collecting in the valve.
• To determine the length of copper tubing you will need,
measure from the connection on the lower left rear of the
refrigerator to the water pipe. Add 7 ft. (2.1 m) to allow for
moving the refrigerator for cleaning. Use 1/4-in. O.D.
(outside diameter) copper tubing. Be sure both ends of the
copper tubing are cut square.
• Using a drill, drill a 1/4-in. hole in the cold water pipe you
have selected.
• Fasten the shutoff valve to the cold water pipe with the
pipe clamp. Be sure the outlet end is solidly in the 1/4-in.
drilled hole in the water pipe and the washer is under the
pipe clamp. Tighten the packing nut. Tighten the pipe
clamp screws carefully and evenly so the washer makes a
watertight seal.
Do not overtighten or you may crush the copper tubing,
especially if soft (coiled) copper tubing is used. Now you
are ready to connect the copper tubing.
• Slip the compression sleeve and the compression nut onto
the copper tubing as shown. Insert the end of the tubing
into the outlet end squarely as far as it will go. Screw the
compression nut onto the outlet end with a wrench. A flare
nut wrench works best, but an open-end wrench will
suffice. Do not overtighten.
• Place the free end of the tubing into a container or sink,
and turn on the main water supply. Flush out the tubing
until the water is clear. Turn off the shutoff valve on the
water pipe. Coil the copper tubing as shown below.
ENGLISH
IMPORTANT: Before connecting the tubing to the
refrigerator, be sure the refrigerator power cord is not
plugged into the wall outlet.
NOTE: If your refrigerator is equipped with an internal water
filter, an external in-line water filter should not be used.
• Remove the plastic flexible cap from the water valve.
• Place the compression nut and ferrule (sleeve) onto the
end of the tubing as shown.
• Insert the end of the copper tubing into the connection as
far as possible. While holding the tubing, tighten the fitting.
IMPORTANT: Tighten any connections that leak.
Open the water at the shutoff valve.
• Plug in the refrigerator.
• Arrange the coil of copper tubing behind the refrigerator so
it does not vibrate against the back of the refrigerator or
against the wall.
• Check for leaks.
• Before connecting the water line to house, purge the
house line for 2 minute.
NOTE: It may take a few seconds for water to begin to flow
as the internal tank fills and air clears from the lines.
• Push the refrigerator back to the wall.
• Set the icemaker switch to the ON position.
NOTE: The icemaker will not begin to operate until it
reaches its operating temperature of 15°F (-9°C).
It will then begin operation automatically.
NOTE: Throw away the first few batches of ice (about
20 pieces).
Packing
Nut
Shutoff
Valve
Compression
Sleeve
Compression
Nut
Cold Water Pipe
Pipe Clamp
Coil of Polyethelyne
or Copper Tubing
Ferrule
(Sleeve)
Refrigerator
Connection
Water
valve
Tubing
Clamp
1
/
4"
Tubing
1
/
4"
Compression
Nut
20
LEVELING THE REFRIGERATOR DOORS
wWARNING
Electrical Shock Hazard
• Be careful when you work with the hinges,
base grille, and stopper. You may be injured.
• Do not put hands, feet, or metal items into
the air vents, base grille, or the bottom of the
refrigerator. You may be injured or receive
an electrical shock.
Leveling
After installing, secure the product with the LEGS
so it does not move to the right or left.
Your refrigerator has two front leveling legs—
one on the right and one on the left. Adjust the
legs to alter the tilt from front to back or side to
side. If your refrigerator seems unsteady or you
want the doors to close more easily, adjust the
refrigerator’s tilt using the following instructions:
wCAUTION
• To avoid possible injury or product or property
damage, you will need two people to perform the
following instructions.

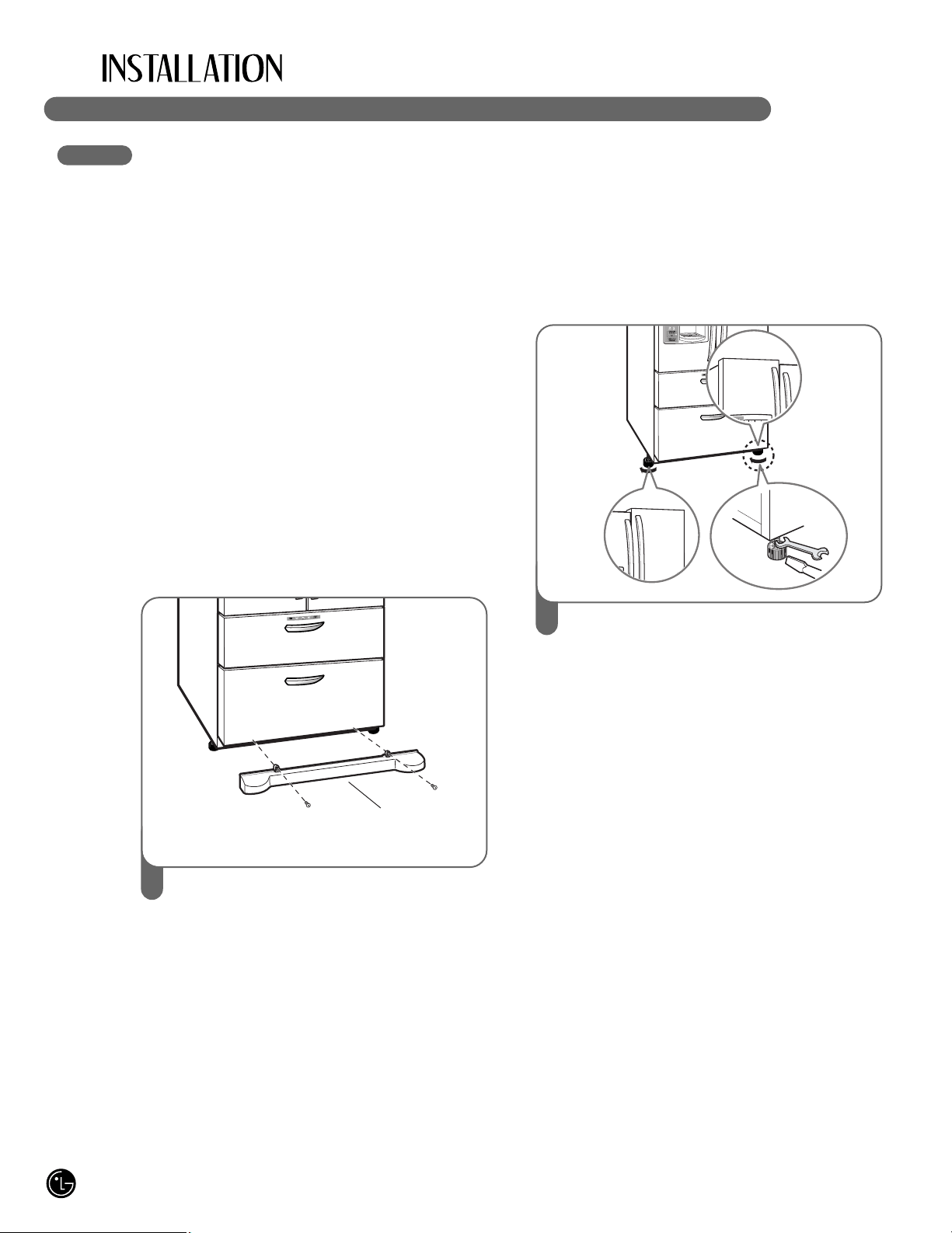

Unplug the refrigerator and move the
refrigerator into its final position. Remove the
kick plate screws and then the kick plate.
• Open the freezer drawer.
• Once the drawer is open, there is sufficient
clearance to remove the screws on top of
the kick plate.
NOTE: To replace the kick plate, place it into
position, and then insert and tighten the
screws.
1
Level the refrigerator by using an 11/16 inch
(18 mm) wrench or a flat blade screw driver.
Turn the leveling legs (counterclockwise) to
raise or (clockwise) to lower the height of the
front of the refrigerator.
NOTE: The front of the refrigerator should be
slightly higher than the back.
NOTE: If someone pushes backward against
the top of the refrigerator, weight is lifted off of
the leveling legs, which makes adjustment
easier.
Open both doors to make sure they close
easily. If not, raise the leveling legs higher by
turning both clockwise the same amount.
Once the refrigerator is level, replace the kick-
plate.
NOTE: Your new refrigerator is uniquely
designed with two fresh food doors. Either
door can be independently opened or closed.
You will have to exert slight pressure on the
doors to close them completely.
NOTE: In order not to move the refrigerator
back and forth, fix it with the 'Adjust' to the
floor to install and use.
2
Kick Plate
ENGLISH
DOOR ALIGNMENT
21
LEVELING THE REFRIGERATOR DOORS
(CONT.)
STARTING
Before loading your refrigerator with fresh foods:
• Remove tape and any temporary labels from
your refrigerator before using. To remove any
remaining adhesive residue, rub the area briskly
with your thumb, or rub a small amount of liquid
dish soap over the adhesive with your fingers.
Wipe with warm water and dry. Do not use sharp
instruments, rubbing alcohol, flammable fluids,
or abrasive cleaners to remove tape or glue.
NOTE: Do not remove any warning-type labels,
the model and serial number label, or the tech
sheet that is taped to the back of the refrigerator.
• Thoroughly clean your refrigerator and wipe off all
dust that may have accumulated during shipping.
• Install accessories such as the ice cube bin,
drawers, and shelves in their proper places.
They are packed together to prevent possible
damage during shipment.
• Adjust the desired temperature for the
refrigerator and freezer (see Adjusting the
Temperature and Functions).
• Let your refrigerator run for at least 2 or 3 hours
before putting food in it. Check the flow of cold
air in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.
• Use the wrench (Included with the User Manual)
to adjust the bolt in the door hinge to adjust the
height. (counter clockwise to raise or clockwise
to lower)
22
CONTROL PANEL FEATURES
For complete details on button functions, see pages 24–27.
NOTE: The shape of the buttons may not match your model.
UNIT CHANGE BUTTON
Press the UNIT CHANGE button more than
3 seconds to change the Metered fill unit
OZ CUPS.
CUBE BUTTON
Press the CUBE button to select the Cubed Ice.
CRUSH BUTTON
Press the CRUSH button to select the Crushed Ice.
REFRIGERATOR BUTTON
Press the REFRIGERATOR button to adjust the
temperature in the refrigerator compartment.
Indicates the set temperature of the refrigerator
compartment in Celsius or Fahrenheit.
CONVERTA TEMP. DISPLAY
Indicates the set temperature of the Converta Drawer
in Fahrenheit or Celsius.
NOTE: For complete details on the Converta Drawer,
see page 31.
FREEZER BUTTON
Press the FREEZER button to adjust the temperature
in the freezer compartment.
Indicates the set temperature of the freezer
compartment in Celsius or Fahrenheit.
2
1
3
4
5
6
1
2
4
5
6
7
A
C
E
B
3
D
F
8
9
23
CONTROL PANEL FEATURES
(CONT.)
OPTION BUTTON
You need to press the OPTION button to
activate the each function(
~
).
LIGHT BUTTON
Press the LIGHT button to controls
the lamp in the dispenser.
FILTER RESET BUTTON
Press the FILTER RESET button
for more than 3 seconds to reset
the filter indicator after the water
filter has been replaced.
ICE PLUS BUTTON
Press the ICE PLUS button to
activate or deactivate the ICE PLUS
function to increase ice making
capabilities.
ENERGY SAVING BUTTON
Press and hold the ENERGY
SAVING button for more than
3 seconds to activate or deactivate
the Energy Saving mode.
NOTE: If moisture forms in the area between the
two refrigerator doors, disable the “Energy
Saving” mode.
ALARM BUTTON
Press the ALARM button to control
the door-open alarm.
LOCK BUTTON
Press and hold the LOCK button at
least 3 seconds to lock or unlock all
the other function buttons on the
control panel, Including operation of the dispenser
and converta control panel.
OPEN/CLOSE BUTTON
Press the OPEN/CLOSE button to open and or close
the lower freezer drawer. You can also open and
close the freezer drawer by pulling or pushing
the drawer with your hand.
CHILD LOCK FUNCTION
This function will disable the Auto Drawer feature.
To activate the Child Lock Function press and
hold the LOCK buttons for 3 seconds.
To cancel the Child Lock Function press and
hold the LOCK buttons for 3 seconds.
wCAUTION
Display mode setting and its cancellation
• With the refrigerator door open, keep pressing the
REFRIGERATOR button and ICE PLUS button
more than 5 seconds, then it goes to the display
mode.
• Perform the same way again to cancel the display
mode.
• All freezing units do not work at the display mode.
ENGLISH
A
B
C
D
E
F
7
9
8
24
ADJUSTING THE TEMPERATURES AND DISPLAY
Adjust Refrigerator Temperature
To adjust the temperature in the refrigerator
compartment, press the REFRIGERATOR button to
cycle through the range of available settings.
Adjust Freezer Temperature
To adjust the temperature in the freezer
compartment, press the FREEZER button to cycle
through the range of available settings.
NOTE: The actual inner temperature varies
depending on the food status, since the indicated
temperature setting is the target temperature and
not the actual temperature within the refrigerator.
Initially set the REFRIGERATOR CONTROL at
37 degrees F and the FREEZER CONTROL at
0 degrees F. Leave them at these setting for
24 hours (one day) to stabilize. Then adjust the
compartment temperature as illustrated above.
Temperature Display
To change the temperature display from Fahrenheit
to Celsius:
• Simultaneously press and hold the FREEZER
and REFRIGERATOR buttons for more than
5 seconds.
• Do the same to convert back to Fahrenheit.
Caution When Closing the Door
wCAUTION
To reduce the risk of door scratches, please make
sure that the refrigerator door mullion is always folded
in.
If dew gathers on the refrigerator door mullion at any
point, deactivate the Energy Saving mode until the
issue resolves itself.
25
OPERATING THE DISPENSER
DISPENSING CUBED ICE
Press the CUBE button to illuminate
the Cubed Ice icon.
Press the push switch with a glass or
other container and cubed ice will be
dispensed.
DISPENSING CRUSHED ICE
Press the CRUSH button to
illuminate the Crushed Ice icon.
Press the push ice switch with a
glass or other container and
crushed ice will be dispensed.
DISPENSING WATER
Press the Water Switch with a
glass or other container and
the water will be dispensed.
During dispensing water, the
figures will be increased.
CONTROLLING THE DISPENSER LIGHT
Press the LIGHT button to turn the
dispenser light on and off.
NOTE: Hold the glass or other container in place for a couple of seconds after dispensing ice or
water to catch the last few cubes or drops. The dispenser is designed to not operate
while either refrigerator door is open.
ENGLISH
wCAUTION
• When filling container with a small opening, place
the container as close as possible to the opening
on the water or ice dispenser.
• Do not dispense ice into fine china or crystal
glasses. China or crystal can break.
Incorrect
Water
Ice
Correct
WATER SWITCH
ICE SWITCH
26
SETTING THE FUNCTIONS
SETTING THE METERED FILL UNIT
You can change the unit of Metered fill.
As you can see the left, the
initial unit after power on is OZ.
The unit is changed to CUPS
when you press and hold this
button at least 3 seconds and
when you press it again,
changed to OZ.
While water is dispensed, the
numbers will be increase.
SETTING THE DISPENSER
You can select the ice type of the dispenser.
The default setting is CRUSHED
ice.
Press CUBE to get cubes
instead of crushed ice.
SETTING THE LIGHT
You can control the lamp in the dispenser.
The lamp is off when the power on.
When you press the LIGHT button,
the lamp turns on, the icon also on.
When you press it again, the lamp
turns off, and the icon also turns off.
SETTING THE FILTER RESET
You need to reset filter remaining period after
replacing filter.
Press and hold the FILTER RESET
button more than 3 seconds to reset
the filter indicator after the water filter
has been replaced.
The figure is changed 6 0 after
pressing it more than 3 seconds.
NOTE: It is recommended that the filter be replaced
when the indicator light on the front dispenser
reaches 0.
ACTIVATING ICE PLUS
Press the ICE PLUS button to
activate the ICE PLUS function.
The ICE PLUS function runs the
freezer compartment at the coldest
setting for 24-hour to increase ice
making and then turns off
automatically.
To deactivate this function, press it
again.
27
SETTING THE FUNCTIONS
(CONT.)
ACTIVATING ENERGY SAVING
Press the ENERGY SAVING button
for at least 3 seconds to activate or
deactivate the function.
This function is recommended for
added energy savings. (Some
heaters to reduce excess moisture
on the refrigerator may be turned off)
The energy saving function is also
recommended during long periods
of time spent away from home-like
vacation.
SETTING THE DOOR ALARM
The ALARM button also controls the
door alarm that sounds three times in
30-second intervals when a
compartment door is left open for
more than 60 seconds. The alarm
stops sounding when the door is
closed.
Press the ALARM button once to
activate and deactivate the door
alarm function.
NOTE: Contact authorized service center if the
alarm continues to sound after the doors are closed.
SETTING AUTO DRAWER LOCK
Press and hold the LOCK button
more than 3 seconds to activate
or deactivate the auto drawer
function.
The auto drawer function is
disabled when you locked the
auto drawer.
SETTING THE DISPENSER LOCK
Press and hold the LOCK button for
three seconds to lock the dispenser
and all of the other control panel
functions. Press and hold again for
3 seconds to unlock.
ENGLISH
DIAGNOSTIC FAILURE DETECTION
The diagnostic function automatically detects problems with your refrigerator, and a diagnostic code will
appear in the display.
NOTE: If a diagnostic code appears in the display during use, note the code and
then call USA 1-800-243-0000 CANADA 1-888-LGCANADA (24 hours per day/7 days per week)
and select the option to locate an authorized servicer.
28
SPACEPLUS ICE SYSTEM
wCAUTION
• Keep hands and tools out of the ice compartment
door and dispenser chute. You could break
something or injure yourself.
The icemaker will stop producing ice when the ice bin
is full. If you need more ice, empty the ice bin into the
extra ice bin in the freezer compartment so the
icemaker can keep producing ice.
Shake the ice bin occasionally to level the ice in it.
Sometimes the ice piles up near the icemaker,
causing the icemaker to misread the amount of ice
cubes and stop producing ice.
NOTE: Storing cans or other items in the ice bin may
damage the icemaker.
Keep the ice compartment door closed tightly. If the
ice compartment door is not closed tightly, the cold air
in the ice bin will freeze food in the refrigerator
compartment. This could also cause the icemaker to
not produce ice.
NOTE: If the On/Off switch on the icemaker is set to
Off for an extended time, the ice compartment will
gradually warm up to the temperature of the
refrigerator compartment. To prevent ice cubes from
melting and leaking from the dispenser, ALWAYS
empty the ice bin when the icemaker is set to Off for
more than a few hours.
wCAUTION
While you handle the ice bin,
keep your hands out of blade.
The blade has sharp edges
could cause injury.
NOTE: To open or close the ice
room compartment, push or pull on
the handle.
NOTE: Avoid touching the Ice-detecting sensor
when replacing the ice bin. See the label on the ice
compartment door for details.
To remove the in-door ice bin, grip the front
handle, slightly lift the lower part, and slowly
pull out the bin as shown.
1 To reinstall the in-door ice bin, slightly slant
the bin during replacement to avoid contact
with the icemaker.
2
Ice-detecting
Sensor
ENGLISH
Ice is made in the automatic icemaker and sent to the
dispenser. The automatic icemaker can make 10 or
14 ice cubes (depending on your device) at a time,
above 80 cubes per 24-hour period. This quantity
may vary by circumstance, including freezer
compartment temperature, room temperature,
number of door openings, freezer load, and other
operating conditions.
• It takes about 12 to 24 hours for a newly installed
refrigerator to make ice.
• Icemaking stops when the ice storage bin is full.
• To turn off the automatic icemaker, set the icemaker
switch to OFF (O). To turn on the automatic
icemaker, set the switch to ON (I).
• The water pressure must be 20 and 120 psi on
models without a water filter and between 40 and
120 psi on models with a water filter to make normal
amount and size of ices.
NOTE: It is normal that a noise is produced when ice
drops into the ice storage bin.
• Even when the water pipe is not connected and the
Icemaker is turned on, the water valve operates.
The noise is generated because the water pipe is
not connected, which does not mean the icemaker
is defective.
wWARNING
Personal Injury Hazard
• DO NOT place fingers or hands on the automatic
icemaking mechanism while the refrigerator is
plugged in.
29
AUTOMATIC ICEMAKER
wCAUTION
• The first ice and water may include particles or odor
from the water supply line or the water tank.
• Throw away the first few batches of ice (about 20
pieces) and purge the water line for 5 minutes after
installation to eliminate air and odd tastes.
• This is also necessary if the refrigerator has not been
used for a long time.
• Never store beverage cans or other foods in the ice bin
for the purpose of rapid cooling. Doing so may damage
the icemaker or the containers may burst.
• If discolored ice is dispensed, check the water filter and
water supply. If the problem continues, contact an
Authorized Service Center. Do not use the ice or water
until the problem is corrected.
• Keep children away from the dispenser.
Do not allow children to play in or around dispenser.
• The ice passage may also become blocked with frost if
only crushed ice is used. Remove the frost that
accumulates.
• Never use thin crystal glass or crockery to collect ice.
Such glasses or containers may break, and glass
fragments could be in the ice.
• Dispense ice into a glass before filling it with water or
other beverages. Splashing may occur if ice is
dispensed into a glass that already contains liquid.
• Never use a glass that is exceptionally narrow or deep.
Ice may jam in the ice passage and refrigerator
performance may be affected.
• Keep the glass at a proper distance from the ice outlet.
A glass held too close to the outlet may prevent ice
from dispensing.
• To avoid personal injury, keep hands out of the ice door
and passage.
• Never remove the dispenser cover.
• If you find ice or water dispensed unexpectedly,
turn off the water supply and contact an Authorized
Service Center. Call USA 1-800-243-0000
CANADA 1-888-LGCANADA (24 hours a day,
365 days a year) and select the option to locate an
authorized servicer.
Power Switch
lcemaker
Ice-detecting
Sensor
*
14 cells icemaker
30
STORING FOODS
• Store fresh food in the refrigerator compartment.
• How food is frozen and thawed is an important
factor in maintaining freshness and flavor.
• Do not store food that spoils easily, such as
bananas and melons, at low temperatures.
• Allow hot food to cool prior to storing; placing hot
food in the refrigerator could spoil other food and
lead to higher energy consumption.
• When storing food, cover it with vinyl wrap or store
in a container with a lid. This prevents moisture from
evaporating and helps food to keep its flavor and
nutrition.
• Do not block air vents with food or containers.
Smooth circulation of chilled air keeps the
refrigerator temperatures even.
• Do not open the doors frequently. Opening the
doors allows warm air to enter the refrigerator and
freezer compartments, which causes temperatures
to rise.
• Never overload the door racks; overloading may
push against the inner racks and prevent the doors
from closing correctly.
Freezer compartment
• Do not store glass bottles in the freezer
compartment; glass may break when the contents
are frozen.
• Do not refreeze food that has been thawed.
This causes loss of flavor and nutrition.
• Do not touch cold foods or containers, especially
those made of metal, with wet hands or place glass
products in the freezer compartment.
• Do not use the egg box as an ice bin in the freezer.
The egg box will break easily if it freezes.
Refrigerator compartment
• Avoid placing moist food on the top refrigerator
shelves; it could freeze from direct contact with
chilled air.
• Always clean food prior to refrigeration.
Vegetables and fruits should be washed and wiped
and packed food should be wiped to prevent
adjacent food from spoiling.
NOTE: If you keep the refrigerator in a hot and humid
place, frequent opening of the door or storing a lot of
vegetables in the refrigerator may cause
condensation to form. Wipe the condensation with a
clean cloth or a paper towel.
31
USING THE CONVERTA DRAWER
• The Converta Drawer is the upper drawer that is
equipped with an adjustable temperature control.
• The Converta Drawer has three adjustable
temperature settings: FROZEN FOOD, SOFT
FREEZE and FRESH FOOD.
Press and hold the SELECT button for three
seconds to change the setting, as indicated below:
(FROZEN FOOD SOFT FREEZE FRESH
FOOD FROZEN FOOD)
NOTE: While the temperature is changing from
its current level to a new set temperature,
the ADJUSTING TEMP light will illuminate.
It will go off when the new SET TEMPERATURE
is reached.
wCAUTION
•
Do not store glass bottles in the Converta Drawer
while in the FROZEN FOOD or SOFT FREEZE
setting.
• Do not store ice cream in the Converta Drawer
while in the SOFT FREEZE or FRESH FOOD
setting.
• Do not store fruit and vegetables in the Converta
Drawer while in the FROZEN FOOD or SOFT
FREEZE setting.
• It is not recommended to keep meat or fish in the
Converta Drawer for more than five days in the
SOFT FREEZE setting. Maximum storage period
may vary depending on initial food condition.
FROZEN FOOD (from -6°F to 8°F)
• When the Converta Drawer is in the FROZEN
FOOD setting, the temperature in the drawer will be
the same as the temperature in the freezer. Adjust
the Converta Drawer temperature by adjusting the
freezer temperature.
NOTE: The FROZEN FOOD setting is intended to be
used as a freezer.
SOFT FREEZE (23°F)
• When the Converta Drawer is in the SOFT FREEZE
setting, the temperature is set to 23°F(-5°C) and
cannot be adjusted.
NOTE: The SOFT FREEZE setting will partially
freeze foods to allow for quicker thawing. This setting
is intended for foods that are to be used within five to
seven days.
FRESH FOOD (37°F)
• When the Converta Drawer is in the FRESH FOOD
setting, the temperature is set to 37°F (3°C) and
cannot be adjusted.
NOTE: The FRESH FOOD section is intended to be
used the same way as the refrigerator compartment.
Converta Drawer Control Panel
ENGLISH
REFRIGERATOR
CONVERTA
DRAWER
FREEZER
32
LOCATION OF FOODS
REFRIGERATOR COMPARTMENT SHELVES
Store larger food items, platters, and containers
on the expansive refrigerator compartment
shelves.
CRISPERS
Store vegetables or fruits with humidity control.
DAIRY CORNER
Store milk products such as butter and cheese.
GALLON STORAGE BINS
Store small packed food or beverages such as
condiments, salad dressings, baby foods, milk, or
juice.
GLIDE‘N’SERVE
Provides storage space with a variable temperature
control that keeps the compartment colder than
refrigerator.
FIXED DOOR BINS
Great for condiments, soda cans, treats, and items
that need to be easily accessible.
1
2
4
5
6
3
2
1
6
3
5
4
ENGLISH
The shelves in your refrigerator are adjustable to
meet your individual storage needs.
Storing similar food items together in your
refrigerator and adjusting the shelves to fit
different heights of items will make finding the
exact item you want easier; it will also reduce
the amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if
exposed to sudden temperature changes or impact,
such as bumping. For your protection, glass shelves
are made with tempered glass, which will shatter into
small, pebble-sized pieces.
NOTE: Glass shelves are heavy. Use special care
when removing them to avoid dropping them.
Adjusting Shelves
Remove shelves from the shipping position and place
shelves in the position you want.
wCAUTION
Make sure that shelves are level from one side to the
other. Failure to do so may result in the shelf’s falling
or spilling food.
33
SHELF HEIGHT ADJUSTMENT
Remove Shelf Reinstall Shelf
Tilt up the front of the shelf. Lift up the back
and pull out the shelf.
Folding Shelf
You can store taller items such as a gallon
container or bottles by simply pushing the front
half of shelf underneath back half of shelf.
Pull toward you to returm to a full shelf.
Tilt up the front of the shelf and guide the shelf
hooks into the slots at a desired height. Then
lower the front of the shelf so that the hooks drop
into the slots.
34
REMOVING AND REPLACING COMPONENTS
NOTE: When reinstalling components, reverse
the order of steps for removal. To prevent damage,
never use excessive force when removing or
reinstalling components.
wCAUTION
• Personal injury can occur if the door bins are not
firmly assembled.
NOTE: DO NOT adjust a loaded bin.
• DO NOT allow children to play with baskets.
The sharp corners on the baskets could cause
injury.
Dairy Bin Gallon Storage Bins
To remove the dairy bin, simply lift it and pull
straight out. To replace the dairy bin, slide it into
place and push down until it stops.
NOTE: The dairy bin will only fit in the top space
on the right-hand door.
The door bins are removable for easy cleaning
and adjusting. Simply lift the bin and pull it straight
out to remove it. To replace the bin, slide it in
above the desired support button and push down
until it stops.
Dispenser Drip Tray
The dispenser drip tray has no self-draining function. It should be cleaned regularly. Remove the cover by
pressing and pulling the tray. Dry it with a cloth. To reinstall the tray, slightly tilt the front of the tray and
snap the ribs into the holes.
ENGLISH
35
REMOVING AND REPLACING COMPONENTS
(CONT.)
Crisper humidity control
You can control the amount of humidity in the
moisture-sealed crispers. Store vegetables or
fruits requiring more or less humidity in separate
crispers. Adjust the control to any setting
between HIGH and LOW.
• LOW lets moist air out of the crisper for best
storage of fruits.
• HIGH keeps moist air in the crisper for best
storage of fresh, leafy vegetables.
CAUTION : The glass shelf over the crisper is not
firmly secured. Be careful when tilting.
MEAT
DELI
PRODUCE
TEMP. SELECTOR
LOW
HIGH
LOW
LOW
HIGH
Removing crisper
• To remove, pull the drawer out to full extension.
• Lift the front of the crisper up, then pull it straight
out.
• To install, slightly tilt up the front and insert the
drawer into the frame and push it back into
place.
MEAT
DELI
PRODUCE
TEMP. SELECTOR
LOW
HIGH
LOW
Glide‘N’Serve
The Glide‘N’Serve provides storage space with a
variable temperature control that keeps the
compartment colder than refrigerator.
This drawer can be used for large party trays, deli
items, or beverages.
Selection Button
• When “MEAT” is selected, the temperature of
the Glide‘N’Serve can be kept around 34°F
(1°C). This feature helps keep meat or fish fresh
for a longer time. The Glide‘N’Serve temperature
can be maintained under recommended
temperature setting (Freezer : 0°F, Referigerator
: 37°F).
• When “DELI” is selected, the temperature of the
Glide‘N’Serve can be kept around 38°F (3°C).
This feature helps keep food fresh for a longer
time. The Glide‘N’Serve temperature can be
maintained under recommended temperature
setting (Freezer : 0°F, Referigerator : 37°F).
• When “PRODUCE” is selected, the temperature
of the Glide‘N’Serve can be kept around 41°F
(5°C). This feature helps keep food fresh for a
long time. The Glide‘N’Serve temperature can
be maintained under recommended temperature
setting (Freezer : 0°F, Referigerator : 37°F).
MEAT
DELI
PRODUCE
TEM
P. SELECTOR
LOW
HIGH
LOW
MEAT
DELI
PRODUCE
TEMP. SELECTOR
36
REMOVING AND REPLACING COMPONENTS
(CONT.)
wCAUTION
• When you close the refrigerator door with
GLIDE'N'SERVE DRAWER opened,
that the drawer could be broken.
To replace Glide‘N’Serve
• To remove, pull the drawer out to full extension.
• Lift the front of the drawer up, then pull it straight
out.
• To install, slightly tilt up the front and insert the
drawer into the frame and push it back into
place.
NOTE: Removing the fixed door bin is
recommended to reduce the risk of door bin
scratches.
MEAT
DELI
PRODUCE
TEMP. SELECTOR
LOW
1
To remove the glass
• Lift up the glass under the crisper cover.
• Pull the glass up and out.
LOW
HIGH
LOW
ENGLISH
37
REMOVING AND REPLACING COMPONENTS
(CONT.)
wCAUTION
• Pinch hazard! Keep hands and feet clear of the
bottom of the door when opening and closing.
wWARNING
Child Entrapment Hazard
• If the Durabase divider is removed, there is enough
open space for children or pets to crawl inside.
To prevent accidental child and pet entrapment or
suffocation risk, DO NOT allow them to play inside
of drawer.
Ice Bin DuraBase ® Divider
To separate the ice bin, pull out the drawer to full
extension. Gently lift and pull out the ice bin.
To reinstall, simply set the ice bin in its correct
position.
Drawer
38
CLEANING THE REFRIGERATOR
wWARNING
Explosion Hazard
• Use nonflammable cleaner.
• Failure to do so can result in death,
explosion, or fire.
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about
once a month to prevent odors. Wipe up spills
immediately.
• Unplug the refrigerator.
• Remove all removable parts, such as shelves and
crispers.
• Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use abrasive or
harsh cleaners.
• Hand wash, rinse, and thoroughly dry all surfaces.
• Plug in the refrigerator.
NOTE: Window sprays, abrasive cleaners, or
flammable fluids can scratch or damage plastic
covers or panels.
Cleaning the Exterior
For models with a stainless steel exterior, use a
commercially available stainless steel cleaner in
accordance with the manufacturer’s instructions.
You may also use a clean sponge or soft cloth and
a mild detergent in warm water. Do not use abrasive
or harsh cleaners. Dry thoroughly with a soft cloth.
IMPORTANT: Do not use cleaning waxes,
concentrated detergents, or cleaners containing
petroleum on plastic refrigerator parts such as door
liners or gaskets.
Care and Cleaning of the Interior
NOTE: Allow the freezer to warm so the cleaning
cloth will not stick.
To help remove odors, you can wash the inside of
the refrigerator with a mixture of baking soda and
warm water. Mix 2 tbsp. baking soda to 1 qt. of water
(26 g soda to 1 L of water). Be sure the baking soda
dissolves completely so it does not scratch the
surfaces of the refrigerator.
IMPORTANT: Do not use a spray nozzle to clean
the interior.
GENERAL INFORMATION
Storage
During average-length vacations, you will
probably find it best to leave the refrigerator in
operation. Place freezable items in the freezer for
longer life.
When you plan to store the refrigerator, remove
all food, disconnect the power cord, clean the
interior thoroughly, and block the doors open to
prevent mold and mildew. Be certain the stored
refrigerator does not present a child entrapment
danger.
Moving
Unload the refrigerator to move it. (This is probably
not necessary when pulling it out to clean behind it.)
Be sure to let the refrigerator warm up to room
temperature, and dry the inside before closing the
doors to pack it for moving. To avoid damaging the
height-adjusting screws, turn them all the way into the
base.
Power Failure
Most power failures that are corrected within an
hour or two will not affect your refrigerator
temperatures. However, you should minimize the
number of door openings while the power is off.
Water may drip from the ice bin during a power
outage. To prevent this, remove the ice bin, discard
all of the ice, towel dry, and replace.
ENGLISH
39
REPLACING THE WATER FILTER
It is recommended that you replace the filter
approximately every 6 months, when the water filter
indicator reaches 0 months, or when the ice and
water dispenser noticeably decreases out-put.
Pull out the filter cartridge.
NOTE : When opened at a full angle the
cartridge should come out easily.
.
3
Press the push button to open the filter cover.
NOTE : Replacing the filter causes a small
amount of water (around 1 oz. or 25 cc) to
drain. Place a cup under the filter hole to
catch any waste.
1 Pull the cartridge downward. 2
1. Remove the old cartridge.
40
REPLACING THE WATER FILTER
(CONT.)
2. Replace with a new cartridge.
NOTE: After replacing the filter, flush 2.5 gallons
through filter before use (flush for approximately
5 minutes).
Check the filter for leaks.
When the water filter indicator displays the
message 0 Filter Month, hold 3 seconds.
Reset the water filter status display and indicator
light by pressing and holding the FILTER RESET
button for at least 3 seconds.
NOTE: Filter Bypass Plug
Keep the filter bypass plug.
You must use the filter bypass plug when a
replacement filter cartridge is not available.
The icemaker will not operate without the filter or filter
bypass plug inserted in the proper compartment.
To purchase replacement water filter cartridges,
visit your local appliance dealer or parts distributor.
You can also call USA 1-800-243-0000
CANADA 1-888-LGCANADA (24 hours per day/
7 days per week).
The replacement water filter cartridge’s part
number is ADQ36006101.
Take the new cartridge out of its packing and
remove the protective cover from the o-rings.
With cartridge ears in the horizontal position,
push the new filter cartridge into the manifold
hole until it stops.
1 Firmly lock in the cartridge.
The cover will click back into place.
When the filter cartridge is not correctly
installed, please try to install again.
2
Filter Bypass Plug
ENGLISH
41
* Based on the use of Cryptosporidium parvum oocysts.
Performance Data Sheet
Model: LG ADQ36006101-S
Use Replacement Cartridge: ADQ36006101
The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal
to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53.
Contaminant Reduction
Average
Influent
Avg %
Reduction
Average
Product Water
Concentration
Max Permissible
Product Water
Concentration
NSF Reduction
Requirements
NSF Test
Report
NSF specified Challenge
Concentration
Chlorine Taste and Odor
Nominal Particulate Class I, ,
≥0.5 to < 1.0 µm
Asbestos
Atrazine
Benzene
Carbofuran
Lindane
P-Dichlorobenzene
Toxaphene
2,4-D
Lead pH @6.5
Lead pH @8.5
Mercury @ pH 6.5
Mercury @ pH 8.5
Cyst*
2.1 mg/L
5,600,000
pts/mL
190 MFL
0.0094 mg/L
0.016 mg/L
0.08 mg/L
0.002 mg/L
0.22 mg/L
0.014 mg/L
0.213 mg/L
0.150 mg/L
0.150 mg/L
0.0059 mg/L
0.0058 mg/L
120,000 cysts/L
97.2%
98.7%
>99%
94.7%
96.7%
98.1%
98.2%
99.8%
93%
95.2%
>99.3%
>99.3%
96.1
90.1
99.99%
0.06 mg/L
73,000 pts/ml
< 1MLF
0.00005 mg/L
0.005 mg/L
0.002 mg/L
0.00004 mg/L
0.0005 mg/L
0.001 mg/L
0.009 mg/L
0.001 mg/L
0.001 mg/L
0.0002 mg/L
0.0006 mg/L
<1 cyst/L
N/A
N/A
N/A
0.003 mg/L
0.005 mg/L
0.04 mg/L
0.0002 mg/L
0.075 mg/L
0.003 mg/L
0.07 mg/L
0.010 mg/L
0.010 mg/L
0.002 mg/L
0.002 mg/L
N/A
≥ 50%
≥85%
≥99%
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
≥99.95%
J-00049247
J-00049282
J-0004928
J-00049293
J-00049300
J-00049294
J-00051975
J-00049298
J-00049302
J-00049284
J-00051974
J-00049277
J-00053886
J-00051972
J-00049281
2.0 mg/L ± 10%
At least 10,000 particles/mL
10
7
to 10
8
MFL; fibers greater
than 10 µm in length
0.009 mg/L ± 10%
0.015 mg/L ± 10%
0.08 mg/L ± 10%
0.002 mg/L ± 10%
0.225 mg/L ± 10%
0.015 mg/L ± 10%
0.210 mg/L ± 10%
0.15 mg/L ± 10%
0.15 mg/L ± 10%
0.006 mg/L ± 10%
0.006 mg/L ± 10%
Minimum 50,000 cysts/L
System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the
reduction of substances listed below.
42
It is essential that the manufacturer’s recommended
installation, maintenance and filter replacement
requirements be carried out for the product to perform
as advertised.
Note: While the testing was performed under
standard laboratory conditions, actual performance
may vary.
Replacement Cartridge: ADQ36006101
For estimated costs of replacement elements
please call USA 1-800-243-0000 CANADA 1-888-
LGCANADA (24 hours per day/7 days per week)
or visit our website at www.lg.com
3M is a trademark of 3M Company.
NSF is a trademark of NSF International.
© 2009 3M Company. All rights reserved.
wWARNING
To reduce the risk associated with ingestion of
contaminants: Do not use with water that is
microbiologically unsafe or of unknown quality
without adequate disinfection before and after the
system. Systems certified for cyst reduction may be
used on disinfected water that may contain filterable
cysts. EPA Establishment Number 10350-MN-005
wCAUTION
To reduce the risk associated with property
damage due to water leakage:
• Read and follow. Use Instructions before
installation and use of this system.
• Installation and use MUST comply with all state and
local plumbing codes.
• Do not install if water pressure exceeds 120 psi
(827 kPa). If your water pressure exceeds 80 psi,
you must install a pressure limiting valve. Contact a
plumbing professional if you are uncertain how to
check your water pressure.
• Do not install where water hammer conditions may
occur. If water hammer conditions exist you must
install a water hammer arrester. Contact a plumbing
professional if you uncertain how to check for this
condition.
• Do not install on hot water supply lines. The
maximum operating water temperature of this filter
system is 100°F (38°C).
• Protect filter from freezing. Drain filter when
temperatures drop below 40°F (4.4°C).
• The disposable filter cartridge must be replaced
every 6 months, at the rated capacity or if a
noticeable reduction in flow rate occurs.
Manufactured for LG®Electronics by CUNO
Incorporated 400 Research Parkway Meriden,
CT 06450 U.S.A Worldwide: 203-237-5541
www.cuno.com
Application Guidelines/Water Supply Parameters
Service Flow 0.5 gpm (1.9 lpm)
Water Supply Potable Water
Water Pressure 20 -120 psi (138 - 827 kPa)
Water Temperature 33°F - 100°F (0.6°C - 38°C)
ENGLISH
43
State of California
Department of Public Health
Water Treatment Device
Certificate Number
Date Issued: December 15, 2009
Trademark/Model Designation
Replacement Elements
201809 -
ADQ36006101-S
ADQ36006101
Manufacturer:
Cuno Inc.
The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section
116830 of the Health and Safety Code for the following health related contaminants:
Cysts Asbestos
Lead
Mercury
2,4-D Reduction
Atrazine
Benzene
Carbofuran
Lindane
p-Dichlorobenzene
Toxaphene
Microbiological Contaminants and Turbidity
Inorganic/Radiological Contaminants
Organic Contaminants
200 gal
Rated Service Capacity:
0.5 gpm
Rated Service Flow:
Conditions of Certification:
44
BEFORE CALLING FOR SERVICE
Before calling for service, review this list. It may save you both time and expense. This list includes
common occurrences that are not the result of defective workmanship or materials in this appliance.
Problem Possible Causes Solutions
Refrigerator
compressor does
not run.
Refrigerator
compressor runs
too frequently or
too long.
Refrigerator
compressor
cycles on and off.
Temperature in
the freezer is too
cold, but the
refrigerator
temperature is
satisfactory.
Temperature in
the refrigerator is
too cold, but the
freezer
temperature is
satisfactory.
• Refrigerator is in defrost
cycle.
• Plug at the wall outlet is
disconnected.
• Power outage. Check house
lights.
• Refrigerator is larger than the
previous one you owned.
• The room or the outdoor
weather is hot.
• Refrigerator was recently
disconnected for a while.
• Large amounts of warm or
hot food may have been
stored recently.
• Doors are opened too
frequently or for too long.
• Refrigerator or freezer door
may be slightly open.
• Refrigerator control is set too
cold.
• Refrigerator or freezer gasket
is dirty, worn, cracked, or
poorly fitted.
• The thermostat is keeping the
refrigerator at a constant
temperature.
• Freezer control is set too
cold.
• Refrigerator control is set too
cold.
• This is normal for a fully automatic defrosting
refrigerator. The defrost cycle occurs periodically.
• Make sure the plug is tightly pushed into the
outlet.
• Call the local electric company.
• This is normal. Larger, more efficient units run
longer.
• It is normal for the refrigerator to work longer
under these conditions.
• It takes a few hours for the refrigerator to reach
cooling temperatures.
• Warm food will cause the refrigerator to run longer
until the desired temperature is reached.
• Warm air entering the refrigerator causes it to run
more. Open the door less often.
• Make sure the refrigerator is level. Keep food and
containers from blocking the door.
• Adjust the refrigerator control to a warmer setting
until the refrigerator temperature is satisfactory.
• Clean or change the gasket. Leaks in the door
seal will cause the refrigerator to run longer in
order to maintain desired temperatures.
• This is normal. The refrigerator cycles on and off
to keep the temperature constant.
• Adjust the freezer control to a warmer setting until
the freezer temperature is satisfactory.
• Adjust the refrigerator control to a warmer setting.
ENGLISH
45
BEFORE CALLING FOR SERVICE
(CONT.)
Problem Possible Causes Solutions
Food stored in
refrigerator
drawers freezes.
Temperatures in
the refrigerator or
freezer are too
warm.
Temperature in
the refrigerator
is too warm,
but the freezer
temperature is
satisfactory.
Louder sound
levels when
compressor
comes on.
Vibrating or
rattling noise.
Moisture collects
on the inside walls
of the refrigerator.
• Refrigerator control is set too
cold.
• Freezer or refrigerator control is
set too warm.
• Doors are opened too frequently
or for too long.
• The display shows “OFF” in
temperature indicating part.
• Door is slightly open.
• Large amounts of warm or hot
food may have been stored
recently.
• Refrigerator has recently been
disconnected for a period of time.
• Refrigerator control is set too
warm.
• Refrigerator operates at higher
pressures during the start of the
ON cycle.
• Floor is uneven or weak. The
refrigerator rocks on the floor
when it is moved slightly.
• Dishes are vibrating on the
shelves in the refrigerator.
• The refrigerator is touching the
wall or cabinets.
• Refrigerator is not connected to a
water supply.
• The refrigerator is moved while
the compressor is operating.
• The weather is hot and humid
which increases the rate of frost
buildup and internal sweating.
• Door is slightly open.
• Door is opened too often or for
too long.
• Adjust the refrigerator to a warmer setting.
• Adjust the freezer or refrigerator control to a colder setting
until the freezer or refrigerator temperature is satisfactory.
• Warm air enters the refrigerator/freezer whenever the door
is opened. Open the door less often.
• Cancel the Display mode. (See the page 23).
• Close the door completely.
• Wait until the refrigerator or freezer has had a chance to
cool food to the set temperature.
• It takes a few hours for the refrigerator to reach the set
temperatures.
• Adjust the refrigerator control to a colder setting.
• This is normal.
• Be sure floor is level and solid and can adequately support
the refrigerator.
• It is normal for dishes to vibrate slightly. Move dishes
slightly. Make sure refrigerator is level and firmly set on
floor.
• Move the refrigerator so that it does not touch the wall.
• Connect to water supply or turn off the icemaker.
• This is normal and will not have an impact on the
performance or the life of the compressor. The rattling will
stop after the refrigerator comes to a rest and the
compressor stabilizes.
• This is normal.
• Close the door.
• Open the door less often.
46
BEFORE CALLING FOR SERVICE
(CONT.)
Problem Possible Causes Solutions
Moisture forms
on the outside of
the refrigerator or
between the
doors.
• Weather is humid.
• Door is slightly open.
• Energy Saving mode is on.
• This is normal in humid weather. When humidity is
lower, the moisture should disappear.
• Close the door completely.
• Disable the “Energy Saving” mode.
Moisture forms
on the dispenser.
Odors in the
refrigerator.
The door(s) will
not close.
Drawers are
difficult to move.
Water has an odd
taste and/or odor.
Sound of ice
dropping.
• Moisture may form when the
temperature or humidity are
high.
• Interior needs to be cleaned.
• Food with strong odor is in
the refrigerator.
• Some containers and
wrapping materials produce
odors.
• Food package is keeping the
door open.
• Door was closed too hard,
causing other door to open
slightly.
• Refrigerator is not level. It
rocks on the floor when it is
moved slightly.
• Floor is uneven or weak. The
refrigerator rocks on the floor
when it is moved slightly.
• Refrigerator is touching the
wall or the cabinets.
• Food is touching the shelf on
top of the drawer.
• The drawer track is dirty.
• The water has been in the
tank for too long.
• The unit is not properly
connected to cold water line.
• When a filter is old.
• A batch of ice has been
released into the ice bin.
• Wipe off the moisture.
• Clean interior with sponge, warm water, and baking
soda. Be sure the soda is completely dissolved so
it will not act as an abrasive compound.
• Cover food completely.
• Use a different container or brand of wrapping
materials.
• Move the packages that keep the door from
closing.
• Gently close both doors.
• Adjust the height-adjusting screw.
• Be sure the floor is level and can adequately
support the refrigerator. Contact a carpenter to
correct sagging or sloping floor.
• Move the refrigerator.
• Keep less food in the drawer.
• Clean the drawer and the track.
• Dispense for 2 minutes and discard to freshen the
supply. Dispense and discard for an additional 2
minutes to rinse the tank completely.
• Connect the unit to a cold water line that supplies
water to the kitchen faucet.
• Replace with a new filter.
• This sound is made when automatically made ice is
dropped into the ice storage bin. The volume may
vary according to the location of the refrigerator.
ENGLISH
47
BEFORE CALLING FOR SERVICE
(CONT.)
Problem Possible Causes Solutions
Sound of water
trickling.
• The icemaker is being
supplied with water.
• This sound is normally made when the icemaker
is supplied with water after dropping the
automatically made ice.
• If this sound lasts more than 10 seconds, check
for a leak.
The icemaker is
not producing ice
or not enough ice
• New installation.
• Refrigerator is not connected
to a water supply and the
supply shutoff valve is not
turned on.
• Reverse osmosis water
filtration system is connected
to your cold water supply.
• Kink in the water source line.
• Large amount of ice recently
has been removed.
• The icemaker is not turned
on.
• There is something on the
Ice-detecting sensor.
• The temperature setting is
too warm on freezer.
• The doors are opened often.
• Any door is not closing
properly.
• The ice compartment door is
not closing properly.
• Frequently dispensing ice.
• Wait 24 hours after ice maker installation for ice
production to begin. Wait 72 hours for full ice
production.
• Connect refrigerator to water supply and turn
water shutoff valve fully open.
• This can decrease water pressure and a little
water comes to icemaker.
• A kink in the line can reduce water flow.
Straighten the water source line.
• Allow 24 hours for ice maker to produce more ice.
• On the icemaker itself, there should be a power
switch. It may have an “I” and “O” on it. The “I”
position is on. If it is off, please flip it to the on
position.
• Foreign substance or frost on the Ice-detecting
sensor stops making ices. To keep making ice,
clean up the surface of Ice-detecting sensor with
clean and soft fabric.
• Below 0°F is recommended temperature setting of
the freezer compartment for normal ice
production. If the freezer temperature is set at a
warmer temperature, then the ice will produce at a
slower rate.
• If the doors of the unit are opened often, the cold
air will escape which will prevent the unit from
maintaining the set temperature. Lowering the
temperature can help, as well as not opening the
doors as frequently.
• The door that is not closed properly, makes the
Freezer temperature high and icemaker will make
ices slowly.
• The compartment door, that is not closed properly,
make the compartment temperature high and
icemaker makes ices slowly.
• Use ‘ICE PLUS’ function.
48
BEFORE CALLING FOR SERVICE
(CONT.)
Problem Possible Causes Solutions
Not dispense ice • The door is not closed
completely.
• The dispenser is locked.
• The ice dispenser is used
infrequently.
• Ice bin is not installed correctly.
• New installation.
• Ices are stuck in the delivery
chute.
• The wrong-sized ice has been
added to the ice bin.
• The ice dispenser is stalling
while dispensing “crushed” ice.
• If any door is not closed completely, any ice is not
dispensed.
• If the display is locked, ice will not dispense. Look at
the bottom of the control panel to see if the lock is
engaged. Press and hold the lock button on the
control panel until there is a “ding” sound. Try to
dispense again. Once unlocked, the dispenser
should dispense ice.
• Infrequent use of the ice dispenser will cause the
cubes to stick together over time, which will prevent
them from properly dispensing. Check the ice bin for
ice cubes clumping/sticking together. If they are,
break up the ice cubes by removing the bin and
breaking them up or shaking the bin to separate
them.
• Sure the ice bin is firmly in position.
• Wait 24 hours after ice maker installation for ice
production to begin. Wait 72 hours for full ice
production.
• Use a plastic utensil to clear the delivery chute.
• Use only cubes produced by the current ice maker.
• Change the ice button from “crushed” to “cubed”.
If cubed ice dispenses correctly, press the button for
“crushed” ice and begin dispensing again.
Dispense hot
water
• New installation.
• Water dispenser has been
used continuously within the
last 5~8 hours.
• Recently large amount of
water was dispensed.
• Refrigerator is not connected
to cold water pipe.
• Allow 24 hours after installation for the water
supply to cool completely.
• The unit has its own water tank inside. Water
storage capacity of the water tank is about two
cups of cold water that will be dispensed. While
the cool water is being dispensed, the tap water
comes into water tank and is reserved. At least
6 hours are needed for cooling the tap water
again.
• Allow 24 hours for water supply to cool
completely.
• Make sure the refrigerator is connected to a cold
water pipe.
ENGLISH
49
BEFORE CALLING FOR SERVICE
(CONT.)
Problem Possible Causes Solutions
Not dispense
water
The interior of the
refrigerator is
covered with dust
or soot.
• New installation.
• Door is not closed completely.
• Refrigerator is not connected
to a water supply and the
supply shutoff valve is not
turned on.
• The water pressure is not
more than 20 psi.
• Home filter or reverse osmosis
system is used.
• The display is not set properly
for water to come out.
• Water filter need to be
changed.
• The refrigerator is located
near a fire source, such as a
fireplace, chimney or candle.
• Make sure that the refrigerator is not located near
a fire source, such as a fireplace, chimney or
candle.
Other Please thoroughly read the Automatic Icemaker and Operating the Dispenser sections in
this manual.
• Flush and fill the water system.
• If any door is not closed completely, the water is
never dispensed.
• Connect refrigerator to water supply and turn water
shutoff valve fully open.
• The water pressure to the home determines the flow
from the dispenser.
• This can decrease water pressure. It is
recommended to remove reverse osmosis for
normal operation of water dispenser.
• Look on the right side of the display to see if the
display lock is engaged. If locked, it will not
dispense. Unlock the dispenser.
• The filter should be changed every 6 months or
more often depending on usage. The filter can get
buildup of foreign particles and slow the water
pressure.
Water is leaking
from the
dispenser.
NOTE: One or two
drops of water after
dispensing is
normal.
• Glass was not being held
under the dispenser long
enough.
• New installation.
• Recently water filter was
changed.
• Hold the glass under the dispenser 2 to 3 seconds
after releasing the dispenser lever.
• Flush and fill the water system.
• Flush the water system.
50
KEY DIMENSIONS AND SPECIFICATIONS
The appearance and specifications listed in this guide may vary due to constant product improvements.
Bottom-Freezer Refrigerator Models LMX28994
Description
Electrical Requirements
Min. / Max. Water Pressure
Dimensions
Net Weight
Refrigerator Storage Capacity
Freezer Storage Capacity
French Door Refrigerator
115 VAC @ 60 Hz
20~120 PSI (1.4~8.4 kgf/cm
2
)
35
3
/
4
" (W) X 35
3
/
8
" (D) X 69
3
/
4
" (H), 47
5
/
8
" (D w/ door open)
908 mm (W) X 899 mm (D) X 1772 mm (H), 1210 mm (D w/ door open)
385 lb. (175 kg)
18.82 cu. ft.
7.68 cu. ft.
ENGLISH
51
LG ELECTRONICS U.S.A., INC.
LG REFRIGERATOR LIMITED WARRANTY - U.S.A.
Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal home use, during the warranty period
set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the
product and applies only when purchased and used within the United States including U.S. Territories. Proof of original retail purchase is
required to obtain warranty service under this limited warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS
REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER
NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE
DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE
WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential
damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you
specific legal rights and you may also have other rights that vary from state to state.
Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or
operating the unit in an unsuitable environment will not be covered under this warranty.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, install, or repair the product; instruct the
customer on operation of the product; repair or replace fuses or correct
wiring or plumbing, or correction of unauthorized repairs/installation.
2. Failure of product to perform during power failures and interruptions
or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes,
restricted drain lines, inadequate or interrupted water supply or inadequate
supply of air.
4. Damage resulting from operating the product in a corrosive atmosphere or
contrary to the instructions outlined in the product owner’s manual.
5. Damage to the product caused by accidents, pests and vermin, lightning,
wind, fire, floods, or acts of God.
6. Damage resulting from misuse, abuse, improper installation, repair,
or maintenance. Improper repair includes use of parts not approved
or specified by LG.
7. Damage or failure caused by unauthorized modification or alteration, or if it
is used for other than the intended purpose, or any water leakage where
the unit was not properly installed.
8.
Damage or failure caused by incorrect electrical current, voltage, or plumbing
codes, commercial or industrial use, or use of accessories, components, or
consumable cleaning products that are not approved by LG.
9. Damage caused by transportation and handling, including scratches,
dents, chips, and/or other damage to the finish of your product, unless
such damage results from defects in materials or workmanship and is
reported within one (1) week of delivery (Call: 1-800-243-0000).
10. Damage or missing items to any display, open box, discounted, or
refurbished product.
11. Products with original serial numbers that have been removed, altered, or
can not be readily determined. Model and Serial numbers, along with
original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your product is used in other than normal and usual
household use (e.g. commercial use, offices, and recreational facilities) or
contrary to the instructions outlined in the product owner’s manual.
15. Costs associated with removal of your product from your home for
repairs.
16. The removal and reinstallation of the product if it is installed in an
inaccessible location or is not installed in accordance with published
installation instructions, including LG’s owner’s and installation manuals.
17. Shelves, door bins, drawers, handles, accessories, and other parts
besidesÄthose that were originally included with this particular model.
Refrigerator
Sealed System
(Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)
One (1) year from the date of
original retail purchase
Parts and Labor
(internal/functional parts only)
One (1) year from the date of
original retail purchase
Parts and Labor
Linear Compressor
Ten (10) years from the date of
original retail purchase
Part only
(Consumer will be charged for labor)
Seven (7) years from the date of
original retail purchase
Parts only
(Consumer will be charged for labor)
WARRANTY PERIOD
For complete warranty details and customer assistance,
please call or visit our website:
Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate
option from the menu, or visit our website at www.lg.com
Or by mail: LG Customer Information Center:
P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813
ATTN: CIC
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or
operating the unit in an unsuitable environment will not be covered under this warranty.
Refrigerator/Freezer
Sealed System
(Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)
One (1) year from the date of
original retail purchase
Parts and Labor
(internal/functional parts only)
One (1) year from the date of
original retail purchase
Parts and Labor
Linear Compressor
Ten (10) years from the date of
original retail purchase
Part only
(Consumer will be charged for labor)
Seven (7) years from the date of
original retail purchase
Parts only
(Consumer will be charged for labor)
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,
the warranty will begin sixty (60) days from the date of manufacture)
52
LG ELECTRONICS CANADA, INC.
LG REFRIGERATOR LIMITED WARRANTY - Canada
WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship under normal home use during the
warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase.
This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or
an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
LG Authorized Service Center warranties their repair work for thirty (30) days.
LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG
CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE
ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE
PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY
PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,
SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER
DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR
FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may have other rights which may vary
from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty
under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty’s terms.
All costs associated with the above excluded circumstances shall be borne by the consumer.
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, or install the product; instructing a customer on
operation of the product; repair or replacement of fuses or correction of wiring or
plumbing, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or
inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted
drain lines, inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or
contrary to the instructions outlined in the Product owner’s manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind,
fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or
maintenance of the Product. Improper repair includes use of parts not approved
or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or
use for other than its intended purpose, or resulting from any water leakage due
to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, or
plumbing codes, commercial or industrial use, or use of accessories,
components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents,
chips, and/or other damage to the finish of your product, unless such damage
results from defects in materials or workmanship and is reported within one (1)
week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished
Product.
11. Products with original serial numbers that have been removed, altered, or cannot
be readily determined. Model and Serial numbers, along with original retail sales
receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your Product is used in other than normal and usual household
use (including, without limitation, commercial use, in offices or recreational
facilities) or contrary to the instructions outlined in the Product owner’s manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible
location or is not installed in accordance with published installation instructions,
including the Product owner’s and installation manuals.
17. Shelves, door bins, drawers, handles, and accessories to the Product. Also
excluded are parts besides those that were originally included with the Product.
For complete warranty details and
customer assistance, please call or visit
our website: Call 1-888-542-2623 (24 hours
a day, 365 days a year) and select the
appropriate option from the menu, or visit our
website at www.lg.com
Write your warranty information below:
Product Registration Information:
Model: Serial Number:
Date of Purchase:
ENGLISH
53
For inquires or comments, visit www.lg.com or call;
1-800-243-0000 USA, Consumer User
1-888-865-3026 USA, Commercial User
1-888-542-2623 CANADA
www.lg.com
Register your product Online!
LG Customer Information Center
