VIZIO P50 HDM User Guide
Version - 5/24/2005 1
www.vizioce.com
Table of Contents
Chapter 1 - Introduction ................................................................................................................................2
1.1 - Before Use ......................................................................................................................................... 2
1.2 – Specifications .................................................................................................................................... 2
1.3 - Opening the Package......................................................................................................................... 3
1.4 - Installation.......................................................................................................................................... 3
1.4.1 - Image Sticking............................................................................................................................ 3
1.5 - Important Safety Guidelines............................................................................................................... 4
1.6 - Package Contents.............................................................................................................................. 6
1.7 - Front Panel Controls .......................................................................................................................... 7
1.8 - Side Panel Controls ........................................................................................................................... 7
1.9 - Rear Panel Connections .................................................................................................................... 8
1.10 - VIZIO Universal Remote Control...................................................................................................... 9
1.10.1 - Key Remote Control Functions................................................................................................. 9
1.10.1 - Key Remote Control Functions................................................................................................10

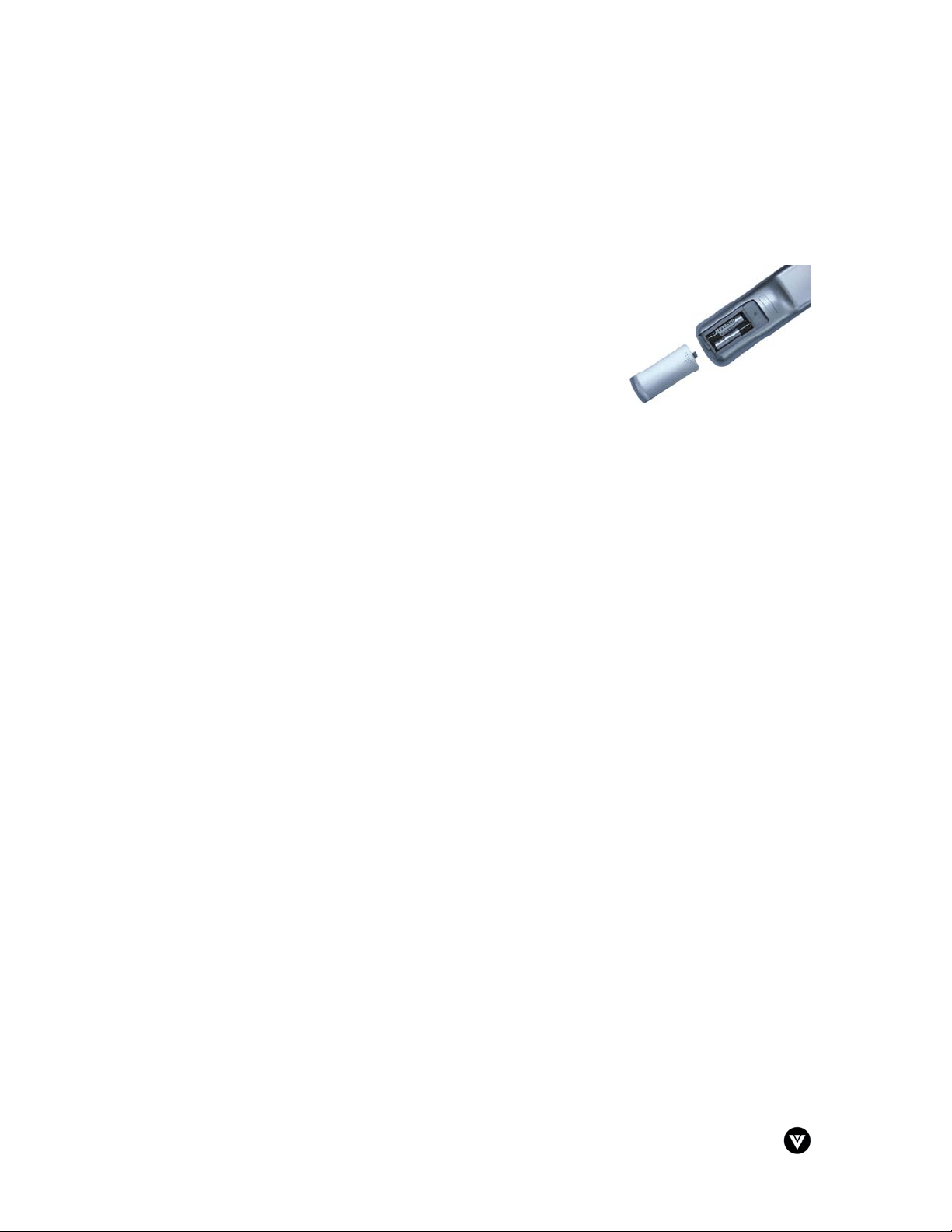

1.10.2 - Insertion of Batteries in the Remote Control............................................................................12
1.10.3 - Remote Control Range............................................................................................................12
1.10.4 - Precautions for the VIZIO Universal Remote Control ..............................................................12
Chapter 2 - Connecting Components.........................................................................................................13

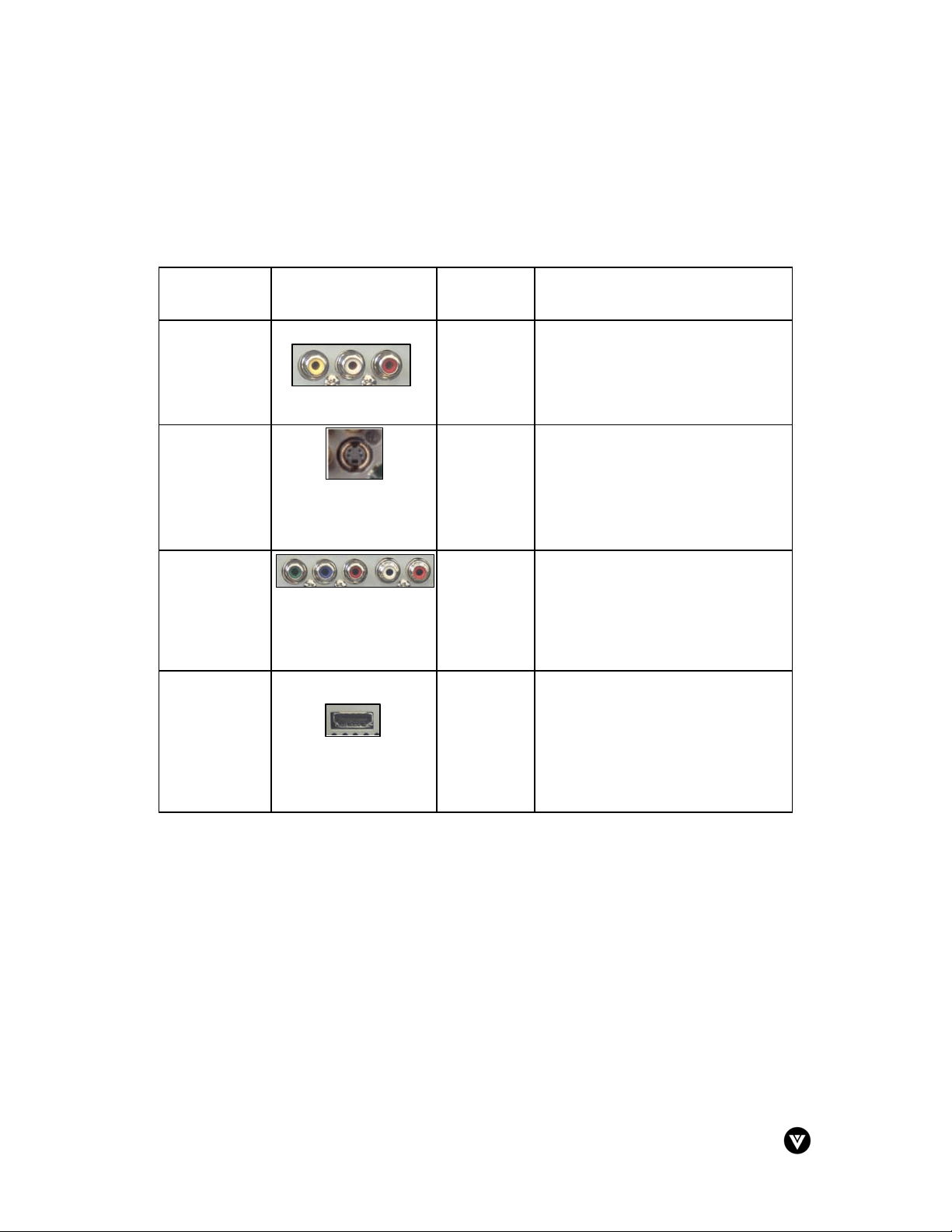

2.1 - Which Video Connection Should I Use? ...........................................................................................13
2.2 - Connecting Your DVD Player............................................................................................................14
2.2.1 - Using HDMI™ (Digital HD) ........................................................................................................14

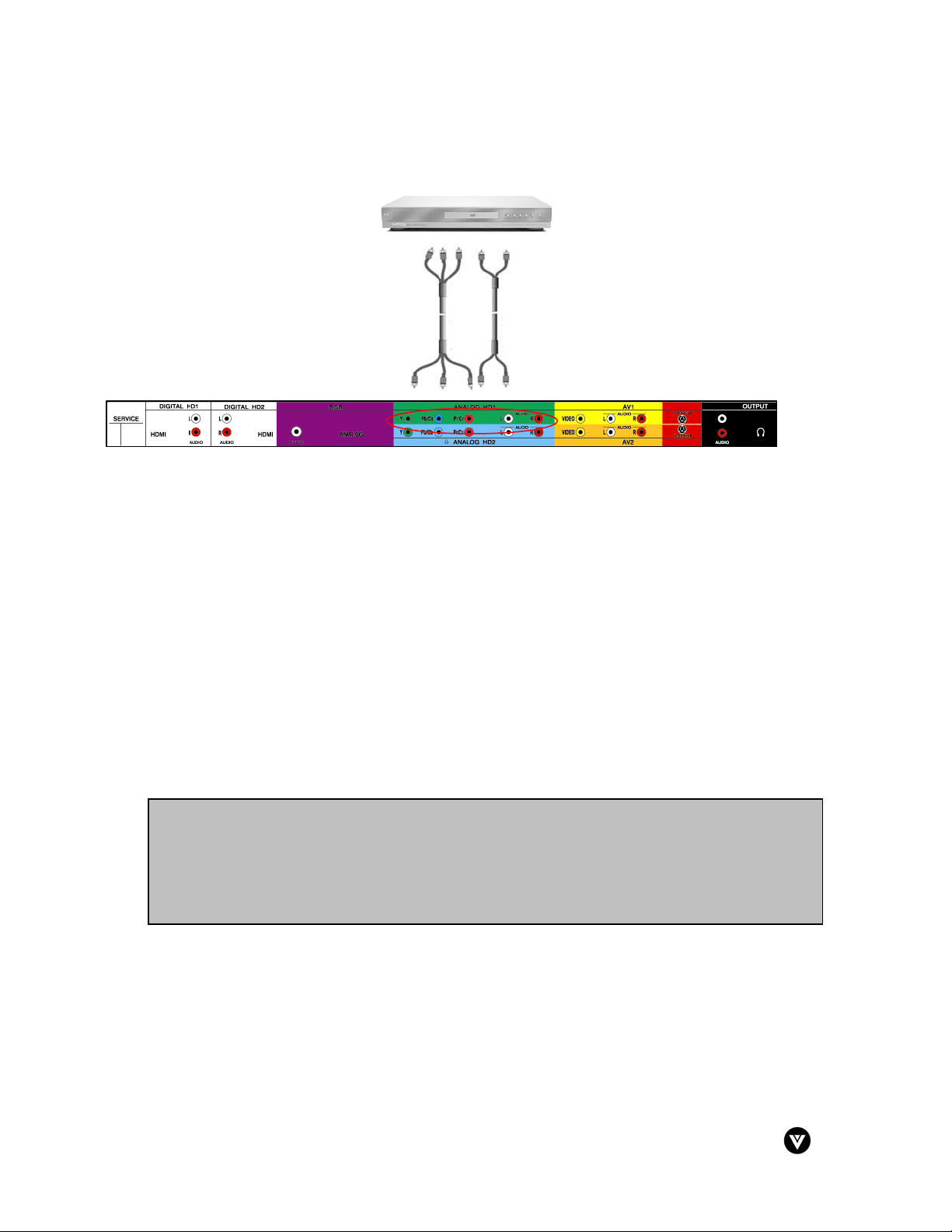

2.2.2 - Using Component (Analog HD) Video.......................................................................................15
2.2.3 - Using S-Video (AV) ...................................................................................................................16
2.2.4 - Using Composite (AV) Video.....................................................................................................17
2.3 - Connecting Your HDTV Set-Top Box.........................................................................................
.......18
2.3.1 - Using HDMI™ (Digital HD) ........................................................................................................18
2.3.2 - Using RGB Video ......................................................................................................................19
2.4 - Connecting Your VCR or Video Camera...........................................................................................19
2.5 - Connecting External Amplified Speakers or Amplifier .......................................................................20
2.6 - Connecting a Computer ....................................................................................................................20
Chapter 3 - Getting Started .........................................................................................................................21
3.1 - Turning your Plasma Monitor On and Off..........................................................................................21
3.2 - Watching a TV Program....................................................................................................................21
3.3 - Adjusting Basic Plasma Monitor Settings..........................................................................................22
3.4 - Preparing the Plasma for Wall Mounting...........................................................................................23

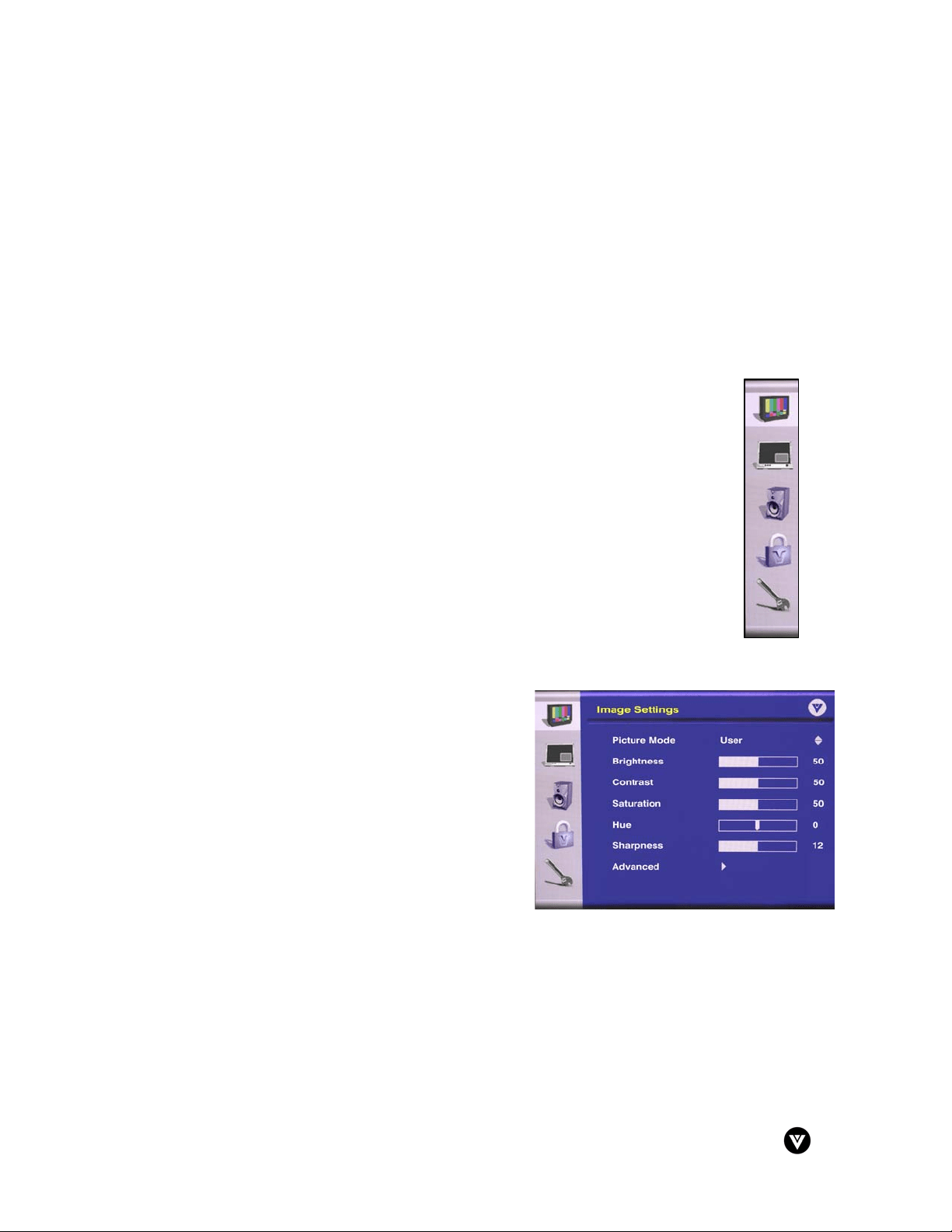

3.5 - Using the On-Screen Display (OSD).................................................................................................24
3.5.1 - Menu Operations.......................................................................................................................24

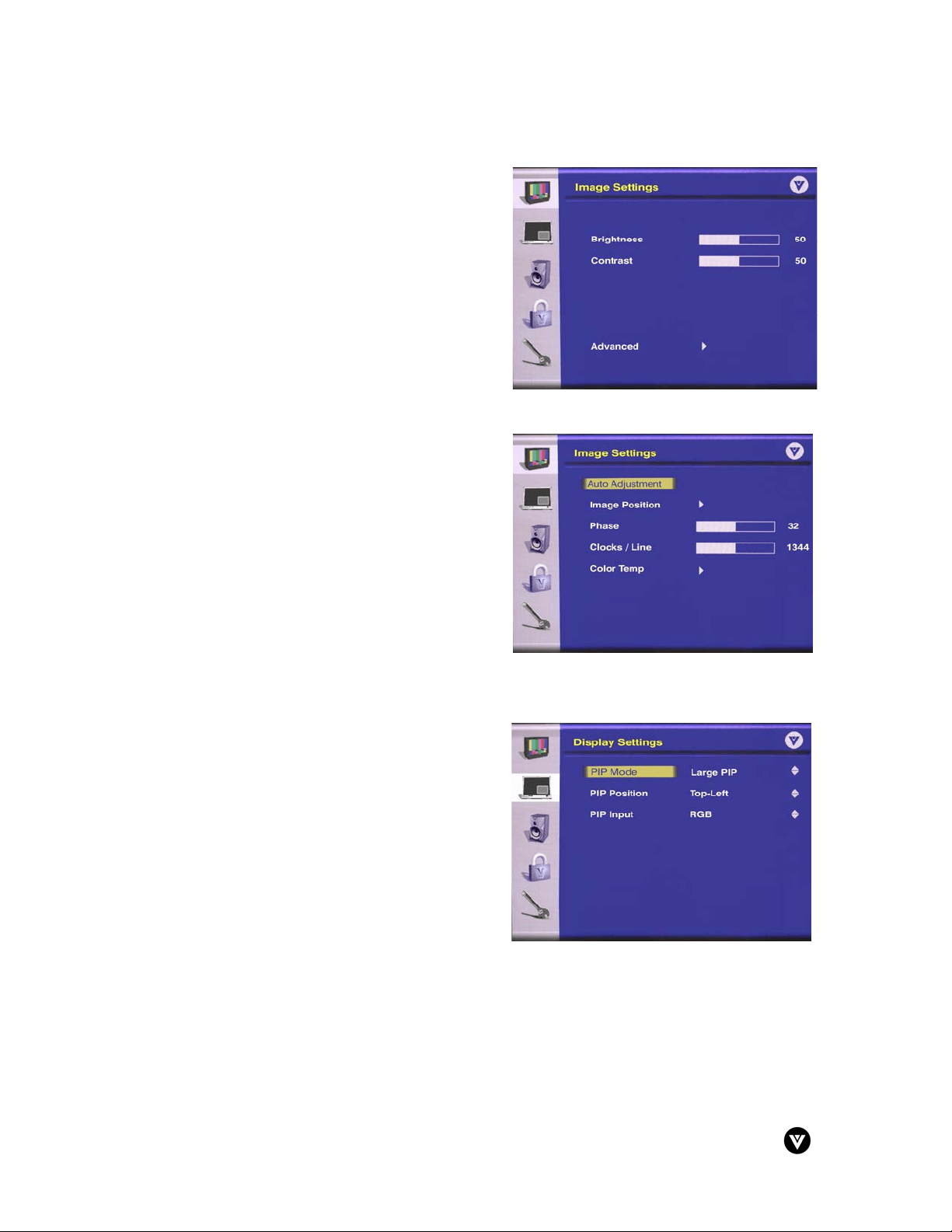

3.5.2 - OSD Menus and Options ..........................................................................................................25
3.5.3 - Using the Parental Controls ......................................................................................................29
3.5.4 – Setting a Password...................................................................................................................30

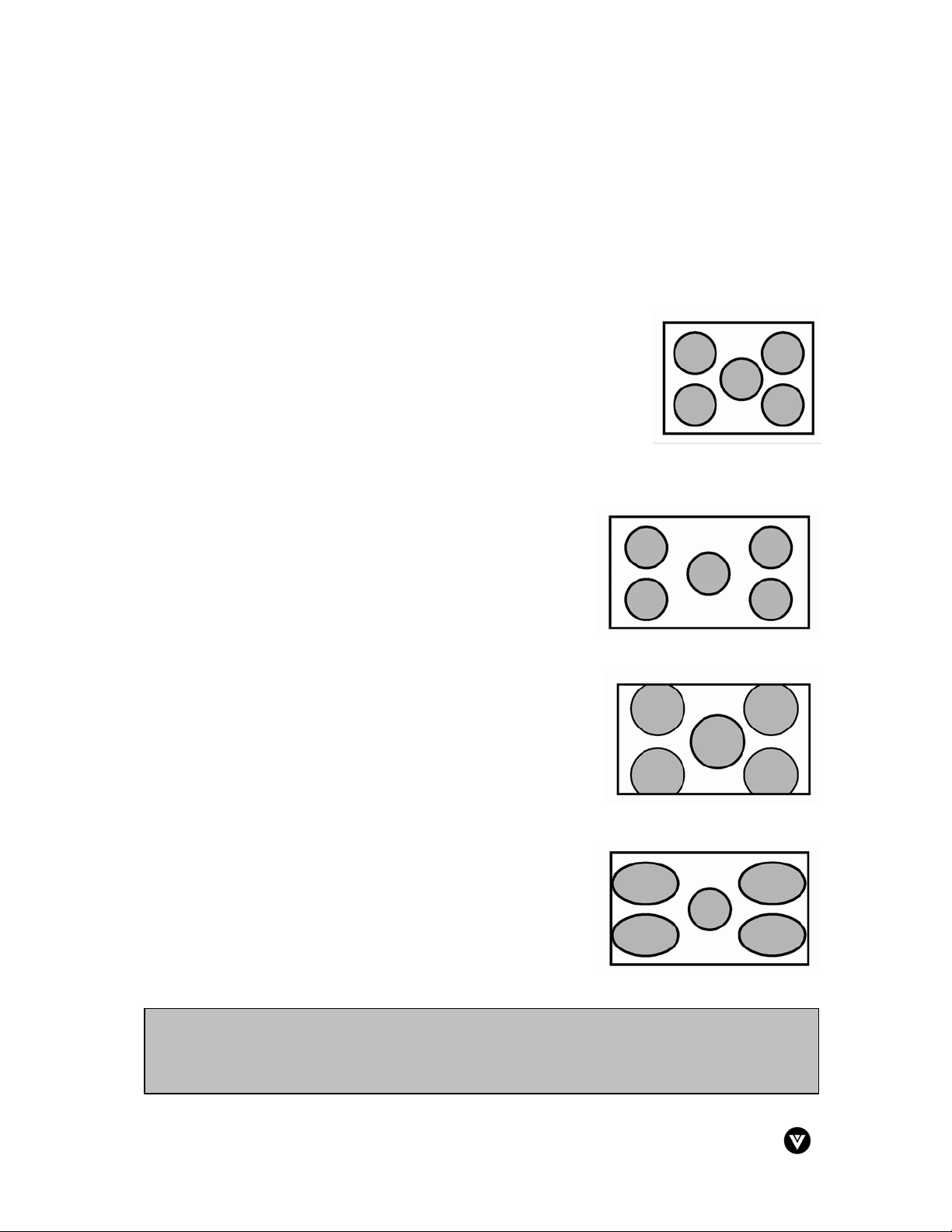

3.6 - Understanding Viewing Features ......................................................................................................31
3.7 - Remote Control Operation ................................................................................................................33
3.7.1 - Programming the VIZIO Universal Remote Control...................................................................33
3.7.2 - Searching for Component Codes ..............................................................................................35
3.7.3 - Reassigning Component Buttons ..............................................................................................35
3.7.4 - Changing Volume Lock .............................................................................................................35
3.7.5 – Using a Cable Box or Satellite Box Remote .............................................................................36
Chapter 4 - Maintenance and Troubleshooting.........................................................................................37
4.1 - Maintenance .....................................................................................................................................37
4.2 - Troubleshooting Guide......................................................................................................................37
4.3 - Telephone & Technical Support........................................................................................................39
4.4 - Compliance .......................................................................................................................................40
4.5 - FCC Class B Radio Frequency Interference Statement....................................................................40
Appendix A: Limited Product Warranty .....................................................................................................41
Appendix B: Component Program Codes .................................................................................................42
Appendix C: Glossary - Standard Definitions ...........................................................................................46
VIZIO P50 HDM User Guide
Version - 5/24/2005 2
www.vizioce.com
Chapter 1 - Introduction
1.1 - Before Use
Congratulations on your VIZIO P50 HDM 50” Plasma monitor purchase. Thank you for your
support of VIZIO and its Plasma display product line. The P50 HDM is a precise electronic
product and you should read the following instructions carefully to maximize the performance of
the product. It has passed the Class-B EMC test and CSA safety certifications and you can be
assured of the highest quality display with the utmost reliability. After you have finished reading
the instructions, put them away in a safe place for future reference.
1.2 – Specifications
Product P50 HDM
Panel: 50" Diagonal, 16:9 Aspect Ratio
Resolution: 1366 x 768 pixels
Pixel (Dot) Pitch: 0.81 (H) mm x .81 mm (V)
Display Compatibility: HDTV (720p)
Signal Compatibility: 480i (SDTV), 480P (EDTV), 720P (HDTV), 1080i (HDTV)
Color: 1 Billion
Brightness: 1000 cd/m2 (typical)
Contrast: 10,000:1 (typical)
Viewing Angle: >170° (horizontal and vertical)
Inputs:
2x Composite Video plus Stereo Audio, 2x S-Video plus Stereo Audio, 2x Component
YPbPr plus Stereo Audio, 1x Analog RGB plus Stereo Audio (shared with Digital Video), 2x
Digital Video (HDMI™**) with HDCP plus Stereo Audio (RCA)
Outputs: 1x Audio, 1x Headphone (Stereo Mini-jack)
Features:
Single Scan Technology for Higher Contrast, Reduced Solarisation and Reduced False
Contouring, and , PIP, POP, CC, V-Chip, 3D Comb Filter, Zoom, Freeze, DCDi® by
Faroudja*** Motion Adaptive De-Interlace, 3-D Noise Reduction, Sharpness Improvement,
Non-linear Chroma Enhancement, Closed Color Suppression, Non-Linear Scaling,
Adaptive Contrast and Color, NTSC Video decoding via Video (CVBS, S-Video or
Component YCbCr), Progressive Scan Video via Component YPbPr, VGA or HDMI™,
HDTV via Component YPbPr, VGA or HDMI™ (Set Top Box required), Computer 640 x
480, 800 x 600, 1024 x 768, 1280 x 1024 via VGA or HDMI™, SRS TruSurround XT****
Sound enhancement.
Speakers: Built-in 10W x 2
Power Input: IEC Connector for direct power line connection
Voltage Range: 100 ~ 240Vac at 50/60 Hz
Power consumption: 550W Max (490W average)
Dimensions:
48.8” x 34.3” x 12.2” (1241 x 871 x 310 mm) w/stand, 48.8” x 33.5” x 3.89” (1241 x 850 x
99 mm) w/o stand
Net Weight: 122 lbs (55.2 kgs) w/stand, and 110 lbs (49.7 kgs) w/o stand
Gross Weight: 144 lbs (65.2 kgs)
Certifications: CSA, FCC Class B
*Product specifications may change without notice or obligation. ** HDMI, the HDMI logo and High-Definition Multimedia
interface are trademarks or registered trademarks of HDMI™ Licensing LLC.
***Registered trademark of Genesis Microchip Inc.
TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
Note: In some countries or regions, the shape of the power plug and power outlet may
sometimes differ from that shown in the explanatory drawings. However, the method of
connecting and operating the unit is the same.
VIZIO P50 HDM User Guide
Version - 5/24/2005 3
www.vizioce.com
1.3 - Opening the Package
• The VIZIO P50 HDM is packaged in a carton together with other standard accessories. Any
optional accessories are packed separately in another carton.
• The weight of the Plasma monitor is approximately 122 lbs. Due to the size and weight of the
product, it is recommended that it be handled by a minimum of 2 persons, preferably 3
people.
• The glass installed on the front of the product can be easily scratched or broken, please
handle the product gently. Never place the unit on a surface with the glass facing downwards
unless it is on protective padding.
• When opening the carton, check that the product is in good condition and that all standard
accessories and items are included.
• Save the original box and all packing materials for future shipping needs.
1.4 - Installation
• Please read the user manual carefully before performing the installation.
• The power consumption of the display is approximately 550W Max (490W average),
significantly higher than a typical television. Please use the power cord designated for the
product. When an extension cord is required, use one with the correct power rating. The cord
must be grounded and the grounding feature must not be defeated.
• The product should be installed on a flat surface to avoid tipping. Space should be
maintained between the back of the product and the wall for proper ventilation. See Section
3.4 - Preparing the Plasma for Wall Mounting, page 23, for additional information.
• Avoid installing the product in the kitchen, bathroom or other places with high humidity dust or
smoke, so as not to shorten the service life of the electronic components.
• Please ensure the product is installed with the screen in landscape orientation. Any 90°
clockwise or counterclockwise installation may induce poor ventilation and subsequent
component damage.
• To protect the screen and avoid screen burn, do not keep a static picture displayed for a
prolonged period of time. This can result in "image sticking" (see below for additional details)
of the image and is not covered by the warranty.
1.4.1 - Image Sticking
The Plasma monitor illuminates phosphors to display images which have a finite illumination
life. After extended periods of illumination, the brightness of the phosphor will be degraded to
such an extent that stationary images would burn-in that part of the screen. Displaying the
same stationary patterns such as black bars, stock tickers, video games or shopping channel
logos and pricing displays, over extended periods of time can leave this type of permanent
image sticking. You can avoid this by mixing your viewing patterns. Do not show the same
stationary image for more than 15% of the total monitor viewing in any one week.
With the VIZIO VIC (VIZIO Image Cleaner) feature you are able to remove ghosts of previous
images. Note that the usual plasma panel precautions of avoiding prolonged display of
stationary images must be maintained. This will not remove images that have been displayed
for too long.
For additional information, please refer to Section 3.5.2.5 – Setup, page 28 for using the
panel protection feature.
NOTE: "Image Sticking" constitutes misuse and is NOT COVERED by the manufacturer's
warranty.
VIZIO P50 HDM User Guide
Version - 5/24/2005 4
www.vizioce.com
1.5 - Important Safety Guidelines
This product is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To
prevent the product from being damaged, the following rules should be observed for the installation, use and maintenance of the product.
Read the following safety instructions before operating the display. Keep these instructions in a safe place for future reference.
• To avoid the risk of electric shock or component damage, switch off the power before connecting other components to the P50 HDM
Plasma monitor.
• Unplug the power cord before cleaning the P50 HDM Plasma monitor. A damp cloth is sufficient for cleaning the P50 HDM Plasma
monitor. Do not use a liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving the P50 HDM Plasma monitor from an area of low temperature to an area of high temperature, condensation may form
on the housing. Do not turn on the P50 HDM Plasma monitor immediately after this to avoid causing fire, electric shock or component
damage.
• Do not place the P50 HDM Plasma monitor on an unstable cart, stand, or table. If the P50 HDM Plasma monitor falls, it can injure a
person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the P50
HDM Plasma monitor.
• A distance of at least 3 feet should be maintained between the P50 HDM Plasma monitor and any heat source, i.e. radiator, heater,
oven, amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or
electric shock.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the P50 HDM
Plasma monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the P50 HDM
Plasma monitor in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slot on the P50 HDM Plasma monitor cabinet. Do not place any objects on the top of the product. It
could short circuit parts causing a fire or electric shock. Never spill liquids on the P50 HDM Plasma monitor.
• The P50 HDM Plasma monitor should be operated only from the type of power source indicated on the label. If you are not sure of the
type of power supplied to your home, consult your dealer or local power company.
• The power cable must be replaced when using different voltage from that specified in the User Manual. For more information, contact
your dealer.
• The P50 HDM Plasma monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit
only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician
install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• The wall socket shall be installed near the equipment and shall be easily accessible.
• Only the marked power source can be used for the product. Any power source other than the specified one may cause fire or electric
shock.
• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
• Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the P50 HDM Plasma
monitor from damage due to power surges.
• Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high voltages, the risk
of electric shock, and other hazards. If repair is required, please contact your dealer and refer all servicing to qualified service
personnel.
• Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product, unplug
the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
• Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your
dealer immediately. Do not try to repair the product yourself.
• Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components may
function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the product may cause
fire or electric shock.
• Do not install the product in an area with heavy dust or high humidity. Operating the product in environments with heavy dust or high
humidity may cause fire or electric shock.
• Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before moving the
product.
• Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the cable
and
cause fire or electric shock. When the product will not be used for an extended period of time, unplug the power connector.
• To avoid risk of electric shock, do not touch the connector with wet hands.
• Insert batteries in accordance with instructions. Incorrect polarities may cause damage and leakage of the batteries, operator injury
and contamination the remote controller.
• If any of the following occurs please contact the dealer:
o The power connector fails or frays.
o Liquid sprays or any object drops into the P50 HDM Plasma monitor.
o The Display is exposed to rain or other moisture.
o The Display is dropped or damaged in any way.
o The performance of the Display changes substantially.
VIZIO P50 HDM User Guide
Version - 5/24/2005 5
www.vizioce.com
Electrical Warnings
Do not place this product in a location that is subject to heavy vibration, or on an unstable surface such as an inclined surface. The
product may fall off or fall over, causing injuries.
When moving the product, be sure to turn off the power and leave 5 seconds then disconnect all the cables. While moving the product,
watch your step. The product may be dropped or fall, leading to injuries of electric shock.
This product should be moved by two or more persons. If one person attempts to carry this product alone, he/she may be injured.
This product contains glass. The glass may break, causing injuries, if shock, vibration, heat, or distortion is applied to the product.
This product may be damaged if it is subject to excessive stresses (such as excessive voltage, current, or temperature). The absolute
maximum ratings specify the limits of these stresses.
Do not switch AC power on/off in the short time, be sure to turn off the power and leave 5 seconds then AC power on.
If this product is used as a display board to display a static image, “image sticking” occurs. This means that the luminance of areas of
the display that remain lit for a long time drops compared with the luminance of areas that are lit for a shorter time, causing uneven
luminance across the display. The degree to which this occurs is in proportion to the luminance at which the display is used. To prevent
this phenomenon, therefore, avoid static images as much as possible and design your system so that it is used at a low luminance, by
reducing signal level difference between bright area and less bright area through signal processing.
Within the warranty period, general faults that occur due to defects in components such as ICs will be rectified by LGE without charge.
However, IMAGE STICKING is not included in the warranty. Repairs due to the other faults may be charged for depending on
responsibility for the faults.
In case of AC PDP driving mechanism, because the brightness of output is not always proportional to input signals. Therefore the non-
linearity of gray can occasionally be observed in certain gray levels as well as Contour and Error Diffusion Noise can be appeared when
a dark picture is on the screen especially. These are phenomena that can be observed on the PDP driving mechanism. With simple
adjustment to picture brightness control, these can be reduced considerably.
Because of the need to control the power consumption on the PDP driving mechanism, the APL (Average Picture Level) mode was
equipped. Thus, as the picture on the screen changes, there can be slightly switched in brightness. This also is a phenomenon that can
be observed on the PDP driving mechanism.
HDMI™ Warnings
If you hot-plug the HDMI™ cable, the signal will be unstable for about 2 to 5 seconds.
Only supports timing 640x480 @60Hz DVI
VIZIO P50 HDM User Guide
Version - 5/24/2005 6
www.vizioce.com
1.6 - Package Contents
VIZIO P50 HDM Plasma Monitor
VIZIO Universal Remote Control
Power Cord
AV Cable
This User Guide
Registration Card
Warranty Card
Quick Connection Guide
Accessory Promotional Flyer
P50 HDM Product Brochure
IMPORTANT: Save the original box and all the packing material for future shipping needs.
Note: Your product may also include various other accessories depending on region of
purchase.
VIZIO P50 HDM User Guide
Version - 5/24/2005 7
www.vizioce.com
1.7 - Front Panel Controls
Power LED - Lights green when powered on.
Remote Control Sensor – This is the window that passes all of the remote signals to the sensor.
Point the remote control directly at this window for the best response to the remote signal.
1.8 - Side Panel Controls
Power - Switch the monitor on by pressing the button once. Press the
button again to turn the monitor off.
Menu – This button activates the OSD. If a sub-menu is active, pressing
this button will return to the previous menu level.
Select ▲/▼ - While the OSD is active, these buttons function as select
controls in the OSD menus.
Volume ◄/► - These buttons are used to increase or decrease the
speaker volume.
Input/Enter - Repeated pressing of this button steps through the input
sources in the following sequence: AV1 (S-Video or video*), AV2 (S-
Video or video*), Analog HD1, Analog HD2, Digital HD1, Digital HD2,
and RGB. Once you have stepped through the entire sequence, you will
return to the beginning.
Additionally, when the OSD is active, this button confirms the menu
function to be adjusted. When the OSD is not active, pressing this button will display
the current input mode.
*S-Video has priority. If a signal is connected to AV1 S-Video by itself or signals are connected to AV1 S-Video and AV1
Video simultaneously, then S-Video will be the only choice for AV1. If a signal is connected to AV1 Video only, then Video
will be the only choice for AV1. The same input priority scheme applies to AV2.
VIZIO P50 HDM User Guide
Version - 5/24/2005 8
www.vizioce.com
1.9 - Rear Panel Connections
1. Service – To be used for factory service only.

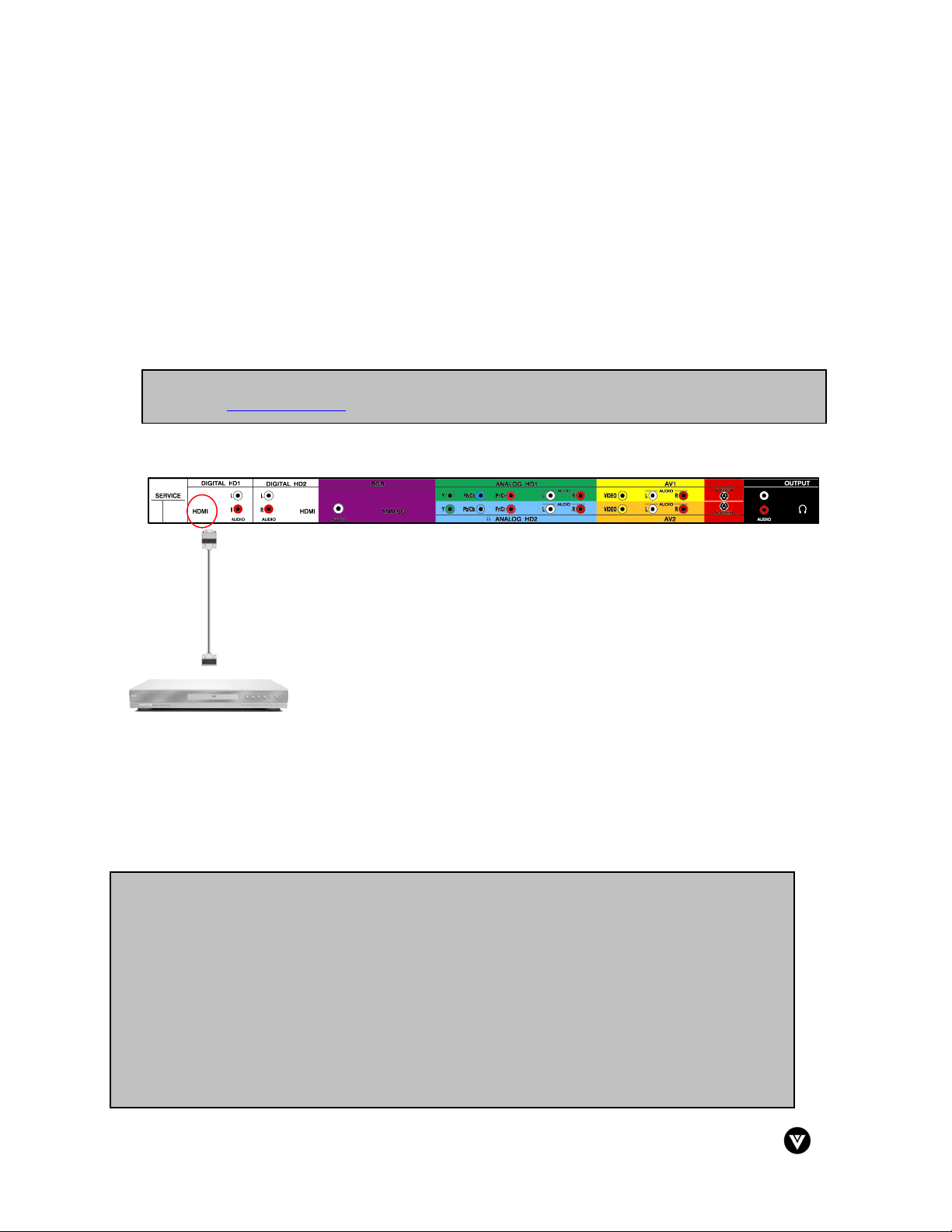

2. Digital HD1 (HDMI™) - Connect the primary source for a DVD multimedia player, computer or set-
top box and the audio through this connection. This connection is indicated by the white color band
on the back of the display. Note: This is a digital only connector.
3. Digital HD2 (HDMI™) - Connect the secondary source for a DVD multimedia player, computer or
set-top box and the audio through this connection. This connection is indicated by the white color
band on the back of the display. Note: This is a digital only connector.
4. RGB (Analog RGB/Audio In) - Connect the video from a computer or set-top box and the audio
from a computer or set-top box to these connections. This connection is indicated by the purple
color band on the back of the display.
5. Analog HD1 (Component YPbPr/YCbCr with Audio L/R) - Connect the primary source for
component video, such as a DVD player or set-top box. Use the connectors indicated by the
green, blue, and red for the video input and the white and red connectors for the audio input. This
connection is indicated by the green color band on the back of the display.
6. Analog HD2 (Component YPbPr/YCbCr with Audio L/R) - Connect the secondary source for
component video, such as a DVD player or set-top box. Use the connectors indicated by the
green, blue, and red for the video input and the white and red connectors for the audio input. This
connection is indicated by the blue color band on the back of the display.

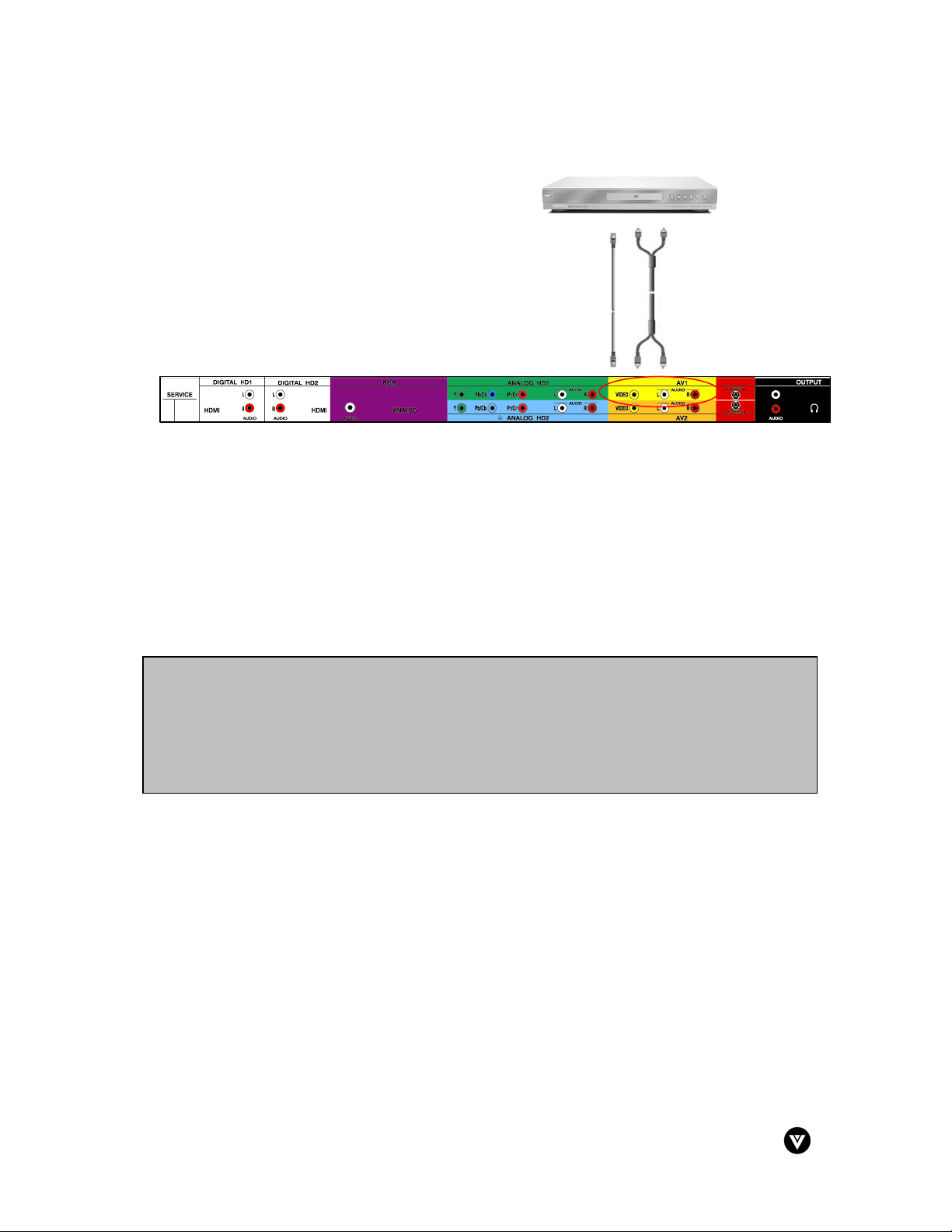

7. AV1 – Connect the primary source for composite video devices, such as a VCR or video game.
Use the white and red connectors to connect the external audio from the same source. This
connection is indicated by the yellow color band on the back of the display.
8. AV2 – Connect the secondary source for composite video devices, such as a VCR or video game.
Use the white and red connectors to connect the external audio from the same source. This
connection is indicated by the orange color band on the back of the display.
9. S-Video1* - Connect the primary source for S-Video devices, such as a VCR of video games. Use
the white and connectors from the AV1 group to connect the external audio from the same source.
10. S-Video2* - Connect the secondary source for S-Video devices, such as a VCR of video games.
Use the white and red connectors from the AV2 group to connect the external audio from the same
source.
11. Audio Out - Connect the audio from the plasma monitor to an external device, such as an external
amplifier or secondary TV.
12. Head Phone Jack - Connect external headphones (not included) to this port. Note: if headphones
are connected, users will need to select speakers off in the Audio Settings menu for sound to be
muted through the standard speakers.
*S-Video has priority. If a signal is connected to AV1 S-Video by itself or signals are connected to AV1 S-Video and AV1
Video simultaneously, then S-Video will be the only choice for AV1. If a signal is connected to AV1 Video only, then Video
will be the only choice for AV1. The same input priority scheme applies to AV2.
Note: YPbPr is used for the following signals: 480i, 480p, 720p, and 1080i. YCbCr is used for 480i and
480
p
onl
y
.
VIZIO P50 HDM User Guide
Version - 5/24/2005 9
www.vizioce.com
1.10 - VIZIO Universal Remote Control
The VIZIO Universal Remote Control is a comprehensive remote that can be used to control up to
four different components. The remote control button functions are explained on the following
pages.
VIZIO Universal Remote Control Button Description
1
5
4
8
3
6
7
9
10
14
13
16
12
11
15
19
17
20
21
24
25
28
31
32
34
35
18
23
22
27
26
30
29
33
37
36
VIZIO P50 HDM User Guide
Version - 5/24/2005 10
www.vizioce.com
1.10.1 - Key Remote Control Functions
1. SET – This button starts all programming sequences.
2. Remote LED – Blinks when the remote is being programmed or is
sending a signal to your
plasma display.
3. POWER – Press this key to turn the
plasma display on from
standby mode. Press it again to return to the standby mode.
4. TV – This button selects a programmed TV. Note: this button has been pre-programmed
for the VIZIO P50 HDM Plasma monitor.
5. VCR – This button selects a programmed VCR.
6. CABLE – This button selects a programmed cable TV set-top box or selects a
programmed satellite TV set-top box.
7. DVD – This button selects a programmed DVD player.
8. Number Button Pad – Use these buttons to select a channel or enter a
password.
9. INPUT – This button allows the user to cycle through the input sources
in the following sequence: AV1 (S-Video or video*), AV2 (S-Video or
video*), Analog HD1, Analog HD2, Digital HD1, Digital HD2, and RGB.
10. Enter – This button works as an ENTER button in video modes.
11. CH (+ or -) – These buttons change the channels up or down. Note:
these buttons are not functional for the VIZIO P50 HDM.
12. LAST – This button recalls the previously viewed channel. Note: this
button is not functional for the VIZIO P50 HDM.
13. MUTE – This button turns the sound on and off.
14. VOL (+ or -) – These buttons turn volume up or down.
15. MENU – This button is used to turn the OSD on.
16. INFO – This button displays the input the user is currently watching.
17. GUIDE – This button displays the electronic program guide. Note: this
button is not functional for the VIZIO P50 HDM.
18. EXIT – This button exits the OSD menus.
dcfe - These buttons navigate the on-screen display (OSD) menus.
19. OK – This button works to select your chosen option in on-screen
display (OSD) menus.
20. Record/Wide – This button functions as a VCR Record when the
component is activated with the remote control. This button also cycles through standard
and widescreen viewing modes. Options include Wide, Zoom, and Normal. Note: in
RGB mode, the only options are Normal and Wide.
21. Pause/Sleep - This button pauses the CD, DVD or VCR when
the component is activated with the remote control.
Additionally, this button allows the user to select the sleep
options by adjusting the timer in 15 minute increments up to 120 minutes.
22. Play/MTS – This button plays the CD, DVD or VCR when the component is activated with
the remote control. Note: this button is not functional for the VIZIO P50 HDM.
23. Stop/CC – This button stops the CD, DVD or VCR when the component is activated with
the remote control. Additionally, this button will select the Closed Caption menu. Options
include the following: OFF, CC1, CC2, CC3, CC4, Text1, Text2, Text3, and Text4.
* S-Video has priority. If a signal is connected to AV1 S-Video by itself or signals are connected to AV1 S-Video and AV1
Video simultaneously, then S-Video will be the only choice for AV1. If a signal is connected to AV1 Video only, then Video
will be the only choice for AV1. The same input priority scheme applies to AV2.
VIZIO P50 HDM User Guide
Version - 5/24/2005 11
www.vizioce.com
24. Skip Channel Reverse/NTSC TV - This button functions as a
DVD “previous chapter” when the DVD player is activated with
the remote control. This button also selects a programmed
NTSC TV. Note: this button is not functional for the VIZIO P50
HDM.
25. Reverse/AV – This button reverses the CD, DVD or VCR when the component is
activated with the remote control. Additionally, this button will select the AV component.
26. Forward/Analog HD – This button forwards the CD, DVD or VCR when the component is
activated with the remote control. Additionally, this button will select the Analog HD
component.
27. Skip Channel Forward/Digital HD – This button functions as a DVD “next chapter” when
the component is activated with the remote control. Additionally, this button will select
the Digital HD component.
28. ZOOM (- and +) – Use this key to zoom the image in or out.
When in ZOOM mode, a small window will appear showing
which area of the screen is enlarged. Use the arrow keys to
move the zoomed portion. Press the OK repeatedly to return
to the standard picture.
29. FREEZE – Press this key to "Freeze-Frame" the current
screen. Users may press this key again to continue playing.
Note: play will resume automatically after one minute.
30. RGB – This button selects a connected RGB component such as a PC.
31. PiP – Use this button to activate the picture-in-picture mode.
32. PiP CH (– and +) – These buttons are used to select the channels within the PiP screen
when TV is the input selected. Note: these buttons are not functional for the VIZIO P50
HDM.
33. AUDIO – Press this key to switch the audio from the main screen to the sub-screen while
in PiP or POP mode.
34. PiP Input – Press this button to choose the PIP input from the OSD menu. Choose from
one of the following: AV1 (S-Video or video*), AV2 (S-Video or video*), Analog HD1,
Analog HD2, Digital HD1, Digital HD2, and RGB. Note: Users must be in PiP mode for
this button to be functional. For additional information regarding the PiP options, see
Section 3.6.2 - Picture-in-Picture (PiP) Mode, page 32.
35. PiP Size – Press this button to select the size of the PiP screen from one of the following:
small or large.
36. LANG – Note: this button is not functional for the VIZIO P50 HDM.
37. Swap – Used to swap the inputs from the main screen and the sub-screen while in the
PiP mode.
Note: The remote control layout is for reference only.
*S-Video has priority. If a signal is connected to AV1 S-Video by itself or signals are connected to AV1 S-Video and AV1
Video simultaneously, then S-Video will be the only choice for AV1. If a signal is connected to AV1 Video only, then Video
will be the only choice for AV1. The same input priority scheme applies to AV2.
VIZIO P50 HDM User Guide
Version - 5/24/2005 12
www.vizioce.com
1.10.2 - Insertion of Batteries in the Remote Control
Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols
on the batteries with the (+) and (-) symbols inside the battery compartment. Re-attach the
battery cover.
Precautionary Tips for Inserting the Batteries:
• Only use the specified AA batteries.
• Do not mix new and old batteries. This may result in
cracking or leakage that may pose a fire risk or lead to
personal injury.
• Inserting the batteries incorrectly may result in cracking or
leakage that may pose a fire risk or lead to personal injury.
• Dispose of the batteries in accordance with local laws and
regulations.
• Keep the batteries away from children and pets.
1.10.3 - Remote Control Range
• Point the remote control at the remote control sensor to transmit the commands.
• Do not place any obstacles between the remote control and the receiver window.
• The effective range of the remote control is approximately 32 feet (10 meters) from the
front of the receiver window, 30º to the left and right, 20º up and down.
1.10.4 - Precautions for the VIZIO Universal Remote Control
• Remote control should be kept dry and away from heat sources. Avoid humidity.
• If the display responds erratically to the remote control or does not respond at all, check
the batteries. If the batteries are low or exhausted, replace them with fresh batteries.
• When not using the remote control for a long period of time, remove the batteries.
• Do not take apart the batteries, heat them, or throw them into a fire.
• Do not subject the remote control to undue physical stress, such as striking or dropping it.
• Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean,
damp cloth.
VIZIO P50 HDM User Guide
Version - 5/24/2005 13
www.vizioce.com
Chapter 2 - Connecting Components
2.1 - Which Video Connection Should I Use?
The VIZIO P50 HDM Plasma Monitor has four different ways to connect your video equipment
from a basic one to the most advanced for digital displays.
Connection Quality Connector Color Codes for
Rear Panel
Description
Basic Yellow and
Orange
AV1/AV2 (Composite) - The complete video
signal is carried through this single pin
connector. This is the most commonly used
video connection.
Good
Red S-Video - The video signal is separated into
two signals, one containing the black-and-
white information and the other containing
the color information. Separating the color in
this way avoids ‘cross color’ effects where
closely spaced black and white lines are
erroneously displayed in color. It also
enables text to be displayed more sharply.
Better
Green and Blue Analog HD1/HD2 (Component) - The video
signal is separated into three signals, one
containing the black-and-white information
and the other two containing the color
information. This enhancement over S-Video
takes advantage of the superior picture
provided by progressive scan DVD players
and HDTV formats.
Best White Digital HD1/HD2 (HDMI™ - High-Definition
Multimedia Interface) - It is the first and only
industry-supported, uncompressed, all-digital
audio/video interface. HDMI™ provides an
interface between any audio/video source,
such as a set-top box, DVD player, or AV
receiver and an audio and/or video monitor,
such as a digital television (DTV), over a
single cable.
VIZIO P50 HDM User Guide
Version - 5/24/2005 14
www.vizioce.com
2.2 - Connecting Your DVD Player
You have several options for connecting your DVD player to your new P50 HDM plasma monitor
– HDMI™
(Digital HD), Component (Analog HD), S-Video (AV), and Composite (AV) inputs.
Based on your home theater configuration, you can decide which option is the right one for you.
2.2.1 - Using HDMI™ (Digital HD)
DVD players that have a digital interface such as HDMI™ (High-Definition Multimedia Interface)
should be connected to the HDMI™ input of the VIZIO P50 HDM plasma monitor for optimal
results.
Installation:
1. Turn off the power to the plasma monitor and DVD player.
2. Connect a HDMI™ cable to the HDMI™ output of your DVD player and the other end to
the HDMI™ input (white color band) in the rear of your plasma monitor.
3. Turn on the power to the plasma monitor and your DVD player.
4. Select Digital HD1 using the INPUT button on the side of the plasma monitor, or the
“Digital HD” or “Input” button on the remote control.
Note: To maintain the display quality, use a VIZIO certified HDMI™ cable that is 10 meters or
less. See www.vizioce.com for details.
Note:
a) If you need to connect a DVI device to your P50HDM monitor, we recommend using an
HDMI™-DVI cable (contact VIZIO for these cables). We suggest you don’t use an
HDMI™/DVI adapter since it may physically block the adjacent audio inputs.
b) The HDMI™ input on your plasma monitor supports High-bandwidth Digital Content
Protection (HDCP). HDCP encrypts the transmission between the video source and the
digital display for added security and protection.
c) If you are already using the Digital HD1 input for another component, or you do not
want to use the Digital HD1 input for the DVD player, you can connect the DVD player
to the Digital HD2 connections coded by the white color band.
d) Refer to your DVD player user manual for more information about the video output
requirements of the product.
VIZIO P50 HDM User Guide
Version - 5/24/2005 15
www.vizioce.com
2.2.2 - Using Component (Analog HD) Video
Installation:
1. Turn off the power to the plasma monitor and DVD player.
2. Connect the Y (green color) connector on the rear of your DVD player to the
corresponding Y (green color) connector in the Analog HD1 group (green color band) in
the rear of your plasma monitor.
3. Connect the Pb (blue color) connector on the rear of your DVD player to the
corresponding Pb (blue color) connector in Analog HD1 group (green color band) in the
rear of your plasma monitor.
4. Connect the Pr (red color) connector on the rear of your DVD player to the corresponding
Pr (red color) connector in the Analog HD1 group (green color band) in the rear of your
plasma monitor.
5. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R (red color) and L (white color) audio input connectors in the Analog HD1
group (green color band) in the rear of your plasma monitor.
6. Turn on the power to the plasma monitor and DVD player.
7. Select Analog HD1 using the INPUT button on the side of the plasma monitor, or the
“Analog HD” or “Input” button on the remote control.
Note:
a) If you are already using the Analog HD1 input for another component, or you do not
want to use the Analog HD1 input for the DVD player, you can connect the DVD
player to the Analog HD2 connections coded by the blue color band.
b) Refer to your DVD player user manual for more information about the video output
requirements of the product.
VIZIO P50 HDM User Guide
Version - 5/24/2005 16
www.vizioce.com
2.2.3 - Using S-Video (AV)
Installation:
1. Turn off the power to the plasma monitor and DVD player.
2. Connect the S-Video jack on the rear of your DVD player to the S-Video1 jack (red color
band) on the back of your plasma monitor.
3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R (red color) and L (white color) audio input connectors in the AV 1 group
(yellow color band) in the rear of your plasma monitor.
4. Turn on the power to the plasma monitor and DVD player.
5. Select AV1 (S-Video) using the INPUT button on the side of the plasma monitor, or the
“Analog HD” or “Input” button on the remote control
Note:
a) If you are already using the S-Video1 input for another component, or you do not want
to use the S-Video1 input for the DVD player, you can connect the DVD player to the
S-Video2 connections. If you are using S-Video2, then please make sure you connect
the audio in the AV2 group.
b) Refer to your DVD player user manual for more information about the video output
requirements of the product.
VIZIO P50 HDM User Guide
Version - 5/24/2005 17
www.vizioce.com
2.2.4 - Using Composite (AV) Video
Installation:
1. Turn off the power to the plasma monitor and DVD player.
2. Connect the Video
(yellow color) connector on the rear of your DVD player to the Video
connector in the AV 1 group (yellow color band) in the rear of your plasma monitor.
3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R (red color) and L (white color) audio input connectors in the AV 1 group
(yellow color band) in the rear of your plasma monitor.
4. Turn on the power to the plasma monitor and DVD player.
5. Select AV1 (video) using the INPUT button on the side of the plasma monitor, or the “AV”
or “Input” button on the remote control.
Note:
a) If you are already using the AV1 input for another component, or you do not want to
use the AV1 input for the DVD player, you can connect the DVD player to the AV2 in
(orange color band). If you are using AV2, then please make sure you connect the
audio in the AV2 group.
b) Refer to your DVD player user manual for more information about the video output
re
q
uirements of the
p
roduct.
VIZIO P50 HDM User Guide
Version - 5/24/2005 18
www.vizioce.com
2.3 - Connecting Your HDTV Set-Top Box
You have several options for connecting your HDTV Set-Top Box to your new P50 HDM plasma
monitor: HDMI™ (Digital HD) and RGB inputs. Based on your home theater configuration, you
can decide which option is the right one for you.
2.3.1 - Using HDMI™ (Digital HD)
Digital Set-Top boxes that have a digital interface such as HDMI™ (High-Definition Multimedia
Interface) should be connected to the HDMI™ input of the VIZIO P50 HDM plasma monitor for
optimal results.
Installation:
1. Turn off the power to the plasma monitor and HDTV Set-Top Box.
2. Connect a HDMI™ cable to the HDMI™ output of your HDTV Set-Top Box and the other
end to the HDMI™ input (white color band) in the rear of your plasma monitor.
3. Connect the Audio Out on your HDTV Set-Top Box to the Audio within the Digital HD1
group (white color band) on your plasma monitor (please see note below).
4. Turn on the power to the plasma monitor and your HDTV Set-Top Box.
5. Select Digital HD1 using the INPUT button on the side of the plasma monitor, or the
“Digital HD” or “Input” button on the remote control.
For additional information to use your satellite or cable box remote, please see 3.7.5 – Using
Cable Box or Satellite Box Remote, page 36.
Note:
a) If you need to connect a DVI device to your P50HDM monitor, we recommend using
an HDMI™-DVI cable (contact VIZIO for these cables). We suggest you don’t use an
HDMI™/DVI adapter since it may physically block the adjacent audio inputs.
b) The HDMI™ input on your plasma monitor supports High-bandwidth Digital Content
Protection (HDCP). HDCP encrypts the transmission between the video source and
the digital display for added security and protection.
c) If you are already using the Digital HD1 input for another component, or you do not
want to use the Digital HD1 input for the HDTV Set-Top Box, you can connect the
HDTV Set-Top Box to the Digital HD2 connections coded by the white color band.
d) Refer to your HDTV Set-Top Box user manual for more information about the video
output requirements of the product or consult your satellite or cable operator.
Note: To maintain the display quality, use a VIZIO certified HDMI™ cable that is 10 meters or
less. See www.vizioce.com
for details.
VIZIO P50 HDM User Guide
Version - 5/24/2005 19
www.vizioce.com
2.3.2 - Using RGB Video
Installation:
1. Turn off the power to the plasma monitor and HDTV Set-Top Box.
2. Connect a 15-pin D-Sub RGB cable to the RGB output of your HDTV Set-Top Box and
the other end to the RGB input (purple color band) in the rear of your plasma monitor.
3. Connect the Audio Out on your HDTV Set-Top Box to the Audio within the RGB group
(purple color band) on your plasma monitor.
4. Turn on the power to the plasma monitor and your HDTV Set-Top Box.
5. Select RGB using the INPUT button on the side of the plasma monitor, or the “RGB” or
“Input” button on the remote control.
2.4 - Connecting Your VCR or Video Camera
Installation:
1. Turn off the power to the plasma monitor and VCR or video camera.
2. Connect the S-Video jack on your VCR or video camera to the S-Video1 jack (red color
band) on the rear of your plasma monitor.
3. Connect the R (red color) and L (white color) audio connectors on the rear of your VCR
or Video Camera to the R (red color) and L (white color) audio input connectors in the AV
1 group (yellow color band) in the rear of your plasma monitor.
4. Turn on the power to the plasma monitor and VCR or video camera.
5. Select AV1 (S-Video) using the INPUT button on the side of the plasma monitor, or the
“AV” or “Input” button on the remote control.
Note: Refer to your HDTV Set-Top Box user manual for more information about the video
output requirements of the product or consult your satellite or cable operator.
Note: Refer to your VCR or video camera user manual for more information about the video
output requirements of the product.
VIZIO P50 HDM User Guide
Version - 5/24/2005 20
www.vizioce.com
2.5 - Connecting External Amplified Speakers or Amplifier
Installation:
1. Turn off the power to the plasma monitor and external amplifier.
2. Connect the R (red color) and L (white color) audio input connectors on the rear of your
amplifier to the R (red color) and L (white color) audio output connectors in the rear of
your plasma monitor.
3. Turn on the power to the plasma monitor and
amplifier.
4. Then press the menu button on the remote
control to open the OSD menu.
5. Press the ▼ on the remote control to select
the Audio Settings menu.
6. Press the ► on the remote control to enter
into the Audio Settings sub menu.
7. Press the ▼ on the remote control to select
SPEAKERS and then press the ► on the
remote control OFF to switch to the display
over to use external speakers.
2.6 - Connecting a Computer
Installation:
1. Turn off the power to the plasma monitor and Computer.
2. Connect a 15-pin D-sub RGB cable to the RGB output of your computer and the other
end to the RGB input (purple band) in the rear of your plasma monitor.
3. Connect the RGB Audio Out on your computer to the RGB Audio (purple band) at the
rear of your plasma monitor.
4. Turn on the power to the plasma monitor and your computer.
5. Select RGB using the INPUT button on the side of the plasma monitor, “RGB” or “Input
button on the remote control.
Note:
a) For the best picture quality when connecting a PC through RGB or DVI, set your
product timing mode to VESA 1024 x 768 @60Hz. Please refer to the graphic card’s
user guide for additional information on how to set the timing mode.
b) Refer to your computer user manual for more information about the video output
requirements of the product.
VIZIO P50 HDM User Guide
Version - 5/24/2005 21
www.vizioce.com
Chapter 3 - Getting Started
3.1 - Turning your Plasma Monitor On and Off
1. Connecting Power Cables
Connect the power cord to the power cord connector on the back of your plasma monitor,
and then plug the power cord into an AC wall socket.
2. Connect Audio and Video Cables to the monitor
For AV, S-Video, Analog HD (YPbPr/YCbCr) and HDMI™ compatible devices, connect
the video and audio cables to the connectors on the rear panel of the plasma monitor.
For a PC, connect it through the RGB input connection in the back of the plasma monitor.
See below for diagram of the rear panel connections.
3. Turning Power On
Once all the components are connected, press the Power button on the side of the
plasma monitor, or press the Power (Red) button on the remote control.
4. Select Input Source
Select the input source for the plasma monitor by pressing the INPUT button on the side
of the monitor or using the Input button on the remote control.
Pressing this button will cycle you through the following options: AV1 (S-Video or video*),
AV2 (S-Video or video*), Analog HD1, Analog HD2, Digital HD1, Digital HD2, and RGB.
*S-Video has priority. If a signal is connected to AV1 S-Video by itself or signals are connected to AV1 S-Video
and AV1 Video simultaneously, then S-Video will be the only choice for AV1. If a signal is connected to AV1
Video only, then Video will be the only choice for AV1. The same input priority scheme applies to AV2.
3.2 - Watching a TV Program
Before you start watching TV, please make sure that any satellite or external tuner, i.e. VIZIO
Bravo HD2, connections are secure. Also, verify that the power cord is plugged into a correctly
grounded electrical outlet or surge protector.
1. Press the power button on the front of your plasma monitor. The status LED on the front
turns green.
2. There are 2 options for selecting your programming:
a. Select Digital HD using the Input button on the side of your plasma monitor if you
are watching broadcasts through a cable set-top box or satellite dish connected
by HDMI™.
b. Select Analog HD using the Input button on the side of your plasma monitor if
you are watching a cable set-top box or satellite dish connected through the
component inputs (YPbPr).
To make additional adjustments to your plasma monitor, please see Section 3.3: Adjusting Basic
Plasma Monitor Settings” on page 22.
Note: You should be able to see a picture. If you do not, make sure that all connections are
secure and you have selected the correct video input source.
VIZIO P50 HDM User Guide
Version - 5/24/2005 22
www.vizioce.com
3.3 - Adjusting Basic Plasma Monitor Settings
Volume
To increase the volume, press and hold the VOL + button on the front panel or remote
control until the desired level is reached.
To decrease the volume, press and hold the VOL - button on the front panel or remote
control until the desired level is reached.
Mute
Press the MUTE button on the remote control to turn off the sound; press the button
again to cancel the MUTE feature and turn the sound on.
Wide
Using this feature you can watch video content in Normal, Wide, and Zoom. Press the
WIDE button on the remote control to switch among the modes.
VIZIO P50 HDM User Guide
Version - 5/24/2005 23
www.vizioce.com
Figure 3.4a
Figure 3.4b
3.4 - Preparing the Plasma for Wall Mounting
The VIZIO P50 HDM can either be kept on the base stand or mounted to the wall for viewing. If
you choose to mount the P50 HDM to the wall, please follow the instructions below for removing
the base stand.
To remove the stand base:
1. Unplug all the cables and cords from the plasma
monitor.
2. Place the plasma monitor face down on a soft and
flat surface (blanket, foam, cloth, etc) to prevent
any damage to the display.
3. Remove the 6 screws on each side of the back
panel of the plasma monitor located near the
bottom so that the base stand can be removed
(see Figure 3.4a).
4. Gently pull the stand away from the display by
grasping firmly to the base.
5. Now, the display can fit securely to a mount (sold
separately) by utilizing the mounting holes in the
center of the back panel of the display (see Figure
3.4b). Please make sure to read the directions of
your specific wall mount to properly hang the P50
HDM.
To find the perfect mount for the VIZIO P50 HDM, browse VIZIO’s certified mount selection at
www.vizioce.com
or call directly, 1.888.VIZIOCE (1.888.849.4623).
VIZIO P50 HDM User Guide
Version - 5/24/2005 24
www.vizioce.com
3.5 - Using the On-Screen Display (OSD)
The remote control or the bottom control keys on the front panel of the Plasma monitor can
control all the function settings. The on-screen display (OSD) allows you to adjust and save
contrast, brightness and other settings. The Plasma monitor will retain changes made to the
settings even if the Plasma monitor is turned off.
3.5.1 - Menu Operations
The OSD consists of a Main Menu of items and each of these items has a Sub Menu associated
with it that the OSD will switch to when the item is selected.
1. Press the MENU button on the remote control and the Main Menu
will be displayed on the screen, as shown in figure 3.5.1.a. Options
include the following: Image, Display, Audio, Parental Controls and
Setup.
2. Use the c /d buttons on the remote control to highlight the feature
you wish to select.
3. Press the OK button on the remote control to select the feature. The
Main Menu will now change to the Sub Menu of the feature
selected, as shown in figure 3.5.1.b.
4. Use the c /d buttons on the remote control to highlight the option
you wish to adjust.
5. Adjust the level or change the setting of the selected option by
pressing e/f buttons on the remote control.
6. Press the OK button to confirm the adjustment.
7. Repeat steps 4 through 6 to adjust additional
options.
8. Once the adjustments are completed, press
the e button on the remote control to exit the
sub menu.
9. Use the c /d buttons on the remote control to
highlight another option you wish to adjust
within the main menu or press the EXIT button
on the remote control to exit the OSD.
Figure 3.5.1.a
Figure 3.5.1.b
VIZIO P50 HDM User Guide
Version - 5/24/2005 25
www.vizioce.com
3.5.2 - OSD Menus and Options
The OSD menus and options are used to adjust various settings on your Plasma monitor.

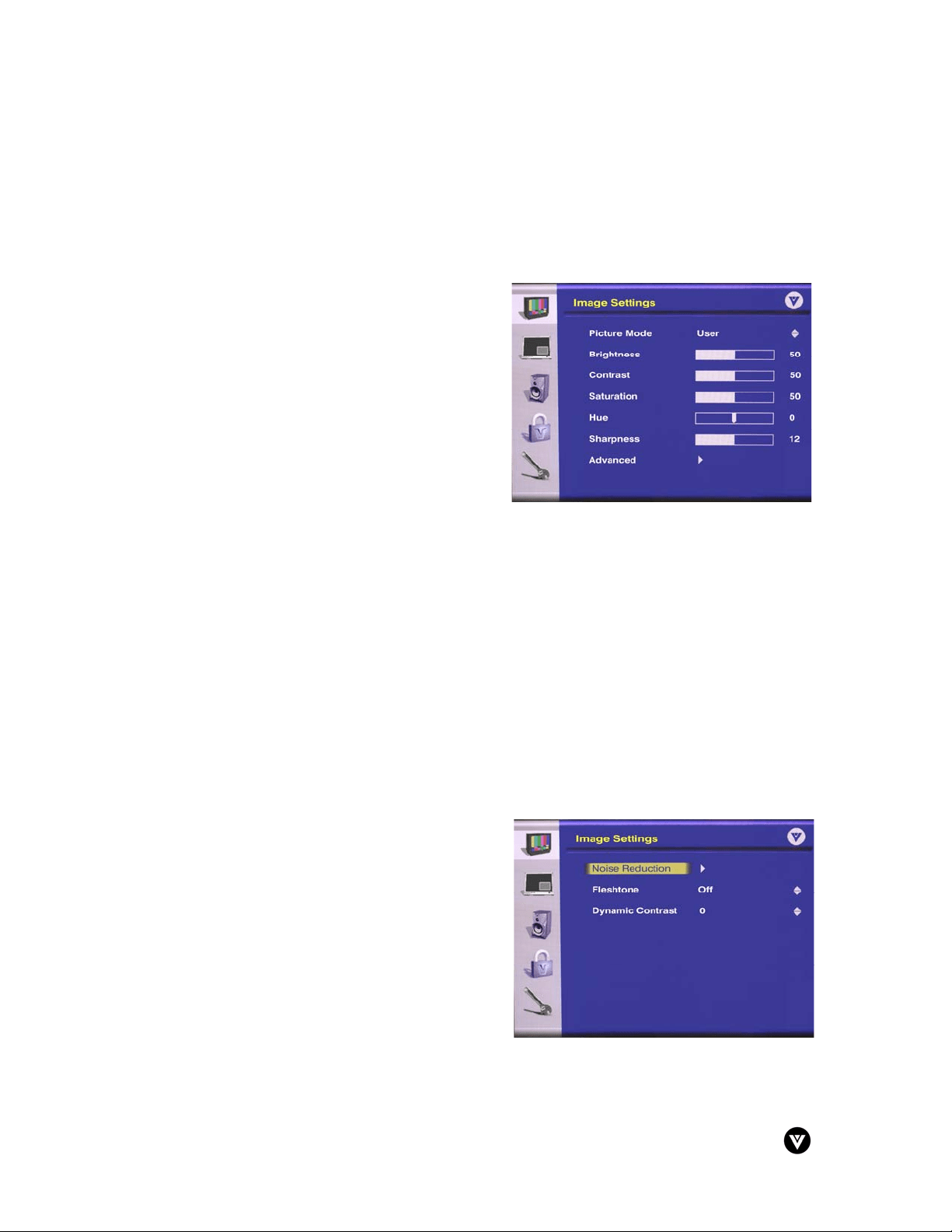

3.5.2.1.1 – Image Settings for Video Inputs
Note: there are different image setting options when the RGB input is selected. Please see
section 3.5.2.1.2 – Image Settings (for PC) on page 26 for additional information.
Picture Mode – Options include User, Vivid, Movie,
Game, and Sport.
User – allows the user to manually customize
individual image settings.
Vivid – automatically increases the saturation
level for an optimized picture.
Movie – automatically decreases the brightness
and contrast level for an optimized picture.
Game – automatically increases the contrast
level and slightly decreases brightness
level for an optimized picture.
Sport – automatically increases contrast and
saturation levels for an optimized picture.
Brightness - Adjusts the black levels of the picture. Users may need to readjust the brightness
after the
plasma monitor warms up.
Contrast – Adjusts the level of white between the lightest and darkest portions of an image. If the
contrast is too low, the picture appears dark and lacks detail. If the contrast is too high, the
picture appears faded and lacks shadow and depth.
Saturation - Adjusts the levels of color in the picture. Highly saturated colors tend to be deep and
strong while unsaturated colors are weaker and lighter.
Hue – Adjusts to make the flesh tones more natural.
Sharpness – Adjusts the clarity of the picture. If the sharpness is set incorrectly, the picture
appears fuzzy or out of focus.
Advanced – please see below for additional information regarding these options.
Advanced Image Settings for Video inputs
When you select “advanced within the image settings submenu. The following options will
appear.
Noise Reduction – when you select Noise
Reduction, the following submenu options will
appear:
Motion (Motion Noise Reduction - MNR) – This
feature helps to remove picture noise
caused by fast moving video that may be
present in the picture.
Digital (Digital Noise Reduction - DNR) – This
feature helps to remove picture noise
caused by MPEG compression that may be
present in the picture.
Fleshtone – Options include the following: Off, Low,
Moderate, and High.
Dynamic Contrast – Changes the level of contrast for each screen. Select from 1 (minor) to 4
(strong).
VIZIO P50 HDM User Guide
Version - 5/24/2005 26
www.vizioce.com
3.5.2.1.2 – Image Settings (for PC)
The following menu options are available when RGB is the selected input.
Brightness - Adjusts the black levels of the picture.
Users may need to readjust the brightness after
the
plasma monitor warms up.
Contrast – Adjusts the level of white between the
lightest and darkest portions of an image. If the
contrast is too low, the picture appears dark
and lacks detail. If the contrast is too high, the
picture appears faded and lacks shadow and
depth.
Advanced Image Settings for PC
Auto Adjustment - Automatically sets the position
and size of the picture.
Image Position - Allows the user to manually set the
position of the picture on the display.
Phase – Removes any horizontal distortion and
clears or sharpens the displayed characters.
Clock – Removes any vertical distortion and clears
or sharpens the displayed characters.
Color Temp - Options include standard, cool, warm
or customized by the user.
3.5.2.2 – Display Settings
Aspect Ratio – Options include one of the following:
Panoramic (available only in video mode),
Normal, Wide and Zoom (not available for RGB
input). For additional information, see Section
3.6 - Understanding Viewing Features on page
31.
PIP – when you select PIP, the following submenu
options will appear:
PIP Mode – Choose from the following: Off,
Large PIP, Small PIP and POP.
PIP Position – Choose from the following: Top-
Left, Top-Right, Bottom-Left, and Bottom-
Right.
PiP input – Choose the input for the PiP source from one of the following: AV1 (S-Video or
video*), AV2 (S-Video or video*), Analog HD1, Analog HD2, Digital HD1, Digital HD2,
and RGB.
*S-Video has priority. If a signal is connected to AV1 S-Video by itself or signals are connected to AV1 S-Video
and AV1 Video simultaneously, then S-Video will be the only choice for AV1. If a signal is connected to AV1
Video only, then Video will be the only choice for AV1. The same input priority scheme applies to AV2.
For additional information regarding the PiP source options, see section 3.6.2 - Picture-in-Picture
(PiP) Mode on page 32.
VIZIO P50 HDM User Guide
Version - 5/24/2005 27
www.vizioce.com

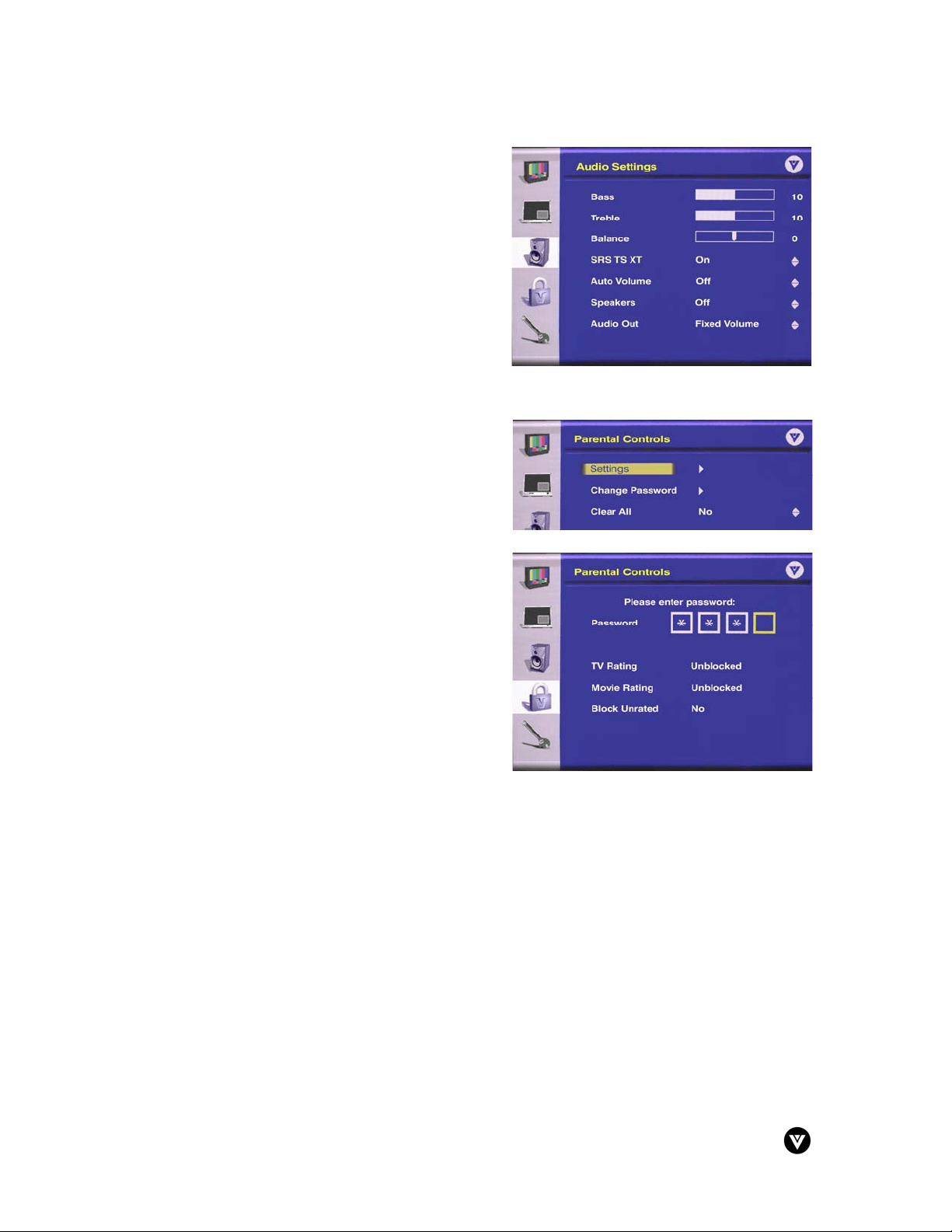

3.5.2.3 – Audio Settings
Bass - Adjusts the bass.
Treble – Adjusts the treble.
Balance – Adjusts the balance level between the
channels.
SRS TS XT – Selects either on or off for surround
sound.
Auto Volume – Adjusts the volume so that each
input is at the same level.
Speakers - Turns the internal speakers on or off.
Audio out – Options include Fixed Volume or
Variable Volume. Note: this option is only
available when the internal speakers are turned
off.
3.5.2.4 – Parental Controls
Note: you will need to enter in a password to
access the submenus. The default password is
“0000”. It is advised that you change this
password during the initial set up.
TV Rating - Sets the level of television programs
that will be blocked without entering in the
password. For more information, see Section
3.5.3 - Using the Parental Controls, page 29.
Movie Rating - Sets the level of movies that will be
blocked without entering in the password. For
more information, see Section 3.5.3 - Using the
Parental Controls, page 29.
Block Unrated – Allows for the user to block
programs that do not have any movie rating
and are classified as “unrated”.
VIZIO P50 HDM User Guide
Version - 5/24/2005 28
www.vizioce.com
3.5.2.5 – Setup
Close caption – Choose from one of the following:
Off, CC1, CC2, CC3, CC4, TEXT1, TEXT2,
TEXT3, TEXT4
Language: Changes the language of the OSD
menu. Options include English, Italian, Spanish
and French.
Factory Reset - Resets the display back to the
factory default settings.
Image Cleaner (VIC) – Removes ghosts of previous
images.
Note: The usual Plasma panel precautions
of avoiding prolonged display of stationary
images must be maintained. This feature will not remove images that have been
displayed for too long. Image sticking is not covered under standard warranty.
Firmware Version – Displays the version of the firmware.
When Close Caption is selected, the following
options will appear:
Display – Choose from the following options: Off,
CC1, CC2, CC3, CC4, TEXT1, TEXT2, TEXT3,
and TEXT4.
Captions on Mute – Enables closed caption when
the audio is muted.
VIZIO P50 HDM User Guide
Version - 5/24/2005 29
www.vizioce.com
3.5.3 - Using the Parental Controls
The Parental Controls feature prevents viewers from watching programs that are not age
appropriate, such as programs containing violence or adult language.
1. Press the MENU button on the remote control
and the Main Menu will be displayed on the
screen.
2. Press
until the Parental Controls menu is
highlighted. Then press OK.
3. Enter your password. If you have not set a
password, use the Number Buttons to enter the
default password “0000”. For more information
about setting a password, please see Section
3.5.4 - Setting a Password, page 30.
4. Settings is highlighted. Press OK.
5. TV Rating is highlighted. Press OK.
6. Press the
buttons to select which rating you want
to block or unblock. You can select from the following
ratings:
• TV Youth (all children)
• TV Youth 7 (older children)
• TV G (general audience)
• TV PG (guidance suggested)
• TV 14 (strongly cautioned)
• TV MA (mature audience)
• Unblocked
Then Press OK.
7. Press the
buttons to select Blocked or
Unblocked. Press OK.
8. Press Menu to back out of the menu.
9. Press
to highlight Movie Rating. Press OK.
10. Press the
buttons to select which rating
you want to block or unblock. You can select
from the following ratings:
• Movie G (General audience)
• Movie PG (Parental guidance suggested)
• Movie PG-13 (Recommended for children
13 years of age and older)
• Movie R (mature audience)
• Movie NC-17 (no one under 17 years of
age)
• Movie X (no one under 17 years of age)
• Unblocked
Then Press OK.
11. Press the
buttons to select Blocked or Unblocked. Press OK.
12. Press Menu repeatedly to exit the menu.
VIZIO P50 HDM User Guide
Version - 5/24/2005 30
www.vizioce.com
3.5.4 – Setting a Password
You control access to the Parental Control features with a password. The default password is
“0000”. You can change the password to any four-digit number.
To change the password:
1. Press the MENU button on the remote
control and the Main Menu will be
displayed on the screen.
2. Press ▼ until the Parental Controls menu
is highlighted. Then press OK.
3. Enter your password. If you have not set a
password, use the Number Buttons to enter
the default password “0000”.
4. Press ▼ to highlight Change Password.
Press OK.
5. Enter your new password.
6. Enter the new password again in the
Confirm area.
7. Press OK.
8. Press Menu repeatedly to exit the menu.
To reset the password:
1. Press the MENU button on the remote control and the Main Menu will be displayed on
the screen, as shown opposite.
2. Press ▼ until the Parental Controls menu is highlighted. Then press OK.
3. When the first box is highlighted in the Password option, press the ▲, ▼, ◄, and ► in
the exact sequence.
4. Then press the OK button.
5. The password has now been reset to “0000" and the following
message will appear.
Note: Please make sure to write down the new password in a safe place.
VIZIO P50 HDM User Guide
Version - 5/24/2005 31
www.vizioce.com
3.6 - Understanding Viewing Features
Your plasma monitor features four viewing modes and Picture-in-Picture (PiP) mode. You can
switch viewing modes using the on-screen display (OSD) or the remote control. For more
information on using the OSD, see 3.5.2 - OSD Menus and Options, page 25.
3.6.1 - Viewing Modes
Normal Mode
The original 4:3 aspect ratio (1.33:1 source) is preserved, so black bars
are added to the left and right of the display image. Standard TV
broadcasts are displayed with a 4:3 Aspect Ratio. Movies in 4:3 Aspect
Ratio may be referred to as pan-and-scan or full frame. These movies
were originally filmed in 16:9 (widescreen), and then modified to fit a
traditional TV screen (4:3). Warning: Continuous viewing of Standard
Definition (4:3) in this mode will result in the appearance of left side and
right side vertical bands caused by Image Sticking.
Wide Mode
When watching a standard broadcast or full-frame movie in this
mode, the display image is stretched proportionately to fill the
TV screen. When watching a widescreen (1.76:1 source)
program or movie, the display image fills the TV screen. If you
are watching a widescreen (1.85:1 or 2.35:1 source) program or
movie, there will still be black bars at the top and bottom.
Zoom Mode
Note: this option is not available for Analog HD (except 480i or
480P) or RGB Input.
When watching a widescreen (1.76:1, 1.85:1, or 2.35:1 source)
program or movie, the display image is zoomed proportionally to
fill the width of the screen. The top and bottom are cut off to
remove most of the source material’s black bars. This mode is
good for programs or movies with sub-titles.
Panoramic Mode
Note: this option is not available for Digital HD, Analog HD
(except 480i or 480P) or RGB Input.
When watching a standard broadcast or full frame movie in this
mode, the 4:3 Aspect Ratio (1.33:1 source) display image is
stretched horizontally on the left and right sides to fill the TV
screen. The center of the image is not stretched.
Note: Viewing modes and volume settings are saved based on input. For example, you last
watched a DVD in widescreen mode and at high volume, and then watched TV in standard
mode and low volume. When you switch back to DVD input, the viewing mode will return to
widescreen and your volume will be high.
VIZIO P50 HDM User Guide
Version - 5/24/2005 32
www.vizioce.com
3.6.2 - Picture-in-Picture (PiP) Mode
Your plasma monitor features PiP mode so you can watch two pictures at the same time. When
PiP is turned on, you can display two pictures at one time. One picture is displayed as the full
screen (main screen) and the other picture is displayed in a small window (sub screen). The sub-
screen can be set to small, medium or large.
See below for detailed information regarding the PiP sources.
Main \ Sub AV1 AV2 Analog HD1 Analog HD2 Digital HD1 Digital HD2 RGB
AV1 x x x x x x
AV2 x x x x x x
Analog HD1 x x x x x x
Analog HD2 x x x x x x
Digital HD1 x x x x x x
Digital HD2 x x x x x x
RGB x x x x x x
“x” – Indicates which inputs are available for PIP and POP modes.
Adjusting Basic PiP Settings
Swapping PiP Video
You can swap the program that is in the main picture with the program in the PiP sub-picture. To
swap the main picture program with the PiP sub-picture program, press SWAP on the remote
control. If you press SWAP again, it will return the program to the main picture.
VIZIO P50 HDM User Guide
Version - 5/24/2005 33
www.vizioce.com
3.7 - Remote Control Operation
3.7.1 - Programming the VIZIO Universal Remote Control
You can program the remote control to work with up to four different components. Listed below
are the steps for programming your TV, VCR, Cable Box and DVD Player.
3.7.1.1 - Programming for TV
For your convenience, the TV button on the remote has already been preprogrammed for the P50
HDM. If you would like to program a second TV as the primary TV, please follow the instructions
below.
1. Manually turn on the TV.
2. Press the TV button on the remote control.
3. Press and hold the SET button until the LED LIGHT flashes twice.
4. Press “1” using the number buttons on the remote control before entering the appropriate
programming code indicating a TV component code is about to be entered.
5. Then find the programming code for your TV in the code list in the back of this book and enter
it using the Number Buttons. If the code is accepted, the LED flashes twice after the last digit
is entered.
If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the
component and manufacturer.
6. Point the remote control at the TV and press the POWER button. The TV will turn off.
3.7.1.2 - Programming for VCR
1. Manually turn on the VCR.
2. Press the VCR button on the remote control.
3. Press and hold the SET button until the LED LIGHT flashes twice.
4. Press “2” using the number buttons on the remote control before entering the appropriate
programming code indicating a VCR component code is about to be entered.
5. Then find the programming code for your VCR in the code list in the back of this book and
enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the
last digit is entered.
If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the
component and manufacturer.
6. Point the remote control at the VCR and press the POWER button. The VCR will turn off.
Note:
a) If your VCR does not respond, try all the codes for your brand. If the codes do not
work, or your brand is not listed, see “Searching for Component Codes”, page 35.
b) Sometimes a code listed will only include limited functions. Try other codes that may
include more functionality.
Note:
a) If your TV does not respond, try all the codes for your brand. If the codes do not work,
or your brand is not listed, see “Searching for Component Codes”, page 35.
b) Sometimes a code listed will only include limited functions. Try other codes that may
include more functionality.
VIZIO P50 HDM User Guide
Version - 5/24/2005 34
www.vizioce.com
3.7.1.3 - Programming for Cable Box
1. Manually turn on the Cable Box.
2. Press the CBL button on the remote control.
3. Press and hold the SET button until the LED LIGHT flashes twice.
4. Press “0” using the number buttons on the remote control before entering the appropriate
programming code indicating a Cable Box code is about to be entered.
5. Find the programming code for your Cable Box in the code list in the back of this book and
enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the
last digit is entered.
If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the
component and manufacturer.
6. Point the remote control at the Cable Box and press the POWER button. The Cable Box will
turn off.
3.7.1.4 - Programming for AUX (DVD Player)
1. Manually turn on the DVD Player.
2. Press the AUX button on the remote control.
3. Press and hold the SET button until the LED LIGHT flashes twice.
4. Press “2” using the number buttons on the remote control before entering the appropriate
programming code indicating a DVD player component code is about to be entered.
5. Find the programming code for your DVD player in the code list in the back of this book and
enter it using the Number Buttons. If the code is accepted, the LED flashes twice after the
last digit is entered.
If the LED does not flash twice, repeat Steps 2 through 4 with the next code listed for the
component and manufacturer.
6. Point the remote control at the DVD Player and press the POWER button. The DVD Player
will turn off.
Note:
a) If your Cable Box does not respond, try all the codes for your brand. If the codes do
not work, or your brand is not listed, see “Searching for Component Codes”, page 35.
b) Sometimes a code listed will only include limited functions. Try other codes that may
include more functionality.
Note:
a) If your DVD Player does not respond, try all the codes for your brand. If the codes do
not work, or your brand is not listed, see “Searching for Component Codes”, page 35.
b) Sometimes a code listed will only include limited functions. Try other codes that may
include more functionality.
VIZIO P50 HDM User Guide
Version - 5/24/2005 35
www.vizioce.com
3.7.2 - Searching for Component Codes
If the user cannot find the manufacturer in the component list or the program code does not work,
the user can use the remote control to search for the correct component code.
To search for a component code:
1. Turn on the component.
2. Press the matching component button on the remote control.
3. Press and hold the SET button until the LED flashes twice.
4. Press 9 9 1. The LED flashes twice.
5. Point the remote control at the component and then alternate between pressing the POWER
button and the component button on the remote control until the component turns off.
If the component still does not respond, clear the component button, then repeat the search
procedure.
To clear the component button:
1. Make sure that the component is turned on.
2. Press and hold the SET button on the remote control until the LED flashes twice.
3. Press 9 9 2, then press the component button on the remote control twice.
3.7.3 - Reassigning Component Buttons
You can reassign the component buttons on the remote control if you have more than one of the
same types of component. For example, if you are using the remote to control the cable (CBL),
CD, DVD, TV and two VCRs, you can reassign the AV2 button as a second VCR button.
To reassign component buttons:
1. Press and hold the SET button until the LED flashes twice.
2. Press 9 9 2. The LED flashes twice.
3. Press the component button that you want (VCR) once, and then press the component button
that you are reassigning (AV2) once. The AV2 button is now reassigned and can be
programmed as a VCR component button. See “Programming the VIZIO Universal Remote
Control”, page 33.
3.7.4 - Changing Volume Lock
The remote control is set to control volume through your TV while in cable (CBL), DVD, satellite
(SAT) and VCR component modes. Use the volume lock if you want to control the volume for all
components through a specific component. For example, you want to control volume for all
components through the tuner (TNR).
To change the volume lock:
1. Press and hold the SET button until the LED flashes twice.
2. Press 9 9 3. The LED flashes twice.
3. Press the component button that you want (TNR) once. The LED flashes twice. Volume will
now be controlled through the tuner for all components.
VIZIO P50 HDM User Guide
Version - 5/24/2005 36
www.vizioce.com
3.7.5 – Using a Cable Box or Satellite Box Remote
Your remote uses code 0178 to work with your 50HDM. To use a cable or satellite remote to
work with your 50HDM, refer to your cable or satellite remote users guide for information on how
to program their remote.
If your cable or satellite remote uses a 4 digit remote code program in 0178. If your cable or
satellite remote is a 5 digit remote (like most Direct TV units) use code 10178. If your cable or
satellite remote uses a 3 digit code (for example, Echostar and Dish Network), then use code
627.
Note: Some functions on your cable or satellite remote may not function like expected. Typically
Power, volume and mute will work.
VIZIO P50 HDM User Guide
Version - 5/24/2005 37
www.vizioce.com
Chapter 4 - Maintenance and Troubleshooting
4.1 - Maintenance
Important
1. Make sure that the power cable is removed from the socket before cleaning the
display.
2. Do not use volatile solvent (such as toluene, rosin and alcohol) to clean the display.
Such chemicals may damage the housing, screen glass and remote control, and
cause the paint to peel.
Cleaning the Housing and the Remote Control
1. Use a soft cotton cloth for cleaning.
2. If the housing or remote control is seriously contaminated, use a soft cloth moistened
with diluted neutral cleaner to clean the display. Wring water out of the cloth before
cleaning to prevent water from penetrating into the housing. Wipe the display with a
dry cloth after cleaning.
Cleaning the Screen
1. Use a soft cotton cloth to gently clean the screen.
2. The screen glass is very fragile. Do not scrape it with any sharp object. Do not press
or tap the screen to avoid cracking. When the screen is seriously contaminated, use
a soft cloth moistened with diluted neutral cleaner to clean the display. Wring water
out of the cloth before cleaning to prevent water from penetrating into the housing.
Wipe the display with a dry cloth after cleaning.
4.2 - Troubleshooting Guide
If the display fails or the performance changes dramatically, check the display in accordance with
the following instructions. Remember to check the peripherals to pinpoint the source of the
failure. If the display still fails to perform as expected, contact the dealer for assistance.
Problem Solution
There is not any power. Make sure DC power button is ON (Green LED).
Make sure AC power cord is securely connected to the AC socket.
Plug another electrical device (like a radio) to the power outlet to
verify that the outlet is supplying the proper voltage.
There is not any sound.
Check your audio connection
Press MUTE on the remote control again, so that MUTE disappears
from the screen
Press the Volume + (Up) key on your remote control
Make sure that speakers are on in the Audio Settings.
VIZIO P50 HDM User Guide
Version - 5/24/2005 38
www.vizioce.com
Power is ON but no screen image.
Confirm the video cables are properly connected. See section 2.2-
2.6.
Adjust brightness and contrast.
Check Source settings.
Wrong or abnormal colors appear.
If any colors (red, green, or blue) are missing, check the video cable
to make sure it is securely connected. Loose or broken pins in the
cable connector could cause an improper connection.
Connect the plasma display to another source.
Control buttons do not work. Press only one button at a time.
Remote Control does not work.
Make sure batteries are inserted correctly
Batteries could be weak.
There appears to be image quality
issues.
Viewing television broadcasts: For best image quality, “Standard
Definition” TV should be viewed as 4:3.
COMPONENT 480i: For best image quality the “YCbCr” Input
should be used.
You cannot see a picture. Make sure that the power cord is plugged into a grounded electrical
outlet.
Make sure that the power button is turned on.
Make sure that the selected input source is connected to a working
input source.
If your plasma monitor is connected to your computer in RGB or
HDMI™ mode, press any key on your keyboard to “wake” your
computer.
You see a distorted picture or hear
unusual sound.
You may be getting interference from electrical appliances, cars,
motorcycles, or fluorescent lights. Try moving your plasma monitor
to another location.
The picture has abnormal patterns. Make sure that the input source cable is attached securely and
correctly to the back of your plasma monitor.
Make sure that the video input source is within the range of your
plasma monitor. Compare the video input source’s specifications
with your plasma monitor specifications.
The display image does not cover
the entire screen.
If you are using RGB mode, make sure that H Size and V Position in
the OSD are set correctly.
If you are using AV1, AV2, or component (Analog HD) with 480i
input, use the WIDE button on the remote control to scroll through
various screen modes.
You can see a picture but you
cannot hear sound.
Make sure that the volume is not turned down.
Make sure that the sound is not muted; speakers are turned off in
the audio settings.
Make sure that your audio input source cables are connected
securely and correctly.
You see “noise” or “trash” on the
screen.
When your plasma monitor’s digital capabilities exceed an analog
broadcast signal, the signal is up-converted (increased) to match
your plasma monitor’s display capabilities. Up-converting can cause
noise or trash.
You switch to a different input and
the volume changes.
The plasma monitor remembers the volume level from the last time
you used a particular input (AV1, AV2, Analog HD, and Digital HD).
You switch to a different input and
the screen size changes.
The plasma monitor remembers the viewing mode from the last time
you used a particular input (AV1, AV2, Analog HD, and Digital HD).
VIZIO P50 HDM User Guide
Version - 5/24/2005 39
www.vizioce.com
The PiP input is set to DVD but the
picture does not look correct.
The PiP DVD source must be 480i (interlaced) and not 480p
(progressive scan). Set your DVD player to interlaced or choose a
different PiP source.
Tips for High-Definition Users The plasma monitor is an ideal platform for viewing High Definition
Content.
Best Image Quality will be achieved by the HDMI™ Input, then
YPbPr, then RGB.
However, due to variances in broadcast practices, it is possible
some image distortions can occur.
Tips for Letterbox Content Users Letterboxed (or “Widescreen”) versions of DVD movies are most
commonly formatted for standard 4:3 Televisions. The plasma
monitor has the capability of expanding this content so the entire
screen is filled at the expense of image accuracy. To use this
function, press the “ZOOM” key on the remote control and cycle
among the available options.
4.3 - Telephone & Technical Support
Products are often returned due to a technical problem rather than a defective product that may
result in unnecessary shipping charges billed to you. Our trained support personnel can often
resolve the problem over the phone. For more information on warranty service or repair, after the
warranty period, please contact our Support Department at the number below.
Quality service and consistent technical support are integral parts of V's commitment to service
excellence. V's service representatives are dedicated to assist you with the utmost in customer
satisfaction. To better assist you, please call toll free or contact us via email.
Tel: (714) 668-0588, 7:30 am – 5:30 pm PST Mon - Fri
E-mail: techsupport@vinc.com
VIZIO
320A Kalmus Drive
Costa Mesa, CA 92626
Tel: (714) 668.0588 Fax: (714) 668-9099
Web: www.vizioce.com
VIZIO P50 HDM User Guide
Version - 5/24/2005 40
www.vizioce.com
4.4 - Compliance
Caution: Always use a power cable that is properly grounded. Please use the AC cords listed
below for each area.
USA UL
Canada CSA
Germany VDE
Britain BASE/BS
Japan Electric Appliance Control Act
4.5 - FCC Class B Radio Frequency Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply
with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modification to this equipment. It is the responsibilities of the user to
correct such interference.
VIZIO P50 HDM User Guide
Version - 5/24/2005 41
www.vizioce.com
Appendix A: Limited Product Warranty
Please read this warranty card carefully, it is a "ONE-YEAR LIMITED WARRANTY" on parts and labor.
VIZIO’s Responsibility
VIZIO Displays purchased in the United States are warranted to be free from defects in materials or workmanship for a
period of one (1) year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will
service the monitor using new or refurbished parts.
Service Labor
During a period of one (1) year from the effective warranty date, VIZIO will provide, when needed, service labor to repair a
manufacturing defect at its designated Service Center. To obtain warranty service in the Untied States, you must first call
our Customer Support at (714) 668-0588, 7:30 am – 5:30 pm PST. The determination of service will be made by VIZIO
Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO VIZIO WITHOUT PRIOR AUTHORIZATION.
Parts
New or remanufactured replacements for defective parts will be used for repairs by VIZIO at its designated Service Center
for one (1) year from the effective warranty date. Such replacement parts are warranted for the remaining portion of the
original warranty period.
Service
During the one (1) year warranty period, VIZIO will, at its option and sole discretion, repair or replace defective parts,
including replacement of the entire Panel. The Customer will be required to ship the unit to the Service Center indicated
at the time Customer Support is contacted to make the necessary repairs, you are responsible for all transportation
charges to and from the service facility. VIZIO is not responsible for the de-installation or re-installation of the unit.
Packaging and Shipping Instruction
When you send the product to an authorized VIZIO service facility you must use the original carton box and packing
material or an equivalent as designated by VIZIO
Not Covered
This warranty does not cover defects, malfunctions or failures resulting from shipping or transit accidents, abuse, misuse,
operation contrary to furnished instructions, operation on incorrect power supplies, operation with faulty associated
equipment, modification, alteration, improper servicing, tampering or normal wear and tear or TVs on which the serial
number has been removed or defaced. Image Sticking caused by operating at excessive brightness levels for extended
periods or mishandling are not covered by this warranty.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. OUR
LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER,
INCLUDING OUR NEGLIGENCE, ALLEGED DAMAGE OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE
DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE DISPLAY. WE SHALL
NOT BE RESPONSIBLE FOR LOSS OF USE, COMMERCIAL LOSS OR OTHER INCIDENTAL OR CONSEQUENTIAL
DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state. This is the only warranty applicable; no one is authorized to extend
or modify it or to grant any other warranty.
VIZIO retains the right to assess all warranty claims and to determine if damages are covered by the warranty. In case of
a claim that is not covered by the warranty, you will be contacted to determine whether VIZIO should repair the damage
for a fee or whether the product should be returned to you as received by the repair center.
Owner’s Responsibility
Effective Warranty Date
Warranty begins on the date of sale to the end user. To ensure warranty service, keep the dated bill or sale receipt as
evidence of the purchase date.
Warranty Service
For warranty service information, contact VIZIO Customer Support at (714) 668-0588, 7:30 am to 5:30 pm PST or visit
www.vizioce.com. Parts and service labor that are VIZIO’s responsibility (see above) will be provided without charge.
Other service is at the owner’s expense. You must provide the model, serial number and date of purchase. Before you
ask for warranty service, read your User Manual. You might avoid a service call.
For additional information regarding your warranty, please see complete details online at www.vizioce.com
.
VIZIO P50 HDM User Guide
Version - 5/24/2005 42
www.vizioce.com
Appendix B: Component Program Codes
SETUP CODES FOR CURRENT VIZIO PRODUCTS
*Note: Please use these codes to program the VIZIO products to existing Universal remote controls for products such as cable and satellite boxes.
VIZIO L13 0864
VIZIO L6 0885
VIZIO L20 1756
VIZIO L30 1756
VIZIO L30WGU 1756
VIZIO P42 1756
VIZIO P42HD 1756
VIZIO P46 1756
VIZIO RP56 1756
VIZIO HDX 20L 1756
VIZIO HDX 42P 1756
Bravo D1 1064
Bravo D2 1226
Bravo HD1 1126
SETUP CODES FOR AMPLIFIERS
Aiwa 0406
Carver 0269
CurtisMathes 0300
Denon 0160
Harman/Kardon 0892
JVC 0331
Linn 0269
Magnavox 0269
Marantz 0269
Optimus 0300
Panasonic 0308
Philips 0269, 0892
Pioneer 0013, 0300
Sony 0220, 0689
Technics 0308
Victor 0331
Wards 0013
Yamaha 0354
SETUP CODES FOR CABLE
ABC 0003, 0008, 0014, 0017,
0007, 0011, 0013
Allegro 0153, 0315
Archer 0153, 0797
Bell&Howell 0014
Century 0153
Citizen 0153, 0315
Comtronics 0040
Contec 0019
Eastern 0002
Emerson 0797
Everquest 0015, 0040
Focus 0400
Garrard 0153
Gemini 0015, 0797
General Instrument 0476, 0276, 0011, 0810
GoldStar 0144, 0040
Goodmind 0797
Hamlin 0020, 0259, 0009, 0034
Hitachi 0011
Hytex 0007
Jasco 0015, 0153, 0315
Jerrold 0003,0012,0476,0276,
0014, 0015, 0011, 0810
Memorex 0000
MovieTime 0063
NSC 0063
Oak 0019, 0007
Optimus 0021
Panasonic 0000, 0107, 0021
Paragon 0000
Philips 0153
Pioneer 0144, 0533, 0877
Popular Mechanics 0400
Pulsar 0000
Quasar 0000
RCA 0021
Radio Shack 0015, 0315, 0797, 0883
Recoton 0400
Regal 0020, 0259
Regency 0002
Rembrandt 0011
Runco 0000
SLMarx 0040
Samsung 0144, 0040
Scientific Atlanta 0008, 0477, 0017, 0877
Signal 0015, 0040
Signature 0011
Sprucer 0021
Starcom 0003, 0015
Stargate 0015, 0040, 0797
Starquest 0015
TV86 0063
Teleview 0040
Tocom 0012, 0013
Toshiba 0000
Tusa 0015
Unika 0153
UnitedArtists 0007
Universal 0153, 0191
Viewstar 0063
Zenith 0000, 0525
Zentek 0400
SETUP CODES FOR CD PLAYERS
Aiwa 0157,0124
Burmester 0420
California Audio Labs 0029, 0303
Carver 0157, 0179, 0437
DKK 0000
Denon 0003, 0873
Emerson 0305
Fisher 0179, 0174
Garrard 0420, 0393
Genexxa 0032, 0305
Harman/Kardon 0157, 0173
Hitachi 0032
JVC 0072
Kenwood 0028, 0037, 0190, 0626,
0826, 0681
Krell 0157
LXI 0305
Linn 0157
MCS 0029
MTC 0420
Magnavox 0157, 0305
Marantz 0029, 0157, 0180
Mission 0157
NSM 0157
Nikko 0174
Onkyo 0101, 0868
Optimus 0000, 0032, 0179, 0305,
0037, 0420, 0145, 0468,
0437
Panasonic 0029, 0303
Parasound 0420
Philips 0157, 0626
Pioneer 0032,0305, 0468, 0244
Proton 0157
QED 0157
Quasar 0029
RCA 0179,0305, 0053,0764
Realistic 0179,0420, 0180
Rotel 0157, 0420
SAE 0157
Sansui 0157, 0305
Sanyo 0179
Scott 0305
Sears 0305
Sharp 0037, 0180, 0861
Sherwood 0180
Sony 0000, 0185, 0490
Soundesign 0145
Tascam 0420
Teac 0420, 0393, 0174, 0180
Technics 0029, 0303
Victor 0072
Wards 0157, 0053
Yamaha 0036, 0187
Yorx 0461
VIZIO P50 HDM User Guide
Version - 5/24/2005 43
www.vizioce.com
SETUP CODES FOR LASER DISK
Denon 0059
Mitsubishi 0059
NAD 0059
Optimus 0059
Pioneer 0059
Sony 0193, 0201
SETUP CODES FOR MISC. AUDIO
Jerrold 0459, 0520
Scientific Atlanta 0460
Starcom 0459
SETUP CODES FOR RECEIVERS
ADC 0531
Aiwa 0158, 0189, 0121, 0405
Capetronic 0531
Carver 0189, 0042, 0360
Casio 0195
Clarinette 0195
Curtis Mathes 0080
Denon 0004
Emerson 0424
Fisher 0042, 0219, 0360
Garrard 0463, 0424
Harman/Kardon 0110, 0189, 0891
JBL 0110
JVC 0074
Kenwood 0027, 0186, 0042
Koss 0424
LXI 0181
Linn 0189
Lloyd's 0195
MCS 0039
Magnavox 0531, 0189, 0195, 0391
Marantz 0039, 0189
Modulaire 0195
NAD 0320
Nakamichi 0097
Onkyo 0135
Optimus 0531, 0670, 0186, 0080,
0042, 0181, 0219, 0738,
0801, 1023
Panasonic 0039, 0309
Penney 0195
Philips 0189, 0391
Pioneer 0531, 0014, 0150, 0630,
0080, 1023
Quasar 0039
RCA 0531, 0054, 0360
Realistic 0195, 0181
Sansui 0189
Sanyo 0219, 0801
Sharp 0186
Sherwood 0491, 0502
Sony 0158, 0474
Soundesign 0670
Teac 0463
Technics 0039, 0309
Victor 0074
Wards 0158, 0014, 0189, 0080,
0054
Yamaha 0176, 0186
Yorx 0195
Zenith 0857
SETUP CODES FOR SATELLITE
AlphaStar 0772
Echostar 0775
Expressvu 0775
General Instrument 0627,0361,0869
HTS 0775
Hitachi 0819
Hughes Network Systems 0749
JVC 0775
Jerrold 0627, 0361
Magnavox 0724, 0722
Memorex 0724
Next Level 0869
Panasonic 0701
Philips 0724, 0722
Primestar 0627, 0361
RCA 0566, 0143, 0392, 0855
Radio Shack 0869
Sony 0639
Star Choice 0869
Toshiba 0749, 0790
Uniden 0724, 0722
Zenith 0856
VIZIO P50 HDM User Guide
Version - 5/24/2005 44
www.vizioce.com
SETUP CODES FOR TELEVISION
AOC 0030, 0019
Admiral 0093, 0463
Aiko 0092
Akai 0030
Alaron 0179
America Action 0180
Ampro 0751
Anam 0180
Audiovox 0451, 0180, 0092, 0623
Baysonic 0180
Belcor 0019
Bell & Howell 0154, 0016
Bradford 0180
Brockwood 0019
Broksonic 0236, 0463
CXC 0180
Candle 0030, 0056
Carnivale 0030
Carver 0054
Celebrity 0000
Cineral 0451, 0092
Citizen 0060, 0030, 0056, 0039,
0092
Concerto 0056
Contec 0180
Craig 0180
Crosley 0054
Crown 0180, 0039
Curtis Mathes 0047, 0054, 0154, 0051,
0451,0093,0060,0030,
0145,0056,0016,0039,
0166,0466,1147,1347
Daewoo 0451, 0019, 0039, 0092,
0623, 0624
Daytron 0019
Denon 0145
Dumont 0017, 0019
Dwin 0720, 0774
Electroband 0000
Emerson 0154, 0236, 0463, 0180,
0282, 0178, 0019, 0179,
0039, 0623, 0624
Envision 0030
Fisher 0154
Fujitsu 0179
Funai 0180, 0179, 0171
Futuretech 0180
GE0 0047, 0051, 0451, 0093,
0282,0178,0021,1147,
1347
Gibralter 0017, 0030, 0019
Gold Star 0030, 0178, 0019, 0056
Gradiente 0053, 0056
Grunpy 0180, 0179
Hallmark 0178
Harley Davidson 0179
Harman/Kardon 0054
Harvard 0180
Hitachi 0145, 0056, 0016
Infinity 0054
Inteq 0017
JBL 0054
JCB 0000
JVC 0053
KEC 0180
KTV 0180, 0030, 0039
Kenwood 0030, 0019
LG0 056
LXI 0047, 0054, 0154, 0156,
0178
Logik 0016
Luxman 0056
MGA 0150, 0030, 0178, 0019
MTC 0060, 0030, 0019, 0056
Magnavox 0054, 0030, 0179
Majestic 0016
Marantz 0054, 0030
Matsushita 0250
Megatron 0178, 0145
Memorex 0154, 0250, 0463, 0150,
0178, 0056, 0016
Midland 0047, 0017, 0051, 0039
Minutz 0021
Mitsubishi 0093, 0150, 0178, 0019
Motorola 0093
Multitech 0180
NAD 0156, 0178, 0166
NEC 0030, 0019, 0056
NTC 0092
Nikko 0030, 0178, 0092
Onwa 0180
Optimus 0154, 0250, 0166
Optonica 0093, 0165
Orion 0236, 0463, 0179
Panasonic 0051, 0250
Penney 0047, 0156, 0051, 0060,
0030, 0178, 0021, 0019,
0056, 0039, 1347
Philco 0054, 0463, 0030, 0145,
0019
Philips 0054
Pilot 0030, 0019, 0039
Pioneer 0166
Portland 0019, 0039, 0092
Prism 0051
Proscan 0047
Proton 0178, 0466
Pulsar 0017, 0019
Quasar 0051, 0250, 0165
RCA 0047, 0051, 0093, 0019,
0090,1047,1147,1247,134
7
RadioShack 0047,0154,0165,0180,
0030,0178,0019,0056,003
9
Realistic 0154,0165,0180,0030,
0178,0019,0056,0039
Runco 0017,0030,0603
SSS 0180,0019
Sampo 0030,0039
Samsung 0060,0030,0178,0019,
0056
Samsux 0039
Sansei 0451
Sansui 0463
Sanyo 0154
Scimitsu 0019
Scotch 0178
Scott 0236, 0180, 0178, 0019,
0179
Sears 0047, 0054, 0154, 0156,
0178, 0179, 0056, 0171
Semivox 0180
Semp 0156
Sharp 0093, 0165, 0039
Shogun 0019
Signature 0016
Sony 0000
Soundesign 0180, 0178, 0179
Squareview 0171
Starlite 0180
Supreme 0000
Sylvania 0054, 0030
Symphonic 0171
TMK 0178, 0056
Tandy 0093
Technics 0051, 0250
Technol Ace 0179
Techwood 0051, 0056
Teknika 0054,0180,0150,0060,
0019, 0179, 0056, 0016,
0039, 0092
Telefunken 0056
Toshiba 0154, 0156 , 0060
Totevision 0039
Vector Research 0030
Victor 0053
Vidikron 0054
Vidtech 0178,0019
Wards 0054, 0165, 0030, 0178,
0021, 0019, 0179, 0056,
0016
White Westinghouse 0463, 0623, 0624
Yamaha 0030, 0019
Zenith 0017,0463,0016,0092,
0624
VIZIO P50 HDM User Guide
Version - 5/24/2005 45
www.vizioce.com
SETUP CODES FOR VCR
Admiral 0048,0209
Adventura 0000
Aiko 0278
Aiwa 0037, 0000
Akai 0041
America Action 0278
American High 0035
Asha 0240
Audiovox 0037
Beaumark 0240
Bell & Howell 0104
Broksonic 0184, 0121, 0209, 0002
CCE 0072, 0278
Calix 0037
Canon 0035
Carver 0081
Cineral 0278
Citizen 0037, 0278
Colt 0072
Craig 0037,0047,0240,0072,
0271
Curtis Mathes 0060,0035,0041,0162
Cybernex 0240
Daewoo 0045,0278
Denon 0042
Dynatech 0000
Electrohome 0037
Electrophonic 0037
Emerex 0032
Emerson 0037, 0184, 0000, 0121,
0043, 0209, 0002, 0278
Fisher 0047, 0104
Fuji 0035, 0033
Funai 0000
GE 0060, 0035, 0048, 0240
Garrard 0000
GoVideo 0526
GoldStar 0037, 0038
Gradiente 0000
HI-Q 0047
Harley Davidson 0000
Harman/Kardon 0081, 0038
Harwood 0072
Headquarter 0046
Hitachi 0000, 0042, 0041
Hughes Network Systems 0042
JVC 0067, 0041
Jensen 0041
KEC 0037, 0278
KLH 0072
Kenwood 0067, 0041, 0038
Kodak 0035, 0037
LXI 0037
Lloyd's 0000
Logik 0072
MEI 0035
MGA 0240, 0043
MGN Technology 0240
MTC 0240, 0000
Magnasonic 0278
Magnavox 0035, 0039, 0081, 0000,
0149
Magnin 0240
Marantz 0035, 0081
Marta 0037
Matsushita 0035, 0162, 0454,
Memorex 0035, 0037, 0048, 0039,
0047, 0240, 0000, 0104,
0209, 0046, 0454, 1162,
1262
Minolta 0042
Mitsubishi 0048,0067,0043
Motorola 0035,0048
Multitech 0000,0072
NEC 0104,0067,0041,0038
Nikko 0037
Noblex 0240
Olympus 0035
Optimus 0037,0048,0104,0162,
0454,1062,1162,1262
Orion 0184, 0209, 0002
Panasonic 0035,0162,0225,0454,
1062, 1162, 1262
Penney 0035,0037,0240,0042,
0038
Pentax 0042
Philco 0035, 0209
Philips 0035, 0081
Pilot 0037
Pioneer 0067
Profitronic 0240
Proscan 0060
Protec 0072
Pulsar 0039
Quarte 0046
Quartz 0046
Quasar 0035,0162,0454,1162
RCA 0060,0035,0048,0240,
0042,0149
RadioShack 0000
Radix 0037
Randex 0037
Realistic 0035, 0037, 0048, 0047,
0000, 0104, 0046
Runco 0039
STS 0042
Samsung 0240, 0045
Sanky 0048, 0039
Sansui 0000, 0067, 0209, 0041,
0271
Sanyo 0047, 0240, 0104, 0046
Scott 0184, 0045, 0121, 0043
Sears 0035, 0037, 0047, 0000,
0042, 0104, 0046
Semp 0045
Sharp 0048
Shintom 0072
Shogun 0240
Singer 0072
Sony 0035, 0032, 0000, 0033
Sylvania 0035, 0081, 0000, 0043
Symphonic 0000
TMK 0240
Tatung 0041
Teac 0000, 0041
Technics 0035, 0162
Teknika 0035, 0037, 0000
Thomas 0000
Toshiba 0045, 0043
Totevision 0037, 0240
Unitech 0240
Vector 0045
Vector Research 0038
Video Concepts 0045
Videosonic 0240
Wards 0060, 0035, 0048, 0047,
0081, 0240, 0000, 0042,
0072, 0149
White Westinghouse 0209, 0278
XR-1000 0035, 0000, 0072
Yamaha 0038
Zenith 0039, 0000, 0209, 0033
SETUP CODES FOR DIGITAL VIDEO DISC
Denon 0490
GE 0522
Harman/Kardon 0582
JVC 0558
Kenwood 0534
Magnavox 0503
Marantz 0521
Onkyo 0503
Optimus 0571
Panasonic 0490
Philips 0503, 0539
Pioneer 0525, 0571
Proscan 0522
RCA 0522
Samsung 0573
Sony 0533
Technics 0490
ThetaDigital 0571
Toshiba 0503
Yamaha 0490, 0545
Zenith 0503, 0591
VIZIO P50 HDM User Guide
Version - 5/24/2005
www.vizioce.com
46
Appendix C: Glossary - Standard Definitions
Analog TV: Today’s TV system using radio frequency waves to transmit and display pictures and sound.
Digital TV (DTV): Television delivered and displayed using radio frequency waves that contain information
that is digitally encoded for improved quality and efficiency.
Standard Definition TV (SDTV): Basic digital television transmission that may be displayed with fewer than
480 progressively scanned lines (480p) in 16 x 9 or 4 x 3 format. 480 interlaced
(480i) is the quality of today’s analog TV system. SDTV provides 150-300,000 pixels.
Enhanced Definition TV (EDTV): A better digital television transmission than SDTV with at least 480p, in a
16 x 9 or 4 x 3 display and Dolby digital surround sound. 480p is the quality used by most DVD players.
EDTV provides 300-400,000 pixels.
High-Definition Television (HDTV): The best quality digital picture, widescreen (16 x 9) display with at least
720 progressively scanned lines (720p) or 1080 interlaced lines (1080i) and Dolby digital surround sound.
HDTV provides 900,000-2.1 million pixels.
HDTV Monitor (sometimes called HDTV Ready): A set that can display HDTV programming if you have a
separate HDTV tuner, HD Cable Set-Top Box or HD Satellite Set-Top-Box Receiver.
HDTV Tuner (also decoder, receiver, set-top box): A device capable of receiving and outputting HDTV
signals for display. It may be stand-alone or integrated in the set.
Integrated HDTV: An HDTV that has the digital tuner built into the set. It does not need a separate set-top
box to receive over-the-air DTV signals.
Plug-and-Play or Digital Cable Ready: A DTV or other device for digital cable customers that plugs directly
into the cable jack and does not require a separate set-top box. Plug and Play TV owners must obtain a
CableCARD from their cable company in order to view scrambled programming services.
Interlace Scan: A way to scan vertical lines onto a TV picture by scanning all the odd lines first, then filling in
the even lines (this happens instantaneously).
Progressive Scan: A way to scan vertical lines onto a TV picture by scanning all the lines consecutively
(progressively).
Aspect ratio (4 X 3): Traditional TV “aspect ratio,” that is, the screen’s width as compared to its height. For
example, a “32 inch TV screen” would be 25 ½ inches wide and 19 inches tall.
Aspect ratio (16 X 9): “Widescreen” TV” aspect ratio” that is more like a movie screen than a traditional TV.
For example, a “32 inch TV screen” would be 28 inches wide and 16 inches tall.
Source: Buying a Digital Television, CEA, HDTV Guide, 2005
Note: The Federal Communications Commission (FCC), the Consumer Electronics Association (CEA) and
the Consumer Electronics Retailers Coalition (CERC) have made a new tip sheet available for digital
television (DTV) retailers to reproduce and distribute to consumers on the sales floor. The file may be
downloaded online at www.dtv.gov. While you’re there, check out the other useful information the FCC is
making available to consumers interested in learning more about the analog to digital transition.
