Owner's Guide Refrigeration
First Steps
This Use & Care Guide provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install your appliance. Use the unit only as instructed in this Use & Care Guide. Before starting the appliance, follow these important first steps.
Location
- Choose a place that is near a grounded, non-GFCI, electrical outlet. Do Not use an extension cord or an adapter plug.
- For the most efficient operation, the unit should be located where surrounding temperatures will not exceed 110°F (43°C). Temperatures of 32°F (0°C) and below will NOT affect operation. Additional compressor heaters are not recommended.
- Allow space around the unit for good air circulation. Leave a 3 inch (75 mm) space on all sides of the appliance for adequate circulation
NOTE The exterior walls of the appliance may become quite warm as the compressor works to transfer heat from the inside. Temperatures as much as 30°F warmer than room temperature can be expected. For this reason it is particularly important in hotter climates to allow enough space for air circulation around your unit.
Leveling
The unit must have all bottom corners resting firmly on a solid floor. The floor must be strong enough to support a fully loaded appliance.
NOTE It is Very Important for your appliance to be level in order to function properly. If the unit is not leveled during installation, the door may be misaligned and not close or seal properly, causing cooling, frost, or moisture problems.
To Level Upright Models:
After discarding crating screws, use a carpenter’s level to level the unit from frontto-back. Adjust the plastic leveling feet in front, ½ bubble higher, so that the door closes easily when left halfway open.
To Level Chest Models:
If needed, add metal or wood shims between foot pads and floor.
Cleaning (Prior to use)
- Wash any removable parts, the appliance interior, and exterior with mild detergent and warm water. Wipe dry. Do not use harsh cleaners on these surfaces.
- Do not use razor blades or other sharp instruments, which can scratch the appliance surface when removing adhesive labels. Any glue left from the tape can be removed with a mixture of warm water and mild detergent, or touch the residue with the sticky side of tape already removed. Do not remove the serial plate.

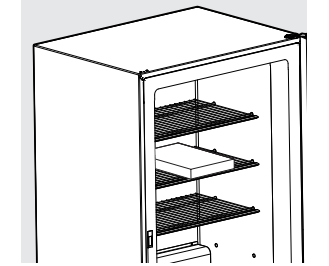

CAUTION To allow door to close and seal properly, DO NOT let food packages extend past the front of shelves.

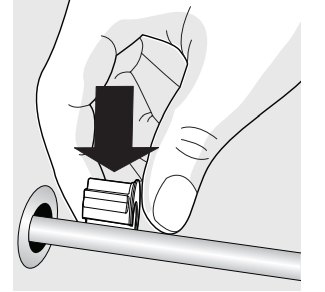

To install the shelf grommet to the shelf:
- With the wire shelf installed, press the shelf grommet down onto the wire that is anchored into the appliance wall. Be sure to keep the larger end of the shelf grommet away from the wall.
- Push the shelf grommet onto the wire until it snaps in place.
- Slide the shelf grommet into the grommet already in the unit wall until it is flush.
To install the handle clips to the basket:
- Place the basket on a firm, flat surface.
- With the narrow side of the handle clip on the inside of the basket, snap the handle clip to the recessed area in the basket.
- Once the inside surface snaps in place, continue the process by rolling the handle clip slightly outward and pressing down firmly to snap onto the outside surface. If installed incorrectly, the handle clip will not lay flat.
See other models: 70813 60087 60085 41793802200 79572029110
Door Removal
If door must be removed:
- Gently lay the unit on its back, on a rug or blanket.
- Remove 2 base screws and base panel.
- Remove wire from clips on bottom of cabinet if required.
- Unplug connector, if required, by holding the cabinet connector in place and pulling the door connector out.
- Remove bottom hinge screws.
- Remove plastic top hinge cover.
- Remove screws from top hinge.
- Remove top hinge from cabinet.
- Remove door and bottom hinge from cabinet.
- To replace door reverse the above order, and securely tighten all screws to prevent hinge slippage.
Energy Saving Tips
- The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight.
- Let hot foods cool to room temperature before placing in the unit. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil.
- Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts down on frost build-up inside.
- Shelves should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the unit less efficient.
- Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.
Setting the Temperature Control
Cool Down Period
- For safe food storage, allow 4 hours for the appliance to cool down completely. The unit will run continuously for the first several hours. Foods that are already frozen may be placed in the appliance after the first few hours of operation. Unfrozen foods should NOT be loaded into the unit until the freezer has operated for 4 hours.
- When loading the appliance, freeze only 3 pounds of fresh food per cubic foot of space at one time. Distribute packages to be frozen evenly throughout the unit. It is not necessary to turn the control knob to a colder setting while freezing food.
Temperature Control
Electromechanical Temperature Control (some chest and upright models)
The electromechanical temperature control is located inside the appliance on upright models, and on the left exterior wall on chest models. The temperature is factory preset to provide satisfactory food storage temperatures. However, the temperature control is adjustable to provide a range of temperatures for your personal satisfaction. To adjust the temperature setting, turn the temperature control knob clockwise or counterclockwise. Allow several hours for the temperature to stabilize between adjustments.
Optional Features
NOTE Your appliance may have some, or all of the features listed below. Become familiar with these features, and their use and care.
Security Lock with Pop-Out Key
This security lock fastens the door snugly, ensuring stored food is secure. To lock or unlock the freezer, push the key into the lock and turn. The key pops out of the lock after it has been turned.
Blue Defrost Button (some chest models)
IMPORTANT It is time to defrost and clean the freezer when the blue defrost button is completely covered with frost.
Temp Alarm
This feature is designed to provide a warning if the inside temperature reaches an unsafe level. The temperature feature operates on household electricity. It will not function if household electricity is interrupted.
To silence the alarm, press the set button next to the ALARM OFF indicator on the display or any key on the control panel.
Interior Light
The light comes on automatically when the door is opened. To replace the light bulb, turn the temperature control to OFF and unplug the electrical cord. Replace the old bulb with a bulb of the same wattage.
Adjustable Interior Shelves (some upright models)
Multi-position adjustable interior shelves can be moved to any position for larger or smaller packages. The shipping spacers that stabilize the shelves for shipping may be removed and discarded.
Smart Basket Upright Models TM System (some chest models)
This basket helps organize odd-shaped items. To reach other packages in the freezer, slide the basket aside or lift out.
Care & Cleaning
CAUTION Damp objects stick to cold metal surfaces. Do not touch interior metal surfaces with wet or damp hands.
Some upright freezers are frost-free and defrost automatically, but should be cleaned occasionally.
Between Defrostings
To avoid frequent defrosting, occasionally use a plastic scraper to remove frost. Scrape with a pulling motion. Never use a metal instrument to remove frost.
Defrosting
CAUTION Freezer must be unplugged (to avoid electrical hazard) from power source when defrosting unit.
It is important to defrost and clean the freezer when ¼ to ½ inch of frost has accumulated. Frost may tend to accumulate faster on the upper part of the freezer due to warm, moist air entering the freezer when the door is opened. Remove food and leave the door open when defrosting the freezer.
To Defrost Upright Models with Defrost Drain:
- Remove the drain plug on the inside floor of the freezer by pulling it straight out.
- To access external drain tube on models with a base panel, first remove the two screws from the base panel. Locate the drain tube near the left center under the freezer.
- Place a shallow pan under the drain tube. Defrost water will drain out. Check the pan occasionally so water does not overflow (see figure 1).
- A ½ inch garden hose adapter can be used to drain the freezer directly into a floor drain. If your model is not equipped with an adapter, one can be purchased at most hardware stores.
- Replace the drain plug when defrosting and cleaning are completed. If the drain is left open, warm air may enter the freezer.
To Defrost Chest Models with Defrost Drain:
- Place a shallow pan beneath the drain outlet. Pull out the outside drain plug (see figure 2). A ½ inch garden hose adapter can be used to drain the freezer directly into a floor drain (see figure 3). If your model is not equipped with an adapter, one can be purchased at most hardware stores.
- Pull out the drain plug inside the freezer (see figure 4). Defrost water will drain out. Check pan occasionally so water does not overflow.
- Replace the drain plugs when defrosting and cleaning are completed. If the drain is left open, warm air may enter the freezer.
To Defrost Models without Defrost Drain:
- Place towels or newspapers on the freezer bottom to catch the frost. The frost will loosen and fall.
- Remove the towels and/or newspapers.
- If the frost is soft, remove it by using a plastic scraper. If the frost is glazed and hard, fill deep pans with hot water and place them on the freezer bottom.
- Close the freezer door/lid. Frost should soften in about fifteen (15) minutes.
- Repeat this procedure is necessary.
Cleaning the Inside
After defrosting, wash inside surfaces of the freezer with a solution of 2 tbsp. (25 g) of baking soda in 1 qt. (1 l) warm water. Rinse and dry. Wring excess water out of the sponge or cloth when cleaning in the area of the controls, or any electrical parts. Wash the removable parts and door basket with the baking soda solution mentioned above, or mild detergent and warm water. Rinse and dry. Never use metallic scouring pads, brushes, abrasive cleaners, or alkaline solutions on any surface. Do not wash removable parts in a dishwasher.
Cleaning the Outside
Wash the cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
WARNING If leaving the freezer lid open while on vacation, make certain that children cannot get into the freezer and become entrapped.
To Defrost Chest Models with Defrost Drain:
- Place a shallow pan or the Divider/Drain Pan (if equipped) beneath the drain outlet. Pull out the outside drain plug (see figure 1). A ½ inch garden hose adapter can be used to drain the freezer directly into a floor drain (see figure 2). If your model is not equipped with an adapter, one can be purchased at most hardware stores.
- Remove the drain plug inside the freezer by turning counterclockwise (see figure 3). Defrost water will drain out. Check pan occasionally so water does not overflow.
- Replace the drain plugs when defrosting and cleaning are completed.If the drain is left open, warm air may enter the freezer.
To Defrost Models without Defrost Drain:
- Place towels or newspapers on the freezer bottom to catch the frost. The frost will loosen and fall.
Vacation and Moving Tips
Short Vacations: Leave the freezer operating during vacations of less than three weeks.
Long Vacations: If the freezer will not be used for several months:
- Remove all food and unplug the power cord.
- Clean and dry the interior thoroughly.
- Leave the freezer door open slightly, blocking it open if necessary, to prevent odor and mold growth.
Moving: When moving the freezer, follow these guidelines to prevent damage:
- Disconnect the power cord plug from the wall outlet.
- Remove foods, then defrost, and clean the freezer.
- Secure all loose items such as base panel, baskets, and shelves by taping them securely in place to prevent damage.
- In the moving vehicle, secure freezer in an upright position to prevent movement. Also protect outside of freezer with a blanket, or similar item.
Power/Freezer Failure
NOTE Do not open freezer door unnecessarily if freezer is off for several hours.
If a power failure occurs, frozen foods will stay frozen for at least 24 hours if the freezer is kept closed. If the power failure continues, pack seven or eight pounds of dry ice into the freezer every 24 hours. Look in the Yellow Pages under Dry Ice, Dairies, or Ice Cream manufacturers for local dry ice suppliers. Always wear gloves and use caution when handling dry ice.
If the freezer has stopped operating, see “Appliance Does Not Run” in the Troubleshooting Guide. If you cannot solve the problem, call an authorized servicer mediately. If the freezer remains off for several hours, follow the directions above for the use of dry ice during a power failure. If necessary, take the food to a local locker plant until the freezer is ready to operate. Look in the Yellow Pages under “Frozen Food Locker Plants”.
Before You Call
TROUBLESHOOTING GUIDE
Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.
APPLIANCE OPERATION
CONCERN | POTENTIAL CAUSE | COMMON SOLUTION |
Appliance does not run. |
|
|
Appliance runs too much or too long. |
|
|
Interior temperature is too cold. |
|
|
Interior temperature is too warm. |
|
|
External surface tem- perature is warm. |
|
|
SOUND AND NOISE
CONCERN | POTENTIAL CAUSE | COMMON SOLUTION |
Louder sound levels whenever appliance is on. |
|
|
Longer sound levels when compressor comes on. |
|
|
Popping or cracking sound when com- pressor comes on. |
|
|
Bubbling or gurgling sound, like water boiling. |
|
|
Vibrating or rattling noise. |
|
|
WATER/MOISTURE/FROST INSIDE APPLIANCE
CONCERN | POTENTIAL CAUSE | COMMON SOLUTION |
Moisture forms on inside walls. |
|
|
WATER/MOISTURE/FROST OUTSIDE APPLIANCE
CONCERN | POTENTIAL CAUSE | COMMON SOLUTION |
Moisture forms on outside of walls. |
|
|
ODOR IN APPLIANCE
CONCERN | POTENTIAL CAUSE | COMMON SOLUTION |
Odor in appliance |
|
|
DOOR PROBLEMS
CONCERN | POTENTIAL CAUSE | COMMON SOLUTION |
Door will not close |
|
|
LIGHT IS NOT ON
CONCERN | POTENTIAL CAUSE | COMMON SOLUTION |
Light is not on. |
|
|
