Samsung DV435ETGJWR Electric Dryer With Steam User Manual

Gas and Electric Dryer

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service or accessory

parts, please register your product at or contact

www.samsung.com/register

1-800-SAMSUNG (726-7864)

DV435*

This manual is made with 100% recycled paper.

DV435_02836G-05_EN.indd 1DV435_02836G-05_EN.indd 1 2013-12-11  11:19:512013-12-11  11:19:51

English - 2

contents

SAFETY INSTRUCTIONS

4 What you need to know about safety

instructions

4 Important safety symbols and precautions

INSTALLING YOUR DRYER

8 Unpacking your dryer

8 See exhaust requirements

9 Basic requirements

9 Ducting requirements

10 Important to installer

11 Location considerations

11 Alcove or closet installations

13 Exhausting

14 Gas requirements

14 Commonwealth of massachusetts

installation instructions

15 Electrical requirements

15 Grounding

16 Electrical connections

17 Connecting the inlet hose

19 Replacement parts and accessories

19 Installation

22 Final installation checklist

22 Dryer exhaust tips

23 Door Reversal

OPERATING INSTRUCTIONS, TIPS

25 Overview of the control panel

30 Rack Dry

31 Clean the lint ﬁ lter

31 Load the dryer properly

31 Getting started

DV435_02836G-05_EN.indd Sec9:2DV435_02836G-05_EN.indd Sec9:2 2013-12-11  11:19:572013-12-11  11:19:57

English - 3

TROUBLESHOOTING

34 Check these points if your dryer…

36 Information codes

CARE AND CLEANING

32 Control Panel

32 Tumbler

32 Stainless Steel Tumbler

32 Dryer Exterior

32 Dryer Exhaust System

SPECIAL LAUNDRY TIPS

33 Special laundry tips

APPENDIX

37 Fabric care chart

38 Protecting the environment

38 Declaration of conformity

38 Speciﬁ cations

39 Cycle chart

DV435_02836G-05_EN.indd Sec9:3DV435_02836G-05_EN.indd Sec9:3 2013-12-11  11:19:572013-12-11  11:19:57

English - 4

SAVE THESE INSTRUCTIONS

Safety instructions

Congratulations on your new Samsung Dryer. This manual contains important

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer’s many beneﬁ ts and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Please read this manual thoroughly to ensure that you know how to operate the extensive features and

functions of your new appliance safely and e ciently. Retain the manual in a safe place near the appliance

for future reference. Use this appliance only for its intended purpose as described in this instruction manual.

The Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury,

death and/or property damage. Follow the information in this manual

to minimize the risk of ﬁ re or explosion or to prevent property damage,

personal injury, or death.

Do not store or use gasoline or other ﬂ ammable vapors and liquids near

this or any other appliance.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or

property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

DV435_02836G-05_EN.indd Sec11:4DV435_02836G-05_EN.indd Sec11:4 2013-12-11  11:19:572013-12-11  11:19:57

English - 5

SAVE THESE INSTRUCTIONS

01 SAFETY INSTRUCTIONS

WARNING - Risk of Fire

• Clothes dryer installation must be performed by a qualiﬁ ed installer.

• Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Do not install a clothes dryer with ﬂ exible plastic venting materials. If ﬂ exible metal (foil type) duct

is installed, it must be of a speciﬁ c type identiﬁ ed by the appliance manufacturer as suitable for

use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and

trap lint. These conditions will obstruct clothes dryer airﬂ ow and increase the risk of ﬁ re.

• To reduce the risk of severe injury or death, follow all installation instructions.

TO REDUCE THE RISK OF FIRE OR EXPLOSION:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other ﬂ ammable or explosive substances. They emit

vapors that could ignite or explode. Any material that has been in contact with a cleaning

solvent or ﬂ ammable liquids or solids should not be placed in the dryer until all traces of

these ﬂ ammable liquids or solids and their fumes have been removed.

There are many highly ﬂ ammable items used in homes, such as acetone, denatured alcohol,

gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes,

and wax removers

• Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured

rubber-like materials on a heat setting. Heated foam rubber materials can, under certain

circumstances, produce ﬁ re by spontaneous combustion.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not turn on the appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the ﬁ re department.

• Installation and service must be performed by a qualiﬁ ed installer, service agency, or the gas

supplier.

WARNING

DV435_02836G-05_EN.indd Sec11:5DV435_02836G-05_EN.indd Sec11:5 2013-12-11  11:19:572013-12-11  11:19:57

English - 6

SAVE THESE INSTRUCTIONS

Safety instructions

IMPORTANT SAFTY INSTRUCTION

WARNING

To reduce the risk of ﬁ re, electric shock, or injury to persons when using your appliance, follow

basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted

with gasoline, dry-cleaning solvents, or other ﬂ ammable or explosive substances, because

they give o vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any ﬂ ammable substance, such

as vegetable oil, cooking oil, machine oil, ﬂ ammable chemicals, thinner, etc., or anything

containing wax or chemicals, such as mops and cleaning cloths. Flammable substances may

cause the fabric to catch ﬁ re by itself.

4. Do not store or use gasoline or other ﬂ ammable vapors and liquids near this or any other

appliance.

5. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

6. Before the appliance is removed from service or discarded, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

7. Do not reach into the appliance when the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with the controls.

10. Do not repair or replace any part of the appliance or attempt any servicing unless speciﬁ cally

recommended in the user-maintenance instructions or published in the user-repair

instructions that you understand and have the skills to carry out.

11. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

14. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

dirt.

15. The interior of the dryer and exhaust duct should be cleaned periodically by qualiﬁ ed service

personnel.

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking

oils may contribute to a chemical reaction that could cause a load to catch ﬁ re.

17. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in the

“Installing your dryer” section.

18. This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately and in accordance with local and national codes. Refer to

installation instructions for grounding this appliance.

WARNING

DV435_02836G-05_EN.indd Sec11:6DV435_02836G-05_EN.indd Sec11:6 2013-12-11  11:19:572013-12-11  11:19:57

English - 7

SAVE THESE INSTRUCTIONS

01 SAFETY INSTRUCTIONS

19. Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e.

coins, knives, pins, etc. These objects could damage your dryer.

20. Gas leaks may occur in your system, resulting in a dangerous situation.

21. Gas leaks may not be detected by smell alone.

22. Gas suppliers recommend you purchase and install a UL-approved gas detector.

GAS APPLIANCES :

This product contains chemicals known to the State of California to cause cancer and

reproductive toxicity.

Gas appliances can cause low-level exposure to Proposition 65 listed substances, including but

not limited to, benzene, carbon monoxide, formaldehyde and soot, substances resulting from the

incomplete combustion of natural gas or LP fuels.

CAUTION

1. Do not sit on top of the dryer.

2. Because of continuing product improvements, Samsung reserves the right to change

speciﬁ cations without notice. For complete details, see the Installation Instructions packed

with your product before selecting cabinetry, making cutouts, or beginning installation.

3. Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.

4. Install and use in accordance with the manufacturer’s instructions.

5. Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain signiﬁ cant amounts of these

oils.

6. Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion

increases when items containing vegetable oil or cooking oil are exposed to heat. Heat

sources such as your dryer can warm these items, allowing an oxidation reaction in the oil to

occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough

to catch ﬁ re. Piling, stacking, or storing these kinds of items may prevent heat from escaping

and can create a ﬁ re hazard.

7. All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous.

Washing these items in hot water with extra detergent will reduce, but not eliminate, the

hazard. Always use the Cool Down cycle for these items to reduce their temperature. Never

remove these items from the dryer hot or interrupt the drying cycle until the items have run

through the Cool Down cycle. Never pile or stack these items when they are hot.

8. Take care that children’s ﬁ ngers are not caught in the door when closing it. This may result in

injury.

WARNING

CAUTION

DV435_02836G-05_EN.indd Sec11:7DV435_02836G-05_EN.indd Sec11:7 2013-12-11  11:19:572013-12-11  11:19:57

English - 8

Installing your dryer

UNPACKING YOUR DRYER

Unpack your Dryer and inspect it for shipping damage. Make sure you have received all the items

shown below. If your Dryer was damaged during shipping, or you do not have all the items, contact

1-800-SAMSUNG (726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

The packing materials can be dangerous children. Keep all packaging material (plastic bags,

polystyrene, etc.) well out of the reach of children.

SEE EXHAUST REQUIREMENTS

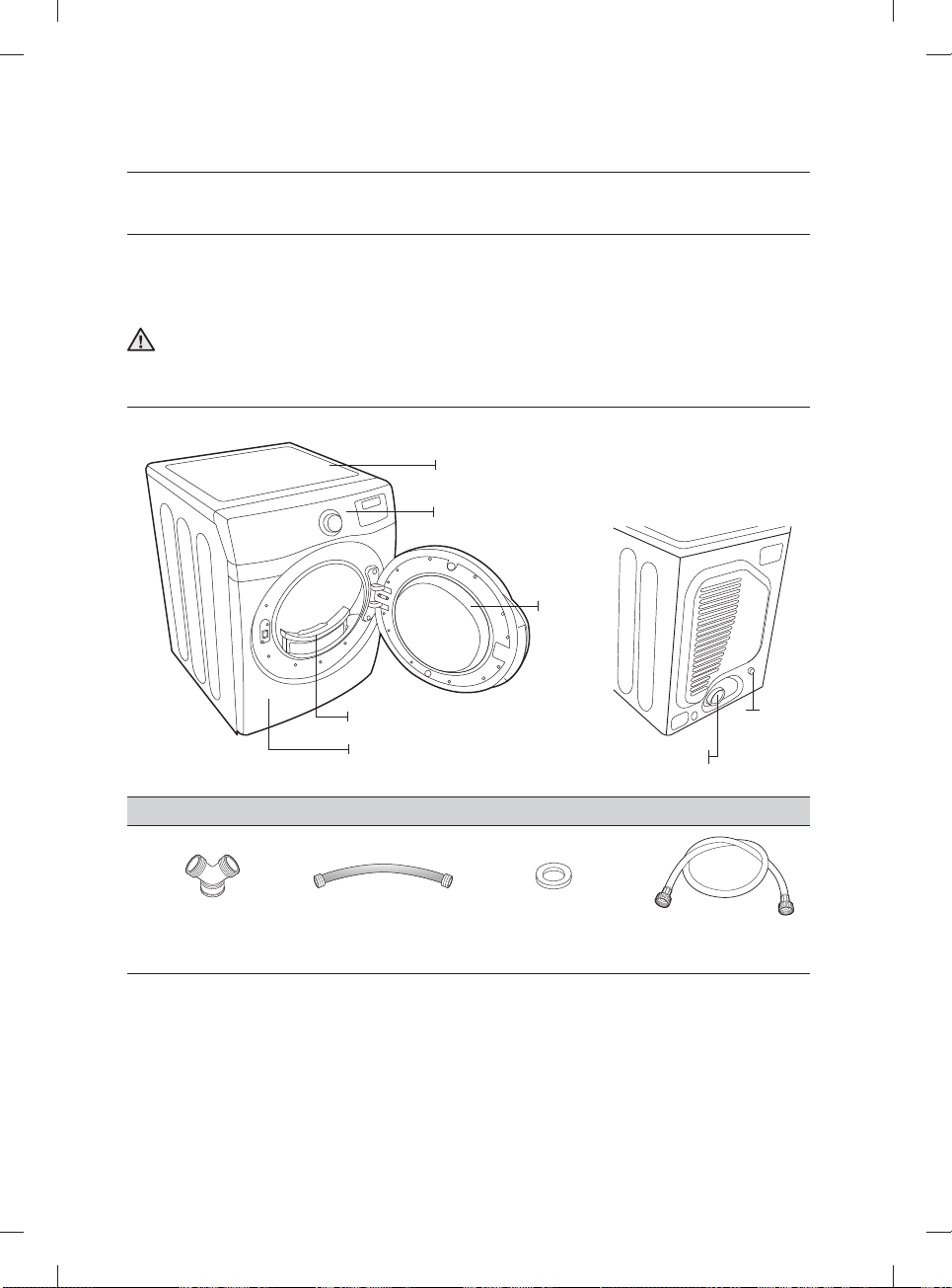

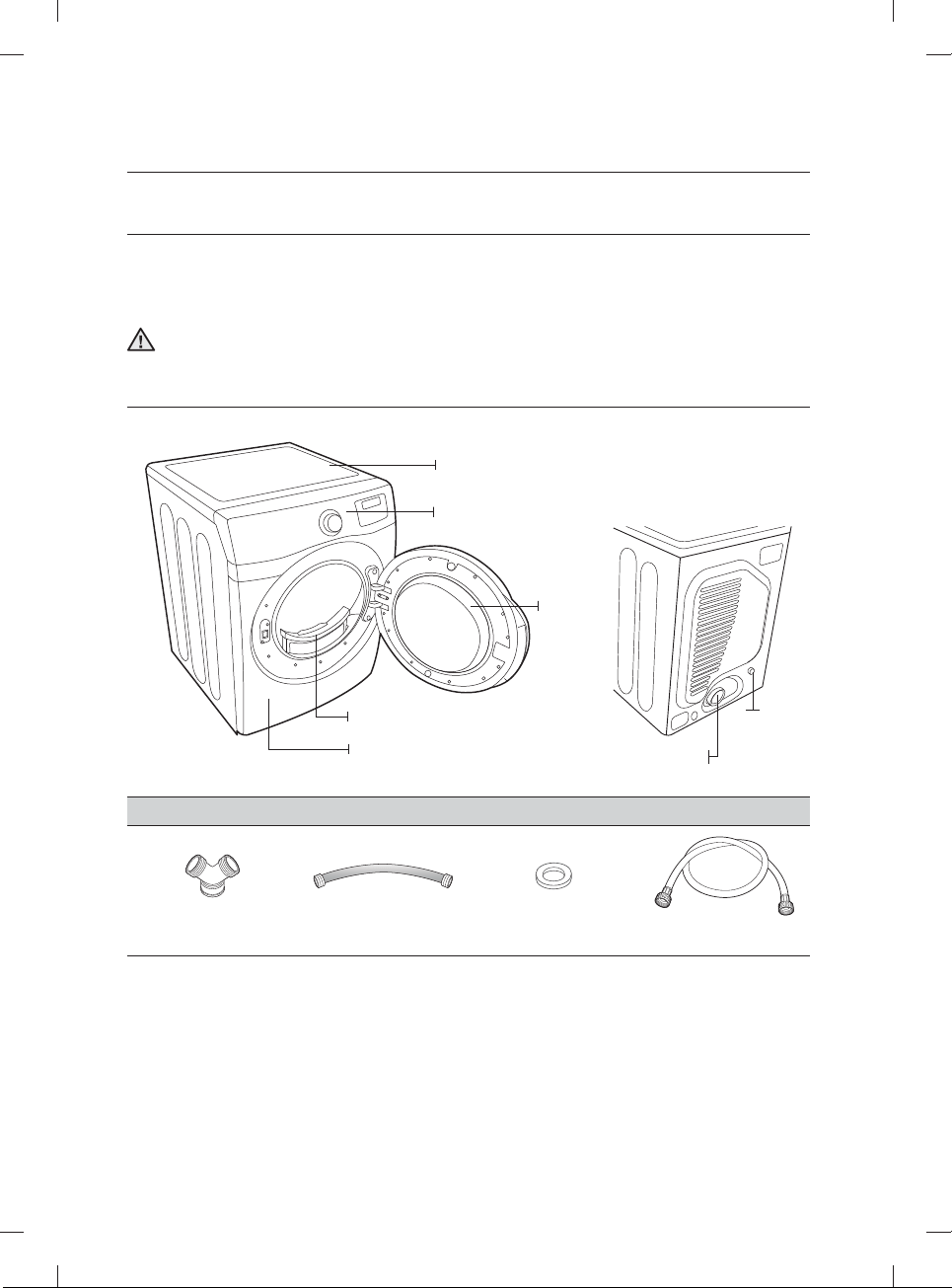

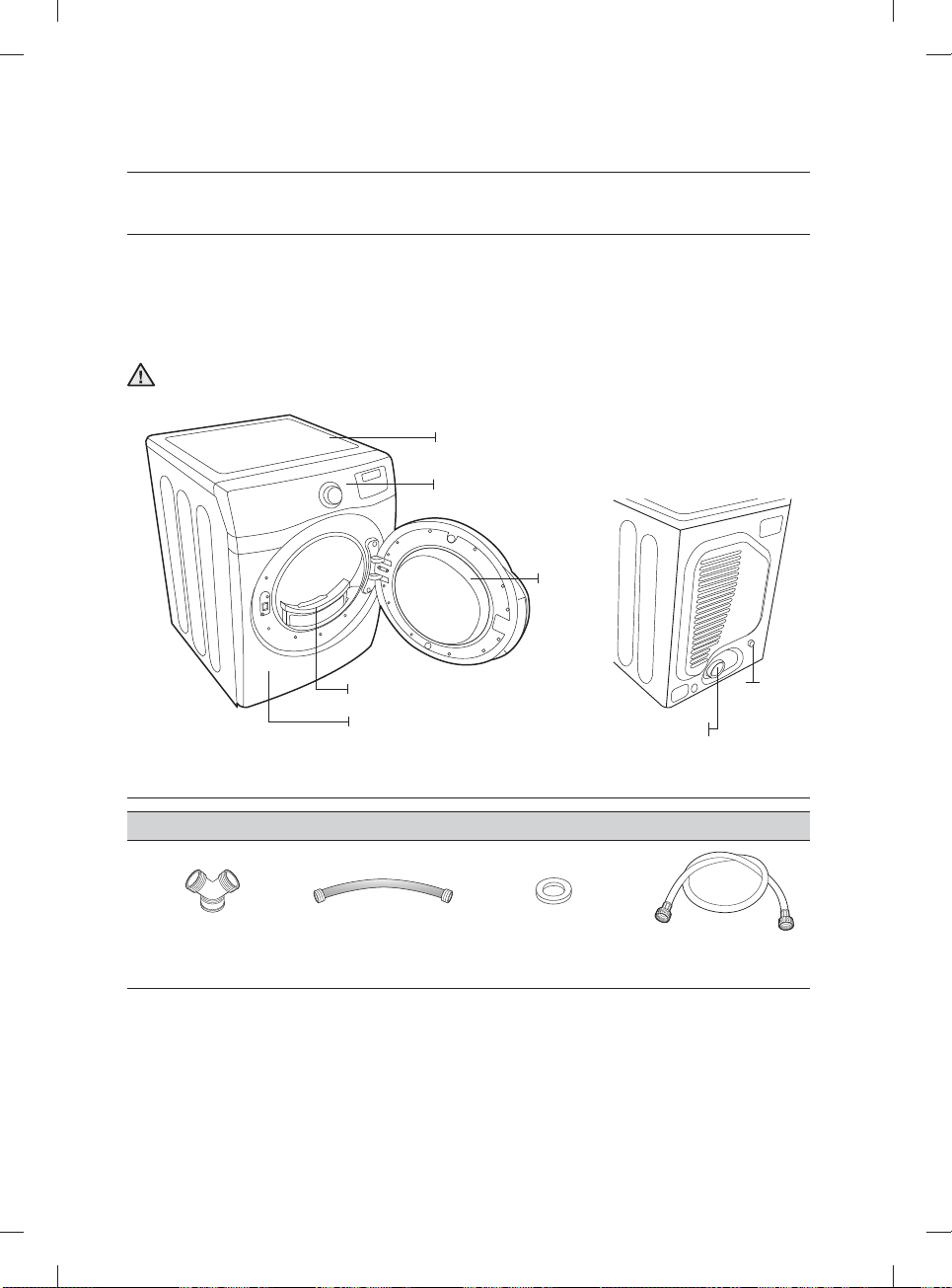

Parts supplied

“Y”-connector Short inlet hose Rubber Washer Long inlet hose

WARNING

Control panel

Top Cover

Door

Frame Front

Filter

Duct Exhaust

Water Inlet

[ BACK ]

DV435_02836G-05_EN.indd 8DV435_02836G-05_EN.indd 8 2013-12-11  11:19:582013-12-11  11:19:58

English - 9

02 INSTALLING YOUR DRYER

Tools needed

Pliers Cutting knife

Pipe wrench

(gas only)

Nut drivers

Level Phillips Screwdriver Duct tape Wrench

BASIC REQUIREMENTS

Make sure you have everything necessary for the proper installation

• A GROUNDED ELECTRICAL OUTLET is required. Refer to the “Electrical requirements” section on

page 15.

• A POWER CORD electric dryer (except for Canada).

• GAS LINES (if a gas dryer) must meet national and local codes.

• The EXHAUST SYSTEM must be made of rigid metal or ﬂ exible sti -walled metal exhaust ducting.

DUCTING REQUIREMENTS

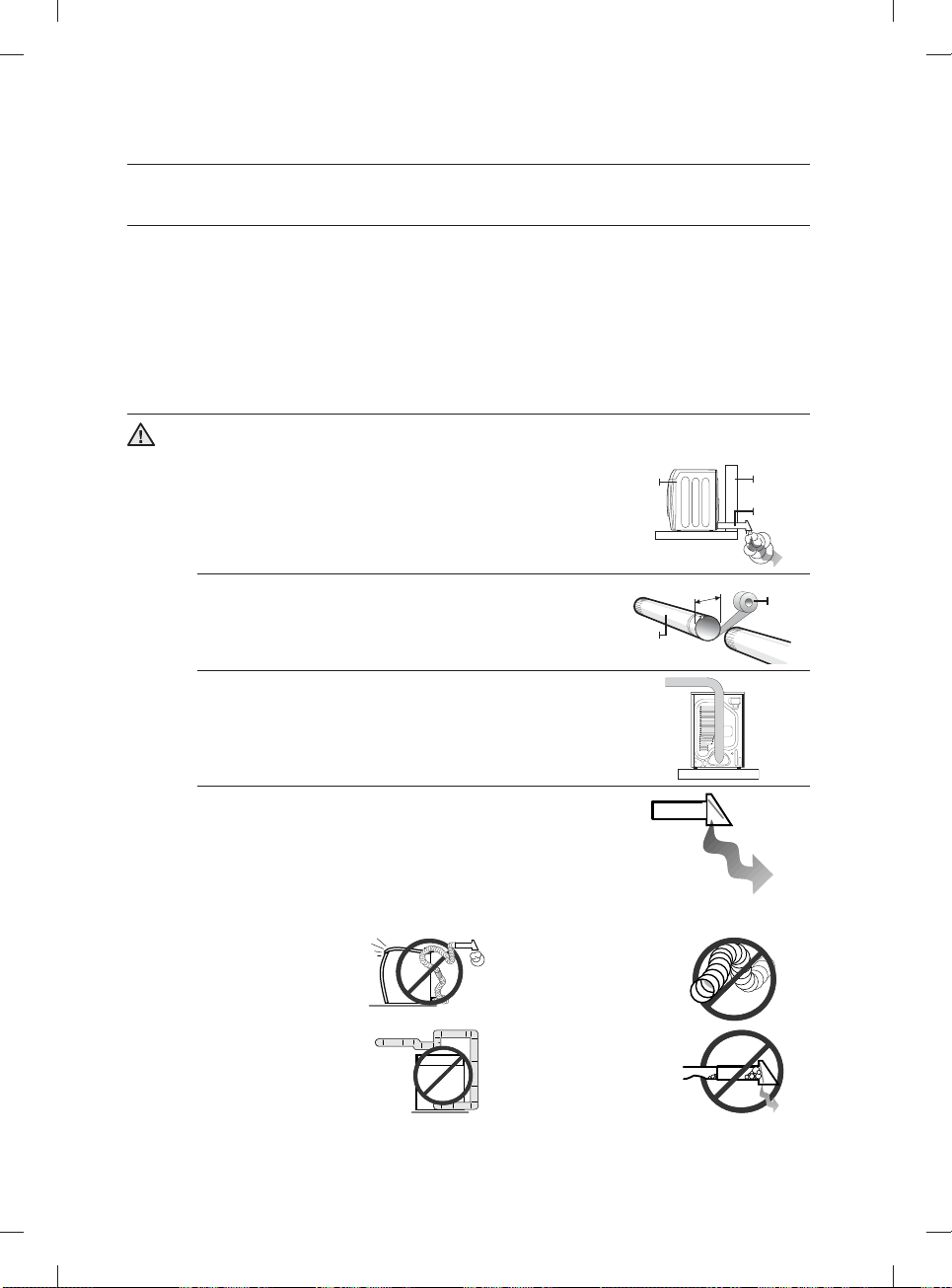

• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

• Do not use a smaller duct.

• Ducts larger than 4 inches (10.2 cm) in diameter can result in increased accumulation of lint.

• Lint should be removed regularly.

• If a ﬂ exible metal duct must be used, use the type with a sti sheet metal wall. Do not use a ﬂ exible duct

with a thin foil wall. A serious blockage can result if the ﬂ exible metal duct is bent too sharply.

• Never install any type of ﬂ exible duct in walls, ceilings, or other concealed spaces.

• Keep the exhaust duct as straight and short as possible.

• Secure joints with duct tape. Do not use screws.

• Plastic ﬂ exible ducts can kink, sag, be punctured, reduce airﬂ ow, extend drying times, and a ect the

dryer operation.

• Exhaust systems longer than recommended can extend drying times, a ect machine operations, and

collect lint.

• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and

entry of wildlife. Never use an exhaust hood with a magnetic damper.

• The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

• Never install a screen over the exhaust outlet.

• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

• If the exhaust duct must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

DV435_02836G-05_EN.indd 9DV435_02836G-05_EN.indd 9 2013-12-11  11:19:582013-12-11  11:19:58

English - 10

Installing your dryer

• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

• Check frequently to make sure the exhaust hood damper opens and closes freely.

• Check once per month, and clean at least once per year. Note: If your clothes are not getting dry, then

check the ducting for obstructions.

• Do not exhaust the dryer into a wall, ceiling, crawl space, or concealed space of a building, gas vent, or

any other common duct or chimney. This could create a ﬁ re hazard from the lint expelled by the dryer.

ELECTRIC AND GAS DRYER

Weather Hood Type

Recommended

Use only for short-run installation

4” (10 .16 cm)

2.5” (6.35 cm)

No. of 90° elbows

Rigid Metallic Flexible*

24.4 m (80 ft.) 12.4 m (41 ft.)

22.6 m (74 ft.) 10.1 m (33 ft.)

20.7 m (68 ft.) 11.2 m (37 ft.)

18.9 m (62 ft.) 8.8 m (29 ft.)

17.4 m (57 ft.) 10.1 m (33 ft.)

15.5 m (51 ft.) 7.6 m (25 ft.)

14.3 m (47 ft.) 9.0 m (29 ft.)

12.5 m (41 ft.) 6.5 m (21 ft.)

* Do not use non-metallic ﬂ exible ducts.

If the new dryer is installed into an existing exhaust system you must make sure:

• The exhaust system meets all local, state, and national codes.

• That a ﬂ exible plastic duct is not used.

• To inspect and clean all lint buildup from inside the existing duct.

• The duct is not dented or crushed.

• The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be less than 0.

This can be measured with the dryer running with a manometer at the point where the exhaust duct

connects to the dryer. A no-heat setting should be used. The dryer tumbler should be empty and the lint

ﬁ lter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept

for future reference.

Remove the door from all discarded appliances to avoid the danger of a child being trapped and

su ocating.

WARNING

DV435_02836G-05_EN.indd 10DV435_02836G-05_EN.indd 10 2013-12-11  11:19:582013-12-11  11:19:58

English - 11

02 INSTALLING YOUR DRYER

LOCATION CONSIDERATIONS

The dryer should be located where there is enough space at the front for loading the dryer, and enough

space behind for the exhaust system. This dryer is factory-ready for the rear exhaust option. To exhaust out

the bottom, right or the left, use the accessory exhaust kit. Instructions are included with the kit. Make sure

the room in which the dryer is located has enough fresh air. The dryer must be located where there are no

air-ﬂ ow obstructions.

For gas dryers, adequate clearance must be maintained as noted on the data plate to ensure adequate air

for combustion and the proper dryer operation.

The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. The

dryer area must be kept clear of combustible materials, gasoline, and other ﬂ ammable vapors and liquids. A

dryer produces combustible lint. The area around the dryer should be kept lint-free.

ALCOVE OR CLOSET INSTALLATIONS

The dryer must be exhausted to the outside to reduce the risk of ﬁ re when installed in an alcove or

closet.

• No other fuel-burning appliance should be installed in the same closet as the dryer.

• WARNING: To reduce the risk of ﬁ re, this dryer must be exhausted to the outside. Refer to the

“Exhausting” section on page 13.

Minimum clearances between the dryer and adjacent walls or other

surfaces

Sides 1 in / 25 mm Rear 5 in / 127 mm

Top 17 in / 432 mm Front 2 in / 51 mm

• The front of the closet must have two unobstructed air openings for a combined minimum

total area of 72 in² (465 cm²) with a minimum clearance of 3” (7.6 cm) at the top and bottom.

A slatted door with equivalent space clearances is acceptable.

Recessed area Side view - closet or conﬁ ned area

1 in.

(2.5 cm)

1 in.

(2.5 cm)

1 in.

(2.5 cm)

27 in.

(68.6 cm)

27 in.

(68.6 cm)

2 in.

(5 cm)

5 in.

(12.7 cm)

34.1 in.

(86.5 cm)

17 in.

(43.2 cm)

WARNING

DV435_02836G-05_EN.indd 11DV435_02836G-05_EN.indd 11 2013-12-11  11:19:582013-12-11  11:19:58

English - 12

Installing your dryer

With optional pedestal base or stacking kit

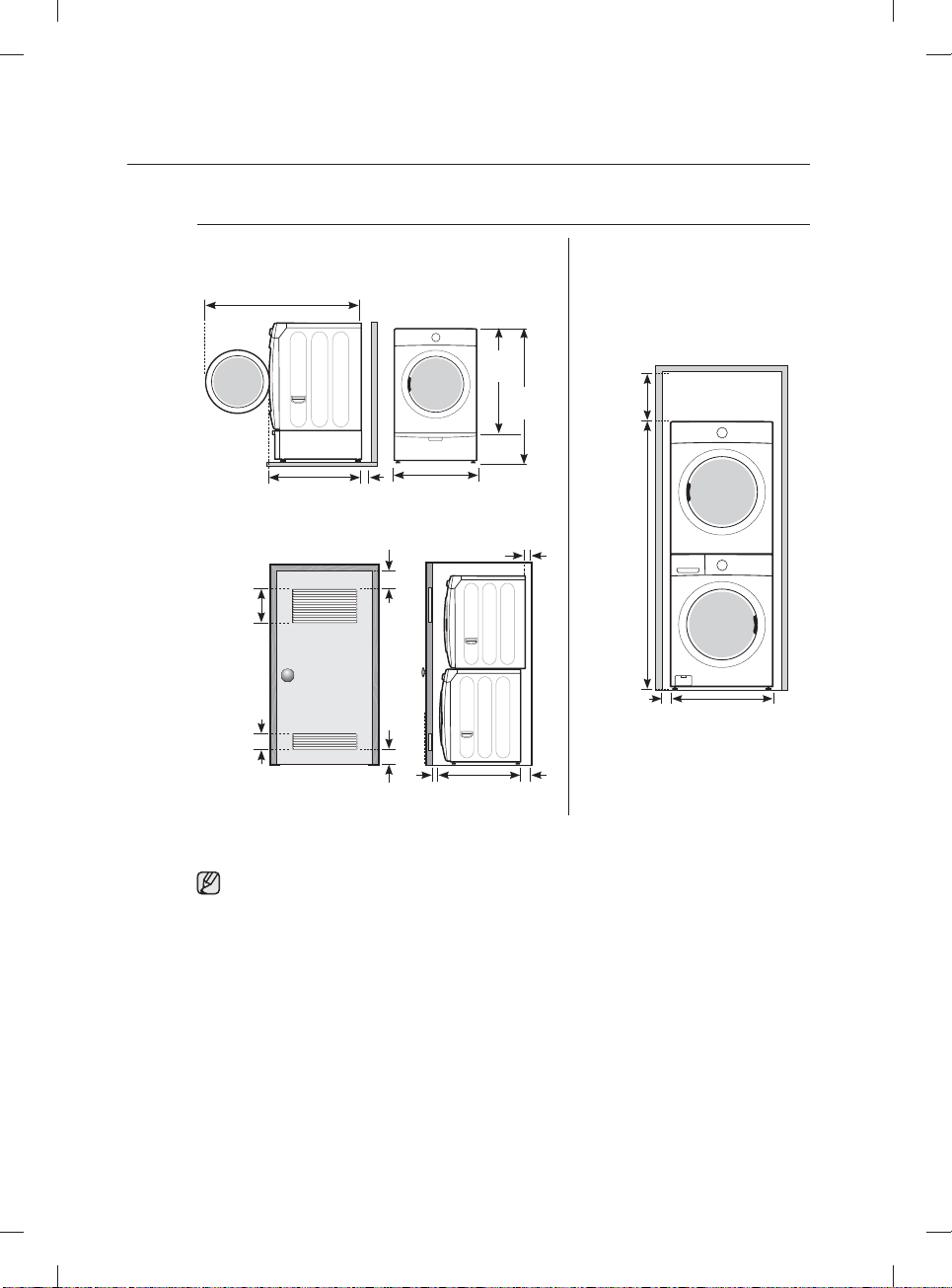

Required Dimensions for Installation With Pedestal

Required Dimensions for Installation

With Stacking Kit

27 in.

(68.6 cm)

39 in.

(99 cm)

5 in.

(12.7 cm)

34.1 in.

(86.5 cm)

51.2 in. (130 cm) to clear open door

53.6 in.

(136.2 cm)

1 in.

(2.5 cm)

27 in.

(68.6 cm)

77.2 in.

(196.2 cm)

6 in. *

(15.2 cm)

48 in.² *

(310 cm²)

24 in.² *

(155 cm²)

3 in.

(7.6 cm)

3 in.

(7.6 cm)

1 in.

(2.5 cm)

34.1 in.

(86.5 cm)

8 in.**

(20.3 cm)

5 in.

(12.7 cm)

Closet or Door

* Required spacing

** An external exhaust elbow requires additional space.

It is not recommended to stack DV457* on your washer.

(it might be hard to control dryer LCD because of the viewing angle.)

DV435_02836G-05_EN.indd 12DV435_02836G-05_EN.indd 12 2013-12-11  11:19:592013-12-11  11:19:59

English - 13

02 INSTALLING YOUR DRYER

EXHAUSTING

The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed

space of a building.

Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the

room.

Refer to the “Ducting requirements” section on page 9 for the maximum duct length and

number of bends.

• All dryers must be exhausted to the outside.

• Do not assemble the duct with screws or other fastening means that extend into the

duct and catch lint.

• The exhaust duct should be 4 inches (102 mm) in diameter.

• The total length of ﬂ exible metal duct shall not exceed 2.4 m (7.8 ft.).

In the United States:

• Use only those foil-type ﬂ exible ducts, if any, speciﬁ cally identiﬁ ed for use with the appliance

by the manufacturer and that comply with the Outline for Clothes Dryer Transition Ducts,

Subject 2158A, shall be used.

In Canada:

• Use only those foil-type ﬂ exible ducts, if any, speciﬁ cally identiﬁ ed for use with the appliance

by the manufacturer.

Outside the U.S. and Canada:

• Refer to the local codes.

The dryer must be exhausted to the outside to reduce the risk of ﬁ re when installed in an

alcove or closet.

NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.

If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.

Use only a metal exhaust duct that is non-ﬂ ammable to ensure containment of the exhaust

air, heat, and lint.

WARNING

DV435_02836G-05_EN.indd 13DV435_02836G-05_EN.indd 13 2013-12-11  11:19:592013-12-11  11:19:59

English - 14

Installing your dryer

GAS REQUIREMENTS

Use only natural or LP (liquid propane) gases.

THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL

CODES, WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED

STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).

Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP

(liquid propane) gas, it must be converted for safe and proper performance by a qualiﬁ ed service technician.

A 1/2” (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8” (1 cm) gas

line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-o

valve be installed within 6” of your dryer.

Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the ﬂ oor.

Additionally, a 1/8” (0.3 cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge

connection, must be installed immediately upstream of your dryer’s gas supply connection.

Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the

system.

DO NOT reuse old ﬂ exible metal gas lines. Flexible gas lines must be design certiﬁ ed by the American Gas

Association (CGA in Canada).

• Any pipe joint compound used must be resistant to the action of any liqueﬁ ed petroleum gas.

• As a courtesy, most local gas utilities will inspect a gas appliance installation.

GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burner.

There is no constant burning pilot.

COMMONWEALTH OF MASSACHUSETTS INSTALLATION

INSTRUCTIONS

Your dryer must be installed by a licensed plumber or gas ﬁ tter. A “T” handle manual gas valve must be

installed in the gas supply line to your dryer. If a ﬂ exible gas connector is used to install your dryer, the

connector may not be longer than 3’ (36”).

• Gas leaks may occur in your system, creating a dangerous situation.

• Gas leaks may not be detected by smell alone.

• Gas suppliers recommend that you purchase and install a UL-approved gas detector.

• Install and use it in accordance with the manufacturer’s instructions.

WARNING

DV435_02836G-05_EN.indd 14DV435_02836G-05_EN.indd 14 2013-12-11  11:19:592013-12-11  11:19:59

English - 15

02 INSTALLING YOUR DRYER

ELECTRICAL REQUIREMENTS

The wiring diagram is located on the plate below the control panel.

• The improper connection of the equipment grounding conductor can result in a risk of electric

shock. Check with a qualiﬁ ed electrician or serviceman if you are in doubt as to whether your dryer

is properly grounded. Do not modify the plug provided with your dryer - if it doesn’t ﬁ t the outlet,

have a proper outlet installed by a qualiﬁ ed electrician.

• To prevent unnecessary risk of ﬁ re, electrical shock, or personal injury, all wiring and grounding

must be done in accordance with local codes, or in the absence of local codes, with the National

Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code

CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide

adequate electrical services for your dryer.

• All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 - Latest

Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and

local codes and ordinances.

GROUNDING

This dryer must be grounded. In the event of a malfunction or breakdown, the grounding the product will

reduce the risk of electrical shock by providing a path of least resistance for the electrical current.

Gas models

Your dryer has a cord with an equipment-grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Do not modify the plug provided with your dryer – if it doesn’t ﬁ t the outlet, have a proper outlet

installed by a qualiﬁ ed electrician.

Never connect the ground wire to the plastic plumbing lines, gas lines, or hot water pipes.

Electric models

Your dryer has an optional cord with an equipment-grounding conductor and a grounding plug,

which is sold separately.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Do not modify the plug provided with your dryer – if it doesn’t ﬁ t the outlet, have a proper outlet

installed by a qualiﬁ ed electrician.

If a power cord is not used and the electric dryer is to be permanently wired, the dryer must

be connected to a permanently grounded metal wiring system, or an equipment grounding

conductor must be run with the circuit conductors and connected to the equipment grounding

terminal or lead on the dryer.

WARNING

DV435_02836G-05_EN.indd 15DV435_02836G-05_EN.indd 15 2013-12-11  11:19:592013-12-11  11:19:59

English - 16

Installing your dryer

ELECTRICAL CONNECTIONS

Before operating or testing, follow all grounding instructions in the “Grounding” section on page 15.

An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN

EXTENSION CORD.

Gas models – U.S. and Canada

A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is

required.

Electric models – U.S. only

Most U.S. dryers require a 120/240 volt, 60 Hz AC approved electrical service. Some require

120/208 volt, 60 Hz approved electrical service. The electric service requirements can be found

on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of

the line is required.

• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.

• The power cord is NOT provided with U.S. electric model dryers.

RISK OF ELECTRIC SHOCK:

When local codes allow, the electrical supply of the dryer may be connected by means of

a new power supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a

minimum of120/240 volts, 30-ampere with three No. 10 copper wire conductors terminated

with closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply

wiring must be retained at the dryer cabinet with a suitable UL-listed strain relief.

• Grounding through the neutral conductor is prohibited for (1) new branch-circuit

installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local

codes prohibit grounding through the neutral conductor. (Use a 4-prong plug for 4 wire

receptacles, NEMA type 14-30R.)

Electric models – Canada Only

• A 120/240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or

circuit breaker on both sides of the line is required.

• All Canadian models are shipped with the power cord attached. The power cord should be

plugged into a 30-ampere receptacle.

In Canada, you may not convert a dryer to 208 volts.

WARNING

DV435_02836G-05_EN.indd 16DV435_02836G-05_EN.indd 16 2013-12-11  11:19:592013-12-11  11:19:59

English - 17

02 INSTALLING YOUR DRYER

CONNECTING THE INLET HOSE

Method 1

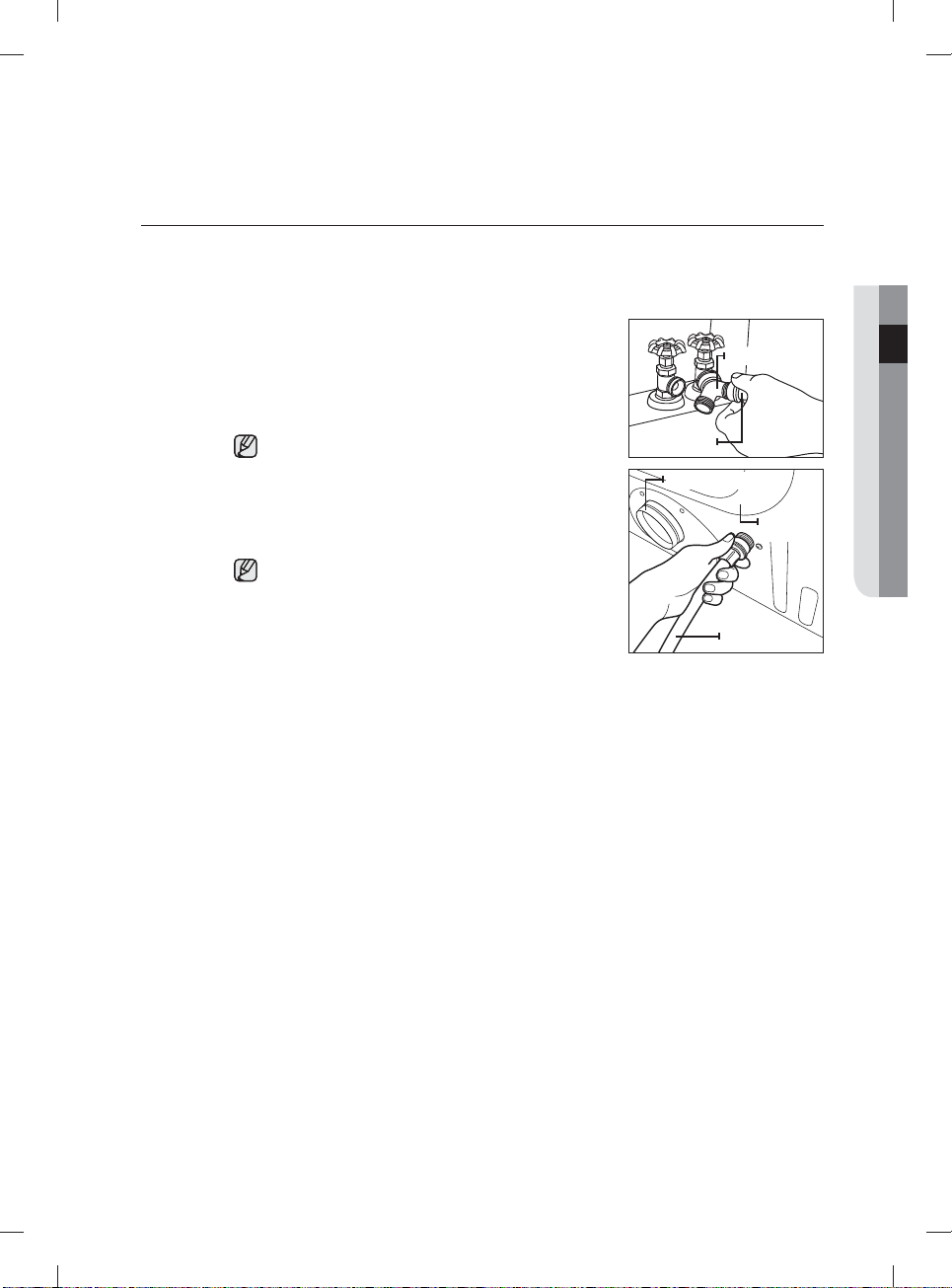

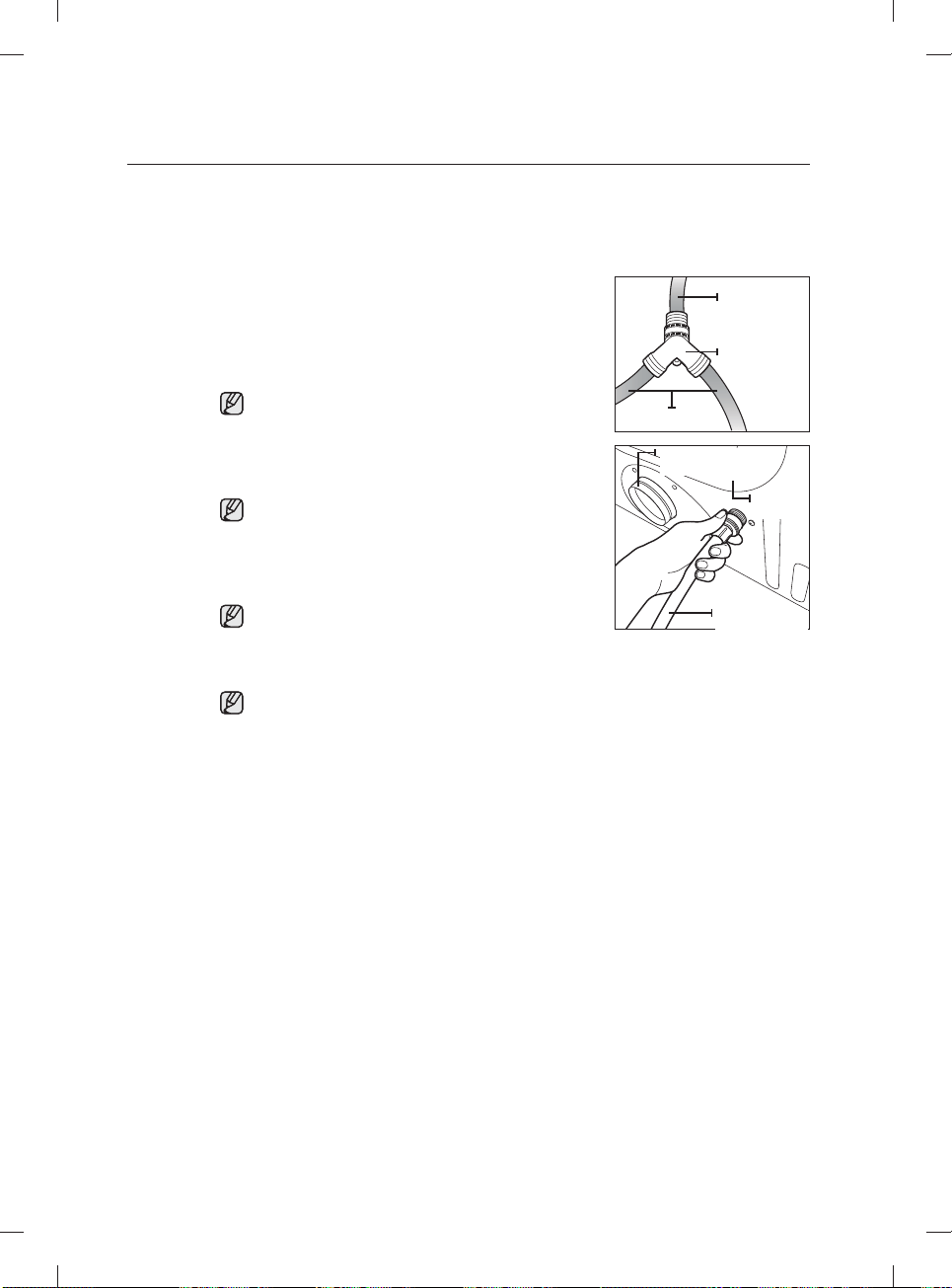

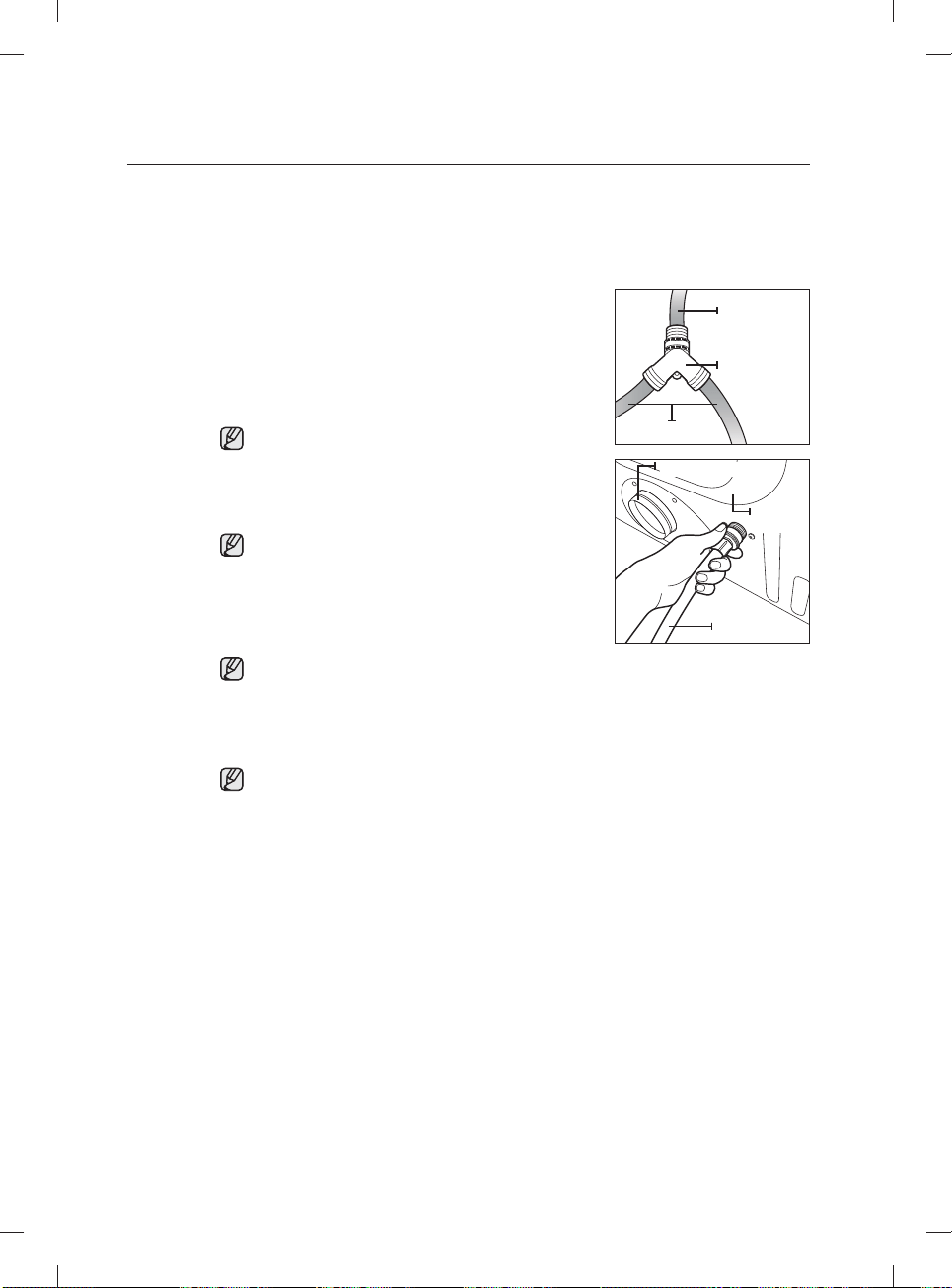

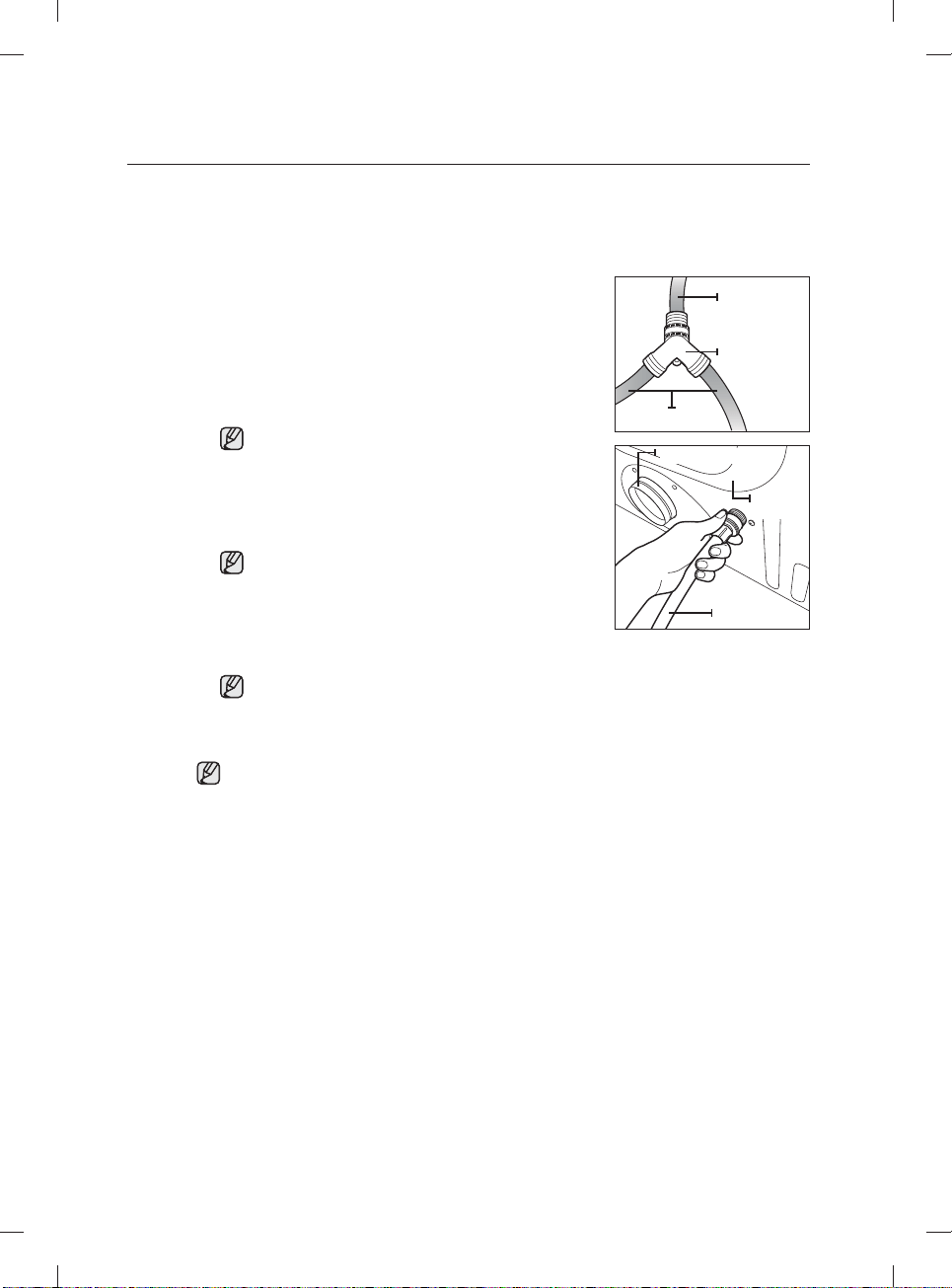

The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old

hoses.

1. If space permits, attach the brass female end of the “Y”

connector to the cold water faucet.

2. Turn the cold water faucet o .

3. Attach the straight end of long hose to the “Y’ connector.

4. Using pliers, tighten the coupling with an additional two-

thirds turn.

Do not overtighten, as this may damage the coupling.

5. Attach the angled end of long hoses to ﬁ ll the valve at the

bottom of the dryer’s rear frame. Screw on the coupling by

hand until it is seated on the ﬁ ll valve connector.

6. Using the pliers, tighten the coupling with an additional two-

thirds turn.

Do not overtighten, as this may damage the coupling.

7. Check that the water faucets are on.

8. Check for leaks around the “Y” connector, faucets and

hoses.

Duct Exhaust

Frame

(back)

Water Hose

Y-Connector

Water Hose

DV435_02836G-05_EN.indd 17DV435_02836G-05_EN.indd 17 2013-12-11  11:19:592013-12-11  11:19:59

English - 18

Installing your dryer

Method 2

The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old

hoses.

1. If the “Y” connector cannot be attached directly to the cold

water faucet, the short hose must be used.

2. Turn the cold water faucet o .

3. Attach the short inlet hose to the cold water faucet.

Screw on the coupling by hand until it is seated on the

faucet.

4. Using the pliers, tighten the coupling with an additional two-

thirds turn.

Do not overtighten, as this may damage the coupling.

5. Attach the ‘Y” connector to the brass male end of the small

hose. Screw on the coupling by hand until it is seated on the

connector.

6. Using the pliers, tighten the coupling with an additional two-

thirds turn.

Do not overtighten, as this may damage the coupling.

7. Attach the angled end of long hoses to the ﬁ ll valve at the

bottom of the dryer rear frame. Screw on the coupling by

hand until it is seated on the ﬁ ll valve connector.

8. Using pliers, tighten the coupling with an additional two-

thirds turn.

Do not overtighten, as this may damage the coupling.

9. Attach the washer hose to the other side of the “Y”

connector. Screw on the hose coupling until it is tight. Using

pliers, tighten the coupling with an additional two thirds turn.

Do not overtighten. You can damage the coupling.

10. Check that the water faucets are on.

11. Check for leaks around the “Y” connector, faucets and

hoses.

Short hose

(Inlet to cold

water)

“Y” connector

Long hose

Duct Exhaust

Frame

(back)

Water Hose

DV435_02836G-05_EN.indd 18DV435_02836G-05_EN.indd 18 2013-12-11  11:19:592013-12-11  11:19:59

English - 19

02 INSTALLING YOUR DRYER

REPLACEMENT PARTS AND ACCESSORIES

If your dryer requires replacement parts or accessories, contact the dealer where you purchased your dryer

or the SAMSUNG customer care center at 1-800-SAMSUNG (726-7864).

INSTALLATION

For the proper installation, we recommend that you hire a qualiﬁ ed installer.

To install

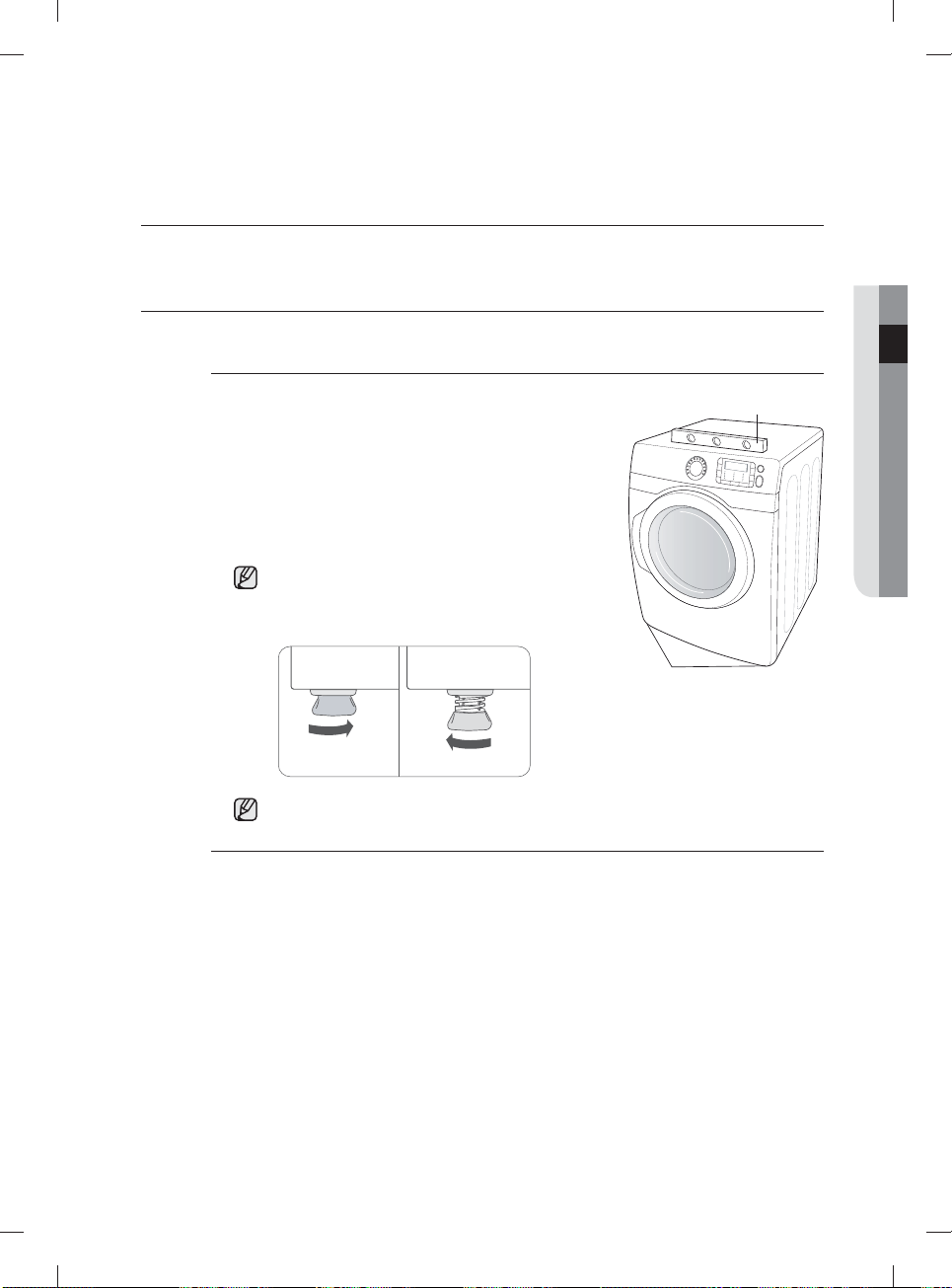

1. Move your dryer to an appropriate location for the

installation. Consider installing the dryer and washer side-

by-side, to allow access to the gas, electrical, and exhaust

connections. Place two of the carton cushion-tops on the

ﬂ oor. Tip your dryer on its side so it lies across both cushion-

tops.

2. Set your dryer back in an upright position.

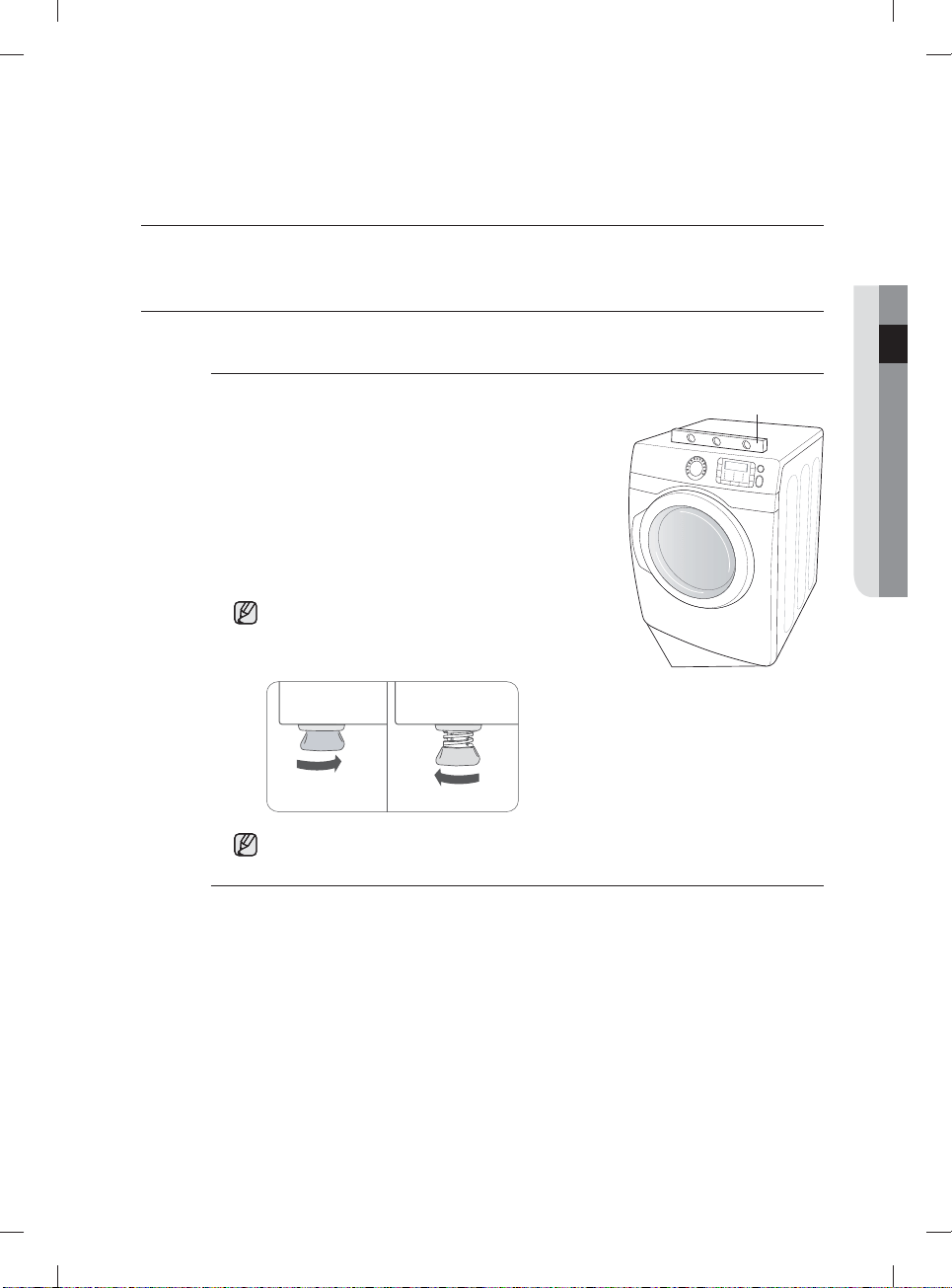

3. To ensure that the dryer provides the optimal drying

performance, it must be level. To minimize vibrations, noise,

and unwanted movement, the ﬂ oor must be a perfectly level,

solid surface.

To set the dryer to the same height as the washer,

fully retract the leveling feet by turning them

counterclockwise, then loosen the legs by turning them

clockwise.

Retract fully Then loosen

Adjust the leveling feet only as much as necessary to

level the dryer. Extending the leveling feet more than

necessary can cause the dryer to vibrate.

Level

Leveling feet

4. Review the “Exhausting” section on page 13 before installing the exhaust system. Install the

ductwork from your dryer to the exhaust hood. The crimped end of the duct sections must

point away from your dryer.

DO NOT use sheet metal screws when assembling the ducting. These joints should be

taped.

Never use plastic ﬂ exible exhaust material.

Tip for tight installations: install a section of the exhaust system onto your dryer before putting

it in place.

Use duct tape to secure this section to your dryer, but do not cover the ventilation slots at

the back of the unit in dryer cabinet.

DV435_02836G-05_EN.indd 19DV435_02836G-05_EN.indd 19 2013-12-11  11:19:592013-12-11  11:19:59

English - 20

Installing your dryer

5. Review the “Electrical requirements” section on page 15.

BEFORE OPERATING OR TESTING, follow the grounding instructions in the “Grounding”

section on page 15.

U.S. MODELS:

RISK OF ELECTRIC SHOCK - All U.S. models are produced for a 3-WIRE SYSTEM

CONNECTION.

The dryer frame is grounded to the neutral conductor at the terminal block.

A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction,

mobile homes, or if local codes do not permit grounding through neutral. If the 4-wire

system is used, the dryer frame cannot be grounded to the neutral conductor at

the terminal block. Refer to the following instructions for 3 and 4-WIRE SYSTEM

CONNECTIONS.

Remove the terminal block cover plate.

Insert the power cord with a UL-listed strain relief through the hole provided in the cabinet

near the terminal block.

A strain relief must be used.

Do not loosen the nuts already installed on the terminal block. Be sure they are tight.

Use a 3/8” (1 cm) deep well socket.

6. Review the “Gas requirements” section on page 14. Remove the pipe thread protective

cap. Apply a pipe joint compound or about 1 1/2 wraps of Teﬂ on tape over all threaded

connections.

The pipe joint compound must be resistant to the actions of any liqueﬁ ed petroleum

gas.

Connect the gas supply to your dryer. An additional ﬁ tting is required to connect the 3/4” (1.9

cm) female thread end of a ﬂ exible connector to the 3/8” (1 cm) male threaded end on the

dryer.

Securely tighten the gas line ﬁ tting over the threads.

Turn on the gas supply.

Check all gas connections for leaks using a soap solution.

If bubbles appear, tighten the connections and recheck. DO NOT use an open ﬂ ame to

check for gas leaks.

WARNING

DV435_02836G-05_EN.indd 20DV435_02836G-05_EN.indd 20 2013-12-11  11:20:002013-12-11  11:20:00

English - 21

02 INSTALLING YOUR DRYER

3-WIRE system connections

1. Loosen or remove the center terminal block screw.

2. Connect the neutral wire (white or center wire) of the power cord to the center, silver-colored

terminal screw of the terminal block. Tighten the screw.

3. Connect the other wires to the outer terminal block screws. Tighten the screws.

4. Tighten the strain relief screws.

5. Insert the tab of the terminal block cover into your dryer’s rear panel slot.

6. Secure the cover with a hold-down screw.

1 External ground connector

2 Neutral grounding wire (green/yellow)

3 Center silver-colored terminal block screw

4 Neutral wire (white or center wire)

5 3/4” (1.9 cm) UL-listed strain relief

If converting from a 4-wire electrical system to a 3-wire, the ground strap must be

reconnected to the terminal block support to ground the dryer frame to the neutral

conductor.

4-WIRE system connections

1. Remove the center terminal block screw.

2. Connect the ground wire (green or unwrapped) of the power cord to the external ground

conductor screw.

3. Connect the neutral wire (white or center wire) of the power cord and the appliance ground

wire (green with yellow stripes) under the central screw of the terminal block.

4. Connect the other wires to the outer terminal block screws. Tighten the screws.

5. Tighten the strain relief screws.

6. Insert the tab of the terminal block cover into your dryer’s rear panel slot.

7. Secure the cover with a hold-down screw.

1 External ground connector

2 Green or bare copper wire of the power cord

3 3/4 in. (1.9 cm) UL-listed strain relief

4 Center silver-colored terminal block screw

5 Grounding wire (green/yellow)

6 Neutral wire (white or center wire)

8. With a level, check your dryer and make the necessary adjustments to the leveling legs.

9. At this time, make sure all gas connections (on gas models), exhaust and electrical

connections are complete. Plug in your dryer, and check its operation by using the checklist

below.

10. (GAS MODELS ONLY)

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on

a heat setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer

o and wait 5 minutes. Be sure the gas supply to your dryer has been turned on. In order to

conﬁ rm the gas ignition, check the exhaust for heat.

WARNING

DV435_02836G-05_EN.indd 21DV435_02836G-05_EN.indd 21 2013-12-11  11:20:002013-12-11  11:20:00

English - 22

Installing your dryer

FINAL INSTALLATION CHECKLIST

• the dryer is plugged into an electrical outlet and is properly grounded.

• The exhaust ductwork is hooked up and the joints are taped.

• A plastic ﬂ exible duct is NOT used.

• Use rigid or sti -walled ﬂ exible metal vent material.

• The dryer is level and is sitting ﬁ rmly on the ﬂ oor.

• Gas models – the gas is turned on with no gas leaks.

• Start your dryer to conﬁ rm that it runs, heats, and shuts o .

DRYER EXHAUST TIPS

A plastic or non-metal ﬂ exible duct presents a potential ﬁ re hazard.

1. Make sure your dryer is installed properly so it exhausts air

easily.

Wall

Duct

Exhaust

Dryer

2. Use a 4” diameter rigid metal duct. Tape all joints, including

at the dryer. Never use lint-trapping screws.

Duct

Tape

4”

3. Keep ducts as straight as possible.

4. Clean all old ducts before installing your new dryer. Be sure

the vent ﬂ ap opens and closes freely. Inspect and clean the

exhaust system annually.

Don’t let a poor exhaust system slow the drying process by:

• Restricting your

dryer with a poor

exhaust system.

• Using a plastic, thin

foil, or non-metal

ﬂ exible duct.

• Unnecessarily using

long ducts that have

many elbows.

• Allowing dented or

clogged ducts and

vent.

WARNING

DV435_02836G-05_EN.indd 22DV435_02836G-05_EN.indd 22 2013-12-11  11:20:002013-12-11  11:20:00

English - 23

02 INSTALLING YOUR DRYER

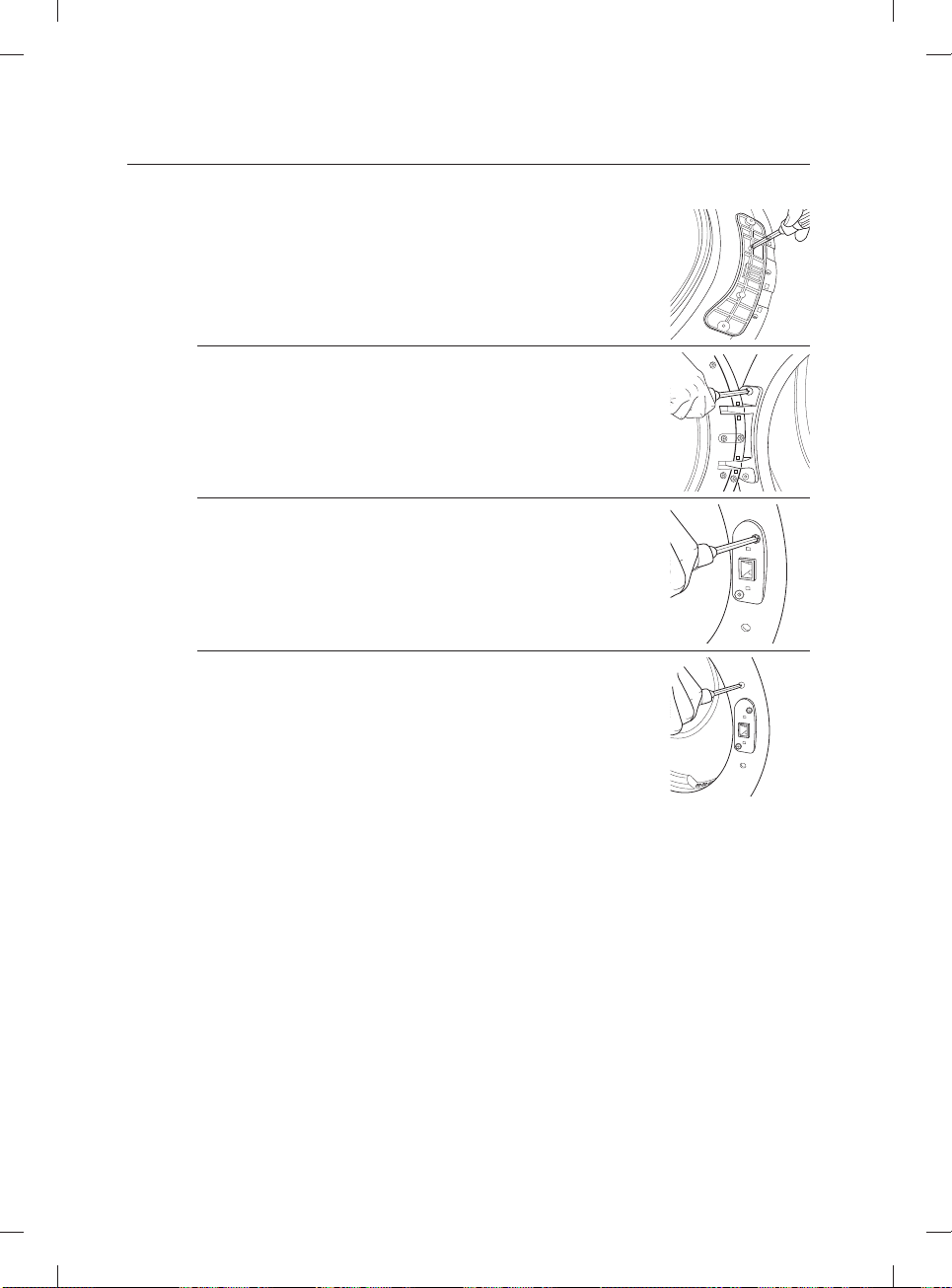

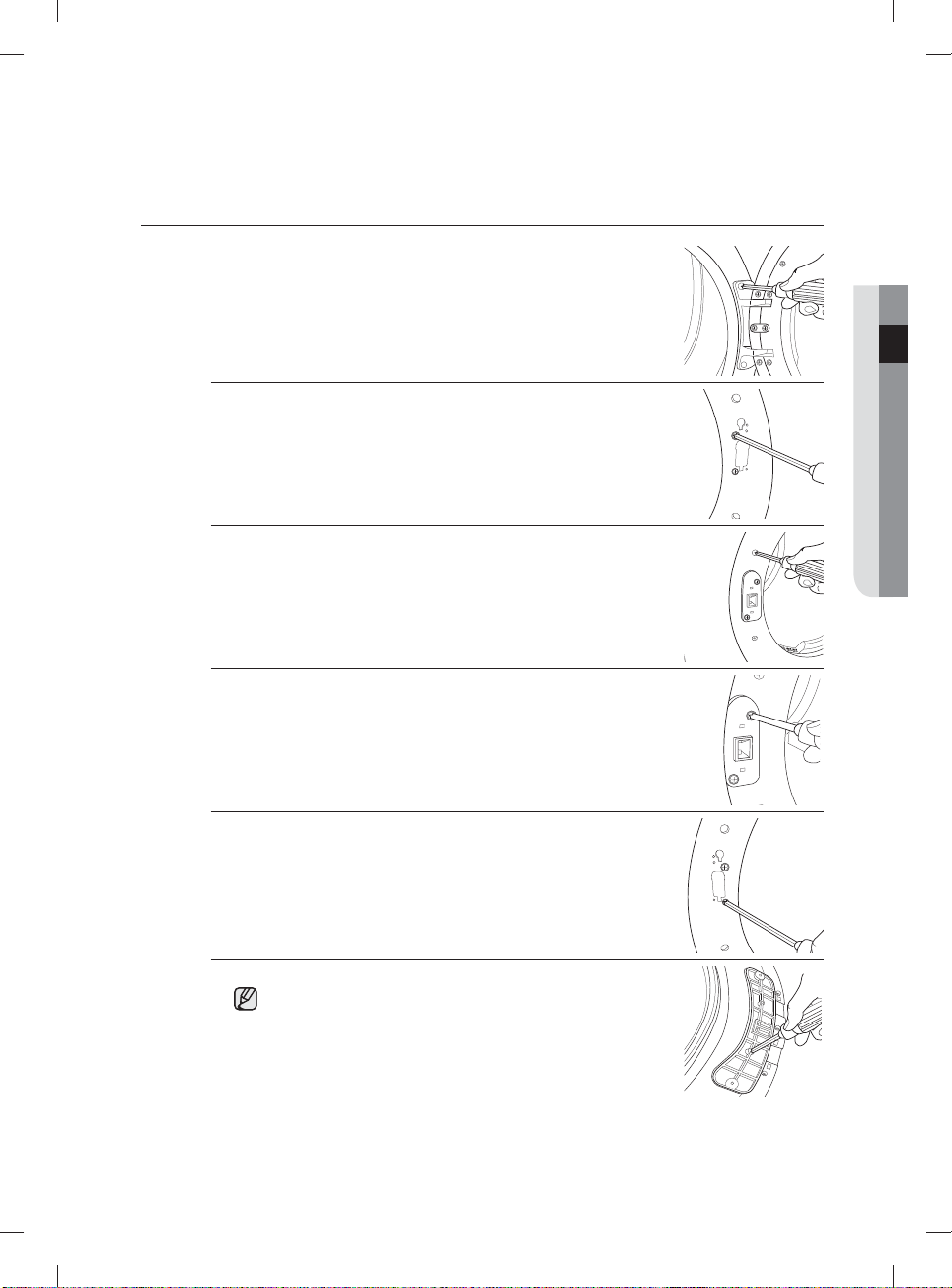

DOOR REVERSAL

1. Unplug the power cord.

2. Remove two door hinge screws.

3. Lift the door and remove it.

4. Remove two screws from the frame front.

5. Remove the two screws from the opposite side of the door

hinge.

6. Remove the two screws from the holder lever.

7. Reassemble the two screws on the inside holes.

8. Remove a screw from the door hinge.

The screw is for pre-ﬁ xing the door to the frame front.

DV435_02836G-05_EN.indd 23DV435_02836G-05_EN.indd 23 2013-12-11  11:20:002013-12-11  11:20:00

English - 24

Installing your dryer

9. Reassemble the screw in the other hole.

10. Place the door on the other side and reattach it to the dryer.

11. Reattach the holder lever.

12. Reattach the screws in the remaining holes.

DV435_02836G-05_EN.indd 24DV435_02836G-05_EN.indd 24 2013-12-11  11:20:002013-12-11  11:20:00

English - 25

03 OPERATING INSTRUCTIONS, TIPS

Operating instructions, tips

To reduce the risk of ﬁre, electric shock, or injury to persons,read the IMPORTANT SAFETY

INSTRUCTIONS before operating this appliance.

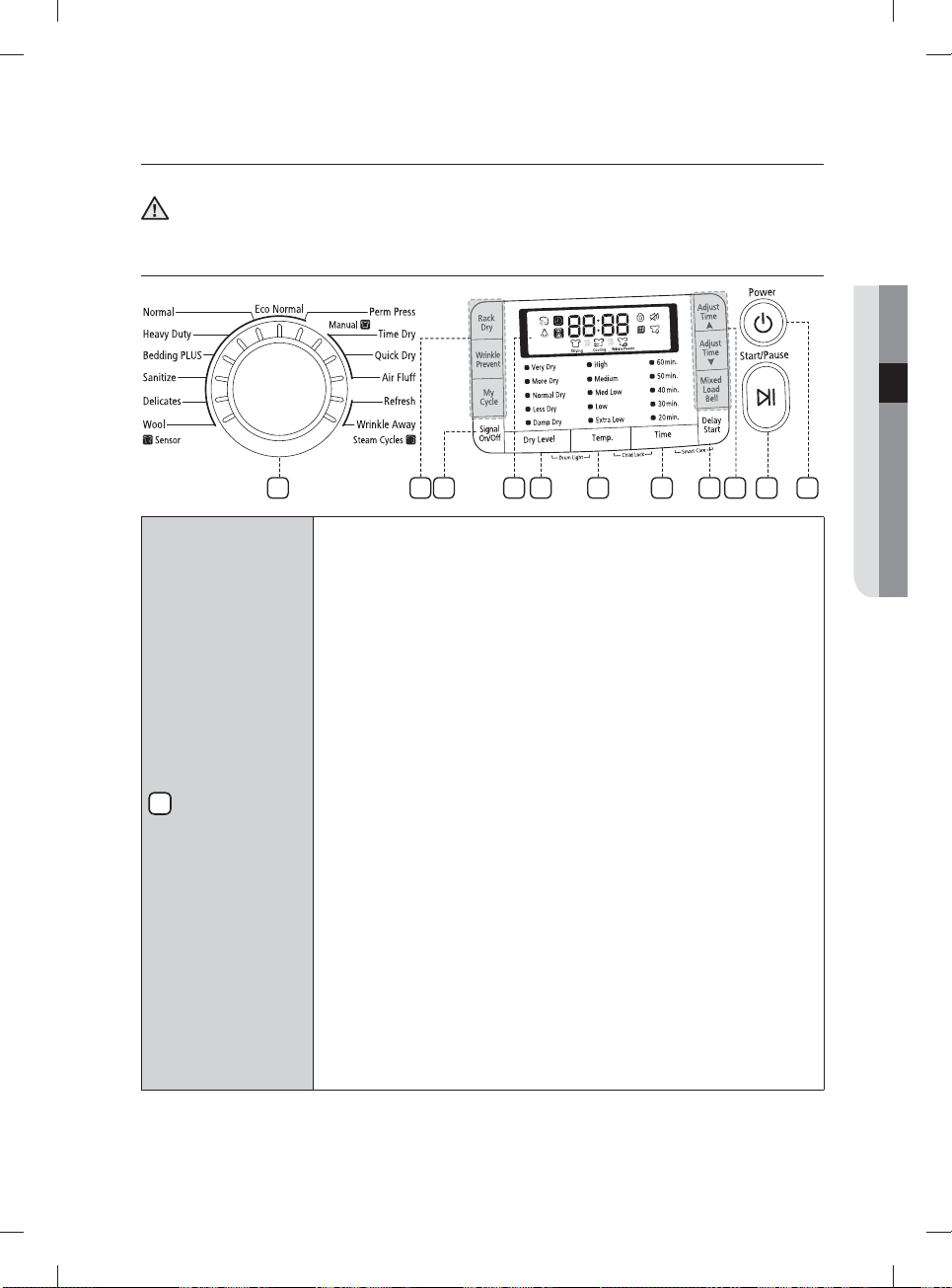

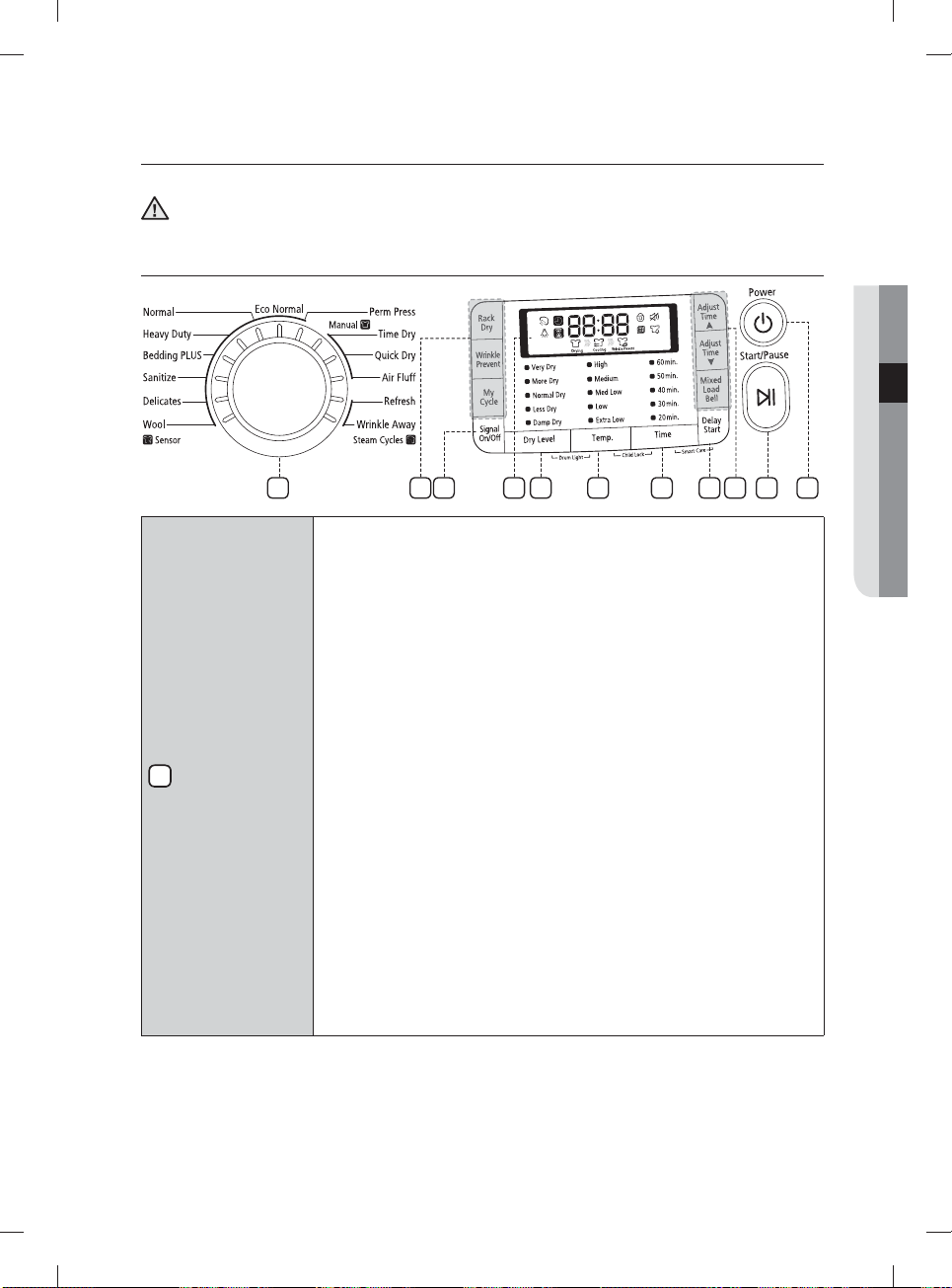

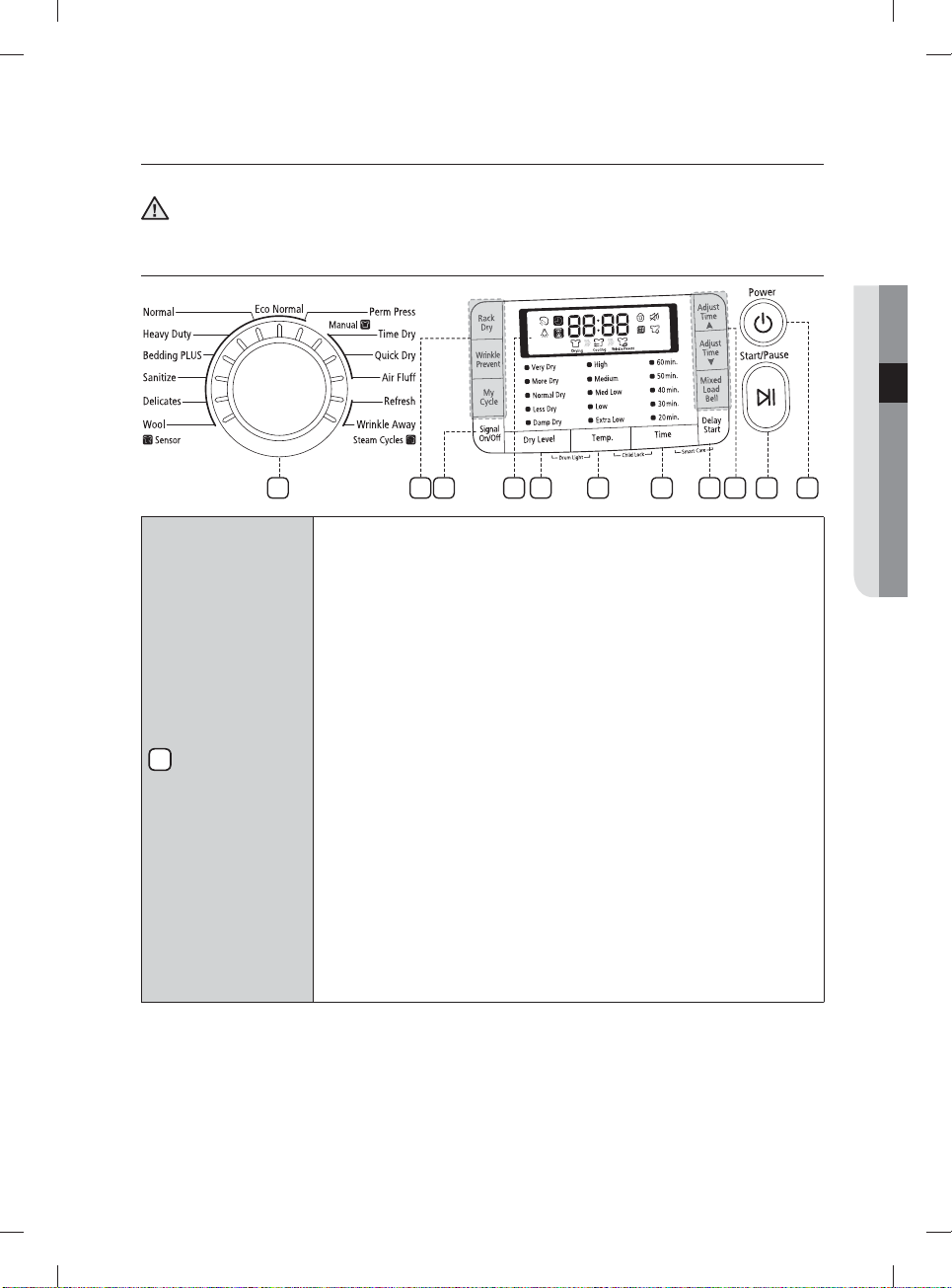

OVERVIEW OF THE CONTROL PANEL

Cycle Selector

To select a cycle, rotate the Cycle Selector dial to the desired cycle.

The indicator light by the cycle name will illuminate. The Wool, Delicates,

Sanitize, Bedding PLUS, Heavy Duty, Normal, Eco Normal and Perm Press

cycles are Sensor Dry cycles.

Sensor Dry automatically senses the moisture in the load and shuts the dryer

o when the selected dryness level (very dry to damp dry) is reached.

Eco Normal - This cycle reduces energy usage by up to 15% compared

to the Normal Dry cycle. It adjusts the cycle time and temperature for

increased e ciency.

Normal - Use this cycle to dry loads such as cotton, underwear, and linen.

Heavy Duty - Use this cycle to get high heat for heavy fabrics such as jeans,

corduroys, or work clothes.

Perm Press - Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent

press fabrics automatically.

Bedding PLUS - For bulky items such as blankets, sheets, and comforters.

Delicates - The Delicates cycle is designed to dry heat-sensitive items at a

low drying temperature.

Wool - For machine washable and tumble dryable wool only.

Sanitize - Sanitize garments by infusing high temperature heat deep into

the fabric during the drying cycle. Use this course to keep your bedding and

curtains clean through sanitization.

Time Dry - Time Dry allows you to select the desired cycle time in minutes.

Turn the Cycle Selector dial to Time Dry, then press the Adjust Time up arrow

to set the drying time. Press the arrow repeatedly to scroll through the time

settings.

WARNING

36 4 5 7

108

8 2

DV435_02836G-05_EN.indd Sec3:25DV435_02836G-05_EN.indd Sec3:25 2013-12-11  11:20:012013-12-11  11:20:01

English - 26

Operating instructions, tips

Quick Dry - Provides a 30 minutes drying cycle.

Air Flu - The Air Flu cycle tumbles the load in room temperature air.

Refresh - This cycle is best for smoothing out wrinkles and reducing odors

from loads consisting of one to four dry items. In this cycle a small amount

of water is sprayed into the dryer drum after several minutes of tumbling with

heat.

Wrinkle Away - The Wrinkle Away cycle removes wrinkles from clothes stored

in closets, etc. It provides wrinkle release via optimized steam care. You can

change the drying time.(Minimum time : 20 minutes) *For best results, load no

more than 3 items.

Overloading the dryer may not yield the same results.

LED Display

The display window shows the estimated time remaining in the cycle after the

Start/Pause button is pressed. The estimated time remaining may ﬂ uctuate as

the cycle progresses.

The Drying light will illuminate and remain lit until the cycle is complete.

When your dryer is in the cool-down phase, the Cooling light will illuminate.

When your dryer is in the wrinkle prevent phase, the Wrinkle Prevent light will

illuminate.

When the cycle is complete, “End” will appear in the display panel until the

dryer door is opened or the Power button is pushed.

If your dryer is paused during a cycle, the indicator lights will blink until the

Start/ Pause button is pressed.

Dry Level

Selection Button

To select the dry level in the Normal, Heavy Duty, or other Sensor Dry cycles,

press the Dry Level button. An indicator light will illuminate next to the desired

dryness level.

Press the button repeatedly to scroll through the settings. Larger or bulkier

loads may require the Very Dry or More Dry setting for complete dryness.

The Less Dry setting is best suited for lightweight fabrics or for leaving some

moisture in the clothing at the end of the cycle. Damp Dry is designed to

partially dry items. Use for items that lay ﬂ at or hang to dry.

Temp Selection

Button

To select the correct temperature for the load, press the Temp button. An

indicator light will illuminate next to the desired temperature. Press the button

repeatedly to scroll through the settings.

High – For sturdy cottons or those labeled Tumble Dry.

Medium – For permanent press, synthetics, lightweight cottons, or items

labeled Tumble Dry Medium.

Med Low – For lower heat than Medium to dry synthetic or washable knit

fabrics.

Low – For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm.

Extra Low – Provides the lowest heated dry temperature possible.

Time Selection

Button

When using Manual Dry cycles, you can adjust the drying time by pressing the

Time selection button.

During the Sensor Dry cycle, the time light indicator is o because exact

drying times are determined by ﬂ uctuating humidity levels.

DV435_02836G-05_EN.indd Sec3:26DV435_02836G-05_EN.indd Sec3:26 2013-12-11  11:20:012013-12-11  11:20:01

English - 27

03 OPERATING INSTRUCTIONS, TIPS

Signal Selection

Button

When the cycle is complete, a chime will sound.

If you selected the Wrinkle Prevent option, the chime will sound intermittently.

Adjust the volume of the chime or turn it o by pressing the Signal button.

Press the button repeatedly to scroll through the choices.

Delay Start

Button

Any cycle can be delayed for up to 24 hours in one-hour increments.

Displayed hour indicates the time at which the cycle will be started. (Refer to

the “Delay Start” section on page 28.)

Select Cycle

Option

Adjust Time – Time can be added or subtracted from the automatically set

times in the Manual Dry cycles (Time Dry, Quick Dry, or Air Flu cycles) and

Wrinkle Away cycle.

To add or subtract time from the cycle, press the Adjust Time arrow pad up or

down until the desired time is displayed.

Wrinkle Prevent -Wrinkle Prevent provides approximately 180 minutes

of intermittent tumbling in unheated air at the end of the cycle to reduce

wrinkling. Press the Wrinkle Prevent button to activate this feature.

The indicator light above the pad will illuminate when Wrinkle Prevent is

selected.

The load is dry, and can be removed at any time during the Wrinkle Prevent

cycle.

My Cycle – Choose your favorite cycle including cycle, temp, dry level option,

etc. (Refer to the “My cycle” section on page 29.)

Rack Dry – Rack Dry is available in the Time Dry cycle. Temperature will be

set to Extra Low only. (Refer to the “Rack Dry” section on page 30.)

Mixed Load Bell - The mixed load bell that notiﬁ es you when the average

dry level in a load is damp dry (80 % dried). This lets you take garments that

you don’t want fully dried or that dry quickly out of the dryer early while letting

others continue to dry.

You can select this function in all Sensor Dry cycles except Wool, Sanitize. The

dry level selections are limited to Normal Dry, More Dry, and Very Dry.

Start/Pause

selection button

Press to pause and restart programs.

Power button

Press once to turn your dryer on. Press again to turn it o . If your dryer is left

on for more than 10 minutes without any buttons being touched, the power

automatically turns o .

DV435_02836G-05_EN.indd Sec3:27DV435_02836G-05_EN.indd Sec3:27 2013-12-11  11:20:012013-12-11  11:20:01

English - 28

Operating instructions, tips

Child lock

Prevents children from playing with your dryer.

Setting/Releasing

To turn Child Lock on or o , press both the Temp. and Time buttons simultaneously for 3

seconds.

Child Lock Details

1. You can turn Child Lock on while your dryer is running.

2. Once you set the Child Lock function, no button, except for the Power button, will respond

until you turn o the Child Lock function.

3. The “Child Lock

” indicator will be lit.

• If the dryer is powered on again, the Child Lock function stays on.

• To turn o Child Lock, follow the instructions above.

When other buttons, except for the Power button, do not respond, check the Child Lock

indicator. If Child Lock is on, follow the instructions above to turn Child Lock o .

Delay Start

You can set the dryer to start your course automatically at a later time by choosing a delay time.

The hour displayed indicates the time at which the course will be started.

1. Set your drying course.

2. Press the Delay Start button repeatedly until the delay time is set.

3. Press the Start/Pause button. The “Delay Start

” indicator will be lit, and the clock will

begin counting down until it reaches the set time.

4. To cancel a Delay Start function, press the Power button and then turn the dryer on again.

Drum Light

Lights the dryer drum while the dryer is running.

Turning On and O

To turn on or turn o the Drum Light, press both the Dry Level and Temp. buttons

simultaneously.

You can turn the Drum Light on and o while your dryer is running and when it is stopped.

If you do not turn the Drum Light o 5 minutes after turning it on, the Drum Light is

automatically turned o .

DV435_02836G-05_EN.indd Sec3:28DV435_02836G-05_EN.indd Sec3:28 2013-12-11  11:20:012013-12-11  11:20:01

English - 29

03 OPERATING INSTRUCTIONS, TIPS

My cycle

Lets you select, save, and then activate a customized cycle that includes Dry Level, Temp option,

etc..

To use My Cycle, follow these steps:

1. Push the My Cycle button. The My Cycle indicator lights.

2. Select the cycle you want to include using the Cycle Selector Dial.

3. Select and set the options (Dry Level, Temp, etc.)

Each cycle has certain default options that are automatically set. To see these default

options, go to page 37.

4. Push the Start/Pause button. The cycle starts.

5. As the dryer moves through the cycle, it memorizes the cycle and the options.

6. To run this cycle again at a later time, press the My Cycle button. The dryer automatically

selects the saved cycle and options.

You can change the My Cycle settings by repeating the process above.

The dryer will use these settings the next time you choose My Cycle.

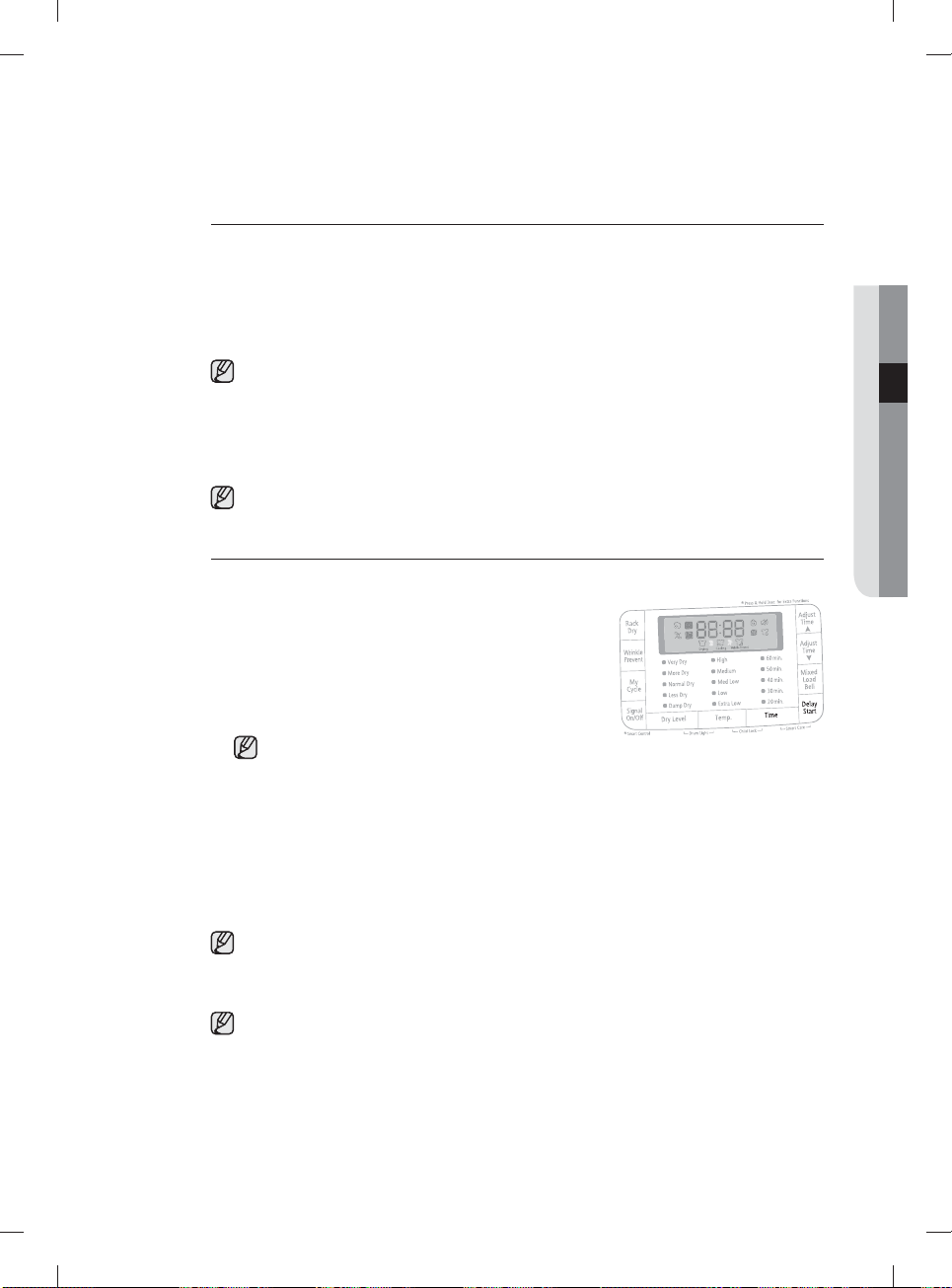

Smart Care

This function enables you to check the status of the dryer using a smartphone.

1. Press and hold the Time and Delay Start buttons for 3

seconds when an error occurs or if you haven’t pressed

any buttons on the dryer after you turned the power on.

2. When the Smart Care function is activated, the LED on the

window display rotates for 2 or 3 seconds and then the

error code will appear in the display panel.

3. Run the Smart Care app on your smart phone.

The Smart Care function is optimized with Galaxy S,

Galaxy S2, iPhone 4 and iPhone 4S.

4. If the smart phone’s camera is focused on the display panel

of the dryer, the panel and error message is automatically

recognized and the error type and countermeasures are

displayed on the smart phone.

5. If the smartphone fails to recognize the error code more

than twice, please enter the error code displayed on the

display panel of the dryer manually into the Smart Care

app.

Downloading the Smart Care app

Download the Samsung Laundry App into your mobile phone from the Android market or

Apple App store. (Search word :Samsung Smart Washer/Dryer)

Precautions when using Smart Care

• If light from a light bulb, ﬂ uorescent bulb, or lamp is reﬂ ected on the display panel of

the washing machine, the smartphone may not be able to recognize the panel or error

message easily.

• If you hold the smartphone at too large an angle relative to the front of the display panel,

it may not be able to recognize the error code. For best results, hold the smartphone so

that the front of the panel and the smartphone are parallel or nearly parallel.

DV435_02836G-05_EN.indd Sec3:29DV435_02836G-05_EN.indd Sec3:29 2013-12-11  11:20:012013-12-11  11:20:01

English - 30

Operating instructions, tips

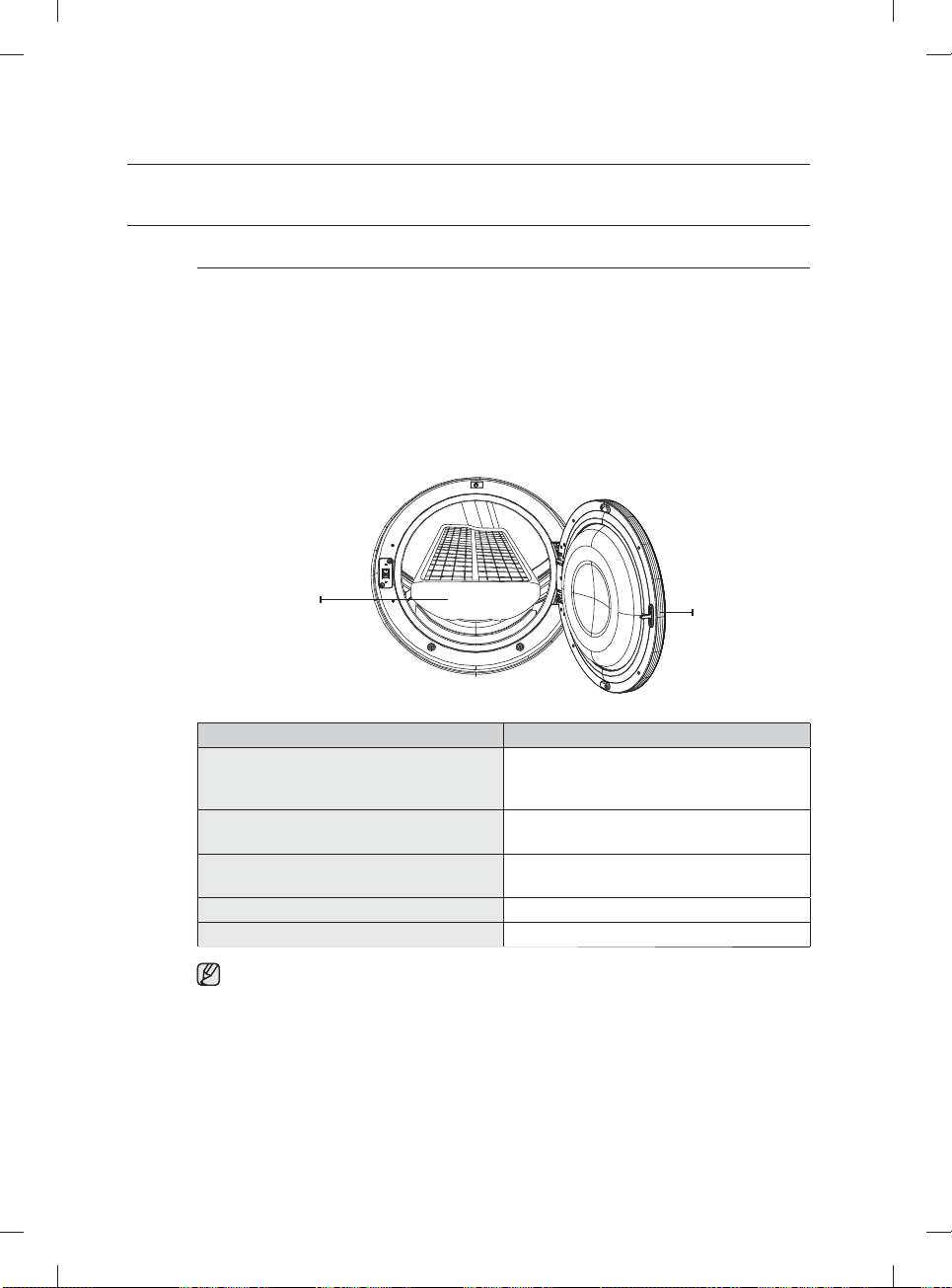

RACK DRY

Installing the drying rack

1. Open the dryer door.

2. Position the drying rack in the tumbler,, placing the front lip of the drying rack on the top of

the lint ﬁ lter.

3. Place the rear legs in the two recessed areas of the dryer’s back wall, and then push down

the middle of the drying rack to ﬁ x in place.

4. Place the items to be dried on the rack, leaving space between them so air can circulate.

5. Close the dryer door.

6. Press the Rack Dry button in the Time Dry cycle and then select the time according to the

amount of moisture and the weight of the items. The drying rack can be also used at Air Flu

cycle.

Door

Drying Rack

SUGGESTED ITEMS SUGGESTED TEMP. SETTINGS

Washable sweaters

(block to shape and lay ﬂ at on rack)

Extra Low ( Time Dry cycle)

Stu ed toys

(cotton or polyester ﬁ berﬁ lled)

Extra Low ( Time Dry cycle)

Stu ed toys

(foam or rubber-ﬁ lled)

Air Flu

Foam rubber pillows Air Flu

Sneakers Air Flu

Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the items

and lead to a ﬁ re hazard.

DV435_02836G-05_EN.indd Sec3:30DV435_02836G-05_EN.indd Sec3:30 2013-12-11  11:20:022013-12-11  11:20:02

English - 31

03 OPERATING INSTRUCTIONS, TIPS

CLEAN THE LINT FILTER

• After each load.

• To shorten drying time.

• To operate more energy e ciently.

Do not operate your dryer without the lint ﬁ lter in place.

Filter

Door

Frame Front

LOAD THE DRYER PROPERLY

• Place only one washload in your dryer at a time.

• Mixed loads of heavy and lightweight fabrics will dry di erently, which may result in lightweight fabrics

being dry while heavy fabrics remain damp at the end of a drying cycle.

• Add one or more similar items to your dryer when only one or two articles of clothing need drying.

This improves the tumbling action and drying e ciency.

• Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some

fabrics.

GETTING STARTED

1. Load your dryer loosely – DO NOT overload.

2. Close the door.

3. Select the appropriate cycle and options for the load.

4. Press the Start/Pause button.

5. The dryer indicator light will illuminate.

6. The estimated cycle time will appear in the display.

The time may ﬂ uctuate as humidity levels ﬂ uctuate in the dryer.

• When the cycle is complete, “End” will appear in the display.

• Pressing Power cancels the cycle and stops your dryer.

• The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those portions of the

cycle.

Do not place anything on top of your dryer while it is running.

WARNING

DV435_02836G-05_EN.indd Sec3:31DV435_02836G-05_EN.indd Sec3:31 2013-12-11  11:20:022013-12-11  11:20:02

English - 32

Care and cleaning

CONTROL PANEL

Clean with a soft, damp cloth. Do not use abrasive substances.

Do not spray cleaners directly on the panel.

The control panel ﬁ nish may be damaged by some laundry pre-treatment soil and stain remover products.

Apply such products away from your dryer and wipe up any spills or overspray immediately.

TUMBLER

Remove any stains caused by crayon, ink, or fabric dye (from new items such as towels or jeans) with an

all-purpose cleaner.

Tumble old towels or rags to remove any remaining stain or cleaning substance.

Once these steps are followed, stains may still be visible, but should not transfer to subsequent loads.

STAINLESS STEEL TUMBLER

To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless

steel surfaces.

Remove the cleaner residue and dry with a clean cloth.

DRYER EXTERIOR

Clean with a soft, damp cloth. Do not use abrasive substances.

Protect the surface from sharp objects.

Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased

pedestal or in a separate storage box. This may scratch or damage the top cover of the dryer.

Since the entire dryer has a high-gloss ﬁ nish, the surface can be scratched or damaged.

Avoid scratching or damaging the surface when using the dryer.

DRYER EXHAUST SYSTEM

Should be inspected and cleaned yearly to maintain optimum performance.

The outside exhaust hood should be cleaned more frequently to ensure proper operation.

DV435_02836G-05_EN.indd Sec5:32DV435_02836G-05_EN.indd Sec5:32 2013-12-11  11:20:032013-12-11  11:20:03

English - 33

05 SPECIAL LAUNDRY TIPS

Special laundry tips

SPECIAL LAUNDRY TIPS

Please follow the care label or manufacturer’s instructions for drying special items. If care label instructions

are not available, use the following information as a guide.

Bedspreads & Comforters • Follow the care label instructions or dry on the Bedding Plus.

• Make sure the item is thoroughly dry before using or storing.

• May require repositioning to ensure even drying.

Blankets • Use Normal cycle and dry only one blanket at a time for best

tumbling action.

• Make sure the item is thoroughly dry before using or storing.

Curtains & Draperies • Use the Perm Press cycle and Low or Extra Low temperature to help

minimize wrinkling.

• Dry these in small loads for best results and remove as soon as

possible.

Cloth Diapers • Use the Normal cycle and the High temperature settings for soft,ﬂ u y

diapers.

Down–ﬁ lled Items (jackets,

sleeping bags, comforters,

etc.)

• Use the Normal cycle and the Low or Extra Low temperature setting.

• Adding a couple of dry towels shortens drying time and absorbs

moisture.

Foam Rubber (rug backs,

stu ed toys, shoulder pads,

etc.)

• DO NOT dry on a heat setting. Use the Air Flu cycle (no heat).

• WARNING – Drying a rubber item with heat may damage it or be a

ﬁ re hazard.

Pillows • Use the Normal cycle.

• Add a couple of dry towels and a pair of clean sneakers to help the

tumbling action and to ﬂ u the item.

• DO NOT dry kapok or foam pillows in dryer. Use the Air Flu cycle.

Plastics (shower curtains,

outdoor furniture covers,

etc.)

• Use the Air Flu cycle or the Time Dry cycle and the Low or Extra

Low temperature settings depending on the care label instructions.

THINGS TO AVOID PUTTING IN THE DRYER:

• Fiberglass items (curtains, draperies, etc.).

• Woolens, unless recommended on the label.

• Vegetable or cooking oil-soaked items.

DV435_02836G-05_EN.indd Sec4:33DV435_02836G-05_EN.indd Sec4:33 2013-12-11  11:20:032013-12-11  11:20:03

English - 34

Troubleshooting

CHECK THESE POINTS IF YOUR DRYER…

PROBLEM SOLUTION

Doesn’t run. • Make sure the door is latched shut.

• Be sure the power cord is plugged into a live electrical outlet.

• Check the home’s circuit breaker and fuses.

• Press the Start/Pause button again if the door is opened during the

cycle.

Doesn’t heat. • Check the home’s circuit breaker and fuses.

• Select a heat setting other than Air Flu .

• On a gas dryer, check that the gas supply is on.

• Clean the lint ﬁ lter and exhaust duct.

• Dryer may have moved into the cool-down phase of the cycle.

Doesn’t dry. • Check all of the above, plus...

• Be sure the exhaust hood outside the home can open and close

freely.

• Check exhaust system for lint buildup. Ducting should be inspected

and cleaned annually.

• Use a 4” rigid metal exhaust duct.

• Do not overload. 1 wash load = 1 dryer load.

• Sort heavy items from lightweight items.

• Large, bulky items like blankets or comforters may require

repositioning to ensure even drying.

• Check that the dryer is draining properly to extract adequate water

from the load.

• Load may be too small to tumble properly. Add a few towels.

Is noisy. • Check the load for objects such as coins, loose buttons, nails, etc.

Remove promptly.

• It is normal to hear the dryer gas valve or heating element cycle on

and o during the drying cycle.

• Be sure the dryer is leveled properly as outlined in the installation

instruction.

• It is normal for the dryer to hum due to the high velocity of air moving

through the dryer drum and exhaust system.

Dries unevenly. • Seams, pockets, and other similarly heavy areas may not be

completely dry when the rest of the load has reached the selected

dryness level. This is normal. Select the Very Dry setting if desired.

• If one heavy item is dried with a lightweight load, such as one towel

with sheets, it is possible that the heavy item will not be completely

dry when the rest of the load has reached the selected dryness level.

Sort heavy items from lightweight items for best drying results.

Has an odor. • Household odors from painting, varnishing, strong cleaners, etc.

may enter the dryer with the surrounding room air. This is normal as

the dryer draws the air from the room, heats it, pulls it through the

tumbler, and exhausts it outside.

• When these odors linger in the air, ventilate the room completely

before using the dryer.

DV435_02836G-05_EN.indd Sec6:34DV435_02836G-05_EN.indd Sec6:34 2013-12-11  11:20:032013-12-11  11:20:03

English - 35

06 TROUBLESHOOTING

PROBLEM SOLUTION

Shuts o before load is dry • Dryer load is too small. Add more items or a few towels and restart

the cycle.

• Dryer load is too large. Remove some items and restart the dryer.

Lint on clothes • Make sure the lint ﬁ lter is cleaned before every load. With some loads

that produce high amounts of lint, it may be necessary to clean the

ﬁ lter during the cycle.

• Some fabrics are lint producers (for example, a fuzzy white cotton

towel) and they should be dried separately from clothes that are lint

trappers (for example, a pair of lack linen pants)

• Divide larger loads into smaller loads for drying

• Check pockets thoroughly before washing and drying clothes.

Garments still wrinkled after

Wrinkle-Care

• Small loads of 1 to 4 items work best.

• Load fewer garments.Load similar-type garments.

Odors remain in clothing

after Refresh.

• Fabrics containing strong odors should be washed in a normal cycle.

Water drips from nozzle

when Steam-Care starts

• This is steam condensation. The dripping water will stop after a short

time.

Sprayed water is not visible

during Steam-Care

• Sprayed water is di cult to see when the door is closed

DV435_02836G-05_EN.indd Sec6:35DV435_02836G-05_EN.indd Sec6:35 2013-12-11  11:20:032013-12-11  11:20:03

English - 36

Troubleshooting

INFORMATION CODES

Information codes may be displayed to help you better understand what is occurring with your Dryer.

ERROR DISPLAY MEANING SOLUTION

The thermistor resistance is very

low or high.

Clean the screen or vent.

If the problem continues, call for service.

Invalid heating Temp when the

dryer is running.

Call for service.

dE Running the dryer with door open

Clean the door and then restart.

If the problem continues, call for service.

bE2

Invalid state of key. Circuit short

for 30 secs.

Make sure a button is NOT being pressed

continuously. Try restarting the cycle.

If the problem continue, call for service.

FE Invalid power source frequency

Try restarting the cycle.

If the problem continues, call for service.

Electronic Control Problem

(Over Voltage Error)

Call for service.

Electronic Control Problem

(Communication Error)

Call for service.

Invalid state of Eeprom

communication

Call for service.

Invalid door state for more than

256 milliseconds.

Call for service.

For any codes not listed above, call 1-800-SAMSUNG (726-7864)

DV435_02836G-05_EN.indd Sec6:36DV435_02836G-05_EN.indd Sec6:36 2013-12-11  11:20:032013-12-11  11:20:03

English - 37

07 APPENDIX

Appendix

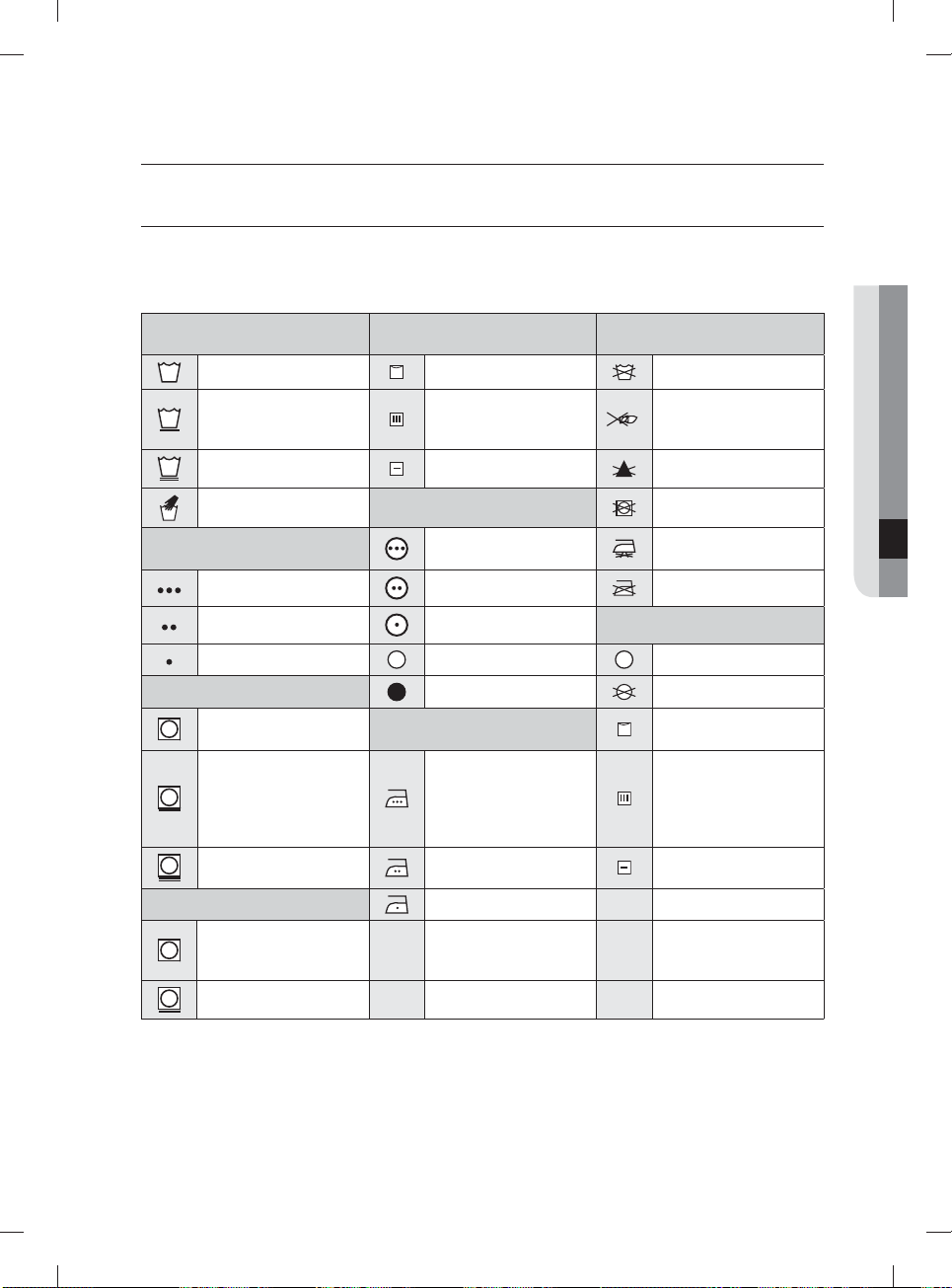

FABRIC CARE CHART

The following symbols provide garment care direction. The Clothing care labels include symbols for

washing, bleaching, drying, and ironing, or dry cleaning when necessary. The use of symbols ensures

consistency among garment manufacturers of domestic and imported items. Follow care label directions to

maximize garment life and reduce laundering problems.

Wash Cycle Special Instructions

Warning Symbols for

Laundering

Normal Line Dry/ Hang to Dry Do Not Wash

Permanent Press /

Wrinkle Resistant /

Wrinkle Control

Drip Dry Do Not Wring

Gentle/Delicates Dry Flat Do Not Bleach

Hand Wash Heat Setting Do Not Tumble Dry

Water Temperature**

High

No Steam (added to

iron)

Hot Medium Do Not Iron

Warm Low Dryclean

Cold Any Heat Dry Clean

Bleach

No Heat/Air Do Not Dry Clean

Any Bleach (when

needed)

Iron-Dry or Steam

Temperatures

Line Dry/ Hang to Dry

Only Non-Chlorine

(color-safe)

Bleach (when needed)

High Drip Dry

Tumble Dry Cycle Medium Dry Flat

Normal

Low

Permanent Press/

Wrinkle Resistant/

Wrinkle Control

Gentle/Delicates

** The dot symbols represent appropriate wash water temperatures for various items. The temperature

range for Hot is 105 – 125 °F (41 – 52 °C), for Warm 85 – 105 °F (29 – 41 °C) and for Cold 60 – 85 °F (16 –

29 °C). (Wash water temperature must be a minimum of 60 °F (16 °C) for detergent activation and e ective

cleaning.)

DV435_02836G-05_EN.indd Sec7:37DV435_02836G-05_EN.indd Sec7:37 2013-12-11  11:20:032013-12-11  11:20:03

English - 38

Appendix

PROTECTING THE ENVIRONMENT

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please

observe local waste disposal regulations. Cut o the power cord so that the appliance cannot be connected

to a power source. Remove the door so that animals and small children cannot get trapped inside the

appliance.

DECLARATION OF CONFORMITY

This appliance complies with UL2158.

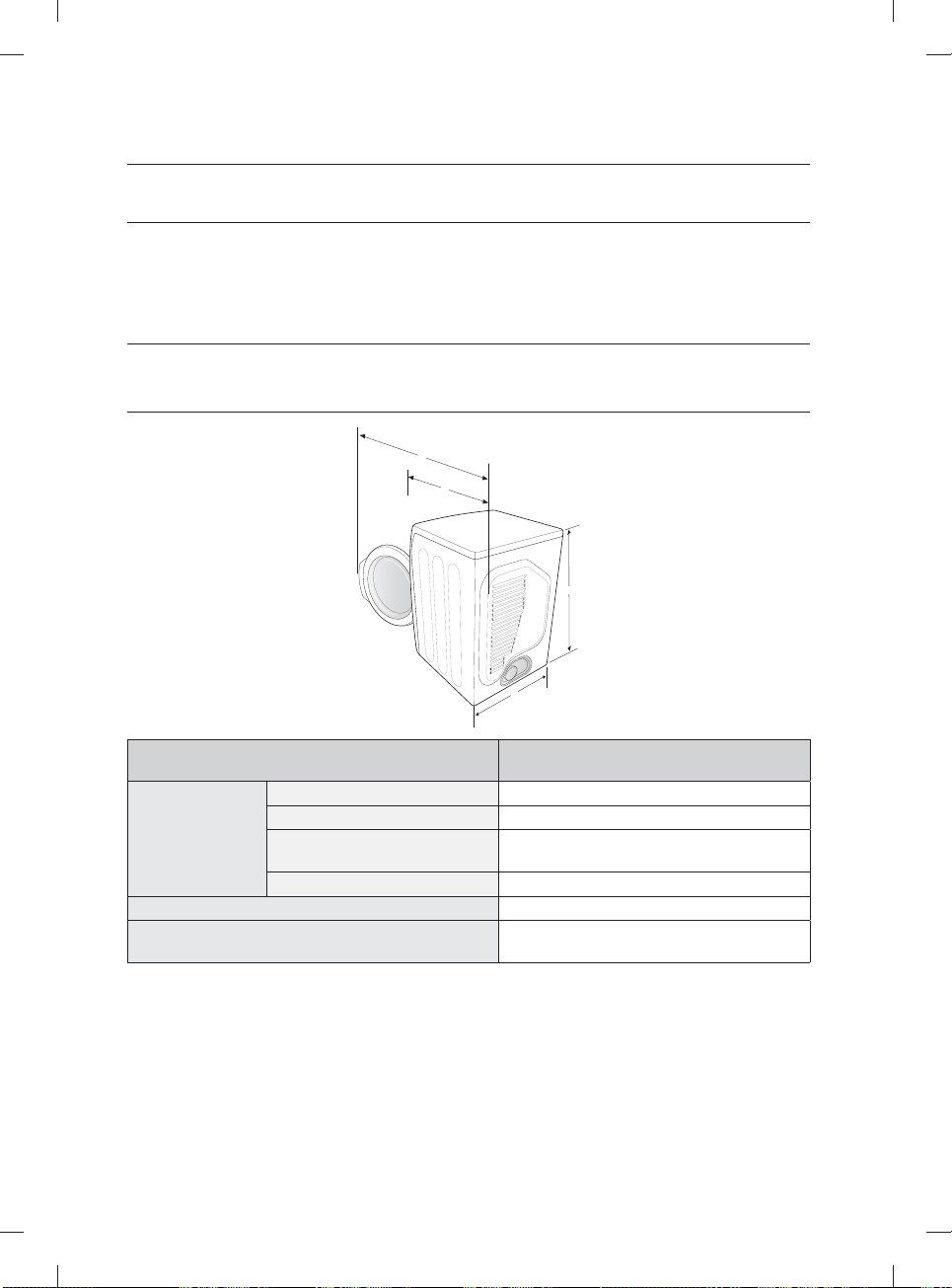

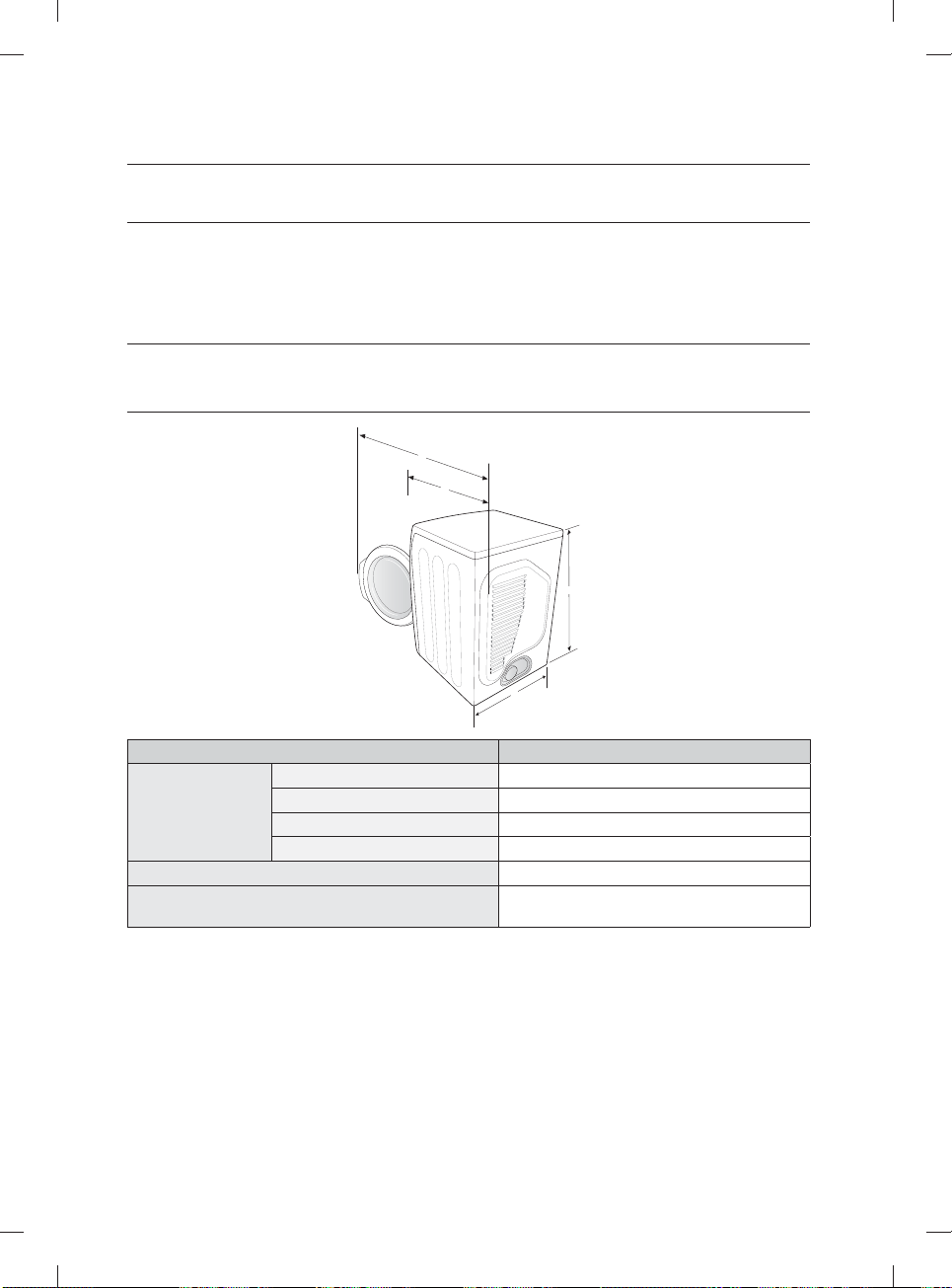

SPECIFICATIONS

TYPE FRONT LOADING DRYER

DIMENSIONS A. Height 39” (99.0 cm)

B. Width 27” (68.6 cm)

C. Depth with door open 90° 51.65” (131.2 cm)

D. Depth 32.28” (82.0 cm)

WEIGHT 127.8 lb (57 Kg)

HEATER RATING 5300 W (Elec.)

22000 BTU/hr (Gas)

DV435_02836G-05_EN.indd Sec7:38DV435_02836G-05_EN.indd Sec7:38 2013-12-11  11:20:032013-12-11  11:20:03

English - 39

07 APPENDIX

CYCLE CHART

(: factory setting, : selectable )

CYCLE RECOMMENDED ITEMS MAXIMUM AMOUNT

Sensor Dry

Normal Cottons, Work clothes, Linen, Mixed loads

Heavy Duty Heavy fabrics such as jean, Corduroys, Heavy work clothes

Perm Press Shirts, Synthetic fabrics, Knits, Wrinkle-free cottons, Permanent

Bedding PLUS Bulky items such as blankets, Sheets, Comforters, Pillows

Delicates Underwear, Blouses, Lingerie

Sanitize Bedding, Curtains, Children` clothing

Eco Normal Cottons, Work clothes, Linen

Wool

For machine washable and tumble dryable wool only

(Maximum amount : 3lb)

Manual Dry

Air Flu Form, Rubber, Plastic

Quick Dry Small loads

Time Dry Any load

Steam

Cycles

Wrinkle Away Shirts, Trouser, Blouses

Refresh Shirts, Trouser, Comforter, Pillows

CYCLE

FUNCTIONS OPTIONS

Sensor Dry

Level

Temp. Control

Time

Wrinkle

Prevent

Delay

Start

High Medium

Medium

Low

Extra

Low

Sensor Dry

Normal Normal dry

 

Heavy Duty Normal dry

 

Perm Press Normal dry

 

Bedding PLUS Normal dry



Delicates Normal dry



Sanitize

Very dry

(No change)



Eco Normal

Normal dry

(No change)*



(DV455G)*



Wool

Normal dry

(No change)



Manual Dry

Air Flu -



Quick Dry -

 

Time Dry -

    

Steam Cycles

Wrinkle Away -

 

Refresh -



* is only Gas model

Load Size Recommendations

Large load Fill the drum to about ¾ full. Do not add items over this level as they need to

tumble freely.

Medium load Fill the drum to about ½ full.

Small load Fill the drum with 3~5 items, not more than ¼ full.

For best results, follow the load size recommendations for each drying cycle.

DV435_02836G-05_EN.indd Sec7:39DV435_02836G-05_EN.indd Sec7:39 2013-12-11  11:20:032013-12-11  11:20:03

English - 40

Warranty (U.S.A)

SAMSUNG DRYER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year All Parts and Labor

Two (2) Years Control Board Parts

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the United States.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or

SAMSUNG’s authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability

within the contiguous United States.

In-home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent.

If service is not available, SAMSUNG may elect to provide transportation of the product to and from an

authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,

with new or reconditioned parts or products if found to be defective during the limited warranty period

speciﬁ ed above.

All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is

longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,

noncommercial use of this product and shall not apply to the following: damage that occurs in shipment;

delivery and installation; applications and uses for which this product was not intended; altered product or

serial numbers; cosmetic damage or exterior ﬁ nish; accidents, abuse, neglect, ﬁ re, water, lightning, or other

acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories,

applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG

that damage this product or result in service problems; incorrect electrical line voltage, ﬂ uctuations and

surges; customer adjustments and failure to follow operating instructions, maintenance and environmental

instructions that are covered and prescribed in the instruction book; product removal and reinstallation;

problems caused by pest infestations.

This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply,

light bulbs, house fuses, house wiring, cost of a service call for instructions, or ﬁ xing installation errors.

SAMSUNG does not warrant uninterrupted or error-free operation of the product.

DV435_02836G-05_EN.indd Sec8:40DV435_02836G-05_EN.indd Sec8:40 2013-12-11  11:20:032013-12-11  11:20:03

English - 41

08 WARRANTY

Except as set forth herein, there are no warranties on this product either express or implied, and samsung

disclaims all warranties including, but not limited to, any implied warranties of merchantability, infringement

or ﬁ tness for a particular purpose.

No warranty or guarantee given by any person, ﬁ rm, or corporation with respect to this product shall be

binding on samsung.

Samsung shall not be liable for loss of revenue or proﬁ ts, failure to realize savings or thter beneﬁ ts, or any

other special, incidental or consequential damages caused by the use, misuse, or inability to use this

product, regardless of the legal theory on which the claim is based, and even if samsung has been advised

of the possibility of such damages.

Nor shall recovery of any kind against samsung be greater in amount than the purchase price of the product

sold by samsung and causing the alleged damage.

Without limiting the foregoing, purchaser assumes all risk and liability for loss, damage, or injury to

purchaser and purchaser’s property and to others and their property arising out of the use, misuse,

or inability to use this product. This limited warranty shall not extend to anyone other than the original

purchaser of this product, is nontransferable and states your exclusive remedy.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation

of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This

warranty gives you speciﬁ c rights, and you may also have other rights, which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

85 Challenger Road Ridgeﬁ eld Park, NJ 07660

1-800-SAMSUNG(726-7864)

www.samsung.com

DV435_02836G-05_EN.indd Sec8:41DV435_02836G-05_EN.indd Sec8:41 2013-12-11  11:20:042013-12-11  11:20:04

English - 42

Warranty (CANADA)

SAMSUNG DRYER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the Canada.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or

SAMSUNG’s authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability

within the Canada.
