User manual Dryer

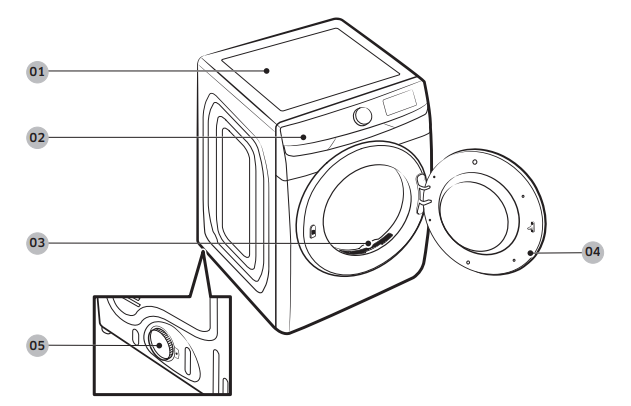

What’s included
Make sure all the parts are included in the product package. If you have a problem with the dryer or the parts, contact a local Samsung customer center or the retailer.
- Worktop
- Control panel
- Lint filter
- Door
- Exhaust duct
Operations
Control panel
01 Cycle Selector | Turn the Cycle Selector to select the desired cycle. The indicator by the cycle name lights up.
|
02 Digital Graphic Display | Displays all cycle information, including the cycle time, information code, and operating status. |
03 Dryness | Press to select a dry level. You can select from 5 different options (Less to More). Please refer to following recommendations to select the appropriate dryness.
NOTE: This option is not available with REFRESH, STEAM SANITIZE*, ACTIVEWEAR, TIME DRY, QUICK DRY, and AIR FLUFF. |
04 Temp. | Press to change the temperature of the current cycle. You can select from 5 different options (Low to High). Please select the appropriate temperature depending on the items in the load.
|
05 Time | Press Time to select a drying time for the selected cycle. This is available only with TIME DRY, QUICK DRY, and AIR FLUFF. This button is not available for Sensor Dry cycles because exact drying times are determined by fluctuating humidity levels. |
06 Wrinkle Prevent | Wrinkle Prevent provides approximately 180 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. Press Wrinkle Prevent to activate this feature. The load is dry and can be removed at any time during the Wrinkle Prevent cycle. |
07 Eco Dry | This function is available with NORMAL and TIME DRY. With the Eco Dry activated, drying takes a longer time but power consumption is reduced. The drying time can be extended by up to 3 times normal depending on the temperature and load. The Eco Dry function is enabled by default. |
08 Damp Alert | This alert is available for all Sensor Dry cycles except for ACTIVEWEAR. Available dry levels are Normal, More, and Extra. If a load contains mixed fabrics, the Damp Alert indicator blinks when average dryness of the items in the load is 80 % dry. This lets you take items that you don’t want fully dried or that dry quickly out of the dryer early while letting others continue to dry. |
09 Drum Light | Press to turn the interior lamp on or off. The lamp stays lit for 2 minutes after it has turned on, regardless of whether the power is on or off or the door is open or closed, and then turns off automatically. |
10 Adjust Time | You can change the set time for the selected cycle. This is available only with TIME DRY, QUICK DRY, and AIR FLUFF. To change the cycle time, press Adjust Time ^ or Adjust Time v until the desired time is displayed. |
11 Smart Monitor | After connecting the Tumble Dryer to your home network using the SmartThings app, you can control or monitor the dryer remotely. When started, the Smart Control (Smart Monitor) indicator blinks. The dryer enters waiting mode and waits for remote commands. |
12 Power | Press to turn on/turn off the dryer. |
13 Start/Pause (Hold to Start) | Press and hold to start operation or press to stop operation. |
NOTE: Do not take extremely tangled items from your washer and put them into the dryer. They can degrade the drying efficiency of the dryer or cause the door to open. We recommend that you untangle the items before putting them into the dryer. Also, do not put objects on the dryer, especially on the control panel.
CAUTION: Do not spray water directly onto the control panel. This may cause a system failure.
Icon description
Sensor Dry | This icon appears when the dryer operates the cycle which senses the internal humidity to determine the drying time. | |
Filter Check | This icon displays after every load as a reminder to clean the lint filter. Clean the lint filter before every cycle and make sure the filter is properly inserted before starting a cycle. | |
Vent Sensor | The dryer features a vent sensor that detects and notifies you when it is time to clean the ductwork. The indicator lets you know the status of the duct. | |
Steam | This icon appears when the dryer is in steam process. The dryer sprays water into the drum to deodorize clothes and reduce static electricity and wrinkles. | |
Child Lock | This icon indicates that Child Lock is on. | |
Alarm Off | This icon indicates that the alarm is off. | |
Wi-Fi | This icon indicates that the dryer is connected to Wi-Fi. |
Simple steps to start
- Press Power to turn the dryer on.
- Turn the Cycle Selector to select a cycle.
- Change the cycle settings (Dryness, Temp., and Time) as necessary.
- Select desired options as necessary.
- Press and hold Start/Pause (Hold to Start)
To change the cycle during operation
- Press Start/Pause (Hold to Start) to stop operation.
- Select a different cycle, and repeat steps 2-4 above if necessary.
- Press and hold Start/Pause (Hold to Start) again to start the new cycle.
Cycle overview
Standard Cycles
Cycle | Description |
NORMAL | For most fabrics including cottons and linens. If Normal is selected, the Eco Dry function is enabled by default. For more information, see Eco Dry in the “Control panel” section. |
HEAVY DUTY | For drying items made out of heavy fabrics, such as jeans, corduroys, or work clothes, with high temperature heat. |
BEDDING | For bulky items such as blankets, sheets, and comforters. |
PERM PRESS | For drying wrinkle-free cottons, synthetic fabrics, knits, and permanent press fabrics automatically. |
STEAM SANITIZE4, | Use to sanitize items by applying steam and high-temperature heat to the fabric. This cycle can make items soft and reduce smells. Confirm that the laundry load is wet or partially wet before starting this cycle. |
REFRESH | Use to smooth out wrinkles and reduce odors in loads of one to four items. With this cycle selected, a small amount of water is sprayed into the dryer drum after several minutes of tumbling with heat. Before removing the laundry, confirm that the laundry load is dry. |
DELICATES | For heat-sensitive items at a low drying temperature. |
ACTIVEWEAR | For exercise wear and outdoor wear such as sports jerseys, training pants, water-repellent jackets, and other performance clothing. Thick fabrics like a zipper or velcro closure of a jacket, or training socks may not be completely dried. |
DOWNLOADED |
|
Manual Dry
You can change the drying settings manually to your preference.
Cycle | Description |
QUICK DRY | A quick drying cycle that runs for 30 minutes. |
TIME DRY | You can specify a cycle time in minutes. If TIME DRY is selected, the Eco Dry function is enabled by default. For more information, see Eco Dry in the “Control panel” section. |
AIR FLUFF | Tumbles the load in room temperature air. |
Drying guide
The best way to dry items is to follow the instructions on the care label. If no drying instructions are provided, see the following table for reference.
Items | Description |
Bedspreads & Comforters | Follow the care label instructions or dry using Bedding.
|
Blankets | Use Normal and dry only one blanket at a time for best tumbling action.
|
Curtains & Draperies | Use PERM PRESS and the Medium temperature setting to help minimize wrinkling.
|
Cloth Diapers | Use Normal and the Medium temperature setting for soft, fluffy diapers. |
Down-filled Items (jackets, sleeping bags, comforters, etc.) | Use Normal and the Medium temperature setting.
|
Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.) | Do not dry on a heat setting. WARNING: Drying a rubber item with heat may damage it or cause a fire. |
Pillows | Use Normal.
|
Plastics (shower curtains, outdoor furniture covers, etc.) | Use TIME DRY and the Low temperature settings depending on the care label instructions. |
WARNING
Do not dry:
- Fiberglass items (curtains, draperies, etc.)
- Woolens, unless recommended on the label
- Items spotted or soaked with vegetable or cooking oils
Special features
Child Lock
Child Lock prevents children from playing with the dryer. When Child Lock is activated, all buttons except for the Power button are disabled.
To activate/deactivate Child Lock, simultaneously press and hold Dryness and Temp. for 3 seconds.
NOTE: Once Child Lock is activated, it will remain active even after you restart the dryer. If other buttons, except for the Power button, do not respond, check the Child Lock indicator. If the indicator is on, follow the instructions above to turn Child Lock off.
Smart Care
To enable this function, you must first download the SmartThings app at the Play Store or the App Store and install it on a mobile device featuring a camera function. The Smart Care function has been optimized for Galaxy & iPhone series (applicable models only).
- When the dryer detects an issue to check, an information code appears on the display. To enter Smart Care mode, press and hold Wrinkle Prevent for 3 seconds.
- The dryer starts the self-diagnosis procedure and displays an information code if a problem is detected.
- Run the SmartThings app on your mobile device, and then tap Smart Care.
- Put the mobile device close to the dryer’s display so that the smartphone camera and the dryer face each other. The app automatically recognizes the information code.
- When the information code is recognized correctly, the app provides detailed information about the problem with applicable solutions.
NOTE
- The function name, Smart Care, may differ depending on the language.
- If light is reflected off the dryer's display, the app may fail to recognize the information code.
- If the app fails to recognize the information code, you can enter the code manually in the app.
Alarm off
You can turn the alarm on or off. When the alarm is off, the melody of cycle completion and the power-off beep will not sound. However, the other sounds stay active.
- For the DVE(G)45R6300* model, press and hold Drum Light for 3 seconds.
- For the DVE(G)45R6100* model, press and hold Damp Alert for 3 seconds.
- Your setting will be retained even after you turn off the dryer. You can turn the alarm back on by pressing and holding the same button for 3 seconds.
DOWNLOADED cycle
You can choose from more cycles available on the SmartThings app on your smartphone.
- On your smartphone, select the DOWNLOADED cycle. You can choose from TOWELS, SANITIZE, SHIRTS, JEANS, WOOL, ECO NORMAL, SMALL LOAD, LOW TEMP., RACK DRY, and WRINKLE AWAY.
- Press Power on your dryer.
- Turn the Cycle Selector to DOWNLOADED.
- Press and hold Start/Pause (Hold to Start).
Bixby
With Bixby, you can easily enjoy variety of services and contents, and experience intelligent customization services. (Voice command function is supported on applicable products only. For the products that do not support the voice command, you can download and connect to the SmartThings app on any Samsung mobile devices that support voice command to use some of the products’ functions through voice command.)
Maintenance
Cleaning
Control panel
- Clean with a soft, damp cloth. Do not use abrasive substances.
- Do not spray liquid cleaning agents directly onto the dryer display.
- Some laundry pre-treatment soil and stain removers may damage the control panel.
- When using liquid cleaning agents, apply them to the cleaning cloth. Do not apply them directly to the dryer. Wipe up any spills or overspray immediately.
Drum
- Remove any stains from the drum with an all-purpose cleaner.
- Tumble old towels or rags to remove any remaining stains or cleaning substances. Stains may still be visible, but will not affect subsequent loads.
Powder coated drum
To clean the powder coated drum, use a damp cloth with a mild, non-abrasive cleaner suitable for easily marred surfaces.
Remove cleaner residue and dry with a clean cloth.
Dryer exterior
- Clean with a soft, damp cloth. Do not use abrasive substances.
- Protect the surface from sharp objects.
- Do not place any heavy or sharp objects or a detergent container on the dryer. They can scratch or damage the top cover of the dryer.
- The dryer has a high-gloss finish on the entire surface. Be careful not to scratch or damage the surface.
Exhaust system
- Check and clean the exhaust system on a regular basis to maintain optimum performance.
- The external exhaust hood must be cleaned frequently to ensure proper air flow.
Troubleshooting
Checkpoints
If the dryer operates abnormally, first check the list of problems in the table below and try the suggested actions.
Problem | Action |
Does not run. |
|
Does not heat. |
|
Does not dry. |
|
Is noisy. |
|
Dries unevenly. |
|
Has odors. |
|
Lint on clothes. |
|
Items still wrinkled after Wrinkle Prevent (Wrinkle Away, Wrinkle Release). |
|
Water drips from the nozzle when the Steam cycles starts. |
|
Sprayed water is not visible during Steam cycles. |
|
Extended time. |
|
If a problem persists, contact a local Samsung service center.
Information codes
If the dryer fails to operate, you may see an information code on the display panel. To determine what you should do, check the list of codes in the table below, and then try the suggested actions.
Code | Action |
dC | Operating the dryer with the door open. • Make sure the door is properly closed. • Make sure laundry is not caught in the door. |
FC | Invalid power source frequency. • Try restarting the cycle. • If this information code remains, contact a Samsung service center. |
AC | Electronic control problem (Invalid Communication). Contact a Samsung service center. |
HC | High temperature heating check. • Clean the lint filter. • If this information code remains, contact a Samsung service center. |
9C1 | The electronic control needs to be checked. • Check if power is supplied properly. • If the information code remains, contact a Samsung service center. |
tC | The Thermistor1 resistance is very low or high. • Check for a clogged lint screen. • Check if the vent system is restricted. • If this information code remains, contact a Samsung service center. |
tC5 | The Thermistor2 resistance is very low or high. • Check for a clogged lint screen. • Check if the vent system is restricted. • If this information code remains, contact a Samsung service center. |
dF | Incorrect door switch. • Contact a Samsung service center. |
If any information code keeps appearing on the display, contact a Samsung service center.
Specifications
Type | Front loading dryer | |
Water pressure (psi (kPa)) | 20-116 (137-800) | |
Weight | lb (kg) | 123.5 (56.0) |
Heater rating | Electric (W) | 5300 |
Gas (BTU/hr) | 20000 | |
Power consumption (W) | 5400 |
