E
User’s Manual
MULTIMEDIA PROJECTOR
2
This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This
projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD)
technology.
◆ Functionally Rich
◆ Multi-use Remote Control Unit
Use the remote control unit as wired and wireless,
or as a PC wireless mouse. Eight remote control
codes and selectable pointer shapes are also
available.
◆ Simple Computer System Setting
The projector has the Multi-scan system to conform
to almost all computer output signals quickly (p.34).
Up to UXGA resolution can be accepted.
◆ Multilanguage Menu Display
Operation menu is available in 12 languages;
English, German, French, Italian, Spanish,
Portuguese, Dutch, Swedish, Russian, Chinese,
Korean, and Japanese (p.48).
◆ Multiple Interface Terminals
The projector has several interface terminals that
can support various types of equipment and signals
(p.11).
◆ Useful Functions for Presentation
Digital zoom function allows you to focus on the
crucial information during a presentation (pp.14,
40).
◆ Power Management
The Power management function reduces power
consumption and maintains lamp life (p.52).
◆ Network-capable
Through an optional Network Imager, you can
operate and control the projector.
◆ Logo Function
The Logo function allows you to customize the
screen logo (pp.49–50). You can capture an image
for the screen logo and use it for the starting-up
display or between presentations.
◆ Security Function
The Security function helps you to ensure security
of the projector. With the Key lock function, you can
lock the operation on the side control or remote
control unit (p.53). PIN code lock functions prevents
unauthorized use of the projector (pp.53–54).
◆ Helpful Maintenance Functions
Lamp and filter maintenance functions provide for
better and proper maintenance of the projector.
◆ Pointer Function
Remote control pointer function. This function
helps you to make a smart presentation on a
projected screen.
This projector has many useful functions such
as lens shifting, ceiling and rear projection,
perpendicular omnidirectional projection, variety of
lens options, etc.
◆ Lamp Mode
Brightness of the projection lamp can be selected
(p.51).
✔Note:
• The On-Screen Menu and figures in this manual may differ slightly from the product.
• The contents of this manual are subject to change without notice.
Features and Design
◆ Automatic Filter Replacement Function
The projector monitors the condition of the filter
and replaces a filter automatically when it detects
the clogging.
◆ Motor-driven Lens Shift
Projection lens can be moved up, down, right and
left with the motor-driven lens shift function. This
function makes it easy to provide projected image
where you want. Zoom and focus can also be
adjusted with a motor-driven operation. (p.27)
3
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective
corporation.
Table of Contents
Features and Design................ 2
Table of Contents .................. 3
To The Owner ..................... 4
Safety Instructions ................. 5
Air Circulation 6
Installing the Projector in Proper Directions
7
Moving the Projector
8
Cautions in Handling the Projector
8
Compliance ....................... 9
Part Names and Functions.......... 10
Front 10
Back 1
0
Bottom 1
0

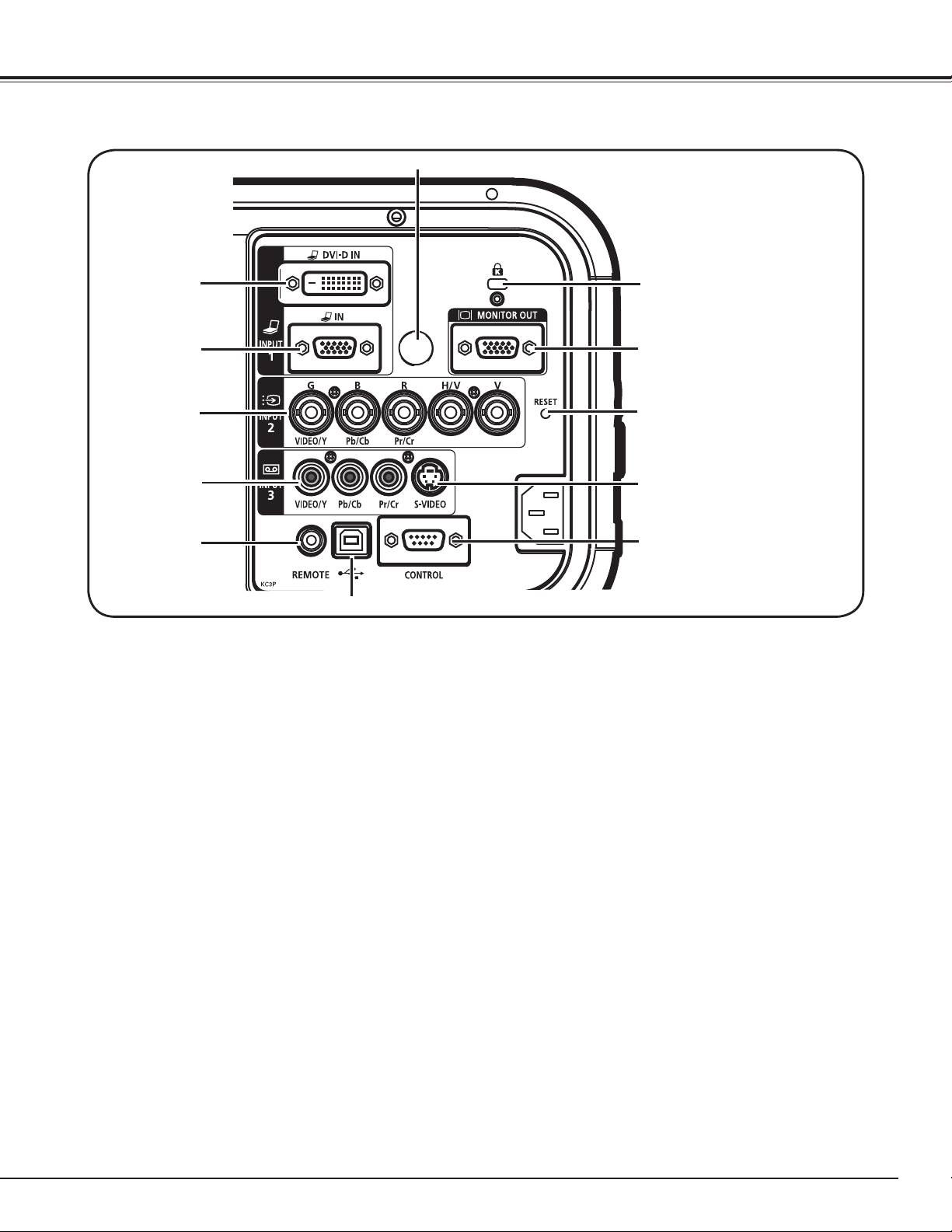

Rear Terminal 1
1

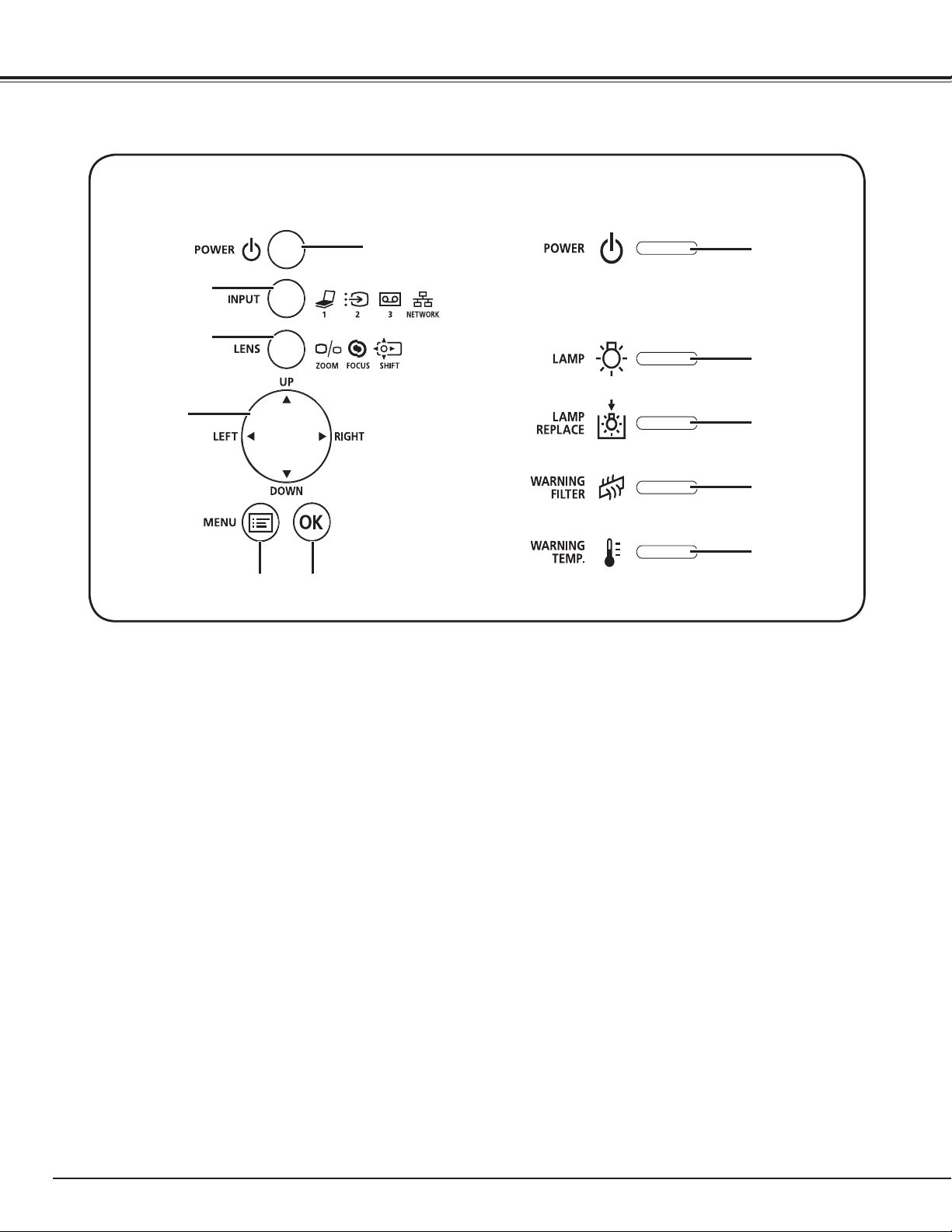

Side Control and Indicators 1
2
Remote Control Unit 1
3
Remote Control Battery Installation 1
5
Remote Control Receivers and Operating Range 1
5
Wired Remote Control Transmitter 1
5
Remote Control Code 1
6
Installation ...................... 17

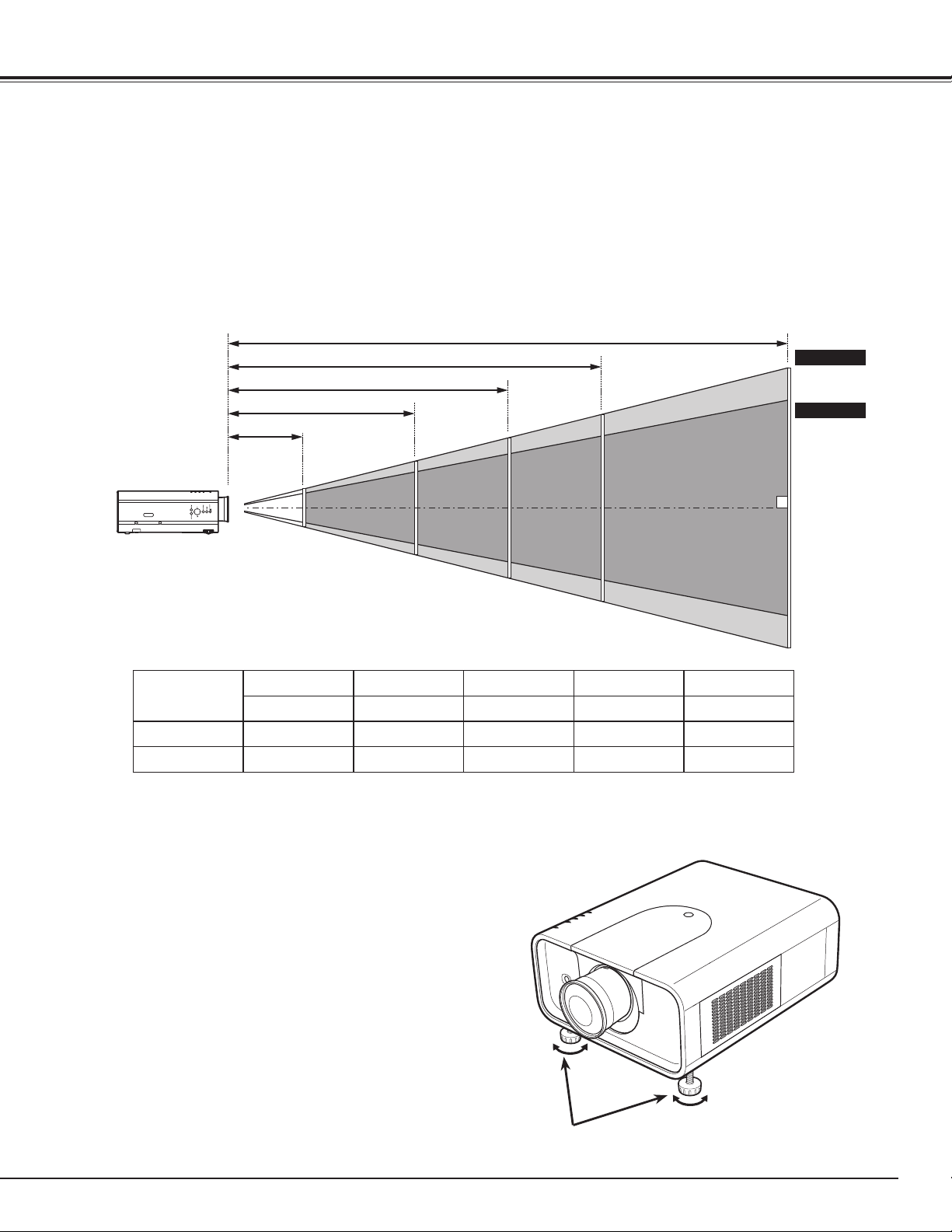

Positioning the Projector 17
Adjustable Feet 1
7
Lens Installation 1
8

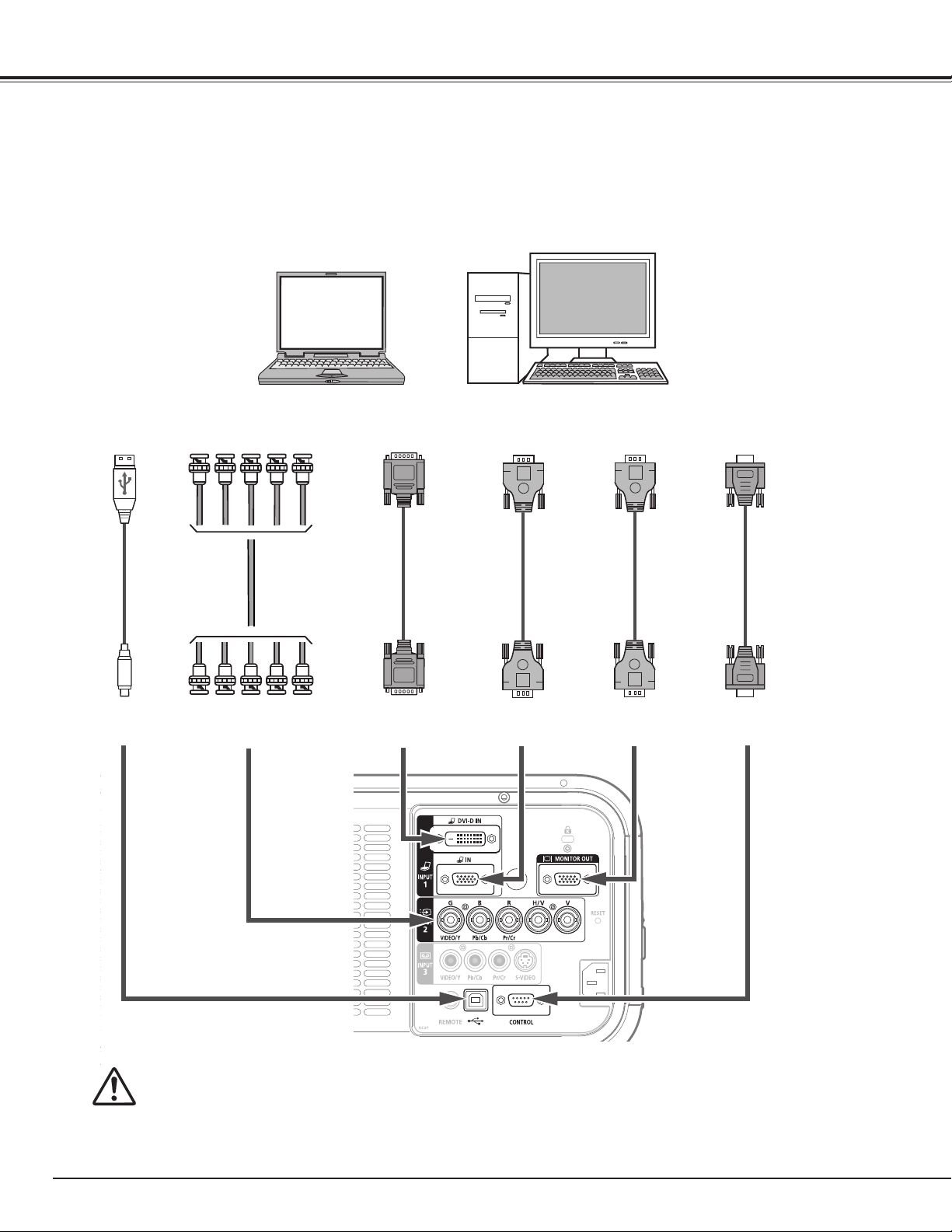

Connecting to a Computer (Digital and Analog RGB) 2
0
Connecting to Video Equipment (Video, S-Video) 2
1
Connecting the AC Power Cord 2
2
Basic Operation .................. 23
Turning On the Projector 23
Turning Off the Projector 2
4
How to Operate the On-Screen Menu 2
5
Menu Bar 2
6
Operating with Projector Control 2
7
Operating with Remote Control Unit 2
8
Pointer Function 3
0
Wireless Mouse Operation 3
0
Input Selection ................... 31
Input 31
Computer Input Source Selection 3
2
Video Input Source Selection 3
3
Computer Input .................. 34
Computer System Selection 34
Auto PC Adjustment 3
5
Manual PC Adjustment 3
6
Image Level Selection 3
8
Screen Size Adjustment 3
9
Video Input ...................... 41
Video System Selection 41
Image Level Selection 4
2
Screen Size Adjustment 4
3
Picture Image .................... 45
Image Adjustment 45
Setting .......................... 48
Setting 48
Maintenance and Care ............. 56
Filter Instructions 56
Replacing the Filter Cartridge 5
7
Resetting the Filter Counter 5
8
Resetting the Scroll Counter 5
8
Lamp Replacement 5
9
Resetting the Lamp Counter 6
0
Cleaning the Projection Lens 6
2
Cleaning the Projector Cabinet 6
2
Warning Indicators 6
3
Appendix ........................ 64
Troubleshooting 64
Menu Tree 6
6

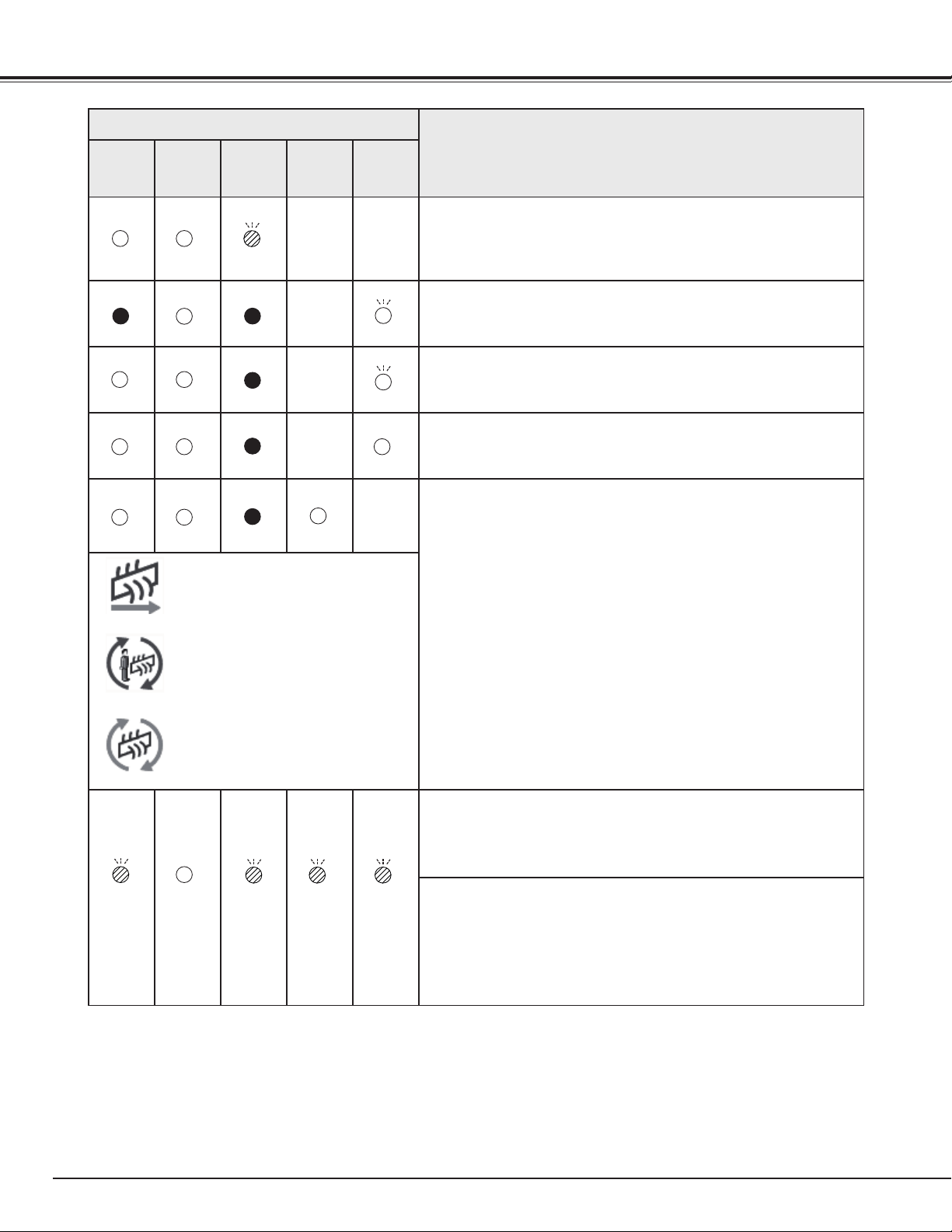

Indicators and Projector Condition 6
9
Compatible Computer Specifications 7
1
Technical Specifications 7
3
Optional Parts 7
4
Lens Replacement 7
4
PJ Link Notice 7
4
Configurations of Terminals 7
5
Dimensions 7
7
Serial Control Interface 7
8
4

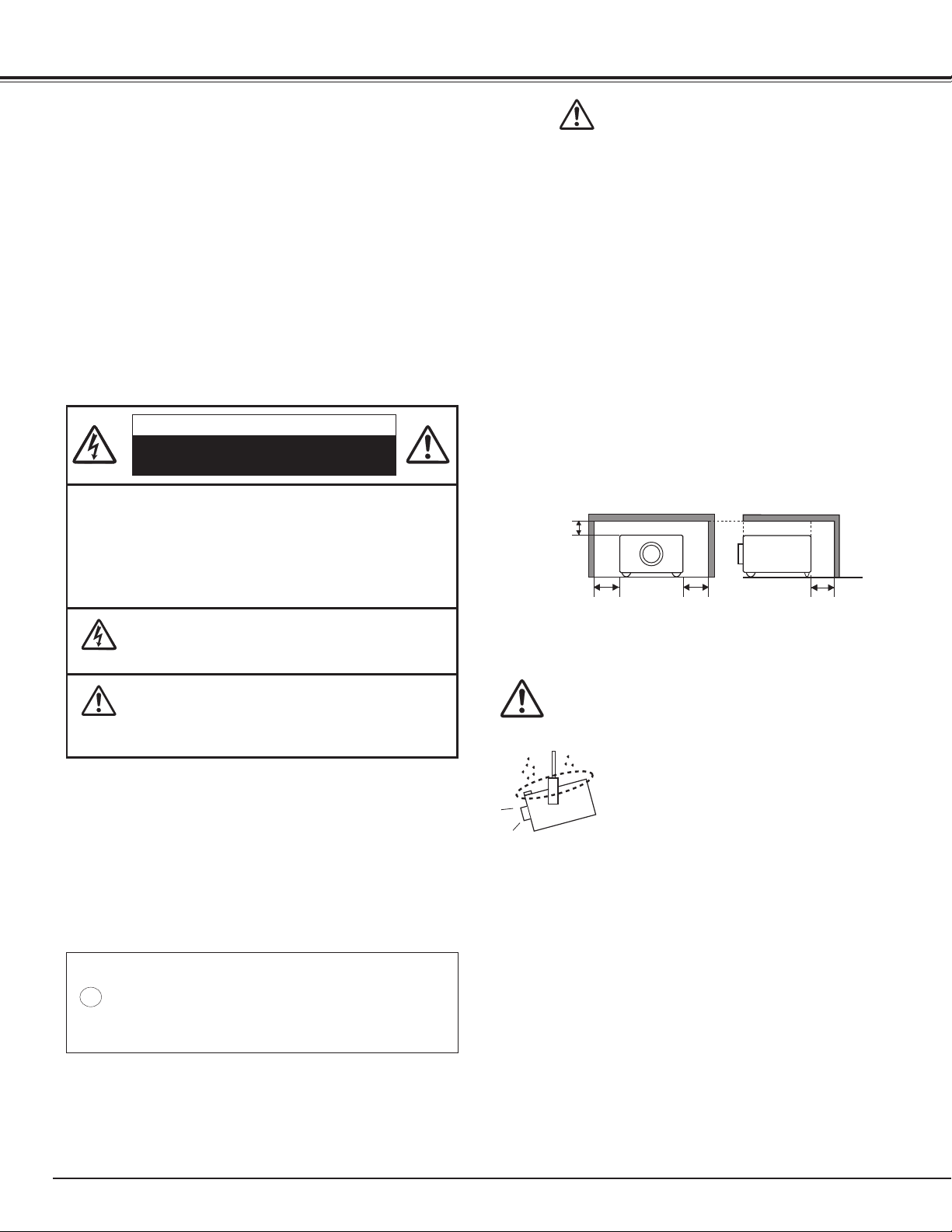

CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE USER’S MANUAL WITH
THIS UNIT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Safety Precaution
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
– This projector produces intense light from the projection
lens. Do not stare directly into the lens, otherwise eye
damage could result. Be especially careful that children do
not stare directly into the beam.
– Install the projector in a proper position. Otherwise it may
result in a fire hazard.
– Allowing the proper amount of space on the top, sides,
and rear of the projector cabinet is critical for proper air
circulation and cooling of the unit. The diagrams shown
here indicates the minimum space required. If the projector
is to be built into a compartment or similarly enclosed,
these minimum distances must be maintained.
– Do not cover the ventilation slots on the projector. Heat
build-up can reduce the service life of your projector, and
can also be dangerous.
– If the projector is unused for an extended time, unplug the
projector from the power outlet.
CAUTION
Not for use in a computer room as defined in the Standard
for the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
CAUTION ON HANGING FROM THE CEILING
When hanging the projector from the
ceiling, clean the air intake vents and top
of the projector periodically with a vacuum
cleaner. If you leave the projector unclean
for a long time, the cooling fans can be
clogged with dust, and it may cause a
breakdown or a disaster.
DO NOT SET THE PROJECTOR IN GREASY, WET,
OR SMOKY CONDITIONS SUCH AS IN A KITCHEN
TO PREVENT A BREAKDOWN OR A DISASTER. IF
THE PROJECTOR COMES IN CONTACT WITH OIL OR
CHEMICALS, IT MAY BECOME DETERIORATED.
READ AND KEEP THIS USER'S MANUAL FOR LATER USE.
1.5' (50 cm)
1.5' (50 cm)
1.5' (50 cm)
3' (1 m)
SIDE and TOP REAR
To The Owner
Before installing and operating the projector, read this manual
thoroughly.
The projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintains it in good condition for
many years to come.
Improper operation may result in not only shortening the
product life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections and try
the solutions in the “Troubleshooting” section in the back of
this booklet. If the problem still persists, contact the dealer
where you purchased the projector or the service center.
NOTE FOR CUSTOMERS IN THE US
Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY
AND MUST BE RECYCLED OR DISPOSED OF ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS.
5
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for
later use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use a tt ach ments n ot recom mende d by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or
table. The projector may fall, causing serious injury to a child
or adult, and serious damage to the projector. Use only with
a cart or stand recommended by the manufacturer, or sold
with the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination
should be moved with care. Quick stops,
excessive force, and uneven surfaces
may c ause the applianc e a nd c art
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to ensure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked
by placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points
or short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening
or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following
the operating instructions. Adjust only those controls that
are covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
Safety Instructions
6
Openings in the cabinet are provided for ventilation.
To ensure reliable operation of the product and to
protect it from overheating, these openings must not
be blocked or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When
using or installing the projector, the following
precautions should be taken.
– Do not put any flammable object or spray can near
the projector, hot air is exhausted from the air
vents.
– Keep the exhaust vent at least 3’ (1 m) away from
any objects.
– Do not touch peripheral parts of the exhaust vent,
especially screws and metallic parts. These areas
will become hot while the projector is being used.
– Do not put anything on the cabinet. Objects put on
the cabinet will not only get damaged but also may
cause fire hazard by heat.
Cooling fans are provided to cool down the projector.
The fans’ running speed is changed according to the
temperature inside the projector.

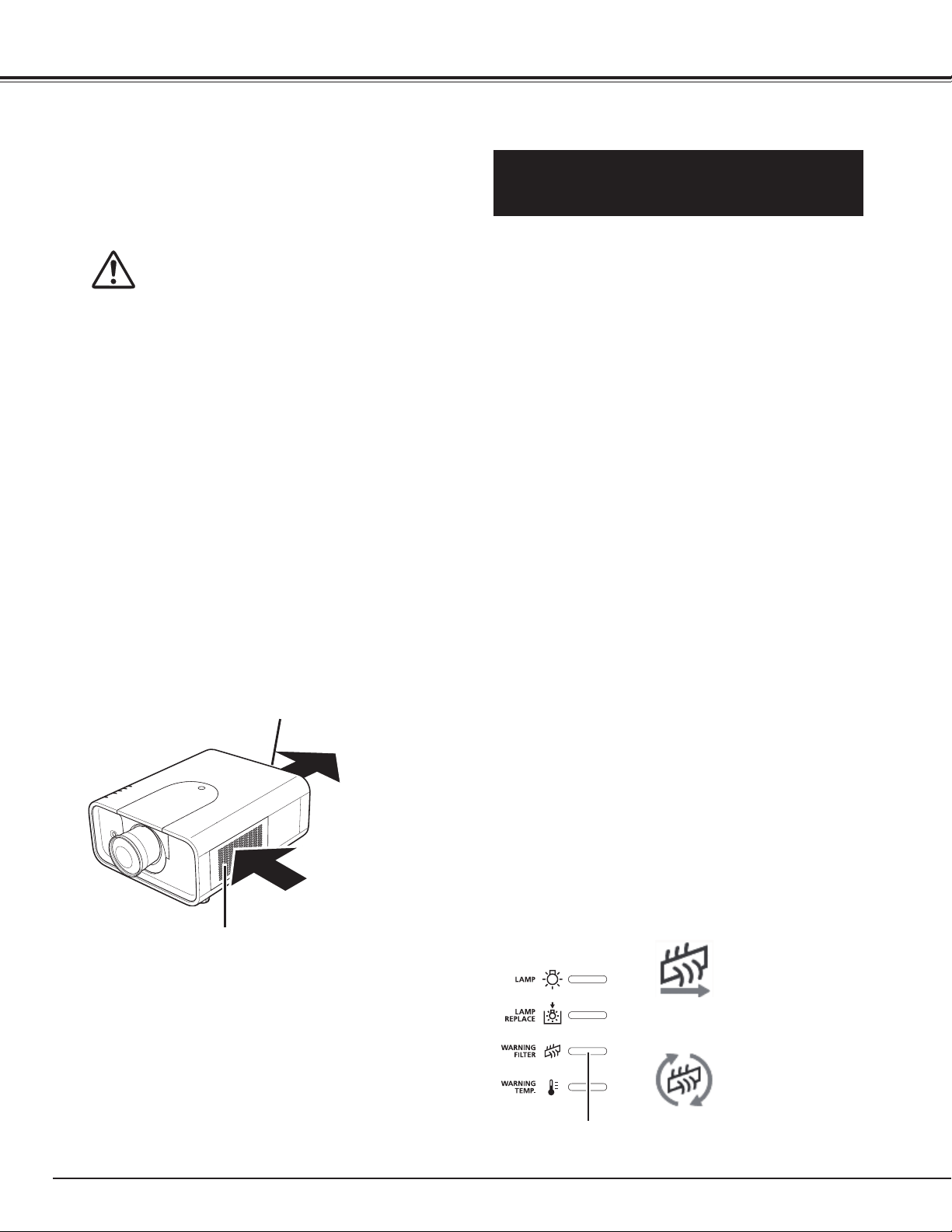

Air Circulation
Exhaust Vent
(Hot air exhaust)
Air Intake Vent
Air flow
The projector uses a lamp which generates
significant heat. The cooling fans and air vents are
provided to dissipate the heat by drawing air into the
housing and the filter is located in the intake vents to
prevent dust from getting inside of the projector.
In order to care for the projector appropriately,
regular cleaning is required. Remove any dirt or dust
that has accumulated on the projector.
If the projector reaches a time set in the timer
setting, a Filter replacement icon (Fig. 1) appears on
the screen and WARNING FILTER indicator on the
top panel lights up (see below), indicating that the
filter replacement is necessary.
If the projector detects that the filter is clogged and
no scroll is left in the filter cartridge, a Filter cartridge
replacement icon (Fig. 2) appears on the screen and
WARNING FILTER indicator on the top panel lights
up (see below). Stop using the projector immediately
and replace the filter cartridge.
Blocking the air vents and leaving the projector
uncleaned for a long time may not only damage the
projector and may require costly repairs but may also
cause accidents or fire.
For maintenance of the filter, refer to “Filter counter”
on page 55 and “Maintenance and Care” on pages
56–58.
Damages to the projector caused by using an
uncleaned filter or improper maintenance will
void the warranty on the projector.
IMPORTANT!
Filter Maintenance!!
Top Panel
WARNING FILTER
indicator
Fig.1
Filter replacement icon
Fig.2 Filter cartridge replacement
icon
Safety Instructions
7
Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in
severe accident or fire hazard.
This projector can project the picture in upward, downward, or inclined position in perpendicular direction to the
horizontal plane. When installing the projector in downwardly inclined position, install the projector bottom side
up.
Installing the Projector in Proper Directions
Avoid positioning the projector as described below when installing.
Positioning Precautions
Do not tilt the projector more than
10 degrees from side to side.
Do not put the projector on either
side to project an image.
10˚
10˚
10˚ 10˚
10˚
10˚
In upward projection, do
not tilt the projector over 10
degrees right and left.
In downward projection, do
not tilt the projector over 10
degrees right and left.
For ceiling mounting, you need the ceiling mount kit designed for this
projector. When not mounted properly, the projector may fall, causing
hazards or injury. For details, consult your dealer. The warranty on
this projector does not cover any damage caused by use of any non-
recommened ceiling mount kit or installation of the ceiling mount kit in an
improper location.
CAUTION ON CEILING MOUNTING
Safety Instructions
✔Note:
• When the image is top/bottom and left/right reversed, set the ceiling function to “On.” (pp. 40, 44)
8
Moving the Projector
Use the handle grip when moving the projector.
Retract the adjustable feet to prevent damage to the lens
and cabinet when carrying.
When this projector is not in use for an extended period, put
it into a suitable case to protect the projector.
CAUTION IN CARRYING OR
TRANSPORTING THE PROJECTOR
– Do not drop or bump the projector, otherwise damages
or malfunctions may result.
– When carrying the projector, use a suitable carrying
case.
– Do not transport the projector by courier or any other
transport service in an unsuitable transport case. This
may cause damage to the projector. For information
about transporting the projector by courier or any other
transport service, consult your dealer.
– Do not put the projector in a case before it is cooled
enough.
Cautions in Handling the Projector
Do not hold the lens or the top cover when lifting or moving
the projector. Doing so may cause damage to the lens and
the projector.
Care must be taken when handling the projector; do not
drop, bump, subject it to strong forces, or put other things
on the cabinet.
Do not hold the lens and the peripheral part.
CAUTION
This projector has a motorized lens. Please note
the followings when using the projector.
● Do not touch the lens while it is moving as this
could cause injury to the fingers.
● Never allow children to touch the lens.
Safety Instructions
9
Compliance
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada:
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories
(UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the
plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable
to insert the plug into the outlet, contact your electrician.
GROUND
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
AC POWER CORD REQUIREMENT
Federal Communications Commission Notice
Multimedia Projector, Model: LV-7585
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop operation of the equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
Tel No. (516)328-5000
Canadian Radio Interference Regulations
This Class B digital apparatus complies with Canadian ICES-003.
European Union (and EEA) only.
This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE
Directive (2002/96/EC) and your national law. This product should be handed over to a designated collection point, e.g.,
on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible
negative impact on the environment and human health due to potentially hazardous substances that are generally
associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to
the effective usage of natural resources. For more information about where you can drop off your waste equipment
for recycling, please contact your local city office, waste authority, approved WEEE scheme or your household
waste disposal service. Your cooperation in the correct disposal of this product will contribute to the effective usage
of natural resources and will avoid incurring administrative sanctions according to art. 50 and following of Italian
legislative decree 22/97. For more information regarding return and recycling of WEEE products, please visit www.
canon-europe.com/environment.
(EEA: Norway, Iceland and Liechtenstein)
10
i
e
t y

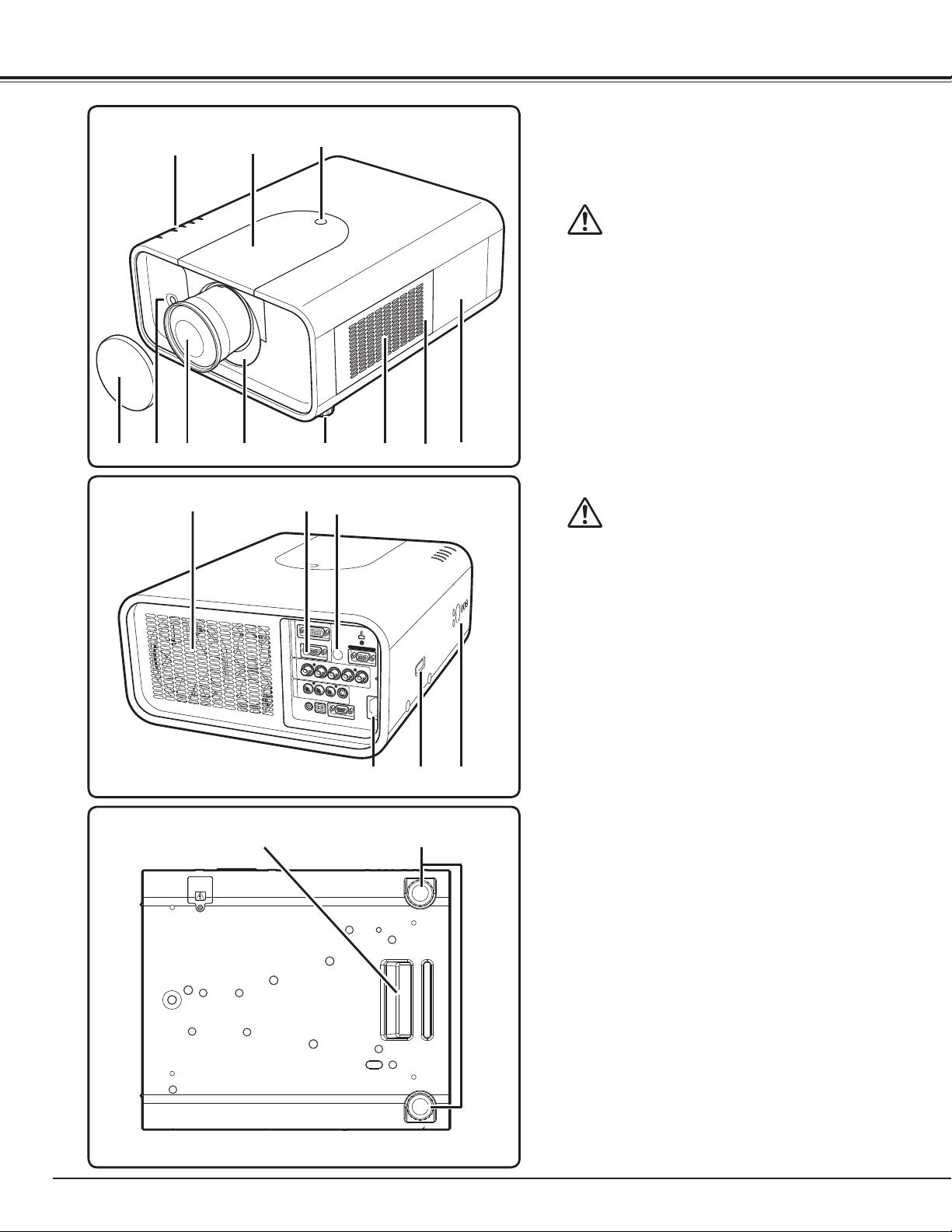

Front
!1!0
q
w
u o
Bottom
Back
qIndicators
wTop Cover
e Top Cover Release Button
rLens Cap
!7
!8
!6
!3
CAUTION
Hot air is exhausted from the exhaust
vent. Do not put heat-sensitive objects
near this side.
!3 Terminals and Connectors
!4 Infrared Remote Receiver (Back)
!5 Power Cord Connector
!6 Optional Parts Attachment
!7Side Controls
!8Hand Grip
tInfrared Remote Receiver (Front)
y Projection Lens
uLight-Block Sheet
i Adjustable Feet
o Air Intake Vent
!0 Filter Cover
!1 Lamp Cover
!2Exhaust Vent
!2
!5
!4
Part Names and Functions
i
CAUTION
Do not turn on the projector with the lens
cap attached. High temperature from light
beam may damage the lens cap and result
in fire hazard.
r
11
Rear Terminal
tR/C JACK
When using the wired remote control unit, connect
the wired remote control unit to this jack with a
remote control cable (not supplied).
✔Note:
• Use a DVI-Digital cable which fits the width of the rear
terminal.
iS-VIDEO INPUT JACK
Connect the S-VIDEO output signal from video
equipment to this jack (p.21).
oMONITOR OUT TERMINAL
This terminal can be used to output the incoming
analog RGB signal from INPUT 1-3 terminal to the
other monitor (pp.20-21).
rVIDEO INPUT JACK
Connect the component or the composite video
output signal from video equipment to this jack
(p.21).
uCONTROL PORT CONNECTOR
When controlling the projector from a computer,
connect the computer to this connector with a
control cable (p.20).
qCOMPUTER INPUT TERMINAL (DIGITAL)
Connect the computer output digital signal to this
terminal. The HDTV (HDCP compatible) signal can
also be connected (pp.20-21).
wCOMPUTER INPUT TERMINAL (ANALOG)
Connect the computer (or RGB scart) output signal
to this terminal (pp.20-21).
e5 BNC INPUT JACKS
Connect the component or composite video output
signal from video equipment to VIDEO/Y, Pb/Cb,
and Pr/Cr jacks or connect the computer output
signal (5 BNC Type [Green, Blue, Red, Horiz. Sync,
and Vert. Sync.]) to G, B, R, H/V, and V jacks (pp.20–
21).
q
w
e
r
t
y
i
u
o
]
[
[ RESET button
A built-in micro processor which controls this unit may
occasionally malfunction and need to be reset. This can
be done by pressing the RESET button with a pen, which
will shut down and restart the unit. Do not use the RESET
function excessively.
] Kensington Security Slot
This slot is for a Kensington lock used to deter theft of the
projector.
*Kensington is a registered trademark of ACCO Brands Corporation.
!0INFRARED REMOTE RECEIVER (Back)
The infrared remote receiver is also located in the
front (pp.10, 15).
!0
Part Names and Functions
yUSB CONNECTOR (Series B)
Use this connector when controlling a computer
with the remote control unit of the projector.
Connect the USB terminal of your computer to this
connector with the supplied USB cable (p.20).
12
wINPUT button
Select an input source (pp.31–33).
qPOWER button
Turn the projector on or off (pp.23–24).
eLENS button
Enter the focus, zoom, and lens shift adjustment
mode (p.27).
rPoint ed7 8 buttons
– Select an item or adjust the value in the On-
Screen Menu (p.25).
– Pan the image in Digital zoom + mode (p.40).
!1WARNING TEMP. indicator
Blink red when the internal temperature of the
projector exceeds the operating range (pp.63, 69-
70 ).
tMENU button
Open or close the On-Screen Menu (p.25).
uPOWER indicator
– Light when in stand-by mode and during
operations.
– Blink in the Power management mode (p.52).
Side Control and Indicators
yOK button
– Execute the selected item (p.25).
– Expand or compress the image in the Digital
zoom mode (p.40).
iLAMP indicator
Light red during operations.
oLAMP REPLACE indicator
Light orange when the projection lamp reaches its
end of life (pp.59, 70).
!0WARNING FILTER indicator
– Blink slow when the filter is being scrolled (pp.
56, 69).
– Blink fast when the filter scroll is not working
properly or the filter cartridge is not installed
(p.56, 70).
– Light orange when the clogging of the filter is
detected or the filter counter reaches a time set
in the timer setting, urging immediate filter/ filter
cartridge replacement (p.55, 56 70).
Indicators (on the top panel)
u
i
o
!0
!1
Part Names and Functions
Side Control
q
w
e
t y
r
13
q STAND-BY button
Turn the projector off (p.24).
r ON button
Turn the projector on (p.23).
t INPUT 1 – 3 buttons
Select an input source (INPUT 1 – INPUT 3)
(pp.31–33).

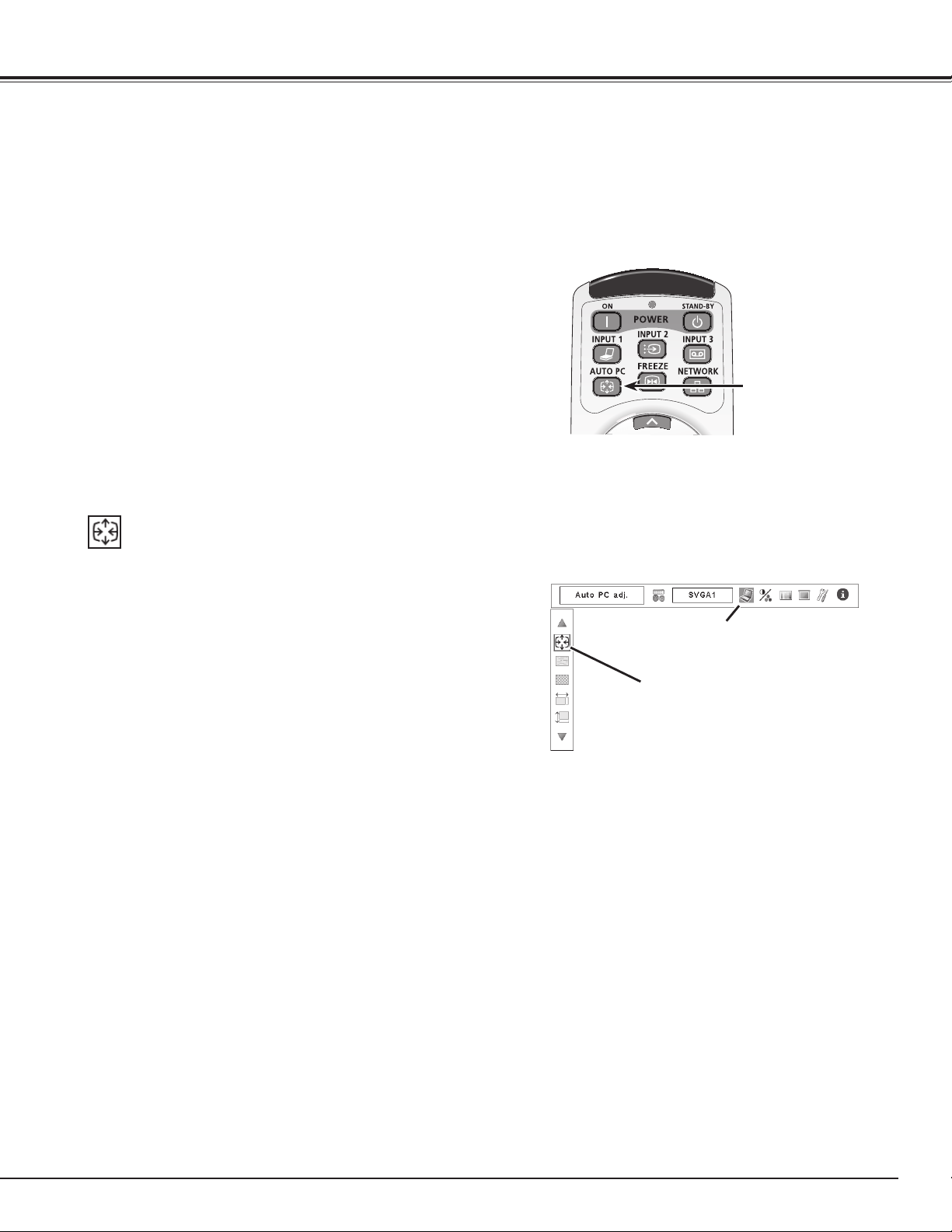

yAUTO PC button
Automatically adjust the computer image to its
optimum setting (pp.28, 35).
iPOINT ed 7 8 buttons
– Select an item or adjust the value in the On-
Screen Menu (p.25).
– Pan the image in Digital zoom + mode (p.40).
Remote Control Unit
!2
!2 L-CLICK button
Act as the left mouse button for wireless mouse
operation (p.30).
e SIGNAL EMISSION indicator
Light red while a signal is being sent from the
remote control unit to the projector.
o OK button
– Execute the selected item (p.25).
– Expand or compress the image in the Digital
zoom mode (p.40).
To ensure safe operation, observe the following
precautions:
– Do not bend, drop, or expose the remote control
unit to moisture or heat.
– For cleaning, use a soft dry cloth. Do not apply
benzene, thinner, splay, or any other chemical
materials.
w WIRED REMOTE jack
Connect the remote control cable (not supplied)
to this jack when using as a wired remote control
unit.
!1 NETWORK button
Select the Network input. (Optionally available).
u FREEZE button
Freeze the picture on the screen (p.28).
!0 MOUSE POINTER button
Move a pointer of the projector or a pointer for
wireless mouse operation (p.30).
Part Names and Functions
o
t
y
r
!0
u
qe
w
i
!1
14
Remote Control Unit
!6
!4
!5
!9
!7
!8
!3 MENU button
Open or close the On-Screen Menu (p.25).
!6ZOOM ed buttons
Zoom in and out the images (p.28).
!5D-ZOOM button
Select the Digital zoom +/- mode and resize the
image (p.40).
@0FOCUS buttons
Adjust the focus (p.28).
!8FILTER button
Scroll the filter (p.29).
!4P-TIMER button
Operate the P-timer function (p.29).
@1BLANK button
Temporarily turn off the image on the screen (p.29).
@2KEYSTONE button
Correct keystone distortion (p.29).
!7INFO. button
Display the input source information (p.28).
!9 RESET/ON/ALL-OFF switch
When using the remote control unit, set this switch
to “ON.” Set it to “ALL OFF” for power saving when it
is not in use. Slide this switch to “RESET” to initialize
the remote control code.
@5 R-CLICK button
Act as the right mouse button for wireless mouse
operation (p.30).
@3 LENS-SHIFT button
Select the Lens Shift function (p.28).
@4 ASPECT button
Select the screen size (p.28).
@6
@7 NUMBER buttons
Act as number buttons. Use these buttons when
setting the remote control codes (p.16) or when
entering the PIN code numbers (pp. 23, 50, 51, 54).
@3
@2
@1
@4
@5
@6 POINTER button
Act as the On-Off switch for the Pointer (p.29, 30).
@7
For PIN code
and remote
control code.
!3
Part Names and Functions
@0
15
Remote Control Battery Installation
1 2 3
Open the battery
compartment lid.
Install new batteries into
the compartment.
Replace the
compartment lid.
Press the lid downward and
slide it.
Two AAA size batteries
For correct polarity (+ and –),
be sure battery terminals are
in contact with pins in the
compartment.
To insure safe operation, please observe the following precautions :
● Use two (2) AAA or LR03 type alkaline batteries.
● Always replace batteries in sets.
● Do not use a new battery with a used battery.
● Avoid contact with water or liquid.
● Do not expose the remote control unit to moisture or heat.
● Do not drop the remote control unit.
● If the battery has leaked on the remote control unit, carefully
wipe the case clean and install new batteries.
● Risk of an explosion if battery is replaced by an incorrect type.
● Dispose of used batteries according to the instructions.
Point the remote control unit toward the projector (to
Infrared Remote Receivers) when pressing the buttons.
Maximum operating range for the remote control unit is
about 16.4’ (5 m) and 60 degrees in front and rear of the
projector.
Infrared Remote Receivers are provided both in front and
back of the projector. You can conveniently use both of
the receivers (pp. 10, 51).
16.4’
(5 m)
Remote Control Receivers and Operating Range
The remote control unit can be used as a wired remote control unit.
Wired remote control unit helps you use the remote control unit
outside of the operating range (16.4’/ 5 m). Connect the remote
control unit and the projector with the remote control cable (sold
separately). Connected with the remote control cable, the remote
control unit does not emit wireless signal.
Wired Remote Control Transmitter
Part Names and Functions
16.4’
(5 m)
16
The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the
remote control codes prevents interference from other remote control units when several projectors or video
equipment next to each other are operated at the same time. Change the remote control code for the projector
first before changing that for the remote control unit. See “Remote control” in the Setting Menu on page 51.
Press and hold the MENU and a number button (1–8)
for more than 5 seconds to switch between the codes.
1
To initialize the remote control code, slide the RESET/
ON/ALL-OFF switch to “RESET,” and then to “ON.” The
initial code is set to Code 1.
2
MENU button
Remote Control Code
Number buttons
RESET/ON/ALL
OFF Switch
Press and hold the MENU and a number button
(1–8) that corresponds to the remote control code
for more than 5 seconds to switch between the
codes.
Part Names and Functions
17
ADJUSTABLE FEET
Projection angle can be adjusted up to 6.5 degrees with the
adjustable feet.
Rotate the adjustable feet and tilt the projector to the proper
height; to raise the projector, rotate the both feet clockwise.
To lower the projector or to retract the adjustable feet, rotate the
both feet counterclockwise.
To correct keystone distortion, press the KEYSTONE button on the
remote control unit or select Keystone from the menu (see pages
14, 29, 40, 44).
Adjustable Feet
Installation
✔Notes:
• The brightness in the room has a great influence on picture quality. It is recommended to limit
ambient lighting in order to obtain the best image.
• All measurements are approximate and may vary from the actual sizes.
For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the
screen.
14.7m
11.0m
7.3m
3.6m
1.4m
100”
200”
300”
400”
308”
231”
154”
77”
31”
40”
Max. Zoom
Min. Zoom
(Inch Diagonal)
(Center)
Positioning the Projector
48.2’ (14.7m)
36.1’ (11.0m)
24.0’ (7.3m)
11.8’ (3.6m)
4.6’ (1.4m)
Screen Size
(W x H) mm
40” 100” 200” 300” 400”
813 x 610 2032 x 1524 4064 x 3048 6096 x 4572 8128 x 6096
Zoom (min.) 5.9’ (1.8 m) 15.4’ (4.7 m) 30.8’ (9.4 m) 46.6’ (14.2 m) –––––
Zoom (max.) 4.6’ (1.4 m) 11.8’ (3.6 m) 24.0’ (7.3 m) 36.1’ (11.0 m) 48.2’ (14.7 m)
18
When replacing the lens or using an optional lens, install the lens by following the instructions below. Ask the
sales dealer for detailed information of the optional lens specifications.
Lens Installation
While pressing the top cover release button on
the top cover, slide the top cover toward front to
remove it
Shift the lens to the center position by using the
Lens shift function (p. 27).
1
2
Removing the lens
Top cover release button
CAUTION
Be careful when handling the lens. Do not
drop.
Slide the light-block sheet upward and remove it.
3
Hold the lens with one hand and pull the Lens
Lock Lever upward with the other hand. Remove
the lens from the projector.
] Do not touch the glass part of the lens with your
hand.
4
Top cover
Light-block sheet
Installation
19
NOTES ON LENS INSTALLATION
● Do not touch or remove any parts except the lens and related parts. It may result in
malfunctions, electrical shock, fire hazard or other accidents.
● Before installing or replacing the lens, check that the Model No. of the Projection Lens
matches to the projector.
● For details of the lens and installation, contact the sales dealer where you purchased the
projector.

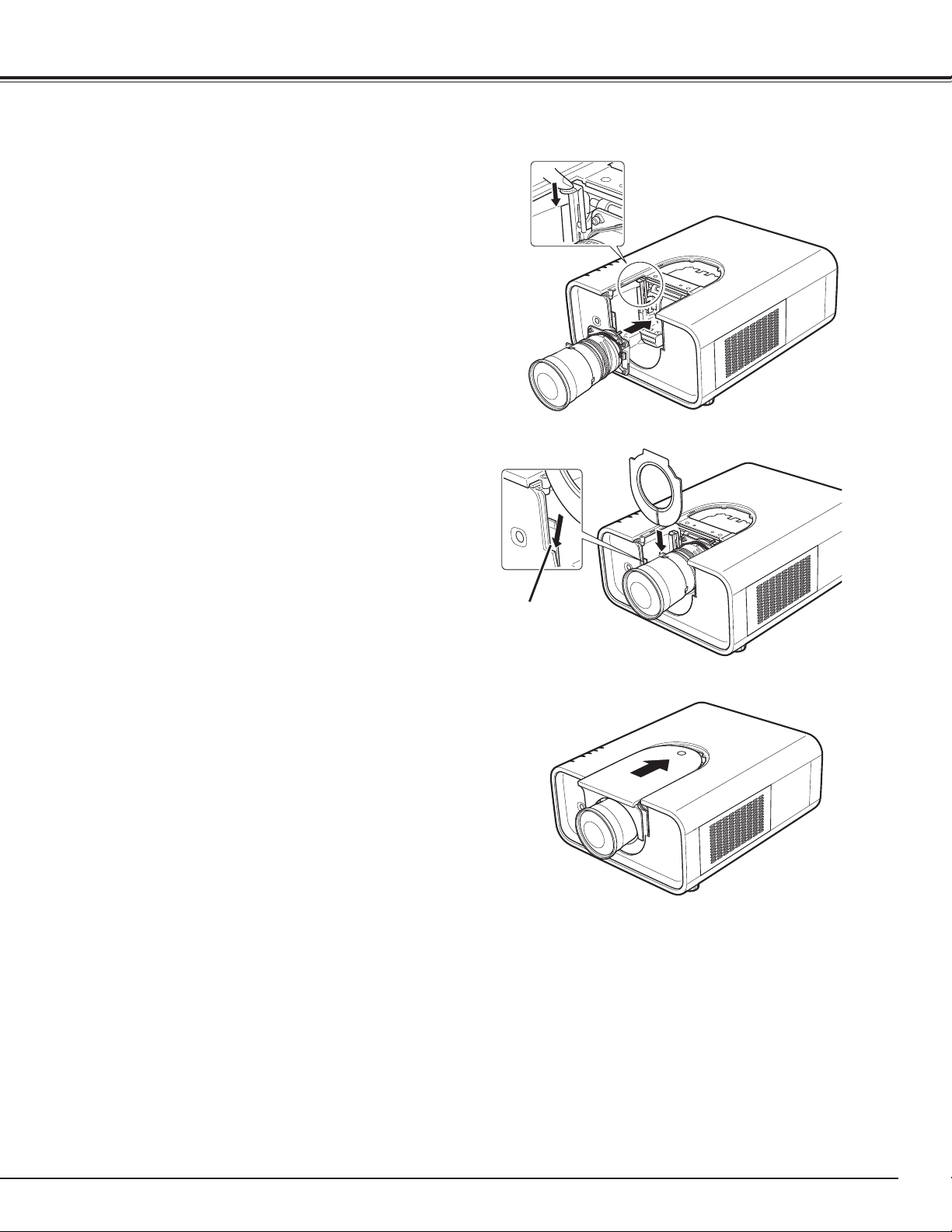

Fit the lens to the projector. Make sure that the
lens is fully inserted to the projector.
While pressing the top cover release button on the
top cover, slide the top cover back to the projector.
1
2
Attaching the lens to the projector
Slide the light-block sheet in the groove to mount.
3
Push the Lens Lock Lever downward. Make sure
that the lens is properly locked.
4
Groove
Installation
20
Monitor Output
BNC
cable
Connecting to a Computer (Digital and Analog RGB)
Monitor Output
G B R H/V V
DVI-Digital
cable
VGA
cable
VGA
cable
USB
cable
USB port
Unplug the power cords of both the
projector and external equipment from
the AC outlet before connecting cables.
Cables used for connection (] = Cables not supplied with this projector.)
• VGA Cable (One cable is supplied.)
• DVI-Digital Cable ]
• BNC Cable ]
• Serial Cross Cable]
• USB Cable
Monitor Output
DIGITAL IN ANALOG IN MONITOR OUTUSB
Serial Cross
cable
Serial out
CONTROL PORT
Installation
See the next page for the signals that can output to the
MONITOR OUT terminal.
v
Monitor Input
v
21
RGB Scart
21-pin Output
Connecting to Video Equipment (Video, S-Video)
S-video
cable
S-video
Output
Composite Video
Y - Pb/Cb - Pr/Cr
BNC
cable
Unplug the power cords
of both the projector
and external equipment
from the AC outlet before
connecting cables.
Cables used for connection (] = Cables not supplied with this projector.)
• Video Cable (RCA x 1 or RCA x 3) ]
• BNC Cable ]
• S-VIDEO Cable ]
• Scart-VGA Cable ]
Component Video
Output
Composite Video
Component Video
Output
(Y, Pb/Cb, Cr/Pr)
Digital Output
(HDCP
compatible)
RCA
cable
DVI-Digital
cable
Scart-VGA
cable
Video Video
Y - Pb/Cb - Pr/Cr
DIGITAL IN ANALOG IN MONITOR OUT S-VIDEO
Installation
Input Terminal Monitor Out Cable
Input 1
D-sub15
RGB (PC analog) YES
RGB (SCART) NO
DVI-D
RGB (PC digital) NO
RGB (AV HDCP) NO
Input 2 5BNC
RGB YES
Video YES
Q
Y, Cb/Cr YES
Q
Input 3
RCA
Y, Cb/Cr YES
Q
S-Video
S-video NO
Video
Video YES
Q
Network
NO
Monitor Out Signal Table
Refer to the
Monitor Out
Signal Table
(above).
Q
A cable with one
end D-sub 15 and
the other end (Black
box) compatible with
each equipment is
necessary.
22
This projector uses nominal input voltages of 100–120 V or 200–
240 V AC and it automatically selects the correct input voltage. It
is designed to work with single-phase power systems having a
grounded neutral conductor. To reduce the risk of electrical shock,
do not plug into any other type of power system.
If you are not sure of the type of power being supplied, consult
your authorized dealer or service station.
Connect the projector with all peripheral equipment before turning
on the projector.
CAUTION
For safety, unplug the AC power cord when the projector is not
in use. When the projector is connected to an outlet with AC
power cord, it is in stand-by mode and consumes a little electric
power.
Connecting the AC Power Cord
Connect the AC power cord (supplied) to the
projector.
The AC outlet must be near this equipment and
must be easily accessible.
Installation
NOTE ON THE POWER CORD
AC power cord must meet the requirements of the country where you use the projector.
Confirm the AC plug type with the chart below and proper AC power cord must be used.
If the supplied AC power cord does not match your AC outlet, contact your sales dealer.
Projector side AC Outlet side
To POWER CORD
CONNECTOR on your
projector.
Ground
To the AC Outlet.
(120 V AC)
For Continental Europe
For the U.S.A. and Canada
For the U.K.
To the AC Outlet.
(200–240 V AC)
To the AC Outlet.
(200–240 V AC)
23
Turning On the Projector
Connect the projector’s AC power cord into an AC
outlet. The LAMP indicator lights red and the POWER
indicator lights green.
Press the POWER button on the side control or the
ON button on the remote control unit. The LAMP
indicator dims and the cooling fans start to operate.
The preparation display appears on the screen and the
countdown starts.
2
3
1
The preparation display will disappear after 30
seconds.
4
After the countdown, the input source that was
selected the last time and the Lamp mode status icon
(see page 51) appear on the screen.
If the projector is locked with a PIN code, PIN code
Input Dialog Box will appear. Enter the PIN code as
instructed below.
Selected Input Source and Lamp mode
Complete peripheral connections (with a computer,
VCR, etc.) before turning on the projector.
What is PIN code?
PIN (Personal Identification Number) code is a security
code that allows the person who knows it to operate the
projector. Setting a PIN code prevents unauthorized use of
the projector.
A PIN code consists of a four-digit number. Refer to the PIN
code lock function in the Setting Menu on page 53-54 for
locking operation of the projector with your PIN code.
PIN code Input Dialog Box
Enter a PIN code
After the OK icon
disappears, you can
operate the projector.
Lamp mode status
See page 51 for the Lamp mode status
✔Note:
• The Lamp replacement icon and the Filter
replacement or the Filter cartridge replacement
icon may appear on the screen depending on the
usage state of the projector.
• When the filter cartridge replacement icon
keeps appearing on the screen at turning on the
projector for some time and no action is taken
to replace the filter cartridge, the projector will
be automatically shut down in 3 minutes after
turning on to protect the projector. (pp. 56-58, 70)
Use the Point ed buttons on the side control or Number
buttons on the remote control unit to enter a number.
When using side control
Use the Point ed buttons on the side control to select a
number. Press the Point 8 button to fix the number and
move the red frame pointer to the next box. The number
changes to “✳.” Repeat this step to complete entering a
four-digit number. After entering the four-digit number, move
the pointer to “Set.” Press the OK button so that you can
start to operate the projector.
When using remote control unit
Press the Number buttons on the remote control unit to
enter a number (p.14). When you complete entering a four-
digit number, the pointer moves to “Set.” Press the OK
button so that you can start to operate the projector.
If you fixed an incorrect number, use the Point 7 button to
move the pointer to the number you want to correct, and
then enter the correct number.
If you entered an incorrect PIN code, “PIN code” and the
number (✳✳✳✳) will turn red for a moment. Enter the
correct PIN code all over again.
✔Note:
• When the Logo select function is set to “Off,” the
logo will not be shown on the screen (p.49).
• When the “Countdown off” or “Off” is selected
in the Display function, the countdown will not
be shown on the screen (p.48).
• During the countdown period, all operations are
invalid.
• If the correct PIN code number is not entered
within three minutes after the PIN code dialog
box appeared, the projector will be turned off
automatically.
• The “1234” is set as the initial PIN code at the
factory.
Basic Operation
16
24
Press the POWER button on the side control or the
STAND-BY button on the remote control unit, and
“Power off?” appears on the screen.
Press the POWER button on the side control or the
STAND-BY button on the remote control unit again to
turn off the projector. The LAMP indicator lights bright
and the POWER indicator turns off. After the projector
is turned off, the cooling fans operate for 90 seconds.
You cannot turn on the projector during this cooling
down period.
1
2
TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU
TURN THE PROJECTOR ON, WAIT AT LEAST FIVE
MINUTES BEFORE TURNING IT OFF.
DO NOT UNPLUG THE AC POWER CORD WHILE
COOLING FANS ARE RUNNING OR BEFORE THE
POWER INDICATOR LIGHTS GREEN AGAIN.
OTHERWISE IT WILL RESULT IN SHORTENING OF
THE LAMP LIFE.
3
When the projector has cooled down enough, the
POWER indicator lights green and then you can turn on
the projector. To unplug the AC power cord, wait until
the projector is completely cooled down.
“Power off?” disappears after 4 seconds.
✔Note:
• When the On start function is set to “On,” the projector will be
turned on automatically by connecting the AC power cord to an AC
outlet (p.52).
• The running speed of cooling fans is changed according to the
temperature inside the projector.
• Do not put the projector in a case before the projector is cooled
enough.
• If the WARNING TEMP. indicator blinks red, see “Warning
Indicators” on page 63.
• The projector cannot be turned on during the cooling period with
the POWER indicator turned off. You can turn it on again after the
POWER indicator becomes green again.
Turning Off the Projector
DO NOT OPERATE THE PROJECTOR CONTINUOUSLY
WITHOUT REST. CONTINUOUS USE MAY RESULT
IN SHORTENING THE LAMP LIFE. TURN OFF THE
PROJECTOR AND LET STAND FOR ABOUT AN HOUR
IN EVERY 24 HOURS.
Basic Operation
25
Side Control
OK
button

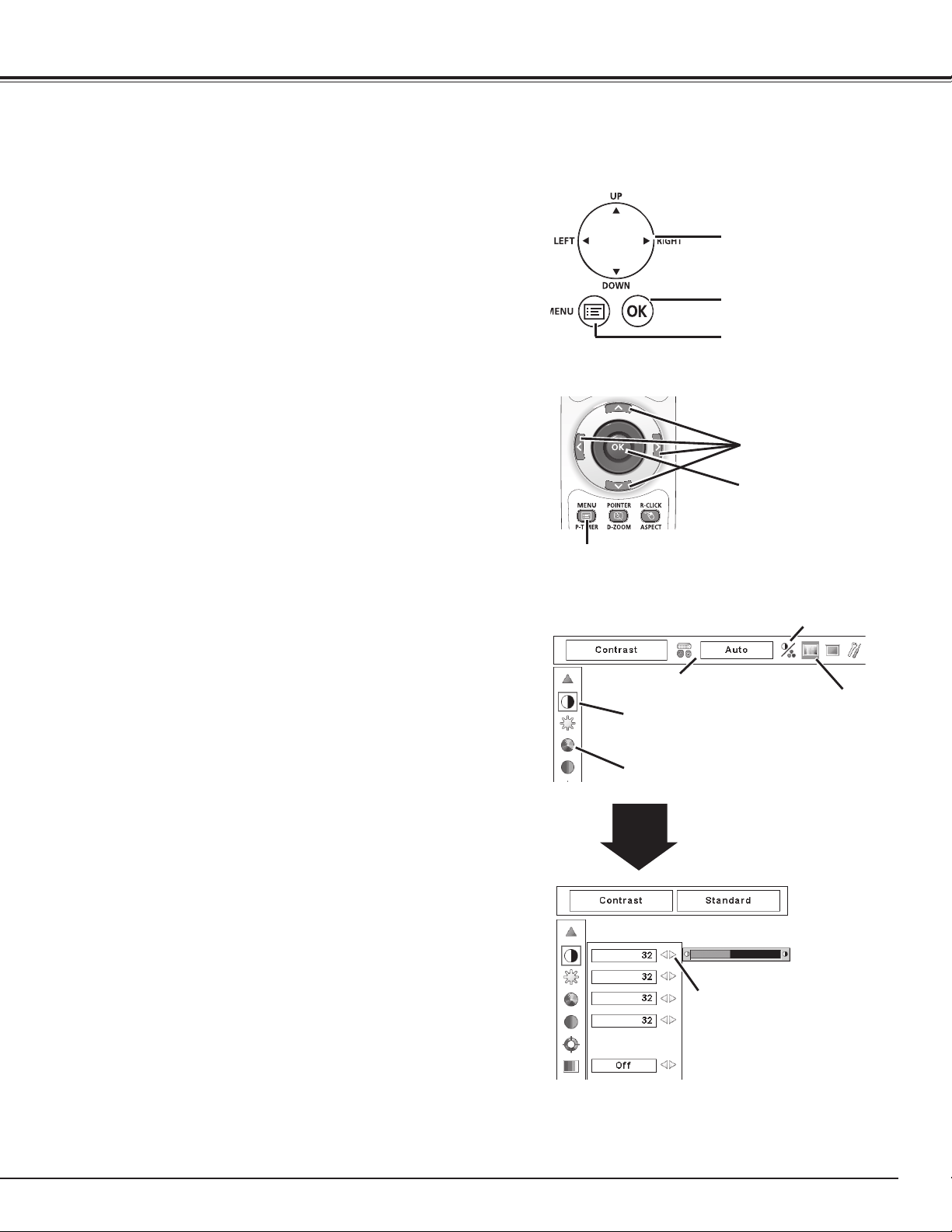

How to Operate the On-Screen Menu
MENU button
OK button
POINT buttons
On-Screen Menu
The projector can be adjusted or set via the On-Screen
Menu. For each adjustment and setting procedure, refer to
the respective sections in this manual.
Use the Point 7 8 buttons to select a Menu icon. Use
the Point ed buttons to select an item in the selected
menu.
Press the OK button to show the item data. Use the
Point 7 8 buttons to adjust the values.
To close the On-Screen Menu, press the MENU button
again.
Press the MENU button on the side control or the
remote control unit to display the On-Screen Menu.
✔Note:
• The selected item is not active until the OK button is pressed.
1
2
3
Remote Control Unit
POINT buttons
OK button
MENU button
Basic Operation
Pointer
(red frame)
Pointer (red frame )
Press the Point ed buttons
to move the pointer.
Item
Menu icon
Menu bar
Item data
Press the Point 7 8
buttons to adjust the
value.
26
Menu Bar
For Computer Source
For Video Source
Same function as menu
for Computer Source.
Same function as menu
for Computer Source.
Guide Window
Show the selected
Menu of the On-
Screen Menu.
PC System Menu
Used to select
computer system
(p. 34).
Image Select Menu
Used to select
an image level
among Standard,
High contrast, and
Custom 1–10 (p.38).
Screen Menu
Used to adjust the size of
the image. [Normal/True/
Wide/Full screen/Custom/
Keystone/Ceiling/Rear/Reset/
Digital zoom +/–] (pp.39-40).
Information Menu
Display the input
source information
(p. 28).
Image Adjust Menu
Used to adjust the
computer image.
[Contrast/ Brightness/Color
management/Auto picture
control/Color temp./White
balance (R/G/B)/Offset (R/
G/B)/Sharpness/ Gamma/
Reset/Store/Quit]
(pp. 45–47).
PC Adjust Menu
Used to adjust
the parameters
to match with the
input signal format
(pp. 35–37).
Input Menu
Used to select an
input source (Input
1, Input 2, or Input 3)
(pp. 31, 32).
Input Menu
Used to select
an input source
(Input 1, Input 2,
or Input 3)
(pp.31, 33).
Image Select Menu
Used to select an
image level among
Standard, Cinema, and
Custom 1–10
(p. 42).
Image Adjust Menu
Used to adjust the picture
image. [Contrast/Brightness/
Color/Tint/Color management/
Auto picture control/Color temp./
White balance (R/G/B)/ Offset
(R/G/B)/Sharpness/Gamma/Noise
reduction/Progressive/Reset/
Store/Quit]
(pp. 45–47.)
AV System Menu
Used to select the
system of selected
video source
(p. 41).
For detailed functions of each menu, see “Menu Tree” on pages 66-68.
Setting Menu
Used to set
the projector’s
operating
configurations
(pp. 48–55).
Screen Menu
Used to adjust the
size of the image.
[Normal/Wide/Custom/
Keystone/Ceiling/Rear/
Reset] (pp. 43-44).
Basic Operation
27
Operating with Projector Control
The following lens operation can be made with the Lens
button on the side control.
Press the LENS button to enter each lens operation mode.
The selected adjustment display appears on the screen.
Display “Lens shift” on the screen. Use the Point ed7 8
buttons to position the screen to the desired point without
having picture distortion.
The screen can be moved up or down to 50 percent, or
sideways up to 10 percent from the central axis of the
lens shift.
Lens Shift Adjustment
✔Note:
• The arrow disappears at the maximum lens shift
in each direction.
• The arrow turns red when the lens shift comes to
the center position of the screen.
Display “Zoom” on the screen. Use the Point ed buttons
to zoom in and out the image.
Zoom Adjustment
Display “Focus” on the screen. Use the Point ed buttons
to adjust focus of the image.
Focus Adjustment
Side Control
LENS button
Lens Operation
ZOOM
FOCUS
POINT buttons
Basic Operation
Zoom
Focus
Lens Shift
28
Operating with Remote Control Unit
Using the remote control unit for some frequently used operations is advisable. Just pressing one of the
buttons enables you to make the desired operation quickly without calling up the On-Screen Menu.
Press the FREEZE button on the remote control unit to
freeze the picture on the screen. To cancel the FREEZE
function, press the FREEZE button again or press any other
button.
FREEZE button
Press the AUTO PC button on the remote control unit to
operate the Auto PC Adj. function. The computer screen
adjustment can be done easily by pressing this button. See
page 35 for details.
AUTO PC button
Press the D-ZOOM button on the remote control unit to
enter to the Digital zoom +/– mode. See page 40 for details.
D-ZOOM button
Press the ASPECT button on the remote control unit to
select the desired screen size. The selected screen size
symbol appears on the screen for 4 seconds. See pages 39
to 40 and 43 to 44 for details.
Press and hold the ASPECT button for more than 5 seconds
to return all the screen size adjustment setting to the factory
default setting.
ASPECT button
Press the ZOOM buttons on the remote control unit to zoom
in and out the image.
ZOOM buttons
Press the FOCUS buttons on the remote control unit to
adjust focus of the image.
FOCUS buttons
See page 27 for details.
LENS-SHIFT button
Remote Control Unit
D-ZOOM
button
INFO.
button
POINT ed7 8
buttons
FREEZE button
AUTO PC
button
ASPECT button
ZOOM
buttons
FOCUS
buttons
LENS-SHIFT
button
✔Note:
• See the next page for the description
of other buttons.
Information display can be used to confirm the current
operating condition of the projector and the signal being
projected through the projector.
Press the INFO. button on the remote control unit to
display the information window on the screen. To hide the
information window, press the INFO. button again or Point 7
8 buttons.
The information window can also be selected from the
menu.
INFO. button
Information Menu
Information Menu
* The H- and V-sync freq. values described in this figure
may be different from the actual values.
Basic Operation
29

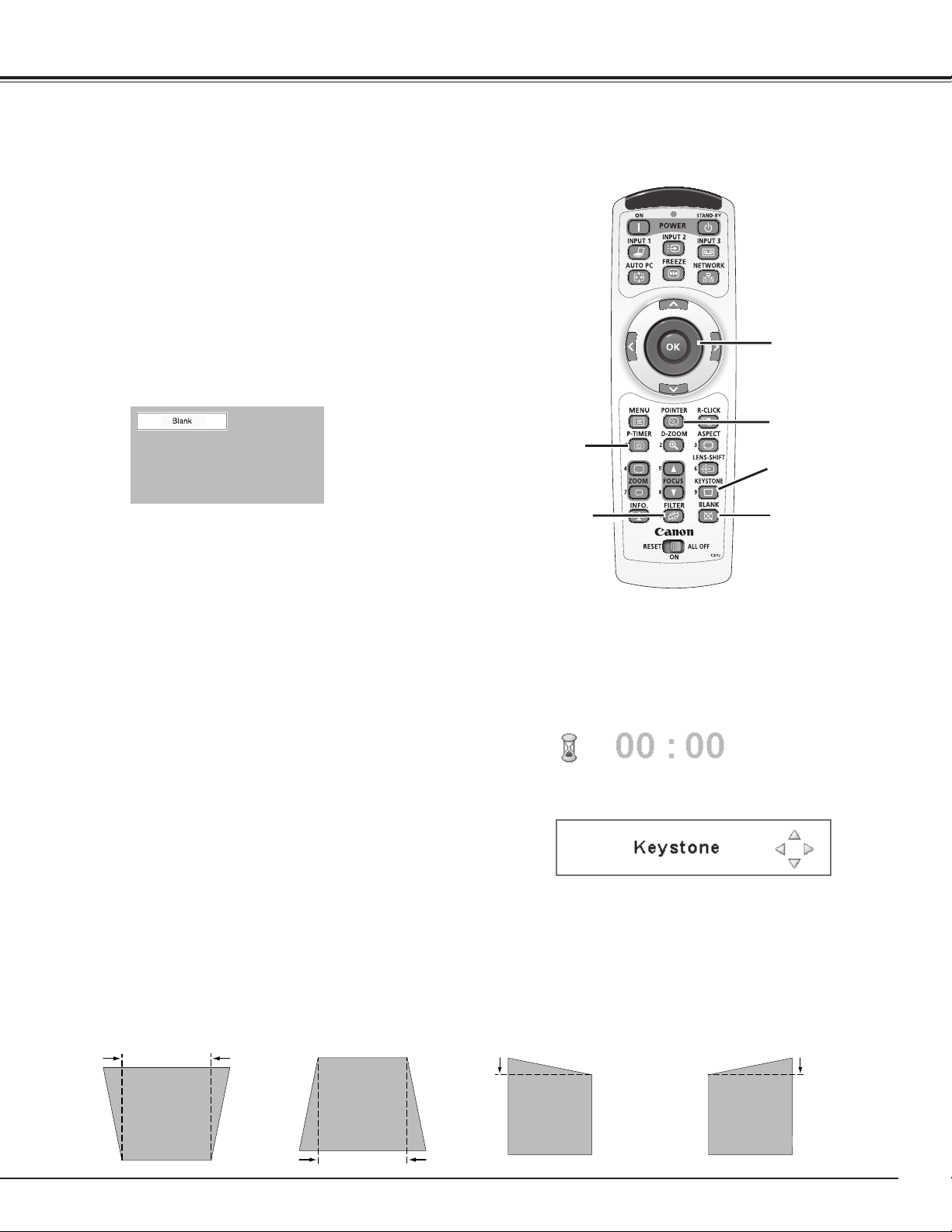

Press the BLANK button on the remote control unit to black
out the image. To restore to normal, press the BLANK button
again or press any other button.
BLANK button
FILTER button
Press and hold the FILTER button for more than 5 seconds
to operate electrically operated filter to replace the filter.
KEYSTONE button
Reduce the upper width with
Point e button.
Reduce the lower width
with Point d button.
Reduce the left part with
Point 7 button.
Reduce the right part with
Point 8 button.
• The white arrows indicate that there is no correction.
• A red arrow indicates the direction of correction.
• An arrow disappears at the maximum correction.
• If you press the KEYSTONE button on the remote
control unit again while the Keystone dialog box is
being displayed, the keystone adjustment will be
canceled.
• “Keystone” disappears after 10 seconds.
Press the P-TIMER button on the remote control unit. The
Timer display “00 : 00” appears on the screen and starts to
count time (00 : 00–59 : 59).
To stop the P-TIMER, press the P-TIMER button.
To cancel the P-TIMER, press the P-TIMER button again.
P-TIMER button
P-Timer display
POINTER button
Press POINTER button on the remote control unit to display
the Pointer on the screen.
Remote Control Unit
POINTER
button
P-TIMER
button
FILTER
button
BLANK
button
✔Note:
• See the previous page for the
description of other buttons.
KEYSTONE
button
Move the pointer on the screen with this button.
MOUSE POINTER button
MOUSE
POINTER
button
Press the KEYSTONE button on the remote control unit. The
“Keystone” appears on the screen.
Use the Point ed7 8 buttons to correct keystone
distortion. The keystone adjustment can be stored (pp.40,
44).
“Blank” disappears after 4 seconds.
Basic Operation
✔Note:
• When the filter is replaced, the total accumulated time of the filter
use is automatically set to 0.
30
Pointer Function
Pointer
✔Note:
• You can choose the pattern of Pointer (Arrow/Cross/Dot) in the
Setting Menu (p. 52)
You can move the Pointer of the projector with the remote control unit to emphasize a part of the projected
image.
Press the POINTER button to activate the Pointer
function.
1
2
3
MOUSE POINTER button
POINTER button
To cancel the Pointer function, press the POINTER
button again or press any other button.
Use the MOUSE POINTER button to move the Pointer.
Wireless Mouse Operation
The remote control unit can be used as a wireless mouse for your computer.
Move the pointer on
the screen with this
button.
MOUSE POINTER
button
R-CLICK button
L-CLICK button
Acts as right (click)
mouse button while
the projector and
a computer are
connected with a USB
cable.
Acts as left (click)
mouse button while
the projector and
a computer are
connected with a USB
cable.
Before operating the wireless mouse, connect your
computer and the projector with the supplied USB
cable (p. 20).
When the Pointer function is used, the wireless mouse
is not available.
When a USB cable is connected to the computer
and the projector, turn on the projector first, then
the computer. If you turn on the computer first, the
wireless mouse function may not operate properly.
1
2
Basic Operation
31
Remote Control Unit
INPUT buttons
Input
Press the INPUT 1, INPUT 2, or INPUT 3 buttons on the
remote control unit. The input source appears on the screen
as you press each button. Select the connected input
source.
Remote Control Operation
Remote Control button operation
Side Control
INPUT button
Press the INPUT button on the side control. It switches to
INPUT 1, INPUT 2, and INPUT 3 as you press the INPUT
button.
Before using the INPUT button on the side control, you
must select a correct input source by On-Screen Menu and
the latest input source will be displayed.
Side Control Operation
INPUT button
Input 1
Input 2
Input 3
INPUT 1 button
Input 1
RGB (PC analog)
RGB (Scart)
RGB (PC digital)
RGB (AV HDCP)
INPUT 2 button
Input 2
Video
Y,Pb/Cb,Pr/Cr
RGB
INPUT 3 button
Input 3
Video
Y,Pb/Cb,Pr/Cr
S-video
Side Control button operation
Input Selection
32

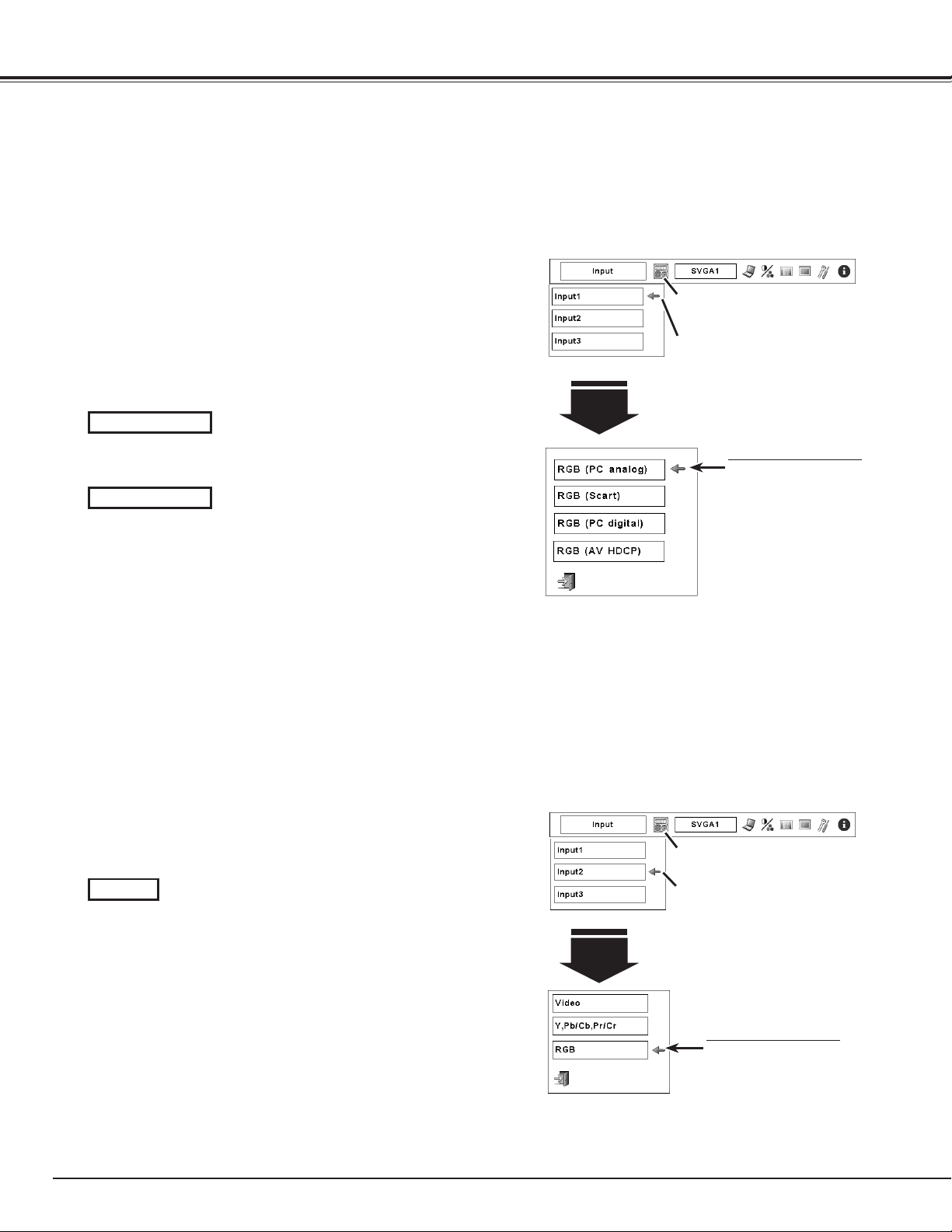

Computer Input Source Selection
WHEN SELECTING INPUT 1 (COMPUTER INPUT TERMINALS )
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
INPUT Menu icon.
Use the Point ed buttons to move the red arrow pointer to
the desired input and then press the OK button. The Source
Select Menu appears.
1
2
Input 1
INPUT MENU
Use the Point ed buttons to select the desired source and
then press the OK button.
3
When your computer is connected to INPUT 1 (DIGITAL)
terminal, select RGB (PC digital).
When your computer is connected to the INPUT 1 (ANALOG)
terminal, select RGB (PC analog).
Move the pointer (red
arrow) to the desired source
and press the OK button.
Source Select Menu
RGB (PC digital)
RGB (PC analog)
✔Note:
• INPUT SOURCE changes if the INPUT 1 button on the remote
control unit is pressed.
• HDCP (High-bandwidth Digital Content Protection) is a system
for protecting digital entertainment content which is delivered by
DVI (Digital Visual Interface) from being copied. The specification
of HDCP is decided and controlled by Digital Content Protection,
LLC. Should the specification be changed, this projector may not
display the digital content protected by HDCP.
Menu Operation
Input Menu icon
Move the pointer (red arrow) to Input
1 and press the OK button.
When connecting the computer output [5 BNC Type (Green,
Blue, Red, Horiz. Sync, and Vert. Sync.)] from the computer
to G, B, R, H/HV, and V jacks:
WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS )
INPUT MENU
INPUT Menu icon
Move the pointer (red arrow) to Input
2 and press the OK button.
Input 2
Move the pointer (red
arrow) to RGB and press the
OK button.
Source Select Menu
Input Selection
When your computer is connected to the INPUT 2 (5 BNC
INPUT JACKS) terminal, select RGB.
RGB
33

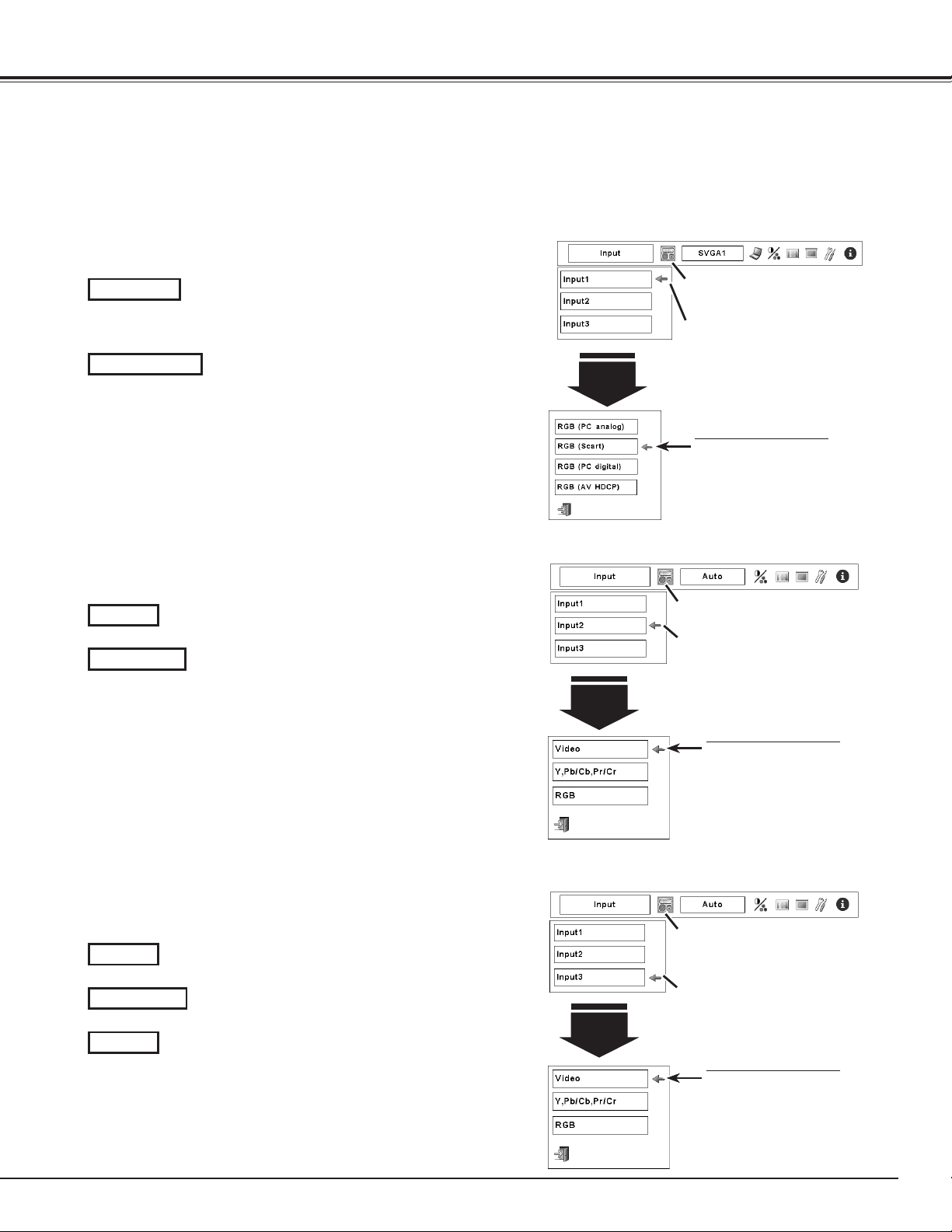

When the video input signal is connected to the Y-
Pb/Cb-Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.
When the video input signal is connected to the
VIDEO jack, select Video.
When the video input signal is connected to the S-
VIDEO jack, select S-Video.
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
WHEN SELECTING INPUT 3 (AV TERMINALS )
WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS )
When the video input signal is connected to the Y-
Pb/Cb-Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.
When the video input signal is connected to the
VIDEO jack, select Video.
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
Video
Y, Pb/Cb, Pr/Cr
Video
Y, Pb/Cb, Pr/Cr
S-Video
Menu Operation
Input Menu icon
Move the pointer (red arrow) to Input
2 and press the OK button.
Input 2
Move the pointer (red
arrow) to Video or Y, Pb/Cb,
Pr/Cr and press the OK
button.
Source Select Menu
INPUT MENU
Input Menu icon
Move the pointer (red arrow) to Input
3 and press the OK button.
Input 3
Move the pointer (red
arrow) to the desired source
and press the OK button.
Source Select Menu
Video Input Source Selection
Input Selection
WHEN SELECTING INPUT 1 (COMPUTER INPUT TERMINALS )
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
Input 1
Move the pointer (red
arrow) to RGB (Scart) or
RGB (AV HDCP) and press
the OK button.
Source Select Menu
Input Menu icon
Move the pointer (red arrow) to Input
1 and press the OK button.
RGB (AV HDCP)
RGB (Scart)
When scart video equipment is connected to the INPUT 1
(ANALOG) terminal, select RGB (Scart).
If the HDCP-compatible signal source is connected to the
INPUT 1 (DIGITAL) terminal, select RGB (AV HDCP).
INPUT MENU
INPUT MENU
34
Computer System Selection
This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, SXGA+,
WXGA, or UXGA (refer to “Compatible Computer Specifications” on pages 71–72). If a computer is selected
as a signal source, this projector automatically detects the signal format and tunes to project a proper image
without any additional settings. (Some computers need to be set manually.)
One of the following messages may appear when:
The projector cannot recognize the connected signal
conforming to the provided PC Systems. The “Auto” is
displayed on the System Menu box and the Auto PC
Adjustment function works to display proper images.
If the image is not projected properly, a manual
adjustment is required. (pp. 36–37.)
There is no signal input from the computer. Check the
connection between your computer and the projector.
(See “Troubleshooting” on page 64.)
Auto
-----
PC System Menu icon
Selected system is displayed.
PC SYSTEM MENU
Selecting Computer System Manually
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
PC System Menu icon.
Use the Point ed buttons to move the red arrow pointer to
the desired system, and then press OK button.
1
2
PC SYSTEM MENU
PC system can also be selected manually.
Automatic Multi-Scan System
The preset system is manually adjustted in the PC
Adjust Menu. The adjusted data can be stored in the
Mode 1–10. (pp. 36-37)
Mode 1
PC systems provided in this projector is chosen. The
projector chooses a proper system provided in the
projector and displays it.
SVGA 1
] Mode 1 and SVGA 1 are examples.
PC System Menu icon
Selected system is displayed
Systems in this dialog box can be
selected.
Custom Mode (1–10) set in PC Adjust
Menu. (pp.36–37)
Computer Input
35
Auto PC Adjustment
Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical
positions to conform to your computer.
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
PC Adjust Menu icon.
1
2
Use the Point ed buttons to move the red frame pointer to
the AUTO PC adj. icon and then press the OK button twice.
PC ADJUST MENU
Auto PC adj.
To store the adjusted parameters.
The adjusted parameters from the Auto PC Adjustment can be stored in
the projector. Once the parameters are stored, the setting can be done
just by selecting Mode in PC SYSTEM Menu (p.34). See MANUAL PC
ADJUSTMENT on pages 36–37.
✔Note:
• Fine sync, Total dots, Horizontal and Vertical position of certain
computers cannot be fully adjusted with the Auto PC Adjustment
function. When the image is not provided properly with this
operation, manual adjustments are required. (pp. 36–37.)
• Auto PC Adjustment cannot be operated in Digital Signal Input on
the DVI terminal and “480p,” “575p,” “480i,” “575i,” “720p,” “1035i,”
or “1080i” is selected on the PC SYSTEM Menu.
• Depending on the condition of signals and the type and
length of cables, the signals may not be properly viewed.
PC Adjust Menu icon
Move the red frame pointer to the Auto PC
adj. and press the OK button twice.
“Please wait...” appears while the Auto PC
adjustment is in process.
The Auto PC adjustment function can be operated directly
by pressing the AUTO PC button on the remote control unit.
AUTO PC button
Direct Operation
Remote Control Unit
Menu Operation
Computer Input
36
Manual PC Adjustment
Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector.
Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats.
The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to
recall the setting for a specific computer.
✔Note: The PC Adjust Menu cannot be operated when the digital signal input on the DVI terminal is selected on
PC System Menu.
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
PC Adjust Menu icon.
1
2
Use the Point ed buttons to move the red frame pointer to
the desired item and then press the OK button to display the
adjustment dialog box. Use the Point 7 8 buttons to adjust
the setting value.
Use the Point 7 8 buttons to adjust the value, eliminating a flicker
from the image displayed (from 0 to 31).
Fine sync
Use the Point 7 8 buttons to adjust the number of total dots in one
horizontal period to match your PC image.
Total dots
Use the Point 7 8 buttons to adjust the horizontal picture position.
Position H
Use the Point 7 8 buttons to adjust the vertical picture position.
Position V
Press the OK button to show H-sync freq. and V-sync freq. of the
connected computer.
Current mode
Use the Point 7 8 buttons to adjust the clamp level. When the
image has dark bars, try this adjustment.
Clamp
Press the OK button at
Current mode icon to
show the information
of the connected
computer.
Current mode
Use the Point 7 8 buttons to adjust the horizontal area displayed
by this projector.
Display area H
Use the Point 7 8 buttons to adjusts the vertical area displayed by
this projector.
Display area V
Move the red frame pointer to the
desired item and press the OK button.
Press the Point 7 8 buttons to adjust
the value.
Press the OK button at this icon to
adjust “Clamp,” “Display area H,” or
“Display area V.”
Selected Mode
Status (Stored/Free) of the
Selected Mode.
Press the OK button at this icon to
display the previous items.
PC ADJUST MENU
PC Adjust Menu icon
Computer Input
37
Exit the PC Adjust Menu.
To store the adjusted data, select Store and then press the OK
button. Move the red arrow pointer to one of the Mode 1 to 10 in
which you want to store, and then press the OK button.
To reset the adjusted data, select Reset and press the OK button. A
confirmation box appears and then select [Yes]. All adjustments will
return to their previous figures.
To store the adjusted data.
To clear the adjusted data.
To clear the adjusted data, select Mode free and then press the OK
button. Move the red arrow pointer to the Mode that you want to
clear and then press the OK button.
Reset
Mode free
Store
Quit
This Mode has stored parameters.
Vacant
Values of “Total dots,” “Position
H,” “Position V,” “Display area
H,” and “Display area V.”
Close this dialog box.
Close this dialog box.
Confirmation box appears
and then select [Yes].
Confirmation box appears
and then select [Yes].
Computer Input
38
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Image Select Menu icon.
1
2
Use the Point ed buttons to move the red frame pointer to
the desired image level and then press the OK button.
IMAGE SELECT MENU
Normal picture level preset on the projector.
Standard
Picture level with improved halftone for graphics.
High contrast
User preset picture adjustment in the Image Adjust Menu. (p. 47)
Custom 1–10
Image Level Selection
Menu Operation
Image Select Menu icon
Move the red frame pointer to the desired
level and press the OK button.
Computer Input
39
Screen Size Adjustment
Select the desired screen size that conforms to the input signal source.
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Screen Menu icon.
1
Use the Point ed buttons to move the red frame pointer to
the desired function and then press the OK button.
2
Normal
SCREEN MENU
Provide the image at the normal computer aspect ratio of 4:3.
Wide
True
Provide the image in its original size. When the original image size
is larger than the screen size (1024 x 768), the projector enters to
the panning mode automatically. Use the Point ed7 8 buttons
to pan the image. When adjusted, the arrows will turn red. When
reached to the correction limits, the arrows will disappear.
Provide the image to fit the wide video aspect ratio (16:9) by
expanding the image width uniformly. This function can be used to
provide the squeezed video signal at 16:9.
Full screen
Provides the full screen image.
Screen Menu icon
Move the red frame pointer to the desired
function and press the OK button.
Scale H/V .............. Adjust the Horizontal/Vertical screen scale.
H&V ...................... When set to “On,” the aspect ratio is fixed.
The “Scale V” appears dimmed and becomes
unavailable. Adjust “Scale H,” then the screen
scale is automatically modified based on the
aspect ratio.
Position H/V .......... Adjust the Horizontal/Vertical screen position.
Common .............. Save the adjusted scale to all the inputs.
Press the OK button at Common to display a
confirmation box. To save the scale, press the
OK button at “Yes.” When Custom is selected,
the saved scale is used.
Reset .................... Reset the all adjusted values. Press the OK
button at Reset to display a confirmation box.
To reset, press the OK button at “Yes.”
Custom
✔Note:
• When no signal is detected, “Normal” is
set automatically and the Aspect dialog box
disappears.
• The adjustable range for Scale H/V and Position
H/V is limited depending on the input signal.
Press the OK button at Common or Reset,
to display a confirmation box.
Computer Input
Adjust the screen scale and position manually with this function.
Press the OK button at Custom and the “Custom” is displayed on
the screen for a few seconds. To display the Aspect dialog box,
press the OK button at Custom again and then the Aspect dialog
box appears.
✔Note:
• The projector cannot display any resolution
higher than 1600 x 1200. If your computer’s
screen resolution is higher than 1600 x 1200,
lower the resolution before connecting the
projector.
• The image data other than XGA (1024 x 768) is
modified to fit the screen size in initial mode.
• True, Full screen, and Digital zoom +/– cannot
be selected when no signal is detected in the PC
System Menu. (p.34)
40
Select Digital zoom +. The On-Screen Menu disappears and
“D- zoom +” appears. Press the OK button to expand the image
size. Use the Point ed7 8 buttons to pan the image. The Panning
function can work only when the image is larger than the screen
size.
You can also enter the Digital zoom + mode by pressing the
D-ZOOM button on the remote control unit.
Digital zoom +
Select Digital zoom –. The On-Screen Menu disappears and
“D- zoom –” appears. Press the OK button to compress the image
size.
You can also enter the Digital zoom – mode by pressing the
D-ZOOM button on the remote control unit.
To exit the Digital Zoom +/– mode, press any button except the
D-ZOOM , OK, and Point buttons.
Digital zoom –
For zooming in and out the images
Keystone
This function is used to store or reset the keystone correction
when the AC power cord is unplugged. Use the Point 7 8 buttons
to switch between each option.
Store
... Keep the keystone correction even when the AC power
cord is unplugged.
Reset
.. Release the keystone correction when the AC power
cord is unplugged.
To correct keystone distortion, press the OK button. The Keystone
dialog box appears. Use the Point ed7 8 buttons to correct
keystone distortion. (p.29)
Ceiling
Rear
Ceiling
When this function is set to “On,” the picture is top/bottom and
left/right reversed. This function is used to project the image from a
ceiling-mounted projector.
Rear
When this function is set to “On,” the picture is left/right reversed.
This function is used to project the image from the rear of the
screen.
Reset
This function returns all adjusted values to the factory default
settings. Press the OK button at Reset to display a confirmation
box. To reset, press the OK button at “Yes.”
SCREEN MENU
Move the red frame pointer to the desired
function and press the OK button.
Computer Input
Exit the Screen Size Adjustment Menu.
Quit
✔Note:
• The panning function may not operate properly if
the stored Mode in the PC Adjust Menu is used.
(p. 37)
• The minimum compression ratio can be limited
depending on the input signal or when the
Keystone function is working.
• Digital zoom +/– cannot be selected when Full
screen or True is selected.
41
AV SYSTEM MENU (VIDEO OR S-VIDEO)
AV SYSTEM MENU (COMPONENT VIDEO)
Video System Selection
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
AV System Menu icon.
Use the Point ed buttons to move the red arrow pointer to
the desired system and then press the OK button.
1
2
If the projector cannot reproduce proper video image, select a
specific broadcast signal format from among PAL, SECAM, NTSC,
NTSC 4.43, PAL-M, and PAL-N.
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
The projector automatically detects an incoming video signal, and
adjusts itself to optimize its performance.
When the Video System is 1035i or 1080i, select the system
manually.
If the projector cannot reproduce proper video image, select a
specific component video signal format from among 480i, 575i,
480p, 575p, 720p, 1035i, and 1080i.
Auto
COMPONENT VIDEO SIGNAL FORMAT
Video Jack or S-Video Jack
Y, Pb/Cb, Pr/Cr Jacks
The projector automatically detects an incoming video system, and
adjusts itself to optimize its performance.
When Video System is PAL-M or PAL-N, select the system manually.
Auto
AV System Menu icon
The selected system is displayed
Move the pointer to the desired
system and press the OK button.
AV System Menu icon
The selected system is displayed.
Move the pointer to the desired
system and press the OK button.
Video Input
42
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Image Select Menu icon.
1
2
Use the Point ed buttons to move the red frame pointer to
the desired image level and then press the OK button.
IMAGE SELECT MENU
Image Level Selection
Move the red frame pointer to the desired
level and press the OK button.
Image Select Menu icon
Normal picture level preset on the projector.
Standard
Picture level adjusted with fine tone.
Cinema
User preset picture adjustment in the Image Adjust Menu. (p. 47)
Custom 1–10
Menu Operation
Video Input
43
Screen Size Adjustment
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Screen Menu icon.
Use the Point ed buttons to move the red frame pointer to
the desired function and then press the OK button.
1
2
✔Note:
• Wide cannot be operated when “720p,” “1035i,”
or “1080i” is selected on AV System Menu (p.41).
SCREEN MENU
Provide the image at the wide screen ratio of 16:9.
Wide
Provide the image at the normal video aspect ratio of 4:3.
Normal
Move the red frame pointer to the desired
function and press the OK button.
Screen Menu icon
Scale H/V .............. Adjust the Horizontal/Vertical screen scale.
H&V ...................... When set to “On,” the aspect ratio is fixed.
The “Scale V” appears dimmed and becomes
unavailable. Adjust “Scale H,” then the screen
scale is automatically modified based on the
aspect ratio.
Position H/V .......... Adjust the Horizontal/Vertical screen position.
Common .............. Save the adjusted scale to all the inputs.
Press the OK button at Common to display a
confirmation box. To save the scale, press the
OK button at “Yes.” When Custom is selected,
the saved scale is used.
Reset .................... Reset the all adjusted values. Press the OK
button at Reset to display a confirmation box.
To reset, press the OK button at “Yes.”
Custom
✔Note:
• When no signal is detected, “Normal” is
set automatically and the Aspect dialog box
disappears.
• The adjustable range for Scale H/V and Position
H/V is limited depending on the input signal.
Press the OK button at Common or Reset,
to display a confirmation box.
Video Input
Adjust the screen scale and position manually with this function.
Press the OK button at Custom and the “Custom” is displayed on
the screen for a few seconds. To display the Aspect dialog box,
press the OK button at Custom again and then the Aspect dialog
box appears.
44
Keystone
This function is used to store or reset the keystone correction
when the AC power cord is unplugged. Use the Point 7 8 buttons
to switch between each option.
Store
... Keep the keystone correction even when the AC power
cord is unplugged.
Reset
.. Release the keystone correction when the AC power
cord is unplugged.
To correct keystone distortion, press the OK button. The Keystone
dialog box appears. Use the Point ed7 8 buttons to correct
keystone distortion. (p.29)
Ceiling
Rear
Ceiling
When this function is set to “On,” the picture is top/bottom and
left/right reversed. This function is used to project the image from a
ceiling-mounted projector.
Rear
When this function is set to “On,” the picture is left/right reversed.
This function is used to project the image from the rear of the
screen.
Reset
This function returns all adjusted values to the factory default
settings. Press the OK button at Reset to display a confirmation
box. To reset, press the OK button at “Yes.”
SCREEN MENU
Move the red frame pointer to a function and
press the OK button.
Video Input
Exit the Screen Size Adjustment Menu.
Quit
45
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Image Adjust Menu icon.
1
2
Use the Point ed buttons to move the red frame pointer to
the desired item and then press the OK button to display the
adjustment dialog box. Use the Point 7 8 buttons to adjust
the setting value.
IMAGE ADJUST MENU
Press the Point 7 button to decrease contrast; press the Point 8
button to increase the contrast (from 0 to 63).
Press the Point 7 button to decrease the brightness; press the
Point 8 button to increase the brightness (from 0 to 63).
Contrast
Brightness
Press the Point 7 button to decrease the intensity of the color;
press the Point 8 button to increase the intensity of the color (from
0 to 63).
Press the Point 7 8 buttons to adjust the tint value to obtain
proper color balance (from 0 to 63).
Color
]
Tint
]
Color Management
The Color Management function can be used to adjust the LEVEL,
PHASE, and GAMMA of the selected display colors (except for
black, white, and gray) on the screen and replace these colors with
other colors if required.
You can store up to eight (8) color management data.
1
Use the Point ed buttons to move the red frame pointer
to Color Management, and then press the OK button. The
projected image freezes, and the COLOR MANAGEMENT
POINTER appears.
Use the Point ed7 8 buttons to move the pointer to the
spot where you want to adjust the color and then press the
OK button. The COLOR SELECTION window appears, and
the color in the center of the pointer is selected and you can
adjust the color.
2
Use the Point ed7 8 buttons to adjust the LEVEL and
PHASE of the color, and then press the OK button to confirm
the setting. Then use the Point ed buttons to adjust the
GAMMA for the color and press the OK button to accept
the setting. After adjusting, press the OK button to go to the
COLOR MANAGEMENT LIST.
3
COLOR MANAGEMENT
POINTER
POINTER MODE
Image Adjustment
Move the red frame pointer to the desired
item and then press OK button.
Image Adjust Menu icon
Use the Point 7 8 buttons to adjust the
setting value.
COLOR SELECTION MODE
Go to the COLOR MANAGEMENT LIST.
LIST
Picture Image
✔Note:
• Displayed only in Video Input.
• Tint cannot be selected when the video system
is PAL, SECAM, PAL-M, or PAL-N (p.41).
]
46
Auto picture control
Use the Point 7 8 buttons to select the desired Auto picture
control position (Off, L1 or L2).
Off
.... Auto picture control OFF position.
L1
..... Auto picture control LEVEL 1 position.
L2
..... Auto picture control LEVEL 2 position.
Clear the check mark if you do not want to apply the adjusted
color data; select the check mark and then press the OK
button. The check mark disappears.
Return to the COLOR MANAGEMENT POINTER. (If you press
the MENU button on the side control or the remote control
unit, it returns to the COLOR MANAGEMENT POINTER and
you will need to reselect and readjust the color.)
Return to the IMAGE ADJUST Menu. Any settings that
have been changed will not be stored. To store the changed
settings, be sure to select “LIST” and go to the COLOR
MANAGEMENT LIST.
LIST MODE
Return to the COLOR SELECTION mode so that you can
readjust the setting for the color in that line. (This option is
not available if the check mark is cleared.)
Select the DEL box if you want to delete the adjusted data.
Press the OK button and a confirmation box appears and then
select [Yes]
Delete all the data in the list. Press the OK button and a
confirmation box appears and then select [Yes].
The same function as stated above.
Level and phase
adjustment palette.
Gamma
adjustment palette.
Color temp.
Use the Point 7 8 buttons to select the desired Color temp. level
(High, Mid, Low, or XLow).
COLOR M.
MENU
COLOR PALETTE
DEL
ALL DEL
COLOR M.
LIST COLOR M. MENU
COLOR PALETTE
DEL
ALL DEL MENU COLOR M.
COLOR SELECTION MODE
LIST MODE
COLOR SELECTION MODE (continued)
In the COLOR MANAGEMENT LIST, the adjusted color data
are checkmarked. You can decide whether or not to apply the
adjusted color data in the list to the projected image (see
below).
4
MENU
The same function as stated above.
Picture Image
47
Use the Point 7 8 buttons to adjust the gamma value to obtain a
better balance of contrast (from 0 to 15).
Gamma
Press the Point 7 button to decrease the sharpness of the image;
press the Point 8 button to increase the sharpness of the image
(from 0 to 31).
Sharpness
An interlaced video signal can be displayed in progressive mode.
Press the Point 7 8 buttons to change the progressive scan mode.
Off
.... Progressive scan mode is “Off.”
On
.... Progressive scan mode is “On.”
Film
... For watching a film. With this function, the projector
reproduces pictures faithful to the original film quality.
Noise interference on the screen can be reduced. Press the Point
7 8 buttons to change the noise reduction mode.
Off
.... Noise reduction mode is “Off”
On
.... Noise reduction mode is “On”
Noise reduction
]
Progressive
]
Store icon
Press the OK button at this icon
to store the adjustment.
Press the Point 7 button to lighten red/green/blue tone; press the
Point 8 button to deepen red/green/blue tone (from 0 to 63).
White balance (Red/Green/Blue)
Press the Point 7 button to lighten red/green/blue tone of the black
level of an image; press the Point 8 button to deepen red/green/
blue tone of the black level of an image (from 0 to 63).
Offset (Red/Green/Blue)
Exit the Image Adjust Menu.
To store the adjusted data, move the red frame pointer to the Store
icon and press the OK button. The Image Level Menu appears.
Move the red arrow pointer to any of the Custom 1 to 10 in which
you want to set and press the OK button. A confirmation box
appears and then select [Yes].
To reset the adjusted data, select Reset and press the OK button. A
confirmation box appears and then select [Yes]. All adjustments will
return to their previous figures.
Reset
Store
Quit
Press the OK button at this icon to display
other items.
Press the OK button at this icon to
display the previous items.
Press the Point 7 8 buttons to
adjust the setting value.
Picture Image
Image Level Menu
Move the red frame pointer to an
image item to be set and then press
the OK button.
✔Note:
• Displayed only in Video Input.
• When the White balance Red, Green, or Blue is adjusted, the Color
temp. level will change to “Adj.”
• The Film mode in the Progressive function cannot be selected
when the video signal format is 1080i or 1035i.
• Progressive cannot be selected when “480p,” “575p,” or “720p” is
selected (p.41).
]
48

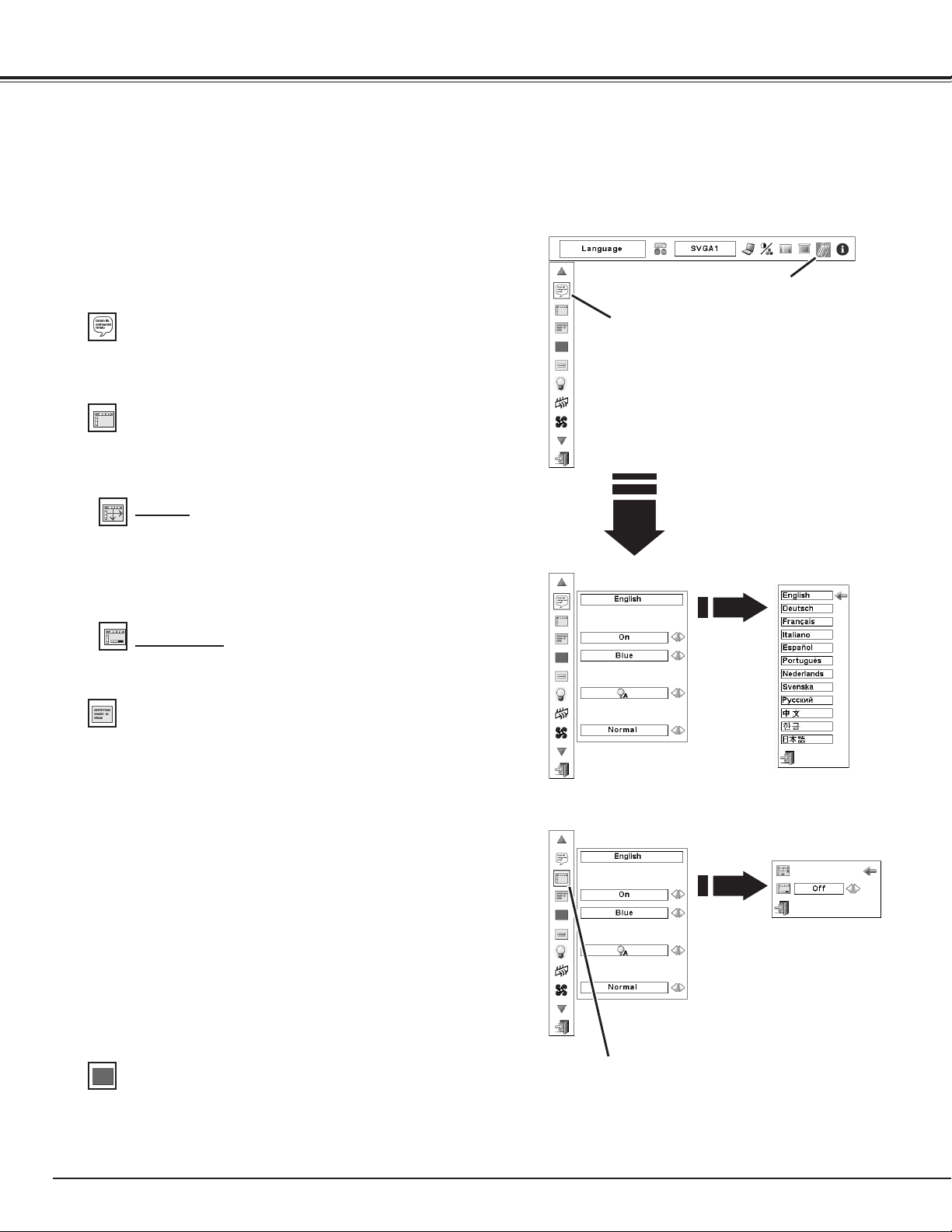

Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Setting Menu icon.
1
2
Language
The language used in the On-Screen Menu is available in English,
German, French, Italian, Spanish, Portuguese, Dutch, Swedish,
Russian, Chinese, Korean, or Japanese.
Use the Point ed buttons to move the red frame pointer to
the desired item and then press the
OK button. The Setting
dialog box appears.
Press the OK button at
Language, then the Language
Menu appears.
SETTING MENU (Language)
This projector has a Setting menu that allows you to set up other various functions.
Background
The selected background screen will be displayed when no input
signal is detected.
Blue
... Blue colored background.
User
... The image you captured.
Black
... Black colored background.
Setting
Set the red frame pointer
to the item and press the
OK button.
Setting Menu icon
When this function is set to “On,” the value adjustment bar in the
Picture Image Adjustment Menu appears on the screen.
Simple menu
Menu
This function is used to adjust the On-Screen Menu display
position. Press the OK button and the adjustment screen appears
(arrows appear). Use the Point ed7 8 buttons to adjust the
position. After making the adjustment, press the OK button to
return to the Menu screen.
Position
This function allows you to adjust the position of the On-Screen
Display and the value adjustment bar in the Picture Image
Adjustment Menu.
Display
This function decides whether to display On-Screen Displays.
On
............ Shows all the On-Screen Displays. Use this
function when you want to project images
after the lamp becomes bright enough. The
factory default setting is in this option.
Countdown Off
... Show the input image instead of the
countdown when turning on the projector.
Use this function when you want to project
the image as early as possible even when the
lamp is not bright enough.
Off
............ Hide the On-Screen Displays except:
●
On-Screen Menu
● “Power off?” (p.24)
● Color management operation screen
(pp.45-46)
● “No signal” for Power management (p.52)
● P-TIMER (p.29)
● ”Please wait....”
● Arrows for the True function in the Screen
Menu (p.39)
Menu
Set the red frame pointer
to the item and press the
OK button.
✔Note:
• User cannot be selected when the image is not
captured.
Setting
49
This function allows you to customize the screen logo with Logo
select, Capture, and Logo PIN code lock functions.
Logo
✔Note:
• Before capturing an image, select “Standard” in the Image
Select Menu to capture a proper image (pp. 38, 42). Adjusted
image on the screen cannot be captured.
• A signal from a computer can be captured up to XGA (1024 X
768).
• Certain signals may not be captured properly.
• When capturing the image that has been adjusted by the
Keystone function, the adjusted data is automatically reset and
the projector captures an image without keystone correction.
• When starting to capture a new image, the previously stored
image is cleared even if you cancel the capturing.
• Once you exit the Logo Menu after setting the Logo lock to
"On," you are required to enter the PIN code every attempting to
change the Logo setting.
• User cannot be selected when the image is not captured.
Select [Yes]
to capture
the projected
image.
This function decides on the starting-up display from among the
following options.
User
... Show the image you captured.
Default
. Show the factory-set logo.
Off
.... Show the countdown display only.
Capture
Select [Yes] to stop
capturing.
Logo select
Logo
✔Note:
• When “On” is selected in the Logo PIN code lock function, Logo
select and Capture functions cannot be selected.
This function enables you to capture an image being projected to
use it for a starting-up display or interval of presentations.
Select Capture and press the OK button.
A confirmation box appears and select [Yes] to capture the
projected image.
After capturing the projected image, go to the Logo select
function and set it to “User”. Then the captured image will be
displayed the next time you turn on the projector.
To cancel the Capture function, select [No].
Set the red frame
pointer to the item and
press the OK button.
Capture
Setting
50
Change the Logo PIN code lock setting
After a correct Logo PIN code is
entered, the following dialog box
appears.
Use the Point 7 8 buttons to switch On/Off,
This function prevents an unauthorized person from changing the
screen logo.
Off
.... The screen logo can be changed freely from the Logo
Menu.
On
.... The screen logo cannot be changed without a Logo
PIN code.
If you want to change the Logo PIN code lock setting, press the
OK button and the Logo PIN code dialog box appears. Enter a
Logo PIN code by following the steps below. The initial Logo PIN
code is set to “4321” at the factory.
Logo PIN code lock
Enter a Logo PIN code
Change the Logo PIN code
Logo PIN code can be changed to your desired four-digit number.
Press the Point d button to select “Logo PIN code change” and
then press the OK button. The New Logo PIN code input dialog
box appears. Set a new Logo PIN code.
Be sure to note the new Logo PIN code and keep it at hand. If you
lost the number, you could no longer change the Logo PIN code
setting. For details on PIN code setting, refer to “PIN code lock”
on pages 53–54.
Logo PIN Code Lock
Enter a Logo PIN code
Use the Point 7 8 buttons to switch On/Off, and then press the
Point d button to move the pointer to “Quit.” Press the OK button
to close the dialog box.
Change the Logo PIN code lock setting
CAUTION:
WHEN YOU HAVE CHANGED THE LOGO PIN
CODE, WRITE DOWN THE NEW PIN CODE
IN COLUMN OF THE LOGO PIN CODE NO.
MEMO ON PAGE 76, AND KEEP IT SECURELY.
SHOULD THE LOGO PIN CODE BE LOST OR
FORGOTTEN, THE LOGO PIN CODE SETTING
CAN NO LONGER BE CHANGED.
Change the Logo PIN code
Use the Point ed buttons on the side control or Number buttons
on the remote control unit to enter a number.
When using side control
Use the Point ed buttons on the side control to select a number.
Press the Point 8 button to fix the number and move the red
frame pointer to the next box. The number changes to “✳.”
Repeat this step to complete entering a four-digit number. After
entering the four-digit number, move the pointer to “Set.” Press
the OK button so that you can change the Logo PIN code lock
setting.
When using remote control unit
Press the Number buttons on the remote control unit to enter a
number (p.14). When you complete entering a four-digit number,
the pointer moves to “Set.” Press the OK button so that you can
change the Logo PIN code lock setting.
If you fixed an incorrect number, use the Point 7 button to move
the pointer to the number you want to correct, and then enter the
correct number.
If you entered an incorrect PIN code, “Logo PIN code” and the
number (✳✳✳✳) will turn red for a moment. Enter the correct PIN
code all over again.
Setting
NOTE:
If you forget your Logo PIN code and unable to change
it, the Logo PIN code can be reset to the factory default
setting (4321) according to the following procedures.
When you reset the Logo PIN code, the PIN code and
Key lock will be reset, as well.
1. Unplug the AC Power Cord from the AC outlet.
2. Hold down the OK button on the projector and
connect the AC Power Cord into the outlet again.
Keep holding down the OK button until the POWER
indicator lights. The Logo PIN code returns to the
factory default setting while the Logo PIN code lock
state will remain the same as the previous set state.
51

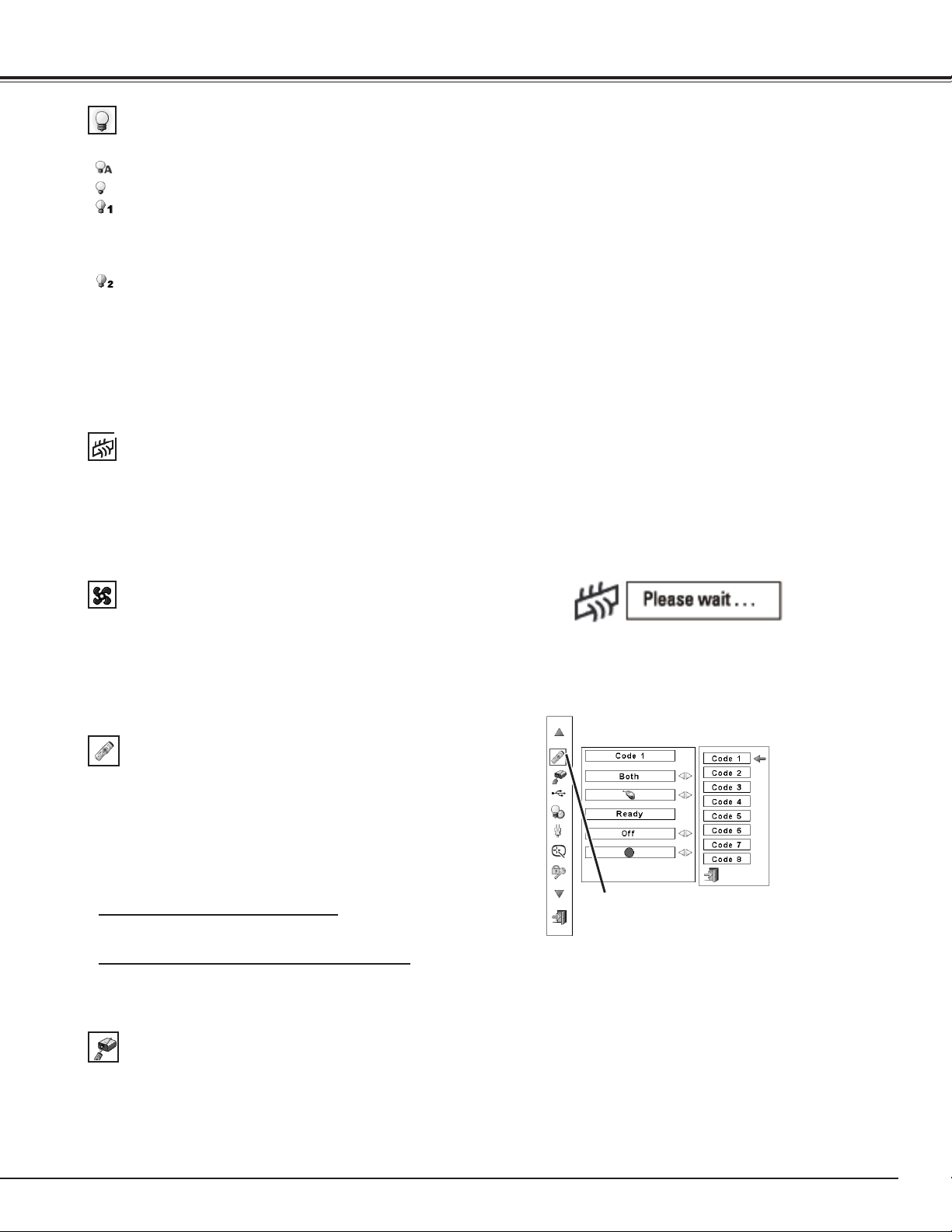

Lamp mode
Filter control
Choose the running speed of cooling fans from the following
options.
Normal ....... Operate in this mode under normal conditions.
Max ........... Use this mode when you want to increase the
cooling effect when operating the projector in high
ambient temperature environment. Fan noise is
lounder than “Normal”.
Fan control
Remote control
Remote control
When pressing the OK button at
Remote control unit, the Remote
control code menu appears.
RC sensor
Select a location of the infrared remote receiver of the remote
control unit. See “Remote Control Receivers and Operating Range”
on page 15 for details.
Both ......... Activate both the front and back receiver.
Front ........ Activate only the front receiver.
Back ......... Activate only the back receiver.
The eight different remote control codes (Code 1–Code 8) are
assigned to the projector; the factory-set, initial code (Code 1) and
the other seven codes (Code 2 to Code 8).
The same code should set on both the projector and the remote
control unit. For example, operating the projector in “Code 7”, the
remote control code also must be switched to “Code 7”.
To change the code for the projector
Select a remote control code in this Setting Menu.
To change the code for the remote control unit:
Press and hold the MENU button and a number button (1–8) on
the remote control unit for more than 5 seconds to switch
between the codes (p. 16).
This function allows you to change the brightness of the screen.
You can replace the filter with this function. Press the OK button at
Filter control to display a confirmation box. To replace, press the OK
button at “YES” and the electrically operated filter starts to scroll.
You can also replace the filter by using the remote control unit (p.
29).
Setting
✔Note:
• Filter replacement icon and “Please wait...”
message appear on the screen when the
filter is being scrolled.
• When the filter is replaced, the total
accumulated time of the filter use is
automatically set to 0
.
Auto mode
......
Brightness according to the input signal.
Normal mode
....
Normal brightness.
Eco 1 mode
.....
Lower brightness and Fan control set to
Normal. Lower brightness reduces the
lamp power consumption and extends the
lamp life.
Eco 2 mode
.....
Lower brightness and Fan control set to
Max. Lower brightness reduces the lamp
power consumption and extends the lamp
life. It is recommended to use Eco 2 mode
when using the projector continuously
over a long period of time. The fan noise
becomes louder in Ecot 2 mode than in
Eco 1 mode. Select the suitalbe mode for
the used environment.
52

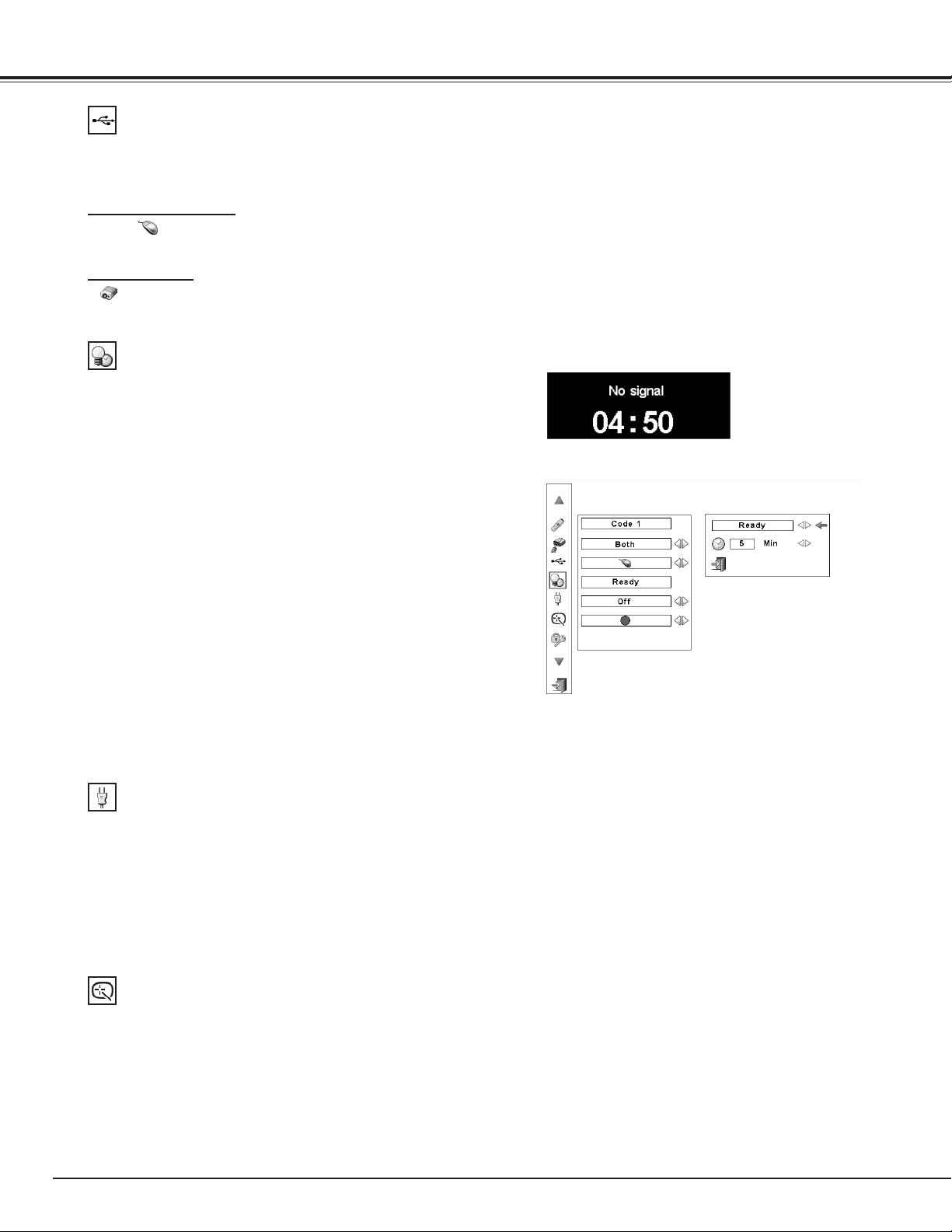

On start
When this function is set to “On,” the projector will be
automatically turned on just by connecting the AC power cord to
the wall outlet.
✔Note:
• Be sure to turn off the projector properly (see “Turning Off the
Projector” on page 24). If the projector is turned off in the incorrect
sequence, the On start function does not work properly.
Power management
Time left before the lamp is off
Press the OK button at Power
management and the dialog box
appears. Use the Point 7 8
buttons to choose one of the three
options.
Press the Point d button to select
the timer, and then use the Point 7
8 buttons to set the timer
For reducing power consumption as well as maintaining the lamp
life, the Power management function turns off the projection lamp
when the projector is not used for a certain period.
If the input signal is interrupted and no button is pressed for more
than 30 seconds, the timer display with “No signal” appears. It
starts the countdown until the lamp is turned off. The countdown
time can be set between 1 and 30 minutes.
Use the Point 7 8 buttons to set the countdown timer.
Select one of the following options:
Ready
.... When the lamp has been fully cooled down, the
POWER indicator starts blinking. In this condition,
the projection lamp is turned on if the input signal
is reconnected or any button on the side control or
remote control unit is pressed .
Shutdown
.. When the lamp has been fully cooled down, the
power is turned off.
Off
....... Power Management function is off.
Power management
The Projector has a USB port for interactive operation between
the projector and computers. Set the mode by following the steps
below.
Wireless Mouse mode
Select “ ” when controlling a computer with the remote control
unit of this projector.
Projector mode:
“ ” Not used.
USB
Pointer
You can emphasize a part of the projected image with this function.
Use the Point 7 8 buttons to select a pattern of the Pointer (Arrow,
Cross, or Dot) (P. 30)
✔Note:
• Factory default is “Ready: 5 min.”
Setting
✔Note:
• The Point ed7 8 buttons and OK button are invalid when the
Pointer function is operating.
53
Security
Key lock
Key lock
Security
Select Key lock and
this box appears.
Choose one of the
alternatives with the
Point ed buttons
and select [Yes] to
activate it.
This function locks the side control and remote control buttons to
prevent operation by unauthorized persons.
..... Unlocked.
..... Lock the side control buttons.
To unlock, use the remote control unit.
..... Lock the remote control buttons.
To unlock, use the side control.
If the side control accidentally becomes locked and you
do not have the remote control unit nearby and unable to
operate the projector, contact the service station.
PIN code lock
This function prevents the projector from being operated by
unauthorized persons and provides the following setting options
for security.
Off
.... Unlocked.
On1
... Enter the PIN code every time turning on the projector.
On2
... Enter the PIN code to operate the projector once the
power cord is disconnected; as long as the AC power
cord is connected, the projector can be operated
without a PIN code.
Whenever you change the PIN code lock setting or the PIN code
(the four-digit number), you are required to enter the PIN code.
“1234” is set as the initial PIN code at the factory.
If you want to change the PIN code lock setting, press the OK
button and the PIN code dialog box appears. Enter a PIN code by
following the steps on the next page.
PIN code lock
When the projector
is locked with a PIN
code, the PIN code
lock symbol appears
on the menu bar.
Set the red frame
pointer to the item
and press the OK
button.
Setting
54
Change the PIN Code
Change the PIN code
CAUTION:
WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN
A NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO
ON PAGE 76, AND KEEP IT SECURELY. IF YOU FORGET YOUR
PIN CODE, THE PROJECTOR CAN NO LONGER BE STARTED.
The PIN code can be changed to your desired four-digit number.
Press the Point d buttons to select “PIN code change” and press
the OK button. The New PIN code input dialog box appears. Set a
new PIN code.
Lamp counter
This function is used to reset the lamp counter.
When the lamp life reaches a recommended lamp replacement
time, the time shown in the dialog box turns red and the Lamp
replacement icon appears on the screen, indicating that the end of
lamp life is approaching.
When replacing the projection lamp, reset the lamp counter. See
“Resetting the Lamp Counter” on page 60.
This icon appears on the screen when the end of lamp life is
approaching.
✔Note:
• This icon also appears at turning on and
selecting input source.
✔Note:
• The Lamp replacement icon will not appear when the Display
function is set to “Off” (p.48), during “Freeze” (p.28), or “Blank”
(p.29).
Change the PIN Code Lock setting
Change the PIN code lock setting
Use the Point 7 8
buttons to switch
between the options.
Enter a PIN code
Use the Point 7 8 button to select Off, On1, or On2 and then
move the pointer to “Quit” with the Point d button. Press the OK
button to close the dialog box.
After a correct Logo PIN code is
entered, the following dialog box
appears.
Enter a PIN code
Use the Point ed buttons on the side control or Number buttons
on the remote control unit to enter a number.
When using side control
Use the Point ed buttons on the side control to select a number.
Press the Point 8 button to fix the number and move the red
frame pointer to the next box. The number changes to “✳.”
Repeat this step to complete entering a four-digit number. After
entering the four-digit number, move the pointer to “Set.” Press
the OK button so that you can change the PIN code lock setting.
When using remote control unit
Press the Number buttons on the remote control unit to enter a
number (p.14). When you complete entering a four-digit number,
the pointer moves to “Set.” Press the OK button so that you can
change the PIN code lock setting.
If you fixed an incorrect number, use the Point 7 button to move
the pointer to the number you want to correct, and then enter the
correct number.
If you entered an incorrect PIN code, “PIN code” and the number
(✳✳✳✳) will turn red for a moment. Enter the correct PIN code all
over again.
Setting
NOTE:
If you forget your PIN code and unable to change
it, the PIN code can be reset to the factory default
setting (1234) according to the following procedures.
When you reset the PIN code, the Logo PIN code and
Key lock will be reset, as well.
1. Unplug the AC Power Cord from the AC outlet.
2. Hold down the OK button on the projector and
connect the AC Power Cord into the outlet again.
Keep holding down the OK button until the POWER
indicator lights. The PIN code returns to the factory
default setting while the PIN code lock state will
remain the same as the previous set state.
55
Factory default
This function returns all setting values except for the user logo, PIN
code lock, Logo PIN code lock, lamp counter, and filter counter to
the factory default settings.
Factory default
Quit
Exit the Setting Menu.
Select Factory default and this box
appears. Select [Yes], and the next
box appears.
Test pattern
Various test pattern are available for use when setting up the
projector.
Filter counter
Filter counter
Filter replacement icon appears on the screen
at a set time.
✔Note:
• Do not reset the counter(s) when the filter or the filter cartridge are
not replaced.
• Timer setting notifies that the filter needs replacement. To replace
the filter, use the filter control function (p.51).
Fig.1 Filter replacement icon
Filter cartridge replacement icon appears on
the screen when the filter scroll is counted
down to 0 scroll.
Fig.4 Filter cartridge replacement icon
✔Note:
• Fig.1, Fig. 2, Fig. 3 and Fig. 4 appear at turning
on and selecting input source.
• Fig.1, Fig. 2, Fig. 3 and Fig. 4 will not appear
when the Display function is set to “Off” (p.48),
during “Freeze” (p.28), or “Blank” (p.29).
Set the red frame pointer
to the item and press the
OK button.
Set the red frame pointer
to the item and press the
OK button.
Last scroll icon appears on the screen when
the filter is down to the last scroll.
Fig.3 Last scroll icon
Use the Point 7 8 buttons
to set the timer. Select from
(Off/ 400H/700H/1000H)
depending on the use
environment.
Setting
This function is used to set a frequency for the filter replacement.
Use the Point ed buttons to move the red frame pointer to
Filter counter and then press the OK button. A dialog box appears
showing the Used time option and the Scrolls remaining option.
Used Time ...... Show the total accumulated time of the
filter use, timer setting option and the Reset
options. When the projector reaches a time
set in the timer setting, the Filter replacement
icon (Fig. 1) appears on the screen and the
total accumulated time turns red, indicating
that the filter replacement is necessary. If
the filter is out of scroll and the projector
reaches a time set in the timer setting, Fig.
2 appears on the screen, indicating that the
filter cartridge replacement is necessary.
Scrolls remaining
.. Show the scroll counter and the Reset
options. When the filter scroll is counted
down to 1 (Scroll counter on the screen is
showing “0 scroll(s)” , the last scroll icon
(Fig. 3) appears on the screen. When the
filter scroll is counted down to 0, the Filter
cartridge replacement icon (Fig. 4) appears
on the screen and the WARNING FILTER
indicator lights orange, indicating that the
filter cartridge replacement is necessary.
To set a timer, press the OK button on Used time option. Move the
red arrow pointer to the timer setting option and use the Point 7 8
buttons to select from (Off/ 400H/700H/1000H) depending on the
use environment.
When replacing the Filter cartridge, reset the Filter counter and the
Scroll counter (p.58).
Select [Yes] to
activate it.
Fig.2
56
Filter Instructions
Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter becomes
clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup
and adversely affect the life of the projector. This projector has an electrically operated filter which helps you to
replace the filter easily. The projector monitors the condition of the filter at all time and replaces a filter with a
new one automatically when it detects the clogging.
If the projector reaches a time set in the timer setting (p.
55), a Filter replacement icon (Fig.1) appears on the screen
and the WARNING FILTER indicator on the top panel lights
up (p.70). When you see this icon, replace the filter as soon
as possible (pp.29, 51). If the filter is out of scroll and the
projector reaches a time set in the timer setting, Fig. 2
appears on the screen, indicating that the filter cartridge
replacement is necessary.
When the filter scroll is counted down to 1, the Last scroll
icon (Fig.3) appears on the screen, indicating that there is
one scroll left in the filter cartridge (p.55).
If the projector detects that the filter is clogged and no scroll
is left in the filter cartridge, a Filter cartridge replacement
icon (Fig. 4) appears on the screen and the WARNING
FILTER indicator on the top panel lights up (p.70). When you
see this icon, replace the filter cartridge (p.57) and reset the
Filter counter (p.58) and the Scroll counter (p.58).
When the filter is being scrolled using the remote control
unit (p.29) or the Filter control function in the setting
menu (p.51), a Filter replacement icon and “Please wait...”
message (Fig.5) appear on the screen and the WARNING
FILTER indicator blinks slow (approx. 2 seconds ON, 2
seconds OFF) (p.69).
The WARNING FILTER indicator blinks fast when the
projector detects an abnormal condition, the filter cartridge
is not installed properly, or the filter scroll is not working
properly (p.70).
Fig.1 Filter replacement icon
Fig.4 Filter cartridge replacement icon
Fig.3
Last scroll icon
Maintenance and Care
✔Note:
• Fig.1, Fig.2, Fig.3, Fig. 4 and Fig.5 will not appear when the
Display function is set to “Off” (p.48), during “Freeze” (p.28),
or “Blank” (p.29).
• The filter cannot be rewinded.
• The filter can be scrolled 9 times since the filter cartridge
has 10 scrolls.
• The filter cartridge is disposable. Do not clean and reuse the
filter cartridge.
• Do not expose the filter cartridge to water or liquid, or it
may cause a breakdown.
• Replace the filter cartridge after all the scroll is used up. If
you replace the filter cartridge when there are some scrolls
left in the filter cartridge, the filter counter and the scroll
counter do not recognize the correct number of remaining
scrolls and the reset function cannot work properly. It may
cause a breakdown.
Fig.5 Filter replacement icon and
“Please wait...” message.
• Do not use the filter cartridge with other projector. The filter
counter and the scroll counter do not recognize the correct
number of remaining scrolls of the used filter cartridge and
the reset function cannot work properly. It may cause a
breakdown.
• Make sure that the projection lamp is turn off when you
are replacing the filter cartridge. If you replace the filter
cartridge when the projection lamp is turn on, the projector
will be shut down automatically for safety purpose
• When you forget to reset the filter counter, the projector
cannot recognize the correct number of remaining scrolls
and may cause a breakdown.
• Do not forget to reset the filter counter and the scroll
counter in the setting menu after replacing the filter
cartridge. If you forget to reset the filter counter and the
scroll counter, the projector cannot recognize the correct
number of remaining scrolls and may cause a breakdown.
Fig.2
57
Turn off the projector, and unplug the AC power cord
from the AC outlet.
First, clean up the dust on the projector and around the
air vents.
1
2
Press s on the filter cover to release the latch and open
the filter cover.
3
Put the new one back into the position and close
the filter cover. Make sure that the filter cartridge is
properly and fully inserted.
5
CAUTION
Make sure the filter cartridge is inserted in the
projector. If the filter cartridge is not inserted, the
projector cannot be turned on.
Do not put anything into the air vents. Doing so
may result in malfunction of the projector.
4
Reset the filter counter and the scroll counter (p.58).
6
Filter cover
Replacing the Filter Cartridge
Pull out the filter cartridge. When taking out the filter
cartridge, put your finger on the filter cartridge’s tab
and then pull.
Latch
Filter cartridge
Tab
RECOMMENDATION
We recommend avoiding dusty/smoky environments when
operating the projector. Usage in these environments may
cause a poor image quality.
When using the projector under dusty or smoky conditions,
dust may accumulate on a lens, liquid crystal panels, or optical
elements inside the projector. Such condition may degrade the
quality of the projected image.
When the symptoms above are noticed, contact your authorized
dealer or service station for proper cleaning.
Connect the AC power cord to the projector and turn
on the projector.
7
Maintenance and Care
58
Be sure to reset the Scroll counter after replacing the filter
cartridge.
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Setting Menu icon.
Use the Point ed buttons to move the red frame pointer
to Filter counter and then press the OK button. A dialog
box appears showing the Used time option and the Scrolls
remaining option. Use the Point ed buttons to select
Scroll(s) remaining.
1
2
Resetting the Scroll Counter
Scroll counter
Another confirmation dialog box appears, select [Yes] to
reset the Scroll counter.
3
Scroll(s) remaining shows the number of the remaining
scrolls and the Reset option. Select Reset and the “Scroll
counter Reset?” appears. Select [Yes] to continue.
4
Be sure to reset the Filter counter after replacing the filter
cartridge.
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Setting Menu icon.
Use the Point ed buttons to move the red frame pointer
to Filter counter and then press the OK button. A dialog
box appears showing the Used time option and the Scrolls
remaining option. Use the Point ed buttons to select Used
time.
1
2
Resetting the Filter Counter
Filter counter
Select Reset and the “Filter
counter Reset?” appears.
Select [Yes],
then another
confirmation
box appears.
Select [Yes] again to reset
the Filter counter.
Another confirmation dialog box appears, select [Yes] to
reset the Filter counter.
3
Used time shows the total accumulated time of the filter
use, a timer setting option, and the Reset option. Select
Reset and the “Filter counter Reset?” appears. Select [Yes]
to continue.
4
Select “Scrolls remaining” and
the dialogue box below appears.
Select Reset and the “Scroll
counter Reset?” appears.
Select [Yes],
then another
confirmation
box appears.
Select [Yes] again to reset
the Scroll counter.
Maintenance and Care
Select “Used time” and the
dialogue box below appears.
59

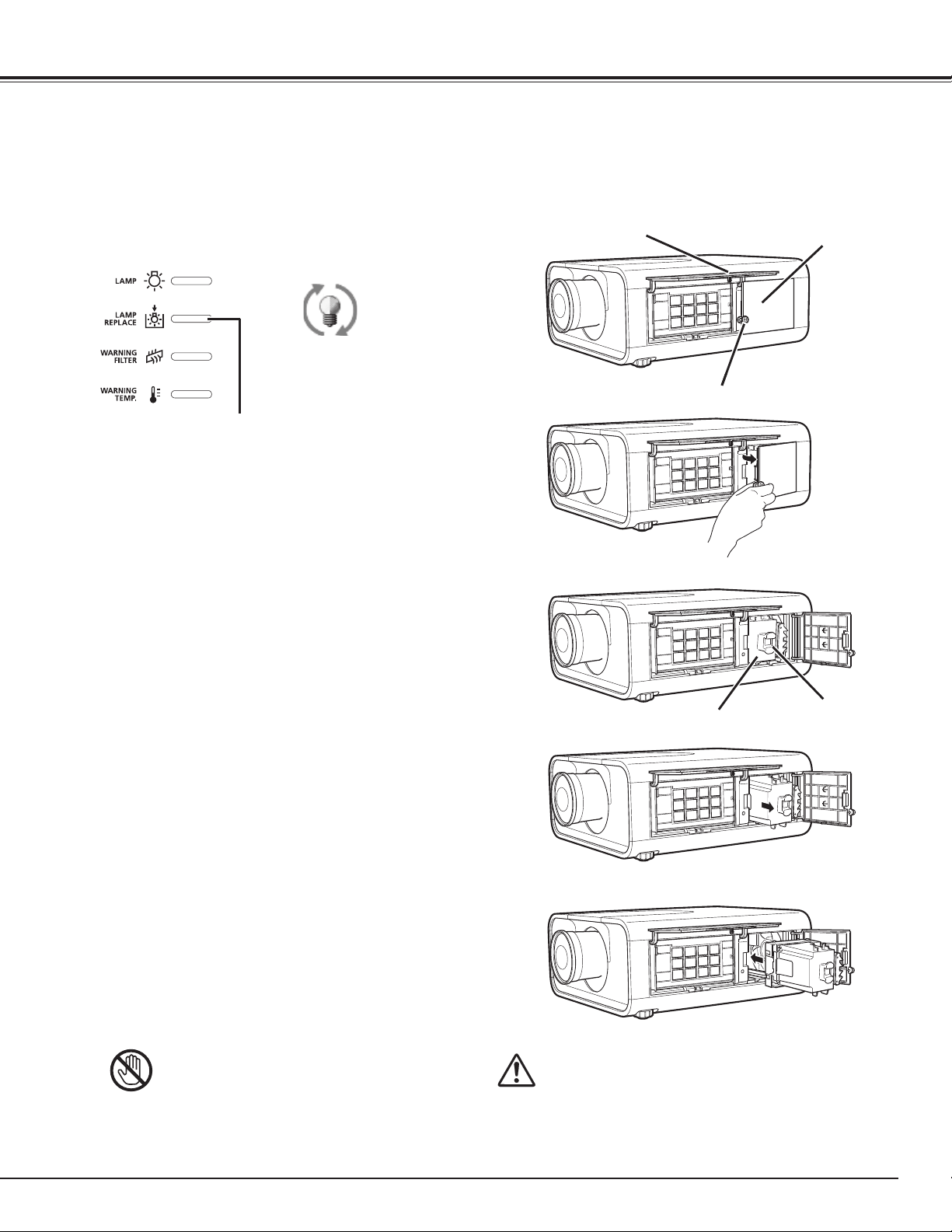

Turn off the projector and unplug the AC power cord. Let
the projector cool for at least 45 minutes.
Loosen the screw and open the lamp cover. Pull out the
lamp by using the built in handle.
1
3
Replace the lamp with a new one. Make sure that the
lamp is properly and fully inserted.
4
Open the filter cover. (p.57)
2
Connect the AC power cord to the projector and turn on
the projector.
6
Follow these steps to replace the lamp.
Reset the Lamp counter (p.60)
5
✔Note:
• Be sure to insert the lamp in the correct direction.
• Do not reset the Lamp counter when the projection lamp is
not replaced.
Lamp Replacement
For continued safety, replace with a lamp of the
same type. Do not drop the lamp or touch the
glass bulb! The glass can shatter and may cause
injury.
Allow a projector to cool for at least 45 minutes
before you open the lamp cover. The inside of the
projector can become very hot.
CAUTION CAUTION
When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the
screen and LAMP REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing
when the LAMP REPLACE indicator should light is depending on the lamp mode.
Top Panel
LAMP REPLACE indicator
Lamp replacement icon
✔Note:
• The Lamp replacement icon will not appear when
the Display function is set to “Off” (p.48), during
“Freeze” (p.28), or “Blank” (p.29).
7
Close the lamp cover and secure the screw.
Lamp
Handle
Lamp cover
Filter cover
Screw
Maintenance and Care
8
Close the filter cover.
60
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering, give the following information to the
dealer.
● Model No. of your projector : LV-7585
● Replacement Lamp Type No. : LV-LP29
Resetting the Lamp Counter
Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP
REPLACE indicator stops lighting and the Lamp replacement icon disappears.
✔Note:
• Do not reset the Lamp counter without replacing the lamp. Be sure
to reset the Lamp counter only after replacing the lamp.
Press the MENU button to display the On-Screen Menu. Use
the Point 7 8 buttons to move the red frame pointer to the
Setting Menu icon
Use the Point ed buttons to move the red frame pointer to
Lamp counter and then press the OK button. A dialog box
appears showing the total accumulated time of the lamp
usage and the reset option. Select Reset and the “Lamp
replacement coutner Reset?” appears. Select [Yes] to
continue.
1
2
Lamp counter
Select Reset and the “Lamp
replacement counter Reset?”
appears.
Select [Yes] again
to reset the lamp
counter.
Select [Yes], then another
confirmation box appears.
Another confirmation dialog box appears and select [Yes] to
reset the Lamp counter.
3
Maintenance and Care
61
This projector uses a high-pressure lamp which must be handled carefully and properly.
Improper handling may result in accidents, injury, or create a fire hazard.
● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no
guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a
shorter period of time than other similar lamps.
● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights
up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow
carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp
with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.
● Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its
lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in
which the projector and lamp are being used.
IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an
authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check
carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out
from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one
should check the inside of the projector except those who are authorized trained technicians and who
are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those
who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken
glass.
LAMP HANDLING PRECAUTIONS
Maintenance and Care
62

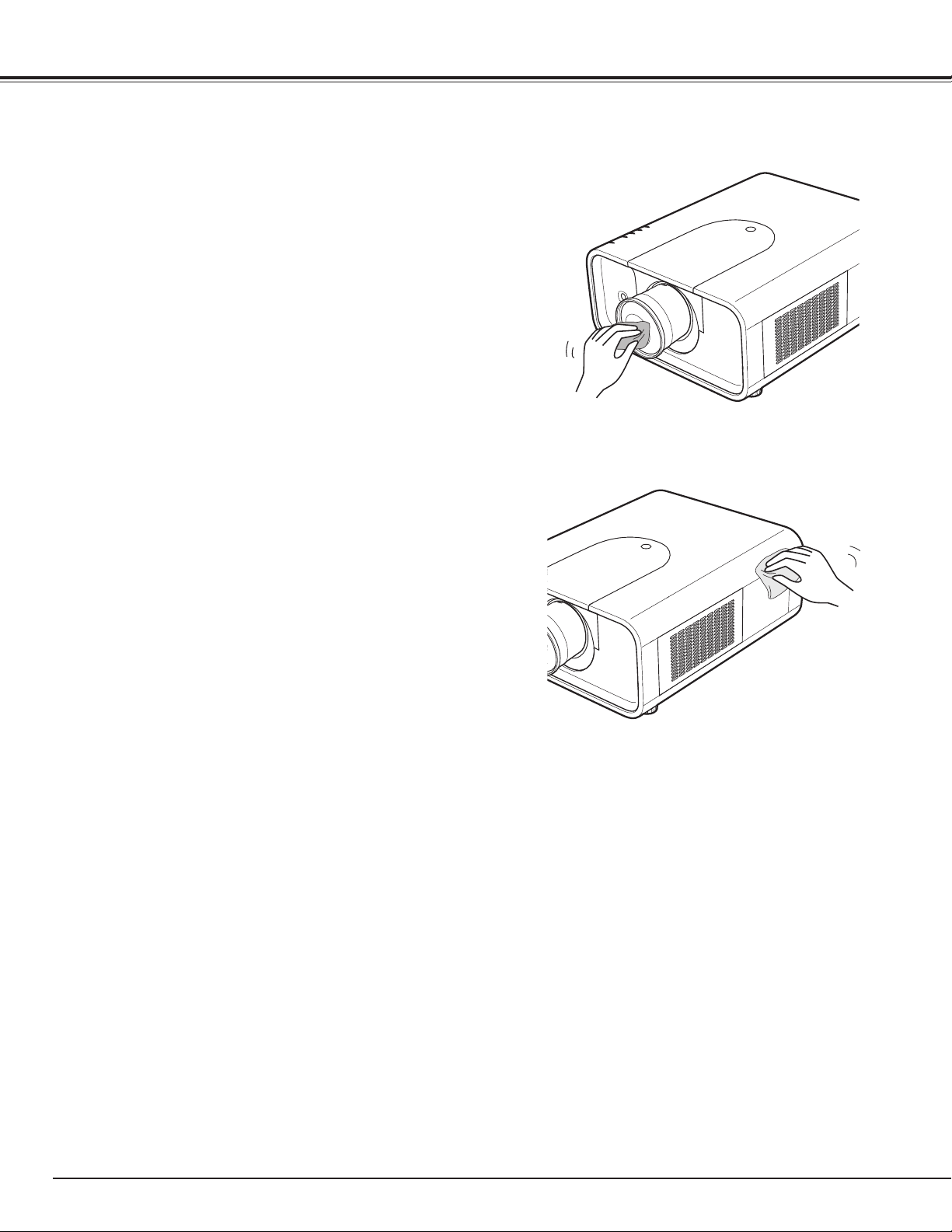

Unplug the AC power cord before cleaning.
Gently wipe the projection lens with a cleaning cloth that
contains a small amount of non-abrasive camera lens
cleaner, or use a lens cleaning paper or commercially
available air blower to clean the lens.
Avoid using an excessive amount of cleaner. Abrasive
cleaners, solvents, or other harsh chemicals might scratch
the surface of the lens.
Cleaning the Projector Cabinet
Unplug the AC power cord before cleaning.
Gently wipe the projector body with a soft dry cleaning
cloth. When the cabinet is heavily soiled, use a small amount
of mild detergent and finish with a soft dry cleaning cloth.
Avoid using an excessive amount of cleaner. Abrasive
cleaners, solvents, or other harsh chemicals might scratch
the surface of the cabinet.
When the projector is not in use, put the projector in
an appropriate carrying case to protect it from dust and
scratches.
Cleaning the Projection Lens
Maintenance and Care
63
The WARNING indicators show the state of the function which protects the projector. Check the state of the
WARNING indicators and the POWER indicator to take proper maintenance.
Warning Indicators
The projector is shut down and the WARNING TEMP.
indicator is blinking red.
When the temperature inside the projector reaches a
certain level, the projector will be automatically shut down
to protect the inside of the projector. The LAMP indicator
turns red and the WARNING TEMP indicator blinks while
the projector is being cooled down. When the projector has
cooled down enough (to its normal operating temperature),
it can be turned on again by pressing the POWER button.
✔Note:
• The WARNING TEMP. indicator continues to blink even after the
temperature inside the projector returns to normal. When the
projector is turned on again, the WARNING TEMP. indicator stops
blinking.
Then check the matters below:
– Did you provide appropriate space for the projector to be
ventilated? Check the installing condition to see if the air
vents of the projector are not blocked.
– Has the projector been installed near an Air-Conditioning/
Heating Duct or Vent? Move the installation of the
projector away from the duct or vent.
– Is the filter clean? Replace the filter with a new one.
The projector is shut down; and the LAMP indicator is
lighting and other four indicators are blinking.
When the projector detects an abnormal condition, it will
be automatically shut down to protect the inside of the
projector and the LAMP indicator lights on and other four
indicators blink. In this case, unplug the AC power cord and
plug it, and then turn on the projector once again to verify
operation. If the projector cannot be turned on and these
indicators are still lighting and blinking, unplug the AC power
cord and contact the service station.
CAUTION
DO NOT LEAVE THE PROJECTOR WITH THE
AC POWER CORD CONNECTED UNDER AN
ABNORMAL CONDITION. IT MAY RESULT IN FIRE
OR ELECTRIC SHOCK.
Top Panel
LAMP indicator lights on
and other four indicators
blink
Top Panel
WARNING TEMP.
blinking red
Maintenance and Care Maintenance and Care
64
Troubleshooting
Before calling your dealer or service center for assistance, check the items below once again.
1. Make sure you have properly connected the projector to peripheral equipment as described on pages 20–21.
2. Check the cable connection. Make sure that all computers, video equipment, and power cords are properly
connected.
3. Make sure that all power is switched on.
4. If the projector still does not produce an image, restart your computer.
5. If an image still does not appear, disconnect the projector from your computer and check your computer
monitor’s display. A problem may be noticed with your graphics controller rather than with the projector.
(When you reconnect the projector, be sure to turn the computer and monitor off before you turn on the
projector. Turn on equipment in the order of the projector and computer.)
6. If a problem still persists, check the following solutions.
No power.
● Plug the power cord of the projector into the AC outlet.
● Wait until the POWER indicator stops blinking to turn on the projector again. (See page
23)
● Check the WARNING TEMP. indicator. If the WARNING TEMP. indicator is blinking, the
projector cannot be turned on. (See page 63.)
● Check the projection lamp. (See page 59.)
● Unlock the Key lock function for the projector. (See page 53)
● See if the filter cartridge is inserted. (See page 57)
Image is out of focus.
● Adjust the focus of the projector.
● Make sure the projection screen is at least 4.6’ (1.4 m) away from the projector.
● Check the projection lens to see if it needs cleaning.
NOTE: Moving the projector from a cool to a warm place may result in moisture
condensation on the projection lens. If this happens, leave the projector off and
wait until condensation evaporates.
Picture is left/right
reversed.
● Check the Ceiling/Rear function. (See pages 40, 44)
Problem: Try These Solutions
Picture is top/bottom
reversed.
● Check the Ceiling function. (See pages 40, 44.)
Some displays are
not seen during
operations.
● Check the Display function. (See page 48.)
No image.
● Check the connection between your computer or video equipment and the projector.
● It takes about 30 seconds to display an image after turning on the projector.
● See if the selected system is corresponding with your computer or video equipment.
● Make sure the temperature is not out of specified operating temperature (41˚F–104˚F
[5˚C–40˚C]).
Appendix
appears on the
screen
● The end of lamp life is approaching. Replace the lamp with a new one promptly. (See
page 59)
appears on the
screen
● The filter is out of scroll. Replace the filter cartridge with a new one promptly. (See pages
56-57)
65
WARNING:
High voltages are used to operate this projector. Do not attempt to open the cabinet.
If problems still persist after following all operating instructions, contact the dealer where you purchased the projector
or the service center. Specify the model number and explain about the problem. We will advise you how to obtain
service.
Remote control unit
does not work.
● Check the batteries.
●
Check if the ALL-OFF switch on the remote control unit is set to “ON.”
● Check if the RC sensor is set properly. (See page 51)
● Make sure no obstruction is between the projector and the remote control unit.
● Make sure you are not too far from the projector when using the remote control unit.
Maximum operating range is 16.4’ (5 m).
● Make sure that the remote control code conforms to the projector’s code.
(See page 51.)
● Unlock the Key lock function for the remote control unit. (See page 53).
● Wireless remote control unit does not work when the remote control cable is connected
to the projector. (See page 15).
Problem: Try These Solutions
Wireless mouse
function does not
work.
● Check the cable connection between the projector and your computer.
● Check the mouse setting on your computer.
● Turn on the projector before you turn on the computer.
Unable to unlock the
Logo PIN code lock,
Security key lock or
Security PIN code
lock.
● Contact the service station.
appears on the
screen
● Your operation is invalid. Operate correctly.
Appendix
66
Menu Tree
Input
RGB (PC analog) Go to System
(1)
Input 1
Y, Pb/Cb,Pr/Cr
Computer Input/Video Input
RGB (Scart)
RGB (PC digital)
RGB (AV HDCP)
Network
Video
RGB
Go to System
(2)
Go to System
(3)
Go to System
(1)
Go to System
(2)
Video
Y, Pb/Cb,Pr/Cr
S-video
Go to System
(3)
Go to System
(2)
Input 2
Input 3
Go to System
(1)
Input
H-sync freq.
V-sync freq.
PIN code lock
Information
Key lock
Screen
Language
Lamp status
Power management
Security
Remote control code
Quit
0–63
0–63
Off/On/Film
Image Adjust
Contrast
Brightness
Color ]
Tint ]
Red
Green
Blue
Sharpness
Reset
Store
Gamma
Progressive ]
0–63
0–63
0–63
0–31
0–15
Custom 1
Yes / No
Quit
Off/OnNoise reduction ]
0–63
0–63
✔Note:
• The Menu display varies depending on the input signal.
Information Image Adjust
]
Displayed only in Video Input
High
Mid
Low
XLow
Adj.
Color temp.
Appendix
Color
management
Auto picture
control
Off/L1/L2
High
Mid
Low
Color temp.
Offset Red/Green/Blue
Custom 10
Color
Gamma
List
Color M.
Menu
Mid
Low
Color M.
All Del
Menu
67
Computer Input
System
(1)
Mode 1
Mode 2
Image Select
Standard
High contrast
Custom 1
Custom 10
Screen
Normal
True
Wide
Full screen
Digital zoom +
Digital zoom -
PC Adjust
Auto PC adj.
Fine sync.
Total dots
Position H
Position V
Current mode
Clamp
Display area - H
Display area - V
Reset
Mode free
Store
Quit
0–31
Yes/No
Mode 1
Mode 10
Quit
] System displayed in the System Menu varies depending on the input signal.
✔Note:
• The Menu display varies depending on the input signal.
SVGA 1
SVGA 2
SVGA 3
Rear
Keystone
Ceiling
Reset
Store
On/Off
On/Off
Custom
H & V
Scale
Position
H / V
On/Off
H / V
Common
Reset
Video Input
System
(2)
Auto
PAL
SECAM
NTSC
NTSC 4.43
PAL-M
PAL-N
System
(3)
Auto
1080i
1035i
720p
575p
480p
575i
480i
Image Select
Standard
Cinema
Custom 1
Custom 10
Screen
Normal
Wide
Rear
Keystone
Ceiling
Reset
Store
On/Off
On/Off
Custom
H & V
Scale
Position
H / V
On/Off
H / V
Common
Reset
Reset
Reset
Appendix
Quit
Quit
68
Computer Input/Video Input
Setting
Language
Fan control
Quit
Position/Simple Menu
Blue/User/Black
Logo select
Capture
Logo PIN code lock
Quit
Auto mode/Normal mode /Eco 1 mode/Eco 2 mode
Yes/No
12 languages provided.
Menu
Logo
Lamp mode
Filter control
Both/Front/Back
Normal/Max
Power management
Background
On/Off
Logo PIN code change
Quit
RC sensor
Ready
Off
Shut down
1–30 Min.
Quit
On/Off
On start
Pointer
Key lock
Security Off
Projector
Remote Control
PIN code lock Off/On1/On2
PIN code change
Used timeFilter counter
Yes/No
Factory default
Quit
On/Countdown Off/Off
Display
User/Default/Off
Yes/No
Code 1Remote Control
Code 8
Quit
MouseUSB
Projector
Arrow/Cross/Dot
Off/400H/700H/1000H
Reset
Yes/No
Quit
Scrolls remaining Scroll(s)
Reset
Yes/No
Quit
8 test patterns provided
Test pattern
Quit
Lamp counter
Hour(s)
Quit
Reset
Yes/No
Appendix
Quit
69
Indicators and Projector Condition
Check the indicators for the projector condition.
Indicators
Projector Condition
POWER
green
LAMP
red
WARNING
TEMP.
red
WARNING
FILTER
orange
LAMP
REPLACE
orange
The projector is off. (The AC power cord is unplugged.)
The projector is in stand-by mode. Press the POWER button
to turn on the projector.
The projector is operating normally.
The projector is preparing for stand-by or the projection lamp
is being cooled down. The projector cannot be turned on until
cooling is completed and the POWER indicator lights green.
The projector is in the Power management mode.
The filter is scrolled using the FILTER button on the remote
control unit or the Filter control function in the setting menu.
When the filter is being scrolled, the Filter replacement icon
and “Please wait...” message (Fig. 1) appear on the screen for
10 seconds.
The projector is operating normally.
Indicators
Projector Condition
POWER
green
LAMP
red
WARNING
TEMP.
red
WARNING
FILTER
orange
LAMP
REPLACE
orange
The temperature inside the projector is elevated close to the
abnormally high level.
The temperature inside the projector is abnormally high. The
projector cannot be turned on. When the projector is cooled
down enough and the temperature returns to normal, the
POWER indicator lights green and the projector can be turned
on. (The WARNING TEMP. indicator keeps blinking.) Check and
replace the filter.
The projector is detecting abnormal condition.
• • • on
• • • off
• • • blinking at the normal rate
(approx. 1 second ON,
1 second OFF)
• • • dim
• • • blinking slow
(approx. 2 seconds ON,
2 seconds OFF)
• • • blinking fast
(approx. 0.5 seconds ON,
0.5 seconds OFF)
]
]
]
]
]
]
]
Appendix
Fig.1 Filter replacement icon and “Please wait...”
v
v
v
v
v
v
v
v
70
Indicators
Projector Condition
POWER
green
LAMP
red
WARNING
TEMP.
red
WARNING
FILTER
orange
LAMP
REPLACE
orange
The projector has been cooled down enough and the
temperature returns to normal. When turning on the projector,
the WARNING TEMP. indicator stops blinking. Check and
replace the filter.
The lamp cannot light up. (The projector is preparing for stand-
by or the projection lamp is being cooled down. The projector
cannot be turned on until cooling is completed.)
The lamp cannot light up. (The lamp has been cooled down
enough and the projector is in stand-by mode and ready to be
turned on with the POWER button.)
The lamp has been used overtime. Replace the lamp
immediately and then reset the lamp counter. The indicator
will be turned off after resetting the counter.
If the Filter counter reached a time set in the timer setting,
a Filter replacement icon (Fig.2) appears on the screen and
the WARNING FILTER indicator on the top panel lights up.
Replace the filter as soon as possible. If the filter is out of
scroll and the projector reaches a time set in the timer setting,
Fig. 3 appears on the screen and the WARNING FILTER
indicator lights up. Replace the filter cartridge as soon as
possible.
If the filter is clogged and no scroll is left in the filter cartridge,
a Filter cartridge replacement icon (Fig.4) appears on the
screen and the WARNING FILTER indicator lights up. Replace
the filter cartridge as soon as possible.
✔Note:
• Fig.2, Fig.3 and Fig.4 icon will not appear when the Display function
is set to “Off” (p.48), during “Freeze” (p.28), or “Blank” (p.29).
The filter cartridge is not installed in the projector. Check the
filter compartment to see if the filter cartridge is installed in
the projector. When the filter cartridge is installed and the
indicators continue to light and blink, read the column below.
The projector detects an abnormal condition and cannot be
turned on. Unplug the AC power cord and plug it again to turn
on the projector. If the projector is turned off again, unplug the
AC power cord and contact the dealer or the service center.
Do not leave the projector on. It may cause an electric shock
or a fire hazard.
Fig.2 Filter replacement icon
When the filter detects clogging, reaches a time set in the timer setting or runs out of the filter scroll, the WARNING
FILTER indicator lights orange. When this indicator lights orange, replace the filter or the filter cartridge with a new one
promptly. Reset the Filter counter and Scroll counter after replacing the filter cartridge (p.58).
When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights
orange. When this indicator lights
orange, replace the projection lamp with a new one promptly. Reset the lamp counter after replacing the lamp (p.59).
Fig.4 Filter cartridge replacement icon
]
]
]
]
]
Appendix
v
v
v
Fig.3
71
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.(Hz)
VGA 1 640x480 31.470 59.880
VGA 2 720x400 31.470 70.090
VGA 3 640x400 31.470 70.090
VGA 4 640x480 37.860 74.380
VGA 5 640x480 37.860 72.810
VGA 6 640x480 37.500 75.000
VGA 7 640x480 43.269 85.000
MAC LC13 640x480 34.970 66.600
MAC 13 640x480 35.000 66.670
480p 640x480 31.470 59.880
575p 768x575 31.250 50.000
575i
768x576
(Interlace)
15.625 50.000
480i
640x480
(Interlace)
15.734 60.000
SVGA 1 800x600 35.156 56.250
SVGA 2 800x600 37.880 60.320
SVGA 3 800x600 46.875 75.000
SVGA 4 800x600 53.674 85.060
SVGA 5 800x600 48.080 72.190
SVGA 6 800x600 37.900 61.030
SVGA 7 800x600 34.500 55.380
SVGA 8 800x600 38.000 60.510
SVGA 9 800x600 38.600 60.310
SVGA 10 800x600 32.700 51.090
SVGA 11 800x600 38.000 60.510
MAC 16 832x624 49.720 74.550
XGA 1 1024x768 48.360 60.000
XGA 2 1024x768 68.677 84.997
XGA 3 1024x768 60.023 75.030
XGA 4 1024x768 56.476 70.070
XGA 5 1024x768 60.310 74.920
XGA 6 1024x768 48.500 60.020
XGA 7 1024x768 44.000 54.580
XGA 8 1024x768 63.480 79.350
XGA 9
1024x768
(Interlace)
36.000 87.170
XGA 10 1024x768 62.040 77.070
XGA 11 1024x768 61.000 75.700
XGA 12
1024x768
(Interlace)
35.522 86.960
XGA 13 1024x768 46.900 58.200
XGA 14 1024x768 47.000 58.300
XGA 15 1024x768 58.030 72.000
MAC 19 1024x768 60.240 75.080
SXGA 1 1152x864 64.200 70.400
SXGA 2 1280x1024 62.500 58.600
SXGA 3 1280x1024 63.900 60.000
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.(Hz)
SXGA 4 1400x1050 64.030 60.010
SXGA 5 1400x1050 62.500 58.600
SXGA 6 1280x1024 71.690 67.190
SXGA 7 1280x1024 81.130 76.107
SXGA 8 1280x1024 63.980 60.020
SXGA 9 1280x1024 79.976 75.025
SXGA 10 1280x960 60.000 60.000
SXGA 11 1152x900 61.200 65.200
SXGA 12 1152x900 71.400 75.600
SXGA 13
1280x1024
(Interlace)
50.000 86.000
SXGA 14
1280x1024
(Interlace)
50.000 94.000
SXGA 15 1280x1024 63.370 60.010
SXGA 16 1280x1024 76.970 72.000
SXGA 17 1152x900 61.850 66.000
SXGA 18
1280x1024
(Interlace)
46.430 86.700
SXGA 19 1280x1024 63.790 60.180
SXGA 20 1280x1024 91.146 85.024
SXGA+ 1 1400x1050 63.970 60.190
SXGA+ 2 1400x1050 65.350 60.120
SXGA+ 3 1400x1050 65.120 59.900
SXGA+ 4 1400x1050 64.030 60.010
SXGA+ 5 1400x1050 62.500 58.600
MAC 21 1152x870 68.680 75.060
MAC 1280x960 75.000 75.080
MAC 1280x1024 80.000 75.080
WXGA 1 1366x768 48.360 60.000
WXGA 2 1360x768 47.700 60.000
WXGA 3 1376x768 48.360 60.000
WXGA 4 1360x768 56.160 72.000
WXGA 6 1280x768 47.776 59.870
WXGA 7 1280x768 60.289 74.893
WXGA 8 1280x768 68.633 84.837
WXGA 9 1280x800 49.600 60.050
WXGA 10 1280x800 41.200 50.000
UXGA 1 1600x1200 75.000 60.000
UXGA 2 1600x1200 81.250 65.000
UXGA 3 1600x1200 87.500 70.000
UXGA 4 1600x1200 93.750 75.000
720p 1280x720 45.000 60.000
720p 1280x720 37.500 50.000
1035i
1920x1035
(Interlace)
33.750 60.000
1080i
1920x1080
(Interlace)
33.750 60.000
1920x1080
(Interlace)
28.125 50.000
Compatible Computer Specifications
Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned below
and less than 180 MHz of Dot Clock.
PC Adjustment is limited when selecting these modes.
Appendix
]
]
]
]
]
True cannot be selected when UXGA1, UXGA2, UXGA3, and UXGA4 are selected (p.39)
]
72
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.(Hz)
D-VGA 640x480 31.470 59.940
D-480p 720x480 31.470 59.880
D-575p 720x575 31.250 50.000
D-SVGA 800x600 37.879 60.320
D-XGA 1024x768 43.363 60.000
D-WXGA 1 1366x768 48.360 60.000
D-WXGA 2 1360x768 47.700 60.000
D-WXGA 3 1376x768 48.360 60.000
D-WXGA 4 1360x768 56.160 72.000
D-WXGA 5 1366x768 46.500 50.000
D-WXGA 6 1280x768 47.776 59.870
D-WXGA 7 1280x768 60.289 74.893
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.(Hz)
D-WXGA 9 1280x800 49.600 60.050
D-WXGA 10 1280x800 41.200 50.000
D-720p 1280x720 45.000 60.000
D-720p 1280x720 37.500 50.000
D-1035i
1920x1035
(Interlace)
33.750 60.000
D-1080i
1920x1080
(Interlace)
33.750 60.000
1920x1080
(Interlace)
28.125 50.000
D-1080psf/30 1920x1080 33.750 60.000
D-1080psf/25 1920x1080 28.125 50.000
D-1080psf/24 1920x1080 27.000 48.000
When an input signal is digital from the DVI terminal, refer to the chart below.
Appendix
✔Note:
• When the input signal is D-SXGA 1, D-SXGA 2, and D-SXGA 3, images may not be displayed properly depending
on computers.
• Depending on the condition of signals and the type and length of cables, these signals may not be properly
viewed.
• Specifications are subject to change without notice.
73
Technical Specifications
Mechanical Information
Projector Type Multi-media Projector
Dimensions (W x H x D) 14.57” x 7.36” x 19.37” (370 mm x 187 mm x 492 mm) (Not including raised portions)
Net Weight 28.7 lbs (13.0 kg)
Feet Adjustment 0˚ to 6.5˚
Panel Resolution
LCD Panel System 1.3” TFT Active Matrix type, 3 panels
Panel Resolution 1,024 x 768 dots
Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)
Signal Compatibility
Color System
PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N
High Definition TV Signal 480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
Scanning Frequency H-sync. 15 kHz–100 kHz, V-sync. 48 Hz–100 Hz
Optical Information
Projection Image Size (Diagonal) Adjustable from 31” to 400”
Throw Distance 4.6’ - 48.2’ (1.4 m - 14.7 m)
Projection Lens F= 1.7 to 2.0, f= 48.2 to 62.6 mm with motor zoom and focus
Projection Lamp 330 W NSHA lamp
Interface
Input 1 Digital (DVI-D) x 1, Analog (Mini D-sub 15 pin) x 1
Monitor Out
Analog RGB (Mini D-sub 15 pin) Terminal x 1
Input 2 BNC Type x 5 (G or Video/Y, B or Cb-Pb, R or Cr-Pr, HV and V)
Input 3 RCA Type x 3 (Video/Component), Mini DIN 4 pin x 1 (S-video)
R/C Jack Mini jack (stereo) (Wired Remote) x 1
Control Port D-sub 9 pin x 1
USB Connector USB Series B x 1
Option Network Imager Terminal x 1
Power
Voltage and Power Consumption AC 100–120 V (4.6A Max. Ampere), 50/60 Hz (The U.S.A and Canada)
AC 200–240 V (2.3A Max. Ampere), 50/60 Hz (Continental Europe and The U.K.)
490W (17.6W in stand-by mode)
Operating Environment
Operating Temperature 41˚F–104˚F (5˚C–40˚C)
Storage Temperature 14˚F–140˚F (-10˚C–60˚C)
Remote Control Unit
Battery AAA or LR03 Type x 2
Operating Range 16.4’ (5 m/±30˚)
Dimensions 1.8” (W) x 1.0” (H) x 5.7” (D) (45 mm x 25 mm x 145 mm)
Net Weight 3.5 oz (99 g) (including batteries)
Accessories
User’s Manual (CD-ROM) Light-block sheet (For option lens)
Quick Start Guide Spacer (For option lens)
AC Power Cord Logo Plate
Remote Control Unit and Batteries
VGA Cable
USB Cable
PIN Code Label
● The specifications are subject to change without notice.
● LCD panels are manufactured to the highest possible standards. Even though
99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less)
may be ineffective by the characteristics of the LCD panels.
Appendix
74
Optional Parts
Lens Replacement
The lens of this projector can be replaced with other optional lens. This feature enables you to use the projector
for wide variety of uses.
For installation and replacement of the lens, always contact the sales dealer. The projector lens must be
installed or replaced by well-trained sales or service engineers. Do not attempt to install and replace the lens by
yourself as it may cause injury.
Do not hold the lens when carrying or lifting the projector. It may cause serious damage to the projector.
This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information
System Industries Association). The projector supports all commands defined by PJLink Class 1 and is verified
conformance with PJLink Standard Class 1.
PJLink is a registered trademark of JBMIA and pending trademark in some countries.
PJ Link Notice
To the sales and service engineers:
For the lens replacement and lens installation, refer to the installation manual of the optional lens. Before replacing and
installing the lens, make sure that you are using the lens with the correct Type No.
Projector Input PJLink Input Parameter
Input 1 RGB (PC analog) RGB 1 11
RGB (Scart) RGB 2 12
RGB (PC digital) DIGITAL 1 31
RGB (AV HDCP) DIGITAL 2 32
Input 2 Video VIDEO 1 21
Y, Pb/Cb,Pr/Cr VIDEO 2 22
RGB RGB 3 13
Input 3 Video VIDEO 3 23
Y, Pb/Cb,Pr/Cr VIDEO 4 24
S-video VIDEO 5 25
Input 4 Network NETWORK 1 51
Model No.
Ultra Wide Angle Lens Type No.
: LV-IL01
Wide Angle Zoom Lens Type No. : LV-IL02
Long Focus Zoom Lens Type No. : LV-IL03
Ultra Long Focus Zoom Lens Type No. : LV-IL04
Ceiling Attachment Type No. : LV-CL13
High Ceiling Attachment Type No. : LV-CL14
DVI Cable Type No. : LV-CA29
Scart-VGA Cable Type No. : LV-CA31
Network Imager Type No. : LV-NI02
The parts listed below are optionally available. When ordering those parts, specify the item name and Model No.
to the sales dealer.
Appendix
75
Configurations of Terminals
ANALOG/ MONITOR OUT (Mini D-sub 15 pin)
5
1
2
34
10
9 678
15
14
13
11
12
Red Input
Ground (Horiz.sync.)
Green Input
Sense 2
Blue Input
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
+5V Power
Horiz. sync.
Ground (Vert. sync.)
DDC Data
Sense 0
Vert. sync.
DDC Clock
9
13
10
12
11
14
15
CONTROL PORT CONNECTOR (D-sub 9 pin)
-----
R X D
T X D
-----
SG
-----
RTS
CTS
Serial
1
2
3
4
5
6
7
8
DIGITAL DVI-D (DVI 24 PIN)
1
9
17
2
10
18
3
11
19
4
12
20
5
13
21
6
14
22
7
15
23
8
16
24
T.M.D.S. Data2–
No Connect
T.M.D.S. Data2+
No Connect
T.M.D.S. Data2 Shield
DDC Clock
DDC Data
No Connect
1
5
2
4
3
6
7
8
T.M.D.S. Data1–
No Connect
T.M.D.S. Data1+
No Connect
T.M.D.S. Data1 Shield
+5V Power
Ground (for +5V)
Hot Plug Detect
9
13
10
12
11
14
15
16
T.M.D.S. Data0–
No Connect
T.M.D.S. Data0+
No Connect
T.M.D.S. Data0 Shield
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock–
17
21
18
20
19
22
23
24
Vcc
- Data
+ Data
Ground
1
2
3
4
USB CONNECTOR (Series B)
2
3 4
1
Appendix
-----
9
76

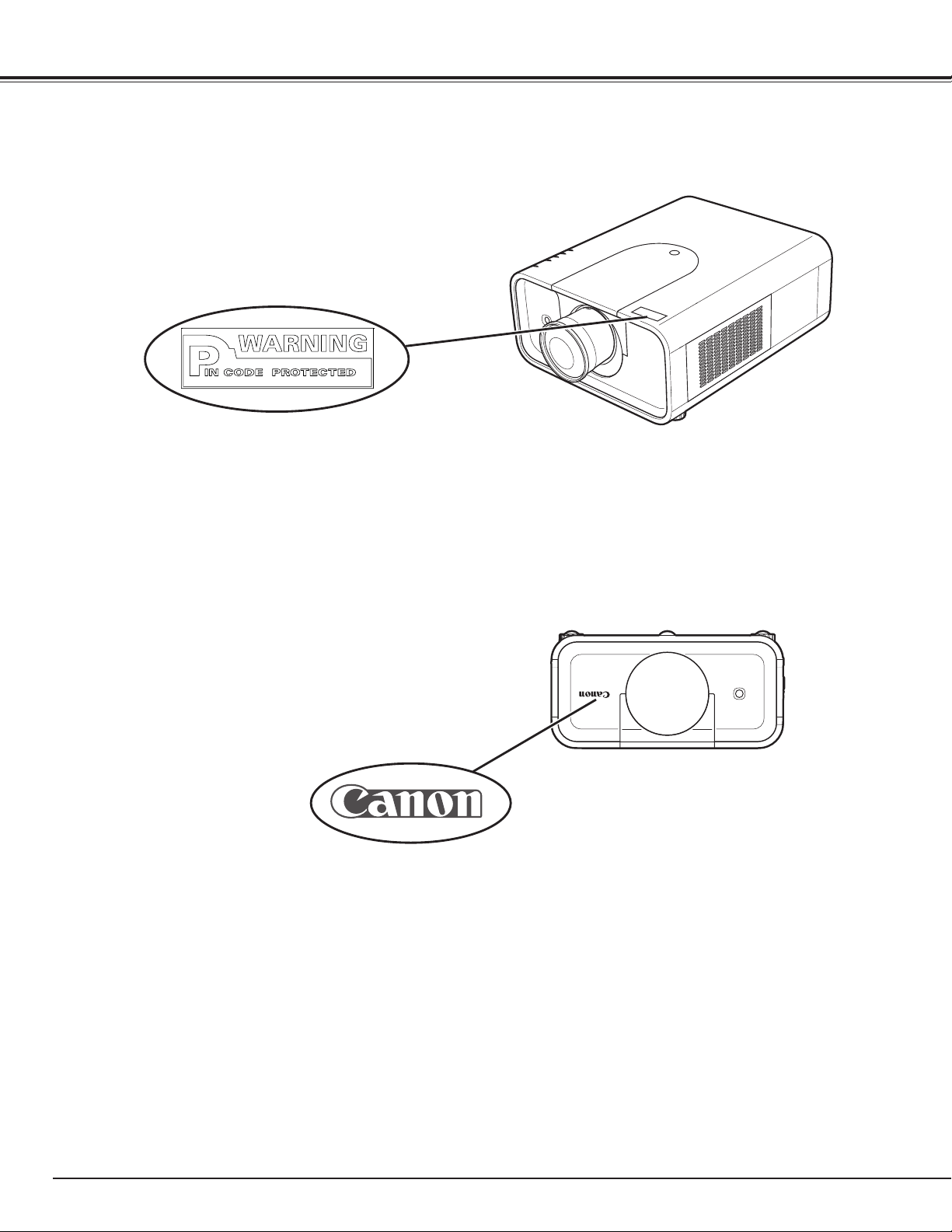

Put the label below (supplied) on in a prominent place of
the projector’s body while it is locked with a PIN code.
While the projector is locked with the PIN code...
Appendix
When hanging the projector from the ceiling, the logo looks
upside down. To display the logo in correct direction, put the
logo plate (supplied) on the reversed logo.
The logo is upside down when hanging the projector from the ceiling...
77
Dimensions
3.94 (100)
14.57 (370)
5.75 (146)
17.32 (440)
13.58 (345)
4.13 (105)5.20 (132)
4.33 (110)4.33 (110)
7.36 (187)
6.5º MAX
Screw Holes for Ceiling Mount
Screw: M6
Depth: 0.393 (10.0)
2.05 (52)
2.05 (52)
Unit: inch (mm)
Appendix
78
Serial Control Interface
Appendix Appendix
This projector provides a function to control and monitor the projector's operations by using the RS-232C serial
port.
Connect a RS-232C serial cross cable to CONTROL
PORT on the projector and serial port on the PC.
(See p.20)
Launch a communication software provided with PC
and setup the communication condition as follows:
1
2
3
Baud rate : 9600 / 19200 bps
Parity check : none
Stop bit : 1
Flow control : none
Data bit : 8
Type the command for controlling the projector and
then enter the "Enter" key.
Example
When you want to change the input to INPUT 2, Type
'C' '0' '6' 'Enter'.
✔Note:
• Enter with ASCII 64-byte capital characters and one-
byte characters.
✔Note:
• The default of the baud rate is set to 19200 bps. If an
error occurs in the communication, change the serial
port and the communication speed (baud rate).
Operation
79
The command is sent from PC to the projector with
the format below;
'C' [Command] 'CR'
Command: two charactors (refer to the
command table below.
-The projector decodes the command and returns the
'ACK' with the format below;
'ACK' 'CR'
-When the projector can not decode the command, it
returns with format below.
‘?’ ‘CR’
Format
Appendix
Functional Execution Command
Command Function
C00 Turn the projector ON
C01
Turn the projector OFF
(immediately OFF)
C02 Turn the projector OFF
C05 Select Input 1
C06 Select Input 2
C07 Select Input 3
C08 Select Network
C0D Video mute ON
C0E Video mute OFF
C0F Aspect 4:3
C10 Aspect 16:9
C1C Menu ON
C1D Menu OFF
C20 Brightness UP
C21 Brightness DOWN
C23 Select Input 2 Video
C24 Select Input 2 Y, Pb/Cb,Pr/Cr
C25 Select Input 2 RGB
C28 ON Start ON
C29 ON Start OFF
C33 Select Input 3 Video
C34 Select Input 3 S-video
C35 Select Input 3 Y, Pb/Cb,Pr/Cr
Command Function
C3A Pointer RIGHT
C3B Pointer LEFT
C3C Pointer UP
C3D Pointer DOWN
C3F Enter
C46 Zoom DOWN
C47 Zoom UP
C4A Focus DOWN
C4B Focus UP
C50 Select Input 1 Analog RGB
C51 Select Input 1 SCART
C52 Select Input 1 DVI (PC Digital)
C53 Select Input 1 DVI (AV HDCP)
C5D Lens shift UP
C5E Lens shift DOWN
C5F Lens shift LEFT
C60 Lens shift RIGHT
C89 Auto PC Adj.
C8E Keystone UP
C8F Keystone DOWN
C90 Keystone RIGHT
C91 Keystone LEFT
80
Status Read Command
Appendix
The command is sent from PC to the projector with
the format below;
'CR' [Command] 'CR'
Command: one character (refer to the command
table below.
The projector decodes the command and returns the
'Charactor string' with the format below;
Format
Command Function
Projector
Return
Projectro status
CR0 Status Read
00
Power On
80
Stand-by mode
40
Countdown
20
Cooling down
10
Power Malfunction
28
Cooling down at the temperature abnormally
24
Cooling down at Power Management mode
04
Power Management mode after Cooling down
21
Cooling down after the projector is turned off when the lamps
are out.
81
Stand-by mode after Cooling down when the lamps are out.
88
Stand-by mode after Cooling down at the temperature
abnormally.
CR6 Temperature Read S1 S2 S3
S1 = Temperature at Sensor 1 (˚C)
S2 = Temperature at Sensor 2 (˚C)
S3 = Temperature at Sensor 3 (˚C)
(ex.) S1 = 12.3˚C, S2 = 23.4˚C, S3 = 34.5˚C
--> The projector displays “12.3 23.4 34.5”
( For each sensor, two digit and the tenth place numbers are
displayed with a space between each temperature.)
?
Communication failure
The tables on page 79 and 80 show the typical command lists for controlling the projector. Please consult your
local dealer for further information of other commands.
© CANON INC. 2007
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku,
Tokyo 146-8501, Japan
CANON U.S.A., INC.
One Canon Plaza, Lake Success, NY 11042,
U.S.A.
CANON CANADA, INC.
6390 Dixie Road Mississauga, Ontario L5T
1P7 Canada
CANON LATIN AMERICA, INC.
703 Waterford Way Suite 400 Miami, Florida
33126 U.S.A.
CANON MEXICANA, S. de R.L. de C.V.
Boulevard Manuel Avila Camacho, No. 138
PB, Pisos 15, 16 y 17Col. Lomas de
Chapultepec, CP 11000, Mexico D.F., Mexico
CANON EUROPA N.V.
P.O.Box 2262, 1180 EG Amstelveen, The
Netherlands
CANON COMMUNICATION & IMAGE
FRANCE S.A.
12 Rue De L’Industrie, 92414 Corbevoie, Cedex, France
CANON (UK) LTD.
Woodhatch, Reigate, Surrey RH2 8BF,
United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A 10, 47807 Krefeld,
Germany
CANON ITALIA S.p.A.
Via Milano, 8 San Donato M. se-20097 (MI), Italy
CANON (Schweiz) A.G.
Industriestrasse 12, 8305 Dietlikon,
Switzerland
CANON BELGIUM N.V./S.A
Bessenveldstraat 7, 1831 Diegem, Belgium
CANON GmbH
Zetschegasse 11, A-1230 Wien, Austria
CANON ESPANA S.A.
C/Joaquin Costa 41, 28002 Madrid, Spain
CANON SVENSKA AB
Gustav III:s, Boulevard 26, 169 88 Solna, Sweden
CANON NORGE A/S
Hallagerbakken 110, P.O. Box 33, Holmlia,
N-1201 Oslo, Norway
CANON OY
Huopalahdentie 24, P.O. Box 1, FIN-00351
Helsinki, Finland
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis
Drive, Hunghom, Kln., H.K.
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue #04-01, Keppel Bay
Tower Singapore 098632
CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, Sydney,
N.S.W.2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive,
Northcote, Auckland, New Zealand
CANON DANMARK A/S
Knud Hoejgaards Vej 1, DK-2860 Soeborg, Denmark
