Interchangeable Lens Digital Camera
ILCA-77M2
Use this manual if you encounter any problems, or have any questions about your product.
Before Use
Preparing the camera
Confirming the operation method
Shooting
Using shooting functions
Viewing
Changing settings
Using Wi-Fi functions
Viewing on computers
Precautions/This product
Help Guide
How to Use
Table Of Contents
Help Guide ILCA-77M2 Interchangeable Lens Digital Camera i.......................................................
Before Use 1......................................................................................................................................
Names of parts 27.......................................................................................................................

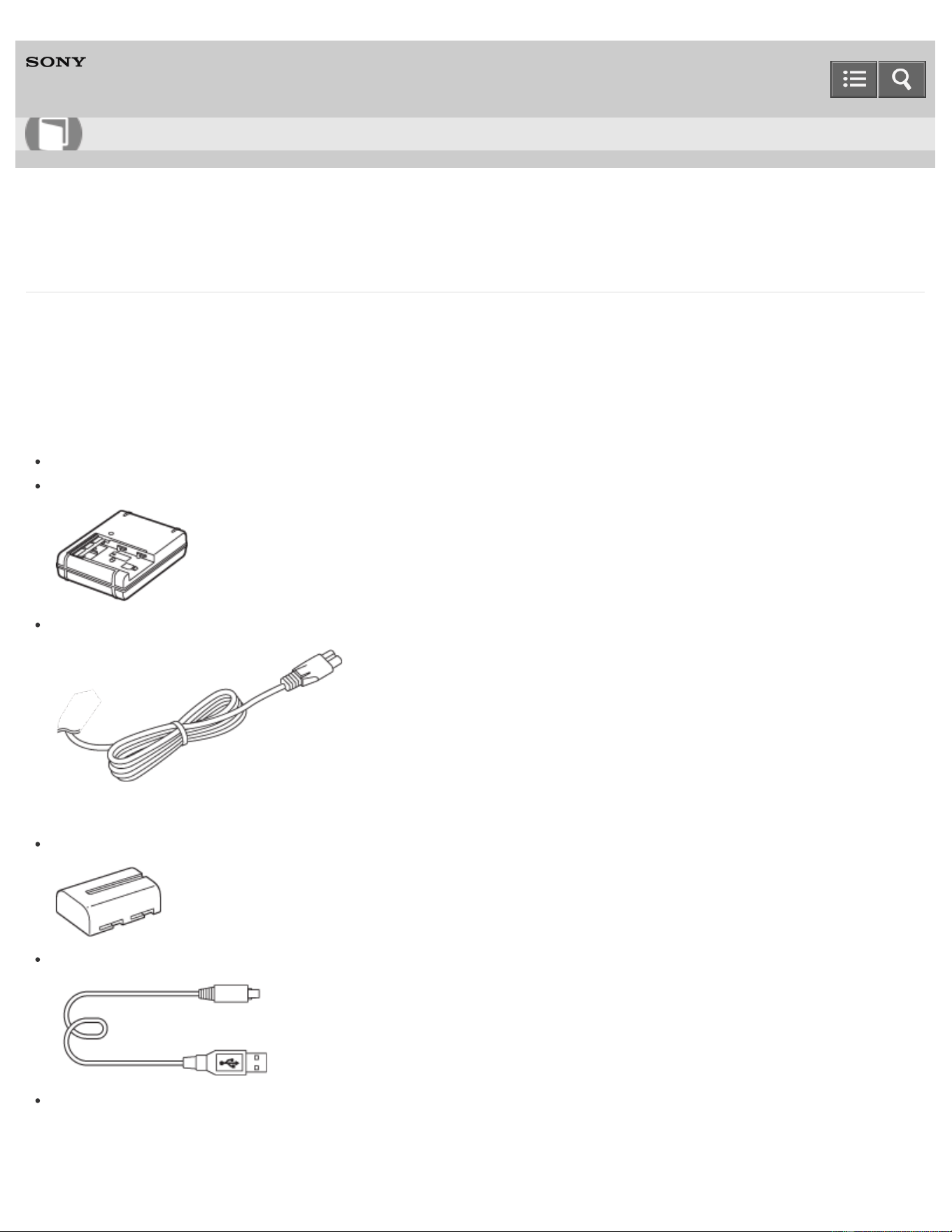

Checking the camera and the supplied items 100.................................................................

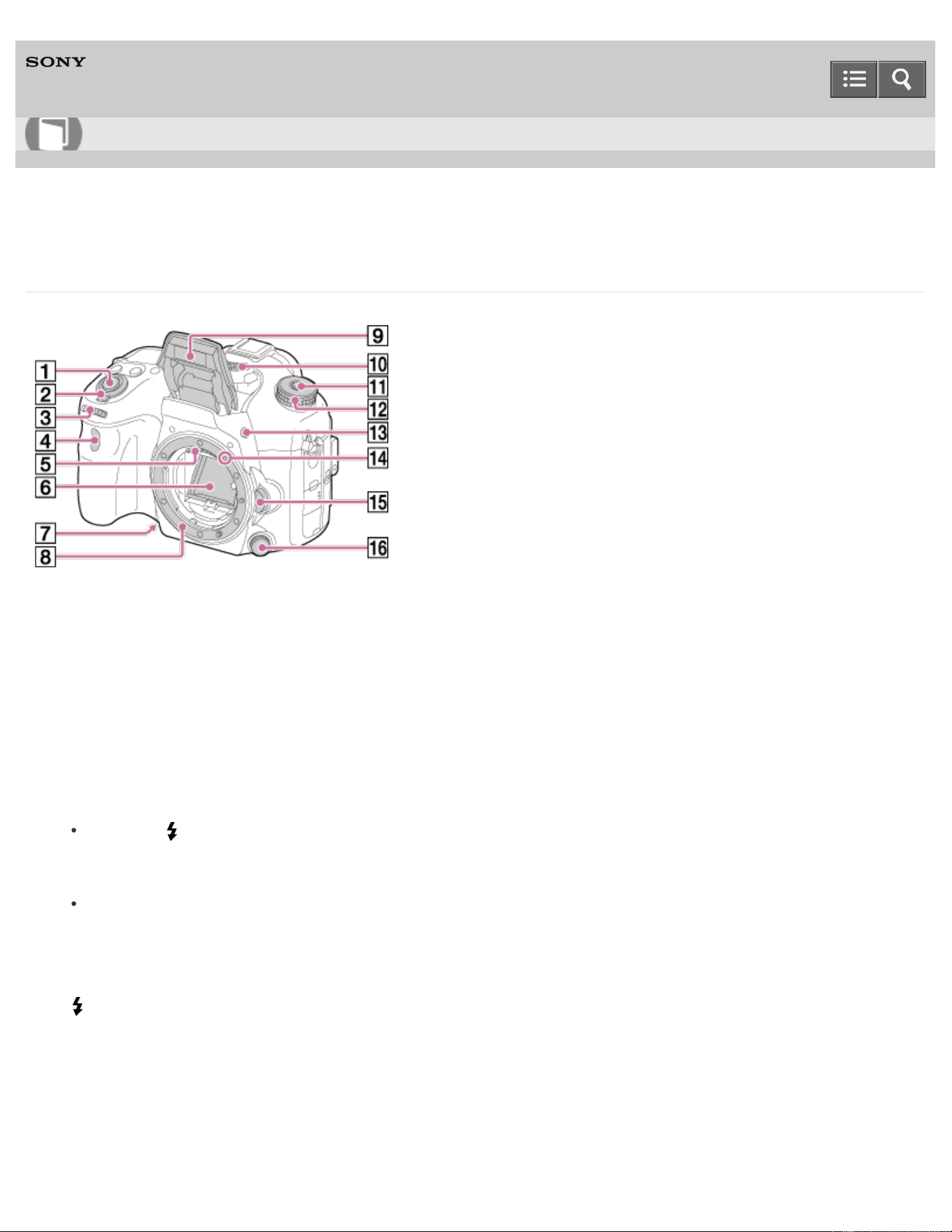

Identifying parts (Front side) 102...........................................................................................

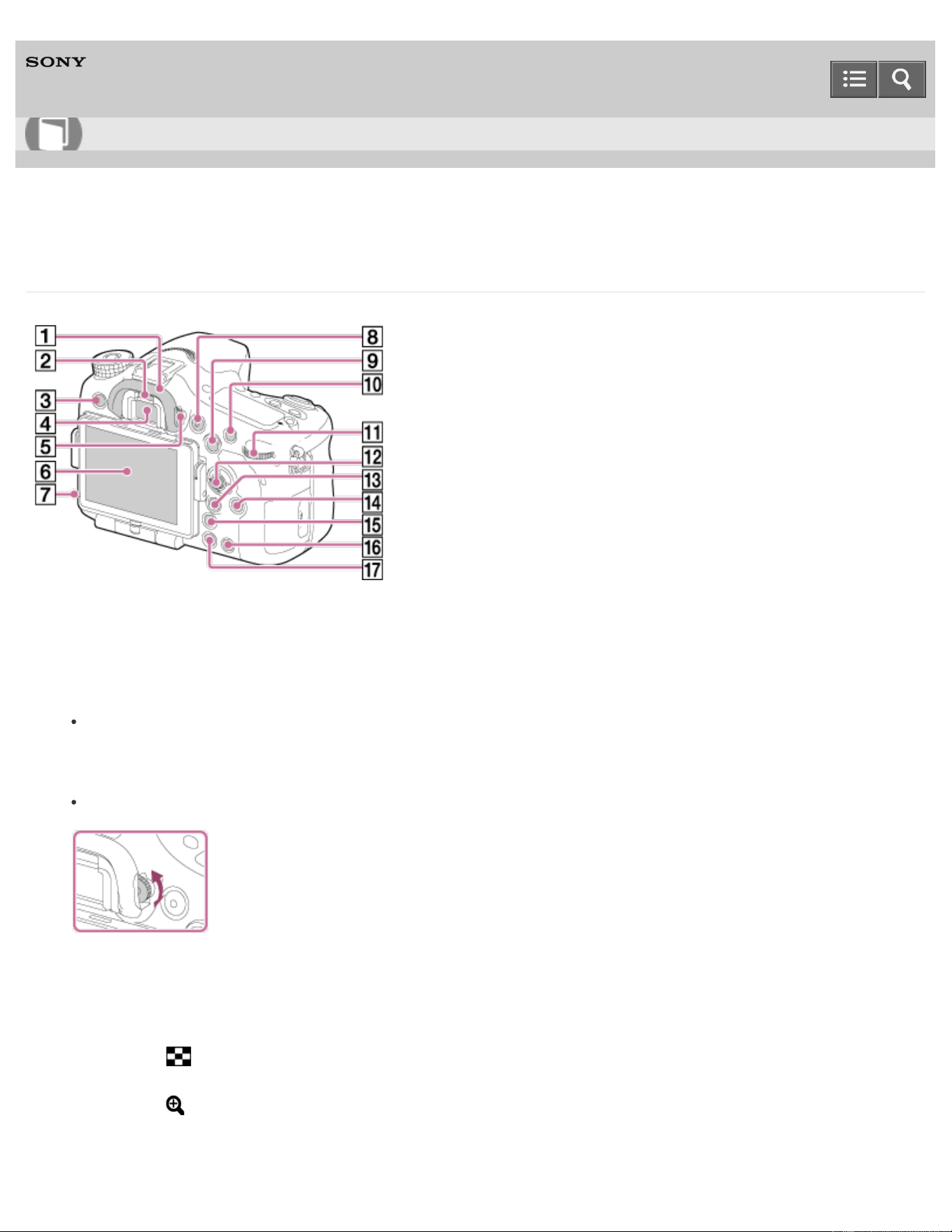

Identifying parts (Rear side) 103............................................................................................

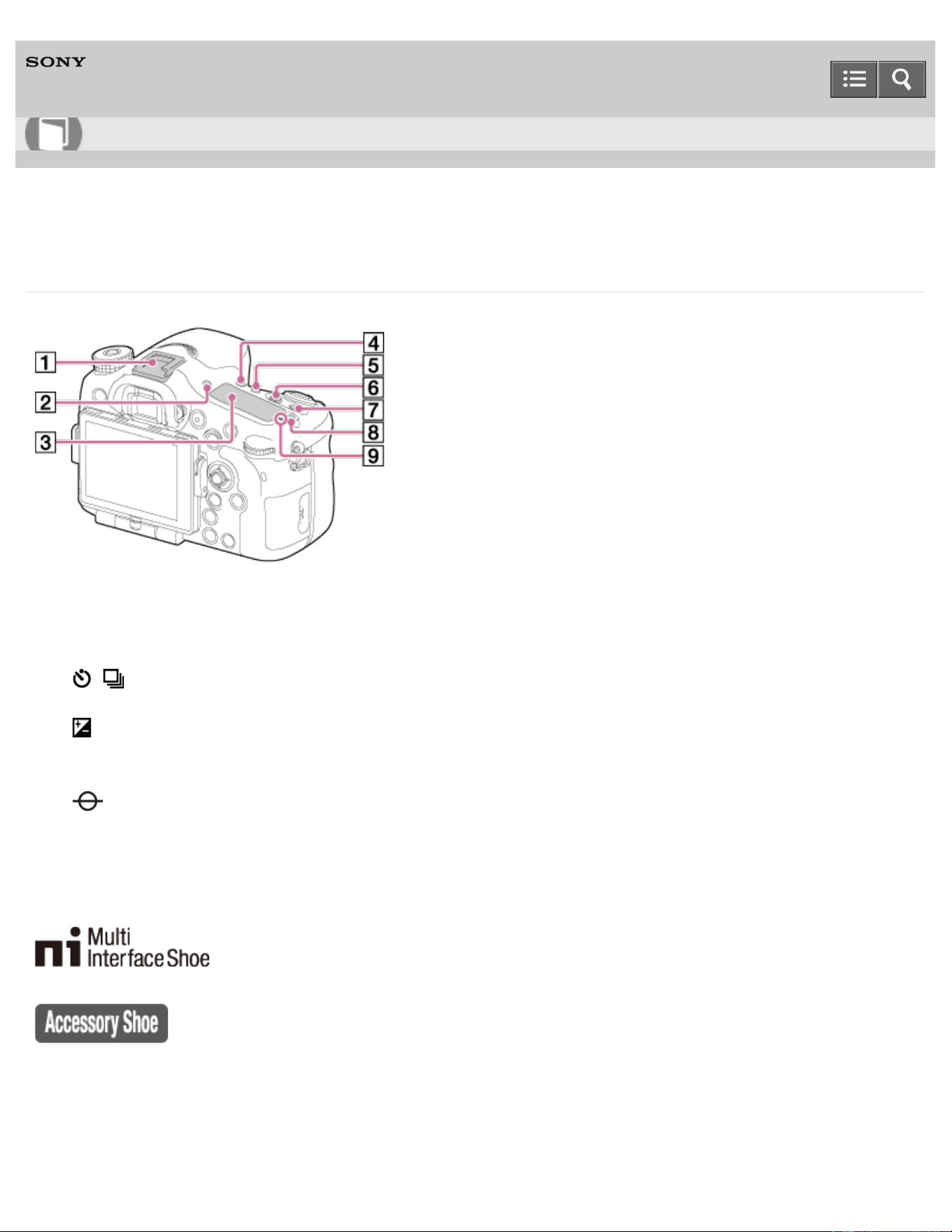

Identifying parts (Top side) 105.............................................................................................
Identifying parts (Sides/Bottom) 106......................................................................................

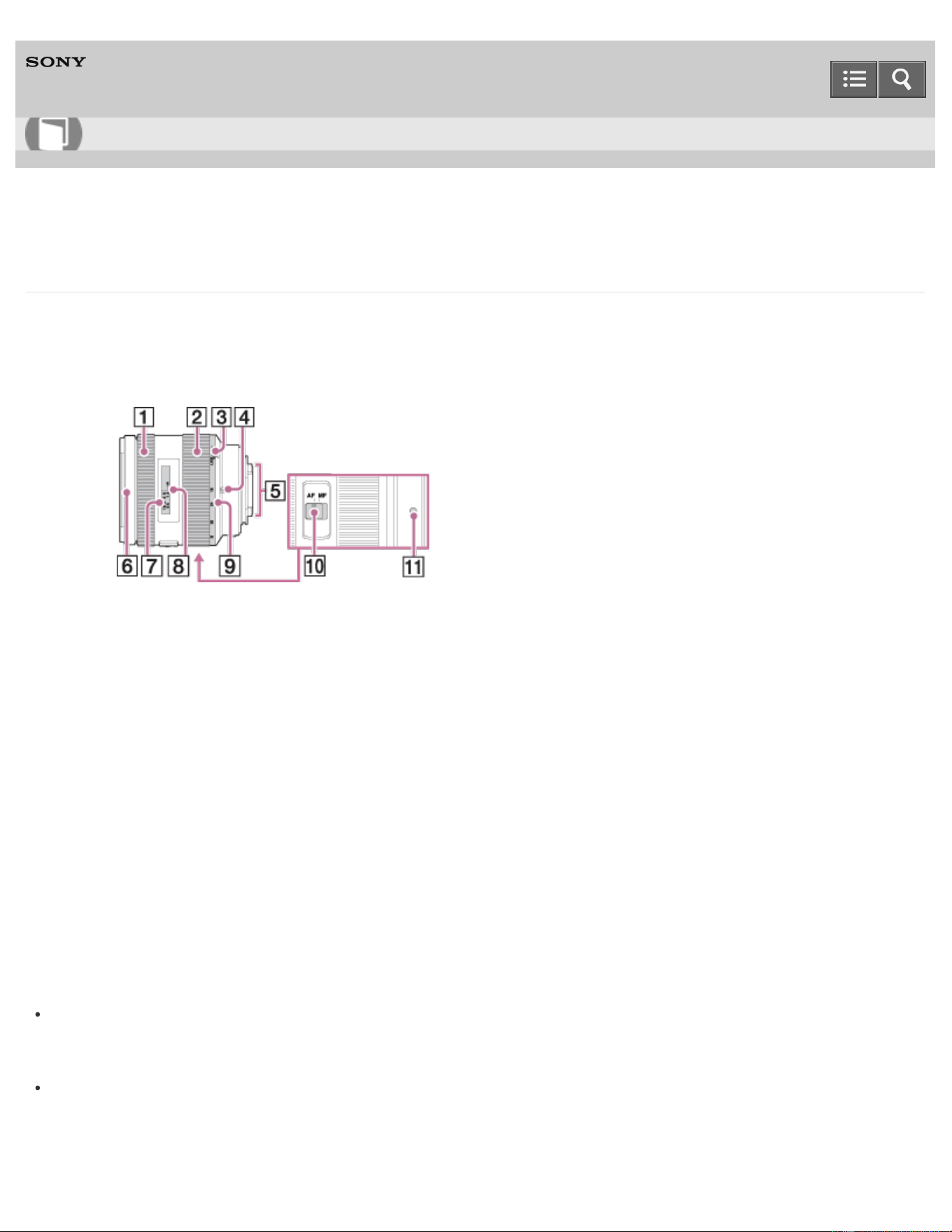

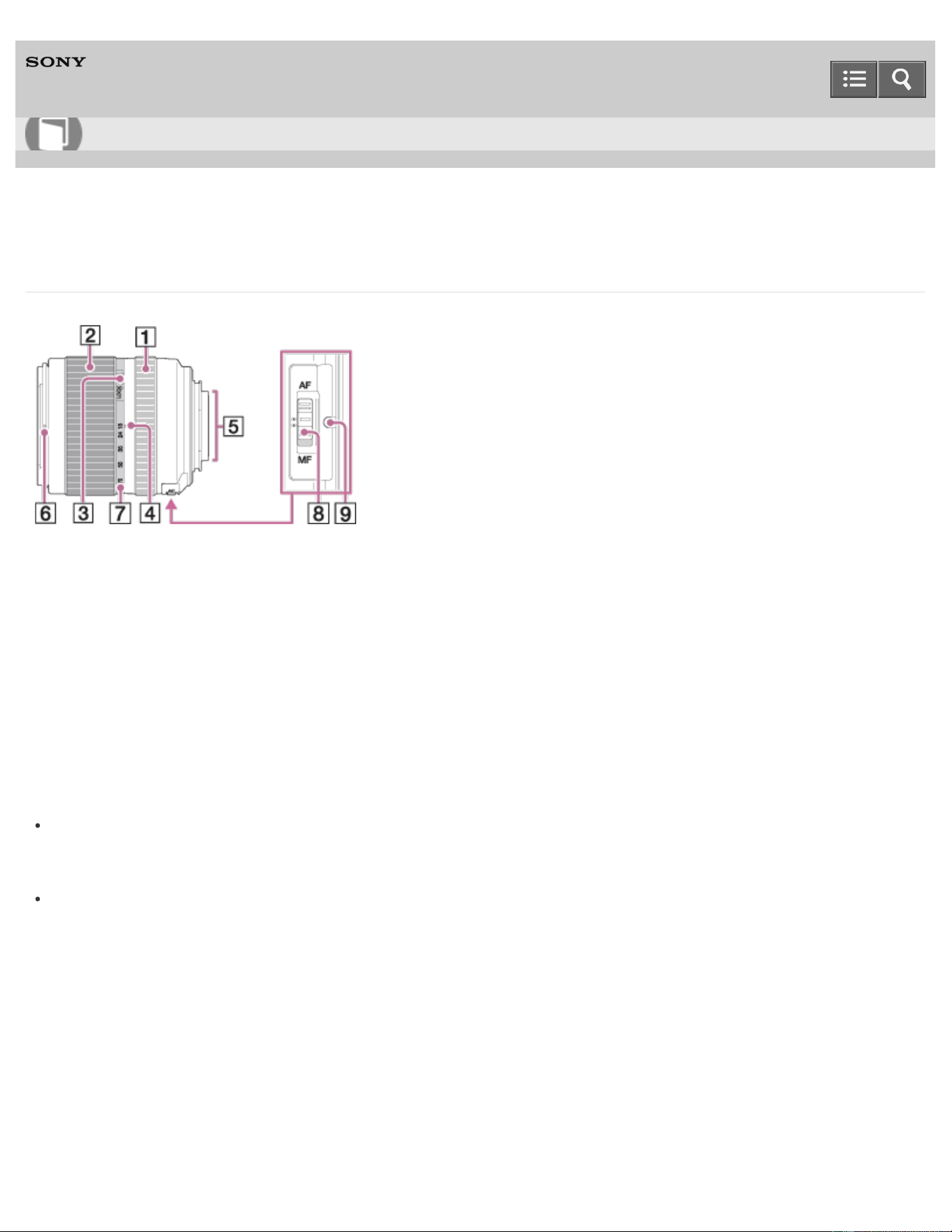

Identifying parts Lens DT 16-50mm F2.8 SSM (Supplied with the ILCA-
77M2Q) 108...........................................................................................................................
Identifying parts Lens DT 18-135mm F3.5-5.6 SAM (Supplied with the
ILCA-77M2M) 109.................................................................................................................
Icons and indicators 28................................................................................................................

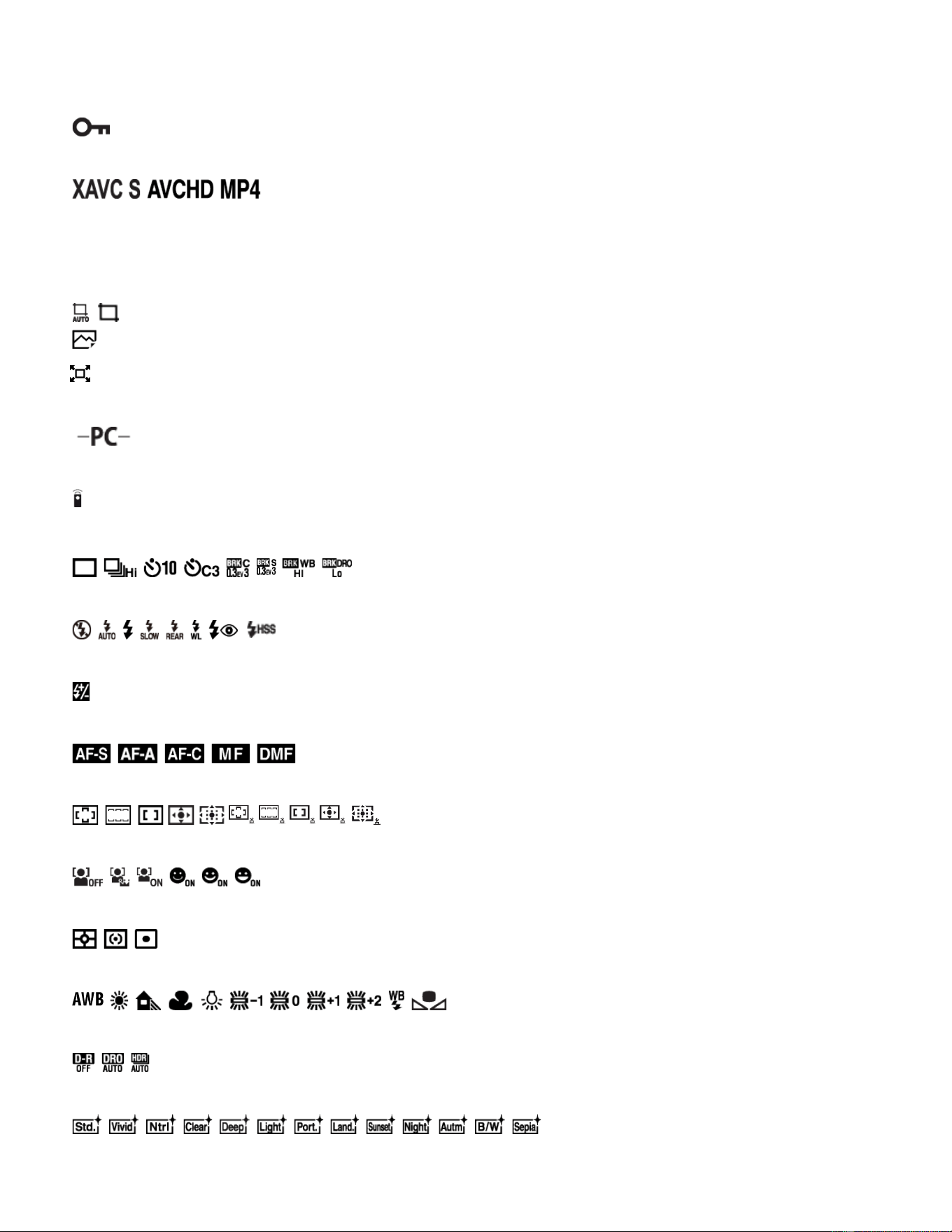

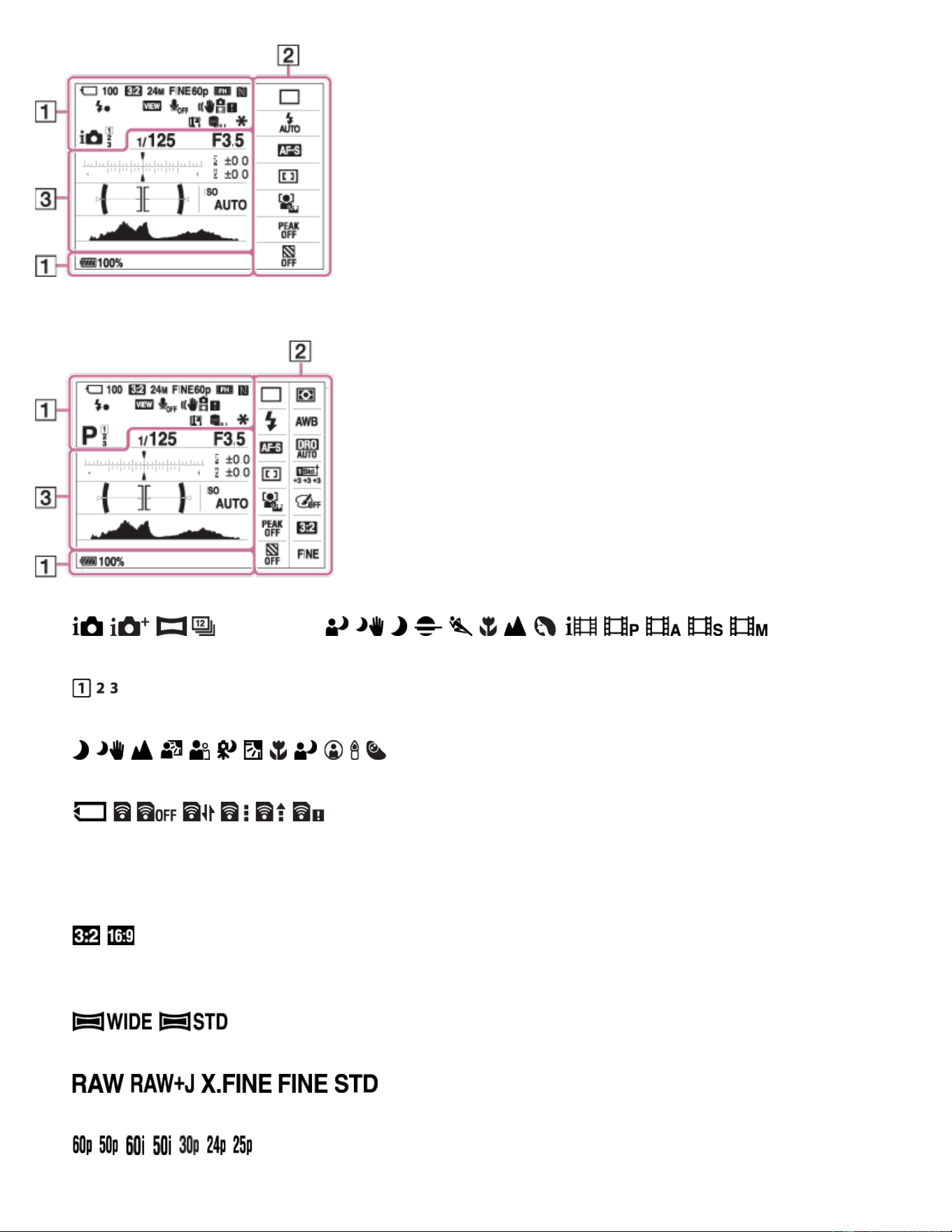

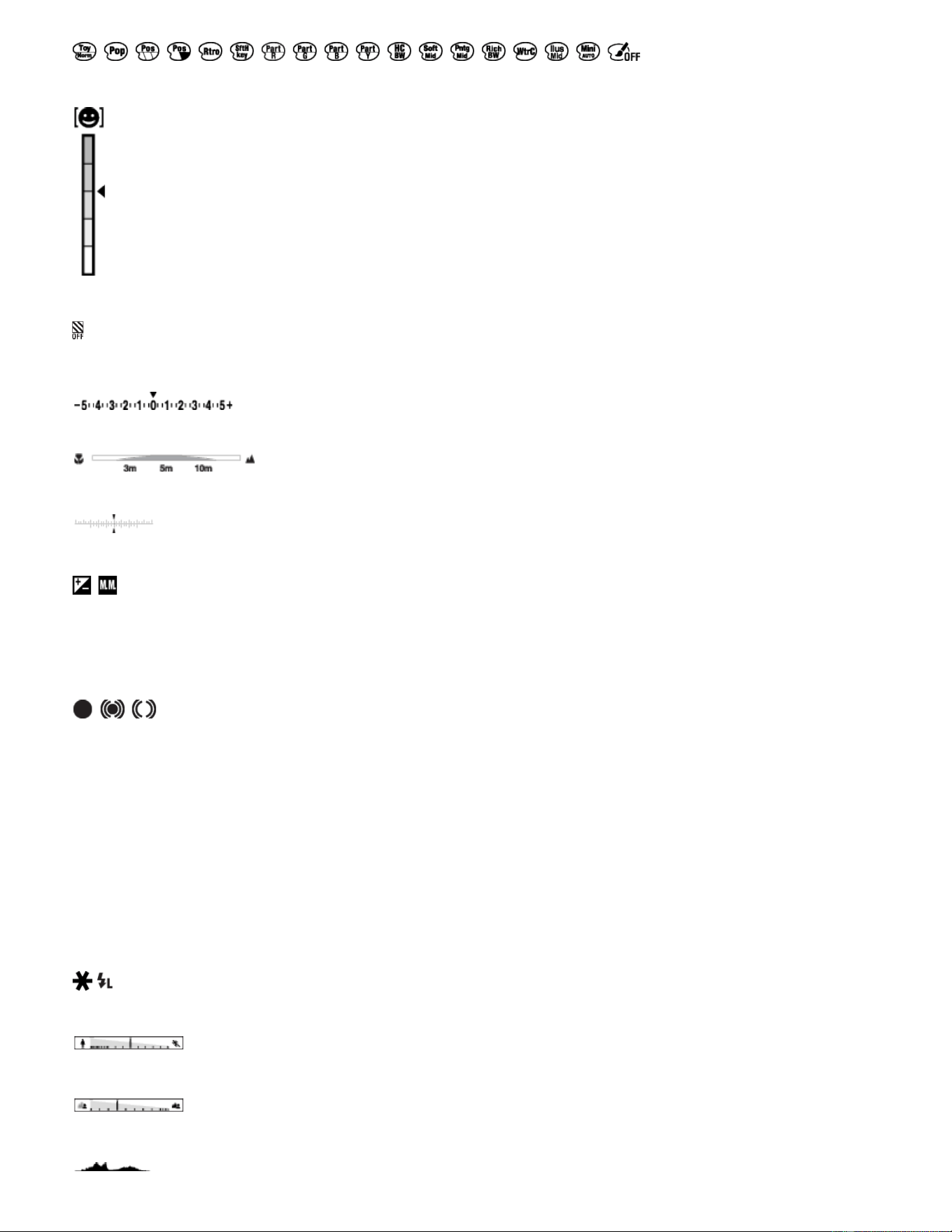

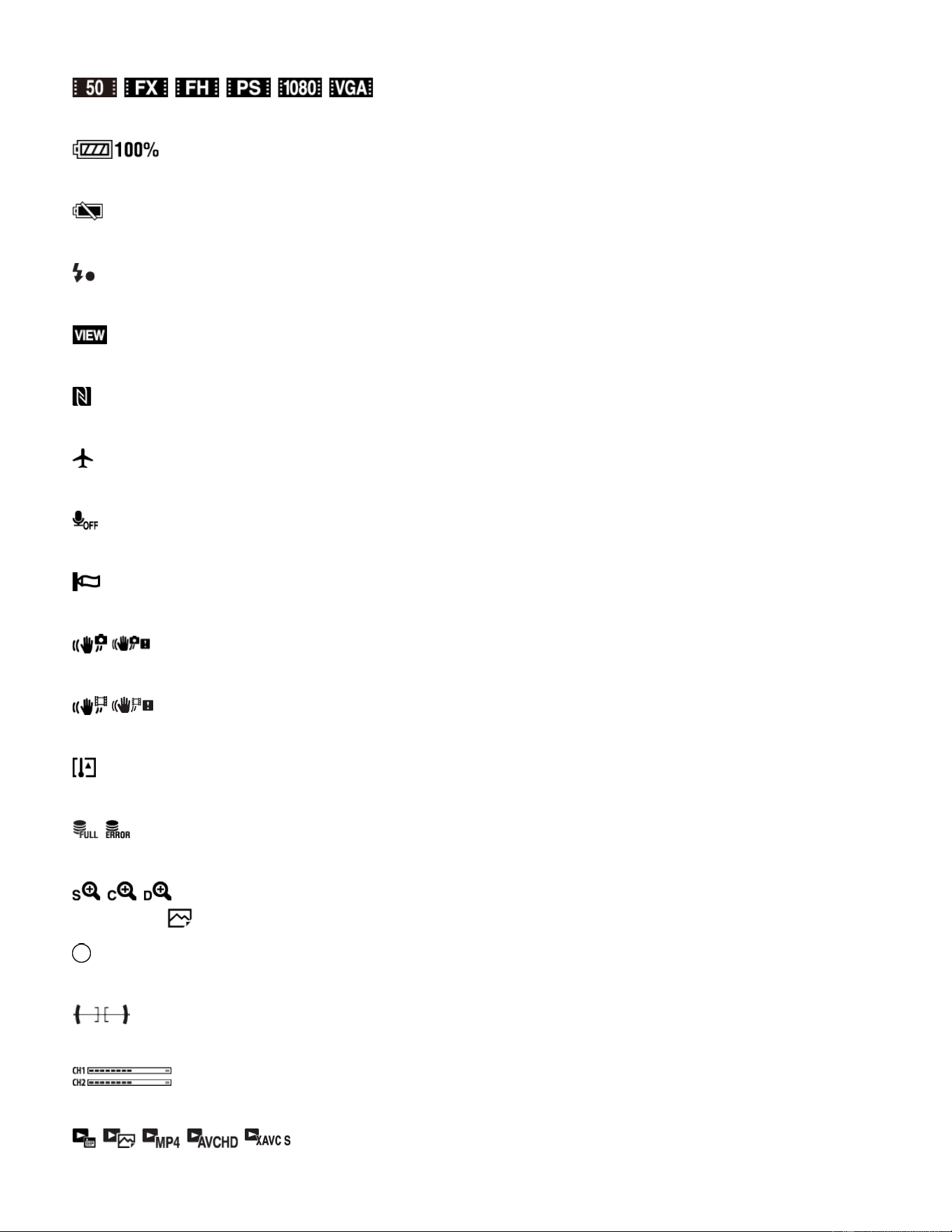

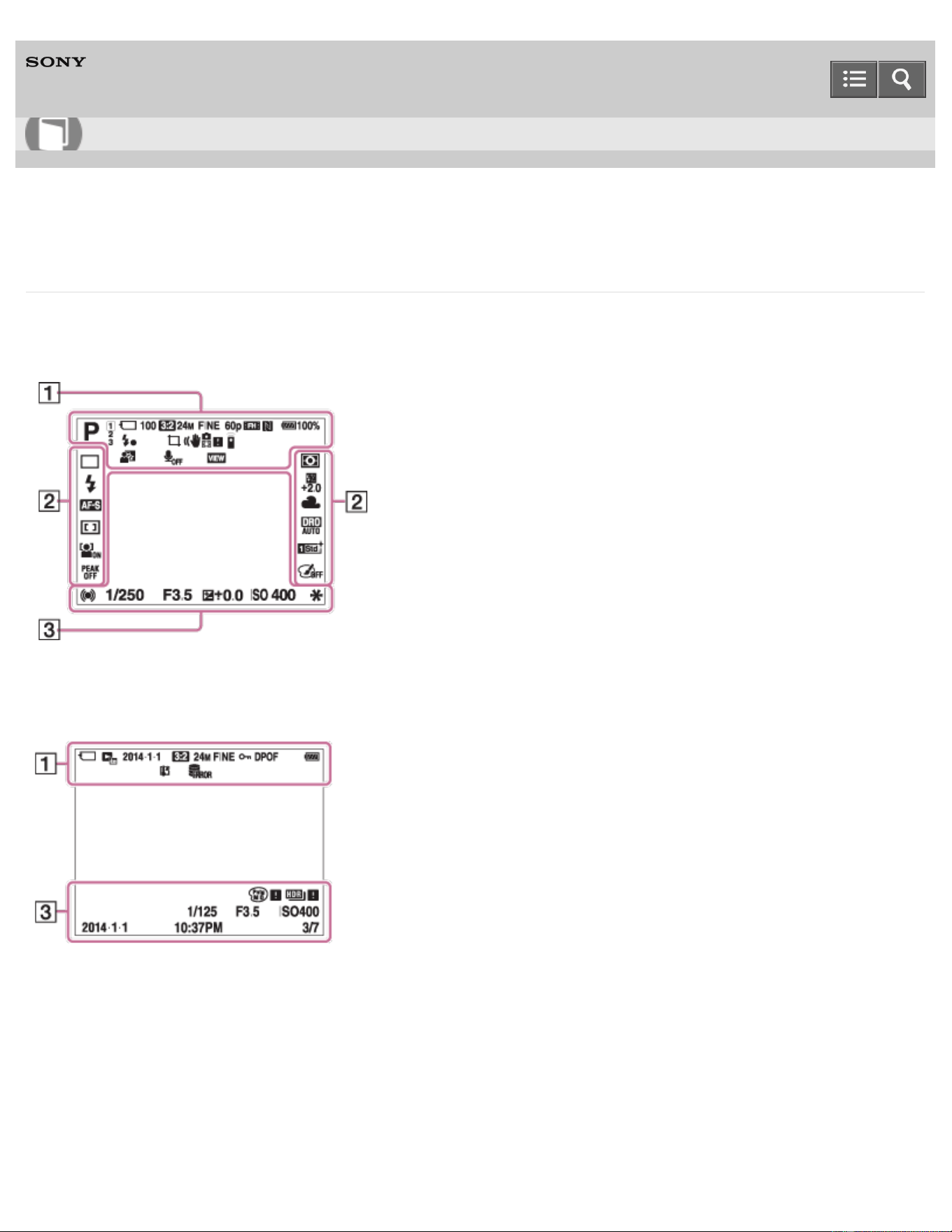

List of icons on the screen 110..............................................................................................

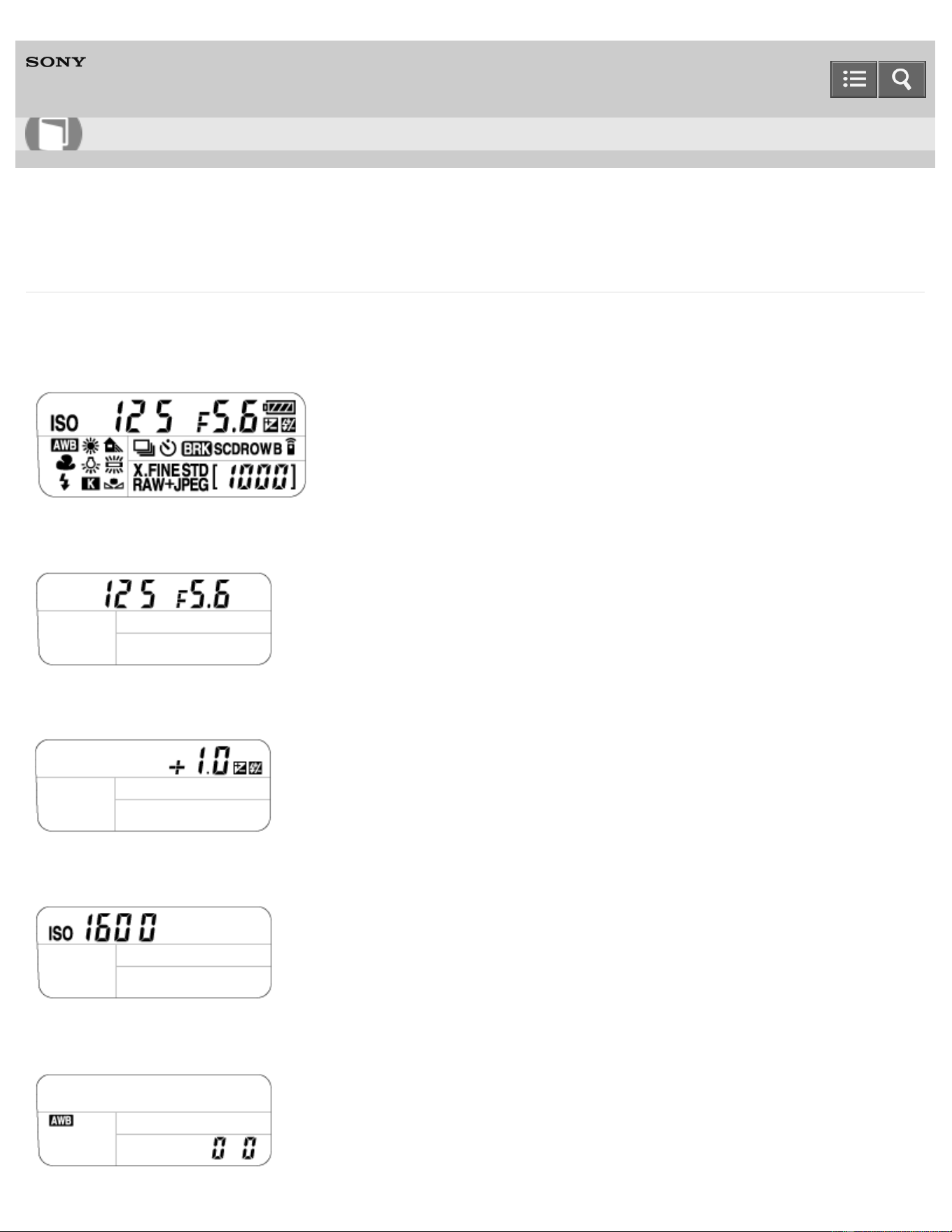

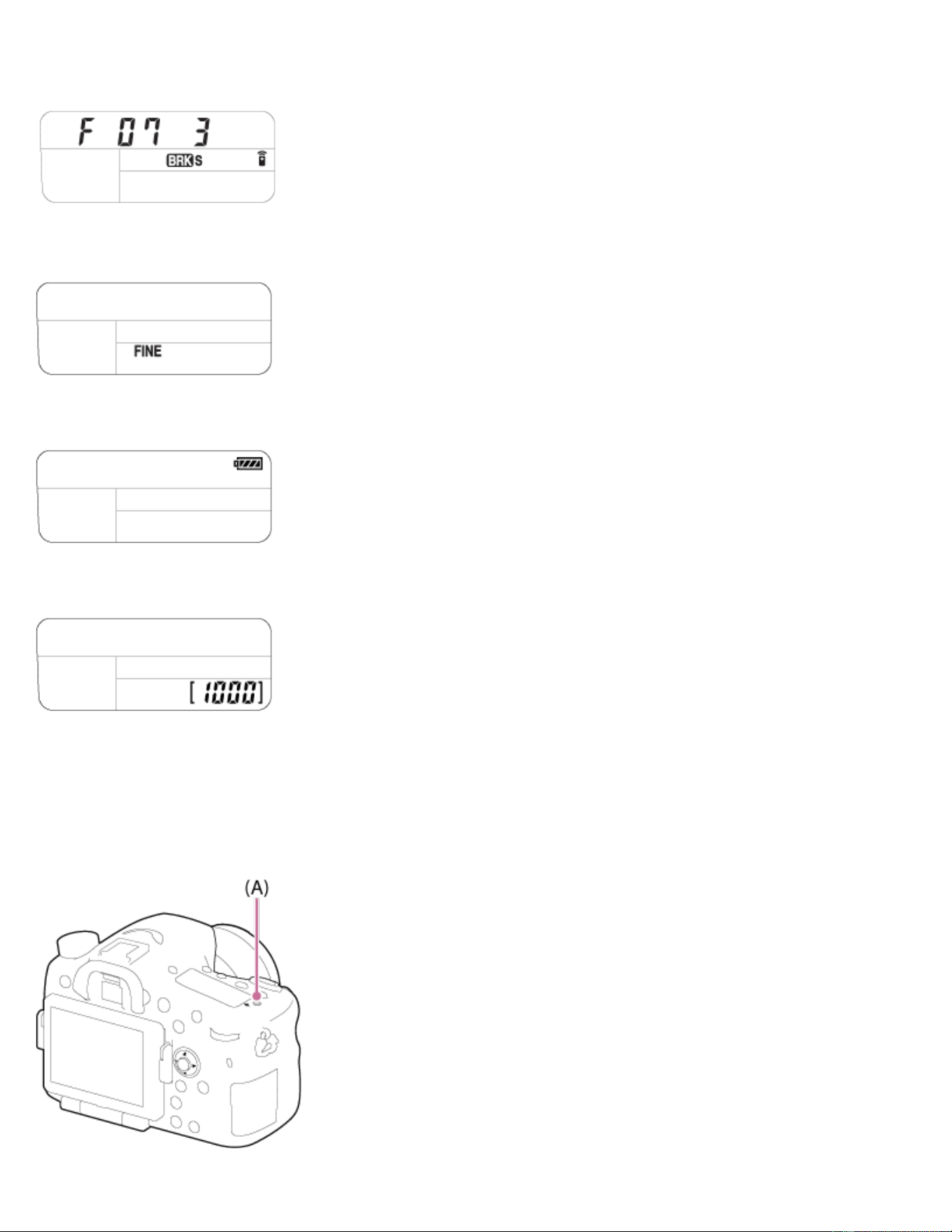

Display panel 116..................................................................................................................
Using the strap 29.......................................................................................................................

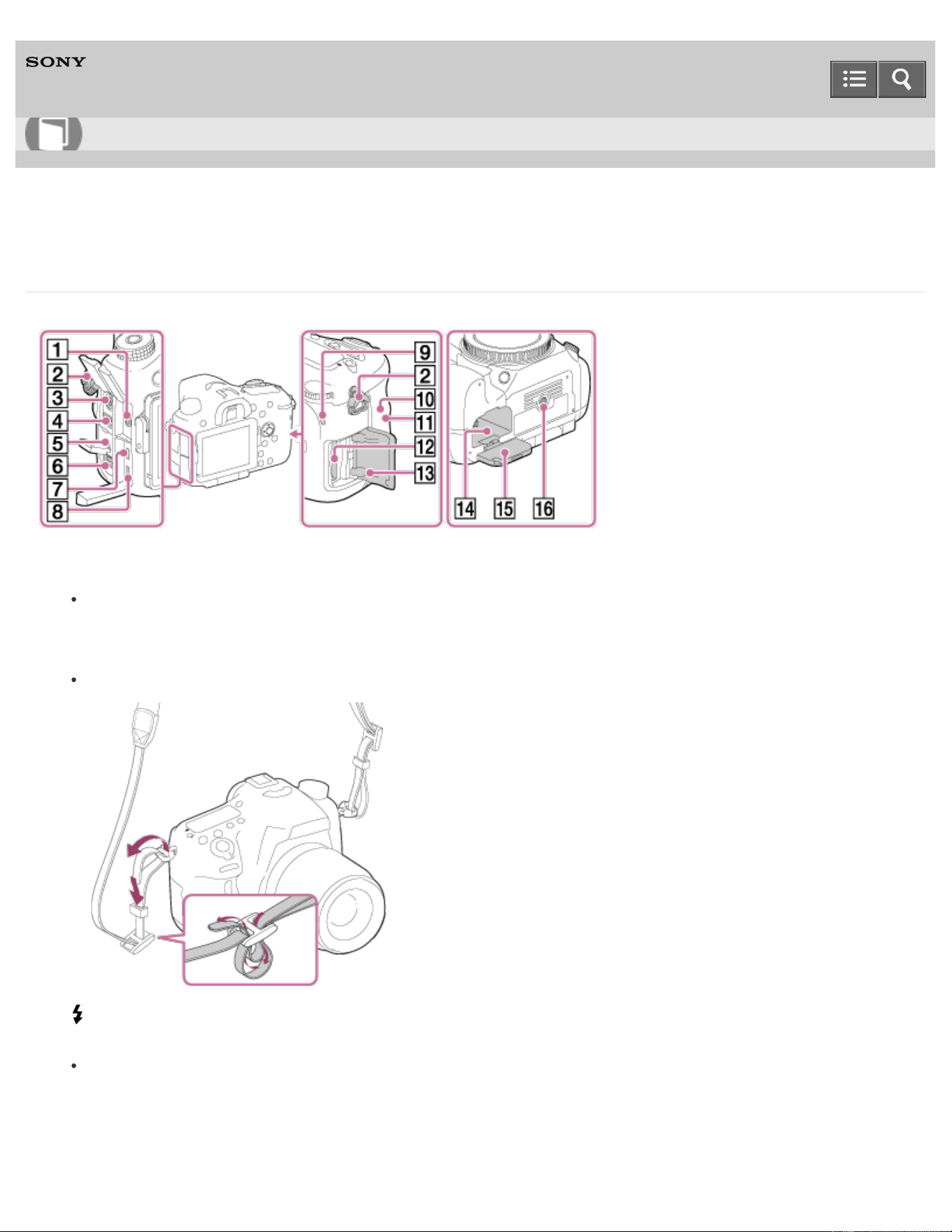

Using the shoulder strap 118.................................................................................................
Attaching the eyepiece cup 30....................................................................................................

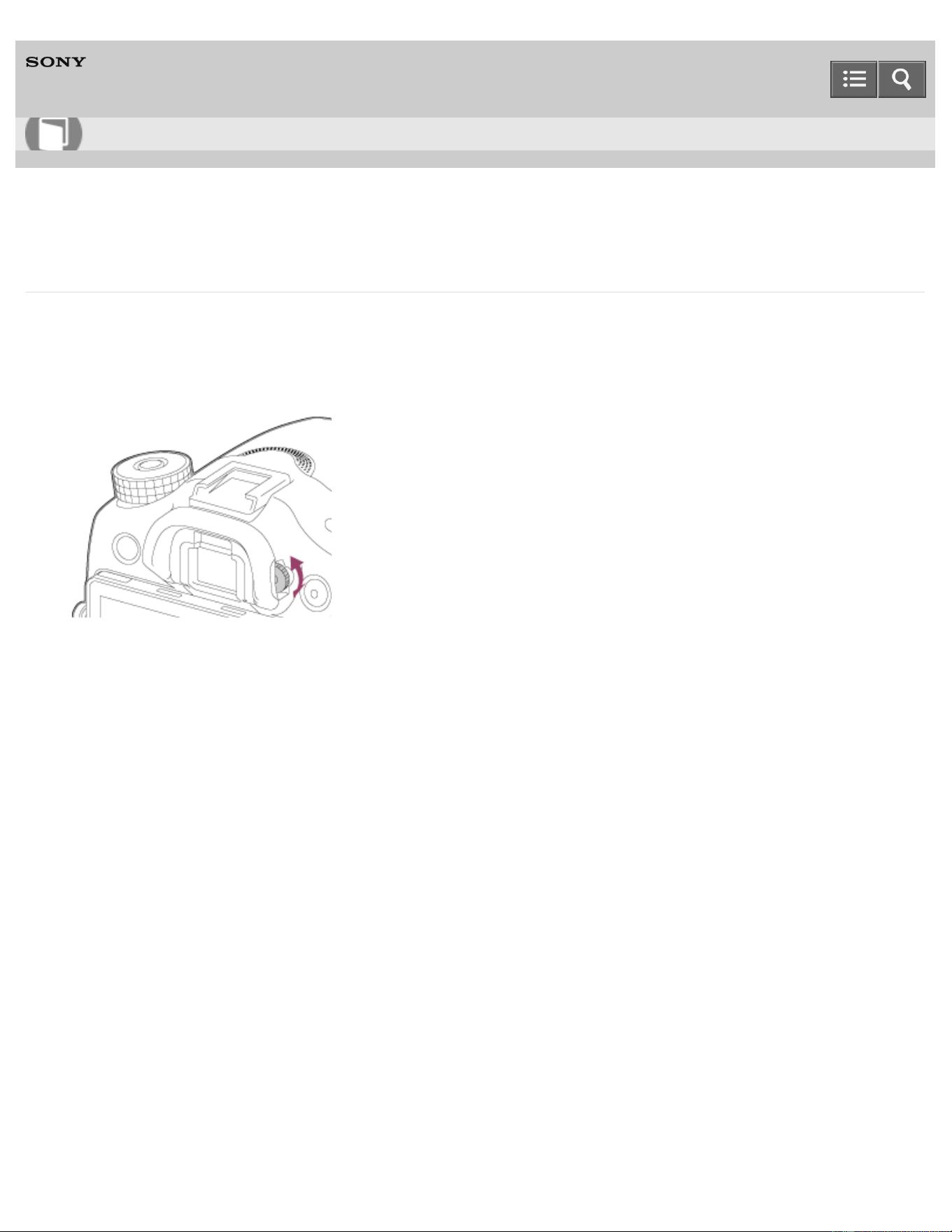

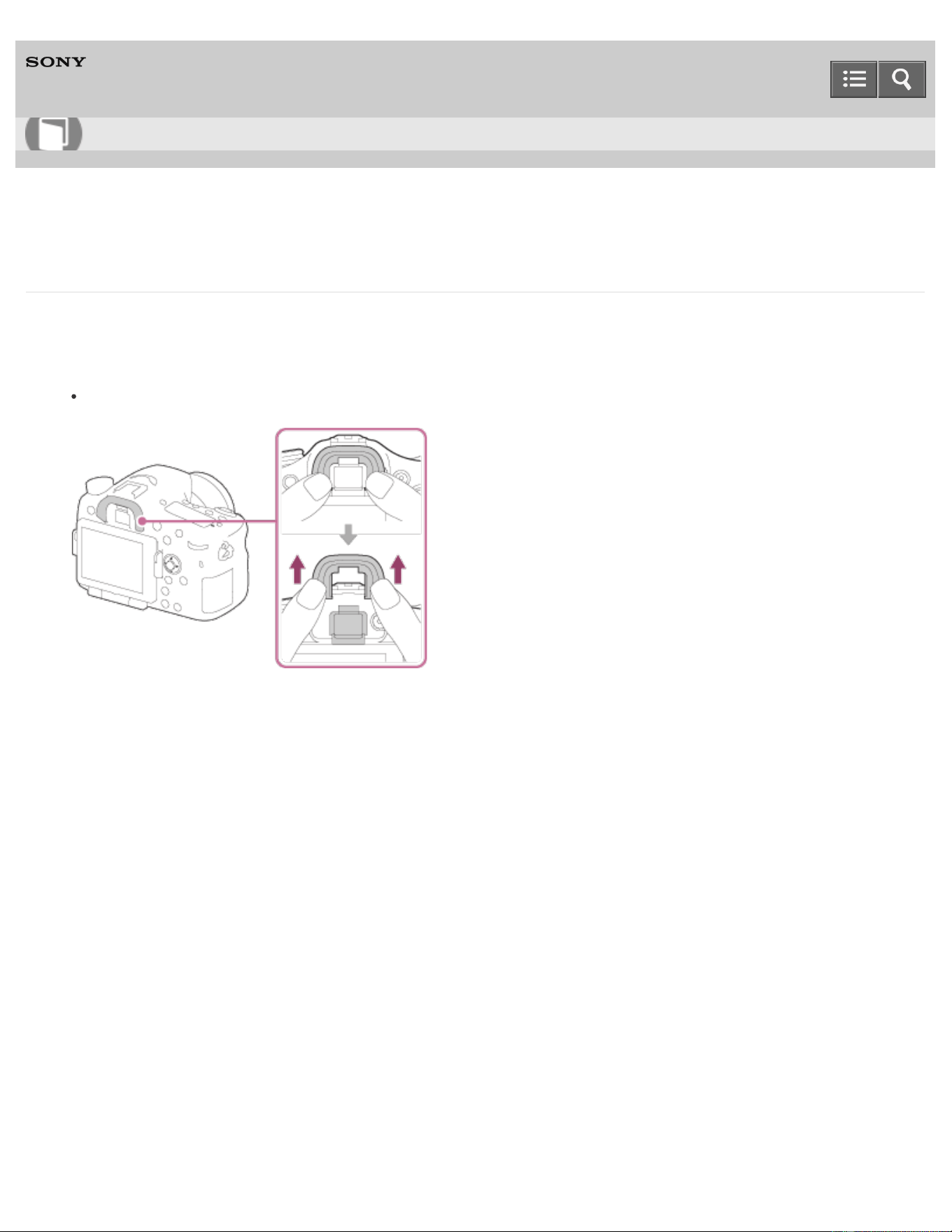

Attaching the eyepiece cup 119.............................................................................................
Adjusting the viewfinder 31..........................................................................................................
Adjusting the viewfinder (diopter-adjustment) 120.................................................................
In-Camera guide 32.....................................................................................................................
About the [In-Camera Guide] 121..........................................................................................
Preparing the camera 2.....................................................................................................................
Charging the battery pack 33......................................................................................................

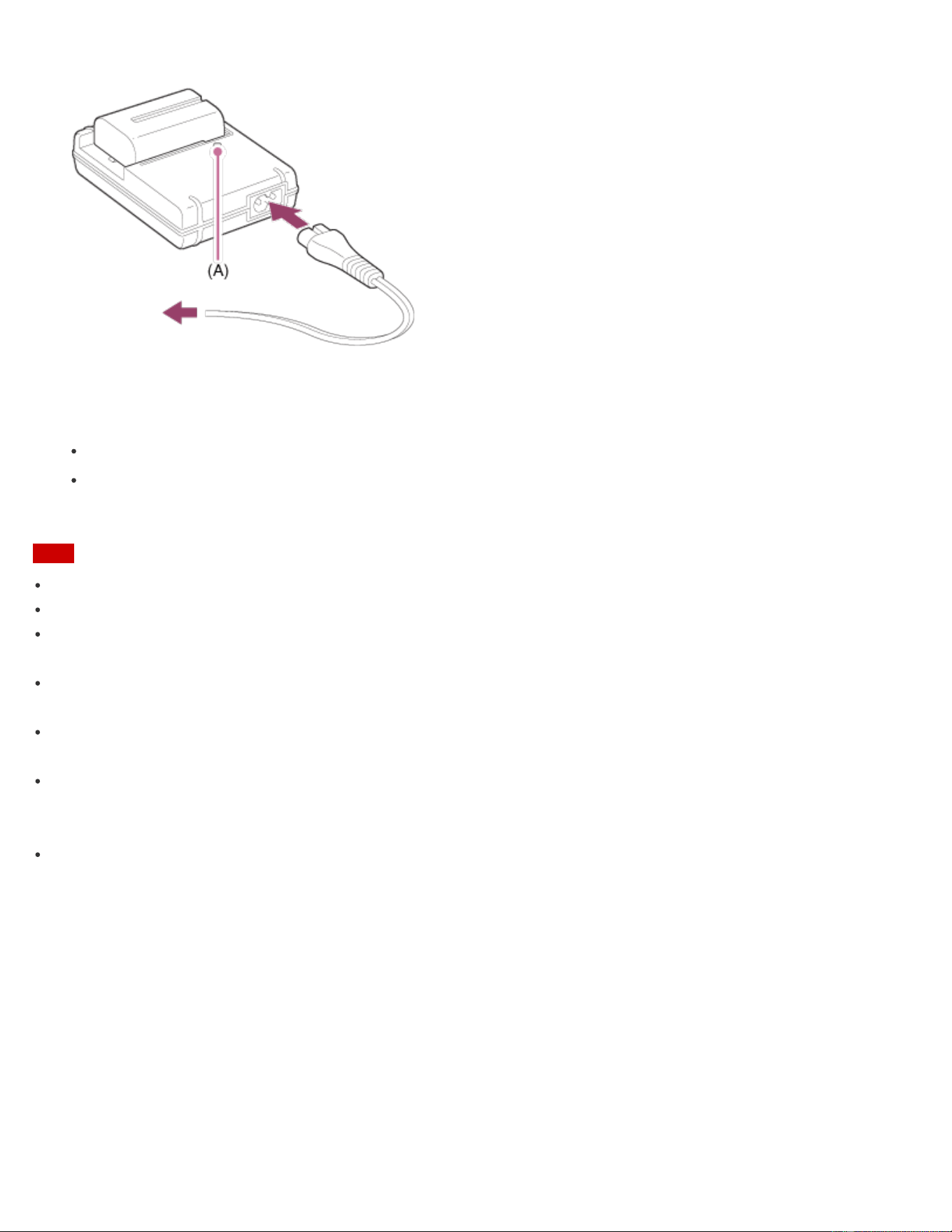

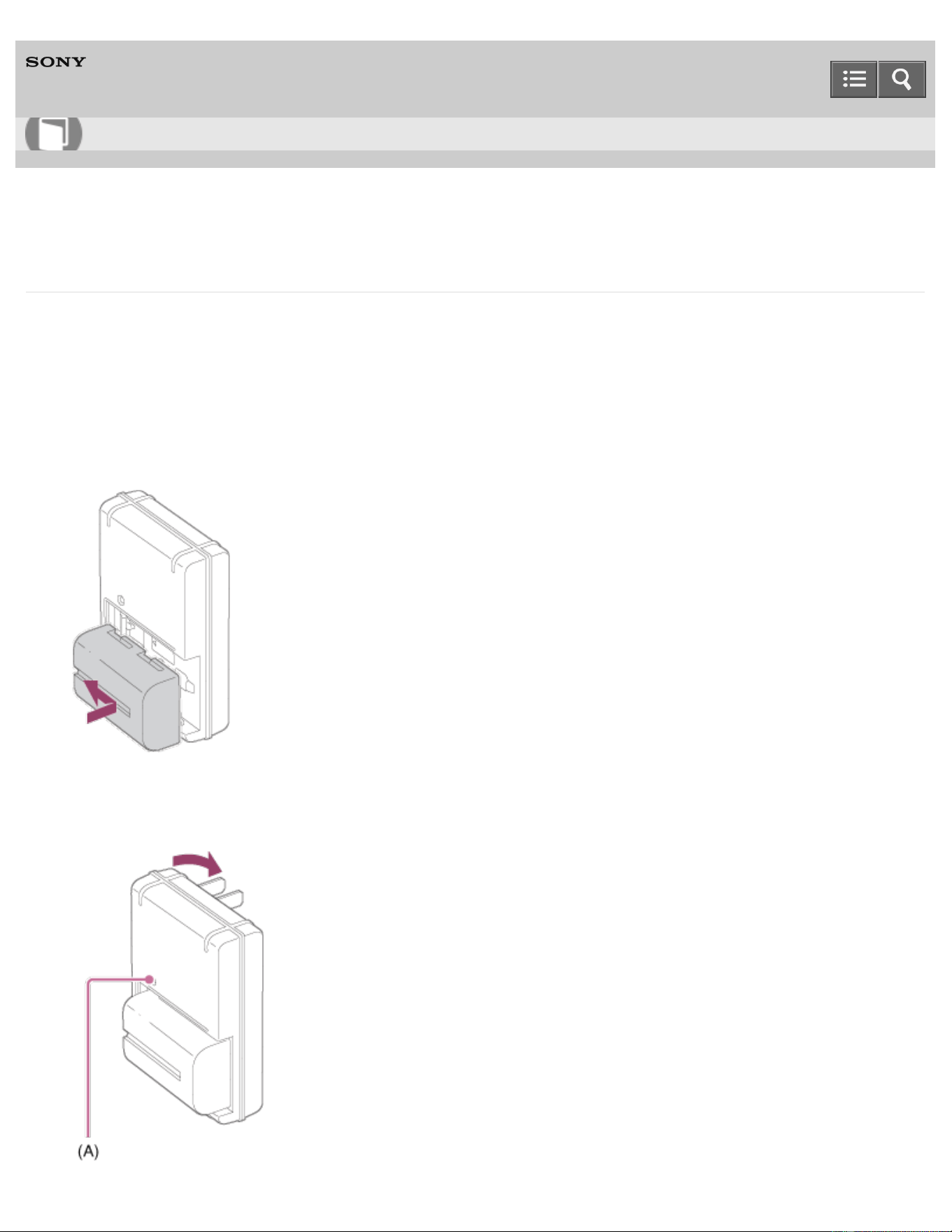

Charging the battery pack using a charger 122.....................................................................

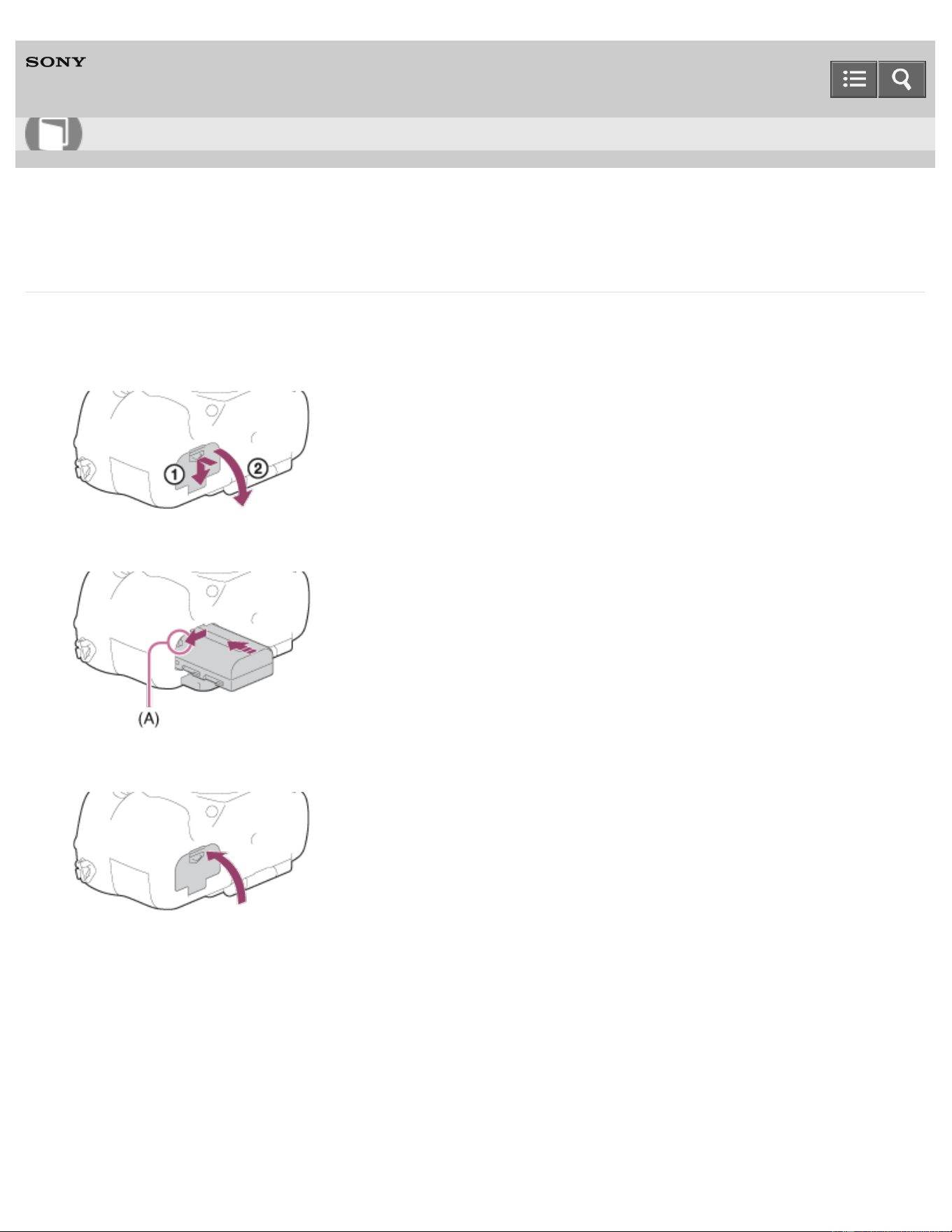

Inserting the battery pack into the camera 124......................................................................
Battery life and the number of images that can be recorded/played back
using a battery pack 125........................................................................................................

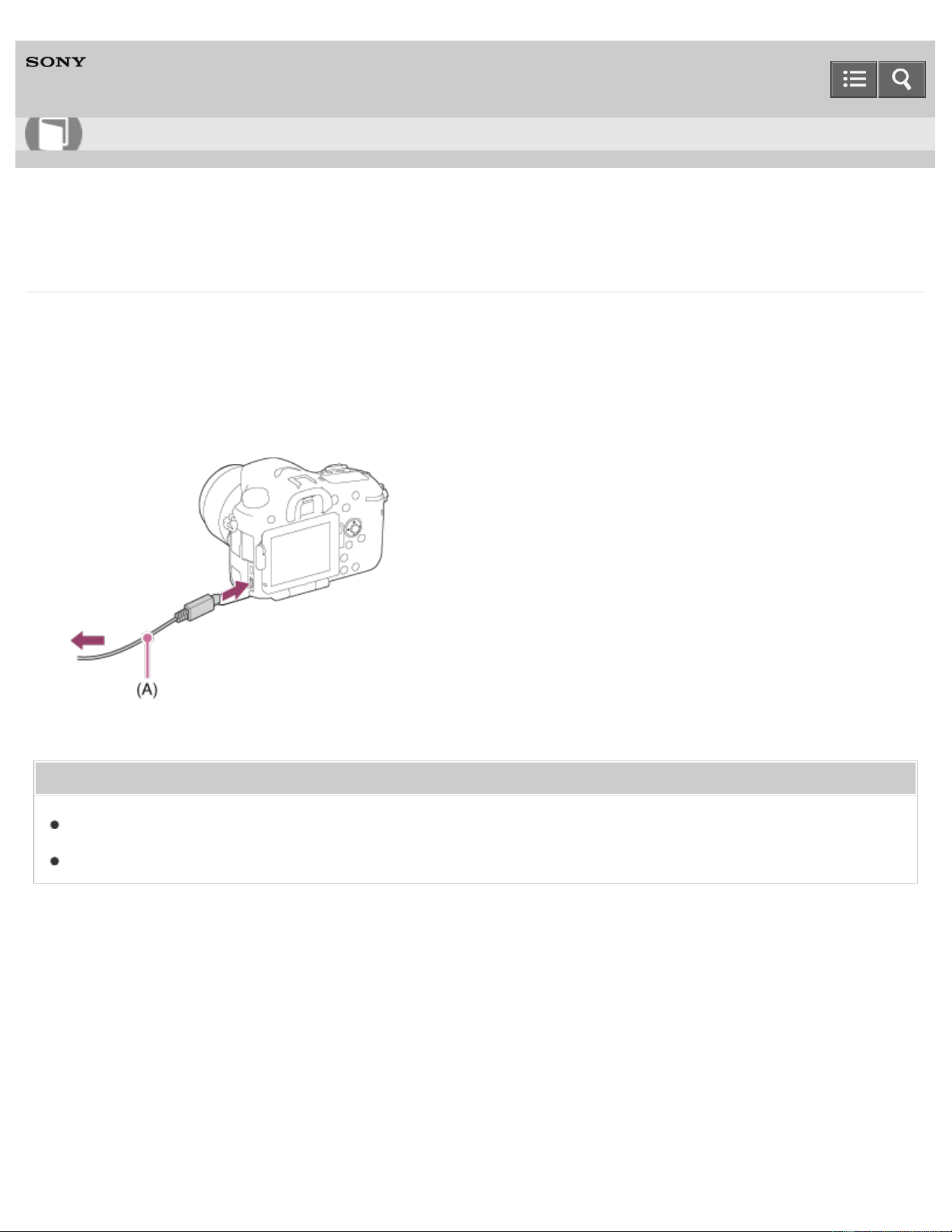

Supplying power using a wall outlet (wall socket) 127...........................................................

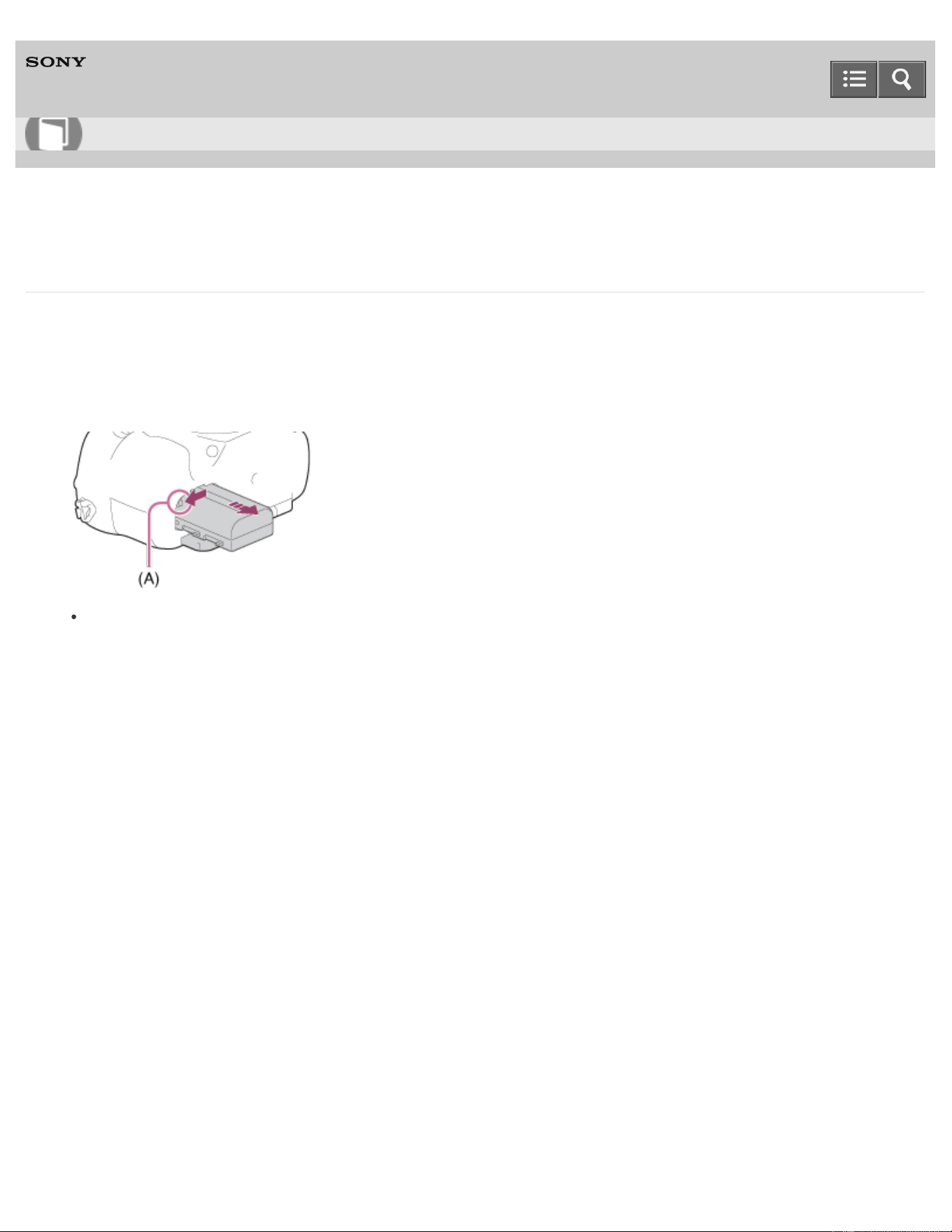

Removing the battery pack 128.............................................................................................
Inserting a memory card (sold separately) 34.............................................................................

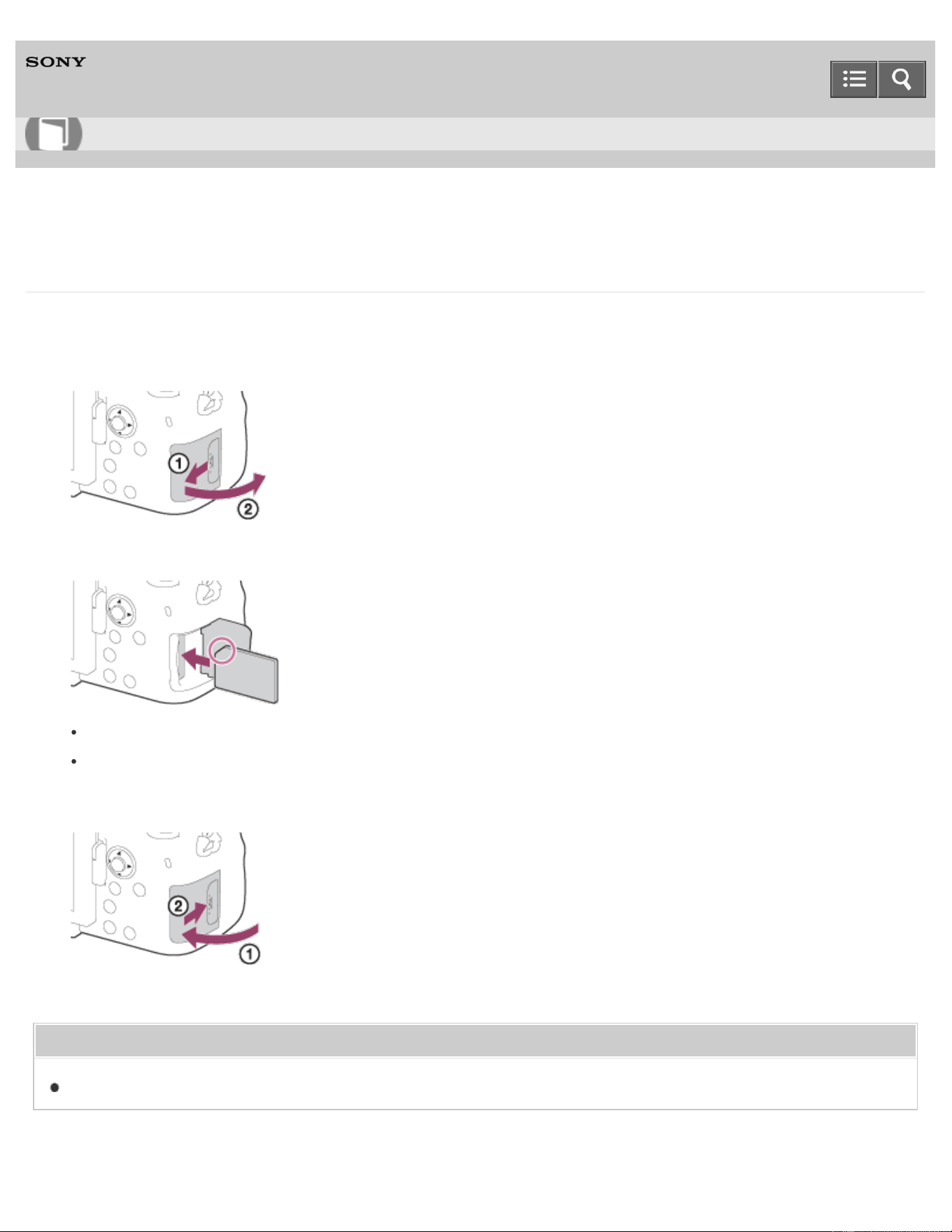

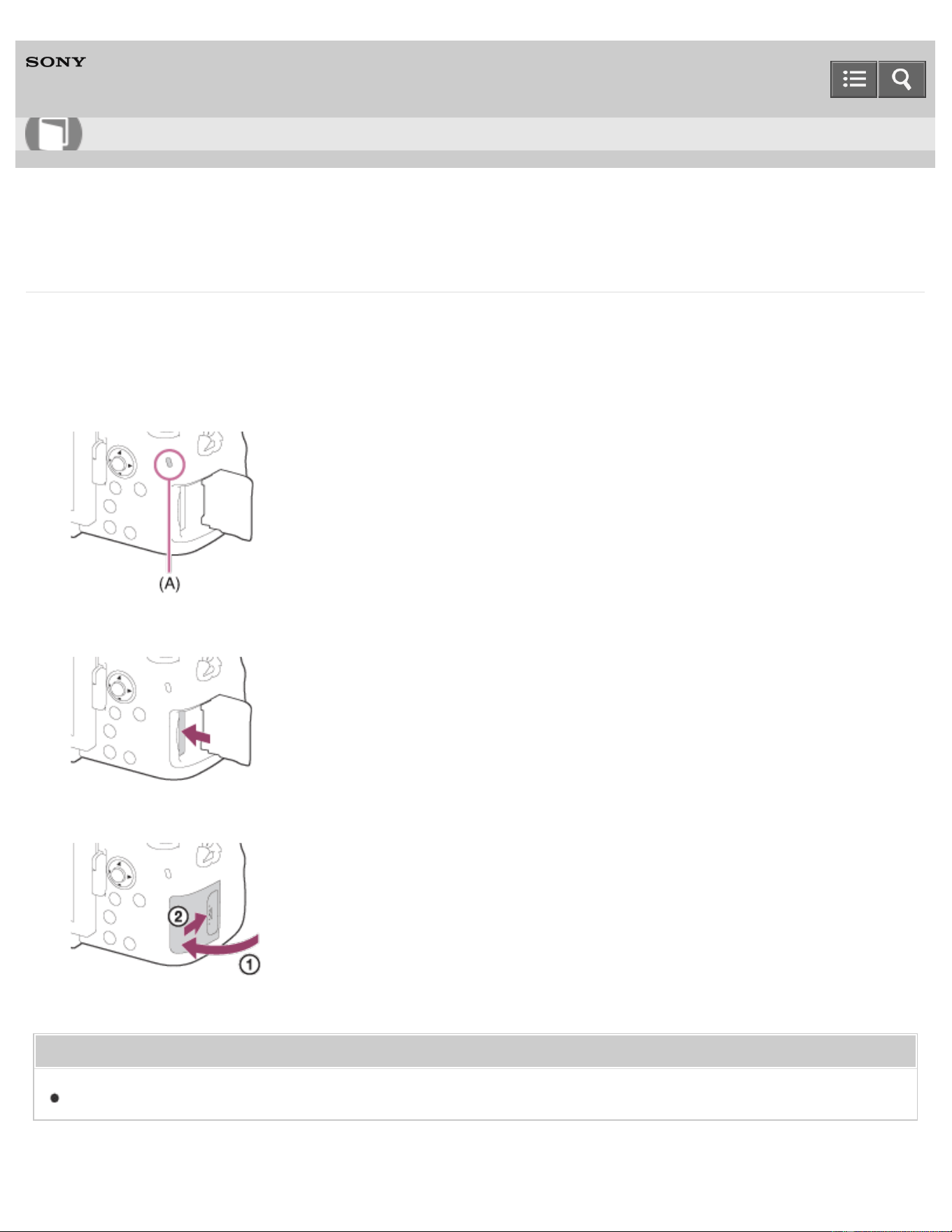

Inserting a memory card 129.................................................................................................
Removing the memory card 130............................................................................................
Attaching a lens 35......................................................................................................................

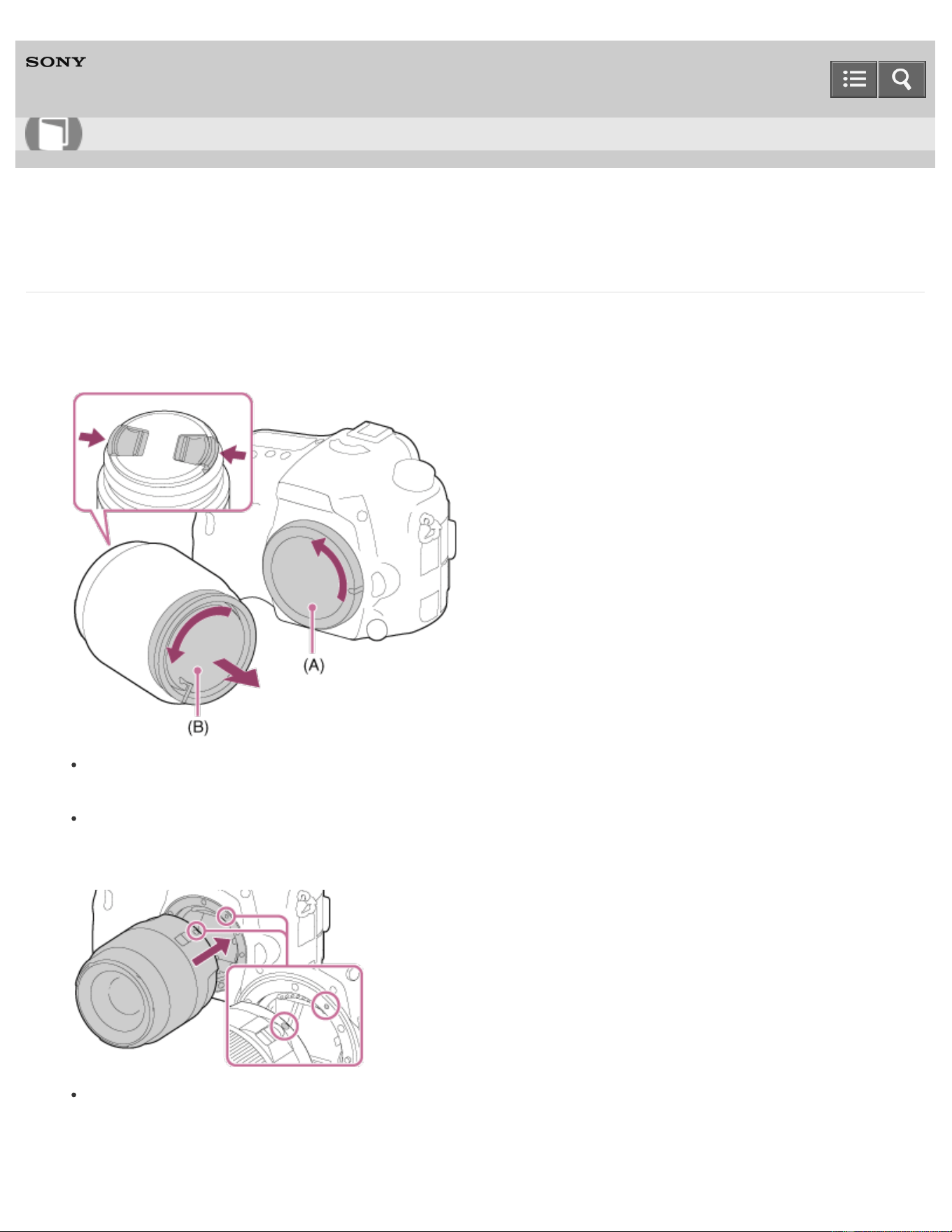

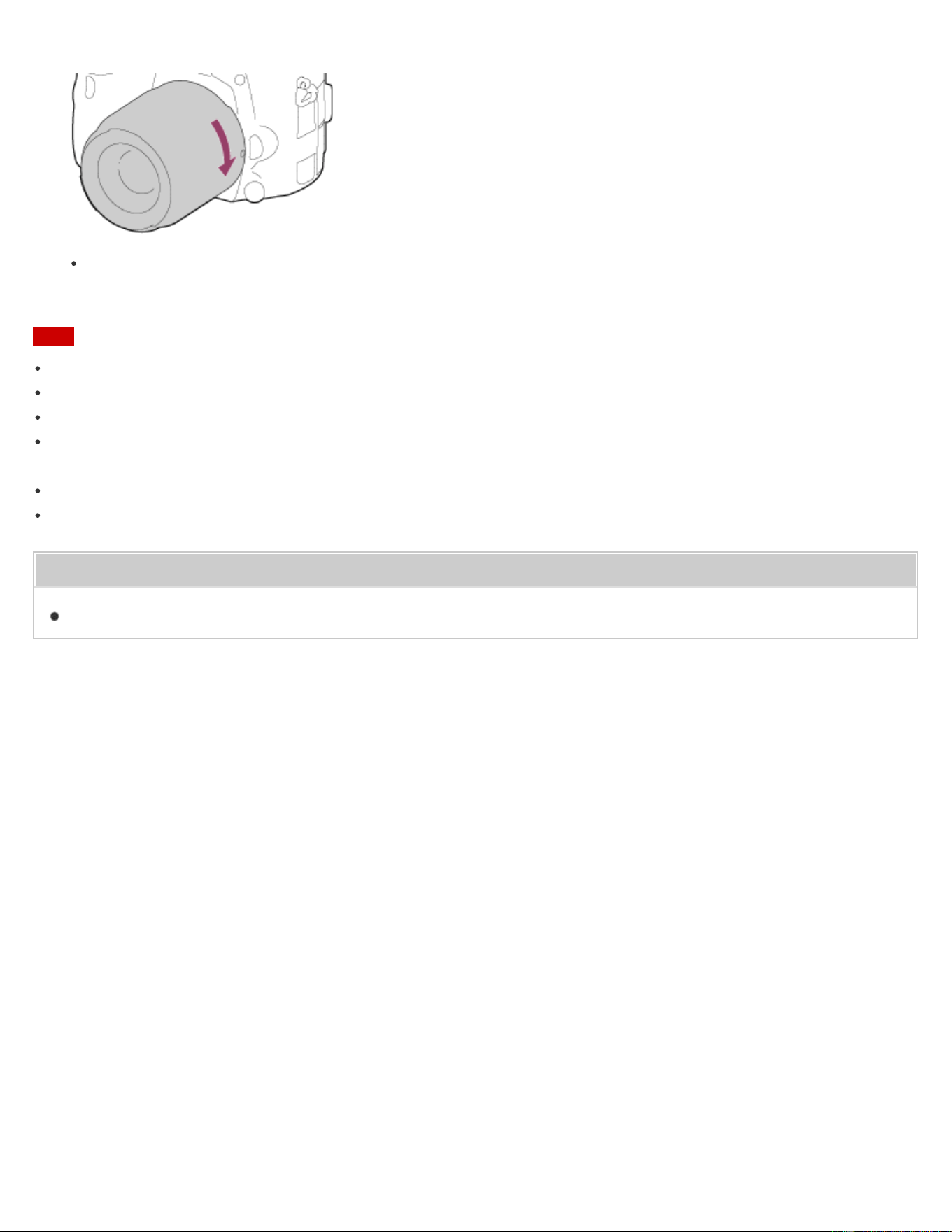

Attaching a lens 131..............................................................................................................

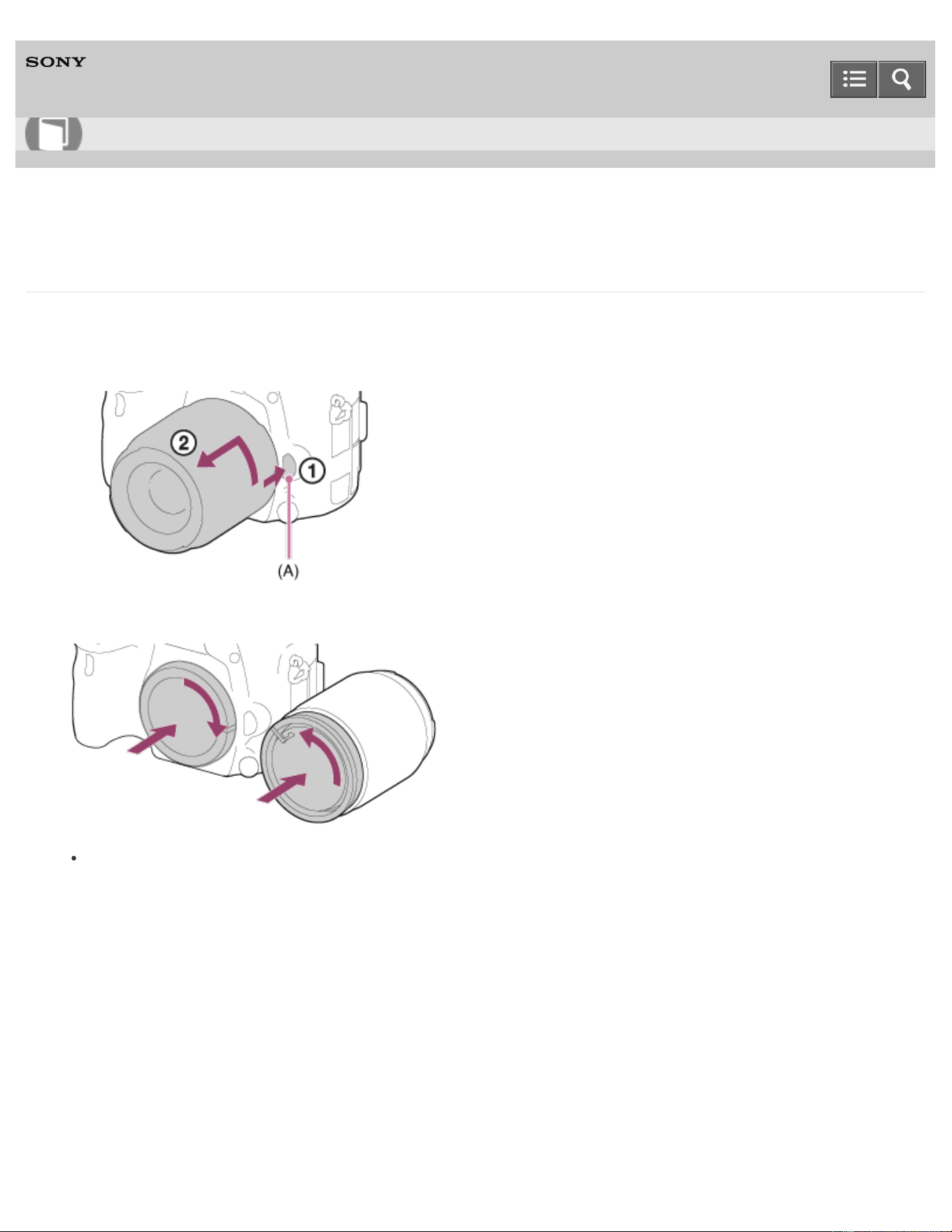

Removing the lens 133..........................................................................................................

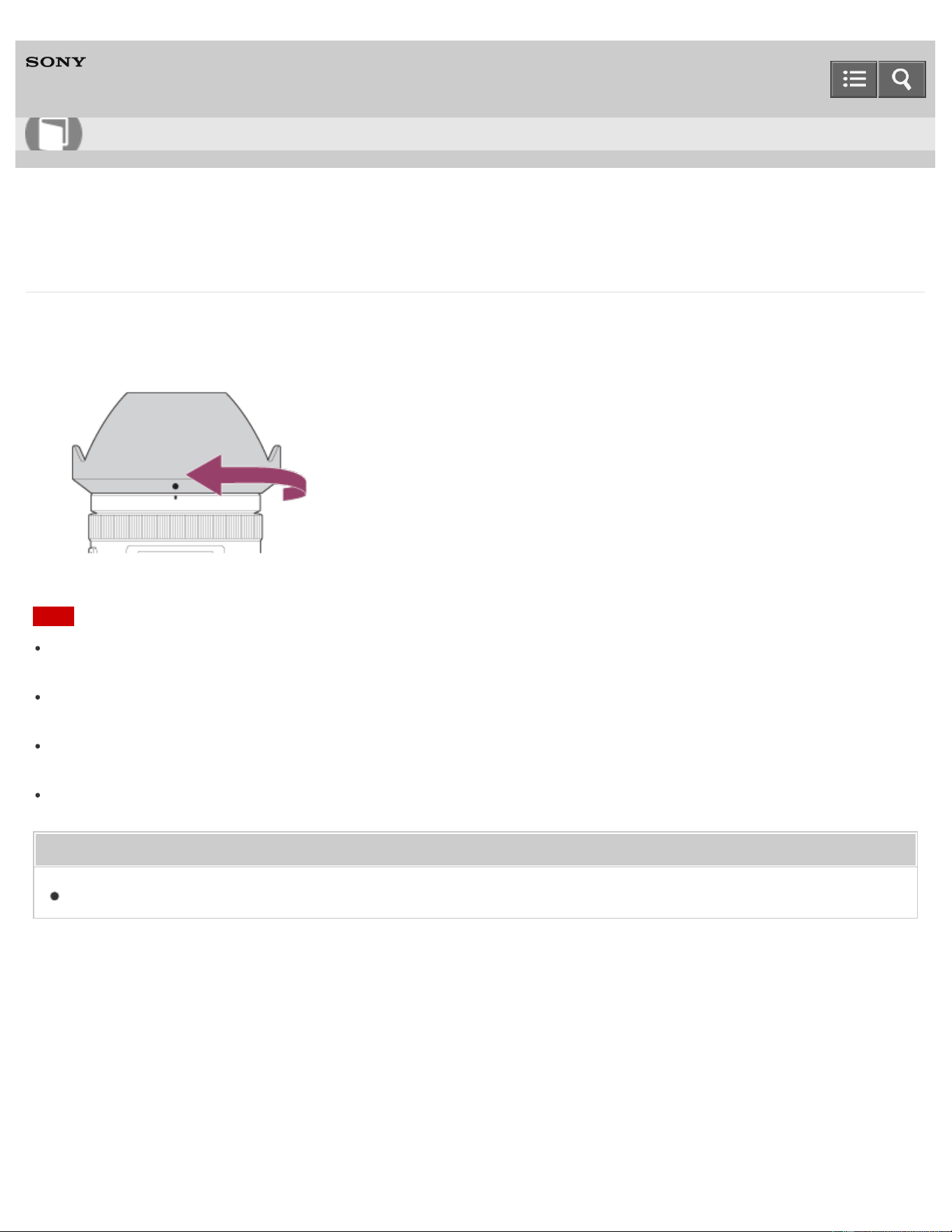

Attaching the lens hood 134..................................................................................................
TOC-1
Notes on changing the lens 135............................................................................................
Setting the date and time 36........................................................................................................
Setting the date and time 136................................................................................................
Confirming the operation method 3...................................................................................................
Confirming the operation method 37...........................................................................................

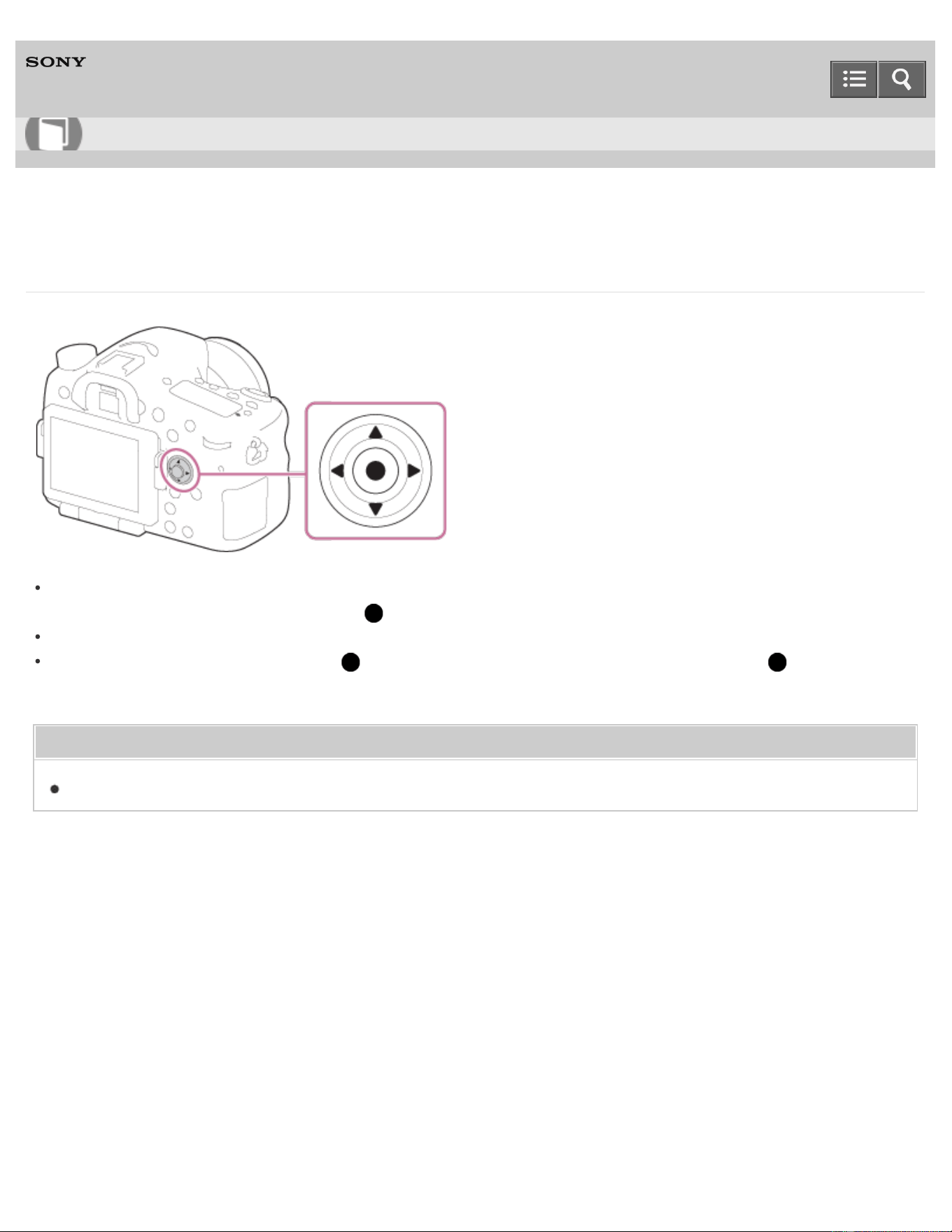

Using the multi-selector 137..................................................................................................

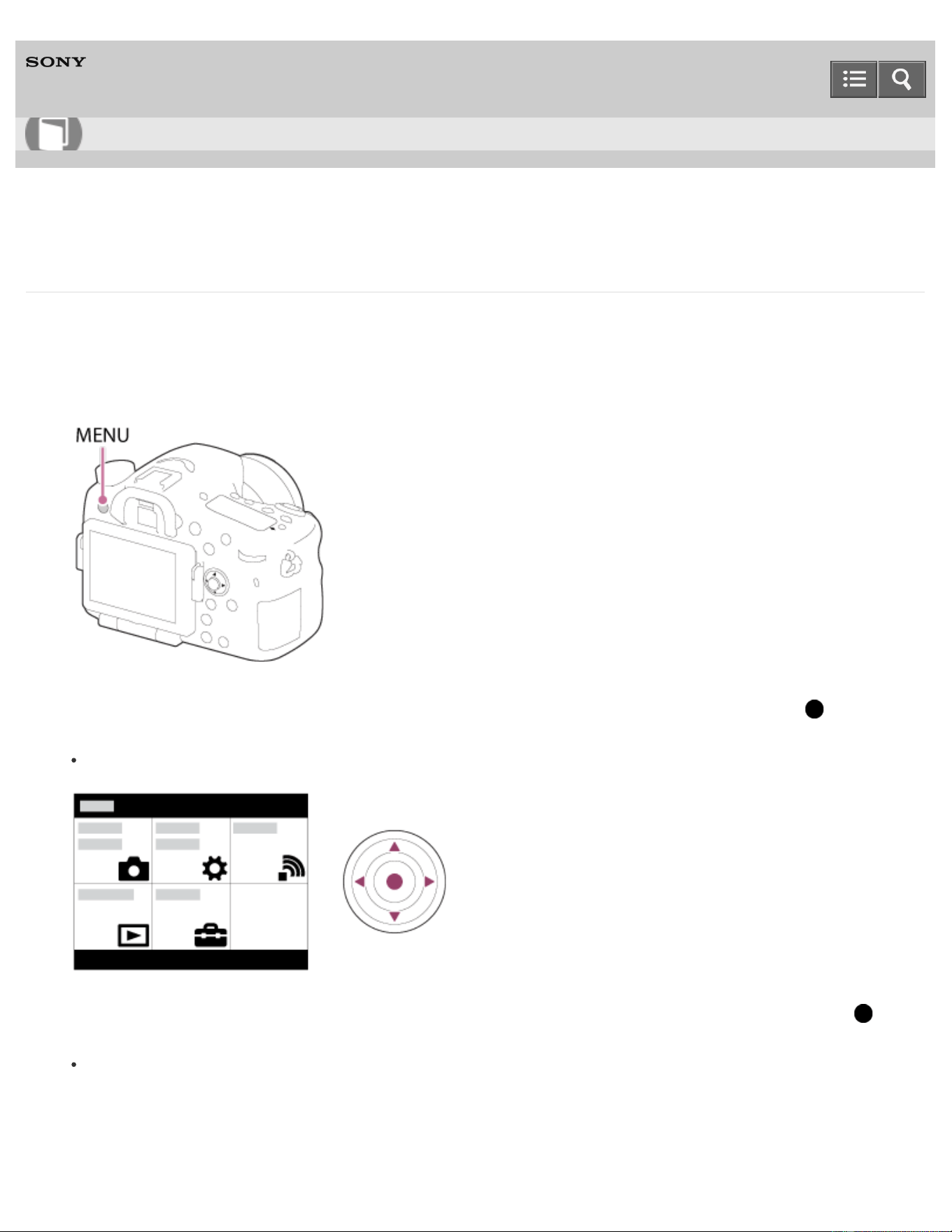

Using MENU items 138.........................................................................................................

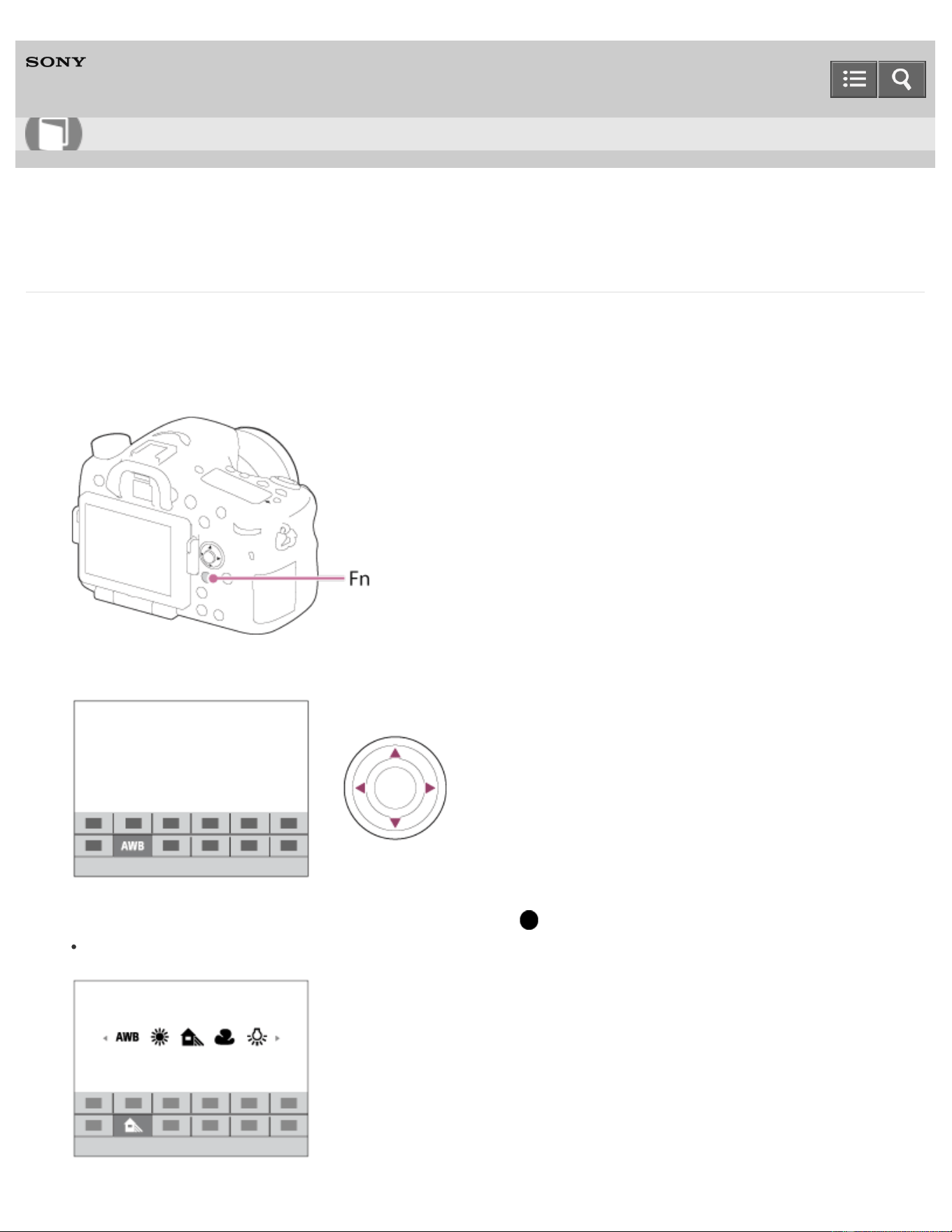

Using the Fn (Function) button 140.......................................................................................
Using the "Quick Navi" 142....................................................................................................
Shooting 4.........................................................................................................................................
Shooting still images/movies 38..................................................................................................
Shooting still images 144.......................................................................................................
Shooting movies 146.............................................................................................................

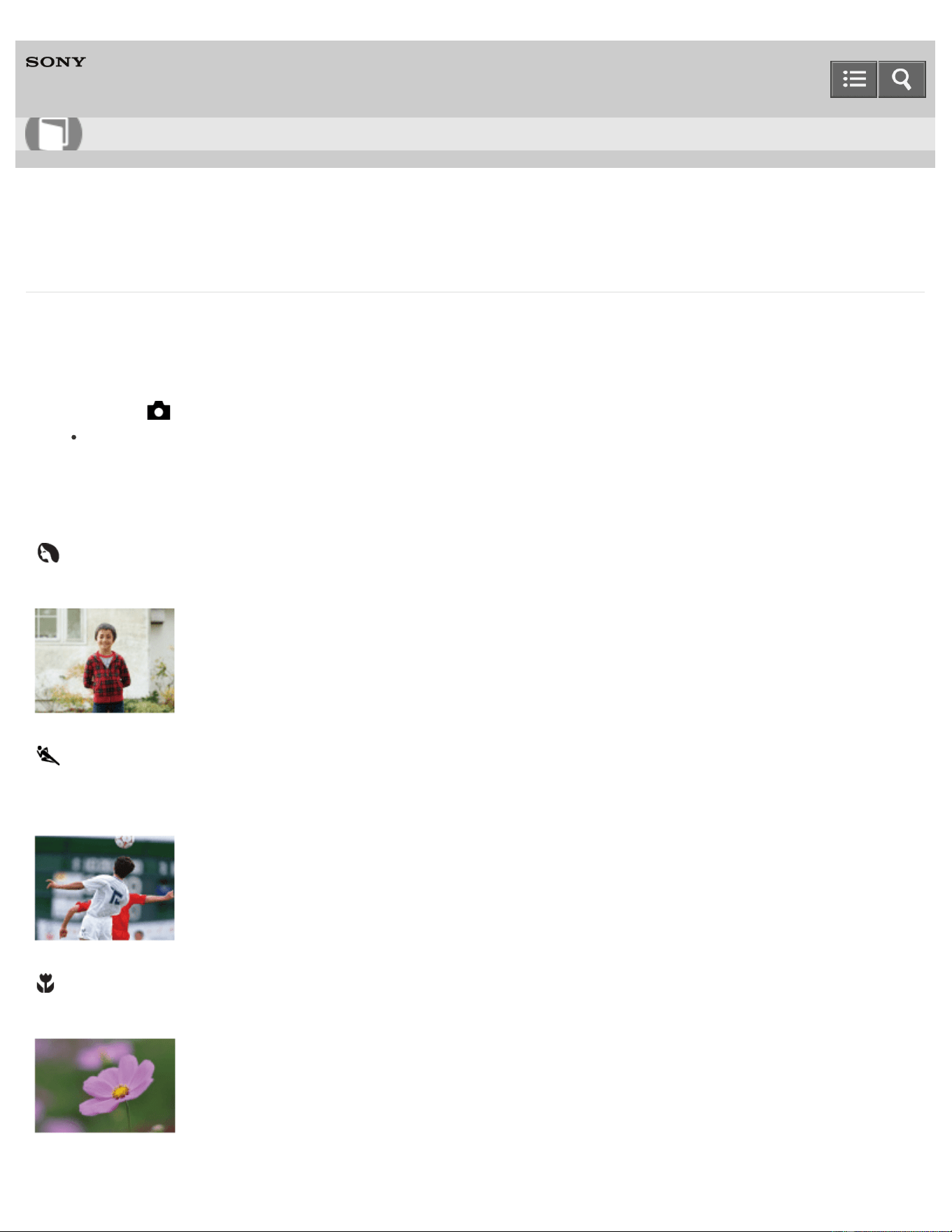

Selecting a shooting mode 39.....................................................................................................

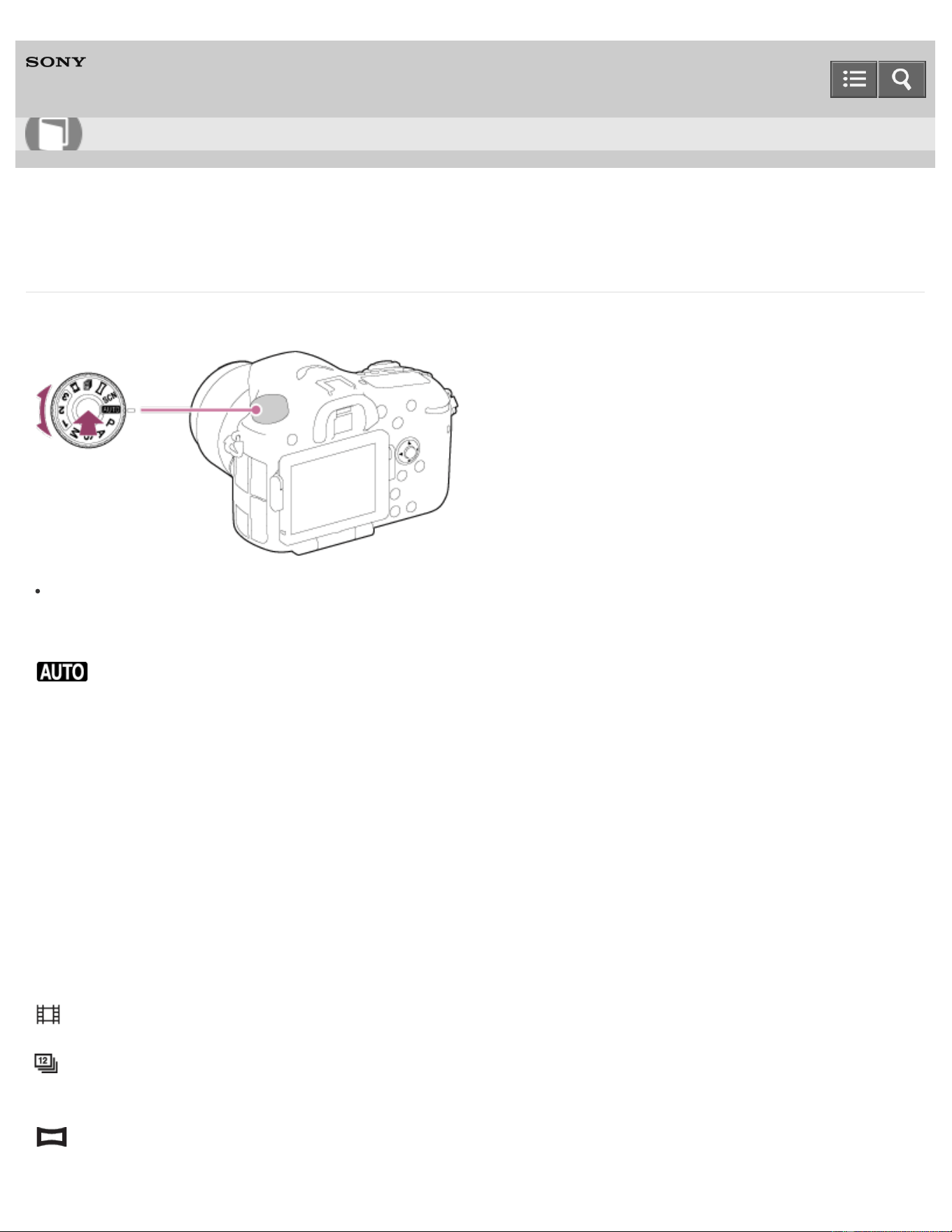

List of mode dial functions 148..............................................................................................
Intelligent Auto 150................................................................................................................
Superior Auto 151..................................................................................................................
About Scene Recognition 153...............................................................................................
The advantages of automatic shooting 154...........................................................................
Program Auto 155..................................................................................................................

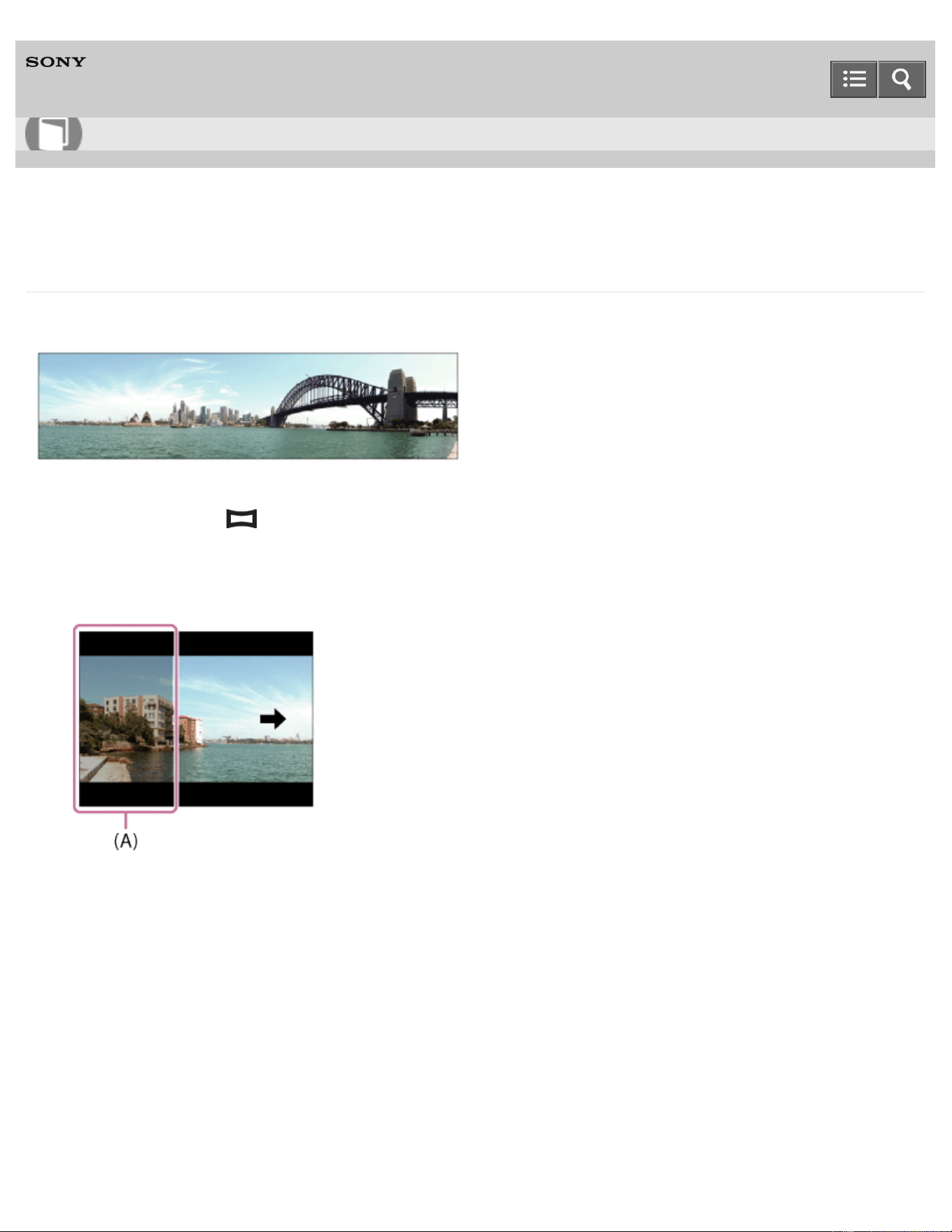

Sweep Panorama 156...........................................................................................................

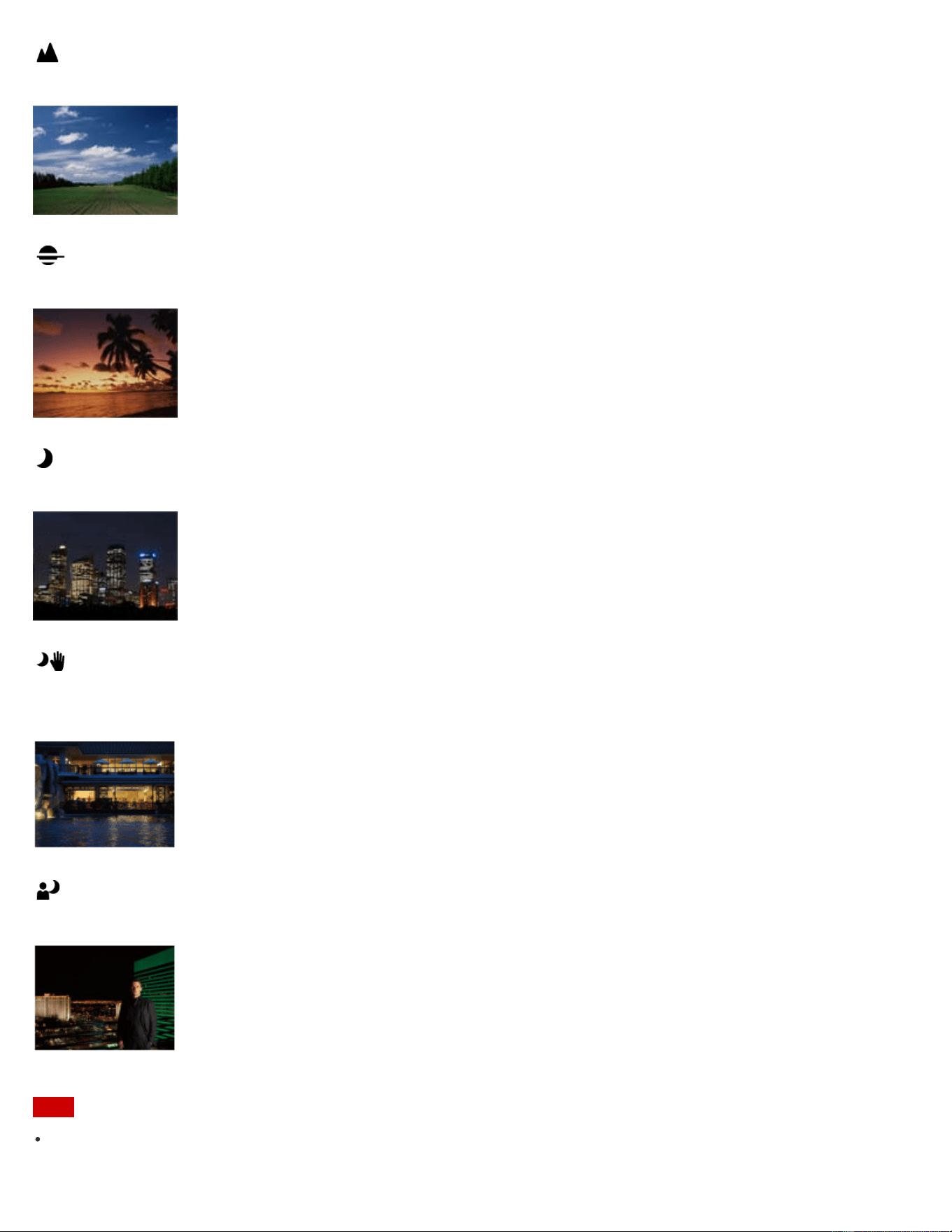

Scene Selection 158..............................................................................................................
Cont. Priority AE 161.............................................................................................................
Shutter Priority 162................................................................................................................
Aperture Priority 163..............................................................................................................
Manual Exposure 164............................................................................................................
BULB 165..............................................................................................................................
Memory recall 167.................................................................................................................
Movie 168..............................................................................................................................
Using shooting functions 5................................................................................................................
Using the zoom 41.......................................................................................................................

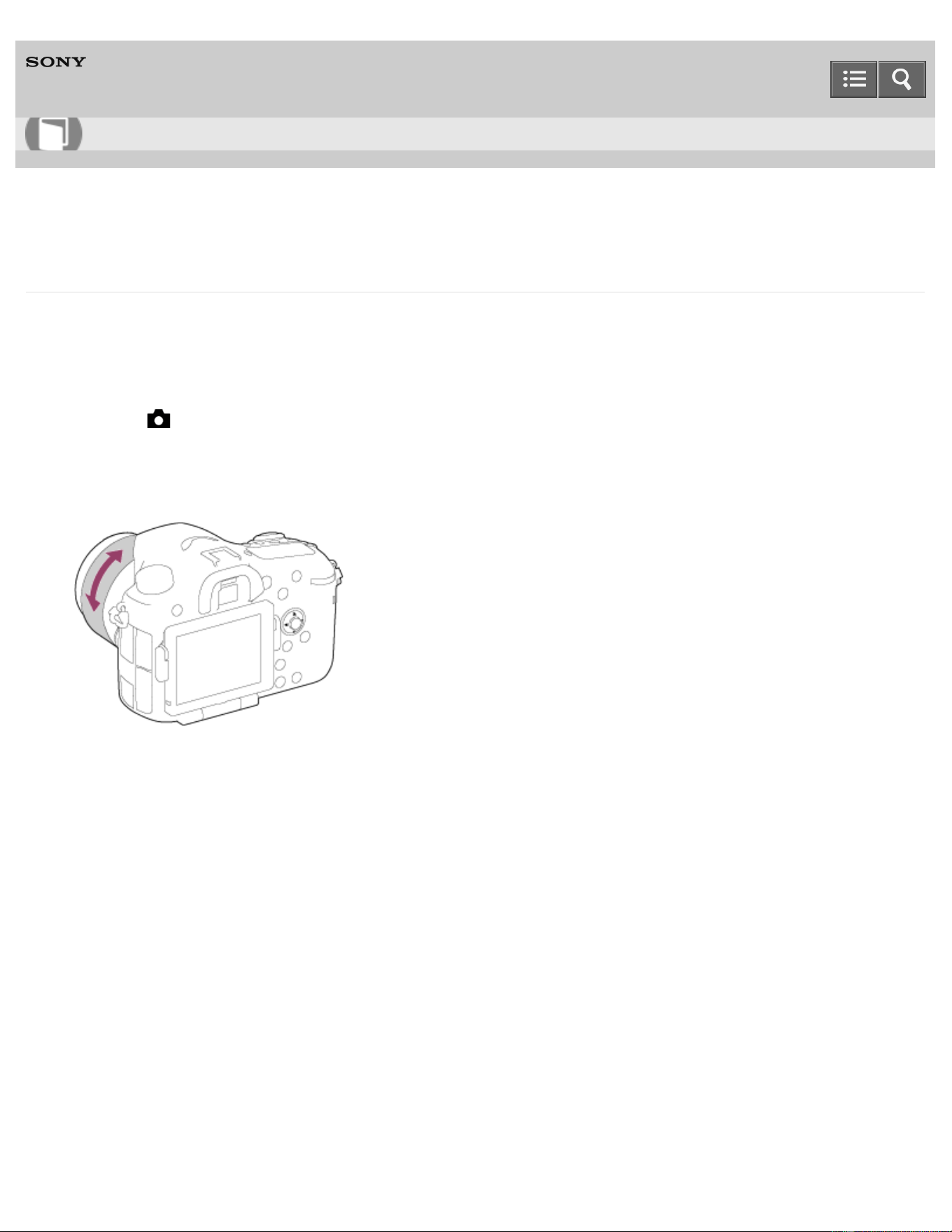

Zoom 169...............................................................................................................................
The zoom features available with this product 170................................................................
Zoom Setting 172..................................................................................................................
About zoom scale 173...........................................................................................................
Smart Telecon. 174...............................................................................................................
Using the flash 42........................................................................................................................

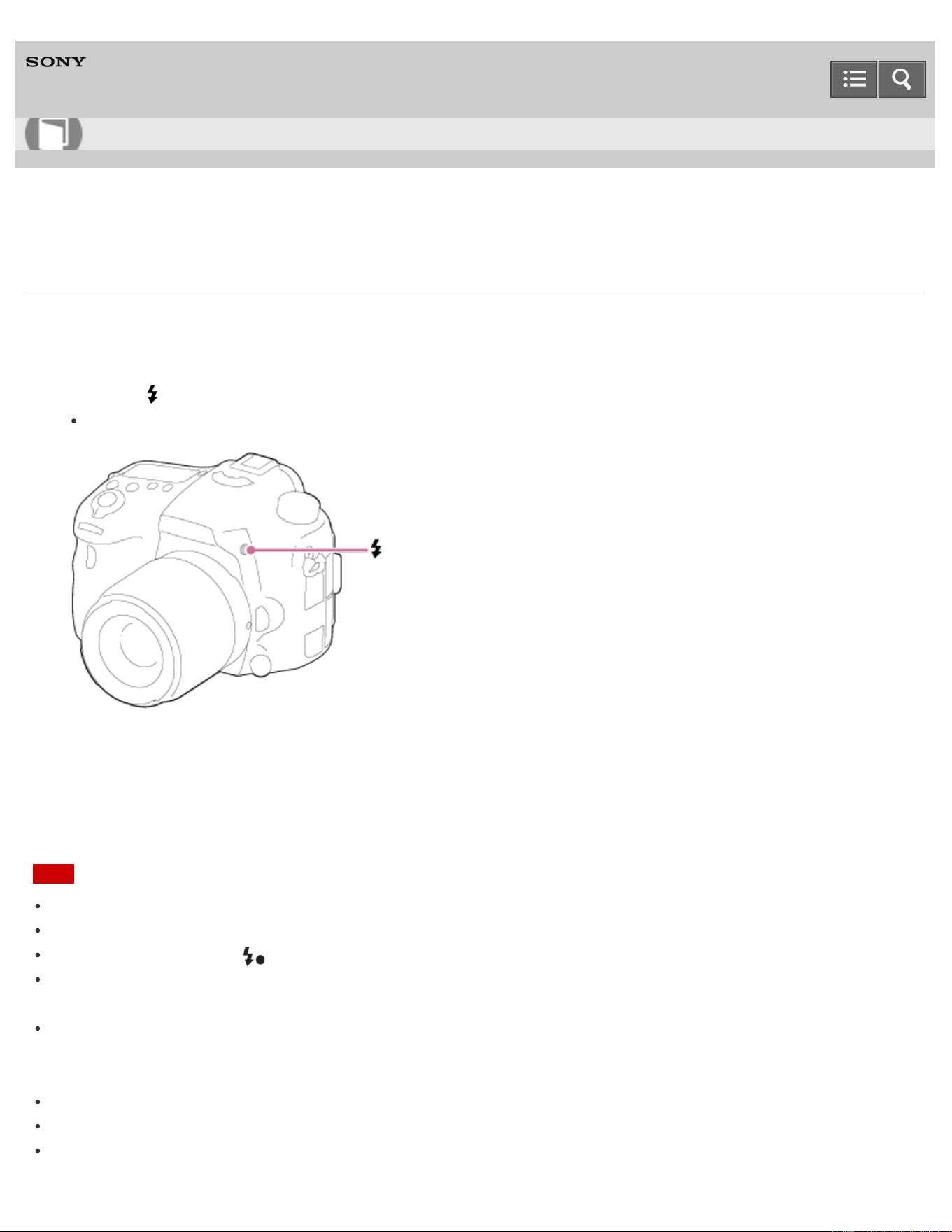

Using flash 175......................................................................................................................
Flash Mode 177.....................................................................................................................
Flash Comp. 179...................................................................................................................
TOC-2
FEL Lock 180.........................................................................................................................
Flash control 182...................................................................................................................
Power ratio 184......................................................................................................................
Selecting a screen display mode 43............................................................................................

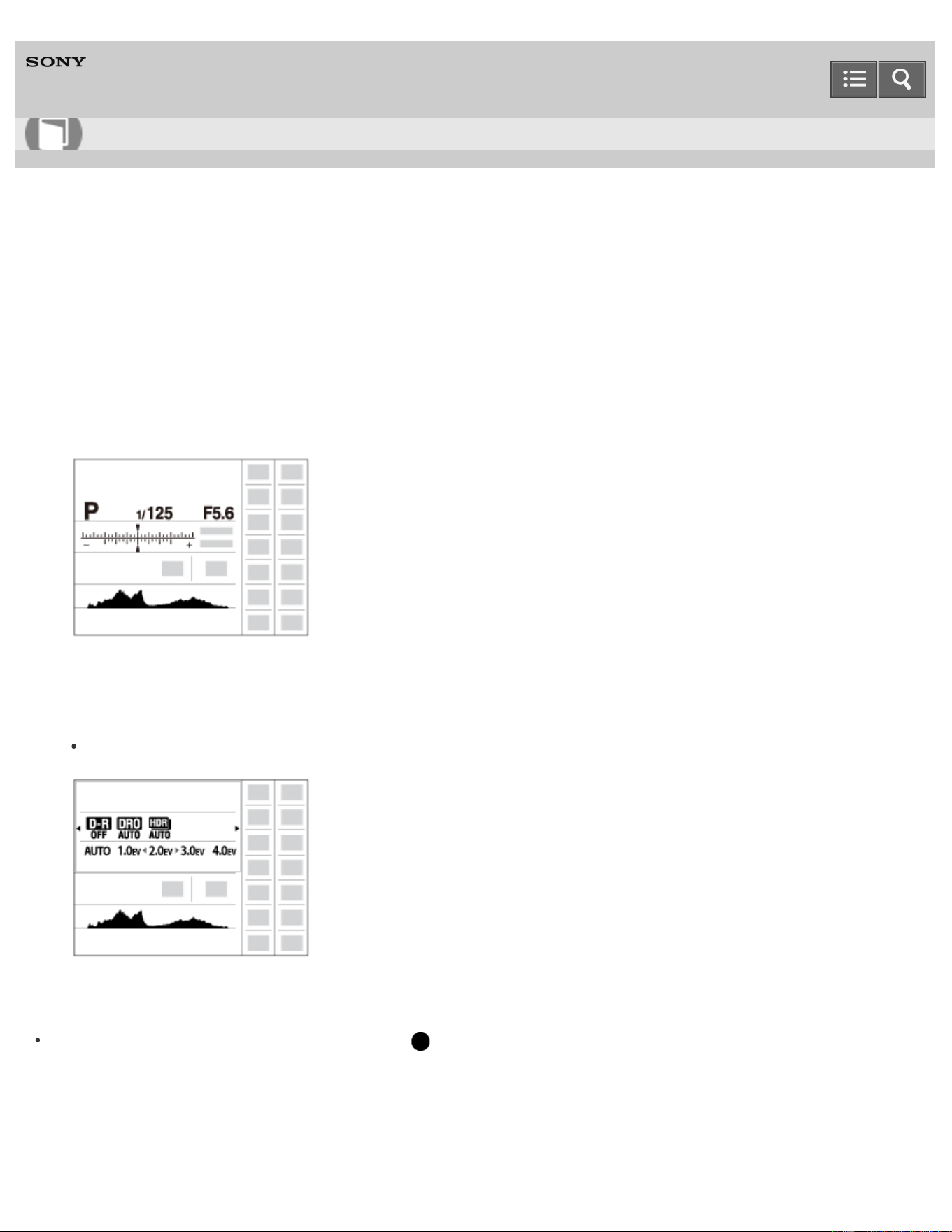

Switching the screen display (Shooting) 185.........................................................................

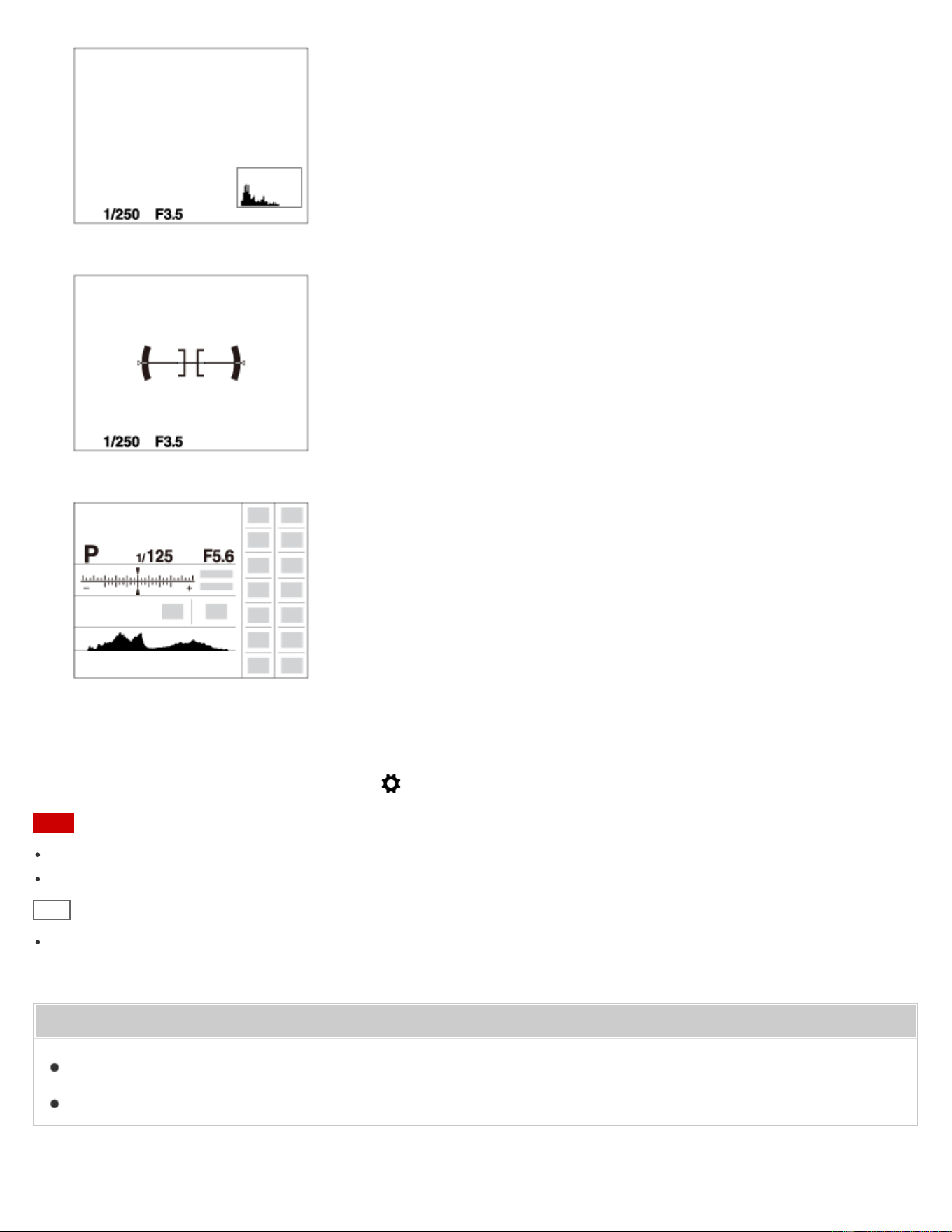

DISP Button (Finder) 187......................................................................................................
DISP Button (Monitor) 188.....................................................................................................
Selecting still image size/image quality 44..................................................................................
Image Size (still image) 189..................................................................................................
Aspect Ratio (still image) 190................................................................................................
Quality (still image) 191.........................................................................................................
Panorama: Size 192..............................................................................................................
Panorama: Direction 193.......................................................................................................
Adjusting the focus 45.................................................................................................................
Changing the focus method using the focus mode dial 194..................................................
Focus Area 196.....................................................................................................................
Center Lock-on AF 197..........................................................................................................
AF Area Auto Clear 198.........................................................................................................
AF Area Points 199................................................................................................................
Flexible Spot Points 200........................................................................................................
Wide AF Area Disp. 201........................................................................................................
Focus-lock 202......................................................................................................................
Manual Focus 203.................................................................................................................
Direct manual focus (DMF) 204.............................................................................................
Focus Magnifier 205..............................................................................................................
Focus Magnif. Time 206........................................................................................................
Peaking Level 207.................................................................................................................
Peaking Color 208.................................................................................................................
Eye-Start AF (still image) 209................................................................................................
AF/MF control 210.................................................................................................................
AF Illuminator (still image) 211..............................................................................................
AF Micro Adj. 212..................................................................................................................
AF w/ shutter (still image) 213...............................................................................................
AF On 214.............................................................................................................................
Eye AF 215............................................................................................................................
AF drive speed (still image) 216............................................................................................
AF Track Duration (still image) 217.......................................................................................
AF Track Duration (movie) 218..............................................................................................

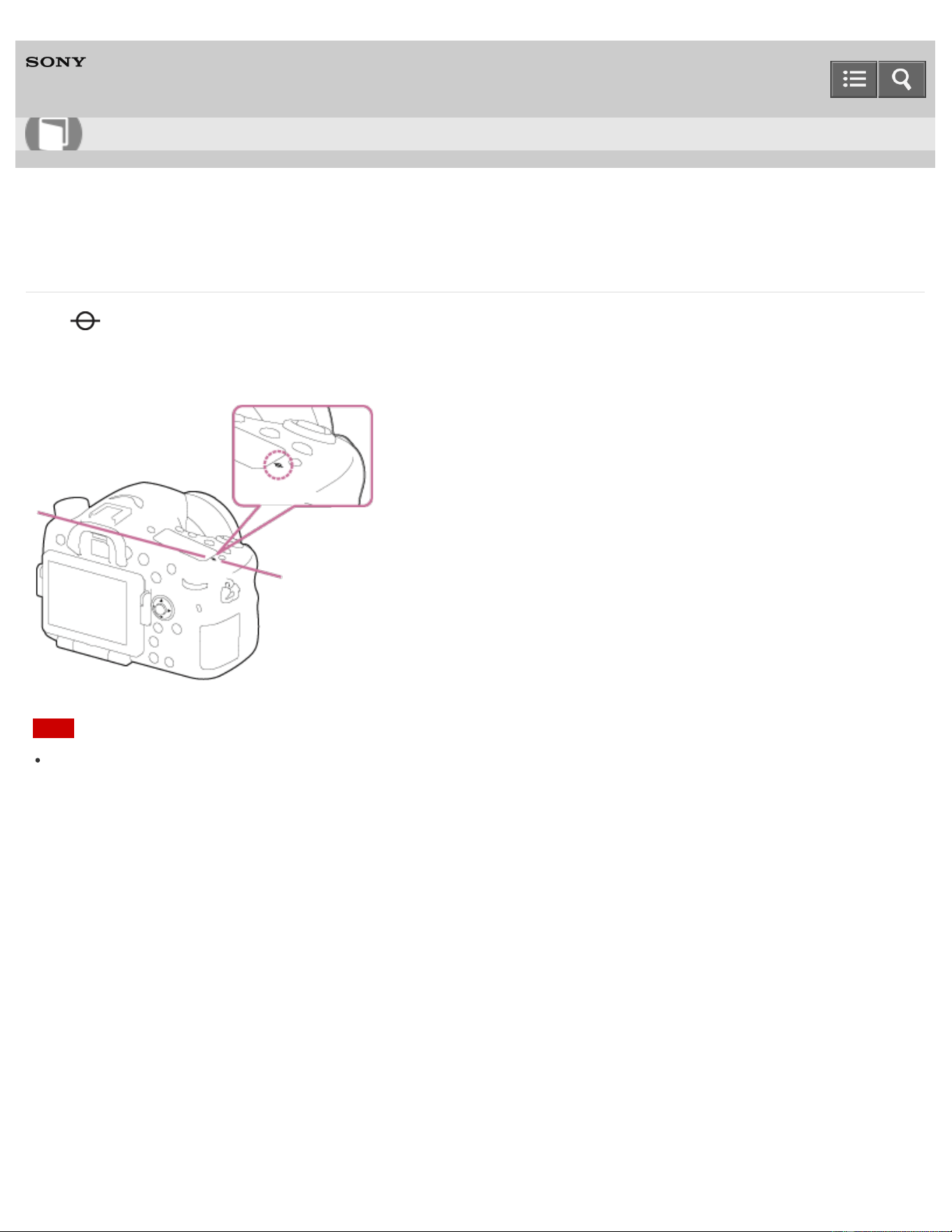

Measuring the exact distance to the subject 219...................................................................
AF Range Control 220...........................................................................................................
TOC-3
AF-A setup 222......................................................................................................................
Priority setup 223...................................................................................................................
Adjusting the exposure 48...........................................................................................................
Exposure Comp. 224.............................................................................................................
Exposure compensation button 225......................................................................................
Metering Mode 226................................................................................................................
AE lock 227............................................................................................................................
AEL w/ shutter (still image) 228.............................................................................................
Exp.comp.set 229..................................................................................................................
Zebra 230..............................................................................................................................
Exposure Set. Guide 231.......................................................................................................
Exposure step 232.................................................................................................................
Dial Ev Comp 233..................................................................................................................
Selecting a drive mode (Continuous shooting/Self-timer) 50......................................................
Drive Mode 234.....................................................................................................................
Cont. Shooting 235................................................................................................................
Self-timer 236........................................................................................................................
Self-timer(Cont) 237..............................................................................................................
Cont. Bracket 238..................................................................................................................
Single Bracket 240.................................................................................................................
WB bracket 242.....................................................................................................................
DRO Bracket 243...................................................................................................................
Bracket order 244..................................................................................................................
Selecting the ISO sensitivity 51...................................................................................................
ISO 245..................................................................................................................................
Multi Frame NR 247...............................................................................................................
NR Effect 248........................................................................................................................
Correcting the brightness or contrast 52.....................................................................................
D-Range Opt. (DRO) 249......................................................................................................
Auto HDR 250........................................................................................................................
Adjusting color tones 53..............................................................................................................
White Balance 251.................................................................................................................
Capturing a basic white color in [Custom Setup] mode 253..................................................
Selecting an effect mode 54........................................................................................................
Picture Effect 254..................................................................................................................
Creative Style 256.................................................................................................................
Recording movies 55...................................................................................................................
Movie recording formats 258.................................................................................................
File Format (movie) 259.........................................................................................................
Record Setting (movie) 260...................................................................................................
TOC-4
SteadyShot (movie) 262........................................................................................................
Audio Recording 263.............................................................................................................
Audio Level Display 264........................................................................................................
Audio Rec Level 265..............................................................................................................
Audio Out Timing 266............................................................................................................
Wind Noise Reduct. 267........................................................................................................
Auto Slow Shut. (movie) 268.................................................................................................

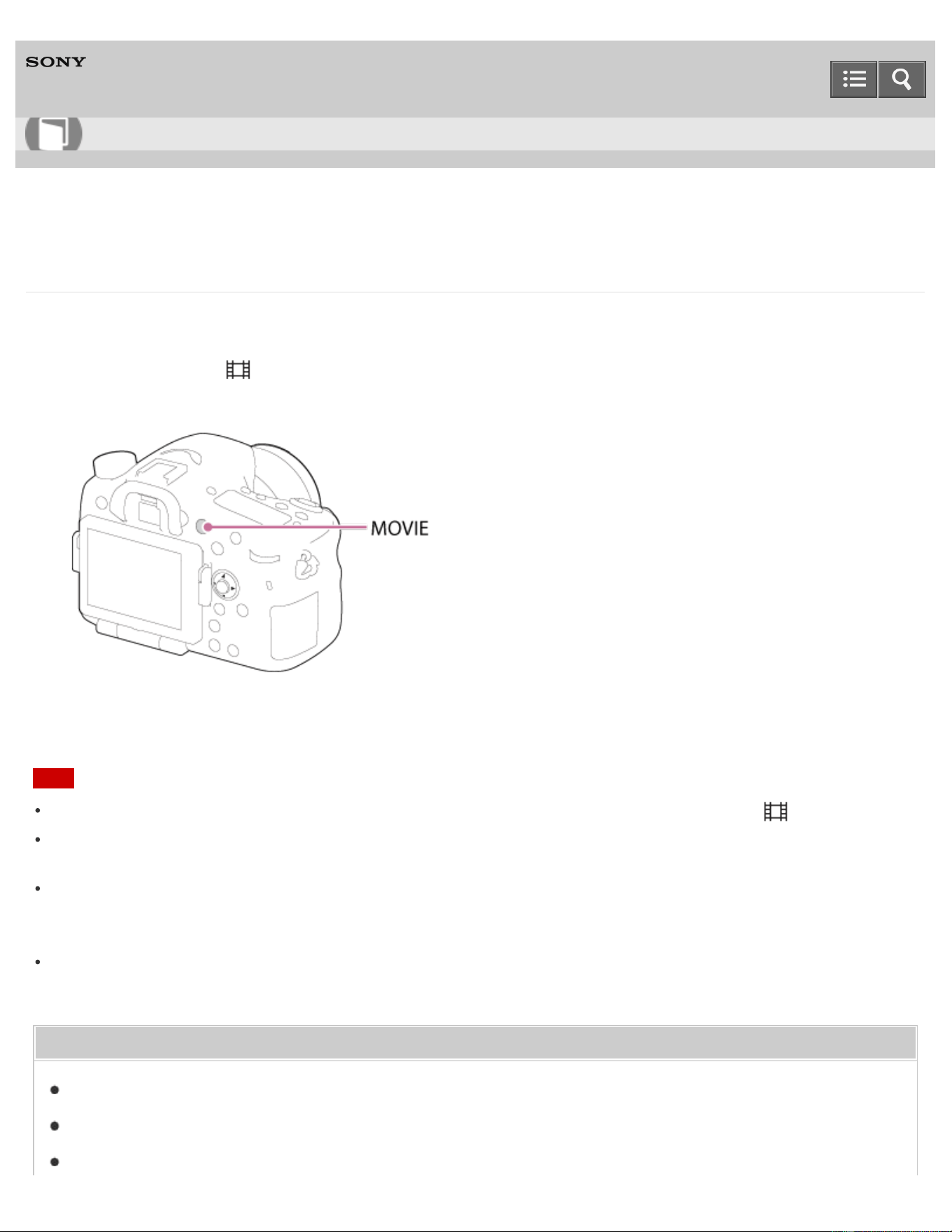

MOVIE Button 269.................................................................................................................
Customizing the shooting functions for convenient use 57.........................................................
Memory 270...........................................................................................................................
Function Menu Set. 271.........................................................................................................
Custom Key Settings 272......................................................................................................
Function of the focus hold button 273....................................................................................
Function of the AEL button 274.............................................................................................
Function of the AF/MF button 275.........................................................................................
Function of the ISO button 276..............................................................................................
Function of the Exposure Compensation button 277.............................................................

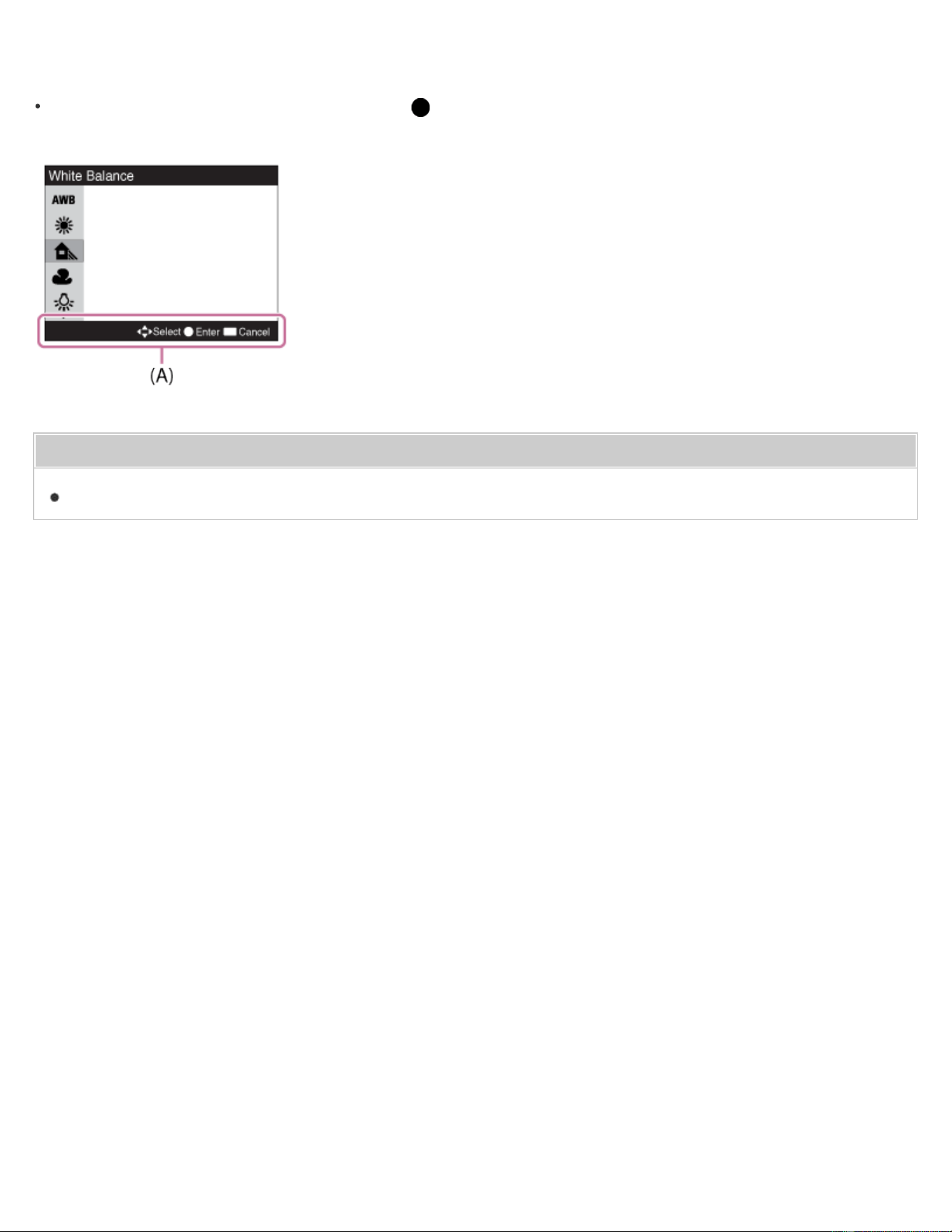

Function of the WB button 278..............................................................................................
Function of the Drive Mode button 279..................................................................................
Function of the Smart Teleconverter button 280...................................................................
Function of the Preview Button 281.......................................................................................
Function of the C button 282.................................................................................................
Function of the center button 283..........................................................................................
Dial Setup 284.......................................................................................................................
Setting the other functions of this product 59..............................................................................

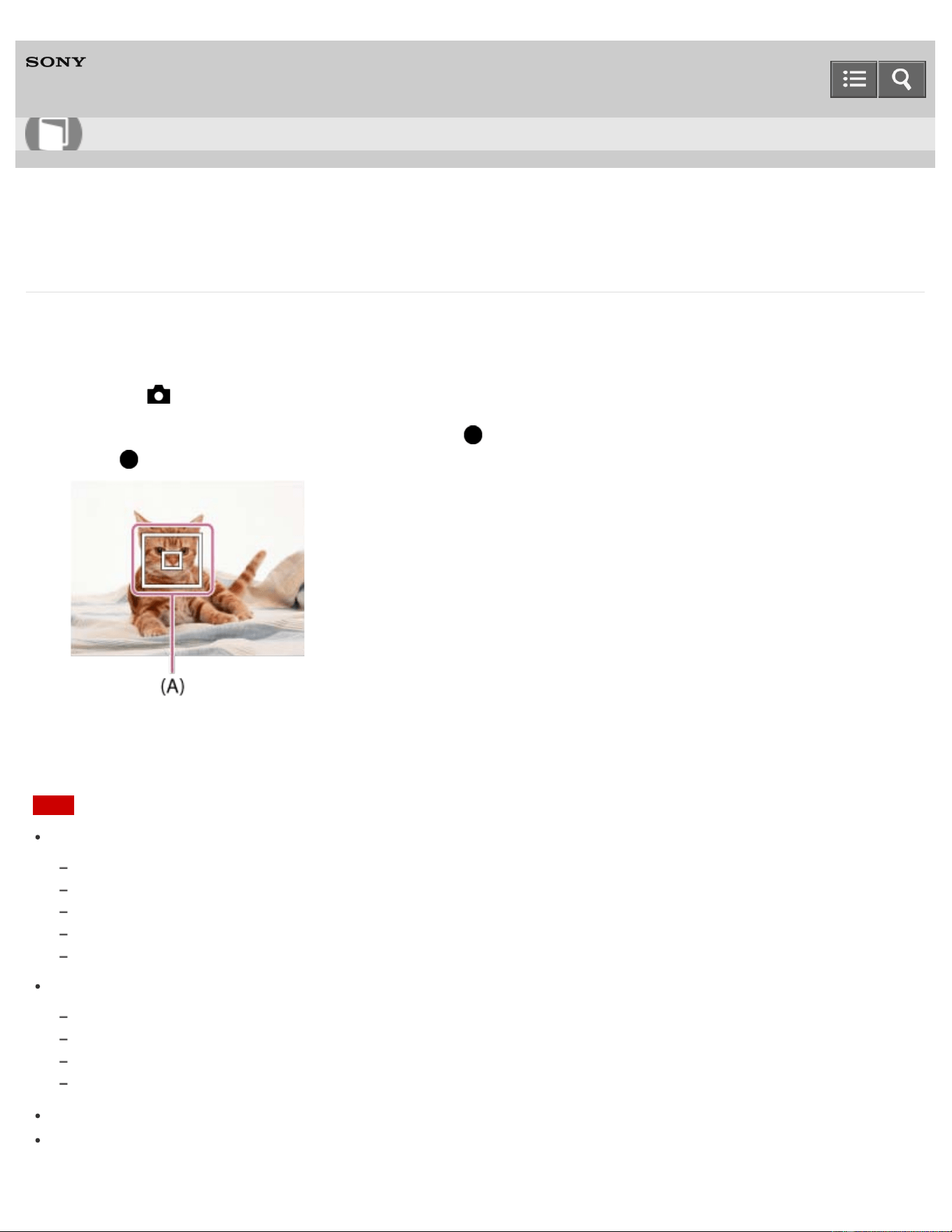

Smile/Face Detect. 285.........................................................................................................
Soft Skin Effect (still image) 287............................................................................................
Face Registration (New Registration) 288.............................................................................
Face Registration (Order Exchanging) 289...........................................................................
Face Registration (Delete) 290..............................................................................................
Red Eye Reduction 291.........................................................................................................
Auto Obj. Framing (still image) 292.......................................................................................
SteadyShot (still image) 293..................................................................................................
Long Exposure NR (still image) 294......................................................................................
High ISO NR (still image) 295................................................................................................
Color Space (still image) 296.................................................................................................
Grid Line 297.........................................................................................................................
Auto Review 298....................................................................................................................
Live View Display 299............................................................................................................
FINDER/MONITOR 300........................................................................................................
TOC-5
Release w/o Lens 301...........................................................................................................
SteadyS. w/ shut. 302............................................................................................................
e-Front Curtain Shut. 303......................................................................................................
Superior Auto (Image Extraction) 304...................................................................................
Superior Auto (Cont. Shooting) 305.......................................................................................
Shading Comp. 306...............................................................................................................
Chro. Aber. Comp. 307..........................................................................................................
Distortion Comp. 308.............................................................................................................
Dial Lock 309.........................................................................................................................
Deactivate Monitor 310..........................................................................................................
Aperture Preview 311............................................................................................................
Shot. Result Preview 312......................................................................................................
Viewing 6...........................................................................................................................................
Viewing still images 62................................................................................................................
Playing back images 313.......................................................................................................
Playback zoom 314...............................................................................................................
Image Index 315....................................................................................................................

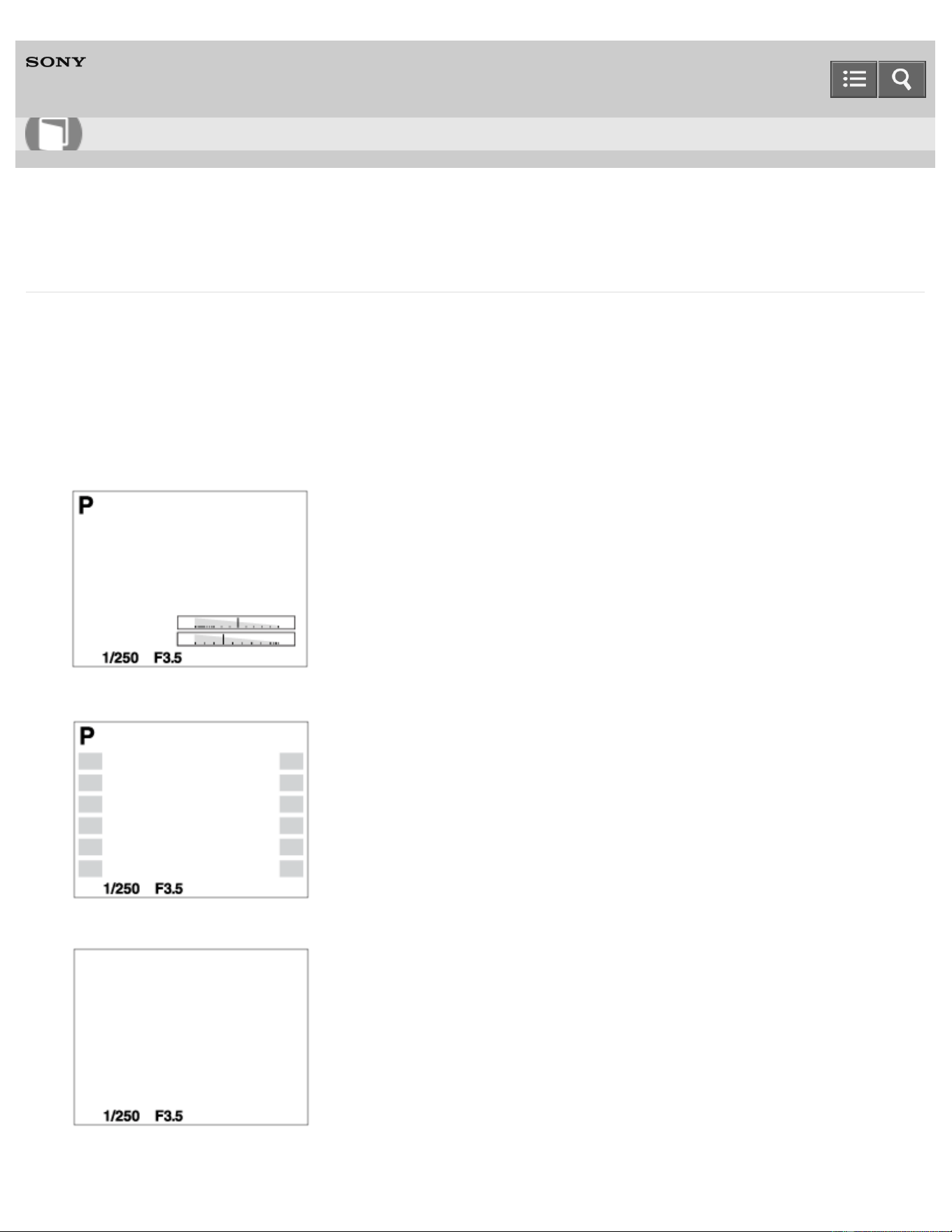

Switching the screen display (during playback) 316..............................................................
Deleting images 63......................................................................................................................
Deleting a displayed image 317.............................................................................................
Deleting multiple selected images 318..................................................................................
Playing back movies 64...............................................................................................................
Playing back movies 319.......................................................................................................
Viewing panoramic images 65.....................................................................................................

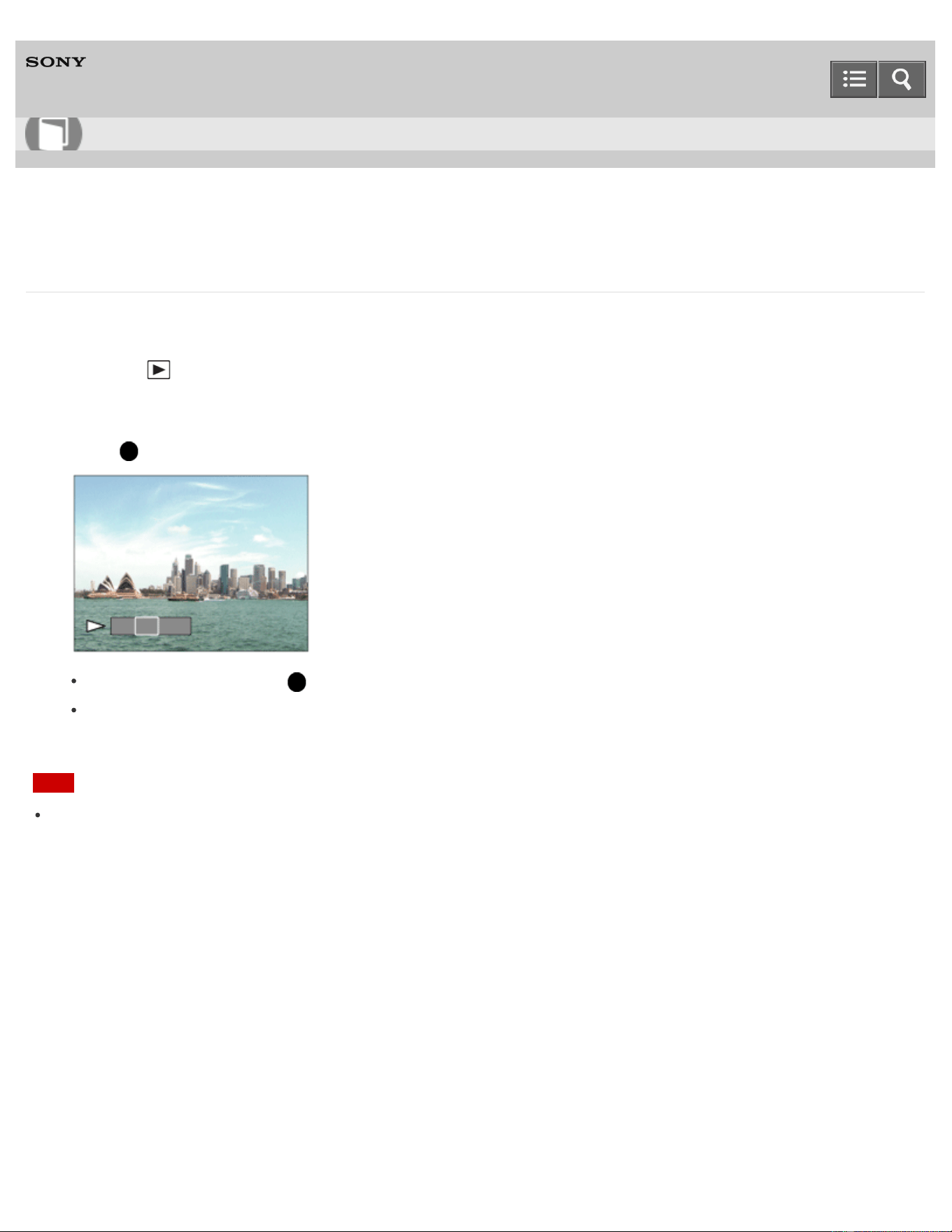

Playing back panoramic images 320.....................................................................................
Printing 66...................................................................................................................................
Specify Printing 321...............................................................................................................
Using viewing functions 67..........................................................................................................
View Mode 322......................................................................................................................
Display Rotation 323..............................................................................................................
Slide Show 324......................................................................................................................
Rotate 325.............................................................................................................................
Protect 326............................................................................................................................
4K Still Image PB 327............................................................................................................
Viewing images on a TV 68.........................................................................................................

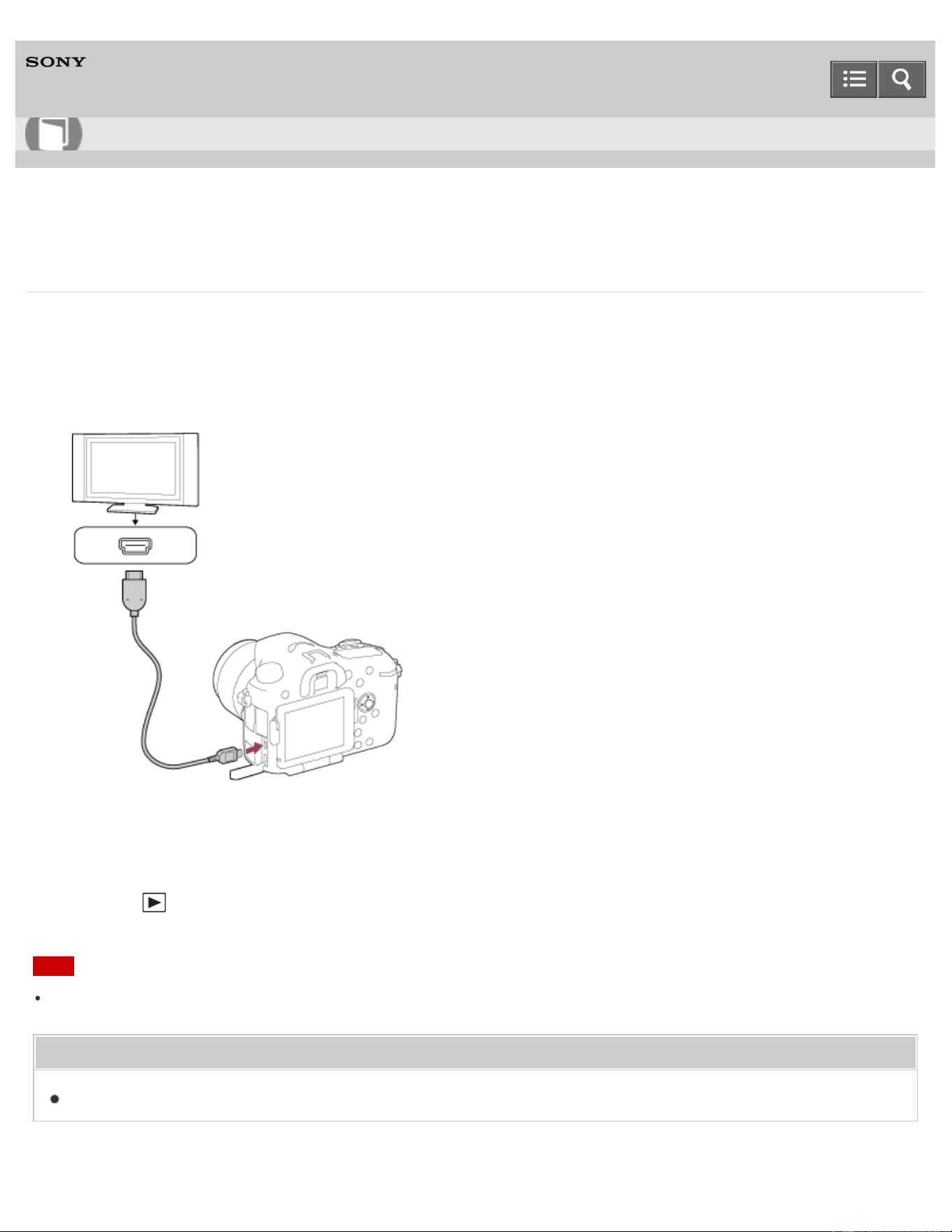

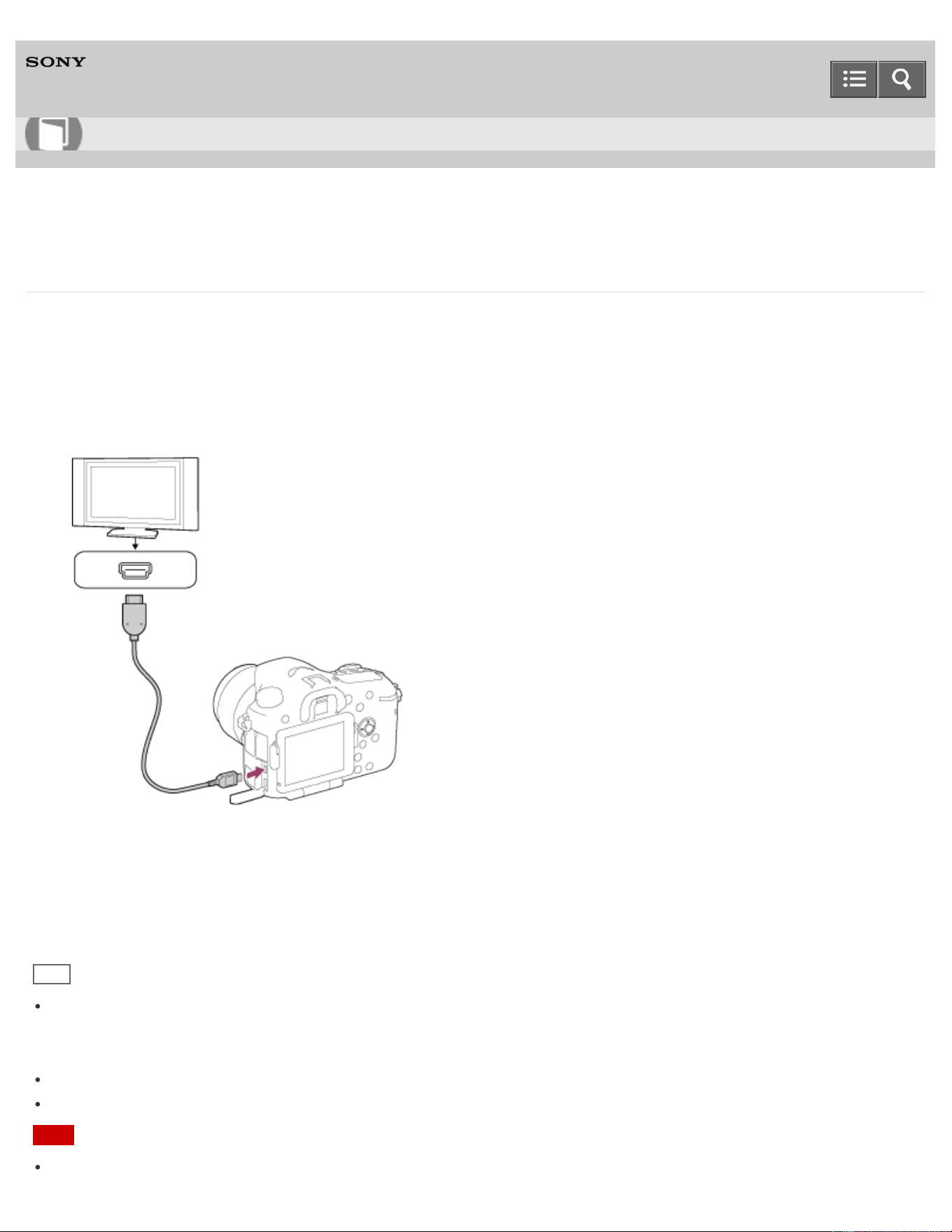

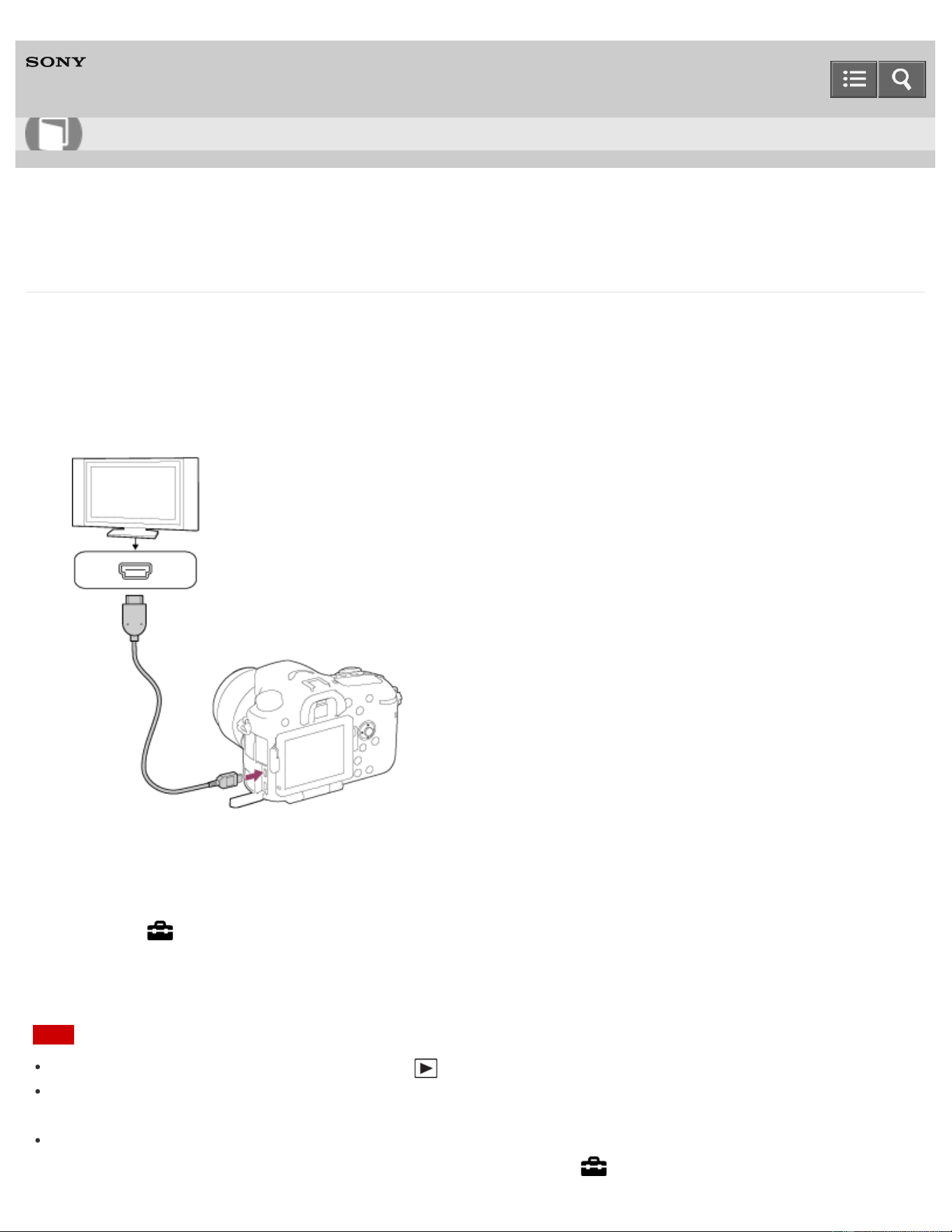

Viewing images on an HD TV 328.........................................................................................
Viewing images on a “BRAVIA” Sync-compatible TV 330....................................................
Changing settings 7...........................................................................................................................
Setup menu 69............................................................................................................................
Monitor Brightness 332..........................................................................................................
TOC-6
Viewfinder Bright. 333............................................................................................................
Finder Color Temp. 334.........................................................................................................
Volume Settings 335..............................................................................................................
Audio signals 336..................................................................................................................
Upload Settings(Eye-Fi) 337..................................................................................................
Tile Menu 339........................................................................................................................
Mode Dial Guide 340.............................................................................................................
Delete confirm. 341................................................................................................................
Pwr Save Start Time 342.......................................................................................................
PAL/NTSC Selector 343........................................................................................................

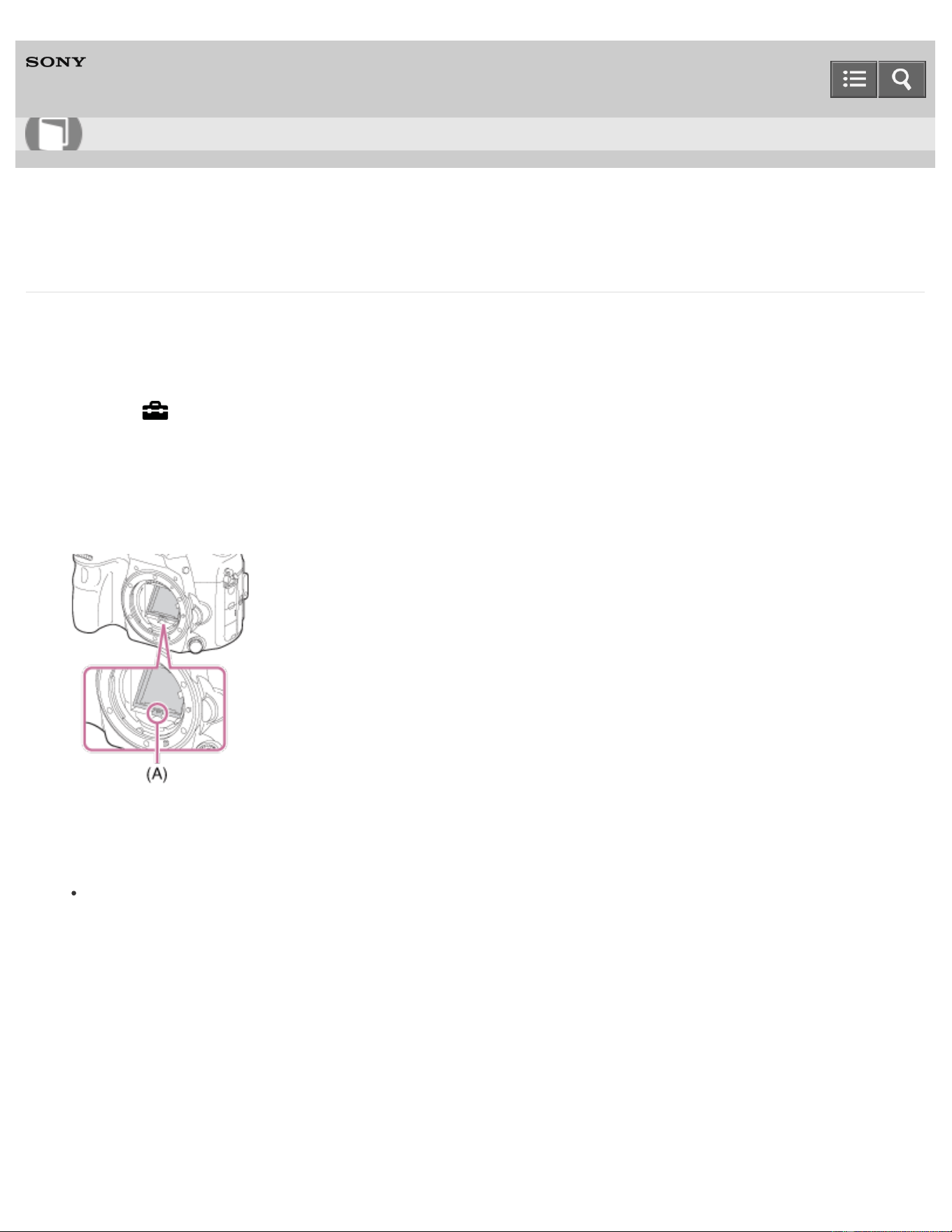

Cleaning Mode 344................................................................................................................
Demo Mode 346....................................................................................................................
Remote Ctrl 347.....................................................................................................................
HDMI Resolution 348.............................................................................................................
CTRL FOR HDMI 349............................................................................................................
HDMI Info. Display 350..........................................................................................................
USB Connection 351.............................................................................................................
USB LUN Setting 352............................................................................................................
Language 353........................................................................................................................
Date/Time Setup 354.............................................................................................................
Area Setting 355....................................................................................................................
Format 356............................................................................................................................
File Number 357....................................................................................................................
Select REC Folder 358..........................................................................................................
New Folder 359.....................................................................................................................
Folder Name 360...................................................................................................................
Recover Image DB 361.........................................................................................................
Display Media Info. 362.........................................................................................................
Version 363............................................................................................................................
Certification Logo (Overseas model only) 364.......................................................................
Setting Reset 365..................................................................................................................
Using Wi-Fi functions 8......................................................................................................................
Connecting this product and a Smartphone 72...........................................................................
PlayMemories Mobile 366.....................................................................................................

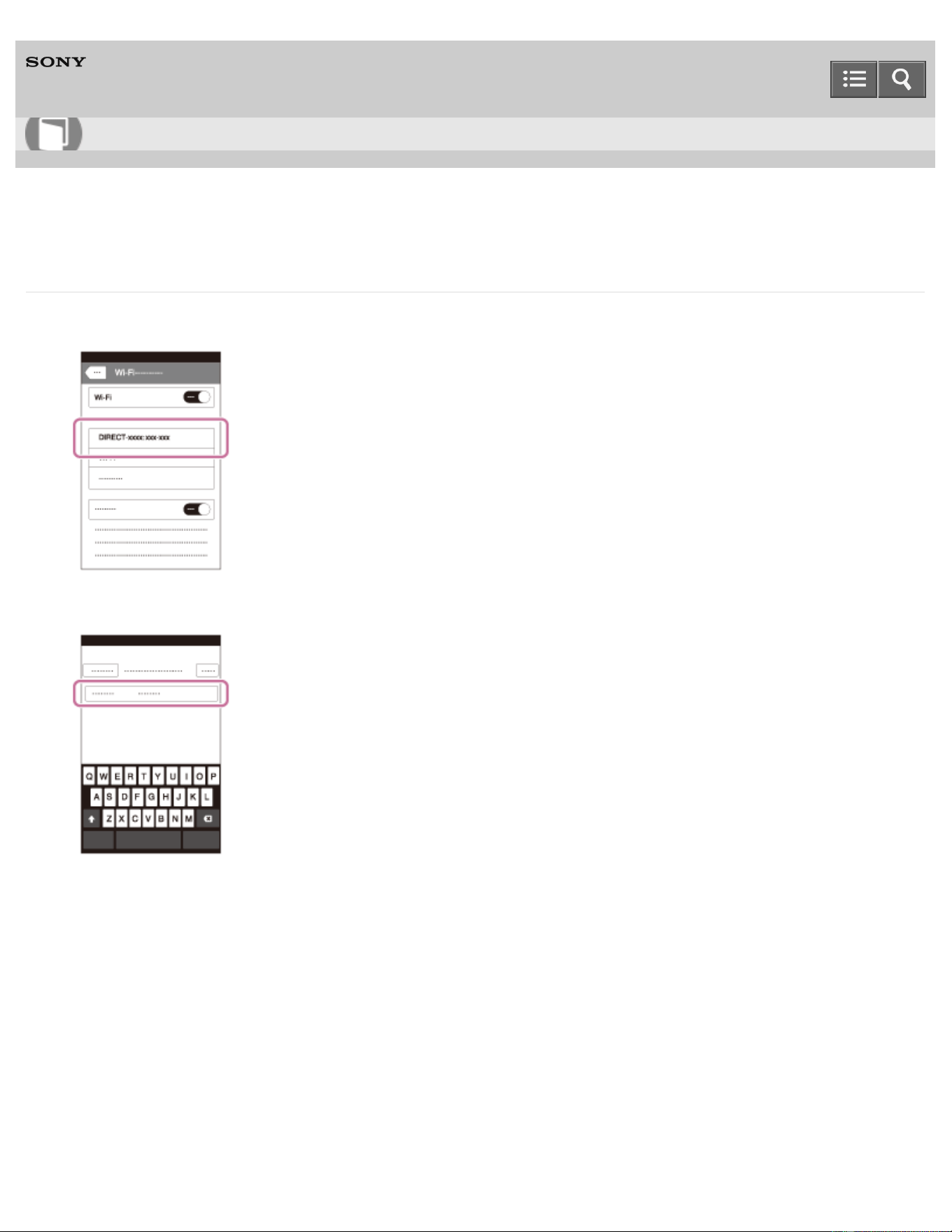

Connecting an Android smartphone to this product 367........................................................

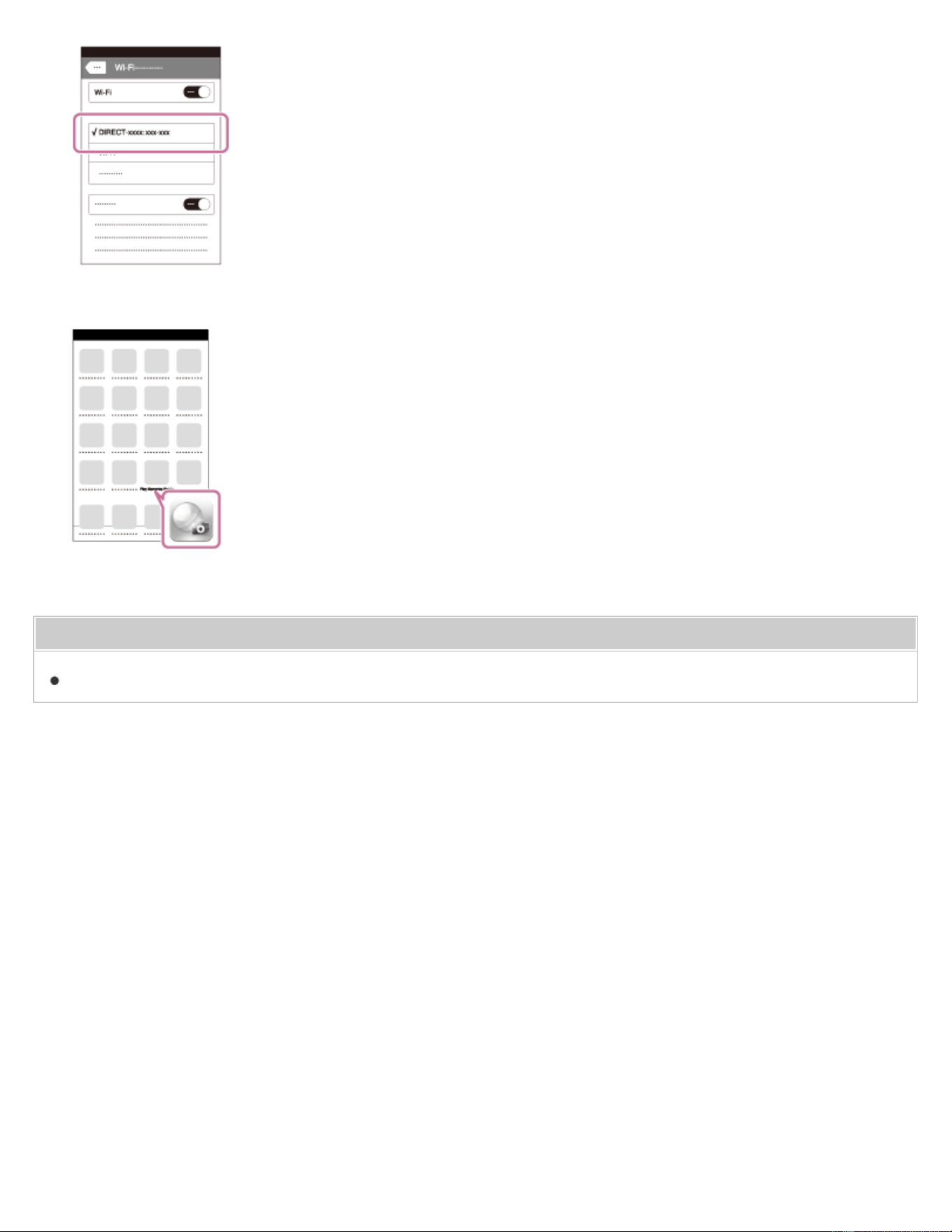

Connecting the product to an iPhone or iPad 368.................................................................
Controlling this product using a Smartphone 73..........................................................................
Ctrl w/ Smartphone 370.........................................................................................................

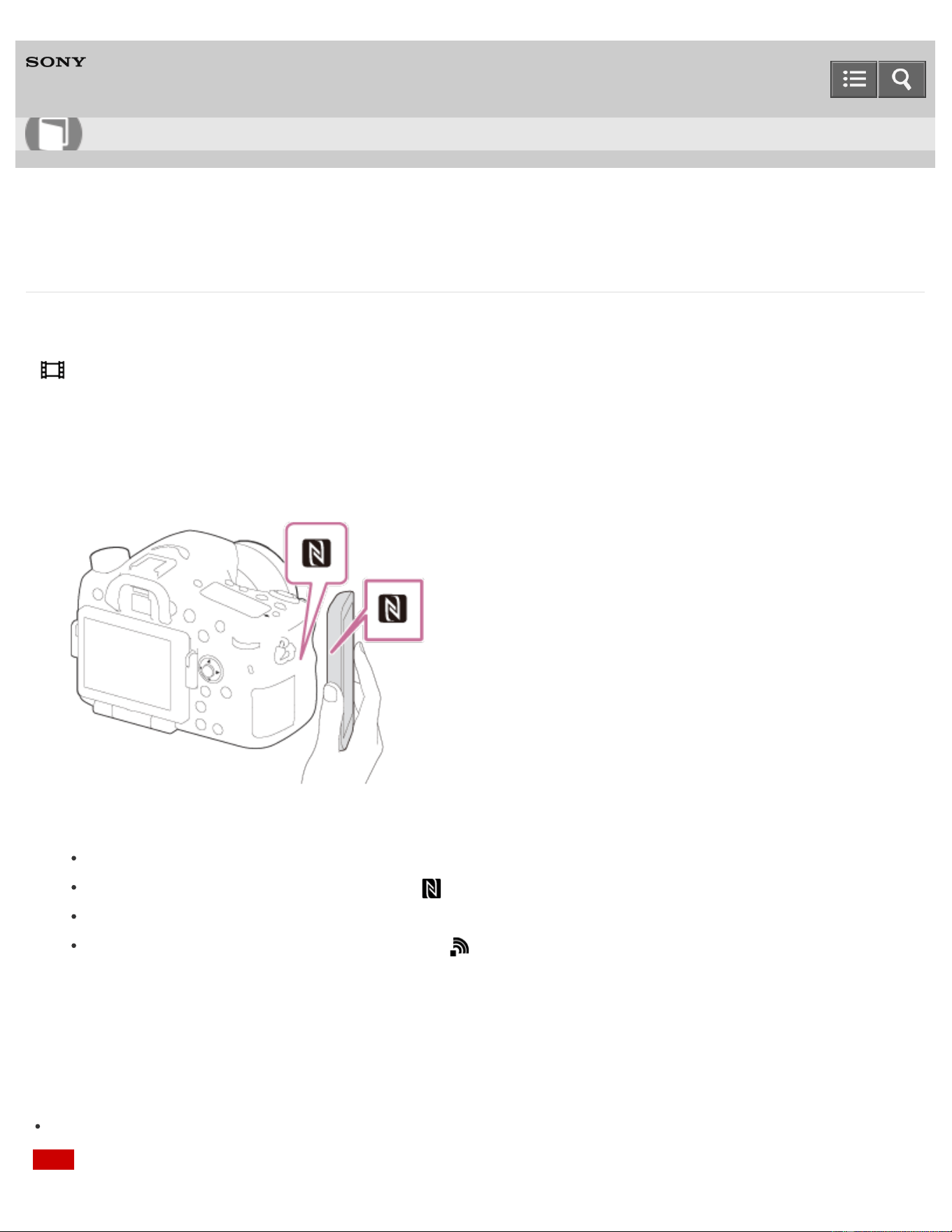

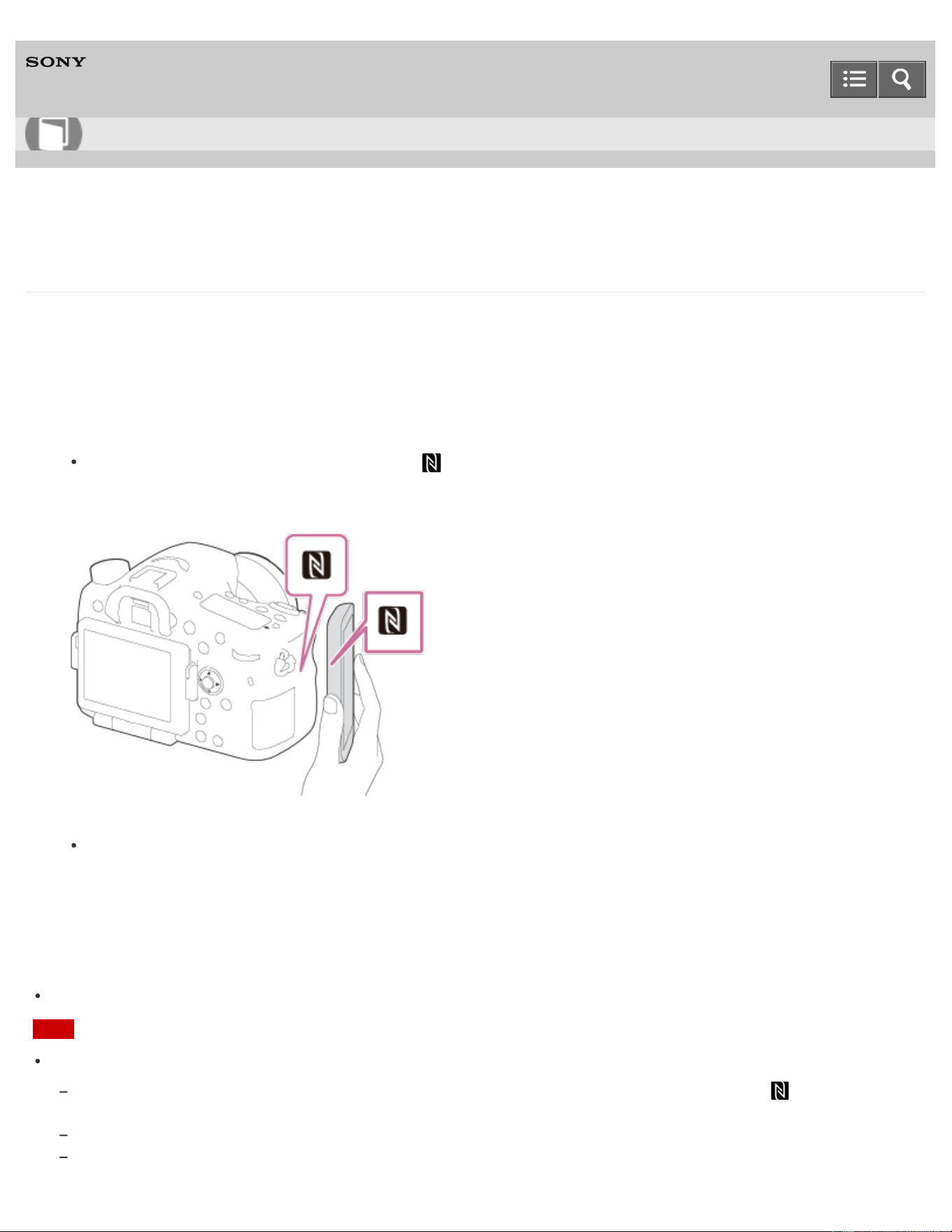

One-touch connection with an NFC-enabled Android smartphone (NFC
One-touch remote) 372..........................................................................................................
TOC-7
Transferring images to a Smartphone 74....................................................................................
Send to Smartphone 374.......................................................................................................
Sending images to an Android smartphone (NFC One-touch Sharing) 376..........................
Transferring images to a computer 75.........................................................................................
Send to Computer 378...........................................................................................................
Transferring images to a TV 76...................................................................................................
View on TV 379.....................................................................................................................
Changing the settings of Wi-Fi functions 77................................................................................
Airplane Mode 381.................................................................................................................
WPS Push 382......................................................................................................................

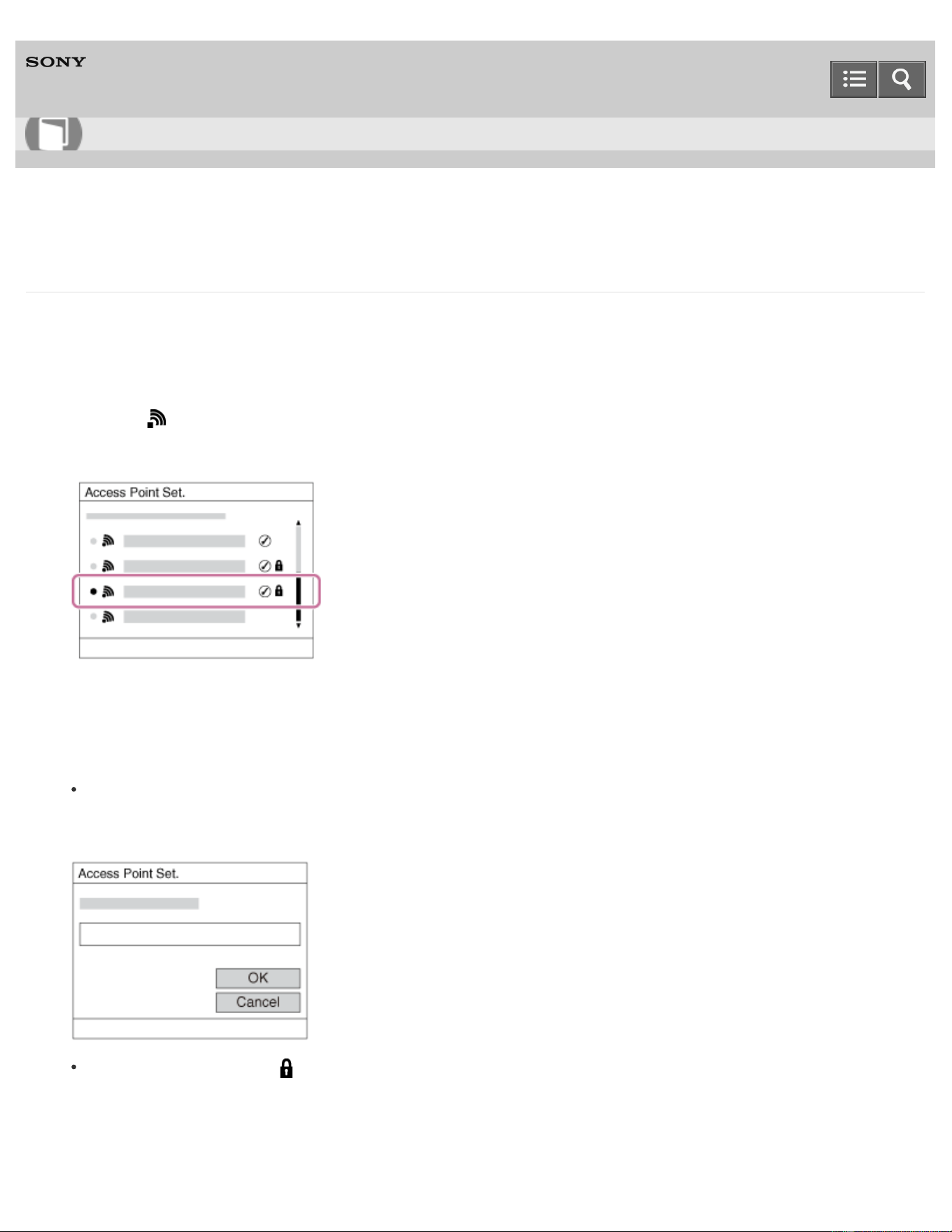

Access Point Set. 383............................................................................................................
Edit Device Name 385...........................................................................................................
Disp MAC Address 386.........................................................................................................
SSID/PW Reset 387..............................................................................................................
Reset Network Set. 388.........................................................................................................
Viewing on computers 9....................................................................................................................
Recommended computer environment 78..................................................................................
Recommended computer environment 389...........................................................................
Using the software 79..................................................................................................................
PlayMemories Home 390......................................................................................................
Installing PlayMemories Home 391.......................................................................................
Software for Mac computers 392...........................................................................................
Image Data Converter 393....................................................................................................
Installing Image Data Converter 394.....................................................................................
Accessing Image Data Converter Guide 395........................................................................
Remote Camera Control 396.................................................................................................
Installing Remote Camera Control 397..................................................................................
Accessing the Help of Remote Camera Control 398.............................................................
Connecting this product and a computer 80................................................................................
Connecting the product to a computer 399............................................................................
Importing images to the computer 400..................................................................................
Disconnecting the product from the computer 401................................................................
Creating a movie disc 81.............................................................................................................
Disc type 402.........................................................................................................................
Selecting the disc creation method 403.................................................................................
Creating a disc with a device other than a computer 404......................................................
Creating Blu-ray Discs 405....................................................................................................
Precautions/This product 10..............................................................................................................
Precautions 82.............................................................................................................................
Precautions 406.....................................................................................................................
TOC-8
On the internal rechargeable battery 409..............................................................................
Battery pack and battery charger 410....................................................................................
Memory card 412...................................................................................................................
Cleaning this product 83..............................................................................................................
On cleaning 414.....................................................................................................................
Number of recordable still images and recordable time of movies 84.........................................
Number of still images 415....................................................................................................
Recordable time of movies 417.............................................................................................
Using this product abroad 85.......................................................................................................
Plug adaptor 420...................................................................................................................
On TV color systems 421......................................................................................................
Other information 86....................................................................................................................
Vertical grip 422.....................................................................................................................
License 423...........................................................................................................................
Trademarks 87............................................................................................................................
Trademarks 424.....................................................................................................................
If you have problems 11....................................................................................................................
If you have problems 88..............................................................................................................
Troubleshooting 426..............................................................................................................
Troubleshooting 12............................................................................................................................
Battery pack and power 89..........................................................................................................
You cannot insert the battery pack into the product. 427......................................................
You cannot turn on the product. 428.....................................................................................
The power turns off suddenly. 429........................................................................................
The remaining battery level indicator shows an incorrect level. 430.....................................
The CHARGE lamp of the battery charger flashes when charging the
battery pack. 431...................................................................................................................
Shooting still images/movies 90..................................................................................................
You cannot record images. 432.............................................................................................
Recording takes a long time. 433..........................................................................................
The image is out of focus. 434...............................................................................................
The flash does not work. 435.................................................................................................
Fuzzy white circular spots appear on images shot using the flash. 436................................
The recording date and time are not displayed on the screen. 437.......................................
The date and time are recorded incorrectly. 438...................................................................
The aperture value and/or shutter speed and/or metering indicator flashes. 439.................
The image colors are not correct. 440...................................................................................
Noise appears in the image when you view the screen in a dark place. 441........................
The eyes of the subject come out red. 442............................................................................
Dots appear and remain on the screen. 443.........................................................................
TOC-9
You cannot shoot images continuously. 444.........................................................................
The image is not clear in the viewfinder. 445........................................................................
The image is whitish (Flare)./Blurring of light appears on the image (
Ghosting). 446.......................................................................................................................
The corners of the picture are too dark. 447..........................................................................
The image is blurred. 448......................................................................................................
The LCD screen darkens after a short period of time passed. 449.......................................
The flash takes too long to recharge. 450.............................................................................
The control dial does not work. 451.......................................................................................
Viewing images 92......................................................................................................................
Images cannot be played back. 452......................................................................................
The date and time are not displayed. 453.............................................................................
The image cannot be deleted. 454........................................................................................
The image was deleted by mistake. 455...............................................................................
A DPOF mark cannot be put. 456..........................................................................................
Wi-Fi 93.......................................................................................................................................
You cannot find the wireless access point to be connected. 457..........................................
[WPS Push] does not work. 458............................................................................................
[Send to Computer] is canceled halfway. 459.......................................................................
You cannot send movies to a smartphone. 460....................................................................
[Ctrl w/ Smartphone] or [Send to Smartphone] is canceled halfway. 461..............................
The shooting screen for [Ctrl w/ Smartphone] is not displayed smoothly./
The connection between this product and the smartphone is
disconnected. 462..................................................................................................................
You cannot use One-Touch connection (NFC). 463..............................................................
Computers 94..............................................................................................................................
The computer does not recognize this product. 464..............................................................
You cannot import images. 465.............................................................................................
The image and sound are interrupted by noise when viewing a movie on
a computer. 466.....................................................................................................................
Images exported from a computer cannot be viewed on this product. 467...........................
Memory cards 95.........................................................................................................................
Formatted the memory card by mistake. 468........................................................................
Printing 96...................................................................................................................................
You cannot print images. 469................................................................................................
The color of the image is strange. 470..................................................................................
Images are printed with both edges cut off. 471....................................................................
You cannot print images with the date. 472...........................................................................
Others 97.....................................................................................................................................
The lens gets fogged. 473.....................................................................................................
TOC-10
The product becomes warm when you use it for a long time. 474........................................
The Clock Set screen appears when you turn on the product. 475.......................................
The number of recordable images does not decrease, or decreases two
images at a time. 476............................................................................................................
The product does not work properly. 477..............................................................................
“--E-” appears on the screen. 478.........................................................................................
Messages 13.....................................................................................................................................
Messages 98...............................................................................................................................
Warning messages 479.........................................................................................................
Situations this product has difficulty handling 14...............................................................................
Situations this product has difficulty handling 99.........................................................................
Situations this product has difficulty handling 481.................................................................
How to Use 15...................................................................................................................................
Troubleshooting 24............................................................................................................................
TOC-11
Interchangeable Lens Digital Camera
ILCA-77M2
Using shooting functions
Using the zoom
Using the flash
Selecting a screen display mode
Selecting still image size/image quality
Adjusting the focus
Adjusting the exposure
Selecting a drive mode (Continuous shooting/Self-timer)
Selecting the ISO sensitivity
Correcting the brightness or contrast
Adjusting color tones
Selecting an effect mode
Recording movies
Customizing the shooting functions for convenient use
Setting the other functions of this product
Help Guide
How to Use
5
Interchangeable Lens Digital Camera
ILCA-77M2
Using Wi-Fi functions
Connecting this product and a Smartphone
Controlling this product using a Smartphone

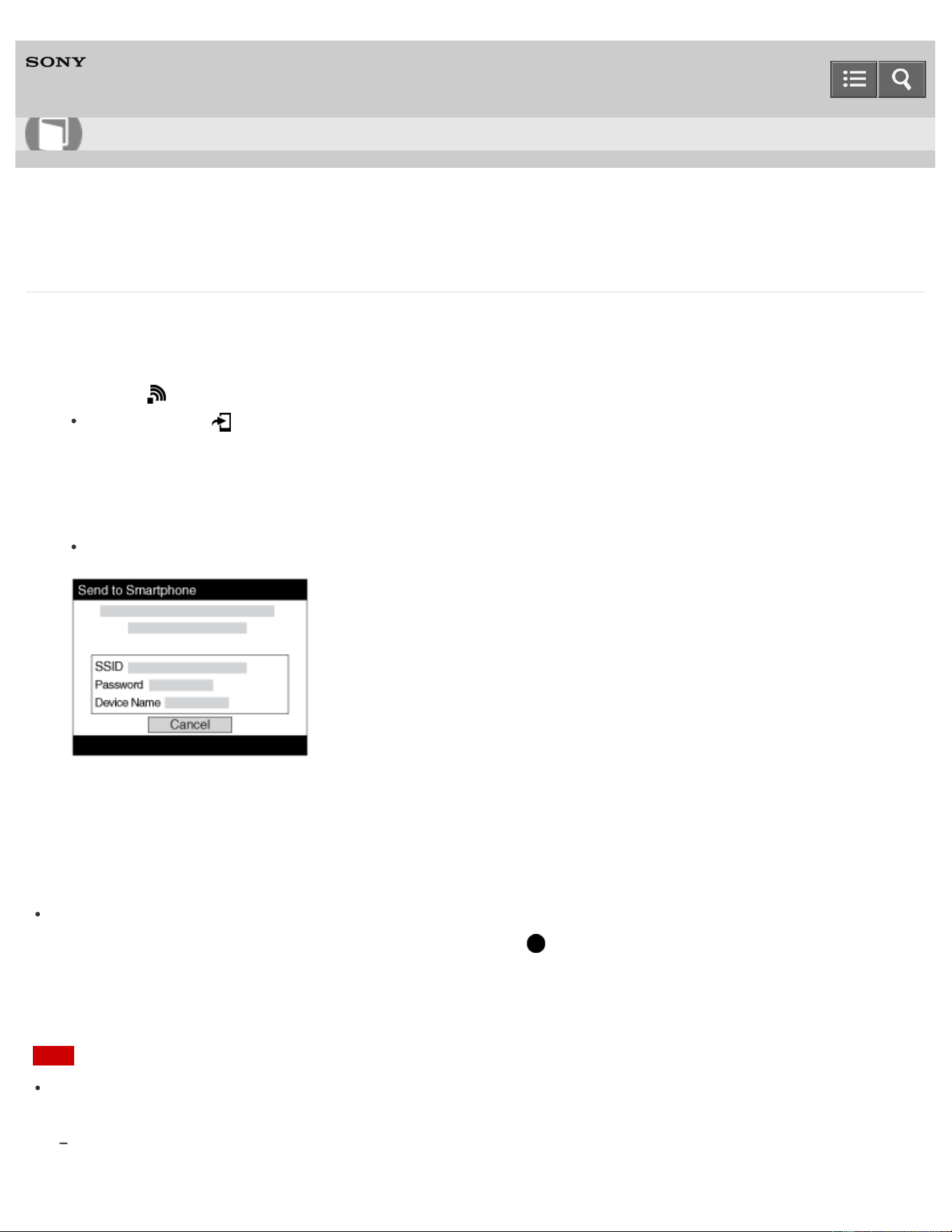

Transferring images to a Smartphone
Transferring images to a computer
Transferring images to a TV
Changing the settings of Wi-Fi functions
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
8
Interchangeable Lens Digital Camera
ILCA-77M2
How to Use
Before Use
Names of parts
Checking the camera and the supplied items
Identifying parts (Front side)
Identifying parts (Rear side)
Identifying parts (Top side)
Identifying parts (Sides/Bottom)
Identifying parts Lens DT 16-50mm F2.8 SSM (Supplied with the ILCA-77M2Q)
Identifying parts Lens DT 18-135mm F3.5-5.6 SAM (Supplied with the ILCA-77M2M)
Icons and indicators
List of icons on the screen
Display panel
Using the strap

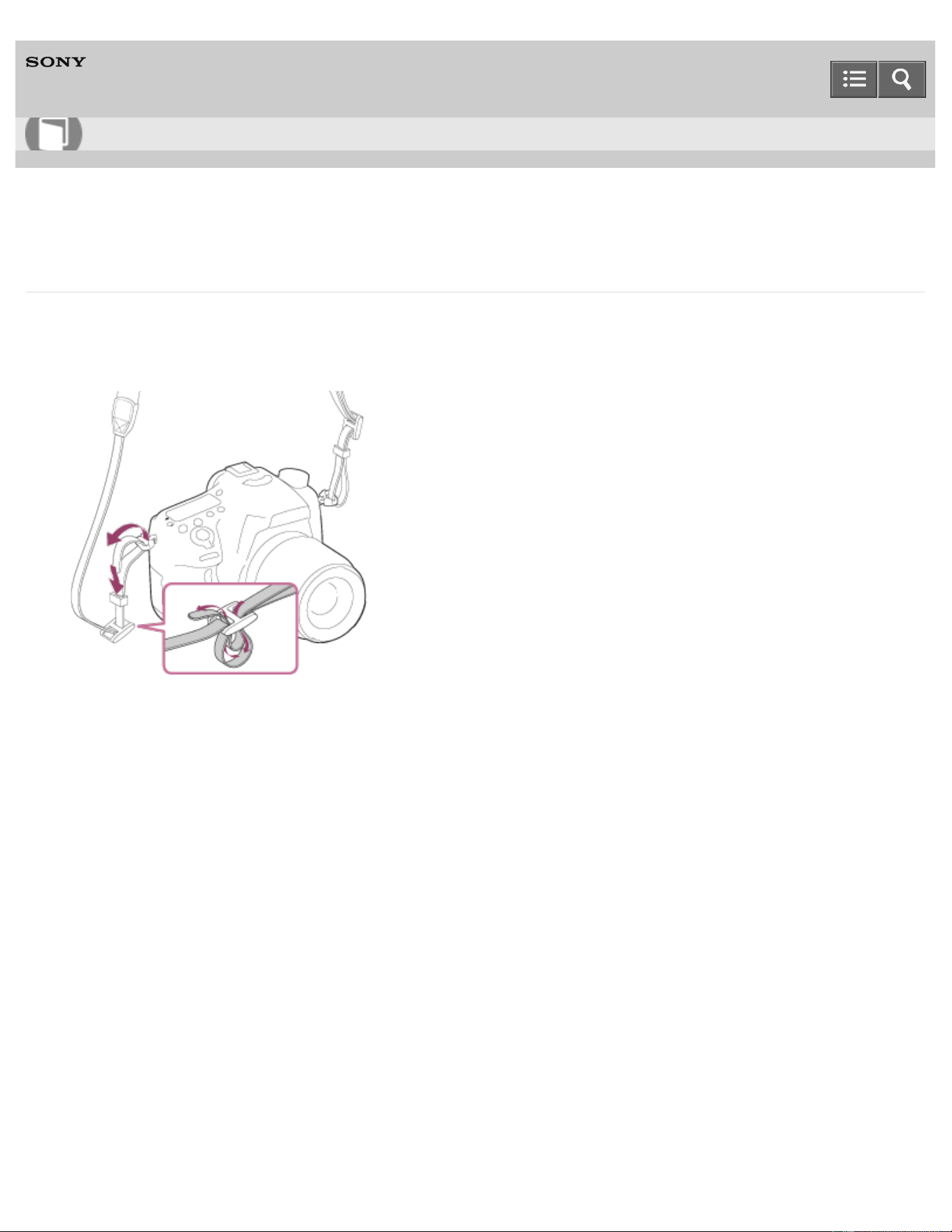

Using the shoulder strap
Attaching the eyepiece cup
Attaching the eyepiece cup
Adjusting the viewfinder
Adjusting the viewfinder (diopter-adjustment)
In-Camera guide
About the [In-Camera Guide]
Preparing the camera
Charging the battery pack
Charging the battery pack using a charger
Inserting the battery pack into the camera
Battery life and the number of images that can be recorded/played back using a battery pack
Supplying power using a wall outlet (wall socket)
Removing the battery pack
Inserting a memory card (sold separately)
Inserting a memory card
Removing the memory card
Help Guide
List of Topics
15
Attaching a lens
Attaching a lens
Removing the lens
Attaching the lens hood
Notes on changing the lens
Setting the date and time
Setting the date and time
Confirming the operation method
Confirming the operation method
Using the multi-selector
Using MENU items
Using the Fn (Function) button
Using the "Quick Navi"
Shooting
Shooting still images/movies
Shooting still images
Shooting movies
Selecting a shooting mode
List of mode dial functions
Intelligent Auto
Superior Auto
About Scene Recognition
The advantages of automatic shooting
Program Auto
Sweep Panorama
Scene Selection
Cont. Priority AE
Shutter Priority
Aperture Priority
Manual Exposure
BULB
Memory recall
Movie
Using shooting functions
Using the zoom
Zoom
The zoom features available with this product
Zoom Setting
About zoom scale
16
Smart Telecon.
Using the flash
Using flash
Flash Mode
Flash Comp.
FEL Lock
Flash control
Power ratio
Selecting a screen display mode
Switching the screen display (Shooting)
DISP Button (Finder)
DISP Button (Monitor)
Selecting still image size/image quality
Image Size (still image)
Aspect Ratio (still image)
Quality (still image)
Panorama: Size
Panorama: Direction
Adjusting the focus
Changing the focus method using the focus mode dial
Focus Area
Center Lock-on AF
AF Area Auto Clear
AF Area Points
Flexible Spot Points
Wide AF Area Disp.
Focus-lock
Manual Focus
Direct manual focus (DMF)
Focus Magnifier
Focus Magnif. Time
Peaking Level
Peaking Color
Eye-Start AF (still image)
AF/MF control
AF Illuminator (still image)
AF Micro Adj.
AF w/ shutter (still image)
AF On
Eye AF
AF drive speed (still image)
17
AF Track Duration (still image)
AF Track Duration (movie)
Measuring the exact distance to the subject
AF Range Control
AF-A setup
Priority setup
Adjusting the exposure
Exposure Comp.
Exposure compensation button
Metering Mode
AE lock
AEL w/ shutter (still image)
Exp.comp.set
Zebra
Exposure Set. Guide
Exposure step
Dial Ev Comp
Selecting a drive mode (Continuous shooting/Self-timer)
Drive Mode
Cont. Shooting
Self-timer
Self-timer(Cont)
Cont. Bracket
Single Bracket
WB bracket
DRO Bracket
Bracket order
Selecting the ISO sensitivity
ISO
Multi Frame NR
NR Effect
Correcting the brightness or contrast

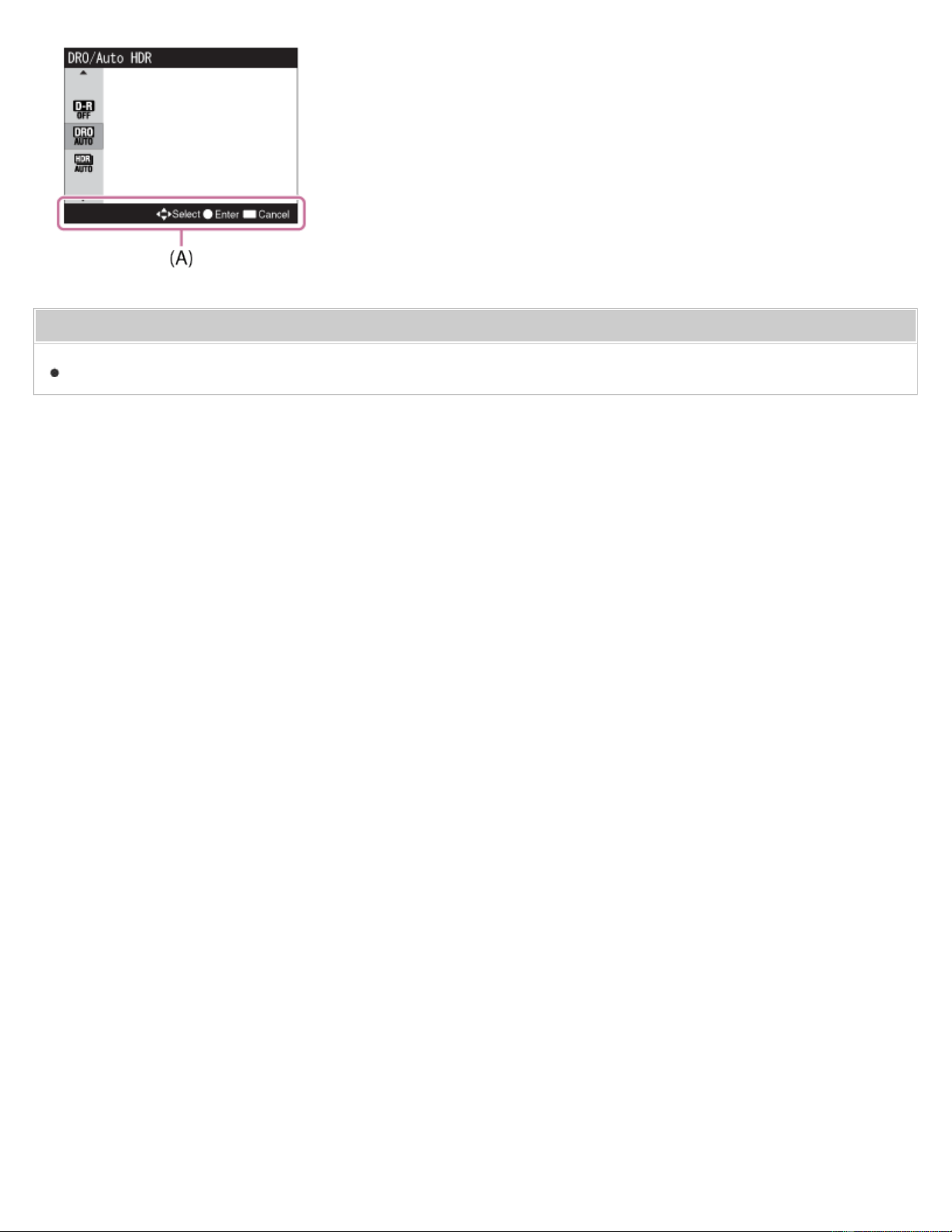

D-Range Opt. (DRO)
Auto HDR
Adjusting color tones
White Balance
Capturing a basic white color in [Custom Setup] mode
Selecting an effect mode
Picture Effect
Creative Style
Recording movies
18
Movie recording formats
File Format (movie)
Record Setting (movie)
SteadyShot (movie)
Audio Recording
Audio Level Display
Audio Rec Level
Audio Out Timing
Wind Noise Reduct.
Auto Slow Shut. (movie)
MOVIE Button
Customizing the shooting functions for convenient use
Memory
Function Menu Set.
Custom Key Settings
Function of the focus hold button
Function of the AEL button
Function of the AF/MF button
Function of the ISO button
Function of the Exposure Compensation button
Function of the WB button
Function of the Drive Mode button
Function of the Smart Teleconverter button
Function of the Preview Button
Function of the C button
Function of the center button
Dial Setup
Setting the other functions of this product

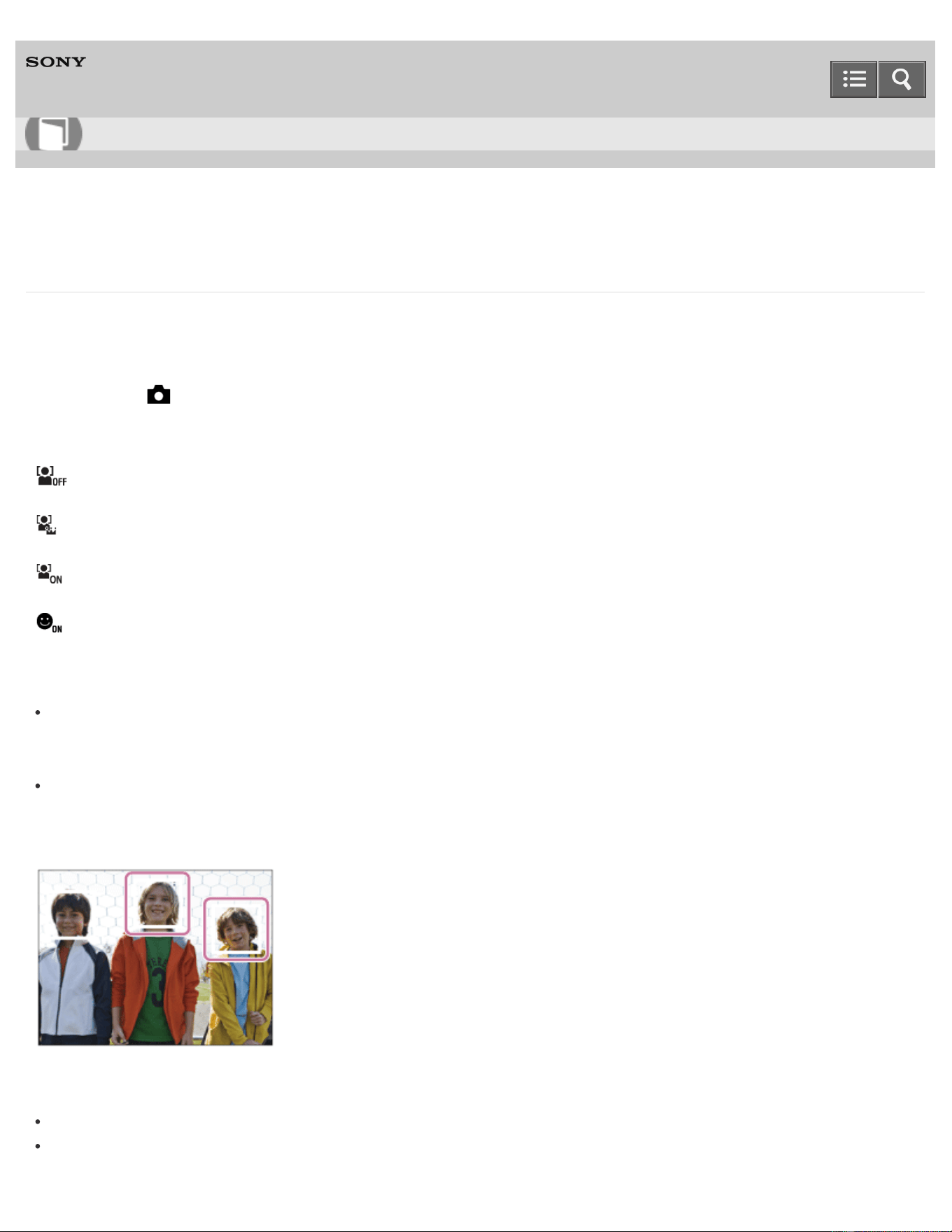

Smile/Face Detect.
Soft Skin Effect (still image)
Face Registration (New Registration)
Face Registration (Order Exchanging)
Face Registration (Delete)
Red Eye Reduction
Auto Obj. Framing (still image)
SteadyShot (still image)
Long Exposure NR (still image)
High ISO NR (still image)
Color Space (still image)
Grid Line
Auto Review
Live View Display
19
FINDER/MONITOR
Release w/o Lens
SteadyS. w/ shut.
e-Front Curtain Shut.
Superior Auto (Image Extraction)
Superior Auto (Cont. Shooting)
Shading Comp.
Chro. Aber. Comp.
Distortion Comp.
Dial Lock
Deactivate Monitor
Aperture Preview
Shot. Result Preview
Viewing
Viewing still images
Playing back images
Playback zoom
Image Index
Switching the screen display (during playback)
Deleting images
Deleting a displayed image
Deleting multiple selected images
Playing back movies
Playing back movies
Viewing panoramic images
Playing back panoramic images
Printing
Specify Printing
Using viewing functions
View Mode
Display Rotation
Slide Show
Rotate
Protect
4K Still Image PB
Viewing images on a TV
Viewing images on an HD TV
Viewing images on a “BRAVIA” Sync-compatible TV
Changing settings
20
Setup menu
Monitor Brightness
Viewfinder Bright.
Finder Color Temp.
Volume Settings
Audio signals
Upload Settings(Eye-Fi)
Tile Menu
Mode Dial Guide
Delete confirm.
Pwr Save Start Time
PAL/NTSC Selector

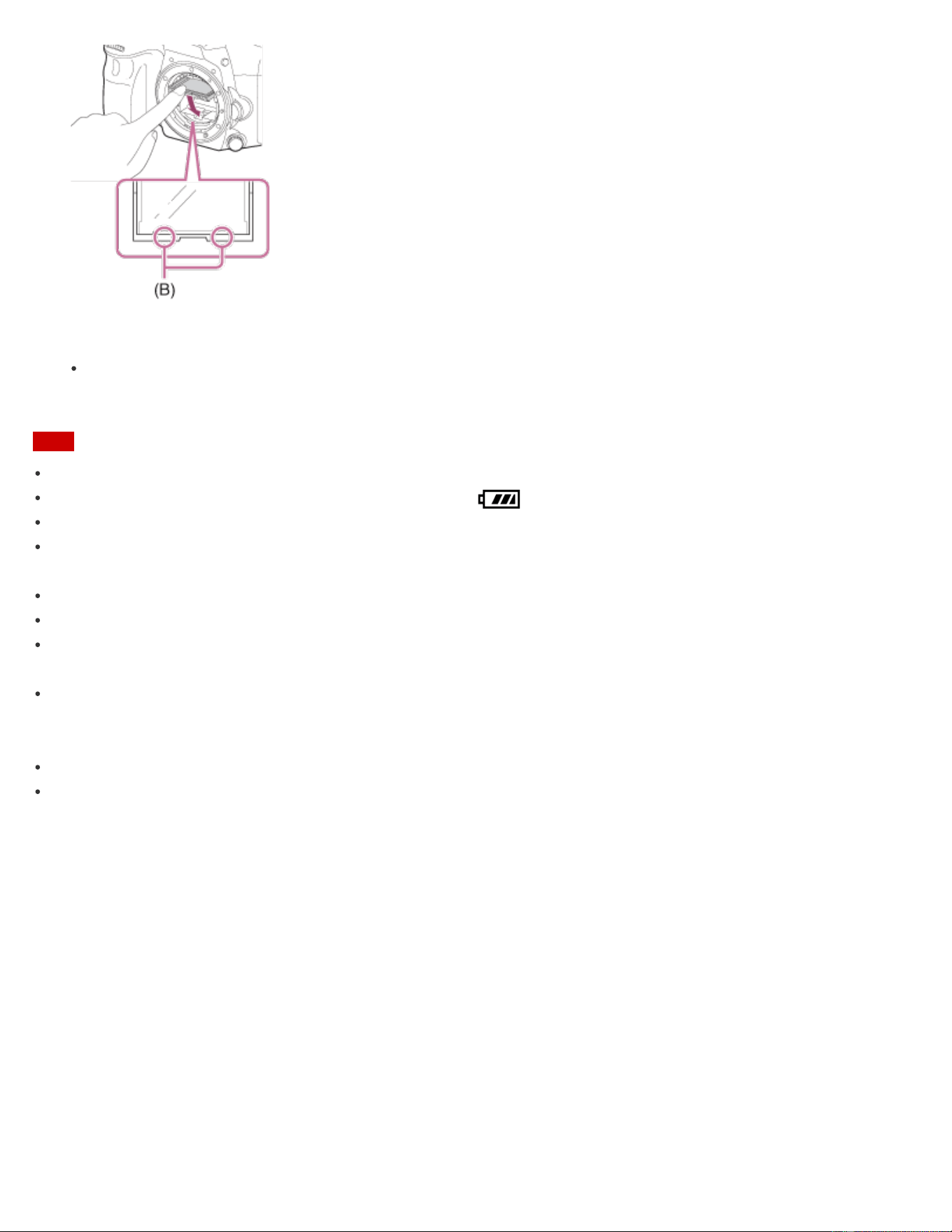

Cleaning Mode
Demo Mode
Remote Ctrl
HDMI Resolution
CTRL FOR HDMI
HDMI Info. Display
USB Connection
USB LUN Setting
Language
Date/Time Setup
Area Setting
Format
File Number
Select REC Folder
New Folder
Folder Name
Recover Image DB
Display Media Info.
Version
Certification Logo (Overseas model only)
Setting Reset
Using Wi-Fi functions
Connecting this product and a Smartphone
PlayMemories Mobile

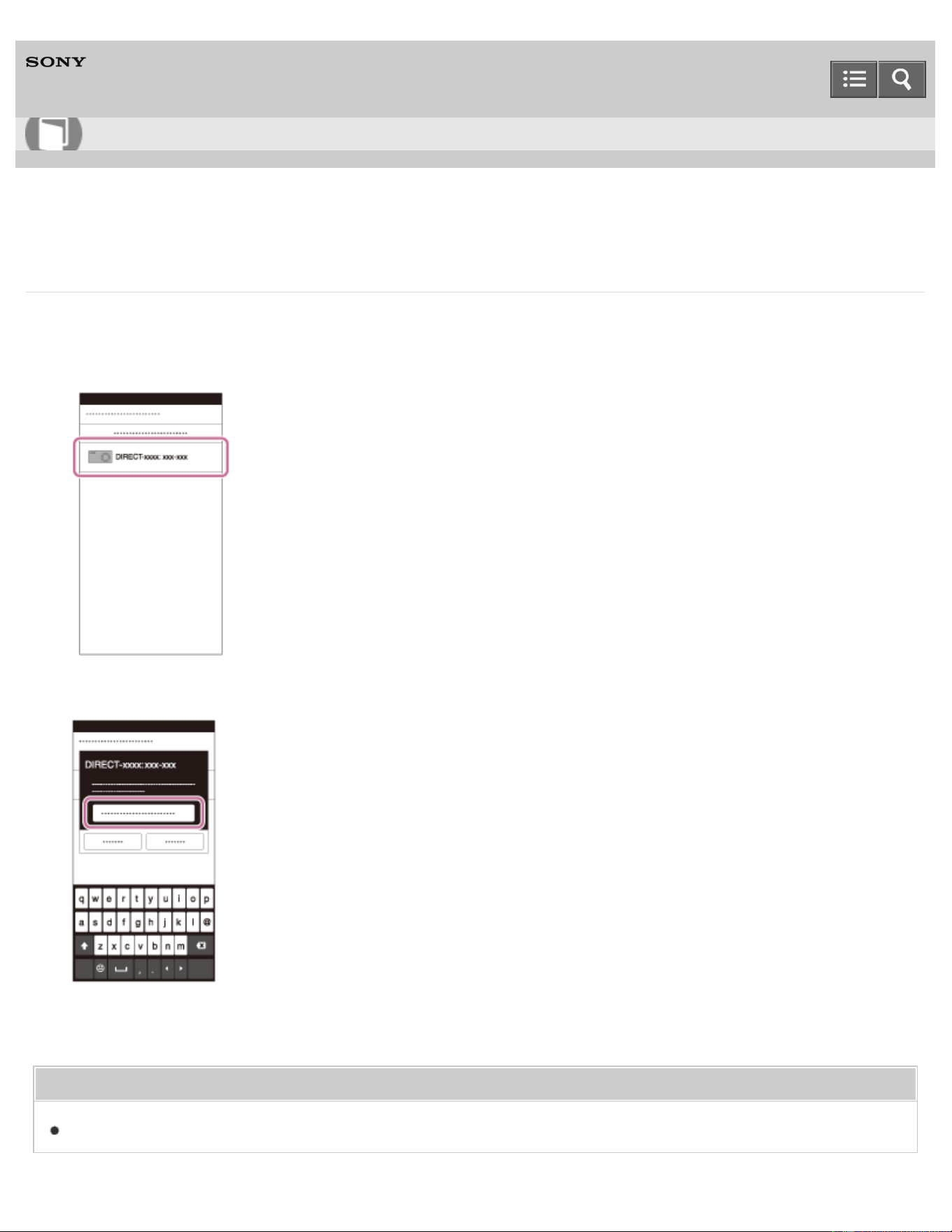

Connecting an Android smartphone to this product
Connecting the product to an iPhone or iPad
Controlling this product using a Smartphone

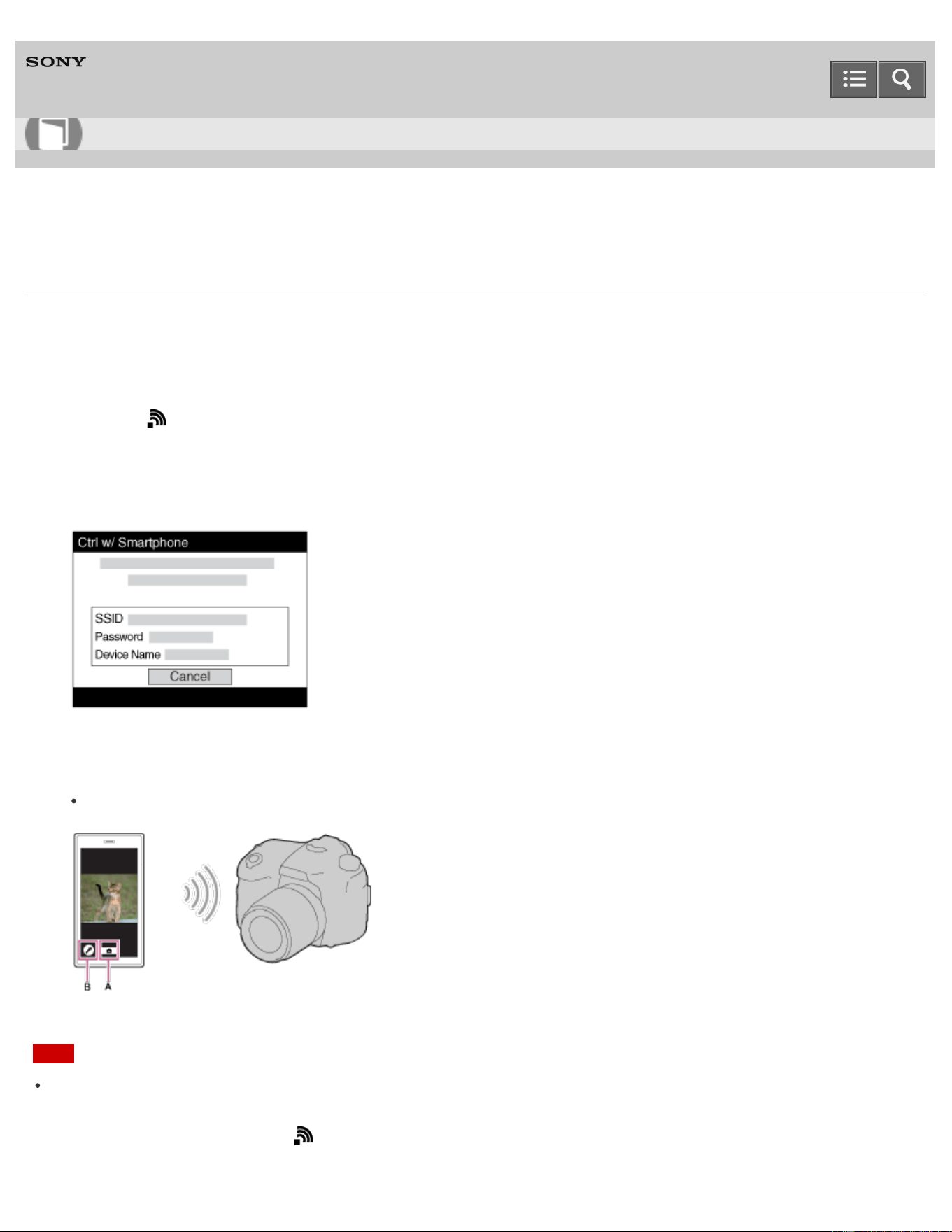

Ctrl w/ Smartphone
One-touch connection with an NFC-enabled Android smartphone (NFC One-touch remote)
21
Transferring images to a Smartphone
Send to Smartphone
Sending images to an Android smartphone (NFC One-touch Sharing)
Transferring images to a computer
Send to Computer
Transferring images to a TV

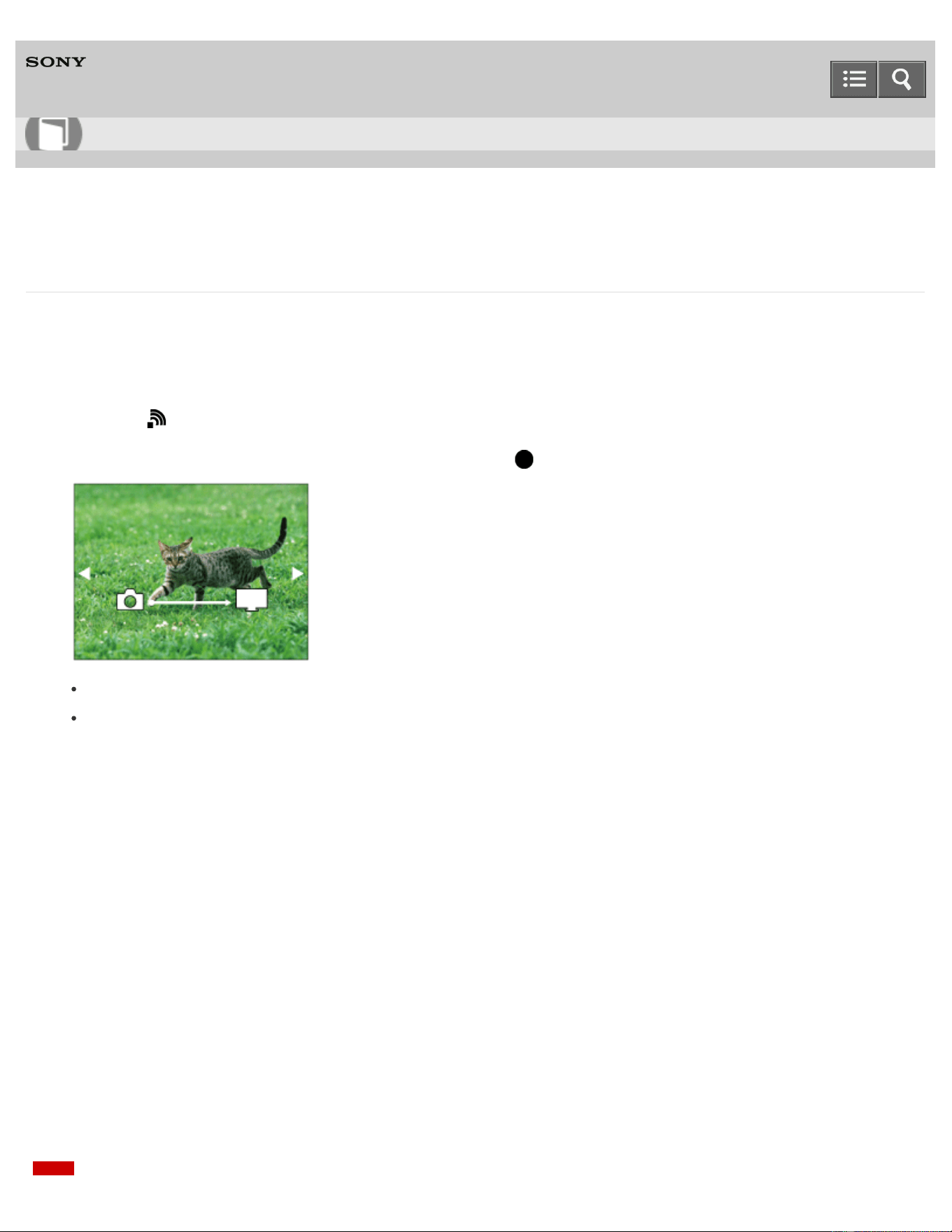

View on TV
Changing the settings of Wi-Fi functions
Airplane Mode
WPS Push
Access Point Set.
Edit Device Name
Disp MAC Address
SSID/PW Reset
Reset Network Set.
Viewing on computers
Recommended computer environment
Recommended computer environment
Using the software
PlayMemories Home
Installing PlayMemories Home
Software for Mac computers
Image Data Converter
Installing Image Data Converter
Accessing Image Data Converter Guide
Remote Camera Control
Installing Remote Camera Control
Accessing the Help of Remote Camera Control
Connecting this product and a computer

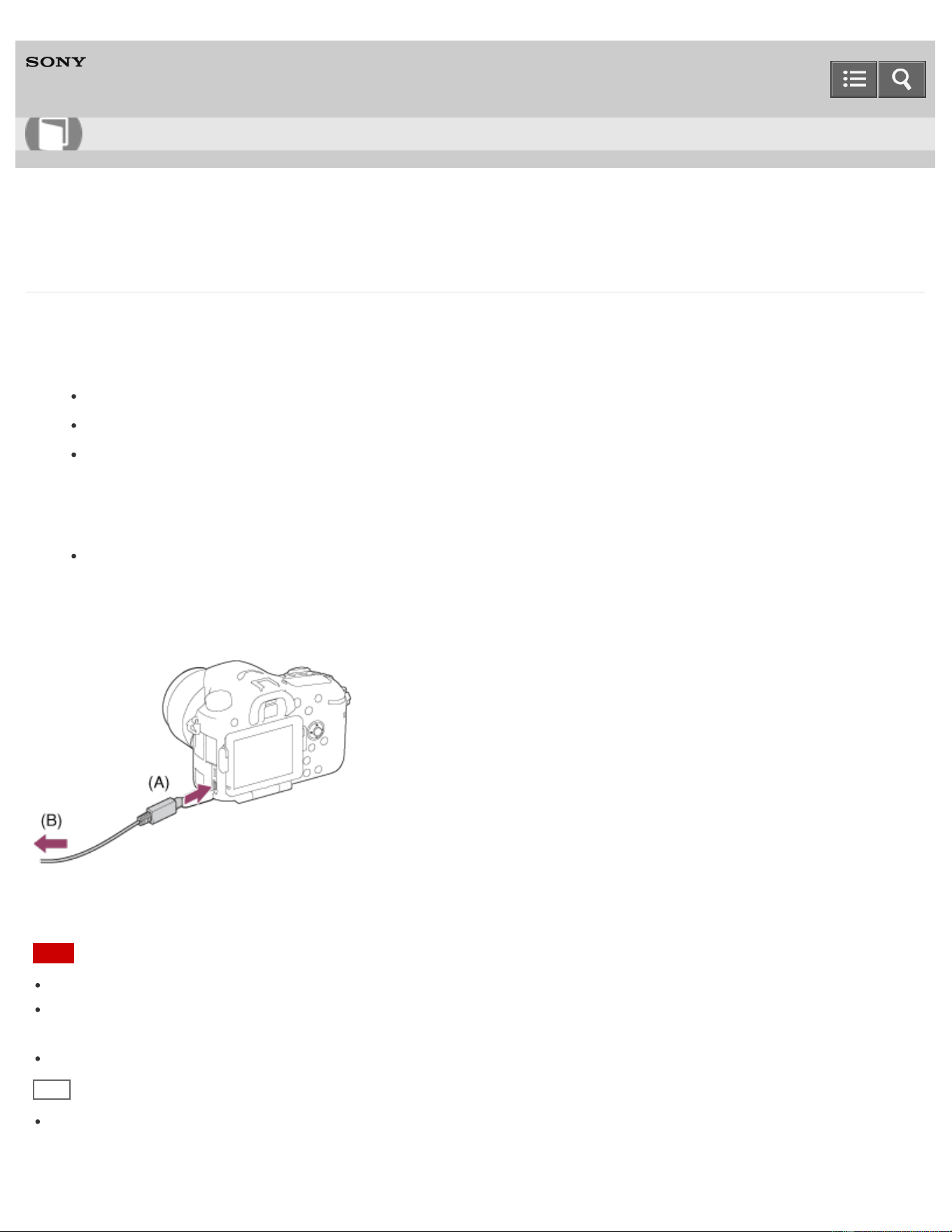

Connecting the product to a computer
Importing images to the computer
Disconnecting the product from the computer
Creating a movie disc
Disc type
Selecting the disc creation method
Creating a disc with a device other than a computer
Creating Blu-ray Discs
Precautions/This product
Precautions
22
Precautions
On the internal rechargeable battery
Battery pack and battery charger
Memory card
Cleaning this product
On cleaning
Number of recordable still images and recordable time of movies
Number of still images
Recordable time of movies
Using this product abroad
Plug adaptor
On TV color systems
Other information
Vertical grip
License
Trademarks
Trademarks
4-538-499-12(1)
Copyright 2014 Sony Corporation
23
Interchangeable Lens Digital Camera
ILCA-77M2
Troubleshooting
If you have problems
If you have problems
Troubleshooting
Troubleshooting
Battery pack and power
You cannot insert the battery pack into the product.
You cannot turn on the product.
The power turns off suddenly.
The remaining battery level indicator shows an incorrect level.
The CHARGE lamp of the battery charger flashes when charging the battery pack.
Shooting still images/movies
You cannot record images.
Recording takes a long time.
The image is out of focus.
The flash does not work.
Fuzzy white circular spots appear on images shot using the flash.
The recording date and time are not displayed on the screen.
The date and time are recorded incorrectly.
The aperture value and/or shutter speed and/or metering indicator flashes.
The image colors are not correct.
Noise appears in the image when you view the screen in a dark place.
The eyes of the subject come out red.
Dots appear and remain on the screen.
You cannot shoot images continuously.
The image is not clear in the viewfinder.
The image is whitish (Flare)./Blurring of light appears on the image (Ghosting).
The corners of the picture are too dark.
The image is blurred.
The LCD screen darkens after a short period of time passed.
The flash takes too long to recharge.
The control dial does not work.
Help Guide
List of Topics
24
Viewing images
Images cannot be played back.
The date and time are not displayed.
The image cannot be deleted.
The image was deleted by mistake.
A DPOF mark cannot be put.
Wi-Fi
You cannot find the wireless access point to be connected.
[WPS Push] does not work.
[Send to Computer] is canceled halfway.
You cannot send movies to a smartphone.
[Ctrl w/ Smartphone] or [Send to Smartphone] is canceled halfway.
The shooting screen for [Ctrl w/ Smartphone] is not displayed smoothly./The connection between this product and the
smartphone is disconnected.
You cannot use One-Touch connection (NFC).
Computers
The computer does not recognize this product.
You cannot import images.
The image and sound are interrupted by noise when viewing a movie on a computer.
Images exported from a computer cannot be viewed on this product.
Memory cards
Formatted the memory card by mistake.
Printing
You cannot print images.
The color of the image is strange.
Images are printed with both edges cut off.
You cannot print images with the date.
Others
The lens gets fogged.
The product becomes warm when you use it for a long time.
The Clock Set screen appears when you turn on the product.
The number of recordable images does not decrease, or decreases two images at a time.
The product does not work properly.
“--E-” appears on the screen.
Messages
Messages
Warning messages
Situations this product has difficulty handling
Situations this product has difficulty handling
25
Interchangeable Lens Digital Camera
ILCA-77M2
Names of parts

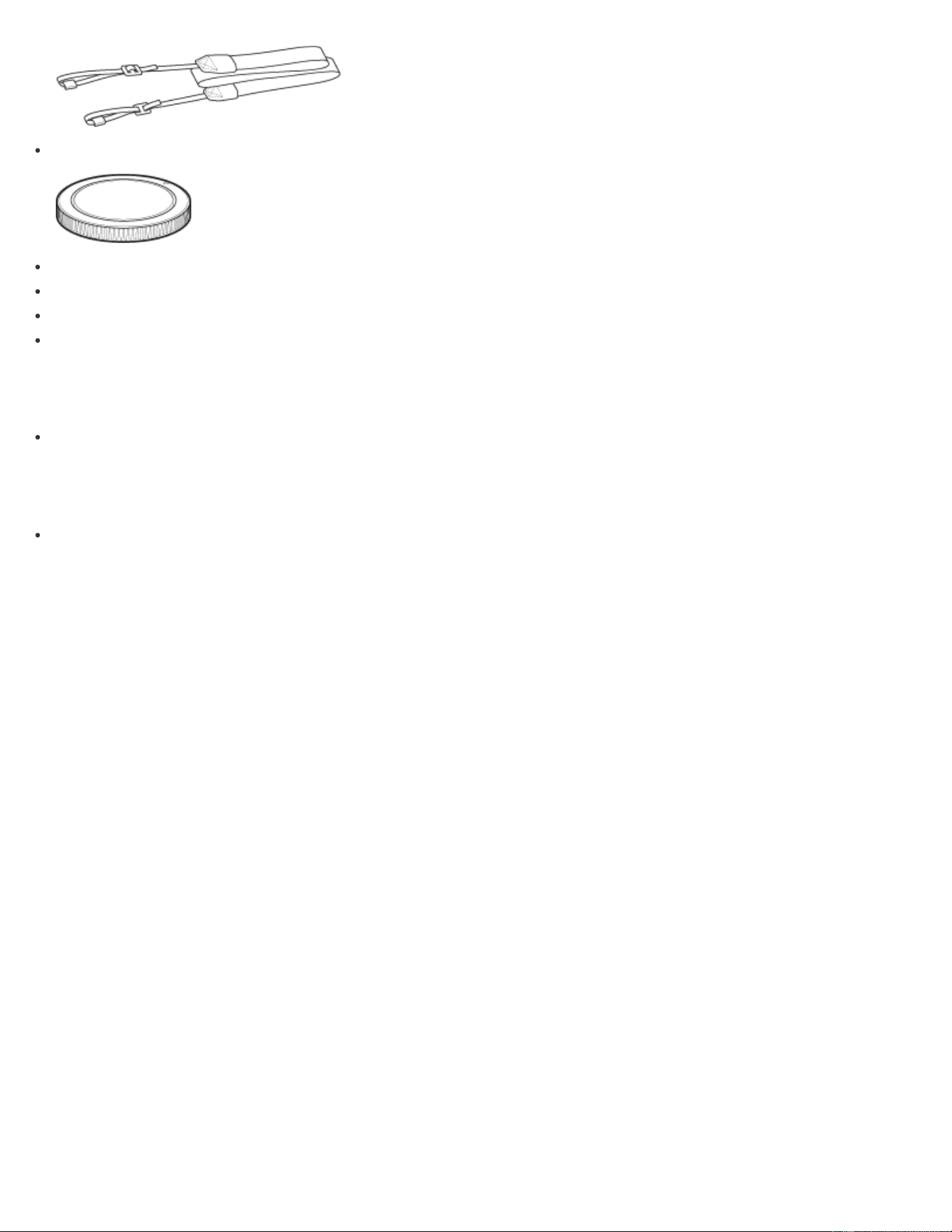

Checking the camera and the supplied items
Identifying parts (Front side)
Identifying parts (Rear side)
Identifying parts (Top side)
Identifying parts (Sides/Bottom)
Identifying parts Lens DT 16-50mm F2.8 SSM (Supplied with the ILCA-77M2Q)
Identifying parts Lens DT 18-135mm F3.5-5.6 SAM (Supplied with the ILCA-77M2M)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
27
Interchangeable Lens Digital Camera
ILCA-77M2
Icons and indicators
List of icons on the screen
Display panel
You can set the shutter speed and aperture, exposure compensation, flash compensation, ISO, white balance, drive mode, and
image quality, etc., using the display panel on top of the camera.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
28
Interchangeable Lens Digital Camera
ILCA-77M2
Adjusting the viewfinder
Adjusting the viewfinder (diopter-adjustment)
Adjust the diopter scale to your eyesight until the display appears clearly in the viewfinder. If it is difficult to turn the diopter-
adjustment dial, remove the eyepiece cup and then adjust the dial.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
31
Interchangeable Lens Digital Camera
ILCA-77M2
Charging the battery pack
Charging the battery pack using a charger
When using the camera for the first time, be sure to charge the InfoLITHIUM NP-FM500H (supplied).
Inserting the battery pack into the camera
How to insert the battery pack into the camera
Battery life and the number of images that can be recorded/played back using a battery pack
Supplying power using a wall outlet (wall socket)
Power can be supplied to the camera during shooting/playback using an AC adaptor AC-PW10AM (sold separately).
Removing the battery pack
How to remove the battery pack
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
33
Interchangeable Lens Digital Camera
ILCA-77M2
Attaching a lens
Attaching a lens
Set the power switch of the camera to OFF before attaching the lens.
Removing the lens
Set the power switch of the camera to OFF before you remove the lens.
Attaching the lens hood
We recommend that you use the lens hood to prevent light outside the shooting frame from affecting the image.
Notes on changing the lens
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
35
Interchangeable Lens Digital Camera
ILCA-77M2
Setting the date and time
Setting the date and time
When you turn on the camera for the first time or after you have initialized the functions, the setting screen for the date and
time appears.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
36
Interchangeable Lens Digital Camera
ILCA-77M2
Confirming the operation method
Using the multi-selector
Using MENU items
In this section, you learn how to change settings related to all camera operations and execute camera functions including
shooting, playback, and operation methods.
Using the Fn (Function) button
You can register frequently used functions to the Fn (function) button and recall them while shooting.
Using the "Quick Navi"
You can change the settings directly using the Quick Navi screen when using the viewfinder.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
37
Interchangeable Lens Digital Camera
ILCA-77M2
Selecting a shooting mode
List of mode dial functions
You can select the desired shooting mode by turning the mode dial.

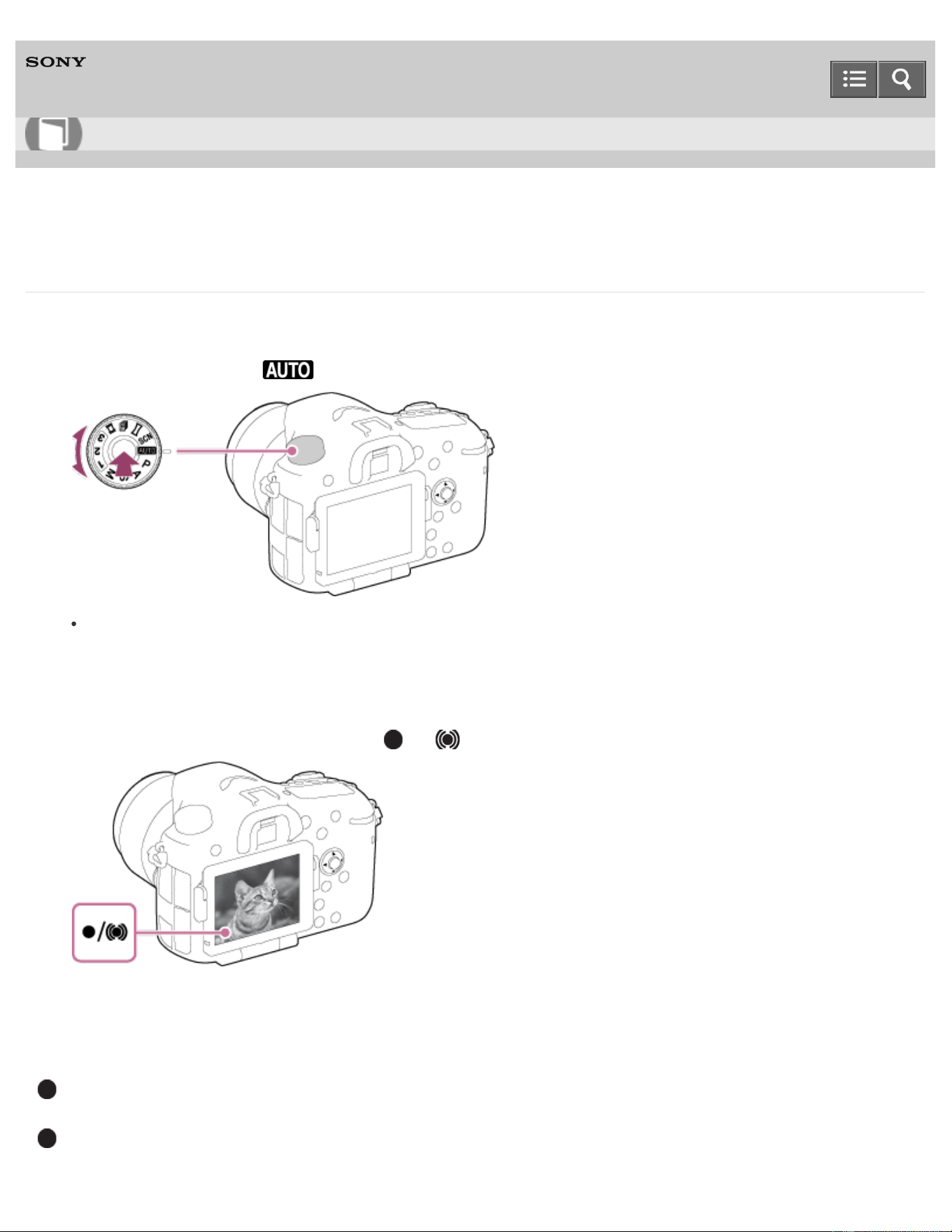

Intelligent Auto
The product analyzes the subject, and allows you to shoot with appropriate settings.
Superior Auto
The product automatically recognizes and evaluates the shooting conditions, and the appropriate settings are set automatically.

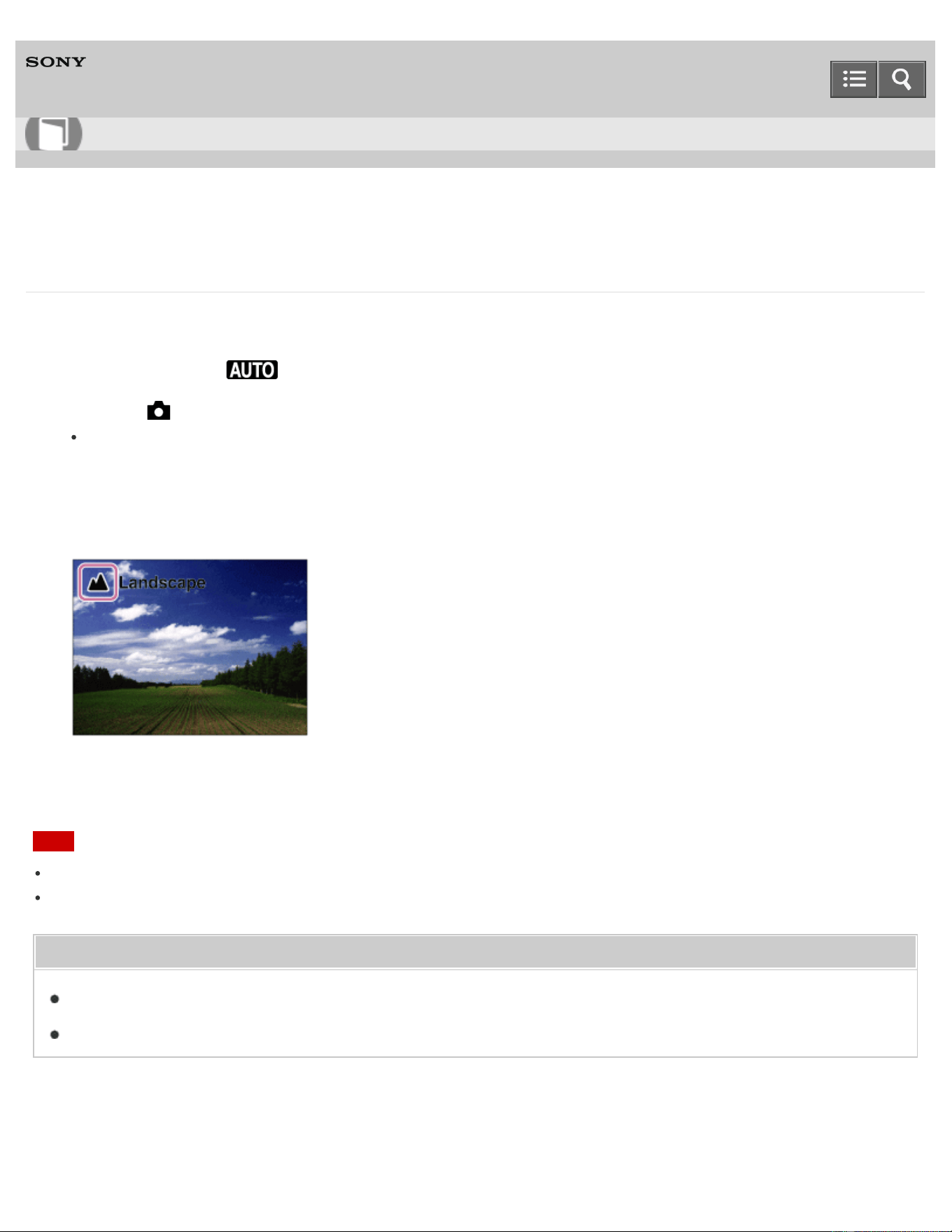

About Scene Recognition
Scene Recognition operates in [Intelligent Auto] mode and [Superior Auto] mode.
The advantages of automatic shooting
Program Auto
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the aperture value).
Sweep Panorama
Allows you to create a single panoramic image from multiple images shot while panning the camera.
Scene Selection
Allows you to shoot with preset settings according to the scene.
Cont. Priority AE
By fixing the aperture value when shooting the first image, you can shoot images continuously at high speed.
Shutter Priority
You can express the movement of a moving subject in various ways by adjusting the shutter speed, for example, at the instant
of the movement with high speed shutter, or as a trailing image with low speed shutter.
Help Guide
How to Use
39
Aperture Priority
You can shoot by adjusting the aperture and changing the range in focus, or by defocusing the background.
Manual Exposure
You can shoot with the desired exposure setting by adjusting both the shutter speed and aperture.
BULB
You can shoot a trailing image of the movement of a subject with long exposure.
Memory recall
Allows you to shoot an image after recalling often-used modes or camera settings registered in advance.
Movie
You can adjust the shutter speed or aperture value to your desired settings for recording movies.
4-538-499-12(1)
Copyright 2014 Sony Corporation
40
Interchangeable Lens Digital Camera
ILCA-77M2
Using the zoom
Zoom

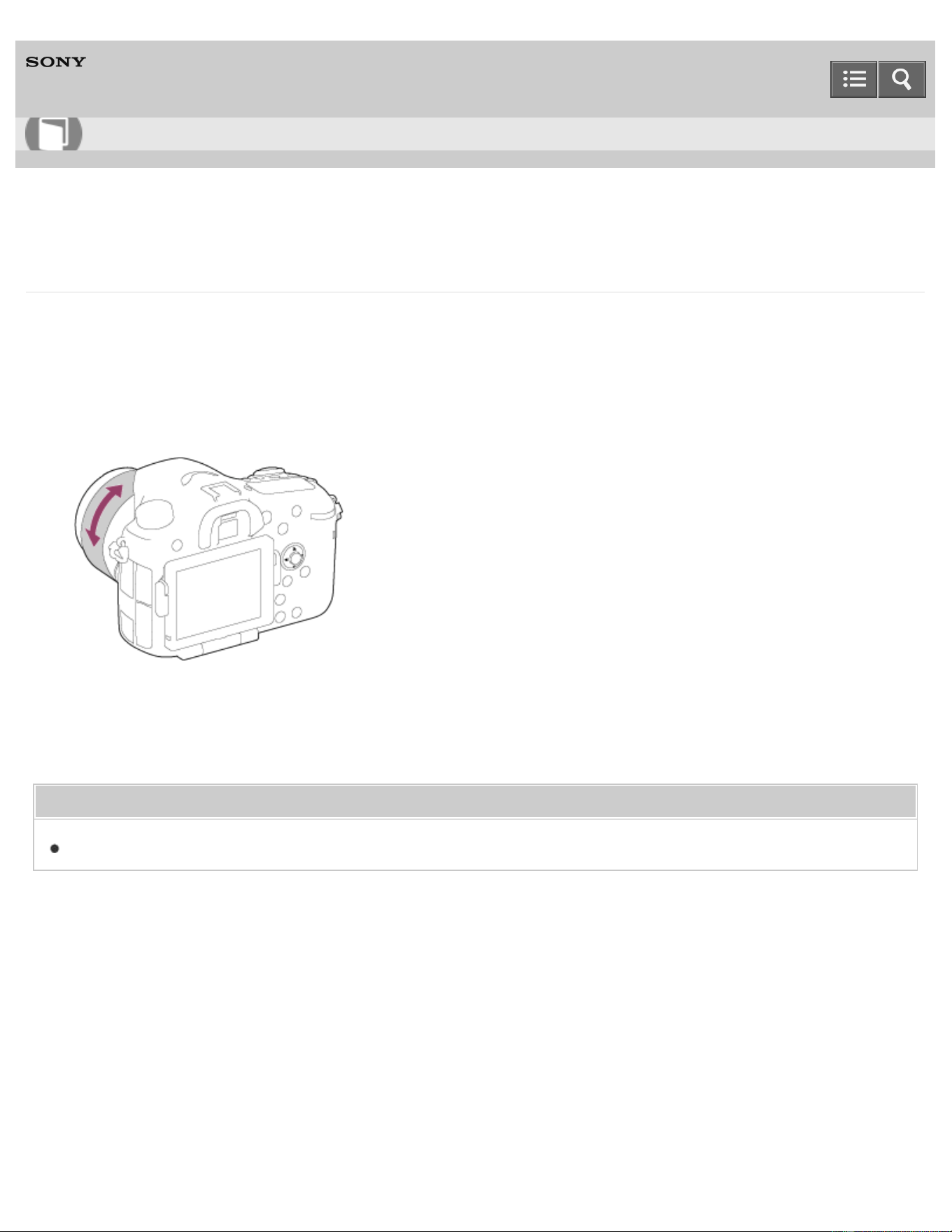

When a zoom lens is mounted, you can enlarge images by turning the zoom ring of the lens.
The zoom features available with this product
The zoom feature of the product provides a higher magnification zoom by combining various zoom features.
Zoom Setting
You can select the zoom setting of the product.

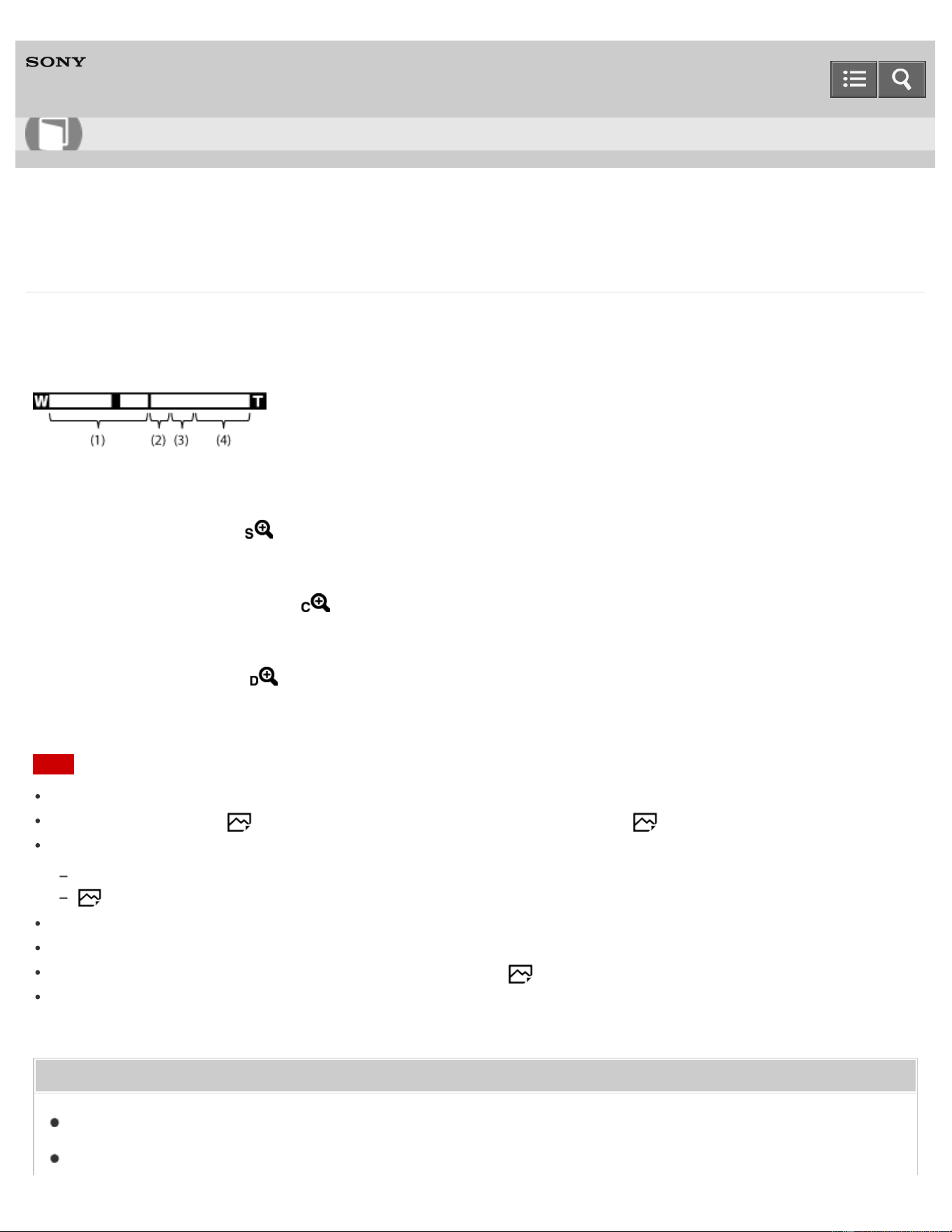

About zoom scale
The zoom scale that is used in combination with the zoom of the lens changes according to the selected image size.
Smart Telecon.
Smart Teleconverter magnifies and trims the center of the image, then records it.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
41
Interchangeable Lens Digital Camera
ILCA-77M2
Using the flash
Using flash
In dark environments, use the flash to light up the subject while shooting and to prevent camera-shake. When shooting against
the sun, use the flash to lighten the image of the backlit subject.
Flash Mode
You can set the flash mode.
Flash Comp.
Adjusts the amount of flash light in a range of –3.0 EV to +3.0 EV.
FEL Lock
The flash level is automatically adjusted so that the subject gets the optimum exposure during normal flash shooting. You can
also set the flash exposure in advance.
Flash control
Sets the method for determining the intensity of flash output.
Power ratio
If you set [Flash control] to [Manual flash], you can adjust the amount of flash manually.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
42
Interchangeable Lens Digital Camera
ILCA-77M2
Selecting a screen display mode
Switching the screen display (Shooting)
You can change the display contents on the screen.
DISP Button (Finder)
Allows you to set the screen display modes that can be selected for the viewfinder using DISP (Display Setting) in shooting
mode.
DISP Button (Monitor)
Allows you to set the screen display modes that can be selected for the monitor using DISP (Display Setting) in shooting
mode.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
43
Interchangeable Lens Digital Camera
ILCA-77M2
Selecting still image size/image quality
Image Size (still image)
The larger the image size, the more detail will be reproduced when the image is printed on large-format paper. The smaller the
image size, the more images can be recorded.
Aspect Ratio (still image)
Sets the aspect ratio of still images.
Quality (still image)
Selects the compression format of still images.
Panorama: Size
Sets the image size when shooting panoramic images.
Panorama: Direction
Sets the direction to pan the camera when shooting panoramic images.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
44
Interchangeable Lens Digital Camera
ILCA-77M2
Adjusting the focus
Changing the focus method using the focus mode dial
You can select the focusing method to suit the movement of the subject.
Focus Area
Selects the focusing area. Use this function when it is difficult to get the proper focus in auto focus mode.

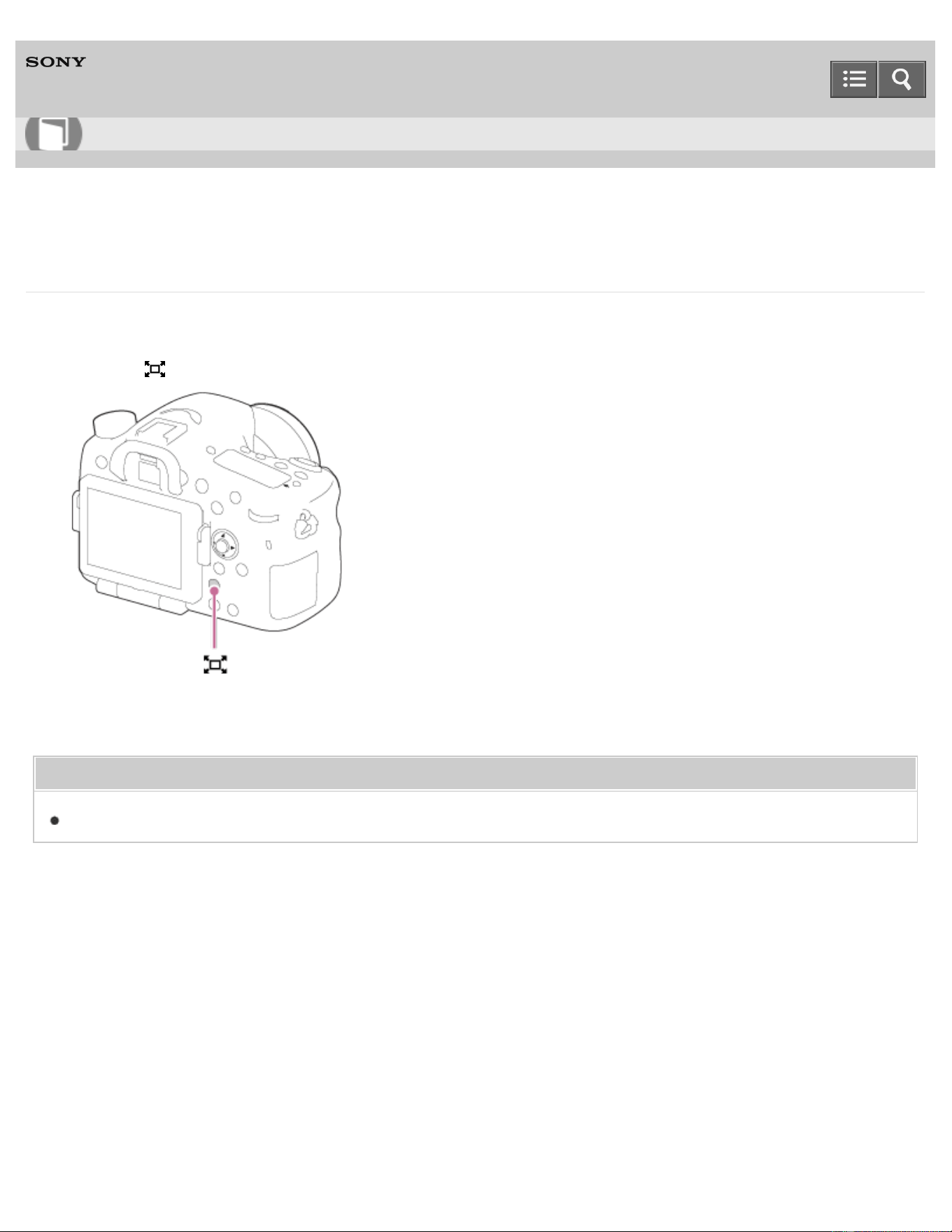

Center Lock-on AF
When you press the center button, the camera detects the subject positioned in the center of the screen and continues to track
the subject.
AF Area Auto Clear
Sets whether the focus area should be displayed all the time or should disappear automatically shortly after focus is achieved.
AF Area Points
Allows you to limit the focus area points used. You can lock the [AF Area Points] manually to prevent the points from being
shifted automatically depending on the attached lens or when it is difficult to focus with the surrounding focus area.
Flexible Spot Points
Sets whether to use all of the AF Area Points or only the limited 15 points.
Wide AF Area Disp.
Sets whether to display the focus area or not when [Focus Area] is set to [Wide].
Focus-lock
Shoots images with the focus locked on the desired subject in auto focus mode.
Manual Focus
When it is difficult to get the proper focus in autofocus mode, you can adjust the focus manually.
Direct manual focus (DMF)
You can make fine adjustments manually after the focus is locked.
Help Guide
How to Use
45
Focus Magnifier
You can check the focus by enlarging the image before shooting.
Focus Magnif. Time
Set the duration for which an image is to be magnified using the [Focus Magnifier] function.
Peaking Level
Enhances the outline of in-focus ranges using a specific color in Manual Focus or Direct Manual Focus shooting.
Peaking Color
Sets the color used for the peaking function in Manual Focus or Direct Manual Focus shooting.
Eye-Start AF (still image)
Sets whether or not to use autofocus when you look through an Electronic Viewfinder.
AF/MF control
You can easily switch the focusing mode from auto to manual and vice versa while shooting without changing your holding
position.
AF Illuminator (still image)
The AF illuminator supplies fill light to focus more easily on a subject in dark surroundings. In the time between pressing the
shutter button halfway down and locking the focus, the flash is raised and released to allow the camera to focus more easily.
AF Micro Adj.
Allows you to adjust and register an autofocused position for each lens.
AF w/ shutter (still image)
Selects whether to focus automatically when you press the shutter button halfway down. Select [Off] to adjust the focus and
the exposure separately.
AF On
You can focus using any button instead of pressing the shutter button halfway down.
Eye AF
The camera focuses on the subject's eyes while you keep the button pressed.
AF drive speed (still image)
You can select the autofocus speed for shooting still images.
AF Track Duration (still image)
46
You can select the duration for AF tracking when shooting still images.
AF Track Duration (movie)
You can set the duration for AF tracking in movie mode.
Measuring the exact distance to the subject
AF Range Control
You can restrict the autofocus range to focus on a subject without interference from objects in the background and foreground.
The [AF Range Control] function is assigned to the C (Custom) button with the default settings.
AF-A setup
Sets whether to allow manual fine-adjustment of the focus when the focus mode is set to [AF-A].
Priority setup
Sets whether or not to release the shutter even when focus is not achieved in auto focus mode.
4-538-499-12(1)
Copyright 2014 Sony Corporation
47
Interchangeable Lens Digital Camera
ILCA-77M2
Adjusting the exposure
Exposure Comp.
Based on the exposure value set by auto exposure, you can make the entire image brighter or darker if you adjust [Exposure
Comp.] to the plus side or minus side, respectively (exposure compensation).

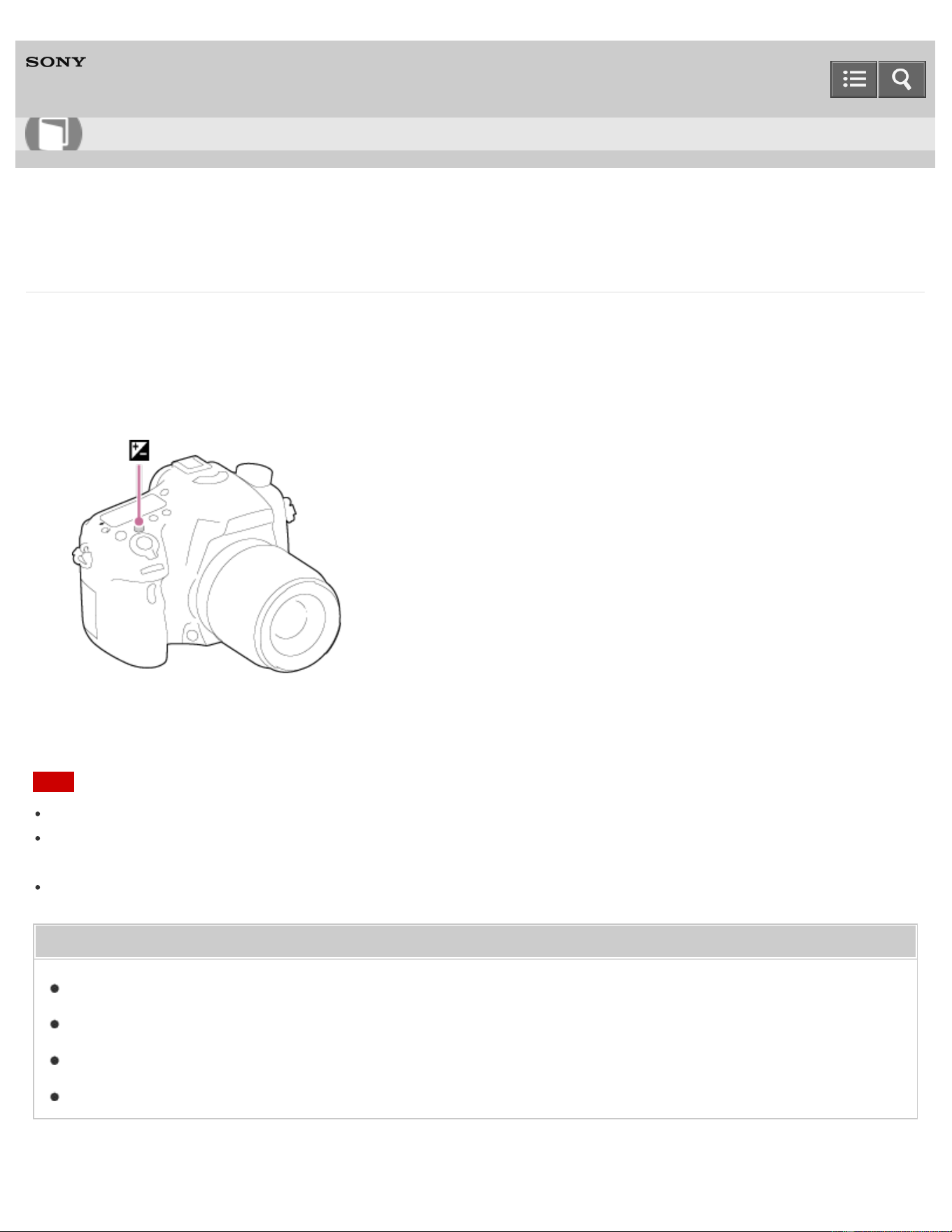

Exposure compensation button
Based on the exposure value set by auto exposure, you can make the entire image brighter or darker if you adjust [Exposure
Comp.] to the plus side or minus side, respectively (exposure compensation).
Metering Mode
Selects the metering mode that sets which part of the screen to measure for determining the exposure.

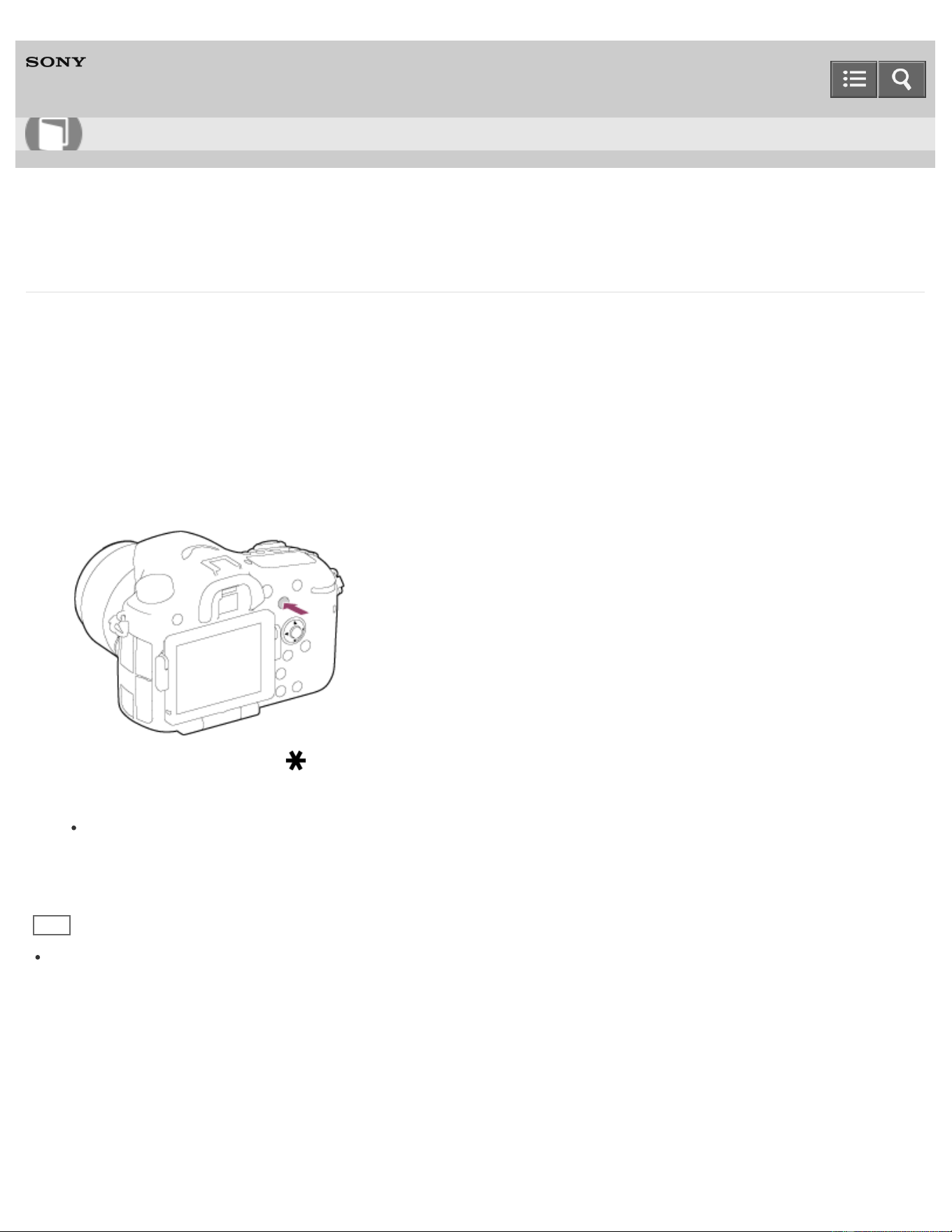

AE lock
When the contrast between the subject and background is high, such as when shooting a backlit subject or a subject near a
window, meter the light at a spot where the subject appears to have the appropriate brightness and lock the exposure before
shooting.
AEL w/ shutter (still image)
Sets whether to fix the exposure when you press the shutter button halfway down.
Exp.comp.set
Sets whether to apply the exposure compensation value to control both flash light and ambient light, or just ambient light.
Zebra
The zebra pattern will appear over the part of an image if the brightness level exceeds the IRE that you set.
Exposure Set. Guide
You can set whether to display a guide when you change the exposure.
Exposure step
You can set the setting range for the shutter speed, aperture, and exposure compensation values.
Help Guide
How to Use
48
Interchangeable Lens Digital Camera
ILCA-77M2
Selecting a drive mode (Continuous shooting/Self-timer)

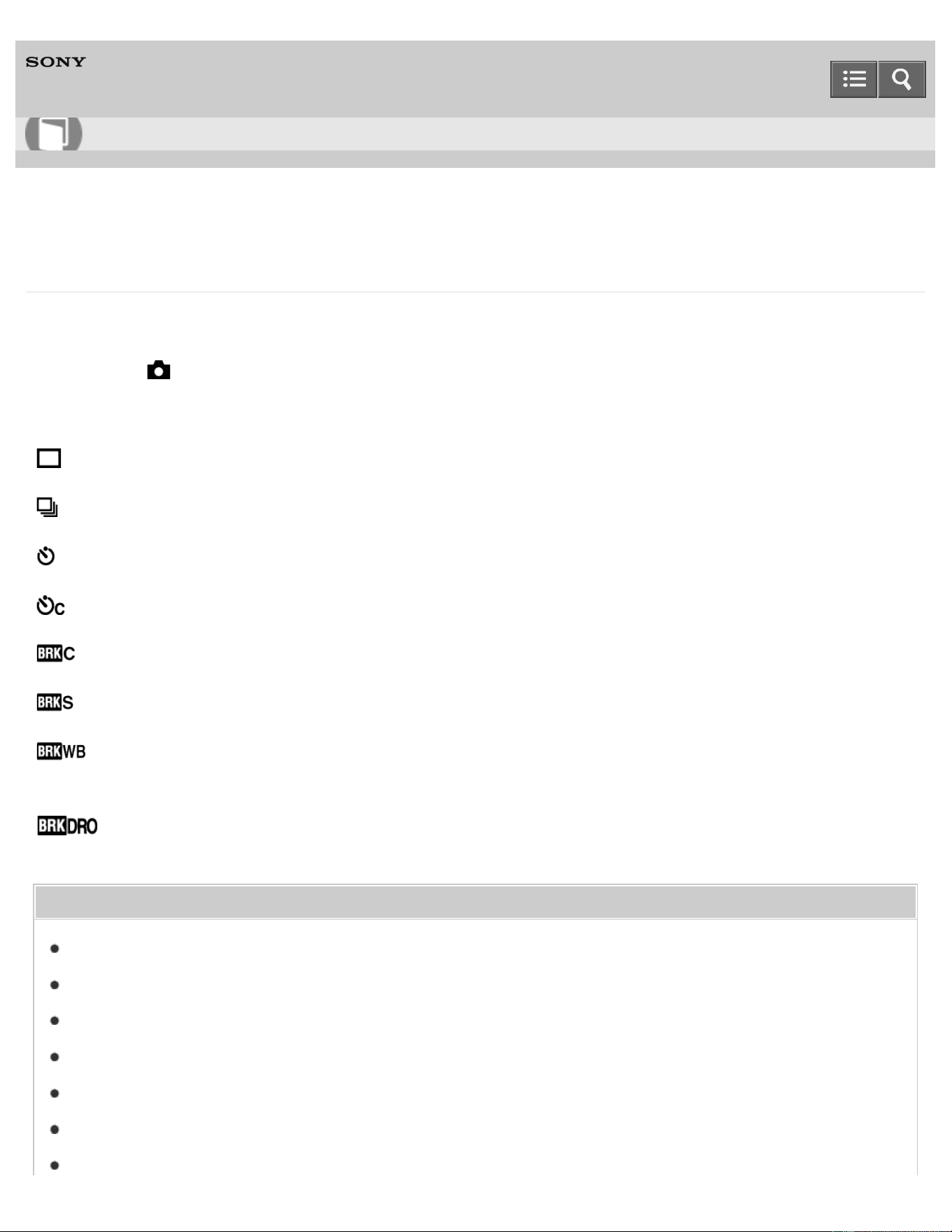

Drive Mode
You can set the drive mode, such as continuous or self-timer shooting.
Cont. Shooting
Shoots images continuously while you press and hold down the shutter button.
Self-timer
The product shoots an image using the self-timer with a 10-second or 2-second delay.
Self-timer(Cont)
Continuously shoots the number of images you have set after 10 seconds.
Cont. Bracket
Shoots multiple images while automatically shifting the exposure from base to darker and then to lighter. Press and hold down
the shutter button until the bracket recording is completed.
Single Bracket
Shoots multiple images while automatically shifting the exposure from base to darker and then to lighter. Press the shutter
button for each image.
WB bracket
Shoots three images, each with different color tones according to the selected settings of white balance, color temperature and
color filter.
DRO Bracket
You can record a total of three images, each at a different degree of D-Range Optimizer value.
Bracket order
You can set the shooting order for exposure bracketing and white balance bracketing.
Help Guide
How to Use
50
Interchangeable Lens Digital Camera
ILCA-77M2
Selecting the ISO sensitivity
ISO
Sensitivity to light is expressed by the ISO number (recommended exposure index).
Multi Frame NR
The product automatically shoots multiple images continuously, combines them, reduces the noise, and records them as one
image.
NR Effect
Sets the effect level for multi frame NR.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
51
Interchangeable Lens Digital Camera
ILCA-77M2
Correcting the brightness or contrast
D-Range Opt. (DRO)
By dividing the image into small areas, the product analyzes the contrast of light and shadow between the subject and the
background, and creates an image with the optimal brightness and gradation.
Auto HDR
Widens the range (gradation) so that you can record from bright parts to dark parts with correct brightness (HDR: High Dynamic
Range).
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
52
Interchangeable Lens Digital Camera
ILCA-77M2
Adjusting color tones
White Balance
Adjusts the color tones according to the ambient light conditions.
Capturing a basic white color in [Custom Setup] mode
In a scene where the ambient light consists of multiple types of light sources, it is recommended to use the custom white
balance in order to accurately reproduce the whiteness.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
53
Interchangeable Lens Digital Camera
ILCA-77M2
Selecting an effect mode
Picture Effect
Select the desired effect filter to achieve more impressive and artistic images.
Creative Style
Allows you to select the desired image processing. You can adjust exposure (shutter speed and aperture) as you like with
[Creative Style], unlike with [Scene Selection] where the product adjusts the exposure.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
54
Interchangeable Lens Digital Camera
ILCA-77M2
Recording movies
Movie recording formats
You can use the movie recording format "XAVC S" with this camera.
File Format (movie)
Selects the movie file format.
Record Setting (movie)
Selects the image size, frame rate, and image quality for movie recording.
SteadyShot (movie)
Sets [SteadyShot] effect when shooting movies.
Audio Recording
Sets whether to record sounds when shooting movies.
Audio Level Display
Sets whether to display the audio level on the screen.
Audio Rec Level
You can adjust the audio recording level while checking the level meter.
Audio Out Timing
You can set echo cancellation for shooting when confirming audio via HDMI output.
Wind Noise Reduct.
Sets whether or not to reduce wind noise during movie recording.
Auto Slow Shut. (movie)
Sets whether or not to adjust the shutter speed automatically when recording movies if the subject is dark.
Help Guide
How to Use
55
Interchangeable Lens Digital Camera
ILCA-77M2
Customizing the shooting functions for convenient use
Memory
Allows you to register up to 3 often-used modes or product settings in the product. You can recall the settings using just the
mode dial.
Function Menu Set.
You can assign the functions to be called up when you press the Fn (Function) button.
Custom Key Settings
Assigning functions to the various keys allows you to speed up operations by pressing the appropriate key when the shooting
information screen is displayed.
Function of the focus hold button
Allows you to assign a function to the focus hold button on the lens.
Function of the AEL button
Once you assign a function to the AEL button, you can perform that function by simply pressing the AEL button when the
shooting information screen is displayed.
Function of the AF/MF button
Once you assign a function to the AF/MF button, you can perform that function by simply pressing the AF/MF button when the
shooting information screen is displayed.
Function of the ISO button
Once you assign a function to the ISO button, you can perform that function by simply pressing the ISO button when the
shooting information screen is displayed.
Function of the Exposure Compensation button
Once you assign a function to the Exposure Compensation button, you can perform that function by simply pressing the
Exposure Compensation button when the shooting information screen is displayed.
Function of the WB button
Once you assign a function to the WB button, you can perform that function by simply pressing the WB button when the
Help Guide
How to Use
57
shooting information screen is displayed.
Function of the Drive Mode button
Once you assign a function to the Drive Mode button, you can perform that function by simply pressing the Drive Mode button
when the shooting information screen is displayed.
Function of the Smart Teleconverter button
Once you assign a function to the Smart Teleconverter button, you can perform that function by simply pressing the Smart
Teleconverter button when the shooting information screen is displayed.
Function of the Preview Button
Once you assign a function to the preview button, you can perform that function by simply pressing the preview button when
the shooting information screen is displayed.
Function of the C button
Once you assign a function to the C button, you can perform that function by simply pressing the C button when the shooting
information screen is displayed.
Function of the center button
Once you assign a function to the center button, you can perform that function by simply pressing the center button when the
shooting information screen is displayed.
Dial Setup
You can switch the functions of the front/rear dial.
4-538-499-12(1)
Copyright 2014 Sony Corporation
58
Interchangeable Lens Digital Camera
ILCA-77M2
Setting the other functions of this product
Smile/Face Detect.
Detects the faces of your subjects and adjusts the focus, exposure, flash settings and performs image processing
automatically.
Soft Skin Effect (still image)
Sets the effect used for shooting the skin smoothly in the Face Detection function.
Face Registration (New Registration)
If you register faces in advance, the product can detect the registered face as a priority when [Smile/Face Detect.] is set to [On
(Regist. Faces)].
Face Registration (Order Exchanging)
When multiple faces are registered to be given priority, the face registered first will be given priority. You can change the
priority order.
Face Registration (Delete)
Deletes a registered face.
Red Eye Reduction
When using the flash, it is fired two or more times before shooting to reduce the red-eye phenomenon.

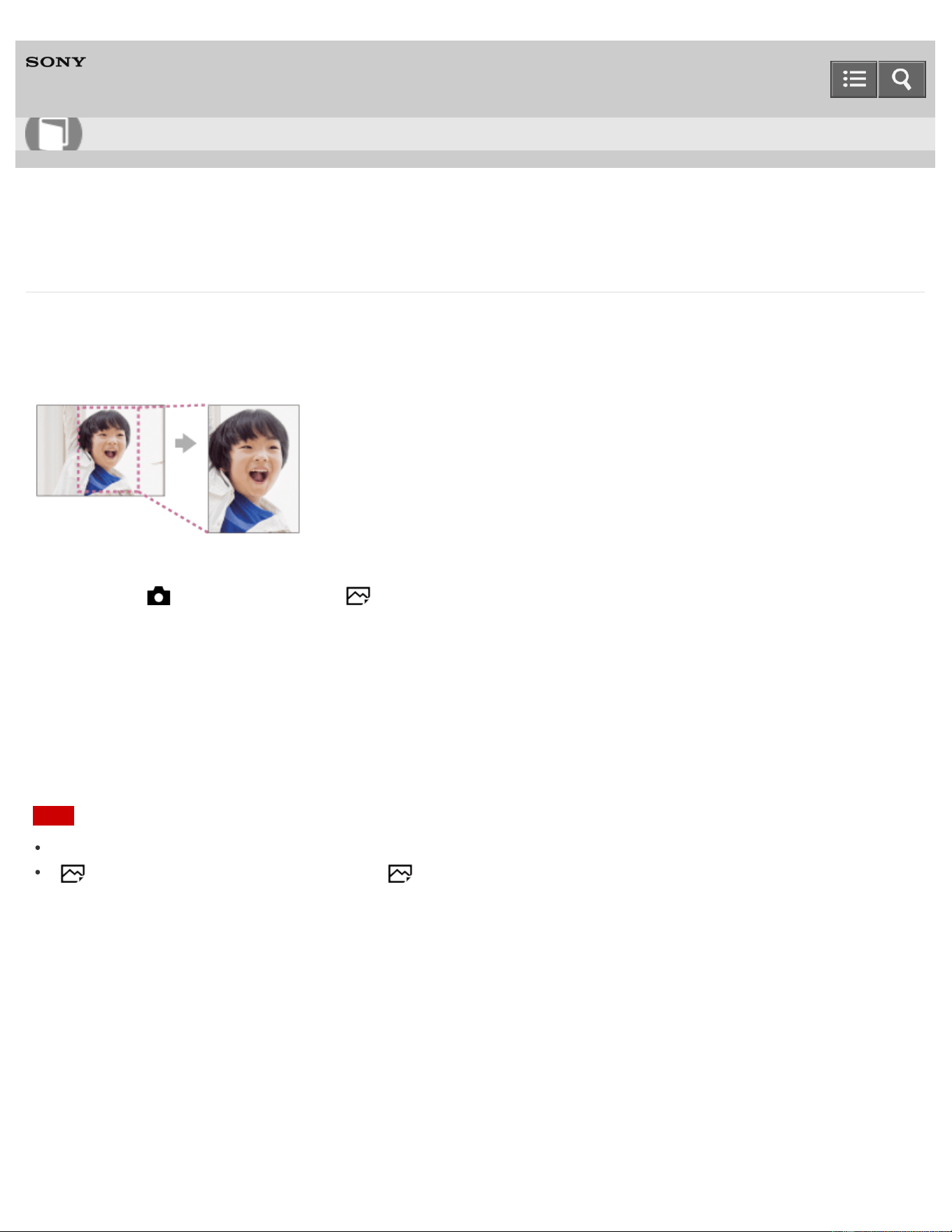

Auto Obj. Framing (still image)
When this product detects and shoots faces, macro shooting subjects or subjects that are tracked by [Lock-on AF], the product
automatically trims the image into an appropriate composition, and then saves it.
SteadyShot (still image)
Sets whether or not to use the SteadyShot function.
Long Exposure NR (still image)
When you set the shutter speed to one second or longer (long exposure shooting), noise reduction is turned on for the duration
that the shutter is open. With the function turned on, the grainy noise typical of long exposures is reduced.
Help Guide
How to Use
59
High ISO NR (still image)
When shooting with high ISO sensitivity, the product reduces noise that becomes more noticeable when the product sensitivity
is high.
Color Space (still image)
The way colors are represented using combinations of numbers or the range of color reproduction is called “color space.” You
can change the color space depending on the purpose of the image.
Grid Line
Sets whether the grid line is displayed or not. The grid line will help you to adjust the composition of images.
Auto Review
You can check the recorded image on the screen right after the shooting.
Live View Display
Sets whether or not to show images altered with effects of the exposure compensation, white balance, [Creative Style], or
[Picture Effect] on the screen.
FINDER/MONITOR
Sets the method for switching the display between Electronic Viewfinder and the screen.
Release w/o Lens
Sets whether or not the shutter can be released when no lens is attached.
SteadyS. w/ shut.
Reduces the image blur not only at the moment of releasing the shutter but also while pressing the shutter button halfway
down.
e-Front Curtain Shut.
The electronic front curtain shutter function shortens the time lag between shutter releases.
Superior Auto (Image Extraction)
Sets whether or not to save all the images that were shot continuously in [Superior Auto].
Superior Auto (Cont. Shooting)
Sets whether or not to perform continuous shooting in [Superior Auto] mode.
Shading Comp.
Compensates for the shaded corners of the screen, caused by certain lens characteristics.
Chro. Aber. Comp.
60
Reduces the color deviation at the corners of the screen, caused by certain lens characteristics.
Distortion Comp.
Compensates for the distortion of the screen, caused by certain lens characteristics.
Dial Lock
You can set whether the dial will be locked by pressing and holding the Fn (Function) button.
Deactivate Monitor
When you press the key to which the [Deactivate Monitor] function is assigned, [Live View Display] is switched to [Setting
Effect OFF], and the screen display is switched to [No Disp. Info.].

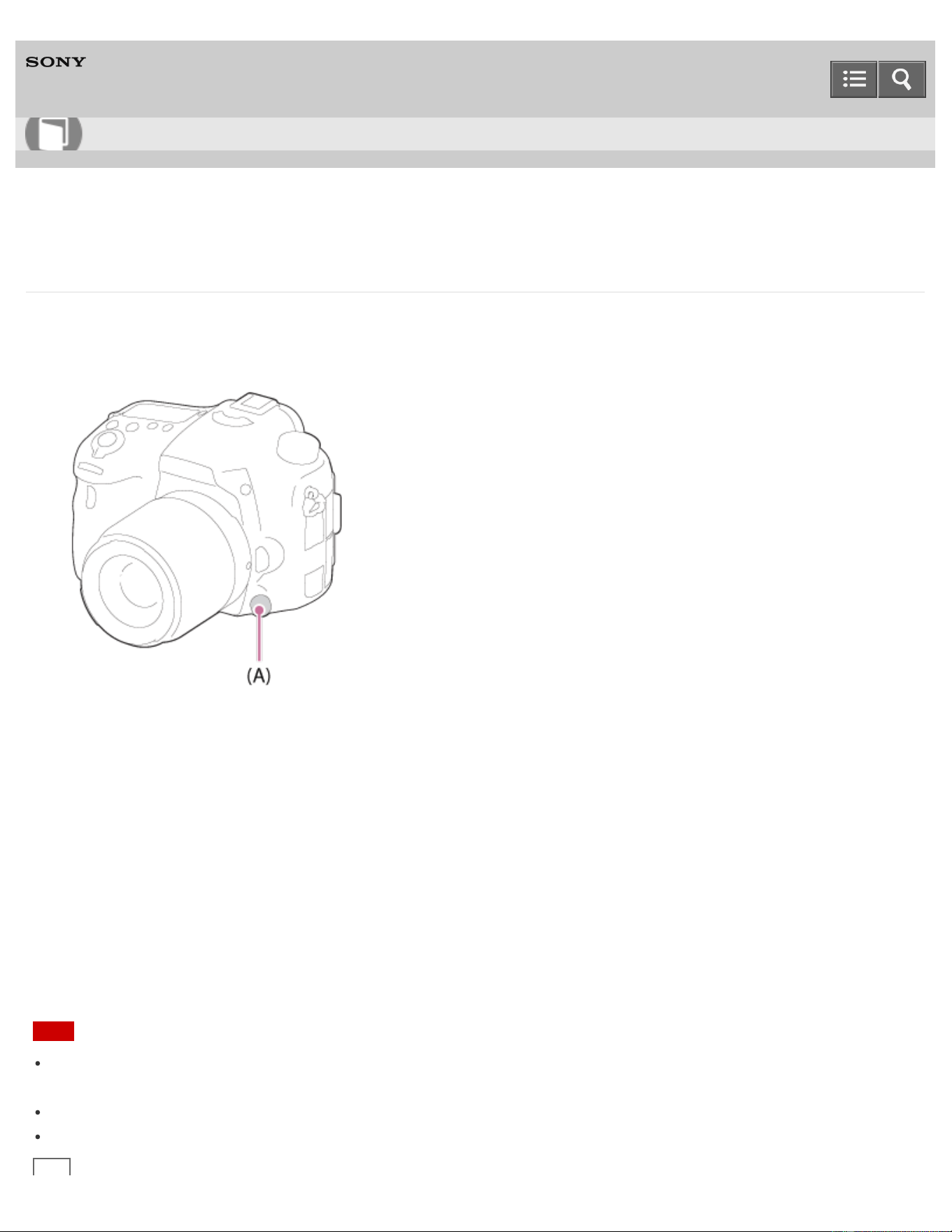

Aperture Preview
With the monitor or viewfinder, you may see an image with an aperture that differs from the shooting result.
Shot. Result Preview
With the monitor or viewfinder, you may see an image with an aperture that differs from the shooting result.
4-538-499-12(1)
Copyright 2014 Sony Corporation
61
Interchangeable Lens Digital Camera
ILCA-77M2
Viewing still images
Playing back images
Plays back the recorded images.
Playback zoom
Enlarges the image being played back.
Image Index
You can display multiple images at the same time in playback mode.
Switching the screen display (during playback)
Switches the screen display.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
62
Interchangeable Lens Digital Camera
ILCA-77M2
Using viewing functions
View Mode
Sets the View Mode (image display method).
Display Rotation
Selects the orientation when playing back recorded still images.
Slide Show
Automatically plays back images continuously.
Rotate
Rotates a recorded still image counter-clockwise.
Protect
Protects recorded images against accidental erasure.
4K Still Image PB
Outputs still images in 4K resolution to an HDMI-connected TV that supports 4K.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
67
Interchangeable Lens Digital Camera
ILCA-77M2
Viewing images on a TV
Viewing images on an HD TV
To view images stored on this product using a TV, an HDMI cable (sold separately) and an HD TV equipped with an HDMI
jack are required.
Viewing images on a “BRAVIA” Sync-compatible TV
By connecting this product to a TV that supports “BRAVIA” Sync using an HDMI cable (sold separately), you can operate this
product with the TV Remote Control.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
68
Interchangeable Lens Digital Camera
ILCA-77M2
Setup menu
Monitor Brightness
You can adjust the brightness of the screen.
Viewfinder Bright.
When using an electronic viewfinder, this product adjusts the brightness of the electronic viewfinder according to the
surrounding environment.
Finder Color Temp.
Adjusts the color temperature of the electronic viewfinder.
Volume Settings
Adjusts the sound volume.
Audio signals
Selects whether the product produces a sound or not.
Upload Settings(Eye-Fi)
Sets whether to use the upload function when using an Eye-Fi card (commercially available).
Tile Menu
Selects whether to always display the first screen of the menu when you press the MENU button.
Mode Dial Guide
You can display the description of a shooting mode when you turn the mode dial and change the settings available for that
shooting mode.
Delete confirm.
You can set whether [Delete] or [Cancel] is selected as the default setting on the delete confirmation screen.
Pwr Save Start Time
You can set time intervals to automatically switch to power save mode.
Help Guide
How to Use
69
PAL/NTSC Selector
Plays back movies recorded with the product on a PAL/NTSC system TV.
Cleaning Mode
Allows you to clean the image sensor.
Demo Mode
The [Demo Mode] function displays the movies recorded on the memory card automatically (demonstration), when the camera
has not been operated for a certain time.
Remote Ctrl
You can operate this product and shoot images using the SHUTTER button, 2SEC button (2 second delay shutter), and
START/STOP button (or Movie button (RMT-DSLR2 only)) on the RMT-DSLR1 Wireless Remote Commander (sold separately)
and RMT-DSLR2 (sold separately).
HDMI Resolution
When you connect the product to a High Definition (HD) TV with HDMI terminals using an HDMI cable (sold separately), you
can select HDMI Resolution to output images to the TV.
CTRL FOR HDMI
When connecting this product to a “BRAVIA” Sync-compatible TV using an HDMI cable (sold separately), you can operate this
product by aiming the TV remote control at the TV.
HDMI Info. Display
Selects whether to display the shooting information when this product and the TV are connected using an HDMI cable (sold
separately).
USB Connection
Selects the appropriate USB connection method for each computer or USB device connected to this product.
USB LUN Setting
Enhances compatibility by limiting of USB connection functions.
Language
Selects the language to be used in the menu items, warnings and messages.
Date/Time Setup
Sets the date and time again.
Area Setting
70
Sets the area where you are using the product.
Format
Formats (initializes) the memory card.
File Number
Selects how to assign file numbers to recorded still images and MP4 movies.
Select REC Folder
You can change the folder on the memory card where still images and MP4 movies are to be recorded.
New Folder
Creates a new folder on the memory card for recording still images and MP4 movies.
Folder Name
Still images you shoot are recorded in a folder that is automatically created under the DCIM folder on the memory card. You
can change the way folder names are assigned.
Recover Image DB
If image files were processed on a computer, problems may occur in the image database file. In such cases, the images on
the memory card will not be played back on this product. If these problems happen, repair the file using [Recover Image DB].
Display Media Info.
Displays the recordable time of movies and the number of recordable still images for the inserted memory card.
Version
Displays the software version of this product and the lens.
Certification Logo (Overseas model only)
Displays some of the certification logos for this product.
Setting Reset
Resets the product to the default settings.
4-538-499-12(1)
Copyright 2014 Sony Corporation
71
Interchangeable Lens Digital Camera
ILCA-77M2
Connecting this product and a Smartphone
PlayMemories Mobile
To use [Ctrl w/ Smartphone] or [Send to Smartphone], etc., the application PlayMemories Mobile should be installed on your
smartphone.
Connecting an Android smartphone to this product
Connecting the product to an iPhone or iPad
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
72
Interchangeable Lens Digital Camera
ILCA-77M2
Controlling this product using a Smartphone
Ctrl w/ Smartphone
You can use a smartphone as the remote controller for this product, and shoot still images/movies.
One-touch connection with an NFC-enabled Android smartphone (NFC One-touch remote)
You can connect this product and an NFC-enabled Android smartphone with one touch, without performing a complex setup
operation.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
73
Interchangeable Lens Digital Camera
ILCA-77M2
Transferring images to a Smartphone
Send to Smartphone
You can transfer still images/movies to a smartphone and view them.
Sending images to an Android smartphone (NFC One-touch Sharing)
With just one touch, you can connect this product and an NFC-enabled Android smartphone, and send an image displayed on
the product screen directly to the smartphone.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
74
Interchangeable Lens Digital Camera
ILCA-77M2
Transferring images to a computer
Send to Computer
You can transfer images stored in the product to a computer connected to a wireless access point or wireless broadband router
and easily make backup copies using this operation.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
75
Interchangeable Lens Digital Camera
ILCA-77M2
Changing the settings of Wi-Fi functions
Airplane Mode
When you board an airplane, etc., you can turn off all Wi-Fi functions temporarily.
WPS Push
If your access point has the WPS button, you can register the access point to this product easily by pushing the WPS button.

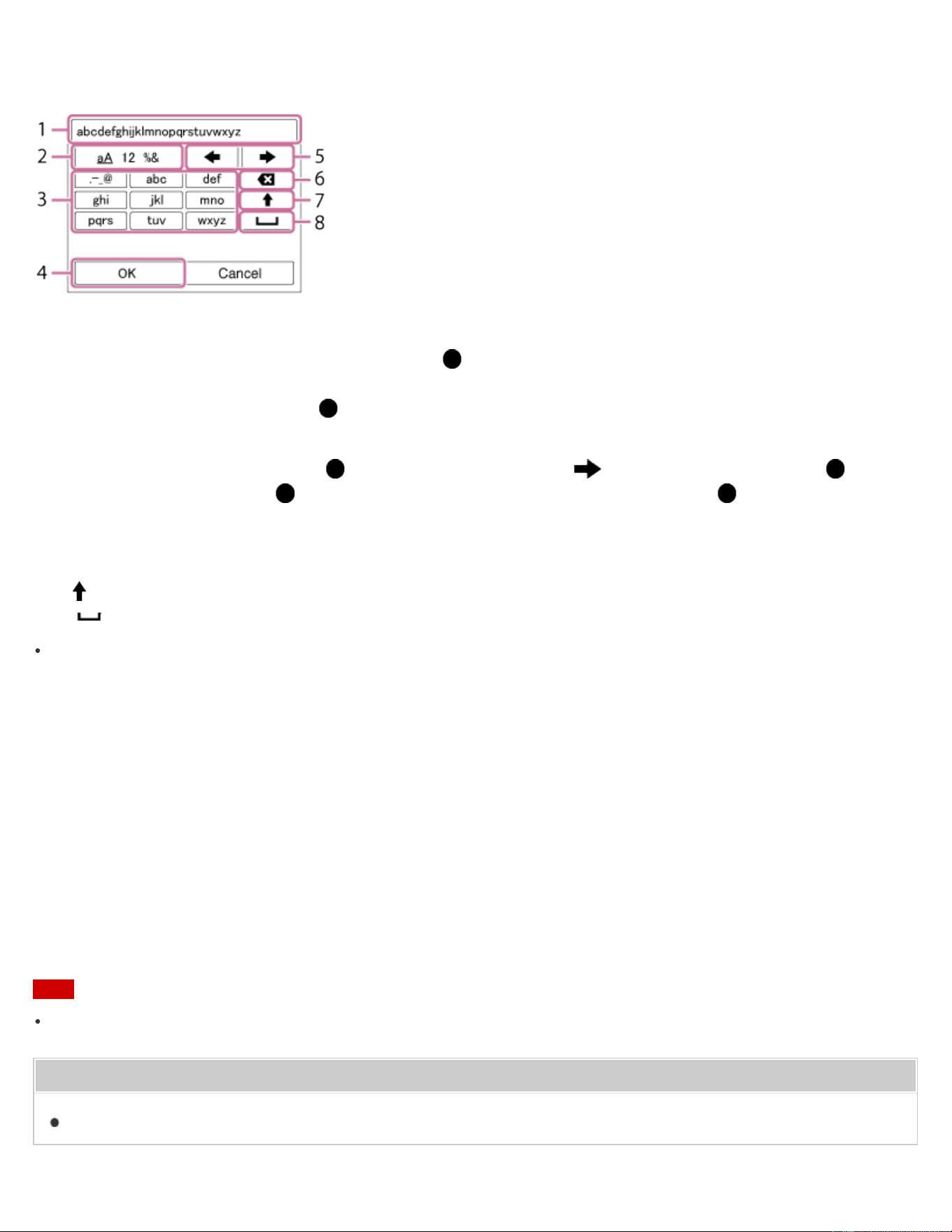

Access Point Set.
You can register your access point manually.
Edit Device Name
You can change the device name under Wi-Fi Direct.
Disp MAC Address
Displays the MAC address of this product.
SSID/PW Reset
This product shares the connection information for [Send to Smartphone] and [Ctrl w/ Smartphone] with a device that has
permission to connect. If you want to change the device that is permitted to connect, reset the connection information.
Reset Network Set.
Resets all the network settings to default settings.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
77
Interchangeable Lens Digital Camera
ILCA-77M2
Using the software
PlayMemories Home
Installing PlayMemories Home
Software for Mac computers
Image Data Converter
Installing Image Data Converter
Accessing Image Data Converter Guide
Remote Camera Control
Installing Remote Camera Control
Accessing the Help of Remote Camera Control
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
79
Interchangeable Lens Digital Camera
ILCA-77M2
Connecting this product and a computer
Connecting the product to a computer
Importing images to the computer
PlayMemories Home allows you to easily import images.
Disconnecting the product from the computer
Disconnects the USB connection between this product and the computer.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
80
Interchangeable Lens Digital Camera
ILCA-77M2
Creating a movie disc
Disc type
Selecting the disc creation method
You can create a disc from an AVCHD format movie recorded using this product.
Creating a disc with a device other than a computer
You can also create discs using a Blu-ray recorder, etc.
Creating Blu-ray Discs
You can create Blu-ray Discs from AVCHD movies imported to a computer.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
81
Interchangeable Lens Digital Camera
ILCA-77M2
Precautions
Precautions
On the internal rechargeable battery
This camera has an internal rechargeable battery for maintaining the date and time and other settings regardless of whether
the power is on or off, or whether the battery pack is charged or discharged.
Battery pack and battery charger
Memory card
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
82
Interchangeable Lens Digital Camera
ILCA-77M2
Using this product abroad
Plug adaptor
You can use the battery charger and the AC Adaptor AC-PW10AM in any country or region where the power supply is within
100 V to 240 V AC and 50 Hz/60 Hz.
On TV color systems
To view movies shot using this product on a television, the product and television must use the same color television system.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
85
Interchangeable Lens Digital Camera
ILCA-77M2
Battery pack and power
You cannot insert the battery pack into the product.
You cannot turn on the product.
The power turns off suddenly.
The remaining battery level indicator shows an incorrect level.
The CHARGE lamp of the battery charger flashes when charging the battery pack.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
89
Interchangeable Lens Digital Camera
ILCA-77M2
Shooting still images/movies
You cannot record images.
Recording takes a long time.
The image is out of focus.
The flash does not work.
Fuzzy white circular spots appear on images shot using the flash.
The recording date and time are not displayed on the screen.
The date and time are recorded incorrectly.
The aperture value and/or shutter speed and/or metering indicator flashes.
The image colors are not correct.
Noise appears in the image when you view the screen in a dark place.
The eyes of the subject come out red.
Dots appear and remain on the screen.
You cannot shoot images continuously.
The image is not clear in the viewfinder.
Help Guide
Troubleshooting
90
The image is whitish (Flare)./Blurring of light appears on the image (Ghosting).
The corners of the picture are too dark.
The image is blurred.
The LCD screen darkens after a short period of time passed.
The flash takes too long to recharge.
The control dial does not work.
4-538-499-12(1)
Copyright 2014 Sony Corporation
91
Interchangeable Lens Digital Camera
ILCA-77M2
Wi-Fi
You cannot find the wireless access point to be connected.
[WPS Push] does not work.
[Send to Computer] is canceled halfway.
You cannot send movies to a smartphone.
[Ctrl w/ Smartphone] or [Send to Smartphone] is canceled halfway.
The shooting screen for [Ctrl w/ Smartphone] is not displayed smoothly./The connection between this product
and the smartphone is disconnected.
You cannot use One-Touch connection (NFC).
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
93
Interchangeable Lens Digital Camera
ILCA-77M2
Computers
The computer does not recognize this product.
You cannot import images.
The image and sound are interrupted by noise when viewing a movie on a computer.
Images exported from a computer cannot be viewed on this product.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
94
Interchangeable Lens Digital Camera
ILCA-77M2
Others
The lens gets fogged.
The product becomes warm when you use it for a long time.
The Clock Set screen appears when you turn on the product.
The number of recordable images does not decrease, or decreases two images at a time.
The product does not work properly.
“--E-” appears on the screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
97
Interchangeable Lens Digital Camera
ILCA-77M2
Checking the camera and the supplied items
First check the model name of your camera.
The accessories supplied differ depending on the model.
The number in parentheses indicates the number of pieces.
Supplied with all models:
Camera (1)
BC-VM10A Battery charger (1)
Power cord (mains lead) (1)* (not supplied in the U.S.A. and Canada)
*Multiple power cords may be supplied with your camera. Use the appropriate one that matches your country/region.
NP-FM500H Rechargeable battery pack (1)
Micro USB cable (1)
Shoulder strap (1)
Help Guide
How to Use
100
Body cap (1) (Attached on the camera)
Shoe cap (1) (Attached on the camera)
Eyepiece cup (1) (Attached on the camera)
Instruction Manual (1)
Wi-Fi Connection/One-touch (NFC) Guide (1)
ILCA-77M2Q
DT 16-50 mm zoom lens (1)/Front lens cap (1)/Rear lens cap (1)/Lens hood (1)
ILCA-77M2M
DT 18-135 mm zoom lens (1)/Front lens cap (1)/Rear lens cap (1)/Lens hood (1)
4-538-499-12(1)
Copyright 2014 Sony Corporation
101
Interchangeable Lens Digital Camera
ILCA-77M2
Identifying parts (Front side)
1. Shutter button
2. Power switch
3. Front control dial
4. Remote sensor
5. Lens contacts*
6. Mirror*
7. Preview button
8. Mount
9. Built-in flash*
Press the (Flash pop-up) button to use the flash. In [Intelligent Auto] and [Scene Selection] mode, the flash
pops up automatically when you press the shutter button if the camera determines that the light is insufficient or
that the subject is backlit.
When not using the flash, press it back into the camera body.
10. Microphone**
11. Mode dial lock release button
12. Mode dial
13.
(Flash pop-up) button
14. Mounting index
15. Lens release button
16. Focus mode dial
*
Do not directly touch these parts.
**
Do not cover this part during movie recording. Doing so may cause noise or lower the volume.
Help Guide
How to Use
102
Interchangeable Lens Digital Camera
ILCA-77M2
Identifying parts (Rear side)
1. Eyecup
2. Eye sensor
3. MENU button
4. Viewfinder*
When you look into the viewfinder, the viewfinder mode is activated, and when you take your face away from the
viewfinder, the screen mode returns to the monitor mode.
5. Diopter-adjustment dial
Adjust the diopter-adjustment dial according to your eyesight until the display appears clearly in the viewfinder.
6. Monitor
7. Light sensor
8. MOVIE button
9. For shooting: AEL (AE lock) button/SLOW SYNC button
For viewing: (Image index) button
10. For shooting: AF/MF (Auto focus/manual focus) button
For viewing: (Enlarge) button
11. Rear control dial
12. Multi-selector
Help Guide
How to Use
103
13. For shooting: Fn (Function) button
For viewing: (Send to Smartphone) button
You can display the screen for [Send to Smartphone] by pressing this button.
When you attach a vertical grip (sold separately), pressing the (Image rotation) button on the vertical grip
displays the [Send to Smartphone] screen.
14. DISP (Display) button
15.
(Smart Telecon.) button
16. C (Custom) button
For viewing: (Delete) button
17. (Playback) button
*
Do not directly touch this part.
4-538-499-12(1)
Copyright 2014 Sony Corporation
104
Interchangeable Lens Digital Camera
ILCA-77M2
Identifying parts (Top side)
1. Multi interface shoe*
2. FINDER/MONITOR button
3. Display panel
4. / (Drive Mode) button
5. WB (White balance) button
6. (Exposure Comp.) button
7. ISO button
8. Display panel illumination button
9. Image sensor position mark
*
For details on compatible accessories of the Multi interface shoe, visit the Sony website in your area, or consult your Sony
dealer or local authorized Sony service facility.
Accessories for the Accessory Shoe can also be used.
Operations with other manufactures' accessories are not guaranteed.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
105
Interchangeable Lens Digital Camera
ILCA-77M2
Identifying parts (Sides/Bottom)
1. Microphone jack
When an external microphone is connected, the internal microphone is turned off automatically.
When the external microphone is a plugin-power type, the power of the microphone is supplied by the camera.
2. Hooks for shoulder strap
Attach both ends of the strap onto the camera.
3. (Flash sync) terminal
4. REMOTE terminal
When connecting the RM-L1AM Remote Commander (sold separately) to the camera, insert the plug of the
Remote Commander into the REMOTE terminal, aligning the guide of the plug with the guide of the REMOTE
terminal. Make sure that the cord of the Remote Commander faces forward.
5. Speaker
6. DC IN terminal
Help Guide
How to Use
106
When connecting the AC-PW10AM AC Adaptor (sold separately) to the camera, turn the camera off, then plug
the connector of the AC Adaptor to the DC IN terminal on the camera.
7. HDMI micro jack
8. Multi/Micro USB Terminal*
Supports Micro USB compatible device.
9. Access lamp
10.
(N mark)
This mark indicates the touch point for connecting the camera and an NFC-enabled Smartphone.
For details on the location of the (N mark) on your Smartphone, refer to the operating instructions of the
Smartphone.
NFC (Near Field Communication) is an international standard of short-range wireless communication technology.
11. Wi-Fi sensor (built-in)
12. Memory card insertion slot
13. Memory card cover
14. Battery insertion slot
15. Battery cover
16. Tripod socket hole
Use a tripod with a screw less than 5.5 mm (7/32 inches) long.
Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.
*
For details on compatible accessories for the Multi/Micro USB Terminal, visit the Sony website, or consult your Sony dealer or
local authorized Sony service facility.
4-538-499-12(1)
Copyright 2014 Sony Corporation
107
Interchangeable Lens Digital Camera
ILCA-77M2
Identifying parts Lens DT 16-50mm F2.8 SSM (Supplied with the ILCA-77M2Q)
1. Focusing ring
2. Zoom ring
3. Zoom lock switch
4. Focal-length index
5. Lens contacts*
6. Lens hood index
7. Distance scale
8. Distance index
9. Focal-length scale
10. Focusing mode switch
11. Mounting index
*
Do not directly touch this part.
The DT 16-50mm F2.8 SSM is designed for Sony A-mount cameras (models equipped with an APS-C sized image
sensor).
You cannot use this lens on 35mm-format cameras.
For the lenses other than DT 16-50mm F2.8 SSM, refer to the operating instructions supplied with the lens.
Help Guide
How to Use
108
Interchangeable Lens Digital Camera
ILCA-77M2
Identifying parts Lens DT 18-135mm F3.5-5.6 SAM (Supplied with the ILCA-77M2M)
1. Focusing ring
2. Zoom ring
3. Zoom lock switch
4. Focal-length index
5. Lens contacts*
6. Lens hood index
7. Focal-length scale
8. Focusing mode switch
9. Mounting index
*
Do not directly touch this part.
The DT 18-135mm F3.5-5.6 SAM is designed for Sony A-mount cameras (models equipped with an APS-C sized
image sensor).
You cannot use this lens on 35mm-format cameras.
For the lenses other than DT 18-135mm F3.5-5.6 SAM, refer to the operating instructions supplied with the lens.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
109
Interchangeable Lens Digital Camera
ILCA-77M2
List of icons on the screen
The displayed contents and their positions shown below are just a guideline, and may differ from the actual display.
Monitor mode
For playback (Basic information display)
Viewfinder mode
In Auto Mode or Scene Selection mode
Help Guide
How to Use
110
P/A/S/M/Sweep Panorama mode
1. P P* A S M
Shooting mode
Register number
Scene Recognition icons
Memory card/Upload
100
Remaining number of recordable images
Aspect ratio of still images
24M / 12M / 6.0M / 20M / 10M / 5.1M
Image size of still images
Image quality of still images
111
Frame rate of movies
Image size of movies
Remaining battery
Remaining battery warning
Flash charge in progress
Setting Effect OFF
NFC is activated
Airplane Mode
No audio recording of movies
Wind Noise Reduction
SteadyShot/Camera shake warning
SteadyShot/Camera shake warning
Overheating warning
Database file full/Database file error
Smart Zoom/ Clear Image Zoom/Digital Zoom
Spot metering area
Digital level gauge
Audio level
View Mode
112
100-0003
Folder - file number
Protect
Recording mode of movies
DPOF
DPOF set
Auto Obj. Framing
Smart Telecon.
PC Remote
Remote controller
2.
Drive mode
Flash mode/Red-eye reduction
±0.0
Flash compensation
Focus mode
Focus area
Smile/Face Detect.
Metering mode
7500K A5 G5
White balance (Auto, Preset, Custom, Color temperature, Color filter)
D-Range Optimizer/Auto HDR
+3 +3 +3
Creative Style/Contrast, Saturation, Sharpness
113
Picture Effect
Smile detection sensitivity indicator
Zebra
3.
EV scale
AF Range Control
Exposure compensation/Flash compensation gauge
Exposure compensation/Metered Manual
REC 0:12
Recording time of the movie (m:s)
Focus
1/250
Shutter speed
F3.5
Aperture Value
ISO400
ISO AUTO
ISO sensitivity
AE lock/FEL lock
Shutter speed indicator
Aperture indicator
114
Histogram
Auto HDR image warning
Picture Effect error
2014-1-1
10:37PM
Date of recording
3/7
File number/Number of images in the view mode
4-538-499-12(1)
Copyright 2014 Sony Corporation
115
Interchangeable Lens Digital Camera
ILCA-77M2
Display panel
You can set the shutter speed and aperture, exposure compensation, flash compensation, ISO, white balance, drive
mode, and image quality, etc., using the display panel on top of the camera.
Shutter speed/Aperture
Exposure compensation/Flash compensation
ISO
White Balance
Help Guide
How to Use
116
Drive Mode/Remote controller
Image quality
Remaining battery
Number of recordable images*
*
Even if the number of recordable images is higher than 9,999 images, "9999" will appear on the display panel.

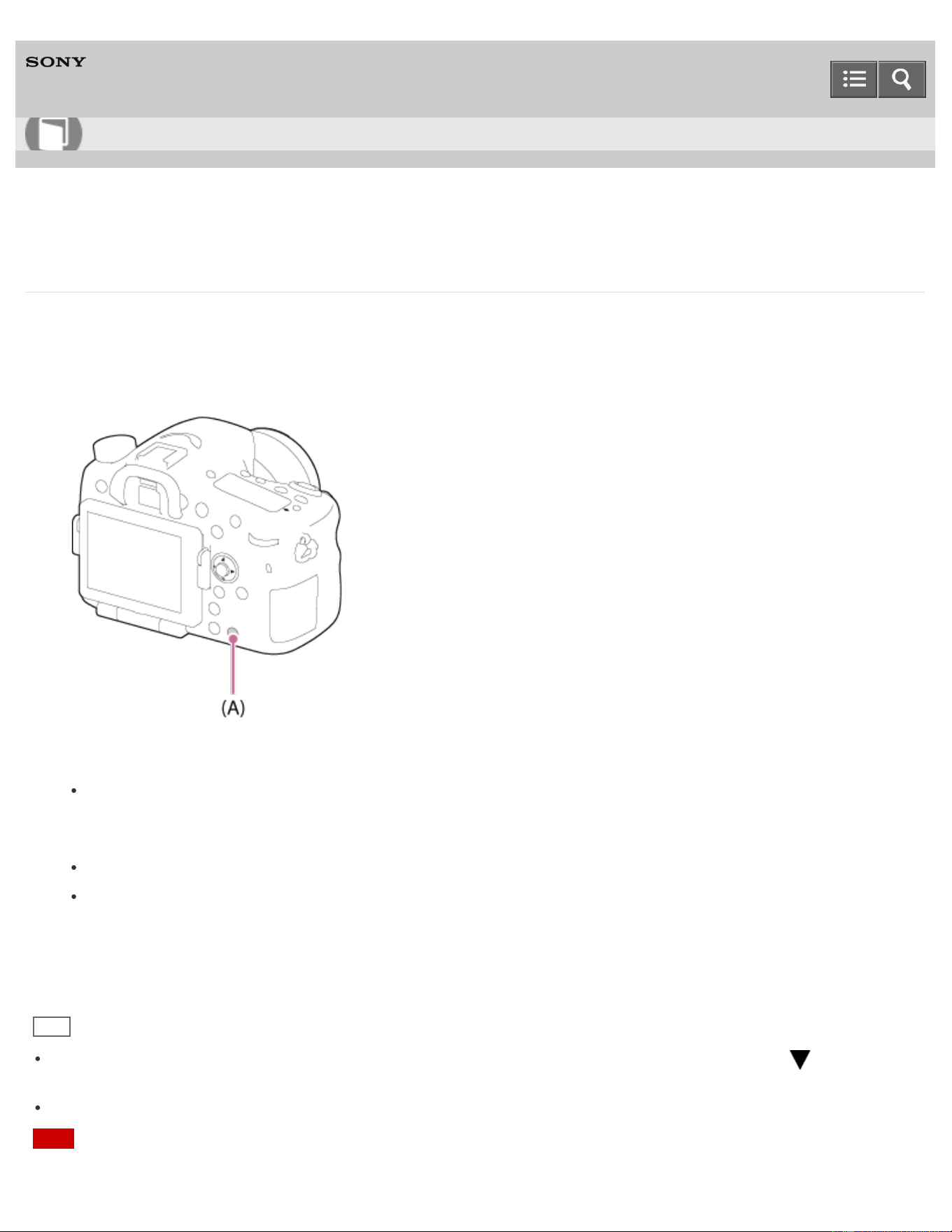

To turn on the display panel backlight
Press the illumination button (A) on top of the camera. If you press the button again, the display panel backlight will turn
off.
117
Interchangeable Lens Digital Camera
ILCA-77M2
Attaching the eyepiece cup
It is recommended that you attach the eyepiece cup when you intend to use the viewfinder.
1. Match the eyepiece cup to the groove on the viewfinder and slide it into place.
To remove the eyepiece cup, grasp it on the left and right sides and lift it up.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
119
Interchangeable Lens Digital Camera
ILCA-77M2
Adjusting the viewfinder (diopter-adjustment)
Adjust the diopter scale to your eyesight until the display appears clearly in the viewfinder. If it is difficult to turn the
diopter-adjustment dial, remove the eyepiece cup and then adjust the dial.
1. Turn the diopter-adjustment dial.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
120
Interchangeable Lens Digital Camera
ILCA-77M2
About the [In-Camera Guide]
The [In-Camera Guide] displays descriptions of MENU items, Fn (Function) button, and settings, and if a function cannot
be set, the reason why.
1. MENU → (Custom Settings) → [Custom Key Settings] → desired functions assigned to the button → [In-
Camera Guide]
2. Press the MENU or Fn button.
3. Select the desired MENU item using up/down/left/right side on the multi-selector.
4. Press the button to which the [In-Camera Guide] function is assigned.
The operation guide for the MENU item you have selected in step 3 is displayed.
If you press the on the center of the multi-selector after selecting an item shown in gray, the reason the item
cannot be set is displayed.
Related Topic
Custom Key Settings
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
121
Interchangeable Lens Digital Camera
ILCA-77M2
Charging the battery pack using a charger
When using the camera for the first time, be sure to charge the InfoLITHIUM NP-FM500H (supplied). The InfoLITHIUM
battery pack can be charged even when it is not fully depleted. It can also be used when it is not fully charged. The
charged battery pack discharges little by little even when it is not being used. To avoid missing a shooting opportunity,
charge the battery pack again before shooting.
1. Insert the battery pack into the battery charger.
Push the battery pack lightly until it clicks.
2. Connect the battery charger to the wall outlet (wall socket).
For the U.S.A. and Canada
Help Guide
How to Use
122
For countries/regions other than the U.S.A. and Canada
Light on: Charging
Light off: Charge completed
Charging time (Full charge): Approx. 175 minutes
When charging a fully depleted battery pack at a temperature of 25°C (77°F).
The CHARGE lamp (A) turns off when charging is completed.
Note
The charging time differs depending on the remaining charge of the battery pack and on the charging conditions.
Be sure to use only genuine Sony brand battery packs.
We recommend charging the battery pack at an ambient temperature of between 10°C to 30°C (50°F to 86°F). You
may not be able to efficiently charge the battery pack outside this temperature range.
Connect the battery charger to the nearest wall outlet (wall socket). If malfunctions occur while using the charger,
disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source.
Even when the CHARGE lamp of this battery charger is off, the power is not disconnected. If any trouble occurs while
this unit is in use, unplug it from the wall outlet (wall socket) to disconnect the power.
When the camera is being used for the first time or when you use a battery pack that has not been used for a long
time, the CHARGE lamp may flash quickly when the battery is charged for the first time. If this happens, remove the
battery pack from the charger and then re-insert it to recharge.
Do not continuously or repeatedly charge the battery pack without using it if it is already fully charged or close to fully
charged. Doing so may cause a deterioration in battery performance.
4-538-499-12(1)
Copyright 2014 Sony Corporation
123
Interchangeable Lens Digital Camera
ILCA-77M2
Inserting the battery pack into the camera
How to insert the battery pack into the camera
1. Slide the open lever to open the battery cover.
2. Insert the battery pack while pressing the lock lever (A) with the tip of the battery until the battery locks into place.
3. Close the cover.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
124
Interchangeable Lens Digital Camera
ILCA-77M2
Battery life and the number of images that can be recorded/played back using a battery pack
Screen mode
Shooting (still images):
Battery life: approx. 240 min., Number of images: approx. 480
Actual shooting (movies):
Battery life: approx. 120 min.
Continuous shooting (movies):
Battery life: approx. 175 min.
Viewing (still images):
Battery life: approx. 270 min., Number of images: approx. 5400
Viewfinder mode
Shooting (still images):
Battery life: approx. 205 min., Number of images: approx. 410
Actual shooting (movies):
Battery life: approx. 110 min.
Continuous shooting (movies):
Battery life: approx. 175 min.
Viewing (still images):
Battery life: approx. 320 min., Number of images: approx. 6400
Note
The above battery life and number of images applies when the battery pack has been fully charged. The battery life
and number of images may decrease depending on the conditions of use.
The battery life and number of images that can be recorded is for shooting under the following conditions:
The battery pack is used at an ambient temperature of 25°C (77°F).
Using the lens DT 16-50mm F2.8 SSM
Using Sony Memory Stick PRO Duo media (sold separately)
[Viewfinder Bright.]: [Manual][±0]
[Monitor Brightness]: [Manual][±0]
The number for "Shooting (still images)" is based on the CIPA standard, and is for shooting under the following
conditions (CIPA: Camera & Imaging Products Association):
Focus Mode: [Single-shot AF]
One picture is taken every 30 seconds.
The power is turned on and off once every ten times.
The number for "Actual shooting (movies)" is based on the CIPA standard, and is for shooting under the following
Help Guide
How to Use
125
conditions:
The image quality is set to 60i 17M (FH) .
Actual shooting (movies): Battery life based on repeated shooting, zooming, shooting stand-by, turning on/off, etc.
Continuous movie shooting: Battery life based on non-stop shooting until the limit (29 minutes) has been reached, and then
continued by pressing the MOVIE button again. Other functions, such as zooming, are not used.
If the remaining battery is not displayed, press the DISP (Display Setting).
4-538-499-12(1)
Copyright 2014 Sony Corporation
126
Interchangeable Lens Digital Camera
ILCA-77M2
Supplying power using a wall outlet (wall socket)
Power can be supplied to the camera during shooting/playback using an AC adaptor AC-PW10AM (sold separately).
1. To supply power to the camera during shooting/playback, connect the camera and the AC adaptor AC-PW10AM
(sold separately) and plug the AC adaptor to a wall outlet (wall socket).
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
127
Interchangeable Lens Digital Camera
ILCA-77M2
Removing the battery pack
How to remove the battery pack
1. Make sure that the access lamp is not lit, and turn off the camera.
2. Slide lock lever (A) and remove the battery pack.
Be careful not to drop the battery pack.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
128
Interchangeable Lens Digital Camera
ILCA-77M2
Inserting a memory card
How to insert a memory card
1. Slide the memory card cover to open it.
2. Insert the memory card.
Ensure that the notched corner is facing in the correct direction.
With the notched corner facing in the direction illustrated, insert the memory card until it clicks into place.
3. Close the memory card cover.
Related Topic
Memory card
Help Guide
How to Use
129
Interchangeable Lens Digital Camera
ILCA-77M2
Removing the memory card
How to remove the memory card
1. Open the memory card cover.
2. Make sure that the access lamp (A) is not lit.
3. Push in on the memory card once to remove it.
4. Close the memory card cover.
Related Topic
Memory card
Help Guide
How to Use
130
Interchangeable Lens Digital Camera
ILCA-77M2
Attaching a lens
Set the power switch of the camera to OFF before attaching the lens.
1. Remove the body cap (A) from the camera and the rear lens cap (B) from the rear of the lens.
When changing the lens, work quickly in a dust-free location to keep dust or debris from getting inside the
camera.
When shooting, remove the front lens cap from the front of the lens.
2. Mount the lens by aligning the two orange index marks (mounting indexes) on the lens and camera.
Hold the camera with the lens facing down to prevent dust and debris from entering the camera.
3. While pushing the lens lightly toward the camera, turn the lens slowly in the direction of the arrow until it clicks into
Help Guide
How to Use
131
the locked position.
Be sure to hold the lens straight when attaching it.
Note
Do not press the lens release button when attaching a lens.
Do not use force when attaching a lens.
E-mount lenses are not compatible with this camera.
When you use a lens with a tripod socket, attach a tripod to the tripod socket of the lens to help balance the weight of
the lens.
When carrying the camera with a lens attached, hold both the camera and the lens firmly.
Do not hold the part of the lens that is extended for zoom or focus adjustment.
Related Topic
Attaching the lens hood
4-538-499-12(1)
Copyright 2014 Sony Corporation
132
Interchangeable Lens Digital Camera
ILCA-77M2
Removing the lens
Set the power switch of the camera to OFF before you remove the lens.
1. Keep pressing the lens release button (A) and turn the lens in the direction of the arrow until it stops.
2. Attach the lens caps to the front and rear of the lens and the body cap to the camera.
Remove any dust from the caps before attaching them.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
133
Interchangeable Lens Digital Camera
ILCA-77M2
Attaching the lens hood
We recommend that you use the lens hood to prevent light outside the shooting frame from affecting the image.
1. Match the shape of the lens hood mounting part and lens head, and turn the lens hood clockwise until it clicks.
Note
Attach the lens hood properly. Otherwise, the lens hood may not have any effect or may be partially reflected in the
image.
When the lens hood is attached properly, the lens hood index (red line) matches the red index mark on the hood.
(There may be no lens hood index on some lenses.)
Remove the lens hood when using the flash. Otherwise, the lens hood blocks the flash light and may appear as a
shadow on the image.
To store the lens hood after shooting, attach the lens hood to the lens backward.
Related Topic
Attaching a lens
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
134
Interchangeable Lens Digital Camera
ILCA-77M2
Notes on changing the lens
When changing the lens, if dust or debris gets inside the camera and adheres to the surface of the image sensor (the
part that converts the light to an electric signal), it may appear as dark spots on the image, depending on the shooting
environment.
This camera is equipped with an anti-dust function that causes the image sensor to vibrate a little when the power is
turned off to prevent dust from attaching to the image sensor. However, always make sure to attach/remove the lens
quickly away from dusty locations.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
135
Interchangeable Lens Digital Camera
ILCA-77M2
Setting the date and time
When you turn on the camera for the first time or after you have initialized the functions, the setting screen for the date
and time appears.
1. Set the power switch to ON to turn on the camera.
The setting screen for the date and time appears.
2. Check that [Enter] is selected on the screen, then press on the multi-selector.
3. Select your desired geographic location, and then press .
4. Select a setting item using the up/down side of the multi-selector, then press in the center.
5. Set [Daylight Savings], [Date/Time], and [Date Format] using the up/down/left/right sides, then press in the
center.
Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
6. Repeat steps 4 and 5 to set other items, then select [Enter] and press in the center.
To cancel the date and time setting procedure, press the MENU button.
Note
This camera does not have a function for inserting the date on images. You can insert the date on images and then
save and print them using PlayMemories Home.
If the date and time setting is cancelled halfway, the setting screen for the date and time appears every time you turn
on the camera.
Related Topic
Date/Time Setup
Area Setting
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
136
Interchangeable Lens Digital Camera
ILCA-77M2
Using the multi-selector
You can move the selection frame by pressing up/down/left/right side of the multi-selector. The item selected with the
multi-selector can be entered by pressing in the center.
Press the left/right side of the multi-selector while playing back images to display the previous or next image.
The [Standard] function is assigned to in the center with the default setting. When you press in the center,
the product automatically focuses on the center of the screen.
Related Topic
Function of the center button
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
137
Interchangeable Lens Digital Camera
ILCA-77M2
Using MENU items
In this section, you learn how to change settings related to all camera operations and execute camera functions
including shooting, playback, and operation methods.
1. Press MENU button to display the Menu screen.
2. Select the desired MENU item using the up/down/left/right side of the multi-selector, and then press in the
center of the multi-selector.
The display may move directly from step 1 to step 3 depending on the [Tile Menu] setting.
3. Select the item you want to set by pressing the up/down/left/right side of the multi-selector, and then press in
the center of the multi-selector.
Select an icon at the top of the screen and press the left/right side of the multi-selector to move to another
MENU item.
Help Guide
How to Use
138
Interchangeable Lens Digital Camera
ILCA-77M2
Using the Fn (Function) button
You can register frequently used functions to the Fn (function) button and recall them while shooting. Up to 12 frequently
used functions can be registered to the Fn (Function) button.
1. Press the DISP button, and then press the Fn (Function) button in a screen mode other than [For viewfinder].
2. Select a function to be registered by pressing the up/down/left/right side of the multi-selector.
3. Select the desired setting by turning the front dial, and press in the center of the multi-selector.
Some functions can be fine-tuned using the rear dial.
Help Guide
How to Use
140
Performing settings on the dedicated screen
Select the desired function in step 2, then press in the center of the multi-selector. The dedicated setting screen
for the function appears. Follow the operating guide (A) to perform the settings.
Related Topic
Function Menu Set.
4-538-499-12(1)
Copyright 2014 Sony Corporation
141
Interchangeable Lens Digital Camera
ILCA-77M2
Using the "Quick Navi"
You can change the settings directly using the Quick Navi screen when using the viewfinder. The displayed contents and
their position shown below are just a guideline, and may differ from the actual display.
1. Press the DISP (Display Setting) button repeatedly until the screen is set to [For viewfinder].
2. Press Fn (Function) button to switch the screen to Quick Navi screen.
3. Select the desired function by pressing the up/down/left/right side of the multi-selector.
4. Turn the front dial to select the desired setting.
Some setting values can be finely adjusted by turning the rear dial.
Performing settings on the dedicated screen
Select the desired function in step 3, then press in the center of the multi-selector. The dedicated setting screen
for the function appears. Follow the operating guide (A) to perform the settings.
Help Guide
How to Use
142
Interchangeable Lens Digital Camera
ILCA-77M2
Shooting still images
Shoots still images.
1. Set the shooting mode to (Auto Mode).
Turn the mode dial while pressing the mode dial lock release button in the center of the mode dial.
2. Adjust the monitor angle, and hold the camera. Or look through the viewfinder and hold the camera.
3. Press the shutter button halfway down to focus.
When the image is in focus, the indicator ( or ) lights up.
4. Press the shutter button fully down.
Focus indicator
lights:
Image is in the focus.
flashes:
The focusing has failed.
Help Guide
How to Use
144
lights:
Image is in the focus. The focused position will change to suit the motion of the subject.
lights:
The focusing is in progress.
Hint
When the product cannot focus automatically, the focus indicator flashes and the beep does not sound. Either
recompose the shot or change the focus setting. When [Continuous AF] is set, the beep does not sound when focus
is achieved.
Focusing may be difficult in the following situations:
It is dark and the subject is distant.
The contrast between the subject and the background is poor.
The subject is seen through glass.
The subject is moving quickly.
There is reflective light or shiny surfaces.
There is a flashing light.
The subject is backlit.
Related Topic
Zoom
Playing back images
Intelligent Auto
4-538-499-12(1)
Copyright 2014 Sony Corporation
145
Interchangeable Lens Digital Camera
ILCA-77M2
Shooting movies
You can record movies by pressing the MOVIE button.
1. Set the mode dial to (Movie).
2. Press the MOVIE button to start recording.
3. Press the MOVIE button again to stop recording.
Note
To adjust the shutter speed and aperture value to the desired settings, set the shooting mode to (Movie).
If you use a function such as zoom while shooting a movie, the noise of the product operating will be recorded. The
sound of the MOVIE button operating may also be recorded when you press the MOVIE button to stop recording.
For the continuous shooting time of a movie recording, refer to "Recordable time of movies." When movie recording is
finished, you can restart recording by pressing the MOVIE button again. Recording may stop to protect the product,
depending on the temperature of the product or the battery.
When shooting, the sound of the shoulder strap hooks (triangular hook) could be recorded, depending on the situation
used.
Related Topic
Zoom
Movie
File Format (movie)
Help Guide
How to Use
146
Interchangeable Lens Digital Camera
ILCA-77M2
List of mode dial functions
You can select the desired shooting mode by turning the mode dial.
Turn the mode dial while pressing the mode dial lock release button in the center of the mode dial.
Available functions
(Auto Mode):
Allows you to shoot still images of any subject under any condition with good results by setting the values determined
appropriate by the product.
P (Program Auto):
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the aperture value (F value)).
Also you can select various settings using the menu.
A (Aperture Priority):
Allows you to adjust the aperture and shoot when you want to blur the background, etc.
S (Shutter Priority):
Allows you to shoot fast-moving subjects etc., by manually adjusting the shutter speed.
M (Manual Exposure):
Allows you to shoot still images with the desired exposure by adjusting the shutter speed and the aperture value.
1/2/3 (Memory recall):
Allows you to shoot an image after recalling often-used modes or numeric settings registered in advance.
(Movie):
Allows you to change the setting for movie recording.
(Cont. Priority AE):
Allows continuous shooting while the shutter button is fully depressed. The camera records images continuously at a
maximum of about 12 images per second.
(Sweep Panorama):
Allows you to shoot a panoramic image by compositing the images.
Help Guide
How to Use
148
SCN (Scene Selection):
Allows you to shoot with preset settings according to the scene.
Related Topic
Intelligent Auto
Superior Auto
Program Auto
Aperture Priority
Shutter Priority
Manual Exposure
Memory recall
Movie
Cont. Priority AE
Sweep Panorama
Scene Selection
4-538-499-12(1)
Copyright 2014 Sony Corporation
149
Interchangeable Lens Digital Camera
ILCA-77M2
Intelligent Auto
The product analyzes the subject, and allows you to shoot with appropriate settings.
1. Set the mode dial to (Auto Mode).
2. MENU → (Camera Settings) → [Auto Mode] →[Intelligent Auto].
When [Mode Dial Guide] is set to [On], you can select the desired settings after you have changed the position
of the mode dial.
3. Point the camera to the subject.
When the camera recognized the scene, the icon for the recognized scene appears on the screen.
4. Adjust the focus and shoot the image.
Note
The product will not recognize the scene when you shoot images with zoom functions other than optical zoom.
The product may not properly recognize these scenes under some shooting conditions.
Related Topic
About Scene Recognition
Mode Dial Guide
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
150
Interchangeable Lens Digital Camera
ILCA-77M2

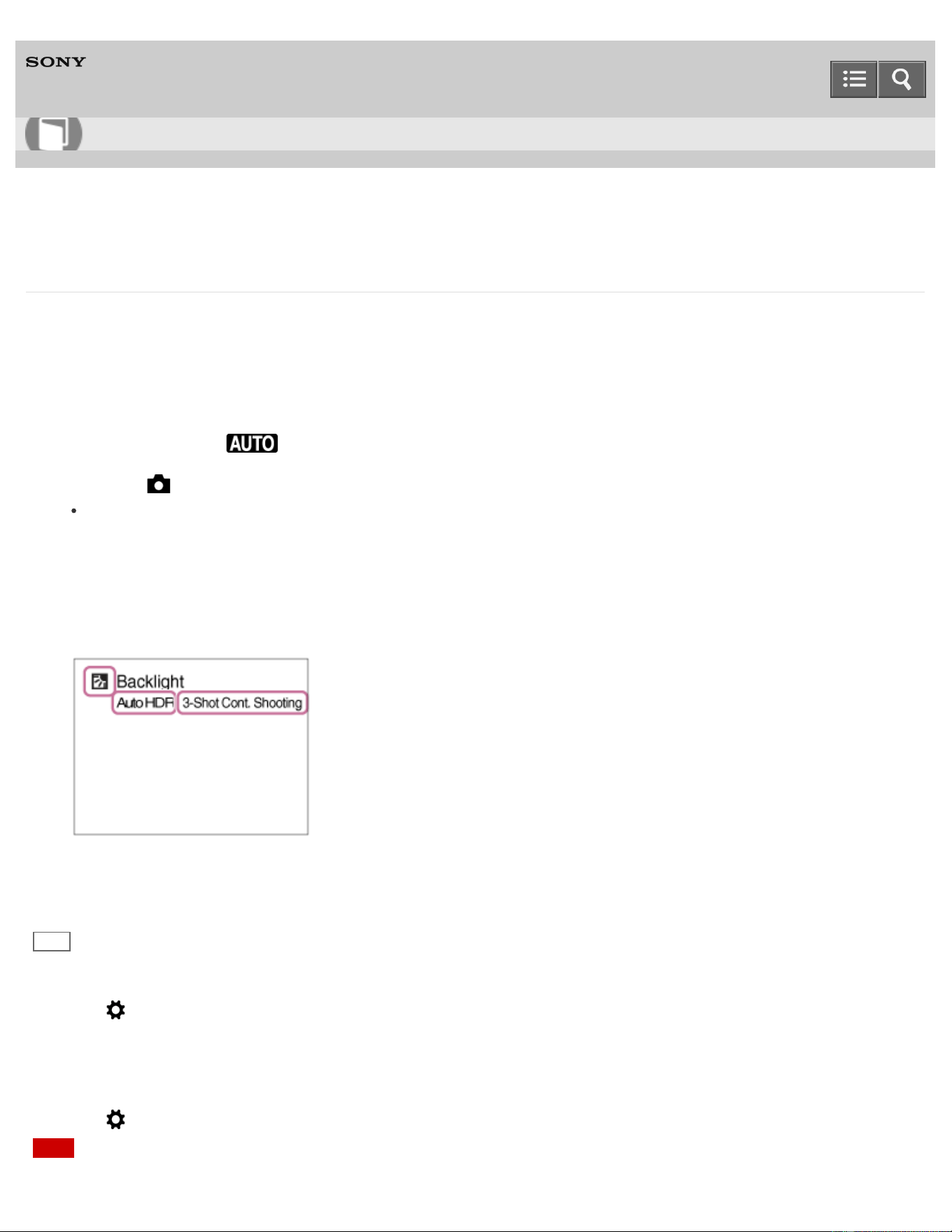

Superior Auto
The product automatically recognizes and evaluates the shooting conditions, and the appropriate settings are set
automatically.
The product may shoot multiple images and create a composite image, etc., using more shooting settings than in
Intelligent Auto mode to record higher quality images.
1. Set the mode dial to (Auto Mode).
2. MENU → (Camera Settings) → [Auto Mode] → [Superior Auto].
When [Mode Dial Guide] is set to [On], you can select the desired settings after you have changed the position
of the mode dial.
3. Point the camera to the subject.
When the camera recognizes a scene, scene recognition icon appears on the screen. If necessary, appropriate
shooting function for the recognized scene and the number of times the shutter is released also appear.
4. Adjust the focus and shoot the image.
Hint
How to shoot continuous images in [Superior Auto] mode
MENU → (Custom Settings) → [Superior Auto] → [Cont. Shooting] → desired settings.
How to change the save method for continuous images recorded in [Superior Auto] mode
You can select whether to save all continuous images or just a single image that is automatically selected as the best
shot.
MENU → (Custom Settings) → [Superior Auto] → [Image Extraction] → desired settings.
Note
Help Guide
How to Use
151
When the product is used to create composite images, the recording process takes longer than usual.
The product will not recognize the scene when you use zoom functions other than optical zoom.
The product may not properly recognize a scene under some shooting conditions.
When [ Quality] is set to [RAW] or [RAW & JPEG], the product cannot create a composite image.
Related Topic
Mode Dial Guide
Superior Auto (Image Extraction)
Superior Auto (Cont. Shooting)
4-538-499-12(1)
Copyright 2014 Sony Corporation
152
Interchangeable Lens Digital Camera
ILCA-77M2
About Scene Recognition
Scene Recognition operates in [Intelligent Auto] mode and [Superior Auto] mode.
This function allows the product to automatically recognize the shooting conditions and shoot the image.
Scene Recognition:
Icons and guides such as (Portrait), (Infant), (Night Portrait), (Night Scene), (Backlight Portrait),
(Backlight), (Landscape), (Macro), (Spotlight), (Low Light), (Night Scene using a tripod) or
(Hand-held Twilight) are displayed.
Image processing:
Cont. Shooting, Slow Sync., Auto HDR, Daylight Sync., Slow Shutter, Hand-held Twilight
Note
When [Smile/Face Detect.] is set to [Off], the [Portrait], [Backlight Portrait], [Night Portrait] and [Infant] scenes are not
recognized.
Related Topic
Intelligent Auto
Superior Auto
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
153
Interchangeable Lens Digital Camera
ILCA-77M2
The advantages of automatic shooting
In [Superior Auto] mode, the product shoots with higher quality than [Intelligent Auto] mode and performs composite
shooting as necessary.
In [Program Auto] mode, you can shoot after adjusting various functions, such as white balance, ISO, etc.
(Intelligent Auto):
Select this mode when you want the camera automatically recognize the scene.
(Superior Auto):
Select this mode to shoot scenes under difficult circumstances, such as when it is dark or the subjects are back-lit.
Select this mode to shoot a higher quality image than that provided by (Intelligent Auto).
P (Program Auto):
Select this mode to shoot with various functions other than the exposure (shutter speed and aperture) adjusted.
Note
In [Intelligent Auto] mode, you may not be able to shoot dark scenes or back-lit subjects clearly.
In [Superior Auto] mode, the recording process takes longer, since the product creates a composite image.
Related Topic
Intelligent Auto
Superior Auto
Program Auto
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
154
Interchangeable Lens Digital Camera
ILCA-77M2
Program Auto
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the aperture value).
You can set shooting functions such as [ISO].
1. Set the mode dial to P (Program Auto).
2. Set the shooting functions to your desired settings.
3. Adjust the focus and shoot the subject.
Program Shift
You can change the shutter speed and aperture (F-value) combination by rotating the front/rear dial, without changing
the appropriate exposure that is set by this product. This function is available when you do not use the flash.
“P” on the screen changes to “P*” when you turn the front/rear dial.
To cancel program shift, set the shooting mode to other than [Program Auto], or turn off the camera.
Note
According to the brightness of the environment, the program shift may not be used.
Set the shooting mode to another one than “P” or turn off the power to cancel the setting you made.
When the brightness changes, the aperture (F value) and shutter speed also change while maintaining the shift
amount.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
155
Interchangeable Lens Digital Camera
ILCA-77M2
Sweep Panorama
Allows you to create a single panoramic image from multiple images shot while panning the camera.
1. Set the mode dial to (Sweep Panorama).
2. Point the camera at the subject.
3. While pressing the shutter button halfway down, aim the camera at one end of the desired panoramic composition.
(A) This part will not be shot.
4. Press the shutter button fully down.
5. Pan the camera to the end of the guide in the direction of the arrow on the monitor.
Help Guide
How to Use
156

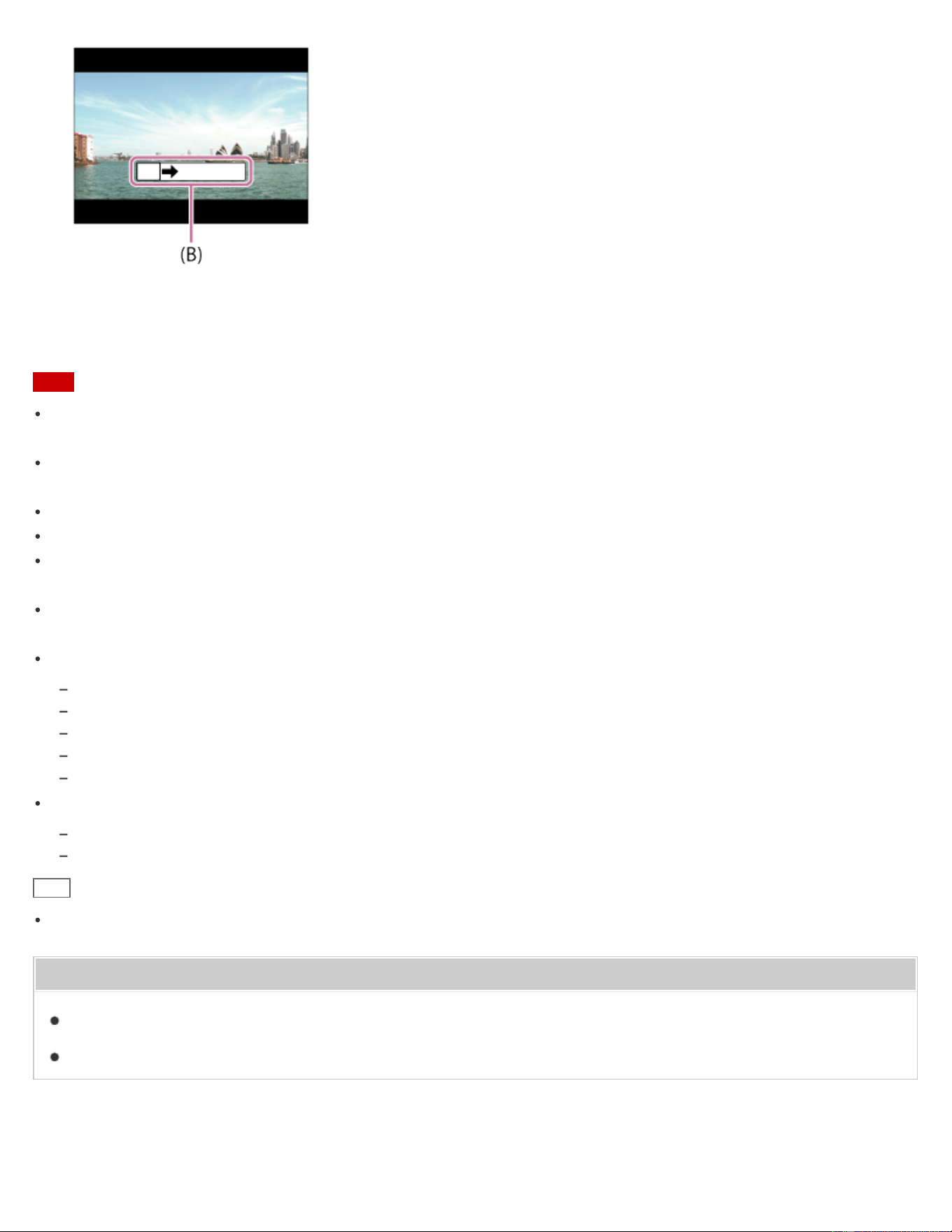

(B) Guidance bar
Note
If the entire angle of the panoramic shot is not achieved within the set time, a gray area occurs in the composite
image. If this happens, move the product faster to record the full panoramic image.
When [Wide] is selected for [Panorama: Size], the entire angle of the panoramic shot may not be achieved within the
given time. If this happens, try shooting after changing [Panorama: Size] to [Standard].
Since several images are stitched together, the stitched part may not be recorded smoothly in some cases.
The images may be blurred in dark scenes.
When a light source such as a fluorescent light flickers, the brightness and color of a stitched image may not be
consistent.
When the whole angle of panoramic shooting and the AE/AF locked angle are very different in brightness and focus,
the shooting may not be successful. If this happens, change AE/AF locked angle and shoot again.
The following situations are not suited for shooting Sweep Panorama:
Moving subjects.
Subjects that are too close to the product.
Subjects with continuously similar patterns, such as the sky, beach, or a lawn.
Subjects with constant change such as waves or water falls.
Subjects with brightness widely different from its surroundings such as the sun or a light bulb.
The Sweep Panorama shooting may be interrupted in the following situations.
When the camera is panned too fast or too slow.
The subject is too blurry.
Hint
You can turn the front dial on the shooting screen to select the shooting direction.
Related Topic
Panorama: Size
Panorama: Direction
4-538-499-12(1)
Copyright 2014 Sony Corporation
157
Interchangeable Lens Digital Camera
ILCA-77M2
Scene Selection
Allows you to shoot with preset settings according to the scene.
1. Set the mode dial to SCN (Scene Selection).
2. MENU → (Camera Settings) → [Scene Selection] → desired mode.
When [Mode Dial Guide] is set to [On], you can select the desired settings after you have changed the position
of the mode dial.
Menu item details
Portrait:
Blurs background and sharpens the subject. Accentuates the skin tones softly.
Sports Action:
Shoots a moving subject at a fast shutter speed so that the subject looks as if it is standing still. The product shoots
images continuously while the shutter button is pressed.
Macro:
Shoots close-ups of the subjects, such as flowers, insects, food, or small items.
Help Guide
How to Use
158
Landscape:
Shoots the entire range of a scenery in sharp focus with vivid colors.
Sunset:
Shoots the red of the sunset beautifully.
Night Scene:
Shoots night scenes without losing the dark atmosphere.
Hand-held Twilight:
Shoots night scenes with less noise and blur without using a tripod. A burst of shots are taken, and image processing is
applied to reduce subject blur, camera-shake, and noise.
Night Portrait:
Shoots night scene portraits using the flash.
Note
In the [Night Scene] and [Night Portrait] modes, the shutter speed is slower, so use of a tripod is recommended to
prevent the image from blurring.
159
In the [Hand-held Twilight] mode, the shutter clicks 4 times and an image is recorded.
If you select [Hand-held Twilight] with [RAW] or [RAW & JPEG], the image quality becomes [Fine] temporarily.
Reducing blur is less effective even in [Hand-held Twilight] when shooting the following subjects:
Subjects with erratic movement.
Subjects that are too close to the product.
Subjects with continuously similar patterns, such as the sky, a beach, or a lawn.
Subjects with constant change such as waves or water falls.
In the case of [Hand-held Twilight], block noise may occur when using a light source that flickers, such as fluorescent
lighting.
The minimum distance that you can come close to a subject does not change even if you select [Macro]. For the
minimum in-focus range, refer to the minimum distance of the lens attached to the product.
Hint
To change the scene, rotate the front dial on the shooting screen and select a new scene.
Related Topic
Mode Dial Guide
4-538-499-12(1)
Copyright 2014 Sony Corporation
160
Interchangeable Lens Digital Camera
ILCA-77M2
Cont. Priority AE
By fixing the aperture value when shooting the first image, you can shoot images continuously at high speed.
1. Set the mode dial to (Cont. Priority AE).
2. Adjust the focus and shoot the image.
The camera continues to record images as long as you hold the shutter button fully pressed.
The camera records images continuously at a maximum of about 12 images per second.
Hint
If the focus mode dial is set to "C" (Continuous AF), the camera locks the focus and exposure while shooting. ISO can
be set to a desired setting.
If the focus mode dial is set to "MF" (Manual Focus), or "S" (Single-shot AF), the focus is locked to the first image.
Note
When set to [Auto HDR], the process will temporarily be based on the DRO settings.
The speed of continuous shooting is estimated using Sony's criteria. The speed of continuous shooting may be
slower, depending on the shooting conditions.
Related Topic
Changing the focus method using the focus mode dial
Auto HDR
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
161
Interchangeable Lens Digital Camera
ILCA-77M2
Shutter Priority
You can express the movement of a moving subject in various ways by adjusting the shutter speed, for example, at the
instant of the movement with high speed shutter, or as a trailing image with low speed shutter. The shutter speed can be
changed while recording movies.
1. Set the mode dial to S (Shutter Priority).
2. Select the desired value by turning the front dial.
3. Adjust the focus and shoot the subject.
The aperture is automatically adjusted to obtain proper exposure.
Note
If proper exposure cannot be obtained after setup, the aperture value on the shooting screen blinks. Although you can
shoot as it is, resetting is recommended.
Use a tripod to prevent blurring when you use a slow shutter speed.
The (SteadyShot warning) indicator does not appear in shutter speed priority mode.
When the shutter speed is 1 second(s) or longer, noise reduction will be done after shooting for the same amount of
time that the shutter was open. However, you cannot shoot any more while noise reduction is in progress.
The brightness of the image on the monitor may differ from the actual image being shot.
Hint
When a faster shutter speed is used, moving subjects, such as a running person, cars, or sea spray come out as if
they are frozen in their movements. When a slower shutter speed is used, a trailing image of the movement of the
subject is captured to create a more natural and dynamic image.
Related Topic
Long Exposure NR (still image)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
162
Interchangeable Lens Digital Camera
ILCA-77M2
Aperture Priority
You can shoot by adjusting the aperture and changing the range in focus, or by defocusing the background. The
aperture value can be changed while recording movies.
1. Set the mode dial to A (Aperture Priority).
2. Select the desired value by turning the front dial.
Smaller F-value: The subject is in focus, but objects in front of and beyond the subject are blurred.
Larger F-value: The subject and its foreground and background are all in focus.
3. Adjust the focus and shoot the subject.
The shutter speed is automatically adjusted to obtain proper exposure.
Note
If proper exposure cannot be obtained after setup, the shutter speed on the shooting screen blinks. Although you can
shoot as it is, resetting is recommended.
The brightness of the image on the screen may differ from the actual image being shot.
Hint
Smaller F-value (opening the aperture) narrows the range that is in focus. This allows you to put the subject in sharp
focus and blur objects in front of and beyond the subject (depth of field becomes shallower). Larger F-value
(narrowing down the aperture) widens the range that is in focus. This allows you to shoot the depth of the scenery
(depth of field becomes deeper).
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
163
Interchangeable Lens Digital Camera
ILCA-77M2
Manual Exposure
You can shoot with the desired exposure setting by adjusting both the shutter speed and aperture. The shutter speed
and the aperture value can be changed while recording movies.
1. Set the mode dial to M (Manual Exposure).
2. Select the desired aperture value by turning the front dial.
Select the desired shutter speed by turning the rear dial.
When [ISO] is set to other than [ISO AUTO], use MM (Metered Manual) to check the exposure value.
Toward +: Images become brighter.
Toward - : Images become darker.
0: Appropriate exposure analyzed by the product
3. Adjust the focus and shoot the subject.
Note
When [ISO] is set to [ISO AUTO], the ISO value automatically changes to achieve the appropriate exposure using the
aperture value and shutter speed you have set. If the aperture value and shutter speed you have set are not suitable
for appropriate exposure, the ISO value indicator will blink.
The Metered Manual indicator does not appear when [ISO] is set to [ISO AUTO].
When the amount of ambient light exceeds the metering range of the Metered Manual, the Metered Manual indicator
flashes.
The (SteadyShot warning) indicator does not appear in manual exposure mode.
The brightness of the image on the monitor may differ from the actual image being shot.
Hint
You can change the shutter speed and aperture (F-value) combination without changing the set exposure value by
rotating the front/rear dial while pressing the AEL button. (Manual shift)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
164
Interchangeable Lens Digital Camera
ILCA-77M2
BULB
You can shoot a trailing image of the movement of a subject with long exposure.
BULB is suitable for shooting trails of light, such as fireworks.
1. Set the mode dial to M (Manual Exposure).
2. Turn the rear dial clockwise until [BULB] is indicated.
3. Select the aperture value (F value) using the front dial.
4. Press the shutter button halfway down to adjust the focus.
5. Press and hold the shutter button for the duration of the shooting.
As long as the shutter button is pressed, the shutter remains open.
Note
Since the shutter speed becomes slow and the camera-shake tends to occur more easily, it is recommended that you
use a tripod.
The longer the exposure time, the more noise will be visible on the image.
After shooting, noise reduction will be done for the same amount of time that the shutter was open. However, you
cannot shoot any more while noise reduction is in progress.
You cannot set the shutter speed to [BULB] in the following situations:
[Cont. Priority AE]
When the [Smile Shutter] function is activated.
When the [Auto HDR] function is activated.
When [Picture Effect] is set to [HDR Painting] or [Rich-tone Mono.].
When the [Multi Frame NR] function is activated.
When the [Drive Mode] function is set to [Cont. Shooting], [Cont. Bracket], [Self-timer(Cont)].
If you use the above functions when the shutter speed is set to [BULB], the shutter speed is temporarily set to 30
seconds.
Hint
Images shot in [BULB] mode tend to be blurry. We recommend that you use a tripod or a remote commander (sold
separately) that has a shutter button lock function.
Related Topic
Help Guide
How to Use
165
Interchangeable Lens Digital Camera
ILCA-77M2
Memory recall
Allows you to shoot an image after recalling often-used modes or camera settings registered in advance.
1. Set the mode dial to 1, 2 or 3 (Memory recall).
2. Press on the center of the multi-selector.
Note
Register shooting settings in advance by [Memory].
If you set [Memory recall] after completing the shooting settings, the registered settings are given priority and the
original settings may become invalid. Check the indicators on the screen before shooting.
Related Topic
Memory
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
167
Interchangeable Lens Digital Camera
ILCA-77M2
Movie
You can adjust the shutter speed or aperture value to your desired settings for recording movies. You can also check the
image angle before shooting.
1. Set the mode dial to (Movie).
2. MENU → (Camera Settings) → [Movie] → desired setting.
When [Mode Dial Guide] is set to [On], you can select the desired settings after you have changed the position
of the mode dial.
3. Press the MOVIE button to start recording.
Press the MOVIE button again to stop recording.
Menu item details
Program Auto:
Allows you to shoot with the exposure (both the shutter speed and the aperture value) adjusted automatically. Other
settings can be adjusted manually and the settings are retained.
Aperture Priority:
Allows you to shoot after adjusting the aperture value manually.
Shutter Priority:
Allows you to shoot after adjusting the shutter speed manually.
Manual Exposure:
Allows you to shoot after adjusting the exposure (both the shutter speed and the aperture value) manually.
(Aperture Priority), (Shutter Priority) and (Manual Exposure) are available only when the focus
mode is set to "MF" (Manual Focus).
Related Topic
Mode Dial Guide
Shooting movies
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
168
Interchangeable Lens Digital Camera
ILCA-77M2
Zoom
When a zoom lens is mounted, you can enlarge images by turning the zoom ring of the lens.
1. Turn the zoom ring of the zoom lens to enlarge subjects.
About other [Zoom] functions than the optical zoom
When you set [Zoom Setting] to something other than [Optical zoom only], you can use other zoom functions than the
optical zoom.
MENU → (Camera Settings) → [Zoom] → desired value.
Related Topic
Zoom Setting
The zoom features available with this product
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
169
Interchangeable Lens Digital Camera
ILCA-77M2
The zoom features available with this product
The zoom feature of the product provides a higher magnification zoom by combining various zoom features. The icon
displayed on the screen changes, according to the selected zoom feature.
(1) Optical zoom range
Zoom images in the zoom range of a lens.
(2) Smart Zoom range ( )
Zoom images without causing the original quality to deteriorate by partially cropping an image (only when the image size
is [M] or [S]).
(3) Clear Image Zoom range ( )
Zoom images using an image process with less deterioration. Set [Zoom Setting] to [On:ClearImage Zoom] or [On:Digital
Zoom] first.
(4) Digital Zoom range ( )
You can magnify images using an image process. When you select [On:Digital Zoom] for [Zoom Setting], you can use
this zoom function.
Note
The default setting for the [Zoom Setting] is [Optical zoom only].
The default setting for [ Image Size] is [L]. To use the smart zoom change [ Image Size] to [M] or [S].
Zoom functions other than the optical zoom are not available when shooting in the following situations:
[Sweep Panorama]
[
Quality] is set to [RAW] or [RAW & JPEG]
You cannot use the Smart Zoom function with movies.
When you use a zoom function other than the optical zoom, [Metering Mode] is fixed to [Multi].
When you use another zoom function than the optical zoom, [ Auto Obj. Framing] is not available.
To use another zoom function than the optical zoom for movies, assign [Zoom] to the desired button using [Custom
Key Settings].
Related Topic
Zoom
Zoom Setting
Help Guide
How to Use
170
Interchangeable Lens Digital Camera
ILCA-77M2
Zoom Setting
You can select the zoom setting of the product.
1. MENU → (Custom Settings) → [Zoom Setting] → desired setting.
Menu item details
Optical zoom only (default setting):
Optical zoom is activated. You can use the Smart Zoom function if you set [ Image Size] to [M] or [S].
On:ClearImage Zoom:
Even if the zoom range of the optical zoom is exceeded, the product magnifies images within the range in which image
quality does not deteriorate significantly.
On:Digital Zoom:
When the zoom range of the [ Clear Image Zoom] is exceeded, the product magnifies images to the largest scale.
However, the image quality will deteriorate.
Note
Set [Optical zoom only] if you want to magnify images within the range in which image quality does not deteriorate.
Related Topic
The zoom features available with this product
About zoom scale
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
172
Interchangeable Lens Digital Camera
ILCA-77M2
About zoom scale
The zoom scale that is used in combination with the zoom of the lens changes according to the selected image size.
When [ Aspect Ratio] is [3:2]
[Zoom Setting] : [Optical zoom only (including smart zoom) ]
[
Image Size] : L -×, M 1.4×, S 2×
[Zoom Setting] : [On:ClearImage Zoom]
[
Image Size] : L 2×, M 2.8×, S 4×
[Zoom Setting] : [On:Digital Zoom]
[
Image Size] : L 4×, M 5.7×, S 8×
Related Topic
Zoom
The zoom features available with this product
Image Size (still image)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
173
Interchangeable Lens Digital Camera
ILCA-77M2
Smart Telecon.
Smart Teleconverter magnifies and trims the center of the image, then records it.
1. Press the (Smart Telecon.) button.
The settings change each time you press the key.
Related Topic
Custom Key Settings
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
174
Interchangeable Lens Digital Camera
ILCA-77M2
Using flash
In dark environments, use the flash to light up the subject while shooting and to prevent camera-shake. When shooting
against the sun, use the flash to lighten the image of the backlit subject.
1. Press the (Flash pop-up) button to pop up the flash.
The flash automatically pops up when [Flash Mode] is set to [Autoflash].
2. Press the shutter button fully down.
When you do not use the flash
When not using the flash, press it back into the camera body.
Note
If you fire the flash before the flash unit pops up entirely, it may cause malfunction.
You cannot use the flash when recording movies.
While charging the flash, flashes. After charging is completed, the flashing icon will light up.
When an external flash (sold separately) is attached to the Multi Interface Shoe, the state of the external flash has
priority over the setting of the product. You cannot use the product’s internal flash.
Before attaching/removing an accessory such as a flash to/from the Multi Interface Shoe, turn off the product first.
When attaching an accessory, insert it fully to the Multi Interface Shoe and screw tightly. Also, make sure that the
accessory is fixed securely to the product.
Do not use a commercially available flash with high-voltage synchro terminals or with reverse polarity.
The light of the flash may be blocked by the lens attached.
The corners of a recorded image may be shaded, depending on the lens.
Help Guide
How to Use
175
Interchangeable Lens Digital Camera
ILCA-77M2
Flash Mode
You can set the flash mode.
1. MENU → (Camera Settings) → [Flash Mode] → desired setting.
Menu item details
Flash Off:
The flash does not operate.
Autoflash:
The flash works in dark environments or when shooting towards bright light.
Fill-flash:
The flash works every time you trigger the shutter.
Slow Sync.:
The flash works every time you trigger the shutter. Slow sync shooting allows you to shoot a clear image of both the
subject and the background by slowing the shutter speed.
Rear Sync.:
The flash works right before the exposure is completed every time you trigger the shutter. Rear sync shooting allows you
to shoot a natural image of the trail of a moving subject such as a moving car or a walking person.
Wireless:
Allows you to shoot by removing the remote control-compatible external flash (sold separately) and using it at a distance
from the camera. The shading effect gives the subject a more three-dimensional feel.
High speed synchronization:
High speed synchronization function (HSS) can be used only when an HSS-capable external flash (sold separately) is
attached to the product. An HSS flash operates by sending multiple small bursts of light at high speed to simulate the
effect of one long burst of flash so that you can shoot images with flash at all shutter speeds.
*
High speed synchronization function (HSS) is also available during wireless flash shooting.
Note
The default setting depends on the shooting mode.
Available flash mode depends on the shooting mode.
Help Guide
How to Use
177
Interchangeable Lens Digital Camera
ILCA-77M2
Flash Comp.
Adjusts the amount of flash light in a range of –3.0 EV to +3.0 EV.
Flash compensation changes the amount of flash light only. Exposure compensation changes the amount of flash light
along with the change of the shutter speed and aperture.
1. MENU → (Camera Settings) → [Flash Comp.] → desired setting.
Selecting higher values (+ side) makes the flash level higher, and lower values (– side) makes the flash level lower.
Note
The higher flash effect may not be visible due to the limited amount of flash light available, if the subject is outside the
maximum range of the flash. If the subject is very close, the lower flash effect may not be visible.
Related Topic
Using flash
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
179
Interchangeable Lens Digital Camera
ILCA-77M2
FEL Lock
The flash level is automatically adjusted so that the subject gets the optimum exposure during normal flash shooting. You
can also set the flash exposure in advance.
FEL: Flash Exposure Level
1. Center the subject on which FEL is to be locked, and adjust the focus.
2. Press the button to which [FEL Lock toggle] is registered, and set the flash amount.
A pre-flash flashes.
(FEL lock) flashes.
Select MENU → (Custom Settings) → [Custom Key Settings] → desired button → [FEL Lock toggle] to
register the function in advance.
3. Adjust the composition and shoot the image.
When you want to release the FEL lock, press the button to which [FEL Lock toggle] is registered again.
Flashes that support FEL lock
HVL-F60M and HVL-F43M can be used as clip-ons, off-camera connected by a cable, and for wireless flash shooting
(controller/remote).
HVL-F20M can be used as a clip-on, off-camera connected with a cable, and for wireless flash shooting (controller).
Note
The FEL lock cannot be set when a flash is not attached.
If a flash that does not support the FEL lock is attached, an error message is displayed.
When both AE and FEL lock are fixed, flashes.
Hint
By setting [FEL Lock hold], you can hold the setting while the button is pressed down. Also, by setting [FEL Lock/AEL
hold] and [FEL Lock/AEL tggle.], you can shoot images with the AE locked in the following situations.
When [Flash Mode] is set to [Flash Off] or [Autoflash].
When the flash cannot go off.
When using an external flash that is set to manual flash mode.
Related Topic
Help Guide
How to Use
180
Interchangeable Lens Digital Camera
ILCA-77M2
Flash control
Sets the method for determining the intensity of flash output.
1. MENU → (Camera Settings) → [Flash control] → desired setting.
Menu item details
ADI flash (default setting):
The camera's flash control uses the focus distance information and brightness value of the subject when the pre-flash is
reflected. This gives precise flash control without hardly being affected by the reflective level of the subject.
Pre-flash TTL:
The camera's flash control uses the brightness value of the subject when the pre-flash is reflected. If this setting is used,
the camera's ability to precisely measure the flash light may be affected by reflections from the subject.
Manual flash:
Allows you to set the flash amount using [Power ratio], and the built-in flash fires with set amount of flash light regardless
of the brightness of a subject.
ADI: Advanced Distance Integration
TTL: Through the Lens
Hint
If you use the lens that is equipped with a distance encoder in [ADI flash] mode, the product achieves accurate flash
control based on the more precise distance information.
Note
When the distance between the subject and flash is not fixed (such as when shooting with wireless flash using an
external flash (sold separately) or in off-camera shooting using a cable, or when using a macro twin flash), or when an
external flash (sold separately) is set to bounce, [Flash control] is automatically set to [Pre-flash TTL]. It may be
automatically set to [Pre-flash TTL] depending on other shooting conditions as well.
Set [Flash control] to [Pre-flash TTL] in the following situations because the product cannot get proper flash
information using [ADI flash].
When a wide panel is attached to the flash HVL-F36AM
When shooting using a flash diffuser
When using filters that affect the exposure factor (such as ND filters)
When using close-up lenses
ADI flash can be used in combination with a lens distance encoder. To confirm if your lens is equipped with a distance
encoder, check the main specifications of the operation manual for your lens.
Help Guide
How to Use
182
[Flash control] cannot be set in [Sweep Panorama] mode, or when [Night Scene] or [Hand-held Twilight] is selected in
[Scene Selection].
4-538-499-12(1)
Copyright 2014 Sony Corporation
183
Interchangeable Lens Digital Camera
ILCA-77M2
Power ratio
If you set [Flash control] to [Manual flash], you can adjust the amount of flash manually.
1. MENU → (Camera Settings) → [Power ratio] → desired setting.
MENU item details
1/1 (default value) / 1/2 / 1/4 / 1/8 / 1/16
Related Topic
Flash control
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
184
Interchangeable Lens Digital Camera
ILCA-77M2
Switching the screen display (Shooting)
You can change the display contents on the screen.

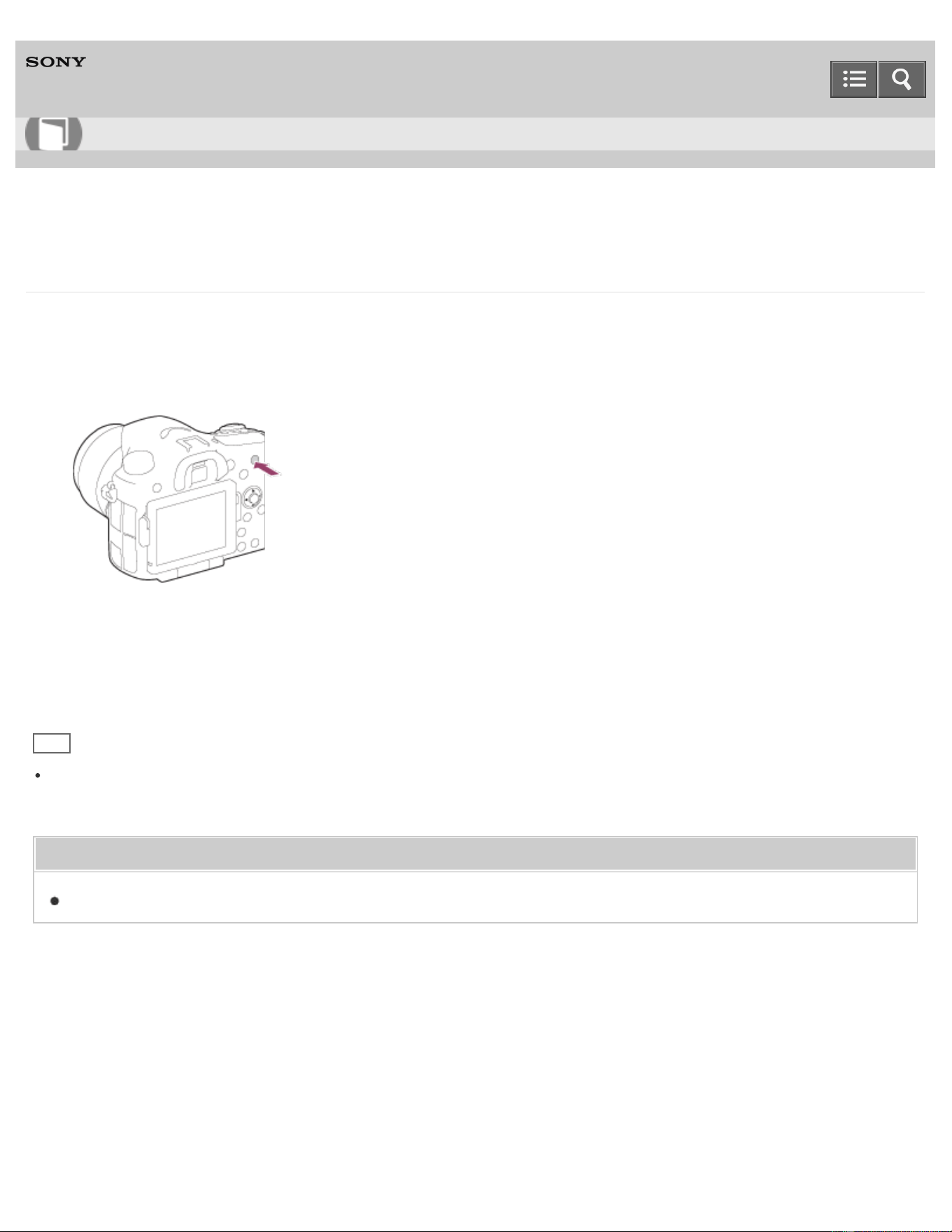

1. Press the DISP (Display Setting) button.
Each time you press the DISP button, the recording information display changes as follows:
Graphic Display → Display All Info. → No Disp. Info. → Histogram → Level → For viewfinder* → Graphic Display
Graphic Display
Display All Info.
No Disp. Info.
Histogram
Help Guide
How to Use
185
Level
For viewfinder*
* [For viewfinder] is displayed only on the screen.
Some display modes are not available in the default settings.
To change the display modes, press MENU → (Custom Settings) → [DISP Button] and change the setting.
Note
Histogram is not displayed during panorama shooting.
In movie mode, [For viewfinder] cannot be displayed.
Hint
You can select different settings for both the viewfinder and the monitor. Look through the viewfinder to set the
display settings for the viewfinder.
Related Topic
DISP Button (Finder)
DISP Button (Monitor)
186
Interchangeable Lens Digital Camera
ILCA-77M2
DISP Button (Finder)
Allows you to set the screen display modes that can be selected for the viewfinder using (Display Setting) in
shooting mode.
1. MENU → (Custom Settings) → [DISP Button] → [Finder] → desired setting → [Enter].
The items marked with are available.
Menu item details
Graphic Display:
Shows basic shooting information. Graphically shows the shutter speed and aperture value.
Display All Info.:
Shows recording information.
No Disp. Info.:
Does not show recording information.
Histogram:
Displays the luminance distribution graphically.
Level:
Indicates whether the product is level in both the horizontal and front-back directions. When the product is level in both
directions, the indicator turns to green.
Related Topic
Switching the screen display (Shooting)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
187
Interchangeable Lens Digital Camera
ILCA-77M2
DISP Button (Monitor)
Allows you to set the screen display modes that can be selected for the monitor using (Display Setting) in
shooting mode.
1. MENU → (Custom Settings) → [DISP Button] → [Monitor] → desired setting → [Enter].
The items marked with are available.
Menu item details
Graphic Display:
Shows basic shooting information. Graphically shows the shutter speed and aperture value.
Display All Info.:
Shows recording information.
No Disp. Info.:
Does not show recording information.
Histogram:
Displays the luminance distribution graphically.
Level:
Indicates whether the product is level in both the horizontal and front-back directions. When the product is level in both
directions, the indicator turns to green.
For viewfinder:
Displays information suited for shooting with the viewfinder.
Related Topic
Switching the screen display (Shooting)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
188
Interchangeable Lens Digital Camera
ILCA-77M2
Image Size (still image)
The larger the image size, the more detail will be reproduced when the image is printed on large-format paper. The
smaller the image size, the more images can be recorded.
1. MENU → (Camera Settings) → [ Image Size] → desired setting.
Menu item details
Image size when [ Aspect Ratio] is 3:2
L: 24M 6000×4000 pixels
M: 12M 4240×2832 pixels
S: 6.0M 3008×2000 pixels
Image size when [
Aspect Ratio] is 16:9
L: 20M 6000×3376 pixels
M: 10M 4240×2400 pixels
S: 5.1M 3008×1688 pixels
Note
When [ Quality] is set to [RAW] or [RAW & JPEG], the image size for RAW images corresponds to [L].
Related Topic
Aspect Ratio (still image)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
189
Interchangeable Lens Digital Camera
ILCA-77M2
Aspect Ratio (still image)
Sets the aspect ratio of still images.
1. MENU → (Camera Settings) → [ Aspect Ratio] → desired setting.
Menu item details
3:2 (default setting):
Suitable for standard prints.
16:9:
For viewing on a high-definition TV.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
190
Interchangeable Lens Digital Camera
ILCA-77M2
Quality (still image)
Selects the compression format of still images.
1. MENU → (Camera Settings) → [ Quality] → desired setting.
Menu item details
RAW:
File format: RAW (Records using the RAW compression format.)
Digital processing is not performed on this file format. Select this format to process images on a computer for
professional purposes.
The image size is fixed to the maximum size. The image size is not displayed on the screen.
RAW & JPEG:
File format: RAW (Records using the RAW compression format.) + JPEG
A RAW image and a JPEG image are created at the same time. This is suitable when you need 2 image files, a JPEG
for viewing, and a RAW for editing.
The JPEG image quality is set to [Fine].
Extra fine:
File format: JPEG
The image is compressed in the JPEG format and recorded using a higher quality than with [Fine].
Fine (default setting):
File format: JPEG
The image is compressed in the JPEG format when recorded.
Standard:
File format: JPEG
The image is compressed in the JPEG format when recorded. Since the compression rate of [Standard] is higher than
that of [Fine], the file size of [Standard] is smaller than that of [Fine]. This will allow more files to be recorded on 1
memory card, but the image quality will be lower.
Note
If images are not to be modified using your computer, we recommend that you record images in JPEG format.
You cannot add DPOF (print order) registration to RAW format images.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
191
Interchangeable Lens Digital Camera
ILCA-77M2
Panorama: Size
Sets the image size when shooting panoramic images. The image size varies depending on the [Panorama: Direction]
setting.
1. MENU → (Camera Settings) → [Panorama: Size] → desired setting.
Menu item details
When [Panorama: Direction] is [Up] or [Down]
Standard: 3872×2160
Wide: 5536×2160
When [Panorama: Direction] is [Left] or [Right]
Standard: 8192×1856
Wide: 12416×1856
Related Topic
Sweep Panorama
Panorama: Direction
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
192
Interchangeable Lens Digital Camera
ILCA-77M2
Panorama: Direction
Sets the direction to pan the camera when shooting panoramic images.
1. MENU → (Camera Settings) → [Panorama: Direction] → desired setting.
Menu item details
Right (default setting):
Pan the camera from the left to the right.
Left:
Pan the camera from the right to the left.
Up:
Pan the camera from the bottom to the top.
Down:
Pan the camera from the top to the bottom.
Related Topic
Sweep Panorama
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
193
Interchangeable Lens Digital Camera
ILCA-77M2
Changing the focus method using the focus mode dial
You can select the focusing method to suit the movement of the subject.
1. Turn the focus mode dial (A) to select the desired focus method.
Focus mode details
S (Single-shot AF):
The camera focuses and the focus is locked when you press the shutter button halfway down. Use this mode when the
subject is motionless.
A (Automatic AF) (default setting):
The camera switches between [Single-shot AF] and [Continuous AF] depending on the movement of the subject.
C (Continuous AF):
The camera continues to focus while the shutter button is pressed and held halfway down. Use this mode when the
subject is in motion.
MF (Manual Focus):
Adjusts the focus manually.
Note
If the subject is too close, the image may show any dust or fingerprints on the lens. Wipe the lens with a soft cloth,
etc.
Once you change the focus method, the set focus distance is erased.
When [Focus Mode] is set to [Continuous AF], the beep does not sound when focus is achieved.
Hint
Help Guide
How to Use
194
Interchangeable Lens Digital Camera
ILCA-77M2
Focus Area
Selects the focusing area. Use this function when it is difficult to get the proper focus in auto focus mode.
1. MENU → (Camera Settings) → [Focus Area] → desired setting.
Menu item details
Wide:
Focuses automatically on a subject in all ranges of the image.
When you press the shutter button halfway down in still image shooting mode, a green frame is displayed around the
area that is in focus.
Zone:
Select a zone on the monitor on which to focus. A zone consists of nine focus areas, and the product automatically
selects a focus area on which to focus.
Center:
Focuses automatically on a subject in the center of the image. When used together with the AF lock function, you can
compose the image you want.
Flexible Spot:
Allows you to move the AF range frame to the desired point on the screen and focus on an extremely small subject in a
narrow area.
Expand Flexible Spot:
If the product fails to focus on the single selected point, it uses the eight focus points around the flexible spot as the
second priority area to achieve focus.
Lock-on AF:
When the shutter button is pressed and held halfway down, the product tracks the subject within the selected autofocus
area. Point the cursor to [Lock-on AF] on the [Focus Area] setting screen, then select the desired tracking start area
using the left/right sides of the multi-selector. You can move the tracking start area to the desired point by designating
the area to be the flexible spot.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
196
Interchangeable Lens Digital Camera
ILCA-77M2
Center Lock-on AF
When you press the center button, the camera detects the subject positioned in the center of the screen and continues
to track the subject.
1. MENU → (Camera Settings) → [Center Lock-on AF] → [On]
2. Align the target frame (A) over the subject and press in the center of the multi-selector.
Press again to stop tracking.
3. Press the shutter button fully down to shoot the image.
Note
[Center Lock-on AF] may not function very well in the following situations:
The subject is moving too quickly.
The subject is too small, or too large.
The contrast between the subject and the background is poor.
It is dark.
The ambient light changes.
Lock-on AF does not work in the following situations:
In [Sweep Panorama] mode
When [Scene Selection] is set to [Hand-held Twilight]
When using [Smart Telecon.]
When shooting in Manual Focus mode
When the subject to be tracked disappears from the screen, Lock-on AF is released.
When [Center Lock-on AF] is set to [On], the camera may not be able to resume tracking for a while after it loses the
track of the subject.
Help Guide
How to Use
197
Interchangeable Lens Digital Camera
ILCA-77M2
AF Area Auto Clear
Sets whether the focus area should be displayed all the time or should disappear automatically shortly after focus is
achieved.
1. MENU → (Custom Settings) → [AF Area Auto Clear] → desired setting.
Menu item details
On:
The focus area is displayed all the time.
Off (default setting):
The focus area disappears automatically shortly after focus is achieved.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
198
Interchangeable Lens Digital Camera
ILCA-77M2
AF Area Points
Allows you to limit the focus area points used. You can lock the [AF Area Points] manually to prevent the points from
being shifted automatically depending on the attached lens or when it is difficult to focus with the surrounding focus area.
1. MENU → (Custom Settings) → [AF Area Points] → desired setting.
Menu item details
Auto (default setting):
The focus area points are set automatically by the camera.
61 Points:
The focus area points are set manually to 61 points.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
199
Interchangeable Lens Digital Camera
ILCA-77M2
Flexible Spot Points
Sets whether to use all of the AF Area Points or only the limited 15 points.
1. MENU → (Custom Settings) → [Flexible Spot Points] → desired setting.
Menu item details
All (default setting):
All the AF Area Points are used.
15 Points:
Only the limited 15 points are used.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
200
Interchangeable Lens Digital Camera
ILCA-77M2
Wide AF Area Disp.
Sets whether to display the focus area or not when [Focus Area] is set to [Wide].
1. MENU → (Custom Settings) → [Wide AF Area Disp.] → desired setting.
Menu item details
On (default setting):
The focus area is displayed.
Off:
The focus area is not displayed.
Related Topic
Focus Area
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
201
Interchangeable Lens Digital Camera
ILCA-77M2
Focus-lock
Shoots images with the focus locked on the desired subject in auto focus mode.
1. Set the focus mode dial to S (Single-shot AF).
2. Place the subject within the AF area and press the shutter button halfway down.
The focus is locked.
3. Keep pressing the shutter button halfway down, and place the subject back in the original position to re-compose
the shot.
4. Press the shutter button down fully to take the picture.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
202
Interchangeable Lens Digital Camera
ILCA-77M2
Manual Focus
When it is difficult to get the proper focus in autofocus mode, you can adjust the focus manually.
1. Set the focus mode switch of the lens to MF. If the lens does not have a focus mode switch, set the focus mode
dial of the camera to MF.
2. Rotate the focus ring to achieve sharp focus.
3. Press the shutter button fully down to take the picture.
Related Topic
Focus Magnifier
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
203
Interchangeable Lens Digital Camera
ILCA-77M2
Direct manual focus (DMF)
You can make fine adjustments manually after the focus is locked.
You can quickly focus on a subject rather than using the manual focus from the beginning. This is convenient in cases
such as macro shooting.
1. MENU → (Camera Settings) → [AF-A setup] → [DMF].
2. Set the focus mode dial to A. Press the shutter button halfway down to focus automatically.
3. Keep the shutter button halfway down, rotate the focusing ring to achieve a sharper focus.
4. Press the shutter button fully down to shoot an image.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
204
Interchangeable Lens Digital Camera
ILCA-77M2
Focus Magnifier
You can check the focus by enlarging the image before shooting.
1. MENU → (Camera Settings) → [Focus Magnifier].
2. Press on the center of the multi-selector to enlarge the image and select the position you want to enlarge using
up/down/left/right side of the multi-selector.
3. Confirm the focus.
4. Press the shutter button fully down to shoot the image.
Hint
Each time you press in the center, the magnifier scaling changes.
When focusing manually, you can adjust the focus while an image is magnified.
The [Focus Magnifier] function will be released when the shutter button is pressed halfway.
You can record images while an image is enlarged, but the product records a full-display image.
The [Focus Magnifier] function will be released after shooting.
You can set how long the image is to be shown magnified by selecting MENU → (Custom Settings) → [Focus
Magnif. Time].
Related Topic
Focus Magnif. Time
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
205
Interchangeable Lens Digital Camera
ILCA-77M2
Focus Magnif. Time
Set the duration for which an image is to be magnified using the [Focus Magnifier] function.
1. MENU → (Custom Settings) → [Focus Magnif. Time] → desired setting.
Menu item details
2 Sec:
Magnifies the images for 2 seconds.
5 Sec:
Magnifies the images for 5 seconds.
No Limit (default setting):
Magnifies the images until you press the shutter button.
Related Topic
Focus Magnifier
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
206
Interchangeable Lens Digital Camera
ILCA-77M2
Peaking Level
Enhances the outline of in-focus ranges using a specific color in Manual Focus or Direct Manual Focus shooting. This
function allows you to confirm the focus easily.
1. MENU → (Custom Settings) → [Peaking Level] → desired setting.
Menu item details
High:
Sets the peaking level to high.
Mid:
Sets the peaking level to middle.
Low:
Sets the peaking level to low.
Off (default setting):
Does not use the peaking function.
Note
Since the product determines that sharp areas are in focus, the effect of peaking differs, depending on the subject
and shooting conditions.
The outline of in-focus ranges is not enhanced when the product is connected using an HDMI cable.
Related Topic
Manual Focus
Direct manual focus (DMF)
Peaking Color
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
207
Interchangeable Lens Digital Camera
ILCA-77M2
Peaking Color
Sets the color used for the peaking function in Manual Focus or Direct Manual Focus shooting.
1. MENU → (Custom Settings) → [Peaking Color] → desired setting.
Menu item details
Red:
Enhances outlines in red.
Yellow:
Enhances outlines in yellow.
White (default setting):
Enhances outlines in white.
Related Topic
Manual Focus
Direct manual focus (DMF)
Peaking Level
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
208
Interchangeable Lens Digital Camera
ILCA-77M2
Eye-Start AF (still image)
Sets whether or not to use autofocus when you look through an Electronic Viewfinder.
1. MENU → (Custom Settings) → [ Eye-Start AF] → desired setting.
Menu item details
On:
Auto focusing starts when you look through the Electronic Viewfinder.
Off (default setting):
Auto focusing does not start when you look through the Electronic Viewfinder.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
209
Interchangeable Lens Digital Camera
ILCA-77M2
AF/MF control
You can easily switch the focusing mode from auto to manual and vice versa while shooting without changing your
holding position.
1. Press the AF/MF button.
During auto focus:
Temporarily switches the focusing mode to manual. Adjust the focus while the AF/MF button is being held down.
During manual focus:
Temporarily switches the focusing mode to auto while the AF/MF button is held down, and locks the focus.
Hint
If you select [AF/MF Ctrl Toggle] in [AF/MF Button] under [Custom Key Settings], the focusing mode remains switched
even if you remove your finger from the button.
Related Topic
Function of the AF/MF button
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
210
Interchangeable Lens Digital Camera
ILCA-77M2
AF Illuminator (still image)
The AF illuminator supplies fill light to focus more easily on a subject in dark surroundings. In the time between pressing
the shutter button halfway down and locking the focus, the flash is raised and released to allow the camera to focus
more easily.
1. MENU → (Camera Settings) → [ AF Illuminator] → desired setting.
Menu item details
Auto (default setting):
Uses the AF illuminator.
Off:
Does not use the AF illuminator.
Note
You cannot use [ AF Illuminator] in the following situations:
In movie mode
In [Sweep Panorama] mode
When [Focus Mode] is set to [Continuous AF].
When [Scene Selection] is set to [Landscape], [Sports Action] or [Night Scene].
When [Focus Area] is set to [Wide] or [Zone], the AF range finder frame is indicated by a dotted line.
The AF illuminator emits a very bright light. Although there is no health hazard, do not look directly into the AF
illuminator at close range.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
211
Interchangeable Lens Digital Camera
ILCA-77M2
AF Micro Adj.
Allows you to adjust and register an autofocused position for each lens.
1. Select MENU → (Custom Settings) → [AF Micro Adj.].
2. Select [AF Adjustment Set.] → [On].
3. [amount] → desired value.
You can select a value between −20 and +20. Selecting a positive value shifts the autofocused position away
from the product. Selecting a negative value shifts the autofocused position closer to the product.
Note
It is recommended that you adjust the position under actual shooting conditions.
When you attach a lens for which you have already registered a value, the registered value appears on the screen.
[±0] appears for lenses for which a value has not yet been registered.
If [−] is displayed as the value, then a total of 30 lenses have been registered and no new lens can be registered. To
register a new lens, attach a lens for which the registration can be erased, and set its value to [±0], or reset the values
of all the lenses using [Clear].
If you perform [AF Micro Adj.] with lenses other than Sony, Minolta, or Konica-Minolta lenses, the registered settings
for Sony, Minolta, or Konica-Minolta lenses may be affected. Do not perform [AF Micro Adj.] with an unsupported lens.
You cannot set [AF Micro Adj.] individually for a Sony, Minolta, and Konica-Minolta lens of the same specification.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
212
Interchangeable Lens Digital Camera
ILCA-77M2
AF w/ shutter (still image)
Selects whether to focus automatically when you press the shutter button halfway down. Select [Off] to adjust the focus
and the exposure separately.
1. MENU → (Custom Settings) → [ AF w/ shutter] → desired setting.
Menu item details
On (default setting):
The auto focus operates when you press the shutter button halfway down.
Off:
The auto focus does not operate even if you press the shutter button halfway down.
Hint
When [ AF w/ shutter] is set to [Off], you can still use the [AF On] function.
Related Topic
AF On
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
213
Interchangeable Lens Digital Camera
ILCA-77M2
AF On
You can focus using any button instead of pressing the shutter button halfway down. The settings for the focus mode
dial will be applied.
1. Select the desired key and assign the [AF On] function to it using MENU → (Custom Settings) → [Custom Key
Settings].
2. Press the key to which you have assigned the [AF On] function while auto-focus shooting.
Related Topic
Custom Key Settings
AF w/ shutter (still image)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
214
Interchangeable Lens Digital Camera
ILCA-77M2
Eye AF
The camera focuses on the subject's eyes while you keep the button pressed.
1. MENU → (Custom Settings) → [Custom Key Settings] → assign the [Eye AF] function to the desired button.
2. Point the camera at a person's face, and press the button to which you have assigned the [Eye AF] function.
3. Press the shutter button while pressing the button.
Note
The camera may not be able to focus on the eyes depending on the circumstances, such as when no eyes can be
detected within the auto focus area. In such cases, the camera detects a face and focuses on the face.
If the camera cannot detect a person’s face, you cannot use [Eye AF].
Depending on the circumstances, you cannot use [Eye AF], such as when the focus mode is set to C (Continuous
AF) or MF (Manual Focus), etc.
[Eye AF] may not function in the following situations:
When the person is wearing sunglasses.
When the front hair covers the person’s eyes.
In low-light or back-lit conditions.
When the eyes are closed.
When the person is in the shade.
When the person is out of focus.
Hint
When the camera focuses on the eyes and [Smile/Face Detect.] is set to [On], a detection frame is displayed on the
face after it is displayed on the eyes. When [Smile/Face Detect.] is set to [Off], a detection frame is displayed on the
eyes for a certain time.
Related Topic
Custom Key Settings
Smile/Face Detect.
4-538-499-12(1)
Help Guide
How to Use
215
Interchangeable Lens Digital Camera
ILCA-77M2
AF drive speed (still image)
You can select the autofocus speed for shooting still images.
1. MENU → (Camera Settings) → [ AF drive speed] → desired setting.
Menu item details
Fast (default setting):
Sets the AF drive speed to fast.
Slow:
Sets the AF drive speed to slow.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
216
Interchangeable Lens Digital Camera
ILCA-77M2
AF Track Duration (still image)
You can select the duration for AF tracking when shooting still images.
1. MENU → (Camera Settings) → [ AF Track Duration] → desired setting.
Menu item details
5 (High) / 4 / 3 (Mid) (default setting) / 2 / 1 (Low):
Select [5 (High)] to shoot fast-moving subjects.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
217
Interchangeable Lens Digital Camera
ILCA-77M2
AF Track Duration (movie)
You can set the duration for AF tracking in movie mode.
1. MENU → (Camera Settings) → [ AF Track Duration] → desired setting.
Menu item details
High:
Sets the AF Track Duration to high. This mode is useful when recording movies when the subject is moving quickly.
Mid (default setting):
Sets the AF Track Duration to normal.
Low:
Sets the AF Track Duration to low.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
218
Interchangeable Lens Digital Camera
ILCA-77M2
Measuring the exact distance to the subject
The mark shows the location of the image sensor*. When you measure the exact distance between the product
and the subject, refer to the position of the horizontal line.
*
The image sensor is the part that converts the light source to a digital signal.
Note
If the subject is closer than the minimum shooting distance of the lens, the focus cannot be confirmed. Make sure you
put enough distance between the subject and the product.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
219
Interchangeable Lens Digital Camera
ILCA-77M2
AF Range Control
You can restrict the autofocus range to focus on a subject without interference from objects in the background and
foreground. The [AF Range Control] function is assigned to the C (Custom) button with the default settings.
1. Press the C (Custom) button (A).
2. Set the maximum shooting distance using the front dial and set the minimum shooting distance using the rear dial.
Focus areas of the subject that are within the set AF range area will be displayed in yellow.
3. Press the C (Custom) button again and decide the shooting distance.
The restricted area will remain displayed.
Focus areas of the subject that are within the set distance will be displayed in yellow.
To end the AF range control function
Press the C (Custom) button again.
Hint
After adjusting the focus to the desired subject, restrict the AF range so that the lens focus indicator falls within
the set range.
Set the AF range to within or outside the restricted value while watching the yellow focus area.
Note
Help Guide
How to Use
220
[AF Range Control] cannot be used in Manual focus mode or when shooting movies.
If you change the lens, the set AF range will be reset.
When you are using a lens equipped with a focus range limit function, do not use the camera’s [AF Range Control]
function at the same time. Use the function on either the lens or the camera.
If you use a lens that is not equipped with a distance encoder, the shooting distance is not displayed.
The shooting distance value is an estimate.
The set value of the AF range, the shooting distance value, and the actual focus point may differ slightly.
The actual set AF range and the yellow guide of the focus area may not correspond.
The focus area may not be displayed in yellow when the lens does not attain proper focus.
When the light is not strong enough or there is not much contrast in the subject, such as with monotone and flat
surfaces, the focus area may not be displayed in yellow. In that case, use the outline of the subject as a guide.
Only lenses with in-lens motors (SSM and SAM lenses*) can be used with Direct Manual Focus.
*
Some SAM lenses do not support Direct Manual Focus. Refer to the operating instructions for your lens.
When using lenses without in-lens motors (other than SSM and SAM lenses*), the product may start the initial
operation for infinity when used with the AF/MF control function.
*
Some SAM lenses do not support the AF/MF control function. Refer to the operating instructions for your lens.
Related Topic
Function of the C button
4-538-499-12(1)
Copyright 2014 Sony Corporation
221
Interchangeable Lens Digital Camera
ILCA-77M2
AF-A setup
Sets whether to allow manual fine-adjustment of the focus when the focus mode is set to [AF-A].
1. MENU→ (Camera Settings) → [AF-A setup]→ desired setting.
Menu item details
AF-A (default setting):
Switches between [Single-shot AF] and [Continuous AF] according to the movement of the subject.
DMF:
The focus can be fine-adjusted manually after the focus is set by auto focus function (Direct Manual Focus).
Related Topic
Changing the focus method using the focus mode dial
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
222
Interchangeable Lens Digital Camera
ILCA-77M2
Priority setup
Sets whether or not to release the shutter even when focus is not achieved in auto focus mode.
1. MENU → (Custom Settings) → [Priority setup] → desired setting.
Menu item details
AF:
Images are shot prioritizing focus.
Release:
The shutter is released even when focus has not been achieved.
Balanced Emphasis (default setting):
Images are shot balancing both focus and photo opportunity.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
223
Interchangeable Lens Digital Camera
ILCA-77M2
Exposure Comp.
Based on the exposure value set by auto exposure, you can make the entire image brighter or darker if you adjust
[Exposure Comp.] to the plus side or minus side, respectively (exposure compensation). Normally, exposure is set
automatically (auto exposure).
1. MENU → (Camera Settings) → [Exposure Comp.] → desired setting.
You can adjust the exposure in a range of –5.0 EV to +5.0 EV.
Note
You can adjust the exposure in a range of –2.0 EV to +2.0 EV for movies.
If you shoot a subject in extremely bright or dark conditions, or when you use the flash, you may not be able to get a
satisfactory effect.
Only a value between –3.0 EV and +3.0 EV with the equivalent image brightness appears on the screen when
shooting. If you set an exposure beyond this range, the image brightness on the screen does not show the effect, but
it will be reflected in the recorded image.
When you use [Manual Exposure], you can compensate for the exposure only when [ISO] is set to [ISO AUTO].
Related Topic
Exposure compensation button
Exposure step
Dial Ev Comp
Exp.comp.set
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
224
Interchangeable Lens Digital Camera
ILCA-77M2
Exposure compensation button
Based on the exposure value set by auto exposure, you can make the entire image brighter or darker if you adjust
[Exposure Comp.] to the plus side or minus side, respectively (exposure compensation). Normally, exposure is set
automatically (auto exposure).
1. Press the exposure compensation button.
2. Select the desired setting using the right/left side of the multi-selector.
Note
You can adjust the exposure in a range of −2.0 EV to +2.0 EV for movies.
If you shoot a subject in extremely bright or dark conditions, or when you use the flash, you may not be able to get a
satisfactory effect.
When you use [Manual Exposure], you can compensate for the exposure only when [ISO] is set to [ISO AUTO].
Related Topic
Exposure Comp.
Exposure step
Dial Ev Comp
Exp.comp.set
Help Guide
How to Use
225
Interchangeable Lens Digital Camera
ILCA-77M2
Metering Mode
Selects the metering mode that sets which part of the screen to measure for determining the exposure.
1. MENU → (Camera Settings) → [Metering Mode] → desired setting.
Menu item details
Multi (default setting):
Measures light on each area after dividing the total area into multiple areas and determines the proper exposure of the
entire screen (Multi-pattern metering).
Center:
Measures the average brightness of the entire screen, while emphasizing the central area of the screen (Center-
weighted metering).
Spot:
Measures only the central area (Spot metering). This function is useful when the subject is backlit or when there is
strong contrast between the subject and the background.
Note
[Multi] is selected when using the following functions:
[Intelligent Auto] or [Superior Auto]
[Scene Selection]
Zoom functions other than optical zoom
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
226
Interchangeable Lens Digital Camera
ILCA-77M2
AE lock
When the contrast between the subject and background is high, such as when shooting a backlit subject or a subject
near a window, meter the light at a spot where the subject appears to have the appropriate brightness and lock the
exposure before shooting. To reduce the brightness of the subject, meter the light at a spot brighter than the subject and
lock the exposure of the entire screen. To make the subject brighter, meter the light at a spot darker than the subject
and lock the exposure of the entire screen.
1. Adjust the focus on the spot at which the exposure is adjusted.
2. Press the AEL button.
The exposure is locked, and (AE lock) lights up.
3. Keep pressing the AEL button and focus on the subject again, then shoot the picture.
Keep holding the AEL button down while taking a shot if you want to continue shooting with the fixed exposure.
Release the button to reset the exposure.
Hint
If you select the [AEL toggle] function in [Custom Key Settings], you can lock the exposure without holding down the
AEL button.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
227
Interchangeable Lens Digital Camera
ILCA-77M2
AEL w/ shutter (still image)
Sets whether to fix the exposure when you press the shutter button halfway down.
1. MENU → (Custom Settings) → [ AEL w/ shutter] → desired setting.
Menu item details
Auto (default setting):
Fixes the exposure after adjusting the focus automatically when you press the shutter button halfway down when focus
mode is set to S (Single-shot AF).
When focus mode is set to A (Automatic AF), and the product determines that the subject is moving, or you shoot burst
images, the fixed exposure is cancelled.
On:
Fixes the exposure when you press the shutter button halfway down.
Off:
Does not fix the exposure when you press the shutter button halfway down. Use this mode when you want to adjust
focus and exposure separately.
The product keeps adjusting the exposure while shooting in [Cont. Shooting] mode.
Note
Operation using the AEL button is prioritized over the [ AEL w/ shutter] settings.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
228
Interchangeable Lens Digital Camera
ILCA-77M2
Exp.comp.set
Sets whether to apply the exposure compensation value to control both flash light and ambient light, or just ambient light.
1. MENU → (Custom Settings) → [Exp.comp.set] → desired setting.
Menu item details
Ambient&flash (default setting):
Applies the exposure compensation value to control both flash light and ambient light.
Ambient only:
Applies the exposure compensation value to control ambient light only.
Related Topic
Flash Comp.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
229
Interchangeable Lens Digital Camera
ILCA-77M2
Zebra
The zebra pattern will appear over the part of an image if the brightness level exceeds the IRE that you set. Use this
zebra pattern as a guide to adjust the brightness.
1. MENU → (Custom Settings) → [Zebra] → desired setting.
Menu item details
Off (default setting):
Does not display the zebra pattern.
70/75/80/85/90/95/100/100+:
Adjusts the brightness level.
Note
The zebra pattern is not displayed during HDMI connection.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
230
Interchangeable Lens Digital Camera
ILCA-77M2
Exposure Set. Guide
You can set whether to display a guide when you change the exposure.
1. MENU → (Custom Settings) → [Exposure Set. Guide] → desired setting.
Menu item details
Off (default setting):
Does not display the guide.
On:
Displays the guide.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
231
Interchangeable Lens Digital Camera
ILCA-77M2
Exposure step
You can set the setting range for the shutter speed, aperture, and exposure compensation values.
1. MENU → (Camera Settings) → [Exposure step] → desired setting.
Menu item details
0.3EV (default setting)/0.5EV
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
232
Interchangeable Lens Digital Camera
ILCA-77M2
Dial Ev Comp
You can compensate the exposure using the front or rear dial.
1. MENU → (Custom Settings) → [Dial Ev Comp] → desired setting.
Menu item details
Off (default setting):
Does not enable exposure compensation with the front or rear dial.
Front dial/ Rear dial:
Enables exposure compensation with the front or rear dial.
Note
When the exposure compensation function is assigned to the front or rear dial, any function that had been assigned
to that dial previously is re-assigned to another dial.
Related Topic
Exposure Comp.
Exposure compensation button
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
233
Interchangeable Lens Digital Camera
ILCA-77M2
Drive Mode
You can set the drive mode, such as continuous or self-timer shooting.
1. MENU → (Camera Settings) → [Drive Mode] → desired setting.
Menu item details
Single Shooting (default setting):
Shoots one still image. Normal shooting mode.
Cont. Shooting:
Shoots images continuously while you press and hold down the shutter button.
Self-timer:
Shoots an image after 10 or 2 seconds.
Self-timer(Cont):
Shoots a specified number of images continuously after 10 seconds.
Cont. Bracket:
Shoots images while holding the shutter button down, each with different degrees of brightness.
Single Bracket:
Shoots a specified number of images, one by one, each with a different degree of brightness.
WB bracket:
Shoots a total of three images, each with a different color tones according to the selected settings for white balance,
color temperature and color filter.
DRO Bracket:
Shoots a total of three images, each at a different degree of D-Range Optimizer.
Related Topic
Cont. Shooting
Self-timer
Self-timer(Cont)
Cont. Bracket
Single Bracket
WB bracket
DRO Bracket
Help Guide
How to Use
234
Interchangeable Lens Digital Camera
ILCA-77M2
Cont. Shooting
Shoots images continuously while you press and hold down the shutter button.
1. MENU→ (Camera Settings) → [Drive Mode] → [Cont. Shooting].
2. Select the desired mode using the right/left side of the multi-selector.
Menu Item Details
Continuous Shooting: Hi (default setting):
Continuous shooting speed is set at a maximum of about 8 images per second.
Continuous Shooting: Lo:
Continuous shooting speed is set at a maximum of about 3 images per second.
Hint
To hold the focus and exposure during burst, change the following settings.
The exposure of the first shot is determined when you press the shutter button halfway down. The exposure setting
for the first shot is used for the subsequent shots.
Set [Focus Mode] to [Continuous AF] or [Automatic AF].
Set [
AEL w/ shutter] to [Off] or [Auto].
Related Topic
AEL w/ shutter (still image)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
235
Interchangeable Lens Digital Camera
ILCA-77M2
Self-timer
The product shoots an image using the self-timer with a 10-second or 2-second delay.
1. MENU → (Camera Settings) → [Drive Mode] → [Self-timer].
2. Select the desired mode using the right/left side of the multi-selector.
Menu item details
Self-timer: 10 Sec (default setting):
Sets the 10-second delay self-timer.
When you press the shutter button, the self-timer lamp flashes, a beep sounds, and the shutter operates after 10
seconds. To cancel the self-timer, press the shutter button again.
Self-timer: 2 Sec:
Sets the 2-second delay self-timer. This reduces the camera-shake caused by pressing the shutter button.
Hint
Press the / button to stop the self-timer.
Press the / button and select (Single Shooting) to release the self-timer.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
236
Interchangeable Lens Digital Camera
ILCA-77M2
Self-timer(Cont)
Continuously shoots the number of images you have set after 10 seconds. You can choose the best shot from several
shots taken.
1. MENU → (Camera Settings) → [Drive Mode] → [Self-timer(Cont)].
2. Select the desired mode using the right/left side of the multi-selector.
Menu item details
Self-timer(Cont.): 10 Sec. 3 Img. (default setting):
Shoots three frames in succession 10 seconds after you press the shutter button.
When you press the shutter button, the self-timer lamp flashes, a beep sounds, and the shutter operates after 10
seconds.
Self-timer(Cont.): 10 Sec. 5 Img.:
Shoots five frames in succession 10 seconds after you press the shutter button.
When you press the shutter button, the self-timer lamp flashes, a beep sounds, and the shutter operates after 10
seconds.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
237
Interchangeable Lens Digital Camera
ILCA-77M2
Cont. Bracket
Shoots multiple images while automatically shifting the exposure from base to darker and then to lighter. Press and hold
down the shutter button until the bracket recording is completed.
You can select an image that suits your intention, after recording.
1. MENU → (Camera Settings) → [Drive Mode] → [Cont. Bracket].
2. Select the desired mode using the right/left side of the multi-selector.
Menu item details
Cont. Bracket: 0.3EV 3 Image (default setting):
This setting shoots three images continuously with an exposure value shifted by plus or minus 0.3 EV.
Cont. Bracket: 0.3EV 5 Image:
This setting shoots five images continuously with an exposure value shifted by plus or minus 0.3 EV.
Cont. Bracket: 0.5EV 3 Image:
This setting shoots three images continuously with an exposure value shifted by plus or minus 0.5 EV.
Cont. Bracket: 0.5EV 5 Image:
This setting shoots five images continuously with an exposure value shifted by plus or minus 0.5 EV.
Cont. Bracket: 0.7EV 3 Image:
This setting shoots three images continuously with an exposure value shifted by plus or minus 0.7 EV.
Cont. Bracket: 0.7EV 5 Image:
This setting shoots five images continuously with an exposure value shifted by plus or minus 0.7 EV.
Cont. Bracket: 1.0EV 3 Image:
This setting shoots three images continuously with an exposure value shifted by plus or minus 1.0 EV.
Cont. Bracket: 1.0EV 5 Images:
This setting shoots five images continuously with an exposure value shifted by plus or minus 1.0 EV.
Cont. Bracket: 2.0EV 3 Image:
This setting shoots three images continuously with an exposure value shifted by plus or minus 2.0 EV.
Cont. Bracket: 2.0EV 5 Images:
This setting shoots five images continuously with an exposure value shifted by plus or minus 2.0 EV.
Cont. Bracket: 3.0EV 3 Image:
Help Guide
How to Use
238
This setting shoots three images continuously with an exposure value shifted by plus or minus 3.0 EV.
Cont. Bracket: 3.0EV 5 Images:
This setting shoots five images continuously with an exposure value shifted by plus or minus 3.0 EV.
Note
The last shot is shown on the Auto Review.
When [ISO AUTO] is selected in [Manual Exposure] mode, the exposure is changed by adjusting the ISO value. If a
setting other than [ISO AUTO] is selected, the exposure is changed by adjusting the shutter speed.
When you adjust the exposure, the exposure is shifted based on the compensated value.
When the flash is used, the product performs flash bracket shooting, which shifts the amount of flash light even if
[Cont. Bracket] is selected. Press the shutter button for each image.
Related Topic
Bracket order
4-538-499-12(1)
Copyright 2014 Sony Corporation
239
Interchangeable Lens Digital Camera
ILCA-77M2
Single Bracket
Shoots multiple images while automatically shifting the exposure from base to darker and then to lighter.
Press the shutter button for each image. You can select an image that suits your purpose after recording.
1. MENU → (Camera Settings) → [Drive Mode] → [Single Bracket].
2. Select the desired mode using the right/left side of the multi-selector.
Menu item details
Single Bracket: 0.3EV 3 Image (default setting):
This setting shoots a total of three images in a row with an exposure value shifted by plus or minus 0.3 EV.
Single Bracket: 0.3EV 5 Image:
This setting shoots a total of five images in a row with an exposure value shifted by plus or minus 0.3 EV.
Single Bracket: 0.5EV 3 Image:
This setting shoots a total of three images in a row with an exposure value shifted by plus or minus 0.5 EV.
Single Bracket: 0.5EV 5 Image:
This setting shoots a total of five images in a row with an exposure value shifted by plus or minus 0.5 EV.
Single Bracket: 0.7EV 3 Image:
This setting shoots a total of three images in a row with an exposure value shifted by plus or minus 0.7 EV.
Single Bracket: 0.7EV 5 Image:
This setting shoots a total of five images in a row with an exposure value shifted by plus or minus 0.7 EV.
Single Bracket: 1.0EV 3 Image:
This setting shoots a total of three images in a row with an exposure value shifted by plus or minus 1.0 EV.
Single Bracket: 1.0EV 5 Images:
This setting shoots a total of five images in a row with an exposure value shifted by plus or minus 1.0 EV.
Single Bracket: 2.0EV 3 Image:
This setting shoots a total of three images in a row with an exposure value shifted by plus or minus 2.0 EV.
Single Bracket: 2.0EV 5 Images:
This setting shoots a total of five images in a row with an exposure value shifted by plus or minus 2.0 EV.
Single Bracket: 3.0EV 3 Image:
This setting shoots a total of three images in a row with an exposure value shifted by plus or minus 3.0 EV.
Help Guide
How to Use
240
Single Bracket: 3.0EV 5 Images:
This setting shoots a total of five images in a row with an exposure value shifted by plus or minus 3.0 EV.
Note
When [ISO AUTO] is selected in [Manual Exposure] mode, the exposure is changed by adjusting the ISO value. If a
setting other than [ISO AUTO] is selected, the exposure is changed by adjusting the shutter speed.
When you adjust the exposure, the exposure is shifted based on the compensated value.
Related Topic
Bracket order
4-538-499-12(1)
Copyright 2014 Sony Corporation
241
Interchangeable Lens Digital Camera
ILCA-77M2
WB bracket
Shoots three images, each with different color tones according to the selected settings of white balance, color
temperature and color filter.
1. MENU → (Camera Settings) → [Drive Mode] → [WB bracket].
2. Select the desired mode using the right/left side of the multi-selector.
Menu item details
White Balance Bracket: Lo (default setting):
Records a series of three images with small changes in the white balance.
White Balance Bracket: Hi:
Records a series of three images with large changes in the white balance.
Note
The last shot is shown on the Auto Review.
Related Topic
Bracket order
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
242
Interchangeable Lens Digital Camera
ILCA-77M2
DRO Bracket
You can record a total of three images, each at a different degree of D-Range Optimizer value.
1. MENU → (Camera Settings) → [Drive Mode] → [DRO Bracket].
2. Select the desired mode using the right/left side of the multi-selector.
Menu item details
DRO Bracket: Lo (default setting):
Records a series of three images with small changes in the D-Range Optimizer value.
DRO Bracket: Hi:
Records a series of three images with large changes in the D-Range Optimizer value.
Note
The last shot is shown on the Auto Review.
Related Topic
Bracket order
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
243
Interchangeable Lens Digital Camera
ILCA-77M2
Bracket order
You can set the shooting order for exposure bracketing and white balance bracketing.
1. MENU → (Custom Settings) → [Bracket order] → desired setting
Menu item details
0→-→+ (default setting):
Records in the following order: 0 → − → +.
-→0→+:
Records in the following order: − → 0 → +.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
244
Interchangeable Lens Digital Camera
ILCA-77M2
ISO
Sensitivity to light is expressed by the ISO number (recommended exposure index). The larger the number, the higher
the sensitivity.
1. MENU → (Camera Settings) → [ISO] → desired setting.
Menu item details
Multi Frame NR:
Combines continuous shots to create an image with less noise.
ISO AUTO (default setting):
Sets the ISO sensitivity automatically.
50 / 64 / 80 / 100 / 125 / 160 / 200 / 250 / 320 / 400 / 500 / 640 / 800 / 1000 / 1250 / 1600 / 2000 /
2500 / 3200 / 4000 / 5000 / 6400 / 8000 / 10000 / 12800 / 16000 / 20000 / 25600:
You can reduce image blurring in dark locations or with moving subjects by increasing the ISO sensitivity (select a larger
number).
Note
[ISO AUTO] is selected when using the following functions:
[Intelligent Auto]
[Superior Auto]
[Scene Selection]
[Sweep Panorama]
When [ISO] is set to a value lower than ISO 100, the range for recordable subject brightness (dynamic range) may
decrease.
The higher the ISO value, the more noise will appear on the images.
When shooting movies, ISO values between ISO 100 and ISO 12800 are available. If the ISO value is set to a value
smaller than ISO 100, the setting is automatically switched to ISO 100. When you finish recording the movie, the ISO
value returns to the original setting.
When you use [Multi Frame NR], it takes some time for the product to perform the overlay processing of images.
Hint
You can change the automatically set ISO sensitivity range for the [ISO AUTO] mode. Select [ISO AUTO], press the
right side of the multi-selector, and set the desired values for [ISO AUTO Maximum] and [ISO AUTO Minimum]. The
values for [ISO AUTO Maximum] and [ISO AUTO Minimum] are also applied when shooting in [ISO AUTO] mode
under [Multi Frame NR].
Help Guide
How to Use
245
Interchangeable Lens Digital Camera
ILCA-77M2
Multi Frame NR
The product automatically shoots multiple images continuously, combines them, reduces the noise, and records them as
one image. With multi frame noise reduction, you can select larger ISO numbers than the maximum ISO sensitivity. The
image recorded is one combined image.
1. MENU → (Camera Settings) → [ISO] → [Multi Frame NR].
2. Press the right side of the multi-selector to display the setting screen, then select a desired value using the
top/bottom side of the multi-selector.
Note
When [ Quality] is set to [RAW] or [RAW & JPEG], this function cannot be used.
The flash, [D-Range Opt.], and [Auto HDR] cannot be used.
You cannot set [Multi Frame NR] when [Picture Effect] is set.
Hint
You can change the automatically set range of ISO sensitivity in the [ISO AUTO] mode under [Multi Frame NR].
Select [ISO AUTO] under [ISO] and press the right side of the multi-selector, and set the desired values for [ISO
AUTO Maximum] and [ISO AUTO Minimum]. The values for [ISO AUTO Maximum] and [ISO AUTO Minimum] are
also applied when shooting in [ISO AUTO] mode under [Multi Frame NR].
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
247
Interchangeable Lens Digital Camera
ILCA-77M2
NR Effect
Sets the effect level for multi frame NR.
1. MENU→ (Camera Settings) → [ISO] → [Multi Frame NR] → [NR Effect]
Menu item details
Normal:
4 images are added for the multi frame NR effect.
High:
12 images are added for the multi frame NR effect to produce images with even less noise.
Note
When [High] is selected, it takes longer to shoot and combine images.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
248
Interchangeable Lens Digital Camera
ILCA-77M2
D-Range Opt. (DRO)
By dividing the image into small areas, the product analyzes the contrast of light and shadow between the subject and
the background, and creates an image with the optimal brightness and gradation.
1. MENU → (Camera Settings) → [DRO/Auto HDR] → [D-Range Opt.].
2. Select the desired setting using the left/right side of the multi-selector.
Menu item details
D-Range Optimizer: Auto (default setting):
Corrects the brightness automatically.
D-Range Optimizer: Lv1 ― D-Range Optimizer: Lv5:
Optimizes the gradation of a recorded image for each divided area. Select the optimization level from Lv1 (weak) to Lv5
(strong).
Note
[DRO/Auto HDR] is fixed to [Off] when the shooting mode is set to [Sweep Panorama], or when [Multi Frame NR] or
[Picture Effect] is used.
[DRO/Auto HDR] is fixed to [Off] when [Sunset], [Night Scene], [Night Portrait] or [Hand-held Twilight] is selected in
[Scene Selection]. The setting is fixed to [D-Range Optimizer: Auto] when other modes are selected in [Scene
Selection].
When shooting with [D-Range Opt.], the image may be noisy. Select the proper level by checking the recorded image,
especially when you enhance the effect.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
249
Interchangeable Lens Digital Camera
ILCA-77M2
Auto HDR
Widens the range (gradation) so that you can record from bright parts to dark parts with correct brightness (HDR: High
Dynamic Range). One image with proper exposure and one overlaid image are recorded.
1. MENU → (Camera Settings) → [DRO/Auto HDR] → [Auto HDR].
2. Select the desired setting using the left/right side of the multi-selector.
Menu item details
Auto HDR: Exposure Diff. Auto (default setting):
Corrects the exposure difference automatically.
Auto HDR: Exposure Diff. 1.0EV ― Auto HDR: Exposure Diff. 6.0EV:
Sets the exposure difference, based on the contrast of the subject. Select the optimal level between 1.0 EV (weak) and
6.0 EV (strong).
For example, if you set the exposure value to 2.0 EV, three images will be composed with the following exposure levels;
−1.0 EV, optimal exposure and +1.0 EV.
Note
[Auto HDR] is not available for RAW images.
When the shooting mode is set to [Intelligent Auto], [Superior Auto], [Sweep Panorama], [Cont. Priority AE] or [Scene
Selection], you cannot select [Auto HDR].
When [Multi Frame NR] is selected, you cannot select [Auto HDR].
When using [Picture Effect], you cannot select [Auto HDR].
You cannot start the next shot until the capture process is completed after you shoot.
You may not obtain the desired effect depending on the luminance difference of a subject and the shooting conditions.
When the flash is used, this function has little effect.
When the contrast of the scene is low or when product shake or subject blur occurs, you may not obtain good HDR
images. If the product has detected a problem, is displayed on the recorded image to inform you of this
situation. Shoot again as necessary, paying attention to the contrast or blur.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
250
Interchangeable Lens Digital Camera
ILCA-77M2
White Balance
Adjusts the color tones according to the ambient light conditions. Use this feature when the color tones of the image did
not come out as you expected, or when you want to change the color tones on purpose for photographic expression.
1. MENU → (Camera Settings) → [White Balance] → desired setting.
You can also set the white balance by pressing the WB (White Balance) button.
Menu item details
Auto (default setting):
The product automatically detects the light source and adjusts the color tones.
Daylight:
The color tones are adjusted for the daylight.
Shade:
The color tones are adjusted for shadiness.
Cloudy:
The color temperature is adjusted for a cloudy sky.
Incandescent:
The color temperature is adjusted for places under an incandescent lamp, or under bright lighting, such as in a photo
studio.
Fluor.: Warm White:
The color temperature is adjusted for warm white fluorescent lighting.
Fluor.: Cool White:
The color temperature is adjusted for white fluorescent lighting.
Fluor.: Day White:
The color temperature is adjusted for neutral white fluorescent lighting.
Fluor.: Daylight:
The color temperature is adjusted for daylight fluorescent lighting.
Flash:
The color temperature is adjusted for flash light.
C.Temp./Filter:
Help Guide
How to Use
251
Adjusts the color tones depending on the light source. Achieves the effect of CC (Color Compensation) filters for
photography.
Custom 1/Custom 2/Custom 3:
Uses the white balance setting saved in [Custom Setup].
Custom Setup:
Memorizes the basic white color under the light conditions for the shooting environment.
Select a memorized custom white balance number.
Hint
You can use the right side of the multi-selector to display the fine adjustment screen and perform fine adjustments of
the color temperature as required.
In [C.Temp./Filter], you can use the right button to display the color temperature setting screen and perform a setting.
When you press the right button again, the fine adjustment screen appears to allow you perform fine adjustments as
required.
Note
[White Balance] is fixed to [Auto] in the following situations:
[Intelligent Auto]
[Superior Auto]
[Scene Selection]
Related Topic
Capturing a basic white color in [Custom Setup] mode
4-538-499-12(1)
Copyright 2014 Sony Corporation
252
Interchangeable Lens Digital Camera
ILCA-77M2
Capturing a basic white color in [Custom Setup] mode
In a scene where the ambient light consists of multiple types of light sources, it is recommended to use the custom white
balance in order to accurately reproduce the whiteness.
1. MENU → (Camera Settings) → [White Balance] → [Custom Setup].
You can also set the white balance by pressing the WB (White Balance) button.
2. Hold the product so that the white area fully covers the AF area located in the center, and then press on the
center of the multi-selector.
The calibrated values (Color Temperature and Color Filter) are displayed.
3. Select a registration number using the right/left button.
The monitor returns to the recording information display while retaining the memorized custom white balance
setting.
Note
The message [Custom WB Error] indicates that the value is higher than the expected range, when the flash is used
on a subject with too bright colors in the frame. If you register this value, the indicator turns orange on the
recording information display. You can shoot at this point, but it is recommended that you set the white balance again
to get a more accurate white balance value.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
253
Interchangeable Lens Digital Camera
ILCA-77M2
Picture Effect
Select the desired effect filter to achieve more impressive and artistic images.
1. MENU → (Camera Settings) → [Picture Effect] → desired setting.
Menu item details
Off (default setting):
Disables the [Picture Effect] function.
Toy Camera:
Creates a soft image with shaded corners and reduced sharpness.
Pop Color:
Creates a vivid look by emphasizing color tones.
Posterization:
Creates a high contrast, abstract look by heavily emphasizing primary colors, or in black and white.
Retro Photo:
Creates the look of an aged photo with sepia color tones and faded contrast.
Soft High-key:
Creates an image with the indicated atmosphere: bright, transparent, ethereal, tender, soft.
Partial Color:
Creates an image which retains a specific color, but converts others to black and white.
High Contrast Mono.:
Creates a high-contrast image in black and white.
Soft Focus:
Creates an image filled with a soft lighting effect.
HDR Painting:
Creates the look of a painting, enhancing the colors and details.
Rich-tone Mono.:
Creates an image in black and white with rich gradation and reproduction of details.
Miniature:
Creates an image which enhances the subject vividly, with the background defocused considerably. This effect may
Help Guide
How to Use
254
often be found in pictures of miniature models.
Watercolor:
Creates an image with ink bleed and blurring effects as if painted using watercolors.
Illustration:
Creates an illustration-like image by emphasizing the outlines.
Hint
You can perform detailed settings for the following [Picture Effect] modes using the left/right side of the multi-selector.
[Toy Camera]
[Posterization]
[Partial Color]
[Soft Focus]
[HDR Painting]
[Miniature]
[Illustration]
Note
When [Partial Color] is selected, images may not retain the selected color, depending on the subject or shooting
conditions.
You cannot check the following effects on the shooting screen, because the product processes the image after the
shot. Also, you cannot shoot another image until image processing is finished. You cannot use these effects with
movies.
[Soft Focus]
[HDR Painting]
[Rich-tone Mono.]
[Miniature]
[Watercolor]
[Illustration]
In the case of [HDR Painting] and [Rich-tone Mono.], the shutter is released three times for one shot. Be careful
about the following:
Use this function when the subject is motionless or does not flash light.
Do not change the composition before shooting.
When the contrast of the scene is low or when significant camera-shake or subject blur has occurred, you may not be
able to obtain good HDR images. If the product detects such a situation, / appear on the recorded image
to inform you of this situation. If necessary, change the composition or otherwise adjust the settings, be careful of
blurring, and shoot again.
4-538-499-12(1)
Copyright 2014 Sony Corporation
255
Interchangeable Lens Digital Camera
ILCA-77M2
Creative Style
Allows you to select the desired image processing. You can adjust exposure (shutter speed and aperture) as you like
with [Creative Style], unlike with [Scene Selection] where the product adjusts the exposure.
1. MENU → (Camera Settings) → [Creative Style] → desired setting.
Menu item details
Standard (default setting):
For shooting various scenes with rich gradation and beautiful colors.
Vivid:
The saturation and contrast are heightened for shooting striking images of colorful scenes and subjects such as flowers,
spring greenery, blue sky, or ocean views.
Neutral:
The saturation and sharpness are lowered for shooting images in subdued tones. This is also suitable for capturing
image material to be modified with a computer.
Clear:
For shooting images in clear tones with limpid colors in highlight, suitable for capturing radiant light.
Deep:
For shooting images with deep and dense colors, suitable for capturing the solid presence of the subject.
Light:
For shooting images with bright and simple colors, suitable for capturing a refreshingly light ambience.
Portrait:
For shooting the skin color in a soft tone, ideally suited for shooting portraits.
Landscape:
The saturation, contrast, and sharpness are heightened for shooting vivid and crisp scenery. Distant landscapes also
stand out more.
Sunset:
For shooting the beautiful red of the setting sun.
Night Scene:
The contrast is lowered for reproducing night scenes.
Autumn leaves:
Help Guide
How to Use
256
For shooting autumn scenes, vividly highlighting the reds and yellows of changing leaves.
Black & White:
For shooting images in black and white monotone.
Sepia:
For shooting images in sepia monotone.
To set [Contrast], [Saturation] and [Sharpness]
[Contrast], [Saturation] and [Sharpness] can be adjusted for each [Creative Style] item.
Select an item to be set by pressing the right/left side of the multi-selector, then set the value using the top/bottom side
of the multi-selector.
Contrast:
The higher the value selected, the more the difference of light and shadow is accentuated, and the bigger the effect on
the image.
Saturation:
The higher the value selected, the more vivid the color. When a lower value is selected, the color of the image is
restrained and subdued.
Sharpness:
Adjusts the sharpness. The higher the value selected, the more the contours are accentuated, and the lower the value
selected, the more the contours are softened.
Registering preferred settings (Style Box)
Select the six style box (the boxes with numbers on the left side ( )) to register preferred settings. Then select the
desired settings using the right side of the multi-selector.
You can call up the same style with slightly different settings.
Note
[Standard] is selected when using the following functions:
[Intelligent Auto]
[Superior Auto]
[Scene Selection]
[Picture Effect]
When [Creative Style] is set to [Black & White] or [Sepia], [Saturation] cannot be adjusted.
4-538-499-12(1)
Copyright 2014 Sony Corporation
257
Interchangeable Lens Digital Camera
ILCA-77M2
Movie recording formats
You can use the movie recording format "XAVC S" with this camera. For details on the "XAVC S" format, see the
following description.
What is XAVC S?
Records high-definition movies by converting them to MP4 movies using the MPEG-4 AVC/H.264 codec. MPEG-4
AVC/H.264 is capable of compressing images at higher efficiency. You can record high-quality images while reducing
the amount of data.
XAVC S/AVCHD recording format
XAVC S:
Bit-rate: Approx. 50 Mbps
Records a more vivid movie compared to AVCHD with increased amounts of information.
AVCHD:
Bit-rate: Approx. 28Mbps
*
The AVCHD format has a high degree of compatibility with storage devices other than computers.
Bit rate is the amount of the data processed within a given length of time.
*
Maximum
Related Topic
File Format (movie)
Record Setting (movie)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
258
Interchangeable Lens Digital Camera
ILCA-77M2
File Format (movie)
Selects the movie file format.
1. MENU → (Camera Settings) → [ File Format] → desired setting.
Menu item details
XAVC S:
Records HD movies in XAVC S format. This file format is suitable for high bit rates.
Audio: LPCM
You cannot create discs using the software PlayMemories Home with movies that are recorded with [ File Format]
set to [XAVC S].
In order to record movies with [ File Format] set to [XAVC S], you need an SDXC memory card with a capacity of
at least 64 GB (Class 10 or faster), a UHS-I compatible SDXC memory card with at least 64 GB (U1 or faster), or a
Memory Stick XC-HG Duo media.
AVCHD (default setting):
Records HD movies in AVCHD format. This file format is suitable for high-definition TV.
You can create a Blu-ray Disc, an AVCHD recording disc, or a DVD-Video disc using the software PlayMemories Home.
Audio: Dolby Digital
MP4:
Records mp4 (AVC) movies. This format is suitable for WEB uploads, e-mail attachments, etc.
Audio: AAC
You cannot create a disc using the software PlayMemories Home with a movie that was recorded when [ File
Format] was set to [MP4].
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
259
Interchangeable Lens Digital Camera
ILCA-77M2
Record Setting (movie)
Selects the image size, frame rate, and image quality for movie recording. The higher the bit-rate, the higher the image
quality.
1. MENU → (Camera Settings) → [ Record Setting] → desired setting.
When [ File Format] is set to [XAVC S]
Records high-definition movies by converting them to MP4 file format using the MPEG-4 AVC/H.264 codec.
When [ File Format] is set to [AVCHD]
60i/50i: Movies are recorded at approximately 60 fields/sec (for 1080 60i-compatible devices) or 50 fields/sec (for 1080
50i-compatible devices), in interlaced mode, with Dolby Digital audio, in AVCHD format.
24p/25p: Movies are recorded at approximately 24 frames/sec (for 1080 60i-compatible devices) or 25 frames/sec (for
1080 50i-compatible devices), in progressive mode, with Dolby Digital audio, in AVCHD format.
60p/50p: Movies are recorded at approximately 60 frames/sec (for 1080 60i-compatible devices) or 50 frames/sec (for
1080 50i-compatible devices), in progressive mode, with Dolby Digital audio, in AVCHD format.
When [ File Format] is set to [MP4]
Movies shot are recorded in MPEG-4 format, at approximately 30 frames/sec (for 1080 60i-compatible devices) or
approximately 25 frames/sec (for 1080 50i-compatible devices), in progressive mode, with AAC audio, mp4 format.
Menu items details
When [ File Format] is set to [XAVC S]
60p 50M
*
/50p 50M
**
:
Records high image quality movies at 1920 × 1080 (60p/50p).
Bit-rate: Approx. 50 Mbps
30p 50M*/25p 50M
**
:
Records high image quality movies at 1920 × 1080 (30p/25p).
Bit-rate: Approx. 50 Mbps
24p 50M (Only for 1080 60i compatible models):
Records high image quality movies at 1920 × 1080 (24p). This produces a cinema-like atmosphere.
Bit-rate: Approx. 50 Mbps
When [
File Format] is set to [AVCHD]
Help Guide
How to Use
260
60i 24M(FX)*:
50i 24M(FX)**:
Records high image quality movies of 1920 × 1080 (60i/50i).
Bit-rate: Approx. 24 Mbps (Max.)
60i 17M(FH) (default setting)*:
50i 17M(FH) (default setting)**:
Records standard image quality movies of 1920 × 1080 (60i/50i).
Bit-rate: Approx. 17 Mbps (Avg.)
60p 28M(PS)*:
50p 28M(PS)**:
Records the highest image quality movies of 1920 × 1080 (60p/50p).
Bit-rate: Approx. 28 Mbps (Max.)
24p 24M(FX)*:
25p 24M(FX)**:
Records high image quality movies of 1920 × 1080 (24p/25p). This produces a cinema-like atmosphere.
Bit-rate: Approx. 24 Mbps (Max.)
24p 17M(FH)*:
25p 17M(FH)**:
Records standard image quality movies of 1920 × 1080 (24p/25p). This produces a cinema-like atmosphere.
Bit-rate: Approx. 17 Mbps (Avg.)
When [
File Format] is set to [MP4]
1440×1080 12M (default setting):
Records movies of 1440 × 1080.
Bit-rate: Approx. 12 Mbps (Avg.)
VGA 3M:
Records movies of VGA size.
Bit-rate: Approx. 3 Mbps (Avg.)
* 1080 60i (NTSC) compatible device
** 1080 50i (PAL) compatible device
Note
60p/50p movies can be played back only on compatible devices.
Movies recorded with the [60p 28M(PS)]/[50p 28M(PS)]/[60i 24M(FX)]/[50i 24M(FX)]/ [24p 24M(FX)] /[25p 24M(FX)]
setting in [ Record Setting] are converted by PlayMemories Home in order to create an AVCHD recording disc.
This conversion can take a long time. Also, you cannot create a disc in the original image quality. If you want to keep
the original image quality, store your movies on a Blu-ray Disc.
To play back 60p/50p/24p/25p movies on a TV, the TV must be compatible with the 60p/50p/24p/25p formats. If the
TV is not compatible with the 60p/50p/24p/25p format, 60p/50p/24p/25p movies will be output as 60i/50i movies.
You cannot create discs with movies recorded with [XAVC S] or [MP4] recording settings using PlayMemories Home.
4-538-499-12(1)
261
Interchangeable Lens Digital Camera
ILCA-77M2
SteadyShot (movie)
Sets [ SteadyShot] effect when shooting movies. If you set the [ SteadyShot] effect to [Off] when using a tripod
(sold separately), a natural image is produced.
1. MENU→ (Camera Settings) → [ SteadyShot] → desired setting.
Menu item details
On:
Uses [
SteadyShot].
Off (default setting):
Does not use [
SteadyShot].
Note
If you change the setting for [ SteadyShot], the angle of view will change.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
262
Interchangeable Lens Digital Camera
ILCA-77M2
Audio Recording
Sets whether to record sounds when shooting movies.
1. MENU → (Camera Settings) → [Audio Recording] → desired setting.
Menu item details
On (default setting):
Records sound (stereo).
Off:
Does not record sound.
Note
The noise of the lens and the product in operation will also be recorded, when [On] is selected.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
263
Interchangeable Lens Digital Camera
ILCA-77M2
Audio Level Display
Sets whether to display the audio level on the screen.
1. MENU→ (Custom Settings) → [Audio Level Display] → desired setting.
Menu item details
On (default setting):
Displays the audio level.
Off:
Does not display the audio level.
Note
The audio level is not displayed in the following situations:
When [Audio Recording] is set to [Off].
When DISP (Display Setting) is set to [No Disp. Info.].
Set the shooting mode to [Movie]. You can see the audio level before recording only in movie recording mode.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
264
Interchangeable Lens Digital Camera
ILCA-77M2
Audio Rec Level
You can adjust the audio recording level while checking the level meter.
1. MENU → (Camera Settings) → [Audio Rec Level] → desired setting.
Menu item details
+:
Turns up the audio recording level.
−:
Turns down the audio recording level.
Reset:
Resets the audio recording level to the default setting.
Note
Regardless of the [Audio Rec Level] settings, the limiter always operates.
[Audio Rec Level] is available only when the shooting mode is set to Movie.
The [Audio Rec Level] settings are applied for both the internal microphone and the (Microphone) terminal input.
Hint
When you record audio movies with loud volumes, set [Audio Rec Level] to a lower sound level. Doing so enables you
to record more realistic audio. When you record audio movies with lower volumes, set [Audio Rec Level] to a greater
sound level to make the sound easier to hear.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
265
Interchangeable Lens Digital Camera
ILCA-77M2
Audio Out Timing
You can set echo cancellation for shooting when confirming audio via HDMI output.
1. MENU → (Camera Settings) → [Audio Out Timing] → desired setting.
Menu item details
Live (default setting):
Outputs audio without delay when recording movies. Select this setting when audio deviation is a problem during audio
monitoring.
Lip Sync:
Outputs video and audio in sync when recording movies. Select this setting to prevent undesirable deviations between
video and audio.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
266
Interchangeable Lens Digital Camera
ILCA-77M2
Wind Noise Reduct.
Sets whether or not to reduce wind noise during movie recording.
1. MENU → (Camera Settings) → [Wind Noise Reduct.] → desired setting.
Menu item details
On:
Reduces wind noise.
Off (default setting):
Does not reduce wind noise.
Note
Setting this item to [On] where wind is not blowing sufficiently hard may cause normal sound to be recorded with too
low volume.
When an external microphone (sold separately) is used, [Wind Noise Reduct.] does not function.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
267
Interchangeable Lens Digital Camera
ILCA-77M2
Auto Slow Shut. (movie)
Sets whether or not to adjust the shutter speed automatically when recording movies if the subject is dark.
1. MENU → (Camera Settings) → [ Auto Slow Shut.] → desired setting.
Menu item details
On (default setting):
Uses [ Auto Slow Shut.]. The shutter speed automatically slows when recording in dark locations. You can reduce
noise in the movie by using a slow shutter speed when recording in dark locations.
Off:
Does not use [ Auto Slow Shut.]. The recorded movie will be darker than when [On] is selected, but you can record
movies with smoother motion and less object blur.
Note
[ Auto Slow Shut.] does not function in the following situations:
When [Movie] in shooting mode is set to [Shutter Priority] or [Manual Exposure].
When [ISO] is set to other than [ISO AUTO].
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
268
Interchangeable Lens Digital Camera
ILCA-77M2
MOVIE Button
Sets whether or not to activate the MOVIE button.
1. MENU → (Custom Settings) → [MOVIE Button] → desired setting.
Menu item details
Always (default setting):
Starts movie recording when you press the MOVIE button in any mode.
Movie Mode Only:
Starts movie recording when you press the MOVIE button only if the shooting mode is set to [Movie] mode.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
269
Interchangeable Lens Digital Camera
ILCA-77M2
Memory
Allows you to register up to 3 often-used modes or product settings in the product. You can recall the settings using just
the mode dial.
1. Set the product to the setting you want to register.
2. MENU → (Camera Settings) → [Memory] → desired number.
Items that can be registered
Shooting mode
Aperture (F number)
Shutter speed
Camera Settings
To recall registered settings
Select the memory number from “1,” “2” or “3” on the mode dial.
To change registered settings
Change the setting to the desired one and re-register the setting to the same mode number.
Note
Program Shift cannot be registered.
For some functions, the position of the dial and the setting actually used for shooting may not match. If this happens,
shoot images by referring to the information displayed on the monitor.
Related Topic
Memory recall
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
270
Interchangeable Lens Digital Camera
ILCA-77M2
Function Menu Set.
You can assign the functions to be called up when you press the Fn (Function) button.
1. MENU → (Custom Settings) → [Function Menu Set.] → set a function to the desired location.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
271
Interchangeable Lens Digital Camera
ILCA-77M2
Custom Key Settings
Assigning functions to the various keys allows you to speed up operations by pressing the appropriate key when the
shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → set a function to the desired key.
Note
Some functions cannot be assigned to certain keys.
Related Topic
Function of the focus hold button
Function of the AEL button
Function of the AF/MF button
Function of the ISO button
Function of the Exposure Compensation button
Function of the WB button
Function of the Drive Mode button
Function of the Smart Teleconverter button
Function of the Preview Button
Function of the C button
Function of the center button
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
272
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the focus hold button
Allows you to assign a function to the focus hold button on the lens.
1. MENU → (Custom Settings) → [Custom Key Settings] → [Focus Hold Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
273
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the AEL button
Once you assign a function to the AEL button, you can perform that function by simply pressing the AEL button when the
shooting information screen is displayed.
1. MENU→ (Custom Settings) → [Custom Key Settings] → [AEL Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
274
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the AF/MF button
Once you assign a function to the AF/MF button, you can perform that function by simply pressing the AF/MF button
when the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [AF/MF Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
275
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the ISO button
Once you assign a function to the ISO button, you can perform that function by simply pressing the ISO button when the
shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [ISO Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
276
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the Exposure Compensation button
Once you assign a function to the Exposure Compensation button, you can perform that function by simply pressing the
Exposure Compensation button when the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [Exp. Comp. Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
277
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the WB button
Once you assign a function to the WB button, you can perform that function by simply pressing the WB button when the
shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [WB Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
278
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the Drive Mode button
Once you assign a function to the Drive Mode button, you can perform that function by simply pressing the Drive Mode
button when the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [Drive Mode Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
279
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the Smart Teleconverter button
Once you assign a function to the Smart Teleconverter button, you can perform that function by simply pressing the
Smart Teleconverter button when the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → (Smart Telecon.) button → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
280
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the Preview Button
Once you assign a function to the preview button, you can perform that function by simply pressing the preview button
when the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [Preview Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
281
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the C button
Once you assign a function to the C button, you can perform that function by simply pressing the C button when the
shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [C Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
282
Interchangeable Lens Digital Camera
ILCA-77M2
Function of the center button
Once you assign a function to the center button, you can perform that function by simply pressing the center button when
the shooting information screen is displayed.
1. MENU → (Custom Settings) → [Custom Key Settings] → [Center Button] → desired setting.
The functions that can be assigned are displayed on the setup item selection screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
283
Interchangeable Lens Digital Camera
ILCA-77M2
Dial Setup
You can switch the functions of the front/rear dial.
1. MENU → (Custom Settings) → [Dial Setup] → desired setting.
Menu item details
SS F/no.:
The front dial is used to change the shutter speed and the rear dial to change the aperture value.
F/no. SS (default setting):
The front dial is used to change the aperture value and the rear dial to change the shutter speed.
Note
The [Dial Setup] function is enabled when the shooting mode is set to “M.”
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
284
Interchangeable Lens Digital Camera
ILCA-77M2
Smile/Face Detect.
Detects the faces of your subjects and adjusts the focus, exposure, flash settings and performs image processing
automatically.
1. MENU → (Camera Settings) → [Smile/Face Detect.] → desired setting.
Menu item details
Off:
Does not use the Face Detection function.
On (Regist. Faces) (default setting):
Detects the registered face with higher priority using [Face Registration].
On:
Detects a face without giving higher priority to the registered face.
Smile Shutter:
Automatically detects and shoots a smile.
Face Detection frame
When the product detects a face, the gray face detection frame appears. When the product determines that autofocus
is enabled, the face detection frame turns white. When you press the shutter button halfway down, the frame turns
green.
In case you have registered the priority order for each face using [Face Registration], the product automatically
selects the first prioritized face and the face detection frame over that face turns white. The face detection frames of
other registered faces turn reddish-purple.
Tips for capturing smiles more effectively
Do not cover the eyes with front hair and keep the eyes narrowed.
Do not obscure the face by a hat, masks, sunglasses, etc.
Help Guide
How to Use
285
Try to orient the face in front of the product and be as level as possible.
Give a clear smile with an open mouth. The smile is easier to be detected when the teeth are shown.
If you press the shutter button during Smile Shutter, the product shoots the image. After shooting, the product returns
to Smile Shutter mode.
Hint
When the [Smile/Face Detect.] is set to [Smile Shutter], you can select the Smile Detection Sensitivity from [On: Slight
Smile], [On: Normal Smile] and [On: Big Smile].
Note
You cannot use the Face Detection function with the following functions:
[Sweep Panorama]
[Picture Effect] is set to [Posterization].
When using the [Focus Magnifier] function.
[Cont. Priority AE]
[Scene Selection] is set to [Landscape], [Night Scene] or [Sunset].
Up to eight faces of your subjects can be detected.
The product may not detect faces at all or may accidentally detect other objects as faces in some conditions.
If the product cannot detect a face, set the Smile Detection Sensitivity.
If you track a face using [Lock-on AF] while executing [Smile Shutter], Smile Detection is performed only for that face.
4-538-499-12(1)
Copyright 2014 Sony Corporation
286
Interchangeable Lens Digital Camera
ILCA-77M2
Soft Skin Effect (still image)
Sets the effect used for shooting the skin smoothly in the Face Detection function.
1. MENU → (Camera Settings) → [ Soft Skin Effect] → desired setting.
Menu item details
Off (default setting):
Does not use the [ Soft Skin Effect] function.
On:
Uses the [ Soft Skin Effect].
Hint
When [ Soft Skin Effect] is set to [On], you can select the effect level.
Note
[ Soft Skin Effect] is not available for RAW images.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
287
Interchangeable Lens Digital Camera
ILCA-77M2
Face Registration (New Registration)
If you register faces in advance, the product can detect the registered face as a priority when [Smile/Face Detect.] is set
to [On (Regist. Faces)].
1. MENU → (Custom Settings) → [Face Registration] → [New Registration].
2. Align the guide frame with the face to be registered, and press the shutter button.
3. When a confirmation message appears, select [Enter].
Note
Up to eight faces can be registered.
Shoot the face from the front in a brightly lit place. The face may not be registered correctly if it is obscured by a hat,
a mask, sunglasses, etc.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
288
Interchangeable Lens Digital Camera
ILCA-77M2
Face Registration (Order Exchanging)
When multiple faces are registered to be given priority, the face registered first will be given priority. You can change the
priority order.
1. MENU → (Custom Settings) → [Face Registration] → [Order Exchanging].
2. Select a face to change the order of priority.
3. Select the destination.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
289
Interchangeable Lens Digital Camera
ILCA-77M2
Face Registration (Delete)
Deletes a registered face.
1. MENU → (Custom Settings) → [Face Registration] → [Delete].
If you select [Delete All], you can delete all registered faces.
Note
Even if you execute [Delete], the data for registered face will remain in the product. To delete the data for registered
faces from the product, select [Delete All].
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
290
Interchangeable Lens Digital Camera
ILCA-77M2
Red Eye Reduction
When using the flash, it is fired two or more times before shooting to reduce the red-eye phenomenon.
1. MENU → (Camera Settings) → [Red Eye Reduction] → desired setting.
Menu item details
On:
The flash is always fired to reduce the red-eye phenomenon.
Off (default setting):
Does not use Red Eye Reduction.
Note
Red Eye Reduction may not produce the desired effects. It depends on individual differences and conditions, such as
distance to the subject, or whether the subject looks at the pre-strobe or not.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
291
Interchangeable Lens Digital Camera
ILCA-77M2
Auto Obj. Framing (still image)
When this product detects and shoots faces, macro shooting subjects or subjects that are tracked by [Lock-on AF], the
product automatically trims the image into an appropriate composition, and then saves it. Both the original and the
trimmed images are saved. The trimmed image is recorded in the same size as the original image size.
1. MENU → (Camera Settings) → [ Auto Obj. Framing] → desired setting.
Menu item details
Off (default setting):
Does not trim images.
Auto:
Automatically trims images into an appropriate composition.
Note
The trimmed image may not be the best possible composition, depending on the shooting conditions.
[ Auto Obj. Framing] cannot be set when [ Quality] is set to [RAW] or [RAW & JPEG].
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
292
Interchangeable Lens Digital Camera
ILCA-77M2
SteadyShot (still image)
Sets whether or not to use the SteadyShot function.
1. MENU → (Camera Settings) → [ SteadyShot] → desired setting.
Menu item details
On (default setting):
Uses [ SteadyShot].
Off:
Does not use [ SteadyShot].
We recommend that you set the camera to [Off] when using a tripod.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
293
Interchangeable Lens Digital Camera
ILCA-77M2
Long Exposure NR (still image)
When you set the shutter speed to one second or longer (long exposure shooting), noise reduction is turned on for the
duration that the shutter is open. With the function turned on, the grainy noise typical of long exposures is reduced.
1. MENU → (Camera Settings) → [ Long Exposure NR] → desired setting.
Menu item details
On (default setting):
Activates noise reduction for the same duration that the shutter is open. When noise reduction is in progress, a message
appears and you cannot take another picture. Select this to prioritize the image quality.
Off:
Does not activate noise reduction. Select this to prioritize the timing of shooting.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
294
Interchangeable Lens Digital Camera
ILCA-77M2
High ISO NR (still image)
When shooting with high ISO sensitivity, the product reduces noise that becomes more noticeable when the product
sensitivity is high. A message may be displayed during noise reduction processing; you cannot shoot another image until
the message disappears.
1. MENU → (Camera Settings) → [ High ISO NR] → desired setting.
Menu item details
Normal (default setting):
Activates high ISO noise reduction normally.
Low:
Activates high ISO noise reduction moderately. Select this to prioritize the timing of shooting.
Off:
Does not activate high ISO noise reduction.
Note
[ High ISO NR] is not available in the following situations:
When the shooting mode is set to [Intelligent Auto], [Superior Auto], [Scene Selection] or [Sweep Panorama].
[ High ISO NR] is not available for RAW images.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
295
Interchangeable Lens Digital Camera
ILCA-77M2
Color Space (still image)
The way colors are represented using combinations of numbers or the range of color reproduction is called “color
space.” You can change the color space depending on the purpose of the image.
1. MENU → (Camera Settings) → [ Color Space] → desired setting.
Menu item details
sRGB (default setting):
This is the standard color space of the digital camera. Use [sRGB] in normal shooting, such as when you intend to print
out the images without any modification.
AdobeRGB:
This color space has a wide range of color reproduction. When a large part of the subject is vivid green or red, Adobe
RGB is effective. The file name of the image starts with “_DSC.”
Note
[AdobeRGB] is for applications or printers that support color management and DCF2.0 option color space. Images
may not be printed or viewed in the correct colors if you use applications or printers that do not support Adobe RGB.
When displaying images that were recorded with [AdobeRGB] on this product or non-Adobe RGB-compliant devices,
the images are displayed with low saturation.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
296
Interchangeable Lens Digital Camera
ILCA-77M2
Grid Line
Sets whether the grid line is displayed or not. The grid line will help you to adjust the composition of images.
1. MENU → (Custom Settings) → [Grid Line] → desired setting.
Menu item details
Rule of 3rds Grid:
Place main subjects close to one of the grid lines that divide the image into thirds for a well-balanced composition.
Square Grid:
Square grids make it easier to confirm the horizontal level of your composition. This is suitable to determine the quality
of the composition when shooting landscape, close-up, or duplicated images.
Diag. + Square Grid:
Place a subject on the diagonal line to express an uplifting and powerful feeling.
Off (default setting):
Does not display the grid line.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
297
Interchangeable Lens Digital Camera
ILCA-77M2
Auto Review
You can check the recorded image on the screen right after the shooting. You can also set the display time for Auto
Review.
1. MENU → (Custom Settings) → [Auto Review] → desired setting.
Menu item details
10 Sec/5 Sec/2 Sec (default setting):
Displays the recorded image on the screen right after shooting for the selected duration of time. If you perform a
magnifying operation during Auto Review, you can check that image using the magnified scale.
Off:
Does not display the Auto Review.
Note
When the product is enlarging an image using image processing, it may temporarily display the original image prior to
enlarging and then display the enlarged image.
The DISP (Display Setting) settings are applied for the Auto Review display.
Related Topic
Switching the screen display (during playback)
Playback zoom
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
298
Interchangeable Lens Digital Camera
ILCA-77M2
Live View Display
Sets whether or not to show images altered with effects of the exposure compensation, white balance, [Creative Style],
or [Picture Effect] on the screen.
1. MENU → (Custom Settings) → [Live View Display] → desired setting.
Menu item details
Setting Effect ON (default setting):
Displays Live View in conditions close to what your picture will look like as a result of applying all your settings. This
setting is useful when you want to shoot pictures while checking the results of the shot on the Live View screen.
Setting Effect OFF:
Shows Live View without the effects of exposure compensation, white balance, [Creative Style], or [Picture Effect]. When
this setting is used, you can easily check the image composition.
Live View is always displayed with the appropriate brightness even in [Manual Exposure] mode.
When [Setting Effect OFF] is selected, the icon is displayed on the Live View screen.
Note
When the shooting mode is set to [Intelligent Auto], [Superior Auto], [Sweep Panorama], [Movie] or [Scene Selection],
[Live View Display] cannot be set to [Setting Effect OFF].
When [Live View Display] is set to [Setting Effect ON], you may have difficulty checking the composition, as the Live
View Display may seem too dark or too bright. If such a phenomenon occurs, set [Live View Display] to [Setting Effect
OFF]. When [Live View Display] is set to [Setting Effect OFF], the brightness of the shot image will not be the same
as that of the displayed Live View.
Hint
When you use a third-party flash, such as a studio flash, Live View Display may be dark for some shutter speed
settings. When [Live View Display] is set to [Setting Effect OFF], Live View Display will be displayed brightly, so that
you can easily check the composition.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
299
Interchangeable Lens Digital Camera
ILCA-77M2
FINDER/MONITOR
Sets the method for switching the display between Electronic Viewfinder and the screen.
1. MENU → (Custom Settings) → [FINDER/MONITOR] → desired setting.
Menu item details
Auto (default setting):
When you look into the Electronic Viewfinder, the display is switched to the Electronic Viewfinder automatically.
Manual:
The product does not switch between the monitor display and the Electronic Viewfinder display automatically.
You can switch the display by pressing the FINDER/MONITOR button.
Hint
If you want to switch the display mode temporarily when [FINDER/MONITOR] is set to [Auto], press the
FINDER/MONITOR button.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
300
Interchangeable Lens Digital Camera
ILCA-77M2
Release w/o Lens
Sets whether or not the shutter can be released when no lens is attached.
1. MENU → (Custom Settings) → [Release w/o Lens] → desired setting.
Menu item details
Enable:
Releases the shutter when no lens is attached. Select [Enable] when attaching the product to an astronomical telescope,
etc.
Disable (default setting):
Does not release the shutter when a lens is not attached.
Note
Correct metering cannot be achieved when you use lenses that do not provide a lens contact, such as the lens of an
astronomical telescope. In such cases, adjust the exposure manually by checking it on the recorded image.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
301
Interchangeable Lens Digital Camera
ILCA-77M2
SteadyS. w/ shut.
Reduces the image blur not only at the moment of releasing the shutter but also while pressing the shutter button
halfway down.
1. MENU → (Custom Settings) → [ SteadyS. w/ shut.] → desired setting.
Menu item details
On (default setting) :
Image blur is reduced while pressing the shutter button halfway down.
Off:
Image blur is not reduced while pressing the shutter button halfway down. If you want to save battery power, select [Off].
Note
When [ SteadyShot] is set to [Off], [ SteadyS. w/ shut.] is not activated.
Related Topic
SteadyShot (still image)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
302
Interchangeable Lens Digital Camera
ILCA-77M2
e-Front Curtain Shut.
The electronic front curtain shutter function shortens the time lag between shutter releases.
1. MENU → (Custom Settings) → [e-Front Curtain Shut.] → desired setting.
Menu item details
On (default setting):
Uses the electronic front curtain shutter function.
Off:
Does not use the electronic front curtain shutter function.
Note
When you shoot at high shutter speeds with a large diameter lens attached, the ghosting of a blurred area may occur,
depending on the subject or shooting conditions. In such cases, set this function to [Off].
When a lens made by another manufacturer (including a Minolta/Konica-Minolta lens) is used, set this function to
[Off]. If you set this function to [On], the correct exposure will not be set or the image brightness will be uneven.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
303
Interchangeable Lens Digital Camera
ILCA-77M2
Superior Auto (Image Extraction)
Sets whether or not to save all the images that were shot continuously in [Superior Auto].
1. MENU → (Custom Settings) → [Superior Auto] → [Image Extraction] → desired setting.
Menu item details
Auto (default setting):
Saves one appropriate image selected by the product.
Off:
Saves all of the images.
Note
Even if you set [Image Extraction] to [Off] with [Hand-held Twilight] selected as the scene recognition mode, one
combined image is saved.
When the [ Auto Obj. Framing] function is activated, two images are saved even if you set [Image Extraction] to
[Auto].
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
304
Interchangeable Lens Digital Camera
ILCA-77M2
Superior Auto (Cont. Shooting)
Sets whether or not to perform continuous shooting in [Superior Auto] mode.
1. MENU → (Custom Settings) → [Superior Auto] → [Cont. Shooting] → desired setting.
Menu item details
Auto (default setting):
Continuous shooting is performed.
Off:
Continuous shooting is not performed.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
305
Interchangeable Lens Digital Camera
ILCA-77M2
Shading Comp.
Compensates for the shaded corners of the screen, caused by certain lens characteristics.
1. MENU → (Custom Settings) → [Lens Comp.] → [Shading Comp.] → desired setting.
Menu item details
Auto (default setting):
Compensates for darker corners of the screen automatically.
Off:
Does not compensate for darker corners of the screen.
Note
The [Shading Comp.] function is only available when an A-mount lens is mounted.
The amount of light around the edges may not be corrected, depending on the lens type.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
306
Interchangeable Lens Digital Camera
ILCA-77M2
Chro. Aber. Comp.
Reduces the color deviation at the corners of the screen, caused by certain lens characteristics.
1. MENU → (Custom Settings) → [Lens Comp.] → [Chro. Aber. Comp.] → desired setting.
Menu item details
Auto (default setting):
Reduces the color deviation automatically.
Off:
Does not compensate for the color deviation.
Note
The [Chro. Aber. Comp.] function is only available when an A-mount lens is mounted.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
307
Interchangeable Lens Digital Camera
ILCA-77M2
Distortion Comp.
Compensates for the distortion of the screen, caused by certain lens characteristics.
1. MENU → (Custom Settings) → [Lens Comp.] → [Distortion Comp.] → desired setting.
Menu item details
Auto:
Compensates for distortion of the screen automatically.
Off (default setting):
Does not compensate for distortion of the screen.
Note
The [Distortion Comp.] function is only available when an A-mount lens is mounted.
Depending on the attached lens, [Distortion Comp.] is fixed to [Auto], and you cannot select [Off].
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
308
Interchangeable Lens Digital Camera
ILCA-77M2
Dial Lock
You can set whether the dial will be locked by pressing and holding the Fn (Function) button.
1. MENU → (Custom Settings) → [Dial Lock] → desired setting.
Menu item details
Lock:
Locks the front and rear dials.
Unlock (default setting):
The front or rear dials are not locked even if you press and hold the Fn (Function) button.
Hint
You can release the locked dial by holding the Fn (Function) button down.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
309
Interchangeable Lens Digital Camera
ILCA-77M2
Deactivate Monitor
When you press the key to which the [Deactivate Monitor] function is assigned, [Live View Display] is switched to
[Setting Effect OFF], and the screen display is switched to [No Disp. Info.].
1. MENU → (Custom Settings) → [Custom Key Settings] → set the [Deactivate Monitor] function to the desired
key.
2. Press the key to which [Deactivate Monitor] was assigned.
Note
Even if you perform [Deactivate Monitor], the backlight of monitor remains on. To turn off the backlight of monitor,
press the FINDER/MONITOR button.
Related Topic
Custom Key Settings
Switching the screen display (Shooting)
FINDER/MONITOR
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
310
Interchangeable Lens Digital Camera
ILCA-77M2
Aperture Preview
With the monitor or viewfinder, you may see an image with an aperture that differs from the shooting result. Since the
blurring of a subject changes if the aperture is changed, the blurriness of the actual picture will differ from the image you
were viewing prior to shooting.
While you press and hold the key to which you assigned the [Aperture Preview] function, the aperture is stepped down
to the set aperture value and you can check the blurriness prior to shooting.
1. MENU → (Custom Settings) → [Custom Key Settings] → set the [Aperture Preview] function to the desired key.
2. Confirm the image by pressing the key to which [Aperture Preview] was assigned.
Related Topic
Custom Key Settings
Shot. Result Preview
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
311
Interchangeable Lens Digital Camera
ILCA-77M2
Shot. Result Preview
With the monitor or viewfinder, you may see an image with an aperture that differs from the shooting result. Since the
blurring of a subject changes if the aperture is changed, the blurriness of the actual picture will differ from the image you
were viewing prior to shooting. While pressing down the key to which [Shot. Result Preview] is assigned, you can check
the image preview with the DRO, shutter speed, aperture and ISO sensitivity settings applied. Check the shooting result
preview before shooting.
1. MENU → (Custom Settings) → [Custom Key Settings] → set the [Shot. Result Preview] function to the desired
key.
2. Confirm the image by pressing the key to which [Shot. Result Preview] was assigned.
Hint
The DRO settings, shutter speed, aperture and ISO sensitivity settings you have set are reflected on the image for
[Shot. Result Preview], but some effects cannot be previewed depending on the shooting settings. Even in that case,
the settings you have selected will be applied to the images you shoot.
Related Topic
Custom Key Settings
Aperture Preview
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
312
Interchangeable Lens Digital Camera
ILCA-77M2
Playing back images
Plays back the recorded images.
1. Press the (Playback) button to switch to the playback mode.
2. Select the image with the multi-selector.
Hint
The product creates an image database file on a memory card to record and play back images. An image that is not
registered in the image database file may not be played back correctly. To play back images shot using other devices,
register those images to the image database file using MENU → [Setup] → [Recover Image DB].
Related Topic
Recover Image DB
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
313
Interchangeable Lens Digital Camera
ILCA-77M2
Playback zoom
Enlarges the image being played back.
1. Display the image you want to enlarge, and then press the button.
If the image is too large, press the button to adjust the zoom scale.
2. Select the portion you want to enlarge by pressing the top/bottom/right/left side of the multi-selector.
3. Press in the center of the multi-selector to exit the playback zoom.
Hint
You can also enlarge an image being played back using MENU.
Note
You cannot enlarge movies.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
314
Interchangeable Lens Digital Camera
ILCA-77M2
Image Index
You can display multiple images at the same time in playback mode.
1. Press the (Image Index) button while the image is being played back.
To change the number of images to be displayed
MENU → (Playback) → [Image Index] → desired setting.
Menu item details
9 Images (default setting)/25 Images
To return to single-image playback
Select the desired image and press on the center of the multi-selector.
To display a desired image quickly
Select the bar on the left of the image index screen using the multi-selector, then press the top/bottom side of the multi-
selector. While the bar is being selected, you can display the calendar screen or folder selection screen by pressing
in the center. In addition, you can switch View Mode by selecting an icon.
Related Topic
View Mode
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
315
Interchangeable Lens Digital Camera
ILCA-77M2
Switching the screen display (during playback)
Switches the screen display.
1. Press the DISP (Display Setting) button.
The screen display switches in the order “Display Info. → Histogram → No Disp. Info. → Display Info.” each time
you press the DISP button.
The DISP (Display Setting) settings are applied for the Auto Review display.
Note
The histogram is not displayed in the following situations:
During movie playback
During scrolling playback of panoramic images
During slideshows
During Folder View (MP4)
During AVCHD View
During XAVC S View
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
316
Interchangeable Lens Digital Camera
ILCA-77M2
Deleting a displayed image
You can delete an image displayed.
1. Display the image you want to delete.
2. Press the (Delete) button.
3. Select [Delete] using the multi-selector, then press on the center of the multi-selector.
Related Topic
Deleting multiple selected images
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
317
Interchangeable Lens Digital Camera
ILCA-77M2
Deleting multiple selected images
You can delete multiple selected images.
1. MENU → (Playback) → [Delete] → desired setting.
Menu item details
Multiple Img.:
Deletes the selected images.
(1) Select the images to be deleted, then press on the center of the multi-selector. The mark is displayed in the
check box. To cancel the selection, press again to remove the mark.
(2) To delete other images, repeat step (1).
(3) MENU → [OK] → Press on the center.
All in this Folder:
Deletes all images in the selected folder.
All with this date:
Deletes all images in the selected date range.
Hint
Perform [Format] to delete all images, including protected images.
Note
The menu items that can be selected differ depending on the [View Mode] setting.
Related Topic
Deleting a displayed image
Format
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
318
Interchangeable Lens Digital Camera
ILCA-77M2
Playing back movies
Plays back the recorded movies.
1. Press the (playback) button to switch to playback mode.
2. Select the movie to be played back using the multi-selector.
3. To play back movies, press on the center.
Available operations during movie playback
You can perform slow playback and sound volume adjustment, etc. by pressing the bottom side of the multi-selector.
: Playback
: Pause
: Fast-forward
: Fast-rewind
: Forward slow playback
: Reverse slow playback
: Next movie file
: Previous movie file
: Displays the next frame
: Displays the previous frame
: Sound volume adjustment
: Closes the operation panel
Hint
“Forward slow playback,” “Reverse slow playback,” “Displays the next frame” and “Displays the previous frame” are
available during pause.
Related Topic
View Mode
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
319
Interchangeable Lens Digital Camera
ILCA-77M2
Playing back panoramic images
The product automatically scrolls a panoramic image from end to end.
1. Press the (playback) button to switch to playback mode.
2. Select the panoramic image to be played back using the multi-selector.
3. Press on the center to play back the image.
To pause playback, press on the center again.
To return to the display of the entire image, press the MENU button.
Note
Panoramic images shot using other products may be displayed in a different size from the actual size, or may not
scroll correctly.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
320
Interchangeable Lens Digital Camera
ILCA-77M2
Specify Printing
You can specify in advance on the memory card which still images you want to print out later.
The (print order) icon will appear on the specified images. DPOF refers to “Digital Print Order Format.”
1. MENU → (Playback) → [Specify Printing] → desired setting.
Menu item details
Multiple Img.:
Selects images to order printing.
(1) Select an image and press on the center of the multi-selector. A mark is displayed in the check box. To
cancel the selection, press and delete the mark.
(2) Repeat step (1) to print other images.
(3) MENU → [OK] → on the center.
Cancel All:
Clears all DPOF marks.
Print Setting:
You can set whether to print the date on images registered with DPOF marks.
Select [On] or [Off] → [Enter] in [Date Imprint].
Note
You cannot add the DPOF mark to the following files:
Movies
RAW images
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
321
Interchangeable Lens Digital Camera
ILCA-77M2
View Mode
Sets the View Mode (image display method).
1. MENU → (Playback) → [View Mode] → desired setting.
Menu item details
Date View:
Displays the images by date.
Folder View(Still):
Displays only still images.
Folder View(MP4):
Displays only MP4-format movies.
AVCHD View:
Displays only AVCHD-format movies.
XAVC S View:
Displays only XAVC S-format movies.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
322
Interchangeable Lens Digital Camera
ILCA-77M2
Display Rotation
Selects the orientation when playing back recorded still images.
1. MENU → (Playback) → [Display Rotation] → desired setting.
Menu items details
Auto:
The image is displayed according to the orientation information of the image. You can rotate the image using the rotation
function. Even if the product is tilted, the display orientation is maintained.
Manual:
The image is displayed according to the orientation information of the image. You can rotate the image using the rotation
function.
Off:
Always displays in landscape orientation.
Related Topic
Rotate
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
323
Interchangeable Lens Digital Camera
ILCA-77M2
Slide Show
Automatically plays back images continuously.
1. MENU → (Playback) → [Slide Show] → desired setting.
2. Select [Enter].
Menu item details
Repeat:
Select [On], in which images are played back in a continuous loop, or [Off] (default setting), in which the product exits the
slideshow when all the images are played back once.
Interval:
Select the display interval for images from among [1 Sec], [3 Sec] (default setting), [5 Sec], [10 Sec] or [30 Sec].
To quit the slideshow in the middle of playback
Press the MENU button to quit the slideshow. You cannot pause the slideshow.
Hint
You can activate a slideshow only when [View Mode] is set to [Date View] or [Folder View(Still)].
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
324
Interchangeable Lens Digital Camera
ILCA-77M2
Rotate
Rotates a recorded still image counter-clockwise.
1. MENU → (Playback) → [Rotate].
2. Press on the center of the multi-selector.
The image is rotated counter-clockwise. The image rotates as you press on the center. If you rotate the image
once, the image remains rotated even after the product is turned off.
Note
You cannot rotate the movies.
You may not be able to rotate images shot using other products.
When viewing rotated images on a computer, the images may be displayed in their original orientation depending on
the software.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
325
Interchangeable Lens Digital Camera
ILCA-77M2
Protect
Protects recorded images against accidental erasure. The mark is displayed on protected images.
1. MENU → (Playback) → [Protect] → desired setting.
Menu item details
Multiple Img.:
Applies or cancels the protection of the selected multiple images.
(1) Select the image to be protected, then press on the center of the multi-selector. The mark is displayed in
the check box. To cancel the selection, press again to remove the mark.
(2) To protect other images, repeat step (1).
(3) MENU → [OK] → Press on the center.
All in this Folder:
Protects all images in the selected folder.
All with this date:
Protects all images in the selected date range.
Cancel All in this Folder:
Cancels the protection of all images in the selected folder.
Cancel All with this date:
Cancels the protection of all images in the selected date range.
Note
The menu items that can be selected differ depending on the [View Mode] setting.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
326
Interchangeable Lens Digital Camera
ILCA-77M2
4K Still Image PB
Outputs still images in 4K resolution to an HDMI-connected TV that supports 4K.
1. Turn off this product and the TV.
2. Connect the HDMI micro terminal of this product to the HDMI jack of the TV using an HDMI cable (sold separately).
3. Turn on the TV and switch the input.
4. Turn on this product.
5. MENU → (Playback) → [4K Still Image PB] → [OK].
Note
This menu is only available with 4K-compatible TVs. For details, refer to the operating instructions of the TV.
Related Topic
Viewing images on an HD TV
Help Guide
How to Use
327
Interchangeable Lens Digital Camera
ILCA-77M2
Viewing images on an HD TV
To view images stored on this product using a TV, an HDMI cable (sold separately) and an HD TV equipped with an
HDMI jack are required.
1. Turn off both this product and the TV.
2. Connect the HDMI micro terminal of this product to the HDMI jack of the TV using an HDMI cable (sold separately).
3. Turn on the TV and switch the input.
4. Turn on this product.
Images shot with the product appear on the TV screen.
Hint
This product is compatible with the PhotoTV HD standard. If you connect Sony PhotoTV HD-compatible devices using
an HDMI cable (sold separately), the TV is set to the image quality suitable for viewing still images, and a whole new
world of photos can be enjoyed in breathtaking high quality.
The PhotoTV HD allows for a highly-detailed, photo-like expression of subtle textures and colors.
For details, refer to the operating instructions supplied with the compatible TV.
Note
Do not connect this product and another device using the output terminals of both. Doing so may cause a malfunction.
Help Guide
How to Use
328
Some devices may not work properly when connected to this product. For example, they may not output video or
audio.
Use an HDMI cable with the HDMI logo or a genuine Sony cable.
Use an HDMI cable that is compatible with the HDMI micro terminal of the product and the HDMI jack of the TV.
4-538-499-12(1)
Copyright 2014 Sony Corporation
329
Interchangeable Lens Digital Camera
ILCA-77M2
Viewing images on a “BRAVIA” Sync-compatible TV
By connecting this product to a TV that supports “BRAVIA” Sync using an HDMI cable (sold separately), you can operate
this product with the TV Remote Control.
1. Turn off both this product and the TV.
2. Connect the HDMI micro terminal of the product to the HDMI jack of the TV using an HDMI cable (sold separately).
3. Turn on the TV and switch the input.
4. Turn on this product.
5. MENU → (Setup) → [HDMI Settings] → [CTRL FOR HDMI] → [On].
6. Press the SYNC MENU button on the TV Remote Control, and select the desired mode.
Note
If the product is not in playback mode, press the (Playback) button.
Only TVs that support “BRAVIA” Sync can provide SYNC MENU operations. For details, refer to the operating
instructions supplied with the TV.
If the product performs unwanted operations in response to the TV Remote Control when the product is connected to
another manufacturer’s TV using an HDMI connection, select MENU → (Setup) → [HDMI Settings] → [CTRL
Help Guide
How to Use
330
FOR HDMI] → [Off].
4-538-499-12(1)
Copyright 2014 Sony Corporation
331
Interchangeable Lens Digital Camera
ILCA-77M2
Monitor Brightness
You can adjust the brightness of the screen.
1. MENU → (Setup) → [Monitor Brightness] → desired setting.
Menu item details
Auto (default setting):
Adjusts the brightness automatically.
Manual:
Adjusts the brightness within the range of –2 to +2.
Sunny Weather:
Sets the brightness appropriately for shooting outdoors.
Note
If you use the AC adaptor AC-PW10AM (sold separately) when [Monitor Brightness] is set to [Auto], the screen is
always set to the brightest setting.
The [Sunny Weather] setting is too bright for shooting indoors. Set [Monitor Brightness] to [Auto] or [Manual] for
indoor shooting.
Do not cover the light sensor with your hand, etc., when [Monitor Brightness] is set to [Auto] .
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
332
Interchangeable Lens Digital Camera
ILCA-77M2
Viewfinder Bright.
When using an electronic viewfinder, this product adjusts the brightness of the electronic viewfinder according to the
surrounding environment.
1. MENU → (Setup) → [Viewfinder Bright.] → desired setting.
Menu item details
Auto (default setting):
Adjusts the brightness of the electronic viewfinder automatically.
Manual:
Selects the brightness of the electronic viewfinder from the range –2 to +2.
Note
When you use the AC adaptor AC-PW10AM (sold separately) when the setting is [Auto], the viewfinder is always set
to the brightest setting.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
333
Interchangeable Lens Digital Camera
ILCA-77M2
Finder Color Temp.
Adjusts the color temperature of the electronic viewfinder.
1. MENU → (Setup) → [Finder Color Temp.] → desired setting.
Menu item details
-2 to +2:
When you select “-,” the viewfinder screen changes to a warmer color, and when you select “+,” it changes to a colder
color.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
334
Interchangeable Lens Digital Camera
ILCA-77M2
Volume Settings
Adjusts the sound volume.
1. MENU → (Setup) → [Volume Settings] → desired setting.
Adjusting the volume during playback
Press the bottom of the multi-selector while playing back movies to display the operation panel, then adjust the volume.
You can adjust the volume while listening to the actual sound.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
335
Interchangeable Lens Digital Camera
ILCA-77M2
Audio signals
Selects whether the product produces a sound or not.
1. MENU → (Setup) → [Audio signals] → desired setting.
Menu item details
On (default setting):
Sounds are produced for example when the focus is achieved by pressing the shutter button halfway down.
Off:
Sounds are not produced.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
336
Interchangeable Lens Digital Camera
ILCA-77M2
Upload Settings(Eye-Fi)
Sets whether to use the upload function when using an Eye-Fi card (commercially available). This item appears when an
Eye-Fi card is inserted into the product’s memory card slot.
1. MENU → (Setup) → [Upload Settings] → desired setting.
2. Set your Wi-Fi network or destination on the Eye-Fi card.
For details, refer to the manual supplied with the Eye-Fi card.
3. Insert the Eye-Fi card you have set up into the product, and shoot still images.
Images are transferred to your computer, etc., automatically via the Wi-Fi network.
Menu item details
On (default setting):
Enables the upload function.
Off:
Disables the upload function
Communication status screen display
: Standby. No images are to be sent.
: Upload standby.
: Connecting.
: Uploading.
: Error
Note
Eye-Fi cards are only sold in certain countries/regions.
For more information on Eye-Fi cards, please contact the manufacturer or vendor directly.
Eye-Fi cards can be used only in the countries/regions where they were purchased. Use Eye-Fi cards in accordance
with the law of the countries/regions where you purchased the card.
Eye-Fi cards are equipped with a wireless LAN function. Do not insert an Eye-Fi card into the product in locations in
which their use is prohibited, such as on an airplane. When an Eye-Fi card is inserted into the product, set [Upload
Settings] to [Off]. When the upload function is set to [Off], the indicator will be displayed on the product.
Power save mode will not function during uploading.
If (error) is displayed, remove the memory card and reinsert it, or turn the product off and then on again. If the
indicator appears again, the Eye-Fi card may be damaged.
Wireless LAN communication may be influenced by other communication devices. If the communication status is poor,
move closer to the access point to be connected.
Help Guide
How to Use
337
This product does not support Eye-Fi “Endless Memory Mode.” Before using an Eye-Fi card, be sure that “Endless
Memory Mode” is turned off.
4-538-499-12(1)
Copyright 2014 Sony Corporation
338
Interchangeable Lens Digital Camera
ILCA-77M2
Tile Menu
Selects whether to always display the first screen of the menu when you press the MENU button.
1. MENU → (Setup) → [Tile Menu] → desired setting.
Menu item details
On:
Always displays the first screen of the menu (Tile Menu).
Off (default setting):
Deactivates the Tile Menu display.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
339
Interchangeable Lens Digital Camera
ILCA-77M2
Mode Dial Guide
You can display the description of a shooting mode when you turn the mode dial and change the settings available for
that shooting mode.
1. MENU → (Setup) → [Mode Dial Guide] → desired setting.
Menu item details
On:
Displays the Mode Dial Guide.
Off (default setting):
Does not display the Mode Dial Guide.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
340
Interchangeable Lens Digital Camera
ILCA-77M2
Delete confirm.
You can set whether [Delete] or [Cancel] is selected as the default setting on the delete confirmation screen.
1. MENU → (Setup) → [Delete confirm.] → desired setting.
Menu item details
"Delete" first:
[Delete] is selected as the default setting.
"Cancel" first (default setting):
[Cancel] is selected as the default setting.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
341
Interchangeable Lens Digital Camera
ILCA-77M2
Pwr Save Start Time
You can set time intervals to automatically switch to power save mode. To return to shooting mode, perform an operation
such as pressing the shutter button halfway down.
1. MENU → (Setup) → [Pwr Save Start Time] → desired setting.
Menu item details
30 Min/5 Min/2 Min/1 Min (default setting)/10 Sec
Note
Turn off the product when you do not use it for a long time.
The power save function is not activated during playing back slideshow or recording movies, or when connected to a
computer.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
342
Interchangeable Lens Digital Camera
ILCA-77M2
PAL/NTSC Selector
Plays back movies recorded with the product on a PAL/NTSC system TV.
1. MENU → (Setup) → [PAL/NTSC Selector] → [Enter]
Note
This function is provided with 1080 50i-compatible devices only. It is not provided with 1080 60i-compatible devices.
The 1080 50i-compatible devices have a “50i” mark on the bottom of the product.
If you insert a memory card that has previously been formatted with the PAL system, a message telling you that you
must re-format the card appears. When you record using the NTSC system, re-format the memory card or use
another memory card.
When the NTSC mode is selected, the “Running on NTSC.” message always appears on the start-up screen each
time you turn the product on.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
343
Interchangeable Lens Digital Camera
ILCA-77M2
Cleaning Mode
Allows you to clean the image sensor.
1. Confirm that the battery has been charged sufficiently.
2. MENU → (Setup) → [Cleaning Mode] → [Enter]
3. Turn off the product following the instructions on the screen.
4. Detach the lens.
5. Push the mirror lock lever (A) and open the mirror.
6. Use the blower to clean the image sensor surface and the surrounding area.
7. After you finish cleaning the image sensor, push down the mirror until it clicks.
Push down either side (B) of the mirror.
Help Guide
How to Use
344
8. Attach the lens.
When you attach the lens, confirm that the mirror is completely pushed down.
Note
A blower is not supplied with this product. Use a commercially available blower.
Cleaning can be performed only when the battery level is (3 remaining battery icons) or more.
Do not use a spray type blower as it may scatter water droplets inside the camera body.
Do not put the tip of a blower into the cavity beyond the lens mount area, so that the tip of the blower does not touch
the image sensor.
Hold the camera slightly face downward so that the dust falls out.
Do not subject the product to any shock during cleaning.
When cleaning the image sensor with a blower, do not blow too hard. If you blow the sensor too hard, the inside of
the product may be damaged.
When you attach the lens after you finish cleaning the image sensor, confirm that the mirror has been completely
pushed down. Otherwise, it may damage the lens or lead to a malfunction. Also, if the mirror has not been pushed
down completely, the autofocus system will not be able to achieve proper focus.
You cannot shoot with the mirror open.
If the dust remains even after you cleaned the product as described, consult the service facility.
4-538-499-12(1)
Copyright 2014 Sony Corporation
345
Interchangeable Lens Digital Camera
ILCA-77M2
Demo Mode
The [Demo Mode] function displays the movies recorded on the memory card automatically (demonstration), when the
camera has not been operated for a certain time.
Normally select [Off].
1. MENU → (Setup) → [Demo Mode] → desired setting.
Menu item details
On:
The movie playback demonstration starts automatically if the product is not operated for about one minute. Only
protected AVCHD movies are played back.
Set the view mode to [AVCHD View], and protect the movie file with the oldest recorded date and time.
Off (default setting):
Does not show the demonstration.
Note
You can set this item only when the product is powered by the AC-PW10AM AC Adaptor (sold separately).
Even if [On] is selected, the product does not start a demonstration if there is no movie file on the memory card.
When [On] is selected, the product does not switch to power save mode.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
346
Interchangeable Lens Digital Camera
ILCA-77M2
Remote Ctrl
You can operate this product and shoot images using the SHUTTER button, 2SEC button (2 second delay shutter), and
START/STOP button (or Movie button (RMT-DSLR2 only)) on the RMT-DSLR1 Wireless Remote Commander (sold
separately) and RMT-DSLR2 (sold separately). Refer also to the operating instructions for the Wireless Remote
Commander.
1. MENU → (Setup) → [Remote Ctrl] → desired setting.
Menu item details
On:
Allows Wireless Remote Commander operation.
Off (default setting):
Does not allow Wireless Remote Commander operation.
Note
The RMT-DSLR1 Wireless Remote Commander cannot be used for movie recording.
The lens or lens hood may block the remote sensor that receive the signals. Use the Wireless Remote Commander in
the position from which the signal can reach the product.
When [Remote Ctrl] is set to [On], the product does not switch to power save mode. Set [Remote Ctrl] to [Off] after
using a Wireless Remote Commander.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
347
Interchangeable Lens Digital Camera
ILCA-77M2
HDMI Resolution
When you connect the product to a High Definition (HD) TV with HDMI terminals using an HDMI cable (sold separately),
you can select HDMI Resolution to output images to the TV.
1. MENU → (Setup) → [HDMI Settings] → [HDMI Resolution] → desired setting.
Menu item details
Auto (default setting):
The product automatically recognizes an HD TV and sets the output resolution.
1080p:
Outputs signals in HD picture quality (1080p).
1080i:
Outputs signals in HD picture quality (1080i).
Note
If the images are not displayed properly using the [Auto] setting, select either [1080i] or [1080p], based on which TV
is to be connected.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
348
Interchangeable Lens Digital Camera
ILCA-77M2
CTRL FOR HDMI
When connecting this product to a “BRAVIA” Sync-compatible TV using an HDMI cable (sold separately), you can
operate this product by aiming the TV remote control at the TV.
1. MENU → (Setup) → [HDMI Settings] → [CTRL FOR HDMI] → desired setting.
Menu item details
On (default setting):
You can operate this product with a TV’s remote control.
Off:
You cannot operate this product with a TV’s remote control.
Note
[CTRL FOR HDMI] is available only with a “BRAVIA” Sync-compatible TV.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
349
Interchangeable Lens Digital Camera
ILCA-77M2
HDMI Info. Display
Selects whether to display the shooting information when this product and the TV are connected using an HDMI cable
(sold separately).
1. MENU → (Setup) → [HDMI Settings] → [HDMI Info. Display] → desired setting.
Menu item details
On (default setting):
Displays the shooting information of the played back image.
Off:
Does not display the shooting information of the played back image.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
350
Interchangeable Lens Digital Camera
ILCA-77M2
USB Connection
Selects the appropriate USB connection method for each computer or USB device connected to this product.
1. MENU → (Setup) → [USB Connection] → desired setting.
Menu item details
Auto (default setting):
Establishes a Mass Storage or MTP connection automatically, depending on the computer or other USB devices to be
connected. Windows 7 or Windows 8 computers are connected in MTP, and their unique functions are enabled for use.
Mass Storage:
Establishes a Mass Storage connection between this product, a computer, and other USB devices.
MTP:
Establishes an MTP connection between this product, a computer, and other USB devices. Windows 7 or Windows 8
computers are connected in MTP, and their unique functions are enabled for use.
PC Remote:
Uses “Remote Camera Control” to control this product from the computer, including such functions as shooting and
storing images on the computer.
Note
If Device Stage* is not displayed with Windows 7 or Windows 8, set [USB Connection] to [Auto].
* Device Stage is a menu screen used to manage connected devices, such as a camera (Function of Windows 7 or
Windows 8).
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
351
Interchangeable Lens Digital Camera
ILCA-77M2
USB LUN Setting
Enhances compatibility by limiting of USB connection functions.
1. MENU → (Setup) → [USB LUN Setting] → desired setting.
Menu item details
Multi (default setting):
Normally, use [Multi].
Single:
Set [USB LUN Setting] to [Single] only if you cannot make a connection.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
352
Interchangeable Lens Digital Camera
ILCA-77M2
Date/Time Setup
Sets the date and time again.
1. MENU → (Setup) → [Date/Time Setup] → desired setting.
Menu item details
Daylight Savings:
Selects Daylight Savings [On]/[Off].
Date/Time:
Sets the date and time.
Date Format:
Selects the date and time display format.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
354
Interchangeable Lens Digital Camera
ILCA-77M2
Format
Formats (initializes) the memory card. When you use a memory card with this product for the first time, it is
recommended that you format the card using the product for stable performance of the memory card. Note that
formatting permanently erases all data on the memory card, and is unrecoverable. Save valuable data on a computer,
etc.
1. MENU → (Setup) → [Format].
Note
Formatting permanently erases all data including even protected images.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
356
Interchangeable Lens Digital Camera
ILCA-77M2
File Number
Selects how to assign file numbers to recorded still images and MP4 movies.
1. MENU → (Setup) → [File Number] → desired setting.
Menu item details
Series (default setting):
Even if you change the recording destination folder or change the memory card, the product continues to assign
numbers to files in sequence.
(If there is a larger file number on the new memory card than the latest image file, a number one higher than the largest
number is assigned.)
Reset:
The product resets numbers when a file is recorded in a new folder and assigns numbers to files starting with “0001.”
(When the recording folder contains a file, a number one higher than the largest number is assigned.)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
357
Interchangeable Lens Digital Camera
ILCA-77M2
Select REC Folder
You can change the folder on the memory card where still images and MP4 movies are to be recorded.
1. MENU → (Setup) → [Select REC Folder] → desired folder.
Note
You cannot select the folder when you select the [Date Form] setting.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
358
Interchangeable Lens Digital Camera
ILCA-77M2
New Folder
Creates a new folder on the memory card for recording still images and MP4 movies. A new folder is created with a
folder number one greater than the largest folder number currently used. Images are recorded in the newly created
folder. A folder for still images and a folder for MP4 movies that have the same number are created at the same time.
1. MENU → (Setup) → [New Folder].
Note
When you insert a memory card that was used with other equipment into this product and shoot images, a new folder
may be automatically created.
Up to 4,000 images in total can be stored in one folder. When the folder capacity is exceeded, a new folder may be
automatically created.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
359
Interchangeable Lens Digital Camera
ILCA-77M2
Folder Name
Still images you shoot are recorded in a folder that is automatically created under the DCIM folder on the memory card.
You can change the way folder names are assigned.
1. MENU → (Setup) → [Folder Name] → desired setting.
Menu item details
Standard Form (default setting):
The folder name form is as follows: folder number + MSDCF.
Example: 100MSDCF
Date Form:
The folder name form is as follows: folder number + Y (the last digit)/MM/DD.
Example: 10040405 (Folder number: 100, date: 04/05/2014)
Note
The MP4 movie folder form is fixed as “folder number + ANV01”.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
360
Interchangeable Lens Digital Camera
ILCA-77M2
Recover Image DB
If image files were processed on a computer, problems may occur in the image database file. In such cases, the images
on the memory card will not be played back on this product. If these problems happen, repair the file using [Recover
Image DB].
1. MENU → (Setup) → [Recover Image DB] → [Enter].
Note
Use a sufficiently charged battery pack. Low battery power during repairing can cause damage to data.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
361
Interchangeable Lens Digital Camera
ILCA-77M2
Setting Reset
Resets the product to the default settings. Even if you perform [Setting Reset], the recorded images are retained.
1. MENU → (Setup) → [Setting Reset] → desired setting.
Menu item details
Camera Settings Reset:
Initializes the main shooting settings to the default settings.
Initialize:
Initializes all the settings to the default settings.
Note
Be sure not to eject the battery pack while resetting.
The value set with [AF Micro Adj.] will not be reset even when [Camera Settings Reset] or [Initialize] is performed.
Related Topic
AF Micro Adj.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
365
Interchangeable Lens Digital Camera
ILCA-77M2
PlayMemories Mobile
To use [Ctrl w/ Smartphone] or [Send to Smartphone], etc., the application PlayMemories Mobile should be installed on
your smartphone.
Download and install the application PlayMemories Mobile from your smartphone’s application store. If PlayMemories
Mobile is already installed on your smartphone, be sure to update it to the latest version.
For details on PlayMemories Mobile, refer to the support page (http://www.sony.net/pmm/).
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
366
Interchangeable Lens Digital Camera
ILCA-77M2
Connecting an Android smartphone to this product
1. Launch PlayMemories Mobile on your smartphone.
2. Select the model name of this product (DIRECT-xxxx: xxxx).
3. Input the password that is displayed on this product.
The smartphone is connected to the product.
Related Topic
Send to Smartphone
Help Guide
How to Use
367
Interchangeable Lens Digital Camera
ILCA-77M2
Connecting the product to an iPhone or iPad
1. Select the model name of this product (DIRECT-xxxx: xxxx) on the Wi-Fi setting screen of your iPhone or iPad.
2. Input the password displayed on this product.
The iPhone or iPad is connected to the product.
3. Confirm that your iPhone or iPad was connected to the “SSID” shown on this product.
Help Guide
How to Use
368
Interchangeable Lens Digital Camera
ILCA-77M2
Ctrl w/ Smartphone
You can use a smartphone as the remote controller for this product, and shoot still images/movies. Still images/movies
shot via remote control are sent to the smartphone from the product.
The application PlayMemories Mobile must be installed on your smartphone.
1. MENU → (Wireless) → [Ctrl w/ Smartphone].
2. When the product is ready for the connection, an information screen appears on the product. Connect the
smartphone and the product using that information.
The setting procedure varies depending on your smartphone.
3. Check the composition of the image on the smartphone screen, and then press the shutter button (A) on the
smartphone to shoot an image.
Use button (B) to change the [Flash] and [Self-Timer] settings. You can also change the image saving settings.
Note
This product shares the connection information for [Ctrl w/ Smartphone] with a device that has permission to connect.
If you want to change the device that is permitted to connect to the product, reset the connection information by
following these steps. MENU → (Wireless) → [SSID/PW Reset]. After resetting the connection information, you
must register the smartphone again.
Help Guide
How to Use
370
Interchangeable Lens Digital Camera
ILCA-77M2
One-touch connection with an NFC-enabled Android smartphone (NFC One-touch remote)
You can connect this product and an NFC-enabled Android smartphone with one touch, without performing a complex
setup operation.
1. Activate the NFC function of the smartphone.
2. Switch this product to shooting mode.
The NFC function is available only when the (N mark) is displayed on the screen.
3. Touch the product to the smartphone.
The smartphone and the product are connected, and PlayMemories Mobile launches on the smartphone.
Touch the smartphone to the product for 1-2 seconds until PlayMemories Mobile launches.
About “NFC”
NFC is a technology that enables short-range wireless communication between various devices, such as mobile phones
or IC tags, etc. NFC makes data communication simpler with just a touch on the designated touch-point.
NFC (Near Field Communication) is an international standard of short-range wireless communication technology.
Note
If you cannot make a connection, do as the following:
Launch PlayMemories Mobile on your smartphone, and then move the smartphone slowly toward the (N mark) of this
product.
If the smartphone is in a case, remove it.
If the product is in a case, remove it.
Help Guide
How to Use
372
Check whether the NFC function is activated on your smartphone.
When [Airplane Mode] is set to [On], you cannot connect this product and the smartphone. Set [Airplane Mode] to
[Off].
If this product and the smartphone are connected when the product is in playback mode, the displayed image is sent
to the smartphone.
Related Topic
Airplane Mode
Ctrl w/ Smartphone
4-538-499-12(1)
Copyright 2014 Sony Corporation
373
Interchangeable Lens Digital Camera
ILCA-77M2
Send to Smartphone
You can transfer still images/movies to a smartphone and view them. The application PlayMemories Mobile must be
installed on your smartphone.
1. MENU → (Wireless) → [Send to Smartphone] → desired setting.
If you press the (Send to Smartphone) button in playback mode, the setting screen for [Send to Smartphone]
will appear.
2. If the product is ready for the transfer, the information screen appears on the product. Connect the smartphone and
the product using that information.
The setting method for connecting the smartphone and the product varies depending on the smartphone.
Menu item details
Select on This Device:
Selects an image on the product to be transferred to the smartphone.
(1) Select from among [This Image], [All Images on This Date] or [Multiple Images].
The options displayed may differ depending on the View Mode selected on the camera.
(2) If you select [Multiple Images], select the desired images using
on the multi-selector, then press MENU →
[Enter].
Select on Smartphone:
Displays all images recorded on the product’s memory card on the smartphone.
Note
You can select an image size to be sent to the smartphone from [Original], [2M] or [VGA].
To change the image size, refer to the following steps.
For Android smartphone
Start PlayMemories Mobile, and change the image size by [Settings] → [Copy Image Size].
Help Guide
How to Use
374
For iPhone/iPad
Select PlayMemories Mobile in the setting menu, and change the image size by [Copy Image Size].
Some images may not be displayed on the smartphone depending on the recording format.
RAW images are converted to JPEG format when they are sent.
You cannot send XAVC S or AVCHD format movies.
This product shares the connection information for [Send to Smartphone] with a device that has permission to
connect. If you want to change the device that is permitted to connect to the product, reset the connection information
by following these steps. MENU → [Wireless] → [SSID/PW Reset]. After resetting the connection information, you
must register the smartphone again.
When [Airplane Mode] is set to [On], you cannot connect this product and the smartphone. Set [Airplane Mode] to
[Off].
Related Topic
Connecting an Android smartphone to this product
Connecting the product to an iPhone or iPad
PlayMemories Mobile
4-538-499-12(1)
Copyright 2014 Sony Corporation
375
Interchangeable Lens Digital Camera
ILCA-77M2
Sending images to an Android smartphone (NFC One-touch Sharing)
With just one touch, you can connect this product and an NFC-enabled Android smartphone, and send an image
displayed on the product screen directly to the smartphone. For movies, you can only transfer MP4 movies recorded with
[ File Format] set to [MP4].
1. Activate the NFC function of the smartphone.
2. Display a single image on the product.
3. Touch the smartphone to the product.
The product and the smartphone are connected, and PlayMemories Mobile automatically launches on the
smartphone, and then the displayed image is sent to the smartphone.
Before you touch the smartphone, cancel the sleep and lock-screen functions of the smartphone.
The NFC function is available only when the (N mark) is displayed on the product.
Touch the smartphone to the product for 1-2 seconds until PlayMemories Mobile launches.
To transfer two or more images, select MENU → (Wireless) → [Send to Smartphone] to select images. After
the connection enabled screen appears, use NFC to connect the product and the smartphone.
About “NFC”
NFC is a technology that enables short-range wireless communication between various devices, such as mobile phones
or IC tags, etc. NFC makes data communication simpler with just a touch on the designated touch-point.
NFC (Near Field Communication) is an international standard of short-range wireless communication technology.
Note
Help Guide
How to Use
376
You can select an image size to be sent to the smartphone from [Original], [2M], or [VGA].
To change the image size, refer to the following steps.
For Android smartphone
Start PlayMemories Mobile, and change the image size by [Settings] → [Copy Image Size].
RAW images are converted to JPEG format when they are sent.
If the Image Index is displayed on the product, you cannot transfer images using the NFC function.
If you cannot make a connection, perform the following:
Launch PlayMemories Mobile on your smartphone, and then move the smartphone slowly toward the (N mark) of this
product.
If the smartphone is in a case, remove it.
If the product is in a case, remove it.
Confirm that the NFC function is activated on the smartphone.
When [Airplane Mode] is set to [On], you cannot connect the product and the smartphone. Set [Airplane Mode] to
[Off].
You cannot send AVCHD format movies.
You cannot send XAVC S format movies.
Related Topic
Connecting an Android smartphone to this product
Connecting the product to an iPhone or iPad
Airplane Mode
Send to Smartphone
PlayMemories Mobile
4-538-499-12(1)
Copyright 2014 Sony Corporation
377
Interchangeable Lens Digital Camera
ILCA-77M2
Send to Computer
You can transfer images stored in the product to a computer connected to a wireless access point or wireless broadband
router and easily make backup copies using this operation. Before starting this operation, install PlayMemories Home on
your computer and register the access point on the product.
1. Start your computer.
2. MENU → (Wireless) → [Send to Computer].
Note
Depending on the application settings of your computer, the product will turn off after saving the images to your
computer.
You can transfer images from the product to only one computer at a time.
If you want to transfer images to another computer, connect the product and the computer via a USB connection and
follow the instructions in PlayMemories Home.
Related Topic
Installing PlayMemories Home
WPS Push
Access Point Set.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
378
Interchangeable Lens Digital Camera
ILCA-77M2
View on TV
You can view images on a network-enabled TV by transferring them from the product without connecting the product and
TV with a cable. For some TVs, you may need to perform operations on the TV. For details, refer to the operating
instructions supplied with the TV.
1. MENU → (Wireless) → [View on TV] → desired device to be connected.
2. When you want to play back images using slideshow, press on the center of the multi-selector.
To display the next/previous image manually, press the right/left side of the multi-selector.
To change the device to be connected, press the bottom side of the multi-selector, then select [Device list].
Slideshow settings
You can change the slideshow settings by pressing the bottom side of the multi-selector.
Playback Selection:
Selects the group of images to be shown.
Folder View(Still):
Selects from [All] and [All in Folder].
Date View:
Selects from [All] and [All in Date Rng.].
Interval:
Selects from [Short] and [Long].
Effects*:
Select from [On] and [Off].
Playback Image Size:
Select from [HD] and [4K].
*
The settings are effective only for BRAVIA TV which is compatible with the functions.
Help Guide
How to Use
379
Note
You can use this function on a TV that supports DLNA renderer.
You can view images on a Wi-Fi Direct-enabled TV or network-enabled TV (including cable TV).
If you connect TV and this product and do not use Wi-Fi Direct, you need to register your access point first.
Displaying the images on the TV may take time.
Movies cannot be shown on a TV via Wi-Fi. Use an HDMI cable (sold separately).
Related Topic
WPS Push
Access Point Set.
4-538-499-12(1)
Copyright 2014 Sony Corporation
380
Interchangeable Lens Digital Camera
ILCA-77M2
Airplane Mode
When you board an airplane, etc., you can turn off all Wi-Fi functions temporarily.
1. MENU → (Wireless) → [Airplane Mode] → desired setting.
If you set [Airplane Mode] to [On], an airplane mark will be displayed on the screen.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
381
Interchangeable Lens Digital Camera
ILCA-77M2
WPS Push
If your access point has the WPS button, you can register the access point to this product easily by pushing the WPS
button.
1. MENU → (Wireless) → [WPS Push].
2. Press the WPS button on the access point you want to register.
Note
[WPS Push] works only if the security setting of your access point is set to WPA or WPA2 and your access point
supports the WPS button method. If the security setting is set to WEP or your access point does not support the WPS
button method, perform [Access Point Set.].
For details about the available functions and settings of your access point, see the access point operating instructions
or contact the administrator of the access point.
A connection may not be enabled depending on the surrounding conditions, such as the type of wall material or if
there is an obstruction or poor wireless signal between the product and access point. If that happens, change the
location of the product or move the product closer to the access point.
Related Topic
Access Point Set.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
382
Interchangeable Lens Digital Camera
ILCA-77M2
Access Point Set.
You can register your access point manually. Before starting the procedure, check the SSID name of the access point,
security system, and password. The password may be preset in some devices. For details, see the access point
operating instructions, or consult the access point administrator.
1. MENU → (Wireless) → [Access Point Set.].
2. Select the access point you want to register.
When the desired access point is displayed on the screen: Select the desired access point.
When the desired access point is not displayed on the screen: Select [Manual Setting] and set the
access point.
*
For the input method, refer to “How to use the keyboard.”
If you select [Manual Setting], input the SSID name of the access point, then select the security system.
3. Input the password, and select [OK].
Access points without the mark do not require a password.
4. Select [OK].
Help Guide
How to Use
383
How to use the keyboard
When manual character entry is required, a keyboard is displayed on the screen.
1. Input box The characters you entered are displayed.
2. Switch character types Each time you press on the center of the multi-selector, the character type
switches among alphabet letters, numerals and symbols.
3. Keyboard Each time you press on the center, the character that you enter will be displayed.
For example: If you want to enter “abd”
Select the key for “abc” and press once to display “a” → select “ ”((5) Move cursor) and press → select
the key for “abc” and press twice to display “b” → select the key for “def” and press once to display “d”.
4. Finalize Finalizes the entered characters.
5. Move cursor Moves the cursor in the input box to the right or left.
6. Delete Deletes the character preceding the cursor.
7. Switches the next character to a capital or small letter.
8. Enters a space.
To cancel the input, select [Cancel].
Other setting items
Depending on the status or the setting method of your access point, you may want to set more items.
WPS PIN:
Displays the PIN code you enter into the connected device.
Priority Connection:
Select [On] or [Off].
IP Address Setting:
Select [Auto] or [Manual].
IP Address:
If you are entering the IP address manually, enter the set address.
Subnet Mask/Default Gateway:
When you set [IP Address Setting] to [Manual], enter the IP address to match your network environment.
Note
To give the registered access point priority, set [Priority Connection] to [On].
Related Topic
WPS Push
384
Interchangeable Lens Digital Camera
ILCA-77M2
Edit Device Name
You can change the device name under Wi-Fi Direct.
1. MENU → (Wireless) → [Edit Device Name].
2. Select the input box, then input the device name → [OK].
For input method, refer to “How to use the keyboard.”
Related Topic
WPS Push
Access Point Set.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
385
Interchangeable Lens Digital Camera
ILCA-77M2
SSID/PW Reset
This product shares the connection information for [Send to Smartphone] and [Ctrl w/ Smartphone] with a device that
has permission to connect. If you want to change the device that is permitted to connect, reset the connection
information.
1. MENU → (Wireless) → [SSID/PW Reset] → [OK].
Note
If you connect this product to the smartphone after resetting the connection information, you must register the
smartphone again.
Related Topic
Ctrl w/ Smartphone
Send to Smartphone
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
387
Interchangeable Lens Digital Camera
ILCA-77M2
PlayMemories Home
With PlayMemories Home, you can do the following:
You can import images shot with this product to your computer.
You can play back the images imported to your computer.
You can share your images using PlayMemories Online.
Also for Windows, you can do the following:
You can organize images on the computer on a calendar by shooting date to view them.
You can edit and correct images, such as by trimming and resizing.
You can create a Blu-ray Disc, AVCHD disc or DVD-Video disc from AVCHD movies imported to a computer.
You cannot create discs from XAVC S format movies, although they can be imported to computers.
You can upload images to a network service. (An internet connection is required.)
For other details, please refer to the Help of PlayMemories Home.
An Internet connection is required to use PlayMemories Online or other network services. PlayMemories Online or
other network services may not be available in some countries or regions.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
390
Interchangeable Lens Digital Camera
ILCA-77M2
Installing PlayMemories Home
1. Using the Internet browser on your computer, go to the following URL and install PlayMemories Home.
http://www.sony.net/pm/
Proceed the installation by following the instructions on the screen.
When installation is completed, PlayMemories Home starts up.
If PMB (Picture Motion Browser) supplied with a product that was purchased before 2011 has already been
installed on the computer, PMB will be overwritten by PlayMemories Home. Please use PlayMemories Home.
2. Connect the product and your computer using the supplied micro USB cable.
New functions may be added to PlayMemories Home. Even if PlayMemories Home has already been installed on
your computer, connect this product and your computer again.
A: To the Multi/Micro USB Terminal
B: To the USB jack of the computer
Note
Log on as Administrator.
It may be necessary to restart your computer. When the restart confirmation message appears, restart the computer
following the instructions on the screen.
DirectX may be installed depending on your computer’s system environment.
Hint
For details on PlayMemories Home, refer to the Help of PlayMemories Home or the PlayMemories Home support
page (http://www.sony.co.jp/pmh-se/) (English only).
Help Guide
How to Use
391
Interchangeable Lens Digital Camera
ILCA-77M2
Software for Mac computers
For details on software for Mac computers, access the following URL:
http://www.sony.co.jp/imsoft/Mac/
Wireless Auto Import
“Wireless Auto Import” is required if you are using a Mac computer and want to import images to the computer using Wi-
Fi function. Download “Wireless Auto Import” from the URL above, and install it on your Mac computer. For details, see
Help for “Wireless Auto Import.”
Note
The software that can be used varies depending on the region.
Related Topic
Send to Computer
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
392
Interchangeable Lens Digital Camera
ILCA-77M2
Image Data Converter
With Image Data Converter, you can do the following:
You can edit images recorded in RAW format with various corrections, such as tone curve and sharpness.
You can adjust images with white balance, exposure, and [Creative Style], etc.
You can save the still images displayed and edited on a computer.
You can either save the still image as RAW format or save it in the general file format.
You can display and compare the RAW images and JPEG images recorded by this product.
You can rank images in five grades.
You can apply color labels.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
393
Interchangeable Lens Digital Camera
ILCA-77M2
Accessing Image Data Converter Guide
Windows:
[Start] → [All Programs] → [Image Data Converter] → [Help] → [Image Data Converter Ver.4].
For Windows 8, start [Image Data Converter Ver.4], and select [Help] from the menu bar → [Image Data Converter
Guide].
Mac:
Finder → [Applications] → [Image Data Converter] → [Image Data Converter Ver.4], and select [Help] from the menu bar
→ [Image Data Converter Guide].
For details on operation, you can also refer to the “Image Data Converter” support page (English only).
http://www.sony.co.jp/ids-se/
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
395
Interchangeable Lens Digital Camera
ILCA-77M2
Remote Camera Control
When using Remote Camera Control, the following operations are available on your computer.
Changing this product’s settings and shooting.
Recording images directly to the computer.
Performing interval timer shooting.
Use these functions after selecting MENU →
(Setup) → [USB Connection] → [PC Remote]. For details on how to
use Remote Camera Control, refer to the Help.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
396
Interchangeable Lens Digital Camera
ILCA-77M2
Accessing the Help of Remote Camera Control
Windows:
[Start] → [All Programs] → [Remote Camera Control] → [Remote Camera Control Help].
For Windows 8, start [Remote Camera Control], and right-click the title bar to select [Remote Camera Control Help].
Mac:
Finder → [Applications] → [Remote Camera Control], and select [Help] from the menu bar → [Remote Camera Control
Help].
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
398
Interchangeable Lens Digital Camera
ILCA-77M2
Connecting the product to a computer
1. Insert a sufficiently charged battery pack into the product, or connect it to a wall outlet (wall socket) using an AC
Adaptor AC-PW10AM (sold separately).
2. Turn on the product and the computer.
3. Connect the product and your computer using the micro USB cable (supplied) (A) .
Related Topic
USB Connection
USB LUN Setting
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
399
Interchangeable Lens Digital Camera
ILCA-77M2
Importing images to the computer
PlayMemories Home allows you to easily import images. For details on PlayMemories Home functions, see the Help of
PlayMemories Home.
Importing images to the computer without using PlayMemories Home (For Windows)
When the AutoPlay Wizard appears after making a USB connection between this product and a computer, click [Open
folder to view files] → [OK] → [DCIM] or [MP_ROOT]. Then copy the desired images to the computer.
If Device Stage appears on a Windows 7 or Windows 8 computer, double-click [Browse Files] → media icon → folder
in which the images you want to import are stored.
Importing images to the computer without using PlayMemories Home (For Mac)
Connect the product to your Mac computer. Double-click the newly recognized icon on the desktop → the folder in which
the image you want to import is stored. Then drag and drop the image file on to the hard disk icon.
Note
For operations such as importing AVCHD movies to the computer, use PlayMemories Home.
Do not edit or otherwise process AVCHD movie files/folders from the connected computer. Movie files may be
damaged or become unplayable. Do not delete or copy AVCHD movies on the memory card from the computer. Sony
is not held liable for consequences resulting from such operations via the computer.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
400
Interchangeable Lens Digital Camera
ILCA-77M2
Disconnecting the product from the computer
Disconnects the USB connection between this product and the computer.
Perform the procedures from step 1 to 2 below before performing the following operations:
Disconnecting the cable.
Removing a memory card.
Turning off the product.
1. Click
(Safely remove USB Mass Storage Device) on the taskbar.
2. Click the displayed message.
Note
For Mac computers, drag and drop the icon of the memory card or the drive icon in the “Trash” icon. The product is
disconnected from the computer.
For Windows 7/Windows 8 computers, the disconnect icon may not appear. In that case, you can skip steps 1 and 2
above.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
401
Interchangeable Lens Digital Camera
ILCA-77M2
Disc type
High-definition image quality (HD)
A Blu-ray Disc enables you to record longer duration of high definition image quality (HD) movies than DVD discs.
High-definition image quality (HD) (AVCHD recording disc)
High definition image quality (HD) movie can be recorded on DVD media, such as DVD-R discs, and a high definition
image quality (HD) disc is created.
You can play a high definition image quality (HD) disc on AVCHD format playback devices, such as a Sony Blu-ray
Disc player and a PlayStation®3. You cannot play the disc on ordinary DVD players.
Standard definition image quality (STD)
Standard definition image quality (STD) movie converted from high definition image quality (HD) movie can be recorded
on DVD media, such as DVD-R discs, and a standard image quality (STD) disc is created.
Hint
You can use the following types of 12 cm discs with PlayMemories Home. For Blu-ray discs, see “Creating Blu-ray
Discs”.
DVD-R/DVD+R/DVD+R DL: Non-rewritable
DVD-RW/DVD+RW: Rewritable
Always maintain your “PlayStation 3” to use the latest version of the “PlayStation 3” system software.
“PlayStation 3” may not be available in some countries/regions.
Related Topic
Creating Blu-ray Discs
4-538-499-12(1)
Help Guide
How to Use
402
Interchangeable Lens Digital Camera
ILCA-77M2
Selecting the disc creation method
You can create a disc from an AVCHD format movie recorded using this product. Depending on the disc type, playable
devices may vary. Select a method suitable for your disc player.
For details on creating a disc using PlayMemories Home, see the Help of PlayMemories Home. (Only for Windows)
Creates a disc with high-definition image quality (HD)
Writable movie format: PS, FX, FH
Player: Blu-ray Disc playback devices (Sony Blu-ray Disc player, PlayStation®3, etc.)
Creates a disc with high-definition image quality (HD) (AVCHD recording disc)
Writable movie format: PS*, FX*, FH
Player: AVCHD format playback devices (Sony Blu-ray Disc player, PlayStation®3, etc.)
Creates a disc with standard definition image quality (STD)
Writable movie format: PS*, FX*, FH*
Player: Ordinary DVD playback devices (DVD player, computer that can play back DVD discs, etc.)
*
You can create a disc with movies recorded in these formats using PlayMemories Home by down-converting the image quality.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
403
Interchangeable Lens Digital Camera
ILCA-77M2
Creating a disc with a device other than a computer
You can also create discs using a Blu-ray recorder, etc. Depending on which device you use, the types of disc that can
be created vary.
Blu-ray recorder:
High-definition image quality (HD)
Standard definition image quality (STD)
HDD recorder, etc.:
Standard definition image quality (STD)
Note
When creating AVCHD discs using PlayMemories Home from movies recorded with the [ Record Setting] of [60p
28M(PS)]/[50p 28M(PS)], [60i 24M(FX)]/[50i 24M(FX)] or [24p 24M(FX)]/[25p 24M(FX)], the image quality is
converted and it is not possible to create discs that have the original image quality. Converting the image quality takes
time. To record movies with the original image quality, use Blu-ray Discs.
To create a Blu-ray Disc from movies recorded in [60p 28M(PS)]/[50p 28M(PS)], you need to use a device that is
compliant with AVCHD format Ver. 2.0. The created Blu-ray Disc can be played back only on a device that is
compliant with AVCHD format Ver. 2.0.
For details on how to create a disc, refer to the operating instructions of the device you use.
Movies recorded with [ File Format] set to [XAVC S] cannot be copied to discs.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
404
Interchangeable Lens Digital Camera
ILCA-77M2
Creating Blu-ray Discs
You can create Blu-ray Discs from AVCHD movies imported to a computer. The computer must be capable of creating
Blu-ray Discs. BD-R (not re-writable) or BD-RE (rewritable) discs can be used. Multi-session recordings cannot be
made. To create Blu-ray Discs using PlayMemories Home, be sure to install the dedicated add-on software. For details,
see the following URL:
http://support.d-imaging.sony.co.jp/BDUW/
To install, your computer must be connected to the Internet. For detailed operations, see the Help of PlayMemories
Home.
Note
To play back a Blu-ray Disc that was created using movies recorded in [60p 28M(PS)]/[50p 28M(PS)], you must use a
device that is compliant with AVCHD format Ver. 2.0.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
405
Interchangeable Lens Digital Camera
ILCA-77M2
Precautions
Backing up memory cards
Data may be corrupted in the following cases. Be sure to back up the data for protection.
When the memory card is removed or the product is turned off during a read or write operation.
When the memory card is used in locations subject to static electricity or electrical noise.
Creating an image database file
If you insert a memory card that does not contain an image database file into the product and turn on the power, the
product automatically creates an image database file using some of the memory card’s capacity. The process may take
a long time and you cannot operate the product until the process is completed.
If a database file error occurs, export all images to your computer using PlayMemories Home, and then format the
memory card using this product.
Do not use/store the product in the following places
In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the camera body may become deformed and this may cause a
malfunction.
Storing under direct sunlight or near a heater
The camera body may become discolored or deformed, and this may cause a malfunction.
In a location subject to rocking vibration
Near strong magnetic place
In sandy or dusty places
Be careful not to let sand or dust get into the product. This may cause the product to malfunction, and in some cases
this malfunction cannot be repaired.
On operating temperatures
Your product is designed for use under the temperatures between 0°C and 40 °C (32 °F and 104 °F). Shooting in
extremely cold or hot places that exceed this range is not recommended.
On moisture condensation
If the product is brought directly from a cold to a warm location, moisture may condense inside or outside the product.
This moisture condensation may cause a malfunction of the product.
To prevent moisture condensation when you bring the product directly from a cold to a warm location, first put it in a
plastic bag and seal it to prevent air from entering. Wait for about an hour until the temperature of the product has
Help Guide
How to Use
406
reached the ambient temperature.
If moisture condensation occurs, turn off the product and wait about an hour for the moisture to evaporate. Note that if
you attempt to shoot with moisture remaining inside the lens, you will be unable to record clear images.
On the functions available with the product
This manual describes the functions of 1080 60i-compatible devices and 1080 50i-compatible devices. To check whether
this product is a 1080 60i-compatible device or 1080 50i-compatible device, look for the following marks on the bottom of
the product.
1080 60i-compatible device: 60i
1080 50i-compatible device: 50i
Notes for when on board an airplane
In an airplane, set [Airplane Mode] to [On].
On image data compatibility
This product conforms with DCF (Design rule for Camera File system) universal standard established by JEITA (Japan
Electronics and Information Technology Industries Association).
Playback of images recorded with your product on other equipment and playback of images recorded or edited with
other equipment on your product are not guaranteed.
Notes on playing movies on other devices
This product uses MPEG-4 AVC/H.264 High Profile for AVCHD format recording. For this reason, movies recorded in
AVCHD format with this product cannot be played by the following devices.
Other devices compatible with AVCHD format that does not support High Profile
Devices incompatible with the AVCHD format
This product also uses MPEG-4 AVC/H.264 Main Profile for MP4 format recording. For this reason, play back movies
recorded in MP4 format with this product on MPEG-4 AVC/H.264 supported devices.
Discs recorded with HD (high definition) image quality can be played back only on AVCHD format-compatible devices.
DVD-based players or recorders cannot play back HD image quality discs, as they are incompatible with the AVCHD
format. Also, DVD-based players or recorders may fail to eject HD image quality discs that are recorded using the
AVCHD format.
On the monitor and lens
The monitor is manufactured using extremely high-precision technology so over 99.99 % of the pixels are operational
for effective use. However, there may be some tiny black points and/or bright points (white, red, blue or green in
color) that constantly appear on the monitor. These points are normal in the manufacturing process and do not affect
the images in any way.
Exposing the monitor or lens to direct sunlight for long periods may cause a malfunction. Exercise caution when
placing the product near a window or outdoors.
Do not press against the monitor. The monitor may be discolored and that may cause a malfunction.
Images may trail across on the monitor in a cold location. This is not a malfunction.
If the monitor has drops of water or other liquids on it, wipe it with a soft cloth. If the monitor stays wet, the surface of
the monitor may change or deteriorate. This may cause a malfunction.
407
Make sure not to bump the lens or subject it to force.
Notes on the flash
Do not cover the flash with your fingers.
Do not carry the product by the flash unit, or use excessive strength on it.
If water, dust or sand get into the open flash unit, it may cause a malfunction.
Notes on discarding or transferring this product to others
When discarding or transferring this product to others, make sure to perform the following operation to protect private
information.
Perform [Setting Reset] to reset all the settings.
4-538-499-12(1)
Copyright 2014 Sony Corporation
408
Interchangeable Lens Digital Camera
ILCA-77M2
On the internal rechargeable battery
This camera has an internal rechargeable battery for maintaining the date and time and other settings regardless of
whether the power is on or off, or whether the battery pack is charged or discharged. This rechargeable battery is
continually charged as long as you are using the product. However, if you use the product for only short periods, it
gradually discharges. If you do not use the product at all for about 2 month(s) it becomes completely discharged. In this
case, be sure to charge this rechargeable battery before using the product. However, even if this rechargeable battery is
not charged, you can still use the product as long as you do not record the date and time.
Charging method of the internal rechargeable battery
Insert a charged battery pack into the product, or connect the product to a wall outlet (wall socket) using the AC Adaptor
(sold separately), and leave the product for 24 hours or more with the power off.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
409
Interchangeable Lens Digital Camera
ILCA-77M2
Battery pack and battery charger
Charging the battery pack
The charging time differs depending on the remaining battery charge and the charging conditions.
We recommend charging the battery pack at an ambient temperature of between 10°C to 30°C (50°F to 86°F). The
battery pack may not charge efficiently outside this temperature range.
Connect the battery charger to the nearest wall outlet (wall socket).
Do not recharge a battery pack that has just been charged or is nearly fully-charged before using it. Doing so affects
the battery performance.
Do not use the battery charger (supplied) to charge other battery packs other than those in the InfoLITHIUM "M"
series. Charging other battery packs than the specified type may cause battery leakage, excessive heat, explosion, or
electric shocks and may lead to burns or injuries.
If the CHARGE lamp flashes, the battery may be malfunctioning, or a battery pack of another type than the specified
one may have been inserted. Make sure the battery pack is correct. If the battery pack is of the specified type,
remove the battery pack and insert a different battery pack, and check whether the battery charger operates correctly.
If the battery charger operates correctly, the first battery pack may be malfunctioning.
If the battery pack is dirty, the battery pack may not charge correctly. Wipe off the dirt with a dry cloth.
Notes on using the battery pack
Use the battery pack NP-FM500H. You cannot use NP-FM55H, NP-FM50, or NP-FM30 with this camera.
The remaining battery indicator may not provide an accurate reading depending on the battery usage or environment.
The battery pack is not waterproof. Be careful not to get the battery pack wet.
Do not leave the battery pack in locations with high temperatures, such as in a car or under a blazing sun.
Using the battery pack efficiently
When the ambient temperature is low, the battery performance is degraded and the operating length of the battery
decreases. In addition, the speed of continuous shooting decreases. We recommend that you warm the battery pack,
for example in your pocket, and insert it into the camera right before you start shooting.
If you use the flash often, shoot images continuously, turn the camera on and off frequently, or use a brighter setting
for the screen, the battery life will decrease.
Battery life
The battery life is limited. If you use the same battery pack repeatedly, or use the same battery pack for a long period,
the battery capacity decreases gradually. If the available time of the battery pack shortens significantly, it is probably
time to replace the battery pack with a new one.
Help Guide
How to Use
410
The battery life varies between different battery packs, and according to how the battery pack is stored and the
operating conditions and environment in which it is used.
Storing the battery pack
To maintain the battery pack’s function, charge the battery pack and then fully discharge it in the camera at least once
a year before storing it. Then remove the battery pack and store in a cool, dry place.
4-538-499-12(1)
Copyright 2014 Sony Corporation
411
Interchangeable Lens Digital Camera
ILCA-77M2
Memory card
Memory card
Card Type Indications in Help Guide
Memory Stick PRO Duo media
(Memory Stick XC-HG Duo media/Memory Stick PRO Duo media/Memory Stick PRO-HG Duo media)
SD card
(SD memory card/SDHC memory card/SDXC memory card)
Memory Stick PRO Duo media and SD cards up to 64 GB have been tested and proven to operate with this product.
When recording movies, the following memory cards are recommended:
(Mark2) (Memory Stick PRO Duo media (Mark2))
(Memory Stick XC-HG Duo media)
(Memory Stick PRO-HG Duo media)
Class 4 SD card or faster
When recording XAVC S format movies, use the following memory cards:
SDXC memory card with a capacity of at least 64 GB (Class 10 or faster)
UHS-I compatible SDXC memory card with a capacity of at least 64 GB
Memory Stick XC-HG Duo media
This product supports UHS-I-compatible SD cards.
Note
When you use a memory card with this product for the first time, it is recommended that you format the card using the
product for stable performance of the memory card before shooting.
Note that formatting permanently erases all data on the memory card, and is unrecoverable. Save precious data on a
computer, etc.
If you repeatedly shoot and delete images for a long time, fragmentation of data in a file in the memory card may
occur, and movie recording may be interrupted in the middle of shooting. If this happens, save your images to a
computer or other storage location, then execute [Format].
Memory card formatted with a computer is not guaranteed to operate with the product.
Data read/write speeds differ depending on the combination of the memory card and the equipment used.
We recommend backing up important data, such as to a hard disk of a computer.
Do not attach a label on the memory card itself nor on a memory card adaptor.
Do not touch the terminal section of the memory card with your hand or a metal object.
Do not strike, bend or drop the memory card.
Do not disassemble or modify the memory card.
Do not expose the memory card to water.
Help Guide
How to Use
412
Do not leave the memory card within the reach of small children. They might accidentally swallow it.
The memory card may be hot just after it has been used for a long time. Be careful when you handle it.
Do not insert a memory card that does not fit the memory card slot. Doing so will cause a malfunction.
Do not use or store the memory card under the following conditions:
High temperature locations such as in a car parked under the sun
Locations exposed to direct sunlight
Humid locations or locations with corrosive substances present
Images recorded on a Memory Stick XC-HG Duo media and SDXC memory card cannot be imported to or played on
computers or AV devices that are not compatible with exFAT when connected using a micro USB cable. Make sure
that the device is compatible with exFAT before connecting it to the product. If you connect your product to an
incompatible device, you may be prompted to format the card. Never format the card in response to this prompt, as
doing so will erase all data on the card. (exFAT is the file system used on Memory Stick XC-HG Duo media and
SDXC memory cards.)
Memory Stick media
The types of Memory Stick media that can be used with the product are as follows. However, proper operation cannot
be guaranteed for all Memory Stick media functions.
Memory Stick PRO Duo media: *1*2*3
Memory Stick PRO-HG Duo media: *1*2
Memory Stick XC-HG Duo media: *1*2
*1
This Memory Stick is equipped with MagicGate function. MagicGate is copyright protection technology that uses encryption
technology. Data recording/playback that requires MagicGate functions cannot be performed with this product.
*2
High-speed data transfer using a parallel interface is supported.
*3
When recording movies, only media marked with Mark2 can be used.
Notes on using Memory Stick Micro media (sold separately)
This product is compatible with Memory Stick Micro media (M2). M2 is an abbreviation for Memory Stick Micro media.
To use a Memory Stick Micro media with this product, be sure to insert the Memory Stick Micro media into an M2
Adaptor as large as Duo size. If you insert a Memory Stick Micro media into the product without an M2 Adaptor as
large as Duo size, you might not be able to remove it from the product.
Do not leave the Memory Stick Micro media within the reach of small children. They might accidentally swallow it.
4-538-499-12(1)
Copyright 2014 Sony Corporation
413
Interchangeable Lens Digital Camera
ILCA-77M2
On cleaning
Cleaning the lens and flash
Wipe the lens and flash with a soft cloth to remove fingerprints, dust, etc.
Cleaning the lens
Do not use a cleaning solution containing organic solvents, such as thinner, or benzine.
When cleaning the lens surface, remove dust with a commercially available blower. In case of dust that sticks to the
surface, wipe it off with a soft cloth or tissue paper slightly moistened with lens cleaning solution. Wipe in a spiral
pattern from the center to the outside. Do not spray lens cleaning solution directly onto the lens surface.
Cleaning the flash
Clean the flash surface before use. The heat of the flash emission may cause dirt on the flash surface to start smoking
or burning. Wipe the flash surface with a soft cloth to remove dirt or dust, etc.
Cleaning the camera body
Do not touch the parts of the product inside the lens mount, such as a lens signal contact. To clean inside the lens
mount, use a commercially available blower* to blow any dust off.
*
Do not use a spray-type blower as doing so may cause a malfunction.
Cleaning the product surface
Clean the product surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To
prevent damage to the finish or casing:
Do not expose the product to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent,
sunscreen or insecticide.
Do not touch the product with any of the above on your hand.
Do not leave the product in contact with rubber or vinyl for a long time.
Cleaning the monitor
If oil from your hand or hand cream, etc., remain on the monitor, the original coating may become easily removable.
Wipe oil or hand cream off as soon as possible.
If you wipe the monitor firmly using tissue paper, etc., the coating may be scratched.
If the monitor becomes dirty with fingerprints or dust, gently remove the dust from the surface, and then clean the
monitor using soft cloth, etc.
Help Guide
How to Use
414
Interchangeable Lens Digital Camera
ILCA-77M2
Number of still images
The number of still images may vary depending on the shooting conditions and the memory card.
[ Image Size]: [L: 24M]
When [ Aspect Ratio] is set to [3:2]*
Standard
2GB: 330 images
4GB: 660 images
8GB: 1350 images
16GB: 2700 images
32GB: 5400 images
64GB: 10500 images
Fine
2GB: 200 images
4GB: 410 images
8GB: 820 images
16GB: 1650 images
32GB: 3300 images
64GB: 6600 images
Extra fine
2GB: 100 images
4GB: 200 images
8GB: 400 images
16GB: 820 images
32GB: 1600 images
64GB: 3250 images
RAW & JPEG
2GB: 54 images
4GB: 105 images
8GB: 220 images
16GB: 440 images
32GB: 880 images
64GB: 1750 images
RAW
2GB: 74 images
4GB: 145 images
Help Guide
How to Use
415
8GB: 300 images
16GB: 600 images
32GB: 1200 images
64GB: 2400 images
*
When the [ Aspect Ratio] is set to other than [3:2], you can record more pictures than shown above. (Except when [
Quality] is set to [RAW].)
Note
Even if the number of remaining shootable images is greater than 9,999, the “9999” indicator appears.
When an image shot with other products is played back on this product, the image may not appear in the actual
image size.
4-538-499-12(1)
Copyright 2014 Sony Corporation
416
Interchangeable Lens Digital Camera
ILCA-77M2
Recordable time of movies
The table below shows the approximate maximum recording times which can be recorded on the memory card that is
formatted with this product. These numbers are the total times of all movie files on the memory card. The recordable
time may vary depending on the shooting conditions and the memory card.
(h (hour), m (minute))
[ File Format]:[XAVC S]
60p 50M
50p 50M
2GB: -
4GB: -
8GB: -
16GB: -
32GB: -
64GB: 2 h 35 m
30p 50M
25p 50M
2GB: -
4GB: -
8GB: -
16GB: -
32GB: -
64GB: 2 h 35 m
24p 50M (Only for 1080 60i compatible models.)
2GB: -
4GB: -
8GB: -
16GB: -
32GB: -
64GB: 2 h 35 m
[ File Format]:[AVCHD]
60i 24M(FX)
50i 24M(FX)
2GB: 10 m
4GB: 20 m
8GB: 40 m
Help Guide
How to Use
417
16GB: 1 h 30 m
32GB: 3 h
64GB: 6 h
60i 17M(FH)
50i 17M(FH)
2GB: 10 m
4GB: 30 m
8GB: 1 h
16GB: 2 h
32GB: 4 h 5 m
64GB: 8 h 15 m
60p 28M(PS)
50p 28M(PS)
2GB: 9 m
4GB: 15 m
8GB: 35 m
16GB: 1 h 15 m
32GB: 2 h 30 m
64GB: 5 h 5 m
24p 24M(FX)
25p 24M(FX)
2GB: 10 m
4GB: 20 m
8GB: 40 m
16GB: 1 h 30 m
32GB: 3 h
64GB: 6 h
24p 17M(FH)
25p 17M(FH)
2GB: 10 m
4GB: 30 m
8GB: 1 h
16GB: 2 h
32GB: 4 h
64GB: 8 h
[ File Format]:[MP4]
1440×1080 12M
2GB: 20 m
4GB: 40 m
8GB: 1 h 20 m
16GB: 2 h 45 m
32GB: 5 h 30 m
64GB: 11 h
VGA 3M
2GB: 1 h 10 m
4GB: 2 h 25 m
418
8GB: 4 h 55 m
16GB: 10 h
32GB: 20 h
64GB: 40 h
Continuous shooting is possible for approximately 29 minutes for each shooting (limited by product specifications). For
[MP4 12M] size movies, continuous shooting is possible for approximately 20 minutes (limited by 2 GB file size).
Note
The recordable time of movies varies because the product is equipped with VBR (Variable Bit Rate), which
automatically adjusts image quality depending on the shooting scene.
When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory
is required for recording.
The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.
4-538-499-12(1)
Copyright 2014 Sony Corporation
419
Interchangeable Lens Digital Camera
ILCA-77M2
Plug adaptor
You can use the battery charger and the AC Adaptor AC-PW10AM in any country or region where the power supply is
within 100 V to 240 V AC and 50 Hz/60 Hz.
Note
Do not use an electronic voltage transformer as doing so may cause a malfunction.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
420
Interchangeable Lens Digital Camera
ILCA-77M2
On TV color systems
To view movies shot using this product on a television, the product and television must use the same color television
system. Check the TV color system for the country or region where you are using the product.
NTSC system:
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Jamaica, Japan, Korea, Mexico, Peru,
Surinam, Taiwan, the Philippines, the U.S.A., Venezuela, etc.
PAL system:
Australia, Austria, Belgium, China, Croatia, Czech Republic, Denmark, Finland, Germany, Holland, Hong Kong,
Hungary, Indonesia, Italy, Kuwait, Malaysia, New Zealand, Norway, Poland, Portugal, Rumania, Singapore, Slovak
Republic, Spain, Sweden, Switzerland, Thailand, Turkey, United Kingdom, Viet Nam, etc.
PAL-M system:
Brazil
PAL-N system:
Argentina, Paraguay, Uruguay
SECAM system:
Bulgaria, France, Greece, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
421
Interchangeable Lens Digital Camera
ILCA-77M2
Vertical grip
You can attach a vertical grip (sold separately) to this product and record vertically oriented images. For details, refer to
the operating instructions for the vertical grip.
Note
When a vertical grip is attached to this product, the battery remaining is displayed as .
When the vertical grip is attached, you cannot perform the following operations:
Using the AC Adaptor AC-PW10AM (sold separately)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
422
Interchangeable Lens Digital Camera
ILCA-77M2
License
Notes on the License
This product comes with software that are used based on licensing agreements with the owners of that software. Based
on requests by the owners of copyright of these software applications, we have an obligation to inform you of the
following. Please read the following sections. Licenses (in English) are recorded in the internal memory of your product.
Establish a Mass Storage connection between the product and a computer to read licenses in the “PMHOME” -
“LICENSE” folder.
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A
CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO
(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”)
AND/OR
(ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR
WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO.
NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE
OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
On GNU GPL/LGPL applied software
The software that is eligible for the following GNU General Public License (hereinafter referred to as “GPL”) or GNU
Lesser General Public License (hereinafter referred to as “LGPL”) are included in the product.
This informs you that you have a right to have access to, modify, and redistribute source code for these software
programs under the conditions of the supplied GPL/LGPL.
Source code is provided on the web.
Use the following URL to download it.
http://www.sony.net/Products/Linux/
We would prefer you do not contact us about the contents of source code.
Licenses (in English) are recorded in the internal memory of your product. Establish a Mass Storage connection between
the product and a computer to read licenses in the “PMHOME” - “LICENSE” folder.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
How to Use
423
Interchangeable Lens Digital Camera
ILCA-77M2
Trademarks
The following marks are registered trademarks or trademarks of Sony Corporation.
, , Memory Stick, , Memory Stick PRO, , Memory
Stick Duo, , Memory Stick PRO Duo, , Memory
Stick PRO-HG Duo, , Memory Stick XC-HG Duo, , Memory
Stick Micro, , MagicGate, PhotoTV HD, InfoLITHIUM, PlayMemories Online, PlayMemories
Online logo, PlayMemories Home, PlayMemories Home logo, PlayMemories Mobile, PlayMemories Mobile logo
Multi Interface Shoe, Multi Interface Shoe logo
XAVC S and are registered trademarks of Sony Corporation.
Blu-ray Disc™ and Blu-ray™ are trademarks of the Blu-ray Disc Association.
AVCHD Progressive and AVCHD Progressive logotype are trademarks of Panasonic Corporation and Sony
Corporation.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
Microsoft, Windows, DirectX and Windows Vista are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Mac and Mac OS are trademarks of Apple Inc.
iOS is a registered trademark or trademark of Cisco Systems Inc.
iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.
SDXC logo is a trademark of SD-3C, LLC.
Android and Google Play are trademarks or registered trademarks of Google Inc.
Wi-Fi, the Wi-Fi logo, Wi-Fi PROTECTED SET-UP are registered trademarks or trademarks of the Wi-Fi Alliance.
The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
DLNA and DLNA CERTIFIED are trademarks of Digital Living Network Alliance.
" " and "PlayStation" are registered trademarks of Sony Computer Entertainment Inc.
Add further enjoyment with your PlayStation 3 by downloading the application for PlayStation 3 from PlayStation Store
Help Guide
How to Use
424
(where available.)
The application for PlayStation 3 requires PlayStation Network account and application download. Accessible in areas
where the PlayStation Store is available.
Eye-Fi is a trademark of Eye-Fi Inc.
In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of
their respective developers or manufacturers. However, the ™ or ® marks may not be specified in all cases in this
manual.
4-538-499-12(1)
Copyright 2014 Sony Corporation
425
Interchangeable Lens Digital Camera
ILCA-77M2
Troubleshooting
If you experience trouble with the product, try the following solutions.
1. Check the items under “Troubleshooting”, then check the product.
2. Remove the battery pack, wait for about one minute, re-insert the battery pack, then turn on the power.
3. Initialize the settings.
4. Consult your dealer or local authorized service facility. Additional information on this product and answers to
frequently asked questions can be found at our Customer Support Website.
http://www.sony.net/
Related Topic
Setting Reset
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
426
Interchangeable Lens Digital Camera
ILCA-77M2
You cannot turn on the product.
After inserting the battery pack into the product, it may take a few moments for the product to power up.
Make sure that the battery pack is inserted correctly.
The battery pack will discharge by itself even if you do not use it. Charge the battery pack before use.
Make sure that the battery is NP-FM500H .
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
428
Interchangeable Lens Digital Camera
ILCA-77M2
The power turns off suddenly.
Depending on the product and battery pack temperature, the product may turn off automatically to protect itself. In this
case, a message is displayed on the product screen before the product turns off.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
429
Interchangeable Lens Digital Camera
ILCA-77M2
The remaining battery level indicator shows an incorrect level.
This phenomenon occurs when you use the product in an extremely hot or cold location.
Battery capacity decreases over time and through repeated use. If decreased usage time between charges becomes
significant, it is probably time to replace it with a new one.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
430
Interchangeable Lens Digital Camera
ILCA-77M2
The CHARGE lamp of the battery charger flashes when charging the battery pack.
Make sure that the battery is NP-FM500H .
Batteries which have not been used for more than a year may have deteriorated.
This phenomenon occurs when you charge the battery pack in an extremely hot or cold location. The optimum
temperature for charging the battery pack is between 10 °C and 30 °C (50 °F and 86 °F).
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
431
Interchangeable Lens Digital Camera
ILCA-77M2
You cannot record images.
You are using a memory card with a write-protect switch, and the switch is set to the LOCK position. Set the switch to
the record position.
Check the free capacity of the memory card.
You cannot record images while charging the flash.
The lens is not attached properly. Attach the lens properly.
The [Self-timer] is activated.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
432
Interchangeable Lens Digital Camera
ILCA-77M2
Recording takes a long time.
The noise reduction function is processing an image. This is not a malfunction.
You are shooting in RAW mode. Since RAW data files are large, RAW mode shooting may take time.
The [Auto HDR] function is processing an image.
The product is compiling images.
Related Topic
Long Exposure NR (still image)
High ISO NR (still image)
Auto HDR
Superior Auto
Multi Frame NR
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
433
Interchangeable Lens Digital Camera
ILCA-77M2
The image is out of focus.
The subject is too close. Check the minimum focal distance of the lens.
Ambient light is insufficient.
The subject you are shooting is not suitable for auto-focusing. Shoot in [Flexible Spot] mode or manual focus mode.
Related Topic
Focus Area
Manual Focus
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
434
Interchangeable Lens Digital Camera
ILCA-77M2
The flash does not work.
Raise the flash.
You cannot use a flash in the following situations:
[Night Scene] or [Hand-held Twilight] in Scene Selection is selected.
During Sweep Panorama shooting.
During movie recording.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
435
Interchangeable Lens Digital Camera
ILCA-77M2
Fuzzy white circular spots appear on images shot using the flash.
Particles (dust, pollen, etc.) in the air reflected the flash light and appeared on the image. This is not a malfunction.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
436
Interchangeable Lens Digital Camera
ILCA-77M2
The date and time are recorded incorrectly.
Set the correct date and time.
The area selected using [Area Setting] differs from the actual area. Select the actual area.
Related Topic
Date/Time Setup
Area Setting
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
438
Interchangeable Lens Digital Camera
ILCA-77M2
The aperture value and/or shutter speed and/or metering indicator flashes.
The subject is too bright or too dark to shoot using the current aperture value and/or shutter speed settings. Readjust
the settings.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
439
Interchangeable Lens Digital Camera
ILCA-77M2
The image colors are not correct.
Adjust [White Balance].
[Picture Effect] is set. Set [Picture Effect] to [Off].
To reset settings to default, perform [Setting Reset].
Related Topic
White Balance
Picture Effect
Setting Reset
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
440
Interchangeable Lens Digital Camera
ILCA-77M2
Noise appears in the image when you view the screen in a dark place.
The product is attempting to increase the visibility of the screen by temporarily brightening the monitor under
conditions of low illumination. There is no effect on the recorded image.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
441
Interchangeable Lens Digital Camera
ILCA-77M2
The eyes of the subject come out red.
Set [Red Eye Reduction] to [On].
Shoot the subject at a distance closer than the flash range using the flash.
Light the room and shoot the subject.
Related Topic
Red Eye Reduction
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
442
Interchangeable Lens Digital Camera
ILCA-77M2
The image is whitish (Flare)./Blurring of light appears on the image (Ghosting).
When pointing the lens toward the strong light source, excessive light enters the lens and the image may come out
white (flare) or extraneous light (ghost images) may appear on the image, but this is not a malfunction.
When using the zoom lens, attach the lens hood.
Also, set up the composition so that you shoot images while avoiding backlit condition.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
446
Interchangeable Lens Digital Camera
ILCA-77M2
The corners of the picture are too dark.
If any filter or hood is used, take it off and try shooting again. Depending on the thickness of the filter and improper
attachment of the hood, the filter or the hood may partially appear in the image. The optical properties of some lenses
may cause the periphery of the image to appear too dark (insufficient light). You may compensate for this
phenomenon with [Shading Comp.].
Related Topic
Shading Comp.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
447
Interchangeable Lens Digital Camera
ILCA-77M2
The image is blurred.
Make sure that [SteadyShot] is set to [On].
The picture was taken in a dark location without the flash, resulting in camera-shake. The use of a tripod or the flash
is recommended. [Hand-held Twilight] in [Scene Selection] is also effective in reducing blur.
Related Topic
Using flash
Scene Selection
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
448
Interchangeable Lens Digital Camera
ILCA-77M2
The LCD screen darkens after a short period of time passed.
If you do not operate the product for a certain period of time, the product switches to the power-save mode. The
product exits power-save mode when you perform operations such as pressing the shutter button halfway.
Related Topic
Pwr Save Start Time
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
449
Interchangeable Lens Digital Camera
ILCA-77M2
The flash takes too long to recharge.
The flash has been fired in succession in a short period. When the flash has been fired in succession, the recharging
process may take longer than usual to avoid overheating of the camera.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
450
Interchangeable Lens Digital Camera
ILCA-77M2
Images cannot be played back.
Make sure that the memory card is fully inserted into the product.
The folder/file name has been changed on your computer.
When an image file has been processed by a computer or when the image file was recorded using a model other than
this product, playback on this product is not guaranteed.
The product is in USB mode. Disconnect the product from the computer.
Use PlayMemories Home to play back on this product images that are stored on your computer.
Related Topic
Disconnecting the product from the computer
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
452
Interchangeable Lens Digital Camera
ILCA-77M2
You cannot find the wireless access point to be connected.
Wireless access points may not be displayed on the product due to signal conditions. Place the product closer to the
wireless access point.
Wireless access points may not be displayed on the product depending on the access point settings. Refer to the
instruction manual of the wireless access point.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
457
Interchangeable Lens Digital Camera
ILCA-77M2
You cannot send movies to a smartphone.
You cannot send XAVC S movies to a smartphone.
You cannot send AVCHD movies to a smartphone. Set [ File Format] to [MP4] to record movies.
Related Topic
File Format (movie)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
460
Interchangeable Lens Digital Camera
ILCA-77M2
[Ctrl w/ Smartphone] or [Send to Smartphone] is canceled halfway.
When the remaining battery level is low, [Ctrl w/ Smartphone] or [Send to Smartphone] may be canceled halfway.
Charge the battery pack and try again.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
461
Interchangeable Lens Digital Camera
ILCA-77M2
The shooting screen for [Ctrl w/ Smartphone] is not displayed smoothly./The connection between this product and
the smartphone is disconnected.
Data communication between this product and the smartphone may fail due to signal conditions. Place this product
closer to the smartphone.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
462
Interchangeable Lens Digital Camera
ILCA-77M2
You cannot use One-Touch connection (NFC).
Place the (N mark) on the smartphone and the (N mark) on the product as close together as possible. If there
is no response, move the smartphone a few millimeters or move the smartphone away from this product, wait more
than 10 seconds, and then touch them together again.
[Airplane Mode] is set to [On]. Set [Airplane Mode] to [Off].
Check whether the NFC function is activated on your smartphone. For details, refer to the instruction manual of the
smartphone.
Do not place any metal objects other than a smartphone near the (N mark).
Do not contact two or more smartphones to this product at the same time.
If another NFC-based application is running on your smartphone, terminate that application.
Related Topic
Airplane Mode
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
463
Interchangeable Lens Digital Camera
ILCA-77M2
The computer does not recognize this product.
Set [USB Connection] to [Mass Storage].
Use the micro USB cable (supplied) to connect the devices.
Disconnect the USB cable, and connect it again firmly.
Disconnect all equipment other than this product, the keyboard and the mouse from the USB terminals of your
computer.
Connect this product directly to your computer without passing through a USB hub or other device.
Related Topic
USB Connection
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
464
Interchangeable Lens Digital Camera
ILCA-77M2
You cannot import images.
Connect this product and your computer correctly making a USB connection.
When you shoot images with a memory card formatted by a computer, you may not be able to import the images to a
computer. Shoot using a memory card formatted by this product.
Related Topic
Connecting the product to a computer
Format
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
465
Interchangeable Lens Digital Camera
ILCA-77M2
The image and sound are interrupted by noise when viewing a movie on a computer.
You are playing back the movie directly from the memory card. Import the movie to your computer using
PlayMemories Home and play it back.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
466
Interchangeable Lens Digital Camera
ILCA-77M2
Images exported from a computer cannot be viewed on this product.
Use PlayMemories Home to copy images that are stored on a computer onto a memory card inserted into this product
and view them on this product.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
467
Interchangeable Lens Digital Camera
ILCA-77M2
The color of the image is strange.
When you print the images recorded in Adobe RGB mode using sRGB printers that are not compatible with Adobe
RGB (DCF2.0/Exif2.21), the images are printed at a lower saturation.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
470
Interchangeable Lens Digital Camera
ILCA-77M2
Images are printed with both edges cut off.
Depending on your printer, the left, right, top, and bottom edges of the image may be cut off. Especially when you
print an image shot with [ Aspect Ratio] set to [16:9], the lateral end of the image may be cut off.
When printing images using your printer, cancel the trimming or borderless settings of the printer. Consult the printer
manufacturer as to whether the printer provides these functions or not.
When you print images at a shop, ask the shop whether they can print the images without cutting off both edges.
Related Topic
Aspect Ratio (still image)
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
471
Interchangeable Lens Digital Camera
ILCA-77M2
You cannot print images with the date.
If you want to print images with the date, use [Print Setting] under [Specify Printing].
You can print images with the date superimposed if the printer or the software can recognize Exif information. For
compatibility with Exif information, consult the manufacturer of the printer or the software.
Using PlayMemories Home, you can print images with the date without recording the date.
When you print images at a shop, images can be printed with the date if you ask them to do so.
Related Topic
Specify Printing
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
472
Interchangeable Lens Digital Camera
ILCA-77M2
The Clock Set screen appears when you turn on the product.
Set the date and time again.
The internal rechargeable backup battery has discharged. Insert a charged battery, and set aside for 24 hours or
more with the power left off.
Related Topic
Date/Time Setup
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
475
Interchangeable Lens Digital Camera
ILCA-77M2
The number of recordable images does not decrease, or decreases two images at a time.
This is because the compression rate and the image size after compression change depending on the image when
you shoot a JPEG image.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
476
Interchangeable Lens Digital Camera
ILCA-77M2
The product does not work properly.
Turn off the product. Remove the battery pack and insert it again. If the product is hot, remove the battery pack, and
allow it to cool down before trying this corrective procedure.
If an AC-PW10AM AC Adaptor (sold separately) is used, disconnect the power cord. Connect the power cord and
turn on the product again. If the product repeats the same error often or still does not work after trying these
solutions, consult your Sony dealer or local authorized Sony service facility.
4-538-499-12(1)
Copyright 2014 Sony Corporation
Help Guide
Troubleshooting
477
Interchangeable Lens Digital Camera
ILCA-77M2
Warning messages
Set Area/Date/Time.
Set the area, date and time. If you have not used the product for a long time, charge the internal rechargeable backup
battery.
Power insufficient.
The cleaning mode will not operate when the remaining battery charge is less than (3). We recommend using
the AC Adaptor AC-PW20 when using cleaning mode.
Unable to use memory card. Format?
The memory card was formatted on a computer and the file format was modified. Select [Enter], and then format the
memory card. You can use the memory card again, however, all previous data in the memory card is erased. It may
take some time to complete the format. If the message still appears, change the memory card.
Memory Card Error
An incompatible memory card is inserted.
Formatting has failed. Format the memory card again.
Unable to read memory card. Reinsert memory card.
An incompatible memory card is inserted.
The memory card is damaged.
The terminal section of the memory card is dirty.
This memory card may not be capable of recording and playing normally.
An incompatible memory card is inserted.
Processing...
When performing noise reduction, the reduction process takes place. You cannot do any further shooting during this
reduction process.
Unable to display.
Images recorded with other products or images modified with a computer may not be displayed.
Cannot recognize lens. Attach it properly.
The lens is not attached properly, or the lens is not attached. If the message appears when a lens is attached,
reattach the lens. If the message appears frequently, check whether the contacts of the lens and product are clean or
Help Guide
Troubleshooting
479
not.
When attaching the product to an astronomical telescope or something similar, set [Release w/o Lens] to [Enable].
Unable to print.
You tried to mark RAW images with a DPOF mark.
Internal temp. high. Allow it to cool.
The product has become hot because you have been shooting continuously. Turn the power off. Cool the product and
wait until the product is ready to shoot again.
You have been recording images for a long time, the product temperature has risen. Stop recording images until the
product cools.
Recording is unavailable in this movie format.
Set [ File Format] to [MP4].
The number of images exceeds that for which date management in a database file by the product is possible.
Unable to register to the database file. Import all the images to a computer and recover the memory card.
Image DataBase File error
There is something wrong in the Image Database File. Select [Setup] → [Recover Image DB].
System Error
Camera Error. Turn power off then on.
Remove the battery pack, and then re-insert it. If the message appears frequently, consult your Sony dealer or local
authorized Sony service facility.
Unable to magnify.
Unable to rotate image.
Images recorded with other products may not be enlarged or rotated.
Related Topic
On the internal rechargeable battery
Memory card
Format
Release w/o Lens
4-538-499-12(1)
480
Interchangeable Lens Digital Camera
ILCA-77M2
Situations this product has difficulty handling
The product cannot take full advantage of some features under certain circumstances.
When shooting under the following conditions, either recompose the shot or change the shooting mode, then shoot the
images again.
Low light conditions
Sweep Panorama
Lock-on AF
Overly bright conditions
Lock-on AF
Varying levels of brightness
Lock-on AF
Flickering lights
Sweep Panorama
Subjects too close to the product
Sweep Panorama
Subjects with large movements or subjects that move too quickly
Superior Auto
Sweep Panorama
Auto HDR
Lock-on AF
Subjects too small or too large
Sweep Panorama
Lock-on AF
Scenes with little contrast, such as the sky or a sandy beach
Sweep Panorama
Superior Auto
AF Track Duration
Scenes changing constantly, such as a waterfall
Help Guide
Troubleshooting
481
