User Manual iRobot Braava Jet M6 (6110) Ultimate Robot Mop

• User Manual - (English)
• User Manual Portugal - (Portuguese)
• User Manual France - (French)
• User Manual Deutsche - (German)
• User Manual Spain - (Spanish)

• Tank Guide - (English)

• Spec Sheet (web) - (English)

Table of contents

• About your Braava jet® m6 Robot Mop
• Getting started
• Using Your Braava jet® m6 Robot Mop
• Care and Maintenance
• iRobot Customer Care
• Regulatory Information
•
•

User manual Ultimate Robot Mop iRobot Jet M6

About your Braava jet® m6 Robot Mop

Top View

Bottom View

Accessing the Tank

Home Base Charging Station

Getting started

1. Get ready

To start, you’ll need your robot, charging station, drip tray, and power cord.

2. Position the charging station and plug in

Choose an area near an outlet with good Wi-Fi coverage.

Plug the power cord into the charging station, and then into the wall.

3. Attach the drip tray

Place the drip tray onto the front of the charging station.

4. Wake up your robot

Slide your robot onto the charging station contacts to activate the battery. The light ring will light up and after a few minutes, and a sound will let you know it’s awake.

5. Connect and update

Connect your robot to the iRobot HOME App to allow remote control, cleaning customization, and to keep robot software up to date.

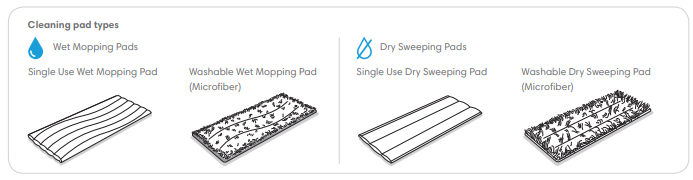

6. Attach a cleaning pad

Slide a wet mopping or dry sweeping pad onto the underside of the robot.

Detach an existing cleaning pad by pressing the button on the front of the robot.

7. Fill the tank

Remove the tank from the robot.

Add Braava jet® Hard Floor Cleaning Solution (if using).

Then fill to top with water.

Cleaning Solution

• When wet mopping, you may add Braava jet® Hard Floor Cleaning Solution to the tank before adding water. This product is a concentrate that is suitable for all wellsealed hard floors.

Important: Braava jet® Hard Floor Cleaning Solution is the only solution that can be safely used in your robot mop. Please do not use other cleaning solutions.

Using Your Braava jet® m6 Robot Mop

Cleaning

Use your robot frequently to maintain well-conditioned floors.

• Your robot will automatically explore and clean your home, moving in a methodical manner across the floor, with some overlap from one pass to the next to ensure that every spot on the floor is cleaned three times. If you are looking for a quicker clean or a deeper clean than this default setting, or if you want to adjust the amount of water sprayed, you can change your cleaning preferences from the iRobot HOME App.
• Your robot will return to the charging station at the end of a cleaning job, whenever it needs to recharge, or when the tank needs to be refilled.

Note: Note: If the “CLEAN” text is pulsing while charging, your robot is in the middle of a cleaning job and will automatically resume where it left off once recharged.

• To send the robot back to its charging station, tap (home). A blue light ring pattern will indicate that the robot is seeking the charging station. This feature will only work if your robot started the job from the charging station.
• When the robot senses its tank needs to be filled, the light ring indicator will illuminate in a red sweeping motion toward the lid latch.
• Clean smaller designated areas (3.3 ft2 /1 m2 ) by placing your robot at the bottom center of the space you’d like to focus on. Tap (spot clean) to start cleaning

Tips for Optimizing Performance

• Your robot works best when used with the iRobot HOME App.
• For optimal mopping performance, we recommend that you vacuum first to pick up large dirt and debris before running Braava jet® .
• Your robot will only run with Braava jet® m Series pads, which are made specifically for Braava jet® m Series robots.
• Use a new pad for each cleaning job, and do not pre-wet the pads prior to use.
• Keep your charging station plugged in and the area around it clear of clutter.
• You can use a Dual Mode Virtual Wall® Barrier to help keep your robot in places you want to be cleaned, and out of the ones you don’t. (Sold separately)
• Within the iRobot HOME App, you can adjust cleaning preferences to modify cleaning power, speed, and coverage.

Charging

• Slide your robot onto the charging station contacts to activate the battery.

Note: Your robot comes with a partial charge, but we recommend that you charge the robot for 3 hours prior to starting the first cleaning job.

• The light ring indicator will show the current charging status. This will turn off after 1 minute to save power, but can be shown again if you press CLEAN. This can also been seen in the iRobot HOME App

• Your robot uses a small amount of power whenever it is on the charging station. You can put the robot in a further-reduced power state when not in use. For instructions and more details on this Reduced Power Standby Mode, refer to the iRobot HOME App.
• For long-term storage, turn off your robot by removing it from the charging station and holding down (home) for 10 seconds. Store your robot in a cool, dry place.

Lithium Ion Battery

For best results, only use the iRobot Lithium Ion Battery that comes with your Braava jet® m6.

WARNING: Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product (with the battery included) for service, travel or any other reason, you MUST follow these shipping instructions.

• Battery MUST be turned off before shipping.
• Turn off the battery by removing the robot from the charging station and holding down (home) for 10 seconds. All indicators will turn off.
• Package the product in its original packaging.
• Ship via ground transportation only (no air shipping).
• If you need further assistance, contact our Customer Care team.

Troubleshooting

• Your robot will tell you something is wrong by playing an audio alert and turning the light ring indicator red. Press CLEAN for details. Further support and instructional videos are available in the iRobot HOME App.
• After 90 minutes of inactivity off the charging station, your robot will automatically end its cleaning job.

Care and Maintenance

Cleaning the Sensors and Pad Reader

• Clean sensors on the bottom of your robot with a damp cloth.

Important: Do not spray cleaning solution or water onto the sensors or sensor openings.

Cleaning the Wheels

• Pull off any visible debris or hair that gathers around the wheels.

Cleaning the Body of the Robot

• Wipe clean with a damp cloth.

Cleaning the Tank

If you notice an odor from the tank

1. Remove the tank from your robot mop.
2. Fill the tank with warm water. Do not use boiling water.
3. Close cap and lightly shake the tank.
4. Rinse the tank and repeat as necessary.

Cleaning the Drip Tray

1. Remove the robot from the charging station.
2. Separate the drip tray by lifting it up from charging station.
3. Clean the drip tray with a damp cloth or with warm water in sink.
4. Dry thoroughly before reattaching the drip tray to the charging station.
5. Put your robot mop back onto the charging station.

Caring for Washable Cleaning Pads

Note: You can clean your washable pads two ways: either by hand washing, or in a washing machine.

Hand Washing

• Thoroughly wash the pad with warm water.

Machine Washing

• Wash using the warm cycle, then air dry. Do not put in dryer. Do not wash with delicates.

iRobot Customer Care

USA & Canada

• If you have questions or comments about your Braava jet ® robot mop, please contact iRobot before contacting a retailer.
• You can start by visiting www.irobot.com for support tips, frequently asked questions and information about accessories. This information can also be found in the iRobot HOME App. If you need further assistance, call our Customer Care team at (877) 855-8593.

iRobot Customer Care Hours

• Monday to Friday, 9AM – 9PM Eastern Time
• Saturday and Sunday 9AM – 6PM Eastern Time

Outside USA & Canada

Visit www.global.irobot.com to:

• Learn more about iRobot in your country.
• Get hints and tips to improve your Braava jet ® robot mop’s performance.
• Get answers to questions.
• Contact your local support center.

Regulatory Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

• Changes or modifications not expressly approved by iRobot Corporation could void the user’s authority to operate the equipment.
• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules as well as ICES-003 Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio commu - nications. However, there is no guarantee that interference to radio communication will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
• Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than the necessary for successful communication.
• FCC Radiation Exposure Statement: This product complies with FCC §2.1093(b) for portable RF exposure limits, set forth for an uncontrolled environment and is safe for the intended operation as described in this manual.
• ISED Radiation Exposure Statement: This product complies with the Canadian Standard RSS-102 for portable RF exposure limits, set forth for an uncontrolled environment and is safe for the intended operation as described in this manual.
