User Manual
USE
The Control Panel
1. PROGRAM SELECTOR KNOB
- Turn the Program Selector knob to choose a drying program. The table “Program Guide” shown on page 9 will help you in selecting the right program.
NOTES : The Program Selector knob is not a timer. Once you select a dry program, the Program Selector knob will stay at that position for the whole dry cycle.
2. DISPLAY
The display shows the following information
DRYING CYCLE IN PROGRESS
COOLING CYCLE IN PROGRESS
Your dryer will automatically switch off the heater at the end of every cycle. the Cooling progress indicator LED will light up and blink.
This is important as it remove residual heat from clothes and help prevent creasing.
ANTI CREASE CYCLE IN PROGRESS
END OF PROGRAM and CLEAN FILTER REMINDER
When the drying program is completed, the display will show text “End”
The Clean Filter LED turns on and blinks at the end of each dry cycle to serve as a reminder to user to clean lint filter at the end of each load.
3. START/PAUSE BUTTON
This button allows you to start or pause the dryer to check the contents or perhaps add more clothes.
NOTE: The dryer will not start unless the door is closed. (If door is not closed you will hear 6 beeps and "E40" on display.)
SETTING DRYING MODE
This mode gives you the option of selecting different drying levels.
- Fast
For small load
- Normal
For drying most fabrics.
- Gentle
For drying delicates and synthetics at lower heat for maximum care of the fabrics. The Low Heat setting will cause the heater to cycle on for shorter time than the normal setting.
- Airing :
This setting does not heat. ONLY circulate the air in the dryer to shake out dust and refresh clothes
To activate Child Lock touch and hold Dry Mode touch pad for 2 seconds. Display will show "LOC" for 2 seconds then back to cycle duration.
Deactivating Child lock
To deactivate Child Lock touch and hold Dry Mode touch pad for 2 seconds. Display will show "unL" for 2 seconds then back to cycle duration.
Operating Sequence
Step 1
Load your dryer loosely until it is no more than TWO THIRDS FULL. Clothes must tumble freely in a dryer. Don’t crem them in. Wet clothed fluff up when dry.
Overloading will :
CAUTION: Do not load clothes or other articles which are dripping wet or have sand and grit on them into your dryer.
Step 2
Step 3
Turn the Program Selector knob to choose drying program you want.

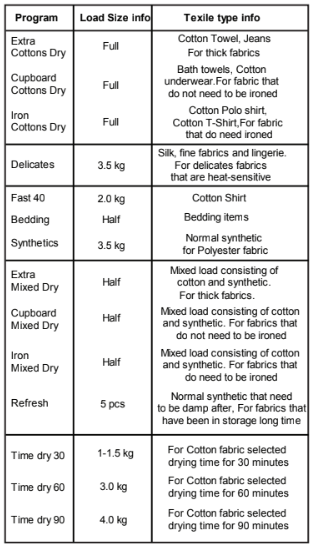

Program Guide
WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
Reversing Action
The drum is designed to rotate in both direction, clockwise and anti-clockwise. The reduces and give more even drying in a shorter time
Step 3
Turn the Program Selector knob to "OFF” When you have finished using the dryer to turn off the power, then switch off at the power point. It is recommended to power off the appliance when not in use.
After every load clean the lint filter to reduce drying time and avoid overheating.
Checking the Load
To check the dryness or add clothes during the cycle, simply open the door. The dryer will beep several times indicating the door is open.. If further drying is required, close the door and then press the Start/Pause button to continue.
For the best drying performance, only add or remove clothes at beginning of the drying cycle.
Next time you turn your dryer on it will be ready to go as it remembers the last program, Temperature and Option setting used. You can change the setting if you wish.
Hints
- Never tumble dry the following: Delicate items such as net curtains, woollen, silk, fabric with metal trim, nylon tights, bulky materials such as anoraks, blankets, eiderdown, sleeping bags, feather quilts and any item containing rubber foam or materials similar to foam rubber.
- Do not place in your dryer undergarments such as bras and corsets that contain metal reinforcements. Your dryer may be damaged if metal parts were to come loose from the garment. Place such items in a bag designed for this purpose.
- Check and empty pockets. Clips, pens, nails and pins can damage both the dryer and your clothes. Other iteras such as matches or cigarette lighters will cause a fire.
- Close all press studs, hooks, eyes and zips that may catch on something else. Tie all belts and apron strings to prevent tangling.
- Drying time will depend on fabric type and construction, load size and wetness. Save time and money and always spin the load as dry as possible in your washing machine.
- Drying time will also be affected by voltage fluctuations, room temperature and humidity. Clothes will dry more slowly on a cool or humid day.
- For best results, sort the load according to fabric types. Such as heavy items which may take longer to dry, eg towels, flannelette sheets etc, than ones which dry quickly, eg poly/cotton shirts and sheets.
- Avoid drying dark clothes with light coloured items such as towels as lint will show on the dark clothes.
Note: Some fabrics will collect lint from other clothes and items. Separate the lint "givers" and the lint "collectors" to minimise this problem.
Clothes that give lint include towels, nappies, chenille. Clothes that collect lint include corduroy, synthetics and permanent press garments.
- If individual items are still damp after drying, set a minute post drying time. This will be necessary particularly for multilayered items (eg collars, pockets, etc).
- Always clean the lint filter-this will reduce drying time and save you money.
- The laundry must be thoroughly spun before tumble drying.
- Easy-care items eg shirts, should be briefly pre-spun before drying (depending on the crease resistance approximately 30 seconds)
- To avoid static charge when drying is completed, use either a fabric softener when you are washing the laundry or a fabric conditioner specifically for tumble dryers.
- Remove the laundry when the dryer has finished drying.
- Do not over-dry laundry, this avoids creasing and saves energy.
- Clothes or towels containing sand or grit should be washed first.
- Due to variations in dryer load fabric texture and thickness it is possible that not all items will be dried evenly. It you experience uneven dryness on Cupboard program please use either Extra Dry or Timer Program but be mindful of the type of fabric being dried to avoid overdrying certain types of fabric. Always follow drying instructions attached to the items intended to be dried in a clothes dryer.

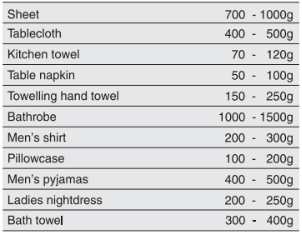

To help you, here is a list of the average weights a some common laundry items.
TROUBLESHOOTING & ACCESSORIES
Troubleshooting
Check the points listed here before you call for help, and make sure that you have followed the Important safety Instructions on pages 3 and 4.
The dryer will not start:
- Plug is not firmly in socket, or power not turned on.
- You have blown a fuse. Check the power point with another appliance.
- You have not closed the dryer door or pushed in the door safety switch button.
Your clothes are still wet:
- The selected drying time was insufficient. Select a longer time setting.
- Longer time may be needed when the room temperature is 10 oC or less.
- Check that the lint filter is not blocked.
- Check to see that you have read all the instructions carefully.
- Contact the Service Center if you are still having problems. Write down the model and serial numbers and the date of purchase before you ring. The Service Center will need this information.
