www.lg.com
Printed in china
ENGLISH
Please read this manual carefully before operating
your set and retain it for future reference.
CM8440 (CM8440, CMS8440F, CMS8440W)
CM8340 (CM8340, CMS8440F)
OWNER’S MANUAL
Mini Hi-Fi
System
CM8440-FB_DUASLLC_ENG_7073.indd 1 2015-01-06 3:27:00
1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure
that may be of sucient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the
apparatus.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing the
product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CM8440-FB_DUASLLC_ENG_7073.indd 2 2015-01-06 3:27:00
Getting Started 3
Getting Started
1
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. The
Power Plug is the disconnecting device. In case of
an emergency, the Power Plug must remain readily
accessible.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
CM8440-FB_DUASLLC_ENG_7073.indd 3 2015-01-06 3:27:00
Getting Started4
Getting Started
1
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
CM8440-FB_DUASLLC_ENG_7073.indd 4 2015-01-06 3:27:01
Getting Started 5
Getting Started
1
FCC Compliance Statement
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in
a particular installation.If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment o and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
y
Reorient or relocate the receiving antenna.
y
Increase the separation between the equipment
and receiver.
y
Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
y
Consult the dealer or an experienced radio/TV
technician for help.
CAUTION : Any changes or modications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
FCC WARNING: This equipment may generate
or use radio frequency energy. changes or
modications to this equipment may cause harmful
interference unless the modications are expressly
approved in the instruction manual. The user could
lose the authority to operate this equipment if an
unauthorized change or modication is made.
FCC RF Radiation Exposure Statement : This
equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
This equipment should be installed and operated
with minimum distance 20 cm between the
radiator and your body. End users must follow the
specic operating instructions for satisfying RF
exposure compliance. This transmitter must not be
co-located or operating in conjunction with any
other antenna or transmitter.
CAUTION: Regulations of the FCC and FAA prohibit
airborne operation of radio-frequency wireless
devices because their signals could interfere with
critical aircraft instruments.
Responsible Party :
LG Electronics USA, Inc. 1000 Sylvan Avenue
Englewood Clis, NJ 07632
TEL. : +1-800-243-0000
CM8440-FB_DUASLLC_ENG_7073.indd 5 2015-01-06 3:27:01
Table of Contents6
Table of Contents
1 Getting Started
2 Safety Information
8 Unique Features
8 Accessories
9 Playable file Requirement
9 – Music file requirement
9 – Compatible USB Devices
9 – USB device requirement
10 Remote control
11 Front panel
13 Rear panel (CM8440)
14 Rear panel (CM8340)
2 Connecting
15 How to Affix the Ferrite Core
15 – Affix the Ferrite Core for power cord
15 Connecting to speakers
17 Optional Equipment Connection
17 – Antenna Connection
17 – USB Connection

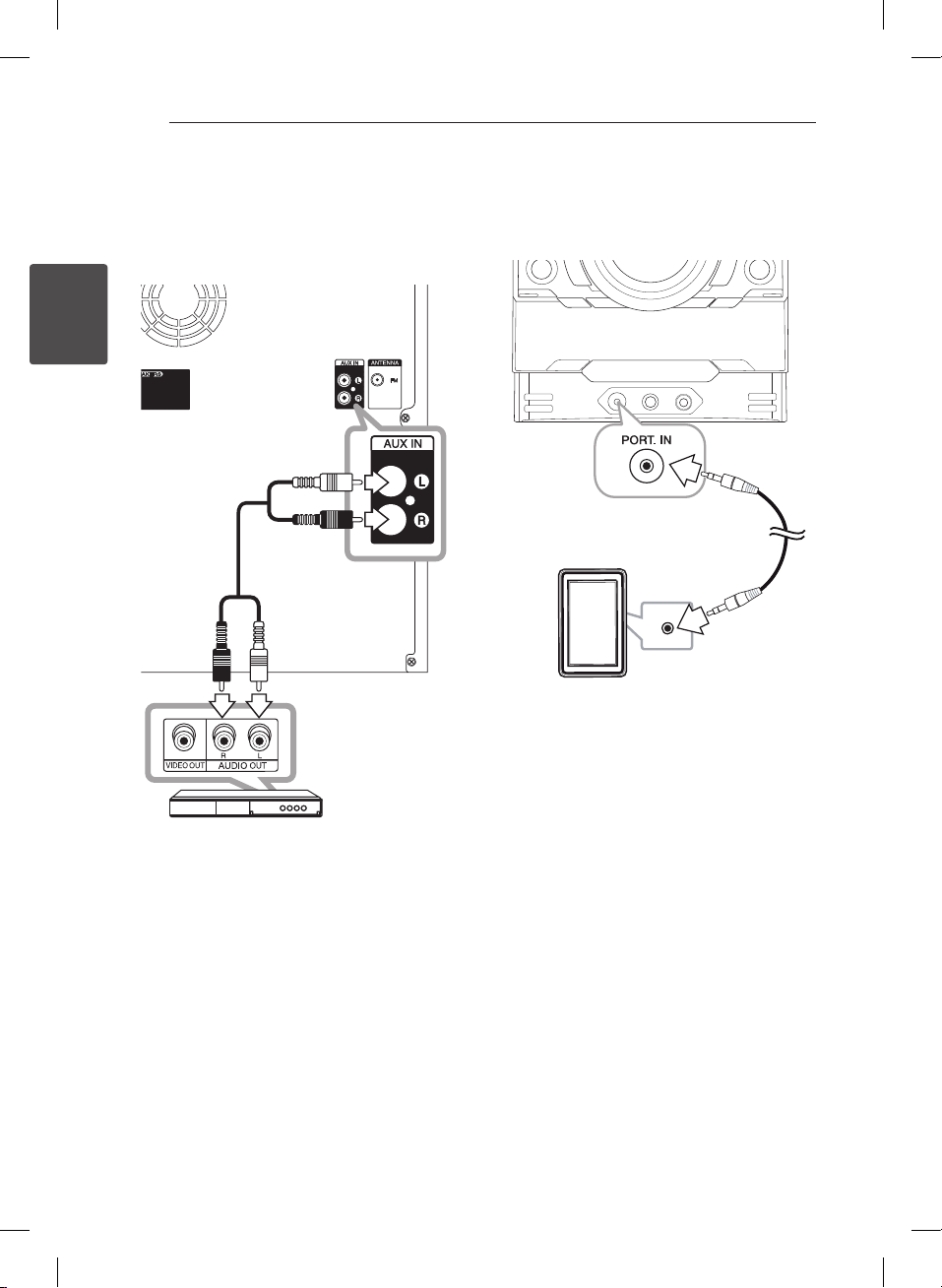

18 – AUX IN Connection
18 – PORT. IN Connection
3 Operating
19 Basic Operations
19 – CD/USB Operations
19 – Selecting a folder and an MP3/WMA
file
20 – Deleting an MP3/WMA file
21 Playback effect
21 – JUKE BOX Playback
(Program play)
22 – AUTO DJ playback
23 Using a Bluetooth wireless technology
23 – Listening to music stored on the
Bluetooth devices
24 – Using Bluetooth App
27 Radio Operations
27 – Listening to the radio
27 – Improving poor FM reception
27 – Presetting the Radio Stations
27 – Deleting all the saved stations
28 Other Operations
28 – Turn off the sound temporarily
28 – Displaying file information
(ID3 TAG)
28 – DEMO
28 – Using Microphone
29 Sound adjustment
29 – Setting the surround mode
29 – Setting the USER EQ
30 Setting the Clock
30 – Setting the Clock through “LG
Bluetooth Remote” App
30 – Using your player as an alarm clock
30 – Sleep Timer Setting
30 – Dimmer
30 – Auto power down
31 Advanced Operations
31 – Recording to USB
CM8440-FB_DUASLLC_ENG_7073.indd 6 2015-01-06 3:27:01
Table of Contents 7
1
2
3
4
5
4 Troubleshooting
33 Troubleshooting
5 Appendix
34 Trademarks and Licenses
35 Specifications
36 Speakers specifications
37 Maintenance
37 – Notes on Discs
37 – Handling the Unit
CM8440-FB_DUASLLC_ENG_7073.indd 7 2015-01-06 3:27:01
Getting Started8
Getting Started
1
Unique Features
Bluetooth
Listens to music stored on your bluetooth device.
Portable In
Listens to music from your portable device. (MP3,
Notebook, etc.)
Playback effects
Listens to music with various sound and playback
eects.
USB Direct Recording
Records music to your USB device.
LG Bluetooth Remote
You can control this unit with your Android device
via Bluetooth. This unit and your device must be
paired for Bluetooth. Visit “Google Android Market
(Google Play Store)” or use the QR code shown
below to search for “LG Bluetooth Remote” app. For
detailed information, refer to page 24-26.
(Android OS)
Accessories
Please check and identify the supplied accessories.
Remote comtrol (1) Batteries (2)
FM Antenna (1)
CM8440-FB_DUASLLC_ENG_7073.indd 8 2015-01-06 3:27:01
Getting Started 9
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/WMA le compatibility with this unit is limited
as follows.
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y
Maximum les : Under 999
y
Maximum folders : Under 99
y
File extensions : “.mp3”/ “.wma”
y
CD-ROM le format : ISO 9660/ JOLIET
y
We recommend that you use Easy-CD Creator,
which creates an ISO 9660 le system.
The DTS is not supported. In case of DTS audio
format, audio is not output.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.
(Mastered/Live File System : Disc format system for
Windows Vista)
Compatible USB Devices
y
MP3 Player : Flash type MP3 player.
y
USB Flash Drive :
Devices that support USB2.0 or USB1.1.
y
The USB function of this unit does not support
all USB devices.
USB device requirement
y
Devices which require additional program
installation when you have connected it to a
computer, are not supported.
y
Do not extract the USB device while in operation.
y
For a large capacity USB, it may take longer than
a few minute to be searched.
y
To prevent data loss, back up all data.
y
If you use a USB extension cable or USB hub, the
USB device is not recognized.
y
Using NTFS le system is not supported. (Only
FAT(16/ 32) le system is supported.)
y
This unit is not supported when the total
number of les is 1,000 or more.
y
External HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
y
USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
y
Some USB may not work with this unit.
CM8440-FB_DUASLLC_ENG_7073.indd 9 2015-01-06 3:27:01
Getting Started10
Getting Started
1
Remote control
Battery Installation
Remove the battery cover on the
rear of the Remote Control, and
insert two (size AAA) batteries
with
4
and
5
matched correctly.
• • • • • •
a
• • • • • •
1
(Power) : Switches the unit ON
or OFF.
B
(Open/Close) : Opens and
closes the disc tray.
PRESETFOLDER
W
/
S
:
-
Searches for a folder of MP3/
WMA les. When a CD/USB
containing MP3/WMA les in
several folders is being played,
press PRESETFOLDER
W
/
S
to select the folder you want to
play.
-
Chooses a preset number for a
radio station.
FUNCTION : Selects the function
and input source.
MUTE
@
: Mutes the sound.
VOL +/- : Adjusts speaker volume.
TUNER/MEMORY :
-
Stores radio stations.
-
Deletes all the saved stations.
USB REC : USB direct recording.
SLEEP : Sets the system to turn off
automatically at a specified time.
(Dimmer : The display window will
be darkened by half.)
• • • • • •
b
• • • • • •
REPEAT (MENU) : Listens to
your tracks/les repeatedly or
randomly.
TUNING-/+ : Selects the radio
stations.
C
/
V
(Skip/Search) :
-
Skips Fast backward or Forward.
-
Searches for a section within a
track/le.
Z
ENTER :
-
Stops playback or recording.
-
Cancels DELETE function.
d
/
M
(Play/Pause) :
-
Starts or pauses playback.
-
Selects STEREO/MONO.
SOUND EFFECT : Chooses sound
impressions.
AUTO DJ : Selects the AUTO DJ
mode. (For more information refer
to the page 22)
DELETE :
-
Deletes MP3/WMA les.
-
Deletes a song on JUKE BOX list.
• • • • • •
c
• • • • • •
0 to 9 numerical buttons : Selects
numbered tracks, les, or preset
number.
INFO : Sees informations about
your music. An MP3 le often
come with ID3 tag. The tag gives
the Title, Artist, Album or Time
information.
REGION EQ : Chooses region
equalizer.
• • • • • •
d
• • • • • •
CLOCK : For setting the clock and
checking the time.
ALARM : With the ALARM function
you can turn CD, USB play and
TUNER reception on at a desired
time.
SET : Conrms the setting.
JUKE BOX :
-
Selects JUKE BOX mode.
-
Makes your favorites list.
CM8440-FB_DUASLLC_ENG_7073.indd 10 2015-01-06 3:27:02
Getting Started 11
Getting Started
1
Front panel
a
b
c
d
e
f
g
h
i
m
n
p
q
j
r
s
k
l
t
u
v
o
w
x
y
CM8440-FB_DUASLLC_ENG_7073.indd 11 2015-01-06 3:27:02
Getting Started12
Getting Started
1
a
1
/
!
(Power)
b
Display window
c
Selects Bluetooth.
Selects the USB 1 or USB 2
d
FUNCTION
Selects the function and input source.
Turn FUNCTION knob clockwise or
counterclockwise.
e
z
(Play/Pause)
- Starts or pauses playback.
- Selects Stereo/Mono.
f
BASS BLAST
Selects the BASS BLAST or BYPASS sound
directly.
g Y
(Skip/Search)
- Searches backward.
- Skips to the previous track/le.
h
LATIN EQ
Chooses locally special equalizer.
i
SLEEP
Sets the system to turn off automatically at a
specified time.
(Dimmer : The display window will be
darkened by half.)
j
USER EQ
Controls sound register.
CLOCK
For setting the clock and checking the time.
k
PORT. IN jack
MIC jack
MIC VOL.
l
NFC allows you to install and open “LG
Bluetooth Remote” app to NFC-enabled
phone.
m
FOLDER
Moves to folder and file in selection mode.
n
ENTER
Selects a folder when searching a file.
o
USB 1/2 Port
You can play or record sound files by
connecting the USB device.
USB REC
Records to USB.
p
DELETE
- Deletes MP3/WMA files. (USB only)
- Deletes a song on JUKE BOX list.
JUKE BOX
- Makes your favourites list.
- Switches on and off JUKE BOX.
q
FILE SEARCH
Selects a folder and a file on CD/USB
function.
r I
(Stop)
Stops playback or cancels DELETE function.
s
AUTO DJ
Selects the AUTO DJ mode. (For more
informaion refer to the page 22)
t
U
(Skip/Search)
- Searches forward.
- Skips to the next track/le.
u
SOUND EFFECT
Chooses sound impressions.
v
B
(Open/Close)
Opens and closes the disc tray.
w
ALARM
With the ALARM function you can turn
CD, USB play and TUNER reception on at a
desired time.
DEMO/SET
- Shows demo.
- Conrms the setting.
x
MASTER VOLUME
Adjusts speaker volume.
y
Disc tray
CM8440-FB_DUASLLC_ENG_7073.indd 12 2015-01-06 3:27:02
Getting Started 13
Getting Started
1
Rear panel (CM8440)
b
c
d
e
a
a
Cooling fan
b
Speakers connector
c
AUX IN connectors (L/R)
d
ANTENNA (FM)
e
Power cord
y
Connect the power cord to wall outlet
directly if possible. Or when you use an
extension cable, it is highly recommended
to use an extension cable of 110 V / 15 A
or 230 V / 15 A, otherwise the unit may not
operate properly because of the lack of
power supply.
y
Do not overload the extension cord with
excessive electrical load.
>
Caution
CM8440-FB_DUASLLC_ENG_7073.indd 13 2015-01-06 3:27:02
Getting Started14
Getting Started
1
Rear panel (CM8340)
a
Cooling fan
b
Speakers connector
c
AUX IN connectors (L/R)
d
ANTENNA (FM)
e
Power cord
y
Connect the power cord to wall outlet
directly if possible. Or when you use an
extension cable, it is highly recommended
to use an extension cable of 110 V / 15 A
or 230 V / 15 A, otherwise the unit may not
operate properly because of the lack of
power supply.
y
Do not overload the extension cord with
excessive electrical load.
>
Caution
b
c
d
e
a
CM8440-FB_DUASLLC_ENG_7073.indd 14 2015-01-06 3:27:03
2 Connecting
Connecting 15
Connecting
2
How to Affix the
Ferrite Core
Ferrite core may not be provided depending on
each nation’s regulations.
Affix the Ferrite Core for
power cord
You must ax a ferrite core in order to reduce or
eliminate electrical interference.
1. Pull the stopper [a] of the ferrite core to open.
2. Wind the power cord around the ferrite core
twice.
3. Close the ferrite core until it clicks.
Connecting to
speakers
Connect the speaker cable plugs to the SPEAKERS
connector. Make sure to connect the speaker’s plug
to the corresponding speaker connector when
connecting the plug.
CM8440
Color Speaker
Grey SURR.R
Red FRONT R
Orange SUB WOOFER
Blue SURR.L
White FRONT L
CM8340
Color Speaker
Grey SURR.R
Red FRONT R
Blue SURR.L
White FRONT L
CM8440-FB_DUASLLC_ENG_7073.indd 15 2015-01-06 3:27:03
Connecting16
Connecting
2
y
Do not try to lift the speaker alone. It needs
two persons to lift the speaker. Otherwise
it may result in the speaker malfunction
and cause personal injury and/or property
damage.
y
The speakers must be placed at a distance
of about 20 cm from the unit for preventing
the vibration caused by the speakers.
20 cm
20 cm
y
Check the volume level before playing
music to prevent inrm, child, and pregnant
women from being shocked by the sudden
and loud sound from the unit.
y
Do not use the unit in a limited space.
It may damage a person’s hearing. It is
recommended to use it in a wide space.
y
Be careful to make sure children not to put
their hands or any objects into the *speaker
duct.
*Speaker duct: A hole for plentiful bass
sound on speaker cabinet (enclosure).
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
y
Make sure to install the speaker with other
people in order to prevent it from falling
and causing injuries to the installer.
>
Caution
CM8440-FB_DUASLLC_ENG_7073.indd 16 2015-01-06 3:27:03
Connecting 17
Connecting
2
Optional Equipment
Connection
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
Connect the FM wire antenna to the FM antenna
connector.
Be sure to fully extend the FM wire antenna.
,
Note
USB Connection
Connect a USB device (or MP3 player, etc.) to the
USB ports on the unit.
Removing the USB device from the unit :
1. Choose a different function/mode or
press
Z
ENTER on the remote control
or
I
on the unit twice in a row.
2. Remove the USB device from the unit.
,
Note
CM8440-FB_DUASLLC_ENG_7073.indd 17 2015-01-06 3:27:04
3 Operating
Connecting18
Connecting
2
AUX IN Connection
Connect an output of auxiliary device(Camcoder,
TV, Player, etc) to the AUX IN (L/R) connector.
If your device has only one output for audio(mono),
connect it to the left (white) audio jack on the unit.
PORT. IN Connection
Connect an output (earphone or line out) of
portable device (MP3 or PMP etc) to the
PORT. IN connector.
Portable cable
MP3 player etc.
Listening to music from your
portable player or external device
The unit can be used to play the music from many
types of portable player or external device.
1. Connect the portable player to the PORT. IN
connector of the unit.
Or
Connect the external device to the AUX IN
connector of the unit.
2. Turn the power on by pressing
1
/
!
.
3. Select the PORTABLE or AUX function by
pressing FUNCTION on the remote control or
rotating FUNCTION knob.
4. Turn on the portable player or external device
and start it playing.
CM8440-FB_DUASLLC_ENG_7073.indd 18 2015-01-06 3:27:04
3 Operating
Operating 19
Operating
3
Basic Operations
CD/USB Operations
1. Insert the disc by pressing
B
or connect the
USB device to the USB port.
2. Select the CD or USB function by pressing
FUNCTION on the remote control or by
rotating FUNCTION knob on the unit.
To Do this
Stop
Press
Z
ENTER on the remote
control or
I
on the unit.
Playback
Press
d
/
M
on the remote control
or
z
on the unit.
Pause
Press
d
/
M
on the remote control or
z
on the unit during playback.
Searching
for a section
within a track/
le
Press
C
/
V
on the remote
control or
Y
/
U
on the unit
during playback and release it at
the point you want to listen to.
Selecting
a track/le
directly
Press 0 to 9 numerical buttons on
the remote control to go to the
desired le or track directly.
Skipping to
the next/
previous
track/le
During playback,
(1) By using
C
/
V
buttons :
Press
C
/
V
to go to the
next track/le or to return to the
beginning of the current track/le.
Press
C
twice briey to step
back to the previous track/le.
(2) By using FILE SEARCH knob :
Rotate FILE SEARCH on the unit
and press
z
to play the track/
le.
Playing
repeatedly or
randomly
Press REPEAT(MENU) on the
remote control repeatedly. Refer
to the note for details about the
display change.
Auto Play
-
AUDIO/MP3/WMA CD is played automatically
after tray is open & closed.
-
Automatically switches to the CD function if tray
is open & closed when there is no disc in tray.
y
The display changes in the following order.
USB MP3/WMA CD AUDIO CD
REPEAT TRK
REPEAT *DIR
REPEAT ALL
RANDOM
OFF
REPEAT TRK
REPEAT DIR
REPEAT ALL
RANDOM
OFF
REPEAT TRK
-
REPEAT ALL
RANDOM
OFF
*DIR : Directory
y
When you play JUKE BOX list, only
REPEAT TRK and REPEAT ALL are available.
y
Even after restarting the unit or switching
one function to another, you can listen to
music from the point where it’s last been
played.
y
The next le name is displayed every 30
seconds. (Except RANDOM play, AUTO DJ
RANDOM play, the last le of playlist, etc.)
y
If you leave the disc tray open for 5 minutes,
it will close automatically.
,
Note
Selecting a folder and an
MP3/WMA file
On the unit
1. Press FOLDER and rotate FILE SEARCH until a
desired folder appears.
2. Press ENTER and rotate FILE SEARCH until a
desired file appears. Press
z
to play it.
On the remote control
1. Press PRESETFOLDER
W
/
S
repeatedly until a
desired folder appears.
2. Press
d
/
M
to play it. The first file of folder will
play.
CM8440-FB_DUASLLC_ENG_7073.indd 19 2015-01-06 3:27:05
Operating20
Operating
3
y
CD / USB Folders/Files are recognized as
below.
y
If there is no le in a folder, the folder will
not appear.
y
Folders will be presented as the following
order;
ROOT
FOLDER 1 FOLDER 3 FOLDER
7 FOLDER 8 FOLDER 5 FOLDER 6
y
File will be played from
$
le No.1 to
$
le
No.14 one by one.
y
Files and folders will be presented in order
recorded and may be presented dierently
according to the record circumstances.
y
*ROOT : The rst screen you can see when a
computer recognize the USB is “ROOT”.
,
Note
Deleting an MP3/WMA file
You can delete file, folder or format by pressing
DELETE. This function is supported only in stop
status. (USB only)
1. - Select the file you want to delete and press
DELETE.
- Select the folder you want to delete by
pressing FOLDER and rotating FILE SEARCH
and press DELETE.
- Press and hold DELETE to format the USB
device.
Or
Press DELETE repeatedly during selecting the
MP3/WMA file.
The display changes in the following order.
- DEL FILE? : Deletes file
- DEL FOLDER? : Deletes folder
- FORMAT? : Formats USB
2. To delete file/folder or format, press
d
/
M
on the
remote control or press
z
on the unit.
3. If you want to exit the current mode, press
Z
ENTER on the remote control or press
I
on
the unit.
y
Do not extract the USB device during
operation. (play, delete, etc.)
y
Regular back up is recommended to
prevent data loss.
y
The delete function may not be supported
according to the USB status. (lock, etc.)
>
Caution
ROOT
FOLDER 1
FOLDER 3
FOLDER
FILE
FILE 5
FILE 8
FILE 9
FILE 10
FILE 11
FILE 12
FILE 1
FILE 2
FILE 13
FILE 14
FILE 3
FILE 4
FILE 6
FILE 7
FOLDER 4
FOLDER 2
FOLDER 5
FOLDER 6
FOLDER 7
FOLDER 8
CM8440-FB_DUASLLC_ENG_7073.indd 20 2015-01-06 3:27:05
Operating 21
Operating
3
Playback effect
The unit supports AUTO DJ and JUKE BOX playback.
JUKE BOX Playback
(Program play)
JUKE BOX function enables you to make a playlist of
your favourite tracks/les from a disc or USB device.
A playlist of up to 100 tracks/les can be entered
for each media (CD, USB1,USB2). Possible to save a
total of 300 tracks/les.
Making JUKE BOX list
It is supported only on stop status.
1. Press and hold JUKE BOX to enter the edit
mode.
2. Select a track/file by pressing
C/V
on the
remote control or
Y/U
on the unit.
3. Press JUKE BOX to save the track/file.
4. Repeat steps 2 to 3 to store the other tracks/
files.
(You can modify the list by pressing PRESET
FOLDER
W
/
S
to select the JUKE BOX program
number.)
5. Press JUKE BOX once again.
To play the JUKE BOX list, press
d/M
after you
make the list.
Enjoying JUKE BOX
Press JUKE BOX twice on stop status. “JUKE BOX
ON” appears on the display window. To play JUKE
BOX list, press
d/M
on the remote control or
z
on the unit.
To cancel it, press JUKE BOX twice. “JUKE BOX OFF”
appears on the display window.
Deleting JUKE BOX list
Deleting function is worked only on the edit mode.
1. Press and hold JUKE BOX to enter the edit
mode.
2. Select a song by pressing JUKE BOX repeatedly
or by pressing PRESET.FOLDER
W
/
S
.
3. Press DELETE while a song is selected.
y
To check the status of JUKE BOX, press JUKE
BOX once. You can also check it by the word
“PROG.” on the display window.
y
If there is no JUKE BOX list, “JUKE BOX NONE”
appears on the display window when you
press JUKE BOX.
y
JUKE BOX is switched o in the case below.
-
Changing the function to the others.
-
Turning o and on the unit.
-
Operating the numeric buttons on the
remote control.
-
Playing a le by using FOLDER and FILE
SEARCH on the unit.
y
JUKE BOX list is cleared in the case below.
-
Removing the disc or the USB device.
-
Deleting or recording music les in the
USB device.
,
Note
CM8440-FB_DUASLLC_ENG_7073.indd 21 2015-01-06 3:27:05
Operating22
Operating
3
AUTO DJ playback
Auto DJ blends the end of one song into the
beginning of another for seamless playback.
It equalizes volume across tracks/les for
uninterrupted playback.
Press AUTO DJ on the remote control or unit
repeatedly, the display changes as followings.
RANDOM (AUTO DJ RANDOM) -> REPEAT ALL
(AUTO DJ SEQUENTIAL) -> (AUTO DJ OFF)
Mode
Display
Window
Description
OFF
-
(AUTO DJ OFF)
-
RANDOM
RANDOM
(AUTO DJ
RANDOM)
The music is
played randomly
on this mode.
REPEAT
REPEAT ALL
(AUTO DJ
SEQUENTIAL)
The music is
played repeatedly
on this mode.
y
It is not supported on the AUTO DJ mode to
search for a section within a track/le or to
play repeatedly or randomly.
y
During AUTO DJ mode, it is not available to
press PRESETFOLDER
W
/
S
on the remote
control or FOLDER on the unit.
y
If you move to other functions or stop the
music using
I
on the unit (or
Z
ENTER on
the remote control) on AUTO DJ mode,
AUTO DJ function will be disable.
y
AUTO DJ function is not supported in the
music le whose length is less than 60
seconds.
y
During recording, AUTO DJ function is not
available.
y
Only AUTO DJ SEQUENTIAL is selected when
played JUKE BOX list.
,
Note
CM8440-FB_DUASLLC_ENG_7073.indd 22 2015-01-06 3:27:05
Operating 23
Operating
3
Using a Bluetooth
wireless technology
About Bluetooth
Bluetooth® is wireless communication technology
for short range connection.
The sound may be interrupted when the
connection interfered by the other electronic wave
or you connect the bluetooth in the other rooms.
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges. A
mobile phone with Bluetooth® wireless technology
can be operated via the Cascade if the connection
was made via Bluetooth® wireless technology.
Available Devices : Mobile phone, MP3, Laptop,
PDA.
Bluetooth Profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain proles.
This unit is compatible with following prole.
A2DP (Advanced Audio Distribution Prole)
Listening to music stored on
the Bluetooth devices
Before you start the pairing procedure, make
sure the Bluetooth feature is turned on in to your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.
1. Select the Bluetooth function by using the
FUNCTION on the remote, FUNCTION knob on
the unit and button on the unit.
“BT READY” appears on the display window.
2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device
display depending on the type of Bluetooth
device. Your unit appears as “LG MINI(XX:XX)”.
XX:XX means the last four digits of BT address.
For example, if your unit has a BT address
such as 9C:02:98:4A:F7:08, you will see “LG
MINI(F7:08)” on your Bluetooth device.
,
Note
3. Enter the PIN code.
PIN code : 0000
Depending on the Bluetooth device type,
some device have a dierent pairing way.
,
Note
4. When this unit is successfully connected with
your Bluetooth device, “PAIRED” will appear on
the display window and bluetooth indicator will
be lit up.
5. Listen to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.
y
Sound from the main set can be distorted
if you raise the volume of Bluetooth device
up to two-thirds or more.
y
When you use the bluetooth function,
adjust the volume of a bluetooth device to
a proper level to listen to.
,
Note
CM8440-FB_DUASLLC_ENG_7073.indd 23 2015-01-06 3:27:05
Operating24
Operating
3
y
When using Bluetooth® technology, you
have to make a connection between the
unit and the bluetooth device as close as
possible and keep the distance.
However it may not work well in the case
below :
-
There is a obstacle between the unit and
the bluetooth device.
-
There is a device using same frequency
with Bluetooth® technology such as a
medical equipment, a microwave or a
wireless LAN device.
y
You should connect your Bluetooth device
to this unit again when you restart it.
y
The sound may be interrupted when
the connection interfered by the other
electronic wave.
y
You cannot control the Bluetooth device
with this unit.
y
Pairing is limited one Bluetooth device per
one unit and multi-pairing is not supported.
y
Depending on the type of the device,
you may not be able to use the Bluetooth
function.
y
You can enjoy wireless system using phone,
MP3, Notebook, etc..
y
When not connected the Bluetooth,
“BLUETOOTH” and “BT READY” appears on
the control panel.
y
When someone stands and interrupts
communication between Bluetooth device
and the player, the connection will be
disconnected.
y
The more distant between the unit and
the bluetooth device, the lower the sound
quality becomes.
y
When Bluetooth connection is
disconnected, connect the bluetooth device
to the unit again.
,
Note
Using Bluetooth App
Only Android OS is available to use “LG
Bluetooth Remote” app with this unit.
,
Note
About “LG Bluetooth Remote” App
“LG Bluetooth Remote” app brings a suite of new
features to this unit.
To enjoy more features, you are recommended to
download and install free “LG Bluetooth Remote”
app.
Install “LG Bluetooth Remote” App
onto Your Bluetooth Device
1. Install “LG Bluetooth Remote” app through QR
code. Use the scanning software to scan the QR
code.
2. Tap an icon for installation.
3. Tap an icon for downloading.
y
Make sure that your Bluetooth device is
connected to the Internet.
y
Make sure that your Bluetooth device has a
scanning software application. If you don’t
have one, download one from “Google
Android Market (Google Play Store)”.
,
Note
CM8440-FB_DUASLLC_ENG_7073.indd 24 2015-01-06 3:27:06
Operating 25
Operating
3
Install “LG Bluetooth Remote” App
through “Google Android Market
(Google Play Store)”
1. Tap the “Google Android Market (Google Play
Store)” icon.
2. In the search bar, type in the “LG Bluetooth
Remote” and search it.
3. In the search result list, find and tap “LG
Bluetooth Remote” to start downloading
Bluetooth app.
4. Tap an icon for installation.
5. Tap an icon for downloading.
y
Make sure that your Bluetooth device is
connected to the Internet.
y
Make sure that your Bluetooth device is
equipped with “Google Android Market
(Google Play Store)”.
,
Note
Install “LG Bluetooth Remote” App
through NFC
NFC (Near Field Communication) allows you to
install and open “LG Bluetooth Remote” app to NFC-
enabled phone.
1. Activates the NFC feature of your NFC-enabled
phone.
2. Turn on the unit.
3. Tag the back of your NFC-enabled phone over
the unit.
-
If “LG Bluetooth Remote” app is not installed on
your NFC-enabled phone, the linked screen with
“LG Bluetooth Remote“ app is displayed.
-
If “LG Bluetooth Remote” app is installed on your
NFC-enabled phone, “LG Bluetooth Remote” app
is activated.
y
You must activate the NFC feature of your
NFC-enabled phone.
y
If your NFC-enabled phone’s screen is
locked, it will not read the NFC.
y
If your smart phone case is plated with
chrome, NFC is unavailable. Depending on
your case’s material or thickness, NFC may
not be read well.
,
Note
CM8440-FB_DUASLLC_ENG_7073.indd 25 2015-01-06 3:27:18
Operating26
Operating
3
Activate Bluetooth with “LG
Bluetooth Remote” App
“LG Bluetooth Remote” app helps to connect your
bluetooth device to this unit.
1. Tap “LG Bluetooth Remote” app icon on the
home screen to open “LG Bluetooth Remote”
app, and go to the main menu.
2. Tap [Setting] and select the unit you want.
3. If you want to get more information to operate,
tap [Setting] and [Help].
y
BT app will be available in the software
version as follow;
-
Android O/S : Ver 2.3.3 (or later)
y
This unit does not support the multi-pairing.
If this unit is already connected with other
Bluetooth device, disconnect that device
and then try again.
y
If you use “LG Bluetooth Remote” app for
operation, there would be some dierences
between “LG Bluetooth Remote” app and
the supplied remote control. Use the
supplied remote control as necessary.
y
Depending on the Bluetooth device, “LG
Bluetooth Remote” app may not work.
y
The connection you’ve made may be
disconnected if you select other application
or change the setting of the connected
device via “LG Bluetooth Remote” app. In
such a case, please check the connection
status.
y
After connection of BT app, music may be
output from your device. In this case, try
connecting procedure again.
,
Note
CM8440-FB_DUASLLC_ENG_7073.indd 26 2015-01-06 3:27:18
Operating 27
Operating
3
Radio Operations
Be sure that both FM aerials are connected. (Refer
to the page 17)
Listening to the radio
1. Press FUNCTION on the remote control or
rotate FUNCTION knob until FM appears on the
display window.
The last received station is tuned in.
2. Auto tuning :
Press and hold TUNING-/+ on the remote
control or
Y/U
on the unit for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
Or
Manual tuning :
Press TUNING-/+ on the remote control or
Y/U
on the unit repeatedly.
3. Adjust the volume by rotating volume knob on
the unit or by pressing VOL +/- on the remote
control repeatedly.
Improving poor FM reception
Press
d
/
M
on the remote control or
z
on the
unit. This will change the tuner from stereo to
mono and usually improve the reception.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure to turn down the volume.
1. Press FUNCTION on the remote control or
rotating FUNCTION knob on the unit until FM
appears in the display window.
2. Press TUNING-/+ on the remote control or
Y
/
U
on the unit to select a desired
frequency.
3. Press TUNER/MEMORY. A preset number will
blink in the display window.
4. Press PRESETFOLDER
W
/
S
to select the
preset number you want.
5. Press TUNER/MEMORY. The station is stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen a preset station, press
PRESETFOLDER
W
/
S
or 0 to 9 numerical
buttons.
Deleting all the saved stations
1. Press and hold TUNER/MEMORY for two
seconds.
“ERASE ALL?” will flash up on the unit display.
2. Press TUNER/MEMORY to erase all the saved
radio stations.
CM8440-FB_DUASLLC_ENG_7073.indd 27 2015-01-06 3:27:18
Operating28
Operating
3
Other Operations
Turn off the sound temporarily
Press MUTE
@
to mute your unit.
You can mute your unit, for example, to answer
the telephone, the mute icon “
Q
” is blinked in the
display window.
Displaying file information
(ID3 TAG)
While playing an MP3 le containing le
information, you can display the information by
pressing INFO.
DEMO
In the power o state, it demonstrates the function
on display window with a demo sound and a
display by pressing DEMO/SET.
To cancel the DEMO, press it again.
y
While DEMO, this unit will keep DEMO
status even if you unplug the power cord
connection.
y
You can enjoy other functions during
the DEMO. Then the DEMO will pause to
temporary.
-
Without input key in 10 sec, the DEMO will
play back automatically.
,
Note
Using Microphone
It is available on the function as follows : CD, USB,
AUX-MIC and BLUETOOTH.
1. Connect your microphone to the MIC jack.
2. Play the music you want.
3. Sing along with the accompaniment. Adjust
the microphone volume by rotating MIC VOL.
clockwise or unclockwise on the unit.
y
When not using the microphone, set the
MIC VOL. to minimum or turn o the MIC
and remove the microphone from the
MIC jack.
y
If the microphone is set too near the
speaker, a howling sound may be produced.
In this case, move the microphone away
from the speaker or decrease the sound
level by using the MIC VOL..
y
If sound through the microphone is
extremely loud, it may be distorted. In this
case, rotate MIC VOL. to minimum.
y
AUX-MIC function enables only your voice
to output.
,
Note
CM8440-FB_DUASLLC_ENG_7073.indd 28 2015-01-06 3:27:18
Operating 29
Operating
3
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround
sound elds. You can select a sound mode you
want by using SOUND EFFECT.
The displayed items for the Equalizer may be
dierent depending on sound sources and eects.
On Display Description
NATURAL
You can enjoy comfortable and
natural sound.
Local
Specialization
equalizer
(Optional)
Regionally optimized sound
eect. (FORRO/FUNK/
SERTANEJO/DANGDUT/ARABIC/
PERSIAN/INDIA/REGUETON/
MERENGUE/SALSA/SAMBA/
CUMBIA/AFRO)
AUTO EQ
Realizes the sound equalizer that
is the most similar to the genre
of which is included in the MP3
ID3 tag of song les.
POP
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to the
sound, giving you the feeling
you are at an actual rock, pop,
jazz or classic concert.
MP3-
OPTIMIZER
This function is optimized
for compressible MP3 le. It
improves the treble sound.
BASS BLAST
Reinforces the treble, bass and
surround sound eect.
LOUDNESS
Improves the bass and treble
sound.
FOOTBALL
You can enjoy the sound eect
FOOTBALL STADIUM.
BYPASS
You can enjoy the sound
without equalizer eect.
y
On some speakers, sound may not be heard
or heard in low sound depending on the
sound mode.
y
Maybe you need to reset the surround
mode, after switching the input, sometimes
even after the sound track/le changed.
y
By pressing BASS BLAST on the unit you
can directly select the BYPASS or
BASS BLAST sound.
,
Note
Setting the USER EQ
You can listen to music with equalizer by adjusting
the sound level yourself.
1. Press USER EQ on the unit. “USER EQ” is
displayed.
2. Press
Y
on the unit while “USER EQ” is
displayed.
3. Select BASS, MIDDLE, or TREBLE by using
BASS BLAST on the unit.
4. Adjust the sound level by turning LATIN EQ
knob.
5. To finish the setting, press
Y
on the unit..
CM8440-FB_DUASLLC_ENG_7073.indd 29 2015-01-06 3:27:18
Operating30
Operating
3
Setting the Clock
1. Turn the unit on.
2. Press and hold CLOCK.
3. Select time mode by pressing
C/V
on
the remote control or
Y/U
on the unit.
- AM 12:00 (for an AM and PM display) or 0:00
(for a 24 hour display)
4. Press SET to confirm your selection.
5. Select the hours by pressing
C/V
on the
remote contro or
Y/U
on the unit.
6. Press SET.
7. Select the minutes by pressing
C/V
on
the remote control or
Y/U
on the unit.
8. Press SET.
Setting the Clock through “LG
Bluetooth Remote” App
Install “LG Bluetooth Remote” app on your Android
device. (see page 24 - 26)
Your unit’s clock will be automatically synchronized
with your device by activating Bluetooth
connection through “LG Bluetooth Remote” app.
Using your player as an alarm
clock
1. Turn the unit on.
2. Press and hold ALARM.
3. Press
C/V
on the remote control or
Y/U
on the unit to change the hours and
minutes and press SET to save.
4. Press
C/V
on the remote control or
Y/U
on the unit to select function and
press SET to save.
5. Press
C/V
on the remote control or
Y/U
on the unit to change the volume
and press SET to save. The clock icon “
(
“
shows that the alarm is set.
y
If you set the clock time, you can check the
time by pressing CLOCK even when the
player is turned o.
y
If you set the clock time and alarm, you
can check the alarm icon “
(
“ by pressing
CLOCK even when the player is turned o.
y
If you set the clock time and alarm, you
can check the alarm icon “
(
“ and setting
informaiton by pressing ALARM even when
the unit is turned o.
y
Press ALARM, you can selects a ALARM on
/ o mode.
,
Note
Sleep Timer Setting
Press SLEEP repeatedly to select delay time
between 10 and 180 minutes. After the delay time,
the unit will be turned o.
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
y
You can check the remaining time before
the unit is turned o.
y
Press SLEEP. The remaining time appears in
the display window.
,
Note
Dimmer
Press SLEEP once. The display window will
be darkened by half. To cancel it, press SLEEP
repeatedly until dim o.
Auto power down
This unit will turn o itself to save electric
consumption in the case were main unit is not
connected to external device and is not used for 20
minutes.
So does this unit after six hours since Main unit has
been connected to other device using analogue
input.
CM8440-FB_DUASLLC_ENG_7073.indd 30 2015-01-06 3:27:19
Operating 31
Operating
3
Advanced Operations
Recording to USB
You can record a various sound source to USB.
(CD, USB, AUX, AUX-MIC, PORTABLE, FM)
1. Connect the USB device to the unit.
2. Select a function in which you want to record
by using FUNCTION on the remote control or
FUNCTION knob on the unit.
One track/file recording - You can record to USB
after playing a track/file you want.
All tracks/files recording - You can record to USB
after stop.
JUKE BOX list recording - After showing the
JUKE BOX list, you can record it to USB.
(Refer to the page 21)
3. Press USB REC on the remote control or
USB REC on the unit.
- If you connect both USB1 and USB2, press
z
to record to USB1 or press
I
to record
to USB2.
4. To stop recording, press
I
on the unit or
Z
ENTER on the remote control.
Pausing recording
During recording, press
d
/
M
on the remote control
or
z
on the unit to pause recording. Press it
again to restart recording.
(TUNER/AUX/AUX-MIC/PORTABLE only)
y
You can control recorded MIC sound
according to MIC volume when you record
in AUDIO CD X1 speed REC.
y
Depending on the sound recording in
MIC Input when you record in AUX-MIC
Function. (No matter the MIC volume
control.)
,
Note
To select recording bit rate and
speed
1. Press USB REC on the remote control or
USB REC on the unit for longer than 3
seconds.
2. Press
C
/
V
on the remote control or
Y
/
U
on the unit to select a bit rate.
3. Press USB REC on the remote control or
USB REC on the unit again to select the
recording speed.
4. Press
C
/
V
on the remote control or
Y
/
U
on the unit to select a desired
recording speed. (AUDIO CD only)
X1 SPEED
- You can listen to music while recording it.
X2 SPEED
- You can just record the music file.
5. Press USB REC on the remote control or
USB REC on the unit to finish the setting.
Dubbing USB to USB
You can do dubbing a various sound source in
USB1 to USB2 on USB function.
1. Connect a USB device including desired sound
files to USB1.
2. Connect another USB device to USB2.
3. Press USB REC on the remote control or
USB REC on the unit.
4. To stop recording, press
Z
ENTER on the
remote control or
I
on the unit.
CM8440-FB_DUASLLC_ENG_7073.indd 31 2015-01-06 3:27:19
Operating32
Operating
3
y
It is not supported to record music stored
on bluetooth device.
y
You can check the recording percentage
rate for the USB record on the display
window during the recording. (MP3/WMA
CD Only)
y
During recording MP3/WMA, there is no
sound.
y
For stable recording, the output sound level
goes down on its own when you record
music from CD to USB.
y
You can only change volume level between
MIN and 10 during recording. It will be kept
even after recording. (CD Only)
y
When you stop recording during playback,
the le that has been recorded at that time
will be stored. (Except MP3/WMA les)
y
Do not remove the USB device or turn o
the unit during USB recording. If does not,
an incomplete le may be made and not
deleted on PC.
y
If USB recording does not work, the
message like “NO USB”, “ERROR”, “USB FULL”
or “NO REC” is displayed on the display
window.
y
Multi card reader device or External HDD
can not be used for USB recording.
y
A le is recorded by about 512 Mbyte when
you record for a long term.
y
Sound of MIC is recorded only during
AUDIO CD X1 speed REC. It is recorded
AUDIO CD source too
y
You can not record in AUTO DJ mode.
y
You may not store more than 999 les.
,
Note
It’ll be stored as follows.
AUDIO CD MP3/WMA
The other source* TUNER
* : AUX, PORTABLE and the like.
TUNER : The current recording frequency is
shown.
,
Note
The making of unauthorized copies of copy-
protected material, including computer
programs, les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal oense.
This equipment should not be used for such
purposes.
Be responsible
Respect copyrights
CM8440-FB_DUASLLC_ENG_7073.indd 32 2015-01-06 3:27:19
4 Troubleshooting
Troubleshooting 33
Troubleshooting
4
Troubleshooting
Problem Cause & Solution
No Power.
y
The power cord is not plugged in. Plug in the power cord.
y
Check whether electricity failed.
Check the condition by operating other electronic devices.
No sound.
y
Check whether you select right function.
Press FUNCTION and check the selected function.
y
If not, connect speaker cables correctly.
Speaker cables connected correctly.
The unit does not start
playback.
y
An unplayable disc is inserted. Check the playable disc.
y
No disc is inserted. Insert a disc.
y
The disc is dirty. Clean the disc. (Refer to the page 37)
y
The disc is inserted upside down.
Place the disc with the label or printed side facing upwards.
Radio stations cannot be
tuned in properly.
y
The antenna is positioned or connected poorly.
Connect the antenna securely.
y
The signal strength of the radio station is too weak.
Tune to the station manually.
y
No stations have been preset or preset stations have been cleared (when
tuning by scanning preset channels).
Preset some radio stations, see page 27 for details.
The remote control does
not work properly.
y
The remote control is too far from the unit.
Operate the remote control within about 23 ft (7 m).
y
There is an obstacle in the path of the remote control and the unit.
Remove the obstacle.
y
The batteries in the remote control are exhausted.
Replace the batteries with new ones.
CM8440-FB_DUASLLC_ENG_7073.indd 33 2015-01-06 3:27:19
5 Appendix
Appendix34
Appendix
5
Trademarks and
Licenses
Bluetooth® wireless technology is a system which
allows radio contact between electronic devices.
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges.
A mobile phone with Bluetooth® wireless
technology can be operated via the Cascade if
the connection was made via Bluetooth® wireless
technology.
The Bluetooth® word mark and logos are owned
by the Bluetooth® SIG, Inc. and any use of such
marks by LG Electronics is under license.
Other trademarks and trade names are those of
their respective owners.
CM8440-FB_DUASLLC_ENG_7073.indd 34 2015-01-06 3:27:19
Appendix 35
Appendix
5
Specifications
General
Model CM8440 CM8340
Power requirements 120 V ~ 60 Hz
Power consumption 210 W
Dimensions (W x H x D)
(290 x 349 x 370) mm
(114.2 X 137.4 X 145.7) inch
Net Weight (Approx.) 5.9 kg (13.0 lb)
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity 60 %
Bus Power Supply 5 V
0
500 mA
Inputs
AUX IN 2.0 Vrms (1 kHz, 0 dB), 600 , RCA jack (L, R)
Port In 1.2 Vrms (3.5 mm stereo jack)
MIC 20 mV
Tuner
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz
Amplier
Model CM8440 CM8340
Total 1,900 W 1,520 W
Streo mode 380 W x 4 380 W x 4
Sub-woofer 380 W -
CD
Frequency Response 40 to 20,000 Hz
Signal-to-noise ratio 75 dB
Dynamic range 80 dB
CM8440-FB_DUASLLC_ENG_7073.indd 35 2015-01-06 3:27:19
Appendix36
Appendix
5
Speakers specifications
Front speaker
Type 2 Way 2 Speaker
Impedance 6
Rated Input Power 380 W
Max. Input power 760 W
Surround speaker
Type 1 Way 1 speaker
Impedance 6
Rated Input Power 380 W
Max. Input power 760 W
Net Dimensions (W x H x D)
(335 x 445 x 300) mm
(131.9 x 175.2 x 118.1) inch
Net Weight 8.8 kg (19.4 lb)
Subwoofer (CM8440)
Type 1 Way 1 speaker
Impedance 6
Rated Input Power 380 W
Max. Input power 760 W
Net Dimensions (W x H x D)
(332 x 455 x 280) mm
(130.7 x 179.1 x 110.2) inch
Net Weight 9.8 kg (21.6 lb)
y
Design and specications are subject to change without notice.
CM8440-FB_DUASLLC_ENG_7073.indd 36 2015-01-06 3:27:20
Appendix 37
Appendix
5
Maintenance
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for old vinyl records.
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray
near the unit. Wiping with strong pressure may
damage the surface. Do not leave rubber or plastic
products in contact with the unit for a long period
of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
CM8440-FB_DUASLLC_ENG_7073.indd 37 2015-01-06 3:27:20
LG Customer Information Center
1-800-243-0000 USA, Consumer
1-888-865-3026 USA, Commercial
Register your product Online!
www.lg.com
CM8440-FB_DUASLLC_ENG_7073.indd 38 2015-01-06 3:27:20
