Operating Instructions
GB
4-727-538-32(1)
Sound Bar
The software of this system may be updated in the future. To find out details on any
available updates, please visit the following URL.
http://www.sony-asia.com/section/support
©2018 Sony Corporation Printed in Malaysia
HT-Z9F
AR
Sound Bar
2
GB
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
To reduce the risk of fire, do not cover
the ventilation opening of the appliance
with newspapers, tablecloths, curtains,
etc.
Do not expose the appliance to naked
flame sources (for example, lighted
candles).
To reduce the risk of fire or electric
shock, do not expose this appliance to
dripping or splashing, and do not place
objects filled with liquids, such as vases,
on the appliance.
The unit is not disconnected from the
mains as long as it is connected to the
AC outlet, even if the unit itself has been
turned off.
As the main plug is used to disconnect
the unit from the mains, connect the
unit to an easily accessible AC outlet.
Should you notice an abnormality in the
unit, disconnect the main plug from the
AC outlet immediately.
Do not expose batteries or appliances
with battery-installed to excessive
heat, such as sunshine and fire.
Indoor use only.
Recommended cables
Properly shielded and grounded cables
and connectors must be used for
connection to host computers and/or
peripherals.
For the Bar Speaker
The nameplate is located on the bottom
of the Bar Speaker.
Caution for mounting the Bar
Speaker on a wall
Make sure to use the supplied
wall mounting brackets when
mounting the Bar Speaker on a
wall.
Make sure to use the supplied wall
mounting brackets when mounting the
Bar Speaker on a wall. Do not mount the
Bar Speaker on a wall directly. The
temperature inside of the Bar Speaker
rises considerably, and it may cause
damage or malfunction.
TRA
REGISTERED No: ER59904/17
DEALER No: DA0096946/12
WARNING
3
GB
Table of Contents
What’s in the Box ..........................5
What You Can Do with the
System .....................................6
Guide to Parts and Controls ..........8
About the Home Menu ................ 14
Connecting to a TV or AV
Device
Connecting Sony TV with the
BLUETOOTH Function
Wirelessly .............................. 16
Connecting a TV with an Analog
Audio Cable ........................... 19
Connecting a 4K TV and 4K
Devices ..................................20
Connecting to a Network
Connecting to a Wired
Network ................................. 23
Connecting to a Wireless
Network .................................24
Preparing to Use the System
Mounting the Bar Speaker or Rear
Speaker on a Wall .................26
Attaching the Grille Frame ..........29
Connecting the Subwoofer and Rear
Speakers Wirelessly ..............29
When the TV Remote Control does
not Work ................................ 31
Watching Images
Watching TV ................................ 32
Playing the Connected AV
Device ....................................32
Listening to Music/Sound
Listening to Music/Sound with the
BLUETOOTH® Function ..........34
Listening to Music on a USB
Device ....................................36
Listening to Music on your PC via a
Home Network ...................... 37
Listening to the Device Connected
with an Analog Audio
Cable ......................................38
Using Spotify ................................39
Using the MUSIC SERVICE
Button ....................................39
Using Chromecast built-in ...........40
Listening to Music on the Mobile
Device with Sony | Music
Center .................................... 41
Connecting the Wireless Multi
Room-Compatible Device
(Wireless Multi Room) ...........42
Listening to Sound of the
Connected TV or Device from
Headphones ..........................43
Adjusting the Sound Quality
Enjoying Immersive Surround
Experience (VERTICAL S.) ......45
Setting the Sound Effect that is
Tailored to Sound Sources
(Sound Mode) ........................46
Making Dialogs Clearer
(VOICE) ...................................47
Enjoying Clear Sound with Low
Volume at Midnight
(NIGHT) ..................................47
Adjusting the Volume of the
Subwoofer and Rear
Speakers ................................48
Adjusting the Delay Between the
Picture and Sound .................49
Connecting to a
TV or AV Device
with the HDMI
Cable
Startup Guide
(separate
document)
GB
4
GB
Playing Compressed Audio Files or
CDs by Upscaling to Near Hi-
Resolution Sound Quality
(DSEE HX) .............................. 50
Enjoying Multiplex Broadcast Sound
(AUDIO) ................................. 50
Using the Control for HDMI
Function
Using the Control for HDMI
Function .................................52
Using the “BRAVIA” Sync
Function ................................ 54
Changing the Settings
Customizing the Speaker Settings
for Surround Sound .............. 55
Changing the Brightness of the
Front Panel Display and
BLUETOOTH Indicator
(DIMMER) .............................. 56
Saving Power in Standby
Mode ......................................57
Performing Easy Setup ................57
Performing Advanced
Settings ................................. 58
Updating the Software ............... 63
Troubleshooting
Troubleshooting .......................... 64
Resetting the System ...................73
Additional Information
Specifications ...............................74
Playable Types of Audio Files ......76
Supported Input Audio
Formats ..................................77
Supported HDMI Video
Formats ..................................78
On BLUETOOTH
Communication ....................80
END USER LICENSE
AGREEMENT ...........................81
Precautions ................................. 85
Index ............................................ 89
5
GB
What’s in the Box
•Bar Speaker (1)
•Grille frame (1)
•Subwoofer (1)
• Remote control (1)
• R03 (size AAA) battery (2)
• HDMI cable (supports the specification
equal to Premium High Speed HDMI
Cable with Ethernet) (1)
• WALL MOUNT TEMPLATE (1)
• Wall mounting bracket (2), Screw (2)
•Startup Guide
• Operating Instructions
6
GB
What You Can Do with the System
“Listening to Music
on a USB Device”
(page 36)
Blu-ray Disc™ player, cable
box, satellite box, etc.
“Using the Control for HDMI
Function” (page 52)
“Using the “BRAVIA” Sync
Function” (page 54)
“Connecting the Subwoofer
and Rear Speakers Wirelessly”
(page 29)
“Watching TV” (page 32)
“Playing the Connected AV
Device” (page 32)
Basic connection: Refer to
“Startup Guide” (separate
document).
Other connections: See
“Connecting to a TV or AV
Device” (page 16).
“Connecting Sony TV
with the BLUETOOTH
Function Wirelessly”
(page 16)
Rear speakers
(not supplied)
The system supports object-based audio formats such as Dolby Atmos and
DTS:X as well as HDR video formats such as HDR10, HLG, and Dolby Vision.
“Using Spotify”
(page 39)*
“Using the MUSIC
SERVICE Button”
(page 39)
* This service may not be available in
some countries/regions.
* To play on the system, you need the
Spotify Premium account.
7
GB
“Listening to Music/Sound with the
BLUETOOTH® Function” (page 34)
“Listening to Music on the Mobile
Device with Sony | Music Center”
(page 41)
“Listening to Sound of the Connected
TV or Device from Headphones”
(page 43)
“Connecting to a Wired
Network” (page 23)
Internet
Router
Modem
Wireless LAN router
“Connecting to a Wireless
Network” (page 24)
“Listening to Music on your PC via a
Home Network” (page 37)
“Connecting the Wireless Multi Room-
Compatible Device (Wireless Multi
Room)” (page 42)
8
GB
Guide to Parts and Controls
Details are omitted from the illustrations.
Front
(power) button
Turns on the system or sets it to
standby mode.
(input select) button
Selects the input for playback on the
system.
BLUETOOTH button (page 34)
(MUSIC SERVICE) button
(page 39)
This button may not be available
in some countries/regions.
+/– (volume) buttons
BLUETOOTH indicator
– Flashes quickly in blue: During
pairing standby status
– Flashes in blue: BLUETOOTH
connection is being attempted.
– Lights in blue: BLUETOOTH
connection has been established.
Front panel display
Remote control sensor
Point the remote control at the
remote control sensor to operate
the system.
Bar Speaker (Main Unit)
9
GB
Rear
LAN(100) port
HDMI IN 2 jack
For specifications and notes on
connections, see “Supported
HDMI Video Formats” (page 78).
HDMI IN 1 jack
For specifications and notes on
connections, see “Supported
HDMI Video Formats” (page 78).
HDMI OUT (TV (ARC)) jack
Connect a TV that has an HDMI
input jack with an HDMI cable.
The system is compatible with
Audio Return Channel (ARC). ARC
is the function that sends TV
sound to an AV device such as the
system from the TV’s HDMI jack.
For specifications and notes on
connections, see “Supported
HDMI Video Formats” (page 78).
(USB) port (page 36)
ANALOG IN jack
TV IN (OPT) jack
IR repeater (page 31)
Transmits the remote signal of
the TV remote control to the TV.
10
GB
Power indicator
– Flashes slowly in green: The
subwoofer is not connected to the
system.
– Lights in green: The subwoofer is
connected to the system.
– Flashes twice repeatedly in green:
The subwoofer is attempting to
connect to the system.
– Flashes/lights in orange: The
software is updating.
– Lights in red: The subwoofer is in
standby mode.
– Turns off: The subwoofer is turned
off.
(power) button
Turns on or off the subwoofer.
LINK button (page 30)
Ventilation holes
For safety, do not block the
ventilation holes.

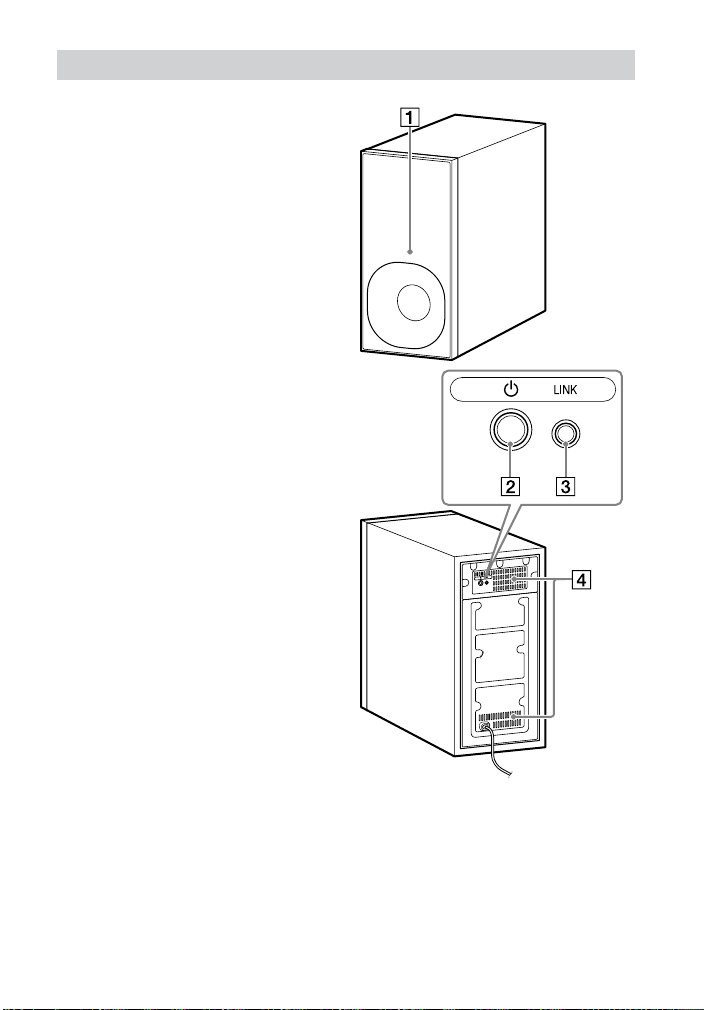

Subwoofer
11
GB
You can enjoy the surround sound by
connecting two rear speakers (not
supplied).
For connecting, see “Connecting the
Subwoofer and Rear Speakers
Wirelessly” (page 29).
Power indicator
– Flashes slowly in green: The rear
speaker is not connected to the
system.
– Lights in green: The rear speaker
is connected to the system.
– Flashes twice repeatedly in green:
The rear speaker is attempting to
connect to the system.
– Flashes/lights in orange: The
software is updating.
– Lights in red: The rear speaker is in
standby mode.
– Turns off: The rear speaker is
turned off.
(power) button
Turns on or off the rear speaker.
LINK button (page 30)
Wall mount hole (page 28)
Mounting hole for the general
speaker stand
Rear Speaker (SA-Z9R) (not supplied)
12
GB
(power)
Turns on the system or sets it to
standby mode.
BLUETOOTH (page 35)
TV (page 32)
HDMI1 (page 32)
HDMI2 (page 32)
ANALOG (page 38)
USB (page 36)
AUTO SOUND (page 46)
CINEMA (page 46)
MUSIC (page 46)
GAME (page 46)
NEWS (page 46)
SPORTS (page 46)
STANDARD (page 46)
VOICE (page 47)
VERTICAL S. (page 45)
NIGHT (page 47)
DIMMER (page 56)
(MUSIC SERVICE) button
(page 39)
This button may not be available
in some countries/regions.
/// (page 14)
(enter) (page 14)
BACK (page 14)
OPTIONS (page 32, 49)
Displays the options menu on the
TV screen.
The options menu is not
displayed for the TV input.
HOME (page 14)
Remote Control
13
GB
REAR (rear speakers volume)
+/–
Adjusts the volume of the rear
speakers when connecting rear
speakers (not supplied).
(volume) +*/–
Adjusts the volume.
SW (subwoofer volume) +/–
Adjusts the volume of the
subwoofer.
(muting)
Turns off the sound temporarily.
DISPLAY
Displays playback information on
the TV screen.
Playback information is not
displayed for the TV input.
Playback operation buttons
/ (previous/next)
Selects the previous/next track or
file.
Pressing and holding searches
backward or forward (rewind/fast
forward) during playback.
(play/pause)*
Starts, pauses, or re-starts
playback (resume play).
AUDIO* (page 50)
*The AUDIO, , and + buttons have
a tactile dot. Use it as a guide during
operation.
About the replacement of
batteries for the remote control
When the system does not respond by
operating with the remote control,
replace two batteries with new
batteries.
Use R03 (size AAA) manganese
batteries for replacement.
14
GB
About the Home Menu
You can display the home menu on the TV screen by connecting the system and TV
with the HDMI cable (supplied). From the home menu, you can set the various
settings and select the input.
The home menu is displayed in the language that is selected in [Easy Setup]. (The
following screen is an example when English is selected.)
1 Press HOME.
The home menu appears on the TV screen.
2 Press // to select the category that you want, then press or .
The items for the selected category appear under the category list on the
TV screen.
3 Press /// to select the item that you want, then press .
The selected input or setting display appears on the TV screen.
To return to the previous screen, press BACK.
[Watch]
Selects the input of the TV or AV device that is connected to the system.
See “Watching Images” (page 32).
Using the Home Menu
Categories
Category items
HOME
BACK
///, (enter)
15
GB
[Listen]
Selects the input of the audio device that is connected to the system or
music service for playing back on the system.
See “Listening to Music/Sound” (page 34).
[Setup]
Performs the basic initial settings by using [Easy Setup] or various advanced
settings of the system.
See “Performing Easy Setup” (page 57) or “Performing Advanced Settings”
(page 58).
If the system detects update information for the system on the network, the
update notification and [Software Update] that performs the software
update appears. See “Updating the Software” (page 63).
In these Operating Instructions, the operations are described as steps that are
operated on the home menu displayed on the TV screen by using the remote control
while the system and TV are connected with the HDMI cable (supplied).
The operating steps that select items on the TV screen by using /// and are
simplified in the following way.
Example: Select [Setup] - [Advanced Settings] on the home menu.
The operation that selects a category and category item by pressing /// and
is expressed as “select.” The category and category item are linked with “-.”
Example: Select [Speaker Settings] - [Manual Speaker Settings].
When repeating the operation that selects an item by pressing /// and , the
selected items are linked with “-.”
Tips
• You can use the buttons on the main unit if they have the same or similar names as those
on the remote control.
• Characters in brackets [ ] appear on the TV screen. Characters in quotes “ ” appear in the
front panel display.
About the Steps Description
16
GB
Connecting to a TV or AV
Device with the HDMI
Cable
Refer to Startup Guide (separate
document).
For the connection to a 4K TV or 4K
Devices, see “Connecting a 4K TV and 4K
Devices” (page 20)
Connecting Sony TV with
the BLUETOOTH Function
Wirelessly
When using Sony TV* with the
BLUETOOTH function, you can listen to
sound of the TV or device that is
connected to the TV by connecting the
system and TV wirelessly.
* The TV needs to be compatible with
A2DP (Advanced Audio Distribution
Profile) of the BLUETOOTH profile.
• If connecting the system and TV by using
the BLUETOOTH function, you cannot
display the operation screen for the
system such as the home menu on the TV
screen, and use the function of the
system other than the listening function
for the sound of the TV or device that is
connected to the TV.
To use all the functions of the system,
connect the system and TV with the HDMI
cable (supplied). For details about
connections and operations to listen to
TV sound by connecting with the HDMI
cable, refer to Startup Guide (separate
document).
• This function is available only for Sony TV
that is compatible with BLUETOOTH
A2DP.
To connect the system and TV
wirelessly, you need to perform pairing
of the system and TV by using the
BLUETOOTH function.
Pairing is the process required to
mutually register the information on
BLUETOOTH devices to be connected
wirelessly in advance.
Connecting to a TV or AV Device
Notes
Blu-ray Disc player,
cable box, satellite
box, etc.
Listening to TV Sound by
Connecting the System and
TV Wirelessly
TV
BLUETOOTH
button
17
GB
1 Set up the remote control.
2 Turn on the TV.
3 Turn on the system.
4 Press and hold the BLUETOOTH
button on the main unit and TV on
the remote control
simultaneously for 5 seconds.
The system enters the pairing
mode, “BT” appears in the front
panel display, and the BLUETOOTH
indicator flashes quickly.
5 On the TV, search the system by
performing the pairing operation.
The list of the BLUETOOTH devices
that are searched appears on the TV
screen.
For the operation method to pair
the BLUETOOTH device to the TV,
refer to the operating instructions of
the TV.
6 Pair the system and TV by
selecting “HT-Z9F” from the list on
the TV screen.
7 Make sure that the BLUETOOTH
indicator on the main unit lights in
blue and “TV (BT)” appears in the
front panel display.
A connection between the system
and TV has been established.
8 Select the program or input of the
device by using the TV remote
control.
The sound of the displayed image
on the TV screen is output from the
system.
9 Adjust the volume of the system
by using the TV remote control.
When pressing the muting button
on the TV remote control, the sound
is muted temporarily.
• If the TV sound is not output from the
system, press TV and check the status of
the front panel display and indicators on
the Bar Speaker.
– “TV (BT)” appears in the front panel
display: The system and TV are
connected and TV sound is output from
the system.
– The BLUETOOTH indicator flashes
quickly and “BT” appears in the front
panel display: Perform pairing on the
TV.
– “TV” appears in the front panel display:
Perform steps from the start.
• When you connect the system and TV
with the HDMI cable (supplied), the
BLUETOOTH connection is canceled. To
connect the system and TV with the
BLUETOOTH function again, disconnect
the HDMI cable, then perform the
connecting operation from the start.
Notes
18
GB
You can turn the system on/off, adjust
the volume, and mute the sound by
using the TV remote control when
connecting the TV to the system
wirelessly.
1 Turn the TV on with the TV remote
control.
The system is turned on by
interlocking with the TV power, and
TV sound is output from the system.
2 Select the program or input of the
device by using the TV remote
control.
The sound of the displayed image
on the TV screen is output from the
system.
3 Adjust the volume of the system
by using the TV remote control.
When pressing the muting button
on the TV remote control, the sound
is muted temporarily.
Tip
When the TV is turned off, the system is
also turned off by interlocking with the TV
power.
About operations with the
remote control that is supplied
with the system
You can use the following buttons.
You can adjust the volume of the
subwoofer and rear speakers, and
adjust sound quality in addition to
turning the system on/off and adjusting
volume that can be operated by the TV
remote control.
• If you select the input other than TV on
the remote control supplied with the
system, the TV sound is not output from
the system. To output the TV sound, press
TV on the remote control to change to the
TV input.
• During the connecting the TV with the
BLUETOOTH function, the following
remote control buttons do not work.
///, (enter), OPTIONS, HOME,
DISPLAY, (play/pause), /
(previous/next)
Listening to Sound of the
Paired TV
Notes
SW +/–
+/–
REAR +/–
Sound mode
selecting buttons
VOICE
VERTICAL S.
NIGHT
19
GB
Connecting a TV with an
Analog Audio Cable
To connect the following devices to the
system, connect them via the ANALOG
IN jack on the system.
– TVs that do not have an HDMI jack and
optical digital output jack
– Portable audio devices such as
smartphones and WALKMAN®
For listening to the connected device,
see “Listening to the Device Connected
with an Analog Audio Cable” (page 38).
If the TV’s headphone jack also serves as
an audio output jack, check the audio
output settings of the TV. For details, refer
to the operating instructions of the TV.
Smartphone,
WALKMAN®, other
audio devices, etc.
TV
Analog
audio out
Analog audio cable
(not supplied)
Note
20
GB
Connecting a 4K TV and
4K Devices
All HDMI jacks on the system support 4K
video format and HDCP2.2 (High-
bandwidth Digital Content Protection
System Revision 2.2).
To watch 4K video content, connect the
4K TV and 4K devices to the system via
an HDCP2.2-compatible HDMI jack on
each device.
You can only view 4K video content
through the HDCP2.2-compatible HDMI
jack connection.
HDMI cable (supplied)
HDMI cable (not supplied)
Use an HDMI cable which supports the 4K
video format that you want to watch. For
details, see “Supported HDMI Video
Formats” (page 78).
When an HDCP2.2-
Compatible HDMI Jack on
the TV is Labeled with “ARC”
HDCP2.2-
compatible
HDMI jack
Blu-ray Disc player,
cable box, satellite
box, etc.
HDCP2.2-
compatible
HDMI jack
TV
21
GB
1 Check which HDMI IN jack on your
TV is compatible with HDCP2.2.
Refer to the operating instructions
of the TV.
2 Connect the HDCP2.2-compatible
HDMI IN jack on the TV and HDMI
OUT jack on the main unit with the
HDMI cable (supplied).
TV connection is complete.
3 Connect the HDCP2.2-compatible
HDMI OUT jack of the 4K device
and HDMI IN jack of the main unit
with the HDMI cable (not
supplied).
Refer to the operating instructions
of the 4K device to check that the
HDMI OUT jack of the 4K device is
compatible with HDCP2.2.
4K device connection is complete.
If your TV’s HDCP2.2-compatible HDMI
IN jack is not compatible with ARC
(Audio Return Channel), the TV sound is
not output from the system.
In this case, connect the optical output
jack of the TV and the TV IN (OPT) jack on
the main unit with the optical digital
cable (not supplied).
HDMI cable (supplied)
HDMI cable (not supplied)
Use an HDMI cable which supports the 4K
video format that you want to watch. For
details, see “Supported HDMI Video
Formats” (page 78).
Optical digital cable (not supplied)
When an HDCP2.2-
Compatible HDMI Jack on
the TV is not Labeled with
“ARC”
HDCP2.2-
compatible
HDMI jack
Blu-ray Disc player, cable
box, satellite box, etc.
HDCP2.2-
compatible
HDMI jack
TV
22
GB
To watch 4K video content, select the
appropriate setting for the connected
4K TV and 4K device.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [HDMI Settings] - [HDMI
Signal Format].
The [HDMI Signal Format] screen
appears on the TV screen.
4 Select [HDMI IN 1]/[HDMI IN 2]
(select the input that you want to
change the setting of), then select
the setting you want.
• [Standard format] (default
setting): Select when the
connected TV and devices support
standard bandwidth video
formats.
• [Enhanced format]: Select when
both the connected TV and
devices support high bandwidth
video formats such as 4K 60p
4:4:4 etc.
For the relation of the [HDMI Signal
Format] setting options, supported
video format signals, and HDMI
cables to be used, see “Supported
HDMI Video Formats” (page 78).
• Depending on the TV, the TV setting for
HDMI output may be required. Refer to
the operating instructions of the TV.
• When the picture is not displayed after
[HDMI Signal Format] is set to [Enhanced
format], set it to [Standard format].
Setting the HDMI Signal
Format to Watch 4K Video
Content
Notes
23
GB
Connecting to a Wired
Network
Prepare the network by connecting the
system and PC to your home network
with a LAN cable.
The following illustration is the example
for connection of the system and PC to
your home network.
The server needs to be connected to the
same network as that of the system.
Tip
We recommend that you use a shielded
straight interface cable (not supplied).
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Network Settings] -
[Internet Settings] - [Wired LAN
Settings].
4 Select [Auto].
The system starts network settings
and the network setting status
appears.
Press / to browse information,
and then press .
5 Select [Save & Connect].
The system starts connecting to the
network. For details, refer to the
messages that appear on the TV
screen.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Network Settings] -
[Internet Settings] - [Wired LAN
Settings].
4 Select [Manual].
Connecting to a Network
Connecting to a PC or Router
with a LAN Cable
Note
Internet
LAN cable
(not supplied)
Server
Router
Modem
Connecting by Obtaining
the Network Information
Automatically
Connecting by Using a
Fixed IP Address
24
GB
5 Perform the setting by following
the on-screen instructions.
The system starts network settings
and the network setting status
appears.
Press / to browse information,
and then press .
6 Select [Save & Connect].
The system starts connecting to the
network. For details, refer to the
messages that appear on the TV
screen.
If you select IPv6, you cannot use a fixed IP
address.
Connecting to a Wireless
Network
Prepare the network by connecting the
system and PC to your wireless LAN
router.
The server needs to be connected to the
same network as that of the system.
When your wireless LAN router (access
point) is Wi-Fi Protected Setup (WPS)-
compatible, you can easily set the
network settings with the WPS button.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Network Settings] -
[Internet Settings] - [Wireless LAN
Settings].
The list of the network name
appears on the TV screen.
4 Select [Wi-Fi Protected Setup™
(WPS)].
5 Select [Start].
6 Press the WPS button on the
access point.
The system starts connecting to the
network.
Note
Note
Connecting with the WPS
Button
25
GB
If your wireless LAN router (access point)
is not compatible with Wi-Fi Protected
Setup (WPS), check the following
information in advance.
– The network name (SSID)*
_____________________________________
– The security key (password)**
_____________________________________
* SSID (Service Set Identifier) is a name that
identifies a particular access point.
**This information should be available
from a label on your wireless LAN router/
access point, from the operating
instructions, from the person who set up
your wireless network, or from the
information provided by your Internet
service provider.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Network Settings] -
[Internet Settings] - [Wireless LAN
Settings].
The list of the network name
appears on the TV screen.
4 Select the desired network name
(SSID).
5 Enter the security key (or
password) using the software
keyboard, and then select [Enter].
The system starts connecting to the
network.
Select [New connection registration] -
[Manual registration] in step 4 of
“Connecting by Selecting the Network
Name (SSID)”and follow the on-screen
instructions.
Select [New connection registration] in
step 4 of “Connecting by Selecting the
Network Name (SSID)” and select [(WPS)
PIN Method].
Sony | Music Center can connect the
system to the same wireless network as
that of the mobile device. For details,
follow the instruction of the app or refer
to the following URL.
http://www.sony.net/smcqa/
Connecting by Selecting the
Network Name (SSID)
Connecting by Using a Fixed
IP Address
Connecting by Using a PIN
Code
Connecting by Sony | Music
Center
26
GB
Mounting the Bar
Speaker or Rear Speaker
on a Wall
You can mount the Bar Speaker or rear
speakers on a wall.
• Prepare screws (not supplied) that are
suitable for the wall material and
strength. As a plasterboard wall is
especially fragile, attach the screws
securely in the wall beam. Install the
speakers horizontally, hung by screws in
studs in a continuous flat section of the
wall.
• Have the installation done by a Sony
dealer or licensed contractor and pay
special attention to safety during the
installation.
• Sony shall not be held responsible for
accidents or damage caused by improper
installation, insufficient wall strength,
improper screw installation or natural
disaster, etc.
1 Prepare two screws (not supplied)
that are suitable for the hole on
the wall mounting bracket
(supplied).
2 Stick WALL MOUNT TEMPLATE
(supplied) on a wall.
1 Align TV CENTER LINE () of
WALL MOUNT TEMPLATE with the
center line of your TV.
2 Align TV BOTTOM LINE () of
WALL MOUNT TEMPLATE with the
bottom of your TV, then stick
WALL MOUNT TEMPLATE on a
wall by using a commercially
available adhesive tape, etc.
Preparing to Use the System
Notes
Rear speakers
Bar Speaker
Mounting the Bar Speaker
on a Wall
Wall mounting bracket
4mm
More than 30 mm
Center of the TV
WALL MOUNT
TEMPLATE
Adhesive tape,
etc.
27
GB
3 Fasten the wall mounting
brackets (supplied) securely with
screws (not supplied) into the
marks () on SCREW LINE () of
WALL MOUNT TEMPLATE as in the
illustration below.
4 Remove WALL MOUNT TEMPLATE.
5 Fasten the screws (supplied)
securely on the rear of the Bar
Speaker not to loosen the screws.
6 Hang the attached screws on the
wall mounting brackets.
Align the screws on the rear of the
Bar Speaker with the holes of the
wall mounting brackets, then hang
the Bar Speaker on the wall
mounting brackets.
• When sticking WALL MOUNT TEMPLATE,
smooth it out fully.
• If the positions of the screws on the rear
of the Bar Speaker and holes of the wall
mounting bracket do not align, adjust the
left-right position of the wall mounting
bracket finely.
• Make sure to use the supplied wall
mounting brackets when mounting the
Bar Speaker on a wall. Do not mount the
Bar Speaker on a wall directly. The
temperature inside of the Bar Speaker
rises considerably, and it may cause
damage or malfunction.
• When you do not use WALL MOUNT
TEMPLATE, install the Bar Speaker apart
from the TV by 70 mm or more.
Marks ()
368.5 mm
368.5 mm
Mark ()
Wall mounting bracket
Screw
Notes
28
GB
1 Prepare a screw (not supplied)
that is suitable for the wall mount
hole on the rear of the rear
speaker.
2 Fasten the screw in the wall.
3 Hang the rear speaker by
confirming the right/left of the
rear speaker.
Check the label on the rear of the
rear speaker. “REAR R” is for the
right, “REAR L” is for the left.
Mounting the Rear Speaker
on a Wall
Hole on the rear of the rear speaker
4mm
More than 30 mm
5.0 mm
10 mm
Approx.
9.5 mm
29
GB
Attaching the Grille
Frame
You can protect the speakers by
attaching the supplied grille frame.
We recommend that you use the main
unit without attaching the grille frame if
you will be listening to High-Resolution
Audio.
Attach the grille frame parallel to
the front panel.
Attach it with the cushions of the grille
frame on the bottom.
Tip
The grille frame is fixed by a magnet.
Connecting the
Subwoofer and Rear
Speakers Wirelessly
The subwoofer and rear speakers are
connected to the system automatically
when they are turned on.
For details, refer to Startup Guide
(separate document) for the subwoofer
connection, or see the following steps
for the rear speakers connection.
You can enjoy the surround sound by
connecting optional two rear speakers.
Perform the following steps for each
rear speaker.
1 Connect the AC power cord (mains
lead).
The rear speaker is turned on and
connected to the system wirelessly.
2 Make sure that the power
indicator on the rear speaker
lights in green.
When the power indicator lights in
green, the connection of the system
and rear speaker is established.
If the connection is not established,
connect the rear speaker to the
system manually by referring to
Cushions
Adding the Rear Speakers
AC power cord
(mains lead)
Power
indicator
30
GB
“Connecting the Subwoofer or Rear
Speakers Manually” (page 30).
3 Install the rear speaker by
confirming the right/left of the
rear speaker.
Check the label on the rear of the
rear speaker. “REAR R” is for the
right, “REAR L” is for the left.
If you cannot connect the subwoofer or
optional rear speakers to the system, or
you use multiple wireless products and
want to specify the wireless connection
to link the system to the subwoofer and
rear speakers, perform the manual
connection.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Speaker Settings] -
[Wireless Speaker Settings] - [Start
manual linking].
The [Start manual linking] screen
appears on the TV screen.
4 Press LINK on all the speakers that
you use (subwoofer and rear
speakers).
The power indicator of the
subwoofer or rear speaker that had
LINK pressed flashes twice
repeatedly in green.
5 Select [Start].
The manual link starts.
The connecting process appears on
the TV screen.
To cancel the manual link, select
[Cancel].
6 When [Connected] appears on all
the speakers that you use
(subwoofer or rear speaker),
select [Finish].
7 Press .
The link is established and the
power indicator of the subwoofer or
rear speaker lights in green.
Connecting the Subwoofer
or Rear Speakers Manually
LINK
Power
indicator
LINK
Power
indicator
31
GB
• If you perform [Start manual linking], [Link
mode] of [Wireless Speaker Settings] is
set to [Manual] automatically (page 59).
• Only the subwoofer or rear speaker that is
linked when selecting [Finish] in Step 6 is
connected to the system. If you want to
connect an additional speaker, perform
the manual connection again.
If you use multiple wireless systems,
such as a wireless LAN, the wireless
signals may become unstable. In this
case, the transmission may improve by
changing the following [RF Channel]
setting.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Speaker Settings] -
[Wireless Speaker Settings] - [RF
Channel].
4 Select the setting you want.
• [On] (default setting): Normally
select this. The system
automatically selects the better
channel for transmission. Stronger
mode for wireless interference.
• [Off]: The system selects a
channel from the limited
frequency band to prevent
external wireless interference. If
sound dropping occurs while [On]
is selected, it may be improved by
selecting [Off].
If you change the [RF Channel] setting from
[Off] to [On], it may take 1 minute to
reconnect.
When the TV Remote
Control does not Work
When the main unit obstructs the
remote control sensor of the TV, the TV
remote control may not work. In that
case, enable the IR repeater function of
the system.
You can control the TV with the TV
remote control by sending the remote
signal from the rear of the main unit.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [System Settings] - [IR-
Repeater].
The [IR-Repeater] screen appears
on the TV screen.
4 Select [On].
• Be sure to check that the TV remote
control cannot control the TV, and then
set [IR-Repeater] to [On]. If it is set to [On]
when the remote control can control the
TV, appropriate operation may not be
obtained because of the interference
between the direct command from the
remote control and command via the
main unit.
• On some TVs, this function may not work
correctly. In this case, place the main unit
slightly further away from the TV.
Notes
If Wireless Transmission is
Unstable
Note
Notes
32
GB
Watching TV
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Watch] - [TV] on the
home menu.
3 Select the program using the TV
remote control.
The selected TV program appears
on the TV screen and the TV sound
is output from the system.
4 Adjust the volume.
• Adjust the volume by pressing
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW +/– on the remote
control (page 48).
• Adjust the rear speakers volume
by pressing REAR +/– on the
remote control (page 48).
Set the speaker setting of the TV (BRAVIA)
to Audio System. Refer to the operating
instructions of your TV regarding how to
set the TV.
Tip
You can select [TV] directly by pressing TV
on the remote control.
Playing the Connected
AV Device
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Watch], then select the
input ([HDMI1] or [HDMI2]) on the
home menu.
• [HDMI1]: Device that is connected
to the HDMI IN 1 jack
• [HDMI2]: Device that is connected
to the HDMI IN 2 jack
The image of the selected device
appears on the TV screen and the
sound is output from the system.
3 Adjust the volume.
• Adjust the volume by pressing
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW +/– on the remote
control (page 48).
• Adjust the rear speakers volume
by pressing REAR +/– on the
remote control (page 48).
Tip
You can select [HDMI1] or [HDMI2] directly
by pressing HDMI1 or HDMI2 on the remote
control.
To adjust the dialog volume while
streaming the DTS:X contents
By adjusting the dialog volume, you can
easily listen to dialog since it stands out
from the ambient noise. This function
does not work on some audio formats.
1 While selecting [HDMI1] or [HDMI2],
press OPTIONS.
The options menu appears on the TV
screen.
2 Select [Dialog Control], then adjust
the dialog volume with /.
Watching Images
Note
33
GB
You can adjust from 0 dB to 6 dB in 1
dB increments.
34
GB
Listening to Music/
Sound with the
BLUETOOTH® Function
You can listen to music stored on a
mobile device such as a smartphone or
tablet via a wireless connection by
connecting the system and mobile
device with the BLUETOOTH function.
When connecting to the mobile device
with the BLUETOOTH function, you can
operate by simply using the supplied
remote control without turning the TV
on.
To use the BLUETOOTH function, you
need to perform pairing of the system
and mobile device in advance.
1 Press and hold BLUETOOTH on the
main unit for 2 seconds.
The system enters the pairing
mode, “BT” appears in the front
panel display, and the BLUETOOTH
indicator flashes quickly.
2 On the mobile device, search the
system by performing the pairing
operation.
The list of the BLUETOOTH devices
that are searched appears on the
screen of the mobile device.
For the operation method to pair
the BLUETOOTH device to the
mobile device, refer to the
operating instructions of the mobile
device.
3 Pair the system and mobile device
by selecting “HT-Z9F” from the list
on the screen of the mobile
device.
If a Passkey is requested, enter
“0000.”
Listening to Music/Sound
BLUETOOTH
SW +/–
+/–
Playback
operation buttons
REAR +/–
BLUETOOTH
button
Listening to Music by Pairing
the Mobile Device that is
Connected for the First Time
35
GB
4 Make sure that the BLUETOOTH
indicator on the main unit lights in
blue.
A connection between the system
and mobile device has been
established.
5 Start audio playback with the
music app on the connected
mobile device.
Sound is output from the main unit.
6 Adjust the volume.
• Adjust the volume by pressing
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW +/– on the remote
control (page 48).
• Adjust the rear speakers volume
by pressing REAR +/– on the
remote control (page 48).
• You can play or pause the content
by using the playback operation
buttons on the remote control.
To check the connection status of
the BLUETOOTH function
Tips
• If there is no mobile device that has been
paired (ex. immediately after the
purchase of the system), the system goes
into pairing mode simply by changing the
input to the BLUETOOTH input.
• Once the BLUETOOTH connection is
established, an indication recommending
which application to install will be
displayed according to what device you
have connected.
Following the instructions displayed, an
application called Sony | Music Center,
which will enable you to operate this
system, can be installed.
See “Listening to Music on the Mobile
Device with Sony | Music Center”
(page 41) for details on Sony | Music
Center.
• Perform pairing for the second and
subsequent mobile devices.
1 Turn the BLUETOOTH function of
the mobile device to on.
2 Press BLUETOOTH.
The system automatically
reconnects to the mobile device it
was most recently connected to.
3 Make sure that the BLUETOOTH
indicator lights in blue.
A connection between the system
and mobile device has been
established.
4 Start audio playback with the
music app on the connected
mobile device.
Sound is output from the main unit.
5 Adjust the volume.
• Adjust the volume by pressing
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW +/– on the remote
control (page 48).
• Adjust the rear speakers volume
by pressing REAR +/– on the
remote control (page 48).
• You can play or pause the content
by using the playback operation
buttons on the remote control.
To disconnect the mobile device
Perform any of the following items.
• Disable the BLUETOOTH function on
the mobile device.
Status BLUETOOTH indicator
During pairing
standby status
Flashes quickly in blue
Connection is
being
attempted
Flashes in blue
Connection has
been
established
Lights in blue
Listening to Music from the
Paired Device
36
GB
• Press BLUETOOTH while the
[Bluetooth Audio] screen appears on
the TV screen.
• Set [Bluetooth Mode] to [Transmitter]
or [Off] (page 60).
• Turn off the system or mobile device.
Tip
When the connection is not established,
select “HT-Z9F” on the mobile device.
Listening to Music on a
USB Device
You can play music files stored on a
connected USB device.
For playable types of files, see “Playable
Types of Audio Files” (page 76).
1 Connect the USB device to the
(USB) port.
2 Press HOME.
The home menu appears on the TV
screen.
3 Select [Listen] - [USB
(Connected)] on the home menu.
4 Select the folder on which songs
are stored, then select a song.
The selected song is played and
sound is output from the system.
5 Adjust the volume.
• Adjust the volume by pressing
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW +/– on the remote
control (page 48).
• Adjust the rear speakers volume
by pressing REAR +/– on the
remote control (page 48).
Do not remove the USB device during
operation. To avoid data corruption or
Note
37
GB
damage to the USB device, turn the system
off before connecting or removing the USB
device.
Select the following buttons on the
screen by pressing /, then press .
• (play)/ (pause)
Starts or pauses playback. You can
also operate by using on the
remote control.
• (previous)/ (next)
Plays the previous or next music file.
You can also operate by using /
on the remote control.
• (Shuffle play)
Shuffles the playback order. Each time
you press , on/off of the shuffle play
is switched.
• (Repeat play)
Press repeatedly to switch the
repeat mode.
Tip
You can rewind/fast forward by pressing
and holding / on the remote
control during playback.
Listening to Music on
your PC via a Home
Network
You can play music files stored on your
PC via your home network.
Music files can be played by operating
Sony | Music Center on a mobile device
such as a smartphone or tablet.
1 Connect the system to a network.
See “Connecting to a Wired
Network” (page 23) or “Connecting
to a Wireless Network” (page 24).
2 Connect the PC to a network.
For details, refer to the operating
instructions of the PC.
3 Set the PC.
To use the PC on your home
network, you need to set the PC as
the server. For details, refer to the
operating instructions of the PC.
Tip
See [Setup] - [Advanced Settings] -
[Network Settings] - [Network Connection
Status] when checking the network
connection status.
About the Music Playback
Screen
Repeat mode Explanation
(Repeat All) Repeats all music files.
(Repeat
Folder)
Repeats all music files
in a folder.
(Repeat
One)
Repeats a music file
that is being played.
(Off) Cancels the repeat
play.
Preparing the Home
Network
38
GB
You can play music files stored on the
PC by operating Sony | Music Center
that is installed to a mobile device such
as a smartphone or tablet. For details of
Sony | Music Center, see “What You can
Do with Sony | Music Center” (page 41)
or the following URL.
http://www.sony.net/smcqa/
Listening to the Device
Connected with an
Analog Audio Cable
You can listen to sound of an audio
device such as a TV, WALKMAN®, etc
that is connected to the ANALOG IN jack
on the system.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Listen] - [Analog] on the
home menu.
The [Analog] screen is displayed on
the TV screen.
3 Adjust the volume.
• Adjust the volume by pressing
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW +/– on the remote
control (page 48).
• Adjust the rear speakers volume
by pressing REAR +/– on the
remote control (page 48).
Tip
You can also select [Analog] directly by
pressing ANALOG.
Listening to Music on a PC by
Using Sony | Music Center
PC
Wireless LAN router
Smartphone or
tablet
39
GB
Using Spotify
You can select the music on the Spotify
app and play it on the system. To play
on the system, you need the Spotify
Premium account.
Listen out loud with Spotify
Connect
1 Connect the system to your Wi-Fi
network.
2 Open up the Spotify app on your
phone, tablet or laptop using the
same Wi-Fi network.
3 Play a song and select “Devices
Available.”
4 Select the system and start
listening.
Tip
If [Network/Bluetooth Standby] is set to
[On] (page 61), you can play music quickly
even when the system is in standby mode.
1 Press MUSIC SERVICE.
When you have played the music of
Spotify on the system, the music
that was played with Spotify is
resumed. For details, see “Using the
MUSIC SERVICE Button” (page 39).
The Spotify app may not be available in
some countries/regions.
Using the MUSIC SERVICE
Button
When you have played the music of
Spotify on the system, you can resume
the music that was played with Spotify.
To enjoy music services, the system
must be connected to the Internet.
Press MUSIC SERVICE.
The music that was played with Spotify
is resumed. See “Using Spotify”
(page 39).
• Music services may not be available in
some countries/regions.
• If the resume playback function is not
available, the last playlist played on the
system plays.
• To play on the system, you need the
Spotify Premium account.
Playing Music on the System
by Using the “Spotify
Connect” Function
Resuming Music that has
been Played on the Mobile
Device
Note
Notes
MUSIC SERVICE
40
GB
Using Chromecast built-
in
Chromecast built-in allows you to select
music content from the Chromecast-
enabled app and play back audio
contents on the system or group that
the system is included in.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Listen] - [Chromecast
built-in] on the home menu.
Perform the settings to use
Chromecast built-in on the system
by following the on-screen
message.
After performing the settings,
[Network/Bluetooth Standby] is set
to [On] automatically and you can
play music quickly even when the
system is in standby mode
(page 61).
3 Connect the mobile device by Wi-
Fi to the same network as that of
the system.
4 Install the Chromecast-enabled
app to the mobile device.
5 Start the Chromecast-enabled
app, tap the cast button, and
select the system or group that
the system is included in.
6 Select and play music on the
Chromecast-enabled app.
The music is played on the system.
Depending on the country and region,
Chromecast built-in and the Chromecast-
enabled app may not be provided.
Note
41
GB
Listening to Music on the
Mobile Device with
Sony | Music Center
Sony | Music Center is an application for
controlling compatible Sony audio
devices using the mobile device such as
a smartphone or tablet.
For details about Sony | Music Center,
refer to the following URL.
http://www.sony.net/smcqa/
Installing Sony | Music Center onto your
mobile device provides the following.
Sound settings of the system
You can easily customize your sound, or
use the [Auto Sound] setting
recommended by Sony.
Music service
You can configure the initial settings to
use music services*.
* Depending on the country and region,
music services and their period of
availability may differ.
An update of the device may be required.
When using Chromecast built-in on
music service, see “Using Chromecast
built-in” (page 40).
Enjoying music on your home
network
You can play music stored in your PC or
home network server over your
network.
Enjoying music on the USB device
You can play music on a device
connected to the (USB) port on the
main unit.
What you can control with Sony | Music
Center varies depending on the connected
device. The specification and design of the
application may change without notice.
1 Install the free Sony | Music
Center app to the mobile device.
Search for Sony | Music Center at
Google Play or the App Store and
install it onto your mobile device.
2 Connect the system and mobile
device with the BLUETOOTH
function (page 34) or network
function (page 23).
3 Start Sony | Music Center.
4 Operate by following the Sony |
Music Center screen.
• Before using Sony | Music Center with the
BLUETOOTH function, be sure to set the
[Bluetooth Mode] to [Receiver] (page 60).
• Use Sony | Music Center of the latest
version. For details about Sony | Music
Center, refer to Google Play or the App
Store. If you cannot connect the system
and a BLUETOOTH device via the
BLUETOOTH function, uninstall Sony |
Music Center and try to connect via the
BLUETOOTH function again.
Tip
When connecting with the network
function, connect the mobile device to the
same network as that of the system.
What You can Do with Sony |
Music Center
Note
Using Sony | Music Center
Notes
42
GB
Connecting the Wireless
Multi Room-Compatible
Device (Wireless Multi
Room)
You can enjoy music in any room by
using the system with the wireless multi
room-compatible wireless speaker.
You can enjoy the following music or
sound in different rooms with high
sound quality using your home wireless
network.
•Music on the music service
• Music stored in your PC or smartphone
• Sound of the [TV] (including
connection with the BLUETOOTH
function), [HDMI1], [HDMI2],
[Bluetooth Audio], [USB], or [Analog]
input of the system*
* You can enjoy the sound of the device
that is connected to the system. The
sound of the system is delayed behind
the picture to synchronize with the sound
of other speakers. If you are bothered by
the time gap between the sound and
picture, try the following.
• For the HDMI1 or HDMI2 input: Press
OPTIONS and set [Multi-room Sync] to
[Off].
• For the TV or analog input: Press
OPTIONS, / until “MSYNC” appears
on the front panel display, and
(enter), then press / until “OFF”
appears on the front panel display and
press (enter).
The sound of the system is synchronized
with the picture though the sound output
from other speakers is delayed.
You can operate with Sony | Music
Center that is installed on a mobile
device. To use multiple devices, connect
them to the same wireless LAN.
To perform setting on Sony |
Music Center
Perform the setting by following the
help on Sony | Music Center.
• When enjoying the wireless multi room
function during using Chromecast built-
in, use the Chromecast-enabled app
(page 40).
• When [Bluetooth Audio] is selected
during use of the wireless multi room
function, the system may reconnect to
the BLUETOOTH device.
• During use of the wireless multi room
function, the HDMI audio input may be
limited.
Tip
For details about Sony | Music Center, see
“What You can Do with Sony | Music
Center” (page 41).
Note
43
GB
Listening to Sound of the
Connected TV or Device
from Headphones
You can listen to sound of the
connected TV or device from
BLUETOOTH compatible headphones by
connecting it with the BLUETOOTH
function.
1 Set the BLUETOOTH compatible
headphones to the pairing mode.
Refer to the operating instructions
of the headphones for pairing
method.
2 Press HOME.
The home menu appears on the TV
screen.
3 Select [Setup] - [Advanced
Settings] on the home menu.
4 Select [Bluetooth Settings] -
[Bluetooth Mode] - [Transmitter].
The system enters BLUETOOTH
transmission mode.
5 Select the name of the
headphones from the [Device List]
in [Bluetooth Settings].
When the BLUETOOTH connection
is established, [Bluetooth device is
connected.] appears.
If you cannot find the name of your
headphones in [Device List], select
[Scan].
6 Return to the home menu, select
[Watch] or [Listen], and
select the input.
The image of the selected input
appears on the TV screen, “BT TX”
appears in the front panel display,
then the sound is output from the
headphones.
No sound is output from the
system.
For selecting input, see “Watching
Images” (page 32) or “Listening to
Music/Sound” (page 34).
7 Adjust the volume.
Adjust the volume level of the
headphones first. The volume level
of the headphones can be
controlled with +/– on the main unit
and +/– on the remote control.
To remove a registered device
from the device list
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Bluetooth Settings] - [Device
List].
4 Move the cursor to the name of the
headphones, and then press
OPTIONS.
5 Select [Remove].
6 Follow the on-screen instructions to
delete the desired headphones from
the device list.
Listening to Sound by Pairing
with Headphones
44
GB
1 Set the BLUETOOTH function of
the headphones to on.
2 Press HOME.
The home menu appears on the TV
screen.
3 Select [Setup] - [Advanced
Settings] on the home menu.
4 Select [Bluetooth Settings] -
[Bluetooth Mode] - [Transmitter].
The system enters BLUETOOTH
transmission mode and the system
automatically reconnects to the
headphones that was most recently
connected to.
5 Return to the home menu, select
[Watch] or [Listen], and
select the input.
The image of the selected input
appears on the TV screen, “BT TX”
appears in the front panel display,
then the sound is output from the
headphones.
No sound is output from the
system.
For selecting input, see “Watching
Images” (page 32) or “Listening to
Music/Sound” (page 34).
6 Adjust the volume.
Adjust the volume level of the
headphones. You can also adjust
volume level of the headphones
with +/– on the remote control.
To disconnect the headphones
Perform any of the following items.
– Disable the BLUETOOTH function on
the headphones.
– Set [Bluetooth Mode] to [Receiver] or
[Off] (page 60).
– Turn off the system or headphones.
– Select the device name of the
connected headphones from
[Setup] - [Advanced Settings] -
[Bluetooth Settings] - [Device List].
[Connected] of the device name
disappears.
• You may not be able to adjust the
volume level depending on the
BLUETOOTH compatible headphones.
• Input of BLUETOOTH is disabled when
[Bluetooth Mode] is set to [Off] or
[Transmitter].
• You can register up to 9 BLUETOOTH
devices. If a 10th BLUETOOTH device is
registered, the oldest connected
BLUETOOTH device will be overwritten
by the new one.
• The system can display up to 15
detected BLUETOOTH devices in the
[Device List].
• You cannot change the sound effect
or settings while transmitting sound to
the BLUETOOTH compatible
headphones.
• Some content may not be output due
to content protection.
• Playback of audio/music on the
BLUETOOTH device is delayed
compared to that on the main unit due
to the characteristics of BLUETOOTH
wireless technology.
• You can enable or disable the
reception of LDAC audio from the
BLUETOOTH device (page 61).
Listening to Sound with
Paired Headphones
About the Connection of the
Headphones
45
GB
Enjoying Immersive
Surround Experience
(VERTICAL S.)
You can feel immersed by the sound
from not only the horizontal direction,
but also from the upward direction by
using Vertical Surround Engine*
effectively for sound modes (page 46)
other than [News]. This function also
works for the 2.0 channel signal such as
a TV program.
* Vertical Surround Engine is a highly
precise digital sound field processing
technology developed by Sony that
produces the sound field in the height
direction virtually in addition to a sound
field in the horizontal direction by only
using front speakers and without using
top speakers.
You do not need to install speakers on a
ceiling and you can enjoy the sound with
rich presence regardless of the ceiling
height. Also, this function is hardly
affected by the shape of a room because
it does not use the sound reflected from
a wall and enables improved surround
playback.
1 Press VERTICAL S.
The vertical surround setting
appears on the TV screen.
2 Press the button repeatedly to
select the setting.
• The surround effect differs depending on
a sound source.
• A time gap between the sound and
picture may occur depending on the
sound source. If your TV has a function
that delays the image, use it for
adjustment.
Adjusting the Sound Quality
VERTICAL S.
Mode Explanation
[On] Activates the vertical
surround function.
[Off] Deactivates the
vertical surround
function.
Notes
46
GB
Setting the Sound Effect
that is Tailored to Sound
Sources (Sound Mode)
You can easily enjoy pre-programmed
sound effects that are tailored to
different kinds of sound sources.
1 Press one of the sound mode
selecting buttons (AUTO SOUND,
CINEMA, MUSIC, GAME, NEWS,
SPORTS, STANDARD) to select the
sound mode.
The selected sound mode appears
on the TV screen.
• The sound mode function is disabled in
the following conditions.
– [Sound Effect] is set to a setting other
than [Sound Mode On] (page 59).
– Chromecast built-in is used (page 40).
– The wireless multi room function is used
(page 42).
– BLUETOOTH device is connected in
BLUETOOTH transmission mode
(page 43).
– Test tone is emitted (page 55).
• A time gap between the sound and
picture may occur depending on the
sound source. If your TV has a function
that delays the image, use it for
adjustment.
Sound mode Explanation
[Auto Sound]
The appropriate
sound setting is
automatically
selected for the
sound source with
ClearAudio+.
[Cinema]
You feel immersed
by the sound that
travels behind you
and surrounds your
entire body. This
mode is suitable for
watching movies.
Sound Mode
selecting buttons
[Music]
Vividness and
glossiness of the
sound are expressed
in detail. This mode
is suitable for
enjoying music in a
way that moves you.
[Game
Studio]
You can immerse
yourself in your
game by
reproducing the
feeling of movement
and distance of
objects, as well as
clearly hearing the
dialog.
[News]
Recreates the clear
speech of newscasts.
[Sports]
You can experience
an atmosphere as if
you were watching
an event in a
stadium. However,
narrations of
commentators are
reproduced vividly.
[Standard]
The sound of a TV
program can be
heard clearly.
Notes
Sound mode Explanation
47
GB
Making Dialogs Clearer
(VOICE)
1 Press VOICE.
The voice mode appears on the TV
screen.
2 Press the button repeatedly to
select the voice mode.
Enjoying Clear Sound
with Low Volume at
Midnight (NIGHT)
Sound is output at low volume with
minimum loss of fidelity and clarity of
dialog.
1 Press NIGHT.
The night mode appears on the TV
screen.
2 Press the button repeatedly to
select the night mode.
When you turn the system off, this setting
is set to [Off] automatically.
Mode Explanation
[Up Off] Standard
[Up 1] Dialog is easily heard
by enhancing dialog
range.
[Up 2] Dialog range is
enhanced, and dialog
sound may be easy to
hear for the elderly.
VOICE
Mode Explanation
[On] Activates the night
mode function.
[Off] Deactivates the night
mode function.
Note
NIGHT
48
GB
Adjusting the Volume of
the Subwoofer and Rear
Speakers
The subwoofer is designed for playback
of bass or low frequency sound.
The rear speakers are designed for
playback of the surround part of the
multi-channel sound and surround
sound that is created from the 2-
channel sound using virtual processing.
To adjust the subwoofer volume
Press SW (subwoofer volume) +/–.
To adjust the rear speaker
volume
Press REAR (rear speaker volume) +/
–.
• When the input source does not contain
much bass sound, such as in TV
programs, the bass sound from the
subwoofer may be difficult to hear.
• When the input source does not contain
much surround sound, the surround
sound from the rear speakers may be
difficult to hear.
•SW +/– does not work when the
subwoofer is not connected and REAR
+/– does not work when the rear speakers
are not connected.
•REAR +/– does not work if no sound is
output from the rear speakers due to the
processing result of the input signal and
sound mode.
Notes
SW +/–
REAR +/–
49
GB
Adjusting the Delay
Between the Picture and
Sound
When the sound does not match the
pictures on the TV screen, you can
adjust the delay between the picture
and sound.
The setting method differs depending
on the input.
1 Press OPTIONS.
“SYNC” appears in the front panel
display.
2 Press or
The adjusting time appears in the
front panel display.
3 Adjust the delay using /, then
press .
You can adjust from 0 msec to
300 msec in 25 msec increments.
4 Press OPTIONS.
The options menu in the front panel
display turns off.
1 Press OPTIONS.
The options menu appears on the
TV screen.
2 Select [A/V Sync].
3 Adjust the delay using /, then
press .
You can adjust from 0 msec to
300 msec in 25 msec increments.
When Watching the TV
OPTIONS
///,
When Watching Another
Device
50
GB
Playing Compressed
Audio Files or CDs by
Upscaling to Near Hi-
Resolution Sound Quality
(DSEE HX)
DSEE HX upscales existing sound
sources to near hi-resolution sound
quality, and it makes you feel as if you
are in a recording studio or at a concert.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Audio Settings] - [DSEE
HX].
4 Select [On].
• This function is only available when [Auto
Sound]* or [Music] is selected as the
sound mode (page 46).
• This function is compatible with the
2-channel digital input signals of 44.1 kHz
or 48 kHz sampling frequency.
• The sampling frequency/bit depth after
upscaling is up to 96 kHz/24 bit.
• This function is not compatible with DSD
signals.
• This function does not work when using
Chromecast built-in.
• This function does not work when
[Advanced Auto Volume] is set to [On]
(page 60).
* Only when [Music] is selected with [Auto
Sound].
Enjoying Multiplex
Broadcast Sound (AUDIO)
You can enjoy multiplex broadcast
sound when the system receives a
Dolby Digital multiplex broadcast signal.
1 Press AUDIO.
The audio signal appears in the front
panel display.
2 Press the button repeatedly to
select the desired audio signal.
• To receive a Dolby Digital signal, you
need to connect the TV that is compatible
with Audio Return Channel (page 53) to
the HDMI OUT (TV (ARC)) jack with the
HDMI cable (supplied), or other devices to
the HDMI IN 1 or HDMI IN 2 jack with the
HDMI cable (not supplied).
• If your TV’s HDMI IN jack is not compatible
with Audio Return Channel (page 53),
connect the TV to the TV IN (OPT) jack
Notes
Audio signal Explanation
“MAIN” Sound of the main
language will be
output.
“SUB” Sound of the sub
language will be
output.
“MN/SB” Mixed sound of both
the main and sub
languages will be
output.
Notes
AUDIO
51
GB
with the optical digital cable (not
supplied) to receive a Dolby Digital signal.
52
GB
Using the Control for
HDMI Function
Connecting a device such as a TV or Blu-
ray Disc player compatible with the
Control for HDMI function* by an HDMI
cable enables you to easily operate the
device by a TV remote control.
The following functions can be used
with the Control for HDMI function.
• System Power Off function
• System Audio Control function
•Audio Return Channel
• One-Touch Play function
• Menu Operation by TV Remote Control
• HDMI Standby Through power saving
setting
• Language Follow
These functions may work with devices
other than those manufactured by Sony,
but operation is not guaranteed.
* Control for HDMI is a standard used by
CEC (Consumer Electronics Control) for
allowing HDMI (High-Definition
Multimedia Interface) devices to control
each other.
Set [Setup] - [Advanced Settings] -
[HDMI Settings] - [Control for HDMI] on
the system to [On] (page 60). The
default setting is [On].
Enable the Control for HDMI function
settings for the TV and other device
connected to the system.
Tip
If you enable the Control for HDMI
(“BRAVIA” sync) function when using a TV
manufactured by Sony, the Control for
HDMI function of the system is also
enabled automatically.
When the [Control for HDMI] settings are
changed to [On], “DONE” appears in the
front panel display.
When you turn off the TV, the system
will turn off automatically.
Set [Setup] - [Advanced Settings] -
[HDMI Settings] - [Standby Linked to TV]
on the system to [On] or [Auto]
(page 60). The default setting is [Auto].
The connected device may not turn off
depending on the status of the device.
If you turn on the system while you are
watching the TV, the TV sound will be
output from the speakers of the system.
The volume of the system can be
adjusted using the TV remote control.
When you turn on the TV, the system is
turned on automatically and the TV
sound is output from the speakers of
the system.
Operations can also be made by the
TV’s menu. For details, refer to the
operating instructions of your TV.
• The number for the system’s volume level
is displayed on the TV screen depending
on the TV. The volume number displayed
on the TV may differ from the number on
the front panel display of the system.
• Depending on the settings of the TV, the
System Audio Control function may not
Using the Control for HDMI
Function
Note
Preparing to Use the Control
for HDMI Function
System Power Off Function
Note
System Audio Control
Function
Notes
53
GB
be available. For details, refer to the
operating instructions of your TV.
• Depending on the TV, if the TV sound was
output from the speakers of the TV the
previous time you watched the TV, the
system may not turn on by interlocking
with the TV power even if the TV is turned
on.
If the system is connected to a TV’s
HDMI IN jack compatible with Audio
Return Channel (ARC), you can listen to
TV sound from the speakers of the
system without connecting an optical
digital cable.
On the system, set [Setup] -
[Advanced Settings] - [HDMI Settings] -
[TV Audio Input Mode] to [Auto]
(page 60). The default setting is [Auto].
If the TV is not compatible with Audio
Return Channel, the optical digital cable
(not supplied) needs to be connected (refer
to the supplied Startup Guide).
When you play content on a device (Blu-
ray Disc player, “PlayStation
®
4,” etc.)
connected to the system, the system
and TV are turned on automatically, the
input of the system is switched to the
input for the device played, and sound is
output from the speakers of the system.
• If [Setup] - [Advanced Settings] -
[HDMI Settings] - [Standby Through] on
the system is set to [On] or [Auto] and the
TV sound was output from the speakers
of the TV the previous time you watched
the TV, the system may not turn on and
the sound and picture may be output
from the TV even if device content is
played (page 60).
• Depending on the TV, the beginning part
of content being played may not play
correctly.
You can select the system using the
SYNC MENU button on the TV remote
control and operate the system.
This function can be used if the TV
supports the Sync Menu. For details,
refer to the operating instructions of
your TV.
• In the TV’s Sync Menu, the system is
recognized by the TV as “Player.”
• Some operations may not be available
with some TVs.
HDMI Standby Through power saving
setting (page 60) is a function that
allows you to enjoy the sound and
picture of a connected device without
turning on the system.
Set [Setup] - [Advanced Settings] -
[HDMI Settings] - [Standby Through] to
[Auto] (page 60). The default setting is
[Auto].
If the picture of a device connected to the
system is not displayed on the TV, set
[Standby Through] to [On]. If you connect a
TV other than those manufactured by
Sony, we recommend you to select this
setting.
Audio Return Channel
Note
One-Touch Play Function
Notes
Menu Operation by TV
Remote Control
Notes
HDMI Standby Through
Power Saving Setting
Note
54
GB
When you change the language for the
on-screen display of the TV, the
system’s on-screen display language is
also changed.
Using the “BRAVIA” Sync
Function
In addition to the Control for HDMI
function, you can also use the following
functions on devices compatible with
the “BRAVIA” sync function.
• Sound mode/Scene Select function
• Home Theatre Control
These functions are proprietary functions
of Sony. This function cannot operate with
products other than those manufactured
by Sony.
The sound mode of the system is
automatically switched according to the
setting of the TV’s Scene Select function
or sound mode. For details, refer to the
operating instructions of your TV.
Set the sound mode to [Auto Sound]
(page 46).
When using a TV compatible with the
Home Theatre Control function, setting
the system, setting the sound mode
settings, input switching, etc. can be
done without switching the TV input.
This function can be used when the TV is
connected to the Internet. For details,
refer to the operating instructions of
your TV.
Language Follow
Note
Sound mode/Scene Select
Function
Home Theatre Control
Function
55
GB
Customizing the
Speaker Settings for
Surround Sound
To obtain a good surround sound, set
the speaker distance from your listening
position and their output level, etc.
The default settings are underlined.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Speaker Settings] -
[Manual Speaker Settings].
The [Manual Speaker Settings]
screen appears on the TV screen.
4 Perform the speaker settings.
Select the setting item from the
following items by pressing /
and , then set the value in
accordance with the environment
by pressing / and .
[Distance]
Set the distance from the listening
position to the speakers.
You can set the value from 0 meters to
10 meters (0.1 m step) (0 ft to 33 ft (1/4 ft
step)).
[Front]: Sets the front speaker distance.
[Subwoofer]: Sets the subwoofer
distance.
[Rear Speaker (L)]*: Sets the left rear
speaker distance.
[Rear Speaker (R)]*: Sets the right rear
speaker distance.
* This item appears when using the rear
speakers.
Tip
You can change measurement units (feet
or meters) by pressing OPTIONS.
[Level]
Adjust the sound level of the speakers.
You can set the value from -6.0 dB to 6.0
dB (0.5 dB step).
[Front]: Sets the front speaker level.
[Subwoofer]: Sets the subwoofer level.
[Rear Speaker (L)]*: Sets the left rear
speaker level.
[Rear Speaker (R)]*: Sets the right rear
speaker level.
* This item appears when using the rear
speakers.
[Test Tone]
The test tone is emitted from the
speakers for checking the available
speakers.
[Off]
: The test tone is not emitted from
the speakers.
[On]: The test tone is emitted from the
speaker.
Changing the Settings
56
GB
Changing the Brightness
of the Front Panel
Display and BLUETOOTH
Indicator (DIMMER)
You can change the brightness of the
front panel display and BLUETOOTH
indicator.
1 Press DIMMER.
The display mode appears in the
front panel display.
2 Press the button repeatedly to
select the desired display mode.
The front panel display is turned off when
“OFF” is selected. It turns on automatically
when you press any button, then turns off
again if you do not operate the system for
about 10 seconds. However, in some cases,
the front panel display may not turn off. In
this case, the brightness of the front panel
display is same as “DARK.”
Mode Explanation
“BRIGHT” The front panel display
and BLUETOOTH
indicator light brightly.
“DARK” The front panel display
and BLUETOOTH
indicator light darkly.
“OFF” The front panel display
is turned off.
Note
DIMMER
57
GB
Saving Power in Standby
Mode
Check that you have made the following
settings:
– [Standby Through] is set to [Off]
(page 60).
– [Network/Bluetooth Standby] is set to
[Off] (page 61).
Performing Easy Setup
You can make basic initial settings,
speaker settings, and network settings
for the system easily by performing Easy
Setup.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Easy Setup]
on the home menu.
The [Easy Setup] screen appears on
the TV screen.
3 Select the desired setting.
• [Easy Initial Setup]: Performs the
basic initial settings including the
speaker settings and network
settings.
• [Easy Speaker Setup]: Performs
the basic speaker settings for the
rear speakers.
• [Easy Network Setup]: Performs
the basic network settings.
4 Perform settings by following the
on-screen instructions.
58
GB
Performing Advanced Settings
You can make various adjustments to items such as picture and sound.
The default settings are underlined.
1 Press HOME.
The home menu appears on the TV screen.
2 Select [Setup] - [Advanced Settings] on the home menu.
The [Advanced Settings] screen appears on the TV screen.
3 Select the setting item.
Setting item Explanation
[Speaker Settings]
Makes the speaker and subwoofer settings for
installing and connections. (page 59)
[Audio Settings] Makes the audio output settings. (page 59)
[HDMI Settings] Makes the HDMI settings. (page 60)
[Bluetooth Settings]
Makes detailed settings for the BLUETOOTH
function. (page 60)
[System Settings] Makes the system-related settings. (page 61)
[Network Settings] Makes detailed settings for the Internet. (page 62)
[Resetting]
Resets the system to the factory default settings.
(page 62)
[Software Update]
Updates the software of the system, subwoofer, or
rear speakers. (page 63)
59
GB
[Manual Speaker Settings]
You can perform the speaker settings to
obtain the best possible surround
sound. For details, see “Customizing the
Speaker Settings for Surround Sound”
(page 55).
[Wireless Speaker Settings]
You can perform connecting settings of
the wireless speakers (subwoofer and
rear speakers).
•[Link mode]
You can set the connection method
for the subwoofer and rear speakers.
[Auto]
: Connects the subwoofer and
rear speakers to the system
automatically.
[Manual]: Connects the subwoofer
and rear speakers manually.
• [Start manual linking]
Perform the manual connection of the
subwoofer and rear speakers to the
system. For details, see “Connecting
the Subwoofer and Rear Speakers
Wirelessly” (page 29).
• [Check wireless connection]
You can check the connection status
of the subwoofer and rear speakers.
•[RF Channel]
You can minimize interference with
other wireless devices. For details, see
“If Wireless Transmission is Unstable”
(page 31).
• [Wireless Playback Quality]
You can set the wireless playback
quality of the subwoofer and rear
speakers.
[Sound Quality]
: The sound quality
takes priority over the connection
status of the wireless connection.
[Connection]: The connection status
takes priority over the sound quality.
•[Software Version]
You can check the software version of
the subwoofer and rear speakers.
[DSEE HX]
This function is only available when
[Auto Sound]* or [Music] is selected as
the sound mode.
[On]
: Upscales the compressed audio
files or CDs to a High-Resolution sound
quality and reproduces the clear high-
range sound which is often lost
(page 50).
[Off]: Off
* Only when [Music] is selected with [Auto
Sound].
[Audio DRC]
You can compress the dynamic range of
the sound track.
[Auto]
: Automatically compresses
sound encoded in Dolby TrueHD.
[On]: The system reproduces the dolby
and DTS sound track with the kind of
dynamic range that the recording
engineer intended.
[Off]: No compression of dynamic
range.
[Sound Effect]
You can select sound effects such as the
sound mode.
[Sound Mode On]
: Vertical Surround
Engine enhances the surround and
height speaker channels to create an
immersive and enveloping virtual
surround effect such as sound mode
(page 46) and vertical surround
(page 45).
[Dolby Speaker Virtualizer]: Dolby
Speaker Virtualizer enhances the
surround and height speaker channels
to create an immersive and enveloping
virtual surround effect when you play
[Speaker Settings]
[Audio Settings]
60
GB
Dolby format. Disables sound effects
other than Dolby format.
[Off]: Disables the sound effects. Select
this when you do not want to set the
upper limit of sampling frequency.
[Advanced Auto Volume]
You can reduce the change of volume
due to the input signal. This function is
effective when the volume of a TV
commercial is louder than that of the TV
program.
[On]: Adjusts the volume automatically.
[Off]
: Off
This function is not suitable for listening
to music.
[Control for HDMI]
[On]: The Control for HDMI function is
enabled. Devices connected with an
HDMI cable can control each other.
[Off]: Off
[Standby Linked to TV]
This function is available when you set
[Control for HDMI] to [On].
[Auto]: If the input of the system is [TV],
[HDMI1], or [HDMI2], the system turns
off automatically when you turn off the
TV.
[On]: The system turns off automatically
when you turn off the TV regardless of
the input.
[Off]: The system does not turn off when
you turn off the TV.
[Standby Through]
This function is available when you set
[Control for HDMI] to [On].
[Auto]: Signals are output from the
system’s
HDMI OUT (ARC) jack when
the TV is turned on while the system is
not turned on. The system standby
power consumption can be reduced
more than when set to [
On] by turning
off the connected TV.
[
On]: Signals are always output from the
system’s
HDMI OUT (ARC) jack when
the system is not turned on. If you
connect a TV other than those
manufactured by Sony, we recommend
that you select this setting.
[
Off]: Signals are not output from the
system’s
HDMI OUT (ARC) jack when
the system is not turned on. Turn on the
system to enjoy on the TV content of a
device connected to the system. The
system standby power consumption
can be reduced more than when set to
[
On].
[TV Audio Input Mode]
Set this function when the system is
connected to a TV’s HDMI IN jack that is
compatible with Audio Return Channel.
The Audio Return Channel function is
available when you set [Control for
HDMI] to [On].
[Auto]
: You can listen to TV sound from
the speakers of the system.
[Optical]: Use this setting when an
optical digital cable is connected.
[HDMI Signal Format]
You can select the HDMI signal format
for the input signal. For details, see
“Setting the HDMI Signal Format to
Watch 4K Video Content” (page 22).
[Bluetooth Mode]
You can enjoy content from a
BLUETOOTH device by using this system
or listen to sound from this system by
using BLUETOOTH compatible
headphones.
[Receiver]
: This system is in receiver
mode, which enables it to receive and
output audio from the BLUETOOTH
device.
Note
[HDMI Settings]
[Bluetooth Settings]
61
GB
[Transmitter]: This system is in
transmitter mode, which enables it to
send audio to the BLUETOOTH
compatible headphones. If you switch
the input of the system, “BT TX” appears
on the front panel display.
[Off]: The BLUETOOTH function is turned
off and you cannot select the [Bluetooth
Audio] input.
[Device List]
Displays a list of paired and detected
BLUETOOTH devices (SNK device) when
[Bluetooth Mode] is set to [Transmitter].
[Bluetooth Codec - AAC]
This function is only available when you
set [Bluetooth Mode] to [Receiver].
[On]
: Enables AAC codec.
[Off]: Disables AAC codec.
You can enjoy high-quality sound if AAC is
enabled and your device supports AAC.
[Bluetooth Codec - LDAC]
This function is only available when you
set [Bluetooth Mode] to [Receiver] or
[Transmitter].
[On]
: Enables LDAC codec.
[Off]: Disables LDAC codec.
• You can enjoy more high-quality sound if
LDAC is enabled and your device supports
LDAC.
• When connecting a BLUETOOTH device,
this setting cannot be changed.
[Wireless Playback Quality]
You can set the transmission data rate
of LDAC playback. This function is only
available when you set [Bluetooth
Mode] to [Transmitter] and [Bluetooth
Codec - LDAC] to [On].
[Sound Quality]: The highest bit rate is
used. Sound is sent in a higher quality;
however, audio playback sometimes
may become unstable when the link
quality is not good enough. If audio
playback is unstable in this mode, select
[Auto].
[Auto]
: The data transfer rate is
automatically changed depending on
the environment.
[OSD Language]
You can select the language you want
for the system on-screen display.
[IR-Repeater]
[On]: Remote signals for the TV are sent
from the rear of the main unit.
[Off]
: Turns off the function.
For details, see “When the TV Remote
Control does not Work” (page 31).
[Network/Bluetooth Standby]
[On]: You can turn the system on via the
network or BLUETOOTH function.
[Off]: You can save power in standby
mode. It takes time to output sound
from the subwoofer or rear speakers
after turning the system on.
• If you agree to use the Chromecast built-
in function, [Network/Bluetooth Standby]
automatically switches to [On].
• If you set [RF Channel] to [On] (page 31),
[Network/Bluetooth Standby]
automatically switches to [On].
[Auto Standby]
[On]: Turns on the [Auto Standby]
function. When you do not operate the
system while no signal is input for about
20 minutes, the system enters standby
mode automatically.
[Off]
: Off
[Software Update Notification]
[On]: Sets the system to inform you of
latest software version information
(page 63).
Note
Notes
[System Settings]
Notes
62
GB
[Off]: Off
[Auto Update Settings]
• [Auto Update]
[On]: Software update is automatically
executed between 2 a.m. and 5 a.m.
local time in the selected [Time Zone]
while this system is not in use. If you
select [Off] in [Network/Bluetooth
Standby], software update is
performed after you turn off the
system.
[Off]
: Off
• [Time Zone]
Select your country/region.
• Software update may be performed even
if you select [Off] in [Auto Update]
depending on the details of the updates.
• Software update is performed
automatically within 11 days of a new
software release.
[Device Name Setting]
You can change the name of this system
according to your preference so that it is
more recognizable when using the
[Bluetooth Audio] function. The name is
also used with other networks, such as
the home network. Follow on-screen
instructions and use the software
keyboard to enter the name.
[System Information]
You can display the system information
such as the software version, the MAC
address.
[Software License Information]
You can display the Software License
Information.
[Internet Settings]
Connect the system to the network
beforehand.
[Wired LAN Settings]: Select this when
you connect to a broadband router
using a LAN cable. When you select this
setting, the wireless LAN function of the
system is disabled automatically.
[Wireless LAN Settings]: Select this
when you use the built-in Wi-Fi function
of the system to connect to a wireless
network.
Tip
For further details, visit the following
website and check the FAQ:
http://www.sony-asia.com/section/support
[Network Connection Status]
Displays the current network
connection status.
You can reset the system settings to the
factory default by selecting the group of
settings. All the settings within the
group will be reset.
For details, see “Resetting the System”
(page 73).
You can update the software of the
system, subwoofer, or rear speakers.
For details, see “Updating the Software”
(page 63).
Notes
[Network Settings]
[Resetting]
[Software Update]
63
GB
Updating the Software
By updating your software to the latest
version, you can take advantage of the
newest functions.
For information about update functions,
visit the following website:
http://www.sony-asia.com/section/support
• It may take up to 40 minutes for the
update to be completed.
• An Internet environment is necessary to
perform updates via Internet.
• While the updating operation is in
progress, do not turn on or off the system,
disconnect the AC power cord (mains
lead), disconnect/connect the HDMI
cable, or operate the system or TV. Wait
for the software update to complete.
• Set [Auto Update] to [On] when you want
to perform software updates
automatically (page 62). Software update
may be performed even if you select [Off]
in [Auto Update] depending on the details
of the updates.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
If the system detects update
information for the system on the
network, the update notification
and [Software Update] appears on
the home menu. In this case, select
[Software Update] and go to step 4.
3 Select [Software Update].
The [Software Update] screen
appears on the TV screen.
4 Select the item for updating.
Select the updating item from the
following items by pressing /
and , then update the software
by following the on-screen
instructions.
When a software update starts, the
system automatically reboots.
During a software update, “UPDT”
appears in the front panel display.
After the update is complete, the
system automatically reboots.
[Network update]
Updates the software using the
available network. Make sure that the
network is connected to the Internet.
[USB update]
Updates the software using a USB
memory. For details of updating, refer
to the instructions that are displayed
when downloading the update file.
[Wireless speakers only]
Updates the software of the subwoofer
and rear speakers when the software of
the system is the latest version. Make
sure that the subwoofer and rear
speakers are turned on and connected
to the system (page 29).
• You can perform [USB update] by
pressing and holding the BLUETOOTH
and button on the main unit for 7
seconds.
• You can perform [Network update] on
Sony | Music Center.
• If the updating of the subwoofer or rear
speakers does not work, move them to a
location near the main unit and update.
Notes
Notes
64
GB
Troubleshooting
If you experience any of the following
difficulties while using the system, use
this troubleshooting guide to help
remedy the problem before requesting
repairs. Should any problem persist,
consult your nearest Sony dealer.
Be sure to bring your main unit,
subwoofer, and rear speakers (not
supplied), even if it seems as though
only one has a problem, when you
request to repair.
The system does not power up.
Check that the AC power cord (mains
lead) is connected securely.
Disconnect the AC power cord (mains
lead) from the wall outlet (mains),
and then reconnect after several
minutes.
The system does not turn on even
when the TV is turned on.
Set [Setup] - [Advanced Settings]
- [HDMI Settings] - [Control for HDMI]
to [On] (page 60). The TV must
support the Control for HDMI function
(page 52). For details, refer to the
operating instructions of your TV.
Check the speaker settings of the TV.
The system power syncs with the
speaker settings of the TV. For details,
refer to the operating instructions of
your TV.
Depending on the TV, if the sound
was output from the speakers of the
TV the previous time, the system may
not turn on by interlocking with the
TV power even when the TV is turned
on.
The system turns off when the TV is
turned off.
Check the setting of [Setup] -
[Advanced Settings] - [HDMI Settings]
- [Standby Linked to TV] (page 60).
When [Standby Linked to TV] is set to
[On] or [Auto], the system turns off
automatically when you turn off the
TV.
The system does not turn off even
when the TV is turned off.
Check the setting of [Setup] -
[Advanced Settings] - [HDMI Settings]
- [Standby Linked to TV] (page 60). To
turn the system off automatically
regardless of the input when you turn
off the TV, set [Standby Linked to TV]
to [On]. The TV must support the
Control for HDMI function (page 52).
For details, refer to the operating
instructions of your TV.
The system cannot be turned off.
The system may be in demo mode. To
cancel demo mode, reset the system.
Press and hold (power) and –
(volume) on the main unit for more
than 5 seconds (page 73).
There is no picture or the picture is
not output correctly.
Select the appropriate input
(page 32).
When there is no picture while the TV
input is selected, select the TV
channel that you want using the TV
remote control.
When there is no picture while the
HDMI1/2 input is selected, press the
playback button of the connected
device.
Disconnect the HDMI cable, then
connect it again. Make sure that the
cable is firmly inserted.
Troubleshooting
Power
65
GB
When there is no picture from the
connected device or the picture from
the connected device is not output
correctly, set [Setup] - [Advanced
Settings] - [HDMI Settings] - [HDMI
Signal Format] - [HDMI IN 1]/[HDMI IN
2] to [Standard format] (page 22).
If you connect a device supporting
HDCP 2.2, be sure to connect the
device to the HDMI IN jack and the TV
to the HDMI OUT jack of the system.
The system is connected to an input
device that is not HDCP (High-
bandwidth Digital Content
Protection) compliant. In this case,
check the specifications of the
connected device.
3D content from the HDMI IN 1/2
jack do not appear on the TV screen.
Depending on the TV or video device,
3D content may not appear. Check
the supported HDMI video format
(page 78).
4K video content from the HDMI IN
1/2 jack do not appear on the TV
screen.
Depending on the TV or the video
device, 4K video content may not
appear. Check the video capability
and settings of your TV and video
device.
The picture may not be displayed
properly if the [HDMI Signal Format]
setting is changed. In this case,
change the setting to [Standard
format] (page 22).
Use a Premium High Speed HDMI
Cable with Ethernet that supports
18Gbps or High Speed HDMI Cable
with Ethernet (page 78).
An image is not displayed on the
entire TV screen.
The aspect ratio on the media is fixed.
Picture and sound of the device that
is connected to the system are not
output from the TV when the
system is not turned on.
Set [Setup] - [Advanced Settings]
- [HDMI Settings] - [Control for HDMI]
to [On] on the system, and then set
[Standby Through] to [Auto] or [On]
(page 60).
Turn on the system, and then switch
the input for the device playing.
If connected to devices other than
those manufactured by Sony that
support the Control for HDMI
function, set [Setup] - [Advanced
Settings] - [HDMI Settings] - [Standby
Through] to [On] (page 60).
HDR contents cannot show as high-
dynamic range.
Check the settings of the TV and
connected device. For details, refer to
the operating instructions of your TV
and the connected device.
Some devices may convert HDR
contents to SDR if the bandwidth is
not enough. In that case, set
[Setup] - [Advanced Settings] -
[HDMI Settings] - [HDMI Signal
Format] - [HDMI IN 1]/[HDMI IN 2] to
[Enhanced format] if the TV and the
connected device support a
bandwidth of up to 18Gbps (page 22).
When you select [Enhanced format],
be sure to use a Premium High Speed
HDMI Cable with Ethernet that
supports 18Gbps (page 78).
The system cannot connect to a TV
with the BLUETOOTH function.
When you connect the system and TV
with an HDMI cable (supplied), the
BLUETOOTH connection is canceled.
Sound
66
GB
No TV sound is output from the
system.
Check the type and connection of the
HDMI cable, optical digital cable, or
analog audio cable that is connected
to the system and the TV (refer to the
supplied Startup Guide).
Disconnect the cables that are
connected between the TV and the
system, then connect them firmly
again. Disconnect the AC power cords
(mains leads) of the TV and the
system from the AC outlets (mains),
then connect them again.
When the system and TV are
connected with an HDMI cable, check
the following.
– The HDMI jack of the connected TV
is labeled with “ARC.”
– The Control for HDMI function of the
TV is set to on.
– On the system, [Control for HDMI] is
set to [On] and [TV Audio Input
Mode] to [Auto] (page 60).
If your TV is not compatible with
Audio Return Channel, connect the
optical digital cable (not supplied)
(refer to the supplied Startup Guide).
If the TV is not compatible with Audio
Return Channel, TV sound will not be
output from the system even if the
system is connected to the TV’s HDMI
IN jack.
Switch the input of the system to the
TV input. When you connect the
system and TV with an analog audio
cable (not supplied), switch input of
the system to the ANALOG input
(page 38).
Increase the volume on the system or
cancel muting.
If sound of a cable box/satellite box
connected to the TV is not output,
connect the device to a HDMI IN 1 or
HDMI IN 2 jack of the system and
switch input of the system to the
input for the connected device
([HDMI1] or [HDMI2]) (refer to the
supplied Startup Guide).
Depending on the order in which you
connect the TV and the system, the
system may be muted and “MUTING”
is displayed on the front panel display
of the system. If this happens, turn on
the TV first, then the system.
Set the speakers setting of the TV
(BRAVIA) to Audio System. Refer to
the operating instructions of your TV
regarding how to set the TV.
Picture and sound of the device that
is connected to the system are not
output from the TV when the
system is not turned on.
Set [Setup] - [Advanced Settings]
- [HDMI Settings] - [Control for HDMI]
to [On] on the system, and then set
[Standby Through] to [Auto] or [On]
(page 60).
Turn on the system, and then switch
the input for the device playing.
If connected to devices other than
those manufactured by Sony that
support the Control for HDMI
function, set [Setup] - [Advanced
Settings] - [HDMI Settings] - [Standby
Through] to [On] (page 60).
The sound is output from both the
system and TV.
Mute the sound of the system or TV.
The sound is interrupted while
watching a TV program or content
on a Blu-ray Disc, etc.
Check the sound mode setting
(page 46). If the sound mode is set to
[Auto Sound], the sound may be
interrupted when the sound mode is
changed automatically according to
the information of the program that is
being played. If you do not want to
change the sound mode
automatically, set the sound mode to
a setting other than [Auto Sound].
67
GB
The TV sound from this system lags
behind the image.
Set [A/V Sync] to 0 msec if it is set to
the range between 25 msec and 300
msec (page 49).
A time gap between the sound and
picture may occur depending on the
sound source. If your TV has a
function that delays the image, use it
for adjustment.
No sound or only a very low-level
sound of the device connected to
the system is heard.
Press + on the remote control and
check the volume level (page 12).
Press or + on the remote control
to cancel the muting function
(page 12).
Make sure the input source is
selected correctly. You should try
other input sources by pressing the
input select button on the remote
control (TV/HDMI1/HDMI2/ANALOG/
USB/BLUETOOTH) (page 12).
Check that all the cables and cords of
the system and connected device are
firmly inserted.
When you play content compatible
with copyright protection technology
(HDCP), it may not be output from the
system.
Set [Setup] - [Advanced Settings]
- [HDMI Settings] - [HDMI Signal
Format] to [Standard format]
(page 22).
The surround effect cannot be
obtained.
Depending on the input signal and
the sound mode setting, surround
sound processing may not work
effectively. The surround effect may
be subtle, depending on the program
or disc.
To play multi-channel audio, check
the digital audio output setting on
the device connected to the system.
For details, refer to the operating
instructions supplied with the
connected device.
The sound is delayed behind the
picture when using the wireless
multi room function.
When the sound of the [TV] (including
the connection with the BLUETOOTH
function), [HDMI1], [HDMI2],
[Bluetooth Audio], or [Analog] input is
played in the wireless multi room
function, the sound of the system is
delayed behind the picture to
synchronize with the sound of other
speakers. If you are bothered by the
time gap between the sound and
picture, try the following.
• For the HDMI1 or HDMI2 input: Press
OPTIONS and set [Multi-room Sync]
to [Off].
• For the TV or analog input: Press
OPTIONS, / until “MSYNC”
appears on the front panel display,
and (enter), then press / until
“OFF” appears on the front panel
display and press (enter).
The sound of the system is
synchronized with the picture though
the sound output from other
speakers is delayed.
No sound or only a very low-level
sound is heard from the subwoofer.
Press SW + on the remote control
to increase the subwoofer volume
(page 48).
Make sure that the power indicator
on the subwoofer is lit in green.
If the power indicator on the
subwoofer does not light, try the
following.
– Make sure the AC power cord
(mains lead) of the subwoofer is
connected properly.
– Press (power) of the subwoofer
to turn on the power.
Subwoofer
68
GB
If the power indicator on the
subwoofer flashes slowly in green or
lights in red, try the following.
– Move the subwoofer to a location
near the main unit so that the power
indicator on the subwoofer lights in
green.
– Follow the steps in “Connecting the
Subwoofer and Rear Speakers
Wirelessly” (page 29).
– Check the wireless connection
status (page 59).
If the power indicator on the
subwoofer flashes in red, press
(power) of the subwoofer to turn off
the power and check whether the
ventilation holes of the subwoofer is
blocked or not.
If the input sources contain very little
bass sound components (i.e., a TV
broadcast), the sound from the
subwoofer may be difficult to hear.
You can check the subwoofer sound
by emitting the test tone (page 55).
Set the night mode to off. For details,
see “Enjoying Clear Sound with Low
Volume at Midnight (NIGHT)”
(page 47).
If you change the [RF Channel] setting
from [Off] to [On] (page 31), it may
take 1 minute for the sound to be
output.
Sound skips or has noise.
If there is a device nearby that
generates electromagnetic waves,
such as a wireless LAN or a
microwave oven in use, locate the
system apart from it.
If there is an obstacle between the
main unit and the subwoofer, move
or remove it.
Locate the main unit and the
subwoofer as close as possible.
Change the [RF Channel] setting
(page 31).
Switch the network connection of the
TV or Blu-ray Disc player from
wireless to wired.
No sound is heard from the rear
speakers.
Make sure the AC power cord (mains
lead) of the rear speaker is connected
properly.
If the power indicator on the rear
speaker does not light, try the
following.
– Make sure the AC power cord
(mains lead) of the rear speaker is
connected properly.
–Press (power) of the rear speaker
to turn on the power.
If the power indicator on the rear
speaker flashes slowly in green or
lights in red, try the following.
– Move the rear speaker to a location
near the main unit so that the power
indicator on the rear speaker lights
in green.
– Follow the steps in “Connecting the
Subwoofer and Rear Speakers
Wirelessly” (page 29).
– Check the wireless connection
status (page 59).
Press REAR + on the remote
control to increase the rear speakers
volume (page 48).
If you change the [RF Channel] setting
from [Off] to [On] (page 31), it may
take 1 minute for the sound to be
output.
Sound skips or has noise.
If there is a device nearby that
generates electromagnetic waves,
such as a wireless LAN or a
microwave oven in use, locate the
system apart from it.
If there is an obstacle between the
main unit and the rear speaker, move
or remove it.
Locate the main unit and the rear
speaker as close as possible.
Rear Speakers (not supplied)
69
GB
Switch the network connection of the
TV or Blu-ray Disc player from
wireless to wired.
The USB device is not recognized.
Try the following:
Turn the system off.
Remove and reconnect the USB
device.
Turn the system on.
Make sure that the USB device is
securely connected to the (USB)
port (page 36).
Check to see if the USB device or a
cable is damaged.
Make sure that the USB device is on.
If the USB device is connected via a
USB hub, disconnect it and connect
the USB device directly to the system.
When connecting a WALKMAN® or
smartphone, its internal storage or
external storage (such as a memory
card) may not be recognized.
Pairing cannot be achieved.
Bring this system and the
BLUETOOTH device closer together.
Make sure this system is not receiving
interference from a wireless LAN
device, other 2.4 GHz wireless
devices, or a microwave oven. If a
device that generates
electromagnetic radiation is nearby,
move the device away from this
system.
BLUETOOTH connection cannot be
completed.
Make sure that the BLUETOOTH
indicator of the main unit is lit
(page 35).
Make sure the BLUETOOTH device to
be connected with is turned on and
the BLUETOOTH function is enabled.
Bring this system and the
BLUETOOTH device closer together.
Pair this system and the BLUETOOTH
device again. You may need to cancel
the pairing with this system using
your BLUETOOTH device first.
Pairing information may be deleted.
Perform pairing operation again
(page 34).
Sound of the connected
BLUETOOTH mobile device is not
output from the system.
Make sure that the BLUETOOTH
indicator of the main unit is lit
(page 35).
Bring this system and the
BLUETOOTH device closer together.
If a device that generates
electromagnetic radiation, such as a
wireless LAN device, other
BLUETOOTH devices, or a microwave
oven is nearby, move the device away
from this system.
Remove any obstacle between this
system and the BLUETOOTH device or
move this system away from the
obstacle.
Reposition the connected
BLUETOOTH device.
Switch the wireless LAN frequency of
any nearby wireless LAN router or PC
to 5 GHz range.
Increase the volume on the
connected BLUETOOTH device.
Pairing cannot be achieved.
Bring this system and the
BLUETOOTH device closer together.
Make sure this system is not receiving
interference from a wireless LAN
USB Device Connection
Mobile Device Connection
Headphones Connection
with the BLUETOOTH
function
70
GB
device, other 2.4 GHz wireless
devices, or a microwave oven. If a
device that generates
electromagnetic radiation is nearby,
move the device away from this
system.
BLUETOOTH connection cannot be
completed.
Make sure that the BLUETOOTH
indicator of the main unit is lit
(page 8).
Make sure the BLUETOOTH device to
be connected with is turned on and
the BLUETOOTH function is enabled.
Bring this system and the
BLUETOOTH device closer together.
Pair this system and the BLUETOOTH
device again. You may need to cancel
the pairing for the BLUETOOTH device
with this system first. See “To remove
a registered device from the device
list” (page 43).
Pairing information may be deleted.
Perform pairing operation again
(page 43).
No sound is output from the
connected BLUETOOTH
headphones.
Make sure that the BLUETOOTH
indicator of the main unit is lit
(page 8).
Bring this system and the
BLUETOOTH device closer together.
If a device that generates
electromagnetic radiation, such as a
wireless LAN device, other
BLUETOOTH devices, or a microwave
oven is nearby, move the device away
from this system.
Remove any obstacle between this
system and the BLUETOOTH device,
or move this system away from the
obstacle.
Reposition the connected
BLUETOOTH device.
Switch the wireless LAN frequency of
any nearby wireless LAN router or PC
to 5 GHz range.
Increase the volume on the
connected BLUETOOTH device.
Set [Wireless Playback Quality] to
[Auto] (page 61).
Some content may not be output due
to content protection.
The system cannot connect to the
network.
Check the network connection
(page 23) and network settings
(page 62).
You cannot connect your PC to the
Internet after [Wi-Fi Protected
Setup™ (WPS)] is performed.
The wireless settings of the router
may change automatically if you use
the Wi-Fi Protected Setup function
before adjusting the settings of the
router. In this case, change the
wireless settings of your PC
accordingly.
The system cannot connect to the
network or the network connection
is unstable.
Make sure the wireless LAN router is
on.
Check the network connection
(page 24) and network settings
(page 62).
Depending on the usage
environment (including the wall
material), radio wave reception
conditions, or obstacles between the
system and wireless LAN router, the
possible communication distance
may be shortened. Move the system
Wired LAN Connection
Wireless LAN Connection
71
GB
and wireless LAN router closer to
each other.
Devices that use a 2.4 GHz frequency
band, such as a microwave,
BLUETOOTH, or digital cordless
device, may interrupt
communication. Move the main unit
away from such devices, or turn off
such devices.
The wireless LAN connection may
become unstable depending on the
usage environment, especially while
using the BLUETOOTH function of the
system. In this case, adjust the usage
environment.
The wireless LAN router you want is
not shown in the wireless network
list.
Press BACK to return to the previous
screen, and try [Wireless LAN
Settings] again (page 24). If the
wireless LAN router you want is still
not detected, select [New connection
registration] from the network list,
then select [Manual registration] to
input a network name (SSID)
manually.
You cannot connect the system to
the Internet.
Check the wired or wireless LAN
connection.
Restart the router or wireless LAN
router.
The sound is delayed behind the
picture.
When the sound of the [TV] (including
the connection with the BLUETOOTH
function), [HDMI1], [HDMI2],
[Bluetooth Audio] input is played in
the wireless multi room function, the
sound of the system is delayed
behind the picture to synchronize
with the sound of other speakers. If
you are bothered by the time gap
between the sound and picture, try
the following.
• For the HDMI1 or HDMI2 input: Press
OPTIONS and set [Multi-room Sync]
to [Off].
• For the TV or analog input: Press
OPTIONS, / until “MSYNC”
appears on the front panel display,
and (enter), then press / until
“OFF” appears on the front panel
display and press (enter).
The sound of the system is
synchronized with the picture though
the sound output from other
speakers is delayed.
The wireless multi room function
cannot be used on Sony | Music
Center.
Connect the mobile device to the
same network as that of the system.
The remote control of this system
does not function.
Point the remote control at the
remote control sensor on the main
unit (page 8).
Remove any obstacles in the path
between the remote control and the
system.
Replace both batteries in the remote
control with new ones, if they are
weak.
Make sure you are pressing the
correct button on the remote control.
TV remote control does not work.
This problem might be solved by
enabling the IR repeater function
(page 31).
Internet Connection
Wireless Multi Room
Remote Control
72
GB
The Control for HDMI function does
not work properly.
Check the connection with the
system (refer to the supplied Startup
Guide).
Enable the Control for HDMI function
on the TV. For details, refer to the
operating instructions of your TV.
Wait a while, and then try again. If
you unplug the system, it will take a
while before operations can be made.
Wait for 15 seconds or longer, and
then try again.
Make sure the devices connected to
the system support the Control for
HDMI function.
Enable the Control for HDMI function
on the devices connected to the
system. For details, refer to the
operating instructions of your device.
The type and number of devices that
can be controlled by the Control for
HDMI function is restricted by the
HDMI CEC standard as follows:
– Recording devices (Blu-ray Disc
recorder, DVD recorder, etc.): up to
3 devices
– Playback devices (Blu-ray Disc
player, DVD player, etc.): up to 3
devices (this system uses one of
them)
– Tuner-related devices: up to 4
devices
– Audio system (receiver/
headphones): up to 1 device (used
by this system)
“PRTCT” flashes in the front panel
display and the system is turned
off.
Disconnect the AC power cord (mains
lead) and make sure nothing is
obstructing the ventilation holes of
the system.
“PRTCT,” “PUSH,” speaker name
(“SUB,” “SUR L,” or “SUR R”), and
“POWER” flash alternately in the
front panel display.
Press (power) on the
corresponding speaker (“SUB”:
subwoofer, “SUR L”: left rear speaker,
“SUR R”: right rear speaker) to turn
off. For the subwoofer, disconnect
the AC power cord (mains lead) and
make sure nothing is obstructing the
ventilation holes of the subwoofer,
then restart the system. For the rear
speaker, disconnect the AC power
cord (mains lead), then restart the
system. If they are reconnected
properly, the display in the front
panel display returns to the normal
display.
“BT TX” appears in the front panel
display.
Set [Bluetooth Mode] to [Receiver].
“BT TX” appears if [Bluetooth Mode] is
set to [Transmitter] (page 60).
Sensors of the TV do not work
properly.
The main unit may block some
sensors (such as the brightness
sensor), the remote control receiver
of your TV or the emitter for 3D
glasses (infrared transmission) of a 3D
TV that supports the infrared 3D glass
system, or wireless communication.
Move the main unit away from the TV
within a range that allow those parts
to operate properly. For the locations
of the sensors and remote control
receiver, refer to the operating
instructions supplied with the TV.
Wireless functions (wireless LAN,
the BLUETOOTH function,
subwoofer, or rear speakers) are
unstable.
Do not place metal objects other than
a TV around the system.
Others
73
GB
Music that you are not familiar with
suddenly plays.
The pre-installed sample music may
have been played. Press on the
main unit to stop playback.
The system cannot be turned off or
[Advanced Settings] cannot be
used./When pressing (power),
“.DEMO” appears in the display
window and the system cannot be
turned off.
The system may be in demo mode. To
cancel demo mode, reset the system.
Press and hold (power) and –
(volume) on the main unit for more
than 5 seconds (page 73).
Spotify cannot be played with the
MUSIC SERVICE button, or cannot
be played on the way of playback.
Play the music of Spotify on the
system by using the Spotify Connect
function on the Spotify app of the
mobile device. For details, see “Using
Spotify” (page 39).
The system restarts.
When connecting to a TV with a
resolution that is different from that
of the system, the system may restart
to reset the picture output setting.
Resetting the System
If the system still does not operate
properly, reset the system as follows.
1 Press HOME.
The home menu appears on the TV
screen.
2 Select [Setup] - [Advanced
Settings] on the home menu.
3 Select [Resetting].
4 Select the menu item you want to
reset.
5 Select [Start].
To cancel resetting
Select [Cancel] in step 5.
Press and hold (power) and –
(volume) on the main unit for more
than 5 seconds.
The settings return to their initial
status.
By resetting, the link with the subwoofer
and rear speakers may be lost. In this case,
perform “Connecting the Subwoofer and
Rear Speakers Wirelessly” (page 29).
If You Cannot Perform
Resetting Using the Home
Menu
Note
74
GB
Specifications
Amplifier section
POWER OUTPUT (rated)
Front L + Front R: 60 W + 60 W
(at 4 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Center speaker
blocks: 100 W (per channel at 4 ohms,
1kHz)
Inputs
HDMI IN 1/2*
ANALOG IN
TV IN (OPT)
Outputs
HDMI OUT (TV (ARC))*
* HDMI IN 1/2 and HDMI OUT (TV (ARC))
jacks support HDCP 2.2 protocol. HDCP
2.2 is newly enhanced copyright
protection technology that is used to
protect content such as 4K movies.
HDMI Section
Connector
Type A (19pin)
USB section
(USB) port:
Type A (For connecting USB memory)
LAN section
LAN(100) terminal
100BASE-TX Terminal
Wireless LAN section
Communication system
IEEE 802.11 a/b/g/n
Frequency band
2.4 GHz, 5 GHz
BLUETOOTH section
Communication system
BLUETOOTH Specification version 4.2
Output
BLUETOOTH Specification Power
Class 1
Maximum communication range
Line of sight approx. 30 m
1)
Maximum number of devices to be
registered
9 devices
Frequency band
2.4 GHz band (2.4 GHz - 2.4835 GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles
2)
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio Video Remote Control
Profile)
Supported Codecs
3)
SBC
4)
, AAC
5)
, LDAC
Transmission range (A2DP)
20 Hz - 40,000 Hz (LDAC sampling
frequency 96 kHz with 990 kbps
transmission)
20 Hz - 20,000 Hz (Sampling frequency
44.1 kHz)
1)
The actual range will vary depending on
factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
cordless phone use, reception
sensitivity, the operating system,
software applications, etc.
2)
BLUETOOTH standard profiles indicate
the purpose of BLUETOOTH
communication between devices.
3)
Codec: Audio signal compression and
conversion format
4)
Abbreviation for Subband Codec
5)
Abbreviation for Advanced Audio
Coding
Front L/Front R/Center speaker block
section
Speaker system
Full Range speaker system, Acoustic
suspension
Speaker
46 mm cone type
General
Power requirements
120 V - 240 V AC, 50 Hz/60 Hz
Additional Information
Bar Speaker (SA-Z9F)
75
GB
Power consumption
On: 52 W
[Network/Bluetooth Standby] - [On]:
Less than 2.4 W
[Network/Bluetooth Standby] - [Off]:
Less than 0.5 W*
* When [Standby Through] is set to
[Off], or [Standby Through] is set to
[Auto] while the connected TV is
turned off.
Dimensions* (approx.) (w/h/d)
1000 mm × 64 mm × 98 mm (without
grille frame)
1000 mm × 64 mm × 99 mm (with
grille frame)
*Not including projection portion
Mass (approx.)
2.9 kg (without grille frame)
3.1 kg (with grille frame)
Compatible iPhone/iPod models
The compatible iPhone/iPod models are as
follows. Update your iPhone/iPod with the
latest software before using with the
system.
Made for:
iPhone X/iPhone 8/iPhone 8 Plus/iPhone
7/iPhone 7 Plus/iPhone SE/iPhone 6s/
iPhone 6s Plus/iPhone 6/iPhone 6 Plus/
iPhone 5s/iPhone 5c/iPhone 5
iPod touch (6th generation)/iPod touch
(5th generation)
POWER OUTPUT (reference)
100 W (at 4 ohms, 100 Hz)
Speaker system
Subwoofer speaker system, Bass
reflex
Speaker
160 mm cone type
Power requirements
120 V - 240 V AC, 50 Hz/60 Hz
Power consumption
On: 20 W
Standby mode: 1 W or less
Turned off: 0.5 W or less
Dimensions (approx.) (w/h/d)
190 mm × 382 mm × 386 mm (not
including projection portion)
Mass (approx.)
8.1 kg
Communication system
Wireless Sound Specification version
4.0
Frequency band
5 GHz
Modulation method
OFDM
Design and specifications are subject to
change without notice.
Subwoofer (SA-WZ9F)
Wireless Transmitter/
Receiver Section
76
GB
Playable Types of Audio
Files
* The system does not play DST encoded
files.
• Some files may not play depending on
the file format, file encoding, recording
condition, or other conditions.
• Some files edited on a PC may not play.
• Fast forward or fast reverse may not be
available with some files.
• The system does not play coded files such
as DRM.
• The system cannot recognize a file/folder
depending on the name/meta-data.
• Some USB devices may not work with this
system.
• The system can recognize Mass Storage
Class (MSC) devices (such as flash
memory).
Codec Extension
MP3 (MPEG-1 Audio
Layer III)
.mp3
AAC/HE-AAC .m4a, .aac, .mp4,
.3gp
WMA9 Standard .wma
LPCM .wav
FLAC .flac
DSF .dsf
DSDIFF* .dff
AIFF .aiff, .aif
ALAC .m4a
Vorbis .ogg
Monkey’s Audio .ape
Notes
77
GB
Supported Input Audio Formats
Audio formats supported by this system are as follows.
: Supported format.
–: Unsupported format.
The HDMI IN 1/2 jacks do not support audio format that contains copy protections, such as
Super Audio CD or DVD-Audio.
Format Function
“HDMI1”
“HDMI2”
“TV”
(ARC)
“TV”
(OPT)
LPCM 2ch
LPCM 5.1ch ––
LPCM 7.1ch ––
Dolby Digital
Dolby TrueHD ––
Dolby Digital Plus –
Dolby Atmos - Dolby TrueHD ––
Dolby Atmos - Dolby Digital Plus –
DTS
DTS-ES Discrete 6.1, DTS-ES Matrix 6.1
DTS 96/24
DTS-HD High Resolution Audio ––
DTS-HD Master Audio ––
DTS-HD LBR ––
DTS:X ––
DSD ––
Note
78
GB
Supported HDMI Video Formats
Video formats supported by this system are as follows.
: Compatible with 3D signal in Side-by-Side (Half)
3)
format
: Compatible with 3D signal in Frame packing and Over-Under (Top-and-Bottom)
3)
format
1)
Use a Premium High Speed HDMI Cable with Ethernet that supports 18Gbps.
2)
Use a Premium High Speed HDMI Cable with Ethernet or Sony High Speed HDMI Cable
with Ethernet with the Cable Type Logo.
3)
The OPTIONS button does not work and the On-Screen Display (OSD) of the system is
not displayed.
• Use an HDMI-authorized cable.
• We do not recommend using an HDMI-DVI conversion cable.
• Audio signals (sampling frequency, bit length, etc.) transmitted from an HDMI jack
may be suppressed by the connected device.
• Sound may be interrupted when the sampling frequency or the number of channels
of audio output signals from the playback device is switched.
Resolution
Frame Rate 3D Color Space Color Depth
[HDMI Signal
Format] setting
4K
4096 × 2160p
3)
3840 × 2160p
50/59.94/60 Hz
–
RGB 4:4:4
YCbCr 4:4:4
8 bit
[Enhanced format]
1)
–
YCbCr 4:2:2 8/10/12 bit
–
YCbCr 4:2:0 10/12 bit
23.98/24/25/29.97/30 Hz
–
RGB 4:4:4
YCbCr 4:4:4
10/12 bit
4K
4096 × 2160p
3)
3840 × 2160p
50/59.94/60 Hz
–
YCbCr 4:2:0 8 bit
[Standard format]
2)
23.98/24/25/29.97/30 Hz
–
RGB 4:4:4
YCbCr 4:4:4
8 bit
–
YCbCr 4:2:2 8/10/12 bit
1920 × 1080p
25/29.97/30/50/
59.94/60 Hz
–
RGB 4:4:4
YCbCr 4:4:4
YCbCr 4:2:2
8/10/12 bit
23.98/24 Hz
1920 × 1080i 50/59.94/60 Hz
1280 × 720p
50/59.94/60 Hz
23.98/24/29.97/30 Hz
–
720 × 480p 59.94/60 Hz
–
720 × 576p 50 Hz
–
640 × 480p 59.94/60 Hz
–
RGB 4:4:4
Notes on HDMI Jack and HDMI Connections
79
GB
• When the TV input is selected, video signals via one of the HDMI IN 1/2 jacks
selected last time are output from the HDMI OUT (TV (ARC)) jack.
• This system supports “TRILUMINOS.”
• All HDMI IN and HDMI OUT jacks support bandwidth up to 18Gbps, HDCP 2.2
1)
,
BT.2020 wide color spaces
2)
, and HDR
(High Dynamic Range)
3)
contents pass-
through.
• When connecting to a TV with a resolution that is different from that of the system,
the system may restart to reset the picture output setting.
1)
HDCP 2.2 is newly enhanced copyright protection technology that is used to protect
content such as 4K movies.
2)
BT.2020 color space is new wider color standard that is defined for ultra-high definition
television systems.
3)
HDR is an emerging video format that can display a wider range of brightness levels.
The system is compatible with HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision.
80
GB
On BLUETOOTH
Communication
• BLUETOOTH devices should be used
within approximately 10 meters (33 feet)
(unobstructed distance) of each other.
The effective communication range may
become shorter under the following
conditions.
– When a person, metal object, wall or
other obstruction is between the
devices with a BLUETOOTH connection
– Locations where a wireless LAN is
installed
– Around microwave ovens that are in use
– Locations where other electromagnetic
waves occur
• BLUETOOTH devices and wireless LAN
(IEEE 802.11 b/g/n) use the same
frequency band (2.4 GHz). When using
your BLUETOOTH device near a device
with wireless LAN capability,
electromagnetic interference may occur.
This could result in lower data transfer
rates, noise, or inability to connect. If this
happens, try the following remedies:
– Use this system at least 10 meters
(33 feet) away from the wireless LAN
device.
– Turn off the power to the wireless LAN
device when using your BLUETOOTH
device within 10 meters (33 feet).
– Install this system and BLUETOOTH
device as closer to each other as
possible.
• The radio waves broadcast by this system
may interfere with the operation of some
medical devices. Since this interference
may result in malfunction, always turn off
the power on this system and
BLUETOOTH device in the following
locations:
– In hospitals, on trains, in airplanes, at
gas stations, and any place where
flammable gasses may be present
– Near automatic doors or fire alarms
• This system supports security functions
that comply with the BLUETOOTH
specification to ensure secure connection
during communication using BLUETOOTH
technology. However, this security may
be insufficient depending on the setting
content and other factors, so always be
careful when performing communication
using BLUETOOTH technology.
• Sony cannot be held liable in any way for
damages or other loss resulting from
information leaks during communication
using BLUETOOTH technology.
• BLUETOOTH communication is not
necessarily guaranteed with all
BLUETOOTH devices that have the same
profile as this system.
• BLUETOOTH devices connected with this
system must comply with the
BLUETOOTH specification prescribed by
the Bluetooth SIG, Inc., and must be
certified to comply. However, even when
a device complies with the BLUETOOTH
specification, there may be cases where
the characteristics or specifications of the
BLUETOOTH device make it impossible to
connect, or may result in different control
methods, display or operation.
• Noise may occur or the audio may cut off
depending on the BLUETOOTH device
connected with this system, the
communications environment, or
surrounding conditions.
If you have any questions or problems
concerning your system, please consult
your nearest Sony dealer.
81
GB
END USER LICENSE
AGREEMENT
IMPORTANT:
BEFORE USING THE SOFTWARE, PLEASE
READ THIS END USER LICENSE
AGREEMENT (“EULA”) CAREFULLY. BY
USING THE SOFTWARE YOU ARE
ACCEPTING THE TERMS OF THIS EULA. IF
YOU DO NOT ACCEPT THE TERMS OF
THIS EULA, YOU MAY NOT USE THE
SOFTWARE.
This EULA is a legal agreement between
you and Sony Video & Sound Products
Inc. (“SONY”). This EULA governs your
rights and obligations regarding the
SONY software of SONY and/or its third
party licensors (including SONY’s
affiliates) and their respective affiliates
(collectively, the “THIRD-PARTY
SUPPLIERS”), together with any
updates/upgrades provided by SONY,
any printed, on-line or other electronic
documentation for such software, and
any data files created by operation of
such software (collectively, the
“SOFTWARE”).
Notwithstanding the foregoing, any
software in the SOFTWARE having a
separate end user license agreement
(including, but not limited to, GNU
General Public license and Lesser/
Library General Public License) shall be
covered by such applicable separate
end user license agreement in lieu of
the terms of this EULA to the extent
required by such separate end user
license agreement (“EXCLUDED
SOFTWARE”).
SOFTWARE LICENSE
The SOFTWARE is licensed, not sold. The
SOFTWARE is protected by copyright
and other intellectual property laws and
international treaties.
COPYRIGHT
All right and title in and to the
SOFTWARE (including, but not limited
to, any images, photographs,
animation, video, audio, music, text and
"applets" incorporated into the
SOFTWARE) is owned by SONY or one or
more of the THIRD-PARTY SUPPLIERS.
GRANT OF LICENSE
SONY grants you a limited license to use
the SOFTWARE solely in connection with
your compatible device (“DEVICE”) and
only for your individual, non-
commercial use. SONY and the THIRD-
PARTY SUPPLIERS expressly reserve all
rights, title and interest (including, but
not limited to, all intellectual property
rights) in and to the SOFTWARE that this
EULA does not specifically grant to you.
REQUIREMENTS AND
LIMITATIONS
You may not copy, publish, adapt,
redistribute, attempt to derive source
code, modify, reverse engineer,
decompile, or disassemble any of the
SOFTWARE, whether in whole or in part,
or create any derivative works from or of
the SOFTWARE unless such derivative
works are intentionally facilitated by the
SOFTWARE. You may not modify or
tamper with any digital rights
management functionality of the
SOFTWARE. You may not bypass,
modify, defeat or circumvent any of the
functions or protections of the
SOFTWARE or any mechanisms
operatively linked to the SOFTWARE.
You may not separate any individual
component of the SOFTWARE for use on
more than one DEVICE unless expressly
authorized to do so by SONY. You may
not remove, alter, cover or deface any
trademarks or notices on the
82
GB
SOFTWARE. You may not share,
distribute, rent, lease, sublicense,
assign, transfer or sell the SOFTWARE.
The software, network services or other
products other than SOFTWARE upon
which the SOFTWARE’S performance
depends might be interrupted or
discontinued at the discretion of the
suppliers (software suppliers, service
suppliers, or SONY). SONY and such
suppliers do not warrant that the
SOFTWARE, network services, contents
or other products will continue to be
available, or will operate without
interruption or modification.
USE OF SOFTWARE WITH
COPYRIGHTED MATERIALS
The SOFTWARE may be capable of
being used by you to view, store,
process and/or use content created by
you and/or third parties. Such content
may be protected by copyright, other
intellectual property laws, and/or
agreements. You agree to use the
SOFTWARE only in compliance with all
such laws and agreements that apply to
such content. You acknowledge and
agree that SONY may take appropriate
measures to protect the copyright of
content stored, processed or used by
the SOFTWARE. Such measures include,
but are not limited to, counting the
frequency of your backup and
restoration through certain SOFTWARE
features, refusal to accept your request
to enable restoration of data, and
termination of this EULA in the event of
your illegitimate use of the SOFTWARE.
CONTENT SERVICE
PLEASE ALSO NOTE THAT THE
SOFTWARE MAY BE DESIGNED TO BE
USED WITH CONTENT AVAILABLE
THROUGH ONE OR MORE CONTENT
SERVICES (“CONTENT SERVICE”). USE OF
THE SERVICE AND THAT CONTENT IS
SUBJECT TO THE TERMS OF SERVICE OF
THAT CONTENT SERVICE. IF YOU
DECLINE TO ACCEPT THOSE TERMS,
YOUR USE OF THE SOFTWARE WILL BE
LIMITED. You acknowledge and agree
that certain content and services
available through the SOFTWARE may
be provided by third parties over which
SONY has no control. USE OF THE
CONTENT SERVICE REQUIRES AN
INTERNET CONNECTION. THE CONTENT
SERVICE MAY BE DISCONTINUED AT ANY
TIME.
INTERNET CONNECTIVITY AND
THIRD PARTY SERVICES
You acknowledge and agree that access
to certain SOFTWARE features may
require an Internet connection for which
you are solely responsible. Further, you
are solely responsible for payment of
any third party fees associated with your
Internet connection, including but not
limited to Internet service provider or
airtime charges. Operation of the
SOFTWARE may be limited or restricted
depending on the capabilities,
bandwidth or technical limitations of
your Internet connection and service.
The provision, quality and security of
such Internet connectivity are the sole
responsibility of the third party
providing such service.
EXPORT AND OTHER
REGULATIONS
You agree to comply with all applicable
export and re-export restrictions and
regulations of the area or country in
which you reside, and not to transfer, or
authorize the transfer, of the SOFTWARE
to a prohibited country or otherwise in
violation of any such restrictions or
regulations.
HIGH RISK ACTIVITIES
The SOFTWARE is not fault-tolerant and
is not designed, manufactured or
intended for use or resale as on-line
83
GB
control equipment in hazardous
environments requiring fail-safe
performance, such as in the operation
of nuclear facilities, aircraft navigation
or communication systems, air traffic
control, direct life support machines, or
weapons systems, in which the failure
of the SOFTWARE could lead to death,
personal injury, or severe physical or
environmental damage ("HIGH RISK
ACTIVITIES"). SONY, each of the THIRD-
PARTY SUPPLIERS, and each of their
respective affiliates specifically disclaim
any express or implied warranty, duty or
condition of fitness for HIGH RISK
ACTIVITIES.
EXCLUSION OF WARRANTY ON
SOFTWARE
You acknowledge and agree that use of
the SOFTWARE is at your sole risk and
that you are responsible for use of the
SOFTWARE. The SOFTWARE is provided
"AS IS,” without warranty, duty or
condition of any kind.
SONY AND EACH OF THE THIRD-PARTY
SUPPLIERS (for purposes of this Section,
SONY and each of the THIRD-PARTY
SUPPLIERS shall be collectively referred
to as “SONY”) EXPRESSLY DISCLAIM ALL
WARRANTIES, DUTIES OR CONDITIONS,
EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY,
NONINFRINGEMENT AND FITNESS FOR A
PARTICULAR PURPOSE. SONY DOES NOT
WARRANT OR MAKE ANY CONDITIONS
OR REPRESENTATIONS (A) THAT THE
FUNCTIONS CONTAINED IN ANY OF THE
SOFTWARE WILL MEET YOUR
REQUIREMENTS OR THAT THEY WILL BE
UPDATED, (B) THAT THE OPERATION OF
ANY OF THE SOFTWARE WILL BE
CORRECT OR ERROR-FREE OR THAT ANY
DEFECTS WILL BE CORRECTED, (C) THAT
THE SOFTWARE WILL NOT DAMAGE ANY
OTHER SOFTWARE, HARDWARE OR
DATA, (D) THAT ANY SOFTWARE,
NETWORK SERVICES (INCLUDING THE
INTERNET) OR PRODUCTS (OTHER THAN
THE SOFTWARE) UPON WHICH THE
SOFTWARE’S PERFORMANCE DEPENDS
WILL CONTINUE TO BE AVAILABLE,
UNINTERRUPTED OR UNMODIFIED, AND
(E) REGARDING THE USE OR THE
RESULTS OF THE USE OF THE SOFTWARE
IN TERMS OF ITS CORRECTNESS,
ACCURACY, RELIABILITY, OR
OTHERWISE.
NO ORAL OR WRITTEN INFORMATION
OR ADVICE GIVEN BY SONY OR AN
AUTHORIZED REPRESENTATIVE OF
SONY SHALL CREATE A WARRANTY,
DUTY OR CONDITION OR IN ANY WAY
INCREASE THE SCOPE OF THIS
WARRANTY. SHOULD THE SOFTWARE
PROVE DEFECTIVE YOU ASSUME THE
ENTIRE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OF IMPLIED
WARRANTIES, SO THESE EXCLUSIONS
MAY NOT APPLY TO YOU.
LIMITATION OF LIABILITY
SONY AND EACH OF THE THIRD-PARTY
SUPPLIERS (for purposes of this Section,
SONY and each of the THIRD-PARTY
SUPPLIERS shall be collectively referred
to as “SONY”) SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY,
BREACH OF CONTRACT, NEGLIGENCE,
STRICT LIABILITY OR UNDER ANY OTHER
LEGAL THEORY RELATED TO THE
SOFTWARE, INCLUDING, BUT NOT
LIMITED TO, ANY DAMAGES ARISING
OUT OF LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE
OF THE SOFTWARE OR ANY ASSOCIATED
HARDWARE, DOWN TIME AND USER’S
TIME, EVEN IF ANY OF THEM HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. IN ANY CASE, EACH AND ALL
84
GB
OF THEIR AGGREGATE LIABILITY UNDER
ANY PROVISION OF THIS EULA SHALL BE
LIMITED TO THE AMOUNT ACTUALLY
PAID FOR THE PRODUCT. SOME
JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE EXCLUSION
OR LIMITATION MAY NOT APPLY TO
YOU.
AUTOMATIC UPDATE FEATURE
From time to time, SONY or the THIRD-
PARTY SUPPLIERS may automatically
update or otherwise modify the
SOFTWARE, including, but not limited
to, for purposes of enhancement of
security functions, error correction and
improvement of functions, at such time
as you interact with SONY's or third
parties' servers, or otherwise. Such
updates or modifications may delete or
change the nature of features or other
aspects of the SOFTWARE, including,
but not limited to, functions you may
rely upon. You acknowledge and agree
that such activities may occur at SONY's
sole discretion and that SONY may
condition continued use of the
SOFTWARE upon your complete
installation or acceptance of such
update or modifications. Any updates/
modifications shall be deemed to be,
and shall constitute part of, the
SOFTWARE for purposes of this EULA. By
acceptance of this EULA, you consent to
such update/modification.
ENTIRE AGREEMENT, WAIVER,
SEVERABILITY
This EULA and SONY’s privacy policy,
each as amended and modified from
time to time, together constitute the
entire agreement between you and
SONY with respect to the SOFTWARE.
The failure of SONY to exercise or
enforce any right or provision of this
EULA shall not constitute a waiver of
such right or provision. If any part of this
EULA is held invalid, illegal, or
unenforceable, that provision shall be
enforced to the maximum extent
permissible so as to maintain the intent
of this EULA, and the other parts will
remain in full force and effect.
GOVERNING LAW AND
JURISDICTION
The United Nations Convention on
Contracts for the International Sale of
Goods shall not apply to this EULA. This
EULA shall be governed by the laws of
Japan, without regards to conflict of
laws provisions. Any dispute arising out
of this EULA shall be subject to the
exclusive venue of the Tokyo District
Court in Japan, and the parties hereby
consent to the venue and jurisdiction of
such courts.
EQUITABLE REMEDIES
Notwithstanding anything contained in
this EULA to the contrary, you
acknowledge and agree that any
violation of or non-compliance with this
EULA by you will cause irreparable harm
to SONY, for which monetary damages
would be inadequate, and you consent
to SONY obtaining any injunctive or
equitable relief that SONY deems
necessary or appropriate in such
circumstances. SONY may also take any
legal and technical remedies to prevent
violation of and/or to enforce this EULA,
including, but not limited to, immediate
termination of your use of the
SOFTWARE, if SONY believes in its sole
discretion that you are violating or
intend to violate this EULA. These
remedies are in addition to any other
remedies SONY may have at law, in
equity or under contract.
TERMINATION
Without prejudice to any of its other
rights, SONY may terminate this EULA if
85
GB
you fail to comply with any of its terms.
In case of such termination, you must
cease all use, and destroy any copies, of
the SOFTWARE.
AMENDMENT
SONY RESERVES THE RIGHT TO AMEND
ANY OF THE TERMS OF THIS EULA AT ITS
SOLE DISCRETION BY POSTING NOTICE
ON A SONY DESIGNATED WEB SITE, BY
EMAIL NOTIFICATION TO AN EMAIL
ADDRESS PROVIDED BY YOU, BY
PROVIDING NOTICE AS PART OF THE
PROCESS IN WHICH YOU OBTAIN
UPGRADES/UPDATES OR BY ANY OTHER
LEGALLY RECOGNIZABLE FORM OF
NOTICE. If you do not agree to the
amendment, you should promptly
contact SONY for instructions. Your
continued use of the SOFTWARE after
the effective date of any such notice
shall be deemed your agreement to be
bound by such amendment.
THIRD-PARTY BENEFICIARIES
Each THIRD-PARTY SUPPLIER is an
express intended third-party beneficiary
of, and shall have the right to enforce,
each provision of this EULA with respect
to the SOFTWARE of such party.
Should you have any questions
concerning this EULA, you may contact
SONY by writing to SONY at applicable
contact address of each area or country.
Copyright © 2018 Sony Video & Sound
Products Inc. All rights reserved.
Precautions
On safety
• Should any solid object or liquid fall into
the system, unplug the system and have
it checked by qualified personnel before
operating it any further.
• Do not climb on the main unit and
subwoofer, as you may fall down and
injure yourself, or system damage may
result.
On power sources
• Before operating the system, check that
the operating voltage is identical to your
local power supply. The operating voltage
is indicated on the nameplate at the
bottom of the main unit.
• If you are not going to use the system for
a long time, be sure to disconnect the
system from the wall outlet (mains). To
disconnect the AC power cord (mains
lead), grasp the plug itself; never pull the
cord.
• One blade of the plug is wider than the
other for the purpose of safety and will fit
into the wall outlet (mains) only one way.
If you are unable to insert the plug fully
into the outlet, contact your dealer.
• AC power cord (mains lead) must be
changed only at a qualified service shop.
On heat buildup
Although the system heats up during
operation, this is not a malfunction. If you
continuously use this system at high
volume, the system temperature at the
rear and bottom rises considerably. To
avoid burning yourself, do not touch the
system.
On placement
• Do not place the system near heat
sources or in a place subject to direct
sunlight, excessive dust, or mechanical
shock.
• Do not place anything at the rear of the
main unit and subwoofer that might block
86
GB
the ventilation holes and cause
malfunctions.
• Do not place metal objects other than a
TV around the system. Wireless functions
may be unstable.
• If the system is being used in combination
with a TV, VCR, or tape deck, noise may
result and picture quality may suffer. In
such a case, place the system away from
the TV, VCR, or tape deck.
• Use caution when placing the system on a
surface that has been specially treated
(with wax, oil, polish, etc.), as staining or
discoloration of the surface may result.
• Take care to avoid any possible injury
from the corners of the main unit and
subwoofer.
• Keep 3 cm or more space under the main
unit when you hang it on a wall.
• The speakers of this system are not of
magnetically shielded type. Do not place
magnetic cards on the system or near it.
On handling the subwoofer
Do not place your hand into the slit of the
subwoofer when lifting it. The speaker
driver may be damaged. When lifting it,
hold the bottom of the subwoofer.
On operation
Before connecting other devices, be sure
to turn off and unplug the system.
If you encounter color irregularity
on a nearby TV screen
Color irregularities may be observed on
certain types of TV sets.
If color irregularity is observed...
Turn off the TV set, then turn it on again
after 15 to 30 minutes.
If color irregularity is observed
again...
Place the system further away from the TV
set.
On cleaning
Clean the system with a soft, dry cloth. Do
not use any type of abrasive pad, scouring
powder, or solvent such as alcohol or
benzine.
If you have any question or problem
concerning your system, please consult
your nearest Sony dealer.
Disclaimer regarding services
offered by third parties
Network services, content and the
(operating system and) software of this
product may be subject to individual terms
and conditions and changed, interrupted
or discontinued at any time and may
require fees, registration and credit card
information.
Notes on updating
This system allows you to update the
software automatically when connected to
the Internet via a wired or wireless
network.
You can add new features and use the
system with more convenience and safety
by updating the system.
If you do not want to update automatically,
you can disable the function by using Sony
| Music Center installed on your
smartphone or tablet. However, the
system may update the software
automatically for reasons such as safety,
even if this function is disabled. You can
also update the software using the settings
menu when this function is disabled. See
“Performing Advanced Settings” (page 58)
for details.
You may not use the system while the
software is being updated.
87
GB
This system incorporates Dolby* Digital
and the DTS** Digital Surround System.
* Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, Dolby
Atmos, Dolby Vision, and the double-D
symbol are trademarks of Dolby
Laboratories.
**For DTS patents, see http://
patents.dts.com. Manufactured under
license from DTS, Inc. DTS, the Symbol,
DTS and the Symbol together, DTS:X, and
the DTS:X logo are registered trademarks
and/or trademarks of DTS, Inc. in the
United States and/or other countries.
© DTS, Inc. All Rights Reserved.
The BLUETOOTH
®
word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are those of
their respective owners.
This system incorporates High-Definition
Multimedia Interface (HDMI™) technology.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the
United States and other countries.
Google, Google Play, Chromecast built-in
and other related marks and logos are
trademarks of Google LLC.
Apple, iPhone, iPod, and iPod touch are
trademarks of Apple Inc., registered in the
U.S. and other countries. App Store is a
service mark of Apple Inc., registered in the
U.S. and other countries.
Use of the Made for Apple badge means
that an accessory has been designed to
connect specifically to the Apple product(s)
identified in the badge, and has been
certified by the developer to meet Apple
performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and
regulatory standards.
“BRAVIA” logo is a trademark of Sony
Corporation.
“ClearAudio+” is a trademark of Sony
Corporation.
WALKMAN® and WALKMAN® logo are
registered trademarks of Sony
Corporation.
“PlayStation” is a registered trademark or
trademark of Sony Interactive
Entertainment Inc.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
This product is protected by certain
intellectual property rights of Microsoft
Corporation. Use or distribution of such
technology outside of this product is
prohibited without a license from Microsoft
or an authorized Microsoft subsidiary.
Wi-Fi®, Wi-Fi Protected Access® and Wi-Fi
Alliance® are registered trademarks of Wi-
Fi Alliance.
Wi-Fi CERTIFIED™, WPA™, WPA2™ and Wi-
Fi Protected Setup™ are trademarks of Wi-
Fi Alliance.
LDAC™ and LDAC logo are trademarks of
Sony Corporation.
LDAC is an audio coding technology
developed by Sony that enables the
transmission of High-Resolution (Hi-Res)
Audio content, even over a Bluetooth
connection. Unlike other Bluetooth
compatible coding technologies such as
SBC, it operates without any down-
conversion of the Hi-Res Audio content*,
and allows approximately three times
more data** than those other technologies
Copyrights and Trademarks
88
GB
to be transmitted over a Bluetooth wireless
network with unprecedented sound
quality, by means of efficient coding and
optimized packetization.
*excluding DSD format contents
**in comparison with SBC (Subband
Coding) when the bitrate of 990 kbps
(96/48 kHz) or 909 kbps (88.2/44.1 kHz) is
selected
This product contains software that is
subject to the GNU General Public License
(“GPL”) or GNU Lesser General Public
License (“LGPL”). These establish that
customers have the right to acquire,
modify, and redistribute the source code of
said software in accordance with the terms
of the GPL or the LGPL.
For details of the GPL, LGPL and other
software licenses, please refer to [Software
License Information] under [Setup] -
[Advanced Settings] - [System Settings] on
the product.
The source code for the software used in
this product is subject to the GPL and LGPL,
and is available on the Web. To download,
please access the following:
URL:
http://oss.sony.net/Products/Linux
Please note that Sony cannot answer or
respond to any inquiries regarding the
content of this source code.
“DSEE HX” is a trademark of Sony
Corporation.
DLNA™, the DLNA Logo and DLNA
CERTIFIED™ are trademarks, service marks,
or certification marks of the Digital Living
Network Alliance.
“TRILUMINOS” and “TRILUMINOS” logo are
a registered trademark of Sony
Corporation.
The Spotify Software is subject to third
party licenses found here:
developer.spotify.com/esdk-third-party-
licenses
(https://developer.spotify.com/esdk-
third-party-licenses/)
Spotify and Spotify logos are trademarks of
the Spotify Group.*
* Depending on the country and region,
this function may not be available.
All other trademarks are trademarks of
their respective owners.
89
GB
Index
A
Advanced Auto Volume 60
Audio DRC
59
Audio Return Channel (ARC)
9, 53, 60
Audio Settings
59
Auto Standby
61
Auto Update
62
Auto Update Settings
62
B
Bluetooth Codec - AAC 61
Bluetooth Codec - LDAC
61
Bluetooth Mode
60
Bluetooth Settings
60
BT.2020
79
C
Control for HDMI 52, 60
D
Device List 61
Device Name Setting
62
DIMMER
56
DSEE HX
59
H
HDCP 2.2 79
HDMI Settings
60
HDMI Signal Format
22, 60, 78
HDR
79
I
Internet Settings 62
IR-Repeater
61
M
Manual Speaker Settings 59
Multiplex broadcast sound
50
MUSIC SERVICE button
39
N
Network 23
Network Connection Status
62
Network Settings
62
Network update
63
Network/Bluetooth Standby
61
NIGHT
47
O
OSD Language 61
P
PRTCT 72
R
Remote control 12
Resetting
62, 73
S
Software License Information 62
Software Update
62
Software Update Notification
61
Sony | Music Center
41
Sound Effect
59
Sound Mode
46
Speaker Settings
59
Standby Linked to TV
60
Standby Through
53, 57, 60
Subwoofer
48, 67
System Information
62
System Settings
61
T
Time Zone 62
TV Audio Input Mode
60
U
Update 62
USB update
63
V
VERTICAL S. 45
VOICE
47
W
Wireless Playback Quality 59, 61
Wireless Speaker Settings
59
Wireless speakers only
63
HT-Z9F
4-727-538-32(1)
HT-Z9F
4-727-538-32(1)
89
AR
HT-Z9F
4-727-538-32(1)
A
60 Advanced Auto Volume
59
Audio DRC
59
Audio Settings
61
Auto Standby
62
Auto Update
62
Auto Update Settings
B
61 Bluetooth Codec - AAC
61
Bluetooth Codec - LDAC
60
Bluetooth Mode
60
Bluetooth Settings
79
BT.2020
C
60 52 Control for HDMI
D
61 Device List
62
Device Name Setting
56
DIMMER
59
DSEE HX
H
79 HDCP 2.2
60
HDMI Settings
78
60 22 HDMI Signal Format
00
HDR
I
62 Internet Settings
61
IR-Repeater
M
59 Manual Speaker Settings
N
62 Network Connection Status
62
Network Settings
63
Network update
61
Network/Bluetooth Standby
47
NIGHT
O
61 OSD Language
P
72 PRTCT
R
73 62 Resetting
S
62 Software License Information
62
Software Update
61
Software Update Notification
41 Sony | Music Center
59
Sound Eect
59
Speaker Settings
60
Standby Linked to TV
60
57 53 Standby Through
62
System Information
61
System Settings
T
62 Time Zone
60
TV Audio Input Mode
U
63 USB update
V
45 VERTICAL S.
47 VOICE
W
61 59 Wireless Playback Quality
59 Wireless Speaker Settings
63 Wireless speakers only
62
39 MUSIC SERVICE
23
50
60 53 9 (ARC)
67 48
12
46
88
AR
HT-Z9F
4-727-538-32(1)
*DSD
( ) SBC **
990
909 ( 48/96)
(
44.1/88.2)
GNU
) General Public License
GNU Lesser General Public License ("GPL"
.
("LGPL" )
GPL
.
LGPL
LGPL GPL
]Software License Information[
- ]Advanced Settings[ - ]Setup[
.
]System Settings[
.
LGPL GPL
:
:URL
http://oss.sony.net/Products/Linux
Sony
.
Sony "DSEE HX"
.
Corporation
DLNA CERTIFIED™ DLNA DLNA™
.
"TRILUMINOS" "TRILUMINOS"
.Sony Corporation
: Spotify
developer.spotify.com/esdk-third-party-
licenses
(https://developer.spotify.com/esdk-third-
party-licenses
/)
Spotify Spotify
*
.Spotify Group
*
.
.
87
AR
HT-Z9F
4-727-538-32(1)
Dolby* Digital
.
DTS** Digital Surround System
* .Dolby
Dolby Dolby Atmos Dolby Audio Dolby
D Vision
.Dolby
DTS **
.http://patents.dts.com
DTS DTS .DTS, Inc.
/ DTS:X DTS:X
DTS, Inc.
.
/
.
© DTS, Inc.
BLUETOOTH®
Bluetooth SIG, Inc.
Sony
.
Corporation
.
High-Definition
.
Multimedia Interface (HDMI
TM
)
HDMI High-Definition HDMI
HDMI Multimedia Interface
HDMI Licensing
Administrator, Inc.
.
Chromecast built-in Google Play Google
.
Google LLC
iPod touch iPod iPhone Apple
Apple Inc.
App Store .
.
Apple Inc.
Apple
Apple ()
Apple .Apple
.
"
BRAVIA"
.
Sony Corporation
"ClearAudio+"
.Sony Corporation
WALKMAN® WALKMAN®
.Sony Corporation
"
PlayStation"
.
Sony Interactive Entertainment Inc.
MPEG Layer-3
.
Fraunhofer IIS and Thomson
Windows Media
Microsoft Corporation
. /
.
Microsoft Corporation
.
Microsoft
Wi-Fi Protected Access® Wi-Fi®
Wi-Fi Alliance®
.
Wi-Fi Alliance
WPA2™ W PA™ Wi-Fi CERTIFIED™
Wi-Fi Protected Setup™
.
Wi-Fi Alliance
Sony LDAC™
.Corporation
Sony LDAC
(Hi-Res)
.
Bluetooth
SBC Bluetooth
*Hi-Res
**
Bluetooth
.
86
AR
HT-Z9F
4-727-538-32(1)
• .
.
•
(
VCR)
.
VCR
.
•
( )
.
•
.
• 3
.
•
.
.
.
.
.
.
.
...
15
.
30
...
.
.
.
.
Sony
( )
.
.
.
Sony | Music Center
.
.
.
.
(58 ) « »
.
85
AR
HT-Z9F
4-727-538-32(1)
AMENDMENT
SONY RESERVES THE RIGHT TO AMEND
ANY OF THE TERMS OF THIS EULA AT ITS
SOLE DISCRETION BY POSTING NOTICE
ON A SONY DESIGNATED WEB SITE, BY
EMAIL NOTIFICATION TO AN EMAIL
ADDRESS PROVIDED BY YOU, BY
PROVIDING NOTICE AS PART OF THE
PROCESS IN WHICH YOU OBTAIN
UPGRADES/UPDATES OR BY ANY OTHER
LEGALLY RECOGNIZABLE FORM OF
NOTICE. If you do not agree to the
amendment, you should promptly
contact SONY for instructions. Your
continued use of the SOFTWARE after
the effective date of any such notice
shall be deemed your agreement to be
bound by such amendment.
THIRD-PARTY BENEFICIARIES
Each THIRD-PARTY SUPPLIER is an
express intended third-party beneficiary
of, and shall have the right to enforce,
each provision of this EULA with respect
to the SOFTWARE of such party.
Should you have any questions
concerning this EULA, you may contact
SONY by writing to SONY at applicable
contact address of each area or country.
Copyright © 2018 Sony Video & Sound
Products Inc. All rights reserved.
•
.
•
.
•
.
.
•
.
AC
.
•
.
.
• AC
.
.
. .
•
.
•
.
84
AR
HT-Z9F
4-727-538-32(1)
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE EXCLUSION
OR LIMITATION MAY NOT APPLY TO
YOU.
AUTOMATIC UPDATE FEATURE
From time to time, SONY or the THIRD-
PARTY SUPPLIERS may automatically
update or otherwise modify the
SOFTWARE, including, but not limited
to, for purposes of enhancement of
security functions, error correction and
improvement of functions, at such time
as you interact with SONY's or third
parties' servers, or otherwise. Such
updates or modifications may delete or
change the nature of features or other
aspects of the SOFTWARE, including,
but not limited to, functions you may
rely upon. You acknowledge and agree
that such activities may occur at SONY's
sole discretion and that SONY may
condition continued use of the
SOFTWARE upon your complete
installation or acceptance of such
update or modifications. Any updates/
modifications shall be deemed to be,
and shall constitute part of, the
SOFTWARE for purposes of this EULA. By
acceptance of this EULA, you consent to
such update/modification.
ENTIRE AGREEMENT, WAIVER,
SEVERABILITY
This EULA and SONY’s privacy policy,
each as amended and modified from
time to time, together constitute the
entire agreement between you and
SONY with respect to the SOFTWARE.
The failure of SONY to exercise or
enforce any right or provision of this
EULA shall not constitute a waiver of
such right or provision. If any part of this
EULA is held invalid, illegal, or
unenforceable, that provision shall be
enforced to the maximum extent
permissible so as to maintain the intent
of this EULA, and the other parts will
remain in full force and effect.
GOVERNING LAW AND
JURISDICTION
The United Nations Convention on
Contracts for the International Sale of
Goods shall not apply to this EULA. This
EULA shall be governed by the laws of
Japan, without regards to conflict of
laws provisions. Any dispute arising out
of this EULA shall be subject to the
exclusive venue of the Tokyo District
Court in Japan, and the parties hereby
consent to the venue and jurisdiction of
such courts.
EQUITABLE REMEDIES
Notwithstanding anything contained in
this EULA to the contrary, you
acknowledge and agree that any
violation of or non-compliance with this
EULA by you will cause irreparable harm
to SONY, for which monetary damages
would be inadequate, and you consent
to SONY obtaining any injunctive or
equitable relief that SONY deems
necessary or appropriate in such
circumstances. SONY may also take any
legal and technical remedies to prevent
violation of and/or to enforce this EULA,
including, but not limited to, immediate
termination of your use of the
SOFTWARE, if SONY believes in its sole
discretion that you are violating or
intend to violate this EULA. These
remedies are in addition to any other
remedies SONY may have at law, in
equity or under contract.
TERMINATION
Without prejudice to any of its other
rights, SONY may terminate this EULA if
you fail to comply with any of its terms.
In case of such termination, you must
cease all use, and destroy any copies, of
the SOFTWARE.
83
AR
HT-Z9F
4-727-538-32(1)
of nuclear facilities, aircraft navigation
or communication systems, air traffic
control, direct life support machines, or
weapons systems, in which the failure
of the SOFTWARE could lead to death,
personal injury, or severe physical or
environmental damage ("HIGH RISK
ACTIVITIES"). SONY, each of the THIRD-
PARTY SUPPLIERS, and each of their
respective affiliates specifically disclaim
any express or implied warranty, duty or
condition of fitness for HIGH RISK
ACTIVITIES.
EXCLUSION OF WARRANTY ON
SOFTWARE
You acknowledge and agree that use of
the SOFTWARE is at your sole risk and
that you are responsible for use of the
SOFTWARE. The SOFTWARE is provided
"AS IS," without warranty, duty or
condition of any kind.
SONY AND EACH OF THE THIRD-PARTY
SUPPLIERS (for purposes of this Section,
SONY and each of the THIRD-PARTY
SUPPLIERS shall be collectively referred
to as "SONY") EXPRESSLY DISCLAIM ALL
WARRANTIES, DUTIES OR CONDITIONS,
EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY,
NONINFRINGEMENT AND FITNESS FOR A
PARTICULAR PURPOSE. SONY DOES NOT
WARRANT OR MAKE ANY CONDITIONS
OR REPRESENTATIONS (A) THAT THE
FUNCTIONS CONTAINED IN ANY OF THE
SOFTWARE WILL MEET YOUR
REQUIREMENTS OR THAT THEY WILL BE
UPDATED, (B) THAT THE OPERATION OF
ANY OF THE SOFTWARE WILL BE
CORRECT OR ERROR-FREE OR THAT ANY
DEFECTS WILL BE CORRECTED, (C) THAT
THE SOFTWARE WILL NOT DAMAGE ANY
OTHER SOFTWARE, HARDWARE OR
DATA, (D) THAT ANY SOFTWARE,
NETWORK SERVICES (INCLUDING THE
INTERNET) OR PRODUCTS (OTHER THAN
THE SOFTWARE) UPON WHICH THE
SOFTWARE’S PERFORMANCE DEPENDS
WILL CONTINUE TO BE AVAILABLE,
UNINTERRUPTED OR UNMODIFIED, AND
(E) REGARDING THE USE OR THE
RESULTS OF THE USE OF THE SOFTWARE
IN TERMS OF ITS CORRECTNESS,
ACCURACY, RELIABILITY, OR
OTHERWISE.
NO ORAL OR WRITTEN INFORMATION
OR ADVICE GIVEN BY SONY OR AN
AUTHORIZED REPRESENTATIVE OF
SONY SHALL CREATE A WARRANTY,
DUTY OR CONDITION OR IN ANY WAY
INCREASE THE SCOPE OF THIS
WARRANTY. SHOULD THE SOFTWARE
PROVE DEFECTIVE YOU ASSUME THE
ENTIRE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OF IMPLIED
WARRANTIES, SO THESE EXCLUSIONS
MAY NOT APPLY TO YOU.
LIMITATION OF LIABILITY
SONY AND EACH OF THE THIRD-PARTY
SUPPLIERS (for purposes of this Section,
SONY and each of the THIRD-PARTY
SUPPLIERS shall be collectively referred
to as "SONY") SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY,
BREACH OF CONTRACT, NEGLIGENCE,
STRICT LIABILITY OR UNDER ANY OTHER
LEGAL THEORY RELATED TO THE
SOFTWARE, INCLUDING, BUT NOT
LIMITED TO, ANY DAMAGES ARISING
OUT OF LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE
OF THE SOFTWARE OR ANY ASSOCIATED
HARDWARE, DOWN TIME AND USER’S
TIME, EVEN IF ANY OF THEM HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. IN ANY CASE, EACH AND ALL
OF THEIR AGGREGATE LIABILITY UNDER
ANY PROVISION OF THIS EULA SHALL BE
LIMITED TO THE AMOUNT ACTUALLY
PAID FOR THE PRODUCT. SOME
JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF
82
AR
HT-Z9F
4-727-538-32(1)
The software, network services or other
products other than SOFTWARE upon
which the SOFTWARE’S performance
depends might be interrupted or
discontinued at the discretion of the
suppliers (software suppliers, service
suppliers, or SONY). SONY and such
suppliers do not warrant that the
SOFTWARE, network services, contents
or other products will continue to be
available, or will operate without
interruption or modification.
USE OF SOFTWARE WITH
COPYRIGHTED MATERIALS
The SOFTWARE may be capable of
being used by you to view, store,
process and/or use content created by
you and/or third parties. Such content
may be protected by copyright, other
intellectual property laws, and/or
agreements. You agree to use the
SOFTWARE only in compliance with all
such laws and agreements that apply to
such content. You acknowledge and
agree that SONY may take appropriate
measures to protect the copyright of
content stored, processed or used by
the SOFTWARE. Such measures include,
but are not limited to, counting the
frequency of your backup and
restoration through certain SOFTWARE
features, refusal to accept your request
to enable restoration of data, and
termination of this EULA in the event of
your illegitimate use of the SOFTWARE.
CONTENT SERVICE
PLEASE ALSO NOTE THAT THE
SOFTWARE MAY BE DESIGNED TO BE
USED WITH CONTENT AVAILABLE
THROUGH ONE OR MORE CONTENT
SERVICES ("CONTENT SERVICE"). USE OF
THE SERVICE AND THAT CONTENT IS
SUBJECT TO THE TERMS OF SERVICE OF
THAT CONTENT SERVICE. IF YOU
DECLINE TO ACCEPT THOSE TERMS,
YOUR USE OF THE SOFTWARE WILL BE
LIMITED. You acknowledge and agree
that certain content and services
available through the SOFTWARE may
be provided by third parties over which
SONY has no control. USE OF THE
CONTENT SERVICE REQUIRES AN
INTERNET CONNECTION. THE CONTENT
SERVICE MAY BE DISCONTINUED AT ANY
TIME.
INTERNET CONNECTIVITY AND
THIRD PARTY SERVICES
You acknowledge and agree that access
to certain SOFTWARE features may
require an Internet connection for which
you are solely responsible. Further, you
are solely responsible for payment of
any third party fees associated with your
Internet connection, including but not
limited to Internet service provider or
airtime charges. Operation of the
SOFTWARE may be limited or restricted
depending on the capabilities,
bandwidth or technical limitations of
your Internet connection and service.
The provision, quality and security of
such Internet connectivity are the sole
responsibility of the third party
providing such service.
EXPORT AND OTHER
REGULATIONS
You agree to comply with all applicable
export and re-export restrictions and
regulations of the area or country in
which you reside, and not to transfer, or
authorize the transfer, of the SOFTWARE
to a prohibited country or otherwise in
violation of any such restrictions or
regulations.
HIGH RISK ACTIVITIES
The SOFTWARE is not fault-tolerant and
is not designed, manufactured or
intended for use or resale as on-line
control equipment in hazardous
environments requiring fail-safe
performance, such as in the operation
81
AR
HT-Z9F
4-727-538-32(1)
END USER LICENSE
AGREEMENT
IMPORTANT:
BEFORE USING THE SOFTWARE, PLEASE
READ THIS END USER LICENSE
AGREEMENT ("EULA") CAREFULLY. BY
USING THE SOFTWARE YOU ARE
ACCEPTING THE TERMS OF THIS EULA. IF
YOU DO NOT ACCEPT THE TERMS OF
THIS EULA, YOU MAY NOT USE THE
SOFTWARE.
This EULA is a legal agreement between
you and Sony Video & Sound Products
Inc. ("SONY"). This EULA governs
your rights and obligations regarding
the SONY software of SONY and/
or its third party licensors (including
SONY’s affiliates) and their respective
affiliates (collectively, the "THIRD-
PARTY SUPPLIERS"), together with any
updates/upgrades provided by SONY,
any printed, on-line or other electronic
documentation for such software, and
any data files created by operation of
such software (collectively, the
"SOFTWARE").
Notwithstanding the foregoing, any
software in the SOFTWARE having a
separate end user license agreement
(including, but not limited to, GNU
General Public license and Lesser/
Library General Public License) shall be
covered by such applicable separate
end user license agreement in lieu of
the terms of this EULA to the extent
required by such separate end user
license agreement ("EXCLUDED
SOFTWARE").
SOFTWARE LICENSE
The SOFTWARE is licensed, not sold. The
SOFTWARE is protected by copyright
and other intellectual property laws
and international treaties.
COPYRIGHT
All right and title in and to the
SOFTWARE (including, but not limited
to, any images, photographs,
animation, video, audio, music, text and
"applets" incorporated into the
SOFTWARE) is owned by SONY or one or
more of the THIRD-PARTY SUPPLIERS.
GRANT OF LICENSE
SONY grants you a limited license to use
the SOFTWARE solely in connection with
your compatible device ("DEVICE") and
only for your individual, non-
commercial use. SONY and the THIRD-
PARTY SUPPLIERS expressly reserve all
rights, title and interest (including, but
not limited to, all intellectual property
rights) in and to the SOFTWARE that this
EULA does not specifically grant to you.
REQUIREMENTS AND
LIMITATIONS
You may not copy, publish, adapt,
redistribute, attempt to derive source
code, modify, reverse engineer,
decompile, or disassemble any of the
SOFTWARE, whether in whole or in part,
or create any derivative works from or of
the SOFTWARE unless such derivative
works are intentionally facilitated by the
SOFTWARE. You may not modify or
tamper with any digital rights
management functionality of the
SOFTWARE. You may not bypass,
modify, defeat or circumvent any of the
functions or protections of the
SOFTWARE or any mechanisms
operatively linked to the SOFTWARE.
You may not separate any individual
component of the SOFTWARE for use on
more than one DEVICE unless expressly
authorized to do so by SONY. You may
not remove, alter, cover or deface any
trademarks or notices on the
SOFTWARE. You may not share,
distribute, rent, lease, sublicense,
assign, transfer or sell the SOFTWARE.
80
AR
HT-Z9F
4-727-538-32(1)
BLUETOOTH
• BLUETOOTH
( ) (
33) 10
.
.
–
BLUETOOTH
– LAN
–
–
• LAN BLUETOOTH
(
IEEE 802.11 b/g/n)
BLUETOOTH .( 2.4)
LAN
.
:
.
– (
33) 10
.
LAN
– LAN
10 BLUETOOTH
.(
33)
– BLUETOOTH
.
•
.
:
BLUETOOTH
–
–
•
BLUETOOTH
.BLUETOOTH
.
BLUETOOTH
• Sony
.
BLUETOOTH
•
BLUETOOTH
.
BLUETOOTH
• BLUETOOTH
BLUETOOTH
.
Bluetooth SIG, Inc.
BLUETOOTH
.
BLUETOOTH
•
BLUETOOTH
.
.
Sony
79
AR
HT-Z9F
4-727-538-32(1)
• HDMI IN 1/2 TV
.
HDMI OUT (TV (ARC))
•."TRILUMINOS"
•
(1
HDCP 2.2 18
HDMI OUT HDMI IN
.
(3
( ) HDR
(2
BT.2020
•.
1 (
.4K
HDCP 2.2
2 (
. BT.2020
3 (
HLG HDR10 . HDR
.Dolby Vision (Hybrid Log-Gamma)
78
AR
HT-Z9F
4-727-538-32(1)
HDMI
.
3D
HDMI Signal[
]Format
4K
(3
4096 × 2160p
3840 × 2160
p
50/59.94/60
–
RGB
4:4:4
YCbCr
4:4:4
8
(1
]Enhanced format[
–
YCbCr 4:2:2 8/10/12
–
YCbCr
4:2:0 10/12
23.98/24/25/29.97/30
–RGB 4:4:4
YCbCr
4:4:4
10/12
4K
(3
4096 × 2160p
3840 × 2160p
50/59.94/60–YCbCr 4:2:0 8
(2
]Standard format[
23.98/24/25/29.97/30
–
RGB
4:4:4
YCbCr
4:4:4
8
–YCbCr
4:2:2 8/10/12
1920
× 1080p
25/29
.97/30/50/
59.94/60
–
RGB
4:4:4
YCbCr
4:4:4
YCbCr
4:2:2
8/10/12
23.98/24
1920 × 1080i 50/59.94/60
1280 × 720p
50/59.94/60
23.98/24/29.97/30
–
720
× 480p 59.94/60–
720
× 576p 50–
640
× 480p 59.94/60–RGB 4:4:4
(3
()
3D :
(3
( ) - 3D :
1 (
. 18 HDMI
2 (
Sony HDMI HDMI
.
3 (
. (OSD) OPTIONS
HDMI HDMI
•. HDMI
•. HDMI-DVI
•. HDMI ( )
•.
77
AR
HT-Z9F
4-727-538-32(1)
.
"
HDMI1"
"
HDMI2"
"
TV"
)ARC(
"TV"
)OPT(
LPCM
2ch
LPCM 5.1ch
––
LPCM 7.1ch
––
Dolby
Digital
Dolby
TrueHD
––
Dolby
Digital Plus
–
Dolby
Atmos - Dolby TrueHD
––
Dolby
Atmos - Dolby Digital Plus
–
DTS
DTS-ES Discrete 6.1, DTS-ES Matrix 6.1
DTS
96/24
DTS-HD
High Resolution Audio
––
DTS-HD
Master Audio
––
DTS-HD
LBR
––
DTS:X
––
DSD
––
. :
. :–
.DVD-Audio Super Audio CD HDMI IN 1/2
76
AR
HT-Z9F
4-727-538-32(1)
MPEG-1( MP3
)III
.
mp3
AAC/HE-AAC
.mp4 .aac .m4a
.3gp
WMA9
Standard.wma
LPCM
.wav
FLAC
.flac
DSF
.dsf
*DSDIFF
.d
AIFF
.aif .ai
ALAC
.m4a
Vorbis
.ogg
Monkey’s
Audio.ape
*. DST
•
.
•
.
•
.
•.DRM
•/
/
.
•. USB
•
.( ) (
MSC)
75
AR
HT-Z9F
4-727-538-32(1)
/ 50 240 - 120
60
52 :
:]On[ - ]Network/Bluetooth Standby[
2.4
:]O[ - ]Network/Bluetooth Standby[
*
0.5
*
[Standby Through]
[
Standby Through] [O]
[
Auto]
.
(//) (
) *
( ) 98 × 64 × 1000
(
) 99 × 64 × 1000
*
(
)
( ) 2.9
(
) 3.1
iPhone/iPod
. iPhone/iPod
iPhone/iPod
.
:
iPhone X/iPhone 8/iPhone 8 Plus/
iPhone 7/iPhone 7 Plus/iPhone SE/
iPhone 6s/iPhone 6s Plus/iPhone 6/
iPhone 6 Plus/iPhone 5s/iPhone 5c/
iPhone 5
) iPod touch/( ) iPod touch
(
)SA-WZ9F(
()
( 100 4 ) 100
160
/ 50 240 - 120
60
20 :
1 :
0.5 :
(//) (
)
( ) 386 × 382 × 190
(
)
8.1
/
4.0
5
OFDM
.
74
AR
HT-Z9F
4-727-538-32(1)
)SA-Z9F(
(
)
: +
1% 1 4 ) 60 + 60
(
()
/
) 100 :/
( 1 4
*HDMI IN 1/2
ANALOG
IN
TV
IN (OPT)
*HDMI OUT (TV (ARC))
HDMI OUT (TV (ARC)) HDMI IN 1/2 *
HDCP 2.2 .HDCP 2.2
.
4K
HDMI
(
19) A
USB
:(USB)
(USB ) A
LAN
LAN(100)
100BASE-TX
LAN
IEEE 802.11 a/b/g/n
5 2.4
BLUETOOTH
4.2 BLUETOOTH
1 BLUETOOTH
(1
30
9
- 2.4) 2.4
( 2.4835
(Freq Hopping Spread Spectrum) FHSS
(
2
BLUETOOTH
Advanced Audio Distribution) A2DP
(Profile
Audio Video Remote Control) AVRCP
(Profile
(3
LDAC
(5
AAC
(4
SBC
(A2DP)
LDAC) 40,000 - 20
990 96
(
) 20,000 - 20
(
44.1
(1
.
BLUETOOTH
(2
. BLUETOOTH
:
(3
(4
(5
/ /
46
73
AR
HT-Z9F
4-727-538-32(1)
.
W
.
.
/.]Advanced Settings[
".
DEMO" ()
.
W
.
.
( ) – ()
.(
73 ) 5
MUSIC Spotify
SERVICE
.
W
Spotify
Spotify Spotify Connect
» .
.(
39 ) «Spotify
.
W
.
.
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 .]Resetting[
4 .
5 .]Start[
.5 [Cancel]
( ) – ()
.
5
.
» .
«
.
(29 )
72
AR
HT-Z9F
4-727-538-32(1)
HDMI
.
W
)
.(
W
. HDMI
.
W
.
15 .
.
W
.
HDMI
W
HDMI
.
.
W
HDMI CEC HDMI
:
– Blu-ray Disc )
3 :( DVD
–
Blu-ray Disc )
)
3 :( DVD
(
– 4 :
– :( / )
( )
"PRTCT"
.
W
( )
.
"PUSH" "PRTCT"
"
SUR L" "SUB")
"
POWER" ("SUR R"
.
W
()
:"
SUR L" :"SUB")
:"
SUR R"
.(
.
.
.
"BT TX"
.
W
.]Receiver[ ]Bluetooth Mode[
]Bluetooth Mode[ "BT TX"
.(
60 ) ]Transmitter[
.
W
)
(
( )
3D
3D 3D
.
.
.
LAN )
BLUETOOTH
(
.
W
.
71
AR
HT-Z9F
4-727-538-32(1)
W
BLUETOOTH 2.4
.
.
W
LAN
.
BLUETOOTH
.
LAN
.
W
BACK
]Wireless LAN Settings[
LAN
.(24 )
New connection[
]registration
]Manual registration[
.
(SSID)
.
W
. LAN
W
. LAN
.
W
) ]TV[
]HDMI1[ (BLUETOOTH
]Bluetooth Audio[ ]HDMI2[
.
.
• OPTIONS :HDMI2 HDMI1
.[
O] [Multi-room Sync]
• / OPTIONS : TV
"
MSYNC"
/ ()
"
OFF"
.
()
.
.
Sony | Music Center
W
.
.
W
.(
8 )
W
.
W
.
W
.
.
W
.(
31 )
70
AR
HT-Z9F
4-727-538-32(1)
.BLUETOOTH
W
BLUETOOTH
.(
8 )
W
BLUETOOTH
.
BLUETOOTH
W
BLUETOOTH
.
W
BLUETOOTH
BLUETOOTH .
» .
.(
43 ) «
W
.
.(
43 )
.
BLUETOOTH
W
BLUETOOTH
.(
8 )
W
BLUETOOTH
.
W
BLUETOOTH LAN
.
W
BLUETOOTH
.
W
. BLUETOOTH
W
LAN
5 LAN
.
W
. BLUETOOTH
W
]Wireless Playback Quality[
.(
61 ) ]Auto[
W
.
LAN
.
W
(23 )
.(
62 )
LAN
Wi-Fi Protected Setup™[
.
])WPS(
W
Wi-Fi Protected Setup
.
.
.
W
LAN
.
W
(24 )
.(
62 )
W
)
(
LAN
.
LAN
.
69
AR
HT-Z9F
4-727-538-32(1)
W
Blu-ray
.
Disc
USB
.USB
W
:
.
. USB
.
W
USB
.(
36 ) (USB)
W
. USB
W
. USB
W
USB USB
.
USB
W
WALKMAN®
.( )
.
W
BLUETOOTH
.
W
LAN
2.4
.
.
.BLUETOOTH
W
BLUETOOTH
.(
35 )
W
BLUETOOTH
.
BLUETOOTH
W
BLUETOOTH
.
W
BLUETOOTH
.
.
BLUETOOTH
W
.
.(
34 )
BLUETOOTH
.
W
BLUETOOTH
.(
35 )
W
BLUETOOTH
.
W
BLUETOOTH LAN
.
W
BLUETOOTH
.
W
. BLUETOOTH
W
LAN
5 LAN
.
W
. BLUETOOTH
BLUETOOTH
.
W
BLUETOOTH
.
W
2.4 LAN
.
.
68
AR
HT-Z9F
4-727-538-32(1)
W
.
–
.
– »
«
.(
29 )
– .(59 )
W
()
.
W
( )
.
.(
55 )
W
.
»
.(
47 ) «(NIGHT)
W
]O[ ]RF Channel[
(
31 ) ]On[
.
.
W
LAN
.
W
.
W
.
W
.(31 ) ]RF Channel[
W
Blu-ray
.
Disc
( )
.
W
.
W
.
–
.
– ()
.
W
.
–
.
– »
«
.(
29 )
– .(59 )
W
REAR +
.(
48 )
W
]O[ ]RF Channel[
(
31 ) ]On[
.
.
W
LAN
.
W
.
W
.
67
AR
HT-Z9F
4-727-538-32(1)
.
W
0 ]A/V Sync[
300 25
.(
49 )
W
.
.
.
W
+
.(
12 )
W
+
.(
12 )
W
.
TV/HDMI1/HDMI2/ANALOG/USB/)
.(12 ) (BLUETOOTH
W
.
W
.
(HDCP)
W
Advanced[ - ]Setup[
HDMI[ - ]HDMI Settings[ - ]Settings
]Standard format[ ]Signal Format
.(22 )
.
W
.
.
W
.
.
.
W
) ]TV[
]HDMI1[ (BLUETOOTH
]Bluetooth Audio[ ]HDMI2[
]Analog[
.
.
• OPTIONS :HDMI2 HDMI1
.[
O] [Multi-room Sync]
• / OPTIONS : TV
"
MSYNC"
/ ()
"
OFF"
.
()
.
.
W
SW +
.(
48 )
W
.
W
.
– )
(
.
– ()
.
66
AR
HT-Z9F
4-727-538-32(1)
.
W
HDMI
.( )
W
.
( )
.
W
HDMI
.
– HDMI
."
ARC"
– HDMI
.
– ]Control for HDMI[
]TV Audio Input Mode[ ]On[
.(60 ) ]Auto[
W
) ( )
.(
HDMI IN
.
W
.TV
)
ANALOG (
.(
38 )
W
.
W
/
HDMI IN 2 HDMI IN 1
]HDMI1[)
.( ) (
]HDMI2[
W
"
MUTING"
.
.
W
(BRAVIA)
.
.
.
W
Advanced[ - ]Setup[
Control[ - ]HDMI Settings[ - ]Settings
]On[ ]for HDMI
]On[ ]Auto[ ]Standby Through[
.(60 )
W
.
W
HDMI Sony
]Advanced Settings[ - ]Setup[
]Standby Through[ - ]HDMI Settings[ -
.(60 ) ]On[
.
W
.
Blu-ray Disc
W
.(46 )
]Auto Sound[
.
.
]Auto Sound[
65
AR
HT-Z9F
4-727-538-32(1)
W
]Advanced Settings[ - ]Setup[
HDMI Signal[ - ]HDMI Settings[ -
]HDMI IN 1[/]HDMI IN 2[ - ]Format
.(22 ) ]Standard format[
W
HDCP 2.2
HDMI IN
.
HDMI OUT
W
)
HDCP
.(
.
3D
.
HDMI IN 1/2
W
HDMI .3D
.(78 )
4K
HDMI IN 1/2
.
W
.
4K
.
W
.
]HDMI Signal Format[
]Standard format[
.(
22 )
W
HDMI
18
.(
78 ) HDMI
.
W
.
.
W
Advanced[ - ]Setup[
Control[ - ]HDMI Settings[ - ]Settings
]On[ ]for HDMI
]On[ ]Auto[ ]Standby Through[
.(60 )
W
.
W
HDMI Sony
]Advanced Settings[ - ]Setup[
]Standby Through[ - ]HDMI Settings[ -
.(60 ) ]On[
HDR
.
W
.
.
W
HDR
.
SDR
Advanced[ - ]Setup[
HDMI[ - ]HDMI Settings[ - ]Settings
]HDMI IN 1[/]HDMI IN 2[ - ]Signal Format
]Enhanced format[
18
Enhanced[ .(22 )
HDMI ]format
18
.(
78 )
.
BLUETOOTH
W
HDMI
.
BLUETOOTH ()
64
AR
HT-Z9F
4-727-538-32(1)
.
.
Sony
( )
.
.
W
AC
.
W
AC
.
.
W
Advanced[ - ]Setup[
Control[ - ]HDMI Settings[ - ]Settings
.(60 ) ]On[ ]for HDMI
.(52 ) HDMI
.
W
.
.
.
W
.
.
W
Advanced[ - ]Setup[
Standby[ - ]HDMI Settings[ - ]Settings
.(60 ) ]Linked to TV
]On[ ]Standby Linked to TV[
]Auto[
.
.
W
Advanced[ - ]Setup[
Standby[ - ]HDMI Settings[ - ]Settings
.(60 ) ]Linked to TV
]Standby Linked to TV[
.
]On[
.(
52 ) HDMI
.
.
W
.
.
( ) – ()
.(
73 ) 5
.
W
.(32 )
W
TV
.
W
HDMI1/2
.
W
. HDMI
.
63
AR
HT-Z9F
4-727-538-32(1)
.
:
http://www.sony-asia.com/section/support
•. 40
•
.
•
HDMI / ( )
. .
• [On] [Auto Update]
.(
62 )
Auto] [O]
.
[
Update
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
Software[
.
]Update
]Software Update[
.
4
3 .]Software Update[
]Software Update[
.
4 .
/
.
.
"
UPDT"
.
.
]Network update[
.
.
]USB update[
.USB
.
]Wireless speakers only[
.
.(
29 )
• [USB update]
.
7 BLUETOOTH
•
Sony | [Network update]
.
Music Center
•
.
62
AR
HT-Z9F
4-727-538-32(1)
]Software Update Notification[
:]On[
.(63 )
:
]O[
]Auto Update Settings[
•]Auto Update[
:]On[
5 2
]Time Zone[
Network/[
]O[ .
]Bluetooth Standby
.
:
]O[
•]Time Zone[
./
• [O]
.
[
Auto Update]
•
11
.
]Device Name Setting[
.
]Bluetooth Audio[
.
.
]System Information[
.
MAC
]Software License Information[
.
]Network Settings[
]Internet Settings[
.
:
]Wired LAN Settings[
.LAN
.
LAN
:]Wireless LAN Settings[
Wi-Fi
.
:
http://www.sony-asia.com/section/support
]Network Connection Status[
.
]Resetting[
.
.
.(
73 ) « »
]Software Update[
.
.(
63 ) « »
61
AR
HT-Z9F
4-727-538-32(1)
:]Transmitter[
.
BLUETOOTH
. "
BT TX"
BLUETOOTH :]O[
.[Bluetooth Audio]
]Device List[
BLUETOOTH
]Bluetooth Mode[ (SNK )
.
]Transmitter[
]Bluetooth Codec - AAC[
Bluetooth[
.
]Receiver[ ]Mode
.AAC :]On[
.AAC :]O[
AAC
.
AAC
]Bluetooth Codec - LDAC[
Bluetooth[
.
]Transmitter[ ]Receiver[ ]Mode
.LDAC :]On[
.LDAC :]O[
• LDAC
.
LDAC
• BLUETOOTH
.
]Wireless Playback Quality[
.
LDAC
]Transmitter[ ]Bluetooth Mode[
.]On[ ]Bluetooth Codec - LDAC[
. :]Sound Quality[
.
.
]Auto[
.
:]Auto[
]System Settings[
]OSD Language[
.
]IR-Repeater[
:]On[
.
. :
]O[
»
.(
31 ) «
]Network/Bluetooth Standby[
:]On[
.BLUETOOTH
. :]O[
.
•Chromecast built-
[
Network/Bluetooth Standby] in
.[On]
• (31 ) [On] [RF Channel]
[
Network/Bluetooth Standby]
.[
On]
]Auto Standby[
.]Auto Standby[ :]On[
.
20
:]O[
60
AR
HT-Z9F
4-727-538-32(1)
]Advanced Auto Volume[
.
.
.
:
]On[
:]O[
.
]HDMI Settings[
]Control for HDMI[
.HDMI :]On[
. HDMI
:
]O[
]Standby Linked to TV[
Control for[
.
]On[ ]HDMI
]HDMI1[ ]TV[ :]Auto[
]HDMI2[
.
:
]On[
.
. :
]O[
]Standby Through[
Control for[
.
]On[ ]HDMI
HDMI OUT :]Auto[
(ARC)
.
[
On]
.
HDMI OUT :]On[
. (ARC)
Sony
.
HDMI OUT :]O[
. (ARC)
.
.
]On[
]TV Audio Input Mode[
.
HDMI IN
Control[
.
]On[ ]for HDMI
:]Auto[
.
:
]Optical[
.
]HDMI Signal Format[
. HDMI
HDMI »
.(
22 ) «4K
]Bluetooth Settings[
]Bluetooth Mode[
BLUETOOTH
.
BLUETOOTH
:]Receiver[
.
BLUETOOTH
59
AR
HT-Z9F
4-727-538-32(1)
]Speaker Settings[
]Manual Speaker Settings[
» .
.(
55 ) «
]Wireless Speaker Settings[
)
.(
•]Link mode[
.
:
]Auto[
.
:
]Manual[
.
•]Start manual linking[
» .
«
.
(29 )
•]Check wireless connection[
.
•]RF Channel[
.
« »
.
(31 )
•]Wireless Playback Quality[
.
:
]Sound Quality[
.
:
]Connection[
.
•]Software Version[
.
]Audio Settings[
]DSEE HX[
*]Auto Sound[
.
]Music[
:
]On[
.(
50 )
:
]O[
*.]Auto Sound[ ]Music[
]Audio DRC[
.
Dolby
:]Auto[
.TrueHD
Dolby :]On[
DTS
.
. :
]O[
]Sound Eect[
.
:
]Sound Mode On[
.(
45 ) (46 )
:
]Dolby Speaker Virtualizer[
Dolby
.
Dolby
.
Dolby
. :
]O[
.
58
AR
HT-Z9F
4-727-538-32(1)
.
.
1 .HOME
.
2 . ]Advanced Settings[ - ]Setup[
.
]Advanced Settings[
3 .
]Speaker Settings[
(
59 ) .
]Audio Settings[(59 ) .
]HDMI Settings[(60 ) .HDMI
]Bluetooth Settings[(60 ) .BLUETOOTH
]System Settings[(61 ) .
]Network Settings[(62 ) .
]Resetting[(62 ) .
]Software Update[
(
63 ) .
57
AR
HT-Z9F
4-727-538-32(1)
:
– [O] [Standby Through]
.(
60 )
– [Network/Bluetooth Standby]
.(
61 ) [O]
.
1 .HOME
.
2 ]Easy Setup[ - ]Setup[
.
.
]Easy Setup[
3 .
• :[Easy Initial Setup]
.
• :[Easy Speaker Setup]
.
• :[Easy Network Setup]
.
4
.
56
AR
HT-Z9F
4-727-538-32(1)
BLUETOOTH
)DIMMER(
.
BLUETOOTH
DIMMER
1 .DIMMER
.
2
.
"
BRIGHT"
.
BLUETOOTH
"DARK"
BLUETOOTH
.
"
OFF"
.
"OFF"
.
.
10
.
."
DARK"
55
AR
HT-Z9F
4-727-538-32(1)
.
.
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 Manual[ - ]Speaker Settings[
.
]Speaker Settings
]Manual Speaker Settings[
.
4 .
/
.
/
]Distance[
.
0.1) 10 0
.((
1/4) 33 0) (
. :[
Front]
. :[
Subwoofer]
:
*]Rear Speaker (L)[
.
:
*]Rear Speaker (R)[
.
*.
( )
.
OPTIONS
]Level[
.
6.0 -6.0
.(
0.5)
. :[
Front]
. :[
Subwoofer]
:
*]Rear Speaker (L)[
.
:
*]Rear Speaker (R)[
.
*.
]Test Tone[
.
. :
]O[
.
:]On[
54
AR
HT-Z9F
4-727-538-32(1)
.
"
BRAVIA"
HDMI
."
BRAVIA"
• /Sound mode
•
.Sony
.
Sony
/Sound mode
.
.
[
Auto Sound]
.(
46 )
.
TV
.
.
53
AR
HT-Z9F
4-727-538-32(1)
•
.
HDMI IN
(
ARC)
.
Advanced] - [Setup]
TV Audio] - [HDMI Settings] - [Settings
.(60 ) [Auto] [Input Mode
.[Auto]
) ( )
.(
.0
Blu-ray Disc )
( "
PlayStation
®
4"
.
• Advanced] - [Setup]
Standby] - [HDMI Settings] - [Settings
[Auto] [On] [Through
.(
60 )
•
.
SYNC MENU
.
.
.
•
.«»
• .
HDMI Standby Through
HDMI Standby Through
(
60 )
.
[
Advanced Settings] - [Setup]
[
Standby Through] - [HDMI Settings] -
.(
60 ) [Auto]
.[
Auto]
.
]On[ ]Standby Through[
Sony
.
52
AR
HT-Z9F
4-727-538-32(1)
HDMI
HDMI
Blu-ray Disc
*
HDMI
HDMI
.
.
HDMI
•
•
•
•
•
• HDMI
Standby Through
•
.
Sony
* CEC HDMI
( )
( )
HDMI
.
HDMI
Advanced] - [Setup]
Control] - [HDMI Settings] - [Settings
.(60 ) [On] [for HDMI
.[On]
HDMI
.
("BRAVIA" ) HDMI
Sony
.
HDMI
]On[ ]Control for HDMI[
. "
DONE"
.
Advanced] - [Setup]
Standby] - [HDMI Settings] - [Settings
[Auto] [On] [Linked to TV
.[Auto] .(60 )
.
.
.
.
.
.
•
.
.
•
.
.
50
AR
HT-Z9F
4-727-538-32(1)
)DSEE HX(
DSEE HX
.
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 .]DSEE HX[ - ]Audio Settings[
4 .]On[
• *[Auto Sound]
.(
46 ) [Music]
•
44.1
.
48
•
96 /
.
24/
•.DSD
• Chromecast
.
built-in
•
Advanced Auto]
.(
60 ) [On] [Volume
*
.[Auto Sound] [Music]
)AUDIO(
Dolby
.
Digital
AUDIO
1 .AUDIO
.
2
.
"
MAIN"
.
"
SUB"
.
"
MN/SB"
.
• Dolby Digital
(
53 )
HDMI HDMI OUT (TV (ARC))
HDMI IN 1 ()
.( )
HDMI HDMI IN 2
49
AR
HT-Z9F
4-727-538-32(1)
.
.
///
OPTIONS
1 .OPTIONS
. "
SYNC"
2
.
3 . /
300 0
.
25
4 .OPTIONS
.
1 .OPTIONS
.
2 .]A/V Sync[
3 . /
300 0
.
25
48
AR
HT-Z9F
4-727-538-32(1)
.
.
REAR +/–
SW +/–
( ) SW
.
+/–
( ) REAR
.
+/–
•
.
•
.
• SW +/–
REAR +/–
.
• REAR +/–
.
47
AR
HT-Z9F
4-727-538-32(1)
)VOICE(
VOICE
1 .VOICE
.
2 .
]Up O[
]Up 1[
.
]Up 2[
.
)NIGHT(
.
NIGHT
1 .NIGHT
.
2 .
]On[
.
]O[
.
]O[
.
46
AR
HT-Z9F
4-727-538-32(1)
)
(
.
1
CINEMA AUTO SOUND(
SPORTS NEWS GAME MUSIC
. )STANDARD
.
]Auto Sound[
.
ClearAudio+
]Cinema[
.
.
]Music[
.
.
Game[
]Studio
.
]News[
.
]Sports[
.
.
]Standard[
.
•.
– [Sound Eect]
.(
59 ) [Sound Mode On]
– .(40 ) Chromecast built-in
–
.(
42 )
– BLUETOOTH
.(
43 ) BLUETOOTH
–
.(55 )
•
.
.
45
AR
HT-Z9F
4-727-538-32(1)
)VERTICAL S.(
(
46 ) *
.[
News]
.
2.0
*
Sony
.
.
.
VERTICAL S.
1 .VERTICAL S.
.
2 .
]On[
.
]O[
.
•.
•
.
.
44
AR
HT-Z9F
4-727-538-32(1)
1 BLUETOOTH
.
2 .HOME
.
3 Advanced[ - ]Setup[
.
]Settings
4 - ]Bluetooth Settings[
.
]Transmitter[ - ]Bluetooth Mode[
BLUETOOTH
.
5 ]Watch[
.
]Listen[
"
BT TX"
.
.
« »
«/ » (
32 )
.(
34 )
6 .
.
.
+/–
.
– . BLUETOOTH
– [Receiver] [Bluetooth Mode]
.(
60 ) [O]
– .
–
- [
Advanced Settings] - [Setup]
.[Device List] - [Bluetooth Settings]
. [
Connected]
•
.
BLUETOOTH
• BLUETOOTH
[
O] [Bluetooth Mode]
.[
Transmitter]
• .BLUETOOTH 9
BLUETOOTH
BLUETOOTH
.
• 15
.[
Device List] BLUETOOTH
•
.
BLUETOOTH
•
.
• /
BLUETOOTH
BLUETOOTH
.
• LDAC
.
(61 ) BLUETOOTH
43
AR
HT-Z9F
4-727-538-32(1)
BLUETOOTH
.
BLUETOOTH
1
.
BLUETOOTH
.
2 .HOME
.
3 Advanced[ - ]Setup[
.
]Settings
4 - ]Bluetooth Settings[
.
]Transmitter[ - ]Bluetooth Mode[
.BLUETOOTH
5 ]Device List[
.
]Bluetooth Settings[
BLUETOOTH
Bluetooth device is[
.
]connected.
.
]Scan[ ]Device List[
6 ]Watch[
.
]Listen[
"
BT TX"
.
.
« »
«/ » (
32 )
.(
34 )
7 .
.
+/–
.
+/–
1 .HOME
.
2 [Advanced Settings] - [Setup]
.
3 .[Device List] - [Bluetooth Settings]
4
.
OPTIONS
5 .[Remove]
6
.
42
AR
HT-Z9F
4-727-538-32(1)
.
Sony | Music
.
Center
. LAN
Sony | Music Center
.
Sony | Music Center
•
Chromecast built-in
.(
40 ) Chromecast
• [Bluetooth Audio]
.
BLUETOOTH
•
HDMI
.
Sony | Music
Sony | » Center
.(41 ) «Music Center
-
( )
-
.
.
•
•
• ) [TV]
[
HDMI2] [HDMI1] (BLUETOOTH
[USB] [Bluetooth Audio]
* [Analog]
* .
.
.
• OPTIONS :HDMI2 HDMI1
.[
O] [Multi-room Sync]
• / OPTIONS : TV
"
MSYNC"
"
OFF" / ()
.()
41
AR
HT-Z9F
4-727-538-32(1)
Sony | Music
Center
Sony | Music Center
Sony | Music Center
Sony
.
Sony | Music Center
.
URL
http://www.sony.net/smcqa/
Sony | Music Center
.
Auto]
.
Sony [Sound
.
*
*
.
.
Chromecast built-in
«
Chromecast built-in »
.(
40 )
.
USB
(USB)
.
Sony |
.
Music Center
.
Sony | Music
Center
1 Sony | Music Center
.
Sony | Music Center
App Store Google Play
.
2
)34 ( BLUETOOTH
.
)23 (
3 .Sony | Music Center
4 Sony |
.
Music Center
• Sony | Music Center
Bluetooth] BLUETOOTH
.(
60 ) [Receiver] [Mode
•
Sony | Music
Sony | Music Center .Center
.App Store Google Play
BLUETOOTH
Sony | Music BLUETOOTH
BLUETOOTH Center
.
.
40
AR
HT-Z9F
4-727-538-32(1)
Chromecast
built-in
Chromecast built-in
Chromecast
.
1 .HOME
.
2 Chromecast built-[ - ]Listen[
.
]in
Chromecast
built-in
.
]Network/Bluetooth Standby[
]On[
.(61 )
3 Wi-Fi
.
4
.
Chromecast
5
cast Chromecast
.
6
.
Chromecast
.
Chromecast
.
Chromecast built-in
39
AR
HT-Z9F
4-727-538-32(1)
Spotify
Spotify
.
.
Spotify Premium
"
Spotify Connect"
Spotify Connect
1 .Wi-Fi
2 Spotify
.
Wi-Fi
3 .« »
4 .
]Network/Bluetooth Standby[
(61 ) ]On[
.
1 .MUSIC SERVICE
Spotify
» .
Spotify
.(39 ) «MUSIC SERVICE
./ Spotify
MUSIC
SERVICE
Spotify
.
Spotify
.
MUSIC SERVICE
.MUSIC SERVICE
.(
39 ) «Spotify » .Spotify
•./
•
.
• Spotify
.
Premium
38
AR
HT-Z9F
4-727-538-32(1)
Sony | Music Center
LAN
Sony | Music Center
Sony | Music Center .
Sony | Music »
.
URL (41 ) «Center
http://www.sony.net/smcqa/
WALKMAN®
.
ANALOG IN
1 .HOME
.
2 ]Analog[ - ]Listen[
.
.
]Analog[
3 .
• +/–
.
•
SW +/–
.(
48 )
•
REAR +/–
.(
48 )
]Analog[
.
ANALOG
37
AR
HT-Z9F
4-727-538-32(1)
. USB
USB
.
USB
/
.
•( ) /()
.
.
•() /()
.
/
.
•( )
.
. /
•( )
.
( )
.
( )
.
( )
.
( )
.
/
.
/
.
Sony | Music Center
.
1 .
(
23 ) « »
.(
24 ) « »
2 .
.
3 .
.
.
- ]Setup[
- ]Network Settings[ - ]Advanced Settings[
.]Network Connection Status[
36
AR
HT-Z9F
4-727-538-32(1)
• BLUETOOTH
. [
Bluetooth Audio]
• [Bluetooth Mode]
.
(60 ) [O] [Transmitter]
•.
"HT-Z9F"
.
USB
USB
.
»
.(
76 ) «
1 .)USB( USB
2 .HOME
.
3 ]USB )Connected([ - ]Listen[
.
4
.
.
5 .
• +/–
.
•
SW +/–
.(
48 )
•
REAR +/–
.(
48 )
35
AR
HT-Z9F
4-727-538-32(1)
4 BLUETOOTH
.
.
5
.
.
6 .
• +/–
.
•
SW +/–
.(
48 )
•
REAR +/–
.(
48 )
•
.
BLUETOOTH
BLUETOOTH
• )
(
.
BLUETOOTH
• BLUETOOTH
.
Sony | Music Center
.
Sony | Music Center
»
.(
41 ) «Sony | Music Center
•
.
1 BLUETOOTH
.
2 .BLUETOOTH
.
3 BLUETOOTH
.
.
4
.
.
5 .
• +/–
.
•
SW +/–
.(
48 )
•
REAR +/–
.(
48 )
•
.
.
•. BLUETOOTH
34
AR
HT-Z9F
4-727-538-32(1)
/
/
BLUETOOTH®
.
BLUETOOTH
BLUETOOTH
.
BLUETOOTH
+/–
SW +/–
REAR +/–
BLUETOOTH
BLUETOOTH
.
1 BLUETOOTH
.
"
BT"
.
BLUETOOTH
2
.
BLUETOOTH
.
BLUETOOTH
.
3
"
HT-Z9F"
.
."
0000"
33
AR
HT-Z9F
4-727-538-32(1)
6 0
.
1
32
AR
HT-Z9F
4-727-538-32(1)
1 .HOME
.
2 . ]TV[ - ]Watch[
3
.
.
4 .
• +/–
.
•
SW +/–
.(
48 )
•
REAR +/–
.(
48 )
(BRAVIA)
.
.
TV ]TV[
.
AV
1 .HOME
.
2 ]Watch[
.
)]HDMI2[ ]HDMI1[(
•HDMI
IN 1 :[HDMI1]
•HDMI IN 2 :[HDMI2]
.
3 .
• +/–
.
•
SW +/–
.(
48 )
•
REAR +/–
.(
48 )
]HDMI2[ ]HDMI1[
HDMI2 HDMI1
.
DTS:X
.
.
1 [HDMI2] [HDMI1]
.
OPTIONS
.
2 [Dialog Control]
.
/
31
AR
HT-Z9F
4-727-538-32(1)
• [Start manual linking]
Wireless Speaker] [Link mode]
.(
59 ) [Manual] [Settings
•
6 [Finish]
.
.
LAN
.
. [
RF Channel]
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 Wireless[ - ]Speaker Settings[
.
]RF Channel[ - ]Speaker Settings
4 . ي
• . :( ) [On]
.
.
• :[O]
.
[
On]
.[
O]
]On[ ]O[ ]RF Channel[
.
.
.
.
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 - ]System Settings[
.
]IR-Repeater[
]IR-Repeater[
.
4 .]On[
•
.[
On] [IR-Repeater]
[
On]
.
•
.
.
30
AR
HT-Z9F
4-727-538-32(1)
3
. /
"
REAR R" .
. "
REAR L"
.
LINK
LINK
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 Wireless[ - ]Speaker Settings[
Start manual[ - ]Speaker Settings
.]linking
]Start manual linking[
.
4 LINK
)
.(
LINK
.
5 .]Start[
.
.
.
]Cancel[
6 ]Connected[ ]Finish[
)
.(
7 .
.
29
AR
HT-Z9F
4-727-538-32(1)
.
.
.
.
.
.
( )
.
.
.
1 .
.
2
.
.
»
.(
30 ) «
28
AR
HT-Z9F
4-727-538-32(1)
1 ) (
.
4
30
5.0
10
2 .
9.5
3
. /
"
REAR R" .
. "
REAR L"
27
AR
HT-Z9F
4-727-538-32(1)
3 ()
(
) ( )
(
)
.
368.5 368.5
(
)
(
)
4 .
5 ()
.
6
.
.
•
.
•
-
.
•
.
.
.
•
70
.
26
AR
HT-Z9F
4-727-538-32(1)
.
• . ( )
.
.
• Sony
.
• Sony
.
1 ) (
.
)(
4
30
2 . ()
.
1 ()
.
2 ()
.
25
AR
HT-Z9F
4-727-538-32(1)
(SSID)
( ) LAN
(WPS) Wi-Fi Protected Setup
.
– *(SSID)
_______________________________________
– **( )
_______________________________________
*
(
) SSID
.
**
/ LAN
.
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 Internet[ - ]Network Settings[
.
]Wireless LAN Settings[ - ]Settings
.
4 .)SSID(
5 ( )
.
]Enter[
.
IP
- ]New connection registration[
»
4 ]Manual registration[
«(SSID)
.
PIN
]New connection registration[
«
(SSID) » 4
.
](WPS) PIN Method[
Sony | Music Center
Sony | Music Center
.
URL
.
http://www.sony.net/smcqa/
24
AR
HT-Z9F
4-727-538-32(1)
5
.
.
/
.
6 .]Save & Connect[
.
.
. IP IPv6
.
LAN
.
WPS
( ) LAN
(WPS) Wi-Fi Protected Setup
.
WPS
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 Internet[ - ]Network Settings[
.
]Wireless LAN Settings[ - ]Settings
.
4
.]Wi-Fi Protected Setup™ )WPS([
5 .]Start[
6 . WPS
.
23
AR
HT-Z9F
4-727-538-32(1)
.
LAN
LAN
.
LAN
( )
.
.( )
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 Internet[ - ]Network Settings[
.
] LAN [ - ]Settings
4 .]Auto[
.
/
.
5 .]Save & Connect[
.
.
IP
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 Internet[ - ]Network Settings[
.
]Wired LAN Settings[ - ]Settings
4 .]Manual[
22
AR
HT-Z9F
4-727-538-32(1)
HDMI
4K
4K
.
4K 4K
1 .HOME
.
2 Advanced[ - ]Setup[
.
]Settings
3 HDMI Signal[ - ]HDMI Settings[
.
]Format
[HDMI Signal Format]
.
4 ) ]HDMI IN 1[/]HDMI IN 2[
(
.
• :( ) [Standard format]
.
• :[Enhanced format]
.
4K 60p 4:4:4
HDMI Signal]
[
Format
HDMI
.(
78 ) « HDMI »
• .HDMI
.
• HDMI Signal]
[
Enhanced format] [Format
.[Standard format]
21
AR
HT-Z9F
4-727-538-32(1)
1 HDMI IN
.
HDCP2.2
.
2 HDMI IN
HDCP2.2
HDMI OUT
.() HDMI
.
3 HDMI OUT
4K HDCP2.2
HDMI IN
.( ) HDMI
4K
HDMI OUT
.
HDCP2.2 4K
.4K
"ARC"
HDCP2.2 HDMI
HDCP2.2 HDMI IN
( )
ARC
.
TV IN (OPT)
.( )
HDMI
HDCP2.2
HDMI
HDCP2.2
Blu-ray Disc
()
HDMI
( ) HDMI
4K HDMI
HDMI » .
.
(78 ) «
( )
20
AR
HT-Z9F
4-727-538-32(1)
4K
4K
HDMI
)
HDCP2.2 4K
.(2.2
4K
HDMI 4K 4K
. HDCP2.2
4K
.
HDCP2.2 HDMI
HDMI
HDCP2.2
"
ARC"
HDMI
HDCP2.2
Blu-ray Disc
HDMI
HDCP2.2
()
HDMI
( ) HDMI
4K HDMI
HDMI » .
.
(78 ) «
19
AR
HT-Z9F
4-727-538-32(1)
.
ANALOG IN
– HDMI
–
WALKMAN®
»
.(
38 ) «
( )
WALKMAN®
.
.
18
AR
HT-Z9F
4-727-538-32(1)
/
.
1
.
.
2
.
.
3
.
.
.
.
/
.
VOICE
VERTICAL
S.
NIGHT
SW +/–
REAR +/–
+/–
•
.
.
TV TV
• BLUETOOTH
.
HOME OPTIONS () ///
( /) DISPLAY
(/) /
17
AR
HT-Z9F
4-727-538-32(1)
1 .
2 .
3 .
4 BLUETOOTH
.
5
"BT"
.
BLUETOOTH
5
.
BLUETOOTH
.
BLUETOOTH
.
6
"
HT-Z9F"
.
7 BLUETOOTH
. "
TV )BT("
.
8
.
.
9
.
.
• TV
.
– : "TV (BT)"
.
– "BT" BLUETOOTH
:
.
– : "TV"
.
• HDMI
.
BLUETOOTH ()
BLUETOOTH
.
HDMI
16
AR
HT-Z9F
4-727-538-32(1)
AV
HDMI AV
.( )
4K 4K
«
4K 4K »
(
20 )
Sony
BLUETOOTH
*Sony
BLUETOOTH
.
* A2DP
(
Advanced Audio Distribution Profile)
.
BLUETOOTH
Blu-ray Disc
•
BLUETOOTH
.
.()
HDMI
.( )
HDMI
• Sony
.
BLUETOOTH A2DP
.
BLUETOOTH
.
BLUETOOTH
TV
BLUETOOTH
15
AR
HT-Z9F
4-727-538-32(1)
[Listen]
.
.(34 ) «/ »
[Setup]
. ]Easy Setup[
.(58 ) « » (57 ) « »
]Software Update[
.(63 ) « » .
.()
HDMI
.
///
.
]Advanced Settings[ - ]Setup[ :
.«»
///
."-"
.
]Manual Speaker Settings[ - ]Speaker Settings[ :
."-"
///
•
.
•. " " . ] [
14
AR
HT-Z9F
4-727-538-32(1)
.() HDMI
.
(. ) .[
Easy Setup]
() ///
HOME
BACK
1 .HOME
.
2 . //
.
3 . ///
.
.BACK
[Watch]
. AV
.(32 ) « »
13
AR
HT-Z9F
4-727-538-32(1)
) REAR
+/– (
.( )
+*/– ( )
.
)SW
+/– (
.
( )
.
DISPLAY
.
.TV
(/) /
./
/).
. (
*( /)
.( )
(50 ) *AUDIO
* + AUDIO
. .
.
.(
AAA ) R03
12
AR
HT-Z9F
4-727-538-32(1)
()
.
(35 ) BLUETOOTH
(32 ) TV
(32 ) HDMI1
(32 ) HDMI2
(38 ) ANALOG
(36 ) USB
(46 ) AUTO SOUND
(46 ) CINEMA
(46 ) MUSIC
(46 ) GAME
(46 ) NEWS
(46 ) SPORTS
(46 ) STANDARD
(47 ) VOICE
(45 ) VERTICAL S.
(47 ) NIGHT
(56 ) DIMMER
(39 ) )MUSIC SERVICE(
/
.
(14 )///
(14 ) ()
(14 ) BACK
(49 32 ) OPTIONS
.
.TV
(14 ) HOME
11
AR
HT-Z9F
4-727-538-32(1)
.( )
»
.(
29 ) «
– :
.
–
:
.
–
:
.
–
: /
.
–
:
.
–.
:
()
.
(30 ) LINK
(28 )
( ) (SA-Z9R)
10
AR
HT-Z9F
4-727-538-32(1)
– :
.
–
:
.
–
:
.
–
: /
.
–
:
.
–.
:
()
.
(30 ) LINK
.
9
AR
HT-Z9F
4-727-538-32(1)
LAN)100(
HDMI IN 2
« HDMI »
.(78 )
HDMI IN 1
« HDMI »
.(78 )
HDMI OUT )TV )ARC((
HDMI
.HDMI
ARC .(ARC)
AV
. HDMI
»
.(78 ) « HDMI
(
36 ) )USB(
ANALOG IN
TV IN )OPT(
(31 )
.
8
AR
HT-Z9F
4-727-538-32(1)
.
( )
()
.
( )
.
(34 ) BLUETOOTH
(39 ) )MUSIC SERVICE(
/
.
( ) +/–
BLUETOOTH
– :
–
:
.
BLUETOOTH
– :
.
BLUETOOTH
.
7
AR
HT-Z9F
4-727-538-32(1)
DTS:X Dolby Atmos
.
Dolby Vision HLG HDR10 HDR
LAN
« »
(23 )
« »
(
24 )
»
(
37 ) «
/ »
(
34 ) «BLUETOOTH®
»
(41 ) «Sony | Music Center
»
(
43 ) «
- »
«( )
(
42 )
6
AR
HT-Z9F
4-727-538-32(1)
DTS:X Dolby Atmos
.
Dolby Vision HLG HDR10 HDR
(32 ) « »
« AV »
(32 )
« » :
.( )
» :
.(
16 ) «AV
Blu-ray Disc
TM
Sony »
BLUETOOTH
(16 ) «
«HDMI »
(52 )
«"BRAVIA" »
(54 )
»
(
29 ) «
»
(
36 ) «USB
( )
«Spotify »
*(39 )
MUSIC »
(39 ) «SERVICE
./ *
*
.Spotify Premium
5
AR
HT-Z9F
4-727-538-32(1)
•(1)
•(1)
•(1)
•(1)
•(2) (AAA ) R03
• HDMI ) HDMI
(1) (
•(1)
• (2) (2)
•
•
4
AR
HT-Z9F
4-727-538-32(1)
50 .................(DSEE HX)
50 ..............................................(AUDIO)
HDMI
52 .......................HDMI
54 .................."BRAVIA"
55 ...................................................
56 .... (DIMMER) BLUETOOTH
57 ..........................
57 ..........................................
58 ...................................
63 ................................................
64 .................................
73 .............................................
74 .........................................................
76 ..................
77........................
78 ...................... HDMI
80 ............................BLUETOOTH
81 ..... END USER LICENSE AGREEMENT
85
.........................................................
89 .............................................................
3
AR
HT-Z9F
4-727-538-32(1)
5 ...................................................
6.............................
8....................................
14 ...................................
AV
AV
HDMI
( )
Sony
16 ...........................
BLUETOOTH
19
........
20 ........ 4K 4K
23 ........................................
24 ......................................
26 ...................................
29 ............................................
29 .........................................
31 .................................................
32 ............................................
32 ................................. AV
/
/
34 ...................................BLUETOOTH®
36 .......................................................USB
37 .............................................
38 ...
39 ........................................... Spotify
39 ................... MUSIC SERVICE
40 ................Chromecast built-in
41 ....................... Sony | Music Center
-
42 .......... ( )
43 ....................................
45 ...................................(VERTICAL S.)
46 ..............................( )
47 ...............(VOICE)
47 .........(NIGHT)
48 ...........................
49 .......................
AR
2
AR
HT-Z9F
4-727-538-32(1)
TRA
REGISTERED No: ER59904/17
DEALER No: DA0096946/12
.
.
)
.
(
.
AC
.
AC
.
.
AC
.
.
/
.
.
.
.
.
.
