OWNER’S MANUAL
Micro Hi-Fi
Audio
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
CM1560DAB (CM1560DAB, CMS1560F)
www.lg.com
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
1911_Rev01
MFL71379814
1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufcient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of
the product and to protect it from overheating.
The openings should never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance, contact
an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure.
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case
of an emergency, the Power Plug must remain readily
accessible.
Check the specication page of this owner’s manual
to be certain of the current requirements.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions
could result in electric shock or re. Periodically
examine the cord of your device, and if its appearance
indicates damage or deterioration, unplug it,
discontinue use of the device, and have the cord
replaced with an exact replacement part by an
authorized service center. Protect the power cord
from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the device.
Getting Started 3
Getting Started
1
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the
apparatus.
CAUTION: Do not use high voltage products around
this product. (ex. Electrical swatter) This product may
malfunction due to electrical shock.
CAUTION: No naked ame sources, such as lighted
candles, should be placed on the apparatus.
Symbols
~
Refers to alternating current(AC).
0
Refers to direct current(DC).
Refers to class II equipment.
1
Refers to stand-by.
!
Refers to “ON” (power).
Refers to dangerous voltage.
Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
7 Playable file Requirement
7 – Music file requirement
7 – Compatible USB Devices
7 – USB device requirement
8 Remote control
10 Front Panel
11 Rear Panel
2 Connecting
12 Connecting to speakers
12 – Connecting the speakers to the unit
13 Optional Equipment Connection
13 – USB Connection
13 – PORT. IN Connection
3 Operating
14 Basic Operations
14 – CD/USB Operations
15 Other Operations
15 – Programmed Playback
15 – Deleting Programmed list
16 – Selecting a folder
16 – Displaying file information
(ID3 TAG)
16 – Turn off the sound temporarily
17 – Sleep Timer Setting
17 – Dimmer
17 – DEMO
17 – Auto power down
18 – AUTO POWER On
18 – Auto function change
19 Sound adjustment
20 Using a BLUETOOTH® wireless technology
20 – Listening to music stored on the
BLUETOOTH devices
22 Radio Operations
22 – Listening to the radio
22 – Improving poor FM reception
22 – Presetting the Radio Stations
22 – Deleting all the saved stations
23 – Seeing information about a Radio station
23 – Listening to the DAB+
23 – DAB+ scan
Getting Started6
Getting Started
1
Unique Features
BLUETOOTH
Listens to music stored on your Bluetooth device.
Getting Started 7
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/ WMA le compatibility with this unit is limited
as follows.
y Sampling Frequency : 8 - 48 kHz (MP3), 8 - 48
kHz (WMA)
y Bit rate : 32 - 384 kbps (MP3), 32 - 384 kbps
(WMA)
y Maximum les : Under 999
y File extensions : “.mp3”/ “.wma”
y CD-ROM le format : ISO 9660/JOLIET
y We recommend that you use “Easy-CD Creator”,
which creates an ISO 9660 le system.
The DTS is not supported. In case of DTS audio
format, audio is not output.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot use
it on LG players.
(Mastered/Live File System : Disc format system for
Windows Vista)
Compatible USB Devices
y MP3 Player : Flash type MP3 player.
y USB Flash Drive :
Devices that support USB2.0 or USB1.1.
y The USB function of this unit does not support all
USB devices.
USB device requirement
y Devices which require additional program
installation when you have connected it to a
computer, are not supported.
y Do not extract the USB device while in operation.
y For a large capacity USB, it may take a few minute
to be searched.
y To prevent data loss, back up all data.
y If you use a USB extension cable or USB hub, the
USB device is not recognized.
y Using NTFS le system is not supported.
(Only FAT(16/32) le system is supported.)
y This unit recognizes up to 1,000 les.
y External HDD, card readers, locked devices, or hard
type USB devices are not supported.
y USB port of the unit cannot be connected to the
PC. The unit cannot be used as a storage device.
y Some USB may not work with this unit.
Getting Started8
Getting Started
1

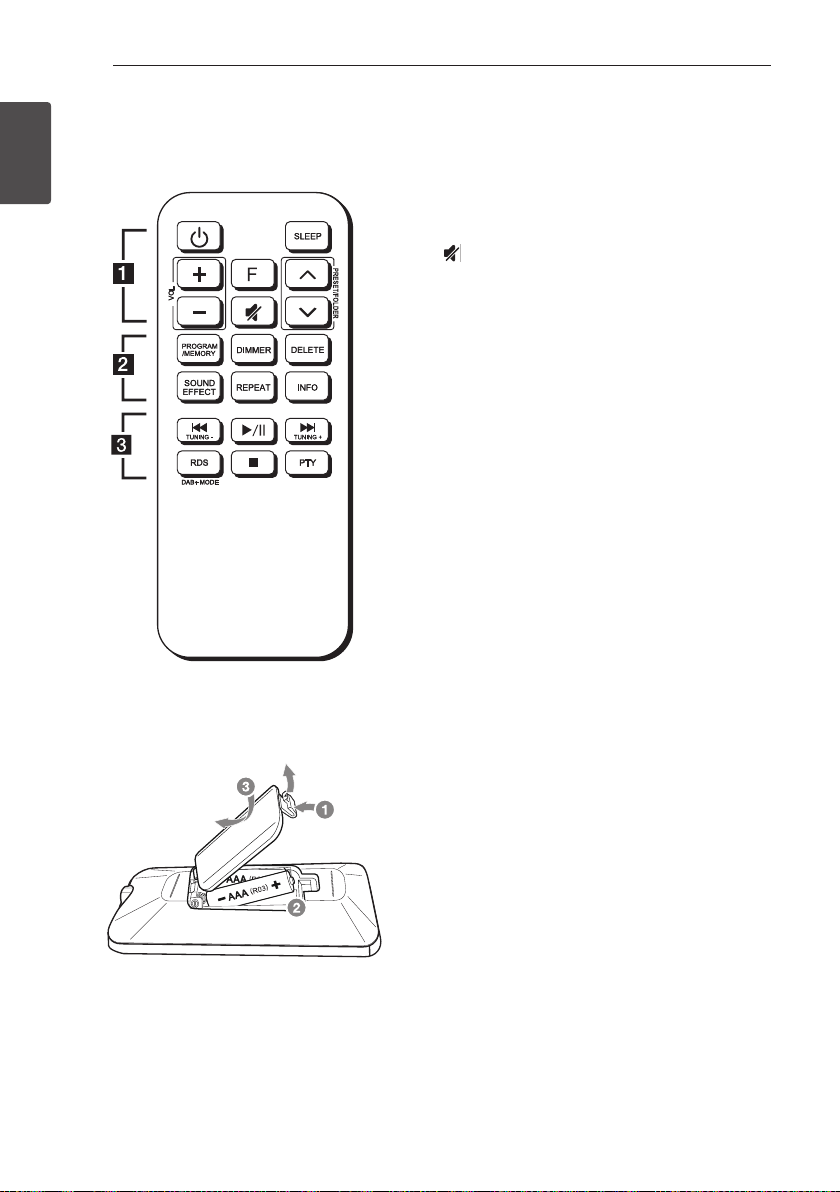

Remote control
Replacement of battery
Remove the battery cover on the rear of the remote
control, and insert the batteries with 4 and 5
matched correctly.
• • • • • • • • • • • • • • a • • • • • • • • • • • • •
1 (Standby) : Switches the unit ON or OFF.
SLEEP : Sets the system to turn off automatically at
a specified time.
VOL (Volume) +/- : Adjusts speaker volume.
F (Function) : Selects the function and input source.
(Mute) : Mutes the sound.
PRESET/FOLDER W/S :
- Searches for a folder of MP3/WMA les. When
a CD/USB containing MP3/WMA les in several
folders is being played, press PRESET/FOLDER
W/S to select the folder you want to play.
- Chooses a preset number for a radio station.
Getting Started 9
Getting Started
1
• • • • • • • • • • • • • • b • • • • • • • • • • • • •
PROGRAM/MEMORY :
- Stores radio stations.
- Creates a programmed list you want to listen to.
DIMMER : The display windows dims over few steps.
DELETE :
- Deletes a song on the programmed list.
- Deletes all the saved stations.
SOUND EFFECT : Chooses sound impressions.
REPEAT : Plays your tracks/les repeatedly or
randomly.
INFO : Sees information about your music. An MP3
le often comes with ID3 tag. The tag gives the Title,
Artist, Album or Time information.
• • • • • • • • • • • • • • c • • • • • • • • • • • • •
TUNING -/+ :
- Selects the radio stations.
- Scans DAB+ stations by pressing and holding.
C/V (Skip/Search) :
- Skips fast backward or forward.
- Searches for a section within a track/le.
d/M (Play/Pause) :
- Starts or pauses playback.
- Selects STEREO/MONO.
RDS : RDS (Radio Data System).
DAB+ MODE :
- DAB+ radio type
- Selects a DAB+ display mode
Z (Stop) : Stops playback.
PTY : Searches radio stations by radio type. (RDS
only)
Getting Started10
Getting Started
1
Front Panel
a
b
c
d
e
f
a 1/! (Standby/On)
Switches the unit ON or OFF.
F (Function)
Selects the function or input source.
Y/U (Skip/Search)
- Searches backward or forward.
- Skips to the previous/next track/le.
TUNING - / +
- Selects the radio stations.
- Scans DAB+ stations by pressing and holding.
T (Play/Pause)
- Starts or pauses playback.
- Selects Stereo/Mono.
I (Stop)
Stops playback.
b R (Open)
Uses it when inserting or removing a CD.
c Display window
d Volume Knob
Adjusts volume of speaker.
e USB
Plays the audio les by connecting the USB
device.
f PORT. (Portable) IN
Connects to a Portable device.
Getting Started 11
Getting Started
1
Rear Panel
R (6 Ω) L (6 Ω)
b
a
c
a DAB+/FM ANTENNA
b SPEAKERS (L/R) terminals
c POWER IN
2 Connecting
Connecting12
Connecting
2
Connecting to speakers
Connecting the speakers to the
unit
To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.
Connect the black of each wire to the terminals
marked - (minus) and the other end to the terminals
marked + (plus).
y Make sure children do not put their hands or
any objects into the *speaker duct.
* Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure)
y Use the speaker supplied with this unit only.
Using any other speaker may cause
malfunction.
y The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
>
Caution
Connecting 13
Connecting
2
Optional Equipment
Connection
USB Connection
Connect a USB device to the USB ports on the unit.
Removing the USB device from the unit.
1. Choose a different function/mode or
press Z on the remote control or I on
the unit twice in a row.
2. Remove the USB device from the unit.
,
Note
PORT. IN Connection
Connect an output (earphone or line out) of portable
device (MP3 or PMP etc) to the PORT. IN connector.
Portable cable
MP3 player etc.
Listening to music from your portable
player or external device
The unit can be used to play the music from many
types of portable player or external device.
1. Connect the portable player to the PORT. IN
connector of the unit.
2. Turn the power on by pressing 1 on the remote
control or 1/! on the unit.
3. Press F on the remote control or on the unit to
select PORTABLE function.
4. Turn on the portable player or external device and
start it playing.
3 Operating
Operating14
Operating
3
Basic Operations
CD/USB Operations
1. Insert the disc by pressing R on the unit or
connect the USB device to the USB port.
2. Select CD or USB function by pressing F on the
remote control or on the unit.
To Do this
Stop
Press Z on the remote control or
I on the unit.
Playback
Press d/M on the remote control
or T on the unit.
Pause
Press d/M on the remote control
or T on the unit.
Searching
for a section
within
a track/le
Press and hold C/V on the
remote control or Y/U on the
unit during playback and release it at
the point you want to listen to.
Skipping to
the next/
previous
track/le
- In stop status,
Press C/V on the remote
control or Y/U on the unit to
go to the next/previous track/le.
- During playback,
press V on the remote control or
U on the unit to go to the next
track/le.
Playing less than 3 seconds, press
C on the remote control or Y
on the unit to go to the previous
track/le.
Playing after 3 seconds, press C
on the remote control or Y on
the unit to go to the beginning of
the track/le.
Playing
repeatedly or
randomly
Press REPEAT on the remote
control repeatedly. Refer to the note
for details about the display change.
y The display changes in the following order.
USB
MP3/WMA CD
AUDIO CD
RPT 1
RPT*DIR
RPT ALL
RANDOM
OFF
RPT 1
RPT DIR
RPT ALL
RANDOM
OFF
RPT 1
-
RPT ALL
RANDOM
OFF
*DIR : Directory
y When you play programmed list, only RPT 1
and RPT ALL are available.
,
Note
Operating 15
Operating
3
Other Operations
Programmed Playback
The program function enables you to store your
favorite les from any disc or USB device.
A program can contain 20 tracks/les.
1. Press PROGRAM/MEMORY on the remote
control in stop status.
2. Press C/V on the remote control or
Y/U on the unit to select a track/file.
3. Press PROGRAM/MEMORY on the remote
control to save and select a next track/file.
4. Repeat steps 2 - 3 to store other tracks/files.
5. Press d/M on the remote control or T on the
unit to play the programmed music tracks/les.
6. To clear your selection, press Z on the remote
control or I on the unit.
When making or modifying the programmed
list, REPEAT mode is off.
,
Note
Deleting Programmed list
Deleting function only works in the edit mode.
1. Press PROGRAM/MEMORY on the remote
control in stop status.
2. Select a song by pressing PROGRAM/MEMORY
or PRESET/FOLDER W/S on the remote
control repeatedly.
3. Press DELETE on the remote control while a
song is selected.
y Programmed list is cleared in the case below.
- Removing the disc or the USB device.
- Unplugging the power cord.
y Program is switched off in the case below.
- Changing to a different function.
- Turning off and on the unit.
,
Note
Operating16
Operating
3
Selecting a folder
1. Press PRESET/FOLDER W/S on the remote
control repeatedly until a desired folder appears.
2. Press d/M on the remote control or T on the
unit to play it. The first file of folder will be played.
(During playback, if you selecting a folder you
want, this step is not necessary.)
y USB/CD Folders/Files are recognized as
below
*ROOT
File_01
File
Directory
File_02
File_03
File_04
File_05
File_06
File_07
File_08
File_09
File_10
y Files and folders will be presented in order
recorded and may be presented differently
according to the record circumstances.
y *ROOT : the rst screen you can see when a
computer recognize the USB is “ROOT”
y Folders will be presented as the following
order;
FAT(USB) : FILE_01
FILE_02 FILE_03
FILE_04 FILE_05 FILE_06
FILE_07 FILE_08 FILE_09 FILE_10
CD : FILE_01
FILE_02 FILE_03
FILE_04 FILE_05 FILE_08 FILE_09
FILE_06 FILE_07 FILE_10
,
Note
Displaying file information
(ID3 TAG)
While playing an MP3 le containing le information,
you can display the information by pressing INFO on
the remote control.
Turn off the sound temporarily
Press on the remote control to mute your sound.
You can mute your unit, for example, to answer the
telephone, the “q” will blink in the display window.
To cancel it, press again or change the volume
level.
Operating 17
Operating
3
Sleep Timer Setting
Press SLEEP repeatedly to select delay time
between 10 and 180 minutes. After the delay time,
the unit will be turned off.
To cancel the sleep function, press SLEEP repeatedly
until “SLEEP 10” appears, and then press SLEEP
once again.
y You can check the remaining time before the
unit is turned off.
y Press SLEEP. The remaining time appears in
the display window.
,
Note
Dimmer
Press DIMMER once.
The display windows dims over few steps.
To cancel it, press DIMMER again.
DEMO
In the power on state, adjust the volume level of the
main unit to minimum and then press and hold F on
the unit for about 7 seconds.
To cancel the DEMO function, press and hold the F on
the unit for about 7 seconds.
Auto power down
This unit will turn itself off to save electricity in the
case were the main unit is not connected to an
external device and is not used for 15 minutes.
The unit will also turn itself off after six hours if the
main unit has been connected to another device
using the analog inputs.
How to disconnect the wireless
network connection or the wireless
device
Turn off the unit by pressing the power button for
more than 5 seconds.
Operating18
Operating
3
AUTO POWER On
This unit automatically turns on by an input source :
Bluetooth
If you try to connect your Bluetooth device, this
unit turns on and the unit will be connected your
Bluetooth device.
y Depending on the connected device, this
function may not operate.
y Depending on the connected device, the unit
turns on but Bluetooth function may not be
connected.
y If you disconnect Bluetooth connection by
this unit, some Bluetooth devices try to
connect to the unit continually. Therefore it is
recommended to disconnect the connection
before turning off the unit.
y If you have already paired with this unit,
automatically this unit can turn on by an
input source when this unit is turned off.
y If you turn off the unit by pressing the power
button for more than 5 seconds, Auto Power
On function is disabled.
To activate it, turn on the unit.
y To use this function, the main unit must be
registered in paired devices list of Bluetooth
device.
,
Note
Auto function change
This unit recognizes input signals such as Bluetooth,
and then changes suitable function automatically.
When you try to connect Bluetooth
device
When you try to connect your Bluetooth device to
this unit, BT function is selected. Play your music on
the Bluetooth device.
This function only works with devices that were
previously connected.
,
Note
Operating 19
Operating
3
Sound adjustment
This system has a number of pre-set surround sound
elds. The displayed items for the equalizer may be
different depending on sound sources and effects.
You can select a desired sound mode by using
SOUND EFFECT on the remote control.
On Display Description
POP
CLASSIC
ROCK
JAZZ
This program lends an
enthusiastic atmosphere to
the sound, giving you the
feeling you are at an actual
rock, pop, jazz or classic
concert.
BASS
Reinforces the treble, bass and
surround sound effect.
STANDARD
You can enjoy optimized
sound.
AUTO EQ
Sets the sound equalizer on
the mode that is the most
similar to the genre which is
included in the MP3 ID3 tag of
song les.
y On some speakers, sound may not be heard
or heard in low sound depending on the
sound mode.
y Maybe you need to reset the sound mode,
after switching the input, sometimes even
after the sound track changed.
,
Note
Operating20
Operating
3
Using a BLUETOOTH®
wireless technology
About BLUETOOTH
Bluetooth is wireless communication technology for
short range connection.
The sound may be interrupted when the connection
has interference from other electronic devices or you
connect a Bluetooth device from a different room.
Connecting individual devices under Bluetooth
wireless technology does not incur any charges. A
mobile phone with Bluetooth wireless technology
can be operated via the Cascade if the connection
was made via Bluetooth wireless technology.
Available Devices : Mobile phone, MP3, Laptop, PDA.
y Version: 2.1 + EDR
y Codec: SBC
BLUETOOTH Profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain proles. This
unit is compatible with following prole.
A2DP (Advanced Audio Distribution Prole)
Listening to music stored on the
BLUETOOTH devices
Pairing your unit and BLUETOOTH
device
Before you start the pairing procedure, make
sure the Bluetooth feature is activated on your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed, it
does not need to be performed again.
1. Turn on the unit.
2. Operate the Bluetooth device and perform
the pairing operation. When searching for this
unit with the Bluetooth device, a list of the
devices found may appear in the Bluetooth
device display depending on the type of
Bluetooth device. Your unit appears as “LG-
CM1560DAB(XX)”.
y XX means the last two digits of
Bluetooth address. For example, if your
unit has a Bluetooth address such as
9C:02:98:4A:F7:08, you will see
“LG-CM1560DAB (XX)”
on your Bluetooth
device.
y Depending on the Bluetooth device type,
some devices may have a different pairing
process. Enter the PIN code (0000) as
needed.
,
Note
3. When this unit has successfully connected with
your Bluetooth device, “PAIRED” will be appear
on the display window.
4. Listen to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.
Operating 21
Operating
3
y When using Bluetooth technology, you have
to make a connection between the unit and
the Bluetooth device as close as possible and
keep the distance.
However, it may not work well in certain
situations as described below:
- There is a obstacle between the unit and
the Bluetooth device.
- There is a device using same frequency
with Bluetooth technology such as a
medical equipment, a microwave or a
wireless LAN device.
y You should connect your Bluetooth device to
this unit again when you restart it.
y The sound may be interrupted when the
connection has interference from other
electronic devices.
y You cannot control the Bluetooth device
with this unit.
y Depending on the type of the device, you may
not be able to use the Bluetooth function.
y You can enjoy wireless system using phone,
MP3, Notebook, etc.
y The more distance between the unit and
the Bluetooth device, the lower the sound
quality becomes.
y Bluetooth connection will be disconnected
when the unit is turned off or the Bluetooth
device gets far from the unit.
y When Bluetooth connection is disconnected,
connect the Bluetooth device to the unit
again.
y When a Bluetooth device is not connected,
“BT READY” appears on the display window.
y When you use Bluetooth function,
adjust the volume to a proper level on the
Bluetooth device.
y When you connect Bluetooth device (iOS
device etc.) to this unit or operate the device,
the volume level can be synchronized with
each other.
y Dongle is not supported.
,
Note
Operating22
Operating
3
Radio Operations
Listening to the radio
1. Press F on the remote control or on the unit until
FM/DAB+ appears in the display window.
The last received station is tuned in.
2. [FM]
Auto tuning :
Press and hold TUNING -/+ on the remote
control or Y/U on the unit for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
Or
Manual tuning :
Press TUNING -/+ on the remote control or
Y/U on the unit repeatedly.
[DAB+]
Manual tuning :
Press TUNING -/+ on the remote control or
Y/U on the unit repeatedly when the
scaning is done.
3. Adjust the volume by rotating volume knob on
the unit or by pressing VOL +/- on the remote
control repeatedly.
When you change the function to DAB+ and no
signal is being received, this unit scans station
automatically.
,
Note
Improving poor FM reception
Press d/M on the remote control or T on the
unit.
This will change the tuner from stereo to mono and
usually improve the reception.
Presetting the Radio Stations
You can preset 50 stations for FM/DAB+.
Before tuning, make sure to turn down the volume.
1. Press F on the remote control or on the unit until
FM/DAB+ appears in the display window.
2. [FM]
Select the desired frequency by pressing
TUNING -/+ on the remote control or Y/U
on the unit.
[DAB+]
Select the desired station by pressing
TUNING -/+ on the remote control or Y/U
on the unit.
3. Press PROGRAM/MEMORY on the remote
control. A preset number will blink in the display
window.
4. Press PRESET/FOLDER W/S on the remote
control to select the preset number you want.
5. Press PROGRAM/MEMORY on the remote
control. The station is stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen to a preset station, press
PRESET/FOLDER W/S on the remote control.
Deleting all the saved stations
1. Press DELETE on the remote control.
“DEL ALL” will flash up on the unit display.
2. Press DELETE on the remote control to erase all
the saved radio stations.
“DELETED ALL” will scroll on the display window.
Operating 23
Operating
3
Seeing information about a
Radio station
The FM tuner is supplied with the RDS (Radio Data
System) facility. This shows information about the
radio station being listened to. Press RDS on the
remote control repeatedly to cycle through the
various data types:
PS (Programmed Service Name)
The name of the channel will appear in
the display.
PTY (Programmed Type Recognition)
The programmed type (e.g. Jazz or News)
will appear in the display.
RT (Radio Text)
A text message contains special
information from the broadcast station.
This text may scroll across the display.
CT (Time controlled by the channel)
This shows the time as broadcast by the
station.
You can search the radio stations by programmed
type by pressing RDS on the remote control. The
display will show the last PTY in use. Press PTY on
the remote control one or more times to select your
preferred programmed type. Press and hold TUNING
-/+ on the remote control. The tuner will search
automatically. When a station is found, the search
will stop.
Listening to the DAB+
You can change the display information of the
currently broadcasting DAB+ channel.
Press DAB+ MODE on the remote control
repeatedly, the display changes in the following order;
SERVICE
PTY NAME FREQ DLS
ENSEMBLE
The initials of the service name are displayed.
SERVICE
Displays the Name of the
channel for the current
broadcast.
PTY NAME
Displays the Type of the channel
for the current broadcast.
FREQ
Displays the frequency of
the channel for the current
broadcast.
DLS
It displays the current Scroll of
the channel which is selected.
ENSEMBLE
Displays the Ensemble of
the channel for the current
broadcast.
DAB+ scan
Press and hold TUNING -/+ on the remote control
or C/V on the unit, all of DAB+ service list and
saved preset DAB+ stations will be deleted and scan
DAB+ service. Then press it again, scanning will be
cancelled.
When moving the unit to other areas :
Delete all of the saved DAB+ scanned stations.
,
Note
4 Troubleshooting
Troubleshooting24
Troubleshooting
4
Troubleshooting
Problem Cause & Correction
The unit does not work
properly.
y Turn off the power of this unit and the connected external device
(TV, Woofer, DVD-player, Amplier, etc.) and turn it on again.
y Disconnect the power cord of this unit and the connected external device
(TV, Woofer, DVD-player, Amplier, etc.) and then try connecting again.
y Previous setting may not be saved when device power is shut off.
No Power.
y The power cord is not plugged in.
Plug in the power cord.
y Check whether electricity failed.
Check the condition by operating other electronic devices.
No sound.
y Check whether you select right function.
Press function button and check the selected function.
y Check to see if the speakers are connected to the unit correctly.
The unit does not start
playback.
y An unplayable disc is inserted. Insert a playable disc.
y No disc is inserted. Insert a disc.
y The disc is dirty. Clean the disc. (Refer to page 27)
y The disc is inserted upside down.
Place the disc with the label or printed side facing upwards.
Radio stations cannot be
tuned in properly.
y The antenna is positioned poorly. Reorient the antenna position to good
reception.
y The signal strength of the radio station is too weak.
Tune to the station manually.
y No stations have been preset or preset stations have been cleared.
(when being tuned by scanning preset channels)
Preset some radio stations, see page 22 for details.
The remote control does
not work properly.
y The remote control is too far from the unit.
Operate the remote control within about 23 ft (7 m).
y There is an obstacle in the path of the remote control and the unit.
Remove the obstacle.
y The batteries in the remote control are exhausted.
Replace the batteries with new ones.
5 Appendix
Appendix 25
Appendix
5
Main unit
General
Power requirements Refer to the main label.
Power consumption
Refer to the main label.
Networked standby : 0.5 W
(If all network ports are activated.)
Dimensions (W x H x D) Approx. 150 mm x 181 mm x 210 mm
Operating temperature 5 °C to 35 °C
Operating humidity 5 % to 90 %
Inputs
Portable in (PORT. IN) 0.6 Vrms (3.5 mm stereo jack) x 1
Tuner
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz
DAB+ Tuning Range 174.92 to 239.20 MHz
Amplier (RMS Output power)
Total 10 W
Front 5 W x 2 (6 Ω at 1 kHz, 10 % THD)
System
Frequency response 80 to 20,000 Hz
Signal-to-noise ratio 80 dB
Dynamic range 75 dB
Bus Power Supply (USB)
5 V 0 500 mA
Appendix26
Appendix
5
Speakers
Front
Type 1 Way 1 Speaker
Impedance 6 Ω
Rated Input Power 5 W
Max. Input Power 10 W
Dimensions (W x H x D) Approx. 132 mm x 181 mm x 140 mm
y Design and specications are subject to change without notice.
Appendix 27
Appendix
5
Maintenance
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally
packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray
near the unit.
Wiping with strong pressure may damage the
surface.
Do not leave rubber or plastic products in contact
with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not use
strong solvents such as alcohol, benzine, or thinner,
as these might damage the surface of the unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the optical
pick-up lens and disc drive parts are dirty or worn,
the picture quality could be diminished. For details,
please contact your nearest authorized service
center.
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for old vinyl records.
Appendix28
Appendix
5
Trademarks and
Licenses
The Bluetooth® word mark and logos are
registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by LG
Electronics is under license.
Other trademarks and trade names are those of
their respective owners.
