CDI-E349-010 XXXXXXX © CANON INC. 2008 PRINTED IN JAPAN
Camera User Guide
Camera User Guide
ENGLISH
DIGITAL CAMERA
Ensure that you read the Safety Precautions (pp. 194–201).
Getting Started p. 7
COPY
Confirming the Package Contents
The following items are included in the package. If something is
missing, please contact the retail outlet at which you purchased the
product.
You may not be able to achieve the full performance of this camera
with the included memory card.
Battery Charger
CB-2LV/CB-2LVE
Battery Pack NB-4L
(with Terminal Cover)
ab c
df
g
Camera
Memory Card
(32MB)
Interface Cable
IFC-400PCU
AV Cable
AVC-DC300
Wrist Strap WS-DC2
• Camera User Guide
• Direct Print User Guide
(Connecting the camera to a printer)
• Software Starter Guide
(Connecting the camera to a computer)
• “Canon Customer Support” Leaflet
• “Use of Genuine Canon Accessories Recommended” Leaflet
User Guides
j
e
Canon Digital Camera
Solution Disk
i
Warranty Card
h
See the PDF manuals available on the Canon website.
http://web.canon.jp/Imaging/information-e.html
• ZoomBrowser EX/ImageBrowser Software User Guide
COPY
Let’s Get Started!
1
Let’s Get Started!
This guide is divided into the following two sections.
This section explains how to prepare the camera for use and the
basics of shooting, viewing and printing images. Start out by
familiarizing yourself with the camera and mastering the basics.
First...
Next...
Getting Started
p. 7
Learning More
p. 39
Once you have mastered the basics, use the camera’s many
features to shoot more challenging photos. Details on using each
function are described in this section, including how to connect the
camera to a television to view images.
COPY
Table of Contents
2
Table of Contents
Items marked with a are lists or charts that summarize camera
functions or procedures.
Please Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Components Guide 40
How to Use the Mode Switch . . . . . . . . . . . . . . . . . . . . . . . . 43
Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Basic Operations 46
Menus and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Information Displayed on the LCD Monitor and Menus . . . . 48
Using the LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Commonly Used Shooting Functions 60
Shooting with the Optical Zoom . . . . . . . . . . . . . . . . 60
Using the Digital Zoom/Digital Tele-Converter . . . . . . . . . . . 60
Magnified Close-Up Shooting (Digital Macro) . . . . . . . . . . . . 63
Using the Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Shooting Close-Ups/Infinity Shot. . . . . . . . . . . . . . . . 64
Using the Self-Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Changing the Recording Pixels (Still Images) . . . . . . . . . . . . 68
Changing the Compression (Still Images). . . . . . . . . . . . . . . 69
Learning More . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Shooting Still Images ( Auto Mode) . . . . . . . . . . . . . . . . . . . 14
Viewing Still Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Erasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Embedding the Date in the Image Data . . . . . . . . . . . . . . . . . 20
Shooting Movies ( Standard Mode) . . . . . . . . . . . . . . . . . . . 22
Viewing Movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Downloading Images to a Computer . . . . . . . . . . . . . . . . . . . 25
System Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
COPY
Table of Contents
3
Setting the Image Stabilizer Function . . . . . . . . . . . . . . . . . . 70
Adjusting the ISO Speed . . . . . . . . . . . . . . . . . . . . . . . . 71
Various Shooting Methods 73
Shooting in Modes for Special Conditions . . . . . . . . . . . . . . 73
Shooting in Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Continuous Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Setting the Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Movie Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Shooting Panoramic Images (Stitch Assist) . . . . . . . . . . . . . 84
Checking the Focus and Peoples’ Expressions
(Focus Check). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Switching between Focusing Modes. . . . . . . . . . . . . . . . . . . 89
Selecting the Face to Focus On (Face Select and Track) . . 92
Shooting Hard-to-Focus Subjects (Focus Lock, AF Lock) . . 94
Locking the Exposure Setting (AE Lock). . . . . . . . . . . . . . . . 95
Locking the Flash Exposure Setting (FE Lock) . . . . . . . . . . . 96
Adjusting the Exposure Compensation . . . . . . . . . . . . . . . . . 97
Switching between Metering Modes . . . . . . . . . . . . . . . . . . . 98
Setting the Shutter Speed (Long Shutter Mode) . . . . . . . . . . 99
Adjusting the Tone (White Balance) . . . . . . . . . . . . . . . . . . 100
Shooting in a My Colors Mode . . . . . . . . . . . . . . . . . . . . . . 103
Changing Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Setting the Display Overlays . . . . . . . . . . . . . . . . . . . . . . . . 110
Categorizing Images Automatically (Auto Category) . . . . . 111
Registering Settings to the Print/Share Button. . . . . . 112
Playback/Erasing 114
Viewing Magnified Images . . . . . . . . . . . . . . . . . . . . . . 114
Viewing Images in Sets of Nine (Index Playback). . . . . 115
Checking the Focus and Peoples’ Expressions
(Focus Check Display) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Jumping to Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Organizing Images by Category (My Category) . . . . . . . . . 120
Trimming a Portion of an Image . . . . . . . . . . . . . . . . . . . . . 123
Viewing Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Editing Movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Rotating Images in the Display . . . . . . . . . . . . . . . . . . . . . . 129
Playback with Transition Effects . . . . . . . . . . . . . . . . . . . . . 130
Automated Playback (Slide Shows) . . . . . . . . . . . . . . . . . . 131
COPY
Table of Contents
4
Red-Eye Correction Function . . . . . . . . . . . . . . . . . . . . . . . 136
Adding Effects with the My Colors Function . . . . . . . . . . . . 140
Resizing Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Attaching Sound Memos to Images . . . . . . . . . . . . . . . . . . 144
Sound-Only Recording (Sound Recorder) . . . . . . . . . . . . . 146
Protecting Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Erasing All Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Print Settings/Transfer Settings 156
Setting the DPOF Print Settings . . . . . . . . . . . . . . . . . . . . . 156
Setting the DPOF Transfer Settings . . . . . . . . . . . . . . . . . . 163
Configuring the Camera 165
Setting the Power Saving Function . . . . . . . . . . . . . . . . . . . 165
Setting the World Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Formatting Memory Cards . . . . . . . . . . . . . . . . . . . . . . . . . 168
Resetting the File Number . . . . . . . . . . . . . . . . . . . . . . . . . 170
Creating an Image Destination (Folder) . . . . . . . . . . . . . . . 172
Setting the Auto Rotate Function . . . . . . . . . . . . . . . . . . . . 174
Resetting Settings to Their Default Values . . . . . . . . . . . . . 175
Connecting to a TV 176
Shooting/Playback Using a TV . . . . . . . . . . . . . . . . . . . . . . 176
Customizing the Camera (My Camera Settings) 177
Changing My Camera Settings . . . . . . . . . . . . . . . . . . . . . . 177
Registering My Camera Settings . . . . . . . . . . . . . . . . . . . . 178
Troubleshooting 180
List of Messages 190
Appendix 194
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Handling Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Using an AC Adapter Kit (Sold Separately) . . . . . . . . . . . . 202
Using an Externally Mounted Flash (Sold Separately) . . . . 203
Camera Care and Maintenance . . . . . . . . . . . . . . . . . . . . . 205
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Index 216
Functions Available in Each Shooting Mode 222
COPY
Table of Contents
5
Symbol Conventions in this Guide
About this Guide
: This mark denotes issues that may affect the camera’s
operation.
: This mark denotes additional topics that complement the
basic operating procedures.
Explanations in this guide are based on the camera’s default settings
at time of purchase.
Specifications are subject to change without prior notice. As a result,
the illustrations and screenshots used in this guide may differ from
the actual camera.
66
You can set the time delay and the numbers of shots you wish to take
in advance.
* This may differ depending on your My Camera settings (p. 177).

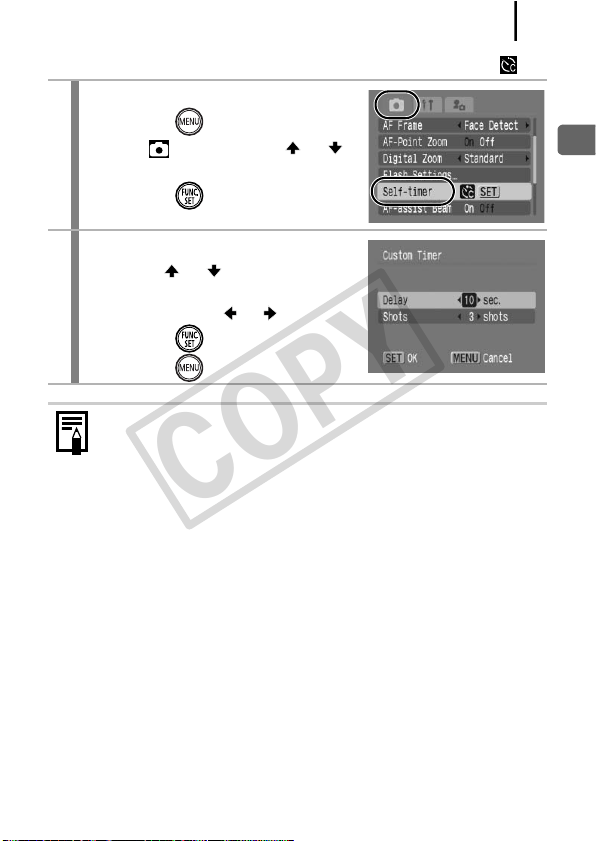

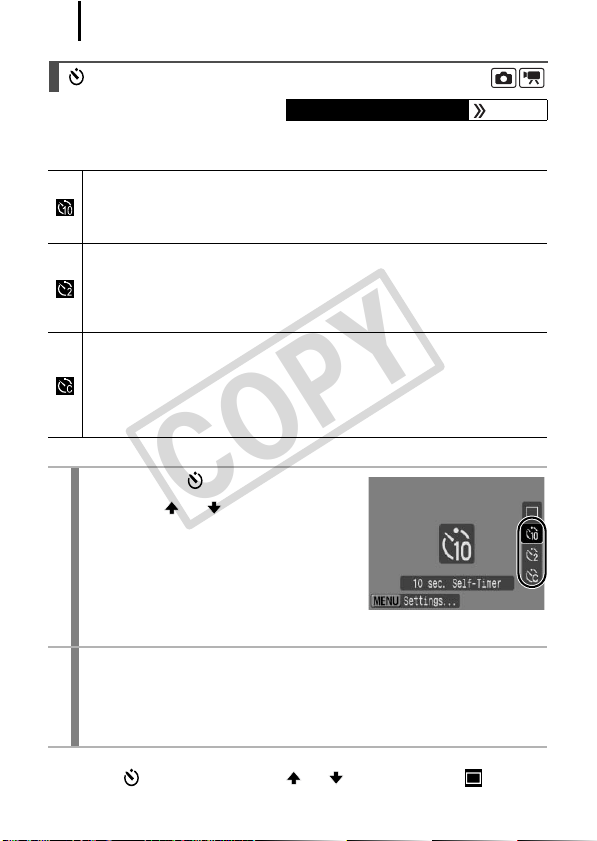

Using the Self-Timer
Available Shooting Modes p. 222
10 sec. Self-Timer: shoots 10 seconds after you press the shutter
button.
• 2 seconds before the shutter releases, the self-timer lamp and
sound speed up.
2 sec. Self-Timer: shoots 2 seconds after you press the shutter
button.
• At the same time as the shutter button is pressed, the self-timer
sound beeps rapidly*, the self-timer lamp blinks, and the shutter
releases 2 seconds later.
Custom Timer: you can change the delay time (0–10, 15, 20, 30 sec.)
and number of shots (1–10).
• When [Delay] is set to 2 or more seconds, the self-timer sound
beeps quickly 2 seconds before the shutter releases. When [Shots]
is set to more than 1, the self-timer sound only beeps before the
first shot.
Mode switch position
Some functions may not be
available in certain shooting
modes. If there is no notation
to that effect, the function
may be used in all modes.
Shooting ( )/Movie ( )/
Playback ( )
COPY
Please Read
6
Please Read
Test Shots
Before you try to photograph important subjects, we highly recommend that
you shoot several trial images to confirm that the camera is operating and
being operated correctly.
Please note that Canon Inc., its subsidiaries and affiliates, and its
distributors are not liable for any consequential damages arising from any
malfunction of a camera or accessory, including memory cards, that results
in the failure of an image to be recorded or to be recorded in a way that is
machine readable.
Warning Against Copyright Infringement
Please note that Canon digital cameras are intended for personal use and
should never be used in a manner that infringes upon or contravenes
international or domestic copyright laws and regulations. Please be advised
that in certain cases the copying of images from performances, exhibitions,
or commercial properties by means of a camera or other device may
contravene copyright or other legal rights even if the image was shot for
personal use.
Warranty Limitations
This camera’s warranty is only effective in the country of sale. If a problem
arises while the camera is in use abroad, please convey it back to the
country of sale before proceeding with a warranty claim to a Canon
Customer Support Help Desk.
For Canon Customer Support contacts, please see the customer
support list supplied with your camera.
Video Format
Please set the camera’s video signal format to the one used in your region
before using it with a TV monitor.
Language Setting
Please see Setting the Display Language (p. 13) to change the language
setting.
Camera Body Temperature
If your camera is used for prolonged periods, the camera body may
become warm. Please be aware of this and take care when operating the
camera for an extended period.
About the LCD Monitor
The LCD monitor is produced with extremely high-precision
manufacturing techniques. More than 99.99% of the pixels operate to
specification. Less than 0.01% of the pixels may occasionally misfire or
appear as red or black dots. This has no effect on the recorded image and
does not constitute a malfunction.
COPY
7
Getting Started
z Preparations
z Shooting Still Images
z Viewing Still Images
z Erasing
z Printing
z Embedding the Date in the Image Data
z Shooting Movies
z Viewing Movies
z Downloading Images to a Computer
z System Map
You can use SD memory cards, SDHC (SD High
Capacity) memory cards, MultiMediaCards,
MMCplus cards and HC MMCplus cards in this
camera. These cards are collectively referred to
as memory cards in this guide.
COPY
Getting Started
Preparations
8
Preparations
1. Insert the battery into the battery charger.
2. Plug the battery charger (CB-2LV) into a power outlet,
or attach the power cord to the battery charger (CB-
2LVE) and plug it into a power outlet.
• Battery charger model names and types vary by region.
3. Remove the battery after charging is complete.
• Charging takes approximately 1 hour 30 minutes.
Charging the Battery
To protect the battery and prolong its life, do not charge it for
longer than 24 hours continuously.
Align these symbols
Charge Indicator
Charging:
Lights orange
For CB-2LV
For CB-2LVE
Charge Indicator
Charging Complete:
Lights green
COPY
Preparations
9
Getting Started

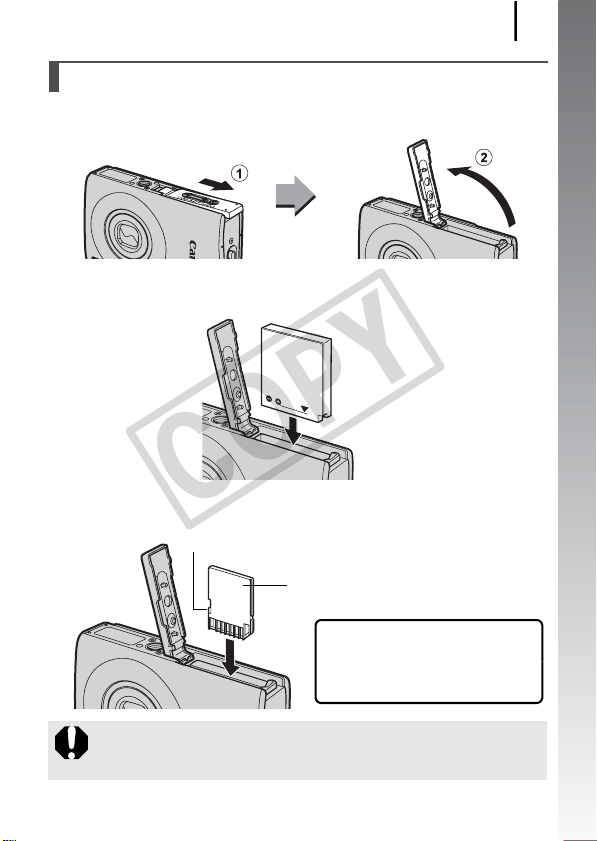

1. Slide the cover (a) and open it out (b).
2. Insert the battery.
• It will lock into place with a click.
3. Insert the memory card until it clicks into place.
Installing the Battery and Memory Card
Ensure that the memory card is correctly oriented before
inserting it in the camera. Inserting it backward may cause the
camera to fail to recognize the memory card or to malfunction.
Back
• Confirm that the write protect tab is
unlocked (only SD and SDHC
memory cards).
• Check the memory card for the
correct orientation.
Write Protect Tab
(Only SD and SDHC memory cards)
COPY
Preparations
10
Getting Started
4. Close the cover (c, d).
To Remove the Battery
Press the battery lock in the direction of
the arrow (a) and pull the battery out
(b).
To Remove the Memory Card
Use a finger or the toggle on the wrist strap to push the memory card in
until you hear a click, then release it.
COPY
Preparations
11
Getting Started

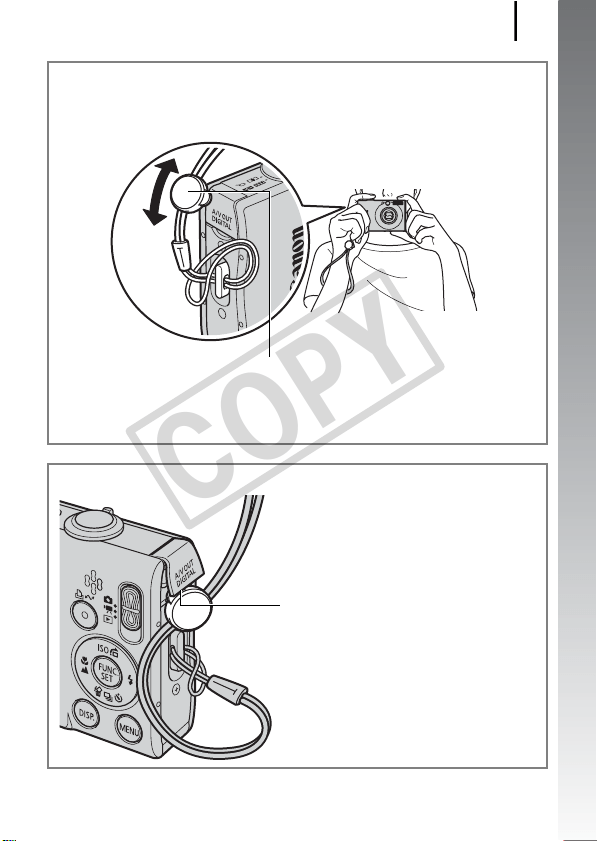

Attaching the Wrist Strap
Use the wrist strap when using the camera to prevent yourself from
accidentally dropping the camera.
To Open the Terminal Cover
Toggle
You can change its position on the strap. The
toggle can be used to open the DIGITAL terminal
cover and when inserting or removing memory
cards.
Hook your fingernail or the wrist
strap toggle under the bottom
edge of the DIGITAL terminal
cover to open it.
COPY
Preparations
12
Getting Started

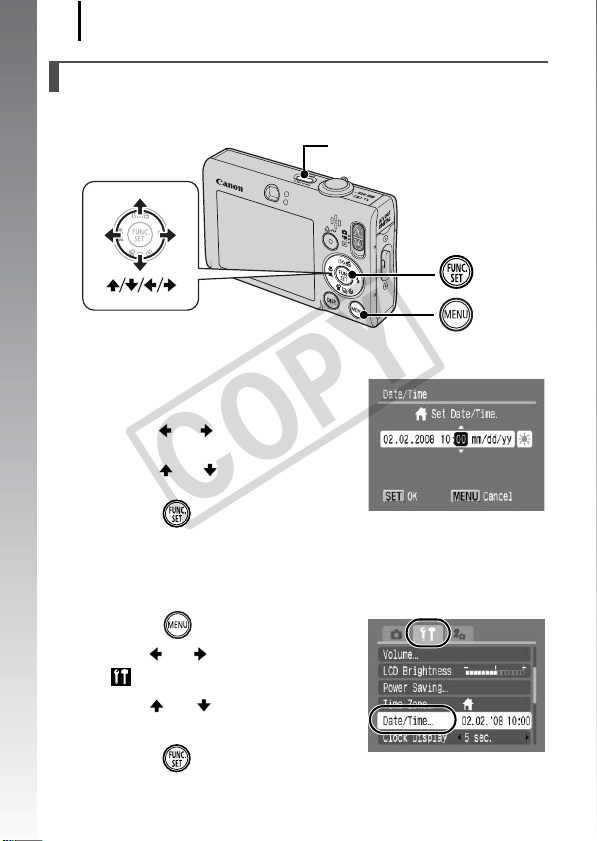

The Date/Time settings menu will appear the first time the power is
turned on.
1. Press the power button.
2. Select the month, day, year and
time, and the display order.
1. Use the or button to select a
category.
2. Use the or button to set the
value.
3. Press the button.
To Change a Previously Set Date/Time
Use the following procedures to display the Date/Time settings
window, and then perform Steps 2 and 3 above.
1. Press the button.
2. Use the or button to select
the (Set up) menu.
3. Use the or button to select
[Date/Time].
4. Press the button.
Setting the Date and Time
Button
Button
Buttons
Power Button
COPY
Preparations
13
Getting Started
You can change the language displayed in the LCD monitor menus
and messages.
1. Press the power button.
2. Set the mode switch to (Playback).
3. Hold down the button and press the button.
4. Use the , , or button to select a language.
5. Press the button.
z A rechargeable lithium battery is built into the camera to
save such settings as the date/time. Insert a charged battery
into the camera. Or if you use the separately sold AC
Adapter Kit ACK-DC10, the battery will charge in about four
hours. It will charge even if the camera is turned off.
z The date/time settings may be lost after approximately three
weeks if you remove the main battery. Reset the date/time
settings if this occurs.
Setting the Display Language
Button
Button
Power Button
Mode Switch
Buttons
COPY
Getting Started
Shooting Still Images
14
Shooting Still Images
1. Press the power button.
• The start-up sound will play and the start-up image will display in
the LCD monitor.
• Pressing the power button again turns the power off.
2. Select a shooting mode.
1. Set the mode switch to
(Shooting).
2. Press the button.
3. Use the or button to select
(Auto).
4. Press the button.
3. Aim the camera at the subject.
4. Press the shutter button lightly (press halfway) to set
the focus.
• When the camera focuses, it beeps twice and the indicator lights
green (orange when the flash fires).
Avoiding Camera Shake
Keep your arms tight against your body while
holding the camera firmly by the sides. Using a
tripod is also effective.
( Auto Mode)
Indicator
Shutter Button
Power Button
Mode Switch
Button
Buttons
Wrist Strap*
* Use the wrist strap to avoid
dropping the camera during use.
COPY
Shooting Still Images
15
Getting Started
5. Without changing anything else, press the shutter
button all the way (press fully) to shoot.
• The shutter sound will play once and the image will record.
• Recorded images are displayed on the LCD monitor for
approximately 2 seconds immediately after shooting (Rec.
review). Shooting is possible while the image is displayed.
• Holding down the shutter button after taking a shot will continue
displaying the image.
• The indicator will blink green and the file will record to the
memory card.
To Shoot Images in Focus
The camera automatically sets the focus when you press the shutter
button halfway*.
* The shutter button has a two-stage action. Pressing it down to the first stage is
referred as “pressing halfway”.
Mute Setting
Pressing the DISP. button while turning on the camera power will
silence all camera sounds except for warning sounds. Setting can be
changed from the
(Set up) Menu [Mute].
Just pressing
fully
Recording:
blinks green
Press halfway
to focus
Beeps
twice
Press fully
Recording:
blinks green
AF frames will display in
green on the LCD monitor
at the points of focus.
Shooting Preparations
Complete: lights green
(Orange when the flash
fires)
Incorrect
Correct
COPY
Getting Started
Viewing Still Images
16
Viewing Still Images
1. Press the power button.
2. Set the mode switch to (Playback).
3. Use the or button to display
the image you wish to view.
• Use the button to move to the
previous image and the button to
move to the next image.
• The images advance more quickly if
you keep the button pressed
continuously, but they will appear
coarse.
z Setting [Resume] to either [Last seen]* or [Last shot] in the
(Play) menu allows you to specify the image to display in
playback mode (* Default setting). If you select [Last seen],
the last image viewed will display (Resume Playback).
z Following the procedure below will display the last image,
regardless of the [Resume] setting.
- Shooting an image
- Changing the memory card
- Editing an image on the memory card using a computer
Mode Switch
Power Button
/ Buttons
COPY
Getting Started
Erasing
17
Erasing
1. Press the power button.
2. Set the mode switch to (Playback).
3. Use the or button to select an image to erase and
press the button.
4. Confirm that [Erase] is selected
and press the button.
• To exit instead of erasing, select
[Cancel].
Please note that erased images cannot be recovered. Exercise
adequate caution before erasing an image.
Button
Button
Power Button
Mode Switch
/ Buttons
COPY
Getting Started
Printing
18
Printing
1. Connect the camera to a direct print compatible printer.
• Hook your fingernail or the wrist strap toggle under the bottom
edge of the camera’s terminal cover to open it, then insert the
interface cable all the way into the connector.
• See the printer’s user guide for connection instructions.
• Printing is also possible using a non-Canon-brand printer
provided the printer is PictBridge compliant. Refer to the Direct
Print User Guide for details.
2. Turn on the printer.
3. Set the camera’s mode switch to (Playback) and
turn on the power.
• The button will light blue.
4. Use the or button to select an image to print and
press the button.
• The button will blink blue and printing will start.
• After you finish printing, turn off the camera and the printer and
disconnect the interface cable.
Button
Power Button
Mode Switch
/ Buttons
Interface Cable
DIGITAL Terminal
COPY
Printing
19
Getting Started
Printing From a Print List
You can add images directly to a print list by merely pressing the
button immediately after shooting or while playing back images.
You can then print the images from the print list, when connecting the
camera to a printer.
Adding to a Print List
1. Press the button (still images only).
2. Add to the print list.
1. Use the or button to set
the number of copies to print.
2. Use the or button to select
[Add].
3. Press the button.
• To remove an image from the print
list, press the button again,
select [Cancel] using the or button, then press the
FUNC./SET button.
Printing Images in a Print List
This explanation is based on the use of a Canon SELPHY ES series
or SELPHY CP series printer.
1. Connect the camera to your printer.
2. Print images.
1. Use the or button to select
[Print now].
• Use the or button to confirm
the images added to the print list.
2. Press the button.
• Printing will begin.
• If printing is halted and resumed,
printing will start from the next
image in the queue.
Number of copies to print
COPY
Getting Started
Embedding the Date in the Image Data
20
Embedding the Date in the Image Data
This section explains how to embed date information on images as
they are recorded (Date Stamp).
• The date stamp cannot be deleted from the image data once it has
been embedded. Ensure that the camera’s date/time is set correctly
beforehand (p. 12).
• The recording pixels are fixed to 2M (1600 x 1200) setting and the
compression to (Fine) (appropriate for printing L-size or postcard-
size prints).
1. Select a shooting mode.
1. Set the mode switch to (Shooting).
2. Press the button.
3. Use the or button to select (Auto).
• Shooting modes other than (Digital Macro) and
(Stitch Assist) can be selected.
Buttons
Mode Switch
Button
Button
COPY
Embedding the Date in the Image Data
21
Getting Started
2. Select [Date Stamp].
1. Use the or button to select
.
2. Use the or button to select
.
• The area which will not be printed
will appear gray.
•Press the DISP. button, then use the
or button to select [Date/
Time].
You can use the following methods to imprint the
date on images lacking imprinted date stamps.
• Set with the camera’s Digital Print Order Format (DPOF)
function.
Set the [Date] option to [On] in [Print Settings] in the (Print)
menu.
• Connect the camera to a printer and imprint the date.
See the Direct Print User Guide.
• Insert a memory card into the printer and imprint the date.
See your printer user guide.
• Use the supplied software.
See the Software Starter Guide.
COPY
Getting Started
Shooting Movies
22
Shooting Movies
1. Press the power button.
2. Select a shooting mode.
1. Set the mode switch
(
Movie
)
.
2. Press the button.
3. Use the or button to select
(Standard).
4. Press the button.
3. Aim the camera at the subject.
z Do not touch the microphone while recording.
z Do not press any buttons other than the shutter button. The
sound that buttons make will be recorded in the movie.
( Standard Mode)
Shutter Button
Power Button
Button
Buttons
Microphone
Indicator
Mode Switch
COPY
Shooting Movies
23
Getting Started
4. Press the shutter button lightly (press halfway) to set
the focus.
• An electronic beep will sound twice and the indicator will light
green when the camera focuses.
• The exposure, focus and white balance are automatically set
when you press the button halfway.
5. Without changing anything else,
press the shutter button all the
way (press fully) to shoot.
• Recording starts.
• During the recording, the elapsed
recording time and [
z
Rec.] will display
in the LCD monitor.
6. Press the shutter button again (press fully) to stop
recording.
• The indicator will blink green and the data will be recorded onto
the memory card.
• Recording will stop automatically when the maximum recording
time elapses, or the built-in memory or memory card become full.
Shooting preparations
complete: Lights green
Elapsed Time
Recording: blinks green
COPY
Getting Started
Viewing Movies
24
Viewing Movies
1. Press the power button.
2. Set the mode switch to (Playback).
3. Use the or button to display a movie and press the
button.
• Images with a icon are movies.
4. Use the or button to select (Playback) and
press the button.
• The movie will start playing.
• If you press the FUNC./SET button
during playback, you can pause and
restart the movie.
• You can adjust the playback volume
with the or button.
Button
Power Button
Mode Switch
Buttons
COPY
Getting Started
Downloading Images to a Computer
25
Downloading Images to a Computer
You are recommended to use the supplied software to download
images to your computer.
Items to Prepare
• Camera and computer
• Canon Digital Camera Solution Disk supplied with the camera
• Interface cable supplied with the camera
Please install the software on a computer meeting the following
minimum requirements.
Windows
Macintosh
System Requirements
OS Windows Vista
Windows XP Service Pack 2
Windows 2000 Service Pack 4
Computer Model The above OS should be pre-installed on computers with built-in
USB ports.
CPU Windows Vista Pentium 1.3 GHz or higher
Windows XP/Windows 2000 Pentium 500 MHz or higher
RAM Windows Vista 512 MB or more
Windows XP/Windows 2000 256 MB or more
Interface USB
Free Hard Disk
Space
• Canon Utilities
- ZoomBrowser EX 200 MB or more
- PhotoStitch 40 MB or more
•
Canon Camera TWAIN Driver
25 MB or more
Display 1,024 x 768 pixels/High Color (16 bit) or better
OS Mac OS X (v10.3 – v10.4)
Computer Model The above OS should be pre-installed on computers with built-in
USB ports.
CPU PowerPC G3/G4/G5 or Intel Processor
RAM 256 MB or more
Interface USB
Free Hard Disk
Space
• Canon Utilities
- ImageBrowser 300 MB or more
- PhotoStitch 50 MB or more
Display 1,024 x 768 pixels/32,000 Colors or better
COPY
Downloading Images to a Computer
26
Getting Started
1. Installing the software.
Windows
1. Place the Canon Digital Camera Solution Disk in the
computer’s CD-ROM drive.
2. Click [Easy Installation].
• Follow the onscreen messages to
proceed with the installation.
3. Click [Restart] or [Finish] once the
installation is complete.
• When the installation is finished,
[Restart] or [Finish] will display. Click
the button that appears.
4. Remove the CD-ROM from the
drive when your normal desktop
screen appears.
Macintosh
Double-click the icon in the CD-
ROM window. When the installer panel
appears, click [Install]. Follow the
onscreen instructions to proceed.
Preparing to Download Images
When using Windows 2000, make sure to install the software first
before connecting the camera to the computer.
COPY
Downloading Images to a Computer
27
Getting Started
2. Connecting the camera to a computer.
1. Connect the supplied interface cable to the computer’s USB
port and to the camera’s DIGITAL terminal.
• Hook your fingernail or the wrist strap toggle under the bottom
edge of the camera’s terminal cover to open it, then insert the
interface cable all the way into the connector.
3. Preparing to download images to the computer.
1. Set the mode switch to
(Playback).
2. Press the power button.
If the Digital Signature Not Found window appears, click [Yes].
The USB driver will automatically finish installing onto the
computer when you attach the camera and open a connection.
Interface Cable
USB Port
DIGITAL Terminal
Mode SwitchPower Button
COPY
Downloading Images to a Computer
28
Getting Started
4. Displaying CameraWindow.
Windows
1. Select [Canon CameraWindow] and
click [OK].
CameraWindow will display.
Macintosh
CameraWindow will appear when you establish a connection
between the camera and computer. If it fails to appear, click the
[CameraWindow] icon on the Dock (the bar which appears at the
bottom of the desktop).
Preparations for downloading images are now finished. Please
proceed to the Downloading Images Using the Camera (Direct
Transfer) section (p. 29) (except Windows 2000).
If this event dialog does not appear, click the [Start] menu and
select [All Programs] or [Programs], followed by [Canon
Utilities], [CameraWindow], [CameraWindow] and
[CameraWindow].
z Please refer to the Software Starter Guide regarding how to
download images using the computer.
z With Windows 2000, you can download images using the
computer.
COPY
Downloading Images to a Computer
29
Getting Started
Use this method to download images using camera operations (except
Windows 2000).
1. Confirm that the Direct Transfer menu is displayed on
the camera’s LCD monitor.
• The button will light blue.
• Press the MENU button if the Direct
Transfer menu fails to appear.
2. Press the button.
• All images that have not already been transferred to the
computer are transferred and saved to the computer.
Downloading Images Using the Camera
(Direct Transfer)
Install the software before downloading images via the Direct
Transfer method for the first time (p. 26).
Button
Button
Button
Buttons
Direct Transfer Menu
COPY
Downloading Images to a Computer
30
Getting Started
You can also use the following options in the Direct Transfer
menu to set the method for downloading images.
All Images/New Images/DPOF Trans. Images
1. Use the or button to select , or and press
the button.
• The images will download. The
button will blink blue while
downloading is in progress.
• The display will return to the Direct
Transfer menu when the download is
complete.
• To cancel the download, press the
FUNC./SET button.
Select & Transfer/Wallpaper
1. Use the or button to select or and press the
(or ) button.
All Images Transfers and saves all images to the computer.
New Images
Transfers and saves to the computer only the
images that have not been previously transferred.
DPOF Trans.
Images
Transfers and saves to the computer only the
images with DPOF Transfer Order settings.
Select &
Transfer
Transfers and saves single images to the computer
as you view and select them.
Wallpaper
Transfers and saves single images to the computer
as you view and select them. The transferred
images display as the background on the computer
desktop.
COPY
Downloading Images to a Computer
31
Getting Started
2. Use the or button to select images to download
and press the button.
• The images will download. The
button will blink blue while
downloading is in progress.
3. Press the button after
downloading finishes.
• You will return to the Direct Transfer
menu.
Click at the bottom right of the window to close the CameraWindow
and the downloaded images will display on the computer.
By default, images are saved on the computer in folders according to
the shooting date.
Only JPEG images can be downloaded as wallpaper for a
computer.
The option selected with the button is retained even when
the camera’s power is turned off. The previous setting will be in
effect the next time the Direct Transfer menu is displayed. The
image selection screen will appear directly when the [Select &
Transfer] or the [Wallpaper] option was last selected.
Windows Macintosh
ZoomBrowser EX ImageBrowser
COPY
Getting Started
System Map
32
System Map
Wrist Strap
WS-DC2
Battery Pack NB-4L*
1
(with Terminal Cover)
Compact Power Adapter
CA-DC10
AC Adapter Kit ACK-DC10
Supplied with Camera
Interface Cable IFC-400PCU*
1
Memory Card (32MB)
Canon Digital Camera
Solution Disk
AV Cable
AVC-DC300*
1
Waterproof Case
WP-DC22
Power Cord
DC Coupler
DR-10
Battery Charger
CB-2LV/CB-2LVE*
1
High-Power Flash
HF-DC1
Waterproof Case Weight
WW-DC1
COPY
System Map
33
Getting Started
USB Port
PC Card Slot
Direct Interface Cable
USB Card
Reader
PCMCIA
Adapter
SD Memory Card*
5
• SDC-128M
• SDC-512MSH
Compact Photo Printers*
2
*
3
(SELPHY Series)
Direct Print Compatible
Bubble Jet Printers*
4
(PIXMA series)
Video IN Terminal
Audio IN Terminal
*1 Also available for purchase separately.
*2 See the user guide supplied with the printer for more information on the printer.
*3 This camera can also be connected to the CP-10/CP-100/CP-200/CP-300.
*4 See the user guide supplied with the Bubble Jet printer for more information on
the printer and interface cables.
*5 Not sold in some regions.
TV/Video
Canon Direct Print
Compatible Printers
COPY
System Map
34
Getting Started
The following camera accessories are sold separately.
Some accessories are not sold in some regions, or may no longer
be available.
Flash
• High-Power Flash HF-DC1
This attachable supplementary flash can be used to capture
photographic subjects that are too distant for the built-in flash to
illuminate.
Power Supplies
• AC Adapter Kit ACK-DC10
Kit for using power from a household electrical outlet.
Recommended to power a camera for an extended period of time or
when connecting to a computer (cannot be used to charge the
camera).
• Battery Charger CB-2LV/CB-2LVE
An adapter for charging Battery Pack NB-4L.
• Battery Pack NB-4L
Rechargeable lithium-ion battery.
Other Accessories
• SD Memory Card
SD memory cards are used to store images recorded by the camera.
Canon brand memory cards are available in 128 MB and 512 MB
capacities.
• Interface Cable IFC-400PCU
Use this cable to connect the camera to a computer, Compact Photo
Printer (SELPHY series), or to a Bubble Jet printer*.
* Refer to the user guide included with your printer.
• AV Cable AVC-DC300
Use this cable to connect the camera to a TV set.
• Waterproof Case WP-DC22
When you attach this waterproof case to the camera, you can use it
to take underwater shots at depths of up to 40 meters (130 feet), and
of course it is ideal for taking worry-free pictures in the rain, at the
beach, or on the ski slopes.
Optional Accessories
COPY
System Map
35
Getting Started
Canon offers the following separately sold printers for use with the
camera. You can produce photo quality prints quickly and easily by
connecting them to the camera with a single cable and operating the
camera’s controls.
• Compact Photo Printers (SELPHY series)
• Bubble Jet Printers (PIXMA series)
For more information, visit your nearest Canon retailer.
Direct Print Compatible Printers
Use of genuine Canon accessories is recommended.
This product is designed to achieve excellent performance when
used with genuine Canon accessories. Canon shall not be liable for
any damage to this product and/or accidents such as fire, etc.,
caused by the malfunction of non-genuine Canon accessories (e.g.,
a leakage and/or explosion of a battery pack). Please note that this
warranty does not apply to repairs arising out of the malfunction of
non-genuine Canon accessories, although you may request such
repairs on a chargeable basis.
COPY
36
COPY
37
COPY
38
COPY
39
Learning More
COPY
40
Components Guide
Front View
a Wrist Strap Mount (p. 11)
b Microphone (p. 22)
c AF-assist Beam (p. 53)
d Red-Eye Reduction Lamp (p. 77)
e Self-Timer Lamp (p. 66)
f Viewfinder Window (p. 41)
g Flash (p. 64)
h Lens
COPY
41
Components Guide
Back View
a LCD Monitor (pp. 48, 58)
b Viewfinder
c Terminal Cover (p. 11)
d A/V OUT (Audio/Video output) Terminal (p. 176)
e DIGITAL Terminal (pp. 18, 27)
f Tripod Socket
g DC Coupler Terminal Cover (p. 202)
h Memory Card Slot/Battery Cover (p. 9)
The interface cable and AV cable cannot be connected
simultaneously.
Using the Viewfinder
The viewfinder can be used to conserve power by turning the LCD
monitor off (p. 58) while shooting.
The LCD monitor may be covered with a thin plastic film for
protection against scratches during shipment. If so, remove the
film before using the camera.
COPY
42
Controls
a Indicators (p. 44)
b Power Lamp
c Power Button (p. 12)
d Shutter Button (p. 14)
e Zoom Lever (pp. 60, 114)
Shooting: (Wide Angle)/ (Telephoto)
Playback: (Index)/ (Magnify)
f Speaker
g Mode Switch (pp. 14, 43)
h (Print/Share) Button (pp. 18, 29, 112)
i FUNC./SET Button (p. 46)
j MENU Button (p. 47)
k DISP. Button (p. 58)
l (Macro)/ (Infinity)/ Button (p. 64)
m (ISO Speed)/ (Jump)/ Button (pp. 71, 118)
n (Single Image Erase)/ (Continuous)/ (Self-timer)/
Button (pp. 17, 66, 76)
o (Flash)/ Button (p. 64)
COPY
43
Components Guide
Slide the switch to the mode you wish to use.
How to Use the Mode Switch
Shooting Mode
: Auto (p. 14)
: Manual Mode (p. 76)
: Stitch Assist (p. 84)
: Digital Macro (p. 63)
: Portrait (p. 73)
: Night Snapshot (p. 73)
: Color Accent (p. 105)
: Color Swap (p. 107)
Special Scene Mode
: Kids&Pets (p. 74) : Indoor (p. 74)
: Sunset (p. 74) : Foliage (p. 74)
: Snow (p. 74) : Beach (p. 74)
: Fireworks (p. 75) : Aquarium (p. 75)
: Underwater (p. 75)
Movie Mode
: Standard (p. 79) : Compact (p. 79)
: Color Accent (p. 79) : Color Swap (p. 79)
: Time Lapse (p. 79)
Playback Mode (pp. 16, 114)
Movie Mode
Shooting Mode
Playback Mode
COPY
44
The indicators on the back of the camera light or blink under the
following conditions.
• Upper Indicator
• Lower Indicator
Indicators
Green: Ready to shoot (camera beeps twice)/Display off
Blinking Green: Time Lapse (movie) recording/Image recording/
reading/erasing/transferring (when connected to a
computer/printer)
Orange: Ready to shoot (flash on)
Blinking Orange: Ready to shoot (camera shake warning)
Yellow: Macro mode/Infinity mode/AF Lock mode
Blinking Yellow: Focusing difficulty (camera beeps once)
Never do the following while the indicator blinks green. These
actions may corrupt image data.
- Shake or jolt the camera
- Turn off the camera, or open the memory card slot/battery
cover
COPY
45
Components Guide
Displaying the Clock
You can display the current date and time
for a 5-second* interval using the
following two methods.
* Default setting
Method 1
Hold the FUNC./SET button down while
turning on the power.
Method 2
In a shooting/playback mode, press the FUNC./SET button for more
than one second.
If you hold the camera horizontally, it displays the time. If you hold it
vertically, the time and date display.
However, if you hold the camera vertically and use method 1 to
display the date and time, the time will be initially displayed in the
same way as when the camera is held horizontally.
• You can change the display color by pressing the or button.
• The clock display will disappear when the display interval is over or
when a button is operated for a subsequent operation.
• The clock’s display interval can be changed in the menu
(p. 56).
• The clock cannot be displayed when images are magnified or it is in
the Index Playback mode.
COPY
46
Basic Operations
Settings for the shooting or playback modes or such camera settings
as the print settings, date/time and sounds are set using the FUNC.
menu or the Rec., Play, Print, Set up or My Camera menu.
FUNC. Menu ( Button)
This menu sets many of the common shooting functions.
Menus and Settings
1
Set the mode switch to or .
2
Press the button.
3
Use the or button to select a menu item.
• Some items may not be selectable in some shooting modes.
4
Use the or button to select an option for
the menu item.
• Items showing the icon can be changed with the DISP.
button.
• After selecting an option, you can press the shutter button to
shoot immediately. After shooting, this menu will appear again,
allowing you to adjust the settings easily.
5
Press the button.
• This example shows the FUNC.
menu in (Auto) mode.
12 5
34
COPY
47
Basic Operations
Rec., Play, Print, Set up and My Camera Menus
( Button)
Convenient settings for shooting, playback or printing can be set with
these menus.
1
Press the button.
2
Use the or button to switch between
menus.
• You can also use the zoom lever to switch between menus.
3
Use the or button to select a menu item.
• Some items may not be selectable in some shooting modes.
4
Use
the or button
to select an option.
• Menu items followed by an ellipsis (...) can only be set after
pressing the FUNC./SET button to display the next menu.
Press the FUNC./SET button again to confirm the setting, then
press the MENU button to return to the menu screen.
5
Press the button.
You can switch between
menus with the
or
button.
1
2
5
34
Shooting Mode (Auto)
Playback Mode
• This example shows the Rec.
menu in (Auto) mode.
COPY
48
Shooting Mode
Information Displayed on the LCD Monitor
and Menus
Display Content Setting Method
a Shooting Mode Mode Switch, FUNC./SET
Button (FUNC. Menu)
b Exposure Compensation ( ••• ) and
Recording Pixels, etc.
FUNC./SET Button
(FUNC. Menu)
c Disp. Overlay MENU Button (Rec. Menu)
d Digital Zoom Magnification/Digital Tele-
Converter ( 1.6x/2.0x)
MENU Button (Rec. Menu)
e Macro ( )/Infinity ( ) / Button
f ISO Speed ( ) Button
g Flash ( ) Button
h Red-Eye Correction Function ( ) MENU Button (Rec. Menu
[Flash Settings])
i Drive Mode ( ) / Button
j Auto Rotate ( ) MENU Button (Set up Menu)
k AE Lock ( )/FE Lock ( ) Button
Spot AE Point Frame/
AF Frame
Remaining battery
charge will display.
b
Recordable Shots (Stills)
Remaining Time/Elapsed
Time (Movies)
d
Shutter Speed/Aperture Value, p
j
m
n
o
c
a
k
Camera Shake Warning
(p. 182)
e f g h i
l
COPY
49
Basic Operations
l AF Lock ( ) / Button
m Time Zone (Home/World) ( ) MENU Button (Set up Menu)
n Create Folder ( ) MENU Button (Set up Menu)
o Image Stabilizer ( ) MENU Button (Set up Menu)
p Exposure Shift Bar (Movie ) Button
About the Battery Charge Indicators
The following icon and message will display.
If the indicator blinks orange and the camera shake warning
icon ( ) displays, this indicates that a slow shutter speed may
have been selected due to insufficient illumination.
Use the following methods to shoot:
- Set the IS mode to any setting other than [Off] (p. 70)
- Raise the ISO speed (p. 71)
- Select a setting other than (Flash off) (p. 64)
- Attach the camera to a tripod or other device
Icons Message
Sufficient battery charge.
Recharge the battery soon for extended use.
(Blinking red) Low battery charge. Recharge the battery.
Change the
batteries
Battery is depleted and the camera can no longer
operate. Charge the battery immediately.
COPY
50
Playback Mode (Detailed)
The following information may also be displayed with some images.
Display Content Setting Method
q Print List or MENU Button
(Print Menu)
r Auto Category/My Category
()
MENU Button
(Shooting/Playback Menu)
s Compression (Still Images), Recording
Pixels (Still Images), Movie ( )
FUNC./SET Button
(FUNC. Menu)
t
Red-Eye Correction/Resize/Trimming/
My Colors ( )
MENU Button
(Playback Menu)Images with sound memo ( )
Protection Status ( )
A sound file in a format other than WAVE is attached.
JPEG image not conforming to Design rule for Camera File
System Standards (p. 207).
RAW image
Unrecognized data type
Histogram
t
Shooting Date/Time
Remaining battery charge will display. Displayed image number/
Total number of images
Folder Number-File
Number
Shooting information is
displayed
r
s
File size
Recording Pixels (Still
Images)
Movie Length (Movies)
q
COPY
51
Basic Operations
z Information for images shot on other cameras may not
display correctly.
z Overexposure Warning
In the following cases, overexposed portions of the image
blink.
- When reviewing an image right after shooting in the LCD
monitor (Detailed)
- When using the Detailed Display mode of the Playback
mode
Histogram Function
The histogram is a graph that allows you to check the brightness of
the image. The greater the bias toward the left in the graph, the
darker the image. The greater the bias toward the right, the brighter
the image.
Use the exposure compensation function to adjust the brightness of
the image while shooting (p. 97).
Sample Histograms
Balanced ImageDark Image Bright Image
COPY
52
Shooting Mode
FUNC. Menu
Rec. Menu
Menu Item Page
Shooting Mode pp. 14, 22,
43
(Still image)
(Movie)
Menu Item Page
Exposure
Compensation
••• p. 97
Long Shutter Mode ••• p. 99
White Balance p. 100
My Colors p. 103
Metering Mode p. 98
Compression p. 69
Shooting Interval
(Movie)
( selected) p. 83
Recording Pixels
(Still Image)
( when the date
has not been set)
p. 68
Recording Pixels
(Movie)
p. 82
Menu Item Options Page/Topic
AF Frame Face Detect*/AiAF/Center p. 89
AF Frame Size Normal*/Small p. 91
AF-Point Zoom On/Off* p. 86
Digital Zoom
p. 60
(Still image) Standard*/Off/1.6x/2.0x
(Movie) Standard*/Off
(In Standard Movie mode only)
* Default setting
COPY
53
Basic Operations
Flash Settings p. 77
Slow Synchro On/Off*
Red-Eye Corr. On/Off*
Red-Eye Lamp On*/Off
Self-timer Delay: 0–10*, 15, 20, 30 sec.
Shots: 1–3*–10
p. 66
AF-assist Beam On*/Off p. 184
Review Off/2*–10 seconds/Hold You can set the
length of time
images display
after being shot
(p. 15).
Review Info Off*/Detailed/Focus Check p. 87
Save Original On/Off* p. 109
Auto Category On*/Off p. 111
Disp. Overlay p. 110
(Still image) Off*/Grid Lines/3:2 Guide/Both
(Movie) Off*/Grid Lines
IS Mode p. 70
(Still image) Continuous*/Shoot Only/
Panning/Off
(Movie) Continuous*/Off
Set button *//////
//
/
/
p. 112
Stitch Assist p. 84
Menu Item Options Page/Topic
COPY
54
Play Menu
Print Menu
Menu Item Page Menu Item Page
Slide Show p. 131 My Colors p. 140
My Category p. 120 Sound Memo p. 144
Erase p. 151 Sound Recorder p. 146
Protect p. 147 Rotate p. 129
Red-Eye Correction p. 136 Transfer Order p. 163
Trimming p. 123 Resume p. 16
Resize p. 142 Transition p. 130
Menu Item Content Page
Print Displays the printing screen.
p. 156
Select Images & Qty. Configures print settings for single
images as you view them.
Select Range For picking a first and last image and
printing all the images in the range.
Select by Date Configures print settings for images
corresponding to the selected date.
Select by Category Configures print settings for images in
the selected category.
Select by Folder Configures print settings for images in
the selected folder.
Select All Images Configures print settings for all images.
Clear All Selections Removes all print settings from images.
Print Setting Sets the printing style.
COPY
55
Basic Operations
Set up Menu
Menu Item Options Page/Topic
Mute On/Off* Set to [On] to silence all sounds*.
* Except for when the memory card
slot/battery cover is opened during
recording.
Volume Off/1/2*/3/4/5 Adjusts the volume of the start-
up sound, operation sound, self-
timer sound, shutter sound and
playback sound. The volume
cannot be adjusted if [Mute] is
set to [On].
Start-up Vol. Adjusts the volume of the start-
up sound when the camera is
turned on.
Operation Vol. Adjusts the volume of the
operation sound that beeps
when any button other than the
shutter button is pressed.
Selftimer Vol. Adjusts the volume of the self-
timer sound played 2 sec. before
the shutter is released.
Shutter Volume Adjusts the volume of the sound
played when the shutter
releases. The shutter sound
does not play when a movie is
recording.
Playback Vol. Adjusts the movie playback
volume, sound memo or sound
recorder volume.
LCD Brightness -7 to 0* to +7 Use the or button to adjust
the brightness. You can check
the brightness in the LCD
monitor while you are adjusting
the setting.
* Default setting
COPY
56
Power Saving
p. 165
Auto Power
Down
On*/Off
Display Off 10 sec./20 sec./
30 sec./1 min.*/
2min./3min.
Time Zone Home*/World p. 166
Date/Time p. 12
Clock Display 0–5*–10 sec./
20 sec./30 sec./
1min./2min./
3min.
p. 45
Format You can also select a low level
format (p. 168).
File Numbering Continuous*/Auto
Reset
p. 170
Create Folder
p. 172
Create New
Folder
Check mark (On)/
No check mark
(Off)
Auto Create Off*/Daily/
Monday–Sunday/
Monthly
(Time can also be
set)
Auto Rotate On*/Off p. 174
Lens Retract 1 minute* /
0 seconds
Sets the lens retraction timing
when switching from Shooting
mode to Playback mode.
Language p. 13
Video System NTSC/PAL p. 176
Print Method Auto*/ p. 57
Reset All p. 175
Menu Item Options Page/Topic
COPY
57
Basic Operations
Print Method
You can change the printer connection method. There is usually no
need to change the settings, but select when you print an image
recorded in the (Widescreen) mode at the full page setting for wide
paper using a Canon SELPHY CP750/CP740/CP730/CP720/CP710/
CP510 Compact Photo Printer. Since this setting is saved even when
the power is turned off, ensure that you return the setting to [Auto] to
print other image sizes. (However, it cannot be changed while the
printer is connected.)
My Camera Menu
Menu Item Content Page
Theme Selects a common theme for each My
Camera settings item.
p. 177
Start-up Image Sets the image displayed when the
camera power is turned on.
Start-up Sound Sets the sound played when the camera
power is turned on.
Operation Sound Sets the sound played when any button
other than the shutter button is pressed.
Selftimer Sound Sets the sound played 2 seconds before
the shutter releases in Self-timer mode.
Shutter Sound Sets the sound played when the shutter
button is pressed. There is no shutter
sound for movies.
My Camera Menu
Contents
(Off)/*//
* Default setting
COPY
58
Switching the Information Displays
You can switch the LCD monitor information display each time you
press the DISP. button. See Information Displayed on the LCD Monitor
and Menus for details (p. 48). (The following are the screens that
display when shooting in mode.)
Shooting Mode
Playback Mode, Rec. Review (Immediately after
Shooting)
Using the LCD Monitor
*1 Playback Mode only
*2 Still images only
No Information
Information View
Off
No Information
Standard*
1
Focus Check Display*
2
Detailed
COPY
59
Basic Operations
Changing the LCD Monitor Brightness
The brightness of the LCD monitor can be changed in the following two
ways.
• Changing Settings Using the Set up Menu (p. 55)
• Changing Settings Using the DISP. Button (Quick-bright LCD
Function)
You can set the LCD monitor to the brightest setting regardless of the
option selected in the Set up menu by pressing the DISP. button for
more than one second.*
* You cannot change the brightness of the LCD monitor with this function if you have
already set it to its highest setting in the Set up menu.
z The LCD monitor on or off setting is retained even after the
camera power is turned off.
z The LCD monitor is set to the information view in the , ,
, , or Movie mode.
z In , , , , , modes, the LCD monitor is
always set to information view.
z The LCD monitor will not switch to the Detailed Display or
Focus Check Display while in the Magnified Display (p. 114)
or Index Playback mode (p. 115).
- To restore the previous brightness setting, press the DISP. button
for more than one second again.
- The next time you turn on the camera, the LCD monitor will be at
the brightness setting selected in the Set up menu.
Night Display
When shooting in dark conditions, the camera automatically
brightens the LCD monitor to suit the brightness of the subject,
making it easier to frame the subject (this setting cannot be turned
off).
• Although noise may appear and the movement of the subject shown on the LCD
monitor may appear somewhat jagged, there is no effect on the recorded image.
The brightness of the image displayed in the monitor, and the brightness of the
actual image recorded will be different.
COPY
60
Commonly Used Shooting Functions
The zoom can be adjusted from 38 mm – 114 mm (focal length) in
35mm film equivalent terms.
You can combine digital zoom with optical zoom when shooting.
The available shooting characteristics and focal lengths (35mm film
equivalent) are as follows:
Shooting with the Optical Zoom
1
Press the zoom lever toward or .
• Wide Angle: Zooms out from
the subject.
• Telephoto: Zooms in on the
subject.
Using the Digital Zoom/Digital Tele-
Converter
Available Shooting Modes p. 222
Selection Focal Length Shooting Characteristics
Standard 38 – 456 mm
Enables shooting at zoom factors of up to
12x with digital and optical zoom combined.
Off 38 – 114 mm Enables shooting without digital zoom.
1.6x 60.8 – 182.4 mm
Digital zoom is fixed at the selected zoom
factor, and the focal length shifts to
maximum telephoto. This enables a faster
shutter speed and less chance of camera
shake than a shot taken at the same angle
of view with [Standard] or [Off].
2.0x 76 – 228 mm
COPY
61
Commonly Used Shooting Functions
Shooting with the Digital Zoom
Safety Zoom Zone
This camera is equipped with a Safety Zoom feature that shifts from
optical zoom to digital zoom without pausing until image quality is lost
at any given recording pixel setting. The icon will display at the
maximum zoom setting before image quality is lost and you can
advance the zoom further by pressing the zoom lever toward the
icon again. The Safety Zoom zone changes according to the selected
recording pixel setting as shown below.
Safety Zoom Factor
Zone without deterioration Zone with deterioration
z The digital zoom cannot be used when the LCD monitor is
turned off.
z The digital zoom cannot be used in (Date Stamp) or
(Widescreen) modes.
1
Select [Digital Zoom].
1. Press the button.
2. In the menu, use the or
button to select [Digital Zoom].
Recording
Pixels
Optical Zoom Digital Zoom
COPY
62
Shooting with the Digital Tele-Converter
The digital tele-converter feature uses digital zoom to achieve the
effects of a tele-converter (a lens used in telephoto shooting).
2
Accept the setting.
1. Use the or button to select
[Standard].
2. Press the button.
3
Press the zoom lever
toward and shoot.
• The combined digital and optical
zoom setting will display in the LCD
monitor.
• The image may appear coarse
depending upon the selected
recording pixels (the zoom factor
appears in blue).
• Press the zoom lever toward to zoom out.
1
Select [Digital Zoom].
1. Press the button.
2. In the menu, use the or
button to select [Digital Zoom].
2
Accept the setting.
1. Use the or button to select
[1.6x] or [2.0x].
2. Press the button.
COPY
63
Commonly Used Shooting Functions
You can shoot a subject 3 – 10 cm (1.2 – 3.9 in.) from the end of the
lens at the maximum wide angle setting. With the digital zoom, the
image area is 8.8 x 6.5 mm (0.35 x 0.26 in.) at maximum zoom
(approximately 4.0x).
3
Adjust the angle of view
with the zoom lever and
shoot.
• and the zoom factor will appear
on the LCD monitor.
• The image may appear coarse
depending upon the selected
recording pixels (the icon and the
zoom factor appear in blue).
Magnified Close-Up Shooting
(Digital Macro)
Available Shooting Modes p. 222
1
Select Digital Macro.
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select .
4. Press the button.
2
Choose the angle of view with the zoom lever
and shoot.
• The zoom factor appears on the LCD monitor.
COPY
64
You can shoot close-ups or infinity shots.
Using the Flash
Available Shooting Modes p. 222
1
Press the button.
1. Use the or button to change
the flash mode.
• : [Off]
• : [On]
• : [Auto]
• Pressing the MENU button while this
screen is displayed will allow you to set flash functions such as
Slow Synchro, Red-Eye Corr., Red-Eye Lamp (p. 77).
You are recommended to shoot with the camera attached to a
tripod or other device if the camera shake warning icon
appears.
Shooting Close-Ups/Infinity Shot
Available Shooting Modes p. 222
Macro
Use this mode to shoot close-ups of flowers or small items.
Image Area at Minimum Focusing Distance from End of
Lens to Subject
• Maximum wide angle setting: 35 x 26 mm (1.4 x 1.0 in.)
Minimum focusing distance: 3 cm (1.2 in.)
• Maximum telephoto setting: 102 x 77 mm (4.0 x 3.0 in.)
Minimum focusing distance: 30 cm (12 in.)
Infinity
Use this mode to record subjects 3 m (9.8 ft.) or more from
the end of the lens.
COPY
65
Commonly Used Shooting Functions
To Cancel the Macro Mode
Press the / button and use the or button to select
(Normal).
1
Press the / button.
1. Use the or button to select
or .
z Use the LCD monitor to compose close-ups in Macro mode
since the view through the viewfinder may not match the
image taken.
z Using the flash in Macro mode may cause image edges to
darken.
COPY
66
You can set the time delay and the numbers of shots you wish to take
in advance.
* This may differ depending on your My Camera settings (p. 177).
To Cancel the Self-Timer
Press the button and use the or button to select .
Using the Self-Timer
Available Shooting Modes p. 222
10 sec. Self-Timer: shoots 10 seconds after you press the shutter
button.
• 2 seconds before the shutter releases, the self-timer lamp and
sound speed up.
2 sec. Self-Timer: shoots 2 seconds after you press the shutter
button.
• At the same time as the shutter button is pressed, the self-timer
sound beeps rapidly*, the self-timer lamp blinks, and the shutter
releases 2 seconds later.
Custom Timer: you can change the delay time (0–10, 15, 20, 30 sec.)
and number of shots (1–10).
• When [Delay] is set to 2 or more seconds, the self-timer sound
beeps quickly 2 seconds before the shutter releases*. When
[Shots] is set to more than 1, the self-timer sound only beeps before
the first shot.
1
Press the button.
1. Use the or button to change
the Self-timer mode.
• Pressing the MENU button while this
screen is displayed will allow you to
set the delay and number of shots as
when Custom Timer is selected
(p. 67).
2
Shoot.
• When the shutter button is pressed fully, the self-timer lamp will
blink*.
* When using the flash by setting [Red-Eye Lamp] to [On] in [Flash Settings]
(p. 77), the self-timer lamp will stay lit for the last 2 seconds.
COPY
67
Commonly Used Shooting Functions
Setting the Delay Time and Number of Shots ( )
1
Select [Self-timer].
1. Press the button.
2. In the menu, use the or
button to select [Self-timer].
3. Press the button.
2
Accept the setting.
1. Use the or button to select
[Delay] or [Shots] and change the
settings with the or button.
2. Press the button.
3. Press the button.
If the [Shots] option is set to 2 or more shots, the following
occurs.
- The exposure and white balance are locked at the settings
selected for the first shot.
- If the flash is used, the interval between shots lengthens
because the flash must charge.
- The interval between shots may lengthen when the built-in
memory of the camera fills.
- Shooting will automatically cease if the memory card
becomes full.
COPY
68
Approximate Values for Recording Pixels
Changing the Recording Pixels
(Still Images)
Available Shooting Modes p. 222
1
Select the recording pixels.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
Recording Pixels Purpose*
(Large) 8M 3264 x 2448
High
Low
Printing to about A3-size
297 x 420 mm (11.7 x
16.5 in.)
(Medium 1) 5M 2592 x 1944
Printing to about A4-size
210 x 297 mm (8.3 x
11.7 in.)
Printing to about Letter-size
216 x 279 mm (8.5 x 11 in.)
(Medium 2) 3M 2048 x 1536
Printing to about A5-size
148 x 210 mm (6 x 8.3 in.)
(Medium 3) 2M 1600 x 1200
Print postcard-size prints
148 x 100 mm (6 x 4 in.)
Print L-size prints
119 x 89 mm (4.7 x 3.5 in.)
(Small) 0.3M 640 x 480
Send images as e-mail
attachments or shoot more
images
(Date Stamp)
2M 1600 x 1200
To embed the date in images when
shooting. Or, when printing L-size
and postcard-size prints. (Or you
can shoot while confirming the print
area for a 3:2 aspect ratio print.)
COPY
69
Commonly Used Shooting Functions
Approximate Values for Compression Settings
(Widescreen) 3264 x 1832
Printing on wide size paper (you
can check the composition at a 16:9
aspect ratio. Areas that will not be
recorded appear on the LCD
monitor as a black border.)
:
Approximate number of recording pixels. (M is short for megapixels.)
* Paper sizes vary according to region.
z See Memory Cards and Estimated Capacities (p. 211).
z See Image Data Sizes (Estimated) (p. 213).
Changing the Compression (Still Images)
Available Shooting Modes p. 222
1
Select a compression
setting.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
Compression Purpose
Superfine High Quality
Normal
Shoot higher quality images
Fine Shoot normal quality images
Normal Shoot more images
z See Memory Cards and Estimated Capacities (p. 211).
z See Image Data Sizes (Estimated) (p. 213).
COPY
70
The Image Stabilizer function allows you to minimize the camera shake
effect (blurred images) when you shoot distant subjects that have been
magnified or when you shoot in dark conditions without a flash.
Setting the Image Stabilizer Function
Available Shooting Modes p. 222
Off –
Continuous
You can check the effect of the IS mode on image blur
on the LCD monitor since the IS mode runs continually.
This makes it easier to compose images and focus on
subjects.
Shoot Only
IS mode is only activated when the shutter button is
pressed, so subjects will be captured with reduced blur
even if their movements on the LCD monitor are not
smooth.
Panning
This option only stabilizes the effect of up and down
camera motions on the image. This option is
recommended for shooting objects moving horizontally.
1
Select [IS Mode].
1. Press the button.
2. In the menu, use the or
button to select [IS Mode].
2
Accept the setting.
1. Use the or button to select an
image stabilizer option.
2. Press the button.
COPY
71
Commonly Used Shooting Functions
Raise the ISO speed to use a fast shutter speed when you wish to
reduce the effects of camera shake or avoid blurry subjects, or to turn
the flash off when shooting in a dark area.
z Camera shake may not be fully corrected when shooting
with slow shutter speeds, such as with evening shots. Use a
tripod to shoot.
z If camera shake is too strong, it may not be fully corrected.
z Hold the camera horizontally while [Panning] (stabilization
does not work when the camera is held vertically).
z When the IS mode is set to [Shoot Only] or [Panning], if you
switch to shooting movies, the mode setting will change to
[Continuous].
Adjusting the ISO Speed
Available Shooting Modes p. 222
1
Press the button.
1. Use the or button to change
the ISO speed.
• You can advance to the next option
each time you press the button.
• Selecting (Auto) or (High ISO
Auto) sets the ISO speed to an
optimum sensitivity for the light level when shooting. As the
sensitivity is automatically raised in dark places, the camera
will select a faster shutter speed and reduce the chances of
camera shake.
• Select to give priority to image quality.
• Selecting will set the ISO speed to an optimum sensitivity to
detect movements. Depending on the scene being shot, the
sensitivity will be set higher* than for , and subject blurring
will be reduced.
* Noise may increase in the captured image compared to .
COPY
72
z The camera automatically applies noise reduction
processing when you shoot at a high ISO speed.
z If the camera is set at or , the ISO speed
automatically set by the camera will be displayed when
pressing the shutter button halfway or in playback
information.
COPY
73
Various Shooting Methods
Various Shooting Methods
When a shooting mode appropriate for the shooting conditions is
selected, the camera automatically adjusts settings for optimal
shooting.
Shooting in Modes for Special Conditions
Available Shooting Modes p. 222
1
Select a shooting mode.
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select a
shooting mode.
• For a scene mode, select the
mode (default setting) and press the
DISP. button, and use the or button to select the desired
mode.
4. Press the button.
Portrait
Produces a soft effect when photographing people.
Night Snapshot
Allows you to take snapshots of people against
twilight or night backgrounds by reducing the effects
of camera shake when firmly holding the camera,
even without using a tripod.
COPY
74
Scene Mode
Kids&Pets
Allows you to capture subjects that move around,
such as children and pets, without missing photo
opportunities.
Indoor
Prevents camera shake and maintains the subject’s
true color when shooting under fluorescent or
tungsten lighting.
Sunset
Allows you to shoot sunsets in vibrant colors.
Foliage
Shoots trees and leaves—such as new growth,
autumn leaves or blossoms—in vivid colors.
Snow
Shoots without a blue tinge and without making
people appear dark against a snowy background.
Beach
Shoots without making people appear dark near
water or sand where reflected sunlight is strong.
COPY
75
Various Shooting Methods
Fireworks
Captures fireworks in the sky sharply and at optimal
exposure.
Aquarium
Selects the optimal ISO speed, white balance and
color balance to capture fish and other items in an
indoor aquarium.
Underwater
Appropriate for shooting images with Waterproof
Case WP-DC22 (sold separately). This mode uses
an optimal white balance setting to reduce bluish
tones and record images with a natural hue. Flash
emission is minimized.
z The shutter speed is slow in mode. Always use a tripod
to avoid camera shake.
z In , , , or mode, the ISO speed may increase
and cause noise in the image depending on the scene being
shot.
Install the camera in Waterproof Case WP-DC22 to shoot
underwater. You are also recommended to use this case for
shooting in rainy conditions, at the beach or on the ski slopes.
COPY
76
Allows you to select settings yourself, such as the exposure
compensation, white balance or My Colors.
In this mode, the camera shoots continuously while the shutter button
is held down. If you use the recommended memory card*, you can
shoot continuously (smooth continuous shooting) at a set shooting
interval until the memory card is full (p. 211).
Shooting in Manual Mode
Available Shooting Modes p. 222
1
Select manual mode.
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select .
4. Press the button.
Continuous Shooting
Available Shooting Modes p. 222
*Recommended Memory Card:
Super high-speed SDC-512MSH memory card (sold separately) to
which low-level formatting (p. 168) is conducted immediately before
shooting.
- Except for mode
- This reflects standard shooting criteria established by Canon. Actual results may
vary according to the subject and shooting conditions.
- Even if continuous shooting suddenly stops, the memory card may not be full.
1
Press the button.
1. Use the or button to select
.
COPY
77
Various Shooting Methods
To Cancel Continuous Shooting
Follow Step 1 to display .
You can make detailed flash settings to fit the shooting conditions.
2
Shoot.
• The camera will continue to record successive images while
the shutter button is held down.
• Recording will cease when the shutter button is released.
z The interval between shots lengthens when the built-in
memory of the camera fills.
z If the flash is used, the interval between shots lengthens
because the flash must charge.
Setting the Flash
Available Shooting Modes p. 222
Slow Synchro
The flash timing is adjusted to slow shutter speeds. This
reduces the chance that only the background will appear
dark when a night scene or an interior shot is taken.
When [Slow Synchro] set to [On], camera shake may
become a factor. Use of a tripod is recommended.
Red-Eye Corr.
Automatically searches for and corrects red eyes in the
image when the flash fires.
Red-Eye Lamp
The red-eye reduction lamp lights orange before the flash
fires. This feature reduces the effect of light reflecting
back from the eyes and making them appear red.
About Red-Eye Correction
z When [Red-Eye Corr.] is set to [On], only corrected images
are saved to memory card.
z If the area around the eyes is red, for example from using
red eye shadow, that area may also be corrected. If this
happens, set [Red-Eye Corr.] to [Off].
z Red eyes may not be automatically detected or may not be
fully corrected on some images. In either case, you can
correct images with the [Red-Eye Correction] in the
(Playback) menu (p. 136).
COPY
78
1
Select [Flash Settings].
1. Press the button.
2. In the menu, use the or
button to select [Flash Settings].
3. Press the button.
2
Set the flash options.
1. Use the or button to select an
item.
2. Use the or button to select an
option.
3. Press the button.
• This screen can be displayed by pressing the button
followed by the MENU button (p. 64).
3
Press the button.
COPY
79
Various Shooting Methods
The following movie modes are available.
The recording time will vary according to the capacity of the memory
card you use (p. 212).
*1 When a super high-speed memory card is used: SDC-512MSH is recommended.
*2 Even if the file size has not reached 4 GB, the recording is stopped when the
recording time reaches one hour. Depending on memory card capacity and data
write speed, recording may stop before the file size reaches 4 GB or the recording
time reaches one hour.
Movie Shooting
Available Shooting Modes p. 222
Standard
You can select the recording pixels and record until the memory card
is full*
1
. The digital zoom can be used while shooting in this mode
(p. 60).
• Maximum Size: 4 GB*
2
/movie
Compact
Since there are few recording pixels and also the data size is small,
this mode is convenient for sending movies as e-mail attachments or
when the memory card capacity is low.
• Maximum Clip Length: 3 minutes
Color Accent Color Swap
You can have only the specified color remain and change all others
into black and white, or change a specified color into a different color
(pp. 105, 107). As with the Standard mode, you can also select the
recording pixels and record until the memory card is full*
1
.
• Maximum Size: 4 GB*
2
/movie
Time Lapse
Select a shooting interval (1 or 2 sec.) to have a single frame shot at
that interval. When played back, two hours worth of recorded frames
is compressed to 8 minutes (1-sec. interval) or 4 minutes (2-sec.
interval). You can record events from a fixed perspective, such as the
spectacle of a flower budding over time, or view changing elements in
a short period. Sound cannot be recorded in this mode.
• Maximum recording session: 2 hours.
COPY
80
1
Select a shooting mode.
1. Set the mode switch to .
2. Press the button.
3. Use the or button to change
the option.
4. Press the button.
• See Changing Colors (p. 105) for the procedures for using
and .
2
Shoot.
• Pressing the shutter button halfway automatically sets the
exposure, focus and white balance settings.
• Pressing the shutter button fully starts recording video and
sound simultaneously.
• During shooting, the recording time and [
z
Rec.] appear on the
LCD monitor.
• Pressing the shutter button fully again stops recording.
Recording will stop automatically under the following
circumstances.
- When the maximum recording time or maximum recording
capacity is exceeded.
- When the built-in memory or memory card becomes full.
COPY
81
Various Shooting Methods
z You are recommended to use a memory card that has been
formatted in your camera to shoot movies (p. 168). The
memory card supplied with the camera may be used without
further formatting.
z Be careful of the following while recording.
- Do not touch the microphone (p. 40).
- If you press a button, the sound of the button being
pressed will also be recorded.
- The camera will automatically adjust the exposure and
white balance to suit the shooting conditions during
recording. Please note, however, that the sounds made by
the camera automatically adjusting the exposure may also
be recorded.
z The focus and optical zoom settings remain fixed for
subsequent frames at the values selected for the first frame.
z Adjust the zoom before shooting. The zoom factor of the
combined optical zoom and digital zoom display on the LCD
monitor. When the zoom factor displays in blue, the image
will deteriorate.
z Only in (Standard) mode, the digital zoom can be used
during shooting.
z Before recording, you can set the AE lock and exposure
shift. This is effective on ski slopes and the beach when the
contrast is too strong between the subject and background
or where there are both light and dark areas in the scene and
it is desirable to adjust the exposure.
1. Press the button.
The exposure will lock (AE lock) and the exposure shift
bar will appear in the LCD monitor.
2. Use the or button to adjust the exposure.
Press the button again to release the setting. Also,
the setting will be canceled if you press the MENU button
or change the white balance, My Colors or shooting mode
settings.
z If you register the function with the button, you can
start shooting a movie simply by pressing the button
even if the mode switch is set to (p. 112).
z QuickTime is required to play back movies (Data type: AVI/
Compression method: Motion JPEG) on a computer (Only
Windows 2000).
COPY
82
Changing Recording Pixels/Frame Rates
You can change the recording pixels when the movie mode is set to
(Standard), (Color Accent) or (Color Swap). The frame
rate can be set depending on the recording pixels.
Recording Pixels and Frame Rates
Frame rates indicate the number of frames recorded or played back
each second. The higher the frame rate, the smoother the
appearance of motion.
1
Select the number of
recording pixels.
1. Press the button.
2. Use the or button to select
and the or button to
change the option.
3. Press the button.
*1 Default setting.
*2 To give priority to recording length over quality, select the . For the same file
size, you can record approximately twice the length.
*3 Frame rate during playback.
Standard *
1
640 x 480 pixels, 30 frames/sec.
Color Accent *
2
640 x 480 pixels, 30 frames/sec. LP
Color Swap 320 x 240 pixels, 30 frames/sec.
Compact 160 x 120 pixels, 15 frames/sec.
Time Lapse 640 x 480 pixels, 15 frames/sec.*
3
z See Memory Cards and Estimated Capacities (p. 211).
z See Image Data Sizes (Estimated) (p. 213).
COPY
83
Various Shooting Methods
Changing the Shooting Interval ( Time Lapse)
1
Select a shooting interval.
1. Press the button.
2. Use the or button to select
and the or button to
change the option.
3. Press the button.
• The indicator will blink green while
the camera is recording.
z You are recommended to use a fully charged battery or an
AC adapter since the recording period may be lengthy.
z The power saving setting (p. 165) will determine whether
or not the LCD monitor shuts off. The LCD monitor will
turn on if something other than the power button or shutter
button is operated.
z The LCD monitor displays the elapsed time from the start
of recording to the end in Playback mode, but the actual
playback time is shorter than the displayed time.
Recordable Duration
COPY
84
Stitch Assist can be used to shoot overlapping images that can later be
merged (stitched) to create one panoramic image on a computer.
Shooting Panoramic Images
(Stitch Assist)
Available Shooting Modes p. 222
1
Select a shooting direction.
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select .
4. Press the button.
5. In the menu, use the or
button to select [Stitch Assist].
6. Press the button.
The overlapping seams of several
adjacent images can be joined
into a single panoramic image.
COPY
85
Various Shooting Methods
7. Use the or button to select
or .
8. Press the button.
• : Left to right horizontally
• : Right to left horizontally
2
Shoot the first image in the
sequence.
• The exposure and white balance are
set and locked with the first image.
3
Shoot the next image by overlapping it with
the first image.
• You can press the or button to return to the previously
recorded image to retake the shot.
• Even if the overlapping portion of the image slightly deviates,
this can be corrected when combining the images on your
computer.
4
Repeat the procedure for additional images.
• A sequence may contain up to 26 images.
5
Press the button twice after the last shot.
z You cannot display the images on a TV when shooting in
Stitch Assist mode.
z The settings for the first image are applied to the second
image onward.
Use PhotoStitch, a supplied software program, to merge the
images on a computer.
COPY
86
You can zoom the display of the AF frame to check focus when
shooting or right after taking a shot.
Zooming the AF Frame and Shooting
When [AF Frame] is set to [Face Detect] or [Center], the AF frame area
can be zoomed to check focus while shooting. When you want to
capture people’s expressions, set [AF Frame] to [Face Detect]. When
you want to check the focus while shooting in Macro mode, set [AF
Frame] to [Center].
Checking the Focus and Peoples’
Expressions (Focus Check)
Available Shooting Modes p. 222
1
Select [AF-Point Zoom].
1. Press the button.
2. In the menu, use the or
button to select [AF-Point Zoom].
2
Accept the setting.
1. Use the or button to select
[On].
2. Press the button.
3
Press the shutter button halfway.
• The image is magnified as follows depending on the AF Frame
mode setting (p. 89).
4
To shoot, press the shutter button all the way
down (press fully).
[Face Detect]: The face that the camera detects as the subject
is magnified.
[Center]: The center of the LCD monitor is magnified.
COPY
87
Various Shooting Methods
Checking the Focus and People’s Expressions
Immediately after Shooting (Focus Check)
You can check the focus in recorded images. It is also easy to check
peoples’ expressions and look for closed eyes because a frame the
size of the face displays when the AF Frame mode is set to [Face
Detect] and a photo is taken.
You are recommended to set [Review Info] in the menu to [Hold]
beforehand.
In the following cases the focus point will not display magnified:
- When [Face Detect] is selected, but no face is detected, or
when the face is too large relative to the entire screen.
- When the subject is out of focus.
- When using the digital zoom.
- When the LCD monitor is not being used to display the
image.
- When the image is being displayed on a TV screen.
1
Select [Review Info].
1. Press the button.
2. In the menu, use the or
button to select [Review Info].
2
Accept the setting.
1. Use the or button to select
[Focus Check].
2. Press the button.
COPY
88
To Cancel Checking the Focus
Press the shutter button halfway.
3
Shoot.
• The recorded image displays.
• The frame displays as follows.
• The orange frame allows you to change the display size, the
display position and the display frame (p. 117).
z Pressing the button while the image is displayed will
erase the image (p. 17). However, when the bottom right of
the image is enlarged, pressing the button will not delete
the image.
z You can also check the focus in Playback mode (p. 116).
Recorded Image
Orange frame contents
Frame Color Content
Orange
Displays the area of the image shown at the
bottom right
White Displays at the focal point
COPY
89
Various Shooting Methods
The AF frame indicates the area of the composition on which the
camera focuses.
Switching between Focusing Modes
Available Shooting Modes p. 222
Face
Detect
The camera detects a face and sets the focus,
exposure*
1
and white balance*
2
. In addition, the
camera meters the subject so that the face is
correctly illuminated when the flash fires. If no face
is detected, the camera shoots using [AiAF].
*1 Only in Evaluative Metering mode (p. 98).
*2 Only in (p. 100)
(No frame) AiAF
The camera detects the subject and highlights the
AF frames, from 9 available points, that it will use
to determine the focus.
Center
The AF frame will be fixed to center.
This is recommended when the target subject is at
the center of the composition. You can change the
size of the AF frame (p. 91).
1
Select [AF Frame].
1. Press the button.
2. In the menu, use the or
button to select [AF Frame].
2
Accept the setting.
1. Use the or button to select an
AF frame option.
2. Press the button.
• Refer to Changing the AF Frame
Size (p. 91).
COPY
90
z [Face Detect] cannot be used when the LCD monitor is
turned off.
z The AF frame appears as follows when the shutter button is
pressed halfway.
Face Detect Feature
• Maximum of three frames will be displayed at the positions of the
faces the camera recognizes. At this point, the frame the camera
judges to be the main subject appears in white while the others
appear in gray. When the shutter button is pressed halfway and
focusing is successful, up to nine green AF frames may appear.
• The camera will shoot using [AiAF] not the [Face Detect] function if
a white frame fails to appear and only gray frames display, or if a
face is not detected.
• The camera may mistakenly identify non-human subjects as a face.
• In certain cases, faces may not be detected.
Examples:
- If faces appear extremely small, large, dark or bright, relative to
the overall composition.
- Faces turned to the side or at a diagonal, or faces with a portion
hidden.
- Green : In focus
- Yellow : Focusing difficulty (AF frame set to [Center])
- No AF frame : Focusing Difficulty (AF frame set to
[Face Detect] or [AiAF])
COPY
91
Various Shooting Methods
Changing the AF Frame Size
When the [AF Frame] is set to [Center], the AF frame can be resized
to correspond to the subject. Select [Small] to constrict the focal
frame to suit a small subject or to focus on a particular area of a
subject.
1
Select [AF Frame Size].
1. Press the button.
2. In the menu, use the or
button to select [AF Frame Size].
2
Accept the setting.
1. Use the or button to select
[Normal] or [Small].
2. Press the button.
The setting is configured to [Normal] when the digital zoom
or digital tele-converter is used.
COPY
92
Once the focus is fixed to a subject’s face, the frame can be set to
follow the subject within a certain range.
Selecting the Face to Focus On
(Face Select and Track)
Available Shooting Modes p. 222
To use the Face Select and Track function, first configure the
following settings.
- Set the AF frame to [Face Detect] (p. 89).
- Register the (Face Select and Track) function to the
button (p. 112).
1
Select a face you wish to focus on.
1. When a face is detected, press the
button.
• The Face Select mode will activate
and a green face frame ( ) will
display around the main subject.
Even if the subject moves, the frame
will follow the subject within a certain
range.
2. Select the person you wish to focus
on.
• When several faces have been
detected, pressing the or
button will move the face frame to
another subject.
• The face frame will not display when
a face is not detected.
• Holding down the DISP. button will
display face frames (up to 35) of all
the detected faces (green: face of
main subject, white: detected faces).
• Pressing the button cancels the Face Select mode.
Face Frame
Face Frame
COPY
93
Various Shooting Methods
3. Press the button again.
• The camera exits Face Select mode,
and the face frame ( ) of the main
subject will change to white. The
frame will continue to follow the
subject within a certain range.
2
Shoot.
1. Press the shutter button halfway.
• The face frame ( ) of the main subject will change into .
2. Press the shutter button all the way to shoot.
In the following cases, the Face Select mode will be canceled.
- When turning the power off and back on.
- When using the digital zoom.
- When the MENU button is pressed to display the menu.
- When a selected face cannot be tracked for several seconds.
- When the LCD monitor is turned off.
COPY
94
It may be difficult to focus on the following types of subjects.
• Subjects with extremely low contrast to the surroundings
• Scenes with a mixture of near and far subjects
• Subjects with extremely bright objects at the center of the
composition
• Subjects that are moving quickly
• Subjects through glass
Shooting with the Focus Lock
Focus lock can be operated in any shooting mode.
Shooting with the AF Lock
Shooting Hard-to-Focus Subjects
(Focus Lock, AF Lock)
Available Shooting Modes p. 222
1
Aim the camera so that an object at the same
focal distance as the main subject is centered
in the viewfinder or in the AF frame displayed
on the LCD monitor.
2
While pressing the shutter button halfway, re-
compose the shot.
3
Press the shutter button all the way to shoot
the image.
1
Turn on the LCD monitor.
2
Aim the camera so that an object at the same
focal distance as the main subject is centered
in the AF frame.
3
Press and hold the shutter button halfway and
press the / button.
• The icon will display.
COPY
95
Various Shooting Methods
To Cancel the AF Lock
Press the / button.
You can set the exposure and focus separately. This is effective when
the contrast is too strong between the subject and background or when
a subject is backlit.
4
Re-aim the camera to compose the shot as
desired and shoot.
z When shooting with the focus lock or AF lock using the LCD
monitor, setting [AF Frame] to [Center] (p. 89) makes
shooting easier since the camera focuses using the center
AF frame only.
z The AF lock is convenient because you can let go of the
shutter button to compose the image. Moreover, the AF lock
is still effective after the picture is taken, allowing you to
capture a second image with the same focus.
z The AF frame will not appear in Movie mode.
z When shooting through glass, bring your camera as close to
the glass as possible and shoot so that there is no reflection
from the glass.
Locking the Exposure Setting (AE Lock)
Available Shooting Modes p. 222
1
Turn on the LCD monitor.
2
Press the button and select (Flash off).
3
Aim the camera at the subject on which you
wish to lock the exposure.
4
Press the shutter button halfway and press the
button.
• The icon will display.
5
Re-aim the camera to compose the shot as
desired and press the shutter button fully.
COPY
96
To Cancel the AE Lock
Press the button.
You can lock the flash exposure so that the exposure settings are
correctly set regardless of the composition of your subject.
To Cancel the FE Lock
Press the button.
z In Movie mode, AE lock can also be set/canceled (p. 79).
z You can use the FE lock when using the flash.
Locking the Flash Exposure Setting
(FE Lock)
Available Shooting Modes p. 222
1
Turn on the LCD monitor.
2
Press the button and select (Flash on).
3
Aim the camera at the subject on which you
wish to lock the exposure.
4
Press the shutter button halfway and press the
button.
• The flash will pre-fire and will display.
5
Re-aim the camera to compose the shot as
desired and press the shutter button fully.
COPY
97
Various Shooting Methods
Adjust the exposure compensation to a positive value to avoid making
the subject too dark when it is backlit or shot against a bright
background. Adjust the exposure compensation to a negative value to
avoid making the subject too bright in night shots or when shot against
a dark background.
To Cancel the Exposure Compensation
Restore the compensation value to [0].
Adjusting the Exposure Compensation
Available Shooting Modes p. 222
1
Adjust the exposure.
1. Press the button.
2. Use the or button to select
and the or button to adjust the
setting.
3. Press the button.
In Movie mode, the exposure shift can be set/canceled (p. 79).
COPY
98
Switching between Metering Modes
Available Shooting Modes p. 222
Evaluative
Appropriate for standard shooting conditions,
including backlit scenes. The camera divides
images into several zones for metering. It
evaluates complex lighting conditions, such as
the position of the subject, the brightness, the
direct light, and the backlighting, and adjusts the
settings to the correct exposure for the main
subject.
Center Weighted
Avg.
Averages the light metered from the entire
frame, but gives greater weight to the subject
matter at the center.
Spot
Adjusts the exposure according to the subject in
the center of the frame (meters the area within
the spot AE point at the center of the LCD
monitor). Use this mode when there is a large
divergence in brightness between the subject
and surroundings.
1
Change the metering
method.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
The metering method is fixed to [Evaluative] in the Long
Shutter mode.
COPY
99
Various Shooting Methods
You can set the shutter speed to a slow setting to make dark subjects
appear brighter.
Setting the Shutter Speed
(Long Shutter Mode)
Available Shooting Modes p. 222
1
Select the Long Shutter
Mode.
1. Press the button.
2. Use the or button to select
.
3. Press the button.
2
Change the shutter speed.
1. Use the or button to change
the shutter speed.
2. Press the button.
• The higher the value, the brighter the
recorded image becomes.
• If you press the DISP. button at this point, you will return to the
Exposure Compensation setting screen.
z The brightness of the image appearing on the LCD monitor
and the recorded image may differ.
z The nature of CCD image sensors is such that noise in the
recorded image increases at long shutter speeds. This
camera, however, applies special processing to images shot
at shutter speeds of 1.3 seconds or slower to eliminate the
noise, thereby producing high-quality images. A certain
amount of processing time, however, may be required before
the next image can be shot.
COPY
100
Normally, the (Auto) white balance setting selects an optimal white
balance. When the setting cannot produce natural looking colors,
change the white balance using a setting appropriate for the light
source.
z Use the LCD monitor to confirm that the image was recorded
at the desired brightness.
z Please note that camera shake becomes a factor at low
shutter speeds. Shoot with the camera attached to a tripod.
z Use of the flash may result in an over-exposed image. If this
occurs, shoot with the flash set to .
Adjusting the Tone (White Balance)
Available Shooting Modes p. 222
Auto Settings are automatically set by the camera.
Day Light For recording outdoors on a bright day.
Cloudy
For recording under overcast, shady or twilight
skies.
Tungsten
For recording under tungsten and bulb-type 3-
wavelength fluorescent lighting.
Fluorescent
For recording under warm-white, cool-white or
warm-white (3-wavelength) fluorescent lighting.
Fluorescent H
For recording under daylight fluorescent, or daylight
fluorescent-type 3-wavelength fluorescent lighting.
Custom
Adjusts the optimal white balance for the shooting
conditions using the white balance data retained in
the camera from a white-colored object, such as a
white paper or cloth.
COPY
101
Various Shooting Methods
1
Select a white balance
setting.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
The white balance setting cannot be adjusted when or
is selected for My Colors.
Using the Custom White Balance
Take a custom white balance (Custom) reading for the following
situations that are difficult for the
(Auto) setting to detect correctly.
• Shooting subjects of monotone color (such as sky, sea or forest)
• Shooting with a particular source of light (such as a mercury-vapor
lamp)
• Shooting close-ups (Macro)
1
Select .
1. Press the button.
2. Use the or button to select
and choose with the or
button.
COPY
102
2
Aim the camera at a piece
of white paper or cloth
and press the button.
• Display the white paper or cloth so
that it fills the entire LCD monitor.
Please note that the center frame
will not appear when the digital
zoom is in use or displays.
• You can also use the optical viewfinder to retain white color
data.
3
Press the button.
z You are recommended to set the shooting mode to
and the exposure compensation setting to [±0] before
setting a custom white balance.
The correct white balance may not be obtained when the
exposure setting is incorrect (image appears completely
black or white).
z Shoot with the same settings as when reading the white
balance data. If the settings differ, the optimal white
balance may not be set.
In particular, the following should not be changed.
- ISO Speed
-Flash
Setting the flash to or is recommended. If the
flash fires when reading the white balance data with the
flash set to , make sure that you also use the flash
when you shoot.
z Since the white balance data cannot be read in Stitch
Assist mode, preset the white balance in another shooting
mode beforehand.
z White balance data is retained even if the camera’s power
is turned off.
COPY
103
Various Shooting Methods
You can change the look of an image when shooting.
* If the image contains colors that are the same as human skin, those colors will also be
changed. You may not obtain the expected results depending on the skin color.
Shooting in a My Colors Mode
Available Shooting Modes p. 222
My Colors Off Records normally with this setting.
Vivid
Emphasizes the contrast and color saturation to
record bold colors.
Neutral
Tones down the contrast and color saturation to
record neutral hues.
Sepia Records in sepia tones.
B/W Records in black and white.
Positive Film
Use this option to make red, green or blue colors
more intense like the Vivid Red, Vivid Green or
Vivid Blue effects. It can produce intense natural-
appearing colors like those obtained with positive
film.
Lighter Skin
Tone*
Use this option to make skin tones lighter.
Darker Skin
Tone*
Use this option to make skin tones darker.
Vivid Blue
Use this option to emphasize blue tints. It makes
blue subjects, such as the sky or ocean, more
vivid.
Vivid Green
Use this option to emphasize green tints. It makes
green subjects, such as mountains, new growth,
flowers and lawns, more vivid.
Vivid Red
Use this option to emphasize red tints. It makes
red subjects, such as flowers or cars, more vivid.
Custom Color
Use this option to adjust the contrast, sharpness
or saturation settings or the color balance
between red, green, blue and skin tones*. It can
also be used to make subtle adjustments, such as
making blue colors more vivid or face colors
brighter.
COPY
104
In
In (Setting the Custom Colors Mode)
1
Select a My Colors setting.
1. Press the button.
2. Use the or button to select
and the or button to change
the option.
3. Press the button.
1
Select .
1. Press the button.
2. Use the or button to select
and choose with the or
button.
2
Adjust the setting.
1. Press the button.
2. Use the or button to select
[Contrast], [Sharpness], [Saturation],
[Red], [Green], [Blue] or [Skin Tone].
3. Use the or button to adjust the
setting.
• The adjustment results show in the
LCD monitor.
• If you press the DISP. button, you will return to the screen
where you can select a My Colors mode.
3
Press the button.
• Returns you to the shooting screen to continue shooting.
Select a setting
Make adjustments
COPY
105
Various Shooting Methods
You can shoot images with the original colors transformed. This can be
performed on movies as well as still images, allowing you to enjoy
photographing with image or movie effects. However, depending on
the shooting conditions, the images may appear rough or you may not
get the expected color. Before you try to photograph important
subjects, we highly recommend that you shoot trial images and check
the results. If you set [Save Original] (p. 109) to [On] when shooting a
still image, you can record the original image as well the transformed
one.
Shooting in the Color Accent Mode
Changing Colors
Available Shooting Modes p. 222
Color Accent
Use this option to have only the color specified in
the LCD monitor remain and to transform all
others to black and white.
Color Swap
Use this option to transform a color specified in
the LCD monitor into another. The specified
color can only be swapped into one other color,
and multiple colors cannot be chosen.
The ISO speed will rise depending on the shooting conditions,
which may increase the noise in the image.
1
Select the Color Accent mode.
When shooting still images:
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select .
4. Press the button.
COPY
106
When shooting movies:
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select .
4. Press the button.
2
Press the button.
•
The camera will switch to Color Input
mode and the display will alternate
between the original image and the
color accent image (using the
previously set color).
3
Aim the camera so that the color you wish to
retain appears at the center of the LCD
monitor and press the button.
• Only one color can be specified.
• You can use the or button to specify the range of colors
that are retained.
4
Press the button to complete the setting,
then shoot.
z The default color accent is green.
z You may not obtain the expected results if you use the flash.
z The specified color accent and color range is retained even if
the camera’s power is turned off.
–5: Only takes the color that you want to retain
+5: Also takes colors close to the one that you want to retain
COPY
107
Various Shooting Methods
Shooting in the Color Swap Mode
1
Select the Color Swap mode.
When shooting still images:
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select .
4. Press the button.
When shooting movies:
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select .
4. Press the button.
Original Color
(Before Swapping)
Desired Color
(After Swapping)
COPY
108
2
Press the button.
•
The camera will switch to Color Input
mode and the display will alternate
between the original image and the
color swap image (using the
previously set color).
3
Aim the camera so that the original color
appears at the center of the LCD monitor and
press the button.
• Only one color can be specified.
• You can use the or button to specify the range of colors
that are swapped.
4
Aim the camera so that the desired color
appears at the center of the LCD monitor and
press the button.
• Only one color can be specified.
5
Press the button to complete the setting,
then shoot.
z The default setting for Color Swap mode changes green into
white.
z You may not obtain the expected results if you use the flash.
z The colors specified in the Color Swap mode and the color
range are retained even if the camera’s power is turned off.
–5: Only takes the color that you want to swap
+5: Also takes colors close to the one that you want to swap
COPY
109
Various Shooting Methods
Changing the Save Method for the Original Image
When shooting still images in the Color Accent or Color Swap mode,
you can set whether or not to save the original image as well as the
transformed one.
1
Select [Save Original].
1. Press the button.
2. In the menu, use the or
button to select [Save Original].
2
Accept the setting.
1. Use the or button to select
[On] or [Off].
2. Press the button.
When [Save Original] is Set to [On]
- Only the transformed image displays in the LCD monitor
while shooting in the Color Accent or Color Swap mode.
- The transformed image is reviewed in the LCD monitor
after shooting in the Color Accent or Color Swap mode.
If you erase the image at this point, the original image is
erased along with the transformed image. Exercise
adequate caution before deleting a file.
- The images are numbered consecutively. The original
images are assigned the lower number and the
transformed color accent or color swap images the next
number.
- Since two images are recorded with each shot, the number
of shots remaining is approximately half the number
displayed when this function is set to [Off].
COPY
110
You can display vertical and horizontal grid lines, a 3:2 print area
guide, or both on the LCD monitor while shooting to help check the
position of your subject.
Setting the Display Overlays
Available Shooting Modes p. 222
Off –
Grid Lines
Displays grid lines to divide the screen into 9 parts. Helps
confirm the vertical and horizontal positioning of the subject.
3:2 Guide
Allows you to confirm the print area (3:2 aspect ratio) for an
L-size or postcard-size print.* Areas outside the printable
area are grayed out.
* Images are still recorded at the standard aspect ratio of 4:3.
Both
Displays both the grid lines and the 3:2 guide
simultaneously.
1
Select [Disp. Overlay].
1. Press the button.
2. In the menu, use the or
button to select [Disp. Overlay].
2
Accept the setting.
1. Use the or button to select
[Off], [Grid Lines], [3:2 Guide] or
[Both].
2. Press the button.
z Only [Grid Lines] can be used when or is selected, or
in Movie mode.
z The grid lines and 3:2 guide will not be recorded in the
image.
COPY
111
Various Shooting Methods
If you set Auto Category to [On], images are automatically sorted into
preset categories as they are recorded.
Categorizing Images Automatically
(Auto Category)
Available Shooting Modes p. 222
People
For images shot in , or mode, or images with
faces detected when [AF Frame] is set to [Face Detect].
Scenery For images shot in
or
mode.
Events For images shot in , , , , or mode.
1
Select [Auto Category].
1. Press the button.
2. In the menu, use the or
button to select [Auto Category].
2
Accept the setting.
1. Use the or button to select
[On] or [Off].
2. Press the button.
Movies are not automatically categorized, but they can be
categorized using the My Category function (p. 120).
COPY
112
You can register a function that you often use when shooting with the
button. The following functions can be registered.
* Sets the sound registered to , found in the [Shutter Sound] section of the My
Camera menu.
Registering Settings to the Print/Share
Button
Available Shooting Modes p. 222
Menu Item Page Menu Item Page
Not Assigned — Digital Tele-converter p. 62
Face Select p. 92 DISP. Overlay p. 110
+/
–
(Exp.) p. 97 Rec. Movie p. 79
White Balance p. 100 Display Off p. 113
Custom White Balance
p. 101 Play Sound Effect* p. 57
Red-Eye Corr. p. 77
1
Select [Set button].
1. Press the button.
2. In the menu, use the or
button to select [Set button].
3. Press the button.
2
Accept the setting.
1. Use the , , or button to
select the function you wish to
register.
2. Press the button.
3. Press the button.
• If displays to the icon’s lower right, you can register the
function, but you cannot use it with some shooting modes or
settings even if you press the button.
COPY
113
Various Shooting Methods
To Cancel the Shortcut Button
Select in Step 2.
Using the Button
1
Press the button.
• , and : switches the settings each time the
button is pressed.
• , and : displays the corresponding setup screen.
• : records the white balance data each time the button
is pressed. As the frame does not appear at this point, position
the white paper or cloth so it appears in the center of the LCD
monitor and then press the button. After using this
function one time, the white balance setting changes to
.
• : pressing the button when the mode switch is set to
starts movie recording with the recording pixels and frame
rate settings selected in (Standard) mode.
• : when the button is pressed, the LCD monitor display
will turn off. Pressing a button other than the power button, or
changing the camera’s vertical/horizontal orientation will
restore the LCD monitor display.
• : pressing the button emits a sound and is useful for
directing your subject’s attention to the camera right before
taking a shot.
COPY
114
Playback/Erasing
Also refer to Viewing Still Images (p. 16).
To Cancel the Magnified Display
Press the zoom lever toward . (You can also cancel it immediately
by pressing the MENU button.)
Viewing Magnified Images
1
Press the zoom lever
toward .
• will display and a magnified
portion of the image will display.
• Images can be magnified up to a
factor of approximately 10x.
2
Use the , , or button to change the
display position.
• If you press the FUNC./SET button while in magnified display,
the camera switches to Image Advance mode and will
display. You can use the or button to advance to the next
or previous image at the same level of magnification. The
image advance mode is canceled when you press the FUNC./
SET button again.
• You can change the magnification level with the zoom lever.
Movie frames and index playback images cannot be magnified.
Approximate Location
of the Displayed Area
COPY
115
Playback/Erasing
To Cancel Index Playback
Press the zoom lever toward .
Viewing Images in Sets of Nine
(Index Playback)
1
Press the zoom lever
toward .
• Up to nine images can be viewed at
once in index playback.
• Use the , , or button to
change the image selection.
Switching between Sets of Nine Images
The jump bar will display if you press the
zoom lever toward while in index
playback and you can switch the display
between sets of nine images.
• Use the or button to move to the
previous or next set of nine images.
• Hold the FUNC./SET button down and
press the or button to jump to the
first or last set.
To Cancel Index Playback
Press the zoom lever toward .
Selected Image
Movie
Jump Bar
COPY
116
Focus Check display allows you to check the focus of images taken.
Moreover, as you can change the display size and switch images, you
can easily check facial expressions and whether a subject’s eyes are
closed.
Displaying the Focus Check
Changing the Display Size or Display Position
Checking the Focus and Peoples’
Expressions (Focus Check Display)
1
Press the button several
times until the focus check
screen appears.
• Frames are displayed on the image
as follows.
• The orange frame allows you to change the display size, the
display position and the display frame.
2
Press the zoom lever
toward .
• Bottom right will be displayed
prominently and the display size and
display position can be changed.
Frame Color Content
Orange
Displays the range of the image displayed at
bottom right.
White
Displays at the position at which the image is in
focus.
Gray
Display around faces detected in Playback
mode.
COPY
117
Playback/Erasing
To Cancel the Focus Check Display
Press the MENU button.
Switching Frames
3
Make changes.
• Change the display size using the
zoom lever.
• Change the display position using
the , , or button.
• If you move the position of the
orange frame, pressing the FUNC./
SET button will return the orange
frame to its original position.
2
Press the button.
• When multiple frames display
around focal points or multiple faces
are detected, pressing the FUNC./
SET button switches the position of
the orange frame. After you change
the display size, the orange frame
will adjust to the size of the face
when you switch the position of the frame.
COPY
118
When you have many images recorded onto a memory card, it is
handy to use the five search keys below to jump over images to find
the object of your search.
Jumping to Images
Jump Shot Date
Jumps to the first image of each shooting
date.
Jump to My Category
Jumps to the first image of each category
sorted by the Auto Category (p. 111) or My
Category (p. 120) functions.
Jump to Folder Jumps to the first image in each folder.
Jump to Movie Jumps to a movie.
Jump 10 Images Jumps 10 images ahead.
Jump 100 Images Jumps 100 images ahead.
1
In Single Image Playback mode, press the
button.
• The camera will switch to Jump Search mode.
2
Use the or button to
select a search key.
• The screen sample will vary slightly
according to the search key.
• You can show/hide image
information using the DISP. button.
Image Information
COPY
119
Playback/Erasing
3
Display the Images.
, , Selected:
1. Use the or button to select
date, category or folder for playback.
• If no images are organized in
categories, you can select only
(None) if you select (My
Category).
2. Press the button.
• The camera will switch to Defined Playback mode and display
a blue frame. You can limit playback to the images
corresponding to the search key.
• Press the button to cancel Defined Playback mode.
, , Selected:
1. Press the or button.
• Pressing the MENU button cancels
the setting.
• Press the FUNC./SET button to
switch the camera to Defined
Playback mode when the is
selected.
The Defined Playback mode will be canceled under the
following circumstances.
- Changing categories (while using My Category to define
images)
- When selecting images in a range
- When displaying images not supported in defined playback
- When newly saving images that have effects added or are
edited
- When images are deleted using [Erase] from the menu
Select the search key
COPY
120
You can organize images into prepared categories. The following
operations can be performed if the images are sorted into categories.
Category Selection Methods
Organizing Images by Category
(My Category)
• Image searches (p. 118) • Erase (p. 151)
• Slide Show (p. 131) • Configure print settings (p. 156)
• Protect (p. 147)
People Category 1–3
Scenery To Do
Events
Select For viewing and selecting images singly.
Select Range
For picking a first and last image and selecting all the
images in the range.
1
Select [My Category].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Choose a selection method.
1. Use the or button to choose a
selection method.
2. Press the button.
COPY
121
Playback/Erasing
[Select]
[Select Range]
3
Categorize the images.
1. Use the or button to select
images to categorize.
2. Use the or button to select a
category.
3. Press the button.
• Pressing the FUNC./SET button again cancels the setting.
• This also can be set in the Index Playback mode.
• Press the MENU button to complete the setting.
3
Select the first image.
1. Press the button.
2. Use the or button to select the
first image to categorize.
3. Press the button.
COPY
122
4
Select the last image.
1. Use the button to select [Last
Image].
2. Press the button.
3. Use the or button to select the
last image to categorize.
4. Press the button.
• An image with a lower number than
the first image cannot be selected as
the last image.
• Up to 500 images can be selected.
5
Select a category.
1. Press the button.
2. Use the or button to select a
category.
6
Accept the setting.
1. Press the button and choose
[Select].
2. Press the button.
• The screen will return to the
selection method screen.
• Selecting [Deselect] cancels categorization of the selected
range.
COPY
123
Playback/Erasing
You can trim a required portion of a recorded image and save it as a
new image file.
Trimming a Portion of an Image
1
Select [Trimming].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Select an image.
1. Use the or button to select an
image for trimming.
2. Press the button.
• The trimming frame (the area of the
image which can be trimmed) is
displayed in green.
3
Adjust the trimming frame.
• You can change the size of the
trimming frame using the zoom
lever. However, the number of the
recording pixels of the saved image
will differ according to the size of the
trimmed image.
• You can change the position of the
trimming frame using the , ,
or button.
• Press the DISP. button to change
the vertical/horizontal orientation of the trimming frame.
• If a face is detected, a gray frame appears around the face
displayed in the top left screen. Trimming can be performed
around this gray frame. If multiple frames are displayed, you
can switch between frames by pressing the button.
Image after trimming
Trimming frame
Recording pixels
after trimming
COPY
124
4
Save the image.
1. Press the button.
2. Use the or button to select
[OK].
3. Press the button.
• The trimmed image is saved as a
new image file.
• To continue trimming another image, repeat from Step 2.
5
Display the saved image.
1. Press the button.
2. Use the or button to select
[Yes].
3. Press the button.
• If you select [No], the display will
return to the menu.
z Movies, or images, and images recorded in
cannot be trimmed.
z You may not be able to trim images recorded by a different
camera.
z The aspect ratio for images which can be trimmed will be
fixed to 4:3 (or 3:4 if the image is vertically oriented).
z The recording pixels of a trimmed image will be less than the
image before trimming.
COPY
125
Playback/Erasing
Viewing Movies
1
Display the movie file.
1. Use the or button to select a
movie.
2. Press the button.
• Images with a icon are
movies.
2
Play the movie.
1. Use the or button to select .
2. Press the button.
• The movie will pause if you press the
FUNC./SET button during playback.
It will resume when you press the
button again.
• When playback ends, the movie
stops at the last frame displayed.
Press the FUNC./SET button to
display the movie control panel.
• You can switch between showing/
hiding the playback progress bar by
pressing the DISP. button while
playing a movie.
• If playback was halted partway through in the prior viewing
session, playback will resume from the last frame displayed.
Volume Level (Adjust it
with the or button)
Movie Control Panel
Playback Progress Bar
Time movie was shot
COPY
126
Operating the Movie Control Panel
Use the or button to select a control and press the FUNC./SET
button.
Exit
Ends playback and returns to single image
playback.
Print
An icon will display when a printer is connected.
See the Direct Print User Guide for details.
Play Starts playback.
Slow Motion
You can use the button to slow down or the
button to speed up playback.
First Frame Displays the first frame.
Previous Frame Rewinds if the FUNC./SET button is held down.
Next Frame
Fast Forwards if the FUNC./SET button is held
down.
Last Frame Displays the last frame.
Edit Switches to the Movie Editing mode.
Movies cannot be played in the Index Playback mode.
z Use the television’s controls to adjust the volume when
playing a movie on a TV set (p. 176).
z Sound cannot be played back in slow motion playback or
.
COPY
127
Playback/Erasing
You can delete portions of recorded movies.
*1 When the shooting interval is 1 sec.
*2 When the shooting interval is 2 sec.
Editing Movies
Movies 1 second or longer before editing can be edited in 1-
second increments, but those that are protected or less than 1
second long ( of 15 sec.*
1
or 30 sec.*
2
) cannot be edited.
1
Select [Edit].
1. Use the or button to select
from the movie editing panel.
2. Press the button.
• The movie editing panel and the
movie editing bar will display.
2
Edit the movie.
1. Use the or button to select
(Cut Beginning) or (Cut End).
2. Use the or button to specify
the cut point ( ).
• While moving the cut point using the
or button, is displayed
every 1 second (or every 15
seconds*
1
or 30 seconds*
2
in ),
allowing you to cut the movie at the
indicated point.
*1 When the shooting interval is 1 sec.
*2 When the shooting interval is 2 sec.
• Even if you specify the cut point at a position other than ,
selecting will delete the beginning portion of the movie from
a point one before your specified cut point, and selecting
will delete the latter portion of the movie from a point one
after your specified cut point. The edited movie will be
saved.
• To check a temporarily edited movie, select (Play) and
press the FUNC./SET button.
Movie Editing Panel
Movie Editing Bar
COPY
128
• To continue editing, repeat Step 2.
• Selecting (Exit) cancels the edit and restores the movie
control panel.
3
Select [Save].
1. Use the or button to select .
2. Press the button.
4
Save the file.
1. Use the , , or button to
select [New File] or [Overwrite]
2. Press the button.
• [New File] saves the edited movie
under a new file name. The pre-edit
data is left unchanged.
Note, if you press the FUNC./SET button while saving the
movie, saving is canceled.
• [Overwrite] saves the edited movie with its original name. The
pre-edit data is lost.
• When there is not enough space left on the memory card, only
[Overwrite] can be selected.
Depending on the movie’s file size, it may take some time to
save an edited movie. If the battery runs out of charge partway
through, edited movie clips cannot be saved. When editing
movies, it is recommended to use a fully charged battery or the
separately sold AC Adapter Kit ACK-DC10 (p. 202).
COPY
129
Playback/Erasing
Images can be rotated clockwise 90° or 270° in the display.
Rotating Images in the Display
1
Select [Rotate].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Rotate the image.
1. Use the or button to select an image to rotate.
2. Press the button.
• Cycle through the 90°/270°/original orientations with each
press of the FUNC./SET button.
• This also can be set in the Index Playback mode.
When images are downloaded to a computer, the orientation of
images rotated by the camera will depend upon the software
used to download the images.
As the orientation of an image is recorded, the image will be
shown in its rotated orientation the next time it is displayed.
Original 90° 270°
COPY
130
You can select the transition effect displayed when switching between
images.
Playback with Transition Effects
No transition effect.
The displayed image darkens and the next image gradually brightens
until it is displayed.
Press the button to have the previous image display from the left
and the button to have the next image display from the right.
1
Select [Transition].
1. Press the button.
2. In the menu, use the or
button to select .
2
Accept the setting.
1. Use the or button to select an
effect.
2. Press the button.
COPY
131
Playback/Erasing
Automated playback of images on the memory card.
Image settings for slide shows are based on the Digital Print Order
Format (DPOF) standard.
Automated Playback (Slide Shows)
All Images Plays all images on a memory card in order.
Date Plays images bearing a specified date in order.
My Category Plays the images in the selected category in order.
Folder Plays images in a specified folder in order.
Movies Plays movie files only, in order.
Stills Plays still images only, in order.
–Custom 1–3
Plays the images selected for each slide show,
Custom 1, Custom 2 or Custom 3, in order
(p. 134).
1
Select [Slide Show].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Select a playback method.
1. Press the button.
2. Use the or button to select the
slide show type.
• ,
,
: Press the FUNC./SET
button to select a date, category or
folder to be played back (p. 133).
• – : Press the FUNC./SET button to select the images to
be played back (p. 134).
• If you want to add a transition effect to play back images, use
the button to select [Effect] and choose the type of effect
with the or button (p. 132).
COPY
132
To Stop the Slide Show
Press the MENU button.
Transition Effects
You can select the transition effect used when one image is replaced
by another.
3
Start the slide show.
1. Press the button.
2. Use the or button to select
[Start].
3. Press the button.
• The following functions are available
during slide shows.
- Pausing/resuming: Press the FUNC./SET button.
- Fast forwarding/rewinding: Press the or button
(continue to hold the button to switch between images more
rapidly).
No transition effect.
The new image gradually brightens as it moves upward from the
bottom.
The new image first appears in a cross shape and gradually expands
to display the full image.
Portions of the new image move horizontally, then the image
expands to display the full image.
In Single Image Playback mode, you can start a slide show
from the current image displayed by holding the FUNC./SET
button and pressing the button. Please note that if you do
this while the last image shot is displayed, the slide show will
start from the first image using the same date.
COPY
133
Playback/Erasing
Select a Date/Category/Folder to Play Back
(//)
1
Select a playback
method.
1. Use the or button to select
, or .
2. Press the button.
2
Select images to play
back.
1. Use the or button to select
a date/category/folder to
playback.
2. Press the button.
• A 3 will appear on selected images.
• To cancel the selection: press the FUNC./SET button again.
• Multiple selections can be made for the date/category/folder.
• The images will play back in the order of selection.
• To check the images for each date/category/folder: use the
or button.
• Pressing the MENU button completes the setting.
COPY
134
Selecting Images for Playback ( – )
Select only the images that you wish to play back and save them as a
slide show (Custom 1, 2 or 3). Up to 998 images can be selected.
They will be played back in their order of selection.
1
Select a playback
method.
1. Use the or button to select
, or .
• Only the icon will display at
first.
2. Press the button.
• When you set , the icon will change to and will
display. and will change in the same way when they
are set.
2
Select images to play
back.
1. Use the or button to choose
images to play back.
2. Use the button to select/
deselect the images.
• You can also select images in the
Index Playback mode.
• Pressing the MENU button
completes the setting.
Selecting All Images
1. After selecting – in Step 1, use the button to
select [Mark all] and press the FUNC./SET button.
2. Use the button to select [Mark all], press the FUNC./
SET button.
3. Use the button to select [OK] and press the FUNC./
SET button.
To deselect all images, select [Reset].
Number indicating
the selection order
Check mark
indicating selection
COPY
135
Playback/Erasing
Adjusting the Play Time and Repeat Settings
• Play Time
Sets the duration that each image displays. Choose between 3–10
seconds, 15 seconds and 30 seconds. Displaying time can vary
slightly depending on the image.
• Repeat
Sets whether the slide show stops when all the slides have been
displayed or continues until stopped.
1
Select [Set up].
1. Use the or button to select
[Set up].
2. Press the button.
2
Configure the setting.
1. Use the or button to select
[Play Time] or [Repeat].
2. Use the or button to select
an option.
3. Press the button.
COPY
136
You can correct red eyes in recorded images.
Red-Eye Correction Function
Red eyes may not be automatically detected in some images
or the results may not turn out as you intended.
We recommend that you use [New File] to save corrected
images.
Examples:
- Faces near the screen edges or faces that appear extremely
small, large, dark or bright in relation to the overall image.
- Faces turned to the side or at a diagonal, or faces with a
portion hidden.
1
Select [Red-Eye Correction].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Select an image.
1. Use the or button to select the
image you wish to correct red eyes.
2. Press the button.
• A frame will automatically display
where a red-eye is detected.
• If red-eye is not automatically detected, select [Add Frame]
with the or button and press the FUNC./SET button
(p. 138).
• To cancel the correction frame, select [Remove Frame] and
press the FUNC./SET button (p. 139).
COPY
137
Playback/Erasing
3
Correct the image.
1. Use the , , or button to
select [Start].
2. Press the button.
4
Save the image.
1. Use the , , or button to
select [New File] or [Overwrite].
2. Press the button.
• [New File]: Saved as new file with a
new name. The uncorrected image
is stored. The new image is stored as the last file.
• [Overwrite]: Saved with the same file name as the uncorrected
image. The uncorrected image is erased.
• When [New File] is selected, proceed to Step 5.
• To continue correcting red-eye in another image, repeat from
Step 2.
5
Display the saved image.
1. Press the button.
2. Use the or button to select
[Yes].
3. Press the button.
• Selecting [No] returns to the
menu.
z Red-eye correction cannot be performed on movies.
z Overwriting cannot be performed on protected images.
COPY
138
z When there is not enough space left on the memory card,
red-eye correction cannot be performed.
z Although you can apply red-eye correction any number of
times to an image, the image quality will gradually
deteriorate with each application.
z Since the correction frame will not appear automatically on
images that have already been corrected once with the Red-
Eye Correction function, use the [Add Frame] option to
correct them.
Add Correction Frame
1
Select [Add Frame].
1. Use the , , or button to
select [Add Frame].
2. Press the button.
• A green frame will display.
2
Adjust the position of the
frame.
1. Use the , , or button to
move the frame.
• Size of the frame can be changed
with the zoom lever.
3
Add a correction frame.
1. Press the button.
• The correction frame will be added and the frame color will
change to white.
• To add additional frames, adjust the position and then press
the FUNC./SET button.
• Up to 35 frames can be added.
• When you finish adding frames, press the MENU button.
COPY
139
Playback/Erasing
Removing Correction Frames
To correctly perform red-eye correction, take note of the
following (refer to the image in Step 2 on page 138):
- Adjust the correction frame size so that it only surrounds
the red-eye portion to be corrected.
- When there are several subjects with red-eye, be sure to
add one correction frame per subject.
1
Select [Remove Frame].
1. Use the , , or button to
select [Remove Frame].
2. Press the button.
2
Select a frame you wish to
remove.
1. Use the or button to select a
frame to remove.
• The selected frame will appear in
green.
3
Delete the frame.
1. Press the button.
• The selected frame will disappear.
• To continue deleting frames, return to Step 2.
• When you finish deleting frames, press the MENU button.
COPY
140
You can add effects to recorded images (stills only) using the My
Colors function. The following selection of My Colors effects is
available. For details, see p. 103.
Adding Effects with the My Colors Function
Vivid Lighter Skin Tone
Neutral Darker Skin Tone
Sepia Vivid Blue
B/W Vivid Green
Positive Film Vivid Red
1
Select [My Colors].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Select an image.
1. Use the or button to select an
image.
2. Press the button.
COPY
141
Playback/Erasing
3
Select a My Colors type.
1. Use the or button to select the
My Colors type.
• The displayed image will reflect the
My Colors effect.
• You can press the zoom lever
toward to check the image at a
higher magnification. While the image is zoomed, you can
press the FUNC./SET button to switch between the image
transformed with the My Colors effect and the original non-
transformed image.
2. Press the button.
4
Save the image.
1. Use the or button to select
[OK].
2. Press the button.
• The newly saved image transformed
with the My Colors effect will be the
last one in the list.
• To continue adding effects to other images, repeat the
procedures from Step 2 onward.
5
Display the saved image.
1. Press the button.
2. Use the or button to select
[Yes].
3. Press the button.
• Selecting [No] returns to the
menu.
COPY
142
You can save images at lower recording pixels than the original image.
z When there is not enough space left on the memory card,
the My Colors effects cannot be added.
z Although My Colors effects can be added any number of
times to an image, the image quality will gradually
deteriorate with each application and the intended colors
may not be achieved.
z Color in images taken using My Colors (p. 103) in Shooting
mode and images edited with the My Colors function in
Playback mode may differ slightly.
Resizing Images
1600 x 1200 pixels
640 x 480 pixels
320 x 240 pixels
1
Select [Resize].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Select an image.
1. Use the or button to select an
image to resize.
2. Press the button.
• The FUNC./SET button is not
selectable for images that cannot be
resized.
COPY
143
Playback/Erasing
3
Select the recording pixels.
1. Use the or button to select the
recording pixels.
2. Press the button.
• Some recording pixel settings
cannot be selected depending on
the available space of the memory card ( is displayed to the
lower right of the icon).
4
Save the image.
1. Use the or button to select
[OK].
2. Press the button.
• The resized image will be saved as a
new file. The image file before
resizing will not be erased.
• To continue resizing other images, repeat from Step 2.
5
Display the saved image.
1. Press the button.
2. Use the or button to select
[Yes].
3. Press the button.
• Selecting [No] returns to the
menu.
Movies and images shot in cannot be resized.
COPY
144
In Playback mode, you can attach sound memos (up to 1 min.) to an
image. The sound data is saved in the WAVE format.
Attaching Sound Memos to Images
1
Select [Sound Memo].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Select an image.
1. Use the or button to select an
image to which you wish to attach a
sound memo.
2. Press the button.
• The sound memo control panel will
display.
3
Record the memo.
1. Use the or button to select .
2. Press the button.
• The elapsed time and the remaining
time display.
• Pressing the FUNC./SET button
pauses the recording. Pressing it
again resumes recording.
• Up to 1 minute of recordings can be
added to any one image.
• Press the MENU button to end the
set up.
Volume (Adjust it with
the or button)
Elapsed Time/
Remaining Time
Sound Memo Panel
COPY
145
Playback/Erasing
Sound Memo Panel
Use the or button to select an option and press the FUNC./SET
button.
Exit Ends the operation.
Record Starts recording.
Pause Stops recording or playback.
Play Plays back.
Erase
Erases sound memos. (Select [Erase] and in the
confirmation screen press the FUNC./SET button.)
z You cannot attach sound memos to movies.
z Sound memos for protected images cannot be erased.
COPY
146
You can record a continuous sound memo for up to approximately 2
hours without taking a picture.
Sound Recorder Panel
Use the or button to select an option and press the FUNC./SET
button.
Sound-Only Recording (Sound Recorder)
1
Select [Sound Recorder].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Sound recording.
1. Use the or button to select .
2. Press the button.
• The elapsed recording time displays.
• You can use the or button to
change the sampling rate. The
recording quality rises progressively
as you select [11.025 kHz],
[22.050 kHz] or [44.100 kHz], but the
recorded file sizes increase
correspondingly.
• Press the FUNC./SET button to stop
the recording session. Pressing the button again starts a new
recording session.
Exit Returns to the menu screen.
Record Starts recording.
Pause Stops recording or playback.
Play
Use the or button to select a sound to play and
press the FUNC./SET button.
Remaining Time
Sampling Rate
Sound Recorder Panel
COPY
147
Playback/Erasing
You can protect important images and movies from accidental erasure.
Rewind
Holding down the FUNC./SET button rewinds. The
sound cannot be heard while rewinding.
Fast
Forward
Holding down the FUNC./SET button fast forwards. The
sound cannot be heard while fast forwarding.
Erase
Select [Erase] or [Erase all] in the confirmation screen
and press the FUNC./SET button.
Protect
Protects against accidental erasure. Use the or
button to select a sound and the FUNC./SET button to
select/deselect protection.
Volume You can use the or button to adjust the volume.
z See Sound Recorder Data Rates and Recording Durations
(Estimated) (p. 212).
z Recording will automatically stop when the memory card is
full.
Protecting Images
Select
You can configure the protection settings for each
image singly while viewing them.
Select Range
You can select a first and last image and protect all
the images in the range.
Select by Date You can protect the images from a specified date.
Select by Category You can protect the images in a specified category.
Select by Folder You can protect the images in a specified folder.
All Images You can protect all the images on a memory card.
1
Select [Protect].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
COPY
148
[Select]
[Select Range]
2
Choose a selection method.
1. Use the or button to choose a
selection method.
• Pressing the MENU button returns to
the prior screen.
2. Press the button.
3
Protect the image.
1. Use the or button to select an
image to protect.
2. Press the button.
• Pressing the FUNC./SET button
again cancels the setting.
• To continue protecting other images,
repeat the procedure.
• This also can be set in the Index Playback mode.
• Press the MENU button to complete the setting.
3
Select the first image.
1. Press the button.
2. Use the or button to select the
first image for the range to protect.
3. Press the button.
Protection Icon
COPY
149
Playback/Erasing
4
Select the last image.
1. Use the button to select [Last
Image].
2. Press the button.
3. Use the or button to select the
last image in the range.
4. Press the button.
• An image with a lower number than
the first image cannot be selected as
the last image.
• Up to 500 images can be selected.
5
Protect the images.
1. Use the button and choose
[Protect].
2. Press the button.
• The screen will return to the
selection method screen.
• Selecting [Unlock] cancels selection of the protected image.
COPY
150
[Select by Date]/[Select by Category]/[Select by
Folder]
[All Images]
3
Select the images.
1. Use the or button to select a
date/category/folder to protect.
2. Press the button.
• A 3 will appear on selected images.
• Pressing the FUNC./SET button
again cancels the setting.
• You can select multiple dates, categories or folders.
• Use the or button to confirm each date, category or folder
image.
3. Press the button.
4
Protect the images.
1. Use the or button to select
[Protect].
2. Press the button.
• Returns to the selection method
screen.
• Selecting [Unlock] removes protection for the selected images.
• Selecting [Stop] cancels protection settings for the current
selection.
3
Protect the images.
1. Use the or button to select
[Protect].
2. Press the button.
• Returns to the selection method
screen.
• Selecting [Unlock] removes protection for all the images.
• Selecting [Stop] cancels protection settings for the current
selection.
COPY
151
Playback/Erasing
You can erase images from a memory card.
Erasing All Images
Select Erase images after selecting them one at a time.
Select Range
For picking a first and last image and erasing all the
images in the range.
Select by Date Erases images corresponding to the selected date.
Select by Category Erases images in the selected category.
Select by Folder Erases images in the selected folder.
All Images Erases all images on a memory card.
z Note that erased images cannot be recovered. Exercise
adequate caution before erasing an image.
z Protected images cannot be erased with this function.
1
Select [Erase].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Select an erasure method.
1. Use the or button to select an
erasure method.
• Pressing the MENU button returns to
the prior screen.
2. Press the button.
COPY
152
[Select]
[Select Range]
3
Select the image.
1. Use the or button to select an
image to erase.
2. Press the button.
• Pressing the FUNC./SET button
again deselects the setting.
• This also can be set in the Index
Playback mode.
3. Press the button.
4
Erase the image.
1. Use the or button to select
[OK].
2. Press the button.
• Selecting [Stop] cancels selection of
the image you are about to erase
and returns to Step 2.
3
Select the first image.
1. Press the button.
2. Use the or button to select the
first image for the range to erase.
3. Press the button.
COPY
153
Playback/Erasing
4
Select the last image.
1. Use the button to select [Last
Image].
2. Press the button.
3. Use the or button to select the
last image in the range.
4. Press the button.
• An image with a lower number than
the first image cannot be selected as
the last image.
• Up to 500 images can be selected.
5
Erase the images.
1. Press the button and choose
[Erase].
2. Press the button.
• Pressing the MENU button cancels
selection of the image you are about
to erase and returns to Step 2.
COPY
154
[Select by Date]/[Select by Category]/[Select by
Folder]
[All Images]
3
Select the images.
1. Use the or button to select a
date/category/folder to erase.
2. Press the button.
• A 3 will appear on selected images.
• Pressing the FUNC./SET button
again cancels the setting.
• You can select multiple dates, categories or folders.
• Use the or button to confirm each date, category or folder
image.
3. Press the button.
4
Erase the images.
1. Use the or button to select
[OK].
2. Press the button.
• Selecting [Stop] cancels selection of
the image you are about to erase
and returns to Step 2.
3
Erase the images.
1. Use the or button to select
[OK].
2. Press the button.
• Selecting [Cancel] cancels the
operation and returns to Step 2.
COPY
155
Playback/Erasing
z Pressing the FUNC./SET button while erasing is in progress
cancels the procedure.
z Please format the memory card when you want to erase not
only image data but also all the data contained on the
memory card (p. 168).
COPY
156
Print Settings/Transfer Settings
You can select images on a memory card for printing and specify the
number of print copies in advance using the camera. The settings used
on the camera comply with the Digital Print Order Format (DPOF)
standards. This is extremely convenient for printing on a direct print
compatible printer, or for sending the images to a photo developing
service that supports DPOF.
Setting the Print Style
After setting the print style, select the images for printing. The following
settings can be selected.
*Default setting
Setting the DPOF Print Settings
z The specified print settings are also applied to the print list
(p. 19).
z The print settings may not be reflected in the print out
depending on the printer or photo developing service.
z Movies cannot be specified for printing.
z The icon may display for a memory card with print
settings set by a different DPOF-compliant camera. These
settings will be overwritten by those set by your camera.
Print
Type
Standard* Prints one image per page.
Index
Prints the selected images together at a
reduced size in an index format.
Both
Prints the images in both the standard and
index formats.
Date (On/Off*) Adds the date to the print.
File No. (On/Off*) Adds the file number to the print.
Clear DPOF data (On*/Off)
Clears all print settings after the images
print.
COPY
157
Print Settings/Transfer Settings
1
Select [Print Settings].
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select the
menu.
4. Use the or button to select
[Print Settings].
5. Press the button.
2
Accept the setting.
1. Use the or button to select a
menu item.
2. Use the or button to select a
setting to configure.
3. Press the button.
z The Date and File No. settings change according to the Print
Type as follows.
- [Index]
[Date] and [File No.] cannot be set to [On] at the same time.
- [Standard] or [Both]
[Date] and [File No.] can be set to [On] at the same time,
however, the printable information may vary between
printers.
z Images dated using (Date Stamp) (p. 20) are always
printed with the date, regardless of the [Date] setting. As a
result, some printers may print the date twice on these
images if [Date] is also set to [On].
z Dates are printed in the style specified in [Date/Time] in the
menu (p. 12).
COPY
158
Select a Print Settings Method
Select Images & Qty.
Configures print settings for single images as you
view them.
Select Range
For picking a first and last image and printing all
the images in the range.
Select by Date
Configures print settings for images
corresponding to the selected date.
Select by Category
Configures print settings for images in the
selected category.
Select by Folder
Configures print settings for images in the
selected folder.
Select All Images Configures print settings for all images.
Clear All Selections Removes all print settings from images.
Only one copy will be printed for each selected image. With the
[Select Images & Qty.] option, you can only set the number of
copies to print when the [Print Type] option is set to [Standard]
or [Both] (p. 156).
1
Choose a selection method.
1. Set the mode switch to .
2. Press the button.
3. Use the or button to select the
menu.
4. Use the or button to choose a
selection method.
5. Press the button.
COPY
159
Print Settings/Transfer Settings
[Select Images & Qty.]
[Select Range]
2
Select the images.
• Selection methods differ for the Print Type settings (p. 156).
Standard ( )/Both ( ):
1. Use the or button to select the
images.
2. Press the button.
3. Use the or button to select the
number of print copies (up to 99).
4. Press the button.
Index ( ):
1. Use the or button to select the
images.
2. Select and deselect with the
button.
3. Press the button.
• You can also select images in the
Index Playback mode (images in
sets of nine).
2
Select the first image.
1. Press the button.
Number of Print Copies
Index Print Selection
COPY
160
2. Use the or button to select the
first image in the print range.
3. Press the button.
3
Select the last image.
1. Use the button to select [Last
Image].
2. Press the button.
3. Use the or button to select the
last image in the range.
4. Press the button.
• An image with a lower number than
the first image cannot be selected as
the last image.
• Up to 500 images can be selected.
4
Configure the print settings.
1. Press and choose [Order].
2. Press the button.
• The screen will return to the
selection method screen.
• Pressing the MENU button cancels
the print settings for the selected
range of images.
COPY
161
Print Settings/Transfer Settings
[Select by Date]/[Select by Category]/[Select by
Folder]
[Select All Images]
2
Select the images.
1. Use the or button to select a
date/category/folder to print.
2. Press the button.
• A 3 will appear on selected images.
• Pressing the FUNC./SET button
again cancels the setting.
• You can select multiple dates,
categories or folders.
• Use the or button to confirm each date, category or folder
image.
3. Press the button.
3
Configure the print settings.
1. Use the or button to select
[OK].
2. Press the button.
• The screen will return to the
selection method screen.
• Selecting [Cancel] cancels print
settings of the selected image.
2
Configure the print settings.
1. Use the or button to select
[OK].
2. Press the button.
• The screen will return to the
selection method screen.
• Selecting [Cancel] cancels the
operation and returns to Step 1.
COPY
162
[Clear All Selections]
2
Deselect the images.
1. Use the or button to select
[OK].
2. Press the button.
• The screen will return to the
selection method screen.
• Selecting [Cancel] cancels the operation.
z Images are printed in order according to the file number.
z A maximum of 998 images can be selected.
z When the camera is connected to a printer, the button
will light blue. At this time, printing will begin after performing
the following.
1. Press the button.
2. Confirm that [Print] is selected, then press the FUNC./
SET button.
COPY
163
Print Settings/Transfer Settings
You can use the camera to specify settings for images before
downloading to a computer. Refer to the Software Starter Guide for
instructions on how to transfer images to your computer.
The settings used on the camera comply with the DPOF standards.
Setting the DPOF Transfer Settings
The icon may display for a memory card with transfer
settings set by a different DPOF-compliant camera. These
settings will be overwritten by those set by your camera.
1
Select [Transfer Order].
1. Press the button.
2. In the menu, use the or
button to select .
3. Press the button.
2
Select [Order].
1. Use the or button to select an
order method.
2. Press the button.
• Selecting [Reset] cancels all transfer order settings.
Order: Select single images.
Mark All: Select all images on the
memory card.
COPY
164
[Order]
[Mark all]
3
Select the images.
1. Use the or button to select
images to transfer.
2. Press the button.
• Pressing the FUNC./SET button
again deselects the setting.
• This also can be set in the Index
Playback mode.
• Press the MENU button to end the set up.
3
Select [OK].
1. Use the or button to select
[OK].
2. Press the button.
•
Press the
MENU
button to end the
set up.
z Images are transferred in order according to the file number.
z A maximum of 998 images can be selected.
Transfer Selection
COPY
165
Configuring the Camera
Configuring the Camera
This camera is equipped with a power saving function, which can
automatically turn off the power or LCD monitor.
Setting the Power Saving Function
Auto Power
Down
When [Auto Power Down] is set to [On], the camera power
turns off in the following situations. Pressing the power
button restores camera power.
• Shooting mode: approximately 3 minutes after the last
control is accessed on the camera.
• Playback mode, connected to printer: approximately 5
minutes after the last control is accessed on the camera.
Display Off
In Shooting mode, the LCD monitor automatically turns off
after the selected time if no control is accessed, regardless
of the [Auto Power Down] setting. Press any button other
than the power button or change the camera orientation to
turn the LCD monitor back on.
1
Select [Power Saving].
1. Press the button.
2. Use the or button to select the
menu.
3. Use the or button to select
[Power Saving].
4. Press the button.
2
Set the power saving
options.
1. Use the or button to select an
option.
2. Use the or button to set an
option.
3. Press the button.
3
Press the button.
COPY
166
When traveling abroad, you can record images with local dates and
times simply by switching the time zone setting if you pre-register the
destination time zones. You can enjoy the convenience of not having
to switch the Date/Time settings.
Setting the Home/World Time Zones
The power saving function will not activate during a slide show
or while the camera is connected to a computer.
Setting the World Clock
1
Select [Time Zone].
1. Press the button.
2. Use the or button to select
menu.
3. Use the or button to select
[Time Zone].
4. Press the button.
2
Select (Home).
1. Use the or button to select
.
2. Press the button.
• When using for the first time, confirm
that the screen to the right appears,
then press the FUNC./SET button.
3
Select an area as home.
1. Use the or button to select a
home time zone.
2. Press the button.
• To set the daylight saving option,
use the or button to display
. The time will advance by 1 hour.
COPY
167
Configuring the Camera
Switching to the Destination Time Zone
4
Select (World).
1. Use the button to select .
2. Press the button.
5
Select a destination area.
1. Use the or button to select a
destination time zone.
2. Press the button.
• As in Step 3, you can set daylight
saving time.
1
Select [Time Zone].
1. Press the button.
2. Use the or button to select
menu.
3. Use the or button to select
[Time Zone].
4. Press the button.
2
Select (World).
1. Use the or button to select .
2. Press the button two times.
• To change the destination time
zone, use the FUNC./SET button.
• When you switch to the destination
time zone,
will display on the
monitor.
Time Difference from the
Home Time Zone
COPY
168
You should always format a new memory card or one from which you
wish to erase all images and other data.
If you change the date and time when the World option is
selected, the Home date and time will also change
automatically.
Formatting Memory Cards
z Please note that formatting (initializing) a memory card
erases all data, including protected images and other file
types.
z When the icon is displayed, sound data recorded with the
sound recorder exists. Exercise adequate caution before
formatting the memory card.
1
Select [Format].
1. Press the button.
2. Use the or button to select
menu.
3. Use the or button to select
[Format].
4. Press the button.
COPY
169
Configuring the Camera
2
Accept the setting.
1. Use the or button to select
[OK].
2. Press the button.
• To perform a low level format, use
the button to select [Low Level
Format] and the or button to
add a check mark.
• You can stop formatting a memory
card when [Low Level Format] is
selected by pressing the FUNC./SET
button. You can still use a memory card without problem when
formatting is halted, but its data will be erased.
Low Level Format
We recommend you select [Low Level Format] when you think
that the recording/reading speed of a memory card has
dropped. A low level format may require 2 to 3 minutes with
some memory cards.
Displays when sound data
recorded with the sound
recorder is present (p. 146).
COPY
170
The images you shoot are automatically assigned file numbers. You
can select how the file number is assigned.
Resetting the File Number
Continuous
A number one higher than the last one recorded is assigned
to the next image. This is convenient for managing all your
images together on a computer because you avoid file
name duplication when changing folders or memory cards.*
* When a blank memory card is used. If a memory card with recorded
data is used, the 7-digit number for the last recorded folder and
image is compared with the last one on the memory card, and the
larger of the two is utilized as the basis for new images.
Auto Reset
The image and folder number are reset to the starting value
(100-0001).* This is convenient for managing images on a
folder-by-folder basis.
* When a blank memory card is used. If a memory card with recorded
data is used, the number following the 7-digit number for the last
recorded folder and image on the memory card is utilized as the
basis for new images.
1
Select [File Numbering].
1. Press the button.
2. Use the or button to select the
menu.
3. Use the or button to select
[File Numbering].
2
Accept the setting.
1. Use the or button to select
[Continuous] or [Auto Reset].
2. Press the button.
COPY
171
Configuring the Camera
File and Folder Numbers
Recorded images are assigned consecutive file numbers starting with
0001 and ranging up to 9999, while folders are assigned numbers
starting with 100 and ranging up to 999. Up to 2000 images can be
saved into a single folder.
• Images may be saved to a new folder when there is insufficient free
space even if the total number of images in a folder is less than 2000
because the following types of images are always saved together into
the same folder.
- Images from continuous shooting
- Self-timer images (custom)
- Stitch Assist mode images
- Still images shot in Color Accent/Color Swap mode with the [Save
Original] category set to [On].
• Images cannot be played back when the folder numbers are
duplicated or image numbers are duplicated within folders.
• Please refer to the Software Starter Guide for information regarding
folder structures or image types.
New Folder Created
Memory Card Exchanged for
Another
Continuous
Memory Card 1 Memory Card 1 Memory Card 2
Auto Reset
Memory Card 1 Memory Card 1 Memory Card 2
COPY
172
You can create a new folder at any time and the recorded images will
be automatically saved to that folder.
Creating a Folder the Next Time You Shoot
Creating an Image Destination (Folder)
Create New
Folder
Creates a new folder the next time you shoot images. To
create an additional folder, insert the check mark again.
Auto Create
You can also specify a date and time if you wish to create
a new folder using a shooting time after the specified
date and time.
1
Select [Create Folder].
1. Press the button.
2. Use the or button to select the
menu.
3. Use the or button to select
[Create Folder].
4. Press the button.
2
Accept the setting.
1. Use the or button to check
mark [Create New Folder].
2. Press the button two times.
• will be displayed on the LCD
monitor when shooting. The symbol
will cease to display after the new folder is created.
COPY
173
Configuring the Camera
Setting the Day or Time for Automatic Folder
Creation
1
Select [Create Folder].
1. Press the button.
2. Use the or button to select the
menu.
3. Use the or button to select
[Create Folder].
4. Press the button.
2
Accept the setting.
1. Use the or button to select
[Auto Create] and the or button
to select a creation date.
2. Use the or button to select
[Time] and the or button to
select a time.
3. Press the button two times.
•
displays when the specified time arrives. The symbol will
cease to display after the new folder is created.
Up to 2000 images can be saved into one folder. A new folder
will automatically be created when you record more than 2000
even if you are not creating new folders.
COPY
174
Your camera is equipped with an Intelligent Orientation sensor that
detects the orientation of an image shot with the camera held vertically
and automatically rotates it to the correct orientation when viewing it in
the LCD monitor.
Setting the Auto Rotate Function
1
Select [Auto Rotate].
1. Press the button.
2. Use the or button to select the
menu.
3. Use the or button to select
[Auto Rotate].
2
Accept the setting.
1. Use the or button to select
[On] or [Off].
2. Press the button.
• When the Auto Rotate function is set
to [On] and the LCD monitor is set to
the Detailed Display mode during
shooting, (normal), (right end is down) or (left end is
down) will appear in the display.
z This function may not operate correctly when the camera is
pointed straight up or down. Check that the arrow is
pointing in the right direction and if it is not, then set the Auto
Rotate function to [Off].
z Even if the Auto Rotate function is set to [On], the orientation
of images downloaded to a computer will depend upon the
software used to download the images.
When the camera is held vertically to shoot, the Intelligent
Orientation sensor judges the upper end to be “up” and the
lower end to be “down”. It then regulates the optimal white
balance, exposure and focus for vertical photography. This
function operates regardless of the on/off status of the Auto
Rotate function.
COPY
175
Configuring the Camera
Resetting Settings to Their Default Values
1
Select [Reset All].
1. Press the button.
2. Use the or button to select
menu.
3. Use the or button to select
[Reset All].
4. Press the button.
2
Accept the setting.
1. Use the or button to select
[OK].
2. Press the button.
z Settings cannot be reset when the camera is connected to a
computer or to a printer.
z The following cannot be reset.
- Shooting mode
- The [TimeZone], [Date/Time], [Language] and [Video
System] options in the menu (p. 56)
- White balance data recorded with the custom white
balance function (p. 101)
- Colors specified in the [Color Accent] (p. 105) or [Color
Swap] (p. 107) modes
- Newly added My Camera settings (p. 178)
COPY
176
Connecting to a TV
You can use the supplied AV cable to shoot or playback images using
a TV.
Shooting/Playback Using a TV
1
Turn off the camera and the TV.
2
Connect the AV cable to the
camera’s A/V OUT terminal.
• Hook your fingernail or the wrist
strap toggle under the bottom edge
of the camera’s terminal cover to
open it, then insert the AV cable all
the way into the connector.
3
Plug the other ends of the
AV cable to the VIDEO IN
and AUDIO IN jacks on the
TV.
4
Turn on the TV and switch it to video mode.
5
Turn on the camera.
z The video output signal can be switched (NTSC or PAL) to
accommodate different regional standards (p. 56). The
default setting varies between regions.
- NTSC: Japan, U.S.A., Canada, Taiwan and others
- PAL: Europe, Asia (excluding Taiwan), Oceania and
others
z If the video system is set incorrectly, the camera output may
not display properly.
VIDEO
Yellow
Black
AUDIO
COPY
177
Customizing the Camera (My Camera Settings)
Customizing the Camera (My Camera Settings)
My Camera allows you to customize the start-up image and start-up,
operation, self-timer and shutter sounds. You can change and register
these settings, enabling you to customize the camera to suit your own
tastes.
Changing My Camera Settings
1
Select a menu item.
1. Press the button.
2. Use the or button to select the
menu.
3. Use the or button to select
menu item.
2
Accept the setting.
1. Use the or button to select
contents you wish to set.
2. Press the button.
• Select [Theme] to set all to the same
settings.
Connecting to a TV
COPY
178
Images recorded onto the memory card and newly recorded sounds
can be added as My Camera settings to the and menu items.
You can also use the supplied software to upload your computer’s
images and sounds to the camera.
Registering My Camera Settings
A computer is required to restore the My Camera settings to
the defaults. Use the supplied software (ZoomBrowser EX/
ImageBrowser) to restore the default settings to the camera.
1
Select a menu item.
1. Press the button.
2. Use the or button to select the
menu.
3. Use the or button to select
menu item to register.
2
Select a setting.
1. Use the or button to select
or .
2. Press the button.
3
Accept the setting.
[Start-up Image]:
1. Use the or button to select
image to register.
2. Press the button.
COPY
179
Customizing the Camera (My Camera Settings)
[Start-up Sound]/[Operation
Sound]/[Selftimer Sound]/
[Shutter Sound]:
1. Use the or button to select
(Record).
2. Press the button.
3. After recording, use the or button to select (Register).
4. Press the button.
• Recording will automatically stop when the recording time
elapses.
• To play it, select (Play).
• To exit instead of registering, press (Exit).
4
Register the setting.
1. Use the or button to select
[OK].
2. Press the button.
• To cancel registering, select
[Cancel].
z The following cannot be registered as My Camera settings.
-Movies
- Sounds recorded with the sound memo function (p. 144)
- Sounds recorded with the Sound Recorder (p. 146)
z The prior setting is erased when a new My Camera setting is
added.
See the supplied Software Starter Guide for more information
on creating and adding to the My Camera data.
COPY
180
Troubleshooting
• Camera (p. 180)
• When the power is turned on (p. 181)
• LCD monitor (p. 181)
• Shooting (p. 183)
• Shooting movies (p. 187)
• Playback (p. 188)
• Battery/Battery Charger (p. 189)
• TV monitor output (p. 189)
• Printing with a direct print compatible printer (p. 189)
Camera
Camera will not operate.
Power is not turned on. z Press the power button (p. 14).
Memory card slot/battery
cover is open.
z Confirm that the memory card slot /
battery cover is securely closed
(p. 10).
Battery charge insufficient
to operate camera
(“Change the battery pack”
message displays).
z Insert a fully charged battery into the
camera (p. 8).
z Use the AC Adapter Kit ACK-DC10
(sold separately) (p. 202).
Poor contact between
camera and battery
terminals.
z Polish the terminals with a soft cotton
swab before charging or using the
battery (p. 198).
Sounds come from the camera interior.
The camera’s horizontal/
vertical orientation was
changed.
z The camera’s orientation mechanism
is operating. There is no malfunction.
COPY
181
Troubleshooting
When the power is turned on
“Card locked!” message appears.
The SD memory card’s or
SDHC memory card’s write
protect tab is set to “Write
protect”.
z When recording to, erasing from or
formatting the memory card, slide the
write protect tab upward (p. 200).
The Date/Time menu appears.
The built-in rechargeable
lithium battery charge is
low.
z Recharge the built-in battery
immediately (p. 8).
LCD monitor
Nothing is displayed.
LCD monitor is set to off. z Press DISP. button and turn on the
LCD monitor (p. 58).
[Power Saving] is set to
[Display Off].
z Press any button other than the
power button or change the camera
orientation to turn the LCD monitor
back on (p. 165).
The LCD monitor will shut off during shooting.
If [Power Saving] is set to [Display Off], the power saving function
will shut down the LCD monitor while shooting in mode.
Camera screen is black at start-up.
Incompatible image has
been selected as the start-
up image in the My Camera
settings.
z Change the start-up image in the My
Camera settings (p. 177) or use the
supplied software program
ZoomBrowser EX or ImageBrowser
to restore the default settings. See
ZoomBrowser EX/ ImageBrowser
Software User Guide (PDF).
COPY
182
The display darkens.
The image in the LCD
monitor will darken in strong
sunlight or bright light.
z This is a normal occurrence in
devices containing CCDs and does
not constitute a malfunction. This
image will not be recorded when
shooting still photos, but it will be
recorded when shooting movies.
Display flickers.
Display flickers when shot
under fluorescent lighting.
z This is not a camera malfunction
(flickering recorded in movies, but not
in still images).
A bar of light (purplish red) appears on the LCD
monitor.
Sometimes appears when
shooting a bright subject,
such as the sun or other
light source.
z This is a normal occurrence in
devices containing CCDs and does
not constitute a malfunction. This bar
of light will not be recorded when
shooting still photos, but it will be
recorded when shooting movies.
appears.
A slow shutter speed has
likely been selected
because of insufficient
lighting.
z Set the IS mode to any setting other
than [Off] (p. 70).
z Raise the ISO speed (p. 71).
z Select a setting other than (flash
off) (p. 64).
z Set the self-timer and attach the
camera to a tripod or other device
(p. 66).
appears.
This displays when using a
memory card that has print
settings, transfer settings or
slide show image selections
set by other DPOF-
compliant cameras.
z These settings will be overwritten by
those set by your camera (pp. 131,
156).
COPY
183
Troubleshooting
Noise displays./Subject’s movements are irregular.
Camera automatically
lightened the image
displayed on the LCD
monitor to make it easier to
see when shooting in a dark
area (p. 59).
z There is no effect on the recorded
image.
Shooting
Camera will not record.
Camera is in Playback
mode or connected to a PC/
printer.
z Switch to Shooting mode (p. 43).
Flash is charging. z When the flash is charged, the
indicator will light orange. Shooting is
now possible (p. 44).
Memory card is full. z Insert a new memory card (p. 9).
z If required, download the images to a
computer and erase them from the
memory card to make space.
Memory card is not
formatted correctly.
z Format the memory card (p. 168).
z If reformatting does not work, the
memory card logic circuits may be
damaged. Consult the nearest Canon
Customer Support Help Desk.
SD memory card or SDHC
memory card is write
protected.
z Slide the write protect tab upward
(p. 200).
Image Seen in Viewfinder vs. Recorded Image
Usually the recorded image
contains more of the scene
than is seen in the
viewfinder.
z Confirm the actual image size with
the LCD monitor. Use the LCD
monitor when taking close-up shots
(p. 58).
COPY
184
Image is blurred or out of focus.
The camera moves when
the shutter button is
pressed.
z Confirm the procedures in
“ appears” (p. 182).
AF-assist Beam is set to
[Off].
z In dark places where it is difficult for
the camera to focus, the AF-assist
Beam will emit to assist focusing. As
the AF-assist Beam will not function
when turned off, set it [On] to activate
it (p. 53). Take care not to obstruct
the AF-assist Beam with your hand
when used.
Subject is out of focal
range.
z Shoot with the subject at the correct
focusing distance (p. 206).
z The camera may be set to an
unintended function (such as Macro).
Cancel the setting.
The subject is hard to focus
on.
z Use the focus lock or AF lock to
shoot (p. 94).
Subject in recorded image is too dark.
Insufficient light for
shooting.
z Set the flash to (Flash on) (p. 64).
The subject is
underexposed because the
surroundings are too bright.
z Set the exposure compensation to a
positive (+) setting (p. 97).
z Use the AE Lock or spot metering
functions (pp. 95, 98).
Subject is too far away for
flash to reach.
z Shoot with the subject within the
correct flash range when using the
built-in flash (p. 207).
z Raise the ISO speed and then shoot
(p. 71).
COPY
185
Troubleshooting
Subject in recorded image is too bright, or image
flashes white.
Subject is too close, making
the flash too strong.
z Shoot with the subject within the
correct flash range when using the
built-in flash (p. 207).
The subject is overexposed
because the surroundings
are too dark.
z Set the exposure compensation to a
negative (–) setting (p. 97).
z Use the AE Lock or spot metering
functions (pp. 95, 98).
Too much light is shining
directly into the camera, or
is being reflected off the
subject.
z Change the shooting angle.
Flash is set to on. z Set the flash to (Flash off) (p. 64).
Image contains noise.
ISO speed is too high. z Higher ISO speeds and (High
ISO Auto) setting may increase
image noise. For higher image
quality, use as low an ISO speed as
possible (p. 71).
z In , , , , , and ,
the ISO speed increases and noise
can appear.
White dots appear on the image.
Light from the flash has
reflected off dust particles or
insects in the air. This is
particularly noticeable when
shooting using the wide
angle.
z This is a phenomenon that occurs
with digital cameras and does not
constitute a malfunction.
COPY
186
Eyes appear red.
Light is reflected back from
the eyes when the flash is
used in dark areas.
z Shoot with the [Red-Eye Lamp] in the
[Flash Settings] set to [On] (p. 77).
For this mode to be effective, the
subject must be looking right at the
red-eye reduction lamp. Try asking
them to look directly at the lamp.
Even better results can be obtained
by increasing the lighting in indoor
settings or approaching closer to the
subject. The shutter will not activate
for approximately 1 second after the
red-eye reduction lamp fires in order
to improve the effect.
z If you set the [Red-Eye Corr.] in the
[Flash Settings] to [On], the camera
will automatically correct red eyes
while shooting and record the image
to the memory card.
z Images recorded with red-eye can be
corrected by selecting [Red-Eye
Correction] in the menu (p. 136).
Continuous shooting slows down.
The memory card’s
performance has dropped.
z To enhance the continuous shooting
performance, you are recommended
to format the memory card in the
camera after you save all its images
to your computer (p. 168).
Recording images to memory card takes a long
time.
Memory card was formatted
in another device.
z Use a memory card formatted in your
camera (p. 168).
Lens will not retract.
Memory card slot/battery
cover was opened with
power on.
z After closing the memory card slot/
battery cover, turn the power on then
back off.
COPY
187
Troubleshooting
Shooting movies
The recording time may not display properly or
shooting may stop unexpectedly.
The following types of
memory cards are used.
- Slow recording memory
cards.
- Memory cards formatted
on a different camera or a
computer.
- Memory cards which have
had images recorded and
erased repeatedly.
z Although the recording time may not
display properly during shooting, the
movie will be recorded correctly on
the memory card. Recording time will
display properly if you format the
memory card in this camera
(excluding slow recording memory
cards) (p. 168).
“!” displayed on the LCD monitor in red and shooting
automatically stopped.
There is insufficient free
space in the camera’s built-
in memory.
z
Try the following procedures.
- Format the memory card with a low
level format before shooting
(p. 168)
- Lower the recording pixels (p. 68)
- Use a high-speed memory card
(SDC-512MSH, etc.)
Zoom does not operate.
Zoom lever was pressed
while shooting in Movie
mode.
z Operate the zoom before shooting in
Movie mode (p. 60). Note the digital
zoom is available while shooting, but
only in Standard Movie mode (p. 60).
COPY
188
Playback
Cannot play back.
You attempted to play back
images shot with another
camera or images edited
with a computer.
z Computer images that cannot be
played back may play back if they are
added to the camera using the
supplied software program
ZoomBrowser EX or ImageBrowser.
See ZoomBrowser EX/
ImageBrowser Software User Guide
(PDF).
File name was changed
with a computer or file
location was changed.
z Set the file name or location on the
file format/structure of the camera.
Refer to the Software Starter Guide
for details.
Images cannot be edited.
Some images shot with another camera cannot be edited.
Movies do not play back correctly.
Movies recorded with high recording pixels and frame rates may
momentarily stop playing if played on slow reading memory cards.
You may experience frame dropping and audio breakup when
playing back a movie on a computer with insufficient system
resources.
Movies shot with this camera may not play back correctly on another
camera.
Reading images from memory card is slow.
Memory card was formatted
in another device.
z Use a memory card formatted in your
camera (p. 168).
COPY
189
Troubleshooting
Battery/Battery Charger
Battery consumed quickly.
Battery is not being used to
its full capacity.
z See Battery Handling Precautions
(p. 198).
Battery life exceeded if
battery loses its charge
quickly at normal
temperature (23 °C/73 °F).
z Replace the battery with a new one
(p. 9).
Battery will not charge.
Battery life exceeded. z Replace the battery with a new one
(p. 9).
TV monitor output
Image is distorted or not showing on TV monitor.
Incorrect video system
setting.
z Set the video system to the
appropriate setting, NTSC or PAL, for
your TV (p. 56).
Shooting in Stitch Assist
mode.
z The output will not appear on a TV in
Stitch Assist mode. Shoot in a
different shooting mode (p. 43).
Printing with a direct print compatible
printer
Cannot print
The camera and printer are
not properly connected.
z Securely connect the camera and
printer with the specified cable.
The printer power is not
turned on.
z Turn on the printer power.
The print connection
method is not correct.
z Select [Print Method] and select
[Auto] (p. 56).
COPY
190
List of Messages
The following messages may appear on the LCD monitor during
shooting or playback. Please refer to the Direct Print User Guide for
the messages that display during a printer connection.
Busy...
Image is being recorded onto the memory card, red-eye correction
is being processed, or the camera settings are being reset to the
defaults.
No memory card
You turned on the camera without a memory card installed, or with a
memory card installed in the wrong orientation (p. 9).
Card locked!
The SD memory card or SDHC memory card is write-protected
(p. 200).
Cannot record!
You attempted to shoot an image without a memory card installed,
with a memory card installed in the wrong orientation, or attempted
to attach a sound memo to a movie.
Memory card error
There may be something wrong with the memory card. By
formatting the malfunctioning memory card with the camera, you
may be able to continue using it (p. 168). However, if this error
message appears even when using the supplied memory card,
contact your Canon Customer Support Help Desk as there may be a
problem with the camera.
Memory card full
Memory card is full of images and no more can be recorded or
saved. Or no more image settings, Sound Recorder files or sound
memos can be recorded.
COPY
191
List of Messages
Naming error!
The file name could not be created because there is an image with
the same name as the folder that the camera is attempting to create,
or the highest possible file number has already been reached. In the
Set up menu, set [File Numbering] to [Auto Reset]; alternatively,
save all the images you wish to retain onto a computer, then
reformat the memory card. Please note that formatting will erase all
the existing images and other data.
Change the battery pack.
Battery charge is insufficient to operate the camera. Replace it at
once with a charged one or recharge the battery. Also, see Battery
Handling Precautions (p. 198).
No image.
No images recorded on memory card.
Image too large.
You attempted to play back an image larger than 5616 x 3744 pixels
or with a large data size.
Incompatible JPEG
You attempted to play back an incompatible JPEG image (edited
with a computer, etc.).
RAW
You attempted to play back an incompatible RAW image.
Unidentified Image
You attempted to play back an image with corrupted data, an image
with a recording type specific to another manufacturer’s camera, or
an image that has been downloaded to a computer and altered.
Cannot magnify!
You attempted to magnify an image recorded in a different camera
or data type, an image edited with a computer, or a movie.
Cannot rotate
You attempted to rotate the image shot with a different camera or
data type, or an image edited with a computer.
COPY
192
Incompatible WAVE
A sound memo cannot be added to this image since the data type of
the existing sound memo is incorrect. In addition, sound cannot be
played back.
Cannot register this image!
You attempted to register an image recorded in a different camera
or a movie as a start-up image.
Cannot modify image
You attempted to add effects using My Colors, perform red-eye
correction, resize or trim movies or images recorded on another
camera. Or, you attempted to resize an image recorded using or
attempted to resize an image already resized to . Or, you
attempted to trim an image recorded using , or a or
image.
Cannot assign to category
You attempted to categorize an image recorded in a different
camera.
Cannot modify
Cannot apply red-eye correction as no red-eye is detected.
Cannot transfer!
When transferring images to your computer using the Direct
Transfer menu, you attempted to select an image with corrupted
data or an image taken with another camera. You may have also
attempted to select a movie when [Wallpaper] was selected in the
Direct Transfer menu.
Protected!
You attempted to erase or edit a protected image, movie or sound
memo.
Too many marks.
Too many images have been marked with print settings, transfer
settings or slide show settings. Cannot process any more.
Cannot complete!
Could not save a part of the print, transfer or slide show settings.
COPY
193
List of Messages
Unselectable image.
You attempted to set the print settings for a non-JPEG image.
Cannot select!
In selecting the image range for categorizing via the My Category
function, protecting images, erasing images or specifying print
settings, you selected a starting image with a file number higher
than the last image, a last image with a file number lower than the
starting image. Or, you attempted to specify more than 501 images.
Communication error
The computer was unable to download the image due to the large
amount of images (approx. 1000) stored on the memory card. Use a
USB card reader or a PCMCIA card adapter to download the
images.
Lens error, restart camera
An error was detected while the lens was in motion, and the power
has been automatically turned off. This error can occur if you hold
the lens while it is in motion or you operate it in a location with
excessive dust or sand in the air. Try turning the power back on, and
resume shooting or playback. If this message continues to display,
contact your Canon Customer Support Help Desk as there may be a
problem with the lens.
Exx
(xx: number) Camera detected error. Turn the power off and then
back on, then shoot or play back. A problem exists if the error code
reappears. Note the number and contact your Canon Customer
Support Help Desk. If an error code displays directly after taking a
picture, the shot may not have been recorded. Check image in
Playback mode.
COPY
194
Appendix
• Before using the camera, please ensure that you read the safety
precautions described below. Always ensure that the camera is
operated correctly.
• The safety precautions noted on the following pages are intended to
instruct you in the safe and correct operation of the camera and its
accessories to prevent injuries or damage to yourself, other persons
and equipment.
• Equipment refers to the camera, battery charger or separately sold
compact power adapter.
• Battery refers to the battery pack.
Safety Precautions
Warnings
Equipment
z Do not point the camera at a bright light source (such as at the
sun on a sunny day).
Doing so could damage the camera’s CCD or your eyesight.
z Store this equipment out of the reach of children and infants.
• Wrist strap: Placement of the strap around the child’s neck could
result in asphyxiation.
• Memory card: Dangerous if accidentally swallowed. If this occurs,
contact a doctor immediately.
z Do not attempt to disassemble or alter any part of the
equipment that is not expressly described in this guide.
z To avoid the risk of high-voltage electrical shock, do not touch
the flash portion of the camera if it has been damaged.
z Stop operating the equipment immediately if it emits smoke or
noxious fumes.
COPY
195
Appendix
z Do not allow the equipment to come into contact with, or
become immersed in, water or other liquids. If the exterior
comes into contact with liquids or salt air, wipe it dry with a
soft, absorbent cloth.
Continued use of the equipment may result in fire or electrical
shock. Immediately turn the camera power off and remove the
camera battery or unplug the battery charger or compact power
adapter from the power outlet. Please consult your camera
distributor or the closest Canon Customer Support Help Desk.
z Do not use organic solvents such as alcohol, benzine, or
thinner to clean the equipment.
z Do not cut, damage, alter or place heavy items on the power
cord.
z Use only recommended power accessories.
z Remove the power cord on a regular periodic basis and wipe
away the dust and dirt that collects on the plug, the exterior of
the power outlet and the surrounding area.
z Do not handle the power cord if your hands are wet.
Continued use of the equipment may result in fire or electrical
shock.
Battery
z Do not place the battery near a heat source or expose it to
direct flame or heat.
z The battery should not be immersed in water or sea water.
z Do not attempt to disassemble, alter or apply heat to the
battery.
z Avoid dropping or subjecting the battery to severe impacts
that could damage the casing.
z Use only recommended battery and accessories.
Use of battery not expressly recommended for this equipment may
cause explosions or leaks, resulting in fire, injury and damage to the
surroundings. In the event that a battery leaks and the eyes, mouth,
skin or clothing contact these substances, immediately flush with
water and seek medical assistance.
COPY
196
z Disconnect the battery charger and compact power adapter
from both the camera and the power outlet after recharging or
when they are not in use to avoid fire and other hazards.
z Do not place anything, such as tablecloths, carpets, bedding or
cushions, on top of the battery charger while it is charging.
Leaving the units plugged in for a long period of time may cause
them to overheat and distort, resulting in fire.
z Use only the specified battery charger to charge the battery.
z The battery charger and compact power adapter are designed
for exclusive use with your camera. Do not use it with other
products or batteries.
There is a risk of overheating and distortion which could result in fire
or electrical shock.
z Before you discard a battery, cover the terminals with tape or
other insulators to prevent direct contact with other objects.
Contact with the metallic components of other materials in waste
containers may lead to fire or explosions.
Others
z Do not trigger the flash in close proximity to human or animal
eyes. Exposure to the intense light produced by the flash may
damage eyesight.
In particular, remain at least one meter (39 inches) away from
infants when using the flash.
z Keep objects that are sensitive to magnetic fields (such as
credit cards) away from the speaker of the camera.
Such items may lose data or stop working.
COPY
197
Appendix
Cautions
Equipment
z Do not sit on a chair while stuffing your camera in the back
pocket of your pants or skirt.
Doing so may cause malfunction or damage the LCD monitor.
z Be careful not to bang the camera or subject it to strong
impacts or shocks when wearing or holding it by the strap.
z Be careful not to bump or strongly push the end of the lens.
The above-mentioned could lead to injury or damage the
equipment.
z When using the camera on a beach or windy location, be
careful not to allow dust or sand to enter the camera interior.
This may cause the camera to malfunction.
z Do not store the equipment in humid or dusty areas.
z Do not allow metal objects (such as pins or keys) or dirt to
contact the charger terminals or plug.
Such conditions could lead to fire, electrical shock or other damage.
z Avoid using, placing or storing the equipment in places
subject to strong sunlight or high temperatures, such as the
dashboard or trunk (boot) of a car.
z Do not use the equipment in a manner that exceeds the rated
capacity of the electrical outlet or wiring accessories. Do not
use if the power cord or plug are damaged, or if not fully
plugged into the outlet.
z Do not use in locations with poor ventilation.
The above-mentioned can cause leakage, overheating or explosion,
resulting in fire, burns or other injuries. High temperatures may also
cause deformation of the casing.
z When not using the camera for extended periods of time,
remove the battery from the camera or battery charger and
store the equipment in a safe place.
The battery can run down.
COPY
198
z Do not connect compact power adapters or battery chargers to
devices such as electrical transformers for foreign travel
because it may lead to malfunctions, excessive heat
generation, fire, electric shock or injury.
Flash
z Do not operate the flash with dirt, dust or other items stuck to
the surface of the flash.
z Be careful not to cover the flash with your fingers or clothing
when shooting.
The flash may be damaged and emit smoke or noise. The resulting
heat build-up could damage the flash.
z Do not touch the surface of the flash after taking several
pictures in rapid succession.
Doing so could result in burns.
Handling Precautions
The Camera
z To prevent malfunction and damage from electromagnetic
waves, never place the camera near motors or equipment
which generate strong magnetic fields.
Exposure to strong magnetic fields may cause malfunctions or
corrupt image data.
z
To prevent condensation when moving the camera from a cold
location to a hot location, seal the camera inside a vinyl bag and
remove the camera after acclimatizing it to the ambient
temperature.
In the event that condensation in the camera occurs, remove the
memory card and battery and leave the camera idle at normal
temperature until the moisture naturally evaporates.
The Battery
z Keep the battery terminals clean at all times.
Dirty terminals may cause poor contact between the battery and
camera. Polish the terminals with a soft cotton swab before
charging or using the battery.
COPY
199
Appendix
z At low temperatures, battery performance may be reduced and
the remaining battery charge icon (blinks red) may appear
earlier than usual.
Under these conditions, revive the battery by warming it in a pocket
immediately before use.
z However, ensure that there are no metallic items in the pocket
that could cause a short circuit, such as a key ring, etc.
The battery may be short circuiting.
z Do not allow any metal objects such
as key rings to touch the ( ) and
( ) terminals (Fig. A). To carry the
battery or store it during periods of
disuse, always replace the terminal
cover (Fig. B).
These conditions can damage the
battery.
You may be able to check the charge state depending upon how the
terminal cover is attached (Fig. C, D).
z You are recommended to use it in the camera until it is
depleted and to store it in an indoor location with low relative
humidity and between the temperatures of 0 – 30 °C (32 –
86 °F).
Storing a fully charged battery for long periods of time (about one
year) may shorten its life cycle or affect its performance. If you do
not use the battery for long periods of time, charge it fully and
discharge it in the camera about once a year before returning it to
storage.
Fig. A Fig. B
Fig. C
Charged Battery
Fig. D
Spent Battery
Attach it so the S
is visible.
Attach it the opposite way
to Fig. C.
COPY
200
z Since this is a lithium-ion battery, you need not discharge it
before recharging.
z You are advised to charge the battery on the day of use, or one
day before, to ensure a full charge.
• Even charged batteries continue to discharge naturally.
z It takes approximately 1 hour 30 minutes to fully charge the
battery from a depleted state (based on Canon’s testing
standards).
• Charging it within a temperature range of 5 – 40 °C (41 – 104 °F)
is recommended.
• Charge times may vary according to the ambient temperature and
the battery’s charge state.
z If the performance of the battery diminishes substantially even
when it is fully charged, its life has been exceeded and it
should be replaced.
The Memory Card
z The write protect tab on SD and SDHC memory cards.
z Memory cards are high-precision electronic devices. Do not
bend them, apply force to them, or subject them to shocks or
vibration.
z Do not attempt to disassemble or alter the memory card.
z Do not allow dirt, water or foreign objects to contact the
terminals on the back of the memory card. Do not touch the
terminals with your hands or metal objects.
z Do not peel away the original label on the memory card or
cover it with another label or sticker.
Slide the switch up.
Slide the switch down.
(You can protect the
images and other data
on the memory card.)
Write Protect Tab
Writing/Erasing Possible Writing/Erasing Impossible
COPY
201
Appendix
z When writing on the memory card, do not use a pencil or ball-
point pen. Only use a soft point pen (e.g. felt-tip pen).
z Do not use or store memory cards in the following locations.
• Locations subject to dust or sand
• Locations subject to high humidity and high temperatures
z Since some or all of the data recorded on the memory card
may be corrupted or erased by electrical noise, static
electricity, camera or memory card malfunction, making a
backup copy of important data is recommended.
z Please note that formatting (initializing) a memory card erases
all data, including protected images.
z You are recommended to use memory cards that have been
formatted in your camera.
• The memory card supplied with the camera may be used without
further formatting.
• When the camera is malfunctioning, a corrupted memory card
might be the cause. Reformatting the memory card may solve the
problem.
• When a non-Canon brand memory card is malfunctioning,
reformatting it may solve the problem.
• Memory cards formatted in other cameras, computers, or
peripheral devices may not operate correctly in this camera. When
that happens, reformat the memory card with this camera.
z If formatting in the camera does not work properly, turn the
camera off and re-insert the memory card. Then turn the
camera back on and format again.
z Be careful when transferring or disposing of a memory card.
Formatting or erasing the data on a memory card merely
changes the file management information on the memory card
and does not ensure that its contents are completely deleted.
When disposing of a memory card, take precautions, such as
physically destroying the memory card, to prevent personal
information leaks.
COPY
202
It is best to power the camera with AC Adapter Kit ACK-DC10 (sold
separately) when you are using it for long periods of time or connecting
it to a computer.
Using an AC Adapter Kit (Sold Separately)
Turn the camera power off before connecting or disconnecting
the AC adapter.
1
Connect the power cord to
the compact power adapter
first and then plug the other
end into the power outlet.
2
Open the memory card slot/
battery cover, push the
battery lock in the direction
of the arrow and insert the
DC coupler until it locks.
• Close the memory card slot/battery
cover.
3
Open the DC coupler
terminal cover and attach
the cord to the DC terminal.
Compact Power Adapter
CA-DC10
DC Coupler DR-10
Battery Lock
COPY
203
Appendix
High-Power Flash HF-DC1
This flash is used to supplement the camera’s built-in flash when the
subject is too far away for proper illumination. Use the following
procedures to affix the camera and High-Power Flash to the supporting
bracket.
Please read the instructions accompanying the flash along with this
explanation.
Using an Externally Mounted Flash
(Sold Separately)
z The flash charge time will lengthen as the battery charge
gets weaker. Always set the power/mode switch to [OFF]
when you finish using the flash.
z Be careful not to touch the flash window or sensor windows
with your fingers while the flash is in use.
z The flash may fire if another flash is being used in close
proximity.
z The High-Power Flash may not fire outdoors in daylight or
when there are no reflective items.
z For continuous shooting, although the flash fires for the first
shot, it does not fire for subsequent shots.
z Fasten the attachment screws securely so that they do not
loosen. Failure to do so may lead to the dropping of the
camera and flash resulting in damage to both.
Tripod
Sockets
Bracket
(Comes with the flash)
COPY
204
Batteries
• Charge becomes Severely Limited
If the battery usage time has considerably diminished, wipe the
battery terminals well with a dry cloth. The terminals may be dirty
from fingerprints.
• Usage in Cold Temperatures
Get a spare generic lithium battery (CR123A or DL123). You are
recommended to place the spare battery in your pocket to warm it up
before switching it for the battery in the flash.
• Non-Use over Extended Periods
Leaving batteries in the High-Power Flash could allow the battery
fluid to leak, damaging the product. Remove the batteries from the
High-Power Flash and store them in a cool, dry place.
z Before attaching the bracket to the flash, check that the
lithium battery (CR123A or DL123) is installed.
z To illuminate the subjects properly, install the flash so that it
is up against the side of the camera and parallel with the
camera’s front panel.
z A tripod can be used even when the flash is attached.
COPY
205
Appendix
Camera Body
Gently wipe dirt off the camera body with a soft cloth or eyeglass lens
wiper.
Lens
First use a lens blower brush to remove dust and dirt, then remove any
remaining dirt by wiping the lens lightly with a soft cloth.
Viewfinder and LCD Monitor
Use a lens blower brush to remove dust and dirt. If necessary, gently
wipe with a soft cloth or an eyeglass lens wiper to remove stubborn
dirt.
Camera Care and Maintenance
Never use thinners, benzine, detergents or water to clean the
camera. These substances may distort or damage the
equipment.
Never use organic solvents on the camera body or lens. If dirt
remains, contact the closest Canon Customer Support Help
Desk as listed on the customer support list supplied with your
camera.
Never rub or press strongly on the LCD monitor. These actions
may damage it or lead to other problems.
COPY
206
All data is based on Canon’s standard testing methods. Subject to
change without notice.
PowerShot SD1100 IS DIGITAL ELPH/DIGITAL IXUS 80 IS
Specifications
(W): Max. wide angle (T): Max. telephoto
Camera Effective Pixels : Approx. 8.0 million
Image Sensor : 1/2.5-inch type CCD (Total number of pixels:
Approx. 8.3 million)
Lens : 6.2 (W) – 18.6 (T) mm
(35mm film equivalent: 38 (W) – 114 (T) mm)
f/2.8 (W) – f/4.9 (T)
Digital Zoom : Approx. 4.0x (Up to approx. 12x in
combination with the optical zoom)
Optical Viewfinder : Real-image zoom viewfinder
LCD Monitor : 2.5-inch type, low-temperature polycrystalline
silicon TFT color LCD (wide viewing angle
type), approx. 230,000 dots (Picture coverage
100%)
AF System : TTL autofocus
Face Detect*
1
*
2
/AiAF (9-point)/Center*
3
*1 AF frame can be moved and fixed to specified
face.
*2 If no face is detected, AiAF (9-point) is used.
*3 Size of AF frame can be selected.
Focusing Range : Normal: 30 cm (12 in.) – infinity
Macro: 3 – 50 cm (W)/30 – 50 cm (T)
(1.2 in. – 1.6 ft. (W)/12 in. – 1.6 ft. (T))
Infinity: 3 m (9.8 ft.) – infinity
Kids&Pets: 1 m (3.3 ft.) – infinity
Shutter : Mechanical shutter and electronic shutter
Shutter Speeds : 1/60 – 1/1500 sec.
15 – 1/1500 sec. (Shutter speed range
throughout all shooting modes)
• Slow shutter speeds of 1.3 sec. or slower
operate with noise reduction.
Image Stabilization : Lens shift type
Continuous/Shoot Only*/Panning*/Off
* Still images only
COPY
207
Appendix
Metering System : Evaluative*
1
/Center-weighted average/Spot*
2
*1 Facial brightness is also evaluated in Face Detect
AF.
*2 Fixed to center
Exposure Compensation : ±2 stops in 1/3-stop increments
ISO speed
(Standard Output
Sensitivity, Recommended
Exposure Index)
: Auto*
1
, High ISO Auto*
2
, ISO 80/100/200/400/
800/1600
*1 Camera automatically sets the optimal speed
according to shooting mode and subject
brightness.
*2 Camera automatically sets the optimal speed
according to shooting mode, subject brightness
and subject movement. However, the ISO speed
is set relatively higher than Auto.
White Balance : Auto*, Day Light, Cloudy, Tungsten,
Fluorescent, Fluorescent H or Custom
* The colors of faces are evaluated in Face Detect
AF.
Built-in Flash : Auto, on, off
• Facial brightness is also evaluated in Face
Detect AF.
Built-In Flash Range : Normal: 30 cm – 3.5 m (12 in. – 11 ft.) (W),
30 cm – 2.0 m (12 in. – 6.6 ft.) (T)
• Brightness of image periphery may reduce
depending on shooting distance.
Shooting
Modes
(Still Images) : Auto, Manual*
1
, Digital Macro, Portrait, Night
Snapshot, Color Accent, Color Swap, Stitch
assist*
2
, Scene Mode*
3
*1 Long Shutter mode available.
*2 Selectable in Manual mode.
*3 Kids&Pets, Indoor, Sunset, Foliage, Snow,
Beach, Fireworks, Aquarium, Underwater
(Movies) : Standard, Compact, Color Accent, Color
Swap, Time Lapse
Continuous Shooting : Approx. 1.3 shots/sec.
Self-timer : Activates shutter after an approx. 10-sec./
approx. 2-sec. delay, Custom Timer
Recording Media : SD memory card/SDHC memory card/
MultiMediaCard/MMCplus card/ HC MMCplus
card
File Format : Design rule for camera file system and DPOF
compliant
COPY
208
Data Type : Still images: Exif 2.2 (JPEG)*
: Movies: AVI (Image data: Motion JPEG;
Audio data: WAVE (monaural))
: Sound Memo and Sound Recorder: WAVE
(monaural)
* This digital camera supports Exif 2.2 (also called
“Exif Print”). Exif Print is a standard for enhancing
the communication between digital cameras and
printers. By connecting to an Exif Print-compliant
printer, the camera’s image data at the time of
shooting is used and optimized, yielding extremely
high quality prints.
Compression : Superfine, Fine, Normal
Number of
Recording
Pixels
(Still images) : Large: 3264 x 2448 pixels
Medium 1: 2592 x 1944 pixels
Medium 2: 2048 x 1536 pixels
Medium 3: 1600 x 1200 pixels
Small: 640 x 480 pixels
Date Stamp: 1600 x 1200 pixels
Widescreen: 3264 x 1832 pixels
(Movies) : Standard, Color Accent, Color Swap:
640 x 480 pixels (30 frames/sec.)
640 x 480 pixels (30 frames/sec. LP)
320 x 240 pixels (30 frames/sec.)
Recording can continue until the memory
card is full*
1
(can record up to a maximum of
4 GB at one time*
2
)
Compact: (can record for 3 min.)
160 x 120 pixels (15 frames/sec.)
Time Lapse: (can record 2 hours)
640 x 480 pixels
(1 frame/sec. (shooting interval: 1 sec.),
0.5 frame/sec. (shooting interval: 2 sec.))
(15 frames/sec. (during playback))
*1 Using super high-speed memory cards (SDC-512
MSH recommended).
*2 Even if the file size has not reached 4 GB, the
recording is stopped when the recording time
reaches one hour. Depending on memory card
capacity and data write speed, recording may
stop before the file size reaches 4 GB or the
recording time reaches one hour.
COPY
209
Appendix
Sound Memo : Bit Rate: 16 bits
Sampling Rate
Sound memo, movie (Compact): 11.025 kHz
Movie (other than Compact): 44.100 kHz
Sound Recorder: 11.025 kHz/22.050 kHz/
44.100 kHz
Playback Modes : Single (histogram displayable), Index (9
images), Magnified (approx. 2x to 10x max.),
Resume Playback, Focus Check, Jump, My
category, Trimming, Rotate, Slide Show,
Red-Eye Correction, My Colors, Resize,
Sound memos (it is possible to record and
playback up to 1 min.), Sound Recorder (up
to 2 hours sound-only recording/playback
possible), Protect
Direct Print : PictBridge compliant, and Canon Direct Print
and Bubble Jet Direct compatible
My Camera Settings : Start-up image, start-up sound, operation
sound, self-timer sound, and shutter sound.
Interface : Hi-Speed USB (mini-B)
Audio/Video output (NTSC or PAL selectable,
monaural audio)
Communication Settings : MTP, PTP
Power Source : Battery Pack NB-4L (Rechargeable lithium-
ion battery)
AC Adapter Kit ACK-DC10
Operating Temperatures : 0 – 40 °C (32 – 104 °F)
Operating Humidity : 10 – 90%
Dimensions
(excluding protrusions)
: 86.8 x 54.8 x 22.0 mm
(3.42 x 2.16 x 0.87 in.)
Weight
(camera body only)
:Approx. 125g
(4.41 oz.)
COPY
210
Battery Capacity (Battery Pack NB-4L (Fully
charged))
• The actual figures will vary according to the shooting conditions and
settings.
• Movie data is excluded.
• At low temperatures, the battery performance may diminish and the
remaining battery charge icon (blinks red) may appear very
rapidly. In these circumstances, the performance can be improved by
warming the battery in a pocket before use.
Test Conditions
Number of Images Shot
Playback Time
LCD Monitor On
(Based on the CIPA
standard)
LCD Monitor Off
Approx. 240 images Approx. 600 images Approx. 6 hours
Shooting: Normal temperature (23 °C ±2 °C/73 °F ±3.6 °F), normal
relative humidity (50% ±20%), alternating wide angle end
and telephoto end shots at 30 second intervals with the flash
fired once every two shots and the camera power turned off
after every tenth shot. Power is left off for a sufficient
amount of time*, then the power is turned back on and the
testing procedure is repeated.
• A Canon-brand memory card is used.
* Until the battery returns to normal temperature
Playback: Normal temperature (23 °C ±2 °C/73 °F ±3.6 °F), normal
relative humidity (50% ±20%), continuous playback at 3
seconds per image.
See Handling Precautions (p. 198).
COPY
211
Appendix
Memory Cards and Estimated Capacities
• Capable of smooth continuous shooting (p. 76) when the
memory card has been formatted with a low level format.
• This reflects standard shooting criteria established by Canon. Actual
results may vary according to the subject and shooting conditions.
: Memory card included with the camera
Recording Pixels Compression 32MB SDC-128M
SDC-
512MSH
(Large)
3264 x 2448 pixels
8 35 139
14 59 231
29 123 479
(Medium 1)
2592 x 1944 pixels
11 49 190
20 87 339
41 173 671
(Medium 2)
2048 x 1536 pixels
18 76 295
32 136 529
64 269 1041
(Medium 3)
1600 x 1200 pixels
29 121 471
52 217 839
99 411 1590
(Small)
640 x 480 pixels
111 460 1777
171 711 2747
270 1118 4317
(Date Stamp)
1600 x 1200 pixels
52 217 839
(Widescreen)
3264 x 1832 pixels
11 47 183
18 79 307
39 166 642
COPY
212
Movie
• Maximum movie clip length at : 3 min., : 2 hours. The figures
indicate the maximum continuous recording time.
• As plays back at 15 frames/sec., the recording time and the
playback time will differ.
Sound Recorder Data Rates and Recording
Durations (Estimated)
: Memory card included with the camera
Recording Pixels/
Frame Rate
32MB
SDC-
128M
SDC-
512MSH
Standard
640 x 480 pixels
30 frames/sec.
14 sec.
1min.
1sec.
3min.
57 sec.
Color Accent
640 x 480 pixels
30 frames/sec.
LP
27 sec.
1min.
56 sec.
7min.
30 sec.
Color Swap
320 x 240 pixels
30 frames/sec.
38 sec.
2min.
42 sec.
10 min.
29 sec.
Compact
160 x 120 pixels
15 frames/sec.
3min.
9sec.
13 min.
2sec.
50 min.
21 sec.
Time Lapse
*
1
640 x 480 pixels
7min.
30 sec.
31 min.
45 sec.
2 hrs.
3min.
30 sec.
*
2
15 min.
1 hr.
3min.
30 sec.
4 hrs.
7min.
*1 1 frame/sec. (shooting interval: 1 sec.)
*2 0.5 frame/sec. (shooting interval: 2 sec.)
: Memory card included with the camera
Data Rates 32MB SDC-128M SDC-512MSH
11.025 KHz 22 KB/sec.
23 min.
28 sec.
1hr. 36min.
59 sec.
6hrs. 14min.
16 sec.
22.050 KHz 44 KB/sec.
11 min.
44 sec.
48 min.
30 sec.
3hrs. 7min.
8sec.
44.100 KHz 88 KB/sec.
5min.
52 sec.
24 min.
15 sec.
1 hr. 33 min.
34 sec.
COPY
213
Appendix
Image Data Sizes (Estimated)
Recording Pixels
Compression
3264 x 2448 pixels 3436 KB 2060 KB 980 KB
2592 x 1944 pixels 2503 KB 1395 KB 695 KB
2048 x 1536 pixels 1602 KB 893 KB 445 KB
1600 x 1200 pixels 1002 KB 558 KB 278 KB
640 x 480 pixels 249 KB 150 KB 84 KB
1600 x 1200 pixels — 558 KB —
3642 x 1832 pixels 2601 KB 1540 KB 736 KB
Recording Pixels/Frame Rate File size
Standard
640 x 480 pixels, 30 frames/sec. 1963 KB/sec.
Color Accent
640 x 480 pixels, 30 frames/sec. LP 1003 KB/sec.
Color Swap
320 x 240 pixels, 30 frames/sec. 703 KB/sec.
Compact
160 x 120 pixels,15 frames/sec. 131 KB/sec.
Time Lapse
*
1
640 x 480 pixels
64 KB/sec.
*
2
32 KB/sec.
*1 1 frame/sec. (shooting interval: 1 sec.)
*2 0.5 frame/sec. (shooting interval: 2 sec.)
COPY
214
SD Memory Card
MultiMediaCard
Battery Pack NB-4L
Interface Compatible with SD memory card standards
Dimensions 32.0 x 24.0 x 2.1 mm (1.26 x 0.94 x 0.08 in.)
Weight Approx. 2 g (0.07 oz.)
Interface Compatible with MultiMediaCard standards
Dimensions 32.0 x 24.0 x 1.4 mm (1.26 x 0.94 x 0.06 in.)
Weight Approx. 1.5 g (0.05 oz.)
Type Rechargeable lithium-ion battery
Nominal Voltage 3.7 V DC
Typical Capacity 760 mAh
Battery Life
(Charge Cycles)
Approx. 300 times
Operating
Temperatures
0 – 40 °C (32 – 104 °F)
Dimensions 35.4 x 40.3 x 5.9 mm (1.4 x 1.6 x 0.23 in.)
Weight Approx. 17 g (0.6 oz.)
U.S.A. and Canada only:
The Lithium ion/polymer battery that powers the
product is recyclable.
Please call 1-800-8-BATTERY for information on
how to recycle this battery.
COPY
215
Appendix
Battery Charger CB-2LV/CB-2LVE
Compact Power Adapter CA-DC10
(Included with the separately sold AC Adapter Kit ACK-DC10)
Rated Input 100 – 240 V AC (50/60 Hz)
0.1 A (100 V) – 0.06 A (240 V)
Rated Output 4.2 V DC, 0.65 A
Charging Time Approx. 1 hour 30 minutes
Operating
Temperatures
0 – 40 °C (32 – 104 °F)
Dimensions 53.0 x 86.0 x 19.5 mm (2.1 x 3.4 x 0.77 in.)
Weight Approx. 60 g (2.1 oz.) (CB-2LV)
Approx. 55 g (1.9 oz.) (CB-2LVE) (excluding
power cord)
Rated Input 100 – 240 V AC (50/60 Hz)
Rated Output 4.3 V DC, 1.5 A
Operating
Temperatures
0 – 40 °C (32 – 104 °F)
Dimensions 42.6 x 104.4 x 31.4 mm (1.68 x 4.11 x 1.24 in.)
Weight (excluding
power cord)
Approx. 180 g (6.35 oz.)
When connecting to and using a household power outlet, use only
AC Adapter Kit ACK-DC10 (rated input: 100 – 240 V AC 50/60 Hz,
rated output: 4.3 V DC). Using anything else can cause fire,
overheating, or electrical shock.
COPY
216
Index
Numerics
3:2 Guide ................................110
A
AC Adapter Kit ACK-DC10 .....202
AE Lock .....................................95
AF Frame ..................................89
AF Lock .....................................94
Auto Rotate Function ..............174
B
Battery
Battery Capacity .................210
Charging .................................8
Handling ..............................198
Installing ..................................9
C
Category
Auto Category .....................111
My Category .......................120
Clock Display ............................45
Color Swap .............................107
Compression .............................69
Continuous Shooting .................76
Correction Frame ....................136
Create Folder ..........................172
D
Date/Time
Displaying the Clock .............45
Setting ...................................12
World Clock ........................166
Digital Tele-Converter ............... 60
DIGITAL Terminal .....................41
Digital Zoom ..............................60
Direct Transfer .......................... 29
Downloading Images to
a Computer ............................... 25
DPOF Print Settings ............... 156
DPOF Transfer Order ............. 163
E
Erasing ............................. 17, 151
Exposure Compensation .......... 97
F
Face Select ............................... 92
FE Lock .................................... 96
File Format ............................. 207
File Number ............................ 170
Flash ......................................... 64
Focus .................................. 15, 86
Focus Check ..................... 86, 116
Focus Lock ............................... 94
FUNC./SET Button ............. 42, 46
G
Grid Lines ............................... 110
H
HF-DC1 .................................. 203
Histogram ................................. 51
I
Image Data Sizes
(Estimated) ............................. 213
Image Stabilizer Function ......... 70
Index Playback ....................... 115
Indicator .................................... 44
Infinity ....................................... 64
Interface Cable ................... 18, 27
COPY
217
Index
ISO Speed ................................ 71
J
Jump (Image Search) .............118
L
Language ..................................13
LCD Monitor
Night Display .........................59
Playback Information ............50
Quick-bright LCD ..................59
Shooting Information .............48
Switching the Information
Displays ................................58
List of Messages .....................190
Long Shutter .............................99
M
Macro ........................................64
Magnifying ...............................114
Maintenance ...........................205
Memory Card
Estimated Capacities ..........211
Formatting ...........................168
Handling ..............................200
Inserting .................................. 9
Menu
FUNC. Menu ................... 46, 52
Menus and Settings ........46, 47
My Camera Menu .................57
Play Menu .......................47, 54
Print Menu ......................47, 54
Rec. Menu ............................52
Set up Menu .........................55
MENU Button ...................... 42, 47
Metering Modes ........................98
Mode Switch ............................. 42
Movie
Editing .................................127
Playback ....................... 24, 125
Shooting ......................... 22, 79
Mute .................................... 15, 55
My Camera Settings ............... 177
My Colors ....................... 103, 140
O
Optical Zoom ............................ 60
P
Playback ................................... 16
Power Saving ......................... 165
Print/Share Button .... 42, 112
Printing ............................. 18, 156
Protect .................................... 147
R
Recording Pixels ....................... 68
Red-Eye Corr. ........................... 77
Red-Eye Correction ................ 136
Red-Eye Lamp .......................... 77
Reset All ................................. 175
Resize ..................................... 142
S
Safety Zoom ............................. 61
Self-Timer ................................. 66
Shooting ................................... 14
Shooting Mode
Auto ...................................... 14
Color Accent ....................... 105
Color Swap ......................... 107
Digital Macro ......................... 63
Functions Available ............ 222
Manual .................................. 76
Movie .................................... 79
Night Snapshot ..................... 73
Portrait .................................. 73
Scene Mode ......................... 73
Aquarium .......................... 75
Beach ............................... 74
COPY
218
Fireworks ..........................75
Foliage .............................. 74
Indoor ................................74
Kids&Pets .........................74
Snow .................................74
Sunset ...............................74
Underwater .......................75
Stitch Assist ..........................84
Shutter Button ...........................42
Fully ......................................15
Halfway .................................14
Slide Show ..............................131
Slow Synchro ............................77
Sound Memo ...........................144
Sound Recorder ......................146
Spot AE Point Frame ................98
Stitch Assist ..............................84
System Requirements ............... 25
T
Telephoto ..................................60
Time Lapse ............................... 83
Time Zone ...............................166
Transition Effects .................... 130
Trimming .................................123
V
Video Output System ..............176
Viewfinder .................................41
W
White Balance .........................100
Wide Angle ................................60
Wrist Strap ................................11
Z
Zoom .........................................60
COPY
219
Canadian Radio Interference Regulations
This Class B digital apparatus complies with Canadian ICES-003.
Réglementation canadienne sur les interférences radio
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
FCC Notice
(Digital Camera, Model PC 1271 systems)
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions;
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for Class B digital devices, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The cable with the ferrite core provided with the digital camera must be
used with this equipment in order to comply with Class B limits in Subpart
B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment unless
otherwise specified in the manual. If such changes or modifications
should be made, you could be required to stop operation of the
equipment.
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516) 328-5600
COPY
220
For CA, USA only
Included lithium battery contains Perchlorate Material - special
handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate/ for details.
Battery Charger CB-2LV
This product is not intended to be serviced. Should the product
cease to function in its intended manner, it should be returned to
the manufacturer or be discarded.
This power unit is intended to be correctly orientated in a vertical or
floor mount position.
IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE
INSTRUCTIONS.
DANGER-TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.
For connection to a supply not in the U.S.A., use an attachment
plug adapter of the proper configuration for the power outlet.
This battery charger is for exclusive use with Battery Pack NB-4L
(0.76 Ah). There is a danger of explosion if other battery packs are
used.
COPY
221
Trademark Acknowledgments
• Microsoft, Windows Vista and the Windows Vista logo are
trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
• Macintosh, the Mac logo, QuickTime and the QuickTime logo are
trademarks of Apple Inc., registered in the U.S. and other countries.
• The SDHC logo is a trademark.
Copyright © Canon Inc. 2008 All rights reserved.
Disclaimer
• While every effort has been made to ensure that the information
contained in this guide is accurate and complete, no liability can be
accepted for any errors or omissions.
• Canon reserves the right to change the specifications of the
hardware and software described herein at anytime without prior
notice.
• No part of this guide may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any
form, by any means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted
or lost data due to a mistaken operation or malfunction of the
camera, the software, SD memory cards (SD cards), personal
computers, peripheral devices, or use of non-Canon SD cards.
COPY
222
Functions Available in Each Shooting Mode
Function
Long
Shutter
Exposure Compensation (p. 97)
{ – { { – –
Long Shutter Mode (p. 99)
– { – – – –
ISO Speed (p. 71)
Auto*
1
{ – { { { {
High ISO Auto
{ – – { – {
ISO 80 – 600
{ { – { – –
White Balance
(p. 100)
Auto*
1
{ { { { { {
Other than Auto
{ { { { – –
Drive Mode
(pp. 66, 76)
Single Shooting
{ { { { { {
Continuous Shooting
{ { – { – –
Self-timer
2 sec./10 sec.
{ { { { { {
Custom Timer
{ { – { – {
My Colors (p. 103)
{ { { { – –
Metering System
(p. 98)
Evaluative
{ { { { { {
Center-weighted Average
{ – – { – –
Spot
{ – – { – –
Recording Pixels, Compression (Still Images)
(pp. 68, 69)
{ { {*
2
{*
2
{ {
Date Stamp (Date, Date & Time) (p. 20)
{ { – – { {
Recording Pixels/
Frame Rate
(Movies) (p. 82)
640 x 480, 30 fps/30 fps LP
– – – – – –
640 x 480, 1/0.5 fps
– – – – – –
320 x 240, 30 fps
– – – – – –
160 x 120, 15 fps
– – – – – –
AE Lock (p. 95)
{ – – { – –
FE Lock (p. 96)
{ – – – – –
AF Lock (p. 94)
{ { – { – –
Shooting Zone
(p. 64)
Normal
{ { { – { {
Macro
{ { { { { {
Infinity
{ { { – { –
Face Select and Track (p. 92)
{ { – { { {
Flash (p. 64)
Auto
{ – – – { {
On
{ { { – { –
Off
{ { { { { {
LCD Monitor
Setting (p. 58)
Off
{ { – – – {
LCD Monitor (no information)
{ { – { – {
LCD Monitor (information view)
{ { { { { {
COPY
223
Functions Available in Each Shooting Mode
Set each function according to the shooting conditions and then shoot.
Only functions with settings that change with the shooting mode are
listed here.
Reference
Pages
{ { { { { { { { { { { – – – –
p. 97
– – – – – – – – – – – – – – –
p. 99
{ { { { { { { { { { { { { { {
p. 71
– – – – – – – – – – – – – – –
– – – – – – – – – – – – – – –
{ { { { { { { { { { { { { { {
p. 100
– – – – – – – – – – – { { { –
{ { { { { { { { { { { { { { {
pp. 66, 76
{ { { { { { { { { { { – – – –
{ { { { { { { { { { { { { { {
{ { { { { { { { { { { – – – –
– – – – – – – – – – – { { { –
p. 103
{ { { { { { { { { { { { { { {
p. 98
– – – – – – – – – – – – – – –
– – – – – – – – – – – – – – –
{ { { { { { { { { { { – – – –
pp. 68, 69
{ { { { { { { { { { { – – – –
p. 20
– – – – – – – – – – – { – – {
p. 82
– – – – – – – – – – – – – {*
3
–
– – – – – – – – – – – { – – {
– – – – – – – – – – – – { – –
– – – – – – – – – – – { { { –
p. 95
– – – – – – – – – – – – – – –
p. 96
– – – – – – – – – – – { { { –
p. 94
{ { { { { { { { { { { { { { {
p. 64
{ { – { – { { { – { { { { { {
{ { – { – { { { – { { { { { {
{ { { { { { { { – { { – – – –
p. 92
{ { { { { { { { – – { – – – –
p. 64
{ { { { { { { { – { { – – – –
{ { { { { { { { { { { – – – –
{ { { { { { { { { { { – – – –
p. 58
{ { { { { { { { { { { { { { –
{ { { { { { { { { { { { { { {
COPY
224
Functions Available in Each Shooting Mode
*1 Set to optimum value depending on each shooting mode.
*2 Date Stamp and Widescreen are not available.
*3 15 frames/sec. in Playback mode.
*4 Not available when Date Stamp or Widescreen are selected.
*5 Always set to On.
*6 Available when the flash is [On].
*7 Select from the shooting menu of .
AF Frame (p. 89)
Face Detect
{ { – { { {
AiAF (9 point)
{ { – { { {
Center
{ { { { { {
AF Frame Size (p. 91)
{ { – – – –
AF-Point Zoom (p. 86)
{ { – – { {
Digital Zoom*
4
(p. 60)
On
{ { – {*
5
– {
Digital Tele-Converter
{ { – – – {
Flash Settings
(p. 77)
Red-Eye Corr.
{ { – – – {
Red-Eye Lamp
{ { { – { {
Slow Synchro
{ {*
5
{ – – –
Self Timer Setting (Delay/Shots) (p. 66)
{ { – { – {
AF-assist Beam (p. 53)
{ { { { { {
Review (Rec. review) (p. 53)
{ { { { { {
Review Info
(p. 53)
Off
{ { { { { {
Detailed/Focus Check
{ { – { { {
Auto Category (p. 111)
{ { { { { {
Disp. Overlay
(p. 110)
Grid Lines
{ { – { { {
3:2 Guide/Both
{ { – { { {
Set Button (p. 112)
{ { { { { {
Stitch Direction Selection (Right, Left)*
7
(p. 84)
– – { – – –
{ : Setting available or optimum value is automatically set by the camera. As a rule,
with the “Stitch Assist”, only the first image is available.
– : Not available.
Function
Long
Shutter
COPY
225
Functions Available in Each Shooting Mode
{ { { { { { { { – { { – – – –
p. 89
{ { { { { { { { – { { { { { {
{ { { { { { { { { { { – – – –
– – – – – – – – – – – – – – –
p. 91
{ { { { { { { { { { { – – – –
p. 86
{ { { { { { { { { { { { – – –
p. 60
{ { { { { { { { { { { – – – –
{ { { { { { { { – { { – – – –
p. 77
{ { { { { { { { – { { – – – –
– {*
5
– – {*
5
– – – – – – – – – –
{ { { { { { { { { { { – – – –
p. 66
{ { { { { { { { – {*
6
{ { { { {
p. 53
{ { { { { { { { { { { – – – –
p. 53
{ { { { { { { { { { { – – – –
p. 53
{ { { { { { { { { { { – – – –
{ { { { { { { { { { { { { { {
p. 111
{ { { { { { { { { { { { { { {
p. 110
{ { { { { { { { { { { – – – –
{ { { { { { { { { { { { { { {
p. 112
– – – – – – – – – – – – – – –
p. 84
Reference
Pages
COPY
