Your new washer dryer
You have chosen a Bosch washer dryer.
Please take a few minutes to read and
become familiar with the advantages of
your washer dryer.
To meet the high quality demands
required by Bosch, every washer dryer
that leaves our factory is carefully
checked to ensure that it functions
correctly and is in perfect condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our after-sales
service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washer dryer.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■ / -
Lists are represented by a small box or
a dash.
en
3
Contents
enInstruction Manual and Installation Instructions
8 Intended use. . . . . . . . . . . . . . . . .4
( Safety instructions . . . . . . . . . . .5
Children/people/pets . . . . . . . . . . . . . 5
Installation. . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning/Maintenance . . . . . . . . . . . 10
7 Environmental protection . . . . .12
Packaging/used appliance . . . . . . . . 12
Tips on economical use . . . . . . . . . . 12
5 Positioning and connecting . . .13
Standard accessories . . . . . . . . . . . . 13
Safety instructions. . . . . . . . . . . . . . . 14
Installation surface . . . . . . . . . . . . . . 14
Installation on a base or a wooden joist
floor . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the appliance in a kitchenette
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Removing the transport locks. . . . . . 15
Hose and cable lengths . . . . . . . . . . 16
Water inlet. . . . . . . . . . . . . . . . . . . . . 16
Water outlet . . . . . . . . . . . . . . . . . . . 18
Alignment . . . . . . . . . . . . . . . . . . . . . 19
Electrical connection. . . . . . . . . . . . . 19
Before washing for the first time . . . . 20
Transportation. . . . . . . . . . . . . . . . . . 20
* Getting to know the appliance 22
Appliance . . . . . . . . . . . . . . . . . . . . . 22
Control panel . . . . . . . . . . . . . . . . . . 23
Touch-Display . . . . . . . . . . . . . . . . . . 24
Z Laundry. . . . . . . . . . . . . . . . . . . .25
Preparing laundry for washing . . . . . 25
Preparing laundry for drying . . . . . . . 26
P Overview of programmes . . . . .27
Selectable programme . . . . . . . . . . 27
Drying table . . . . . . . . . . . . . . . . . . . 31
Starching . . . . . . . . . . . . . . . . . . . . . 32
Dyeing/bleaching . . . . . . . . . . . . . . . 32
0 Programme default settings. . . 32
Temperature . . . . . . . . . . . . . . . . . . .32
Spin speed . . . . . . . . . . . . . . . . . . . .32
Finish in. . . . . . . . . . . . . . . . . . . . . . .33
\ Additional programme settings33
Wash+Dry. . . . . . . . . . . . . . . . . . . . .33
Dry . . . . . . . . . . . . . . . . . . . . . . . . . .33
» (Cupboard dry) . . . . . . . . . . . . . . .33
¾ (Cupboard dry+) . . . . . . . . . . . . .34
ö (Iron dry) . . . . . . . . . . . . . . . . . . .34
Speed. . . . . . . . . . . . . . . . . . . . . . . .34
Eco. . . . . . . . . . . . . . . . . . . . . . . . . .34
T (Prewash) . . . . . . . . . . . . . . . . . . .34
O (Rinse plus) . . . . . . . . . . . . . . . . .34
2 (Hygiene care) . . . . . . . . . . . . . . .34
p (Easy iron) . . . . . . . . . . . . . . . . . .35
Z (Water plus) . . . . . . . . . . . . . . . . .35
â (Memory) . . . . . . . . . . . . . . . . . . .35
Á (Silent) . . . . . . . . . . . . . . . . . . . . .35
1 Operating the appliance . . . . . . 35
Preparing the appliance . . . . . . . . . .35
Switching on the appliance/selecting a
programme . . . . . . . . . . . . . . . . . . . .36
Placing laundry into the drum . . . . . .36
Dosing and adding detergent and care
product . . . . . . . . . . . . . . . . . . . . . . .37
Starting the programme . . . . . . . . . .38
Childproof lock . . . . . . . . . . . . . . . . .38
Adding/removing laundry . . . . . . . . .39
Changing the programme . . . . . . . . .39
Cancel the programme . . . . . . . . . . .39
Programme end . . . . . . . . . . . . . . . .39
Removing laundry/switching off the
appliance. . . . . . . . . . . . . . . . . . . . . .40
Q Appliance settings . . . . . . . . . . 40
Automatic switch-off . . . . . . . . . . . . .40
Basic settings . . . . . . . . . . . . . . . . . .40
H Sensors . . . . . . . . . . . . . . . . . . . 42
Unbalanced load detection system . .42
en Intended use
4
2 Cleaning and maintenance . . . 42
Appliance housing/control panel. . . 42
Drum . . . . . . . . . . . . . . . . . . . . . . . . 42
Descaling. . . . . . . . . . . . . . . . . . . . . 42
Detergent drawer and housing . . . . 42
Drain pump is blocked . . . . . . . . . . 43
The drain hose at the siphon is blocked
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Filter in the water supply is blocked 45
3 Faults and what to do about them
46
Emergency release . . . . . . . . . . . . . 46
Information on the display panel . . . 47
Faults and what to do about them . . 48
4 After-sales service . . . . . . . . . . 51
[ Consumption values . . . . . . . . 52
J Technical data. . . . . . . . . . . . . . 53
8 Intended use
Intended use
■ This appliance is intended for private
domestic use only.
■ Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■ This appliance must only be used for
washing domestic laundry,
consisting of machine-washable
items and hand-washable woollens
(see label on item). Using the
appliance for any other purpose is
outside of the scope of its intended
application and is forbidden.
■ This appliance must only be used for
drying and freshening up domestic
laundry, consisting of items that have
been washed with water and are
suitable for tumble drying (see label
on item). Using the appliance for any
other purpose is outside of the
scope of its intended application and
is forbidden.
■ This appliance is suitable for
operation with mains water and
commercially available detergents
and care products (must be suitable
for use in washing machines).
■ This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.
Safety instructions en
5
( Safety instructions
Safety instructi ons
The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■ The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■ Children must not play with
this appliance.
■ Do not allow children to
clean or maintain this
appliance unsupervised.
■ Keep children under 3 years
and pets away from this
appliance.
■ Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■ Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■ Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.
en Safety instructions
6
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■ The mains voltage on your
power socket must match
the rated voltage specified
on the appliance
(identification plate). The
connected loads and the
required fuse protection are
specified on the identification
plate.
■ The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■ The installation must have an
adequate cross section.
■ The mains plug must be
freely accessible at all times.
If this is not possible, in
order to comply with the
relevant safety regulations, a
switch (all pole
disconnection) must be built
into the permanent
installation in accordance
with electrical installation
regulations.
■ If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
Safety instructions en
7
:Warning
Risk of fire/material damage/
damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material
damage/damage to the
appliance!
■ The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■ If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.
:Warning
Risk of injury!
■ The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■ The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■ If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
Caution!
Material damage/damage to
the appliance
■ If the water pressure is too
high or too low, the
appliance may not be able to
operate properly, and it may
also result in material
damage or damage to the
appliance.
Make sure that the water
pressure in the water supply
facility is at least
100 kPa (1 bar), and does
not exceed
1000 kPa (10 bar).
Material damage/damage to the appliance
en Safety instructions
8
■ If the water hoses are altered
or damaged, this may result
in material damage or
damage to the appliance.
The water hoses must not be
kinked, crushed, altered or
severed.
Material damage/damage to the appliance
■ The use of hoses supplied
by other brands to connect
to the water supply may
result in material damage or
damage to the appliance.
Use the hoses supplied with
the appliance or genuine
spare part hoses only.
Material damage/damage to the appliance
■ The appliance is secured for
transportation by transport
locking devices. If the
transport locking devices are
not removed before the
appliance is operated, this
may result in damage to the
appliance.
It is important to completely
remove all transport locking
devices before using the
appliance for the first time.
Make sure that you retain
these transport locking
devices separately. It is
important to refit the
transport locking devices if
the appliance is to be
transported, in order to
prevent the appliance from
being damaged in transit.
Operation
:Warning
Risk of explosions/fire!
Laundry that has come into
contact with solvents, oil, wax,
wax remover, paint, grease or
stain remover may ignite when
dried in the machine, or even
cause the appliance to explode.
Therefore please note:
■ Rinse the laundry thoroughly
with warm water and
detergent before drying it in
the machine.
■ Do not place laundry in this
appliance to be dried if the
laundry has not been
washed first.
■ Do not use the appliance if
industrial chemicals have
been used to clean the
laundry.
:Warning
Risk of explosions/fire!
■ Laundry that has been
pretreated with cleaning
agents that contain solvents,
e.g. stain remover/cleaning
solvent, may cause an
explosion in the drum.
Rinse the laundry thoroughly
with water before washing it
in the machine.
Risk of explosions/fire!
Safety instructions en
9
■ Certain objects may ignite
when drying is in progress,
or even cause the appliance
to catch fire or explode.
Remove any lighters or
matches from pockets on
items of clothing.
Risk of explosions/fire!
■ If there is coal dust or flour in
the air around the appliance,
this may cause an explosion.
Make sure that the area
around the appliance is kept
clean when it is in operation.
:Warning
Risk of fire/material damage/
damage to the appliance!
If a program is terminated
before the drying cycle has
finished, this prevents the
laundry from cooling down
sufficiently and may cause the
laundry to ignite, or may result
in material damage or damage
to the appliance.
■ During the last part of the
drying cycle, the laundry in
the drum is not heated
(cooling cycle). This is to
ensure that it remains at a
temperature at which it will
not be damaged.
■ Do not switch off the
appliance before the drying
cycle has finished unless you
remove all items of laundry
from the drum immediately
and spread them out (to
dissipate the heat).
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■ If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■ If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■ If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
:Warning
Risk of scalding!
When washing at high
temperatures, there is a risk of
scalding if you come into
contact with hot detergent
solution (e.g. when draining hot
detergent solution into a
washbasin).
Do not reach into the hot
detergent solution.
en Safety instructions
10
:Warning
Eye/skin irritation!
Detergent and care products
may spray out if the detergent
drawer is opened while the
appliance is in operation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. If accidentally
swallowed, seek medical
advice.
Caution!
Material damage/damage to
the appliance
■ If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs.
Material damage/damage to the appliance
■ Foam and foam rubber may
deform or melt if dried in the
appliance.
Do not dry laundry items that
contain foam or foam rubber
in the appliance.
Material damage/damage to the appliance
■ If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■ Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■ Never take hold of the mains
plug with wet hands.
■ When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■ Do not make any technical
modifications to the
appliance or its features.
Safety instructions en
11
■ Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■ Spare mains cables can be
ordered from our customer
service.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material
damage/damage to the
appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■ Do not allow these agents to
come into contact with the
surfaces of the appliance.
■ Clean the appliance with
nothing but water and a soft,
damp cloth.
■ Remove any detergent,
spray or other residues
immediately.
en Environmental protection
12
7 Environmental
protection
Environmental protecti on
Packaging/used appliance
Tips on economical use
■ Always fill the appliance with the
maximum amount of laundry for
each programme. ~ Page 27
■ Wash normally soiled laundry
without pretreating.
■ For light and normal soiling in
laundry, you can save energy and
detergent.
■ The selectable temperatures apply
to the care labels on the textiles. The
temperatures in the appliance may
deviate from this so that you get the
optimum mix of energy-saving and
washing results.
■ Energy-saving mode: If the
appliance is not operated for a
prolonged period (approx. 5
minutes), the Touch-Display lighting
goes out before the programme
starts and when the programme has
ended to save energy, # flashes.
Touch any area of Touch-Display to
activate the display backlighting.
When the programme is running,
most of the Touch-Display lighting
goes out. Touch any area of Touch-
Display to re-activate the lighting.
■ Automatic switch off: If the
appliance is not operated for a
prolonged period (at least 20
minutes, depending on the water
level inside of appliance), it will
automatically switch off before the
programme starts or after the
programme has ended. Press the
power button # again to switch on
the appliance.
■ If the laundry is then dried in the
appliance, select the maximum
possible spin speed. The less water
the laundry contains, the less time
and energy are required for drying.
Do not dry dripping wet laundry.
)
Dispose of packaging in an
environmentally-responsible
manner.
This appliance is labelled in
accordance with European
Directive 2012/19/EU
concerning used electrical and
electronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances
as applicable throughout the
EU.
Positioning and connecting en
13
5 Positioning and
connecting
Positioning and connecting
Standard accessories
Note: Check the appliance for transport
damage. Never use a damaged
appliance. If you have any complaints,
contact the dealer from whom you
purchased the appliance or our
Customer Service.
In addition, a hose clamp (24 - 40 mm
diameter, available from specialist
retailers) is required to connect the
water outlet hose to a siphon.
Useful tool
■ Spirit level for aligning
■ Wrench with:
– WAF13 for loosening the
transport braces and
– WAF17 for aligning the appliance
feet

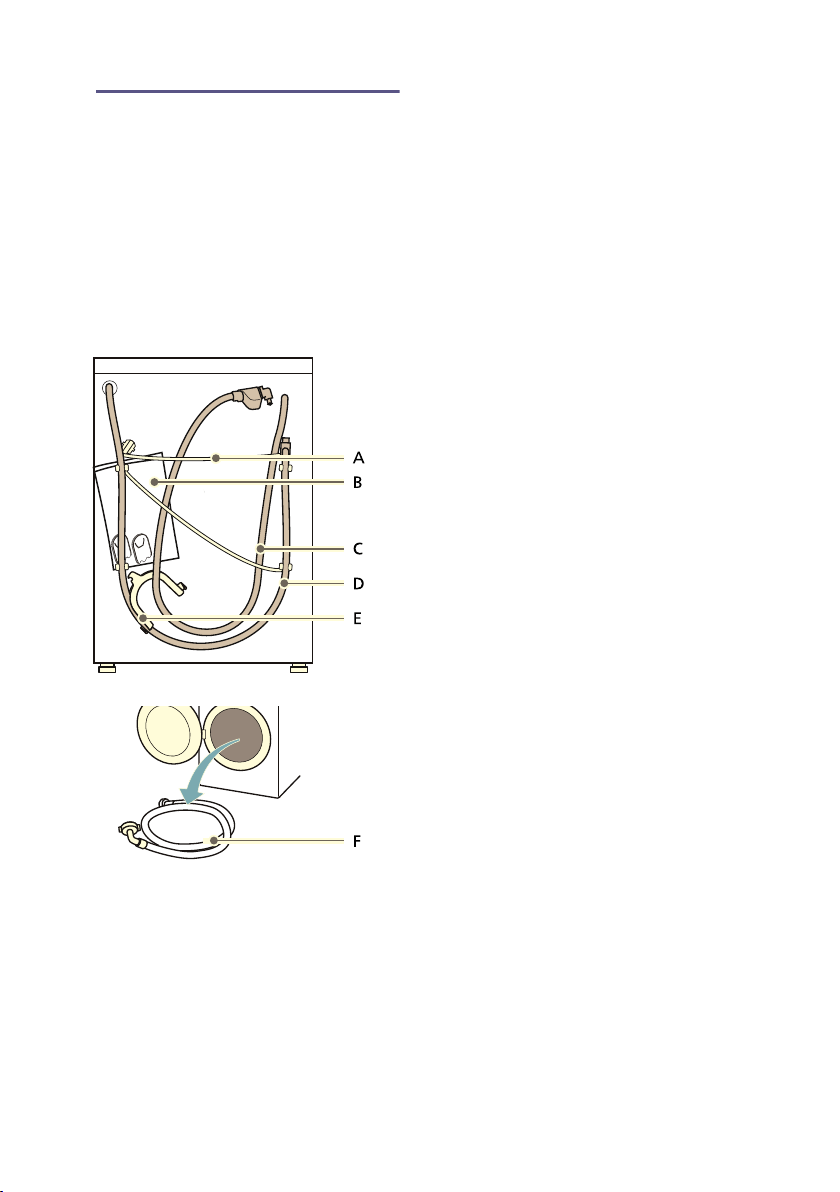

A Mains lead
B Bag:
■ Installation and operating
instructions
■ Customer Service location
directory*
■ Warranty*
■ Supplementary sheet for the
installation and operating
instructions*
■ Cover caps for openings after
the transport braces have
been removed
■ Home Connect Installation
Guides*
C Water inlet hose on aquaStop
models
D Water outlet hose
E Elbow for securing the water
outlet hose
F Cold water inlet hose on
Standard/Aqua-Secure models
* Depending on the model
en Positioning and connecting
14
Safety instructions
:Warning
Risk of injury!
■ The appliance is very heavy.
Be careful when lifting/transporting
the appliance.
■ When the appliance is lifted by its
protruding parts (e.g. the appliance
door), the components may break
off and cause injuries.
Do not lift the appliance by
protruding parts.
■ If the hose and mains cables are not
routed properly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of tripping.
Caution!
Damage to the appliance
Frozen hoses may rip/burst.
Do not install the appliance in areas
exposed to frost or outdoors.
Caution!
Water damage
The connection points for the water
supply hose and water drain hose are
under high water pressure. To prevent
leaks and water damage, you must
follow the instructions in this section.
Notes
■ In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■ If in doubt, have the appliance
connected by a specialist.
Installation surface
Note: The appliance must be stable
aligned so that it does not move
around.
■ The installation surface must be firm
and level.
■ Soft floors/floor coverings are not
suitable.
Installation on a base or a
wooden joist floor
Caution!
Damage to the appliance
The appliance may "wander" and tip/
topple from the base when spinning.
The feet of the appliance must be
secured with holding brackets.
Order no. WMZ 2200, WX 975600,
CZ 110600, Z 7080X0.
Note: On wooden joist floors, install the
appliance:
■ In a corner, if possible,
■ On a water-resistant wooden board
(min. 30 mm thick) which is screwed
tightly to the floor.
Installing the appliance in a
kitchenette
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not remove the appliance covering
plate.
Notes
■ Recess width of 60 cm required.
■ Only install the appliance
underneath a continuous worktop
that is securely connected to
adjacent cabinets.
Positioning and connecting en
15
Removing the transport locks
Caution!
Damage to the appliance
■ The appliance is secured for
transportation using transport locks.
If the transport locks are not
removed, the appliance may
become damaged when it is
operated.
Before using the appliance for the
first time, make sure that you
completely remove all four transport
locks. Keep the locks in a safe
place.
■ To prevent transport damage from
occurring if the appliance is moved
at a later date, you must refit the
transport locks before transporting
the appliance.
Note: Keep the screws and sleeves in
a safe place.
1. Take the hoses out of the holders.
2. Unscrew and remove all four
transport brace screws.
a) Remove the mains cable from the
holders.
b) Remove the sleeves.

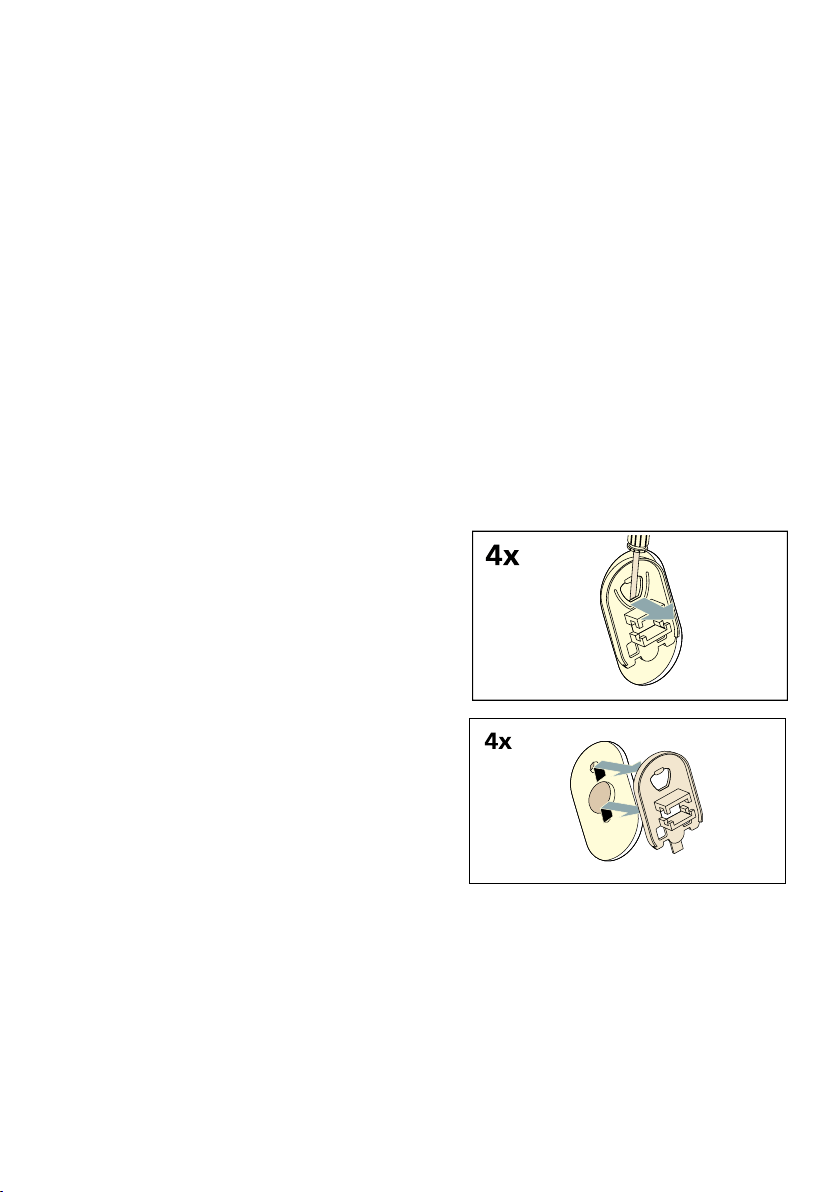

3. Fit the covers.
en Positioning and connecting
16
4. Lock the covers firmly in place by
applying pressure to the snap-in
hooks.
Hose and cable lengths
Connection on left side
or
Connection on right side
Tip: The following are available from
specialist dealers/the after-sales
service:
■ An extension for Aqua-Stop or cold
water supply hose (approx. 2.50 m);
order no. WMZ2380, WZ10130,
CZ11350, Z7070X0
■ A longer supply hose (approx.
2.20 m) for standard model.
Water inlet
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
Do not immerse the Aqua-Stop safety
valve* in water (it contains an electric
valve).
* Depending on the model
Observe the following when connecting
the appliance:
Notes
■ Only operate the appliance using
cold mains water.
■ Do not connect the appliance to the
mixer tap of an unpressurised hot-
water boiler.
■ Do not use a used supply hose. Only
use the supply hose supplied or one
that was purchased from an
authorised specialist retailer.
■ Do not bend, squash, modify or cut
through the water supply hose
(otherwise its strength is no longer
guaranteed).
■ Only tighten the screw connections
by hand. If the screw connections
are tightened too much with a tool
(pliers), the thread may be
damaged.
( ~ 105 cm
0 ~ 100 cm
8 ~ 150 cm
@ 0 cm ~ 100 cm
#
#
( ~ 75 cm
0 ~ 145 cm
8 ~ 190 cm
@ 0 cm ~ 100 cm
Positioning and connecting en
17
Optimum water pressure in the supply
network
At least 100 kPa (1 bar)
Maximum 1000 kPa (10 bar)
When the tap is open, the water flow is
at least 8 l/min.
If the water pressure is higher than this,
a pressure-reducing valve must be
installed.
Connection

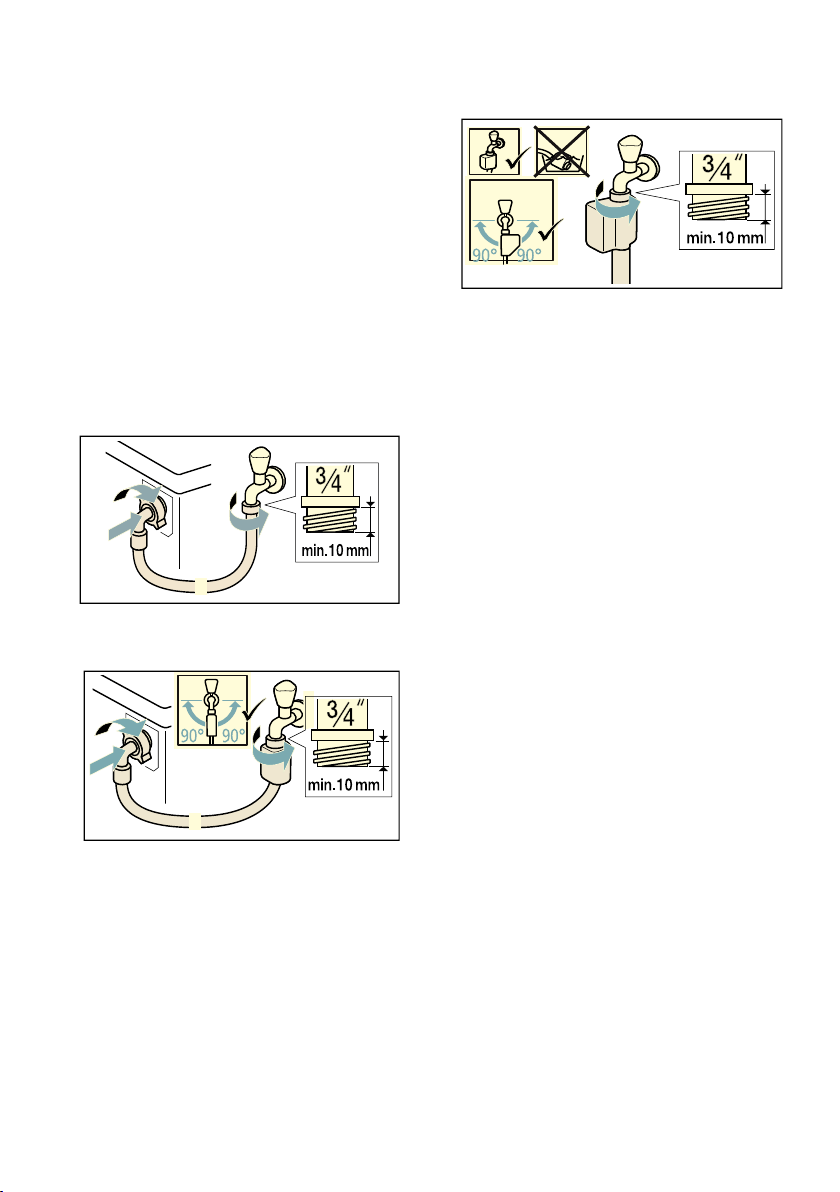

1. Connect the water supply hose to
the water tap (¾" = 26.4 mm) and to
the appliance:
– Model: Standard
– Model: AquaSecure
– Model: Aqua-Stop
Tip: Connect also an external water
filter (depending on the model)
between water supply hose and tap.
The filter filters dirt particles out of the
water.
Water filter must be cleaned regularly
to remove contaminants. This will
prevent blockages. See also ~
separate installation and cleaning
instruction for water filter.
2. Open the water tap carefully,
checking the leak tightness of the
connection points. The screw
connection is under mains water
pressure.
en Positioning and connecting
18
Water outlet
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with hot water
(e.g. when draining hot water into a
washbasin).
Do not reach into the hot water.
Caution!
Water damage
If the drain hose slips out of the
washbasin or the connection point
during draining due to high water
pressure, any escaping water may
cause water damage.
Secure the drain hose so that it cannot
slip out.
Caution!
Damage to the appliance/fabrics
If the end of the drain hose is immersed
in the drained water, water may be
sucked back into the appliance and
may damage the appliance/fabrics.
Make sure that:
■ The plug does not block drainage
from the washbasin.
■ The end of the drain hose is not
immersed in the drained water.
■ The water drains away quickly
enough.
Note: Do not kink the water drain hose
or put strain on it lengthways.
Connection

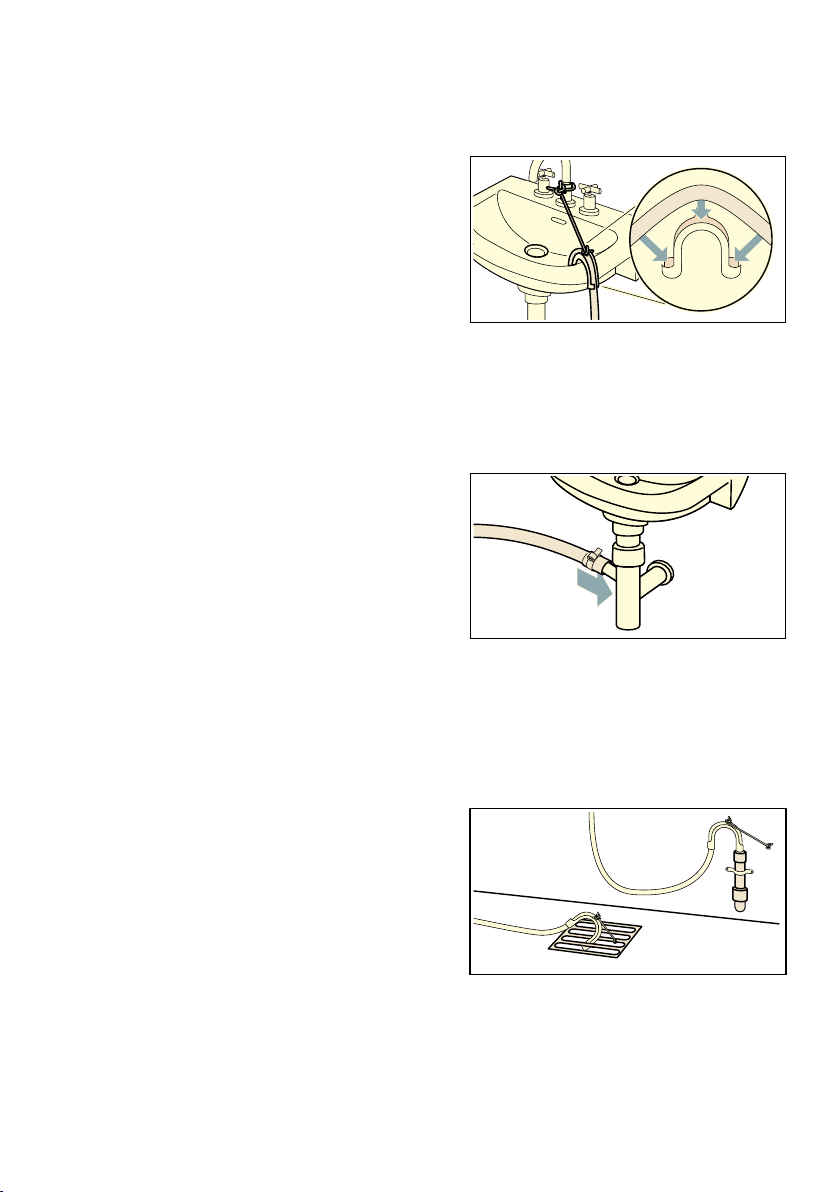

■ Drainage into a washbasin
■ Drainage into a siphon
The connection point must be
secured using a hose clamp with a
diameter of 24 - 40 mm (available
from specialist dealers).
Note: The hose clamp is not
standard accessory, available from
specialist dealers.
■ Drainage into a plastic pipe with
rubber bushing or into a drainage
pit
Note: The plastic pipe is not
standard accessory, available from
specialist dealers.
Positioning and connecting en
19
Alignment
Level the appliance using a spirit level.
Incorrect levelling may result in intense
noise, vibrations and "wandering".
1. Loosen the lock nuts using a
wrench, by turning it in a clockwise
direction.
2. Check the alignment of the
appliance with a spirit level, and
adjust it if necessary. Change the
height by turning the appliance feet.
All four appliance feet must stand
firmly on the ground.
3. Tighten the lock nut against the
housing.
In doing so, hold the foot tight and
do not adjust its height.
The lock nuts on all four appliance
feet must be screwed tightly against
the housing.
Electrical connection
:Warning
Risk of death!
There is a risk of electric shock if you
touch live components.
■ Never touch or hold the mains plug
with wet hands.
■ Only pull out the mains cable by the
plug and never by the cable, as this
could damage it.
Observe the following information and
ensure that:
Notes
■ The mains voltage and voltage
indicated on the appliance (rating
plate) are the same.
The connected load and fuse
required are specified on the rating
plate.
■ The appliance is only connected to
an alternating current via a properly
installed earthed socket.
■ The mains plug fits the socket.
■ The earthing system is properly
installed.
■ The mains cable is only replaced by
a qualified electrician (if this is
necessary). Replacement mains
cables are available from the after-
sales service.
■ No multiple plugs/couplings or
extension cables are used.
■ If an earth-leakage circuit breaker is
used, only a type which displays this
symbol is used: z.
Only this symbol guarantees
compliance with the currently
applicable regulations.
en Positioning and connecting
20
■ The mains plug can be accessed at
all times.
■ The mains cable is not bent,
squashed, modified, cut through, or
in contact with heat sources.
Before washing for the first
time
The appliance was inspected
thoroughly before leaving the factory. To
remove any residual test water, run the
Drum Clean programme the first time
without laundry.
Note:
■ The appliance must have been
installed and connected properly.
~ "Positioning and connecting"
on page 13
■ Never switch on a damaged
appliance.
1. Insert mains plug.
2. Turn the water tap on.
3. Press the # button till the indicator
lamp lights up, release the button.
The appliance is switched on.
4. Close the door. Do not load any
laundry.
5. Select the Drum Clean 90°C
programme.
6. Open the detergent drawer.
7. Pour approx. 1 litre of water into
dispenser II.
8. Add standard detergent to
dispenser II according
to manufacturer’s instructions for
light soiling.
Note: To prevent over sudsing, use
only half the recommended amount
of detergent. Do not use any
woollens or mild detergents.
9. Close the detergent drawer.
10.Select A.
11.When the programme ends, press
the # button till the indicator lamp
turns off, release the button.
Your appliance is now ready for use.
Transportation
e.g. when moving home
Preparatory work:
1. Turn off the water tap.

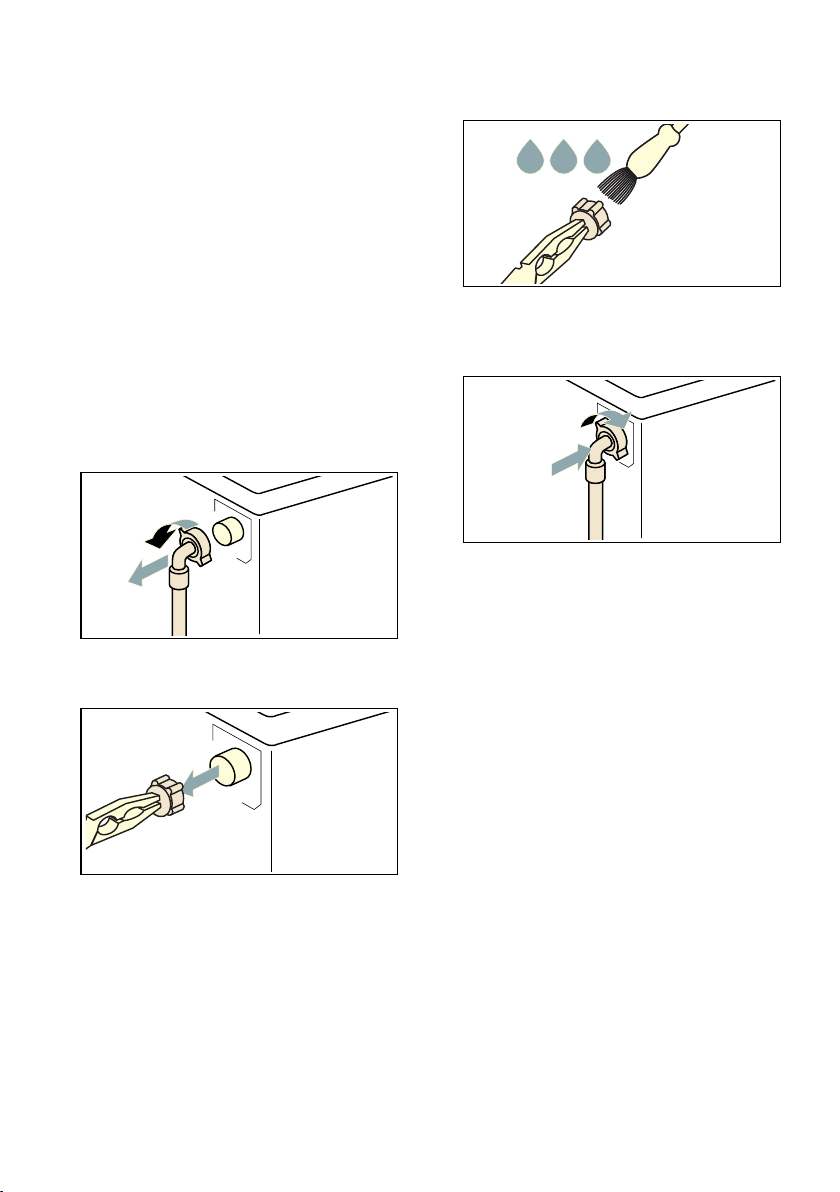

2. Reduce the water pressure in the
supply hose. ~ Page 45
3. Drain any residual water.
~ Page 43
4. Disconnect the appliance from the
mains.
5. Remove the hoses.
6. Empty the dispensers.
~ "Detergent drawer and housing"
on page 42
Installing the transport locks:

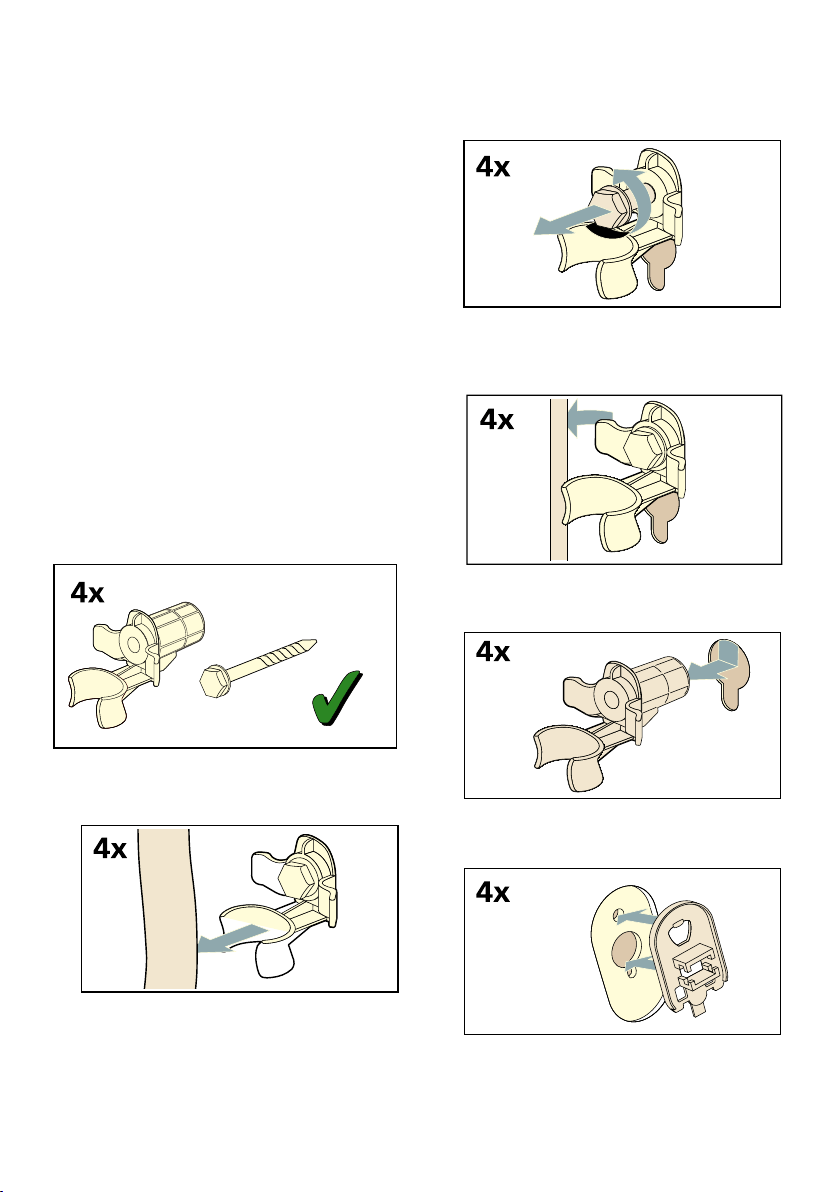

1. Remove the covers and keep them
in a safe place.
Note: Use a screwdriver if
necessary.
Positioning and connecting en
21
2. Insert all four sleeves.
a) Clip the hoses securely in the
holders.
b) Clip the mains cable securely in
the holders.
c) Insert and tighten the screws.
Before switching on the appliance
again:
Notes
■ The transport braces must be
removed.
~ "Removing the transport locks"
on page 15
■ Pour approx. 1 litre of water into
dispenser II, select the Rinse/Spin/
Drain programme and start.
This will prevent detergent from
flowing straight into the drain during
the next wash.
en Getting to know the appliance
22
* Getting to know the appliance
Getting to know the appliance

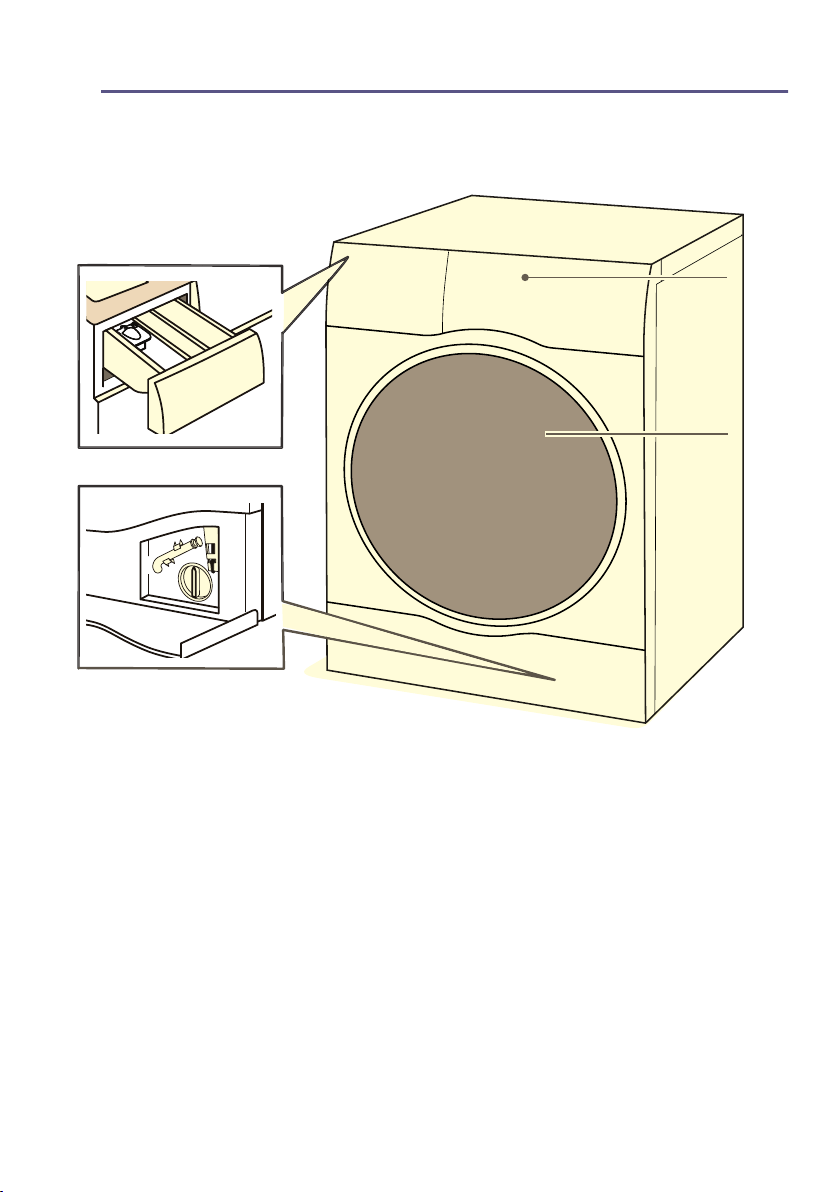

Appliance
#
( Detergent drawer
0 Control panel/touch display
8 Loading door
@ Service flap
Getting to know the appliance en
23
Control panel
#
( Programmes that can be selected.
0 Touch-Display
8 Start/Pause button
Touch A button to start, interrupt
(e.g. reload washing) and cancel
the programme.
@ Power button
Press the # button to switch the
appliance on/off.
en Getting to know the appliance
24
Touch-Display
Programme default settings
Additional programme settings
Display Setting Description
— - 90° Temperature Temperature that
can be set in °C
— = cold
2, 400-
1400*
Spin speed Spin speed in rpm
(revolutions per
minute)
2 = No spin
2:30* Programme
remaining time
Programme
remaining time
depends on the
programme selec-
tion in h:min
(hours:minutes)
0.5 - 24 h "Finish in" time Programme ends
after ... h (h =
hours)
10.0* kg/
6.0* kg
Maximum load
for Washing/Dry-
ing
Recommended
load in kg
* Depending on the selected model and pro-
gramme.
Display Setting
Wash+Dry
~ "Additional programme
settings" on page 33
Dry
¾ (Cupboard
dry+)
» (Cupboard dry)
ö (Iron dry)
T (Prewash)
O (Rinse plus)
Z (Water plus)
p (Easy iron)
2 (Hygiene care)
Speed
Eco
â (Memory)
Á (Silent)
Laundry en
25
Status indicators for the programme
progress (programme sequence)
Z Laundry
Laundry
Preparing laundry for washing
Protecting your laundry and appliance
Caution!
Damage to the appliance/textiles
Foreign objects (e.g. coins, paper clips,
needles, nails) may damage the
washing or components of the
appliance.
The following instructions must be
observed when preparing your laundry:
■ Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■ Do not exceed maximum load.
Overfilling will impair the washing
result.
■ Keep detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) away
from the surfaces of the appliance.
Using a damp cloth, immediately
remove any fine spray residue and
other residue or droplets.
■ Empty any pockets. Remove any
foreign objects.
■ Remove metal parts (paper clips,
etc.).
■ Trousers, knitwear and knitted
textiles, e.g. jersey garments, T-shirts
or sweatshirts, should be turned
inside out.
■ Ensure that underwired bras are
appliance-washable.
■ Wash delicates in a net or bag
(tights, underwired bras, etc).
■ Close zips, button up covers.
■ Brush sand out of pockets and
collars.
■ Remove curtain fittings or include in
the net/bag.
Sorting laundry
Sort your laundry according to the care
instructions and manufacturer's
information on the care labels,
depending on:
■ Type of fabric/fibre
■ Colour
Note: Laundry may discolour. Wash
white and coloured items separately.
Wash new coloured items separately
the first time you wash them.
■ Soiling
Wash laundry with the same level of
soiling together.
Some examples of soiling levels can
be found in the chapter
– Light: Do not need to pretreat,
select the Speed setting if
necessary.
– Normal
Display Setting
A Start/Pause button
ã Pretreatment
N Wash
O Rinse
0 Spin/Drain
‰ Dry
Q Wrinkle guard
End Programme end
en Laundry
26
– Heavy: Load less laundry, need
to pretreat or soak laundry firstly.
– Stains: Remove/pretreat stains
while they are fresh. First dab
with soapy water; do not rub.
Then wash the items of laundry
with the appropriate programme.
Stubborn or dried-in stains can
sometimes only be removed by
washing several times.
■ Symbols on the care labels
Preparing laundry for drying
Note: To ensure an even drying result,
sort the laundry according to the:
■ Type of fabric
■ Care symbols which are indicated on
the care labels.
Only dry laundry which is labelled
“dryer-proof” or which has the following
care symbols:
■ a : You can select
Cottons/Allergy+/MyTime + Dry
■ ` : You can select
Easy-Care/Mixed Load/W Wool/
Down/Sportswear/Shirts + Dry
The following textiles must not be dried:
■ b = care symbol “Do not dry”
■ Delicates (silk, synthetic curtains).
■ Textiles which contain foam rubber
or similar materials.
■ Textiles which were treated with
flammable liquids, e.g. with stain
remover, petroleum ether, thinners.
Risk of explosion!
■ Textiles which still contain hairspray
or similar substances.
Notes
■ Before drying, hand-washed textiles
must be spun at the appropriate spin
speed.
■ Before drying, spin at the optimum
speed. A spin speed of more than
1000 rpm is recommended for
cotton, more than 800 rpm for easy-
care textiles.
■ Do not iron washing immediately
after drying. It is recommended to
roll the washing up first to distribute
residual moisture evenly.
■ To ensure a good drying
performance, quilts, terry cloths and
other large textiles should be dried
separately. Do not dry more than 6
terry cloths (or 5 kg).
■ Do not exceed the maximum load.
M Suitable for normal washing
process;
e.g. Cottons programme
N A gentle washing process is
required;
e.g. Easy-Care programme
O An especially gentle washing
process is required;
e.g. Delicates/
Silk programme
W Suitable for washing by hand;
e.g. W Wool programme
Ž Do not machine wash.
Overview of programmes en
27
P Overview of
programmes
Overview of programmes
Selectable programme
Programme/Type of laundry Options/Information
Name of the programme
Brief explanation of the programme and for which fabrics it is
suitable.
Max. load for washing/
Max. load for drying
Max. load as kg
depending on the model and the pro-
gramme
selectable temperature* as °C
selectable spin speed* in rpm
possible additional programme settings*
Cottons
Hard-wearing fabrics, heat-resistant fabrics made of cotton or
linen.
Max. 10.0 (5.0**) kg/6.0 kg
— - 90 °C
400 - 1400 rpm
Speed, Eco, Z (Water plus), p (Easy
iron), 2 (Hygiene care), O (Rinse
plus), T (Prewash), â (Memory), Á
(Silent), Wash+Dry, Dry, ¾ (Cupboard
dry+), » (Cupboard dry), ö (Iron dry)
Easy-Care
Textiles made of synthetic materials or blended fabrics.
Max. 4.0 kg/2.5 kg
— - 60 °C
400 - 1400 rpm
Speed, Eco, Z (Water plus), p (Easy
iron), 2 (Hygiene care), O (Rinse
plus), T (Prewash), â (Memory), Á
(Silent), Wash+Dry, Dry, ¾ (Cupboard
dry+), » (Cupboard dry), ö (Iron dry)
Mixed Load
Mixed load of cottons and synthetic fabrics.
Max. 4.0 kg/2.5 kg
— - 40 °C
400 - 1400 rpm
Speed, Eco, Z (Water plus), p (Easy
iron), 2 (Hygiene care), O (Rinse
plus), T (Prewash), â (Memory), Á
(Silent), Wash+Dry, Dry, ¾ (Cupboard
dry+), » (Cupboard dry), ö (Iron dry)
* Depending on the model and the programme.
** Reduced load with Speed additional programme setting.
en Overview of programmes
28
Delicates/Silk
For delicate, washable fabrics, e.g. made of silk, satin, synthetic
fibres or blends (e.g. silk blouses, silk scarves).
Max. 2.0 kg/-
— - 40 °C
2 - 800 rpm
Speed, Eco, Z (Water plus), p (Easy
iron), O (Rinse plus), T (Prewash), â
(Memory), Á (Silent)
W Wool
Hand- or appliance-washable fabrics that are made of wool or
contain wool;
particularly gentle wash programme to prevent laundry from
shrinking, with longer pauses in the programme (during which
the items rest in the water).
Note: In order to prevent clothing shrink, after drying still con-
tain a small amount of water, please take out the clothes as soon
as possible after the end of the programme to flat dry.
Max. 2.0 kg/1.0 kg
— - 40 °C
2 - 800 rpm
â (Memory), Á (Silent), Wash+Dry,
Dry, ö (Iron dry)
Down
Appliance-washable fabrics stuffed with down; also suitable for
items stuffed with synthetic fibres.
Notes
■ It is recommended that you pull down the coat zipper
before drying and turn the inner layer inside out.
■ Use the special detergent for down.
Max. 1.5 kg/1.5 kg
— - 60 °C
400 - 1200 rpm
Speed, Eco, Z (Water plus), 2
(Hygiene care), O (Rinse plus), â
(Memory), Wash+Dry, Dry, ¾ (Cup-
board dry+), » (Cupboard dry)
Rinse/Spin/Drain
Combined extra programme for rinsing and spinning the laun-
dry, and draining the rinsing water
Note: The setting O (Rinse plus) is activated at the factory for
this programme.
If you only want to spin the laundry: Deactivate the O
(Rinse plus) setting and, if required, adjust the spin speed.
If you only want to drain water: Deactivate the O (Rinse
plus) setting and select the 2 setting.
-
-
2 - 1400 rpm
Z (Water plus), p (Easy iron), O
(Rinse plus), â (Memory), Wash+Dry,
¾ (Cupboard dry+), » (Cupboard dry),
ö (Iron dry)
Programme/Type of laundry Options/Information
* Depending on the model and the programme.
** Reduced load with Speed additional programme setting.
Overview of programmes en
29
Drum Clean
Special programme for drum hygiene or fluff removal. Do not
load any laundry.
90°C = antibacterial programme.
40°C = antibacterial programme, special drum cleaning deter-
gent can be used.
— = no antibacterial programme, to remove hair or fluff from
the tub.
The Drum Clean programme indicator flashes if you have not
used any programme at a temperature of 60 °C or higher for an
extended period.
Notes
■ Switching the Drum Clean information signal on/off.
~ "Switching the drum-care information signal on/off"
on page 41
■ Always follow the manufacturer's instructions when dosing
the detergent.
Max. 0.0 kg/-
—, 40°C, 90 °C
1200
â (Memory), Á (Silent)
Allergy+
Hard-wearing fabrics made of cotton or linen.
Note: Particularly suited to washing items that need to be hy-
gienically clean and especially kind to sensitive skin thanks to
the longer wash cycle at a defined temperature, higher water
level and longer spin cycle.
Max. 6.5 kg/5.0 kg
— - 60 °C
400 - 1400 rpm
Speed, Eco, Z (Water plus), p (Easy
iron), 2 (Hygiene care), O (Rinse
plus), T (Prewash), â (Memory), Á
(Silent), Wash+Dry, Dry, ¾ (Cupboard
dry+), » (Cupboard dry), ö (Iron dry)
Sportswear
Suitable for sportsweare made of microfibre e.g Acrylic, Nylon,
Spandex etc.
Max. 2.0 kg/2.0 kg
— - 40 °C
400 - 800 rpm
Speed, Eco, Z (Water plus), p (Easy
iron), O (Rinse plus), T (Prewash), â
(Memory), Á (Silent), Wash+Dry, Dry,
¾ (Cupboard dry+), » (Cupboard dry),
ö (Iron dry)
Programme/Type of laundry Options/Information
* Depending on the model and the programme.
** Reduced load with Speed additional programme setting.
en Overview of programmes
30
Shirts
Non-iron shirts or blouses made of cotton, linen, synthetic fibres
or blended fabrics.
Max. 2.0 kg/2.0 kg
— - 60 °C
400 - 800 rpm
Speed, Eco, Z (Water plus), p (Easy
iron), 2 (Hygiene care), O (Rinse
plus), T (Prewash), â (Memory), Á
(Silent), Wash+Dry, Dry, » (Cupboard
dry), ö (Iron dry)
MyTime
Mixed fabrics; for lightly soiled laundry made of cotton and syn-
thetics.
The length of the programme can be set each time. The maxi-
mum programme length is 60 minutes for washing and 120
minutes for drying, it can be reduced in 10-minute increments.
Notes
■ Increase the length of the programme with O (Rinse
plus) additional programme setting.
■ The ñ (Finish in) programme default setting can not be
selected for this programme.
■ If you use this programme for drying, the detergent can not
be added.
Max. 2.0 kg/6.0 kg
— - 40 °C
400 - 1200 rpm
Z (Water plus), p (Easy iron), O
(Rinse plus), â (Memory), Á (Silent),
Dry, ö (Iron dry)
Super Quick 15’/Wash&Dry 60’
For small amount lightly soiled garments made of cotton, linen,
synthetic or blended fabrics. Approx. 15 mins for washing. If
drying function is selected, it’s followed by another approx. 45
mins drying process.
Note: The default programme is Super Quick 15’. You can
switch to Wash&Dry 60’ programme by touching Wash+Dry
button.
Max. 2.0 kg/1.0 kg
— - 40 °C
400 - 1200 rpm
â (Memory), Á (Silent), Wash+Dry, »
(Cupboard dry)
Refresh
Odour removal and wrinkle reduction program, suitable for
wool, linen, suits, etc. which do not need frequent washing.
Notes
■ It is recommended that the 3-5-minute effect of hanging
clothing in a ventilation environment will be better after the
program is finished. If you use the program repeatedly, it is
recommended that you run the washing program in the
middle to remove the odor attached to the drum.
■ The detergent can not be added for this programme.
- / Max. 1.0 kg
-
-
â (Memory), Á (Silent)
Programme/Type of laundry Options/Information
* Depending on the model and the programme.
** Reduced load with Speed additional programme setting.
Overview of programmes en
31
Drying table
Estimated drying time (min)
Recommended drying
programme
Option Drying load
(kg)
ö (Iron
dry)
» (Cup-
board dry)
¾ (Cup-
board dry+)
Cottons/Allergy+ Speed 1.0-2.0 40-50 50-70 65-90
2.0-4.0 50-75 70-95 90-135
4.0-6.0 75-90 95-120 135-160
Eco 1.0-2.0 45-65 60-90 75-110
2.0-4.0 65-115 90-160 110-185
4.0-6.0 115-150 160-240 185-265
Easy-Care/Mixed Load/
Sportswear/Shirts
Speed 0.5-1.5 30-40 35-60 45-80
1.5-2.5 40-60 60-90 80-110
Eco 0.5-1.5 35-50 55-80 75-105
1.5-2.5 50-75 80-120 105-145
Down 1.5 - 50-120 80-150
± The time listed above is the reference value, the actual drying effect may be affected by the clothing
type, clothing weight, dehydration degree and ambient temperature.
± In order to achieve uniform drying effect, it is recommended to distinguish between heavy and light-
weight clothing. For example, separate the thick towel and the shirt to bake.
± ¾ (Cupboard dry+) is recommended for drying bulky or heavy clothing.
± In order to reduce the wrinkling of clothing after drying, it is recommended to put a small amount of
clothing drying.
± Please refer to the panel display for the drying time of the programme not mentioned in the table above.
en Programme default settings
32
Starching
Note: Laundry should not be treated
with fabric softener.
1. Switch on the appliance.
2. Select the Rinse programme.
3. Measure starch into compartment ©
in accordance with the
manufacturer's instructions (clean
first if necessary).
4. Touch the A button.
Dyeing/bleaching
Dye should only be used in normal
household quantities. Salt may damage
stainless steel. Always follow the dye
manufacturer's instructions.
Do not use the appliance to bleach
clothes.
0 Programme default
settings
Programme default setti ngs
You can change the default settings for
selected programmes. The settings can
be changed even while the selected
programme is running. The effects
depending on the progress of the
programme.
Temperature
Before and after the programme starts,
you can change the set temperature
depending on how far through the
programme the appliance is.
The maximum temperature that can be
set depends on the programme that has
been selected.
Spin speed
Depending on what stage the
programme is in, you can change the
spin speed (in rpm; revolutions per
minute) before and during the
programme.
setting 2: 2=”No spin”. The water is
only drained.
You can select “No spin” to prevent
creasing if the laundry will not be taken
out of the appliance immediately after
the programme has ended.
The maximum speed that can be set
depending on the model and the
programme that has been selected.
Additional programme settings en
33
Finish in
Before starting the programme, you
can preselect the programme end
("Finish in" time) in 0.5h increments (h =
hour) up to a maximum of 24 hours.
To do this:
1. Select a programme (except
MyTime programme).
The programme duration is
displayed for the selected
programme, e.g. 2:30
(hours:minutes).
2. Select the ˜ button repeatedly until
the required number of hours is
displayed.
Note: The setting values are
increased using the ˜ button, and
decreased using the ~ button.
3. Select the A button.
The programme starts.
The selected number of hours (e.g.
8h) is shown in the display panel
and counts down until the
programme starts. The duration of
the programme is then displayed.
Note: The length of the programme is
automatically adjusted when the
programme is running. Changes to the
programme default settings or
programme additional settings may also
change the programme duration.
After starting the programme (if a
“Finish in” time has been selected and
the programme has not yet started), you
can change the preselected number of
hours as follows:
1. Select the A button.
2. Touch the ˜ or ~ button to change
the number of hours.
3. Select the A button.
\ Additional programme
settings
Additi onal programme settings
Note: You can find possible additional
programme settings in the overview;
these differ depending on the model.
By selecting additional programme
settings, you can better adapt the
washing/drying process to your items of
laundry.
The settings can be selected or
deselected depending on the progress
of the programme.
The button indicator lamps light up if a
setting is activated.
The settings are not retained after the
appliance is switched off.
Wash+Dry
Continuous cycle with washing and
drying at once.
Dry
Drying cycle without washing.
» (Cupboard dry)
For single-layer fabrics. Garments can
be folded or hung up in a cupboard.
en Additional programme settings
34
¾ (Cupboard dry+)
For fabrics made of thick, multilayered
items of clothing, which need to be
dried longer. Garments can be folded or
hung up in a cupboard. Laundry more
dry than » (Cupboard dry).
ö (Iron dry)
Normal, single-layered laundry that still
needs to be damp after drying and is
suitable for ironing or hanging up.
Speed
Washing/drying in a shorter time while
achieving a washing/drying result that is
consistent with the normal performance.
Touch Speed to activate or deactivate
this additional programme setting.
Note: With the Speed additional
programme setting activated, the
maximum load of washing will be
reduced, and extra water will be needed
for the drying process.
Eco
Washing with less energy while
achieving a washing result that is
consistent with the normal performance.
Drying with less water while achieving a
drying result that is consistent with the
normal performance.
Touch Eco to activate or deactivate this
additional programme setting.
Note: With the Eco additional
programme setting activated, washing
at lower temperatures over a longer
period of time to conserve washing
performance; drying with less water
over a longer period of time to achieve
drying result.
T (Prewash)
Prewash for heavily soiled laundry.
Touch T (Prewash) to activate or
deactivate it.
Note: Put the detergent into dispenser I
and II.
O (Rinse plus)
Settings that can be selected:
Additional rinse cycles for particularly
sensitive skin and/or for areas with very
soft water.
Longer programme duration.
The number of rinse cycles that the
appliance actually runs depends on the
number that is set as a basic setting for
the program in question.
2 (Hygiene care)
An innovative function, pretreat dry
laundry by hot air (up to 65°C) for
enhanced hygiene need, followed by a
low temperature washing cycle.
Achieves both hygiene effect and fabric
care. Suitable for most non-delicate
textiles.
Note: During this process, the drum
light will animation for approx. 10
minutes.
+1 + 1 rinse cycle
+2 + 2 rinse cycles
+3 + 3 rinse cycles
Operating the appliance en
35
p (Easy iron)
Reduces creasing by means of a
special spin sequence followed by
fluffing and reduced spin speed.
Touch p (Easy iron) and activate or
deactivate it.
Note: If p (Easy iron) has been
activated, the laundry will have retained
a higher than average level of moisture
after spinning.
Z (Water plus)
Increased water level for gentler
treatment of the laundry.
Touch Z (Water plus) to activate or
deactivate it.
â (Memory)
You can save a selected programme
with your favourite settings here.
To store:
1. Switch on the appliance.
2. Select a programme.
3. If required, change the programme
default settings and/or select
programme additional settings.
4. Touch and hold â (Memory) button
for approx. three seconds.
The programme is saved if all of the
settings flash briefly.
Calling up: touch â (Memory) button
briefly after you switch on the appliance.
Reset: touch and hold â (Memory)
button again for approx. three seconds
after selecting the new programme and
settings.
Á (Silent)
Special designed function for noise
reduction. Washing and drying process
noise will be reduced, and ending
signal will be switched off.
Note: If silent is selected for wash only,
remaining moisture of the laundry will
be slightly increased. The spin result
may not be satisfying. Before hanging
you can select Spin programme to
further reduce moisture.
1 Operating the
appliance
Operati ng the appliance
Preparing the appliance
The appliance was tested before
delivery. To remove residual water from
the test procedure, the first wash cycle
should be run without laundry using the
Drum Clean programme.
~ "Before washing for the first time"
on page 20
Notes
■ Never switch on a damaged
appliance!
■ Inform customer service!
1. Insert mains plug.
:Warning
Risk of death from electric shock!
Risk of death if live parts are
touched.
– Never pull out the mains plug by
tugging the power cord.
– Insert/pull out the mains plug
with dry hands only.
en Operating the appliance
36
2. Turn the water tap on.
3. Open the appliance door.
Switching on the appliance/
selecting a programme
Press the # button till the indicator
lamp lights up, release the button. The
appliance is switched on.
The Cottons programme, which is
preset at the factory, is then always
displayed.
You can use this programme or select a
different programme.
Note: If you have activated the
childproof lock, you must deactivate it
before you can set a programme.
Presettings and maximum load are
indicated on the Touch-Display for the
selected programme.
You can use the displayed presettings
or adjust the selected programme
optimally to the items of washing by
changing the ~ "Programme default
settings" on page 32 and/or selecting
~ "Additional programme settings"
on page 33.
Placing laundry into the drum
Insert the laundry.
Close the door.
Notes
■ Unfold and load presorted items
of laundry. Mix large and small
items. Washing items of different
size distribute themselves better
during the spin cycle. Individual
items of washing may cause
an unbalanced load.
■ Observe the maximum specified
load. Overfilling adversely affects the
washing/drying result and promotes
creasing. Make sure that no items of
laundry are trapped between the
door and the rubber seal, and close
the door.
Operating the appliance en
37
Dosing and adding detergent
and care product
Caution!
Damage to the appliance
Detergents and agents for the
pretreatment of laundry (e.g. stain
remover, prewash sprays, etc.) may
damage the surfaces of the washer
dryer.
Keep these agents away from the
surfaces of the washer dryer. Using a
damp cloth, immediately remove any
fine spray residue and other residue/
droplets.
Dosing
Dose the detergents and care products
according to:
■ water hardness (ask your water
supply company),
■ the manufacturer’s specifications on
the packaging,
■ the amount of laundry,
■ soiling.
Filling the dispensers
1. Pull out the detergent drawer.
:Warning
Eye / skin irritation!
If the detergent drawer is opened
while the appliance is running,
detergent/care product may run out.
Carefully open the drawer.
If detergent/care product comes into
contact with eyes or skin, rinse
thoroughly.
If accidentally swallowed, seek
medical advice.
2. Pour in detergent and/or cleaning
product.
Notes
■ Always follow the manufacturer's
instructions when dosing
all detergents, cleaning aids, care
products and cleaning agents.
■ Dilute viscous fabric softener
and fabric conditioner with water.
This will prevent blockages.
■ Be careful when opening the
detergent drawer while the appliance
is running.
Measuring aid A* for liquid detergent
*depending on the model
Position the measuring aid A for
measuring the correct amount of liquid
detergent:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
2. Slide the measuring aid forwards,
fold it down and click it into place.
Dispenser I Detergent for pretreat and
clothing disinfectant. (only for
the appliance with pretreat and
disinfectant function)
Dispenser i Softener, starch. Do not exceed
the maximum load.
Dispenser II Detergent for main wash, water
softener, bleach, stain remover.
Dispenser A For dosing liquid detergent.
en Operating the appliance
38
3. Reinsert the drawer.
Note: Do not use the measuring aid for
gel detergents and washing powder, or
for programmes with pretreat or when
"Finish in" time is selected.
For models without a measuring aid,
pour the liquid detergent into the
appropriate dispenser and place it in
the drum.
Starting the programme
Touch and hold A button for 1~2
seconds, then release the button. The
programme starts and the appliance
door is locked.
The Finish in time is shown in the
Touch-Display and counts down until
the programme starts. After the
programme has started, the programme
duration is displayed. And the displays
for the programme's progress light up.
~ "Touch-Display" on page 24
Note: Foam detection
If the symbol Å also lights up in the
Touch-Display, the appliance has
detected too much foam during the
wash cycle and automatically activated
additional rinse cycles to remove the
foam.
If you want to lock the programme to
prevent it from being adjusted
inadvertently, you can select the
childproof lock.
Childproof lock
You can lock the appliance to prevent
the functions you have set from being
changed inadvertently. To do this,
activate the childproof lock.
Touch and hold the E (3s) button to
activate/deactivate the childproof lock.
To activate the childproof lock:
After the programme starts, Touch and
hold the E (3s) button for 3 seconds.
■ E (3s) lights up: The childproof lock
is activated.
■ E (3s) flashes: If a button is touched
while childproof lock is activated, the
E (3s) button will flash.
Note: When the programme ends, End
is displayed. The door is closed. E (3s)
and Õ remain on to remind you to
deactivate the childproof lock.
To deactivate the childproof lock:
Touch and hold the E (3s) button until
the E (3s) indicator lamp is off.
Operating the appliance en
39
Adding/removing laundry
After starting the programme, you can
add or remove laundry if necessary.
Touch the A button. The appliance
checks whether reloading is possible.
If the following appears on the Touch-
Display:
■ The symbol Õ disappears, reloading
is possible.
■ The symbol Õ lights up, reloading is
not possible.
To continue the programme, touch the
A button. The programme continues
automatically.
Notes
■ Do not leave the door open for too
long when adding laundry as water
from the laundry may leak out.
■ For safety reasons, the door remains
locked when the water level or
temperature is high, or while the
drum is turning, and it is not possible
to add laundry during this time.
Changing the programme
If you have started the wrong
programme by mistake, you can
change the programme as follows:
1. Touch the A button.
2. Select another programme.
3. And touch the A button again. The
new programme starts from the
beginning.
Note: If the programme in drying
process, you can’t pause the
programme.
Cancel the programme
For programmes washing at high
temperatures:
1. Touch the A button.
2. To cool down laundry: Select Rinse.
3. Touch the A button.
For programmes washing at low
temperatures:
1. Touch the A button.
2. Select Spin.
3. Touch the A button.
For programmes in drying process:
1. Switch the appliance off.
2. Switch the appliance on again.
3. To cool down laundry: Select the
MyTime + Dry.
4. Touch the A button.
Programme end
End lights up on the Touch-Display and
A and Õ displays are off.
If you have selected 2, the water is only
drained after rinse process, no spin
cycle.
Notes
■ If Hot flashes in the display before
the drying programme ends, the
temperature in the drum is high. The
programme for cooling the drum
runs until the temperature in the
drum has dropped.
■ Wrinkle guard process starts after
drying process is finished to prevent
laundry getting wrinkle if you do not
take laundry out in time. The process
lasts about 30 minutes. 0:00 will be
displayed in time display and Q
symbol will be displayed as the
status symbol. You can touch any
area of Touch-Display to terminate
this process, then the door will be
released and laundry can be taken
out.
en Appliance settings
40
Removing laundry/switching
off the appliance
1. Press the # button till the indicator
lamp turns off, release the button.
The appliance is switched off.
2. Open the door and remove the
laundry.
3. Turn off the water tap.
Note: Not required for Aqua-Stop
models.
Notes
■ Do not leave any items of laundry in
the drum. They may shrink in the
next wash or discolour another item.
■ Remove any foreign objects from the
drum and the rubber seal – risk of
rusting.
■ Wipe the rubber seal dry.
■ Leave the door and detergent
drawer open so that any residual
water can evaporate.
■ Always wait until the programme
ends, as the appliance could still be
locked. Then switch the appliance
on and wait for it to unlock.
Q Appliance settings
Appliance settings
Automatic switch-off
If the appliance is not operated for a
prolonged period (at least 20 minutes,
depending on the water level inside of
appliance), it will automatically switch
off before the programme starts or after
the programme has ended. Press the
power button # again to switch on the
appliance.
Basic settings
To access the basic settings, touch and
hold the Á (Silent) button for approx. 3
seconds. The control panel show:
You can change the following basic
settings:
■ The volume of the end signal.
■ The volume of the buttons.
■ The brightness of the Touch-Display.
■ Switching the Drum Clean
information signal on/off.
Appliance settings en
41
End signal
You can select position 1 and use the ˜
button to adjust the volume of the end
signal, e.g. ‘- „.
Possible setting values:
Button signal
You can select position 2 and use the ˜
button to adjust the volume of the
button signal, e.g. ›- „.
Possible setting values:
Brightness
Possible setting values: 1 - 4
You can select position 3 and use the ˜
button to adjust the brightness of the
Touch-Display, e.g. ’- „.
Possible setting values:
Switching the drum-care information
signal on/off
You can select position 4 and use the ˜
button to switch the Drum Clean
information signal on or off, e.g. š- ‚.
Possible setting values:
0 off
1 quiet
2 medium
3 loud
4 very loud
0 off
1 quiet
2 medium
3 loud
4 very loud
1 not very bright
2 normal level of
brightness
3 bright
4 very bright
0 off
1on
en Sensors
42
H Sensors
Sensors
Unbalanced load detection
system
The automatic unbalanced load
detection system detects imbalances
and ensures even distribution of the
laundry by repeatedly starting and
stopping drum spinning.
If the laundry is extremely unevenly
distributed, the spin speed is reduced
or the spin cycle is not performed for
safety reasons.
Note: Place large and small items of
laundry evenly in the drum.
2 Cleaning and
maintenance
Cleaning and maintenance
:Warning
Risk of death!
There is a risk of electric shock if touch
live components.
Press the button # and pull out the
mains plug.
Caution!
Fire and explosion hazard!
Toxic vapours can be produced by
cleaning agents that contain solvents,
e.g. cleaning solvent.
Do not use cleaning agents that contain
solvents.
Caution!
The appliance may be damaged!
Cleaning agents that contain solvents,
e.g. cleaning solvent, can damage
surfaces and components in the
appliance.
Do not use cleaning agents that contain
solvents.
Appliance housing/control
panel
■ Remove the detergent residue
immediately.
■ Wipe the housing and the control
panel with a soft, damp cloth.
■ Do not use abrasive cloths, sponges
or detergents (stainless steel
cleaner).
■ Do not clean the appliance with a
water jet.
Drum
Use chlorine-free cleaning agents, do
not use steel wool.
If there are odours in the appliance, or
to clean the drum, run the Drum Clean
90°C programme without laundry.
Descaling
Descaling should not be necessary if
the detergent is measured out correctly.
However, if it is required, follow the
manufacturer's instructions for the
descaling agent. Suitable descalers can
be obtained via our website or from
customer services.
Detergent drawer and housing
If the appliance contains detergent or
fabric softener residues:
1. Pull out the detergent drawer. Press
down the insert and fully remove the
drawer.
Cleaning and maintenance en
43
2. To remove the insert: Push the insert
upwards from below with your finger.
3. Clean the detergent dispenser tray
and insert with water and a brush,
and dry it. Clean the inside of the
housing as well.
4. Fit the insert and lock it in place
(push the cylinder onto the guide
pin).
5. Push in the detergent drawer.
Note: Leave the detergent drawer open
so that any residual water can
evaporate.
Drain pump is blocked
Note: Turn the water tap off to prevent
more water from flowing in and to
ensure that it is drained via the pump.
:Warning
Risk of scalding!
When you wash at high temperatures,
the water gets very hot. If you come into
contact with the hot water, you may be
scalded.
Allow the water to cool down first.
1. Switch off the appliance. Pull out the
mains plug.
2. Open the service flap.
en Cleaning and maintenance
44
3. Take the drain hose out of the
retainer.
Remove the sealing cap and pour
the water out into a suitable
container.
Replace the sealing cap and place
the drain hose back in the retainer.
4. Carefully unscrew the pump cover;
residual water may leak out.
Clean the interior, pump cover
thread and pump housing. The
impeller in the drain pump must be
able to rotate.
5. Refit and screw on the pump cover.
The handle must be in a vertical
position.
6. Close the service flap.
Note: To prevent unused detergent
from flowing straight into the drain
during the next wash: Pour 1 litre of
water into dispenser II and start the
Rinse/Spin/Drain programme.
The drain hose at the siphon
is blocked
1. Press the # button. Pull out the
mains plug.
2. Loosen the hose clamp. Carefully
remove the drain hose; residual
water may leak out.
3. Clean the drain hose and siphon
connecting piece.
4. Re-attach the drain hose and secure
the connection point using the hose
clamp.
Cleaning and maintenance en
45
Filter in the water supply is
blocked
Release water pressure in the supply
hose:
1. Turn off the water tap.
2. Select any programme (except
Rinse/Spin/Drain programme).
3. Select the A button. Allow the
programme to run for approx. 40
seconds.
4. Press the button #.
5. Pull out the mains plug.
Clean the filters:
1. Disconnect the hose from the rear of
the appliance.
2. Use pliers to remove the filter.
3. Clean the filter with a small brush.
4. Connect the hose and check for
leaks.
en Faults and what to do about them
46
3 Faults and what to do
about them
Faults and what to do about them
Emergency release
E.g. power outage or in the event of a
loss of power
The programme continues when the
power supply is restored.
However, if the laundry has to be
removed, the appliance door can be
opened as follows:
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with hot water
and laundry.
If possible, leave it to cool down first.
:Warning
Risk of injury!
Reaching into the drum while it is still
turning may cause hand injuries.
Do not reach into the drum when it is
turning.
Wait until the drum has stopped turning.
Caution!
Water damage!
Any escaping water may cause water
damage.
Do not open the door if water can be
seen through the glass.
1. Press the # button. Pull out the
mains plug.
2. Open the service flap.
3. Drain the water. ~ Page 43
4. Pull the emergency release
downwards with a tool and release.
The door can then be opened.
Faults and what to do about them en
47
Information on the display panel
Display Cause/Remedy
Õ ■ Flashes fast + signal: The door was opened and the water level is too high.
Close the door, continue the programme with A button or select Spin pro-
gramme.
■ Flashes slowly: The door lock temperature is too high to open the door. Wait
approx. 30 seconds until the door lock temperature cools down.
Hot The door cannot be opened after the drying programme due to the high tempera-
ture. The cooling process continues until the display disappears, after which the
door can be opened.
r ■ Flashes (no water supply): Water tap turned on? Filter in the water supply is
blocked?
~ "Filter in the water supply is blocked" on page 45
Is the supply hose kinked or trapped?
■ Lights up (low water pressure): For information only. This will not affect the
programme progress. The programme duration is extended.
E:36
alternating with
-10 and End
when programme is
finished
■ The drain pump is blocked.
~ "Drain pump is blocked" on page 43
■ The drain hose at the siphon is blocked.
~ "The drain hose at the siphon is blocked" on page 44
H:95
alternating with
End
when programme is
finished
No water detected in drying phase, may get bad drying result.
H:32
alternating with
End
when programme is
finished
Unbalance problem, spinning phase is aborted.
E (3s) lights up The childproof lock is activated – deactivate it.
Å lights up Too much foam has been detected and an additional wash cycle has been acti-
vated. Add less detergent to the next washing cycle with the same load.
The indicator lamp of
the Drum Clean pro-
gramme flashes
Run the Drum Clean 90°C programme to clean and care for the drum and the
outer tub.
Notes
■ Run the programme without laundry.
■ Use washing powder or a detergent containing bleach. To prevent foaming,
only use half the amount of detergent recommended by the detergent manu-
facturer. Do not use detergent designed for woollens or delicates.
■ Switching the Drum Clean information signal on/off.
~ "Switching the drum-care information signal on/off" on page 41
Other displays Switch off the appliance, wait for five seconds and then switch it on again. If the dis-
play appears again, call customer service.
en Faults and what to do about them
48
Faults and what to do about them
Faults Cause/Remedy
Water is leaking from the
appliance.
■ Attach the drain hose correctly or replace it.
■ Tighten the screw fitting on the supply hose.
The appliance is not filling
with water.
Detergent is not being dis-
pensed.
■ Programme does not start?
■ Is the water tap turned on?
■ Could the filter in the water supply be blocked?
~ "Filter in the water supply is blocked" on page 45
■ Is the supply hose kinked or trapped?
The wrong detergent/fab-
ric softener has been
poured into the dis-
penser(s).
Dispenser(s):
1. Empty and clean.
2. Refill.
Detergent/fabric softener
has congealed in the dis-
pensers.
Clean and refill the dispensers.
The door cannot be
opened.
■ Childproof lock activated? Deactivate childproof lock.
■ The temperature in drum is too high to open the door.
■ The safety function is activated. Stop the programme?
■ The water level in drum is too high.
■ Can the door only be opened by the emergency release?
~ "Emergency release" on page 46
The programme will not
start.
■ Have you touched the A button or selected ñ (Finish in) time?
■ Is the door closed?
■ Childproof lock activated? Deactivate childproof lock.
■ Shop mode activated? If the display shows àœ©˜ for 5 s after you have
switched on or off the appliance, the appliance is in shop mode. Turn off
the shop mode as follows:
1. Switch the appliance off and on again.
2. Wait for the display message àœ©˜ to disappear.
3. Touch and hold A for at least 5 s.
The appliance will automatically switch off. You can use the appliance now as
usual.
The water is not draining. ■ Could the drain pump be blocked?
~ "Drain pump is blocked" on page 43
■ Could the drain hose at the siphon be blocked?
~ "The drain hose at the siphon is blocked" on page 44
Water is not visible in the
drum.
Not a fault – the water is below the visible area.
Faults and what to do about them en
49
The spin result is not sat-
isfactory.
Laundry wet/too damp.
■ Not a fault – the unbalanced load detection system has interrupted the
spin cycle because the laundry is unevenly distributed. Distribute small and
large items of laundry evenly in the drum.
■ Is p (Easy iron) additional programme setting selected (depending on
the model)?
■ Is Á (Silent) additional programme setting or Silent programme selected
(depending on the model)?
■ Is the selected spin speed too low?
The spin cycle runs sev-
eral times.
Not a fault – the unbalanced load detection system is adjusting an imbalance.
Residual water in the dis-
penser for care product.
■ Not a fault – effect of the care product not impaired.
■ If required, remove the insert. Clean the detergent drawer and re-insert it.
Compartment M is not
rinsed out completely.
Remove the insert. Clean the detergent drawer and reinsert it.
The programme is taking
longer than usual.
■ Not a fault – the unbalanced load detection system is adjusting an imbal-
ance by repeatedly distributing the laundry.
■ Not a fault – the foam detection system is activated – a rinse cycle has
been switched on.
The length of the pro-
gramme changes during
the wash/dry cycle.
Not a fault – the programme sequence is optimised for the specific washing/
drying process. This may change the length of the programme shown on the
Touch-Display.
Foam may come out of
the detergent drawer.
Too much detergent used?
Mix 1 tablespoon of fabric softener with ½ litre of water and pour into
dispenser II. (Not for outdoor, sports and down-filled textiles!)
Reduce detergent dosage for the next wash cycle.
Use commercially available low foam detergent and care product which are
suitable for machine.
Odours, stain formation in
the appliance.
Run the Drum Clean 90°C programme without laundry.
Add washing powder or a detergent containing bleach.
Note: To prevent foaming, only use half the amount of detergent recommend-
ed by the detergent manufacturer. Do not use detergents designed for woollens
or delicates.
Loud noises, vibrations
and appliance "move-
ment" during the spin
cycle.
■ Is the appliance aligned?
~ "Alignment" on page 19
■ Are the appliance's feet fixed? Secure the appliance's feet.
■ Have the transport locks been removed?
~ "Removing the transport locks" on page 15
The Touch-Display indica-
tor lights do not work
while the appliance is run-
ning.
■ Has there been a power failure?
■ Circuit breaker fuses blown? Reset/replace the fuses.
■ If the fault occurs repeatedly, call customer services.
Faults Cause/Remedy
en Faults and what to do about them
50
There is detergent resi-
due on the laundry.
■ Some phosphate-free detergents contain water-insoluble residue.
■ Select Rinse or brush the laundry after washing.
Spin noise during the dry-
ing phase.
This is an innovative process known as thermal spinning used to reduce energy
consumption during the drying phase.
Fluff found on the laundry. Run the Drum Clean — (cold) programme without laundry and detergent to
remove fluff which have accumulated inside the drum during the previous dry-
ing cycle.
Water inlet noise during
the drying phase.
The washer dryer uses water condensation technology, water is constantly
needed to dry the laundry. Therefore the water tap must be on all the time, till
the end of the drying phase.
Drying duration extended. ■ Run the Drum Clean — (cold) programme to remove fluff which has col-
lected in the washer drum during the drying phase.
■ If the ambient temperature is higher than 30 °C, this may extend the drying
time.
■ Insufficient air circulation in the room may increase the drying time. Venti-
late the room.
Drying programme does
not start.
■ Drying additional programme setting not selected?
■ Door not closed properly?
Creasing. ■ Creasing occurs when you have exceeded the maximum load or selected
the wrong program for the type of fabric. All the required information can
be found in the programme overview table.
■ Remove clothes immediately after drying; creasing may occur if they are
left in the drum.
Faults Cause/Remedy
After-sales service en
51
4 After-sales service
After-sales service
If you cannot rectify a fault yourself,
(~ "Faults and what to do about them"
on page 46), please contact our after-
sales service.
We will always find an appropriate
solution to avoid unnecessary visits by
engineers.
Please provide the after-sales service
with the product number (E-Nr.) and the
production number (FD) of the
appliance.
You can find this information
(depending on the model):
■ On the inside of the loading door
■ On the back of the appliance
Trust the expertise of the
manufacturer. Contact us. By doing so,
you can be sure that the repairs are
carried out by trained service personnel
using genuine spare parts.
The drying result is not
satisfactory (laundry is
not dry enough).
■ After the end of the programme, warm laundry feels damper than it actu-
ally is. Spread the laundry out and allow the heat to disperse.
■ Excessively high ambient temperature (above 30 °C) or inadequate ventila-
tion in the room in which the washer dryer is situated.
■ The laundry has not been spun well enough before drying. Always set the
highest selectable spin speed for the particular washing programme.
■ Washer dryer overloaded: Observe the recommendations for the maximum
load in the programme table and on the load display. Do not overload the
washer dryer, as the maximum load for the drying phase is less than the
maximum load for the wash cycle. Unload the washer dryer after washing
with the maximum load and divide the laundry into two drying cycles.
■ The power supply voltage is too low (below 200 V) – provide a suitable
power supply.
■ The water pressure is low. According to water condensing principle, low
water pressure will cause evaporated steam to not condense properly and
completely.
■ The water tap is closed during drying. Due to the use of the water conden-
sation technology for drying, please keep the connected water tap open
during the drying process, otherwise proper drying cannot be guaranteed.
■ Thick multilayered textiles or textiles with thick fillings dry easily on the sur-
face, but not inside. This equalisation process may take longer. For these
types of textiles, select drying mode ¾ (Cupboard dry+) or select
MyTime with Dry.
If you cannot rectify a fault yourself (after switching the appliance off and on again) or a repair is required:
■ Switch off the appliance and pull out the mains plug.
■ Turn off the water tap and call customer service.
Faults Cause/Remedy
E-Nr. Product number
FD Production number
(1U )'
en Consumption values
52
[ Consumption values
Consumpti on values
Energy and water consumption, programme duration and residual moisture for
the main washing programme
(approximate values)
Programme Load Energy con-
sumption*
Water con-
sumption*
Programme
duration*
Cottons 20 °C 10,0 kg 0,39kWh 91 l 3] h
Cottons 40 °C 10,0 kg 1,32 kWh 91 l 4 h
Cottons 60 °C 10,0 kg 1,54 kWh 92 l 3] h
Cottons 60 °C + Eco ** 10,0 kg 1,22 kWh 69 l 5] h
Cottons 60 °C + Eco (washing) 10,0 kg
6,82 kWh 125 l 10^ h
Cottons + Dry + Speed + ¾
(Cupboard dry+) (drying) ***
6,0 kg
Cottons 90 °C 10,0 kg 2,70 kWh 104 l 3] h
Easy-Care 40 °C 4,0 kg 0,77 kWh 69 l 2 h
Mixed Load 40 °C 4,0 kg 0,63 kWh 50 l 1] h
Delicates/Silk 30 °C 2,0 kg 0,21 kWh 35 l _ h
W Wool 30 °C 2,0 kg 0,21 kWh 41 l _ h
Cottons + Dry + Speed + »
(Cupboard dry) (drying)
6,0 kg 3,11 kWh 38 l 2] h
Easy-Care + Dry + Speed + »
(Cupboard dry) (drying)
2,5 kg 1,32 kWh 21 l 1^ h
Values determined according to the valid version of EN50229.
* Observed values may deviate from the indicated values due to influence of water pressure, hardness
and inlet temperature, ambient temperature, type, amount and soiling of laundry, detergent used, fluc-
tuations in power supply and selected additional functions.
** EU energy label performance tests according to the valid version of EN50229 and Directive 96/60/EC
for washing with max. load, cold water (15°C) and maximum spin speed.
*** EU energy label performance tests according to the valid version of EN50229 and Directive 96/60/EC
for washing with max. load, cold water (15°C) and maximum spin speed and for drying, which is divided
into 2 parts for 2 drying cycles.
Technical data en
53
J Technical data
Technical data
Dimensions:
848 mm x 598 mm x 620 mm
(height x width x depth)
Weight:
84 kg
Mains connection:
Nominal voltage 220-240V, 50 Hz
Minimum installation protection (c)10
A
Nominal power 1900-2300 W
Water pressure:
100–1000 kPa (1–10 bar)
6
6
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
*9001342805*
9001342805 (9805)
You can find the contact information for all countries in the attached after-sales
service directory.
7 Advice and repair order in the event of faults
GB 0344 892 8979 (Calls charged at local or mobile rate.)
IE 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.)
