Instruction Manual and Installation Instructions
Washer dryer
WVH28424GB
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WVH28424GB:
Your new washer dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Protection of the environment 12
3
5 Installation and connection 13
3
Y The main points in brief 21
3
* Getting to know your appliance 22
3
Z Laundry 26
3
1 Operating the appliance 28
3
/ Overview of programmes 34
3
0 Changing programme default settings 38
3
\ Selecting additional functions 40
3
M Setting the signal 41
4
2 Cleaning and maintenance 42
4
3 Faults and what to do about them 45
4
4 Customer service 49
4
J Technical specifications 49
4
[ Consumption values 50
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Caution!
8
Material damage/damage to the appliance
8
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Protection of the environment
12
Protection of the environment
12
Packaging/old appliance
12
Hints and tips
12
5 Installation and connection
13
Installation and connection
13
Standard accessories
13
Note:
13
Note:
13
Useful tools:
13
Installation
13
Note:
13
Secure installation
13
: Warning
13
Risk of injury!
13
Caution!
14
Damage to the appliance
14
Installation area
14
Note:
14
Installing the appliance on a base or on a wooden joist ceiling
14
Caution!
14
Damage to the appliance
14
Note:
14
Installing the appliance under/ between kitchen units
14
: Warning
14
Risk of electric shock!
14
: Warning
14
Risk of scalding!
14
Notes
14

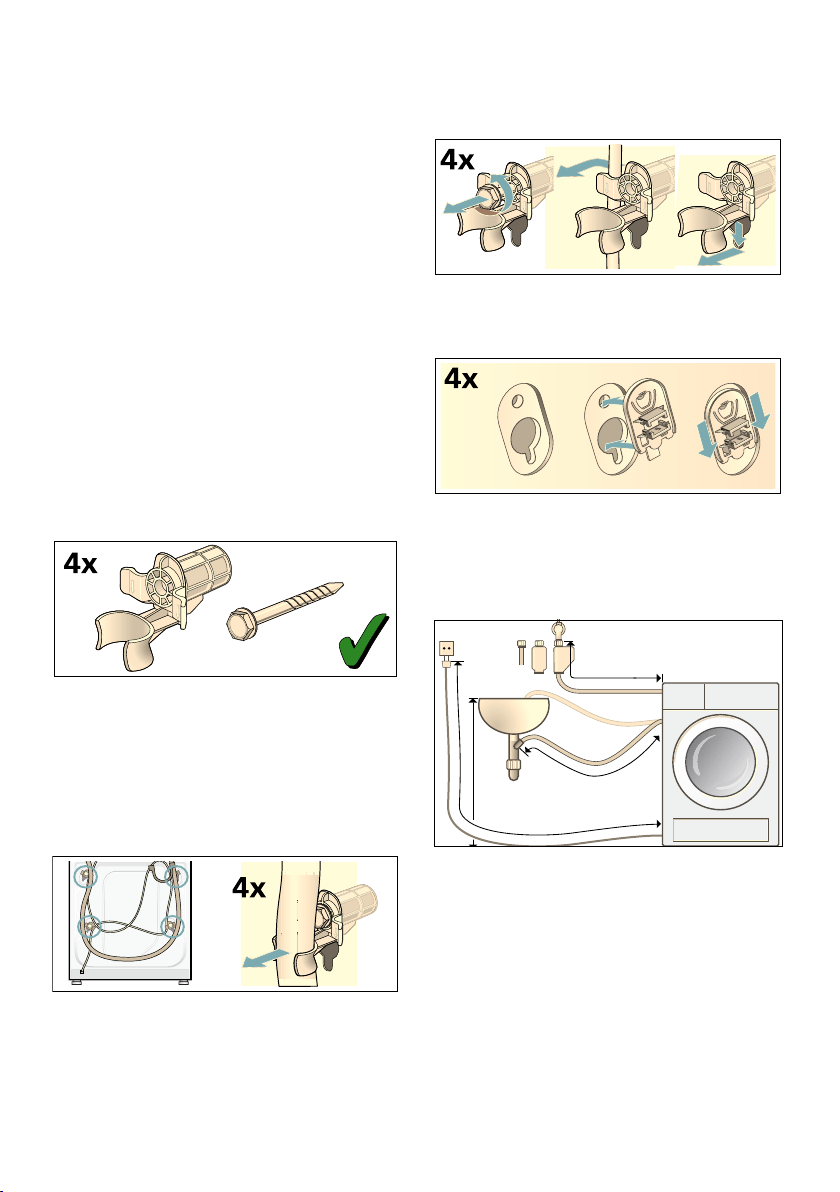

Removing the transportation protection devices
15
Caution!
15
Damage to the appliance
15
1. Take the hoses out of the holders.
15
2. Take hoses out of the elbow and remove the elbow.
15

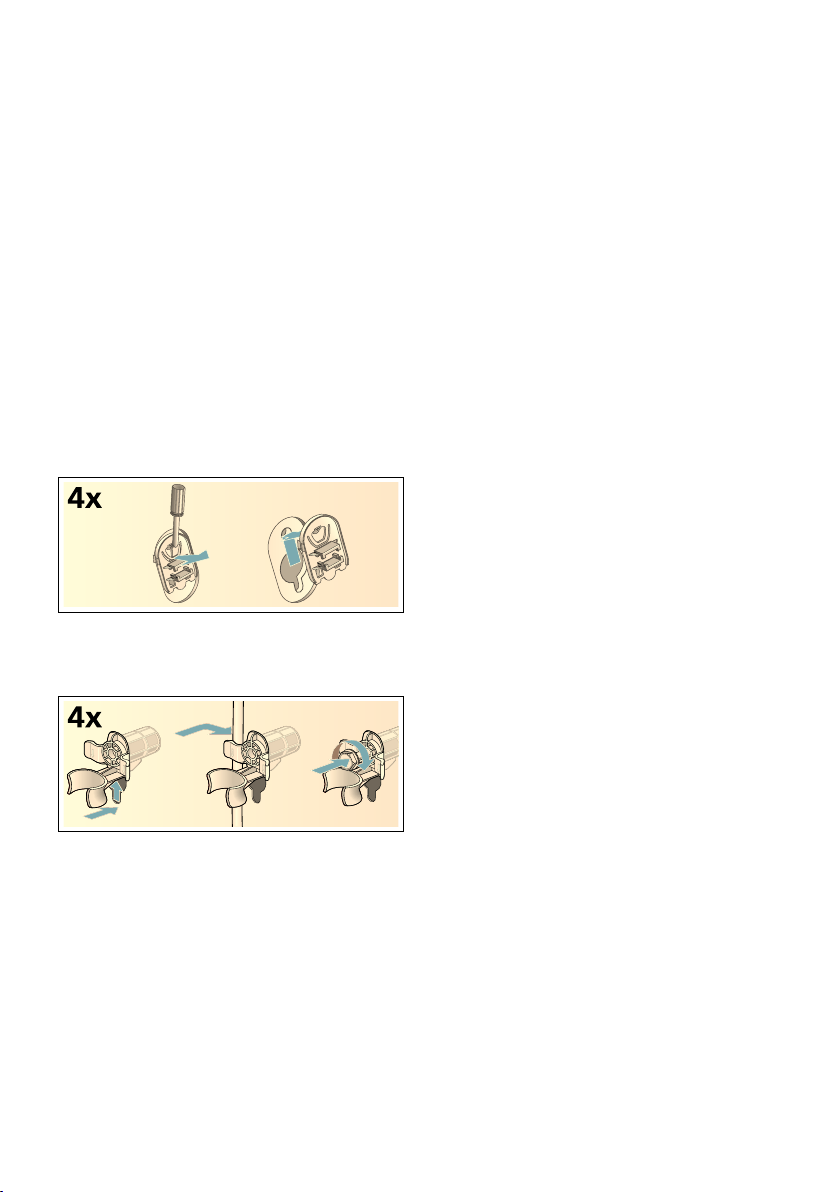

3. Loosen and remove all 4 transportation lock screws.
15
4. Take the power cord out of the holders. Remove the sleeves.
15
5. Insert the covers. Lock firmly by pressing on the locking hook. Insert the hose holder.
15

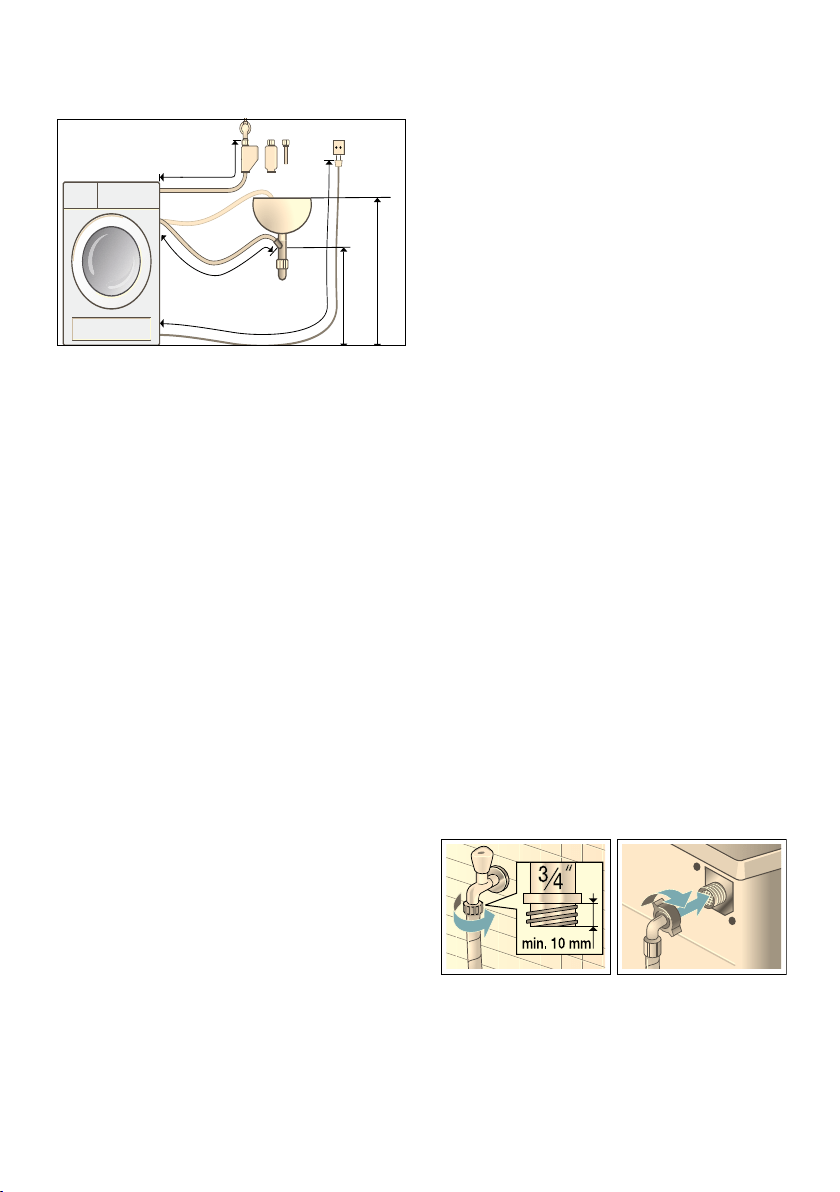

Hose and cable lengths
15
Note:
16
Available from dealer/customer service:
16
Connecting the water
16
: Warning
16
Risk of electric shock!
16
Caution!
16
Water damage
16
Notes
16
Water supply
16
Notes
16
Optimum water pressure in the mains: 100–1000 kPa (1–10 bar)
16
1. Connect the water supply hose to the tap (¾" = 26.4 mm) and to the appliance (except models with Aquastop):
16

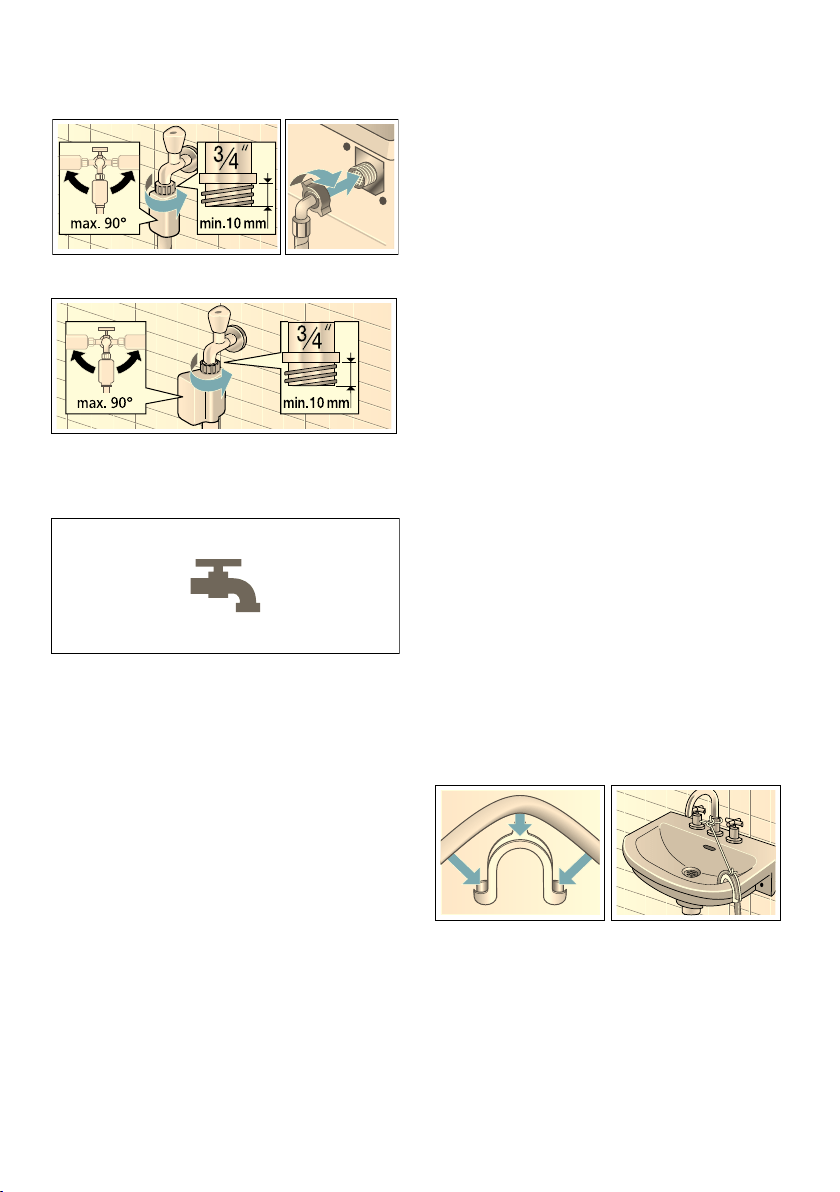

2. Carefully turn on the tap and check that the connection points are not leaking.
17
Note:
17
Water drainage
17
Notes
17
Drainage into a wash basin
17
: Warning
17
Risk of scalding!
17
Caution!
17
Water damage
17
Caution!
17
Damage to appliance/textiles
17
Drainage into a siphon
18
Drainage into a plastic pipe with rubber sleeve or into a gully
18
Alignment
18
1. Loosen the lock nut in a clockwise direction with a wrench.
18
2. Check the alignment of the washer dryer with a spirit level and, if required, correct. Adjust the height by rotating the appliance foot.
18
Note:
18
3. Tighten the lock nut against the housing.
18
Notes
18
Electrical connection
19
Electrical safety
19
: Warning
19
Risk of electric shock!
19
Before washing/drying for the first time
19
Note:
19
1. Insert mains plug.
19
2. Turn the tap on.
19
3. Switch on the appliance.
19
4. Close the door. Do not load any laundry.
19
5. Select the Drum Clean 40°C l programme.
19
6. Open the detergent drawer.
19
7. Pour approx. 1 litre of water into dispenser II.
19
8. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
19
Note:
19
9. Close the detergent drawer.
19
10. Select Start/Reload A.
19
11. When the programme ends, switch off the appliance.
19
Transportation
20
Preparatory work
20
1. Turn off the tap.
20
2. Release the water pressure in the supply hose.
20
3. Drain any residual washing water.
20
4. Disconnect the washer dryer from the power supply.
20
5. Remove the hoses.
20
Installing transportation protection devices:
20
1. Remove the covers and keep in a safe place.
20
2. Insert all 4 sleeves.
20
Notes
20

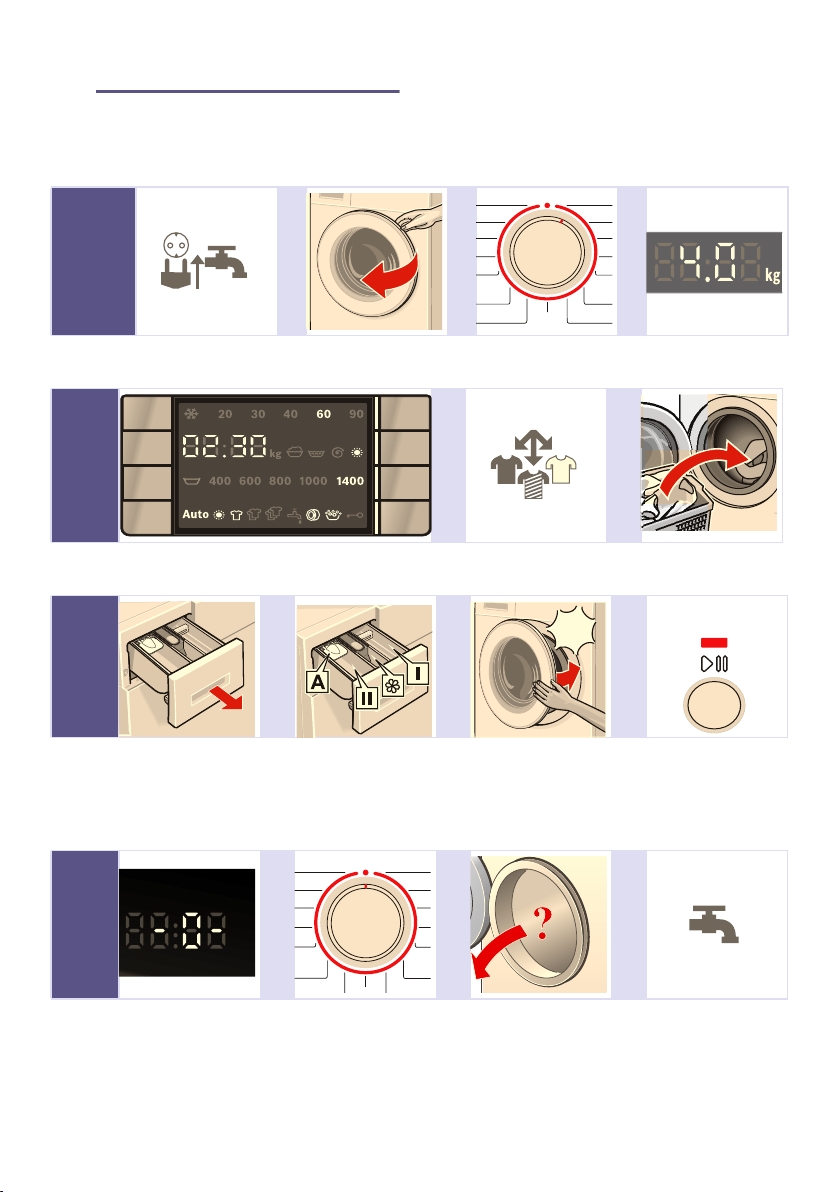

Y The main points in brief
21
The main points in brief
21
* Getting to know your appliance
22
Getting to know your appliance
22
Washer dryer
22

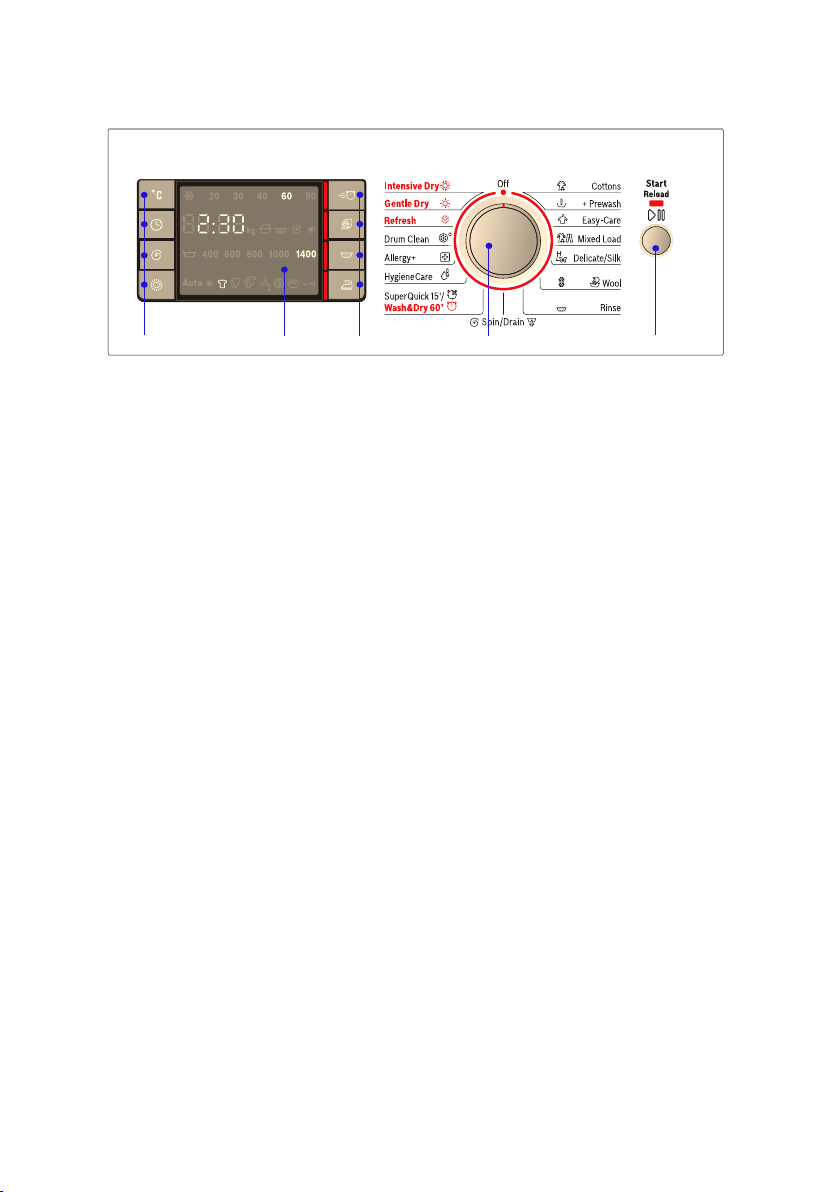

Control panel
23
Display panel
24
Displays for the programme
24
Z Laundry
26
Laundry
26
Preparing laundry for washing
26
Sorting laundry according to:
26
Note:
26
Note:
26
Protecting your laundry and appliance
26
Caution!
26
Damage to the appliance/textiles
26
Preparing laundry for drying
27
Note:
27
Notes
27

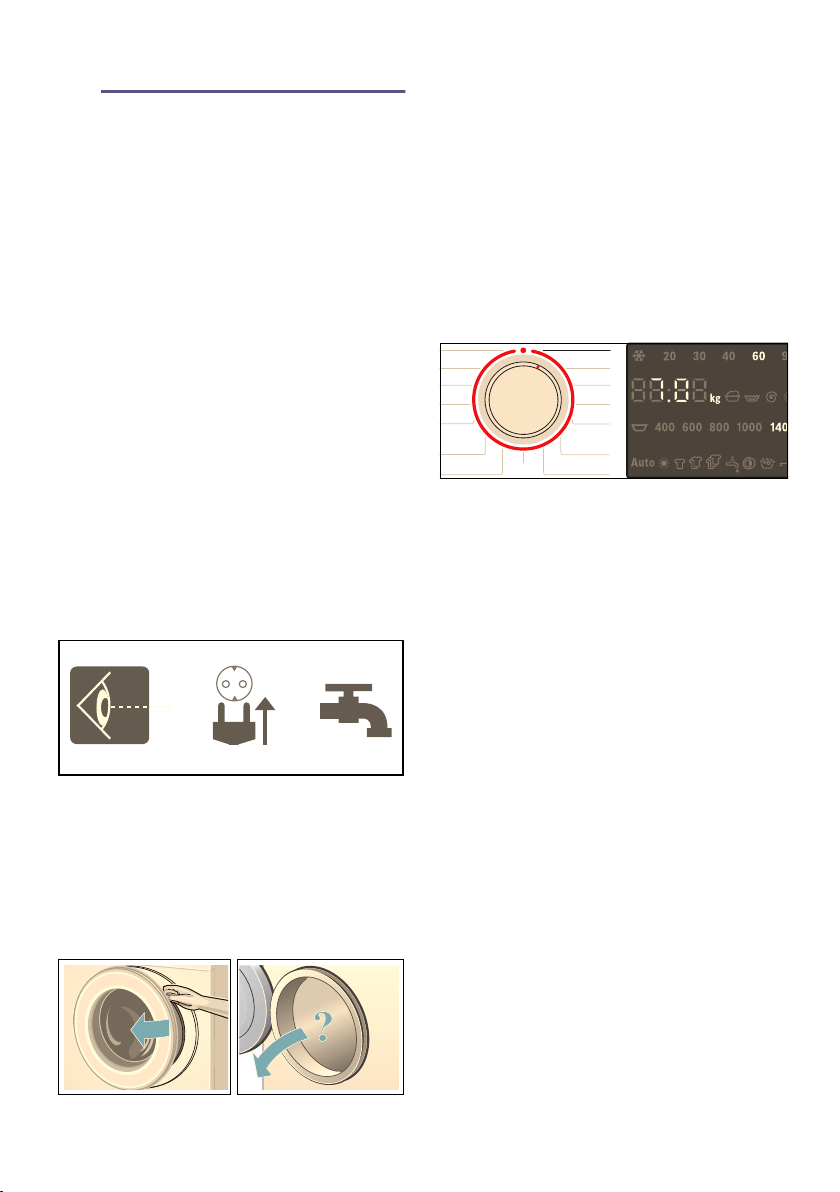

1 Operating the appliance
28
Operating the appliance
28
Preparing the washer dryer
28
Note:
28
1. Insert mains plug.
28
2. Turn the tap on.
28
Note:
28
3. Open the door.
28
Selecting the programme/ Switching on the appliance
28
Note:
28
Adjusting the washing programme
28
Notes
29
Note:
29
Adjusting the drying programme
29
Note:
29
Note:
29
Loading the laundry
29
: Warning
29
Danger of death!
29
Notes
30

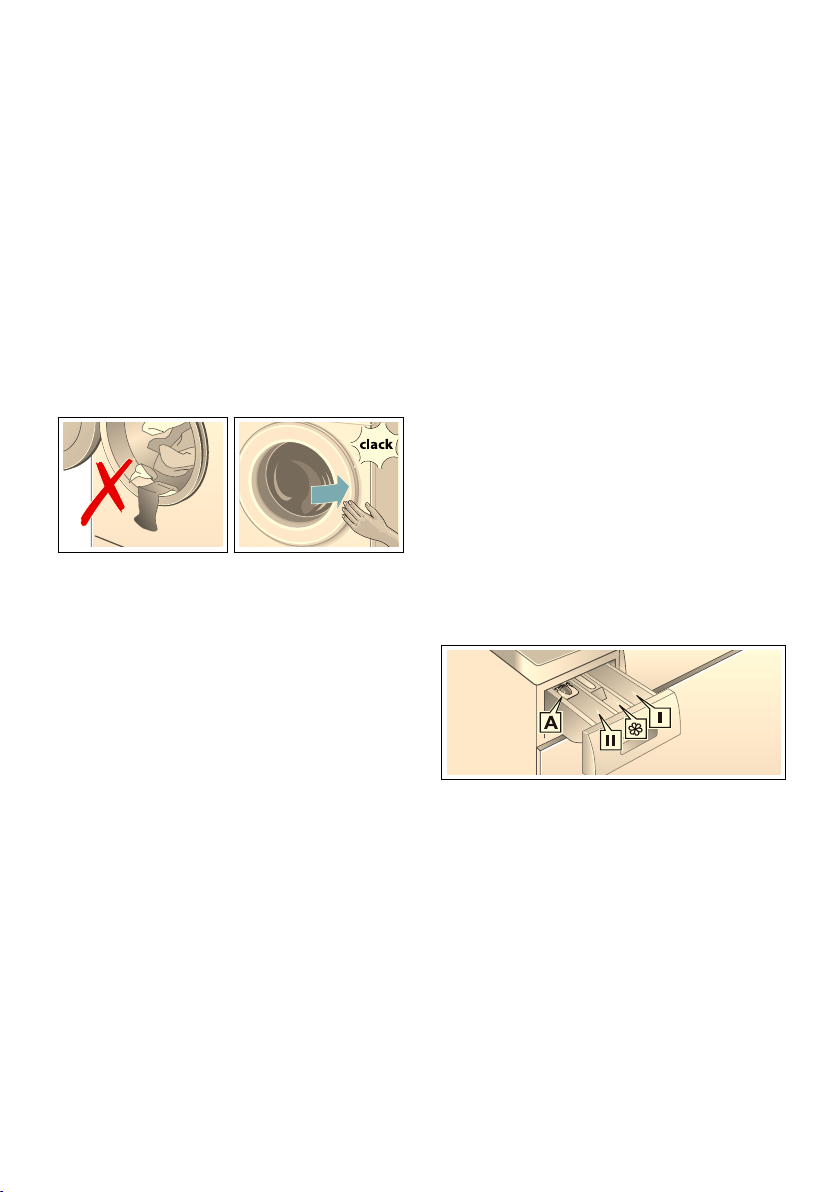

1. Unfold presorted laundry items and place in the drum.
30
2. Ensure that no laundry items are trapped between the door and rubber seal.
30
3. Close the door.
30
Note:
30
Dosing and adding detergent and care product
30
Caution!
30
Damage to the appliance
30
1. Pull out the detergent drawer.
30
: Warning
30
Eye / skin irritation!
30
2. Pour in detergent and/or cleaning product.
30
Notes
31
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
31
2. Slide the measuring aid forwards, fold it down and click it into place.
31
3. Reinsert the drawer.
31
Note:
31
Starting the programme
31
Note:
31
Childproof lock
31
Note:
31
Reloading the laundry
32
Notes
32
Changing the programme
32
1. Select Start/Reload A.
32
2. Select another programme. If required, adjust the default settings and/or select additional functions.
32
3. Select Start/Reload A. The new programme starts from the beginning.
32
Interrupting or ending the programme
32
1. Select Start/Reload A.
32
2. To cool down laundry: Select O Rinse.
32
3. Select Start/Reload A.
32
1. Select Start/Reload A.
32
2. Select Drain [ or 0 Spin.
32
3. Select Start/Reload A.
32
1. Select Intensive Dry 5 or Gentle Dry ‰.
32
2. Touch button 5 (Drying) and set drying time to 15 minutes.
32
3. Select Start/Reload A.
32
End of the programme
33
Notes
33
After washing/drying
33
1. Open the door and remove the laundry.
33
2. Turn the programme selector to Ú Off. The appliance is switched off.
33
3. Turn off the tap.
33
Notes
33
/ Overview of programmes
34
Overview of programmes
34
Programme on the programme selector
34
Programme/Type of washing
34
Options/Information
34
Note:
34
Note:
34
Note:
35
Note:
35
Note:
35
Notes
36
Note:
36
Note:
36
Drying table
37
Starching
38
Note:
38
Dyeing/Bleaching
38
Soaking
38
1. Pour soaking agent/detergent into dispenser II according to the manufacturer’s instructions.
38
2. Set the programme selector to Cottons 60°C and select Start/ Reload A.
38
3. After approximately 10 minutes select Start/Reload A.
38
4. After the required soaking time, reselect Start/Reload A if the programme is to be continued or change the programme.
38
Note:
38
0 Changing programme default settings
38
Changing programme default settings
38
°C (Temperature)
38
0 (Finish in)
38
Note:
38
1. Select Start/Reload A.
39
2. Select the 5 (Finish in) button and change the Finish in time.
39
3. Select Start/Reload A.
39
0 (Spin speed)
39
5 (Drying)
39
Notes
39
1. Touch button 5 (Drying) and activate the function Aut1 or Aut2.
39
2. Do not exceed the maximum loads for drying.
39
3. Maximum spin speed for the washing programme will be selected automatically to obtain a good drying result.
39
\ Selecting additional functions
40
Selecting additional functions
40
G (SpeedPerfect)
40
Note:
40
F (EcoPerfect)
40
Note:
40
à (Rinse plus)
40
p (Less iron)
40
M Setting the signal
41

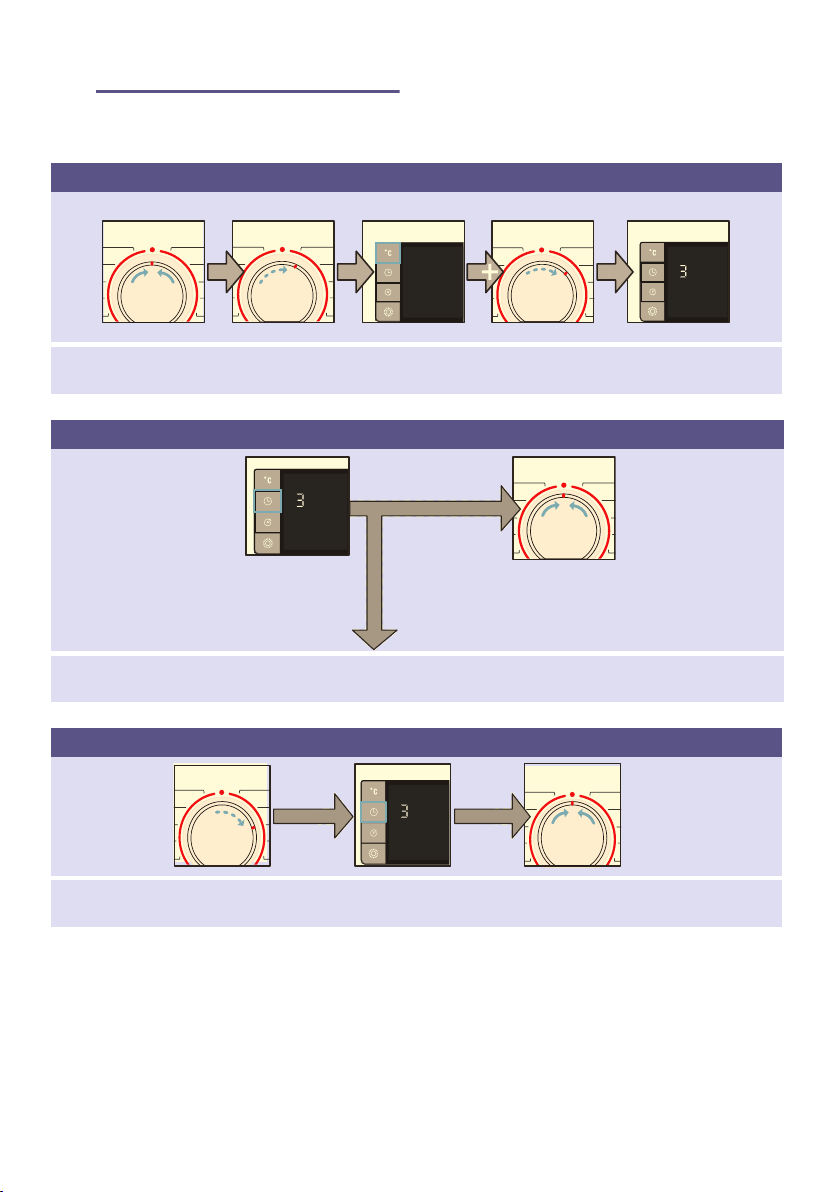

Setting the signal
41
1. Activate setting mode for the signal volume
41
2.a Set the volume for the button signals (depending on model)
41
2.b Selecting the volume for the information signals
41
2 Cleaning and maintenance
42
Cleaning and maintenance
42
: Warning
42
Risk of electric shock!
42
: Warning
42
Risk of poisoning!
42
Caution!
42
Damage to the appliance
42
Appliance housing/control panel
42
Drum
42
Descaling
42

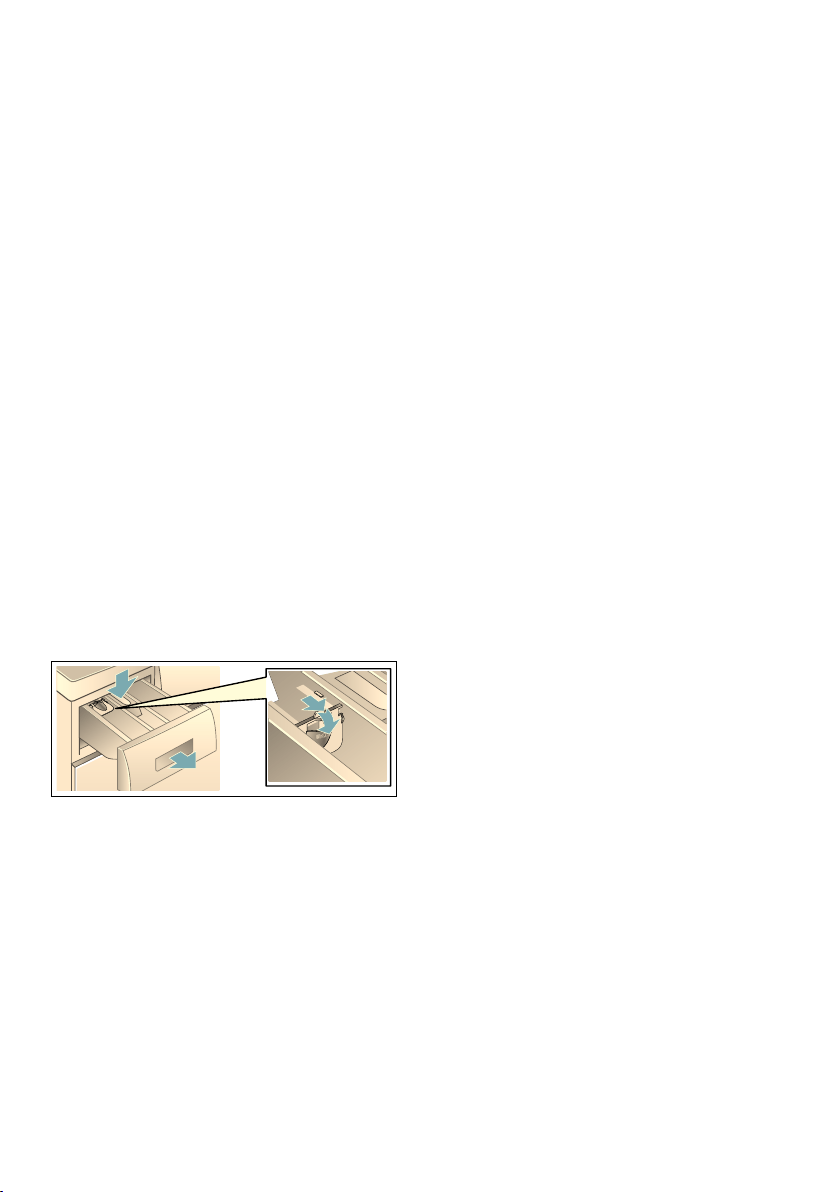

Cleaning the detergent dispenser
42

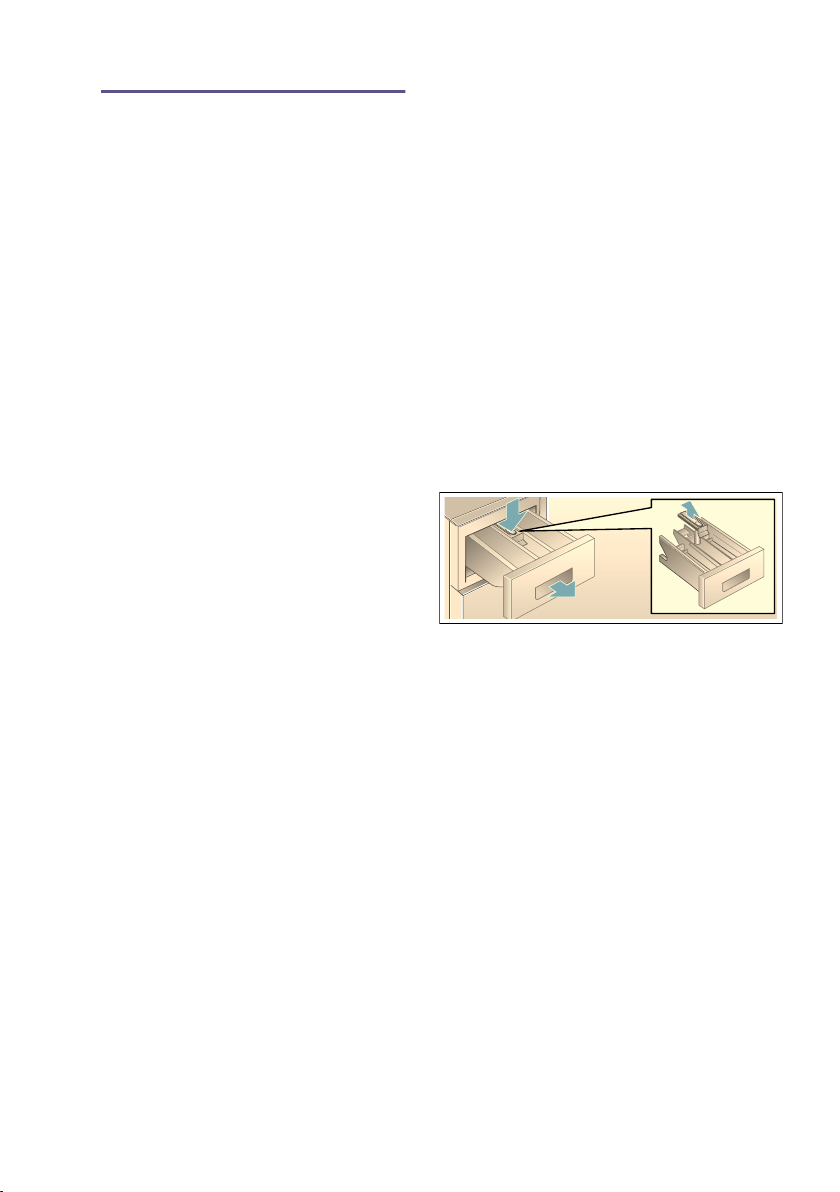

1. Pull out the detergent drawer. Depress the insert and remove the drawer completely.
42
2. Take out insert: using your finger, press insert upwards.
42
3. Clean the detergent dispenser and insert with water and a brush and dry.
42
4. Attach the insert and lock into position (push the cylinder onto the guide pin).
42
5. Insert detergent drawer.
42
Note:
42
Drain pump blocked
43
: Warning
43
Risk of scalding!
43
1. Turn the tap off to prevent more water from flowing in and to ensure that it is drained via the detergent solution pump.
43
2. Turn the programme selector to Ú Off. Pull out the mains plug.
43
3. Open the service flap.
43
4. Take the drainage hose out of the holder.
43
5. Remove the cover flap, draining the washing water into a suitable container. Press on the cover flap and insert the drainage hose into the holder.
43
Note:
43
6. Carefully unscrew the pump cover. Clean the interior, pump cover thread and pump housing (the fan impeller in the detergent-solution pump must be able to rotate).
43
7. Reinsert and screw on the pump cover. Handle should be vertical.
43
8. Close the service flap. If required, engage the disengaged service flap beforehand.
43
Note:
43
Drainage hose on the siphon blocked
43
1. Turn the programme selector to Ú Off. Pull out the mains plug.
43
2. Loosen hose clip, carefully remove drainage hose. Residual water may run out.
43
3. Clean drainage hose and siphon spigot.
43
4. Re-attach the drainage hose and secure the connection point with the hose clip.
43

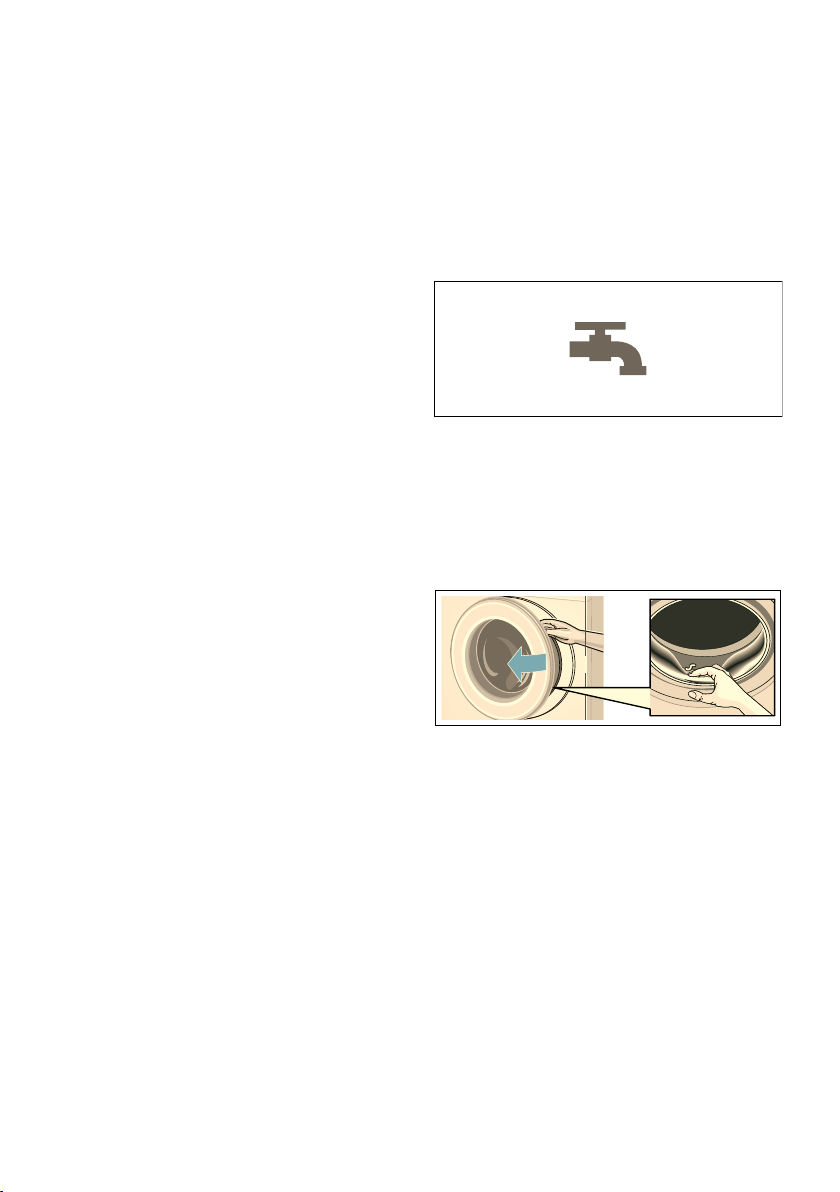

Filter in the water inlet hose blocked
44
: Warning
44
Danger of death!
44
1. Turn off the tap.
44
2. Select any programme (except 0 Spin or Drain [).
44
3. Select Start/Reload A. Allow the programme to run for approx. 40 s.
44
4. Turn the programme selector to Ú Off. Pull out the mains plug.
44
5. Clean the filter on the tap:
44
6. Clean the filter on the back of the appliance:
44
7. Connect the hose and check for leaks.
44
Air filter blocked
44
1. Turn the programme selector to Ú Off. Pull out the mains plug.
44
2. Open and remove the service flap.
44
3. Take out the air filter.
44
4. Rinse fluff off the air filter using a brush under running water.
44
5. Re-insert the air filter.
44
6. Re-insert and close the service flap.
44
3 Faults and what to do about them
45
Faults and what to do about them
45

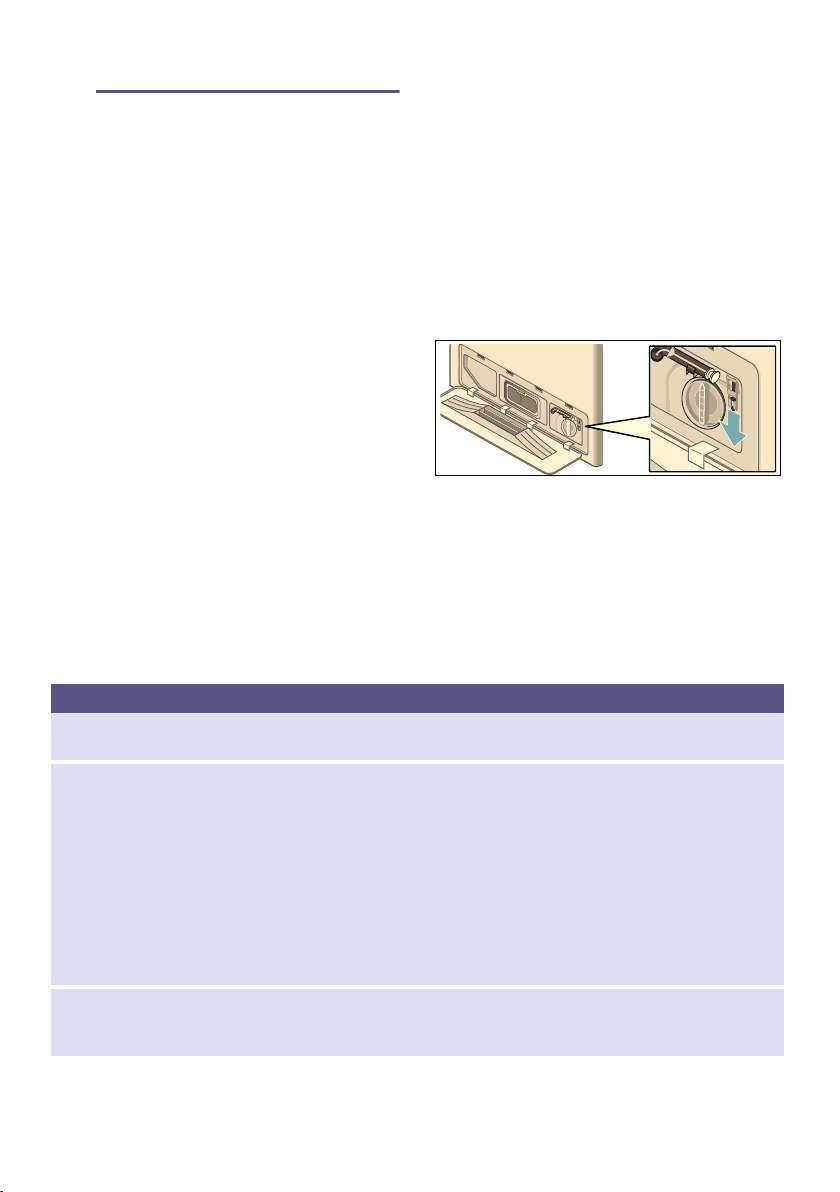

Emergency release, e.g. if a power failure occurs
45
: Warning
45
Risk of scalding!
45
: Warning
45
Risk of injury!
45
Caution!
45
Water damage
45
1. Turn the programme selector to Ú Off. Pull out the mains plug.
45
2. Drain the detergent solution.
45
3. Pull down emergency release with a tool and release.
45
Information on the display panel
45
Display
45
Cause/Remedy
45
Faults and what to do about them
46
Faults
46
Cause/Remedy
46
4 Customer service
49
Customer service
49
J Technical specifications
49
Technical specifications
49
[ Consumption values
50
Consumption values
50
Programme
50
Option
50
Load
50
(kg)
50
Energy consumption * (kWh)
50
Water Consumption * (liter)
50
Programme duration * (hours)
50
File type: PDF
File name: Bosch WVH28424GB Washer dryer.pdf
File size: 4.85 MB
File Language: English
Pages: 52
Author: Bosch
Updated: 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WVH28424GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WKD28351GB
WKD28541GB
WTWH7561GB
WTYH6791GB
WTA79200GB
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Samsung P853
Samsung P853S
Bosch WVH28490AU
Bosch WVH28441AU
Bosch WVH28440AU
Bosch WVG3047SGB
Bosch WVG30462GB
Bosch WVG28420AU
Bosch NITP068UC
Bosch B36BT930NS
Bosch SHEM63W55N
Bosch WAT28400UC
Bosch NBS533BS0B
Bosch B36CT80SNS/02
Bosch SHXM88Z75N
Table of Contents
×
Your new washer dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Protection of the environment 12
3
5 Installation and connection 13
3
Y The main points in brief 21
3
* Getting to know your appliance 22
3
Z Laundry 26
3
1 Operating the appliance 28
3
/ Overview of programmes 34
3
0 Changing programme default settings 38
3
\ Selecting additional functions 40
3
M Setting the signal 41
4
2 Cleaning and maintenance 42
4
3 Faults and what to do about them 45
4
4 Customer service 49
4
J Technical specifications 49
4
[ Consumption values 50
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Caution!
8
Material damage/damage to the appliance
8
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Protection of the environment
12
Protection of the environment
12
Packaging/old appliance
12
Hints and tips
12
5 Installation and connection
13
Installation and connection
13
Standard accessories
13
Note:
13
Note:
13
Useful tools:
13
Installation
13
Note:
13
Secure installation
13
: Warning
13
Risk of injury!
13
Caution!
14
Damage to the appliance
14
Installation area
14
Note:
14
Installing the appliance on a base or on a wooden joist ceiling
14
Caution!
14
Damage to the appliance
14
Note:
14
Installing the appliance under/ between kitchen units
14
: Warning
14
Risk of electric shock!
14
: Warning
14
Risk of scalding!
14
Notes
14
Removing the transportation protection devices
15
Caution!
15
Damage to the appliance
15
1. Take the hoses out of the holders.
15
2. Take hoses out of the elbow and remove the elbow.
15
3. Loosen and remove all 4 transportation lock screws.
15
4. Take the power cord out of the holders. Remove the sleeves.
15
5. Insert the covers. Lock firmly by pressing on the locking hook. Insert the hose holder.
15
Hose and cable lengths
15
Note:
16
Available from dealer/customer service:
16
Connecting the water
16
: Warning
16
Risk of electric shock!
16
Caution!
16
Water damage
16
Notes
16
Water supply
16
Notes
16
Optimum water pressure in the mains: 100–1000 kPa (1–10 bar)
16
1. Connect the water supply hose to the tap (¾" = 26.4 mm) and to the appliance (except models with Aquastop):
16
2. Carefully turn on the tap and check that the connection points are not leaking.
17
Note:
17
Water drainage
17
Notes
17
Drainage into a wash basin
17
: Warning
17
Risk of scalding!
17
Caution!
17
Water damage
17
Caution!
17
Damage to appliance/textiles
17
Drainage into a siphon
18
Drainage into a plastic pipe with rubber sleeve or into a gully
18
Alignment
18
1. Loosen the lock nut in a clockwise direction with a wrench.
18
2. Check the alignment of the washer dryer with a spirit level and, if required, correct. Adjust the height by rotating the appliance foot.
18
Note:
18
3. Tighten the lock nut against the housing.
18
Notes
18
Electrical connection
19
Electrical safety
19
: Warning
19
Risk of electric shock!
19
Before washing/drying for the first time
19
Note:
19
1. Insert mains plug.
19
2. Turn the tap on.
19
3. Switch on the appliance.
19
4. Close the door. Do not load any laundry.
19
5. Select the Drum Clean 40°C l programme.
19
6. Open the detergent drawer.
19
7. Pour approx. 1 litre of water into dispenser II.
19
8. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
19
Note:
19
9. Close the detergent drawer.
19
10. Select Start/Reload A.
19
11. When the programme ends, switch off the appliance.
19
Transportation
20
Preparatory work
20
1. Turn off the tap.
20
2. Release the water pressure in the supply hose.
20
3. Drain any residual washing water.
20
4. Disconnect the washer dryer from the power supply.
20
5. Remove the hoses.
20
Installing transportation protection devices:
20
1. Remove the covers and keep in a safe place.
20
2. Insert all 4 sleeves.
20
Notes
20
Y The main points in brief
21
The main points in brief
21
* Getting to know your appliance
22
Getting to know your appliance
22
Washer dryer
22
Control panel
23
Display panel
24
Displays for the programme
24
Z Laundry
26
Laundry
26
Preparing laundry for washing
26
Sorting laundry according to:
26
Note:
26
Note:
26
Protecting your laundry and appliance
26
Caution!
26
Damage to the appliance/textiles
26
Preparing laundry for drying
27
Note:
27
Notes
27
1 Operating the appliance
28
Operating the appliance
28
Preparing the washer dryer
28
Note:
28
1. Insert mains plug.
28
2. Turn the tap on.
28
Note:
28
3. Open the door.
28
Selecting the programme/ Switching on the appliance
28
Note:
28
Adjusting the washing programme
28
Notes
29
Note:
29
Adjusting the drying programme
29
Note:
29
Note:
29
Loading the laundry
29
: Warning
29
Danger of death!
29
Notes
30
1. Unfold presorted laundry items and place in the drum.
30
2. Ensure that no laundry items are trapped between the door and rubber seal.
30
3. Close the door.
30
Note:
30
Dosing and adding detergent and care product
30
Caution!
30
Damage to the appliance
30
1. Pull out the detergent drawer.
30
: Warning
30
Eye / skin irritation!
30
2. Pour in detergent and/or cleaning product.
30
Notes
31
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
31
2. Slide the measuring aid forwards, fold it down and click it into place.
31
3. Reinsert the drawer.
31
Note:
31
Starting the programme
31
Note:
31
Childproof lock
31
Note:
31
Reloading the laundry
32
Notes
32
Changing the programme
32
1. Select Start/Reload A.
32
2. Select another programme. If required, adjust the default settings and/or select additional functions.
32
3. Select Start/Reload A. The new programme starts from the beginning.
32
Interrupting or ending the programme
32
1. Select Start/Reload A.
32
2. To cool down laundry: Select O Rinse.
32
3. Select Start/Reload A.
32
1. Select Start/Reload A.
32
2. Select Drain [ or 0 Spin.
32
3. Select Start/Reload A.
32
1. Select Intensive Dry 5 or Gentle Dry ‰.
32
2. Touch button 5 (Drying) and set drying time to 15 minutes.
32
3. Select Start/Reload A.
32
End of the programme
33
Notes
33
After washing/drying
33
1. Open the door and remove the laundry.
33
2. Turn the programme selector to Ú Off. The appliance is switched off.
33
3. Turn off the tap.
33
Notes
33
/ Overview of programmes
34
Overview of programmes
34
Programme on the programme selector
34
Programme/Type of washing
34
Options/Information
34
Note:
34
Note:
34
Note:
35
Note:
35
Note:
35
Notes
36
Note:
36
Note:
36
Drying table
37
Starching
38
Note:
38
Dyeing/Bleaching
38
Soaking
38
1. Pour soaking agent/detergent into dispenser II according to the manufacturer’s instructions.
38
2. Set the programme selector to Cottons 60°C and select Start/ Reload A.
38
3. After approximately 10 minutes select Start/Reload A.
38
4. After the required soaking time, reselect Start/Reload A if the programme is to be continued or change the programme.
38
Note:
38
0 Changing programme default settings
38
Changing programme default settings
38
°C (Temperature)
38
0 (Finish in)
38
Note:
38
1. Select Start/Reload A.
39
2. Select the 5 (Finish in) button and change the Finish in time.
39
3. Select Start/Reload A.
39
0 (Spin speed)
39
5 (Drying)
39
Notes
39
1. Touch button 5 (Drying) and activate the function Aut1 or Aut2.
39
2. Do not exceed the maximum loads for drying.
39
3. Maximum spin speed for the washing programme will be selected automatically to obtain a good drying result.
39
\ Selecting additional functions
40
Selecting additional functions
40
G (SpeedPerfect)
40
Note:
40
F (EcoPerfect)
40
Note:
40
à (Rinse plus)
40
p (Less iron)
40
M Setting the signal
41
Setting the signal
41
1. Activate setting mode for the signal volume
41
2.a Set the volume for the button signals (depending on model)
41
2.b Selecting the volume for the information signals
41
2 Cleaning and maintenance
42
Cleaning and maintenance
42
: Warning
42
Risk of electric shock!
42
: Warning
42
Risk of poisoning!
42
Caution!
42
Damage to the appliance
42
Appliance housing/control panel
42
Drum
42
Descaling
42
Cleaning the detergent dispenser
42
1. Pull out the detergent drawer. Depress the insert and remove the drawer completely.
42
2. Take out insert: using your finger, press insert upwards.
42
3. Clean the detergent dispenser and insert with water and a brush and dry.
42
4. Attach the insert and lock into position (push the cylinder onto the guide pin).
42
5. Insert detergent drawer.
42
Note:
42
Drain pump blocked
43
: Warning
43
Risk of scalding!
43
1. Turn the tap off to prevent more water from flowing in and to ensure that it is drained via the detergent solution pump.
43
2. Turn the programme selector to Ú Off. Pull out the mains plug.
43
3. Open the service flap.
43
4. Take the drainage hose out of the holder.
43
5. Remove the cover flap, draining the washing water into a suitable container. Press on the cover flap and insert the drainage hose into the holder.
43
Note:
43
6. Carefully unscrew the pump cover. Clean the interior, pump cover thread and pump housing (the fan impeller in the detergent-solution pump must be able to rotate).
43
7. Reinsert and screw on the pump cover. Handle should be vertical.
43
8. Close the service flap. If required, engage the disengaged service flap beforehand.
43
Note:
43
Drainage hose on the siphon blocked
43
1. Turn the programme selector to Ú Off. Pull out the mains plug.
43
2. Loosen hose clip, carefully remove drainage hose. Residual water may run out.
43
3. Clean drainage hose and siphon spigot.
43
4. Re-attach the drainage hose and secure the connection point with the hose clip.
43
Filter in the water inlet hose blocked
44
: Warning
44
Danger of death!
44
1. Turn off the tap.
44
2. Select any programme (except 0 Spin or Drain [).
44
3. Select Start/Reload A. Allow the programme to run for approx. 40 s.
44
4. Turn the programme selector to Ú Off. Pull out the mains plug.
44
5. Clean the filter on the tap:
44
6. Clean the filter on the back of the appliance:
44
7. Connect the hose and check for leaks.
44
Air filter blocked
44
1. Turn the programme selector to Ú Off. Pull out the mains plug.
44
2. Open and remove the service flap.
44
3. Take out the air filter.
44
4. Rinse fluff off the air filter using a brush under running water.
44
5. Re-insert the air filter.
44
6. Re-insert and close the service flap.
44
3 Faults and what to do about them
45
Faults and what to do about them
45
Emergency release, e.g. if a power failure occurs
45
: Warning
45
Risk of scalding!
45
: Warning
45
Risk of injury!
45
Caution!
45
Water damage
45
1. Turn the programme selector to Ú Off. Pull out the mains plug.
45
2. Drain the detergent solution.
45
3. Pull down emergency release with a tool and release.
45
Information on the display panel
45
Display
45
Cause/Remedy
45
Faults and what to do about them
46
Faults
46
Cause/Remedy
46
4 Customer service
49
Customer service
49
J Technical specifications
49
Technical specifications
49
[ Consumption values
50
Consumption values
50
Programme
50
Option
50
Load
50
(kg)
50
Energy consumption * (kWh)
50
Water Consumption * (liter)
50
Programme duration * (hours)
50
Search:
×
Search
