Owners' Guide Washers and Dryers
Operation
Before Washing
Prepare Wash Load
Empty Pockets and Cuffs
Make sure all pockets are empty and turn them inside out. One bobby pin, metal or plastic toy, nail or sharp object in a load can catch laundry, cause tears and plug the pump. Facial tissue left in a pocket will produce extreme “lint”. A crayon or lipstick in a wash load may cause stains that cannot be removed. Roll down cuffs and shake out grass, sand and gravel.
Mend Rips and Tears
Little holes can become bigger in the washer. Mend holes and tears before placing garments in the washer.
Close Zipper and Fasten Hooks
These can catch on garments in a wash load and tear them. Tie belts and sashes so they won’t wind around clothes.
Check For Colorfastness
Squeeze a portion of garment in warm or hot sudsy water. If the color bleeds or runs, wash the item separately in cold water.

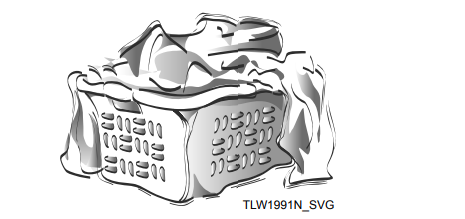

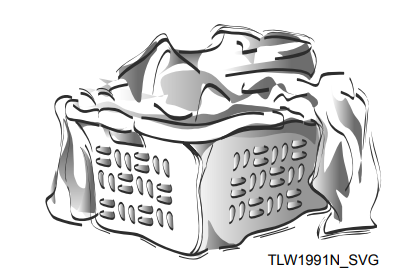

Sort Items
Different items use different wash cycles and temperatures. Always follow the manufacturer’s care label.
Proper sorting is easy if you follow a few guidelines:
- Sort by Color: Separate items into loads of whites, darks, lights and non-colorfast.
- Sort by Fabric and Construction: Separate items into loads of cottons/linens, permanent press, synthetics/blends/poly knits, and delicates.
- Sort by Temperature: Separate items into loads that can be washed in cold, warm or hot water.
- Sort by Type and Amount of Soil: Heavily soiled clothes will need extra treatment. Lightly soiled clothes can become dingy if washed with heavily soiled items.
- Sort Lint “Shedders” From Lint “Receivers”: Some fabrics attract lint and should not be washed with lint-shedding loads. Lint shedders are cottons, terry towels, chenille bedspreads, rugs and clothes that have been heavily bleached. Lint receivers are synthetics, permanent or durable press, knits (including socks), corduroy, and other smooth fabrics.
Pretreat
Pretreat shirt collars and cuffs with a pretreat product or liquid detergent when placing them in the washer. Before washing, treat special stains individually.
WARNING: Do not wash or dry items soiled with vegetable or cooking oils. Some oils may remain after washing and may cause the fabric to catch on fire by itself.
Loading the Washer
Load Articles
NOTE: Always add detergent first.
- Load items by the amount of space they take up, not by their weight. Mix large and small items in a load to get the best washing results.

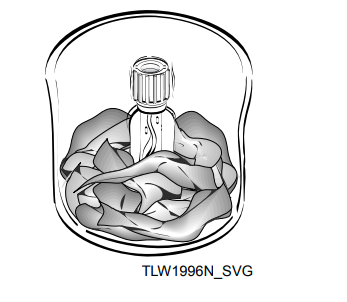

- Drop items loosely into the washtub. The bulk of the clothes rather than the weight will determine load size. Do not pack items in or wrap them around the agitator. Overloading can cause poor cleaning, excessive wrinkling and tears.
- Items should move freely through the wash water for best cleaning results. Items should rollover, sink and then reappear.
- When washing very large items, do not fill washtub as full as with other loads.
Load Size (Water Level)
- The water level in your washer should fit the size of your wash load. Small loads will use lower water levels. There must be enough water in the washtub to allow items to move and turn over freely.

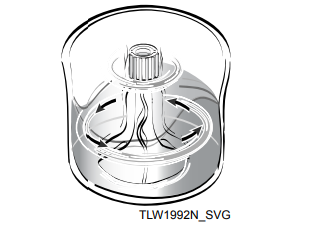

Wrong Water Level for Size of Load
Right Water Level for Size of Load
- Overloading the washtub can result in poor washing and rinsing.
- Overloading may also cause wrinkling and tearing of items as well as increased wear to the washer’s motor.
IMPORTANT: If in doubt, always use a larger load size. Most average loads will require the Large Load Size setting. Failure to have the correct volume of water relative to the load may decrease washer performance.
Load Sizes
Small | 1-2 permanent press dress shirts or 2 pillow cases or 1 lightweight dress or similar size load |
Medium | 3-4 permanent press dress shirts or 1 twin sheet, 1 pillow case or 1-2 lightweight dresses |
Large | 6-7 permanent press shirts or 2 twin sheets, 2 pillow cases or 8 standard bath towels, 6 wash cloths |
Extra Large | 8-9 shirts, 5 pair polyester pants or 2 queen size sheets, 4 pillow cases, 2 nightgowns, 1 pair men’s pajamas or 1 queen size bedspread |
Wash Temperature
Hot
Hot water is the most effective for cleaning, but it is not recommended for all fabric types (read labels).
Warm
The Warm Wash is useful for providing a thorough cleaning on light and moderately soiled clothing without damaging fabric or adding to color fading. Warm water also reduces wrinkling. Use with noncolorfast or dark colors, permanent press, silks, woolens, nylon, and acrylic.
Cool
The Cool Wash temperature is useful for washing permanent press fabrics.
Cold
The Cold Wash is ideal for delicate items. Although its cleaning abilities are not as great as with hot or warm water, it is useful for colors that bleed easily and for sensitive fabrics.
All rinses use cold water. It is the most beneficial for fabrics. Cold rinses reduce wrinkling and color fading. In addition, cold rinses will save money and energy
NOTE: In wash temperatures colder than 60°F (16°C), detergents do not dissolve well. This may cause ineffective cleaning, or lint and residue to form.
NOTE: Always follow manufacturer’s care labels.
Wash Temperature Guide
Water Temperature | Use | Comments |
HOT |
|
|
WARM |
|
|
COOL |
|
|
COLD |
|
|

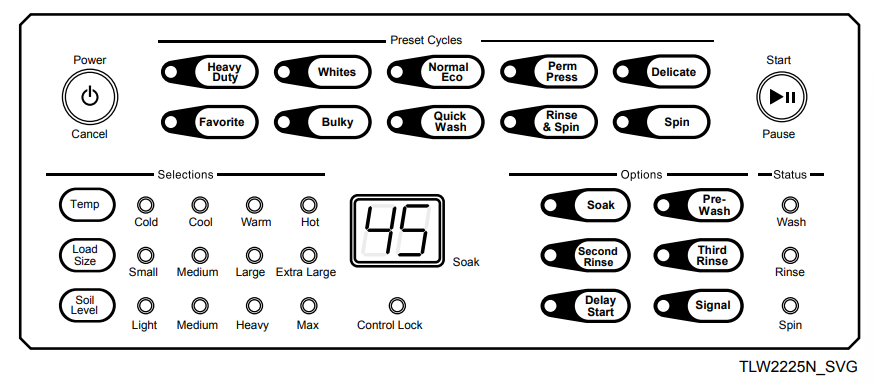

Control Panel
Digital Display
The two-digit display is used to show the time remaining in a cycle.
If the cycle time is over 99 minutes the control will display either 1H, 2H, etc., and then the additional minutes over one or two hours.
The display also shows diagnostic codes.
Soak
In the lower right of the display, a single light will flash during any soak portion of the cycle.
The soak light also will flash once each minute in Idle Mode. Idle Mode is entered if no keypads have been pressed for five minutes after a cycle is finished. Press the Power/Cancel keypad to exit this mode
Cycles
The following cycle descriptions will help determine which cycle to choose depending on the type of laundry being washed. The descriptions are standard settings that may be modified using the Selections and Options.
NOTE: The cycle used for a normally soiled cotton load at the rated load capacity 8.5 kg is as follows:
- Normal Eco Cycle
- Warm wash water temperature setting
- Extra Large Load Size
- Medium Soil Level
Heavy Duty
Use for sturdy items, like play or work clothes, towels, T-shirts, etc. The wash time selection will depend on the type of fabric and the amount of soil. For the best results when cleaning heavily soiled items, use a higher soil level selection. Lightly soiled items require less wash time.
Use the Prewash setting for extra heavily soiled items. During the PREWASH setting, the washtub will fill with water, agitate for a reduced period of time and spin out.
Whites
This cycle is designed to keep white laundry white. It utilizes a longer wash time.
Normal Eco
This cycle uses less water than the other cycles. It also uses less hot water. This cycle is recommended for washing everyday cottons and linens.
Perm Press
Use for permanent press items and synthetics. The final spin is a low spin speed.
Delicate
Wash delicate items usually washed by hand on this cycle. A full tub of water is recommended (even for small loads) to allow the delicate items to move freely through the water. More water helps reduce fabric wear, wrinkling, and provides for a clean wash.
On this cycle, the agitation during the wash portion of the cycle is not constant. The wash will alternate between periods of agitation and then a short soak until advancing to the spin portion of the cycle. All spin speeds are a low spin.
Favorite
The Favorite cycle keypad allows the user to save different cycles, selections and options for later use. After pressing the Favorite keypad, the control will display the cycle and modifier settings for the first Favorite cycle. The 2-digit display will switch between F1 and the cycle time for the selected cycle. Pressing the Favorite keypad again will save the current settings and display the next Favorite cycle, F2. Pressing Start/Pause or Delay Start keypads will also save the current settings. Pressing Power/Cancel keypad will discard the currently selected Favorite cycle setting changes. Nine favorite cycles can be saved.
Bulky
Use this cycle when washing bulky items such as blankets and comforters. The cycle includes a longer wash time to thoroughly clean larger items.
Quick Wash
Wash lightly soiled items on this cycle. The cycle includes a shorter wash time.
Rinse & Spin
Use to quickly rinse items. The rinse is followed by a high spin.
Spin
Use this cycle to extract water from wet items. The cycle uses the high spin.
Selections
The following selections can be used to modify the currently chosen cycle. The default selections will be lit after choosing a cycle.
Temp
Press the Temp keypad to change the cycle’s wash water temperature from the default selection to Cold, Cool, Warm, or Hot.
Load Size
The Load Size Selection determines the amount of water used in the cycle.
Choose Small, Medium, Large or Extra Large according to the amount of laundry being washed.
Soil Level
Changing the Soil Level keypad will add more wash time to the cycle.
Choose Light, Medium, Heavy or Max according to the amount of soil in the laundry load.
Options
The following options can be used to modify the currently chosen cycle, signal volume and control lock.
Soak
The Soak option adds a 27 minute soak to the beginning of the cycle. Use for heavily soiled or stained clothing. The washtub will fill with water, agitate for a reduced period of time, pause for approximately 27 minutes, and spin out to complete the cycle.
Pre-Wash
The Pre-Wash option adds a second wash to the selected cycle.
Second Rinse
This Option will provide an additional rinse to the selected cycle. The water temperature will be cold.
Third Rinse
The Third Rinse Option provides two rinses in addition to the selected cycle. It is useful for detergent sensitive skin, allergies, etc. The water temperature will be cold.
Delay Start
Pressing the Delay Start Option will allow the cycle to begin up to 24 hours after pressing the keypad. Pressing it once will delay the cycle by one hour and 1h will show on the control’s display. Press the Delay Start keypad again to increase the time by one hour each press. Press the Start/Pause keypad to begin the countdown.
While setting the Delay Start Option, the cycle time and the Delay Start keypad light will flash (1 second on/off).
After the Delay Start Option is started, the Delay Start keypad light will flash (1 second on/off).
Signal
Pressing the Signal keypad will change the end of cycle signal volume. There are four settings: Off, Low, Medium, High.
Control Lock (Secure keypad)
Pressing and holding the Signal keypad for three seconds will turn on the Control Lock. The Control Lock status light will be lit. While Control Lock is on, no other keypad presses are allowed. Press and hold the Signal keypad again to turn the option off.
Status
The Status lights are lit during the cycle to show what part of the cycle is running.
Wash | The Wash status light is lit during the wash portion of the cycle including Pre-Wash and Soak, if selected. |
Rinse | The Rinse status light is lit during the rinse portions of the cycle including Second Rinse and Third Rinse, if selected. |
Spin | The Spin status light is lit during the final spin portion of the cycle. |
To Wash Clothes
IMPORTANT: Before using your new washer, make sure the washer cord is connected to an appropriate electrical outlet that is properly installed and connected to a protective earth/ground. Make sure the washer hoses are connected to the hot and cold water taps, and that the taps are turned on. Be sure the drain hose is not kinked and is inserted into a drain. Refer to the INSTALLATION INSTRUCTIONS for details of proper washer installation.
IMPORTANT: Prior to first wash, use an all purpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside of wash drum.
- Get the clothes ready for washing. Empty pockets and cuffs. Sort items into separate loads. Pretreat stains and heavily soiled areas.
IMPORTANT: Remove all sharp objects from laundry to avoid tears and rips to items during normal machine operation. - Measure and add low sudsing, High Efficiency (HE) detergent to the washtub. Follow instructions on detergent package for amount to use.
NOTE: High efficiency (HE) detergent is recommended for use in this machine. Look for the HE logo or “high efficiency” on the detergent’s label. - Add clothes loosely into the washtub. Safety: Maximum mass 7.5 kg (dry cloth). Energy Efficiency: 8.5 kg capacity

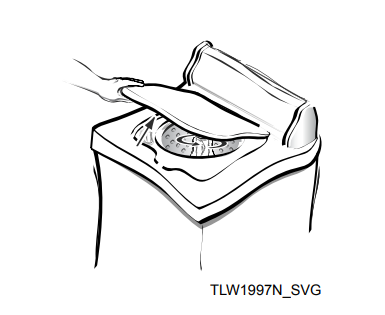

- Close the lid. The washer will not fill, agitate or spin with the lid open.
See other models: ATGE9AGASLP ADEE9R ADGE9RGASLP ADEE8B AFNE9BAW01ADGE8BGASL
WARNING: To reduce the risk of serious injury, do not by-pass the lid switch by permitting the washer to agitate or spin with the lid open. - If not already on (control lights will be lit), turn on the washer. Press the Power button to turn on the washer.
NOTE: You will not be able to press the Start/ Pause button to start a cycle until five seconds after turning on the washer. - Select the cycle according to the type of fabric being washed. If the selected cycle is not the correct cycle for the fabric being washed, you may change the cycle selection at any time until the first wash fill is complete.
NOTE: The Normal Eco cycle is recommended for everyday cottons and linens. - If desired change the Selections and Options settings.
- Press the Start/Pause button to begin the cycle.
NOTE: Lid must be closed for fill, agitation and spin to start.
The washer will stop (pause) shortly before the wash and rinse spins. They are a normal part of the cycle.
Manual Soaking
Do not fill the washer and open the lid or press the Start/Pause button to perform a soak cycle. Use the Soak option on the control panel to perform this operation.
Cycle Operation

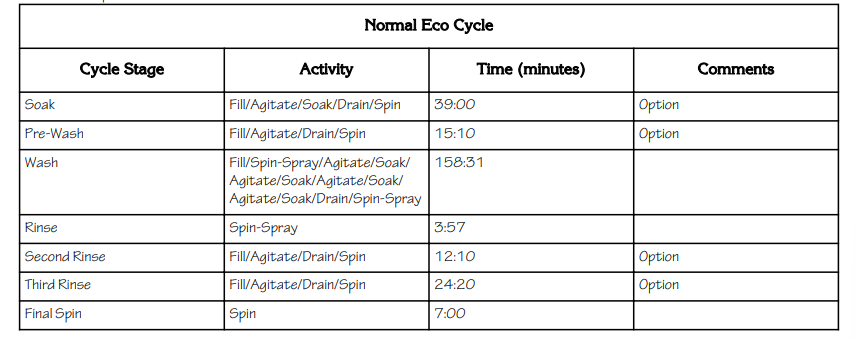

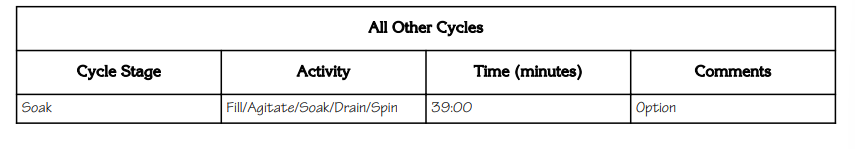

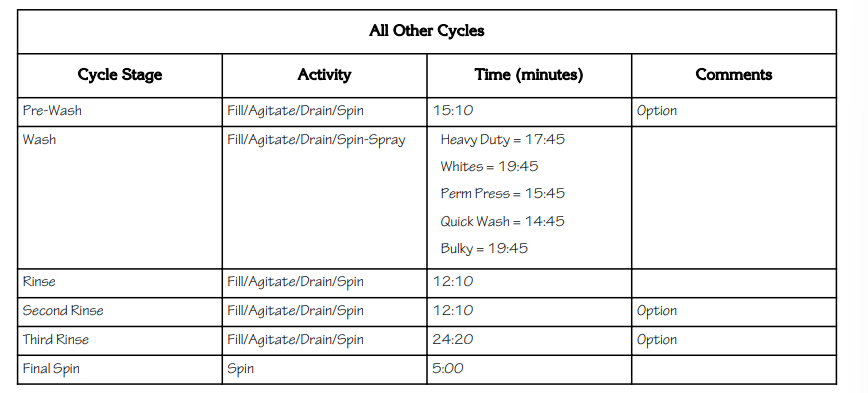

The cycles of your washer include several different stages. Refer to the tables below for what can be expected during the cycles that you select.
The cycle stages are dependent on the cycle, selections and options chosen.
The times listed are approximate and will vary depending on the selections and options chosen.
Cycle stages that are Options must be selected on the keypad to be included in the cycle.
NOTE: The rinse water temperature will be cold, including when optional rinses are selected.
Optional Features
Bleach Dispenser
The bleach dispenser is located in the left front corner, under the lid.
Use liquid bleach in the dispenser. Powdered bleach must not be used in the dispenser. Add powdered bleach to the wash water.
Use no more than one cup chlorine bleach for large loads, threequarters cup for medium and one-half cup for small loads.
Carefully pour recommended amount of bleach into the dispenser during the first fill of the washer.
Be careful not to spill undiluted bleach. It is a strong chemical and can damage some fabrics if it is not properly diluted.
Fabric Softener Dispenser
Fabric softener is not recommended to be used when the Normal Eco cycle is selected. For best results, choose an alternate cycle setting if using fabric softener.
To Use Dispenser

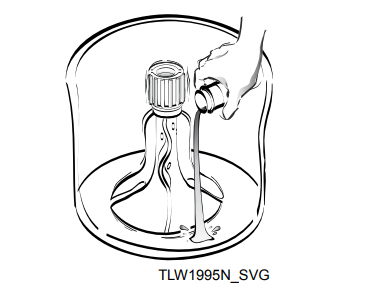

After the clothes are loaded into the washtub and before the start of the WASH cycle, pour the proper amount of liquid fabric softener into the bottle measuring cap (refer to bottle directions). Pour into dispenser.
The large fabric softener dispenser allows for the fabric softener to be diluted with water. We recommend adding water up to the fill level. Do not exceed tip of arrow which indicates correct fill level. Over-filling can allow fabric softener to spill onto the clothes, causing stains on clothes if the softener comes into contact with detergent suds.
Setting the water level to medium or higher will result in better performance from the fabric softener.
The fabric softener will remain in the dispenser during the wash fill, agitation and spin. At the end of the wash spin, the liquid fabric softener will be dispensed into the washtub through the slots in the agitator and will be mixed with the incoming rinse water.
To Clean the Dispenser

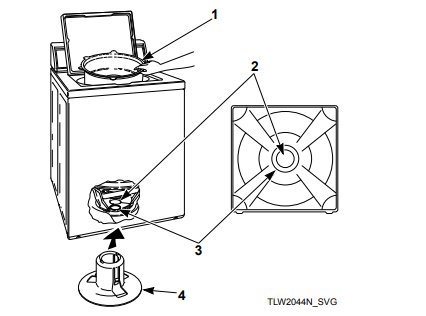

- Remove the dispenser housing from agitator by squeezing the lower part of the dispenser, pulling directly upward and at the same time tilting slightly. This will expose the dispenser cup, which is also removable for cleaning. Refer to illustration.
- Soak both housing and cup in hot soapy water.
- Rinse housing and cup clean.
- Clean funnel shape in top of agitator by using a small brush.
- After cleaning, install dispenser cup, then push dispenser housing directly downward onto top of agitator until firmly snapped together.
IMPORTANT: When adding detergent to the wash load, DO NOT allow any detergent to enter the softener dispenser cup. If this happens, refer to the cleaning instructions.
- Dispenser Housing
- Dispenser Cup
- Agitator
Use Tips
- Fabric softener spilled onto garments may cause staining. To remove, dampen stain and rub with bar soap. Wash as usual.
- Liquid fabric softeners will be dispensed during the first rinse and should not be combined with bleach, bluing, starch, detergents, soaps or packaged water conditioners.
- Fabric softener is not to be used in dispenser when using Prewash cycle, if available.
- When adding detergent to wash water, do not allow any to enter into softener dispenser cup, as softener will become gummy.
To prevent softener buildup, the dispenser can be filled with clean water for automatic cleaning. This can be done in washing cycles other than when softener is used.
Clothing Care
Clothing Concerns
To keep clothes looking white or bright, use good washing practices at all times to prevent a gradual build-up of soil or water hardness minerals on them. If you notice that your clothes are not as bright as they should be, take corrective measures immediately.
Problem | Cause | Solution |
Gray or Dingy Clothes | Insufficient Detergent |
Add more detergent to washtub before loading clothes. Mild detergents are not suitable for average soil. |
Improper Sorting | Wash whites separately. Separate light from heavily soiled items. Clothes can pick up soil from dirty wash water. | |
Nonphosphate Detergent and Hard Water | Follow package directions. Soften water if possible. | |
Water Not Hot Enough | White clothes will stay whiter with hot wash water. Increase temperature. | |
Overcrowding Washer | Clothes must circulate freely through the water for best results. | |
Yellowed Clothes | Unremoved Soil | Skin soil is hard to remove. Check hem edge of sheets and pillowcases, bottom end of t-shirts, etc. If this portion is white and center is yellow, the fabric contains unremoved soil. Use sufficient detergent and a hot wash. Chlorine bleach may be needed |
Clothes Stained from Iron in the Water | To test for an iron stain, use a rust remover that is recommended for use with washing machines on a portion of the garment. Follow bottle directions for larger items. | |
Older Clothes | Some white fabrics turn yellow with age and cannot be whitened. | |
Clothes Tearing or Damaged | Improper Use of Chlorine Bleach |
No correction for bleach damaged clothes. Always measure and dilute bleach. Take extra care to avoid unwanted spilling. |
Insufficient Precare | Fasten all hooks and zippers. Mend tears. Remove objects from pockets. | |
Overcrowding or Overloading | Make sure all items can move freely during agitation. | |
Excessive Lint | Improper Sorting | Fabrics that shed lint cannot be washed with fabrics that receive lint. |
Insufficient Detergent/Non-phosphate Detergent | Use enough detergent so lint remains suspended in water and flushed out. Do not oversuds the water. | |
Mixing Fabric Types |
Knits and permanent press attract lint. Wash these only with similar items. Use fabric softener in rinse water. |
|
Wrinkling | Improper Sorting | Heavy items like towels should not be washed with light items like nightgowns. |
Improper Cycle | Make sure cycle selected is appropriate for type of clothes. | |
Improper Temperature | Using a warm or cold wash and a cold rinse reduces wrinkling | |
Too Many Clothes in Washer | Clothes must circulate freely through the water for best results |
Maintenance
Cold Weather Care
If the unit is delivered on a cold day (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to operate the washer until it has had a chance to warm up. Water from the previous cycle may remain.
Care of Your Washer
Use only a damp or sudsy cloth for cleaning the control panel. Some cleaning products may harm the finish on the control panel or damage the interior. DO NOT use products that contain alcohol on the control panel.
Wipe the panel dry after cleaning. Wipe the washer cabinet as needed. If detergent, bleach or other washing products are spilled on the cabinet, wipe immediately. Some products will cause permanent damage if spilled on the cabinet.
Do not use scouring pads or abrasive cleansers.
The washtub will need no particular care though it may need rinsing or wiping after some unusual loads have been washed. This also may be necessary if too little detergent has been used.
Leave the lid open to allow the inside of the washer to dry out after use. This helps prevent musty odors from developing.
The agitator should not be removed except for service. The washtub is designed to be self cleaning.
Replacing Hoses
Hoses and other natural rubber parts deteriorate after extended use. Hoses may develop cracks, blisters or material wear from the temperature and constant high pressure they are subjected to.
All hoses should be checked on a monthly basis for any visible signs of deterioration. Any hose showing the signs of deterioration listed above should be replaced immediately. All hoses should be replaced every five years.
Filter Screens
Check the filter screens in the fill hoses for debris or damage every six months. Clean or replace them if necessary.
If the washer is filling with water slower than normal, check the filter screens. Clean or replace them if necessary.
Order filter screen Part No. 803615 from the nearest authorized parts distributor.
Vacations and Extended Non-Use
IMPORTANT: To avoid possible property damage due to flooding, turn off the water supply to the washer whenever there will be an extended period of non-use.
Preventative Maintenance
Follow these guidelines to ensure the washer operates properly. Call for service if you observe any of the following: water of any amount on the floor, an increase in operating noise or water remaining in the wash basket after a cycle.
Frequency | Maintenance Procedure |
Monthly |
|
Every six months |
|
Every five years |
|
Reinstallation of Shipping Materials
You must install the shipping brace and shipping plug any time the washer is moved.
Shipping Brace
The shipping brace in the lid opening should be saved and reinstalled whenever the washer is moved. To reinstall the brace, open the washer lid and place the brace over the washer agitator, placing the back of the brace into the lid opening first.
Shipping Plug
The plastic shipping plug should be saved and reinstalled any time the washer is moved. The plug fits into two openings: The base opening and the shipping plug opening on the bottom of the movable pivot dome. The plug MUST be inserted into both openings to prevent damage to the washer. In order to accomplish this, the shipping plug opening must be directly lined up with the base opening.
Refer to illustration below.
- Shipping Brace
- Shipping Plug Opening
- Base Opening
- Shipping Plug
After the shipping brace has been installed in the lid opening, tilt washer back enough to access base opening.
Insert shipping plug into base opening and, using the palm of your hand, push shipping plug into washer until it snaps into shipping plug opening.
Motor Overload Protector
The internal motor overload protector will stop the motor automatically if there are too many clothes in the washtub or if a failure has occurred within the machine’s motor. The control’s digital display will show tP. The overload protector will reset itself and the display will then show tP, St alternately. Remove any laundry wrapped around the agitator. Press the Start/Pause button to resume the cycle. If the overload protector stops the motor again, remove the washer from use and call a service person to correct the problem.
Troubleshooting
Try these troubleshooting tips before making a service call. They may save you time and money.
Washer Symptom | Possible Cause/Solution |
Won't Fill |
|
Won't Start |
|
Won't Agitate |
|
Won't Spin |
|
Stops/Pauses During Cycle |
|
Won't Drain |
|
Water Leaks |
|
Is Noisy |
|
Load Is Too Wet |
|
Wrong Water Temperature |
|
tP on digital display |
|
Er, FL on digital display |
|
OF, St on digital display |
|
Er, dr on digital display |
|
Er, PS on digital display |
|
Other Er Codes |
|
Contact Information
- Serial Plate
When contacting us about your washer, PLEASE GIVE THE MODEL AND SERIAL NUMBERS. The model and serial numbers are located on the serial plate. The serial plate will be in the location shown. Please include a copy of your bill of sale and any service receipts you have.
If replacement parts are required, contact the source from where you purchased your washer or or call +1 (920) 748-3950 or +32 56 41 20 54 for the name and address of the nearest authorized parts distributor.
WARNING: To reduce the risk of serious injury or death, DO NOT repair or replace any part of the unit or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
