Your new washing machine
2
Explanation of symbols
2
: Warning!
2
Caution!
2
Note / Tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 7
3
* Getting to know the appliance 8
3
Z Laundry 11
3
C Detergent 12
3
0 Programme default settings 13
3
\ Additional programme settings 15
3
1 Operating the appliance 16
3
H Sensors 20
3
M Setting the signal 20
3
2 Cleaning and maintenance 21
3
3 Faults and what to do about them. 23
3
4 After-sales service 27
4
J Technical data 27
4
5 Positioning and connecting 28
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Danger of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
5
: Warning
5
Danger of death!
5
: Warning
5
Danger of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
: Warning
6
Risk of injury!
6
7 Environmental protection
7
Environmental protection
7
Packaging/used appliance
7
Tips on economical use
7
* Getting to know the appliance
8
Getting to know the appliance
8
Washing machine
8
Control panel
8
Select additional program settings if necessary: ~ Page 15
9
A button for:
9
Display panel
9
Note:
9
You will find settings and information for the selected program in the table.
9
More information on the display panel
10
Z Laundry
11
Laundry
11
Prepare the laundry
11
Caution!
11
Damage to the appliance/fabrics
11
Sorting laundry
11
Note:
11
Note:
11
Starching
11
Note:
11
Laundry should not be treated with fabric softener.
11
Dyeing/bleaching
11
Soaking
12
1. Switch on the appliance.
12
2. Select the i Cottons 20 °C program.
12
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
12
4. Press the A button.
12
5. After approx. 10 minutes, press the A button to pause the program.
12
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the program or change the program.
12
Notes
12
C Detergent
12
Detergent
12
Correct selection of detergent
12
Saving energy and detergent
13
Saving
13
Soiling/note
13
Note:
13
When measuring the amount of all detergents/additives/care products and cleaning agents, please always check the manufacturer's instructions and information. ~ Page 17
13
0 Programme default settings
13
Programme default settings
13
Note:
13
Pressing and holding the buttons automatically runs through the setting values until the last one. Then press the button again and you will be able to change the setting values again.
13
Temperature
13
Spin speed
13
Finished in-time
14
1. Select a program.
14
2. Press the Finished in-time button repeatedly until the required number of hours is displayed.
14
3. Press the A button.
14
Note:
14
The length of the program is automatically adjusted when the program is running.
14
Certain factors can affect the program length, e.g.:
14
1. Press the A button.
14
2. Use the Finished in-time button to change the number of hours.
14
3. Press the A button.
14
\ Additional programme settings
15
Additional programme settings
15
Speed Eco
15
Note:
15
Easy-Iron
15
Note:
15
The washing's residual moisture is increased.
15
Water&Rinse+
15
Prewash
15
Note:
15
Pour detergent into compartments I and II.
15
1 Operating the appliance
16
Operating the appliance
16
Preparing the washing machine
16
Note:
16
The washing machine must be correctly installed and connected. From ~ Page 28
16
1. Connect the mains plug.
16
2. Turn on the water tap.
16
3. Open the door.
16
4. Check that the drum is completely drained. Drain if necessary.
16
Select programme/switch on the appliance
16
Note:
16
If you have activated the childproof lock, you must first deactivate it, before you can set a program.
16
Change the programme default settings
16
Select additional programme settings
16
Placing laundry into the drum
16
: Warning
16
Danger of death!
16
Notes
17
1. Place presorted items of laundry unfolded in the washing drum.
17
2. Make sure that no items of laundry are trapped between the washing machine door and the rubber seal, and close the door.
17
Measure and add detergent and care products
17
Caution!
17
Damage to the appliance
17
: Warning
17
Eye/skin irritation!
17
Note:
17
Dilute viscous fabric softener and fabric conditioner with water to prevent blockages.
17
1. Pull out the detergent drawer as far as possible.
17
2. Add detergent and/or care products.
17
3. Close the detergent drawer.
17
1. Pull out the detergent drawer.Press down the insert and fully remove the drawer.
18
2. Slide the measuring aid forwards, fold it down and click it into place.
18
3. Reinsert the drawer.
18
Note:
18
Do not use the measuring aid for gel detergents and washing powder, or for programs with prewash or when the "Fertig in" (Ready in) time is selected.
18
Start the programme
18
Note:
18
Foam detection
18
If the Å symbol also lights up in the display panel, the washing machine has detected too much foam during the wash cycle and automatically activated additional rinse cycles to remove the foam.
18
Add less detergent to the next wash cycle with the same load.
18
Childlock
18
Note:
18
Note:
18
The childproof lock remains active after the program has ended and the appliance is switched off. You must always deactivate the childproof lock if you want to start a new program.
18
Adding laundry
18
Notes
19
Changing the programme
19
1. Press the A button.
19
2. Select another program.
19
3. Press the A button.The new program starts from the beginning.
19
Cancel the programme
19
1. Press the A button.
19
2. To cool down laundry: Select ' Rinse.
19
3. Press the A button.
19
1. Press the A button.
19
2. Select 0 Spin/Drain//Spin/Empty [.
19
3. Press the A button.
19
Programme end during rinse hold
19
Programme end
19
Removing laundry/switching off the appliance
19
1. Open the door and remove the laundry.
19
2. Turn the program selector to Off . The appliance is switched off.
19
3. Turn off the tap.
19
Note:
19
Notes
19
H Sensors
20
Sensors
20
Automatic load sensing
20
Unbalanced load detection system
20
Note:
20
Place large and small items of laundry evenly in the drum. ~ Page 25
20
VoltCheck
20
Note:
20
Voltage under-usages can for example result in program extensions and/or a non-satisfactory spin result.
20
M Setting the signal
20
Setting the signal
20
Activating the setting mode
20
1. Select the i Cottons program to position 1. The washing machine is switched on.
20
2. Press the A button and, at the same time, turn the program selector clockwise to position 2.Release the button.
20
2 Cleaning and maintenance
21
Cleaning and maintenance
21
: Warning
21
Danger of death!
21
: Warning
21
Risk of poisoning!
21
Caution!
21
Damage to the appliance
21
Notes
21
Machine housing/control panel
21
Drum
21
Descaling
21
Detergent drawer and housing
21
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
21
2. To remove the insert: Push the insert upwards from below with your finger.
21
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
21
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
21
5. Push in the detergent drawer.
21
Note:
22
Leave the detergent drawer open so that any residual water can evaporate.
22
Detergent solution pump blocked
22
: Warning
22
Risk of scalding!
22
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
22
2. Switch off the appliance. Disconnect the mains plug.
22
3. Open and remove the service flap.
22
4. Take the drain hose out of the retainer.
22
5. Carefully unscrew the pump cover, residual water may leak out.
22
6. Place the service flap back on, lock it into place, and close it.
22
Note:
22
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into compartment II and start the [ Empty programme.
22
The drain hose at the siphon is blocked
22
1. Switch off the appliance. Disconnect the mains plug.
22
2. Loosen the hose clamp. Carefully remove the drain hose, residual water may leak out.
22
3. Clean the drainage hose and siphon connecting piece.
22
4. Reattach the drainage hose and secure the connection using the hose clamp.
23
Filter in the water supply blocked
23
1. Turn off the tap.
23
2. Select any program (except Rinse// Spin/Empty).
23
3. Press the A button.Allow the program to run for approximately 40 seconds.
23
4. Turn the program selector to Off. Pull out the mains plug.
23
5. Clean the filter on the tap:
23
6. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
23
7. Connect the hose and check for leaks.
23
3 Faults and what to do about them.
23
Faults and what to do about them.
23
Emergency release
23
: Warning
23
Risk of scalding!
23
: Warning
23
Risk of injury!
23
Caution!
23
Water damage
23
1. Switch off the appliance. Disconnect the mains plug.
23
2. Drain the detergent solution.
23

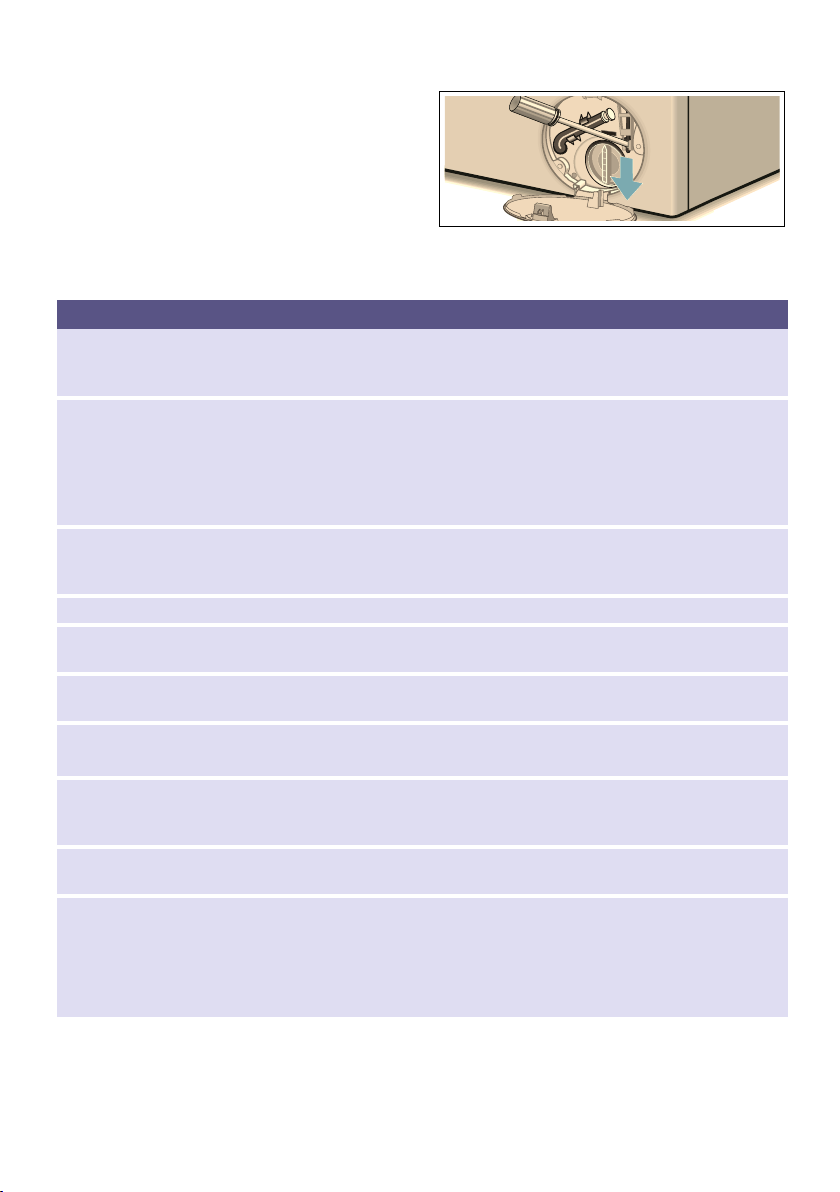

3. Pull the emergency release downwards with a tool and release.
24
Information on the display panel
24
Display
24
Cause/remedy
24
Faults and what to do about them.
25
Faults
25
Cause/remedy
25
Note:
26
4 After-sales service
27
After-sales service
27
J Technical data
27
Technical data
27
5 Positioning and connecting
28
Positioning and connecting
28
Included with the appliance
28
Note:
28
Check the machine for transport damage.Never use a damaged machine. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services. ~ Page 27
28
Safety instructions
28
: Warning
28
Risk of injury!
28
Caution!
28
Damage to the appliance
28
Caution!
29
Water damage
29
Notes
29
Installation surface
29
Note:
29
The washing machine be stable so that it does not move around.
29
Installation on a base or a wooden joist floor
29
Caution!
29
Damage to the appliance
29
Note:
29
On wooden joist floors, install the washing machine:
29
Installation on a platform with drawer
29
Installing the appliance in a kitchenette
29
: Warning
29
Danger of death!
29
Notes
29
Removing the transport locks
29
Caution!
29
Damage to the appliance
29
Note:
29
Keep the screws and sleeves in a safe place.
29
1. Take the hoses out of the holders.
30
2. Unscrew and remove all four transport brace screws.
30
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
30
Hose and cable lengths
30
Tip:
30
Water inlet
30
: Warning
30
Danger of death!
30
Notes
31
Cold water connection
31
Note:
31
With a cold water connection, only operate the washing machine using cold mains water.
31
Note:
31
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
31
Hot and cold water connection
31
Notes
31
Connection to the water pipes (¾" = 26.4 mm)
32
Connection to the appliance
32
Note:
32
Carefully turn on the taps and check that the connection points are not leaking. The screw connection is under mains water pressure.
32
Water outlet
32
Caution!
32
Water damage
32
Note:
32
Do not kink the water drain hose or put strain on it lengthways.
32
: Warning
32
Risk of scalding!
32
Caution!
32
Damage to the appliance/fabrics
32

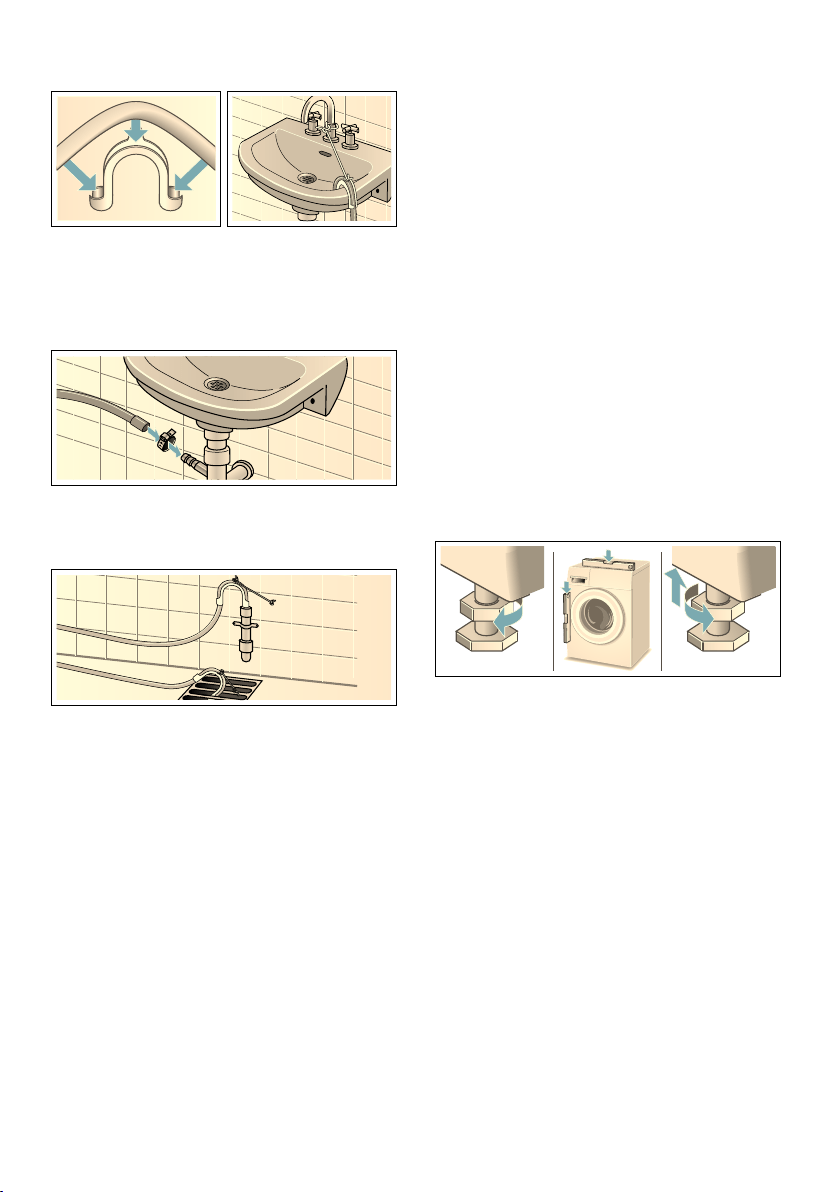

Levelling
33
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
33
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
33
3. Tighten the lock nut against the housing.
33
Electrical connection
34
: Warning
34
Danger of death!
34
Notes
34
Before washing for the first time
34
Notes
34
1. Check the machine.
34
2. Remove the protective film from the control panel.
34
3. Connect the mains plug.
34
4. Turn on the tap.
34
5. Close the door (do not load any laundry).
34
6. Depending on the model, run the ¾ Drum Clean 90 °C or i Cottons 90 °C program.
34
7. Open the detergent drawer.
34
8. Pour approximately 1 litre of water into compartment II.
34
9. Pour standard detergent into compartment II.
34
Note:
34
10. Close the detergent drawer.
34
11. Press the A button.
34
12. When the program ends, switch off the appliance.
34
Transportation
35
1. Turn off the water tap.
35
2. Reduce the water pressure in the supply hose.
35
3. Drain the remaining detergent solution.
35
4. Disconnect the washing machine from the mains.
35
5. Remove the hoses.
35
1. Remove the covers and keep them in a safe place.
35
2. Insert all four sleeves.
35
Notes
35
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
36
2. The liability guarantee is valid for the service life of the appliance.
36
3. It is a prerequisite of all warranty claims that the appliance with Aqua-Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
36
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
36
File type: PDF
File name: Bosch WAT24463GB Washer.pdf
File size: 4.66 MB
File Language: English
Pages: 36
Author: Bosch
Published: 2018-07-31 17:00:00
Updated: 2023-08-08
Verified by
Macy Effertz
on 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WAT24463GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WAT28463GB
WAT286H0GB
WIW28300GB
WAW285H0GB
WIW28500GB
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WAT28463GB
Bosch WAT286H0GB
Bosch WAT2840SGB
Bosch WAT24440AU
Bosch WAT28560GB
Bosch WAT28371GB
Bosch WAT28370GB
Bosch WAT28350GB
Bosch WAT287H0
Bosch WAT287F0
Bosch WAT286V0
Bosch WAT286F1
Bosch WAT28640
Bosch WAT285H0
Bosch WAT285F0
Table of Contents
×
Your new washing machine
2
Explanation of symbols
2
: Warning!
2
Caution!
2
Note / Tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 7
3
* Getting to know the appliance 8
3
Z Laundry 11
3
C Detergent 12
3
0 Programme default settings 13
3
\ Additional programme settings 15
3
1 Operating the appliance 16
3
H Sensors 20
3
M Setting the signal 20
3
2 Cleaning and maintenance 21
3
3 Faults and what to do about them. 23
3
4 After-sales service 27
4
J Technical data 27
4
5 Positioning and connecting 28
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Danger of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
5
: Warning
5
Danger of death!
5
: Warning
5
Danger of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
: Warning
6
Risk of injury!
6
7 Environmental protection
7
Environmental protection
7
Packaging/used appliance
7
Tips on economical use
7
* Getting to know the appliance
8
Getting to know the appliance
8
Washing machine
8
Control panel
8
Select additional program settings if necessary: ~ Page 15
9
A button for:
9
Display panel
9
Note:
9
You will find settings and information for the selected program in the table.
9
More information on the display panel
10
Z Laundry
11
Laundry
11
Prepare the laundry
11
Caution!
11
Damage to the appliance/fabrics
11
Sorting laundry
11
Note:
11
Note:
11
Starching
11
Note:
11
Laundry should not be treated with fabric softener.
11
Dyeing/bleaching
11
Soaking
12
1. Switch on the appliance.
12
2. Select the i Cottons 20 °C program.
12
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
12
4. Press the A button.
12
5. After approx. 10 minutes, press the A button to pause the program.
12
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the program or change the program.
12
Notes
12
C Detergent
12
Detergent
12
Correct selection of detergent
12
Saving energy and detergent
13
Saving
13
Soiling/note
13
Note:
13
When measuring the amount of all detergents/additives/care products and cleaning agents, please always check the manufacturer's instructions and information. ~ Page 17
13
0 Programme default settings
13
Programme default settings
13
Note:
13
Pressing and holding the buttons automatically runs through the setting values until the last one. Then press the button again and you will be able to change the setting values again.
13
Temperature
13
Spin speed
13
Finished in-time
14
1. Select a program.
14
2. Press the Finished in-time button repeatedly until the required number of hours is displayed.
14
3. Press the A button.
14
Note:
14
The length of the program is automatically adjusted when the program is running.
14
Certain factors can affect the program length, e.g.:
14
1. Press the A button.
14
2. Use the Finished in-time button to change the number of hours.
14
3. Press the A button.
14
\ Additional programme settings
15
Additional programme settings
15
Speed Eco
15
Note:
15
Easy-Iron
15
Note:
15
The washing's residual moisture is increased.
15
Water&Rinse+
15
Prewash
15
Note:
15
Pour detergent into compartments I and II.
15
1 Operating the appliance
16
Operating the appliance
16
Preparing the washing machine
16
Note:
16
The washing machine must be correctly installed and connected. From ~ Page 28
16
1. Connect the mains plug.
16
2. Turn on the water tap.
16
3. Open the door.
16
4. Check that the drum is completely drained. Drain if necessary.
16
Select programme/switch on the appliance
16
Note:
16
If you have activated the childproof lock, you must first deactivate it, before you can set a program.
16
Change the programme default settings
16
Select additional programme settings
16
Placing laundry into the drum
16
: Warning
16
Danger of death!
16
Notes
17
1. Place presorted items of laundry unfolded in the washing drum.
17
2. Make sure that no items of laundry are trapped between the washing machine door and the rubber seal, and close the door.
17
Measure and add detergent and care products
17
Caution!
17
Damage to the appliance
17
: Warning
17
Eye/skin irritation!
17
Note:
17
Dilute viscous fabric softener and fabric conditioner with water to prevent blockages.
17
1. Pull out the detergent drawer as far as possible.
17
2. Add detergent and/or care products.
17
3. Close the detergent drawer.
17
1. Pull out the detergent drawer.Press down the insert and fully remove the drawer.
18
2. Slide the measuring aid forwards, fold it down and click it into place.
18
3. Reinsert the drawer.
18
Note:
18
Do not use the measuring aid for gel detergents and washing powder, or for programs with prewash or when the "Fertig in" (Ready in) time is selected.
18
Start the programme
18
Note:
18
Foam detection
18
If the Å symbol also lights up in the display panel, the washing machine has detected too much foam during the wash cycle and automatically activated additional rinse cycles to remove the foam.
18
Add less detergent to the next wash cycle with the same load.
18
Childlock
18
Note:
18
Note:
18
The childproof lock remains active after the program has ended and the appliance is switched off. You must always deactivate the childproof lock if you want to start a new program.
18
Adding laundry
18
Notes
19
Changing the programme
19
1. Press the A button.
19
2. Select another program.
19
3. Press the A button.The new program starts from the beginning.
19
Cancel the programme
19
1. Press the A button.
19
2. To cool down laundry: Select ' Rinse.
19
3. Press the A button.
19
1. Press the A button.
19
2. Select 0 Spin/Drain//Spin/Empty [.
19
3. Press the A button.
19
Programme end during rinse hold
19
Programme end
19
Removing laundry/switching off the appliance
19
1. Open the door and remove the laundry.
19
2. Turn the program selector to Off . The appliance is switched off.
19
3. Turn off the tap.
19
Note:
19
Notes
19
H Sensors
20
Sensors
20
Automatic load sensing
20
Unbalanced load detection system
20
Note:
20
Place large and small items of laundry evenly in the drum. ~ Page 25
20
VoltCheck
20
Note:
20
Voltage under-usages can for example result in program extensions and/or a non-satisfactory spin result.
20
M Setting the signal
20
Setting the signal
20
Activating the setting mode
20
1. Select the i Cottons program to position 1. The washing machine is switched on.
20
2. Press the A button and, at the same time, turn the program selector clockwise to position 2.Release the button.
20
2 Cleaning and maintenance
21
Cleaning and maintenance
21
: Warning
21
Danger of death!
21
: Warning
21
Risk of poisoning!
21
Caution!
21
Damage to the appliance
21
Notes
21
Machine housing/control panel
21
Drum
21
Descaling
21
Detergent drawer and housing
21
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
21
2. To remove the insert: Push the insert upwards from below with your finger.
21
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
21
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
21
5. Push in the detergent drawer.
21
Note:
22
Leave the detergent drawer open so that any residual water can evaporate.
22
Detergent solution pump blocked
22
: Warning
22
Risk of scalding!
22
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
22
2. Switch off the appliance. Disconnect the mains plug.
22
3. Open and remove the service flap.
22
4. Take the drain hose out of the retainer.
22
5. Carefully unscrew the pump cover, residual water may leak out.
22
6. Place the service flap back on, lock it into place, and close it.
22
Note:
22
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into compartment II and start the [ Empty programme.
22
The drain hose at the siphon is blocked
22
1. Switch off the appliance. Disconnect the mains plug.
22
2. Loosen the hose clamp. Carefully remove the drain hose, residual water may leak out.
22
3. Clean the drainage hose and siphon connecting piece.
22
4. Reattach the drainage hose and secure the connection using the hose clamp.
23
Filter in the water supply blocked
23
1. Turn off the tap.
23
2. Select any program (except Rinse// Spin/Empty).
23
3. Press the A button.Allow the program to run for approximately 40 seconds.
23
4. Turn the program selector to Off. Pull out the mains plug.
23
5. Clean the filter on the tap:
23
6. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
23
7. Connect the hose and check for leaks.
23
3 Faults and what to do about them.
23
Faults and what to do about them.
23
Emergency release
23
: Warning
23
Risk of scalding!
23
: Warning
23
Risk of injury!
23
Caution!
23
Water damage
23
1. Switch off the appliance. Disconnect the mains plug.
23
2. Drain the detergent solution.
23
3. Pull the emergency release downwards with a tool and release.
24
Information on the display panel
24
Display
24
Cause/remedy
24
Faults and what to do about them.
25
Faults
25
Cause/remedy
25
Note:
26
4 After-sales service
27
After-sales service
27
J Technical data
27
Technical data
27
5 Positioning and connecting
28
Positioning and connecting
28
Included with the appliance
28
Note:
28
Check the machine for transport damage.Never use a damaged machine. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services. ~ Page 27
28
Safety instructions
28
: Warning
28
Risk of injury!
28
Caution!
28
Damage to the appliance
28
Caution!
29
Water damage
29
Notes
29
Installation surface
29
Note:
29
The washing machine be stable so that it does not move around.
29
Installation on a base or a wooden joist floor
29
Caution!
29
Damage to the appliance
29
Note:
29
On wooden joist floors, install the washing machine:
29
Installation on a platform with drawer
29
Installing the appliance in a kitchenette
29
: Warning
29
Danger of death!
29
Notes
29
Removing the transport locks
29
Caution!
29
Damage to the appliance
29
Note:
29
Keep the screws and sleeves in a safe place.
29
1. Take the hoses out of the holders.
30
2. Unscrew and remove all four transport brace screws.
30
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
30
Hose and cable lengths
30
Tip:
30
Water inlet
30
: Warning
30
Danger of death!
30
Notes
31
Cold water connection
31
Note:
31
With a cold water connection, only operate the washing machine using cold mains water.
31
Note:
31
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
31
Hot and cold water connection
31
Notes
31
Connection to the water pipes (¾" = 26.4 mm)
32
Connection to the appliance
32
Note:
32
Carefully turn on the taps and check that the connection points are not leaking. The screw connection is under mains water pressure.
32
Water outlet
32
Caution!
32
Water damage
32
Note:
32
Do not kink the water drain hose or put strain on it lengthways.
32
: Warning
32
Risk of scalding!
32
Caution!
32
Damage to the appliance/fabrics
32
Levelling
33
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
33
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
33
3. Tighten the lock nut against the housing.
33
Electrical connection
34
: Warning
34
Danger of death!
34
Notes
34
Before washing for the first time
34
Notes
34
1. Check the machine.
34
2. Remove the protective film from the control panel.
34
3. Connect the mains plug.
34
4. Turn on the tap.
34
5. Close the door (do not load any laundry).
34
6. Depending on the model, run the ¾ Drum Clean 90 °C or i Cottons 90 °C program.
34
7. Open the detergent drawer.
34
8. Pour approximately 1 litre of water into compartment II.
34
9. Pour standard detergent into compartment II.
34
Note:
34
10. Close the detergent drawer.
34
11. Press the A button.
34
12. When the program ends, switch off the appliance.
34
Transportation
35
1. Turn off the water tap.
35
2. Reduce the water pressure in the supply hose.
35
3. Drain the remaining detergent solution.
35
4. Disconnect the washing machine from the mains.
35
5. Remove the hoses.
35
1. Remove the covers and keep them in a safe place.
35
2. Insert all four sleeves.
35
Notes
35
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
36
2. The liability guarantee is valid for the service life of the appliance.
36
3. It is a prerequisite of all warranty claims that the appliance with Aqua-Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
36
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
36
Search:
×
Search
