Instruction Manual and Installation Instructions
Washing machine
WIW...V0
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WIW28300GB:
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 6
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
* Getting to know the appliance 29
3
Z Laundry 32
3
C Detergent 34
3
0 Programme default settings 35
3
\ Additional programme settings 36
3
1 Operating the appliance 37
3
H Sensors 42
3
M Setting the signal 43
4
2 Cleaning and maintenance 44
4
3 Faults and what to do about them. 49
4
4 After-sales service 53
4
J Technical data 54
4
r Aqua-Stop warranty 55
4
8 Intended use
5
Intended use
5
■ This appliance is intended for private domestic use only.
5
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
5
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand-washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and ...
5
■ This appliance is suitable for operation with mains water and commercially available detergents and care products (must be suitable for use in washing machines).
5
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
5
( Safety instructions
6
Safety instructions
6
Children/people/pets
6
: Warning
6
Risk of death!
6
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
6
■ Children must not play with this appliance.
6
■ Do not allow children to clean or maintain this appliance unsupervised.
6
■ Keep children under 3 years and pets away from this appliance.
6
■ Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
6
: Warning
6
Risk of death!
6
■ Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
6
■ Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
6
: Warning
7
Risk of suffocation!
7
: Warning
7
Risk of poisoning!
7
: Warning
7
Risk of burns!
7
: Warning
7
Eye/skin irritation!
7
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
■ The mains voltage on your power socket matches the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
7
■ The appliance is only connected to a source of alternating current via a nationally recognized and grounded outlet that has been correctly installed.
7
■ The mains plug and the grounded socket match and the earthing system has been correctly installed.
7
■ The cross section of the cable is sufficiently large enough.
7
■ The mains plug is accessible at all times.
7
■ If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
7
: Warning
8
Risk of electric shock/fire/ material damage/damage to the appliance!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
■ Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
11
■ Never take hold of the mains plug with wet hands.
11
■ When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
11
■ Do not make any technical modifications to the appliance or its features.
11
■ Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
11
■ Spare mains cables can be ordered from our customer service.
11
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
■ Do not allow these agents to come into contact with the surfaces of the appliance.
12
■ Clean the appliance with nothing but water and a soft, damp cloth.
12
■ Remove any detergent, spray or other residues immediately.
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
■ Always utilise the maximum amount of washing for the particular programme.
13
■ Wash normally soiled laundry without prewash.
13
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the machine may deviate from this so that you get the optimum mix of energy-saving and washing results.
13
■ Energy-saving mode: The control panel lighting and TimeLight* (display on the floor ~ Page 39) will go out after a few minutes. The start button will flash. Press any button to activate the lighting.
13
■ If the washing will be dried in a dryer, select the spin speed according to the dryer manufacturer's instructions.
13
5 Positioning and connecting
14
Positioning and connecting
14

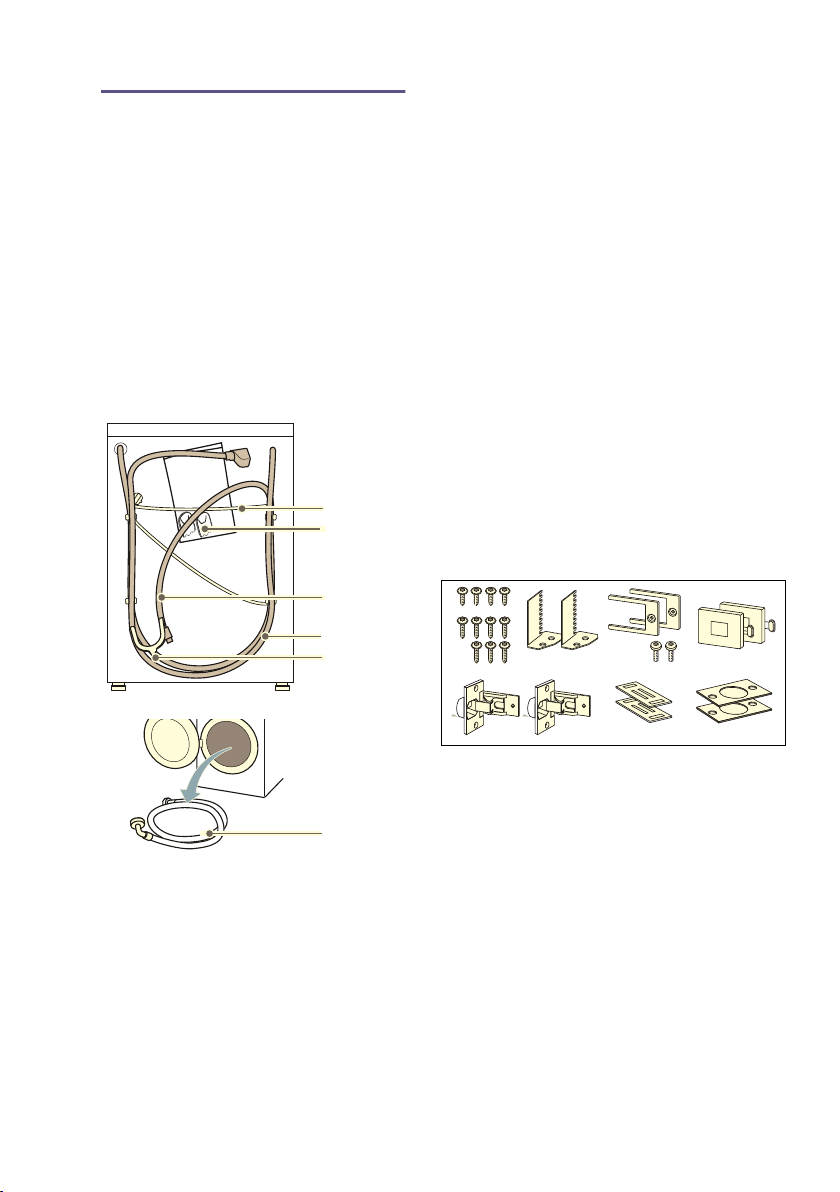

Included with the appliance
14
Note:
14
■ Installation and operating instructions
14
■ After-sales service location directory*
14
■ Guarantee*
14
■ Cover caps for openings after the transport locks have been removed
14
■ Hose clip for securing the water drain hose to the siphon
14
Components required for installation ~ Page 22
14
Useful tools
14
■ Spirit level for aligning
14
■ Spanner with:
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a slide sheet
15
Tip:
15
Installing the appliance below a high worktop
16
Installation on a base or a wooden joist floor
16
Caution!
16
Damage to the appliance
16
Note:
16
Installation on a platform with drawer
16
Removing the transport locks
17
Caution!
17
Damage to the appliance
17
1. Take the hoses out of the holders.
17
2. Use a WAF13 spanner to undo and remove all four transport lock bolts.
17
3. Remove the sleeves. Remove the mains cable from the holders.
17
4. Put on the cover caps.
17
5. Press the cover cap down firmly at the top, while at the same time pushing it downwards until you hear the hooks clicking into place.
17
Hose and cable lengths
18
■ Left-hand connection
18
■ Right-hand connection
18
Tip:
18
Water inlet
19
: Warning
19
Risk of death!
19
Notes
19
Connection
19
■ to the tap
19
■ to the appliance Model: Standard and AquaSecure
19
Note:
19
Water outlet
20
: Warning
20
Risk of scalding!
20
Caution!
20
Water damage
20
Caution!
20
Damage to the appliance/fabrics
20
Note:
20
Height difference between the installation area and the drain
20
■ for AquaSecure and standard models, min. 60 cm - max. 100 cm,
20
■ for AquaStop models 0 - max. 100 cm.
20
Levelling
20
Electrical connection
21
: Warning
21
Danger of death!
21
Notes
21
Installing the appliance
22
1. To make it easier to push in the appliance's rear feet (a), turn them in until the appliance is on the runners (b).
22
2. Prepare the installation space.
22
3. Lay the mains cable and the hoses. Push the appliance in, moving the mains cable and the hoses with it.
22
Note:
22
4. Connect the hoses. ~ Page 19, ~ Page 20
22
5. The appliance must be standing on all four feet before it can be put into operation. Unscrew the rear feet.
22

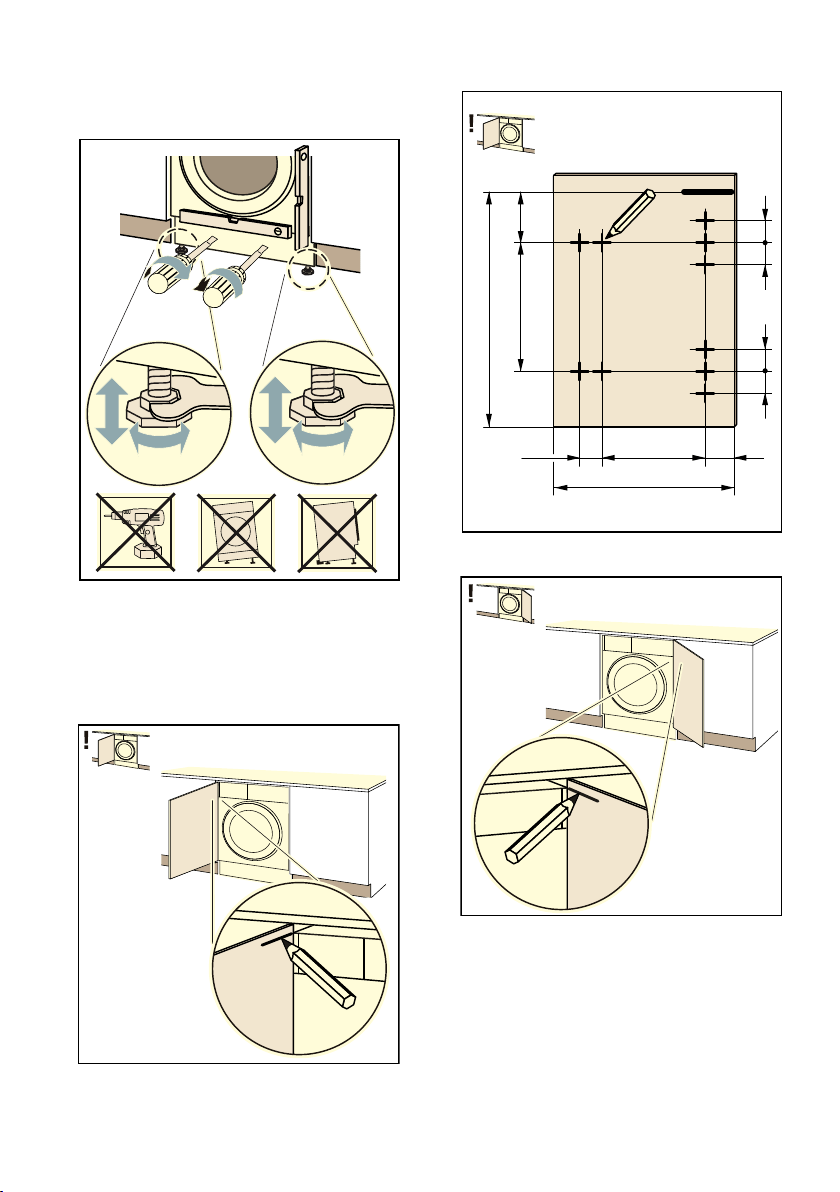

6. Align appliance with a spirit level. ~ Page 20
23

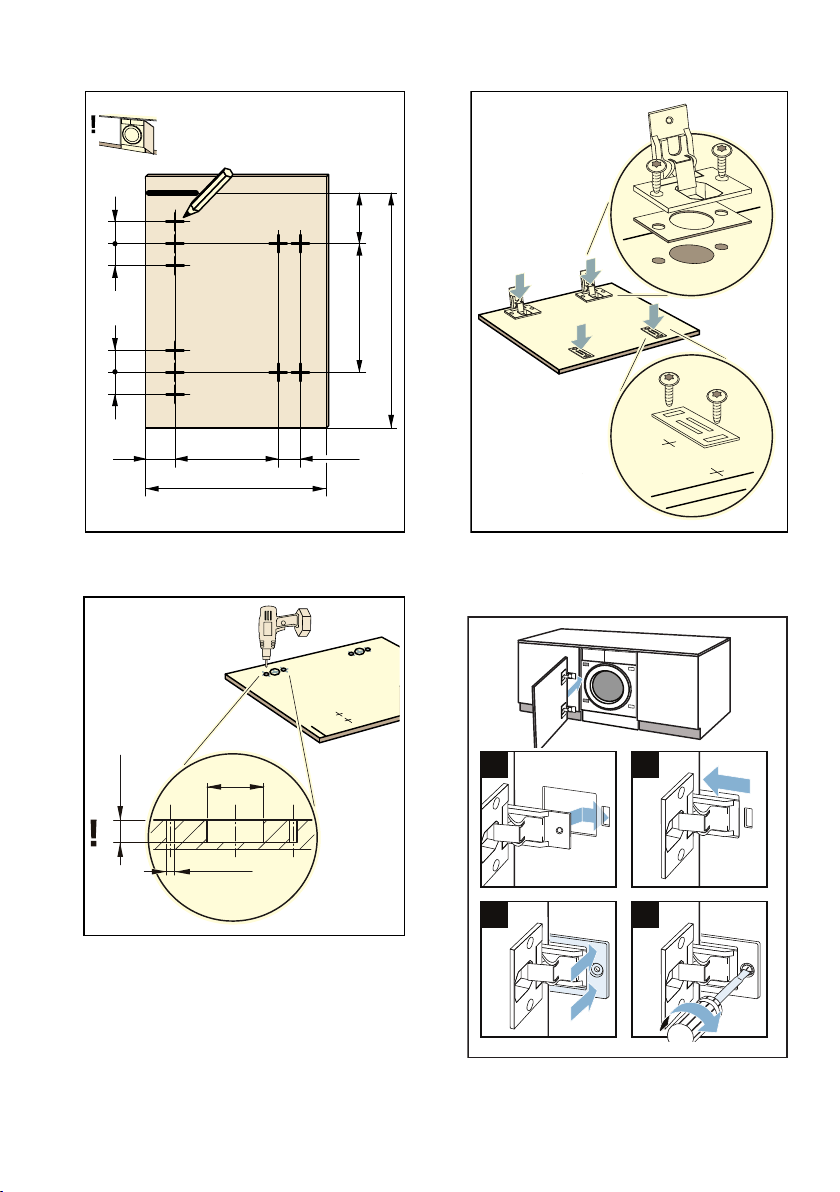

7. Hold the cabinet door against the appliance at the required height and mark where the top edge of the appliance comes to on the inside of the door.
23
8. Drill the holes. Use a Forstner bit for the 35 mm hole.
24
9. Put the hinges in the holes and screw them in. Screw in the counter plates for the magnetic catches.
24

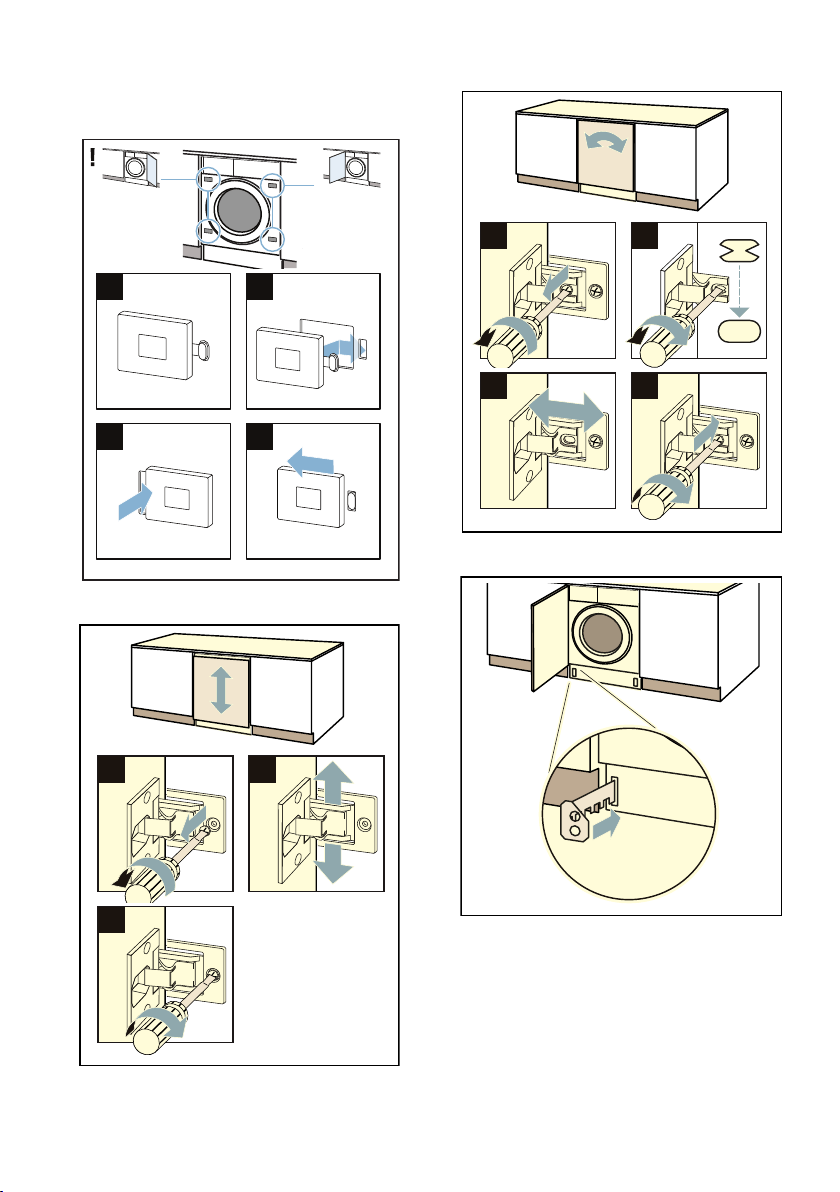

10. Put the hinges in the appliance (1 + 2), push on the cover panels (3) and screw them in place (4).
24
11. Put the magnetic catches on the appliance.
25

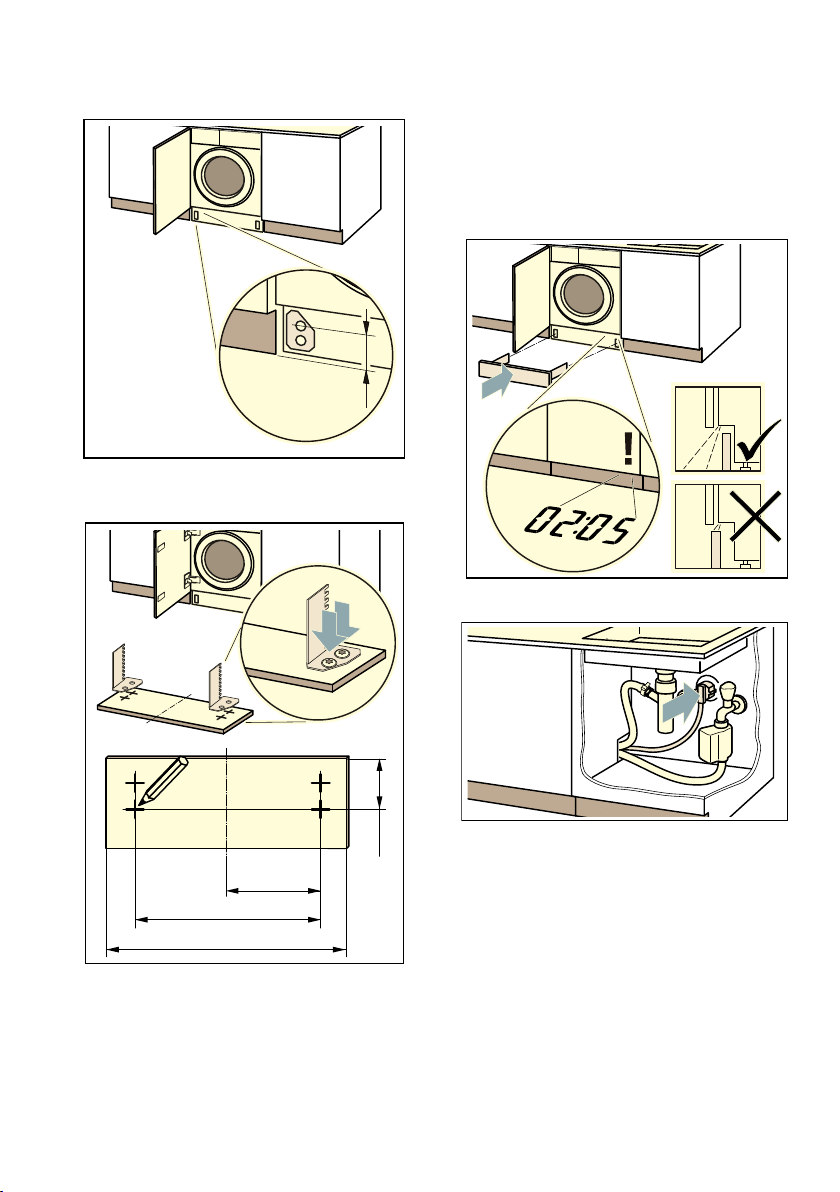

12. Align the door of the cabinet.
25
13. Put in the spacers for the toe kick.
25
14. Reduce dimension Y.
26
15. Screw the spacers in as per the dimensions.
26
16. Fit the toe kick.
26
Note:
26
17. Plug the plug in the socket.
26
Before washing for the first time
27
Note:
27
Preparatory work:
27
1. Plug the mains plug into the mains.
27
2. Turn on the tap.
27
Run a programme without laundry:
27
1. Switch on the appliance.
27
2. Close the door (do not load any laundry).
27
3. Set the Cottons 90 °C programme.
27
4. Open the detergent drawer.
27
5. Pour approximately 1 litre of water into compartment II.
27
6. Pour standard washing powder into compartment II.
27
Note:
27
7. Close the detergent drawer.
27
8. Press the A button.
27
9. Switch off the appliance at the end of the programme.
27
Transportation
28
Preparatory work:
28
1. Turn off the tap.
28
2. Reduce the water pressure in the supply hose: ~ Page 48; Cleaning and maintenance – filter in the water supply blocked
28
3. Disconnect the washing machine from the mains.
28
4. Drain the remaining water: ~ Page 46; cleaning and maintenance – the drain pump is blocked, emergency draining
28
5. Remove the hoses.
28
Attach the transport locks:
28
1. Use a screwdriver to remove the covers and then keep them in a safe place.
28
2. Insert all four sleeves.
28
3. Insert the transport lock bolts and tighten them with a WAF13 spanner.
28
Notes
28
* Getting to know the appliance
29
Getting to know the appliance
29

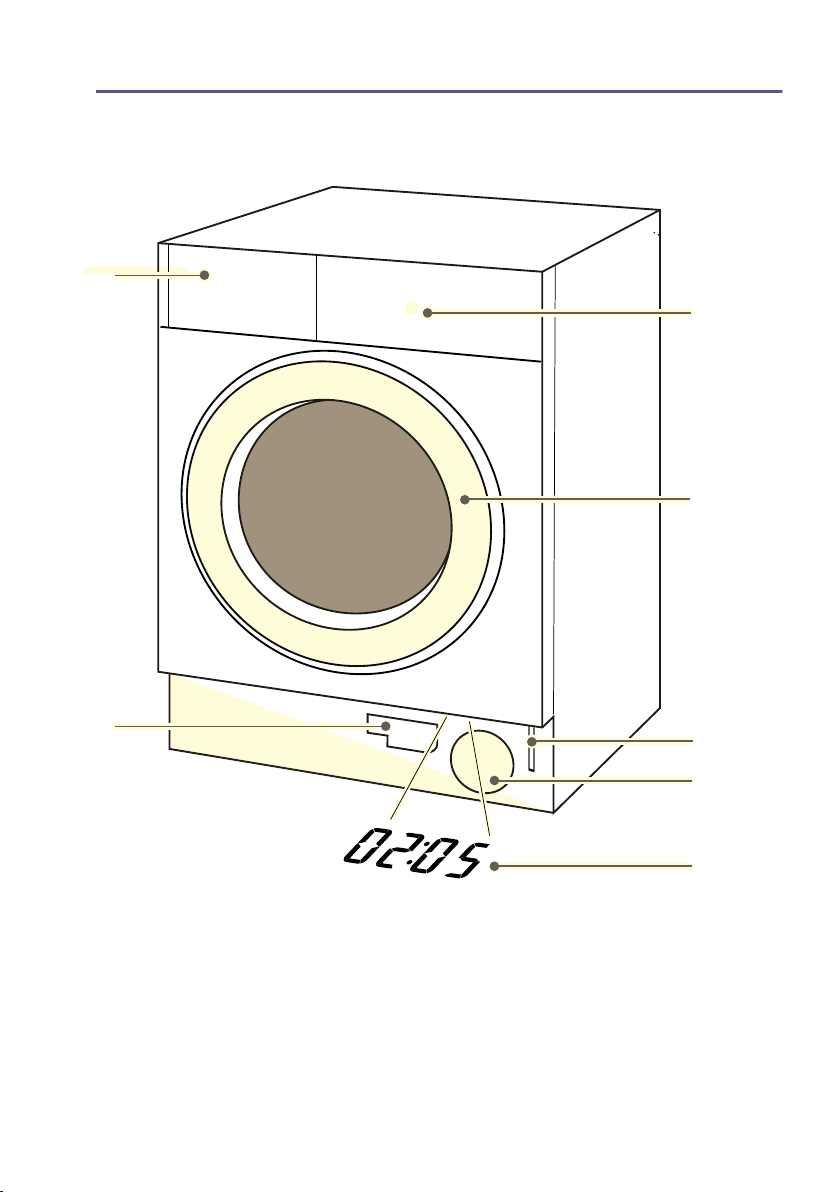

Washing machine
29
TimeLight (depends on the model)
29
Control panel
30
Display panel
31
Buttons
31
Indicators and symbols for setting values
31
Setting
31
Other indicators and symbols
31
Information on:
31
Z Laundry
32
Laundry
32
Prepare the laundry
32
Caution!
32
Damage to the appliance/laundry
32
■ Empty any pockets.
32
■ Look out for metal objects (paperclips, etc.) and remove them.
32
■ Wash delicates in a laundry bag (tights, underwired bras, etc.).
32
■ Close any zips; button up any cover buttons.
32
■ Brush sand out of pockets and collars.
32
■ Remove curtain fittings or place curtains in a laundry bag.
32
Sorting laundry
32
■ Type of fabric/fibre
32
■ Colour
32
Note:
32
■ Soiling Wash laundry with the same level of soiling together.
32
■ Symbols on the care labels
32
Note:
32
Starching
33
Note:
33
Dyeing/bleaching
33
Soaking
33
1. Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions.
33
2. Select the desired programme.
33
3. Press the A button to start the programme.
33
4. After approx. ten minutes, press the A button to pause the programme.
33
5. After the desired soaking time, press the A button again to continue or change the programme.
33
Notes
33
C Detergent
34
Detergent
34
Correct selection of detergent
34
■ Standard detergent with optical brighteners
34
■ Detergent for colours without bleach or optical brighteners
34
■ Detergent for colours/delicates without optical brighteners
34
■ Detergent for delicates
34
■ Detergent for woollens
34
Saving energy and detergent
34
Saving
34
Soiling/note
34
Note:
34
0 Programme default settings
35
Programme default settings
35
Note:
35
Spin speed
35
Ready in
35
1. Select a program.
35
2. Press the Ready in button repeatedly until the required number of hours is displayed.
35
3. Press the A button.
35
Note:
35
1. Press the A button.
35
2. Use the Ready in button to change the number of hours.
35
3. Press the A button.
35
\ Additional programme settings
36
Additional programme settings
36
Speed/Eco
36
■ Speed
36
Note:
36
■ Eco
36
1 Operating the appliance
37
Operating the appliance
37
Preparing the washing machine
37
Note:
37
1. Connect the mains plug.
37
2. Turn on the tap.
37
3. Open the door.
37
4. Check that the drum is completely drained. Drain if necessary.
37
Select programme/switch on the appliance
37
Note:
37
Change the programme default settings
37
Select additional programme settings
37
Placing laundry into the drum
38
: Warning
38
Danger of death!
38
Notes
38

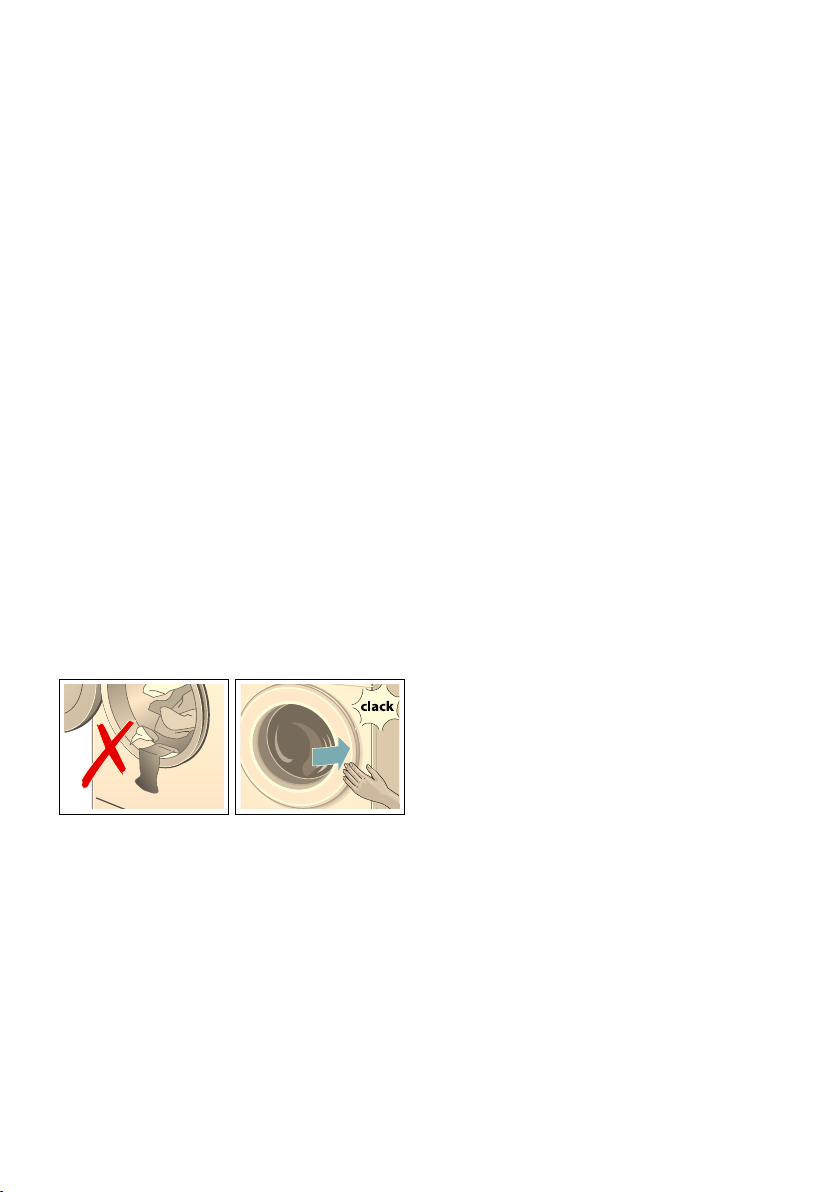

1. Unfold presorted laundry items and place them in the drum.
38
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
38
Measure and add detergent and care products
38
Caution!
38
Damage to the appliance
38
■ Water hardness (ask your water supply company)
38
■ The manufacturer's instructions on the packaging
38
■ The amount of laundry
38
■ Soiling ~ Page 34
38
: Warning
38
Eye/skin irritation!
38
Note:
38
1. Pull out the detergent drawer as far as possible.
39
2. Add detergent and/or care products.
39
3. Close the detergent drawer.
39
1. Pull out the detergent drawer.Press down the insert and fully remove the drawer.
39
2. Slide the measuring aid forwards, fold it down and click it into place.
39
3. Reinsert the drawer.
39
Note:
39
Start the programme
39
Childlock
39
■ E lights up: The childproof lock is active.
39
■ E flashes: The childproof lock is active and the program selector has been adjusted.To deactivate the childproof lock, reset the program selector to the initial program. The symbol lights up again.
39
Note:
39
Note:
39
Adding laundry
40
■ the Õ symbol disappears, and adding is possible.
40
■ the Õ symbol lights up, it is not possible to add laundry.
40
Notes
40
Changing the programme
40
1. Press the A button.
40
2. Select another program.
40
3. Press the A button.The new program starts from the beginning.
40
Cancel the programme
40
1. Press the A button.
40
2. To cool down laundry: Select Rinse.
40
3. Press the A button.
40
1. Press the A button.
40
2. Select Spin.
40
3. Press the A button.
40
Programme end during rinse hold
40
■ Pressing the A button or
40
■ Selecting a spin speed or setting the program selector to Spin and then pressing the A button.
40
Programme end
40
■ TimeLight (visual display) has been activated and is visible.
40
■ Energy-saving mode has not been activated. ~ Page 13
40
Removing laundry/switching off the appliance
41
1. Open the door and remove the laundry.
41
2. Turn the programme selector to Off. The appliance is now switched off.
41
3. Turn off the tap.
41
Note:
41
Notes
41
H Sensors
42
Sensors
42
Automatic load sensing
42
Unbalanced load detection system
42
Note:
42
VoltCheck
42
Note:
42
M Setting the signal
43
Setting the signal
43
■ The volume of the notification signals (e.g. at the end of the programme).
43
■ The volume of the button signals.
43
■ Activating/deactivating TimeLight* (for displaying information about the programme on the floor).
43
Activating setting mode
43
1. Set the programme selector to the Cottons programme at to position 1. The washing machine is switched on.
43
2. Press the A button while turning the programme selector clockwise to position 2. Release the button.
43
■ 2: The volume of the notification signals and/or
43
■ 3: The volume of the button signals
43
■ 5: Whether TimeLight* (for displaying information about the programme on the floor) is switched on or off.
43
2 Cleaning and maintenance
44
Cleaning and maintenance
44
: Warning
44
Danger of death!
44
: Warning
44
Risk of poisoning!
44
Caution!
44
Damage to the appliance
44
Notes
44
Machine housing/control panel
44
■ Wipe the housing and the control panel with a soft, damp cloth.
44
■ Remove the detergent residue immediately.
44
■ Do not clean with a water jet.
44
Drum
44
Descaling
44

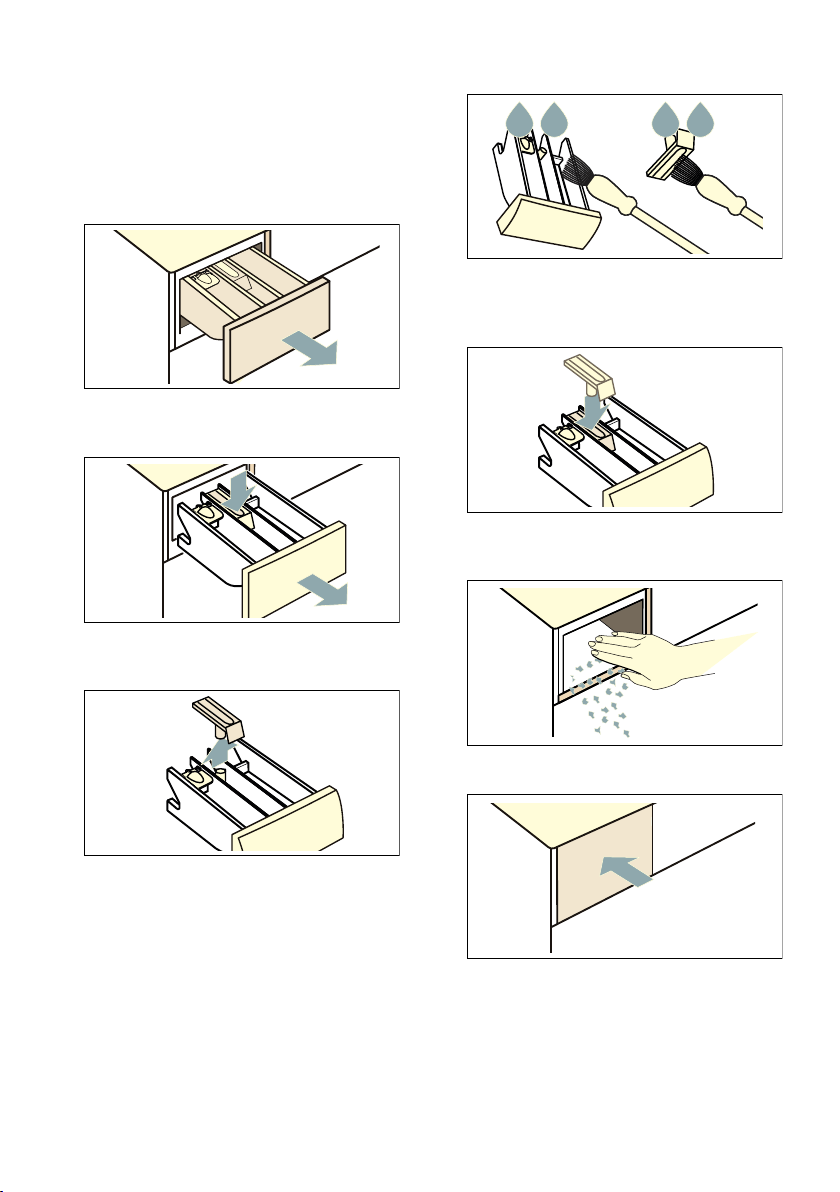

Detergent drawer and housing
45
1. Pull out the detergent drawer as far as possible.
45
2. Press the insert down and fully remove the drawer.
45
3. To remove the insert: Push the insert upwards from below with your finger.
45
4. Clean the detergent drawer and insert with water and a brush, then dry them.
45
5. Fit the insert and lock it in place (push the cylinder onto the guide pin).
45
6. Clean the inside of the detergent drawer housing.
45
7. Push in the detergent drawer.
45
Note:
45
The drain pump is blocked, emergency draining
46
: Warning
46
Risk of scalding!
46
1. Turn off the tap so that no more water can flow in and it has to be drained via the drain pump.
46
2. Switch off the appliance. Pull out the mains plug.
46
3. Remove the toe kick.
46
4. Take the drain hose out of the holder.
46
5. Remove the sealing cap and drain the water into a suitable container.
46
6. Put the sealing cap back on and press down firmly.
46
7. Place the drain hose back in the holder.
46
8. Carefully unscrew the pump cover. Be aware that any remaining water may leak out.
46
9. Clean the inside, the pump cover thread and the pump housing. The impeller in the drain pump must be able to rotate.
46

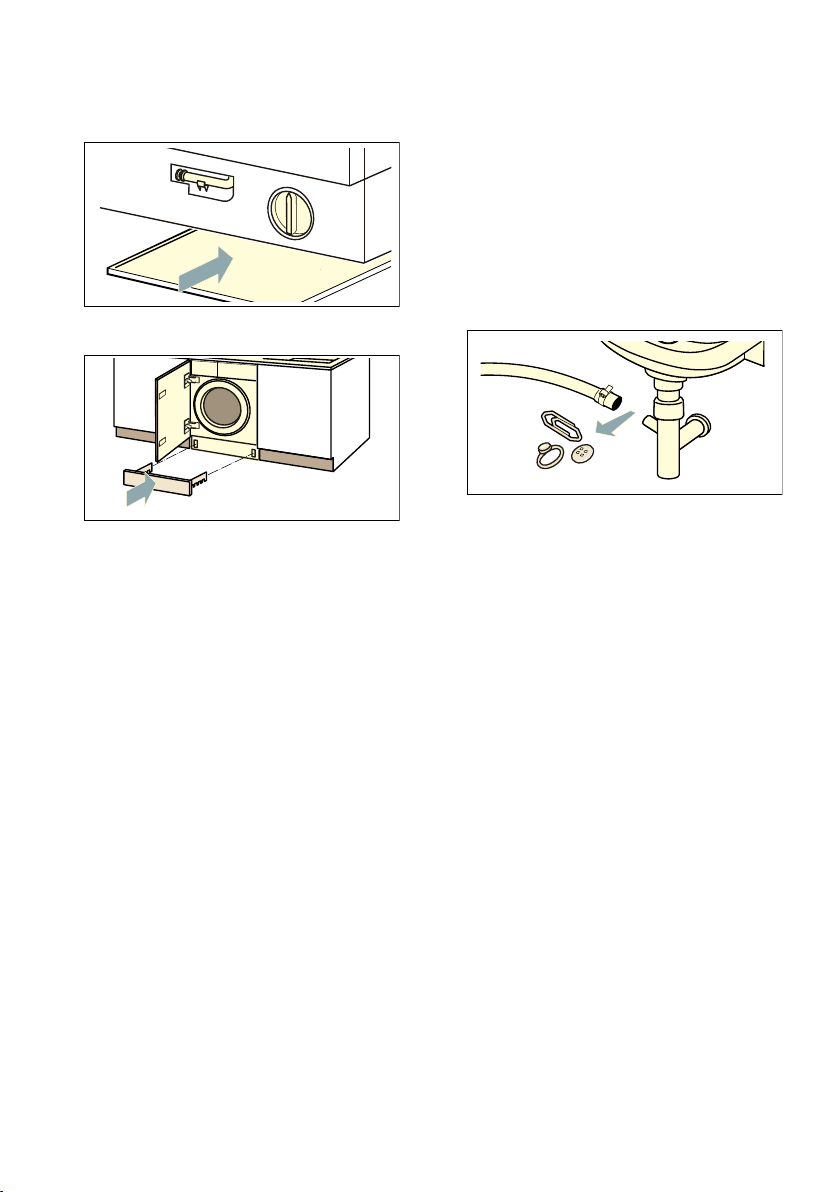

10. Put the pump cover back on and screw it in. The grip must be vertical.
47
11. Refit the toe kick.
47
Note:
47
The drain hose at the siphon is blocked
47
1. Switch off the appliance. Pull out the mains plug.
47
2. Undo the hose clamp. Carefully remove the drain hose. Be aware that any remaining water may leak out.
47
3. Clean the drain hose and siphon connecting piece.
47
4. Re-attach the drain hose and secure the connection point using the hose clamp.
47
Filter in the water supply blocked
48
Relieve the water pressure in the supply hose first:
48
1. Turn off the tap.
48
2. Select any programme (except Rinse/Spin/Empty).
48
3. Start the programme.
48
4. Allow the programme to run for approximately 40 seconds, then switch off the appliance.
48
5. Pull out the mains plug.
48
Then clean the filter:
48
1. Disconnect the hose from the tap.
48
2. Clean the filter with a small brush.
48
3. For standard and AquaSecure models, clean the filter on the rear of the appliance:
48
4. For standard and AquaSecure models, clean the filter on the rear of the appliance:
48
a) Use pliers to remove the filter.
48
b) Clean the filter.
48
5. Connect the hose and check for leaks.
48
3 Faults and what to do about them.
49
Faults and what to do about them.
49
Emergency release
49
: Warning
49
Risk of scalding!
49
: Warning
49
Risk of injury!
49
Caution!
49
Water damage
49
1. Switch off the appliance. Pull out the mains plug.
49
2. Drain the washing water. ~ Page 46
49
3. Use a tool to pull the emergency release downwards and then release.
49
4. Open the door.
49
Information on the display panel
50
Indicator/symbol
50
Cause/remedy
50
Symbol in TimeLight* (display on the floor):
50
*Depends on the model
50
Cause/remedy
50
Faults and what to do about them.
51
Faults
51
Cause/remedy
51
Note:
52
4 After-sales service
53
After-sales service
53
J Technical data
54
Technical data
54
r Aqua-Stop warranty
55
Aqua-Stop warranty
55
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
55
2. The liability guarantee is valid for the service life of the appliance.
55
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
55
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
55
File type: PDF
File name: Bosch WIW28300GB Washer.pdf
File size: 3.2 MB
File Language: English
Pages: 56
Author: Bosch
Published: 2018-07-31 17:00:00
Updated: 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WIW28300GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WAW285H0GB
WIW28500GB
WAW325H0GB
WAWH8660GB
WAYH8790GB
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WIW28500GB
Bosch WIW28301GB
Bosch WIW28302GB
Bosch WIW28501GB
Bosch WIW28502GB
Bosch WIW28442
Bosch WIW28541EU
Bosch WIW24341EU
Bosch WIW24342EU
Bosch WIW28542EU
Bosch HIIP056U
Bosch HBA534BS0A
Bosch SHX3AR75UC
Bosch PVS675FB1E
Bosch SPV50E70EU/40
Table of Contents
×
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 6
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
* Getting to know the appliance 29
3
Z Laundry 32
3
C Detergent 34
3
0 Programme default settings 35
3
\ Additional programme settings 36
3
1 Operating the appliance 37
3
H Sensors 42
3
M Setting the signal 43
4
2 Cleaning and maintenance 44
4
3 Faults and what to do about them. 49
4
4 After-sales service 53
4
J Technical data 54
4
r Aqua-Stop warranty 55
4
8 Intended use
5
Intended use
5
■ This appliance is intended for private domestic use only.
5
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
5
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand-washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and ...
5
■ This appliance is suitable for operation with mains water and commercially available detergents and care products (must be suitable for use in washing machines).
5
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
5
( Safety instructions
6
Safety instructions
6
Children/people/pets
6
: Warning
6
Risk of death!
6
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
6
■ Children must not play with this appliance.
6
■ Do not allow children to clean or maintain this appliance unsupervised.
6
■ Keep children under 3 years and pets away from this appliance.
6
■ Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
6
: Warning
6
Risk of death!
6
■ Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
6
■ Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
6
: Warning
7
Risk of suffocation!
7
: Warning
7
Risk of poisoning!
7
: Warning
7
Risk of burns!
7
: Warning
7
Eye/skin irritation!
7
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
■ The mains voltage on your power socket matches the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
7
■ The appliance is only connected to a source of alternating current via a nationally recognized and grounded outlet that has been correctly installed.
7
■ The mains plug and the grounded socket match and the earthing system has been correctly installed.
7
■ The cross section of the cable is sufficiently large enough.
7
■ The mains plug is accessible at all times.
7
■ If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
7
: Warning
8
Risk of electric shock/fire/ material damage/damage to the appliance!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
■ Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
11
■ Never take hold of the mains plug with wet hands.
11
■ When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
11
■ Do not make any technical modifications to the appliance or its features.
11
■ Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
11
■ Spare mains cables can be ordered from our customer service.
11
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
■ Do not allow these agents to come into contact with the surfaces of the appliance.
12
■ Clean the appliance with nothing but water and a soft, damp cloth.
12
■ Remove any detergent, spray or other residues immediately.
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
■ Always utilise the maximum amount of washing for the particular programme.
13
■ Wash normally soiled laundry without prewash.
13
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the machine may deviate from this so that you get the optimum mix of energy-saving and washing results.
13
■ Energy-saving mode: The control panel lighting and TimeLight* (display on the floor ~ Page 39) will go out after a few minutes. The start button will flash. Press any button to activate the lighting.
13
■ If the washing will be dried in a dryer, select the spin speed according to the dryer manufacturer's instructions.
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
■ Installation and operating instructions
14
■ After-sales service location directory*
14
■ Guarantee*
14
■ Cover caps for openings after the transport locks have been removed
14
■ Hose clip for securing the water drain hose to the siphon
14
Components required for installation ~ Page 22
14
Useful tools
14
■ Spirit level for aligning
14
■ Spanner with:
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a slide sheet
15
Tip:
15
Installing the appliance below a high worktop
16
Installation on a base or a wooden joist floor
16
Caution!
16
Damage to the appliance
16
Note:
16
Installation on a platform with drawer
16
Removing the transport locks
17
Caution!
17
Damage to the appliance
17
1. Take the hoses out of the holders.
17
2. Use a WAF13 spanner to undo and remove all four transport lock bolts.
17
3. Remove the sleeves. Remove the mains cable from the holders.
17
4. Put on the cover caps.
17
5. Press the cover cap down firmly at the top, while at the same time pushing it downwards until you hear the hooks clicking into place.
17
Hose and cable lengths
18
■ Left-hand connection
18
■ Right-hand connection
18
Tip:
18
Water inlet
19
: Warning
19
Risk of death!
19
Notes
19
Connection
19
■ to the tap
19
■ to the appliance Model: Standard and AquaSecure
19
Note:
19
Water outlet
20
: Warning
20
Risk of scalding!
20
Caution!
20
Water damage
20
Caution!
20
Damage to the appliance/fabrics
20
Note:
20
Height difference between the installation area and the drain
20
■ for AquaSecure and standard models, min. 60 cm - max. 100 cm,
20
■ for AquaStop models 0 - max. 100 cm.
20
Levelling
20
Electrical connection
21
: Warning
21
Danger of death!
21
Notes
21
Installing the appliance
22
1. To make it easier to push in the appliance's rear feet (a), turn them in until the appliance is on the runners (b).
22
2. Prepare the installation space.
22
3. Lay the mains cable and the hoses. Push the appliance in, moving the mains cable and the hoses with it.
22
Note:
22
4. Connect the hoses. ~ Page 19, ~ Page 20
22
5. The appliance must be standing on all four feet before it can be put into operation. Unscrew the rear feet.
22
6. Align appliance with a spirit level. ~ Page 20
23
7. Hold the cabinet door against the appliance at the required height and mark where the top edge of the appliance comes to on the inside of the door.
23
8. Drill the holes. Use a Forstner bit for the 35 mm hole.
24
9. Put the hinges in the holes and screw them in. Screw in the counter plates for the magnetic catches.
24
10. Put the hinges in the appliance (1 + 2), push on the cover panels (3) and screw them in place (4).
24
11. Put the magnetic catches on the appliance.
25
12. Align the door of the cabinet.
25
13. Put in the spacers for the toe kick.
25
14. Reduce dimension Y.
26
15. Screw the spacers in as per the dimensions.
26
16. Fit the toe kick.
26
Note:
26
17. Plug the plug in the socket.
26
Before washing for the first time
27
Note:
27
Preparatory work:
27
1. Plug the mains plug into the mains.
27
2. Turn on the tap.
27
Run a programme without laundry:
27
1. Switch on the appliance.
27
2. Close the door (do not load any laundry).
27
3. Set the Cottons 90 °C programme.
27
4. Open the detergent drawer.
27
5. Pour approximately 1 litre of water into compartment II.
27
6. Pour standard washing powder into compartment II.
27
Note:
27
7. Close the detergent drawer.
27
8. Press the A button.
27
9. Switch off the appliance at the end of the programme.
27
Transportation
28
Preparatory work:
28
1. Turn off the tap.
28
2. Reduce the water pressure in the supply hose: ~ Page 48; Cleaning and maintenance – filter in the water supply blocked
28
3. Disconnect the washing machine from the mains.
28
4. Drain the remaining water: ~ Page 46; cleaning and maintenance – the drain pump is blocked, emergency draining
28
5. Remove the hoses.
28
Attach the transport locks:
28
1. Use a screwdriver to remove the covers and then keep them in a safe place.
28
2. Insert all four sleeves.
28
3. Insert the transport lock bolts and tighten them with a WAF13 spanner.
28
Notes
28
* Getting to know the appliance
29
Getting to know the appliance
29
Washing machine
29
TimeLight (depends on the model)
29
Control panel
30
Display panel
31
Buttons
31
Indicators and symbols for setting values
31
Setting
31
Other indicators and symbols
31
Information on:
31
Z Laundry
32
Laundry
32
Prepare the laundry
32
Caution!
32
Damage to the appliance/laundry
32
■ Empty any pockets.
32
■ Look out for metal objects (paperclips, etc.) and remove them.
32
■ Wash delicates in a laundry bag (tights, underwired bras, etc.).
32
■ Close any zips; button up any cover buttons.
32
■ Brush sand out of pockets and collars.
32
■ Remove curtain fittings or place curtains in a laundry bag.
32
Sorting laundry
32
■ Type of fabric/fibre
32
■ Colour
32
Note:
32
■ Soiling Wash laundry with the same level of soiling together.
32
■ Symbols on the care labels
32
Note:
32
Starching
33
Note:
33
Dyeing/bleaching
33
Soaking
33
1. Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions.
33
2. Select the desired programme.
33
3. Press the A button to start the programme.
33
4. After approx. ten minutes, press the A button to pause the programme.
33
5. After the desired soaking time, press the A button again to continue or change the programme.
33
Notes
33
C Detergent
34
Detergent
34
Correct selection of detergent
34
■ Standard detergent with optical brighteners
34
■ Detergent for colours without bleach or optical brighteners
34
■ Detergent for colours/delicates without optical brighteners
34
■ Detergent for delicates
34
■ Detergent for woollens
34
Saving energy and detergent
34
Saving
34
Soiling/note
34
Note:
34
0 Programme default settings
35
Programme default settings
35
Note:
35
Spin speed
35
Ready in
35
1. Select a program.
35
2. Press the Ready in button repeatedly until the required number of hours is displayed.
35
3. Press the A button.
35
Note:
35
1. Press the A button.
35
2. Use the Ready in button to change the number of hours.
35
3. Press the A button.
35
\ Additional programme settings
36
Additional programme settings
36
Speed/Eco
36
■ Speed
36
Note:
36
■ Eco
36
1 Operating the appliance
37
Operating the appliance
37
Preparing the washing machine
37
Note:
37
1. Connect the mains plug.
37
2. Turn on the tap.
37
3. Open the door.
37
4. Check that the drum is completely drained. Drain if necessary.
37
Select programme/switch on the appliance
37
Note:
37
Change the programme default settings
37
Select additional programme settings
37
Placing laundry into the drum
38
: Warning
38
Danger of death!
38
Notes
38
1. Unfold presorted laundry items and place them in the drum.
38
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
38
Measure and add detergent and care products
38
Caution!
38
Damage to the appliance
38
■ Water hardness (ask your water supply company)
38
■ The manufacturer's instructions on the packaging
38
■ The amount of laundry
38
■ Soiling ~ Page 34
38
: Warning
38
Eye/skin irritation!
38
Note:
38
1. Pull out the detergent drawer as far as possible.
39
2. Add detergent and/or care products.
39
3. Close the detergent drawer.
39
1. Pull out the detergent drawer.Press down the insert and fully remove the drawer.
39
2. Slide the measuring aid forwards, fold it down and click it into place.
39
3. Reinsert the drawer.
39
Note:
39
Start the programme
39
Childlock
39
■ E lights up: The childproof lock is active.
39
■ E flashes: The childproof lock is active and the program selector has been adjusted.To deactivate the childproof lock, reset the program selector to the initial program. The symbol lights up again.
39
Note:
39
Note:
39
Adding laundry
40
■ the Õ symbol disappears, and adding is possible.
40
■ the Õ symbol lights up, it is not possible to add laundry.
40
Notes
40
Changing the programme
40
1. Press the A button.
40
2. Select another program.
40
3. Press the A button.The new program starts from the beginning.
40
Cancel the programme
40
1. Press the A button.
40
2. To cool down laundry: Select Rinse.
40
3. Press the A button.
40
1. Press the A button.
40
2. Select Spin.
40
3. Press the A button.
40
Programme end during rinse hold
40
■ Pressing the A button or
40
■ Selecting a spin speed or setting the program selector to Spin and then pressing the A button.
40
Programme end
40
■ TimeLight (visual display) has been activated and is visible.
40
■ Energy-saving mode has not been activated. ~ Page 13
40
Removing laundry/switching off the appliance
41
1. Open the door and remove the laundry.
41
2. Turn the programme selector to Off. The appliance is now switched off.
41
3. Turn off the tap.
41
Note:
41
Notes
41
H Sensors
42
Sensors
42
Automatic load sensing
42
Unbalanced load detection system
42
Note:
42
VoltCheck
42
Note:
42
M Setting the signal
43
Setting the signal
43
■ The volume of the notification signals (e.g. at the end of the programme).
43
■ The volume of the button signals.
43
■ Activating/deactivating TimeLight* (for displaying information about the programme on the floor).
43
Activating setting mode
43
1. Set the programme selector to the Cottons programme at to position 1. The washing machine is switched on.
43
2. Press the A button while turning the programme selector clockwise to position 2. Release the button.
43
■ 2: The volume of the notification signals and/or
43
■ 3: The volume of the button signals
43
■ 5: Whether TimeLight* (for displaying information about the programme on the floor) is switched on or off.
43
2 Cleaning and maintenance
44
Cleaning and maintenance
44
: Warning
44
Danger of death!
44
: Warning
44
Risk of poisoning!
44
Caution!
44
Damage to the appliance
44
Notes
44
Machine housing/control panel
44
■ Wipe the housing and the control panel with a soft, damp cloth.
44
■ Remove the detergent residue immediately.
44
■ Do not clean with a water jet.
44
Drum
44
Descaling
44
Detergent drawer and housing
45
1. Pull out the detergent drawer as far as possible.
45
2. Press the insert down and fully remove the drawer.
45
3. To remove the insert: Push the insert upwards from below with your finger.
45
4. Clean the detergent drawer and insert with water and a brush, then dry them.
45
5. Fit the insert and lock it in place (push the cylinder onto the guide pin).
45
6. Clean the inside of the detergent drawer housing.
45
7. Push in the detergent drawer.
45
Note:
45
The drain pump is blocked, emergency draining
46
: Warning
46
Risk of scalding!
46
1. Turn off the tap so that no more water can flow in and it has to be drained via the drain pump.
46
2. Switch off the appliance. Pull out the mains plug.
46
3. Remove the toe kick.
46
4. Take the drain hose out of the holder.
46
5. Remove the sealing cap and drain the water into a suitable container.
46
6. Put the sealing cap back on and press down firmly.
46
7. Place the drain hose back in the holder.
46
8. Carefully unscrew the pump cover. Be aware that any remaining water may leak out.
46
9. Clean the inside, the pump cover thread and the pump housing. The impeller in the drain pump must be able to rotate.
46
10. Put the pump cover back on and screw it in. The grip must be vertical.
47
11. Refit the toe kick.
47
Note:
47
The drain hose at the siphon is blocked
47
1. Switch off the appliance. Pull out the mains plug.
47
2. Undo the hose clamp. Carefully remove the drain hose. Be aware that any remaining water may leak out.
47
3. Clean the drain hose and siphon connecting piece.
47
4. Re-attach the drain hose and secure the connection point using the hose clamp.
47
Filter in the water supply blocked
48
Relieve the water pressure in the supply hose first:
48
1. Turn off the tap.
48
2. Select any programme (except Rinse/Spin/Empty).
48
3. Start the programme.
48
4. Allow the programme to run for approximately 40 seconds, then switch off the appliance.
48
5. Pull out the mains plug.
48
Then clean the filter:
48
1. Disconnect the hose from the tap.
48
2. Clean the filter with a small brush.
48
3. For standard and AquaSecure models, clean the filter on the rear of the appliance:
48
4. For standard and AquaSecure models, clean the filter on the rear of the appliance:
48
a) Use pliers to remove the filter.
48
b) Clean the filter.
48
5. Connect the hose and check for leaks.
48
3 Faults and what to do about them.
49
Faults and what to do about them.
49
Emergency release
49
: Warning
49
Risk of scalding!
49
: Warning
49
Risk of injury!
49
Caution!
49
Water damage
49
1. Switch off the appliance. Pull out the mains plug.
49
2. Drain the washing water. ~ Page 46
49
3. Use a tool to pull the emergency release downwards and then release.
49
4. Open the door.
49
Information on the display panel
50
Indicator/symbol
50
Cause/remedy
50
Symbol in TimeLight* (display on the floor):
50
*Depends on the model
50
Cause/remedy
50
Faults and what to do about them.
51
Faults
51
Cause/remedy
51
Note:
52
4 After-sales service
53
After-sales service
53
J Technical data
54
Technical data
54
r Aqua-Stop warranty
55
Aqua-Stop warranty
55
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
55
2. The liability guarantee is valid for the service life of the appliance.
55
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
55
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
55
Search:
×
Search
