User Manual

This is the main product document for model DU-50PY10.

The file format is pdf, 96 pages, you can download this manual here .

background
Please
read
this
manual
carefully
and
completely
before
operating
your
TV.
Retain
this
manual
for
future
reference.
Record
model
number
and
serial
number
of
the
TV
in
the
spaces
provided
below.
See
the
label
attached
on
the
back
cover
and
relate
this
information
to
your
dealer
if
you
require
service.
Model
Number
:
Serial
Number
:
MODELS:
DU-50PY10
DU-60PY10
LG
Electronics
U.S.A.,
Inc.
TM
R
TruSurround
XT
PLASMA
TV
OWNER'S
MANUAL
background
2
Plasma
TV
Warning
WARNING:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK
DO
NOT
REMOVE
COVER
(OR
BACK).
NO
USER
SERVICEABLE
PARTS
INSIDE.
REFER
TO
QUALIFIED
SERVICE
PERSONNEL.
The
lightning
flash
with
arrowhead
symbol,
within
an
equilateral
triangle,
is
intended
to
alert
the
user
to
the
presence
of
uninsulated
"dangerous
voltage"
within
the
product's
enclosure
that
may
be
of sufficient
magnitude
to
constitute
a
risk
of electric
shock
to
persons.
The
exclamation
point
within
an
equilateral
triangle
is
intended
to
alert
the
user
to
the
presence
of
impor-
tant
operating
and
maintenance
(servicing)
instructions
in
the
literature
accompanying
the
appliance.
WARNING:
TO PREVENT
FIRE
OR
SHOCK
HAZARDS,
DO
NOT
EXPOSE
THIS
PRODUCT
TO
RAIN
OR
MOISTURE.
POWER
CORD
POLARIZATION:
CAUTION:
TO
PREVENT
ELECTRIC
SHOCK,
MATCH
WIDE
BLADE
OF
PLUG
TO
WIDE
SLOT,
FULLY
INSERT.
NOTE
TO
CABLE/TV
INSTALLER:
This
reminder
is
provided
to
call
the
CATV
system
installer's
attention
to
Article
820-40
of
the
National
Electric
Code
(U.S.A.).
The
code
provides
guidelines
for
proper
grounding
and,
in
particular,
specifies
that
the
cable
ground
shall
be
connected
to
the
grounding
system
of
the
building,
as
close
to
the
point
of
the
cable
entry
as
practical.
REGULATORY
INFORMATION:
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
when
the
equip-
ment
is
operated
in
a
residential
installation.
This
equipment
generates,
uses
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instruction
manual,
may
cause
harmful
interference
to
radio
com-
munications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
?
Reorient
or
relocate
the
receiving
antenna.
?
Increase
the
separation
between
the
equipment
and
receiver.
?
Connect
the
equipment
into
an
outlet
on
a
circuit
different
from
that
to
which
the
receiver
is
connected.
?
Consult
the
dealer
or
an
experienced
radio/TV
technician
for
help.
Any
changes
or
modifications
not
expressly
approved
by
the
party
responsible
for
compliance
could
void
the
user
's
authority
to
operate
the
equipment.
CAUTION:
Do
not
attempt
to
modify
this
product
in
any
way
without
written
authorization
from
LG
Electronics.
Unauthorized
mod-
ification
could
void
the
user's
authority
to
operate
this
product.
COMPLIANCE:
The
responsible
party
for
this
product's
compliance
is:
LG
Electronics
U.S.A.,
Inc
1000
Sylvan
Avenue,
Englewood
Cliffs,
NJ
07632
1-201-816-2000
http://www.lgusa.com
WARNING/CAUTION
W
Warning
arning
background
Owner's
Manual
3
TV
Guide
On
Screen
Notices
for
U.S.A.
TV
Guide
On
Screen
Notices
for
U.S.A.
In
the
United
States,
the
TV
Guide
On
Screen
system
and
other
related
marks
are
registered
marks
of
Gemstar-TV
Guide
On
Screen
system
International,
Inc.
and/or
one
of
its
affiliates.
In
Canada,TV
Guide
On
Screen
system
is
a
registered
mark
of
Transcontinental
Inc.,
and
is
used
under
license
by
Gemstar-TV
Guide
On
Screen
system
International,
Inc.
The
TV
Guide
On
Screen
system
is
protected
by
one
or
more
of
the
following
issued
United
States
patents
6,498,895,
6,418,556,
6,331,877; 6,239,794;
6,154,203;
5,940,073; 4,908,713; 4,751,578; 4,706,121.
The
TV
Guide
On
Screen
system
is
manufactured
under
license
from
Gemstar-TV
Guide
On
Screen
system
International,
Inc.
and/or
one
of
its
affiliates.
Digital
Cable
Compatibility
Digital
Cable
Compatibility
This
digital
television
is
capable
of
receiving
basic
analog,
digital
basic
and
digital
premium
cable
television
programming
by
direct
connection
to
a
cable
system
providing
such
programming.
A
security
card
provided
by
your
cable
operator
is
required
to
view
encrypted
digital
programming.
Certain
advanced
interactive
digital
cable
services
such
as
video-on-demand,
cable
operator
enhanced
program
the
TV
Guide
On
Screen
system,
and
data
enhanced
television
service
may
require
the
use
of
a
set
top
box.
For
more
information
contact
your
local
cable
operator.
Use
of
the
CableCARDTM
TradeMark.
"CableCARDTM
is
a
trademark
of
Cable
Television
Laboratories,
Inc."
background
4
Plasma
TV
Safety
Instructions
Important
safeguards
for
you
and
your
new
product
Your
product
has
been
manufactured
and
tested
with
your
safety
in
mind.
However,
improper
use
can
result
in
electrical
shock
or
fire
hazards.
To
avoid
defeating
the
safeguards
that
have
been
built
into
your
new
product,
please
read
and
observe
the
following
safety
points
when
installing
and
using
your
new
product,
and
save
them
for
future
reference.
Observing
the
simple
precautions
discussed
in
this
manual
can
help
you
get
many
years
of
enjoyment
and
safe
operation
that
are
built
into
your
new
product.
This
product
complies
with
all
applicable
U.S.
Federal
safety
requirements,
and
those
of
the
Canadian
Standards
Association.
1.
Read
Instructions
All
the
safety
and
operating
instructions
should
be
read
before
the
product
is
operated.
2.
Follow
Instructions
All
operating
and
use
instructions
should
be
followed.
3.
Retain
Instructions
The
safety
and
operating
instructions
should
be
retained
for
future
reference.
4.
Heed
Warnings
All
warnings
on
the
product
and
in
the
operating
instructions
should
be adhered
to.
5.
Cleaning
Unplug
this
product
from
the
wall
outlet
before
cleaning.
Do
not
use
liquid
cleaners
or
aerosol
cleaners.
Use
a
damp
cloth
for
cleaning.
6.
Water
and
Moisture
Do
not
use
this
product
near
water,
for
example,
near
a
bath
tub,
wash
bowl,
kitchen
sink,
or
laundry
tub,
in
a
wet
base-
ment,
or
near
a
swimming
pool.
7.
Accessories,
Carts,
and
Stands
Do
not
place
this
product
on
a
slippery
or
tilted
surface,
or
on
an
unstable
cart,
stand,
tripod,
bracket,
or
table.
The
product
may
slide
or
fall,
causing
serious
injury
to
a
child
or
adult,
and
serious
damage
to
the
product.
Use
only
with
a
cart,
stand,
tripod,
bracket,
or
table
recommended
by
the
manu-
facturer,
or
sold
with
the
product.
Any
mounting
of
the
prod-
uct
should
follow
the
manufacturer
's
instructions,
and
should
use
a
mounting
accessory
recommended
by
the
manufac-
turer.
8.
Transporting
Product
A
product
and
cart
combination should
be
moved
with
care.
Quick
stops,
excessive
force,
and
uneven
surfaces
may
cause
the
product
and
cart
combination
to
overturn.
9.
Attachments
Do
not
use
attachments
not
recommended
by
the
product
manufacturer
as
they
may
cause
hazards.
10.
Ventilation
Slots
and
openings
in
the
cabinet
are
provided
for
ventilation
and
to
ensure
reliable
operation
of
the
product
and
to
protect
it
from
overheating,
and
these
openings
must
not
be
blocked
or
covered.
The
openings
should
never
be
blocked
by
plac-
ing
the
product
on a
bed,
sofa,
rug,
or
other
similar
surface.
This
product
should
not
be
placed
in
a
built-in
installation
such
as
a
bookcase
or
rack
unless
proper
ventilation
is
pro-
vided
or
the
manufacturer's
instructions
have been
adhered
to.
11.
Power
Sources
This
product
should
be
operated
only
from
the
type
of
power
source
indicated
on
the
marking
label.
If
you
are
not
sure
of
the
type
of
power
supply
to
your
home,
consult
your
product
dealer
or
local
power
company.
For
products
intended
to
operate
from
battery
power,
or
other
sources,
refer
to
the
operating
instructions.
12.
Power-Cord
Polarization
This
product
is
equipped
with
a
three-wire
grounding
type
plug,
a
plug
having
a
third
(grounding)
pin.
This
plug
will
only
fit
into
the
grounding-type
power
outlet.
This
is
a
safety
fea-
ture.
If
you
are
unable
to
insert
the
plug
into
the
outlet,
con-
tact
your
electrician
to
replace
your
obsolete
outlet.
Do
not
defeat
the
safety
purpose
of
the
grounding-type
plug.
13.
Power-Cord
Protection
Power-supply
cords
should
be
routed
so
that
they
are
not
likely
to
be
walked
on
or
pinched
by
items
placed
upon
or
against
them,
paying
particular
attention
to
cords
at
plugs,
convenience
receptacles,
and
the
point
where
they
exit
from
the
product.
PORTABLE
CART
WARNING
Safety
Instructions
Safety
Instructions
background
Owner's
Manual
5
Safety
Instructions
Antenna
Lead
in
Wire
Antenna
Discharge
Unit
(NEC
Section
810-20)
Grounding
Conductor
(NEC
Section
810-21)
Ground
Clamps
Power
Service
Grounding
Electrode
System
(NEC
Art
250,
Part
H)
Ground
Clamp
Electric
Service
Equipment
Example
of
Grounding
According
to
National
Electrical
Code
Instructions
NEC
-
National
Electrical
Code
14.
Outdoor
Antenna
Grounding
If
an
outside
antenna
or
cable
system
is
connected
to
the
product,
be
sure
the
antenna
or
cable
system
is
grounded
so
as
to
provide
some
protection
against
voltage
surges
and
built-up
static
charges.
Article
810
of
the
National
Electrical
Code
(U.S.A.),
ANSI/
NFPA
70
provides
information
with
regard
to
proper
grounding
of
the
mast
and
supporting
struc-
ture,
grounding
of
the
lead-in
wire
to
an
antenna
discharge
unit,
size
of
grounding
conductors,
location
of
antenna-dis-
charge
unit,
connection
to
grounding
electrodes,
and
requirements
for
the
grounding
electrode.
15.
Lightning
For
added
protection
for
this
product
(receiver)
during
a
light-
ning
storm,
or
when
it
is
left
unattended
and unused
for
long
periods
of
time,
unplug
it
from
the
wall
outlet
and
disconnect
the
antenna
or
cable
system.
This
will
prevent
damage
to
the
product
due
to
lightning
and
power-line
surges.
16.
Power
Lines
An
outside
antenna
system
should not
be
located
in
the
vicinity
of
overhead
power
lines
or
other
electric
light
or
power
circuits,
or
where
it
can
fall
into
such
power
lines
or
circuits.
When
installing
an
outside
antenna
system,
extreme
care
should
be
taken
to
keep
from
touching
such
power
lines
or
circuits
as
contact
with
them
might
be
fatal.
17.
Overloading
Do
not
overload
wall
outlets
and
extension
cords
as
this
can
result
in
a
risk
of
fire
or
electric
shock.
18.
Object
and
Liquid
Entry
Never
push
objects
of
any
kind
into this
product
through
openings
as
they
may
touch
dangerous
voltage
points
or
short-out
parts
that
could
result
in
a
fire
or
electric
shock.
Never
spill
liquid
of
any
kind
on
the
product.
19.
Servicing
Do
not
attempt
to
service
this
product
yourself
as
opening
or
removing
covers
may
expose
you
to
dangerous
voltage
or
other
hazards.
Refer
all
servicing
to
qualified
service
per-
sonnel.
20.
Damage
Requiring
Service
Unplug
this
product
from
the
wall
outlet
and
refer
servicing
to
qualified
service
personnel
under
the
following
conditions:
a.
If
the
power-supply
cord
or
plug
is
damaged.
b.
If
liquid
has
been
spilled,
or
objects
have
fallen
into
the
product.
c.
If
the
product
has
been
exposed
to
rain
or
water.
d.
If
the
product
does
not
operate
normally
by
following
the
operating
instructions.
Adjust
only
those
controls
that
are
covered
by
the
operating
instructions
as an
improper
adjustment
of
other
controls
may
result
in
damage
and
will
often
require
extensive
work
by
a
qualified
technician
to
restore
the
product
to
its
normal
operation.
e.
If
the
product
has
been
dropped
or
the
cabinet
has
been
damaged.
f. If
the
product
exhibits
a
distinct
change
in
performance.
21.
Replacement
Parts
When
replacement
parts
are
required,
be
sure
the
service
technician
has
used
replacement
parts
specified
by
the
man-
ufacturer
or
have
the
same
characteristics
as
the
original
part.
Unauthorized
substitutions
may
result
in
fire,
electric
shock,
or
other
hazards.
22.
Safety
Check
Upon
completion
of
any
service
or
repairs
to
this
product,
ask
the
service
technician
to
perform
safety
checks
to
deter-
mine
that
the
product
is
in
proper
operating
condition.
23.
Wall
or
Ceiling
Mounting
The
product
should
be
mounted
to
a
wall
or
ceiling
only
as
recommended
by
the
manufacturer.
The
product
may
slide
or
fall,
causing
serious
injury
to
a
child
or
adult,
and
serious
damage
to
the
product.
24.
Heat
The
product
should
be
situated
away
from
heat
sources
such
as
radiators,
heat
registers,
stoves,
or
other
products
(including
amplifiers)
that
produce
heat.
Safety
Instructions
continued
Safety
Instructions
continued
background
6
Plasma
TV
Contents
After
reading
this
manual,
keep
it
handy
for
future
reference.
Warnings.....................................2
DigitalCableCompatibility.........................3
SafetyInstructions.............................4~5
Introduction
Controls...............................8
ConnectionOptions......................9
RemoteControlKeyFunctions
. . . . . . . . . . .
.10
Installation
Joining
the
TV
assembly
to
the
wall
to
protect
the
set
tum-
bling...................................11
InstallationInstructions.....................12
External
Equipment
Connections
. . . . . . . . .
.13~18
AntennaorCableConnection
. . . . . . . . . .
.13~14
VCRSetup...........................14
ExternalA/VSourceSetup................15
DVDSetup............................15
CableCARDTMSetup.....................16
HDSTBSetup.........................16
PCSetup.............................17
MonitorOutSetup......................18
DigitalAudioOutput.....................18
HDMI/DVI(VIDEO).....................19~21
TVGuideOnScreenSetup..............22~31
IEEE1394................................32~36
TVGuideOnScreenSystem.
. . . . . . . . . . . .
.37~55
Operation
Screen
Setup
for
PC
mode
Adjustments
for
screen
Position,
Size,
and
Phase
.
.56
On-screen
Menus
Language
Selection
. . . . . . . .
.57
Setup
Menu
Options
EZScan(ChannelSearch)................58
ManualScan..........................58
ChannelEdit...........................59
DTVSignalStrength.....................59
ChannelLabelSetup....................60
MainPictureSourceSelection
. . . . . . . . . . . .
.60
Aux.Label.............................60
Video
Menu
Options
EZPicture............................61
Manual
Control
(Off
Option)
. . . . . . . .
.61
ColorTemperatureControl................61
XD..................................62
VideoPreset..........................62
Audio
Menu
Options
AudioLanguage........................63
EZSoundRite/EZSound.................63
ManualSoundControl(offOption)
. . . . . . . . .
.63
FrontSurround.........................64
TVSpeakersOn/OffSetup................64
Stereo/SAPBroadcastsSetup
. . . . . . . . . . . .
.64
Time
Menu
Options
AutoClockSetup.......................65
ManualClockSetup.....................65
On/OffTimerSetup.....................65
SleepTimer/AutoOff....................66
Option
Menu
Features
AspectRatioControl.....................67
CinemaModeSetup.....................67
Caption...............................68
Caption/Text..........................68
CaptionOption/Demo...................69
ISMMethod...........................70
LowPower............................71
SplitZoom............................71
Lock
Menu
Options
ParentalLockSetup.....................73
CableCARDTM
Function
Cablemenuoptions.....................74
Scrambledchannel......................74
CableChannelList......................75
EmergencyAlertMessage................75
Remote
Control
PIP
(Picture-in-Picture)/Twin
. . . . . . . . .
..76
WatchingPIP/POP/TwinPicture.
. . . . . . . . . .
..76
Selecting
an
Input
Signal
Source
for
PIP/Twin
.
.76
SwappingPIP/TwinPicture................76
TVProgramSelectionforPIP.
. . . . . . . . . . . .
.76
MovingthePIPsubpicture................77
Adjusting
Main
and
Sub
Sizes
for
Twin
.
.77
POP
(Picture-out-of-Picture:
Channel
Scan)
. .
.77
Information..............................78
EZMute................................79

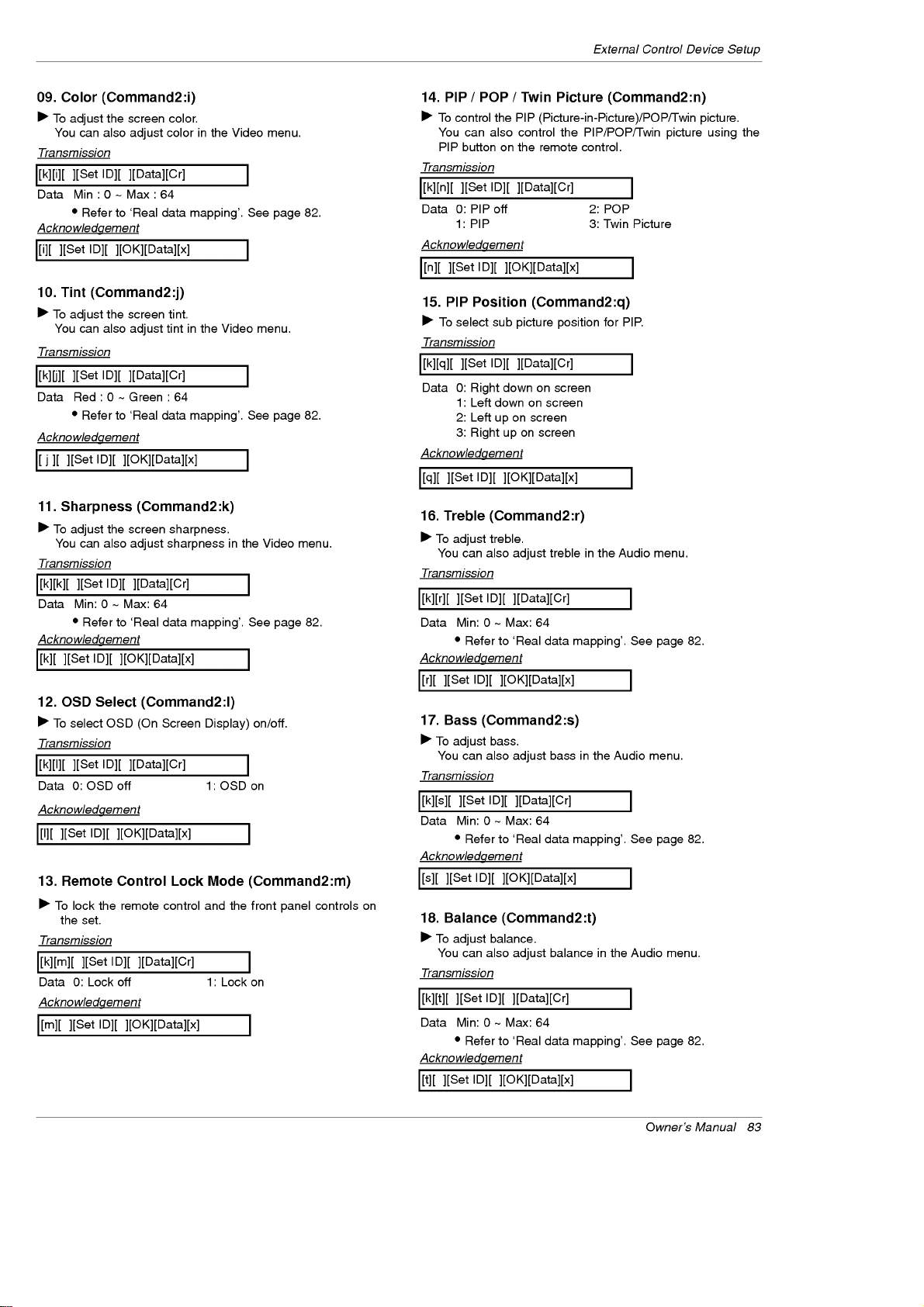

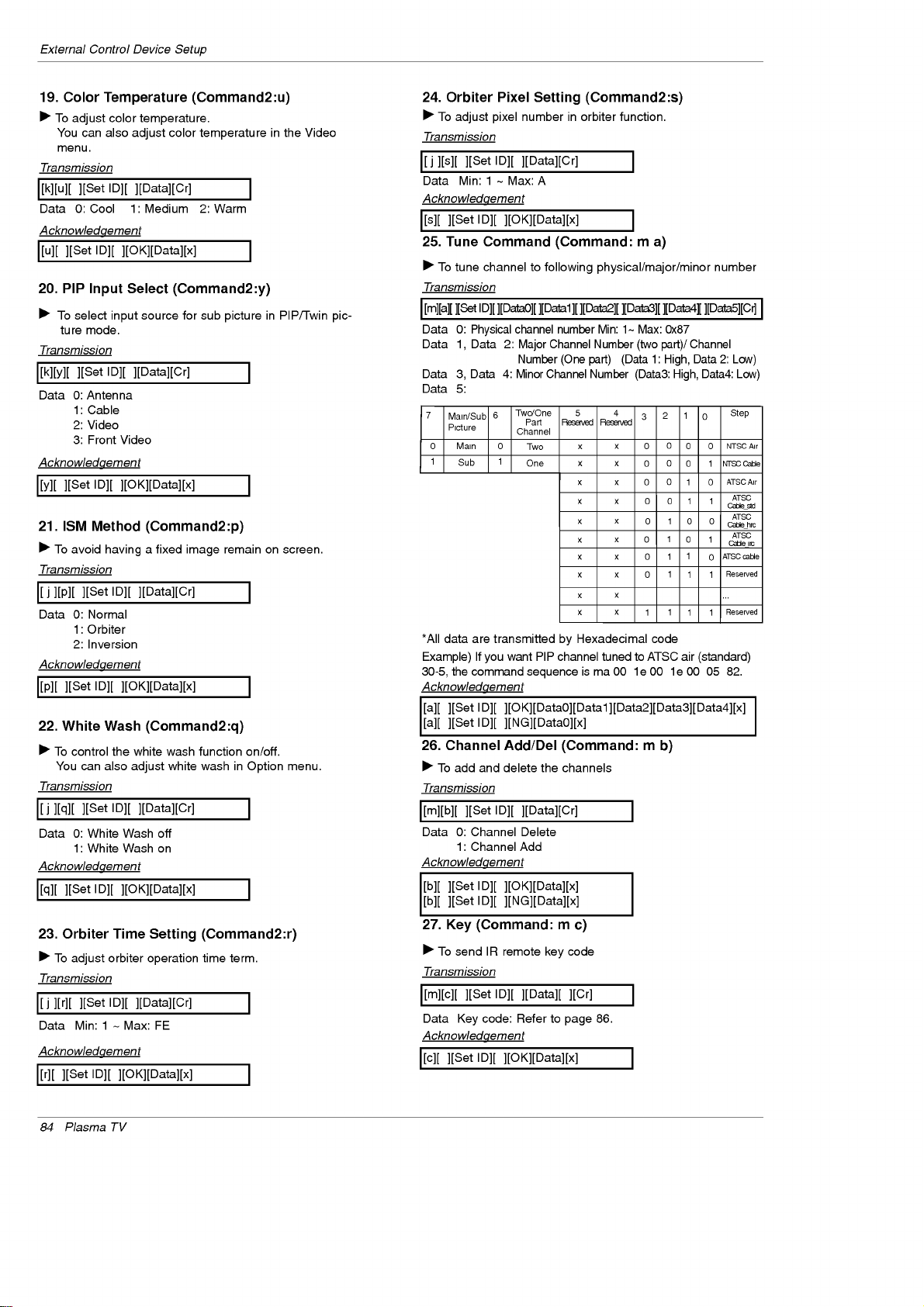

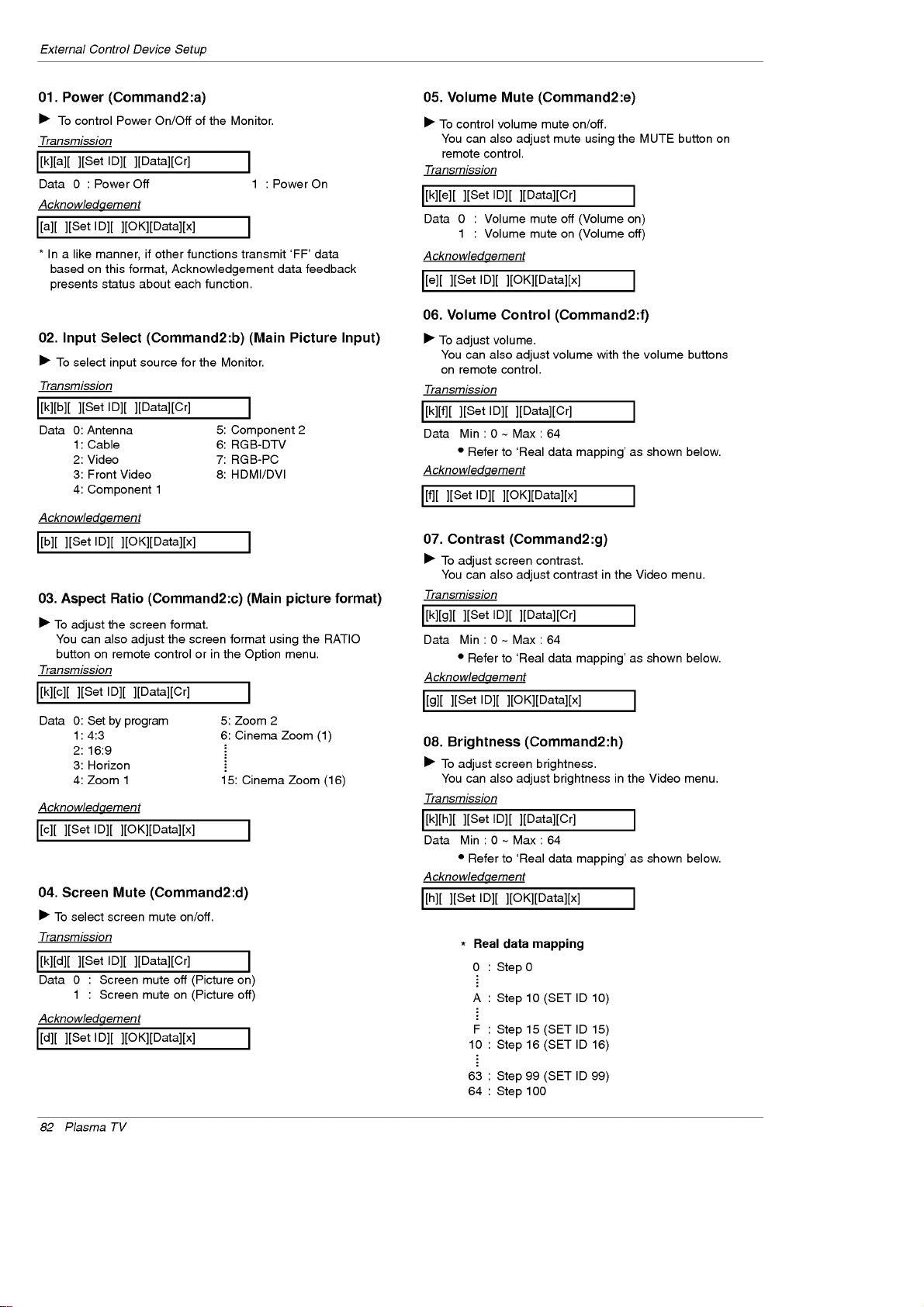

ExternalControlDeviceSetup.
. . . . . . . . . . . . . .
.80~84
IRCodes................................85~86
ProgrammingtheRemote......................87
ProgrammingCodes.......................88~89
TroubleshootingChecklist......................90
Maintenance.................................91
ProductSpecifications.........................92

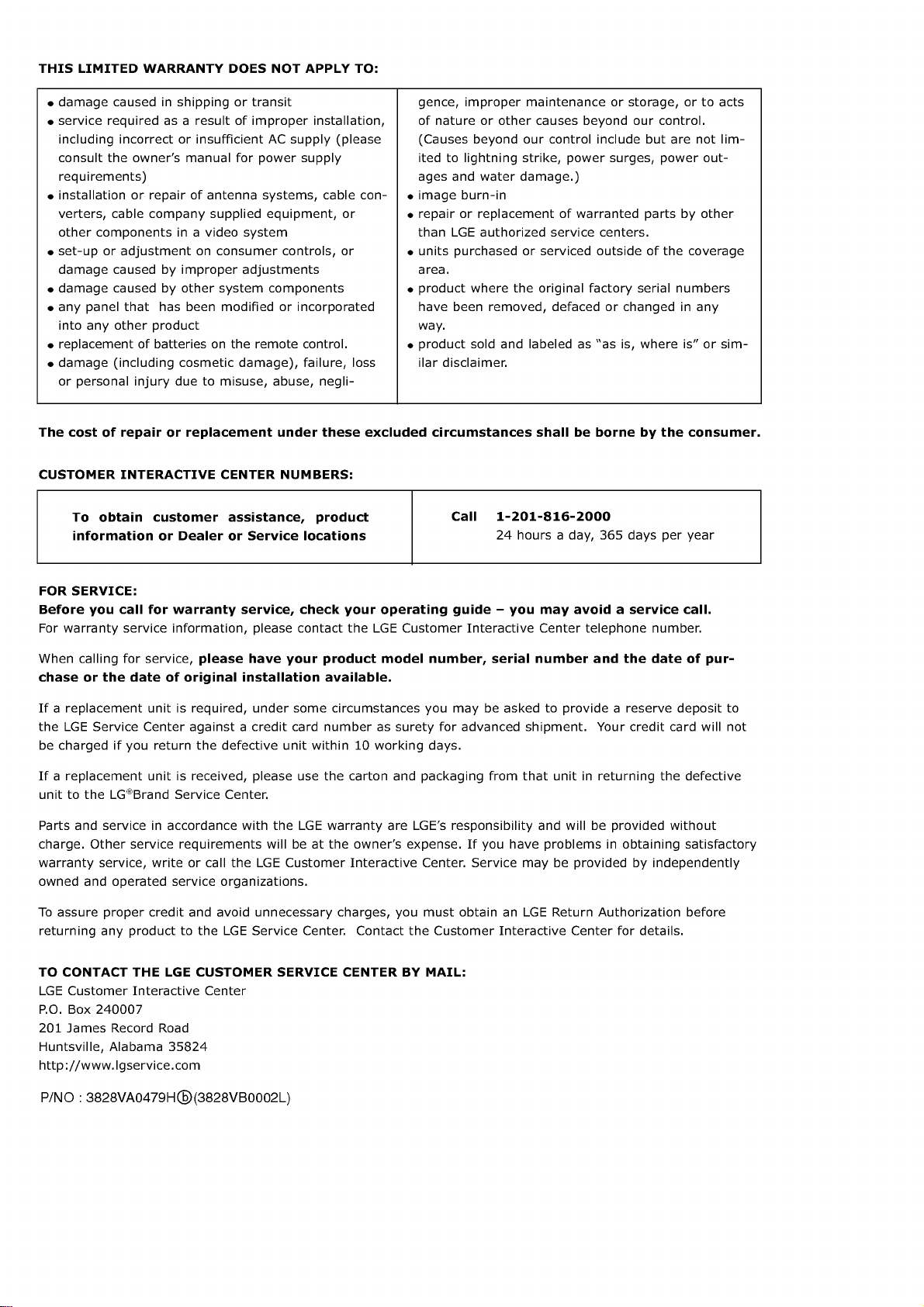

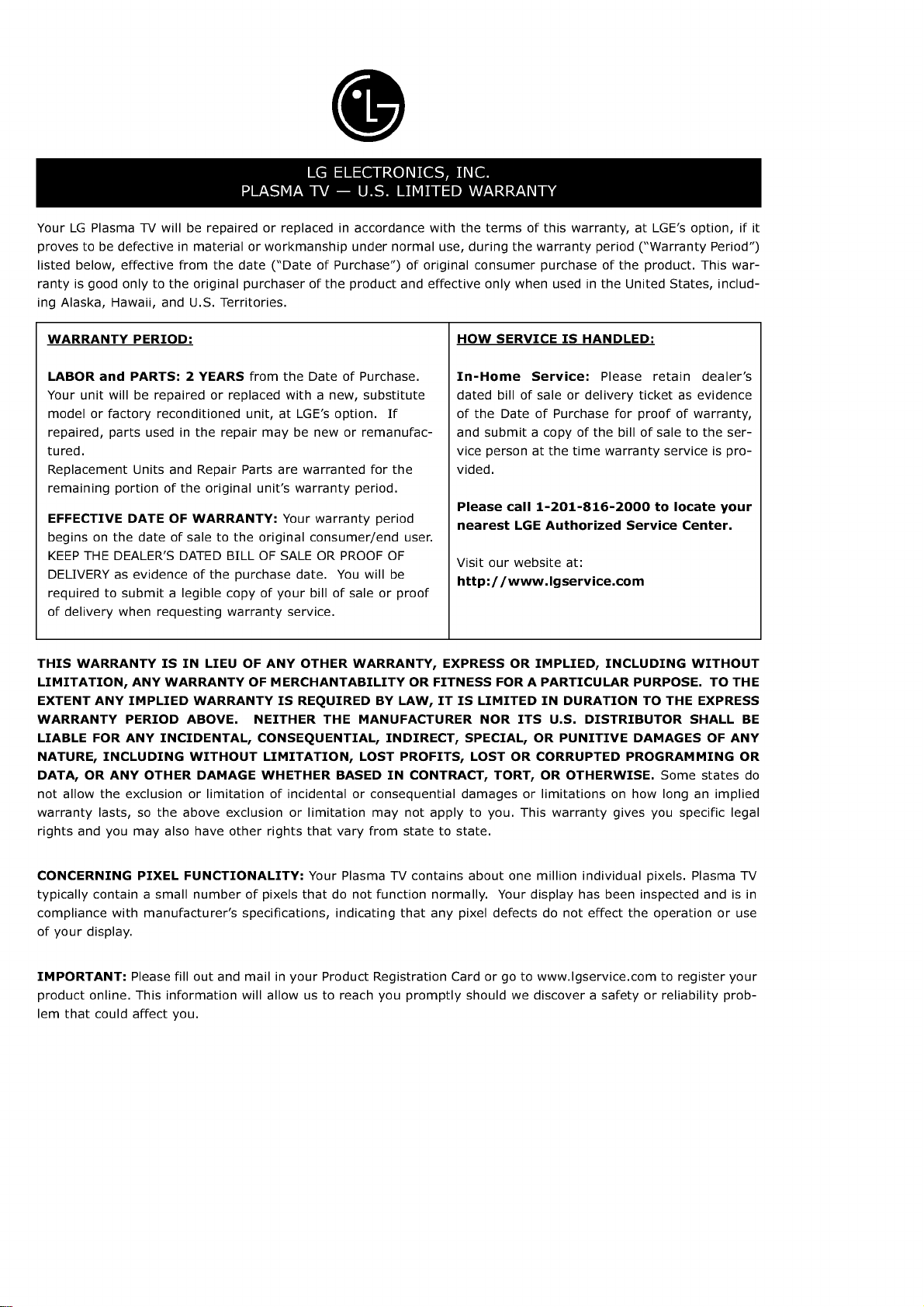

Warranty.................................95~96
Contents
Contents
Setup
and
Operation
Checklist
Setup
and
Operation
Checklist
Setup
and
Operation
Checklist
(See
pages
11~18
for
available
connection
and
operational
setup
options.)
1.
Unpack
TV
and
all
accessories.
2.
Connect
all
external
video
and
audio
equipment.
see
pages
13~
18.
3
Install
batteries
in
remote
control.
See
page
10.
4.
Turn
TV
on.
See
page
57.
5.
Turn
video
source
equipment
on.
6.
Select
viewing
source
for
TV.
See
pages
60.
7.
Fine-tune
source
and
sound
to
your
personal
prefer-
ence
or
as
required
by
source.
See
pages
61~
64.
8.
Additional
features
set
up
See
Contents
above.
background
Owner's
Manual
7
Introduction
Introduction
Introduction
What
is
a
Plasma
Display
Panel
(PDP)?
A
plasma
display
panel
is
the
latest
display
technology
and
the
best
way
to
achieve
flat
panel
displays
with
excellent
quality
and
large
screen
sizes
that
are
easily
viewable.
The
PDP
can
be
thought
of
as
a
descendant
of
the
neon
lamp
and
it
can
be
also
be
viewed
as
a
series
of
fluorescent
lamps.
How
does
it
work?
PDP
is
an
array
of
cells,
known
as
pixels,
which
are
comprised
of
3
sub
pixels,
corresponding
to
the
colors
red,
green,
and
blue.
Gas
in
a
plasma
state
is
used
to
react
with
phosphors
in
each
sub-pixel
to
produce
colored
light
(red,
green,
or
blue).
These
phos-
phors
are
the
same
types
used
in
Cathode
Ray
Tube
(CRT)
devices
such
as
televisions
and
common
computer
monitors.
You
get
the
rich,
dynamic
colors
that
you
expect.
Each
sub-pixel
is
individually
controlled
by
advanced
electronics
to
produce
over
16
million
different
colors.
All
of
this
means
that
you
get
perfect
images
that
are
easily
viewable
in
a
display
that
is
less
than
5
inches
thick.
160°
-
Wide
angle
range
of
vision
Your
flat
panel
plasma
screen
offers
an
exceptionally
broad
viewing
angle
--
over
160
degrees.
This
means
that
the
display
is
clear
and
visible
to
viewers
anywhere
in
the
room
who
can
see
the
screen.
Wide
Screen
The
screen
of
the
Plasma
Display
is
so
wide
that
your
viewing
experience
is
as
if
you
are
in
a
theater.
Multimedia
Connect
your
plasma
display
to
a
PC
and
you
can use
it
for
conferencing,
games,
and
Internet
browsing.
The
Picture-in-Picture
feature
allows
you
to
view
your
PC
and
video
images
simultaneously.
Versatile
The
light
weight
and
thin
size
makes
it
easy
to
install
your
plasma
display
in
a
variety
of
locations
where
conventional
TVs
will
not
fit.
The
PDP
Manufacturing
Process:
a
few
minute
colored
dots
may
be
present
on
the
PDP
screen
The
PDP
(Plasma
Display
Panel),
which
is
the
display
device
of
this
product
is
composed
of
0.9
to
2.2
million
cells.
A
few
cell
defects
will
normally
occur
in
the
PDP
manufacturing
process.
Several
tiny,
minute
colored
dots
visible
on
the
screen
should
be
acceptable.
This
also
occurs
in
other
PDP
manufacturers'
products.
The
tiny
dots
appearing
does
not
mean
that
this
PDP
is
defec-
tive.
Thus
a
few
cell
defects
are
not
sufficient
cause
for
the
PDP
to
be
exchanged
or
returned.
Our
production
technology
mini-
mizes
these
cell
defects
during
the
manufacture
and
operation
of
this
product.
Cooling
Fan
Noise
In
the
same
way
that
a
fan
is
used
in
a
PC
computer
to
keep
the
CPU
(Central
Processing
Unit)
cool,
the
PDP
is
equipped
with
cooling
fans
to
cool
the
Monitor
and
improve
its
reliability.
Therefore,
a
certain
level
of
noise
could
occur
while
the
fans
are
operat-
ing
and
cooling
the
PDP.
The
fan
noise
doesn't
have
any
negative
effect
on
the
PDP's
efficiency
or
reliability.
The
noise
from
these
fans
is
normal
during
the
operation
of
this
product.
We
hope
you
understand
that
a
certain
level
of
noise
from
the
cooling
fans
is
acceptable
and
is
not
suffi-
cient
cause
for
the
PDP
to
be
exchanged
or
returned.
background
8
Plasma
TV
Introduction
TV/VIDEO
MENU
VOL
CH
POWER
TV
GUIDE
POWER
Controls
Controls
-
This
is
a
simplified
representation
of
front
panel.
Here
shown
may
be
somewhat
different
from
your
TV.
Front
Panel
Controls
Front
Panel
Controls
TV/VIDEO
MENU
VOL
CH
TV GUIDE
MENU
Button
TV/VIDEO
Button
POWER
Button
VOLUME
(
,
)
Buttons
CHANNEL
(
,
)
Buttons
INDEX
Switches
LED
Display
on
or
off.
TV
GUIDE
Button
Remote
Control
Sensor
Power
Indicator
Illuminates
orange
in
stand-
by
mode,
Illuminates
green
when
the
TV
is
turned
on.
(If
power
isn't
turn
on
in
red,
contact
your
service
center.)
background
Owner's
Manual
9
Introduction
Connection
Options
Connection
Options
R
S-VIDEO
VIDEO
L/MONO
AUDIO
FRONT A/V INPUT
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO
INPUT
AUDIO
INPUT
CABLE
HDMI
/
DVI(VIDEO)
Cable
ANTENNA
AC
NPU
Back
Connection
Panel
Back
Connection
Panel
Antenna
Inputs
Connect
antenna
sig-
nals
to
the
TV,
either
directly
or
through
your
cable
box.
RGB/AUDIO
INPUT
Connect
the
moni-
tor
output
connec-
torfromaPCto
the
appropriate
input
port.
Digital
Audio
(DVI:
Digital
Visual
Interface/Component2)
Input/
Digital
Audio
Output
Connect
digital
audio
from
various
types
of
equipment.
Note:
In
standby
mode,
these
ports
will
not
work.
DVD/DTV
Input
(Component
1-2)
Connect
a
component
video/audio
device
to
these
jacks.
Monitor
Output
Connect
a
second
TV
or
Monitor.
Remote
Control
Port
Connect
your
wired
remote
control
here.
S-Video
Input
Connect
S-Video out
from
an
S-VIDEO
device
to
the
S-
VIDEO
input.
IEEE1394
Connect
DVHS
or
MicroMV
to
IEEE1394
Connector.
CABLE
Inputs
Connect
cable
signals
to
the
TV,
either
directly
or
through
your
cable
box.
RS-232C
INPUT
(CON-
TROL/SER-
VICE)
PORT
Connect
to
the
RS-232C
port
onaPC.
CableCARDTM
Used
for
CableCARDTM
received
Cable
Service
Provider.
G-LINK
Connect
an
IR
controller
to
this
jack.
HDMI/DVI(VIDEO)
Connect
a
HDMI/DVI(Video)
signal
to
this
jack.
S-VIDEO
Input
A
connection
available
to
provide
bet-
ter
quality
than
the
video
input.
VIDEO
Input
Connects
the
video
signal
from
a
video
device.
AUDIO
Input
Use
to
connect
to
hear
stereo
sound
from
an
external
device.
Power
Cord
Socket
This
TV
operates
on an
AC
power.
The
voltage
is
indi-
cated
on
the
Specifications
page.
Never
attempt
to
oper-
ate
the
TV
on
DC
power.
Audio/Video
Input
Connect
audio/video
output
from
an
exter-
nal
device
to
these
jacks.
-
This
manual
explains
the
features
available
on
the
DU-50PY10
series
TVs.
background
10
Plasma
TV
Installation
-
When
using
the
remote
control,
aim
it
at
the
remote
control
sensor on
the TV.
SKIP
L
GHT
T
/VIDEO
MODE
COMP/RGB/HDMI
MUTE
SURF
VOL
CH
PGUP
PGDN
INFO
SAP
RATIO
CC
MENU
TV
GUIDE
TIMER
EXIT
PLAY
PAUSE
STOP
RECORD
PIP
PIPCH-
PIPCH+
PIPINPUT
ENTER
SIGNAL
SWAP
REW
FF
POWER
1394
FLASHBK
VIDEO
SOUND
ADJUST
DAY
+
DAY
-
FREEZE
ZOOM
LIGHT
Illuminates
the
remote
control
buttons.
TV/VIDEO
Selects:
DTV,
Analog,
Video,
Front
Video,
Component
1-2,
RGB-DTV
(or
RGB-PC),
HDMI/DVI
input
sources.
COMP/RGB/HDMI
Selects:
Component
1-2,
RGB-DTV
(or
RGB-
PC),
HDMI/DVI
input
sources.
NUMBER
buttons
DASH
Uses
to
enter
a
program
number
for
multiple
program
channels
such
as
2-1,2-2,etc.
MUTE
Switches
the
sound
on
or
off.(Refer
to
p.79)
VCR/DVD
BUTTONS
Control
some
video
cassette
recorders
or
DVD
player.
("RECORD"
button
is
not
avail-
able
for
DVD
player.)
Selects
the
frequency
setting
in
the
record-
ing:
Once,
Regularly,
Weekly,
Off.("RECORD"
button
only)
RATIO
Changes
the
aspect
ratio.
MODE
Selects
the
remote
operating
mode:
TV,
VCR,
DVD,
CABLE,
HDSTB
or
AUDIO.
Select
other
operating
modes,
for
the
remote
to
operate
external
devices.
POWER
Turns
your
TV
or
any
other
programmed
equipment
on
or
off,
depending
on
mode.
1394
(Refer
to
p.32-36)
SURF
Use
to
scroll
the
Surf
channel.
CC
Select
a
closed
caption:
Off,
CC1~4,
Text1~4.
FLASHBK
Tunes
to
the
last
channel
viewed.
THUMBSTICK
(Up/Down/Left/Right/ENTER)
Allows
you
to
navigate
the
on-screen
menus
and
adjust
the
system
settings
to
your
pref-
erence.
CHANNEL
UP/DOWN
Selects
available
channels
found
with
EZ
scan.
PAGE
UP/PAGE
DOWN
Moves
from
one
full
set
of
screen
infor-
mation
to
the
next
one.
EXIT
Clears
all
on-screen
displays
and
returns
to
TV
viewing
from
any
menu.
TIMER
Lets
you
select
the
amount
of
time
before
your
TV
turns
itself
off
automatically.
VOLUME
UP/DOWN
Increases/decreases
the
sound
level.
SAP
Selects
MTS
sound:
Mono,
Stereo,
and
SAP
in
Analog
mode.
Change
the
audio
language
in
DTV
mode.
MENU
Brings
up
the
main
menu
to
the
screen.
Enters
or
exits
a
Panel
Menu
in
the
TV
Guide
On
Screen
system.
INFO
When
you
watch
the
TV,
information
displays
on
top
of
the
screen.
Not
available
in
Component
1-2,
RGB
and
HDMI/DVI
mode.(Refer
to
p.78)
TV
GUIDE
Brings
up
the
TV
Guide
On
Screen
system
to
the
screen.
PIP
Switches
between
PIP,
POP
(Picture-out-of-
Picture)
and
Twin
modes.
Switches
the
video
window
locking
or
unlocking
in
the
Listings
Grid.
PIPCH-/PIPCH+
Changes
to
next
higher/lower
PIP
channel.
PIP
INPUT
Selects
the
input
source
for
the
sub
picture.
SWAP
Exchanges
the
main/sub
images
in
PIP/Twin
mode.
VIDEO
Adjusts
the
factory
preset
depending
on
the
viewing
environment.
ADJUST
Adjusts
screen
position,
size,
and
phase
in
PC
mode.
SOUND
Selects
the
sound
appropriate
for
the
program's
character.
SIGNAL
Displays
the
digital
signal
strength.
Installing
Batteries
?
Open
the
battery
compartment
cover
on
the
back
side
and
install
the
batteries
matching
correct
polarity
(+
with
+,
-
with
-).
?
Install
two
1.5V
AA
batteries.
Don't
mix
old
or
used
batteries
with
new
ones.
Replace
cover.
Remote
Control
Key
Functions
Remote
Control
Key
Functions
FREEZE
Freezes
the
currently-viewed
picture.
Main
pic-
ture
is
frozen
in
PIP/Twin
mode.
ZOOM
Enlarges
the
main
size.
DAY+/DAY-
Moves
forward
or
backward
in
24
hour
increments
in
the
Listings
Grid.
background
Owner
's
Manual
11
Installation
-
Secure
the
TV
assembly
by
joining
it
to
a
wall
by
using
the
TV/Wall
brackets.
Joining
the
TV
assembly
to
the
wall
to
protect
the
set
tumbling
?
After
the
set
must
be
mounted
on
the
desk
top,
install
the
TV
brackets
on
the
TV
as
shown.
Install
the
TV
brackets
on
the
TV
as
shown.
Insert
the
2
bolts
and
tighten
securely,
in
the
upper
holes
on
the
bracket.
Install
the
wall
brackets
on
the
wall
with
4
bolts*,
(not
supplied
with
the
product),
as
shown.
Match
the
height
of
the
TV
brackets
and
the
wall
brack-
ets.
Check
to
be
sure
the
brackets
are
tightened
securely.
?
Secure
the
TV
assembly
to
the
wall
with
strong
strings
or
wound
wire
cables,
(not
supplied
with
the
product),
as
shown.
Installation
Installation
Owner's
Manual
1.5V
1.5V
Batteries
Power
Cord
LIGHT
TV
IDEO
MODE
COMP/RGB/DVI
MUTE SURF
VOL
CH
NFO
SAP
RATO
CC
MENU
SOUND
VDEO
EXIT
PLAY
PAUSE
ST
OP
RECORD
PP
PIPCH- PIPCH+
PPINPUT
FREEZE
ADJUST
OK
ZOOM
SGNAL
SWAP
REW
FF
SKIP
POWER
TMER
FLASHBK
75Ω
Round
Cable
Ensure
that
the
following
accessories
are
included
with
your
plasma
display.
If
an
accessory
is
missing,
please
contact
the
dealer
where
you
purchased
the
product.
2-TV
brackets
2-Wall
brackets
4-TV
bracket
bolts(50")
G-LINK
Cable
2-TV
bracket
bolts(60")
background
12
Plasma
TV
Installation
Installation
Instructions
Installation
Instructions
?
The
TV
can
be
installed
in
various
ways
such
as
on a
wall,
or
on
a
desktop
etc.
?
The
TV
is
designed
to
be
mounted
horizontally.
The
speakers
shown
are
optional.
GROUNDING
Ensure
that
you
connect
the
grounding
/
earth
wire
to
prevent
possible
electric
shock.
If
grounding
methods
are
not
possible,
have
a
qualified
electrician
install
a
separate
circuit
breaker.
Do
not
try
to
ground
the
unit
by
connecting
it
to
telephone
wires,
lightening
rods,
or
gas
pipes.
Power
Supply
Short-circuit
Breaker
4
inches
4
inches
4
inches
4
inches
2
inches
W
Wall
Mount:
Horizontal
installation
all
Mount:
Horizontal
installation
For
proper
ventilation,
allow
a
clearance
of
4"
on
each
side
and
2"
from
the
wall.
Detailed
installation
instruc-
tions
are
available
from
your
dealer,
see
the
optional
Wall
Mounting
Bracket
Installation
and
Setup
The
TV
guide
on
screen
system.
4
inches
4
inches
2.36
inches
4
inches
2
inches
Desktop
Pedestal
Installation
Desktop
Pedestal
Installation
For
proper
ventilation,
allow
a
clearance
of
4"
on
each
side
and
the
top,
2.36"
on
the
bottom,
and
2"
from
the
wall.
Detailed
installation
instructions
are
included
in
the
optional
Desktop
Stand
Installation
and
Setup
The
tv
guide
on
screen
system
available
from
your
dealer.
background
Owner
's
Manual
13
Installation
Antenna
or
Cable
Connection
Antenna
or
Cable
Connection
External
Equipment
Connections
External
Equipment
Connections
-
Wall
Antenna
Socket
or
Outdoor
Antenna
without
a
Cable
Box
Connections
-
For
optimum
quality,
adjust
antenna
direction
if
needed.
1.
Analog
and
Digital
TV
signals
provided
on
antenna
2.
Analog
and
Digital
TV
signals
provided
on
cable
CABLE
ANTENNA
Multi-family
Dwellings/Apartments
(Connect
to
wall
antenna
socket)
Single-family
Dwellings
/Houses
(Connect
to
wall
jack
for
outdoor
antenna)
Outdoor
Antenna
Wall
Antenna
Socket
VHF
Antenna
UHF
Antenna
RF
Coaxial
Wire
(75
ohm)Bronze
Wire
Turn
clockwise
to
tighten.
Bronze
Wire
Be
careful
not
to
bend
the
bronze
wire
when
connecting
the
antenna.
Bronze
Wire
Cable
TV
Wall
Jack
RF
Coaxial
Wire
(75
ohm)
CABLE
Cable
ANTENNA
background
14
Plasma
TV
Installation
-
To
avoid
noise
(interference),
leave
an
adequate
distance
between
the
VCR
and
TV
-
Use
the
ISM
Method
(on
the
Option
menu)
feature
to
avoid
having
a
fixed
remain
on
the
screen
for
a
long period
of
time.
If
the
4:3
format
is
used;
the
fixed
images
on
the sides
of
the
screen
may
remain
visible
on
the
screen.
Connection
Option
1
Set
VCR
output
switch
to
3
or
4
and
then
tune
TV
to
the
same
channel
number.
Connection
Option
2
1.
Connect
the
audio
and
video
cables
from
the
VCR's
output
jacks
to
the
TV
input
jacks,
as
shown
in
the
figure.
When
connecting
the
TV
to
VCR,
match
the
jack
colors
(Video
=
yellow,
Audio
Left
=
white,
and
Audio
Right
=
red).
If
you
connect
an
S-VIDEO
output
from
VCR
to
the
S-VIDEO
input,
the
quality
is
improved;
compared
to
connecting
a
regular
VCR
to
the
Video
input.
2.
Insert
a
video
tape
into
the
VCR
and
press
PLAY
on
the
VCR.
(Refer
to
the
VCR
owner's
manual.)
3.
Select the
input
source
with
using
the
TV/VIDEO
button
on
the
remote
control.
(If
connected
to
A/V
INPUT
,
select
Video
input
source)
Do
not
connect
to
both
Video
and
S-Video
at
the
same
time.
VCR
Setup
VCR
Setup
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
ANT
OUT
ANT
IN
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO
INPUT
AUDIO
INPUT
CABLE
HDMI
/
DVI(VIDEO)
Cable
ANTENNA
VCR
Rear
1
2
Note:
The
TV
will
let
you
know
when
the
analog,
cable,
and
digital
channel
scans
are
complete.
?
In
a
poor
signal
area
to
improve
quality,
purchase
and
install
a
signal
amplifier.
?
If
the
antenna
needs
to
be
split
for
two
TV's,
install
a
"2-
Way
Signal
Splitter"
in
the
connections.
?
If
the
antenna
is
not
installed
properly,
contact
your
deal-
er
for
assistance.
Cable
ANTENNA
Signal
Amplifier
3.
Analog
and
Digital
TV
signals
provided
on
cable
and
antenna
Antenna
RF
Coaxial
Wire
(75
ohm)
Bronze
Wire
Turn
clockwise
to
tighten.
Cable
TV
Wall
Jack
RF
Coaxial
Wire
(75
ohm)
CABLE
Cable
ANTENNA
background
Owner
's
Manual
15
?
Component
Input
ports
To
get
better
quality,
connect
a
DVD
player
to
the
compo-
nent
input
ports
as
shown
below.
How
to
connect
Connect
the
audio
and
video
cables
from
the
external
equip-
ment's
output
jacks
to
the
TV
input
jacks,
as
shown
in
the
figure.
When
connecting
the
TV
to
external
equipment,
match
the
jack
colors
(Video
=
yellow,
Audio
Left
=
white,
and
Audio
Right
=
red).
How
to
use
1.
Select the
input
source
with
using
the
TV/VIDEO
button
on
the
remote
control.
(If
connected
to
A/V
INPUT
,
select
Video
input
source).
2.
Operate
the
corresponding
external
equipment.
Refer
to
external
equipment
operating
the
tv
guide
on
screen
system.
Component
ports
on
the
TV
YPBPR
Video
output
ports
on
DVD
player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How
to
connect
1.
Connect
the
DVD
video
outputs
(Y,
PB,
PR)
to
the
COMPONENT
(Y,
PB,
PR)
INPUT
jacks
on
the
TV
and
connect
the
DVD
audio
outputs
to
the
AUDIO
INPUT
jacks
on
the
TV,
as
shown
in
the
figure.
2.
If
your
DVD
only
has
an
S-Video
output
jack,
connect
this
to
the
S-VIDEO
input
on
the
TV
and
connect
the
DVD
audio
outputs
to
the
AUDIO
INPUT
jacks
on
the
TV,
as
shown
in
the
figure.
Note:
If
your
DVD
player
does
not
have
component
video
output,
use
S-Video.
How
to
use
1.
Turn
on
the
DVD
player,
insert
a
DVD.
2.
Use
the
TV/VIDEO
or
COMP/RGB/HDMI
button
on
the
remote
control
to
select
Component
1
or
Component
2.
(If
connected
to
S-VIDEO,
select
the
Video
or
Front
Video
external
input
source.)
3.
Refer
to
the
DVD
player's
manual
for
operating
instructions.
External
External
A/V
Source
Setup
A/V
Source
Setup
DVD
Setup
DVD
Setup
RL
AUDIO
VIDEO
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEOINPUT
AUDIO
INPUT
HDMI
/
DVI(VIDEO)
C
B R
(R)
AUDIO
(L)
DIGITAL
AUDIO
OPTICAL
(R)
AUDIO
(L)
S-VIDEO
CABLE
Cable
ANTENNA
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO
INPUT
AUDIO
INPUT
HDMI
/
DVI(VIDEO)
DVD
or
Camcorder
Video
Game
Set
Notes:
?
Digital
Audio
will
not
work
for
Component
1
input
source.
?
Digital
Audio
operation
has
priority
if
Digital
Audio
and
AUDIO
L/R
are
connected
at
the
same
time.
or
background
16
Plasma
TV
Installation
-
This
TV
can
receive
Digital
Over-the-air/Cable
signals
without
an
external
digital
set-top
box.
However,
if
you
do
receive
Digital
signals
from
a
digital
set-top
box
or
other
digital
external
device,
refer
to
the
figure
as
shown
below.
-
This
TV
supports
HDCP
(High-bandwidth
Digital
Contents
Protection)
protocol
for
Digital
Contents
(480p,720p,1080i).
How
to
connect
Use
the
TV's
COMPONENT
(Y,
PB,
PR)
INPUT,
RGB
or
HDMI/DVI
jack
for
video
connections,
depending
on
your
set-top
box
connector.
Then,
make
the
corresponding
audio
connections.
How
to
use
1.
Turn
on
the
digital
set-top
box.
(Refer
to
the
owner's
manual
for
the
digital
set-top
box.)
2.
Use
TV/VIDEO
or
COMP/RGB/HDMI
on
the
remote
control
to
select
Component
1,
Component
2,
RGB-DTV,
or
HDMI/DVI
source.
HDSTB
Setup
HDSTB
Setup
(R)
AUDIO
(L)
RGB-DTV
OUTPUT
B
R
(R)
AUDIO
(L)
DIGITAL
AUDIO
OPTICAL
(R)
AUDIO
(L)
DVI-DTV
OUTPUT
DIGITAL
AUDIO
OPTICAL
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO INPUT
AUDIO
INPUT
HDMI
/
DVI(
VIDEO)
CABLE
Cable
ANTENNA
HDMI-DTV
OUTPUT
Digital
Set-top
Box
or
or
or
or
Signal
480i
480p
720p
1080i
Component
1/2
Yes
Yes
Yes
Yes
RGB-DTV,HDMI/DVI
No
Yes
Yes
Yes
CableCARD
CableCARDTM
TM
Setup
Setup
I
CABLE
Cable
ANTENNA
How
to
use
Insert
the
CableCARDTM
TM
received
from
Cable
Service
provider
to
CableCARDTM
TM
slot
of
TV
back
panel.
If
Host
or
CableCARDTM
TM
does
not
display
on
the
screen,
contact
with
Cable
service
provider
by
phone.
Note
:
?
CableCARDTM
TM
has
the
types
of
Motorola,
Scientific
Atlanta,
SCM
etc..
These
3
types
of
CableCARDTM
TM
can
be used
for
this
PLASMA
TV.
Caution:
When
removing
the
CableCARDTM
TM,
do
not
fall
it
as
this
may
cause
impact
to
the
CableCARDTM
TM.
background
Owner
's
Manual
17
Installation
How
to
connect
1.
To
get
the
best
quality,
adjust
the
PC
graphics
card
to
1024x768,
60Hz.
2.
Use
the
TV's
RGB
INPUT
or
HDMI/DVI
(Digital
Visual
Interface)
INPUT
port
for
video
connections,
depending
on
your
PC
con-
nector.
?
If
the
graphic
card
on
the
PC
does
not
output
analog
and
digital
RGB
simultaneously,
connect
only
one
of
either
RGB
INPUT
or
DVI
INPUT
to
display
the
PC
on
the
TV.
?
If
the
graphic
card
on
the
PC
does
output
analog
and
digital
RGB
simultaneously,
set
the
TV
to
either
RGB
or
HDMI/DVI;
(the
other
mode
is
set
to
Plug
and
Play
automatically
by
the
TV.)
3.
Then,
make
the
corresponding
audio
connections.
If
using
a
sound
card,
adjust
the
PC
sound
as
required.
How
to
use
1.
Turn
on
the
PC
and
the TV.
2.
Turn
on
the
display
by
pressing
the
POWER
button
on
the
TV's
remote
control.
3.
Select
RGB-PC
or
HDMI/DVI
input
source
in
main
input
option
of
SETUP
menu.
(Refer
to
P.59)
4.
Check
the
on
your
TV.
There
may
be
noise
associated
with
the
resolution,
vertical
pattern,
contrast
or
brightness
in
PC
mode.
If
noise
is
present,
change
the
PC
mode
to
another
resolution,
change
the
refresh
rate
to
another
rate
or
adjust
the
brightness
and
contrast
on
the
menu
until
the
is
clear.
If
the
refresh
rate
of
the
PC
graphic
card
can
not
be
changed,
change
the
PC
graphic
card
or
consult the
manufacturer
of
the
PC
graphic
card.
Notes:
?
Depending
on
the
graphics
card,
DOS
mode
may
not
work
if
you
use
a
HDMI
to
DVI
cable.
?
Avoid
keeping
a
fixed
on
the
TV's
screen
for
a
long
period
of
time.
The
fixed
may
become
permanently
imprinted
on
the
screen.
Use
the
Orbiter
screen
saver
when
possible.
?
The
synchronization
input
form
for
Horizontal
and
Vertical
frequencies
is
separate.
PC
Setup
PC
Setup
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEOINPUT
AUDIO
INPUT
HDMI
/
DVI(
VIDEO)
CABLE
Cable
ANTENNA
-
This
TV
provides
Plug
and
Play
capability,
meaning
that
the
PC
adjusts
automatically
to
the
TV's
settings.
-
The
TV
perceives
640x480,
60Hz
as
DTV
480p
based
on
the
PC
graphic
card,
change
the
screen
scanning
rate
for
the
graphic
card
accordingly.
Resolution
640x350
720x400
640x480
800x600
Horizontal
Frequency(KHz)
31.468
37.861
31.469
37.927
31.469
37.861
37.500
43.269
70.09
85.08
70.08
85.03
59.94
72.80
75.00
85.00
35.156
37.879
48.077
46.875
53.674
48.363
56.476
60.023
56.25
60.31
72.18
75.00
85.06
60.00
70.06
75.02
Vertical
Frequency(Hz)
Resolution
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
1024x768
Monitor
Display
Specifications
(RGB-PC
)
background
18
Plasma
TV
Installation
Send
the
TV's
audio
to
external
audio
equipment
(stereo
system)
via
the
Digital
Audio
Output
(Optical)
port.
How
to
connect
1.
Connect
one
end
of
an
optical
cable
to
the
TV
Digital
Audio
(Optical)
Output
port.
2.
Connect
the other
end
of
the
optical
cable
to
the
digital
audio
(opti-
cal)
input
on
the
audio
equipment.
3.
Set
the
"
TV
Speaker
option
-
Off"
in
the
AUDIO
menu.
Refer
to
page
64.
See
the
external
audio
equipment
instruction
manual
for
operation.
Caution:
Do
not
look
into
the
optical
output
port.
Looking
at
the
laser
beam
may
damage
your
vision.
Digital
Digital
Audio
Output
Audio
Output
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO
INPUT
AUDIO
INPUT
HDMI
/
DVI(VIDEO)
The
TV
has
a
special
signal
output
capability
which
allows
you
to
hook
up
a
second
TV
or
monitor.
Connect
the
second
TV
or
monitor
to
the
TV's
MONITOR
OUTPUT.
See
the
Operating
Manual
of
the
second
TV
or
monitor
for
further
details
regarding
that
device's
input
settings.
Note
?
Component,
RGB-PC/RGB-DTV,
HDMI/DVI,
DTV
input
sources
cannot
be used
for
Monitor
out.
S-VIDEO
IN
(R)
AUDIO
(L)
VIDEO
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO
INPUT
AUDIO INPUT
HDMI
/
DVI(
VIDEO)
Monitor
Out
Setup
Monitor
Out
Setup
Resolution
640x480
800x600
Horizontal
Frequency(KHz)
31.469
37.861
37.500
35.156
37.879
48.077
46.875
59.94
72.80
75.00
56.25
60.31
72.18
75.00
48.363
56.476
60.023
60.00
70.06
75.02
Vertical
Frequency(Hz)
Resolution
Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
1024x768
Monitor
Display
Specifications
(HDMI/DVI
Mode)
background
Owner
's
Manual
19
HDMI
HDMI/DVI
(VIDEO)
HDMI/DVI
(VIDEO)
-HDMITM,
the
HDMI
logo
and
High-Definition
Multimedia
Interface
are
trademarks
or
registered
trademarks
of
HDMI
Licensing
LLC."
-This
TV
SET
can
receive
the
High-Definition
Multimedia
Interface(HDMI)
or
Input
of
Digital
Visual
Interface(DVI).
-This
TV
SET
supports
HDCP(High-bandwidth
Digital
Contents
Protection)
Protocol
for
TV
SET(480p,
720p,
1080i)
modes.
-When
you
Connect
with
HDMI/DVI
Source
Devices
(DVD
Player
or
Set
Top
Box
or
PC)
supporting
Auto
HDMI/DVI
function,
auto-
matically,
support
Plug
&
Play
and
then
set
the
HDMI/DVI
Source
Devices(1280
x
720p).
After
reading
in
HDMI/DVI
Source
Devices
using
Display
Data
Channel(DDC)
Protocol,
EDID
stored
in
TV
SET
is
used
.
If
HDMI/DVI
Source
Devices
not
support-
ed
Auto
HDMI/DVI
is
been,
the
Resolution
is
setted,
manually.
-
To
get
the
best
quality,
adjust
the
DVD
Player
or
Set
Top
Box
output
resolution
to
1280
x
720p.
-
To
get
the
best
quality,
adjust
the
PC
graphics
card
to
1024
x
768,
60Hz.
-
When
Source
Devices
have
DVI
Output
Connector,
you
must
connect
audio
with
separated
cable.(Refer
to
<How
to
connect>)
How
to
connect
1.
When
Source
Devices(DVD
Player
or
Set
Top
Box)
support
HDMI.
-
If
Source
Devices
have
HDMI
Output
Connector,
Source
Devices
connect
to
DTV
with
HDMI
Cable
.(not
supplied
with
the
prod-
uct).
-
If
Source
Devices
support
Auto
HDMI,
automatically,
Source
Devices
divert
output
resolution
in
1280x720p.
But
if
not,
resolution
divert
Manually
Setting
for
reference
Manual
of
Source
Devices.
-
To
get
the
best
quality,
adjust
the
DVD
Player
or
Set
Top
Box
output
resolution
to
1280
x
720p.
-
Because
HDMI
sends
Digital
Video
and
Audio
with
one
cable,
need
not
especial
Audio
Cable
for
using
HDMI
Cable.
2.
When
Source
Devices(DVD
Player
or
Set
Top
Box)
supports
DVI.
-
If
Source
Devices
have
DVI
Output
Connector,
Source
Devices
connect
to
DTV
with
HDMI
to
DVI
Cable
(not
supplied
with
the
product).
-
If
Source
Devices
support
Auto
DVI,
automatically,
Source
Devices
divert
output
resolution
in
1280x720p.
But
if
not,
resolution
divert
Manually
Setting
for
reference
Manual
of
Source
Devices.
-
To
get
the
best
quality,
adjust
the
DVD
Player
or
Set
Top
Box
output
resolution
to
1280
x
720p.
-
In
this
case,
Audio
use
other
cable.
When
Source
Devices
have
Fiber
Optic
Digital
Audio
Output
Connector,
Digital
Audio
DVI
Input(DVI)
of
DTV
connect
to
Fiber
Optic
Digital
Audio Cable
(not
supplied
with
the
product)
or
when
Source
Devices
have
Analog
Audio
Output
Connector,
RGB/DVI
Audio
Input
of
DTV
connect
to
Audio
Cable
(not
supplied
with
the
product).
And
then
you
can
listen
to
normal
Audio.
3.
When PC
supports
DVI.
-
If
PC
have
DVI
Output
Connector,
Source
Devices
connect
to
DTV
with
HDMI
to
DVI
Cable
(not
supplied
with
the
product).
-
To
get
the
best
quality,
adjust
the
PC
graphics
card
to
1024
x
768,
60Hz.
-
Use
the
DTV's
HDMI/DVI(VIDEO)
for
video
connections,
depending
on
your
PC
connector.
-
If
the
graphics
card
on
the
PC
does
not
output
analog
RGB
and
DVI
simultaneously,
connect
only
one
of
either
RGB
Input
or
HDMI/DVI
Input
to
display
the
PC
on
the
DTV.
-
If
he
graphics
card
on
the
PC
does
output
analog
RGB
and
DVI
simultaneously,
set
the
DTV
to
either
RGB
Input
or
HDMI/DVI
Input;(the
other
mode
is
set
to
Plug
and
Play
automatically
by
the
DTV.)
-
Then,
make
the
corresponding
audio
connections.
If
using
a
sound
card,
adjust
the
PC
sound
as
required.
-
In
this
case,
Audio
use
other
cable.
When
PC
(or
sound
card
of
PC)
have
Fiber
Optic
Digital
Audio
Output
Connector,
Digital
Audio
DVI
Input(DVI)
of
DTV
connect
to
Fiber
Optic
Digital
Audio Cable
(not
supplied
with
the
product)
or
when
PC
(or
sound
card
of
PC)
have
Analog
Audio
Output
Connector,
RGB/DVI
Audio
Input
of
DTV
connect
to
Analog
Audio Cable
(not
supplied
with
the
product).
And
then
you
can
listen
to
normal
Audio.
background
20
Plasma
TV
HDMI
Reference
Cable
sample
HDMI
Cable
(not
supplied
with
the
product)
HDMI
to
DVI
Cable
(not
supplied
with
the
product)
Fiber
Optic
Digital
Audio
Cable
(not
supplied
with
the
product)
Analog
Audio
Cable(RCA
type)
(not
supplied
with
the
product)
Analog
Audio
Cable(Stereo
to
RCA
type)
(not
supplied
with
the
product)
background
Owner
's
Manual
21
HDMI
How
to
use
1.
Connect
the
HDMI/DVI
Source
Devices(DVD
Player
or
Set
Top
Box
or
PC)
and
the
TV
SET.
2.
Turn
on
the
display
by
pressing
the
POWER
button
on
the
TV
SET
and
HDMI/DVI
Source
Devices
remote
control.
3.
Select
HDMI/DVI
Input
source
in
Main
Input
option
of
SETUP
menu.(Refer
to
P.60)
4.
Check
the
on
your
TV
SET.
There
may
be
noise
associated
with
the
resolution,
vertical
pattern,
contrast
or
brightness
in
HDMI/DVI
Source
Devices.
If
noise
is
present,
change
the
HDMI/DVI
Source
Devices
to
another
resolution,
change
the
refresh
rate
or
adjust
the
brightness
and
contrast
on
the
menu
until
the
is
clear.
If
the
refresh
rate
of
the
PC
graphics
card
can
not
changed,
change
the
PC
graphics
card
or
consult
the
manufacturer
of
the
PC
graphics
card.
Notes:
-
Depending
on
the
graphics
card,
DOS
mode
may
not
work
if
you
use
a
HDMI
to
DVI
Cable.
-
Avoid
keeping
a
fixed
on
the
TV
SET
screen
for
a
long
period
of
time.
The
fixed
may
become
permanently
imprint-
ed
on
the
screen.
Use
the
Orbiter
screen
saver
when
possible.
-
When
Source
Devices
connected
HDMI/DVI
Input,
output
PC
Resolution(VGA,
SVGA,
XGA),
Position,
Size
may
not
fit
to
Screen.
As
shown
the
lower
picture,
press
the
Adjust
button
to
adjust
the
screen
Position
of
TV
SET
and
contact
an
PC
graph-
ics
card
service
center.
-
When
Source
Devices
connected
HDMI/DVI
Input
output
TV
SET
Resolution(480p,
720p,
1080i),
TV
SET
Display
fit
EIA/CEA-
861-B
Specification
to
Screen.
If
not,
refer
to
the
Manual
of
HDMI/DVI
Source
Devices
or
contact
your
service
center.
-
In
case
HDMI/DVI
Source
Devices
is
not
connected
Cable
or
poor
cable
connection,
"NO
SIGNAL"
OSD
display
in
HDMI/DVI
Input.
And
In
case
of,
Video
Resolution
not
supported
TV
SET
output
in
HDMI/DVI
Source
Devices,
"INVALID
FORMAT"
OSD
display.
Refer
to
the
Manual
of
HDMI/DVI
Source
Devices
or
contact
your
service
center.
Close
POSITION
SIZE
PHASE
RESET
Adjust
In
This
Mode,
the
Supported
TV
SET
Resolution
Specification
-
1920
x
1080
I
@
59.94Hz
/
60Hz,
16:9
-
1280
x
720
P
@
59.94Hz
/
60Hz,
16:9(preferred
format)
[email protected]/60Hz,16:9
[email protected]/60Hz,4:3
In
This
Mode,
the
Supported
PC
Resolution
Specification
-640x480@60Hz
-640x480@72Hz
-640x480@75Hz
-800x600@56Hz
-800x600@60Hz
-800x600@72Hz
-800x600@75Hz
-
1024
x
768
@
60Hz(preferred
format)
-1024x768@70Hz
-1024x768@75Hz
background
22
Plasma
TV
Installation
TV
Guide
On
Screen
Setup
-
The
TV
Guide
On
Screen
system
uses
Setup
information
to
provide
you
with
show
listings
and
lineups
in
your
area---which
are
updated
several
times
a
day.
-
Once
you
set
up
the
TV
according
to
manufacturer's
instructions,
you
are
ready
to
set
up
the
TV
Guide
On
Screen
system.
Note:
The
TV
Guide
On
Screen
System
interactive
program
guide
provides
listings
for
cable-ready,
cable
box,
and
digital
cable
services
as
well
as
over-the-air
broadcast.
It
does
not
provide
listings
for
satellite
services.
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
ANT
IN
ANT
OUT
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO
INPUT
AUDIO
INPUT
CABLE
HDMI
/
DVI(VIDEO)
Cable
ANTENNA
How
to
connect
VCR
and
Cable
Box
1.
Antenna
Service
2.
Cable
Service
without
a
Cable
Box
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO INPUT
AUDIO
INPUT
CABLE
HDMI
/
DVI(VIDEO)
Cable
ANTENNA
ANT
IN
ANT OUT
VCR
Rear
VCR
Front
VCR
Rear
VCR
Front
background
Owner
's
Manual
23
Installation
3.
Cable
Service
with
a
Cable
Box
RF
TV
VCR
Cable
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
CABLE
Cable
ANTENNA
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
4
O
PUT
S
TCH
AN
ANT
OUT
4.
Antenna
and
Cable
Service
without
a
Cable
Box
5.
Antenna
and
Cable
Service
with
a
Cable
Box
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
CABLE
Cable
ANTENNA
ANT
IN
ANT
OUT
CABLE
Cable
ANTENNA
S-VIDEO
OUT
IN
(R)
AUDIO
(L)
VIDEO
4
O
PUT
S
TCH
RF
TV
VCR
Cable
(R)
AUDIO
(L)
VIDEO
34
OUTPUT
SWITCH
ANTOUT
ANT
IN
Cable
Box
Rear
VCR
Rear
VCR
Front
Cable
Box
Front
or
VCR
Rear
VCR
Front
Cable
Box
Rear
VCR
Rear
VCR
Front
Cable
Box
Front
or
background
24
Plasma
TV
Installation
1.Reminder
Screen
The
TV
Guide
On
Screen
system's
Reminder
Screen
appears:
--
after
initial
TV
set
up
--
if
you
power
Off
the
TV
and
then
power
it
back
On
To
make
a
selection,
use
the
/
button
to
highlight
to
an
option,
and
press
ENTER.
?
"Set
up
TV
Guide
On
Screen
now,"
displays
the
Welcome
Screen.
Press
ENTER
to
begin
Setup.
?
"Remind
me
to
set
up
later"
returns
you
to
watching
TV.
?
"Don't
remind
me
again"
returns
you
to
watching
TV
and
stops
the
reminder
screen
from
appearing
upon
power
On.
How
to
use
1.
Screen
1:
Country
?This
screen
asks
you
the
location
of
your
TV.
?Use
the
/
button
to
highlight
a
country.
?Press
ENTER
to
display
Screen
2.
2.Welcome
Screen
The
TV
Guide
On
Screen
system's
Welcome
Screen
appears:
--
by
pressing
the
TV
Guide
key
--
when
you
power
On
your
TV
if
you
previously
skipped
"Set
up
TV
Guide
On
Screen
now"
on
the
Reminder
Screen.
The
Welcome
Screen
highlights
features
of
the
TV
Guide
On
Screen
system.
Press
ENTER
to
begin
Setup.
Note:
?
The
G-LINK
cable
is
necessary
for
the
TV
Guide
On
Screen
system
to
work
with
your
Cable
Box
and
VCR.
See
Page
22~23
for
G-LINK
connection
instructions.
background
Owner
's
Manual
25
Installation
2.
Screen
2:
Enter
Zip
or
Postal
Code
Option
1
?If
you
selected
USA
in
Screen
1,
you
see
the
ZIP
Code
screen.
?You
input
numbers
by
either
pressing
the
number
keys
on
the
remote
or
using
the
/
button
to
display
a
number,
and
then
the
/
but-
ton
to
move
to
another
field.
?Press
ENTER
to
display
Screen
3.
Option
2
?If
you
selected
Canada
in
Screen
1,
you
see
the
Postal
Code
screen.
?You
input
characters
by
using
the
/
button,
and
then
the
/
but-
ton
to
move
to
another
field.
?Press
ENTER
to
display
Screen
3.
3.
Screen
3:
Do
you
have
Cable?
?If
you
select
Yes,
you
see
Screen
4.
?If
you
select
No,
you
see
Screen
12.
4.
Screen
4:
Do
you
have
a
Cable
Box?
?If
you
select
Yes,
you
see
Screen
5.
?If
you
select
No,
you
see
Screen
12.
background
26
Plasma
TV
Installation
6.
Screen
6:
Cable
Box
Tuning
Channel
?Select
the
channel
used
for
the
cable
box.
?Press
ENTER
to
display
Screen
7.
7.
Screen
7:
Cable
Box
Configuration
Diagram
?The
diagram
shows
the
correct
way
to
install
the
G-LINK
Cable
from
the
back
of
the
device
to
the
cable
box.
Make
sure
the
G-LINK
Cable
is
properly
installed.
?Press
ENTER
to
display
Screen
8.
5.
Screen
5:
Which
TV
input
is
the
cable
box
plugged
into?
?If
you
select
Cable,
you
see
Screen
6.
?If
you
make
any
other
choice,
you
see
Screen
7
.
background
Owner
's
Manual
27
Installation
8.
Screen
8:
Cable
Box
Brand
Name
?Use
the
/
button
to
select
a
cable
box
brand.
?Press
ENTER
to
display
Screen
9.
9.
Screen
9:
Cable
Box
Preparation
Follow
the
on-screen
instructions,
and
press
ENTER
to
display
Screen
10.
10.
Screen
10:
Cable
Box
Code
Testing
When
testing
is
done,
Screen
11
displays
automatically.
11.
Screen
11:
Cable
Box
Tuned
to
Channel
9?
If
you
select
Yes,
you
see
Screen
12.
If
you
select
No,
a
different
code
is
tested
in
Screen
10.
Note:
?Many
Cable
Boxes
require
testing
more
than
one
code.
If
you
select
Test
this
code
again,
the
same
code
is
tested
again
in
Screen
10.
background
28
Plasma
TV
Installation
14.
Screen
14:
Congratulations
?Press
ENTER
to
display
Screen
15.
13.
Screen
13:
Are
your
basic
settings
correct?
?If
you
select
Yes,
you
see
Screen
14.
?If
you
select
No,
you
see
Screen
1.
12.
Screen
12:
Do
you
have
an
antenna
connected?
?If
you
select
Yes,
you
see
Screen
13.
Note:
?If
you
selected
No
in
Screen
3
then
you
must
select
Yes
in
this
screen
to
receive
a
channel
lineup
and
listings.
?If
you
select
No,
you
see
Screen
13.
background
Owner
's
Manual
29
Installation
17.
Screen
17:
VCR
Brand
Name
?Use
the
/
button
to
select
the
brand
of
the
recording
device.
?Press
ENTER,
and
you
see
Screen
18.
16.
Screen
16:
VCR
Configuration
Diagram
?This
screen
shows
the
correct
way
to
install
the
G-LINK
Cable
from
the
back
of
the
TV
to
the
Recording
device.
Make
sure
the
G-LINK
Cable
is
properly
installed.
?Press
ENTER,
and
you
see
Screen
17.
15.
Screen
15:
Is
a
VCR
Connected?
?If
you
select
Yes,
you
see
Screen
16.
?If
you
select
No,
you
see
Screen
21.
background
30
Plasma
TV
Installation
18.
Screen
18:
VCR
Preparation
Follow
the
on-screen
instructions,
and
press
ENTER
to
display
Screen
19.
19.
Screen
19:
VCR
Code
Testing
When
testing
is
done,
Screen
20
displays
automatically.
20.
Screen
20:
VCR
Tuned
to
Channel
9?
?If
you
select
Yes,
you
see
Screen
21.
?If
you
select
No,
a
different
code
is
tested
in
Screen
19.
Note
:
Many
VCRs
require
testing
more
than
one
code.
?If
you
select
Test
this
code
again,
the
same
code
is
tested
again
in
Screen
19.
background
Owner
's
Manual
31
Installation
21.
Screen
21:
Confirming
Your
Settings
Verify
the
Setup
information
is
correct.
If it
is,
select
Yes,
end
setup,
and
you
see
Screen
22.
If it
is
not,
select
No,
repeat
setup
process,
and
you
see
Screen
1.
22.
Screen
22:
Congratulations
?You
have
successfully
completed
Setup!
?Press
ENTER
and
you
see
Screen
23.
23.
Screen
23:
Helpful
Information
?This
screen
tells
you
valuable
information
on
using
your
Guide.
?Press
ENTER
to
watch
TV.
Notes:
The
TV
Guide
On
Screen
system
receives
program
listings
data
through
your
cable
or
over-the-air
video
signal.
In
order
to
receive
regular
program
listings,
please
remember
to
do
the
following:
1.
Turn
OFF
your
TV
when
it
is
not
in
use.
(Do
not
unplug
the
power
cord.)
2.
If
you
have
a
Cable
box
connected,
leave
it
ON.
3.
If
you
have
a
VCR
connected,
turn
it
OFF
when
not
in
use.
(Do
not
unplug
the
power
cord.)
4.
If
you
have
more
than
one
Cable
system
in
your
area,
you
may
be
prompted
to
select
which
Cable
system's
program
data
to
download.
If
so
prompted,
please
follow
the
on-screen
instructions.
background
32
Plasma
TV
IEEE
1394
IEEE
1394
IEEE
1394
-
It's
available
to
communicate
to
either direction
and
you
can
give
and
take
a
image,
sound,
or
each
control
command
with
one
cable.
-
Only
use
the
DVHS
and
MicroMV
Camcorder
to
work
the
1394.
How
to
connect
the
1394
?To
work
the
1394,
this
3
methods
can
used.
1.
When
connecting
the
DVHS
or
the
MicroMV
Camcorder,
as
shown
in
the
(a)
or
(b)
figure,
press
the
1394
button
to
show
the
control
panel.
TV/VIDEO
MENU
VOL
CHPOWER
TV
GUIDE
(a)
TV
DVHS
<Connect
the
IEEE1394
Cable>
TV/VIDEO
MENU
VOL
CH
POWER
TV
GUIDE
<Connect
the
IEEE1394
Cable>
(b)
TV
MicroMV
Camcorder
<TV>
<TV>
<DVHS>
<MicroMV
Camcorder>
2.
When
connecting
the
DVHS
and
the
MicroMV
Camcorder,
as
shown
in
the
(c)
figure,
press
the
1394
button
to
show
the
con-
tents
panel
and
then
select
the
DVHS
or
the
MicroMV
Camcorder
to
show
the
control
panel.
TV/VIDEO
MENU
VOL
CHPOWER
TV
GUIDE
(c)
TV
DVHS
+
MicroMV
Camcorder
<Connect
the
IEEE1394
Cable>
<TV>
<DVHS>
<MicroMV
Camcorder>
When
connecting
the
1394
and
then
playing,
you
must
use
the
original
DVHS
tape.
If
not,
it
may
be
occurred
the
errors.
<Connect
the
IEEE1394
Cable>
IEEE
1394
Functions
IEEE
1394
Functions
background
Owner
's
Manual
33
IEEE
1394
IEEE
1394
functions
continued
IEEE
1394
functions
continued
DVHS
DVHS
VHow
to
play
the
DVHS
TV/VIDEO
MENU
VOL
CHPOWER TV
GUIDE
<TV>
<DVHS>
1.
Connect
the
IEEE
1394
jack
of
the
TV
to
the
IEEE
1394
jack
of
the
DVHS
with
IEEE
1394
Cable.
2.
When
watching
the
TV,
press
the
1394
button.
?
Show
the
control
panel
of
DVHS.
POWER
G
V
GG
FF FF GG
Panasonic
NV-DH2
DVHS
VSTOP
+0:00:06
*
Supported
DVHS
List
VICTOR(HM-DH35000U)
JVC(HM-DH30000U)
JVC(HM-DH40000U)
MITSUBISHI(HS-HD1100U)
MITSUBISHI(HS-HD2000U)
Hitachi(DT-DR20000)
Hitachi(DT-DRX100)
PANASONIC(NV-DH1)
PANASONIC(NV-DH2)
PANASONIC(NV-DHE20)
TOSHIBA(A-HD2000)
?
The
control
panel
of
DVHS
-Depending
on
the
connected
equipment,
marked
control
panel
may
differ.
0:00
POWER
G
V
GG
FF
FF
GG
Panasonic
NV-DH2
DVHS
VSTOP
+0:00:06
1
2
6
7
8
9
3
4
5
0:00
1.
DVHS
Company
2.
DVHS
Model
3.
Connected
Equipment
to
the
1394
4.
DVHS
Operating
Status
5.
Power
On/Off
6.
Tape
Status
?
Tape
shape
Icon
-
Tape
in
or
not
?
Lock
shape
Icon
-
Use
or
not
use
7.
DVHS
Play
Time
8.
Initializing
Play
Time
9.
DVHS
Play,
Pause,
Stop,
Search
or
Skip
(Notes:
?
Skip-
This
function
is
for
a
fast
search.
It
searches
the
program's
start
point
and
then
plays.
On
skipping,
Search
(GG,
FF),
Pause
( )
and
Play
(G)
are
displayed
on
the
Control
Panel.
In
some
models,
it's
not
available
to
operate
the
Skipping
(
FF,
GG
)
function.
background
34
Plasma
TV
IEEE
1394
G
V
GG
FF
Sony
DCR-IP45
CAM
VSTOP
+0:00:06
0:00
IEEE
1394
functions
continued
IEEE
1394
functions
continued
How
to
play
the
MicroMV
Camcorder
MicroMV
Camcorder
MicroMV
Camcorder
TV/VIDEO
MENU
VOL
CH
POWER
TV
GUIDE
<TV>
<MicroMV
Camcorder>
1.
Connect
the
IEEE 1394
jack
of
the
TV
to
the
IEEE
1394
jack
of
the
MicroMV
Camcorder
with
IEEE
1394
Cable.
2.
When
watching
the
TV,
press
the
1394
button.
?
Show
the
control
panel
of
MicroMV
Camcorder.
?
The
control
panel
of
MicroMV
Camcorder
-Depending
on
the
connected
equipment,
marked
control
panel
may
differ.
1
2
5
6
7
8
1.
MicroMV
Camcorder
Company
2.
MicroMV
Camcorder
Model
3.
Connected
Equipment
to
the
1394
4.
MicroMV
Camcorder
Operating
Status
5.
Tape
Status
?
Tape
shape
Icon
-
Tape
in
or
not
?
Lock
shape
Icon
-
Use
or
not
use
6.
MicroMV
Camcorder
Play
Time
7.
MicroMV
Camcorder
Play,
Search
or
Stop
8.
Initializing
Play
Time
*
Supported
MicroMV
Camcorder
List
SONY
MICORMV
IP-5
SONY
MICORMV
IP-45
SONY
MICORMV
IP-210
SONY
MICORMV
IP-7
SONY
MICORMV
IP-55
SONY
MICORMV
IP-220
G
V
GG
FF
Sony
DCR-IP45
CAM
VSTOP
+0:00:06
0:00
3
4
background
Owner
's
Manual
35
IEEE
1394
functions
continued
IEEE
1394
functions
continued
how
to
play
the
MicroMV
Camcorder
and
DVHS
MicroMV
Camcorder
and
DVHS
MicroMV
Camcorder
and
DVHS
1.
Synchronously,
connect
the
IEEE
1394
jack
of
the
TV
to
the
IEEE
1394
jack
of
the
DVHS
and
the
MicroMV
Camcorder
with
IEEE
1394
Cable.
2.
Press
the
/
button
to
select
device,
then
press
ENTER
button
to
play
it
.
And
then
selected
device
will
be
showed
OSD.
Panasonic
NV-DH1
CAM
DVHS
Panasonic
NV-DH1
DVHS
CAM
G V
GG
FF
Panasonic
NV-DH1
CAM
VSTOP
+0:00:06
0:00
IEEE
1394
background
36
Plasma
TV
IEEE
1394
IEEE
1394
functions
continued
IEEE
1394
functions
continued
How
to
connect
the
1394
?
When
connecting
these
3
methods,
the
1394
will
not
work
properly.
TV/VIDEO
MENU
VOL
CHPOWER
TV
GUIDE
(a)
LOOP
Connection
<Connect
the
IEEE1394
Cable>
<TV>
<DVHS>
<MicroMV
Camcorder>
<Connect
the
IEEE1394
Cable>
TV/VIDEO
MENU
VOL
CHPOWER
TV
GUIDE
(b)
Daisy
Chain
<Connect
the
IEEE1394
Cable>
<TV>
<DVHS>
<DVHS>
<Connect
the
IEEE1394
Cable>
TV/VIDEO
MENU
VOL
CH
POWER
TV
GUIDE
(c)
MicroMV
Camcorder
Daisy
Chain
<Connect
the
IEEE1394
Cable>
<TV>
<DVHS>
<Connect
the
IEEE1394
Cable>
<MicroMV
Camcorder>
or
background
Owner
's
Manual
37
TV
Guide
On
Screen
System
TV
Guide
On
Screen
TV
Guide
On
Screen
System
System
Overview
Overview
-
Your
new
TV
contains
the
TV
Guide
On
Screen
Interactive
Program
Guide.
-
The
TV
Guide
On
Screen
system
has
features
that
help
you
get
the
most
out
of
your
viewing
experience.
TV
Guide
On
Screen
Overview
The
TV
Guide
On
Screen
system
has
the
following
features:
?Eight
days
of
show
listings
(today
plus
seven
days).
?Icons
that
indicate
show
rating,
stereo,
HDTV,
new
episode,
etc.
?Intuitive
up/down/left/right
navigation
using
your
remote
control.
?Set
shows
to
Record.
?Schedule
show
Reminders.
?Search
shows
by
category
(e.g.,
Movies,
Sports,
Children,
etc.).
?Search
for
shows
based
on
keywords
or
alphabetically
by
title.
?Direct
tuning
to
a
channel.
?Show
information
while
watching
TV.
?Streamlined
System
Setup
and
default
setting
options.
?Channel
lineup
customization.
?Help
screens
while
in
the
Guide.
background
38
Plasma
TV
TV
Guide
On
Screen
System
Screen
Components
Screen
Components
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
-
The
screens
displayed
in
the
TV
Guide
On
Screen
system
share
many
of
the
same
compo-
nents,
as
shown
in
the
following
figure:
?Video
Window
-
displays
TV
video
while
the
Guide
is
displayed
?Service
Bar
-
provides
access
to
the
4
main
Guide
Services
?Current
Service
Label
-
indented
to
indicate
current
Service
displayed
?Tile
-
displays
show
title
?Highlight
-
indicates
an
active
tile
?Info
Box
-
provides
information
for
a
highlighted
item
?Info
Button
-
cycles
through
the
various
Info
Box
sizes
?Channel
Logo
-
identifies
network
?Record/Remind
Icons
-
indicates
a
show
is
set
to
Record
or
set
as
a
Reminder
?Panel
Ad
-
location
where
show-
or
product-specific
information
appears
(and
also
where
Panel
Menu
appears)
background
Owner
's
Manual
39
TV
Guide
On
Screen
System
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
?A
Panel
Menu
appears
when
the
Menu
key
is
pressed
on
a
highlighted
tile
and
additional
options
are
available.
It
also
appears
when
you
press
ENTER
on
a
show
starting
in
the
future.
?When
a
Panel
Menu
appears,
the
highlighted
tile
changes
color
to
indicate
the
Panel
Menu
relates
to
this
tile.
?The
Panel
Menu
displays
below
the
Video
Window.
?Help
is
available
for
a
displayed
Panel
Menu
by
pressing
the
INFO
button.
?The
/
button
move
between
the
options
within
the
Panel
Menu.
?The
left
and
right
arrows
move
to
adjacent
options
unless
the
highlight
is
on an
odometer,
where
these
arrows
change
the
odometer
choice.
?Pressing
ENTER
from
an
odometer
or
number
entry
box
moves
the
highlight
to
the
default
command
button
of
that
Panel
Menu,
for
example,
Schedule
Reminder.
?Pressing
ENTER
from
a
highlighted
command
button
executes
the
action
and
closes
the
Panel
Menu
(e.g.,
Schedule
Reminder,
Cancel).
?Select
Cancel
to
cancel
any
changes
and
press
ENTER
to
close
this
menu.
?Pressing
Menu
is
a
shortcut
to
Cancel.
Press
Menu
to
cancel
any
changes
and
close
the
menu.
?If
a
Panel
Menu
contains
more
menu
options
than
can
be
displayed
on
a
single
screen,
/
button
appear
at
the
top
or
bottom
of
a
menu.
Simply
scroll
down
to
access
these
options.
?
Panel
Menu
background
40
Plasma
TV
TV
Guide
On
Screen
System
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
-
Access
Listings
by
pressing
the
TV
Guide
button
on
your
remote
or
on
the
front
panel
of
your
TV.
-
Listings
is
always
the
first
Service
displayed
in
the
Guide.
-
With
Listings
highlighted,
press
the
Info
button
to
display
a
Help
screen.
Press
the
Info
button
again
to
close
the
screen.
?View
8
days
of
show
listings
?Read
show
descriptions
?Tune
directly
to
a
show
currently
airing
?Set
a
show
to
Remind
?Set
a
show
to
Record
?Lock
and
unlock
the
Video
Window
?Access
Panel
and
Channel
Ads
Use
the
/
/ /
buttons
to
move
the
highlight
within
Listings
to:
Main
Services
Main
Services
V
<
Listings
>
Notes:
There
may
be
times
when
the
TV
Guide
On
Screen
system
could
display
partial
or
no
program
list-
ings.
The
reasons
for
this
include:
?
Program
schedule
information
was
not
provided
to
TV
Guide
On
Screen.
?
The
transmission
of
the
program
listings
was
inter-
rupted.
The
phrase
"No
Listings"
will
be
replaced
with
program
information
during
the
next
transmission,
which
should
occur
within
the
next
24
hours.
Please
remember
to
turn
off
your
TV
when
not
in
use
in
order
to
receive
program
listings.
background
Owner
's
Manual
41
TV
Guide
On
Screen
System
-
Search
lets
you
find
shows
by
category
(Alphabetical,
Movies,
Sports,
Children,
Educational,
News,
Variety,
Series,
HDTV)
or
by
Keyword.
-
With
Search
highlighted,
press
the
Info
button
to
display
a
Help
screen.
Press
the
Info
button
again
to
close
the
screen.
?Category
Search
Example:
Movies
1.
From
Search,
use
the
button
to
highlight
Movies.
V<Search>
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
background
42
Plasma
TV
TV
Guide
On
Screen
System
2.
Use
the button
to
highlight
a
subcategory
(for
example,
All).
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
3.
Press
ENTER
to
display
a
list
of
all
Movies,
organized
by
date
and
time.
You
can
choose
to
set
a
recording,
a
reminder,
or
tune
to
the
channel.
4.
Highlight
a
show
and
press
ENTER
to
watch
(if
on
now)
or
the
Menu
key
to
display
the
Episode
Options
menu.
Go
to
Service
Bar
-
closes
the
menu,
changes
no
infor-
mation,
and
returns
to
the
Search
Service
Bar.
Tune
to
Channel
-
exits
the
Guide
and
tunes
to
the
chan-
nel
of
the
highlighted
show
(show
airs
in
the
future).
Note:
This
option
reads
Watch
Now
if
the
show
is
cur-
rently
airing.
Set
Recording
-
displays
the
Record
Options
menu,
from
which
you
can
set
frequency,
start
and end
time,
etc.
Set
Reminder
-
displays
the
Remind
Options
menu,
from
which
you
can
set
frequency,
when,
automatically
power
On,
and
auto-tune
the
TV.
Cancel
-
closes
the
menu,
changes
no
information,
and
returns
to
the
highlighted
show.
background
Owner
's
Manual
43
TV
Guide
On
Screen
System
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
-
Keyword
search
lets
you
enter
a
word(s)
to
look
for
a
particular
show
by
category
or
for
every
show
title
that
matches.
?
Keyword
Search
1.
Highlight
the
Keyword
navigation
label,
and
press
ENTER
button
to
display
the
Keyword
Search
menu.
2.
Highlight
New
Search,
and
press
ENTER
button.
3.
The
Search
Options
menu
is
displayed.
4.
Highlight
Category,
and
use
the
/
button
to
select
a
category
to
search
(e.g.
All,
HDTV,
Children,
Sports,
etc.).
When
finished,
use
the
button
to
highlight
Enter
Keyword.
5.
Highlight
Enter
Keyword,
and
press
ENTER.
Then
the
keyboard
is
displayed.
6.
Use
the
/
/ /
button
to
highlight
a
character,
and
press
ENTER
to
display
it.
When
complete,
high-
light
Done
and
press
ENTER.
background
44
Plasma
TV
TV
Guide
On
Screen
System
The
TV
guide
on
screen
system
stores
all
the
keywords
you
create.
To
edit
or
delete
a
keyword,
highlight
the
keyword
and
press
the
Menu
key.
A
Search
Options
menu
is
displayed.
Go
to
Service
Bar
-
closes
the
menu,
changes
no
infor-
mation,
and
returns
to
the
Search
Service
Bar.
Edit
Search
-
displays
the
keyboard,
where
you
can
change
the
keyword.
Delete
Search
-
A
Confirm
menu
is
displayed.
?Yes
-
deletes the
Search
?No
-
closes
the
panel
menu
Cancel
-
closes
the
menu,
changes
no
information,
and
returns
to
the
highlighted
show.
7.
A
list
of
all
matching
shows
for
that
keyword
is
dis-
played.
Like
the
Category
Search
Example,
you
can
highlight
a
show,
and
press
ENTER
to
display
all
airings.
You
can
then
highlight
a
specific
listing
and
press
ENTER
to
watch
(if
On
now)
or
the
Menu
key
to
display
the
Episode
Options
menu.
From
the
Episode
Options
menu,
choose
to
set
a
recording,
a
reminder,
or
tune
to
the
channel,
as
pre-
viously
described.
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
background
Owner
's
Manual
45
TV
Guide
On
Screen
System
-
Schedule
lets
you
review,
edit,
or
delete
Record
and
Remind
events
that
you
set
previously.
-
With
Schedule
highlighted,
press
the
Info
button
to
display
a
Help
screen.
Press
the
Info
button
again
to
close
the
screen.
-
An
icon
identifies
the
event
type:
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
Record
W
Once
---records
the
show
one
time
W
Regularly
,
Daily
---records
the
show
every
time
the
show
airs
on
the
same
channel
and
starts
at
the
same
time
W
Weekly
---records
the
show
each
time
the
show
airs
on
the
same
day
of
the
week,
on
the
same
channel
and
starts
at
the
same
time
W
Off
---keeps
the
show
in
the
list
but
will
not
record
this
show
until
the
frequency
is
changed.
Remind
W
Once
---sets
a
show
reminder
one
time
W
Regularly
,
Daily
---sets
a
show
reminder
every
time
the
show
airs
on
the
same
channel
and
starts
at
the
same
time
W
Weekly
---sets
a
show
reminder
each
time
the
show
airs
on
the
same
day
of
the
week,
on
the
same
channel
and
starts
at
the
same
time
W
Off
---keeps
the
show
in
the
list
but
will
not
remind
until
the
frequency
is
changed
Highlight
an
event,
and
press
the
Menu
key
for
options.
Go
to
Service
Bar
-
closes
the
menu,
changes
no
information,
and
returns
to
the
Schedule
Service
Bar.
Tune
to
channel
-
exits
the
tv
guide
on
screen
system
and
tunes
to
the
highlighted
show.
Delete
Recording
-
removes
the
recording
from
the
Schedule,
after
a
Confirm
screen.
Edit
Recording
-
opens
a
menu
from
which
you
can
change
existing
recording
information.
Set
Reminder
-
opens
a
menu
from
which
you
can
set
a
Reminder
for
the
show
(Record
is
not
cancelled).
Cancel
-
closes
the
menu,
changes
no
information,
and
returns
to
the
highlighted
show.
V
<
Schedule
>
background
46
Plasma
TV
TV
Guide
On
Screen
System
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
-
After
you
initially
complete
Guide
Setup,
you
can
make
changes
to
Guide
settings
in
the
following
areas:
?
Change
System
Settings
?
Change
Channel
Display
?
Change
Default
Options
Highlight
a
choice,
press
ENTER,
and
follow
the
on-screen
instruc-
tions.
?
Change
System
Settings
This
option
appears
after
you
have
completed
the
initial
Guide
Setup
process.
Press
ENTER
to
display
the
Confirming
Your
Settings
screen.
You
see
your
current
settings.
Choose
one
of
the
options,
press
ENTER,
and
follow
the
on-screen
instructions.
V<Setup>
With
Setup
highlighted,
press
the
Info
button
to
display
a
Help
screen.
Press
the
Info
button
again
to
close the
screen.
background
Owner
's
Manual
47
TV
Guide
On
Screen
System
Press
ENTER
to
display
the
Channel
Editor
screen.
Then,
highlight
a
channel
and
press
Menu.
A
Grid
Options
menu
is
displayed.
Highlight
Go
Back
to
Setup
to
close the
menu,
change
no
information,
and
return
to
the
Setup
Service
Bar.
Or
make
changes
and
when
finished,
press
ENTER
to
high-
light
Done.
Press
ENTER
again
to
close
the
menu
and
accept
the
changes.
Highlight
Cancel
to
close
the
menu,
change
no
information,
and
return
to
the
highlighted
channel.
?
Change
Channel
Display
Change
Channel
Display
lets
you
edit
channel
information
that
appears
in
Listings.
With
Change
Channel
Display
you
can
:
?
Re-order
the
position
or
the
channel
appears
in
Listings
?
Change
the
tune
channel
number
?
Switch
a
channel
W
On
-
the
channel
is
always
displayed
W
Off
-
the
channel
is
never
displayed
W
Auto-Hide
-
the
channel
is
only
displayed
when
program
information
is
available.
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
background
48
Plasma
TV
TV
Guide
On
Screen
System
General
Default
Options
lets
you
set
defaults
for
the
following:
?The
initial
Info
Box
size
when
the
TV
guide
on
screen
system
is
entered.
Choices
are
No,
Small,
Large,
and
Last
Used
(Default
=
Last
Used).
?The
Info
Box
size
rotation
when
the
Info
key
is
pressed
while
in
the
TV
guide
on
screen
system.
Choices
are
No
only,
Small
only,
Large
only,
No
&
Small,
No
&
Large,
Small
&
Large,
All
(Default
=
All)
?Automatic
entry
into
the
TV
guide
on
screen
system
(Auto-Guide)
when
the
TV
is
powered
On.
Choices
are
On
and
Off
(Default
=
On).
Highlight
General
Default
Options,
and
press
the
Menu
key
to
dis-
play
the
General
Default
Options
menu.
Highlight
Go
to
Service
Bar
to
close
the
menu,
change
no
infor-
mation,
and
return
to
the
Setup
Service
Bar.
When
finished,
press
ENTER
to
highlight
Done.
Press
ENTER
again
to
close
the
menu
and
accept
the
changes.
Highlight
Cancel
to
close
the
menu,
change
no
information,
and
return
to
the
highlighted
option.
?
Change
Default
Options
Change
Default
Options
lets
you
change
default
settings
in
the
following
categories:
?General
Default
Options
?Record
Defaults
?Remind
Defaults
Highlight
Change
Default
Options,
and
press
ENTER.
<General
Default
Options>
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
background
Owner
's
Manual
49
TV
Guide
On
Screen
System
<
Record
Defaults>
Record
Default
Options
lets
you
set
defaults
for
the
following:
?
When
to
start
the
record
event.
Choices
are
120
minutes
early
to
120
minutes
late,
to
On
time.
(Default
=
On
time)
?
When
to
end
the record
event.
Choices
are
120
minutes
early
to
120
minutes
late,
to
On
time.
(Default
=
On
time)
?
Recorder
choice:
Please
choose
the
VCR
only.
This
TV
does
not
provide
other
devices
with
a
recording
feature.
Highlight
Record
Defaults,
and
press
the
Menu
key
to
display
the
Record
Default
Options
menu.
Highlight
Go
to
Service
Bar
to
close the
menu,
change
no
infor-
mation,
and
return
to
the
Setup
Service
Bar.
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
<
Remind
Defaults>
Remind
Default
Options
lets
you
set
defaults
for
the
following:
?Power
On
the
TV,
if
Off,
when
a
Reminder
is
scheduled.
Choices
are
Yes
and
No.
(Default
=
No)
?Automatically
tune
the
TV
to
the
channel
(TV
must
be
On),
when
a
Reminder
is
scheduled.
Choices
are
Yes
and
No.
(Default
=
No)
?When
to
display
the
reminder
screen.
Choices
are
30
seconds
to
15
minutes
early,
to
30
seconds
to
15
minutes
late,
to
On
time.
(Default
=
1
min
early)
Highlight
Remind
Defaults,
and
press
the
Menu
key
to
display
the
Remind
Default
Options
menu.
Highlight
Go
to
Service
Bar
to
close
the
menu,
change
no
infor-
mation,
and
return
to
the
Setup
Service
Bar.
When
finished,
press
ENTER
to
highlight
Done.
Press
ENTER
again
to
close
the
menu
and
accept
the
changes.
Highlight
Cancel
to
close the
menu,
change
no
information,
and
return
to
the
highlighted
option.
background
50
Plasma
TV
TV
Guide
On
Screen
System
W
Once
---records
the
show
one
time
W
Regularly
---records
the
show
every
time
the
show
airs
on
the
same
channel
and
starts
at
the
same
time
W
Weekly
---records
the
show
each
time
the
show
airs
on
the
same
day
of
the
week,
on
the
same
channel
and
starts
at
the
same
time
W
Off
(not
cancel)
---keeps
the
show
in
the
list
but
will
not
record
this
show
until
the
frequency
is
changed
W
Cancel
(no
icon
displayed)---does
not
record
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
Record
Record
And
Remind
Features
And
Remind
Features
V<Record>
You
can
set
a
show
to
Record
in
Listings,
Search,
and
Schedule
or
change
Record
settings
for
a
show
in
Schedule.
There
are
3
ways
to
set
a
show
to
Record:
1)
Using
the
Record
Button
on
the
Remote
?
Press
the
Record
button
on
the
remote
to
record the
show
Once
with
current
default
settings
(Start
and
End
recording
On
Time).
Each
time
you
press
the
Record
button,
you
change
the record
frequency
(but
not
the
default
settings)
among
Once
(default),
Regularly,
Daily,
Weekly
and
then
Cancel.
Note:
The
proper
Record
icon
appears
on
the
show
tile,
as
the
Record
button
is
pressed.
2)
From
a
Panel
Menu
?Highlight
a
show,
and
press
Menu
to
display
the
Episode
Options
menu.
?Highlight
Set
Recording,
and
press
ENTER
to
display
the
Record
Options
menu.
?Highlight
the
Frequency
option,
and
use
the
left
and
right
arrows
to
choose
among
Once,
Regularly,
Weekly,
and
Off,
as
previously
described.
?
Recorder
choice:
Please
choose
the
VCR
only.
This
TV
does
not
provide
other
devices
with
a
recording
feature.
?Note:
Video
Window
Lock
is
operated
to
on
or
off
using
PIP
button
in
Listings
mode.
background
Owner
's
Manual
51
TV
Guide
On
Screen
System
When
finished,
press
ENTER
to
highlight
Schedule
Recording.
Press
ENTER
again
to
close the
menu.
You
see a
Record
icon
for
the
selected
frequency
next
to
the
show
title.
Highlight
Cancel
to
close the
menu,
change
no
information,
and
return
to
the
highlighted
show.
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
3)
Manual
Recording
?Highlight
the
Schedule
Service
label,
and
press
Menu
to
display
the
Schedule
Options
menu.
?Use
the
/
/ /
buttons
to
move
through
the
options.
Use
the
number
or
Use
the
/
/ /
buttons
to
change
the
infor-
mation,
as
necessary.
?Highlight
New
Manual
Recording
and
press
ENTER
to
display
the
Record
Options
menu.
?Current
information
(i.e.,
date,
start
and end
times,
channel,
input)
is
displayed.
?
Recorder
choice:
Please
choose
the
VCR
only.
This
TV
does
not
provide
other
devices
with
a
recording
feature.
background
52
Plasma
TV
TV
Guide
On
Screen
System
?Use
the
left
and
right
arrows
to
choose
between
Once,
Daily,
Weekly,
and
Off,
as
follows.
W
Once
---records
the
time,
channel,
input,
recorder
combi-
nation
one
time.
W
Daily
---records
the
time,
channel,
input,
recorder
combi-
nation
Monday
through
Friday.
W
Weekly
---records
the
time,
channel,
input,
recorder
com-
bination
once
a
week
on
this
selected
day
of
the
week
W
Off
(not
cancel)
---keeps
the
time,
channel,
input,
recorder
combination
in
the
list
without
recording
until
the
frequency
is
changed.
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
Record
Conflict
A
conflict
message
appears
for
the
following
reasons:
?
a
show
set
to
Record
overlaps
with
any
part
of
another
show
pre-
viously
set
to
Record,
?
a
show
set
to
Record
overlaps
with
a
show
previously
set
to
auto-
tune
Select
one
of
these
options:
W
record
anyway
-
this
show
will
override
an
existing
show
set
to
Record
or
auto-tune
W
don't
record
this
show
-
cancel
the
Recording
Before
a
recording
begins,
a
notification
screen
appears
if
you
are
using
a
Cable
box
and
your
TV
is
On.
At
that
time,
you
can
choose
to
start
or
cancel
recording.
If
the
TV
is
not
On,
the
recording
occurs
as
scheduled.
If
there
is
no
activity
for
3
minutes,
the
notification
screen
auto-
matically
closes
and
completes
the
highlighted
item.
When
finished,
press
ENTER
to
highlight
Schedule
Recording.
Press
ENTER
again
to
close the
menu.
You
see a
Record
icon
for
the
selected
frequency
next
to
the
show
title.
Note:
Manual
recording
is
listed
by
channel
number.
Highlight
Cancel
to
close
the
menu,
change
no
informa-
tion,
and
return
to
the
highlighted
show.
background
Owner
's
Manual
53
TV
Guide
On
Screen
System
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
V<Remind>
You
can
set
a
show
Reminder
in
Listings,
Search,
and
Schedule
or
change
Reminder
settings
for
a
show
in
Schedule.
There
are
2
ways
to
set
a
show
Reminder:
1)
From
a
Panel
Menu
?
Highlight
a
show,
and
press
Menu
to
display
the
Episode
Options
menu.
?
Highlight
Set
Reminder,
and
press
ENTER
to
display
the
Remind
Options
menu.
?Highlight
the
Frequency
option,
and
use
the
left
and
right
arrows
to
choose
between:
W
Once
---sets
a
show
reminder
one
time
W
Regularly
---sets
a
show
reminder
every
time
the
show
airs
on
the
same
channel
and
starts
at
the
same
time
W
Weekly
---sets
a
show
reminder
each
time
the
show
airs
on
the
same
day
of
the
week,
on
the
same
channel
and
starts
at
the
same
time
W
Off
---keeps
the
show
in
the
list
but
will
not
remind
until
the
frequency
is
changed
?Power
On
the
TV,
if
Off,
when
a
Reminder
is
scheduled.
Choices
are
Yes
and
No.
(Default
=
No)
?Automatically
tune
the
TV
to
the
channel
(TV
must
be
On),
when
a
Reminder
is
scheduled.
Choices
are
Yes
and
No.
(Default
=
No)
?When
to
display
the
reminder
screen.
Choices
are
30
seconds
to
15
minutes
early,
to
30
seconds
to
15
minutes
late,
to
On
time.
(Default
=
1
min
early)
When
finished,
press
ENTER
to
highlight
Schedule
Reminder.
Press
ENTER
again
to
close
the
menu.
You
see a
Remind
icon
for
the
selected
frequency
next
to
the
show
title.
Highlight
Cancel
to
close
the
menu,
change
no
information,
and
return
to
the
highlighted
show.
background
54
Plasma
TV
TV
Guide
On
Screen
System
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
2)
Manual
Reminder
?Highlight
the
Schedule
Service
label,
and
press
the
Menu
key
to
display
the
Schedule
Options
menu.
?Use
the
/
/ /
buttons
to
move
through
the
options.
Use
the
number
or
/
/ /
buttons
to
change
the
information,
as
nec-
essary.
?Highlight
New
Manual
Reminder
and
press
the
ENTER
key
to
dis-
play
the
Remind
Options
menu.
?Current
information
(i.e.,
date,
start
and
end
times,
channel,
input,
frequency,
etc.)
is
displayed.
?Highlight
the
Frequency
option,
and
use
the
/
buttons
to
choose
among
Once,
Daily,
Weekly,
and
Off,
as
follows.
W
Once
---sets
a
show
reminder
for
the
time,
channel,
input,
recorder
combination
one
time
W
Daily
---reminds
for
the
time,
channel,
input,
recorder
com-
bination
Monday
through
Friday
W
Weekly
---sets
a
show
reminder
for
the
time,
channel,
input,
recorder
combination
once
a
week
on
this
selected
day
of
the
week
W
Off
(not
cancel)
---keeps
the
time,
channel,
input,
destina-
tion
combination
in
the
list
without
reminding
until
the
frequency
is
changed
?Power
On
the
TV,
if
Off,
when
a
Reminder
is
scheduled.
Choices
are
Yes
and
No
(Default
=No).
?Automatically
tune
the
TV
to
the
channel
(TV
must
be
On),
when
a
Reminder
is
scheduled.
Choices
are
Yes
and
No
(Default
=
No).
When
finished,
press
ENTER
to
highlight
Schedule
Reminder.
Press
ENTER
again
to
close the
menu.
You
see a
Remind
icon
for
the
selected
frequency
next
to
the
show
title.
Note:
Manual
reminder
is
listed
by
channel number.
Highlight
Cancel
to
close the
menu,
change
no
information,
and
return
to
the
highlighted
show.
background
Owner
's
Manual
55
TV
Guide
On
Screen
System
Based
on
your
option
settings,
a
notification
screen
will
appear,
if
your
TV
is
On
at
the
reminder
time.
You
can
then
choose
to
hide the
reminder,
or
highlight
the
show,
and
press
ENTER
to
tune
to
the
show.
If
there
is
no
activ-
ity
for
3
minutes,
the
notification
screen
automatically
closes
and
completes
the
highlighted
item
(hide
reminders).
If
you
choose
Hide
Reminders,
the
window
closes
for
the
show
or
shows,
but
does
not
affect
other
Reminders
you
set.
Note:
If
more
than
2
reminders
are
set
for
the
same
time,
arrows
appear
on
the
Reminder
screen.
Use
the
/
buttons
to
view
the
shows.
Remind
Conflict
A
conflict
message
appears
for
the
following
reasons:
?
a
show
set
with
an
Auto-Tune
Reminder
has
the
same
start
time
as an
existing
Auto-Tune
Reminder.
?
If
you
are
using
a
cable
box,
a
show
set
with
an
Auto-
Tune
Reminder
overlaps
with
a
Recording
already
scheduled.
Select
one
of
these
options:
W
auto-tune
anyway
-
this
show
will
override
an
exist-
ing
show
set
to
auto-tune
W
proceed,
no
auto-tune
-
set
the
show
as
a
Reminder
but
do
not
auto-tune
W
don't
set
this
reminder
-
cancel
the
Reminder
TV
Guide
On
Screen
TV
Guide
On
Screen
System
continued
System
continued
background
56
Plasma
TV
Operation
Operation
Operation
-
Be
sure
to
select
the
RGB-PC/RGB-DTV
SET
source
before
operation.
(For
RGB-DTV
input
source,
Position
and
Reset
are
available.)
-
In
RGB-PC
input
source,
settings
are
available.
-
In
DVI-PC
input
source,
Position,
Size
and
Reset
are
available.
-
You
can
manually
adjust
position
and
minimize
shaking
for
the
PC
input
source.
1.
Press
the
ADJUST
button
and
then
use
/
button
to
select
POSITION,
SIZE,
or
PHASE.
2.
Press
ENTER
button
and
then
use
/
/ /
buttons
to
make
appropriate
adjustments.
?
The
PHASE
adjustment
range
is
-16
~
+16.
?
The
SIZE
adjustment
range
is
-30
~
+30.
3.
Press
ENTER
button.
?Note:
In
HDMI/DVI-PC
mode,
screen
PHASE
is
not
available.
Adjustment
for
screen
Position,
Size,
and
Phase
Adjustment
for
screen
Position,
Size,
and
Phase
Screen
Setup
for
PC
mode
Screen
Setup
for
PC
mode
1.
Press
the
ADJUST
button
and
then
use
/
button
to
select
the
RESET
option.
2.
Press
ENTER
button
and
then
use
/
button
to
select
Yes
.
3.
Press
ENTER
button
Initializing
(Reset
to
original
factory
values)
Initializing
(Reset
to
original
factory
values)
-
To
initialize
the
adjusted
values
Close
POSITION
SIZE
PHASE
RESET
Adjust
Close
POSITION
SIZE
PHASE
RESET
Adjust
Initialize
Settings
background
Owner
's
Manual
57
Operation
On-screen
Menus
Language
Selection
On-screen
Menus
Language
Selection
T
Turning
the
TV
On
urning
the
TV
On
1.
First,
connect
power
cord
correctly.
At
this
moment,
the
TV
switches
to
standby
mode.
In
standby
mode
to
turn
TV
on,
press
the
POWER,
TV/VIDEO,
CH
(
/
)
button
on
the
TV
or
press
the
POWER,
TV/VIDEO,
COMP/RGB/HDMI,
CH
(+,
-),
Number
(0
~
9)
button
on
the
TV
.
-
The
menus
can
be
shown
on
the
screen
in
the
selected
language.
First
select
your
language.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
OPTION
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Language.
3.
Press
the
button
and
then
use
/
button
to
select
your
desired
language.
From
this
point
on,
the
on-screen
menus
will
be
shown
in
the
selected
language.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Notes:
?
If
you
intend
to
be
away
on
vacation,
disconnect
the
power
plug
from
the
wall
power
outlet.
?
After
turning
on
the
TV,
it
takes
time
to
be
initialized
for
the
TV
Guide
On
Screen
System.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect
Ratio
Cinema
Caption
Caption/Text
Caption
Option
Language
Demo
ISM
Method
Low
Power
English
Espanol
Francais
MENU
CABLE
2.
Select
the
viewing
source
by
using
TV/VIDEO,
COMP/RGB/DVI
button
on
the
remote
control.
This
TV
is
programmed
to
remember
which
mode
it
was
last
set
to,
even
if
you
turn the
TV
off.
3.
When
finished
using
the
TV,
press
the
POWER
button
on
the
remote
control.
The
TV
reverts
to
standby
mode.
background
58
Plasma
TV
Operation
-
Automatically
finds
all
channels
available
through
antenna
or
cable
inputs,
and
stores
them
in
memory
on
the
channel
list.
-
Run
EZ
Scan
again
after
any
Antenna/Cable
connection
changes.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
SETUP
menu.
2.
Press
the button
and
then
use
/
button
to
select
EZ
Scan.
3.
Press
the
ENTER
button
to
begin
the
channel
search.
Allow
EZ
Scan
to
complete
the
channel
search
cycle
for
TV,
DTV,
CATV,
and
CADTV.
EZ
Scan
(Channel
Search)
EZ
Scan
(Channel
Search)
Setup
Menu
Options
Setup
Menu
Options
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
SETUP
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Manual
Scan.
3.
Press
the
button
and
then
use
/
button
to
select
TV,
DTV,
CATV,
and
CADTV.
4.
Press
the
button
and
then
use
/
button
to
select
channel
number
you
want
to
add
or
delete.
5.
Press
the
ENTER
button
to
add
or
delete
for
the
channel
number.
6.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Manual
Scan
Manual
Scan
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
CABLE
Previous
EZ
Scan
Manual
Scan
Channel
Edit
DTV
Signal
Channel
Label
Main
Input
Sub
Input
Aux.
Label
Set
ID
Select
channel
type
and
RF-channel
number.
MENU
TV
20
Notes:
?This
channel
number
is
different
from
normal
channel
showed
Channel
Edit.
?When
Cable
Box
connect
to
RF2,3,4
in
TV
Guide
Setup,
CATV,
CADTV
is
not
working
in
EZ
Scan.
background
Note:
?When
Cable
Box
connect
to
RF2,3,4
in
TV
Guide
Setup,
CATV,
CADTV
is
not
working
in
EZ
Scan.
Owner
's
Manual
59
Operation
-
Create
two
different
types
of
channel
lists
in
memory:
"Custom
list"
and
"Surf"
(Favorite)
channel
list"
from
the
default
channel
list
created
from
the
EZ
Scan
channel
search.
-
A
custom
list
can
be
created
by
toggling
each
channel
on
or
off
with
ENTER
button.
Once
a
channel
is
highlighted,
you
will
be
able
to
see
whether
the
chan-
nel
is
currently
added
or
deleted
by
referring
to
the
small
window
at
the
top-left
corner
of
the
screen.
You
can
create
your
own
Surf
channel
with
all
channels.
Use
the
SURF
button
on
the
remote
control
when
a
channel
is
highlighted
and
then
you
can
create
your
Surf
channel.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
SETUP
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Channel
Edit.
3.
Press
the
button.
You
will
now
see a
screen
filled
with
channel
numbers
and
a
preview
picture.
4.
Use
/
/ /
utton
to
select
a
channel
and
then
use
the
ENTER
button
to
add
or
delete
it.
Press
SURF
to
add
the
channel
to
the
Surf
List.
5.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to return
to
the
previous
menu.
Channel
Edit
Channel
Edit
-
Shows
how
strong
your
DTV
signal
is
and
whether
you
need
to
adjust
your
antenna
or
digital
cable
input.
The
higher
the
signal
strength,
the
less
likely
you
are
to
experience
degradation.
-
DTV
Signals:
When
input
signals
are
DTV,
CADTV,
this
function
is
available.
1.
Press
the
SIGNAL
button.
2.
View
the
on-screen
signal
strength
monitor
to
see
the
quality
of
the
signal
being
received.
?
You
can
also
check
the
DTV
Signal
strength
with
the
SETUP
menu.
DTV
Signal
Strength
DTV
Signal
Strength
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
CABLE
Previous
EZ
Scan
Manual
Scan
Channel
Edit
DTV
Signal
Channel
Label
Main
Input
Sub
Input
Aux.
Label
Set
ID
Selection
(
or
)
leads
you
to
the
channel
edit
screen.
MENU
background
60
Plasma
TV
Operation
Setup
Menu
Options
continued
Setup
Menu
Options
continued
-
Changes
the
source
so
you
can
watch
your
off-air
TV,
cable
TV,
VCR,
DVD,
or
any
other
devices
that
are
connected
to
your
TV.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
SETUP
menu.
2.
Press
the button
and
then
use
/
button
to
select
Main
Input.
3.
Press
the
button
and
then
use
/
button
to
select
the
source:
Antenna,
Cable,
Video,
Front
Video,
Component1, Component2,
RGB-DTV
(or
RGB-PC),
HDMI/DVI.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Main
Source
Selection
Main
Source
Selection
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
EZ
Scan
Manual
Scan
Channel
Edit
DTV
Signal
Channel
Label
Main
Input
Sub
Input
Aux.
Label
Set
ID
Antenna
Cable
Video
Front
Video
Component1
Component2
RGB-DTV
HDMI/DVI
MENU
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
SETUP
menu.
2.
Press
the button
and
then
use
/
button
to
select
Aux.
Label.
3.
Press
the button
and
then
use
/
button
to
select
the
source:
Video,
Front
Video,
Component1,
Component2,
RGB,
HDMI/DVI.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Aux.
Label
Aux.
Label
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
EZ
Scan
Manual
Scan
Channel
Edit
DTV
Signal
Channel
Label
Main
Input
Sub
Input
Aux.
Label
Set
ID
Video
Cable
Box
Front
Video
VCR
Component1
DVD
Component2
Set
Top
Box
RGB
PC
HDMI/DVI
Game
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
EZ
Scan
Manual
Scan
Channel
Edit
DTV
Signal
Channel
Label
Main
Input
Sub
Input
Aux.
Label
Set
ID
MENU
Selection
(
or
)
leads
you
to
the
channel
logo
screen.
-
Choose
preset
labels
for
your
channels.
-
If
a
channel
label
is
provided
on
the
signal
from
the
broadcasting
station,
the
TV
displays
a
short
name
for
a
channel
-
even
if
you
didn't
preset
a
label
for
the
channel.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
SETUP
menu.
2.
Press
the button
and
then
use
/
button
to
select
Channel
Label.
3.
Press
the
button.
You
will
now
see a
screen
filled
with
Labels
and
a
preview
screen.
4.
Use
the
CH
+/-
button
to
select
a
channel
to
Label.
5.
Use
/
/ /
button
to
select
the
appropriate
label
for
the
channel,
then
press
ENTER
button
to
set
the
Label
to
the
selected
channel.
-
If
you
press
ENTER
button,
you
will
see
the
channel
banner.
?
For
example:
Channel
Label
Setup
Channel
Label
Setup
CABLE
CABLE
CABLE
CADTV
27-1
CNN
DOLBY
DIGITAL
HD
background
Owner
's
Manual
61
Operation
-
Adjust
the
appearance
to
suit
your
preference
and
viewing
situations.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
VIDEO
menu.
2.
Press
the
button
and
then
use
/
button
to
select
the
desired
option
(Contrast,
Brightness,
Color,
Sharpness,
or
Tint
).
3.
Press
the
button
and
then
use
/
button
to
make
appropriate
adjustments.
4.
Press
EXIT
button
to return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
1.
Press
the
VIDEO
button
repeatedly
to
select
the
appearance
setup
option
as
shown
below:
Off
(your
own
settings),
Daylight,
Normal,
Night
Time,
Movie,
Video
Game,
and
Sports.
?
You
can
also
use
the
VIDEO
menu
to
adjust
EZ
Picture.
2.
Press
the
EXIT
button
to
save
and
return
to
TV
viewing.
EZ
EZ
Manual
Control
(
Manual
Control
(Off
option)
option)
-
Choose
one
of
three
automatic
color
adjustments.
Set
to
warm
to
enhance
hotter
colors
such
as
red,
or
set
to
cool
to
see
less
intense
colors
with
more
blue.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
VIDEO
menu.
2.
Press
the button
and
then
use
/
button
to
select
Color
Temperature
.
3.
Press
the
button
and
then
use
/
button
to
select
either
Cool,
Medium
or
Warm.
4.
Press
EXIT
button
to return to
TV
viewing
or
press
MENU
button
to return to
the
previous
menu.
Color
Color
T
Temperature
Control
emperature
Control
-
EZ
adjusts
the
TV
for
the best
appearance.
Select
the
preset
value
in
the
EZ
menu
based
on
the
program
category.
-
When
adjusting
Video
menu
options
(contrast,
brightness,
color,
sharpness,
tint,
and
color
temperature)
manually,
EZ
automatically
changes
to
Off.
-
Daylight,
Normal,
Night
Time, Movie,
Video
Game,
and
Sports
settings
are
preset
for
optimum
quality
at
the
factory
and
are
not
adjustable.
V
Video
Menu
Options
ideo
Menu
Options
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
EZ
Contrast
Brightness
Color
Sharpness
Tint
Color
Temperature
Video
Preset
Cool
Medium
Warm
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
EZ
Contrast
85
Brightness
50
Color
50
Sharpness
50
Tint
0
Color
Temperature
Video
Preset
MENU
R
G
CABLE
CABLE
background
62
Plasma
TV
Operation
-
Use
to
quickly
reset
all
the
Video
menu
options
to
their
original
factory
preset
values.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
VIDEO
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Video
Preset
.
3.
Press
the
button
to
reset
the
Video
menu
options
to
original
values.
V
V
ideo
Preset
ideo
Preset
SETUP
VIDEO
AUDIO
TIME
OPTION
EZ
Contrast
Brightness
Color
Sharpness
Tint
Color
Temperature
Video
Preset
Selection
(
or
)
presets
the
video
configuration.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
EZ
Contrast
Brightness
Color
Sharpness
Tint
Color
Temperature
Video
Preset
Off
On
MENU
-
XD
is
LG
Electronic's
unique
improving
technology
to
display
a
real
HD
source
through
an
advanced
digital
signal
processing
algorithm.
-
When
selecting
EZ
options
(Daylight,
Normal,
Night
Time,
Movie,
Video
Game,
and
Sports),
XD
is
automatically
change
to
On.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
menu.
2.
Press
the
button
and
then
use
/
button
to
select
XD.
3.
Press
the
button
and
then
use
/
button
to
set
On
or
Off.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return to
the
previous
menu.
XD
XD
LOCK
Previous
MENU
CABLE
CABLE
background
Owner
's
Manual
63
Operation
-
Other
languages
may
be
available
if
a
digital
signal
is
provided
by
the
broad-
casting
station.
Audio
Menu
Options
Audio
Menu
Options
1.
Press
the
SOUND
button
repeatedly
to
select
the
appropriate
sound
setup
as
shown
below:
Off
(your
own
settings),
Normal,
Stadium,
Theater,
and
Music.
?
You
can
also
adjust
EZ
Sound
in
the
AUDIO
menu.
2.
Press
EXIT
button
to
save
and
return
to
TV
viewing.
EZ
Sound
EZ
Sound
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
AUDIO
menu.
2.
Press
the
button
and
then
use
/
button
to
select
the
desired
sound
option
(Balance,
Treble,
or
Bass).
3.
Press
the
button
and
then
use
/
button
to
make
appropriate
adjustments.
4.
Press
EXIT
button
to return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Manual
Sound
Control
(
Manual
Sound
Control
(Off
option)
option)
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
AUDIO
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Audio
Language.
3.
Press
the button
and
then
use
/
button
to
select:
English,
Spanish,
or
French.
4.
Press
EXIT
button
to return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Audio
Language
Audio
Language
-
EZ
Sound
lets
you
enjoy
the best
sound
without
any
special
adjustment
because
the
TV
sets
the
appropriate
sound
options
based
on
the
program
content.
-
When
adjusting
sound
options
(treble,
bass,
and
front
surround)
manually,
EZ
Sound
automatically
switches
Off.
-
Normal,
Stadium,
Theater,
and
Music
are
preset
for
good
sound
quality
at
the
factory
and
are
not
adjustable.
-
Scans
for
changes
in
sound
level
during
commercials,
then
adjusts
the
sound
to
match
the
specified
audio
level.
SoundRite
makes
sure
that
the
volume
level
remains
consistent
whether
you
are
watching
a
commercial
or
a
regular
TV
program.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
AUDIO
menu.
2.
Press
the
button
and
then
use
/
button
to
select
EZ
SoundRite.
3.
Press
the
button
and
then
use
/
button
to
select
On
or
Off.
4.
Press
EXIT
button
to return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
EZ
SoundRite
EZ
SoundRite
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Audio
Language
EZ
SoundRite
EZ
Sound
Balance
Treble
Bass
Front
Surround
TV
Speaker
English
Spanish
French
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Audio
Language
EZ
SoundRite
EZ
Sound
Balance
Treble
Bass
Front
Surround
TV
Speaker
Off
On
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Audio
Language
EZ
SoundRite
EZ
Sound
Balance
0
Treble
50
Bass
50
Front
Surround
TV
Speaker
MENU
L
R
-
Adjust
the
sound
to
suit
your
taste
and
room
situations.
CABLE
CABLE
CABLE
background
64
Plasma
TV
Operation
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Audio
Language
EZ
SoundRite
EZ
Sound
Balance
Treble
Bass
Front
Surround
TV
Speaker
Off
3D
EchoSound
System
SRS
TruSurround
XT
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Audio
Language
EZ
SoundRite
EZ
Sound
Balance
Treble
Bass
Front
Surround
TV
Speaker
Off
On
MENU
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
AUDIO
menu.
2.
Press
the button
and
then
use
/
button
to
select
Front
Surround.
3.
Press
the
button
and
then
use
/
button
to
select
Off,
3D
EchoSound
System
or
SRS
(Sound
Retrieval
System)
TruSurround
XT..
?
3D
EchoSound
System
Creates
a
stunning
simulated
stereo
effects
from
any
mono
sound
and
a
real-
istic
three-dimensional
sound
with
a
very
wide
and
deep
sound
stage
into
stereo
sound.
?
SRS
TruSurround
XT
Takes
advantage
of
any
multi-channel
format
without
needing
to
add
extra
speakers
or
equipment.
Dialog
clarity,
bass
enrichment,
and
the
addition
of
stereo
audio
enhancement
that
produces
an
immersive
sound
experience
from
standard
stereo
material.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Front
Surround
Front
Surround
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
AUDIO
menu.
2.
Press
the button
and
then
use
/
button
to
select
TV
Speaker.
3.
Press
the button
and
then
use
/
button
to
select
On
or
Off.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
TV
Speakers
On/Of
TV
Speakers
On/Off
Setup
f
Setup
-
Turn
TV
speakers
off
if
using
external
audio
equipment.
Feature
turns
the
TV
Speakers
option
On
or
Off.
1.
Use
the
SAP
button
to
select
your
desired
MTS
mode
in
analog
signal.
Each
time
you
press
the
SAP
button,
Mono,
Stereo,
or
SAP
appear
in
turn.
?
If
other
languages
available
on
the
digital
signal,
select
them
with
the
SAP
button.
2.
Press
EXIT
button
to
save
and
return
to
TV
viewing.
Stereo/SAP
Stereo/SAP
Broadcasts
Setup
Broadcasts
Setup
-
This
TV
can
receive
MTS
stereo
programs
and
any
SAP
(Secondary
Audio
Program)
that
accompanies
the
stereo
program;
if
the
station
transmits
an
additional
sound
signal
as
well
as
the
original
one.
-
When
having
selected
Stereo
or
SAP
button
on
the
remote
control,
this
TV
can
only
receive
the
signal
in
case
that
the
TV
sta-
tion
transmits
the
proper
signals.
-
Mono
sound
is
automatically
received
if
the
broadcast
is
only
in
Mono;
even
though
Stereo
or
SAP
has
been
selected.
-
Select
Mono
if
you
want
to
listen
to
the
mono
sound
in
remote
fringe
areas
during
stereo/SAP
broadcasting.
-
Stereo
or
SAP
can
be
received
in
Analog
channel.
-
is
a
trademark
of
SRS
Labs,
Inc.
-
TruSurround
XT
technology
is
incorporated
under
license
from
SRS
Labs,
Inc.
-
Manufactured
under
license
from
Dolby
Laboratories.
"Dolby"
and
the
double-D
symbol
are
trademarks
of
Dolby
Laboratories.
CABLE
CABLE
background
Owner
's
Manual
65
Operation
T
Time
Menu
Options
ime
Menu
Options
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Auto
Clock
Manual
Clock
Off
Timer
On
Timer
Sleep
Timer
Auto
Off
Off
On
Time
Zone
Eastern
Daylight
Auto
Saving
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Auto
Clock
Manual
Clock
Off
Timer
On
Timer
Sleep
Timer
Auto
Off
Off
On
Time6:30AM
Ch.
TV
2-0
Vol
17
MENU
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Auto
Clock
Manual
Clock
Off
Timer
On
Timer
Sleep
Timer
Auto
Off
Year
----
Date--/--
Time--:--
--
MENU
-
Timer
function
operates
only
if
current
time
has
been
set.
-
Off-Timer
function
overrides
On-Timer
function
if
they
are
set
both
set
to
the
same
time.
-
The
TV
must
be
in
standby
mode
for
the
On-Timer
to
work.
-
If
you
do
not
press
any
button
within
2
hours
after
the
TV
turns
on
with
the
On
Timer
function,
the
TV
will
automatically
revert
to
standby
mode.
On/Of
On/Offf
T
Timer
Setup
imer
Setup
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
TIME
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Off
Timer
or
On
Timer.
3.
Press
the
button
and
then
use
/
button
to
select
On.
?
To
cancel
On/Off
timer
function,
select
Off.
4.
Press
the
button
and
then
use
/
button
to
set
the
hour.
5.
Press
the
button
and
then
use
/
button
to
set
the
minutes.
6.
For
only
On
timer
function
Press
the
button
and
then
use
/
button
to
select
the
channel
at
turn-on.
Press
the
button
and
then
use
/
button
to
set
the
sound
level
at
turn-on.
7.
Press
EXIT
button
to return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Auto
Clock
Setup
Auto
Clock
Setup
-
The
time
is
set
automatically
from
a
digital
channel
signal.
-
The
digital
channel
signal
includes
information
for
the
current
time
provided
by
the
broadcasting
station.
-
Set
the clock
manually,
if
the
current
time
is
set
incorrectly
by
the
auto
clock
function.
-
When
you
set
up
TV
guide
on
screen
system,
Auto
Clock
menu
is
not
selected.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
TIME
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Auto
Clock.
3.
Press
the
button
and
then
use
/
button
to
select
On.
4.
Press
the
button
and
then
use
/
button
to
select
your
viewing
area
time
zone:
Eastern,
Central,
Mountain,
Pacific,
Alaska,
or
Hawaii.
5.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Manual
Clock
Setup
Manual
Clock
Setup
-
If
current
time
setting
is
wrong,
reset
the
clock
manually.
-
When
you
set
up
TV
guide
on
screen
system,
Manual
Clock
menu
is
not
worked.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
TIME
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Manual
Clock.
3.
Press
the
button
and
then
use
/
button
to
select
either
the
year,
date,
or
time
option.
Once
selected,
use
the
/
button
to
set
the
year,
date,
and
time
options.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
CABLE
CABLE
CABLE
background
66
Plasma
TV
Operation
Auto
Of
Auto
Offf
-
If
set
to
on
and
there
is
no
input
signal,
the
TV
turns
off
automatically
after
10
minutes.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
TIME
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Auto
Off.
3.
Press
the
button
and
then
use
/
button
to
select
On
or
Off.
4.
Press
EXIT
button
to return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Sleep
Sleep
T
T
imer
imer
-
The
Sleep
Timer
turns
the
TV
off
at
the
preset
time.
Note
that
this
setting
is
cleared
when
the
TV
is
turned
off.
-
You
can
also
set
up
the
Sleep
Timer
in
the
TIME
menu.
1.
Press
the
TIMER
button
repeatedly
to
select
the
number
of
minutes.
First
the
Off
option
appears
on
the
screen,
followed
by
the
following
sleep
timer
options:
10,
20,
30,
60,
90,
120, 180,
and
240
minutes.
2.
When
the
number
of
minutes
you
want
is
displayed
on
the
screen,
press
the
ENTER
button.
The
timer
begins
to
count
down
from
the
number
of
minutes
selected.
3.
To
check
the
remaining
minutes
before
the
TV
turns
off,
press
the
TIMER
button
once.
4.
To
cancel
the
Sleep
Timer,
press
the
TIMER
button
repeatedly
to
select
Off.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Auto
Clock
Manual
Clock
Off
Timer
On
Timer
Sleep
Timer
Auto
Off Off
On
MENU
CABLE
background
Owner
's
Manual
67
Operation
Option
Menu
Features
Option
Menu
Features
Aspect
Ratio
Control
Aspect
Ratio
Control
-
Lets
you
choose
the
way
an
analog
with
a
4:3
aspect
ratio
is
displayed
on
your
TV
with
a
16:9
ratio
format.
When
you
receive
an
analog
with
a
4:3
aspect
ratio
on
your
16:9
TV,
you
need
to
specify
how
the
is
to
be
dis-
played.
-
If
you
are
viewing
a
with
a
16:9
aspect
ratio,
you
can't
use
the
Horizon
aspect
ratio
option.
-
Horizon
aspect
ratio
is
not
available
for
Component
1-2
(720p/1080i)/RGB-DTV
(720p/1080i)/HDMI/DVI-DTV
(720p/1080i)/DTV(720p/1080i)
input
source.
-
RGB-PC/DVI-PC
input
source
use
4:3
or
16:9
aspect
ratio.
-
Note:
If
a
fixed
is
displayed
on
the
screen
for
a
long
time,
that
fixed
may
become
imprinted
on
the
screen
and
remain
visible.
?
Set
By
Program
Selects the
proper
proportion
to
match
the
source's
image.
(4:3
→
4:3,
16:9
→
16:9)
?
4:3
Choose
4:3
when
you
want
to
view
a
with
an
original
4:3
aspect
ratio,
with
black
bars
appearing
at
both
the
left
and
right
sides.
?
16:9
Choose
16:9
when
you
want
to
adjust
the
horizontally,
in
a
linear
proportion
to
fill
the
entire
screen.
?
Horizon
Choose
Horizon
when
you
want
to
adjust
the
in
a
non-linear
proportion,
that
is,
more
enlarged
at
both
sides,
to
create
a
spectacular
view.
?Zoom1
Choose
Zoom
1
when
you
want
to
view
the
without
any
alteration.
However,
the
top
and
bottom
portions
of
the
will
be
cropped.
?Zoom2
Choose
Zoom
2
when
you
want
the
to
be
altered,
both
vertically
extended
and
cropped.
The
tak-
ing
a
halfway
trade
off
between
alteration
and
screen
coverage.
?
Cinema
Zoom
Choose
Cinema
Zoom
when
you
want
to
enlarge
the
in
correct
proportion.
Note:
When
enlarging
or
reducing
the
picture,
the
may
become
distorted.
You
can
adjust
the
enlarge
proportion
of
Cinema
Zoom
using
/
button.
The
adjustment
range
is
1~16.
1.
Press
the
RATIO
button
repeatedly
to
select
the
desired
format.
You
can
also
adjust
Aspect
Ratio
in
the
OPTION
menu.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect
Ratio
Cinema
Caption
Caption
/
Text
Caption
Option
Language
Demo
ISM
Method
Low
Power
MENU
CABLE
Cinema
Mode
Setup
-
Set
up
the
TV
for
the
best
appearance
for
viewing
movies.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
OPTION
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Cinema.
3.
Press
the
button
and
then
use
/
button
to
select
On
or
Off.
4.
Press
EXIT
button
to
return to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Off
On
background
68
Plasma
TV
Operation
Caption/T
Caption/Text
ext
Analog
Broadcasting
System
Captions
-
Select
a
caption
mode
for
displaying
captioning
information
if
provided
on a
program.
-
Analog
caption
displays
information
at
any
position
on
the
screen
usually
the
program's
dialog.
-
Text
displays
information,
usually
at
the
bottom
position
and
is
used
for
a
data
service,
generally
not
program
related.
-
Caption/Text,
if
provided
by
the
broadcaster,
would
be
available
for
both
digital
and
analog
channels
on
the
Antenna/Cable.
-
This
TV
is
programmed
to
remember
the
caption/text
mode
it
was
last
set
to,
when
you
turn the
power
off.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect
Ratio
Cinema
Caption
Caption
/
Text
Caption
Option
Language
Demo
ISM
Method
Low
Power
MENU
CC1
CC2
CC3
CC4
Text
1
Text
2
Text
3
Text
4
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect
Ratio
Cinema
Caption
Caption
/
Text
Caption
Option
Language
Demo
ISM
Method
Low
Power
MENU
English
Spanish
French
Digital
Broadcasting
System
Captions
-
Choose
the
language
you
want
the
DTV/CADTV
Captions
to
appear
in.
-
Languages
can
be
chosen
for
digital
sources
only
if
they
are
included
on
the
program.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
OPTION
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Caption/Text.
3.
Press
the
button
and
then
use
/
button
to
select
caption:
CC1,
CC2,
CC3,
CC4,
Text1,
Text2,
Text3,
or
Text4.
?
CAPTION
The
term
for
the
words
that
scroll
across
the
bottom
of
the
TV
screen;
usually
the
audio
portion
of
the
program
provided
for
the
hearing
impaired.
?
TEXT
The
term
for
the
words
that
appear
in
a
large
black
frame
and
almost
cover
the
entire
screen;
usually
messages
provided
by
the
broadcaster.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
OPTION
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Caption/Text.
3.
Press
the
button
and
then
use
/
button
to
select available
caption
lan-
guages:
English,
Spanish,
or
French.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
CABLE
CABLE
Caption
Caption
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
OPTION
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Caption.
3.
Press
the
button
and
then
use
/
button
to
select
On
or
Off.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect
Ratio
Cinema
Caption
Caption
/
Text
Caption
Option
Language
Demo
ISM
Method
Low
Power
MENU
Off
On
CABLE
1.
Use
the
CC
button
repeatedly
to
select
Caption
CC1,
CC2,
CC3,
CC4,
Text1,
Text2,
Text3,
or
Text4.
?
EZ
Mute
shows
the
selected
captions
option
(if
available
on
program)
when
the
TV
sound
is
muted
.2.
Press
EXIT
button
to
save
and
return
to
TV
viewing.
?
You
can
also
use
the
OPTION
menu
to
select
Caption/Text.
background
Owner
's
Manual
69
Operation
Option
Menu
Features
continued
Option
Menu
Features
continued
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect
Ratio
Cinema
Caption
Caption/Text
Caption
Option
Language
Demo
ISM
Method
Low
Power
Style
Custom
Size
A
Standard
Font Font 0
Text
Color
White
Text
Opacity
Solid
Bg
Color Black
Bg
Opacity
Solid
Edge
Type
None
Edge
Color Black
MENU
Caption
Option
Caption
Option
-
Customize
the
DTV/CADTV
captions
that
appear
on
your
screen.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
OPTION
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Caption
Option.
3.
Press
the
button
and
then
use
/
button
to
select
Custom.
4.
Use
/
button
to
customize
the
Style,
Font,
etc.,
to
your
preference.
A
pre-
view
icon
is
provided
at
the
bottom
of
the
screen,
use
it
to
see
the
caption
lan-
guage.
?
Size:
Set
the
size
the
words
will
appear
in.
?
Font:
Select
a
typeface
for
the
words.
?
Text
Color:
Choose
a
color
for
the
text.
?
Text
Opacity:
Specify
the
opacity
for
the
text
color.
?
Bg
(Background)
Color:
Select
a
background
color.
?
Bg
(Background)
Opacity:
Select
the
opacity
for
the
background
color.
?
Edge
Type:
Select
an
edge
type.
?
Edge
Color:
Select
a
color
for
the
edges.
5.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect
Ratio
Cinema
Caption
Caption/Text
Caption
Option
Language
Demo
ISM
Method
Low
Power
MENU
Demo
Demo
-
EZ
Demo
Use
to
scan
the
features
and
menu
options
available
on
your
TV.
-
XD Demo
Use
to
see
the
difference
between
XD
Demo
On
and
XD
Demo
Off.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
OPTION
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Demo.
3.
Press
the
button
and
then
use
/
button
to
select
EZ
Demo
or
XD
Demo.
4.
Press
the
button
to
start
EZ
Demo
or
XD
Demo.
Press
EXIT
button
to
stop
EZ
Demo
or
XD
Demo.
EZ
Demo
Demo
CABLE
CABLE
background
70
Plasma
TV
Operation
-
A
frozen
still
from
a
PC/video
game
displayed
on
the
screen
for
prolonged
periods
will
result
in
an
ghost
remaining;
even
when
you
change
the
image.
Avoid
allowing
any
fixed
to
remain
on
the
TV's
screen
for
a
long
period
of
time.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
OPTION
menu.
2.
Press
the button
and
then
use
/
button
to
select
ISM
Method.
3.
Press
the
button
and
then
use
/
button
to
select
either
Normal,
White
wash,
Orbiter
or
Inversion.
?
Normal
If
sticking
is
never
a
problem,
ISM
is
not
necessary
-
set
to
Normal.
?
White
wash
White
Wash
removes
permanent
images
from
the
screen.
Note:
An
excessive
permanent
may
be
impossible
to
clear
entirely
with
White
Wash.
To
return
to
normal
viewing,
press
the
any
button.
?
Orbiter
Orbiter
may
help
prevent
ghost images.
However,
it
is
best
not
to
allow
any
fixed
to
remain
on
the
screen.
To
avoid
a
permanent
on
the
screen,
the
will
move
once
per
minute:
Right
→
Right
→
Downside
→
Downside
→
Left
→
Left
→
Upside
→
Upside.
?
Inversion
Inversion
will
automatically
invert
the
plasma
display
panel
color
every
30
min-
utes.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
ISM
(Image
Sticking
Minimization)
Method
ISM
(Image
Sticking
Minimization)
Method
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect
Ratio
Cinema
Caption
Caption/Text
Caption
Option
Language
Demo
ISM
Method
Low
Power
MENU
Normal
White
Wash
Orbiter
Inversion
Option
Menu
Features
continued
Option
Menu
Features
continued
CABLE
background
Owner
's
Manual
71
Operation
1.
Press
the
ZOOM
button
in
DTV
720p,
or
1080i
modes.
2.
Use
the
/
/ /
buttons
to
select
the
screen
split
zoom
section.
3.
To
return
to
normal
viewing,
press
the
ZOOM
button
again.
Split
Zoom
(DTV
720p,
or
1080i
mode
only)
Split
Zoom
(DTV
720p,
or
1080i
mode
only)
-
Enlarges
the
with
correct
proportions.
-
When
enlarging
the
picture,
the
may
become
distorted.
Low
Power
Low
Power
-
Low
power
reduces
the
plasma
display
power
consumption.
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
OPTION
menu.
2.
Press
the
button
and
then
use
/
button
to
select
Low
power.
3.
Press
the
button
and
then
use
/
button
to
select
On
or
Off.
?
When
you
select
On,
the
screen
darkens.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to return
to
the
previous
menu.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Aspect
Ratio
Cinema
Caption
Caption
/
Text
Caption
Option
Language
Demo
ISM
Method
Low
Power
MENU
CABLE
Off
On
background
72
Plasma
TV
Operation
Lock
Menu
Options
Lock
Menu
Options
Parental
Control
can
be
used
to
block
specific
channels,
ratings
and
other
viewing
sources.
The
Parental
Control
Function
(V-Chip)
is
used
to
block
program
viewing
based
on
the
ratings
sent
by
the
broadcasting
station.
The
default
setting
is
to
allow
all
programs
to
be
viewed.
Viewing
can
be
blocked
by
the
type
of
program
and
by
the
categories
chosen
to
be
blocked.
It
is
also
possible
to
block
all
program
viewing
for
a
time
period.
To
use
this
function,
the
following
must
be
done
:
1.
Set
ratings
and
categories
to
be
blocked.
2.
Specify
a
password
3.
Enablethe
lock
V-Chip
rating
and
categories
Rating
guidelines
are
provided
by
broadcasting
stations.
Most
television
programs
and
television
movies
can
be
blocked
by
TV
Rating
and/or
Individual
Categories.
Movies
that
have been
shown
at
the
theaters
or
direct-to-video
movies
use
the
Movie
Rating
System
(MPAA)
only.
Ratings
for
Movies
previously
shown
in
theaters:
Movie
Ratings
:
?
Blocking
Off
(Permits
all
programs)
?G
(General
audience)
?PG
(Parental
guidance
suggested)
?
PG-13
(Parents
strongly
cautioned)
?R
(Restricted)
?
NC-17
(No
one
17
and
under
admitted)
?X
(Adult
only)
If
you
set
PG-13
:
G
and
PG
movies
will
be
available
,
PG-13,
R,
NC-17
and
X
will
be
blocked.
Ratings
for
Television
programs
including
made-for-TV
movies
:
?
TV-G
(General
audience)
?
TV-PG
(Parental
guidance
suggested)
?
TV-14
(Parents
strongly
cautioned)
?
TV-MA
(Mature
audience
only)
?
TV-Y
(All
children)
?
TV-Y7
(Children
7
years
older)
TV
Rating
Children:
?
Age
(applies
to
TV-Y,
TV-Y7)
?
Fantasy
Violence
(applies
to
TV-Y7)
TV
Rating
General:
?
Age
(applies
to
TV-G,
TV-PG,
TV-14,
TV-MA)
?
Dialogue
-
sexual
dialogue
(applies
to
TV-PG,
TV-14)
?
Language
-
adult
language
(applies
to
TV-PG,
TV-14,
TV-MA)
?
Sex
-
sexual
situations
(applies
to
TV-PG,
TV-14,
TV-MA)
?
Violence
(applies
to
TV-PG,
TV-14,
TV-MA)
Aux.
Block
?
Video,
Front
Video
(On,
Off)
?
Component
1,
2
(On,
Off)
?
RGB,
HDMI/DVI
(On,
Off)
background
Owner
's
Manual
73
Operation
Parental
Lock
Setup
Parental
Lock
Setup
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
LOCK
menu.
Then,
press
the
button
?
If
Lock
is
already
set,
enter
the
password
as
requested.
?
The
TV
is
set
up
with
the
initial
password
"0-0-0-0".
2.
Use
the
/
button
to
choose
from
the
following
Lock
Menu
options.
Once
the
option
is
selected,
change
the
settings
to
your
preference.
?
Lock
System:
Activates
or
disables
the
blocking
scheme
you
set
up
previ-
ously.
?
Set
Password:
Change
the
password
by
inputting
a
new
password
twice.
?
Movie
Rating
(MPAA):
Blocks
movies
according
to
the
movie
ratings
lim-
its
specified,
so
children
cannot
view
certain
movies.
You
can
set
the
rat-
ings
limit
by
blocking
out
all
the
movies
with
the
ratings
above
a
specified
level.
Keep
in
mind
that
the
movie
ratings
limit
only
applies
to
movies
shown
on
TV,
not
TV
programs,
such
as
soap
operas.
?
TV
Rating-Children:
Prevents
children
from
watching
certain
children's
TV
programs,
according
to
the
ratings
limit
set.
The
children
rating
does
not
apply
to
other
TV
programs.
Unless
you
block
certain
TV
programs
intend-
ed
for
mature
audiences
in
the
TV
Rating
-
sub
menu,
your
children
can
view
those
programs.
?
TV
Rating-General:
Based
on
the
ratings,
blocks
certain
TV
programs
that
you
and
your
family
do
not
want
to
view.
?
Aux.
Block:
Enables
you
to
select
a
source
to
block
from
the
external
source
devices
you
have
hooked
up.
3.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to
return
to
the
previous
menu.
Note:
?
If
you
ever
forget
your
password,
key
in
'7',
'7',
'7',
'7'
on
the
remote
control.
-
Set
up
blocking
schemes
to
block
specific
channels,
ratings,
and
external
viewing
sources.
-
A
password
is
required
to
gain
access
to
this
menu
if
the
Lock
System
is
turned
on.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
Lock
System
Set
Password
Block
Channel
Movie
Rating
TV
Rating-Children
TV
Rating-General
Aux.
Block
MENU
Off
On
CABLE
background
74
Plasma
TV
Operation
CableCARD
CableCARDTM
Function
Function
Cable
menu
options
Cable
menu
options
-
The
Cable
sub
menu
displays
when
inserting
the
CableCARDTM
to
the
TV.
-
The
CableCARDTM
type
is
Motorola,
Scientific
Atlanta
(SA),
or
SCM
etc.
The
OSD
(On
screen
display)
is
different
from
your
TV
according
to
your
CableCARDTM
type.
Scrambled
channel
Scrambled
channel
-
Insert
the
CableCARDTM.
If
you
do
it
at
first,
it
takes
about
1
minute
to
exchange
the
data
between
the
TV
and
the
CableCARDTM.
Then,
TV
screen
displays
as
shown
right.
-
Let
your
cable
TV
service
provider
know
CableCARDTM
ID
and
Host
ID.
-
If
your
cable
TV
service
provider
is
registered
CableCARDTM
ID
and
Host
ID,
you
can
watch
the
premium
or
high
value
channel.
-
If
you
ever
registered
to
the
cable
TV
service
provider,
you
can
watch
the
pre-
mium
or
high
value
channel
without
a
message.
-
If
the
certificate
don't
match
between
the
TV
and
the
CableCARDTM,
the
OSD
(On
screen
display)
displays
as
shown
left.
In
case
of
Scientific
Atlanta
CableCARDTM
i.e)
CableCARDTM/
Host
ID
Screen
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
CABLE
menu.
2.
Press
the button
and
then
use
/
button
to
select
your
desired
item.
3.
Press
the
button.
5.
Press
EXIT
button
to
return
to
TV
viewing.
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
CABLE
SA
CableCARDTM
Diag
Screen
SA
CableCARDTM/Host
ID
Screen
MENU
Exit
In
order
to
start
service
for
this
device,
please
contact
customer
service
at
Ph#:
1-866-303-0422
CableCARDTM(tm):
0-010-405-698-001
HOST
ID:
0-080-000-000-226
EXIT
CableCARDTM
Message
Exit
In
order
to
start
cable
service
for this
device,
please
contact
SuperVision
Cable
at
1-800-555-8888
POD
ID:
7-561-034-449-009
Host
ID:
0-100-331-784-018
EXIT
CableCARDTM
Message
Please
call
your
operator
and
report
an
invalid
CableCARDTM.
*
In
this
manual,
the
OSD
(On
Screen
Display)
may
be
different
from
your
TV's
because
it
is
just
example
to
help
the
TV
operation.
As
shown,
the
pairing
num-
ber
means
your
TV
and
CableCARDTM
ID.
For
fur-
ther
information
regarding
cable
TV
service,
contact
your
local
cable
TV
service
provider(s).
background
Owner
's
Manual
75
Operation
-
If
an
emergency
situation
occur
during
watching
the
TV,
you
can
receive
a
message
from
cable
TV
service
provider(s).
-
When
receiving
an
emergency
message,
the
message
is
displayed
on
the
screen
as
shown
below
or
the
channel
is
changed
automatically
to
a
channel
that
maintains
the
emergency
message.
The
message
automatically
disap-
peared.
Emergency
Action
Notification
Hurricane
will
be
coming!!!
Cable
Channel
List
Cable
Channel
List
Emergency
Emergency
Alert
Message
Alert
Message
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
CABLE
Prev.
EZ
Scan
Manual
Scan
Channel
Edit
DTV
Signal
Channel
Label
Main
Input
Sub
Input
Aux.
Label
Selection
(
or
)
leads
you
to
the
channel
edit
screen.
MENU
1.
If
you
enter
the
Channel
Edit
after
running
the
EZ
Scan,
you
can
see
the
cable
channel
list.
2.
Inserting
the
CableCARDTM.
Then,
the
TV
receive
a
new
cable
channel
list.
At
this
time,
it
takes
about
2~3
minutes.
(Occasionally
more
than
that
time).
Note:
?
As
data
gathering
of
CableCARDTM,
it
may
make
a
noise
by
fan
in
standby
mode.
1.
2.
3. 4.
background
76
Plasma
TV
Operation
W
WW
Watching
PIP/POP/T
atching
PIP/POP/Twin
win
-
PIP
lets
you
view
2
different
inputs
(sources)
on
your
TV
screen
at
the
same
time.
One
source
will
be
large,
and
the other
source
will
show
a
smaller
inset
image.
-
Twin
mode
splits
the
screen
into
2,
allowing
2
sources
to
be
shown
on
the
TV
screen
at
the
same
time.
Each
source
is
given
half
the
screen.
-
If
you
set
the
block/rating
for
Lock
menu
options
in
PIP/Twin
mode,
"Rating
Blocked"
doesn't
display
on
screen.
Press
the
PIP
button
to
access
the
sub
picture.
Each
press
of
PIP
changes
the
PIP
options
as
shown
below.
PIP
Off
PIP
Mode
POP
Mode
Twin
Mode
W
W
TV
Program
selection
for
PIP
TV
Program
selection
for
PIP
1.
Press
the
PIP
button.
2.
Select
the
Antenna
or
Cable
option
on
the
Sub
input
menu
or
with
the
PIP
INPUT
button.
Use
the
PIPCH+
/
PIPCH-
button
to
select
a
channel
for
the
sub
picture.
(You
can't
select
DTV
for
main
and
sub
simultaneously).
W
W
Swapping
the
PIP
Swapping
the
PIP/T
/Twin
win
Repeatedly,
use
the
SWAP
button
to
switch
the
main
and
sub
pictures.
?
Component
1,
Component
2,
RGB-PC
(or
RGB-DTV),
HDMI/DVI
input
sources
for
the
main
can't
be
used
to
swap
the
main
and
sub
pictures.
W
W
Selecting
an
Input
Signal
Source
for
PIP/T
Selecting
an
Input
Signal
Source
for
PIP/Twin
win
Use
the
PIP
INPUT
button
to
select
the
input
source
for
the
sub
picture.
Each
press
of
PIP
INPUT
button
changes
the
PIP
source.
You
can
also
select
sources
for
the
Sub
Input
in
the
SETUP
menu.
Main
Source
Available
Sub
Sources
DTV
Analog
Analog,
Video,
and
Front
Video
DTV,
Analog,
Video,
and
Front
Video
Main
Sub
Main
Sub
TV
2-0
TV
4-0
TV
6-0
Remote
Control
Remote
Control
PIP
PIP
(Picture-In-Picture)
/
POP
(Picture-In-Picture)
/
POP
/
T
/
Twin
win
background
Owner
's
Manual
77
Operation
W
W
Moving
the
PIP
Moving
the
PIP
sub
sub
In
PIP
mode,
press
the
/
/ /
button
to
move
the
sub
to
a
different
location
on
the
screen.
W
W
Adjusting
Main
and
Sub
Sizes
for
Adjusting
Main
and
Sub
Sizes
for
T
Twin
win
Use
the
/
/ /
button
to
change
main
and
sub
sizes
in
Twin
mode.
If
screen
is
adjusted
to
the
maximal
size,
the
large
screen
is
filled
with
entire
screen
vertically
as
shown.
i.e)
1.
Press
the
PIP
button
to
activate
the
POP
mode
while
in
PIP
mode.
?
Channel
selection:
Use
button
to
enlarge
the
selected
channel
being
searched
on
the
PIP
screen
to
shift
it
for
viewing
on
the
Main
screen.
?
PIP
selection:
Use
/
button
to
select
one
of
3
PIP
screen
pictures
in
POP
mode.
?
When
watching
TV
on
Main
picture,
TV
or
DTV
on
Sub
pictures
are
in
channel
scanning.
However,
when
watching
DTV
on
Main
picture,
only
TV
on
Sub
is in
channel
scanning.
2.
Press
the
EXIT
button
to
cancel
POP
mode.
W
W
POP
POP
(Picture-out-of-Picture:
Channel
Scan)
(Picture-out-of-Picture:
Channel
Scan)
-
Use
POP
to
search
the
programs
of
all
the
memorized
channels
one-by-one
on
the
3
PIP
screen
display,
(while
the
main
source
remains
the
current
channel).
The
pictures
of
all
the
programmed
channels
are
searched
with
the
3
POP
screen.
-
Notes:
?Run
EZ
Scan
channel
search
before
using
POP
mode.
?When
Sub
pictures
are
changed
from
the
TV/DTV
to
CATV/CADTV
in
POP
mode,
it
may
make
a
noise
from
the
Tuner
switch.
TV
2-0
TV
4-0
TV
6-0
background
78
Plasma
TV
Operation
3:11AM
Sophie's
Choice
Tue,
Oct
7,
2004
7:00PM
9:00PM
Caption
CC
4:3
480i
TV-PGDLSV
TV
6-0
CNBC
MONO
STEREO
BC
DF
A
G
E
4:3
16:9
Screen
Ratio
of
Input
Signal
4:3
Screen
Ratio
of
Input
Signal
16:9
Resolution
of
Input
Signal
720x480i
Resolution
of
Input
Signal
720x480p
Resolution
of
Input
Signal
1280x720p
Resolution
of
Input
Signal
1920x1080i
Multilingual
:
Input
Signal
have
over
two
Audio
infor-
mation.
Press
the
SAP
button
to
select
wanted
Audio.
Caption:
Input
Signal
have
over
one
Close
service.
Press
the
CC
button
to
select
wanted
Closed
caption.
Input
Signal
have
rating
information
.
Refer
to
the
<Lock
Menu>.
D
(Dialogue),
L
(Language),
S
(Sex),
V
(Violence),
FV
(Fantasy
Violence)
480i
480p
720p
1080i
CC
Operation:
?
Watching
TV/DTV/CATV/CADTV
?
Watching
Video,
Front
Video
?
Watching
IEEE
1394
?
In
Component1,
Component2,
RGB,
HDMI/DVI
modes,
INFO
button
is
not
working.
Function:
?
Show
the
present
screen
information.
?
On
Watching
with
the
upper
Input
signal,
press
the
INFO
button.
?
Press
the
INFO
button
or
EXIT
button
to
exit.
A:
Banner
information,
Refer
to
the
<Channel
Banner>.
B:
Program
title
C:
Day,
Month,
Year
D:
Program
start
time
E:
Program
finish
time
F:
Show
the
prosessing
rate
G:
Present
time
H:
Added
information.
Refer
to
the
icon
explanation.
Information
Information
H
background
Owner
's
Manual
79
Operation
-
Nothing
to
do
with
Caption
on/Off
using
Mute
button,
the
mode
selected
Caption/Text
is
to
be
displayed.
-
When
you
repeatedly
press
the
Mute
button,
the
screen
is
displayed
in
turn.
(Refer
to
the
lower
picture)
Note:
?
EZ
Mute
only
operates
in
DTV/Analog/Video/Front
Video/IEEE1394.
Mute
EZ
Mute
24
EZ
Mute
EZ
Mute
background
80
Plasma
TV
External
Control
Device
Setup
No.
Pin
Name
1
No
connection
2
RXD
(Receive
data)
3
TXD
(Transmit
data)
4
DTR
(DTE
side
ready)
5
GND
6
DSR
(DCE
side
ready)
7
RTS
(Ready
to
send)
8
CTS
(Clear
to
send)
9
No
Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-Wire
Configurations
(Standard
RS-232C
cable)
D-Sub
9
3
2
5
6
4
8
7
PDP
D-Sub
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3-Wire
Configurations
(Not
standard)
D-Sub
9
3
2
5
4
6
7
8
PDP
D-Sub
9
-
Connect
the
RS-232C
input
jack
to
an
external
control
device
(such
as
a
computer
or
an
A/V
control
system)
and
control
the
Monitor's functions
externally.
-
Connect
the
serial
port
of
the
control
device
to
the
RS-232C
jack
on
the
Monitor
back
panel.
-
RS-232C
connection
cables
are
not
supplied
with
the
Monitor.
T
Type
of
Connector;
D-Sub
9-Pin
Male
ype
of
Connector;
D-Sub
9-Pin
Male
RS-232C
Configurations
RS-232C
Configurations
External
Control
Device
Setup
External
Control
Device
Setup
RS-232C
Setup
RS-232C
Setup
DVI
COMPONENT2
DIGITAL
AUDIO(OPTICAL)
VIDEO
INPUT
AUDIO
INPUT
CABLE
HDMI
/
DVI(VIDEO)
Cable
ANTENNA
PC
background
Owner
's
Manual
81
External
Control
Device
Setup
Set
ID
Set
ID
Use
this
function
to
specify
a
monitor
ID
number.
Refer
to
'Real
Data
Mapping'.
See
page
82.
?
Baud
rate
:
9600
bps
(UART)
?
Data
length
:
8
bits
?
Parity
:
None
*
Use
a
crossed
(reverse)
cable.
?Stopbit:1bit
?
Communication
code
:
ASCII
code
Communication
Parameters
Communication
Parameters
1.
Press
the
MENU
button
and
then
use
/
button
to
select
the
SETUP
menu.
2.
Press
the
button
and
then
use
/
button
to
select
SET
ID.
3.
Press
the button
and
then
use
/
button
to
adjust
SET
ID
to
choose
the
desired
monitor
ID
number.
The
adjustment
range
of
SET
ID
is
1
~
99.
4.
Press
EXIT
button
to
return
to
TV
viewing
or
press
MENU
button
to return
to
the
previous
menu.
Transmission
*
[Command
1]:
First
command
to
control
the
set.
(j
or
k)
*
[Command
2]:
Second
command
to
control
the
set.
*
[Set
ID]:
You
can
adjust
the
set
ID
to
choose
desired
monitor
ID
number
in
Setup
menu.
Adjustment
range
is
1
~
99.
When
selecting
Set
ID
'0',
every
connected
the
TV
is
controlled.
Set
ID
is
indicated
as
decimal
(1~99)
on
menu
and
as
Hexa
decimal
(0x0~0x63)
on
transmission/receiving
protocol.
*
[DATA]:
To
transmit
command
data.
Transmit
'FF'
data
to
read
status
of
command.
*
[Cr]:
Carriage
Return
ASCII
code
'0x0D'
*
[
]:
ASCII
code
'space
(0x20)'
[Command1][Command2][
][Set
ID][
][Data][Cr]
T
Transmission
/
Receiving
Protocol
ransmission
/
Receiving
Protocol
OK
Acknowledgement
*
The
Monitor
transmits
ACK
(acknowledgement)
based
on
this
format
when
receiving
normal
data.
At
this
time,
if
the
data
is
data
read
mode,
it
indicates
present
status
data.
If
the
data
is
data
write
mode,
it
returns
the
data
of
the
PC
computer.
[Command2][
][Set
ID][
][OK][Data][x]
Error
Acknowledgement
*
The
Monitor
transmits
ACK
(acknowledgement)
based
on
this
format
when
receiving
abnormal
data
from
non-viable
functions
or
communication
errors.
[Command2][
][Set
ID][
][NG][Data][x]
Data
1:
Illegal
Code
2:
Not
supported
function
3:
Wait
more
time
01.
Power
k
a
0~1
02.
Input
Select
k
b
0~8
03.
Aspect
Ratio
k
c
0~15
04.
Screen
Mute
k
d
0~1
05.
Volume
Mute
k
e
0~1
06.
Volume
Control
k
f
0~64
07.
Contrast
k
g
0~64
08.
Brightness
k h
0~64
09.
Color
k
i
0~64
10.
Tint
k
j
0~64
11.
Sharpness
k k
0~64
12.
OSD
Select
k
l
0~1
13.
Remote
Control
Lock
Mode
k
m
0~1
14.
PIP/Twin
k
n
0~3
15.
PIP
Position
k
q
0~3
16.
Treble
k
r
0~64
17.
Bass
k
s
0~64
18.
Balance
k
t
0~64
19.
Color
Temperature
k
u
0~2
20.
PIP
Input
Source
k
y
0~3
21.
ISM
Method
j
p
0~2
22.
White
Wash
j
q
0~1
23.
Orbiter
Time
Setting
j
r
1~FE
24.
Orbiter
Pixel
Setting
j
s
1~A
COMMAND
1
COMMAND
2
DATA
(Hexadecimal)
25.ChannelTuning
m
a
01~87 01~87
00~FE
00~FF
26.
Channel
Add/Del
m
b
00
~
01
27.
Key
mc
COM-
MAND
2
COM-
MAND
1
DATA
0
(Hexadecimal)
DATA
1
(Hexadecimal)
DATA
2
(Hexadecimal)
DATA
3
(Hexadecimal)
Command
Reference
List
Command
Reference
List
SETUP
VIDEO
AUDIO
TIME
OPTION
LOCK
Previous
EZ
Scan
Manual
Scan
Channel
Edit
DTV
Signal
Channel
Label
Main
Input
Sub
Input
Aux.
Label
SET
ID
MENU
1
background
82
Plasma
TV
External
Control
Device
Setup
02.
Input
Select
(Command2:b)
(Main
Input)
G
To
select
input
source
for
the
Monitor.
Transmission
Data
0:
Antenna
1:
Cable
2:
Video
3:
Front
Video
4:
Component
1
5:
Component
2
6:
RGB-DTV
7:
RGB-PC
8:
HDMI/DVI
Data
0:
Set
by
program
1:
4:3
2:
16:9
3:
Horizon
4:
Zoom
1
5:
Zoom
2
6:
Cinema
Zoom
(1)
15:
Cinema
Zoom
(16)
[k][b][
][Set
ID][
][Data][Cr]
Acknowledgement
[b][
][Set
ID][
][OK][Data][x]
01.
Power
(Command2:a)
G
To
control
Power
On/Off
of
the
Monitor.
Transmission
Data
0
:
Power
Off
1:PowerOn
[k][a][
][Set
ID][
][Data][Cr]
Acknowledgement
[a][
][Set
ID][
][OK][Data][x]
*
In
a
like
manner,
if
other
functions
transmit
'FF'
data
based
on
this
format,
Acknowledgement
data
feedback
presents
status
about
each
function.
*
Real
data
mapping
0
:Step0
A
:Step10(SETID10)
F
:Step15(SETID15)
10:Step16(SETID16)
63:Step99(SETID99)
64
:
Step
100
05.
Volume
Mute
(Command2:e)
G
To
control
volume
mute
on/off.
You
can
also
adjust
mute
using
the
MUTE
button
on
remote
control.
Transmission
Data
0
:
Volume
mute
off
(Volume
on)
1
:
Volume
mute
on
(Volume
off)
[k][e][
][Set
ID][
][Data][Cr]
Acknowledgement
[e][
][Set
ID][
][OK][Data][x]
03.
Aspect
Ratio
(Command2:c)
(Main
format)
G
To
adjust
the
screen
format.
You
can
also
adjust
the
screen
format
using
the
RATIO
button
on
remote
control
or
in
the
Option
menu.
Transmission
[k][c][
][Set
ID][
][Data][Cr]
Acknowledgement
[c][
][Set
ID][
][OK][Data][x]
04.
Screen
Mute
(Command2:d)
G
To
select
screen
mute
on/off.
Transmission
Data
0
:
Screen
mute
off
(Picture
on)
1
:
Screen
mute
on
(Picture
off)
[k][d][
][Set
ID][
][Data][Cr]
Acknowledgement
[d][
][Set
ID][
][OK][Data][x]
06.
Volume
Control
(Command2:f)
G
To
adjust
volume.
You
can
also
adjust
volume
with
the
volume
buttons
on
remote
control.
Transmission
Data
Min:0~Max:64
?
Refer
to
'Real
data
mapping'
as
shown
below.
[k][f][
][Set
ID][
][Data][Cr]
Acknowledgement
[f][
][Set
ID][
][OK][Data][x]
07.
Contrast
(Command2:g)
G
To
adjust
screen
contrast.
You
can
also
adjust
contrast
in
the
Video
menu.
Transmission
Data
Min:0~Max:64
?
Refer
to
'Real
data
mapping'
as
shown
below.
[k][g][
][Set
ID][
][Data][Cr]
Acknowledgement
[g][
][Set
ID][
][OK][Data][x]
08.
Brightness
(Command2:h)
G
To
adjust
screen
brightness.
You
can
also
adjust
brightness
in
the
Video
menu.
Transmission
Data
Min:0~Max:64
?
Refer
to
'Real
data
mapping'
as
shown
below.
[k][h][
][Set
ID][
][Data][Cr]
Acknowledgement
[h][
][Set
ID][
][OK][Data][x]
background
Owner
's
Manual
83
External
Control
Device
Setup
09.
Color
(Command2:i)
G
To
adjust
the
screen
color.
You
can
also
adjust
color
in
the
Video
menu.
Transmission
Data
Min:0~Max:64
?
Refer
to
'Real
data
mapping'.
See
page
82.
[k][i][
][Set
ID][
][Data][Cr]
Acknowledgement
[i][
][Set
ID][
][OK][Data][x]
10.
Tint
(Command2:j)
G
To
adjust
the
screen
tint.
You
can
also
adjust
tint
in
the
Video
menu.
Transmission
Data
Red:0~Green:64
?
Refer
to
'Real
data
mapping'.
See
page
82.
[k][j][
][Set
ID][
][Data][Cr]
Acknowledgement
[ j
][
][Set
ID][
][OK][Data][x]
13.
Remote
Control
Lock
Mode
(Command2:m)
G
To
lock
the
remote
control
and
the
front
panel
controls
on
the
set.
Transmission
[k][m][
][Set
ID][
][Data][Cr]
Acknowledgement
Data
0:
Lock
off
1:
Lock
on
[m][
][Set
ID][
][OK][Data][x]
14.
PIP
/
POP
/
Twin
(Command2:n)
G
To
control
the
PIP
(Picture-in-Picture)/POP/Twin
picture.
You
can
also
control
the
PIP/POP/Twin
using
the
PIP
button
on
the
remote
control.
Transmission
Data
0:
PIP
off
1:
PIP
2:
POP
3:
Twin
[k][n][
][Set
ID][
][Data][Cr]
Acknowledgement
[n][
][Set
ID][
][OK][Data][x]
G
To
adjust
the
screen
sharpness.
You
can
also
adjust
sharpness
in
the
Video
menu.
Transmission
11.
Sharpness
(Command2:k)
Data
Min:
0
~
Max:
64
?
Refer
to
'Real
data
mapping'.
See
page
82.
[k][k][
][Set
ID][
][Data][Cr]
Acknowledgement
[k][
][Set
ID][
][OK][Data][x]
12.
OSD
Select
(Command2:l)
G
To
select
OSD
(On
Screen
Display)
on/off.
Transmission
[k][l][
][Set
ID][
][Data][Cr]
Acknowledgement
Data
0:
OSD
off
1:
OSD
on
[l][
][Set
ID][
][OK][Data][x]
15.
PIP
Position
(Command2:q)
G
To
select
sub
position
for PIP.
Transmission
[k][q][
][Set
ID][
][Data][Cr]
Acknowledgement
Data
0:
Right
down
on
screen
1:
Left
down
on
screen
2:
Left
up
on
screen
3:
Right
up
on
screen
[q][
][Set
ID][
][OK][Data][x]
16.
Treble
(Command2:r)
G
To
adjust
treble.
You
can
also
adjust
treble
in
the
Audio
menu.
Transmission
Data
Min:
0
~
Max:
64
?
Refer
to
'Real
data
mapping'.
See
page
82.
[k][r][
][Set
ID][
][Data][Cr]
Acknowledgement
[r][
][Set
ID][
][OK][Data][x]
18.
Balance
(Command2:t)
G
To
adjust
balance.
You
can
also
adjust
balance
in
the
Audio
menu.
Transmission
Data
Min:
0
~
Max:
64
?
Refer
to
'Real
data
mapping'.
See
page
82.
[k][t][
][Set
ID][
][Data][Cr]
Acknowledgement
[t][
][Set
ID][
][OK][Data][x]
17.
Bass
(Command2:s)
G
To
adjust
bass.
You
can
also
adjust
bass
in
the
Audio
menu.
Transmission
Data
Min:
0
~
Max:
64
?
Refer
to
'Real
data
mapping'.
See
page
82.
[k][s][
][Set
ID][
][Data][Cr]
Acknowledgement
[s][
][Set
ID][
][OK][Data][x]
background
84
Plasma
TV
External
Control
Device
Setup
19.
Color
Temperature
(Command2:u)
G
To
adjust
color
temperature.
You
can
also
adjust
color
temperature
in
the
Video
menu.
Transmission
Data
0:
Cool
1:
Medium
2:
Warm
[k][u][
][Set
ID][
][Data][Cr]
Acknowledgement
[u][
][Set
ID][
][OK][Data][x]
23.
Orbiter
Time
Setting
(Command2:r)
G
To
adjust
orbiter
operation
time
term.
Transmission
Data
Min:
1
~
Max:
FE
[ j
][r][
][Set
ID][
][Data][Cr]
Acknowledgement
[r][
][Set
ID][
][OK][Data][x]
24.
Orbiter
Pixel
Setting
(Command2:s)
G
To
adjust
pixel
number
in
orbiter
function.
Transmission
Data
Min:1~Max:A
[ j
][s][
][Set
ID][
][Data][Cr]
Acknowledgement
[s][
][Set
ID][
][OK][Data][x]
25.
Tune
Command
(Command:
m
a)
G
To
tune
channel
to
following
physical/major/minor
number
Transmission
Data
0:
Physical
channel
number
Min:
1~
Max:
0x87
Data
1,
Data
2:
Major
Channel
Number
(two
part)/
Channel
Number
(One
part)
(Data
1:
High,
Data
2:
Low)
Data
3,
Data
4:
Minor
Channel
Number
(Data3:
High,
Data4:
Low)
Data
5:
*All
data
are
transmitted
by
Hexadecimal
code
Example)
If
you
want
PIP
channel
tuned
to
ATSC
air
(standard)
30-5,
the
command
sequence
is
ma
00
1e
00
1e
00
05
82.
[m][a][
][Set
ID][
][Data0][ ][Data1][ ][Data2][
][Data3][ ][Data4][
][Data5][Cr]
[a][
][Set
ID][
][OK][Data0][Data1][Data2][Data3][Data4][x]
[a][
][Set
ID][
][NG][Data0][x]
Acknowledgement
26.
Channel
Add/Del
(Command:
m
b)
G
To
add and
delete
the
channels
Transmission
Data
0:
Channel
Delete
1:
Channel
Add
[m][b][
][Set
ID][
][Data][Cr]
[b][
][Set
ID][
][OK][Data][x]
[b][
][Set
ID][
][NG][Data][x]
Acknowledgement
27.
Key
(Command:
m
c)
G
To
send
IR
remote
key
code
Transmission
Data
Key
code:
Refer
to
page
86.
[m][c][
][Set
ID][
][Data][
][Cr]
[c][
][Set
ID][
][OK][Data][x]
Acknowledgement
20.
PIP
Input
Select
(Command2:y)
G
To
select
input
source
for
sub
in
PIP/Twin
pic-
ture
mode.
Transmission
Data
0:
Antenna
1:
Cable
2:
Video
3:
Front
Video
[k][y][
][Set
ID][
][Data][Cr]
Acknowledgement
[y][
][Set
ID][
][OK][Data][x]
21.
ISM
Method
(Command2:p)
G
To
avoid
having
a
fixed
remain
on
screen.
Transmission
Data
0:
Normal
1:
Orbiter
2:
Inversion
[ j
][p][
][Set
ID][
][Data][Cr]
Acknowledgement
[p][
][Set
ID][
][OK][Data][x]
22.
White
Wash
(Command2:q)
G
To
control
the white
wash
function
on/off.
You
can
also
adjust
white
wash
in
Option
menu.
Transmission
Data
0:
White
Wash
off
1:
White
Wash
on
[ j
][q][
][Set
ID][
][Data][Cr]
Acknowledgement
[q][
][Set
ID][
][OK][Data][x]
7
Main/Sub
6
Two/One
Part
Channel
5
Reserved
4
Reserved
3
2
1
0
Step
0
1
Main
Sub
0
1
Two
One
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
0
1
0
0
0
0
0
0
0
1
1
1
1
0
0
0
0
1
1
0
0
1
0
1
0
1
1
1
0
1
1
0
x x
0110
NTSC
Air
ATSC
cable
AT
SC
Cable_irc
AT
SC
Cable_hrc
AT
SC
Cable_std
NTSC
Cable
ATSC
Air
Reserved
...
Reserved
background
Owner
's
Manual
85
IR
Codes
G
Connect
your
wired
remote
control
to
the
Remote
Control
port
on
the
TV.
G
Output
waveform
Single
pulse,
modulated
with
37.917KHz
signal
at
455KHz
G
Configuration
of
frame
G
Repeat
code
G
Lead
code
?
1st
frame
Low
custom
code
Lead
code
High
custom
code
Data
code
Data
code
TC
Tf
T1
C0
Carrier
frequency
FCAR
=
1/TC
=
fOSC/12
Duty
ratio
=
T1/TC
=
1/3
?
Repeat
frame
C1C2C3C4C5C6C7C0C1C2C3C4C5C6C7D0D1D2D3D4D5D6D7D0D1D2D3D4D5D6D7
Repeat
code
9ms
4.5
ms
0.55
ms
9ms
2.25
ms
G
Bit
description
G
Frame
interval
:
Tf
The
waveform
is
transmitted
as
long
as
a
key
is
depressed.
?
Bit
"0"
Tf
Tf
Tf=108ms
@455KHz
0.56
ms
0.56
ms
1.12
ms
?
Bit
"1"
2.24
ms
How
to
Connect
How
to
Connect
Remote
Control
IR
Codes
Remote
Control
IR
Codes
IR
Codes
IR
Codes
background
86
Plasma
TV
IR
Codes
0B
08
C4
C5
98
79
0E
10~19
4C
1A
09
02
03
00
01
1E
AA
39
40
41
07
06
44
43
52
4D
5B
60
72
71
61
63
65
7B
0A
CB
D6
5A
D0
BF
D4
D5
D7
C6
76
77
AF
70
96
87
B0
BA
B1
BD
8F
8E
B2
B3
A9
R/C
Button
R/C
Button
R/C
Button
(Power
On/Off)
Discrete
IR
Code
(Only
Power
On)
Discrete
IR
Code
(Only
Power
Off)
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
Discrete
IR
Code
(TV
Input
Selection)
Discrete
IR
Code
(Video
Input
Selection)
Discrete
IR
Code
(Front
Video
Input
Selection)
Discrete
IR
Code
(Component1
Input
Selection)
Discrete
IR
Code
(Component2
Input
Selection)
Discrete
IR
Code
(RGB-PC
Input
Selection)
Discrete
IR
Code
(RGB-DTV
Input
Selection)
Discrete
IR
Code
(HDMI/DVI
Input
Selection)
Discrete
IR
Code
(Only
4:3
Mode)
Discrete
IR
Code
(Only
16:9
Mode)
Discrete
IR
Code
(Only
Zoom1
Mode)
Discrete
IR
Code
(Channel
Search)
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
R/C
Button
Code
(Hexa)
Function
Note
TV/VIDEO
MODE
POWER
POWER
ON
POWER
OFF
COMP/RGB/HDMI
RATIO
TIMER
Number
Key
0~
9
-
(Dash)
FLASHBK
MUTE
VOL
+
VOL
-
CH+
CH-
SURF
INFO
CC
D
E
F
G
ENTER
MENU
SOUND
VIDEO
EXIT
PIP
PIPCH
-
PIPCH
+
PIP
INPUT
SWAP
FREEZE
ZOOM
SAP
ADJUST
TV
VIDEO
Front
Video
COMPONENT
1
COMPONENT
2
RGB-PC
RGB-DTV
HDMI/DVI
Ratio
4:3
Ratio
16:9
Ratio
Zoom
POP
SIGNAL
1394
PLAY
PAUSE
STOP
REC
REW
FF
GOTOPREV
GOTONEXT
TV
GUIDE
background
Owner
's
Manual
87
Programming
the
Remote
G
The
remote
control
is
a
multi-brand
or
universal
remote
control.
It
can
be
programmed
to
operate
most
remote-controllable
devices
of
other
manufacturers.
Note
that
the
remote
control
may
not
control
all
models
of
other
brands.
Programming
a
code
into
a
remote
mode
Programming
a
code
into
a
remote
mode
Programming
the
Remote
Programming
the
Remote
1.
Test
your
remote
control.
To
find
out
whether
your
remote
control
can
operate
the
component
without
programming,
turn
on
the
component
such
as
a
VCR
and
press
the
corresponding
MODE
button
(VCR)
on
the
remote
control,
while
pointing
at
the
component.
Test
the
POWER
and
CH
+/-
buttons
to
see
if
the
component
responds
properly.
If
not,
the
remote
requires
programming
to
operate
the
device.
2.
Turn
on
the
component
to
be
programmed,
then
press
the
corresponding
MODE
button
on
the
remote
control.
3.
Press
the
MENU
and
MUTE
buttons
simultaneously,
the
remote
control
is
ready
to
be
programmed
for
the
code.
4.
There
are
two
ways
to
find
the
right
code
for
the
component.
A.
If
you
press
the
CH
+/-
buttons
repeatedly,
the
codes
will
change
one
at-a-time.
Press
the
POWER
button
after
each
code
change.
If
the
right
code
is
found,
the
device
will
turn
off.
B.
Enter
a
code
number
using
the
number
buttons
on
the
remote.
Programming
code
numbers
for
the
corresponding
component
can
be
found
on
the
following
pages.
Again,
if
the
code
is
correct,
the
device
will
turn
off.
5.
Press
the
MENU
button
to
store
the
code.
6.
Test the
remote
control
functions
to
see
if
the
component
responds
properly.
If
not,
repeat
from
step
2.
background
88
Plasma
TV
Programming
Codes
Programming
Codes
Programming
Codes
VCRs
VCRs
CA
CATV
TV
AIWA
034
AKAI
016 043 046
124
125 146
AMPRO
072
ANAM
031
033
103
AUDIO
DYNAMICS
012 023 039 043
BROKSONIC
035 037
129
CANON
028
031
033
CAPEHART
108
CRAIG
003 040
135
CURTIS
MATHES
031
033
041
DAEWOO
005 007 010 064
065
108
110
111
112 116 117 119
DAYTRON
108
DBX
012 023 039 043
DYNATECH
034 053
ELECTROHOME
059
EMERSON
006 017 025 027
029
031
034 035
036 037 046
101
129
131
138 153
FISHER
003 008 009 010
FUNAI
034
GE
031
033 063 072
107 109 144 147
GO
VIDEO
132 136
HARMAN
KARDON
012 045
HITACHI
004 018 026 034
043 063
137 150
INSTANTREPLAY
031
033
JCL
031
033
JCPENNY
012 013 015 033
040 066
101
JENSEN
043
JVC
012
031
033 043
048 050 055 060
130 150 152
KENWOOD
014 034 039 043
047 048
LG
(GOLDSTAR)
001
012 013 020
101
106
114
123
LLOYD
034
LXI
003 009 013 014
017 034
101
106
MAGIN
040
MAGNAVOX
031
033 034
041
067 068
MARANTZ
012
031
033 067
069
MARTA
101
MATSUI
027 030
MEI
031
033
MEMOREX
003 010 014
031
033 034 053 072
101
102 134 139
MGA
045 046 059
MINOLTA
013 020
MITSUBISHI
013 020 045 046
049
051
059
061
151
MTC
034 040
MULTITECH
024 034
NEC
012 023 039 043
048
NORDMENDE
043
OPTONICA
053 054
PANASONIC
066 070 074 083
133 140 145
PENTAX
013 020
031
033
063
PHILCO
031
034 067
PHILIPS
031
033 034 054
067
071
101
PILOT
101
PIONEER
013
021
048
PORTLAND
108
PULSAR
072
QUARTZ
011
014
QUASAR
033 066 075
145
RCA
013 020 033 034
040
041
062 063
107 109 140 144
145 147
REALISTIC
003 008 010 014
031
033 034 040
053 054
101
RICO
058
RUNCO
148
SALORA
014
SAMSUNG
032 040
102 104
105 107 109
112
113 115
120 122
125
SANSUI
022 043 048
135
SANYO
003 007 010 014
102 134
SCOTT
017 037
112
129
131
SEARS
003
00
009
010 013 014 017 020
031
042 073
081
101
SHARP
031
054
149
SHINTOM
024
SONY
003 009
031
052
056 057 058 076
077 078
149
SOUNDESIGN
034
STS
013
SYLVANIA
031
033 034 059
067
SYMPHONIC
034
TANDY
010 034
TATUNG
039 043
TEAC
034 039 043
TECHNICS
031
033 070
TEKNIKA
019
031
033 034
101
THOMAS
034
TMK
006
TOSHIBA
008 013 042 047
059 082
112
131
TOTEVISION
040
101
UNITECH
040
VECTOR
RESEARCH
012
VICTOR
048
VIDEO
CONCEPTS
012 034 046
VIDEOSONIC
040
WARDS
003 013 017 024
031
033 034 040
053 054
131
YAMAHA
012 034 039 043
ZENITH
034 048 056
058 072 080
101
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
ABC
003 004 039 042
046 052 053
AJIN
112
ANTRONIK
014
ARCHER
005 007 014 024
CABLE
STAR
026
CENTURION
092
CENTURY
007
CITIZEN
007
COLOUR
VOICE
065 090
COMBANO
080
081
COMTRONICS
019 030
DIAMOND
023
EAGLE
020 030 040
EASTERN
057 062 066
ELECTRICORD
032
GE
072
GEMINI
008 022 025 054
GI
052 074
GOLDEN
CHANNEL
030
HAMLIN
049 050 055
HITACHI
052 055
HOSPITALITY
070 077
JERROLD
002 003 004 008
009 010 052 069
074
LG
(GOLDSTAR)
001
106
101
005
M-NET
037
MACOM
033
MAGNAVOX
010 012 064 079
MEMOREX
100
MOVIE
TIME
028 032
NSC
015 028 038
071
073
OAK
016
031
037 053
PANASONIC
044 047
PARAGON
100
PHILIPS
006 012 013 020
065 085 090
PIONEER
034
051
052 063
076
POST
NEWS
WEEK
016
PRUCER
059
PTS
011
048
071
072
073 074
PULSAR
100
RCA
047
REGAL
049 050
REGENCY
057
REMBRANT
025
RK
091
SAMSUNG
102 107
030 068
SCIENTIFIC
ATLANTA
003
011
041
042
043 045 046
SHERITECH
022
SIGNAL
030
SIGNATURE
052
SL
MARX
030
SPRUCER
047 078
STARCOM
002 004 008 009
STARGATE
008 030
SYLVANIA
067
TADIRAN
030
TAEKWANG
110
TAIHAN
105
TANDY
017
TEXSCAN
029 067
TOCOM
039 040 056
TOSHIBA
100
UNIKA
007 014 024
UNITED
CABLE
004 053
UNIVERSAL
005 007 014 024
026 027 032 035
VIEWSTAR
012 015 018 086
087 088 089
ZENITH
100
114
060 093
background
Owner
's
Manual
89
Programming
Codes
Audio
Audio
APEX
DIGITAL
022
DENON
020 014
GE
005 006
HARMAN
KARDON
027
JVC
012
LG
001
010 016
025
MAGNAVOX
013
MARANTZ
024
MITSUBISHI
002
NAD
023
ONKYO
008 017
PANASONIC
003 009
PHILIPS
013
PIONEER
004 026
PROCEED
021
PROSCAN
005 006
RCA
005 006
SAMSUNG
011
015
SONY
007
THOMPSON
005 006
TOSHIBA
019 008
YAMAHA
009 018
ZENITH
010 016 025
DVD
DVD
ALPHASTAR
DSR
123
AMPLICA
050
BIRDVIEW
051
126 129
BSR
053
CAPETRONICS
053
CHANNEL
MASTER
013 014 015 018
036 055
CHAPARRAL
008 009 012 077
CITOH
054
CURTIS
MATHES
050
145
DRAKE
005 006 007 010
011
052
112 116
141
DX
ANTENNA
024 046 056 076
ECHOSTAR
038 040 057 058
093 094 095 096
097 098 099
100
122
ELECTRO
HOME
089
EUROPLUS
114
FUJITSU
017
021
022 027
133 134
GENERAL
INSTRUMENT
003 004 016 029
031
059
101
HITACHI
139 140
HOUSTON
TRACKER
033 037 039
051
057
104
HUGHES
068
HYTEK
053
JANIEL
060
147
JERROLD
061
KATHREIN
108
LEGEND
057
LG
001
LUTRON
132
LUXOR
062
144
MACOM
010 059 063 064
065
MEMOREX
057
NEXTWAVE
028
124 125
NORSAT
069 070
PACE SKY
SATELLITE
143
PANASONIC
060
142
PANSAT
121
PERSONAL
CABLE
117
PHILIPS
071
PICO
105
PRESIDENT
019
102
PRIMESTAR
030
110
111
PROSAT
072
RCA
066
106
REALISTIC
043 074
SAMSUNG
123
SATELLITE
SERVICE
CO
028 035 047 057
085
SCIENTIFIC
ATLANTA
032
138
SONY
103
STARCAST
041
SUPER
GUIDE
020
124 125
TEECOM
023 026 075 087
088 090
107 130
137
TOSHIBA
002
127
UNIDEN
016 025 042 043
044 045 048 049
078 079 080 086
101
UNIDEN
135 136
VIEWSTAR
115
WINEGARD
128 146
ZENITH
081
082 083 084
091
120
HDSTB
HDSTB
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
AIWA
014 028 070
096
125 129 139
229
230
AKAI
163
ANAM
003 014 017 023
059
106 189
216
217 235 236
BURMECTER
252
CARVER
086
CLARION
199
DAEWOO
027 053 060
084
102 148 198
221
DENON
015 075
130
143
FANTASIA
071
FINEARTS
022
FISHER
089 099
LG(GOLDSTAR)
001 021
024 029
087
107 108
110
190
191
192
210
211
212 239
HAITAI
034 035
188
222
HARMAN/KARDON
068
INKEL
037 058 062 069
078 079 095
121
122 149 150
151
152 153 154 155
157 158 159
160
189
207 222 224
225 226 227 243
247
JVC
004 013
141
KEC
185 186 187
KENWOOD
038 050 067 089
170
171
197
206
215 222
KOHEL
030
NAD
045 046
LOTTE
014 016 036 098
100 172 173 174
175 176 177 178
179 180
181
183
201
202 208 213
214 219 223 232
238 240
LXI
103
MAGNAVOX
111
MARANTZ
002 018 020 025
034
041 081
090
097
112
MCINTOSH
049
MCS
104
MEMOREX
107
NAD
046
ONKYO
013 040
041
047
048 056 057
132
133 140
OPTIMUS
158
PANASONIC
007 033 064
113
142
220
241 251
PENNEY
104
PHILIPS
026
112
143
253
PIONEER
039 042 043 063
065
091
093 094
115
123 127
250
QUASAR
113
RCA
080
RCX
092
REALISTIC
103 106
SAMSUNG
124 145 146 182
193 194 195
203
204 244 245 246
SANSUI
011
135 138 144
SANYO
019 083 234
SCOTT
106 186
SHARP
031
032
051
052
072 082
117 119
156 184 199
200
206 209
SHERWOOD
005 006
158
SONY
044 045
109
114
118
126
248 249
TAEKWANG
012 020 073 074
076 077
105
161
162 163 164 165
166 167 168 169
205
231
233 242
254
TEAC
010 085
106 136
185 187
237
TECHNICS
101
113
128 134
147
218
TOSHIBA
137
THE
061
VICTOR
088
131
WARDS
089
YAMAHA
054 055 066 092
199
Brand
Codes
Brand
Codes
Brand
Codes
Brand
Codes
background
90
Plasma
TV
Troubleshooting
Checklist
No
output
from
one
of
the
speakers
?
Adjust
Balance
in
the
AUDIO
menu.
(Refer
to
p.63)
Unusual
sound
from
inside
the
TV
?
A
change
in
ambient
humidity
or
temperature
may
result
in
an
unusual
noise
when
the
plasma
display
is
turned
on
or
off
and
does
not
indicate
a
fault
with
the
TV.
No
&
No
sound
?
Check
whether
the
TV
is
turned
on.
?
Is
the
power
cord
inserted
into
wall
power
outlet?
?
Test
the
wall
power
outlet,
plug
another
product's
power
cord
into
the
outlet
where
the
TV's
power
cord
was
plugged
in.
No
or
poor
color
or
poor
?
Select
Color
in
the
Video
menu
and
press
the
VOLUME
(G)
button.
(Refer
to
p.61)
?
Keep
a
sufficient
distance
between
the
TV
and
the
VCR.
?
Activate
any
function
to
restore
the
brightness
of
the
picture.
(If
still
is
on
the
screen
for
more
than
5
minutes,
the
screen
gets
dark.)
The
remote
control
doesn't
work
?
Check
to
see
if
there
is
any
object
between
the
TV
and
the
remote
control
causing
obstruction.
?
Are
batteries
installed
with
correct
polarity
(+
to
+,
-
to
-)?
(Refer
to
p.10)
?
Correct
remote
operating
mode
set:
TV,
VCR
etc.?
?
Install
new
batteries.
(Refer
to
p.10)
OK
&
No
sound
?
Press
the
VOLUME
(G)
button.
?
Sound
muted?
Press
MUTE
button.
appears
slowly
after
switching
on
?
This
is
normal,
the
is
muted
during
the
TV
startup
process.
Please
contact
your
service
center,
if
the
has
not
appeared
after
five
minutes.
Horizontal/vertical
bars
or
shaking
?
Check
for
local
interference
such
as
an
electrical
appliance
or
power
tool.
T
Troubleshooting
Checklist
roubleshooting
Checklist
background
Owner
's
Manual
91
Maintenance
1.
Here's
a
great
way
to
keep
the
dust
off
your
screen
for
a
while.
Wet
a
soft
cloth
in
a
mixture
of
lukewarm
water
and
a
little
fabric
softener
or
dish
washing
detergent.
Wring
the
cloth
until
it's
almost
dry,
and
then
use
it
to
wipe
the
screen.
2.
Make
sure
the
excess
water
is
off
the
screen,
and
then
let
it
air-dry
before
you
turn
on
your
TV.
To
remove
dirt
or
dust,
wipe
the
cabinet
with
a
soft,
dry,
lint-free
cloth.
Please
be
sure
not
to
use a
wet
cloth.
If
you
expect
to
leave
your
TV
dormant
for
a
long
time
(such
as
a
vacation),
it's
a
good
idea
to
unplug
the
power
cord
to
protect
against
possible
damage
from
lightning
or
power
surges.
-
Early
malfunctions
can
be
prevented.
Careful
and
regular
cleaning
can
extend
the
amount
of
time
you
will
have
your
new
TV.
Be
sure
to
turn the
power
off
and
unplug
the
power
cord
before
you
begin
any
cleaning.
Cleaning
the
Screen
Cleaning
the
Screen
Cleaning
the
Cabinet
Cleaning
the
Cabinet
Extended
Extended
Absence
Absence
Maintenance
Maintenance
background
92
Plasma
TV
Specification
?
The
specifications
shown
above
may
be
changed
without
prior
notice
for
quality
improvement.
Product
Specifications
Product
Specifications
MODELS
1366
x
768
(Dot)
AC100-240V
~
60Hz
NTSC-M,
ATSC
VHF2~13,UHF14~69,CATV1~135,CADTV1~135.DTV2~69
75Ω
16,770,000
(256
steps
of
each
R,
G
and
B)
32
~
104°F
(0
~
40°C)
Less
than
80%
6561
feet
(2000m)
55.2
/
1402
31.4
/
798.5
11.9
/
302.5
122
/
55.3
67.24
/
1708
36.6
/
931
12.6
/
320.7
189.2
/
85.8
Width
(inches
/
mm)
Height
(inches
/
mm)
Depth
(inches
/
mm)
Weight
(pounds
/
kg)
Resolution
Power
requirement
Television
System
Program
Coverage
External
Antenna
Impedance
Color
Operating
Temperature
Range
Operating
Humidity
Range
Maximum
Elevation
DU-50PY10
DU-60PY10
background
Owner
's
Manual
93
Notes
Notes
background
94
Plasma
TV
Notes
Notes
background
Your
LG
Plasma
TV
will
be
repaired
or
replaced
in
accordance
with
the
terms
of
this
warranty,
at
LGE's
option,
if
it
proves
to
be
defective
in
material
or
workmanship
under
normal
use,
during
the
warranty
period
("Warranty
Period")
listed
below,
effective
from
the
date
("Date
of
Purchase")
of
original
consumer
purchase
of
the
product.
This
war-
ranty
is
good
only
to
the
original
purchaser
of
the
product
and
effective
only
when
used
in
the
United
States,
includ-
ing
Alaska,
Hawaii,
and
U.S.
Territories.
CONCERNING
PIXEL
FUNCTIONALITY:
Your
Plasma
TV
contains
about
one
million
individual
pixels.
Plasma
TV
typically
contain
a
small
number
of
pixels
that
do
not
function
normally.
Your
display
has
been
inspected
and
is
in
compliance
with
manufacturer's
specifications,
indicating
that
any
pixel
defects
do
not
effect
the
operation
or
use
of
your
display.
THIS
WARRANTY
IS
IN
LIEU
OF
ANY
OTHER
WARRANTY,
EXPRESS
OR
IMPLIED,
INCLUDING
WITHOUT
LIMITATION,
ANY
WARRANTY
OF
MERCHANTABILITY
OR
FITNESS
FOR
A
PARTICULAR
PURPOSE.
TO
THE
EXTENT
ANY
IMPLIED
WARRANTY
IS
REQUIRED
BY
LAW,
IT
IS
LIMITED
IN
DURATION
TO
THE
EXPRESS
WARRANTY
PERIOD
ABOVE.
NEITHER
THE
MANUFACTURER
NOR
ITS
U.S.
DISTRIBUTOR
SHALL
BE
LIABLE
FOR
ANY
INCIDENTAL,
CONSEQUENTIAL,
INDIRECT,
SPECIAL,
OR
PUNITIVE
DAMAGES
OF
ANY
NATURE,
INCLUDING
WITHOUT
LIMITATION,
LOST
PROFITS,
LOST
OR
CORRUPTED
PROGRAMMING
OR
DATA,
OR
ANY
OTHER
DAMAGE
WHETHER
BASED
IN
CONTRACT,
TORT,
OR
OTHERWISE.
Some
states
do
not
allow
the
exclusion
or
limitation
of
incidental
or
consequential
damages
or
limitations
on
how
long
an
implied
warranty
lasts,
so
the
above
exclusion
or
limitation
may
not
apply
to
you.
This
warranty
gives
you
specific
legal
rights
and
you
may
also
have
other
rights
that
vary
from
state
to
state.
WARRANTY
PERIOD:
LABOR
and
PARTS:
2
YEARS
from
the
Date
of
Purchase.
Your
unit
will
be
repaired
or
replaced
with
a
new,
substitute
model
or
factory
reconditioned
unit,
at
LGE's
option.
If
repaired,
parts
used
in
the
repair
may
be
new
or
remanufac-
tured.
Replacement
Units
and
Repair
Parts
are
warranted
for
the
remaining
portion
of
the
original
unit's
warranty
period.
EFFECTIVE
DATE
OF
WARRANTY:
Your
warranty
period
begins
on
the
date
of
sale
to
the
original
consumer/end
user.
KEEP
THE
DEALER'S
DATED
BILL
OF
SALE
OR
PROOF
OF
DELIVERY
as
evidence
of
the
purchase
date.
You
will
be
required
to
submit
a
legible
copy
of
your
bill
of
sale
or
proof
of
delivery
when
requesting
warranty
service.
HOW
SERVICE
IS
HANDLED:
In-Home
Service:
Please
retain
dealer's
dated
bill
of
sale
or
delivery
ticket
as
evidence
of
the
Date
of
Purchase
for
proof
of
warranty,
and
submit
a
copy
of
the
bill
of
sale
to
the
ser-
vice
person
at
the
time
warranty
service
is
pro-
vided.
Please
call
1-201-816-2000
to
locate
your
nearest
LGE
Authorized
Service
Center.
Visit
our
website
at:
http://www.lgservice.com
IMPORTANT:
Please
fill
out
and
mail
in
your
Product
Registration
Card
or
go
to
www.lgservice.com
to
register
your
product
online.
This
information
will
allow
us
to
reach
you
promptly
should
we
discover
a
safety
or
reliability
prob-
lem
that
could
affect
you.
background
TO
CONTACT
THE
LGE
CUSTOMER
SERVICE
CENTER
BY
MAIL:
LGE
Customer
Interactive
Center
P.O.
Box
240007
201
James
Record
Road
Huntsville,
Alabama
35824
http://www.lgservice.com
FOR
SERVICE:
Before
you
call
for
warranty
service,
check
your
operating
guide
--
you
may
avoid
a
service
call.
For
warranty
service
information,
please
contact
the
LGE
Customer
Interactive
Center
telephone
number.
When
calling
for
service,
please
have
your
product
model
number,
serial
number
and
the
date
of
pur-
chase
or
the
date
of
original
installation
available.
If
a
replacement
unit
is
required,
under
some
circumstances
you
may
be
asked
to
provide
a
reserve
deposit
to
the
LGE
Service
Center
against
a
credit
card
number
as
surety
for
advanced
shipment.
Your
credit
card
will
not
be
charged
if
you
return
the
defective
unit
within
10
working
days.
If
a
replacement
unit
is
received,
please
use
the
carton
and
packaging
from
that
unit
in
returning
the
defective
unit
to
the
LGBrand
Service
Center.
Parts
and
service
in
accordance
with
the
LGE
warranty
are
LGE's
responsibility
and
will
be
provided
without
charge.
Other
service
requirements
will
be
at
the
owner's
expense.
If
you
have
problems
in
obtaining
satisfactory
warranty
service,
write
or
call
the
LGE
Customer
Interactive
Center.
Service
may
be
provided
by
independently
owned
and
operated
service
organizations.
To
assure
proper
credit
and
avoid
unnecessary
charges,
you
must
obtain
an
LGE
Return
Authorization
before
returning
any
product
to
the
LGE
Service
Center.
Contact
the
Customer
Interactive
Center
for
details.
CUSTOMER
INTERACTIVE
CENTER
NUMBERS:
To
obtain
customer
assistance,
product
information
or
Dealer
or
Service
locations
Call
1-201-816-2000
24
hours
a
day,
365
days
per
year
THIS
LIMITED
WARRANTY
DOES
NOT
APPLY
TO:
The
cost
of
repair
or
replacement
under
these
excluded
circumstances
shall
be
borne
by
the
consumer.
damage
caused
in
shipping
or
transit
service
required
as
a
result
of
improper
installation,
including
incorrect
or
insufficient
AC
supply
(please
consult
the
owner's
manual
for
power
supply
requirements)
installation
or
repair
of
antenna
systems,
cable
con-
verters,
cable
company
supplied
equipment,
or
other
components
in
a
video
system
set-up
or
adjustment
on
consumer
controls,
or
damage
caused
by
improper
adjustments
damage
caused
by
other
system
components
any
panel
that
has
been
modified
or
incorporated
into
any
other
product
replacement
of
batteries
on
the
remote
control.
damage
(including
cosmetic
damage),
failure,
loss
or
personal
injury
due
to
misuse,
abuse,
negli-
gence,
improper
maintenance
or
storage,
or
to
acts
of
nature
or
other
causes
beyond
our
control.
(Causes
beyond
our
control
include
but
are
not
lim-
ited
to
lightning
strike,
power
surges,
power
out-
ages
and
water
damage.)
burn-in
repair
or
replacement
of
warranted
parts
by
other
than
LGE
authorized
service
centers.
units
purchased
or
serviced
outside
of
the
coverage
area.
product
where
the
original
factory
serial
numbers
have
been
removed,
defaced
or
changed
in
any
way.
product
sold
and
labeled
as
"as
is,
where
is"
or
sim-
ilar
disclaimer.
P/NO
:
3828VA0479H
(3828VB0002L)
b

Specifications
