Instruction Manual
( For Household Use Only / Warranty Included )
| H-100S Series
02
01 You should read <Safety Precautions>
02 You should follow <Safety Precautions>
03 Precautions are classified as follows.
Warning
Violating the labeling requirement, may cause serious injury or death.
Safety Precautions
CONTENS
DO NOT PLUG IN NOR UNPLUG WITH WET HANDS.
It may cause electric shock or injury.
DO NOT USE OTHER THAN 230 V 240 V AC.
It may cause electric shock, fire or abnormal performance. If the voltage is
different, it may shorten the life of the motor or cause a failure.
16
17
18
20
22
23
How to Assemble: Chamber Set and Main Body
Using Power Dial / When Screw Stops in Use
How to Use

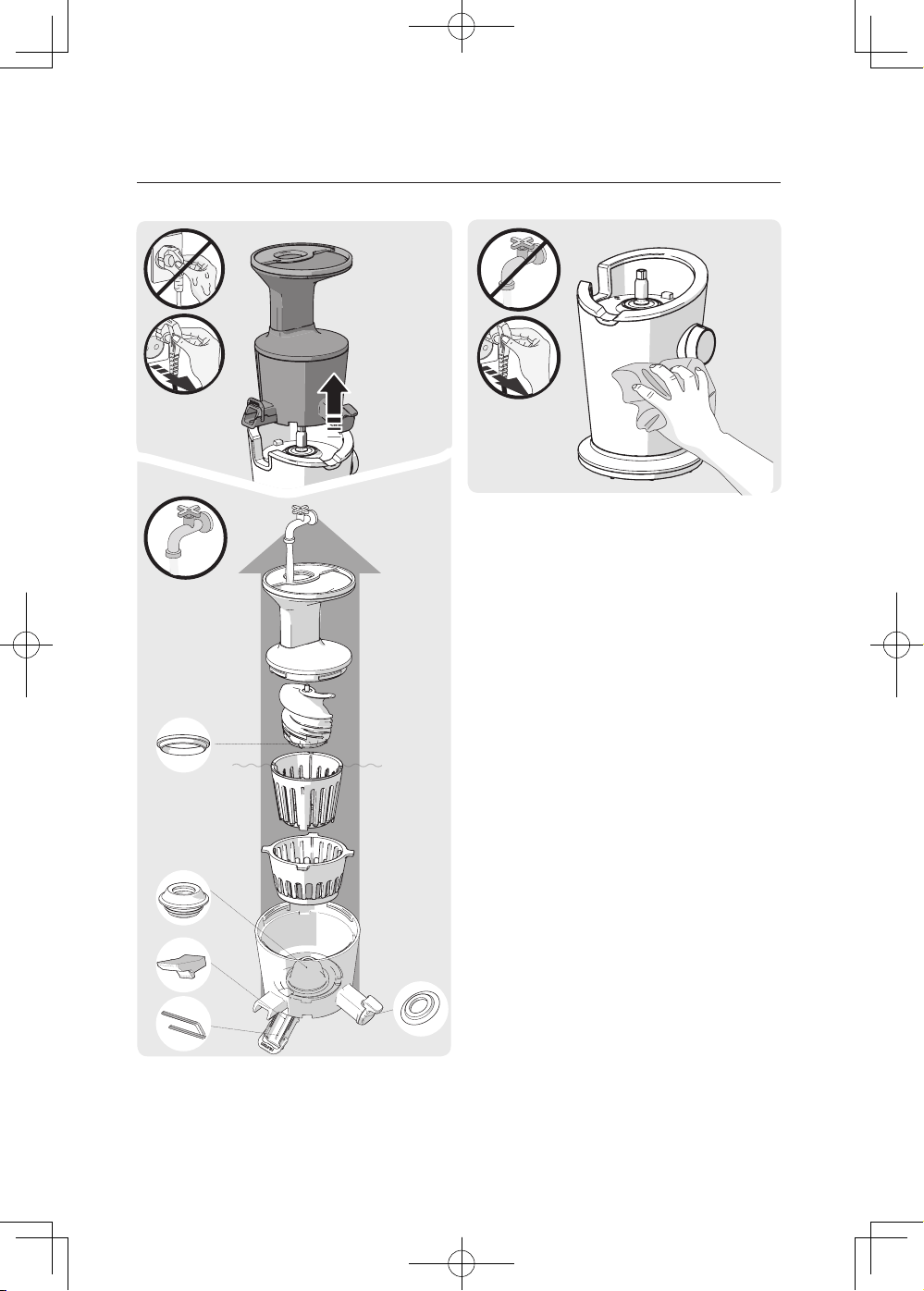

Separating and Washing / Disassembling and
Washing Silicon Components
Before Requesting for Repair
Product Specifications / Warranty
02
05
06
08
12
14
Safety Precautions
Cautions during Operation
Parts and Accessories
Component Details

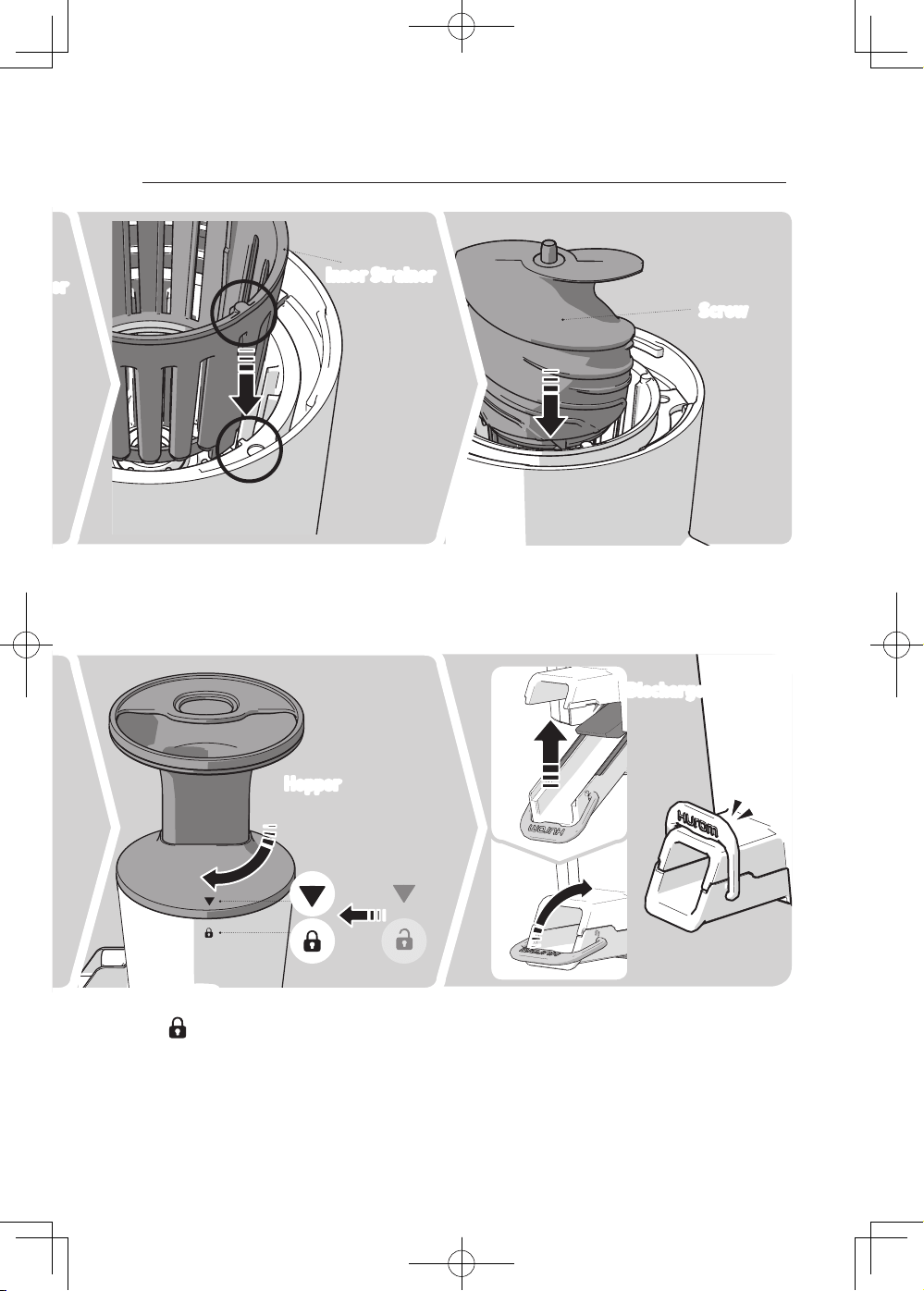

Assembling Juice Chamber Set

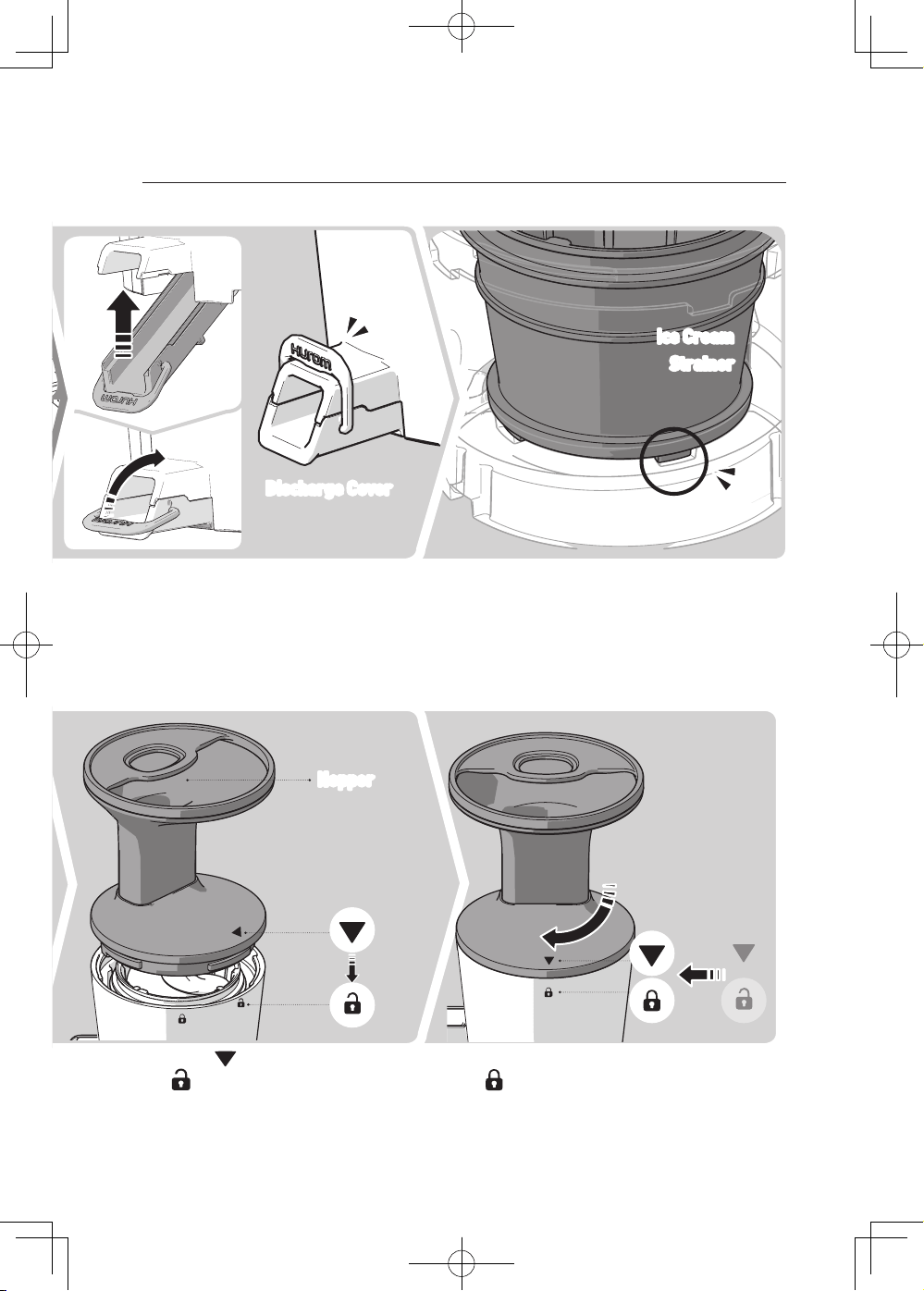

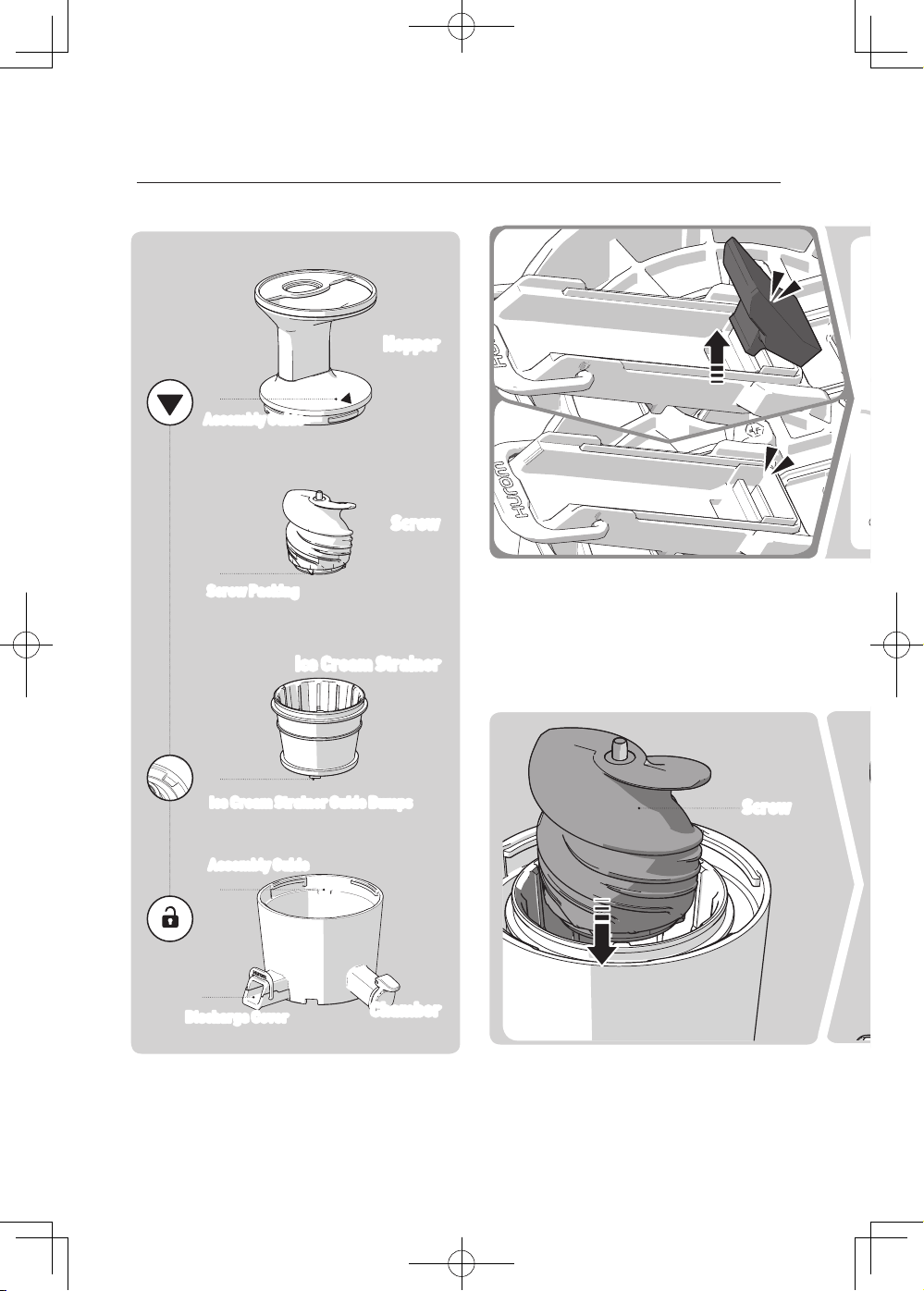

Assembling Ice Cream Chamber Set
1. Read ‘Safety Precautions’ (p. 2~5) and use the appliance properly.
2. After reading the manual, keep it in a convenient location for future reference.
3. Do not use it abroad which has different power supply and voltage.
4. Any quality improvements is subject to change without notice.
Before Reading Manual
03
Safety Precautions
PLUG THE POWER CORD CORRECTLY AND FIT IT TIGHTLY INTO A WALL SOCKET.
It may cause an electric shock or a fire.
IF THE POWER CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTUR
ER’S ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZ
ARD. If the power cord is damaged, it may cause electric shock or fire.
NEVER DISASSEMBLE CHAMBER SET PARTS OR INSERT ALIEN SUBSTANCES
INTO
THE JUICE OUTLET AND PULP OUTLET WHILE THE JUICER IS RUNNING.
It can cause injury, accident, or trouble
WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED OR THE PLUGIN PART
BECOMES LOOSE, DO NOT OPERATE THE MACHINE.
It may cause electric shock, fire or injury.
DO NOT WET OR SPLASH WATER ON THE MAIN BODY.
Be careful not to let any liquids or other substances get into the switch on the appliance.
DO NOT OPERATE THE POWER DIAL WITH WET HANDS.
It may cause an electric shock or fire.
FOR SAFETY, GROUND THE APPLIANCE. MAKE SURE TO USE THE OUTLET WITH
GROUND CONNECTION. DO NOT GROUND TO GAS PIPE, PLASTIC WATER PIPE,
TELEPHONE LINE, AND SO FORTH.
It could cause electric shock, fire, malfunction or explosion.
NEVER DISASSEMBLE THE CHAMBER SET DURING OPERATION NOR INSERT FIN
GERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS, ETC. INTO HOPPER CHUTE
OR
JUICE OUTLET. It may cause injury, accident or failure.
APPLIANCES CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY
OR
MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE
BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLI
ANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED. CHIL
DREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTE
NANCE SHALL NOT BE MADE BY CHILDREN. THIS APPLIANCE SHALL NOT BE USED
BY CHILDREN. KEEP THE APPLIANCE OUT OF REACH OF CHILDREN.
DO NOT USE THE PRODUCT WHILE WEARING OR CARRYING ITEMS WITH MAG
NETIC FORCE E.G., MAGNETIC BRACELETS, ETC..
Placing objects with magnetic force around the product may lead to malfunctions.
Caution
Violating the labeling requirement, may cause serious injury or damage to
the appliance.
DO NOT RUN THE JUICER WHILE THE CHAMBER SET IS NOT ASSEMBLED
PROPERLY. It can cause injury, accident, or trouble.
04
WHEN DETECTING A GAS LEAK, DO NOT INSERT THE POWER CORD INTO
THE OUTLET. OPEN THE WINDOW TO VENTILATE FULLY AND IMMEDIATELY.
It may cause injury or failure.
IF THE SCREW STOPS TURNING, TURN THE POWER DIAL TO REV DIRECTION TO
TURN THE SCREW IN REVERSE DIRECTION FOR 3~5 SECONDS,AND THEN TURN
THE DIAL BACK TO ON DIRECTION. IF THE MACHINE CONTINUES TO STOP WHILE
RUNNING, IT MAY LEAD TO DAMAGE TO PARTS AND FUNCTIONAL DEGRADATION
DUE TO OVERHEATED MOTOR.
If the problem persists, stop the product and contact Hurom Customer Center.
DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE MAIN BODY, DISASSEM
BLE THE CHAMBER SET OR PARTS, OR TRY TO LOCK THEM. It may cause an injury or
a failure. If any action is needed, switch off and unplug the power cord first.
MAKE SURE NO ALIEN SUBSTANCES GET INTO THE HOPPER OTHER THAN
INGREDIENTS WHEN USING THE JUICER.
It can cause damage or breakage.
PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE.
It may cause injury or failure.
DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME.
It may cause a motor failure due to overheating. Cool it down sufficiently about 5 minutes
and operate it again.
DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE NOR DROP IT.
It may cause electric shock, fire or damage.
IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL, EXCESSIVE HEATING,
OR SMOKE, STOP USING THE APPLIANCE IMMEDIATELY AND CONTACT THE LO
CAL
CUSTOMER CARE CENTER.
When using a new appliance, it gives off a smell, which disappears naturally over time.
ALWAYS UNPLUG THE APPLIANCE AFTER USE. ALWAYS DISCONNECT THE APPLI
ANCE FROM THE POWER SOURCE IF IT IS LEFT UNATTENDED AND BEFORE AS
SEMBLING, DISASSEMBLING OR CLEANING. WHEN UNPLUGGING THE POWER
CORD, MAKE SURE TO HOLD THE POWER CORD BY ITS HEAD.
Pulling the cord to unplug may cause electric shock or fire.
DO NOT WASH THE APPLIANCE AT A HIGH TEMPERATURE, 80
0
C176
0
F OR HIGHER.
DO NOT PUT THE APPLIANCE IN A DISHWASHER, A DRYER OR A MICROWAVE ETC.
It may cause a trouble or a deformation of part.
THE MACHINE WEIGHS ABOUT 5.7kg. WHEN YOU ARE MOVING THE MA
CHINE, MAKE SURE YOU HOLD THE MAIN BODY TIGHTLY WITH BOTH HANDS.
When you hold the machine by the chamber or the side of the main body, the main body
may fall and result in injury or malfunction.
DO NOT USE HOUSEHOLD PRODUCTS FOR COMMERCIAL PURPOSE.
Forcing a large amount of ingredients for extraction may damage the parts.
Please contact the Customer Service Center for the advice on using the product for
commercial purposes.
Safety Precautions
05
This is a reference about how to trim the ingredients, so if you have allergy please choose your
own proper ingredients which agrees with you.
Ingredients that need attention: Ingredients that can be used for extraction but requires
attention for preparation.
- For fruits with a hard seed that cannot possibly be chewed with teeth (such as persimmon,
apricot, lemon, plum, and peach),make sure the seed is removed before extraction.
(If not, it may cause damage or malfunction.)
- For vegetables with long and tough fibers (such as water parsley and celery),
cut them to 3~4cm in length for insertion.
- Extracting juice from root vegetables (such as ginger, garlic, etc.) in a large quantity at once may lead
to damage or malfunction.
- When you are extracting a large amount, repeat the process,'Extract 1kg, disassemble, and wash'
Ingredients to Avoid: Inserting these ingredients may lead to damage or malfunction.
- Ingredients that are not for extracting juice such as sesame seeds, coffee beans, tree barks,
Chinese pepper, etc.
- Boiled ingredients (potato, sweet potato, sweet pumpkin, chestnut), loach, eel, shrimp, marsh snail,
squid, salted fish, etc.
- Fruits pickled in liquor, honey, sugar, etc. (such as grapes, Korean raspberry, mulberry, etc.)
and enzymes (herbacea, rock pine, etc.)
- Ingredients that does not produce juice according to the characteristic of the ingredients such as
linden, aloe, cactus, acorn, etc. (Contact Hurom Customer Center and ask us about the ingredients
to use for extraction. We will answer you in detail.)
- Do not use the machine for crushing cereals.
- Ice prepared by freezing water (shall be avoided for both juice strainer and ice cream strainer)
If ingredients have withered after prolonged storage in the refrigerator,
they may produce less or very little amount of juice.
We recommend you to drink green vegetable juice and fruit juice immediately after
extraction rather than keeping them for long time.
Do not re-squeeze pulp discharged through the pulp outlet.
Do not idle the product before inserting ingredients.
Do not insert too many ingredients at once.
- If you insert an excessive amount of ingredients of thick ingredients, the unit may stop.
Do not use for more than 30 minutes in a continuously.
- It may cause a failure due to the overheating of the motor.
When using the appliance continuously, stop for 5 minutes after every 30 minutes of use.
Never insert chopsticks or spoon into pulp outlet during the operation.
- Inserting chopsticks and the like may cause damage to parts and personal injury.
Do not press the ingredients with anything except the pusher.
- It may stick to the screw and cause injury and failure.
Do not operate the power dial with a wet hand
- It can cause electric shock, short circuit, or fire. Do not stain the power dial and its proximity with alien substances.
If you are extracting 350ml of juice or more at once, open the juice cap to discharge the juice
for every 350ml. If you are extracting a large amount of juice, open the lift lever frequently
to discharge pulp. The pressure inside the chamber may increase and make it impossible to
open the chamber cover or cause damage.
If there is any water or juice on the main body or standing in any area of the machine, make
sure you wipe it with a dry cloth before use.
For frozen fruits, use the ice cream strainer only.Do not use the product for crushing the ice
frozen from water and other ingredients or for mincing. It may lead to damage or malfunction.
If you do not wash immediately after use, it may be caked with pulp, which makes it difficult to
disassemble and wash or may become the cause of performance degradation.
Cautions during Operation
06
①
②
③
⑦
⑤
⑥
④
⑨
⑧
05
Screw
Inner Strainer
Outer Strainer
Hopper
①
Upper hopper chute
②
Side hopper chute
③
Assembly Guide
①
Juice Strainer (Black)
②
Juice Strainer Wing (J)
③
Smoothie Strainer
(orange)
④
Smoothie Strainer Wing (S)
①
Screw Axis
②
Screw Packing
①
Inner Strainer
②
Inner Strainer Binding
Points
③
Ice Cream Strainer
④
Ice Cream Strainer
Guide Bumps
①
①
③
②
②
①
①
②
②
④
④
③
③
Component Guide (Chamber Set)
01
02
03
04
Chamber
①
Pulp Outlet
②
Extraction Packing
/ Seal Packing
③
Discharge Cover
/ Discharge Cover Loop
④
Filter Binding Groove
⑤
Assembly Guide Mark ( )
⑥
Chamber Packing
⑦
Juice Outlet
⑧
Juice Cap
⑨
Juice Cap Packing
07
Container Set
Accessories
Base
①
Juice Container
②
Pulp Container
①
Cleaning Brush
②
Pusher
①
MotorSpin
②
Power Dial
①
①
②
②
Component Guide (Chamber Set)
Component Guide (Main Body, Other Components)
06
07
08
①
②
08
⑨
②
③
⑦
⑧
⑥
⑤
④
①
/
Chamber
02
(Closed) (Open)
Component Details
①
Upper hopper chute: Use this to insert long and narrow vegetables such as celery and carrot.
②
Side hopper chute : Use this to insert cherry tomato, grapes, and diced fruits and vegetables
③
Assembly Guide Mark on Hopper : Marks to check the assembly with the chamber.
Parts must fit properly in order to work.
/ Hopper
①
③
②
01
①
Juice Cap / Juice Cap Packing: A cap for preventing juice from being discharged in case of
extraction. The juice cap packing is assembled inside the juice cap.
②
Pulp / Ice Cream Outlet: An outlet for discharging extraction pulp or ice cream.
③
Discharge Cover / Discharge Cover Loop: The lower part of the pulp outlet.
If not properly assembled, it will leak juice.
④
Extraction Packing: This packing is assembled in the discharge cover.
If not properly assembled, it will leak juice.
⑤
Seal Packing: This packing is assembled in the discharge cover.
If not properly assembled, it will leak juice.
⑥
Chamber Assembly Guide Mark: This guide mark is used when assembling with the hopper.
Proper assembly ensures normal operation.
⑦
Filter Binding Groove: Chamber grooves that fix the filter wings.
⑧
Chamber Bottom Groove: Grooves for fixing the ice cream strainer and inner filter.
⑨
Chamber Packing: Packing in the middle of the chamber. If not properly assembled,
it will leak juice.
09
Component Details
Component Details
/ Juice Strainer
(Black)
03
Root
Vegetables
Fresh Sweet
Potato, Ginger,
Carrot, Fresh
Potato, Garlic,
Dandelion, etc.
Wash the ingredients thoroughly in running water to remove foreign
matters such as the soil. For ingredients containing plenty of fiber such
as ginger, remove the peel and cut it into slices, and insert it slowly. As
for other root vegetables, cut them to 3~4cm before use. When you are
extracting a large amount, repeat the process, 'Extract 1kg,
disassemble, and wash'
Leaf/Stem
Vegetables
Wheat Sprout,
Chives, Kale,
Water Parsley,
Cactus, Celery,
Cabbage,
Spinach,
etc.
Make sure the ingredients are cut to 3~4cm.
As for thin and narrow vegetables such as wheat sprouts and chives,
put them in handfuls so that the ingredients would not scatter.
cut them to 3~4cm before use. When you are extracting a large
amount, repeat the process, 'Extract 1kg, disassemble, and wash'
※ Spinach produces a lot of bubbles when extracted by itself, making it
difficult to extract juice. Only use a small amount for mixed juice.
Fruits with
Thick Peel
Pomegranate,
etc.
Remove the peel and cut the flesh into the sizes that fit the hopper inlet.
Remove seeds that cannot be chewed with teeth.
Fruits with
Large Seed
Persimmon,
Apricot, Peach,
etc.
For fruits and vegetables containing a large and hard seed that cannot
be chewed with teeth such as peach, remove the seed and only use the
flesh.
Cut them to sizes that would fit the hopper inlet.
Nuts and
Beans
Almonds,
Walnut, Soaked
Beans, etc.
Do not use nuts by themselves but with fruits and vegetables. Insert
fruit and vegetable mixture first and then gradually add nuts. As for
beans, soak them in water fully for a day before use.
To make bean juice, put water and beans by the ratio of 1:1.
Juice Strainer
Prohibited
(Soft fruit)
Banana,
strawberry,
kiwi, tomato,
cherry tomato,
mango,
pineapple, etc.
Do not use the juice strainer for extraction.
Use the smoothie strainer.
①
Juice Strainer Wing
: Wings for fixing chamber
and strainer. Fit the winter
wings to the grooves on
the chamber.
• Use this to extract juice from fruits containing plenty of flesh, ordinary vegetables / fruits.
(Use smoothie strainer for soft fruits)
• Classification of strainer: Dark black in color which is darker than smoothie strainer.
You will find the strainer distinguishing mark on the wing [ J ].
• You can extract juice from common fruits and vegetables such as apple, pear, and broccoli with the
juice strainer. Some ingredients need to be prepared carefully. Please check how to prepare them
according to the following list.
J
①
10
Component Details
Citruses
Grapefruit,
Orange,Lemon,
etc.
Remove the peel and cut the flesh to the size that would pass through
the hopper inlet.Make sure the unchewable seed is removed before
inserting ingredients.
Fruits with
thick peel
Dragon fruit,
Melon,
Pineapple,
Watermelon,
etc.
Remove the peel and cut the flesh to the size that would pass through
the hopper inlet.Make sure the unchewable seed is removed before
inserting ingredients.
Fruits with
seed/ grapes
Soft peach, Soft
persimmon,
Old apple,
Grape, Plum,
Cherry, etc.
For fruits with a hard seed that cannot possibly be chewed with teeth
and fruits and vegetables with a large seed such as peach, make sure
the seed is removed and prepare only the flesh.Cut ingredients to the
size that fits the hopper inlet.
Separate each grape from the cluster. If the ingredient is too soft, do
not extract with the ingredient alone but mix it with another ingredient
in a small amount.
Soft fruits and
vegetables
Berry, Tomato,
Cherry tomato,
Pineapple, etc.
Clean thoroughly and cut to sizes that would fit the inlet. For fruits and
vegetables with stem, remove the stem.
Strawberry,
Kiwi, Mango,
etc.
Remove the peel and stalk. When using a single material to extract
juice, insert a piece of hard material such as the vegetable with tough
fiber or apple/carrot before inserting soft material.
Banana
Only add a small quantity to other ingredients to make mixed juice.
Remove the peel thoroughly and cut to 3~4cm to fit the inlet.
/ Smoothie Strainer
(Orange)
04
For your reference, choose ingredients carefully if you have allergy.
Refer to the ingredient preparation guide, choose the strainer suitable for the ingredient.
The juice might leak or the product may be damaged.
Prohibited Ingredients:Inserting these ingredients may lead to damage or malfunction.
• Ingredients that are not for extracting juice such as sesame seeds, coffee beans, tree barks, Chinese pepper
•
Boiled ingredients (potato, sweet potato, sweet pumpkin, chestnut), loach, eel, shrimp, marsh snail, squid, salted fish, etc.
• Fruits pickled in liquor, honey, sugar, etc. (such as grapes, Korean raspberry, mulberry, etc.) and enzymes
(herbacea, rock pine, etc.)
• Ingredients that does not produce juice according to the characteristic of the ingredients such as linden, aloe,
cactus, acorn, etc. (Contact Hurom Customer Center and ask us about the ingredients to use for extraction.
We will answer you in detail.)
• Do not use the machine for crushing cereals.
• Ice prepared by freezing water (shall be avoided for both juice strainer and ice cream strainer)
①
Smoothie Strainer Wings:
These are used to fix the
strainer to the chamber. Fit the
wings to the grooves of the
chamber when putting them
together.
• Use this to extract juice from soft fruits and fruits containing plenty of flesh and fiber.
• Classification of Strainer: Smoothie Fileter is light in orange color.
You will find the strainer distinguishing mark on the wing [S].
• Refer to the following table for extractable fruits and the preparation of each ingredient.
①
11
Component Details
/ Power Dial
06
Turn to left or right to start, stop, or reverse.
[ ] : Start - Used to run the machine to extract juice.
[ ] : Stop - Used to stop the machine.
[ ] : Reverse - Used to reduce pressure inside chamber by pushing
up the ingredients when the machine stops or too
much ingredient was placed.
(Runs only when you hold the dial. Stops when you let go your hand.)
Component Details
/ Ice Cream Strainer
05
• Used to make slushie, smoothie, and ice cream using frozen fruits.
• Ice cream strainer is used without external strainer.
• Dice fruits to 2cm and freeze them thoroughly before use.
• For fruits with a hard seed that cannot be chewed with teeth, make sure the seed is removed
before use.
• Do not use the machine for crushing ice frozen from water and other ingredients or for mincing.
• The machine may stop if you put too much at once or put a massive chunk.
Insert ingredients in a small amount.
• When extracting from slightly thawed fruits, the juice may leak through pulp / ice cream outlet.
(This is normal and is not a defect.)
• Refer to the following for extractable fruits and how to prepare them. (Add in small amounts)
Fruits with
Thick Peel
Watermelon,
Melon, etc.
Remove the peel and cut the flesh into the sizes that fit the hopper inlet and
freeze.
Fruits with
Seed
Mango, Peach,
Grapes, etc.
Use seedless frozen fruits only. For fruits with seeds that cannot be
chewed with teeth such as mango, peach, and lemon, make sure the
seeds are removed and freeze the fruits beforehand. For grapes, choose
the ones without seeds and freeze them before use.
Soft Fruits
and
Vegetables
Banana,
Strawberry,
Kiwi, Tomato,
Cherry Tomato,
etc.
Remove the peel thoroughly for banana and kiwi and cut them to 3-4cm to
fit the inlet.
For cherry tomato, strawberry, etc., remove the stem and freeze before
use.
①
Guide Bump:
When you set ice cream strainer onto the
chamber, use the groove on the chamber
and the bump on the strainer as the guides
to fit them together completely.
①
12
④
⑦
⑤
②
①
③
⑥
Discharge Cover
01
04
Fit the wings of the external strainer (④) to
the grooves of the chamber (③).
Put together the hopper and chamber by
matching the mark on hopper [ ] (⑦)
and the mark on the chamber [ ].
If the inner parts are not assembled properly,
the hopper will not close.
Assembling Juice Chamber Set
Chamber
Hopper
Out Strainer
Chamber
Out Strainer
Inner Strainer
Screw
Hopper
Assembly Guide
Screw Packing
Assembly Guide
Strainer Wing
Chamber Groove
Assembly Guide
13
06
Discharge Cover
05
02 03
Place the inner strainer fit into the outer
strainer in the chamber.
Match the binding point (⑤) of the inner
strainer and the wings of the outer strainer
(④) when putting the parts together.
Place the screw in the assembly in 02.
Make sure the screw packing (⑥) is properly
placed under the screw before putting the
parts together.
Turn the hopper clockwise up to the mark
[ ] on the chamber.
The hopper will not close if the inner parts
are not assembled properly.
Assembling Juice Chamber Set
※Assembly Guide with Main Body is in p16.
Screw
Inner Strainer
Out Strainer
Hopper
Make sure the discharge cover (①) of the
chamber is properly fastened with the loop.
1. Close the discharge cover and fasten
it with the loop.
2. If the packing is not properly assembled or
the lever is not properly closed, the lever
may open or, juice may leak during
extraction.
14
③
⑤
④
②
①
Discharge Cover
Assembling Ice Cream Chamber Set
Chamber
Ice Cream Strainer
Hopper
Screw
Assembly Guide
Screw Packing
Ice Cream Strainer Guide Bumps
Assembly Guide
Screw
02
Remove the extraction packing in the
discharge cover.
1. When making ice cream,
remove the extraction packing.
2. Do not remove the seal packing.
01
04
Place the screw in the assembly in 01
Make sure the screw packing (④) is
properly placed under the screw before
putting the parts together.
05
15
Assembling Ice Cream Chamber Set
※ Assembly Guide with Main Body is in p16.
Chamber
Ice Cream
Strainer
Discharge Cover
Hopper
02
03
Place the ice cream strainer in the chamber.
Wiggle the strainer left and right until the
bump on the strainer fits the groove on the
bottom of the chamber (③).
Make sure the discharge cover (①) of the chamber
is properly fastened with the loop.
1. Close the discharge cover and fasten it with
the loop.
2. If the packing is not properly assembled or
the lever is not properly closed, the lever
may open or, juice may leak during extraction.
05
06
Match the mark [ ] (⑤) on the hopper and
the mark [ ] (②) on the chamber when
putting the parts together.
The hopper will not close if the inner parts are
not assembled properly.
Turn the hopper clockwise up to the mark
[ ] on the chamber.
The hopper will not close if the inner parts
are not assembled properly.
16
Check if you placed the Strainer of your choice
The juice is not extracted smoothly if the strainer does not fit the ingredient.
Check if the hopper is closed properly. It may cause injury or failure.
Check if the juice cap is closed.
Keep it closed until you wish to pour out the juice.
Check if the chamber set is assembled properly.
Ice cream comes out of the pulp/ice cream outlet.
When making ice cream, remove the extraction packing.
Make sure the extraction packing / seal packing / discharge cover loop
are assembled properly.
If the discharge cover is not closed properly, or the packing assembly is not
correct, the discharge cover may open, or juice may leak during extraction.
Check after Assembly!
How to Assemble: Chamber Set and Main Body
Fit chamber set to main body.
Assemble the chamber set and main body first and then plug the power cord with your dry hand.
Place the juice cup (①) and pulp cup (②) when you extract juice.
Place the cup (②) under the pulp outlet when you make ice cream.
Ice cream will come out of the pulp/ice cream outlet.
01
02
03
②
①
17
1
2
How to Assemble: Chamber Set and Main Body
Assemble the chamber set and main body first and then plug the power cord with your dry hand.
Using Power Dial / When Screw Stops in Use
The screw may stop if you put ingredients too much or too quickly.
If the machine does not resume even after the following remedies, turn off the machine and contact
Hurom Customer Center.
When the reverse motion comes to a complete stop, turn the power dial to the direction
of [ON] (clockwise) to run.
Turn the power dial to the direction of [REV] and hold it for 3~5 seconds (counterclock-
wise) and let it go. Repeat this 2-3 times.
When turning power dial to the direction of [ON] or [REV], make sure the screw comes to a complete stop
first before turning the dial to the direction of your choice.
The "Reverse" feature pushes the ingredients in the chamber upwards. The "Reverse" feature is active
when you are holding the dial and stops when you remove your hand.
Screw Stops in Use
Using Power Dial
① Turn to right (clockwise) to 'Extract', set in the middle to 'Stop', and turn to left (counterclockwise) to 'Reverse'
② For safety, the machine will not stop instantly but slow down to a stop when you set the dial to Stop [ ].
③ Reverse [REV] feature is active when you are holding the dial on [REV]. (Stops when you remove your hand.)
18
03
06
02
04 05
07 08
01
01
[ON] 30
"
> [REV] 5
"
> [ON] 30
"
How to Use: Making Juice / Ice Cream
19
Make sure the discharge cover and juice cap of the chamber are closed properly.
① Even if the discharge cover is closed, pulp is discharged. The velocity and amount of
discharge of pulp may differ according to the ingredients used.
When extracting juice: After making sure that the extraction packing and seal packing
are assembled properly, close the discharge cover.
When making ice cream: Remove the extraction packing in the discharge cover.
① Do not remove the seal packing.
Turn the power dial to the direction of [ON] (clockwise).
① The 'click' sound heard when you turn the dial is the sound made when the chamber set and
motor fit into each other.
② Make sure the chamber set and main body are assembled properly.
Insert the ingredients into the inlet slowly.
If the ingredient does not go down smoothly or is stuck at the inlet, use the pusher to push
down the ingredients.
① Do not use the hand or any other tool than the pusher. If not, it may lead to damage of product
or personal injury.
② If the machine stops in use due to overloading, turn the power dial to [REV](counterclockwise)
to run in reverse direction.
When the juice begins to fill the chamber, open the juice cap to discharge juice.
① The chamber can be filled with juice quickly depending on the characteristic of the
ingredients. Make sure the juice does not leak.
② For ingredients that produce many bubbles such as cabbage and apple, keep the juice cap
open during extraction.
③ Ice cream is discharged through the ice cream outlet.
After extracting the last ingredients, run the machine in order of "30 seconds of normal
rotation > 5 seconds of reverse rotation > 30 seconds of normal rotation."
① It slowly squeezes the ingredients to extract juice and needs some time enough to extract
juice from the last ingredients.
② If the remaining pulp is removed by additionally running the machine after extraction, it is
very convenient to remove the hopper and wash the parts.
When the extraction and discharge of pulp are completed, turn the dial to the direction of
[ ] (counterclockwise) to stop.
① For performance and safety, the machine will take 3-4 seconds to stop completely even
when the power dial is at [ ].
If there is any juice / ice cream left in the chamber, pour it by tilting the chamber set forward.
① For thick juice such as tomato juice, the juice might still remain inside the chamber.
01
02
03
04
05
06
07
08
How to Use: Making Juice / Ice Cream
How to Use: Making Juice / Ice Cream
20
※
01
02
03
04
05
06
Separating and Washing
After the product has completely stopped
operating, unplug the power cord with your
dry hand.The motor will stop slowly even when
you stop the machine.Separate the chamber
set approximately 3 seconds after the machine
comes to a complete stop.
Remove the chamber set from the main body.
Twist the hopper to open and lift up in order to
disassemble the unit.
Use a cleaning brush and wash the chamber set
under running water.
For chamber, open the lift lever and juice cap to
wash.
Clean the main body with dried towel or soft
cloth.
In the case of packings made of silicon, remove
and wash them after use.
(Screw packing, Juice cap packing, Lift lever
packing, Chamber packing)
Soak in the mixture of water, baking soda, citric
acid, or vinegar for 30 minutes for sterilization.
※
If the unit is not cleaned immediately after use, the pulp may dry and stick to the unit. This will make
disassembling and cleaning difficult and may also lead to performance degradation. Do not wash with hot
or boiling water, an iron scrubber, abrasive material, sink solvents, or sharp cleaning tools. Do not put it in a
dishwasher or dish dryer. After washing, thoroughly and naturally dry, and store in a clean area.
21
Assembling and Disassembling the Extraction Packing / Seal Packing
(if it is not assembled properly, juice may leak)
Hold the packing and pull it
out smoothly.
Insert one of the edges, and
then put it down.
Insert the other parts and put
them down firmly.
01
01
01
02
02
02
03
03
03
Assembling and Disassembling the Screw Packing
(if it is not assembled properly, the packing may be damaged)
01 02 03
Separating and Washing
Disassembling and Washing Silicon Components
(Packing is a consumable component and replacement is recommended every 6 months ~ 1 year.
You can purchase components through the Customer Center.)
Assembling and Disassembling Chamber Packing
(The juice will leak if not assembled properly.)
Assembling and Disassembling Chamber Juice Cap Packing
(The juice will leak if not assembled properly.)
Remove the packing as though
it is pulled inside out from one
side.
Remove the packing as though
it is pulled inside out.
After washing, fit one side along
with the chamber hole like a
hook by checking the top and
bottom sides of the packing.
After washing, fit one side of
the packing first like a hook.
Push the rest of the packing in
a way that no parts are folded.
Fit the rest and push it in
around the rim.
Flip over the screw and pull
to remove it as if you are
pinching it.
After washing, hold the packing
in a way that the thin part of the
packing faces outwards.
Place the packing on the
bottom of the screw and push
it in so that it will not fall off.
22
1. I hear 'click' sound
when I start the
machine.
When the screw fits into the motor, they produce this sound. This has not effect on use.
2. I hear 'squeak-
squeak' sound.
This is produced by the friction between screw packing and chamber. This is normal.
3. The main body
will not work on its
own.
Make sure the chamber set and main body are assembled properly.
Make sure the power is turned off when assembling / disassembling the product.
4. Please align
safety sensors.
Make sure they are assembled in accordance with the assembly guide.
Make sure the power is turned off when assembling / disassembling the product.
5. It will not work.
Check if the power cord is
connected properly.
The machine may not work after a prolonged use (30 minutes
or longer). The machine will work normally after the main body
(motor) cools down.
Check if the hopper is fit
properly.
The machine will not work if the hopper is fit properly. It will
work only when the lock icon on the chamber is matched with
the triangle icon on the lid.
Check if this product is properly
assembled in the assembling
order.
Refer to assembly guide P. 12~16
6. The appliance
stops during
normal operation.
Have you in heavy loads or
large pieces of ingredients into
the appliance?
Refer to p. 17 of the manual and follow the guideline for using
[REV] button.
7. Screw has crack
or scratch marks.
The screw has crack mark and scratch marks on the top. In addition to the straight molding
marks on the top and sides of the screw, it also has a curved mark, all of which were made
when molding the screw.This is normal and has no impact on use.
8. The juice leaks
from the outlet
immediately
after I insert the
ingredients.
Depending on the ingredients used, the juice may come out of the pulp outlet. This is not a defect
but is caused by the characteristic of the ingredient, and the leakage ill stop when the machine
runs. If the juice comes out persistently, contact the Customer Center.
9. The juice leaks from
the top of the main
body.
Did you put too much ingredients?
If the juice continues to leak from
the top of the main body, contact our
Customer Center for consultation.
If the input is greater than the chamber's capacity, the juice may
leak between hopper and chamber. When you are extracting
a large amount, make sure you open the lever and juice cap as
often as necessary to discharge the content inside. If there is any
water or juice on the main body, wipe it off immediately.
Is the chamber packing
assembled properly?
The juice will leak if the chamber packing is placed in a wrong
direction or is not tightly placed. Check if the chamber packing is
placed properly.
10. The hopper will
not open.
There may be much pulp
remaining inside.
If the remaining pulp is discharged by turning on the machine,
or the machine is rotated in reverse for 10 seconds two or three
times, the hopper will open smoothly.
Did you put foreign or solid
matter (hard seed such as the
seed of persimmon)?
If foreign or solid matter is put into the chamber, running
reverse can further the damage. Contact our Customer Center
to request for repair service.
11. The chamber
is shaking (when
extracting).
The machine may wobble slightly by the kinetic energy of the motor of the main body. Extracting
juice from various ingredients can cause various degrees of movements depending on the
characteristics of the ingredients (hard or tough). This is a normal as the movement is caused
by the rotating screw and is not considered as a trouble. It may seem that it is wobbling more
severely when extracting juice from hard ingredients (i.e. carrot/potato/radish/beet/kohlrabi,
etc.) compared to when extracting from soft and watery ingredients.
12. Pulp is
discharged
even when the
discharge cover is
closed.
The pulp is discharged naturally even when you close the lever. Discharging amount and rate
may vary depending on the ingredients used.
Check the following before asking for repair.
For follow-up service and any inquiry you may have while using the product, please contact our Customer Center, or homepage at
http://www.globalhurom.com
Check the manufacturer’s number or the number under the barcode when requesting for follow-up service or parts.
Before Requesting for Repair
23
Product Specifications / Warranty
Product name
Important: For better protection of your purchase, fill out and mail this form to a local distributor where
you purchased the appliance and keep the original receipt.
This certifies that the Hurom Slow juicer is covered under warranty by HUROM to be free from defects in
material construction and workmanship.
Hurom provides warranty for one (1) year from the date of purchase by the original purchaser.
Coverage is valid only with proof of purchase from an Authorized Local Distributor.
(No international warranty available)
This warranty does not apply to damages caused by accident, misuse, abuse, commercial use, alteration, failure to
follow operating instructions, or damage caused by parts or service unauthorized by HUROM . Damages caused by
transportation must be claimed with carrier. HUROM disclaims all responsibilities for consequential damages from
incidental losses caused by use of this appliance.
Please check the bottom of your Hurom product for a sticker with a barcode.
This barcode sticker helps verify a genuine Hurom product and identify the product manufacturing date.
Hurom’s manufacturer’s warranty does not cover products with missing or damaged barcode stickers.
Products are to be inspected upon receipt.
For service and assistance with technical difficulty, please contact our local Customer Service Center.
Supplier Date of purchase
Address
Model name
Manufacture’s serial number
Customer name
Warranty
Manufacture :
Hurom webpage : www.globalhurom.com
ProductName
Model Name
Rated Voltage
Rated Frequency
Rated Power Consumption
Hurom Slow Juicer
H-100S Series
- 240 V
50 Hz
150W
43 rpm
Rated Operating Hour
Cord Length
Motor
Fuse
Weight
Less than 30 minutes
1.4 m
250 V 5 A
5.7kg
W 210mm / L 224 mm / H 471 mm
Single-phase induction motor
Product Specifications
Energy efficiency
is low at high
rated power
consumption(W).
Outward
Dimension
RPM
MADE IN KOREA
Copyright© All Rights Reserved by HUROM
4DC010761_V.01
