OWNER’S MANUAL
LED LCD TV / LCD TV /
PLASMA TV
Please read this manual carefully before operating the set and retain it
for future reference.
LED LCD TV MODELS
LCD TV
MODELS
42LK530
47LK530
55LK530
42LK550
47LK550
PLASMA TV
MODELS
50PZ750
60PZ750
50PZ950
60PZ950
50PZ950U
60PZ950U
42LV3700
47LV3700
55LV3700
42LV5400
47LV5400
55LV5400
42LV5500
47LV5500
55LV5500
42LW5600
47LW5600
55LW5600
32LW5700
42LW5700
47LW5700
55LW5700
47LW6500
55LW6500
65LW6500
47LW9800
55LW9800
55LV9500
P/NO : SAC34134233(1107-REV00)
www.lg.com
2
LICENSES
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is
an official DivX Certified® device that plays DivX video. Visit
www.divx.com for
more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies. To
obtain your registration code, locate the DivX VOD section in your device setup
menu. Go to
vod.divx.com for more information on how to complete your
registration.
“DivX Certified® to play DivX® and DivX Plus™ HD (H.264/MKV) video up to
1080p HD including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and
are used under license.”
“Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668;
7,515,710; 7,519,274”
NOTE
•
Pla sm a
: Plasma TV
LCD
: LED LCD TV, LCD TV
• Image shown may differ from your TV.
• Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are
using.
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
3
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak performance of
your product.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s
instructions.
• Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
• Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the
third prong are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet (Can differ by country).
ENGLISH
4
IMPORTANT SAFETY INSTRUCTIONS
• Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
• Only use attachments/accessories specified by
the manufacturer.
• Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
• Unplug this apparatus during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
• Never touch this apparatus or antenna during a
thunder or lightning storm.
• When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
• Do not allow an impact shock or any objects to
fall into the product, and do not drop anything
onto the screen.
• CAUTION concerning the Power Cord (Can
differ by country):
It is recommended that appliances be placed
upon a dedicated circuit; that is, a single outlet
circuit which powers only that appliance and has
no additional outlets or branch circuits. Check
the specification page of this owner’s manual to
be certain. Do not connect too many appliances
to the same AC power outlet as this could result
in fire or electric shock. Do not overload wall
outlets. Overloaded wall outlets, loose or
damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire
insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your appliance,
and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service.
Protect the power cord from physical or
mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the
appliance. Do not move the TV with the power
cord plugged in. Do not use a damaged or loose
power cord. Be sure do grasp the plug when
unplugging the power cord. Do not pull on the
power cord to unplug the TV.
• Warning - To reduce the risk of fire or electrical
shock, do not expose this product to rain,
moisture or other liquids. Do not touch the TV
with wet hands. Do not install this product near
flammable objects such as gasoline or candles,
or expose the TV to direct air conditioning.
• Do not expose to dripping or splashing and do
not place objects filled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g.
on shelves above the unit).
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
5
• Grounding
Ensure that you connect the earth ground wire
to prevent possible electric shock (i.e. a TV with
a three-prong grounded AC plug must be
connected to a three-prong grounded AC outlet).
If grounding methods are not possible, have a
qualified electrician install a separate circuit
breaker. Do not try to ground the unit by
connecting it to telephone wires, lightening
rods, or gas pipes.
• DISCONNECTING DEVICE FROM THE MAIN
POWER
The power outlet must remain readily accessed
in the event the device needs to be unplugged.
• As long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
• Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this product.
• ANTENNAS Outdoor antenna grounding (Can
differ by country):
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can come in contact with
such power lines or circuits as death or serious
injury can occur. Be sure the antenna system is
grounded so as to provide some protection
against voltage surges and built-up static
charges. Section 810 of the National Electrical
Code (NEC) in the U.S.A. provides information
with respect to proper grounding of the mast
and supporting structure, grounding of the lead-
in wire to an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes and requirements for the grounding
electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
• Cleaning
When cleaning, unplug the power cord and wipe
gently with a soft cloth to prevent scratching. Do
not spray water or other liquids directly on the
TV as electric shock may occur. Do not clean
with chemicals such as alcohol, thinners or
benzine.

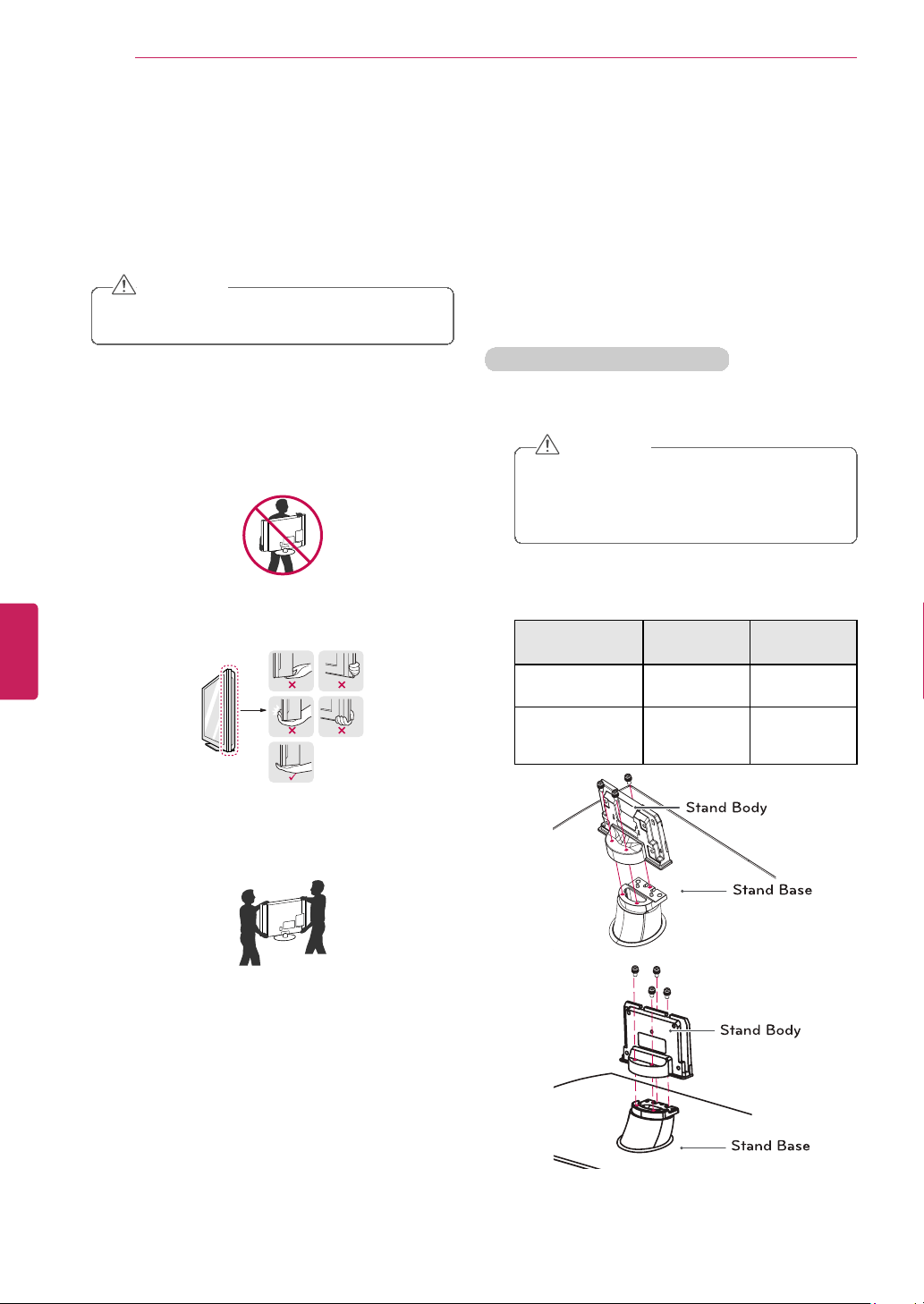

• Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take 2
or more people to carry larger TVs. Do not press
or put stress on the front panel of the TV.
• Ventilation
Install your TV where there is proper ventilation.
Do not install in a confined space such as a
bookcase. Do not cover the product with cloth or
other materials while plugged. Do not install in
excessively dusty places.
• If you smell smoke or other odours coming from
the TV, unplug the power cord contact an
authorized service center.
• Do not press strongly upon the panel with hand
or sharp object such as nail, pencil or pen, or
make a scratch on it.
• Keep the product away from direct sunlight.
• Dot Defect
The Plasma or LCD panel is a high technology
product with resolution of two million to six
million pixels. In a very few cases, you could see
fine dots on the screen while you’re viewing the
TV. Those dots are deactivated pixels and do not
affect the performance and reliability of the TV.
ENGLISH
6
IMPORTANT SAFETY INSTRUCTIONS
• Generated Sound
"Cracking” noise: A cracking noise that occurs
when watching or turning off the TV is
generated by plastic thermal contraction due to
temperature and humidity. This noise is
common for products where thermal
deformation is required. Electrical circuit
humming/panel buzzing: A low level noise is
generated from a high-speed switching circuit,
which supplies a large amount of current to
operate a product. It varies depending on the
product. This generated sound does not affect
the performance and reliability of the product.
• Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or
cause defects in the product.
• Viewing 3D Imaging (For 3D TV)
- If you watch the 3D imaging too closely or for a
long period of time, it may harm your eyesight.
- Watching the TV or playing video games that
incorporate 3D imaging with the 3D glasses for
a long period of time can cause drowsiness,
headaches or fatigue to you and/or your eyes.
If you have a headache, or otherwise feel
fatigued or drowsy, stop watching the TV and
have a rest.
- Pregnant woman, seniors, persons with heart
problems or persons who experience frequent
drowsiness should refrain from watching 3D
TV.
- Some 3D imaging may cause you to duck or
dodge the image displayed in the video.
Therefore, it is best if you do not watch 3D TV
near fragile objects or near any objects that can
be knocked over easily.
- Please prevent children under the age of 5
from watching 3D TV. It may affect their vision
development.
- Warning for photosensitization seizure: Some
viewers may experience a seizure or epilepsy
when exposed to certain factors, including
flashing lights or images in TV or video games.
If you or anybody from your family has a history
of epilepsy or seizure, please consult with your
doctor before watching 3D TV.
Also certain symptoms can occur in
unspecified conditions without any previous
history. If you experience any of the following
symptoms, immediately stop watching the 3D
imaging and consult a doctor: dizziness or light-
headedness, visual transition or altered vision,
visual or facial instability, such as eye or
muscle twitching, unconscious action,
convulsion, loss of conscience, confusion or
disorientation, loss of directional sense,
cramps, or nausea. Parents should monitor
their children, including teenagers, for these
symptoms as they may be more sensitive to
the effects of watching 3D TV.
Risk of photosensitization seizure can be
reduced with the following actions.
- Take frequent breaks from watching 3D TV.
- For those who have vision that is different in
each eye, they should watch the TV after
taking vision correction measures.
- Watch the TV so that your eyes are on the
same level as the 3D screen and refrain from
sitting too closely to the TV.
- Do not watch the 3D imaging when tired or
sick, and avoid watching the 3D imaging for a
long period of time.
- Do not wear the 3D glasses for any other
purpose than viewing 3D imaging on a 3D TV.
- Some viewers may feel disoriented after
watching 3D TV. Therefore, after you watch 3D
TV, take a moment to regain awareness of
your situation before moving.
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
7
•
LCD
If the TV feels cold to the touch, there may be a
small “flicker” when it is turned on. This is
normal, there is nothing wrong with TV. Some
minute dot defects may be visible on the
screen, appearing as tiny red, green, or blue
spots. However, they have no adverse effect on
the TV’s performance. Avoid touching the LCD
screen or holding your finger(s) against it for long
periods of time. Doing so may produce some
temporary distortion effects on the screen.
DISPOSAL (Hg lamp only used in LCD TVs)
The fluorescent lamp used in this product contains
a small amount of mercury. Do not dispose of this
product with general household waste. Disposal of
this product must be carried out in accordance to
the regulations of your local authority.
For USA
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected
to the grounding system of the building, as close to
the point of the cable entry as practical.
ENGLISH
8
TABLE OF CONTENTS
TABLE OF CONTENTS
2
LICENSES
3
IMPORTANT SAFETY
INSTRUCTIONS
8
TABLE OF CONTENTS
10
ASSEMBLING AND PREPARING
10
Unpacking
13
Optional Extras
14

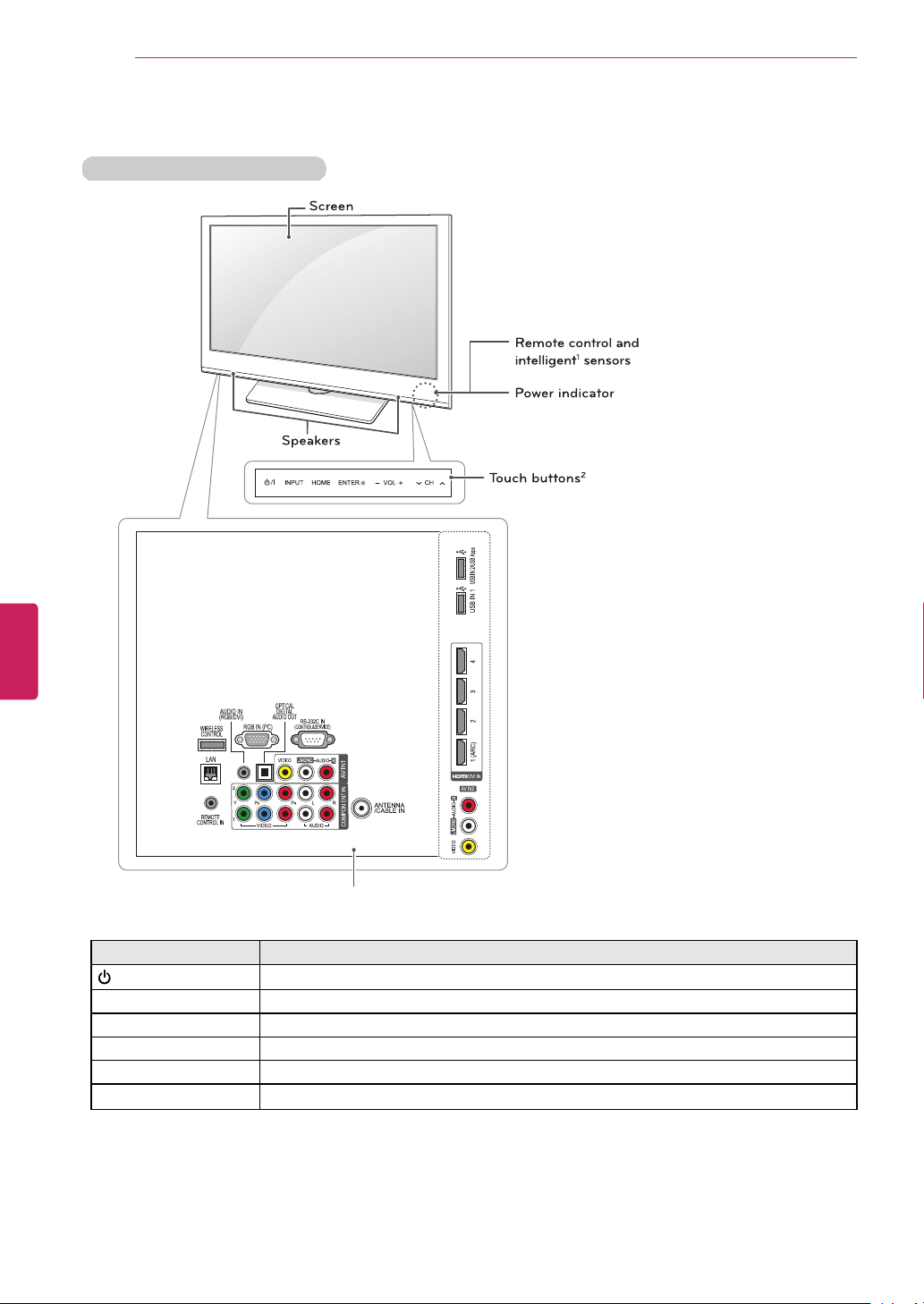

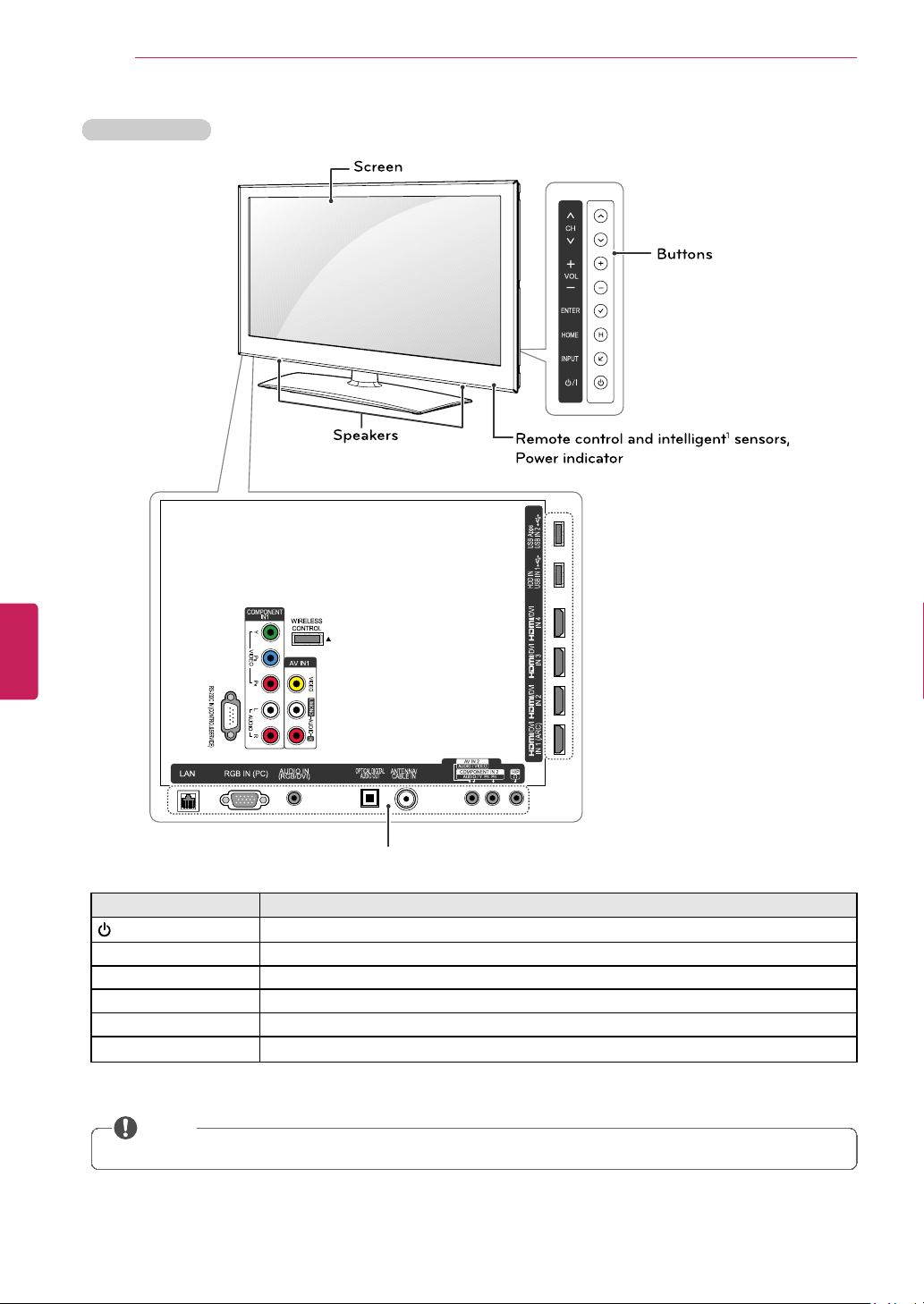

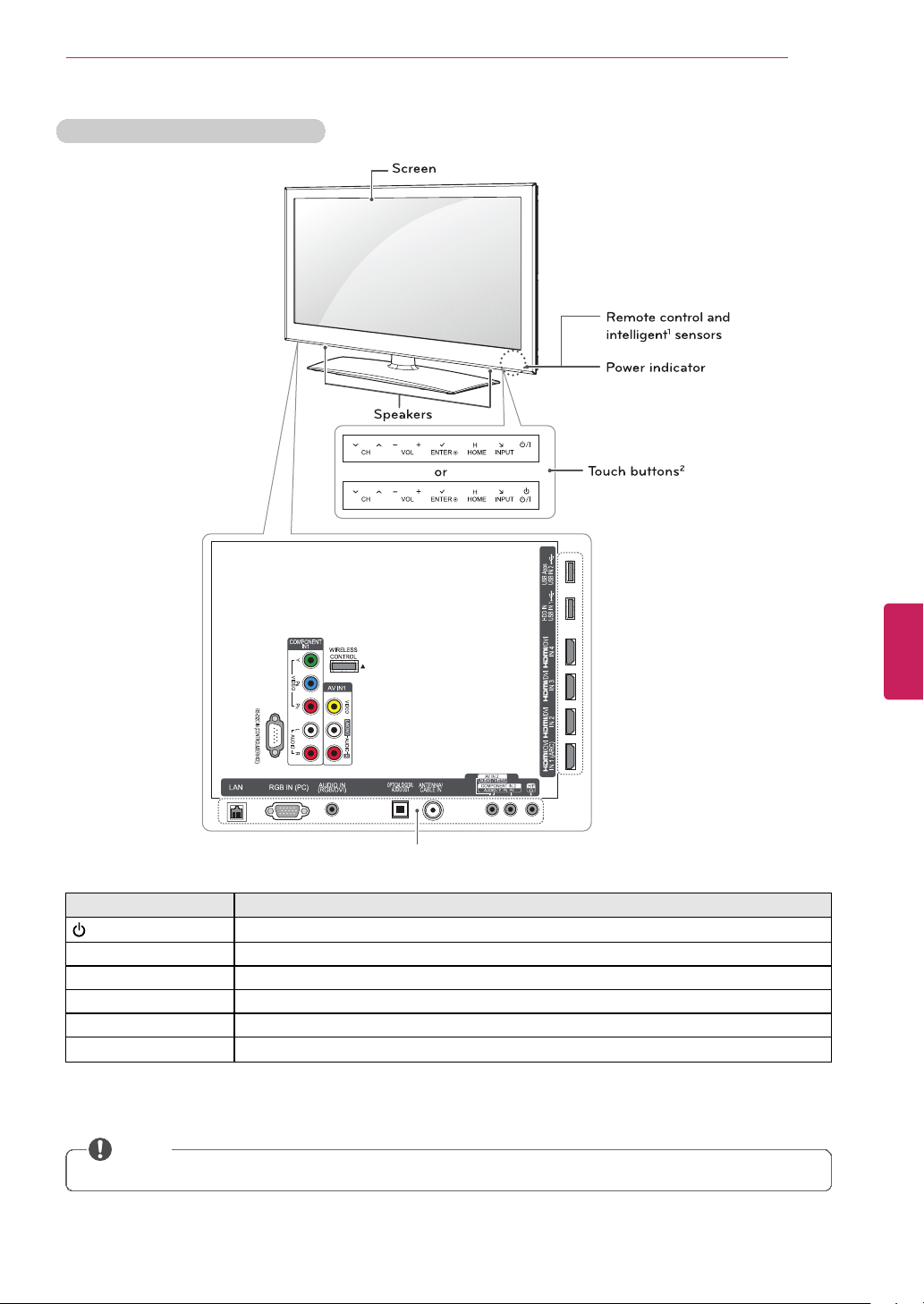

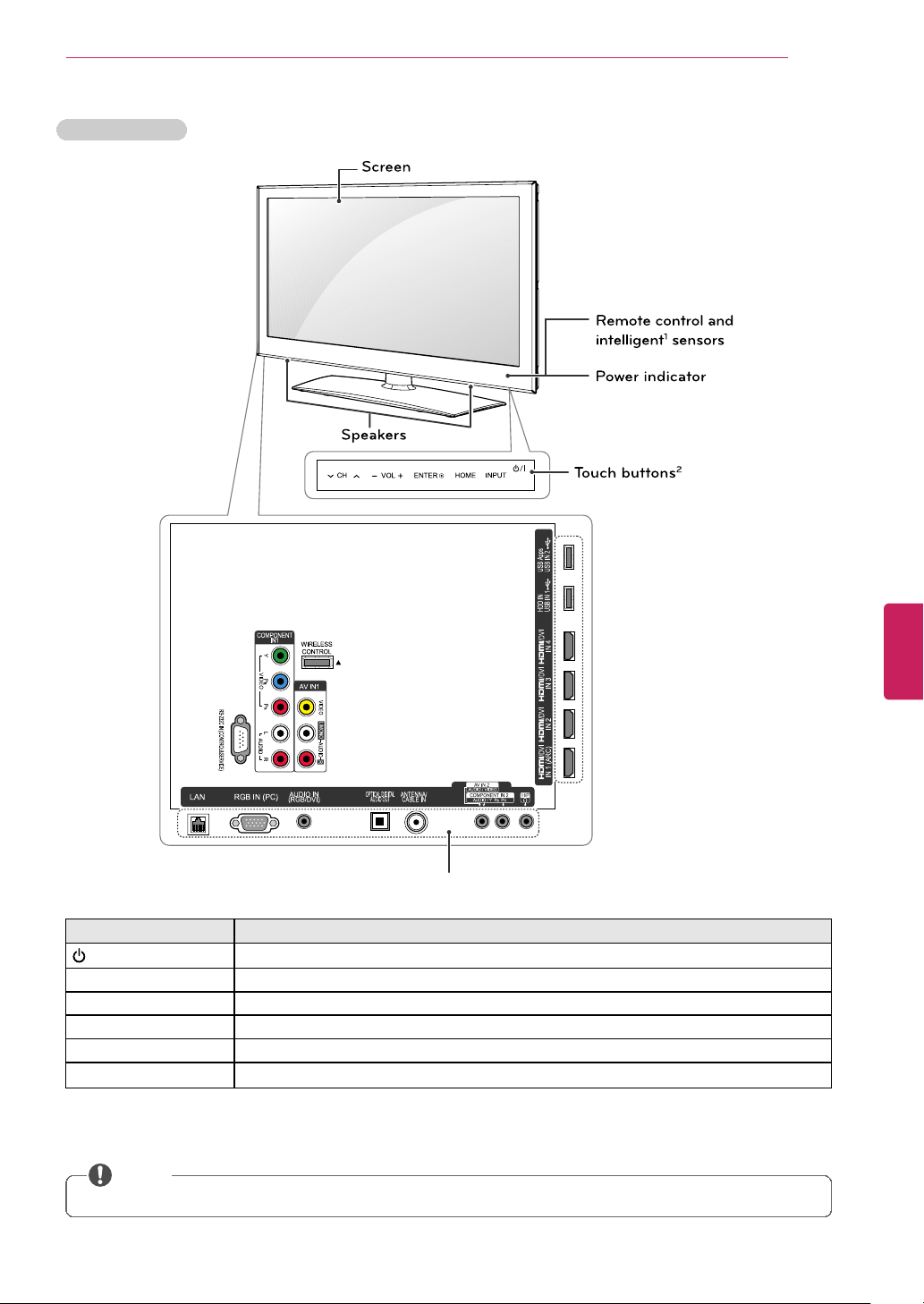

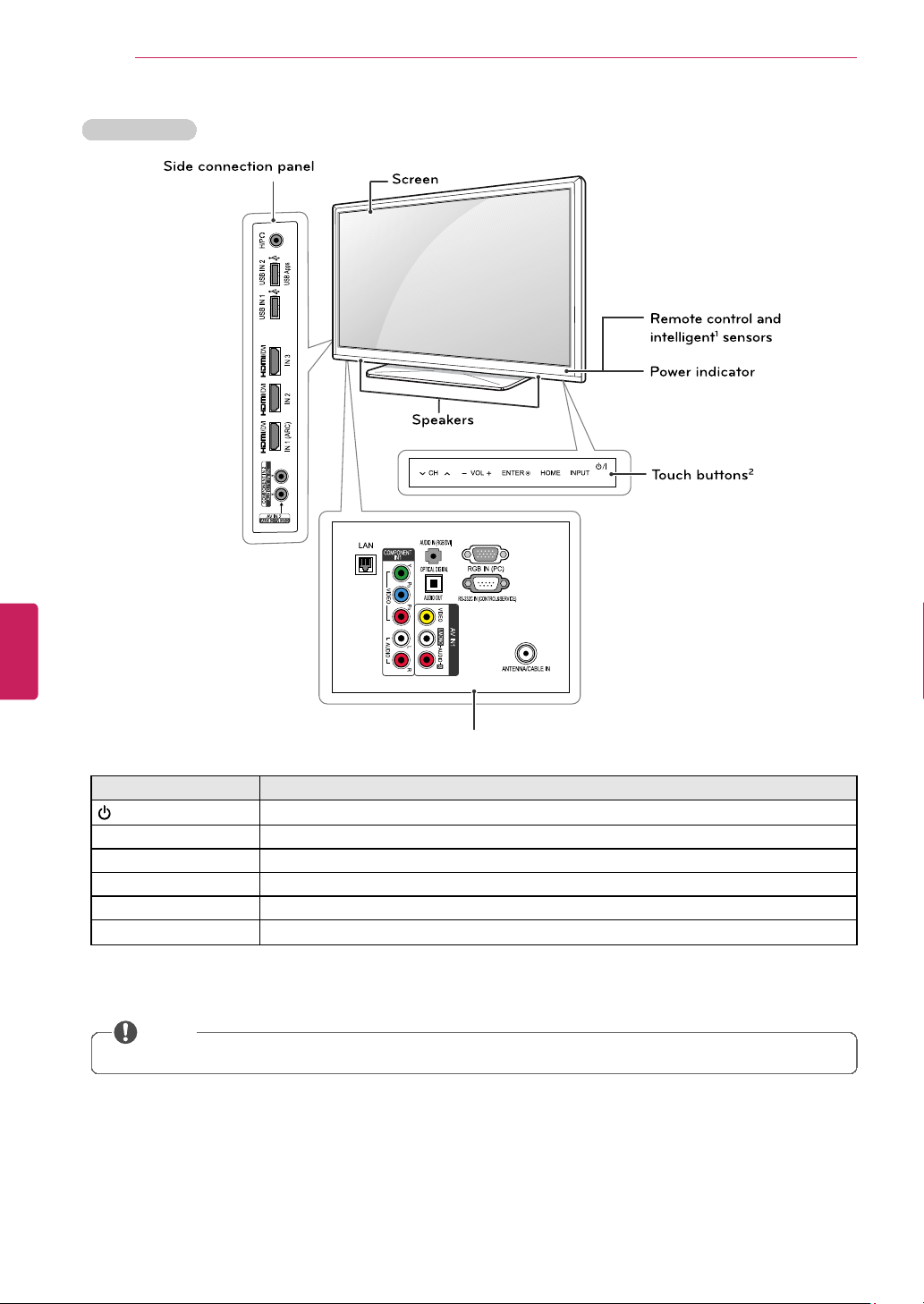

Parts and buttons
22
Lifting and moving the TV
22

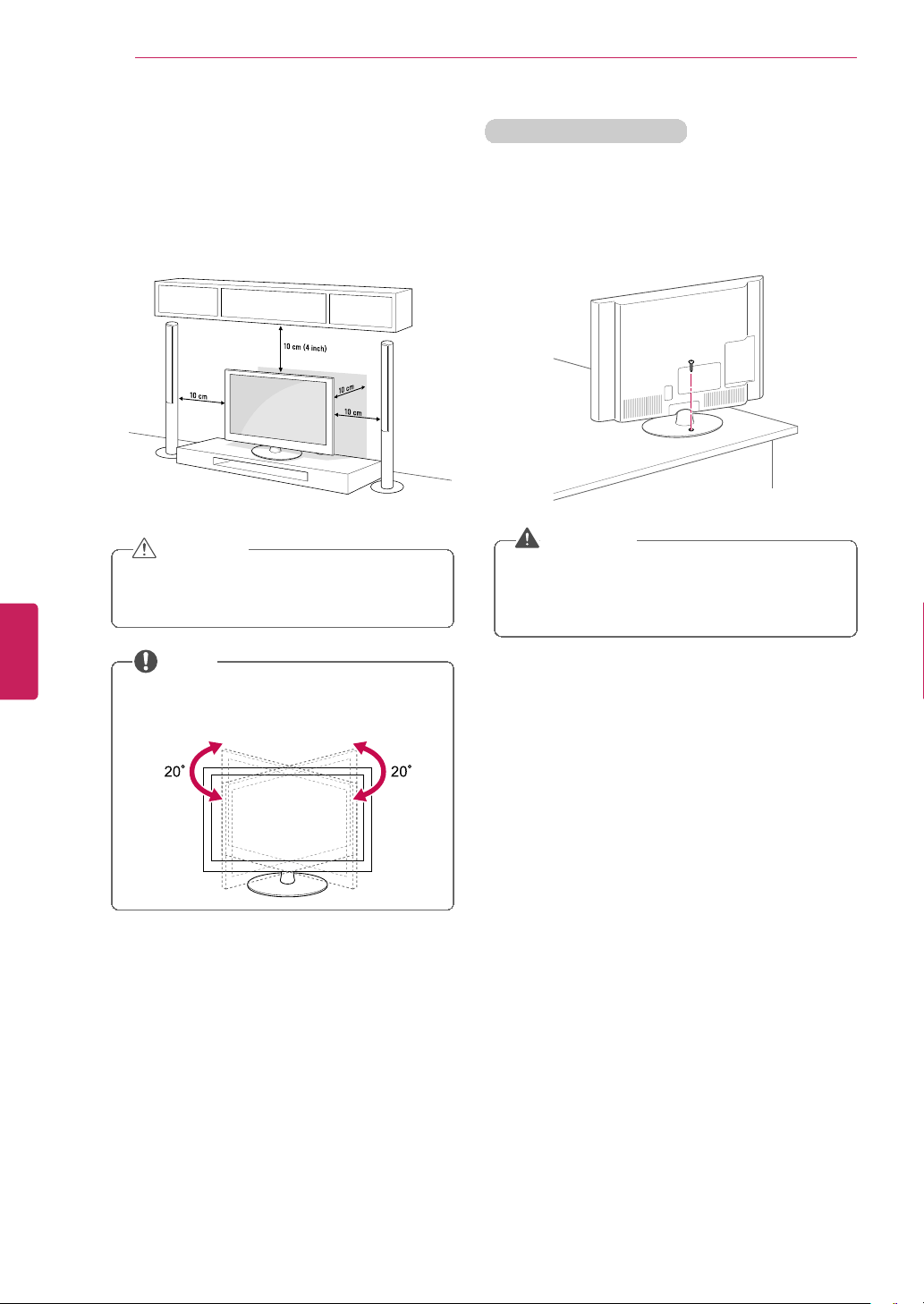

Setting up the TV
22
- Attaching the stand
28
- Mounting on a table
30

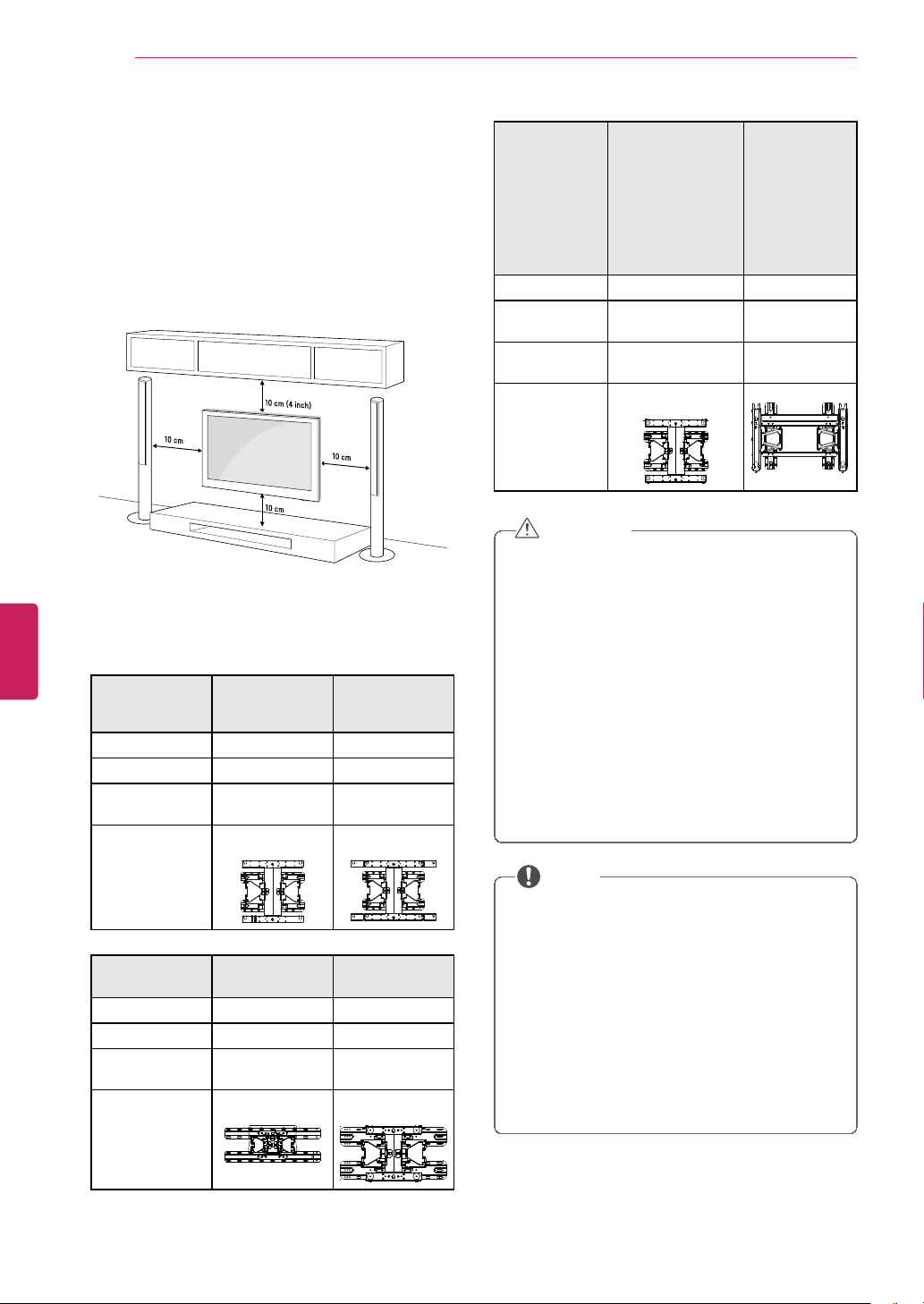

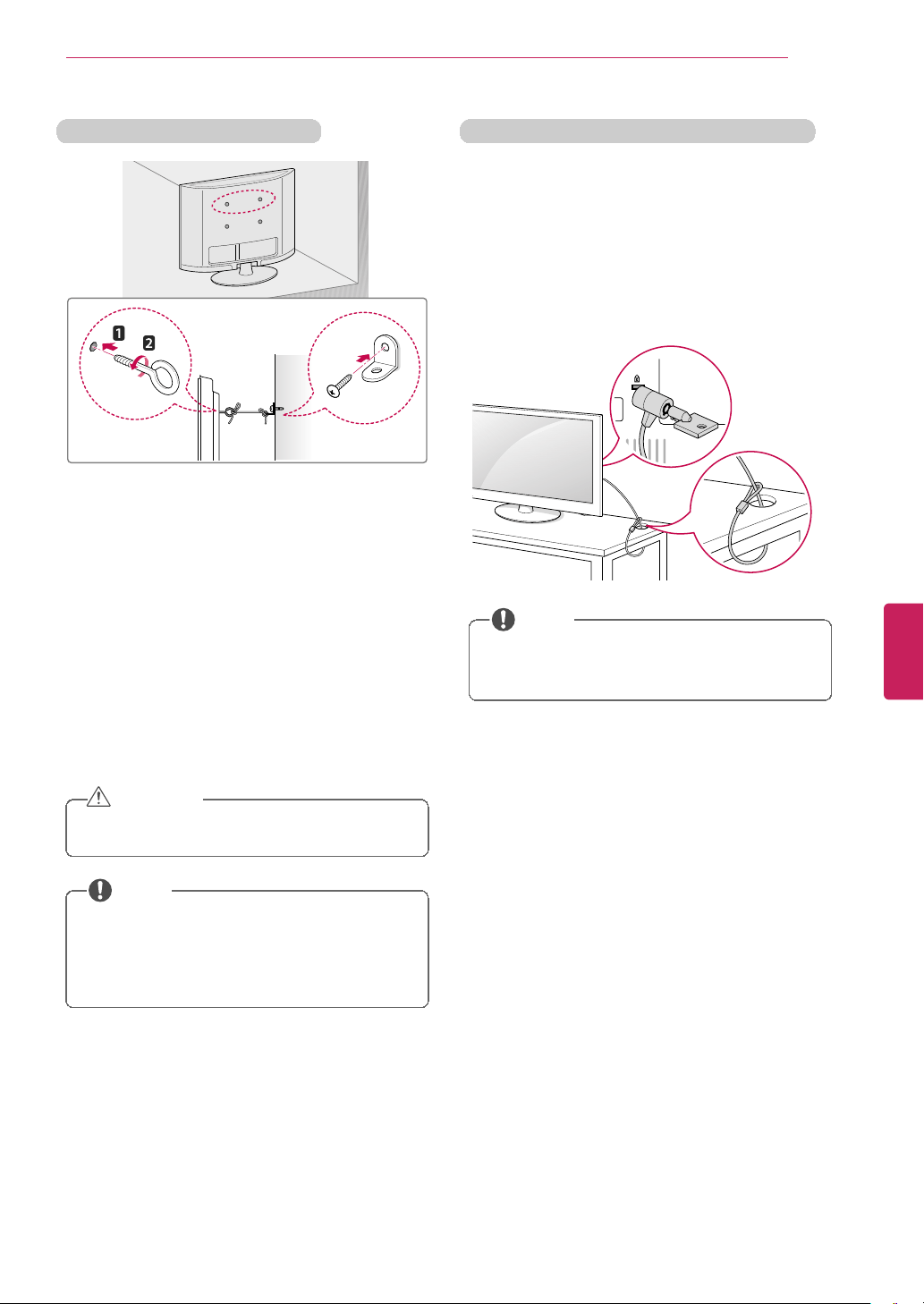

- Mounting on a wall
31
- Tidying cables
32

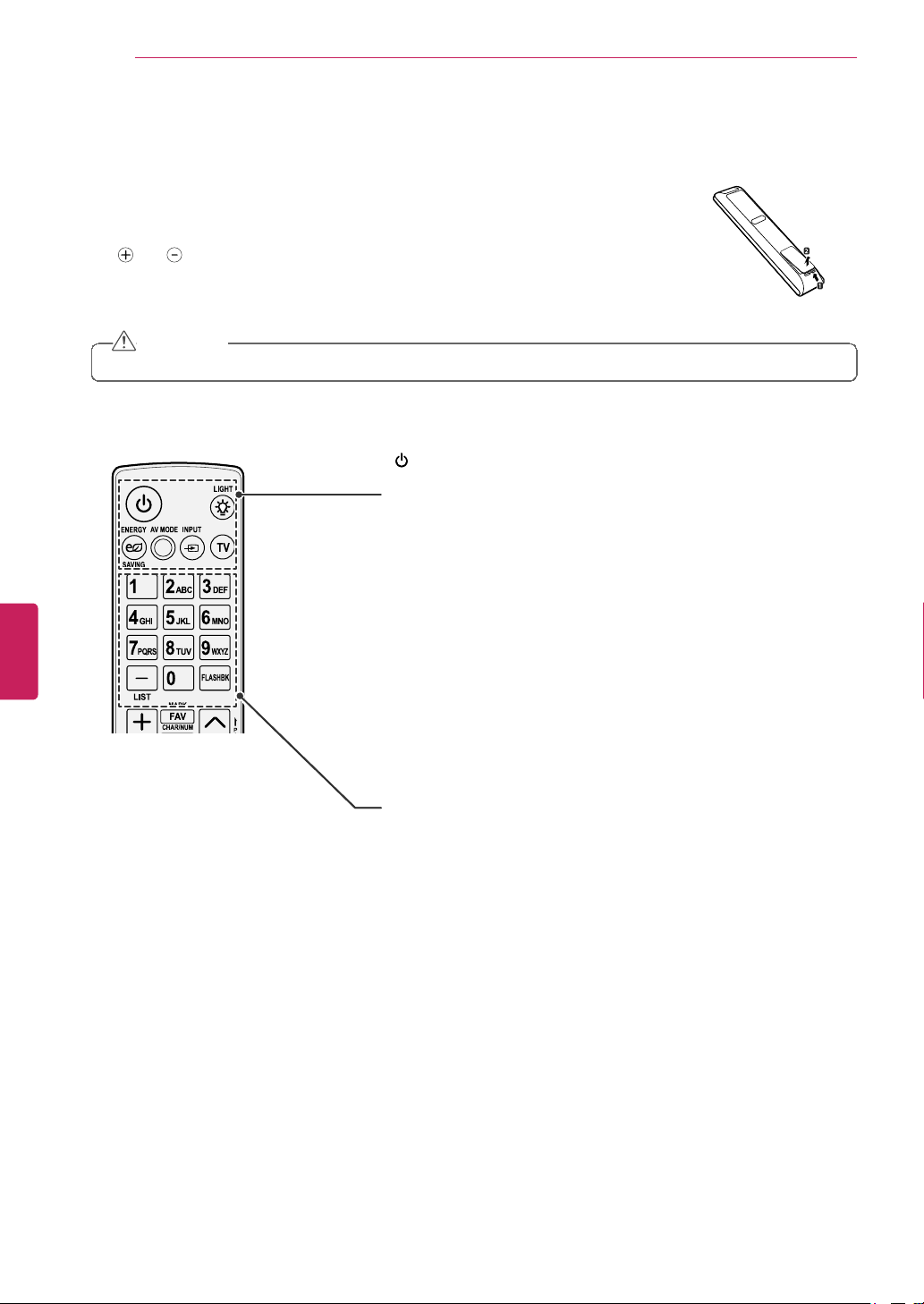

REMOTE CONTROL
36
Magic Motion Remote Control Functions
37
- Registering Magic Motion Remote Control
37
- How to use Magic Motion Remote Control
37
- Precautions to Take when Using the Magic
Motion Remote Control
38
WATCHING TV
38

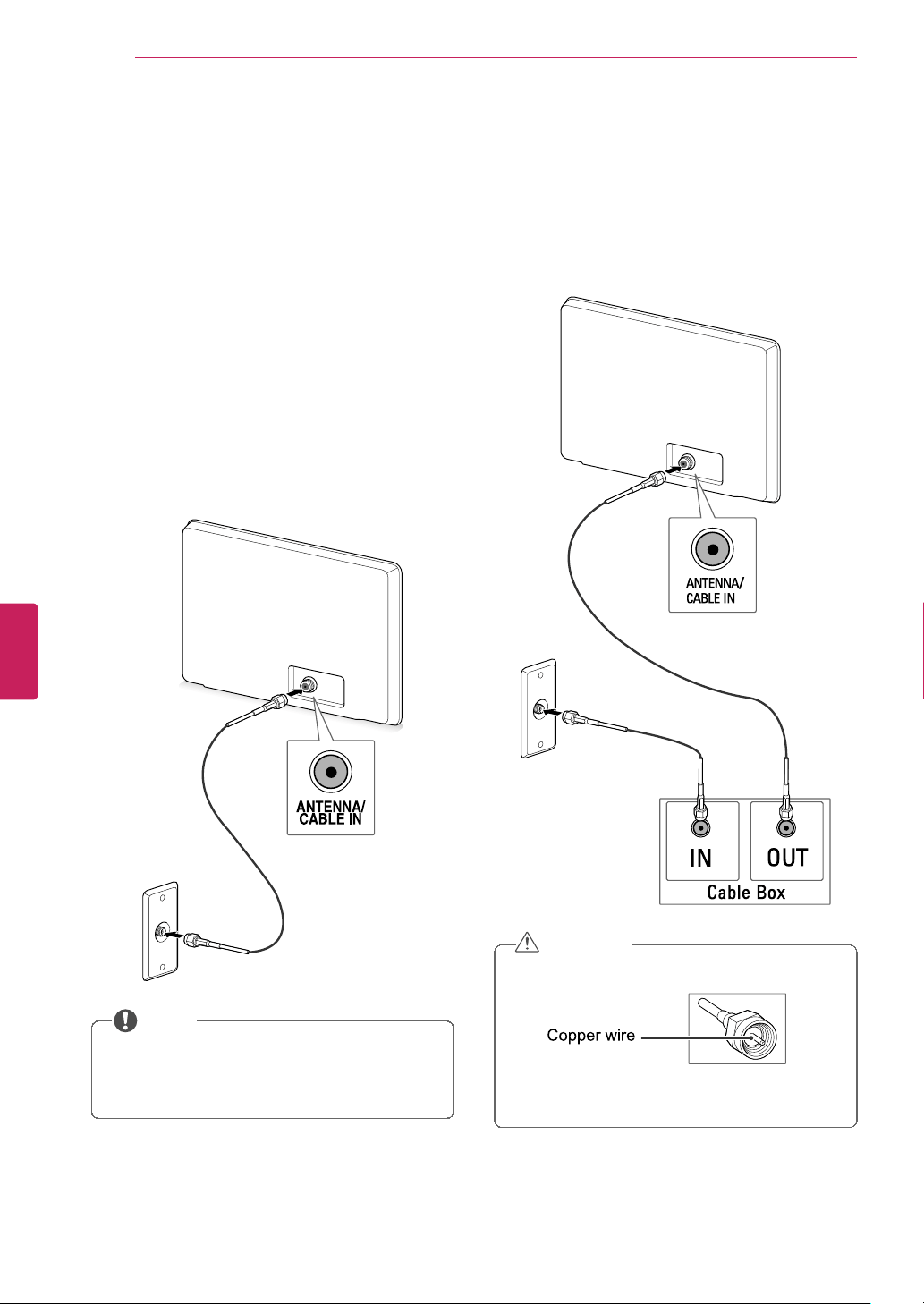

Connecting to an antenna or cable
38
- Connecting an antenna or basic cable
38
- Connecting a cable box
39
Turning the TV on for the first time
40
Watching TV
41
Accessing Home Menu
42
Managing channels
42
- Setting up channels
43

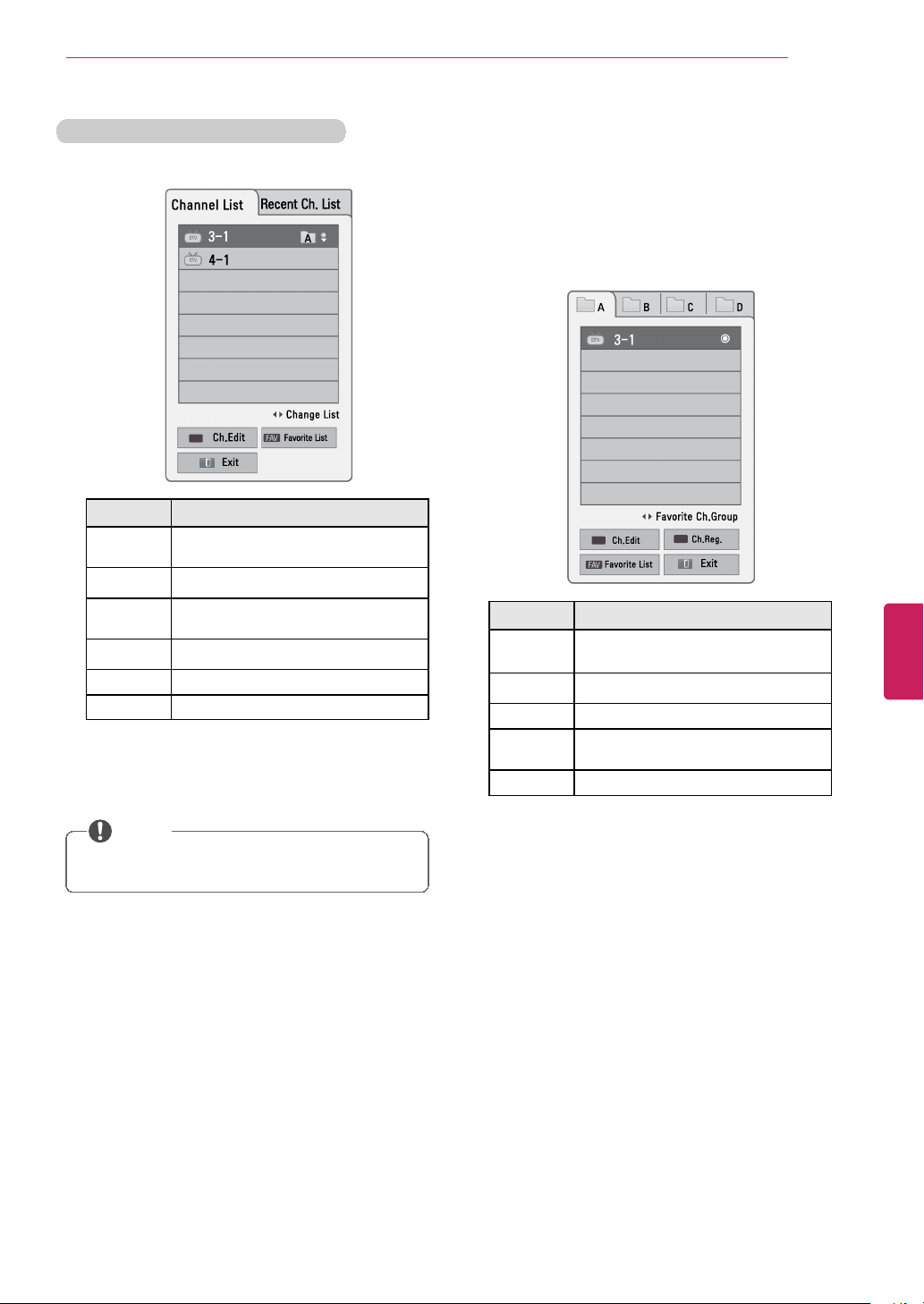

- Using favorite channels
44

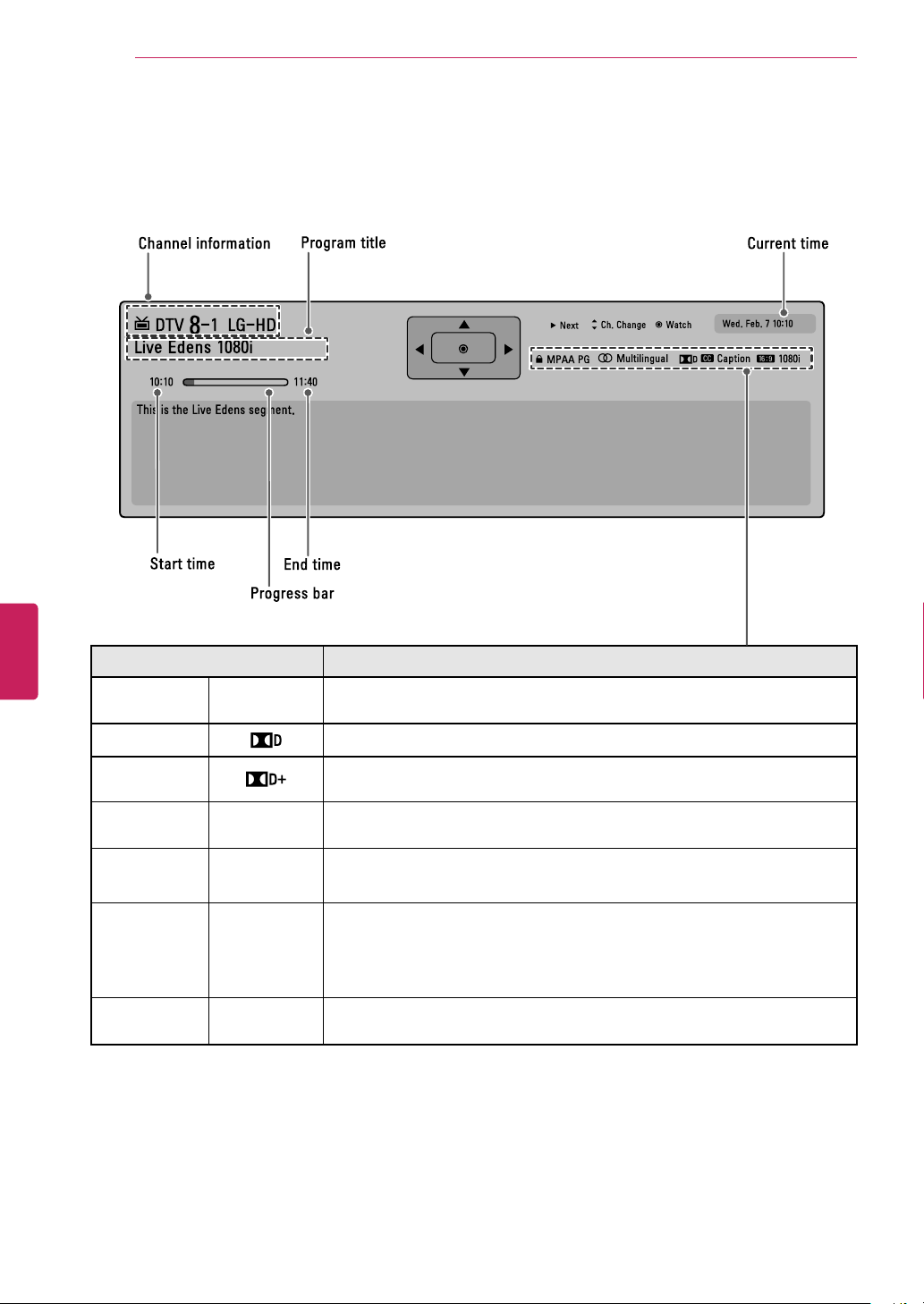

- Checking current program info
45
Using additional options
45
- Adjusting aspect ratio
46
- Changing AV modes
46
- Using the input list
47
Using the quick menu
48
ENTERTAINMENT
48
Network Connection
48
- Connecting to a wired network
49

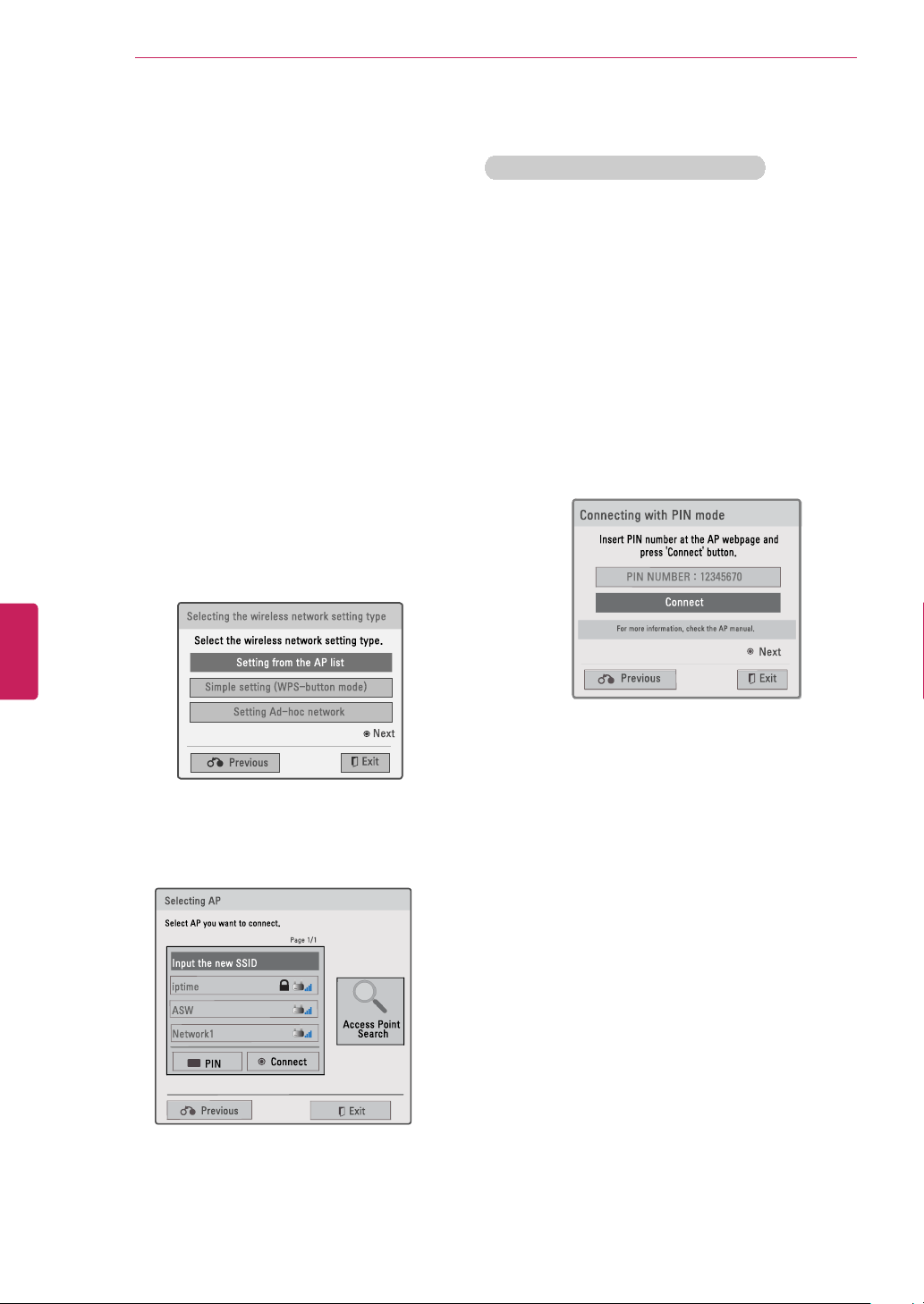

- Connecting to a wireless network
50
- When a security code is already set
53
- Network Status
54
Premium Account Function
54
- Notice
56
LG Apps function
56
- Registration LG Apps
57
- Sign in with LG Apps account
58
- Using LG Apps
59
- Using My Apps
60

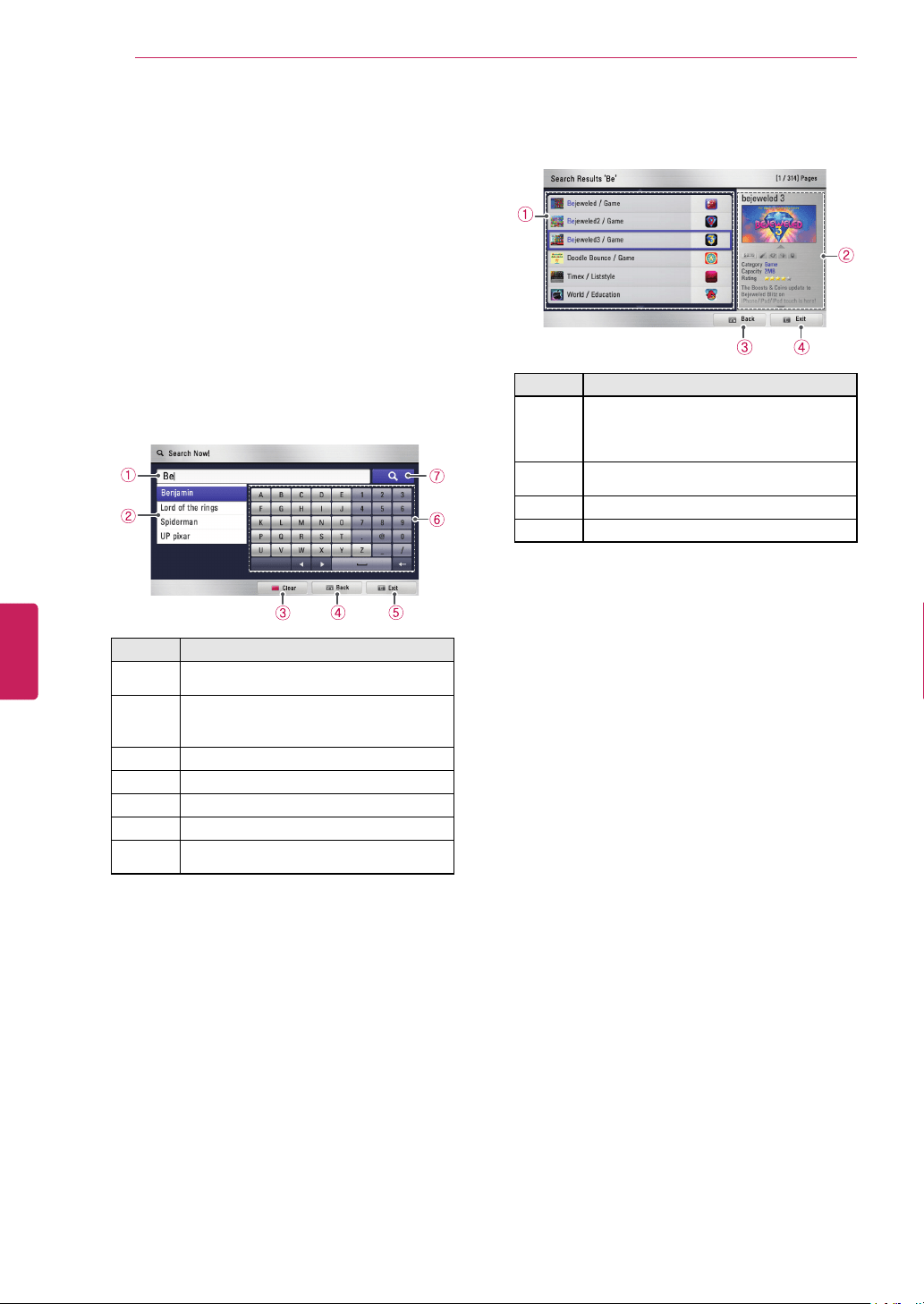

Search
61
Web Browser Function
61
- Using Web Browser
62

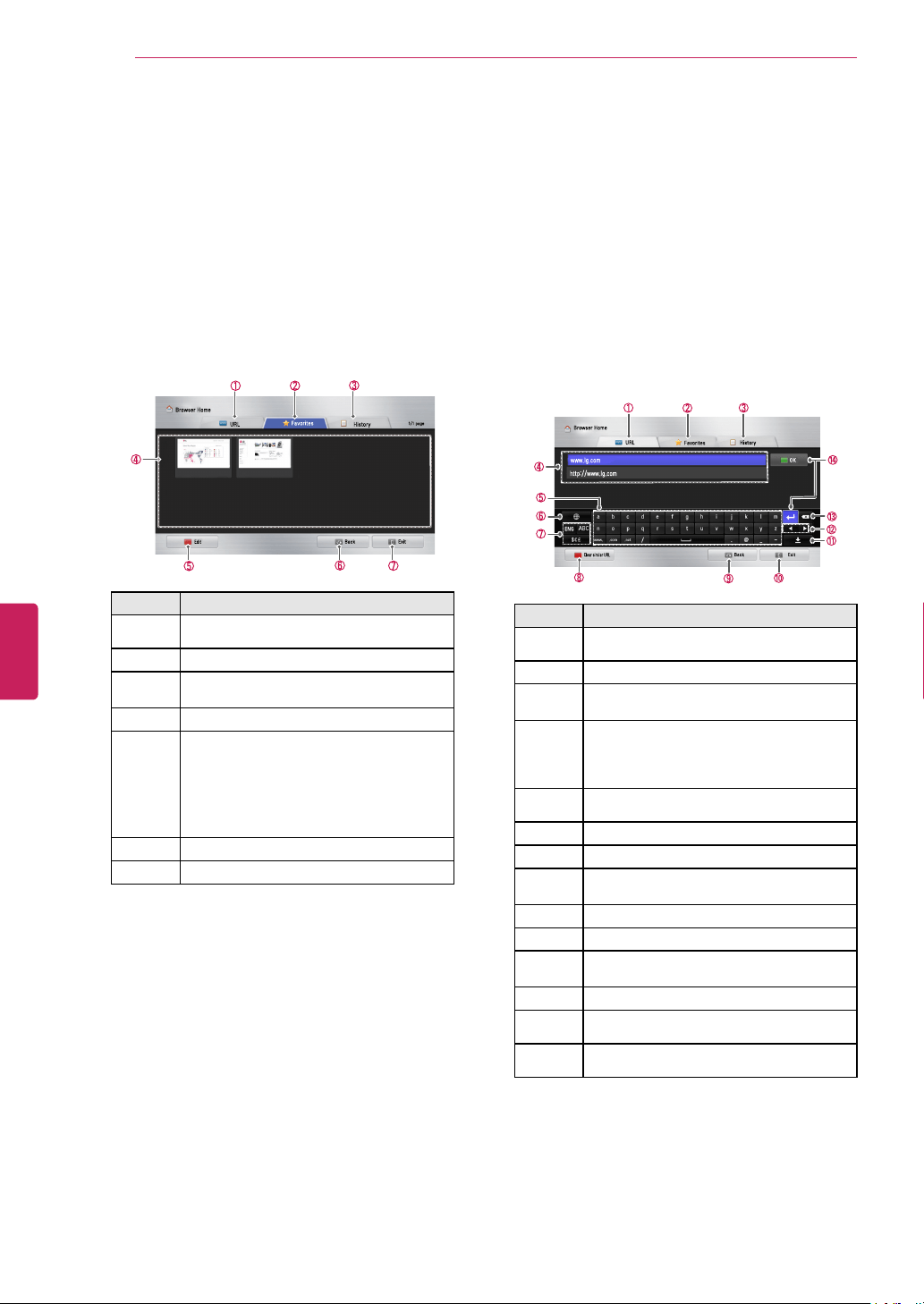

- Browsing Favorite Websites
62
- Browsing Websites by Directly Entering
Address
63

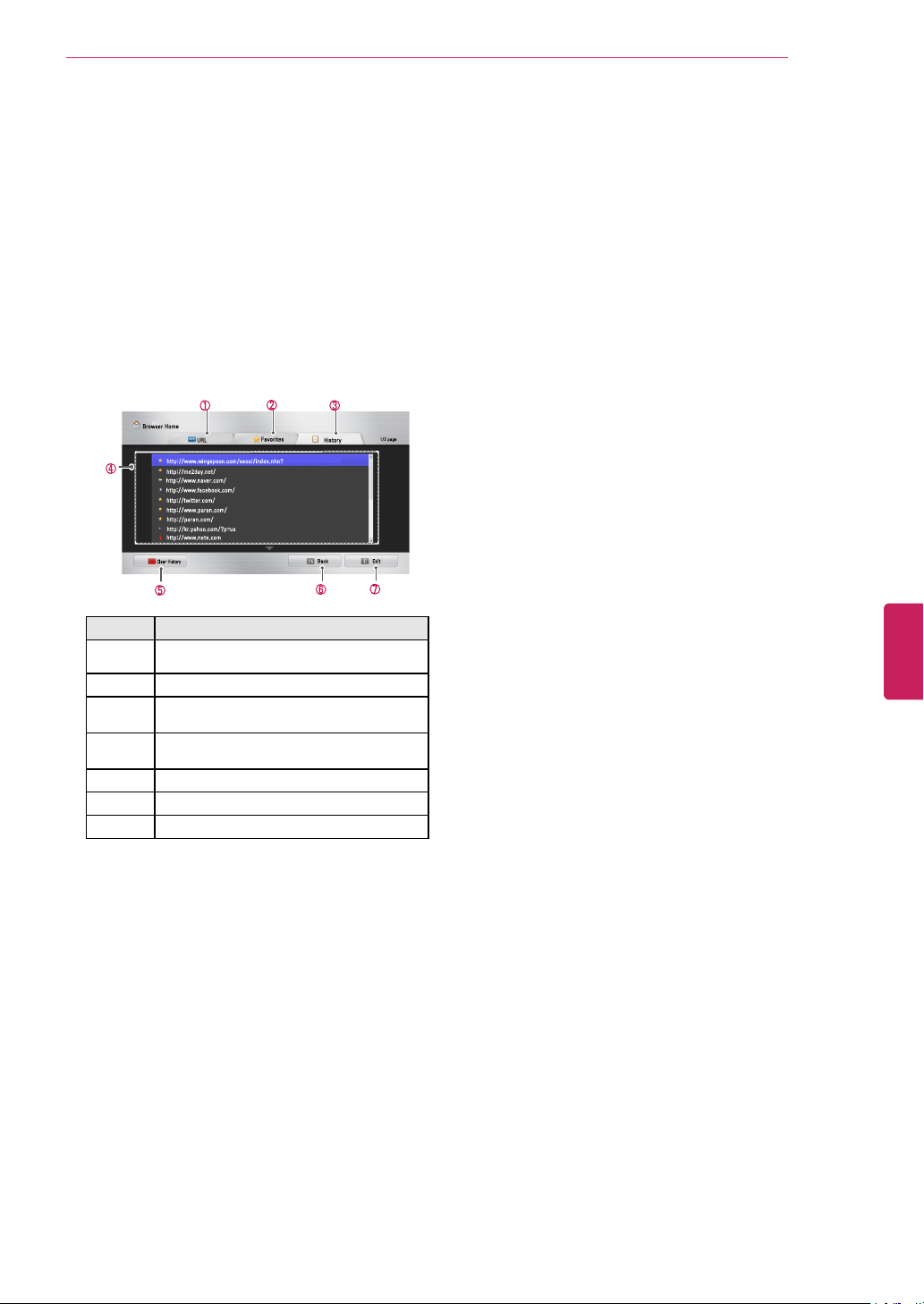

- Viewing Visited Website List
64
Smart Share Function
64
- Connecting USB storage devices
65
- Connecting DLNA DMP (Digital Living
Network Alliance, Digital Media Player)
68
- Connecting DLNA DMR (Digital Living
Network Alliance, Digital Media Render)
69
- Browsing files
70

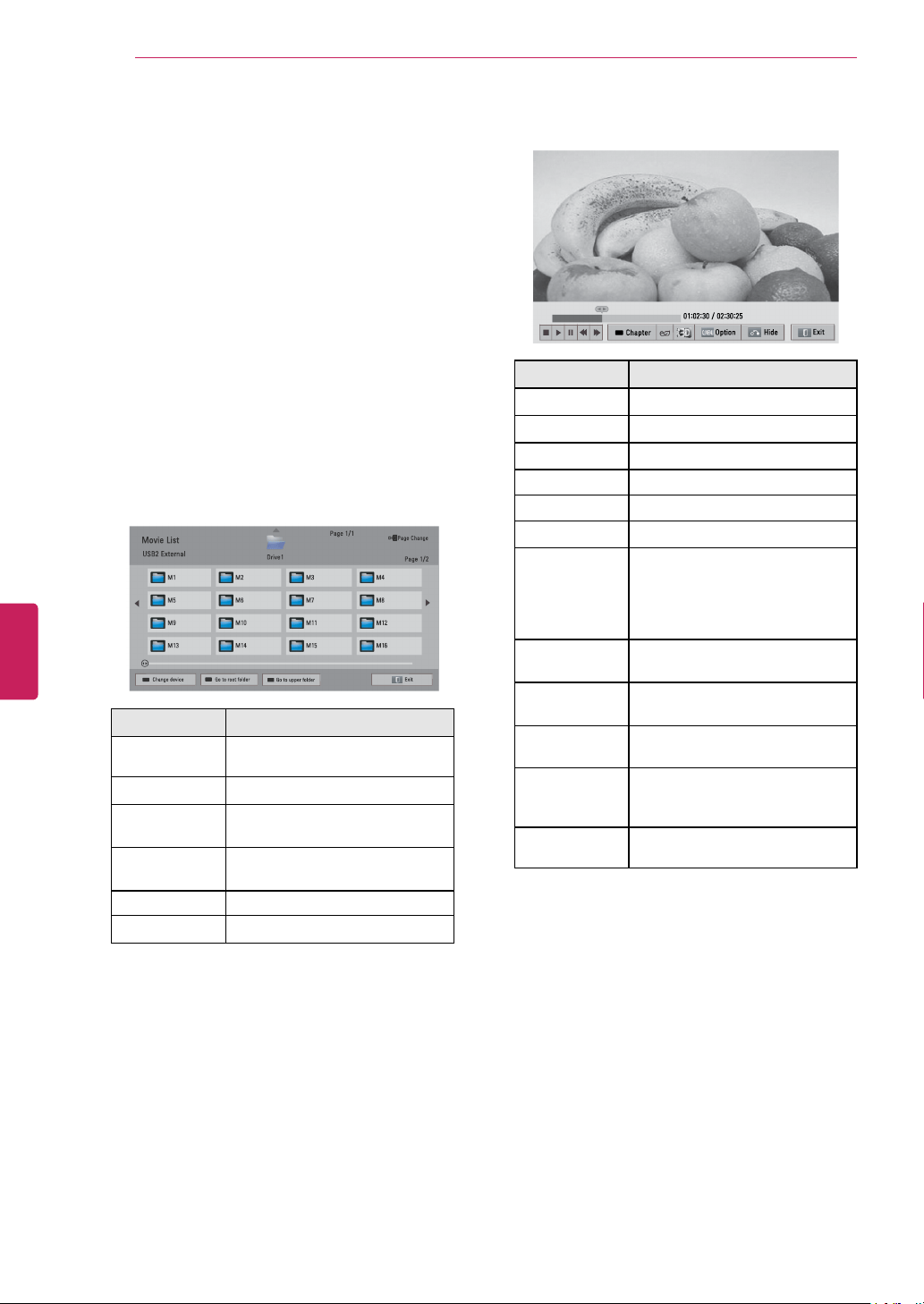

- Viewing Videos
73
- DivX registration code
74

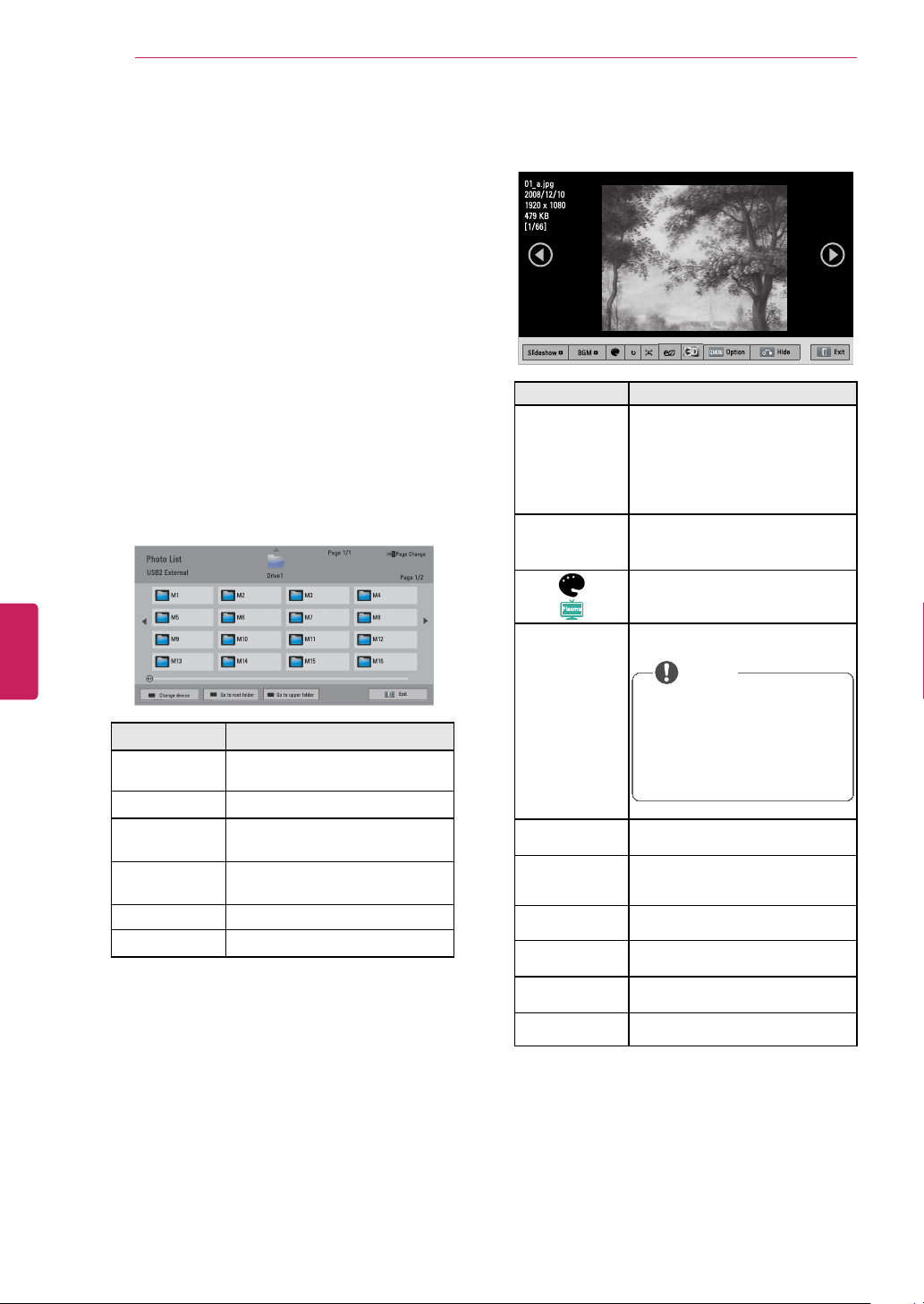

- Viewing Photos
76
- Listening to music
78

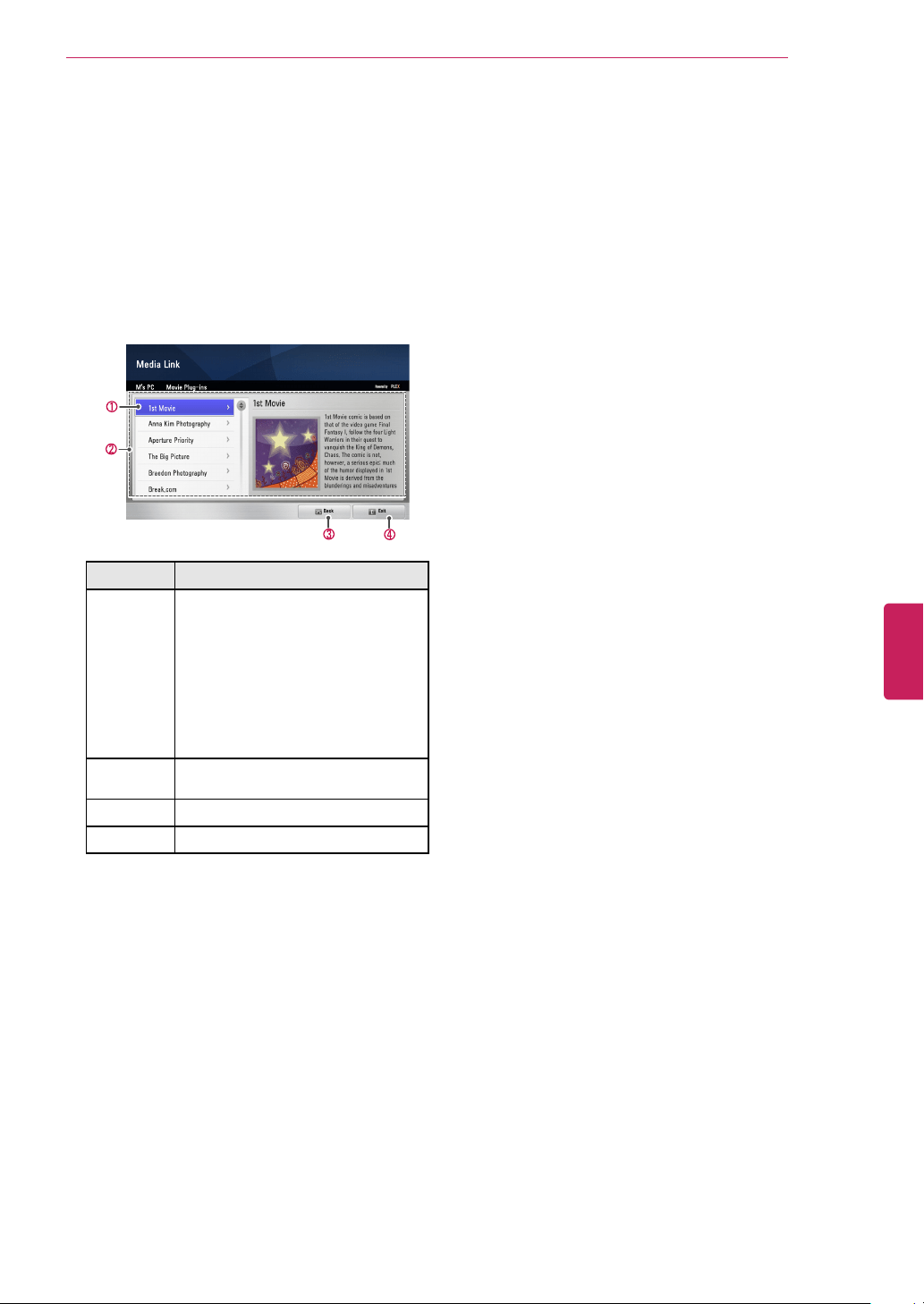

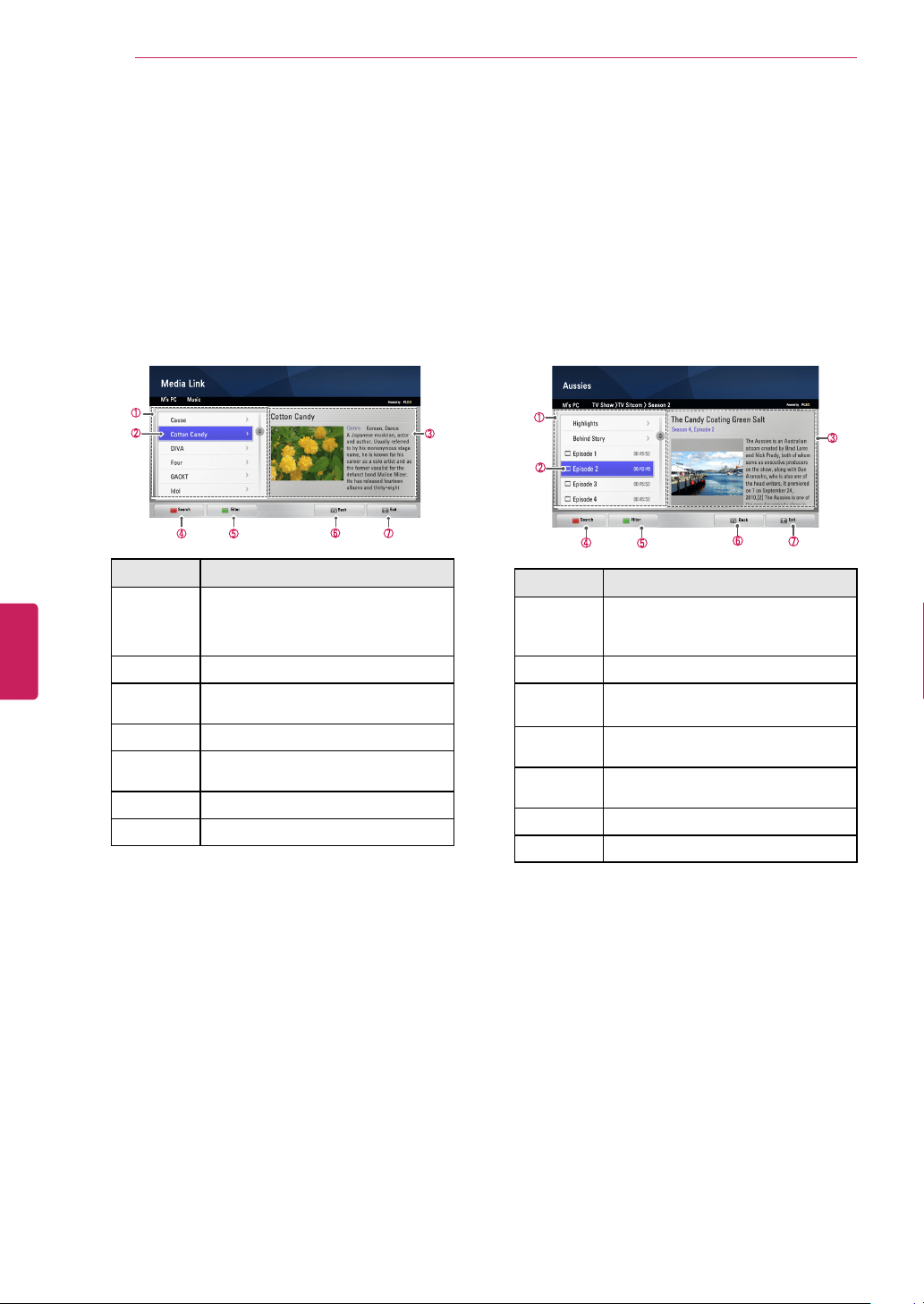

Media Link Function
78
- Media Link Connection
79

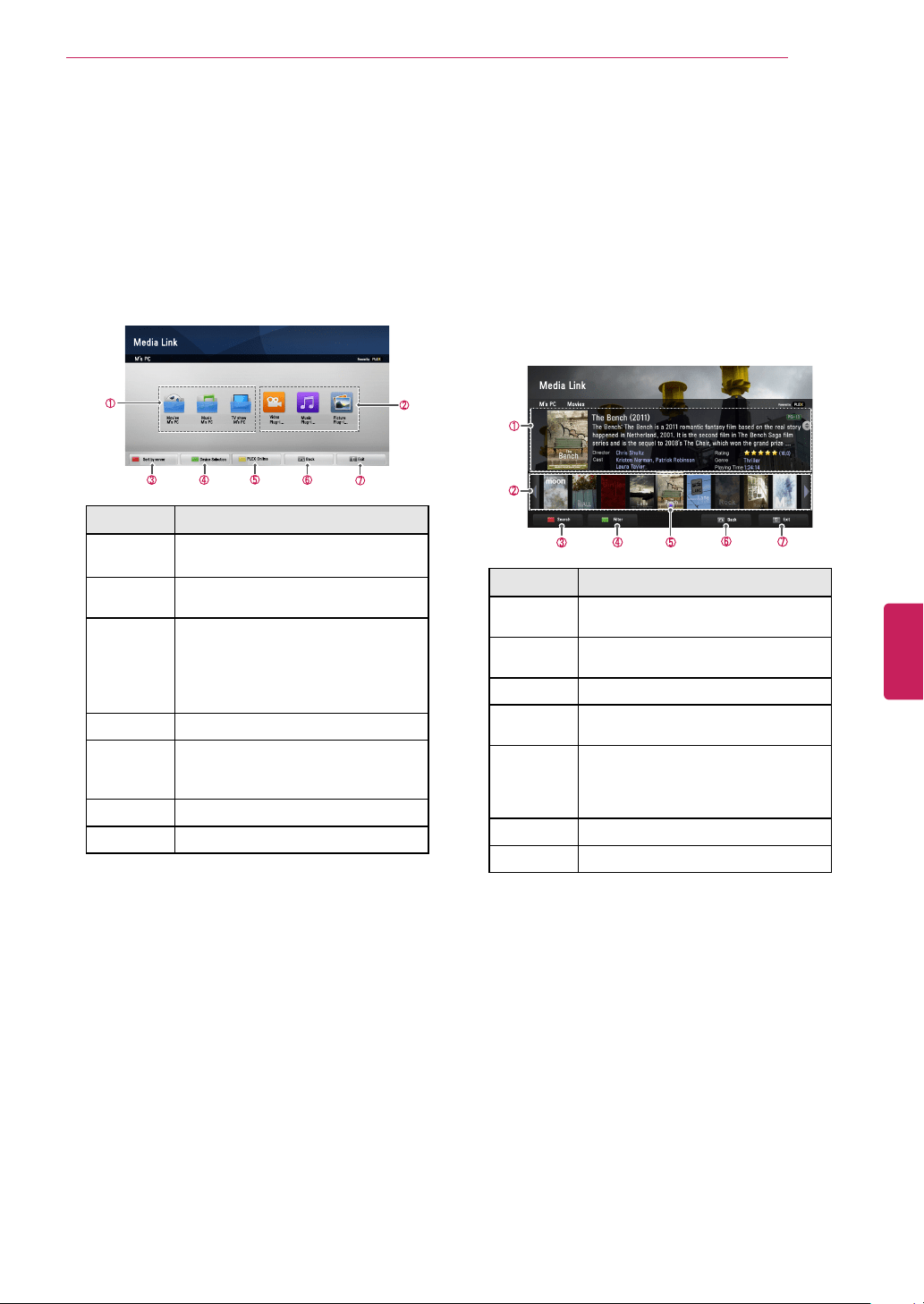

- Using Media Link
79
- Viewing Movies
80
- Using Music Section
80
- Using TV Program Section
81
- Installing Plug-Ins
82
3D IMAGING (FOR 3D TV)
82
3D Technology
82
- When watching 3D imaging
83
- When using 3D Glasses
83
- 3D Imaging Viewing Range (
Pla sm a
)
84

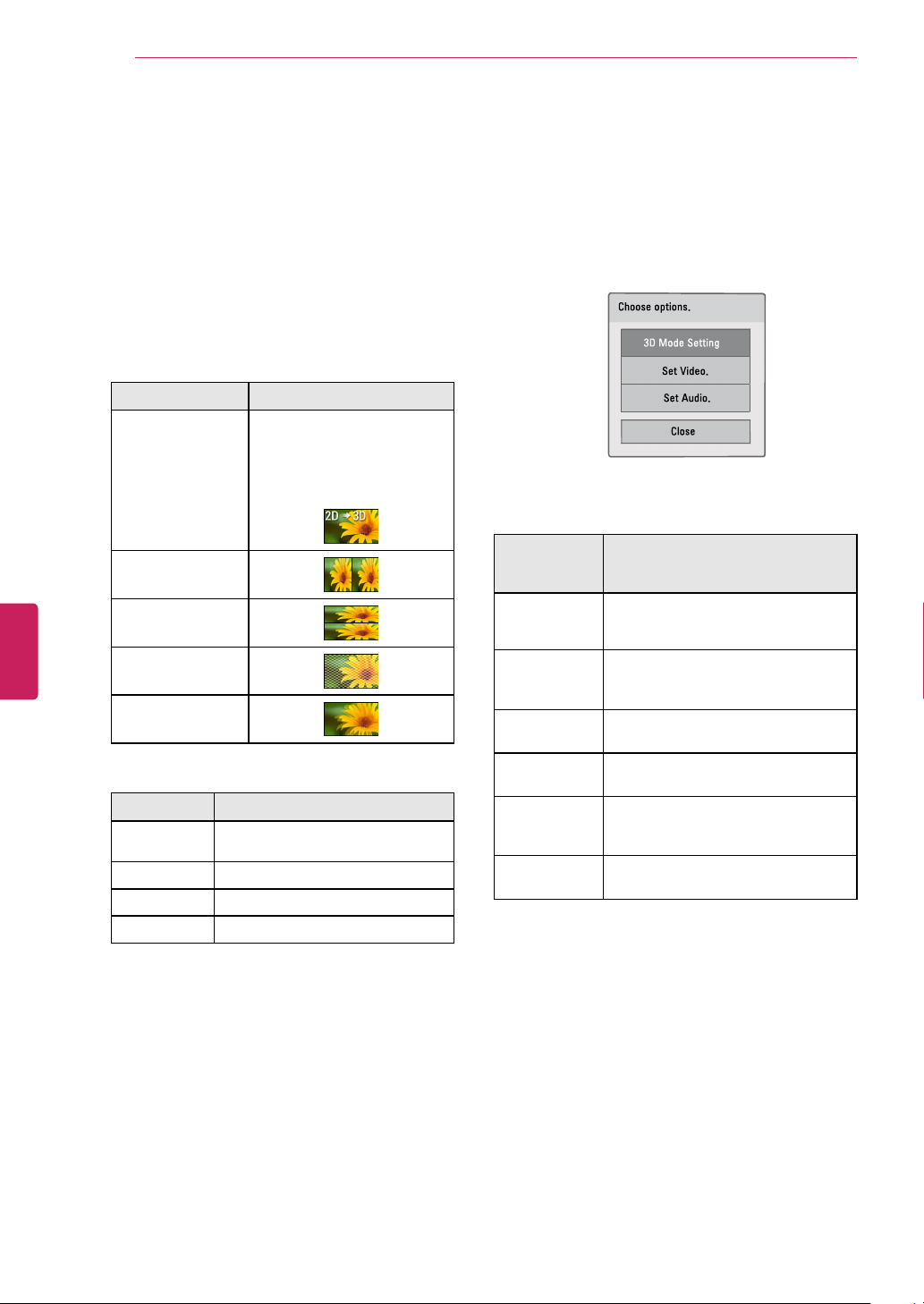

Viewing 3D Imaging
84
- Setting 3D Imaging
86
CUSTOMIZING TV SETTINGS
86
The SETUP Menu
87
Customizing Settings
87
- CHANNEL Settings
88

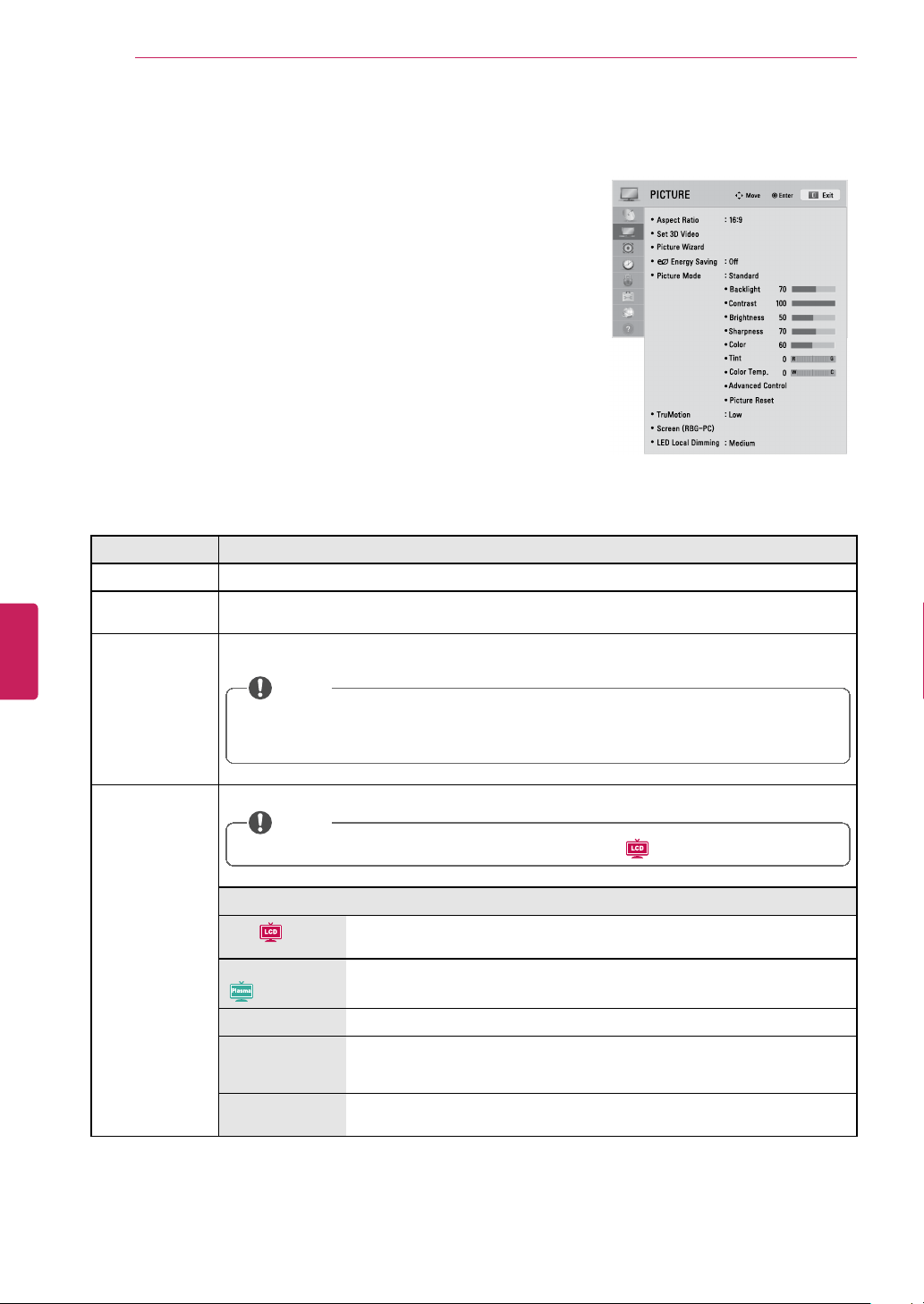

- PICTURE Settings
93
- AUDIO Settings
ENGLISH
TABLE OF CONTENTS
9
95
- TIME Settings
96
- LOCK Settings
98
- OPTION Settings
101
- NETWORK Settings
102
- SUPPORT Settings
103
MAKING CONNECTIONS
104

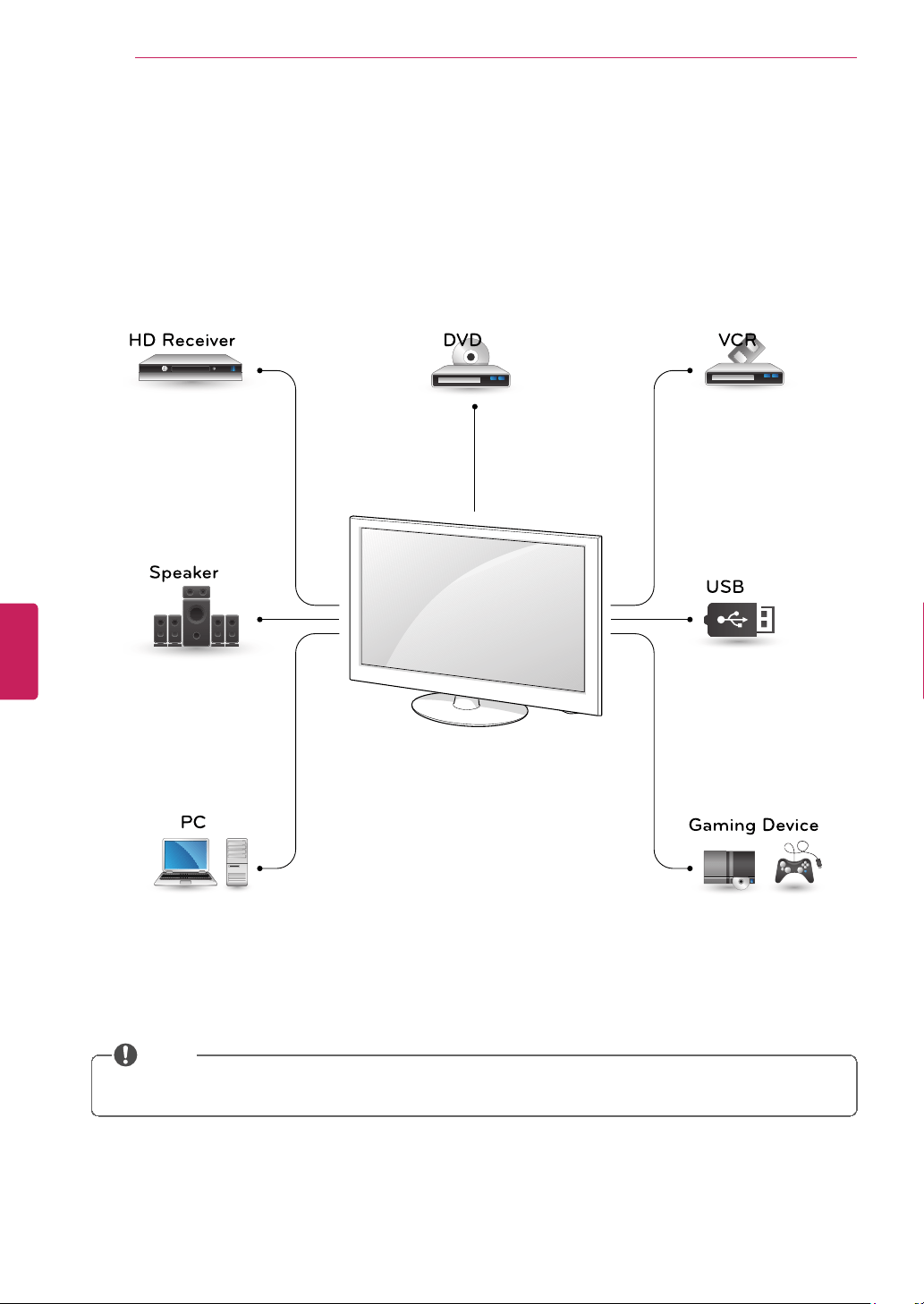

Connection Overview
105
Connecting to a HD receiver, DVD, or VCR
player
105
- HDMI Connection
106
- DVI to HDMI Connection
107

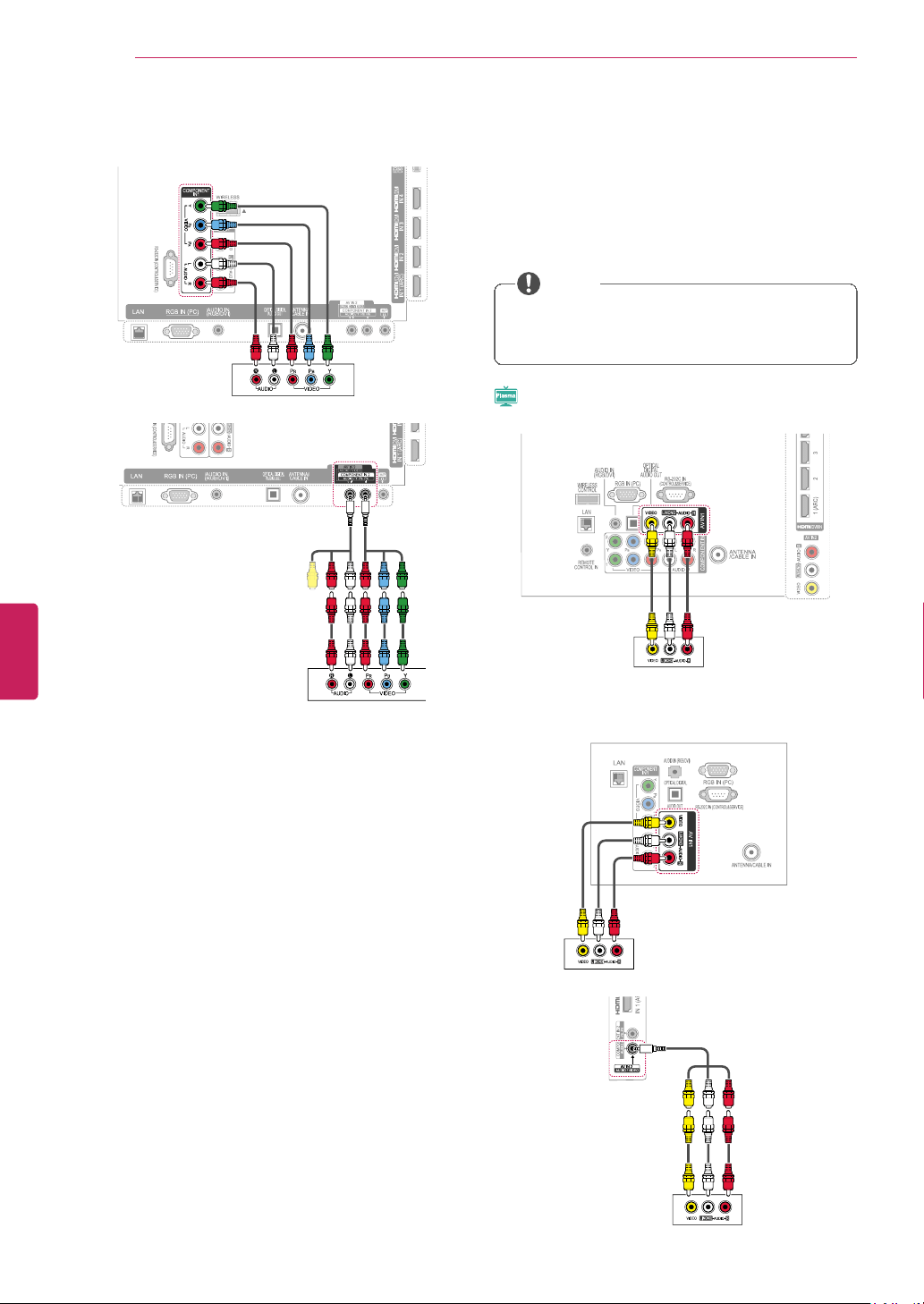

- Component Connection
108
- Composite Connection
110
Connecting to a PC
110
- HDMI Connection
111

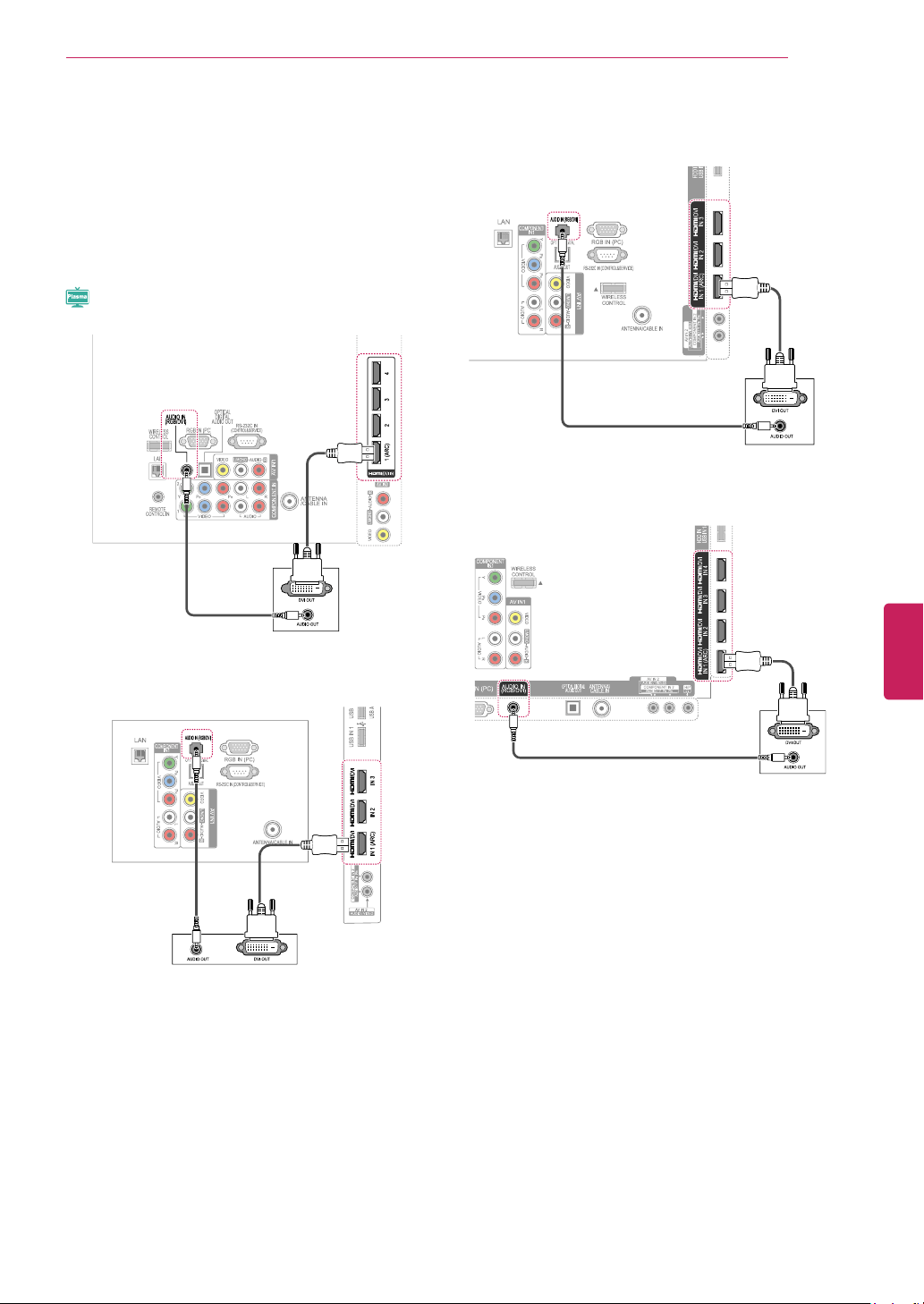

- DVI to HDMI Connection
112
- RGB Connection
113
Connecting to an Audio System
113

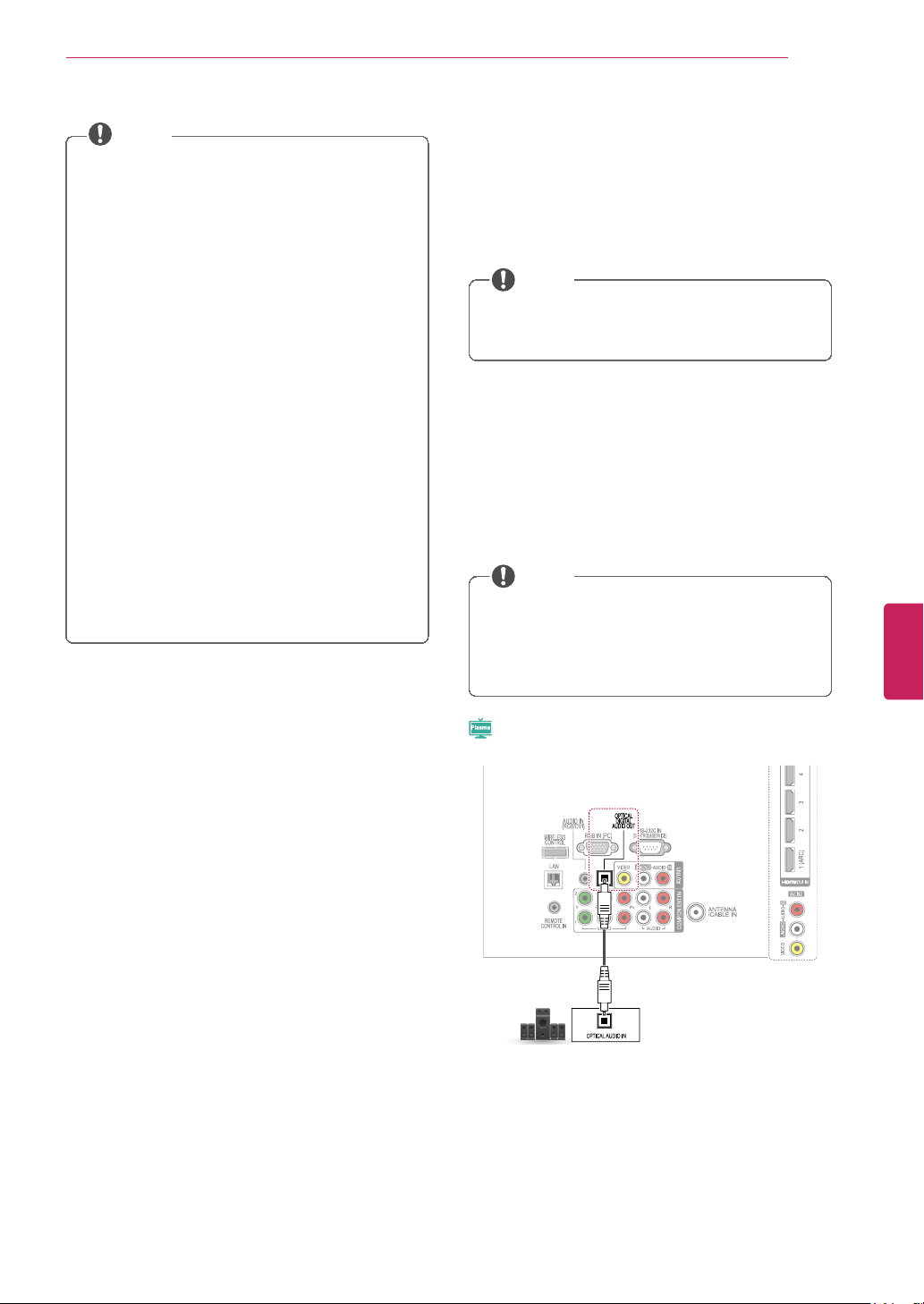

- Digital Optical Audio Connection
115

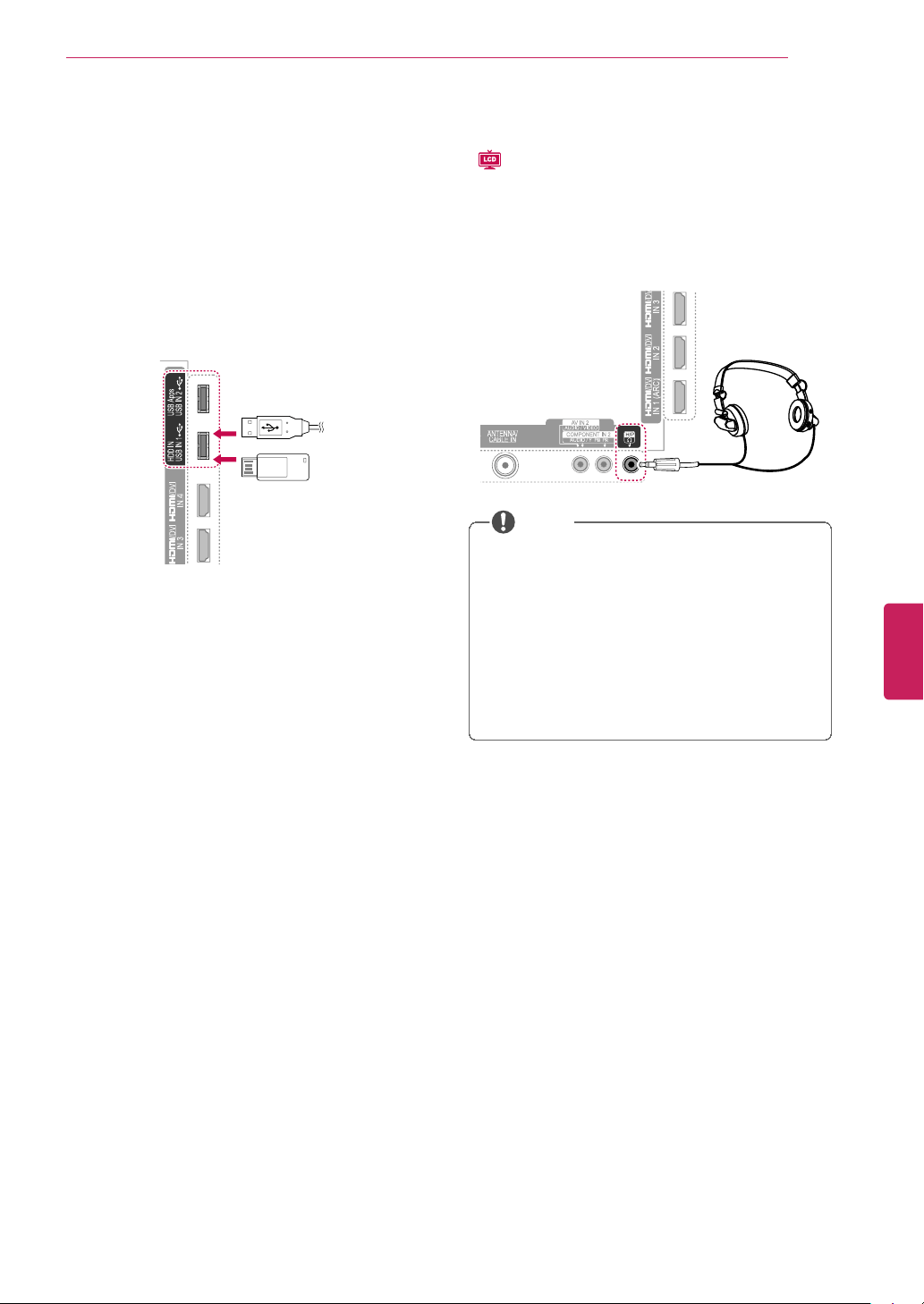

Connecting to a USB
115
Connecting to a Headphone (
LCD
)
116
Connecting the Wireless Media Box
117
SIMPLINK Connection
117
- Activating and Using the SIMPLINK menus
118
MAINTENANCE
118
Updating the TV Firmware
119
Cleaning Your TV
119
- Screen and frame
119
- Cabinet and stand
119
- Power cord
119
Preventing “Image burn” or “Burn-in” on your
TV screen
120
TROUBLESHOOTING
122
SPECIFICATIONS
130
IR CODES
130
How to Connect
130
Remote Control IR Codes
130
- Output waveform
130
- Frame configuration
130
- Lead code
130
- Repeat code
130
- Bit description
130
- Frame interval: Tf
132
EXTERNAL CONTROL DEVICE
SETUP
132
RS-232C Setup
132
Type of connector: D-Sub 9-Pin Male
133

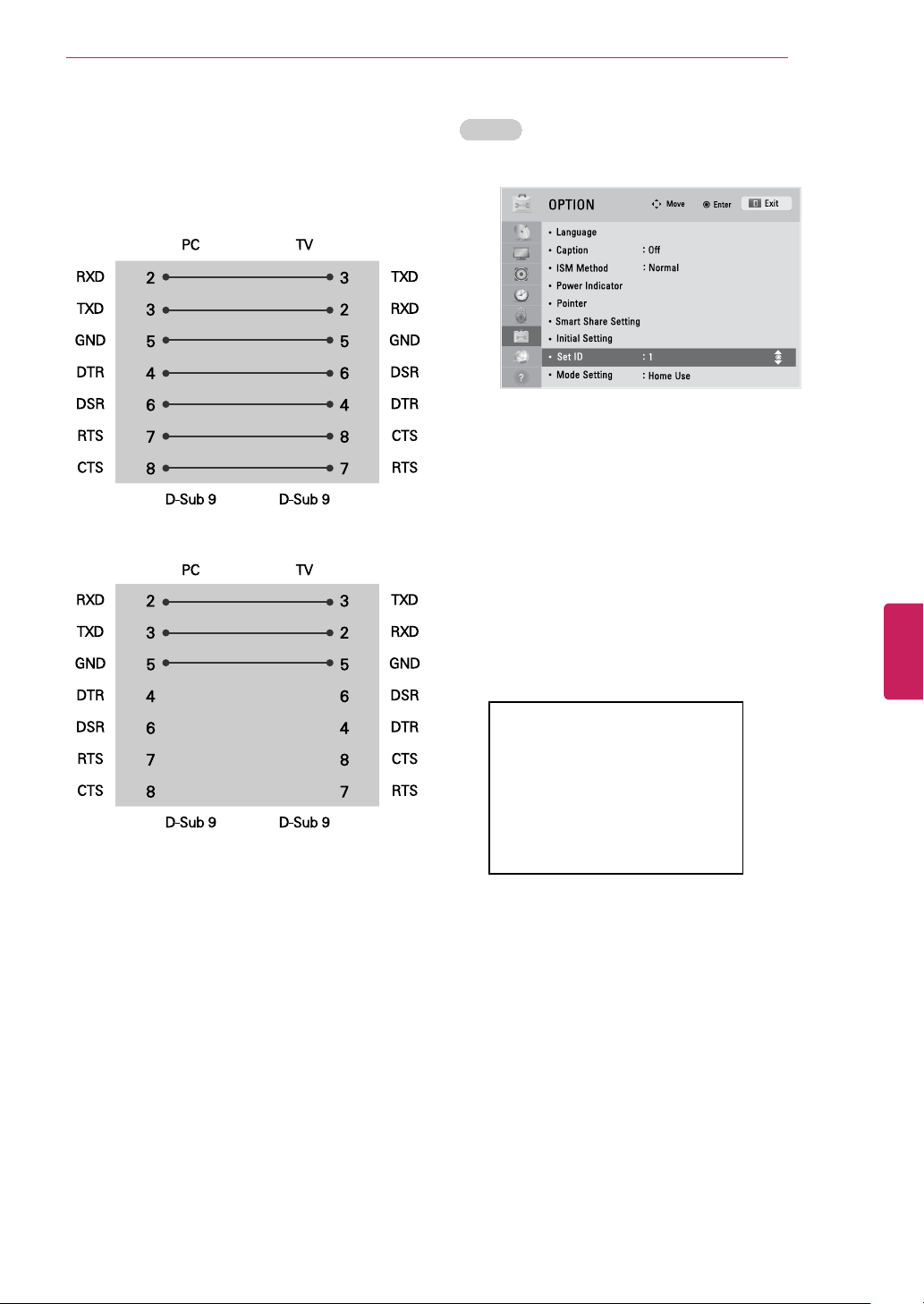

RS-232C configurations
134
Communication Parameters
134
Command reference list
135
Transmission / Receiving protocol
140
OPEN SOURCE LICENSE
141
GNU GENERAL PUBLIC LICENSE
144
GNU Lesser General Public License
150
Mozilla Public License 1.1 (MPL 1.1)
156
Apache License Version 2.0
158
MIT license
160
Expat license
161
The FreeType Project LICENSE
162
JPEG license
163
OpenSSL License
164
zlib/libpng License
165
Portmap license
165
Pixman license
166
X.net license
166
BSD license
168
RSA Data Security license
168
JSON license
169
MS92 license
ENGLISH
10
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer
where you purchased your product. The illustrations in this manual may differ from the actual product and
item.
CAUTION
• Do not use any unapproved items to ensure the safety and product life span.
• Any damages or injuries by using unapproved items are not covered by the warranty.
• In case of some model, the thin film on screen is a part of TV, So don’t take it off.
NOTE
• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade
of product functions.
• New features may be added to this TV in the future.
FREEZE
RATIO
L/R SELEC T
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
Remote control, Batteries (AAA) Owner’s manual,
CD manual
Nero MediaHome 4 Essentials CD
Polishing cloth
1
(Depending on model)
Cleansing Cloths (Mitt)
2
(Depending on model)
Magic Motion Remote Control
3
, Strap,
Batteries (AA)
(Except LV3700, LV5400, LW5700,
LK530, LK550 series)
1 Gently wipe the spots on the cabinet with the polishing cloth.
2 Wipe spots on the exterior only with the cleansing cloths. Do not wipe
roughly when removing stains. Excessive pressure may cause scratches
or discoloration.
For cleaning front frame, please slowly wipe in one direction after
spraying water 1-2 times on cleansing cloths. Please remove excessive
moisture after cleaning. Excessive moisture may cause water stains on
the frame.
3 Sold separately for LV3700, LV5400, LW5700, LK530, LK550 series.
ENGLISH
ASSEMBLING AND PREPARING
11

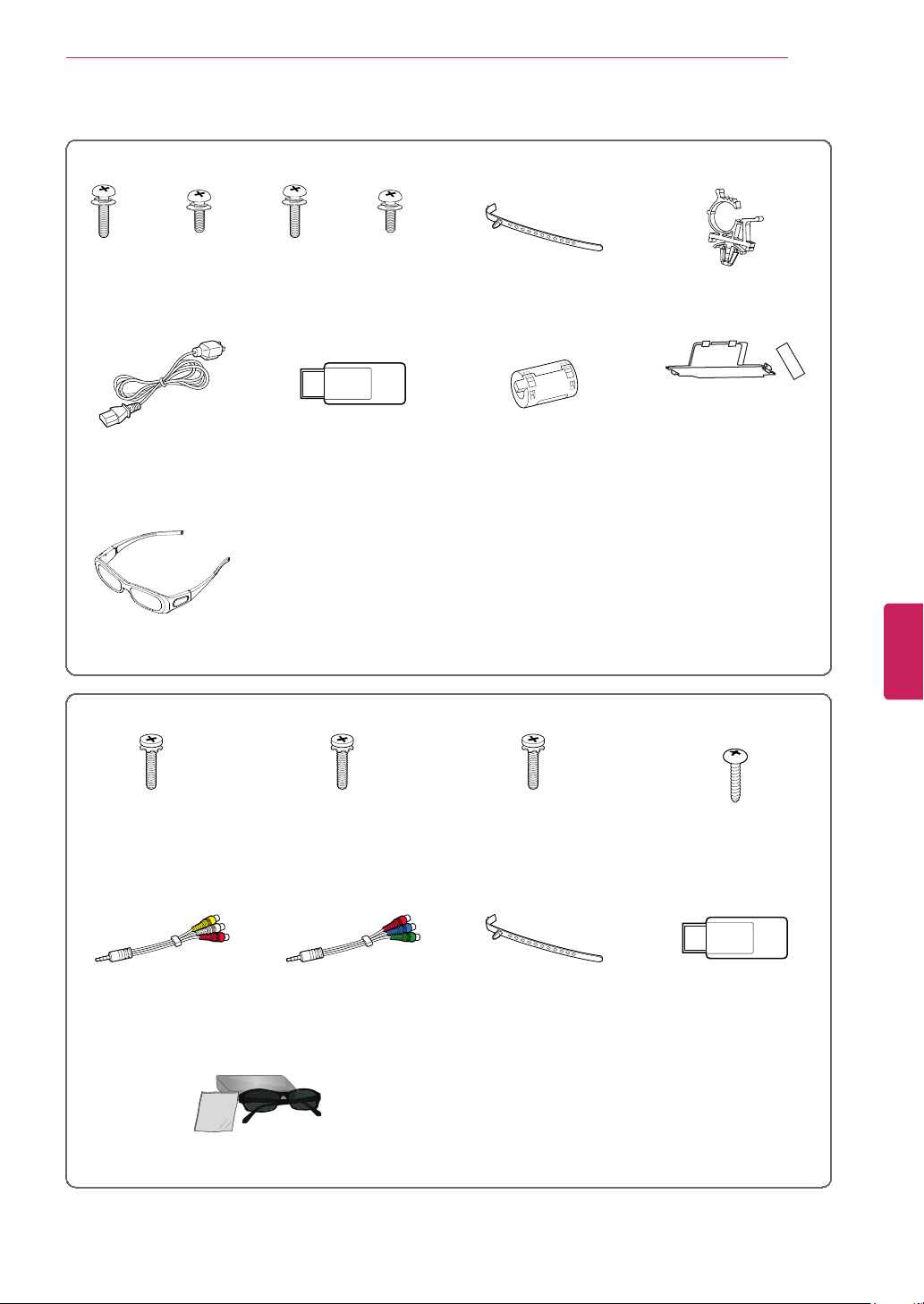

PZ750, PZ950, PZ950U series
x 4 x 3 x 4 x 4
M4 x 26 M5 x 14.5 M4 x 28 M5 x 14.5
Screw for assembly
(50PZ750/950/950U)
Screw for assembly
(60PZ750/950/950U)
Cable holder Power cord holder
Power cord Wireless LAN for
Broadband/DLNA Adaptor
(AN-WF100)
(PZ950, PZ950U series)
Ferrite Core
(Depending on model)
Protection cover, Tape
3D Glasses
1
(AG-S250)
(Depending on model)
LV3700, LV5400, LV5500, LV9500, LW5600, LW5700, LW6500, LW9800 series
x 8 x 9 x 8
M4 x 12 M4 x 16 M4 x 16
Screw for assembly
(LV3700, LV5400, LV5500,
LW5600, LW5700 series,
47/55LW6500)
Screw for assembly
(65LW6500)
Screw for assembly
(LV9500, LW9800 series)
Screw for fixing
(32LW5700)
Composite gender cable Component gender cable Cable holder
(Depending on model)
Wireless LAN for
Broadband/DLNA Adaptor
(AN-WF100)
(Except LV9500, LW9800
series, 32LW5700)
FPR 3D Glasses
1
(LW5600, LW5700, LW6500, LW9800 series)
1 The number of 3D glasses may differ depending on the model or country.
ENGLISH
12
ASSEMBLING AND PREPARING
LK530, LK550 series
x 8
M4 x 20
Screw for assembly Protection cover Power cord Screw for fixing
(42LK530, 42LK550)
Composite gender cable Component gender cable Wireless LAN for
Broadband/DLNA Adaptor
(AN-WF100)
NOTE
• (
Pla sm a
) How to use the ferrite core
1 Use the ferrite core to reduce the electromagnetic interference in the LAN cable.
Wind the LAN cable on the ferrite core once. Place the ferrite core close to the TV.
[to an External device]
[Figure 1]
[to the TV]
[Cross Section of
Ferrite Core]
2 Use the ferrite core to reduce the electromagnetic interference in the PC audio cable.
Wind the PC audio cable on the ferrite core thrice. Place the ferrite core close to the TV.
[to an External device]
10 mm (+/-5 mm)
[Figure 2]
[to the TV]
[Cross Section of
Ferrite Core]
3 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug.
[to a wall plug]
[Figure 3]
[to the TV]
[Cross Section of
Ferrite Core]
- If there is one ferrite core, follow as shown in Figure 1.
- If there are two ferrite cores, follow as shown in Figures 1 and 2.
- If there are three ferrite cores, follow as shown in Figures 1 and 3.
- If there are four ferrite cores, follow as shown in Figures 1, 2 and 3.
• (
LCD
) For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inch)
thick and 18 mm (0.7 inch) width.
B
A
A
B
* A 10 mm (0.39 inch)
* B
18 mm (0.7 inch)
ENGLISH
ASSEMBLING AND PREPARING
13
Optional Extras
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These device only works with compatible LG LED LCD TV, LCD TV, or Plasma TV.
Wireless Media Box
1
(AN-WL100W)
3D Glasses
2
(AG-S230, AG-S250, AG-S270)
Wireless LAN for Broadband /DLNA
Adaptor
3
(AN-WF100)
Magic Motion Remote
(AN-MR200)
D-sub 15 pin signal cable
4
FPR 3D Glasses
5
(AG-F2**)
1 Supports for LV3700, LV5400, LV5500, LV9500, LW5600, LW5700, LW6500, LW9800, PZ750, PZ950,
PZ950U series
2 Supports for PZ750, PZ950, PZ950U series
3 Unnecessary for LV9500, LW9800 series
4 When using the VGA (D-sub 15 pin signal cable) PC connection, use the shielded signal interface cable
with a ferrite core to maintain standards compliance for the product.
5 Supports for LW5600, LW5700, LW6500, LW9800 series
The model name or design may be changed depending on the upgrade of product functions,
manufacturer’s circumstances or policies.
ENGLISH
14
ASSEMBLING AND PREPARING
Parts and buttons
PZ750, PZ950, PZ950U series
AUDIO
VIDEO
L/MONO
AV IN2
R
/DVI IN
1 (ARC) 2 3 4
USB IN 1
USB IN 2/USB Apps
AUDIO
VIDEO
L/MONO
R
AV IN1
COMPON ENT IN
ANTENNA
/CABLE IN
VIDEO
AUDIO
Y
2
1
LP
B
P
R
R
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
WIRELESS
CONTRO L
RGB IN (PC )
LAN
REMOTE
CONTRO L IN
AUDIO IN
(RGB/DVI)
ENTE
R
CH
VOL
HOME
INPUT
Spe akers
Screen
Touch buttons
2
Remote control and
intelligent
1
sensors
Power indicator
Rear Connection panel (see p.103)
Touch button
2
Description
/ I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ꔉ
Selects the highlighted menu option or confirms an input.
– VOL + Adjusts the volume level.
v CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
ENGLISH
ASSEMBLING AND PREPARING
15
LV5400, LV5500, LW6500 series
W
IRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
C
OMPONENT
IN1
VIDEO
AUDIO
Y
LP
B
P
R
R
A
UDI
O
VIDEO
L
/MONO
R
A
V IN1
ÿ
ÿ
I
N 1 (ARC)
/
DVI
IN 2
/
DVI
IN 3
/
DVI
IN 4
/
DVI
L
AN
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
A
V IN 2
AUDIO / VIDEO
COMPONENT
IN 2
AUDIO / Y P
B
P
R
H
/P
HDD IN
USB IN 1
USB Apps
USB IN 2
ENTE
R
CH
VOL
HOME
H
INPUT
ENTE
R
CH
VOL
HOME
H
INPUT
Spe akers
or
Remote control and
intelligent
1
sensors
Power indicator
Screen
Touch buttons
2
Rear Connection panel (see p.103)
Touch button
2
Description
/ I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ꔉ
Selects the highlighted menu option or confirms an input.
– VOL + Adjusts the volume level.
v CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
• You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.
ENGLISH
16
ASSEMBLING AND PREPARING
LW5700 series
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
COMPONENT
IN1
VIDEO
AUDIO
Y LP
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿ
ÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
LAN
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
USB Apps
USB IN 2
ENTER
CH
VOL
HOME
INPUT
H
Spe akers
Screen
Buttons
Remote control and intelligent
1
sensors,
Power indicator
Rear Connection panel (see p.103)
Button
Description
/ I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ꔉ
Selects the highlighted menu option or confirms an input.
– VOL + Adjusts the volume level.
v CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
NOTE
• You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.
ENGLISH
ASSEMBLING AND PREPARING
17
LW5600 series
Touch buttons
2
Remote control and
intelligent
1
sensors
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
COMPONENT
IN1
VIDEO
AUDIO
Y LP
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿ
ÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
LAN
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
USB Apps
USB IN 2
Power indicator
ENTER
CH
VOL
HOME
INPUT
Speakers
Screen
Rear Connection panel (see p.103)
Touch button
2
Description
/ I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ꔉ
Selects the highlighted menu option or confirms an input.
– VOL + Adjusts the volume level.
v CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
• You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.
ENGLISH
18
ASSEMBLING AND PREPARING
LV9500, LW9800 series
Touch buttons
2
Remote control and
intelligent
1
sensors
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
COMPONENT
IN1
VIDEO
AUDIO
Y LP
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿ
ÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
LAN
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
ANTENNA/
CABLE IN
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
USB Apps
USB IN 2
ENTER
CH
VOL
HOME
H
INPUT
Speakers
Screen
Power indicator
Rear Connection panel (see p.103)
Touch button
2
Description
/ I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ꔉ
Selects the highlighted menu option or confirms an input.
– VOL + Adjusts the volume level.
v CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
• You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.
ENGLISH
ASSEMBLING AND PREPARING
19
LV3700 series
W
IRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
ÿÿ
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
L
AN
C
OMPONENT
IN1
VIDE
O
AUDI
O
Y LP
B
P
R
R
A
UDIO
VIDEO
L
/MONO
R
AV IN1
ANTEN
NA/CABLE IN
A
V IN 2
AUDIO / VIDEO
C
OMPONENT IN 2
AUDIO / Y P
B
P
R
I
N 1 (ARC)
/
DVI
IN 2
/
DVI
IN 3
/
DVI
HDD IN
USB IN 1
USB Apps
USB IN 2
H/P
E
NTER
CH
VOL
HOME
INPUT
Spe akers
S
creen
T
ouch buttons
2
Remote control and
intelligent
1
sensors
Power indicator
Rear Connection panel (see p.103)
Touch button
2
Description
/ I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ꔉ
Selects the highlighted menu option or confirms an input.
– VOL + Adjusts the volume level.
v CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
• You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.
ENGLISH
20
ASSEMBLING AND PREPARING
LK550 series
Touch buttons
2
Remote control and
intelligent
1
sensors
RS-232C IN (CONTROL&SERVICE)
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
LAN
COMPONENT
IN1
VIDEO
AUDIO
Y LP
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
USB IN 1 USB IN 2
USB Apps
H/P
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
ENTER
CH
VOL
HOME
INPUT
Speakers
Screen
Power indicator
Side connection panel
Rear Connection panel (see p.103)
Touch button
2
Description
/ I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ꔉ
Selects the highlighted menu option or confirms an input.
– VOL + Adjusts the volume level.
v CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
• You can set the power indicator light to on or off by selecting OPTION in the Home menu - SETUP.
ENGLISH
ASSEMBLING AND PREPARING
21
LK530 series
Remote control and
intelligent
1
sensors
RS-232C IN (CONTROL&SERVICE)
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
LAN
COMPONENT
IN1
VIDEO
AUDIO
Y LP
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
USB IN 1 USB IN 2
USB Apps
H/P
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
ENTER
CH
VOL
HOME
INPUT
Speakers
Screen
Buttons
Power indicator
Side connection panel
Rear Connection panel (see p.103)
Button
Description
/ I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the Home menu, or saves your input and exits the menus.
ENTER ꔉ
Selects the highlighted menu option or confirms an input.
– VOL + Adjusts the volume level.
v CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
ENGLISH
22
ASSEMBLING AND PREPARING
Lifting and moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged
and for safe transportation regardless of its type
and size.
CAUTION
• Avoid touching the screen at all times, as
this may result in damage to the screen.
• It is recommended to move the TV in the box or
packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the
power cord and all cables.
• When holding the TV, the screen should face
away from you to avoid damage.
• Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grill area.
• When transporting a large TV, there should be at
least 2 people.
• When transporting the TV by hand, hold the TV
as shown in the following illustration.
• When transporting the TV, do not expose the TV
to jolts or excessive vibration.
• When transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the
left or right.
Setting up the TV
Put your TV on a pedestal stand and mount the TV
on a table or wall.
Attaching the stand
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
PZ750, PZ950, PZ950U series
1 Lay the TV with the screen side down on a flat
surface.
CAUTION
• Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
2 Assemble the parts of the stand body with the
stand base of the TV.
Model
Screw for
assembly
Number of
screws
50PZ750,50P-
Z950,50PZ950U
M5 x 14.5
3
60PZ750,
60PZ950,
60PZ950U
M5 x 14.5
4
Stand Body
Stand Base
Stand Base
Stand Body
ENGLISH
ASSEMBLING AND PREPARING
23
3 Secure the TV and the stand with the 4 screws.
Model
Screw for
assembly
Number of
screws
50PZ750,
50PZ950,
50PZ950U
M4 x 26
4
60PZ750,
60PZ950,
60PZ950U
M4 x 28
4
CAUTION
• Tighten the screws firmly to prevent the
TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 4 screws and pull the stand away
from the TV.
3 Push the supplied protection cover into the
opening at the bottom of the TV until it locks in
place.
Attach the protection cover tape.
- This will protect the opening from
accumulating dust and dirt.
- When installing the wall mounting bracket,
use the protection cover.
Protection cover
Protection cover tape
ENGLISH
24
ASSEMBLING AND PREPARING
LV3700, LV5400, LV5500, LW5600, LW5700,
LW6500 series
1 Lay the TV with the screen side down on a flat
surface.
CAUTION
• Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
2 Assemble the parts of the stand body with the
stand base of the TV.
Model
Screw for
assembly
Number of
screws
LV3700, LV5400,
LV5500, LW5600,
LW5700 series,
47/55LW6500
M4 x 12
4
65LW6500
M4 x 16
4
Stand Base
Stand Body
3 Assemble the TV as shown.
4 Secure the TV and the stand with the screws.
Model
Screw for
assembly
Number of
screws
LV3700, LV5400,
LV5500, LW5600,
LW5700 series,
47/55LW6500
M4 x 12
4
65LW6500
M4 x 16
5
CAUTION
• Tighten the screws firmly to prevent the
TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 4 screws and pull the stand away
from the TV.
ENGLISH
ASSEMBLING AND PREPARING
25
LV9500, LW9800 series
1 Lay the TV with the screen side down on a flat
surface.
CAUTION
• Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
2 Assemble the parts of the stand body with the
stand base of the TV.
Screw for assembly
Number of screws
M4 x 16
4
Stand Base
Stand Body
3 Assemble the parts of the stand rear cover with
the TV.
Stand Rear Cover
4 Secure the TV and the stand with the 4 screws.
Screw for assembly
Number of screws
M4 x 16
4
CAUTION
• Tighten the screws firmly to prevent the
TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 4 screws and pull the stand away
from the TV.
ENGLISH
26
ASSEMBLING AND PREPARING
LK530, LK550 series
1 Lay the TV with the screen side down on a flat
surface.
CAUTION
• Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
2 Assemble the parts of the stand body with the
stand base of the TV.
Screw for assembly
Number of screws
M4 x 20
4
Stand Base
Stand Body
S
tand Base
S
tand Body
F
ront
3 Assemble the TV as shown.
4 Secure the TV and the stand with the 4 screws.
Screw for assembly
Number of screws
M4 x 20
4
CAUTION
• Tighten the screws firmly to prevent the
TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 4 screws and pull the stand away
from the TV.
ENGLISH
ASSEMBLING AND PREPARING
27
3 Push the supplied protection cover into the
opening at the bottom of the TV until it locks in
place.
This will protect the opening from accumulating
dust and dirt.
When installing the wall mounting bracket, use
the Protection cover.
Protection cover
ENGLISH
28
ASSEMBLING AND PREPARING
Mounting on a table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inch) (minimum) space from
the wall for proper ventilation.
2 Connect the power cord to a wall outlet.
CAUTION
• Do not place the TV near or on sources of
heat, as this may result in fire or other
damage.
NOTE
• Swivel 20 degrees to the left or right and
adjust the angle of the TV to suit your
view.
2020
Securing the TV to a table
(For 32LW5700, 42LK530, 42LK550)
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and
tighten the supplied screw on the rear of the stand.
WARNING
• To prevent TV from falling over, the TV
should be securely attached to the floor/wall
per installation instructions. Tipping,
shaking, or rocking the TV may cause injury.
ENGLISH
ASSEMBLING AND PREPARING
29
Securing the TV to a wall (optional)
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
flat surface.
CAUTION
• Make sure that children do not climb on or
hang on the TV.
NOTE
• Use a platform or cabinet that is strong and
large enough to support the TV securely.
• Brackets, bolts and ropes are optional. You
can obtain additional accessories from your
local dealer.
Using the Kensington security system (optional)
The Kensington security system connector is
located at the rear of the TV. For more information
of installation and using, refer to the manual
provided with the Kensington security system or
visit http://www.kensington.com.
Connect the Kensington security system cable
between the TV and a table.
NOTE
• The Kensington security system is optional.
You can obtain additional accessories from
your local dealer.
ENGLISH
30
ASSEMBLING AND PREPARING
Mounting on a wall
Attach an optional wall mount bracket at the rear of
the TV carefully and install the wall mount bracket
on a solid wall perpendicular to the floor. When you
attach the TV to other building materials, please
contact qualified personnel. LG recommends that
wall mounting be performed by a qualified
professional installer.
Make sure to use screws and wall mount bracket
that meet the VESA standard. Standard dimensions
for the wall mount kits are described in the
following table.
Model
50PZ750
50PZ950
50PZ950U
60PZ750
60PZ950
60PZ950U
VESA
400 x 400 600 x 400
Standard screw
M6 M8
Number of
screws
4 4
Wall mount
bracket
(optional)
PSW400B,
PSW400BG
PSW600B,
PSW600BG
Model 32LW5700
42/47LK550
42/47LK530
VESA
200 x 100 200 x 200
Standard screw
M4 M6
Number of
screws
4 4
Wall mount
bracket
(optional)
LSW100B,
LSW100BG
LSW200B,
LSW200BG
Model
42/47/55LV3700
42/47/55LV5400
42/47/55LV5500
55LV9500
42/47/55LW5600
42/47/55LW5700
47/55LW6500
47/55LW9800
55LK530
65LW6500
VESA
400 x 400 600 x 400
Standard
screw
M6 M8
Number of
screws
4 4
Wall mount
bracket
(optional)
LSW400B,
LSW400BG
LSW600B
CAUTION
• Disconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
• If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount bracket
and contact the local dealer or qualified
personnel.
• Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
• Use the screws and wall mount bracket that
meet the VESA standard. Any damages or
injuries by misuse or using an improper
accessory are not covered by the warranty.
NOTE
• Use the screws that are listed on the VESA
standard screw specifications.
• The wall mount kit includes an installation
manual and necessary parts.
• The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
• The length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
• For more information, refer to the manual
supplied with the wall mount bracket.
ENGLISH
ASSEMBLING AND PREPARING
31
Tidying cables
PZ750, PZ950, PZ950U series
1 Install the power cord holder and power cord.
- It will help prevent the power cable from being
removed by accident.
2 Gather and bind the cables with the cable
holder.
Install the LAN cable as shown to reduce the
electromagnetic wave.
CAUTION
• Do not move the TV by holding the cable
holder and power cord holder, as the
cable holders may break, and injuries and
damage to the TV may occur.
LV3700, LV5400, LV5500, LV9500, LW5600,
LW5700, LW6500, LW9800 series
1 Gather and bind the cables with the cable holder
on the TV back cover.
or
LK530, LK550 series
1 Gather and bind the cables with the cable
management clip.
2 Fix the cable management clip firmly to the TV.
AC IN
ENGLISH
32
REMOTE CONTROL
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching
the
and ends to the label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
CAUTION
• Do not mix old and new batteries, as this may damage the remote control.
Make sure to point the remote control toward the remote control sensor on the TV.
E
NERGY
C
HVOL
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
P
A
G
E
S
AVING
T
V
A
V MODE
INPUT
LIGHT
F
AV
3
D
MUTE
M
ARK
D
ELETE
C
HAR/NUM
L
IST
FLASHBK
3D OPTION
H
ome
Premium
Q.MENU
SMART TV
E
NERGY
C
HVOL
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
P
A
G
E
S
AVING
T
V
A
V MODE
INPUT
LIGHT
F
AV
3
D
MUTE
M
ARK
D
ELETE
C
HAR/NUM
L
IST
FLASHBK
3D OPTION
H
ome
Premium
Q.MENU
SMART TV
POWER
Turns the TV on or off.
LIGHT (Depending on model)
Illuminates the remote control buttons.
ENERGY SAVING (See p.88)
Adjusts the brightness of the screen to reduce energy consumption.
AV MODE (See p.46)
Selects an AV mode.
INPUT (See p.46)
Changes the input source. Turns the TV on.
TV
Returns to the last TV channel.
Alphanumeric buttons
Enters letters and numbers.
LIST (See p.43)
Accesses the saved channel list.
- (Dash)
Inserts a dash between numbers such as 2-1 and 2-2.
FLASHBK
Alternates between the two last channels selected (pressing repeatedly).
ENGLISH
REMOTE CONTROL
33
CHVOL
1 2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
P
A
G
E
SAVING
FAV
MUTE
MARK
DELETE
CHAR/NUM
LIST
FLASHBK
RATIO
SMART TV
VOL
Adjusts the volume level.
MARK
Selects a menu or option.
FAV (See p.43)
Accesses your favorite channel list.
CHAR/NUM
Switches between Letter and Number input modes.
RATIO (See p.45)
Resizes an image
MUTE
Mutes all sounds
DELETE
Deletes letters and numbers.
CH
Scrolls through the saved channels.
PAGE
Moves to the previous or next screen.
CHVOL
1 2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
0
9
WXYZ
P
A
G
E
SAVING
FAV
3D
MUTE
MARK
DELETE
CHAR/NUM
LIST
FLASHBK
3D OPTION
SMART TV
VOL
Adjusts the volume level.
MARK
Selects a menu or option.
FAV (See p.43)
Accesses your favorite channel list.
CHAR/NUM
Switches between Letter and Number input modes.
3D (for 3D TV) (See p.84)
Uses for viewing 3D video.
MUTE
Mutes all sounds.
DELETE
Deletes letters and numbers.
CH
Scrolls through the saved channels.
PAGE
Moves to the previous or next screen.
ENGLISH
34
REMOTE CONTROL
MUTE
BACK
EXIT
ENTER
3D OPTION
H
ome
Premium
Q.MENU
SMART TV
INFO
Premium
Accesses the Premium menus.
Home (See p.41)
Accesses the Home menu.
Q. MENU (See p.47)
Accesses the quick menu.
3D OPTION (for 3D TV)
Used for viewing 3D video.
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
ENTER
Selects menus or options and confirms your input.
BACK
Returns to the previous level.
INFO
Views the information of the current program and screen.
EXIT
Clears all on-screen displays and returns to TV viewing.
ENGLISH
REMOTE CONTROL
35
CHVOL
P
A
G
E
FAV
MUTE
MARK
DELETE
CHAR/NUM
BACK
EXIT
ENTER
Q.MENU
INFO
RATIO
H
ome
Premium
SMART TV
R
ATIO
F
REEZE
Color buttons
These access special functions in some menus.
Control buttons
Controls the Premium contents, Smart Share menus, or the SIMPLINK
compatible devices (USB, SIMPLINK).
FREEZE (
Pla sm a
)
Freezes the current frame (Not supported when using USB Mode and
Simplink).
SIMPLINK (See p.117)
Accesses the AV devices connected to the TV;
Opens the SIMPLINK menu.
RATIO (See p.45)
Resizes an image.
ENGLISH
36
REMOTE CONTROL
Magic Motion Remote Control Functions
LV3700, LV5400, LW5700, LK530, LK550 series: Supports the Magic Motion remote control, which is sold
separately. Refer to the Magic Motion Remote Control manual for operating instructions.
Please read this manual carefully and use the TV correctly.
When the message “Magic motion remote control battery is low. Change the
battery.” is displayed, replace the battery.
To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching
and ends to the label inside the compartment, and close the battery cover. Be
sure to point the remote control at the remote control sensor on the TV. To remove
the batteries, perform the installation actions in reverse.
CAUTION
• Do not mix old and new batteries, as this may damage the remote control.
Make sure to point the remote control at the remote control sensor on the TV.
①
Pointer (RF transmitter)
Blinks the light when operating.
②
Home
Accesses the Home menu.
③
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
④
VOL
Adjusts the volume level.
CH
Scrolls through the saved channels.
⑤
MUTE
Mutes all sounds.
⑥
(POWER)
Turns the TV on or off.
⑦
ENTER
Selects menus or options and confirms your input.
Press this button to display the pointer when it disappears from the
screen.
If you press the navigation button while moving the pointer on the
screen, the pointer disappears, and the Magic Motion remote control
works as a regular remote control.
To display the pointer again, shake the Magic Motion remote control
from side to side within 2 minutes after it disappeared. (If 2 minutes
have passed, press the Enter button to display the pointer.)
ENGLISH
REMOTE CONTROL
37
Registering Magic Motion Remote
Control
The Magic Motion Remote Control operates by
pairing with your TV.
Register the Magic Motion Remote Control to use
it.
How to register the Magic Motion Remote Control
To register the remote control, press the ENTER
button on the remote control while aiming it at your
TV.
How to Re-register the Magic Motion Remote
Control after Registration Failure
Reset the remote control by pressing and holding
both the ENTER and MUTE buttons for 5 seconds.
(Once the reset is complete, the light on the
Pointer blinks.) Then repeat the above procedure to
register the remote control.
How to use Magic Motion Remote
Control
1 Press ENTER button if there is no pointer on
your TV screen. The pointer will then appear on
the screen.
If the pointer has not been used for a certain
period of time, it will disappear.
2 You can move the pointer by aiming the Pointer
Receiver of the remote control at your TV then
move it left, right, up or down.
If the pointer does not work properly after
clicking the ENTER button, leave the remote
control for 10 seconds then use it again.
Precautions to Take when Using
the Magic Motion Remote Control
• Use the remote control within the maximum
communication distance (10 m, 32.8ft). Using
the remote control beyond this distance, or with
an object obstructing it, may cause a
communication failure.
• A communication failure may occur due to
nearby devices. Electrical devices such as a
microwave oven or wireless LAN product may
cause interference, as this will use the same
bandwidth (2.4 GHz) as the Magic Motion
Remote Control.
• The Magic Motion Remote Control may be
damaged or may malfunction if it is dropped or
receives a heavy impact.
• When playing a game using the Magic Motion
Remote Control, hold it securely by wrapping its
strap around your wrist and adjusting the length
with the adjustable ring.
• Take care not to bump into nearby furniture or
other people when using the Magic Motion
Remote Control.
• Manufacturer and installer cannot provide
service related to human safety as the applicable
wireless device has possibility of electric wave
interference.
• It is recommended that an Access Point (AP) be
located more than 1 m (3.28 ft) away from the
TV. If the AP is installed closer than 1 m (3.28 ft),
the magic motion remote control may not
perform as expected due to frequency
interference.
ENGLISH
38
WATCHING TV
WATCHING TV
Connecting to an antenna or
cable
Connect an antenna, cable, or cable box to watch
TV while referring to the following. The illustrations
may differ from the actual items and a RF cable is
optional.
Connecting an antenna or basic
cable
Connect the TV to a wall antenna socket with an RF
cable (75 Ω).
NOTE
• Use a signal splitter to use more than 2 TVs.
• Visit http://lgknowledgebase.com for more
information about the antenna and cable
connection. Search for antenna.
Connecting a cable box
Connect the TV to a cable box and the cable box to
a wall antenna socket with 2 RF cables (75 Ω).
CAUTION
• Make sure not to bend the copper wire of
the RF cable.
• Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
ENGLISH
WATCHING TV
39
Turning the TV on for the
first time
When you turn the TV on for the first time, the
Initial setting screen appears. Select a language
and customize the basic settings.
1 Connect the power cord to a power outlet.
2 In Standby mode, press the power button on the
remote control to turn the TV on.
The Initial setting screen appears if you turn the
TV on for the first time.
NOTE
• You can also access Initial Setting by
accessing OPTION in the Home menu -
SETUP.
3 Follow the on-screen instructions to customize
your TV settings according to your preferences.
Language
Selects a language to
display.
▼
Mode Setting
Selects Home Use for the
home environment.
▼
Power Indicator
Sets the standby light.
(For LED LCD TV)
▼
Time Zone
Selects the time zone and
daylight saving.
▼
Network Setting
Sets your network to
enable network-related
feature on the TV. (For
LV9500, LW9800 series)
▼
Auto Tuning
Scans and saves available
channels automatically.
NOTE
• To display images in the best quality for
your home environment, select Home
Use.
• Store Demo is suitable for the retail
environment.
• If you select Store Demo, the any
customized settings will switch back to
the default settings of Store Demo in 5
minutes.
• Power Indicator feature is disabled in
Store Demo mode.
4 When the basic settings are complete, press
ENTER.
NOTE
• If you do not complete the Initial setting,
it will appear whenever the TV turns on.
• Disconnect the power cord from the
power outlet when you do not use the TV
for a long period of time.
5 To turn the TV off, press the power button on
the remote control.
ENGLISH
40
WATCHING TV
Watching TV
1 In Standby mode, press the power button on the
remote control to turn the TV on.
2 Press INPUT and select TV.
3 Control the TV using the following buttons while
you are watching TV.
Button
Description
CH (
^
, v)
Scrolls through saved channels.
LIST
Selects a channel on the saved or
recent watched channel list.
0 – 9
Selects a channel by entering
numbers.
VOL (+, -)
Adjusts the volume level.
MUTE
Mutes all sounds.
AV MODE
1
Selects an AV mode (See p.46).
Q.MENU
Accesses the quick menus (See
p.47).
FLASHBK
Alternates between the last two
channels selected.
RATIO
Resizes an image (See p.45).
FREEZE
(
Pla sm a
)
Freezes the current frame while you
are watching TV
1 Each AV mode has the optimized image and
sound settings. If you select Off, the image
and sound settings will be restored to the
previously customized settings.
4 To turn the TV off, press the power button on
the remote control.
The TV switches to Standby mode.
ENGLISH
WATCHING TV
41
Accessing Home Menu
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to one of the following menus and press ENTER.
3 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.
4 When you are finished, press EXIT.
Option Description
①
Current Date, Time
②
Channel program info
③
Function card: You can enjoy various content files by selecting each card and you can edit
the premium card by selecting 5 items.
④
Function card position
⑤
Sign In
⑥
Exit
⑦
Current watching channel screen
⑧
INPUT, SETUP, FAVORITE menu.
⑨
Launcher bar
ENGLISH
42
WATCHING TV
Managing channels
* The Digital broadcasting (DTV, Cable DTV) is not
available for Philippines.
Setting up channels
Storing channels
To store channels automatically,
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll to
CHANNEL and press ENTER.
4 Press the Navigation buttons to scroll to Auto
Tuning and press ENTER.
5 Select Start to start automatic tuning. The TV
scans and saves available channels
automatically.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
To store channels manually,
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll CHANNEL
and press ENTER.
4 Press the Navigation buttons to scroll to Manual
Tuning and press ENTER.
5 Scroll through the channel types, and then add
or delete channels.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
NOTE
• If the TV scans a blocked channel, you will
be prompted to enter your password to
keep the channel scanned.
• You can store up to 1000 channels. The
number of channels that you can store
differs depending on the broadcasting signal
environment.
• The channels are stored in the order of DTV,
TV, Cable DTV and Cable TV.
Editing your channel list
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll to
CHANNEL and press ENTER.
4 Press the Navigation buttons to scroll to Channel
Edit and press ENTER.
5 Edit channels using the following buttons.
Button
Description
^
Highlight the channel type (DTV, TV,
Cable DTV, Cable TV).
^
, v, <,
>
Scrolls through channel types or
channels.
ENTER
Edits channels.
Watch Selects the highlighted
channel to view.
Set as
Favorite
Registers or cancels the
current channel in favorite
channel list.
Add/
Delete
Adds or deletes a channel.
The deleted channel
displays in blue.
Block Blocks or unblocks a
channel.
CH (
^
, v)
Moves to the previous or next page.
Red
button
Selects your desired favorite channel
group.
6 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
ENGLISH
WATCHING TV
43
Selecting a channel on the channel list
1 Press LIST to access the channel list.
Button
Description
<, >
Selects Channel list or Recent channel
list.
^
, v
Scrolls through channel.
ENTER
Selects the highlighted channel to
view.
CH (
^
, v)
Moves to the previous or next page.
Red button
Edits Channel.
FAV
Moves to the favorite channel list.
2 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
NOTE
• If you select the blocked channel, you will
be prompted to enter your password.
Using favorite channels
Add the channels that you watch frequently to the
favorite list.
1 Select a channel to add to the favorite list.
2 Press FAV.
Button
Description
<, >
Selects a desired favorite channel
group.
CH (
^
, v)
Moves to the previous or next page.
Red button
Moves to the Channel Edit.
Green
button
Registers or cancels the current
channel.
FAV
Moves to the Channel List.
3 When you are finished, press EXIT.
ENGLISH
44
WATCHING TV
Checking current program info
Press INFO to view the information of the currently program while you are watching. The following
information appears at the bottom of the screen.
Icon
Description
Multilingual
ꔥ
The program contains two or more audio language services. You can change the
audio language using the quick menu.
Dolby Digital
The program contains a Dolby Digital audio signal in TV and HDMI input sources.
Dolby Digital
Plus
The program contains a Dolby Digital Plus audio signal in TV and HDMI input
sources.
Caption
ꔯ
The program contains one or more language caption services. You can select a
closed caption you want by using the quick menu.
Aspect ratio
ꔶ
ꔷ
The original aspect ratio of the video is 4:3.
The original aspect ratio of the video is 16:9 (wide).
Resolution
480i
480p
720p
1080i
1080p
The video resolution is 720 x 480i.
The video resolution is 720 x 480p.
The video resolution is 1280 x 720p.
The video resolution is 1920 x 1080i.
The video resolution is 1920 x 1080p.
V-Chip
ꔒ
The program contains Lock information.
Refer to the “TV Rating-General” (See p.96).
ENGLISH
WATCHING TV
45
Using additional options
Adjusting aspect ratio
Resize an image to view at its optimal size by
pressing RATIO while you are watching TV.
NOTE
• You can also change the image size by
pressing Q. MENU or accessing Aspect
Ratio in the PICTURE menu.
• The available ratio varies depending on the
input source.
- The input sources: HDMI-PC and RGB-PC
support 4:3 and 16:9.
- 16:9: Resizes images to fit the screen width.
- Just Scan: Displays video images in the original
size without cutting off the edges.
NOTE
• If you select Just Scan, you may see
image noises at the edge or edges of the
screen.
• The input sources: DTV, CADTV,
Component, HDMI-DTV, and DVI-DTV
(720p/1080i/1080p) support Just Scan.
- Set By Program: Displays images in the same
aspect ratio as the original image.
- 4:3: Resizes images to the previous standard.
- Cinema Zoom: Formats an image to the
cinemascope ratio, 2.35:1.
• To change the ratio of the cinema zoom, press
< or > and its range is from 1 to 16.
• To move the zoom focus up or down, press
^
or v.
NOTE
• If you enlarge or reduce an image, the
image may be distorted.
ENGLISH
46
WATCHING TV
Changing AV modes
Each AV mode has optimized image and sound
settings.
Press AV MODE repeatedly to select an
appropriate mode.
Mode
Description
Off
Changes to the previously
customized settings.
Cinema or THX
Cinema
Use the optimized image and sound
settings for the cinematic look.
Sport
(
Pla sm a
)
Use the optimized image and sound
settings for dynamic action sports.
Game
Use the optimized image and sound
settings for fast gaming.
When playing a video game using
PlayStation or Xbox, it is
recommended to use the Game
mode.
When in Game mode, functions
related to picture quality will be
optimized for playing games.
Using the input list
Selecting an input source
1 Press INPUT to access the input sources.
- The connected device displays on each input
source.
NOTE
• You can also access the input source
list by selecting INPUT in the Home
menu.
2 Press the Navigation buttons to scroll to one of
the input sources and press ENTER.
J
J
o
o
q
q
v
v
u
u
!
!
M
M
j
j
t
t
u
u
QQ bb hh ff !! 22 00 33
ÿ
ÿ
U
U
W
W
V
V
T
T
C
C
2
2
V
V
T
T
C
C
3
3
O
O
F
F
U
U
X
X
P
P
S
S
L
L
B
B
W
W
!
!
2
2
B
B
W
W
!
!
3
3
D
D
p
p
n
n
q
q
p
p
o
o
f
f
o
o
u
u
2
2
D
D
p
p
n
n
q
q
p
p
o
o
f
f
o
o
u
u
3
3
S
S
H
H
C
C
.
.
Q
Q
D
D
I
I
E
E
N
N
J
J
2
2
I
I
E
E
N
N
J
J
3
3
I
I
E
E
N
N
J
J
4
4
ÿ
ÿ
ó
ó
!
!
T
T
J
J
N
N
Q
Q
M
M
J
J
O
O
L
L
ó
ó
!
!
J
J
o
o
q
q
v
v
u
u
!
!
M
M
b
b
c
c
f
f
m
m
F
F
y
y
j
j
u
u
Input source Description
TV
Watch TV over the air, cable, and
digital cable broadcast.
USB
Play media files from a thumb
drive.
Input source Description
NETWORK
Play media files from your home
network.
AV
Watch video from a VCR or other
external devices.
Component
Watch video from a DVD or other
external devices, or through a
digital set-top box.
RGB-PC
Use the TV as a computer
monitor.
HDMI
Watch video from a HTS or other
high definition devices.
The disconnected input sources will be gray.
- To add an input label, press the Green button.
You can easily identify a device connected to
each input source.
- If you connect a new external device to the
TV, a pop-up window appears. Select Yes on
the pop-up window to select an input source.
- To access the SIMPLINK, press the Red
button. If you select “SIMPLINK and On”, the
pop-up window for the HDMI input will not
display.
ENGLISH
WATCHING TV
47
Adding an Input label
Add a label to an input source so that you can easily
identify a device connected to each input source.
ú
ú
B
B
W
W
2
2
W
W
D
D
S
S
ÿ
ÿ
B
B
W
W
3
3
ÿ
ÿ
D
D
p
p
n
n
q
q
p
p
o
o
f
f
o
o
u
u
2
2
ÿ
ÿ
D
D
p
p
n
n
q
q
p
p
o
o
f
f
o
o
u
u
3
3
ÿ
ÿ
S
S
H
H
C
C
.
.
Q
Q
D
D
ÿ
ÿ
û
û
D
D
m
m
p
p
t
t
f
f
Q
Q
b
b
h
h
f
f
!
!
2
2
0
0
3
3
J
J
o
o
q
q
v
v
u
u
!
!
M
M
b
b
c
c
f
f
m
m
1 Press INPUT to access the input sources.
2 Press the Green button.
3 Press the Navigation buttons to scroll to one of
the input sources.
4 Press the Navigation buttons to scroll to one of
the input labels.
5 When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Using the quick menu
Customize frequently used menus.
1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll through
the following menus and press ENTER.
Menu
Description
Aspect Ratio
Changes the image size.
Picture Mode
Changes the image mode.
Sound Mode
Changes the sound mode.
Sleep Timer
Sets the length of time until the
TV to turns off.
Caption
Activates or deactivate the
subtitles
Multi Audio
Changes the audio language
(Digital signal)
SAP
Changes the MTS sound (Analog
signal)
Energy Saving
Reduces the power consumption
by adjusting the screen
brightness.
AV Mode
Sets the optimized image and
sound settings.
Del/Add
Edits the channels to add or
delete the channel.
USB Device
Eject a USB device. The menu is
displayed only when the USB
device is connected.
NOTE
• The available menus and options may
differ from the input source or product
model that you are using.
3 Press the Navigation buttons to scroll to the
option you want.
4 When you are finished, press Q.MENU.
ENGLISH
48
ENTERTAINMENT
ENTERTAINMENT
Network Connection
Connecting to a wired network
Connect the TV to a local area network (LAN) via
the LAN port as shown in the following illustration
and set up the network settings.
If wired and wireless networks are both available,
wired is the preferred method.
After making a physical connection, a small number
of home networks may require the TV network
settings to be adjusted. For most home networks,
the TV will connect to automatically without any
adjustments.
For detail information, contact your internet
provider or router manual.
RS-232C IN (CONTROL&SERVICE)
AUDIO
R
AUDIO
R
LAN
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
OPTICAL DIGITAL
OPTICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
Router
LAN WAN
Cable modem
ETHERNET
@
Internet
LAN
CAUTION
• Do not connect a modular phone cable to
the LAN port.
• Since there are various connection
methods, please follow the specifications of
your telecommunication carrier or internet
service provider.
• After connecting the LAN port, use the
Premium or LG Apps menu.
To set up the network settings: (Even if your TV has
already connected automatically, running setup
again will not harm anything)
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll to
NETWORK and press ENTER.
4 Press the Navigation buttons to select Network
Setting and press ENTER.
5 If wired and wireless are simultaneously
connected, press the Navigation buttons to
select Wired and press ENTER.
6 If you have already set the Network Setting,
select Resetting. The new connection settings
will reset the current network settings.
7 Select IP Auto Setting or IP Manual Setting.
- If selecting IP Manual Setting, press the
Navigation and Number buttons. IP addresses
will need to be input manually.
- IP Auto Setting: Select this if there is a DHCP
server (Router) on the local area network
(LAN) via wired connection, the TV will
automatically be allocated an IP address. If
you’re using a broadband router or broadband
modem that has a DHCP (Dynamic Host
Configuration Protocol) server function. The IP
address will automatically be determined.
- IP Manual Setting: Select if there is no DHCP
server on the network or you want to set the
IP address manually.
8 When you are finished, press EXIT.
ENGLISH
ENTERTAINMENT
49
NOTE
• If you want to access the Internet directly
on your TV, the broadband internet
connection should always be on.
• If you cannot access the Internet, check the
network conditions from a PC on your
network.
• When you use Network Setting, check the
LAN cable or check if DHCP in the router is
turned on.
• If you do not complete the network
settings, the network may not work
properly.
Connecting to a wireless network
The LG Wireless LAN for Broadband/DLNA Adaptor
allows the TV to connect to a wireless LAN
network.
The network configuration and connection method
may vary depending on the equipment in use and
the network environment. Refer to the setup
instructions supplied with your access point or
wireless router for detailed connection steps and
network settings.
Setting up the AP (Access Point) or the wireless
router is required before connecting the TV to the
network. The easiest method is the WPS button
method (Third method in this section).
(LV9500, LW9800 series: Built-in the Wi-Fi Module,
Unnecessary Wireless LAN for Broadband/DLNA
adaptor setup)
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
AV IN 2
AUDIO / VIDEO
COMP ONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
USB Apps
USB IN 2
Router
LAN WAN
Cable modem
ETHERNET
@
Internet
HDD IN
USB IN 1
USB Apps
USB IN 2
NOTE
• For enjoying pictures, music, or video stored
on a PC using the router, a wired connection
is recommended.
• When the wireless port of the router is
used, there may be restrictions on some
functions.
• It is recommended that an Access Point
(AP) be located more than 1 m (3.28 ft)
away from the TV. If the AP is installed
closer than 1 m, the magic motion remote
control may not perform as expected due to
frequency interference.
ENGLISH
50
ENTERTAINMENT
To set up the network settings,
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll to
NETWORK and press ENTER.
4 Press the Navigation buttons to select Network
Setting and press ENTER.
5 Press the Navigation buttons to select Wireless
and press ENTER.
6 If you already set Network Setting, select
Resetting and press ENTER.
The new connection settings resets the current
network settings.
7 Press the Navigation buttons to select Setting
from the AP list and press ENTER.
- Scan the all available AP (Access Point) or
wireless routers within range and display
them as a list.
8 Press the Navigation buttons to select an AP
(Access Point) or wireless router on the list. (If
your AP is secured, you will prompted for the
key. And press ENTER.
9 Press the Number buttons to Input the security
key of AP and press ENTER.
When a security code is already set
PIN (Personal Identification Number)
If your router is set to use a PIN, use the following
instructions.
1 Repeat step 1-7 on “Connecting to a wireless
network”.
2 Press the Red button to connect the access
point with PIN mode.
3 You can see the Network ID and Security Key on
your TV screen.
Enter the PIN number to your device.
PIN number is the unique 8 digit number of the
dongle.
4 Press ENTER to select Connect.
5 Repeat step 6-7 on “Connecting to a wired
network”.
ENGLISH
ENTERTAINMENT
51
WPS (Wi-Fi Protected Setup)
If your router or AP has a WPS button, it is the
easiest connection method. You simply press the
button on the router and then select the WPS on
the TV within 120 seconds.
1 Repeat step 1-7 on “Connecting to a wireless
network”.
2 Press the Navigation buttons to select the
Simple setting (WPS-button mode).
3 Press the WPS button on your router.
4 Go back to the TV and select Connect.
5 Repeat step 6-7 on “Connecting to a wired
network”.
Ad-hoc Mode
Ad-hoc mode allows the TV to use a wireless to
connect to a computer without using a router or
access point.
1 Repeat step 1-5 on “Connecting to a wireless
network”.
2 Press the Navigation buttons to select Setting
Ad-hoc network and press ENTER.
3 Press the Navigation buttons to select Enter and
press ENTER.
4 Press ENTER to select Connect to connect
Adhoc network.
- You can see the Network ID and Security Key
on your TV screen.
- Enter this Network ID and Security Key to your
device.
- When needed, you can change the setting
information using the Red button.
NOTE
When searching for wireless networks on
your PC using ad-hoc, the TV is named
LGTV10.
• LGTV10 that appears in the list. (Select
the same name as the network ID that
appears on your TV screen.)
5 Press the Navigation buttons to type in an IP
address and press ENTER.
Option Description
PC Setting
• Internet Protocol(TCP/IP) of PC
needs to be set manually. IP
address, Subnet Mask, and
default Gateway can be set
with your own discretion.
» e.g.) IP address: 192.168.0.1
/ Subnet Mask:
255.255.255.0 / default
Gateway: 192.168.0.10
TV Setting
• Verify IP address and gateway
of PC. Input Gateway address
of PC to IP Address, and IP
Address of PC to Gateway, and
select Enter.
» e.g.) IP address:
192.168.0.10 / Subnet Mask:
255.255.255.0 / default
Gateway: 192.168.0.1
6 Press the Navigation buttons to select Close
after Network setting is completed.
7 Press the ENTER.
ENGLISH
52
ENTERTAINMENT
Tips for Network setting
• Use a standard LAN cable with this TV. Cat5 or
better with a RJ45 connector.
• Many network connection problems during set
up can often be fixed by re-setting the router or
modem. After connecting the player to the
home network, quickly power off and/or
disconnect the power cable of the home
network router or cable modem. Then power on
and/or connect the power cable again.
• Depending on the internet service provider (ISP),
the number of devices that can receive internet
service may be limited by the applicable terms
of service. For details, contact your ISP.
• LG is not responsible for any malfunction of the
TV and/or the internet connection feature due to
communication errors/malfunctions associated
with your broadband internet connection, or
other connected equipment.
• LG is not responsible for problems within your
internet connection.
• Some content available through the network
connection may not be compatible with the TV.
If you have questions about such content,
please contact the producer of the content.
• You may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
• Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
broadband Internet connection.
• Any fees charged by an ISP including, without
limitation, connection charges are your
responsibility.
• A 10 Base-T or 100 Base-TX LAN port is required
when using a wired connection to this TV. If
your internet service does not allow for such a
connection, you will not be able to connect the
TV.
• A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with your
ISP, you may not be able to use the internet
connection feature contained in this TV or you
may be limited to the number of devices you can
connect at the same time. (If your ISP limits sub-
scription to one device, this TV may not be
allowed to connect when a PC is already
connected.)
• The use of a “Router” may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
your ISP directly.
• The wireless network operates at 2.4 GHz radio
frequencies that are also used by other
household devices such as cordless telephone,
Bluetooth® devices, microwave oven, and can
be affected by interference from them. It can be
interrupted by the device using 5 Ghz radio
frequencies. It is same device with LG wireless
media box, cordless telephone, other Wi-Fi
device.
• It may decrease the service speed using
Wireless network by surrounding wireless
condition.
• Turn off all unused network equipment in your
local home network. Some devices may
generate network traffic.
• In some instances, placing the access point or
wireless router higher up away from the floor
may improve the reception.
• The reception quality over wireless depends on
many factors such as type of the access point,
distance between the TV and access point, and
the location of the TV.
• To connect wireless AP, an AP that supports the
wireless connection is necessary, and the
wireless connection function of the AP needs to
be activated. Please enquire to the AP supplier
for the possibility of AP wireless connections.
• Please verify the security settings of AP SSID for
wireless AP connection, and enquire to the AP
supplier for the AP SSID security settings.
• The TV can become slower or malfunction with
wrong settings of network equipments (wired/
wireless router, hub, etc). Please install correctly
by referring to the manual of the equipment, and
set the network.
• When AP is set to include 802.11 n, and if
Encryption is designated as WEP(64/128bit) or
WPA(TKIP/AES), the connection may not be
possible. There may be different connection
methods according to the AP manufacturers.
ENGLISH
ENTERTAINMENT
53
Network Status
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll to
NETWORK and press ENTER.
4 Press the Navigation buttons to select Network
Status.
5 Press ENTER to check the network status.
Option Description
Setting
Return to the network setting
menu or wireless network setting
type menu.
Test
Test the current network status
after setting the network.
Close
Return to the previous menu.
ENGLISH
54
ENTERTAINMENT
Premium Account Function
LG’s Premium technology allows you to access a
variety of online services or content directly on your
TV. Your TV offers instant streaming of movies,
weather, videos, and photo album services with a
Premium account and an Internet connection.
Enjoy entertainment including not only
entertainment content, but also up-to-the minute
news, weather updates, photo management, and
more by simply using the TV’s remote control
without a separate PC.
1 Press Premium to access the Premium option.
2 Press the Navigation buttons to scroll to the
content you want and press ENTER.
Option Description
①
Moves to the weather setting screen.
②
Sign into the premium service.
③
Moves to the previous menu screen.
④
Returns to TV viewing.
⑤
Selects your desired online service.
• If a service requires you to log in, you
must first sign up for the service on
your computer and then log into the
service on the TV.
⑥
Launcher bar
3 Enjoy the premium features.
Notice
• These services are provided by separate content
providers.
• Please visit the content providers web site for
specific information on their service.
• Premium menu can differ by country.
• Note that content may be updated automatically
depending on the service provider, so the
content layout or operation method may change
without notice. Please refer to the help menu on
the screen.
• All information, data, documents,
communications, downloads, files, text, images,
photographs, graphics, videos, webcasts,
publications, tools, resources, software, code,
programs, applets, widgets, applications,
products and other content (“Content”) and all
services and offerings (“Services”) provided or
made available by or through any third party
(each a “Service Provider”) is the sole
responsibility of the Service Provider from
whom it originated.
• The availability of and access to Content and
Services furnished by the Service Provider
through the LGE Device are subject to change at
any time, without prior notice, including, but not
limited to the suspension, removal or cessation
of all or any part of the Content or Services.
• Should you have any inquiry or problem related
to the Content or Services, you may refer to the
Service Provider’s website for the most up-to-
date information. LGE is neither responsible nor
liable for customer service related to the
Content and Services. Any question or request
for service relating to the Content or Services
should be made directly to the respective
Content and Service Providers.
• Please note that LGE is not responsible for any
Content or Services provided by the Service
Provider or any changes to, removal of, or
cessation of such Content or Services and does
not warrant or guaranty the availability of or
access to such Content or Services.
• Some content may be harmful to minors
depending on the service provider. Parental
guidance is necessary.
• The service may be interrupted if the Internet
connection is unstable. Please check the
connection status if you experience this
problem.
• The videos list searched from the TV may
different with the list searched from a web
browser on PC.
ENGLISH
ENTERTAINMENT
55
• The playback of videos may pause, stop, or
buffer depending on your broadband speed.
• For service that requires log in, join the
applicable service on the website using a PC and
log in through the TV to enjoy various additional
functions.
• For Plasma TV: If there is no user action 2
minutes following freezing image or video on
screen, the screensaver will activate itself
preventing a fixed image remaining on screen.
Legal Notice
IMPORTANT NOTICE RELATING TO NETWORK
SERVICE
All content and services accessible through this
device belong to third parties and are protected by
copyright, patent, trademark and/or other
intellectual property laws. Such content and
services are provided solely for your personal
noncommercial use. You may not use any content
or services in a manner that has not been
authorized by the content owner or service
provider. Without limiting the foregoing, unless
expressly authorized by the applicable content
owner or service provider, you may not copy,
upload, post, transmit, translate, sell, modify,
create derivative works, or distribute in any manner
or medium any content or services displayed
through this device.
YOU EXPRESSLY ACKNOWLEDGE AND AGREE
THAT THE DEVICE AND ALL THIRD PARTY
CONTENT AND SERVICES ARE PROVIDED “AS
IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED. LG ELECTRONICS
EXPRESSLY DISCLAIMS ALL WARRANTIES AND
CONDITIONS WITH RESPECT TO ANY CONTENT
AND SERVICES, EITHER EXPRESS OR, IMPLIED,
INCLUDING BUT NOT LIMITED TO, WARRANTIES
OF MERCHANTABILITY, OF SATISFACTORY
QUALITY, FITNESS FOR A PARTICULAR
PURPOSE, AND NON-INFRINGEMENT OF THIRD
PARTY RIGHTS. LG DOES NOT GUARANTEE THE
ACCURACY, VALIDITY, TIMELINESS, LEGALITY,
OR COMPLETENESS OF ANY CONTENT OR
SERVICE MADE AVAILABLE THROUGH THIS
DEVICE AND DOES NOT WARRANT THAT THE
DEVICE OR SERVICES WILL MEET YOUR
REQUIREMENTS, OR THAT OPERATION OF THE
DEVICE OR SERVICES WILL BE UNINTERRUPTED
OR ERROR-FREE. UNDER NO CIRCUMSTANCES,
INCLUDING NEGLIGENCE, SHALL LG BE LIABLE,
WHETHER IN CONTRACT OR TORT, FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES, OR ANY OTHER
DAMAGES ARISING OUT OF, ANY INFORMATION
CONTAINED IN, OR ANY CONTENT OR SERVICE
ACCESSED BY YOU OR ANY THIRD PARTY, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Third party services may be changed, suspended,
removed, terminated or interrupted, or access may
be disabled at any time, without notice, and LG
makes no representation or warranty that any
content or service will remain available for any
period of time. Content and services are
transmitted by third parties by means of networks
and transmission facilities over which LG has no
control. LG may impose limits on the use of or
access to certain services or content, in any case
and without notice or liability. LG expressly
disclaims any responsibility or liability for any
change, interruption, disabling, removal of or
suspension of any content or service made
available through this device.
LG is neither responsible nor liable for customer
service related to the content and services. Any
question or request for service relating to the
content or services should be made directly to the
respective content and service providers.
ENGLISH
56
ENTERTAINMENT
LG Apps function
This feature is not available for all country.
Additional applications can be downloaded from
the LG App Store.
These functions may be not available for a certain
period of time depending on country or product
model. In such cases, the buttons may be disabled.
They are enabled when the services are available.
Option Description
①
Sign In,
Sign Out
Sign in or sign out to the premium
service.
②
Exit
Returns to TV viewing.
③
LG Apps
Moves to the LG Apps.
④
Moves to the LG Apps you want
directly.
⑤
Search
These functions may be not available
for a certain period of time
depending on country or product
model. In such cases, the buttons
may be disabled. They are enabled
when the services are available.
⑥
Web
Browser
⑦
Media Link
⑧
Quick
Apps.
Stores the most frequently used
apps among all downloads. To
change the list of Quick Apps, see
“Using My Apps”.
⑨
My Apps.
Moves to My Apps. You can browse
all apps installed, change the list of
Quick Apps, and select and play the
app you want.
Registration LG Apps
1 Press Home to access the Home menu.
2 Press Red button to register.
- You can only register as a free member from
your TV.
3 Create your ID and password.
Press the Navigation buttons to select alphabet
and number and select OK.
4 The registration is completed.
NOTE
• If you wish to become a paid member or
change your information, please use your
PC and visit http://www.lgappstv.com.
ENGLISH
ENTERTAINMENT
57
Sign in with LG Apps account
To enjoy the LG Apps with your account, you need
sign in with the LG Apps account.
1 Press Home to access the Home menu.
2 Press Red button to sign in.
It displays the keyboard menu for entering ID
and password.
- If you are not a member, press Red button
again. You can only register as a free member
from your TV.
3 Press the Navigation buttons to scroll to the
alphabet or number and press ENTER.
- If you check “Auto Sign In”, you are
automatically logged in whenever you turn on
TV.
4 Enjoy the LG Apps.
You can enjoy Premium service, LG Apps, My
Apps and much more.
NOTE
• You can download a paid app on up to five
TVs.
ID Management
1 After sign in, press Red button again. A pop-up
window will appear.
2 Press the Navigation buttons to scroll to the
desired menu option and press ENTER.
3 Manage the ID by using following menu.
Option Description
Account
Setting
Checks basic information, apps you
purchased and apps installed on
your TV.
Change User
Changes your account.
Sign Out
Sign out the premium service.
ENGLISH
58
ENTERTAINMENT
Using LG Apps
1 Press Home to access the Home menu.
2 Sign in on your TV.
3 Press the Navigation buttons to scroll to the LG
Apps and press ENTER.
4 Edit the Apps by using following menu.
Option Description
①
Sign In/out
Sign in or out to use the LG Apps.
②
Search
Search the LG Apps.
③
My Apps.
Move to My Apps.
④
Back
Move to the previous screen.
⑤
Exit
Exit the LG Apps.
⑥
Apps
Sorting
• Hot: Most downloaded apps in
the past 7 days
• New: Most recently released
apps
• Top Paid: Most downloaded paid
apps
• Top Free: Most downloaded free
apps
• All: Alphabetical order
• Moves to the previous or next
page using CH (
^
, v) button.
⑦
Apps
Category
Shows the LG Apps category (All,
Game, Entertainment, Life,
Education, News/Info.)
⑧
Live TV
Watches the current channel.
Purchasing and Installing Apps.
Log in first to purchase apps.
1 Press the Navigation buttons to select Apps you
want and press ENTER.
You can see the information of the App.
2 Press Purchase to buy a App.
Option Description
①
Sign In/out
Sign in or out to use the LG Apps.
②
My Apps.
Move to My Apps.
③
Back
Move to the previous screen.
④
App
description
Shows the description of the
current Apps.
⑤
Fee
Shows the fee of the current app.
⑥
Install
Install or purchase the App. You
can purchase an app on either your
PC or TV, but it can be installed and
played only on the TV.
• If you want to purchase a paid
app, you need to sign up as a
paid member on www.lgappstv.
com.
• If the available space of your TV
is not enough, you can download
apps in the USB storage device
by connecting it to the USB IN 2
port.
• You can play, delete or move the
apps stored in the USB storage
device on the My Apps screen.
⑦
Rate this
App
Rate the app you purchased with
stars.
⑧
App info.
Shows the creator/program
version/update date/volume/ rating
of the current Apps.
NOTE
• To store apps in the USB storage device,
make sure that it is connected to the
USB IN 2/USB Apps port.
• Up to 1000 apps can be stored as USB
apps.
• The USB storage device containing apps
cannot be used for storing other types of
data.
ENGLISH
ENTERTAINMENT
59
Using My Apps
1 Enter the LG Apps after sign in.
2 Press the Navigation buttons to scroll to My
Apps. and press ENTER.
Option Description
①
Shows the amount of used and available
memories.
②
Current page number/total number of
pages of My Apps.
③
Shows the downloaded apps. Moves to
the previous or next page using CH (
^
, v)
button.
④
Moves the LG Apps.
⑤
Quick Apps.
⑥
Sign In the LG Apps.
After sign in, manage the ID option
(Account Setting, Change User, Sign Out).
⑦
Edit the My Apps.
⑧
Exit the My Apps.
⑨
Move to the Home menu.
⑩
Delete the Apps.
ENGLISH
60
ENTERTAINMENT
Search
(This feature is not available for all country.)
The search option supports LG apps and PLEX
content. It will also work with some premium
services that provide metadata.
1 Connect to the network.
2 Press Home to access the Home menu.
3 Press the Navigation buttons to scroll to Search
and press ENTER.
4 Use the on-screen keyboard to type in your
desired search term and press ꔦ.
T
T
ff bb ss dd ii !! OO pp xx ""
D
D mm ff bb ss
C
C bb dd ll
F
F yy jj uu
··
¸
¸
¹
¹
º
º
»
»
¼
¼
½
½
Option Description
①
Input the word you would like to search
here.
②
Show words similar to the input words.
Select one of the similar words to enter it
in the input field and search for it.
③
Clear the search term.
④
Move to the previous screen.
⑤
Exit the search.
⑥
On-screen keyboard.
⑦
Start the search after inputting the search
term.
5 Press the Navigation buttons to select the
desired searched results.
C
C bb dd ll
F
F yy jj uu
T
T ff bb ss dd ii !! SS ff tt vv mm uu tt !! )) CC ff **
\
\ 22 !! 00 !! 44 22 55 ^^ !! QQ bb hh ff tt
·
·
¸
¸
¹
¹
º
º
Option Description
①
Show the searched results.
This option is available only for LG apps,
PLEX content and some premium
services.
②
Shows detailed information on the
selected search result.
③
Move to the previous screen.
④
Exit the Search.
ENGLISH
ENTERTAINMENT
61
Web Browser Function
(This feature is not available for all country.)
The Web Browser allows you to view Web pages
on your TV.
More information about the Web Browser
• The web browser on this device supports Flash
8 and earlier.
• The web browser on this device does not
support platform-dependent technologies such
as ActiveX.
• The web browser on this device only supports
preinstalled plug-ins.
• The web browser on this device may not
support media formats other than the following:
JPEG / PNG / GIF / WMV (ASF) / WMA / MP3 /
MP4
• Some Web pages may exceed the memory
allotment of the Web Browser. The Web
Browser will close when this happens.
• The web browser on this device uses a single
built-in font. Some text may not be displayed as
intended.
• The web browser on this device does not
support downloading of files or fonts.
• The web browser on this device is a TV browser.
It may work differently to PC browsers.
Using Web Browser
1 Connect to the network.
2 Press Home to access the Home menu.
3 Press the Navigation buttons to scroll to the
Web Browser and press ENTER.
4 Press the Navigation buttons to scroll to the URL
and press ENTER.
5 Press the Navigation buttons to scroll to the
desired the URL and press ENTER.
6 You can browse websites on your TV.
Option Description
①
Move to the previous page.
②
Move to the Favorites screen.
③
Zoom the screen in or out.
④
Add the current web page to Favorites.
⑤
Move to the search screen.
⑥
Move to the previous/next page in the list
of recently viewed web pages.
You can change the URL address to move
to other websites.
You can delete the list and cookies of
recently viewed web pages.
⑦
Exit the web browser.
ENGLISH
62
ENTERTAINMENT
Browsing Favorite Websites
1 Connect to the network.
2 Press Home to access the Home menu.
3 Press the Navigation buttons to scroll to the
Web Browser and press ENTER.
4 Press the Navigation buttons to scroll to the
Favorites and press ENTER.
- By adding frequently visited websites to
Favorites, you can browse them easily.
Option Description
①
Browse a website by directly entering the
URL address.
②
Select a website in Favorites.
③
View the list of recently viewed web
pages.
④
Select a site to browse.
⑤
Edit Favorites.
• Move: Change the order in Favorites.
• Rename: Rename the sites added to
Favorites.
• Delete: Remove the sites from
Favorites.
⑥
Move to the previous screen.
⑦
Exit the web browser.
Browsing Websites by Directly
Entering Address
1 Connect to the network.
2 Press Home to access the Home menu.
3 Press the Navigation buttons to scroll to the
Web Browser and press ENTER.
4 Press the Navigation buttons to scroll to the URL
and press ENTER.
- You can browse a website by directly entering
the URL address.
Option Description
①
Browse a website by directly entering the
URL address.
②
Select a website in Favorites.
③
View the list of recently viewed web
pages.
④
Enter the URL address. If the address
entered is similar to any of the sites
previously visited, a drop-down list will be
displayed.
⑤
Use the keyboard to enter the address.
Select characters to enter.
⑥
Select the keyboard language.
⑦
Change the keyboard.
⑧
Clear the similar addresses appearing
below the address input field.
⑨
Move to the previous page.
⑩
Exit the web browser.
⑪
Hide the keyboard. Select the address
input field to display the keyboard again.
⑫
Move the cursor left or right.
⑬
Delete the text before the cursor, one
character at a time.
⑭
Press this after entering the address to go
to the website.
ENGLISH
ENTERTAINMENT
63
Viewing Visited Website List
1 Connect to the network.
2 Press Home to access the Home menu.
3 Press the Navigation buttons to scroll to the
Web Browser and press ENTER.
4 Press the Navigation buttons to scroll to the
history and press ENTER.
- You can view the addresses of the websites
you visited previously. Select an item to move
to the page.
Option Description
①
Browse a website by directly entering the
URL address.
②
Select a website in Favorites.
③
View the list of recently viewed web
pages.
④
Display a list of recently visited pages.
Select an item to move to the page.
⑤
Clear the visited website list.
⑥
Move to the previous screen.
⑦
Exit the web browser.
ENGLISH
64
ENTERTAINMENT
Smart Share Function
Connecting USB storage devices
Connect USB storage devices such as a USB flash
drive or external hard drive to the TV and use
multimedia features (See “Browsing files” on page
69).
Connect a USB flash drive or USB memory card
reader to the TV as shown in the following
illustration.
To disconnect a USB storage device, make sure to
end the connection properly to prevent damages to
the TV or files.
1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to USB
Device and press ENTER.
3 Disconnect the USB storage device only when
the message says that it is safe to remove.
CAUTION
• Do not turn the TV off or remove a USB
storage device while the USB storage
device is connected to the TV, as this could
result in loss of files or damage to the USB
storage device.
• Back up your files saved on a USB storage
device frequently, as you may lose or
damage the files and this may be not
covered by the warranty.
Tips for using USB storage devices
• The TV recognizes only a USB storage device.
• If you connect a USB storage device to the TV through
a USB hub, your TV may not recognize the USB
storage device.
• The TV may not recognize a USB storage device that
requires a special driver.
• The recognition speed of a USB storage device may
differ depending on the device.
• Only use a USB storage device which has normal
music or image files.
• Use only USB storage devices that are formatted as a
FAT 32 or NTFS file system.
• You may need to connect a USB storage device to an
external power supply with a power adapter.
• If the TV does not recognize a connected USB storage
device, replace the cable and try again. Do not use an
excessively long cable.
• The TV does not support some USB storage devices
properly.
• You can use a multi-partition (up to 4) USB storage
device.
• You can use up to 4 USB storage devices at a time by
using a USB multi-card reader.
• The file alignment method of a USB storage device is
similar to the one of Window XP.
• You cannot create or delete a folder saved in a USB
storage device directly on the TV.
• The number of characters for a file name is up to 100
English characters.
• Up to 1000 including folders and files can be
recognized.
• If there are too many folders and files in one folder, it
may not operate properly.
• The recommended capacity for a USB external hard
disk is 1 TB or less and for a USB storage device is 32
GB or less.
• If a USB external hard disk with the Energy Saving
feature does not work, turn the USB external hard disk
off and on again to make it work properly. For more
information, refer to the user manual of the USB
external hard disk.
• USB storage devices below USB 2.0 are supported as
well. But they may not work properly in the movie list.
• The electrostatic can cause USB device’s malfunction.
In this case, USB Device has to be plugged again.
ENGLISH
ENTERTAINMENT
65
Connecting DLNA DMP (Digital
Living Network Alliance, Digital
Media Player)
This TV can display and play many types of movie,
photo and music files from your DLNA server and
has been certified by DLNA.
The Digital Living Network Alliance (DLNA) is a
cross-industry organization of consumer
electronics, computing industry and mobile device
companies. Digital Living provides consumers with
easy sharing of digital media through a wired or
wireless network in the home.
The DLNA certification logo makes it easy to find
products that comply with the DLNA
Interoperability Guidelines. This unit complies with
DLNA Interoperability Guidelines v1.5. When a PC
running DLNA server software or other DLNA
compatible device is connected to this TV, some
setting changes of software or other devices may
be required. Please refer to the operating
instructions for the software or device for more
information.
Please refer to “Smart Share Function” for
additional information on supported file types and
other instructions.
NOTE
• The supplied Nero MediaHome 4 Essentials
CD-ROM is a customized software edition
only for sharing files and folders to this TV.
• The supplied Nero MediaHome 4 Essentials
software does not support following
functions: Transcoding, Remote UI, TV
control, Internet services and Apple iTunes
• This manual explains operations with the
English version of Nero MediaHome 4
Essentials as examples. Follow the
explanation referring to the actual
operations of your language version.
• If there are too many folders and files in one
folder, it may not operate properly.
• For the DLNA option, use the Nero
MediaHome program that is provided with
the TV. However, we cannot guarantee that
third party program will work perfectly.
• You can select a channel while viewing the
small preview channel list on your TV
screen.
• Check your network settings when the
DLNA option does not work properly.
• If there is an abnormal operation or an error
occurs in Nero Media Home, the DLNA
option may not work properly. In this case,
exit Nero Media Home and restart the
program. You can download the latest
version of Nero Media Home by clicking the
question mark at the bottom-left of the
program.
• When the network is unstable, the device
may be slower or may need to load during
playback.
• When playing a video in DLNA mode, the
Multi Audio and Closed Caption features are
not supported.
• When selecting Full Screen in DLNA mode,
the ratio of the outputted screen may differ
from the original.
• When more than one TV is connected to a
single server in DLNA mode, a file may not
play properly, depending on the server
performance.
• If the play time information is not provided
by the server, it is displayed as “- -."
ENGLISH
66
ENTERTAINMENT
Installing Nero MediaHome 4 Essentials
Nero MediaHome 4 Essentials is an easy to use
DLNA server software for Windows.
Computer requirements for Nero MediaHome 4
Essentials
• Windows® XP (Service Pack 2 or higher),
Windows Vista® (no Service Pack required),
Windows® XP Media Center Edition 2005
(Service Pack 2 or higher), Windows Server®
2003 (Service Pack 1 or higher)
• Windows® 7 Home Premium, Professional,
Enterprise or Ultimate (32 and 64-bit)
• Windows Vista® 64-bit edition (application runs
in 32-bit mode)
• Windows® 7 64-bit edition (application runs in
32-bit mode)
• Hard drive space: 200 MB hard drive space for a
typical installation of Nero MediaHome stand-
alone
• 1.2 GHz Intel® Pentium® III or AMD Sempron™
2200+ processors
• Memory: 256 MB RAM
• Graphics card with at least 32 MB video
memory, minimum resolution of 800 x 600
pixels, and 16-bit color settings
• Windows® Internet Explorer® 6.0 or higher
• DirectX® 9.0c revision 30 (August 2006) or
higher
• Network environment: 100 Mb Ethernet, WLAN
(IEEE 802.11g), or faster
1 Start up your computer.
2 Close all Microsoft Windows programs and exit
any anti-virus software that may be running.
3 Insert the Nero MediaHome 4 Essentials
CDROM into your computer’s CD-ROM drive.
4 Click Nero MediaHome 4 Essentials. The
installation wizard will appear.
5 Click the Next button to display the serial
number input screen. Click Next to go to the
next step.
6 If you accept all conditions, click I accept the
License Conditions check box and click Next.
Installation is not possible without this
agreement.
7 Click Typical and click Next. The installation
process is started.
8 If you want to take part in the anonymous
collection of data, select the check box and click
the Next button.
9 Click the Exit button to complete the installation.
Sharing files and folders
After installing Nero MediaHome, you must add
folders you wish to share.
1 Double-click the Nero MediaHome 4 Essentials
icon on the desktop.
2 Click Network icon on the left and define your
network name in the Network name field. The
Network name you enter will be recognized by
your TV.
3 Click Shares icon on the left.
4 Click Local Folders tab on the Shared screen.
5 Click Add icon to open the Browse Folder
window.
6 Select the folder containing the files you want to
share. The selected folder is added to the list of
shared folders.
7 Click Start Server icon to start the server.
NOTE
• If the shared folders or files are not
displayed on the TV, click the folder on the
Local Folders tab and click Rescan Folder at
the More button.
• Visit http://www.nero.com for more
information and software tools.
ENGLISH
ENTERTAINMENT
67
Playing Shared Media
You can display and play movie, photo and music
content stored on your computer or other DLNA
media servers.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to Smart
Share and press ENTER.
3 Press the Navigation buttons to scroll to the
device you want and press ENTER.
4 Press the Navigation buttons to select DLNA.
Depending on the media server, this TV may
need to get the permission from the server.
Tips for using DLNA DMP
• To play the file on the media server, the TV and
the media server must be connected to the
same access point.
• File requirements and playback functions on the
Smart Share may differ depending on the media
server used.
• There may be some restrictions by file features
and the media server that restrict playback.
• Movie thumbnail is only supported when DLNA
server supports a Movie thumbnail.
• If there is an unplayable music file in the Smart
Share menu, the TV will skip the file and play
next file.
• Files in a folder can be played only when they
are of the same type.
• The file information indicated on the screen may
not always correct for music and movie files in
Smart Share menu.
• This TV only supports movie subtitle files
supplied by Nero MediaHome 4.
• The subtitle file name and movie file name have
to be the same and located in the same folder.
• If subtitle files have been added after a directory
has been indexed already, the user has to
remove and re-add the folder to the list of
shares.
• The DRM/*.tp/*.trp file in DLNA server is not
played while Movie List is in operation.
• MPO files are not played when Photo List is in
operation.
• The playback and operating quality of the Smart
Share function may be affected by your home
network condition.
• The files from removable media such as USB
drive, DVD-drive etc. on your media server may
not share properly.
• When playing the Media through DLNA
connection, it does not support files protected
by DRM.
• Up to 1000 including folders and files can be
recognized.
• If there are too many folders and files in one
folder, it may not operate properly.
• The DLNA function is not available in some
routers which do not support multicasting. For
more information, refer to your router manual or
contact the manufacturer.
ENGLISH
68
ENTERTAINMENT
Connecting DLNA DMR (Digital
Living Network Alliance, Digital
Media Render)
This supports remote playing of media files. Media
from a compatible device (Windows 7, Mobile
Phone with PlayTo, or other compatible DLNA-
DMC device) can be “pushed” to the TV.
The DMR function only works properly when the
TV and PC are on the same local network.
1 To play a file, select the file by using the
“Remote Play” feature in Windows 7.
To do this, right-click on the file you want to play.
2 You can play a file only on a single TV set or
device even though multiple devices are
connected. The playback speed depends on the
network status.
NOTE
• Subtitle is supported only on some DMC
devices.
• The DMR function may not work properly in
a wireless network.
• The seek function of the DMC only works
on video files.
• The DMR is not available when another
function is operating (recording, playback or
Smart Share work etc.).
• Refer to the owner’s manual of the mobile
phone or other device to find out how to use
it to play a file.
• You can change the name of a connected
TV by double-clicking the item you want to
change in Control Panel>Network and
Internet>View network computers and
devices (For Windows 7).
• You cannot change the name of a TV while
DMR media is playing. Change it when
playback is stopped.
ENGLISH
ENTERTAINMENT
69
Browsing files
Access the photo, music, or movie lists and
browse files.
1 Connect a USB storage device.
2 Press Home to access the Home menu.
3 Press the Navigation buttons to scroll to Smart
Share and press ENTER.
4 Press the Navigation buttons to scroll to the
device you want and press ENTER.
5 Press Navigation buttons to scroll to All Media,
Movie List, Photo List, or Music List and press
ENTER.
- All Media: Shows all files in the file list.
- Movie List, Photo List, or Music List: Shows
only one type of file in the file list.
6 Press Navigation buttons to select a folder or file
you want.
No.
Description
①
Shows all media folders.
②
Current page number/total number of
pages.
③
Moves to the previous or next page.
④
Current page number/total number of
pages.
⑤
Files info or thumbnail.
⑥
Available buttons on the remote control.
Thumbnail information
Type
Abnormal files
Non-supported files
Video
Music
Tips for using USB storage devices
Type Supported File Formats
Video
• MPG, MPEG, DAT, TS, TRP, TP, VOB, MP4,
MOV, MKV, DivX, AVI, ASF, WMV, M4V
• Max bitrate of playable movie file: 20 Mbps
(Mega bit per second)
• Bit rate of audio format: within 32 kbps to 320
kbps (MP3)
• Supported external subtitle format: *.smi, *.
srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.
ass, *.ssa, *.txt (TMPlayer), *.psb
(PowerDivX)
• Supported Internal subtitle format: only XSUB
(It is the subtitle format made in DivX files),
Text UTF-8, SRT, ASS, SAA (It is the subtitle
format used in DivX-Plus HD files)
• Do not use the progressive option when
saving JPG files on your PC.
• It may take some time to open high-resolution
images in full screen.
File
Exten-
sions
Item Profile
2D
jpeg
jpg
jpe
Supported
file format
• SOF0:
baseline
• SOF1:
Extend
Sequential
• SOF2:
Progressive
Photo size
• Min: 64 x 64
• Max -
Normal Type:
15360 (W) x
8640 (H)
• Progressive
Type: 1920
(W) x 1440
(H)
3D
(For
3D TV)
mpo
Supported
file format
• mpo
Photo size
• 4:3 size:
3,648 x
2,736, 2,592
x 1,944,
2,048 x
1,536
• 3:2 size:
3,648 x
2,432
Music
• MP3
• Bit rate range: 32 Kbps - 320 Kbps
• Sampling rate (Sampling Frequency)
MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHz
MPEG2 layer 3: 16 kHz, 22.05 kHz, 24 kHz
* A copy-protected file will not play.
ENGLISH
70
ENTERTAINMENT
Viewing Videos
Play video files on the TV. Your TV can display
video files from a USB storage device.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to Smart
Share and press ENTER.
3 Press the Navigation buttons to scroll to the
device you want and press ENTER.
4 Press the Navigation buttons to scroll to Movie
List and press ENTER.
5 Press Navigation buttons to select a folder or file
you want and press ENTER.
6 Play a movie by using the following menus/
buttons.
Button
Description
Navigation
button
Scrolls through the files.
ENTER
Plays the highlighted file.
CH (
^
, v)
Moves to the previous or next
page.
Red button Change device: Changes to a
different input.
Green button Go to root folder.
Yellow button Go to upper folder.
7 Control playback by using the following buttons.
Button
Description
ꕗ
Stops the playback.
ꕖ
Plays a video.
ꕘ
Pauses or resumes the playback
ꕚ
Scans backward in a file
ꕙ
Scans forward in a file
ꕘ and ꕙ Plays videos in slow motion
Red button and
< or >
Selects the frame directly. The
entire file is divided into 10
frames.
Frames may not be displayed
depending on the file.
ENERGY
SAVING
Increases or decreases the
brightness of your screen.
Q.MENU
Shows the Option menu (See
p.72).
3D
(For 3D TV)
Views the 3D imaging.
BACK
Hides the menu on screen.
To see the menu again, press
ENTER button to display.
EXIT
Moves to the previous menu
screen.
ENGLISH
ENTERTAINMENT
71
Tips for playing video files
• The TV does not support the files encoded in
Motion JPEG.
• Some user-created subtitles may not work
properly.
• Subtitles may not display some special
characters or HTML tags.
• Changing font and color in subtitles is not
supported.
• Subtitles in non-supported languages are
unavailable.
• Video files with subtitle files of 1 MB or larger
may not be played properly.
• The screen may suffer from temporary
interruptions such as image stoppage or faster
playback when you change the audio language.
• If you play a damaged video file, the video file
may not be played correctly or some player
functions may not be unavailable.
• The TV may not properly play the video files
produced with certain encoders.
• If the recorded file does not have video or audio,
either video or audio is not outputted.
• If the TV plays the recorded file without video or
audio, either video or audio is not outputted.
• The TV may not smoothly play the video files
with a resolution higher than the supported
resolution for each frame.
• The TV may not properly play the video files not
included on the specified type and format.
• The TV may not play the files encoded with
GMC (Global Motion Compensation) or quarter-
pel motion estimation.
• The TV supports the only 10,000 sync blocks
within the subtitle file.
• The TV supports the H.264/AVC codec up to the
profile level 4.1.
• The TV does not support DTS audio codec.
• The TV cannot play a video file whose size is
larger than 30 GB.
• If you play a video file through the USB
connection that does not support the high
speed, the video player may not work properly.
• The video file and its subtitle should be in the
same folder and the name of the video file and
subtitle should be identical.
• The TV may not play the video files in the
supported file format depending on the encoded
condition.
• Trick Mode does not support other functions
than
ꕙ if video files do not have index
information.
• Video file names that contain special characters
may not be playable.
• For 3D WMV files encoded in dualstream, 3D
mode is not supported. (For 3D TV)
ENGLISH
72
ENTERTAINMENT
Q.MENU options for movie list
1 Press Q.MENU.
A pop-up window will appear.
2 Press the Navigation buttons to scroll the option
and press ENTER.
3 Press the Navigation buttons to scroll to one of
the following options and press ENTER.
Set Video Play.
Option Description
Picture Size
Selects your desired picture format for
videos.
• Full Mode: Files are played in full screen
mode according to the aspect ratio of
video.
• Original Mode: Files are played in their
native size.
Audio
Language
Changes the Language Group of the audio
for video files. Files with a single audio
track cannot be selected.
Subtitle
Language
The subtitles can be turned on or off.
Language
Activated for SMI subtitles and can select
the language within the subtitle.
Code Page
Subtitle font selection. When set to
default, contents are displayed in the
language set in “Option - Language -
Menu Language."
Option Description
Subtitle
Language
Group
Latin1: English, Spanish,
French Korean: English,
Korean
Sync
If the video is not
synchronized with the
captions, it can be
adjusted by 0.5 second.
Position
Move the location of the
subtitles.
Size
Changes the subtitle font
size.
Repeat
Turn on/off repeat function of movie
playback. When turned on, the file within
the folder will be played back repeatedly.
When turned off, if the next file name is
similar to the previous file, it can be played
sequentially.
NOTE
• Option values changed in Movie List does
not affect Photo List and Music List.
• Option value changed in Photo List and
Music List are changed likewise in Photo
List and Music List excluding Movie List.
• When replaying a video file after stopping,
select “Yes” to restart where it previously
stopped.
• If continuous series files exist within the
folder, the next file will automatically be
played. But, this excludes cases when the
Repeat function of Movie List Option is
turned “On”.
Set Video.
Allows you to change Video presets (Refer to
“PICTURE Settings” on page 88).
Set Audio.
Allows you to change Audio presets (Refer to
“AUDIO Settings” on page 93).
Set DivX PLUS HD
These options are enabled only when the movie file
being played has the title, edition and authored
chapter information.
Option Description
Title
For files with more than one title,
select the title you want to play.
Edition
For files with more than one edition,
select the edition you want to play.
• An edition refers to the playback
order set based on the chapters.
Authored
Chapter
Select and play the chapter you want.
ENGLISH
ENTERTAINMENT
73
DivX registration code
Registering the DivX code
The DivX registration code allows you to rent or
purchase the latest movies at www.divx.com/vod.
To play a rented or purchased DivX file, the file’s
registration code should be same as your TV’s DivX
registration code.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll to
OPTION and press ENTER.
4 Press the Navigation buttons to scroll to Smart
Share Setting and press ENTER.
5 Press the Navigation buttons to scroll to DivX
VOD Registration and press ENTER.
6 View the registration code of your TV.
7 When you are finished, press EXIT.
NOTE
• While you are checking the registration
code, some buttons may not work.
• If you use the DivX registration code of
another device, you cannot play the rented
or purchased DivX file. Make sure to use the
DivX registration code assigned to your TV.
• The video or audio files that are not
converted by the standard DivX codec may
be corrupted or not be played.
• The DivX VOD code allows you to activate
up to 6 devices under one account.
Deactivating the DivX feature
You can deactivate all of the devices through the
web server and block devices from activating.
Delete the existing authentication information to
receive a new DivX user authentication for the TV.
Once this function is executed, a DivX user
authentication is required again to see DivX DRM
files.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll to
OPTION and press ENTER.
4 Press the Navigation buttons to scroll to Smart
Share Setting and press ENTER.
5 Press the Navigation buttons to scroll to DivX
Deregistration and press ENTER.
6 Select Yes to confirm.
7 When you are finished, press EXIT.
ENGLISH
74
ENTERTAINMENT
Viewing Photos
You can view image files saved on a USB storage
device. The displays on the screen may based on
the from the model.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to Smart
Share and press ENTER.
3 Press the Navigation buttons to scroll to the
device you want and press ENTER.
4 Press the Navigation buttons to scroll to Photo
List and press ENTER.
5 Press Navigation buttons to select a folder or file
you want and press ENTER.
6 View a photo by using the following menus/
buttons.
Button
Description
Navigation
button
Scrolls the file.
ENTER
Views the highlighted file.
CH (
^
, v)
Moves to the previous or next
page.
Red button Change device: Changes to a
different input.
Green button Go to root folder.
Yellow button Go to upper folder.
7 The following options are available while viewing
photos.
1
1
2
2
`
`
b
b
/
/
k
k
q
q
h
h
3
3
1
1
1
1
9
9
0
0
2
2
3
3
0
0
2
2
1
1
2
2
:
:
3
3
1
1
!
!
y
y
!
!
2
2
1
1
9
9
1
1
5
5
8
8
:
:
!
!
L
L
C
C
\
\
2
2
0
0
7
7
7
7
^
^
T
T
m
m
j
j
e
e
f
f
t
t
i
i
p
p
x
x
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
C
C
H
H
N
N
!
!
!
!
!
!
!
!
!
!
!
!
!
!
`
`
!
!
!
!
8
8
!
!
!
!
P
P
q
q
u
u
j
j
p
p
o
o
!
!
I
I
j
j
e
e
f
f
!
!
F
F
y
y
j
j
u
u
Option Description
Slideshow
• Starts or stops a slideshow.
• All photos saved in the current
folder display during a
slideshow.
• To set a slideshow speed, select
Option.
BGM
(Background
Music)
• Turns the background music on
or off. To set the background
music folder, select Option.
(
Pla sm a
)
Displays the current photo in
Original, Monotone, Sepia, Oil
Painting and Vignetting.
꘤ (Rotate)
Rotates photos clockwise (90°,
180°, 270°, 360°).
NOTE
• The supported photo size
is limited. You cannot
rotate a photo if the
resolution of the rotated
width is larger than the
supported resolution size.
ꕲꕳ
Views the photo in full mode or
original mode.
ꕊ
(ENERGY
SAVING)
Increases or decreases the
brightness of your screen.
3D
(For 3D TV)
Views the 3D images.
Option
Shows the Option menu (See
p.75).
Hide
Hides the option window. To
display the options, press ENTER.
Exit
Moves to the previous menu
screen.
ENGLISH
ENTERTAINMENT
75
Q.MENU options for photo list
1 Press Q.MENU.
A pop-up window will appear.
2 Press the Navigation buttons to scroll to the
option and press ENTER.
3 Press the Navigation buttons to scroll to one of
the following options and press ENTER.
Set Photo View.
Option Description
Slide Speed
Selects a slideshow speed (Fast,
Medium, Slow).
BGM
Selects a music folder for the
background music.
Select Repeat or Random option.
NOTE
• You cannot change the
music folder while the
background music is
playing.
NOTE
• Option values changed in Photo List do not
affect Movie List and Music List.
• Option values changed in Photo List or
Music List are changed likewise in Photo
List and Music List, but not Movie List.
Set Video.
Allows you to change Video settings. (Refer to
“PICTURE Settings” on page 88).
Set Audio.
Allows you to change Audio settings. (Refer to
“AUDIO Settings” on page 93).
ENGLISH
76
ENTERTAINMENT
Listening to music
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to Smart
Share and press ENTER.
3 Press the Navigation buttons to scroll to the
device you want and press ENTER.
4 Press the Navigation buttons to scroll to Music
List and press ENTER.
5 Press Navigation buttons to select a folder or file
you want and press ENTER.
6 Play music by using the following menus/
buttons.
Button
Description
Navigation
button
Scrolls through the files.
ENTER
Plays the highlighted file.
CH (
^
, v)
Moves to the previous or next
page.
Red button Change device: Changes to a
different input.
Green button Go to root folder.
Yellow button Go to upper folder.
Blue button Open music player.
It is enabled during playing music.
7 Control playback by using the following buttons.
Button
Description
ꕗ
Stops playback.
ꕖ
Plays a music file.
Button
Description
ꕘ
Pauses or resumes playback.
ꕚ
Skips to the previous file.
ꕙ
Skips to the next file.
< or >
Indicates a cursor.
ꕊ
(ENERGY
SAVING)
Increases or decreases the
brightness of your screen.
Q.MENU
Shows the Option menu (See
p.76).
BACK
Hides the option window. To
display the options, press ENTER.
EXIT
Moves to the previous menu
screen.
Tips for playing music files
• The TV cannot support the ID3 Tag embedded
MP3 files.
Q.MENU options for music list
1 Press Q.MENU. A pop-up window will appear.
2 Press the Navigation buttons to scroll to the
option and press ENTER.
3 Press the Navigation buttons to scroll to one of
the following options and press ENTER.
NOTE
• Option values changed in Movie List does
not affect the Photo List and Music List.
• Option value changed in Photo List and
Music List are changed likewise in Photo
List and Music List.
ENGLISH
ENTERTAINMENT
77
Set Audio Play.
Select Repeat or Random option.
Set Audio.
Allows you to change Audio settings. (Refer to
“AUDIO Settings” on page 93).
NOTE
• The TV will not play copy protected files.
• If the TV is not in use for some time during
playback, the information box as a
screensaver will appear to prevent image
burn.
To return to the Music list screen, press
ENTER.
ENGLISH
78
ENTERTAINMENT
Media Link Function
(This feature is not available for all country.)
The Media Link program allows you to connect to a
Plex Media Server. The Plex Media Server is free
download from www.plexapp.com. It will allow to
play media files and download Plex apps. The Plex
apps download to your computer and do not use
any space on the TV.
NOTE
• We recommend that you install version
0.9.1.14 or later of PLEX Media Server on
your Mac or PC. (Download the installation
file at http://www.plexapp.com/medialink)
• GUI is displayed in English and the data
transmitted will not be displayed when
using the following languages: Thai, Arabic,
Persian, Hebrew, Kurdish.
• When using the video plug-in, initial
buffering may take a while if the TV does
not support a file to be played and
conversion needs to be performed on the
computer. The conversion performance
may vary depending on the computer’s
performance and the network speed.
• When playing the files stored on the
computer (movies, TV shows, music), the
formats supported are the same as those
for the DLNA function. The skip to content
function is not supported when playing
music. (Same for DLNA)
• You may experience problems when playing
HD movies over Wi-Fi due to the network
slowing down.
• When using a router, the TV may not detect
the computer due to the router settings.
(For example, when using the multicast
forward function in some routers, TVs
cannot detect computers via Wi-Fi.)
• Some plug-ins may not work, depending on
the media format.
• Plug-ins are subject to change and may stop
working without prior notice, at the
providers’ discretion.
Media Link Connection
1 Your TV must be connected to your home
network. Either using a wired or wireless
connection.
2 Download the Plex Media Server and install it.
- You can download it at http://www.plexapp.
com/medialink.
- For more information on how to install it,
please visit the website above.
3 When running PLEX for the first time, the wizard
guides you through the steps to set up the
program.
- For information on how to use the wizard,
please visit the website above.
ENGLISH
ENTERTAINMENT
79
Using Media Link
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to the
Media Link and press ENTER.
3 The Media Link sections of the connected
computer are displayed. Select an icon to view
the shared media in that category.
Option Description
①
This is a list of categories you set on
the connected computer.
②
This is a list of plug-ins for online
content.
③
Change the section sorting.
• By server name: Sort the list by
server name.
• By item name: Sort the list by item
name.
④
Select another device.
⑤
Using PLEX Online, you can install,
remove or update applications on the
computer.
⑥
Move to the previous screen.
⑦
Exit Media Link.
Viewing Movies
Media Link will retrieve information on shared
movies as described below.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to the
Media Link and press ENTER.
3 Press the Navigation buttons to scroll to the
Video and press ENTER.
Option Description
①
Show information for the selected
movie.
②
Show images captured from the
movie file.
③
Search movies within the section.
④
Display the list according to the
selected filter.
⑤
Select to play the movie in full screen
mode. If the movie has already been
played, you can continue from the last
scene.
⑥
Move to the previous screen.
⑦
Exit Media Link.
ENGLISH
80
ENTERTAINMENT
Using Music Section
You can view information for the music files set for
the Music section and enjoy them.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to the
Media Link and press ENTER.
3 Press the Navigation buttons to scroll to the
Music section and press ENTER.
Option Description
①
Sort the music files in the selected
section in the order of artist > album >
song title.
②
Select a folder or a song.
③
Show the artist, album and
information for the selected music.
④
Search music files within the section.
⑤
Display the list according to the
selected filter.
⑥
Move to the previous screen.
⑦
Exit Media Link.
Using TV Program Section
You can view information for the programs
contained in the TV Show section and enjoy them.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to the
Media Link and press ENTER.
3 Press the Navigation buttons to scroll to the TV
Show section and press ENTER.
Option Description
①
Sort the TV program files in the
selected section in the order of
Program name > season > episode.
②
Select a folder or a program.
③
Show information for the selected
program.
④
Search TV Programs within the
section.
⑤
Display the list according to the
selected filter.
⑥
Move to the previous screen.
⑦
Exit Media Link.
ENGLISH
ENTERTAINMENT
81
Installing Plug-Ins
Media Link allows you to install plug-ins to enjoy
media content on the web.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to the
Media Link and press ENTER.
3 Press the yellow button to select PLEX online.
Option Description
①
Move the cursor to a plug-in to view
the plug-in information on the right
pane. Plug-ins already installed: You
can run, update, reinstall or remove
them. Plug-ins not yet installed: You
can install them.
Once installed, you can run the plug-in
by selecting Video, Music or Picture
Plug-in from the Media Link main
screen.
②
A list of plug-ins available for
installation.
③
Move to the previous screen.
④
Exit Media Link.
ENGLISH
82
3D IMAGING (FOR 3D TV)
3D IMAGING (FOR 3D TV)
3D Technology
This TV can display in 3D via 3D broadcasting or
when the TV is connected to a compatible device,
such as a Blu-ray 3D Player. The viewer must wear
compatible 3D glasses in order to see these
images in 3D format.
When watching 3D imaging
• To watch the TV in 3D, you must put on your 3D
glasses. For best results, you should wear LG
Brand 3D glasses. The 3D imaging may not
display properly when using another brand of 3D
glasses. Please see the 3D glasses manual for
instructions on how to use the 3D glasses.
• When watching 2D images, it is recommended
to take off the 3D glasses. If you watch 2D
images with the 3D glasses on, you may see
distorted images.
(
LCD
)
• We recommend that you maintain a distance of
at least twice the screen diagonal length when
watching 3D videos.
(
Pla sm a
)
• After powering on the TV, a few seconds may
be needed for your TV to calibrate.
• The TV may flicker slightly if the 3D imaging is
displayed under 3 wavelength fluorescent light
(50 Hz - 60 Hz) or magnetic fluorescent lamp
(50Hz - 60 Hz). In such instances, it is
recommended to turn the lights off.
• If there is an obstacle between the TV and the
3D glasses, the 3D imaging may not display
properly.
• Do not use the TV in close proximity to other
electronic equipments and RF equipments.
• The 3D imaging may not display if it is viewed
while you are lying down.
• It may take a moment for you to see the 3D
imaging if you look away from the TV and then
revert your eyes back to the 3D program.
ENGLISH
3D IMAGING (FOR 3D TV)
83
When using 3D Glasses
• Do not use the 3D glasses to replace your
corrective glasses, sunglasses or protective
goggles.
• Do not store the 3D glasses in hot or cold
locations.
• Do not drop objects onto the 3D glasses. Do not
drop or bend the glasses.
• Since the lenses of the 3D glasses are easily
scratched, make sure to clean only with a soft
cloth. Shake off any dust before using the cloth
since the glasses are easily scratched.
• A communication failure may occur if the
glasses are near electronic devices that use the
same bandwidth (2.4 GHz), such as a microwave
oven or wireless LAN product(
Pla sm a
).
3D Imaging Viewing Range (
Pla sm a
)
TV size, viewing angle & other circumstances may
change the viewing distance and the angle of view.
Viewing Distance Maximum Viewing Distance
2 m - 7 m
(6.5 ft - 22.9 ft)
10 m
(32.8 ft)
ENGLISH
84
3D IMAGING (FOR 3D TV)
Viewing 3D Imaging
1 Play the video produced in 3D.
2 Press 3D to watch 3D imaging.
3 Wear the 3D glasses.
4 Press the Navigation buttons to scroll the OK
and press ENTER.
5 Press the Navigation buttons to select the shape
and press ENTER.
Mode
Description
2D » 3D
Changed from 2D imaging to
3D imaging.
2D-to-3D converted videos
may appear less realistic than
titles originally produced as 3D
videos.
Side by Side
Top & Bottom
Checker Board
Frame Sequential
6 Press 3D button to 2D Off or 3D Off.
Option Description
3D -> 2D
Displays images in 2D without any
3D effects.
3D Off
Displays images in original format.
2D -> 3D
Displays images in 3D.
Cancel
Close the pop-up window.
Setting 3D Imaging
1 Press the 3D OPTION while viewing 3D
imaging.
A pop-up window will appear.
2 Press the Navigation buttons to scroll to one of
the following options and press ENTER.
3D Mode Setting
Option
(Depending on
model)
Description
3D Picture
Size
Cuts off the outer edges of the picture
and stretch it to fit the full screen in
3D mode.
3D Picture
Correction
Select Left/Right or Right/Left. Select
the screen with 3D video with better
visibility.
3D Depth
Adjusts the stereoscopic effect of the
3D image converted from 2D image.
3D Viewpoint
Moves the 3D image to front and back
to adjust the 3D perspective view.
3D Picture
Balance
Adjusts the color and brightness
difference between the right and left
sides of the picture in 3D mode.
3D
Optimization
Optimizes the 3D image screen for
the viewing environment.
ENGLISH
3D IMAGING (FOR 3D TV)
85
Set Video.
Allows you to change Video settings (Refer to
“PICTURE Settings” on page 88).
Set Audio.
Allows you to change Audio settings (Refer to
“AUDIO Settings” on page 93).
CAUTION
• Some menus may not work while viewing
3D imaging.
• The 3D imaging is disabled automatically
when switching input source or DTV
channel.
• The screen may not be displayed properly if
you view 2D images in 3D imaging mode.
• 3D effect can be seen when 3D Mode is
selected appropriately for the 3D input
signal supplied to the TV.
• For *mpo files (3D camera files), the 3D
imaging mode is enabled automatically.
NOTE
(
LCD
)
• If viewing 3D imaging, “Power indicator” is
turned off automatically.
• You can only choose “Off or Cinema” with
the AV MODE button on the remote control.
• Energy Saving is disabled while playing in
3D.
• Home menu is not available while playing in
3D.
• You cannot enter the Home menu while
watching 3D imaging.
ENGLISH
86
CUSTOMIZING TV SETTINGS
CUSTOMIZING TV SETTINGS
The SETUP Menu
1 Press Home to access the Home menu.
2 Press the Navigation buttons to select the SETUP menu and press ENTER.
3 Press the Navigation buttons to scroll to one of the following menus and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you want and press ENTER.
5 When you are finished, press EXIT.
Menu
Description
CHANNEL
Sets up and edit channels.
Adjusts the image size, quality, or effect.
AUDIO
Adjusts the sound quality, effect, or volume level.
TIME
Sets the time, date, or Timer feature.
LOCK
Locks or unlocks channels and programs.
OPTION
Customizes the general settings.
NETWORK
Sets up the network setting.
?
SUPPORT Checks the customer information.
ENGLISH
CUSTOMIZING TV SETTINGS
87
Customizing Settings
CHANNEL Settings
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to CHANNEL and press
ENTER.
4 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.
The available channel settings are described in the following.
Setting Description
Auto Tuning
Tunes and stores all available channels through antennas or cable inputs (See p.42).
Manual Tuning
Tunes and stores the channels you want manually (See p.42).
Channel Edit
Adds or deletes channels (See p.42).
ENGLISH
88
CUSTOMIZING TV SETTINGS
PICTURE Settings
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to PICTURE and press
ENTER.
4 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.
The available picture settings are described in the following.
Setting Description
Aspect Ratio
Changes the image size to view images at its optimal size (See p.45).
Set 3D Video
(For 3D TV)
Sets the 3D imaging option (See p.84).
Picture Wizard
Adjusts the image quality and calibrates the screen.
The customized options will be saved as Expert1 in the Picture Mode.
NOTE
• If you use Picture Wizard, the Energy Saving feature will turn off automatically.
• To reset changes made by Picture Wizard, operate Picture Reset when Picture Mode is on
Expert1.
Energy Saving
Reduces the power consumption by adjusting the screen brightness.
NOTE
• When selecting Auto or Maximum, Backlight will not work (
LCD
).
Option
Auto(
LCD
)
The backlight is adjusted automatically corresponding to the surroundings when
selecting Auto using the Intelligent sensor feature.
Intelligent sensor
(
Pla sm a
)
The most suitable picture is automatically adjusted corresponding to the
surroundings.
Off
Select if this feature is not necessary.
Minimum/
Medium/
Maximum
Selects the brightness level.
Screen off
The screen turns off in 3 seconds.
Pressing any button of the remote control will turn on the screen again.
ENGLISH
CUSTOMIZING TV SETTINGS
89
Setting Description
Picture Mode
Selects one of the preset image or customizes options in each mode for the best TV screen
performance. You are also able to customize advanced options of each mode. The available preset
picture modes vary depending on the TV.
NOTE
• (
LCD
) If you select Intelligent Sensor, the Energy saving feature will switch to Auto
automatically .
• If you select THX Cinema or THX Bright Room, the Aspect ratio feature will switch to Just
scan automatically.
Mode (Depending on model)
Intelligent Sensor
Sets the TV to adjust the image settings, such as contrast, brightness,
sharpness, color, or tint, automatically corresponding to the surrounding
environments.
Vivid
Adjusts the video image for the retail environment by enhancing the contrast,
brightness, color, and sharpness.
Standard
Adjusts the image for the normal environment.
APS
Maximizes video images reducing power consumption without hurting picture
quality.
Cinema
Optimizes video image for a cinematic look to enjoy movies as if you are in a
movie theater.
THX Cinema,
THX Bright Room
Provides a cinema experience while watching a movie at home. The user will
be able enjoy the best level of screen quality without any separate adjustments.
» THX Cinema express the optimal screen quality when the room is dark.
» THX Bright Room express the optimal screen quality when the room is bright.
NOTE
• THX : THX (Thomlinson Holman’s Experiment) is an audio and video
certification standard established by George Lucas and Thomlinson. A
THX certified display guarantees screen quality that exceeds the
display standard specification in both hardware and software.
Sport
Optimizes the video image for high and dynamic actions by emphasizing
primary colors such as white, grass, or sky blue.
Game
Optimizes the video image for a fast gaming screen for PCs or games.
Optimizes the still image like a photo file in HDMI, USB mode (ie, when
connecting the external device like a DSLR)
Expert 1,2 or
ISPFccc Expert 1,
2
Adjusts the detailed video image settings for video experts as well as general
viewers.
NOTE
• ISFccc (ISFccc: Imaging Science Foundation Certified Calibration
Control) (Depending on model): This TV contains the detailed
calibrations necessary for professional certification by the Imaging
Science Foundation. The resulting ISF “day” and “night” modes will
then be accessible by the user to experience the best their LG HDTV
has to offer. Sophisticated and detailed calibrations can be made
through the ISFccc mode. Detailed calibration requires a licensed
technician. Please contact your local dealer to inquire about an ISF
certified technician.
ENGLISH
90
CUSTOMIZING TV SETTINGS
Setting Description
TruMotion
(Depending on
model)
Advance video technology that provides clearer, smoother images, even during fast action scenes
creating a more stable structure for a crisper picture.
TruMotion works with all inputs except PC mode.
If you enable “TruMotion”, noise may appear on the screen. If this occurs, set “TruMotion” to
“Off”.
If you select “Picture Mode-Game ”, set “TruMotion” to “Off”.
Mode
High Provides smoother picture movement.
Low Provides smooth picture movement. Use this setting for standard use.
Off Turn off TruMotion operation.
User De-Judder: Adjusts noise of the screen.
De-Blur: Adjusts after-image of the screen.
SCREEN (RGB-
PC)
Customizes the PC display options.
Option
Resolution Selects a proper resolution.
Auto Configure Sets the TV to optimize the options automatically for the TV display.
Position Locates the image at the proper position.
Size Adjusts the image size.
Phase Eliminates horizontal streaking.
Reset Restores the options to the default setting.
LED Local
Dimming
(Depending on
model)
After analysing the signal of the input video by areas of the screen, it adjusts the backlight to
improve the contrast ratio.
Mode
Off Turn off LED Local Dimming operation.
Low Brightens the picture and deepens black levels using the soft local dimming.
Medium Deepens black levels using the strong local dimming.
High Clears the picture and deepens black levels using the strong local dimming.
Basic Image Options
Setting Description
Backlight (
LCD
)
Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the brightness
level, the screen becomes darker and the power consumption will be reduced without any video
signal loss.
NOTE
• If you use the “Energy saving - Off, Minimum, Medium”, Backlight will be available.
Contrast
Increases or decreases the gradient of the video signal. You may use Contrast when the bright part
of the picture is saturated.
Brightness
Adjusts the base level of the signal in the picture.
Sharpness
Adjusts the level of sharpness in the edges between the light and dark areas of the picture. The
lower the level, the softer the image.
Color
Adjusts intensity of all colors.
Tint
Adjusts the balance between red and green levels.
Color Temp.
Set to warm to enhance hotter colors such as red, or set to cool to enhance cooler colors such as
blue.
ENGLISH
CUSTOMIZING TV SETTINGS
91
Setting Description
Advanced
Control or Expert
Control
Customizes the advanced options.
Picture Reset
Restores the options of each mode to the factory default.
Advanced Image Options (Depending on model)
Setting Description
Dynamic
Contrast
Adjusts the contrast to keep it at the best level according to the brightness of the screen. The picture
is improved by making bright parts brighter and dark parts darker.
Dynamic Color
Adjusts screen colors so that they look livelier, richer and clearer. This feature enhances hue,
saturation and luminance so that red, blue and green white look more vivid.
Skin Color
It detects the skin area of video and adjusts it to express a natural skin color.
Noise Reduction
Reduces screen noise without compromising video quality.
MPEG Noise
Reduction
Removes noise caused by compressing video.
Super Resolution
Provides a crystal-clear picture by improving the details in an area that has a blurry or unclear picture.
Gamma
You can adjust brightness of dark area and middle gray level area of the picture.
» Low: Make the dark and middle gray level areas brighter.
» Medium: Express the original picture level.
» High: Make the dark and middle gray level area darker.
Black Level
Sets black level of the screen to proper level. This function is available in the following modes: TV
(NTSC-M/J, PAL-M, PAL-N), AV (NTSC-M/J, PAL-M, PAL-N), HDMI or Component.
» Auto: Realizing the black level of the screen and set it to High or Low automatically.
» Low: The reflection of the screen gets darker.
» High: The reflection of the screen gets brighter.
Clear White
Make the white area of screen brighter and more white.
Eye Care
Adjusts the brightness of the screen to prevent the screen from being too bright. Dims extremely
bright pictures.
This feature is enabled in “Picture Mode-Standard, Game”.
Real Cinema or
Film Mode
Makes video clips recorded in film look more natural by eliminating judder effect. DVD and Blu-ray
movies are filmed at 24 frames per second (fps). With LG Real Cinema, every frame is consistently
processed 5 times in 1/24 of a second producing 120 fps with TruMotion or 2 times in 1/24 of a
second producing 48 fps without TruMotion, thus totally eliminating the judder effect.
This function can also work when TruMotion is off.
Color Gamut
Pla sm a
Advanced Control, Expert Control
» Maximizes the utilization of color to increase color quality.
» Standard: Displays standard set of colors.
» Wide: Increases number of colors used.
Photo mode
» Wide: Increases number of colors used.
» sRGB: Mode to display sRGB standard color gamut”
LCD
Advanced Control
» Maximizes the utilization of color to increase color quality.
» Standard: Displays standard set of colors.
» Wide: Increase number of colors used.
Expert Control
Displays color domain of the signal.
» Standard: Displays standard set of colors.
» Wide: Increase number of colors used.
» EBU: Mode to display EBU standard color area.
» SMPTE: Mode to display SMPTE standard color area.
» BT709: Mode to display BT709 standard color area.
ENGLISH
92
CUSTOMIZING TV SETTINGS
Setting Description
Edge Enhancer
Shows clearer and distinctive yet natural edges of the video.
This function works well over Sharpness UI 60 value.
xvYCC
This is produces richer colors.
This feature represents rich colors as much as a conventional video signal.
This function is enabled in “Picture mode - Cinema, Expert” when xvYCC signal is inputted through
HDMI.
Color Filter
This is the function to filter the specific colors of the video.
You can use the RGB filter to set color saturation and hue accurately.
Expert Pattern
This is the pattern used for expert adjustment.
This function is enabled in “Picture Mode - Expert” when you watch DTV.
Color
Temperature
Adjusts the overall color of the screen by changing the white baseline.
Pla sm a
a. Method: 2 Points
• Pattern: Inner, Outer
• Red/Green/Blue Contrast, Red/Green/Blue Brightness: The adjustment range is -50 to
+50.
b. Method: 20 Point IRE
• IRE (Institute of Radio Engineers) is the unit to display the size of the video signal and
can be set among 0, 5, 10, 15 - 100 Plasma TV. You can adjust Red, Green or Blue
according to each setting.
• Red/Green/Blue: The adjustment range is -50 - +50.
c. Apply to all inputs
LCD
a. Gamma: Select 1.9, 2.2, 2.4
b. Method: 2 Points
• Pattern: Inner, Outer
• Red/Green/Blue Contrast, Red/Green/Blue Brightness
c. Method: 10 Point IRE
• Pattern: Inner, Outer
• IRE (Institute of Radio Engineers) is the unit to display the size of the video signal and
can be set among 10, 20, 30 - 100. You can adjust Red, Green or Blue according to each
setting.
• Luminance: This function displays calculated luminance value for 2.2 gamma. You can
input luminance value you want at 100 IRE, than the target luminance value for 2.2
gamma is displayed at every 10 steps from 10 IRE to 90 IRE.
• Red/Green/Blue: The adjustment range is -50 - +50.
d. Apply to all inputs
Color
Management
System
As the tool used by the experts to make adjustments by using the test patterns, this does not affect
other colors but can be used to selectively adjust the 6 color areas (Red/Green/ Blue/Cyan/Magenta/
Yellow).
Color difference may not be distinctive even when you make the adjustments for the general video.
Adjusts Red/Green/Blue/Yellow/Cyan/Magenta.
» Red/Green/Blue/Yellow/Cyan/Magenta Color: The adjustment range is -30 - +30.
» Red/Green/Blue/Yellow/Cyan/Magenta Tint: The adjustment range is -30 - +30.
» This feature is disable in RGB-PC and HDMI-PC mode.
ENGLISH
CUSTOMIZING TV SETTINGS
93
AUDIO Settings
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to AUDIO and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.
The available audio settings are described in the following.
Setting Description
Auto Volume
Activates the Auto Volume feature to keep the volume level consistent whenever you change
channels. The volume level may not be consistent due to different signal conditions of
broadcasting stations.
Clear Voice II
Sets whether to enhance human voice clarity. You can adjust the level of clarity when you set
this feature on.
Balance
Adjust balance between the left and right speakers according to your room environment.
Sound Mode
Selects one of the preset sound modes or customizes options in each mode.
Mode
Standard Select when you want standard-quality sound.
Music Select when you listen to music.
Cinema Select when you watch movies.
Sport Select when you watch sports events.
Game Select when you play games.
NOTE
• If sound quality or volume is not at the level you want, it is recommended to use a
separate home theater system or amplifier to cope with different user environments.
• If the Clear Voice II feature is on, Infinite 3D Surround will not be activated.
Option
Infinite 3D Surround Patents LG proprietary sound processing technology that strives
immersive 5.1 surround sound with just two front speakers.
Treble Controls the dominant sounds in the output. When you turn up the
treble, it will increase the output to the higher frequency range.
Bass Controls the softer sounds in the output. When you turn up the bass,
it will increase the output to the lower frequency range.
Sound Reset Resets the sound mode to the default setting.
ENGLISH
94
CUSTOMIZING TV SETTINGS
Setting Description
Sound Optimizer
Optimizes the sound depending on the environment in which the TV is installed.
Option
Normal Normal sound mode.
Wall Mount Type Optimized sound mode for a wall-mounted TV.
Stand Type Optimized sound mode for a stand-type TV.
TV Speaker
Turns on the internal speaker of the TV when using an external Hi-Fi system. You can use the
TV speaker as an audio output device even if there is no video input.
ARC Mode
(Audio Return
Channel)
When using an external audio device with the ARC (Audio Return Channel) feature, optical
SPDIF can be output using only a High Speed HDMI cable without an additional optical cable.
NOTE
• Some HDMI cables may not support this mode (A High Speed HDMI cable is
recommended).
• The ARC mode only works on the HDMI 1 input on the TV.
• Activates the SIMPLINK feature to use this feature.
Option
On If the device with the ARC feature is turned on, the device speaker is
automatically used when SIMPLINK is enabled.
Off Even if the device with the ARC feature is turned on and SIMPLINK is
enabled, the device speaker is not automatically used.
AV Sync.
If the video and sound are not synced, you can adjust it manually.
» (-) setting : Make audio output faster than the default.
» (+) setting : Make audio output slower than the default.
Option
AV Sync. Adjusts the sync of the TV speaker and SPDIF.
TV Speaker Adjusts the sync of the sound from the TV’s internal speaker.
SPDIF (Sony Philips
Digital InterFace)
Adjusts the sync of the sound from an external speaker connected to
the digital audio output port.
ENGLISH
CUSTOMIZING TV SETTINGS
95
TIME Settings
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to TIME and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.
The available time settings are described in the following.
Setting Description
Clock
Sets the time, date, time zone, and daylight-saving time feature.
The time will be set automatically according to a digital channel signal which includes time
information provided by the broadcasting station. If not, set the time and date manually.
Off Time/On Time
Sets the time to turn on or off the TV automatically. To use this function, you should set the
current time and date in advance.
NOTE
• If you do not press any button within 2 hours after the TV turns on by the On Time
feature, the TV enters the Standby mode automatically.
• If you set both Off time and On time features to the same time, the Off time feature
overrides the On time feature.
Sleep Timer
Sets the length of time until the TV to turns off. When you turn the TV off and turn it on
again, the Sleep timer feature will be set to off.
ENGLISH
96
CUSTOMIZING TV SETTINGS
LOCK Settings
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to LOCK and press ENTER.
4 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.
The available lock settings are described in the following.
Setting Description
Set Password
Changes the 4-digit password. The default PIN is “0-0-0-0”.
If you forget your password, press “0-3-2-5” on the remote control.
Lock System
Activates or deactivates the lock system.
Block Channel
Blocks the channels that contain inappropriate contents for children. The channels can be
selected but the screen is blank and the audio is muted.
To watch a locked channel, enter the password.
Movie Rating
Blocks the movies that are only broadcasted on the TV and contain inappropriate contents, based
on the Motion Picture Association of America (MPAA) rating.
Rating
G General audiences – All ages admitted
PG Parental guidance suggested – Some material may not be suitable for
children
PG-13 Patents strongly cautioned – Some material may be inappropriate for
children under 13
R Restricted – Under 17 requires accompanying parent or adult guardian
NC-17 No one 17 and under admitted.
X Adults only
TV Rating - Children
(Depending on
model)
Blocks the children’s TV programs that parents do not want their children to watch. To block other
TV programs, you should set the TV Rating-General feature.
Rating
Age TV-Y (All children, including children from ages 2-6)
TV-Y7 (Directed to older children, suitable for children age 6 and above)
Fantasy Violence TY-Y7 (Directed to older children
– Fantasy violence, suitable for children
age 6 and above, containing more intense or combative fantasy violence)
ENGLISH
CUSTOMIZING TV SETTINGS
97
Setting Description
TV Rating - General
(Depending on
model)
Blocks the TV programs that you want based on the ratings by using the Parental Control
Function (V-Chip).
NOTE
• The V-Chip electronically reads TV program ratings and allows parents to block program
that are unsuitable for children.
Rating
Age TV-G (General audience, suitable for all ages)
TV-PG (Parental guidance suggested, containing material that are
unsuitable for younger children)
TV-14 (Parents strongly cautioned, containing material that are unsuitable
for children age 14 and under)
TV-MA (Mature audience only, unsuitable for children age under 17)
Dialog
(suggestive
dialogue)
TV-PG or TV-14
Language
(coarse language)
TV-PG, TV-14, or TV-MA
Sex
(sexual situation)
TV-PG, TV-14, or TV-MA
Violence TV-PG, TV-14, or TV-MA
TV Rating - English
(Depending on
model)
Selecting Canadian English rating system.
Rating
E Exempt
C Children
C8+ Children eight years and older
G General programming, suitable for all audiences
PG Parental Guidance
14+
Viewers 14 years and older
18+
Adult programming
Blocking Off Permits all programs
TV Rating - French
(Depending on
model)
Selecting Canadian French rating system.
Rating
E Exempt
G General
8ans+
General-Not convenient for little children
13ans+
Not convenient for children of 13 years and younger
16ans+
Not convenient for children of 16 years and younger
18ans+
This programs is only for adults
Blocking Off Permits all programs
Downloadable
Rating
This function operates only when TV has received Region5 Rating data.
The name of the rating option may differ.
NOTE
• This feature is available only for digital channels.
Input Block
Block the input sources.
ENGLISH
98
CUSTOMIZING TV SETTINGS
OPTION Settings
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to OPTION and press
ENTER.
4 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.
The available general settings are described in the following.
Setting Description
Language
Selects a desired language.
Option
Menu Language Selects a language for the display text.
Audio Language Selects an audio language for your program. This feature operates only in
the DTV or CADTV mode.
Caption
Sets whether to display captions and customize your option in each mode.
Mode
CC 1–4
(Closed Captioning)
Displays the audio portion of a TV program as text on the TV screen. CC1
is the most common mode in use.
- Field 1 data channels: two Captions (CC1, CC2) and two Text (T1, T2).
- Field 2 data channels: two Captions (CC3, CC4) and two Text (T3, T4).
Text 1–4
Service 1–6 This is only available for the digital broadcasting system.
Option (For Digital Broadcasting)
Size Selects the word size.
Font Selects a typeface for the text.
Text Color Selects a color for the text.
Text Opacity Adjusts the opacity for the text color.
Bg Color Selects a background color.
Bg Opacity Adjusts the opacity for the background color.
Edge Type Selects an edge type.
Edge Color Selects a color for the edges.
Power Indicator
(Depending on
model)
Sets to turn on or off the indicator light on the TV.
Option
Standby Light Set to turn on or off the indicator light in Standby mode.
Power Light Set to turn on or off the indicator light when you turn on the power.
ENGLISH
CUSTOMIZING TV SETTINGS
99
Setting Description
ISM Method
(
Pla sm a
)
Prevents image sticking or removes a ghost image.
A frozen still picture displayed on the screen for prolonged periods can result in a ghost image.
Mode
Normal Sets it if image sticking is never a problem.
Orbiter Avoids a ghost image on the screen.
The image will move every 2 minutes to help prevent ghost images.
However, it is best not to allow any fixed image to remain on the screen.
Color Wash Removes a ghost image on the screen.
The color block with the screen moved a little and the white pattern are
alternately displayed. It is difficult to see the after image on all colors.
Once it has been corrected it will not be visible in any color.
White Wash Removes a ghost image on the screen.
Use sparingly. Watch the TV normally for a while before using this feature
to see if the ghost image disappears on its own.
NOTE
• An excessive ghosted image may be impossible to clear entirely
with White Wash. To return to normal viewing, press the any
button.
Pointer
(Depending on
model)
Sets the pointer option of the magic motion remote control.
Option
Speed Changes the pointer speed.
Shape Selects the pointer shape.
Size Changes the pointer size.
Alignment Align the remote control’s direction with the pointer on your TV screen by
shaking the remote control left and right. Then, the pointer automatically
moves to the center of the screen.
Smart Share Setting
Sets the DivX and DLNA option.
Option
DivX VOD
Registration
Registers your TV to play DivX protected videos (See p.73).
DivX Deregistration Deregisters your TV (See p.73).
DMR Activates or deactivates the DMR (Digital Media Render) connection.
ENGLISH
100
CUSTOMIZING TV SETTINGS
Setting Description
Initial Setting
Resets the TV to factory default and erases all stored channels.
Customizes the TV settings to suit your preference. The initial setup screen will appear when you
turn on the TV for the first time.
NOTE
• When selecting “Lock System - On”in the LOCK menu, the message to enter the
password appears.
• If you forget your password, press “0-3-2-5” on the remote control.
Setting
Language Selects a desired language.
Mode Setting Selects
Home Use for the home environment.
Selects Store Demo for the retail environment.
Selects Demo Mode to set to show special features of the TV. You can
cancel the demo mode by pressing any buttons except the Volume and
Mute buttons.
NOTE
• When selecting Store Demo, Demo Mode will be activated.
Power Indicator
(LED LCD TV)
Turns the power indicator light on or off.
Time Zone Sets the time zone and daylight saving.
Network Setting
(LV9500, LW9800
series)
Sets your network to enable network-related feature on the TV.
Auto Tuning Scans and saves available channels automatically.
Set ID
Adds an ID to the connected devices.
Mode Setting
Default selection is “Home Use”. We recommend setting the TV to “Home Use” mode for the
best picture in your home environment.
Option
Home Use Selects it for the home environment.
Store Demo Selects it for the retail environment.
Demo Mode Sets to show special features of the TV. You can cancel the demo mode
by pressing any buttons except the Volume and Mute buttons.
IR Blaster
(Depending on
model)
Adjusts when connecting Wireless media box (sold separate).
For further information, refer to the optional “Wireless media box” manual for operating
instructions.
ENGLISH
CUSTOMIZING TV SETTINGS
101
NETWORK Settings
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to NETWORK and press
ENTER.
4 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.
The available network settings are described in the following.
Setting Description
Network Setting
Configure the network settings (See p.48).
Network Status
Display the network status (See p.53).
Smart TV Setting
Set the region for which weather forecast is provided and manage the IDs added to the TV.
Setting
Country Setting Set the country for premium services. Different premium services are
provided depending on the country you set.
Weather Effect Sets the region for the weather to be displayed on the background of the
premium service. Select your region.
Premium Version Display the version of the premium service.
ID Management Manage the login history of the IDs added to the TV.
Reset Delete all IDs added on the TV.
Legal Notice
Display the Legal notice (See p.55).
ESN (Depending on
model)
View the supplied Netfilx Electronic Serial Number (ESN)
ENGLISH
102
CUSTOMIZING TV SETTINGS
SUPPORT Settings
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP and press ENTER.
3 Press the Navigation buttons to scroll to SUPPORT and press
ENTER.
4 Press the Navigation buttons to scroll to the setting or option you
want and press ENTER.
- To return to the previous level, press BACK.
5 When you are finished, press EXIT.
The available support settings are described in the following.
Setting Description
Software Update
Update the TV with the latest firmware.
Picture Test
Executes picture or built-in melody sound tests.
» If this test has an error, select Yes. You will see product or service information.
» If this test has no errors, check the connection status of external devices and refer to the
manual of external devices.
Sound Test
Product/Service Info.
Shows the product or service information.
Customer Service Center can differ by country.
Initialization of Premium
Initialize the premium menu if an error occurs while updating the premium menu.
Then, the TV automatically switches off and then back on.
ENGLISH
MAKING CONNECTIONS
103
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information on external device’s connection, refer to the manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
gaming devices, and other external devices.
NOTE
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable
to the TV through a DVD recorder or VCR. For more information on recording, refer to the manual
provided with the connected device.
• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
ENGLISH
104
MAKING CONNECTIONS
Connection Overview
Connect various external devices to the ports on the TV back panel.
1 Find an external device you want to connect to your TV as shown on the following illustration.
2 Check the connection type of the external device.
3 Go to the appropriate illustration and check the connection details.
H
D Receiver DVD VCR
USB
Speaker
PC
Gaming Device
HDMI – See p.105, p.110
DVI – See p.106, p.111
Component – See p.107
Composite – See p.108
RGB – See p.112
Memory storage – See p.115
Memory card reader – See p.115
Digital – See p.113
NOTE
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• Refer to the external equipment’s manual for operating instructions.
ENGLISH
MAKING CONNECTIONS
105
Connecting to a HD receiver,
DVD, or VCR player
Connect a HD receiver, DVD, or VCR player to the
TV and select an appropriate input mode.
HDMI Connection
Transmits the digital video and audio signals from
an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown
in the following illustration.
NOTE
• Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
• High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
Pla sm a
A
UDIO
V
IDEO
L/MONO
AV IN2
R
/DVI IN
1
(ARC) 2
3
4
AUDIO
VIDEO
L/MONO
R
AV IN1
COMPON ENT IN
ANTENNA
/CABLE IN
VIDEO
AUDIO
Y
2
1
L
P
B
P
R
R
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
WIRELESS
CONTROL
RGB IN (PC)
LAN
REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
HDMI
/DVI IN
1 (ARC) 2 3 4
LK530, LK550 series
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
USB IN 1
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
HDMI
LV3700 series
WIRELES
S
C
ON
TRO
L
RS
-
232C
IN (
CON
TRO
L
&
SE
RVIC
E
)
ÿ
ÿ
RGB IN (PC)
O
PTIC
AL DIGITAL
AUDIO OUT
AUDIO
IN
(
R
G
B
/
D
VI)
L
A
N
COMPONENT
I
N1
V
I
DEO
A
UD
IO
YYY
LP
B
P
R
R
A
UD
IO
V
I
DEO
L/
M
O
N
O
R
A
VIN1
ANTENNA/
CABLE
IN
A
V
IN 2
A
UDI
O
/
V
IDE
O
A
UDI
O / VIDEO
C
O
M
P
O
N
ENT IN 2
A
U
D
I
O
/
Y
P
B
P
R
IN 1 (ARC)
/DVI
I
N 2
/DVI
I
N
3
/DVI
H
DD
I
N
U
SB
IN 1
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
HDMI
Other models
WIRELESS
CONTROL
COMPONENT
IN1
VIDEO
AUDIO
Y
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿ
ÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
OPTICAL DIGITAL
OPTICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
HDMI
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
ENGLISH
106
MAKING CONNECTIONS
DVI to HDMI Connection
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown in the
following illustration. To transmit an audio signal,
connect an audio cable.
Pla sm a
A
UDIO
V
IDEO
L/MONO
AV IN2
R
/DVI IN
1
(ARC) 2
3
4
AUDIO
VIDEO
L/MONO
R
AV IN1
COMPON ENT IN
ANTENNA
/CABLE IN
VIDEO
AUDIO
Y
2
1
L
P
B
P
R
R
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
WIRELESS
CONTROL
RGB IN (PC)
LAN
REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
AUDIO OUT
DVI OUT
AUDIO IN
(RGB/DVI)
/DVI IN
1 (ARC) 2 3 4
LK530, LK550 series
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
USB IN 1
USB IN 2
USB Apps
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
RS-232C IN (CONTROL&SERVICE)
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
LAN
COMPONENT
IN1
VIDEO
AUDIO
YYY
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
AUDIO IN (RGB/DVI)
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
AUDIO OUT
DVI OUT
LV3700 series
WIRELES
S
CONTROL
RS
-
232C
IN (
CON
TRO
L
&
SE
RVIC
E
)
ÿ
ÿ
RGB IN (PC)
O
P
TICAL DIGITAL
AUDIO OUT
AUDIO
IN
(
R
G
B
/
D
VI)
L
A
N
COMPONENT
I
N1
V
I
D
E
O
A
UD
IO
YYY
LP
B
P
R
R
A
UD
IO
V
I
DEO
L/
M
O
N
O
R
A
V
IN1
ANTENNA/
CA
BLE IN
A
V
IN
2
A
UDIO
/
V
IDEO
A
UDIO / VIDEO
C
OM
PO
N
ENT IN
2
AUDIO / Y P
B
P
R
IN 1 (ARC)
/DVI
I
N 2
/DVI
I
N
3
/DVI
H
DD
I
N
U
SB
IN
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
AUDIO OUT
DVI OUT
AUDIO IN (RGB/DVI)
Other models
WIRELESS
CONTROL
COMPONENT
IN1
VIDEO
AUDIO
Y
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
OPTICAL DIGITAL
OPTICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
AV IN 2
AUDIO / VIDEO
COMP ONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
AUDIO OUT
DVI OUT
AUDIO IN
(RGB/DVI)
ENGLISH
108
MAKING CONNECTIONS
Other models
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
COMPONENT
IN1
VIDEO
AUDIO
Y
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿ
ÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
LAN
RGB IN (PC)
OP TICAL DIGITAL
AUDIO OUT
OP TICAL DIGITAL
OP TICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
AV IN 2
AUDIO / VIDEO
COMP ONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
COMPONENT
IN1
VIDEO
AUDIO
Y LP
B
P
R
R
VIDEO
AUDIO
RS-232C IN (CONTROL&SERVICE)
AUDIO
L
R
AUDIO
L/MONO
R
IN 1 (ARC)
/DVI
IN 2
LAN
RGB IN (PC)
OP TICAL DIGITAL
AUDIO OUT
OP TICAL DIGITAL
OP TICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
H/P
VIDEO
AUDIO
AV IN 2
AUDIO / VIDEO
COMP ONENT IN 2
AUDIO / Y P
B
P
R
Composite Connection
Transmits the analog video and audio signals from
an external device to the TV. Connect the external
device and the TV with the composite cable as
shown in the following illustration.
NOTE
• If you have a mono VCR, connect the audio
cable from the VCR to the AUDIO L/MONO
jack of the TV.
Pla sm a
A
UDIO
V
IDEO
L/MONO
AV IN2
R
/DVI IN
1
(ARC) 2
3
AUDIO
VIDEO
L/MONO
R
AV IN1
COMPON ENT IN
ANTENNA
/CABLE IN
VIDEO
AUDIO
Y
2
1
L
P
B
P
R
R
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
WIRELESS
CONTROL
RGB IN (PC)
LAN
REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
VIDEO
AUDIO
R
L (MONO)
AUDIO
VIDEO
L/MONO
R
AV IN1
LK530, LK550 series
RS-232C IN (CONTROL&SERVICE)
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
LAN
COMPONENT
IN1
VIDEO
AUDIO
YYY
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
AUDIO
VIDEO
L/MONO
R
AV IN1
VIDEO
AUDIO
R
L (MONO)
AV IN 2
AUDIO / VIDEO
COMP ONENT IN 2
AUDIO / Y P
B
P
R
IN 1 (ARC)
/DVI
VIDEO
AUDIO
R
L (MONO)
AV IN 2
AUDIO / VIDEO
ENGLISH
MAKING CONNECTIONS
109
LV3700 series
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
ÿ
ÿ
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
LAN
COMPONENT
IN1
VIDEO
AUDIO
YYY
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
AV IN 2
AUDIO / VIDEO
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
AUDIO
VIDEO
L/MONO
R
AV IN1
VIDEO
AUDIO
R
L (MONO)
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
ÿ
ÿ
AUDIO OUT
VIDEO
L
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
AV IN 2
IN 1 (ARC)
/DVI
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
VIDEO
AUDIO
R
L (MONO)
Other models
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
COMPONENT
IN1
VIDEO
AUDIO
Y
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
LAN
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
OPTICAL DIGITAL
OPTICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
H/P
AUDIO
VIDEO
L/MONO
R
AV IN1
VIDEO
AUDIO
R
L (MONO)
RS-232C IN (CONTROL&SERVICE)
AUDIO
L
R
AUDIO
VIDEO
L/MONO
R
IN 1 (ARC)
/DVI
IN 2
/DVI
LAN
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
OPTICAL DIGITAL
OPTICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
P
R
H/P
VIDEO
AUDIO
R
L (MONO)
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
COMPONENT IN 2
COMPONENT IN 2COMPONENT IN 2
COMPONENT IN 2
AUDIO / Y P
B
P
P
P
P
R
R
R
ENGLISH
110
MAKING CONNECTIONS
Connecting to a PC
NOTE
• It is recommended to use the TV with the
HDMI connection for the best image quality.
HDMI Connection
Transmits the digital video and audio signals from
your PC to the TV. Connect the PC and the TV with
the HDMI cable as shown in the following
illustrations.
Pla sm a
A
UDIO
V
IDEO
L/MONO
AV IN2
R
/DVI IN
1
(ARC) 2
3
4
AUDIO
VIDEO
L/MONO
R
AV IN1
COMPON ENT IN
ANTENNA
/CABLE IN
VIDEO
AUDIO
Y
2
1
L
P
B
P
R
R
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
WIRELESS
CONTROL
RGB IN (PC)
LAN
REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
HDMI
/DVI IN
1 (ARC) 2 3 4
LK530, LK550 series
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
USB IN 1
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
HDMI
LV3700 series
WIRELES
S
C
ON
TRO
L
RS
-
232C
IN (
CON
TRO
L
&
SE
RVIC
E
)
ÿ
ÿ
RGB IN (PC)
O
PTIC
AL DIGITAL
AUDIO OUT
AUDIO
IN
(
R
G
B
/
D
VI)
L
A
N
COMPONENT
I
N1
V
I
DEO
A
UD
IO
YYY
LP
B
P
R
R
A
UD
IO
V
I
DEO
L/
M
O
N
O
R
A
VIN1
ANTENNA/
CABLE
IN
A
V
IN 2
A
UDI
O
/
V
IDE
O
A
UDI
O / VIDEO
C
O
M
P
O
N
ENT IN 2
A
U
D
I
O
/
Y
P
B
P
R
IN 1 (ARC)
/DVI
I
N 2
/DVI
I
N
3
/DVI
H
DD
I
N
U
SB
IN 1
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
HDMI
Other models
WIRELESS
CONTROL
COMPONENT
IN1
VIDEO
AUDIO
Y
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿ
ÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
OPTICAL DIGITAL
OPTICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
HDMI
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
ENGLISH
MAKING CONNECTIONS
111
DVI to HDMI Connection
Transmits the digital video signal from your PC to
the TV. Connect the PC and the TV with the
DVIHDMI cable as shown in the following
illustration. To transmit an audio signal, connect an
audio cable.
Pla sm a
A
UDIO
V
IDEO
L/MONO
AV IN2
R
/DVI IN
1
(ARC) 2
3
4
AUDIO
VIDEO
L/MONO
R
AV IN1
COMPON ENT IN
ANTENNA
/CABLE IN
VIDEO
AUDIO
Y
2
1
L
P
B
P
R
R
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
WIRELESS
CONTROL
RGB IN (PC)
LAN
REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
AUDIO OUT
DVI OUT
AUDIO IN
(RGB/DVI)
/DVI IN
1 (ARC) 2 3 4
LK530, LK550 series
AV IN 2
AUDIO / VIDEO
COMP ONENT IN 2
AUDIO / Y P
B
P
R
USB IN 1
USB IN 2
USB Apps
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
RS-232C IN (CONTROL&SERVICE)
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
LAN
COMPONENT
IN1
VIDEO
AUDIO
YYY
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
AUDIO IN (RGB/DVI)
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
AUDIO OUT
DVI OUT
LV3700 series
WIRELES
S
CONTROL
RS
-
232C
IN (
CON
TRO
L
&
SE
RVIC
E
)
ÿ
ÿ
RGB IN (PC)
O
P
TICAL DIGITAL
AUDIO OUT
AUDIO
IN
(
R
G
B
/
D
VI)
L
A
N
COMPONENT
I
N1
V
I
D
E
O
A
UD
IO
YYY
LP
B
P
R
R
A
UD
IO
V
I
DEO
L/
M
O
N
O
R
A
V
IN1
ANTENNA/
CA
BLE IN
A
V
IN
2
A
UDIO
/
V
IDEO
A
UDIO / VIDEO
C
OM
PO
N
ENT IN
2
AUDIO / Y P
B
P
R
IN 1 (ARC)
/DVI
I
N 2
/DVI
I
N
3
/DVI
H
DD
I
N
U
SB
IN
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
AUDIO OUT
DVI OUT
AUDIO IN (RGB/DVI)
Other models
WIRELESS
CONTROL
COMPONENT
IN1
VIDEO
AUDIO
Y
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
OPTICAL DIGITAL
OPTICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
AV IN 2
AUDIO / VIDEO
COMP ONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
AUDIO OUT
DVI OUT
AUDIO IN
(RGB/DVI)
ENGLISH
112
MAKING CONNECTIONS
RGB Connection
Transmits the analog video signal from your PC to
the TV. Connect the PC and the TV with the D-sub
15 pin signal cable as shown in the following
illustrations. To transmit an audio signal, connect an
audio cable.
Pla sm a
A
UDIO
V
IDEO
L/MONO
AV IN2
R
/DVI IN
1
(ARC) 2
3
4
AUDIO
VIDEO
L/MONO
R
AV IN1
COMPON ENT IN
ANTENNA
/CABLE IN
VIDEO
AUDIO
Y
2
1
L
P
B
P
R
R
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
WIRELESS
CONTROL
RGB IN (PC)
LAN
REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
RGB OUT (PC)
AUDIO OUT
RGB IN (PC)
AUDIO IN
(RGB/DVI)
LK530, LK550 series
RS-232C IN (CONTROL&SERVICE)
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
LAN
COMPONENT
IN1
VIDEO
AUDIO
YYY
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
RGB OUT (PC)
AUDIO OUT
RGB IN (PC)
AUDIO IN (RGB/DVI)
LV3700 series
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
ÿ
ÿ
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
LAN
COMPONENT
IN1
VIDEO
AUDIO
YYY
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
AV IN 2
AUDIO / VIDEO
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
RGB IN (PC)
AUDIO IN (RGB/DVI)
RGB OUT (PC)
AUDIO OUT
Other models
RS-232C IN (CONTROL&SERVICE)
AUDIO
L
R
AUDIO
L/MONO
R
IN 1 (ARC)
/DVI
IN 2
LAN
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
OPTICAL DIGITAL
OPTICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
H/P
RGB IN (PC)
AUDIO IN
(RGB/DVI)
RGB OUT (PC)
AUDIO OUT
ENGLISH
MAKING CONNECTIONS
113
NOTE
• 1920 x 1080 is the recommended PC
resolution. If you use the TV in other video
modes, afterimages or distorted images
may appear on the screen.
• Depending on the graphics card, DOS mode
may not work if a HDMI to DVI Cable is in
use.
• In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast
or brightness. If noise is present, change
the PC output to another resolution, change
the refresh rate to another rate or adjust the
brightness and contrast on the PICTURE
menu until the picture is clear.
• The synchronization input form for
Horizontal and Vertical frequencies is
separate.
• Depending on the graphics card, some
resolution settings may not allow the image
to be positioned on the screen properly.
• If you experience overscan issues when
using HDMI-PC 1920x1080, change aspect
ratio to Just scan.
• When selecting HDMI-PC, set the “Input
Label - PC” in the INPUT menu.
Connecting to an Audio
System
Use an optional external audio system instead of
the built-in speaker.
NOTE
• If you use an optional external audio device
instead of the built-in speaker, set the TV
speaker feature to off (See p.93).
Digital Optical Audio Connection
Transmits the digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown in the
following illustration.
NOTE
• Do not look into the optical output port.
Looking at the laser beam may damage your
vision.
• Audio with ACP (Audio Copy Protection)
function may block digital audio output.
Pla sm a
A
UDIO
V
IDEO
L/MONO
AV IN2
R
/DVI IN
1
(ARC) 2
3
4
AUDIO
VIDEO
L/MONO
R
AV IN1
COMPON ENT IN
ANTENNA
/CABLE IN
VIDEO
AUDIO
Y
2
1
L
P
B
P
R
R
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
WIRELESS
CONTROL
RGB IN (PC)
LAN
REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
OPTICAL
AUDIO IN
ENGLISH
MAKING CONNECTIONS
115
Connecting to a USB
Connect a USB storage device such as a USB flash
memory, external hard drive, or a USB memory
card reader to the TV and access the Smart Share
menu to use various multimedia files. See
“Connecting USB storage devices” on page 64 and
see “Browsing files” on page 69.
i.e.)
IN 3
/DVI
IN 4
/DVI
HDD IN
USB IN 1
USB Apps
USB IN 2
HDD IN
USB IN 1
USB Apps
USB IN 2
Connecting to a Headphone
(
LCD
)
Listen to the sound through a headphone.
i.e.)
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
OPTICAL DIGITAL
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
AV IN 2
AUDIO / VIDEO
COMPONENT IN 2
AUDIO / Y P
B
P
R
H/P
H/P
NOTE
• AUDIO menu options are disabled when
connecting a headphone.
• When changing AV MODE with a
headphone connected, the change is
applied to video but not to audio.
• Optical Digital Audio Out is not available
when connecting a headphone.
• Headphone impedance: 16Ω
• Max audio output: 10 mW to 15 mW
• Headphone jack size: 0.35 cm (0.13 inch)
ENGLISH
116
MAKING CONNECTIONS
Connecting the Wireless
Media Box
(Not support for LK530 and LK550 series)
LG TVs with a Wireless Control port support the LG
Wireless Media Box, which is sold separately.
When you connect the wireless ready dongle
(included with the media box) to the TV, external
devices can be connected to the LG Wireless
Media Box and video and audio will be sent to the
TV wirelessly.
Refer to the Wireless Media Box manual for
operating instructions.
NOTE
• When using the external device connected
to the Wireless Media Box, some functions
of the TV menu may not work.
Pla sm a
A
UDIO
V
IDEO
L/MONO
AV IN2
R
/DVI IN
1
(ARC) 2
3
4
AUDIO
VIDEO
L/MONO
R
AV IN1
COMPON ENT IN
ANTENNA
/CABLE IN
VIDEO
AUDIO
Y
2
1
L
P
B
P
R
R
RS-232C IN
(CONTROL&SERVICE)
OPTICAL
DIGITAL
AUDIO OUT
WIRELESS
CONTROL
RGB IN (PC)
LAN
REMOTE
CONTROL IN
AUDIO IN
(RGB/DVI)
HDMI OUT
WIRELESS
CONTROL
WIRELESS
CONTROL
/DVI IN
1 (ARC) 2 3 4
LV3700 series
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
ÿ
ÿ
RGB IN (PC)
OP TICAL DIGITAL
AUDIO OUT
AUDIO IN (RGB/DVI)
LAN
COMPONENT
IN1
VIDEO
AUDIO
YYY
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ANTENNA/CABLE IN
AV IN 2
AUDIO / VIDEO
AUDIO / VIDEO
COMP ONENT IN 2
AUDIO / Y P
B
P
R
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
HDMI OUT
WIRELESS
CONTROL
WIRELESS
CONTROL
ÿ
ÿ
Other models
WIRELESS
CONTROL
RS-232C IN (CONTROL&SERVICE)
COMPONENT
IN1
VIDEO
AUDIO
Y
L
P
B
P
R
R
AUDIO
VIDEO
L/MONO
R
AV IN1
ÿ
ÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
LAN
RGB IN (PC)
OP TICAL DIGITAL
AUDIO OUT
OP TICAL DIGITAL
OP TICAL DIGITAL
AUDIO IN
(RGB/DVI)
AUDIO IN
AUDIO IN
ANTENNA/
CABLE IN
ANTENNA/
ANTENNA/
AV IN 2
AUDIO / VIDEO
COMP ONENT IN 2
AUDIO / Y P
B
P
R
H/P
HDD IN
USB IN 1
HDMI OUT
WIRELESS
CONTROL
WIRELESS
CONTROL
ÿ
ÿ
IN 1 (ARC)
/DVI
IN 2
/DVI
IN 3
/DVI
IN 4
/DVI
ENGLISH
MAKING CONNECTIONS
117
SIMPLINK Connection
Use the TV remote control to play and control the
AV device connected with the HDMI cable through
HDMI-CEC. This TV may work with the devices that
support HDMI-CEC, but only devices with the
logo are fully supported.
Connect one end of the HDMI cable to the HDMI/
DVI IN or HDMI IN terminal on the rear of the TV
and the other end to the SIMPLINK device.
NOTE
• If the connected device does not support
HDMI-CEC, the SIMPLINK feature is
unavailable.
• To operate SIMPLINK, you should use an
High Speed HDMI cable with the CEC
(Consumer Electronics Control) function.
• SIMPLINK may not work properly if you a
third-party device that has an HDMI-CEC
function.
Activating and Using the
SIMPLINK menus
1 Press SIMPINK to access the SIMPLINK menus.
2 Press the Navigation buttons to select to On.
3 Press the Navigation buttons to scroll to one of
the devices and press ENTER.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
P
P
o
o
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
ÿ
ÿ
X
X
b
b
u
u
d
d
i
i
!
!
U
U
W
W
EE
JJ TT DD
W
W
D
D
S
S
I
I
E
E
E
E
!
!
S
S
f
f
d
d
p
p
s
s
e
e
f
f
s
s
T
T
q
q
f
f
b
b
l
l
f
f
s
s
ó
ó
!
!
J
J
O
O
Q
Q
V
V
U
U
!
!
F
F
Y
Y
J
J
U
U
P
P
o
o
ÿ
ÿ
¡
¡
¢
¢
£
£
¤
¤
No.
Description
①
Displays the previously viewed TV channel.
②
Plays discs. When multiple discs are
available, the title of the disc appears at the
bottom of the screen.
③
Controls the connected VCR.
No.
Description
④
HDD recordings playback: Controls the
recording stored in HDD.
⑤
Audio out to home theater speaker or
Audio out to TV: Changes the audio output
between Home theater speaker and TV
speaker.
- A check mark appears in front of the selected
device.
- Available devices display in a bright color.
- Unavailable devices display in grey.
4 Control the selected AV device.
Function
Description
Direct Play After connecting AV devices to
the TV, you can directly control
the devices and play media
without additional settings.
Select AV
device
Enables you to select one of the
AV devices connected to the TV.
Disc playback Control connected AV devices by
pressing the Navigation buttons,
ENTER, ꕖ, ꕗ, ꕘ, ꕚ and ꕙ.
Power off all
devices
When you power off the TV, all
connected devices are turned off.
Sync Power on When the equipment with
SIMPLINK function connected
HDMI terminal starts to play, the
TV will automatically turn on.
Switch audio-
out
Offers an easy way to switch
audioout.
NOTE
• If you change the input source by pressing
INPUT, the progressing function of the
SIMPLINK device will stop.
• If you select a device that has the home
theater feature, the sound output
automatically switches to the home theater
speaker and the TV speaker turns off.
• If a connected SIMPLINK home theater
system does not play the audio from the TV,
connect the DIGITAL AUDIO OUT terminal
on the rear of the TV to the DIGITAL AUDIO
IN terminal on the back of the SIMPLINK
device with an optical cable.
ENGLISH
118
MAINTENANCE
MAINTENANCE
Update and clean your TV regularly to keep the best
performance and to extend the product lifespan.
Updating the TV Firmware
Download and install the latest firmware by
connecting to the firmware update server to
enhance or change the product function, or add
new features.
The firmware update may not work properly
depending on the Internet environment. If so, you
may obtain the latest firmware update from the
authorized LG Electronics service center.
To check the current firmware version or update
the firmware,
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll to
SUPPORT and press ENTER.
4 Press the Navigation buttons to scroll to
Software Update and press ENTER. The current
firmware version displays.
5 Select Check Update Version to check a new
firmware version manually.
NSU (Network Software Update):
When software update is on, the TV will
automatically check for software updates. A
pop-up window will appear on the screen when
an update is available.
NOTE
• While updating the firmware, do not
disconnect the LAN cable, turn the TV
off, or unplug the power cord.
• Premium service is disabled while the
software is being updated through NSU.
6 When the update is complete, the TV will
automatically restart in 5 seconds.
You may need to reset some CHANNEL,
PICTURE, or AUDIO menus.
NOTE
• You cannot downgrade back to an older
firmware version.
• The period of time for the firmware update
may be different depending on the firmware
size or network condition.
• If the firmware update download fails when
using wireless, temporarily connect a cable
directly to your router. If it still does not
download, contact customer service.
ENGLISH
MAINTENANCE
119
Cleaning Your TV
CAUTION
• Make sure to turn the power off and
disconnect the power cord and all other
cables first.
• When the TV is left unattended and unused
for a long time, disconnect the power cord
from the wall outlet to prevent possible
damage from lightning or power surges.
Screen and frame
To remove dust or light dirt, wipe the surface with a
dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft
cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
CAUTION
• Do not push, rub, or hit the surface with
your fingernail or a sharp object, as this may
result in scratches on the screen and image
distortions.
• Do not use any chemicals, such as waxes,
benzene, alcohol, thinners, insecticides, air
fresheners, lubricants, as these may
damage the screen’s finish and cause
discoloration.
Cabinet and stand
To remove dust or light dirt, wipe the cabinet with a
dry, clean, and soft cloth.
To remove major dirt, wipe the cabinet with a soft
cloth dampened in a clean water or water
containing a small amount of mild detergent. Then
wipe immediately with a dry cloth.
CAUTION
• Do not spray liquid onto the surface. If water
enters the TV, it may result in fire, electric
shock, or malfunction.
• Do not use any chemicals as this may
deteriorate the surface.
Power cord
Remove the accumulated dust or dirt on the power
cord regularly.
Preventing “Image burn” or
“Burn-in” on your TV screen
• If a fixed image displays on the TV screen for a
long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is “image burn” or “burn-in” and
not covered by the warranty.
• If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on
the letterboxed area of the screen.
• Avoid displaying a fixed image on the TV screen
for a long period of time (2 or more hours for
LCD, 1 or more hours for the Plasma TV) to
prevent image burn.
ENGLISH
120
TROUBLESHOOTING
TROUBLESHOOTING
General
Problem Resolution
Cannot control the TV with the remote
control.
• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote control.
• Check if the batteries are still working and properly installed (
to , to
).
• Check if the appropriate input mode such as TV or VCR is set for using the
remote control.
No image display and no sound is
produced.
• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wall outlet by connecting other products.
Image appears slowly when the TV
turns on.
• The image is muted during the product startup process. This is normal. If the
image does not appear in a few minutes, unplug the TV for 30 seconds and
try again. If the image still does not appear, contact the authorized service
center in your local area.
Cannot connect external devices.
• Refer to the “Connection overview” and connect an external device.
The TV turns off suddenly.
• Check the power control settings. The power supply may be interrupted.
• Check if the Auto sleep feature is activated in the Time settings. Refer to the
“Sleep Timer”.
• If there is no signal while the TV is on, the TV will turn off automatically after
15 minutes of inactivity.
Audio
Problem Resolution
No sound is produced while images
are displaying.
• Press VOL + or - button.
• Check if the sound is muted by pressing MUTE.
• Scroll to other channels. There may a problem with the broadcast.
• Check if the audio cables are connected properly.
• Check if the TV Speaker feature is activated in the menu option.
No output from one of the speakers
• Adjust Balance in the menu option.
Unusual sound from inside the TV is
produced.
• A change in ambient humidity or temperature may result in an unusual noise
when the product turns on or off. There is no problem with your product.
ENGLISH
TROUBLESHOOTING
121
Video
Problem Resolution
An image displays in black and white or
the color quality is poor.
• Adjust the color setting in the menu option.
• Keep a sufficient distance between this product and other electronic products.
• Scroll to other channels. There may a problem with the broadcast.
Horizontal or vertical bars appears or
images blur
• Check if there are local interferences such as an electrical appliance or power tool.
Lines or streaks appear on images.
• Check the antenna or aim the antenna to the proper direction.
Afterimages (ghosts) appear when the
product turns off
• Pixels may have been damaged from a fixed image displayed for a long time
(image burn). Use a screen saver to prevent the pixel damage on the screen.
The power is on but the screen appears
extremely dark.
• Adjust the brightness and contrast in the menu option.
“No Signal” appears on the screen.
• Check if the signal cable is connected between the TV and products properly.
• Check the selected input source by pressing INPUT.
Black spots appear on the screen.
• Several pixels in red, green, white, or black may appear on the screen that can
attribute to the characteristics of the panel. This is normal.
The display offset is wrong.
• Adjust the position setting in the Picture menu.
• Check if the video card resolution and frequency are supported by the product. If
the frequency is out of range, set to the recommended resolution using the
display settings on the external device.
Thin lines appear in the background of
the screen.
• Check the video cable connections.
Horizontal noises appear or characters
blur.
• Adjust the Phase setting in the menu option. Refer to the “SCREEN (RGB-PC)”.
The reception on some channels is poor.
• Scroll to other channels. There may a problem with the broadcast.
• The station signal may be weak. Aim the antenna to the proper direction.
• Check if there is local interference such as an electrical appliance or power tool.
Movie
Problem Resolution
The file does not appear on the Movie
List.
• Check whether the extension is supported.
Message is displayed saying “This file is
invalid” or the audio is working normally
but the video is not working normally.
• Check whether the file is playing normally on a PC. (Check whether the file is
damaged.)
• Check whether the resolution is supported.
• Check whether the video/audio codec is supported.
• Check whether the frame rate is supported.
Message is displayed saying
“Unsupported Audio” or the video is
working normally but the audio is not
working normally.
• Check whether the file is playing normally on a PC. (Check whether the file is
damaged.)
• Check whether the audio codec is supported.
• Check whether the bit rate is supported.
• Check whether the sample rate is supported.
Subtitle is not working.
• Check whether the file is playing normally on a PC. (Check whether the file is
damaged.)
• Check whether the video file and subtitle file name are the same.
• Check whether the video file and subtitle file are located in the same folder.
• Check whether the subtitle file is supported.
• Check whether the language is supported. (When you open the subtitle file in
Memo Pad, you can check the language of the subtitle file.)
ENGLISH
122
SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna Impedance
75 Ω
Environment condition Operating Temperature 0 - 40°C
Operating Humidity Less than 80%
Storage Temperature -20 - 60°C
Storage Humidity Less than 85%
MODELS
50PZ750
(50PZ750-UG)
60PZ750
(60PZ750-UG)
Dimensions
(W x H x D)
With stand
1185.2 mm x 782.6 mm x 317.2 mm
(46.6 inch x 30.8 inch x 12.4 inch)
1404.0 mm x 911.4 mm x 364.4 mm
55.2 inch x 35.8 inch x 14.3 inch)
Without stand
1185.2 mm x 714.0 mm x 49.6 mm
(46.6 inch x 28.1 inch x 1.9 inch)
1404.0 mm x 837.8 mm x 49.6 mm
(55.2 inch x 32.9 inch x 1.9 inch)
Weight With stand 31.5 kg (69.4 lb) 46.3 kg (102.0 lb)
Without stand 27.9 kg (61.5 lb) 40.3 kg (88.8 lb)
Current Value / Power consumption 3.7 A / 370 W 5.3 A / 530 W
Power requirement AC 100 - 240V ~ 50 / 60 Hz
MODELS
50PZ950
(50PZ950-UA)
60PZ950
(60PZ950-UA)
50PZ950U
(50PZ950U-UA)
60PZ950U
(60PZ950U-UA)
Dimensions
(W x H x D)
With stand
1175.2 mm x 787.6 mm x 317.2 mm
(46.2 inch x 31.0 inch x 12.4 inch)
1393.4 mm x 916.4 mm x 364.4 mm
(54.8 inch x 36.0 inch x 14.3 inch)
Without stand
1175.2 mm x 720.6 mm x 49.6 mm
(46.2 inch x 28.3 inch x 1.9 inch)
1393.4 mm x 843.8 mm x 49.6 mm
(54.8 inch x 33.2 inch x 1.9 inch)
Weight With stand 32.5 kg (71.6 lb) 46.3 kg (102.0 lb)
Without stand 28.9 kg (63.7 lb) 40.3 kg (88.8 lb)
Current Value / Power consumption 3.7 A / 370 W 5.3 A / 530 W
Power requirement AC 100 - 240V ~ 50 / 60 Hz
ENGLISH
SPECIFICATIONS
123
MODELS
42LV3700
(42LV3700-UD)
47LV3700
(47LV3700-UD)
55LV3700
(55LV3700-UD)
Dimensions
(W x H x D)
With stand
998.0 mm x 684.0 mm
x 256.0 mm
(39.2 inch x 26.9 inch x
10.0 inch)
1108.0 mm x 746.0 mm
x 256.0 mm
(43.6 inch x 29.3 inch x
10.0 inch)
1286.0 mm x 847.0 mm
x 338.0 mm
(50.6 inch x 33.3 inch x
13.3 inch)
Without stand
998.0 mm x 615.0 mm
x 30.4 mm
(39.2 inch x 24.2 inch x
1.1 inch)
1108.0 mm x 677.0 mm
x 30.4 mm
(43.6 inch x 26.6 inch x
1.1 inch)
1286.0 mm x 778.0 mm
x 30.4 mm
(50.6 inch x 30.6 inch x
1.1 inch)
Weight With stand 15.5 kg (34.1 lb) 20.9 kg (46.0 lb) 25.5 kg (56.2 lb)
Without stand 13.3 kg (29.3 lb) 18.7 kg (41.2 lb) 21.4 kg (47.1 lb)
Current Value / Power consumption Philippines
: 1.3 A / 130 W
Other Country
: 1.1 A / 110 W
1.4 A / 140 W 1.6 A / 160 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 Hz
Other Country: AC 100 - 240 V ~ 50 / 60 Hz
MODELS
42LV5400
(42LV5400-UB)
47LV5400
(47LV5400-UB)
55LV5400
(55LV5400-UB)
42LV5500
(42LV5500-UA)
(42LV5500-UG)
47LV5500
(47LV5500-UA)
55LV5500
(55LV5500-UA)
Dimensions
(W x H x D)
With stand
1012.0 mm x 683.0 mm
x 256.0 mm
(39.8 inch x 26.8 inch x
10.0 inch)
1121.0 mm x 746.0 mm
x 256.0 mm
(44.1 inch x 29.3 inch x
10.0 inch)
1298.0 mm x 849.0 mm
x 338.0 mm
(51.1 inch x 33.4 inch x
13.3 inch)
Without stand
1012.0 mm x 617.0 mm
x 29.9 mm
(39.8 inch x 24.2 inch x
1.1 inch)
1121.0 mm x 678.0 mm
x 29.9 mm
(44.1 inch x 26.6 inch x
1.1 inch)
1298.0 mm x 778.0 mm
x 29.9 mm
(51.1 inch x 30.6 inch x
1.1 inch)
Weight With stand 15.5 kg (34.1 lb) 20.7 kg (45.6 lb) 25.8 kg (56.8 lb)
Without stand 13.2 kg (29.1 lb) 18.4 kg (40.5 lb) 21.7 kg (47.8 lb)
Current Value / Power consumption 1.4 A / 140 W 1.5 A / 150 W 1.7 A / 170 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 Hz
Other Country: AC 100 - 240 V ~ 50 / 60 Hz
MODELS
42LW5600
(42LW5600-UA)
47LW5600
(47LW5600-UA)
55LW5600
(55LW5600-UA)
Dimensions
(W x H x D)
With stand
1005.0 mm x 688.0 mm
x 256.0 mm
(39.5 inch x 27.0 inch x
10.0 inch)
1115.0 mm x 750.0 mm
x 256.0 mm
(43.8 inch x 29.5 inch x
10.0 inch)
1293.0 mm x 851.0 mm
x 338.0 mm
(50.9 inch x 33.5 inch x
13.3 inch)
Without stand
1005.0 mm x 621.0 mm
x 29.9 mm
(39.5 inch x 24.4 inch x
1.1 inch)
1115.0 mm x 683.0 mm
x 29.9 mm
(43.8 inch x 26.8 inch x
1.1 inch)
1293.0 mm x 785.0 mm
x 29.9 mm
(50.9 inch x 30.9 inch x
1.1 inch)
Weight With stand 15.2 kg (33.5 lb) 20.7 kg (45.6 lb) 26.2 kg (57.7 lb)
Without stand 13.0 kg (28.6 lb) 18.5 kg (40.7 lb) 22.0 kg (48.5 lb)
Current Value / Power consumption 1.4 A / 140 W 1.5 A / 150W 1.7 A / 170 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 Hz
Other Country: AC 100 - 240 V ~ 50 / 60 Hz
ENGLISH
124
SPECIFICATIONS
MODELS
32LW5700
(32LW5700-UE)
42LW5700
(42LW5700-UE)
Dimensions
(W x H x D)
With stand
766.0 mm x 545.0 mm x 240.0 mm
(30.1 inch x 21.4 inch x 9.4 inch)
999.0 mm x 681.0 mm x 255.0 mm
(39.3 inch x 26.8 inch x 10.0 inch)
Without stand
766.0 mm x 491.0 mm x 41.0 mm
(30.1 inch x 19.3 inch x 1.6 inch)
999.0 mm x 623.0 mm x 30.9 mm
(39.3 inch x 24.5 inch x 1.2 inch)
Weight With stand 10.7 kg (23.5 lb) 15.7 kg (34.6 lb)
Without stand 8.9 kg (19.6 lb) 13.4 kg (29.5 lb)
Current Value / Power consumption 1.2A / 120 W 1.4 A / 140 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 Hz
Other Country: AC 100 - 240 V ~ 50 / 60 Hz
MODELS
47LW5700
(47LW5700-UE)
55LW5700
(55LW5700-UE)
Dimensions
(W x H x D)
With stand
1109.0 mm x 744.0 mm x 255.0 mm
(43.6 inch x 29.2 inch x 10.0 inch)
1286.0 mm x 848.0 mm x 338.0 mm
(50.6 inch x 33.3 inch x 13.3 inch)
Without stand
1109.0 mm x 684.0 mm x 30.9 mm
(43.6 inch x 26.9 inch x 1.2 inch)
1286.0 mm x 784.0 mm x 30.9 mm
(50.6 inch x 30.8 inch x 1.2 inch)
Weight With stand 20.2 kg (44.5 lb) 26.2 kg (57.7 lb)
Without stand 17.9 kg (39.4 lb) 22.1 kg (48.7 lb)
Current Value / Power consumption 1.5 A / 150 W 1.7 A / 170 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 Hz
Other Country: AC 100 - 240 V ~ 50 / 60 Hz
MODELS
47LW6500
(47LW6500-UA)
55LW6500
(55LW6500-UA)
65LW6500
(65LW6500-UA)
Dimensions
(W x H x D)
With stand 1119.0 mm x 749.0 mm
x 255.0 mm
(44.0 inch x 29.4 inch x
10.0 inch)
1297.0 mm x 851.0 mm
x 341.0 mm
(51.0 inch x 33.5 inch x
13.4 inch)
1555.0 mm x 1012.0
mm x 341.0 mm
(61.2 inch x 39.8 inch x
13.4 inch)
Without stand
1119.0 mm x 684.0 mm
x 29.9 mm
(44.0 inch x 26.9 inch x
1.1 inch)
1297.0 mm x 785.0 mm
x 29.9 mm
(51.0 inch x 30.9 inch x
1.1 inch)
1555.0 mm x 940.0 mm
x 38.1 mm
(61.2 inch x 37.0 inch x
1.5 inch)
Weight With stand 21.0 kg (46.2 lb) 27.0 kg (59.5 lb) 49.0 kg (108.0 lb)
Without stand 18.2 kg (40.1 lb) 22.0 kg (48.5 lb) 42.0 kg (92.5 lb)
Current Value / Power consumption 1.5 A / 150 W 1.7 A / 170W 2.4 A / 240 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 Hz
Other Country: AC 100 - 240 V ~ 50 / 60 Hz
ENGLISH
SPECIFICATIONS
125
MODELS
47LW9800
(47LW9800-UA)
55LW9800
(55LW9800-UA)
55LV9500
(55LV9500-UA)
Dimensions
(W x H x D)
With stand
1095.0 mm x 735.0 mm x 235.0 mm
(43.1 inch x 28.9 inch x 9.2 inch)
1265.0 mm x 831.0 mm x 285.0 mm
(49.8 inch x 32.7 inch x 11.2 inch)
Without stand
1095.0 mm x 665.0 mm x 27.9 mm
(43.1 inch x 26.1 inch x 1.0 inch)
1265.0 mm x 760.0 mm x 27.9 mm
(49.8 inch x 29.9 inch x 1.0 inch)
Weight With stand 22.5 kg (49.6 lb) 29.0 kg (63.9 lb)
Without stand 18.2 kg (40.1 lb) 23.8 kg (52.4 lb)
Current Value / Power consumption 2.1 A / 210 W 55LV9500: 2.5 A / 250 W
55LW9800: 2.7 A / 270 W
Power requirement USA, Canada, Mexico: AC 120 V ~ 50 / 60 Hz
Other Country: AC 100 - 240 V ~ 50 / 60 Hz
MODELS
42LK530
(42LK530-UC)
47LK530
(47LK530-UC)
55LK530
(55LK530-UC)
Dimensions
(W x H x D)
With stand
1024.0 mm x 685.0 mm
x 261.0 mm
(40.3 inch x 26.9 inch x
10.2 inch)
1137.0 mm x 758.0 mm
x 270.0 mm
(44.7 inch x 29.8 inch x
10.6 inch)
1329.0 mm x 872.0 mm
x 330.0 mm
(52.3 inch x 34.3 inch x
12.9 inch)
Without stand
1024.0 mm x 621.0 mm
x 76.8 mm
(40.3 inch x 24.4 inch x
3.0 inch)
1137.0 mm x 685.0 mm
x 76.8 mm
(44.7 inch x 26.9 inch x
3.0 inch)
1329.0 mm x 796.0 mm
x 96.5 mm
(52.3 inch x 31.3 inch x
3.7 inch)
Weight With stand 15.5 kg (34.1 lb) 20.3 kg (44.7 lb) 33.0 kg (72.7 lb)
Without stand 13.9 kg (30.6 lb) 18.3 kg (40.3 lb) 29.8 kg (65.6 lb)
Current Value / Power consumption 2.0 A / 200 W 2.5 A / 250 W 3.2 A / 320 W
Power requirement AC 100 - 240V ~ 50 / 60 Hz
MODELS
42LK550
(42LK550-UA)
(42LK550-UG)
47LK550
(47LK550-UA)
Dimensions
(W x H x D)
With stand 1019.0 mm x 698.0 mm x 265.0 mm
(40.1 inch x 27.4 inch x 10.4 inch)
1132.0 mm x 762.0 mm x 265.0 mm
(44.5 inch x 30.0 inch x 10.4 inch)
Without stand
1019.0 mm x 631.0 mm x 76.5 mm
(40.1 inch x 24.8 inch x 3.0 inch)
1132.0 mm x 695.0 mm x 76.5 mm
(44.5 inch x 27.3 inch x 3.0 inch)
Weight With stand 16.2 kg (35.7 lb) 19.0 kg (41.8 lb)
Without stand 14.5 kg (31.9 lb) 17.3 kg (38.1 lb)
Current Value / Power consumption 1.9 A / 190 W 2.5 A / 250 W
Power requirement AC 100 - 240V ~ 50 / 60 Hz
ENGLISH
126
SPECIFICATIONS
RGB (PC), HDMI (PC) supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640x350 31.468 70.09
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1360x768 47.712 60.015
1280x1024
(HDMI-PC)
63.981 60.02
1920x1080
(RGB-PC)
66.587 59.934
1920x1080
(HDMI-PC)
67.50 60.00
HDMI (DTV) supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720x480p
31.47
31.50
59.94
60.00
1280x720p
44.96
45.00
59.94
60.00
1920x1080i
33.72
33.75
59.94
60.00
1920x1080p
26.97
27.00
33.71
33.75
67.432
67.50
23.976
24.00
29.97
30.00
59.94
60.00
Component supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720x480i
15.73
15.73
59.94
60.00
720x480p
31.47
31.50
59.94
60.00
1280x720p
44.96
45.00
59.94
60.00
1920x1080i
33.72
33.75
59.94
60.00
1920x1080p
26.97
27.00
33.71
33.75
67.432
67.500
23.976
24.00
29.97
30.00
59.94
60.00
Component port connecting information
Component ports on
the TV
Y P
B
P
R
Video output ports
on DVD player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
ENGLISH
SPECIFICATIONS
127
DivX supported mode
File Extensions
Audio/Video
Codec
Profile/Level Support Explanation
.asf
.wmv
Video
VC-1 Advanced Profile
Advanced Profile@Level 3
(e.g. 720p60, 1080i60, 1080p30)
Only streams compliant to
SMPTE 421M VC-1
standard are supported.
VC-1 Simple and Main
Profiles
Simple Profile@Medium Level (e.g.
CIF, QVGA)
Main Profile@High Level (e.g.
1080p30)
Audio
WMA Standard
WMA 9 Professional
.divx
.avi
Video
DivX 3.11
Global motion
compensation or
quarterpel motion
estimation does not
supported. Streams using
this syntax are not
supported.
DivX4
DivX5
DivX6
Advanced Simple Profile
(e.g. 720p/1080i)
XViD
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
Audio
MPEG-1 Layer I, II
MPEG-1 Layer III (MP3)
Dolby Digital
.mp4
.m4v
.mov
Video
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30
Global motion
compensation or
quarterpel motion
estimation does not
supported. Streams using
this syntax are not
supported.
MPEG-4 Part 2
Advanced Simple Profile (e.g. 720p/
1080i)
Audio AAC AAC-LC and HE-AAC
.mkv
Video
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
Most of the MKV content
available is encoded by
the open source x264
codec.
Audio
HE-AAC HE-AAC-LC and HE-AAC
Dolby Digital
.ts
.trp
.tp
Video
H.264 / AVC
Main Profile@ Level 4.1
High Profile@ Level 4.1
(e.g. 720p60, 1080i60, 1080p30)
MPEG-2
Main Profile@High Level
(e.g. 720p60, 1080i60)
VC-1
Simple Profile@Medium Level
(e.g. CIF, QVGA)
Main Profile@High Level
(e.g. 1080p30)
Advanced Profile@Level3
(e.g. 720p60, 1080i60, 1080p30)
Only streams compliant to
SMPTE 421M VC-1
standard are supported.
Audio
MPEG-1 Layer I, II
MPEG-1 Layer III (MP3)
Dolby Digital
Dolby Digital Plus
AAC AAC-LC and HE-AAC
.vob
Video
MPEG-1
MPEG-2
Main Profile@High Level
(e.g. 720p60, 1080i60)
Audio
Dolby Digital
MPEG-1 Layer I, II
DVD-LPCM
.mpg
Video MPEG-1
Main Profile@High Level
(e.g. 720p60, 1080i60)
Only streams compliant
configured properly for TS,
PS or ES
Audio
MPEG-1 Layer I, II
ENGLISH
128
SPECIFICATIONS
3D supported formats
Input Signal
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Playable 3D video format
HDMI
720p
1280x720
45.00 60
» Side by Side
» Top & Bottom
» HDMI 3D Top & Bottom
90.00 60
» HDMI 3D Frame Packing
1080i 1920x1080 33.75 60
» Side by Side
» Top & Bottom
» HDMI 3D Side by Side (Half)
1080p
1920x1080
67.50 60
» Side by Side
» Top & Bottom
» Checker Board
» Single Frame Sequential
27.00 24
» Side by Side
» Top & Bottom
» Checker Board
» HDMI 3D Top & Bottom
54.00 24
» HDMI 3D Frame Packing
67.50 (
LCD
)
30
» HDMI 3D Frame Packing
33.75 30
» Side by Side
» Top & Bottom
» Checker Board
Component
(
Pla sm a
)
720p
1280x720
44.96 59.94
» Side by Side
» Top & Bottom
45.00 60.00
1080i 1920x1080
33.72 59.94
» Side by Side
» Top & Bottom
33.75 60.00
RGB-PC
1080p
1920x1080 66.587 59.934
» Side by Side
» Top & Bottom
USB
1080p
1920x1080 33.75 30
» Side by Side
» Top & Bottom
» Checker Board
» MPO (Photo)
DLNA
1080p
1920x1080 33.75 30
» Side by Side
» Top & Bottom
» Checker Board
Signal Playable 3D video format
DTV
720p, 1080i
» Side by Side
» Top & Bottom
•
Media contents and a player need to support HDMI 3D Frame Packing, HDMI 3D Side by Side, HDMI 3D
Top & Bottom to play in 3D.
• Video, which is input as HDMI 3D Frame Packing, HDMI 3D Side by Side, HDMI 3D Top & Bottom format,
is switched into the 3D screen automatically.
ENGLISH
SPECIFICATIONS
129
Wireless LAN for Broadband/DLNA Adaptor SPEC (For LV9500, LW9800 series)
This device only works with compatible LG TV.
Standard
IEEE802.11a/b/g/n
Frequency Range
2402 to 2483 MHz
5150 to 5250 MHz
5725 to 5850 MHz
Modulation
CCK / OFDM / MIMO
Output Power (Typical)
802.11a: 14 dBm
802.11b: 17 dBm
802.11g: 14 dBm
802.11n: 13 dBm
Data rate
802.11a/g: 54 Mbps
802.11b: 11 Mbps
802.11n: 300 Mbps
Antenna Gain (Typical)
2402 to 2483 MHz: 1.17 dBi
5150 to 5250 MHz: 4.67 dBi
5725 to 5850 MHz: 3.30 dBi
Occupied bandwidth
802.11a/b/g: HT20
802.11n: HT20/40
Because band channel used by the country could be different, the user can not change or adjust the
operating frequency and this product is set for the regional frequency table.
• FCC ID of Wi-Fi module inside TV
FCC ID: BEJWN8522D1
RF module (BM-LDS201) specification
For TV By using a 2.4 GHz bandwidth radio frequency(RF).
• Output: 1 dBm or lower
• Maximum Communication Distance: 10 m (30 ft) in an open space
• Bandwidth: 2.4 GHz (2.4035 GHz - 2.4783 GHz)
• Transfer Rate: 250 kbps
• FCC ID of RF module inside TV
FCC ID: BEJLDS201
ENGLISH
130
IR CODES
IR CODES
(Depending on model)
How to Connect
Connect your wired remote control to the Remote Control port on the TV.
Remote Control IR Codes
Output waveform
Single pulse, modulated with 37.917kHz signal at 455kHz
T1
Tc
Frame configuration
1st frame
Repeat frame
Lead code
5
5
/
/
6
6
!
!
n
n
t
t
:
:
!
!
n
n
t
t
!
!
Repeat code
2.25 ms
9 ms
0.55 ms
Bit description
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Bit “0” Bit “1”
Frame interval: Tf
The waveform is transmitted as long as a key is depressed.
Tf Tf
Tf=108ms @455KHz
ENGLISH
IR CODES
131
Code
(Hexa)
Function Note
Code
(Hexa)
Function Note
08
Power Remote control Button
(Power On/Off)
0F TV Remote control Button
DC 3D Remote control Button
45
Q.Menu Remote control Button 5B EXIT Remote control Button
43
Home Remote control Button D6 TV Discrete IR Code
(TV Input Selection)
0B INPUT Remote control Button
10 – 19
Number Key 0-9 Remote control Button C4 POWER ON Discrete IR Code
(Only Power Off)
4C - (Dash)/LIST Remote control Button
1A FLASHBK Remote control Button C5 POWER OFF Discrete IR Code
(Only Power Off)
09
MUTE/DELETE Remote control Button
02
VOL + Remote control Button 5A AV1 Discrete IR Code
(AV1 Input Selection)
03
VOL - Remote control Button
00
CH
^
Remote control Button D0 AV2 Discrete IR Code
(AV2 Input Selection)
01
CH
v
Remote control Button
1E FAV/MARK Remote control Button BF COMPONENT1 Discrete IR Code
(Component1 Input
Selection)
40
^
Remote control Button
41
v
Remote control Button D4 COMPONENT2 Discrete IR Code
(Component2 Input
Selection)
07
<
Remote control Button
06
>
Remote control Button D5 RGB-PC Discrete IR Code
(RGB-PC Input Selection)
44
ENTER Remote control Button
28
BACK Remote control Button CE HDMI1 Discrete IR Code
(HDMI1 Input Selection)
79
RATIO Remote control Button
BA (
Pla sm a
)
FREEZE Remote control Button CC HDMI2 Discrete IR Code
(HDMI2 Input Selection)
95
ENERGY SAVING Remote control Button
7E SIMPLINK Remote control Button E9 HDMI3 Discrete IR Code
(HDMI3 Input Selection)
AA INFO Remote control Button
30
AV MODE Remote control Button DA HDMI4 Discrete IR Code
(HDMI4 Input Selection)
72
RED Remote control Button
71
GREEN Remote control Button
76
Ratio 4:3 Discrete IR Code
(Only 4:3 Mode)
63
YELLOW Remote control Button
61
BLUE Remote control Button
77
Ratio 16:9 Discrete IR Code
(Only 16:9 Mode)
B1
ꕗ
Remote control Button
B0
ꕖ
Remote control Button AF Ratio Cinema
Zoom
Discrete IR Code
(Only Cinema Zoom
Mode)
BA
ꕘ
Remote control Button
8E
ꕙ
Remote control Button
8F
ꕚ
Remote control Button
•
Use the feature depending on your model.
ENGLISH
132
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
Connect the RS-232C (serial port) input jack to an
external control device (such as a computer or an
A/V control system) to control the product’s
functions externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
NOTE
• RS-232C on this TV is intended to be used
with third party RS-232C control hardware
and software. The instructions below are
provided to help with programming
software or to test functionality using
telenet software. RS-232C connection
cables are not supplied with the product.
Type of connector: D-Sub 9-
Pin Male
¤
¤
¥
¥
¨
¨
RS-232C IN
(CONTROL & SERVICE)
No. Pin name
①
No connection
②
RXD (Receive data)
③
TXD (Transmit data)
④
DTR (DTE side ready)
⑤
GND
⑥
DSR (DCE side ready)
⑦
RTS (Ready to send)
⑧
CTS (Clear to send)
⑨
No Connection
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
133
RS-232C configurations
7-Wire Configuration
(Serial female-female NULL modem cable)
PC TV
RXD
2 3
TXD
TXD
3 2
RXD
GND
5 5
GND
DTR
4 6
DSR
DSR
6 4
DTR
RTS
7 8
CTS
CTS
8 7
RTS
D-Sub 9 D-Sub 9
3-Wire Configuration (Not standard)
PC TV
RXD
2 3
TXD
TXD
3 2
RXD
GND
5 5
GND
DTR
4 6
DSR
DSR
6 4
DTR
RTS
7 8
CTS
CTS
8 7
RTS
D-Sub 9 D-Sub 9
Set ID
Set ID number.
1 Press Home to access the Home menu.
2 Press the Navigation buttons to scroll to SETUP
and press ENTER.
3 Press the Navigation buttons to scroll to
OPTION and press ENTER.
4 Press the Navigation buttons to scroll to Set ID
and press ENTER.
5 Scroll left or right to select a set ID number and
select CLOSE. The adjustment range is 1-99.
6 When you are finished, press EXIT.
*Real data mapping
0: Step 0
⋮
A: Step 10 (SET ID 10)
⋮
F: Step 15 (SET ID 15)
10: Step 16 (SET ID 16)
⋮
63: Step 99 (SET ID 99)
64: Step 100
ENGLISH
134
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
• Baud rate: 9600 bps (UART)
• Data length: 8 bits
• Parity : None
• Stop bit: 1 bit
• Communication code: ASCII code
• Use a crossed (reverse) cable.
Command reference list
COMMAND1 COMMAND2 DATA
(Hexadecimal)
COMMAND1 COMMAND2 DATA
(Hexadecimal)
01. Power k a 00 – 01 14. Treble k r 00 - 64
02. Input Select x b
(See
p.136.)
15. Bass k s 00 - 64
03. Aspect Ratio k c
(See
p.136.)
16. Balance k t 00 - 64
04. Screen Mute k d 00 - 01 17. 3D (For 3D TV) x t
(See
p.137.)
05. Volume Mute k e 00 - 01 18. Color
Temperature
x u 00 - 64
06. Volume Control k f 00 - 64 19. Extended 3D
(For 3D TV)
x v
(See
p.137.)
07. Contrast k g 00 - 64 20. ISM Method (
Pla sm a
)
j p
(See
p.137.)
08. Brightness k h 00 - 64 21. Energy Saving j q
(See
p.137.)
09. Color k i 00 - 64 22. Auto
Configuration
j u
(See
p.137.)
10. Tint k j 00 - 64 24. Channel Add/Del m b 00 – 01
11. Sharpness k k 00 - 64 25. Key m c
(See
p.138.)
12. OSD Select k l 00 - 01
26. Backlight (
LCD
)
m g 00 - 64
13. Remote Control
Lock Mode
k m 00 - 01
COMMAND1 COMMAND2 DATA00
(Hexadecimal)
DATA01
(Hexadecimal)
DATA02
(Hexadecimal)
DATA03
(Hexadecimal)
DATA04
(Hexadecimal)
DATA05
(Hexadecimal)
23. Channel
Tuning
m a physical
program high
major
program low
major low minor high minor low attribute
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
135
Transmission / Receiving protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the set.(j, k, m or x)
[Command 2] : Second command to control the set.
[Set ID] : You can adjust the set ID to choose desired set ID number in Option menu. Adjustment range is 1~
99. When selecting Set ID ‘0’, every connected the set is controlled. Set ID is indicated as decimal (1~ 99) on
menu and as Hexa decimal (0x0~ 0x63) on transmission /receiving protocol.
[DATA] : To transmit the command data.
Transmit the ‘FF’ data to read status of command.
[Cr] : Carriage Return
ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
*In this model, set will not send the status during the standby mode.
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if
the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data
of the PC computer.
*In this model, set will not send the status during the standby mode.
*Data Format
[Command 2] : Use as command.
[Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’.
[OK] : Use the large character.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from
nonviable functions or communication errors.
Data1: Illegal Code
Data2: Not supported function
Data3: Wait more time
*In this model, set will not send the status during the standby mode.
*Data Format
[Command 2] : Use as command.
[Set ID] : Use the small character, if set ID is 10, it will send the ‘0’, ‘a’.
[DATA] : Use the small character, if data is 0 x ab, it will send the ‘a’, ‘b’.
[NG] : Use the large character
ENGLISH
136
EXTERNAL CONTROL DEVICE SETUP
01. Power (Command: k a)
To control Power On/Off of the set.
Transmission [k][a][ ][Set ID][ ][Data][Cr]
Data 00: Power Off Data 01: Power On
Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]
* In a like manner, if other functions transmit ‘FF’
data based on this format, Acknowledgement data
feedback presents status about each function.
* Note: In this model, set will send the
Acknowledge after power on processing
completion.
There might be a time delay between command
and acknowledge.
02. Input Select (Command: x b)
To select input source for set.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data 00: DTV (Antenna) Data 01: DTV (Cable)
Data 10: Analog
(Antenna)
Data 11: Analog (Cable)
Data 20: AV or AV1 Data 21: AV2
Data 40: Component1 Data 41: Component2
Data 42: Component3 Data 60: RGB-PC
Data 90: HDMI1 Data 91: HDMI2
Data 92: HDMI3 Data 93: HDMI4
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
* Use the feature depending on your model.
03. Aspect Ratio (Command: k c)
To adjust the screen format.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3 Data 09: Just scan
Data 02: 16:9 Data 10: Cinema Zoom 1
Data 06: Set by program
⋮
Data 1F: Cinema Zoom16
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
04. Screen Mute (Command: k d)
To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00: Screen mute off (Picture on), Video-out
Mute off
Data 01: Screen mute on (Picture off)
Data 10: Video-out Mute on
Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of Video-out Mute on only, TV will display
On Screen Display (OSD). But, in case of screen
mute on, TV will not display On Screen Display
(OSD).
05. Volume Mute (Command: k e)
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00: Volume mute on (Volume off)
Data 01: Volume mute off (Volume on)
Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]
06. Volume Control (Command: k f)
To adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]
07. Contrast (Command: k g)
To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
08. Brightness (Command: k h)
To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
To adjust screen color.
You can also adjust color in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
To adjust screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red: 00 ~ Green: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]
11. Sharpness (Command: k k)
To adjust screen sharpness.
You can also adjust sharpness in the PICTURE menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]
12. OSD Select (Command: k l)
To select OSD (On Screen Display) on/off.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00: OSD off Data 01: OSD on
Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]
13. Remote Control Lock Mode (Command: k m)
To lock the remote control and the front panel
controls on the set.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00: Lock off Data 01: Lock on
Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]
If you’re not using the remote control and front panel
controls on the Monitor set, use this mode. When
main power is on/off, remote control lock is released.
If Key Lock is on in the standby mode, TV will not
turn on by POWER button of remote control and on
the TV.
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
137
14. Treble (Command: k r)
To adjust treble.
You can also adjust treble in the AUDIO menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]
15. Bass (Command: k s)
To adjust bass.
You can also adjust bass in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]
16. Balance (Command: k t)
To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]
17. 3D (Command: x t) (For 3D TV)
To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data01] [ ][Data02][ ]
[Data03][ ][Data04][Cr]
Data1
00: 3D On 01: 3D Off
02: 3D to 2D 03: 2D to 3D
Data2
00: Top and Bottom 01: Side by Side
02: Check Board 03: Frame Sequential
Data3
00: Right to Left 01: Left to Right
Data4
3D Depth: Min : 00 ~ Max : 14
(*transmit by Hexadecimal code)
* If data1 is 00 (3D On), data4 has no meaning.
* If data1 is 01 (3D off) or 02 (3D to 2D), data2, data3
and data4 have no meaning.
* If data1 is 03 (2D to 3D), data2 and data3 have no
meaning.
Data 1 Data 2 Data 3 Data 4
00
○ ○
x
01 x x x
02
x x x
03 x x
○
x : Don’t care
Acknowledgement [t][ ][OK][Data01][Data02]
[Data03][Data04][x][t][ ][NG][Data01][x]
18. Color Temperature (Command: x u)
To adjust color temperature.
You can also adjust color temperature in the
PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
19. Extended 3D (Command: x v) (For 3D TV)
To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data01][ ][Data02][Cr]
Data1: 3D option
00: 3D Picture Correction
01: 3D Depth (2D to 3D Only)
02: 3D Viewpoint
03: 3D Picture Size
04: 3D Picture Balance
05: 3D Optimization
Data2: It has own range for each 3D option
determined by Data1.
1)When Data1 is 00
00: Right to Left 01: Left to Right
2)When Data1 is 01
Data Min: 00 ~ Max: 14 (*transmit by
Hexadecimal code)
3)
When Data1 is 02
Data Min: 00 ~ Max: 14 (*transmit by
Hexadecimal code)
4)
When Data1 is 03
00: Just Scan
01: 16:9
5)When Data1 is 04
00: Off 01: On
6)When Data1 is 05
Data Min: 00 ~ Max: 02 (*transmit by
Hexadecimal code)
Acknowledgement [v][ ][OK][Data01][Data02][x] [v][ ]
[NG][Data01][x]
* Use the feature depending on your model.
20. ISM Method (Command: j p)(
Pla sm a
)
To avoid having a fixed image remain on screen.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data 02: Orbiter
04: White Wash
08: Normal
20: Color Wash
Acknowledgement [p][ ][Set ID][ ][OK/NG][Data][x]
21. Energy Saving (Command: j q)
To control the energy saving function.
Transmission [ j ][q][ ][Set ID][ ][Data][Cr]
Data 00: off
01: Minimum
02: Medium
03: Maximum
04: Auto (Depending on model)
05: Screen off
Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]
22. Auto Configuration (Command: j u)
To adjust picture position and minimize image
shaking automatically. Auto configuration only works
in RGB-PC mode.
Transmission [ j ][u][ ][Set ID][ ][Data][Cr]
Data 01: To set
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
23. Channel Tuning (Command: m a)
To tune channel to following physical/major/minor
number.
(This feature is not available for all models.)
Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01] [ ]
[Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
ENGLISH
138
EXTERNAL CONTROL DEVICE SETUP
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel to the Major number, the Physical
number is not required when sending a command.
Data 00: Physical Channel Number
NTSC air: 02~45, NTSC cable: 01, 0E~7D
ATSC air: 01~45, ATSC cable: 01~87
Data 01 & 02: Major Channel Number
Data 01: High byte Data 02: Low byte
Two bytes are available for the Major and Minor,
normally only the second byte is used.
Data 03 & 04: Minor Channel Number
Not needed for NTSC.
The table lists the binary code which must be
converted to Hexadecimal before sending. For
example:
The binary code to tune the sub source to an NTSC
cable channel is “1000 0001”, which translates to
“81” in Hex.
* 7th bit : For which source do you want to change
the channel.
* 6th bit: Use a two part or one part channel. Most
cases just use 0 since it’s ignored when using
NTSC.
* 5th bit: Use 0 with NTSC since it can only use the
physical channel number. Normally use 1 for ATSC
since most times it doesn’t matter what the
physical number is.
* 4th bit: Set to 0.
* 3-0 bits: Choose signal type.
* Tune Command Examples:
1. Tune to the analog (NTSC) cable channel 35.
Data 00 = Physical of 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = 0000 0001 in binary = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital (ATSC) local channel 30-3.
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = 0010 0010 in binary = 22
Total = ma 00 00 00 1E 00 03 22
24. Channel Add/Del (Command: m b)
To add and delete the channels.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00: Channel Delete Data 01: Channel Add
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
25. Key (Command: m c)
To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
See
p.130.
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
When TV is in the standby mode, TV will turn on by
POWER button of remote control only.
26. Backlight (Command: m g) (
LCD
)
To adjust screen backlight.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min:00 ~ Max:64 (*transmit by Hexadecimal
code)
*Refer to “Real data mapping”.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
139
* Table List (Channel Tuning)
7
Main/Sub
6
Two/One
Part Channel
5
Using
Physical
Channel
4
Reserved
3 2 1 0
Step
0
Main
0
Two
0
Use
x 0 0 0 0
NTSC Air
1
Sub
1
One
1
No Use
x 0 0 0 1
NTSC Cable
x 0 0 1 0
ATSC Air
x 0 0 1 1
ATSC Cable_std
x 0 1 0 0
ATSC Cable_hrc
x 0 1 0 1
ATSC Cable_irc
x 0 1 1 0
ATSC Cable_auto
x 0 1 1 1
Reserved
x x x x x ...
x 1 1 1 1
Reserved
ENGLISH
140
OPEN SOURCE LICENSE
OPEN SOURCE LICENSE
Please be informed that LG Electronics products
may contain open source software listed in the
tables below.
License
Component
Apache
license
bonjour
MIT license
cares
curl
fontconfig
libcurl
libxml2
libxslt
lua interpreter
expat license
expat
Freetype
license
freetype
JPEG license libjpeg
OpenSSL
license
openssl
Zlib/libpng
license
libmng
libpng
zlib
portmap
license
portmap
pixman
license
pixman
X.net license libicu
BSD license netBSD
Simple XML Parser
xySSL
RSA Data
security
license
MD5
JSON license JSON
MS92 license
snacc
LG Electronics products may also contain open
source software listed as Components in the table
below, and you may download the complete
source code thereof free of charge, from LG
Electronics website (http://opensource.lge. com)
for a period of three (3) years from our last
shipment of this product. Please be informed that
the open source software is subject to the terms
and conditions of the applicable open source
licenses, which are provided to you herein below.
License
Component
GNU GPL v2.0 Linux kernel 2.6
alsa
busybox
e2fsprogs
gdbserver
jfsutils
Izo
msdl 1.1
mtd-utils
ntpclient
procps
GNU LGPL
v2.1
atk
directFB
ffmpeg
glib
gnuTLS
gail
GTK+
iconv
libintl
libgcrypt
libgpg-error
libgphoto2
libsoup
pango
pyenchant
qt
uClibc
webkit
MPL 1.1 cairo
nanox
mozilla firefox
zzipib
ENGLISH
OPEN SOURCE LICENSE
141
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software
Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-
1301, USA
Everyone is permitted to copy and distribute
verbatim copies of this license document, but
changing it is not allowed.
Preamble
The licenses for most software are designed to
take away your freedom to share and change it. By
contrast, the GNU General Public License is
intended to guarantee your freedom to share and
change free software–to make sure the software is
free for all its users. This General Public License
applies to most of the Free Software Foundation’s
software and to any other program whose authors
commit to using it. (Some other Free Software
Foundation software is covered by the GNU Lesser
General Public License instead.) You can apply it to
your programs, too.
When we speak of free software, we are referring
to freedom, not price. Our General Public Licenses
are designed to make sure that you have the
freedom to distribute copies of free software (and
charge for this service if you wish), that you receive
source code or can get it if you want it, that you can
change the software or use pieces of it in new free
programs; and that you know you can do these
things.
To protect your rights, we need to make
restrictions that forbid anyone to deny you these
rights or to ask you to surrender the rights. These
restrictions translate to certain responsibilities for
you if you distribute copies of the software, or if
you modify it.
For example, if you distribute copies of such a
program, whether gratis or for a fee, you must give
the recipients all the rights that you have. You must
make sure that they, too, receive or can get the
source code. And you must show them these
terms so they know their rights.
We protect your rights with two steps: (1) copyright
the software, and (2) offer you this license which
gives you legal permission to copy, distribute and/
or modify the software.
Also, for each author’s protection and ours, we
want to make certain that everyone understands
that there is no warranty for this free software. If
the software is modified by someone else and
passed on, we want its recipients to know that
what they have is not the original, so that any
problems introduced by others will not reflect on
the original authors’ reputations.
Finally, any free program is threatened constantly
by software patents. We wish to avoid the danger
that redistributors of a free program will individually
obtain patent licenses, in effect making the
program proprietary. To prevent this, we have
made it clear that any patent must be licensed for
everyone’s free use or not licensed at all.
The precise terms and conditions for copying,
distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other
work which contains a notice placed by the
copyright holder saying it may be distributed
under the terms of this General Public License.
The “Program”, below, refers to any such
program or work, and a “work based on the
Program” means either the Program or any
derivative work under copyright law: that is to
say, a work containing the Program or a portion
of it, either verbatim or with modifications and/
or translated into another language. (Hereinafter,
translation is included without limitation in the
term “modification”.) Each licensee is
addressed as “you”.
Activities other than copying, distribution and
modification are not covered by this License;
they are outside its scope. The act of running
the Program is not restricted, and the output
from the Program is covered only if its contents
constitute a work based on the Program
(independent of having been made by running
the Program). Whether that is true depends on
what the Program does.
1. You may copy and distribute verbatim copies of
the Program’s source code as you receive it, in
any medium, provided that you conspicuously
and appropriately publish on each copy an
appropriate copyright notice and disclaimer of
warranty; keep intact all the notices that refer to
this License and to the absence of any warranty;
ENGLISH
142
OPEN SOURCE LICENSE
and give any other recipients of the Program a
copy of this License along with the Program.
You may charge a fee for the physical act of
transferring a copy, and you may at your option
offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the
Program or any portion of it, thus forming a work
based on the Program, and copy and distribute
such modifications or work under the terms of
Section 1 above, provided that you also meet all
of these conditions:
a) You must cause the modified files to carry
prominent notices stating that you changed
the files and the date of any change.
b) You must cause any work that you distribute
or publish, that in whole or in part contains or
is derived from the Program or any part
thereof, to be licensed as a whole at no
charge to all third parties under the terms of
this License.
c) If the modified program normally reads
commands interactively when run, you must
cause it, when started running for such
interactive use in the most ordinary way, to
print or display an announcement including an
appropriate copyright notice and a notice that
there is no warranty (or else, saying that you
provide a warranty) and that users may
redistribute the program under these
conditions, and telling the user how to view a
copy of this License. (Exception: if the
Program itself is interactive but does not
normally print such an announcement, your
work based on the Program is not required to
print an announcement.)
These requirements apply to the modified work
as a whole. If identifiable sections of that work
are not derived from the Program, and can be
reasonably considered independent and
separate works in themselves, then this
License, and its terms, do not apply to those
sections when you distribute them as separate
works. But when you distribute the same
sections as part of a whole which is a work
based on the Program, the distribution of the
whole must be on the terms of this License,
whose permissions for other licensees extend
to the entire whole, and thus to each and every
part regardless of who wrote it.
Thus, it is not the intent of this section to claim
rights or contest your rights to work written
entirely by you; rather, the intent is to exercise
the right to control the distribution of derivative
or collective works based on the Program.
In addition, mere aggregation of another work
not based on the Program with the Program (or
with a work based on the Program) on a volume
of a storage or distribution medium does not
bring the other work under the scope of this
License.
3. You may copy and distribute the Program (or a
work based on it, under Section 2) in object code
or executable form under the terms of Sections
1 and 2 above provided that you also do one of
the following:
a) Accompany it with the complete
corresponding machine-readable source code,
which must be distributed under the terms of
Sections 1 and 2 above on a medium
customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at
least three years, to give any third party, for a
charge no more than your cost of physically
performing source distribution, a complete
machine-readable copy of the corresponding
source code, to be distributed under the terms
of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you
received as to the offer to distribute
corresponding source code. (This alternative is
allowed only for noncommercial distribution
and only if you received the program in object
code or executable form with such an offer, in
accord with Subsection b above.)
The source code for a work means the preferred
form of the work for making modifications to it.
For an executable work, complete source code
means all the source code for all modules it
contains, plus any associated interface definition
files, plus the scripts used to control compilation
and installation of the executable. However, as a
special exception, the source code distributed
need not include anything that is normally
distributed (in either source or binary form) with
the major components (compiler, kernel, and so
on) of the operating system on which the
executable runs, unless that component itself
accompanies the executable.
ENGLISH
OPEN SOURCE LICENSE
143
If distribution of executable or object code is
made by offering access to copy from a
designated place, then offering equivalent
access to copy the source code from the same
place counts as distribution of the source code,
even though third parties are not compelled to
copy the source along with the object code.
4. You may not copy, modify, sublicense, or
distribute the Program except as expressly
provided under this License. Any attempt
otherwise to copy, modify, sublicense or
distribute the Program is void, and will
automatically terminate your rights under this
License. However, parties who have received
copies, or rights, from you under this License
will not have their licenses terminated so long as
such parties remain in full compliance.
5. You are not required to accept this License,
since you have not signed it. However, nothing
else grants you permission to modify or
distribute the Program or its derivative works.
These actions are prohibited by law if you do not
accept this License. Therefore, by modifying or
distributing the Program (or any work based on
the Program), you indicate your acceptance of
this License to do so, and all its terms and
conditions for copying, distributing or modifying
the Program or works based on it.
6. Each time you redistribute the Program (or any
work based on the Program), the recipient
automatically receives a license from the original
licensor to copy, distribute or modify the
Program subject to these terms and conditions.
You may not impose any further restrictions on
the recipients’ exercise of the rights granted
herein. You are not responsible for enforcing
compliance by third parties to this License.
7. If, as a consequence of a court judgment or
allegation of patent infringement or for any other
reason (not limited to patent issues), conditions
are imposed on you (whether by court order,
agreement or otherwise) that contradict the
conditions of this License, they do not excuse
you from the conditions of this License. If you
cannot distribute so as to satisfy simultaneously
your obligations under this License and any
other pertinent obligations, then as a
consequence you may not distribute the
Program at all. For example, if a patent license
would not permit royalty-free redistribution of
the Program by all those who receive copies
directly or indirectly through you, then the only
way you could satisfy both it and this License
would be to refrain entirely from distribution of
the Program.
If any portion of this section is held invalid or
unenforceable under any particular
circumstance, the balance of the section is
intended to apply and the section as a whole is
intended to apply in other circumstances.
It is not the purpose of this section to induce you
to infringe any patents or other property right
claims or to contest validity of any such claims;
this section has the sole purpose of protecting
the integrity of the free software distribution
system, which is implemented by public license
practices. Many people have made generous
contributions to the wide range of software
distributed through that system in reliance on
consistent application of that system; it is up to
the author/donor to decide if he or she is willing
to distribute software through any other system
and a licensee cannot impose that choice.
This section is intended to make thoroughly
clear what is believed to be a consequence of
the rest of this License.
8. If the distribution and/or use of the Program is
restricted in certain countries either by patents
or by copyrighted interfaces, the original
copyright holder who places the Program under
this License may add an explicit geographical
distribution limitation excluding those countries,
so that distribution is permitted only in or among
countries not thus excluded. In such case, this
License incorporates the limitation as if written
in the body of this License.
9. The Free Software Foundation may publish
revised and/or new versions of the General
Public License from time to time. Such new
versions will be similar in spirit to the present
version, but may differ in detail to address new
problems or concerns.
Each version is given a distinguishing version
number. If the Program specifies a version
number of this License which applies to it and
“any later version”, you have the option of
following the terms and conditions either of that
version or of any later version published by the
Free Software Foundation. If the Program does
not specify a version number of this License,
you may choose any version ever published by
the Free Software Foundation.
10.If you wish to incorporate parts of the Program
into other free programs whose distribution
ENGLISH
144
OPEN SOURCE LICENSE
conditions are different, write to the author to
ask for permission. For software which is
copyrighted by the Free Software Foundation,
write to the Free Software Foundation; we
sometimes make exceptions for this. Our
decision will be guided by the two goals of
preserving the free status of all derivatives of
our free software and of promoting the sharing
and reuse of software generally.
NO WARRANTY
11.BECAUSE THE PROGRAM IS LICENSED FREE
OF CHARGE, THERE IS NO WARRANTY FOR
THE PROGRAM, TO THE EXTENT PERMITTED
BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE PROGRAM “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK AS
TO THE QUALITY AND PERFORMANCE OF
THE PROGRAM IS WITH YOU. SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.
12.IN NO EVENT UNLESS REQUIRED BY
APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR
ANY OTHER PARTY WHO MAY MODIFY AND/
OR REDISTRIBUTE THE PROGRAM AS
PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM
(INCLUDING BUT NOT LIMITED TO LOSS OF
DATA OR DATA BEING RENDERED
INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF
THE PROGRAM TO OPERATE WITH ANY
OTHER PROGRAMS), EVEN IF SUCH HOLDER
OR OTHER PARTY HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
GNU Lesser General Public License
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software
Foundation, Inc. 59 Temple Place, Suite 330,
Boston, MA 02111-1307 USA Everyone is
permitted to copy and distribute verbatim copies of
this license document, but changing it is not
allowed.
[This is the first released version of the Lesser GPL.
It also counts as the successor of the GNU Library
Public License, version 2, hence the version
number 2.1.]
Preamble
The licenses for most software are designed to
take away your freedom to share and change it. By
contrast, the GNU General Public Licenses are
intended to guarantee your freedom to share and
change free software–to make sure the software is
free for all its users.
This license, the Lesser General Public License,
applies to some specially designated software
packages–typically libraries–of the Free Software
Foundation and other authors who decide to use it.
You can use it too, but we suggest you first think
carefully about whether this license or the ordinary
General Public License is the better strategy to use
in any particular case, based on the explanations
below.
When we speak of free software, we are referring
to freedom of use, not price. Our General Public
Licenses are designed to make sure that you have
the freedom to distribute copies of free software
(and charge for this service if you wish); that you
receive source code or can get it if you want it; that
you can change the software and use pieces of it in
new free programs; and that you are informed that
you can do these things.
To protect your rights, we need to make
restrictions that forbid distributors to deny you
these rights or to ask you to surrender these rights.
These restrictions translate to certain
responsibilities for you if you distribute copies of
the library or if you modify it.
For example, if you distribute copies of the library,
whether gratis or for a fee, you must give the
recipients all the rights that we gave you. You must
make sure that they, too, receive or can get the
source code. If you link other code with the library,
ENGLISH
OPEN SOURCE LICENSE
145
you must provide complete object files to the
recipients, so that they can relink them with the
library after making changes to the library and
recompiling it. And you must show them these
terms so they know their rights.
We protect your rights with a two-step method: (1)
we copyright the library, and (2) we offer you this
license, which gives you legal permission to copy,
distribute and/or modify the library.
To protect each distributor, we want to make it very
clear that there is no warranty for the free library.
Also, if the library is modified by someone else and
passed on, the recipients should know that what
they have is not the original version, so that the
original author’s reputation will not be affected by
problems that might be introduced by others.
Finally, software patents pose a constant threat to
the existence of any free program. We wish to
make sure that a company cannot effectively
restrict the users of a free program by obtaining a
restrictive license from a patent holder. Therefore,
we insist that any patent license obtained for a
version of the library must be consistent with the
full freedom of use specified in this license.
Most GNU software, including some libraries, is
covered by the ordinary GNU General Public
License. This license, the GNU Lesser General
Public License, applies to certain designated
libraries, and is quite different from the ordinary
General Public License. We use this license for
certain libraries in order to permit linking those
libraries into non-free programs.
When a program is linked with a library, whether
statically or using a shared library, the combination
of the two is legally speaking a combined work, a
derivative of the original library. The ordinary
General Public License therefore permits such
linking only if the entire combination fits its criteria
of freedom. The Lesser General Public License
permits more lax criteria for linking other code with
the library.
We call this license the “Lesser” General Public
License because it does Less to protect the user’s
freedom than the ordinary General Public License.
It also provides other free software developers
Less of an advantage over competing non-free
programs. These disadvantages are the reason we
use the ordinary General Public License for many
libraries. However, the Lesser license provides
advantages in certain special circumstances.
For example, on rare occasions, there may be a
special need to encourage the widest possible use
of a certain library, so that it becomes a de-facto
standard. To achieve this, non-free programs must
be allowed to use the library. A more frequent case
is that a free library does the same job as widely
used non-free libraries. In this case, there is little to
gain by limiting the free library to free software
only, so we use the Lesser General Public License.
In other cases, permission to use a particular library
in non-free programs enables a greater number of
people to use a large body of free software. For
example, permission to use the GNU C Library in
non-free programs enables many more people to
use the whole GNU operating system, as well as
its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less
protective of the users’ freedom, it does ensure
that the user of a program that is linked with the
Library has the freedom and the wherewithal to run
that program using a modified version of the
Library.
The precise terms and conditions for copying,
distribution and modification follow. Pay close
attention to the difference between a “work based
on the library” and a “work that uses the library”.
The former contains code derived from the library,
whereas the latter must be combined with the
library in order to run.
TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software
library or other program which contains a notice
placed by the copyright holder or other
authorized party saying it may be distributed
under the terms of this Lesser General Public
License (also called “this License”). Each
licensee is addressed as “you”.
A “library” means a collection of software
functions and/or data prepared so as to be
conveniently linked with application programs
(which use some of those functions and data) to
form executables.
The “Library”, below, refers to any such
software library or work which has been
distributed under these terms. A “work based
on the Library” means either the Library or any
ENGLISH
146
OPEN SOURCE LICENSE
derivative work under copyright law: that is to
say, a work containing the Library or a portion of
it, either verbatim or with modifications and/ or
translated straightforwardly into another
language. (Hereinafter, translation is included
without limitation in the term “modification”.)
“Source code” for a work means the preferred
form of the work for making modifications to it.
For a library, complete source code means all
the source code for all modules it contains, plus
any associated interface definition files, plus the
scripts used to control compilation and
installation of the library.
Activities other than copying, distribution and
modification are not covered by this License;
they are outside its scope. The act of running a
program using the Library is not restricted, and
output from such a program is covered only if its
contents constitute a work based on the Library
(independent of the use of the Library in a tool
for writing it). Whether that is true depends on
what the Library does and what the program
that uses the Library does.
1. You may copy and distribute verbatim copies of
the Library’s complete source code as you
receive it, in any medium, provided that you
conspicuously and appropriately publish on each
copy an appropriate copyright notice and
disclaimer of warranty; keep intact all the
notices that refer to this License and to the
absence of any warranty; and distribute a copy
of this License along with the Library.
You may charge a fee for the physical act of
transferring a copy, and you may at your option
offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the
Library or any portion of it, thus forming a work
based on the Library, and copy and distribute
such modifications or work under the terms of
Section 1 above, provided that you also meet all
of these conditions:
a) The modified work must itself be a software
library.
b) You must cause the files modified to carry
prominent notices stating that you changed
the files and the date of any change.
c) You must cause the whole of the work to be
licensed at no charge to all third parties under
the terms of this License.
d) If a facility in the modified Library refers to a
function or a table of data to be supplied by an
application program that uses the facility,
other than as an argument passed when the
facility is invoked, then you must make a good
faith effort to ensure that, in the event an
application does not supply such function or
table, the facility still operates, and performs
whatever part of its purpose remains
meaningful.
(For example, a function in a library to
compute square roots has a purpose that is
entirely well-defined independent of the
application. Therefore, Subsection 2d requires
that any application-supplied function or table
used by this function must be optional: if the
application does not supply it, the square root
function must still compute square roots.)
These requirements apply to the modified
work as a whole. If identifiable sections of that
work are not derived from the Library, and can
be reasonably considered independent and
separate works in themselves, then this
License, and its terms, do not apply to those
sections when you distribute them as
separate works. But when you distribute the
same sections as part of a whole which is a
work based on the Library, the distribution of
the whole must be on the terms of this
License, whose permissions for other
licensees extend to the entire whole, and thus
to each and every part regardless of who
wrote it.
Thus, it is not the intent of this section to
claim rights or contest your rights to work
written entirely by you; rather, the intent is to
exercise the right to control the distribution of
derivative or collective works based on the
Library.
In addition, mere aggregation of another work
not based on the Library with the Library (or with
a work based on the Library) on a volume of a
storage or distribution medium does not bring
the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary
GNU General Public License instead of this
License to a given copy of the Library. To do
this, you must alter all the notices that refer to
this License, so that they refer to the ordinary
GNU General Public License, version 2, instead
of to this License. (If a newer version than
version 2 of the ordinary GNU General Public
License has appeared, then you can specify that
version instead if you wish.) Do not make any
other change in these notices.
Once this change is made in a given copy, it is
irreversible for that copy, so the ordinary GNU
General Public License applies to all subsequent
copies and derivative works made from that
copy.
ENGLISH
OPEN SOURCE LICENSE
147
This option is useful when you wish to copy part
of the code of the Library into a program that is
not a library.
4. You may copy and distribute the Library (or a
portion or derivative of it, under Section 2) in
object code or executable form under the terms
of Sections 1 and 2 above provided that you
accompany it with the complete corresponding
machinereadable source code, which must be
distributed under the terms of Sections 1 and 2
above on a medium customarily used for
software interchange.
If distribution of object code is made by offering
access to copy from a designated place, then
offering equivalent access to copy the source
code from the same place satisfies the
requirement to distribute the source code, even
though third parties are not compelled to copy
the source along with the object code.
5. A program that contains no derivative of any
portion of the Library, but is designed to work
with the Library by being compiled or linked with
it, is called a “work that uses the Library”. Such
a work, in isolation, is not a derivative work of
the Library, and therefore falls outside the scope
of this License.
However, linking a “work that uses the Library”
with the Library creates an executable that is a
derivative of the Library (because it contains
portions of the Library), rather than a “work that
uses the library”. The executable is therefore
covered by this License. Section 6 states terms
for distribution of such executables.
When a “work that uses the Library” uses
material from a header file that is part of the
Library, the object code for the work may be a
derivative work of the Library even though the
source code is not. Whether this is true is
especially significant if the work can be linked
without the Library, or if the work is itself a
library. The threshold for this to be true is not
precisely defined by law.
If such an object file uses only numerical
parameters, data structure layouts and
accessors, and small macros and small inline
functions (ten lines or less in length), then the
use of the object file is unrestricted, regardless
of whether it is legally a derivative work.
(Executables containing this object code plus
portions of the Library will still fall under Section
6.)
Otherwise, if the work is a derivative of the
Library, you may distribute the object code for
the work under the terms of Section 6. Any
executables containing that work also fall under
Section 6, whether or not they are linked directly
with the Library itself.
6. As an exception to the Sections above, you may
also combine or link a “work that uses the
Library” with the Library to produce a work
containing portions of the Library, and distribute
that work under terms of your choice, provided
that the terms permit modification of the work
for the customer’s own use and reverse
engineering for debugging such modifications.
You must give prominent notice with each copy
of the work that the Library is used in it and that
the Library and its use are covered by this
License. You must supply a copy of this License.
If the work during execution displays copyright
notices, you must include the copyright notice
for the Library among them, as well as a
reference directing the user to the copy of this
License. Also, you must do one of these things:
a) Accompany the work with the complete
corresponding machine-readable source code
for the Library including whatever changes
were used in the work (which must be
distributed under Sections 1 and 2 above);
and, if the work is an executable linked with
the Library, with the complete machine-
readable “work that uses the Library”, as
object code and/or source code, so that the
user can modify the Library and then relink to
produce a modified executable containing the
modified Library. (It is understood that the
user who changes the contents of definitions
files in the Library will not necessarily be able
to recompile the application to use the
modified definitions.)
b) Use a suitable shared library mechanism for
linking with the Library. A suitable mechanism
is one that (1) uses at run time a copy of the
library already present on the user’s computer
system, rather than copying library functions
into the executable, and (2) will operate
properly with a modified version of the library,
if the user installs one, as long as the modified
version is interfacecompatible with the
version that the work was made with.
c) Accompany the work with a written offer,
valid for at least three years, to give the same
user the materials specified in Subsection 6a,
above, for a charge no more than the cost of
performing this distribution.
d) If distribution of the work is made by offering
access to copy from a designated place, offer
equivalent access to copy the above specified
materials from the same place.
ENGLISH
148
OPEN SOURCE LICENSE
e) Verify that the user has already received a
copy of these materials or that you have
already sent this user a copy.
For an executable, the required form of the
“work that uses the Library” must include any
data and utility programs needed for reproducing
the executable from it. However, as a special
exception, the materials to be distributed need
not include anything that is normally distributed
(in either source or binary form) with the major
components (compiler, kernel, and so on) of the
operating system on which the executable runs,
unless that component itself accompanies the
executable.
It may happen that this requirement contradicts
the license restrictions of other proprietary
libraries that do not normally accompany the
operating system. Such a contradiction means
you cannot use both them and the Library
together in an executable that you distribute.
7. You may place library facilities that are a work
based on the Library side-by-side in a single
library together with other library facilities not
covered by this License, and distribute such a
combined library, provided that the separate
distribution of the work based on the Library and
of the other library facilities is otherwise
permitted, and provided that you do these two
things:
a) Accompany the combined library with a copy
of the same work based on the Library,
uncombined with any other library facilities.
This must be distributed under the terms of
the Sections above.
b) Give prominent notice with the combined
library of the fact that part of it is a work based
on the Library, and explaining where to find
the accompanying uncombined form of the
same work.
8. You may not copy, modify, sublicense, link with,
or distribute the Library except as expressly
provided under this License. Any attempt
otherwise to copy, modify, sublicense, link with,
or distribute the Library is void, and will
automatically terminate your rights under this
License. However, parties who have received
copies, or rights, from you under this License
will not have their licenses terminated so long as
such parties remain in full compliance.
9. You are not required to accept this License,
since you have not signed it. However, nothing
else grants you permission to modify or
distribute the Library or its derivative works.
These actions are prohibited by law if you do not
accept this License. Therefore, by modifying or
distributing the Library (or any work based on
the Library), you indicate your acceptance of this
License to do so, and all its terms and conditions
for copying, distributing or modifying the Library
or works based on it.
10.Each time you redistribute the Library (or any
work based on the Library), the recipient
automatically receives a license from the original
licensor to copy, distribute, link with or modify
the Library subject to these terms and
conditions. You may not impose any further
restrictions on the recipients’ exercise of the
rights granted herein. You are not responsible
for enforcing compliance by third parties with
this License.
11.If, as a consequence of a court judgment or
allegation of patent infringement or for any other
reason (not limited to patent issues), conditions
are imposed on you (whether by court order,
agreement or otherwise) that contradict the
conditions of this License, they do not excuse
you from the conditions of this License. If you
cannot distribute so as to satisfy simultaneously
your obligations under this License and any
other pertinent obligations, then as a
consequence you may not distribute the Library
at all. For example, if a patent license would not
permit royalty-free redistribution of the Library
by all those who receive copies directly or
indirectly through you, then the only way you
could satisfy both it and this License would be to
refrain entirely from distribution of the Library.
If any portion of this section is held invalid or
unenforceable under any particular
circumstance, the balance of the section is
intended to apply, and the section as a whole is
intended to apply in other circumstances.
It is not the purpose of this section to induce you
to infringe any patents or other property right
claims or to contest validity of any such claims;
this section has the sole purpose of protecting
the integrity of the free software distribution
system which is implemented by public license
practices. Many people have made generous
contributions to the wide range of software
distributed through that system in reliance on
consistent application of that system; it is up to
the author/donor to decide if he or she is willing
to distribute software through any other system
and a licensee cannot impose that choice.
ENGLISH
OPEN SOURCE LICENSE
149
This section is intended to make thoroughly
clear what is believed to be a consequence of
the rest of this License.
12.If the distribution and/or use of the Library is
restricted in certain countries either by patents
or by copyrighted interfaces, the original
copyright holder who places the Library under
this License may add an explicit geographical
distribution limitation excluding those countries,
so that distribution is permitted only in or among
countries not thus excluded. In such case, this
License incorporates the limitation as if written
in the body of this License.
13.The Free Software Foundation may publish
revised and/or new versions of the Lesser
General Public License from time to time. Such
new versions will be similar in spirit to the
present version, but may differ in detail to
address new problems or concerns.
Each version is given a distinguishing version
number. If the Library specifies a version
number of this License which applies to it and
“any later version”, you have the option of
following the terms and conditions either of that
version or of any later version published by the
Free Software Foundation. If the Library does
not specify a license version number, you may
choose any version ever published by the Free
Software Foundation.
14.If you wish to incorporate parts of the Library
into other free programs whose distribution
conditions are incompatible with these, write to
the author to ask for permission. For software
which is copyrighted by the Free Software
Foundation, write to the Free Software
Foundation; we sometimes make exceptions for
this. Our decision will be guided by the two
goals of preserving the free status of all
derivatives of our free software and of
promoting the sharing and reuse of software
generally.
NO WARRANTY
15.BECAUSE THE LIBRARY IS LICENSED FREE
OF CHARGE, THERE IS NO WARRANTY FOR
THE LIBRARY, TO THE EXTENT PERMITTED
BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE
COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE LIBRARY “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK AS
TO THE QUALITY AND PERFORMANCE OF
THE LIBRARY IS WITH YOU. SHOULD THE
LIBRARY PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.
16.IN NO EVENT UNLESS REQUIRED BY
APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR
ANY OTHER PARTY WHO MAY MODIFY AND/
OR REDISTRIBUTE THE LIBRARY AS
PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE LIBRARY (INCLUDING
BUT NOT LIMITED TO LOSS OF DATA OR
DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD
PARTIES OR A FAILURE OF THE LIBRARY TO
OPERATE WITH ANY OTHER SOFTWARE),
EVEN IF SUCH HOLDER OR OTHER PARTY
HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be
of the greatest possible use to the public, we
recommend making it free software that everyone
can redistribute and change. You can do so by
permitting redistribution under these terms (or,
alternatively, under the terms of the ordinary
General Public License).
To apply these terms, attach the following notices
to the library. It is safest to attach them to the start
of each source file to most effectively convey the
exclusion of warranty; and each file should have at
least the “copyright” line and a pointer to where
the full notice is found.
<one line to give the library’s name and an
idea of what it does.> Copyright (C) <year>
<name of author>
This library is free software; you can
redistribute it and/or modify it under the
terms of the GNU Lesser General Public
ENGLISH
150
OPEN SOURCE LICENSE
License as published by the Free Software
Foundation; either version 2.1 of the License,
or (at your option) any later version.
This library is distributed in the hope that it
will be useful, but WITHOUT ANY
WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS
FOR A PARTICULAR PURPOSE. See the
GNU Lesser General Public License for more
details.
You should have received a copy of the GNU
Lesser General Public License along with this
library; if not, write to the Free Software
Foundation, Inc., 59 Temple Place, Suite 330,
Boston, MA 02111-1307 USA
Also add information on how to contact you by
electronic and paper mail.
You should also get your employer (if you work as a
programmer) or your school, if any, to sign a
“copyright disclaimer” for the library, if necessary.
Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright
interest in the library ‘Frob’ (a library for
tweaking knobs) written by James Random
Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
Mozilla Public License 1.1 (MPL 1.1)
1. Definitions.
1.0.1. “Commercial Use”
means distribution or otherwise making the
Covered Code available to a third party.
1.1. “Contributor”
means each entity that creates or contributes
to the creation of Modifications.
1.2. “Contributor Version”
means the combination of the Original Code,
prior Modifications used by a Contributor, and
the Modifications made by that particular
Contributor.
1.3. “Covered Code”
means the Original Code or Modifications or
the combination of the Original Code and
Modifications, in each case including portions
thereof.
1.4. “Electronic Distribution Mechanism”
means a mechanism generally accepted in the
software development community for the
electronic transfer of data.
1.5. “Executable”
means Covered Code in any form other than
Source Code.
1.6. “Initial Developer”
means the individual or entity identified as the
Initial Developer in the Source Code notice
required by Exhibit A.
1.7. “Larger Work”
means a work which combines Covered Code
or portions thereof with code not governed by
the terms of this License.
1.8. “License”
means this document.
1.8.1. “Licensable”
means having the right to grant, to the
maximum extent possible, whether at the
time of the initial grant or subsequently
acquired, any and all of the rights conveyed
herein.
1.9. “Modifications”
means any addition to or deletion from the
substance or structure of either the Original
Code or any previous Modifications. When
Covered Code is released as a series of files, a
Modification is:
(a) Any addition to or deletion from the contents
of a file containing Original Code or previous
Modifications.
ENGLISH
OPEN SOURCE LICENSE
151
(b) Any new file that contains any part of the
Original Code or previous Modifications.
1.10. “Original Code”
means Source Code of computer software
code which is described in the Source Code
notice required by Exhibit A as Original Code,
and which, at the time of its release under this
License is not already Covered Code governed
by this License.
i 1.10.1. “Patent Claims”
means any patent claim(s), now owned or
hereafter acquired, including without limitation,
method, process, and apparatus claims, in any
patent Licensable by grantor.
1.11. “Source Code”
means the preferred form of the Covered Code
for making modifications to it, including all
modules it contains, plus any associated
interface definition files, scripts used to control
compilation and installation of an Executable,
or source code differential comparisons against
either the Original Code or another well known,
available Covered Code of the Contributor’s
choice. The Source Code can be in a
compressed or archival form, provided the
appropriate decompression or de-archiving
software is widely available for no charge.
1.12. “You” (or “Your”)
means an individual or a legal entity exercising
rights under, and complying with all of the
terms of, this License or a future version of this
License issued under Section 6.1. For legal
entities, “You” includes any entity which
controls, is controlled by, or is under common
control with You. For purposes of this
definition, “control” means (a) the power,
direct or indirect, to cause the direction or
management of such entity, whether by
contract or otherwise, or (b) ownership of more
than fifty percent (50%) of the outstanding
shares or beneficial ownership of such entity.
2. Source Code License.
2.1. The Initial Developer Grant.
The Initial Developer hereby grants You a
world-wide, royalty-free, non-exclusive license,
subject to third party intellectual property
claims:
(a) under intellectual property rights (other than
patent or trademark) Licensable by Initial
Developer to use, reproduce, modify, display,
perform, sublicense and distribute the
Original Code (or portions thereof) with or
without Modifications, and/or as part of a
Larger Work; and
(b) under Patents Claims infringed by the
making, using or selling of Original Code, to
make, have made, use, practice, sell, and
offer for sale, and/or otherwise dispose of the
Original Code (or portions thereof).
(c) the licenses granted in this Section 2.1(a) and
(b) are effective on the date Initial Developer
first distributes Original Code under the terms
of this License.
(d) Notwithstanding Section 2.1(b) above, no
patent license is granted: 1) for code that You
delete from the Original Code; 2) separate
from the Original Code; or 3) for
infringements caused by: i) the modification
of the Original Code or ii) the combination of
the Original Code with other software or
devices.
2.2. Contributor Grant.
Subject to third party intellectual property
claims, each Contributor hereby grants You a
world-wide, royalty-free, non-exclusive license
(a) under intellectual property rights (other than
patent or trademark) Licensable by
Contributor, to use, reproduce, modify,
display, perform, sublicense and distribute
the Modifications created by such Contributor
(or portions thereof) either on an unmodified
basis, with other Modifications, as Covered
Code and/or as part of a Larger Work; and
(b) under Patent Claims infringed by the making,
using, or selling of Modifications made by
that Contributor either alone and/or in
combination with its Contributor Version (or
portions of such combination), to make, use,
sell, offer for sale, have made, and/or
otherwise dispose of: 1) Modifications made
by that Contributor (or portions thereof); and
2) the combination of Modifications made by
that Contributor with its Contributor Version
(or portions of such combination).
(c) the licenses granted in Sections 2.2(a) and
2.2(b) are effective on the date Contributor
first makes Commercial Use of the Covered
Code.
(d) Notwithstanding Section 2.2(b) above, no
patent license is granted: 1) for any code that
Contributor has deleted from the Contributor
Version; 2) separate from the Contributor
Version; 3) for infringements caused by: i)
third party modifications of Contributor
Version or ii) the combination of Modifications
ENGLISH
152
OPEN SOURCE LICENSE
made by that Contributor with other software
(except as part of the Contributor Version) or
other devices; or 4) under Patent Claims
infringed by Covered Code in the absence of
Modifications made by that Contributor.
3. Distribution Obligations.
3.1. Application of License.
The Modifications which You create or to
which You contribute are governed by the
terms of this License, including without
limitation Section 2.2. The Source Code
version of Covered Code may be distributed
only under the terms of this License or a future
version of this License released under Section
6.1, and You must include a copy of this
License with every copy of the Source Code
You distribute. You may not offer or impose
any terms on any Source Code version that
alters or restricts the applicable version of this
License or the recipients’ rights hereunder.
However, You may include an additional
document offering the additional rights
described in Section 3.5.
3.2. Availability of Source Code.
Any Modification which You create or to which
You contribute must be made available in
Source Code form under the terms of this
License either on the same media as an
Executable version or via an accepted
Electronic Distribution Mechanism to anyone
to whom you made an Executable version
available; and if made available via Electronic
Distribution Mechanism, must remain available
for at least twelve (12) months after the date it
initially became available, or at least six (6)
months after a subsequent version of that
particular Modification has been made
available to such recipients. You are
responsible for ensuring that the Source Code
version remains available even if the Electronic
Distribution Mechanism is maintained by a
third party.
3.3. Description of Modifications.
You must cause all Covered Code to which
You contribute to contain a file documenting
the changes You made to create that Covered
Code and the date of any change. You must
include a prominent statement that the
Modification is derived, directly or indirectly,
from Original Code provided by the Initial
Developer and including the name of the Initial
Developer in (a) the Source Code, and (b) in any
notice in an Executable version or related
documentation in which You describe the
origin or ownership of the Covered Code.
3.4. Intellectual Property Matters
(a) Third Party Claims.
If Contributor has knowledge that a license
under a third party’s intellectual property
rights is required to exercise the rights
granted by such Contributor under Sections
2.1 or 2.2, Contributor must include a text file
with the Source Code distribution titled
“LEGAL” which describes the claim and the
party making the claim in sufficient detail that
a recipient will know whom to contact. If
Contributor obtains such knowledge after the
Modification is made available as described in
Section 3.2, Contributor shall promptly modify
the LEGAL file in all copies Contributor makes
available thereafter and shall take other steps
(such as notifying appropriate mailing lists or
newsgroups) reasonably calculated to inform
those who received the Covered Code that
new knowledge has been obtained.
(b) Contributor APIs.
If Contributor’s Modifications include an
application programming interface and
Contributor has knowledge of patent licenses
which are reasonably necessary to
implement that API, Contributor must also
include this information in the LEGAL file.
(c) Representations.
Contributor represents that, except as
disclosed pursuant to Section 3.4(a) above,
Contributor believes that Contributor’s
Modifications are Contributor’s original
creation(s) and/or Contributor has sufficient
rights to grant the rights conveyed by this
License.
3.5. Required Notices.
You must duplicate the notice in Exhibit A in
each file of the Source Code. If it is not
possible to put such notice in a particular
Source Code file due to its structure, then You
must include such notice in a location (such as
a relevant directory) where a user would be
likely to look for such a notice. If You created
one or more Modification(s) You may add your
name as a Contributor to the notice described
in Exhibit A. You must also duplicate this
License in any documentation for the Source
Code where You describe recipients’ rights or
ownership rights relating to Covered Code. You
may choose to offer, and to charge a fee for,
warranty, support, indemnity or liability
obligations to one or more recipients of
ENGLISH
OPEN SOURCE LICENSE
153
Covered Code. However, You may do so only
on Your own behalf, and not on behalf of the
Initial Developer or any Contributor You must
make it absolutely clear than any such
warranty, support, indemnity or liability
obligation is offered by You alone, and You
hereby agree to indemnify the Initial Developer
and every Contributor for any liability incurred
by the Initial Developer or such Contributor as
a result of warranty, support, indemnity or
liability terms You offer.
3.6. Distribution of Executable Versions.
You may distribute Covered Code in
Executable form only if the requirements of
Section 3.1-3.5 have been met for that
Covered Code, and if You include a notice
stating that the Source Code version of the
Covered Code is available under the terms of
this License, including a description of how and
where You have fulfilled the obligations of
Section 3.2. The notice must be conspicuously
included in any notice in an Executable version,
related documentation or collateral in which
You describe recipients’ rights relating to the
Covered Code. You may distribute the
Executable version of Covered Code or
ownership rights under a license of Your
choice, which may contain terms different
from this License, provided that You are in
compliance with the terms of this License and
that the license for the Executable version
does not attempt to limit or alter the recipient’s
rights in the Source Code version from the
rights set forth in this License. If You distribute
the Executable version under a different
license You must make it absolutely clear that
any terms which differ from this License are
offered by You alone, not by the Initial
Developer or any Contributor. You hereby
agree to indemnify the Initial Developer and
every Contributor for any liability incurred by
the Initial Developer or such Contributor as a
result of any such terms You offer.
3.7. Larger Works.
You may create a Larger Work by combining
Covered Code with other code not governed
by the terms of this License and distribute the
Larger Work as a single product. In such a
case, You must make sure the requirements of
this License are fulfilled for the Covered Code.
4. Inability to Comply Due to Statute or Regulation.
If it is impossible for You to comply with any of
the terms of this License with respect to some
or all of the Covered Code due to statute, judicial
order, or regulation then You must: (a) comply
with the terms of this License to the maximum
extent possible; and (b) describe the limitations
and the code they affect. Such description must
be included in the LEGAL file described in
Section 3.4 and must be included with all
distributions of the Source Code. Except to the
extent prohibited by statute or regulation, such
description must be sufficiently detailed for a
recipient of ordinary skill to be able to
understand it.
5. Application of this License.
This License applies to code to which the Initial
Developer has attached the notice in Exhibit A
and to related Covered Code.
6. Versions of the License.
6.1. New Versions.
Netscape Communications Corporation
(“Netscape”) may publish revised and/or new
versions of the License from time to time.
Each version will be given a distinguishing
version number.
6.2. Effect of New Versions.
Once Covered Code has been published under
a particular version of the License, You may
always continue to use it under the terms of
that version. You may also choose to use such
Covered Code under the terms of any
subsequent version of the License published
by Netscape. No one other than Netscape has
the right to modify the terms applicable to
Covered Code created under this License.
6.3. Derivative Works.
If You create or use a modified version of this
License (which you may only do in order to
apply it to code which is not already Covered
Code governed by this License), You must (a)
rename Your license so that the phrases
“Mozilla”, “MOZILLAPL”, “MOZPL”,
“Netscape”, “MPL”, “NPL” or any
confusingly similar phrase do not appear in
your license (except to note that your license
differs from this License) and (b) otherwise
make it clear that Your version of the license
contains terms which differ from the Mozilla
Public License and Netscape Public License.
(Filling in the name of the Initial Developer,
Original Code or Contributor in the notice
described in Exhibit A shall not of themselves
be deemed to be modifications of this
License.)
ENGLISH
154
OPEN SOURCE LICENSE
7. DISCLAIMER OF WARRANTY.
COVERED CODE IS PROVIDED UNDER THIS
LICENSE ON AN “AS IS” BASIS, WITHOUT
WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING,
WITHOUT LIMITATION, WARRANTIES THAT
THE COVERED CODE IS FREE OF DEFECTS,
MERCHANTABLE, FIT FOR A PARTICULAR
PURPOSE OR NON-INFRINGING. THE ENTIRE
RISK AS TO THE QUALITY AND
PERFORMANCE OF THE COVERED CODE IS
WITH YOU. SHOULD ANY COVERED CODE
PROVE DEFECTIVE IN ANY RESPECT, YOU
(NOT THE INITIAL DEVELOPER OR ANY
OTHER CONTRIBUTOR) ASSUME THE COST
OF ANY NECESSARY SERVICING, REPAIR OR
CORRECTION. THIS DISCLAIMER OF
WARRANTY CONSTITUTES AN ESSENTIAL
PART OF THIS LICENSE. NO USE OF ANY
COVERED CODE IS AUTHORIZED
HEREUNDER EXCEPT UNDER THIS
DISCLAIMER.
8. TERMINATION.
8.1. This License and the rights granted hereunder
will terminate automatically if You fail to comply
with terms herein and fail to cure such breach
within 30 days of becoming aware of the breach.
All sublicenses to the Covered Code which are
properly granted shall survive any termination of
this License. Provisions which, by their nature,
must remain in effect beyond the termination of
this License shall survive.
8.2. If You initiate litigation by asserting a patent
infringement claim (excluding declatory
judgment actions) against Initial Developer or a
Contributor (the Initial Developer or Contributor
against whom You file such action is referred to
as “Participant”) alleging that:
(a) such Participant’s Contributor Version directly
or indirectly infringes any patent, then any
and all rights granted by such Participant to
You under Sections 2.1 and/or 2.2 of this
License shall, upon 60 days notice from
Participant terminate prospectively, unless if
within 60 days after receipt of notice You
either: (i) agree in writing to pay Participant a
mutually agreeable reasonable royalty for
Your past and future use of Modifications
made by such Participant, or (ii) withdraw
Your litigation claim with respect to the
Contributor Version against such Participant.
If within 60 days of notice, a reasonable
royalty and payment arrangement are not
mutually agreed upon in writing by the parties
or the litigation claim is not withdrawn, the
rights granted by Participant to You under
Sections 2.1 and/or 2.2 automatically
terminate at the expiration of the 60 day
notice period specified above.
(b) any software, hardware, or device, other than
such Participant’s Contributor Version,
directly or indirectly infringes any patent, then
any rights granted to You by such Participant
under Sections 2.1(b) and 2.2(b) are revoked
effective as of the date You first made, used,
sold, distributed, or had made, Modifications
made by that Participant.
8.3. If You assert a patent infringement claim
against Participant alleging that such
Participant’s Contributor Version directly or
indirectly infringes any patent where such claim
is resolved (such as by license or settlement)
prior to the initiation of patent infringement
litigation, then the reasonable value of the
licenses granted by such Participant under
Sections 2.1 or 2.2 shall be taken into account in
determining the amount or value of any payment
or license. 8.4. In the event of termination under
Sections 8.1 or 8.2 above, all end user license
agreements (excluding distributors and resellers)
which have been validly granted by You or any
distributor hereunder prior to termination shall
survive termination.
9. LIMITATION OF LIABILITY.
UNDER NO CIRCUMSTANCES AND UNDER
NO LEGAL THEORY, WHETHER TORT
(INCLUDING NEGLIGENCE), CONTRACT, OR
OTHERWISE, SHALL YOU, THE INITIAL
DEVELOPER, ANY OTHER CONTRIBUTOR, OR
ANY DISTRIBUTOR OF COVERED CODE, OR
ANY SUPPLIER OF ANY OF SUCH PARTIES, BE
LIABLE TO ANY PERSON FOR ANY INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES OF ANY CHARACTER INCLUDING,
WITHOUT LIMITATION, DAMAGES FOR LOSS
OF GOODWILL, WORK STOPPAGE,
COMPUTER FAILURE OR MALFUNCTION, OR
ANY AND ALL OTHER COMMERCIAL
DAMAGES OR LOSSES, EVEN IF SUCH PARTY
SHALL HAVE BEEN INFORMED OF THE
POSSIBILITY OF SUCH DAMAGES. THIS
LIMITATION OF LIABILITY SHALL NOT APPLY
TO LIABILITY FOR DEATH OR PERSONAL
INJURY RESULTING FROM SUCH PARTY’S
NEGLIGENCE TO THE EXTENT APPLICABLE
LAW PROHIBITS SUCH LIMITATION. SOME
JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL
ENGLISH
OPEN SOURCE LICENSE
155
OR CONSEQUENTIAL DAMAGES, SO THIS
EXCLUSION AND LIMITATION MAY NOT
APPLY TO YOU.
10.U.S. GOVERNMENT END USERS.
The Covered Code is a “commercial item,” as
that term is defined in 48 C.F.R. 2.101 (Oct.
1995), consisting of “commercial computer
software” and “commercial computer software
documentation,” as such terms are used in 48
C.F.R. 12.212 (Sept. 1995). Consistent with 48
C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through
227.7202-4 (June 1995), all U.S. Government
End Users acquire Covered Code with only
those rights set forth herein.
11.MISCELLANEOUS.
This License represents the complete
agreement concerning subject matter hereof. If
any provision of this License is held to be
unenforceable, such provision shall be reformed
only to the extent necessary to make it
enforceable. This License shall be governed by
California law provisions (except to the extent
applicable law, if any, provides otherwise),
excluding its conflict-oflaw provisions. With
respect to disputes in which at least one party is
a citizen of, or an entity chartered or registered
to do business in the United States of America,
any litigation relating to this License shall be
subject to the jurisdiction of the Federal Courts
of the Northern District of California, with venue
lying in Santa Clara County, California, with the
losing party responsible for costs, including
without limitation, court costs and reasonable
attorneys’ fees and expenses. The application of
the United Nations Convention on Contracts for
the International Sale of Goods is expressly
excluded. Any law or regulation which provides
that the language of a contract shall be
construed against the drafter shall not apply to
this License.
12.RESPONSIBILITY FOR CLAIMS.
As between Initial Developer and the
Contributors, each party is responsible for claims
and damages arising, directly or indirectly, out of
its utilization of rights under this License and
You agree to work with Initial Developer and
Contributors to distribute such responsibility on
an equitable basis. Nothing herein is intended or
shall be deemed to constitute any admission of
liability.
13.MULTIPLE-LICENSED CODE.
Initial Developer may designate portions of the
Covered Code as Multiple-Licensed. Multiple-
Licensed means that the Initial Developer
permits you to utilize portions of the Covered
Code under Your choice of the MPL or the
alternative licenses, if any, specified by the Initial
Developer in the file described in Exhibit A.
EXHIBIT A -Mozilla Public License.
“The contents of this file are subject to the Mozilla
Public License Version 1.1 (the “License”); you
may not use this file except in compliance with the
License. You may obtain a copy of the License at
http://www.mozilla.org/MPL/
Software distributed under the License is
distributed on an “AS IS”basis, WITHOUT
WARRANTY OF ANY KIND, either express or
implied. See the License for the specific language
governing rights and limitations under the License.
The Original Code is _______________________.
The Initial Developer of the Original Code is
________________________.
Portions created by ______________________ are
Copyright (C) _______________________.
All Rights Reserved.
Contributor(s): ________________________.
Alternatively, the contents of this file may be used
under the terms of the _____ license (the [___]
License), in which case the provisions of [______]
License are applicable instead of those above.If you
wish to allow use of your version of this file only
under the terms of the [____] License and not to
allow others to use your version of this file under
the MPL, indicate your decision by deleting the
provisions above and replace them with the notice
and other provisions required by the [___] License.
If you do not delete the provisions above, a
recipient may use your version of this file under
either the MPL or the [___] License.”
[NOTE: The text of this Exhibit A may differ slightly
from the text of the notices in the Source Code
files of the Original Code. You should use the text
of this Exhibit A rather than the text found in the
Original Code Source Code for Your Modifications.]
ENGLISH
156
OPEN SOURCE LICENSE
Apache License Version 2.0
Apache License
Version 2.0, January 2004
http://www.apache.org/licenses/
TERMS AND CONDITIONS FOR USE,
REPRODUCTION, AND DISTRIBUTION
1. Definitions.
“License” shall mean the terms and conditions
for use, reproduction, and distribution as defined
by Sections 1 through 9 of this document.
“Licensor” shall mean the copyright owner or
entity authorized by the copyright owner that is
granting the License.
“Legal Entity” shall mean the union of the acting
entity and all other entities that control, are
controlled by, or are under common control with
that entity. For the purposes of this definition,
“control” means (i) the power, direct or indirect,
to cause the direction or management of such
entity, whether by contract or otherwise, or (ii)
ownership of fifty percent (50%) or more of the
outstanding shares, or (iii) beneficial ownership
of such entity.
“You” (or “Your”) shall mean an individual or
Legal Entity exercising permissions granted by
this License.
“Source” form shall mean the preferred form for
making modifications, including but not limited
to software source code, documentation source,
and configuration files.
“Object” form shall mean any form resulting
from mechanical transformation or translation of
a Source form, including but not limited to
compiled object code, generated
documentation, and conversions to other media
types.
“Work” shall mean the work of authorship,
whether in Source or Object form, made
available under the License, as indicated by a
copyright notice that is included in or attached to
the work (an example is provided in the
Appendix below).
“Derivative Works” shall mean any work,
whether in Source or Object form, that is based
on (or derived from) the Work and for which the
editorial revisions, annotations, elaborations, or
other modifications represent, as a whole, an
original work of authorship. For the purposes of
this License, Derivative Works shall not include
works that remain separable from, or merely link
(or bind by name) to the interfaces of, the Work
and Derivative Works thereof.
“Contribution” shall mean any work of
authorship, including the original version of the
Work and any modifications or additions to that
Work or Derivative Works thereof, that is
intentionally submitted to Licensor for inclusion
in the Work by the copyright owner or by an
individual or Legal Entity authorized to submit on
behalf of the copyright owner. For the purposes
of this definition, “submitted” means any form
of electronic, verbal, or written communication
sent to the Licensor or its representatives,
including but not limited to communication on
electronic mailing lists, source code control
systems, and issue tracking systems that are
managed by, or on behalf of, the Licensor for the
purpose of discussing and improving the Work,
but excluding communication that is
conspicuously marked or otherwise designated
in writing by the copyright owner as “Not a
Contribution.”
“Contributor” shall mean Licensor and any
individual or Legal Entity on behalf of whom a
Contribution has been received by Licensor and
subsequently incorporated within the Work.
2. Grant of Copyright License. Subject to the terms
and conditions of this License, each Contributor
hereby grants to You a perpetual, worldwide,
non-exclusive, no-charge, royalty-free,
irrevocable copyright license to reproduce,
prepare Derivative Works of, publicly display,
publicly perform, sublicense, and distribute the
Work and such Derivative Works in Source or
Object form.
3. Grant of Patent License. Subject to the terms
and conditions of this License, each Contributor
hereby grants to You a perpetual, worldwide,
non-exclusive, no-charge, royalty-free,
irrevocable (except as stated in this section)
patent license to make, have made, use, offer to
sell, sell, import, and otherwise transfer the
Work, where such license applies only to those
patent claims licensable by such Contributor that
are necessarily infringed by their Contribution(s)
alone or by combination of their Contribution(s)
with the Work to which such Contribution(s)
was submitted. If You institute patent litigation
against any entity (including a cross-claim or
counterclaim in a lawsuit) alleging that the Work
or a Contribution incorporated within the Work
constitutes direct or contributory patent
infringement, then any patent licenses granted
to You under this License for that Work shall
terminate as of the date such litigation is filed.
ENGLISH
OPEN SOURCE LICENSE
157
4. Redistribution. You may reproduce and
distribute copies of the Work or Derivative
Works thereof in any medium, with or without
modifications, and in Source or Object form,
provided that You meet the following conditions:
(a)You must give any other recipients of the
Work or Derivative Works a copy of this
License; and
(b)You must cause any modified files to carry
prominent notices stating that You changed
the files; and
(c)You must retain, in the Source form of any
Derivative Works that You distribute, all
copyright, patent, trademark, and attribution
notices from the Source form of the Work,
excluding those notices that do not pertain to
any part of the Derivative Works; and
(d)If the Work includes a “NOTICE” text file as
part of its distribution, then any Derivative
Works that You distribute must include a
readable copy of the attribution notices
contained within such NOTICE file, excluding
those notices that do not pertain to any part of
the Derivative Works, in at least one of the
following places: within a NOTICE text file
distributed as part of the Derivative Works;
within the Source form or documentation, if
provided along with the Derivative Works; or,
within a display generated by the Derivative
Works, if and wherever such third-party
notices normally appear. The contents of the
NOTICE file are for informational purposes
only and do not modify the License. You may
add Your own attribution notices within
Derivative Works that You distribute,
alongside or as an addendum to the NOTICE
text from the Work, provided that such
additional attribution notices cannot be
construed as modifying the License.
You may add Your own copyright statement to
Your modifications and may provide additional or
different license terms and conditions for use,
reproduction, or distribution of Your
modifications, or for any such Derivative Works
as a whole, provided Your use, reproduction,
and distribution of the Work otherwise complies
with the conditions stated in this License.
5. Submission of Contributions. Unless You
explicitly state otherwise, any Contribution
intentionally submitted for inclusion in the Work
by You to the Licensor shall be under the terms
and conditions of this License, without any
additional terms or conditions. Notwithstanding
the above, nothing herein shall supersede or
modify the terms of any separate license
agreement you may have executed with
Licensor regarding such Contributions.
6. Trademarks. This License does not grant
permission to use the trade names, trademarks,
service marks, or product names of the
Licensor, except as required for reasonable and
customary use in describing the origin of the
Work and reproducing the content of the
NOTICE file.
7. Disclaimer of Warranty. Unless required by
applicable law or agreed to in writing, Licensor
provides the Work (and each Contributor
provides its Contributions) on an “AS IS” BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF
ANY KIND, either express or implied, including,
without limitation, any warranties or conditions
of TITLE, NON-INFRINGEMENT,
MERCHANTABILITY, or FITNESS FOR A
PARTICULAR PURPOSE. You are solely
responsible for determining the appropriateness
of using or redistributing the Work and assume
any risks associated with Your exercise of
permissions under this License.
8. Limitation of Liability. In no event and under no
legal theory, whether in tort (including
negligence), contract, or otherwise, unless
required by applicable law (such as deliberate
and grossly negligent acts) or agreed to in
writing, shall any Contributor be liable to You for
damages, including any direct, indirect, special,
incidental, or consequential damages of any
character arising as a result of this License or
out of the use or inability to use the Work
(including but not limited to damages for loss of
goodwill, work stoppage, computer failure or
malfunction, or any and all other commercial
damages or losses), even if such Contributor has
been advised of the possibility of such damages.
9. Accepting Warranty or Additional Liability. While
redistributing the Work or Derivative Works
thereof, You may choose to offer, and charge a
fee for, acceptance of support, warranty,
indemnity, or other liability obligations and/or
rights consistent with this License. However, in
accepting such obligations, You may act only on
Your own behalf and on Your sole responsibility,
not on behalf of any other Contributor, and only
if You agree to indemnify, defend, and hold each
Contributor harmless for any liability incurred by,
or claims asserted against, such Contributor by
ENGLISH
158
OPEN SOURCE LICENSE
reason of your accepting any such warranty or
additional liability.
END OF TERMS AND CONDITIONS
MIT license
- cares
Copyright 1998 by the Massachusetts Institute of
Technology.
Permission to use, copy, modify, and distribute
this software and its documentation for any
purpose and without fee is hereby granted,
provided that the above copyright notice appear in
all copies and that both that copyright notice and
this permission notice appear in supporting
documentation, and that the name of M.I.T. not
be used in advertising or publicity pertaining to
distribution of the software without specific,
written prior permission. M.I.T. makes no
representations about the suitability of this
software for any purpose.
It is provided “as is” without express or implied
warranty.
- curl
Copyright (C) 1998 - 2005, Daniel Stenberg,
This software is licensed as described in the file
COPYING, which you should have received as
part of this distribution. The terms are also
available at http://curl.haxx.se/docs/copyright.
html. You may opt to use, copy, modify, merge,
publish, distribute and/or sell copies of the
Software, and permit persons to whom the
Software is furnished to do so, under the terms of
the COPYING file.
This software is distributed on an “AS IS” basis,
WITHOUT WARRANTY OF ANY KIND, either
express or implied.
- fontconfig
Copyright (c) 2000 Keith Packard
Copyright (c) 2005 Patrick Lam
Permission to use, copy, modify, distribute, and
sell this software and its documentation for any
purpose is hereby granted without fee, provided
that the above copyright notice appear in all
copies and that both that copyright notice and this
permission notice appear in supporting
documentation, and that the name of Keith
Packard not be used in advertising or publicity
pertaining to distribution of the software without
specific, written prior permission. Keith Packard
makes no representations about the suitability of
this software for any purpose.
It is provided “as is” without express or implied
warranty.
KEITH PACKARD DISCLAIMS ALL WARRANTIES
WITH REGARD TO THIS SOFTWARE,
INCLUDING ALL IMPLIED WARRANTIES OF
ENGLISH
OPEN SOURCE LICENSE
159
MERCHANTABILITY AND FITNESS, IN NO
EVENT SHALL KEITH PACKARD BE LIABLE FOR
ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES OR ANY DAMAGES WHATSOEVER
RESULTING FROM LOSS OF USE, DATA OR
PROFITS, WHETHER IN AN ACTION OF
CONTRACT, NEGLIGENCE OR OTHER
TORTIOUS ACTION, ARISING OUT OF OR IN
CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE.
- libcurl
Copyright (c) 1996 - 2010, Daniel Stenberg,
All rights reserved.
Permission to use, copy, modify, and distribute
this software for any purpose with or without fee
is hereby granted, provided that the above
copyright notice and this permission notice
appear in all copies.
THE SOFTWARE IS PROVIDED “AS IS”,
WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OF THIRD PARTY RIGHTS.
IN NO EVENT SHALL THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR ANY
CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT, TORT
OR OTHERWISE, ARISING FROM, OUT OF OR
IN CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
Except as contained in this notice, the name of a
copyright holder shall not be used in advertising or
otherwise to promote the sale, use or other
dealings in this Software without prior written
authorization of the copyright holder.
- libxml2
Copyright (C) 1998-2003 Daniel Veillard. All Rights
Reserved.
Permission is hereby granted, free of charge, to
any person obtaining a copy of this software and
associated documentation files (the “Software”),
to deal in the Software without restriction,
including without limitation the rights to use,
copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is
furnished to do so, subject to the following
conditions:
The above copyright notice and this permission
notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”,
WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE
DANIEL VEILLARD BE LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY, WHETHER IN
AN ACTION OF CONTRACT, TORT OR
OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE
USE OR OTHER DEALINGS IN THE SOFTWARE.
Except as contained in this notice, the name of
Daniel Veillard shall not be used in advertising or
otherwise to promote the sale, use or other
dealings in this Software without prior written
authorization from him
- libxslt
Copyright (C) 2001-2002 Daniel Veillard.
Copyright (C) 2001-2002 Thomas Broyer, Charlie
Bozeman and Daniel Veillard.
All Rights Reserved.
Permission is hereby granted, free of charge, to
any person obtaining a copy of this software and
associated documentation files (the “Software”),
to deal in the Software without restriction,
including without limitation the rights to use,
copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is
furnished to do so, subject to the following
conditions:
The above copyright notice and this permission
notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”,
WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE, ARISING
FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS
IN THE SOFTWARE.
Except as contained in this notice, the name of
Daniel Veillard shall not be used in advertising or
otherwise to promote the sale, use or other
dealings in this Software without prior written
authorization from him.
- lua interpreter
ENGLISH
160
OPEN SOURCE LICENSE
Copyright © 1994–2010 Lua.org, PUC-Rio.
Permission is hereby granted, free of charge, to
any person obtaining a copy of this software and
associated documentation files (the “Software”),
to deal in the Software without restriction,
including without limitation the rights to use,
copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is
furnished to do so, subject to the following
conditions:
The above copyright notice and this permission
notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”,
WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE, ARISING
FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS
IN THE SOFTWARE.
Expat license
The source package was downloaded from <URL:
http://expat.sourceforge.net>.
The original packager is Adam Di Carlo
The current maintainer is Ardo van Rangelrooij
Copyright (c) 1998, 1999, 2000 Thai Open Source
Software Center Ltd and Clark Cooper
Copyright (c) 2001, 2002, 2003, 2004, 2005, 2006
Expat maintainers.
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and
associated documentation files (the “Software”), to
deal in the Software without restriction, including
without limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to
whom the Software is furnished to do so, subject
to the following conditions:
The above copyright notice and this permission
notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”,
WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE
FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE, ARISING
FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS
IN THE SOFTWARE.
ENGLISH
OPEN SOURCE LICENSE
161
The FreeType Project LICENSE
Copyright 1996-2002, 2006 by David Turner, Robert
Wilhelm, and Werner Lemberg
Introduction
The FreeType Project is distributed in several
archive packages; some of them may contain, in
addition to the FreeType font engine, various tools
and contributions which rely on, or relate to, the
FreeType Project.
This license applies to all files found in such
packages, and which do not fall under their own
explicit license. The license affects thus the
FreeType font engine, the test programs,
documentation and makefiles, at the very least.
This license was inspired by the BSD, Artistic, and
IJG (Independent JPEG Group) licenses, which all
encourage inclusion and use of free software in
commercial and freeware products alike. As a
consequence, its main points are that:
- We don’t promise that this software works.
However, we will be interested in any kind of
bug reports. (‘as is’ distribution)
- You can use this software for whatever you
want, in parts or full form, without having to
pay us. (‘royalty-free’ usage)
- You may not pretend that you wrote this
software. If you use it, or only parts of it, in a
program, you must acknowledge somewhere
in your documentation that you have used the
FreeType code. (‘credits’)
We specifically permit and encourage the inclusion
of this software, with or without modifications, in
commercial products. We disclaim all warranties
covering The FreeType Project and assume no
liability related to The FreeType Project.
Finally, many people asked us for a preferred form
for a credit/disclaimer to use in compliance with
this license. We thus encourage you to use the
following text:
Portions of this software are copyright
<year> The FreeType Project (www.freetype.
org). All rights reserved.
Please replace <year> with the value from the
FreeType version you actually use.
Legal Terms
0. Definitions
Throughout this license, the terms ‘package’,
‘FreeType Project’ and ‘FreeType archive’ refer
to the set of files originally distributed by the
authors (David Turner, Robert Wilhelm, and
Werner Lemberg) as the ‘FreeType Project’, be
they named as alpha, beta or final release.
‘You’ refers to the licensee, or person using
the project, where ‘using’ is a generic term
including compiling the project’s source code
as well as linking it to form a ‘program’ or
‘executable’. This program is referred to as ‘a
program using the FreeType engine’.
This license applies to all files distributed in the
original FreeType Project, including all source
code, binaries and documentation, unless
otherwise stated in the file in its original,
unmodified form as distributed in the original
archive. If you are unsure whether or not a
particular file is covered by this license, you
must contact us to verify this.
The FreeType Project is copyright (C) 1996-
2000 by David Turner, Robert Wilhelm, and
Werner Lemberg. All rights reserved except as
specified below.
1. No Warranty
THE FREETYPE PROJECT IS PROVIDED ‘AS
IS’ WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT WILL
ANY OF THE AUTHORS OR COPYRIGHT
HOLDERS BE LIABLE FOR ANY DAMAGES
CAUSED BY THE USE OR THE INABILITY TO
USE, OF THE FREETYPE PROJECT.
2. Redistribution
This license grants a worldwide, royalty-free,
perpetual and irrevocable right and license to
use, execute, perform, compile, display, copy,
create derivative works of, distribute and
sublicense the FreeType Project (in both
source and object code forms) and derivative
works thereof for any purpose; and to
authorize others to exercise some or all of the
rights granted herein, subject to the following
conditions:
- Redistribution of source code must retain
this license file (‘FTL.TXT’) unaltered; any
additions, deletions or changes to the original
files must be clearly indicated in accompanying
documentation. The copyright notices of the
unaltered, original files must be preserved in all
copies of source files.
ENGLISH
162
OPEN SOURCE LICENSE
- Redistribution in binary form must provide a
disclaimer that states that the software is
based in part of the work of the FreeType
Team, in the distribution documentation. We
also encourage you to put an URL to the
FreeType web page in your documentation,
though this isn’t mandatory.
These conditions apply to any software derived
from or based on the FreeType Project, not just
the unmodified files. If you use our work, you
must acknowledge us. However, no fee need
be paid to us.
3. Advertising
Neither the FreeType authors and contributors
nor you shall use the name of the other for
commercial, advertising, or promotional
purposes without specific prior written
permission. We suggest, but do not require,
that you use one or more of the following
phrases to refer to this software in your
documentation or advertising materials:
‘FreeType Project’, ‘FreeType Engine’,
‘FreeType library’, or ‘FreeType Distribution’.
As you have not signed this license, you are
not required to accept it. However, as the
FreeType Project is copyrighted material, only
this license, or another one contracted with the
authors, grants you the right to use, distribute,
and modify it. Therefore, by using, distributing,
or modifying the FreeType Project, you indicate
that you understand and accept all the terms of
this license.
4. Contacts
There are two mailing lists related to FreeType:
Discusses general use and applications of
FreeType, as well as future and wanted
additions to the library and distribution. If you
are looking for support, start in this list if you
haven’t found anything to help you in the
documentation.
Discusses bugs, as well as engine internals,
design issues, specific licenses, porting, etc.
Our home page can be found at http://www.
freetype.org
JPEG license
This software is copyright (C) 1991-1998, Thomas
G. Lane.
All Rights Reserved except as specified below.
Permission is hereby granted to use, copy, modify,
and distribute this software (or portions thereof) for
any purpose, without fee, subject to these
conditions:
(1) If any part of the source code for this software
is distributed, then this README file must be
included, with this copyright and no-warranty
notice unaltered; and any additions, deletions,
or changes to the original files must be clearly
indicated in accompanying documentation.
(2) If only executable code is distributed, then the
accompanying documentation must state that
“this software is based in part on the work of
the Independent JPEG Group”.
(3) Permission for use of this software is granted
only if the user accepts full responsibility for any
undesirable consequences; the authors accept
NO LIABILITY for damages of any kind.
ENGLISH
OPEN SOURCE LICENSE
163
OpenSSL License
Copyright (c) 1998-2008 The OpenSSL Project. All
rights reserved.
Redistribution and use in source and binary forms,
with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
2. Redistributions in binary form must reproduce
the above copyright notice, this list of conditions
and the following disclaimer in the
documentation and/or other materials provided
with the distribution.
3. All advertising materials mentioning features or
use of this software must display the following
acknowledgment: “This product includes
software developed by the OpenSSL Project for
use in the OpenSSL Toolkit. (http://www.
openssl.org/)”
4. The names “OpenSSL Toolkit” and “OpenSSL
Project” must not be used to endorse or
promote products derived from this software
without prior written permission. For written
permission, please contact openssl-
5. Products derived from this software may not be
called “OpenSSL” nor may “OpenSSL” appear
in their names without prior written permission
of the OpenSSL Project.
6. Redistributions of any form whatsoever must
retain the following acknowledgment:
“This product includes software developed by
the OpenSSL Project for use in the OpenSSL
Toolkit (http://www.openssl.org/)”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL
PROJECT “AS IS” AND ANY EXPRESSED OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE OpenSSL PROJECT OR ITS
CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software
This product includes software written by Tim
Hudson ([email protected]).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young
This package is an SSL implementation written by
The implementation was written so as to conform
with Netscapes SSL.
This library is free for commercial and non-
commercial use as long as the following conditions
are aheared to. The following conditions apply to all
code found in this distribution, be it the RC4, RSA,
lhash, DES, etc., code; not just the SSL code. The
SSL documentation included with this distribution
is covered by the same copyright terms except that
Copyright remains Eric Young’s, and as such any
Copyright notices in the code are not to be
removed. If this package is used in a product, Eric
Young should be given attribution as the author of
the parts of the library used. This can be in the form
of a textual message at program startup or in
documentation (online or textual) provided with the
package.
Redistribution and use in source and binary forms,
with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the
copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce
the above copyright notice, this list of conditions
and the following disclaimer in the
documentation and/or other materials provided
with the distribution.
3. All advertising materials mentioning features or
use of this software must display the following
acknowledgement:
“This product includes cryptographic software
ENGLISH
164
OPEN SOURCE LICENSE
The word ‘cryptographic’ can be left out if the
rouines from the library being used are not
cryptographic related :-).
4. If you include any Windows specific code (or a
derivative thereof) from the apps directory
(application code) you must include an
acknowledgement:
“This product includes software written by Tim
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG
“AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE AUTHOR OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publically
available version or derivative of this code cannot
be changed. i.e. this code cannot simply be copied
and put under another distribution licence [including
the GNU Public Licence.]
zlib/libpng License
This product may contain open source software
licensed under zlib/libpng License.
Libmng : Copyright © 2000-2008 Gerard Juyn
Libpng : Copyright (c) 1998-2008 Glenn Randers-
Pehrson
(Version 0.96 Copyright (c) 1996, 1997 Andreas
Dilger)
(Version 0.88 Copyright (c) 1995, 1996 Guy Eric
Schalnat, Group 42, Inc.)
Zlib : Copyright (C) 1995-2010 Jean-loup Gailly and
Mark Adler
This software is provided ‘as-is’, without any
express or implied warranty. In no event will the
authors be held liable for any damages arising from
the use of this software.
Permission is granted to anyone to use this
software for any purpose, including commercial
applications, and to alter it and redistribute it freely,
subject to the following restrictions:
1. The origin of this software must not be
misrepresented; you must not claim that you
wrote the original software. If you use this
software in a product, an acknowledgment in
the product documentation would be
appreciated but is not required.
2. Altered source versions must be plainly marked
as such, and must not be misrepresented as
being the original software.
3. This notice may not be removed or altered from
any source distribution.
Jean-loup Gailly
Mark Adler
ENGLISH
OPEN SOURCE LICENSE
165
Portmap license
Most of the files, fall under the following copyright,
and are distributable under the terms of the BSD
license.
Copyright (c) 1983,1991 The Regents of the
University of California. All rights reserved.
Some of the RPC code, is copyrighted by Sun
Microsystems, and is provided under the following
terms:
Sun RPC is a product of Sun Microsystems, Inc.
and is provided for unrestricted use provided that
this legend is included on all tape media and as a
part of the software program in whole or part.
Users may copy or modify Sun RPC without
charge, but are not authorized to license or
distribute it to anyone else except as part of a
product or program developed by the user or with
the express written consent of Sun Microsystems,
Inc.
SUN RPC IS PROVIDED AS IS WITH NO
WARRANTIES OF ANY KIND INCLUDING THE
WARRANTIES OF DESIGN, MERCHANTIBILITY
AND FITNESS FOR A PARTICULAR PURPOSE, OR
ARISING FROM A COURSE OF DEALING, USAGE
OR TRADE PRACTICE.
Sun RPC is provided with no support and without
any obligation on the part of Sun Microsystems,
Inc. to assist in its use, correction, modification or
enhancement.
SUN MICROSYSTEMS, INC. SHALL HAVE NO
LIABILITY WITH RESPECT TO THE
INFRINGEMENT OF COPYRIGHTS, TRADE
SECRETS OR ANY PATENTS BY SUN RPC OR
ANY PART THEREOF.
In no event will Sun Microsystems, Inc. be liable for
any lost revenue or profits or other special, indirect
and consequential damages, even if Sun has been
advised of the possibility of such damages.
Sun Microsystems, Inc.
2550 Garcia Avenue
Pixman license
Copyright 1987, 1988, 1989, 1998 The Open Group
Copyright 1987, 1988, 1989 Digital Equipment
Corporation
Copyright 1999, 2004, 2008 Keith Packard
Copyright 2000 SuSE, Inc.
Copyright 2000 Keith Packard, member of The
XFree86 Project, Inc.
Copyright 2004, 2005, 2007, 2008 Red Hat, Inc.
Copyright 2004 Nicholas Miell
Copyright 2005 Lars Knoll & Zack Rusin, Trolltech
Copyright 2005 Trolltech AS
Copyright 2007 Luca Barbato
Copyright 2008 Aaron Plattner, NVIDIA Corporation
Copyright 2008 Rodrigo Kumpera
Copyright 2008 André Tupinambá
Copyright 2008 Mozilla Corporation
Copyright 2008 Frederic Plourde
Copyright 2009 Sun Microsystems, Inc.
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and
associated documentation files (the “Software”), to
deal in the Software without restriction, including
without limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to
whom the Software is furnished to do so, subject
to the following conditions:
The above copyright notice and this permission
notice (including the next paragraph) shall be
included in all copies or substantial portions of the
Software.
THE SOFTWARE IS PROVIDED “AS IS”,
WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE
FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE, ARISING
FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS
IN THE SOFTWARE.
ENGLISH
166
OPEN SOURCE LICENSE
X.net license
Copyright (c) 1995-2001 International Business
Machines Corporation and others
All rights reserved.
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and
associated documentation files (the “Software”), to
deal in the Software without restriction, including
without limitation the rights to use, copy, modify,
merge, publish, distribute, and/or sell copies of the
Software, and to permit persons to whom the
Software is furnished to do so, provided that the
above copyright notice(s) and this permission
notice appear in all copies of the Software and that
both the above copyright notice(s) and this
permission notice appear in supporting
documentation.
THE SOFTWARE IS PROVIDED “AS IS”,
WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OF THIRD PARTY RIGHTS.
IN NO EVENT SHALL THE COPYRIGHT HOLDER
OR HOLDERS INCLUDED IN THIS NOTICE BE
LIABLE FOR ANY CLAIM, OR ANY SPECIAL
INDIRECT OR CONSEQUENTIAL DAMAGES, OR
ANY DAMAGES WHATSOEVER RESULTING
FROM LOSS OF USE, DATA OR PROFITS,
WHETHER IN AN ACTION OF CONTRACT,
NEGLIGENCE OR OTHER TORTIOUS ACTION,
ARISING OUT OF OR IN CONNECTION WITH THE
USE OR PERFORMANCE OF THIS SOFTWARE.
Except as contained in this notice, the name of a
copyright holder shall not be used in advertising or
otherwise to promote the sale, use or other
dealings in this Software without prior written
authorization of the copyright holder.
BSD license
- netBSD
Copyright (c) 1998 The NetBSD Foundation, Inc.
All rights reserved.
This code is derived from software contributed to
The NetBSD Foundation by Lennart Augustsson
Technology.
Redistribution and use in source and binary forms,
with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
2. Redistributions in binary form must reproduce
the above copyright notice, this list of conditions
and the following disclaimer in the
documentation and/or other materials provided
with the distribution.
3. All advertising materials mentioning features or
use of this software must display the following
acknowledgement:
This product includes software developed by the
NetBSD Foundation, Inc. and its contributors.
4. Neither the name of The NetBSD Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE NETBSD
FOUNDATION, INC. AND CONTRIBUTORS “AS
IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE FOUNDATION OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ENGLISH
OPEN SOURCE LICENSE
167
ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
- Simple XML Parser
Copyright (c) 2001-2002 Bruno Essmann
All rights reserved.
Redistribution and use in source and binary forms,
with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
2. Redistributions in binary form must reproduce
the above copyright notice, this list of conditions
and the following disclaimer in the
documentation and/or other materials provided
with the distribution.
3. The name of the author may not be used to
endorse or promote products derived from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE AUTHOR
“AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE AUTHOR BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
- xyssl
Copyright (C) 2006-2008 Christophe Devine
Copyright (C) 2009 Paul Bakker
<polarssl_maintainer at polarssl dot org>
All rights reserved.
Redistribution and use in source and binary forms,
with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
2. Redistributions in binary form must reproduce
the above copyright notice, this list of conditions
and the following disclaimer in the
documentation and/or other materials provided
with the distribution.
3. Neither the names of PolarSSL or XySSL nor the
names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS
“AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE COPYRIGHT OWNER OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
ENGLISH
168
OPEN SOURCE LICENSE
RSA Data Security license
Copyright (C) 1991-2, RSA Data Security, Inc.
Created 1991. All rights reserved.
License to copy and use this software is granted
provided that it is identified as the “RSA Data
Security, Inc. MD5 Message-Digest Algorithm” in
all material mentioning or referencing this software
or this function.
License is also granted to make and use derivative
works provided that such works are identified as
“derived from the RSA Data Security, Inc. MD5
Message-Digest Algorithm” in all material
mentioning or referencing the derived work.
RSA Data Security, Inc. makes no representations
concerning either the merchantability of this
software or the suitability of this software for any
particular purpose. It is provided “as is” without
express or implied warranty of any kind.
These notices must be retained in any copies of
any part of this documentation and/or software.
JSON license
Copyright (c) 2005 JSON.org
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and
associated documentation files (the “Software”), to
deal in the Software without restriction, including
without limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to
whom the Software is furnished to do so, subject
to the following conditions:
The above copyright notice and this permission
notice shall be included in all copies or substantial
portions of the Software.
The Software shall be used for Good, not Evil.
THE SOFTWARE IS PROVIDED “AS IS”,
WITHOUT WARRANTY OF ANY KIND, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE
FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE, ARISING
FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS
IN THE SOFTWARE.
ENGLISH
OPEN SOURCE LICENSE
169
MS92 license
Copyright (C) 1992 Michael Sample and the
University of British Columbia
This library is free software; you can redistribute it
and/or modify it provided that this copyright/license
information is retained in original form.
If you modify this file, you must clearly indicate
your changes.
This source code is distributed in the hope that it
will be useful, but WITHOUT ANY WARRANTY;
without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE.
ENGLISH
The model and serial numbers of the TV is located
on the back of the TV Record it below should you
ever need service.
MODEL
SERIAL
